FINGERPRINT RESISTANT STAINLESS STEEL
MADE FOR
STICKY FINGERS
refrigeration
MADE FOR MODERN FAMILIES
Westinghouse has been a household name for generations. And while we’ve been helping
Australian families for years, times have changed. And we’ve changed with them…
Life is so much busier than it used to be, filled with work, extra curricular activities, not to
mention just raising a family! We know it’s not always easy, which is why all Westinghouse
products are designed to make your life a little simpler.
Although we can’t solve everything (sorry!), we can help keep your kitchen in control and
looking great. So whether it’s the auto reheat microwaves, for busy mid-week meal dilemmas,
or dishwashers that get the perfect wash, no matter how you stack; you can always be sure
it’s been Made for Modern Families.
2
OUR RANGE
3
OUR RANGE
A GUIDE TO BUYING YOUR NEXT FRIDGE
After your house and car, a fridge is one of the more expensive purchases you will make. That’s why it’s essential
you make the right choice. But there are so many different types of fridges out there that it can be overwhelming.
That’s where Westinghouse can help. In the table below are some guidelines and questions to help you decide
on the right fridge for your family.
TYPE/STYLE
Would white, pacific silver or stainless steel suit your kitchen?
Do you have limited space and want all the benefits of a large fridge in a smaller model?
Do you like the aesthetics of a side by side and the idea of an ice and water dispenser?
Do you tend to have a lot of frozen food or do you need more fresh food and drink storage?
DIMENSIONS
Does it need to fit into an existing space? (And remember that fridges need
a few centimetres of air space around them to keep them running at their best).
Always measure your kitchen cavity and doorways before you choose a fridge.
CAPACITY
As a general rule, a family of two needs around 300L of food storage space.
For each additional family member add around 30L. But keep in mind that your
family may expand, so when in doubt, go larger. (Larger fridges tend to have
more features and be more efficient).
VALUE
Consider which features are really useful to you, but keep in mind that your family’s
needs may change, so think ahead, or buy a fridge that will adapt to your changes.
Ongoing running costs can eat into your family budget so check the energy rating
system (the more stars and the lower kWh per year the better).
EASY CLEANING
Spillsafe™ shelves, easy-to-remove parts, and fingerprint-resistant surfaces can all
make a big difference to your workload.
FUNCTIONS &
CONTROLS
Manual controls are easy to use. Electronic controls offer a wider range of clever
functions including drink chill and door alarms, quick freeze and holiday mode.
SECURITY &
RELIABILITY
A fridge or freezer is a considerable investment. Today, there are many brands available of
variable history and quality. It pays both financially and for peace-of-mind to ensure that the
company that makes your fridge can provide advice, service and support for it well beyond
the shop floor.
Westinghouse refrigerators have started converting over to the less harmful R600a refrigerant. That means every
day, the family refrigerator can quietly play its own part in reducing the household’s impact on the environment.
Look out for this symbol, as well as, R600a in the specification tables, to see which models have already changed over.
4
OUR RANGE
Model shown: WBE5100SB bottom mount fridge
5
OUR RANGE
6
BUYING GUIDE
BLEND PERFECTLY WITH THE IK007 INTEGRATION KIT
The Westinghouse Integrated Refrigeration Kit offers a simple and precise solution for a seamless kitchen. The specialised
Westinghouse hinges also allow the fridge door to open to a wide 120º, making it easier to access food as well as
clean and remove shelves. In order to prevent unnecessary running around and hidden costs, our unique kit is the only
one in the market to come complete with hinges.
HOW DOES IT WORK?
The kit is designed to fit a wide variety of Top and
Bottom Mount Westinghouse Fridges and Vertical
Freezers. It utilises a sliding system which fixes the
outer door of the fridge to the kitchen cabinet.
When the cabinet door is opened, the connecting
rail opens the fridge in one smooth and simple motion.
For all applicable models please refer to product
feature table below.
FEATURE* MEANING… BENEFIT TO YOU
Adjustable
interiors
Over 20 different shelving and door bin positions,
giving you hundreds of possible shelf combinations
It’s easy to make everything fit perfectly, from the
smallest deli items to the largest party platters
Specialised
compartments
Drawers and crispers on telescopic extension slides
Differently humidified compartments for fruit
and vegetables
Twist ice and serve
Lockable storesafe™ drawers
Drawers glide out smoothly, no matter how full
Keeps fruit and vegetables fresher for longer
Easy access to more ice, more often
Keeps medicines safely away from inquisitive
little fingers
Electronic
controls
Displays average fridge temperature and allows
adjustments in 1
o
C increments
‘Quick freeze’ boosts freezer to max setting for
90 mins at the touch of a button
Alarms sound when the fridge door is left open
or the drinks chill timer finishes
Takes the guesswork out of setting your fridge and
freezer temperatures
Rapidly freezes items to lock in flavours and nutrients
Helps prevent accidental food spoilage
Westinghouse offers Australia’s most extensive range of fridges and freezers, so take a closer look at the vast range
of proactive features available.
BOTTOM MOUNT TOP MOUNT SINGLE DOOR
WBM5100 WTM5200 WTM3300 WRM4300
WBM4300 WTM4400 WTM3000 WRM3700
WBM3700 WTM4200 WTM2800 WFM3600
WTM3900 WFM3000
†
Refer to the product information on the back page of this brochure.
MODELS THAT CAN BE USED WITH THE INTEGRATION KIT IK007
7
INTEGRATION KIT
EASY-FILL DISPENSER FOR
WATER BOTTLES
With Aqua Direct, you can fill up
water bottles of all shapes and
sizes - even those with a narrow
neck. It’s our new splash-free water
dispensing system that is so simple
to use, even the kids can do it.
SIDE BY SIDES
†
Like having a full freezer and fridge in one unit? The new 700 litre side by side provides you with the maximum fresh food
and freezer storage in one fridge – and with a fresh food section 508mm wide it is truly the fridge big enough for any family.
For those with big families but limited space the compact side by side is the perfect solution. Combining a full-length
freezer on the left and a full-length fridge on the right, these models have been specifically designed to fit into the
popular 600mm deep and 900mm wide fridge cavity – so you don’t have to renovate your kitchen.
FILTERED ICE & WATER DISPENSER
Available on selected models,
our new ice and water dispenser
delivers fresh, filtered water and
crushed or cubed ice instantly.
And to make things easier, the
innovative combi-lever lets you do
it all using just one hand.
EASY GLIDE DRAWERS &
SPECIALISED COMPARTMENTS
Easy glide freezer bins and fridge
crispers* give easy access without
the effort – even when they’re full.
Humidity controlled crispers keep
fruit and vegetables fresh, while
deli drawers help isolate odours.
Handy storesafe™ drawers put
special items safely out of reach.
COMPACT ICE MAKER
Growing families always need
more space. Cleverly designed
to create additional storage
space, the compact ice maker
and removable ice storage bin
provide great flexibility and
convenience. The ice storage bin
is also ideal for filling eskies.
ADJUSTABLE INTERIORS WITH
SPILLSAFE
TM
GLASS SHELVES
With over 20 different shelving and
door bin positions, you can easily
fit the smallest deli items to the
biggest party platters. Spillsafe™
glass shelves improve visibility and
isolate leaks – preventing up to
1 litre of spills from dripping down
to the shelves below.
BLUE FEATURE LIGHTING
Available on selected models,
blue feature lighting increases
visibility and enhances the stylish
design of the fridge interior.
†
Refer to the product information on the back page of this brochure
* Selected models
FINGERPRINT- RESISTANT
STAINLESS STEEL DOORS
The innovative fingerprint-resistant
stainless steel doors ensure all
Westinghouse stainless steel fridges
maintain that sleek fingerprint-free
look. In fact, a damp cloth should
be all you need to remove marks
from any Westinghouse fridge
or freezer.
8
SIDE BY SIDE
Model shown: WSE6970SF
8
6
6
6
3
2
99
1
Filtered ice & water
dispenser (not shown)
2
Electronic controls (not shown)
3
Removable ice bin
4
Bottle bin with bottle fingers
5
Easy glide freezer bins
and crispers
6
Adjustable interiors
7
Specialised compartments
8
Blue feature lighting
9
Spillsafe™ glass shelves
10
Bottle rack
11
500mm wide shelves –
ideal for platters
7
7
10
11
1
5 5
4
4
9
SIDE BY SIDE
Model shown: WSE6970SF Model shown: WSE7000SF
MODEL WSE6970SF/WSE6970WF WSE7000SF/WSE7000WF
gross capacity (litres) 690 700
food compartment gross capacity (litres) 450 450
freezer compartment gross capacity (litres) 240 250
dimensions (and recommended clearances) refer to page 32 refer to page 32
door finish
stainless steel/classic white stainless steel/classic white
filtered ice and water dispenser
(cubed & crushed ice)
P
frost-free
P P
separate temperature controls for
fridge and freezer
P P
fingerprint-resistant surface
P P
aqua direct
P
ELECTRONIC CONTROLS
door alarm
P P
drinks chill timer
P P
quick freeze function
P P
holiday energy efficiency mode
P P
FRIDGE FEATURES
easy glide crispers with humidity control 2 2
adjustable spillsafe™ glass shelves 3 3
repositional deli compartment (full-width)
P P
dairy compartment (full-width)
P P
bottle bin (full-width)/with bottle fingers 4/2 4/2
interior
fridge light
P P
FREEZER FEATURES
removable ice bin
P P
easy glide freezer bins 2 2
adjustable spill safe slide-out glass shelves 2 3
adjustable freezer door bins (full-width) – clear 3 5
twist ice and serve 3
interior
freezer light
P P
OTHER FEATURES
adjustable front rollers
P P
rear rollers
P P
energy star rating (new) 2 2.5
energy consumption (kwh/year) 699 637
†
Refer to the product information on the back page of this brochure
LARGE
SIDE BY SIDE
features
†
NEW
NEW
10
SIDE BY SIDE
Model shown: WSE6070SF Model shown: WSE6100WF
MODEL WSE6070SF/WSE6070WF WSE6100SF/WSE6100PF/WSE6100WF
gross capacity (litres) 600 610
food compartment gross capacity (litres) 360 357
freezer compartment gross capacity (litres) 240 249
dimensions (and recommended clearances) refer to page 32 refer to page 32
door finish
stainless steel/classic white stainless steel/pacific silver/classic white
filtered ice and water dispenser
(cubed & crushed ice)
P
frost-free
P P
fingerprint-resistant surface
P P
aqua direct
P
ELECTRONIC CONTROLS
door alarm
P P
drinks chill timer
P P
quick freeze function
P P
holiday energy efficiency mode
P P
FRIDGE FEATURES
blue feature lighting
P
storesafe™ drawer with child latch
P P
adjustable spillsafe™ slide-out glass shelves 3 3
bottle rack
P P
repositional deli compartment (full-width)
P P
humidity controlled crisper bins (full-width) 2 2
dairy compartment (full-width)
P P
bottle bin (full-width)/with bottle fingers 4/2 4/2
egg tray
P P
interior
fridge light
P P
FREEZER FEATURES
removable ice bin
P P
adjustable spill safe slide-out glass shelves 3 4
freezer basket with clear fascia 2 2
adjustable freezer door bins (full-width) – clear 3 5
twist ice and serve 3
interior
freezer light
P P
OTHER FEATURES
adjustable front rollers
P P
rear rollers
P P
energy star rating (new) 2 2.5
energy consumption (kwh/year) 660 605
†
Refer to the product information on the back page of this brochure
COMPACT
SIDE BY SIDE
features
†
NEW
NEW
11

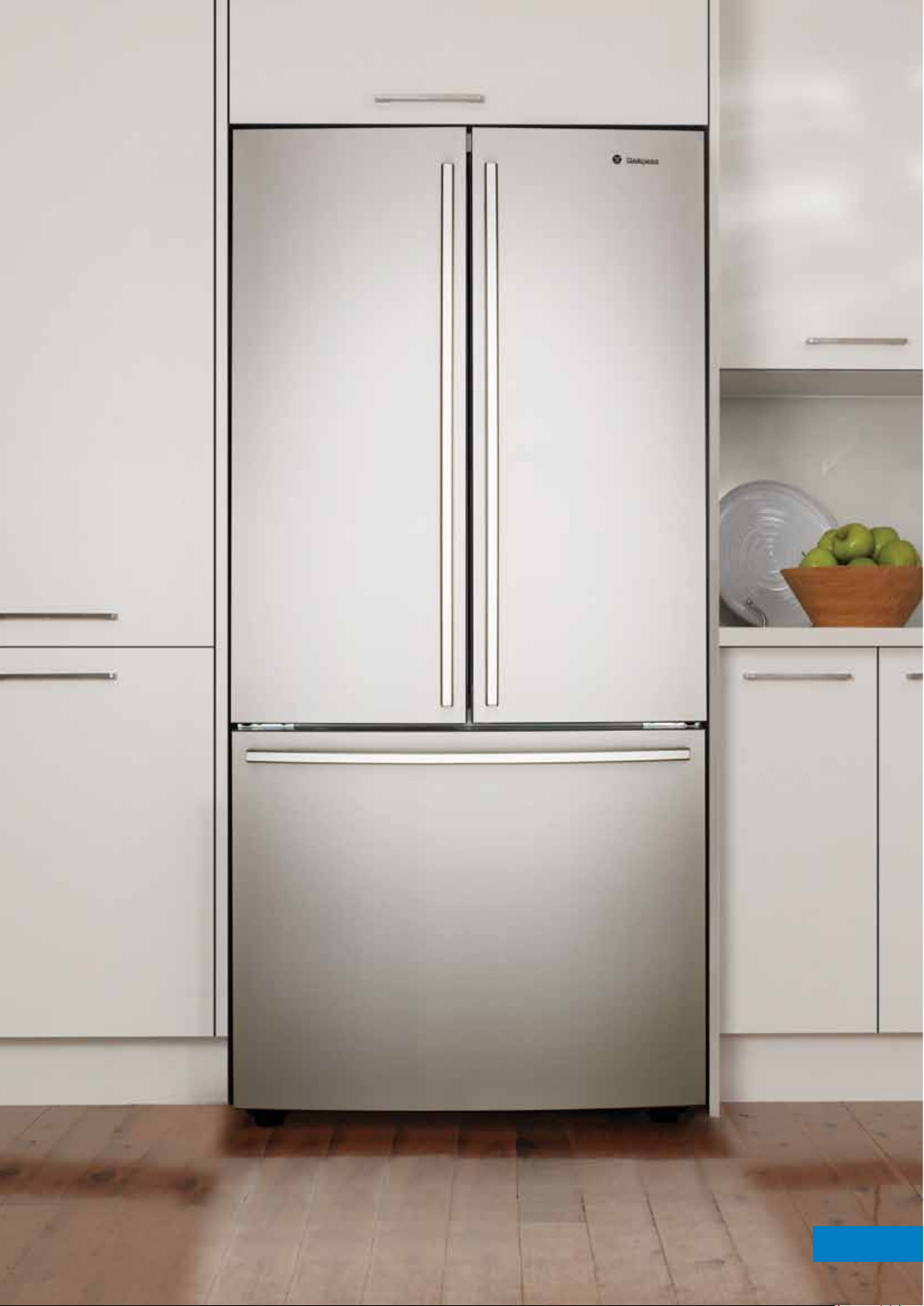

SIDE BY SIDE
FRENCH DOOR
†
Enjoy cooking for the extended family or entertaining friends?
You can truly have the best of everything with this stylish new fridge/freezer. A generous modern design that fits into most
existing fridge spaces. Update your kitchen without changing the layout!
This stunning new French door design features contemporary curved lines and a wide fridge layout. The wide-open fridge
space easily fits platters, plentiful fresh food and multiple bottles and cans so you can see everything at a glance.
For the mini master chef in your family, enjoy the self-closing freezer drawers (no more melted ice-cream!) and fingerprint
resistant stainless steel. Other features include: a drinks chill alarm, door alarm, specialised feature lighting and stylish
bar handles.
STANDS OUT & FITS IN
Stunning contemporary curved
design that at 790mm fits most
existing 800mm cavities.
DRINKS CHILL ALARM
The handy drinks chill alarm
reminds you that drinks put in
the freezer need to be removed.
No more frozen soft drinks!
WIDE OPEN FRIDGE SPACE
The French door design delivers
a wide fridge space that’s perfect
for platters, or plentiful fresh food.
DOOR ALARM
Leaving the fridge door open
spoils food and allows bacteria
to breed. The door alarm sounds
after two minutes if anyone forgets
to close it.
WIRE BOTTLE RACK
Store multiple bottles without taking
up too much fridge space.
SELF CLOSE FREEZER DRAWER
Never have melted ice-cream
again! The bottom freezer drawer
will always close even when your
kids forget.
TWIST ICE SERVE
Twist ice and serve with ice caddy
provides you with easy access to
more ice, more often.
†
Refer to the product information on the back page of this brochure
* Selected models
EASY GLIDE CRISPER
Easy to access crispers make
life easy. The telescopic runners
make them a joy to open, and the
divided design means you only
need to open one door to access
each crisper.
12
FRENCH DOOR
Model shown: WHE5100SA-D
5
1
Chill stream air curtain
2
Dairy compartment with lid
3
Standard door bin
4
Egg tray
5
Deep bottle bin
6
Blue feature light
7
Electronic temperature controls
8
Adjustable spill safe
glass shelves
9
Easy glide humidity
controlled crispers
10
Wire bottle rack
11
Self-close freezer drawer
12
Inside:
- Easy glide freezer drawer
- Delicates/pastry tray
- Twist ice server with
removable ice bucket
and scoop
9
1
2
3
4
5
6
7
8
11
10
12
13
FRENCH DOOR
Model shown: WHE5100SA-D
MODEL WHE5100SA-D
gross capacity (litres) 510
food compartment gross capacity (litres) 349
freezer compartment gross capacity (litres) 156
dimensions (and recommended clearances) refer to page 33
mark-resistant stainless steel door finish
P
energy star rating
2
energy consumption (kwh/year) 603
contemporary curved line door design
P
hidden hinges
P
frost-free
P
chill stream air curtain
P
electronic temperature controls (internal)
drinks chill alarm
P
quick freeze function
P
holiday mode
P
eco mode
P
door alarm refrigerator
freezer temperature alarm
P
separate temperature controls for fridge & freezer
P
FRIDGE FEATURES
FreshLogic
®
deodoriser
P
adjustable spillsafe™ glass shelves 3
wire bottle rack
P
easy glide (telescopic) crispers 2
separated humidity controlled crispers
P
dairy compartment with lid (in door) 2
standard door bins 2
deep bottle bins 3
egg tray
P
blue feature lighting
P
FREEZER FEATURES
self-close freezer door
P
large freezer storage drawer
P
easy glide (telescopic) freezer drawer
P
delicates/frozen pastry tray
P
twist ice server 3 trays
removable ice bucket and scoop
P
†
Refer to the product information on the back page of this brochure
FRENCH DOOR
features
†
14
FRENCH DOOR
15
FRENCH DOOR
BOTTOM MOUNTS
†
We understand that fresh food is important. So we created a bottom mount with the freezer located below the fridge
to give you easy access to the section your family will use the most – the fresh food compartment.
INTERNAL ELECTRONIC CONTROLS
With easy-to-reach electronic
functions* like Fast Freeze,
Drink Chill Timer, Temperature
Controls and Eco mode, your
Westinghouse refrigerator can
be quickly adjusted to suit you,
your family and your lifestyle.
EASY GLIDE CRISPERS
AND FREEZER BINS
Telescopic freezer bins and fridge
crispers* give the whole family
quick and easy access without
the effort – even when they’re full.
TWIST ICE AND SERVE*
Twist ice and serve is an
easy way to dispense ice.
The removable ice bucket and
scoop makes serving simple.
(selected models only)
CHILL STREAM
®
A chill stream
®
air curtain is
directed down the front of the
fridge from the top compartment,
keeping your drinks at the front
perfectly cold without freezing
items at the back.
FINGERPRINT-RESISTANT
STAINLESS STEEL DOORS
The innovative fingerprint-resistant
stainless steel* doors ensure all
Westinghouse stainless steel fridges
maintain that sleek fingerprint-free look.
In fact, a damp cloth should be all
you need to remove marks from any
Westinghouse fridge or freezer.
BLUE FEATURE LIGHTING
Available on selected models,
blue feature lighting increases
visibility and enhances the stylish
design of the fridge interior.
ADJUSTABLE INTERIORS WITH
SPILLSAFE™ GLASS SHELVES
With over 20 different shelving and
door bin positions, you can easily fit
the smallest deli items to the biggest
party platters. Spillsafe™ glass shelves
improve visibility and isolate leaks –
preventing up to 1 litre of spills from
dripping down to the shelves below.
INTEGRATED or BAR HANDLE
Selected models have bar
handles whilst all others have
integrated handles, giving you
the choice of handle that suits
your needs.
* Selected models only
†
Refer to the product information on the back page of this brochure
16
BOTTOM MOUNTS
Model shown: WBE5100SB
3
6
4
2
9
10
4
7
1
Adjustable interiors
2
Internal electronic controls
3
Chill stream
®
4
Easy glide freezer bins
and crispers
5
Twist ice and serve
and portable ice bucket
with scoop
6
Blue feature lighting
7
Spillsafe™ glass shelves
8
Bottle rack
9
Storesafe™ drawer
with child latch
10
Full width bottle bins
with bottle fingers
5
1
1
8
17
BOTTOM MOUNTS
MODEL WBE5100SB WBM5104SB WBM5100WB WBE4300SB WBM4304SB WBM4300WB WBM3700SB/WB
gross capacity (litres) 510 510 510 430 430 430 370
food compartment gross capacity (litres) 349 349 349 300 300 300 243
freezer compartment gross capacity (litres) 156 156 156 131 131 131 122
dimensions (and recommended clearances) refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34
door finish stainless steel stainless steel classic white stainless steel stainless steel classic white stainless steel/classic white
handle design integrated bar integrated integrated bar integrated integrated
frost-free
P P
P P P P P
multi-flow air delivery system
P P
P P P P P
internal electronic controls (door alarm, drinks chill timer,
quick freeze function, holiday energy efficient mode)
P
P
separate temperature controls for fridge & freezer
P P
P P P P P
fingerprint resistant surface
P P
P P P P P
FRIDGE FEATURES
blue feature lighting
P
P
storesafe™ drawer with child latch
P P
P P P P P
chill stream
®
air curtain
P P
P P P P P
adjustable spillsafe™ glass shelves 3 3 3 3 3 3 2
bottle rack/caddy
P/ – P/ –
–/P P/ – P/ – –/P –/P
easy glide crisper bins
P P
humidity controlled crisper bins (separated)
P P
P
humidity controlled crisper bin (full-width)
P P P P
dairy compartment (full-width)
P P
P P P P P
bottle bins (half-width) 2 2 2 2 2 2 3
bottle bins full-width (with bottle fingers) 2(1) 2(1) 2(1) 2(1) 2(1) 2(1) 2(1)
interior fridge light
P P
P P P P P
FREEZER FEATURES
easy glide freezer baskets 2 2 2 2 2 2 2
twist ice and serve with bucket and scoop/trays
P/3 P/3
P/3 P/3 P/3
P/3 –/1
OTHER FEATURES
hidden hinges
P P
P P P P P
door opening left or right hand left or right hand left or right hand left or right hand left or right hand left or right hand left or right hand
adjustable front rollers
P P
P P P P P
rear rollers
P P
P P P P P
integration kit available
P
P P P P
energy star rating (new) 2 2 2 2 2 2 2
energy star rating (on old scale) 4 4 4 4 3.5
energy consumption (kwh/year) 545 580 580 530 530 530 495
†
Refer to the product information on the back page of this brochure
Model shown: WBM5104SB Model shown: WBE5100SB
BOTTOM MOUNT
features
†
18
BOTTOM MOUNTS
MODEL WBE5100SB WBM5104SB WBM5100WB WBE4300SB WBM4304SB WBM4300WB WBM3700SB/WB
gross capacity (litres) 510 510 510 430 430 430 370
food compartment gross capacity (litres) 349 349 349 300 300 300 243
freezer compartment gross capacity (litres) 156 156 156 131 131 131 122
dimensions (and recommended clearances) refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34
door finish stainless steel stainless steel classic white stainless steel stainless steel classic white stainless steel/classic white
handle design integrated bar integrated integrated bar integrated integrated
frost-free
P P
P P P P P
multi-flow air delivery system
P P
P P P P P
internal electronic controls (door alarm, drinks chill timer,
quick freeze function, holiday energy efficient mode)
P
P
separate temperature controls for fridge & freezer
P P
P P P P P
fingerprint resistant surface
P P
P P P P P
FRIDGE FEATURES
blue feature lighting
P
P
storesafe™ drawer with child latch
P P
P P P P P
chill stream
®
air curtain
P P
P P P P P
adjustable spillsafe™ glass shelves 3 3 3 3 3 3 2
bottle rack/caddy
P/ – P/ –
–/P P/ – P/ – –/P –/P
easy glide crisper bins
P P
humidity controlled crisper bins (separated)
P P
P
humidity controlled crisper bin (full-width)
P P P P
dairy compartment (full-width)
P P
P P P P P
bottle bins (half-width) 2 2 2 2 2 2 3
bottle bins full-width (with bottle fingers) 2(1) 2(1) 2(1) 2(1) 2(1) 2(1) 2(1)
interior fridge light
P P
P P P P P
FREEZER FEATURES
easy glide freezer baskets 2 2 2 2 2 2 2
twist ice and serve with bucket and scoop/trays
P/3 P/3
P/3 P/3 P/3
P/3 –/1
OTHER FEATURES
hidden hinges
P P
P P P P P
door opening left or right hand left or right hand left or right hand left or right hand left or right hand left or right hand left or right hand
adjustable front rollers
P P
P P P P P
rear rollers
P P
P P P P P
integration kit available
P
P P P P
energy star rating (new) 2 2 2 2 2 2 2
energy star rating (on old scale) 4 4 4 4 3.5
energy consumption (kwh/year) 545 580 580 530 530 530 495
†
Refer to the product information on the back page of this brochure
Model shown: WBM3700WBModel shown: WBM4300WB Model shown: WBM4304SB Model shown: WBE4300SB Model shown: WBM5100WB
19
BOTTOM MOUNTS

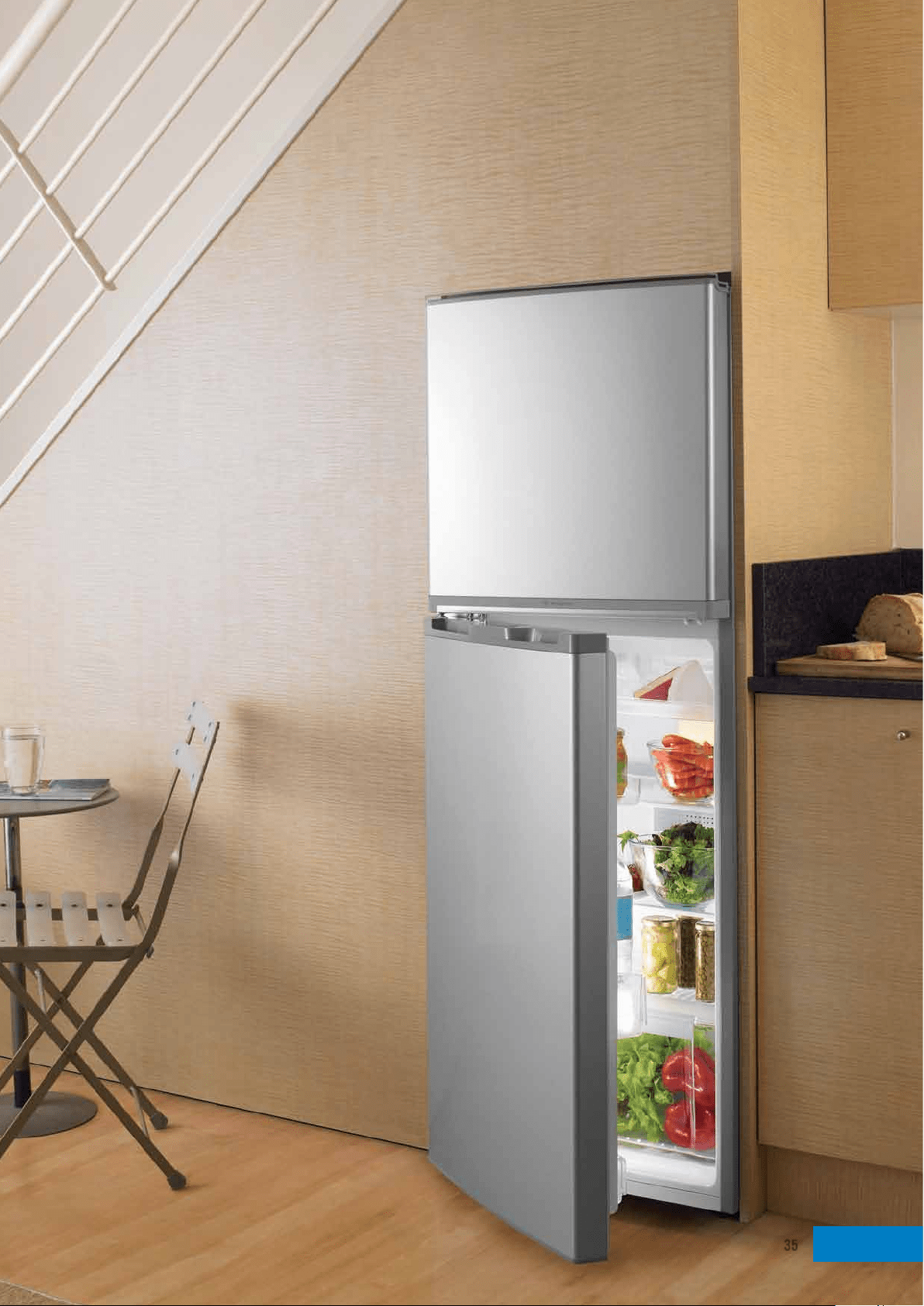

TOP MOUNTS – LARGE (390L- 520L)
†
Our top mounts with their eye-level freezer puts fresh food in reach of every member of the family. This ever-popular model
comes loaded with great features.
EASY GLIDE CRISPERS*
Crispers on telescopic extension
slides give the family effortless
access to fresh goods, even
when full.
BLUE FEATURE LIGHTING
Available on selected models,
blue feature lighting increases
visibility and enhances the stylish
design of the fridge interior.
INTERNAL ELECTRONIC CONTROLS
With easy-to-reach electronic
functions* like Fast Freeze,
Drink Chill Timer, Temperature
Controls and Eco mode, your
Westinghouse refrigerator can
be quickly adjusted to suit you,
your family and your lifestyle.
TWIST ICE AND SERVE
Twist ice and serve is an
easy way to dispense ice.
CHILL STREAM
®
A chill stream
®
air curtain is
directed down the front of the
fridge from the top compartment,
keeping your drinks at the front
perfectly cold without freezing
items at the back.
ADJUSTABLE INTERIORS WITH
SPILLSAFE™ GLASS SHELVES
With over 20 different shelving and
door bin positions, you can easily fit
the smallest deli items to the biggest
party platters. Spillsafe™ glass shelves
improve visibility and isolate leaks –
preventing up to 1 litre of spills from
dripping down to the shelves below.
INTEGRATED or BAR HANDLE
Selected models have bar
handles whilst all others have
integrated handles, giving you
the choice of handle that suits
your needs.
* Selected models only
†
Refer to the product information on the back page of this brochure
FINGERPRINT- RESISTANT
STAINLESS STEEL DOORS
The innovative fingerprint-resistant
stainless steel doors ensure all
Westinghouse stainless steel fridges
maintain that sleek fingerprint-free
look. In fact, a damp cloth should
be all you need to remove marks
from any Westinghouse fridge
or freezer.
20
TOP MOUNTS
2
3
8
1
1
10
11
12
5
1
Adjustable interiors
2
Internal electronic controls
3
Chill stream
®
4
Easy glide crispers
5
Twist ice and serve
6
Blue feature lighting
7
Spillsafe™ glass shelves
8
Bottle rack
9
Storesafe™ drawer
with child latch
10
Full width bottle bins
with bottle fingers
11
Egg tray
12
Deli compartment
4
6
7
Model shown: WTE5200SB
21
TOP MOUNTS
MODEL WTE5200SB WTM5200WB WTM5204SB WTM4404SB WTM4400WB WTE4200SB WTM4200WB WTM3900SB/WB
gross capacity (litres) 520 520 520 440 440 420 420 390
food compartment gross capacity (litres) 396 396 396 339 339 315 315 302
freezer compartment gross capacity (litres) 122 122 122 103 103 103 103 91
dimensions (and recommended clearances) refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34
door finish stainless steel classic white stainless steel stainless steel classic white stainless steel classic white stainless steel/classic white
handle design integrated integrated bar bar integrated integrated integrated integrated
frost-free
P P P
P P P P P
multi-flow air delivery system
P P P
P P P P P
internal electronic controls (door alarm, drinks chill timer,
quick freeze function, holiday energy efficient mode)
P
P
separate temperature controls for
fridge
& freezer
P P P P P P P P
fingerprint resistant surface
P P P
P P P P P
FRIDGE F E ATU R E S
blue feature lighting
P
P P
storesafe™ drawer with child latch
P P P
P P P P P
chill stream
®
air curtain
P P P
P P P P P
adjustable spillsafe™ glass shelves 3 3 3 3 3 3 3 3
repositional deli compartment
P P P
P P P P P
bottle rack/caddy
P/ – –/P P/–
P/– –/P P/ – –/P –/P
easy glide crisper bins
P P
humidity controlled crisper bins (separated)
P P P
humidity controlled crisper bin (full width)
P P P P P
dairy compartment (full-width)
P P P
P P P P P
door bins (half-width) 2 2 2 2 2 2 2 2
bottle bin full-width (with bottle fingers) 2 (1) 2 (1) 2 (1) 2 (1) 2 (1)
2/P 2/P 1/P
utility drawer
P P P
P P P P
interior fridge light
P P P
P P P P P
FREEZER F E ATU R E S
freezer door bins (full-width) 2 2 2 2 2 2 2 2
adjustable glass shelf
P P P
P P P P P
twist ice and serve/trays
P/3 P/3 P/3
P/3 P/2 P/2 P/2 P/2
interior
freezer light
P P
P P
OTHER F E ATU R E S
hidden hinges
P P P
P P P P P
door opening left or right hand left or right hand left or right hand left or right hand left or right hand left or right hand left or right hand left or right hand
adjustable front rollers
P P P
P P P P P
rear rollers
P P P
P P P P P
integration kit available
P P
P P P P
energy star rating (new) 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
energy star rating (on old scale) 4.5 4.5 4 4 4 4
energy consumption (kwh/year) 507 518 518 484 484 468 469 450
†
Refer to the product information on the back page of this brochure
TOP MOUNT–LARGE
features
†
Model shown: WTM5200WB Model shown: WTM5204SBModel shown: WTE5200SB
22
TOP MOUNTS
MODEL WTE5200SB WTM5200WB WTM5204SB WTM4404SB WTM4400WB WTE4200SB WTM4200WB WTM3900SB/WB
gross capacity (litres) 520 520 520 440 440 420 420 390
food compartment gross capacity (litres) 396 396 396 339 339 315 315 302
freezer compartment gross capacity (litres) 122 122 122 103 103 103 103 91
dimensions (and recommended clearances) refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34
door finish stainless steel classic white stainless steel stainless steel classic white stainless steel classic white stainless steel/classic white
handle design integrated integrated bar bar integrated integrated integrated integrated
frost-free
P P P
P P P P P
multi-flow air delivery system
P P P
P P P P P
internal electronic controls (door alarm, drinks chill timer,
quick freeze function, holiday energy efficient mode)
P
P
separate temperature controls for
fridge
& freezer
P P P P P P P P
fingerprint resistant surface
P P P
P P P P P
FRIDGE F E ATU R E S
blue feature lighting
P
P P
storesafe™ drawer with child latch
P P P
P P P P P
chill stream
®
air curtain
P P P
P P P P P
adjustable spillsafe™ glass shelves 3 3 3 3 3 3 3 3
repositional deli compartment
P P P
P P P P P
bottle rack/caddy
P/ – –/P P/–
P/– –/P P/ – –/P –/P
easy glide crisper bins
P P
humidity controlled crisper bins (separated)
P P P
humidity controlled crisper bin (full width)
P P P P P
dairy compartment (full-width)
P P P
P P P P P
door bins (half-width) 2 2 2 2 2 2 2 2
bottle bin full-width (with bottle fingers) 2 (1) 2 (1) 2 (1) 2 (1) 2 (1)
2/P 2/P 1/P
utility drawer
P P P
P P P P
interior fridge light
P P P
P P P P P
FREEZER F E ATU R E S
freezer door bins (full-width) 2 2 2 2 2 2 2 2
adjustable glass shelf
P P P
P P P P P
twist ice and serve/trays
P/3 P/3 P/3
P/3 P/2 P/2 P/2 P/2
interior
freezer light
P P
P P
OTHER F E ATU R E S
hidden hinges
P P P
P P P P P
door opening left or right hand left or right hand left or right hand left or right hand left or right hand left or right hand left or right hand left or right hand
adjustable front rollers
P P P
P P P P P
rear rollers
P P P
P P P P P
integration kit available
P P
P P P P
energy star rating (new) 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
energy star rating (on old scale) 4.5 4.5 4 4 4 4
energy consumption (kwh/year) 507 518 518 484 484 468 469 450
†
Refer to the product information on the back page of this brochure
Model shown: WTM4404SB Model shown: WTM4400WB Model shown: WTE4200SB Model shown: WTM4200WB Model shown: WTM3900WB
23
TOP MOUNTS
TOP MOUNTS –COMPACT (180L-330L)
†
ADJUSTABLE INTERIORS
With easily repositionable and
removable shelves and bins, you
have over 20 different shelving
and door bin positions, allowing
you to fit the smallest deli items
to the biggest party platters.
(On selected models.)
SPECIALISED COMPARTMENTS
Keep your fruit and vegetables
fresh with humidity controlled
crispers while the chiller
compartment allows you to store
perishable food for longer.
LARGE CAPACITY FRIDGE
More fridge space where
you need it most! Up to
255 litres dedicated to the
fridge compartment, for all
your fresh food requirements.
MULTI-FLOW
Selected models have the
multi-flow airflow system which
maintains an even temperature
throughout – keeping your food
fresher for longer.
SPILLSAFE™ GLASS SHELVES
Selected models are fitted with
adjustable, durable glass shelves
which contain spills and can be
wiped clean with ease. Selected
models come with a spillsafe™
glass shelf in the freezer.
BOTTLE CADDY
On selected models, a ridged
caddy lets you keep up to six
bottles stacked neatly for
easy access.
TWIST ICE AND SERVE
Twist ice and serve is an
easy way to dispense ice.
(On selected models)
†
Refer to the product information on the back page of this brochure
A small fridge that thinks it’s a big fridge – or perhaps that should be the other way round. Offering the capacity and
features normally found in larger models, these fridges offer the best of both worlds for homes where kitchen space is
at a premium.
FINGERPRINT- RESISTANT
PACIFIC SILVER DOORS
The innovative fingerprint-resistant
pacific silver doors ensure all
Westinghouse pacific silver fridges
maintain that sleek fingerprint-free
look. In fact, a damp cloth should
be all you need to remove marks
from any Westinghouse fridge
or freezer.
24
TOP MOUNTS
Model shown: WTB2500WB
1
Adjustable interiors
2
Specialised compartments
3
Specialised storage
4
Twist ice and serve
5
Spillsafe™ glass shelves
1
1
2
2
3
5
5
4
3
25
TOP MOUNTS
TOP MOUNT –COMPACT
features
†
MODEL WTM3300PB/WB WTM3000PB/WB WTM2800PB/WB WTB2500PB/WB WTB2300PB/WB WTM2000WC WTM1800WC
gross capacity (litres) 330 300 280 250 230 200 180
food compartment gross capacity (litres) 255 227 209 167 161 144 127
freezer compartment gross capacity (litres) 75 75 75 79 65 59 54
dimensions (and recommended clearances) refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34
door finish pacific silver/classic white pacific silver/classic white pacific silver/classic white pacific silver/classic white pacific silver/classic white classis white classic white
frost-free
P P
P P P P P
multi-flow air delivery system
P P
separate temperature controls for
fridge
& freezer
P P P P P P P
fridge door alarm
P P
fingerprint resistant surface
P/– P/–
P/– P/– P/–
FRIDGE F E ATU R E S
adjustable spillsafe™ glass shelves 3 3 2 2 2
adjustable wire shelves 3 3
full-width chiller compartment
P P
deli compartment
P P
P
bottle caddy
P P
full-width humidity controlled crisper bin
P P
P P P
crisper bin
P P
dairy compartment
P P
P P P P P
full-width door bins 2 2 2 2 2 3 3
half-width door bins 2 2 2 2 2 2 2
bag clips
P P
interior fridge light
P P
P P P P P
FREEZER F E ATU R E S
adjustable spill safe glass shelves 1 1 1
wire/plastic shelves –/1 –/1 1/– 1/–
twist ice server/storage bin
2/P 2/P
2/P 2/P 2/P
ice cube trays/storage bin
2/P 2/P
meat drawer
P P
full-width door bins 1 1 1 2 1 1 1
OTHER F E ATU R E S
R600a refrigerant
P P P P
hidden hinges
P P
P P P P P
door opening conversion kit
1
conversion kit
1
conversion kit
1
conversion kit
2
conversion kit
2
reversible reversible
rear rollers
P P
P P P P P
levelling legs
P P
P P P P P
integration kit available
P P
P
energy star rating (new) 2 2 2 2 2 2 2
energy star rating (on old scale) 4 4 4 3.5 3.5 4 4
energy consumption (kwh/year) 437 424 413 414 394 360 341
1
For those wanting a left hand opening model for WTM3300PB/WB, WTM3000PB/WB and WTM2800PB/WB please order AREX00WA.
2
For those wanting a left hand opening model for WTB2500PB/WB and WTB2300PB/WB please order AREX01WA
†
Refer to the product information on the back page of this brochure
Model shown: WTM3300PB
Model shown: WTM3000WB
26
TOP MOUNTS
MODEL WTM3300PB/WB WTM3000PB/WB WTM2800PB/WB WTB2500PB/WB WTB2300PB/WB WTM2000WC WTM1800WC
gross capacity (litres) 330 300 280 250 230 200 180
food compartment gross capacity (litres) 255 227 209 167 161 144 127
freezer compartment gross capacity (litres) 75 75 75 79 65 59 54
dimensions (and recommended clearances) refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34 refer to page 34
door finish pacific silver/classic white pacific silver/classic white pacific silver/classic white pacific silver/classic white pacific silver/classic white classis white classic white
frost-free
P P
P P P P P
multi-flow air delivery system
P P
separate temperature controls for
fridge
& freezer
P P P P P P P
fridge door alarm
P P
fingerprint resistant surface
P/– P/–
P/– P/– P/–
FRIDGE F E ATU R E S
adjustable spillsafe™ glass shelves 3 3 2 2 2
adjustable wire shelves 3 3
full-width chiller compartment
P P
deli compartment
P P
P
bottle caddy
P P
full-width humidity controlled crisper bin
P P
P P P
crisper bin
P P
dairy compartment
P P
P P P P P
full-width door bins 2 2 2 2 2 3 3
half-width door bins 2 2 2 2 2 2 2
bag clips
P P
interior fridge light
P P
P P P P P
FREEZER F E ATU R E S
adjustable spill safe glass shelves 1 1 1
wire/plastic shelves –/1 –/1 1/– 1/–
twist ice server/storage bin
2/P 2/P
2/P 2/P 2/P
ice cube trays/storage bin
2/P 2/P
meat drawer
P P
full-width door bins 1 1 1 2 1 1 1
OTHER F E ATU R E S
R600a refrigerant
P P P P
hidden hinges
P P
P P P P P
door opening conversion kit
1
conversion kit
1
conversion kit
1
conversion kit
2
conversion kit
2
reversible reversible
rear rollers
P P
P P P P P
levelling legs
P P
P P P P P
integration kit available
P P
P
energy star rating (new) 2 2 2 2 2 2 2
energy star rating (on old scale) 4 4 4 3.5 3.5 4 4
energy consumption (kwh/year) 437 424 413 414 394 360 341
1
For those wanting a left hand opening model for WTM3300PB/WB, WTM3000PB/WB and WTM2800PB/WB please order AREX00WA.
2
For those wanting a left hand opening model for WTB2500PB/WB and WTB2300PB/WB please order AREX01WA
†
Refer to the product information on the back page of this brochure
Model shown: WTM2800PB Model shown: WTB2500WB Model shown: WTB2300PB Model shown: WTM2000WC Model shown: WTM1800WC
†
Refer to the product information on the back page of this brochure
27
TOP MOUNTS
EASY GLIDE CRISPERS AND
FREEZER BINS*
Telescopic freezer bins and fridge
crispers give the whole family
quick and easy access without
the effort – even when they’re full.
TWIST ICE AND SERVE
Twist ice and serve is an
easy way to dispense ice.
VERTICALS AND PIGEON PAIRS
Westinghouse’s vertical fridges and freezers can be combined in one space to give you a pigeon pair. This provides
you with the maximum fresh food and freezer storage in one unit – truly the big fridge for the big family. Or they can
be placed in separate places to give you best utilisation of space in your kitchen/home. Best of all, their interior is
as flexible as their exterior.
ADJUSTABLE INTERIORS
With over 20 different shelving
and door bin positions, you can
easily fit the smallest deli items
to the biggest party platters.
SPILL SAFE GLASS SHELVES
Spill safe glass shelves improve
visibility and isolate leaks –
preventing up to 1 litre of spills from
dripping down to the shelves below.
CHILL STREAM
®
A chill stream
®
air curtain is
directed down the front of the
fridge from the top compartment,
keeping your drinks at the front
perfectly cold without freezing
items at the back.
FINGERPRINT-RESISTANT
STAINLESS STEEL DOORS
The innovative fingerprint-resistant
stainless steel doors ensure all
Westinghouse stainless steel
fridges maintain that sleek
fingerprint-free look. In fact,
a damp cloth should be all you
need to remove marks from any
Westinghouse fridge or freezer.
BOTTLE CADDY
All models have bottle caddies
– providing you with a practical
solution for storing and organising
all kinds of bottles.
* Selected models only
ENVIRONMENTALLY FRIENDLY
Westinghouse refrigerators and
freezers have started converting
over to the less harmful R600a
refrigerant. Look out for this
symbol, as well as, R600a in the
specification tables, to see which
models have already changed over.
28
VERTICALS /
PIGEON PAIRS
1
1
8
9
10
10
2
4
5
7
3
1
Adjustable interiors
2
Easy glide crisper
3
Chill stream
®
4
Repositional deli compartment
5
Storesafe™ drawer with
child latch
6
Spill safe glass shelves
7
Bottle storage with
bottle fingers
8
Bottle caddy
9
Twist ice and serve
10
Easy glide freezer bins
Model shown: WRM4300SBFreezer Model: WFM3600SB
6
7
29
VERTICALS /
PIGEON PAIRS
MODEL WRM4300SB/WB WRM3700PB/WB WRM2400SC/WC
gross capacity (litres) 430 370 240
door finish stainless steel/classic white pacific silver/classic white stainless steel/classic white
dimensions (and recommended clearances) refer to page 32 refer to page 32 refer to page 32
door opening left or right hand available left or right hand available reversible
frost-free
P P
separate temperature control
P P P
chill stream air curtain
P P
multi-flow air delivery system
P P
FRIDGE F E ATU R E S
adjustable deli compartment
P P
bottle caddy
P P
easy glide crisper bins
P
storesafe™ drawer with child latch
P
adjustable spill safe slide out
glass shelves
P P
full width crisper bin
P P P
humidity controlled crisper bin
P P
dairy compartment (full width) with lid
P P P
adjustable full width bottle bins 2 2 3
bottle fingers 2 2
egg tray
P P P
interior
fridge light
P P P
OTHER F E ATU R E S
R600a refrigerant
P
adjustable front rollers
P P
adjustable front levelling leg
P
rear rollers
P P
integration kit available
P P
energy star rating (new) 1.5 1.5 2
energy star rating (on old scale) 5.5 5.5 6
energy consumption (kwh/year) 380 353 265
†
Refer to the product information on the back page of this brochure
SINGLE DOOR
FRIDGES
features
†
Model shown: WRM4300SB Model shown: WRM3700PB Model shown: WRM2400WC
30
FRIDGES
MODEL WFM3600SB/WB WFM3000PB/WB WFM1800SC/WC
gross capacity (litres) 360 300 180
door finish stainless steel/classic white pacific silver/classic white stainless steel/classic white
dimensions (and recommended clearances) refer to page 32 refer to page 32 refer to page 32
door opening left or right hand available left or right hand available reversible
frost-free
P P
separate temperature control
P P P
multi-flow air delivery system
P P
FREEZER F E ATU R E S
easy glide baskets
P
twist ice and serve/trays
P/2 P/2
– /1
ice cube storage bin
P P P
adjustable glass shelves 3 5
full-width freezer baskets 3 1 6
freezer light
P P
OTHER F E ATU R E S
R600a refrigerant
P
adjustable front rollers
P P
adjustable front levelling leg
P
rear rollers
P P
integration kit available
P P
energy star rating (new) 1.5 1.5 2.5
energy star rating (on old scale) 3.5 3.5 5
energy consumption (kwh/year) 569 525 297
†
Refer to the product information on the back page of this brochure
VERTICAL
FREEZERS
features
†
Model shown: WFM3600SB Model shown: WFM3000PB Model shown: WFM1800WC
31
FREEZERS
VERTICALS AND PIGEON PAIRS
†
50mm
30mm
30mm
W
H2 H1H
18mm
Recommended
airspace
D1
D2
D
W1
W
90
o
If you do not have a
cupboard with a rear
gap, the recommended
clearance on top
increases from 50mm to
90mm (x) and 32mm to
72mm (y).
(x)
(y)
(Rear gap)
Recommended airspaces:
Please note:
Doors are designed to sit
proud of cabinetry (not flush).
When positioned in a
corner area, spacing of at
least 350mm on the fridge
side will allow the doors to
open enough to enable the
removal of the crisper bins
and shelves
≠
.
Front face of
bench aligned to
front corner edge
of cabinet.
10mm
5mm
5mm
1000mm
992mm
1000mm
1210mm
742mm
600mm
90mm
1753mm
1761mm
1736mm
25mm
90
o
Recommended
airspace
898mm
18mm
1754mm
1736mm
Recommended airspaces:
35mm
10 mm
10mm
5mm
5mm
Please note:
Doors are designed to
sit proud of cabinetry
(not flush).
Please note:
Doors are designed to sit
proud of cabinetry (not flush).
Recommended
airspace
890mm
1110mm
741mm
600mm
90mm
90
o
898mm
When positioned in a
corner area, spacing of at
least 300mm on the fridge
side and 250mm on the
freezer side will allow the
doors to open enough to
enable the removal of the
bins and glass shelves.
Front face of
bench aligned to
front corner edge
of cabinet.
When positioned in a
corner area, spacing of at
least 350mm on the fridge
side and 250mm on the
freezer side will allow the
doors to open enough to
enable the removal of the
bins and glass shelves.
Front face of
bench aligned to
front corner edge
of cabinet.
Recommended clearance:
35mm
10 mm
LARGE SIDE BY SIDE MODELS
†
WSE6970SF, WSE6970WF, WSE7000SF, WSE7000WF
COMPACT SIDE BY SIDE MODELS
†
WSE6070SF, WSE6070WF, WSE6100SF, WSE6100PF, WSE6100WF
898mm
10mm
5mm
5mm
Please note:
Doors are designed to
sit proud of cabinetry
(not flush).
Recommended
airspace
890mm
1108mm
742mm
600mm
90mm
90
o
898mm
When positioned in a
corner area, spacing of at
least 300mm on the fridge
side and 250mm on the
freezer side will allow the
doors to open enough to
enable the removal of the
bins and glass shelves.
Front face of
bench aligned to
front corner edge
of cabinet.
1753mm
1761mm
1736mm
25mm
If you do not have a
cupboard with a rear
gap, the recommended
clearance on top
increases from
50mm to 90mm (x) and
29mm to 69mm (y).
Recommended clearance:
35mm
10 mm
MODEL
MAX DOOR
HEIGHT
(H)
CABINET
HEIGHT
(H1)
TOTAL
HEIGHT
(H2)
DOOR
WIDTH
(W)
CABINET
WIDTH
(W1)
TOTAL
DEPTH
(D)
CABINET
DEPTH
(D1)
DEPTH
DOOR OPEN
(D2)
WRM4300SB, WRM4300WB 1714 1702 1720 703 690 647 550 1299
WRM3700PB, WRM3700WB 1714 1702 1720 608 595 647 550 1204
WRM2400SC, WRM2400WC 1441 1441 1441 545 540 570 485 1079
WFM3600SB, WFM3600WB 1714 1702 1720 703 690 647 550 1299
WFM3000PB, WFM3000WB 1714 1702 1720 608 595 647 550 1204
WFM1800SC, WFM1800WC 1441 1441 1441 545 540 570 485 1079
†
Refer to the product information on the back page of this brochure.
≠
For those single door models with telescopic extension slide-out bins or crispers situated
with the door opening against the wall, clearance requirement increases from 350mm to 450mm.
For information on installation of integration kits for top mounts, bottom mounts and pigeon pair models, please refer to www.westinghouse.com.au
32
DIMENSIONS
Minimum recommended a irspaces
These are the recommended minimum clearances.
28mm
1730 1702
800
1730
Please note:
If 5 mm side clearance,
the fridge cabinet must sit at
least 5 mm proud of kitchen
cabinetry for doors to open.
A 5 mm side clearance
requires 50 mm rear
clearance and 50–90mm
clearance above.
50mm
5mm
5mm
Minimum
recommended
airspace
Minimum Recommended Airspaces
If you do not have a
cupboard with a rear
gap, the recommended
clearance area on top
increases from 50mm
to 90mm (x) and from
32mm to 72mm (y).
(x)
(y)
(Rear gap)
When positioned
in a corner area,
spacing of at
least 300mm on
the hinge side
will allow the
doors to open
enough to enable
the removal of
bins and shelves.
Front face
of bench
aligned to
front corner
edge of
cabinet.
300mm300mm
612
1050
790
767
90°
28mm
1730 1702
800
1730
Please note:
If 5 mm side clearance,
the fridge cabinet must sit at
least 5 mm proud of kitchen
cabinetry for doors to open.
A 5 mm side clearance
requires 50 mm rear
clearance and 50–90mm
clearance above.
50mm
5mm
5mm
Minimum
recommended
airspace
Minimum Recommended Airspaces
If you do not have a
cupboard with a rear
gap, the recommended
clearance area on top
increases from 50mm
to 90mm (x) and from
32mm to 72mm (y).
(x)
(y)
(Rear gap)
When positioned
in a corner area,
spacing of at
least 300mm on
the hinge side
will allow the
doors to open
enough to enable
the removal of
bins and shelves.
Front face
of bench
aligned to
front corner
edge of
cabinet.
300mm300mm
612
1050
790
767
90°
28mm
1730 1702
800
1730
Please note:
If 5 mm side clearance,
the fridge cabinet must sit at
least 5 mm proud of kitchen
cabinetry for doors to open.
A 5 mm side clearance
requires 50 mm rear
clearance and 50–90mm
clearance above.
50mm
5mm
5mm
Minimum
recommended
airspace
Minimum Recommended Airspaces
If you do not have a
cupboard with a rear
gap, the recommended
clearance area on top
increases from 50mm
to 90mm (x) and from
32mm to 72mm (y).
(x)
(y)
(Rear gap)
When positioned
in a corner area,
spacing of at
least 300mm on
the hinge side
will allow the
doors to open
enough to enable
the removal of
bins and shelves.
Front face
of bench
aligned to
front corner
edge of
cabinet.
300mm300mm
612
1050
790
767
90°
FRENCH DOOR
†
WHE5100SA-D
MODEL
MAX DOOR
HEIGHT
CABINET
HEIGHT
TOTAL
HEIGHT
DOOR
WIDTH
CABINET
WIDTH
TOTAL
DEPTH
CABINET
DEPTH
DEPTH
DOOR OPEN
WHE5100SA-D 1730 1702 1730 800 790 767 612 1050
†
Refer to the product information on the back page of this brochure.
≠
For those top mount and bottom mount models with telescopic extension slide-out bins or
crispers being placed in location with the door opening against the wall, clearance requirement increases from 350mm to 550mm.
For information on installation of integration kits for top mounts, bottom mounts and pigeon pair models, please refer to www.westinghouse.com.au
28mm
1730 1702
800
1730
Please note:
If 5 mm side clearance,
the fridge cabinet must sit at
least 5 mm proud of kitchen
cabinetry for doors to open.
A 5 mm side clearance
requires 50 mm rear
clearance and 50–90mm
clearance above.
50mm
5mm
5mm
Minimum
recommended
airspace
Minimum Recommended Airspaces
If you do not have a
cupboard with a rear
gap, the recommended
clearance area on top
increases from 50mm
to 90mm (x) and from
32mm to 72mm (y).
(x)
(y)
(Rear gap)
When positioned
in a corner area,
spacing of at
least 300mm on
the hinge side
will allow the
doors to open
enough to enable
the removal of
bins and shelves.
Front face
of bench
aligned to
front corner
edge of
cabinet.
300mm300mm
612
1050
790
767
90°
28mm
1730 1702
800
1730
Please note:
If 5 mm side clearance,
the fridge cabinet must sit at
least 5 mm proud of kitchen
cabinetry for doors to open.
A 5 mm side clearance
requires 50 mm rear
clearance and 50–90mm
clearance above.
50mm
5mm
5mm
Minimum
recommended
airspace
Minimum Recommended Airspaces
If you do not have a
cupboard with a rear
gap, the recommended
clearance area on top
increases from 50mm
to 90mm (x) and from
32mm to 72mm (y).
(x)
(y)
(Rear gap)
When positioned
in a corner area,
spacing of at
least 300mm on
the hinge side
will allow the
doors to open
enough to enable
the removal of
bins and shelves.
Front face
of bench
aligned to
front corner
edge of
cabinet.
300mm300mm
612
1050
790
767
90°
33
DIMENSIONS
34
MODEL
MAX DOOR
HEIGHT
(H)
CABINET
HEIGHT
(H1)
TOTAL
HEIGHT
(H2)
DOOR
WIDTH
(W)
CABINET
WIDTH
(W1)
TOTAL
DEPTH
(D)
CABINET
DEPTH
(D1)
DEPTH
DOOR OPEN
(D2)
WBE5100SB, WBM5100WB 1714 1702 1720 803 790 709 612 1450
WBM5104SB 1714 1702 1720 803 790 725 612 1450
WBE4300SB, WBM4300WB 1714 1702 1720 703 690 709 612 1350
WBM4304SB 1714 1702 1720 703 690 725 612 1350
WBM3700SB, WBM3700WB 1614 1602 1620 652 640 709 612 1269
WTE5200SB, WTM5200WB 1714 1702 1720 803 790 709 612 1450
WTM5204SB 1714 1702 1720 803 790 725 612 1450
WTM4400WB 1714 1702 1720 703 690 709 612 1350
WTM4404SB 1714 1702 1720 703 690 725 612 1350
WTE4200SB, WTM4200WB 1634 1622 1640 703 690 709 612 1350
WTM3900SB, WTM3900WB 1714 1702 1720 703 690 647 550 1288
WTM3300PB, WTM3300WB 1714 1702 1720 607 595 647 550 1193
WTM3000PB, WTM3000WB 1614 1602 1620 607 595 647 550 1193
WTM2800PB, WTM2800WB 1544 1532 1550 607 595 647 550 1193
WTB2500PB, WTB2500WB 1458 1450 1491 543 540 620 540 1094
WTB2300PB, WTB2300WB 1356 1348 1389 543 540 620 540 1094
WTM2000WC 1476 1472 1476 524 520 595 500 1070
WTM1800WC 1400 1400 1400 494 490 580 490 1029
†
Refer to the product information on the back page of this brochure.
≠
For those top mount and bottom mount models with telescopic extension slide-out bins or crispers
being placed in location with the door opening against the wall, clearance requirement increases from 350mm to 550mm.
For information on installation of integration kits for top mounts, bottom mounts and pigeon pair models, please refer to www.westinghouse.com.au
When positioned in a
corner area, spacing
of at least 350mm on
the fridge side will
allow the doors to
open enough to
enable the removal of
the crisper bins and
shelves. This required
clearance inceases to
550mm for those
models with telescopic
extension slide-out
bins.
Front face of
bench aligned
to front corner
edge of
cabinet.
D1
D2
W1
W
D
90
o
(x)
(y)
If you do not have a
cupboard with a rear
gap, the recommended
clearance on top
increases from 50mm to
90mm (x) and 32mm to
72mm (y).
50mm
30mm
30mm
Recommended
airspace
CABINET
DOOR
(Rear gap)
Please note:
Doors are
designed to sit
proud of cabinetry
(not flush).
W
H2HH1
18mm
11mm
W
H
H2 H1
W
H2HH1
18mm
350mm
550mm for telescopic drawer models
BOTTOM MOUNT MODELS
†
WBE5100SB, WBM5100WB, WBE4300SB,
WBM4300WB, WBM3700SB, WBM3700WB
LARGE TOP MOUNT MODELS
†
WTE5200SB, WTM5200WB, WTM4400WB,
WTE4200SB, WTM4200WB, WTM3900SB,
WTM3900WB
COMPACT TOP MOUNT MODELS
†
WTM3300PB, WTM3300WB, WTM3000PB,
WTM3000WB, WTM2800PB, WTM2800WB,
WTB2500PB, WTB2500WB, WTB2300PB,
WTB2300WB, WTM2000WC, WTM1800WC
When positioned in a
corner area, spacing
of at least 350mm on
the fridge side will
allow the doors to
open enough to
enable the removal of
the crisper bins and
shelves. This required
clearance inceases to
550mm for those
models with telescopic
extension slide-out
bins.
Front face of
bench aligned
to front corner
edge of
cabinet.
D1
D2
W1
W
D
90
o
(x)
(y)
If you do not have a
cupboard with a rear
gap, the recommended
clearance on top
increases from 50mm to
90mm (x) and 32mm to
72mm (y).
50mm
30mm
30mm
Recommended
airspace
CABINET
DOOR
(Rear gap)
Please note:
Doors are
designed to sit
proud of cabinetry
(not flush).
W
H2HH1
18mm
11mm
W
H
H2 H1
W
H2HH1
18mm
350mm
550mm for telescopic drawer models
When positioned in a
corner area, spacing
of at least 350mm on
the fridge side will
allow the doors to
open enough to
enable the removal of
the crisper bins and
shelves. This required
clearance inceases to
550mm for those
models with telescopic
extension slide-out
bins.
Front face of
bench aligned
to front corner
edge of
cabinet.
D1
D2
W1
W
D
90
o
(x)
(y)
If you do not have a
cupboard with a rear
gap, the recommended
clearance on top
increases from 50mm to
90mm (x) and 32mm to
72mm (y).
50mm
30mm
30mm
Recommended
airspace
CABINET
DOOR
(Rear gap)
Please note:
Doors are
designed to sit
proud of cabinetry
(not flush).
W
H2HH1
18mm
11mm
W
H
H2 H1
W
H2HH1
18mm
350mm
550mm for telescopic drawer models
When positioned in a
corner area, spacing
of at least 350mm on
the fridge side will
allow the doors to
open enough to
enable the removal of
the crisper bins and
shelves. This required
clearance inceases to
550mm for those
models with telescopic
extension slide-out
bins.
Front face of
bench aligned
to front corner
edge of
cabinet.
D1
D2
W1
W
D
90
o
(x)
(y)
If you do not have a
cupboard with a rear
gap, the recommended
clearance on top
increases from 50mm to
90mm (x) and 32mm to
72mm (y).
50mm
30mm
30mm
Recommended
airspace
CABINET
DOOR
(Rear gap)
Please note:
Doors are
designed to sit
proud of cabinetry
(not flush).
W
H2HH1
18mm
11mm
W
H
H2 H1
W
H2HH1
18mm
350mm
550mm for telescopic drawer models
When positioned in a
corner area, spacing
of at least 350mm on
the fridge side will
allow the doors to
open enough to
enable the removal of
the crisper bins and
shelves. This required
clearance inceases to
550mm for those
models with telescopic
extension slide-out
bins.
Front face of
bench aligned
to front corner
edge of
cabinet.
D1
D2
W1
W
D
90
o
(x)
(y)
If you do not have a
cupboard with a rear
gap, the recommended
clearance on top
increases from 50mm to
90mm (x) and 32mm to
72mm (y).
50mm
30mm
30mm
Recommended
airspace
CABINET
DOOR
(Rear gap)
Please note:
Doors are
designed to sit
proud of cabinetry
(not flush).
W
H2HH1
18mm
11mm
W
H
H2 H1
W
H2HH1
18mm
350mm
550mm for telescopic drawer models
Minimum recommended airspaces
These are the recommended minimum clearances.
34
DIMENSIONS
3535
TOP MOUNTS
TOP SERVICE
Top Service encompasses the after sales service provided by The Electrolux Group
to consumers including delivery, home service and spare parts.
WARRANTY
Electrolux Home Products Pty Ltd warrants that for domestic application, the Westinghouse products featured in this brochure are free from defects in
materials and workmanship for a period of 2 years (3 months for commercial applications) from the date of first purchase, subject to the conditions set
out in the warranty card accompanying the product when purchased. An additional 3 year warranty is also provided for domestic applications to cover
replacement of parts for the sealed refrigeration system only.
†
PRODUCT INFORMATION
The descriptors and illustrations in this publication apply to the specific products and models described as at the date of issue. Under our policy of continuous
product development, product specifications may change without notice. Prospective purchasers should therefore check with their retailer to ensure this
publication correctly describes the products that are being offered for sale. All information supplied is to be used for general reference purposes only and is
on the understanding that Electrolux Home Products Pty Ltd will not be liable for any loss, liability or damage of whatever kind arising as a result of reliance
on such information. Colours of products illustrated are as close as printing limitations allow. Electrolux will at all times comply with its obligations pursuant
to law including Trade Practices (Australian Consumer Law) Act and Regulations.
Chill stream
®
is a registered trademark of Electrolux Home Products Pty Ltd
Aqua Direct™, Spillsafe™ and storesafe™ are used by Electrolux Home Products Pty Ltd
© 2012 Electrolux Home Products Pty Ltd ABN 51 004 762 341 Print code: WBRO_WFRI_Mar12
Printed on Monza Gloss Recycled Art stock containing 55% recycled material & 45% from sustainable forests.
phone: 1300 363 640
fax: 1800 350 067
email: customercare
@electrolux.com.au
web: www.westinghouse.com.au
For more information on all Westinghouse appliances,
or for dimension and installation information, call into your retailer,
phone or email our customer care team or visit our website:
Westinghouse. We are part of the Electrolux family.
Share more of our thinking at www.electrolux.com.au
