WD-3274RHD
WD-3276RHD
Washing Machine
OWNER'S MAINUAL
Pleasereadthismanualcarefully,itprovides
instructionsonsafeinstallationuse,andmaintenance.
Retainitforfuturereference.
Recordthemodelandsedalnumbersofyourmachine.
Quotethisinformationtoyourdealerifyourequireservice.
e
Lave-UngeAutomaitqueLG.
IIcontient,
rutiliseitonet
3sedemier.
num6rodes6riedulave-linge.

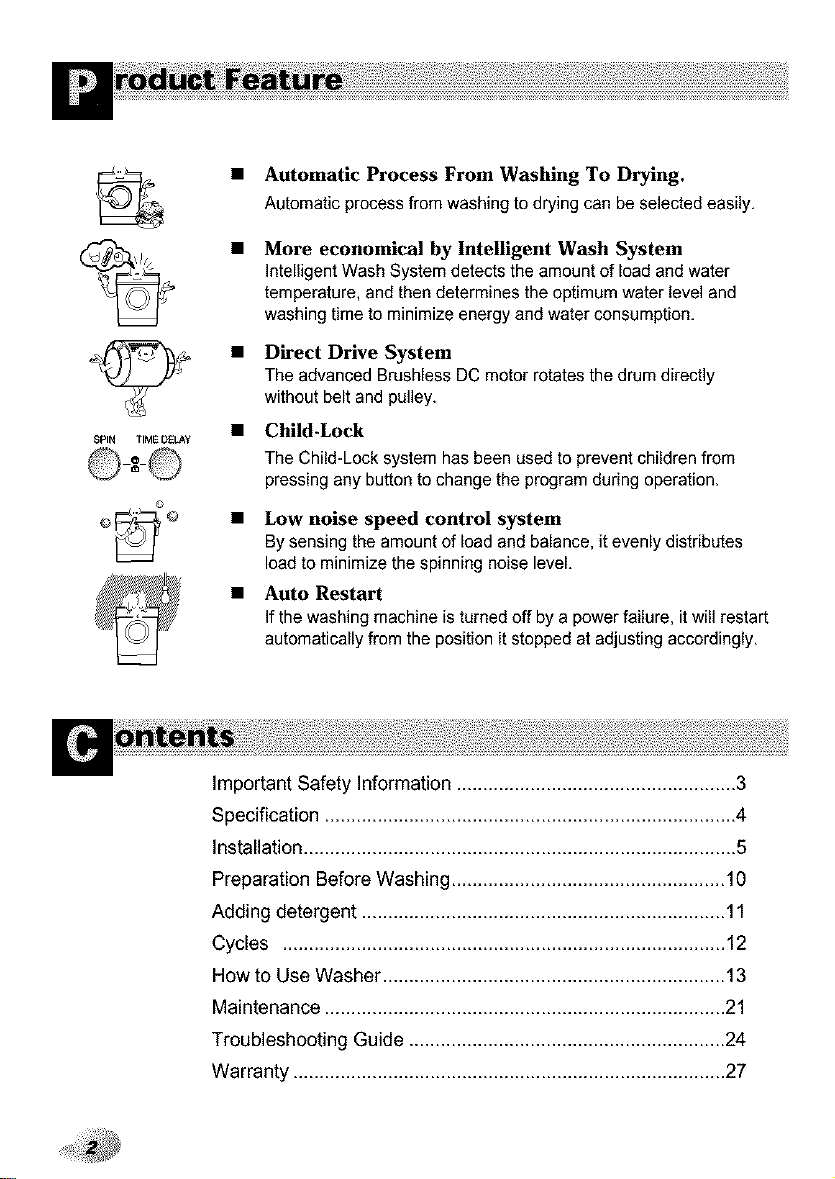

SPIN TIME DELAY
@
Automatic Process From Washing To Drying.
Automaticprocessfromwashingtodryingcanbe selectedeasily,
More economical by Intelligent Wash System
Intelligent Wash System detects the amount of load and water
temperature, and then determines the optimum water level and
washing time to minimize energy and water consumption.
Direct Drive System
The advanced Brush[ess DC motor rotates the drum directly
without belt and pulley.
Child-Lock
The Child-Lock system has been used to prevent children from
pressing any button to change the program during operation.
Low noise speed control system
By sensing the amount of load and balance, it evenly distributes
load to minimize the spinning noise level.
Auto Restart
If the washing machine is turned off by a power failure, it will restart
automatically from the position it stopped at adjusting accordingly.
Important Safety Information ..................................................... 3
Specification .............................................................................. 4
Installation .................................................................................. 5
Preparation Before Washing .................................................... 10

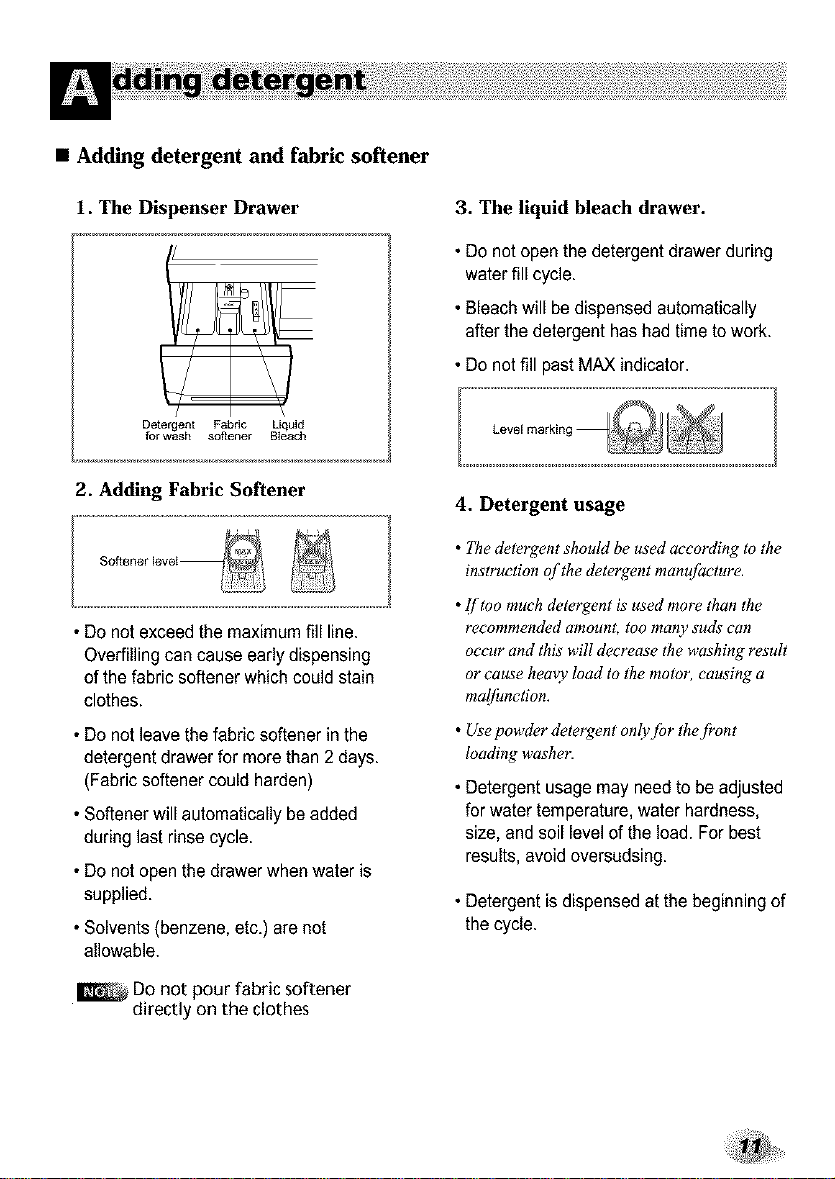

Adding detergent ..................................................................... 11

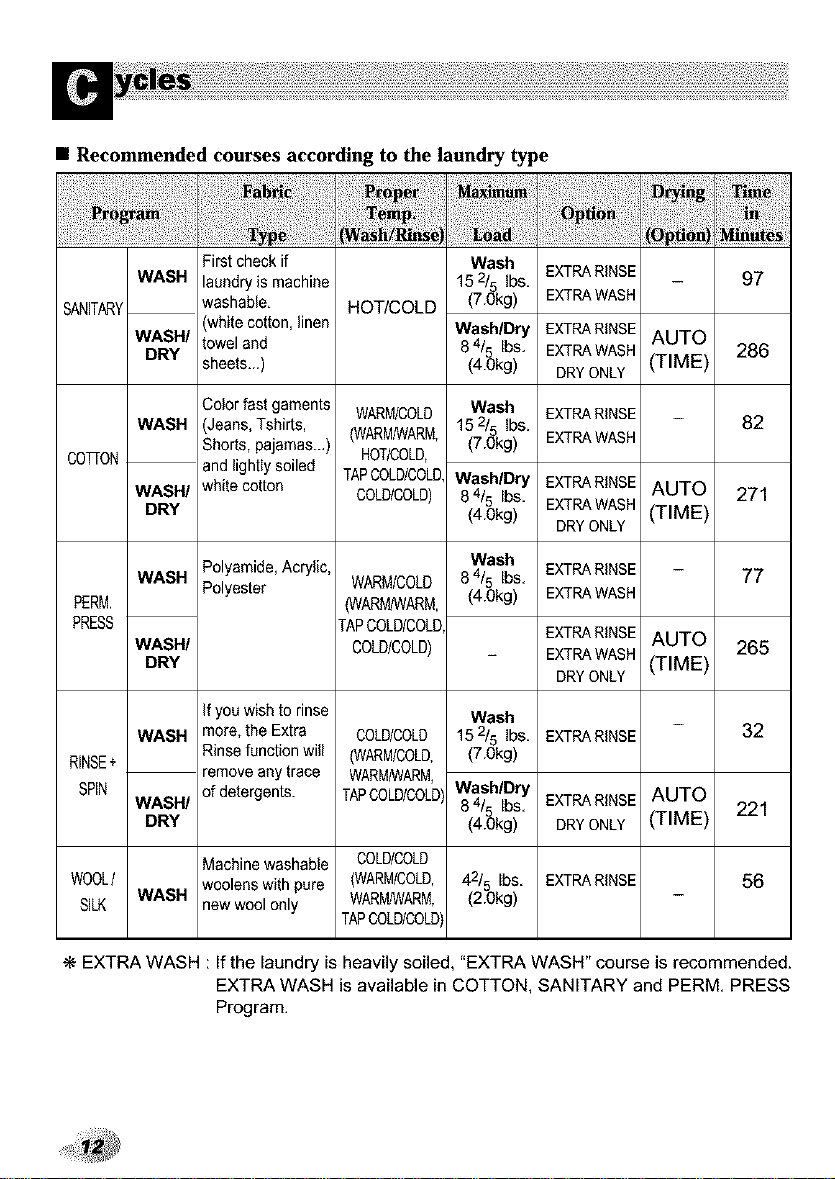

Cycles .................................................................................... 12

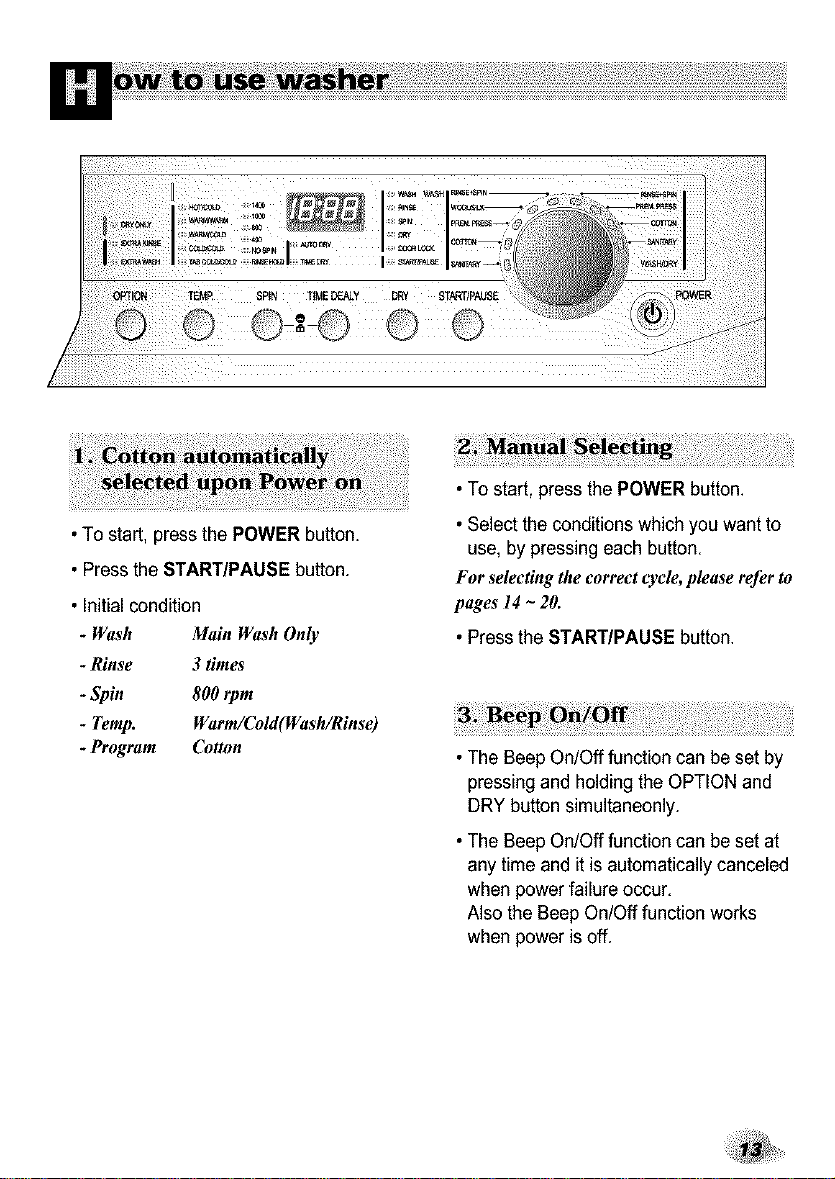

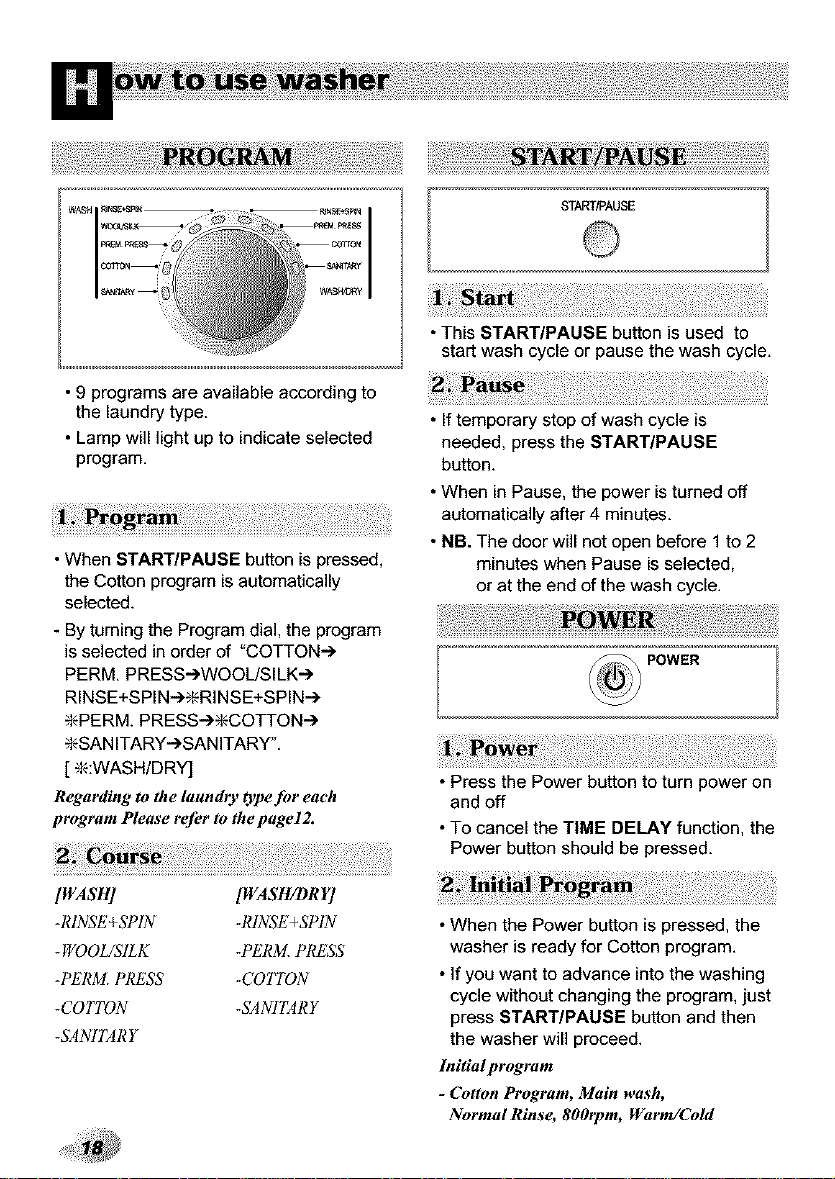

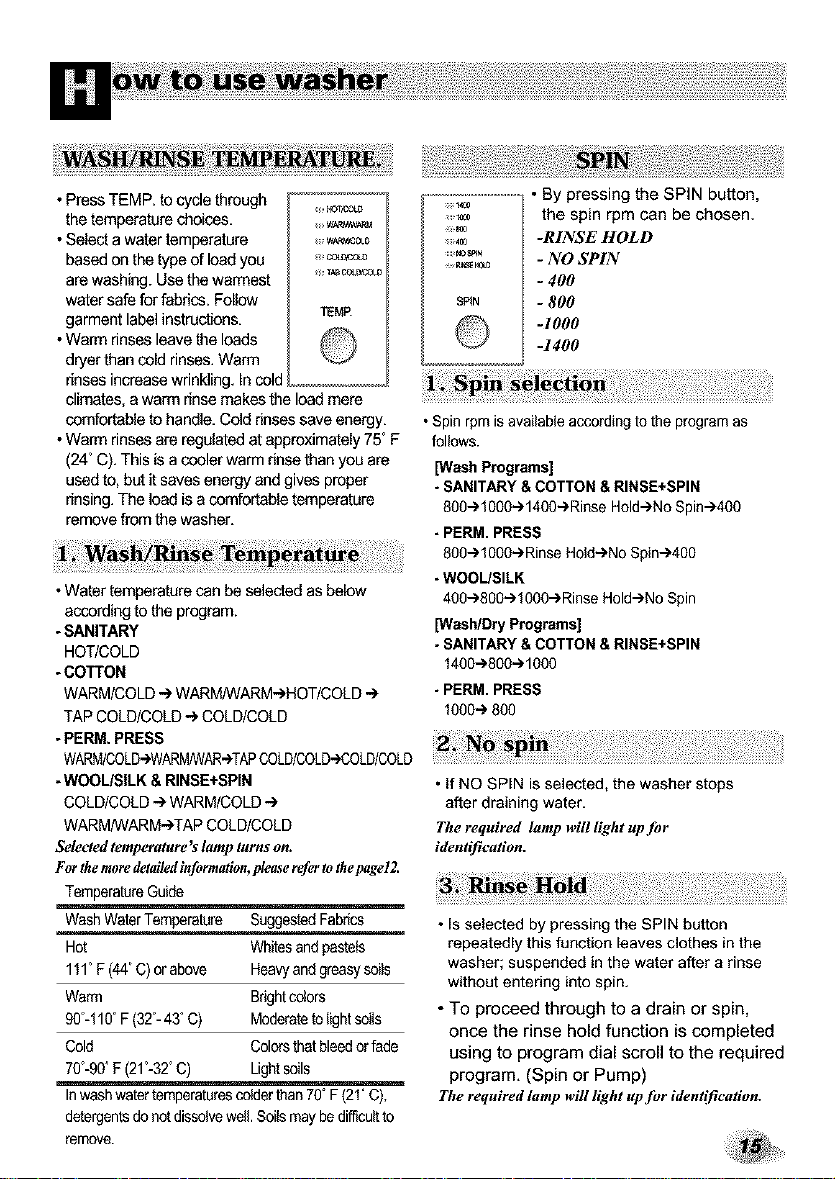

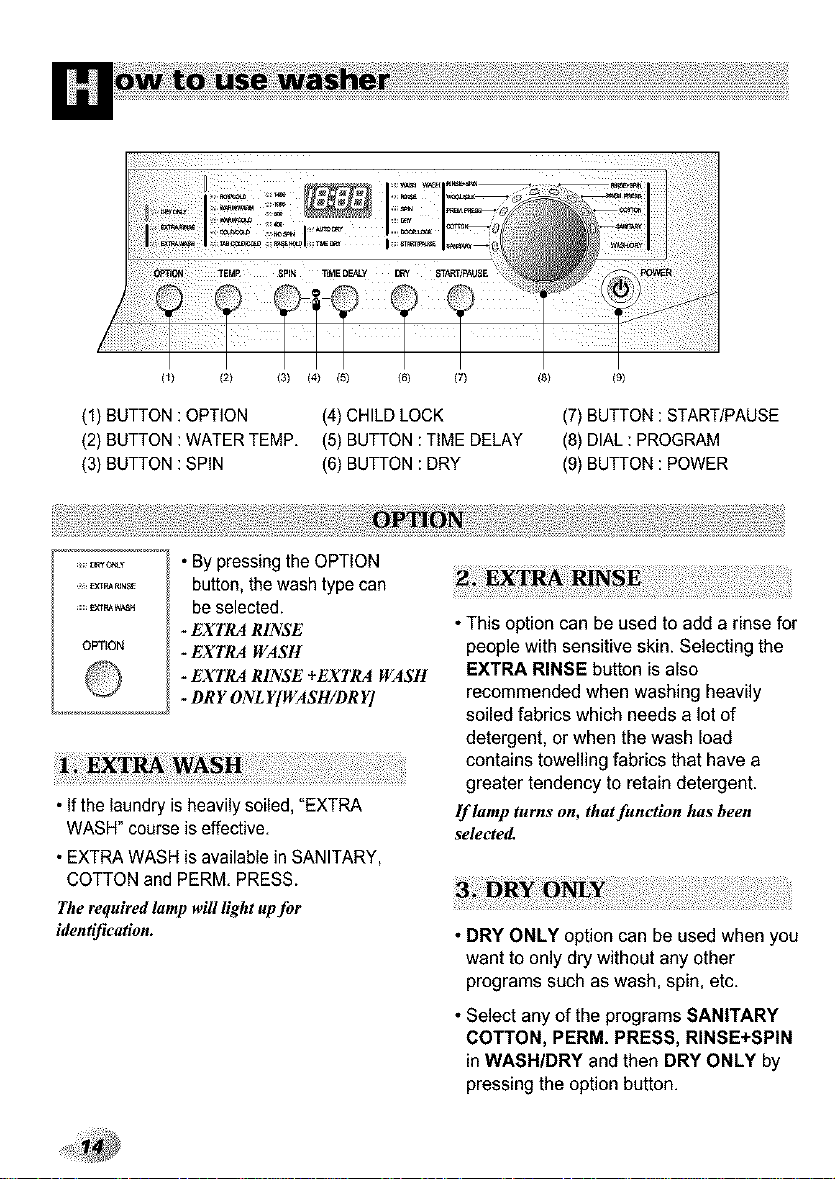

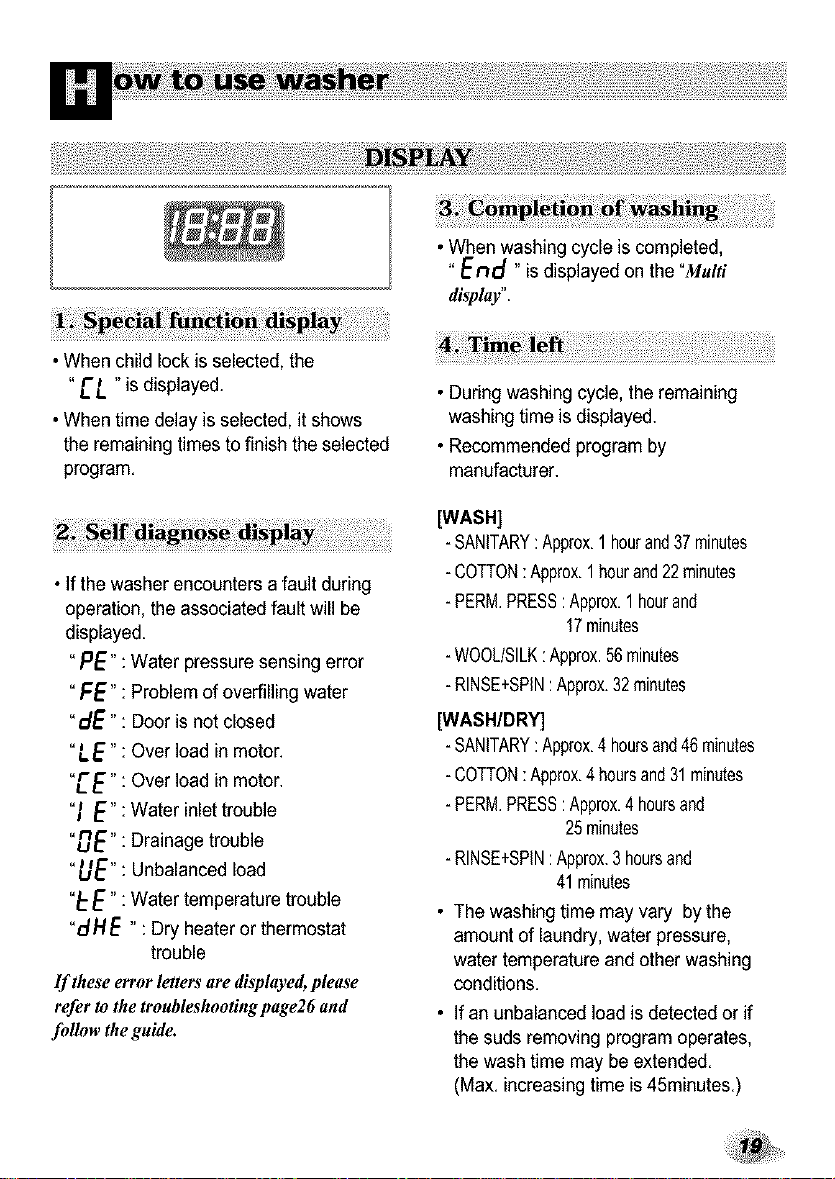

How to Use Washer ................................................................. 13
Maintenance ............................................................................ 21

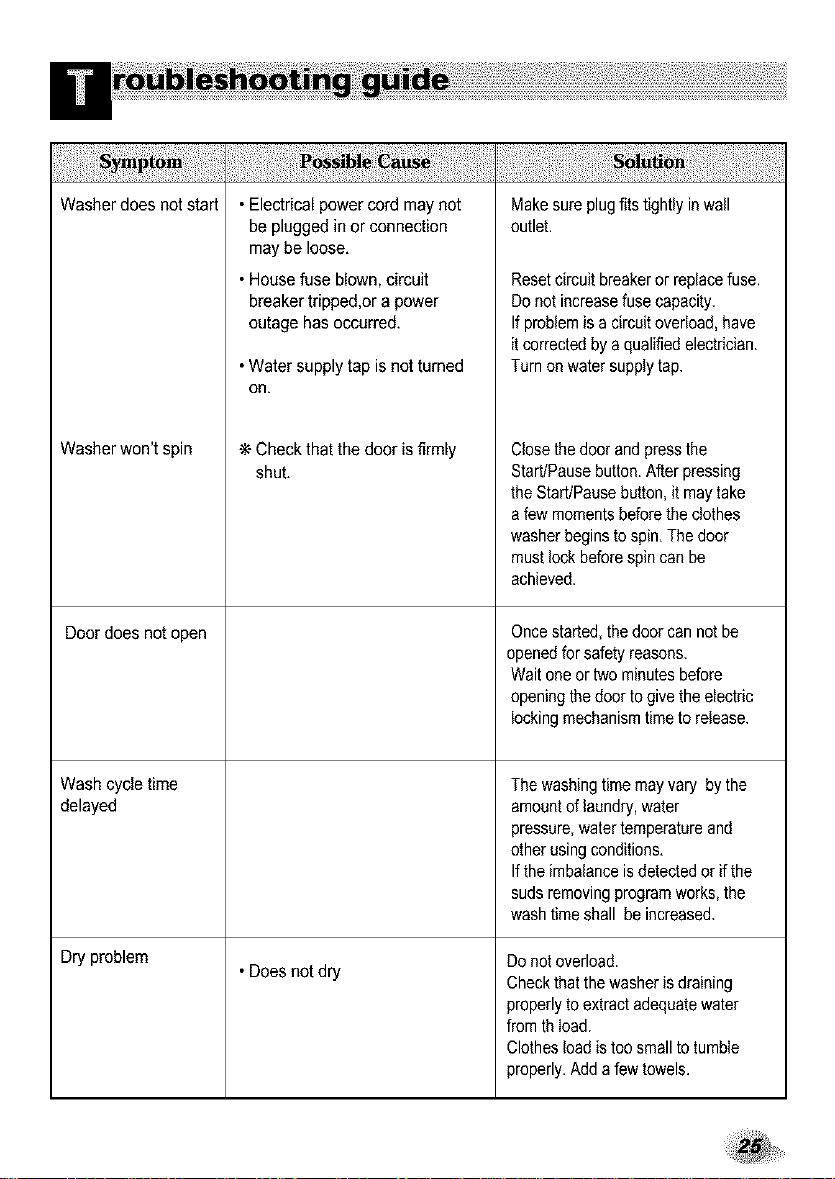

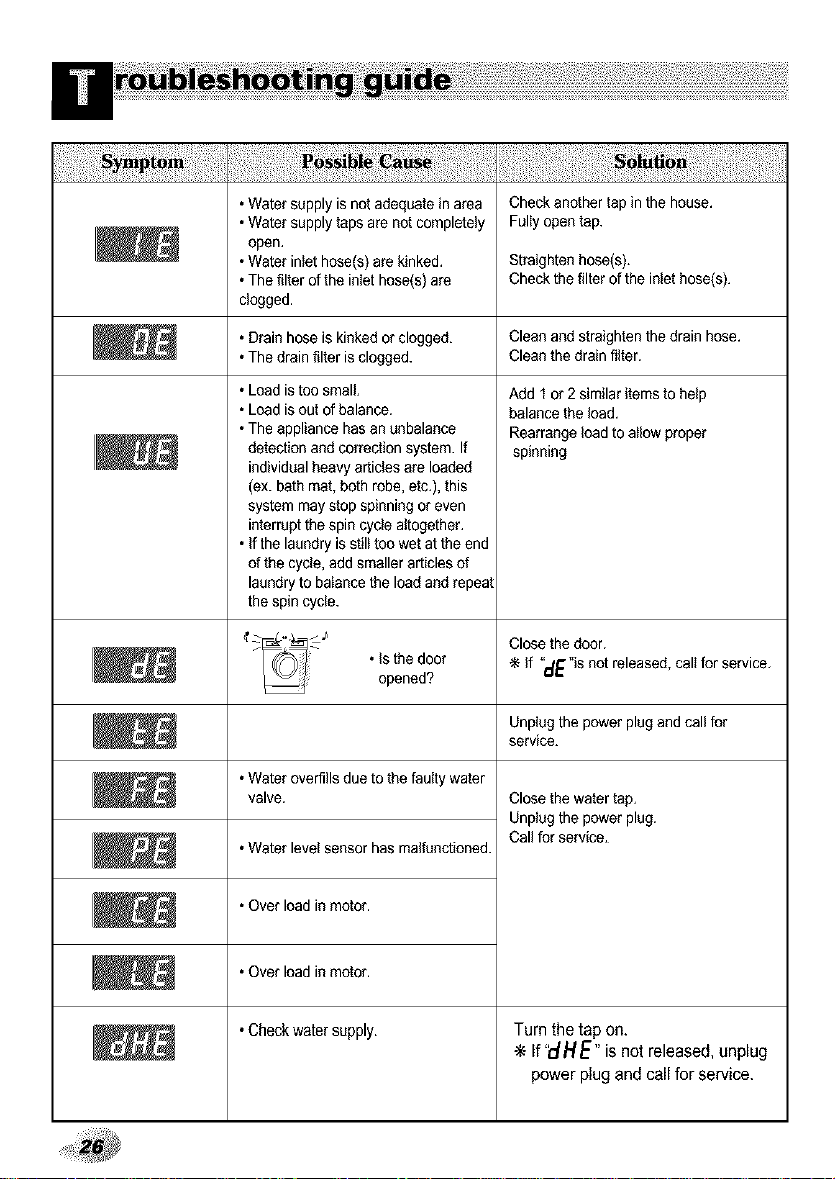

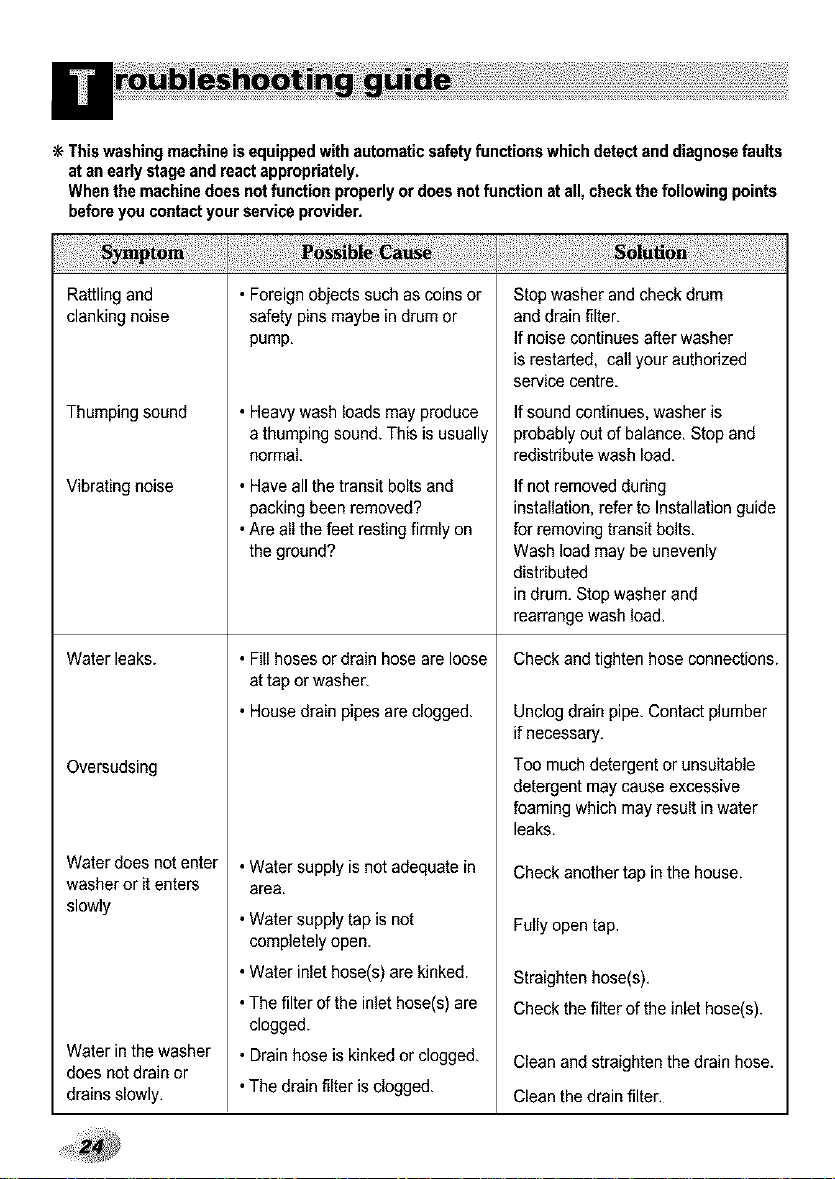

Troubleshooting Guide ............................................................ 24
Warranty .................................................................................. 27

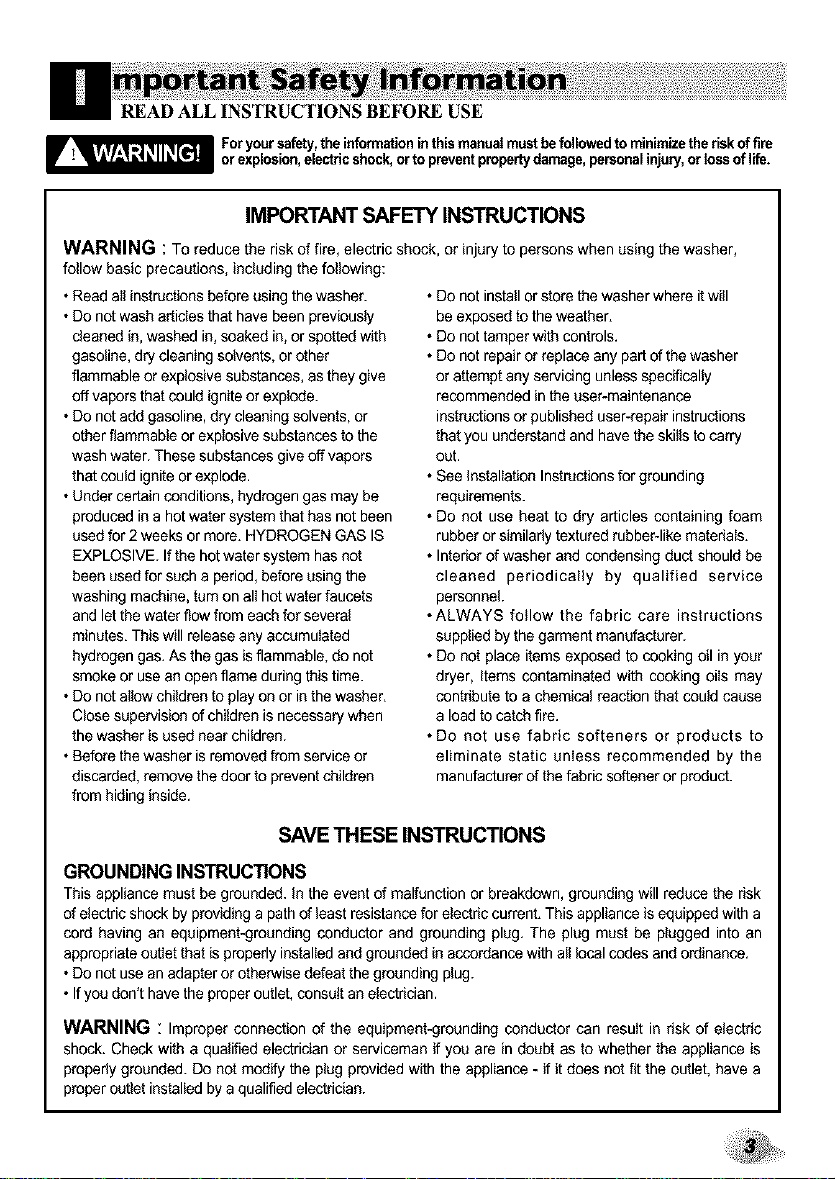

READ ALL INSTRUCTIONS BEFORE USE
Foryoursafety,theinformationinthismanualmustbefonowedtominimizetheriskoffire
orexplosion,electricshock,ortopreventpropertydamage,personalinjury,orlossoflife.
IMPORTANT SAFETY INSTRUCTIONS
WARNING : To reduce the risk of fire, electric shock, or injuryto persons when using the washer,
follow basic precautions, locluding the following:
• Read all instructions before using the washer.
• Do not wash articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, or other
flammable or explosive substances, as they give
off vapors that could igniteor explode.
• Do not add gasoline, dry cleaning solvents, or
other flammable or explosive substances to the
wash water, These substances give off vapors
that could ignite or explode.
• Under certain conditions, hydrogen gas may be
produced ina hot water system that has not been
used for 2 weeks or more, HYDROGEN GAS IS
EXPLOSIVE. Ifthe hotwater system has not
been used for such a period, before using the
washing machine, turn on all hotwater faucets
and let the water flow from each for several
minutes, This will release any accumulated
hydrogen gas, As the gas isflammable, do not
smoke or use an open flame during thistime.
• Do not allow children to play on or inthe washer,
Close supervision of chitdren is necessary when
the washer isused near children.
• Before the washer is removed from service or
discarded, remove the door to prevent children
from hiding inside,
• Do not install or store thewasher where itwill
be exposed to the weather,
• Do nottamper with controls.
• Do not repair or replace any part of the washer
or attempt any servicing unless specifically
recommended in the user-maintenance
instructions or publisheduser-repair instructions
that you understand and have the skills tocarry
out.
• See InstallafioeInstructions for grounding
requirements.
• Do not use heat to dry articles containing foam
rubber or similarly textured rubber-like materials,
• Interior of washer and condensing duct should be
cleaned periodically by qualified service
personnel
• ALWAYS follow the fabric care instructions
supplied by the garment mantdacturer.
• Do not place items exposed to cooking oil in your
dryer, items contaminated with cooking oils may
contribute to a chemical reaction that could cause
a load to catch fire,
• Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
This appliance must be grounded, in the event of malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for electric current, This appliance is equipped with a
cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinance,
• Do not use an adapter or otherwise defeat the grounding plug.
• If you don't have the proper outlet, consult an electrician.
WARNING : Improper connection of the equipment-grounding conductor can result in risk of electdc
shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is
properly grounded. Do not modify the plug provided with the appliance - if it does not fit the outlet, have a
proper outlet installed by a qualified electrician.

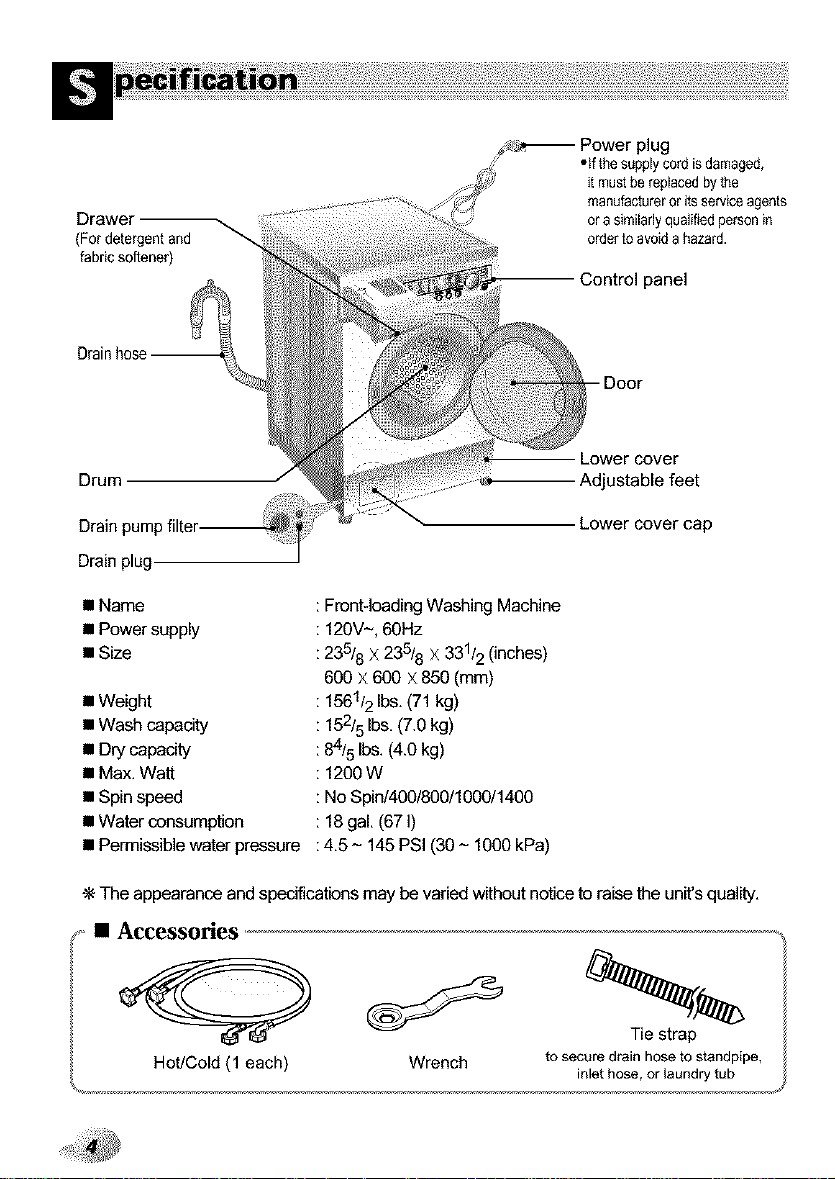

Drawer
(For detergent end _,
fabric softener)
f_:_ Power plug
olf thesupplycord is damaged,
it mustbereplacedbythe
manufactureror its serviceagents
ora similarlyqualifiedpersonin
ordertoavoida hazard.
Control panel
Drainhos
Drum
Drain pump flit
Drain plug.
• Name
• Power supply
• Size
• Weight
• Wash capacity
• Dry capacity
• Max. Watt
• Spin speed
• Water consumption
• Permissible water pressure
: Front-loading Washing Machine
: 120V~, 60Hz
: 235/8 X 235/8 X331/2 (inches)
600 X 600 X850 (ram)
: 1561/2Ibs.(71 kg)
: 152/5Ibs. (7.0 kg)
: 84/5Ibs. (4.0 kg)
: 1200W
: No Spin/400/800/1000/1400
: 18gaL (670
: 4.5 - 145 PSi (30 - 1000 kPa)
Lower cover
Adjustable feet
Lowercovercap
÷ The appearance and specifications may be varied without notice to raise the unit'squality,
• Accessories
Hot/Cold (1 each)
Wrench
Tie strap
to secure drain hose to standpipe,
inlet hose, or laundry tub

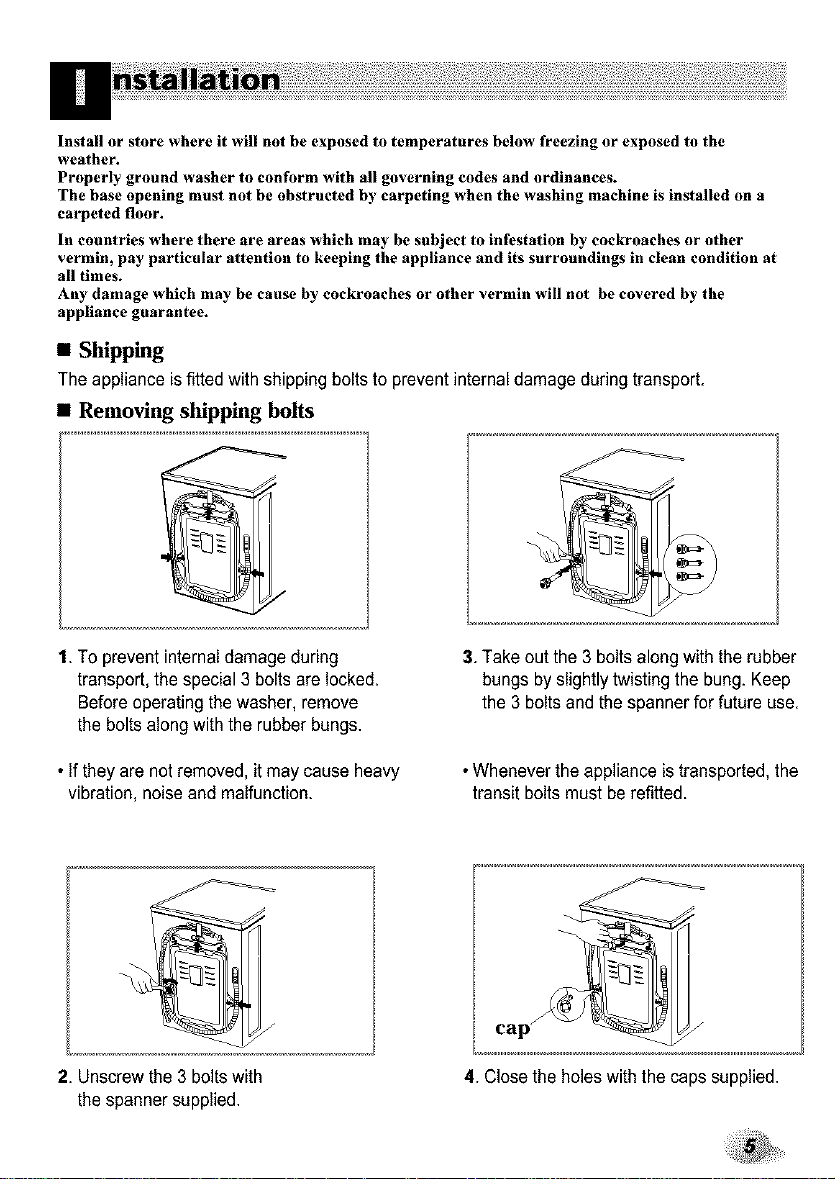

Install or store where it will not be exposed to temperatures below freezing or exposed to the
weather.
Properly ground washer to conform with all governing codes and ordinances.
The base opening must not be obstructed by carpeting when the washing machine is installed on a
carpeted floor.
In countries where there are areas which may be subject to infestation by cockroaches or other
vermin_ pay particular attention to keeping the appliance and its surroundings in clean condition at
all times.
Any damage which may be cause by cockroaches or other vermin will not he covered by the
appliance guarantee.
• Shipping
The applianceis fitted with shipping bolts to prevent internal damageduringtransport.
• Removing shipping bolts
1.To preventinternaldamageduring
transport,thespecial3 bolts are locked.
Beforeoperatingthewasher,remove
the boltsalongwith therubberbungs.
3. Takeoutthe 3 boltsalong withthe rubber
bungsbyslightlytwistingthe bung.Keep
the3 boltsandthespannerforfuture use.
• If theyare notremoved,itmaycause heavy
vibration,noiseand malfunction.
•Wheneverthe applianceistransported,the
transitboltsmust berefitted.
2. Unscrewthe3 boltswith
thespannersupplied.
cap
4. Closethe holeswith thecaps supplied.

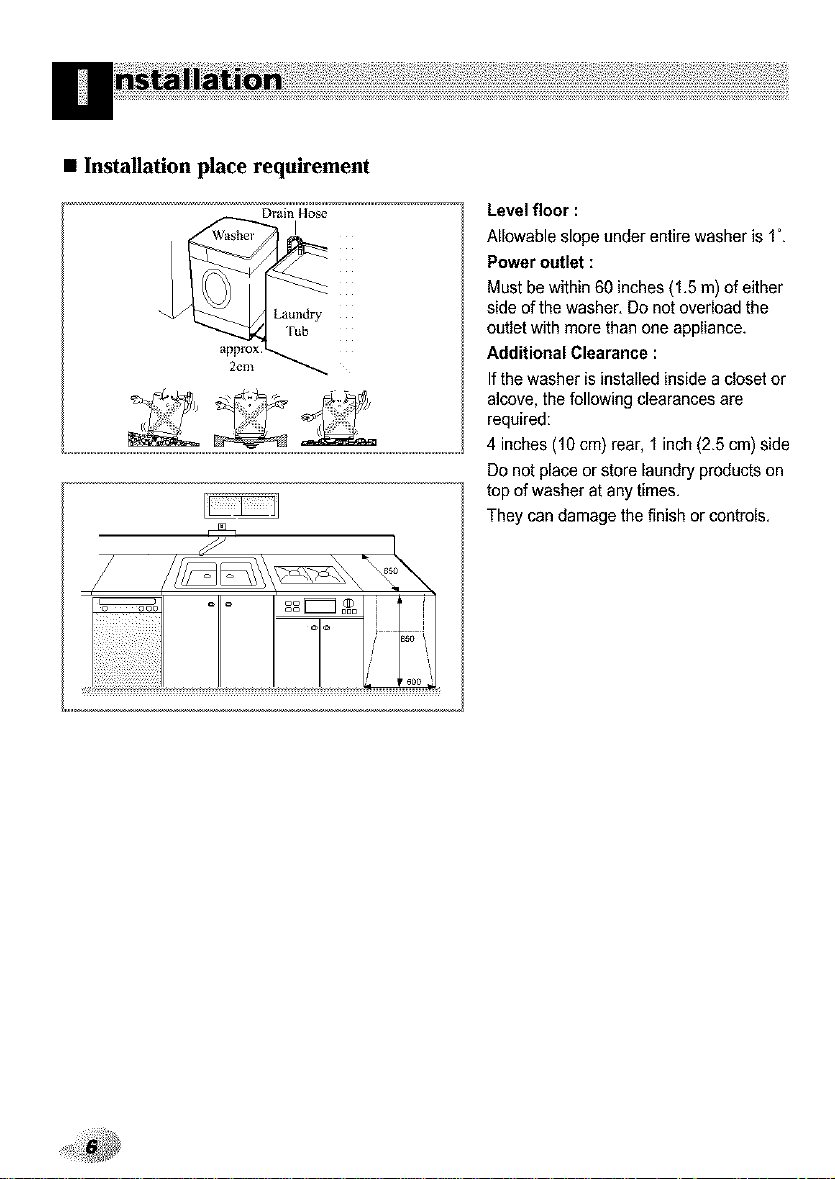

• Installation place requirement
Drain Hose
/ Laundry
Tub
approx.
Level floor :
Allowable slope under entire washer is 1_.
Power outlet :
Mustbe within 60 inches(1.5 m) of either
side ofthe washer. Do not overload the
outlet with more than one appliance.
Additional Clearance :
Ifthe washer is installed inside a closet or
alcove,the following clearances are
required:
4 inches (10 cm) rear, 1 inch (2.5 cm) side
Do not place or store laundry products on
top of washer at any times.
They can damage the finish or controls.

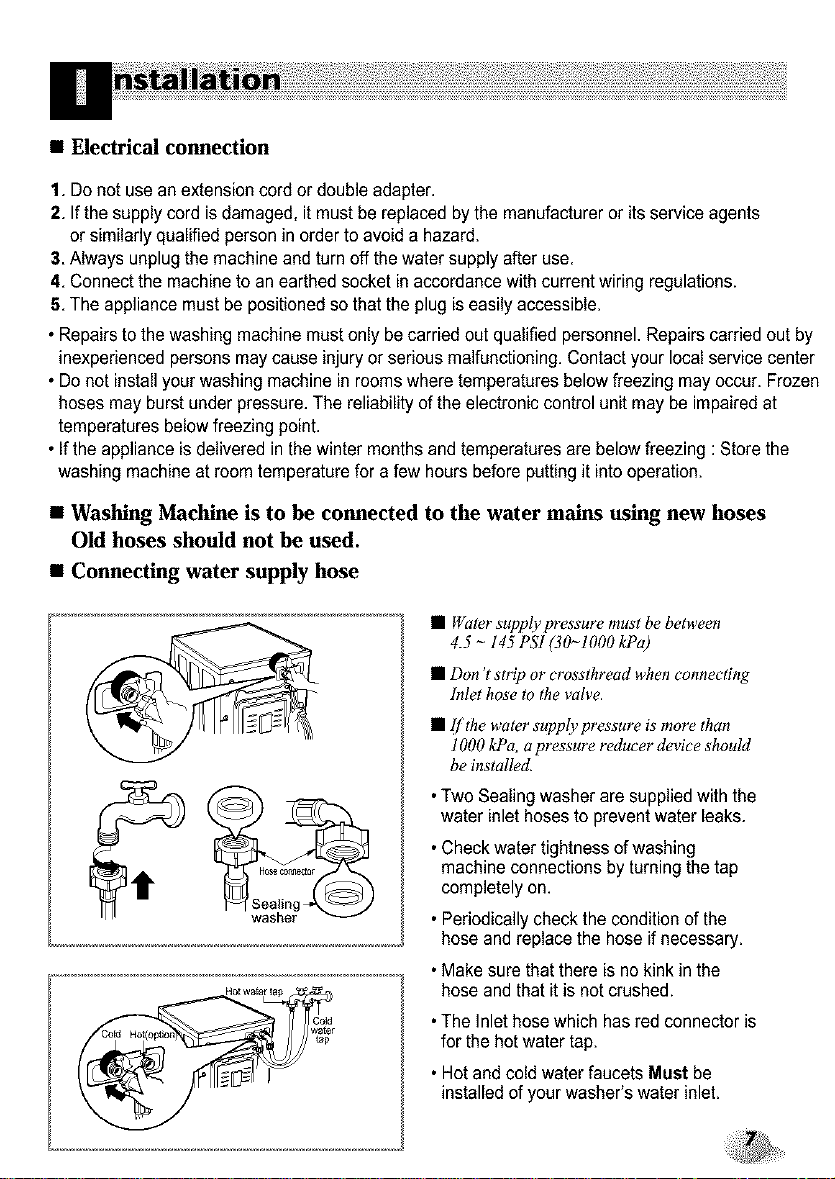

• Electrical connection
1. Donot usean extensioncordor doubleadapter.
2. If thesupplycordis damaged,it mustbe replacedbythe manufactureror its serviceagents
or similarlyqualifiedpersonin ordertoavoida hazard.
3.Alwaysunplugthemachineand turnoff thewatersupply afteruse.
4. Connectthemachinetoan earthedsocketin accordancewith currentwiring regulations.
5.The appliancemustbe positionedsothat theplug iseasilyaccessible.
• Repairstothewashingmachinemustonlybe carriedoutqualifiedpersonnel.Repairscarriedout by
inexperiencedpersonsmaycauseinjuryor seriousmalfunctioning.Contactyour localservicecenter
•Donot installyourwashingmachinein roomswheretemperaturesbelowfreezingmay occur.Frozen
hosesmay burstunderpressure.Thereliabilityofthe electroniccontrolunitmay be impairedat
temperaturesbelowfreezingpoint.
•If theapplianceisdeliveredin thewintermonthsandtemperaturesare belowfreezing :Storethe
washingmachineat roomtemperaturefor afew hoursbeforeputtingit intooperation.
• Washing Machine is to be connected to the water mains using new hoses
Old hoses should not be used.
• Connecting water supply hose
Hot wate_
Cold
4.5 ~ 145 PSI (30~1000 kPa)
• Don't strip or crossthread when connecting
inlet hose to the valve.
• 1/the water supplypressure is more than
1000 kPa, apressure reducer device should
be installed.
•TwoSealingwasherare suppliedwith the
water inlethosesto preventwater leaks,
•Checkwatertightnessofwashing
machineconnectionsby turningthetap
completelyon.
• Periodicallycheckthe conditionof the
hoseand replacethe hoseifnecessary.
• Makesurethatthere isno kinkin the
hoseand that itis notcrushed.
•The Inlethosewhichhasred connectoris
for thehotwater tap.
•Hotand coldwaterfaucetsMust be
installedofyourwasher'swaterinlet.

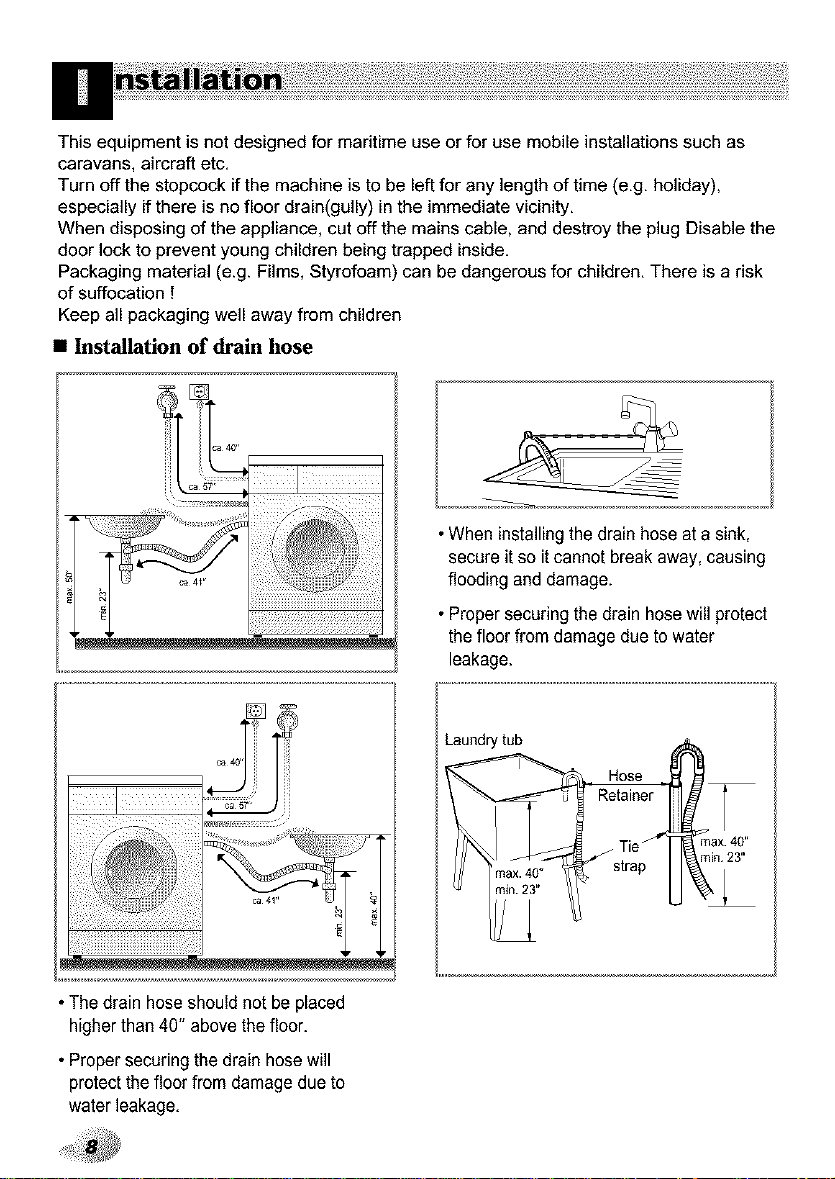

This equipment is not designed for maritime use or for use mobile installations such as
caravans, aircraft etc.
Turn off the stopcock if the machine is to be left for any length of time (e.g. holiday),
especially if there is no floor drain(gully) in the immediate vicinity.
When disposing of the appliance, cut off the mains cable, and destroy the plug Disable the
door lock to prevent young children being trapped inside.
Packaging material (e.g. Films, Styrofoam) can be dangerous for children. There is a risk
of suffocation !
Keep all packaging well away from children
• Installation of drain hose
• When installingthe drain hose at a sink,
secure it so it cannot break away, causing
flooding and damage.
• Proper securing the drain hose will protect
the floor from damage due to water
leakage.
Laundrytub
Retainer
Tie_'_ ,i_ianx.24,0"
•Thedrain hoseshouldnot beplaced
higherthan40" abovethe floor.
•Propersecuringthedrain hosewill
protectthefloorfromdamagedueto
waterleakage,

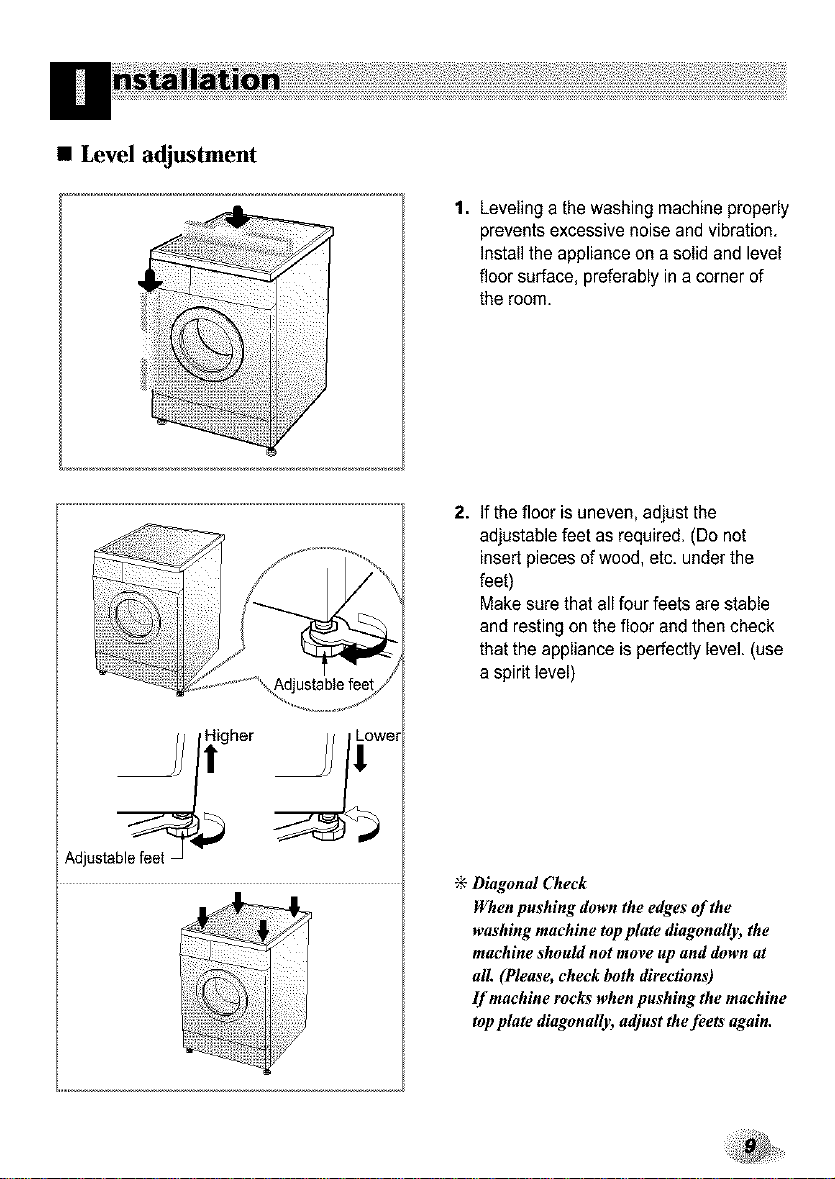

• Level adjustment
1. Levelinga thewashingmachineproperly
preventsexcessivenoiseandvibration.
Installthe applianceon asolid and level
floorsurface,preferablyin a cornerof
theroom.
2. If theflooris uneven,adjust the
adjustablefeet asrequired.(Do not
insertpiecesofwood, etc.underthe
feet)
Makesurethat allfourfeets arestable
and restingon thefloor andthencheck
thatthe applianceisperfectlylevel.(use
a spiritlevel)
-',_Diagonal Check
When pushing down the edges of the
washing machine top plate diagonally, the
machine should not move up and down at
all. (Please, check both directions)
If machine rocks when pushing the machine
top plate diagonally, adjust the feets again.

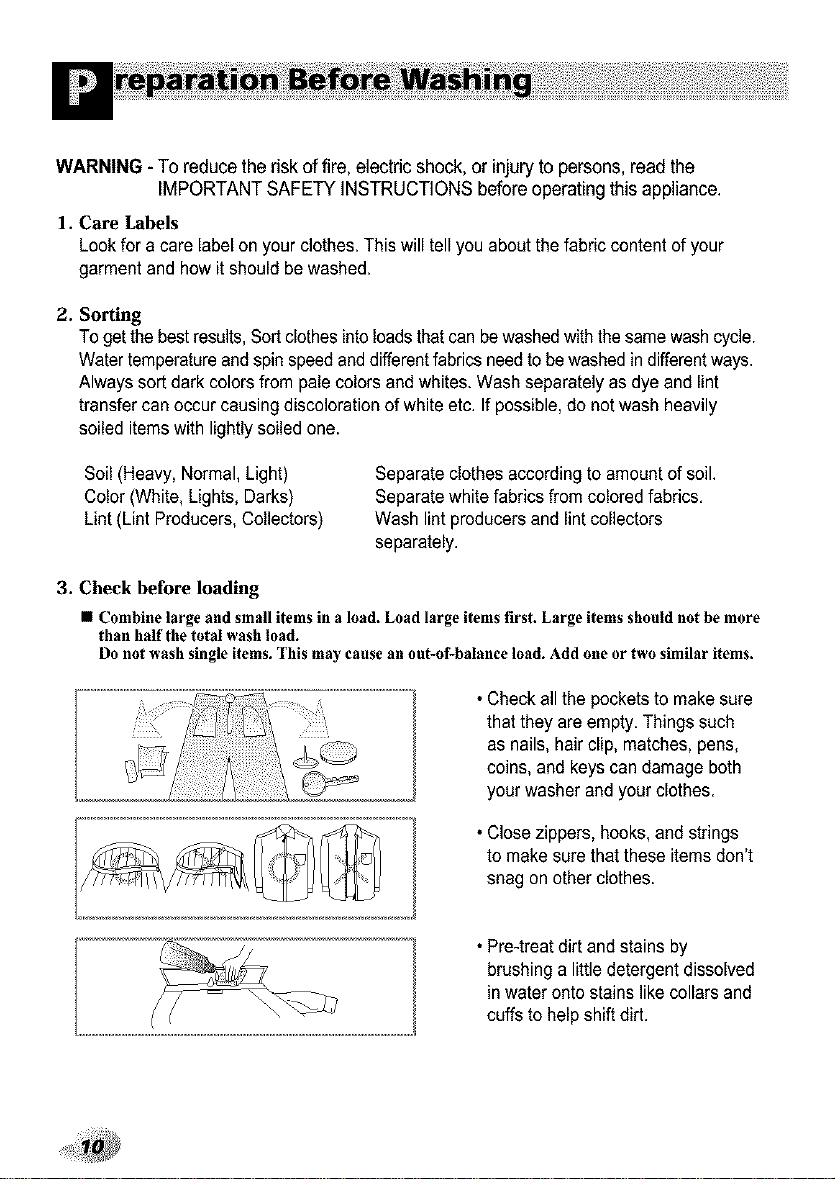

WARNING- To reducethe risk offire, electricshock, or injuryto persons,read the
IMPORTANTSAFETY INSTRUCTIONSbeforeoperatingthis appliance.
1. Care Labels
Lookfor acare labelon yourclothes.Thiswilltell youaboutthefabriccontentofyour
garmentand howitshouldbe washed.
2. Sorting
Togetthebestresults,Sortclothesintoloadsthatcanbewashedwiththesamewashcycle.
Watertemperatureandspinspeedanddifferentfabricsneedto bewashedin differentways.
Alwayssortdarkcolorsfrom palecolorsand whites.Washseparatelyas dyeand lint
transfercan occurcausingdiscolorationofwhite etc. If possible,do notwash heavily
soileditemswith lightlysoiledone.
Soil (Heavy,Normal,Light)
Color(White,Lights,Darks)
Lint(LintProducers,Collectors)
Separateclothesaccordingto amountofsoil.
Separatewhitefabricsfrom coloredfabrics.
Wash lintproducersand lintcollectors
separately.
3. Check before loading
• Combine large and small items in a load. Load large items first. Large items should not be more
than half the total wash load,
Do not wash single items, This may cause an out-of-balance load. Add one or two similar items.
• Checkall thepocketsto makesure
that they areempty.Thingssuch
asnails,hair clip, matches,pens,
coins,and keyscandamageboth
yourwasher andyourclothes.
• Closezippers,hooks,and strings
tomakesurethat theseitemsdon't
snagon otherclothes.
• Pre-treatdirtand stainsby
brushinga littledetergentdissolved
inwater ontostainslikecollarsand
cuffs tohelp shiftdirt.
• Adding detergent and fabric softener
1. The Dispenser Drawer
Detergent Fabric Uquid
for wash sotlener BIeadl
2. Adding Fabric Softener
• Donotexceedthe maximumfill line.
Overfillingcancauseearlydispensing
ofthefabric softenerwhichcouldstain
clothes.
•Donotleavethefabricsoftenerin the
detergentdrawerformorethan2 days.
(Fabricsoftenercouldharden)
•Softenerwill automaticallybe added
duringlast rinsecycle.
•Donotopen thedrawerwhenwater is
supplied.
•Solvents(benzene,etc.)are not
allowable.
3. The liquid bleach drawer.
• Donotopenthe detergentdrawerduring
waterfill cycle.
• Bleachwill bedispensedautomatically
after thedetergenthashad timetowork.
• Donotfill pastMAXindicator.
4. Detergent usage
• Thedetergent should be used according to the
instruction of the detergent mam4Jhcture.
•[[too muchdetergentis usedmorethan the
recommendedamount,toomanysudscan
occurandthis willdecreasethe washingresuh
or cause heavy loadto the motor,causing a
malfL1nclion.
• Use powder detergent onlyJbr the,[kont
loading washer.
• Detergentusagemay needto be adjusted
for watertemperature,water hardness,
size, andsoil levelof theload.For best
results,avoidoversudsing.
• Detergent is dispensed at the beginning of
the cycle.
Do not pour fabric softener
directly on the clothes
• Recommended courses according to the laundry type
Firstcheckif Wash EXTRARINSE
WASH laundryis machine 152/5 Ibs. - 97
SANITARY washable. HOT/COLD (7.0kg) EXTRAWASH
whitecotton, linen WaehlDry EXTRARINSE AUTO
WASH/ toweland 84/5 Ibs. EXTRAWASH(TIME) 286
DRY sheets...) (4.0kg) DRYONLY
Colorfast gaments WARM/COLD Wash EXTRARINSE
WASH Jeans,Tshirts, (WARM/WARM,152/5 Ibs. 82
Shorts,pajamas..,) HOT/COLD, (7.0kg) EXTRAWASH
COT[ON WASH/ whiteandlight_YcottonSOiledTAPCOLD/COLtWaehlDry EXTRARINSE AUTO 271
DRY COLD,COLD EXTRAWASH(T,ME)
DRYONLY
WASH Polyamide,Acrylic, Wash
PERM, Polyester WARM/COLD 84/5 Ibs. EXTRARINSE 77
(WARM/WARM, (4.0kg) EXTRAWASH
PRESS TAPCOLD/COLD EXTRARINSE AUTO
WASH/DRY COLD/COLD) - EXTRAWASHDRYONLY (TIME) 265
Ifyou wishto rinse Wash
WASH more,theExtra COLD/COLD 152/5 Ibs. EXTRARINSE 32
RINSE+ Rinsefunctionwill (WARM/COLD, (7.0kg)
removeany trace WARM/WARM,
SPiN WASH/ ofdetergents. TAPCOLD/COLEWashlDrY84/5Ibs. EXTRARINSE AUTO
DRY (4.0kg) DRYONLY (TIME) 221
Machinewashable COLD/COLD
WOOL/ woolenswith pure (WARM/COLD,42/5 Ibs. EXTRARINSE 56
SiLK WASH newwoolonly WARM/WARM, (2.0kg)
TAPCOLD/COLE
÷ EXTRA WASH : If the laundry is heavily soiled, "EXTRA WASH" course is recommended.
EXTRA WASH is available in COTTON, SANITARY and PERM. PRESS
Program.
•To start, press the POWER button.
•Press the START/PAUSE button.
•Initial condition
- Wash Main Wash Only
- Rinse 3times
- Spin 800rpm
- Temp. Warm/Cold(Wash/Rinse)
- Program Cotton
• Tostart, press the POWER button.
• Select the conditions which you want to
use, by pressing each button.
For selecting the correct _cle, please refer to
pages 14 ~ 20.
• Press the START/PAUSE button.
• The Beep On/Off function can be set by
pressing and holding the OPTION and
DRY button simultaneonly.
• The Beep On/Off function can be set at
anytime and it is automaticallycanceled
when powerfailure occur.
Alsothe Beep On/Off function works
when power isoff.
(1) (2) (3) (4) (5) (6) (7)
(1) BUTTON : OPTION (4) CHILD LOCK
(2) BUTTON : WATER TEMP. (5) BUTTON : TIME DELAY
(3) BUTTON : SPIN (6) BUTTON : DRY
(8) (9)
(7) BUTTON : START/PAUSE
(8) DIAL : PROGRAM
(9) BUTTON : POWER
OPTION
• By pressing the OPTION
button, the wash type can
be selected.
- EXTRA RINSE
- EXTRA WASH
- EXTRA RINSE +EXTRA WASH
- DR Y ONLY[WASH/DR Y]
• If the laundry is heavily soiled, "EXTRA
WASH" course is effective.
• EXTRA WASH is available in SANITARY,
COTTON and PERM. PRESS.
The required lamp will light upJbr
identification.
• This option can be used to add a rinse for
people with sensitive skin. Selecting the
EXTRA RINSE button is also
recommended when washing heavily
soiled fabrics which needs a lot of
detergent, or when thewash load
contains towelling fabrics that have a
greater tendency to retain detergent.
If lamp turns on, that function has been
selected.
• DRY ONLY option can be used when you
want to only drywithout any other
programs such as wash, spin, etc.
• Select anyof the programs SANITARY
COTTON, PERM. PRESS, RINSE+SPIN
in WASH/DRY and then DRY ONLY by
pressing the optionbutton.
• Press TEMP, to cycle through _
the temperature choices, w,_v_
• Select a water temperature w_oLo
based on the type of load you _
are washing. Use the warmest Tec_._u_
water safe for fabrics, Follow
garment label instructions. TEMe
• Warm dnses leave the loads
dryer than cold rinses, Warm
rinsesincrease wrinkling, In cold
climates, a warm rinsemakes the load mere
comfortable to handle. Cold rinses save energy.
• Warm rinses are regulated at approximately 75_F
(24_C), This is a cooler warm rinse than you are
used to, but it saves energy and gives proper
rinsing,The load is a comfortable temperature
remove from the washer,
• Water temperature can be selected as below
according to the program,
- SANITARY
HOT/COLD
- COTTON
WARM/COLD "i) WARM/WARM-)HOT/COLD -.)
TAP COLD/COLD-.) COLD/COLD
- PERM. PRESS
WARM/COLD-)WARM/WAR-)TAPCOLD/COLD-)COLD/COLD
- WOOL/SILK & RINSE+SPIN
COLD/COLD -') WARM/COLD --)
WARM/WARM-)TAP COLD/COLD
Selected temperature's lamp turns on,
Forthe moredetailedinformation,ple_e refer to thepage12.
TemperatureGuide
Wash Water Temperature SuggestedFabdc_
Hot Whitesanti pasteis
111_F (_ C) orabove Heavyanti greasy solts
Warm Brightcolors
90_-110_F (3Z- 43_C) Moderateto lightsolIs
Cold Colo_ thatbleed orfade
70_-90_F (21_-3Z C) Lightsoils
Inwash watertemperatures colderthan70" F (21' C),
detergentsdonot dissolveweU,Soils maybe difficultto
remove.
SPIN
• By pressing the SPIN button,
the spin rpm can be chosen,
-RINSE HOLD
- NO SPIN
- 400
- 800
-1000
-1400
• Spin rpm is available according to the program as
foltuws.
[Wash Programs]
- SANITARY & COTTON & RINSE+SPIN
800--)1000-.)1400-.)Rinse HOld-.)NoSpin.-.)400
- PERM. PRESS
800,--)1000-.)RinseHolri-YNo Spin,--)400
- WOOL/SILK
400,--)800.-.)1000.-.)RinseHold.-.)NoSpin
[Wash/Dry Programs]
- SANITARY & COTTON & RINSE+SPIN
1400-.)800-.)1000
- PERM. PRESS
1000-) 800
• If NO SPIN is selected, the washer stops
after draining water,
The required lamp will light up for
identification.
• [s selected by pressing the SPIN button
repeatedly this function leaves clothes in the
washer; suspended in the water after a rinse
without entedng into spin,
• To proceed through to a drain or spin,
once the rinse hold function is completed
using to program dial scroll to the required
program, (Spin or Pump)
The required lamp will light up for identOTcadon.
If youchooseto lockthe buttonson the
controlassemblyto preventtampering,this
functionmay beselected.
•ChildLockcanbesetbypressingandholdingthe
SPINbuttonandTIMEDELAYbutton
simultaneousl
SPIN T_MEDEALY
Whenchildlockisset,allbuttonsare inoperable.
•TodeactivateChildLocksystem,pressandhold
theSPINandTIMEDELAYbutton
simultaneouslyagain.
•Tochangetothedesiredprogram,whilstinchild
lockmode.
1.PressandholdbothSPINandTIMEDELAY
togetheronceagain,
Z.PresstheSTART/PAUSEbutton.
3.Selectthedesiredprogramandpressthe
START/PAUSEbuttonagain.
•Thechildlockcanbesetatanytimeanditis
automaticallycanceledwhenoperationalerrors
occur.AIsoChildLockworkswhenpowerisoff.
PreparingwashingbeJorestarting"Time
Delay"
- Turnon thewatertap.
- Loadlaundryand closethe door.
- Placethedetergentandfabric softenerin
thedrawer.
• Howtoset "TIME DELAY"
- PressPOWERbutton.
- TurnthePROGRAMdial toselect
the programyourequire.
- PressTIMEDELAYbuttonand set the
desiredtime.
- PresstheSTART/PAUSEbutton.
(":"blinks.)
• If TIMEDELAYbuttonis pressed,"3:00"is
displayed.The maximumdelayedtime is
19:00hoursand theminimumtime is3:00
hours.
• Eachpressingofthe buttonadvanceson
timedelaybyone hour.
• Tocancelthetimedelay,pressthe
POWERbutton.
• TIME DELAY is 'expected time' from the
present to the completion of washing cycle
or selected process (Wash, Rinse or Spin).
• According to the condition of water supply and
temperature, the delayed time and the actual
washing time may vary.
A,_O _y
t_E_Y
o_
• This washer-dryer's automatic
process from washing to drying
can be selected easily.
• For most even drying, make sure
all articles in the clothes load are
similar in material and thickness.
• Do not overload dryer by stuffing
too many articles into drum, Items
must be able to tumble freely.
• If you open door and remove load before dryer has
finished its cycle, remember to press the
START/PAUSE button.
• Use your Automatic Cycles to dry most loads.
Electronic sensors measure the temperature of
the exhaust to increase or decrease drying
temperatures for faster reaction time and tigher
temperature control,
• If a load is not as dry as you like, complete drying
using a time cycle.
• By pressing the DRY button, the drying time can he
selected.
• These drying times are given as a guide to help you
set your dryer for manual drying. Drying times can
vary greatly depending on dampness, room
temperature and type offabric and your own
experience will be your best guide,
• AUTO (NORMAL) Cotton 84/5Ibs.(4.0 kg)
• TIMEDRY From15rm.to150rnin.eslestable
15min,isaddedbypressingDRYbutton.
30 rain. Cotton 21/5Ibs,(1.0kg)
60 rain. Cotton43/7Ibs,(2.0kg)
150min, Co,on 65/8Ibs,(3.0kg)
The Estimated drying time varies
from the actual drying time with an
Automatic. The type of fabric, size
of the load, and the dryness
selected affect drying time.
•Yourdryercanhandlea loadofup to
84/5Ibs.(4kg) dryweightofarticles.
•Whenloading,shakeouteach handfulof
clothessothat they cantumblefreely.
Itemsshouldnotbe loadedin a tangled
condition,asthiswill lengthenthedryingtime.
WoolenArticles
- Donottumbledrywoolenarticles.Pullthem
to theiroriginalshape,and drythemflat.
Wovenand LoopknitMaterials
- Somewoven andIoopknitmaterialsmay
shrink,byvarying amounts,dependingon
their quality.
- Alwaysstretchthem outimmediatelyafter
drying.
PermanentPressandSynthetics
- Donotoverloadyour dryer
- Take outpermanentpressarticlesan soonas
the dryerstopsto reducewrinkles.
Fiber or Leather Materials
- Alwayscheckthemanufacture'sinstructions.
Baby Clothes and Night Gowns
- Alwayscheckthemanufacture'sinstructions.
Rubber and Plastics
- Donotdry anyitemsmadefrom or containing
rubberor plastics,such as:
a)aprons, bibs,chaircovers
b)curtainsandtablecloths
c) bathmats
Fiberglass
- Donotdryfiberglassarticlesin yourdryer.
Glassparticlesleft in thedryercouldbe picked
up byyourclothesthe nexttime youusethe
dryerand irritateyourskin.
• 9 programs are available according to
the laundry type
• Lamp will light up to indicate selected
program
• When START/PAUSE button is pressed,
the Cotton program is automatically
selected
- By turning the Program dial, the program
is selected in order of "COTTON-->
PERM PRESS->WOOL/SILK->
RINSE+SPIN->÷RINSE+SPIN->
÷PERM PRESS->÷COTTON->
÷SAN ITARY->SANITARY"
[ ÷:WASH/DRY]
Regarding to the laundry type for eaeh
program Please refer W the page12.
START/PAUSE
• This START/PAUSE button is used to
start wash cycle or pause the wash cycle
• If temporary stop of wash cycle is
needed, press the START/PAUSE
button
• When in Pause, the power is turned off
automatically after 4 minutes
• NB. The door will not open before 1 to 2
minutes when Pause is selected,
or at the end of the wash cycle
• Press the Power button to turn power on
and off
• To cancel the TIME DELAY function, the
Power button should be pressed
[WASH] IWASH/DR Y]
-RINSE+SPIN -RINSE+SPIN
-WOOUSILK -PERM. PRESS
-PERM. PRESS -COITON
-COTTON -SANITARY
-SANITARY
• When the Power button is pressed, the
washer is ready for Cotton program
• If you want to advance into the washing
cycle without changing the program, just
press START/PAUSE button and then
the washer will proceed
lnitial program
- Cotton Program, Main wash,
Normal Rinse, 800rpm, Warm/Cold
• When washing cycle is completed,
"End "is displayedonthe "Multi
display'.
•When child lock is selected, the
,,r _ ,,is displayed.
t.t.
•When time delay is selected, itshows
the remainingtimes to finish the selected
program.
• If the washer encounters a fault during
operation, the associated fault will be
displayed.
"PE": Water pressure sensing error
"FE" :Problem ofoverfillingwater
"dE" : Dooris not closed
"LE ": Over load in motor.
"rE ": Over load in motor.
",'E":Water inlettrouble
"OE": Drainage trouble
"UE" : Unbalanced load
"/_E ": water temperaturetrouble
"dHE ": Dry heateror thermostat
trouble
If these error lettersare displayed,please
refer to the troubleshootingpage26 and
follow theguide.
• Duringwashing cycle, the remaining
washing time is displayed.
• Recommended program by
manufacturer.
[WASH]
-SANITARY:Approx.1 hourand37minutes
-COTTON:Approx.1hourand22minutes
-PERM.PRESS:Approx.1hourand
17minutes
-WOOL/SILK:Approx.56minutes
-RINSE+SPIN:Approx.32minutes
[WASH/DRY]
-SANITARY:Approx.4 hoursand46minutes
-COTTON:Approx.4hoursand31minutes
-PERM.PRESS:Approx.4 hoursand
25minutes
-RINSE+SPIN:Approx.3 hoursand
41minutes
• The washing time may vary bythe
amount of laundry,water pressure,
water temperature and other washing
conditions.
• If an unbalanced load is detected or if
the suds removing program operates,
thewash time maybe extended.
(Max. increasing time is45minutes.)

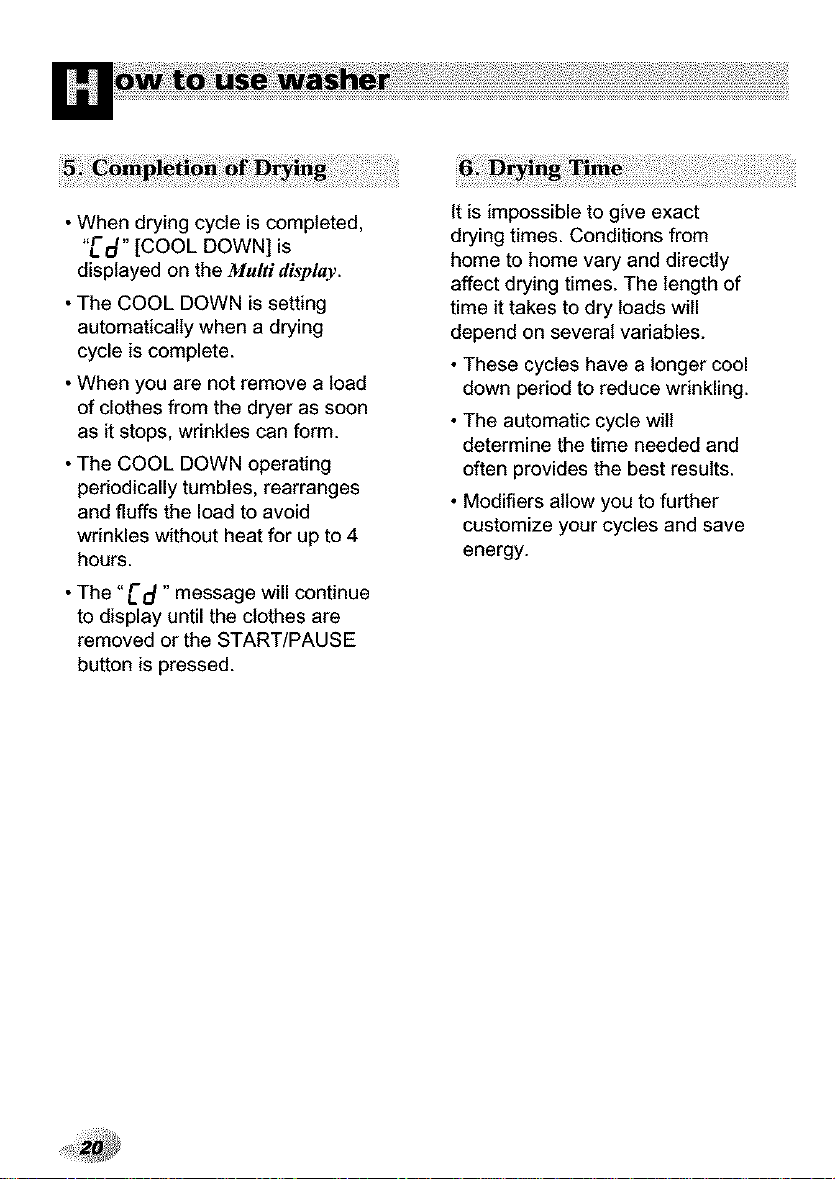

•Whendryingcycleiscompleted,
"Cd"[COOLDOWN]is
displayedontheMulti display.
• The COOL DOWN is setting
automatically when a drying
cycle is complete.
• When you are not remove a load
of clothes from the dryer as soon
as it stops, wrinkles can form.
• The COOL DOWN operating
periodically tumbles, rearranges
and fluffs the load to avoid
wrinkles without heat for up to 4
hours.
• The "Cd " message will continue
to display until the clothes are
removed or the START/PAUSE
button is pressed.
It is impossible to give exact
drying times. Conditions from
home to home vary and directly
affect drying times. The length of
time it takes to dry loads will
depend on several variables.
• These cycles have a longer cool
down period to reduce wrinkling.
• The automatic cycle will
determine the time needed and
often provides the best results.
• Modifiers allow you to further
customize your cycles and save
energy.

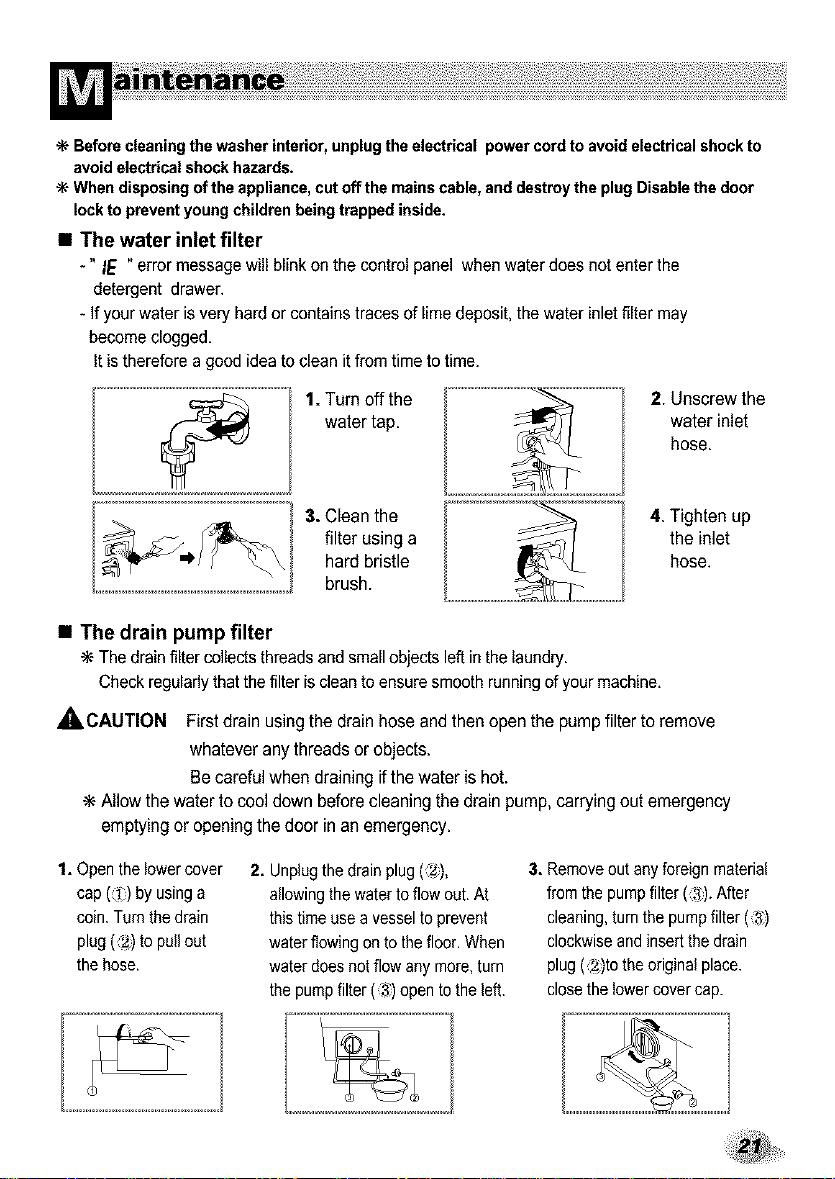

-_ Beforecleaningthe washerinterior,unplugthe electrical powercordto avoidelectricalshockto
avoidelectricalshockhazards.
÷ Whendisposingofthe appliance,cut offthe mainscable,anddestroytheplugDisablethedoor
lockto preventyoungchildrenbeingtrappedinside.
• The water inlet filter
-"/E "error message will blink on the control panel when water does not enterthe
detergent drawer.
- Ifyour water isvery hard or contains traces of lime deposit, the water inlet filter may
become clogged.
Itis therefore a good idea to clean it from time to time.
1.Turnoff the
watertap.
3. Cleanthe
filter usinga
hardbristle
brush.
2. Unscrewthe
water inlet
hose.
4. Tightenup
theinlet
hose.
• The drain pump filter
-.'.teThedrainfiltercollectsthreadsandsmallobjectsleftinthelaundry.
Checkregularlythatthefilteriscleantoensuresmoothrunningofyourmachine.
_,CAUTION Firstdrainusingthedrainhoseandthenopenthe pumpfilterto remove
whateveranythreadsorobjects.
Becarefulwhendrainingifthewaterishot.
÷ Allowthewatertocooldownbeforecleaningthedrainpump,carryingoutemergency
emptyingoropeningthedoor inan emergency.
1. Openthe lowercover
cap (_:) byusinga
coin.Turnthe drain
plug (_) topullout
the hose.
2. Unplugthedrain plug(_4),
allowingthe watertoflow out. At
thistime use avesseltoprevent
waterflowingon tothe floor.When
waterdoesnotflow anymore,turn
thepumpfilter (_) opentotheleft.
3. Removeout anyforeignmaterial
from thepumpfilter (Z_.).After
cleaning,turnthe pumpfilter (13)
clockwiseandinsertthe drain
plug (2.)tothe originalplace.
closethe lowercovercap.

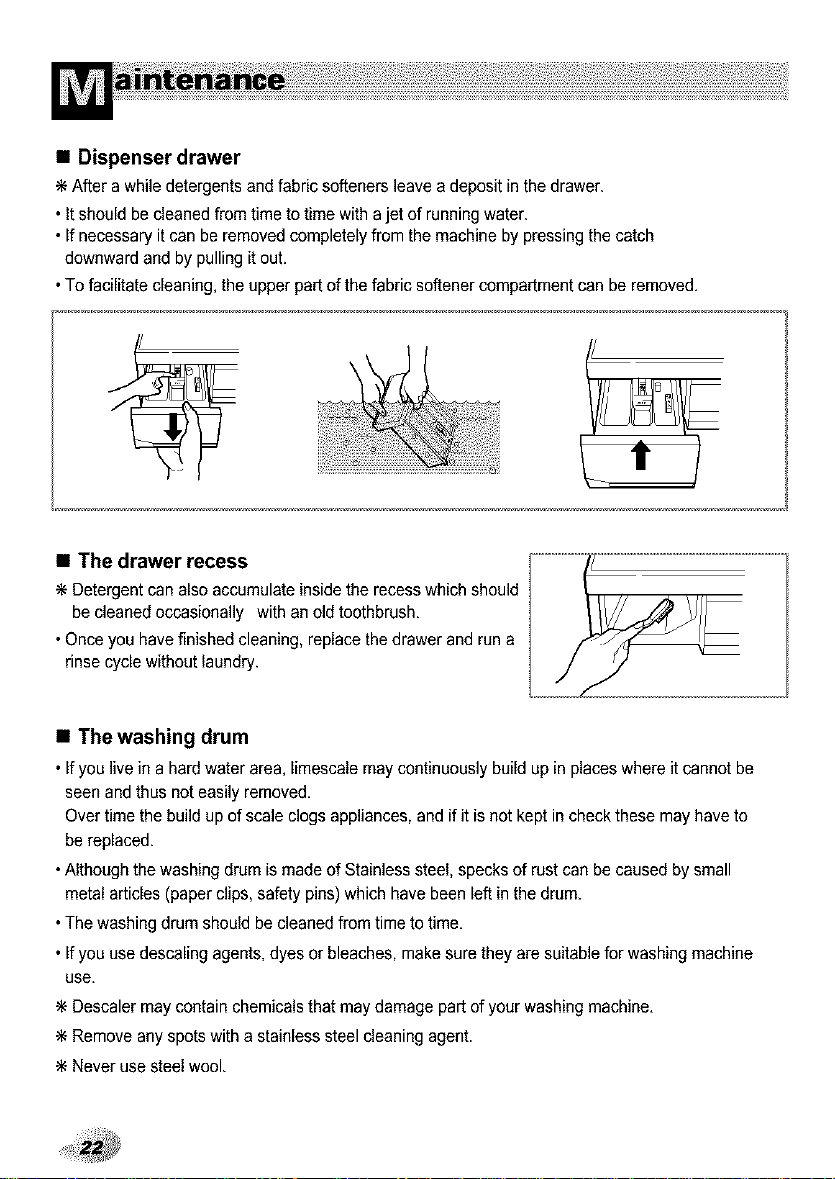

• Dispenser drawer
After a while detergents and fabric softeners leave a deposit in the drawer.
• Itshould be cleaned from time to time with ajet of running water.
• Ifnecessary it can be removed completely from the machine by pressing the catch
downward and by pulling it out.
• To facilitate cleaning, the upper part of the fabric softener compartment can be removed.
• The drawer recess
Detergent can also accumulate insidethe recesswhich should
be cleaned occasionally with an old toothbrush.
• Once you havefinished cleaning, replace the drawer and run a
rinse cycle without laundry.
• The washing drum
• Ifyou live in a hard water area, limescale may continuously build up in places where it cannot be
seen and thus not easily removed.
Over time the build up of scale clogs appliances, and if it is not kept in check these may have to
be replaced.
• Although the washing drum is made of Stainless steel, specks of rust can be caused by small
metal articles (paper clips, safety pins) which have been left in the drum.
• The washing drum should be cleaned from time to time.
• Ifyou use descaling agents, dyes or bleaches, makesure they are suitable for washing machine
use.
Descaler may contain chemicals that may damage part of your washing machine.
Remove any spots with a stainless steel cleaning agent.
Never use steel wool.

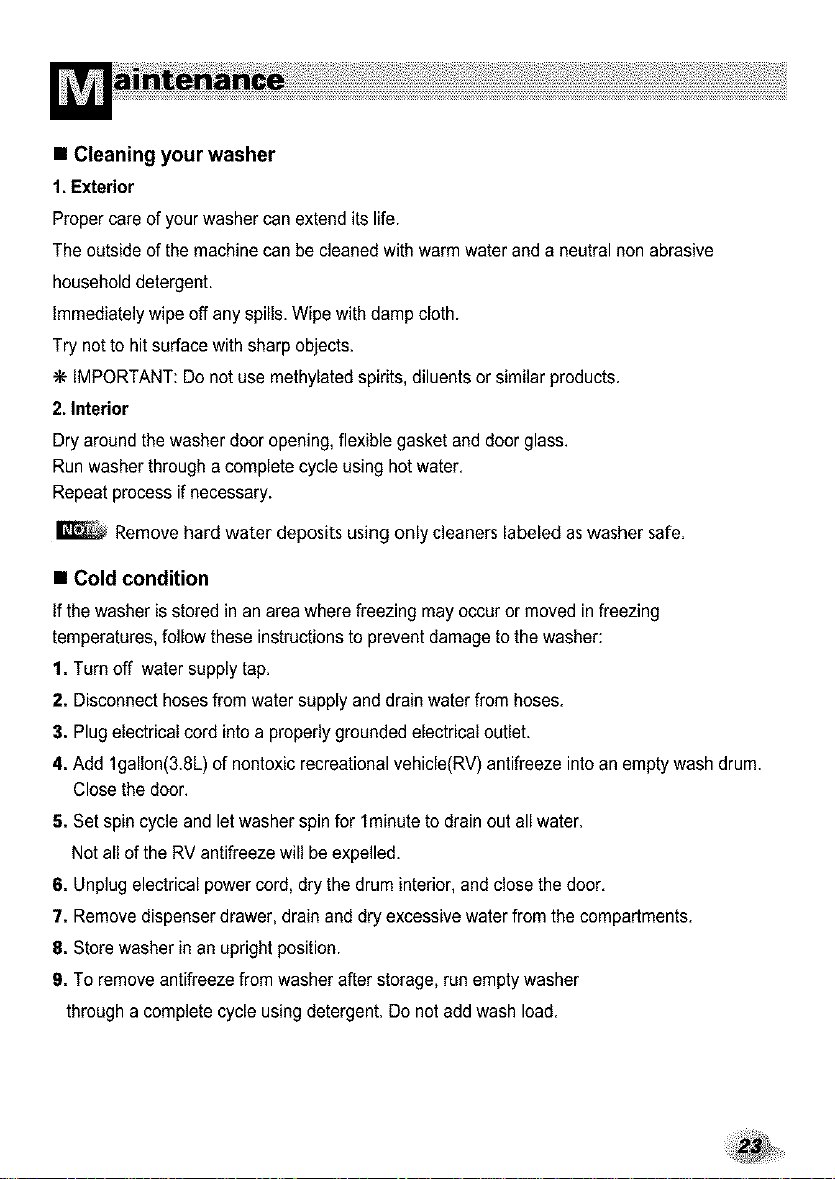

• Cleaning your washer
1.Exterior
Propercareofyourwashercanextend its life.
Theoutsideofthe machinecanbe cleanedwith warmwater anda neutralnonabrasive
householddetergent.
Immediatelywipeoff anyspills.Wipewithdampcloth.
Try notto hitsurfacewith sharpobjects.
÷ IMPORTANT:Do notusemethylatedspirits,diluentsor similarproducts.
2.Interior
Dry aroundthewasher dooropening,flexiblegasketand doorglass.
Runwasherthrougha completecycleusinghotwater.
Repeatprocessif necessary.
Removehard water depositsusing only cleaners labeled aswasher safe.
• Cold condition
If thewasherisstoredin an areawherefreezingmayoccuror moved infreezing
temperatures,followthese instructionsto preventdamagetothewasher:
1. Turnoff water supplytap.
2. Disconnecthosesfrom watersupplyanddrain waterfrom hoses.
3. Plugelectricalcordintoa properlygroundedelectricaloutlet.
4. Add lgallon(3.8L) of nontoxicrecreationalvehicle(RV)antifreezeintoan emptywash drum.
Closethe door.
5. Setspincycleand letwasherspinfor 1minuteto drainout allwater.
Notall ofthe RVantifreezewillbe expelled.
6. Unplugelectricalpowercord, drythedruminterior,andclose thedoor.
7. Removedispenserdrawer,drainand dryexcessivewater fromthe compartments.
8. Storewasherinan uprightposition.
9. To removeantifreezefromwasher afterstorage,runemptywasher
througha completecycleusingdetergent.Do notaddwash load.
÷ Thiswashingmachineisequippedwith automaticsafetyfunctions whichdetectanddiagnosefaults
atanearlystageandreactappropriately.
Whenthe machinedoesnotfunction properlyor doesnotfunctionat all,checkthe followingpoints
beforeyoucontactyour serviceprovider.
Rattling and
clanking noise
Thumping sound
Vibrating noise
Waterleaks.
Oversudsing
Water does not enter
washer or itenters
slowly
Water in the washer
does not drain or
drains slowly.
• Foreign objects such as coins or
safety pinsmaybe in drum or
pump.
• Heavywash loads may produce
a thumping sound. This is usually
normal
• Have all the transit bolts and
packing been removed?
• Are all the feet resting firmly on
the ground?
• Fill hoses or drain hose are loose
at tap or washer.
• House drain pipes are clogged.
• Water supply is not adequate in
area.
• Water supply tap is not
completely open.
• Water inlethose(s) are kinked.
• The filter of the inlet hose(s) are
clogged.
• Drain hose is kinked or clogged.
• The drain filter is clogged.
Stopwasher and check drum
anddrain filter.
Ifnoise continues after washer
is restarted, call your authorized
service centre.
Ifsound continues,washer is
probably out of balance. Stop and
redistribute wash load.
Ifnot removed during
installation, refer to Installation guide
forremoving transit bolts.
Wash load may be unevenly
distributed
in drum. Stop washer and
rearrange wash load.
Check and tighten hose connections.
Unclog drain pipe. Contact plumber
if necessary.
Too much detergent or unsuitable
detergent may causeexcessive
foaming which may result inwater
leaks.
Check another tap in the house.
Fully open tap.
Straighten hose(s),
Check the filter of the inlet hose(s).
Clean and straighten the drain hose.
Clean the drain filter.
Washerdoesnotstart
Washerwon'tspin
Doordoesnotopen
Washcycletime
delayed
Dryproblem
•Electricalpowercordmaynot
bepluggedinorconnection
maybeloose.
•Housefuseblown,circuit
breakertripped,orapower
outagehasoccurred.
•Watersupplytapisnotturned
on.
÷ Check that the door isfirmly
shut
• Does not dry
Makesureplugfitstightly in wall
outlet.
Resetcircuit breakeror replacefuse
Do not increasefusecapacity
Ifproblemis a circuitoverload,have
it correctedby aqualifiedelectrician
Turnon watersupplytap
Closethe doorand pressthe
Start/Pausebutton After pressing
the Start/Pausebutton,it maytake
a fewmomentsbeforethe clothes
washerbeginstospin The door
mustlock beforespin canbe
achieved
Once started,the door cannot be
openedforsafety reasons
Wait oneor twominutesbefore
openingthedoor togivethe electric
lockingmechanismtime to release
The washingtimemay vary bythe
amountoflaundry, water
pressure,watertemperatureand
other usingconditions
Ifthe imbalanceisdetectedor ifthe
suds removingprogramworks,the
washtime shall be increased
Do not overload
Checkthatthewasheris draining
properlytoextract adequatewater
from thload
Clothesload istoo smallto tumble
properly Add afewtowels
• Water supply is not adequate in area Check another tap in the house,
• Water supply taps are not completely Fully opentap.
open,
• Water inlet hose(s) are kinked, Straighten hose(s),
• The filter of the inlet hose(s) are Check the filter of the inlet hose(s),
clogged.
• Drain hose is kinked or clogged, Clean and straighten the drain hose,
• The drain filter is clogged. Clean the drain filter,
• Load is too small,
• Load is out of balance.
• The appliance has an unbalance
detection and correction system. If
individual heavy articlos are loaded
(ex. bath mat, both robe, arc,), this
system may stop spinning or even
interrupt the spin cycle altogether,
• If the laundry isstill too wet at the end
of the cycle, add smaller articles of
laundry to balance the load and repeat
the spin cycle.
Add 1or 2 similar items to help
balance the load.
Rearrange load to allow proper
spinning
Close the door.
• Is the door ÷ If "alE"is not released, call for service,
opened?
Unplug the power plug and call for
service,
• Water overfills due to the faulty water
valve,
• Water level sensor has malfunctioned.
• Over load in motor.
• Over load in motor.
• Checkwatersupply.
Close the water tap,
Unplug the power plug.
Call for service,
Turn the tap on.
If'dHE" is not released, unplug
power plug and call for service.
O LG Electronics Inc.
P/No.: 3828ER3021A
