Contents

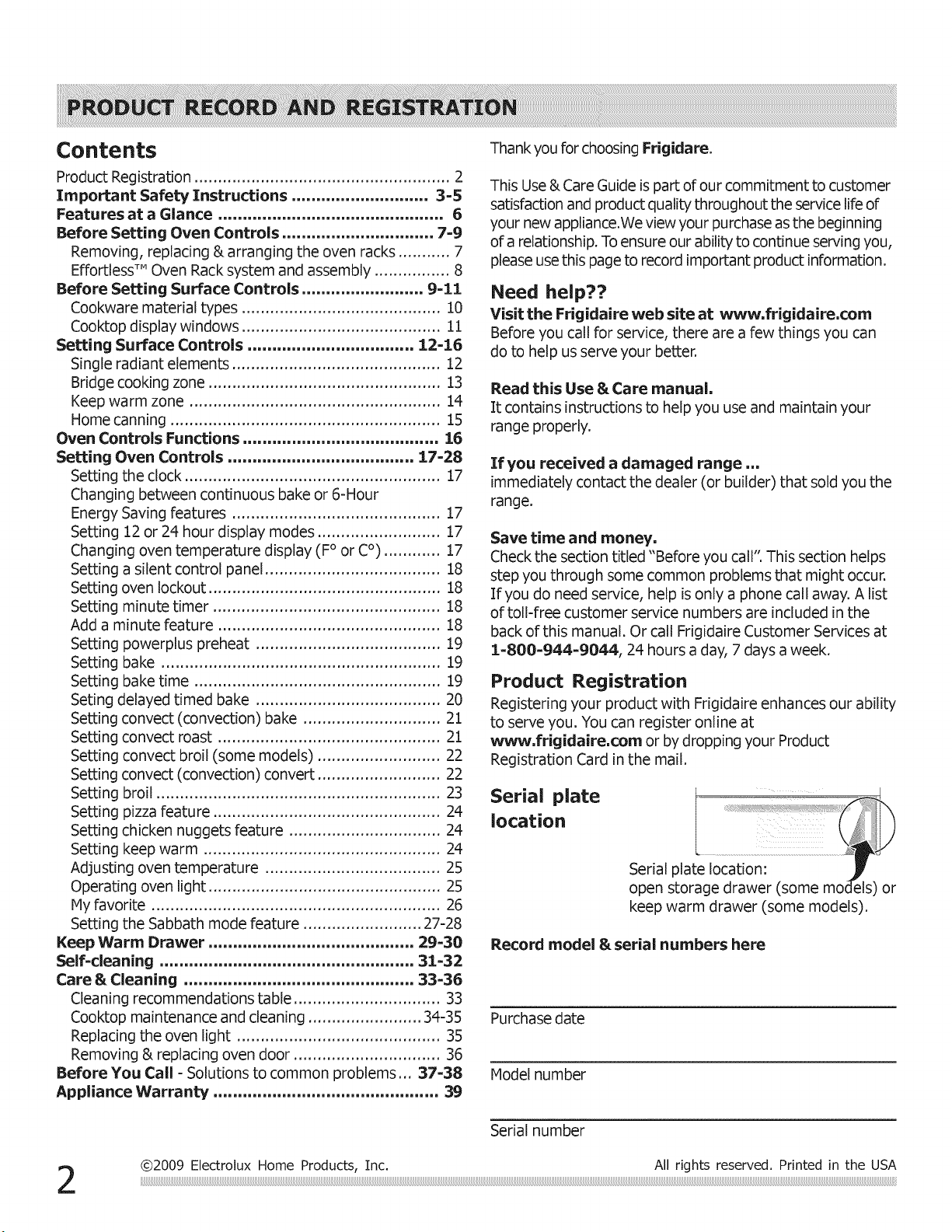

Product Registration ...................................................... 2
Important Safety Instructions ............................ 3=5
Features at a Glance .............................................. 6
Before Setting Oven Controls ............................... 7=9
Removing, replacing & arranging the oven racks ........... 7
Effortless T" Oven Rack system and assembly ................ 8
Before Setting Surface Controls ......................... 9-11
Cookware material types .......................................... 10
Cooktop display windows .......................................... 11
Setting Surface Controls .................................. 12-16
Single radiant elements ............................................ 12
Bridge cooking zone ................................................. 13
Keep warm zone ..................................................... 14
Home canning ......................................................... 15
Oven Controls Functions ........................................ 16
Setting Oven Controls ...................................... 17=28
Setting the clock...................................................... 17
Changing between continuous bake or 6-Hour
Energy Saving features ............................................ 17
Setting 12 or 24 hour display modes .......................... 17
Changing oven temperature display (F° or C°) ............ 17
Setting a silent control panel ..................................... 18
Setting oven lockout ................................................. 18
Setting minute timer ................................................ 18
Add a minute feature ............................................... 18
Setting powerplus preheat ....................................... 19
Setting bake ........................................................... 19
Setting bake time .................................................... 19
Seting delayed timed bake ....................................... 20
Setting convect (convection) bake ............................. 21
Setting convect roast ............................................... 21
Setting convect broil (some models) .......................... 22
Setting convect (convection) convert .......................... 22
Setting broil ............................................................ 23
Setting pizza feature ................................................ 24
Setting chicken nuggets feature ................................ 24
Setting keep warm .................................................. 24
Adjusting oven temperature ..................................... 25
Operating oven light ................................................. 25
My favorite ............................................................. 26
Setting the Sabbath mode feature ......................... 27-28
Keep Warm Drawer .......................................... 29-30
Self-cleaning .................................................... 31-32
Care & Cleaning ............................................... 33-36
Cleaning recommendations table ............................... 33
Cooktop maintenance and cleaning ........................ 34-35
Replacing the oven light ........................................... 35
Removing & replacing oven door ............................... 36
Before You Call - Solutions to common problems... 37=38
Appliance Warranty .............................................. 39
Thank you for choosing Frigidare.
This Use & Care Guide is part of our commitment to customer
satisfaction and product quality throughout the service life of
your new appliance.We view your purchase as the beginning
of a relationship. To ensure our ability to continue serving you,
please use this page to record important product information.
Need help??
Visit the Frigidaire web site at www.frigidaire.com
Before you call for service, there are a few things you can
do to help us serve your better.
Read this Use & Care manual,
:It contains instructions to help you use and maintain your
range properly.
If you received a damaged range ...
immediately contact the dealer (or builder) that sold you the
range.
Save time and money.
Check the section titled "Before you call". This section helps
step you through some common problems that might occur.
If you do need service, help is only a phone call away. A list
of toll-free customer service numbers are included inthe
back of this manual. Or call Frigidaire Customer Services at
1=800=944=9044, 24 hours a day, 7 days a week.
Product Registration
Registering your product with Frigidaire enhances our ability
to serve you. You can register online at
www.frigidaire.com or by dropping your Product
Registration Card in the mail.
Serial plate
location
keep warm drawer (some models).
Record model & serial numbers here
Purchase date
Model number
Serial number
©2009 Electrolux Home Products, Inc. All rights reserved. Printed in the USA

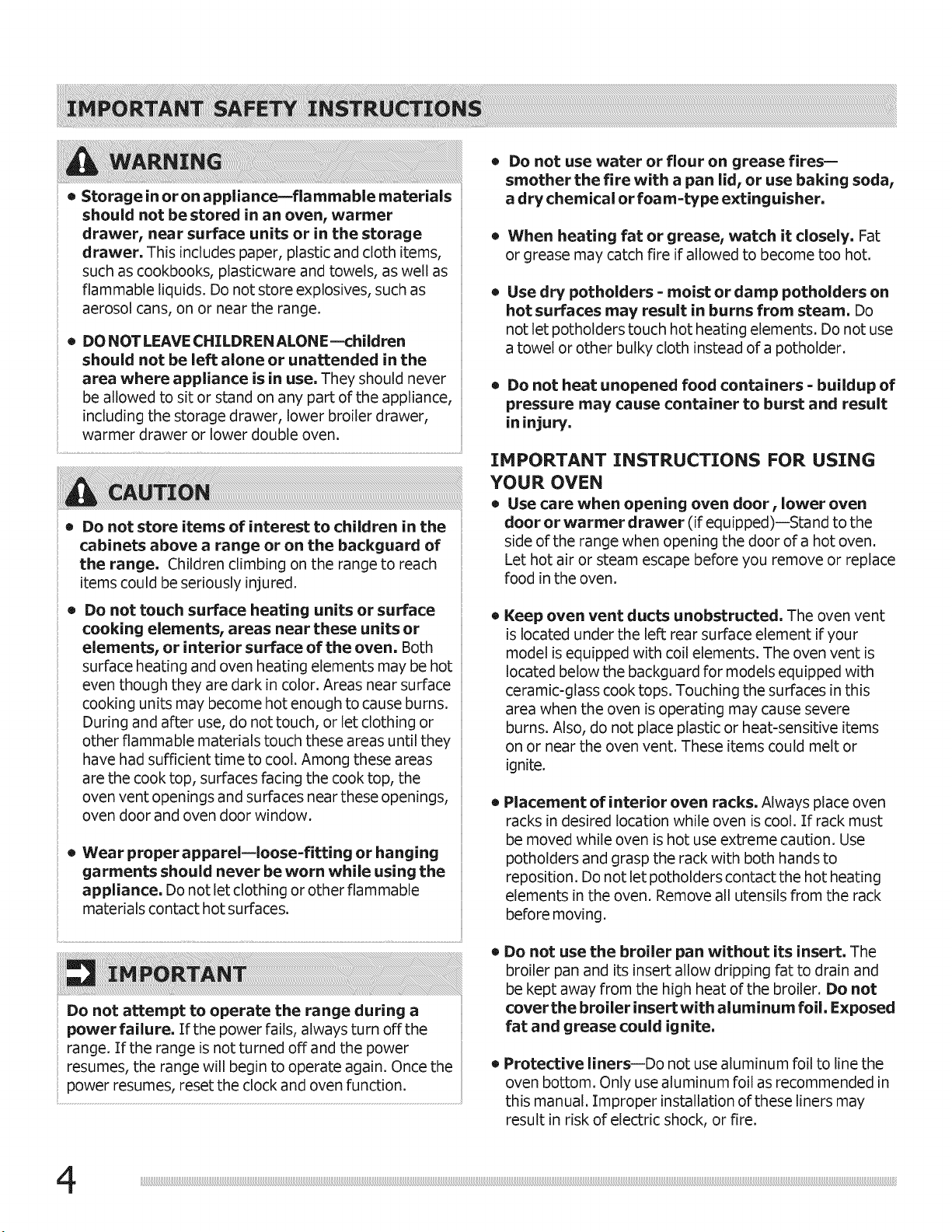

Read all instructions before using this appliance,
Do not attempt to install or operate your appliance until you
have read the safety precautions in this manual. Safety
items throughout this manual are labeled with a WARNING
or CAUTION statement based on the risk type.
Definitions
_:_ This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
[;
WARNING indicates a potentially hazardous
situation which, if not avoided, may result in death
or serious injury.
[;
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
IMPORTANT indicates installation, operation,
maintenance or valuable information that is not hazard
related.
Important Safety Instructions
• Remove all tape and packaging before using the
range, Destroy the carton and plastic bags after
unpacking the range. Never allow children to play with
packaging material.
= Proper installation--Be sure your appliance is
properly installed and grounded bya qualified
technician in accordance with the National Electrical
Code ANSI/N FPA No. 70 latest edition and local
electrical code requirements. Install only per
installation instructions provided in the literature package
for this range.
• User servicing--Do not repair or replace any part
of the appliance unless specifically recommended in
the manuals. All other servicing should be done only by a
qualified technician. This may reduce the risk of personal
injury and damage to the range.
Ask your dealer to recommend a qualified technician and
an authorized repair service. Know how to disconnect the
power to the range at the circuit breaker or fuse box in
case of an emergency.
= All ranges can tip.
= Injuryto persons could result.
= Install anti=tipdevice packed
with range.
= See Installation Instructions.
To reduce the risk of tipping, the
range must be secured by properely
installed anti-tip bracket provided with
the range. To check if the bracket is
installed properly, visually checkthat
rear leveling leg is inserted into and
fully secured by the anti-tip bracket by
removing lower front panel or storage
drawer from the range.
For models equipped with a warmer drawer or lower
oven, grasp the top rear edge of the range and carefully
attempt to tilt it forward. Refer to the installation
instructions for proper anti- tip bracket installation.
=Never modify or alter the construction of a range
by removing the leveling legs, panels, wire covers,
anti=tip brackets/screws, or any other part of the
range.
= Remove the oven door from any unused range if it
is to be stored or discarded.
Stepping, leaning or sitting on the door or
drawers of a range can result in serious injuries
and also cause damage to the appliance. DO NOT
allow children to climb or play around the range. The
weight of a child on an open oven door may cause the
range to tip, resulting in serious burns or other injury.
Never use your appliance for warming or heating
the room.
Do not use the oven, warmer drawer or lower
oven (if equipped) for storage.
3
= Storage in or on appliance--flammable materials
should not be stored in an oven, warmer
drawer, near surface units or in the storage
drawer, This includes paper, plastic and cloth items,
such as cookbooks, plasticware and towels, as well as
flammable liquids. Do not store explosives, such as
aerosol cans, on or near the range.
• DO NOT LEAVE CHILDREN ALONE--children
should not be left alone or unattended in the
area where appliance is in use. They should never
be allowed to sit or stand on any part of the appliance,
including the storage drawer, lower broiler drawer,
warmer drawer or lower double oven.
= Do not store items of interest to children in the
cabinets above a range or on the backguard of
the range. Children climbing on the range to reach
items could be seriously injured.
= Do not touch surface heating units or surface
ii
cooking elements, areas near these units or
elements, or interior surface of the oven. Both
surface heating and oven heating elements may be hot
even though they are dark in color. Areas near surface
cooking units may become hot enough to cause burns.
ii
During and after use, do not touch, or let clothing or
ii
other flammable materials touch these areas until they
have had sufficient time to cool. Among these areas
are the cook top, surfaces facing the cook top, the
oven vent openings and surfaces near these openings,
oven door and oven door window.
ii
ii
• Wear proper apparel=loose=fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable
materials contact hot surfaces.
Do not attempt to operate the range during a
power failure. If the power fails, always turn offthe
range. If the range is not turned off and the power
resumes, the range will begin to operate again. Once the
power resumes, reset the clock and oven function.
= Do not use water or flour on grease fires=
smother the fire with a pan lid, or use baking soda,
a dry chemical or foam=type extinguisher.
= When heating fat or grease, watch it closely. Fat
or grease may catch fire if allowed to become too hot.
Use dry potholders = moist or damp potholders on
hot surfaces may result in burns from steam. Do
not let potholders touch hot heating elements. Do not use
a towel or other bulky cloth instead of a potholder.
= Do not heat unopened food containers = buildup of
pressure may cause container to burst and result
in injury.
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
• Use care when opening oven door, lower oven
door or warmer drawer (if equipped)--Sta nd to the
side of the range when opening the door of a hot oven.
Let hot air or steam escape before you remove or replace
food in the oven.
Keep oven vent ducts unobstructed. The oven vent
is located under the left rear surface element if your
model is equipped with coil elements. The oven vent is
located below the backguard for models equipped with
ceramic-glass cook tops. Touching the surfaces in this
area when the oven is operating may cause severe
burns. Also, do not place plastic or heat-sensitive items
on or near the oven vent. These items could melt or
ignite.
Placement of interior oven racks. Always place oven
racks in desired location while oven is cool. If rack must
be moved while oven is hot use extreme caution. Use
potholders and grasp the rack with both hands to
reposition. Do not let potholders contact the hot heating
elements in the oven. Remove all utensils from the rack
before moving.
Do not use the broiler pan without its insert. The
broiler pan and its insert allow dripping fat to drain and
be kept away from the high heat of the broiler. Do not
cover the broiler insert with aluminum foil. Exposed
fat and grease could ignite.
Protective liners--Do not use aluminum foil to line the
oven bottom. Only use aluminum foil as recommended in
this manual. Improper installation of these liners may
result in risk of electric shock, or fire.
SELF-CLEANING OVENS
• Clean in the self=cleaning cycle only the parts
listed in this Use &Care Manual. Before self-cleaning
the oven, remove the broiler pan and any utensils or
foods from the oven.
• Do Not Use Oven Cleaners--No commercial oven
cleaner or oven liner protective coating of any kind should
be used in or around any part of the oven.
• Do Not Clean Door Gasket--The door gasket is
essential for a good seal. Care should be taken not to
rub, damage or move the gasket.
• The health of some birds is extremely sensitive to the
fumes given offduring the self-cleaning cycle of any
range. Move birds to another well-ventilated room.
IivIPORTANTINSTRUCTIONS FOR CLEANING
YOUR RANGE
• Clean the range regularly to keep all parts free of
grease that could catch fire, Pay particular attention
to the area around each surface element. Do not allow
grease to accumulate.
• Kitchen cleaners and aerosolsmAIways follow the
manufacturer's recommended directions for use.
Be aware that excess residue from cleaners and aerosols
may ignite causing damage and injury.
= Clean ventilating hoods frequently=Grease should
not be allowed to accumulate on the hood or filter.
Follow the manufacturer's instructions for cleaning hoods.
FOR CERAMIC=GLASS COOK TOP MODELS
• Do not cook on broken cook top--If cook top should
break, cleaning solutions and spillovers may penetrate
the broken cook top and create a risk of electric shock.
Contact a qualified technician immediately.
• Clean cook top with caution--If a wet sponge or cloth
is used to wipe spills on a hot cooking area, be careful to
avoid a steam burn. Some cleaners can produce noxious
fumes if applied to a hot surface.
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
• Know which knob controls each surface heating
unit.Place a pan of food on the unit before turning it on,
and turn the unit off before removing the pan.
Use proper pan size--This appliance is equipped with
one or more surface units of different sizes. Select
utensils having flat bottoms large enough to cover the
surface unit heating element. The use of undersized
utensils will expose a portion of the heating element to
direct contact and may result in ignition of clothing.
Proper relationship of utensil to element will also improve
efficiency.
Utensil handles should be turned inward and not
extend over adjacent surface elements--To reduce
the risk of burns, ignition of flammable materials, and
spillage due to unintentional contact with the utensil, the
handle of the utensil should be positioned so that it is
turned inward, and does not extend over adjacent
surface units.
Never leave surface elements unattended at high
heat settings--Boilovers cause smoking and greasy
spillovers that may ignite, or a pan that has boiled dry
may melt.
Do not immerse or soak removable heating
elements_Heating elements should never be immersed
in water. Heating elements clean themselves during
normal operation.
Glazed cooking utensils--Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for cook top service without breaking
due to the sudden change in temperature. Check the
manufacturer's recommendations for cook top use.
When flaming foods under a ventilating hood, turn
the fan on.
IHPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth
defects or other reproductive harm, and requires
businesses to warn customers of potential exposure to such
substances.
_ keep w_rm
__ drower
on-off on-off on-off
@ 0 G
_ powe_plas keep
= preheat warm
self ¢onvect add start cancel
clean convert a min [] 0 []
i hi
med
I Lo
temp
a
%¸¸¸¸¸

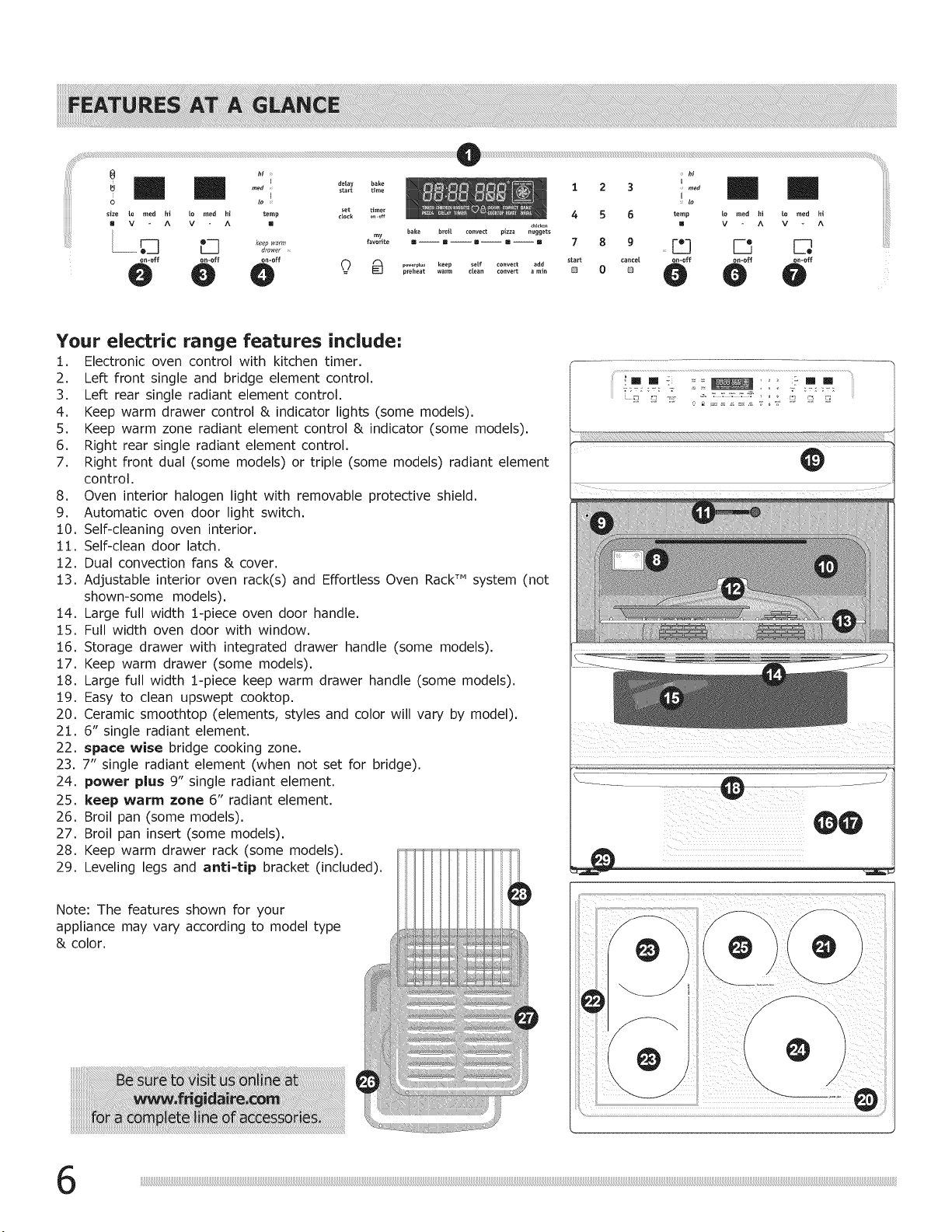

Your electric range features include:
1. Electronic oven control with kitchen timer.
2. Left front single and bridge element control.
3. Left rear single radiant element control.
4. Keep warm drawer control & indicator lights (some models).
5. Keep warm zone radiant element control & indicator (some models).
6. Right rear single radiant element control.
7. Right front dual (some models) or triple (some models) radiant element
control.
8. Oven interior halogen light with removable protective shield.
9. Automatic oven door light switch.
10. Self-cleaning oven interior.
11. Self-clean door latch.
12. Dual convection fans & cover.
13. Adjustable interior oven rack(s) and Effortless Oven RackTM system (not
shown-some models).
14. Large full width 1-piece oven door handle.
15. Full width oven door with window.
16. Storage drawer with integrated drawer handle (some models).
17. Keep warm drawer (some models).
18. Large full width l-piece keep warm drawer handle (some models).
19. Easy to clean upswept cooktop.
20. Ceramic smoothtop (elements, styles and color will vary by model).
21. 6" single radiant element.
22. space wise bridge cooking zone.
23. 7" single radiant element (when not set for bridge).
24. power plus 9" single radiant element.
25. keep warm zone 6" radiant element.
26. Broil pan (some models).
27. Broil pan insert (some models).
28. Keep warm drawer rack (some models).
29. Leveling legs and anti-tip bracket (included).
Note: The features shown for your
appliance may vary according to model type
& color.
- :77-
¢
111117i _ . ._ ._ ,_ _ _ _ _ _ _. _ . _ _, _. '_
))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))
Oven vent location
The oven vent is located under the left side of the
control panel (See Fig. 1). When the oven is on, warm
air passes through this vent. This venting is necessary for
proper air circulation in the oven and good baking results.
Do not block the oven vent.
oven vent location
Fig. 1
Removingr replacing & arranging racks
To remove - pull the rack forward until it stops. Lift up
front of rack and slide out.
To replace - fit the rack onto the guides on the oven walls.
Tilt the front of the rack upward and slide the rack back into
place.
Arranging - always arrange the oven racks when the oven
is cool (prior to operating the oven).
Always use oven mitts when using the oven. When
using the appliance, oven racks and cooktop will become
very hot which can cause burns.
Oven with visible
bake element - Fig. 2
Oven with hidden
Bake Element- Fig. 3*
Types of oven racks
offset
oven rack
The flat oven rack or flat handle oven rack (some
models) may be used for most cooking needs. The half
rack (some models) design comes with a removable
section that allows for taller cooking utensils. The offset
oven rack (some models) is designed to place the base of
the rack about 1/2 of a rack position lower than normal.
This rack design provides several additional possible
positions between the standard positions. To maximize
oven cooking space place the bottom oven rack (some
models) in the lowest rack position for baking or roasting
large cuts of meat. The Effortless TM Oven Rack (some
models) is described later in this section,
To maximize oven cooking space place the bottom oven
rack (some models) in the lowest rack position for baking
and when roasting large cuts of meat.
Only the Effortless TM Oven Rack should be used in
oven rack position 2. Placing any other rack in rack
position 2 will prevent the oven door from fully closing.
Recommended rack positions by food type
Food type Position models with Position models with
visible bake element (Fig. 2) hidden bake element (Fig. 3*)
Broiling meats See broil section
Cookies, cakes, pies, biscuits & muffins 4 or 5
Frozen pies, angel food cake, yeast, bread, casseroles 2 or 3
Small cuts of meat or poultry 1 or 2
Turkey, roast or ham 2
See broil section
4or5
2or3
lor2
lor2

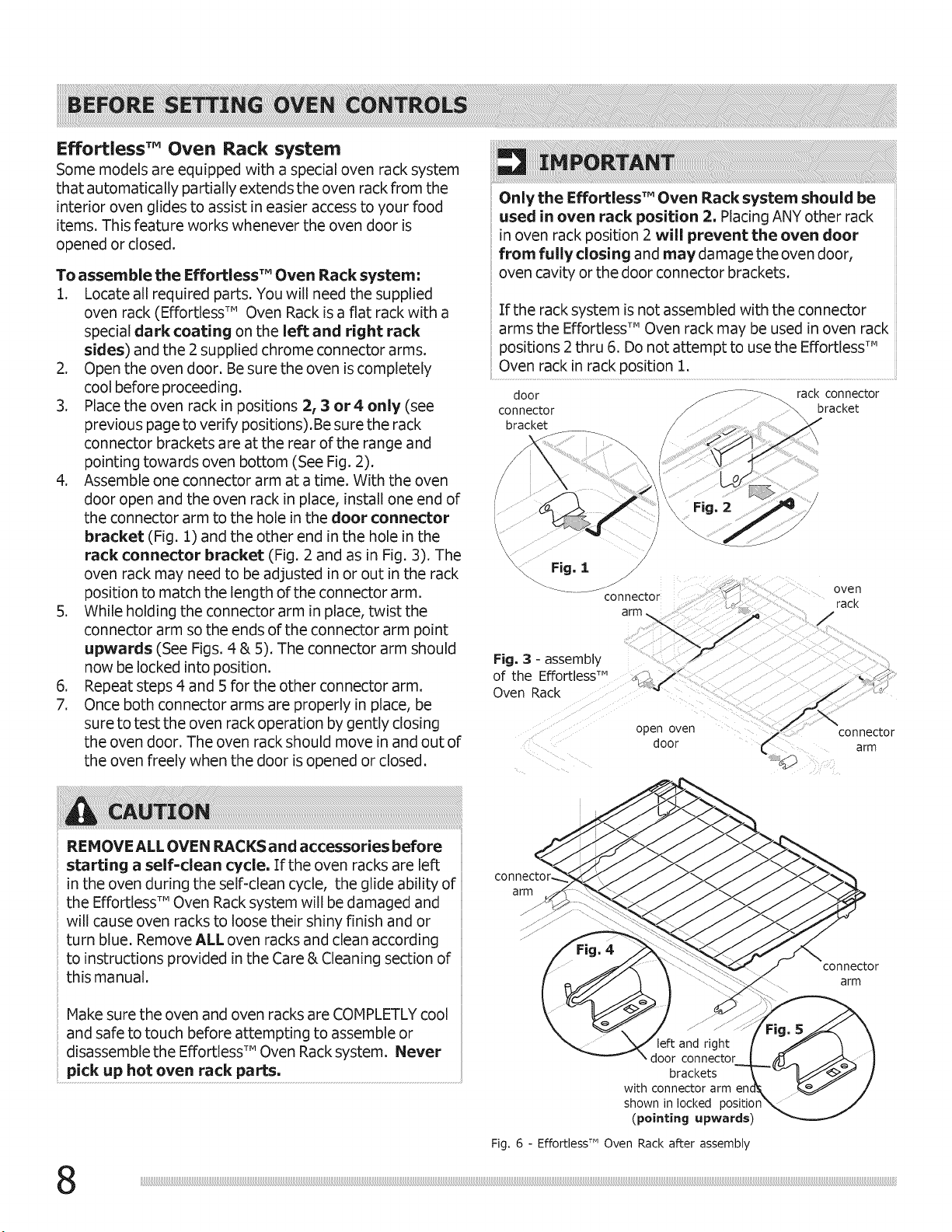

Effortless TM Oven Rack system
Some models are equipped with a special oven rack system
that automatically partially extends the oven rack from the
interior oven glides to assist in easier access to your food
items. This feature works whenever the oven door is
opened or closed.
To assem ble the Effortless'" Oven Rack system:
1. Locate all required parts. You will need the supplied
oven rack (Effortless T" Oven Rack is a flat rack with a
special dark coating on the left and right rack
sides) and the 2 supplied chrome connector arms.
2. Open the oven door. Be sure the oven is completely
cool before proceeding.
3. Place the oven rack in positions 2, 3 or 4 only (see
previous page to verify positions).Be sure the rack
connector brackets are at the rear of the range and
pointing towards oven bottom (See Fig. 2).
4. Assemble one connector arm at a time. With the oven
door open and the oven rack in place, install one end of
the connector arm to the hole in the door connector
bracket (Fig. 1) and the other end in the hole in the
rack connector bracket (Fig. 2 and as in Fig. 3). The
oven rack may need to be adjusted in or out in the rack
position to match the length of the connector arm.
5. While holding the connector arm in place, twist the
connector arm so the ends of the connector arm point
upwards (See Figs. 4 & 5). The connector arm should
now be locked into position.
6. Repeat steps 4 and 5 for the other connector arm.
7. Once both connector arms are properly in place, be
sure to test the oven rack operation by gently closing
the oven door. The oven rack should move in and out of
the oven freely when the door is opened or closed.
Only the Effortless T" Oven Rack system should be
used in oven rack position 2. PLacingANY other rack
in oven rack position 2 will prevent the oven door
from fully closing and may damage the oven door,
oven cavity or the door connector brackets.
If the rack system is not assembled with the connector
arms the Effortless T" Oven rack may be used in oven rack
positions 2 thru 6. Do not attempt to use the Effortless _"
Oven rack in rack position 1.
door _ .... 7::_ rack connector
connector .... bracket
bracket
,io.1
..............connector oven
rack
arm
Fig. 3 - assembly
of the Effortless TM
Oven Rack
open oven
door
d arm
[i
REMOVE ALL OVEN RACKS and accessories before
starting a self=clean cycle. If the oven racks are left
in the oven during the self-clean cycle, the glide ability of
the Effortless _" Oven Rack system will be damaged and
will cause oven racks to loose their shiny finish and or
turn blue. Remove ALL oven racks and clean according
to instructions provided in the Care & Cleaning section of
this manual.
Make sure the oven and oven racks are COMPLETLY cool
and safe to touch before attempting to assemble or
disassemble the Effortless _" Oven Rack system. Never
pick up hot oven rack parts.
arm
eft and right
brackets
with connector arm en
shown in locked positior
(pointing upwards)
Fig. 6 - Effortless TM Oven Rack after assembly
connector
arm
Air circulation in the oven
For best baking results allow 2-4" (5-10 cm) around the
cookware for proper air circulation and be sure pans and
cookware do not touch each other, the oven door, sides or
back of the oven cavity. Hot air must be able to circulate
around the pans and cookware in the oven for even heat to
reach around the food.
Baking layer cakes with 1 or 2 oven racks
For best results when baking cakes using 2 oven racks,
place cookware on rack positions 2 & 5 (See Fig. 1). For
best results when using a single oven flat rack, place
cookware on rack positions 2, 3 or 4 (See Fig. 2).
Fig. 1 Fig. 2
About the ceramic glass cooktop
The ceramic cooktop has radiant surface elements located
below the surface of the glass. The design of the ceramic
cooktop outlines the area of the surface element
underneath. Be sure to match the pan size with the
diameter of the element outline on the cooktop and only
flat-bottomed cookware should be used.
The type and size of cookware, the number of surface
elements in use and their settings are all factors that will
affect the amount of heat that will spread to areas beyond
the surface elements. The areas surrounding the elements
may become hot enough to cause burns,
Unlike the surface elements, the keep warm zone will
not glow red when it is hot.
Radiant elements have a limiter that allows the element
to cycle ON and OFF, even atthe HI setting. This helps to
prevent damage to the ceramic smoothtop. Cycling at the
HI setting is normal and will occur more often if the
cookware is too small for the radiant element or if the
cookware bottom is not flat.
About the radiant surface elements
The element temperature rises gradually and evenly. As the
temperature rises, the element will glow red. To maintain
the selected setting the element will cycle ON and OFF. The
heating element retains enough heat to provide a uniform
and consistent heat during the off cycle.
For efficient cooking, turn OFF the element several minutes
before cooking is complete. This will allow residual heat to
complete the cooking process.
The single radiant elements will have one round outline
pattern shown (See Fig. 3). The keep warm zone is
designed to keep food warm only.
The space wise bridge feature allows the user to set the
left front cooking element along with the left middle and if
desired the left rear single elements into one combined
cooking zone called the space wise bridge element (See
Fig. 3). The left front and left rear elements may also be
used as single independent heating elements whenever
needed.
space wise (bridge)
cooking zone
front of cooktop
Fig, 3 (element and cooking zone locations on cooktop)
Power plus feature (some models)
Your appliance may be equipped with one or two elements
on the ceramic cooktop marked power plus.
power ptus
The power plus radiant element has a higher power level
capability and is best used when bringing larger quantities
of liquid to temperature or when preparing larger quantities
of food.

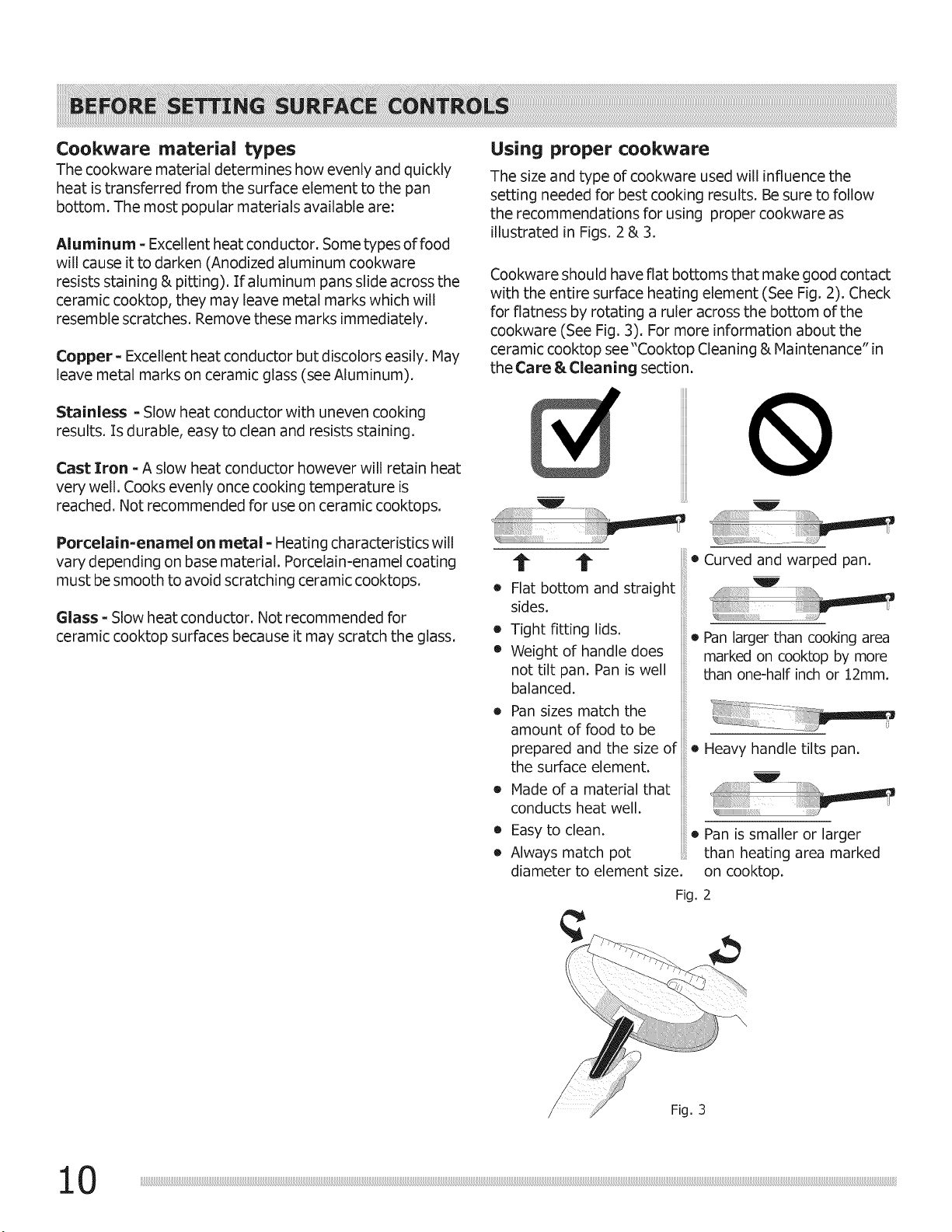

Cookware material types
The cookware material determines how evenly and quickly
heat is transferred from the surface element to the pan
bottom. The most popular materials available are:
Aluminum - Excellent heat conductor. Some types of food
will cause it to darken (Anodized aluminum cookware
resists staining & pitting). If aluminum pans slide across the
ceramic cooktop, they may leave metal marks which will
resemble scratches. Remove these marks immediately.
Copper - Excellent heat conductor but discolors easily. May
leave metal marks on ceramic glass (see Aluminum).
Stainless - Slow heat conductor with uneven cooking
results. Is durable, easy to clean and resists staining.
Cast Iron - A slow heat conductor however will retain heat
very well. Cooks evenly once cooking temperature is
reached. Not recommended for use on ceramic cooktops.
Porcelain=enamel on metal =Heating characteristics will
vary depending on base material. Porcelain-enamel coating
must be smooth to avoid scratching ceramic cooktops.
Glass - Slow heat conductor. Not recommended for
ceramic cooktop surfaces because it may scratch the glass.
Using proper cookware
The size and type of cookware used will influence the
setting needed for best cooking results. Be sure to follow
the recommendations for using proper cookware as
illustrated in Figs. 2 & 3.
Cookware should have flat bottoms that make good contact
with the entire surface heating element (See Fig. 2). Check
for flatness by rotating a ruler across the bottom of the
cookware (See Fig. 3). For more information about the
ceramic cooktop see"Cooktop Cleaning & Maintenance" in
the Care &Cleaning section.
®
o
iiiiiii
i _ l_ • Curved and warped pan.
Flat bottom and straight
sides. I_
Tight fitting lids.
Weight of handle does " Pan larger than cooking area
marked on cooktop by more
not tilt pan. Pan is well than one-half inch or 12mm.
balanced.
• Pan sizes match the
amount of food to be
prepared and the size of o Heavy handle tilts pan.
the surface element.
e Made of a material that
conducts heat well.
• Easy to clean.
• Pan is smaller or larger
o Always match pot than heating area marked
diameter to element size. on cooktop.
Fig. 2
Fig. 3
Cooktop element power level display windows
The cooktop element power level display features provide a
digital display for each of the heating positions located on
the cooktop. Power levels are easily controlled and
monitored using the window displays in combination with
the corresponding control touch pads.
The Triple radiant heating element (some models) has 3
cooking sizes to select from. This feature allows you to
match the size of the element to the size of the cookware
you are using.
Available power level settings
The cooktop control will display heat levels ranging from Hi
(Fig. 1) to Lo (Fig. 6) and OFF (Fig. 7).
The settings between 9.5 (Fig. 2) and 3.0 (Fig. 3) decrease
or increase in increments of .5 (1/2). The settings between
2.8 (Figs. 4) and 1.2 (Fig. 5) are Simmer settings which
decrease or increase in increments of .2 to Lo (Fig. 6) for
more precise settings at lower heat levels.
Use the "Suggested power level settings table"
provided later in this section to determine the correct
setting for the type of food you are preparing.
Hot surface window message (HE)
After using any radiant element the cooktop will be very
hot. After turning any of these elements OFF, the cooktop
will remain HOT for some time. The corresponding lie
(hot element-Fig. 8) message will remain ON and turn
OFF once that element position on the cooktop has cooled
sufficiently (Fig. 7).
Lockout window message ( == )
The (- -) message will appear whenever the lockout
feature is active (See Fig. 9). Refer to the lockout
instructions for complete lockout instructions.
Sabbath Day feature (Sb) message
The display windows wil! show the Sb message whenever
the Sabbath Day feature is active (Fig. 10). When
activated, the Sabbath Day feature works for both the
oven and cooktop together.
Once the Sabbath Day feature is active, changes to the
heat levels for the cooktop elements will not show in the
displays. The cooktop will react slower to heat level
changes. See "Setting the Sabbath Day feature" for
complete instructions.
Fig. 2
Fig. 3 Fig. 4
Fig. 6
Fig 8
Fig. 10
When setting the size for all 3 bridge elements to heat
together, both the display windows for the left front and
left rear elements will display the set power level & hot
element message (for models with a bridge surface
element feature only).
Single radiant surface elements
The cooktop has several single radiant surface elements.
Each surface element provides a constant amount of heat at
each setting. A glowing red surface heating area extending
beyond the bottom edge of the cookwa re indicates the
cookware is too small for the surface heating area.
Start most cooking operations on a higher setting and then
set to a lower setting to finish cooking.The suggested
power level settings found in Fig.1 are based when cooking
with medium-weight aluminum pans with lids. Settings may
vary when using other types of pans.
To operate a single radiant surface element:
Step Press
1. Place correctly sized cookware on
the radiant surface element.
2. Press and hold the on=off on-off
for the desired element position
until a beep is heard.
[o
3. Press Io, reed (5.0) or hi. v ' reed
/
.
Each touch of the Io or hi pad will
decrease or increase the power
level by 1/2 from 9.5 through 3.0.
Simmer power levels between
3.0 and 1.2 will decrease or increase
by .2 increments. Io is the lowest
power level available.
Once cooking has
completed, press on-off.
on-off
hi
A
[i
Radiant surface elements may appear to have cooled
after they have been turned off. The glass surface may
still be hot and burns may occur if the glass surface is
touched before it has cooled sufficiently.
Do not place flammable items such as plastic salt and
pepper shakers, spoon holders or plastic wrappings on
top of the range when it is in use. These items could melt
or ignite. Potholders, towels or wooden spoons could
catch fire if placed too close to the surface elements.
Suggested power level settings table (for single,
dual or triple elements)
Settings Type of cooking
High (8,0-HI) Start most foods, bring water to a
boil, pan broiling
Medium high (5.0 - 8.0) Continuea rapid boil, fry, deep fat fry
Medium (3.0 - 5.0) Maintain a slow boil, thicken sauces
and gravies or steam vegetables
Keep foods cooking, poach, stew
(2.8 or lower is a simmer setting)
Medium Low (2,0 - 4,0)
Low (Lo - 2.0) Keep warm, melt, simmer (2.8 or
lower is a simmer setting)
Note: These settings are based when cooking with medium-
weight aluminum pans with lids. Settings may vary when
using other types of pans.
Fig. 1
The lie (hot element) message will appear in the display
windows once a heating element is turned OFF and will
remain ON until the heating surface area or areas have
cooled sufficiently.
Do not allow aluminum foil, orANY material that
can melt to make contact with the ceramic glass
cooktop, If these items melt on the cooktop they will
damage the ceramic cooktop.
The size and type of utensil used, and the amount and
type of food being cooked will influence the setting
needed for best cooking results.

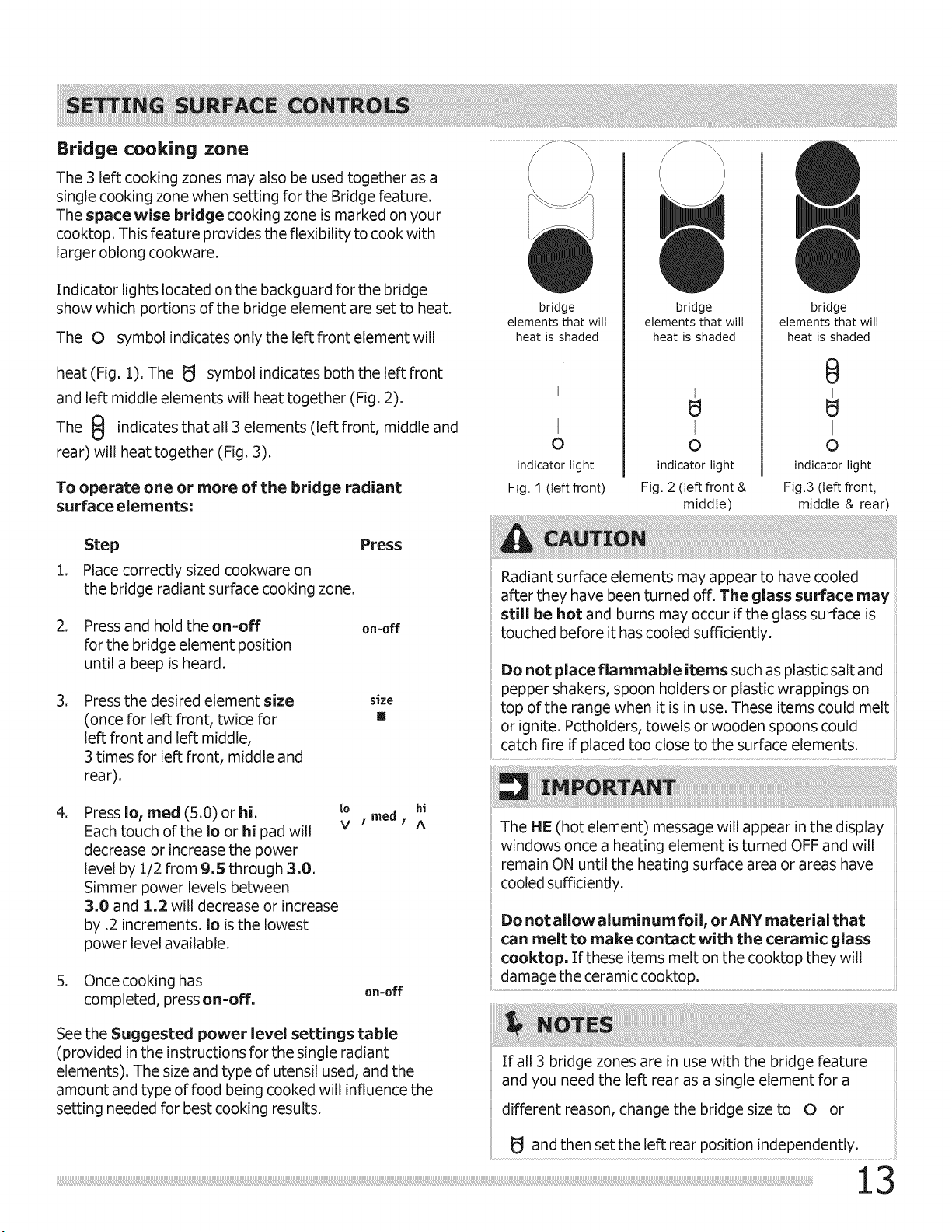

Bridge cooking zone
The 3 left cooking zones may also be used together as a
single cooking zone when setting for the Bridge feature.
The space wise bridge cooking zone is marked on your
cooktop. This feature provides the flexibility to cook with
larger oblong cookware.
Indicator lights located on the backguard for the bridge
show which portions of the bridge element are set to heat.
The O symbol indicates only the left front element will
heat (Fig. 1). The _ symbol indicates both the left front
and left middle elements will heat together (Fig. 2).
The _ indicates that all 3 elements (left front, middle and
rear) will heat together (Fig. 3).
To operate one or more of the bridge radiant
surface elements"
bridge
elements that will
heat is shaded
I
O
indicator light
Fig. 1 (left front)
bridge
elements that will
heat is shaded
bridge
elements that will
heat is shaded
8
O O
indicator light indicator light
Fig. 2 (left front & Fig.3 (left front,
middle) middle & rear)
.
Step
Place correctly sized cookware on
the bridge radiant surface cooking zone.
Press
2. Press and hold the on=off on-off
for the bridge element position
until a beep is heard.
3. Press the desired element size size
(once for left front, twice for []
left front and left middle,
3 times for left front, middle and
tea r).
Radiant surface elements may appear to have cooled
after they have been turned off. The glass surface may
still be hot and burns may occur if the glass surface is
touched before it has cooled sufficiently.
Do not place flammable items such as plastic salt and
pepper shakers, spoon holders or plastic wrappings on
top of the range when it is in use. These items could melt
or ignite. Potholders, towels or wooden spoons could
catch fire if placed too close to the surface elements.
4. Press Io, meal (5.0) or hi. [o reed hi
Each touch of the Io or hi pad will v ' ' ^
decrease or increase the power
level by 1/2 from 9,5 through 3,0,
Simmer power levels between
3.0 and 1.2 will decrease or increase
by .2 increments. Io is the lowest
power level available,
.
Once cooking has
completed, press on-off.
on-off
The HE (hot element) message will appear in the display
windows once a heating element is turned OFF and will
remain ON until the heating surface area or areas have
cooled sufficiently.
Do not allow aluminum foil, orANY material that
can melt to make contact with the ceramic glass
cooktop, If these items melt on the cooktop they will
damage the ceramic c°°kt°p: ...........................................................................................................................................................
See the Suggested power level settings table
(provided in the instructions for the single radiant
elements). The size and type of utensil used, and the
amount and type of food being cooked will influence the
setting needed for best cooking results.
:If all 3 bridge zones are in use with the bridge feature
and you need the left rear as a single element for a
different reason, change the bridge size to O or
and then set the left rear position independently.

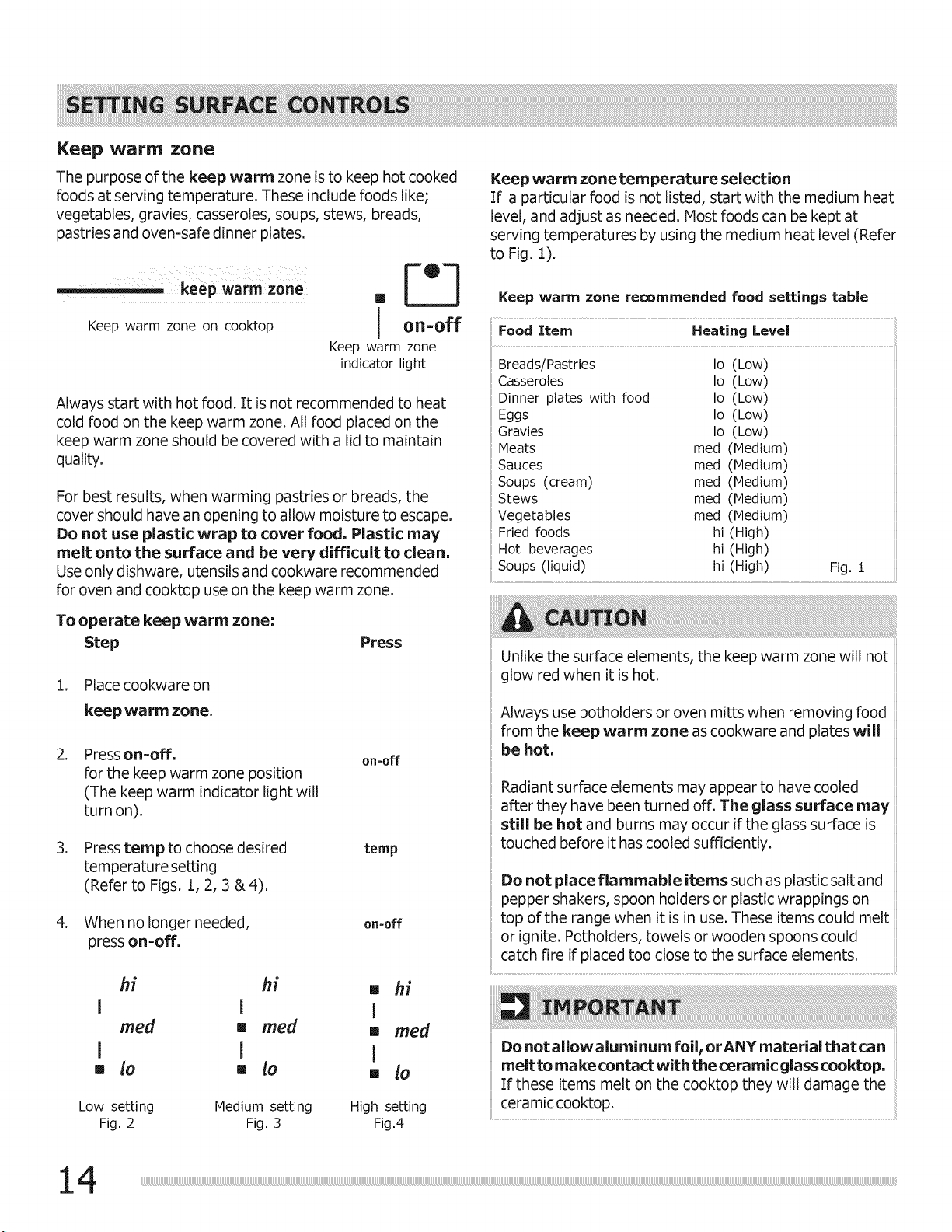

Keep warm zone
The purpose of the keep warm zone is to keep hot cooked
foods at serving temperature. These include foods like;
vegetables, gravies, casseroles, soups, stews, breads,
pastries and oven-safe dinner plates.
keep warm zone
Keep warm zone on cooktop
on-off
Keep warm zone
indicator light
Always start with hot food. It is not recommended to heat
cold food on the keep warm zone. All food placed on the
keep warm zone should be covered with a lid to maintain
quality.
For best results, when warming pastries or breads, the
cover should have an opening to allow moisture to escape.
Do not use plastic wrap to cover food, Plastic may
melt onto the surface and be very difficult to clean.
Use only dishware, utensils and cookware recommended
for oven and cooktop use on the keep warm zone.
Keep warm zone tem peratu re selection
If a particular food is not listed, start with the medium heat
level, and adjust as needed. Most foods can be kept at
serving temperatures by using the medium heat level (Refer
to Fig. 1).
Keep warm zone recommended food settings table
Food Item Heating Level
Breads/Pastries Io (Low)
Casseroles Io (Low)
Dinner plates with food Io (Low)
Eggs Io (Low)
Gravies Io (Low)
Meats med (Medium)
Sauces med (Medium)
Soups (cream) med (Medium)
Stews med (Medium)
Vegetables med (Medium)
Fried foods hi (High)
Hot beverages hi (High)
Soups (liquid) hi (High)
Fig. 1
To operate keep warm zone:
Step
1. Place cookware on
keep warm zone.
.
.
.
Press on=off,
for the keep warm zone position
(The keep warm indicator light will
turn on).
Press temp to choose desired
temperature setting
(Refer to Figs. 1, 2, 3 & 4).
When no longer needed,
press on-off.
Press
on-off
temp
on-off
hi hi I hi
I I I
med [] meal [] med
I I !
[] 1o [] lo [] lo
Low setting Medium setting High setting
Fig. 2 Fig. 3 Fig.4
Unlike the surface elements, the keep warm zone will not
glow red when it is hot.
Always use potholders or oven mitts when removing food
from the keep warm zone as cookware and plates will
be hot.
Radiant surface elements may appear to have cooled
after they have been turned off. The glass surface may
still be hot and burns may occur if the glass surface is
touched before it has cooled sufficiently.
Do not place flammable items such as plastic salt and
pepper shakers, spoon holders or plastic wrappings on
top of the range when it is in use. These items could melt
or ignite. Potholders, towels or wooden spoons could
catch fire if placed too close to the surface elements.
Do not allowaluminum foil, orANY material that can
melt to ma ke contact with the ceramic glass cooktop,
If these items melt on the cooktop they will damage the
ceramiccooktop.
Home Canning
Be sure to read and observe all the following points when
home canning with your appliance. Check with the USDA
(United States Department of Agriculture) website and be
sure to read all the information they have available as well
as follow their recommendations for home canning
procedures.
• Use only quality flat bottom canners when home canning.
Use a straight-edge to check canner bottom (see
"Cookware material types" in the Before setting
surface controls section).
• Use only a completely flat bottom canner with no
ridges that radiate from the bottom center when home
canning using a ceramic cooktop.
= Hake sure the diameter of the canner does not
exceed I inch beyond the surface element
markings or burner, It is recommended to use smaller
diameter canners on electric coil and ceramic glass
cooktops.
• Start with hot tap water to bring water to boil more
quickly.
• Use the highest heat seating when first bringing the water
to a boil. Once boiling is achieved, reduce heat to lowest
possible setting to maintain that boil.
Radiant surface elements may appear to have cooled
after they have been turned off. The glass surface may
still be hot and burns may occur if the glass surface is
touched before it has cooled sufficiently.
Do not place flammable items such as plastic salt and
pepper shakers, spoon holders or plastic wrappings on
top of the range when it is in use. These items could melt
or ignite. Potholders, towels or wooden spoons could
catch fire if placed too closeto the surface elements.
Do not allowaluminum foil, orANY material that can
melt to ma ke contact with the ceramic glass cooktop,
If these items melt on the cooktop they will damage the
ceramiccooktop.
surface cooking areas at the same time. This may cause
the ceramic cooktop to fracture.

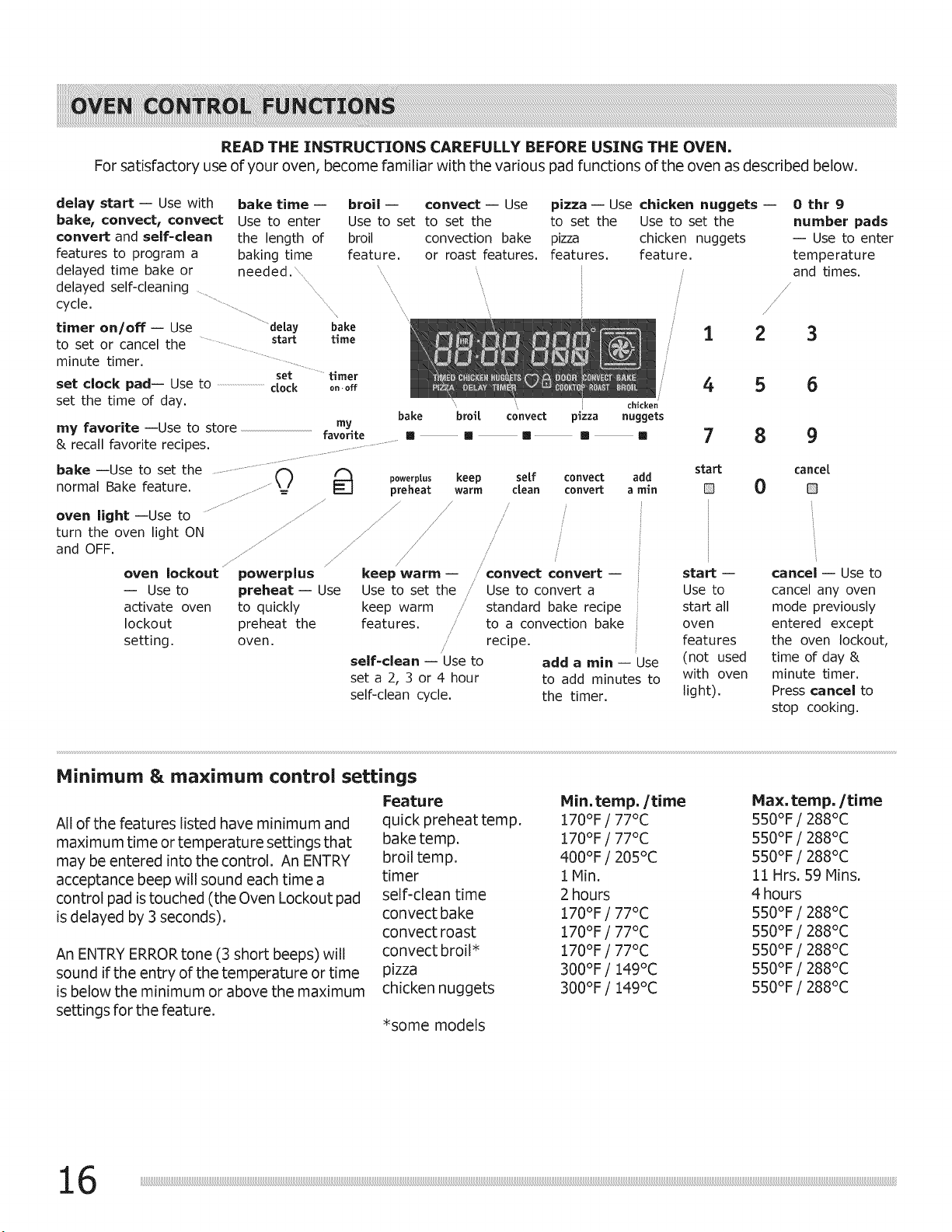

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.
For satisfactory use of your oven, become familiar with the various pad functions of the oven as described below.
de(ay start
i
Use with
bake, convect, convect
convert and self-clean
features to program a
delayed time bake or
delayed self-cleaning ............
cycle. ............
timer on/off- Use
to set or cancel the
minute timer.
bake time
I
Use to enter
the length of
baking time
needed.
de[ay bake
time
set dock pad-- Use to ..........................................dock
set the time of day.
set ............timer
on. off
broil
i
convect
i
Use
pizza
i
Use
chicken nuggets
i
Use to set to set the to set the Use to set the
broil convection bake pizza chicken nuggets
feature, or roast features, features, feature.
/
bake
my favorite --Use to store my
favorite [] --
& recall favorite recipes.
bake --Use to set the ........................t_
k/
normal Bake feature. =
oven light--Use to ........... .....
turn the oven light ON ...........
and OFF. /
oven lockout powerplus
i
Use to preheat
i
Use
activate oven to quickly
lockout preheat the
setting, oven.
chicken
broil convect pizza nuggets
II1--[] [] !11
powerptus keep self convect
preheat warm dean convert
/ / /
/
/, /'
/_ //
/ /
/
keep warm
i
/
convect convert
i
Use to set the Use to convert a
/
keep warm standard bake recipe
features. / to a convection bake
recipe.
self=clean
I
Use to
set a 2, 3 or 4 hour
self-clean cycle,
add
a rain
)
)
add a rain
i
Use
to add minutes to
the timer.
1
0 thr 9
number pads
i
Use to enter
temperature
and times.
/
/
/
/
2 3
4 5 6
7 8 9
start cancel
o 0 o
start
i
cancel
i
Use to
Use to cancel any oven
start all mode previously
oven entered except
features the oven lockout,
(not used time of day &
with oven minute timer.
light), Press cancel to
stop cooking.
Minimum & maximum control settings
All of the features listed have minimum and
maximum time or temperature settings that
may be entered into the control. An ENTRY
acceptance beep will sound each time a
control pad is touched (the Oven Lockout pad
is delayed by 3 seconds).
An ENTRY ERRORtone (3 short beeps) will
sound if the entry of the temperature or time
is below the minimum or above the maximum
settings for the feature.
Feature Hin. temp./time Max. temp./time
quick preheat temp. 170°F / 77°C 550°F / 288°C
bake temp. 170°F / 77°C 550°F / 288°C
broil temp. 400°F / 205°C 550°F / 288°C
timer 1 Min. 11 Hrs. 59 Mins.
self-clean time 2 hours 4 hours
convect bake 170°F / 77°C 550°F / 288°C
convect roast 170°F / 77°C 550°F / 288°C
convect broiL* 170°F / 77°C 550°F / 288°C
pizza 300°F / 149°C 550°F / 288°C
chicken nuggets 300°F / 149°C 550°F / 288°C
*some models

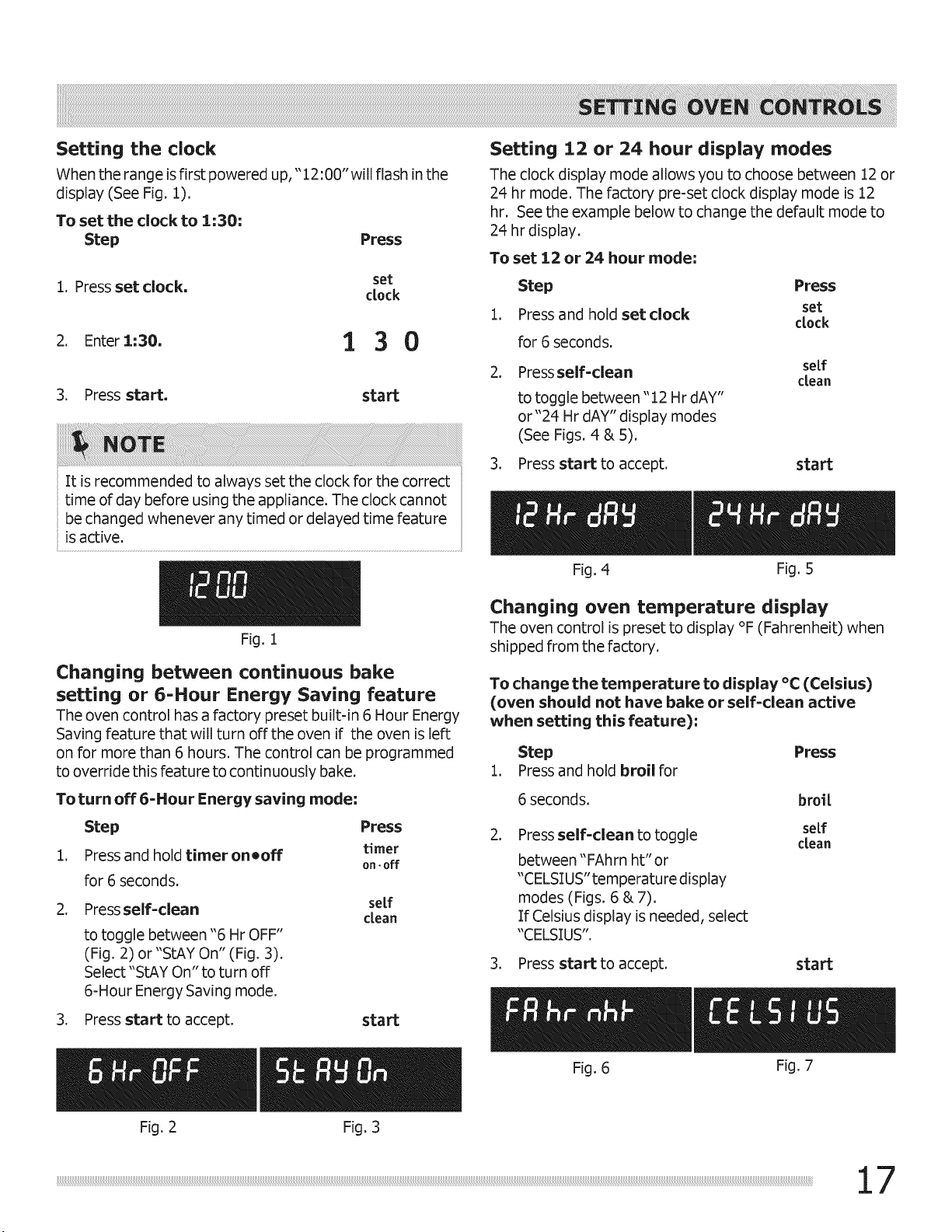

Setting the clock
When the range is first powered up, "12:00"will flash in the
display (See Fig. 1).
To set the clock to 1:30:
Step Press
1, Press set clock, set
clock
2, Enter 1:30. 1 3 0
3. Press start, start
It is recommended to always set the clock for the correct
time of day before using the appliance, The clock cannot
be changed whenever any timed or delayed time feature
is active.
Fig. 1
Changing between continuous bake
setting or 6-Hour Energy Saving feature
The oven control has a factory preset built-in 6 Hour Energy
Saving feature that will turn offthe oven if the oven is left
on for more than 6 hours. The control can be programmed
to override this feature to continuously bake.
To turn off 6=Hour Energy saving mode:
Step Press
1, Press and hold timer on®off timer
on- off
for 6 seconds,
2. Press self-clean self
clean
to toggle between "6 Hr OFF"
(Fig. 2) or "STAYOn" (Fig. 3).
Select "STAY On" to turn off
6-Hour Energy Saving mode.
3. Press startto accept, start
Fig. 2 Fig. 3
Setting 12 or 24 hour display modes
The clock display mode allows you to choose between 12 or
24 hr mode, The factory pre-set clock display mode is 12
hr. See the example below to change the default mode to
24 hr display,
To set 12 or 24 hour mode:
Step Press
1. Press and hold set clock set
clock
for 6 seconds,
2, Pressself-clean self
clean
to toggle between "12 Hr dAY"
or"24 Hr dAY" display modes
(See Figs. 4 & 5).
3. Press start to accept, start
Fig. 4 Fig. 5
Changing oven temperature display
The oven control is preset to display °F (Fahrenheit) when
shipped from the factory,
To change the temperature to display °C (Celsius)
(oven should not have bake or self-clean active
when setting this feature):
Step Press
1. Press and hold broil for
6 seconds, broil
2. Press self-clean to toggle self
clean
between "FAhrn ht" or
"CELSIUS'temperature display
modes (Figs. 6 & 7).
If Celsius display is needed, select
"CELSIUS".
3, Press startto accept, start
Fig. 6 Fig. 7
Setting a silent control panel
Silent mode allows the oven control to operate without
sounds. The control may be programmed for silent
operation and later returned to operating with all the
normal sounds.
To set silent mode:
Step Press
1. Pressand hold detay
start
delay startfor6 seconds.
2. Pressself-clean self
dean
to toggle between"bEEP On" or
"bEEP OFF". Select"bEEP OFF" for
silent mode. (Figs. 1 & 2)
3. Press start to accept start
Fig. 1 Fig. 2
Setting lockout
The control may be programmed to lock the oven door,
lockout the cooktop and oven control pads.
To set the lockout feature:
Step
Press and hold lock pad for 3 seconds.
"door Loc" will appear in the display until
the oven door is completely locked.
To unlock the lockout feature:
Step
Press and hold lock pad for
3 seconds. Once the oven door has
unlocked the"door Loc" message will
no longer display (See Fig. 3).
Press
Press
DO NOT attempt to open the oven door while the
"door Loc" (door lock) message is visible. Allow 15
seconds for the oven door to completely lock. Once the
oven door has locked, the current time of day will
reappear in the display. If a control pad is pressed when
the oven lockout feature is active the control may triple
beep which indicates the keypad action isnot available
when the oven lockout isactive.
Fig. 3
Setting the minute timer
The timer allows you to track your cooking times without
interferring with the cooking process. The timer may be set
from 1 minute up to 11 hours and 59 minutes.
To set the timer for 5 minutes:
Step
1. Press timer on-off.
2. Enter5 minutes.
Press
timer
on. off
5
3. Press start.
Press timer on-off to turn
the minute timer off,
start
The minute timer will display hours and minutes until 1
hour remains on the timer. Once less than 1 hour
remains, the display will count down in minutes and
seconds. Once the timer has less than 1 minute
remaining only seconds will display.
The minute timer DOES NOT start or stop the cooking
process. It serves as an extra timer in the kitchen that
will beep when the set time has run out. The minute
timer can be used alone or while using any of the other
oven features.
When the minute timer is in use during a cooking
process, the minute timer will be shown in the display.
To view the status of other features, press the pad once
for the other feature to view the status of that feature.
Add a minute feature
Use the add 1 minute feature to set additional minutes to
the timer. Each press of the key pad will add 1 additional
minute. If add a minute key pad is pressed when the timer
is not active, the timer will begin counting down from 1
minute.
To add 2 additional minutes to the active timer:
Step Press
Press add a minute twice, add
a rain

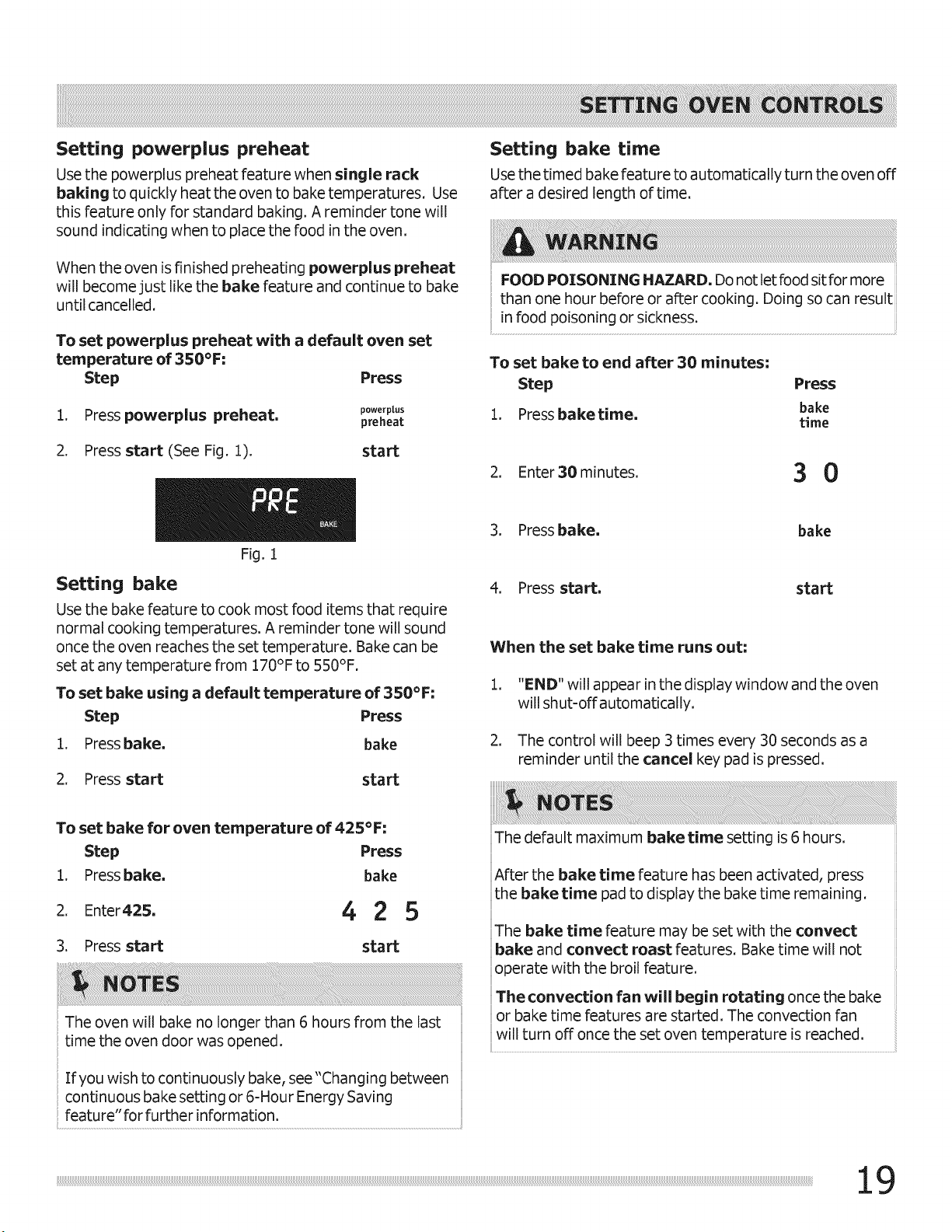

Setting powerplus preheat
Use the powerplus preheat feature when single rack
baking to quickly heat the oven to bake temperatures. Use
this feature only for standard baking. A reminder tone will
sound indicating when to place the food in the oven.
When the oven is finished preheating powerplus preheat
will become just like the bake feature and continue to bake
until cancelled.
To set powerplus preheat with a default oven set
temperature of 350°F:
Step Press
powerptus
1. Presspowerplus preheat, preheat
2. Press start (See Fig. 1). start
Fig. 1
Setting bake
Use the bake feature to cook most food items that require
normal cooking temperatures. A reminder tone will sound
once the oven reaches the set temperature. Bake can be
set at any temperature from 170°F to 550°F.
To set bake using a default temperature of 350°F:
Step Press
1. Press bake, bake
2. Press start start
Setting bake time
Use the timed bake feature to automatically turn the oven off
after a desired length of time.
FOOD POISONING HAZARD, Do not let food sit for more
than one hour before or after cooking, Doing so can result
in food poisoning or sickness,
To set bake to end after 30 minutes:
Step Press
1. Press bake time. bake
time
2. Enter 30 minutes. 3 0
3. Press bake, bake
4. Press start, start
When the set bake time runs out:
1. "END" will appear in the display window and the oven
will shut-offautomatically.
2. The control will beep 3 times every 30 seconds as a
reminder until the cancel key pad is pressed.
To set bake for oven temperature of 425°F:
Step Press
1. Press bake, bake
2 Enter42S. 4 2
3. Press start start
5
The oven will bake no longer than 6 hours from the last
time the oven door was opened.
If you wish to continuously bake, see "Changing between
continuous bake setting or 6-Hour Energy Saving
feature" for further information.
The default maximum bake time setting is 6 hours.
After the bake time feature has been activated, press
the bake time pad to display the bake time remaining.
The bake time feature may be set with the convect
bake and convect roast features. Bake time will not
operate with the broil feature.
The convection fan will begin rotating once the bake
or bake time features are started. The convection fan
will turn off once the set oven temperature is reached.

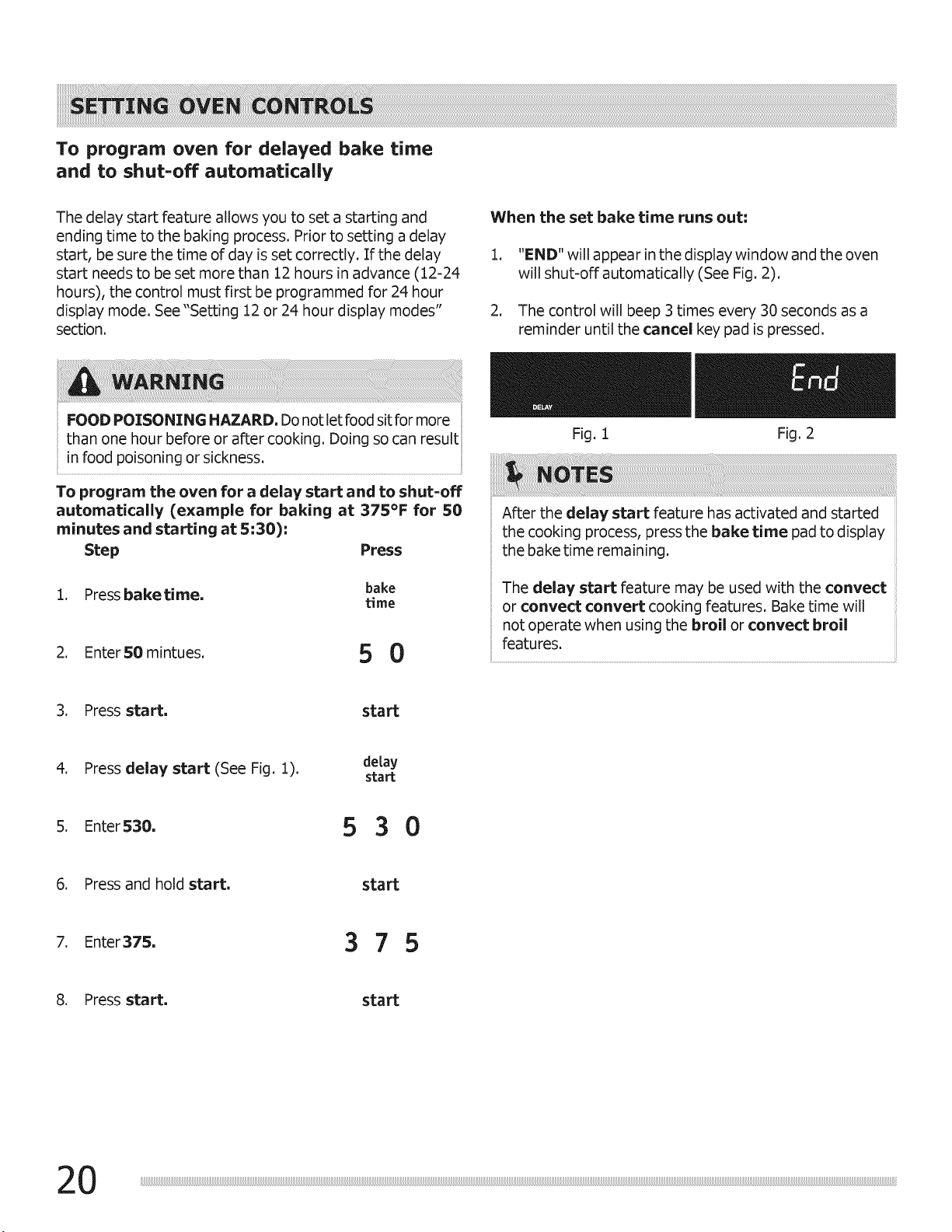

To program oven for delayed bake time
and to shut=off automatically
The delay start feature allows you to set a starting and
ending time to the baking process. Prior to setting a delay
start, be sure the time of day is set correctly. If the delay
start needs to be set more than 12 hours in advance (12-24
hours), the control must first be programmed for 24 hour
display mode. See "Setting 12 or 24 hour display modes"
section.
FOOD POISONING HAZARD, Do not let food sit for more
than one hour before or after cooking. Doing so can result
in food poisoning or sickness.
To program the oven for a delay start and to shut=off
automatically (example for baking at 375°F for 50
minutes and starting at 5"30);
Step Press
I. Press bake time. bake
time
2. Enter SOmintues. 5 0
When the set bake time runs out:
1. "END" will appear in the display window and the oven
will shut-off automatically (See Fig. 2).
2. The control will beep 3 times every 30 seconds as a
reminder until the cancel key pad is pressed.
Fig, 1 Fig, 2
After the delay start feature has activated and started
the cooking process, press the bake time pad to display
the bake time remaining.
The delay start feature may be used with the convect
or convect convert cooking features. Bake time will
not operate when using the broil or convect broil
features.
3. Press start, start
4. Press delay start (See Fig. 1). delay
start
5. Enter530. 5 3 0
6. Press and hold start, start
7. Enter375, 3 7 5
8. Press start, start
¢onvect bake (all models)
Benefits of the convect feature
I Foods may cook up to 25 to 30% faster, saving time and
energy.
I Multiple rack baking.
I No special pans or bakeware needed.
Convect uses a fan to circulate the oven's heat uniformly
and continuously around the oven. This improved heat
distribution allows for fast, even cooking and browning
results. It also gives better baking results when using two
racks at the same time.
Heated air flows around the food from all sides, sealing in
juices and flavors. Breads and pastry brown more evenly.
Layer cakes will have better results using the bake pad.
Most foods baked in a standard oven can be cooked faster
and more evenly with the convect feature.
Suggestions for convect baking
1. For optimum cooking results it is recommended to
preheat the oven when baking foods such as cookies,
biscuits and breads.
2. Reduce oven temperature 25°F from recipe's
recommended oven temperature. Follow the remainder
of the recipe's instructions using the minimum
recommended cooktime.
3. When using 2 oven racks at the same time, place in
positions 2 & 5 for best results (Fig. 1).
Convect bake (all models)
To set convect (convection bake) with a default oven
set temperature of 350°F:
Step Press
1. Press convect, convect
.
Press start (See Fig. 2). start
Fig. 2
Fig. i (fan & lights may vary in appearance)
¢onvect roast (all models)
Meats cooked with convect roast will be juicer and
poultry will be crisp on the outside while staying tender and
moist on the inside.
When choosing between the convect features, use the
convect keypad to toggle between convect bake,
convect roast or convect broil (some models) choices.
Suggestion for convect roast
1. Preheating is not necessary when roasting foods using
convect roast.
2. Since convect roast cooks food faster, reduce the
cook time by 25% from the recommended cook time of
your recipe (check the food at this time). If necessary,
increase cook time until the desired doneness is
obtained.
3. Do not cover foods when dry roasting - this will prevent
the meat from browning properly.
To set convect roast (convection roast) with a
default oven set temperature of 3SO°F:
Step Press
1. Press convect, convect
When using convection bake cook time red uctions may
vary depending on the amount and type of food being
cooked.
The convection fan will begin rotating once
convection bake or convection roast has been activated.
2. Press convect again, convect
.
Press start (See Fig. 3). start
Fig. 3

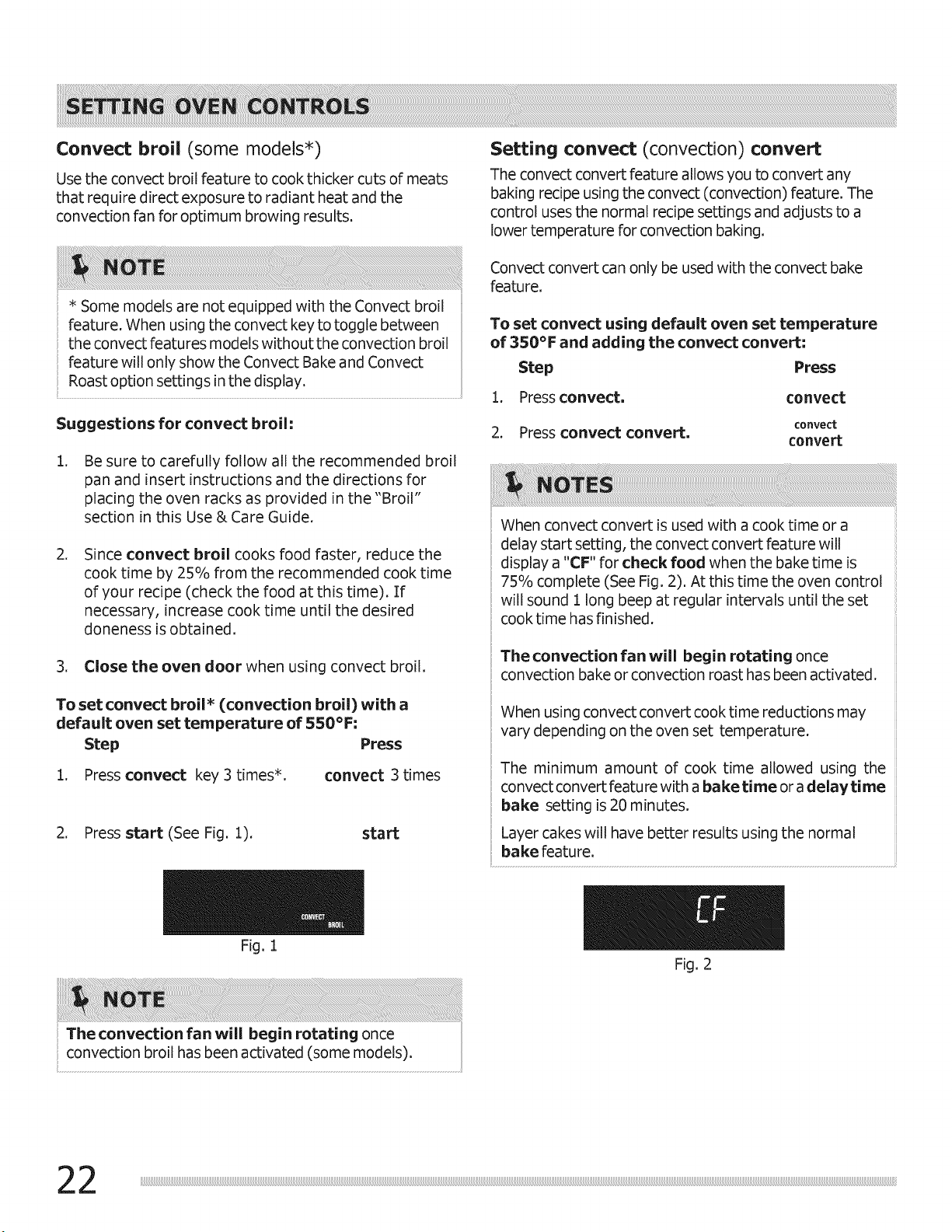

Convect broil (some models _)
Use the convect broil feature to cook thicker cuts of meats
that require direct exposure to radiant heat and the
convection fan for optimum browing results.
* Some models are not equipped with the Convect broil
feature. When using the convect key to toggle between
the convect features models without the convection broil
feature will only show the Convect Bake and Convect
Roast option settings in the display.
Suggestions for convect broil"
.
Be sure to carefully follow all the recommended broil
pan and insert instructions and the directions for
placing the oven racks as provided in the "Broil"
section in this Use & Care Guide.
.
Since convect broil cooks food faster, reduce the
cook time by 25% from the recommended cook time
of your recipe (check the food at this time). If
necessary, increase cook time until the desired
doneness is obtained,
3. Close the oven door when using convect broil.
To set convect broil _ (convection broil) with a
default oven set temperature of 550°F:
Step Press
1. Press convect key 3 times*, convect 3 times
.
Press start (See Fig. 1). start
Fig. 1
Setting convect (convection) convert
The convect convert feature allows you to convert any
baking recipe using the convect (convection) feature. The
control uses the normal recipe settings and adjusts to a
lower temperature for convection baking,
Convect convert can only be used with the convect bake
feature,
To set convect using default oven set temperature
of 350°F and adding the convect convert:
Step Press
1. Press convect, convect
convect
2, Press convect convert, convert
When convect convert is used with a cook time or a
delay start setting, the convect convert feature will
display a "CF" for check food when the bake time is
75% complete (See Fig. 2). At this time the oven control
will sound 1 long beep at regular intervals until the set
cook time has finished.
The convection fan will begin rotating once
convection bake or convection roast has been activated.
When using convect convert cook time reductions may
vary depending on the oven set temperature,
The minimum amount of cook time allowed using the
convect convert feature with a bake time or a delaytime
bake setting is 20 minutes.
Layer cakes will have better results using the normal
bake feature.
Fig. 2
The convection fan will begin rotating once
convection broil has been activated (some models).
Broil
Use the broil feature to cook meats that require direct
exposure to flame heat for optimum browing results.
When broiling always remember to arrange the oven
racks while oven is still cool. Position the oven rack as
suggested in the broil settings table (See Fig. 4).
To set broil:
Step
1. Place the broiler insert on the
broil pan, then place meat on
the insert. Remember to follow
all warnings and cautions.
Press
.
Arrange the interior oven rack to
recommended position (Figs. 1 & 4).
For optimum browning results,
preheat oven for 5 minutes
before adding food.
Fig. 1
Insert
\
Broil pan
Fig, 2
Fig. 3
.
Be sure to place food and pan
directly under upper oven element.
Leave the oven door open.
4. Press broil, broi[
5. Press start (See Fig. 3) start
Should an oven fire occur, close the oven door and turn
the oven OFF. If the fire continues, use a fire
extinguisher. DO NOT put water or flour on the fire. Flour
may be explosive.
The broiler pan and the insert (some models) allows
grease to drain and be kept away from the high heat of
the broiler. DO NOT use the pan without the insert (Fig.
2). DO NOT cover the insert with foil; the exposed grease
could ignite. DO NOT use the broil pan without the insert
or cover the insert with aluminum foil. The exposed fat
could ignite. To insure proper results use ONLY Electrolux
Home Products, Inc. approved broil pan & insert.
Always pull the oven rack out to the stop position before
turning or removing the food.
Suggested broil settings table (electric oven)
Food Rack position Setting Cook time in minutes
1st side 2nd side Doneness
Steak 1" thick 6th or 7th*
Steak 1" thick 6th or 7th*
Steak 1" thick 6th or 7th*
Pork chops 3/4" thick 6th
Chicken-bone in 5th
Ch icken- boneless 6th
Fish 6th
Shrimp 5th
Hamburger 1" thick 7th*
Hamburger 1" thick 6th
550°F 6 4 Medium
550°F 7 5 Medium-well
550°F 8 7 Well
550°F 8 6 Well
450°F 20 10 Well
450°F 8 6 Well
550°F - as directed - Well
550°F - as directed - Well
550°F 9 7 Medium
550°F 10 8 Well
*Use the bottom oven rack if you choose to use rack position 7.
Fig, 4
23

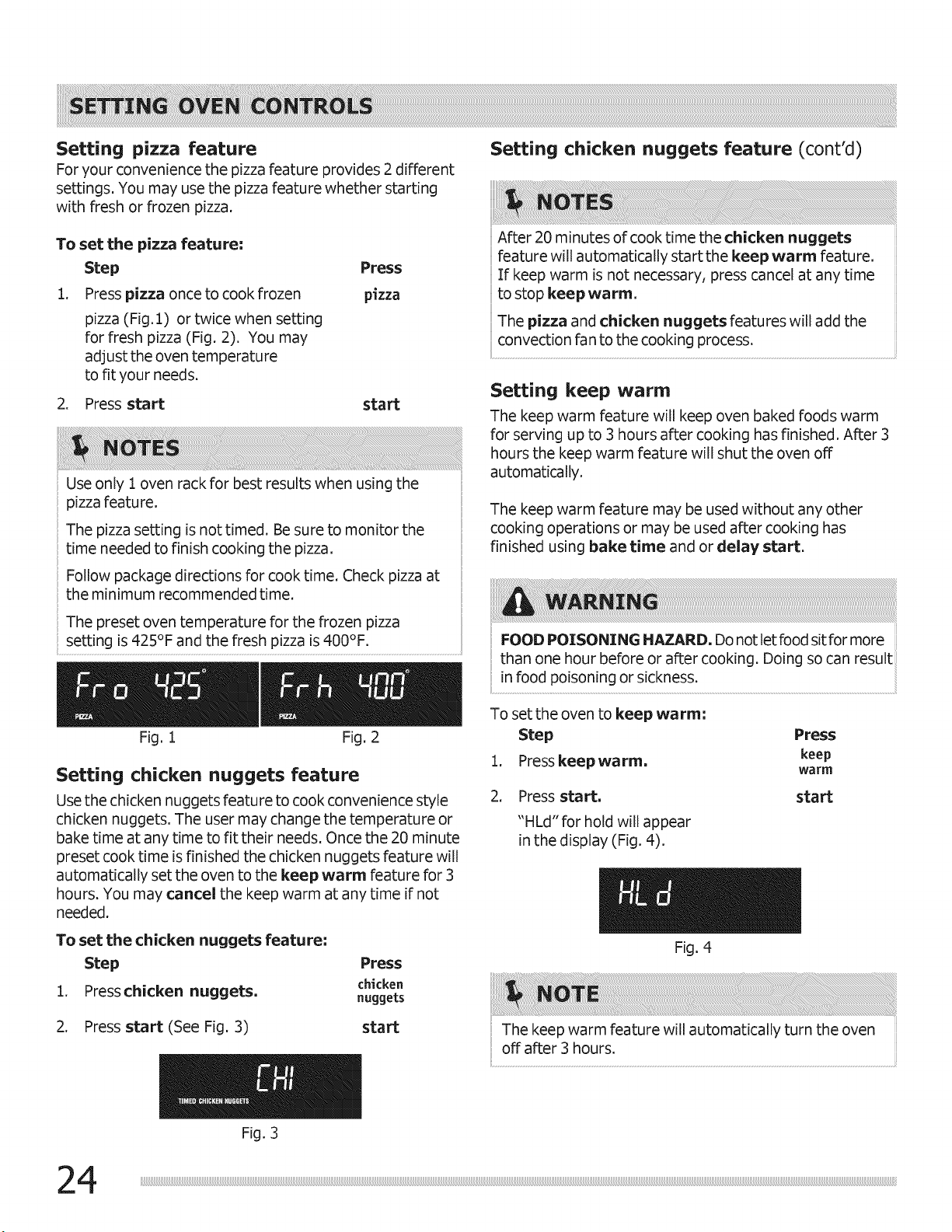

Setting pizza feature
For your convenience the pizza feature provides 2 different
settings. You may use the pizza feature whether starting
with fresh or frozen pizza.
To set the pizza feature:
Step Press
1. Press pizza once to cookfrozen pizza
pizza (Fig. 1) or twice when setting
for fresh pizza (Fig. 2). You may
adjust the oven temperature
to fit your needs.
2. Press start start
Use only 1 oven rack for best results when using the
pizza feature.
The pizza setting is not timed. Be sure to monitor the
time needed to finish cooking the pizza.
Follow package directions for cook time. Check pizza at
the minimum recommended time.
The preset oven temperature for the frozen pizza
setting is 425°F and the fresh pizza is 400°F.
Fig. 1 Fig. 2
Setting chicken nuggets feature
Use the chicken nuggets feature to cook convenience style
chicken nuggets. The user may change the temperature or
bake time at any time to fit their needs. Once the 20 minute
preset cook time is finished the chicken nuggets feature will
automatically set the oven to the keep warm feature for 3
hours. You may cancel the keep warm at any time if not
needed.
To set the chicken nuggets feature:
Step Press
chicken
1. Press chicken nuggets, nuggets
2. Press start (See Fig. 3) start
Fig. 3
Setting chicken nuggets feature (cont'd)
After 20 minutes of cook time the chicken nuggets
feature will automatically start the keep warm feature.
If keep warm is not necessary, press cancel at any time
to stop keep warm.
The pizza and chicken nuggets features will add the
convection fan to the cooking process.
Setting keep warm
The keep warm feature will keep oven baked foods warm
for serving up to 3 hours after cooking has finished. After 3
hours the keep warm feature will shut the oven off
automatically.
The keep warm feature may be used without any other
cooking operations or may be used after cooking has
finished using bake time and or delay start.
FOOD POISONING HAZARD, Do not let food sit for more
than one hour before or after cooking. Doing so can result
in food poisoning or sickness.
To set the oven to keep warm:
Step Press
1. Press keep warm. keep
warm
2. Press start.
"HLd" for hold will appear
in the display (Fig. 4).
start
Fig, 4
i¸]
The keep warm feature will automatically turn the oven
off after 3 hours.

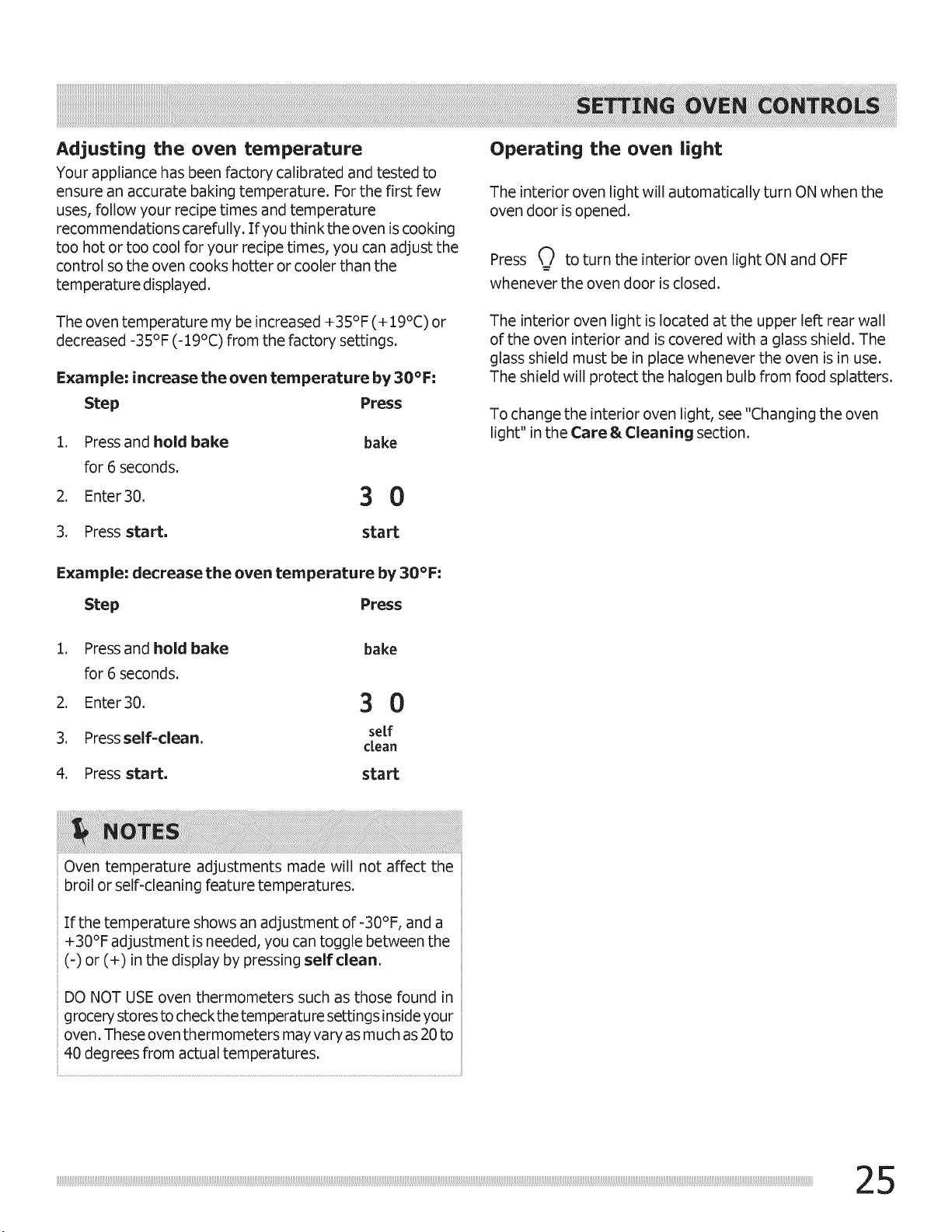

Adjusting the oven temperature
Your appliance has been factory calibrated and tested to
ensure an accurate baking temperature. For the first few
uses, follow your recipe times and temperature
recommendations carefully. If you thinkthe oven is cooking
too hot or too cool for your recipe times, you can adjust the
control so the oven cooks hotter or cooler than the
temperature displayed.
The oven temperature my be increased +35°F (+ 19°C) or
decreased -35°F (-19°C) from the factory settings.
Example: increase the oven temperature by 30°F:
Step Press
1. Press and hold bake bake
for 6 seconds.
2. Enter30. 3 0
3. Press start, start
Example: decrease the oven temperature by 30°F:
Step Press
1. Press and hold bake bake
for 6 seconds.
2. Enter30. 3 0
3. Press self=clean, self
dean
4. Press start, start
Oven temperature adjustments made will not affect the
Operating the oven light
The interior oven light will automatically turn ON when the
oven door is opened.
Press O to turn the interior oven light ON and OFF
whenever the oven door is closed.
The interior oven light is located at the upper left rear wall
of the oven interior and is covered with a glass shield. The
glass shield must be in place whenever the oven is in use.
The shield will protect the halogen bulb from food splatters.
To change the interior oven light, see "Changing the oven
light" in the Care &Cleaning section.
broil or self-cleaning feature temperatures.
If the temperature shows an adjustment of-30°F, and a
+30°F adjustment is needed, you can toggle between the
(-) or (+) in the display by pressing self clean.
DO NOT USE oven thermometers such as those found in
grocery stores to checkthe temperature settings inside your
oven. These oven thermometers may vary as much as 20 to
40 degrees from actual temperatures.

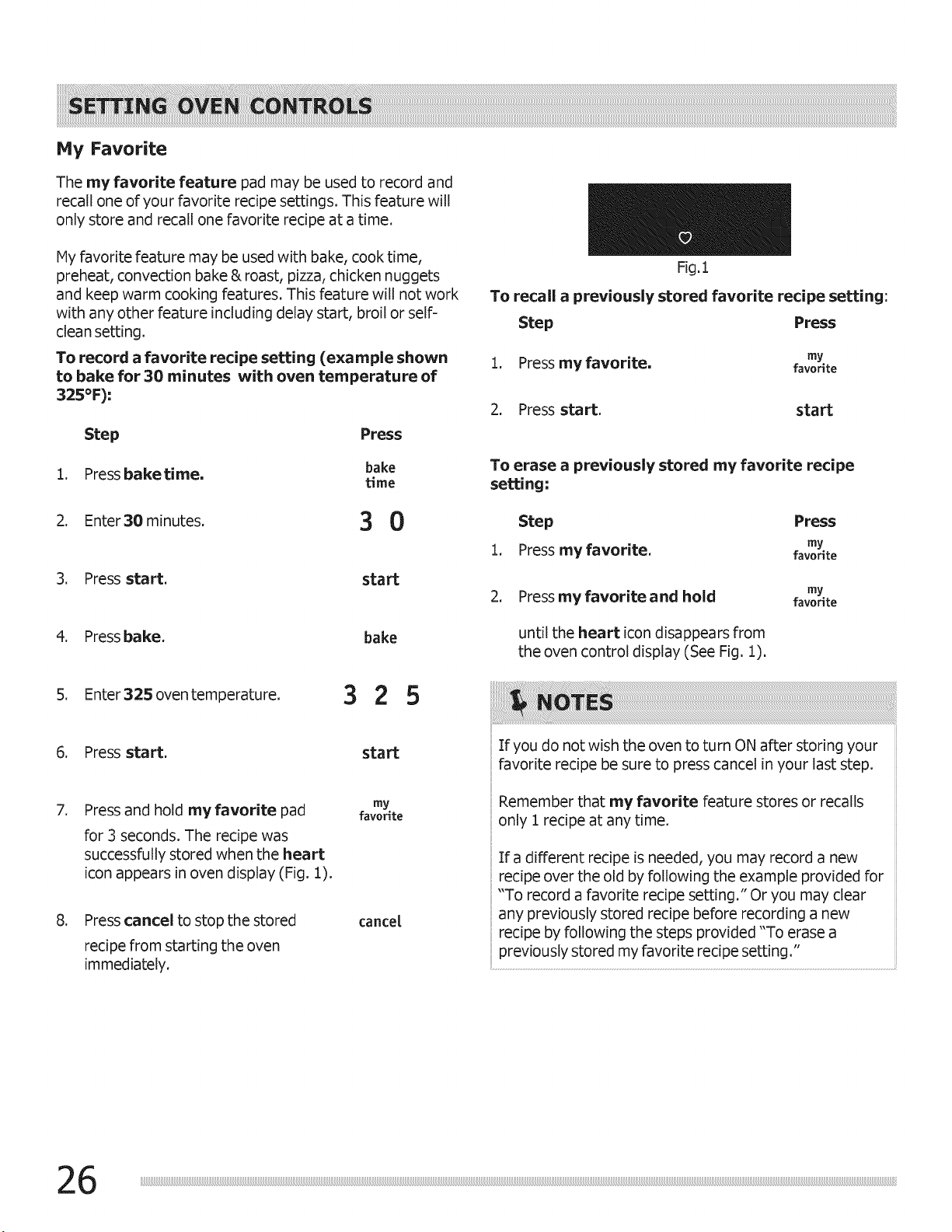

Hy Favorite
The my favorite feature pad may be used to record and
recall one of your favorite recipe settings. This feature will
only store and recall one favorite recipe at a time.
My favorite feature may be used with bake, cooktime,
preheat, convection bake & roast, pizza, chicken nuggets
and keep warm cooking features. This feature will not work
with any other feature including delay start, broil or self-
clean setting.
To record a favorite recipe setting (example shown
to bake for 30 minutes with oven temperature of
325°F):
.
Step Press
Press bake time. bake
time
2. Enter3Ominutes. 3 0
3. Press start, start
4. Press bake. bake
5. Enter 325 oven temperature. 3 2 5
6. Press start, start
my
7. Press and hold my favorite pad favorite
for 3 seconds. The recipe was
successfully stored when the heart
icon appears in oven display (Fig. 1).
8. Press cancel to stop the stored
recipe from starting the oven
immediately.
cancel
Fig.1
To recall a previously stored favorite recipe setting:
Step Press
my
1. Press my favorite, favorite
2. Press start, start
To erase a previously stored my favorite recipe
setting:
Step Press
my
1. Press my favorite, favorite
my
2. Press my favorite and hold favorite
until the heart icon disappears from
the oven control display (See Fig. 1).
If you do not wish the oven to turn ON after storing your
favorite recipe be sure to press cancel in your last step.
Remember that my favorite feature stores or recalls
only 1 recipe at any time.
If a different recipe is needed, you may record a new
recipe over the old by following the example provided for
"To record a favorite recipe setting." Or you may clear
any previously stored recipe before recording a new
recipe by following the steps provided "To erase a
previously stored my favorite recipe setting."

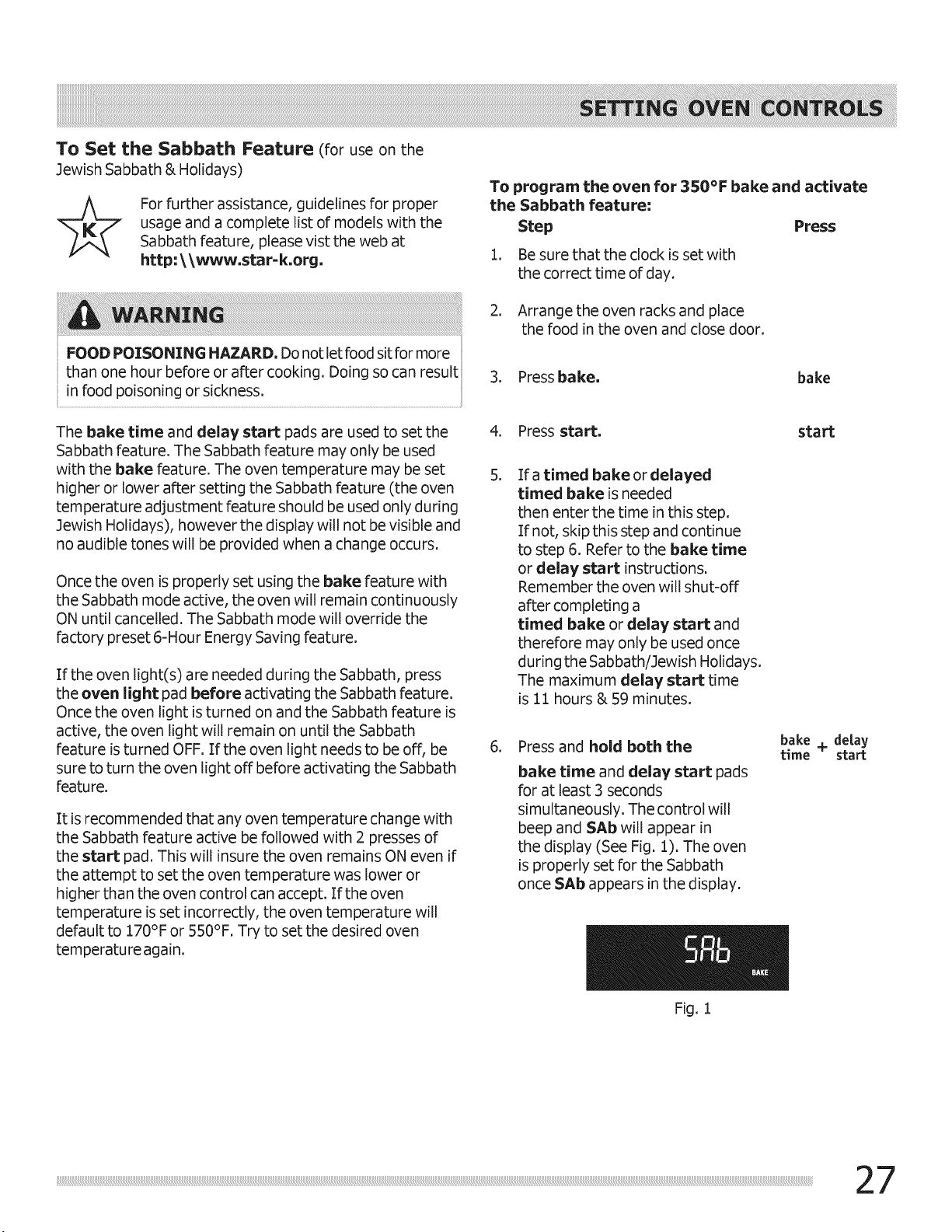

To Set the Sabbath Feature (for use on the
Jewish Sabbath & Holidays)
For further assistance, guidelines for proper
usage and a complete list of models with the
Sabbath feature, please vist the web at
http; \\www.star=k.org.
U
FOOD POISONING HAZARD, Do notletfoodsitformore
than one hour before or after cooking. Doing so can result
in food poisoning or sickness.
The bake time and delay start pads are used to set the
Sabbath feature. The Sabbath feature may only be used
with the bake feature. The oven temperature may be set
higher or lower after setting the Sabbath feature (the oven
temperature adjustment feature should be used only during
Jewish Holidays), however the display will not be visible and
no audible tones will be provided when a change occurs.
Once the oven is properly set using the bake feature with
the Sabbath mode active, the oven will remain continuously
ON until cancelled. The Sabbath mode will override the
factory preset 6-Hour Energy Saving feature.
If the oven light(s) are needed during the Sabbath, press
the oven lightpad before activating the Sabbath feature.
Once the oven light is turned on and the Sabbath feature is
active, the oven light will remain on until the Sabbath
feature is turned OFF. If the oven light needs to be off, be
sure to turn the oven light off before activating the Sabbath
feature.
It is recommended that any oven temperature change with
the Sabbath feature active be followed with 2 presses of
the start pad. This will insure the oven remains ON even if
the attempt to set the oven temperature was lower or
higher than the oven control can accept. If the oven
temperature is set incorrectly, the oven temperature will
default to 170°F or 550°F. Try to set the desired oven
temperature again.
To program the oven for 350°F bake and activate
the Sabbath feature:
Step Press
1. Be sure that the clock is set with
the correct time of day.
2. Arrange the oven racks and place
the food in the oven and close door.
3. Pressbake. bake
4. Press start, start
.
If a timed bake or delayed
timed bake is needed
then enter the time in this step.
If not, skip this step and continue
to step 6. Refer to the bake time
or delay start instructions.
Remember the oven will shut-off
after completing a
timed bake or delay start and
therefore may only be used once
during the Sabbath/Jewish Holidays.
The maximum delay start time
is 11 hours & 59 minutes.
6. Press and hold both the
bake time and delay start pads
for at least 3 seconds
simultaneously. The control will
beep and SAb will appear in
the display (See Fig. 1). The oven
is properly set for the Sabbath
once SAb appears in the display.
bake
time
+ delay
start
Fig. 1
To Set the Sabbath Feature (cont'd)
To turn offthe oven but keep the Sabbath feature
active:
Press cancel, cancel
To turn off the Sabbath feature:
Press and hold both the
bake time and delay start pads
for at least 3 seconds, The control
will beep and SAb will disappear
from the display. The oven is no
longer programmed for the
Sabbath feature.
bake
time
+ delay
start
What to do during a power failure or power
interruption after the Sabbath feature was
activated:
Should you experience a power failure or interruption, the
oven will shut-off. When power is restored the oven will not
turn back on automatically. The oven will remember that it
is set for the Sabbath and the oven display will show the
message "SF" for Sabbath failure (Fig. 1).
Fig, 1
The food may be safely removed from the oven while still in
the Sabbath feature, however the oven cannot be turned
back on until after the Sabbath/Holidays.
After the Sabbath observance turn OFF the Sabbath
feature. At the same time press and hold both the
bake + delay pads for at least 3 seconds.
time start
SF will disappear from the display and the oven may be
used with all normal functions.
If a delay start time longer than 12 hours (maximum of
24 hours) in advance is desired, set the display mode for
the 24 hour setting. For detailed instructions see the
section "Setting 12 or 24 hour display modes".
It is not advised to attempt to activate any other program
feature except BAKE while the Sabbath feature is active.
ONLY the following key pads will function correctly with
the Sabbath feature: 0=9 number pads, bake, start &
cancel. ALL OTHER KEYPADS should not be used once
the Sabbath feature is activated.
You may change the oven temperature once baking has
started. Press bake, enter the oven temperature
change (170 to 550F °) and press start (for 3ewish
Holidays only). Remember that the oven control will
no longer beep or display any further changes
once the oven is set for the Sabbath feature.
If the keep warm feature was activated and the
Sabbath feature was set the keep warm feature will
automatically shut-off the oven off after 3 hours,
Operating the keep warm drawer
(some models)
The purpose of the keep warm drawer is to keep hot
cooked foods at serving temperatures It is not
recommended to heat cold food in the keep warm drawer;
always start with hot food.
The keep warm drawer may also be used to warm dinner
plates. All food placed in the keep warm drawer should be
covered with a lid or aluminum foil to maintain quality.
= Storage in or on appliance=flammable materials
should not be stored in an oven, warmer
drawer, near surface units, This includes paper,
plastic and cloth items, such as cookbooks,
plasticware and towels, as well as flammable liquids.
Do not store explosives, such as aerosol cans, on or
near the range.
= DO NOT LEAVE CHTLDREN ALONE=children
should not be left alone or unattended in the
area where appliance is in use. They should never
be allowed to sit or stand on any part of the appliance,
including the warmer drawer.
Always use potholders or oven mitts when removing
food from the warmer drawer as cookware and plates
will be hot and you can be burned.
Do not use plastic wrap to cover food, Plastic may
melt onto the drawer and be very difficult to clean
up, Use only utensils and cookware recommended by the
manufacturer for use in the keep warm drawer.
Keep warm drawer indicator light
The keep warm drawer indicator light is located beside the
on=off key (See Fig. 1). It turns on when the keep warm
drawer is turned ON, and stays on until the keep warm
drawer is turned OFF.
hi
I
reed
I
lo
temp
keep warm
drawer
on=off
Fig. i
-- Keep warm
drawer
indicator
light
Operating keep warm drawer
The electronic control located on the left side of the control
panel is used to turn ON and set temperature settings for
the keep warm drawer. Available temperature settings (2)
are approximate, and are designated by hi, reed, and le. If
needed, refer to keep warm drawer recommended
settings list provided in this section.
To set the keep warm drawer:
Step Press
1. Arrange the keep warm drawer rack
(if needed) in the keep warm drawer
and place the food or dishes in the
keep warm drawer.
2. Press on/off
from the keep warm drawer control.
The keep warm indicator light will
turn ON (See Fig. 1).
3. Press temp to choose desired
temperature setting (high, medium
or low-See Fig. 2).
4. Once warming is finished,
press on/off to turn OFF.
on-off
temp
on-off
hi D hi D hi []
I I I
med D med [] med []
I I I
lo [] lo [] 1o []
temp temp temp
Fig, 2

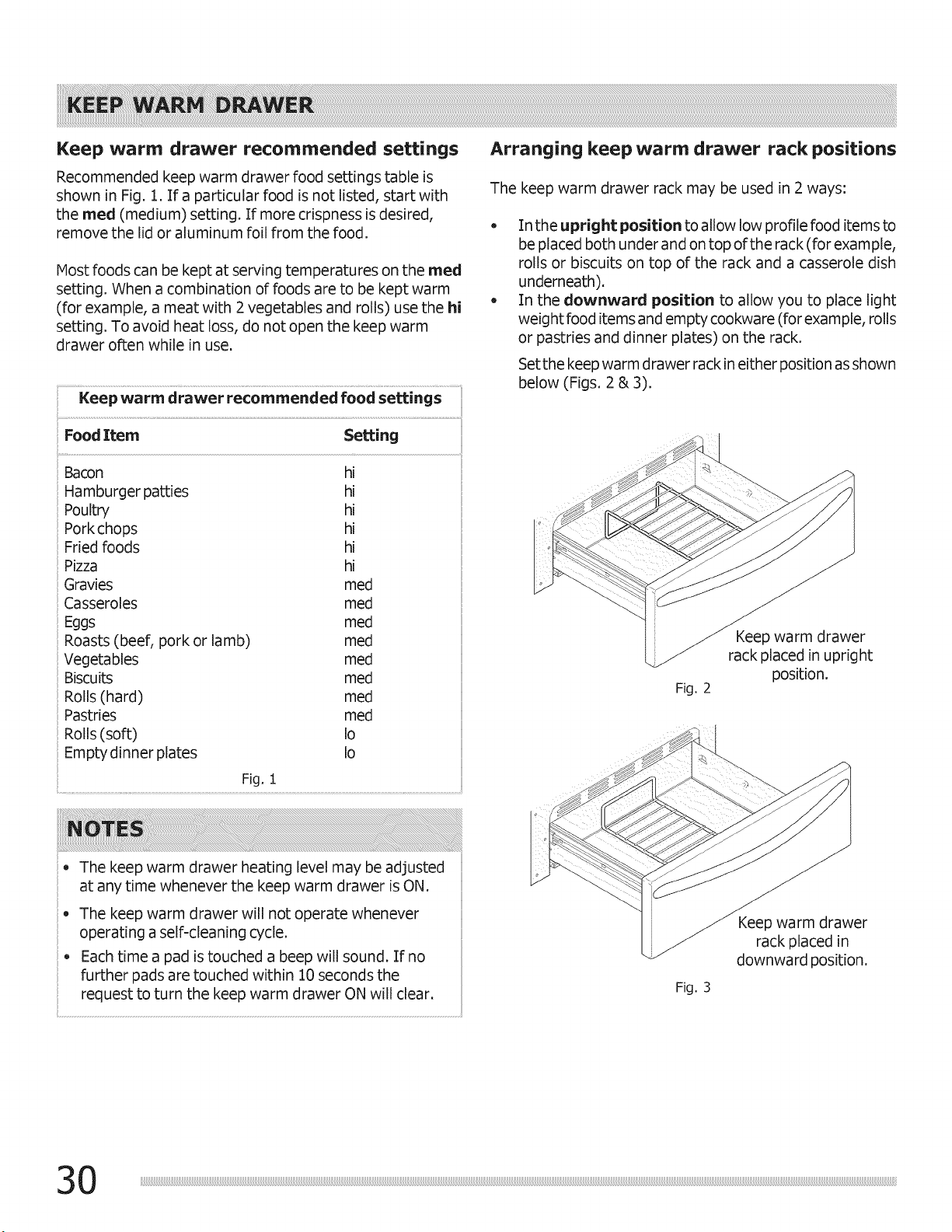

Keep warm drawer recommended settings
Recommended keep warm drawer food settings table is
shown in Fig. 1. If a particular food is not listed, start with
the reed (medium) setting. If more crispness is desired,
remove the lid or aluminum foil from the food.
Most foods can be kept at serving temperatures on the reed
setting. When a combination of foods are to be kept warm
(for example, a meat with 2 vegetables and rolls) use the hi
setting. To avoid heat loss, do not open the keep warm
drawer often while in use.
Keep warm drawer recommended food settings
Food Item Setting
Bacon hi
Hamburger patties hi
Poultry hi
Pork chops hi
Fried foods hi
Pizza hi
Gravies med
Casseroles med
Eggs med
Roasts (beef, pork or lamb) med
Vegetables med
Biscuits med
Rolls (hard) med
Pastries med
Rolls (soft) !o
Empty dinner plates Io
Fig. 1
Arranging keep warm drawer rack positions
The keep warm drawer rack may be used in 2 ways:
- In the upright position to allow low profile food items to
be placed both under and on top of the rack (for example,
rolls or biscuits on top of the rack and a casserole dish
underneath).
- In the downward position to allow you to place light
weight food items and empty cookware (for example, rolls
or pastries and dinner plates) on the rack.
Set the keep warm drawer rack in either position as shown
below (Figs. 2 & 3).
Fig, 2
Keep warm drawer
rack peaced in upright
position.
• The keep warm drawer heating level may be adjusted
at any time whenever the keep warm drawer is ON.
• The keep warm drawer will not operate whenever
operating a self-cleaning cycle.
Each time a pad is touched a beep will sound. If no
further pads are touched within 10 seconds the
request to turn the keep warm drawer ON will clear.
Fig. 3
Keep warm drawer
rack placed in
downward position.

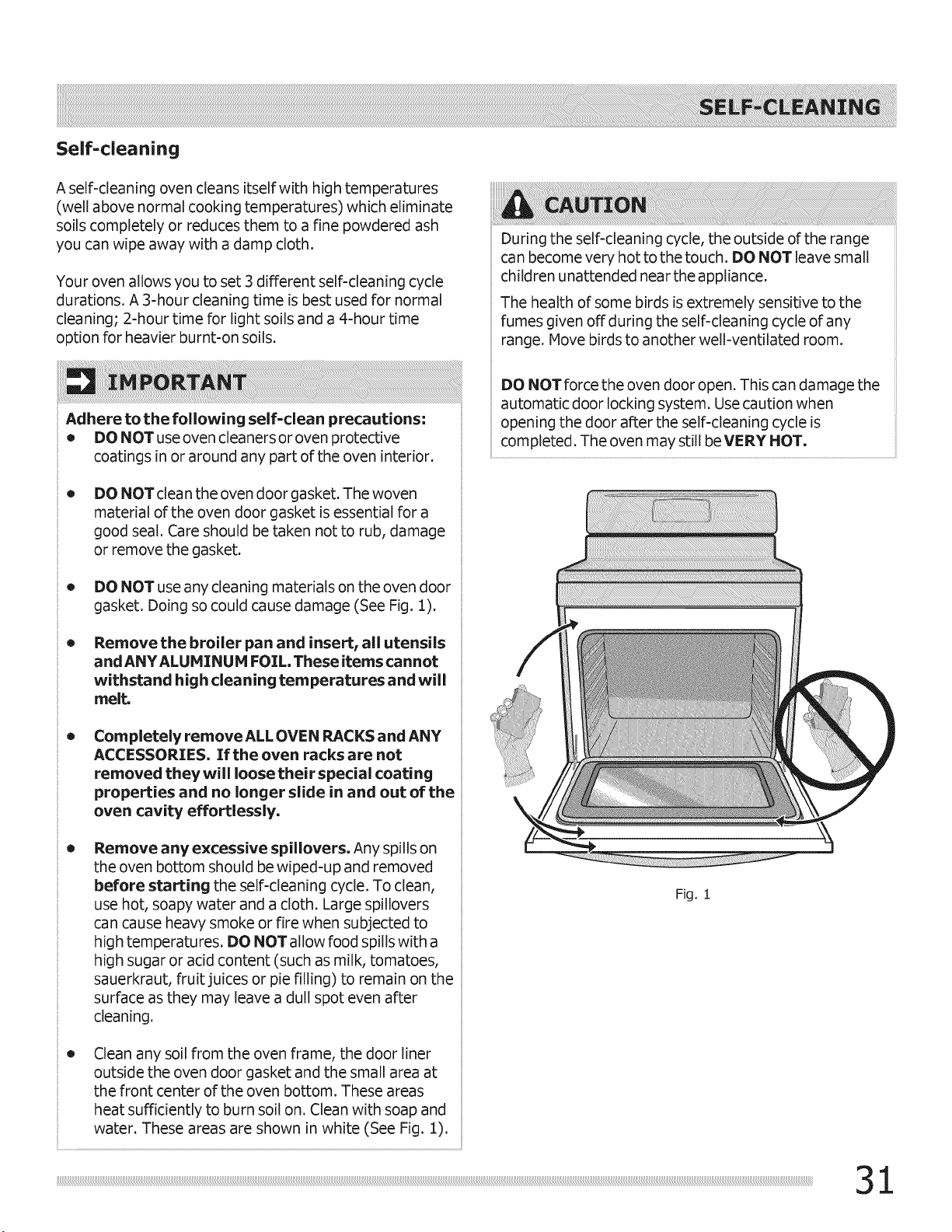

Self=cleaning
A self=cleaning oven cleans itself with high temperatures
(well above normal cooking temperatures) which eliminate
soils completely or reduces them to a fine powdered ash
you can wipe away with a damp cloth.
Your oven allows you to set 3 different self-cleaning cycle
durations. A 3-hour cleaning time is best used for normal
cleaning; 2=hour time for light soils and a 4-hour time
option for heavier burnt-on soils.
Adhere to the following self-dean precautions:
= DO NOT use oven cleaners or oven protective
coatings in or around any part of the oven interior.
DO NOT clean the oven door gasket. The woven
material of the oven door gasket is essential for a
good seal. Care should be taken not to rub, damage
or remove the gasket.
o
ii io
o
DO NOT use any cleaning materials on the oven door
gasket. Doing so could cause damage (See Fig. 1).
Remove the broiler pan and insert, all utensils
and ANYALUMINUM FOIL. These items cannot
withstand high cleaning temperatures and will
melt.
Corn pletely remove ALL OVEN RACKS and ANY
ACCESSORIES. If the oven racks are not
removed they will loose their special coating
properties and no longer slide in and out of the
oven cavity effortlessly.
Remove any excessive spillovers, Any spills on
the oven bottom should be wiped-up and removed
before starting the self-cleaning cycle. To clean,
use hot, soapy water and a cloth. Large spillovers
can cause heavy smoke or fire when subjected to
high temperatures. DO NOTallow food spills with a
high sugar or acid content (such as milk, tomatoes,
sauerkraut, fruit juices or pie filling) to remain on the
surface as they may leave a dull spot even after
cleaning.
Clean any soil from the oven frame, the door liner
outside the oven door gasket and the small area at
the front center of the oven bottom. These areas
heat sufficiently to burn soil on. Clean with soap and
water. These areas are shown in white (See Fig. 1).
During the self=cleaning cycle, the outside of the range
can become very hot to the touch. DO NOT leave small
children unattended near the appliance.
The health of some birds is extremely sensitive to the
fumes given off during the self-cleaning cycle of any
range. Move birds to another well-ventilated room.
DO NOT force the oven door open. This can damage the
automatic door locking system. Use caution when
opening the door after the self-cleaning cycle is
completed. The oven may still be VERY HOT.
Fig. 1
Setting a self=clean cycle or a delayed
start self=clean cycle
Examples: To start an immediate self-cleaning cycle
and/or how to add a delay start time of 9:00 o'clock
and shut-off self=clean automatically:
Step Press
1. Be sure the clock is set with the correct
time of day, ALL the oven racks are
removed and the oven door is closed.
Go to step 5 if you wish to start the
self-clean immediately,
Finish steps 2 thru 6 if setting a
delayed start self-clean cycle,
delay
2. Press delay start,
start
3, Enter900. 9 0 0
4. Press start, start
When the self=clean cycle has completed:
1. The time of day and "Hot" will appear in the display
window (See Fig.3).
2. Once the oven has cooled down for about 1 hour and
"Hot" is no longer displayed the"door OPn" message
should appear (Fig. 4). When this message turns off
the oven door may be opened. Use caution and avoid
possible burns when opening the door after the self-
cleaning cycle has completed. The oven may still be
VERY HOT.
Fig. 3 Fig. 4
If it becomes necessary to stop a self=clean cycle
once it has been activated:
1. Press cancel.
2. If the self-clean cycle has heated the oven to a high
temperature, allow enough time for the oven to cool
and for the "door OPn" message to appear (Fig. 4).
When this message turns offthe oven door may be
opened.
3. Restart the self-dean cycle once all conditions have
been corrected.
5. Press self clean once for a 3-hour self
clean
clean time, press self clean twice for
4-hour clean and press 3 times
for a 2-hour self-clean cycle time.
6. Press start, start
As soon as the controls are set, the motor driven door
lock will begin to closeautomatically. "door Loc" will
appear in the display (See Fig. 1). DO NOT open the
oven door while "door Loc" is on (allow 15 seconds for
the oven door to completely lock).
Once the door has locked "CLn" will appear in the
display indicating the oven will begin the self-clean
process (Fig, 2).
Fig. 1 Fig. 2
To avoid possible burns use care when opening the
oven door after the self-cleaning cycle. Stand to the
side of the oven when opening the door to allow hot
air or steam to escape.
DO NOT force the oven door open. This can damage
the automatic door locking system. Use caution and
avoid possible burns when opening the door after the
self-cleaning cycle has completed. The oven may still be
VERY HOT,
Whenever the self-clean feature is active you may check
the amount of time remaining in the self-clean cycle by
pressing the self pad once. The oven door will be
clean
locked until the range has cooled sufficiently, You will
need to allow about 1 additional hour to the time
displayed before you can open the oven door.
When the oven is cool, wipe away any residue or
powdered ash with a damp cloth or paper towel.

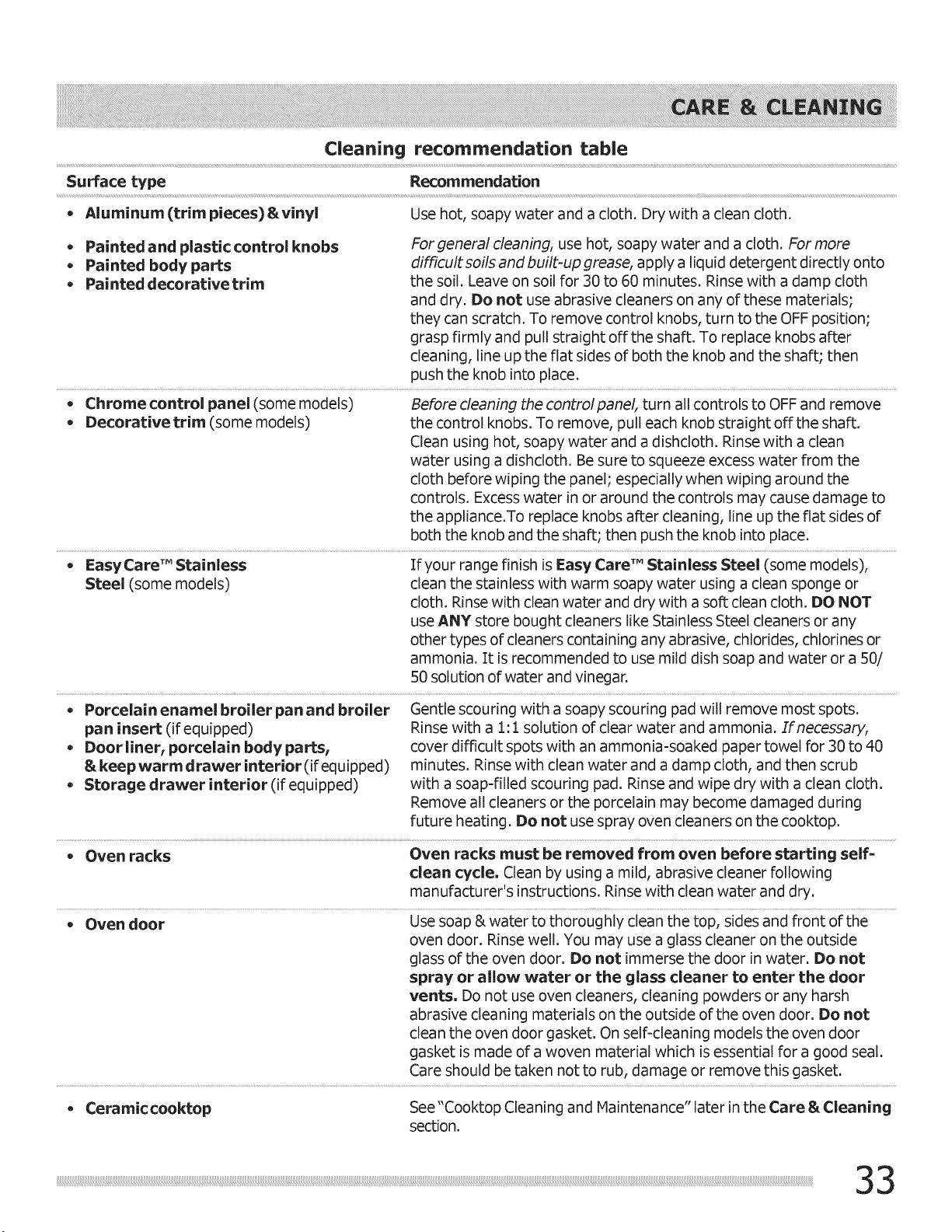

Cleaning recommendation table
Surface type Recommendation
- Aluminum (trim pieces) &vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.
- Painted and plastic control knobs
- Painted bodyparts
- Painted decorative trim
For general cleaning, use hot, soapy water and a cloth. For more
difficult soils and buflt-up grease, apply a liquid detergent directly onto
the soil. Leave on soil for 30 to 60 minutes. Rinse with a damp cloth
and dry. Do not use abrasive cleaners on any of these materials;
they can scratch. To remove control knobs, turn to the OFF position;
grasp firmly and pull straight offthe shaft. To replace knobs after
cleaning, line up the flat sides of both the knob and the shaft; then
push the knob into place.
- Chrome control panel (some models) Before cleaning the controlpanel, turn all controls to OFF and remove
- Decorative trim (some models) the control knobs. To remove, pull each knob straight offthe shaft.
Clean using hot, soapy water and a dishcloth. Rinse with a clean
water using a dishcloth. Be sure to squeeze excess water from the
cloth before wiping the panel; especially when wiping around the
controls. Excess water in or around the controls may cause damage to
the appliance.To replace knobs after cleaning, line up the flat sides of
both the knob and the shaft; then push the knob into place.
- EasyCare TM Stainless If your range finish is Easy Care TM Stainless Steel (some models),
Steel (some models) clean the stainless with warm soapy water using a clean sponge or
cloth. Rinse with clean water and dry with a soft clean cloth. DO NOT
use ANY store bought cleaners like Stainless Steel cleaners or any
other types of cleaners containing any abrasive, chlorides, chlorines or
ammonia. It is recommended to use mild dish soap and water or a 50/
50 solution of water and vinegar.
o Porcelain enamel broiler pan and broiler
pan insert (if equipped)
Door liner, porcelain body parts,
& keep warm drawer interior (if equipped)
- Storage drawer interior (if equipped)
Gentle scouring with a soapy scouring pad will remove most spots.
Rinse with a 1:1 solution of clear water and ammonia. If necessary,
cover difficult spots with an ammonia=soaked paper towel for 30 to 40
minutes. Rinse with clean water and a damp cloth, and then scrub
with a soap=filled scouring pad. Rinse and wipe dry with a clean cloth.
Remove all cleaners or the porcelain may become damaged during
future heating. Do not use spray oven cleaners on the cooktop.
- Oven racks Oven racks must be removed from oven before starting self=
clean cycle. Clean by using a mild, abrasive cleaner following
manufacturer's instructions. Rinse with clean water and dry.
- Oven door Use soap & water to thoroughly clean the top, sides and front of the
oven door. Rinse well. You may use a glass cleaner on the outside
glass of the oven door. Do not immerse the door in water. Do not
spray or allow water or the glass cleaner to enter the door
vents, Do not use oven cleaners, cleaning powders or any harsh
abrasive cleaning materials on the outside of the oven door. Do not
clean the oven door gasket. On self-cleaning models the oven door
gasket is made of a woven material which is essential for a good seal.
Care should be taken not to rub, damage or remove this gasket.
* Ceramiccooktop
See"Cooktop Cleaning and Maintenance" later in the Care & Cleaning
section.
Cooktop maintenance
Consistent and proper cleaning is essential to
Cooktop cleaning
maintaining your ceramicglasscooktop,
Prior to using your cooktop for the first time, apply some of
the cooktop cleaning cream supplied with your new
applia nce. Buff with a non-abrasive cloth or no-scratch
cleaning pad. This will make cleaning easier when soiled
from cooking. The special cooktop cleaning cream leaves a
protective finish on the glass to help prevent scratches and
abrasions.
Sliding aluminum or copper clad bottom pans on the
cooktop can cause metal markings on the cooktop surface.
These marks should be removed immediately after the
cooktop has cooled using the cooktop cleaning cream. Metal
marks can become permanent if not removed prior to
future use.
Cookware (cast iron, metal, ceramic or glass) with rough or
dirty bottoms can mark or scratch the cooktop surface.
Do not:
- Slide anything metal or glass across the cooktop.
- Use cookware with dirt or dirt build up on bottom;
replace with clean cookware before using.
- Use your cooktop as a cutting board or work surface in
the kitchen.
- Cook foods directly on the cooktop surface without a pan.
- Drop heavy or hard objects on the ceramic glass cooktop,
they may cause it to crack.
Before cleaning the cooktop, be sure the controls are
turned to OFF and the cooktop is COOL.
For light to moderate soil:
Apply a few drops of CookTop® Cleaning Creme directly to
the cooktop. Use a paper towel or use a non=abrasive
plastic type no-scratch cleaning pad to clean the entire
cooktop surface. Make sure the cooktop is cleaned
thoroughly, leaving no residue.
For heavy, burned on soil:
Apply a few drops of CookTop® Cleaning Creme directly to
the soiled area. Rub the soiled area using a non-abrasive
plastic type no-scratch cleaning pad, applying pressure as
needed. Do not use the pad you use to clean the cooktop
for any other purpose.
If soils remain, carefully scrape soils with a metal razor
blade scraper, holding scraper at a 30 degree angle to the
surface. Remove loosened soils with cooktop cleaning
cream and buff surface clean.
Cooktop cleaning (cont'd)
Plastic or foods with a high sugar content:
These types of soils need be removed immediately if spilled
or melted onto the ceramic cooktop surface. Permanent
damage (such as pitting of the cooktop surface) may occur
if not removed immediately,
After turning the surface elements OFF, use a razor blade
scraper or a metal spatula with a mitt and scrape the soil
from the hot surface (as illustrated). Allow the cooktop to
cool, and use the same method for heavy or burned on
soils.
DO NOT use a cooktop cleaner on a hot cooktop,
The fumes can be hazardous to your health and
can chemically damage the ceramic glass surface.
Do not use the following on the cooktop:
- Do not use abrasive cleaners and scouring pads, such as
metal and some nylon pads. They may scratch the
cooktop, making it more difficult to clean.
o Do not use harsh cleaners, such as chlorine bleach,
ammonia or oven cleaners, as they may etch or discolor
the cooktop.
o Do not use dirty sponges, cloths or paper towels, as they
can leave soil or lint on the cooktop which can burn and
cause discoloration.
Caution for aluminum use on the cooktop
- Aluminum Foil =Use of aluminum foil on a hot cooktop
will damage the ceramic cooktop. Do not use thin
aluminum cooking utensils or allow aluminum foil to
touch the ceramic cooktop under ANY circumstances.
Aluminum utensils =The melting point of aluminum
is much lower than that of other metals. Care must be
taken when aluminum pots or pans are used on the
cooktop. If aluminum pans are allowed to boil dry
when using the cooktop, not only will the utensil be
damaged or destroyed, but it may fuse to, break or
mark the ceramic glass surface, permanently
damaging the cooktop surface.
Replacing the oven interior light
Besure the range is unplugged and all parts are COOL before
replacing oven light. Wear a leather-faced glove for protection
against possible broken glass.
The interior oven light bulb is located at the rear oven cavity
and is covered with a glass shield. The glass shield must be
in place whenever the oven is in use (See Fig. 1).
Replacing the oven interior light bulb:
1. Turn electrical power off at the main source or unplug
the appliance.
2. Remove interior oven light shield (See Fig. 1).
3. Replace bulb with a new T=4 type 40 Watt Halogen
appliance bulb. Please note: do not allow your fingers
to touch the new bulb when replacing. This will shorten
the life of the new bulb. Use a paper towel to cover the
new bulb when installing.
4. Replace glass interior oven light shield.
5. Turn power back on again at the main source (or plug
the appliance back in).
6. Be sure to reset the time of day on the clock.
oven interior
Damage to the ceramic glass coo ktop may occur if you
use an abrasive type cleaning pad. Only use cleaning
products that have been specifically designed for ceramic
glasscooktops. Fig. 1

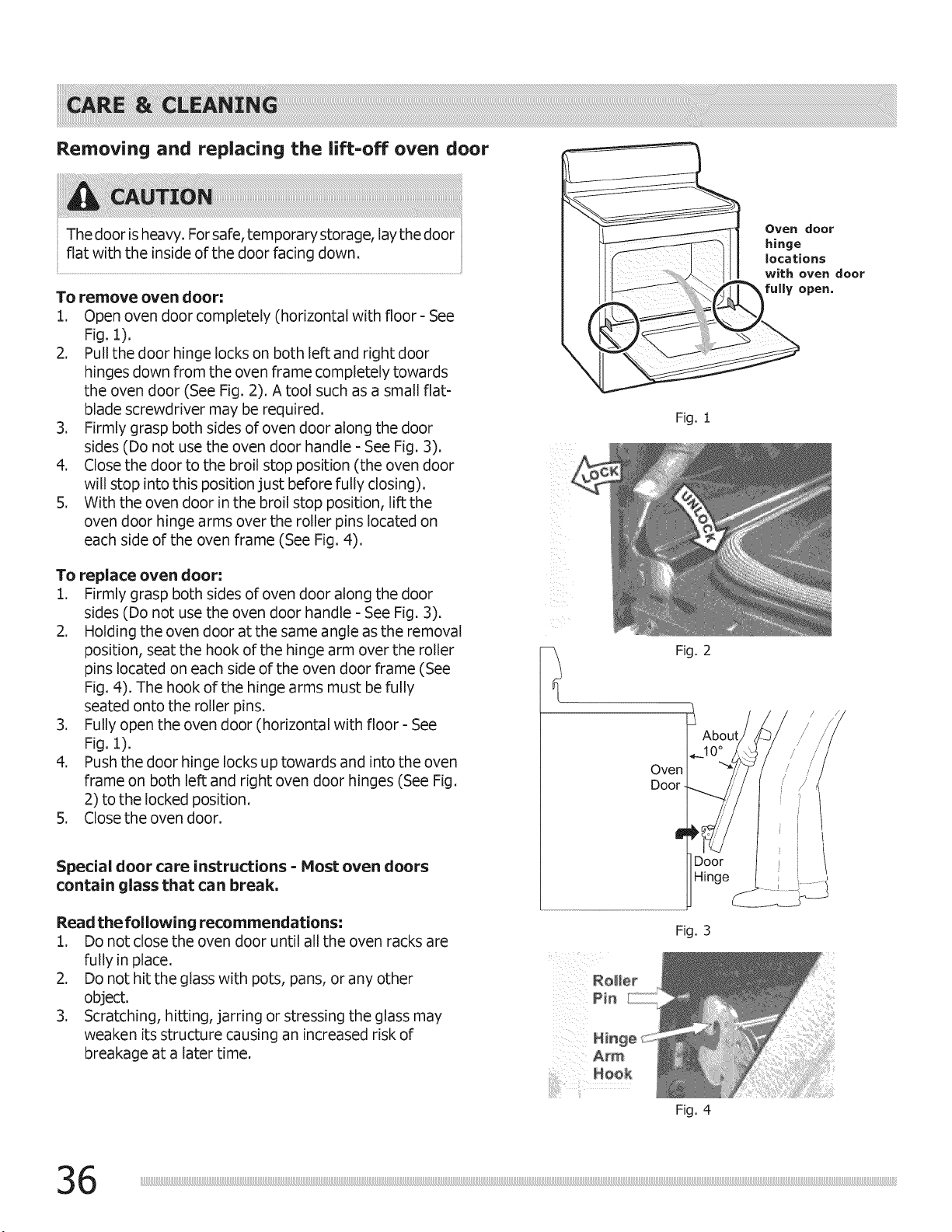

Removing and replacing the lift-off oven door
The door is heavy. For safe, temporary storage, lay the door
flat with the inside of the door facing down.
To remove oven door:
1. Open oven door completely (horizontal with floor- See
Fig. 1).
2. Pullthedoor hingelockson bothleftand rightdoor
hinges down from the oven frame completely towards
the oven door (See Fig. 2). A tool such as a small flat-
blade screwdriver may be required.
3. Firmly grasp both sides of oven door along the door
sides (Do not use the oven door handle - See Fig. 3).
4. Close the door to the broil stop position (the oven door
will stop into this position just before fully closing).
5. With the oven door in the broil stop position, lift the
oven door hinge arms over the roller pins located on
each side of the oven frame (See Fig. 4).
To replace oven door:
1. Firmly grasp both sides of oven door along the door
sides (Do not use the oven door handle - See Fig. 3).
2. Holding the oven door at the same angle as the removal
position, seat the hook of the hinge arm over the roller
pins located on each side of the oven door frame (See
Fig. 4). The hook of the hinge arms must be fully
seated onto the roller pins.
3. Fully open the oven door (horizontal with floor - See
Fig.1).
4. Push the door hinge locks up towards and into the oven
frame on both left and right oven door hinges (See Fig.
2) to the locked position.
5. Close the oven door.
Special door care instructions = Most oven doors
contain glass that can break.
Read the following recommendations:
1. Do not close the oven door until all the oven racks are
fully in place.
2. Do not hit the glass with pots, pans, or any other
object.
3. Scratching, hitting, jarring or stressing the glass may
weaken its structure causing an increased risk of
breakage at a later time.
Fig, I
Fig. 2
Oven
Door
Door
Hinge
Fig. 3
Fig. 4-
Oven door
hinge
locations
with oven door
fully open,
................_ ....................._, _

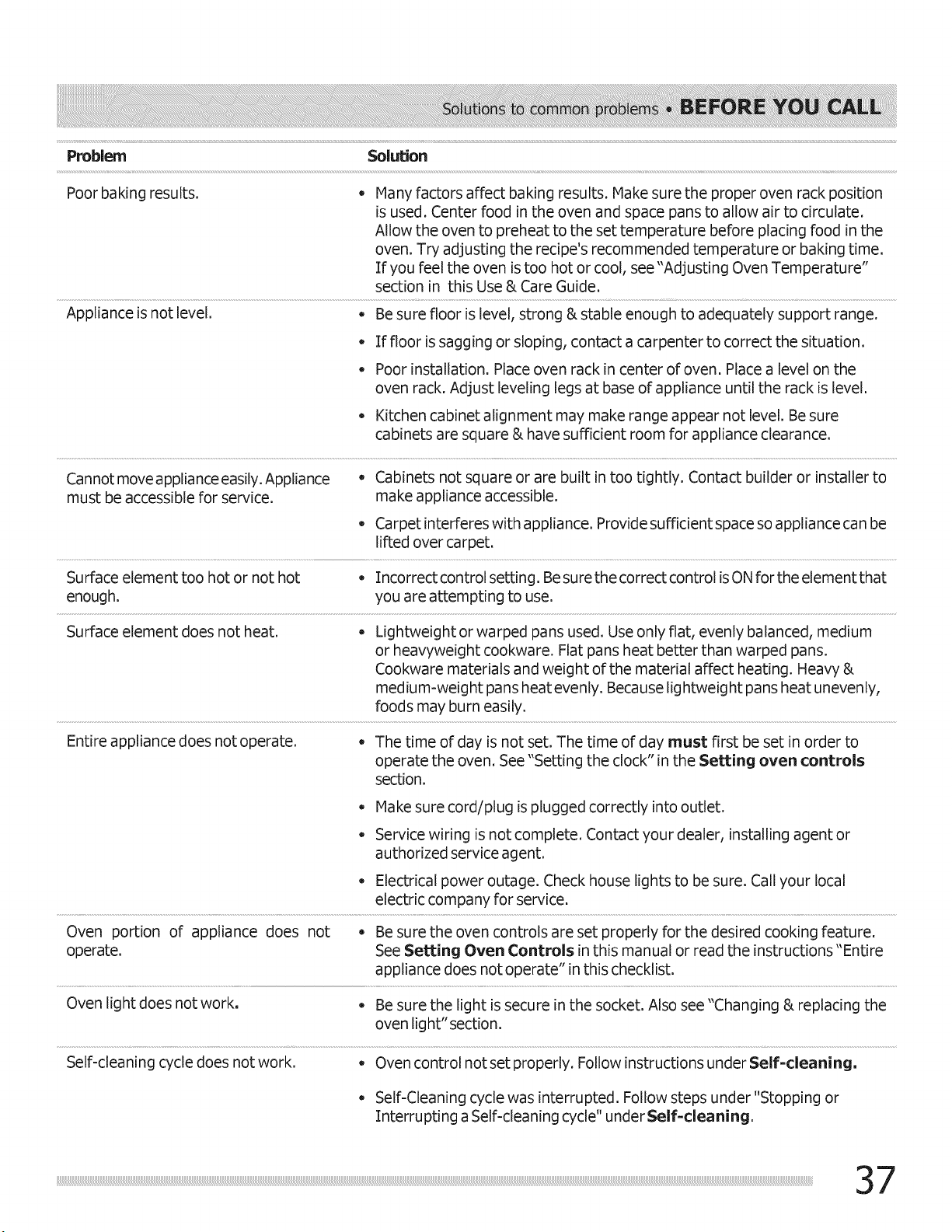

Problem Solution
Poor baking results, * Many factors affect baking results. Hake sure the proper oven rack position
is used. Center food in the oven and space pans to allow air to circulate,
Allow the oven to preheat to the set temperature before placing food in the
oven. Try adjusting the recipe's recommended temperature or baking time.
If you feel the oven is too hot or cool, see"Adjusting Oven Temperature"
section in this Use & Care Guide.
Appliance is not level. * Be sure floor is level, strong & stable enough to adequately support range.
* If floor is sagging or sloping, contact a carpenter to correct the situation.
Poor installation. Place oven rack in center of oven. Place a level on the
oven rack. Adjust leveling legs at base of appliance until the rack is level.
Kitchen cabinet alignment may make range appear not level. Be sure
cabinets are square & have sufficient room for appliance clearance.
Cannot moveapplianceeasily. Appliance - Cabinets not square or are built in too tightly. Contact builder or installer to
must be accessible for service, make appliance accessible.
Carpet interferes with appliance. Provide sufficient space so appliance can be
lifted over carpet.
Surface element too hot or not hot * Incorrect control setting. Besure the correct control is ON for the element that
enough, you are attempting to use.
Surface element does not heat. - Lightweight or warped pans used. Use only flat, evenly balanced, medium
or heavyweight cookware. Flat pans heat better than warped pans.
Cookware materials and weight of the material affect heating. Heavy &
medium-weight pans heat evenly. Because lightweight pans heat unevenly,
foods may burn easily.
Entire appliance does not operate. The time of day is not set. The time of day must first be set in order to
operate the oven. See "Setting the clock" in the Setting oven controls
section.
Hake sure cord/plug is plugged correctly into outlet.
- Service wiring is not complete. Contact your dealer, installing agent or
authorized service agent.
Electrical power outage. Check house lights to be sure. Call your local
electric company for service.
Oven portion of appliance does not * Be sure the oven controls are set properly for the desired cooking feature.
operate. See Setting Oven Controls in this manual or read the instructions"Entire
appliance does not operate" in this checklist.
Oven light does not work. _ Be sure the light is secure in the socket. Also see "Changing & replacing the
oven lig ht" section.
Self-cleaning cycle does not work. * Oven control not set properly. Follow instructions under Self-cleaning.
* Self-Cleaning cycle was interrupted. Follow steps under "Stopping or
Interrupting a Self-cleaning cycle" under Self-cleaning.
.......... ......................._ _ _ _ _..................................._

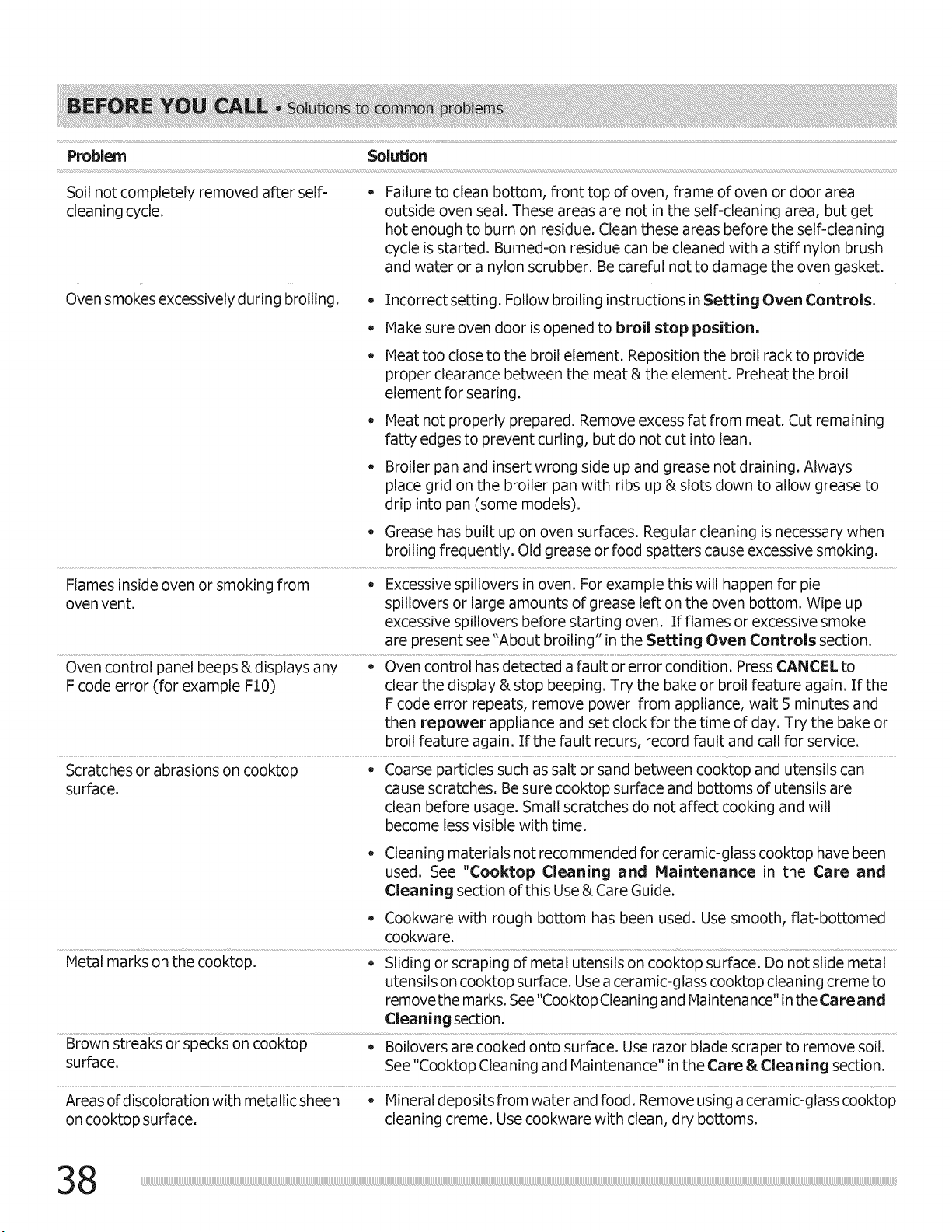

Problem Solution
Soil not completely removed after self- - Failure to clean bottom, front top of oven, frame of oven or door area
cleaning cycle, outside oven seal. These areas are not in the self-cleaning area, but get
hot enough to burn on residue. Clean these areas before the self-cleaning
cycle is started. Burned-on residue can be cleaned with a stiff nylon brush
and water or a nylon scrubber. Be careful not to damage the oven gasket.
Oven smokes excessively during broiling, o Incorrect setting. Follow broiling instructions in Setting Oven Controls.
Make sure oven door is opened to broil stop position,
Meat too close to the broil element. Reposition the broil rack to provide
proper clearance between the meat & the element. Preheat the broil
element for searing.
Neat not properly prepared. Remove excess fat from meat. Cut remaining
fatty edges to prevent curling, but do not cut into lean.
Broiler pan and insert wrong side up and grease not draining. Always
place grid on the broiler pan with ribs up & slots down to allow grease to
drip into pan (some models).
- Grease has built up on oven surfaces. Regular cleaning is necessary when
broiling frequently. Old grease or food spatters cause excessive smoking.
Flames inside oven or smoking from o Excessive spillovers in oven. For example this will happen for pie
oven vent. spillovers or large amounts of grease left on the oven bottom. Wipe up
excessive spillovers before starting oven. If flames or excessive smoke
are present see "About broiling" in the Setting Oven Controls section.
Oven contioi panei beeps & displays any ; oven control has detected a Press CANCEL to ....
F code error (for example F10) clear the display & stop beeping. Try the bake or broil feature again. If the
F code error repeats, remove power from appliance, wait 5 minutes and
then repower appliance and set clock for the time of day. Try the bake or
broil feature again. If the fault recurs, record fault and call for service.
Scratches or abrasions on cooktop _ Coarse particles such as salt or sand between cooktop and utensils can
surface, cause scratches. Be sure cooktop surface and bottoms of utensils are
clean before usage. Small scratches do not affect cooking and will
become less visible with time.
Cleaning materials not recommended for ceramic-glass cooktop have been
used. See "Cooktop Cleaning and Maintenance in the Care and
Cleaning section of this Use & Care Guide.
Cookware with rough bottom has been used. Use smooth, fiat-bottomed
cookware.
Metal marks on the cooktop. - Sliding or scraping of metal utensils on cooktop surface. Do not slide metal
utensils on cooktop surface. Usea ceramic-g lass cooktop cleaning creme to
removethe marks. See "Cooktop Cleaning and Maintenance" in the Care and
Cleaning section.
Brown streaks Orspecks On€ooktoP ; Beilovers are Cookedonto surface: use razor Blade scraper t0 iemove S0il:
surface. See "Cooktop Cleaning and Maintenance" in the Care &Cleaning section.
Areas of discoloration with metallic sheen - Mineral deposits from water and food. Remove using a ceramic-glass cooktop
on cooktop surface, cleaning creme. Use cookware with clean, dry bottoms.
Yourapplianceis coveredby a oneyearlimitedwarranty.Foroneyearfromyour originaldateof
purchase,Electroluxwill pay allcostsfor repairingor replacingany partsof thisappliancethat proveto
bedefectivein materialsorworkmanshipwhensuchapplianceis installed,usedand maintainedin
accordancewiththe providedinstructions.
Exclusions
This warranty does not cover the following :
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIE S
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN
LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRI-i-i-EN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.
If You Need
Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
P.O. Box 212378
Augusta, GA 30907
Electrolux
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
