Installation
Professional Indoor & Outdoor Hoods
VWH53012 / VWH53612
VWH53048 / VWH53648 / VWH54248
VWH54848 / VWH56048
VCWH53048 / VCWH53648 / VCWH54248
VCWH54848 / VCWH56048
VCIH53608 / VCIH54208 / VCIH55408 / VCIH56608
VBCV53638 / VBCV54238 / VBCV54838 / VBCV56038 / VBCV56038
VWHO3678 / VWHO4878 / VWHO6078 (Canadian Outdoor models not applicable)
2
Warnings & Important Information
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3 -
4
VWH/CVWH 10” H/12”H. Wall Hoods w/Standard Ventilator 30”, & 36”
Dimensions & Specifications _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Clearance Dimensions _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6
Interior Ventilator Dimensions _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7
VWH/CVWH 18”H. 24”Deep Wall Hoods 30”, 36”, 42”, 48”, & 60”
Dimensions & Specifications _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 8
Clearance Dimensions _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 9
Interior Ventilator Dimensions _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 0
Exterior Ventilator Dimensions _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 1
VWHO/CVWHO 18”H. Outdoor Wall Hoods 36”, 48”, & 60”
Dimensions & Specifications _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 2
Clearance Dimensions _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 3
VCWH/CVCWH Chimney Wall Hoods 30”, 36”, 42”, 48”, & 60”
Dimensions & Specifications _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 4
Clearance Dimensions _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 5
Interior Ventilator Dimensions _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 6
Exterior Ventilator Dimensions _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 7
VCIH/CVCIH Chimney Island Hoods 36”, 42”, 54”, & 66”
Dimensions & Specifications _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 8
Clearance Dimensions _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 9
Interior Ventilator Dimensions _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2 0
Exterior Ventilator Dimensions _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2 1
VBCV/CVBCV Wall Custom Ventilator System
Dimensions & Specifications _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2 2
Installing Hood Canopy _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2 3
Clearance Dimensions _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2 4
VBCV Ventilator Dimensions _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2 5
Planning Information _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2 7
Installation Procedures
Installation ( VWH/CVWH 10”H./12”H. Wall Hoods w/Standard Ventilator) _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 28
Duct Cover Option (VWH/CVWH 12”H. Wall Hoods w/Standard Ventilator) _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 30
Installation ( VWH/CVWH 12”H. Wall Hoods w/Recirculating Kit) _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 30
Installation ( VWH/CVWH 18”H. Wall & VCWH Chimney Wall Hoods) _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 33
Duct Cover Option (VWH/CVWH 18”H. Wall Hoods) _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 34
Duct Cover Option (VCWH/CVCWH Chimney Wall Hoods) _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 35
Installation ( VCIH Island Hoods) _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3 6
S e r v i c e & R e g i s t r a t i o n _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3 8
Wi r i n g D i a g r a m _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3 9
Table of Contents
3
NOTE:
If installing hood with warming shelf panel, install
warming shelf panel first.
IMPORTANT – PLEASE READ AND FOLLOW
• Before beginning, please read these instructions completely
and carefully.
• Do not remove permanently affixed labels, warnings, or
plates from the product. This may void the warranty.
• Please observe all local and national codes and ordinances.
If no local codes are applicable, wire in accordance with the
National Electrical Code, ANSI/NFPA 70-latest edition.
• Damp environment approved models should be installed in
a covered non-enclosed area and should be protected from
the elements as much as possible.
• The installer should leave these instructions with the
consumer who should retain for local inspector’s use and for
future reference.
• Check with a qualified and trained installer or local codes
for makeup air requirement, if any.
This hood is for residential installation only and is not
designed for installation over a commercial product. Make
sure power is off at the main circuit breaker or fuse box
before making connections. To avoid risk of fire, electric
shock, or injury to persons, turn off the electricity to the
hood from the power supply before servicing or cleaning.
Viking hoods are equipped with variable speed control
blowers. These units will not function with a single speed
ventilator. All Viking Range ventilator kits are designed
specifically for use with Viking Range hoods. Use of any non-
Viking Range ventilator kit will void the hood warranty.
Viking hoods are equipped with the variable speed controls
for blowers. These units will not function with a single speed
ventilator. All Viking ventilator kits are designed specifically
for use with Viking hoods. Use of any non-Viking ventilator
kit will void the hood warranty.
READ AND SAVE THESE INSTRUCTIONS
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Installation work and electrical wiring must be
done by qualified person(s) in accordance with all
applicable codes and standards, including fire-
rated construction.
2. Sufficient air is needed for proper combustion
and exhausting of gases through the flute
(chimney) of fuel burning equipment to prevent
back drafting. Follow the heating equipment
manufacturer’s guideline and safety standards
such as those published by the National Fire
Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local
code authorities.
3. When cutting of drilling into wall or ceiling, do
not damage electrical wiring and other hidden
utilities.
4. Ducted fans must always be vented to the outdoors.
5. WARNING!: To reduce risk of fire, use only metal
ductwork
6. CAUTION!: To reduce risk of fire and to properly
exhaust air, be sure to duct air outside. Do not
vent exhaust air into spaces within walls or
ceilings, or into attics, crawl spaces, or garages.
7. CAUTION!: To Reduce the Risk of Fire and Electric
Shock, Install this rangehood only with remote
blower models manufactured by Viking, model
numbers – DEV900/DEV1200, VEV900, VIL1200,
OR DEV1500 or integral blowers manufactured by
Viking, model numbers – VINV300/600/1200, or
DIL1200. NOTE – Please refer inside for specific
canopy/blower combinations.
WARNING
WARNING
To reduce the risk of fire, electric shock, or injury to
persons, observe the following:
• Use this unit only in the manner intended by the
manufacturer. If you have any questions, contact the
manufacturer.
• Before servicing or cleaning unit, switch power off at
service panel and lock service panel to prevent power
from being switched on accidentally. When the
service disconnecting means cannot be locked,
securely fasten a prominent warning device, such as
a tag, to the service panel.
IMPORTANT–Please Read and Follow!
4
WARNING
TO REDUCE THE RISK OF FIRE,
ELECTRICAL SHOCK, OR INJURY
TO PERSONS
Rangehoods must be installed with the
ventilators that are specified on their
carton indicating suitability with this
model. Other ventilators cannot be substituted.
CAUTION
For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
WARNING
To reduce the risk of injury to persons in the event of a
rangetop grease fire, observe the following. (Based on
“Kitchen Firesafety Tips,” published by NFPA.)
1. SMOTHER FLAMES with a close fitted lid, cookie
sheet, or metal tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. If the flames do not
go out immediately, EVACUATE AND CALL THE FIRE
DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN. You may be
burned.
3. DO NOT USE WATER, including wet dishcloths or
towels a violent steam explosion will result.
4. Use an extinguisher ONLY if
• You know it is a Class ABC extinguisher, and you
already know how to operate it.
• The fire is small and contained in the area where it
started.
• The fire department is being called.
• You can fight the fire with your back to an exit.
IMPORTANT–Please Read and Follow!
WARNING
This appliance is not to be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning the use of the appliance by a person
responsible for their safety. Children should be
supervised to ensure that they do not play with the
appliance.
5
21”
(53.3 cm)
A
10”
(25.4 cm)
12 ”
(30.5 cm)
A (Hood width)
30”W. 29-7/8“ (76.2 cm)
36”W. 35-7/8” (91.1 cm)
5”
(12.7 cm)
21”
(53.3 cm)
A
12 ”
(30.5 cm)
A (Hood width)
30”W. 29-7/8“ (76.2 cm)
36”W. 35-7/8” (91.1 cm)
5”
(12.7 cm)
12 ”
(30.5 cm)
(VWH 10”H./12”H. Wall Hoods w/Standard Ventilator 30”, & 36”)
* Disregard when using recirculating kits.
460 CFM blower is shipped with hood.
NOTE: Optional duct cover sold separately.
VWH/CVWH 10”H./12”H. Wall Hoods
w/Standard Ventilator
Description 30” 36”
Duct cover width
29-7/8” (75.9 cm) 35-7/8” (91.1 cm)
Duct cover depth
12” (30.5 cm)
Duct cover height
12” (30.5 cm)
Number of lights
2
Number of filters
2
Heat lamps
N/A
Interior ventilator kit
460 CFM Standard
Interior duct size*
7” (17.8 cm)
Interior—Maximum amps
5.6 A
Dimensions & Specifications
6
* NOTE: When installing with a 24” high-shelf,
the 27” (68.6 cm) max. dimensions must be used.
24" min.
(61.0 cm)
to
27" max.*
(68.6 cm)
60" min.
(152.4 cm)
to
63" max.
(160.0 cm)
36"
(91.4 cm)
(VWH/CVWH 10”H./12”H. Wall Hoods w/Standard Ventilator)
Clearance Dimensions
7
A
B
C
D
18”
(4.6 cm)
3-7/8”
(9.8 cm)
3-4”
(1.9 cm)
7” (17.8 cm) dia.
duct location
Electrical
hookup
1/2”
(1.3 cm)
4”
(10.2 cm)
3-1/2”
(8.9 cm)
A
24”W. 23-7/8” (60.6 cm)
30”W. 29-7/8” (75.9 cm)
36”W. 35-7/8” (91.1 cm)
B
24”W. 5-1/4” (13.3 cm)
30”W. 8-1/4” (20.9 cm)
36”W. 11-1/4” (28.6 cm)
C
24”W. 11-15/16” (30.3 cm)
30”W. 14-15/16” (37.9 cm)
36”W. 17-15/16” (45.6 cm)
D
24”W. 5/8” (1.6 cm)
30”W. 3-5/8” (9.2 cm)
36”W. 6-5/8” (16.8 cm)
460 CFM Interior Ventilator Installation
Top View
(VWH/CVWH 10”H./12”H. Wall Hoods w/Standard Ventilator)
Interior Ventilator Dimensions
8

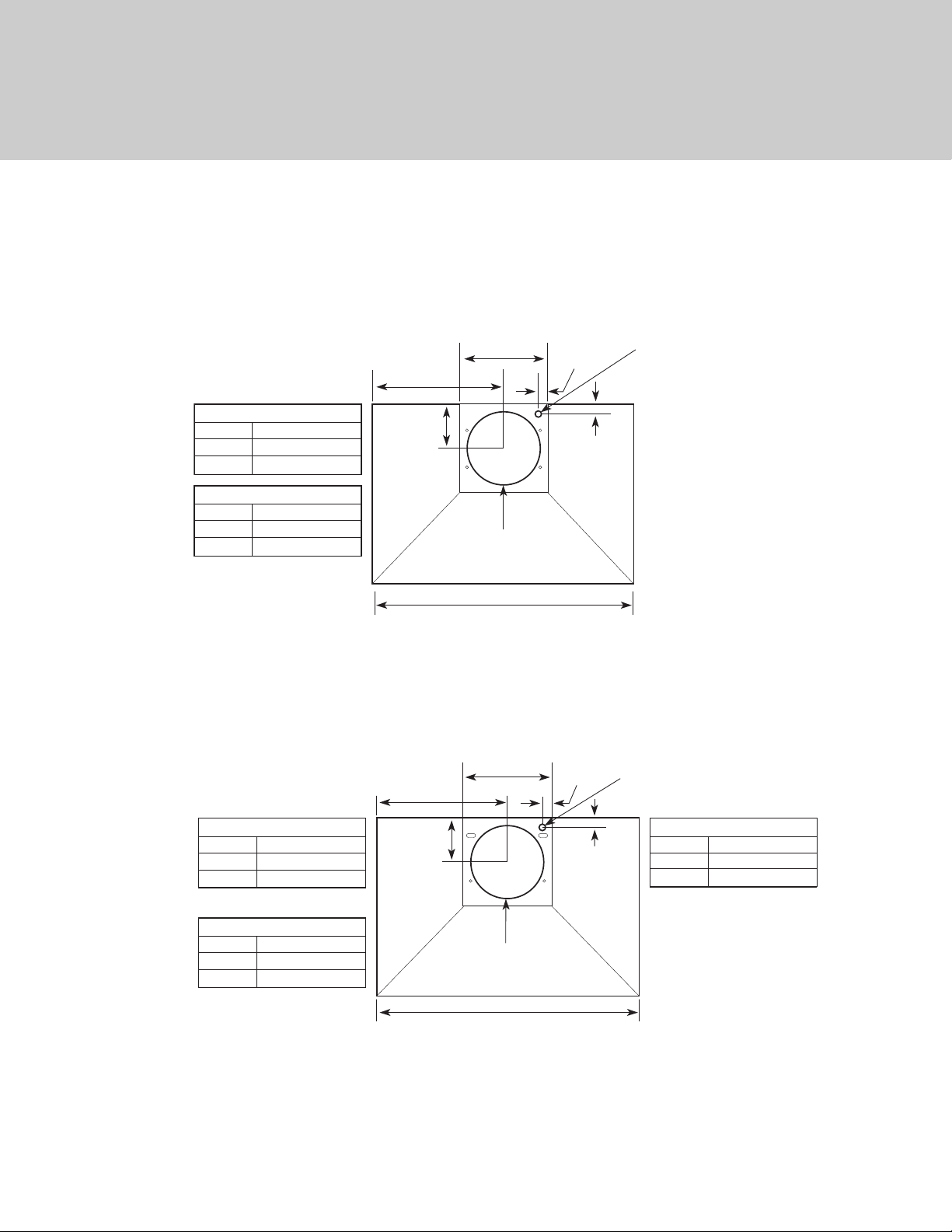

24"
(61.0 cm)
A
18"
(45.7 cm)
12"
(30.5 cm)
6"
(15.2 cm)
A
30" W 29-7/8" (76.2 cm)
36" W 35-7/8" (91.1 cm)
42" W 41-7/8" (106.4 cm)
48" W 47-7/8" (121.6 cm)
60" W 59-7/8" (152.1 cm)
(VWH/CVWH 18”H. 24” Deep Wall Hoods 30”, 36”, 42”, 48”, & 60”)
* A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-grill. Max
duct run is 50 ft.
** It is recommended that the 1,500 CFM ventilator be used with longer duct runs. Max duct run is 75 ft.
NOTE: Maximum amp rating for hoods includes recommended ventilator kit rating; All products must be hard wired with 2-wire with
ground. An interior- or exterior-power ventilator kit must be purchased for installation with all 18”H. hoods.
NOTE: Optional duct cover sold separately.
VWH/CVWH 18”H. Wall Hoods
Description 30” 36” 42” 48” 60”
Duct cover width
29-7/8”
(75.9 cm)
35-7/8”
(91.1 cm)
41-7/8”
(106.4 cm)
47-7/8”
(121.6 cm)
59-7/8” (152.1
cm)
Duct cover depth
12” (30.5 cm)
Duct cover height
12” (30.5 cm)
Number of lights
2 2 2 3 4
Number of filters
2 2 2 3 4
Heat lamps
1 1 1 2 3
Interior ventilator kits
VINV300/
600/1200
VINV300/
600/1200
VINV600/
1200
VINV1200* VINV1200*
Exterior ventilator kits
DEV900/
1200*
DEV900/
1200*
DEV900/
1200*
DEV1200*/
1500**
DEV1200*/
1500**
In-line ventilator kits
DIL1200 DIL1200 DIL1200 DIL1200 DIL1200
Interior duct size
7”/10”
(17.8/25.4 cm)
7”/10”
(17.8/25.4 cm)
7”/10”
(17.8/25.4 cm)
10”
(25.4 cm)
10”
(25.4 cm)
Exterior duct size
10” (24.5 cm)
Interior—Maximum amps
4.2/5.2/8.2 4.2/5.2/8.2 5.2/8.2 10.8 10.8
Exterior—Maximum amps
8.0/5.3 8.0/5.3 8.0/5.3 7.8/8.5 7.8/8.5
In-Line—Maximum amps
5.3/7.2 5.3/7.2 5.3/7.2 9.6 10.0
Dimensions & Specifications
9
30” min.
(76.2 cm)
to
36” max.
(91.4 cm)
66” min.
(167.6 cm)
to
72” max.
(182.9 cm)
36”
(91.4 cm)
(VWH/CVWH 18”H. Wall Hoods)
Clearance Dimensions
10
10" (25.4 cm)
dia. duct location
B
A
30" W 14-15/16" (37.9 cm)
36" W 17-15/16" (45.6 cm)
42" W 20-15/16" (53.2 cm)
48" W 23-15/16" (60.8 cm)
60" W 29-15/16" (76.0 cm)
A
5-1/2"
(14.0 cm)
B
30" W 29-7/8" (75.9 cm)
36" W 35-7/8" (91.1 cm)
42" W 41-7/8" (106.4 cm)
48" W 47-7/8" (121.6 cm)
60" W 59-7/8" (152.1 cm)
A
B
7" (17.8 cm)
dia. duct location
4-5/8"
(11.7 cm)
B
30" W 29-7/8" (75.9 cm)
36" W 35-7/8" (91.1 cm)
42" W 41-7/8" (106.4 cm)
48" W 47-7/8" (121.6 cm)
60" W 59-7/8" (152.1 cm)
A
30" W 14-15/16" (37.9 cm)
36" W 17-15/16" (45.6 cm)
42" W 20-15/16" (53.2 cm)
48" W 23-15/16" (60.8 cm)
60" W 29-15/16" (76.0 cm)
300 or 600 CFM Interior Ventilator Installation for all Wall Hoods
1200 CFM Interior Ventilator Installation for all Wall Hoods
Top View
Top View
(VWH/CVWH 18”H. Wall Hoods)
Interior Ventilator Dimensions
11
10" (25.4 cm)
dia. duct location
A
B
A
30" W 14-15/16" (37.9 cm)
36" W 17-15/16" (45.6 cm)
42" W 20-15/16" (53.2 cm)
48" W 23-15/16" (60.8 cm)
60" W 29-15/16" (76.0 cm)
B
30" W 29-7/8" (75.9 cm)
36" W 35-7/8" (91.1 cm)
42" W 41-7/8" (106.4 cm)
48" W 47-7/8" (121.6 cm)
60" W 59-7/8" (152.1 cm)
5-15/16"
(15.1 cm)
A
B
10" (25.4 cm)
dia. duct location
5-15/16"
(15.1 cm)
A
30" W 14-15/16" (37.9 cm)
36" W 17-15/16" (45.6 cm)
42" W 20-15/16" (53.2 cm)
48" W 23-15/16" (60.8 cm)
60" W 29-15/16" (76.0 cm)
B
30" W 29-7/8" (75.9 cm)
36" W 35-7/8" (91.1 cm)
42" W 41-7/8" (106.4 cm)
48" W 47-7/8" (121.6 cm)
60" W 59-7/8" (152.1 cm)
900 or 1200 CFM Exterior or In-Line Ventilator Installation for all Wall
Hoods
1200 or 1500 CFM Exterior or In-Line Ventilator Installation for all Wall
Hoods
Top View
Top View
(VWH/CVWH 18”H. Wall Hoods)
Exterior Ventilator Dimensions
12
27"
(68.6 cm)
A
18"
(45.7 cm)
6"
(15.2 cm)
A
36" W 35-7/8" (91.1 cm)
48" W 47-7/8" (121.6 cm)
60" W 59-7/8" (152.1 cm)
(VWHO/CVWHO 18”H. Outdoor Wall Hoods 36”, 48”, & 60”)
* A 1,200 CFM interior- or exterior-power ventilator should be used with all outdoor models and when i ndoor models are installed
over range/rangetop with gas char-grill. Max duct run is 50 ft.
** It is recommended that the 1,500 CFM ventilator be used with longer duct runs. Max duct run is 75 ft.
NOTE: Maximum amp rating for hoods includes recommended ventilator kit rating; All products must be hard wired with 2-wire with
ground. An interior- or exterior-power ventilator kit must be purchased for installation with all 18”H. hoods.
VWHO/CVWHO 18”H. Outdoor Wall Hoods
Description 36” 48” 60”
Number of lights
2 3 4
Number of filters
2 3 4
Interior ventilator kits
VINV1200* VINV1200* VINV1200*
Exterior ventilator kits
DEV1200*/1500** DEV1200*/1500** DEV1200*/1500**
In-line ventilator kits
DIL1200 DIL1200 DIL1200
Interior duct size
10” (25.4 cm)
Exterior duct size
10” (25.4 cm)
Interior—Maximum amps
9.0 11.4 11.8
Exterior—Maximum amps
6.1/6.8 8.4/9.1 8.8/9.5
In-Line—Maximum amps
7.9 10.2 10.6
Dimensions & Specifications
13
30" min.
(76. 2 cm)
to
36" max.
(91.4 cm)
36"
(91.4 cm)
66" min.
(167.6 cm)
to
72" max.
(182.9 cm)
27"
(68.6 cm)
DIM «X»
+ 4-1/2"
(11.4 cm)
18"
(45.7 cm)
(VWHO/CVWHO 18”H. Outdoor Wall Hoods)
Note: Outdoor Models must be installed in a covered, non-enclosed area, and should be protected from the
elements as much as possible.
The bottom of the hood should be 30” (76.2 cm) to 36” (91.4 cm) above the grill surface. The hood should be
installed 4-1/2” (11.4 cm) plus the distance between the back trim and surface from the back wall. (Note: DIM
“X” - There is a 3” minimum clearance from the back trim to non-combustible surfaces, and a 24” minimum to
combustible surfaces.) This will require building the hood out from the wall. Any combustible material used for
this purpose must be covered with locally-supplied stainless steel. It is also recommended to use a backsplash.
Clearance Dimensions
14
24”
(61.0 cm)
B
A
18”
(45.7 cm)
12”
(30.5 cm)
to
24”
(61.0 cm)
6”
(15.2 cm)
A (Duct width)
30”W. 12“ (30.5 cm)
36”W. 12“ (30.5 cm)
42”W. 12“ (30.5 cm)
48“W. 18“ (45.7 cm)
60”W. 24“ (61.0 cm)
66”W. 24“ (61.0 cm)
B (Hood width)
30”W. 29-7/8“ (76.2 cm)
36”W. 35-7/8” (91.1 cm)
42”W. 41-7/8” (106.4 cm)
48“W. 47-7/8” (121.6 cm)
60”W. 59-7/8” (152.1 cm)
66”W. 65-7/8” (167.3 cm)
(VCWH/CVCWH
Chimney Wall Hoods 30”, 36”, 42”, 48”, 54”, & 60”)
* A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-grill. Max duct
run is 50 ft.
** It is recommended that the 1,500 CFM ventilator be used with longer duct runs. Max duct run is 75 ft.
NOTE: Maximum amp rating for hoods includes recommended ventilator kit rating; All products must be hard wired with 2-wire with
ground. An interior- or exterior-power ventilator kit must be purchased for installation with all 18”H. hoods.
NOTE: Optional duct cover sold separately.
VCWH/CVCWH Chimney Wall Hoods
Description 30” 36” 42” 48” 60”
Duct cover width
12” (30.5 cm) 12” (30.5 cm) 12” (30.5 cm) 18” (45.7 cm) 24” (61.0 cm)
Duct cover depth
12” (30.5 cm)
Duct cover height
12” (30.5 cm) to 24” (61.0 cm)
Number of lights
2 2 2 3 4
Number of filters
2 2 2 2 3
Heat lamps
1 1 1 2 3
Interior ventilator kits
VINV300/600 VINV300/600 VINV600 VINV1200* VINV1200*
Exterior ventilator kits
DEV900/
1200*
DEV900/
1200*
DEV900/
1200*
DEV1200*/
1500**
DEV1200*/
1500**
In-line ventilator kits
DIL1200 DIL1200 DIL1200 DIL1200 DIL1200
Interior duct size
7” (17.8 cm) 7” (17.8 cm) 7” (17.8 cm) 10” (25.4 cm) 10” (25.4 cm)
Exterior duct size
10” (25.4 cm)
Interior—Maximum amps
4.2/5.2 4.2/5.2 5.2 10.8 10.8
Exterior—Maximum amps
8.0/5.3 8.0/5.3 8.0/5.3
7.8/8.5 7.8/8.5
In-Line—Maximum amps
5.3/7.2 5.3/7.2 5.3/7.2 9.6 10.0
Dimensions & Specifications
15
30” min.
(76.2 cm)
to
36” max.
(91.4 cm)
66” min.
(167.6 cm)
to
72” max.
(182.9 cm)
36”
(91.4 cm)
(VCWH/CVCWH Chimney Wall Hoods)
Clearance Dimensions
16
A
48”W. 23-15/16” (60.8 cm)
60”W. 29-15/16” (76.0 cm)
66”W. 32-15/16” (83.7 cm)
C
48”W. 18” (45.7 cm)
60”W. 24” (61.0 cm)
66”W. 24” (61.0 cm)
10” (25.4 cm) dia.
duct location
6”
(15.2 cm)
1-1/2”
(3.8 cm)
1-1/2”
(3.8 cm)
A
B
C
120 V
power
supply
B
48”W. 47-7/8” (121.6 cm)
60”W. 59-7/8” (152.1 cm)
66”W. 65-7/8” (167.3 cm)
7” (17.8 cm) dia.
duct location
B
A
30”W. 14-15/16” (37.9 cm)
36”W. 17-15/16” (45.6 cm)
42”W. 20-15/16” (53.2 cm)
120V
power
supply
1-1/2”
(3.8 cm)
6”
(15.2 cm)
12”
(30.5 cm)
1-1/2”
(3.8 cm)
A
B
30”W. 29-7/8” (75.9 cm)
36”W. 35-7/8” (91.1 cm)
42”W. 41-7/8” (106.4 cm)
300 or 600 CFM Interior Ventilator Installation
for 30”, 36”, & 42” models
1200 CFM Interior Ventilator Installation
for 48”, & 60”models
Top View
Top View
(VCWH/CVCWH Chimney Wall Hoods)
Interior Ventilator Dimensions
17
A
48”W. 23-15/16” (60.8 cm)
60”W. 29-15/16” (76.0 cm)
66”W. 32-15/16” (83.7 cm)
C
48”W. 18” (45.7 cm)
60”W. 24” (61.0 cm)
66”W. 24” (61.0 cm)
10” (25.4 cm) dia.
duct location
6”
(15.2 cm)
1-1/2”
(3.8 cm)
1-1/2”
(3.8 cm)
A
B
C
120 V
power
supply
B
48”W. 47-7/8” (121.6 cm)
60”W. 59-7/8” (152.1 cm)
66”W. 65-7/8” (167.3 cm)
10” (25.4 cm) dia.
duct location
B
A
30”W. 14-15/16” (37.9 cm)
36”W. 17-15/16” (45.6 cm)
42”W. 20-15/16” (53.2 cm)
120V
power
supply
1-1/2”
(3.8 cm)
6”
(15.2 cm)
12”
(30.5 cm)
1-1/2”
(3.8 cm)
A
B
30”W. 29-7/8” (75.9 cm)
36”W. 35-7/8” (91.1 cm)
42”W. 41-7/8” (106.4 cm)
900 or 1200 CFM Exterior or In-Line Ventilator Installation
for 30”, 36”, & 42” models
900, 1200 or 1500 CFM Exterior or In-Line Ventilator Installation
for 48”, & 60”models
Top View
Top View
(VCWH/CVCWH Chimney Wall Hoods
)
Exterior Ventilator Dimensions
18
* A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-grill. Max duct run is
50 ft.
** It is recommended that the 1,500 CFM ventilator be used with longer duct runs. Max duct run is 75 ft.
NOTE: Maximum amp rating for hoods includes recommended ventilator kit rating; All products must be hard wired with 2-wire with ground. An
interior or exterior-power ventilator kit must be purchased for installation with all 18”H. hoods.
30"
(76.2 cm)
C
A
18"
(45.7 cm)
B
6"
(15.2 cm)
C
36" W 35-7/8" (91.1 cm)
42" W 41-7/8" (106.4 cm)
54" W 53-7/8" (136.8 cm)
66" W 65-7/8" (167.3 cm)
B
36" W.
42" W.
54" W.
66" W.
12" (30.5 cm)
or
24" (61.0 cm)
or
36" (91.4 cm)
A
36" W 12" (30.5 cm)
42" W 12" (30.5 cm)
54" W 18" (45.7 cm)
66" W 24" (70.0 cm)
NOTE: Optional duct cover sold separately.
(VCIH/CVCIH Chimney Island Hoods 36”, 42”, 54”, & 66”)
VCIH/CVCIH Chimney Island Hoods
Description 36” 42” 54” 66”
Duct cover width
12” (30.5 cm) 12” (30.5 cm) 18” (45.7 cm) 24” (70.0 cm)
Duct cover depth
12” (30.5 cm)
Duct cover height
12” (30.5 cm) or 24” (61.0 cm) or 36” (91.4 cm)
Number of lights
4 4 6 8
Number of filters
4 4 6 8
Heat lamps
N/A
Interior ventilator kits
VINV600 VINV600 VINV1200* VINV1200*
Exterior ventilator kits
DEV900/1200* DEV900/1200*/1500** DEV1200*/1500** DEV1200*/1500**
In-line ventilator kits
DIL1200 DIL1200 DIL1200 DIL1200
Interior duct size
7” (17.8 cm) 7” (17.8 cm) 10” (25.4 cm) 10” (25.4 cm)
Exterior duct size
10” (25.4 cm)
Interior—Maximum amps
4.2/5.2/8.2 5.2/8.2 8.9 9.3
Exterior—Maximum amps
7.4/4.7 7.4/4.7/5.5 5.6/6.4 6.4/7.4
In-Line—Maximum amps
4.7/6.5 3.9/5.7 7.4 7.4
Dimensions & Specifications
19
30” min.
(76.2 cm)
to
36” max.
(91.4 cm)
66” min.
(167.6 cm)
to
72” max.
(182.9 cm)
36”
(91.4 cm)
(VCIH /CVCIHChimney Island Hoods)
Clearance Dimensions
20
A
54”W. 26-15/16” (68.4 cm)
66”W. 32-15/16” (83.7 cm)
C
54”W. 18” (45.7 cm)
66”W. 24” (61.0 cm)
1-1/8”
(2.9 cm)
1-1/8”
(2.9 cm)
10” (25.4 cm) dia.
duct location
B
A
C
6”
(15.2 cm)
120 V
power
supply
B
54”W. 53-7/8” (136.8 cm)
66”W. 65-7/8” (167.3 cm)
7” (17.8 cm) dia.
duct location
12”
(30.5 cm)
120 V
power
supply
1-1/8”
(2.9 cm)
B
A
A
36”W. 17-15/16” (45.6 cm)
42”W. 20-15/16” (53.2 cm)
1-1/8”
(2.9 cm)
6”
(15.2 cm)
B
36”W. 35-7/8” (91.1 cm)
42”W. 41-7/8” (106.4 cm)
600 CFM Interior Ventilator Installation
for all Chimney Island Hoods
1200 CFM Interior Ventilator Installation
for all Chimney Island Hoods
Top View
Top View
(VCIH/CVCIH Chimney Island Hoods
)
Interior Ventilator Dimensions
21
A
54”W. 26-15/16” (68.4 cm)
66”W. 32-15/16” (83.7 cm)
C
54”W. 18” (45.7 cm)
66”W. 24” (61.0 cm)
1-1/8”
(2.9 cm)
1-1/8”
(2.9 cm)
10” (25.4 cm) dia.
duct location
B
A
C
6”
(15.2 cm)
120 V
power
supply
B
54”W. 53-7/8” (136.8 cm)
66”W. 65-7/8” (167.3 cm)
10” (25.4 cm) dia.
duct location
12”
(30.5 cm)
1-1/8”
(2.9 cm)
120 V
power
supply
1-1/8”
(2.9 cm)
6”
(15.2 cm)
B
A
A
36”W. 17-15/16” (45.6 cm)
42”W. 20-15/16” (53.2 cm)
B
36”W. 35-7/8” (91.1 cm)
42”W. 41-7/8” (106.4 cm)
900 or 1200 CFM Exterior or In-Line Ventilator Installation
for all Chimney Island Hoods
900, 1200 or 1500 CFM Exterior or In-Line Ventilator Installation
for all Chimney Island Hoods
Top View
Top View
(VCIH/CVCIH Chimney Island Hoods)
Exterior Ventilator Dimensions
22
(VBCV Wall Custom Ventilator System 36”, 42”, 48”, & 60”)
* A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-grill. Max
duct run is 50 ft.
** It is recommended that the 1,500 CFM ventilator be used with longer duct runs. Max duct run is 75 ft.
NOTE: Maximum amp rating for hoods includes recommended ventilator kit rating; All products must be hard wired with 2-wire with
ground. An interior- or exterior-power ventilator kit must be purchased for installation with all 18”H. hoods.
B*
A*
Bottom Cutout Dimensions
*For best results,
center the unit over
the burners of the
cooking product
(front to back; right
to left).
Wall Hoods
Description A (Hood Width) B (Hood Depth)
36” W. 33-7/16” (84.9 cm) 21-7/16” (54.5 cm)
42” W. 39-7/16” (100.2 cm) 21-7/16” (54.5 cm)
48” W. 45-7/16” (115.4 cm) 21-7/16” (54.5 cm)
60” W. 57-7/16” (145.9 cm) 21-7/16” (54.5 cm)
Make sure the back wall of
the custom hood canopy
is flush with the cutout so
the ventilator system may
be mounted as shown on
page 25.
VBCV Wall Custom Ventilator System
Description 36” 42” 48” 60”
Number of lights
2 2 3 4
Number of filters
2 2 3 4
Heat lamps
1 1 2 3
Interior ventilator kits
VINV300/
600
VINV600 VINV1200* VINV1200*
Exterior ventilator kits
DEV900/
1200*
DEV900/
1200*
DEV1200*/
1500**
DEV1200*/
1500**
In-line ventilator kits
DIL1200 DIL900/1200 DIL1200 DIL1200
Interior duct size
7”/10”
(17.8/25.4 cm)
7”/10”
(17.8/25.4 cm)
10”
(25.4 cm)
10”
(25.4 cm)
Exterior duct size
10” (25.4
Interior—Maximum amps
4.2/5.2 10.8 10.8 10.8
Exterior—Maximum amps
8.0/5.3 8.0/5.3 7.8/8.5 7.8/8.5
In-Line—Maximum amps
5.3/7.2 5.3/7.2 9.6 10.0
Dimensions & Specifications
23
A
B
Custom Hood
Canopy
1) Position ventilator
system inside of the
custom hood canopy
and center it front to
back and left to right.
2) Bottom mounting holes
fasten ventilator system
to bottom of custom
hood canopy with the
screws provided.
Built-In Ventilator
System
3) OPTIONAL
Rear mounting holes fasten
ventilator system to rear of
custom hood canopy.
(Custom Hood Canopy Cutouts)
Installing Hood Canopy
24
30" min.
(76.2 cm)
to
36" max.
(91.4 cm)
66" min.
(167.6 cm)
to
72" max.
(182.9 cm)
36"
(91.4 cm)
(Custom Hood)
(VBCV/CVBCV Wall Custom Ventilator System)
Clearance Dimensions
25
1-1/2"
(3.81 cm)
1"
(2.54 cm)
5/8"
(1.6 cm)
21-7/8”
(55.8 cm)
17-1/4”
(43.8 cm)
7/8”
(2.2 cm)
1-1/2”
(3.8 cm)
17-1/4”
(43.8 cm)
11-1/2”
(29.2 cm)
21-7/8”
(55.8 cm)
5/8”
(1.6 cm)
6”
(15.2 cm)
5/8" (1.6 cm)
D
C
10" (25.4 cm)
dia. duct location
5-1/2"
(14.0 cm)
D
C
5/8" (1.6 cm)
7" (17.8 cm)
dia. duct location
4-5/8"
(11.7 cm)
For 900, 1200 or 1500 CFM Exterior
or In-Line Ventilator Installation
For 300, 600 or 1200 CFM Interior
Ventilator Installation
900 or 1200 CFM Exterior
or In-Line Ventilator Installation
36”, 42” W. Models
300 or 600 CFM Interior
Ventilator Installation
36”, 42” W. Models
C
36” W. 34-1/4” (87.0 cm)
42” W. 40-1/4” (102.2 cm)
D
36” W. 17-1/8” (43.5 cm)
42” W. 20-1/8” (51.1 cm)
Built-In Wall Custom Ventilator
System Dimensions
(VBCV Models)
26
5/8" (1.6 cm)
D
C
10" (25.4 cm)
dia. duct location
5-1/2"
(14.0 cm)
1200 or 1500 CFM Exterior or In-Line Ventilator Installation
48”, 60” W. Models
5/8" (1.6 cm)
C
10" (25.4 cm)
dia. duct location
5-1/2"
(14.0 cm)
D
1200 CFM Interior Ventilator Installation
36”, 42”, 48”, 60” W. Models
C
36” W. 34-1/4” (87.0 cm)
42” W. 40-1/4” (102.2 cm)
48” W. 46-1/4” (117.5 cm)
60” W. 58-1/4” (148.0 cm)
D
36” W. 17-1/8” (43.5 cm)
42” W. 20-1/8” (51.1 cm)
48” W. 23-1/8” (58.7 cm)
60” W. 29-1/8” (74.0 cm)
Built-In Wall Custom Ventilator
System Dimensions
(VBCV/CVBCV Models)
27
Proper installation of ducting is extremely
important to ensure maximum performance from
any ventilation product.
• All CFMs are based on tests at 0.1 static pressure:
without applying static pressure, CFM would be
greatly overstated.
• Straight runs and gradual turns are best; for
example, each 90º elbow is equivalent to 5-10 feet
(1.52-3.05 cm) of straight run.
• Never use flexible duct; it creates back pressure/air
turbulence and greatly reduces performance.
• Proper performance is dependent on proper ducting;
make sure that a qualified and trained installer is
used.
• Check with a qualified and trained installer or local
codes for makeup air requirement, if any.
• Max. amp rating for hoods includes recommended
ventilator kit rating; all products must be hard wired
direct with 2-wire with ground.
Plan where the duct work will be located. Install proper-
sized duct work, and roof or wall cap for the type of
blower you are using. Recommended hood locations
for the most common installations are shown. Adjust
your measurements for various heights of ceilings,
soffits, cabinets, or ranges/rangetops.
Check Framing
NOTE: Because of the weight of the hood make sure that
the mounting screws are driven into the framing and not
just the drywall. It may be necessary to drill additional
holes in the canopy for proper alignment.
Roof Cap
7” round duct
Duct cover or soffit
300 or 600 CFM
single blower
interior-power
typical ductwork
Hood
Roof cap
10” round duct
Duct cover or soffit
1200 CFM
single blower
interior power
typical ductwork
Hood
Exterior blower
10” round duct
Duct cover or soffit
900, 1200, or
1500 CFM
exterior power
typical ductwork
Hood
Duct
Duct cover or soffit
Wall Installation exterior
power typical
ductwork
NOTE: Wall exhaust must be a minimum of 24” (61.0 cm)
from ground. This may vary depending on local codes
and geogra
p
hic location.
Hotte
Wall Cap
Planning Information
28
1
Check damper for unrestricted movement, adjust if
necessary.
2
3
Attach transition to damper. Seal with aluminum tape.
Flip hood over and remove electrical box cover.
1
4
2
1
5
Insert 6” of electrical wiring through the top of vent hood
and secure using wiring restrain. Refer to local codes.
Slide duct over transition and tape around joint.
WARNING
To reduce the risk of fire, electric shock, or injury to
persons, observe the following:
• Use this unit only in the manner intended by the
manufacturer. If you have any questions, contact the
manufacturer.
• Before servicing or cleaning unit, switch power off at
service panel and lock service panel to prevent power
from being switched on accidentally. When the
service disconnecting means cannot be locked,
securely fasten a prominent warning device, such as
a tag, to the service panel.
Installation(VWH/CVWH 10”H./12”H. Wall Hoods w/Standard Ventilator)
29
CAUTION: If not using a duct cover, using screws
provided, make sure top mounting screws are secured
into soffit or cabinet framing. Use additional mounting
screws, if necessary.
Connect black to black, white to white, and the
green/bare wire under the green screw.
NOTE: Housing wiring must be properly installed for wiring
to be correct when wiring unit.
5/16”
Nut driver
Black
Black
White
White
Green
Bare or Green
7
Replace electrical box cover. Make connection to breaker
box.
1
1
2
8
Slide filter front over front lip. Push filter rear up, then
slide back over rear lip.
1
2
1
3
9
CAUTION: Secure vent hood to wall using screws
provided. Use additional mounting screws and wall
anchors, if necessary.
6
Nut driver
5/16”
1
2
3
10
Slide filter front over front lip. Push filter rear up, then
slide back over rear lip.
30
1
2
Remove damper and discard with transition.
Turn recirculating unit upside down. Place vent hood
upside down on recirculating unit.
Installation
(VWH/CVWH 10”H./12”H. Wall Hoods w/Recirculating Kit)
1
2
2
Measure distance from ceiling to canopy.
Slide the duct cover in place and fasten from inside
canopy using the sheet metal screws provided.
Duct Cover Option
(VWH/CVWH 10”H./12”H. Wall Hoods w/Standard Ventilator)
31
CAUTION: Secure vent hood. Make sure mounting screws
are secured into framing. Use additional mounting screws
and wall anchors, if necessary.
7
5/16”
Nut driver
5
Remove electrical box cover.
1
6
2
Flip hood over. Insert 6” of electrical wiring through the
top of vent hood and secure. Refer to local codes.
3
4
Attach with screws and lock washers provided.
Attach with screws.
WARNING
To reduce the risk of fire, electric shock, or injury to
persons, observe the following:
• Use this unit only in the manner intended by the
manufacturer. If you have any questions, contact the
manufacturer.
• Before servicing or cleaning unit, switch power off at
service panel and lock service panel to prevent power
from being switched on accidentally. When the
service disconnecting means cannot be locked,
securely fasten a prominent warning device, such as
a tag, to the service panel.
Installation
(VWH/CVWH 10”H./12”H. Wall Hoods w/Recirculating Kit)
32
Connect black to black, white to white, and the
green/bare wire under the green screw.
NOTE: Housing wiring must be properly installed for wiring
to be correct when wiring unit.
Replace electrical box cover. Make connection to breaker
box.
Assemble brackets to baffles and insert charcoal filters.
Black
Black
White
White
Green
Bare or Green
8
1
1
2
9
10
Slide filter front over front lip. Push filter rear up, then
slide back over rear lip.
1
2
3
11
Slide filter front over front lip. Push filter rear up, then
slide back over rear lip.
1
2
3
13
Slide spacer front over front lip. Push spacer rear up, then
slide back over rear lip.
1
2
3
12
Installation (con’t)
(VWH/CVWH 10”H./12”H. Wall Hoods w/Recirculating Kit)
33
1-13/16”
(4.6 cm)
1-1/2” x 3/4”
(3.8 cm) x ( 1.9 cm)
wood strip
1
5/16”
Nut driver
2
5/16”
Nut driver
VWH/CVWH only! Measure down 1-13/16 (4.6 cm) from
desired height of hood and secure 1-1/2” x 3/4” wood
strip (provided locally) to wall using screws provided.
VWH/CVWH only! Use additional mounting screws to
secure hood to wood strip.
3
5/16”
Nut driver
5/16”
Nut
Driper
CAUTION: Secure vent hood to wall using screws
provided. Use additional mounting screws and wall
anchors, if necessary.
CAUTION: If not using a duct cover, using screws
provided, make sure top mounting screws are secured
into soffit or cabinet framing use additional mounting
screws, if necessary.
1
2
1
3
4
1
2
z
5
Slide filter front over front lip. Push filter rear up, then
slide back over rear lip.
Slide filter front over front lip. Push filter rear up, then
slide back over rear lip.
Installation
(VWH/CVWH 18”H. Wall & VCWH Chimney Wall Hoods) *For VCWH hoods, begin with Step
3. The VCWH hoods do not require the wood strip
34
1
2
2
Measure distance from ceiling to canopy.
Slide the duct cover in place and fasten from inside
canopy using the sheet metal screws provided.
To install ventillation kit
refer to ventillation kit
installation instructions.
Duct Cover Option (VWH/CVWH 18”H. Wall Hoods)
35
3
4
2
Place duct cover top inside duct cover base and lower until
desired height is found. Mark height. Use the retaining nuts
and bolts to fasten in place and remove tape.
Slide the duct cover in place and fasten from inside
canopy using the sheet metal screws provided.
1
2
Measure distance from ceiling to canopy.
Tape to avoid scratching.
Duct Cover Option (VCWH/CVCWH Chimney Wall Hoods)
36
Check framing where cutout will be.
NOTE: 200 lb. limit.
Cut appropriate size hole in ceiling. Either 7” or 10”
depending on your specific unit and ventillator kit.
1
2
Mounting options:
Using duct cover with ceiling mounting
bracket. (Option A - VCIH only)
Using threaded rod for additional support.
(Option B)
Attaching hood directly to soffit or
duct cover.
(Skip to step 3)
A1
Attach duct cover to optional ceiling mounting bracket.
Attach duct cover to ceiling. The ceiling bracket can be
hidden by using a locally supplied trim.
A2
5/16”
Nut
Driver
B1
Additional support option. Drill holes in all four corners
for threaded rod and run rods from hood to ceiling.
Installation(VCIH/CVCIH Island Hoods)
37
4
5/16”
Nut
Driver
Attach canopy to duct cover/soffit. Seal top of hood to
duct with aluminum tape.
3
To install ventillation kit
refer to ventillation kit
installation instructions.
Run duct work down to bottom edge of duct cover/soffit
and secure in place. Make sure the duct does not stick
down past the cover.
•Install larger center spacer in middle of canopy
•Slide grease trough down into filter support with lip
facing upward
•Attach long edge of side spacers to outer side of baffle
filters to installed next to canopy. Number of filters will
vary due to size. Spacers only go on the (4) filters next to
canopy.
•Insert small center spacer (36” and 42” models only).
•Slide top part of baffle filter up and under large center
spacer.
•Push bottom of filter up and into grease trough.
Grease Trough
Large Center
Spacer
Side spacer
Center spacer
5
Installation(VCIH/CVCIH Island Hoods)
38
If service is required, call your dealer or authorized service agency.
The name of the authorized service agency can be obtained from the dealer or distributor in your
area.
Have the following information readily available.
• Model number
• Serial number
• Date purchased
• Name of dealer from whom purchased
Clearly describe the problem that you are having. If you are unable to obtain the name of an
authorized service agency, or if you continue to have service problems, contact Viking Range, LLC
at 1-888-(845-4641), or write to:
VIKING RANGE, LLC
PREFERRED SERVICE
111 Front Street
Greenwood, Mississippi 38930 USA
Record the information indicated below. You will need it if service is ever required. The model and serial
number for your hood is located behind the baffle filter on the left side panel in the lower right corner.
M o d e l n o. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ S e r i a l n o. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Date of purchase _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Date installed _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
D e a l e r ’ s na m e _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
A d d r e s s _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
If service requires installation of parts, use only authorized parts to ensure protection under the warranty.
THIS MANUAL SHOULD REMAIN WITH THE HOOD FOR FUTURE REFERENCE.
Service & Registration
39
Viking Range, LLC
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
For product information,
call 1-888-(845-4641)
or visit our web site at vikingrange.com
F21287i EN
(050120)
