Williams 2509622 Monterey Gravity Top-Vent Natural Gas User Manual

Owner’s Manual Save this manual for future reference.

Williams Furnace Co.  250 West Laurel Street  Colton, California 92324 U.S.A.

Top-Vent Gravity Wall

Furnace

Model Numbers:

2509622A; 2519622A; 2539622A; 2559622A; 3509622A;

3519622A: 3539622A; 3559622A; 5009622A; 5019622A;

5039622A; 5059622A

FOR USE WITH NATURAL GAS ONLY

Model Numbers:

2509621A; 2519621A; 2539621A; 2559621A; 3509621A;

3519621A; 3539621A; 3559621A; 5009621A; 5019621A;

5039621A; 5059621A

FOR USE WITH PROPANE GAS ONLY

READ THIS OWNER’S MANUAL CAREFULLY BEFORE YOU

INSTALL YOUR NEW WILLIAMS WALL FURNACE.

WARNING: Improper installation, adjustment,

alteration, service or maintenance can cause injury

or property damage. Refer to this manual. For

assistance or for additional information consult a

qualified installer, service agency or the gas

supplier.

50,000

Btu/hr. Model

25,000 and 35,000

Btu/hr. Model

 Do not store or use gasoline or other

flammable vapors and liquids in the vicinity

of this or any other appliance.

 WHAT TO DO IF YOU SMELL GAS:

 Open all windows.

 Do not try to light any appliance.

 Do not touch any electrical switch; do not

use any phone or cell phone in your

building.

 Extinguish any open flame.

 Immediately call your gas supplier from

a neighbor’s phone. Follow the gas

supplier’s instructions.

 If you cannot reach the gas supplier,

call the fire department.

 Installation and service must be performed

by a qualified installer, service agency or

the gas supplier.

WARNING: If the information in these

instructions is not followed exactly, a fire or

explosion may result causing property

damage, personal injury or loss of life.

Warranty

Warranty & Installation Record – 2

2

The manufacturer, Williams Furnace Co., warrants this wall furnace or heater to the original purchaser under the following conditions:

LIMITED ONE-YEAR WARRANTY

1. Any part thereof which proves to be defective in material or workmanship within one year from date of original purchase for use will be replaced at the Manufacturer’s

option, FOB to its factory.

2. No liability is assumed by the Manufacturer for removal or installation labor costs, nor for freight or delivery charges.

LIMITED EXTENDED WARRANTY

1. In addition to the above limited one-year warranty on the complete unit, any combustion chamber which burns out or rusts under normal installation, use and service

conditions during a period of nine years following expiration of the one-year warranty period will be exchanged for a like or functionally similar part.

2. No liability is assumed by the Manufacturer for removal or installation labor costs, nor for freight or delivery charges.

LIMITATIONS

1. THIS LIMITED WARRANTY IS THE ONLY WARRANTY MADE BY THE MANUFACTURER, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY

PARTICULAR PURPOSE ARE LIMITED TO THE SAME ONE YEAR TERM AS THE EXPRESS WARRANTY. UNDER NO CIRCUMSTANCES SHALL THE

MANUFACTURER BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, SPECIAL OR CONTINGENT DAMAGES OR EXPENSES ARISING DIRECTLY OR INDIRECTLY

FROM ANY DEFECT IN THE PRODUCT OR ANY COMPONENT OR FROM THE USE THEREOF. THE REMEDIES SET FORTH HEREIN ARE THE EXCLUSIVE

REMEDIES AVAILABLE TO THE USER AND ARE IN LIEU OF ALL OTHER REMEDIES.

Some states do not allow limitation on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential

damages, so the above limitations or exclusions may not apply to you.

2. This warranty does not include any charge for labor or installation.

3. This warranty does not extend to painted surfaces or to damage or defects resulting from accident, alteration, misuses or abuse or improper installation.

4. This warranty does not cover claims which do not involve defective workmanship or materials.

DUTIES OF THE CONSUMER

1. The heating equipment must be installed by a qualified installer and operated in accordance with the installation and homeowner’s instructions furnished with the

equipment.

2. Any travel, diagnostic costs, service labor, and labor to repair the defective unit will be the responsibility of the owner.

3. A bill of sale, cancelled check, payment record or permit should be kept to verify purchase date to establish the warranty period.

4. Have the installer enter the requested information in the space below.

GENERAL

1. The manufacturer neither assumes nor authorizes any person to assume for it any other obligation or liability in connection with said equipment.

2. Service under this warranty should be obtained by contacting your dealer. Provide the dealer with the model number, serial number, and purchase date verification.

3. If, within a reasonable time after contacting your dealer, satisfactory service has not been received, contact: Customer Service Department, 250 West Laurel Street,

Colton, CA 92324 for assistance.

4. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Installation Record

Model No. ______________________________________________________________ Serial No. ___________________________

Original Purchaser ____________________________________________________________________________________________

Address ____________________________________________________________________________________________________

City and State ___________________________________________________________ Zip ________________________________

Dealer _____________________________________________________________________________________________________

Address ____________________________________________________________________________________________________

City and State ___________________________________________________________ Zip ________________________________

Installation Date _______________ Name ________________________________ Signature_________________________________

(Dealer or authorized representative who certifies that this appliance is installed in accordance with Manufacturer’s instructions and local codes.)

Contents

Your Williams Warranty ................................................................. 2

Installation Record ......................................................................... 2

Table of Contents .......................................................................... 3

Safety Rules .................................................................................. 4

Introduction .................................................................................... 5

Basic Materials Needed................................................................. 5

Basic Tools Needed ...................................................................... 5

Optional Accessories ..................................................................... 5

Installing Your Wall Furnace .......................................................... 6

Locating Wall Furnace and Thermostat ..................................... 6-7

Combustion & Ventilation Air ..................................................... 7-9

Installation

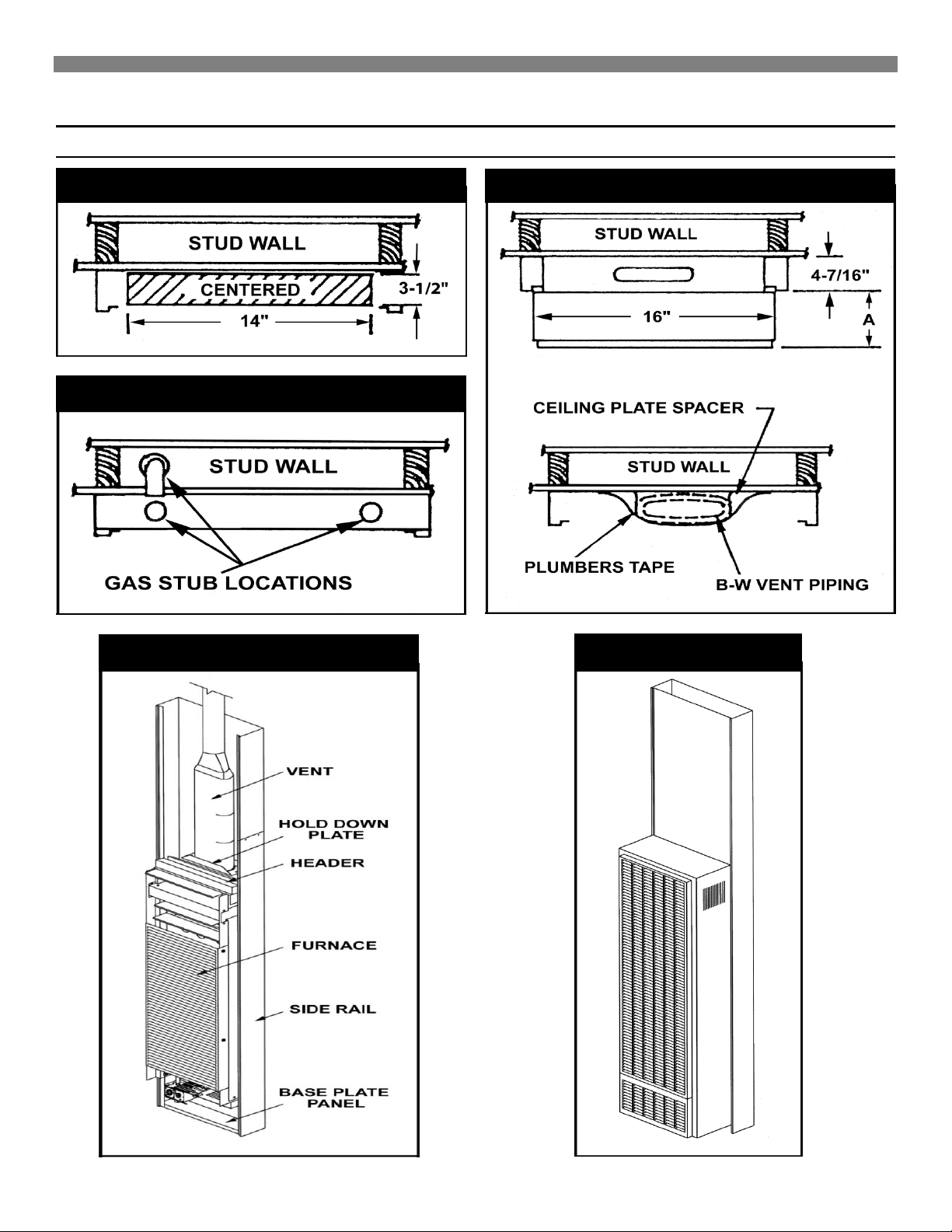

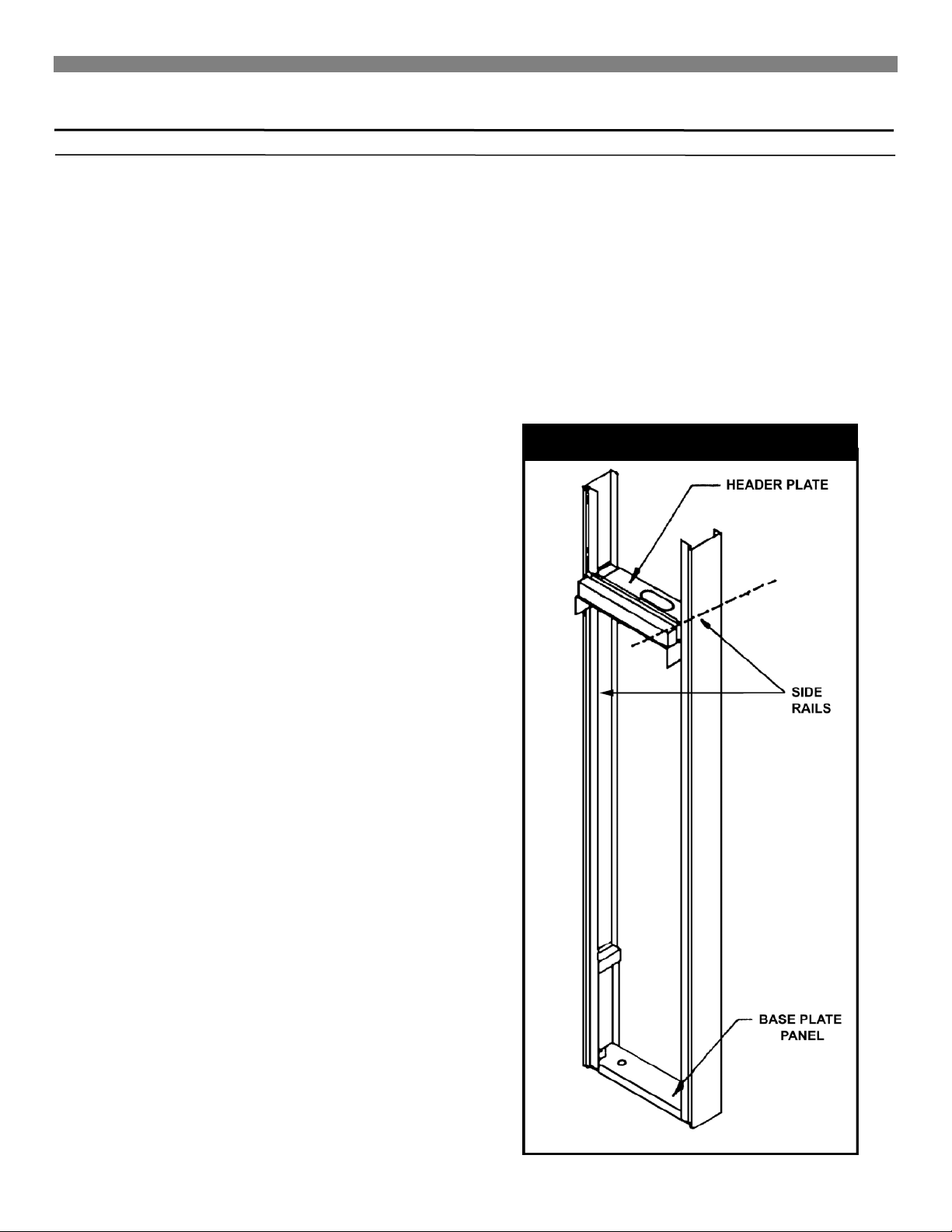

Recessed Mount Installation ........................................ 10-11

Surface Mount Installation ........................................... 12-13

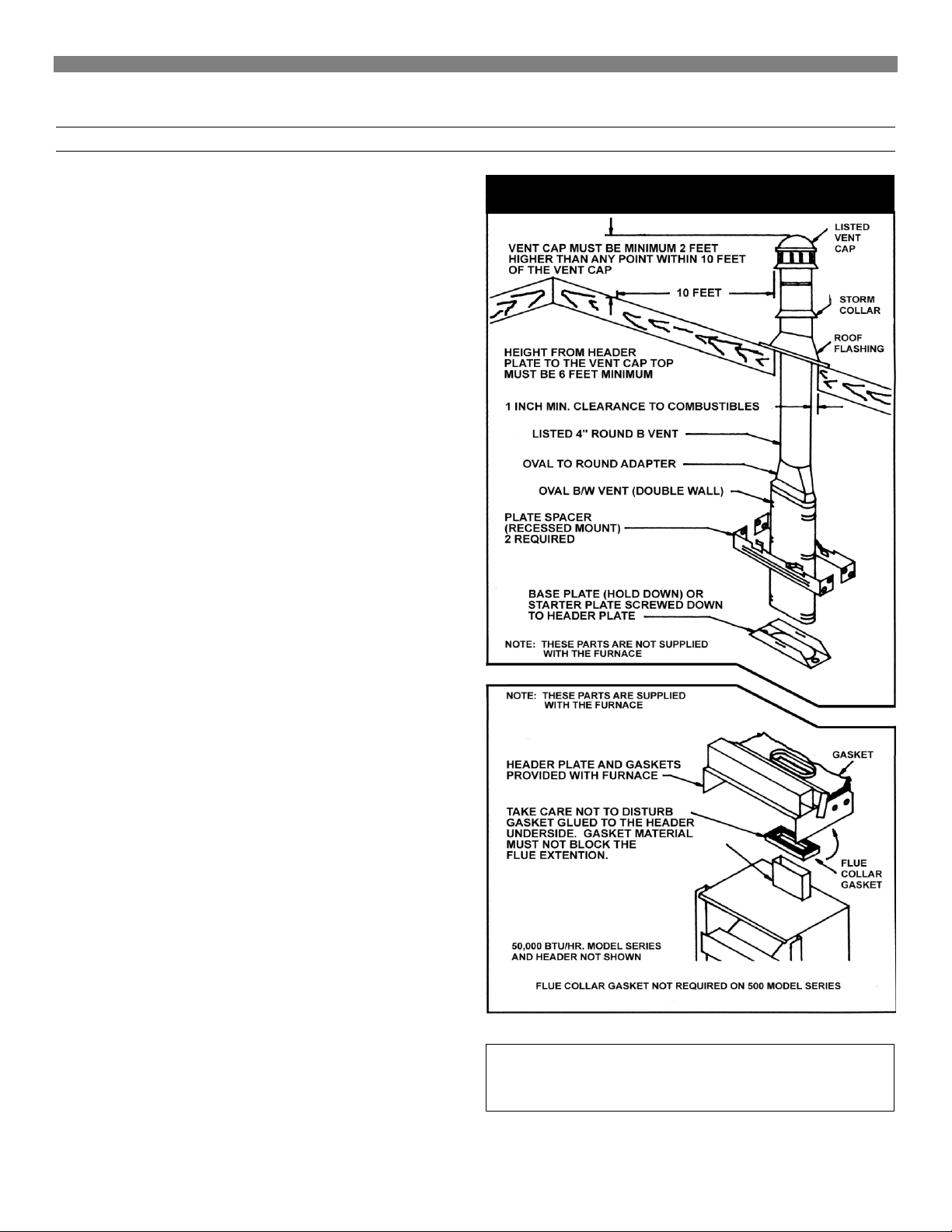

Vent Installation ................................................................. 14

Attaching Your Furnace ......................................................... 15-16

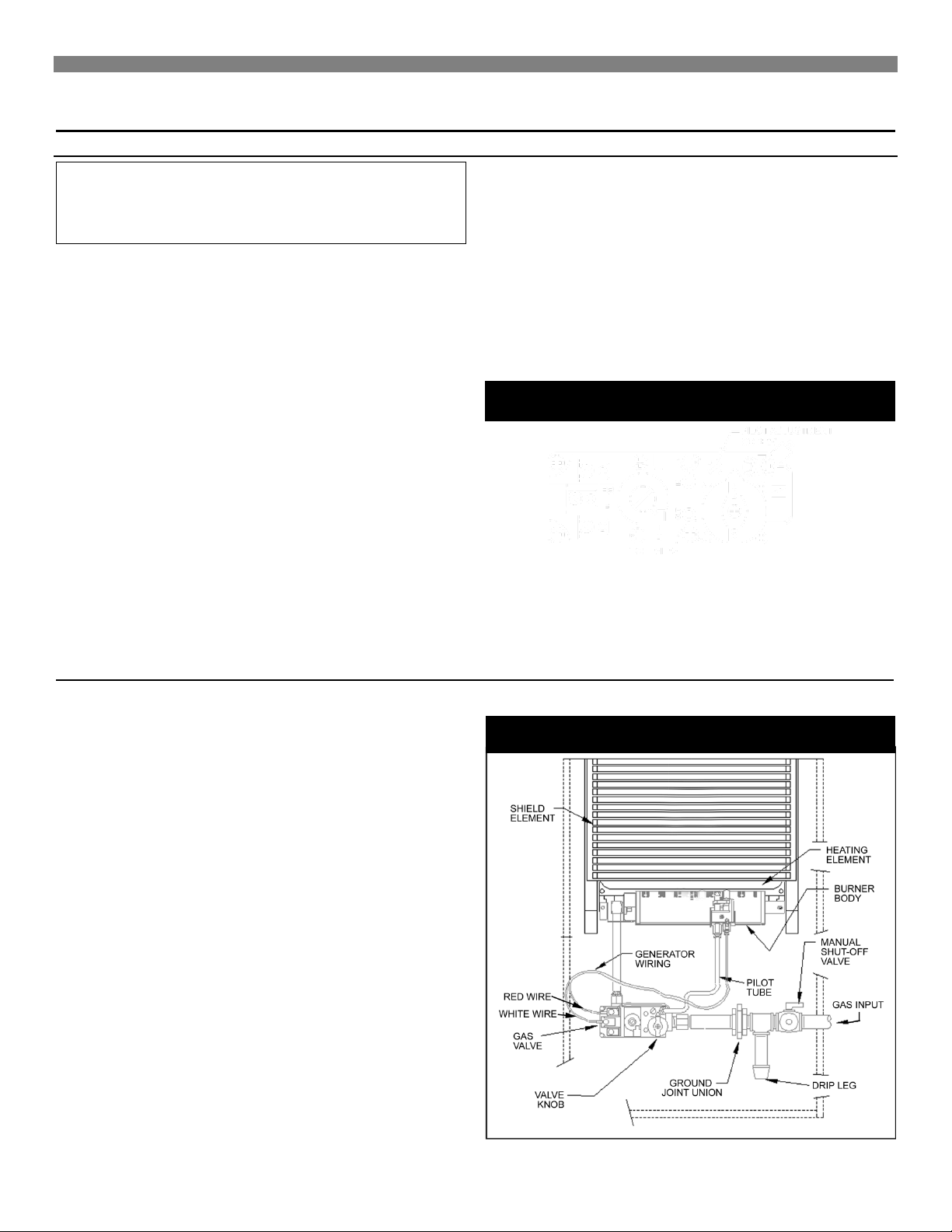

Gas Supply and Piping .......................................................... 16-18

Front Panel Installation ................................................................ 18

Thermostat Installation ................................................................ 19

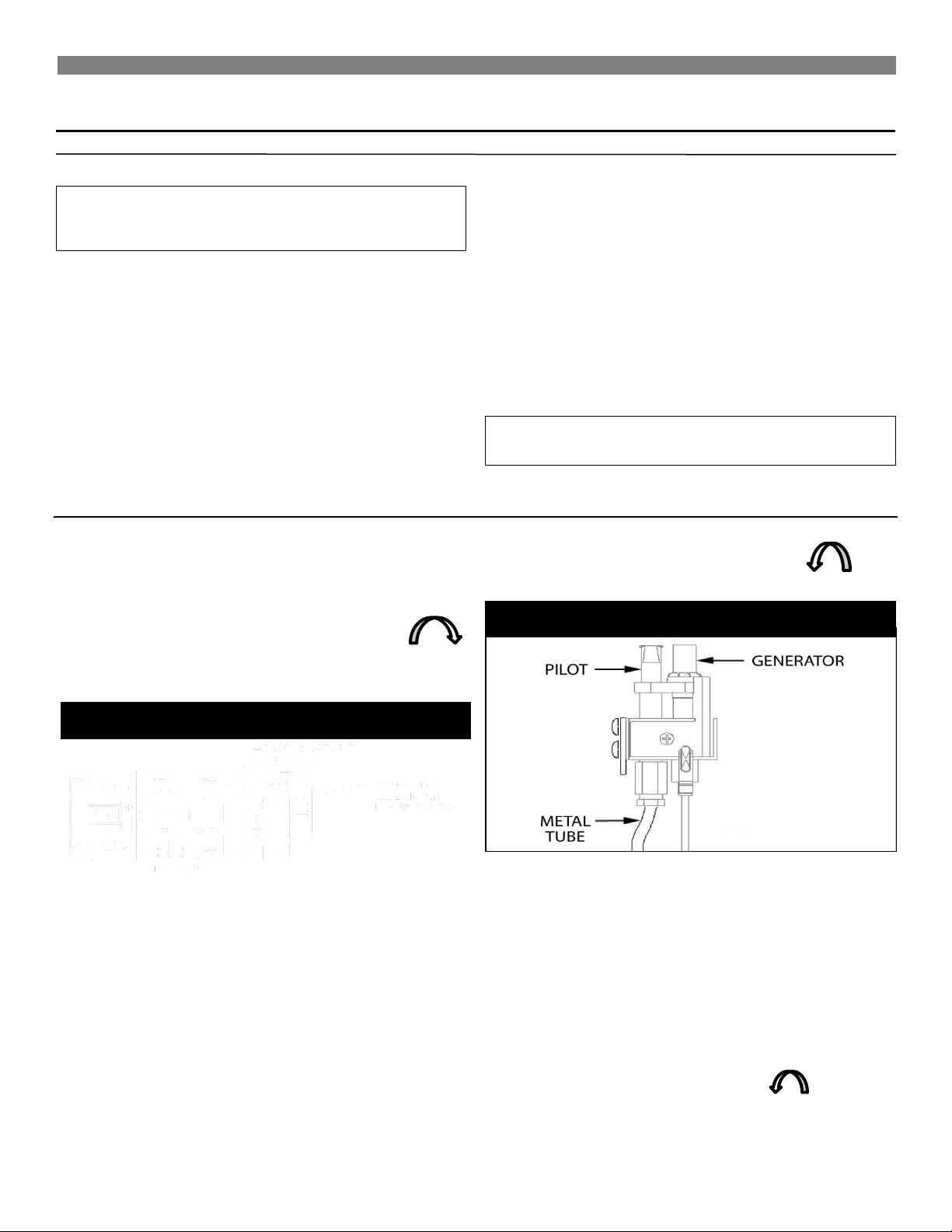

Start Up Procedure ................................................................ 20-21

Stay Safe………………………………………………………….22-23

Operating Your Furnace………………………………………...22-23

How to Care for Your Furnace ……………………….………..24-25

Installing Your Blower Accessory………………………………25-26

Blower Accessory Replacement Parts....….…………………..27-28

Installing Your Motorized Rear Outlet Accessory...….............29-30

Motorized Rear Outlet Replacement Parts...……………....…31-32

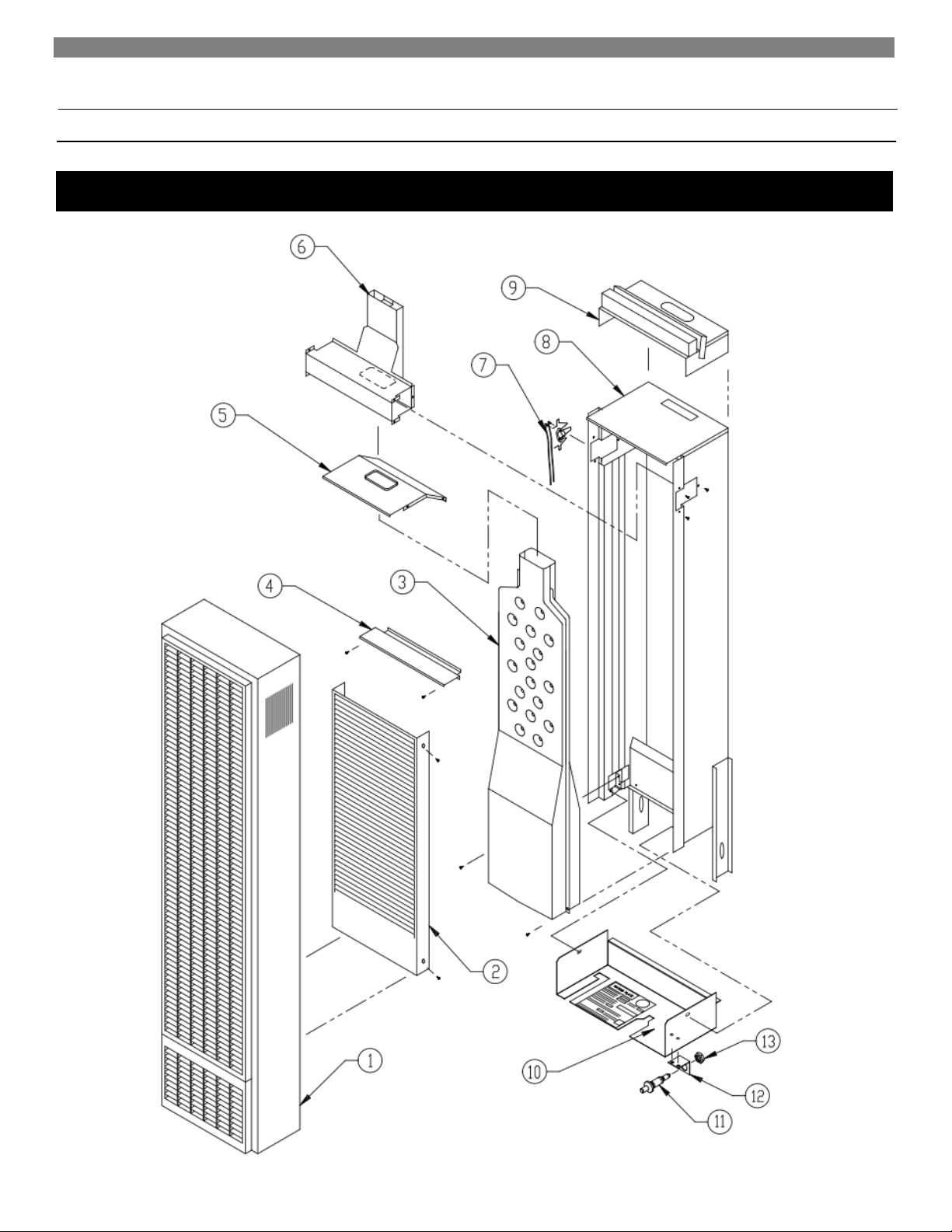

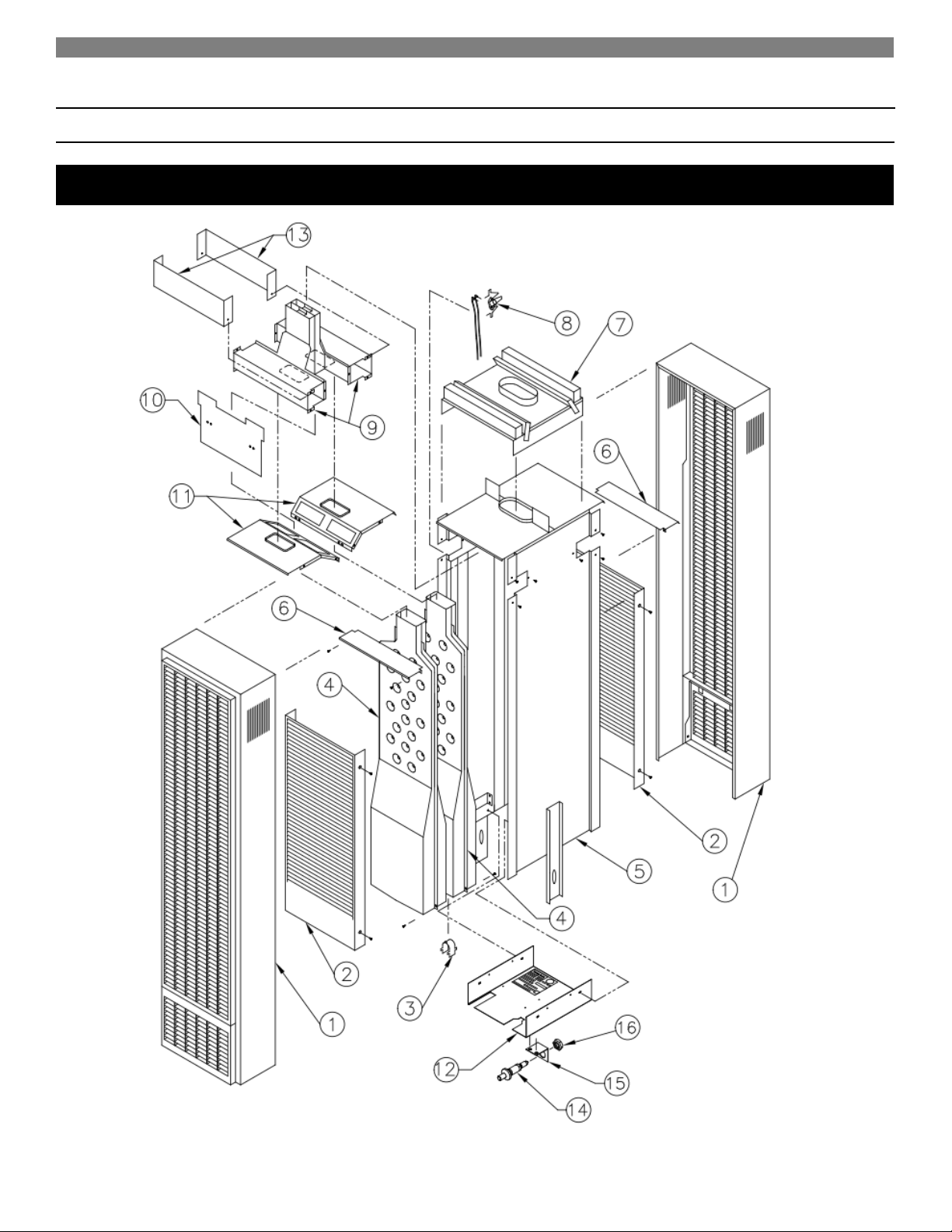

Furnace Replacement Parts …………………………..……….32-37

Troubleshooting Chart...…..…………………………………….38-39

Service Hints………………………………………………...............40

Quick Reference: Here’s how to…

Installing Your Furnace ............................................................ 6-20

Recessed Mount, Surface Mount, and Vent Installation are

explained starting on page 6.

Operating Your Furnace ........................................................ 22-23

Igniting your furnace for the first time.

Caring for Your Furnace ........................................................ 24-25

Learn how to keep your new Williams Furnace operating.

Safety Rules

4

WARNING: Read these rules and the instructions

carefully. Failure to follow these rules and

instructions could cause a malfunction of the

furnace. This could result in death, serious bodily

injury and/or property damage.

INSTALLATION MUST CONFORM TO LOCAL CODES. IN THE

ABSENCE OF LOCAL CODES, INSTALLATION MUST

CONFORM TO THE NATIONAL FUEL GAS CODE, ANSI Z223.1.

THE APPLIANCE, WHEN INSTALLED MUST BE

ELECTRICALLY CONNECTED AND GROUNDED IN

ACCORDANCE WITH LOCAL CODES OR, IN THE ABSENCE

OF LOCAL CODES, WITH THE CURRENT NATIONAL

ELECTRICAL CODE ANSI/NFPA NO. 70.

IN CANADA: Installation must conform to local

codes or, in the absence of local codes, the current

CAN/CGA B149 Installation code.

The appliance, when installed, must be grounded in

accordance with local codes, with the current CSA

C22.1 Canadian Electrical Code.

Reference is made in this manual regarding gas

type as L.P.G. Be advised that L.P.G. is not

available in Canada; refer to Propane/L.P. Gas.

WARNING: Do not use this furnace if any part has

been under water. Immediately call a qualified

service technician to inspect the furnace and to

replace any part of the control system and any gas

control which has been under water.

1. Use only manufacturer’s replacement parts. Use of any

other parts could cause injury or death.

2. DO NOT install the furnace where it could be isolated by

closing doors to the heated space.

3. DO NOT install these furnaces in a travel trailer, recreational

vehicle or mobile home.

4. MAINTAIN all clearances specified in section “Locating Wall

Furnace and Thermostat” and “Vent Installation.”

5. BE SURE the furnace is for type of gas being used. Check

the nameplate by the gas valve in the lower cabinet. Do not

change it to use other gases without the proper

manufacturer’s gas conversion kit.

6. For natural gas, the minimum inlet gas supply pressure for

the purpose of input adjustment is 5” water column. The

maximum inlet gas supply pressure is 7” water column. For

L.P. gas, the minimum inlet gas supply pressure for the

purpose of input adjustment is 11” water column. The

maximum inlet gas supply pressure is 13” water column.

7. Any safety screen, guard or parts removed for servicing this

appliance must be replaced prior to operating the appliance

to avoid property damage, bodily injury or death.

8. Vent the furnace directly to the outdoors, so that harmful

gases will not collect inside the building. Follow the venting

instructions for your type installation exactly. Use only the

type and size of vent pipe and fittings specified.

9. Provide for adequate combustion and ventilation air. See

page 7. The flow of this air to the furnace must not be

blocked.

10. NEVER vent flue gases into another room, a fireplace or

any space inside a building. This could cause property

damage, bodily injury or death.

11. NEVER test for gas leaks with an open flame. Use a soap

solution to check all gas connections. This will avoid the

possibility of fire or explosions.

12. , ALLOW furnace to cool before servicing. Always shut off

electricity and gas to furnace when working on it. This will

prevent any electrical shocks or burns.

13. DUE TO HIGH TEMPERATURES, locate the furnace out of

traffic and away from furniture and draperies.

14. ALERT children and adults to the hazards of high surface

temperatures and warn them to keep away to avoid burns

or clothing ignition.

15. CAREFULLY supervise young children when they are in the

same room with the furnace.

16. DO NOT place clothing or other flammable material on or

near furnace.

17. INSTALLATION and REPAIR must be done by a qualified

service person. The appliance should be inspected before

use and at least annually by a professional service person.

More frequent cleaning may be required due to excessive

lint from carpeting, bedding material, etc. It is imperative

that control compartments, burners and circulating air

passages be kept clean.

18. BEFORE INSTALLING: To avoid electrical shock, turn off

electrical circuits that pass through the wall where you are

going to install the furnace.

19. BE AWARE of good safety practices by wearing personal

protective equipment such as gloves and safety glasses to

avoid being injured by sharp metal edges in or around the

furnace while cutting or drilling holes in wood and/or sheet

metal.

20. CAUTION: Label all wires prior to disconnection when

servicing controls.

21. DO NOT store or use gasoline or other flammable liquids or

vapors near the furnace.

WARNING: Do not install any of these furnaces (Natural or

L.P. Gas) in mobile homes, trailers or recreational vehicles.

Introduction

Introduction – 5

The following steps are all needed for proper installation and safe operation of your furnace. If you have any doubts as to any

requirements, check with local authorities. Obtain professional help where needed. All of the checks and adjustments in the Start-Up

Procedures are vital to the proper and safe operation of the furnace. Please read the instructions before you install and use your

furnace. This will help you obtain the full value from this furnace. It could also help you avoid needless service costs if the answer to

the problem is found within this instruction manual.

Always consult your local heating or plumbing inspector, building department or gas utility company regarding regulations codes or

ordinances which apply to the installation of a vented wall furnace.

Check the furnace nameplate, located in the burner compartment, to make sure your furnace is equipped to operate on the type of gas

available (either natural or L.P. gas). DO NOT convert the furnace from natural gas to L.P. gas or from L.P. gas to natural gas without

the proper manufacturer’s gas conversion kit.

Combustion air is drawn in from the room where the furnace is located and is vented out of the top of the furnace vertically through vent

piping in the stud space to a roof vent top. Vent material is not supplied with the furnace.

This furnace is equipped with a vent safety shutoff system designed to protect against improper venting of combustion products.

Operation of this wall furnace when not connected to a properly installed and maintained venting system or tampering with the vent

safety shutoff system can result in carbon monoxide (CO) poisoning and possible death.

The efficiency rating of this furnace is a product thermal efficiency rating determined under continuous operating conditions and was

determined independent of any installed system.

Basic Materials Needed

Pipe and fittings to make gas connections to the furnace.

Vertical venting materials. See page 14, Figure 8.

Pipe Joint Compound resistant to L.P. Gases.

Electrical wiring supplies as needed. Minimum wire size is #14

gauge copper.

Basic Tools Needed

Hand drill or properly grounded electric drill

Expansion bit 1/2” to 1-5/8” or 1/2” and 1-1/2” blade bits

1/8” and 3/16” drill bit (metal)

6 ft. folding rule or tape measure

Screwdriver (medium blade)

Screwdriver (Phillips head)

Pliers (wire cutting)

Hammer

Stud Locator or small finishing nails

Tin Snips

8” adjustable wrench

12” adjustable wrench

Two, 10” or 12” pipe wrenches

Gloves and safety glasses

Helpful Installation Information

The following booklets will help you in making the installation:

ANSI/NFPA 70, or current edition “National Electrical Code”. In Canada: CSA C22.1 Canadian Electrical Code.

American National Standard Z223.1 or current edition of the “National Fuel Gas Code.”

Obtain from the American National Standard Institute, Inc., 1430 Broadway, New York, NY 10018. In Canada, CAN/CGA B149.

Optional Accessories

Blower Accessories 2901, 2907 - May be used on all models and mounts on top of a furnace. This blower increases circulation of

warm air through the heated space. A 115V outlet adjacent to the furnace is required.

Trim Strip Kit 4701 - Provides a finished edge for sides of the wall furnace.

Free Standing Accessory 4901 - May be used with single-sided models. This accessory allows the furnace to be mounted on the

surface of a wall.

Vent Adapter Kit 9902, 9910 - Optional vent adapter, typically used when the furnace is vented into a properly lined chimney.

Rear Outlet Registers 6901, 6919, 6920 - May be used with single-sided models when recessed into a standard 2x4 inch interior stud

partition. This accessory directs some of the heated air into the room opposite the one in which the furnace is installed.

Oval B/W Vent Kit 9901 - This U.L. listed B/W vent kit contains four feet of oval, double-walled vent pipe, plate spacers and base or

hold-down plate that starts the venting from the top of furnace. See Vent Installation on page 14 for additional items you will need.

Plaster Ground Kit 6905 - Used for 6901 or 6919 Rear Outlet Registers.

Gas Conversion Kits - See page 16.

Installing Your Furnace

6

The following steps are needed for proper installation and safe

operation of your furnace. If you have any doubts as to any

requirements, obtain professional help. Remember to ALWAYS

consult your local heating or plumbing inspector, building

department or gas utility company regarding regulations, codes,

or ordinances which apply to the installation and location of a

vented wall furnace.

IMPORTANT

For satisfactory and trouble-free operation, be sure to:

1. Locate the furnace properly within the space to be heated.

2. Install the furnace in accordance with local codes or

ordinances and instructions provided. In the absence of

local codes or ordinances, install the furnace to conform

with the current edition of the National Fuel Gas Code,

NFPA 54, ANSI Z223.1/Canadian Installation Code,

CAN/CGA B149.

3. Maintain minimum clearances: Floor 2½-inches, ceiling 16-

inches, side wall 1-inch.

4. Provide enough combustion and ventilation air.

Locating Wall Furnace & Thermostat

The furnace is installed between 2x4 inch wall studs spaced on

16-inch centers or a stud space that can be framed in to 16-

inches.

Consider the following points before attempting to install the

furnace:

CAUTION: Do not make cutouts in the wall or

ceiling before checking in the attic for ceiling joist

locations and proposed venting.

1. Locate the furnace near the center of the space to be

heated for good air circulation. Do not put it behind a door

or draperies. Do not install the furnace where it could be

isolated by closing doors to the heated space. Do not

locate the furnace where a door could swing over the front

panel or where circulation could be retarded by furniture or

cabinets.

2. Check the minimum spacing needs as shown in Figure 1.

3. The top of the furnace must be at least 16-inches from the

ceiling.

4. When the furnace is properly installed with legs resting on

the floor plate, it sets the dimension from the face panel to

the bare floor. (Approximately 2½-inches depending on the

thickness of floor plate).

5. A protective barrier (metal or wood), cut to match the width

and depth of the furnace, should be used to cover over

any floor coverings such as carpet or vinyl under the

furnace. At no time should the dimension from the bottom

of the face panel to the protective barrier be less than 1½-

inches.

6. In the space to be heated, the side of the furnace may be

as close as 1-inch to an intersecting wall. The recessed

portion may have 0-inches clearance to combustible

material.

7. Select a location that will provide adequate accessibility

clearance for servicing and proper operation.

8. After picking a location, inspect the wall, floor, attic and

roof areas. Make sure there are no pipes, wiring, bracing,

etc., that will interfere with furnace or vent installation. If

required, move them or pick a new installation location.

9. Be sure that gas piping and electrical wiring can be

brought to the location. Electrical wiring is required for

optional blower accessory.

10. If installing the thermostat on the wall, locate the

thermostat approximately 5-feet above the floor on an

inside wall where it will sense the average room

temperature.

1” MIN. TO

CLOSEST

SIDE

WALL

Installing Your Furnace

Locating Wall Furnace & Thermostat (continued)

The thermostat should be sensing average room temperature;

avoid the following:

HOT SPOTS: COLD SPOTS:

Concealed pipes or ducts Concealed pipes or ducts

Fireplaces Stairwells – drafts

Registers Doors – drafts

TV sets Unheated rooms on

Radios other side of wall

Lamps

Direct sunlight DEAD SPOTS

Kitchen Behind doors

Corners and alcoves

After picking a location that meets the requirements, check the

walls, attic and roof to make sure there are no obstructions such

as pipes, electrical wiring, etc., which could interfere with the

installation of the furnace or vent pipe. If required, move them or

pick a new location.

WARNING: Danger of property damage, bodily

injury or loss of life. Do not install the furnace in any

area where oxygen is in use.

Combustion & Ventilation Air

WARNING: Danger of property damage, bodily

injury or loss of life. The furnace and any other fuel-

burning appliances must be provided with enough

fresh air for proper combustion and ventilation of

flue gases. Most homes will require that outside air

be supplied into the heated area.

The high cost of energy for home heating has brought about new

materials and methods used to construct or remodel most current

homes. The improved construction and additional insulation has

reduced the heat loss and made these homes much tighter

around windows and doors so that infiltrated air is minimal. This

creates a problem to supply combustion and ventilation air for

gas-fired or other fuel burning appliances. Any use of appliances

that pull air out of the house (clothes dryers, exhaust fans,

fireplaces, etc.) increases this problem and appliances could be

starving for air.

The combination of a tight energy efficient home with the use of

exhaust fans, fireplaces, clothes dryers, and gas appliances result

in more and more air being drawn from the house until fresh air

may be sucked back into the house down a furnace flue or

fireplace chimney. Carbon monoxide can be the result. Carbon

monoxide (CO) is a colorless, odorless gas produced when fuel is

not burned completely or when the flame does not receive

sufficient oxygen. Automobiles, charcoal, wood fires and

improperly vented or air-starved coal, oil and gas furnaces or

other appliances can produce carbon monoxide.

Do not install furnace in the same room or near a wood solid fuel

burning fireplace.

BE AWARE OF THESE AIR-STARVATION SIGNALS:

1. Headaches, nausea, dizziness.

2. Excessive humidity shown by heavily frosted windows or a

moist "clammy" sensation.

3. Fireplace smoke fills the room or will not draw.

4. Furnace flue backs up.

AIR REQUIREMENTS

The requirements for providing air for combustion and ventilation

are listed in the National Fuel Gas Code NFPA 54/ANSI Z223.1 (in

Canada: CAN/CGA B149). Most homes will require that outside

air be supplied to the heated area by means of ventilation grilles

or ducts connecting directly to the outside or spaces open to the

outdoors such as attic or crawl space. The only exception is when

the heated area meets the requirements and definitions for an

unconfined space with adequate air infiltration.

All air openings and connecting ducts must comply with the

following:

If the furnace is installed in an area with another gas appliance(s),

the total input rating of all appliances must be considered when

determining the free area requirements for combustion and

ventilation air openings.

Ducts must have the same cross-sectional area as the free area

of the openings to which they connect. The minimum dimension

of rectangular air ducts must not be less than 3-inches in length or

height.

Locating Wall Furnace & Thermostat (continued)

WARNING: Danger of property damage, bodily injury or loss of life. Even when a house meets

requirements for unconfined space with adequate air infiltration, it is recommended that a fresh air intake be

installed to lessen the possible dangers from any future changes on the home

Installing Your Furnace

8

Combustion & Ventilation Air (continued)

LOUVERS / GRILLES AND SCREENS COVERING

FREE AREA OPENINGS

If a screen is used to cover the opening(s), it must not be smaller

than 1/4-inch mesh. Use the free area of a louver or grille to

determine the size opening required to provide the free area

specified. If the free area is not known, assume a 20% free area

for wood and a 60% free area for metal louvers or grilles.

INFILTRATION AIR

If your furnace is in an open area (unconfined space), the air that

leaks through the cracks around doors and windows may be

enough for combustion and ventilation air. The doors should not

fit tightly. The cracks around windows should not be caulked or

weather stripped.

Spillage means air starvation. A fresh air duct or air intake

opening must be installed to provide air directly to the furnace or

other gas appliances.

If spillage exists or when the furnace is in a building of tight

construction where the windows and doors are weather stripped,

air for combustion and ventilation must be obtained from outdoors

or space open to the outdoors.

To determine if infiltration air is adequate, perform the following

checks:

1. Close all doors and windows. If you have a fireplace, start a

fire and wait until flames are burning vigorously.

2. Turn on all exhausting devices, i.e., kitchen and bathroom

exhaust fans; water heaters (gas and electric).

3. Turn on all vented gas appliances, i.e., heating equipment

(includes any room heaters), water heaters.

4. Wait ten (10) minutes for drafts to settle.

5. Check for draft hood spillage at each appliance. Hold a lit

match two-inches from the draft opening. (Figure 2).

A. No Spillage

If the match flame pulls toward draft hood, this indicates sufficient

infiltration air. Return exhausting devices and appliances to the

condition you found them.

B. Draft Hood Spills

If there is spillage at a draft hood (match goes out or flame wavers

away from draft hood), check for plugged flue connectors and

chimneys. Repair blockage and test again.

If you have a fireplace, open a window or door near the fireplace

and then check for spillage. If spillage stops, do not use the

fireplace without a nearby window or door open until you can

supply fresh air by a permanent duct.

If you have kitchen and bathroom exhaust fans, turn them off and

check for spillage. If spillage stops, do not use exhaust fans

(circuit breakers for fans should be turned off) until you can supply

fresh air by a permanent duct.

Provide opening(s) having a total free area of one-square-inch per

4,000 Btu/hr. of the total combined input ratings for all appliances

in the area. The required free area is shown in Figure 3. This

fresh air opening or duct must terminate at a point not more than

one-foot above the floor. It must have at least one-square inch of

free area for each 4,000 Btu/hr. of input of all appliances in area.

Hole Placement - Example

Square inches

of Opening

Installing Your Furnace

Combustion & Ventilation Air (continued)

FURNACE LOCATED IN UNCONFINED SPACE

An unconfined space must have a volume of a minimum 50 cubic

feet per 1,000 Btu/hr. of the total combined input of all appliances

in the area. Adjoining rooms may be included only if there are no

doors between the rooms or if special provisions are made such

as ventilation grilles installed between connecting rooms. Figure

4 outlines the minimum area in square feet, based on 8-foot

ceiling heights for various Btu/hr. input ratings.

FURNACE LOCATED IN CONFINED SPACE

If a furnace is installed in a confined space, it must be provided

with free air for proper combustion and ventilation of flue gases by

one of the following methods:

A. Air From Inside the Building

If the confined space adjoins an unconfined space, provide two

permanent openings. One within 12-inches of the top and another

within 12-inches of the bottom of the room directly connected to

the unconfined space. Each opening must have a free area of at

least 100-square inches or 1-square inch per 1,000 Btu/hr. of

input for all appliances combined.

WARNING: Danger of property damage, bodily

injury or death. The adjoining unconfined space

must have adequate air infiltration.

B. Air From Outdoors

If confined space does not adjoin an unconfined space, then air

must be provided from outdoors or spaces open to the outdoors

such as an attic or crawl spaces.

Openings for inlet or outlet air should NOT be made into an attic

area if the attic is equipped with a thermostat controlled power

vent.

Provide two permanent openings, one within 12-inches of the top

and bottom of the room connecting directly to, or by using ducts,

with the outdoors or areas open to fresh air.

If the opening connects directly to, or with vertical ducts, the free

area of each opening must be at least 1-square inch per 4,000

Btu/hr. of the combined input of all appliances in the area.

If horizontal ducts are used, the free area of each opening must

be at least 1-square inch per 2,000 Btu/hr. of the combined input

of all appliances in the area.

WARNING: Danger of illness, bodily injury or

death. Draft hood spillage, with unobstructed vents,

indicates that additional air must be brought into the

structure from the outside. Keep a window open

(minimum 2-inches) near the appliance until a

permanent air duct is installed.

Examples of Grille Placement

Examples of Air Inlets and Outlets

Max.

Btu/hr.

Input

Installing Your Furnace

10

Recessed Wall Mount Installation

On models 2509621A, 2519621A, 2539621A, 2559621A,

2509622A, 2519622A, 2539622A, 2559622A, 3509621A,

3519621A, 3539621A, 3559621A, 3509622A, 3519622A,

3539622A, and 3559622A, the maximum recess depth from rear

of furnace forward is 4½-inches.

FIND THE STUDS AND CEILING JOINTS

Use a stud locator or small finishing nails. Repeatedly drive and

remove a nail into the wall in the area of the stud until it is located.

Then find the inside edge of the stud. Leave the nail at this

location.

The other stud should be about 14½-inches from the one found.

Drive finishing nails on the inside of this stud. Draw wall cutout to

required size as shown in Figure 5. If wall studs are not on

16-inch centers. See "CLOSE OFF STUD SPACE.” (Figure 6).

CUT WALL OPENING

Cut wall opening 14⅜-inches wide and 66⅛-inches high

measured from the top of the floor plate. (Figure 5). All corners

must be square.

INSTALLATION OF REAR OUTLET REGISTER

The optional rear outlet register may be installed when the

furnace is recessed into the wall. In new construction, install the

rear outlet plaster ground at the same time you install the header

plate. For existing construction, make the necessary cutout and

install the plaster ground before you install the furnace. See

instructions packed with accessory and Figure 5.

Do not allow wall finish material to project into the furnace recess.

Do not install rear outlet register where grille may be blocked by a

door, curtains or any other obstruction.

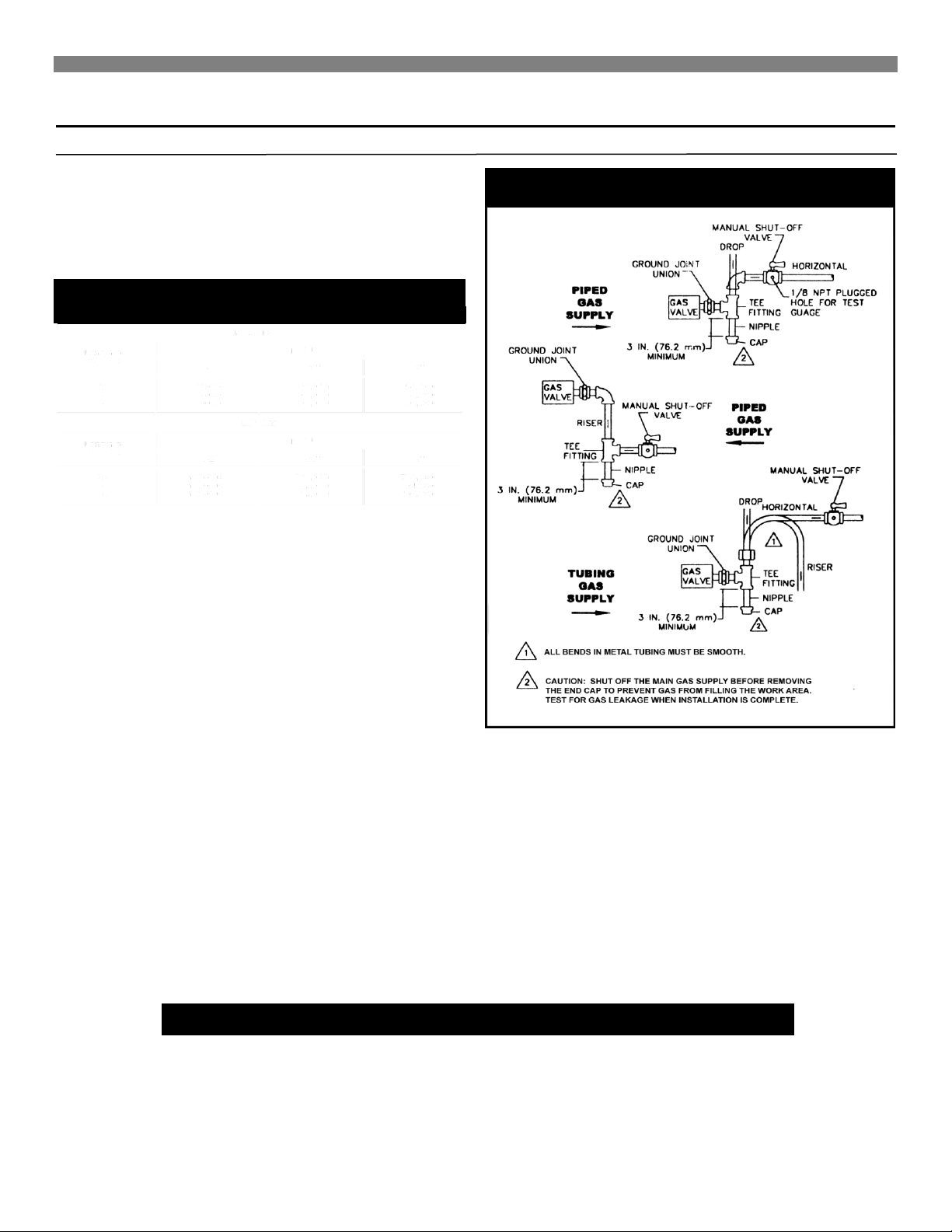

GAS SUPPLY OPENING

A hole must be drilled for the gas line. Decide whether the gas

line will come through the floor or wall. Drill a 1½-inch hole

through the floor or wall as needed. (Figure 5).

CAUTION: Be careful not to damage any furnace

components while making any alternate hole.

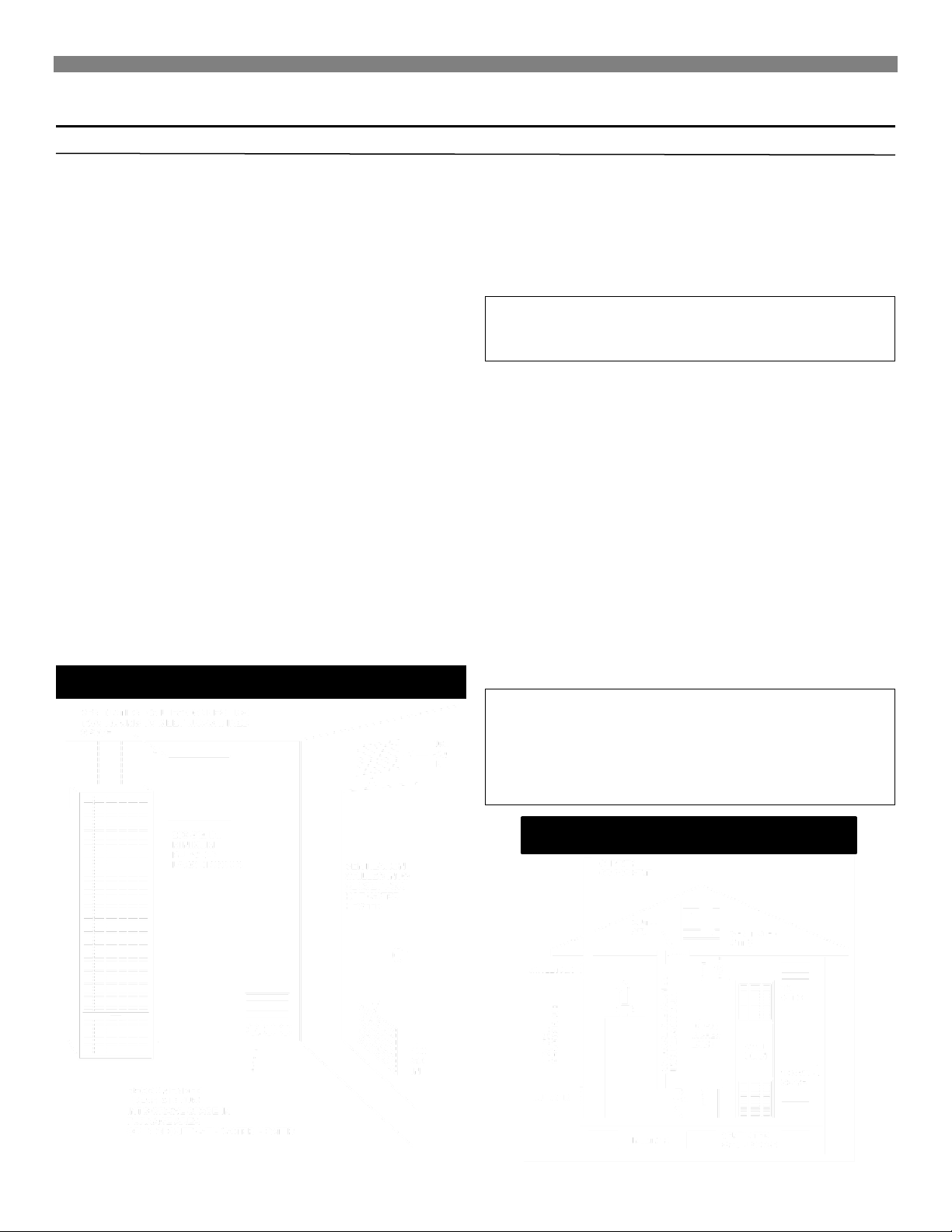

FIGURE 5 – Recessed Wall Mount Installation

Installing Your Furnace

Recessed Wall Mount Installation (continued)

CLOSE OFF STUD SPACE (If Required)

If studs are not on 16-inch centers, cut the hole for the furnace

next to an existing stud and frame in the other side using a 2x4

and spacer blocks as required. (Figure 6).

I

CEILING PLATE OPENING

Cut away the ceiling plate between the studs where the furnace is

to be installed. Work from the top in the attic. If there is no

access to the top, remove the wall covering between the two wall

studs all the way to the ceiling. Work through this opening. Cut

out the entire plate so the plate edges will be even with the inner

face of the 2x4 studs. (Figure 7).

INSTALL VENT BASE PLATE (HOLD-DOWN PLATE)

Position base plate on top of header plate and fasten with screws.

Note: Hold down plate is not included.

HEADER PLATE (VENT SUPPORT)

Measure upward 62¼-inches from the top of the floor plate. Place

a mark on each stud at this distance. (Figure 5). Place the

header plate between the studs with the lower edges even with

marks on the studs. Make sure header plate is level.

Locate rear edge of nailing tabs at back of the header. Nail

header plate to the 2x4 studs which will center the vent collar in

the wall. (Figure 5).

INSTALL CEILING PLATE SPACER

Nail the ceiling plate spacers either across or in between the cut

out section of ceiling plate. If nailed between, ends must be bent

at 90 degrees. They must be fastened along each long edge of

the ceiling plate hole to hold the oval vent pipe in the center of the

hole. Ceiling plate spacers preserve structural strength and

position oval vent pipe in the center of the cut out opening.

Ceiling plate spacers are not included. (Figure 7).

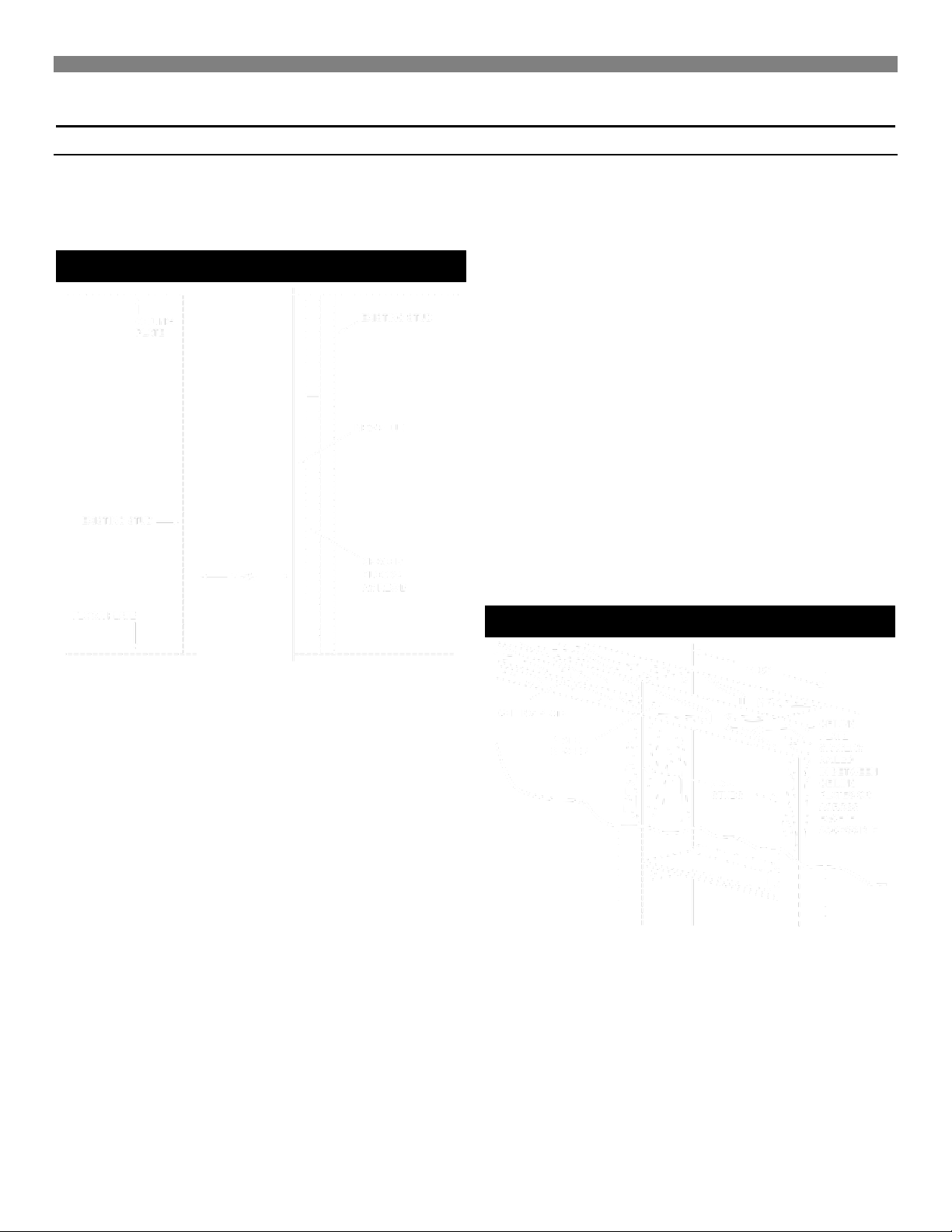

FIGURE 6 – Close Off Stud Space

FIGURE 7 – Ceiling Plate Opening

Installing Your Furnace

12

Surface Mount Installation

The use of the optional Free Standing Accessory No. 4901 allows

single-sided furnaces to be surface mounted instead of recessed

into a wall. This is ideal for remodeling existing masonry wall

construction or when studding is substandard. This kit drastically

cuts installation time and eliminates the expense of cutting into

the walls and ceiling plates. Be sure this accessory is of the type

and design required for the use with your furnace.

NOTE: After picking a location that meets the requirements,

check the wall, attic, and roof to make sure there are no

obstructions such as pipes, electrical wiring, etc., which could

interfere with the installation of the furnace or vent pipe. If

required, move them or pick a new location.

FIND THE WALL STUDS OR CEILING JOISTS

Find two studs or joists at the spot where the furnace is to be

located. Use a stud locator or small finishing nails. Repeatedly

drive and remove a nail into the wall or ceiling in the area of the

stud or joust until you find it. Then find the its side and leave the

nail there. Drive another nail just on the other side other the same

stud or joist.

The inside of the next stud or joist should be about 14½ inches

from the first one found. Drive a nail on the inside of this stud or

joist.

Using the nails as a guide, draw two lines down the side of the

wall from the ceiling to locate the furnace and ceiling hole cutout

for venting.

FREE STANDING ACCESSORY ASSEMBLY & INSTALLATION

1. Attach the base plate panel as shown in Figure A to the

bottom of the side rails with four (4) # 6, ⅜” screws.

2. Attach the header plate, (included with the furnace), to the

side rails using four (4) #8, ⅜” screws. Flanges of the header

plate go against the wall. (Figure A).

3. Install extension side rails as shown in Figure A, by

telescoping them inside the lower side rails. Adjust the

extension side rails by sliding them up or down to ceiling

height. Maximum: 8 feet 9 inches, Minimum: 7 feet 9 inches.

4. If the wall has a baseboard, cut the baseboard out to fit

against the side rails. Stand the side rails against the wall and

fasten them to the wall securely with screws or bolts in the

holes provided. Use a level to assure the enclosure is plumb.

Screws and bolts for wall fastening are not included.

5. After positioning the enclosure, cut a 3½ X 14 inch hole in the

ceiling, centered between the studs or joists as shown in

Figure B.

6. Cut ¼ inch off each end of the ceiling spacer plate. Place the

ceiling spacer plate to the back of the wall and centered in the

enclosure as shown in Figure C.

7. Install Type B/W vent though the roof and studs or joists in

accordance with the installation instructions packed with the

furnace and local codes. See Vent Installation, page 14.

8. Set the furnace body into position. (Figure 9), page 15. The

furnace legs will rest on the bottom of the base plate panel.

Utilizing the holes provided in the furnace legs, secure the

furnace to the brackets attached to the bottom panel with two

(2) #10, ¾” screws.

9. Install the vent enclosure panel, fastening it to the side rails

with six (6) #6, ⅜” screws. Trim the bottom of the panel to fit

the header plate.

10. Install gas inlet through the back wall or one of the two holes

provided in the bottom base plate panel. (Figure D.) Connect

gas line to furnace. See Gas supply and Piping, page 17.

11. Install furnace face panel. See Front Panel Installation,

page 18. NOTE: The panel recesses ¼-inch between the

vertical edges of the enclosure.

FIGURE A

Installing Your Furnace

Surface Mount Installation (continued)

FIGURE B

FIGURE C

FIGURE D

Vent Installed

Front panel installed

Installing Your Furnace

14

Vent Installation

The vent installation must comply with all local codes and

ordinances. If in doubt, consult your local codes or inspector.

The furnace vent must be directed to the outdoors so that harmful

combustion gases will not collect inside the building.

This furnace must not be connected to a chimney flue serving a

separate solid-fuel burning appliance.

This product is design certified to ANSI Z21.86. It must be

installed with a U.L. tested and listed type "B" approved vent and

type "B/W” approved vent (Figure 8). Older style terra-cotta,

transite, clay, concrete or masonry type vent pipe cannot be used

with this appliance. These types of vent pipe will not heat fast

enough to establish a draft, which will result in improper venting of

combustion products. Consequently, this could cause the vent

safety control system to shut down the furnace.

The area above header within the stud space MUST be kept clear

of any attic insulation to allow the free circulation of air around the

oval vent piping. In some areas the building code requires the

use of an attic shield.

The B/W vent must extend through the ceiling and roof

terminating at least 12-feet above the finished floor on which the

furnace rests.

INSTALL FURNACE VENT

Attach a 4-foot length of oval, double-wall vent pipe through the

plate spacers to the hold-down plate. Push the vent pipe into the

hold-down plate until it is completely seated. The hold-down cleat

will engage the groove in the vent pipe.

COMPLETE THE VENTING

Type B/W gas vent shall extend from the header plate of the

furnace to a point above the highest ceiling plate within the stud

space through which the vent passes, without any offsets or

crossovers. The first vent pipe offset, (if required), may not be any

closer than 2-feet from the header. After a type B/W gas vent

passes through the highest ceiling plate within a stud space

above the furnace to which it serves, the vent system may be

completed with a Type B gas vent, from the SAME manufacturer

(do not mix brands of pipe). Offsets cannot be greater than 45

degrees from vertical. Refer to The Uniform Mechanical Code.

Install the oval-to-round adapter. Complete the piping extending it

through the roof. Use a 4-inch round, double-wall (Type B) vent

pipe, roof flashing, storm collar and vent cap as shown. The vent

cap must be at least 2-feet higher than any point that is within 10-

feet of the vent cap. There must be at least a 1-inch clearance

between the vent pipe and any combustible material.

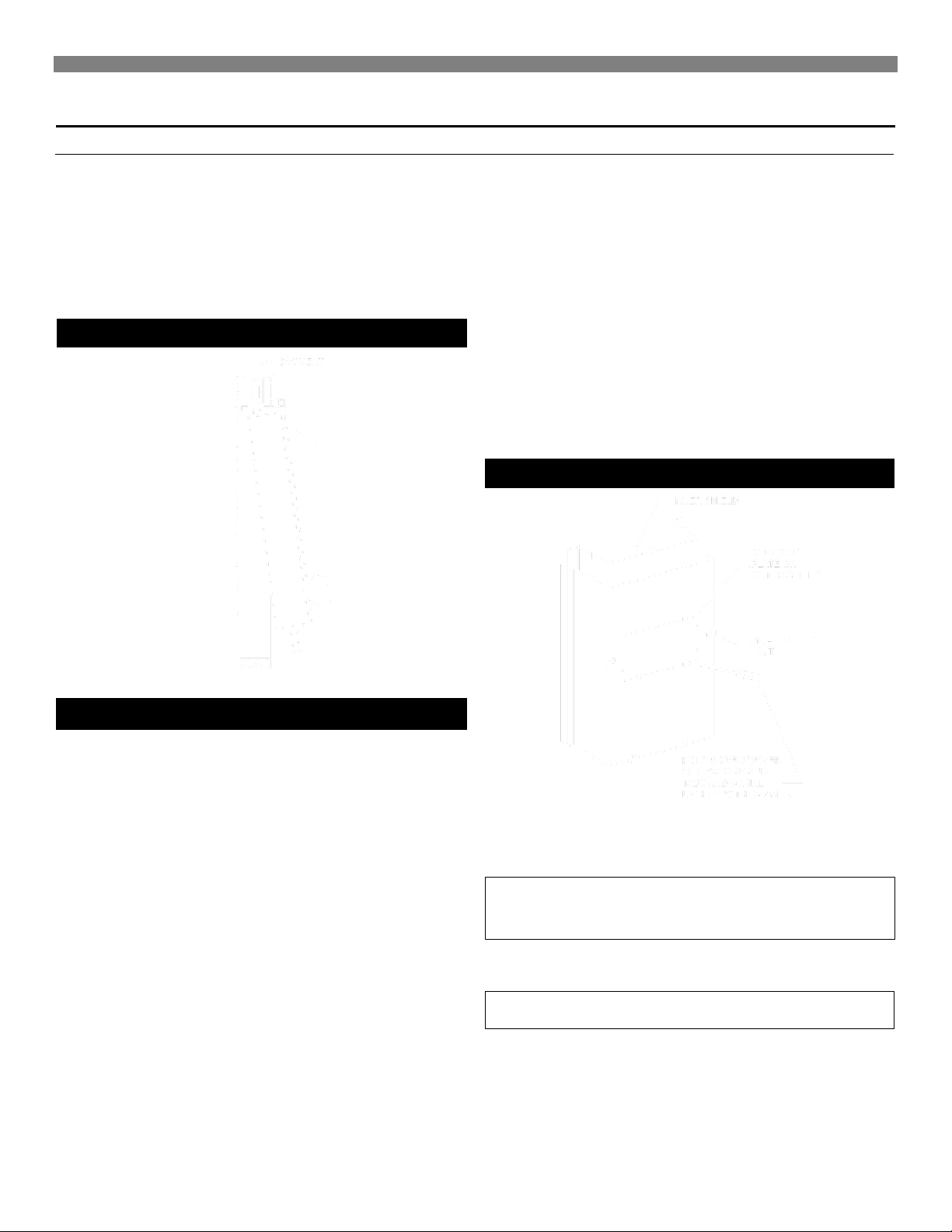

Figure 8 – Typical Vent Installation

CAUTION: To avoid damage to wiring, be sure to

route the wires away from the path of the furnace

vent.

Installing Your Furnace

Attaching Your Furnace

Clear the wall recess of all debris, remove any wood or plaster.

Stand the furnace in front of recess, holding the furnace body at

an angle. Insert flue collar into the opening in the header plate

and raise furnace carefully (Figure 9). Swing bottom of furnace

into wall recess with front edges of legs flush with 2x4 floor plate.

In the holes provided, nail through the legs into studs or floor plate

(Figure 10).

Do not damage gasket glued to underside of header plate when

placing furnace in wall. Avoid nailing the legs so tightly that it

disturbs the inner furnace casing. Do not try to force the furnace

into a smaller-than-specified recess.

REAR OUTLET KIT INSTALLATION (OPTIONAL)

If a Rear Outlet Register Accessory is used, the following

procedure must be completed before placing furnace body into

wall recess. (Figure 11). Attach speed nuts to outer shield and

remove knockout plates from both the outer and inner shields as

follows:

1. Punch in the lower corners with a screwdriver blade.

2. Break the knockout side and bottom connecting tabs by

holding a screwdriver blade sideways against the tab and

striking the head of the screwdriver lightly with a hammer.

3. Swing the plate outward; bend it back and forth to break the

top tabs. Use caution when handling sharp metal edges.

25,000 & 35,000

Btu/hr. Models

Attaching Your Furnace

FIGURE 9 – Insert Furnace

FIGURE 11- Remove Knockout Plates11 -

Remove Knockout Plates

CAUTION: Do not install rear outlet kit where

grille may be blocked by a door, curtains, or any

other obstruction.

FIGURE 10 – Nail Placement

WARNING: Never shear or cut the furnace legs.

Installing Your Furnace

16

Attaching Your Furnace (continued)

After furnace is in position, install rear outlet register as shown in

Figure 12. Have damper in open position when inserting the

assembly. Secure the rear outlet register to speed nuts with the

machine screws furnished.

Gas Supply and Piping

GAS PIPING

The gas supply line must be of adequate size to handle the Btu/hr.

requirements and length of the run for the unit being installed.

Determine the minimum pipe size from Figure 17, basing the

length of the run from the gas meter or source to the unit.

All piping must comply with local codes and ordinances or with the

National Fuel Gas Code (ANSI Z223.1 NFPA No. 54), whichever

applies. (In Canada: CAN/C.G.A B149). Refer to Figure 18 for

the general layout of the unit. It shows the basic fittings needed.

The following rules apply:

1. Use new, properly reamed pipe free from chips such as

steel or black iron pipe and fittings or other approved by

local codes.

2. Do not thread pipe too far. Valve distortion or malfunction

may result from excess pipe within the control. Apply a

moderate amount of good quality dope to pipe only. Leave

the two end threads bare. If L.P. gas installation, use

compound resistant to action of liquefied petroleum gases.

3. Use ground joint unions.

4. Install a drip leg (sediment trap) to trap dirt and moisture

before it can enter the gas valve. The nipple must be a

minimum of 3-inches long.

5. Install a manual shut-off valve.

6. Provide a 1/8 NPT test gauge connection immediately

before the gas supply connection to the furnace.

2509622A Nat. 25,000 18,935 #43 0.089 1

2509621A L.P. 25,000 19,759 .057" 1

3509622A Nat. 35,000 24,496 #36 0.106 1

3509621A L.P. 35,000 25,588 .069" 1

5009622A Nat. 50,000 38,490 .091" 2

5009621A L.P. 50,000 39,827 .058" 2

Furnace Technical Information

Main Burner Orifice

Drill

Decimal

Quantity

Heating

Capacity

Rating

Btu/hr.

Input

Rating

Btu/hr.

Gas

Type

Model

Number

Gas Supply and Piping (continued)

FIGURE 12 – Mounting Rear Outlet Register

The gas control valve, in the furnace, is shipped with a seal over

the gas inlet tapping. Do not remove the seal until ready to

connect the piping.

GAS SUPPLY

For L.P. gas, the minimum inlet gas supply pressure for the

purpose of input adjustment is 11-inches water column. The

maximum inlet gas supply pressure is 13-inches water column.

For natural gas, the minimum inlet gas supply pressure for the

purpose of input adjustment is 5-inches water column. The

maximum inlet gas supply pressure is 7-inches water column.

Gas pressure and input to the burners must not exceed the rated

input and pressure shown on the nameplate. The natural gas

manifold pressure should be 4-inches water column. The

manifold pressure should be 10-inches water column for L.P. gas.

For operation in elevations above 2,000 feet, a burner orifice

change may be required to suit the gas supplied. Check with

your local gas supplier.

ORIFICE SIZES

The efficiency rating of this appliance is a product thermal

efficiency rating determined under continuous operating

conditions and was determined independently of any installed

system. For elevations above 2,000 feet, reduce ratings 4% for

each 1,000 feet above sea level.

WARNING: Danger of property damage, bodily injury or

death. Make sure the furnace is equipped to operate on

the type of gas available. Models designed as natural gas

are to be used with natural gas only. Models designed for

use with liquefied petroleum (L.P) gas have orifices sized

for commercially pure propane gas. They cannot be used

with butane or a mixture of butane and propane.

Gas Conversion Kits

Natural Gas to L.P. Gas

Model

Description

8913

25096A Series with Williams Brand Gas Valve

8914

35096A Series with Williams Brand Gas Valve

8909

50098 Series with Williams Brand Gas Valve

Gas Conversion kits

L.P. Gas to Natural Gas

Model

Description

8915

25096A Series with Williams Brand Gas Valve

8916

35096A Series with Williams Brand Gas Valve

8912

50098 Series with Williams Brand Gas Valve

Furnace Technical Information

Installing Your Furnace

Gas Supply and Piping (continued)

GAS PIPING

The gas supply line must be of adequate size to handle the Btu/hr.

requirements and length of the run for the unit being installed.

Determine the minimum pipe size from Figure 13, based on the

length of the run from the gas meter to the unit.

All piping must comply with local codes and ordinances or with the

National Fuel Gas Code (ANSI Z223.1 NFPA No. 54), whichever

applies. (In Canada: CAN/C.GA B149). Refer to FIGURE 14 for

the general layout of the unit. It shows the basic fittings needed.

The following rules apply:

1. Use new, properly reamed steel or black iron pipe and

fittings free of metal chips and debris that are approved by

local codes. Metal chips and debris can damage the valve.

2. Do not thread pipe too far. Valve distortion or malfunction

may result from excess pipe within the gas control valve.

Apply a moderate amount of good quality dope to the pipe

only. Leave the two end threads bare. (Figure 15). L.P.

gas installations require a dope compound resistant to the

action of liquefied petroleum gases. Excess dope going into

the valve may cause it malfunction.

3. Use ground joint unions.

4. Install a drip leg (sediment trap) to trap dirt and moisture

before it can enter the gas valve. The nipple must be a

minimum of 3-inches long.

5. Install a manual shutoff valve.

6. Provide a 1/8” NPT test gauge connection immediately

before the gas supply connection to the furnace.

GAS CONNECTION

If the installation is for L.P. gas, have the L.P. installer use a two

stage regulator and make all the connections from the storage

tank.

Use two pipe wrenches when making the connection to the valve

to prevent turning and/or damage to the valve.

Connections between the manual shutoff valve and burner control

assembly can be made with an A.G.A./C.G.A. design certified

flexible connector if allowed by local codes. Drip leg and ground

joint unions are still required.

Tighten all joints securely.

FIGURE 14 – Gas Piping

FIGURE 15 – Proper Piping Practice

Pipe Capacity – Btu/hr. with Fittings

FIGURE 13 – Pipe Capacity

Installing Your Furnace

18

Gas Supply and Piping (continued)

CHECKING THE GAS PIPING

Test all piping for leaks. When checking gas piping to the furnace

with gas pressure less than 1/2 PSI, shut off manual gas valve to

the furnace. If gas piping is to be checked with the pressure at or

above 1/2 PSI, the furnace and manual shutoff valve must be

disconnected during testing. (SEE WARNING). Apply soap

solution (or a liquid detergent) to each joint. Bubbles forming

indicate a leak. Correct even the slightest leak at once.

WARNING: Danger of property damage, bodily

injury or death. Never use a match or open flame

to test for leaks. Never exceed specified pressures

for testing. Higher pressures may damage the gas

valve and cause over-firing which may result in

component(s) failure. L.P. gas is heavier than air

and may settle in any low area, including open

depressions and it will remain there unless the area

is ventilated.

Never attempt start-up of unit before thoroughly

ventilating the area and smelling near the floor for

gas odor.

Front Panel Installation

Place the front panel top over the channel on the header plate,

as shown in Figure 16. Press the panel tight against wall, and

secure it to the header channel with the screw provided in final

assembly package. Open the control door at bottom of panel

and fasten the panel at each side through slots in flanges with

screws provided.

Attach handle to the front panel door with the screw provided.

Install the second face panel in same manner for 500 Series

models.

FIGURE 16 – Panel Placement

Installing Your Furnace

Thermostat Installation

Williams’ furnaces are operated by a millivolt type thermostat.

Current to the thermostat is supplied by the pilot generator. Do

not connect it to electricity. Anticipator settings are not required.

1. Use of existing wire is acceptable if it is in a satisfactory

location and the wire is in good condition. When in doubt,

use new wiring.

2. If a new location is chosen or if this is a new installation,

thermostat wire must first be run to the location selected.

All wiring must agree with local codes and ordinances.

These instructions cover bringing the wire down from the

attic but it may be run from a basement or crawl space

using similar methods.

3. Before drilling a hole in the wall at the selected location,

drive a small finish nail through the ceiling in the corner of

the wall and ceiling above the thermostat location. Pull the

nail out and push a small, stiff wire through the hole so it

can be found in the attic. Drill a ½-inch hole through the

ceiling wall plate.

4. Probe for obstructions in the partition. Then, drill a ½-inch

hole through the wall at the selected location for the

thermostat.

5. From the attic, feed the thermostat wire through the wall

until even with the thermostat location.

6. Snag the thermostat wire through the hole and pull the wire

through the hole in the wall so that 6-inches of the wire

protrude.

7. Route wires to the furnace.

8. Never use nails or staples across the thermostat wires.

CAUTION: Label all wires prior to disconnection

when servicing controls. Wiring errors can cause

improper and dangerous operation. Verify proper

operation after servicing. Refer to installation

instructions packed in the thermostat carton if you

have any doubt about the above procedures.

WALL-MOUNTED THERMOSTAT INSTALLATION

1. To remove the thermostat cover, squeeze both sides and lift.

2. Connect the thermostat wires to the terminal screws on the

base of thermostat.

3. Push any excess wire back through hole in the wall and

plug hole with insulation to prevent drafts from affecting

thermostat operation.

4. Be sure to level the thermostat for best appearance. Fasten

thermostat base to the wall through mounting holes with

screws provided.

5. Replace the thermostat cover.

6. Do not run wire in any location where it might be damaged.

Avoid splicing the thermostat wires unless the spliced wires

are properly cleaned, soldered and taped.

7. Use the 18-gauge wire as supplied for a maximum length of

20-feet. If a longer length is needed, use 16-gauge wire to

a maximum length of 25-feet.

8. Connect the thermostat wires to the control valve as shown

in Figure 17.

FACE PANEL-MOUNTED THERMOSTAT INSTALLATION

1. Before removing the face panel, disconnect the thermostat

wires at the gas valve.

2. Locate the knockout on the right side of the furnace to

mount the thermostat. Remove the knockout by tapping it

lightly with a screwdriver (Figure 18). It will also be

necessary to cut a 1/2-inch hole in the inside panel

insulation for clearance to the knockout.

3. Cut the thermostat wire to 56 inches.

4. Connect the thermostat wires to terminal screws on the

thermostat base.

5. Feed the thermostat wires through the knockout and route

them through the metal clip to the gas valve.

6. Mount the thermostat to the side of the cabinet with screws

provided.

7. Replace the thermostat cover.

8. Connect the thermostat wires to the control valve as shown

in Figure 17.

FIGURE 17 – Thermostat Wiring

FIGURE 18 Knockout Holes

IMPORTANT: Keep the thermostat wires away from the

combustion chamber.

Installing Your Furnace

20

Start-Up Procedure

WARNING: Danger of property damage, bodily

injury or loss of life. Liquefied Petroleum (L.P.) Gas

is heavier than air and may settle in any low area,

including open depressions and may remain there

unless area is ventilated. Never attempt start-up of

unit before thoroughly ventilating the area.

Check the furnace operation as outlined in the following

instructions. If any sparking, odors or unusual noises are

encountered, shut off electric power immediately. Recheck for

wiring errors or obstructions in or near fan motor (if equipped).

WARNING: Natural gas heating value (Btu per

cubic foot) can vary significantly. Therefore, it is

the installer's responsibility to see that Btu/hr. input

to the furnace is adjusted properly. Failure to do so

could cause combustion chamber failure,

asphyxiation, fire or explosion resulting in damage,

bodily injury or death. Refer to the National Fuel

Gas Code (NFPA 54) to be sure the furnace is

burning fuel at the proper rate.

CHECK GAS INPUT AND PRESSURES

For furnaces located at elevations between sea level and 2,000

feet, the measured input must not be greater than the input shown

on the nameplate of the furnace. For elevations above 2,000 feet,

the measured input must not exceed the input on the nameplate

reduced by 4 percent for each 1,000 feet that the furnace is above

sea level.

Gas supply pressure and manifold pressure with the burner(s)

operating must also be as specified on the nameplate.

Rated input will be obtained on a heating value of 2,500 Btu/hr. for

propane at 10-inches manifold pressure with factory-sized

orifices. If L.P. gas having a different heating value is supplied,

orifices must be changed by a qualified service technician before

the furnace is operated.

CHECK THE MANIFOLD GAS PRESSURE

A tapped opening is provided in the gas valve to facilitate

measuring manifold gas pressure. A water column manometer

having a scale range from 0 to 12-inches of water column should

be used for this measurement. The manifold pressure must be

measured with the burner and pilot operating. Any major changes

in the flow must be made by changing the size of the burner

orifice.

CHECK THE GAS INPUT (NATURAL GAS ONLY)

Under firing could cause inadequate heat, excessive

condensation or ignition problems. Over firing could cause

shooting flame impingement or overheating of the combustion

chamber. Before starting natural gas input check, obtain the

heating value of gas (Btu per cubic foot) at standard conditions

from your local gas supplier.

To measure the input, using the gas meter, proceed as follows:

1. Turn off gas supply to all other appliances except the

furnace.

2. With the furnace operating, time the smallest dial on the

meter for one complete revolution. If this is a 2-cubic-foot

dial, divide the seconds by 2. If it is a 1-cubic-foot dial, use

the time in seconds as is. This gives the seconds per cubic

foot of gas being delivered to the furnace.

3. Assuming natural gas with a heating value of 1,000 Btu per

cubic foot and 34-seconds per cubic foot used as

determined by step (2), then:

Seconds per hour = 3,600

Input = 1,000 x 3,600 / 34 = 106,000 Btu/hr.

This measured input must not be greater than the input

indicated on the nameplate of the furnace.

4. Relight all other appliances turned off in Step 1 above. Be

sure all pilots are operating.

CHECK THERMOSTAT

Check thermostat operation. When set above room temperature

shown on the thermostat, the main burner should light. Make

certain the thermostat turns off the furnace when the room

temperature reaches the selected setting and starts the furnace

when room temperature falls a few degrees below the thermostat

setting.

Type of Gas

Manifold Pressure, In. W.C.

Natural

4.0

L.P.

10.0

CHECK GAS CONTROL VALVE WIRE CONNECTIONS

Operating Your Furnace

Start-Up Procedure (continued)

CHECK PILOT BURNER

The pilot flame must surround the generator tip from 1/4 to 3/8-

inches. Pilot flame is preset at the factory, so ordinarily it does not

require field adjustment. (Figure 19). On new installations, the

gas lines will be filled with air and may take several minutes to

establish a pilot flame.

BURNER FLAME CHARACTERISTICS

Start the furnace and let it operate at least ten minutes. Open the

access door to view the burner flame. Limit your movements near

the furnace a few more minutes before making your final

observations. The flame may look yellow due to dust particles in

the room air. The flame should change to a nice blue color with

firm inner and secondary cones. An occasional flash of orange

might be seen as dust particles burn in the flame. This is normal.

No burner adjustment is provided, or is necessary. (Figure 20).

NORMAL APPEARANCE

Natural Gas:

1. Inner coneblue in color3/8 to 5/8-inches above ports.

2. Secondary inner conelight blue in color1 to 2-inches

above ports.

3. Total flamefrom blue in color to nearly invisible

approximately 6-inches above ports.

L.P Gas:

1. Inner coneblue in color1/2 to 3/4-inches above ports.

2. Secondary inner conelight blue in color1 to 2-inches

above ports.

3. Total flamefrom blue in color to nearly invisible

approximately 6-inches above ports.

ABNORMAL APPEARANCE

Lazy Flame:

Long, soft yellow cones moving around in the combustion

chamber lifting from ports (insufficient air).

Extremely Fast Flame:

Flame will not hold to portsentire cone sections blow off from

noisy ports (too much pressure).

WARNING: If flame appears abnormal, contact the

gas company or a qualified service technician

immediately.

FIGURE 19 – Check Pilot Burner

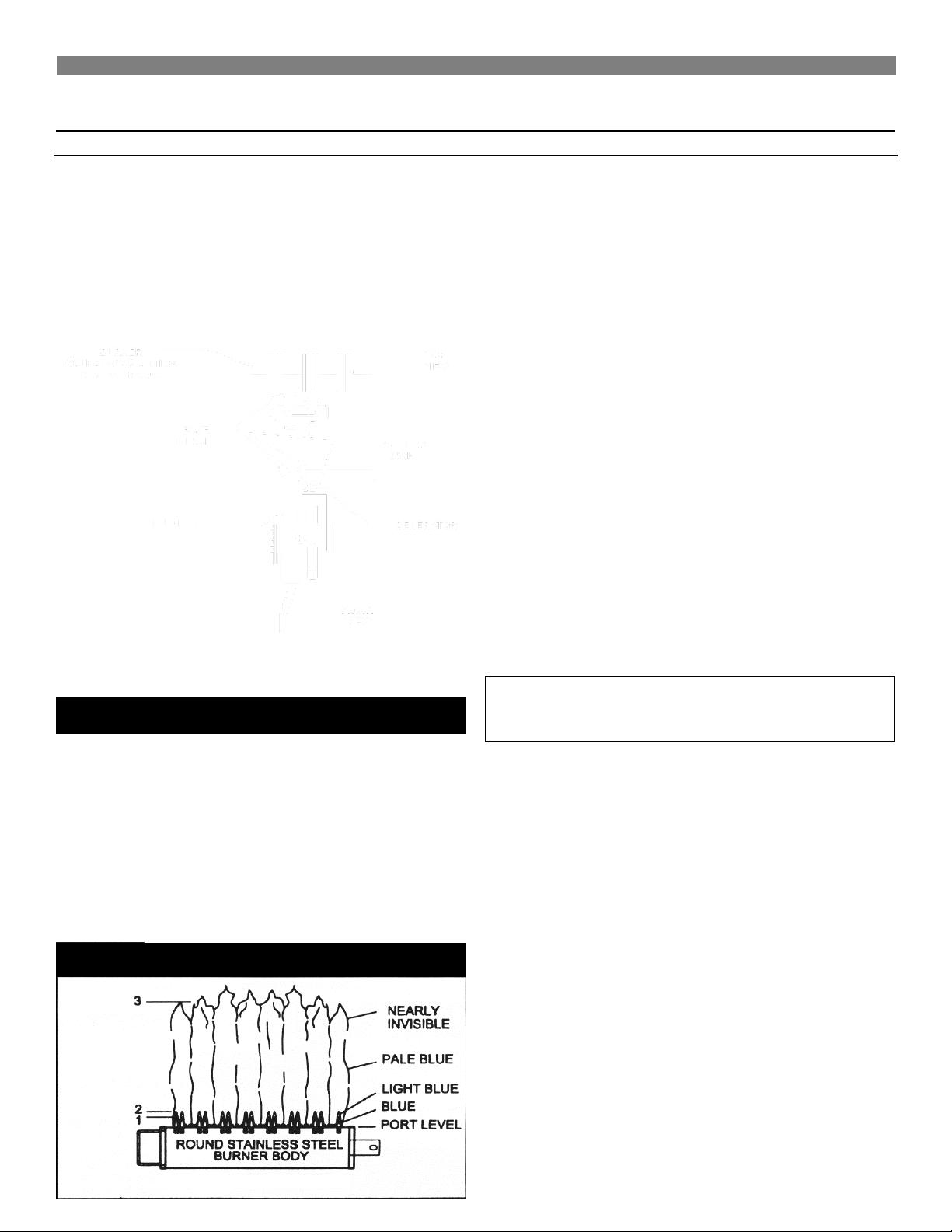

FIGURE 20 – Burner Flame Characteristics

Operating Your Furnace

22

FOR YOUR SAFETY, READ BEFORE LIGHTING THE PILOT

WARNING: If you do not follow these instructions

exactly, a fire or explosion may result causing

property damage, personal injury or loss of life.

LIGHTING THE PILOT

A. This appliance has a pilot which may be lit by hand. When

lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell around the appliance area for gas.

Be sure to smell next to the floor because some gases are

heavier than air and will settle on the floor.

C. Use only your hand to push in or turn the gas control knob.

Never use tools. If the knob will not push in or turn by hand,

don't try to repair it, call a qualified service technician. Force

or attempts to repair may result in a fire or explosion.

D. Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect the

appliance and to replace any part of the control system and

any gas control which has been under water.

E. WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance or strike a match.

• Do not touch any electrical switch; do not use any phone or

cell phone in your building.

• Immediately call your gas supplier from a neighbor's phone.

Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire

department.

OPERATING INSTRUCTIONS

1. STOP! Read the safety information above.

2. Set the thermostat to lowest setting.

3. If applicable, turn off all electric power to the appliance.

4. Open control access panel.

5. Push in gas control knob slightly and turn clockwise

to "OFF". (Figure 21).

6. Wait five (5) minutes to clear out any gas, then smell for gas,

including near the floor. If you then smell gas, STOP! Follow

"E" in the safety information above. If you don't smell gas, go

to the next step.

7. Loosen wing nut and open the pilot observation door (if

equipped).

8. To find the pilot, follow metal tube from the gas control. The

pilot is mounted on the side of the burner. (Figure 22).

9. Turn knob on the gas control counterclockwise to

"PILOT".

10. Push in the control knob all the way and hold in. Immediately

light the pilot. Continue to hold the control knob in for about

one (1) minute after the pilot is lit. Release the knob and the

pilot flame will pop back up. The pilot should remain lit. If it

goes out, repeat Steps 5 through 10.

• If knob does not pop up when released, stop and

immediately call your service technician or gas supplier.

• If the pilot will not stay lit after several tries, turn the gas

control knob "OFF” and call your service technician or gas

supplier.

11. Close pilot observation door, tighten wing nut (if equipped).

12. Turn gas control knob counterclockwise to "ON”.

13. Close control access panel.

14. Turn on all electric power to the appliance (if applicable).

15. Set thermostat to desired setting.

IMPORTANT:

KEEP BURNER AND CONTROL COMPARTMENT CLEAN.

FIGURE 21 – Gas Control Knob

FIGURE 22 – Pilot and Generator

Operating Your Furnace

FOR YOUR SAFETY, READ BEFORE LIGHTING THE PILOT (continued)

TO TURN OFF GAS TO APPLIANCE

1. Set the thermostat to lowest setting.

2. Turn off all electric power to the appliance if service is to be

performed (if applicable).

3. Remove control access panel.

4. Push in gas control knob slightly and turn clockwise

to "OFF". Do not Force.

5. Replace control access panel.

WARNING: Due to high surface temperatures,

keep children, clothing, furniture or any combustible

material away from the furnace.

THE FURNACE OPERATES IN THE FOLLOWING SEQUENCE:

1. Thermostat turns on the main burner.

2. Heat builds up in the furnace and starts the fan (if

equipped). The heated air comes out the front panel

louvers.

3. When the thermostat setting is reached, it shuts off the main

burner.

4. The fan runs until the heat is removed from the furnace,

then it turns off (if equipped).

Your furnace is equipped with a 100% safety pilot that will shut off

the gas supply in case the pilot is not burning or functioning

properly. Make sure the pilot is adjusted properly and that the

pilot generator connection at the control valve is tight. If the

furnace will not stay lit, call your local gas utility or a qualified

service person.

If furnace is equipped with a manual spark igniter, follow these

steps:

1. Review the pilot lighting instructions.

2. When instructed to “Light the Pilot,” depress the red button

located on the burner pan for pilot ignition. If necessary,

depress the red button vigorously several times for pilot

ignition.

3. If pilot fails to ignite or a spark is not present while actuating

the red button or by using a match, repeat steps 5 through

10 listed in "Lighting the Pilot.”

WARNING: The surface of the furnace is hot

during operation. Keep children, clothing, furniture,

and flammable material away from it. Keep all

access doors and panels in place except for

inspection and maintenance. On new installations,

the gas lines will be filled with air and it may take

several minutes to establish the pilot flame.

WARNING: Danger of property damage, bodily

injury or death. If the furnace overheats or fails to

shut off, close manual shutoff gas valve to the

furnace before turning off electrical power to the

accessory fan.

IMPORTANT:

KEEP BURNER AND CONTROL COMPARTMENT CLEAN.

OPERATION OF YOUR FURNACE

WARNING: Protect your eyes against the danger

of ignition flash and eye injury or blindness. Never

attempt to light the pilot with the gas control valve

knob in the “ON” position. Flashback could occur.

occur.

Caring for Your Furnace

24

How to Care for Your Furnace

WARNING: Danger of bodily injury or death. Turn

off electric power supply at disconnect switch, fuse

box or service panel before removing any doors or

access service panels from unit.

ANNUAL UPKEEP NEEDED

It is recommended that a qualified service technician perform

these maintenance checks at the beginning of each heating

season.

CABINET FINISH

Clean cabinet with damp cloth. Never use abrasive cleaners.

Cabinets are finished with heat resistant powder paint. Never

refinish or paint.

FURNACE AREA

Keep the area near the furnace clear and free from combustible

materials, gasoline and other flammable liquids and vapors.

COMBUSTION AND VENTILATION AIR

The combustion and ventilation air supply must not be blocked.

Do not put anything in or on the furnace cabinet. For better

circulation and more effective heating, do not place obstructions,

furniture or other items closer than four-feet in front of the furnace

or two-feet from each side of the furnace.

CLEANING BLOWER (IF APPLICABLE)

Shut off electricity. Clean any lint or dirt from fan blades, fan

motor and exposed air passages.

BURNER CLEANING

If cleaning is required, contact a qualified service technician to

clean and service burner. To remove burner(s):

1. Open burner compartment door.

2. Shut off gas supply to furnace.

3. Disconnect gas line inside cabinet at ground joint union

fitting. (Figure 24).

4. Remove (2) screws securing burner pan assembly to inner

liner.

5. Pull burner pan assembly forward approximately 1/2-inch

and drop down to expose the top of the burner.

6. Clean all foreign materials from the top of the burner.

7. After cleaning, replace burner pan assembly by reversing

above procedure.

PILOT BURNER

Using the instructions in "Lighting the Pilot”, leave thermostat at its

lowest setting. Pilot flame should surround the generator tip 1/4

to 3/8-inches. If flame needs adjusting, do so as follows:

1. Insert small screwdriver into the pilot adjusting screw

(Figure 23). Adjust flame as needed. Turn screw

counterclockwise to increase flame, clockwise to decrease.

2. Turn thermostat to highest setting. Main burner should light

quickly and smoothly. Turn thermostat to lowest setting.

Main burner should go out. Pilot should remain lit.

VENT SYSTEM

Make sure that no parts of the venting system are blocked or

rusted. Clean or replace before using the furnace.

FIGURE 23 – Adjusting the Pilot

FIGURE 24 – Disconnecting Gas Line

Caring for Your Furnace

Care – 25

How to Care for Your Furnace (continued)

CLEANING THE BURNER COMPARTMENT

Because cold air is attracted to the flame during furnace

operation, a buildup of lint from carpeting, bedding, dust, etc. in

the burner area will occur. It is necessary to clean this area

regularly. Use a vacuum cleaner with a narrow attachment to

reach small areas. Be careful in and around the pilot. A change

in its adjustment could be made if moved during cleaning. A

properly adjusted burner with nearly all gases will produce a flame

which has clear blue cone having a bluish-red or bluish-violet

outer mantle.

This blower accessory is installed on the furnace top and

increases circulation of warm air through the heated space. A

115V electrical outlet adjacent to the furnace is required. For

automatic setting, you must select the "HI" or "LOW" fan switch

position. When the furnace heats up, the automatic fan switch will

be activated and the fan will operate. The blower accessory will

not operate if the fan switch is set in the "OFF" (center) position.

Be sure this accessory is of the type and design required for use

with your furnace.

1. Turn off electric power supply at the disconnect switch, fuse

box or service panel before installation or service to the

blower accessory.

2. Label all wires prior to disconnection when servicing. Wiring

errors can cause improper and dangerous operation. Verify

proper operation after servicing.

3. Install a 115V electrical outlet as shown in Figure A.

4. Remove the two (2) screws securing the blower grille and

remove the blower grille as shown in Figure B.

5. Remove the two (2) screws securing the junction box cover.

Remove the cover to gain access to the knockout located in

the junction box.

6. Locate the knockout and remove it using a hammer and

screwdriver. Use caution when handling sharp metal edges.

7. Place the blower body on furnace top as shown in Figure B.

8. Route 115V wiring into the junction box through the

knockout.

9. Make wiring connections inside the junction box as shown in

Figures C and D. Follow applicable local and national

electrical codes. All electrical work must conform to your

local codes and ordinances or in their absence, with

National Electrical Code, NFPA 70/ANSI. If you are not

familiar with wiring codes in general, have a competent

electrician do this job.

Drill a 1/8-inch diameter hole in each side of the furnace

face panel through the holes located on the sides of the fan

cabinet. Secure the blower to the furnace with the two

screws provided.

10. Replace the junction box cover, securing it with the screws

previously removed

11. Replace the blower grille, securing it with the screws

previously removed.

12. Set the switch to the desired position. If left in “HI” or

“LOW” position during the summer months, the blower

could be activated by heat. If this is undesirable, set

the switch to the “OFF” position.

Installing Your Blower Accessory

Blower Accessory 2901 and 2907

DANGER: The build-up of any dust, lint or foreign

material in the primary air opening of the burner

can interfere with the proper air gas mixture and

can result in a yellow flame which can produce

carbon monoxide and soot. This condition, if

allowed to develop, can lead to bodily injury

including death. It is imperative that the burner be

kept clean.

CAUTION: Danger of property damage, bodily

injury or death. Turn off electric power supply at

the disconnect switch, fuse box or service panel

before removing or working on the fan cabinet.

Installing Your Blower Accessory

26

Blower Accessory 2901 and 2907 (continued)

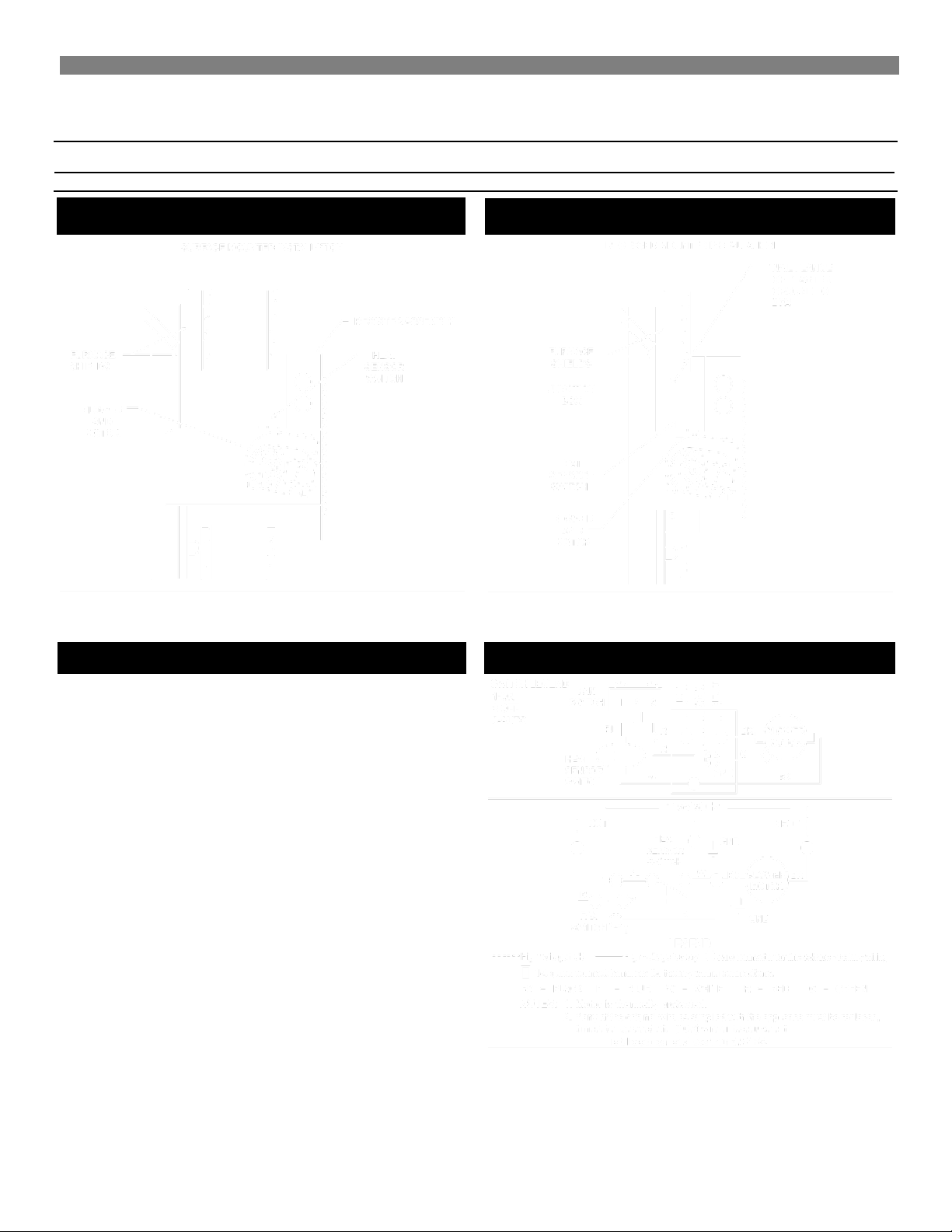

FIGURE D – Wiring for Model 2907

FIGURE C – Wiring for Model 2901

FIGURE A – Install Electrical Outlet

FIGURE B – Install Blower Body

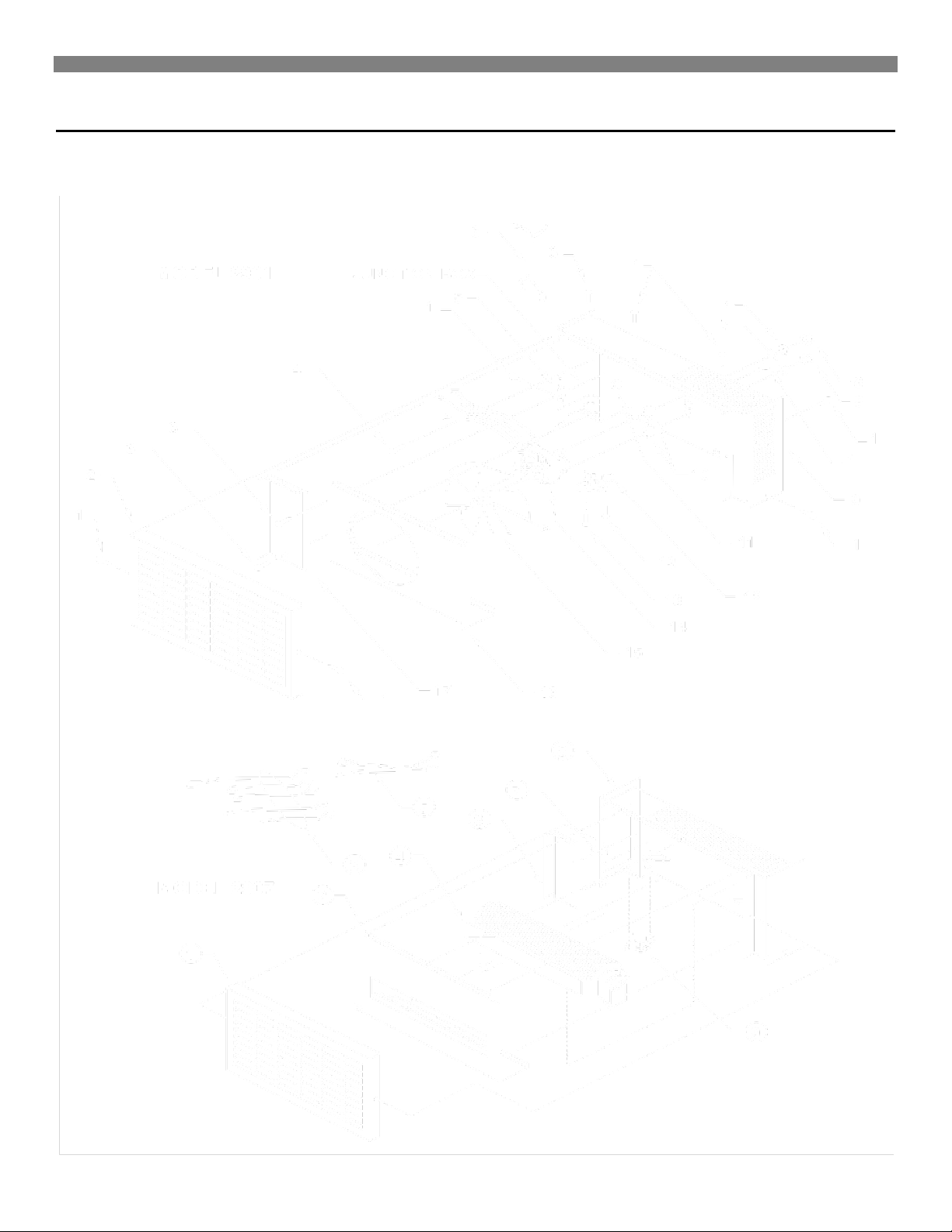

Blower Accessory Replacement Parts

Accessories– 27

Blower Accessory Replacement Parts

Care – 28

28

Blower Accessory 2901 and 2907 (continued)

BLOWER ACCESSORY PARTS - MODEL 2901MODEL 2901

Ref.

No.

Description

Part

No.

1

Screw - #8Ax 3/8 (8)

P013200

2

Blower Grille

9C99

3

Screw - #8Ax 3/8 (8)

P093200

4

Screw - #10 x ½

P141000

5

Toggle Switch

P320911A

6

Wire Bridle

P320912

7

Flat Washer - #10-31 (2)

P127300

8

Machine Nut - #8-32 w/Washer (2)

P041100

9

Blower Body

9C102

10

Motor Mount Grommet (2)

P321078

11

Strain Relief Bushing

P012900

12

Fan Switch

P323097

13

Screw - #8-18 x 1/2”

P138200

14

Motor

P320905

15

Fan Blade

P320907

16

Orifice Plate

9D12-1

17

Junction Box Cover

9B161

BLOWER ACCESSORY PARTS – MODEL 2907MODEL 2907

Ref.

No.

Description

Part

No.

1

Blower Grille

9C99

2

Orifice Plate

9B246

3

Wire Assemblies

9B248

4

Blower and Motor

P323076

5

Heat Sensor Wire Assembly

P320912

6

Junction Box Cover

9A483

7

Fan Switch

P323080

8

Blower Body

9B249

9

Heat Sensor Switch

P323097

Use only manufacturer’s authorized parts.

NOTE: Nuts, bolts, screws, and washers are standard hardware items and may be purchased locally.

Installing Your Motorized Rear Outlet Accessory

Motorized Rear Outlet Register 6919 and 6920

WARNING: Danger of property damage, bodily injury or

death. Turn off all electrical power supply at disconnect switch,

fuse box or service panel before removing or working on fan.

For your protection against shock hazard, this appliance is

equipped with a three-prong (grounding) plug and should be

plugged directly into a properly grounded three-prong

receptacle. Do not cut or remove the prong. All electrical work

must conform to your local codes and ordinances or in their

absence, with National Electrical Code ANSI/NFPA 70. In

Canada, use the Canadian Electrical Code C22.1. If you are

not familiar with the wiring codes in general, have a competent

electrician do this job.

MOTORIZED REAR OUTLET REGISTER 6919 AND 6920

This Rear Outlet Register directs some of the heated air into the

room opposite the one in which the furnace is installed. Read

these instructions carefully and familiarize yourself with the

installation before you begin. Use gloves to protect your hands

from sharp metal edges.

BLOWER SETTINGS

You must select "ON" for continuous blower operation or "AUTO"

for automatic setting. If the blower is set on "AUTO" when the

furnace heats up, the heat sensor switch is activated and the

blower will operate until the furnace cools down, then the blower

will turn off. The blower will not operate if fan switch is set in the

"OFF" (center) position.

LOCATION WARNING

This register must be centered between studs and aligned with

the furnace for proper engagement. Make sure the furnace is

centered between the same studs before you cut any wall

openings for the register.

1. Measure and mark wall for opening as shown in Figure A.

Check the wall for any electrical wiring present before

cutting the opening. Reroute existing electrical if necessary.

2. If recessed-mounted installation, place the plaster ground in

the opening and attach to the 2x4 studs.

3. An embossed knockout plate is located on the rear of the

outer shield and another is located directly behind it on the

inner shield. (Figure B). Remove the knockout plates on

the furnace by punching in the lower corners of the plate

with a screwdriver blade. Then, holding the screwdriver

blade sideways against the side and bottom connecting

tabs, strike the head of the screwdriver lightly with a

hammer to break the tabs. Swing the plate outward and

bend it back and forth to break the top tabs. Both knockout

plates must be removed in order to attach the register

assembly properly. If the inner shield knockout is not

embossed deep enough to be removed easily, mark an

outline using the existing opening as a guide. Use tin snips

to cut the area away. A pilot hole may be needed to begin

the first cut. Take care not to damage the combustion

chamber directly behind the inner shield when making a

pilot hole.

4. Attach speed nuts to the outer shield (Figure B). After the

furnace is in position, insert the outlet register into the

opening as shown in Figures C, D and E. Install machine

screws through the register housing and into the speed nut

clips on the furnace outer shield. Do not over tighten the

screws.

5. After the register has been either wired, (Figure F), or

plugged in, set the fan switch to the desired blower

operation.

CAUTION: Do not install this kit where the outlet grille

may be blocked or covered by a door, curtains or any

other obstructions.

FIGURE B – Removing Knockout plates

FIGURE A- Recessed & Surface Installation

Installing Your Motorized Rear Outlet Accessory

30

Motorized Rear Outlet Register 6919 and 6920 (continued)

FIGURE C – Surfaced Mounted Installation

FIGURE D – Recessed Mounted Installation

FIGURE F - Wiring

FIGURE E – Surface Mounted Installation

Motorized Rear Outlet Replacement Parts

Motorized Rear Outlet – Models 6919 and 6920

-- and 6920

Motorized Rear Outlet Replacement Parts

32

Motorized Rear Outlet Replacement Parts (continued)

Motorized Rear Outlet Replacement Parts List – Models 6919 and 69206919 and 6920

Ref.

No.

Description

Part

No.

6919

6920

1

Register Assembly

9B269

PB285

2

Strain Relief Bushing

P500185

3

J-Box Cover

9A427

4

Strain Relief Bushing

P603108

5

Heat Sensor Switch

P323172

6

Fan Switch

P323080

7

Motor and Blower

P323076

8

Motor cover

9A432

PA462

9

Motor Housing Back Plate

9B266

9B284

10

Cord and Plug

P323081

11

Bushing

P323084

Use only manufacturer’s authorized parts.

NOTE: Nuts, bolts, screws, and washers are standard hardware items and may be purchased locally.

Furnace Replacement Parts

Control Assembly – 250, 350, and 500 Series

Furnace Replacement Parts

34

Furnace Replacement Parts (continued)

Cabinet and Body Parts - 250 and 350 Series

Furnace Replacement Parts

Furnace Replacement Parts (continued)

Cabinet and Body Parts – 500 Series

Furnace Replacement Parts

36

Furnace Replacement Parts (continued)

REF.

NO.

DESCRIPTION

2509621A

2519621A

2539621A

2559621A

2509622A

2519622A

2539622A

2559622A

3509621A

3519621A

3539621A

3559621A

3509622A

3519622A

3539622A

3559622A

5009621A

5019621A

5039621A

5059621A

5009622A

5019622A

5039622A

5059622A

1

Wire Assembly (2 Required for 500 Series)

P321836

2

Valve

P322660

P323011

P322660

P323011

P322660

P323011

3

Front Burner Bracket

9B234

9B243

4

Manifold

P323660

P323661

5

Burner Orifice (2 Required for 500 Series)

P332624

P090543

P332635

P090536

P332623

P332625

6

Pilot/Generator Assembly

P501618

P501617

P501618

P501617

P322397

P322396

7

Thermostat

P322016

8

Burner (2 Required for 500 Series)

P323648

9

Electrode

P322276

P322155

10

Pilot Mounting Plate

-

9A409

REF.

NO.

DESCRIPTION

2509621A

2519621A

2539621A

2559621A

2509622A

2519622A

2539622A

2559622A

3509621A

3519621A

3539621A

3559621A

3509622A

3519622A

3539622A

3559622A

1

Face Panel

4915

2

Front Heat Shield

9C216

3

Combustion Chamber

6922

6923

4

Front Shield Deflector

9B199

5

Inner Shield Top

9C152

6

Draft Hood Assembly

9C184

9C217

7

Vent Limit Switch

P321826

P322055

8

Shield Assembly

9C213

9

Header

5902

10

Burner Pan

9B296

11

Manual Spark Igniter

P285500

12

Igniter Bracket

7A189

13

Pal Nut

P285501

**

Header - Insulation

P310000

**

Parts Bag

9A288-1

9A228-1

**

Knob

P332606

**

Vent Limit Switch Bracket

P322074

P332074

** Not Shown

Control Assembly – 250, 350 & 500 Series

Cabinet and Body Parts - 250 & 350 Series

Furnace Replacement Parts

Furnace Replacement Parts (continued)

REF. NO.

DESCRIPTION

5009621A

5019621A

5039621A

5059621A

5009622A

5019622A

5039622A

5059622A

1

Face Panel (2 Required)

4915

2

Front Heat Shield (2 Required)

9C216

3

Carryover Shell

9A321-1

4

Combustion Chamber (2 Required)

9D72/9D74

5

Shield Assembly

9C218

6

Deflector (2 Required)

9B199

7

Header

5901

8

Vent Limit Switch

P321826

9

Draft Hood (2 Required)

9C170

10

Non-Vision Shield

9C157

11

Inner Shield Top (2 Required)

9C158

12

Burner Pan Assembly

9B251

13

Blower Heat Deflector

9A440

14

Manual Spark Igniter

P285500

15

Igniter Bracket

7A189

16

Pal Nut

P285501

**

Header – Insulation

P310000

**

Parts Bag

9A288-1

**

Knob

P332606

**

Vent Limit Switch Bracket

P322074

** Not Shown

Cabinet and Body Parts – 500 Series

Troubleshooting Your Furnace

38

SYMPTOM

POSSIBLE CAUSE(S)

CORRECTIVE ACTION

1. Pilot will not stay

lit after following

lighting

instructions.

a. Generator producing

insufficient millivolts.

b. Loose or dirty generator

connections at gas valve.

c. Generator defective.

d. Grounded thermostat wire.

e. Defective gas valve.

a. Check pilot flame. It must impinge on the generator.

b. Clean and/or tighten generator connections at valve.

c. Check generator with millivolt meter. Take reading at generator

terminals of the valve with the valve placed in “Pilot” position.

Disconnect the thermostat wires. The millivolt reading should be

450 millivolts or more.

d. Remove thermostat wires from valve terminals. If pilot now stays lit,

trace thermostat wiring circuit for a ground. May be grounded to

furnace, gas supply, nails or staples.

e. Replace gas valve after above is verified.

2. No gas to the

main burner.

a. Gas valve not turned to the

“ON” position after lighting

pilot.

b. Thermostat not tuned to a

position calling for heat.

c. Plugged furnace orifice.

d. Improper wired or broken

thermostat wires. Defective

thermostat.

e. Pilot generator may not be

generating sufficient

millivolts to open valve.

f. Defective valve.

g. Vent safety switch tripped.

a. Turn gas valve knob to the “ON.”

b. Set thermostat to a position calling for heat.

c. Checkclean or replace.

d. Check connections at valve terminals. If valve operates, check

thermostat wires.

e. See 1a and 1c above.

f. Replace gas valve after above is verified.

g. Check and reset.

3. Furnace

operates but

turns off before

room

temperature is

attained.

a. Thermostat location.

b. Defective thermostat.

a. Check thermostat location. It should not be in the path of warm air

discharge from furnace, near a lamp or above a T.V. or stereo unit.

b. Check thermostat calibration or replace.

4.

Furnace not

producing

sufficient heat.

a. Furnace may be too small for

space being heated.

b. Furnace not burning at full

rate.

a. Check heat sizing calculations.

b. Check for low gas pressure at gas valve. It should be 4 inches

water column for natural gas; 10-inches water column for L.P.G.

Check for blocked burner orifices.

5. Furnace

operates but will

not shut off

when room

temperature is

attained.

a. Thermostat wiring defective.

b. Thermostat location.

c. Defective thermostat.

d. Valve stuck open.

a. Thermostat lead wires may be shorted together, caused by a nail or

staple. Check by removing thermostat leads from valve terminals.

b. Check thermostat location. If on an outside wall, or there is a hole

in the wall behind the thermostat, cold air may be coming in contact

with the thermostat. Relocate.

c. Check thermostat calibration; verify thermostat temperature

reading; or replace.

d. Replace valve.

Troubleshooting Your Furnace

Troubleshooting Your Furnace (continued)

SYMPTOM

POSSIBLE CAUSE(S)

CORRECTIVE ACTION

6. Pilot outage.

a. Pilot flame may be low or

blowing (high).

b. Drafts or drafty areas.

a. Adjust pilot flame. Pilot orifice may be plugged (check for spider

webs or other material).

b. Check for doorway and high movement areas.

7. Noisy blower.

a. Housing rattling.

b. Blower dirty.

c. Blower wheel bent.

a. Tighten blower screws.

b. Clean blower wheel.

c. Straighten or replace.

8. Blower does not

run.

a. Fan switch not set.

a. Select fan speed.

9. Main burner will

not stay on.

a. Blockage in vent pipe.

b. Vent too short.

c. Restriction in vent system

caused by offsets.

d. Incorrect vent pipe.

e. Loose connections on the

vent safety wiring harness.

a. Check vent pipe for blockage, such as bird nests, twigs, leaves, etc.

Check that the vent cap is properly installed, and not placed too far

down on the vent pipe. Cap must be the same manufacturer as the

vent.

b. The vent should terminate a minimum of 12 feet above the floor

plate. The top of the vent must be at least 2 feet above any

obstacle within a 10 foot radius, including the roof.

c. All type “B” vents shall extend in a vertical direction with offsets not

exceeding 45 degrees. Any angle greater than 45 degrees from

vertical is considered horizontal. Any offsets used should be a

minimum of 2-feet above the draft hood or as far away as possible

to allow venting to begin before any restriction is encountered. The

use of too many offsets may also prevent proper venting.

d. Use listed B/W type vent pipe. DO NOT use transite or any other

type of ceramic pipe for venting. DO NOT use single wall vent pipe.

When venting into a masonry chimney, the chimney must be

properly lined and sized for this gas furnace. The use of type “B” or

flexible chimney liner is recommended.

e. Check the connection on both the switch and the gas valve. Tighten

if necessary.

10. Abnormal

operation.

a. Delayed ignition. Pilot flame

may be too low.

b. Expansion noise, ticking.

c. Combustible gas spillage.

d. Excessive flame roll-out.

e. Burner is over-fired.

f. Yellow burner flame.

g. Yellow pilot flame.

h. Expansion noise

a. Adjust pilot flame. Refer to “How to Care for Your Furnace” section

in this manual.

b. Check installation. Casing may be distorted by being fastened to an

uneven opening or jammed under the header. A restricted vent may

create expansion noise. Refer to “Vent Installation” section in this

manual.

c. Check vent system for a blocked flue, excessive down draft (wind)

or negative pressure in room caused by a ventilating fan or a fire in

a fireplace.

d. Furnace is possibly overrated, check for high gas pressure at gas

valve. (See 4B).

e. Check the manifold gas pressure. Check the rate, this appliance is

manufactured for elevations up to 4,500 feet. It must be derated for

operation above 4,500 feet.

f. Check burner for obstructions. Install new burner and pilot orifices.

g. Remove pilot orifice, check and clean.

h. DO NOT elevate the furnace off the floor unless supported by the

free standing accessory. Never shear the legs. If replacing the

furnace, bring the vent pipe to the header. DO NOT raise the

furnace to the vent pipe. Legs must be flat on the floor plate, never

one in front of the other.

Hints and Information

40

Service Hints

If your furnace fails to work correctly, you may avoid the

inconvenience and cost of a service call by checking the

troubleshooting section on pages 38 and 39 before you call

for service.

How to Order Repair Parts

When ordering repair parts, always give the following Information:

1. MODEL NUMBER

2. MFG. DATE CODE

3. PART NUMBER

4. PART DESCRIPTION

All parts listed herein may be ordered from your equipment

supplier. The Model Number of your Williams wall furnace will be

found on the nameplate near gas valve, inside control

compartment.

WARNING: If the information in this manual is

not followed exactly, a fire or explosion may

result causing property damage, personal

injury or loss of life.

Williams Furnace Company • 250 West Laurel Street, Colton, CA 92324

(909) 825-0993 • FAX: (909) 824-8009  www.wfc-fc.com

Manufactured in the U.S.A. • Established 1916

DO NOT store or use gasoline or other

flammable vapors and liquids in the vicinity or

this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

 Open all of the windows.

 Do not try to light any appliance.

 Do not touch any electrical switch.

 Do not use any phone or cell phone in

your building.

 Extinguish any open flame.

 Immediately call your gas supplier from

a neighbor’s phone. If you cannot reach

your gas supplier, call the fire

department.

Installation and service must be performed by

a qualified installer, service agency or the gas

supplier.

P322087 - February 2014

Williams 2509622 Monterey Gravity Top-Vent Natural Gas Furnace 25,000 BTU

Product's Documents

Owner’s Manual

Specifications

Williams 2509622 Questions and Answers
