Tip Over Hazard
A child or adult can tip the range and be
killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti=tipbracket, ifthe range
is moved.
Failure to follow these instructions can
result in death or serious burns to children
and adults.
Quick Reference
Table of
Pages
[]
[]
[]
[]
[]
[]-[]
[]
[]
[]
if you need
Contents:
Before you start
Product dimensions
Cabinet dimensions/requirements
Electrical requirements
Gas supply requirements

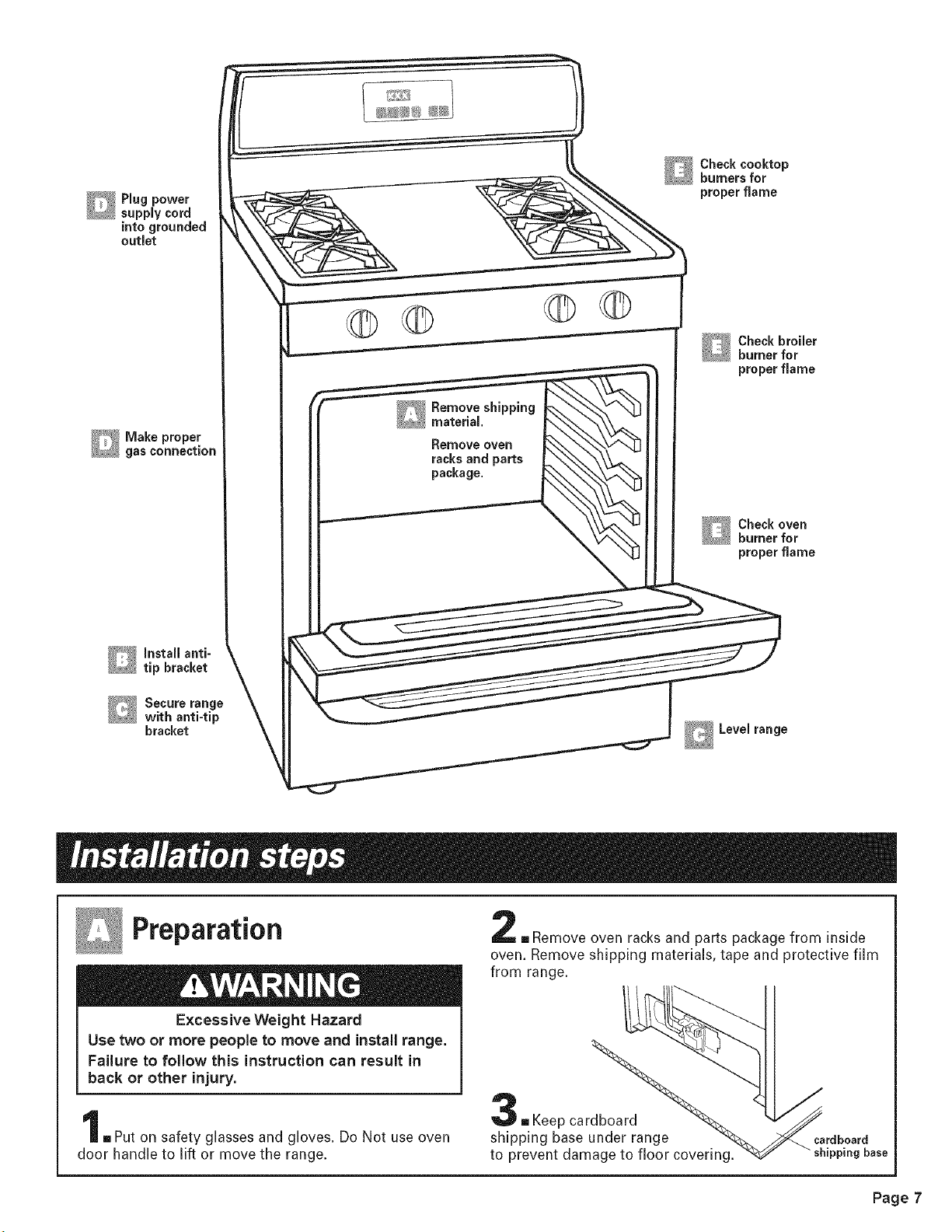

Installation steps

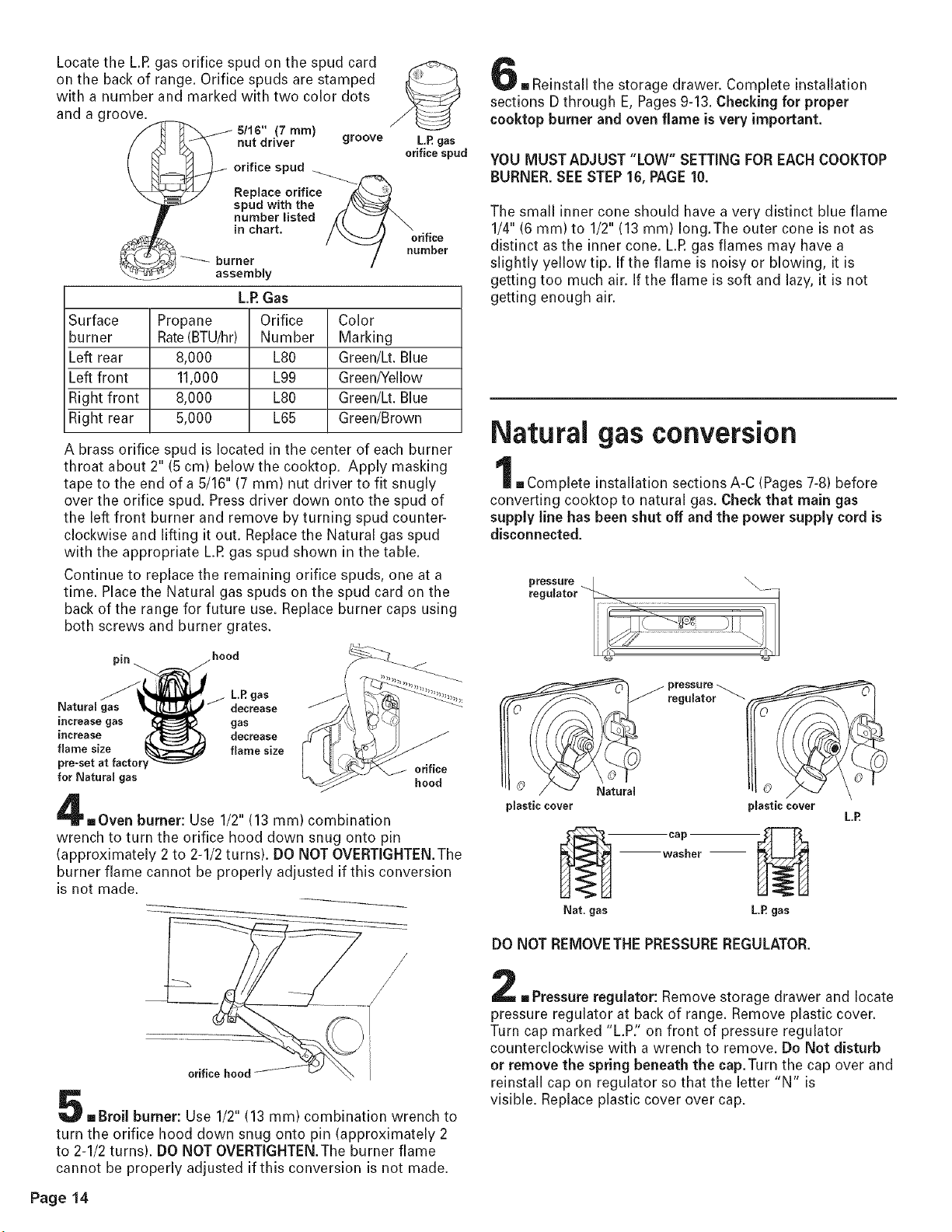

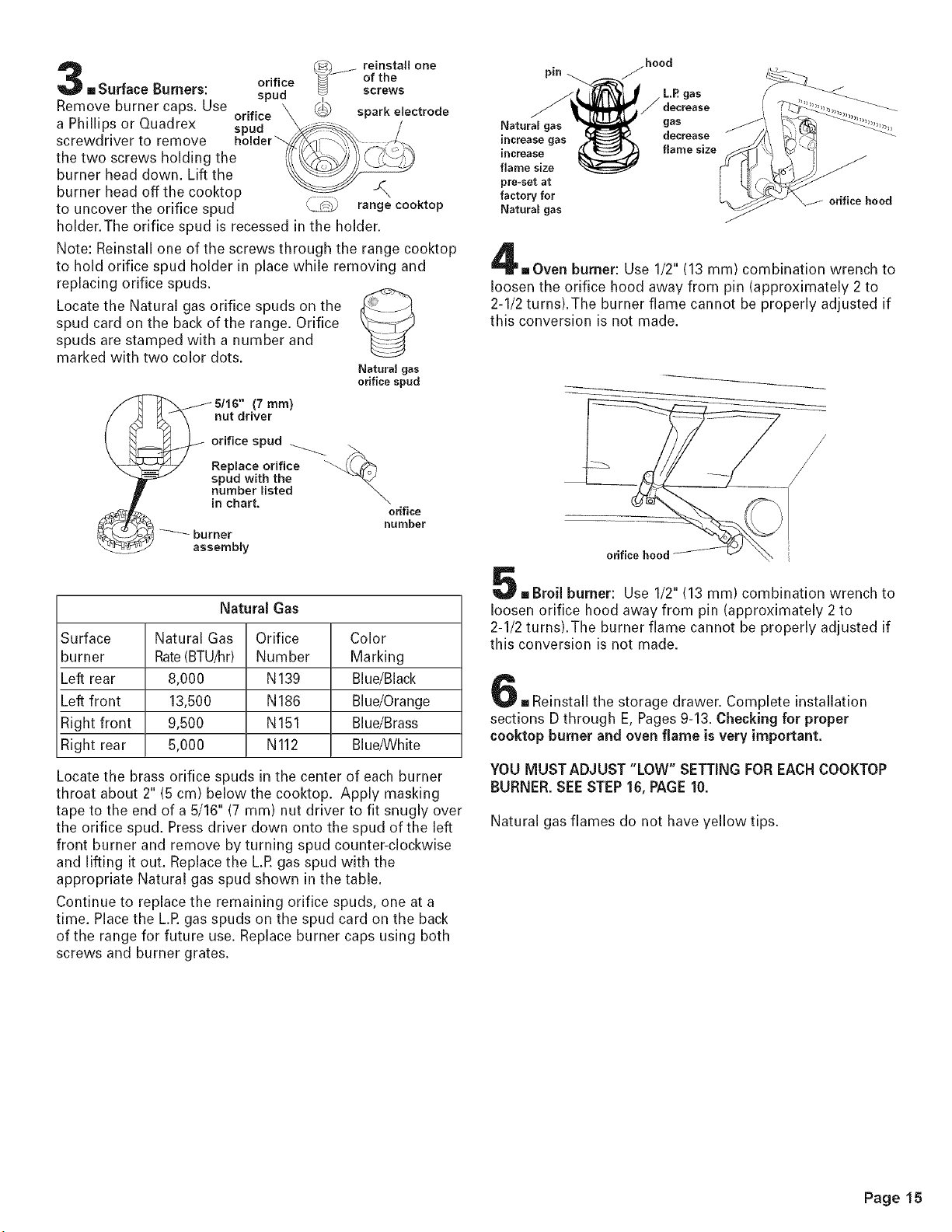

Gas conversions

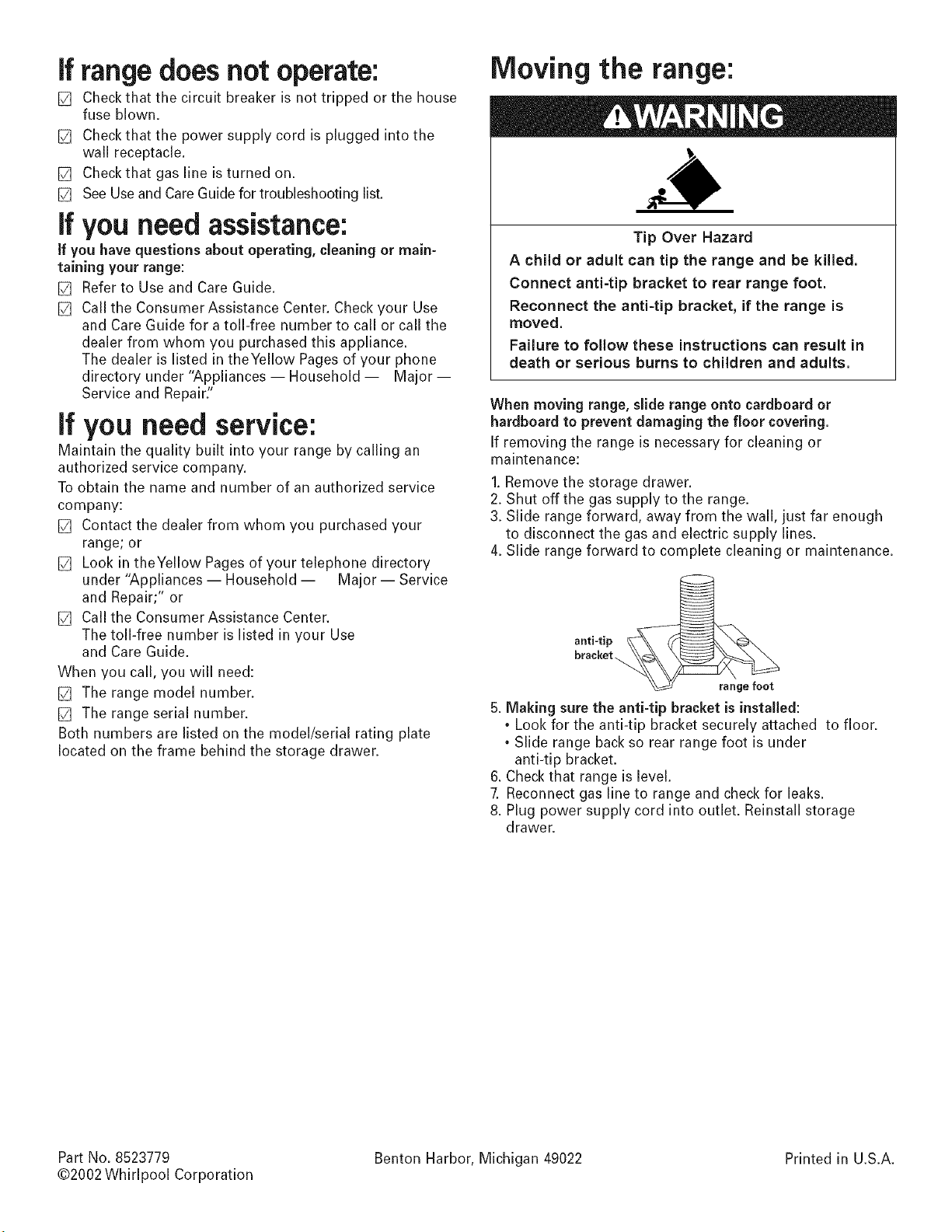

If range does not operate
If you need assistance/service
Moving the range
assistance:
Check your Use and Care Guide for a toll-free number to call or
call the dealer from whom you purchased this range.The dealer
is listed in theYellow Pages of your phone directory under
"Appliances -- Household -- Major -- Service and Repair."
Call when you:
[] Have questions about range installation or operation.
[] Need to obtain the name and number of an authorized
service company.
When you call, you will need:
[] The range model number.
[] The range serial number.
Both numbers are listed on the model/serial rating plate located
on the frame behind the storage drawer.
Yoursafetyand the safety of others are veryimportant.
Wehaveprovided many important safety messagesin this
manual and on your appliance.Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazardsthat can kill
or hurt you and others.
All safety messageswill follow the safety alertsymbol and
either the word "DANGER"or "WARNING".Thesewords mean:
Youcan bekilled or seriously injuredif you don't
immediately follow instructions.
Youcan bekilled or seriously injuredif you don't follow
instructions.
All safety messageswill tell you what the potential hazardis,
tell you how to reducethe chanceof injury, and tell you what
can happenif the instructions are not followed.
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury or death.
m Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
, Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
= Installation and service must be per=
formed by a qualified installer, service
agency or the gas supplier.
important: Observe all governing codes and
ordinances.
Do not obstruct flow of combustion and ventilation air.
This installation must conform with all local codes and
ordinances. In the absence of local codes, installation
must conform with American National Standard,
National Fuel Gas Code ANSI Z223.1 -- latest edition*
or CAN/CGA -- B149 -- latest edition* installation
codes.
It is the customer's responsibility:
• To contact a qualified electrical installer.
•To assure that the electrical installation is adequate
and in conformance with National Electrical Code,
ANSI/NFPA 70 -- latest edition**, or CSA Standard
C22.1, Canadian Electrical Code, Part 1 -- latest
edition*, and all codes and ordinances.
Cabinet opening dimensions shown must be used. Given
dimensions are minimum clearances.
When installing a range under existing cabinets and the
installation does not meet the minimum cabinet clearances,
install a range hood above the cooktop to avoid burn
hazards.
Proper installation isyour responsibility. A qualified
technician must install this range. Make sure you have
everything necessary for correct installation. It isthe
installer's responsibility to comply with installation
clearances specified on the gas information label.The gas
information label and model/serial rating plate are located
on the frame behind the storage drawer.
Copies of the standards listed may be obtained from:
* CSA International
8501 East Pleasant Valley Rd.
Cleveland, Ohio 44131-5575
** National Fire Protection Association
One Batterymarch Park
Quincy, Massachusetts 02269
Page 2
Groundedelectricaloutletis required.
See "Electrical requirements;' Page 5.
Proper gas supply connection must be available.
See "Gas supply requirements" Page 6.
J
27-1/8" (68.9 cm)
depth with handle
25"
(53.5 cm)
\
,_ .......... 2g-7/8" (75.9 cm)
width
36 _'
(91.4 cm)
cooktep
height
Anti-tip
bracket
Check location where range wiff be installed.The range _ _ /
should be located for convenient use in the kitchen. / _",_'_ I_
Recessed installations must provide complete enclosure of t./ _o,, ,o_ ___ ..... _
thesidesandrearofrange. I ___;'_'_"o_._o. I
ALL OPENINGS iN THE WALL OR FLOOR WHERE RANGE iS I ups, _,,,,_ u_._l I
TO BE iNSTALLED MUST BE SEALED. _ / I
J 30" (75.2 cm) rain ....
,MPORTAN Somecabinetandbui,ding of
• . _ P
materials are net designed to I *
withstand the heat produced by the T _, t io,, m= c ._
ovenforbakingandse.-c ean,ngI // ,I
P g
Check with your builder or cabinet I__/ I
I I
supplier to make sure that the . I /
• , 18" (45 7 cm) ram. I W /
materials used will not dlscomr, clearance' upper _ __'_
delaminate or sustain other I'_
cabinet to "
damage, countertop [
oo,o
supply cord between the
range and the wall.
Do Not seal the range to
8" the side cabinets.
The floor-mounted anti-tip
bracket MUST be installed.

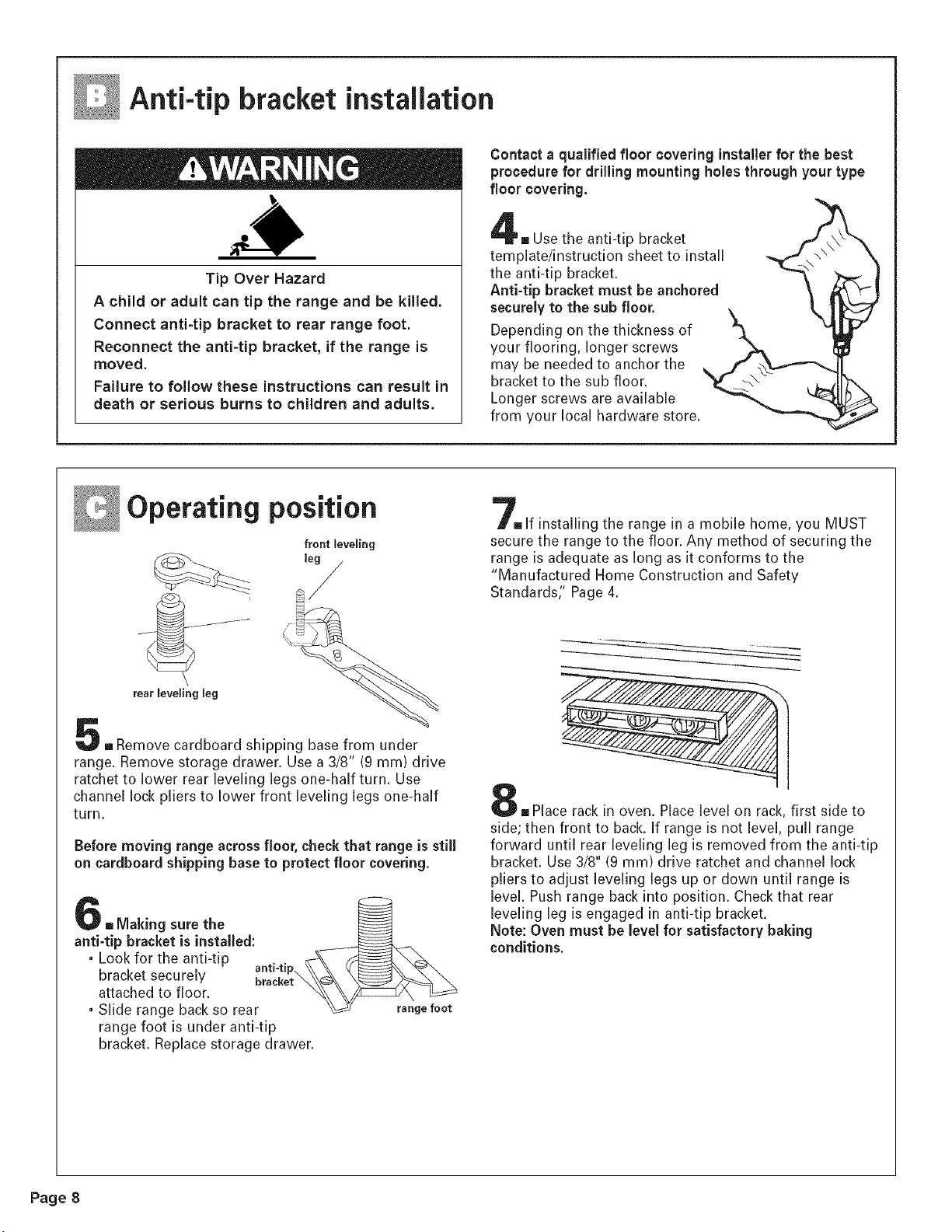

To install the anti-tip bracket
supplied, see Page 8 and the
anti-tip bracket
template/instruction sheet.
material
I
Contact a
qualified floor
covering
installer to
check that the
floor covering
can withstand
at least 200°F 4-1/2"
(93°C). (11.4 cm)
Use an
insulated pad
or 114" (6 ram)
plywood
under range if
installing
range over
carpeting.
17" (43.2 cm) (11.4cm)
If cabinet depth is greater
than 24" (61 cm), oven
frame must extend beyond
cabinet fronts by 1/2"
(13 ram) rain.
2" (5.1 cm)
This shaded area recommended
for installation of rigid gas pipe. *
Flexible gas pipe and electrical
outlet are recommended in either
shaded area.
Note: 24" (61 cm) min. when bottom of
wood or metal cabinet is protected by
not less than 1/4" (6 mm) flame
retardant mill-board covered with not
less than No. 28 MSG sheet steel, 0.015"
(0.4 ram) stainless steel, 0.024" (0.5 mm)
aluminum or 0.020" (0.5 mm) copper.
30" (75.2 cm) rain. clearance between
the top of the cooking platform and the
bottom of an unprotected wood or
metal cabinet.
Page 3

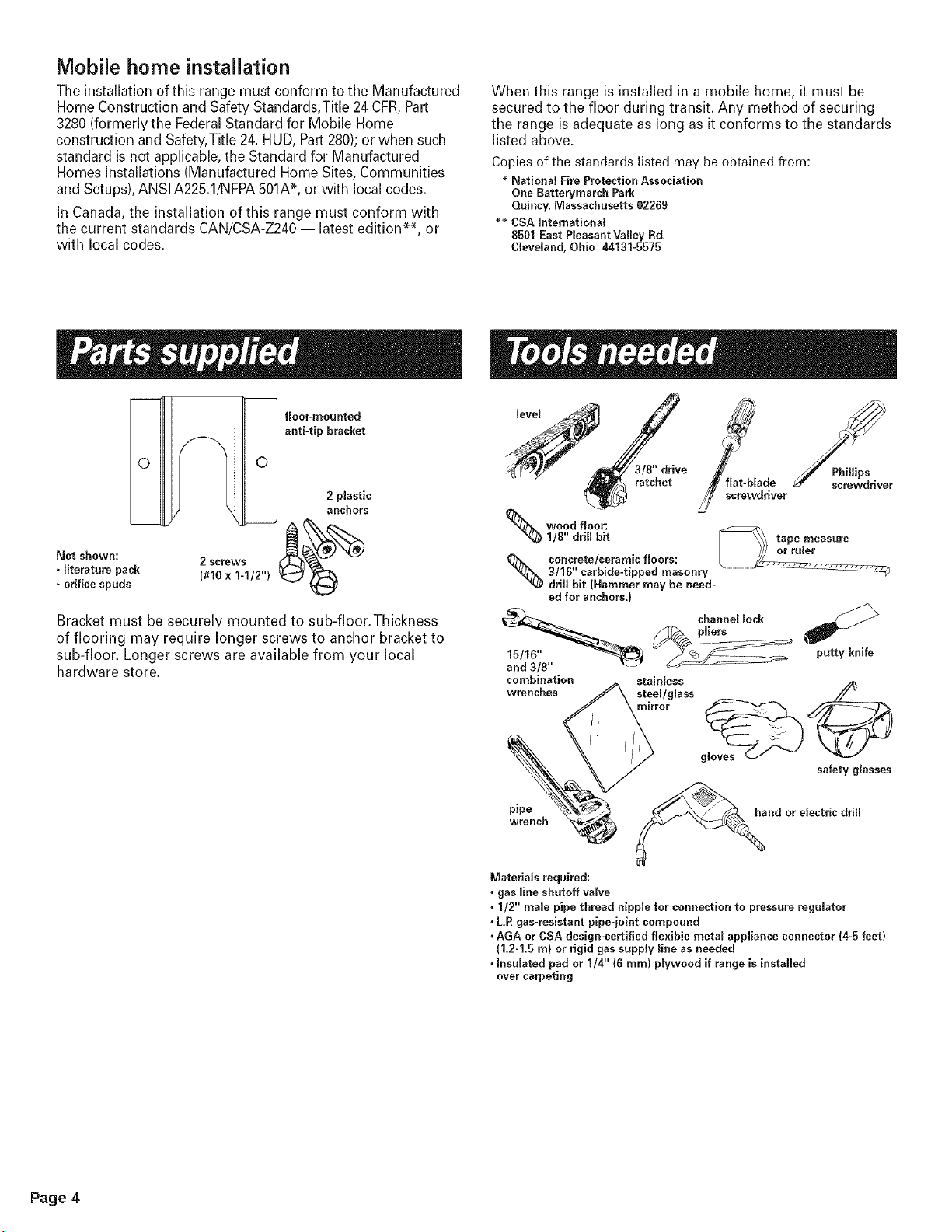

Mobile home installation
The installationof this range must conform to the Manufactured
Home Construction and Safety Standards,Title 24 CFR,Part
3280 (formerly the FederalStandard for Mobile Home
construction and Safety,Title 24, HUD, Part280);or when such
standard is not applicable, the Standard for Manufactured
Homes Installations (Manufactured Home Sites,Communities
and Setups),ANSI A225.1/NFPA501A*, or with local codes.
In Canada, the installationof this range must conform with
the current standards CAN/CSA-Z240-- latest edition**, or
with local codes.
When this range is installedin a mobile home, it must be
secured to the floor during transit. Any method of securing
the range is adequate as long as itconforms to the standards
listed above.
Copies of the standards listed may be obtained from:
* National Fire Protection Association
One Batterymarch Park
Quincy, Massachusetts 02289
_ CSA International
8501 East Pleasant Valley Rd.
Cleveland, Ohio 44131-5575
floor-mounted
anti-tip bracket
O
2 plastic
anchors
Not shown: 2 screws_ __%• literature pack (#10 x 1-1/2"}
• orificespuds
Bracket must be securely mounted to sub-floor.Thickness
of flooring may require longer screws to anchor bracket to
sub-floor. Longer screws are available from your local
hardware store.
e t-blade screwdriver
J screwdriver
wood floor:
1/8" drill bit [_ tape measure
concrete/ceramicfloors: I 2/orruler
3/16" carbide-tipped masonry \ Z_L'L_'__'_'L_._,._
drill bit (Hammer may be need-
ed for anchors.}
channel lock
_ pliers
and3,8....
putty knife
combination stainless
wrenches steel/glass
mirror
pipe
wrench
safety glasses
nd or electric drill
Materials required:
• gas line shutoff valve
• 1/2" male pipe thread nipple for connection to pressure regulator
• L.R gas-resistant pipe-joint compound
AGA or CSA design-certified flexible metal appliance connector (4-5 feet}
(1.2-1.5 m} or rigid gas supply line as needed
• insulated pad or 1/4" (6 ram} plywood if range is installed
over carpeting
Page 4
ElectricalShockHazard
Pluginto a grounded 3-prong outlet.
Do not remove ground prong.
Do not use an adapter.
Failure to follow these instructions can result in
death, fire, or electrical shock.
Recommended
ground method
For personal safety, this range isequipped with a power
supply cord having a 3-prong ground plug.To minimize
possible shock hazard, the cord must be plugged into a
mating 3-prong, ground-type outlet, grounded in accordance
with the National Electrical Code, ANSI/NFPA 70 -- latest
edition* or CSA Standard C22.1, Canadian Electrical Code,
Part 1,- latest edition** and all local codes and ordinances.
If a mating outlet is not available, it isthe personal
responsibility and obligation of the customer to have a
properly polarized and grounded, 3-prong outlet installedby
a qualified electrician.
if codes permit and a separate ground wire is used,it is
recommended that a qualified electrician determine that the
ground path isadequate and that the outlet is correctly
polarized.
Do Not ground to a gas pipe.
Check with a qualified electrician if you are not sure range is
properly grounded.
A 120-volt, 60-Hz,AC-only, 10-ampere, fused electrical
supply is required. A time-delay fuse or circuit breaker is
recommended. It is recommended that a separate circuit
serving only this appliance be provided.
Electronic ignition systems operate within wide voltage
limits, but proper grounding and polarity are necessary.
In addition to checking that the outlet iscorrectly grounded,
the outlet must be checked by a qualified electrician to see if
it is wired with correct polarity.
Important:This range isequipped with an electronic ignition
system that will not operate if plugged into an outlet that is
not properly polarized.
Copies of the standards listed may be obtained from:
* National Fire Protection Association
One Batterymerch Park
Quincy, Massachusetts, 02269
_ CSA International
8501 East Pleasant Valley Rd,
Cleveland, Ohio 44131-5575
3-prong ground
plug _
d
power supply
cord
3-prong properly polarized
ground-type outlet
A wiring diagram isincluded on the back of the range.
See "Cabinet dimensions/requirements" Page 3, for
recommended location of electrical outlet.
Page 5

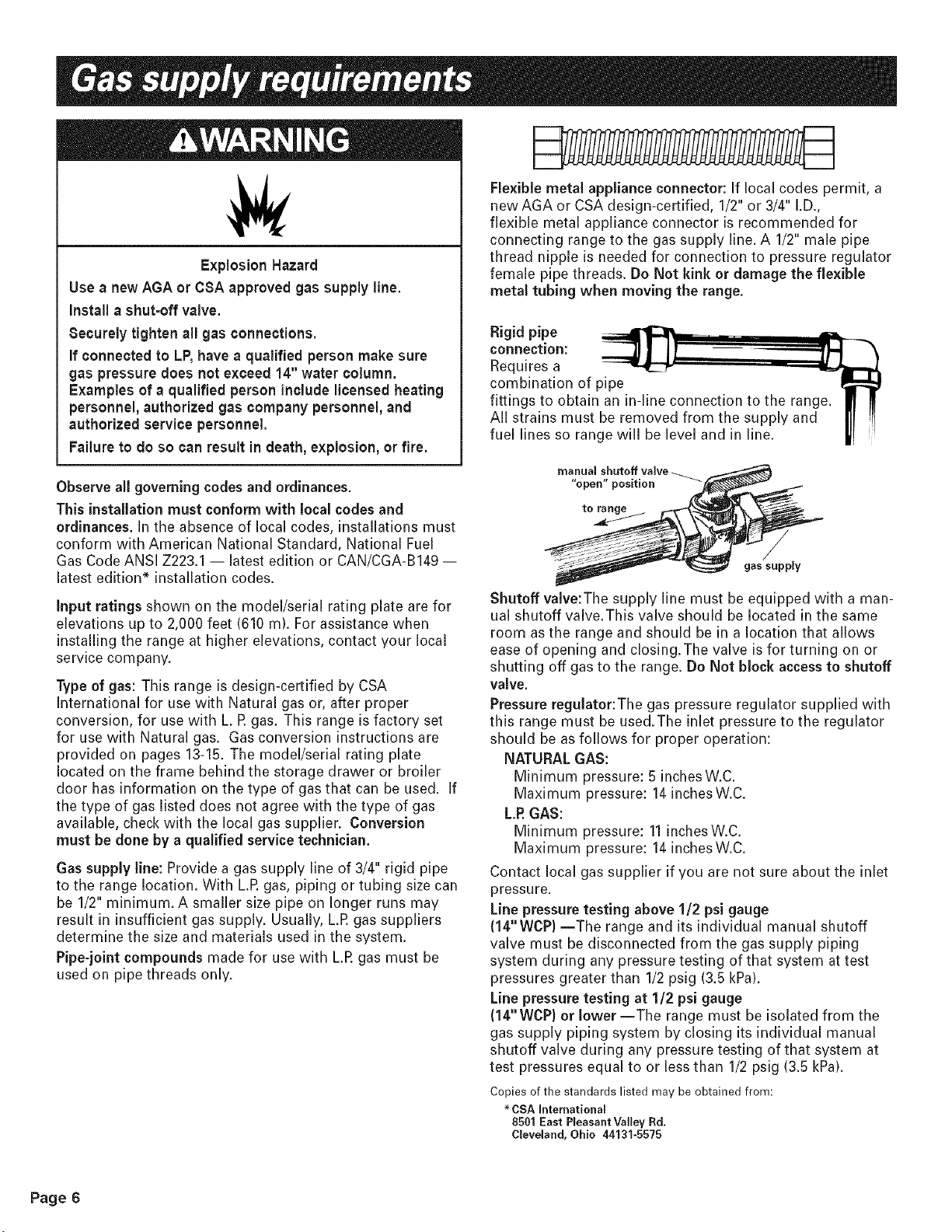

ExplosionHazard
Usea newAGA or CSA approved gas supply line.
Install a shut=offvalve.
Securely tighten all gas connections.
If connected to LP,have a qualified person make sure
gas pressure does not exceed 14" water column.
Examples of a qualified person include licensed heating
personnel, authorized gas company personnel,and
authorized service personnel.
Failure to do so can result in death,explosion, or fire.
Observe all governing codesand ordinances.
This installation must conform with localcodes and
ordinances. In the absence of local codes, installations must
conform with American National Standard, National Fuel
Gas Code ANSI Z223.1 -- latest edition or CAN/CGA-B149 --
latest edition* installation codes.
Input ratings shown on the model/serial rating plate are for
elevations up to 2,000 feet (610 m). For assistance when
installingthe range at higher elevations, contact your local
service company.
Type of gas: This range is design-certified by CSA
International for use with Natural gas or, after proper
conversion, for use with L. P.gas. This range is factory set
for use with Natural gas. Gas conversion instructionsare
provided on pages 13-15. The model/serial rating plate
located on the frame behind the storage drawer or broiler
door has information on the type of gas that can be used. If
the type of gas listed does not agree with the type of gas
available, check with the local gas supplier. Conversion
must be done by a qualified service technician.
Gas supply line: Provide a gas supply line of 3/4" rigid pipe
to the range location. With L.R gas, piping or tubing size can
be 1/2" minimum. A smaller size pipe on longer runs may
result in insufficientgas supply. Usually, LR gas suppliers
determine the size and materials used inthe system.
Pipe-joint compounds made for use with L.R gas must be
used on pipe threads only.
Flexible metal appliance connector: If local codes permit, a
newAGA or CSA design-certified, 1/2" or 3/4" I.D.,
flexible metal appliance connector isrecommended for
connecting range to the gas supply line. A 1/2" male pipe
thread nipple is needed for connection to pressure regulator
female pipe threads. Do Not kink or damage the flexible
metal tubing when moving the range.
Rigid pipe _, , ,==
connection: I I! - -
Requires a _
combination of pipe
fittings to obtain an in-lineconnection to the range. _
All strains must be removed from the supply and 111'II
fuel lines so range will be level and in line. I_I
manual shutoff valve __
"open"position .___
Shutoff valve:The supply line must be equipped with a man-
ual shutoff valve.This valve should be located in the same
room asthe range and should be in a location that allows
ease of opening and closing.The valve is for turning on or
shutting off gas to the range. Do Not block access to shutoff
valve.
Pressure regulator:The gas pressure regulator supplied with
this range must be used.The inlet pressure to the regulator
should be as follows for proper operation:
NATURAL GAS:
Minimum pressure: 5 inchesW.C.
Maximum pressure: 14 inchesW.C.
L.P.GAS:
Minimum pressure: 11inchesW.C.
Maximum pressure: 14 inchesW.C.
Contact local gas supplier if you are not sure about the inlet
pressure.
Line pressure testing above 1/2 psi gauge
(14"WCP)--The range and its individual manual shutoff
valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test
pressures greater than 1/2 psig (3.5 kPa).
Line pressure testing at 1/2 psi gauge
(14"WCP} or lower--The range must be isolatedfrom the
gas supply piping system by closing its individual manual
shutoff valve during any pressure testing of that system at
test pressures equal to or less than 1/2 psig (3.5 kPa).
Copies of the standards listed may be obtained from:
* CSA international
8501 East PleasantValley Rd.
Cleveland, Ohio 44131-5575
Page 6
into grounded
outlet
__' Make proper
_gas connection
Install anti-
tip bracket
_ ecure range
with anti-tip
bracket
©
©
Remove oven
racksand parts
package.
® Check cooktop
burnersfor
proper flame
Levelrange
Preparation
Excessive Weight Hazard
Use two or more people to move and install range.
Failure to follow this instruction can result in
back or other injury.
-, Put on safety glasses and gloves. Do Not use oven
door handle to lift or move the range.
[] Remove oven racks and parts package from inside
oven. Remove shipping materials, tape and protective film
from range.
,, Keep cardboard
shipping base under range
to prevent damage to floor covering.
cardboard
shipping base
Page 7
Anti-tip bracket installation
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti=tip bracket, if the range is
moved.
Failure to follow these instructions can result in
death or serious burns to children and adults.
Contact a qualified floor covering installerfor the best
procedure for drilling mounting holes through your type
floor covering.
m Use the anti-tip bracket
template/instruction sheet to install
the anti-tip bracket.
Anti-tip bracket must be anchored
securely to the sub floor.
Depending on the thickness of
your flooring, longer screws
may be needed to anchor the
bracket to the sub floor.
Longer screws are available
from your local hardware store.
Operating position
front leveling
leg /
rear leveling leg
- Remove cardboard shipping base from under
range. Remove storage drawer. Use a 3/8" (9 mm) drive
ratchet to lower rear leveling legs one-half turn. Use
channel lock pliers to lower front leveling legs one-half
turn.
Before moving range across floor, checkthat range is still
on cardboard shipping baseto protect floor covering.
. Making sure the \___
anti-tip bracket is installed:
. Look for the anti-tip anti-tip
bracket securely bracket
attached to floor. __
• Slide range back so rear _ range foot
range foot is under anti-tip
bracket. Replace storage drawer.
=If installingthe range in a mobile home, you MUST
secure the range to the floor. Any method of securing the
range isadequate as long as itconforms to the
"Manufactured Home Construction and Safety
Standards:' Page 4.
= Place rack in oven. Place level on rack, first side to
side; then front to back. If range is not level, pull range
forward until rear leveling leg is removed from the anti-tip
bracket. Use 3/8" (9 mm) drive ratchet and channel lock
pliers to adjust leveling legs up or down until range is
level. Push range back into position. Checkthat rear
leveling leg is engaged in anti-tip bracket.
Note: Oven must be level for satisfactory baking
conditions.
Page 8
Gas and electrical connections
All connections must be wrench-tightened.
Typical rigid pipe connection
/90°elbow
_ nipple
/ _] _ union
pressure
regulator
pipe
manual
gas shutoff
valve
/
90°elbow
Typicalflexible connection
union nipple
\
1/2" (12 ram) to
3/4" (18 mm)
gas pipe
pressure
regulator
use pipe-joint
compound
adapter manual
gas shutoff
flexible con- valve
hector
//
sdspt / l/z, mm to
/ 3/4" (18 mm)
use pipe-joint
compound gas pipe
A I/2" (12 ram) male pipe thread is needed for connection to pressure
regulator female pipe threads.
,, Use 15/16"(23 ram) combination wrench and
channel lock pliers to attach the flexible connector to the
adapters. Checkthat connector is not kinked.
manual shutoff.valve _
"open" pos=tlon
[] Check that range regulator shutoff valve is in the
"on" position. Open the manual shutoff valve in the gas
supply line,
[]Apply pipe-joint compound made for use with L. R
gas to the smaller thread ends of the flexible connector
adapters. Attach one adapter to the pressure regulator
elbow and the other adapter to the gas shutoff valve.
Tighten both adapters.
[] Use a brush and liquid detergent to test all gas
connections. Bubbles around connections will indicate a
leak. If a leak appears, shut off gas valve controls and
tighten connections.Then check connections again.
Clean all detergent from range.
-Center the burner cap on burner base.
Burner cap should be level when properly positioned.
Place burner grates over burner.
[] Plug power supply cord into grounded
electrical outlet.
Page 9
Check operation
Electronic ignition system
Cooktop and oven burners use electronic ignitors in place
of standing pilots. When a cooktop control knob isturned
to the "LIGHT" position, the system creates a spark to light
the burner.This sparking continues until the control knob
isturned to the desired setting.
When the oven control isset to the desired setting, a series
of sparks lights the oven burner.The sparking will stop
when burner gas lights. Sparking will again occur to re-light
the burner everytime the burner cycles back on again.
Check operation of cooktop
.,After air has been purged from gas line, push in
and turn each surface unit control knob to "LIGHT"
position.The flame should light within 4 seconds.Turn
control knob to "HIGH" position after burner
lights.
Checkeachcooktop burner for proper flame.
The small inner cone should have a very
distinct blue flame 1/4" (6 ram) to 1/2" (13 mm)
long.The outer cone is not as distinct as the
inner cone.
=Push in and turn each cooktop control knob
from "LIGHT" to "LOW" setting quickly.The low flame
should be a minimum, steady blue flame. If flame needs
to be adjusted, turn control knob to the "LOW" setting
and remove control knob. Insert a small flat-blade
screwdriver into the valve stem. Turn the valve screw to
obtain the smallest flame that will not go out when the
control of a cold burner is quickly turned from "HIGH" to
"LOW': Repeat for other cooktop burners as needed.
Check operation of oven burner
reOpen oven door.
Remove oven bottom:
Remove two screws atthe rear of the oven bottom. Lift the
rear of the oven bottom up and back until the front of the
panel is away from the front frame. Remove from oven.
steel/glass
mirror
f
flame
spreader
2 screws
You can checkthe burner flame by removing the flame
spreader or by using a mirror.
Removeflame spreader:
Removetwo screws from the front tabs of the flame
spreader. Lift front of the flame spreader and pull forward to
remove tabs from rear of oven.
Using a mirror:
Insert mirror to one side of the burner. Look into mirror to
check flame.
mFollow the instructions for your type of oven
controls.
Note:A faint ticking sound will be heardwhile the oven
burner Eghts.Theoven burner shouldlight within 8 seconds.
OFF PUSHTO
TURN
t
W/ARM
/
OVEN ON 0 ,200
/TURN OFF OVEN WHEN FLASHING) CLEAN
OVEN HEATING qlt PUSHTO i
TURN • 250
1
DOOR LOCKED/CLEANING 0 BROIL e \
(OLOSE DOOR WHEN FLASHING)
e
500 / • I • \ 350
450 400
Push in and turn the oven selector control knob to
"350" If the burner fails to light due to air remaining in
the gas line, reset the oven control by turning selector
knob to "OFF" and then again to "350:'
Page 10
k
A
T_MER
BAKE -- O /
BROIL --Q •
START ? -- ®
HEAT --O O
CLEAN --O/
DOO£ LOCKED
ON
/
If your oven has electronic control pads only:
1.Press the "BAKE" pad.
•The "BAKE" indicator will light.
• "350" will appear in the display.
2. Pressthe START/ENTERpad.
•The "PREHEAT" or "HEAT,"and "ON" indicators will
appear.
• If the burner fails to light due to air remaining in the
gas line, reset the oven control by pressing the
"OFF/CANCEL' pad and then pressing the "BAKE" and
"START/ENTER" pads again to reactivate the bake
operation.
1.Pressthe "BAKE" pad.
•The "BAKE" indicator will light.
•"350°F" will appear in the display.
2. Pressthe START/ENTERpad.
, "PrE;' and the preheat countdown time will appear in
the display.
•"HEAT" and "ON" indicators will light.
. If the burner fails to light due to air remaining in the
gas line, reset the oven control by pressing the
"OFF/CANCEL' pad and then pressing the "BAKE" and
"START/ENTER" pads again to reactivate the bake
operation.
mQ lm
C
1.Pressthe "BAKE" pad,
•The "BAKE" indicator will light.
• "350" will appear in the display.
2. Press the START/ENTERpad.
• "PrE[' and "10:00" will appear in the display.
• "HEAT" and "ON" indicators will light.
• If the burner fails to light due to air remaining in the
gas line, reset the oven control by pressing the
"OFF/CANCEL' pad and then pressing the "BAKE" and
"START/ENTER" pads again to reactivate the bake
operation.
= Check the oven burner for properflame. The
flame should be 1/2" (13mm) long, with inner
cone of bluish-green, and outer mantle of dark
blue, and should be clean and soft in character.
No yellow tips, blowing or lifting of flame should
occur, if burner does not light, checkthat the
regulator shutoffvalve is in the "on" position
(see Step 11).
if oven flame needs adjusting:
Locate the air shutter next to the pressure regulator.
Loosen screw and adjust the air shutter until the proper
flame appears.Tighten screw.
Page 11

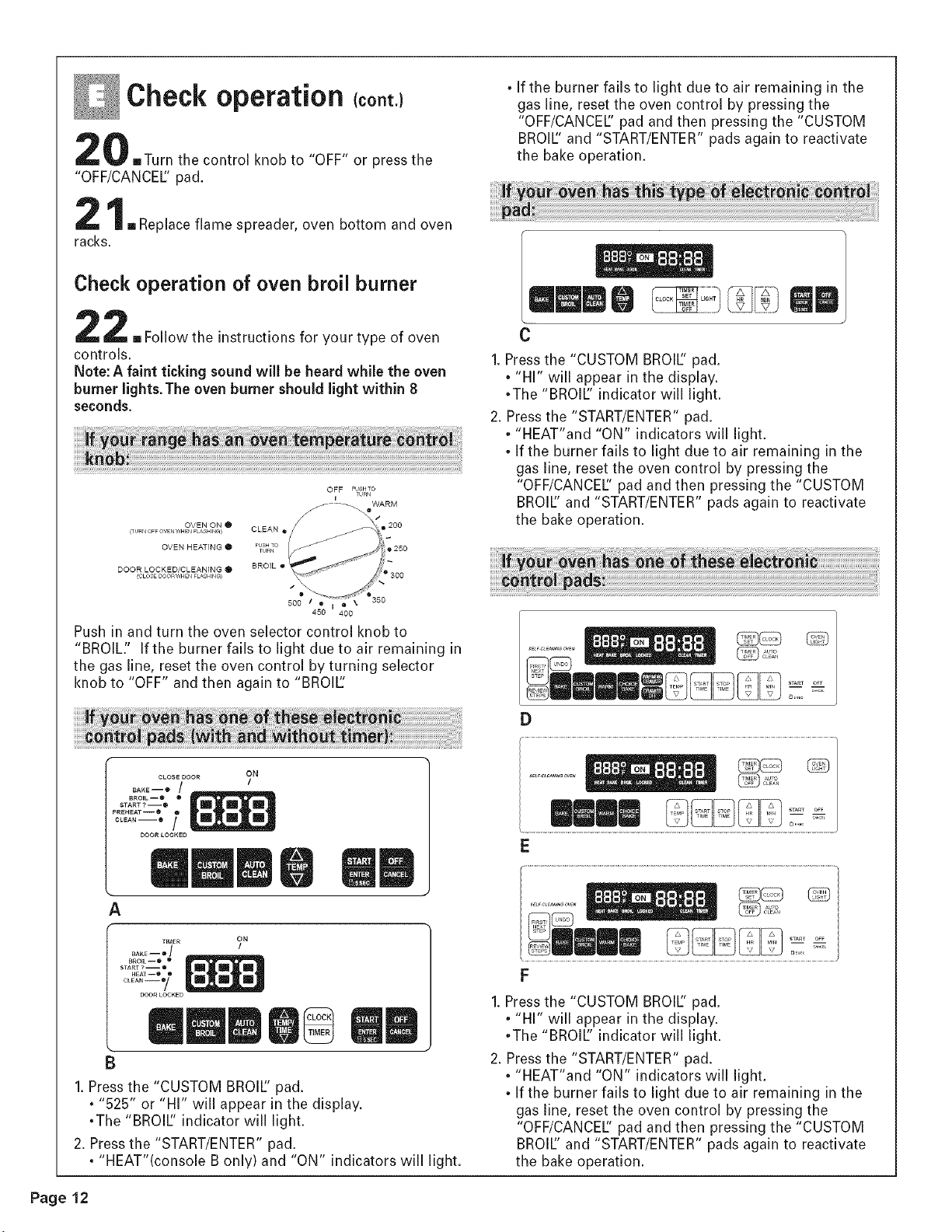

Check operation oont.
-,Turn the control knob to "OFF" or press the
"OFF/CANCEL' pad.
,, Replace flame spreader, oven bottom and oven
racks.
Check operation of oven broil burner
[] Follow the instructions for your type of oven
controls.
Note: A faint ticking sound will be heard while the oven
burner lights.The oven burner should light within 8
seconds.
OFF PUSHTO
TURN
-!-_ WARM
OVEN ON • • 200
_URN OFF OVEN WHEN FLASHING) C LEAN,
OVEN HEATING O PUSHTO
TURN
DOOR LOCKED/CLEANING O BROIL
_cL )SEDOOR _HE F _SH G) • 300
• If the burner fails to light due to air remaining in the
gas line, reset the oven control by pressing the
"OFF/CANCEL' pad and then pressing the "CUSTOM
BROIL' and "START/ENTER" pads again to reactivate
the bake operation.
Um
Pressthe "CUSTOM BROIL' pad.
. "HI" will appear inthe display.
•The "BROIL' indicatorwill light.
Pressthe "START/ENTER" pad.
• "HEAT"and "ON" indicators will light.
, If the burner fails to light due to air remaining in the
gas line, reset the oven control by pressing the
"OFF/CANCEL' pad and then pressing the "CUSTOM
BROIL' and "START/ENTER" pads again to reactivate
the bake operation.
450 400
Push in and turn the oven selector control knob to
"BROIL" Ifthe burner fails to light due to air remaining in
the gas line, reset the oven control by turning selector
knob to "OFF" and then again to "BROIL'
START OFF
D
B
1.Press the "CUSTOM BROIL' pad.
• "525" or "HY' will appear in the display.
•The "BROIL' indicator will light.
2. Pressthe "START/ENTER" pad.
• "HEAT"(consoie B only) and "ON" indicators will light.
F
Pressthe "CUSTOM BROIL' pad.
• "HI" will appear in the display.
•The "BROIL' indicator will light.
Pressthe "START/ENTER" pad.
. "HEAT"and "ON" indicators will light.
• If the burner fails to light due to air remaining in the
gas line, reset the oven control by pressing the
"OFF/CANCEL' pad and then pressing the "CUSTOM
BROIL' and "START/ENTER" pads again to reactivate
the bake operation.
Page 12
3-Checkthe broil burner for proper
flame.The flame should be 1/2" (13 mm) long,
with inner cone of bluish-green, and outer
mantle of clark blue, and should be clean and
soft in character. No yellow tips, blowing or
lifting of flame should occur.
If flame needs to be adjusted:
Loosen the lockscrew on the air shutter located at the
rear of the broil burner. Adjust the air shutter as needed.
Tighten lock screw.
[]Turn the oven control knob to "OFF" or press
the "OFF/CANCEl" pad.
You have just finished installing
your new range.To get the most efficient use
from your range, read your Use & Care Guide.
Keep Installation Instructions and Guide close
to range for easy reference.
The instructions will make installing the range
in another home as easy as the first
installation.
Gas conversions(from Natural gas to L.P.gas; or from L.P.
gas to Natural gas) must be done by a qualified installer.
L.P.gas conversion
[] Complete installationsections A-C (Pages 7-8)
before converting cooktop to L.P.gas. Check that main gas
supply line has been shut off and the power supply cord is
disconnected.
regulatorpressure .......
/pressure __
plastic cover plastic cover L.R
_- cap
--washer --
Nat. gas L.P,gas
DO NOT REIVIOVETHEPRESSUREREGULATOR.
[] Pressure regulator: Remove storage drawer and locate
pressure regulator at backof range. Remove plastic cover.
Turn cap marked "N" on front of pressure regulator counter-
clockwise with a wrench to remove. Do Not disturb or
remove the spring beneath the cap.Turn the cap over and
reinstall cap on regulator so that the letters "L.R" are visible.
Replace plastic cover over cap.
orifice
[] Surface Burners: spud
Remove burner caps. Use
orifice
a Phillips or Quadrex spud
screwdriver to remove holder\
the two screws holding the
burner head down. Lift the
burner head off the cooktop
to uncover the orifice spud
_ einstall
one of the
screws
spark electrode
range cooktop
holder.The orifice spud isrecessed in the holder.
Note: Reinstall one of the screws through the range cooktop
to hold orifice spud holder in place while removing and
replacing orifice spuds.
Page 13
LocatetheL.Rgasorificespudonthespudcard
onthebackofrange.Orificespudsarestamped
withanumberandmarkedwithtwocolordots
andagroove.
5/16" (7 ram)
nut driver groove L.P.gas
orifice spud
orifice spud
Replace orifice __
spud with the ./_-_2_
number listed f'( _
in chart. / _',_____j_ \orifice
!
number
burner /
assembly
L.R Gas
Surface Propane Orifice Color
burner Rate(BTU/hr) Number Marking
Left rear 8,000 L80 Green/Lt.Blue
Left front 11,000 L99 Green/Yellow
Right front 8,000 LS0 Green/Lt.Blue
Right rear 5,000 L65 Green/Brown
A brass orifice spud is located in the center of each burner
throat about 2" (5 cm) below the cooktop. Apply masking
tape to the end of a 5/16" (7 mm) nut driver to fit snugly
over the orifice spud. Pressdriver down onto the spud of
the left front burner and remove by turning spud counter-
clockwise and lifting it out. Replace the Natural gas spud
with the appropriate L.R gas spud shown in the table.
Continue to replace the remaining orifice spuds, one at a
time. Place the Natural gas spuds on the spud card on the
back of the range for future use. Replace burner caps using
both screws and burner grates.
pin hood
_ __,_ L.P.gas
.Natural gas _i_ _ decrease
!ncrease gas _ gas
increase Gf _:_ _ decrease
flame size _ flame size
pro-set at factory
orifice
for Natural gas hood
,. Oven burner: Use 1/2" (13 mm) combination
wrench to turn the orifice hood clown snug onto pin
(approximately 2 to 2-1/2 turns). DO NOT OVERTIGHTEN.The
burner flame cannot be properly adjusted if this conversion
is not made.
,. Broil burner: Use 1/2"(13 mm) combination wrench to
turn the orifice hood down snug onto pin (approximately 2
to 2-1/2 turns). DO NOT OVERTIGHTEN.The burner flame
cannot be properly adjusted if this conversion isnot made.
Page 14
,. Reinstall the storage drawer. Complete installation
sections D through E, Pages9-13. Checking for proper
cooktop burner and oven flame is very important.
YOU MUST ADJUST "LOW" SETTING FOREACH COOKTOP
BURNER.SEE STEP 16,PAGE 10.
The small inner cone should have a very distinct blue flame
1/4" (6 mm) to 1/2" (13 mm) long.The outer cone is not as
distinct asthe inner cone. L.R gas flames may have a
slightly yellow tip. If the flame is noisy or blowing, it is
getting too much air. If the flame is soft and lazy, it is not
getting enough air.
Natural gas conversion
,. Complete installationsections A-C (Pages7-8) before
converting cooktop to natural gas. Check that main gas
supply line has been shut off and the power supply cord is
disconnected.
pressure_ _ ......
regulator /_
_pressure _
,,I_ /-_, \
plastic cover plastic cover
_- cap
--washer --
Nat. gas L.R gas
L.P.
DO NOT REMOVETHEPRESSUREREGULATOR.
,. Pressureregulator: Remove storage drawer and locate
pressure regulator at backof range. Remove plastic cover.
Turn cap marked "LP:' on front of pressure regulator
counterclockwise with a wrench to remove. Do Not disturb
or remove the spring beneath the cap.Turn the cap over and
reinstall cap on regulator so that the letter "N" is
visible. Replace plastic cover over cap.
_ reinstall one
orifice of the
[] Surface Burners: spud _ screws
Remove burner caps. Use ... \ _ snark electrode
a Phillips or Quadrex s°p'_'_e _ ""
/
screwdriver to remove holder _///Tx/"/_r_._%_\\_.,_,x\\_/._
the two screws holding the __'_b_
burner head down. Lift the \\\'_//_
burner head off the cooktop _
to uncover the orifice spud rangecooktop
holder.The orifice spud is recessed in the holder.
Note: Reinstall one of the screws through the range cooktop
to hold orifice spud holder in place while removing and
replacing orifice spuds.
Locate the Natural gas orifice spuds on the
spud card on the back of the range. Orifice
spuds are stamped with a number and
marked with two color dots.
5/16" (7 ram)
nut driver
Nature[ gas
orifice spud
orifice spud _ __
Replace orifice _-.._,_
spud with the _
number listed
in chart, x
orifice
number
burner
assembly
Natural Gas
Surface Natural Gas Orifice Color
burner Rate(BTU/hr) Number Marking
Left rear 8,000 N139 Blue/Black
Left front 13,500 N186 Blue/Orange
Right front 9,500 N151 Bhe/Brass
Right rear 5,000 Nl12 Blue/White
Locate the brass orifice spuds in the center of each burner
throat about 2" (5 cm) below the cooktop. Apply masking
tape to the end of a 5/16" (7 ram) nut driver to fit snugly over
the orifice spud. Press driver down onto the spud of the left
front burner and remove by turning spud counter-clockwise
and lifting it out. Replace the L.R gas spud with the
appropriate Natural gas spud shown in the table.
Continue to replace the remaining orifice spuds, one at a
time. Placethe L.R gas spuds on the spud card on the back
of the range for future use. Replace burner caps using both
screws and burner grates.
pin __ hood
zt I L.Rgas
\ /decrease
Natural gas _ gas
increase gas_ decrease /,
increase _ flame size
flame size
pro-set at
factory for
Natural gas
J
_hood
[] Oven burner: Use 1/2" (13 mm) combination wrench to
loosen the orifice hood away from pin (approximately 2 to
2-1/2 turns).The burner flame cannot be properly adjusted if
this conversion is not made.
/-----------m------_ ..................
[] Broil burner: Use 1/2" (13 mm) combination wrench to
loosen orifice hood away from pin (approximately 2 to
2-1/2 turns).The burner flame cannot be properly adjusted if
this conversion is not made.
[] Reinstall the storage drawer. Complete installation
sections D through E, Pages9-13. Checking for proper
cooktop burner and oven flame is very important.
YOU MUST ADJUST "LOW" SETTING FOREACH COOKTOP
BURNER.SEE STEP 16,PAGE 10.
Natural gas flames do not have yellow tips.
Page 15
ifrangedoesnot operate:
[] Checkthat the circuit breaker is not tripped or the house
fuse blown.
[] Checkthat the power supply cord is plugged intothe
wall receptacle.
[] Checkthat gas line isturned on.
[] See Useand CareGuide for troubleshooting list.
ifyou need assistance:
if you havequestions about operating, cleaning or main-
taining your range:
[] Refer to Use and Care Guide.
[] Call the ConsumerAssistance Center. Checkyour Use
and Care Guide for a toll-free number to call or call the
dealer from whom you purchased this appliance.
The dealer islisted in theYellow Pages of your phone
directory under "Appliances -- Household -- Major--
Service and Repair:'
if you need service:
Maintain the quality built into your range by calling an
authorized service company.
To obtain the name and number of an authorized service
company:
[] Contact the dealer from whom you purchased your
range; or
[] Look in theYellow Pages of your telephone directory
under "Appliances -- Household -- Major -- Service
and Repair;" or
[] Call the ConsumerAssistance Center.
The toll-free number islisted in your Use
and Care Guide.
When you call, you will need:
[] The range model number.
[] The range serial number.
Both numbers are listed on the model/serial rating plate
located on the frame behind the storage drawer.
Moving the range:
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is
moved.
Failure to follow these instructions can result in
death or serious burns to children and adults.
When moving range, slide range onto cardboard or
hardboard to prevent damaging the floor covering.
If removing the range is necessary for cleaning or
maintenance:
1.Remove the storage drawer.
2. Shut offthe gas supply to the range.
3. Slide range forward, away from the wall, just far enough
to disconnect the gas and electric supply lines.
4. Slide range forward to complete cleaning or maintenance.
anti-tip
bracket__
5. Making sure the anti-tip bracket is installed:
• Look for the anti-tip bracket securely attached to floor.
. Slide range back so rear range foot is under
anti-tip bracket.
6. Checkthat range is level.
7. Reconnect gas line to range and check for leaks.
8. Plug power supply cord into outlet. Reinstall storage
drawer.
Printed in U.S.A.
Part No. 8523779 Benton Harbor, Michigan 49022
@2002Whirlpool Corporation
