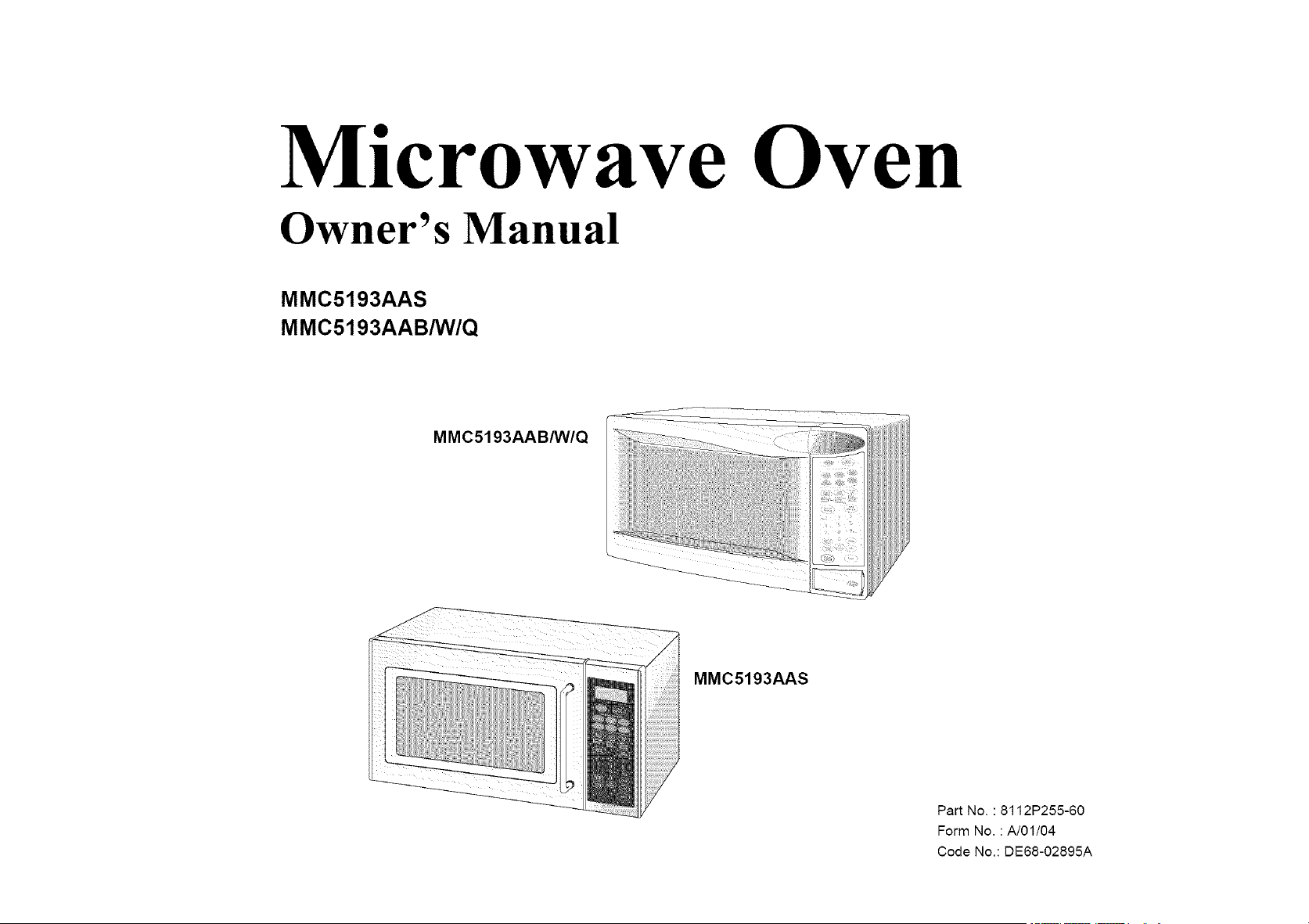

Microwave Oven
Owner's Manual
MMC5193AAS
MMC5193AAB/W/Q
MMC5193AAB/W/Q
MMC5193AAS
Part No. : 8112P255-60
Form No. : A/01/04
Code No.: DE68-02895A

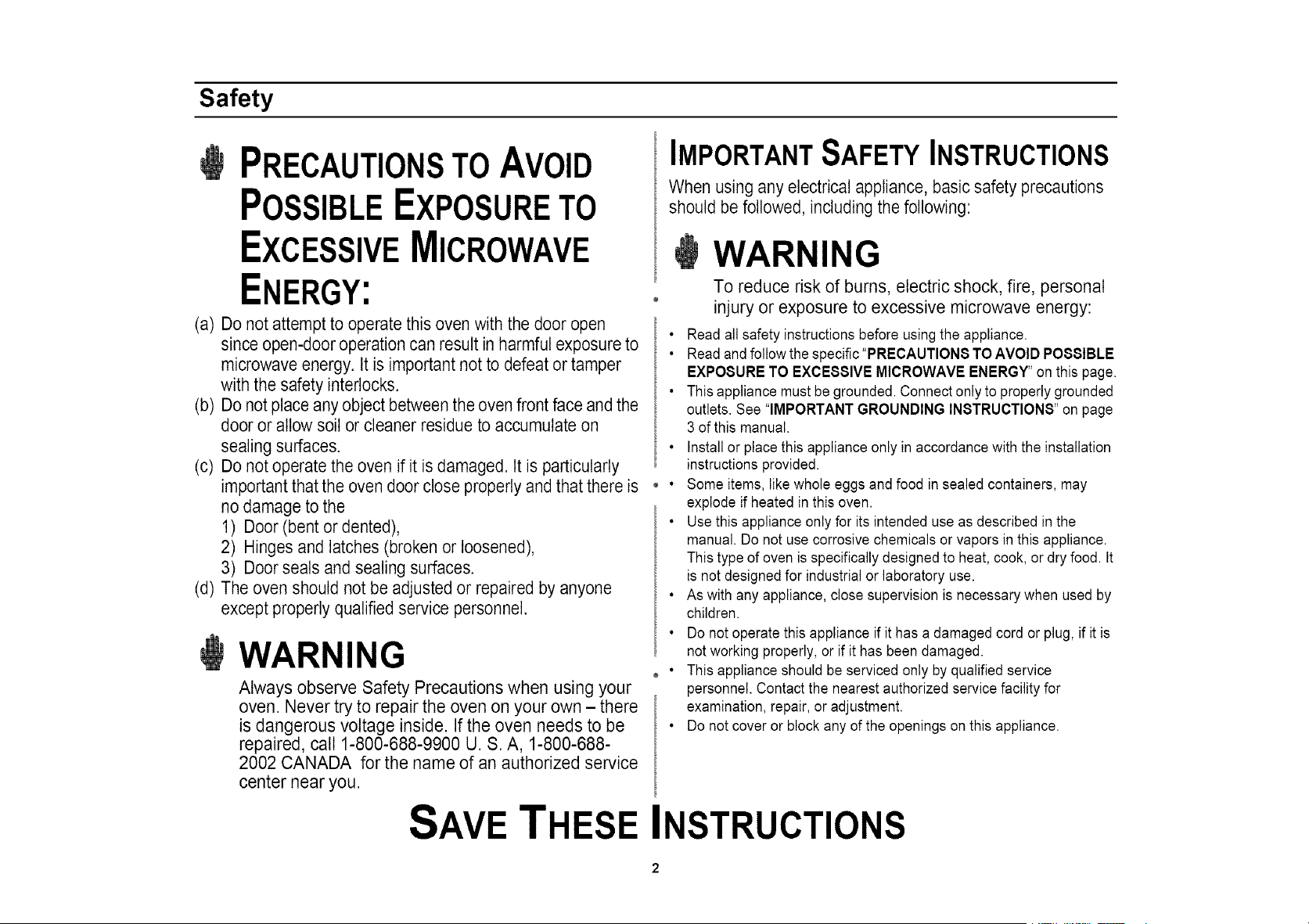

Safety
PRECAUTIONSTOAVOID
POSSIBLEEXPOSURETO
EXCESSIVEMICROWAVE
ENERGY:
(a) Do not attempt to operate this oven with the door open
since open-door operation can result in harmful exposure to
microwave energy. It is important not to defeat or tamper
with the safety interlocks.
(b) Do notplace anyobject between the oven front face and the
door or allow soil or cleaner residue to accumulate on
sealing surfaces.
(c) Do not operate the oven ifit is damaged. It is particularly
important that the oven door close properly and that there is
no damage to the
1) Door(bent or dented),
2) Hinges and latches (broken or loosened),
3) Door seals and sealing surfaces.
(d) The oven should not beadjusted or repaired by anyone
except properly qualified service personnel.
WARNING
Always observe Safety Precautions when using your
oven. Never try to repair the oven on your own - there
is dangerous voltage inside. If the oven needs to be
repaired, call 1-800-688-9900 U. S. A, 1-800-688-
2002 CANADA for the name of an authorized service
center near you.
SAVE THESE
IMPORTANTSAFETY INSTRUCTIONS
When using any electrical appliance, basic safety precautions
should be followed, including the following:
WARNING
To reduce risk of burns, electric shock, fire, personal
injury or exposure to excessive microwave energy:
• Read all safety instructions before usingthe appliance.
• Readand follow the specific"PRECAUTIONS TOAVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVEENERGY"on thispage.
• This appliance mustbe grounded. Connect onlyto properlygrounded
outlets. See "IMPORTANT GROUNDING INSTRUCTIONS"on page
3 of this manual.
Install or place this applianceonly in accordance with the installation
instructions provided.
Some items, like whole eggs and food in sealed containers, may
explode if heated in this oven.
• Use this applianceonly for its intended use as described in the
manual. Donot use corrosive chemicals or vapors in this appliance.
This type of oven is specifically designedto heat, cook, or dry food. It
is not designedfor industrial or laboratory use.
As with any appliance, close supervision is necessary when usedby
children.
Do not operate this appliance ifit has a damagedcord or plug, if it is
notworking properly, or if it has been damaged.
This appliance should be serviced only byqualified service
personnel. Contact the nearest authorized servicefacility for
examination, repair, or adjustment.
• Do not cover or block any of the openings on this appliance.
NSTRUCTIONS
Safety
Important Safety Instructions, continued
• Do not store this appliance outdoors. Donot use near water - for
example, near a kitchensink, ina wet basement, or near a swimming
pool, etc.
• Keep the inside ofthe oven clean. Foodparticles or spattered oils
stuck to the ovenwalls or floor can cause paint damage and reduce
the efficiency of the oven.
• Do not immersecord or plug in water.
• Keep cord away from heated surfaces.
• Do not letcord hang over edge of table or counter.
• When cleaning door and oven surfaces, use only mild, nonabrasive
soaps or detergents applied with a sponge or soft cloth.
• To reduce the risk of fire in the oven:
a. Do notovercook food. Watch appliance carefully if paper, plastic,
or other combustible materials are inside.
b. Removewire twist-ties from plastic cooking bags before placing
bags in oven.
c. If materials inside the oven ignite, keepthe oven door closed,turn
the oven off, disconnect the power cord, or shut off the power at
thefuse or circuit breaker panel.
d. Do not usethe oven compartmentfor storage purposes. Do not
leave paper products, cooking utensils, or food in the ovenwhen
not in use.
• Do nottry to preheat oven or operate while empty.
• Donot cookwithout the glass tray in place on the ovenfloor. Foodwill
not cook properly withoutthe tray.
• Do not defrostfrozen beverages in narrow-necked bottles. The
containers can break.
• Dishesand containers can become hot. Handlewith care.
• Carefully remove container coverings, directing steam away from
hands and face.
• Removelids from baby food before heating. After heating babyfood,
stir well and test temperature by tasting before serving.
SAVE THESE
• A short power-supplycord isprovided to reduce the risk of becoming
entangled in or tripping over a longer cord. Longer cordsets or
extension cords are available and may be used with caution.
• Do not operate any other heating or cooking appliance beneaththis
appliance.
• Do not mount unit over or near any portion of a heating or cooking
appliance.
• Do not mount over a sink.
o • Do not store anything directly on top of the appliance when it is in
operation.
• If materials insideoven should ignite, keepthe oven door closed, turn
the oven off and disconnect the power cord, or shut off power at the
fuse or circuit breaker panel. If the door is opened,the fire may
spread.
• Precaution for safe useto avoid possible exposure to excessive
micro oven energy :
Do not attempt to pull any part ofthe door by hand to open the door.
Open the door only utilizing the push button located at front-right-
bottom side.
IMPORTANTGROUNDING
INSTRUCTIONS
This appliance must be grounded. In the event of an electrical
short circuit, grounding reduces the risk d electric shock by
providing an escape wire for the electrical current. This
appliance isequipped with a cord that includes a grounding wire
and a grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded. Plug the three-prong
power cord into a properly grounded outlet of standard 115-120
voltage, 60 Hz. Your oven should be the only appliance on this
circuit.
NSTRUCTIONS
Safety

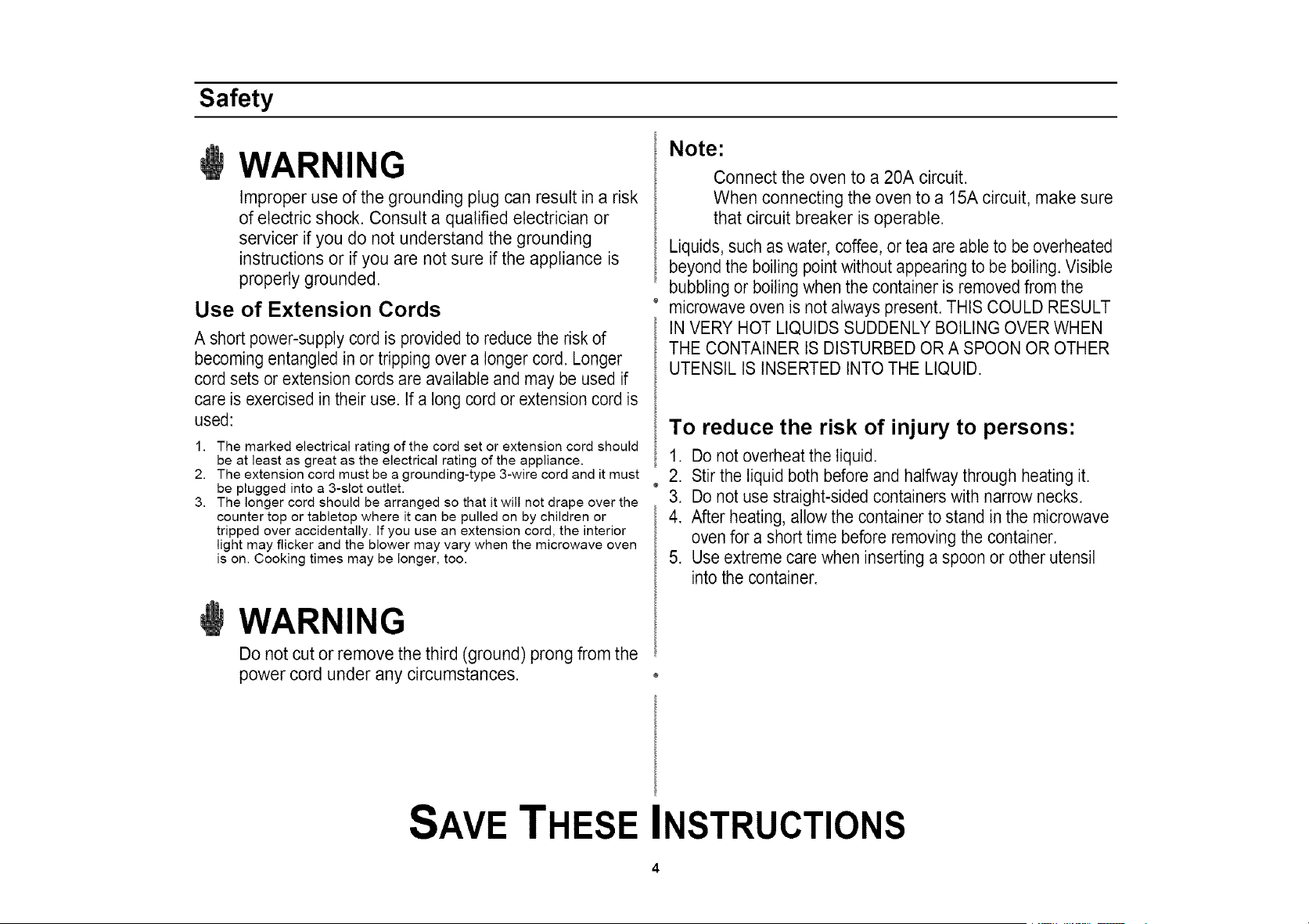

WARNING
Improper use of the grounding plug can result in a risk
of electric shock. Consult a qualified electrician or
servicer if you do not understand the grounding
instructions or if you are not sure if the appliance is
properly grounded.
Use of Extension Cords
A short power-supply cord is provided to reduce the risk of
becoming entangled in or tripping over a longer cord. Longer
cord sets or extension cords are available and may be used if
care is exercised in their use. If a long cord or extension cord is
used:
1. The marked electrical rating of the cord set or extension cord should
be at least as great as the electrical rating of the appliance.
2. The extension cord must be a grounding-type 3-wire cord and it must
be plugged into a 3-slot outlet.
3. The longer cord should be arranged so that it will not drape over the
counter top or tabletop where it can be pulled on by children or
tripped over accidentally. If you use an extension cord, the interior
light may flicker and the blower may vary when the microwave oven
is on. Cooking times may be longer, too.
WARNING
Do not cut or remove the third (ground) prong from the
power cord under any circumstances.
Note:
Connect the oven to a 20A circuit.
When connecting the oven to a 15A circuit, make sure
that circuit breaker is operable.
Liquids, such as water, coffee, ortea are able to be overheated
beyond the boiling point without appearing to be boiling. Visible
bubbling or boiling when the container is removed from the
° microwave oven is not always present. THIS COULD RESULT
INVERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN
THE CONTAINER IS DISTURBED OR A SPOON OR OTHER
UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
1. Do not overheat the liquid.
2. Stir the liquid both before and halfway through heating it.
3. Do not use straight-sided containers with narrow necks.
4. After heating, allow the container to stand in the microwave
oven for a short time before removing the container.
5. Use extreme care when inserting a spoon or other utensil
into the container.
SAVE THESE NSTRUCTIONS
Your New Microwave oven

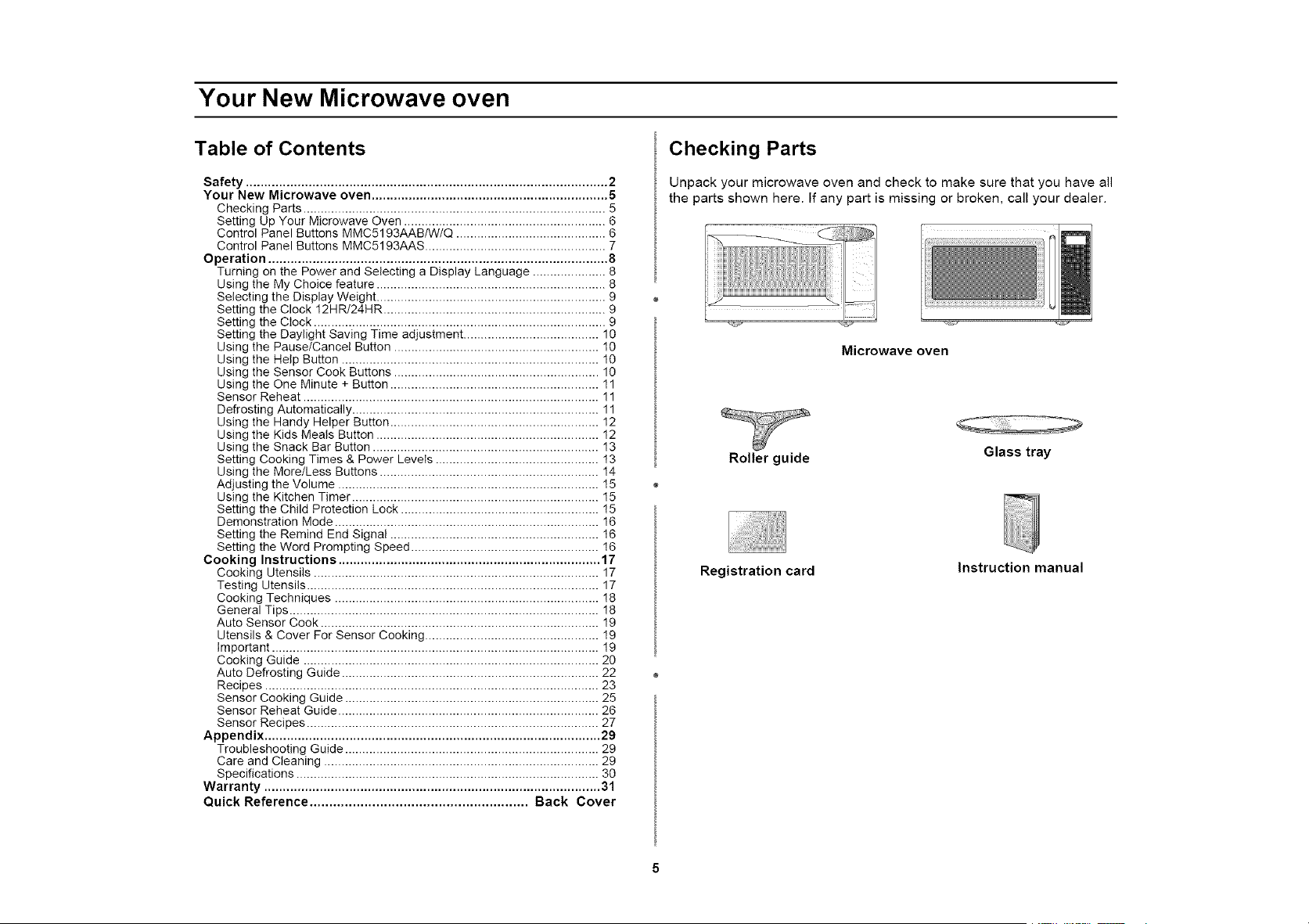

Table of Contents
Safety .................................................................................................. 2
Your New Microwave oven ................................................................ 5
Checking Parts ....................................................................................... 5

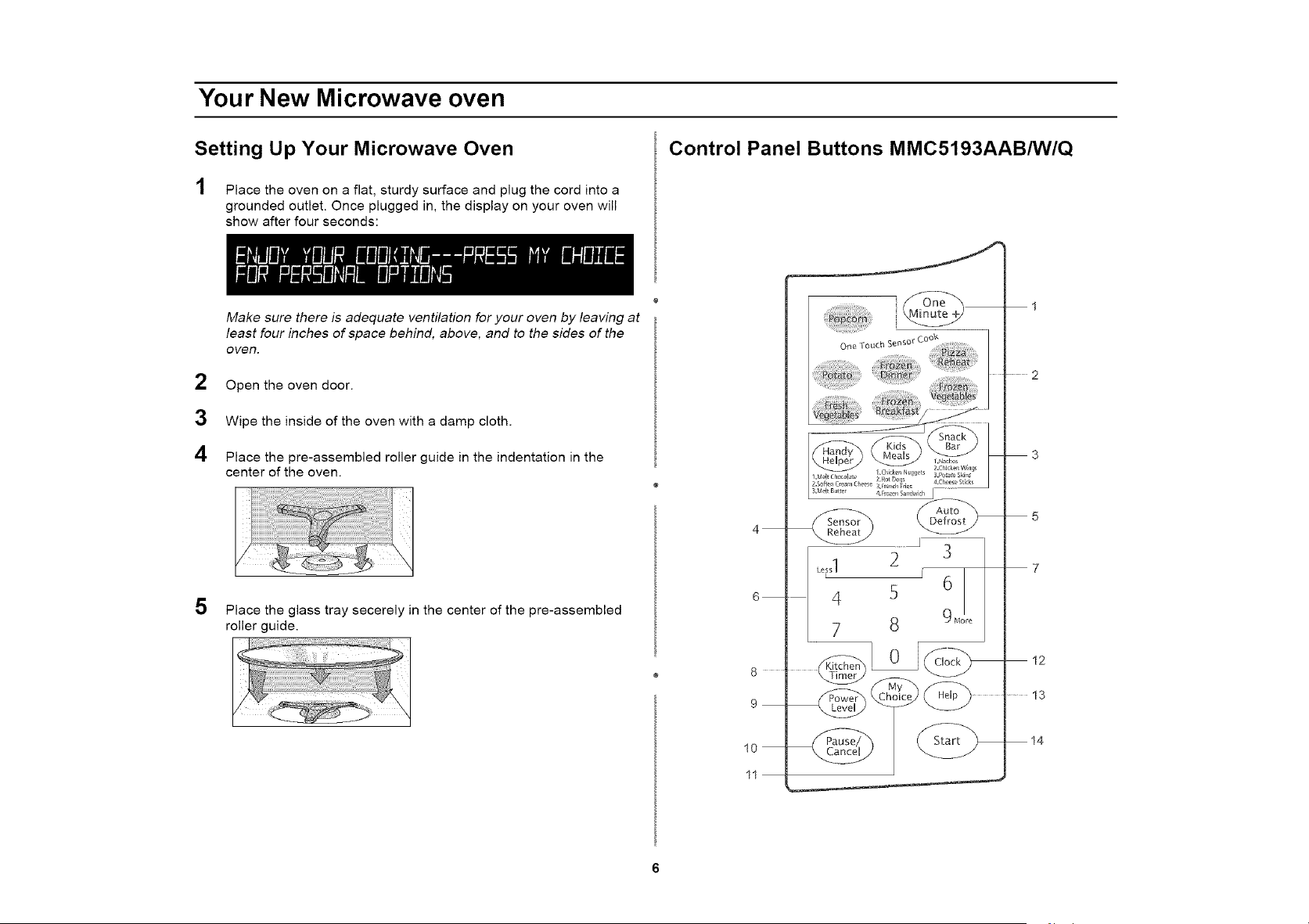

Setting Up Your Microwave Oven .......................................................... 6
Control Panel Buttons MMC5193AAB/W/Q ........................................... 6
Control Panel Buttons MMC5193AAS .................................................... 7
Operation ............................................................................................ 8

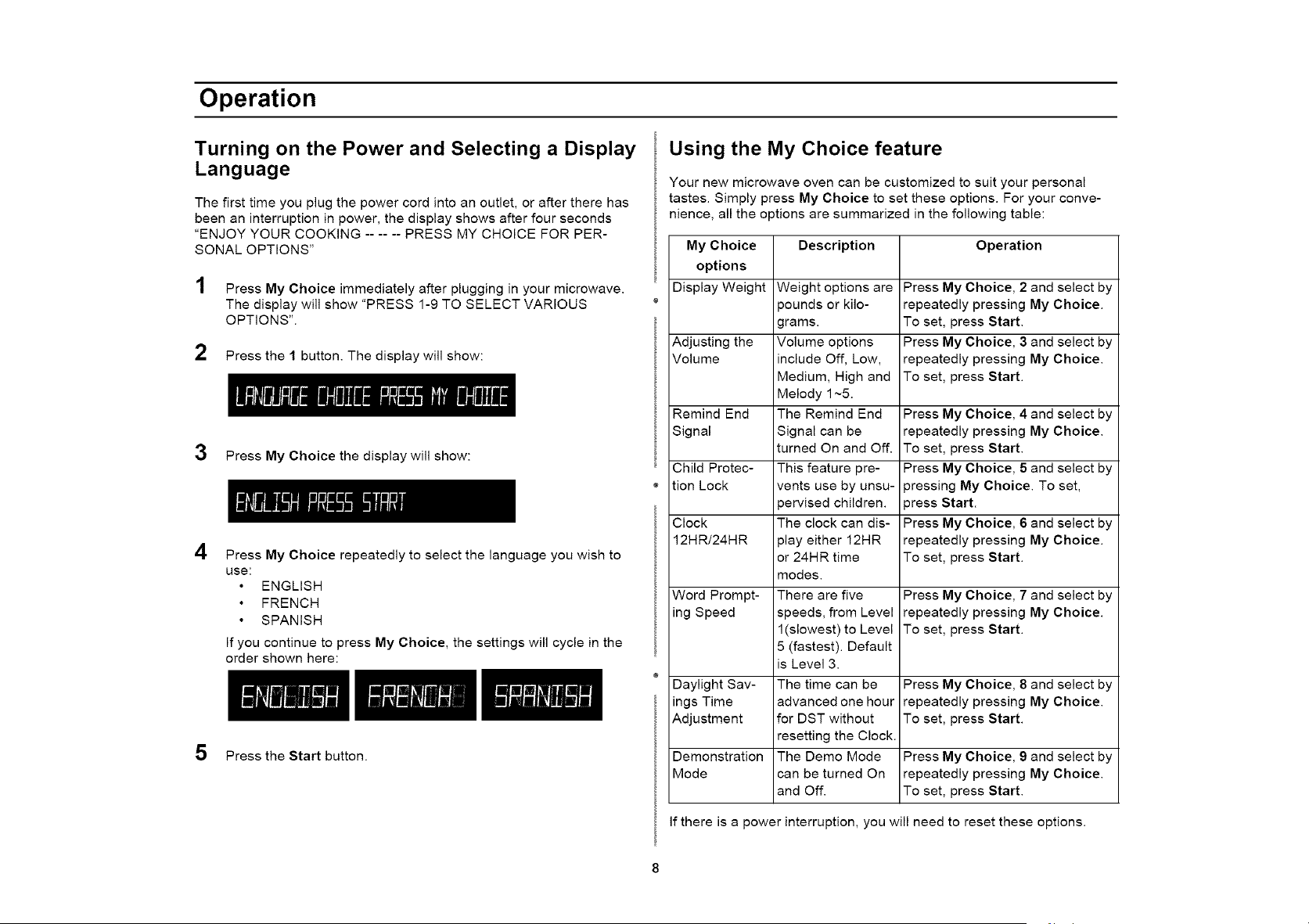

Turning on the Power and Selecting a Display Language ..................... 8
Using the My Choice feature .................................................................. 8

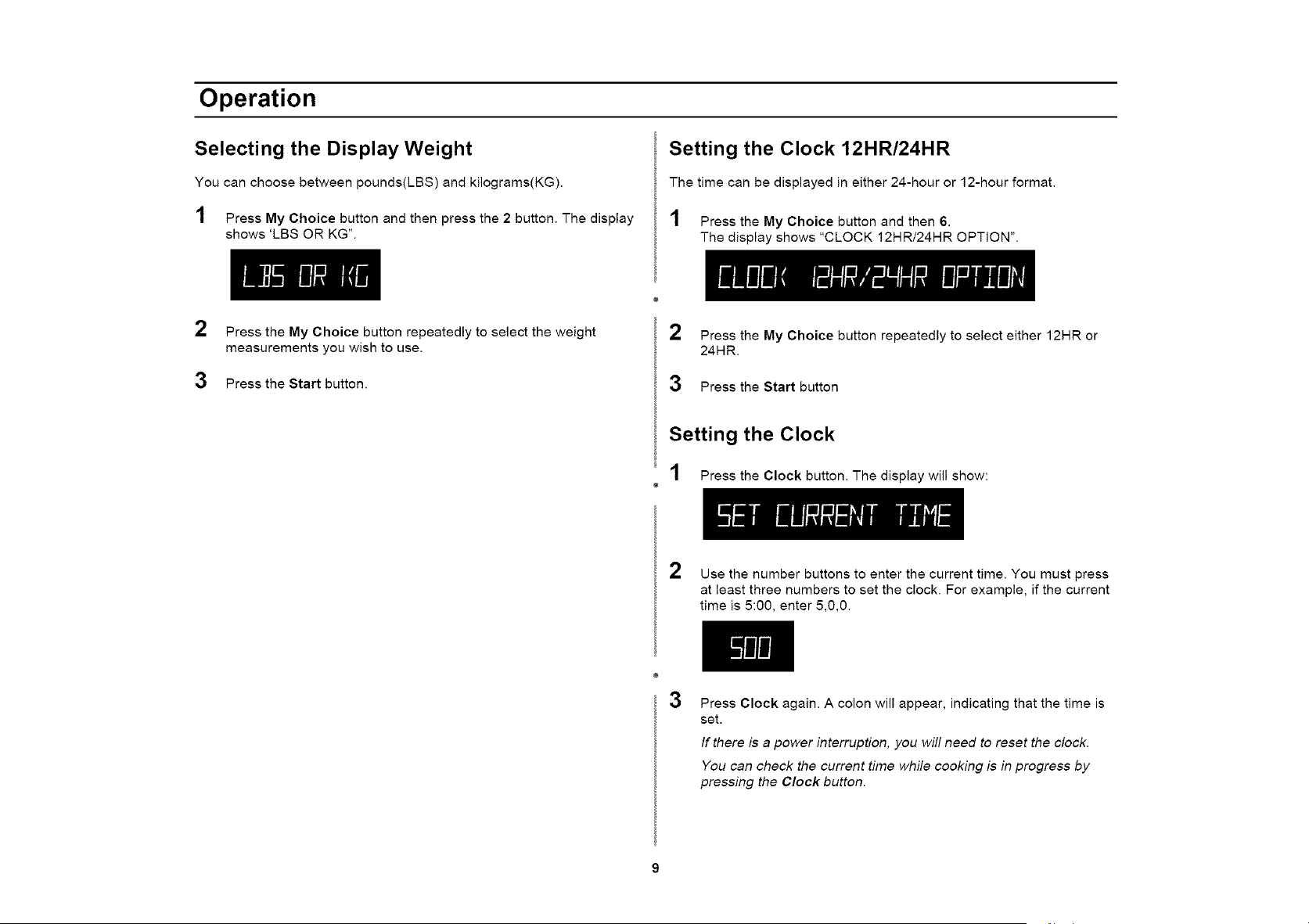

Selecting the Display Weight .................................................................. 9
Setting the Clock 12HR/24HR ................................................................ 9
Setting the Clock .................................................................................... 9

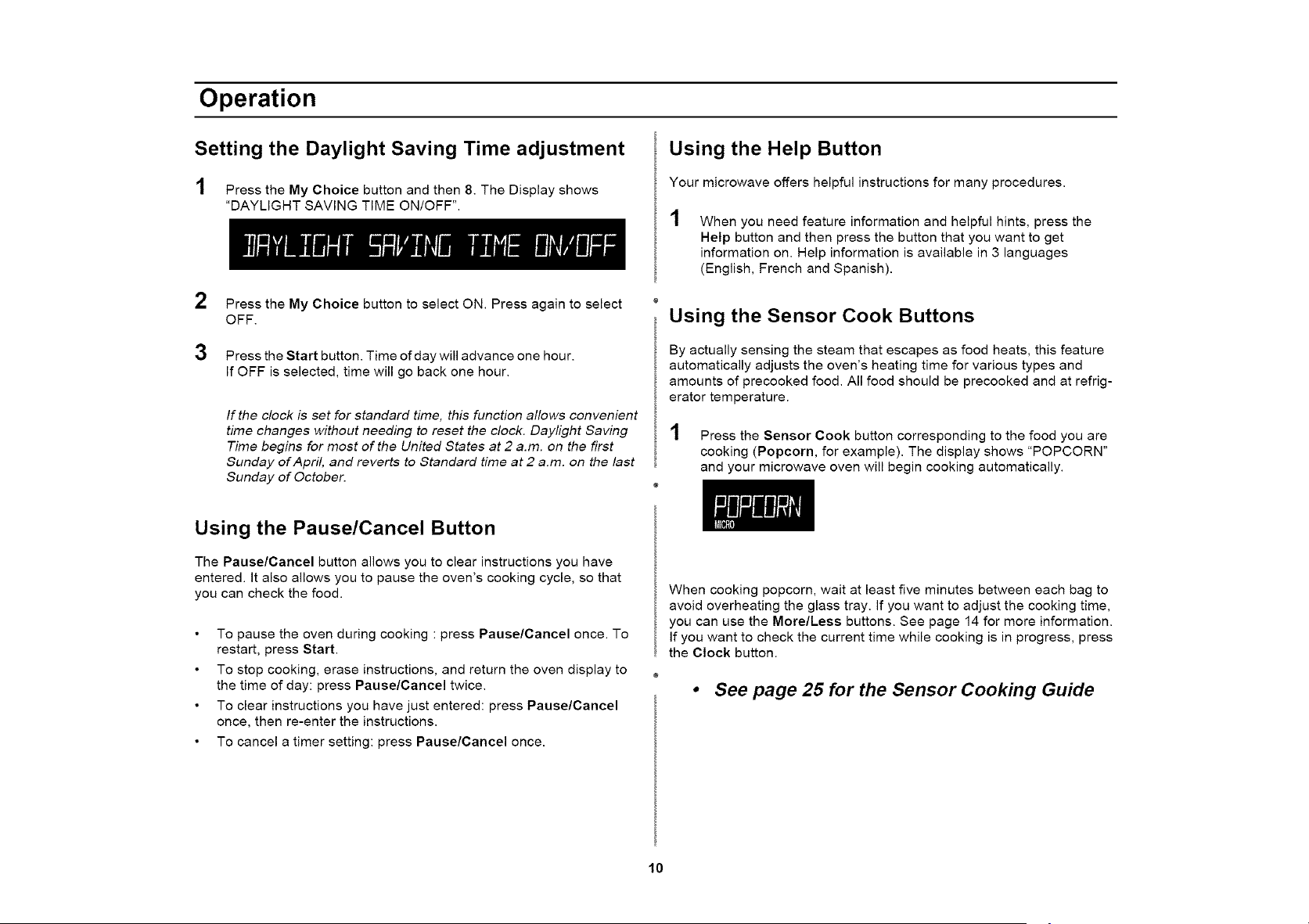

Setting the Daylight Saving Time adjustment ....................................... 10
Using the Pause/Cancel Button ........................................................... 10
Using the Help Button .......................................................................... 10
Using the Sensor Cook Buttons ........................................................... 10
Using the One Minute + Button ............................................................ 11
Sensor Reheat ..................................................................................... 11
Defrosting Automatically ....................................................................... 11

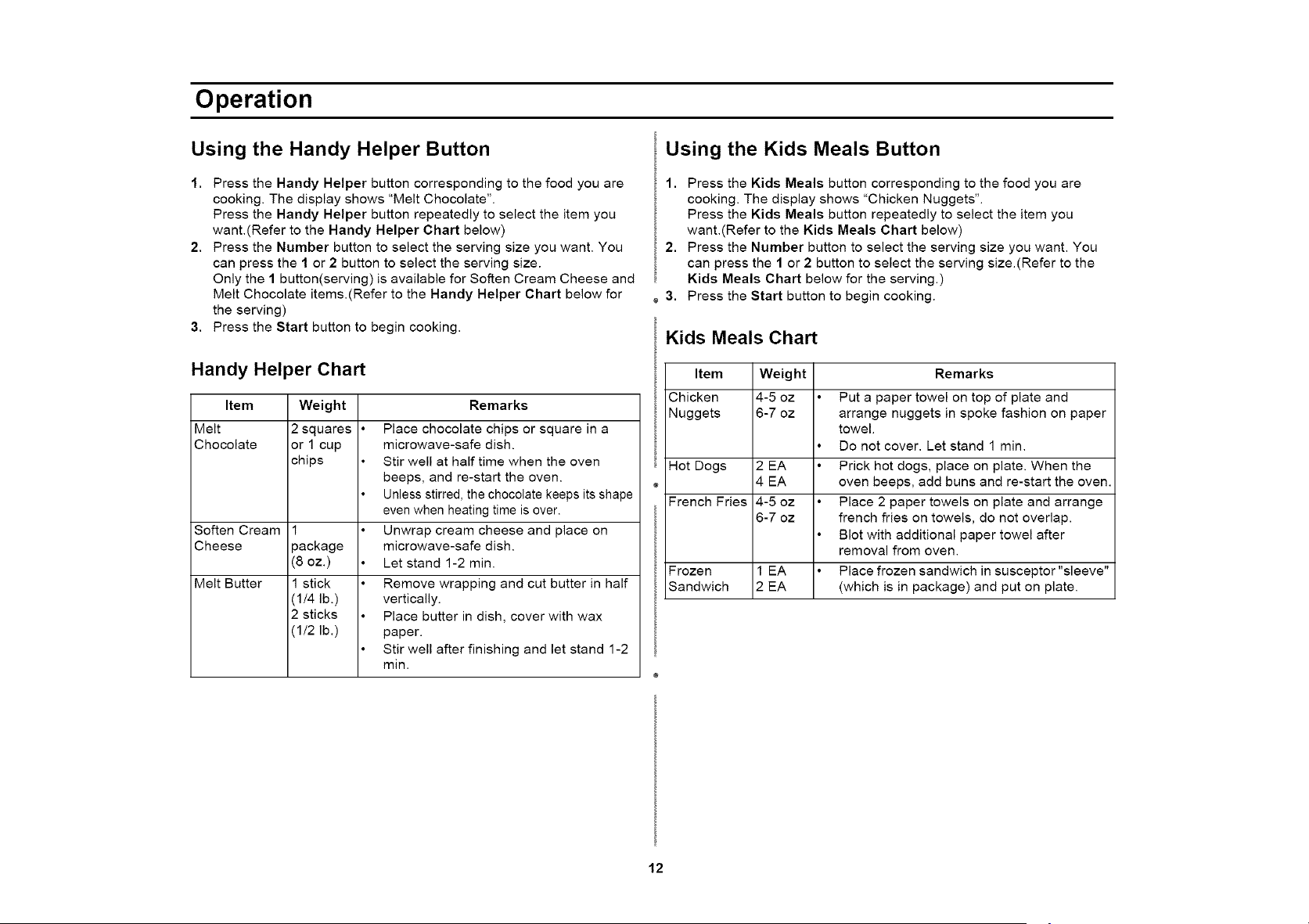

Using the Handy Helper Button ............................................................ 12
Using the Kids Meals Button ................................................................ 12

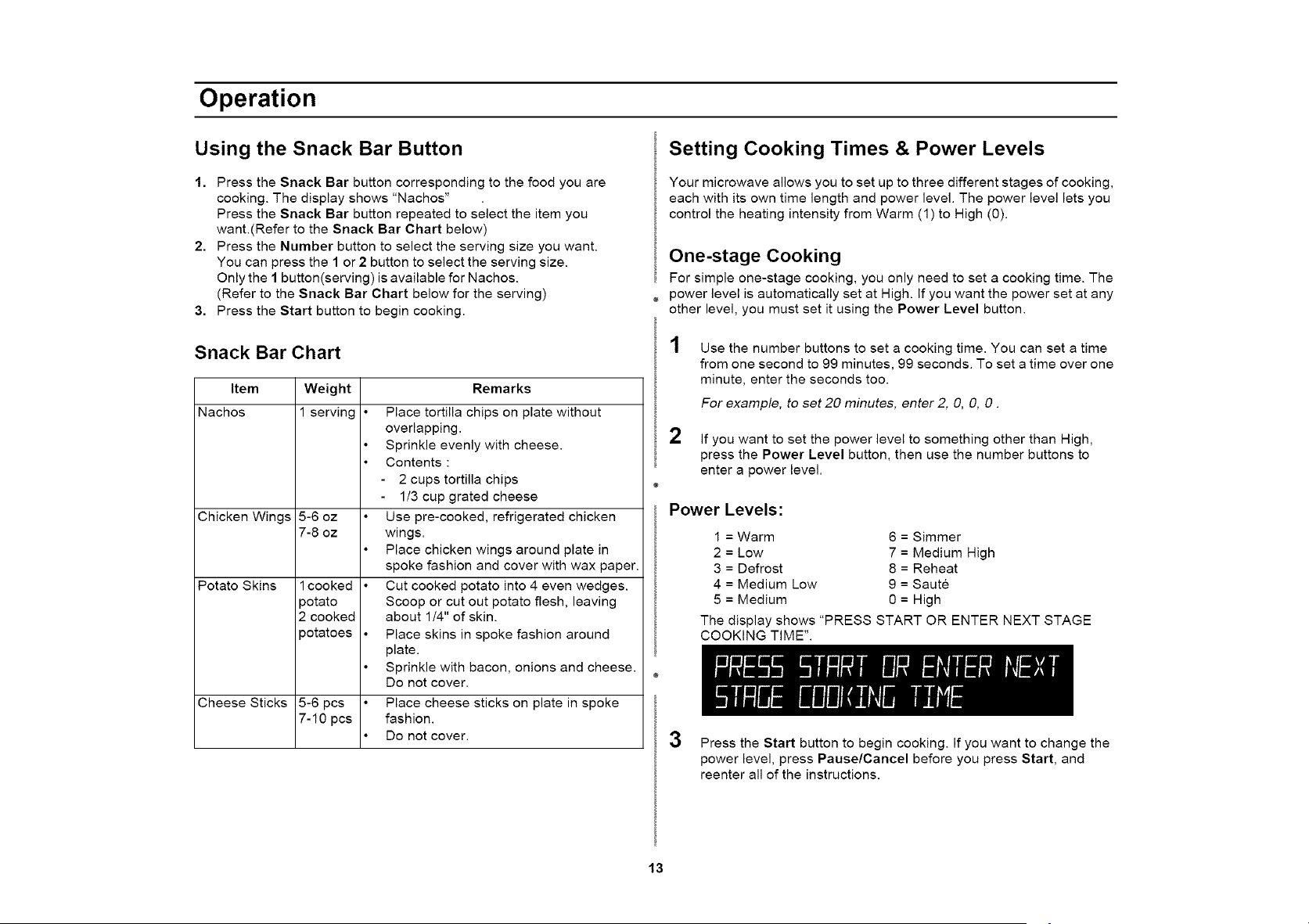

Using the Snack Bar Button ................................................................. 13
Setting Cooking Times & Power Levels ............................................... !3

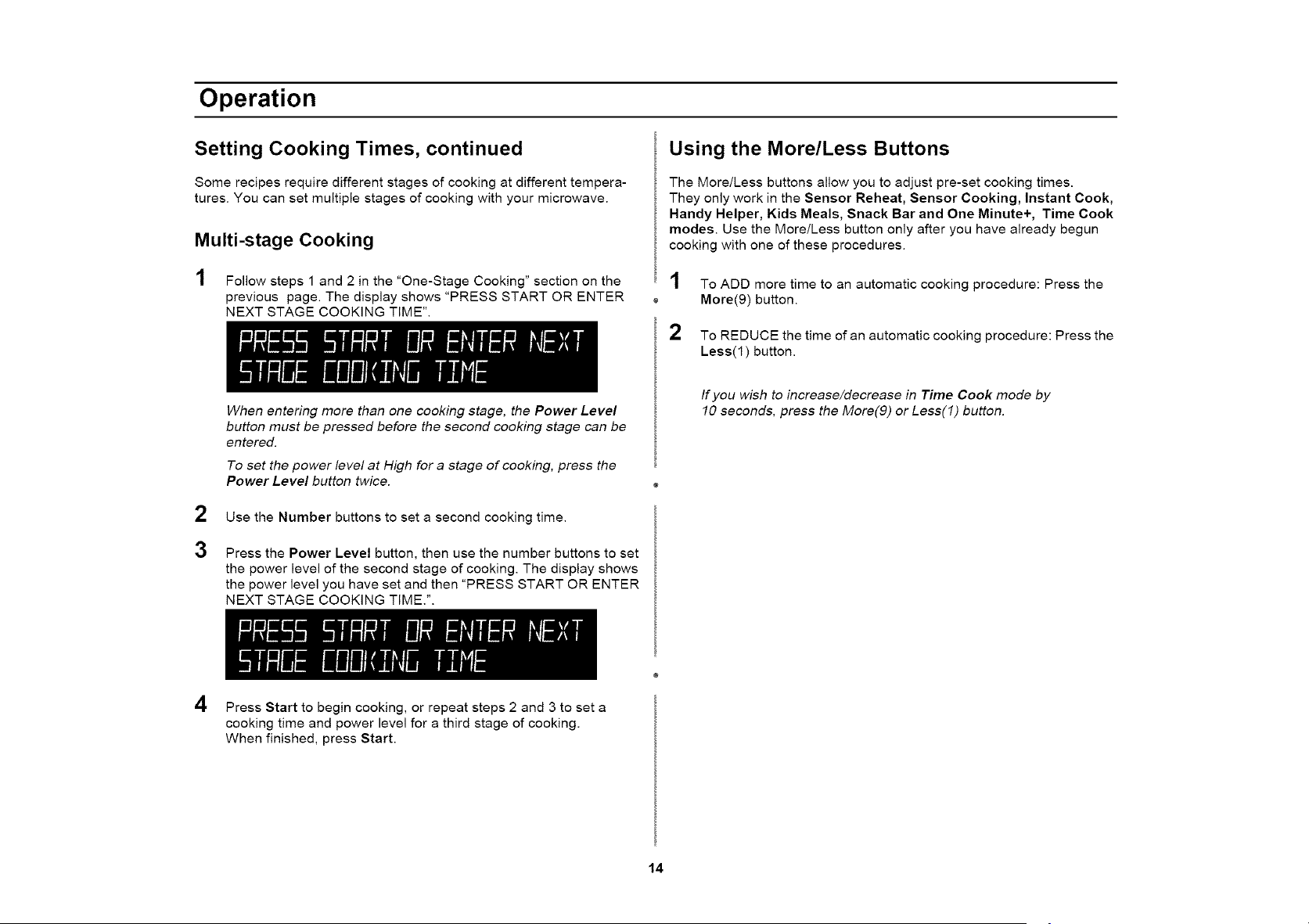

Using the More/Less Buttons ............................................................... 14

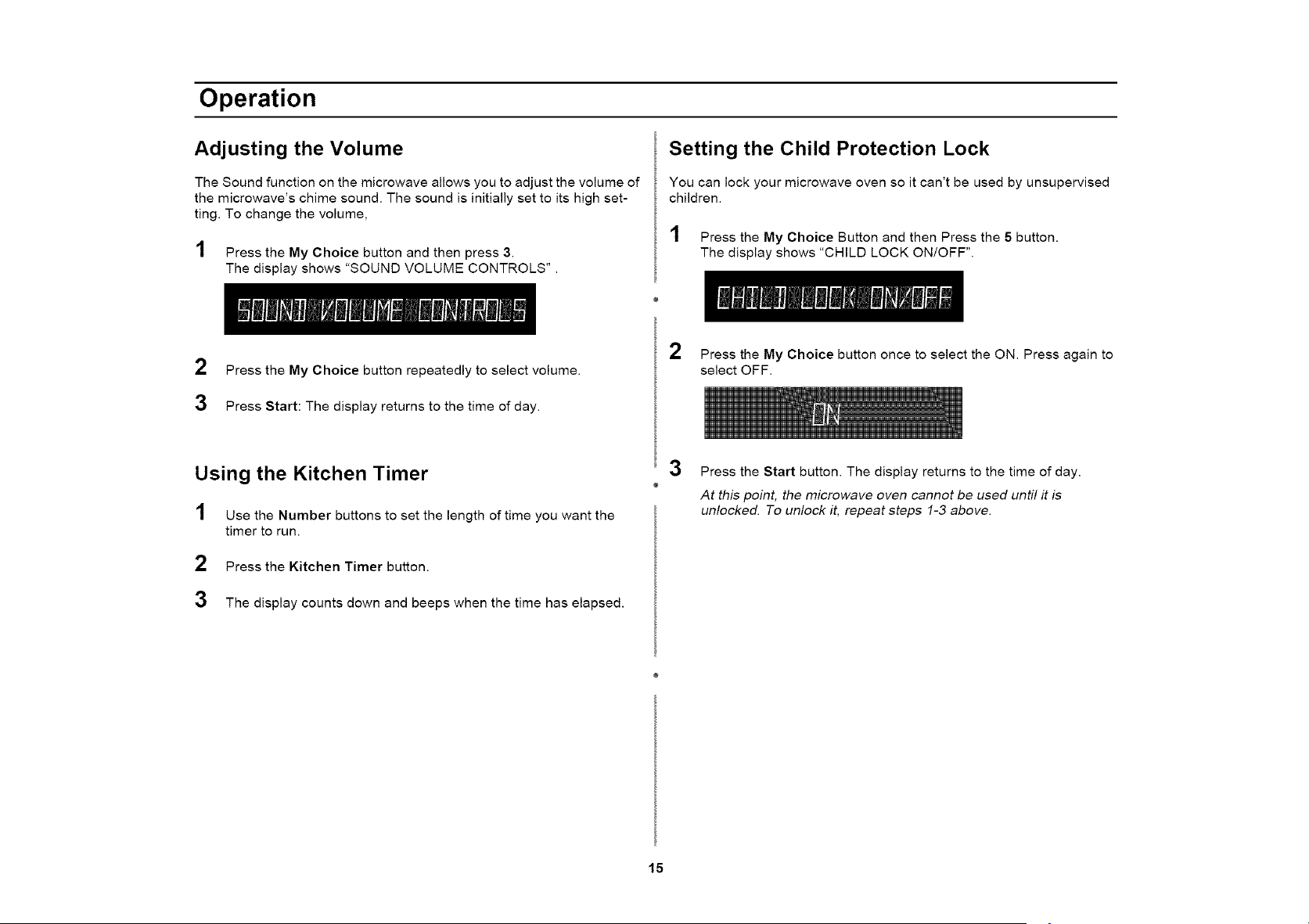

Adjusting the Volume ........................................................................... 15
Using the Kitchen Timer ....................................................................... 15
Setting the Child Protection Lock ......................................................... !5

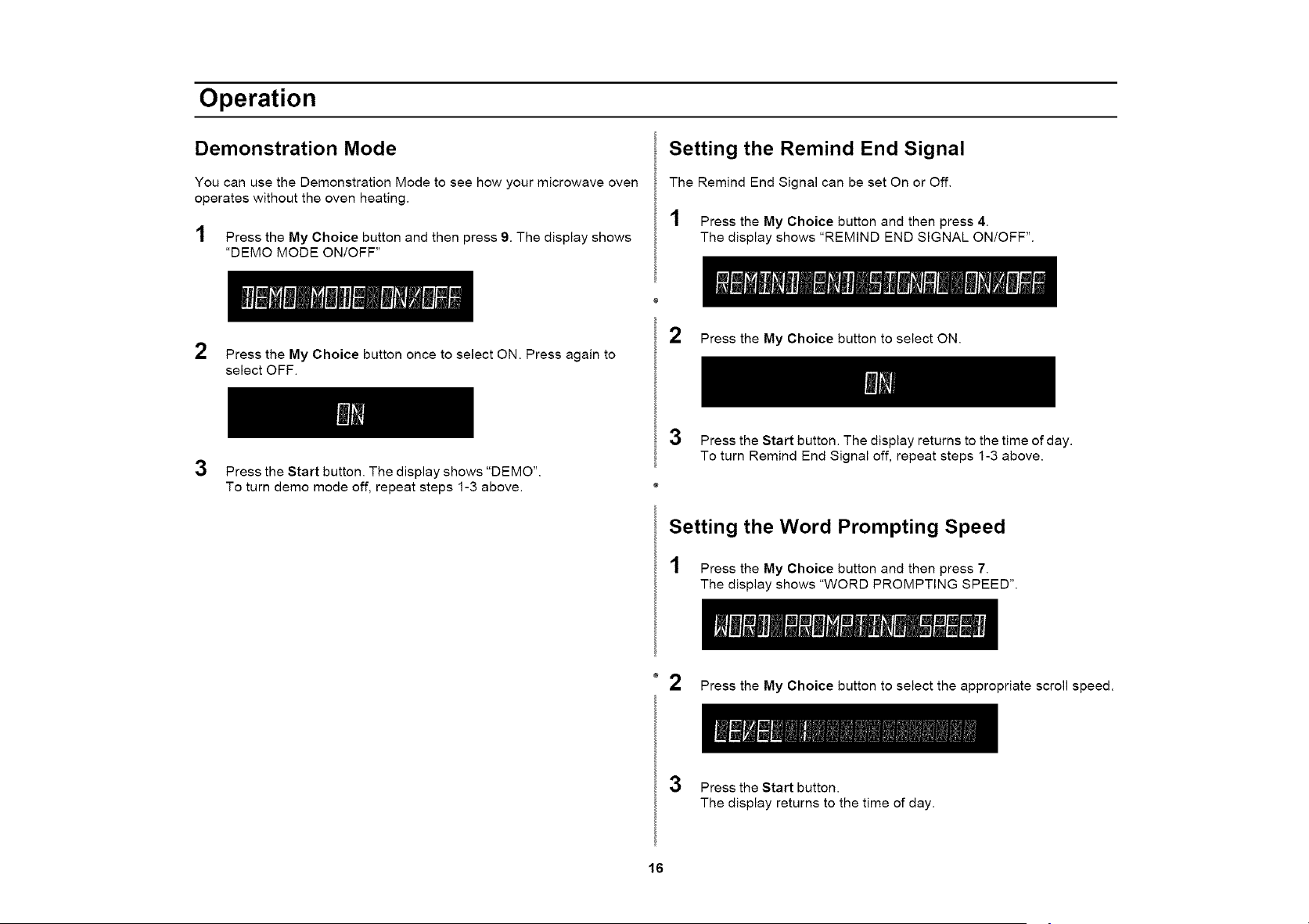

Demonstration Mode ............................................................................ 16
Setting the Remind End Signal ............................................................ 16
Setting the Word Prompting Speed ...................................................... 16
Cooking Instructions ....................................................................... 17

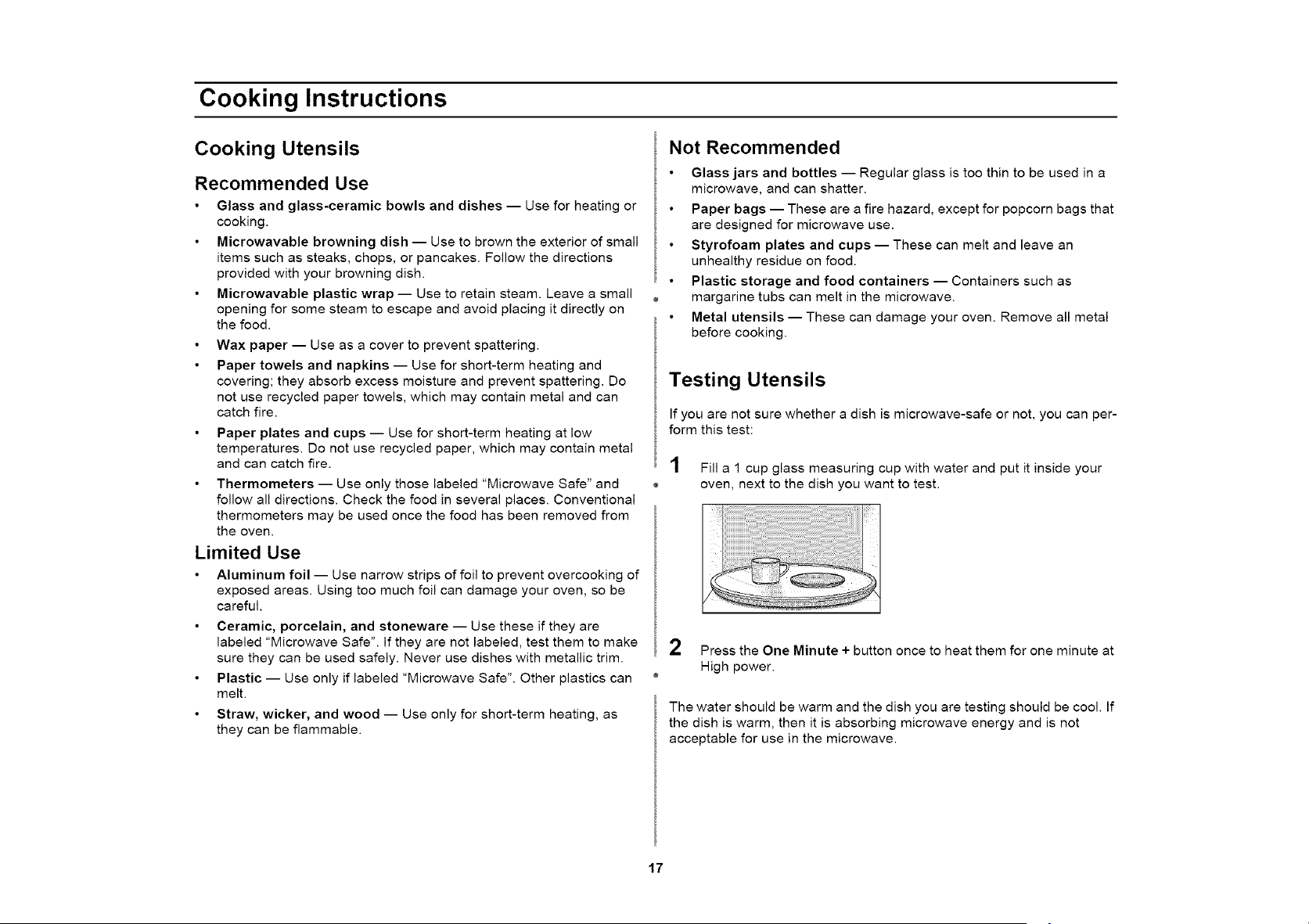

Cooking Utensils .................................................................................. 17
Testing Utensils .................................................................................... 17

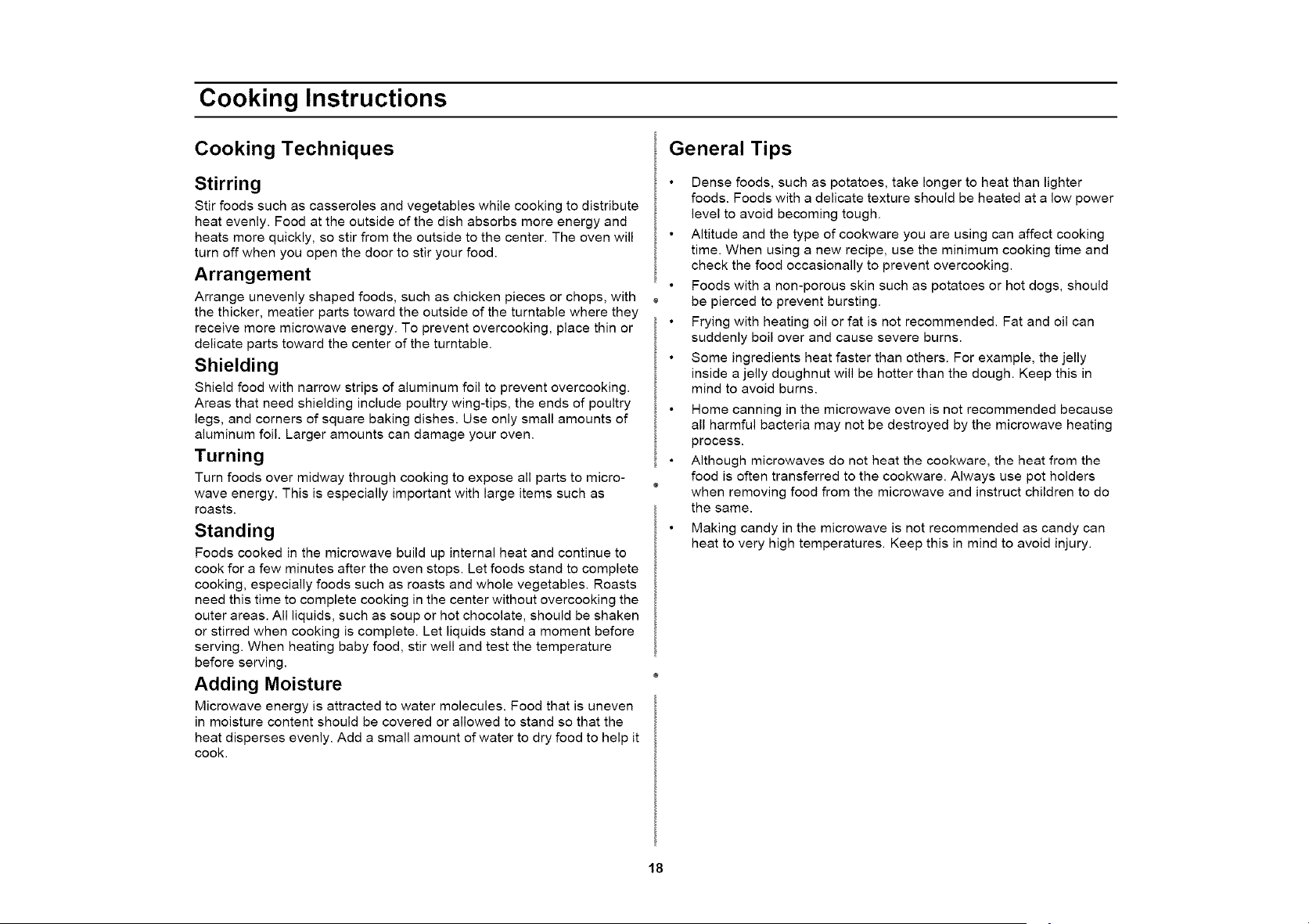

Cooking Techniques ............................................................................ !8
General Tips ......................................................................................... !8

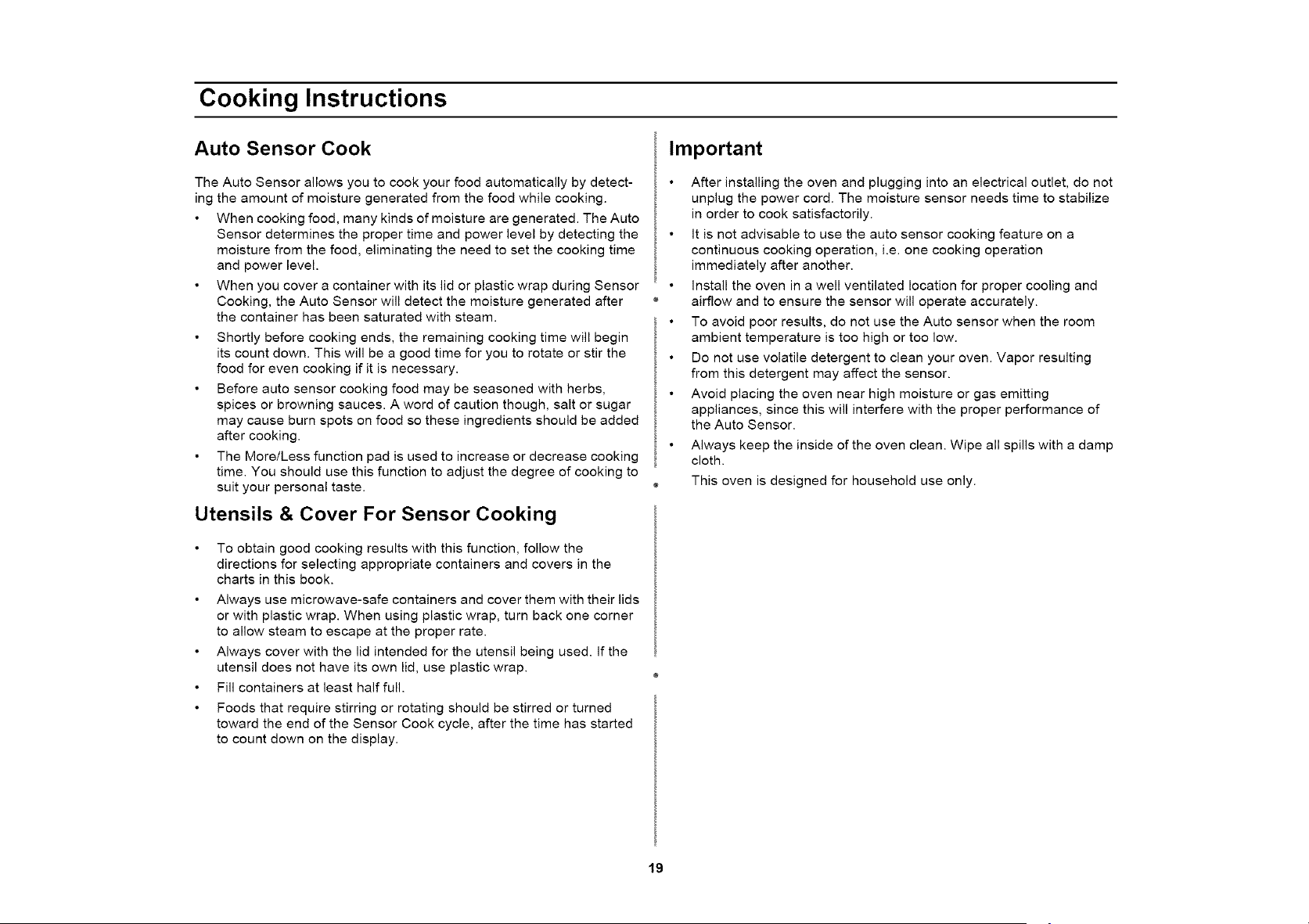

Auto Sensor Cook ................................................................................ 19
Utensils & Cover For Sensor Cooking .................................................. 19
Important .............................................................................................. !9

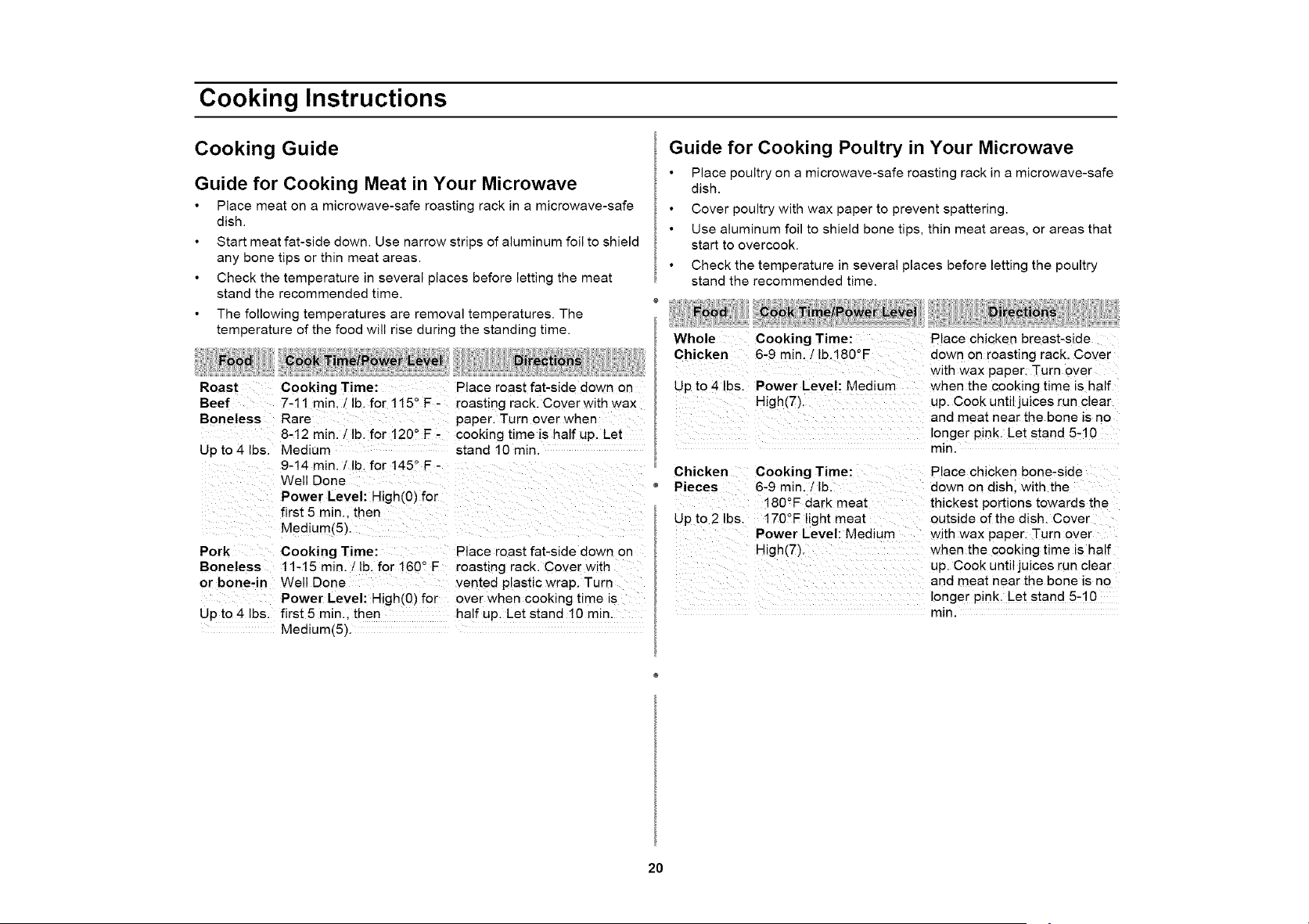

Cooking Guide ..................................................................................... 20

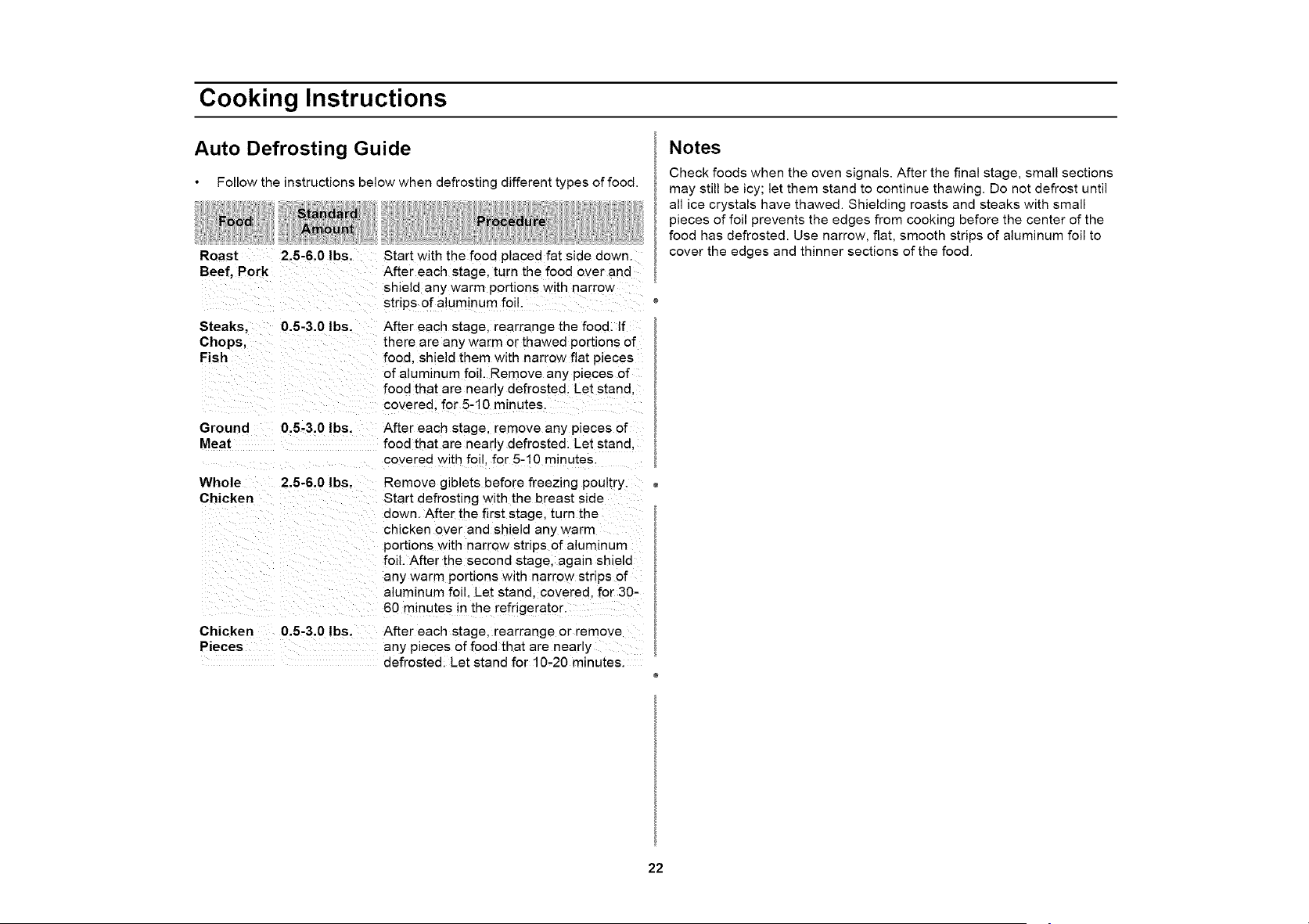

Auto Defrosting Guide .......................................................................... 22

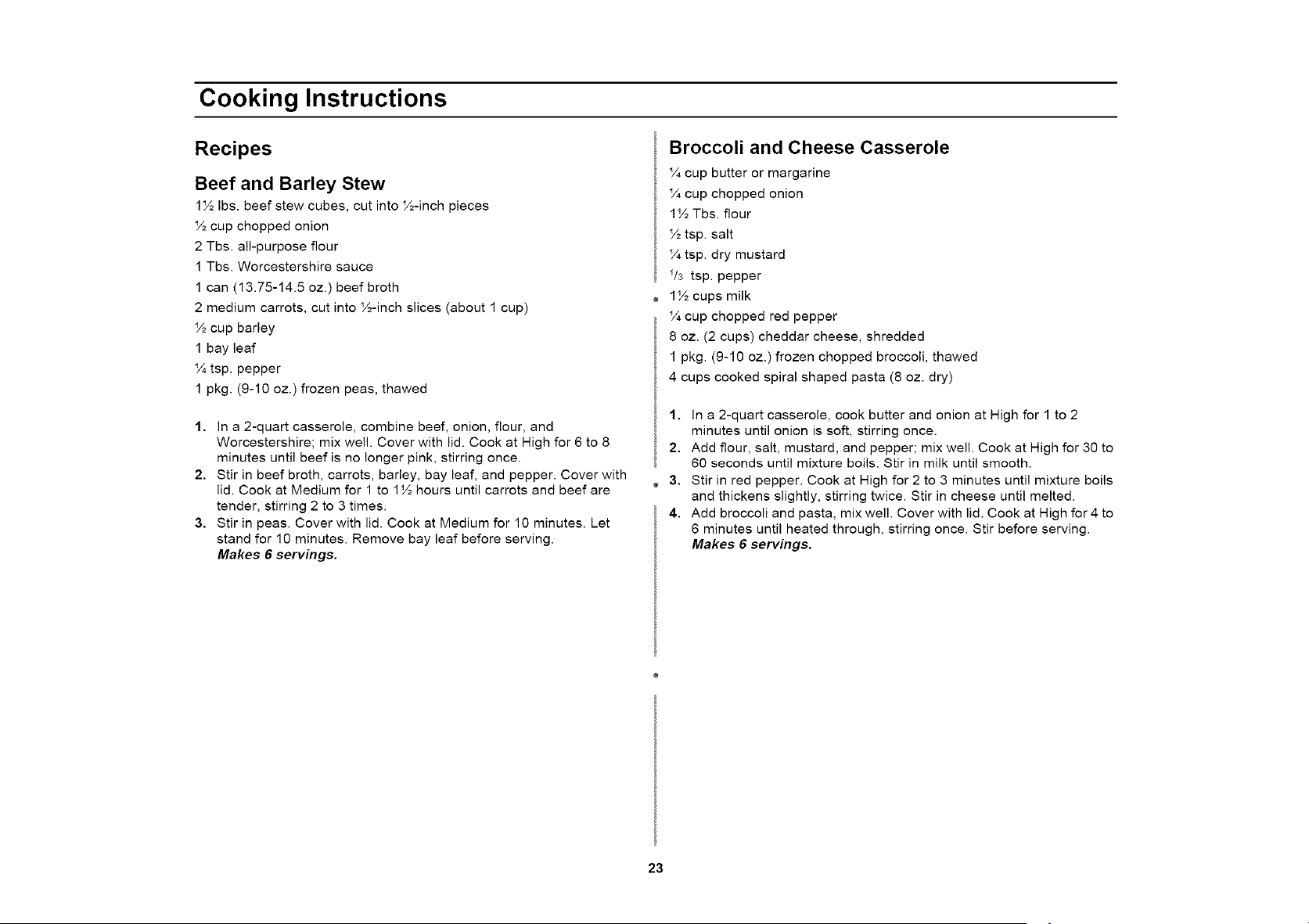

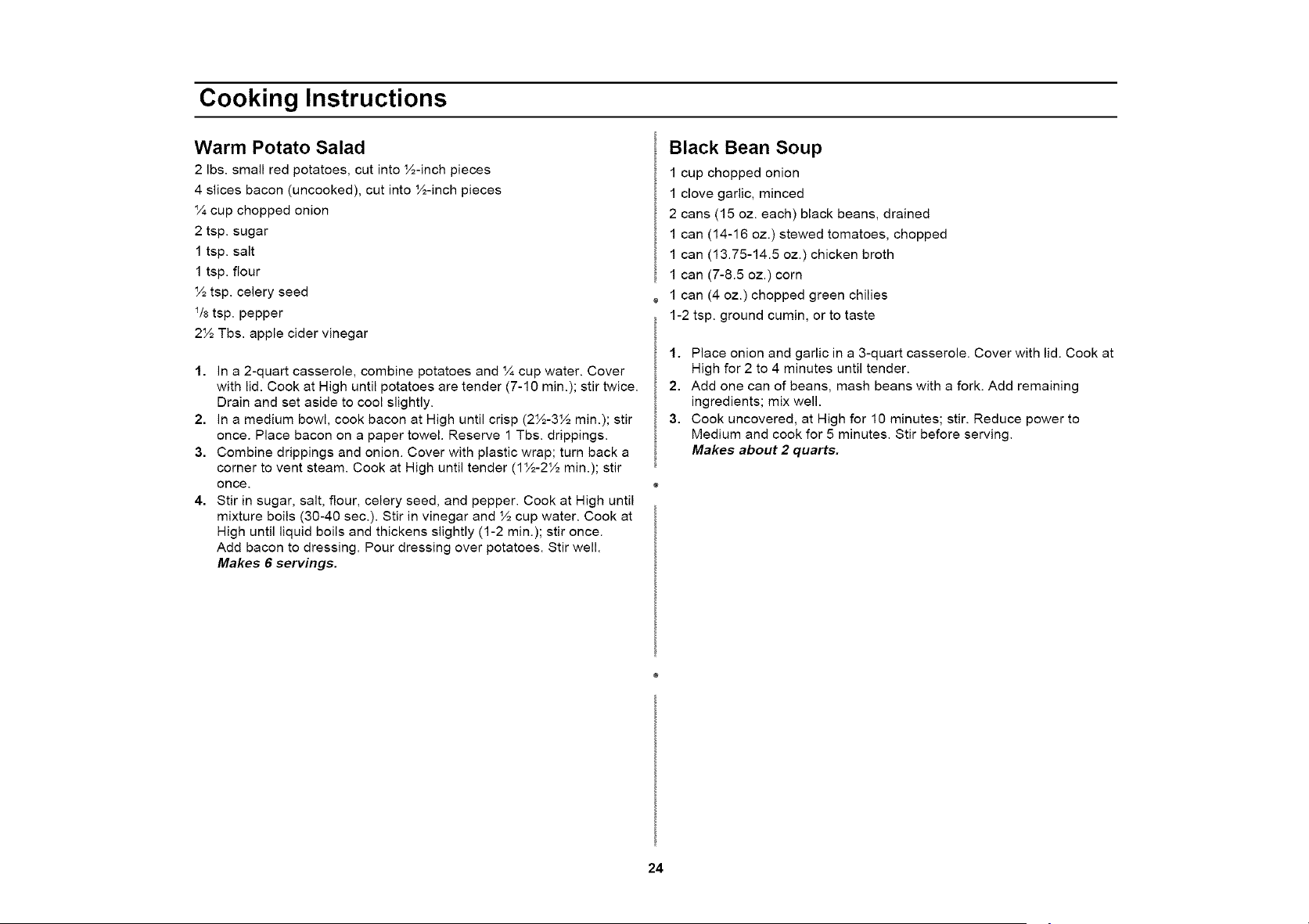

Recipes ................................................................................................ 23

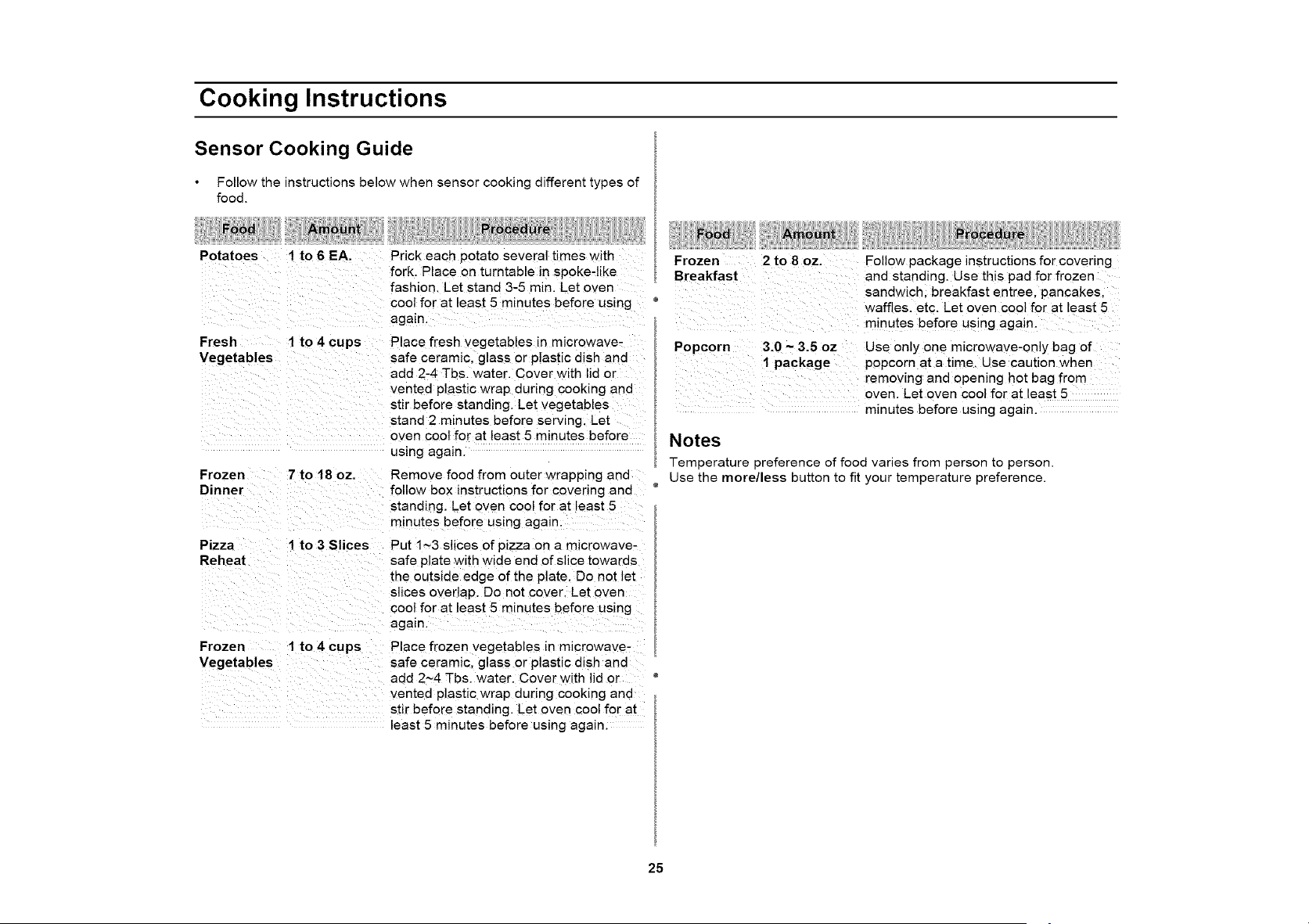

Sensor Cooking Guide ......................................................................... 25

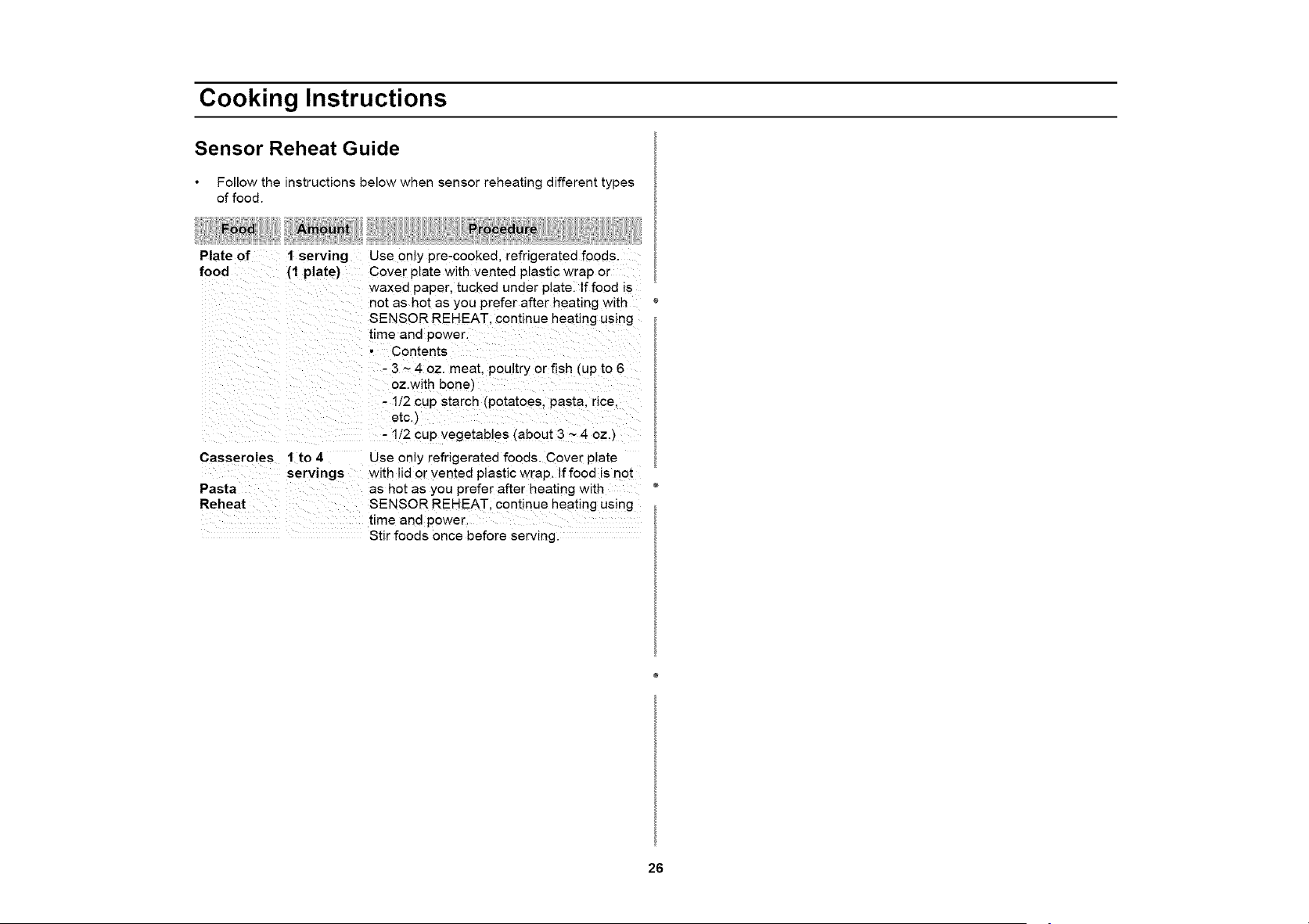

Sensor Reheat Guide ........................................................................... 26

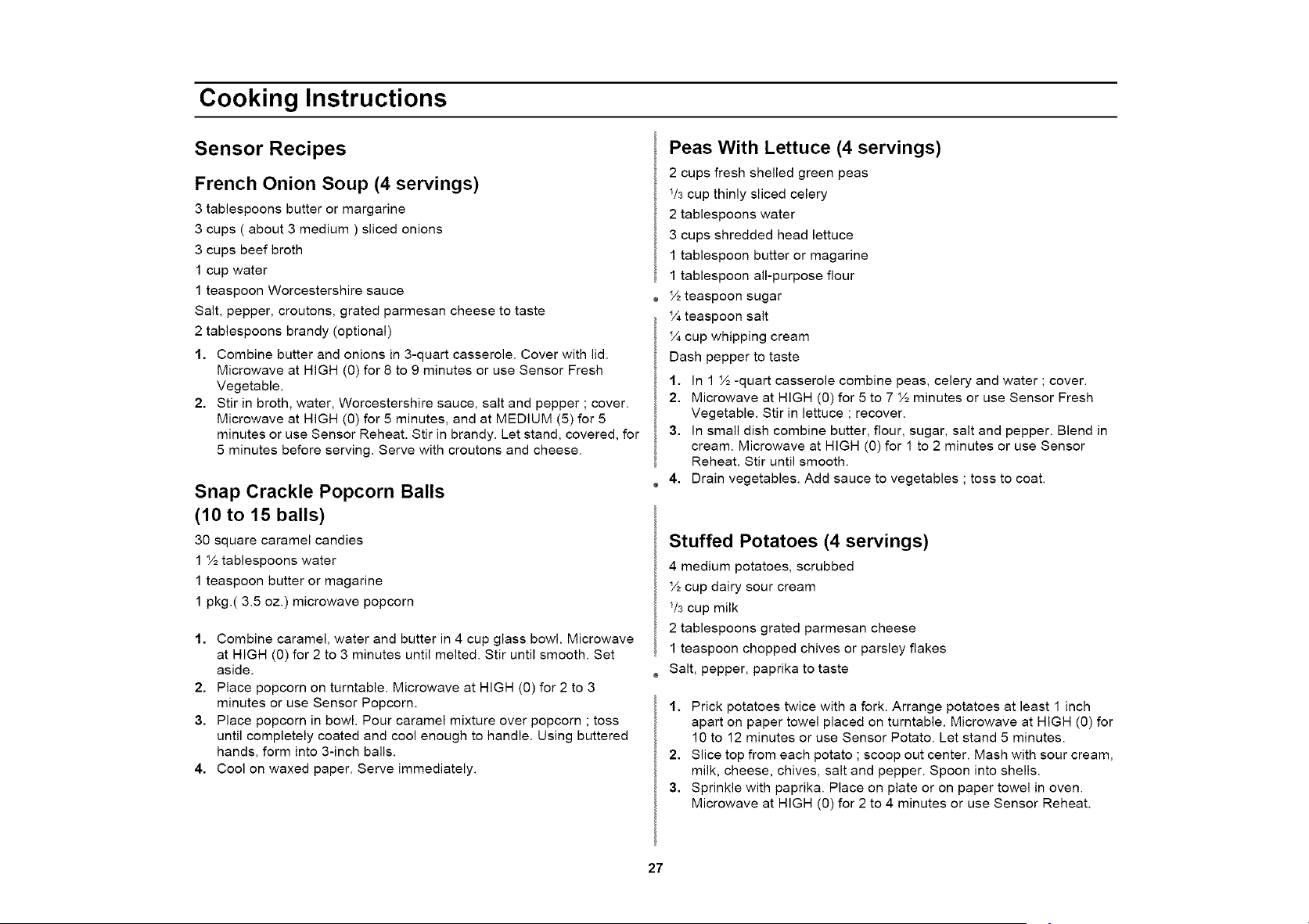

Sensor Recipes .................................................................................... 27

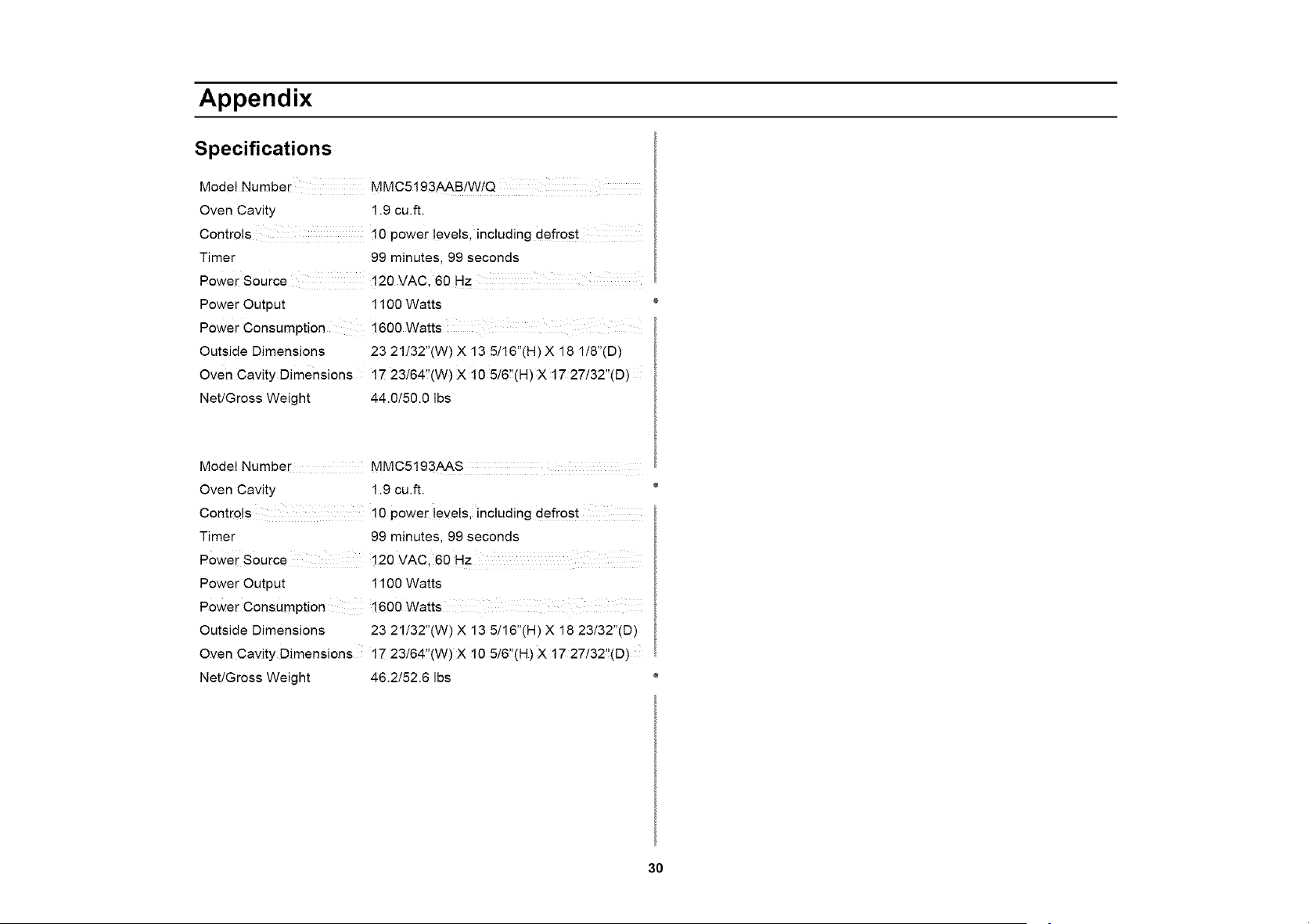

Appendix ........................................................................................... 29

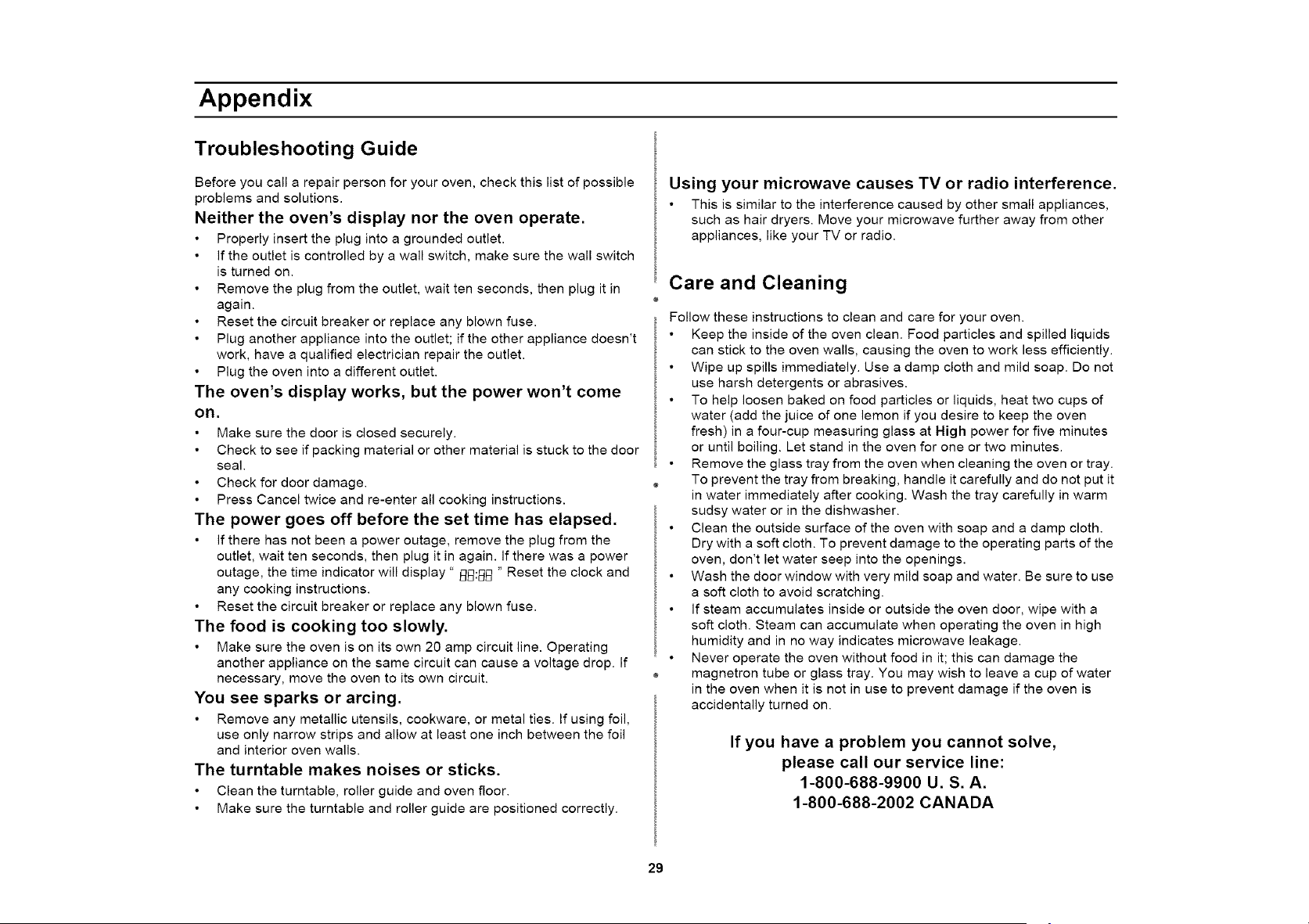

Troubleshooting Guide ......................................................................... 29
Care and Cleaning ............................................................................... 29
Specifications ....................................................................................... 30

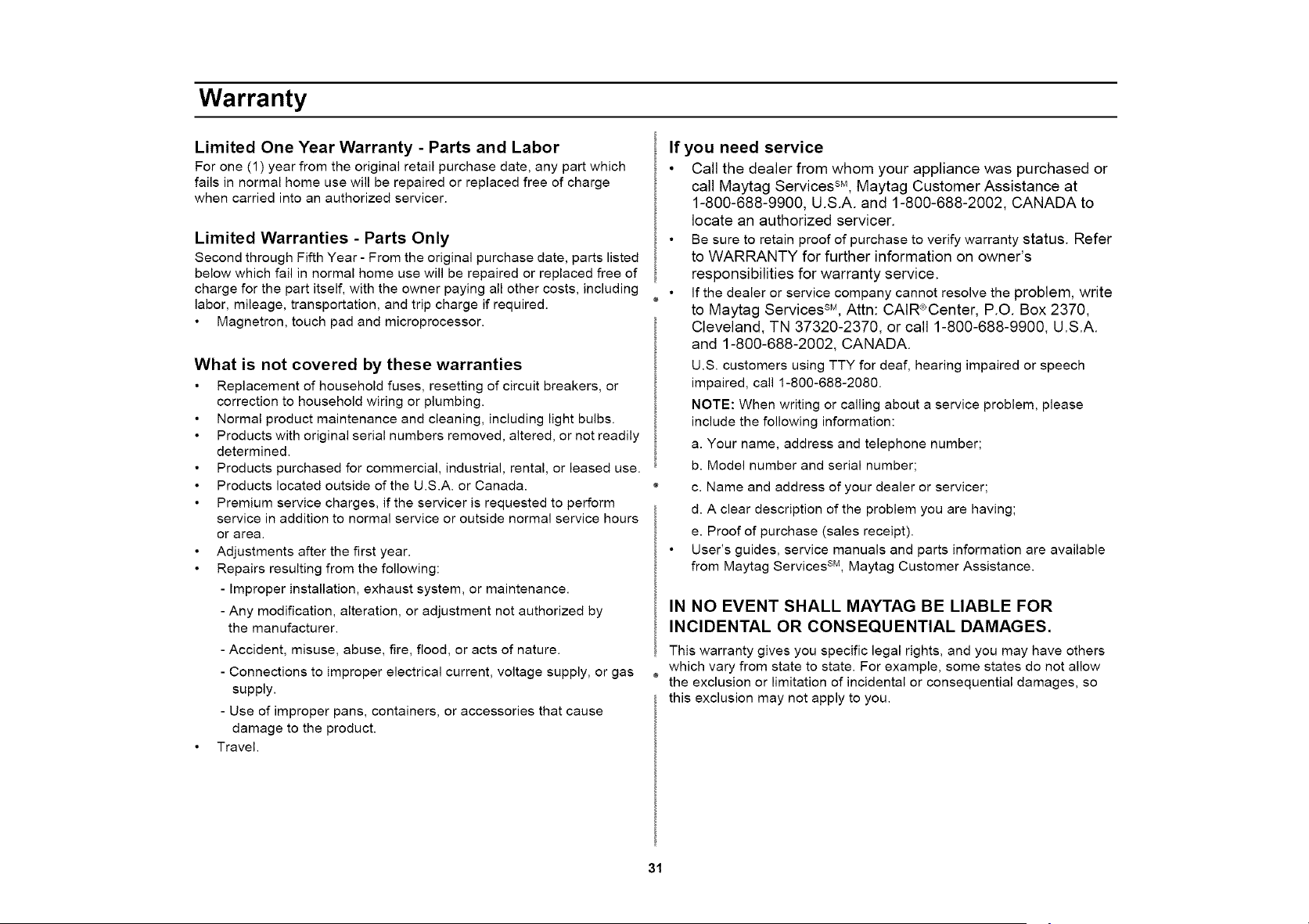

Warranty ........................................................................................... 31

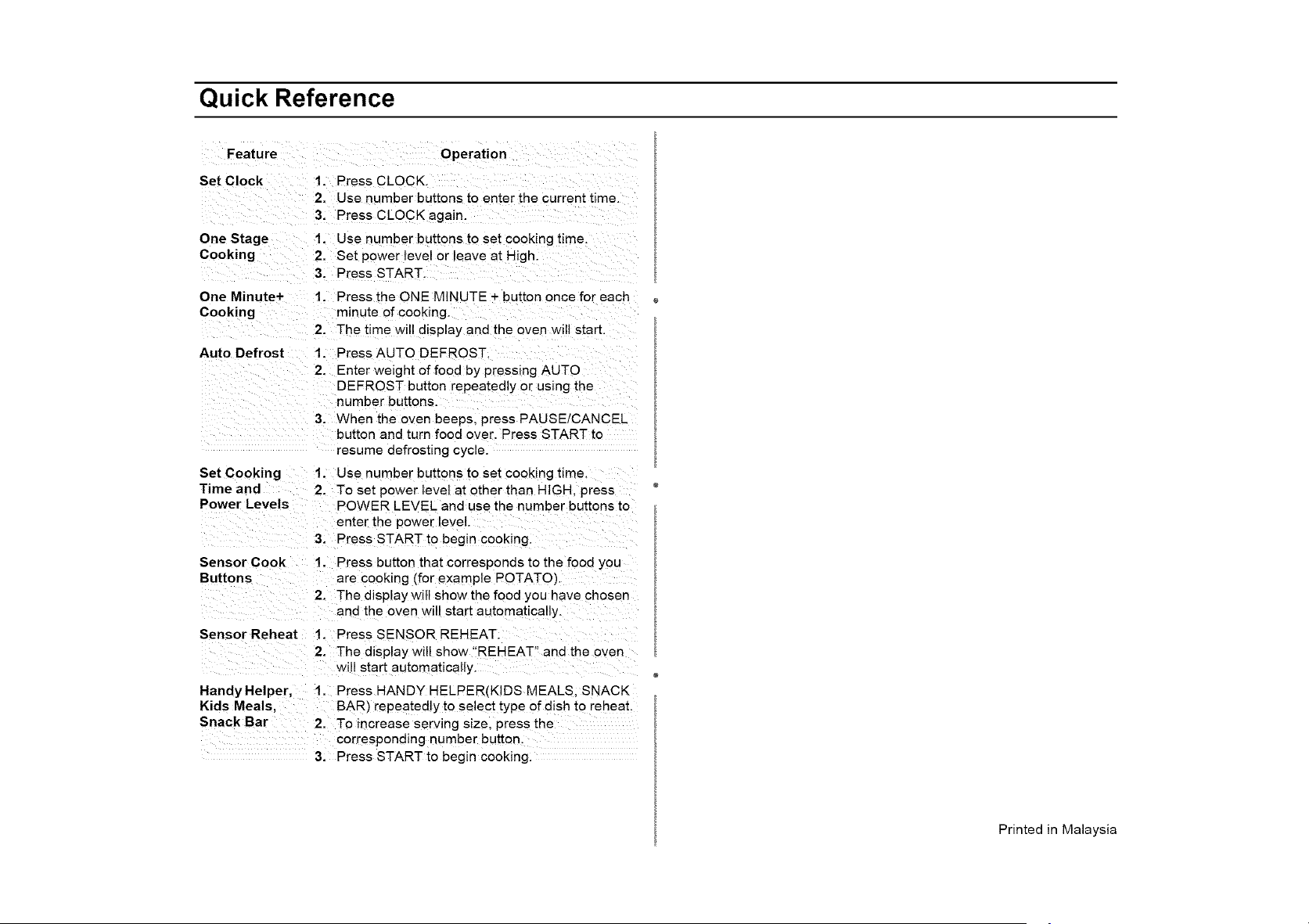

Quick Reference ........................................................ Back Cover
Checking Parts
Unpack your microwave oven and check to make sure that you have all
the parts shown here. If any part is missing or broken, call your dealer.
Microwave oven
Roller guide
Glass tray
Registration card
Instruction manual
Your New Microwave oven
Setting Up Your Microwave Oven
1 Place the even on a flat, sturdy surface and plug the cord into a
grounded outlet. Once plugged in, the display on your oven will
show after four seconds:
2
3
4
Make sure there is adequate ventilation for your oven by leaving at
least four inches of space behind, above, and to the sides of the
oven.
Open the oven door.
Wipe the inside of the oven with a damp cloth.
Place the pre-assembled roller guide in the indentation in the
center of the oven.
5 Place the glass tray secerely in the center of the pre-assembled
roller guide.
Control Panel Buttons MMC5193AAB/W/Q
6
8
9
10
11
I
7
12
...... 13
14
Your New Microwave oven
Control Panel Buttons MMC5193AAS
5
7
12
13
14
,
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
One Minute + p.11
Press once for every minute of cooking at High power.
Sensor Cook Buttons p.10
Sensor settings to cook popular foods.
Handy Helper, Kids Meals, Snack Bar p.12
Selects type of dish to be reheated.
Sensor Reheat p.11
Auto Defrost p.11
Sets weight of food to be defrosted.
Number Buttons
Set cooking times or amounts and power levels
other than high.
More/Less p.14
increase or decrease cooking time.
Kitchen Timer p.15
Sets kitchen or convenience timer.
Power Level p.13
Press this pad to set a power level other than high.
Pause/Cancel p.10
Press to pause oven or correct a mistake.
My Choice p.8
Press to set non-cooking feature.
Clock p.9
Sets current time
Help p.10
Press to see help information about the feature
you are using.
Start
Press to start cooking.
Operation
Turning on the Power and Selecting a Display
Language
The first time you plug the power cord into an outlet, or after there has
been an interruption in power, the display shows after four seconds
"ENJOY YOUR COOKING ...... PRESS MY CHOICE FOR PER-
SONAL OPTIONS"
1 Press My Choice immediately after plugging in your microwave.
The display will show "PRESS 1-9 TO SELECT VARIOUS
OPTIONS".
2 Press the I button. The display will show:
3 Press My Choice the display will show:
4
Press My Choice repeatedly to select the language you wish to
use:
ENGLISH
FRENCH
SPANISH
If you continue to press My Choice, the settings will cycle in the
order shown here:
5 Press the Start button.
Using the My Choice feature
Your new microwave oven can be customized to suit your personal
tastes. Simply press My Choice to set these options. For your conve-
nience, all the options are summarized in the following table:
My Choice Description Operation
options
Display Weight Weight options are Press My Choice, 2 and select by
3ounds or kilo- repeatedly pressing My Choice.
grams. To set, press Start.
Adjusting the Volume options Press My Choice, 3 and select by
Volume include Off, Low, repeatedly pressing My Choice.
Medium, High and To set, press Start.
Melody 1~5.
Remind End The Remind End Press My Choice, 4 and select by
Signal Signal can be repeatedly pressing My Choice.
turned On and Off. To set, press Start.
Child Protec- This feature pre- Press My Choice, 5 and select by
tion Lock vents use by unsu- pressing My Choice. To set,
3ervised children. 3ress Start.
Clock The clock can dis- Press My Choice, 6 and select by
12HR/24HR play either 12HR repeatedly pressing My Choice.
or 24HR time To set, press Start.
modes.
Word Prompt- There are five Press My Choice, 7 and select by
ing Speed speeds, from Level repeatedly pressing My Choice.
1(slowest) to Level To set, press Start.
5 (fastest). Default
is Level 3.
Daylight Say- The time can be Press My Choice, 8 and select by
ings Time advanced one hour repeatedly pressing My Choice.
Adjustment for DST without To set, press Start.
resetting the Clock.
Demonstration The Demo Mode Press My Choice, 9 and select by
Mode can be turned On repeatedly pressing My Choice.
and Off. To set, press Start.
If there is a power interruption, you will need to reset these options.
Operation
Selecting the Display Weight
You can choose between pounds(LBS) and kilograms(KG).
1 Press My Choice button and then press the 2 button. The display
shows 'LBS OR KG".
Setting the Clock 12HR/24HR
The time can be displayed in either 24-hour or 12-hour format.
1 Press the My Choice button and then 6.
The display shows "CLOCK 12HR/24HR OPTION".
2
3
Press the My Choice button repeatedly to select the weight
measurements you wish to use.
Press the Start button.
2 Press the My Choice button repeatedly to select either 12HR or
24HR.
3 Press the Start button
Setting the Clock
1 Press the Clock button. The display will show:
2 Use the number buttons to enter the current time. You must press
at least three numbers to set the clock. For example, if the current
time is 5:00, enter 5,0,0.
3
Press Clock again. A colon will appear, indicating that the time is
set.
If there is a power interruption, you will need to reset the clock.
You can check the current time while cooking is in progress by
pressing the Clock button.
Operation
Setting the Daylight Saving Time adjustment
1 Press the My Choice button and then 8. The Display shows
"DAYLIGHT SAVING TIME ON/OFF".
2
3
Press the My Choice button to select ON. Press again to select
OFF.
Press the Start button. Time of day will advance one hour.
If OFF is selected, time will go back one hour.
If the clock is set for standard time, this function allows convenient
time changes without needing to reset the clock. Daylight Saving
Time begins for most of the United States at 2 a.m. on the first
Sunday of April, and reverts to Standard time at 2 a.m. on the last
Sunday of October.
Using the Help Button
Your microwave offers helpful instructions for many procedures.
When you need feature information and helpful hints, press the
Help button and then press the button that you want to get
information on. Help information is available in 3 languages
(English, French and Spanish).
Using the Sensor Cook Buttons
By actually sensing the steam that escapes as food heats, this feature
automatically adjusts the oven's heating time for various types and
amounts of precooked food. All food should be precooked and at refrig-
erator temperature.
1 Press the Sensor Cook button corresponding to the food you are
cooking (Popcorn, for example). The display shows "POPCORN"
and your microwave oven will begin cooking automatically.
Using the PauselCancel Button
The Pause/Cancel button allows you to clear instructions you have
entered. It also allows you to pause the oven's cooking cycle, so that
you can check the food.
To pause the oven during cooking : press Pause/Cancel once. To
restart, press Start.
To stop cooking, erase instructions, and return the oven display to
the time of day: press Pause/Cancel twice.
To clear instructions you have just entered: press Pause/Cancel
once, then re-enter the instructions.
To cancel a timer setting: press Pause/Cancel once.
When cooking popcorn, wait at least five minutes between each bag to
avoid overheating the glass tray. If you want to adjust the cooking time,
you can use the More/Less buttons. See page 14 for more information.
If you want to check the current time while cooking is in progress, press
the Clock button.
• See page 25 for the Sensor Cooking Guide
10
Operation
Using the One Minute + Button
This button offers a convenient way to heat food in one minute incre-
ments at the High power level.
Press the One Minute+ button once for each minute you wish to
cook the food. For example, press it twice for two minutes. The time
will display, and the oven starts automatically.
Add minutes to a program in progress by pressing the
One Minute+ button for each minute you want to add.
Sensor Reheat
Heating leftovers and precooked foods is easy with your new micro-
wave. By actually sensing the steam that escapes as food heat, this fea-
ture automatically adjusts the oven's heating time for various types and
amounts of precooked food. All food should be precooked and at refrig-
erator temperature. To use sensor reheating:
1 Press Sensor Reheat. The display will show "REHEAT" and the
oven will start automatically.
If you want to adjust the heating time, use the More/Less buttons.
See page 14 for the More/Less buttons. If you want to check the
current time while reheating, press the Clock button.
Defrosting Automatically
To thaw frozen food, set the weight of the food and the microwave auto-
matically sets the defrosting time, power level and standing time.
1 Press the Auto Defrost button. The display shows "0.5 LB."(0.2Kg
if you have set your oven for metric measure).
2
To set the weight of your food, press the Auto Defrost button
repeatedly. This increases the weight by 0.5 Ib increments, up to
6.0 Ibs. You can also use the number buttons to enter the weight of
the food directly. The oven calculates the defrosting time and starts
automatically. Twice during defrosting, the oven will beep and the
display will read "TURN THE FOOD OVER.
3 Press the Pause/Cancel button, open the oven door, and turn the
food over.
4 Press the Start button to resume defrosting.
• See page 22 for the Auto Defrosting Guide
• See page 26 for the Sensor Reheat Guide
11
Operation
Using the Handy Helper Button
1. Press the Handy Helper button corresponding to the food you are
cooking. The display shows "Melt Chocolate".
Press the Handy Helper button repeatedly to select the item you
want.(Refer to the Handy Helper Chart below)
2. Press the Number button to select the serving size you want. You
can press the 1 or 2 button to select the serving size.
Only the 1 button(serving) is available for Soften Cream Cheese and
Melt Chocolate items.(Refer to the Handy Helper Chart below for
the serving)
3. Press the Start button to begin cooking.
Handy Helper Chart
Item Weight
Melt 2 squares •
Chocolate or 1 cup
chips
Soften Cream
Cheese
Melt Butter
1
package
(8 oz.)
1 stick
(1/4 lb.)
2 sticks
(1/2 lb.)
Remarks
Place chocolate chips or square in a
microwave-safe dish.
Stir well at half time when the oven
beeps, and re-start the oven.
Unless stirred, the chocolate keeps its shape
even when heating time is over.
Unwrap cream cheese and place on
microwave-safe dish.
Let stand 1-2 min.
Remove wrapping and cut butter in half
vertically.
Place butter in dish, cover with wax
paper.
Stir well after finishing and let stand 1-2
min.
Using the Kids Meals Button
1. Press the Kids Meals button corresponding to the food you are
cooking. The display shows "Chicken Nuggets".
Press the Kids Meals button repeatedly to select the item you
want.(Refer to the Kids Meals Chart below)
2. Press the Number button to select the serving size you want. You
can press the 1 or 2 button to select the serving size.(Refer to the
Kids Meals Chart below for the serving.)
3. Press the Start button to begin cooking.
Kids Meals Chart
Item Weight
Chicken 4-5 oz
Nuggets 6-7 oz
Hot Dogs 2 EA
4 EA
French Fries 4-5 oz
6-7 oz
Frozen 1 EA
Sandwich 2 EA
Remarks
Put a paper towel on top of plate and
arrange nuggets in spoke fashion on paper
towel.
Do not cover. Let stand 1 min.
Prick hot dogs, place on plate. When the
oven beeps, add buns and re-start the oven.
Place 2 paper towels on plate and arrange
french flies on towels_ do not overlap.
Blot with additional paper towel after
removal from oven.
Place frozen sandwich in susceptor "sleeve"
(which is in package) and put on plate.
12
Operation
Using the Snack Bar Button
1. Press the Snack Bar button corresponding to the food you are
cooking. The display shows "Nachos"
Press the Snack Bar button repeated to select the item you
want.(Refer to the Snack Bar Chart below)
2. Press the Number button to select the serving size you want.
You can press the 1 or 2 button to select the serving size.
Only the 1 button(serving) is available for Nachos.
(Refer to the Snack Bar Chart below for the serving)
3. Press the Start button to begin cooking.
Snack Bar Chart
Item Weight
Nachos 1 serving •
Chicken Wings
Potato Skins
5-6 oz
7-8 oz
1cooked
potato
2 cooked
potatoes
Cheese Sticks 5-6 pcs
7-10 pcs
Remarks
Place tortilla chips on plate without
overlapping.
Sprinkle evenly with cheese.
Contents :
2 cups tortilla chips
1/3 cup grated cheese
Use pre-cooked, refrigerated chicken
wings.
Place chicken wings around plate in
spoke fashion and cover with wax paper.
Cut cooked potato into 4 even wedges.
Scoop or cut out potato flesh, leaving
about 1/4" of skin.
Place skins in spoke fashion around
plate.
Sprinkle with bacon, onions and cheese.
Do not cover.
Place cheese sticks on plate in spoke
fashion.
Do not cover.
Setting Cooking Times & Power Levels
Your microwave allows you to set up to three different stages of cooking,
each with its own time length and power level• The power level lets you
control the heating intensity from Warm (1) to High (O).
One-stage Cooking
For simple one-stage cooking, you only need to set a cooking time. The
power level is automatically set at High. If you want the power set at any
other level, you must set it using the Power Level button.
2
Use the number buttons to set a cooking time. You can set a time
from one second to 99 minutes, 99 seconds. To set a time over one
minute, enter the seconds too.
For example, to set 20 minutes, enter 2, O, O, O .
If you want to set the power level to something other than High,
press the Power Level button, then use the number buttons to
enter a power level.
Power Levels:
1 = Warm 6 = Simmer
2 = Low 7 = Medium High
3 = Defrost 8 = Reheat
4 = Medium Low 9 = Saute
5 = Medium 0 = High
The display shows "PRESS START OR ENTER NEXT STAGE
COOKING TIME".
3 Press the Start button to begin cooking. If you want to change the
power level, press Pause/Cancel before you press Start, and
reenter all of the instructions.
13
Operation
Setting Cooking Times, continued
Some recipes require different stages of cooking at different tempera-
tures. You can set multiple stages of cooking with your microwave.
Multi-stage Cooking
1 Fo,ow steps 1 and 2 in the "One-Stage Cooking" section on the
previous page. The display shows "PRESS START OR ENTER
NEXT STAGE COOKING TIME".
2
3
When entering more than one cooking stage, the Power Level
button must be pressed before the second cooking stage can be
entered.
To set the power level at High for a stage of cooking, press the
Power Level button twice.
Use the Number buttons to set a second cooking time.
Press the Power Level button, then use the number buttons to set
the power level of the second stage of cooking. The display shows
the power level you have set and then "PRESS START OR ENTER
NEXT STAGE COOKING TIME.".
Using the More/Less Buttons
The More/Less buttons allow you to adjust pre-set cooking times.
They only work in the Sensor Reheat, Sensor Cooking, Instant Cook,
Handy Helper, Kids Meals, Snack Bar and One Minute+, Time Cook
modes. Use the More/Less button only after you have already begun
cooking with one of these procedures.
1
2
To ADD more time to an automatic cooking procedure: Press the
More(9) button.
To REDUCE the time of an automatic cooking procedure: Press the
Less(1 ) button.
If you wish to increase/decrease in Time Cook mode by
10 seconds, press the More(9) or Less(l) button.
4
Press Start to begin cooking, or repeat steps 2 and 3 to set a
cooking time and power level for a third stage of cooking.
When finished, press Start.
14
Operation
Adjusting the Volume
The Sound function on the microwave allows you to adjust the volume of
the microwave's chime sound. The sound is initially set to its high set-
ting. To change the volume,
1 Press the My Choice button and then press 3.
The display shows "SOUND VOLUME CONTROLS".
Setting the Child Protection Lock
You can lock your microwave oven so it can't be used by unsupervised
children.
1 Press the My Choice Button and then Press the 5 button.
The display shows "CHILD LOCK ON/OFF".
2 Press the My Choice button repeatedly to select volume.
3 Press Start: The display returns to the time of day.
2 Press the My Choice button once to select the ON. Press again to
select OFF.
Using the Kitchen Timer
1 Use the Number buttons to set the length of time you want the
timer to run.
2 Press the Kitchen Timer button.
3 The display counts down and beeps when the time has elapsed.
3
Press the Start button. The display returns to the time of day.
At this point, the microwave oven cannot be used until it is
unlocked. To unlock it, repeat steps 1-3 above.
15
Operation
Demonstration Mode
You can use the Demonstration Mode to see how your microwave oven
operates without the oven heating.
1 Press the My Choice button and then press 9. The display shows
"DEMO MODE ON/OFF"
Setting the Remind End Signal
The Remind End Signal can be set On or Off.
1 Press the My Choice button and then press 4.
The display shows "REMIND END SIGNAL ON/OFF".
2
3
Press the My Choice button once to select ON. Press again to
select OFF.
Press the Start button. The display shows "DEMO".
To turn demo mode off, repeat steps 1-3 above.
2 Press the My Choice button to select ON.
3
Press the Start button. The display returns to the time of day.
To turn Remind End Signal off, repeat steps 1-3 above.
Setting the Word Prompting Speed
1 Press the My Choice button and then press 7.
The display shows "WORD PROMPTING SPEED".
° 2 Press the My Choice button to select the appropriate scroll speed.
3 Press the Start button.
The display returns to the time of day.
16
Cooking Instructions
Cooking Utensils
Recommended Use
Glass and glass-ceramic bowls and dishes -- Use for heating or
cooking.
Microwavable browning dish -- Use to brown the exterior of small
items such as steaks, chops, or pancakes. Follow the directions
provided with your browning dish.
Microwavable plastic wrap -- Use to retain steam. Leave a small
opening for some steam to escape and avoid placing it directly on
the food.
Wax paper -- Use as a cover to prevent spattering.
Paper towels and napkins -- Use for short-term heating and
covering; they absorb excess moisture and prevent spattering. Do
not use recycled paper towels, which may contain metal and can
catch fire.
Paper plates and cups -- Use for short-term heating at low
temperatures. Do not use recycled paper, which may contain metal
and can catch fire.
Thermometers -- Use only those labeled "Microwave Safe" and
follow all directions. Check the food in several places. Conventional
thermometers may be used once the food has been removed from
the oven.
Limited Use
Aluminum foil -- Use narrow strips of foil to prevent overcooking of
exposed areas. Using too much foil can damage your oven, so be
careful.
Ceramic, porcelain, and stoneware -- Use these if they are
labeled "Microwave Safe". If they are not labeled, test them to make
sure they can be used safely. Never use dishes with metallic trim.
Plastic -- Use only if labeled "Microwave Safe". Other plastics can
melt.
Straw, wicker, and wood -- Use only for short-term heating, as
they can be flammable.
Not Recommended
Glass jars and bottles -- Regular glass is too thin to be used in a
microwave, and can shatter.
Paper bags -- These are a fire hazard, except for popcorn bags that
are designed for microwave use.
Styrofoam plates and cups -- These can melt and leave an
unhealthy residue on food.
Plastic storage and food containers -- Containers such as
margarine tubs can melt in the microwave.
Metal utensils -- These can damage your oven. Remove all metal
before cooking.
Testing Utensils
If you are not sure whether a dish is microwave-safe or not, you can per-
form this test:
1 Fill a 1 cup glass measuring cup with water and put it inside your
oven, next to the dish you want to test.
2 Press the One Minute + button once to heat them for one minute at
High power.
The water should be warm and the dish you are testing should be cool. If
the dish is warm, then it is absorbing microwave energy and is not
acceptable for use in the microwave.
17
Cooking Instructions
Cooking Techniques
Stirring
Stir foods such as casseroles and vegetables while cooking to distribute
heat evenly. Food at the outside of the dish absorbs more energy and
heats more quickly, so stir from the outside to the center. The oven will
turn off when you open the door to stir your food.
Arrangement
Arrange unevenly shaped foods, such as chicken pieces or chops, with
the thicker, meatier parts toward the outside of the turntable where they
receive more microwave energy. To prevent overcooking, place thin or
delicate parts toward the center of the turntable.
Shielding
Shield food with narrow strips of aluminum foil to prevent overcooking.
Areas that need shielding include poultry wing-tips, the ends of poultry
legs, and corners of square baking dishes. Use only small amounts of
aluminum foil. Larger amounts can damage your oven.
Turning
Turn foods over midway through cooking to expose all parts to micro-
wave energy. This is especially important with large items such as
roasts.
Standing
Foods cooked in the microwave build up internal heat and continue to
cook for a few minutes after the oven stops. Let foods stand to complete
cooking, especially foods such as roasts and whole vegetables. Roasts
need this time to complete cooking in the center without overcooking the
outer areas. All liquids, such as soup or hot chocolate, should be shaken
or stirred when cooking is complete. Let liquids stand a moment before
serving. When heating baby food, stir well and test the temperature
before serving.
Adding Moisture
Microwave energy is attracted to water molecules. Food that is uneven
in moisture content should be covered or allowed to stand so that the
heat disperses evenly. Add a small amount of water to dry food to help it
cook.
General Tips
Dense foods, such as potatoes, take longer to heat than lighter
foods. Foods with a delicate texture should be heated at a low power
level to avoid becoming tough.
Altitude and the type of cookware you are using can affect cooking
time. When using a new recipe, use the minimum cooking time and
check the food occasionally to prevent overcooking.
Foods with a non-porous skin such as potatoes or hot dogs, should
be pierced to prevent bursting.
Frying with heating oil or fat is not recommended. Fat and oil can
suddenly boil over and cause severe burns.
Some ingredients heat faster than others. For example, the jelly
inside a jelly doughnut will be hotter than the dough. Keep this in
mind to avoid burns.
Home canning in the microwave oven is not recommended because
all harmful bacteria may not be destroyed by the microwave heating
process.
Although microwaves do not heat the cookware, the heat from the
food is often transferred to the cookware. Always use pot holders
e
when removing food from the microwave and instruct children to do
the same.
Making candy in the microwave is not recommended as candy can
heat to very high temperatures. Keep this in mind to avoid injury.
18
Cooking Instructions
Auto Sensor Cook
The Auto Sensor allows you to cook your food automatically by detect-
ing the amount of moisture generated from the food while cooking.
When cooking food, many kinds of moisture are generated. The Auto
Sensor determines the proper time and power level by detecting the
moisture from the food, eliminating the need to set the cooking time
and power level.
When you cover a container with its lid or plastic wrap during Sensor
Cooking, the Auto Sensor will detect the moisture generated after
the container has been saturated with steam.
Shortly before cooking ends, the remaining cooking time will begin
its count down. This will be a good time for you to rotate or stir the
food for even cooking if it is necessary.
Before auto sensor cooking food may be seasoned with herbs,
spices or browning sauces. A word of caution though, salt or sugar
may cause burn spots on food so these ingredients should be added
after cooking.
The More/Less function pad is used to increase or decrease cooking
time. You should use this function to adjust the degree of cooking to
suit your personal taste.
Utensils & Cover For Sensor Cooking
To obtain good cooking results with this function, follow the
directions for selecting appropriate containers and covers in the
charts in this book.
Always use microwave-safe containers and cover them with their lids
or with plastic wrap. When using plastic wrap, turn back one corner
to allow steam to escape at the proper rate.
Always cover with the lid intended for the utensil being used. If the
utensil does not have its own lid, use plastic wrap.
Fill containers at least half full.
Foods that require stirring or rotating should be stirred or turned
toward the end of the Sensor Cook cycle, after the time has started
to count down on the display.
Important
After installing the oven and plugging into an electrical outlet, do not
unplug the power cord. The moisture sensor needs time to stabilize
in order to cook satisfactorily.
It is not advisable to use the auto sensor cooking feature on a
continuous cooking operation, i.e. one cooking operation
immediately after another.
Install the oven in a well ventilated location for proper cooling and
airflow and to ensure the sensor will operate accurately.
To avoid poor results, do not use the Auto sensor when the room
ambient temperature is too high or too low.
Do not use volatile detergent to clean your oven. Vapor resulting
from this detergent may affect the sensor.
Avoid placing the oven near high moisture or gas emitting
appliances, since this will interfere with the proper performance of
the Auto Sensor.
Always keep the inside of the oven clean. Wipe all spills with a damp
cloth.
,_ This oven is designed for household use only.
19
Cooking Instructions
Cooking Guide
Guide for Cooking Meat in Your Microwave
Place meat on a microwave-safe roasting rack in a microwave-safe
dish.
Start meat fat-side down. Use narrow strips of aluminum foil to shield
any bone tips or thin meat areas.
Check the temperature in several places before letting the meat
stand the recommended time.
The following temperatures are removal temperatures. The
temperature of the food will rise during the standing time.
Roast Cooking Time: Place roast fat-side down on
Beef 7-11 rain. / lb. for 1150 F - roasting rack. Cover with wax
Boneless Rare paper. Turn over when
8-12 min. / lb. for 120° F, cooking time is ha!f up, Let
Up to 4 Ibs. Medium stand 10 rain.
9-14 rain. / lb. for 145_ F -
Well Done
Power Level: High(0) for
first 5 rain. then
Medium(5).
Pork Cooking Time: Place roast fat.side down on
Boneless 11.15 min. / lb. for 1600 F roasting rack. Cover with
or bone-in Well Done vented plastic wrap. Turn
Power Level: High(0) for over when cooking time is
Up to 4 Ibs. first 5 rain., then half Up. Let stand 10 rain.
Medium(5).
Guide for Cooking Poultry in Your Microwave
Place poultry on a microwave-safe roasting rack in a microwave-safe
dish.
Cover poultry with wax paper to prevent spattering.
Use aluminum foil to shield bone tips, thin meat areas, or areas that
start to overcook.
Check the temperature in several places before letting the poultry
stand the recommended time.
Whole Cooking Time:
Chicken 6-9 mir , Ib.180°F
Up to 4 Ibs. Power Level: Medium
High_71.
Chicken Cooking Time:
Pieces 6-9 min. / lb.
180°F dark meat
Up to 2 Ibs. 170°F light meat
Power Level: _ ledium
High(7).
Place chicken breast-side
down on roasting rack. Cover
with wax paper. Turn over
when the cooking time is half
UP. Cook until juices run clear
and meat near the bone is no
longer pink. Let stand 5-10
min.
Place chicken bone-side
down on dish. with the
thickest portions towards the
outside of the dish. Cover
with wax paper. Turn over
when the cooking time is half
up. Cook unti juices run clear
and meat near the bone is no
longer pink. Let stand 5-10
min.
2O

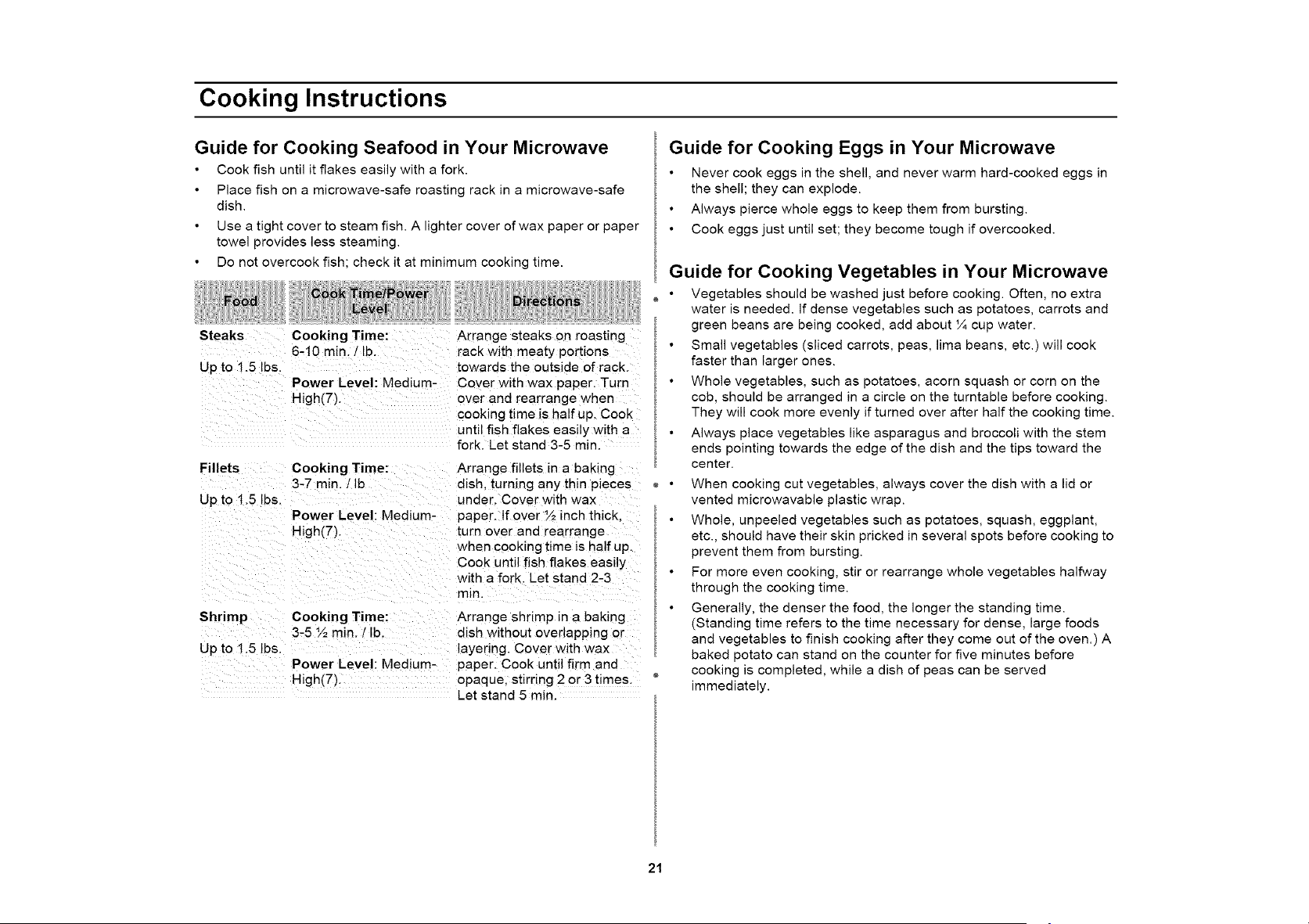

Cooking Instructions
Guide for Cooking Seafood in Your Microwave
Cook fish until it flakes easily with a fork.
Place fish on a microwave-safe roasting rack in a microwave-safe
dish.
Use a tight cover to steam fish. A lighter cover of wax paper or paper
towel provides less steaming.
Do not overcook fish; check it at minimum cooking time.
Steaks Cooking "rime:
6-10 min./Ib.
Up to 1.5 Ibs.
Power Level: Medium-
High(7).
Fillets Cooking Time:
3-7 min. / Ib
Up to 1.5 Ibs.
Power Level: Medium-
High(7).
Shrimp Cooking Time:
3-5 ½ min. / lb.
Up to 1.5 lbs.
Arrange steaks on roasting
rack with meaty portions
towards the outside of rack.
Cover with wax paper. Turn
over and rearrange when
cooking time is half up. Cook
until fish flakes easily with a
fork. Let stand 3-5 min.
Arrange fillets in a baking
dish. turning any thin pieces
under. Cover with wax
paper. If over ½ inch thick.
turn over and rearrange
when cooking time is half up.
Cook until fish flakes easily
with a fork. Let stand 2-3
mln.
Arrange shrimp in a baking
dish without overlapping or
layering Cover with wax
Power Level: Medium- paper. Cook until firm and
H.gh(7). opaque, sttmng 2 or 3 times.
Let stand 5 min
Guide for Cooking Eggs in Your Microwave
Never cook eggs in the shell, and never warm hard-cooked eggs in
the shell; they can explode.
Always pierce whole eggs to keep them from bursting.
Cook eggs just until set; they become tough if overcooked.
Guide for Cooking Vegetables in Your Microwave
_, Vegetables should be washed just before cooking. Often, no extra
water is needed. If dense vegetables such as potatoes, carrots and
green beans are being cooked, add about % cup water.
Small vegetables (sliced carrots, peas, lima beans, etc.) will cook
faster than larger ones.
Whole vegetables, such as potatoes, acorn squash or corn on the
cob, should be arranged in a circle on the turntable before cooking.
They will cook more evenly if turned over after half the cooking time.
Always place vegetables like asparagus and broccoli with the stem
ends pointing towards the edge of the dish and the tips toward the
center.
,_ • When cooking cut vegetables, always cover the dish with a lid or
vented microwavable plastic wrap.
Whole, unpeeled vegetables such as potatoes, squash, eggplant,
etc., should have their skin pricked in several spots before cooking to
prevent them from bursting.
For more even cooking, stir or rearrange whole vegetables halfway
through the cooking time.
Generally, the denser the food, the longer the standing time.
(Standing time refers to the time necessary for dense, large foods
and vegetables to finish cooking after they come out of the oven.) A
baked potato can stand on the counter for five minutes before
cooking is completed, while a dish of peas can be served
immediately.
21
Cooking Instructions
Auto Defrosting Guide
Follow the instructions below when defrosting different types of food.
Roast 2.5-6.0 Ibs.
Beef, Pork
Steaks, 0.5-3.0 Ibs.
Chops,
Fish
Grou nd 0.5-3.0 Ibs.
Meat
Whole 2.5-6.0 Ibs.
Chicken
Chicken 0.5-3.0 Ibs.
Pieces
defrosted. Let stand for 10-20 minutes.
Start with the food placed fat side down
After each stage, turn the food over and
shielc any warm portions with narrow
strips of aluminum foil.
After each stage, rearrange the food. If
there are any warm or thawed portions of
food. shield them with narrow fiat pieces
of aluminum foil. Remove any pieces of
food that are nearly defrosted. Let stand.
covered, for 5-10 minutes.
After each stage, remove any pieces of
food that are nearly defrosted. Let stand.
covered with foil. for 5-10 minutes.
Remove giblets before freezing poultry.
Start defrosting with the breast side
down. After the first stage, turn the
chicken over and shield any warm
portions with narrow strips of aluminum
foil. After the second stage, again shielc
any warm portions with narrow strips of
aluminum fol. Let stand, covered, for 30-
60 minutes in the refrigerator.
After each stage, rearrange or remove
any pieces of food that are nearly
Notes
Check foods when the oven signals. After the final stage, small sections
may still be icy; let them stand to continue thawing. Do not defrost until
all ice crystals have thawed. Shielding roasts and steaks with small
pieces of foil prevents the edges from cooking before the center of the
food has defrosted. Use narrow, flat, smooth strips of aluminum foil to
cover the edges and thinner sections of the food.
22
Cooking Instructions
Recipes
Beef and Barley Stew
1½ Ibs. beef stew cubes, cut into ½-inch pieces
½ cup chopped onion
2 Tbs. all-purpose flour
1 Tbs. Worcestershire sauce
1 can (13.75-14.5 oz.) beef broth
2 medium carrots, cut into ½-inch slices (about 1 cup)
½ cup barley
1 bay leaf
% tsp. pepper
1 pkg. (9-10 oz.) frozen peas, thawed
1. in a 2-quart casserole, combine beef, onion, flour, and
Worcestershire; mix well. Cover with lid. Cook at High for 6 to 8
minutes until beef is no longer pink, stirring once.
2. Stir in beef broth, carrots, barley, bay leaf, and pepper. Cover with
lid. Cook at Medium for 1 to 1½ hours until carrots and beef are
tender, stirring 2 to 3 times.
3. Stir in peas. Cover with lid. Cook at Medium for 10 minutes. Let
stand for 10 minutes. Remove bay leaf before serving.
Makes 6 servings.
Broccoli and Cheese Casserole
% cup butter or margarine
% cup chopped onion
1½ Tbs. flour
½ tsp. salt
¼ tsp. dry mustard
I/3 tsp. pepper
1½ cups milk
% cup chopped red pepper
8 oz. (2 cups) cheddar cheese, shredded
1 pkg. (9-10 oz.)frozen chopped broccoli, thawed
4 cups cooked spiral shaped pasta (8 oz. dry)
1. In a 2-quart casserole, cook butter and onion at High for 1 to 2
minutes until onion is soft, stirring once.
2. Add flour, salt, mustard, and pepper; mix well. Cook at High for 30 to
60 seconds until mixture boils. Stir in milk until smooth.
3. Stir in red pepper. Cook at High for 2 to 3 minutes until mixture boils
and thickens slightly, stirring twice. Stir in cheese until melted.
4. Add broccoli and pasta, mix well. Cover with lid. Cook at High for 4 to
6 minutes until heated through, stirring once. Stir before serving.
Makes 6 servings.
23
Cooking Instructions
Warm Potato Salad
2 Ibs. small red potatoes, cut into ½-inch pieces
4 slices bacon (uncooked), cut into ½-inch pieces
% cup chopped onion
2 tsp. sugar
1 tsp. salt
1 tsp. flour
½ tsp. celery seed
1/8tsp. pepper
2½ Tbs. apple cider vinegar
1. In a 2-quart casserole, combine potatoes and ¼ cup water. Cover
with lid. Cook at High until potatoes are tender (7-10 min.); stir twice.
Drain and set aside to cool slightly.
2. In a medium bowl, cook bacon at High until crisp (2½-3½ min.); stir
once. Place bacon on a paper towel. Reserve 1 Tbs. drippings.
3. Combine drippings and onion. Cover with plastic wrap; turn back a
corner to vent steam. Cook at High until tender (1½-2½ min.); stir
once.
4. Stir in sugar, salt, flour, celery seed, and pepper. Cook at High until
mixture boils (30-40 sec.). Stir in vinegar and ½ cup water. Cook at
High until liquid boils and thickens slightly (1-2 min.); stir once.
Add bacon to dressing. Pour dressing over potatoes. Stir well.
Makes 6 servings.
Black Bean Soup
1 cup chopped onion
1 clove garlic, minced
2 cans (15 oz. each) black beans, drained
1 can (14-16 oz.) stewed tomatoes, chopped
1 can (13.75-14.5 oz.) chicken broth
1 can (7-8.5 oz.) corn
1 can (4 oz.) chopped green chilies
1-2 tsp. ground cumin, or to taste
1. Place onion and garlic in a 3-quart casserole. Cover with lid. Cook at
High for 2 to 4 minutes until tender.
2. Add one can of beans, mash beans with a fork. Add remaining
ingredients; mix well.
3. Cook uncovered, at High for 10 minutes; stir. Reduce power to
Medium and cook for 5 minutes. Stir before serving.
Makes about 2 quarts.
24
Cooking Instructions
Sensor Cooking Guide
Follow the instructions below when sensor cooking different types of
food.
Potatoes 1 to 6 EA. Prick each aotato several times with
fork. Place on turntable in spoke-like
fashion. Let stand 3-5 min. Let oven
cool for at least 5 minutes before using
again.
Fresh 1 to 4 cups Place fresh vegetables in microwave-
Vegetables safe ceramic, glass or plastic dish and
add 2-4 Tbs. water. Cover with lid or
vented plastic wrap during cooking and
sttr oefore standing. Let vegetables
stand 2 minutes before serving Let
oven cool for at least 5 minutes before
using again.
Frozen 7 to 18 oz. Remove food from outer wrapping and
Dinner follow box instructions for covering and
standing. Let oven cool for at least 5
minutes before using again.
Pizza I to 3 Slices Put 1~3 slices of pizza on a microwave-
Reheat safe plate with wide end of slice towards
the outside edge of the plate. Do not let
slices overlap. Do not cover. Let oven
cool for at least 5 minutes before using
again.
Frozen 1 to 4 cups Place frozen vegetables in microwave-
Vegetables safe ceramic, glass or plastic dish and
add 2~4 Tbs. water. Cover with lid or
vented plastic wrap during cooking and
stir before standing Let oven cool for at
least 5 minutes before using again.
Frozen 2 to 8 oz. Follo w package instructions for covering
Breakfast and standing, Use this pad for frozen
waffles, etc. L.et oven cool for at least5sandwich; breakfast entree, pancakes,
minutes before using again-
Popcorn 3.0 ~ 3.5 oz Use only one microwave-only bag of
1 package popcorn at a time, Use caution when
removing and opening hot bag from
oven. Let oven cool for at least 5
minutes before using again.
Notes
Temperature preference of food varies from person to person.
Use the more/less button to fit your temperature preference.
25
Cooking Instructions
Sensor Reheat Guide
Follow the instructions below when sensor reheating different types
of food.
Plate of I serving
food (1 plate)
Casseroles I to 4
servings
Pasta
Reheat
Use only pre-cooked, refrigerated foods.
Cove, plate with vented plastic wrap or
waxed paper, tucked under plate, tf food is
not as hot as you prefer after heating with
SENSOR REHEAT. continue heating using
time and power.
• Contents
- 3 ~ 4 oz. meat. poultry or fish (up to 6
oz.with bone)
- 112cup starch (potatoes, pasta, rice.
etc.)
- 1/2 cup vegetables (about 3 ~ 4 oz.)
Use only refrigerated foods. Cover plate
with lid or vented plastic wrap. If food is not
as hot as you prefer after heating with
SENSOR REHEAT. continue heating using
time and power,
Stir foods once before serving.
26
Cooking Instructions
Sensor Recipes
French Onion Soup (4 servings)
3 tablespoons butter or margarine
3 cups ( about 3 medium ) sliced onions
3 cups beef broth
1 cup water
1 teaspoon Worcestershire sauce
Salt, pepper, croutons, grated parmesan cheese to taste
2 tablespoons brandy (optional)
1. Combine butter and onions in 3-quart casserole. Cover with lid.
Microwave at HIGH (0) for 8 to 9 minutes or use Sensor Fresh
Vegetable.
2. Stir in broth, water, Worcestershire sauce, salt and pepper ; cover.
Microwave at HIGH (0) for 5 minutes, and at MEDIUM (5) for 5
minutes or use Sensor Reheat. Stir in brandy. Let stand, covered, for
5 minutes before serving. Serve with croutons and cheese.
Snap Crackle Popcorn Balls
(10 to 15 balls)
30 square caramel candies
1 ½ tablespoons water
1 teaspoon butter or magarine
1 pkg.( 3.5 oz.) microwave popcorn
1. Combine caramel, water and butter in 4 cup glass bowl. Microwave
at HIGH (0) for 2 to 3 minutes until melted. Stir until smooth. Set
aside.
2. Place popcorn on turntable. Microwave at HIGH (0) for 2 to 3
minutes or use Sensor Popcorn.
3. Place popcorn in bowl. Pour caramel mixture over popcorn ; toss
until completely coated and cool enough to handle. Using buttered
hands, form into 3-inch balls.
4. Cool on waxed paper. Serve immediately.
Peas With Lettuce (4 servings)
2 cups fresh shelled green peas
1/3cup thinly sliced celery
2 tablespoons water
3 cups shredded head lettuce
1 tablespoon butter or magarine
1 tablespoon all-purpose flour
½ teaspoon sugar
_¼teaspoon salt
_Xcup whipping cream
Dash pepper to taste
1. In 1 ½ -quart casserole combine peas, celery and water ; cover.
2. Microwave at HIGH (0) for 5 to 7 ½ minutes or use Sensor Fresh
Vegetable. Stir in lettuce ; recover.
3. In small dish combine butter, flour, sugar, salt and pepper. Blend in
cream. Microwave at HIGH (0) for 1 to 2 minutes or use Sensor
Reheat. Stir until smooth.
4. Drain vegetables. Add sauce to vegetables ; toss to coat.
Stuffed Potatoes (4 servings)
4 medium potatoes, scrubbed
½ cup dairy sour cream
1/3cup milk
2 tablespoons grated parmesan cheese
1 teaspoon chopped chives or parsley flakes
Salt, pepper, paprika to taste
1. Prick potatoes twice with a fork. Arrange potatoes at least 1 inch
apart on paper towel placed on turntable. Microwave at HIGH (0) for
10 to 12 minutes or use Sensor Potato. Let stand 5 minutes.
2. Slice top from each potato ; scoop out center. Mash with sour cream,
milk, cheese, chives, salt and pepper. Spoon into shells.
3. Sprinkle with paprika. Place on plate or on paper towel in oven.
Microwave at HIGH (0) for 2 to 4 minutes or use Sensor Reheat.
27
Cooking Instructions
Vegetable Medley (4 to 6 servings)
1 ½ cups broccoli flowerets, s/4 to 1 inch in diameter
1 ½ cups cauliflower flowerets, s/4 to 1 inch in diameter
1 medium yellow squash, cut into % inch diagonal slices
1 medium zucchini, cut into % inch diagonal slices
1 medium carrot, cut into I/8 inch diagonal slices
½ small red pepper, slivered
6-7 pitted ripe olives, sliced
2-3 tablespoons butter or margarine
½ teaspoon dried oregano
1 teaspoon fresh lemon juice
parmesan cheese, optional to taste
1. Arrange broccoli and cauliflower alternately around the edge of a 10
to 12 inch glass dish with rim. Alternately place yellow squash and
zucchini in circle inside broccoli and cauliflower, place carrots slices
in center and arrange red pepper slivers over top. Sprinkle with 2
tablespoons water. Cover with vented microwave plastic wrap.
2. Microwave at HIGH (0) for 7 to 9 minutes or use Sensor Fresh
Vegetable. Remove wrap immediately, scatter olive slices
attractively over all.
3. Place butter or magarine in 1 cup glass measure and Microwave at
HIGH (0) for 30 seconds to 1 minute to melt. Add oregano and lemon
juice. Pour over vegetables. Sprinkle with parmesan cheese and
serve.
Franks And Beans Casserole (4 to 6 servings)
½ cup chopped onions
2 tablespoons butter or margarine
1 pkg.(12 - 16 oz.) frankfurters, cut in quarters
1 can (16 oz) baked beans
1 can (15 - 16 oz.) cannellini (white kidney) beans,drained
1 can (15 - 16 oz.) red kidney beans,drained
1/3cup brown sugar
% cup catsup
1 teaspoon yellow mustard
Salt, pepper and garlic power to taste
1. Combine onions and butter in 3-quart casserole. Microwave at
HIGH(0) for 1 to 2 minutes or until onions are soft.
2. Stir in all remaining ingredients, pushing frankfurters to the bottom of
dish so they are covered with the beans.
3. Cover and microwave at HIGH (0) for 11 to 13 minutes or use
Sensor Reheat. Stir until smooth.
28
Appendix
Troubleshooting Guide
Before you call a repair person for your oven, check this list of possible
problems and solutions.
Neither the oven's display nor the oven operate.
Properly insert the plug into a grounded outlet.
If the outlet is controlled by a wall switch, make sure the wall switch
is turned on.
Remove the plug from the outlet, wait ten seconds, then plug it in
again.
Reset the circuit breaker or replace any blown fuse.
Plug another appliance into the outlet; if the other appliance doesn't
work, have a qualified electrician repair the outlet.
Plug the oven into a different outlet.
The oven's display works, but the power won't come
on.
Make sure the door is closed securely.
Check to see if packing material or other material is stuck to the door
seal.
Check for door damage.
Press Cancel twice and re-enter all cooking instructions.
The power goes off before the set time has elapsed.
If there has not been a power outage, remove the plug from the
outlet, wait ten seconds, then plug it in again. If there was a power
outage, the time indicator will display" _:_ " Reset the clock and
any cooking instructions.
Reset the circuit breaker or replace any blown fuse.
The food is cooking too slowly.
Make sure the oven is on its own 20 amp circuit line. Operating
another appliance on the same circuit can cause a voltage drop. If
necessary, move the oven to its own circuit.
You see sparks or arcing.
Remove any metallic utensils, cookware, or metal ties. If using foil,
use only narrow strips and allow at least one inch between the foil
and interior oven walls.
The turntable makes noises or sticks.
Clean the turntable, roller guide and oven floor.
Make sure the turntable and roller guide are positioned correctly.
Using your microwave causes TV or radio interference.
This is similar to the interference caused by other small appliances,
such as hair dryers. Move your microwave further away from other
appliances, like your TV or radio.
Care and Cleaning
Follow these instructions to clean and care for your oven.
Keep the inside of the oven clean. Food particles and spilled liquids
can stick to the oven walls, causing the oven to work less efficiently.
Wipe up spills immediately. Use a damp cloth and mild soap. Do not
use harsh detergents or abrasives.
To help loosen baked on food particles or liquids, heat two cups of
water (add the juice of one lemon if you desire to keep the oven
fresh) in a four-cup measuring glass at High power for five minutes
or until boiling. Let stand in the oven for one or two minutes.
Remove the glass tray from the oven when cleaning the oven or tray.
To prevent the tray from breaking, handle it carefully and do not put it
in water immediately after cooking. Wash the tray carefully in warm
sudsy water or in the dishwasher.
Clean the outside surface of the oven with soap and a damp cloth.
Dry with a soft cloth. To prevent damage to the operating parts of the
oven, don't let water seep into the openings.
Wash the door window with very mild soap and water. Be sure to use
a soft cloth to avoid scratching.
If steam accumulates inside or outside the oven door, wipe with a
soft cloth. Steam can accumulate when operating the oven in high
humidity and in no way indicates microwave leakage.
Never operate the oven without food in it; this can damage the
magnetron tube or glass tray. You may wish to leave a cup of water
in the oven when it is not in use to prevent damage if the oven is
accidentally turned on.
If you have a problem you cannot solve,
please call our service line:
1-800-688-9900 U. S. A.
1-800-688-2002 CANADA
29
Appendix
Specifications
Model Number MMC5193AAB!WiQ
Oven Cavity 1.9 cu.ft.
Contrels !0 power levels, including defrost
Timer
Power Source
Power Output
Power Consumptien
Outside Dimensions
Oven Cavity Dimensions
Net/Gross Weight
99 minutes, 99 seconds
120 VAC, 60 Hz
11 O0 Watts
1600 Watts
23 21/32"(W) X 13 5/16"(H)X 18 1/8"(D)
17 23/64"(W) X t 0 516'I(H) X 17 27t32,(D)
44.0/50.0 Ibs
Model Number MMC5193AAS
Oven Cavity 1.9 cu.ft.
Controls ! 0 power !evels, including defrost
Timer 99 minutes, 99 seconds
Power Source !20 VAC, 60 Hz
Power Output
Power Consumptien
Outside Dimensions
Oven Cavity Dimensions
Net/Gross Weight
1100 Watts
1600 Watts
23 21/32"(W) X 13 5/16"(H) X 18 23/32"(D)
17 23/64,(W) X 10 5/6!!(H) X17 27/32'!(D)
46.2/52.6 Ibs
3O
Warranty
Limited One Year Warranty - Parts and Labor
For one (1) year from the original retail purchase date, any part which
fails in normal home use will be repaired or replaced free of charge
when carried into an authorized servicer.
Limited Warranties - Parts Only
Second through Fifth Year - From the original purchase date, parts listed
below which fail in normal home use will be repaired or replaced free of
charge for the part itself, with the owner paying all other costs, including
labor, mileage, transportation, and trip charge if required.
Magnetron, touch pad and microprocessor.
What is not covered by these warranties
Replacement of household fuses, resetting of circuit breakers, or
correction to household wiring or plumbing.
Normal product maintenance and cleaning, including light bulbs.
Products with original serial numbers removed, altered, or not readily
determined.
Products purchased for commercial, industrial, rental, or leased use.
Products located outside of the U.S.A. or Canada.
Premium service charges, if the servicer is requested to perform
service in addition to normal service or outside normal service hours
or area.
Adjustments after the first year.
Repairs resulting from the following:
- Improper installation, exhaust system, or maintenance.
- Any modification, alteration, or adjustment not authorized by
the manufacturer.
- Accident, misuse, abuse, fire, flood, or acts of nature.
- Connections to improper electrical current, voltage supply, or gas
supply.
- Use of improper pans, containers, or accessories that cause
damage to the product.
Travel.
If you need service
• Call the dealer from whom your appliance was purchased or
call Maytag Services sM,Maytag Customer Assistance at
1-800-688-9900, U.S.A. and 1-800-688-2002, CANADA to
locate an authorized servicer.
Be sure to retain proof of purchase to verify warranty status. Refer
to WARRANTY for further information on owner's
responsibilities for warranty service.
If the dealer or service company cannot resolve the problem, write
to Maytag Services sM,Attn: CAIR®Center, P.O. Box 2370,
Cleveland, TN 37320-2370, or call 1-800-688-9900, U.S.A.
and 1-800-688-2002, CANADA.
U.S. customers using TTY for deaf, hearing impaired or speech
impaired, call 1-800-688-2080.
NOTE: When writing or calling about a service problem, please
include the following information:
a. Your name, address and telephone number;
b. Model number and serial number;
c. Name and address of your dealer or servicer;
d. A clear description of the problem you are having;
e. Proof of purchase (sales receipt).
User's guides, service manuals and parts information are available
from Maytag Services sM, Maytag Customer Assistance.
IN NO EVENT SHALL MAYTAG BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
This warranty gives you specific legal rights, and you may have others
which vary from state to state. For example, some states do not allow
the exclusion or limitation of incidental or consequential damages, so
this exclusion may not apply to you.
31
Quick Reference
Feature Operation
Set Clock 1. Press CLOCK.
2. Use number buttons to enter the current time.
3. Press CLOCK again
One Stage 1. Use number buttons to set cooking time.
Cooking 2. Set power level or leave at High
3. Press START.
One Minute+ 1. Press the ONE MINUTE + button once for each
Cooking minute of cooking.
2. The time will display and the oven will start.
Auto Defrost 1. Press AUTO DEFROST.
2. Enter weight of food by pressing AUTO
DEFROST button repeatedly or using the
number buttons.
3. When the oven beeps, press PAUSE/CANCEL
button and turn food over. Press START to
resume defrosting cycle.
Set Cookin g 1. Use number buttons to set cooking time.
Time and 2. To set power level at other than HIGH. press
Power Levels POWER LEVEL and use the number buttons to
enter the power leve
3. Press START to begin cooking.
Sensor Cook 1. Press button that corresponds to the food you
Buttons are cooking (for example POTATO).
2. The displaywill show the food you have chosen
and the oven will start automatically.
Sensor Reheat 1. Press SENSOR REHEAT.
2. The display will show "REHEAT" and the oven
will start automatically.
Handy Helper, 1. Press HANDY HELPER/KIDS MEALS. SNACK
Kids Meals, BAR) repeatedly to select type of dish to reheat.
Snack Bar 2. To increase serving size, press the
corresponding number button.
3. Press START to begin cooking.
Printed in Malaysia
