OWNER'S
MANUAL
MODEL NO.
315.171020
CAUTION:
Read and follow
ALL safety rules
and instructions
before operating
this equipment.
Electronic Reciprocating
Saw =Variable Speed
1 Inch Stroke
DOUBLE INSULATED
Thank You for Buying
Craftsman Tools
Rules for Safe Operation
Warranty
Operation
Maintenance
Repair Parts
Sold by SEARS, ROEBUCK AND CO., Hoffman Estates, IL 60179 U.S,A_
®
972000-256
4-95 Printed In UoS,A,

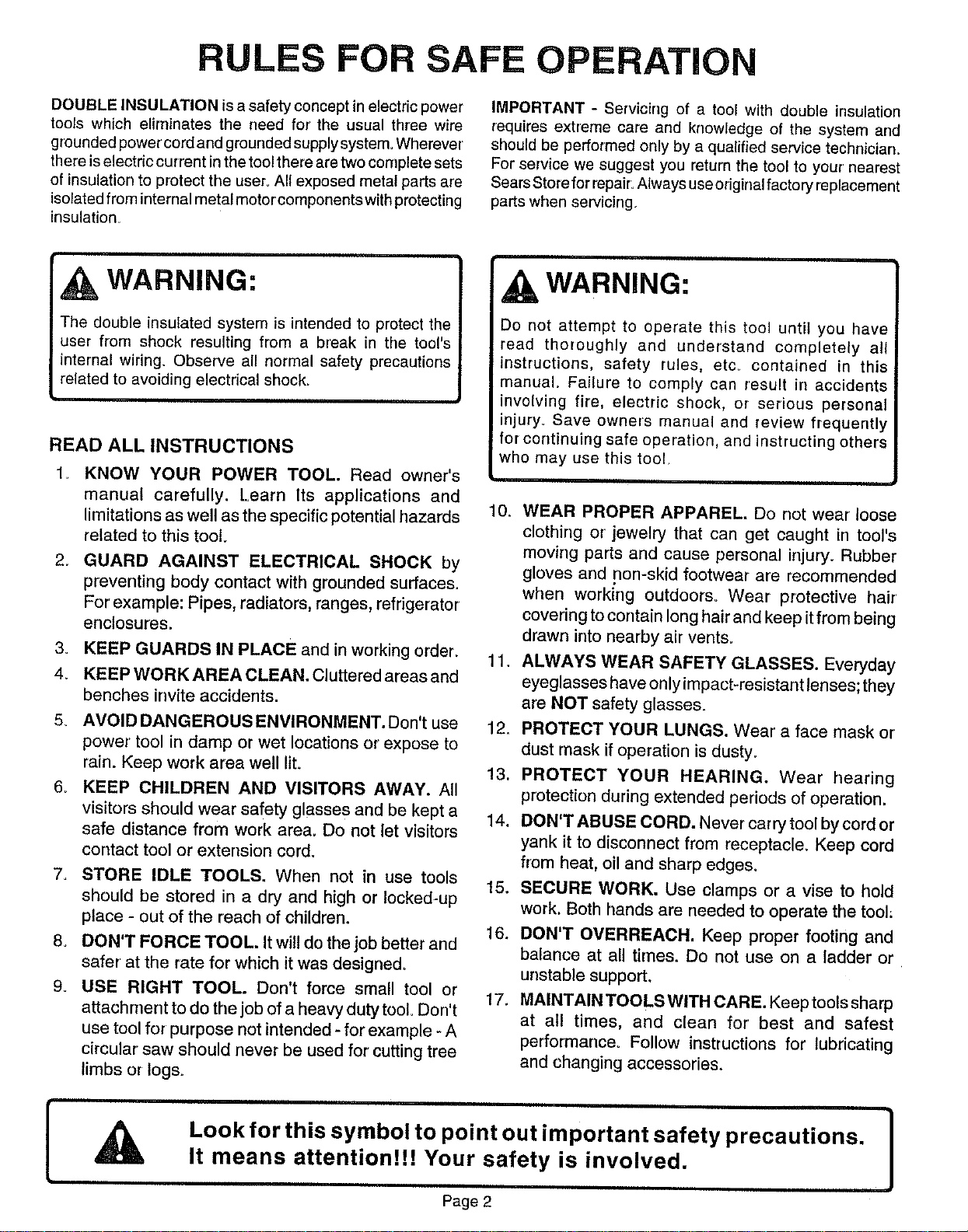

RULES FOR SAFE OPERATION
DOUBLE INSULATION is a safety concept in electric power
tools which eliminates the need for the usual three wire
grounded powercord and grounded supply system_ Wherever
there iselectric current in the tootthere are two complete sets
of insulation to protect the user_All exposed metal parts are
isolated from internal metal motorcomponentswith protecting
insulation_
IMPORTANT - Servicing of a tool with double insulation
requires extreme care and knowledge of the system arrd
should be performed only by a qualified service technician,
For service we suggest you return the tool to your nearest
Sears Store for repair, Always useoriginal factory replacement
parts when servicing.
WARNING:
The double insulated system is intended to protect the
user from shock resulting from a break in the tool's
internal wiring. Observe all normal safety precautions
related to avoiding electrical shock.
READ ALLINSTRUCTIONS
1_ KNOW YOUR POWER TOOL. Read owner's
manual carefully. Learn Its applications and
limitations as well as the specific potential hazards
related to this tool.
2. GUARD AGAINST ELECTRICAL SHOCK by
preventing body contact with grounded surfaces.
For example: Pipes, radiators, ranges, refrigerator
enclosures,
3_ KEEP GUARDS IN PLACE and in working order,
4, KEEP WORK AREA CLEAN. Cluttered areas and
benches invite accidents.
5_ AVOID DANGEROUS ENVIRONMENT. Don't use
power tool in damp or wet locations or expose to
rain. Keep work area well lit,
6_ KEEP CHILDREN AND VISITORS AWAY. Air
visitors should wear safety glasses and be kept a
safe distance from work area. Do not let visitors
contact tool or extension cord.
7. STORE IDLE TOOLS. When not in use tools
should be stored in a dry and high or locked-up
place - out of the reach of children.
8o DON'T FORCE TOOL. tt will do the job better and
safer at the rate for which it was designed.
9. USE RIGHT TOOL. Don't force small tool or
attachrnent to do the job of a heavy duty tool. Don't
use tool for purpose net intended - for example - A
circular saw should never be used for cutting tree
limbs or logs.
WARNING:
Do not attempt to operate this tool until you have
read thoroughly and understand completely all
instructions, safety rules, etc_ contained in this
manual Failure to comply can result in accidents
involving fire, electric shock, or serious personal
injury. Save owners manual and review frequently
for continuing safe operation, and instructing others
who may use this tool,
10. WEAR PROPER APPAREL. Do not wear loose
clothing or jewelry that can get caught in tool's
moving parts and cause personal injury. Rubber
gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair
covering to contain long hair and keep itfrom being
drawn into nearby air vents.
11. ALWAYS WEAR SAFETY GLASSES. Everyday
eyeglasses have only impact-resistant lenses; they
are NOT safety glasses.
12. PROTECT YOUR LUNGS. Wear a face mask or
dust mask if operation is dusty.
13. PROTECT YOUR HEARING. Wear hearing
protection during extended periods of operation,
14. DON'T ABUSE CORD. Never carry tool by cord or
yank it to disconnect from receptacle. Keep cord
from heat, oil and sharp edges.
15. SECURE WORK. Use clamps or a vise to hold
work. Both hands are needed to operate the tool;
16. DON'T OVERREACH. Keep proper footing and
balance at all times. Do not use on a ladder or
unstable support.
17. MAINTAIN TOOLSWITH CARE. Keep toolssharp
at all times, and clean for best and safest
performance° Follow instructions for lubricating
and changing accessories.
I
Look for this symbol to point out important safety precautions.
It means attention!!! Your safety is involved.
Page 2
I

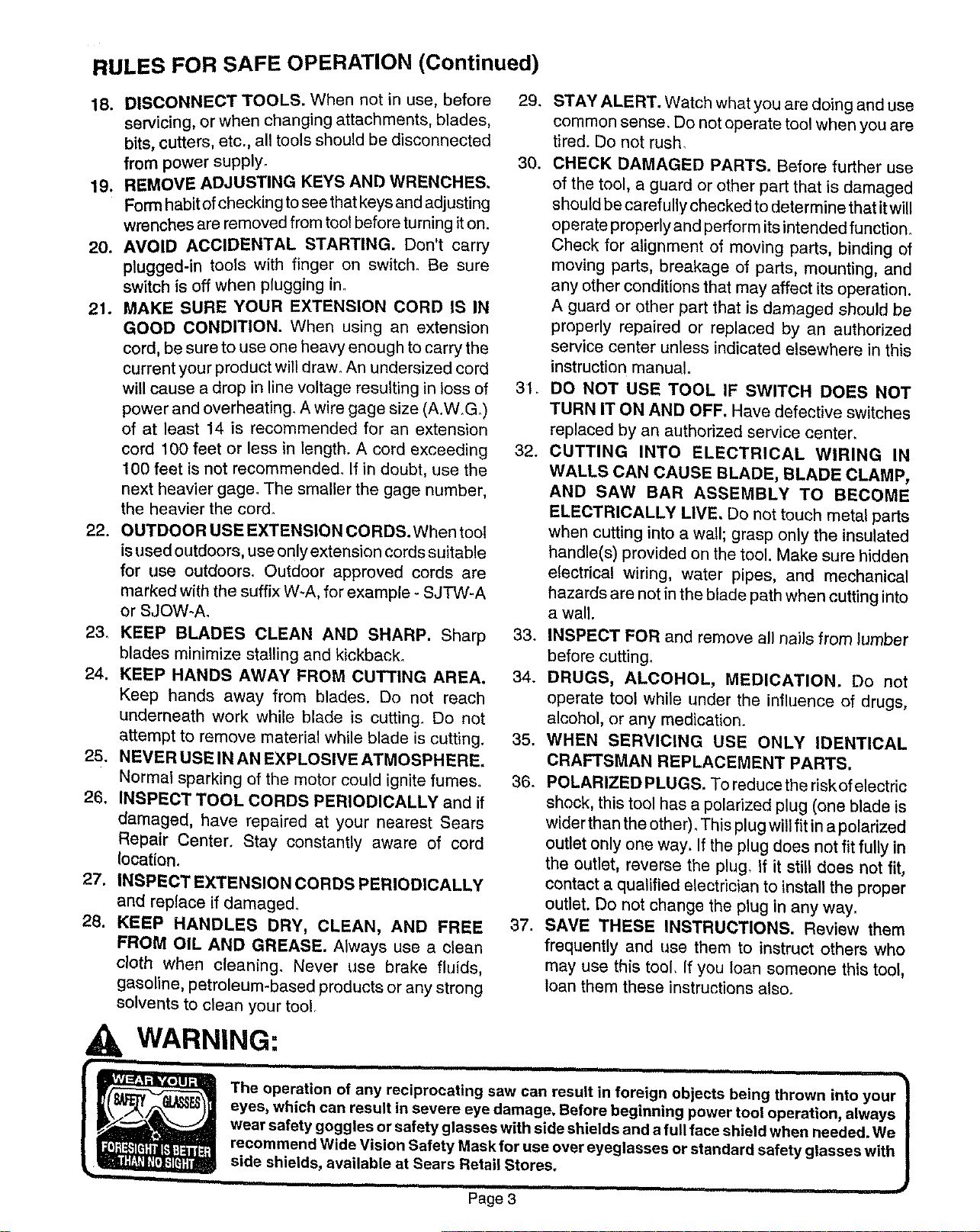

RULES FOR SAFE OPERATION (Continued)
18. DISCONNECT TOOLS. When not in use, before 29.
servicing, or when changing attachments, blades,
bits, cutters, etc., all tools should be disconnected
from power supply. 30.
19. REMOVE ADJUSTING KEYS AND WRENCHES,
Form habit of checking tosee that keys and adjusting
wrenches are removed from tool before turning it on.
20, AVOID ACCIDENTAL STARTING. Don't carry
plugged-in tools with finger on switch. Be sure
switch is off when plugging in.
21. MAKE SURE YOUR EXTENSION CORD IS IN
GOOD CONDITION. When using an extension
cord, be sure to use one heavy enough to carry the
current your product will draw. An undersized cord
will cause a drop in line voltage resulting in loss of 31.
power and overheating. A wire gage size (A.W.Go)
of at least 14 is recommended for an extension
cord 100 feet or less in length. A cord exceeding 32.
100 feet is not recommende& If in doubt, use the
next heavier gage. The smaller the gage number,
the heavier the cord°
22. OUTDOOR USE EXTENSION CORDS. When tool
is used outdoors, use only extension cords suitable
for use outdoors. Outdoor approved cords are
marked with the suffix W-A, for example - SJ'FW-A
or SJOW-A_
23, KEEP BLADES CLEAN AND SHARP. Sharp 33.
blades minimize sta_ling and kickback.
24, KEEP HANDS AWAY FROM CUTTING AREA. 34.
Keep hands away from blades. Do not reach
underneath work while blade is cutting. Do not
attempt to remove material while blade is cutting. 35.
25. NEVER USE IN AN EXPLOSIVE ATMOSPHERE.
Normal sparking o4the motor could ignite fumes. 36.
26. INSPECT TOOL CORDS PERIODICALLY and if
damaged, have repaired at your nearest Sears
Repair Center. Stay constantly aware of cord
location.
27. INSPECT EXTENSION CORDS PERIODICALLY
and replace if damaged.
28. KEEP HANDLES DRY, CLEAN, AND FREE 37.
FROM OIL AND GREASE. Always use a clean
cloth when cleaning. Never use brake fluids,
gasoline, petroleum-based products or any strong
solvents to clean your tool.
STAY ALERT. Watch what you are doing and use
common sense. Do not operate tool when you are
tired. Do not rush.
CHECK DAMAGED PARTS. Before further use
of the tool, a guard or other part that is damaged
should be carefully checked to determine that itwiU
operate properly and perform its intended function.
Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and
any other conditions that may affect its operation.
A guard or other part that is damaged should be
properly repaired or replaced by an authorized
service center unless indicated elsewhere in this
instruction manual.
DO NOT USE TOOL IF SWITCH DOES NOT
TURN IT ON AND OFF. Have defective switches
replaced by an authorized service center.
CUTTING INTO ELECTRICAL WIRING IN
WALLS CAN CAUSE BLADE, BLADE CLAMP,
AND SAW BAR ASSEMBLY TO BECOME
ELECTRICALLY LIVE, Do not touch metal parts
when cutting into a wall; grasp only the insulated
handle(s) provided on the tool. Make sure hidden
etectrical wiring, water pipes, and mechanical
hazards are net in the blade path when cutting into
a wall.
INSPECT FOR and remove all nails from lumber
before cutting.
DRUGS, ALCOHOL, MEDICATION. Do not
operate tool while under the influence of drugs,
alcohol, or any medication.
WHEN SERVICING USE ONLY IDENTICAL
CRAFTSMAN REPLACEMENT PARTS.
POLARIZED PLUGS. To reduce the risk ofelectric
shock, this tool has a polarized plug (one blade is
wider than the other). This plug will fit in a polarized
outlet only one way. If the plug does not fit fully in
the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install the proper
outlet. Do not change the plug in any way.
SAVE THESE INSTRUCTIONS. Review them
frequently and use them to instruct others who
may use this tool. If you loan someone this tool,
loan them these instructions also.
WARNING:
"Theoperation of any reciprocating saw can result in foreign obiects being thrown into your
eyes, which can result in severe eye damage, Before beginning power tool operation, always
wear safety goggles or safety glasses with side shields and a fuU face shield when needed. We
recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with
side shields, available at Sears Retail Stores.
1111111111
Page 3

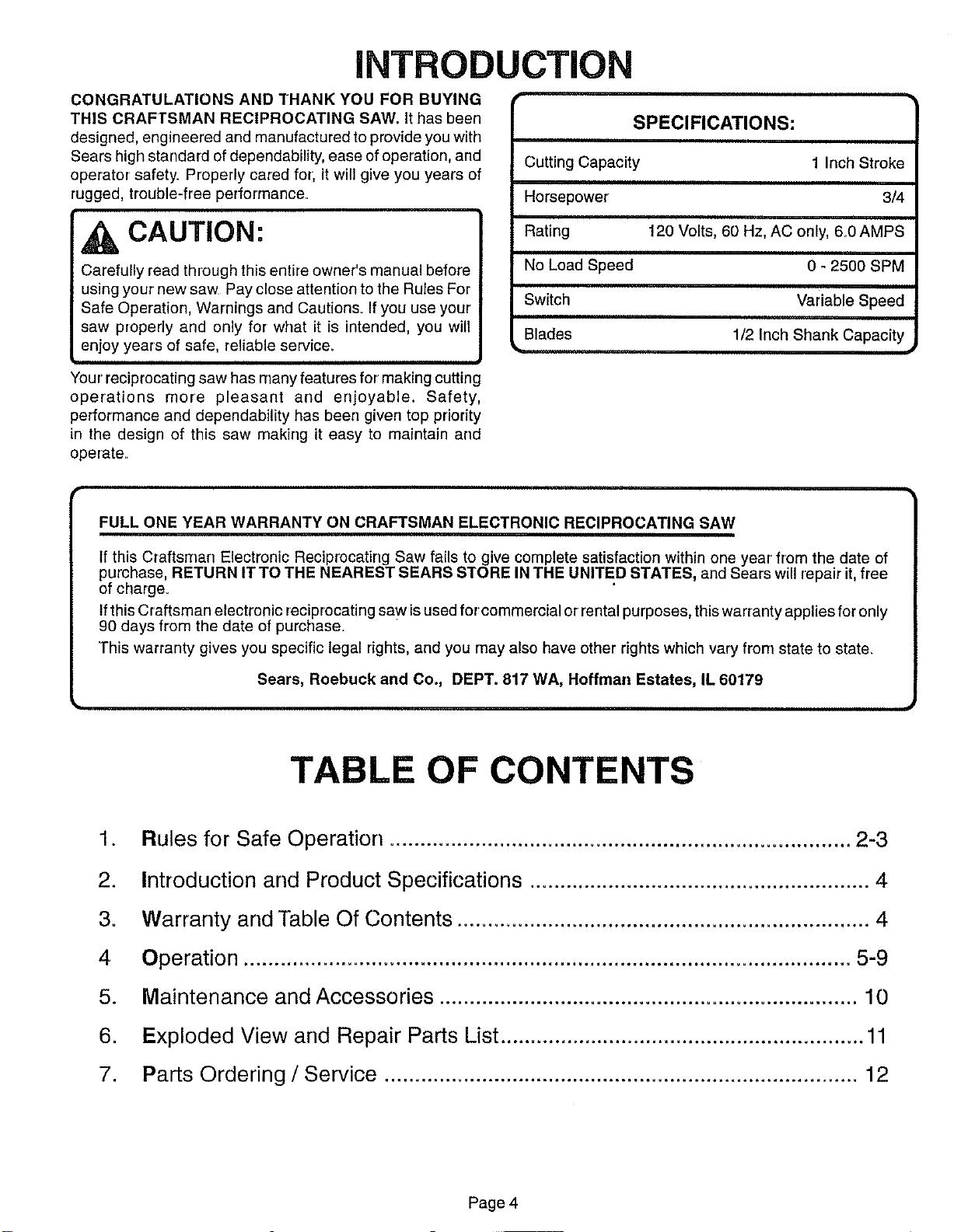

iNTRODUCTiON
CONGRATULATIONS AND THANK YOU FOR BUYING
THIS CRAFTSMAN RECIPROCATING SAW. It has been
designed, engineered and manufactured toprovide you with
Sears high standard of dependability, ease of operation, and
operator safety. Properly cared for, it will give you years of
rugged, trouble-free performance.
CAUTION:
Carefully read through this entire owner's manual before
using your new saw Pay close attention to the Rules For
Safe Operation, Warnings and Cautions. If you use your
saw properly and only for what it is intended, you wilt
enjoy years of safe, reliable service.
SPECIFICATIONS:
Cutting Capacity 1 Inch Stroke
Horsepower 3/4
Rating 120 Volts, 60 Hz, AC only, 6_0AMPS
No Load Speed 0 - 2500 SPM
Switch Variable Speed
• Blades 1/2 Inch Shank Capacity ,_
Your' reciprocating saw has many features for making cutting
operations more pleasant and enjoyable. Safety,
performance and dependability has been given top priority
in the design of this saw making it easy to maintain and
operate
FULL ONE YEAR WARRANTY ON CRAFTSMAN ELECTRONIC RECIPROCATING SAW
If this Craftsman Electronic Reciprocating Saw fails to give complete satisfaction within one year from the date of
purchase, RETURN IT TO THE NEAREST SEARS STORE IN THE UNITED STATES, and Sears will repair it, free
of charge°
tfthis Craftsman electronic reciprocating saw is used forcommercial or rental purposes, this warranty applies for only
90 days from the date of purchase.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., DEPT. 817 WA, Hoffman Estates, IL 60179
TABLE OF CONTENTS
1. Rules for Safe Operation ............................................................................ 2-3
2. Introduction and Product Specifications ........................................................ 4
3. Warranty andTable Of Contents .................................................................... 4
4 Operation .................................................................................................... 5-9
5. Maintenance and Accessories ..................................................................... 10
6. Exploded View and Repair Parts List ............................................................ 11
7. Parts Ordering / Service .............................................................................. 12
Page 4

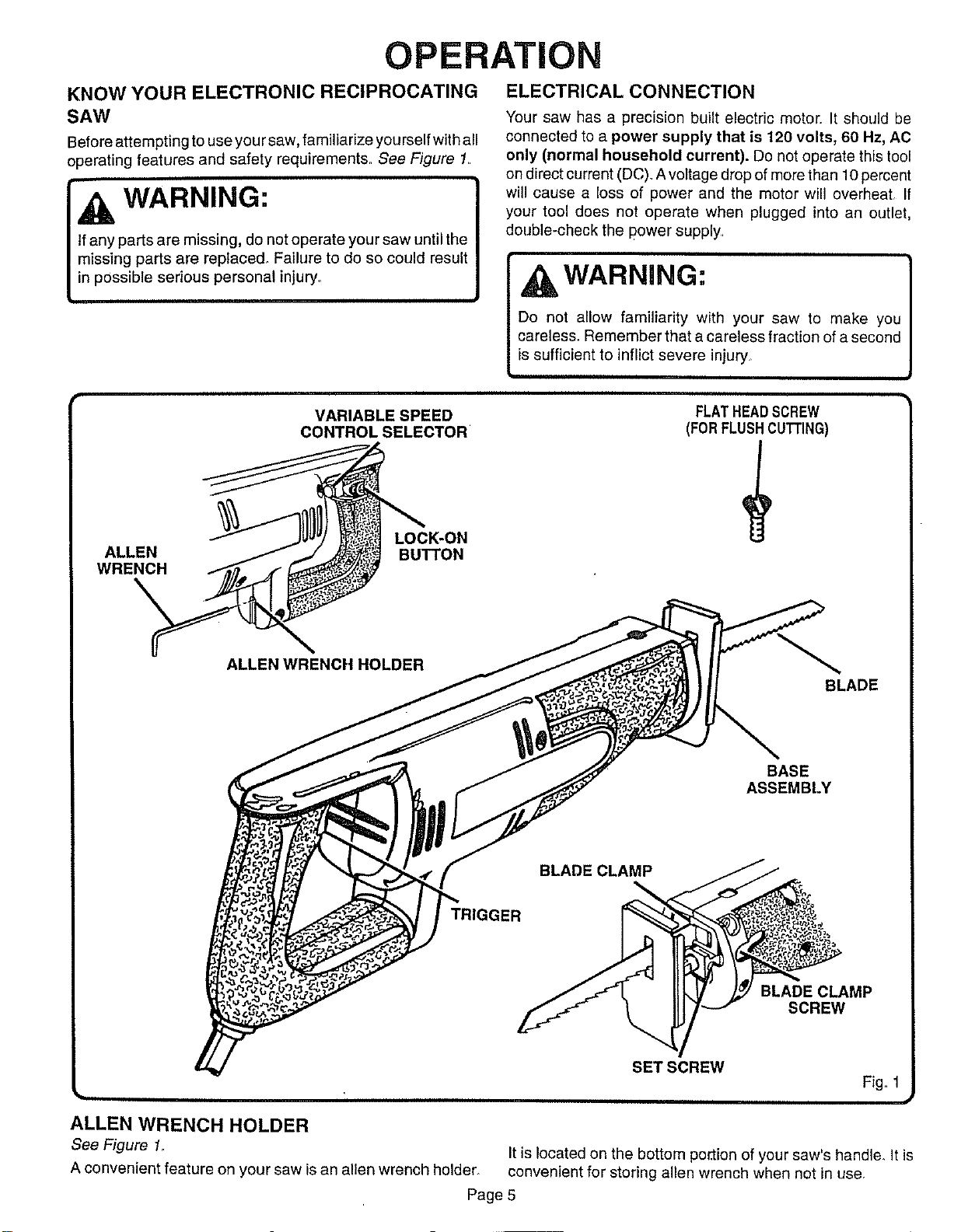

OPERATION
KNOW YOUR ELECTRONIC RECIPROCATING
SAW
Before attempting to use you rsaw, familiarize you rself with all
operating features and safety requirements. See Figure 1
WARNING:
If any parts are missing, do not operate your saw until the
missing parts are replaced. Failure to do so could result
in possible serious personal injury.
i
ELECTRICAL CONNECTION
Your saw has a precision built electric motor. It should be
connected to a power supply that is 120 volts, 60 Hz, AC
only (normal household current). Do not operate this tool
on direct current (DC) A voltage drop of more than 10 percent
will cause a loss of power and the motor will overheat. If
your tool does not operate when plugged into an outlet,
double-check the power supply
, WARNING:
Do not allow familiarity with your saw to make you
careless. Remember that a careless fraction of a second
is sufficient to inflict severe injury
ALLEN
WRENCH
VARIABLE SPEED
CONTROL SELECTOR
LOCK-ON
BUTTON
FLATHEADSCREW
(FORFLUSHCUTTING)
ALLEN WRENCH HOLDER
BLADE
BASE
ASSEMBLY
TRIGGER
BLADE CLAMP
SCREW
SET SCREW
Fig 1
ALLEN WRENCH HOLDER
See Figure 1,
A convenient feature on your saw is an allen wrench holder,
It is located on the bottom portion of your saw's handle. It is
convenient for storing allen wrench when not in use.
Page 5
OPERATION
, WARNING:
Always wear safety goggles or safety glasses with side
shieldswhen operating your electronic reciprocating saw.
Failure to do so could result in foreign objects being
thrown into your eyes resulting in possible serious injury..
SWITCH
See Figure 2o
To turn your reciprocating saw ON, depress switch trigger_
Release switch trigger to turn your saw OFF,
LOCK-ON BUTTON
See Figure 2.
Your saw is equipped with a "lock-on" feature, which is
convenient when continuous cutting for extended periods of
time is required. To lock-on, depress the switch trigger, push
in and hold the "lock-on" button located on the side of the
handle, then release switch trigger Release "lock-on"button
and your saw will continue running.
To release the lock, depress the switch trigger and release iL
DO NOT lock the trigger on heavy jobs where your saw may
have to be stopped quickly.
,, WARNING:
When using your saw with the switch lock-on, keep your
finger on the trigger and be prepared to disengage the
"lock-on" feature at all tirnes. Failure to do so could result
in loss of control leading to possible serious injury_
k
if you have the "lock-on" featu re engaged during use and your
saw becomes disconnected from power supply, disengage
the "lock-on" feature immediately_
, WARNING:
Before connecting your saw to power supply source,
always check to be sure it is not in "Lock-on" position
(depress and release switch trigger). Failure to do so
could result in accidental starting of saw resulting in
possible serious injury. Also, do not lock the trigger on
jobs where your saw may need to be stopped suddenly.
VARIABLE SPEED
See Figure 2.
Your electronic reciprocating saw has a variable speed
control selector designed to allow operator control and ad-
justment of speed and power limits. The speed and power of
your saw can be increased or decreased by rotating the
variable speed control selector in the direction of the arrows
shown in figure 2_
NOTE: Hold your saw in normal operating position and turn
the variable speed control selector clockwise to increase the
speed and power of your saw. Turn counterclockwise to
decrease the speed and power of your saw.
TOINCREASESPEED
TO DECREASE SPEED
VARIABLE SPEED
CONTROLSELECTOR
LOCK-ON
BUTTON
Fig. 2
If you desire to lock the switch on at a given speed, depress
the switch trigger', push in and hold the "lock-on" button, then
while holding the "lock-on" button pushed in release the
switch trigger_ Next, adjust the variable speed control selec-
tor until the desired speed is reached.
NOTE: IFTHE VARIABLE SPEED CONTROL SELECTOR
IS FULLY TURNED IN THE COUNTERCLOCKWISE
DIRECTION (ZERO SETTING) YOUR SAW MAY NOT
RUN.
IF YOU DESIRE NOT TO USE THE VARIABLE SPEED
CONTROL SELECTOR, TURN IT IN THE FULL
CLOCKWISE DIRECTION. THIS WILL ALLOW THE
SPEED OF YOUR SAW TO BE FULLY CONTROLLED
BY THE AMOUNT OF SWITCH TRIGGER
DEPRESSION.
Avoid running your saw at low speeds for extended pedods
of time. Running at low speeds under constant usage may
cause the motor of your saw to become overheated. If this
occurs, cool your saw by running it without a load and at full
speed.
WARNING:
Your saw should never be connected to power supply
'when you are assembling parts, making adjustments,
installing or removing blades, when clearfing, or when not
in use_ Disconnecting your' saw will prevent accidental
Lstarting that could cause serious injury.
BLADE SELECTION
To obtain the best performance from your saw it is important
to select a specific blade for the particular application and
type of material you wish to cut. By doing this you will get a
smoother faster cut and prolong blade life. Replacement
blades for this saw are available from your' nearest Sears
Retail Store.
Page 6
OPERATION

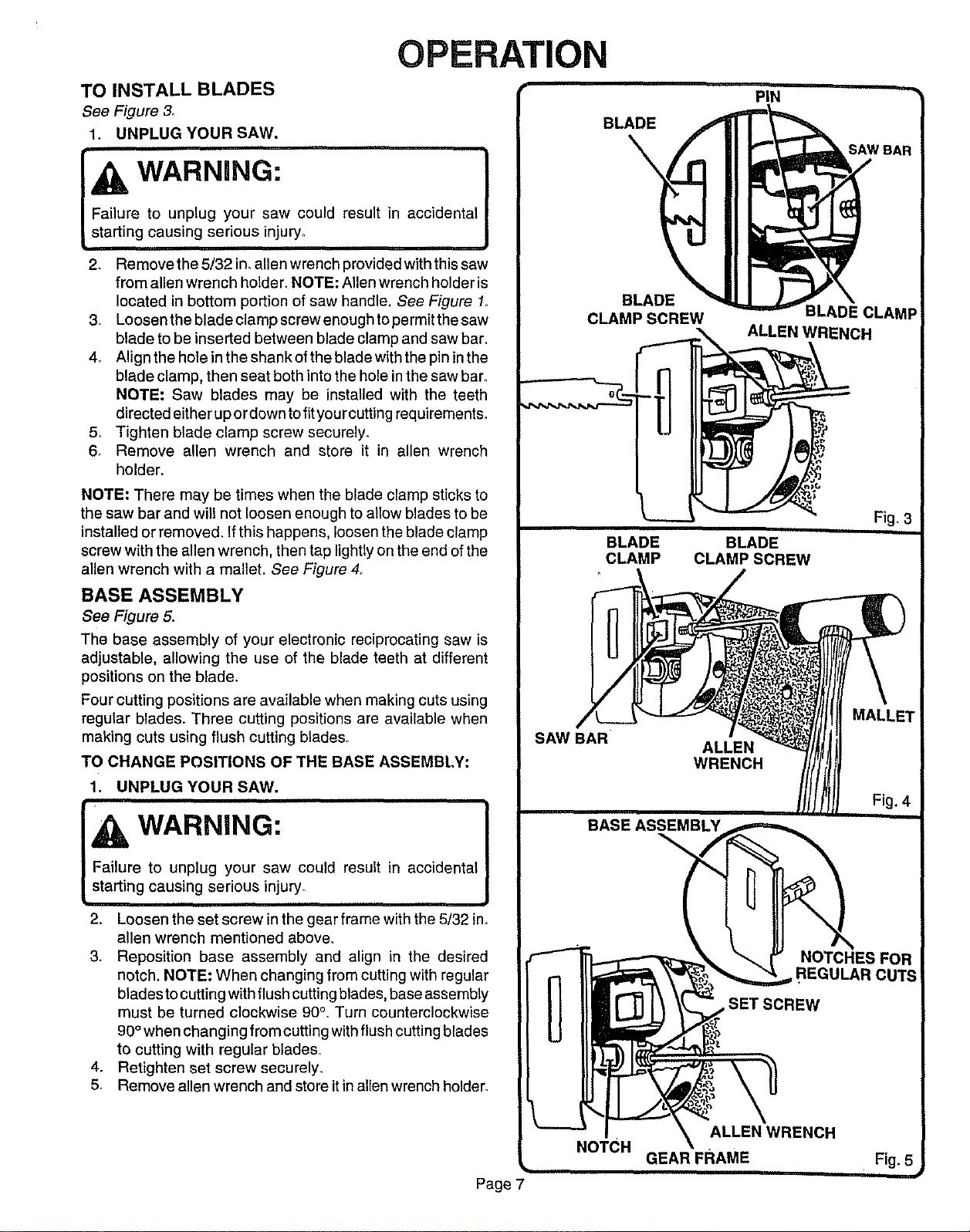

TO INSTALL BLADES
See Figure 3_
1, UNPLUG YOUR SAW.
2. Remove the 5/32 in. allen wrench provided with this saw
from allen wrench holder. NOTE: Allen wrench holder is
located in bottom portion of saw handle° See Figure 1o
3. Loosen the blade clamp screw enough to permit the saw
blade to be inserted between blade clamp and saw bar,
4. Alignthe hole in the shankof the blade with the pin in the
blade clamp, then seat both into the hole in the saw bar.
NOTE: Saw blades may be installed with the teeth
directed either up ordown to fit yourcutting requirements,
5, Tighten blade clamp screw securely.
6o Remove allen wrench and store it in allen wrench
holder.
NOTE: There may be times when the blade clamp sticks to
the saw bar and wilt not loosen enough to allow blades to be
installed or removed. If this happens, loosen the blade clamp
screw with the allen wrench, then tap lightly on the end of the
allen wrench with a maiteL See Figure 4_
BASE ASSEMBLY
See Figure 5.
The base assembly of your electronic reciprocating saw is
adjustable, allowing the use of the blade teeth at different
positions on the blade.
Four cutting positions are available when making cuts using
regular blades. Three cutting positions are available when
making cuts using flush cutting blades.
TO CHANGE POSITIONS OF THE BASE ASSEMBLY:
1. UNPLUG YOUR SAW.
Failure to unplug your saw could result in accidental
starting causing serious injury_
2. Loosen the set screw in the gear frame with the 5/32 in.
allen wrench mentioned above.
3. Reposition base assembly and align in the desired
notch. NOTE: When changing from cutting with regular
blades to cutting with flush cutting blades, base assembly
must be turned clockwise 90% Turn counterclockwise
90°when changing from cutting with flush cutting blades
to cutting with regular blades.
4. Retighten set screw securely.
5. Remove allen wrench and store itinallen wrench holder.
BLADE
\
BLADE
CLAMP SCREW
BLADE
BASE ASSEMBLY
PiN
SAW BAR
BLADE
Page 7
BLADE CLAMP
ALLEN WRENCH
Fig. 3
OPERATION

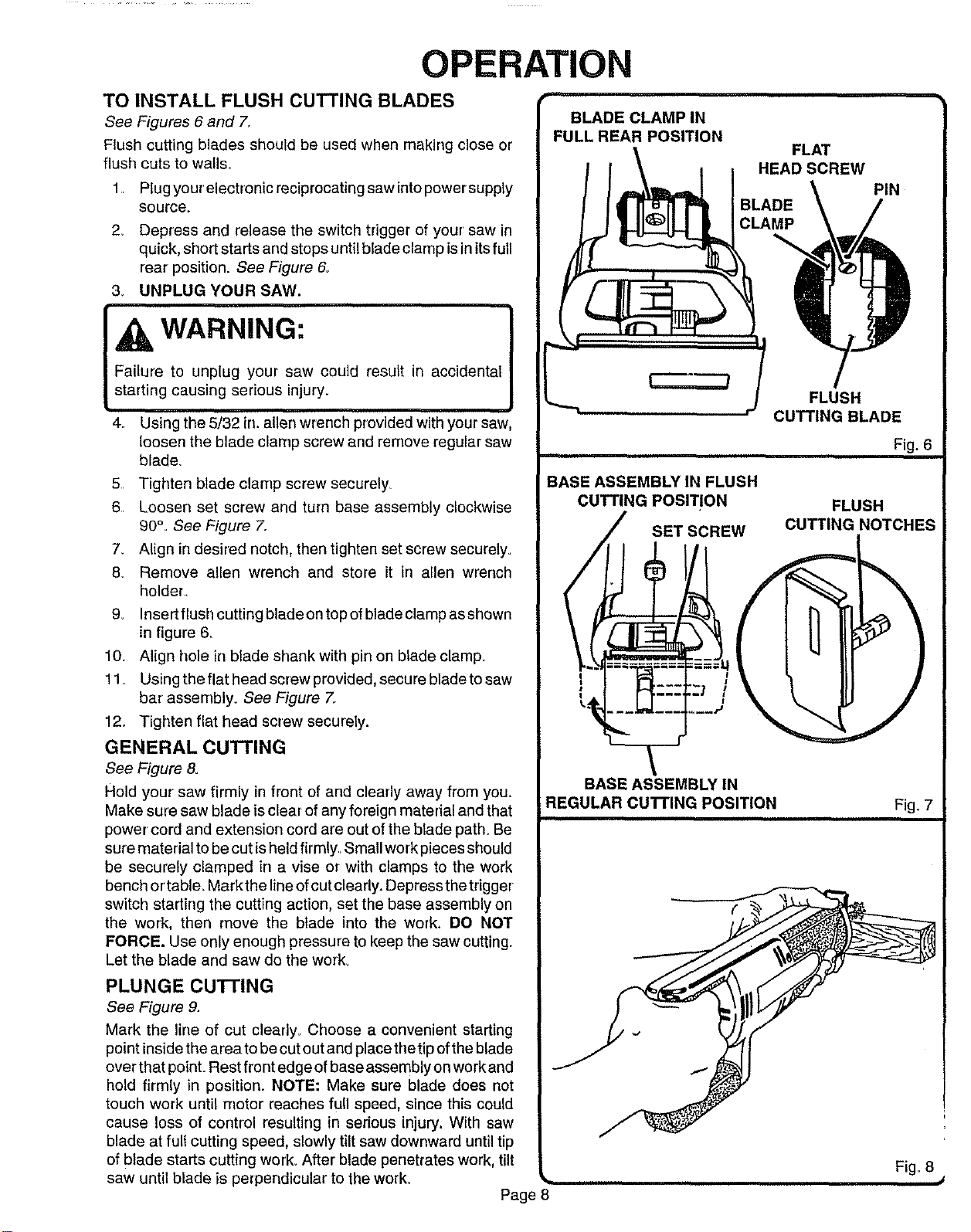

TO INSTALL FLUSH CUTTING BLADES
See Figures 6 and 7_
Flush cutting blades should be used when making close or
flush cuts to walls.
1. Plug your electrenic reciprocating saw into power supply
source.
2_ Depress and release the switch trigger of your saw in
quick, short starts and stops until blade clamp is in its full
rear' position. See Figure 6.
3. UNPLUG YOUR SAW.
WARNING:
4. Using the 5/32 in. allen wrench provided with your saw,
loosen the blade clamp screw and remove regular saw
blade
5 Tighten blade clamp screw securely,
6. Loosen set screw and turn base assembly clockwise
g0°. See Figure 7.
7. Align in desired notch, then tighten set screw securely.
8. Remove allen wrench and store it in allen wrench
holder,.
9_ Insert flush cutting blade on top of blade clamp as shown
in figure 6.
10. Align hole in blade shankwith pin on blade clamp.
11_ Using the flat head screw provided, secure blade to saw
bar assembly. See Figure 7,
12. Tighten flat head screw securely.
GENERAL CUTTING
See Figure 8.
Hold your saw firmly in front of and clearly away from you.
Make sure saw blade isclear of any foreign material and that
power cord and extension cord are out of the blade path. Be
sure material to be cut isheld firmly. Small work pieces should
be securely clamped in a vise or with clamps to the work
bench ortable. Mark the line of cut clearly. Depress the trigger
switch starting the cutting action, set the base assembly on
the work, then move the blade into the work. DO NOT
FORCE. Use only enough pressure to keep the saw cutting.
Let the blade and saw do the work_
PLUNGE CUTTING
See Figure 9.
Mark the line of cut clearly. Choose a convenient starting
point inside the area to be cut out and place the tip of the blade
over that point. Rest front edge of base assembly on work and
hold firmly in position. NOTE: Make sure blade does not
touch work until motor reaches full speed, since this could
cause loss of control resulting in serious injury. With saw
blade at full cutting speed, slowly tilt saw downward until tip
of blade starts cutting work. After blade penetrates work, tilt
saw until blade is perpendicular to the work_ _.
Page 8
Hll
BASE ASSEMBLY IN FLUSH
CUTTING POSITION
SET SCREW
BASE ASSEMBLY IN
REGULAR CUTTING POSITION
FLAT
FLUSH
CUTTING BLADE
Fig. 6
FLUSH
CUTTING NOTCHES
Fig. 7
Fig, 8
#
OPERATION

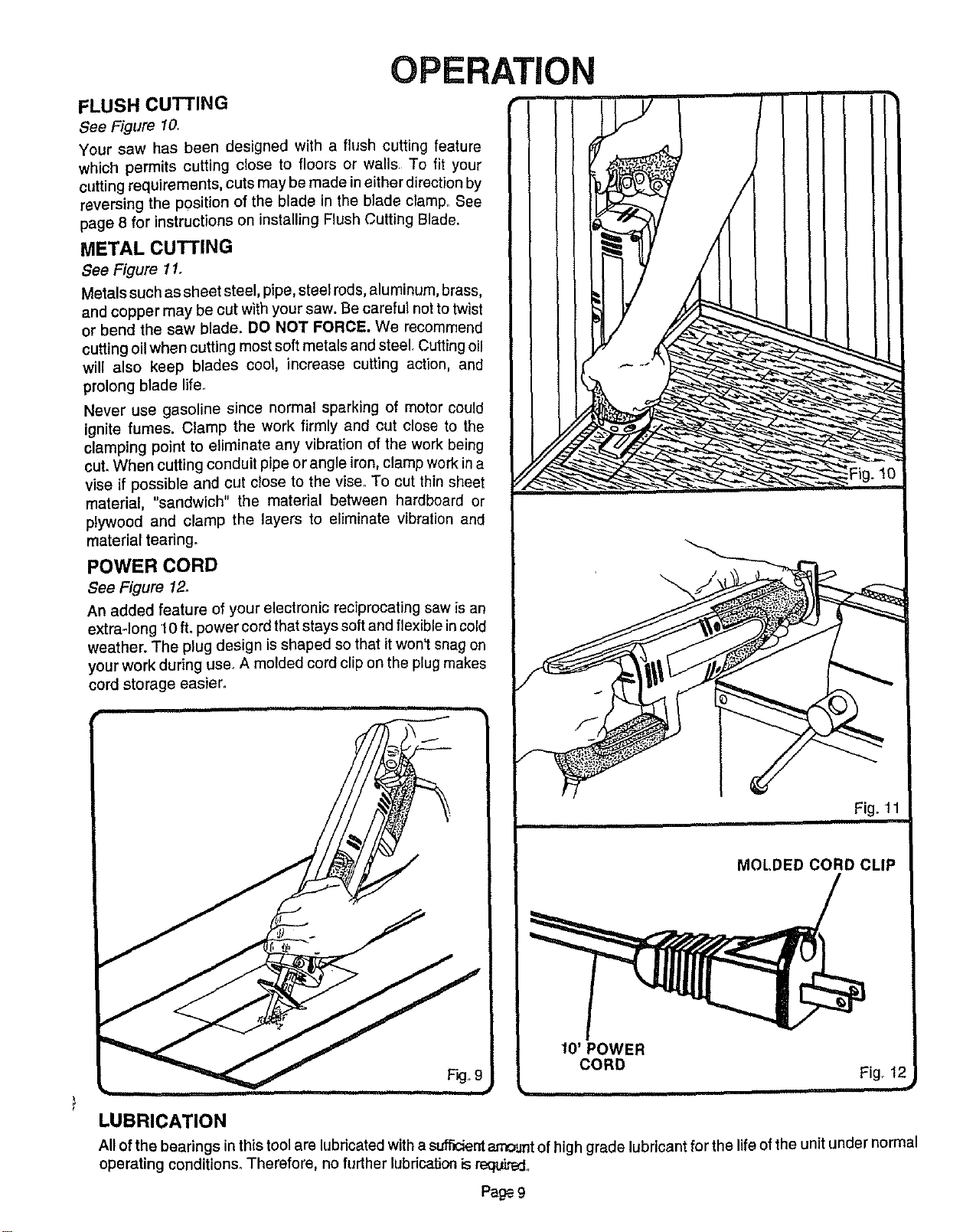

FLUSH CUTTING
See Figure 10.
Your saw has been designed with a flush cutting feature
which permits cutting close to floors or walls. To fit your
cutting requirements, cuts may bemade ineither directionby
reversing the position of the blade in the blade clamp_ See
page 8 for instructions on installing Flush Cutting Blade.
METAL CUTTING
See Figure 11.
Metals such as sheet steel, pipe, steel rods, aluminum, brass,
and copper may be cut with your saw. Be careful not to twist
or bend the saw blade, DO NOT FORCE. We recommend
cutting oil when cutting most soft metals and steel Cutting oil
will also keep blades cool, increase cutting action, and
prolong blade life.
Never use gasoline since normal sparking of motor could
ignite fumes. Clamp the work firmly and cut close to the
clamping point to eliminate any vibration of the work being
cut. When cutting conduit pipe or angle iron, clamp work in a
vise if possible and cut close to the vise. To cut thin sheet
material, "sandwich" the material between hardboard or
plywood and clamp the layers to eliminate vibration and
material tearing.
POWER CORD
See Figure 12_
An added feature of your electronic reciprocating saw is an
extra-long 10 ft, power cord that stays soft and flexible in cold
weather. The plug design is shaped so that itwont snag on
your work during use. A molded cord clip on the plug makes
cord storage easier.
MOLDED CORD CLIP
10' POWER
CORD
Fig° 12
LUBRICATION
Allof the bearings inthis tool are lubricatedwitha _nt am_.mt ofhigh grade lubricant for the life ofthe unitunder normal
operating conditions. Therefore, no further lubricationis requ]r_o
Page.g

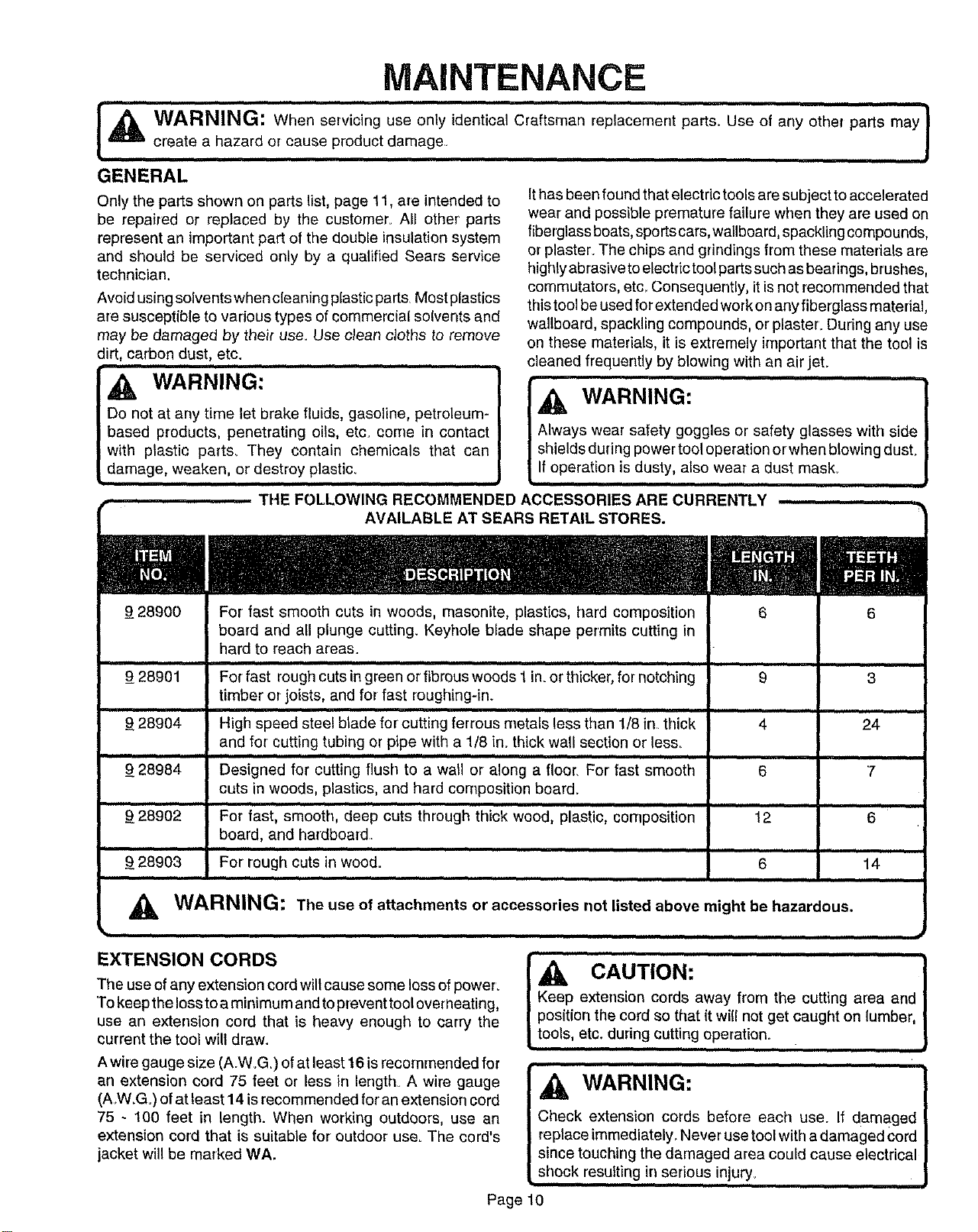

MAINTENANCE
, i
WARNING: When servicing use only identical Craftsman replacement parts. Use of any other parts may!
create a hazard or cause product damage.
GENERAL
Only the parts shown on parts list, page 11, are intended to
be repaired or replaced by the customer. All other' parts
represent an important part of the double insulation system
and should be serviced only by a qualified Sears service
technician.
Avoid using solvents when cleaning plastic parts. Most plastics
are susceptible to various types of commercial solvents and
may be damaged by their use. Use clean cloths to remove
dirt, carbon dust, etc.
WARNING:
Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc. come in contact
with plastic parts, They contain chemicals that can
damage, weaken, or' destroy plastic.
J
THE FOLLOWING RECOMMENDED ACCESSORIES ARE CURRENTLY
It has been found that electric tools are subject to accelerated
wear and possible premature failure when they are used on
fiberglass boats, sports cars, wallboard, spackling compounds,
or plaster. The chips and grindings from these materials are
highly abrasive to electric tool parts such as bearings, brushes,
commutators, etc, Consequently, it is not recommended that
this tool be used for extended work on any fiberglass material,
wallboard, spackling compounds, or plaster. During any use
on these materials, it is extremely important that the tool is
cleaned frequently by blowing with an air jeL
WARNING: I
Always wear safety goggles or safety glasses with side I
shields during power tool operation or when blowing dust. I
If operation is dusty, also wear a dust mask_ I
P
AVAILABLE AT SEARS RETAIL STORES.
9-28900 6
For fast smooth cuts in woods, masonite, plastics, hard composition
board and all plunge cutting. Keyhole blade shape permits cutting in
hard to reach areas.
u ii ,,,n i,,,,n n,i ,,, i,,i ,,, iii ull I
For fast rough cuts in green or fibrous woods 1 in. or thicker, for notching
timber or joists, and for fast roughing-in_
ii
High speed steel blade for'cutting ferrous metals less than 1/8 in. thick
and for cutting tubing or pipe with a 1/8 in. thick wall section or less.
, lul i i
Designed for cutting flush to a wail or along a floor. For' fast smooth
cuts in woods, plastics, and hard composition board.
,, ,i , , i i, iii, i,i i ul
For fast, smooth, deep cuts through thick wood, plastic, composition
board, and hardboard.
For rough cuts in wood.
;_28gol g 3
9_28904 4 24
9_28984 6 7
IIII IIII
9_28902 12 6
ii
9.9.28903 6 14
WARNING: The use of attachments or accessories not listed above might be hazardous.
_, ,i, i d
EXTENSION CORDS
The use of any extension cord wilt cause some loss of power.
To keep the loss to a minimum andtopreventtooloverneating,
use an extension cord that is heavy enough to carry the
current the tool will draw.
A wire gauge size (A.W.G _)of at least 16 is recommended for
an extension cord 75 feet or less in length_ A wire gauge
(A.W.G.) of at least 14 is recommended for an extension cord
75 - 100 feet in length. When working outdoors, use an
extension cord that is suitable for outdoor use° The cord's
jacket will be marked WA.
WARNING:
Check extension cords before each use. If damaged
replace immediately_ Never use tool with a damaged cord
since touching the damaged area could cause electrical
I
shock resulting in serious injury_
I i
Page 10

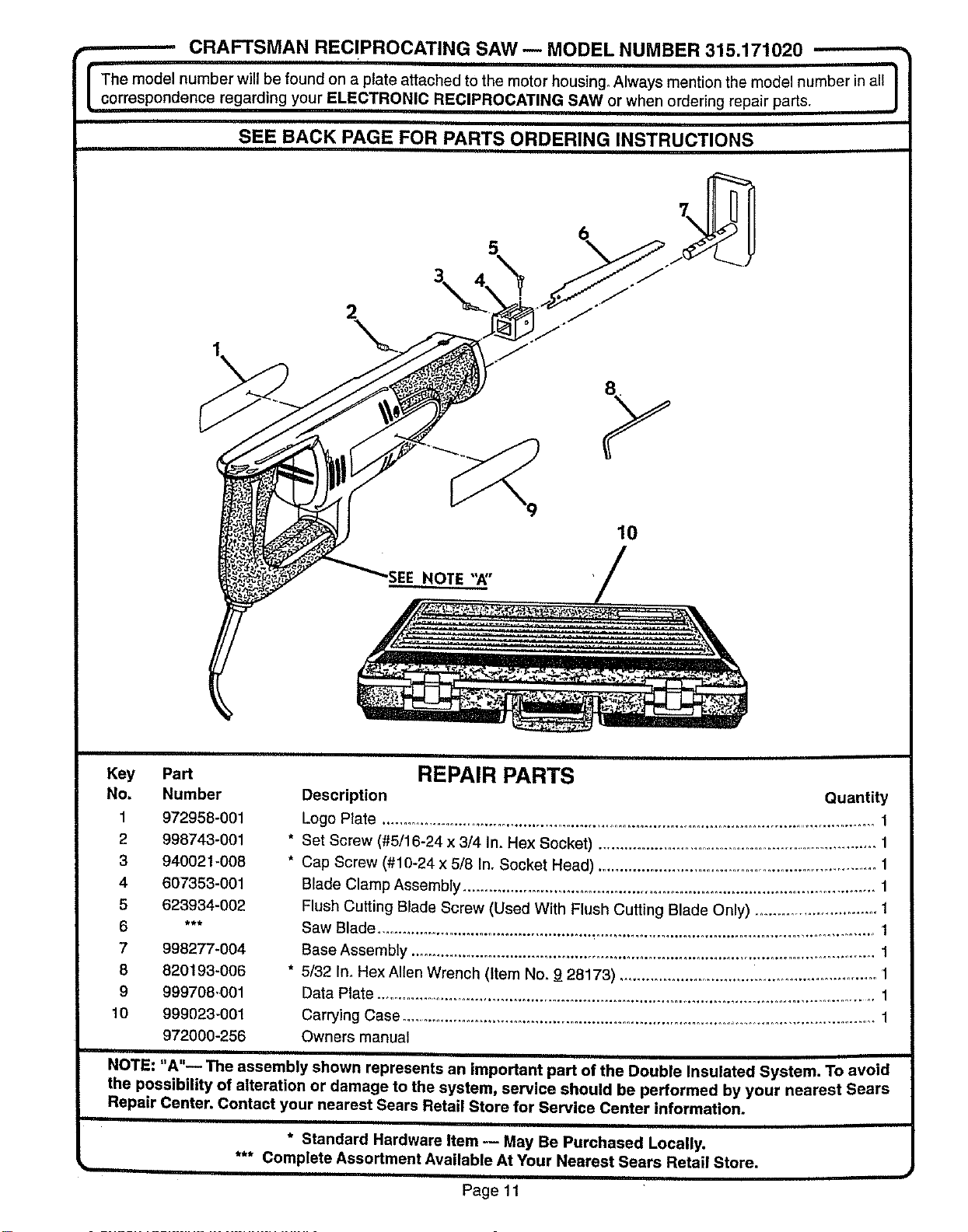

r CRAFTSMAN RECIPROCATING SAW -- MODEL NUMBER 315.171020
The model number will be found on a plate attached to the motor housing, Always mention the model number in all
correspondence regarding your ELECTRONIC RECIPROCATING SAW or when ordering repair parts.
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
2
5
10
NOTE 'W'
Key Part
No. Number
1 972958-001
2 998743-001
3 940021-008
4 607353-001
5 623934-002
_
7 998277-004
8 820193-006
9 999708,001
10 999023-001
972000-256
REPAIR PARTS
Description Quantity
Logo Plate .................................................................................................................... 1
Set Screw (#5/16-24 x 3/4 In. Hex Socket) .................................................................. 1
Cap Screw (#10-24 x 5/8 In, Socket Head) .................................................................. 1
Blade Clamp Assembly .............................................................................................. 1
Flush Cutting Blade Screw (Used With Flush Cutting Blade Only) ............................ 1
Saw Blade ..................................................................................................................... 1
Base Assembly ........................................................................................................... 1
5/32 In. Hex Allen Wrench (Item No. 9_28173) .............................................................. 1
Data Plate ........................................................................................................................ 1
Carrying Case .................................................................................................................. 1
Owners manual
NOTE: "A"-- The assembly shown represents an important part of the Double Insulated System. To avoid
the possibility of alteration or damage to the system, service should be performed by your nearest Sears
Repair Center. Contact your nearest Sears Retail Store for Service Center information.
* Standard Hardware Item -- May Be Purchased Locally.
*** Complete Assortment Available At Your Nearest Sears Retail Store.
Page 11

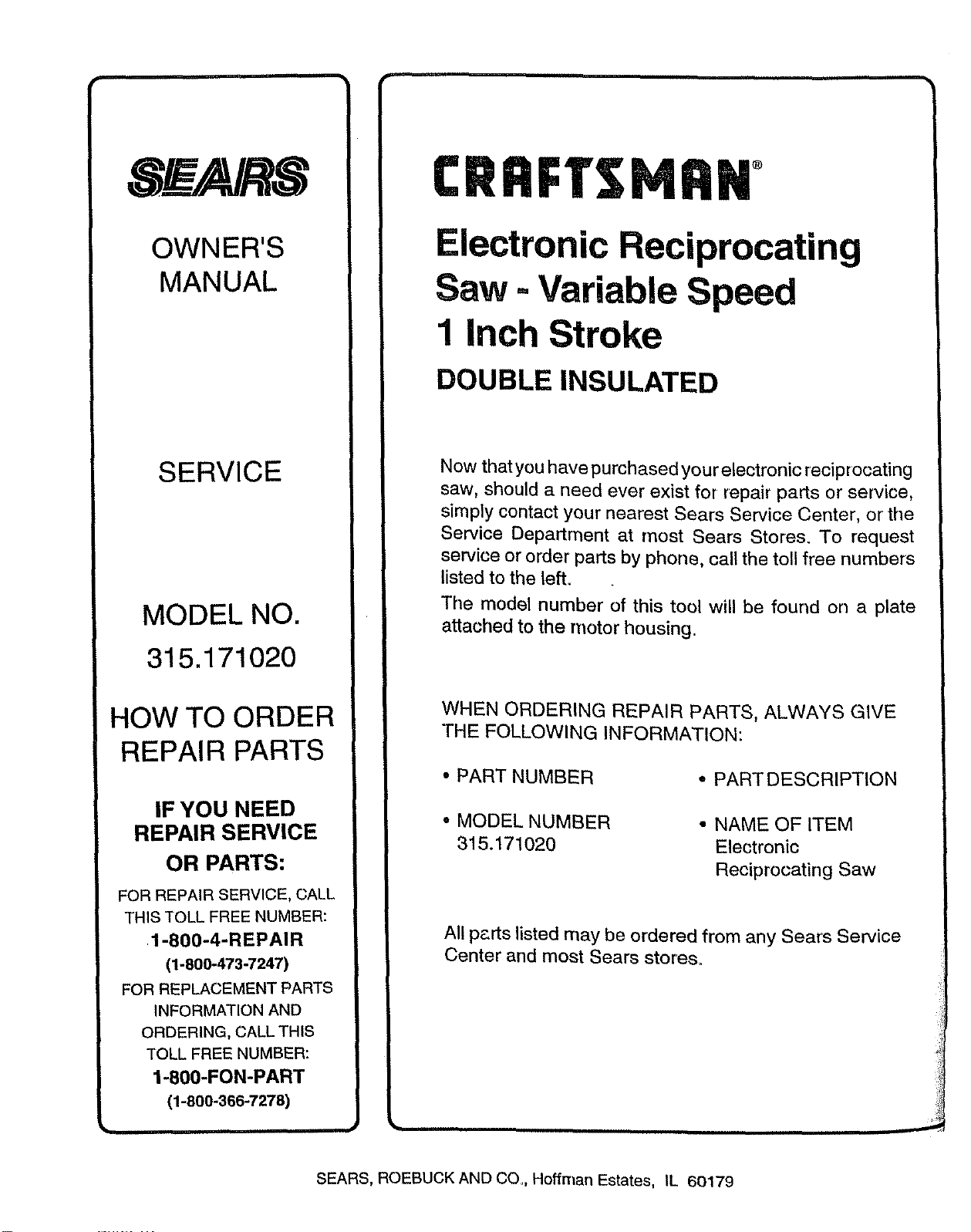

OWNER'S
MANUAL
SERVICE
MODEL NO.
315.171020
HOW TO ORDER
REPAIR PARTS
IF YOU NEED
REPAIR SERVICE
OR PARTS:
FOR REPAIR SERVICE, CALL
THIS TOLL FREE NUMBER:
1-800-4-REPAIR
(1-800-473-7247)
FOR REPLACEMENT PARTS
_NFORMATION AND
ORDERING, CALL THIS
TOLL FREE NUMBER:
1-SOO-FON-PART
(1-800.366-7278)
®
Electronic Reciprocating
Saw- Variable Speed
1 Inch Stroke
DOUBLE INSULATED
Now that you have purchased your electronic reciprocating
saw, should a need ever exist for repair parts or service,
simply contact your nearest Sears Service Center, or the
Service Department at most Sears Stores. To request
service or order parts by phone, call the toll free numbers
listed to the left.
The model number of this tool will be found on a plate
attached to the motor housing.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE
THE FOLLOWING INFORMATION:
oPARTNUMBER • PART DESCRIPTION
• MODEL NUMBER
315.171020
• NAME OF ITEM
Electronic
Reciprocating Saw
All pc.rts listed may be ordered from any Sears Service
Center and most Sears stores.
SEARS, ROEBUCKAND CO. Hoffrnan Estates, IL 60179
