Euromaid FIDWB16 60cm Fully Integrated Dishwasher User Manual

),':%

3ODFH)XOO\,QWHJUDWHG'LVKZDVKHU

USER MANUAL

PLEASE READ THE USER MANUAL CAREFULLY BEFORE USE

www.glendimplex.com.au

([SODQDWLRQRIV\PEROV

Throughout this User Manual the following symbols are used:

Important information or useful

hints about usage.

Warning for hazardous situations

with regard to life and property.

Warning for electric shock.

Packaging materials of the

product are manufactured

from recyclable materials in

accordance with our National

Environment Regulations.

Do not dispose of the packaging materials together with the domestic or other wastes.

Take them to the packaging material collection points designated by the local authorities.

Please read this user manual first!

Dear Customer,

We hope that you get the best results from your product which has been manufactured

with high quality and state-of-the-art technology. Therefore, please read this entire user

manual and all other accompanying documents carefully before using the product and

keep it as a reference for future use. If you handover the product to someone else, give

the user manual as well. Follow all warnings and information in the user manual.

Remember that this user manual is also applicable for several other models. Differences

between models will be identified in the manual.

This product was manufactured using the latest technology in environmentally friendly conditions.

CONTENTS

,16758&7,216)256$)(7<

$1'(19,5210(17 

General safety .......................................4

Intended use ..........................................4

Children’s safety ....................................5

Disposing of packaging material ........5

Transportation of the product ............5

Compliance with WEEE Directive and

Disposing of the Waste Product .........6

Compliance with RoHS Directive ........6

Package information ............................6

',6+:$6+(5 

Overview ................................................7

Fan drying system .................................8

Technical specications .......................8

,167$//$7,21 

Appropriate installation location .......9

Connecting water supply .....................9

Connection to the drain .................... 10

Adjusting the feet .............................. 10

Aquasafe+ ...........................................11

Electrical connection ..........................11

Initial use ..............................................11

35(3$5$7,21 

Tips for energy saving ........................12

Tablet detergents ...............................13

Rinse aid ...............................................14

Items not suitable for washing in the

dishwasher ...........................................14

Placing the dishes into the

dishwasher ...........................................15

Cutlery basket .....................................17

ollapsible lower basket tines ......... 18

Tray Wash Supports ........................... 19

SoftTouch Accessory ......................... 19

Lower Basket Glass Holder ............... 19

Lower basket multipurpose / height

adjustable service rack ..................... 20

Lower basket bottle wire ...................21

Upper basket height adjustable

rack ........................................................21

Upper baske

t multipurpose service

rack ........................................................21

Adjusting the height of the upper

basket .................................................. 22

Collapsible upper basket wires ........ 23

Ceiling cutlery basket ........................ 24

Silverware basket piece .................... 25

23(5$7,1*7+(352'8&7

Keys .......................................................27

Function keys ......................................27

Preparing the machine.......................27

Programme selection .........................27

Auxiliary functions ............................ 29

Scheduling the washing time .......... 30

Starting the programme ....................31

Cancelling the programme ................31

Salt indicator (

) ...............................31

Adjusting the amount of rinse aid ... 32

Rinse Aid indicator (

) ..................... 32

End of programme ............................. 32

Water cut-o warning ....................... 32

Overowing warning ......................... 32

0$,17(1$1&($1'

&/($1,1* 

Cleaning the outer surface of the

product ................................................ 33

Cleaning the interior of the machine 33

Cleaning the lters ............................ 33

Cleaning the hose lter ..................... 34

Cleaning the impellers ...................... 35

Lower impeller .................................... 35

Upper impeller ................................... 35

7528%/(6+227,1* 

7(&+1,&$/'5$:,1*

0$18)$&785(

*8$5$17((





4/48 EN Dishwasher / User’s Manual

instructions for safety and environment

5IJTTFDUJPODPOUBJOTTBGFUZJOTUSVDUJPOT

UIBUXJMMIFMQUPHFUQSPUFDUFEGSPNSJTLPG

QFSTPOBMJOKVSZPSQSPQFSUZEBNBHF'BJMVSF

UPGPMMPXUIFTFJOTUSVDUJPOTTIBMMWPJEBMM

XBSSBOUJFT

(FOFSBMTBGFUZ

 /FWFSQMBDFUIFQSPEVDU

POBDBSQFUDPWFSFEGMPPSPUIFSXJTF

MBDLPGBJSGMPXCFOFBUIUIFQSPEVDUXJMM

DBVTFFMFDUSJDBMQBSUTUPPWFSIFBU5IJT

XJMMDBVTFQSPCMFNTXJUIZPVSQSPEVDU

 *GUIFTVQQMZDPSEJTEBNBHFEJUNVTUCF

SFQMBDFECZUIFNBOVGBDUVSFSPSJUT

TFSWJDFBHFOUPSBTJNJMBSMZRVBMJGJFE

QFSTPOJOPSEFSUPBWPJEBIB[BSE

 $POOFDUUIFQSPEVDUUPBHSPVOEFE

PVUMFUQSPUFDUFECZBGVTFDPNQMZJOH

XJUIUIFWBMVFTJOUIFi5FDIOJDBM

TQFDJGJDBUJPOTwUBCMF%POPUOFHMFDUUP

IBWFUIFHSPVOEJOHJOTUBMMBUJPONBEFCZ

BRVBMJGJFEFMFDUSJDJBO5IFNBOVGBDUVSFS

TIBMMOPUCFMJBCMFGPSBOZEBNBHFTUIBU

XJMMBSJTFXIFOUIFQSPEVDUJTVTFE

XJUIPVUHSPVOEJOHJOBDDPSEBODFXJUI

UIFMPDBMSFHVMBUJPOT

 5IFEJTIXBTIFSNVTUBMXBZTCF

DPOOFDUFEUPUIFXBUFSTZTUFNVTJOH

OFXIPTFTFUTTVQQMJFEXJUIUIJT

BQQMJBODF0MEIPTFTFUTTIPVMEOPUCF

SFVTFE

 5IFXBUFSTVQQMZBOEESBJOJOHIPTFT

NVTUCFTFDVSFMZGBTUFOFEBOESFNBJO

VOEBNBHFE

 6OQMVHUIFQSPEVDUXIFOOPUJOVTF

 /FWFSXBTIUIFQSPEVDUCZTQSFBEJOHPS

QPVSJOHXBUFSPOUPJU5IFSFJTUIFSJTLPG

FMFDUSJDTIPDL

 /FWFSUPVDIUIFQMVHXJUIXFUIBOET

/FWFSVOQMVHCZQVMMJOHPOUIFDBCMF

BMXBZTQVMMPVUCZHSBCCJOHUIFQMVH

 5IFQSPEVDUNVTUCFVOQMVHHFEEVSJOH

JOTUBMMBUJPONBJOUFOBODFDMFBOJOHBOE

SFQBJSJOHQSPDFEVSFT

 "MXBZTIBWFUIFJOTUBMMBUJPOBOESFQBJSJOH

QSPDFEVSFTDBSSJFEPVUCZUIF"VUIPSJTFE

4FSWJDF"HFOU.BOVGBDUVSFSTIBMMOPUCF

IFMEMJBCMFGPSEBNBHFTUIBUNBZBSJTF

GSPNQSPDFEVSFTDBSSJFEPVUCZ

VOBVUIPSJTFEQFSTPOT

 /FWFSVTFDIFNJDBMTPMWFOUTJOUIF

QSPEVDU5IFZCSJOHGPSUIUIFSJTLPG

FYQMPTJPO

 8IFOZPVQVMMUIFVQQFSBOEMPXFS

CBTLFUTPVUDPNQMFUFMZUIFEPPSPGUIF

QSPEVDUXJMMCFBSBMMUIFXFJHIUPGUIF

CBTLFUT%POPUQVUPUIFSMPBETPOUIF

EPPSPUIFSXJTFUIFQSPEVDUNBZUJMU

 1MFBTFEPOPUMFBWFUIFEPPSPQFOBT

UIJTXJMMDBVTFBUSJQQJOHIB[BSE

 %POPUUPPQFOUIFEPPSPGUIFQSPEVDU

XIFOJUJTSVOOJOHVOMFTTOFDFTTBSZ#F

DBSFGVMGPSUIFSVTIPGIPUTUFBNXIFO

ZPVPQFOUIFEPPS

*OUFOEFEVTF

 5IJTQSPEVDUIBTCFFOEFTJHOFEGPS

EPNFTUJDVTF

 *UNVTUCFVTFEUPEPUIFEPNFTUJDUZQF

EJTIFTPOMZ

Dishwasher / User’s Manual

5 / 48

instructions for safety and environment

 5IJTBQQMJBODFJTJOUFOEFEUPCFVTFE

JOIPVTFIPMEBOETJNJMBSBQQMJDBUJPOT

TVDIBT

P4UBGGLJUDIFOBSFBTJOTIPQT

PGGJDFTBOEPUIFSXPSLJOH

FOWJSPONFOUT

P'BSNIPVTFT

P#ZDMJFOUTJOIPUFMTNPUFMTBOE

PUIFSSFTJEFOUJBMUZQF

FOWJSPONFOUT

P#FEBOECSFBLGBTUUZQF

FOWJSPONFOUT

 0OMZEJTIXBTIFSTBGFEFUFSHFOUTSJOTF

BJETBOEBEEJUJWFTNVTUCFVTFE

 5IFNBOVGBDUVSFSXBJWFTBOZ

SFTQPOTJCJMJUZBSJTFOGSPNJODPSSFDUVTBHF

PSUSBOTQPSUBUJPO

 5IFBQQMJBODFJTOPUJOUFOEFEGPSVTFCZ

QFSTPOTJODMVEJOHDIJMESFOXJUISFEVDFE

QIZTJDBMTFOTPSZPSNFOUBMDBQBCJMJUJFT

PSMBDLPGFYQFSJFODFBOELOPXMFEHF

VOMFTTUIFZIBWFCFFOHJWFOTVQFSWJTFE

PSJOTUSVDUJPODPODFSOJOHVTFPGUIF

BQQMJBODFCZBSFTQPOTJCMFQFSTPOGPS

UIFJSTBGFMZ$MFBOJOHBOEVTFS

NBJOUFOBODFTIBMMOPUCFNBEFCZ

DIJMESFO

 :PVOHDIJMESFOTIPVMECFTVQFSWJTFEUP

FOTVSFUIBUUIFZEPOPUQMBZXJUIUIF

BQQMJBODF

 8

8"3/*/(

,OJWFTBOEPUIFSVUFOTJMT

XJUITIBSQTQPJOUTNVTUCFMPBEFEJOUIF

CBTLFUXJUIUIFQPJOUTEPXOPSQMBDFEJO

BIPSJ[POUBMQPTJUJPO

$IJMESFOTTBGFUZ



8"3/*/(

40.&%*4)8"4)&3

%&5&3(&/54"3&4530/(-:

"-,"-*/&5)&:$"/#&&953&.&-:

%"/(&3064*'48"--08&%"70*%

$0/5"$58*5)4,*/"/%&:&4"/%

,&&1$)*-%3&/"8":'30.5)&

%*4)8"4)&38)&/5)&%003*4

01&/

%JTQPTJOHPGQBDLBHJOH

NBUFSJBM

1BDLBHJOHNBUFSJBMTBSFEBOHFSPVTUP

DIJMESFO,FFQQBDLBHJOHNBUFSJBMTJOBTBGF

QMBDFBXBZGSPNSFBDIPGUIFDIJMESFO

1BDLBHJOHNBUFSJBMTPGUIFQSPEVDUBSF

NBOVGBDUVSFEGSPNSFDZDMBCMFNBUFSJBMT

%JTQPTF

PGUIFNQSPQFSMZBOETPSUJOBDDPSEBODF

XJUISFDZDMFEXBTUFJOTUSVDUJPOT%POPU

EJTQPTFPGUIFNXJUIOPSNBMEPNFTUJD

XBTUF

5SBOTQPSUBUJPOPGUIF

QSPEVDU

*GZPVOFFEUPNPWFUIF

QSPEVDUEPJUJOVQSJHIUQPTJUJPO

BOEIPMEGSPNUIFSFBSTJEF

4MBOUJOHUIFQSPEVDUPOUPJUT

GSPOUTJEFNBZDBVTFUIF

FMFDUSPOJDQBSUTJOJUHFUXFUBOE

EBNBHFE

6/48 EN Dishwasher / User’s Manual

instructions for safety and environment





6OQMVHUIFQSPEVDUCFGPSFUSBOTQPSUJOH

JU



3FNPWFXBUFSESBJOBHFBOEXBUFS

TVQQMZDPOOFDUJPOT



%SBJOUIFSFNBJOJOHXBUFSJOUIF

QSPEVDUDPNQMFUFMZ

$PNQMJBODFXJUI8&&&

%JSFDUJWFBOE%JTQPTJOHPG

UIF8BTUF1SPEVDU

5IJTQSPEVDUDPNQMJFTXJUI&6

8&&&%JSFDUJWF

&65IJTQSPEVDU

CFBSTBDMBTTJGJDBUJPOTZNCPM

GPSXBTUFFMFDUSJDBMBOEFMFDUSPOJD

FRVJQNFOU8&&&5IJTQSPEVDUIBTCFFO

NBOVGBDUVSFEXJUIIJHIRVBMJUZQBSUTBOE

NBUFSJBMTXIJDIDBOCFSFVTFEBOEBSF

TVJUBCMFGPSSFDZDMJOH%POPUEJTQPTFPG

UIFXBTUFQSPEVDUXJUIOPSNBMEPNFTUJD

BOEPUIFSXBTUFTBUUIFFOEPGJUTTFSWJDF

MJGF5BLFJUUPUIFDPMMFDUJPODFOUFSGPSUIF

SFDZDMJOHPGFMFDUSJDBMBOEFMFDUSPOJD

FRVJQNFOU1MFBTFDPOTVMUZPVSMPDBM

BVUIPSJUJFTUPMFBSOBCPVUUIFTFDPMMFDUJPO

DFOUFST

$PNQMJBODFXJUI3P)4

%JSFDUJWF

5IFQSPEVDUZPVIBWFQVSDIBTFEDPNQMJFT

XJUI&63P)4%JSFDUJWF&6*U

EPFTOPUDPOUBJOIBSNGVMBOEQSPIJCJUFE

NBUFSJBMTTQFDJGJFEJOUIF%JSFDUJWF

1BDLBHFJOGPSNBUJPO

1BDLBHJOHNBUFSJBMTPGUIFQSPEVDUBSF

NBOVGBDUVSFEGSPNSFDZDMBCMFNBUFSJBMTJO

BDDPSEBODFXJUIPVS/BUJPOBM&OWJSPONFOU

3FHVMBUJPOT%POPUEJTQPTF

PGUIFQBDLBHJOHNBUFSJBMTUPHFUIFSXJUIUIF

EPNFTUJDPSPUIFSXBTUFT5BLFUIFNUPUIF

QBDLBHJOHNBUFSJBMDPMMFDUJPOQPJOUT

EFTJHOBUFECZUIFMPDBMBVUIPSJUJFT

Dishwasher / User’s Manual

7 / 48

Dishwasher

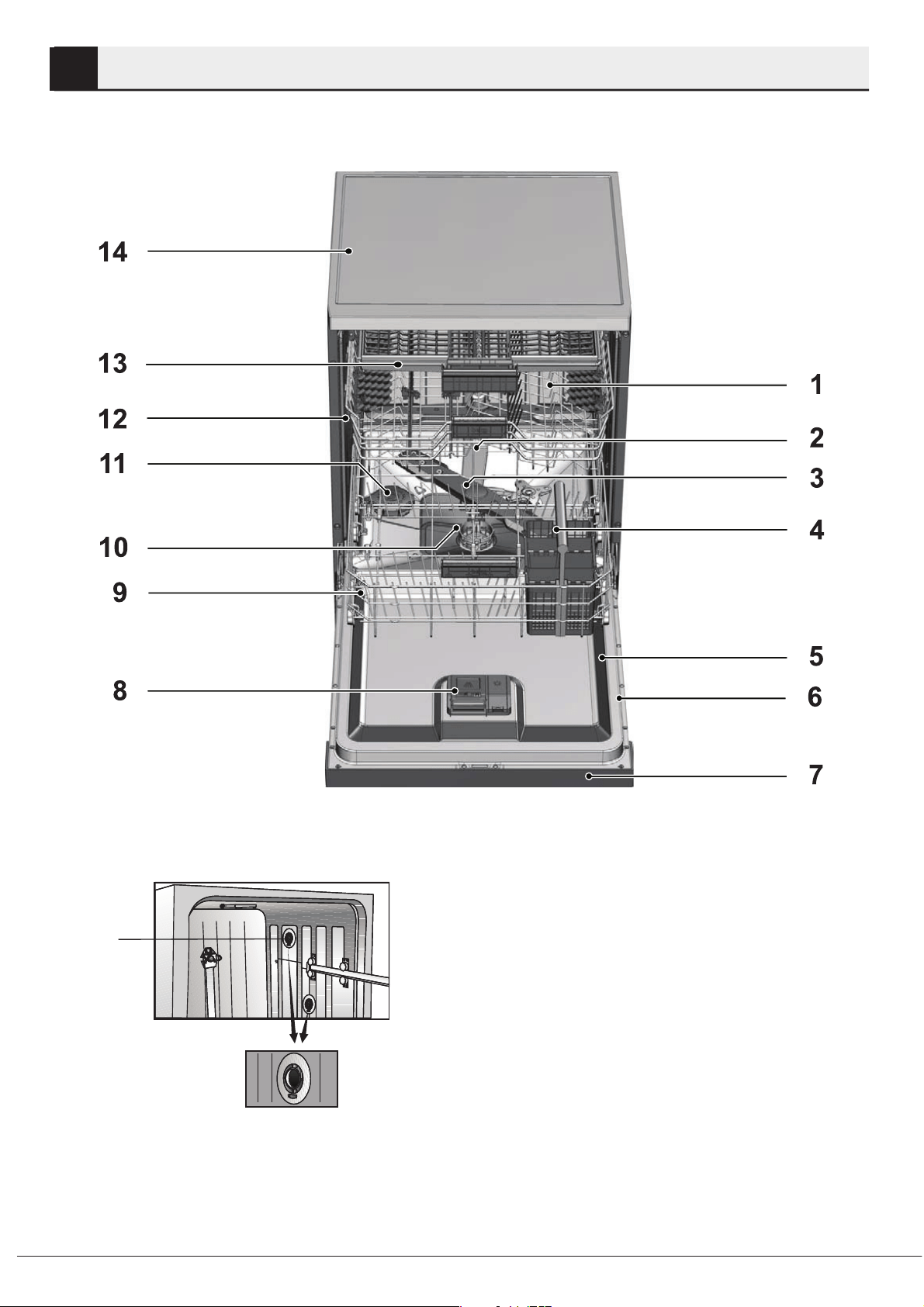

Overvew

1. Upper basket

2. Upper impeller

3. Lower impeller

4. Silverware basket

5. Door

6. Rating Label

7. Control panel

8. Detergent dispenser

9. Lower basket

10. Filters

11. Salt reservoir lid (depends on model)

12. Upper basket rail

13. Upper cutlery basket (depends on model)

14. Tabletop (depends on model)

15. Fan drying system (depends on model)

8/48 EN Dishwasher / User’s Manual

Dishwasher

Techncal specfcatons

&RPSOLDQFHWRVWDQGDUGVDQGWHVWGDWD(&GHFODUDWLRQRIFRQIRUPLW\

This product complies with the following EU directives;

Development, production and sales stages of this product comply with the safety

rules included in all pertaining European Community regulations.

2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242

Power input 220-240 V, 50 Hz (see rating label)

Total power consumption 1800-2100 W (see rating label)

Heater power consumption 1800 W (see rating label)

Total current (depends on the model) 10 A (see rating label)

Drain pump power consumption 30 W (see rating label)

Water pressure 0.3 –10 bar (= 3 – 100 N/cm = 0.01-1.0

Mpa)

Technical specifications may be changed without prior notice to improve the

quality of the product.

Figures in this manual are schematic and may not match the product exactly.

Values stated on the markings of the product or in the printed documents

accompanying the product are obtained in the laboratory on basis of the relevant

standards. Depending on operational and environmental conditions of the

product, these values may vary.

Note for test institutions:

Data required for performance tests shall be provided upon request. Requests can be

e-mailed to the following address:

dishwasher@standardloading.com

Do not forget to provide the code, stock and serial numbers of the product to be tested in

your request e-mail along with your contact information. Code, stock and serial numbers of

the product may be found on the type label attached to the side wall of the door.

Fan dryng system

(depends on model)

Fan drying system ensures efficient drying of your dishes.

It is normal to hear a different sound than that of washing cycle during fan operation.

Dishwasher / User’s Manual

9 / 48

Installation

Refer to the nearest Authorised Service

Agent for installation of your product. To

make the product ready for use, make sure

that the electricity, tap water supply and

water drainage systems are appropriate

before calling the Authorised Service Agent.

If they are not, call a qualified technician

and plumber to have any necessary

arrangements carried out.

Preparation of the location and

electrical, tap water and waste

water installations at the place

of installation is the customer's

responsibility.

Installation and electrical

connections must be carried

out by the Authorised Service

Agent. Manufacturer shall not

be held responsible for damages

arising from processes carried

out by unauthorised persons.

Prior to installation, visually

check if the product has any

defects on it. If so, do not have

it installed. Damaged products

cause risks for your safety.

Make sure that the water inlet

and discharge hoses are not

folded, pinched or crushed

while pushing the product into

its place after installation or

cleaning procedures.

When placing the product, pay attention not

to damage the floor, walls, piping, etc. Do

not hold the product by its door or panel to

move it.

Approprate nstallaton

locaton

 Place the product on a solid and flat

floor that has sufficient load carrying

capacity! The product must be installed

on a flat surface in order for the door to

be closed comfortably and securely.

 Do not install the product at places

where temperature may fall below 0ºC.

 Place the product at least 1 cm away

from the edges of other furniture.

 Place the product on a rigid floor. Do

not place it on a long pile rug or similar

surfaces.

Do not place the product on the

power cable.

 Make sure that you select a location

that will allow you to load and unload

the dishes in a fast and comfortable

manner.

 Install the product in a place close to

the tap and the drain hole. Select the

installation location by considering

that it will not be changed after the

connections are made.

Connectng water supply

We recommend attaching a

filter on the house/apartment

supply water inlet to protect the

machine from damages that

may arise from impurities (sand,

dirt, rust, etc.) coming from the

urban water supply system or

from your own water system as

well as to prevent complaints

such as yellowing or sludge

accumulation at the end of

washing.

10 /48 EN Dishwasher / User’s Manual

Installation

Permitted water temperature:

up to 25°C ( 60°C for products

equipped with Aquasafe+; please

refer toAquasafe+ section )

The dishwasher should be connected to cold

water inlet.

 Do not use old or used water inlet hose

on the new product. Use the new water

inlet hose supplied with the product.

 Connect the water inlet hose directly

to the water tap. Pressure coming from

the tap should be minimum 0.3 and

maximum 10 bars. If the water pressure

exceeds 10 bars, a pressure relief valve

should be installed in between.

 Open the taps completely after making

the connections to check for water

leaks.

Use a screw-on hose connector

to connect the water inlet hose

to a water tap with a ¾ inch

external thread. If required, use

a filter insert to filter deposits

from the pipes.

For your safety, close the water

inlet tap completely after the

washing programme is over.

Connecton to the dran

Water discharge hose can directly be

connected to the drain hole or sink’s

drainage. The length of this connection must

be min. 50 cm and max. 100 cm from the

floor. A discharge hose longer than 4 meters

causes dirty washing.

Attach the water discharge hose to the

drainpipe without bending it. Tightly fix the

water discharge hose to the drainpipe in

order to prevent any dislocation of the water

discharge hose during operation of the

product.

min

300

min

120

max 1000

min 500

Drainpipe must be connected

to the sewage system and it

should not be connected to any

surface water.

Adjustng the feet

If the door of the product cannot be closed

properly or if the product swings when you

push it slightly, then you need to adjust

the feet of the product. Adjust the feet of

the product as illustrated in the installation

manual supplied with the product.

Dishwashers door must be

aligned properly otherwise hot

steam can escape! Danger of

serious burns, other injury or

may damage furniture.

Dishwasher / User’s Manual

11 / 48

Installation

 The voltage and allowed fuse or

breaker protection are specified in the

“Technical specifications” section. If the

current value of the fuse or breaker in

the house is less than 16 Amps, have

a qualified electrician install a 16 Amp

fuse.

 The specified voltage must be equal to

your mains voltage.

 Do not make connections via extension

cables or multi-plugs.

Damaged power cables must

be replaced by the Authorised

Service Agent.

If your dishwasher is equipped

with internal illumination, lamp

should only be replaced by the

Authorised Service Agent in case

of failures that may occur on the

lamp.

If the product has a failure, it

should not be operated unless

it is repaired by the Authorised

Service Agent! There is the risk

of electric shock!

Intal use

Before starting to use the product, make

sure that all preparations are made in

accordance with the instructions in sections

“Important safety instructions” and

“Installation”.

 To prepare the product to do the

dishes, perform first operation in the

shortest programme with detergent

while the machine is empty.

There might be a small amount

of water left in the product after

factory quality control tests. This

has no harm on the product.

Aquasafe+

(depends on model)

The Aquasafe+ system protects against

water leaks that may occur at the hose inlet.

Water contact with the valve box of the

system must be avoided to prevent damage

to the electrical system. If the Aquasafe+

system is damaged, unplug the product and

call the Authorised Service Agent.

As the hose set contains

electrical connections and

assemblies, never shorten

or lengthen the hose with

extension hoses.

Electrcal connecton

Connect the product to a grounded outlet

protected by a fuse complying with the

values in the “Technical specifications” table.

The manufacturer shall not be liable for any

damages that will arise when the product is

used without grounding in accordance with

the local regulations.

 Connection must comply with national

regulations.

 Power cable plug must be within easy

reach after installation.

Unplug the product after the

washing programme is over.

12 /48 EN Dishwasher / User’s Manual

Preparation

Tps for energy savng

Following information will help you use the

product in an ecological and energy-efficient

manner.

Wipe away any coarse food remnants on the

dishes before putting them in the product.

Operate the product after filling it

completely.

When selecting a programme, consider

the table of "Programme data and average

consumption values".

Do not put more detergent than suggested

on the detergent package.

Adding detergent

Pay attention to the warnings

on the detergent packaging

to get better washing and

drying results. Contact the

manufacturer of the detergent

for further questions.

Do not put solvents into the

detergent dispenser. There is

the risk of explosion!

Put the detergent into the detergent

dispenser just before operating the machine

as illustrated below.

Push the latch to right to open the

detergent dispenser lid (A). (depends on

model)

2. Put suggested amount of powder,

liquid/gel or tablet detergent in the

reservoir.

Inside the detergent dispenser

there are level markings that

help you use appropriate amount

of powder detergent. When

brimful, detergent dispenser will

contain 45 cm of detergent.

Fill detergent up to 15 cm or 25

cm level marks in the detergent

dispenser according to fullness

of the machine and/or soiling

degree of the dishes. One

tablet is enough if you are using

detergent tablets.

3. Push the lid of the detergent dispenser

to close it. A "click" will be heard when

the lid is closed.

Dishwasher / User’s Manual

13 / 48

Preparation







Use powder or liquid/gel

detergent in short programmes

without prewash since the

solubility of the tablet detergent

changes depending on the

temperature and time.

Tablet detergents

In addition to the conventional tablet

detergents, there are also commercially

available detergent tablets that show water

softening salt and/or rinse aid effect. Some

types of these detergents contain special-

purpose components such as glass and

stainless steel protectors. These tablets

show their effects up to a certain water

hardness level (21°dH). Water softening salt

and rinse aid must also be used together

with the detergent if the water hardness

level is above the mentioned level.

Observe the instructions of the

detergent manufacturer on

the package when using tablet

detergents.

Contact the detergent

manufacturer if your dishes

are wet and/or if you notice

limescale spots particularly on

your glasses after the washing

programme is over when using a

tablet detergent.

When you switch to powder

detergent from tablet detergent:

1. Make sure that salt and rinse aid

reservoirs are full.

2. Set the water hardness to the highest

level and perform an empty run.

3. After the empty washing cycle, review

the user manual and readjust the water

hardness level so as to suit the water

supply.

4. Make the appropriate rinse aid settings.

14 / 48 EN Dishwasher / User’s Manual

Preparation

4. If there are stains on tableware items

after washing, level must be increased

and if there is a blue trace after wiping

them by hand, it must be decreased.

This is set to position 3 as factory

default.

The rinse aid adjustment is

described under "Adjusting

the amount of rinse aid" in

the section for operating the

machine.

Wipe clean any spilled rinse

aid outside the reservoir. Rinse

aid that spilled accidentally

will cause foaming and it will

eventually decrease washing

performance.

Items not sutable for

washng n the dshwasher

 Never wash dishes soiled by cigarette

ash, candle remnants, polish, dyestuff,

chemicals, etc. in your dishwasher.

 Do not wash silverware and cutlery

with wooden or bone stems, glued

pieces, or pieces that are not resistant

to heat, as well as copper and tin-plated

containers in the dishwasher.

Decorative prints of chinaware

as well as aluminium and silver

items may get discoloured or

tarnished after washing in the

dishwasher just as it happens

in handwashing as well. Some

delicate glass types and crystals

may become dull in time. We

strongly recommend you to

check if the tableware you are

going to purchase is suitable

for washing especially in the

dishwasher.

Rnse ad

The rinse aid used in

dishwashers is a special

combination that aims to

increase drying efficiency and

prevent water or lime stains

on the washed items. For this

reason, care must be paid

to have rinse aid in the rinse

aid reservoir and to use rinse

aids produced specially for

dishwashers only.

Open the lid of the rinse aid reservoir

with the help of the latch.

2. Fill the reservoir until “MAX” level.

3. Slightly press the point (B) of the

reservoir lid to close it.

Dishwasher / User’s Manual

15 / 48

Preparation

Placng the dshes nto the

dshwasher

You can use your dishwasher in the optimum

way with respect to energy consumption

and washing and drying performance only if

you place the dishes in an orderly way.

 Wipe away any coarse food remnants

(bones, seeds, etc.) on the dishes

before placing them in the dishwasher.

 Place thin, narrow pieces in the middle

sections of baskets if possible.

 Place the heavily soiled and bigger

items in the lower basket and smaller,

delicate and light items in the upper

basket.

 Place the hollowed dishes such as

bowls, glasses and pans upside down in

the dishwasher. Thus, accumulation of

water in deep hollows is prevented.

To prevent possible injuries,

always place the sharp and

pointed dishes such as service

fork, bread knife, etc. upside

down so as their pointed ends

will face down or they will lie

horizontally in the dish basket.

Unload dishes in the lower basket first and

then the dishes in the upper basket.

16 / 48 EN Dishwasher / User’s Manual

Preparation

Suggestions for loading the dishwasher

Lower basket

Upper basket

Improper Loading Of Dishware

Dishwasher / User’s Manual

17 / 48

Preparation

Cutlery basket

(depends on model)

Cutlery basket is designed to wash your

dishes such as knife, fork, spoon, etc. in an

efficient manner.

Since the cutlery basket can be moved (A,

B), you can create more space while placing

your dishes in the lower basket and free up

space for your dishes of different sizes.

18 /48 EN Dishwasher / User’s Manual

Preparation

Collapsble lower basket

tnes

(depends on model)

There are foldable tines (A) located at the

lower basket of the machine are designed

for an easier placement of large pieces such

as pans, bowls, etc. You can create larger

spaces by folding each tines individually or

all of them at once.

To bring the collapsible tines into horizontal

position, grab the tines from mid position

and push them in the directions of arrows

(B). To bring the tines back to vertical

position, just lift them up. Collapsible tines

will click into the latch again (C).

Bringing the tines to the

horizontal position by holding

them from the tips may cause

them to bend. Therefore, it will

be appropriate to bring the tines

in the middle to horizontal or

vertical position by holding them

from their stems and pushing in

the direction of arrow.

Dishwasher / User’s Manual

19 / 48

Preparation

Tray Wash Supports

(depends on model)

Use the supports to wash trays in the

bottom basket.

See the Auxiliary functions section for

appropriate programme and function

selection.

Bringing the tines to the

horizontal position by holding

them from the tips may cause

them to bend. Therefore, it will

be appropriate to bring the tines

in the middle to horizontal or

vertical position by holding them

from their stems and pushing in

the direction of arrow.

SoftTouch Accessory

(depends on model)

The SoftTouch Accessory found in the lower

basket of your machine enables a safe

washing for your fragile glasses.

Lower Basket Glass Holder

(depends on model)

Lower Basket Glass Holder found in the

lower basket of your machine enables a safe

washing for your oversized and tall glasses.

20 /48 EN Dishwasher / User’s Manual

Preparation

Lower basket multpurpose

/ heght adjustable servce

rack

(depends on model)

This accessory located at the lower basket

of your machine allows you to easily wash

pieces such as extra glasses, long ladles and

bread knives.

You may use the racks as

required by moving them to

lower or upper position, or close

them to create a wider space in

your lower basket.

Make sure that the impeller does

not touch the dishes you placed

on the racks.

To close the racks:

Fold the rack (A).

Slide the rack up (B).

Put the rack in vertical position (C).

Slide the rack down and lock it by the

tabs (D).

You may open the racks in the

same process in reverse order.

To adjust the height of the racks:

Fold the rack (E).

Slide the rack up (F).

Open the rack at the desired level (G).

Dishwasher / User’s Manual

21 / 48

Preparation

Upper basket multpurpose

servce rack

(depends on model)

This accessory located at the upper basket

of your machine allows you to easily wash

pieces such as extra long ladles and bread

knives.

You can lift up the upper basket

multipurpose service rack to remove it if you

do not want to use it.

If you want to use the upper basket

multipurpose service rack again, you can

easily attach it to the side section of your

upper basket.

Upper basket heght

adjustable rack

(depends on model)

Use the lower and upper parts of the height

adjustable racks in the upper basket of

the machine by sliding them down or up

according to the heights of the glasses, cups

or etc. (A, B, C).

Lower basket bottle wre

(depends on model)

The bottle wire is designed for easier

washing of long pieces with wide mouths.

You may take out the bottle wire from the

basket when not in use by pulling it out from

both sides (H).

These racks are detachable as well. It is

recommended that you should detach the

rack on the front left corner of the basket to

place the silverware basket piece if needed.

22 /48 EN Dishwasher / User’s Manual

Preparation

To lower the basket, while it is in the

uppermost position;

1. Hold the upper basket wires with both

hands, slightly lift up the basket and

simultaneously push and release the

latches shown in the figure (B).

2. Lower the basket from its current

position to the lower one.

3. Release the basket after it has reached

one level down.

Repeat the process if the height is not

sufficient.

The movement mechanism

may not function properly if the

upper basket is overloaded or

if the weight distribution is not

balanced. In heavier conditions,

there is the risk of falling one

level down.

Make sure that the adjustment

mechanism has the same

positions on the right and left

sides of the upper basket.

Adjustng the heght of the

upper basket

(depends on model)

The upper basket height adjustment

mechanism has been designed for you to

create large spaces in the lower or upper

sections of your machine depending on your

needs by adjusting the height in the upper

or lower direction while your basket is empty

or loaded.

Thanks to this mechanism, you can use your

basket in three different positions, namely

lower, middle and upper positions (1, 2, 3).

1. To raise your basket, hold the upper

basket wires with both hands while the

basket is in the lowermost position and

pull them up (A).

2. You will hear a "Click" from the right

and left mechanisms, indicating that

the basket has reached the next level.

Release the basket.

Repeat the process if the height is not

sufficient.







Dishwasher / User’s Manual

23 / 48

Preparation

Collapsble upper basket

wres

(depends on model)

You can use collapsible wires when you need

a larger space for your dishes in the upper

basket of your machine.

To bring the collapsible wires into horizontal

position, grab the wire from the middle

position and push them in the direction of

arrow in the figure. Place your larger dishes

into the area created. To bring the wires back

to vertical position, just lift them up.

Bringing the wires to the

horizontal position by holding

them from the tips may cause

them to bend. Therefore, hold

the wires from their stems while

bringing them to the horizontal

or vertical positions.

24 /48 EN Dishwasher / User’s Manual

Preparation

Celng cutlery basket

(depends on model)

Ceiling cutlery basket is designed to wash

your cutlery items such as forks, spoons and

etc. by placing them between the bars on

the basket.



In models with partial movement feature,

pushing the bar (1) on the handle enables

the central tray of the basket to get to

the lower position and the system gets

unlocked. Thus right and left side trays can

be used as moving parts.

The free space enabled by the side trays

allows long parts to be loaded in the upper

basket.

When the central tray is in the lower

position, you can load long/high items such

as coffee cups, ladles, etc. on the tray. When

the side trays lean on two side walls, the

handle can be pulled to allow the central tray

to rise and the system to be locked.

Dishwasher / User’s Manual

25 / 48

Preparation

Slverware basket pece

(depends on model)

You can place your forks, spoons and etc. to

upper basket with the additional piece in the

figure..

It is recommended that you should place the

silverware basket piece on front left corner

of the upper basket by detaching the Upper

basket height adjustable rack.

26 /48 EN Dishwasher / User’s Manual

Operating the product

1. On/Off key

2. Programme Selection / Programme Cancel (3 seconds) key

3. Function keys

4. Programme indicator

5. Salt indicator

7. Start / Cancel indicator

8. Time Delay / Programme Time indicator

9. Time Delay key

10. Time Delay indicator

11. End of Programme indicator

12.

13. Rinse Aid indicator

Half Load function

Fast+ Function

Not in use





       





Not in use

( Depends on model)

Extra Drying Function

TurboWash Function

Dishwasher / User’s Manual

27 / 48

Operating the product

Keys

On/Off key

When you press On / Off key, indicator lights

illuminate on the display for ON position. The

lights turn off in OFF position.

Programme Selection /

Programme Cancel key

Press this key until the desired programme

appears in the programme indicator.

To cancel the running programme open

the door of the product. Press and hold

the Programme Selection / Programme

Cancel keys for 3 seconds. After the 3 - 2 - 1

countdown, 0:01 is displayed, close the door

of the product and wait for the draining

process complete. Draining is completed in

2 minutes and the machine gives an audible

warning when it is completed.

Functon keys

If you press any of the Function keys

during programme selection or time delay

selection, an affirmative key signal will be

heard provided that the relevant function

is supported by the selected programme.

Function will be deemed selected when the

indicator of the selected function is lit.

To cancel the selected function, keep the

function key pressed until the function

indicator disappears.

Preparng the machne

1. Open the door of the dishwasher.

2. Place the dishes in accordance with the

instructions in the user manual.

Make sure that the upper and lower

impellers rotate freely.

4. Put adequate amount of detergent into

the detergent dispenser.

Programme selecton

1. Press the On/Off button to turn on your

machine.

2. Check the Salt and Rinse Aid indicators

and add salt and/or rinse aid if needed.

3. Refer to the table of “Programme data

and average consumption values”

to determine a washing programme

suitable for your dishes.

4. Selected programme will start when you

close the door of your machine.

28 /48 EN Dishwasher / User’s Manual

Operating the product

12345678

Eco * Auto MixWash+ Intensive Quick GlassCare Mini Pre-wash

45 ºC 40-65 ºC - 70 ºC 60 ºC 40 ºC 35 ºC -

Most economical

washing program

for the normally

soiled daily dishes

that are kept

waiting.

Determines the

soiling degree of the

dishes and sets the

temperature and

amount of the

washing water as

well as the washing

time automatically.

Suitable for all types

of dishes.

It is the most

suitable washing

programme for daily

mixed dishes

including plastic

items. While

delicate glass items

are washed in the

upper basket, pans

and trays can be

washed in the lower

basket.

Suitable for heavily

soiled dishes, pots

and pans.

Daily washing

programme at which

the medium soiled

dishes that are kept

waiting are cleaned

in the fastest way.

Special program for

gentle cleaning of

delicate glassware.

Suitable for lightly

soiled daily dishes

that are scraped or

pre-cleaned.

Suitable for

removing the

remnants on the

soiled dishes that

will be kept waiting

in the machine for a

few days, and thus,

for preventing the

bad odour buildup.

Normal Medium to high Medium High Medium Low Low -

++++ - +- +

+++++++ -

++++++ - -

196 110-173 197 158 58 113 30 15

14,3 9,4-12,4 19 16,8 10,6 13,6 10,8 4

0,70 0,85-1,40 1,53 1,51 1,18 1,20 0,80 -

Programme Table

The consumption values shown in the table were determined under standard conditions. Differences may therefore occur under practical conditions. * Reference

programme for testing institutes. The tests in accordance with EN 50242 must be carried out with a full water softener salt dispenser and a full rinse aid reservoir,

and using the test programme.

Programme number

Programme name

Cleaning temperature

Degree of Soiling

Energy (kWh)

Prewash

Wash

Dry

Duration (min)

Water (I)

Eco 45° is the recommended program for a normally soiled cotton load.

Dishwasher / User’s Manual

29 / 48

Operating the product

Auxlary functons

Washing programmes of your dishwasher

are designed to obtain the best cleaning

effect, considering the type of the soiling,

soiling degree and properties of the dishes

to be washed.

Auxiliary functions allow you save from time,

water and power.

Auxiliary functions may cause

changes in the programme

duration.

Auxiliary functions are not

suitable for all washing

programs. Indicator of the

auxiliary function that is not

compatible with the programme

will not be active.

Half Load function

It is used to operate the machine without

loading it completely.

1. Load your dishes in the machine as you

like.

2. Turn the machine on with On/Off key.

3. Select the desired programme and press

the Half Load key.

While the function is enabled, the Half Load

indicator will become on in the function

selection indicator and on the display.

4. Close the door of the machine to start

the programme.

With the Half Load function you

can save both water and power

while using the lower and upper

baskets of the machine.

Fast+ Function

It shortens the time of the washing cycle

selected and decreases water consumption

by enabling washing under higher pressure.

TurboWash Function

This function operates the lower impeller

with a higher pressure and higher speed to

enable a better washing for dishes such as

pans and trays with stubborn, dried soiling.

Extra Drying Function

It provides superior drying performance.

Auto Tablet Feature

Auto Tablet is a feature which detects

the use of combined tablet detergents

automatically.

Drying performance of these

type of detergents is improved

by adjusting temperature and

duration accordingly.

Owing to this feature, there is no need

to press any button in case of a tablet

detergent use.

Feature can be activated if automatic

detection is desired.

To activate / to deactivate:

1. After turning on the machine, press

Time Delay and P keys simultaneously.

Keep them pressed until the countdown

3, 2, 1 is completed on the display.

2. Press P key to activate the a: option.

Automatic detergent detection feature

is disabled at “a:0” option and enabled

at “a:1” option. Set the desired option by

pressing the Time Delay key.

Turn off the machine with On/Off key to

save the changes.

30 /48 EN Dishwasher / User’s Manual

Operating the product

Interior Lighting

(depends on the model)

Some models have interior lighting to

illuminate the interior when the door is

opened.

1. After switching on your machine,

press Time Delay and P / P+ keys

simultaneously. Keep them pressed until

the countdown 3, 2, 1 is completed on

the display.

2. Press P / P+ key to move to the L:

position on the display. Interior lighting

is off in “L:0” position and on in “L:1”

position. Select the position you want

with the Time Delay key.

3. Switch off the machine with the On/Off

key to save the changes.

Changing Warning Sound Volume

1. After switching on your machine,

press Time Delay and P / P+ keys

simultaneously. Keep them pressed until

the countdown 3, 2, 1 is completed on

the display.

2. Press P / P+ key to move to the S:

position on the display.

3. Each pressing on the Time Delay key will

change the warning sound volume as

"S:0" off, "S:1" medium and "S:2" high.

4. Switch off the machine with the On/Off

key to save the changes.

Your machine is set to

“S:2” as factory default.

Floor illumination

Warning to show that machine is

in washing phase

(depends on the model)

Your machine reflects a light to the floor

during the washing process. This light turns

off after the washing process is complete.

Floor illumination is activated

automatically when the washing

programme starts and remains lit

until the end of the programme.

Floor illumination cannot be

cancelled by the user.

Schedulng the washng tme

Time Delay

If an economical electricity tariff is applied

in your region, you can use the Time

Delay function to wash your dishes during

appropriate hours.

You can delay the start of the selected

programme until 24 hours.

1. Press the Time Delay function key after

selecting the washing programme and

other auxiliary functions.

2. Once you press the Time Delay key, Display

Information Line will show "0:30" and Time

Delay indicator will start flashing.

3. Set the desired time by pressing the

Time Delay key. Time will increase with

increments of 30 minutes up to 6 hours

and after that in 1 hour increments up to

24 hours every time you press the key.

4. Close the door of your machine after

setting the Delayed Start. Once the delay

time is over, the selected programme will

start automatically.

Dishwasher / User’s Manual

31 / 48

Operating the product

Changing the settings while Time

Delay function is active

While the Time Delay function is activated,

you cannot make changes in the washing

programme, auxiliary functions or the

duration of delay time.

Programme and auxiliary

functions cannot be set/

changed after the programme

has started.

To cancel the Time Delay function

Open the door of the product Press and

hold the Programme Selection / Programme

Cancel keys for 3 seconds. After the 3 - 2 - 1

countdown, 0:01 is displayed, close the door

of the product and wait for the draining

process complete. Draining is completed in

2 minutes and the machine gives an audible

warning when it is completed.

You can select and start a

new programme following

the cancellation of Time Delay

function.

Time Delay function cannot be

set after the programme starts.

Startng the programme

Close the door of your machine to start it

after selecting the programme and auxiliary

functions.

Your machine performs water

softening depending on the

hardness level of the supply

water. Washing time can

change while the programme

is running depending on the

ambient temperature where

your machine is installed,

temperature of the supply water

and amount of the dishes.

Pay attention not to open the

door of the machine when it is

running. There may be a rush of

vapour when you open the door

of your machine; be careful.

The machine will remain silent

in pause mode for some time

in order to remove the water

from the machine and on the

dishes completely and to have

the water softener cleaned, and

then it will resume running in

drying mode.

Cancellng the programme

Open the door of the product Press and

hold the Programme Selection / Programme

Cancel keys for 3 seconds. After the 3 - 2 - 1

countdown, 0:01 is displayed, close the door

of the product and wait for the draining

process complete. Draining is completed in

2 minutes and the machine gives an audible

warning when it is completed.

There might be residues of

detergent or rinse aid in the

machine and/or on the pieces

being washed depending on the

step the programme you have

cancelled was in.

Salt ndcator ( )

Please check the salt indicator on the display

to see whether there is adequate amount

of softening salt in the dishwasher or not.

You need to refill the salt reservoir with

salt whenever salt indicator appears on the

display of your machine.

Adjusting the water hardness

level is explained in Water

Softening System section.

32 /48 EN Dishwasher / User’s Manual

Operating the product

Rnse Ad ndcator (

)

Please check the rinse aid indicator on the

display to see whether there is adequate

amount of rinse aid in the dishwasher or

not. You need to refill the rinse aid reservoir

with rinse aid whenever rinse aid indicator

appears on the display of your machine.

End of Programme indicator will light up when the

washing programme is over.

1. Open the door of the machine.

2. Press On/Off key to turn off your machine.

3. Close the tap.

4. Unplug the machine from the socket.

For energy saving, the machine

is automatically turned off

following the completion of the

programme or if the programme

is not started.

Leave your dishes in the machine

for about 15 minutes to allow

them cool down after they are

washed. Your dishes will dry in a

shorter time if you leave the door

of your machine ajar during this

period. This process will increase

the drying effectiveness of your

machine.

Water cut-o warnng

If mains water is cut or water inlet tap is turned

off the machine cannot take water in and E:02

icon will flash on the programme indicator. As long

as the problem continues, washing programme

is paused and the water inlet is checked regularly

by the machine; when the water is restored E:02

icon will disappear after a while and the washing

programme resumes.

Overowng warnng

If the machine intakes too much water or there

is leakage at any of the components then

the machine will detect this and E:01 icon will

flash on the Programme indicator. As long as

the overflowing continues safety algorithm

will be active and try to discharge the water. If

overflowing stops and safety is assured, E:01 icon

will disappear. If E:01 does not disappear, there

is a permanent fault. In this case the authorised

service should be contacted.

Adjustng the amount of

rnse ad

1. After turning on the machine, press

Time Delay and P+ keys simultaneously.

After the countdown (3, 2, 1) is

displayed keep the keys pressed for a

while.

2. Press P+ to move to position (P) on the

display.

3. Set to the appropriate level with the

Time Delay key.

4. Press On / Off key to save the setting.

No rinse aid dispensed in P:0 wash position.

1 dose of rinse aid is dispensed in P:1

position.

2 doses of rinse aid are dispensed in P:2

position.

3 doses of rinse aid are dispensed in P:3

position.

4 doses of rinse aid are dispensed in P:4

position.

End of programme

When the programme you have

selected comes to an end, an

audible warning signal will warn

you to turn off your machine.

This audible signal will warn you

with certain intervals before it

turns off.

Dishwasher / User’s Manual

33 / 48

Maintenance and cleaning

Service life of the product extends and

frequently faced problems decrease if it is

cleaned at regular intervals.

Unplug the product and turn off

the tap before attempting any

cleaning procedures.

Do not use abrasive substances

for cleaning.

Clean the filter and impellers at

least once a week in order for the

machine operates efficiently.

Cleanng the outer surface

of the product

Wipe the outer surface and door gaskets

of the product gently with a mild cleaning

material and damp cloth. Wipe the "Control

panel" only with a slightly damp cloth.

Cleanng the nteror of the

machne

 Clean the interior of the machine and

the tank by running a programme with

or without detergent based on the

degree of soil.

 If water has remained in the machine,

drain the water by performing the

procedures under the topic "Canceling

a programme". If the water cannot

be discharged, remove the filters

as specified in the "Cleaning the

filters" section and check if there

are any leftover deposits that have

accumulated at the bottom of the

machine, blocking the water path. Clean

if necessary.

Cleanng the flters

Clean the filters at least once a week in order

for the machine operates efficiently. Check if

food residues are left on the filters. If there

are food residues on filters, take them out

and clean well under running water.

1. Turn the micro filter (1) and coarse filter

(2) assembly counter clockwise and pull

it out from its seating.

2. Pull out the metal/plastic filter (3) from

the seating.

3. Press the two pawls on the coarse filter

inwards and separate the coarse filter

from the assembly.

34 /48 EN Dishwasher / User’s Manual

Maintenance and cleaning

4. Clean all three filters under tap water by

means of a brush.

5. Place the metal/plastic filter.

6. Place the coarse filter into the micro

filter. Make sure that it is properly

seated. Turn the coarse filter clockwise

until a "click" sound is heard.

Do not use the dishwasher

without filter.

Incorrect placement of the filters

will reduce washing efficiency.

Cleanng the hose flter

Damages on the machine that may be

caused by impurities coming from the urban

supply water or your own water installation

(such as sand, dirt, rust, etc.) can be

prevented by means of the filter attached to

the water inlet hose. Check the filter and the

hose regularly and clean them if necessary.

1. Turn off the tap and remove the hose.

2. After taking out the filter, clean it under

running tap water.

3. Place the cleaned filter back to its seat

in the hose.

4. Install the hose to tap.

(depends on model)

Dishwasher / User’s Manual

35 / 48

Maintenance and cleaning

Cleanng the mpellers

Clean the impellers at least once a week in

order for the machine operates efficiently.

Lower mpeller

Check if the holes on the lower impeller (1)

are clogged. If they are clogged, remove and

clean the impeller. You can pull the lower

impeller up to remove it.

Upper mpeller

Check if the holes on the upper impeller (1)

are clogged. If they are clogged, remove

and clean the impeller. Turn its nut to left to

remove the upper impeller.

Make sure that the nut is tightened well

when installing the upper impeller.

36 /48 EN Dishwasher / User’s Manual

Troubleshooting

0DFKLQHGRHVQRWVWDUW

• Power cable is unplugged. >>> Check if the power cable is plugged in.

• Fuse is blown. >>> Check the fuses in your house.

• Water is cut. >>> Make sure that the water inlet tap is open.

• Door of the machine is open. >>> Make sure that you have closed the door of the

machine.

• On / Off button is not pressed. >>> Make sure that you have turned on the machine by

pressing the On / Off button.

'LVKHVDUHQRWZDVKHGFOHDQ

• Dishes are not placed orderly in the machine. >>> Load the dishes as described in the

user manual.

• Selected programme is unsuitable. >>> Select a programme with a higher temperature

and cycle time.

• Impellers are stuck. >>> Prior to starting the programme, turn the lower and upper

impellers by hand to make sure that they rotate freely.

• Impeller holes are clogged. >>> Lower and upper impeller holes might be clogged with

food remnants such as lemon pips. Clean the impellers regularly as illustrated in section

“Cleaning and Care”.

• Filters are clogged. >>> Check if the filter system is clean. Clean the filter system

regularly as illustrated in section “Cleaning and Care”.

• Filters are installed incorrectly. >>> Check the filter system and make sure that it is

installed correctly.

• Baskets are overloaded. >>> Do not overload the baskets in excess of their capacity.

• Detergent is stored under unsuitable conditions. >>> If you are using powder detergent,

do not store the detergent package in humid places. Keep it in a closed container if

possible. For ease-of-storing, we recommend you to use tablet detergents.

• Detergent is not sufficient. >>> If you are using powder detergent, adjust the amount of

detergent according to the soiling degree of your dishes and/or programme definitions.

We recommend you to use tablet detergents for optimum results.

• Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if

necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the

machine.

• Detergent dispenser lid is left open. >>> Make sure that the detergent dispenser lid is

closed tightly after adding detergent.

'LVKHVDUHQRWGU\DWWKHHQGRIF\FOH

• Dishes are not placed orderly in the machine. >>> Place your dishes in a way that no

water will accumulate in them.

Dishwasher / User’s Manual

37 / 48

Troubleshooting

• Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if

necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the

machine.

• Machine is unloaded right after the programme is over. >>> Do not unload your machine

right after washing process is completed. Slightly open the door and wait for evacuation

of the steam inside for a while. Unload the dishes after the pieces cool down to a

touchable level. Start unloading process from the lower basket. Thus, dropping of water

remained on a piece at upper basket onto the pieces at lower basket is prevented.

•

Selected programme is unsuitable. >>> Since rinsing temperature is low at programmes

with short duration, drying performance will also be low. Select programmes with longer

duration for a higher drying performance.

• Surface quality of the kitchen utensils is deteriorated. >>> Desired washing

performance can not be obtained on kitchen utensils with deteriorated surfaces and it

is not suitable to use such utensils in terms of hygiene as well. Also, water can not flow

easily on deteriorated surfaces. It is not recommended to wash such kitchen utensils in

dishwasher.

It is normal that drying complaints can be experienced with Teflon kitchen

utensils. It is associated with the structure of Teflon. Since the surface tensions

of Teflon and water are different, water droplets will remain as beads on the

Teflon surface.

7HDFRIIHHRUOLSVWLFNVWDLQVUHPDLQRQGLVKHV

• Selected programme is unsuitable. >>> Select a programme with a higher temperature

and cycle time.

• Surface quality of the kitchen utensils is deteriorated. >>> Tea and coffee stains

or other dye spots may not be cleaned in dishwasher when they have penetrated in

deteriorated surfaces. Desired washing performance can not be obtained on kitchen

utensils with deteriorated surfaces and it is not suitable to use such utensils in terms of

hygiene as well. It is not recommended to wash such kitchen utensils in dishwasher.

• Detergent is stored under unsuitable conditions. >>> If you are using powder detergent,

do not store the detergent package in humid places. Keep it in a closed container if

possible. For ease-of-storing, we recommend you to use tablet detergents.

/LPHWUDFHVUHPDLQRQGLVKHVDQGJODVVZDUHJDLQVDPLVW\DSSHDUDQFH

• Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if

necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the

machine.

38 /48 EN Dishwasher / User’s Manual

Troubleshooting

7KHUHLVDGLIIHUHQWRGRXULQWKHPDFKLQH

A new machine has a peculiar odour. It will fade out after a couple of washes.

•

Filters are clogged. >>> Check if the filter system is clean. Clean the filter system

regularly as illustrated in section “Cleaning and Care”.

•

Dirty dishes are kept in dishwasher for 2-3 days. >>> If you are not going to start the

machine right after you have put the dishes into it, remove the remnants on the dishes

and run the Prewash programme without detergent every 2 days. In such cases, do not

close the door of the machine completely in order to avoid odour build up in machine. You

can also use commercially available odour removers or machine cleaners.

5XVWGLVFRORUDWLRQRUVXUIDFHGHWHULRUDWLRQRFFXUVRQGLVKHV

• Salt leakage exists. >>> Salt may cause deterioration and oxidation on metal surfaces.

Pay attention not to spill salt around the salt filling hole while adding salt. Make sure that

the salt reservoir lid is tightly closed after finishing the filling process. Run the prewash

programme to remove the salt that spilled inside the machine. Since the salt granules

that will remain under the lid will dissolve during prewash, causing the lid loosen, check

the lid once again at the end of the programme.

• Salty food remnants have remained on dishes for a long time. >>> If cutlery soiled with

such foods will be kept waiting in machine, dirt must be removed by prewash or dishes

must be washed without being kept waiting.

• Electric installation is not grounded. >>>Check if your machine is connected to the actual

grounding line. Otherwise, the static electric created in the product causes arcs on the

surfaces of metal items creating pores, removing the protective cover on the surface and

causing discoloration.

• Intensive cleansers such as bleaches are used. >>> Protective cover on metal surfaces

gets damaged and looses its efficiency in time when it gets in contact with cleansers

such as bleach. Do not wash your dishes with bleach.

• Metal items particularly knives are used for purposes other then their intended uses.

>>> Protective cover on the edges of knives may get damaged when they are used for

purposes such as opening cans. Do not use metal kitchen utensils out of their intended

uses.

• Cutlery are made of low quality stainless steel. >>> Corrosion on such items is inevitable;

they should not be washed in dishwashers.

• Kitchen utensils that are already corroded are washed in dishwasher. >>> Rust on a

corroded item can migrate to other stainless steel surfaces and cause corrosion on those

surfaces as well. Such items should not be washed in dishwashers.

'HWHUJHQWUHPDLQVLQGHWHUJHQWGLVSHQVHU

• Detergent dispenser was damp when adding detergent. >>> Make sure that the

detergent dispenser is dried well prior to filling it with detergent.

Dishwasher / User’s Manual

39 / 48

Troubleshooting

• Detergent is added long before the washing process. >>> Pay attention to add detergent

shortly before start-up of the washing.

• Opening of the detergent dispenser lid is prevented during washing. >>> Place the

dishes in a way that will not prevent the detergent dispenser lid from opening and the

water going into the machine from impellers.

•

Detergent is stored under unsuitable conditions. >>> If you are using powder detergent,

do not store the detergent package in humid places. Keep it in a closed container if

possible. For ease-of-storing, we recommend you to use tablet detergents.

•

Impeller holes are clogged. >>> Lower and upper impeller holes might be clogged with

food remnants such as lemon pips. Clean the impellers regularly as illustrated in section

“Cleaning and Care”.

'HFRUDWLRQVDQGRUQDPHQWVRQNLWFKHQXWHQVLOVDUHEHLQJHUDVHG

Decorated glasses and decorated lustre porcelains are not suitable for washing in

the dishwasher. Manufacturers of some glassware and porcelain tableware items

do not recommend washing such kitchen utensils in the dishwashers either.

'LVKHVDUHVFUDWFKHG

Kitchen utensils that contains or are made of aluminium should not be washed in

dishwasher.

•

Dishes are not placed orderly in the machine. >>> When placing the glasses and other

glassware into the basket lean them not against other dishes but the edges or racks of

the basket or the glass support tines. Striking of the glasses to each other or to other

dishes due to the impact of water during washing can cause breaks, or scratches on their

surfaces.

$VPHDUUHPDLQVRQJODVVHVWKDWUHVHPEOHVPLONVWDLQZKLFKFDQQRWEH

UHPRYHGZKHQZLSHGE\KDQG$EOXLVKUDLQERZDSSHDUDQFHRFFXUVZKHQ

WKHJODVVLVSRLQWHGWROLJKW

• Excessive rinse aid is used. >>>Lower rinse aid setting. Clean the spilled rinse aid when

adding rinse aid.

•

Corrosion has occurred on glass due to soft water. >>> Measure the hardness of the

supply water appropriately and check the water hardness setting. If your supply water is

soft (<5 dH), do not use salt. Choose programmes that wash in higher temperatures (e.g.

60-65°C). You can also use glass protective detergents that are commercially available.

40 /48 EN Dishwasher / User’s Manual

Troubleshooting

)RDPIRUPVLQWKHPDFKLQH

• Dishes are washed with hand-wash detergent by hand but not rinsed before placing

them into the machine. >>> Hand-wash detergents do not contain antifoam. There is

no need to hand-wash the dishes before placing them into the machine. Removing the

coarse soil on the dishes under tap water, with a tissue paper or fork will be sufficient.

• Rinse aid has spilled into the machine when adding rinse aid. >>> Take care that rinse

aid is not spilled in the machine when you are filling it. Clean any spilled rinse ait with the

help of a tissue paper/towel.

• Lid of the rinse aid reservoir is left open. >>> Make sure that the lid of the rinse aid

reservoir is closed after adding rinse aid.

.LWFKHQXWHQVLOVDUHEURNHQ

• Dishes are not placed orderly in the machine. >>> Load the dishes as described in the

user manual.

• Baskets are overloaded. >>> Do not overload the baskets in excess of their capacity.

:DWHUUHPDLQVLQWKHGLVKZDVKHUDWWKHHQGRIWKHSURJUDPPH

• Filters are clogged. >>> Check if the filter system is clean. Clean the filter system

regularly as illustrated in section “Cleaning and Care”.

• Discharge hose is clogged/blocked. >>> Check the discharge hose. If necessary, remove

the discharge hose, clear the blockage and insert is as illustrated in the user manual.

If you cannot eliminate the problem although you follow the instructions in this

section, consult your dealer or the Authorised Service Agent. Never try to repair a

nonfunctional product yourself.

5FDIOJDBM%SBXJOH

4 /48 EN

Dishwasher / User’s Manual

min

m18m

min 590

550

min 592

598

min 600

max 717

818 (+100)

820 - 920

max

500mm

PD[

PLQNJ

.BOVGBDUVSF(VBSBOUFF

7KLVZDUUDQW\LVSURYLGHGLQ$XVWUDOLDE\*OHQ'LPSOH[$XVWUDOLD3W\/LPLWHG$%1

3KRQHQXPEHUDQGLQ1HZ=HDODQGE\*OHQ'LPSOH[1HZ

=HDODQG/LPLWHG1=%13KRQHQXPEHULQUHVSHFWRIWKH

*OHQ'LPSOH[SURGXFW

 *OHQ'LPSOH[([SUHVV:DUUDQW\

6XEMHFWWRWKHH[FOXVLRQVEHORZZHZDUUDQWWKDWWKHSURGXFWZLOOQRWKDYHDQ\HOHFWULFDO

RUPHFKDQLFDOEUHDNGRZQVZLWKLQ

D ,QWKHFDVHRI*OHQ'LPSOH[SURGXFWVXVHGIRUSHUVRQDOGRPHVWLFRUKRXVHKROG

SXUSRVHVDSHULRGRI\HDUV$8IURPWKHGDWHWKHSURGXFWLVSXUFKDVHGDVD

EUDQGQHZSURGXFWIURPDUHWDLOHUORFDWHGLQ$XVWUDOLD1HZ=HDODQG

E ,QWKHFDVHRI*OHQ'LPSOH[SURGXFWVXVHGIRUSXUSRVHVRWKHUWKDQSHUVRQDO

GRPHVWLFRUKRXVHKROGSXUSRVHVLQFOXGLQJEXVLQHVVRUFRPPHUFLDOXVHDSHULRG

RIGD\VIURPWKHGDWHWKHSURGXFWLVSXUFKDVHGDVDEUDQGQHZSURGXFWIURPD

UHWDLOHUORFDWHGLQ$XVWUDOLD1HZ=HDODQG*OHQ'LPSOH[SURGXFWVDUHGHVLJQHG

DQGLQWHQGHGIRUGRPHVWLFXVHRQO\DQG

F $OOZDUUDQW\UHSDLUVPXVWEHFDUULHGRXWE\*OHQ'LPSOH[RUWKHLUQRPLQDWHGVHUYLFH

DJHQW

1RWHZDUUDQW\SHULRGVGHWDLOHGDERYHPD\YDU\LQOLQHZLWKDJUHHPHQWVZLWKVHOHFW

UHWDLODQGEXLOGHUSDUWQHUVDQGPD\GLIIHUEHWZHHQ$XVWUDOLDDQG1HZ=HDODQG

7KHEHQHILWVFRQIHUUHGE\WKLVH[SUHVVZDUUDQW\DUHLQDGGLWLRQWRWKH&RQVXPHU

*XDUDQWHHVUHIHUUHGWRLQVHFWLRQDQGDQ\RWKHUVWDWXWRU\ULJKWV\RXPD\KDYHXQGHU

WKH$XVWUDOLDQ1HZ=HDODQG&RQVXPHU/DZDQGRURWKHUDSSOLFDEOHODZV

 :DUUDQW\H[FOXVLRQV

7KLVH[SUHVVZDUUDQW\GRHVQRWDSSO\ZKHUH

D 7KHSURGXFWKDVEHHQLQVWDOOHGXVHGRURSHUDWHGRWKHUZLVHWKDQLQDFFRUGDQFH

ZLWKWKHSURGXFWPDQXDORURWKHUVLPLODUGRFXPHQWDWLRQSURYLGHGWR\RXZLWKWKH

SURGXFW

E 7KHSURGXFWUHTXLUHVUHSDLUVGXHWRGDPDJHUHVXOWLQJIURPDFFLGHQWPLVXVH

LQFRUUHFWLQVWDOODWLRQLQVHFWRUYHUPLQLQIHVWDWLRQLPSURSHUOLTXLGVSLOODJHFOHDQLQJ

RUPDLQWHQDQFHXQDXWKRULVHGPRGLILFDWLRQXVHRQDQLQFRUUHFWYROWDJHSRZHU

VXUJHVDQGGLSVYROWDJHVXSSO\SUREOHPVWDPSHULQJRUXQDXWKRULVHGUHSDLUVE\

DQ\SHUVRQVXVHRIGHIHFWLYHRULQFRPSDWLEOHDFFHVVRULHVRUH[SRVXUHWR

DEQRUPDOO\FRUURVLYHFRQGLWLRQVHYHQWVLQGHSHQGHQWRIKXPDQFRQWUROZKLFK

RFFXUUHGDIWHUWKHJRRGVOHIWWKHFRQWURORI*OHQ'LPSOH[

Dishwasher / User’s Manual

4/48 EN

.BOVGBDUVSF(VBSBOUFF

c) The repair relates to the replacement of consumable parts such as fuses and bulbs

or any other parts of the product which require routine replacement;

d) You are unable to provide us with reasonable proof of purchase for the product;

e) the breakdown occurs after the expiry of the express warranty period set out in

section 1 or

 &RQVXPHUJXDUDQWHHV

Our goods come with guarantees that cannot be excluded under the Australian / New

Zealand Consumer Law. You are entitled to a replacement or refund for a major failure and

for compensation for any other reasonably foreseeable loss or damage. You are also entitled

to have the goods repaired or replaced if the goods fail to be of acceptable quality and the

failure does not amount to a major failure.

 +RZWRPDNHDFODLP

You may make a claim under this warranty through our website, contacting our customer care

line or via email. Contact details for Glen Dimplex Australia and New Zealand can be found at

the end of this document

To make a valid claim under this warranty, you must:

a) Lodge the claim with us as soon as possible and no later than 14 days after you first

become aware of the breakdown;

b) Provide us with the product serial number;

c) Provide us with reasonable proof of purchase for the product. This can take the form

of a store receipt, new home handover form or other payment receipt

documentation; and

d) If required by us, provide us (or any person nominated by us) with access to the

premises at which the product is located at times nominated by us (so that we can

inspect the product).

4/48 EN

Dishwasher / User’s Manual

.BOVGBDUVSF(VBSBOUFF

 :DUUDQW\FODLPV

If you make a valid claim under this warranty and none of the exclusions set out in

section 2 apply, we will, at our election, either repair the product or replace the

product with a product of identical specification (or where the product is superseded

or no longer in stock, with a product of as close a specification as possible).

Goods presented for repair may be replaced by refurbished goods of the same type

rather than being repaired. Refurbished parts may be used to repair the goods.

Products are designed and supplied for normal domestic use. We will not be liable

to you under this warranty for business loss or damage of any kind whatsoever.

*OHQ'LPSOH[$XVWUDOLD3W\/WG *OHQ'LPSOH[1HZ=HDODQG/WG

www.glendimplex.com.au www.glendimplex.co.nz

$XVWUDOLD 1HZ=HDODQG

Ph: 1300 556 816 Ph: 09 274 8265

[email protected] [email protected]

4 /48 EN

Dishwasher / User’s Manual

/PUFT

___________________________________________________________________________________

4/48 EN

Dishwasher / User’s Manual

/PUFT

___________________________________________________________________________________

4 /48 EN

Dishwasher / User’s Manual

/PUFT

___________________________________________________________________________________

4 /48 EN

Dishwasher / User’s Manual

5($'7+(,16758&7,21%22./(7%()25(,167$//,1*$1'86,1*7+($33/,$1&(

The manufacturer will not be responsible for any damage to property or to persons caused by

incorrect installation or improper use of the appliance.

The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors,

contained in this manual. In addition, the appearance of the figures reported is also purely

indicative.

The manufacturer reserves the right to make changes to its products when considered necessary

and useful, without affecting the essential safety and operating characteristics.

Glen Dimplex constantly seeks ways to improve the specifications and designs of their products.

Whilst every effort is made to produce up to date literature, this document should not be regarded

as an infallible guide. Actual product only should be used to derive cut out sizes.

All appliances must be installed by a qualified person/s with adherence to the relevant electrical,

plumbing and building codes, with compliance being issued as required by state or national

legislation.

Additionally, all upright cookers must have the anti-tilt device installed correctly in adherence to the

relevant standards by a licenced installer.

For maximum effectiveness and efficiency all rangehoods should be installed with the use of

ductwork, by a licenced installer with adherence to the relevant state and national building codes

and regulations.

All Glen Dimplex appliances are for Domestic use only, and must be installed by a licence installer

into Domestic Applications only, without exception and to the required Authorities guidelines. Any

installation outside of this will VOID warranty. Alfresco areas are not a Domestic application.

Distributed by:

*OHQ'LPSOH[$XVWUDOLD3W\/WG *OHQ'LPSOH[1HZ=HDODQG/WG

For full terms and conditions, or to register your product warranty, please visit our website:

www.glendimplex.com.au www.glendimplex.co.nz

For service advice, please contact the Customer Care Centre by phone or email below.

$XVWUDOLD 1HZ=HDODQG

Ph: 1300 556 816 Ph: 09 274 8265

[email protected] [email protected]

VERSION1REVISION 20200817

Euromaid FIDWB16 60cm Fully Integrated Dishwasher

Product's Documents

User Manual

Specifications

Euromaid FIDWB16 Questions and Answers
