User Manual

This is the main product document for model GS1504C.

The file format is pdf, 10 pages, you can download this manual here .

background
Cart Model
GS1504-C
GS1504-C
background
2
Table of Contents
SAFETYPRECAUTIONS...................................................................................................................................3
INSTALLATIONINSTRUCTIONS...................................................................................................................4
InspectionofShipment..........................................................................................................................................4
Manual...........................................................................................................................................................................4
ItemsIncludedwiththisUnit..............................................................................................................................4
Setup–CartAssembly............................................................................................................................................4
CAREANDCLEANING.......................................................................................................................................6
MAINTENANCEINSTRUCTIONS...................................................................................................................6
ORDERINGSPAREPARTS...............................................................................................................................7
Cart‐PartsBreakdown..........................................................................................................................................8
PRODUCTWARRANTY....................................................................................................................................9
PRODUCTSERVICE...........................................................................................................................................9
TERMS&CONDITIONS....................................................................................................................................9

background
3
SAFETY PRECAUTIONS
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installin
g
, servicin
g
, or operatin
g
this equipment.
014_020416
WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
www.nemcofoodequip.com or call 800.782.6761.
022_060215
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefull
y
read all instructions before operation.
012_010914
WARNING
This machine is NOT to be operated by minors.
007_010914

background
4
INSTALLATION INSTRUCTIONS
Inspection of Shipment
Afterunpacking,checkthoroughlyforanydamagewhichmayhaveoccurredinshipment.
Purchasershouldmakeclaimdirectlytocarrierforanydamagestomerchandisethatoccurin
transit.Thewarrantydoesnotcoverdamagethatoccursintransit,ordamagecausedbyabuse,
orconsequentialdamageduetotheoperationofthismachine,sinceitisbeyondourcontrol
(referencewarrantyinbackofmanual).
Manual
Readandunderstandtheoperator’smanualandallothersafetyinstructionsbeforeusingthis
equipment.Toordercopiesoftheoperator’smanualcontactGlobalSolutions,301Meuse
ArgonneHicksville,OH43526,800.782.6761,orgotowww.nemcofoodequip.com.
Items Included with this Unit
BaseCabinet
HandleBarand2HandlebarBrackets
2Wheels
1Axle
2ShortAxleSupports
2LongLegSupports
2LegSupportBrackets
2AdjustableFeet(forlonglegs)
HardwareKit(includesdoorknob)
Setup – Cart Assembly
Thiscartrequiresassembly(unitswithadoor,comewiththedoorandmagnetpre‐assembledto
thebase).Removeallpackagingandtape,thenfollowthestepsbelowforcartassembly.

Step1:Pre‐assembletheaxleandthe2short
axlesupports(FigureA).Toassemble,screw
a1/2‐13nutontoeachendoftheaxleuntilit
almostbottomsout.
Then,slideashortsupportontoeachendofthe
axleasshown.Fastenwitha1/2‐13nut(finger
tightenonlysosupportscanbeadjustedwhen
installingtothebase).
A
xleNut
A
xleNut
FigureA
‐Pre‐assembleAxleandSupports
Axle
Suppor
t
(short)
background
5

LockNut
DoorKnob
HandleAssembly
Step2:Attachaxleassemblytobaseonthe
sideoppositethehandlebar(FigureB).Use
2longbolts,4washers,and2locknutson
eachsupport(useawasheroneachend).
Onceassembled,tightentheaxlenuts
tosecure.
Step3:Assemblelonglegstobase.
Fasteneachlegusing2longbolts,
4washers,and2locknuts.
Step4:Positionthelegsupportbracketas
showninFigureB.Fastenbrackettoleg
usingalongbolt,washer,andlocknut.
Fastenbrackettocabinetusingashortbolt,
washer,andlocknut.
Step5:Installanadjustablefootontoeach
longleg.Ensurefootisfullyinsertedinlegas
showninFigureC.
Step6:Slideawheelontoeachendofthe
axleandfastenwithalocknut(FigureD).
Tightenthelocknutenoughtotakeup
clearance.DONOTovertighten.
Step7:Positioncartupright,andensureall
fastenersaresecure.
Step8:Assembleabracketoneachendof
thehandlebar.Fastenhandleassemblyto
cabinetusing4shortbolts,4washers,and
4locknuts(FigureE).
Step9:Cartsequippedwithadoor,install
thedoorknobontothecabinetdoorusing
the8‐32screw.
Step10:Carefullyinstallpopperbysettingit
inplaceonthecart,makesurethepopper
feetsetsecurelyintotheholesprovided.
Step11:Ifneeded,adjustcartfeettoensure
popperandcartarelevel.
LegSuppor
t
Bracke
t
FigureB
–AttachAxleAssemblyandLegs
Leg Suppor
t
(long)
FigureC
‐Install
anAdjustableFoot
oneachleg.
FigureD
FigureE
A
ttachAxle
ssembly
background
6
CARE AND CLEANING
Goodsanitationpracticedemandsthatallfoodpreparationequipmentbecleanedregularly(only
usenon‐toxic,foodgradecleaners).Acleanlooking,well‐keptmachineisoneofthebestwaysof
advertisingyourproduct.
Followthedirectionsbelowtocleanandsanitizeuniteachdayafteruse.
1. Wipeunitwithasoftcloth,dampenedwithhotwater.DONOTuseabrasivematerials
onthisunit.
2. Iffurthercleaningisneeded,useWatchdogConcessionEquipmentCleaner.
MAINTENANCE INSTRUCTIONS
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installin
g
, servicin
g
, or operatin
g
this equipment.
014_020416
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY
FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH
ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE
OPERATOR.
027
_
010914

background
7
ORDERING SPARE PARTS
1. Identifytheneededpartbycheckingitagainstthephotos,illustrations,and/or
partslist.(Generalimagesmaybeusedinmanualforreferenceonly.)
2. Useonlyapprovedreplacementpartswhenservicingthisunit.
3. Whenordering,pleaseincludepartnumber,partname,andquantityneeded.
4. Pleaseincludeyourmodelnumber,serialnumber,anddateofmanufacture(located
onthemachinenameplate/dataplate)withyourorder.
5. Placeordersbyphoneoronline:
Phone: 800.782.6761
Fax: 419.542.6690
WebPage:www.nemcofoodequip.com
background
8
Cart - Parts Breakdown
Item PartDescription
PartNumber
GS1504‐C
1 HANDLEBARCARTGOLD 10423
2 BRACKETHANDLEBARGOLD(2required) 10422
MANUAL 10435

1 2
background
9

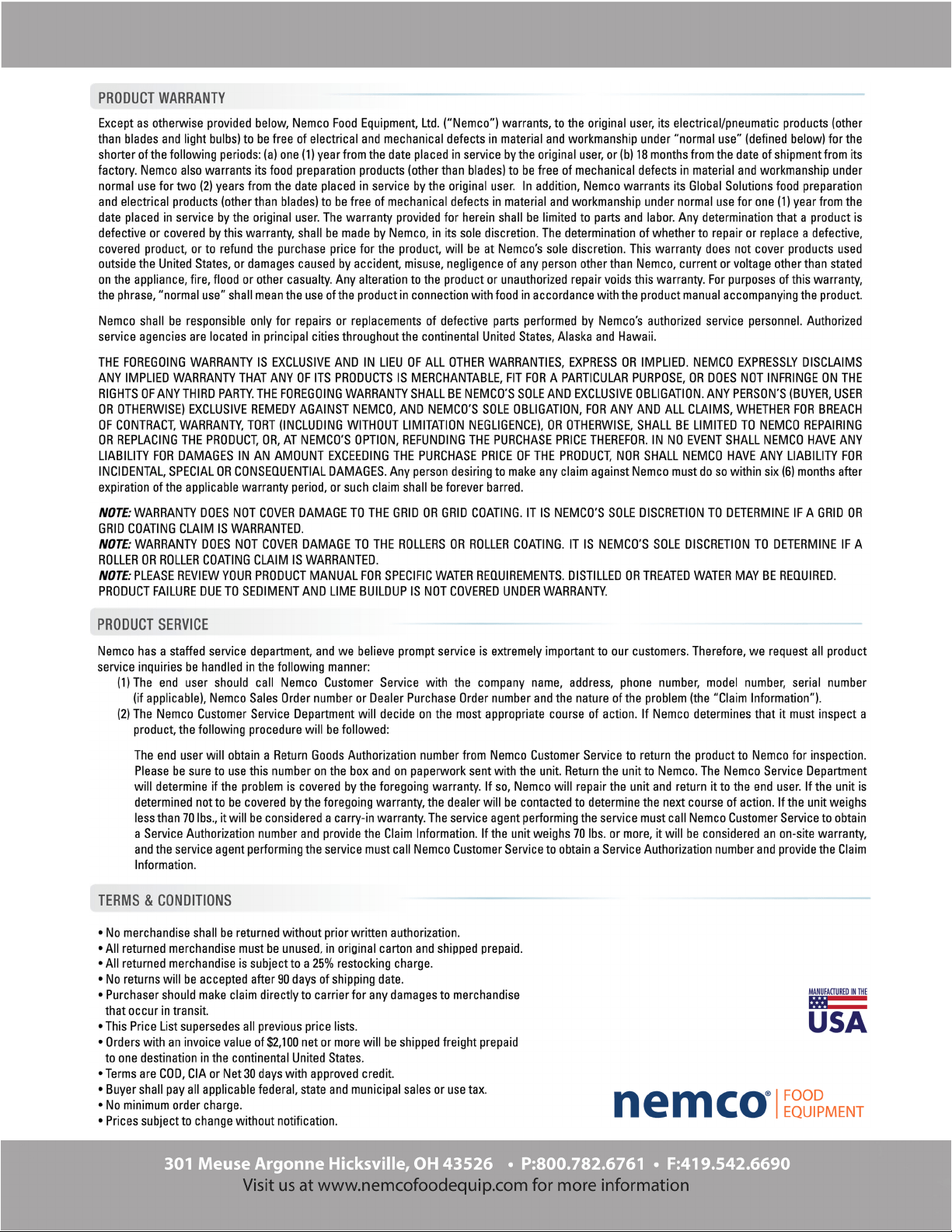

PRODUCT WARRANTY
PRODUCT SERVICE
TERMS & CONDITIONS
background
110195
3/29/18
10
MODEL NUMBER CROSS REFERENCE
Global Solutions Gold Medal Products Co.
GS1504-C 2649-00-015
Approvals / Listings for Global Solutions Carts:
Our carts are manufactured to Global Solutions (a Nemco Food Equipment Company) specifications
