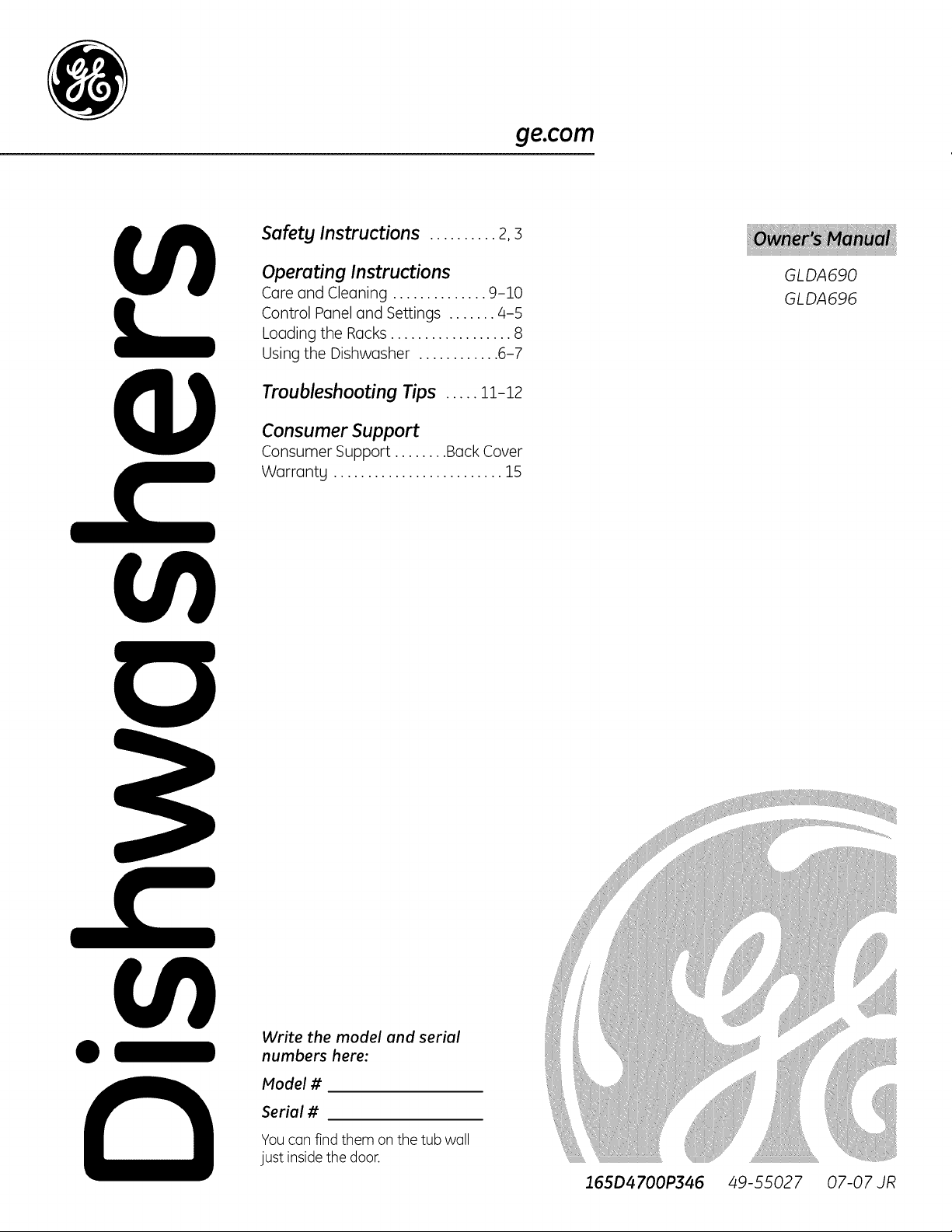

Safety Instructions .......... 2,s

Operating Instructions

Care and Cleaning .............. 9JlO

Control Panel and Settings ....... 415

Loading the Racks .................. 8

Using the Dishwasher ............ 617

Troubleshooting Tips ..... 11-12

Consumer Support

Consumer Support ........ Back Cover

Warrantg ......................... 15

GLDA690

GLDA696

Write the model and serial

numbers here:

Model #

Serial #

Youcan find them on the tub wall

just insidethe door.

165D4700P346 49-55027 07-07 JR

IMPORTANTSAFETYINFORMATION.

READALL INSTRUCTIONSBEFOREUSING-

SAVETHESEINSTRUCTIONS

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire

or explosion, electric shock, and to prevent property damage, personal injury, or death.

-&WARNING! WATER HEATER SAFETY

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used

for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.

Ifthe hot water has not been used for two weeks or more, prevent the possibility of damage or injury

by turning on all hot water faucets and allow them to run for several minutes. Do this before using any

electrical appliance which is connected to the hot water system. This simple procedure will allow any built-

up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance

during this process.

PROPER INSTALLATION AND MAINTENANCE

This dishwasher must be properly installed and located in accordance with the Installation

Instructions before it is used. If you did not receive an Installation Instructions sheet with

your dishwasher, you can receive one by visiting our website at ge.com.

• Connect to a grounded metal, permanent wiring

system; or run an equipment-grounding

conductor with the circuit conductors and

connect to the equipment-grounding terminal

or lead of the appliance.

• Improper connection of the equipment-grounding

conductor can result in a risk of electric shock.

Check with a qualified electrician or service

representative if you are in doubt whether

the appliance is properly grounded.

• Disposeof discarded appliances and shipping

or packing material properly.

• Do not attempt to repair or replace any part

of your dishwasher unless it is specifically

recommended in this manual. Allother servicing

should be referred to a qualified technician.

• To minimize the possibility of electric shock,

disconnect this appliance from the power supply

before attempting any maintenance.

NOTE:Turningthe dishwasher off does not

disconnect the appliance from the power supply.

We recommend having a qualified technician

service gout appliance.

CAUTION: Topreventminorinjuryorpropertydamage

• Contents washed in Anti-bacterial mode, if

available,may be hot to the touch. Use care

before handling.

• Using a detergent that is

not specifically designed

for dishwashers will cause

the dishwasher to fill with

suds.

• If your dishwasher is connected to a

wall switch, ensure that the switch is

on prior to use.

• On dishwashers with electronic

controls, if you choose to turn the wall

switch off between wash cycles, allow

5-10 seconds after turning the switch on before

touching START/RESETto allow the control to

reboot.

• Non-Dishware Items: Do not wash items such

as electronic air cleaner filters, furnace filters and

paint brushes in your dishwasher.Damage to

dishwasher and discoloration or staining of

dishwasher may result.

• Close supervision is necessary if this appliance

is used by or near children.

• Load light, plastic items so they will not

become dislodged and drop to the bottom

of the dishwasher-they might come into

contact with the heating element and be

damaged.

ge.com

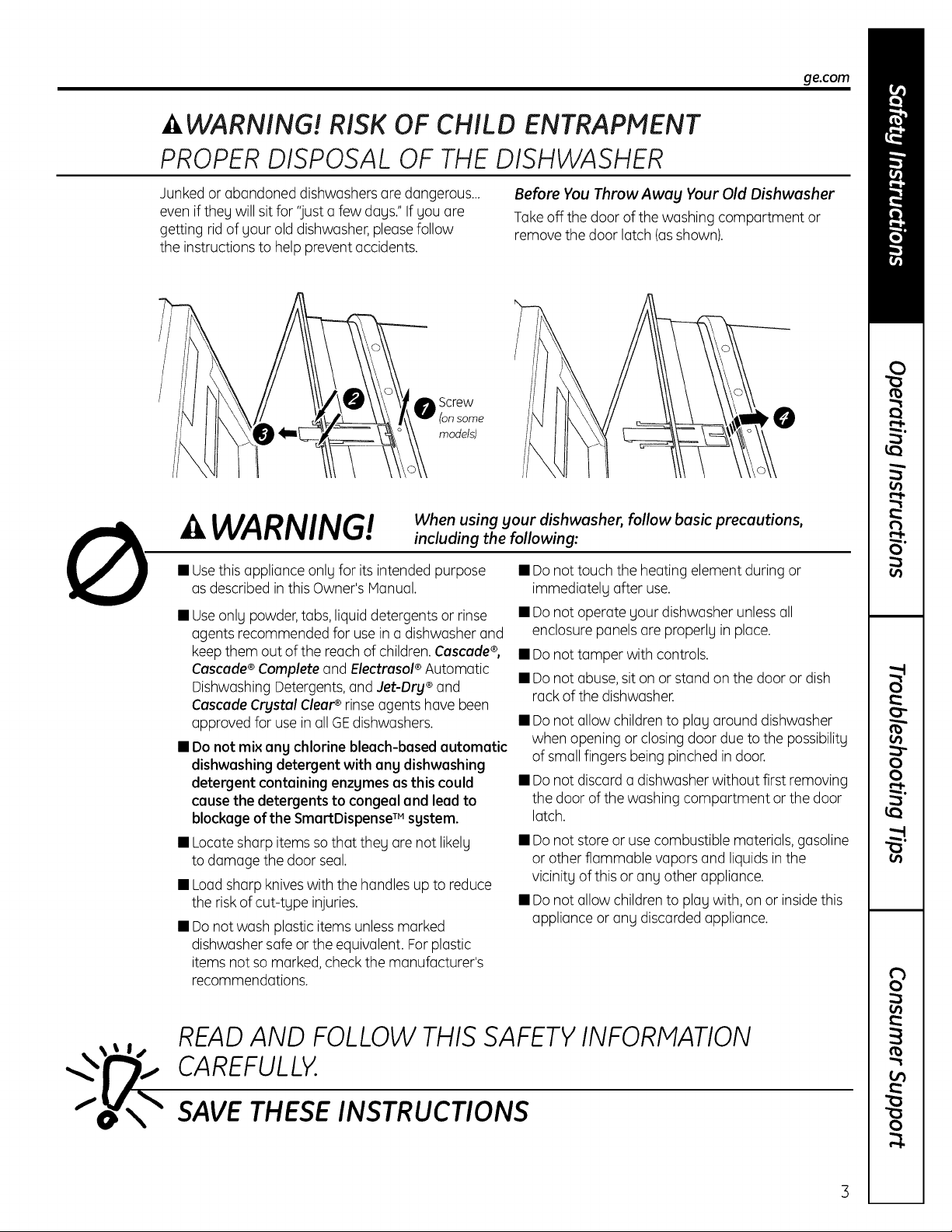

WARNING! RISK OF CHILD ENTRAPMENT

PROPER DISPOSAL OF THE DISHWASHER

Junked or abandoned dishwashers ore dangerous...

even if they will sit for "just a few dogs." If you ore

getting rid of your old dishwasher,pleasefollow

the instructions to help prevent accidents.

Before You Throw Away Your Old Dishwasher

Takeoff the door of the washing compartment or

remove the door latch (asshown).

O Screw

(On some

models)

A WARNING!

When using gour dishwasher, follow basic precautions,

including the following:

• Usethis appliance only for its intended purpose

as described in this Owner's Manual.

• Useonly powder, tabs, liquid detergents or rinse

agents recommended for use in a dishwasher and

keep them out of the reach of children. Cascade®,

Cascade ®Complete and Electrusol ®Automatic

Dishwashing Detergents,and Jet-Dry®and

Cascade Crystal Cleare rinse agents have been

approved for use in all GE dishwashers.

• Do not mix any chlorine bleach-bused automatic

dishwashing detergent with any dishwashing

detergent containing enzymes as this could

cause the detergents to congeal and lead to

blockage of the SmartDispense TM system.

• Locatesharp items so that they are not likely

to damage the door seal.

• Loadsharp knives with the handles up to reduce

the risk of cut-type injuries.

• Do not wash plastic items unless marked

dishwasher safe or the equivalent. For plastic

items not so marked, check the manufacturer's

recommendations.

• Do not touch the heating element during or

immediately after use.

• Do not operate your dishwasher unlessall

enclosure panels are properly in place.

• Do not tamper with controls.

• Do not abuse,sit on or stand on the door or dish

rack of the dishwasher.

• Do not allow children to play around dishwasher

when opening or closing door due to the possibility

of small fingers being pinched in door.

• Do not discord a dishwasher without first removing

the door of the washing comportment or the door

latch.

• Do not store or use combustible materials,gasoline

or other flammable vapors and liquids in the

vicinity of this or any other appliance.

• Do not allow children to play with, on or insidethis

appliance or any discorded appliance.

READ AND FOLLOW THIS SAFETY INFORMATION

CAREFULLY.

SAVE THESE INSTRUCTIONS

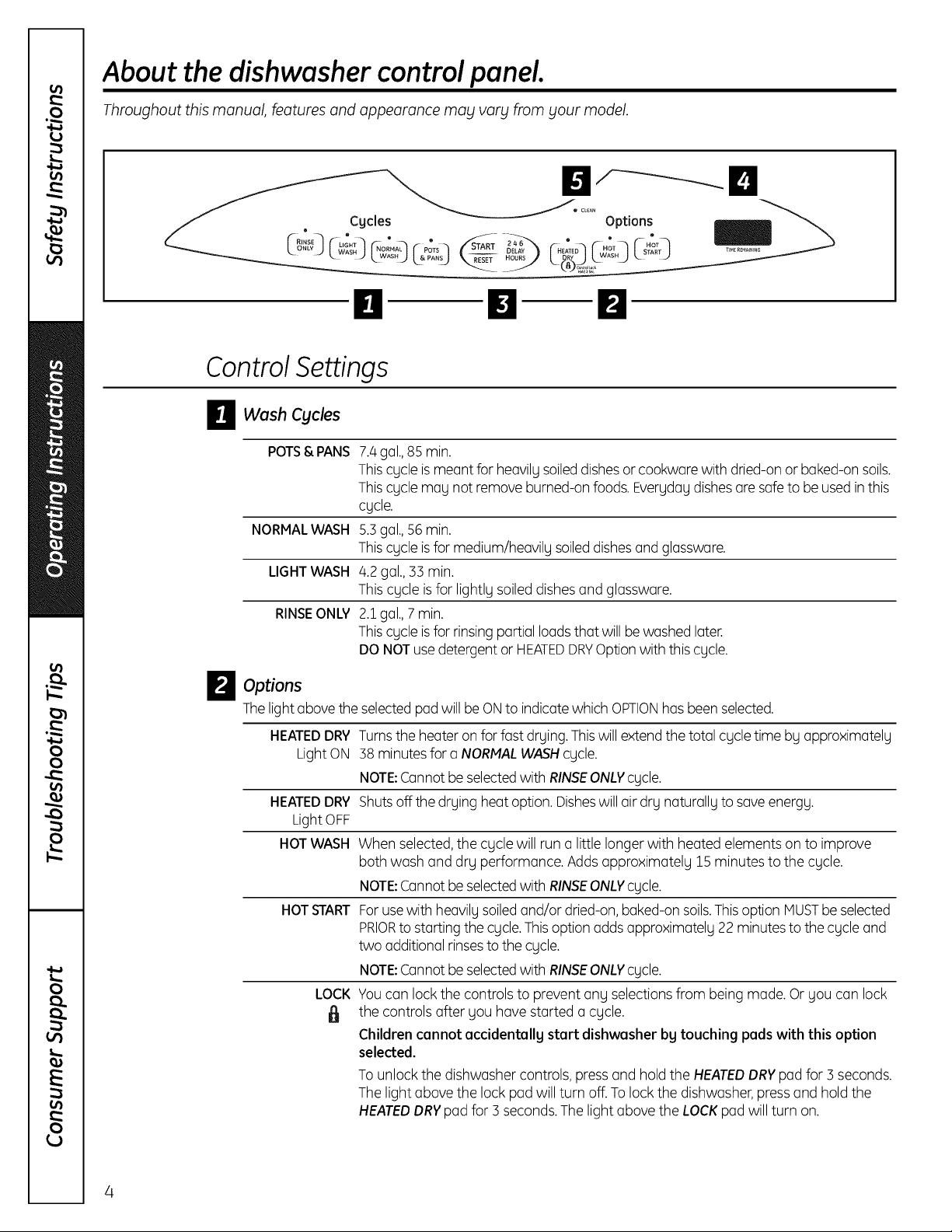

About the dishwasher control panel.

Throughout this manual, features and appearance may vary from your model.

Optioos Immlm

• • .... _46_% • • •

• POTS DELAY HEATED

0 El 0

Control Settings

O Wash Cycles

POTS&.PANS

NORMALWASH

LIGHTWASH

RINSEONLY

7.8gal.,85 min.

Thiscycle is meant for heavily soileddishesor cookware with dried-on or baked-on soils.

Thiscycle may not remove burned-on foods. Everyday dishesaresafe to be used in this

cycle.

5.3gal.,56 min.

Thiscycle isfor medium/heavily soileddishes and glassware.

4.2 gal.,33 min.

Thiscycle is for lightly soiled dishes and glassware.

2.1gal.,7 min.

Thiscycle isfor rinsing partial loads that will bewashed later.

DO NOT use detergent or HEATEDDRYOption with this cycle.

O Options

The light above the selected padwill be ONto indicatewhich OPTIONhas beenselected.

HEATED DRY

Light ON

HEATED DRY

Light OFF

HOT WASH

HOT START

LOCK

Turnsthe heater on for fast drying. Thiswill extend the total cycle time by approximately

38 minutes for a NORMALWASHcycle.

NOTE:Cannot be selectedwith RINSEONLYcycle.

Shutsoff the drying heat option. Disheswill air dry naturally to save energy.

When selected, the cycle will run a little longer with heated elements on to improve

both wash and dry performance. Adds approximately 15 minutes to the cycle.

NOTE: Cannot be selected with RINSE ONLY cycle.

For use with heavily soiled and/or dried-on, baked-on soils. This option HUST be selected

PRIORto starting the cycle. This option adds approximately 22 minutes to the cycle and

two additional rinses to the cycle.

NOTE: Cannot be selected with RINSE ONLY cycle.

You can lock the controls to prevent any selections from being made. Or you can lock

the controls after you have started a cycle.

Children cannot accidentally start dishwasher bg touching pads with this option

selected.

To unlock the dishwasher controls, press and hold the HEATED DRY pad for 3 seconds.

The light above the lock pad will turn off. To lock the dishwasher, press and hold the

HEATED DRY pad for 3 seconds. The light above the LOCK pad will turn on.

ge.com

_JStart/Reset

Closeand latchthe dishwasherdoor and selectthe cycle and desiredenhancements. Touch the

START/RESETpadto begin the cycle.The water fill begins immediately, and approximately 60 seconds later

the wash action begins.

When the dishwasher door isfully closed and latched,the control panel lightswill display the last settings

you selected.Ifyou don't want to change any of the settings, siimply touch the START/RESETpad to begin

the cycle.

Ifthe door is closed,the indicator lightswill turn off if the START/RESETpad is not selectedwithin 5 minutes.

Toactivate the display, open and close the door or pressany pad.

DELAY HOURS

RESET

Youcan delay the start of a wash cycle for up to 6 hours. Pressthe DELAYSTART

pad to choosethe number of hours you want to delay the start of the cycle;then

pressSTART/RESET.

The machine will count down and start automatically at the correct time.

NOTE:To cancel the DELAYSTARTselection before the cycle begins,repeatedly pressthe

DELAYSTARTpad until the display is blank.

To change a cycle after washing starts:

Touchthe START/RESETpad to cancel the cycle. TheSTART/RESETlight will flash while

the water is pumped out, if needed.Thistakes approximately 2 minutes.

Time Remaining Display (onsome models)

During operation, the display shows the minutes remaining until the cycle is complete. The display

may adjust the remaining time while the SENSINGlight is on. The time displayed at the start of each

cycle may change from the factory setting as the unit customizes itself to home use.During a delay

start, the display will show hours of time remaining until the cycle starts.

Clean

The CLEANlight is illuminated when the selected cycle and enhancements are complete. The light will

stay ON until a pad is pressedor the door is opened and then closed.

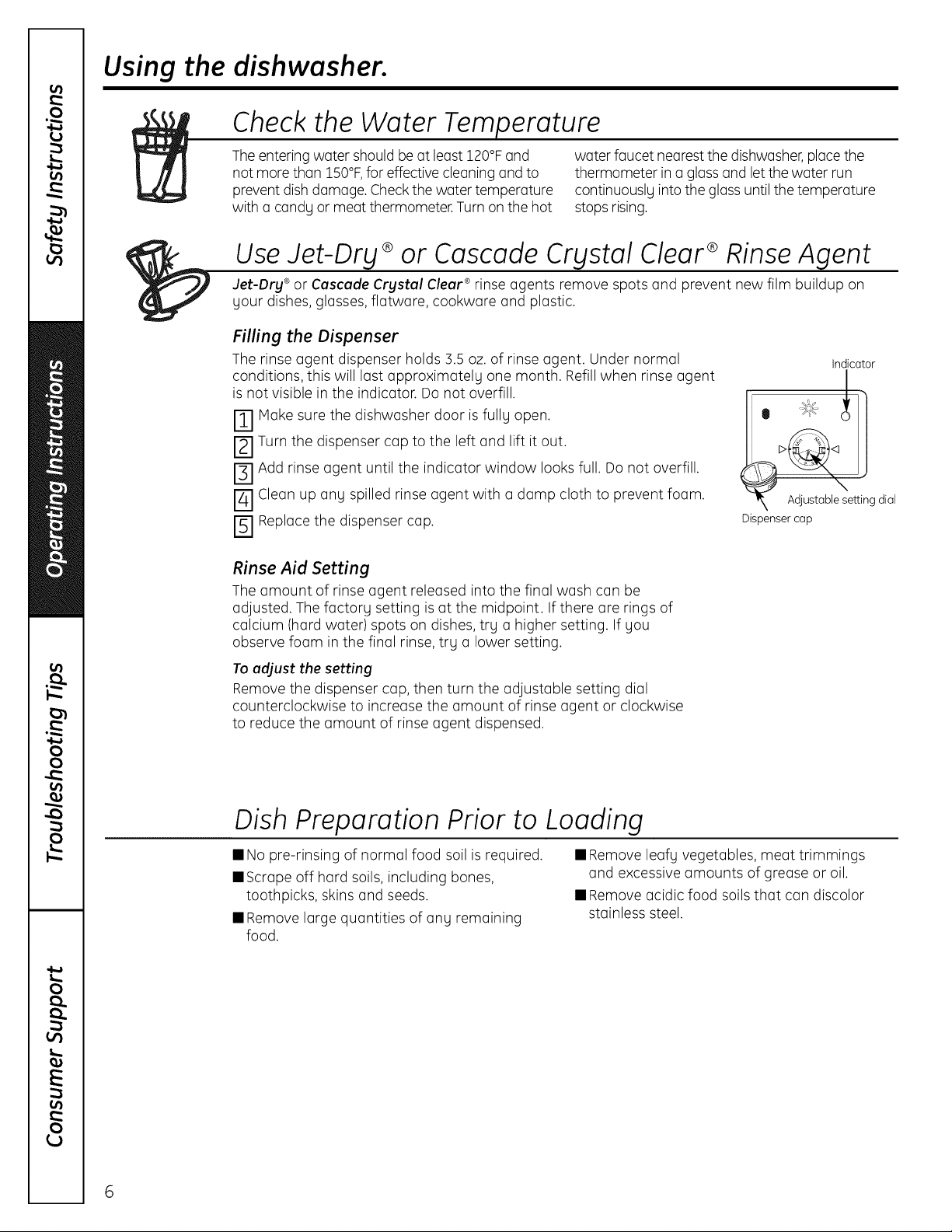

Using the dishwasher.

Check the Water Tern

The entering water should be at least 120°F and

not more than 150°F,for effective cleaning and to

prevent dish damage. Checkthe water temperature

with a candy or meat thermometer. Turn on the hot

water faucet nearest the dishwasher,place the

thermometer in a glass and let the water run

continuously into the glass until the temperature

stops rising.

Use Jet-Dry ®or Cascade Crystal Clear ®Rinse Agent

.let-Dry* or Cascade Crystal Clear ®rinse agents remove spots and prevent new film buildup on

gour dishes, glasses, flatware, cookware and plastic.

Filling the Dispenser

The rinse agent dispenser holds 3.5 oz. of rinse agent. Under normal

conditions, this will last approximatelu one month. Refill when rinse agent

is not visible in the indicator. Do not overfill.

[] Hake sure the dishwasher door is fully open.

[-_1Turn the dispenser cap to the left and lift it out.

I-_1Add rinse agent until the indicator window looks full. Do not overfill.

[_'] Clean up any spilled rinse agent with a damp cloth to prevent foam.

I_1 Replace the dispenser cap.

Indicator

et g dial

Dispenser cap

Rinse Aid Setting

The amount of rinse agent released into the final wash can be

adjusted. The factorg setting is at the midpoint. If there are rings of

calcium (hard water) spots on dishes, trg a higher setting. If gou

observe foam in the final rinse, trg a lower setting.

To adjust the setting

Remove the dispenser cap, then turn the adjustable setting dial

counterclockwise to increase the amount of rinse agent or clockwise

to reduce the amount of rinse agent dispensed.

Dish Preparation Prior to Loading

• No pre-rinsing of normal food soil is required.

• Scrape off hard soils, including bones,

toothpicks, skins and seeds.

• Remove large quantities of any remaining

food.

• Remove leafy vegetables, meat trimmings

and excessive amounts of grease or oil.

• Remove acidic food soils that can discolor

stainless steel.

ge.com

Proper Use of Detergent

Use only detergent specifically made for use

in dishwashers. Cascade ®and Electrasol ®

Automatic Dishwashing Detergents have been

approved for use in all GEdishwashers. Keep

your detergent fresh and dry. Don't put powder

detergent into the dispenser until you're ready

to wash dishes.

The amount of detergent to use depends on

whether your water is hard or soft. With hard

water, you need extra detergent. With soft water,

you need less detergent.

Protect your dishes and dishwasher by

contacting your water department and asking

how hard your water is. Twelve or more grains

is extremely hard water. A water softener is

recommended. Without it, lime can build up

in the water valve, which could stick while open

and cause flooding. Too much detergent with

soft water can cause a permanent cloudiness

of glassware, called etching.

Usethe information in the table below as a

guideline to determine the amount of automatic

dishwasher detergent to place in the dispenser.

Number

of Grains Detergent Cups to Fill

Less than 4 15 cup

4 to 8 25 cup

8 to 12 15and 25 cups

Greater 15, 25 cups and the open cup

than 12

For heavily-soiled loads, use the Pots and Pans or

Heavy Wash cycle and add a little extra detergent.

DO NOT USE HAND DISH DETERGENT

NOTE:Using a detergent that is not specifically

designedfor dishwashers will causethe dishwasher

to fill with suds. During operation, these suds will spill

out of the dishwasher vents, covering the kitchen

floor and making the floor wet.

Becauseso many detergent containers look alike,

store the dishwasher detergent in a separate space

from all other cleaners.Show anyone who may use

the dishwasher the correct detergent and where

it is stored.

While there will be no lasting damage to the

dishwasher,your disheswill not get clean using a

dishwashing detergent that is not formulated to

work with dishwashers.

Button_

To open the wash cover, press the button and the cover will

flip back.

Forget to Add a Dish?

A forgotten dish can be added any time before

the main wash.

r_ Squeeze the door latch to release the door.

_] Do not open the door until the water spray

action stops. Steam may rise out of the

dishwasher.

r_l Add forgotten dishes.

[_l Close the door.

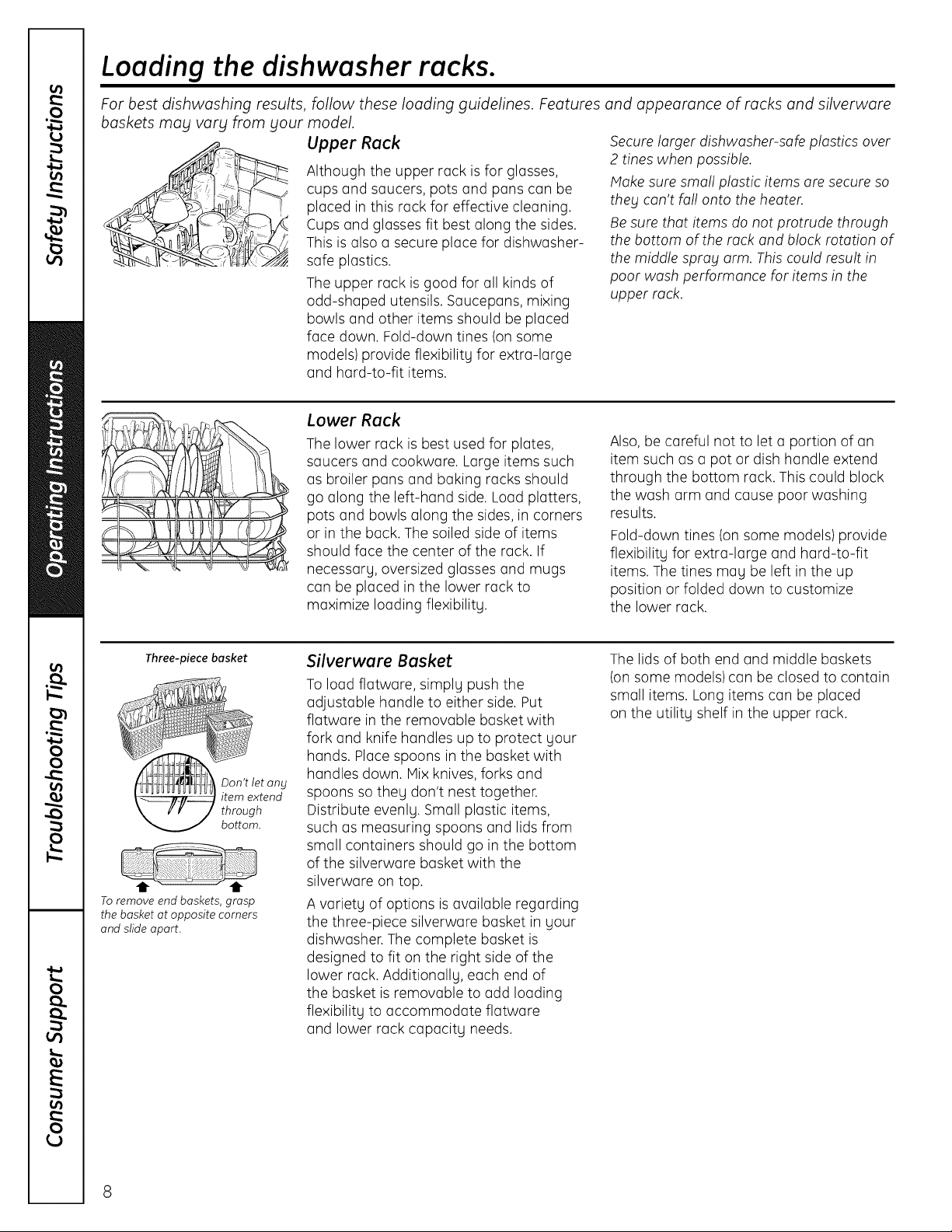

Loading the dishwasher racks.

For best dishwashing results,

baskets may vary from your model.

Upper Rack

follow these loading guidelines. Features and appearance of racks and silverware

Although the upper rack is for glasses,

cups and saucers, pots and pans can be

placed in this rack for effective cleaning.

Cups and glasses fit best along the sides.

This is also a secure place for dishwasher-

safe plastics.

The upper rack is good for all kinds of

odd-shaped utensils. Saucepans, mixing

bowls and other items should be placed

face down. Fold-down tines (on some

models) provide flexibilitg for extra-large

and hard-to-fit items.

Secure larger dishwasher-safe plastics over

2 tines when possible.

Make sure small plastic items are secure so

the_j can't fall onto the heater.

Be sure that items do not protrude through

the bottom of the rack and block rotation of

the middle sprog arm. This could result in

poor wash performance for items in the

upper rack.

Lower Rack

The lower rack is best used for plates,

saucers and cookware. Large items such

as broiler pans and baking racks should

go along the left-hand side. Load platters,

pots and bowls along the sides, in corners

or in the back. The soiled side of items

should face the center of the rack. If

necessary, oversized glasses and mugs

can be placed in the lower rack to

maximize loading flexibility.

Also, be careful not to let a portion of an

item such as a pot or dish handle extend

through the bottom rack. This could block

the wash arm and cause poor washing

results.

Fold-down tines (on some models) provide

flexibilitu for extra-large and hard-to-fit

items. The tines may be left in the up

position or folded down to customize

the lower rack.

Three-piece basket

Toremove end baskets, grasp

the basket at opposite comers

and slide apart.

Silverware Basket

To load flatware, simply push the

adjustable handle to either side. Put

flatware in the removable basket with

fork and knife handles up to protect your

hands. Place spoons in the basket with

handles down. Mix knives, forks and

spoons so they don't nest together.

Distribute evenly. Small plastic items,

such as measuring spoons and lids from

small containers should go in the bottom

of the silverware basket with the

silverware on top.

A variety of options is available regarding

the three-piece silverware basket in your

dishwasher. The complete basket is

designed to fit on the right side of the

lower rack. Additionally, each end of

the basket is removable to add loading

flexibility to accommodate flatware

and lower rack capacity needs.

The lids of both end and middle baskets

(on some models) can be closed to contain

small items. Long items can be placed

on the utility shelf in the upper rack.

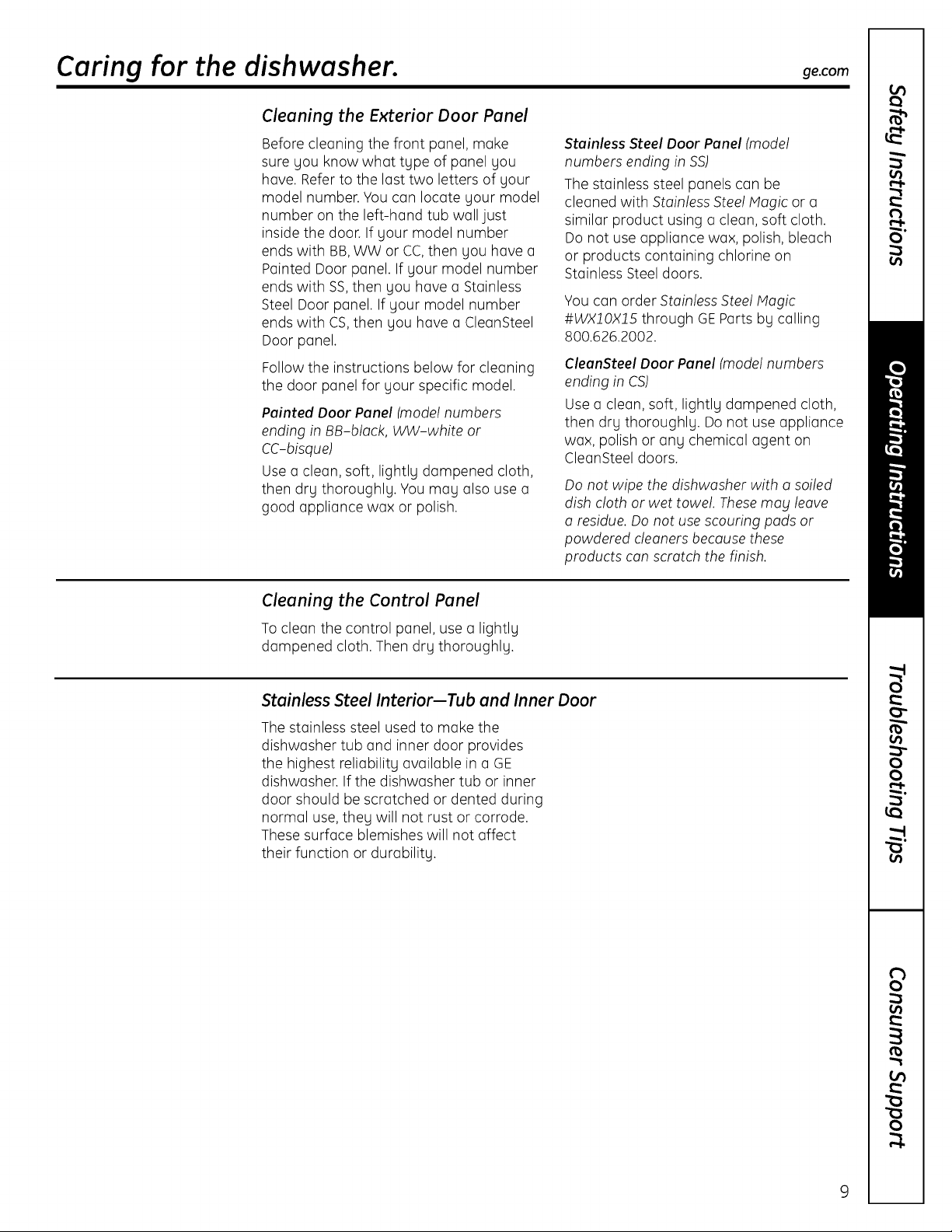

Caring for the dishwasher, ge.com

Cleaning the Exterior Door Panel

Before cleaning the front panel, make

sure gou know what tgpe of panel gou

hove. Refer to the last two letters of gour

model number. You can locate gour model

number on the left-hand tub wall just

inside the door. If gour model number

ends with BB,WW or CC,then gou have a

Painted Door panel. If gour model number

ends with SS,then gou have a Stainless

Steel Door panel. If gour model number

ends with CS,then gou have a CleanSteel

Door panel.

Follow the instructions below for cleaning

the door panel for gour specific model.

Painted Door Panel (model numbers

ending in BB-block, WW-white or

CC-bisque)

Use a clean, soft, lightlg dampened cloth,

then drg thoroughlg. You mag also use a

good appliance wax or polish.

Stainless Steel Door Panel (model

numbers ending in SS)

The stainless steel panels can be

cleaned with Stainless Steel Mogic or a

similar product using a clean, soft cloth.

Do not use appliance wax, polish, bleach

or products containing chlorine on

Stainless Steel doors.

You can order Stainless Steel Mogic

#WXlOX1S through GEParts bg calling

800.626.2002.

CleanSteel Door Panel (model numbers

ending in CS)

Use a clean, soft, lightlg dampened cloth,

then drg thoroughlg. Do not use appliance

wax, polish or ang chemical agent on

CleanSteel doors.

Do not wipe the dishwosher with o soiled

dish cloth or wet towel. Thesemog leove

o residue. Do not use scouring pads or

powdered cleoners becouse these

products can scrotch the finish.

Cleaning the Control Panel

To clean the control panel, use a lightlg

dampened cloth. Then drg thoroughlg.

Stainless Steel Interior--Tub and Inner Door

The stainless steel used to make the

dishwasher tub and inner door provides

the highest reliabilitg available in a GE

dishwasher. If the dishwasher tub or inner

door should be scratched or dented during

normal use, theg will not rust or corrode.

These surface blemishes will not affect

their function or durabilitg.

Caring for the dishwasher.

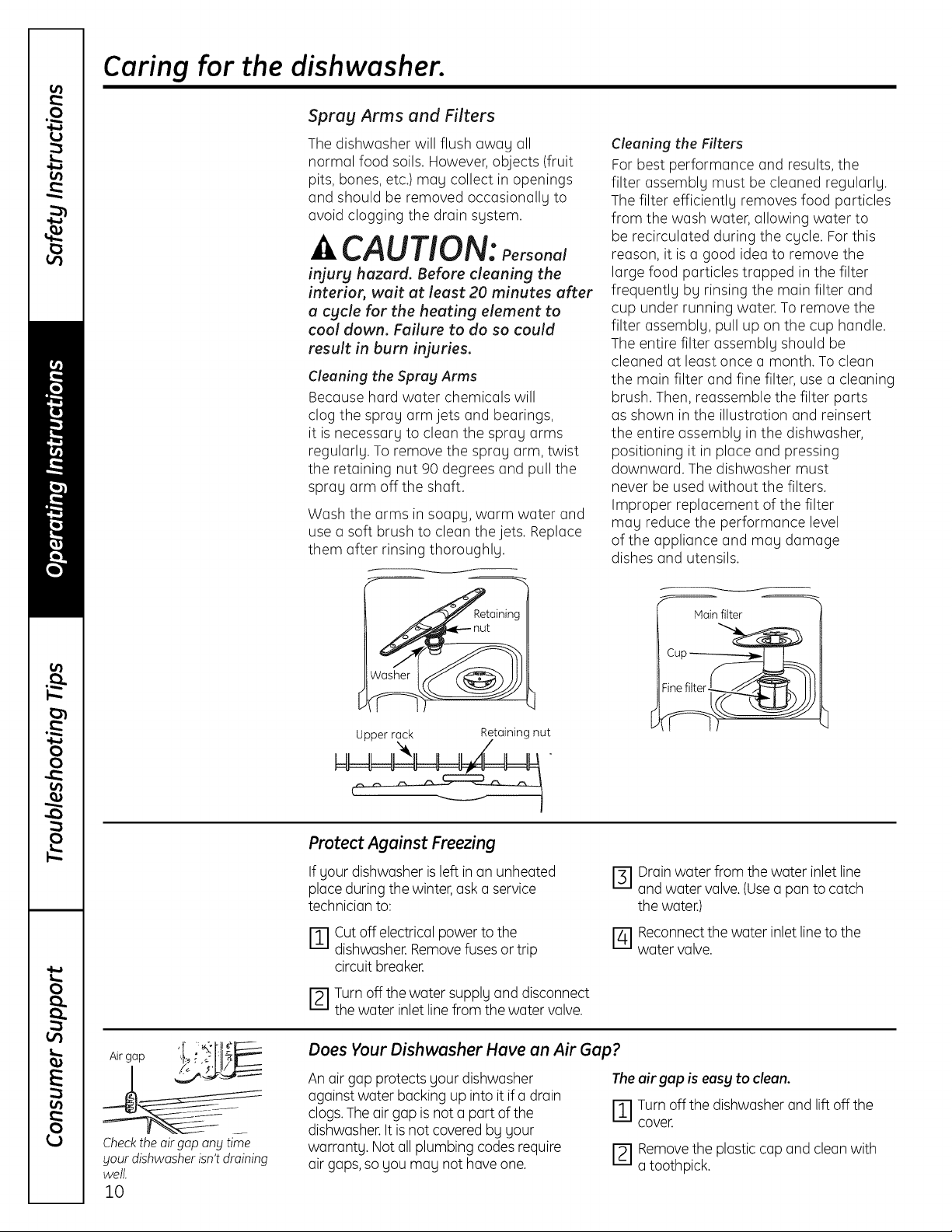

Spray Arms and Filters

The dishwasher will flush away all

normal food soils. However, objects (fruit

pits, bones, etc.) may collect in openings

and should be removed occasionally to

avoid clogging the drain system.

ii, CAUTION: Personal

injurg hazard. Before cleaning the

interior, wait at least 20 minutes after

a cgde for the heating element to

cool down. Failure to do so could

result in burn injuries.

Cleaning the Spray Arms

Because hard water chemicals will

clog the spray arm jets and bearings,

it is necessary to clean the spray arms

regularly. To remove the spray arm, twist

the retaining nut 90 degrees and pull the

spray arm off the shaft.

Wash the arms in soapy, warm water and

use a soft brush to clean the jets. Replace

them after rinsing thoroughly.

:;===========- _

taining

Upper rack Retaining nut

Cleaning the Filters

For best performance and results, the

filter assembly must be cleaned regularly.

The filter efficiently removes food particles

from the wash water, allowing water to

be recirculated during the cycle. For this

reason, it is a good idea to remove the

large food particles trapped in the filter

frequently by rinsing the main filter and

cup under running water. To remove the

filter assembly, pull up on the cup handle.

The entire filter assembly should be

cleaned at least once a month. To clean

the main filter and fine filter, use a cleaning

brush. Then, reassemble the filter parts

as shown in the illustration and reinsert

the entire assembly in the dishwasher,

positioning it in place and pressing

downward. The dishwasher must

never be used without the filters.

Improper replacement of the filter

may reduce the performance level

of the appliance and may damage

dishes and utensils.

Main filter

Protect Against Freezing

If your dishwasher is left in an unheated

place during the winter, ask a service

technician to:

I-_1 Cut off electrical power to the

dishwasher.Removefuses or trip

circuit breaker.

I-_1 Turn off the water supply and disconnect

the water inlet linefrom the water valve.

F_-IDrain water from the water inlet line

and water valve. (Usea pan to catch

the water.)

[_-] Reconnectthe water inlet line to the

water valve.

Air gap

Checkthe airgap any time

your dishwasher isn't draining

welt.

Does Vour Dishwasher Have an Air Gap?

An air gap protects your dishwasher

against water backing up into it if a drain

clogs.The air gap is not a part of the

dishwasher.It is not covered by your

warranty. Not all plumbing codes require

air gaps, so you may not have one.

The air gap is easy to clean.

[] Turn off the dishwasher and lift off the

cover

Remove the plasticcap and cleanwith

l-_a toothpick.

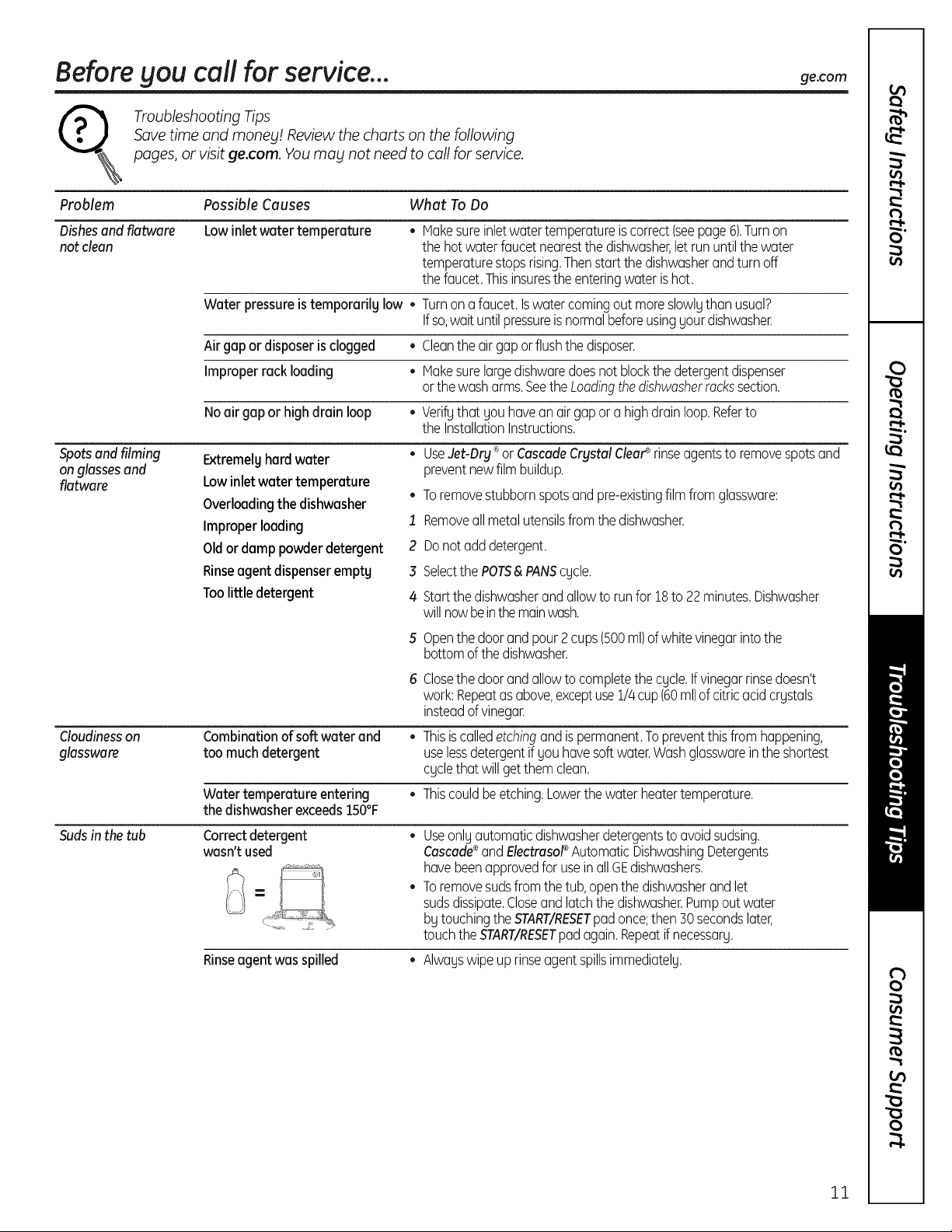

Before you call for service.., ge.com

Problem

Dishesand flatware

not clean

Spotsandfilming

onglassesand

flatware

Troubleshooting Tips

Save time and money! Review the charts on the following

pages, or visit ge.com. You may not need to call for service.

Possible Causes What To Do

Low inlet water temperature • Makesureinletwatertemperatureis correct(seepage6).Turnon

the hot waterfaucet nearestthe dishwasher,let rununtilthe water

temperaturestopsrising.Thenstart thedishwasherandturn off

the faucet.Thisinsuresthe enteringwaterishot.

Water pressureis temporarily low • Turnona faucet. Iswater comingout moreslowlythan usual?

Ifso,waituntilpressureisnormalbeforeusingyour dishwasher.

Airgap or disposerisclogged • Cleanthe airgap orflushthe disposer.

Improperrackloading • Makesurelargedishwaredoesnot blockthe detergentdispenser

orthe wash arms.Seethe Loadingthedishwasherrackssection.

No air gapor highdrain loop • Verifythat youhaveanairgapor a highdrainloop.Referto

the InstallationInstructions.

Extremelyhardwater • UseJet-Dry®or CascadeCrystalClea_ rinseagentsto removespotsand

preventnewfilm buildup.

Lowinlet water temperature

• Toremovestubbornspotsand pre-existingfilmfrom glassware:

Overloadingthe dishwasher

Improperloading 1 Removeallmetalutensilsfromthedishwasher.

Oldor damp powderdetergent 2 Donot add detergent.

Rinseagent dispenserempty 3 Selectthe POTS& PANScycle.

Toolittle detergent 4 Startthe dishwasherand allowto runfor 18to 22minutes.Dishwasher

willnowbeinthemainwash.

5 Openthe doorand pour2 cups(500ml)of whitevinegarinto the

bottomof the dishwasher.

6 Closethe doorand allowto completethe cycle.Ifvinegarrinsedoesn't

work:Repeatasabove,exceptuse1//4cup(60ml)of citricacidcrystals

insteadof vinegar.

Cloudinesson Combinationof soft water and • Thisiscalledetchingandis permanent.Topreventthisfrom happening,

glassware too muchdetergent uselessdetergentif you havesoftwater.Washglasswarein the shortest

cyclethatwill getthem clean.

Water temperatureentering • Thiscouldbe etching.Lowerthe water heatertemperature.

the dishwasherexceeds150°F

Sudsin the tub Correctdetergent • Useonlyautomaticdishwasherdetergentsto avoidsudsing.

wasn't used Cascade®andElectrasoPAutomaticDishwashingDetergents

havebeenapprovedfor usein all GEdishwashers.

Toremovesudsfrom the tub,openthe dishwasherand let

sudsdissipate.Closeand latch thedishwasher.Pumpout water

by touchingtheSTART/RESETpadonce;then 30 secondslater,

touchthe START/RESETpadagain.Repeatif necessary.

Rinseagent was spilled • Alwayswipeuprinseagentspillsimmediately.

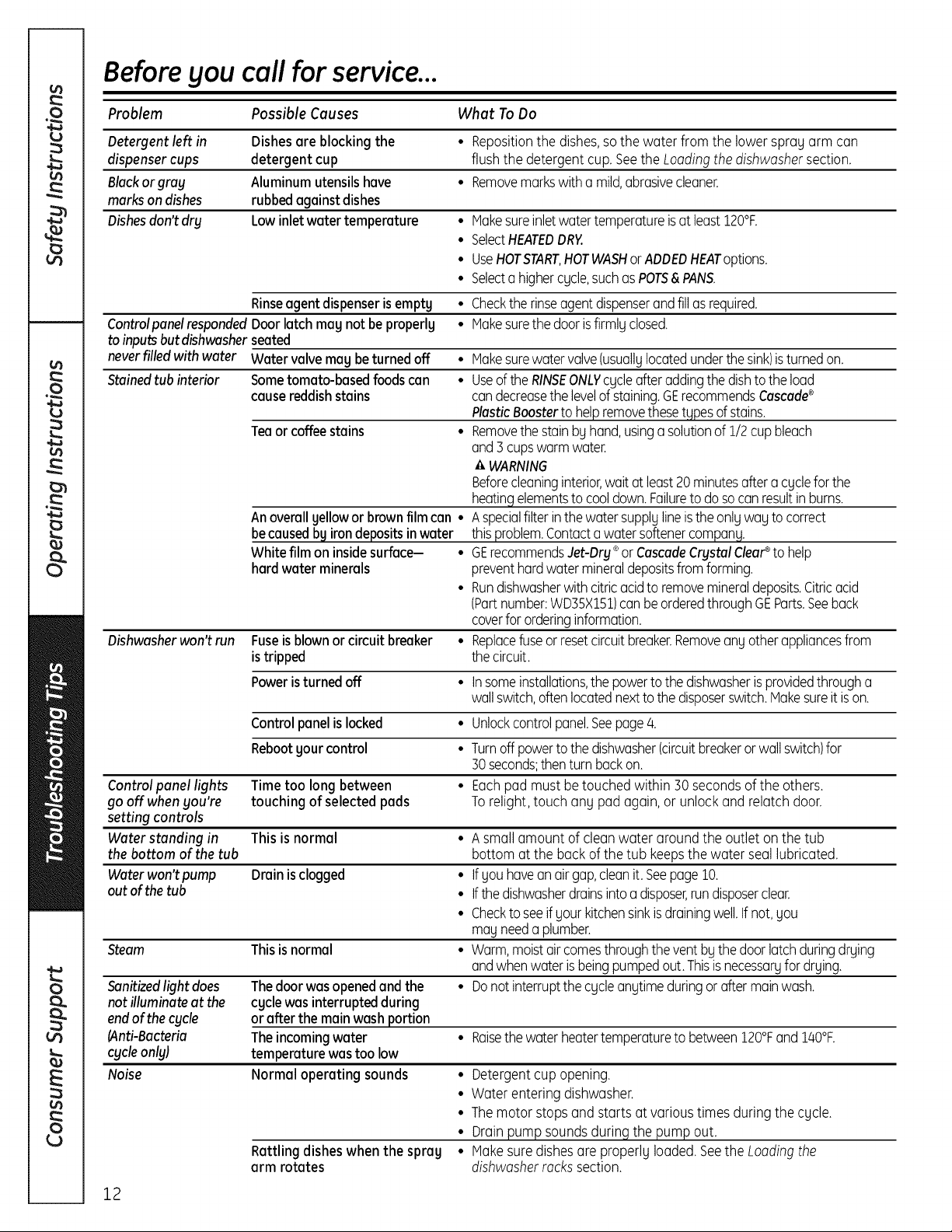

Before you call for service...

Problem Possible Causes What To Do

Detergent left in

dispensercups

Blackor gray

markson dishes

Dishesdon'tdry

Dishes are blocking the

detergent cup

Aluminum utensils have

rubbed against dishes

Low inlet water temperature

Rinseagent dispenser is emptg

Controlpanel responded Door latch meg not be properlg

to inputs but dishwasher seated

never filled with water Water valve meg be turned off

Stained tub interior Some tomato-based foods can

cause reddish steins

Teaor coffeestains

Anoverallgellowor brownfilmcan •

becausedby iron depositsin water

White film on insidesurface- •

hardwater minerals

Dishwasherwon't run Fuseis blownor circuit breaker

istripped

• Repositionthe dishes,so the water from the lowerspray arm can

flushthe detergentcup. Seethe Loadingthe dishwashersection.

• Removemarkswith a mild,abrasivecleaner.

• Make sure inlet water temperature is atleast 120°F.

• Select HEATEDDRY.

• Use HOTSTART,HOT WASH or ADDED HEAToptions.

• Select a higher cgcle, such as POTS& PANS.

• Check the rinse agent dispenser and fill as required.

• Make sure the door is firmly closed.

• Makesurewater valve(usuallylocatedunderthe sink)isturnedon.

• Useof the RINSEONLYcycleafter addingthe dishto the load

candecreasethe levelof staining.GErecommendsCascade®

PlasticBoosterto helpremovethesetypesof stains.

• Removethe stainby hand,usinga solutionof 1/2cup bleach

and] cupswarmwater.

WARNING

Beforecleaninginterior,waitat least 20minutesaftera cyclefor the

heatingelementsto cooldown.Failureto do socan resultin burns.

Aspecialfilter in the watersupplylineistheonly way to correct

thisproblem.Contacta water softenercompany.

GErecommendsJet-Dry®or CascadeCrystal Clear_to help

preventhardwatermineraldepositsfrom forming.

• Rundishwasherwithcitricacidto removemineraldeposits.Citricacid

(Partnumber:WD35X151)can beorderedthroughGEParts.Seeback

coverfor orderinginformation.

• Replacefuseor resetcircuitbreaker.Removeany otherappliancesfrom

thecircuit.

Power is turned off

• In someinstallations,the powerto the dishwasheris providedthrougha

wallswitch,often locatednext to the disposerswitch.Makesureit ison.

Controlpanelis locked • Unlockcontrol panel.Seepage4.

Control panel lights

go off when you're

setting controls

Water standing in

the bottom of the tub

Water won't pump

out of thetub

Steam

Sanitizedlight does

not illuminateat the

endof thecycle

(Anti-Bacteria

cycleonly)

Noise

Rebootgourcontrol

Time too long between

touching of selected pads

• Turnoff powerto the dishwasher(circuitbreakerorwall switch)for

30seconds;thenturn backon.

• Eachpad must be touched within 30 secondsof the others.

Torelight,touch ang pad again,or unlockand relatch door.

Thisis normal

Drainis clogged

Thisis normal

Thedoorwasopenedand the

cgclewasinterrupted during

or after the main washportion

Theincomingwater •

temperature was too low

Normal operating sounds •

Rattling disheswhen the sprag •

arm rotates

• A small amount of cleanwater around the outlet on the tub

bottom at the backof the tub keepsthe water seal lubricated.

• If gou havean air gap,cleanit. Seepage10.

• If the dishwasherdrainsintoa disposer,rundisposerclear.

• Checkto seeif your kitchensinkisdrainingwell.If not,you

may needaplumber.

• Warm,moistaircomesthroughthe ventby the door latch duringdrying

andwhenwaterisbeingpumpedout.Thisisnecessaryfor drying.

• Donot interruptthe cycleanytimeduringor after mainwash.

Raisethe water heater temperature to between 120°Fand 140°F.

Detergentcup opening.

Waterentering dishwasher.

Themotor stops and starts at varioustimes during the cgcle.

Drain pump soundsdurinqthe pump out.

Makesuredishesare properlgloaded.Seethe Loadingthe

dishwasherrackssection.

Notes.

¢3

¢b

Notes.

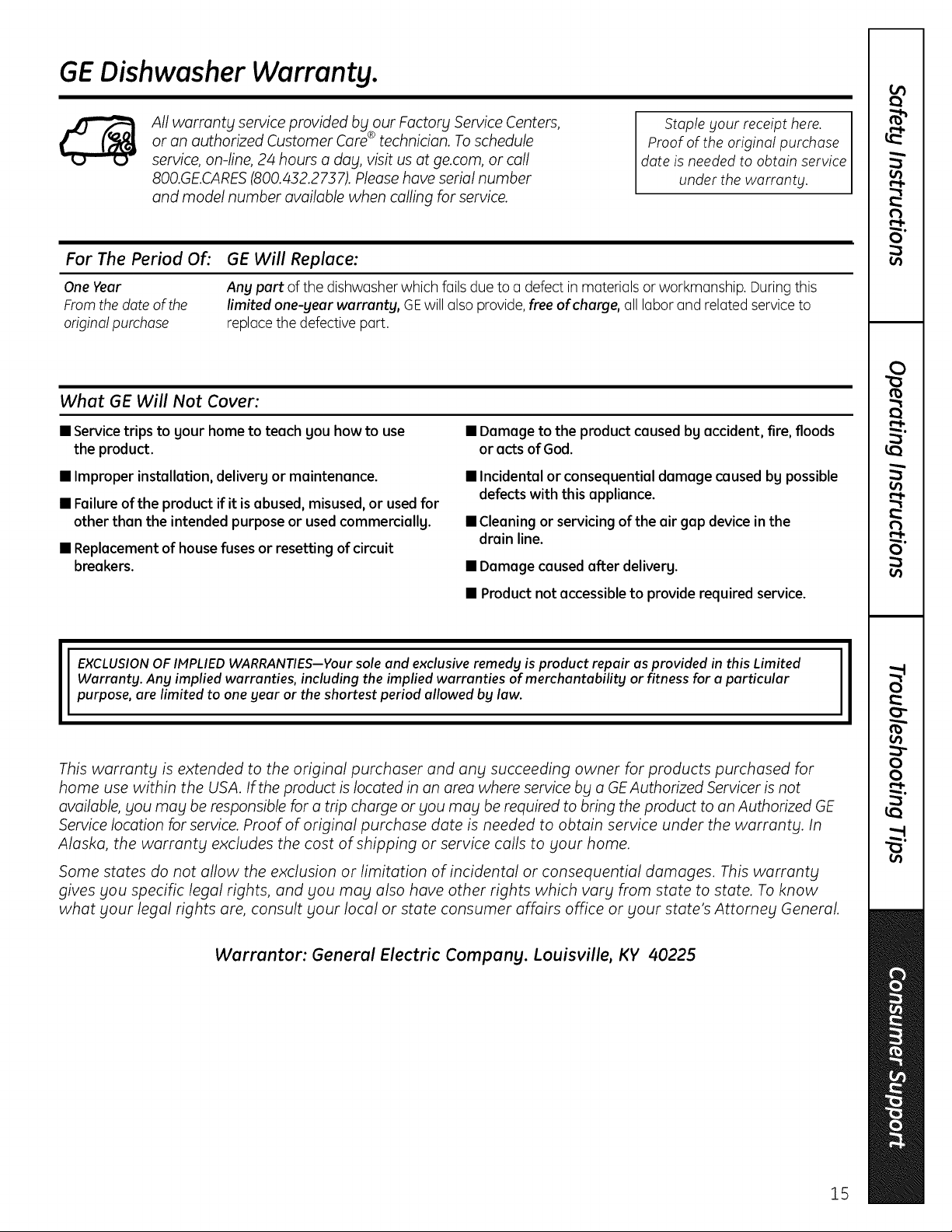

GEDishwasher Warranty.

All warranty service provided by our Factory Service Centers,

or on authorized Customer Core® technician. To schedule

service, on-line, 2/4 hours a day, visit us at ge.com, or call

800.GE.CARES(800./432.2737).Please have serial number

and model number available when calling for service.

Staple Four receipt here.

Proof of the original purchase

date is needed to obtain service

under the warrant F.

For The Period Of:

One Vear

Fromthe date of the

original purchase

GE Will Replace:

Any part of the dishwasher which fails due to a defect in materials or workmanship. During this

limited one-year warranty, GEwill also provide, free of charge, all labor and related service to

replace the defective part.

What GE Will Not Cover:

• Service trips to gour home to teach gou how to use

the product.

• Improper installation, deliverg or maintenance.

• Failure of the product if it is abused, misused, or used for

other than the intended purpose or used commerciallg.

• Replacement of house fuses or resetting of circuit

breakers.

• Damage to the product caused bg accident, fire, floods

or acts of God.

• Incidental or consequential damage caused bg possible

defectswith this appliance.

• Cleaning or servicingof the air gap device in the

drain line.

• Damage caused after deliverg.

• Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTIES--Vour sole and exclusive remedy is product repair as provided in this Limited

Warranty. Any implied warranties, including the impfied warranties of merchantability or fitness for a particular

purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for

home use within the USA. If the product is located in on area where service by a GEAuthorized Servicer is not

available, you may be responsible for a trip charge or you may be required to bring the product to on Authorized GE

Service location for service. Proof of original purchase dote is needed to obtain service under the warranty. In

Alaska, the warranty excludes the cost of shipping or service coils to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty

gives you specific legal rights, and you may also have other rights which vary from state to state. To know

what your legal rights ore, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KV 40225

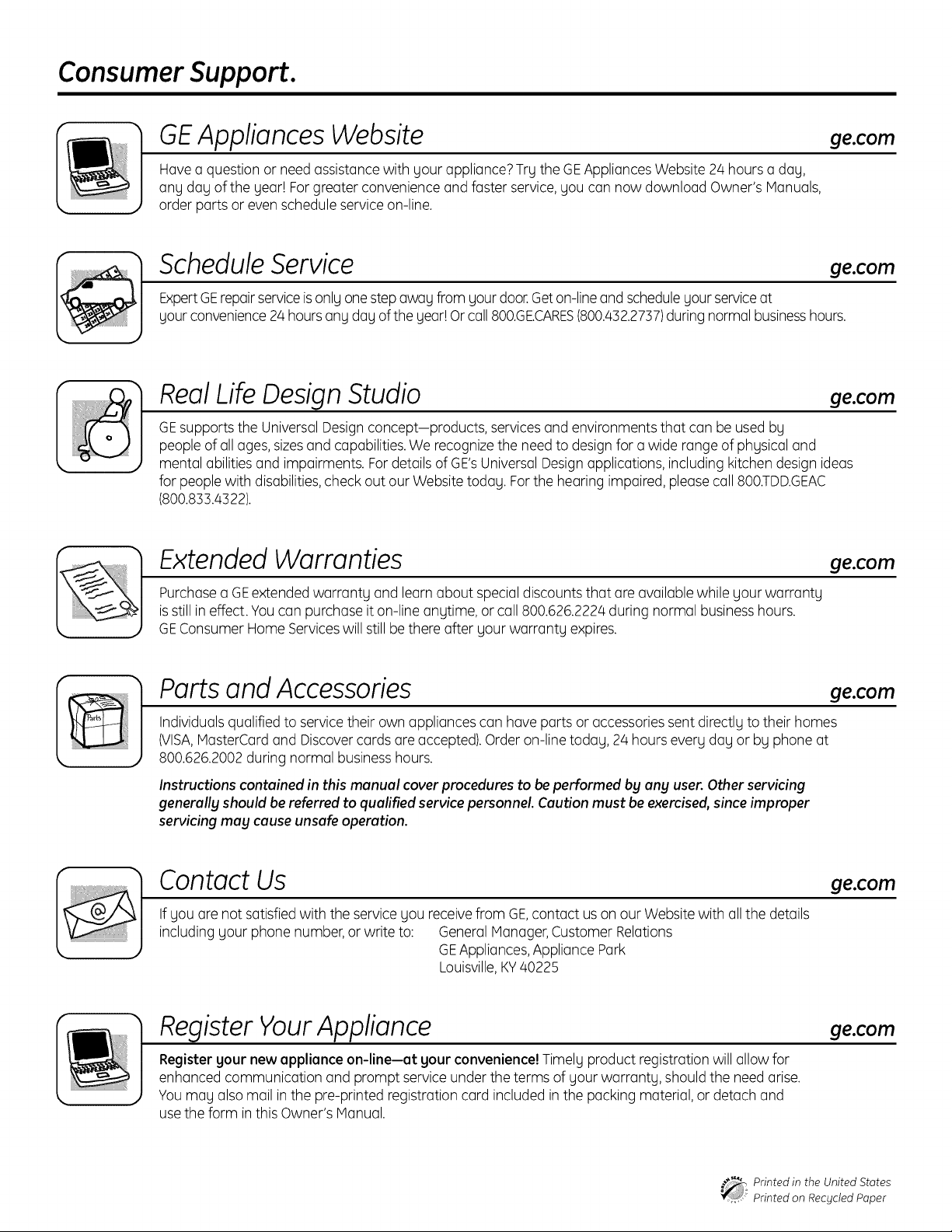

Consumer Support.

GEAppliances Website

Have a question or need assistance with your appliance? Try the GEAppliances Website 24 hours a day,

any day of the year! For greater convenience and faster service, you can now download Owner's Manuals,

order parts or even schedule service on-line.

ge.com

Schedule Service ge.com

ExpertGErepairserviceisonly one step away from your door.Geton-lineand scheduleyour serviceat

your convenience2/4hours any day of the year! Or call 800.GE.CARES(800.412.2717)during normal businesshours.

Real Life Design Studio ge.com

GEsupports the Universal Designconcept-products, services and environments that can be used by

people of all ages, sizesand capabilities.We recognizethe need to design for a wide range of physical and

mental abilities and impairments. For details of GE'sUniversal Design applications, including kitchen design ideas

for people with disabilities,check out our Website today. Forthe hearing impaired, please call 800.TDD.GEAC

(800.8]].4122).

Extended Warranties

Purchasea GEextended warranty and learn about special discounts that are available while your warranty

is still in effect. You can purchase it on-line anytime, or call 800.626.222/4during normal business hours.

GEConsumer Home Serviceswill still be there after your warranty expires.

ge.com

Parts and Accessories

ge.com

Individuals qualified to service their own appliances can have parts or accessoriessent directly to their homes

(VISA,MasterCordand Discovercards ore accepted).Orderon-line today, 2/4hours every day or by phone at

800.626.2002during normal business hours.

Instructions contoined in this munuul coverprocedures to be performed by uny user. Other servicing

generully should be referred to quulified service personnel. Cuution must be exercised,since improper

servicing mug cuuseunsofe operation.

If you are not satisfiedwith the service you receivefrom GE,contact us on our Website with all the details

including your phone number, or write to: General Manager,Customer Relations

GEAppliances,Appliance Park

Louisville,KY40225

ge.com

enhanced communication and prompt service under the terms of your warranty, should the needarise.

Youmay also mail in the pre-printed registration card included in the packing material, or detach and

use the form in this Owner's Manual.

ge.com

Printed in the United States

_ Printed on Recycled Paper

ge.com

(11

Safety Instructions .......... 2,s

Operating Instructions

Care and Cleaning .............. 9JlO

Control Panel and Settings ....... 415

Loading the Racks .................. 8

Using the Dishwasher ............ 617

Troubleshooting Tips ..... 11-12

Consumer Support

Consumer Support ........ Back Cover

Warrantg ......................... 15

GLDA690

GLDA696

Write the model and serial

numbers here:

Model #

Serial #

Youcan find them on the tub wall

just insidethe door.

165D4700P346 49-55027 07-07 JR

IMPORTANTSAFETYINFORMATION.

READALL INSTRUCTIONSBEFOREUSING-

SAVETHESEINSTRUCTIONS

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire

or explosion, electric shock, and to prevent property damage, personal injury, or death.

-&WARNING! WATER HEATER SAFETY

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used

for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.

Ifthe hot water has not been used for two weeks or more, prevent the possibility of damage or injury

by turning on all hot water faucets and allow them to run for several minutes. Do this before using any

electrical appliance which is connected to the hot water system. This simple procedure willallow any built-

up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance

during this process.

PROPER INSTALLATION AND MAINTENANCE

This dishwasher must be properly installed and located in accordance with the Installation

Instructions before it is used. If you did not receive an Installation Instructions sheet with

your dishwasher, you can receive one by visiting our website at ge.com.

• Connect to a grounded metal, permanent wiring

system; or run an equipment-grounding

conductor with the circuit conductors and

connect to the equipment-grounding terminal

or lead of the appliance.

• Improper connection of the equipment-grounding

conductor can result in a risk of electric shock.

Check with a qualified electrician or service

representative if you are in doubt whether

the appliance is properly grounded.

• Disposeof discarded appliances and shipping

or packing material properly.

• Do not attempt to repair or replace any part

of your dishwasher unless it is specifically

recommended in this manual. Allother servicing

should be referred to a qualified technician.

• To minimize the possibility of electric shock,

disconnect this appliance from the power supply

before attempting any maintenance.

NOTE:Turningthe dishwasher off does not

disconnect the appliance from the power supply.

We recommend having a qualified technician

service gout appliance.

CAUTION: Topreventminorinjuryorpropertydamage

• Contents washed in Anti-bacterial mode, if

available,may be hot to the touch. Use care

before handling.

• Using a detergent that is

not specifically designed

for dishwashers will cause

the dishwasher to fill with

suds.

• If your dishwasher is connected to a

wall switch, ensure that the switch is

on prior to use.

• On dishwashers with electronic

controls, if you choose to turn the wall

switch off between wash cycles, allow

5-10 seconds after turning the switch on before

touching START/RESETto allow the control to

reboot.

• Non-Dishware Items: Do not wash items such

as electronic air cleaner filters, furnace filters and

paint brushes in your dishwasher.Damage to

dishwasher and discoloration or staining of

dishwasher may result.

• Close supervision is necessary if this appliance

is used by or near children.

• Load light, plastic items so they will not

become dislodged and drop to the bottom

of the dishwasher-they might come into

contact with the heating element and be

damaged.

ge.com

WARNING! RISK OF CHILD ENTRAPMENT

PROPER DISPOSAL OF THE DISHWASHER

Junked or abandoned dishwashers ore dangerous...

even if they will sit for "just a few dogs." If you ore

getting rid of your old dishwasher,pleasefollow

the instructions to help prevent accidents.

Before You Throw Away Your Old Dishwasher

Takeoff the door of the washing compartment or

remove the door latch (asshown).

O Screw

(On some

models)

A WARNING!

When using gour dishwasher, follow basic precautions,

including the following:

• Usethis appliance only for its intended purpose

as described in this Owner's Manual.

• Useonly powder, tabs, liquid detergents or rinse

agents recommended for use in a dishwasher and

keep them out of the reach of children. Cascade®,

Cascade ®Complete and Electrusol ®Automatic

Dishwashing Detergents,and Jet-Dry®and

Cascade Crystal Cleare rinse agents have been

approved for use in all GE dishwashers.

• Do not mix any chlorine bleach-bused automatic

dishwashing detergent with any dishwashing

detergent containing enzymes as this could

cause the detergents to congeal and lead to

blockage of the SmartDispense TM system.

• Locatesharp items so that they are not likely

to damage the door seal.

• Loadsharp knives with the handles up to reduce

the risk of cut-type injuries.

• Do not wash plastic items unless marked

dishwasher safe or the equivalent. For plastic

items not so marked, check the manufacturer's

recommendations.

• Do not touch the heating element during or

immediately after use.

• Do not operate your dishwasher unlessall

enclosure panels are properly in place.

• Do not tamper with controls.

• Do not abuse,sit on or stand on the door or dish

rack of the dishwasher.

• Do not allow children to play around dishwasher

when opening or closing door due to the possibility

of small fingers being pinched in door.

• Do not discord a dishwasher without first removing

the door of the washing comportment or the door

latch.

• Do not store or use combustible materials,gasoline

or other flammable vapors and liquids in the

vicinity of this or any other appliance.

• Do not allow children to play with, on or insidethis

appliance or any discorded appliance.

READ AND FOLLOW THIS SAFETY INFORMATION

CAREFULLY.

SAVE THESE INSTRUCTIONS

About the dishwasher control panel.

Throughout this manual, features and appearance may vary from your model.

Optioos Immlm

• • .... _46_% • • •

• POTS DELAY HEATED

0 El 0

Control Settings

O Wash Cycles

POTS&.PANS

NORMALWASH

LIGHTWASH

RINSEONLY

7.8gal.,85 min.

Thiscycle is meant for heavily soileddishesor cookware with dried-on or baked-on soils.

Thiscycle may not remove burned-on foods. Everyday dishesaresafe to be used in this

cycle.

5.3gal.,56 min.

Thiscycle isfor medium/heavily soileddishes and glassware.

4.2 gal.,33 min.

Thiscycle is for lightly soiled dishes and glassware.

2.1gal.,7 min.

Thiscycle isfor rinsing partial loads that will bewashed later.

DO NOT use detergent or HEATEDDRYOption with this cycle.

O Options

The light above the selected padwill be ONto indicatewhich OPTIONhas beenselected.

HEATED DRY

Light ON

HEATED DRY

Light OFF

HOT WASH

HOT START

LOCK

Turnsthe heater on for fast drying. Thiswill extend the total cycle time by approximately

38 minutes for a NORMALWASHcycle.

NOTE:Cannot be selectedwith RINSEONLYcycle.

Shutsoff the drying heat option. Disheswill air dry naturally to save energy.

When selected, the cycle will run a little longer with heated elements on to improve

both wash and dry performance. Adds approximately 15 minutes to the cycle.

NOTE: Cannot be selected with RINSE ONLY cycle.

For use with heavily soiled and/or dried-on, baked-on soils. This option HUST be selected

PRIORto starting the cycle. This option adds approximately 22 minutes to the cycle and

two additional rinses to the cycle.

NOTE: Cannot be selected with RINSE ONLY cycle.

You can lock the controls to prevent any selections from being made. Or you can lock

the controls after you have started a cycle.

Children cannot accidentally start dishwasher bg touching pads with this option

selected.

To unlock the dishwasher controls, press and hold the HEATED DRY pad for 3 seconds.

The light above the lock pad will turn off. To lock the dishwasher, press and hold the

HEATED DRY pad for 3 seconds. The light above the LOCK pad will turn on.

ge.com

_JStart/Reset

Closeand latchthe dishwasherdoor and selectthe cycle and desiredenhancements. Touch the

START/RESETpadto begin the cycle.The water fill begins immediately, and approximately 60 seconds later

the wash action begins.

When the dishwasher door isfully closed and latched,the control panel lightswill display the last settings

you selected.Ifyou don't want to change any of the settings, siimply touch the START/RESETpad to begin

the cycle.

Ifthe door is closed,the indicator lightswill turn off if the START/RESETpad is not selectedwithin 5 minutes.

Toactivate the display, open and close the door or pressany pad.

DELAY HOURS

RESET

Youcan delay the start of a wash cycle for up to 6 hours. Pressthe DELAYSTART

pad to choosethe number of hours you want to delay the start of the cycle;then

pressSTART/RESET.

The machine will count down and start automatically at the correct time.

NOTE:To cancel the DELAYSTARTselection before the cycle begins,repeatedly pressthe

DELAYSTARTpad until the display is blank.

To change a cycle after washing starts:

Touchthe START/RESETpad to cancel the cycle. TheSTART/RESETlight will flash while

the water is pumped out, if needed.Thistakes approximately 2 minutes.

Time Remaining Display (onsome models)

During operation, the display shows the minutes remaining until the cycle is complete. The display

may adjust the remaining time while the SENSINGlight is on. The time displayed at the start of each

cycle may change from the factory setting as the unit customizes itself to home use.During a delay

start, the display will show hours of time remaining until the cycle starts.

Clean

The CLEANlight is illuminated when the selected cycle and enhancements are complete. The light will

stay ON until a pad is pressedor the door is opened and then closed.

Using the dishwasher.

Check the Water Tern

The entering water should be at least 120°F and

not more than 150°F,for effective cleaning and to

prevent dish damage. Checkthe water temperature

with a candy or meat thermometer. Turn on the hot

water faucet nearest the dishwasher,place the

thermometer in a glass and let the water run

continuously into the glass until the temperature

stops rising.

Use Jet-Dry ®or Cascade Crystal Clear ®Rinse Agent

.let-Dry* or Cascade Crystal Clear ®rinse agents remove spots and prevent new film buildup on

gour dishes, glasses, flatware, cookware and plastic.

Filling the Dispenser

The rinse agent dispenser holds 3.5 oz. of rinse agent. Under normal

conditions, this will last approximatelu one month. Refill when rinse agent

is not visible in the indicator. Do not overfill.

[] Hake sure the dishwasher door is fully open.

[-_1Turn the dispenser cap to the left and lift it out.

I-_1Add rinse agent until the indicator window looks full. Do not overfill.

[_'] Clean up any spilled rinse agent with a damp cloth to prevent foam.

I_1 Replace the dispenser cap.

Indicator

et g dial

Dispenser cap

Rinse Aid Setting

The amount of rinse agent released into the final wash can be

adjusted. The factorg setting is at the midpoint. If there are rings of

calcium (hard water) spots on dishes, trg a higher setting. If gou

observe foam in the final rinse, trg a lower setting.

To adjust the setting

Remove the dispenser cap, then turn the adjustable setting dial

counterclockwise to increase the amount of rinse agent or clockwise

to reduce the amount of rinse agent dispensed.

Dish Preparation Prior to Loading

• No pre-rinsing of normal food soil is required.

• Scrape off hard soils, including bones,

toothpicks, skins and seeds.

• Remove large quantities of any remaining

food.

• Remove leafy vegetables, meat trimmings

and excessive amounts of grease or oil.

• Remove acidic food soils that can discolor

stainless steel.

ge.com

Proper Use of Detergent

Use only detergent specifically made for use

in dishwashers. Cascade ®and Electrasol ®

Automatic Dishwashing Detergents have been

approved for use in all GEdishwashers. Keep

your detergent fresh and dry. Don't put powder

detergent into the dispenser until you're ready

to wash dishes.

The amount of detergent to use depends on

whether your water is hard or soft. With hard

water, you need extra detergent. With soft water,

you need less detergent.

Protect your dishes and dishwasher by

contacting your water department and asking

how hard your water is. Twelve or more grains

is extremely hard water. A water softener is

recommended. Without it, lime can build up

in the water valve, which could stick while open

and cause flooding. Too much detergent with

soft water can cause a permanent cloudiness

of glassware, called etching.

Usethe information in the table below as a

guideline to determine the amount of automatic

dishwasher detergent to place in the dispenser.

Number

of Grains Detergent Cups to Fill

Less than 4 15 cup

4 to 8 25 cup

8 to 12 15and 25 cups

Greater 15, 25 cups and the open cup

than 12

For heavily-soiled loads, use the Pots and Pans or

Heavy Wash cycle and add a little extra detergent.

DO NOT USE HAND DISH DETERGENT

NOTE:Using a detergent that is not specifically

designedfor dishwashers will causethe dishwasher

to fill with suds. During operation, these suds will spill

out of the dishwasher vents, covering the kitchen

floor and making the floor wet.

Becauseso many detergent containers look alike,

store the dishwasher detergent in a separate space

from all other cleaners.Show anyone who may use

the dishwasher the correct detergent and where

it is stored.

While there will be no lasting damage to the

dishwasher,your disheswill not get clean using a

dishwashing detergent that is not formulated to

work with dishwashers.

Button_

To open the wash cover, press the button and the cover will

flip back.

Forget to Add a Dish?

A forgotten dish can be added any time before

the main wash.

r_ Squeeze the door latch to release the door.

_] Do not open the door until the water spray

action stops. Steam may rise out of the

dishwasher.

r_l Add forgotten dishes.

[_l Close the door.

Loading the dishwasher racks.

For best dishwashing results,

baskets may vary from your model.

Upper Rack

follow these loading guidelines. Features and appearance of racks and silverware

Although the upper rack is for glasses,

cups and saucers, pots and pans can be

placed in this rack for effective cleaning.

Cups and glasses fit best along the sides.

This is also a secure place for dishwasher-

safe plastics.

The upper rack is good for all kinds of

odd-shaped utensils. Saucepans, mixing

bowls and other items should be placed

face down. Fold-down tines (on some

models) provide flexibilitg for extra-large

and hard-to-fit items.

Secure larger dishwasher-safe plastics over

2 tines when possible.

Make sure small plastic items are secure so

the_j can't fall onto the heater.

Be sure that items do not protrude through

the bottom of the rack and block rotation of

the middle sprog arm. This could result in

poor wash performance for items in the

upper rack.

Lower Rack

The lower rack is best used for plates,

saucers and cookware. Large items such

as broiler pans and baking racks should

go along the left-hand side. Load platters,

pots and bowls along the sides, in corners

or in the back. The soiled side of items

should face the center of the rack. If

necessary, oversized glasses and mugs

can be placed in the lower rack to

maximize loading flexibility.

Also, be careful not to let a portion of an

item such as a pot or dish handle extend

through the bottom rack. This could block

the wash arm and cause poor washing

results.

Fold-down tines (on some models) provide

flexibilitu for extra-large and hard-to-fit

items. The tines may be left in the up

position or folded down to customize

the lower rack.

Three-piece basket

Toremove end baskets, grasp

the basket at opposite comers

and slide apart.

Silverware Basket

To load flatware, simply push the

adjustable handle to either side. Put

flatware in the removable basket with

fork and knife handles up to protect your

hands. Place spoons in the basket with

handles down. Mix knives, forks and

spoons so they don't nest together.

Distribute evenly. Small plastic items,

such as measuring spoons and lids from

small containers should go in the bottom

of the silverware basket with the

silverware on top.

A variety of options is available regarding

the three-piece silverware basket in your

dishwasher. The complete basket is

designed to fit on the right side of the

lower rack. Additionally, each end of

the basket is removable to add loading

flexibility to accommodate flatware

and lower rack capacity needs.

The lids of both end and middle baskets

(on some models) can be closed to contain

small items. Long items can be placed

on the utility shelf in the upper rack.

Caring for the dishwasher, ge.com

Cleaning the Exterior Door Panel

Before cleaning the front panel, make

sure gou know what tgpe of panel gou

hove. Refer to the last two letters of gour

model number. You can locate gour model

number on the left-hand tub wall just

inside the door. If gour model number

ends with BB,WW or CC,then gou have a

Painted Door panel. If gour model number

ends with SS,then gou have a Stainless

Steel Door panel. If gour model number

ends with CS,then gou have a CleanSteel

Door panel.

Follow the instructions below for cleaning

the door panel for gour specific model.

Painted Door Panel (model numbers

ending in BB-block, WW-white or

CC-bisque)

Use a clean, soft, lightlg dampened cloth,

then drg thoroughlg. You mag also use a

good appliance wax or polish.

Stainless Steel Door Panel (model

numbers ending in SS)

The stainless steel panels can be

cleaned with Stainless Steel Mogic or a

similar product using a clean, soft cloth.

Do not use appliance wax, polish, bleach

or products containing chlorine on

Stainless Steel doors.

You can order Stainless Steel Mogic

#WXlOX1S through GEParts bg calling

800.626.2002.

CleanSteel Door Panel (model numbers

ending in CS)

Use a clean, soft, lightlg dampened cloth,

then drg thoroughlg. Do not use appliance

wax, polish or ang chemical agent on

CleanSteel doors.

Do not wipe the dishwosher with o soiled

dish cloth or wet towel. Thesemog leove

o residue. Do not use scouring pads or

powdered cleoners becouse these

products can scrotch the finish.

Cleaning the Control Panel

To clean the control panel, use a lightlg

dampened cloth. Then drg thoroughlg.

Stainless Steel Interior--Tub and Inner Door

The stainless steel used to make the

dishwasher tub and inner door provides

the highest reliabilitg available in a GE

dishwasher. If the dishwasher tub or inner

door should be scratched or dented during

normal use, theg will not rust or corrode.

These surface blemishes will not affect

their function or durabilitg.

Caring for the dishwasher.

Spray Arms and Filters

The dishwasher will flush away all

normal food soils. However, objects (fruit

pits, bones, etc.) may collect in openings

and should be removed occasionally to

avoid clogging the drain system.

ii, CAUTION: Personal

injurg hazard. Before cleaning the

interior, wait at least 20 minutes after

a cgde for the heating element to

cool down. Failure to do so could

result in burn injuries.

Cleaning the Spray Arms

Because hard water chemicals will

clog the spray arm jets and bearings,

it is necessary to clean the spray arms

regularly. To remove the spray arm, twist

the retaining nut 90 degrees and pull the

spray arm off the shaft.

Wash the arms in soapy, warm water and

use a soft brush to clean the jets. Replace

them after rinsing thoroughly.

:;===========- _

taining

Upper rack Retaining nut

Cleaning the Filters

For best performance and results, the

filter assembly must be cleaned regularly.

The filter efficiently removes food particles

from the wash water, allowing water to

be recirculated during the cycle. For this

reason, it is a good idea to remove the

large food particles trapped in the filter

frequently by rinsing the main filter and

cup under running water. To remove the

filter assembly, pull up on the cup handle.

The entire filter assembly should be

cleaned at least once a month. To clean

the main filter and fine filter, use a cleaning

brush. Then, reassemble the filter parts

as shown in the illustration and reinsert

the entire assembly in the dishwasher,

positioning it in place and pressing

downward. The dishwasher must

never be used without the filters.

Improper replacement of the filter

may reduce the performance level

of the appliance and may damage

dishes and utensils.

Main filter

Protect Against Freezing

If your dishwasher is left in an unheated

place during the winter, ask a service

technician to:

I-_1 Cut off electrical power to the

dishwasher.Removefuses or trip

circuit breaker.

I-_1 Turn off the water supply and disconnect

the water inlet linefrom the water valve.

F_-IDrain water from the water inlet line

and water valve. (Usea pan to catch

the water.)

[_-] Reconnectthe water inlet line to the

water valve.

Air gap

Checkthe airgap any time

your dishwasher isn't draining

welt.

Does Vour Dishwasher Have an Air Gap?

An air gap protects your dishwasher

against water backing up into it if a drain

clogs.The air gap is not a part of the

dishwasher.It is not covered by your

warranty. Not all plumbing codes require

air gaps, so you may not have one.

The air gap is easy to clean.

[] Turn off the dishwasher and lift off the

cover

Remove the plasticcap and cleanwith

l-_a toothpick.

Before you call for service.., ge.com

Problem

Dishesand flatware

not clean

Spotsandfilming

onglassesand

flatware

Troubleshooting Tips

Save time and money! Review the charts on the following

pages, or visit ge.com. You may not need to call for service.

Possible Causes What To Do

Low inlet water temperature • Makesureinletwatertemperatureis correct(seepage 6).Turnon

the hot waterfaucet nearestthe dishwasher,let rununtilthe water

temperaturestopsrising.Thenstart thedishwasherand turn off

the faucet.Thisinsuresthe enteringwaterishot.

Water pressureis temporarily low • Turnona faucet. Iswater comingout moreslowlythan usual?

Ifso,waituntilpressureisnormalbeforeusingyour dishwasher.

Airgap or disposerisclogged • Cleanthe airgap orflushthe disposer.

Improperrackloading • Makesurelargedishwaredoesnot blockthe detergentdispenser

orthe wash arms.Seethe Loadingthedishwasherrackssection.

No air gapor highdrain loop • Verifythat youhaveanairgapor a highdrainloop.Referto

the InstallationInstructions.

Extremelyhardwater • UseJet-Dry®or CascadeCrystalClea_ rinseagentsto removespotsand

preventnewfilm buildup.

Lowinlet water temperature

• Toremovestubbornspotsand pre-existingfilmfrom glassware:

Overloadingthe dishwasher

Improperloading 1 Removeallmetalutensilsfromthedishwasher.

Oldor damp powderdetergent 2 Donot add detergent.

Rinseagent dispenserempty 3 Selectthe POTS& PANScycle.

Toolittle detergent 4 Startthe dishwasherand allowto runfor 18to 22minutes.Dishwasher

willnowbeinthemainwash.

5 Openthe doorand pour2 cups(500ml)of whitevinegarinto the

bottomof the dishwasher.

6 Closethe doorand allowto completethe cycle.Ifvinegarrinsedoesn't

work:Repeatasabove,exceptuse1//4cup(60ml)of citricacidcrystals

insteadof vinegar.

Cloudinesson Combinationof soft water and • Thisiscalledetchingandis permanent.Topreventthisfrom happening,

glassware too muchdetergent uselessdetergentif you havesoftwater.Washglasswarein the shortest

cyclethatwill getthem clean.

Water temperatureentering • Thiscouldbe etching.Lowerthe water heatertemperature.

the dishwasherexceeds150°F

Sudsin the tub Correctdetergent • Useonlyautomaticdishwasherdetergentsto avoidsudsing.

wasn't used Cascade®andElectrasoPAutomaticDishwashingDetergents

havebeenapprovedfor usein all GEdishwashers.

Toremovesudsfrom the tub,openthe dishwasherand let

sudsdissipate.Closeand latch thedishwasher.Pumpout water

by touchingtheSTART/RESETpadonce;then 30 secondslater,

touchthe START/RESETpadagain.Repeatif necessary.

Rinseagent was spilled • Alwayswipeuprinseagentspillsimmediately.

Before you call for service...

Problem Possible Causes What To Do

Detergent left in

dispensercups

Blackor gray

markson dishes

Dishesdon'tdry

Dishes are blocking the

detergent cup

Aluminum utensils have

rubbed against dishes

Low inlet water temperature

Rinseagent dispenser is emptg

Controlpanel responded Door latch meg not be properlg

to inputs but dishwasher seated

never filled with water Water valve meg be turned off

Stained tub interior Some tomato-based foods can

cause reddish steins

Teaor coffeestains

Anoverallgellowor brownfilmcan •

becausedby iron depositsin water

White film on insidesurface- •

hardwater minerals

Dishwasherwon't run Fuseis blownor circuit breaker

istripped

• Repositionthe dishes,so the water from the lowerspray arm can

flushthe detergentcup. Seethe Loadingthe dishwashersection.

• Removemarkswith a mild,abrasivecleaner.

• Make sure inlet water temperature is atleast 120°F.

• Select HEATEDDRY.

• Use HOTSTART,HOT WASH or ADDED HEAToptions.

• Select a higher cgcle, such as POTS& PANS.

• Check the rinse agent dispenser and fill as required.

• Make sure the door is firmly closed.

• Makesurewater valve(usuallylocatedunderthe sink)isturnedon.

• Useof the RINSEONLYcycleafter addingthe dishto the load

candecreasethe levelof staining.GErecommendsCascade®

PlasticBoosterto helpremovethesetypesof stains.

• Removethe stainby hand,usinga solutionof 1/2cup bleach

and] cupswarmwater.

WARNING

Beforecleaninginterior,waitat least 20minutesaftera cyclefor the

heatingelementsto cooldown.Failureto do socan resultin burns.

Aspecialfilter in the watersupplylineistheonly way to correct

thisproblem.Contacta water softenercompany.

GErecommendsJet-Dry®or CascadeCrystal Clear_to help

preventhardwatermineraldepositsfrom forming.

• Rundishwasherwithcitricacidto removemineraldeposits.Citricacid

(Partnumber:WD35X151)can beorderedthroughGEParts.Seeback

coverfor orderinginformation.

• Replacefuseor resetcircuitbreaker.Removeany otherappliancesfrom

thecircuit.

Power is turned off

• In someinstallations,the powerto the dishwasheris providedthrougha

wallswitch,often locatednext to the disposerswitch.Makesureit ison.

Controlpanelis locked • Unlockcontrol panel.Seepage4.

Control panel lights

go off when you're

setting controls

Water standing in

the bottom of the tub

Water won't pump

out of thetub

Steam

Sanitizedlight does

not illuminateat the

endof thecycle

(Anti-Bacteria

cycleonly)

Noise

Rebootgourcontrol

Time too long between

touching of selected pads

• Turnoff powerto the dishwasher(circuitbreakerorwall switch)for

30seconds;thenturn backon.

• Eachpad must be touched within 30 secondsof the others.

Torelight,touch ang pad again,or unlockand relatch door.

Thisis normal

Drainis clogged

Thisis normal

Thedoorwasopenedand the

cgclewasinterrupted during

or after the main washportion

Theincomingwater •

temperature was too low

Normal operating sounds •

Rattling disheswhen the sprag •

arm rotates

• A small amount of cleanwater around the outlet on the tub

bottom at the backof the tub keepsthe water seal lubricated.

• If gou havean air gap,cleanit. Seepage10.

• If the dishwasherdrainsintoa disposer,rundisposerclear.

• Checkto seeif your kitchensinkisdrainingwell.If not,you

may needaplumber.

• Warm,moistaircomesthroughthe ventby the door latch duringdrying

andwhenwaterisbeingpumpedout.Thisisnecessaryfor drying.

• Donot interruptthe cycleanytimeduringor after mainwash.

Raisethe water heater temperature to between 120°Fand 140°F.

Detergentcup opening.

Waterentering dishwasher.

Themotor stops and starts at varioustimes during the cgcle.

Drain pump soundsdurinqthe pump out.

Makesuredishesare properlgloaded.Seethe Loadingthe

dishwasherrackssection.

Notes.

¢3

¢b

Notes.
