LG
website:http".//www.lgservice.com
LRSC 26980TT
REFRIGERATOR
User's Guide
Please read this guide thoroughly
before operating and keep it handy for
reference at all times.
REFRIGERATEUR
.............. pr6sent manuel
avant d,ufilis_ ie _g_ateur.
poa_ de mmn pour pouvoir le
Introduction
Installation
Operation
Suggestion on
Food Storage
Care and
Maintenance

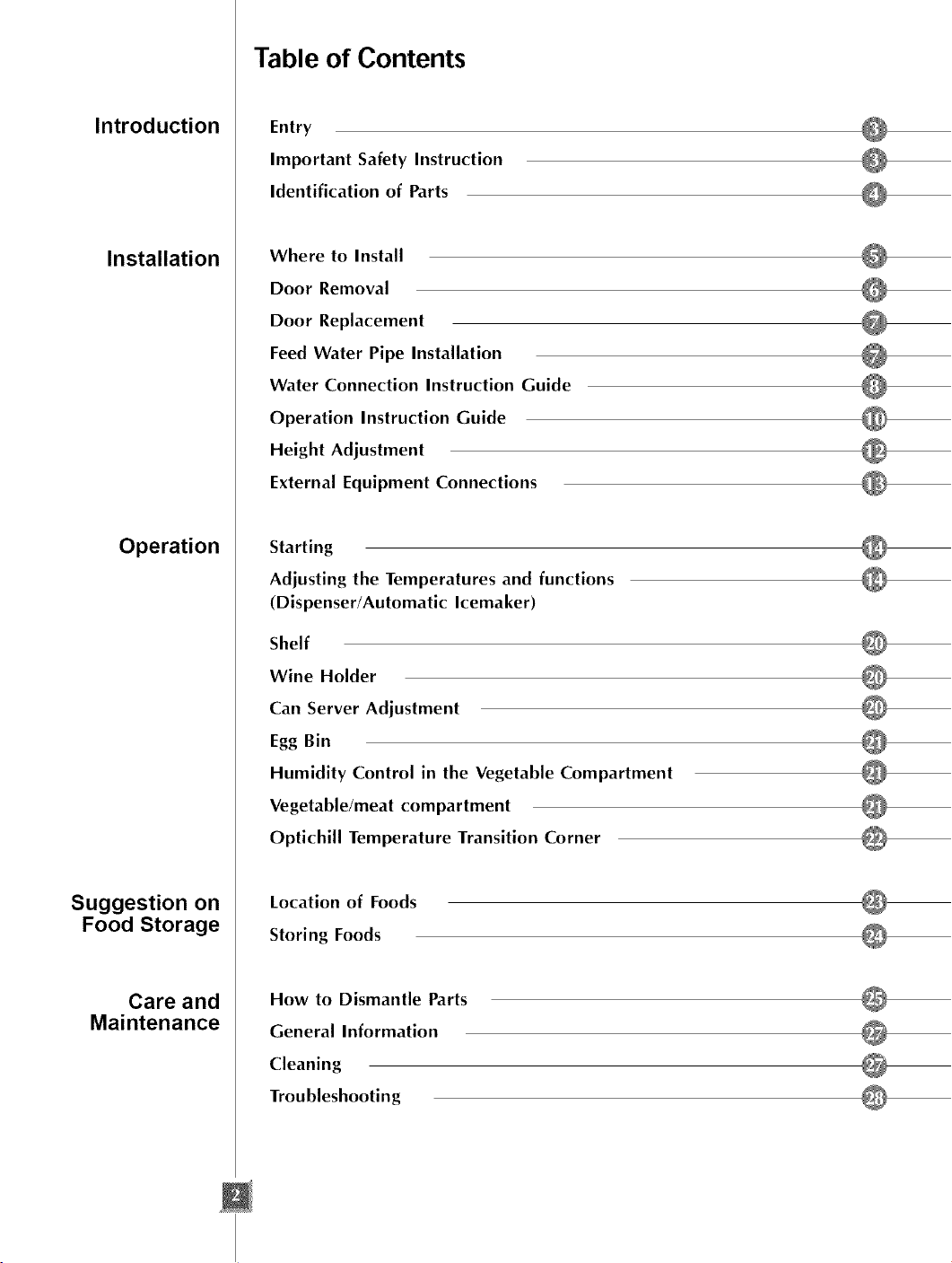

Table of Contents
Entry
Important Safety Instruction
Identification of Parts
Where to Install
Door Removal
Door Replacement
Feed Water Pipe Installation
Water Connection Instruction Guide
Operation Instruction Guide
Height Adjustment

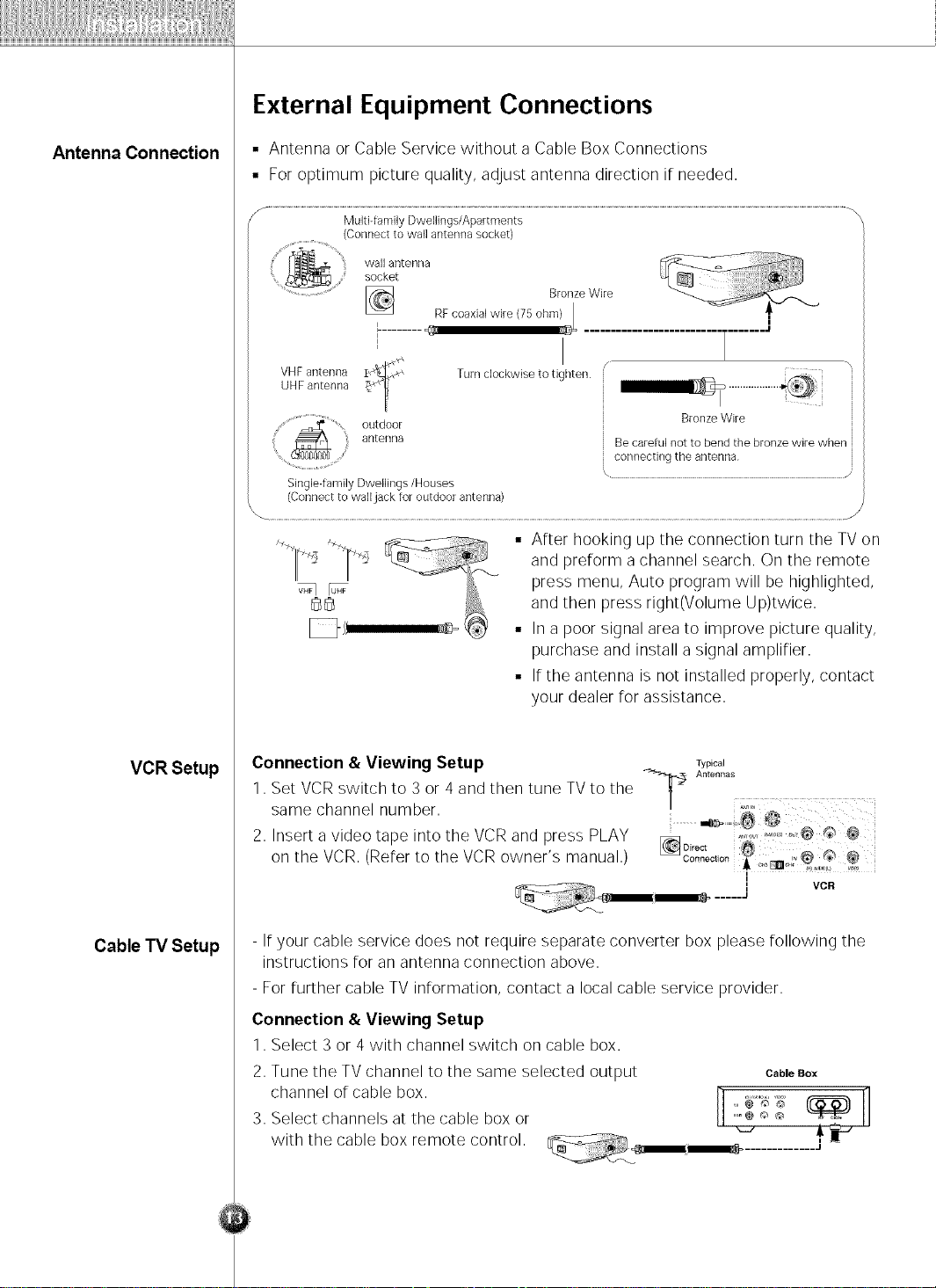

External Equipment Connections

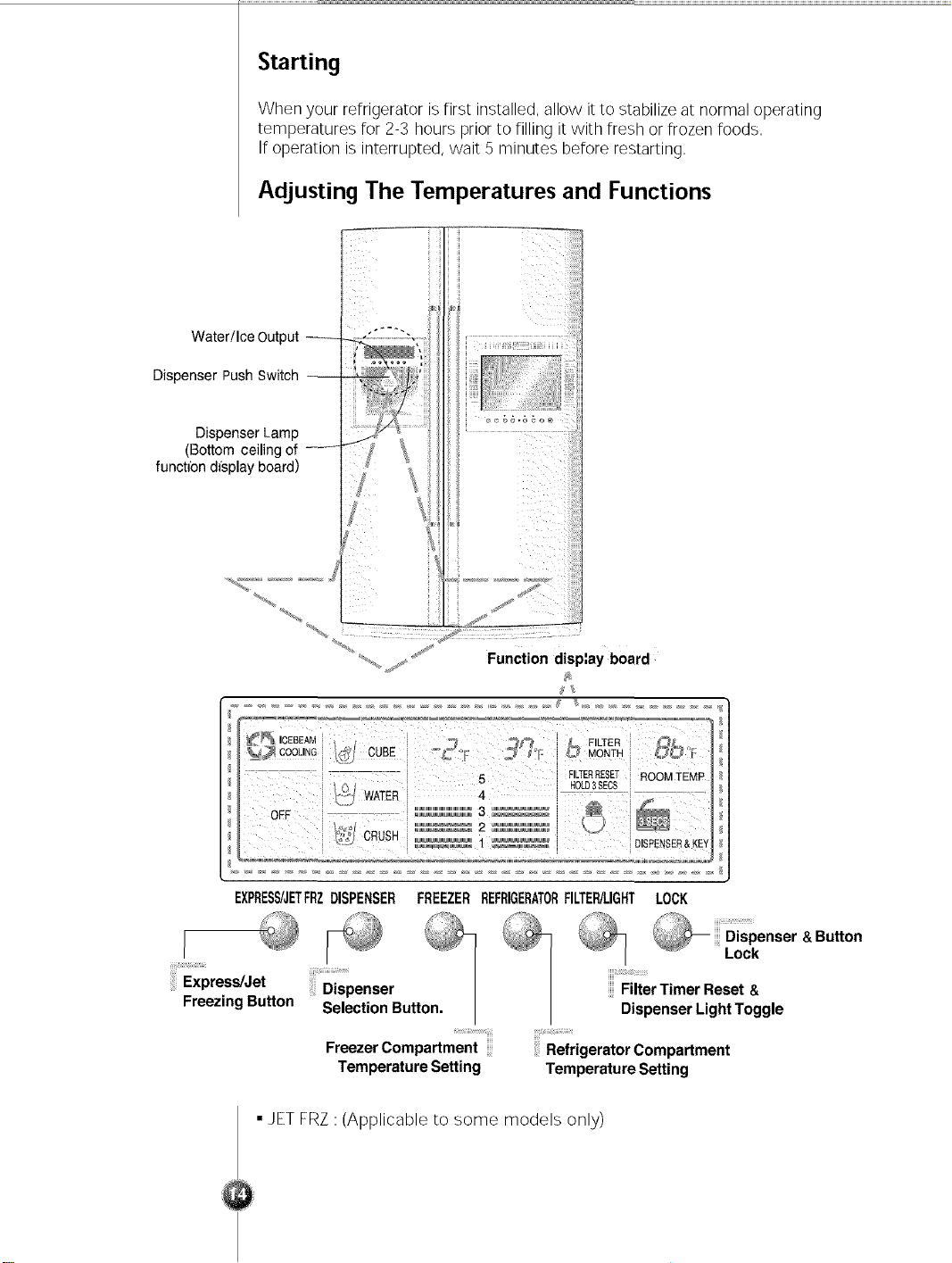

Starting

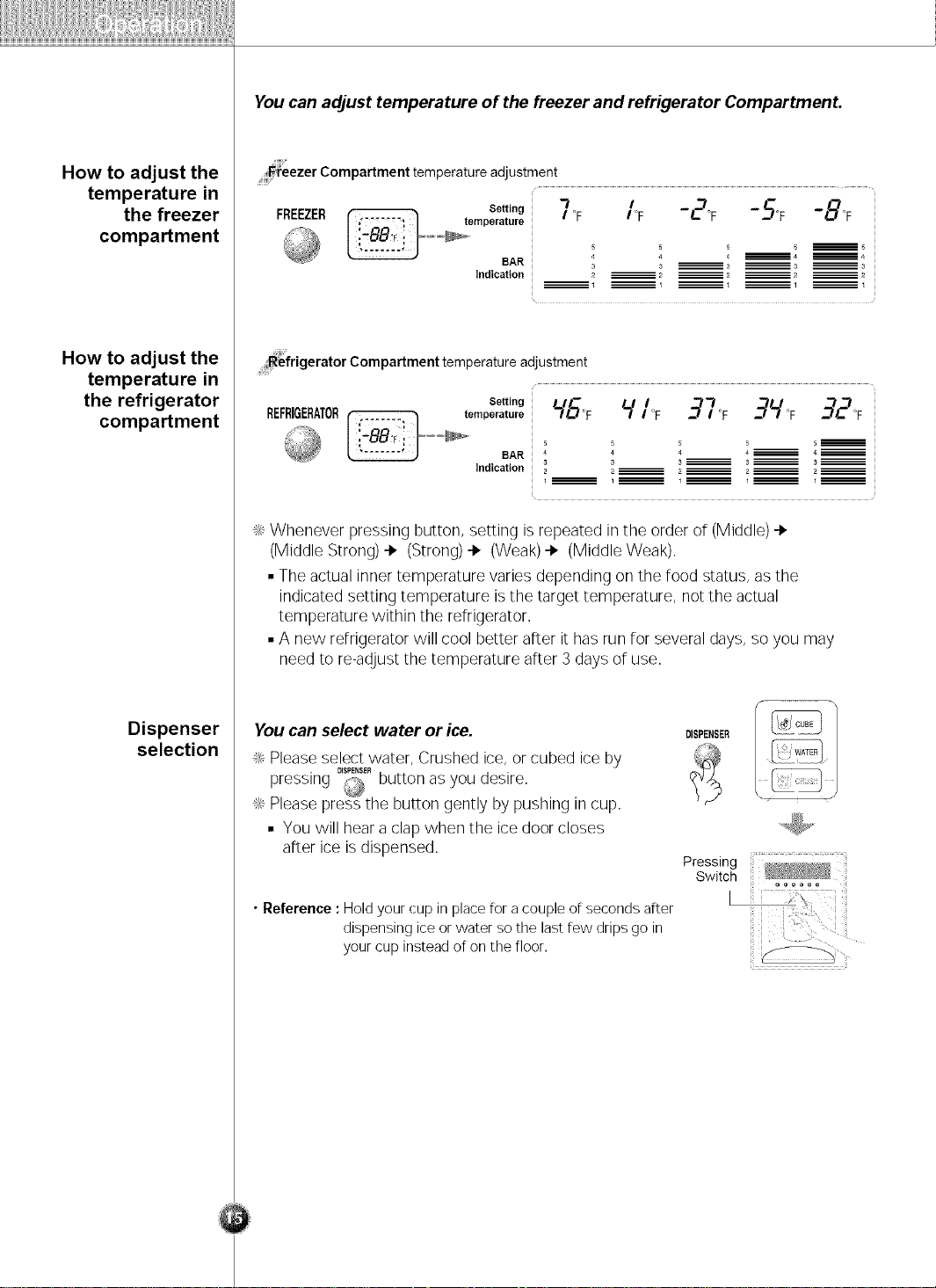

Adjusting the Temperatures and functions
(Dispenser/Automatic Icemaker)
Shelf
Wine Holder
Can Server Adjustment

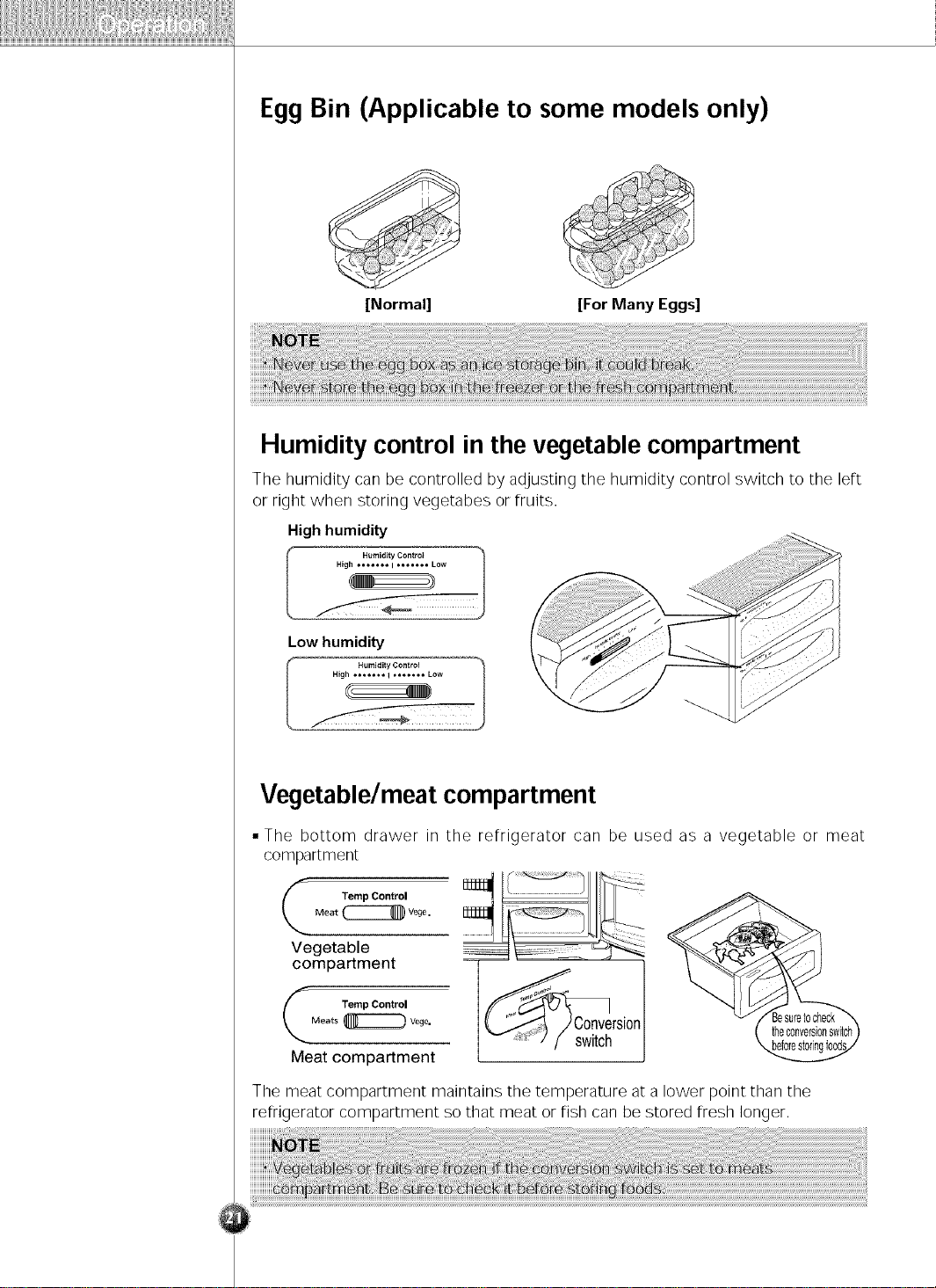

Egg Bin
Humidity Control in the Vegetable Compartment
Vegetable/meat compartment

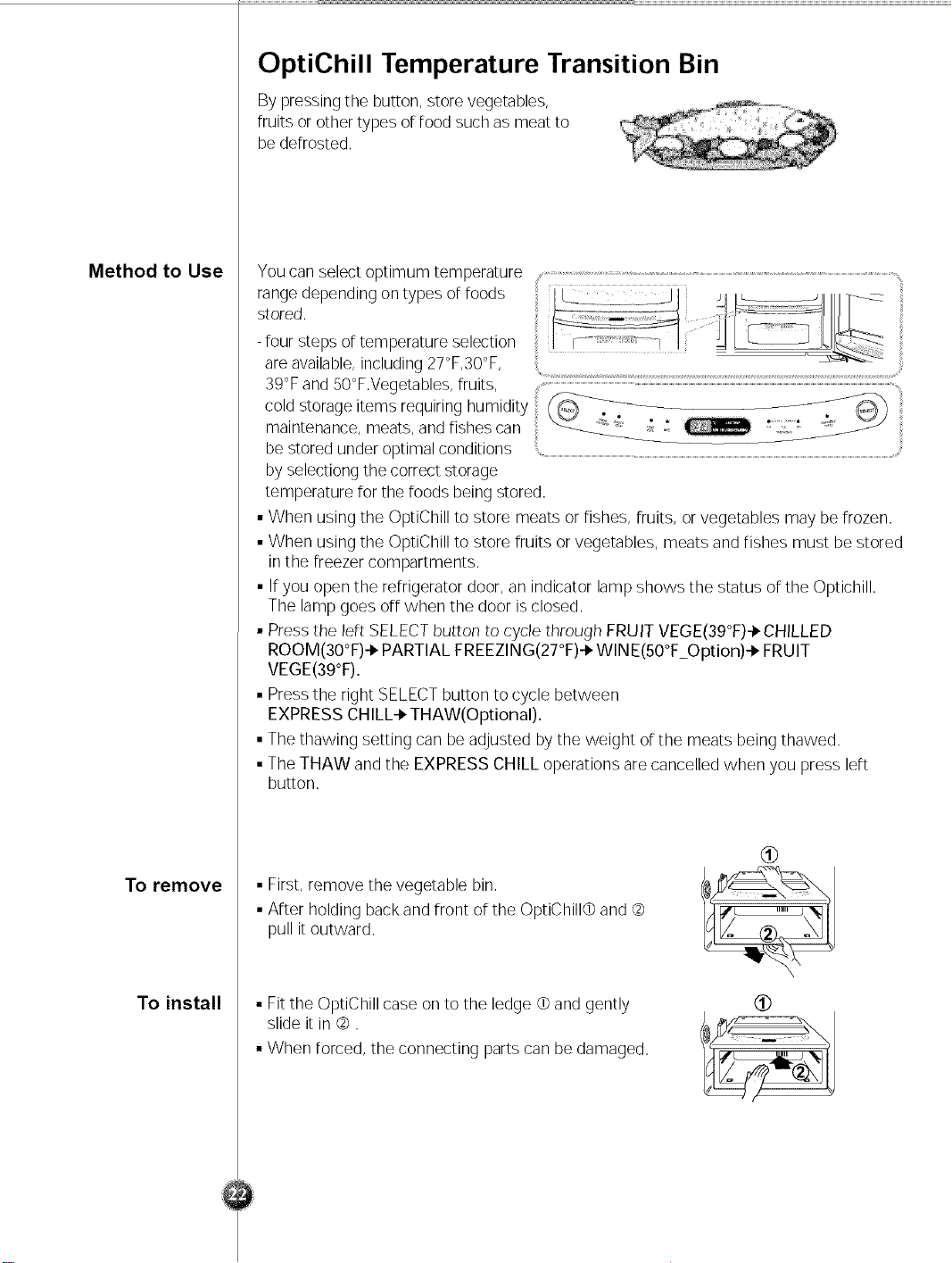

Optichill Temperature Transition Corner

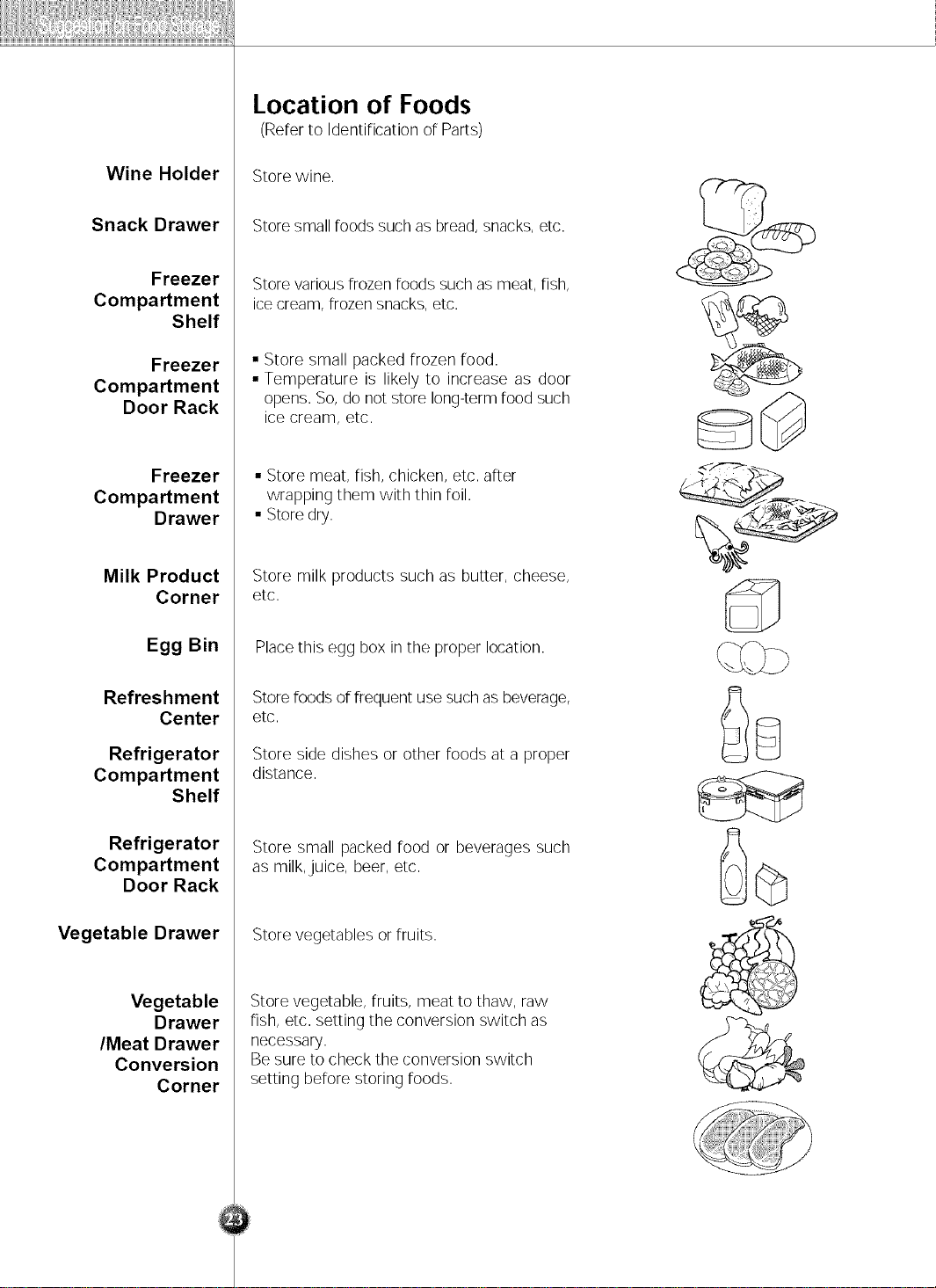

Location of Foods

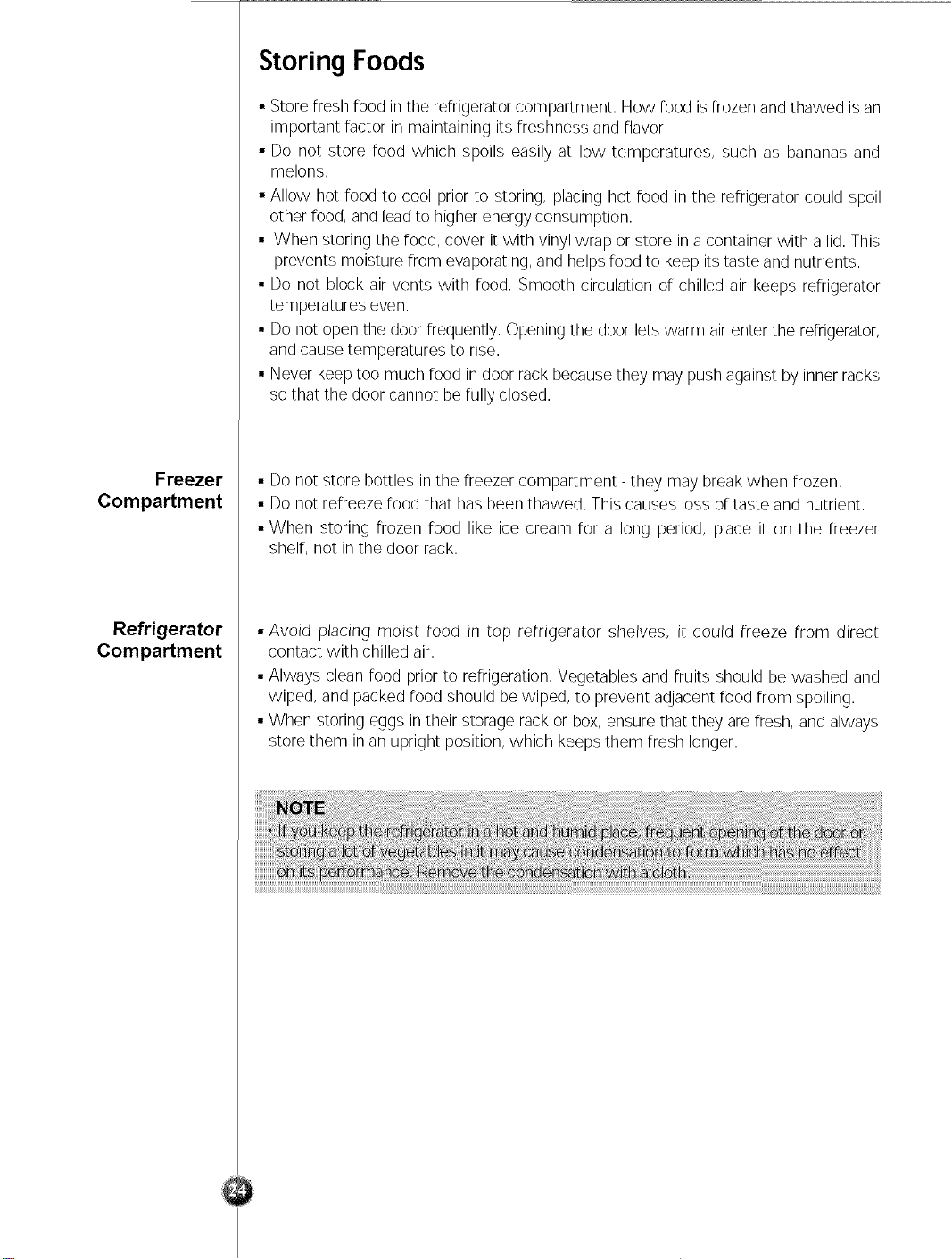

Storing Foods

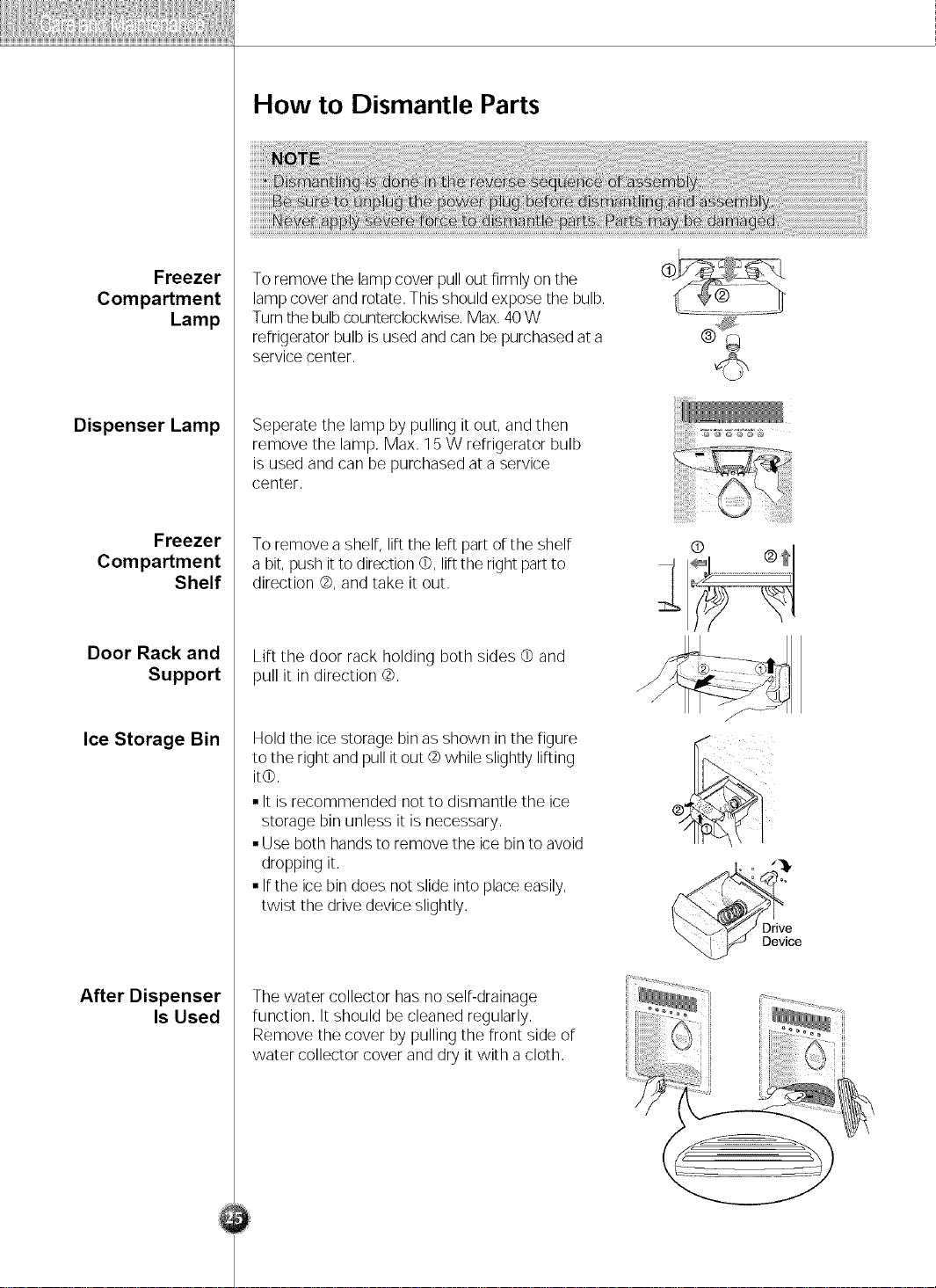

How to Dismantle Parts

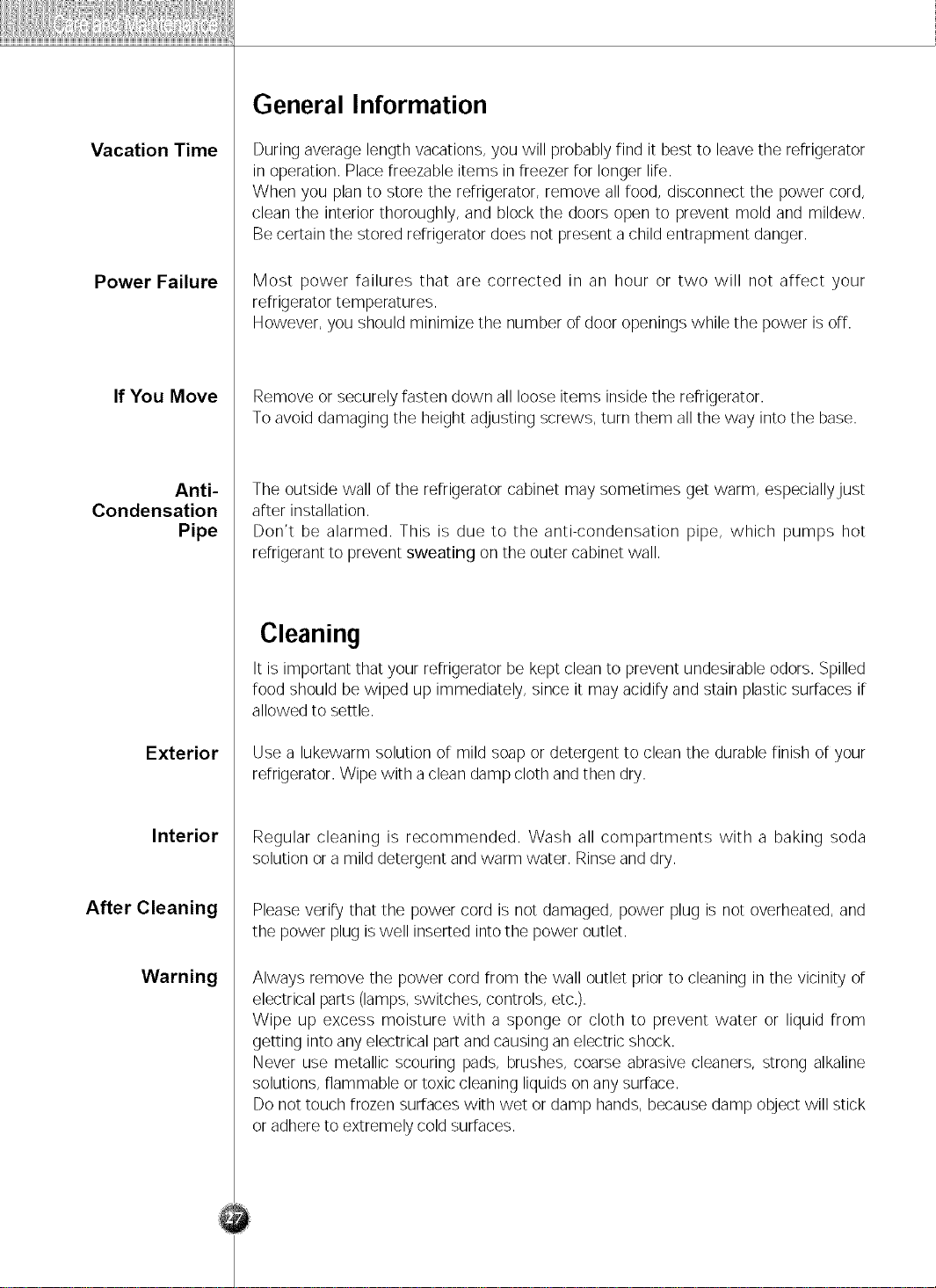

General Information
Cleaning

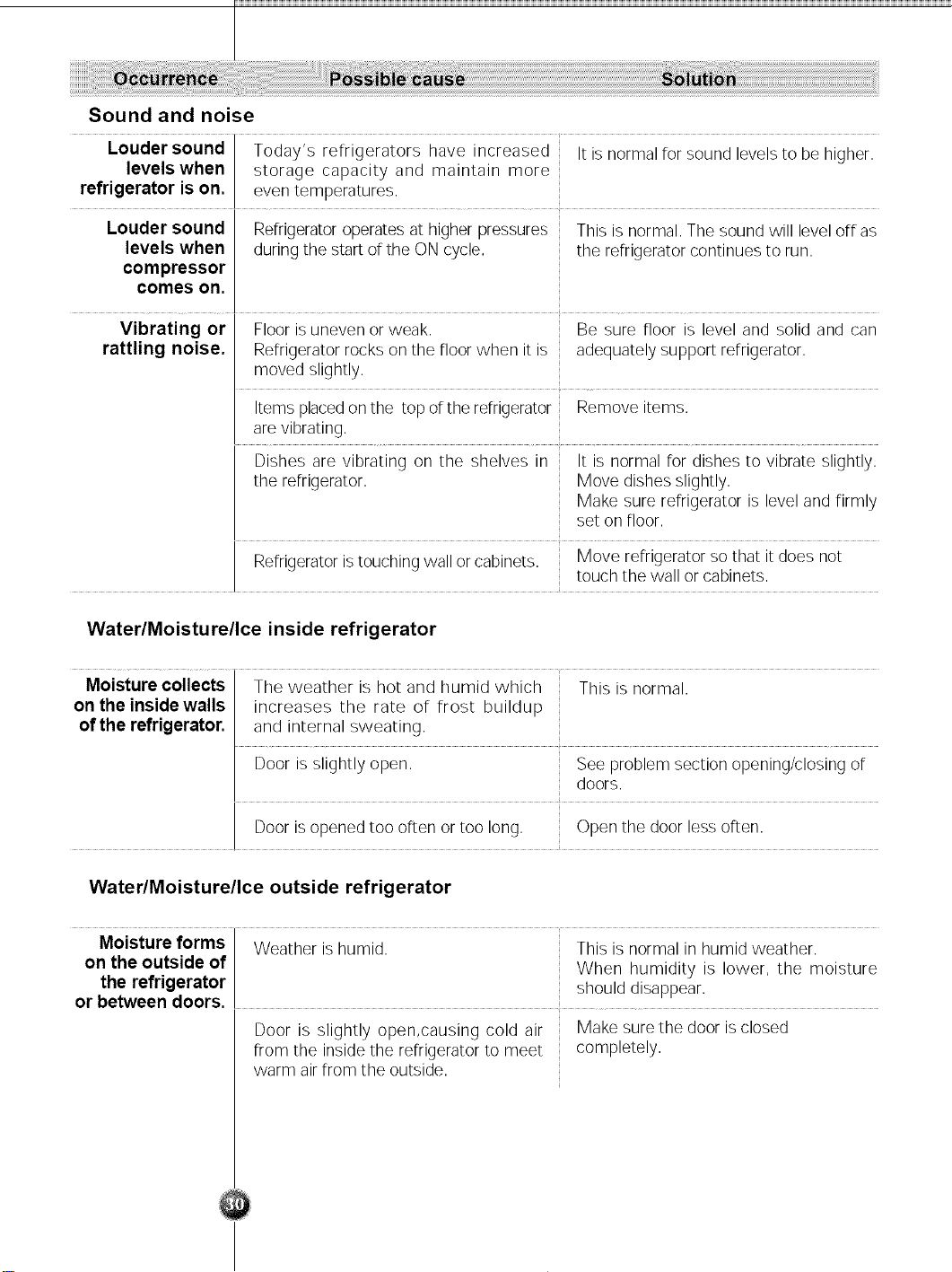

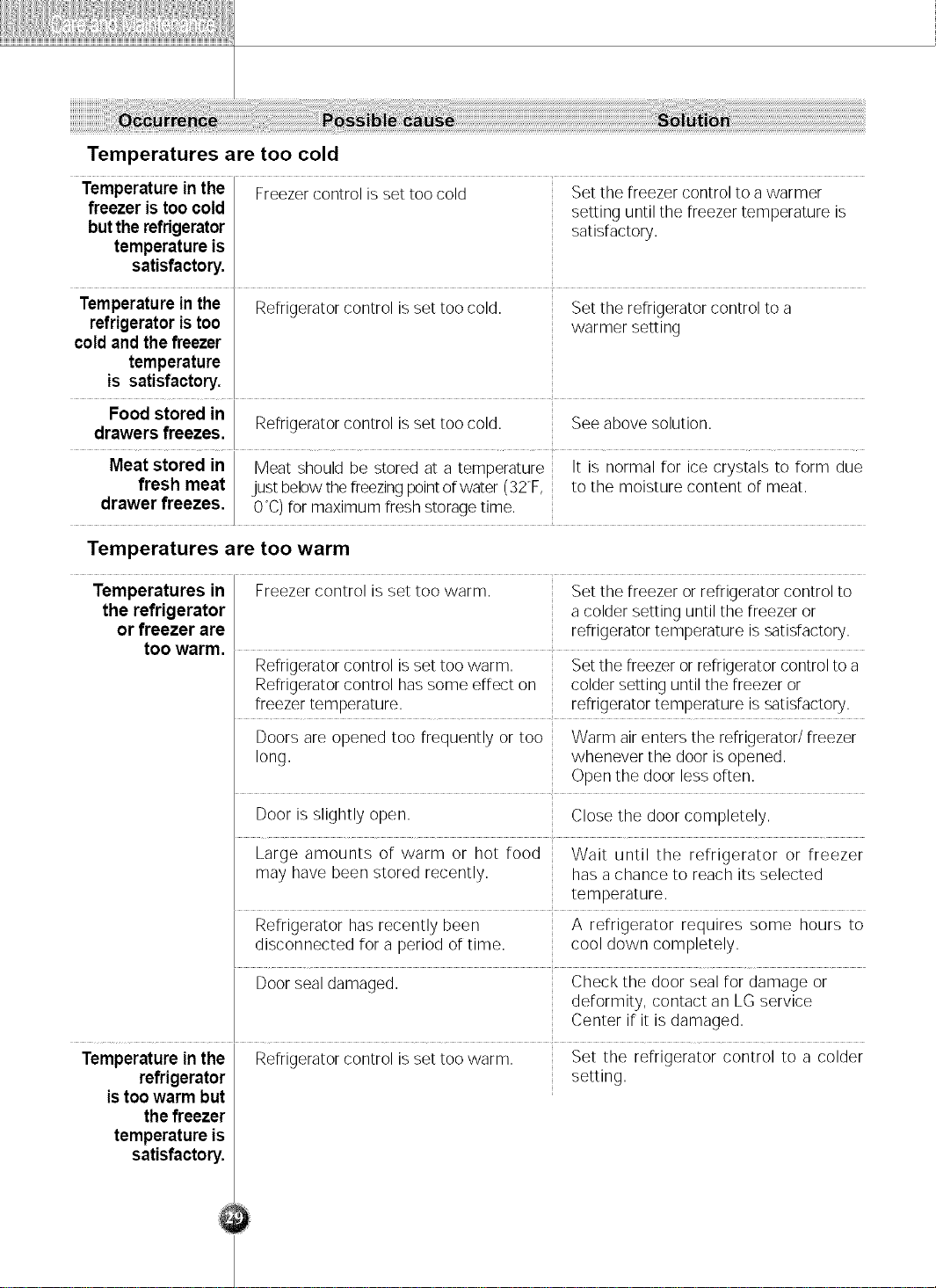

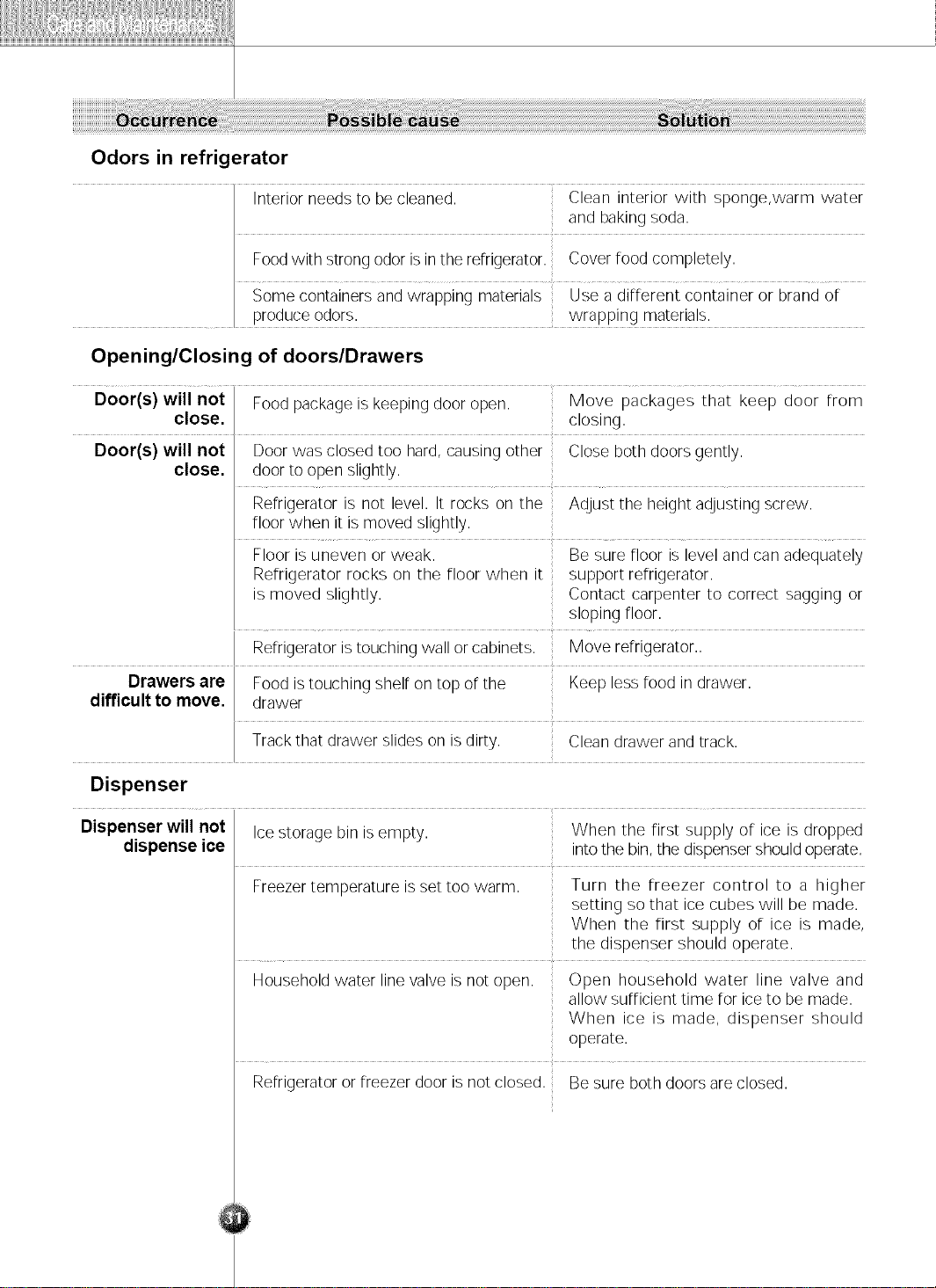

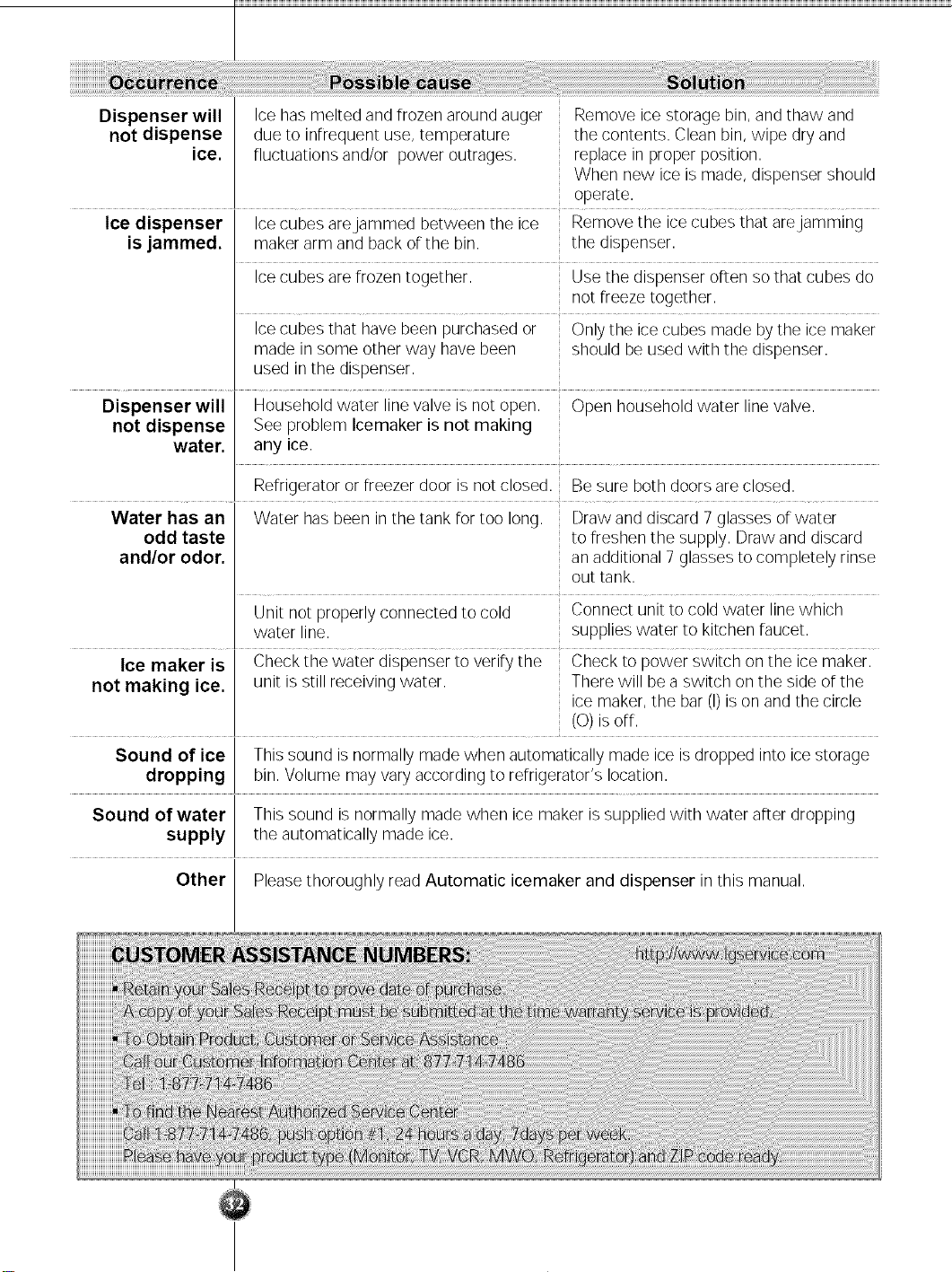

Troubleshooting
Recommended
Grounding
Method
Accessibility of
Supply Plug
Supply Cord
Replacement

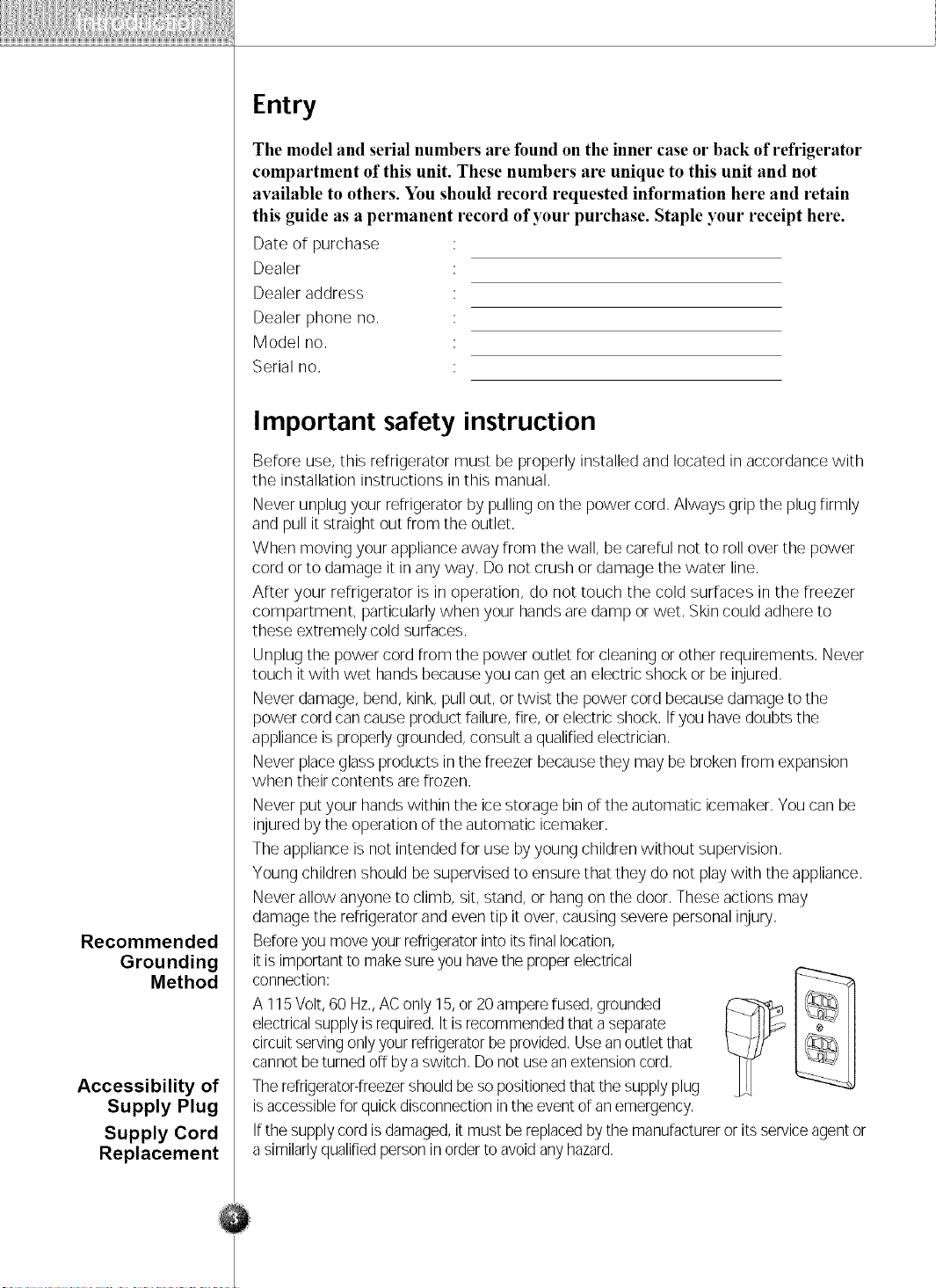

Entry
The model and serial numbers are found on the inner case or back of refrigerator
compartment of this unit. These numbers are unique to this unit and not
available to others. You should record requested information here and retain
this guide as a permanent record of your purchase. Staple your receipt here.
Date of purchase
Dealer
Dealer address
Dealer phone no.
Model no.
Serial no.
Important safety instruction
Before use, this refrigerator must be properly installed and located inaccordance with
the installation instructions in this manual.
Never unplug your refrigerator by pullingon the power cord. Always gripthe plug firmly
and pull it straight out from the outlet.
When moving your applianceaway from the wall, be careful not to roll over the power
cord orto damage it in any way. Do not crush or damage the water line.
After your refrigerator is in operation, do not touch the cold surfaces in the freezer
compartment, particularlywhen your handsare damp or wet. Skincould adhereto
these extremely cold surfaces.
Unplugthe power cordfrom the power outlet for cleaning or other requirements. Never
touch itwith wet handsbecauseyou can get anelectric shock or be injured.
Never damage, bend,kink,pull out, or twist the power cord becausedamageto the
power cordcan cause productfailure, fire, or electric shock. If you havedoubts the
applianceis properlygrounded,consult a qualifiedelectrician.
Never placeglass products inthe freezer becausethey may be brokenfrom expansion
when theircontents are frozen.
Never put your handswithin the icestorage bin of the automatic icemaker.You can be
injured bythe operationof the automatic icemaker.
The applianceis not intended for use by young childrenwithout supervision.
Young children should be supervised to ensure that they do not playwith the appliance.
Never allow anyoneto climb, sit, stand, or hangon the door.These actions may
damagethe refrigeratorand eventip it over, causing severe personalinjury.
Beforeyou moveyourrefrigeratorintoitsfinallocation,
itis importantto makesureyou havethe properelectrical
connection:
A 115Volt,60 Hz.,AConly15,or 20amperefused,grounded
electricalsupplyisrequired.It isrecommendedthata separate
circuitservingonlyyourrefrigeratorbe provided.Useanoutlet that
cannotbe turnedoff bya switch, Donot useanextensioncord,
Therefrigerator-freezershouldbeso positionedthatthe supplyplug
isaccessibleforquickdisconnectioninthe event ofan emergency.
Ifthe supplycordisdamaged,it must bereplacedbythe manufactureror its serviceagentor
asimilarlyqualifiedpersonin orderto avoidanyhazard.
Child Entrapment
Warning
Don't Store
Grounding (Earthing)
DANGER: Risk of child entrapment.
Before you throw away your old refrigerator or freezer:
Take off the doors but leavethe shelves in placeso that children may not easilyclimb
inside.
Theappliance isnot intendedfor use byyoung children without supervision.
Young children should be supervised to ensure that they do not playwith the appliance.
Don't store or usegasoline orother flammable vapor andliquids inthe vicinity of this or
any other appliance.
Inthe event of an electric short circuit, grounding (earthing)reduces the risk of electric
shock by providingan escape wire for the electriccurrent.
Inorder to prevent possibleelectric shock, this appliancemust be grounded.
improper useof the grounding plug can result in an electricshock. Consulta qualified
electrician or service person irthe grounding instructions are not completely
understood, or ir you havedoubts on whether the appliance isproperly grounded.

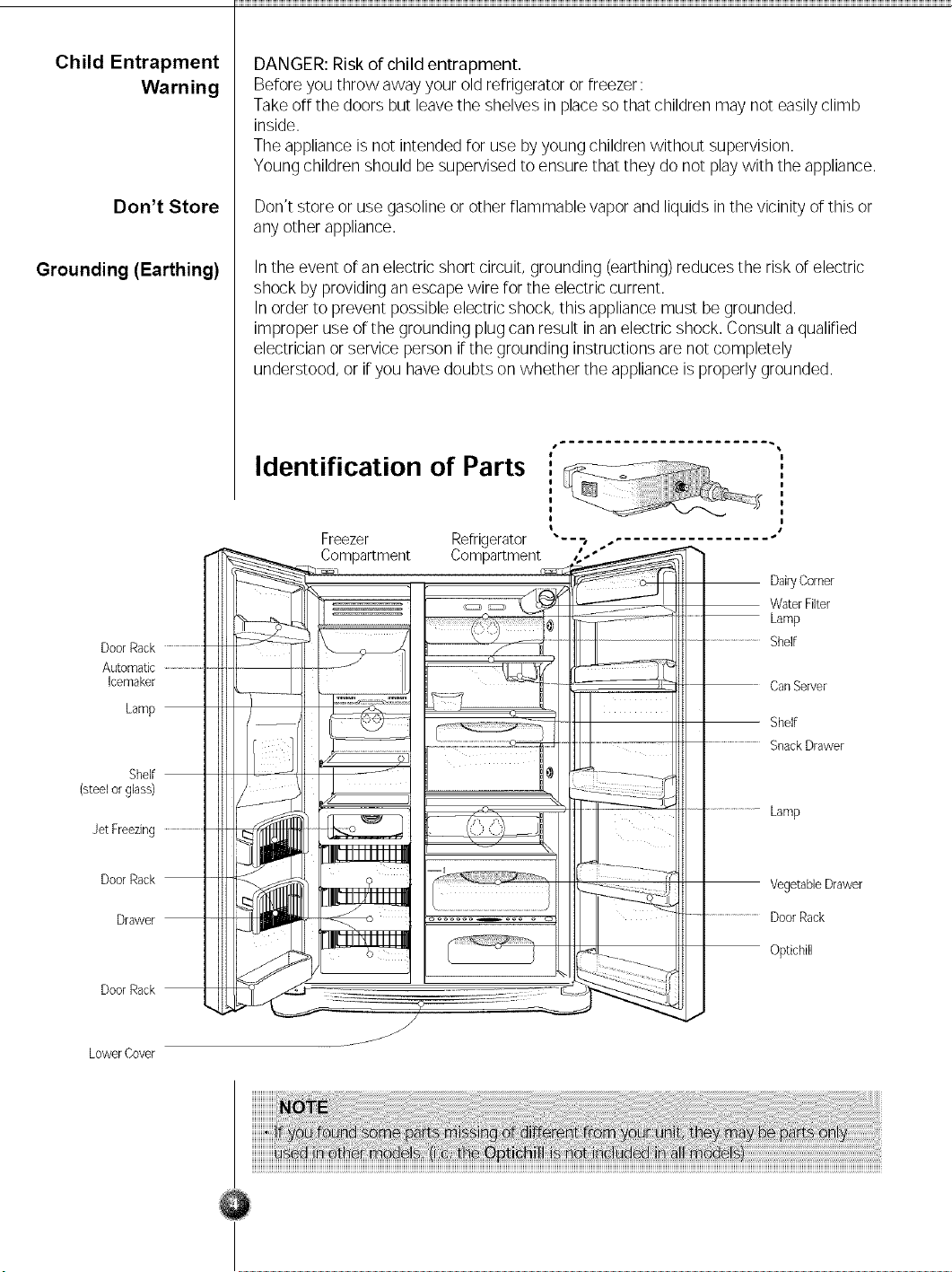

Identification of Parts
DoorRack
Automatic
Icemaker
Lamp
Shelf
(steelorglass)
Jet Freezing
DoorRack
Drawer
DoorRack
LowerCover
Freezer Refrigerator "---, .o .................
Compartment Compartment
J
J
DairyCorner
WaterFilter
Lamp
..................................Shelf
..............................................CanServer
Shelf
..........................SnackDrawer
Lamp
VegetableDrawer
DoorRack
Optichill
Select a Good
Location

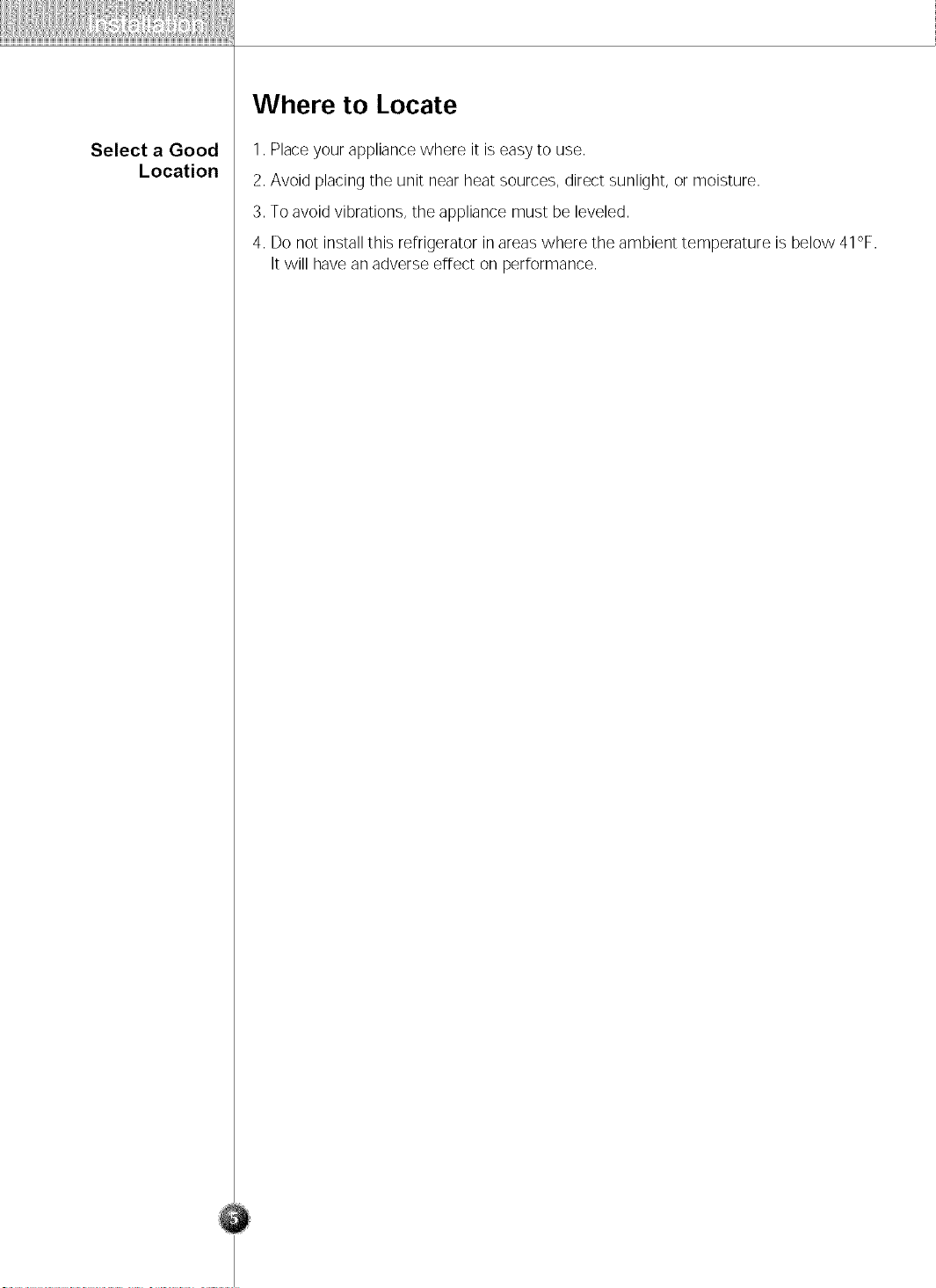

Where to Locate
1. Placeyour appliance where it is easy to use.
2.Avoid placing the unit near heat sources, direct sunlight, or moisture.
3.To avoid vibrations, the appliance must be leveled.
4. Do not install this refrigerator in areas where the ambient temperature is below 41°F.
It will havean adverse effect on performance.
Warning
Remove Lower
Cover and
Water Feed Tube
Remove the
Freezer
Compartment
Door
Remove the
Refrigerator
Door

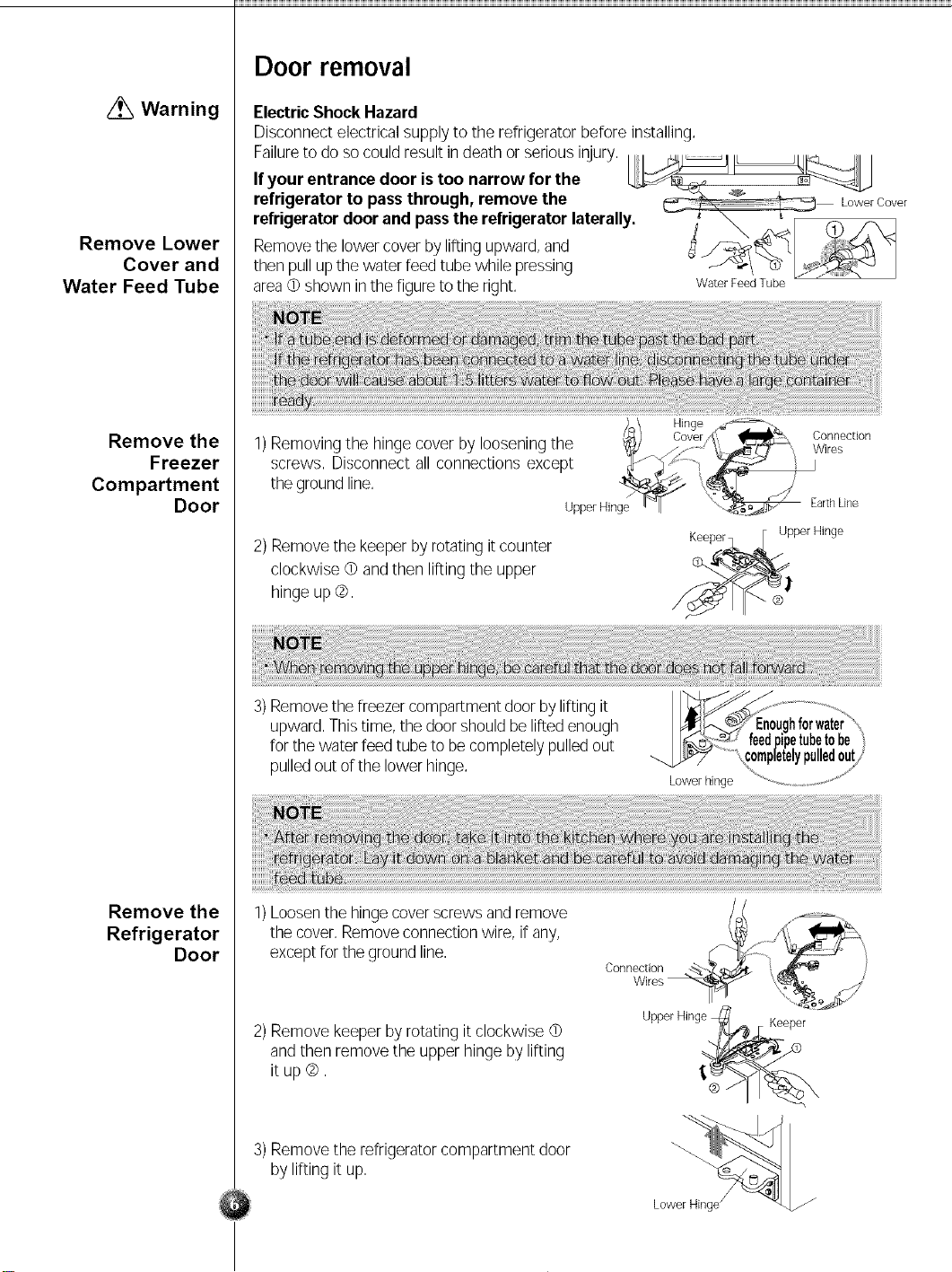

Door removal
ElectricShock Hazard
Disconnect electricalsupply to the refrigerator beforeinstalling,
Failureto do socouldresult in deathor seriousinjury,
Ifyour entrance door istoo narrow for the
refrigerator to passthrough, remove the
refrigeratordoor and passthe refrigeratorlaterally.
Removethe lowercover bylikingupward,and
thenpull upthe water feedtubewhile pressing
area¢ shown inthe figureto the right,
Water Feed Tube
Lower Cover
1) Removingthe hingecover bylooseningthe
screws, Disconnectall connections except
the groundline,
2) Removethe keeperbyrotating itcounter
clockwise ¢ andthen lifting the upper
hinge up(2).
Hinge
Cove ? Connect,on
,;::,_:1, . ' Wires
Upper Hing o_dt_ EarthLine
per Hinge
3) Removethe freezercompartmentdoorby likingit
upward,Thistime,the doorshouldbe likedenough
for thewater feedtube to becompletelypulledout
pulledout ofthe lowerhinge,
I[_" feedpipetubetobe}
.......scompletelypulledout
...... y
Lowe_hinge .................................'_"'
1) Loosenthe hingecoverscrews andremove
the cover,Removeconnectionwire, ifany,
exceptforthe groundline.
Connection
2) Removekeeperbyrotating it clockwise d:)
and then removethe upperhinge by lifting
it up @.
3) Removethe refrigeratorcompartment door
bylifting it up.

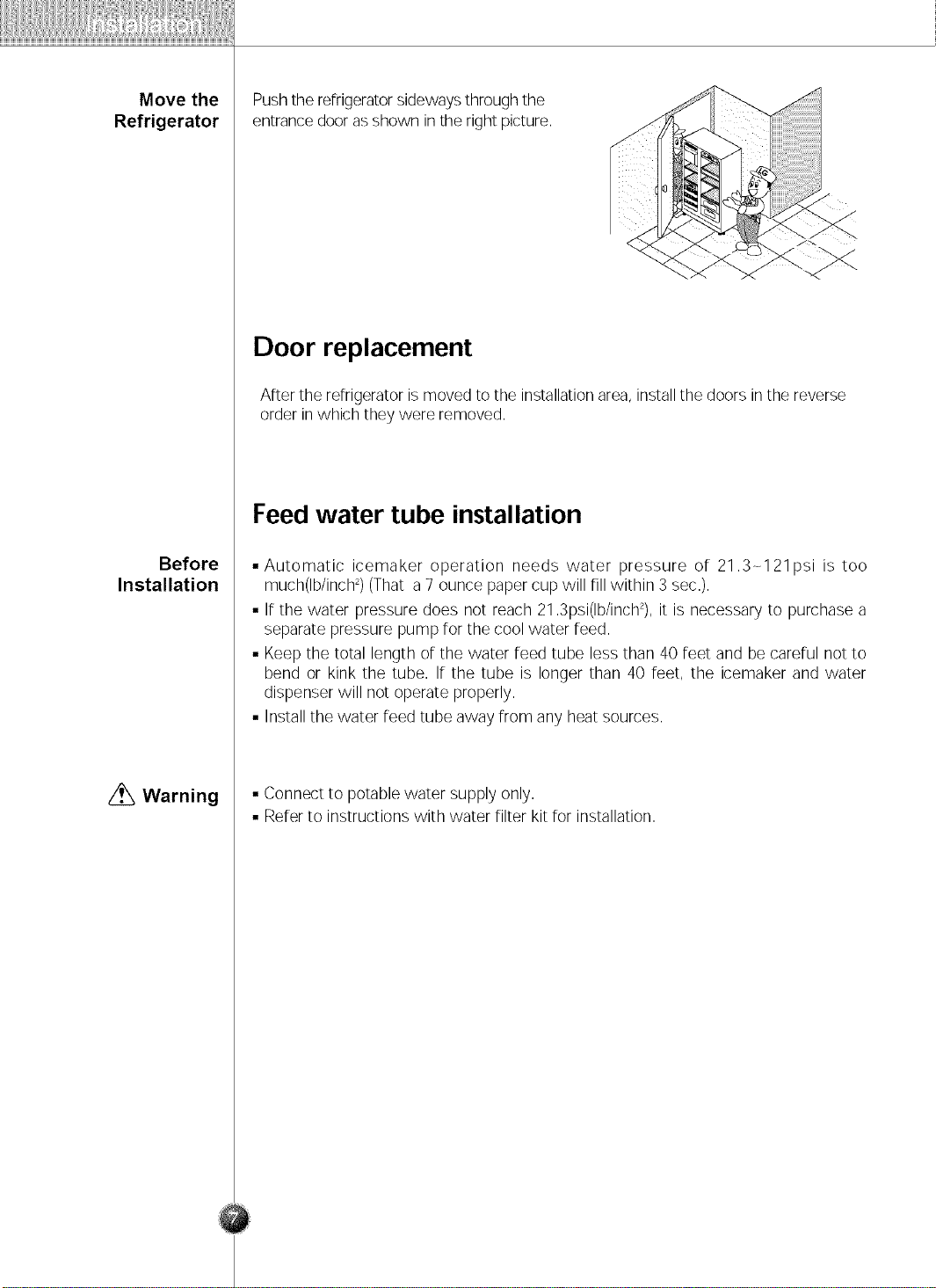

Move the
Refrigerator
Before
Installation
Push the refrigerator sideways through the
entrance door as shown in the right picture,
Door replacement
After the refrigerator is moved to the installationarea,installthe doors in the reverse
order in which they were removed.
Feed water tube installation
• Automatic icemaker operation needs water pressure of 21.3-1 21psi is too
much(Ib/inch2)(That a 7 ounce paper cup will fill within 3 sec.).
• If the water pressure does not reach 21.3psi(Ib/inch2),it is necessary to purchase a
separate pressure pump for the cool water feed.
• Keep the total length of the water feed tube less than 40 feet and be careful not to
bend or kink the tube. If the tube is longer than 40 feet, the icemaker and water
dispenser will not operate properly.
• Installthe water reed tube away from any heat sources.
Warning • Connect to potable water supply only.
• Refer to instructions with water filter kit for installation.
Connecting
the Refrigerator
to a Water Source
Warning
Tools Required
Cold Water Supply

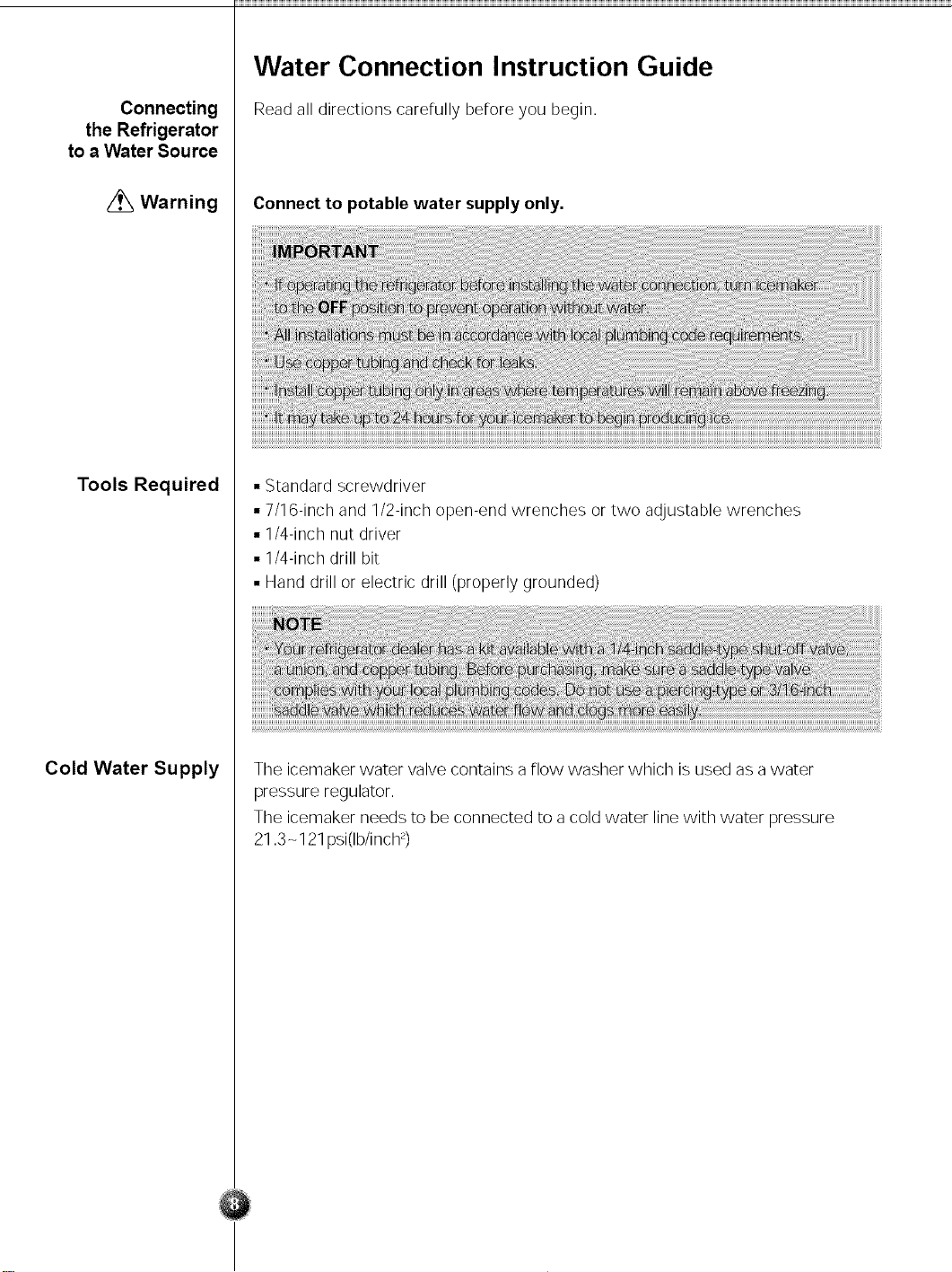

Water Connection Instruction Guide
Read all directions carefully before you begin.
Connect to potable water supply only.
• Standard screwdriver
• 7/16-inch and 1/2-inch open-end wrenches or two adjustable wrenches
• 1/4-inch nut driver
• 1/4-inch drill bit
• Hand drill or electric drill (properly grounded)
The icemaker water valve contains a flow washer which is used as a water
pressure regulator.
The icemaker needs to be connected to a cold water line with water pressure
21.3o-121psi(Ib/inch2)

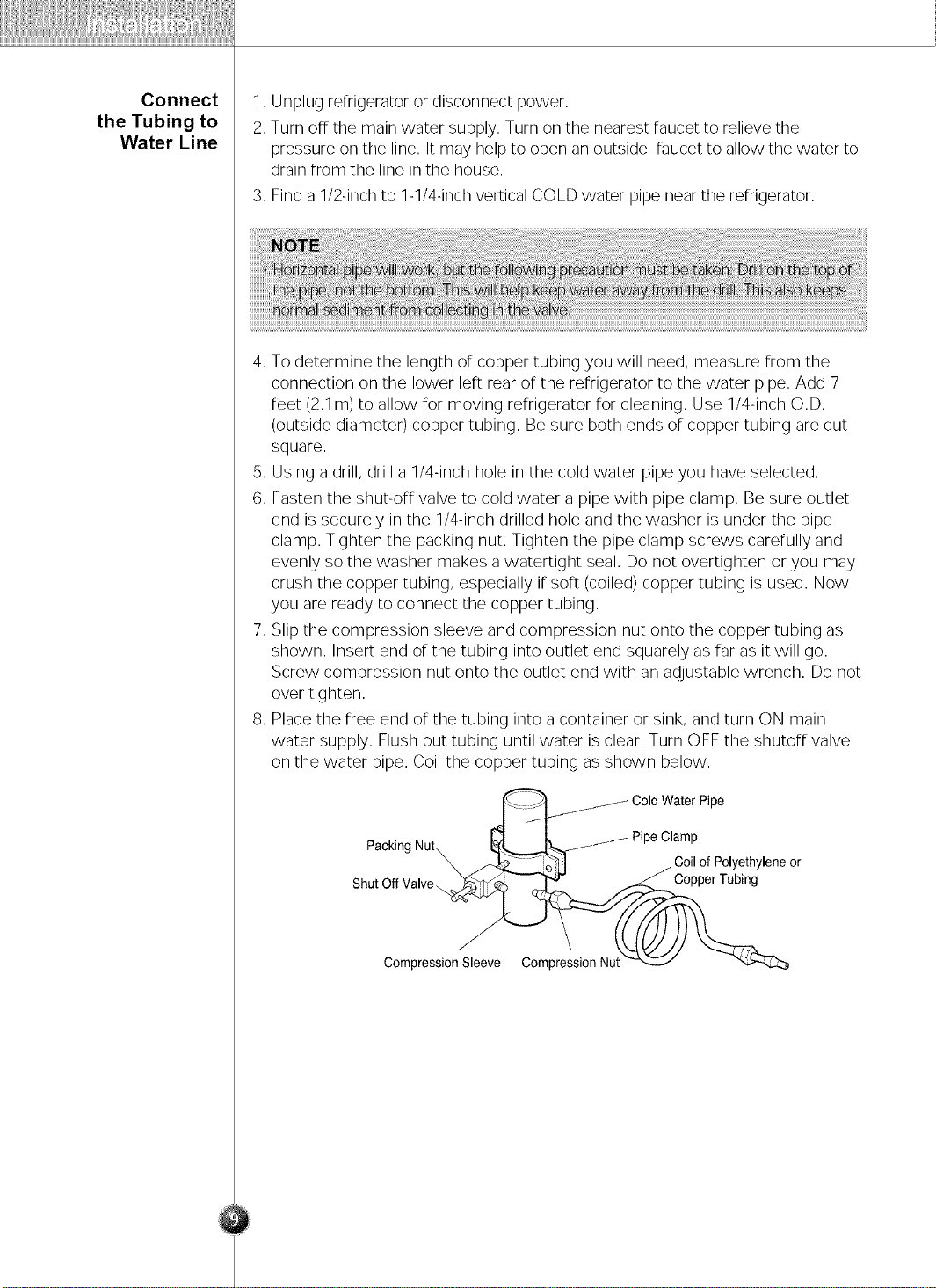

Connect
the Tubing to
Water Line
1. Unplug refrigerator or disconnect power.
2. Turn off the main water supply. Turn on the nearest faucet to relieve the
pressure on the line. It may help to open anoutside faucet to allow the water to
drain from the line in the house.
3. Find a 1/2dnch to 1-1/4-inch vertical COLD water pipe near the refrigerator.
4. To determine the length of copper tubing you will need, measure from the
connection on the lower left rear of the refrigerator to the water pipe. Add 7
feet (2.1m) to allow for moving refrigerator for cleaning. Use 1/4dnch O.D.
(outside diameter) copper tubing. Be sure both ends of copper tubing are cut
square.
5. Using a drill, drill a 1/4dnch hole in the cold water pipe you have selected.
6. Fasten the shut-off valve to cold water a pipe with pipe clamp. Be sure outlet
end is securely in the 1/4dnch drilled hole and the washer is under the pipe
clamp. Tighten the packing nut. Tighten the pipe clamp screws carefully and
evenly so the washer makes a watertight seal. Do not overtighten or you may
crush the copper tubing, especially if sort (coiled) copper tubing is used. Now
you are ready to connect the copper tubing.
7. Slip the compression sleeve and compression nut onto the copper tubing as
shown. Insert end of the tubing into outlet end squarely as far as it will go.
Screw compression nut onto the outlet end with an adjustable wrench. Do not
over tighten.
8. Place the free end of the tubing into a container or sink, and turn ON main
water supply. Flush out tubing until water is clear. Turn OFF the shutoff valve
on the water pipe. Coil the copper tubing as shown below.
_ Cold Water Pipe
Packing Nut\ _/JJ Pipe Clamp
Shut Off Valve \ A_-- _'_I Coil of Polyethylene or
Compres_
Connect the Tubing
to the Refrigerator
Turn the Water On at
the Shutoff Valve
Automatic Ice maker
Operation Instruction Guide
Before making the connection to the refrigerator, be sure the refrigerator
power cord is not plugged into the
wall outlet.
• If your refrigerator does not have a
water filter, we recommend Ferrule
installing one. sand or particles
could clog the screen of the
refrigerator's water valve. Install Clamp
the filter in the water line near the
refrigerator. 1/4"
1 Remove the plastic flexible cap Compression
' Nut
from the water valve.
2. Place the compression nut and 1/4"
ferrule (sleeve) onto the end of the Tubing
tubing as shown.
3. Insert the end of the copper tubing into the connection as far as possible. While
holding the tubing, tighten the fitting.
Refrigerator
Connection
Tighten any connections that leak.
• Plug In the Refrigerator
Arrange the coil of copper tubing behind the refrigerator so it does not vibrate
against the back of the refrigerator or against the wall. Push the refrigerator
back to the wall.
• Start the Icemaker
Set the icemaking stop switch to the ON position The icemaker will not begin
to operate until it reaches its operating temperature of 15 °F (-9 °C). It will then
begin operation automatically if the icemaking stop switch is in the ON
position.

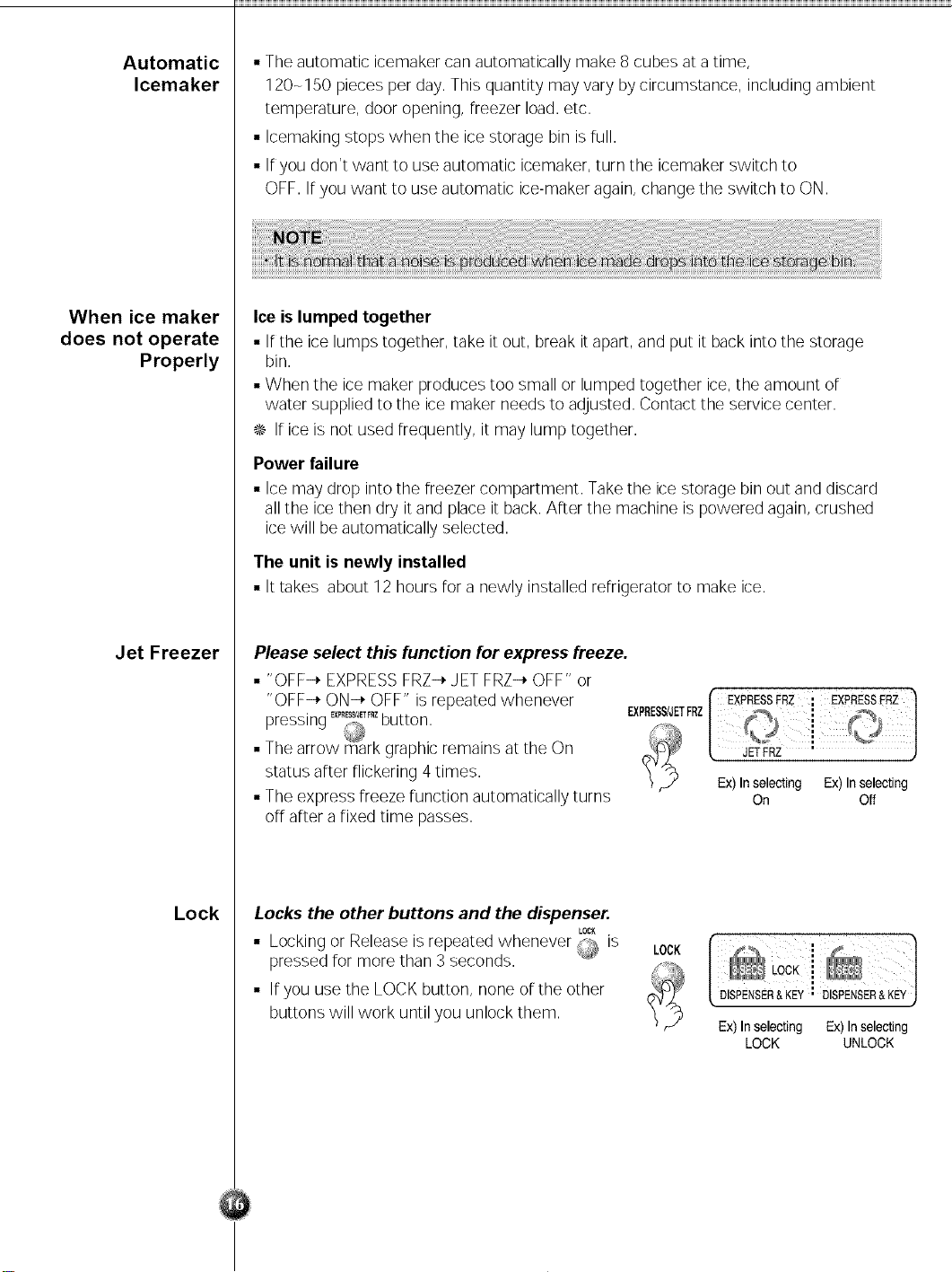

• The automatic icemaker makes 8 cubes at a time, 120/150 pieces per day.
But these quantities may vary according to circumstance, including ambient
temperature, door openings, freezer load.etc.
• The Icemaker stops when the bin is full.

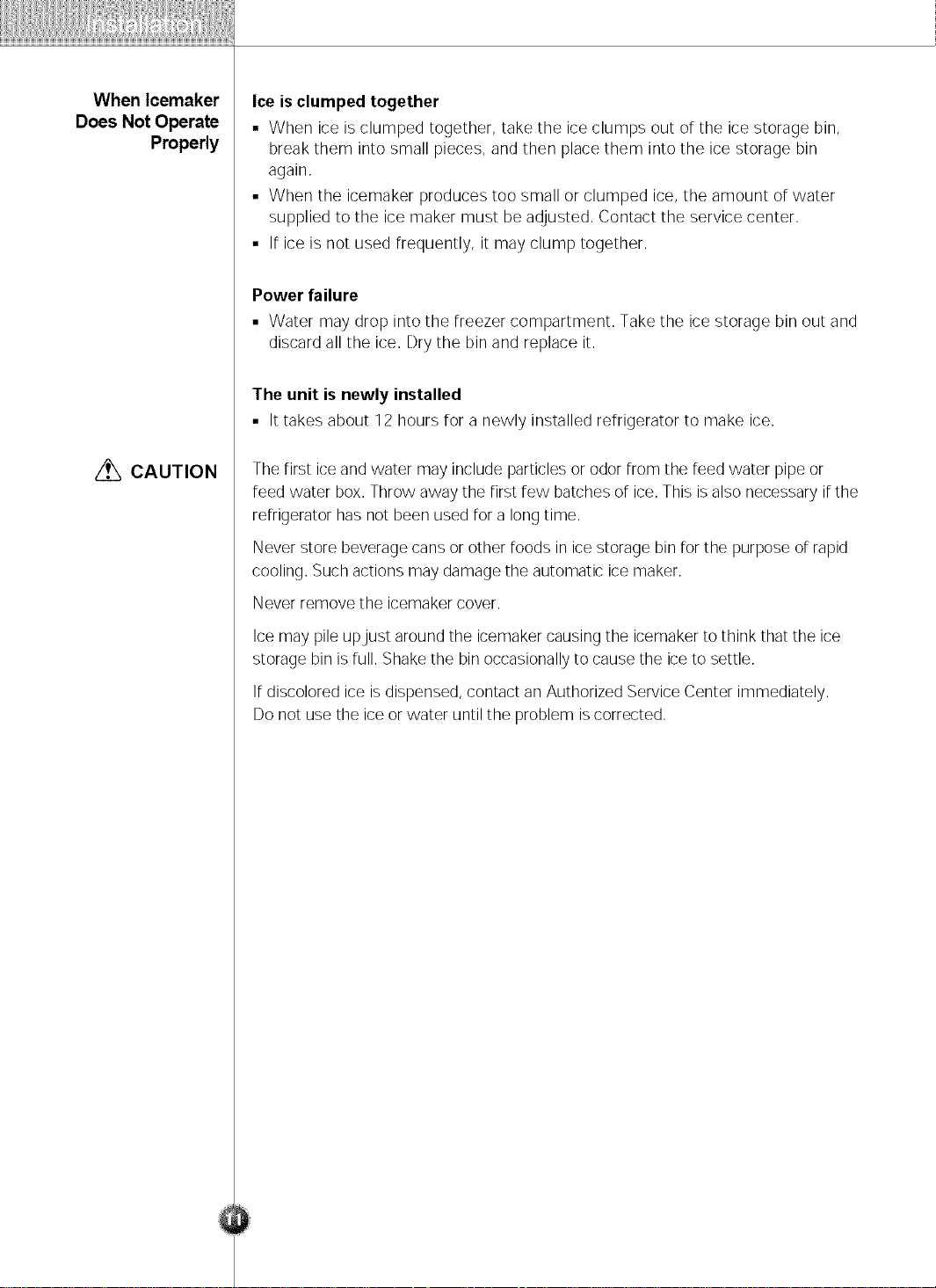

When Icemaker
Does Not Operate
Propedy
/_ CAUTION
Ice is clumped together
• When ice is clumped together, take the ice clumps out of the ice storage bin,
break them into small pieces, and then place them into the ice storage bin
again.
• When the icemaker produces too small or clumped ice, the amount or water
supplied to the ice maker must be adjusted. Contact the service center.
• If ice is not used frequently, it may clump together.
Power failure
• Water may drop into the freezer compartment. Take the ice storage bin out and
discard all the ice. Dry the bin and replace it.
The unit is newly installed
• It takes about 12 hours for a newly installed refrigerator to make ice.
The first iceand water may include particles or odor from the feed water pipeor
reed water box. Throw away the first few batches of ice. This is also necessary irthe
refrigerator has not been used for a long time.
Never store beverage cans or other roods in ice storage bin for the purpose or rapid
cooling. Such actions may damage the automatic ice maker.
Never remove the icemaker cover.
Ice may pile upjust around the icemaker causing the icemaker to think that the ice
storage bin isfull. Shake the bin occasionally to cause the iceto settle.
Ir discolored ice is dispensed, contact an Authorized Service Center immediately.
Do not use the ice or water until the problem is corrected.
If the freezer
compartment door
is lower than the
refrigerator
compartment door
If the freezer
compartment door
is higher than the
refrigerator
compartment door
After leveling the
door height
Next
Height Adjustment
Levelthe door by insertingafiat (- type)driverintothe grooveofthe left heightadjusting
screw and rotating itclockwise O.
Height Difference
_: Difference
Left H_lght
Adjustment Screw
Levelthe door by inserting a flat (- type) driver into the groove of the right height
adjusting screw and rotating it clockwise O.
Height Difference
Right Height
Adjustment Screw
The refrigerator doors will close smoothly after adjusting the height adjusting screw
properly. If the doors do not close correctly, performance may be affected.
1. Wipe off all dust accumulated during shipping and clean your appliance thoroughly.
2. Install accessories such as the ice cube box, cover evaporating tray, etc., in their
proper places.They are packedtogether to prevent possibledamage during shipping.
3. Connect the power supply cord (or plug) to the outlet. Use this appliance on a
single-outlet circuit.
Antenna Connection
VCR Setup
Cable TV Setup
External Equipment Connections
• Antenna or Cable Service without a Cable Box Connections
• For optimum picture quality, adjust antenna direction if needed.
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
wall antenna
socket
BronzeWire
RFcoaxialwire (75ohm)
i
F
i
VHF antenna ff
UHF antenna "
outdoor
:i antenna
Turn clockwise to tighten
Single#amily Dwellings/Houses
'l ....... J
Bronze Wire
Be careful not to bend the bronze wire when
connecting the antenna
J
88
• After hooking up the connection turn the TV on
and preform a channel search. On the remote
press menu, Auto program will be highlighted,
and then press right(Volume Up)twice.
• In a poor signal area to improve picture quality,
purchase and install a signal amplifier.
• If the antenna is not installed properly, contact
your dealer for assistance.
Connection & Viewing Setup Typ_oa_
1. Set VCR switch to 3 or 4 and then tune TVto the _ An,......
same channel number / :;;;
2. Insert a video tape into the VCR and press PLAY _D_o,
on the VCR. (Refer to the VCR owner's manual.) cooo_t_o_
i VCR
,_ ..... .J
- If your cable service does not require separate converter box please following the
instructions for an antenna connection above.
- For further cable TV information, contact a local cable service provider.
Connection & Viewing Setup
1. Select 3 or 4 with channel switch on cable box.
2. Tune the TV channel to the same selected output CableBox
r
3. Select channels at the cable box or _°_® _' _'
with the cable box remote control.
3_ J
Starting
When your refrigerator isfirst installed,allow it to stabilizeat normal operating
temperatures for 2-3 hours prior to filling itwith fresh or frozen foods.
If operation is interrupted, wait 5 minutes before restarting.
AdJusting The Temperatures and Functions
Water/Ice Output
Dispenser Push Switch --
Dispenser Lamp
(Bottom ceiling of
functJbn display board)
"J_ Functiondisp=ayboard
EXPRESS/JETFRZDISPENSERFREEZERREFRIGERATORFILTER/LIGHTLOCK
I
Express/Jet
FreezingButton
FreezerCompartment
TemperatureSetting
Dispenser&Button
Lock
iiii
FilterTimerReset&
DispenserLightToggle
RefrigeratorCompartment
TemperatureSetting
• JET FRZ' (Applicable to some models only)
How to adjust the
temperature in
the freezer
compartment
How to adjust the
temperature in
the refrigerator
compartment
Dispenser
selection
You can adjust temperature of the freezer and refrigerator Compartment.
,_eezer Compartment temperature adjustment
FREEZER _ _e Setting "_ I -- °F
mperature '"F I"F 5 -8"F
4 4 4 _4 _4
BAR 3 3 _3 _3 _3
Indication 2 _ 2 _ 2 _ 2 _ 2
,_frigerator Compartment temperature adjustment
Setting
Indication
5 5 5 _ b_
4 4 4 4_4i
3 3 3_3_3 _
2
_'sWhenever pressing button, setting isrepeated in the order of (Middle) -_
(Middle Strong) ÷ (Strong)÷ (Weak) ÷ (Middle Weak).
• The actual inner temperature varies depending on the rood status, as the
indicated setting temperature is the target temperature, not the actual
temperature within the refrigerator.
• A new refrigerator will cool better after it has run for several days,so you may
need to re-adjust the temperature aRer3 days or use.
You can select water or ice.
_,'19Pleaseselect water, Crushed ice, or cubed ice by
pressing °'_i_" button as you desire.
;},_Pleasepress the button gently by pushing in cup.
• You will hear a clap when the ice door closes
after ice is dispensed.
• Reference : Hold your cup in place for a couple of seconds after
dispensing ice or water so the last few drips go in
your cup instead of on the floor.
DISPENSER
Pressing
Switch
h
iii ¸¸.............. " "'iii
iiiil :iii
Automatic
Icemaker
When ice maker
does not operate
Properly
Jet Freezer
Lock
• The automatic icemaker can automatically make 8 cubes at a time,
120-150 pieces per day. This quantity may vary bycircumstance, including ambient
temperature, door opening, freezer load.etc.
• Icemaking stops when the ice storage bin is full.
• If you don't want to use automatic icemaker, turn the icemaker switch to
OFF. Ifyou want to use automatic ice-maker again,change the switch to ON.
Ice is lumped together
• If the ice lumps together, take it out, break it apart, and put it back into the storage
bin.
• When the ice maker produces too small or lumped together ice,the amount of
water supplied to the ice maker needs to adjusted. Contact the service center.
¢ If ice is not used frequently, it may lump together.
Power failure
• Ice may drop into the freezer compartment. Take the icestorage bin out and discard
all the icethen dry it and place it back.After the machine is powered again, crushed
icewill be automatically selected.
The unit is newly installed
• It takes about 12 hours for a newly installed refrigerator to make ice.
Please select this function for express freeze.
• "OFF-* EXPRESSFRZ-_,JETFRZ-_OFF" or
"OFF--* ON--*OFF" isrepeated whenever
EXPRESS/JETFRZ
ressin EXPRES_JETFi]Zbutton
p , g (_
•The arrow mark graphic remains at the On _
status after flickering 4 times. _
• The express freeze function automatically turns
off after a fixed time passes.
EXPRESSFRZ i
JETFRZ
Ex) Inselecting Ex) Inselecting
On Off
Locks the other buttons and the dispenser.
LOCK
• Locking or Release is repeated whenever/,:_ is
pressed for more than 3 seconds.
• Ifyou use the LOCK button, none of the other
buttons will work until you unlock them.
LOCK
Ex) In selecting Ex) Inselecting
LOCK UNLOCK

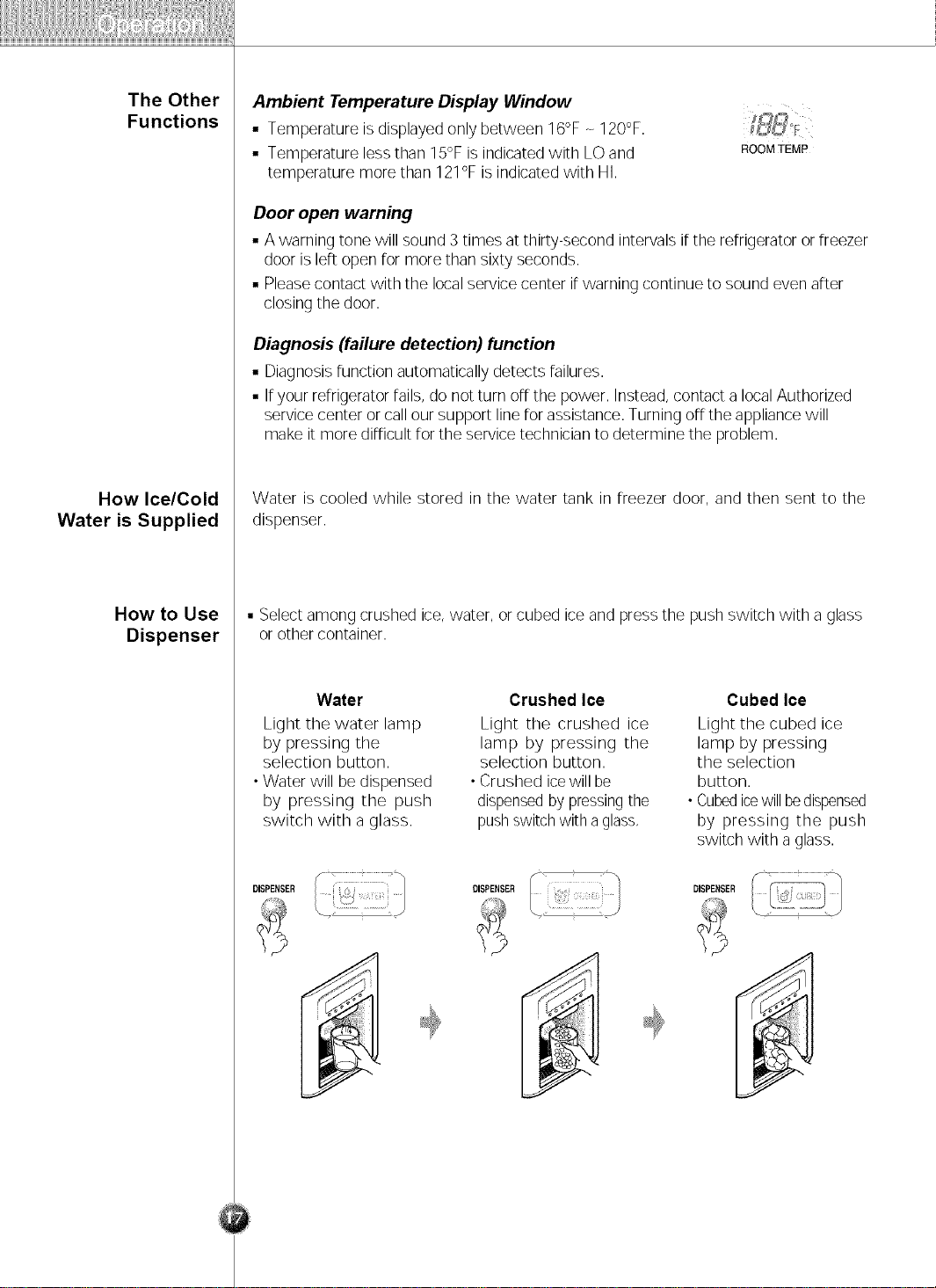

The Other
Functions
How Ice/Cold
Water is Supplied
How to Use
Dispenser
Ambient Temperature Display Window
• Temperature is displayedonly between 16°F - 120°F.
• Temperature lessthan 15°F isindicated with LO and
temperature more than 121°F isindicated with HI.
ROOMTEMP
Door open warning
• A warning tone will sound 3 times atthirty-second intervalsif the refrigerator orfreezer
door isleft open for more than sixty seconds.
• Pleasecontactwith the localservicecenter if warning continue to sound evenafter
closing the door.
Diagnosis (failure detection) function
• Diagnosisfunction automaticallydetects failures.
• Ifyour refrigerator fails, do notturn off the power. Instead, contact a localAuthorized
servicecenter or call our support line for assistance.Turning off the appliancewill
make it more difficult for the servicetechnician to determine the problem.
Water is cooled while stored in the water tank in freezer door, and then sent to the
dispenser.
• Selectamong crushed ice,water, or cubed ice and press the push switch with a glass
or othercontainer.
Water
Light the water lamp
by pressing the
selection button.
•Water will be dispensed
by pressing the push
switch with a glass.
Crushed Ice
Light the crushed ice
lamp by pressing the
selection button.
•Crushed icewillbe
dispensedby pressingthe
pushswitchwith aglass,
Cubed Ice
Light the cubed ice
lamp by pressing
the selection
button.
•Cubedicewillbedispensed
by pressing the push
switch with a glass.
DISPENSER DISPENSER DISPENSER

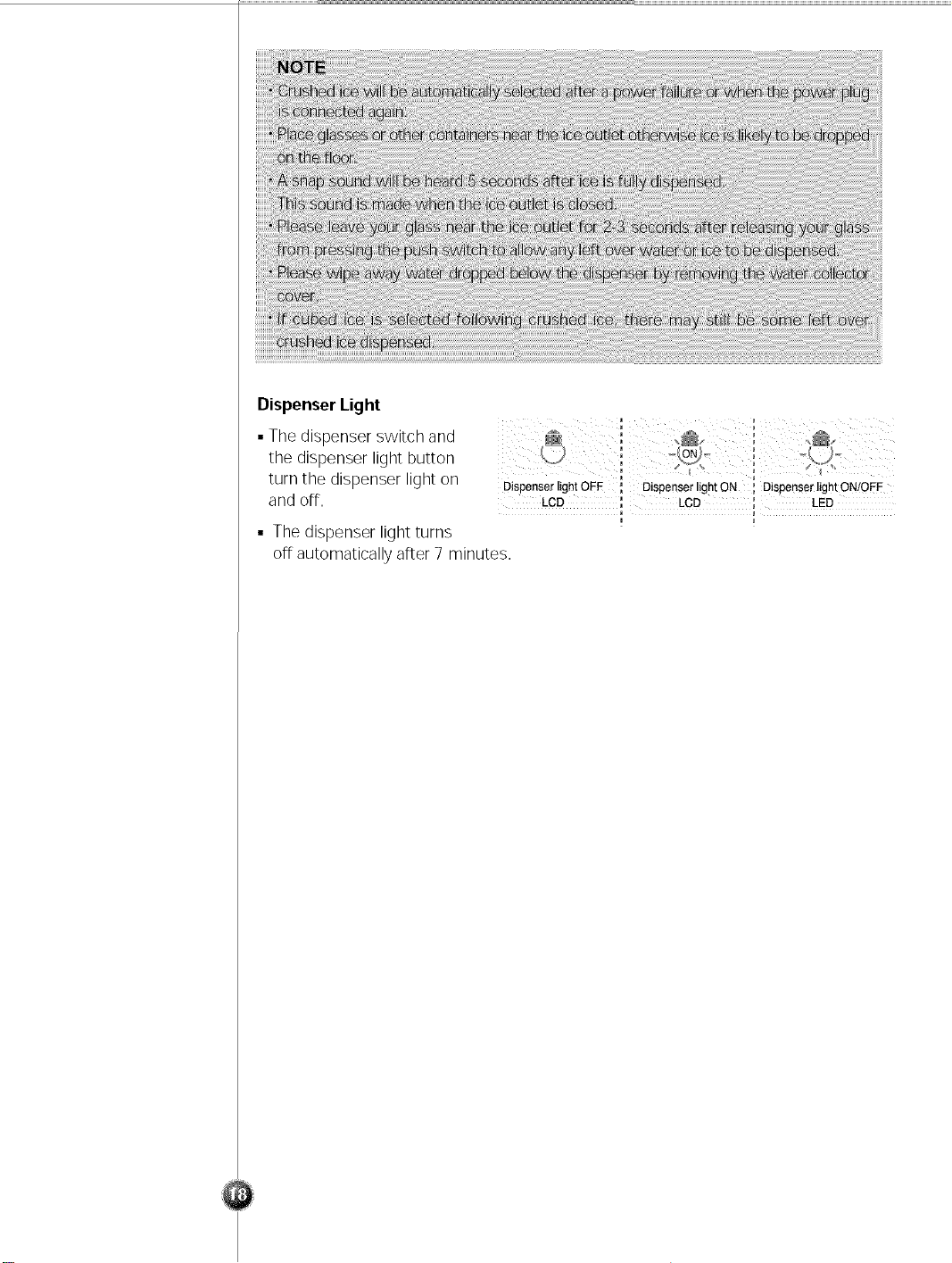

Dispenser Light
• The dispenser switch and
the dispenser light button
turn the dispenser light on
and off.
• The dispenser light turns
w
_',,J _'" i :t ,2°'
w
Dispenser light OFF °_ Dispenser light ON Dispenser light ON/OFF
LD _
C _ LCD _ LED
off automatically after 7 minutes.

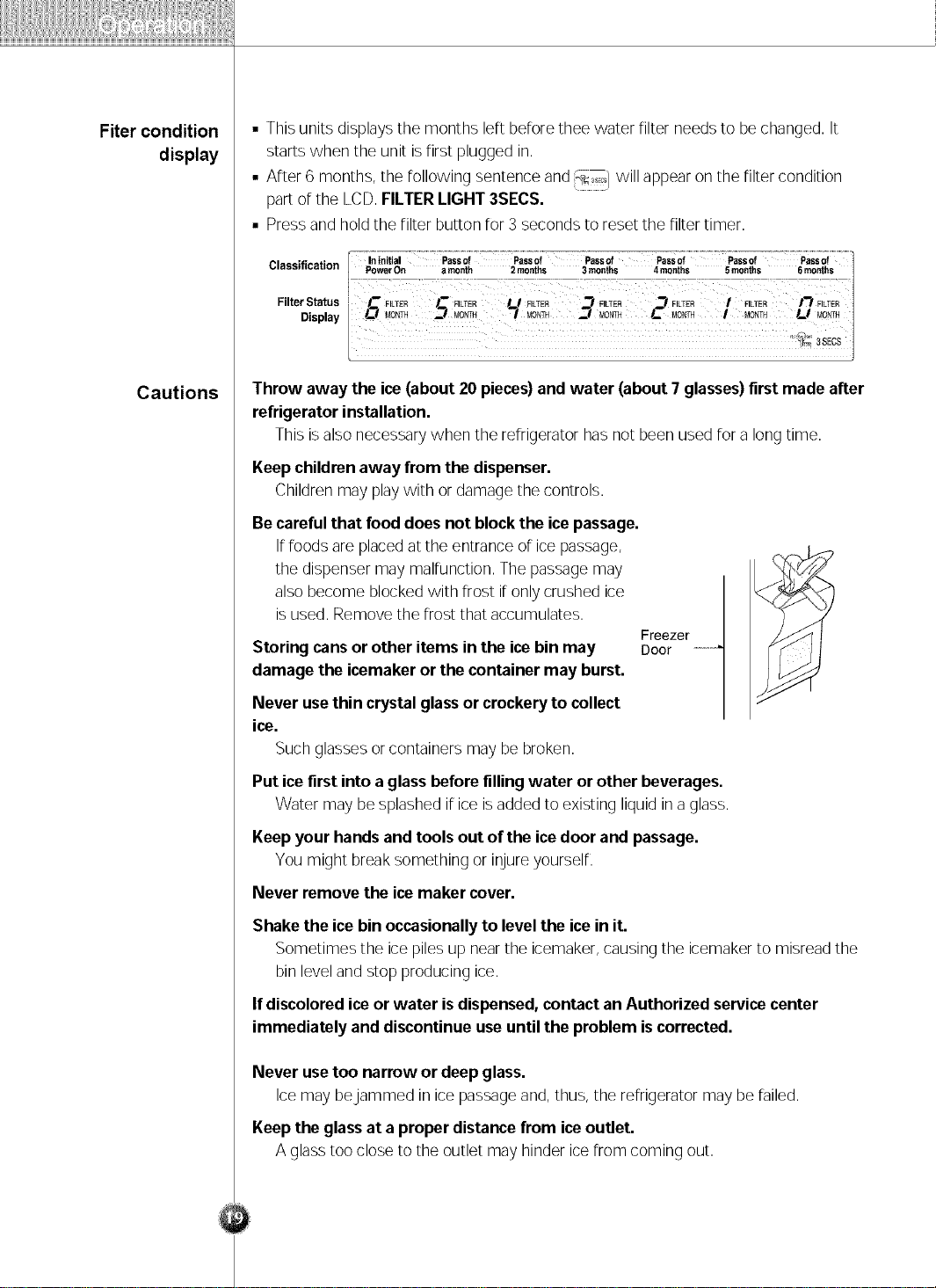

FiLercondition
display
Cautions
• This units displaysthe months left beforethee water filter needsto bechanged. It
starts when the unit isfirst plugged in.
• After 6 months, the following sentence and i,<_,j] will appearon the filter condition
partof the LCD.FILTERLIGHT 3SECS.
• Pressandhold the filter button for 3 seconds to reset the filter timer.
Classification
Filter Status
Display
Throw away the ice(about 20 pieces)and water (about 7 glasses)first made after
refrigeratorinstallation,
This is alsonecessary when the refrigerator hasnot been usedfor a long time.
Keepchildren away from the dispenser.
Children may playwith or damage the controls.
Becarefulthat food does not blockthe icepassage.
If foods are placedatthe entrance of ice passage,
the dispenser may malfunction. The passagemay
also become blocked with frost if onlycrushed ice
isused. Removethe frost that accumulates.
Storing cans or other items in the ice bin may
damage the icemaker or the container may burst.
Never usethin crystal glassor crockeryto collect
ice.
Such glassesor containers may be broken.
Freezer
Door ...........
Putice first into a glass beforefilling water or other beverages.
Water may be splashed ificeisadded to existing liquidina glass
Keepyour handsand tools out of the icedoor and passage.
You might breaksomething or injure yourself.
Never remove the ice maker cover.
Shake the icebin occasionallyto level the icein it.
Sometimes the icepiles upnear the icemaker, causing the icemakerto misreadthe
bin leveland stop producing ice.
Ifdiscolorediceor water isdispensed, contact anAuthorized servicecenter
immediately and discontinue useuntil the problem iscorrected.
Never usetoo narrow or deep glass.
Ice may bejammed in ice passageand,thus, the refrigerator may be failed.
Keepthe glassat a proper distance from iceoutlet.
A glasstoo close to the outlet may hinder icefrom coming out.
Shelf Height
Adjustment
Wine Holder
Adjustment
Can Server
Adjustment
Shelf
The refrigerator compartment shelf is movable so that you can place it at a height
according to the space requirement of foods.
How to separate a shelf : _ ...... ---_._.i::_f:__'0
Lift the shelf in the direction of
ArrowO,then remove it from the rack by
pullingit in the direction of Arrow ®.
How to install a shelf :
Holding the shelf up at the front, insert the
tabat the desired height and lower the shelf
into place.
Q
Wine Holder
Bottles ran be stored on their sides in this
wine rack. It can be attached to any shelf.
Wine holder adjustment :
Wine holder can be separated by pulling
it straight out and installed by placing it at
the end of the shelf you want and pushing
it inward.
Can Server adjustment
Cansbe stored on their sides out of the way
usingthe Canserver, Itcan be only be attached
to an upper shelf,
Egg Bin (Applicable to some models only)
[Normal] [For Many Eggs]
Humidity control in the vegetable compartment
The humidity carl be controlled by adjusting the humidity control switch to the left
or right when storing vegetabes or fruits.
Highhumidity
I _ HumiditY C°ntr°} !High..,..,..,..,.. ow
Lowhumidity
I Humidity ControJ
Vegetable/meat compartment
• The bottom drawer in the refrigerator carl be used as a vegetable or meat
compartment
Temp Control
Meat _ Vege,
Vegetable
compartment
Temp Control
Meats _ Vege.
Meat compartment
| ((,,.j-_ /)Conversion
L .... / [ switch J
3esuret0check\
theconversionswitch/
The meat compartment maintains the temperature at a lower point than the
refrigerator compartment so that meat or fish can be stored fresh longer.
Method to Use
To remove
To install
OptiChill Temperature Transition Bin
By pressingthe button, store vegetables,
fruits or other types of food such as meat to
be defrosted.
You canselect optimum temperature
range depending on types of foods I.............. J
stored.
-four steps of temperature selection
are available,including27°F,30°F,
39°Fand 50°F.Vegetables,fruits,
cold storage items requiring humidity
maintenance, meats, and fishes can
be stored under optimal conditions .....................................................................................................................................................................................................................................................................................................................................................
byselectiong the correct storage
temperature for the foods being stored.
• When using the OptiChill to store meats or fishes, fruits, or vegetables may be frozen.
• When using the OptiChill to store fruits or vegetables, meats and fishes must be stored
in the freezer compartments.
• If you open the refrigerator door, an indicator lamp shows the status of the Optichill.
The lamp goes off when the door isclosed.
• Press the left SELECTbutton to cycle through FRUITVEGE(ag°F)÷ CHILLED
ROOM(30°F)-_PARTIAL FREEZlNG(27°F)-_ WINE(50°F_Option)÷ FRUIT
VEGE(39°F).
• Press the right SELECTbutton to cycle between
EXPRESSCHILL÷ THAW(Optional).
• Thethawing setting can be adjusted by the weight or the meats being thawed.
• TheTHAW and the EXPRESSCHILL operations are cancelled when you press left
button,
• First, remove the vegetable bin.
• After holding back and front of the OptiChilld) and ®
pull it outward.
• Fit the OptiChill case on to the ledge O and gently
slide it in ®.
• When forced, the connecting parts can be damaged.
(b
\
Wine Holder
Snack Drawer
Freezer
Compartment
Shelf
Freezer
Compartment
Door Rack
Freezer
Compartment
Drawer
Milk Product
Corner
Egg Bin
Refreshment
Center
Refrigerator
Compartment
Shelf
Refrigerator
Compartment
Door Rack
Vegetable Drawer
Vegetable
Drawer
/Meat Drawer
Conversion
Corner
Location of Foods
(Refer to Identification of Parts)
Store wine.
Storesmall foods such as bread,snacks,etc.
Storevarious frozen foods such as meat,fish,
icecream, frozen snacks, etc.
• Store small packed frozen food.
• Temperature is likely to increase as door
opens. So,do not store long-term rood such
ice cream, etc.
• Store meat, fish, chicken, etc. after
wrapping them with thin foil.
• Storedry.
Store milk products such as butter, cheese,
etc.
Placethis egg box in the proper location.
Storefoods of frequent use suchas beverage,
etc,
Store side dishes or other foods at a proper
distance.
Store small packed rood or beverages such
as milk,juice, beer, etc.
Store vegetables or fruits.
Store vegetable, fruits, meat to thaw, raw
fish, etc. setting the conversion switch as
necessary.
Be sure to check the conversion switch
setting before storing foods.
Freezer
Compartment
Refrigerator
Compartment
Storing Foods
• Store fresh food in the refrigerator compartment. How food isfrozen and thawed isan
important factor in maintaining its freshness and flavor.
• Do not store food which spoils easily at low temperatures, such as bananas and
melons.
• Allow hot rood to cool prior to storing, placing hot rood in the refrigerator could spoil
other rood, and leadto higher energy consumption.
• When storing the rood, cover itwith vinylwrap or store in a container with a lid.This
prevents moisture from evaporating,and helpsrood to keep its taste and nutrients.
• Do not block air vents with rood. Smooth circulation of chilled air keeps refrigerator
temperatures even.
• Do not open the door frequently. Opening the door lets warm air enterthe refrigerator,
and cause temperatures to rise.
• Never keeptoo much rood in door rack becausethey may push against by inner racks
so that the door cannot be fully closed.
• Do not store bottles in the freezer compartment - they may breakwhen frozen.
• Do not refreeze food that has been thawed. This causes loss of taste and nutrient.
• When storing frozen rood like ice cream for a long period, place it on the freezer
shelf, not in the door rack.
• Avoid placing moist food in top refrigerator shelves, it could freeze from direct
contact with chilled air.
• Always clean rood prior to refrigeration. Vegetables and fruits should be washed and
wiped, and packed rood should be wiped, to prevent adjacent rood from spoiling.
• When storing eggs in their storage rack or box, ensure that they are fresh, and always
store them inan upright position, which keeps them fresh longer.
Freezer
Compartment
Lamp
Dispenser Lamp
Freezer
Compartment
Shelf
Door Rack and
Support
Ice Storage Bin
After Dispenser
Is Used
How to Dismantle Parts
To remove the lampcover pullout firmly on the
lampcover and rotate.This shouldexpose the bulb.
Turnthebulbcounterclockwise,Max.40W
refrigerator bulb is usedand can be purchasedat a
servicecenter.
Seperate the lamp by pulling it out, and then
remove the lamp. Max. 15 W refrigerator bulb
is used and can be purchased at a service
center.
To remove a shelf, lift the left part of the shelf
a bit, pushitto direction0, lift the rightpartto
direction ®, and take it out.
Lift the door rack holding both sides (b and
pull it in direction ®.
Holdthe ice storage bin asshown in the figure
to the right and pull itout ® while slightlylifting
it¢.
• It is recommended not to dismantle the ice
storage bin unless it is necessary.
• Use both handsto remove the ice binto avoid
dropping it.
• If the ice bin does not slide into placeeasily,
twist the drive device slightly.
The water collector hasno self-drainage
function. It should be cleaned regularly.
Remove the cover by pulling the front side of
water collector cover and dry it with a cloth.
Drive
Device
Lamp in
Refrigerator
Compartment
Vegetable
Compartment
Cover
To remove the lampcover, press the protrusion under the lamp cover to the front and
then pull the lamp cover out.
Turn the bulb counterclockwise. Max. 40 W refrigerator bulb is used and can be
purchased at a service center.
• To remove the vegetable compartment
cover, pull out the vegetable compartment
a bit to the front d), lift the front part of the
vegetable compartment cover as shown by
®, and take it out.
®
Vacation Time
Power Failure
If You Move
Anti-
Condensation
Pipe
Exterior
Interior
After Cleaning
Warning
General Information
During average length vacations, you will probably find it best to leave the refrigerator
in operation. Placefreezable items in freezer for longer life.
When you plan to store the refrigerator, remove all food, disconnect the power cord,
clean the interior thoroughly, and block the doors open to prevent mold and mildew.
Be certain the stored refrigerator does not present a child entrapment danger.
Most power failures that are corrected in an hour or two will not affect your
refrigerator temperatures.
However, you should minimize the number of door openings while the power is off.
Remove or securely fasten down all loose items insidethe refrigerator.
To avoid damaging the height adjusting screws, turn them all the way into the base.
The outside wall of the refrigerator cabinet may sometimes get warm, especiallyjust
after installation.
Don't be alarmed. This is due to the anti-condensation pipe, which pumps hot
refrigerant to prevent sweating on the outer cabinet wall.
Cleaning
It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled
rood should be wiped up immediately, since it may acidify and stain plastic surfaces if
allowed to settle.
Use a lukewarm solution of mild soap or detergent to clean the durable finish of your
refrigerator. Wipe with aclean damp cloth and then dry.
Regular cleaning is recommended. Wash all compartments with a baking soda
solution or a mild detergent and warm water. Rinseand dry.
Pleaseverify that the power cord is not damaged, power plug is not overheated, and
the power plug iswell inserted into the power outlet.
Always remove the power cord from the wall outlet prior to cleaning in the vicinity of
electrical parts (lamps,switches, controls, etc.).
Wipe up excess moisture with a sponge or cloth to prevent water or liquid from
getting into any electrical part and causing an electric shock.
Never use metallic scouring pads, brushes, coarse abrasive cleaners, strong alkaline
solutions, flammable or toxic cleaning liquids on any surface.
Do not touch frozen surfaces with wet or damp hands, because damp object will stick
or adhere to extremely cold surfaces.
Troubleshooting
Before calling for service, review this list. It may save you both time and expense,
This list includes common occurrences that are not the result of defective
workmanship or materials in this appliance.
Running of refrigerator
Refrigerator Refrigerator control is off. Set refrigerator control. See setting the
compressor controls.
does not run. Refrigerator is in defrost cycle. This is normal for a fully automatic
defrosting refrigerator. The defrost
cycle occurs periodically.
Plug at wall outlet is disconnected. Make sure plug is tightly pushed into
outlet.
Power outage. Check house lights. Call local electric company.
Refrigerator Refrigerator is larger than the previous This is normal. Larger, more efficient
runs too much one you owned, units run longer in these conditions.
or too long Room or outside weather is hot. It is normal for the refrigerator to work
longer under these conditions.
Refrigerator has recently been It takes some hours for the refrigerator
disconnected for a period of time. to cool down completely.
Large amounts of warm or hot food Warm food will cause the refrigerator to
may have been stored recently, run longer until the desired temperature
is reached.
Doors are opened too frequently or too Warm air entering the refrigerator
long. causes it to run longer. Open the door
less often.
Refrigerator or freezer door may be Make sure the refrigerator is level.
slightly open. Keep food and containers from
blocking door. See problem section.
OPENING/CLOSING of doors.
Refrigerator control is set too cold. Set the refrigerator control to a
warmer setting until the refrigerator
temperature is satisfactory.
Refrigerator or freezer gasket is dirty, Clean or change gasket. Leaks in the
worn, cracked, or poorly fitted, door seal will cause refrigerator to run
longer in order to maintain desired
ternperatures.
Thermostat is keeping the refrigerator This is normal. Refrigerator goes on and
at a constant temperature, off to keepthe temperature constant,
Temperatures are too cold
Temperature in the Freezer control isset too cold Set the freezer control to a warmer
freezer is too cold setting until the freezer temperature is
butthe refrigerator satisfactory.
temperature is
satisfactory.
Temperature in the Refrigerator control is set too cold. Set the refrigerator control to a
refrigerator is too warmer setting
cold and the freezer
temperature
is satisfactory.
Food stored in
drawers freezes. Refrigerator control is set too cold. See above solution.
Meat stored in Meat should be stored at a temperature It is normal for ice crystals to form due
fresh meat just belowthefreezingpointof water (32°F, to the moisture content of meat.
drawer freezes. OC) for maximum fresh storage time.
Temperatures are too warm
Temperatures in Freezer control is set too warm. Set the freezer or refrigerator control to
the refrigerator a colder setting until the freezer or
or freezer are refrigerator temperature is satisfactory.
too warm. .....
Refrigerator control is set too warm. Setthe freezer or refrigerator control to a
Refrigerator control has some effect on colder setting until the freezer or
freezer temperature, refrigerator temperature is satisfactory.
Doors are opened too frequently or too Warm air enters the refrigerator/freezer
long. whenever the door is opened.
Open the door less oRen.
Door is slightly open. Close the door completely.
Large amounts of warm or hot food Wait until the refrigerator or freezer
may have been stored recently, has a chance to reach its selected
temperature.
Refrigerator has recently been A refrigerator requires some hours to
disconnected for a period of time. cool down completely.
Doorseal damaged. Check the door seal for damage or
deformity, contact an LG service
Center if it is damaged.
Temperature in the Refrigerator control is set too warm. Set the refrigerator control to a colder
refrigerator setting.
istoo warm but
the freezer
temperature is
satisfactory.
Sound and noise
Loudersound Today's refrigerators have increased It isnormal Forsound levelsto be higher
levels when storage capacity and maintain more
refrigerator is on. even temperatures
Louder sound Refrigeratoroperates at higher pressures This is normal. The sound will leveloff as
levels when during the start of the ON cycle, the refrigerator continues to run.
compressor
comes on.
Vibrating or Floor is uneven or weak. Be sure floor is level and solid and can
rattling noise. Refrigerator rocks on the floor when it is adequately support refrigerator.
moved slightly.
Items placedon the top of the refrigerator Remove items.
are vibrating.
Dishes are vibrating on the shelves in It is normal for dishes to vibrate slightly.
the refrigerator. Move dishes slightly.
Make sure refrigerator is level and firmly
set on floor.
Refrigerator istouching wall or cabinets. Move refrigerator so that it does not
touch the wall or cabinets.
Water/Moisture/Ice inside refrigerator
Moisture collects The weather is hot and humid which This is normal.
on the inside walls increases the rate of frost buildup
of the refrigerator, and internal sweating.
Door is slightly open. See problem section opening/closing of
doors.
Door is opened too often or too long. Open the door less often.
Water/Moisture/Ice outside refrigerator
Moisture forms
on the outside of
the refrigerator
or between doors.
Weather is humid. This is normal in humid weather.
When humidity is lower, the moisture
should disappear.
Door is slightly open,causing cold air Make sure the door isclosed
from the inside the refrigerator to meet completely.
warm air from the outside.
Odors in refrigerator
Interiorneeds to be cleaned. Clean interiorwith sponge,warm water
and baking soda.
Food with strong odor is in the refrigerator. Cover food completely.
Some containers and wrapping materials Use a different container or brand of
produce odors, wrapping materials.
Opening/Closing of doors/Drawers
Door(s) will not Food packageis keeping door open. Move packages that keep door from
close, closing.
Door(s) will not Door was closed too hard, causing other Closeboth doors gently.
close, door to open slightly.
Refrigerator is not level. It rocks on the Adjust the height adjusting screw.
floor when it is moved slightly.
Floor is uneven or weak. Be sure floor is level and can adequately
Refrigerator rocks on the floor when it support refrigerator.
is moved slightly. Contact carpenter to correct sagging or
sloping floor.
Refrigerator istouching wall or cabinets. Move refrigerator..
Drawers are Food istouching shelf on top of the Keep less rood in drawer.
difficult to move. drawer
Track that drawer slides on is dirty. Cleandrawer and track.
Dispenser
Dispenser will not Ice storage bin is empty. When the first supply of ice is dropped
dispense ice into the bin,the dispensershould operate,
Freezertemperature is set too warm. Turn the freezer control to a higher
setting so that ice cubes will be made.
When the first supply of ice is made,
the dispenser should operate.
Household water line valve is not open. Open household water line valve and
allow sufficient time for ice to be made.
When ice is made, dispenser should
operate.
Refrigerator or freezer door is not closed. Be sure both doors are closed.
Dispenserwill Icehasmeltedandfrozenaroundauger Removeicestoragebin,andthawand
notdispense duetoinfrequentuse,temperature thecontents.Cleanbin,wipedryand
ice. fluctuationsand/orpoweroutrages, replaceinproperposition.
Whennewiceismade,dispensershould
operate.
Ice dispenser Ice cubes arejammed between the ice Remove the ice cubes that arejamming
is jammed, maker arm and back of the bin. the dispenser.
Ice cubes are Frozentogether. Use the dispenser often so that cubes do
not Freezetogether.
Ice cubes that have been purchased or Only the ice cubes made by the ice maker
made in some other way have been should be used with the dispenser.
used in the dispenser.
Dispenser will Household water linevalve is not open. Open household water line valve.
not dispense See problem Icemaker is not making
water, any ice.
Refrigerator or Freezerdoor is not closed. Be sure both doors are closed.
Water has an Water has been in the tank for too long. Draw and discard 7 glasses of water
odd taste to Freshenthe supply. Draw and discard
and/or odor. an additional 7 glasses to completely rinse
out tank.
Unit not properly connected to cold Connect unit to cold water line which
water line. supplies water to kitchen Faucet.
Ice maker is Check the water dispenser to verify the Check to power switch on the ice maker.
not making ice. unit is still receiving water. There will be a switch on the side of the
ice maker,the bar (I)is on and the circle
(O)is off.
Sound of ice This sound isnormally made when automatically made ice is dropped into ice storage
dropping bin. Volume may vary according to refrigerator's location.
Sound of water This sound is normally made when ice maker issupplied with water after dropping
supply the automatically made ice.
Other Pleasethoroughly read Automatic icemaker and dispenser in this manual.
LG Electronics Inc.
LG Twin Tower, 20, Yoido-Dong,
Youngdungpo-Gu, Seoul, 150-721, Korea.
http://www.lge.com
P/NO : 3828JD8645A Printed in Korea
