Operating and Installation
Instructions
Ventilation Hood
To prevent accidents and damage to the appliance, you must read
these instructions before installing the appliance and using it for the
first time.
en-US M.-Nr. 12 039 190
Contents
2
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 4
Caring for the environment .............................................................................. 13

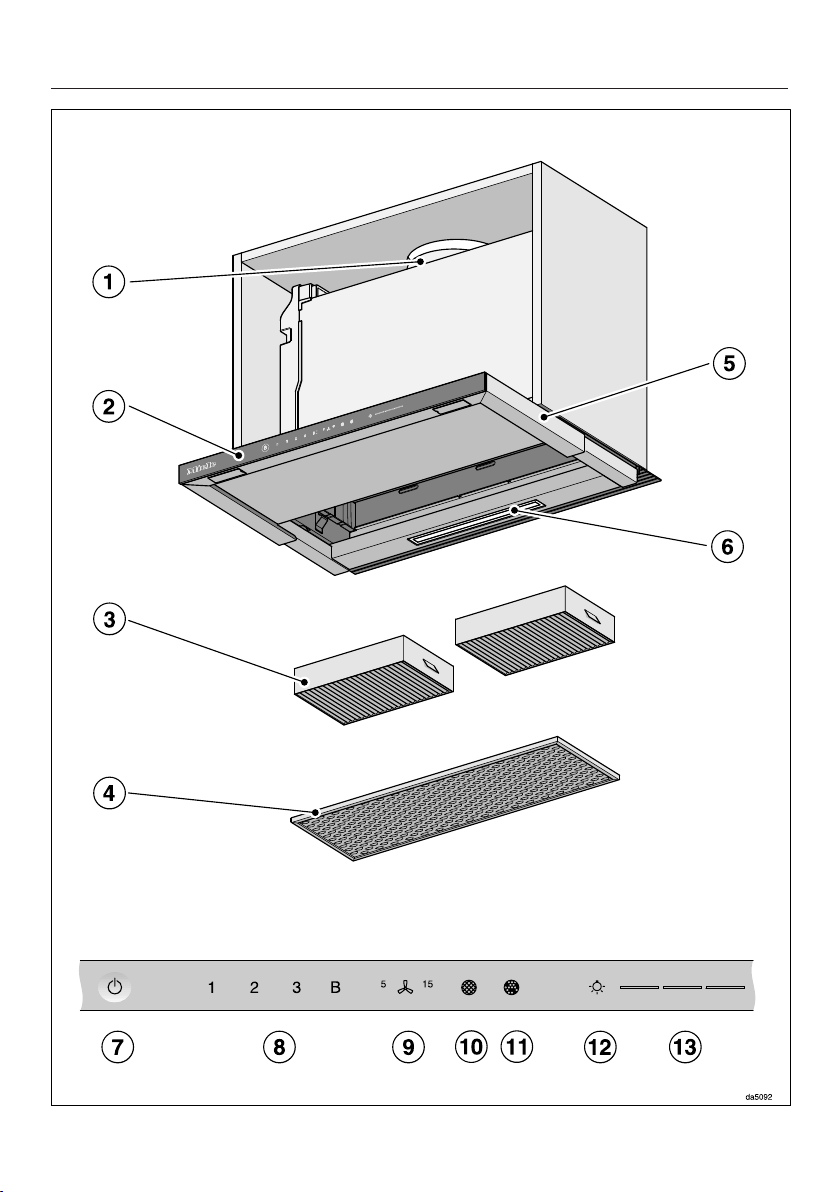

Guide to the ventilation hood ........................................................................... 14
Description of functions ................................................................................... 16
Before using for the first time .......................................................................... 17
Selecting vented mode or recirculation mode .................................................... 17
Setting up Miele@home ...................................................................................... 17
Connecting via the app .................................................................................. 18
Connecting via WPS ...................................................................................... 19
Signing out of WiFi (reset to factory settings) ................................................ 20

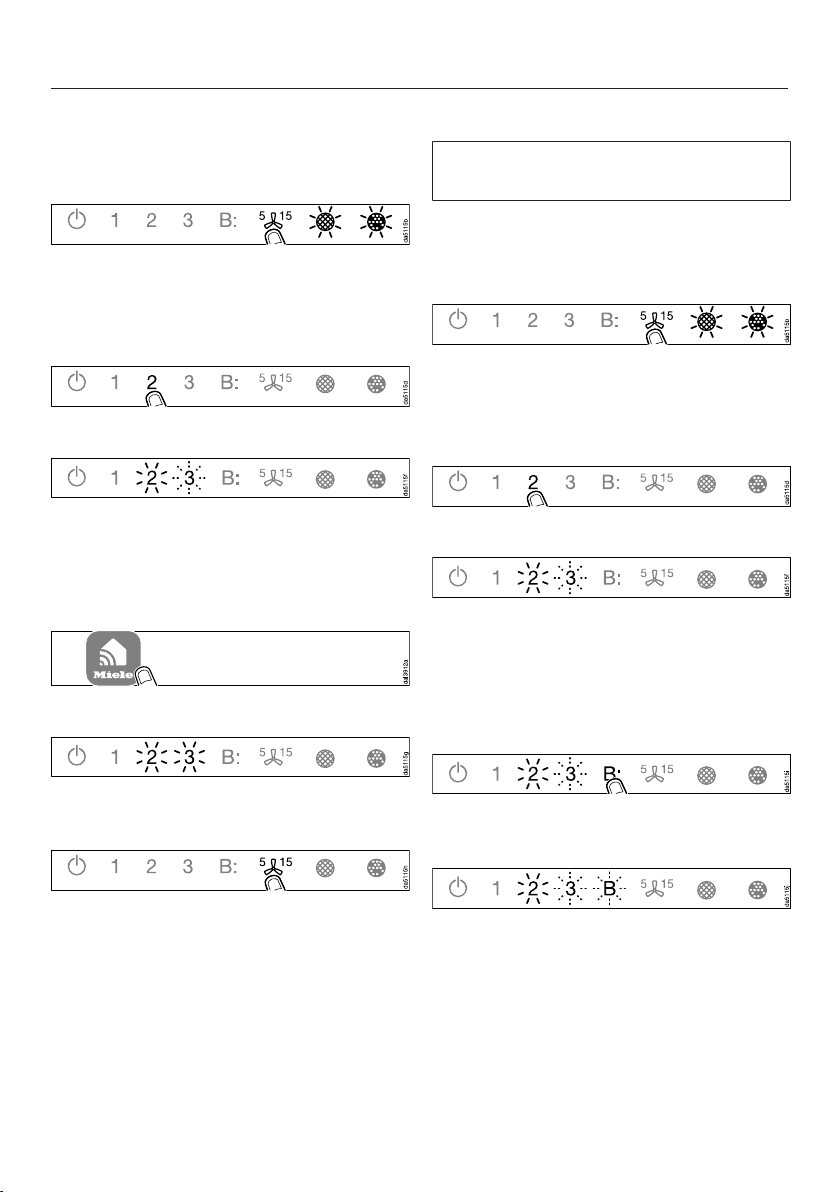

Operation............................................................................................................ 22
Turning on the fan................................................................................................ 22
Selecting the power level .................................................................................... 22
Selecting the second booster level ................................................................ 22
Selecting the delayed shutdown time ................................................................. 23
Turning off the blower.......................................................................................... 23
Dimming/switching the cooktop lighting on/off .................................................. 23
Safety shut-off..................................................................................................... 23
Changing settings ............................................................................................. 24
Adjusting the grease filter filter saturation indicator ............................................ 24
Adjusting or deactivating the filter saturation indicator for the charcoal filter..... 25
Deactivating power management ....................................................................... 25
Audible signal for the sensor controls................................................................. 26
Energy-saving tips............................................................................................. 27
Cleaning and care ............................................................................................. 28
Stainless steel housing........................................................................................ 28
Important information for appliances with stainless steel surfaces ............... 28
Filter saturation indicator..................................................................................... 29
Grease filter ......................................................................................................... 29
Replacing the grease filter.............................................................................. 31

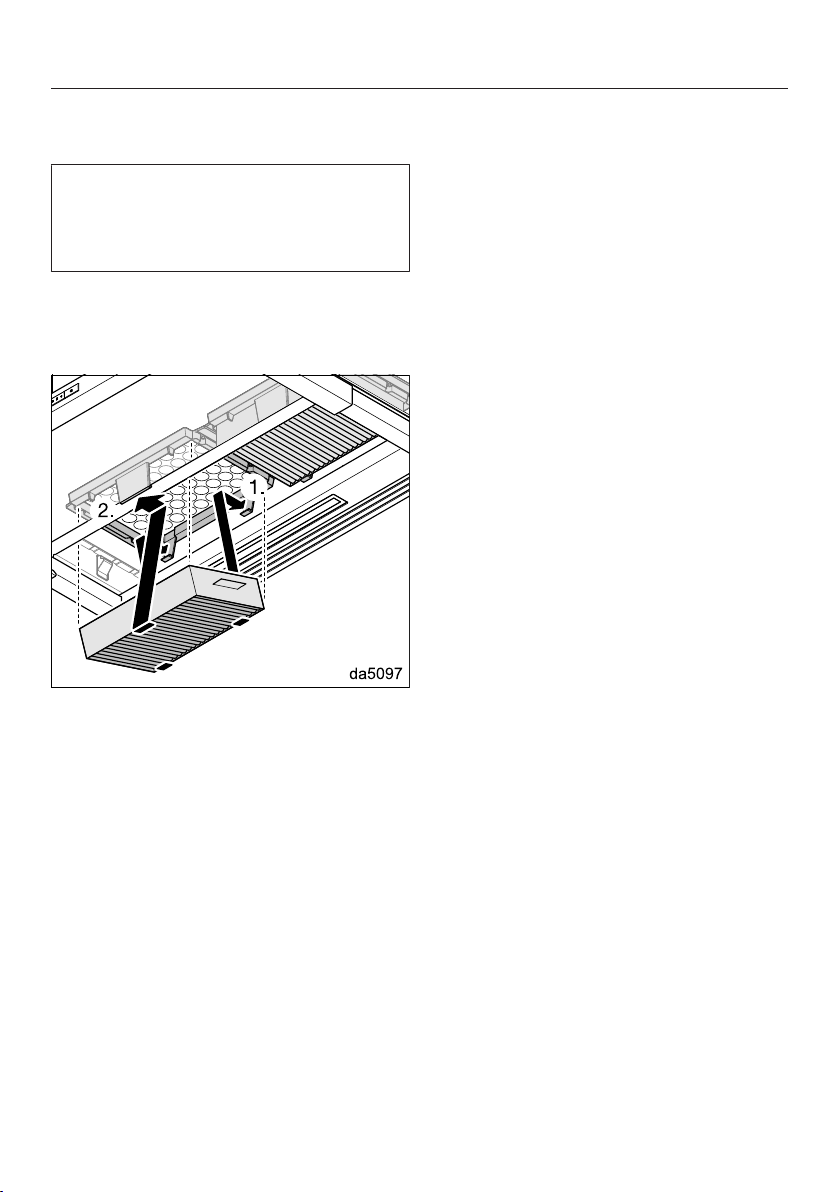

OdorFree Charcoal Filter ..................................................................................... 31
Resetting the filter saturation indicator for the charcoal filters....................... 32
Disposing of charcoal filters ........................................................................... 32
Reactivatable charcoal filters ......................................................................... 32
Installation.......................................................................................................... 33
Before installation................................................................................................ 33
Contents
3
Installation recommendations ............................................................................. 33

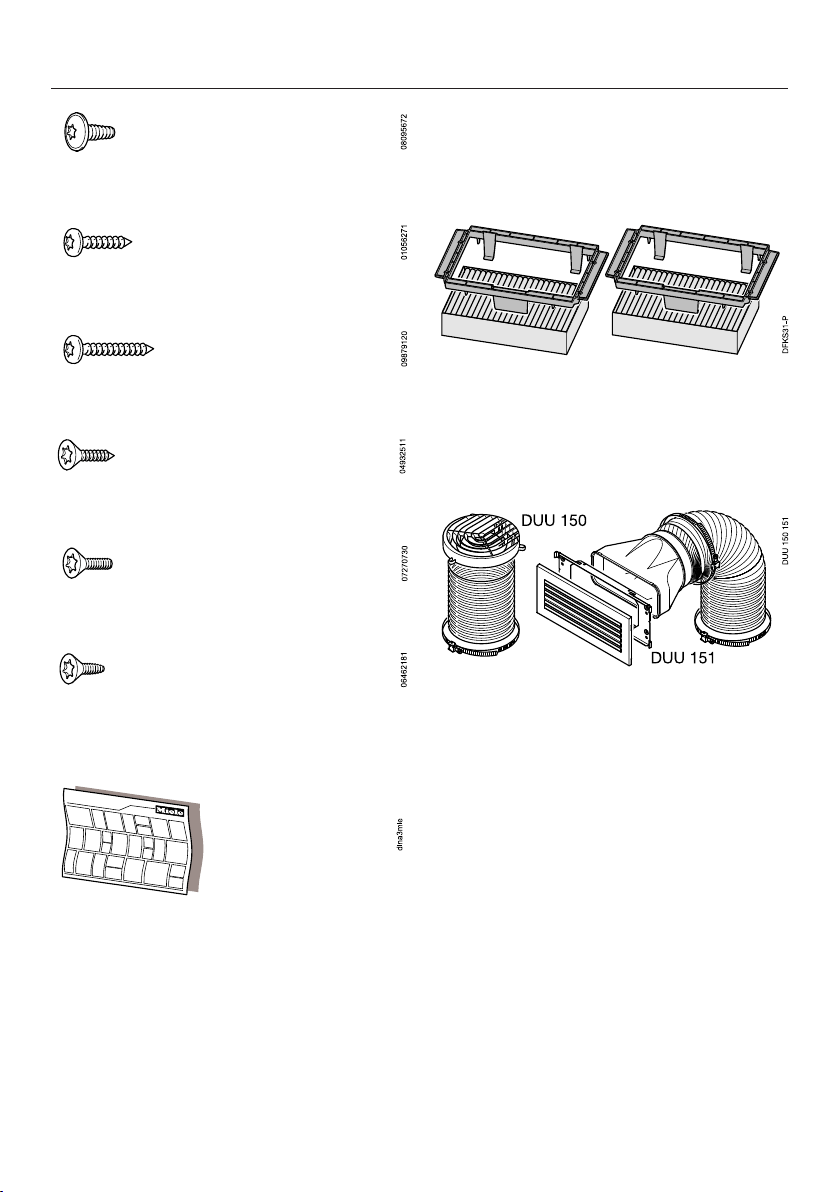

Installation materials............................................................................................ 33
Installation materials for recirculation mode................................................... 34

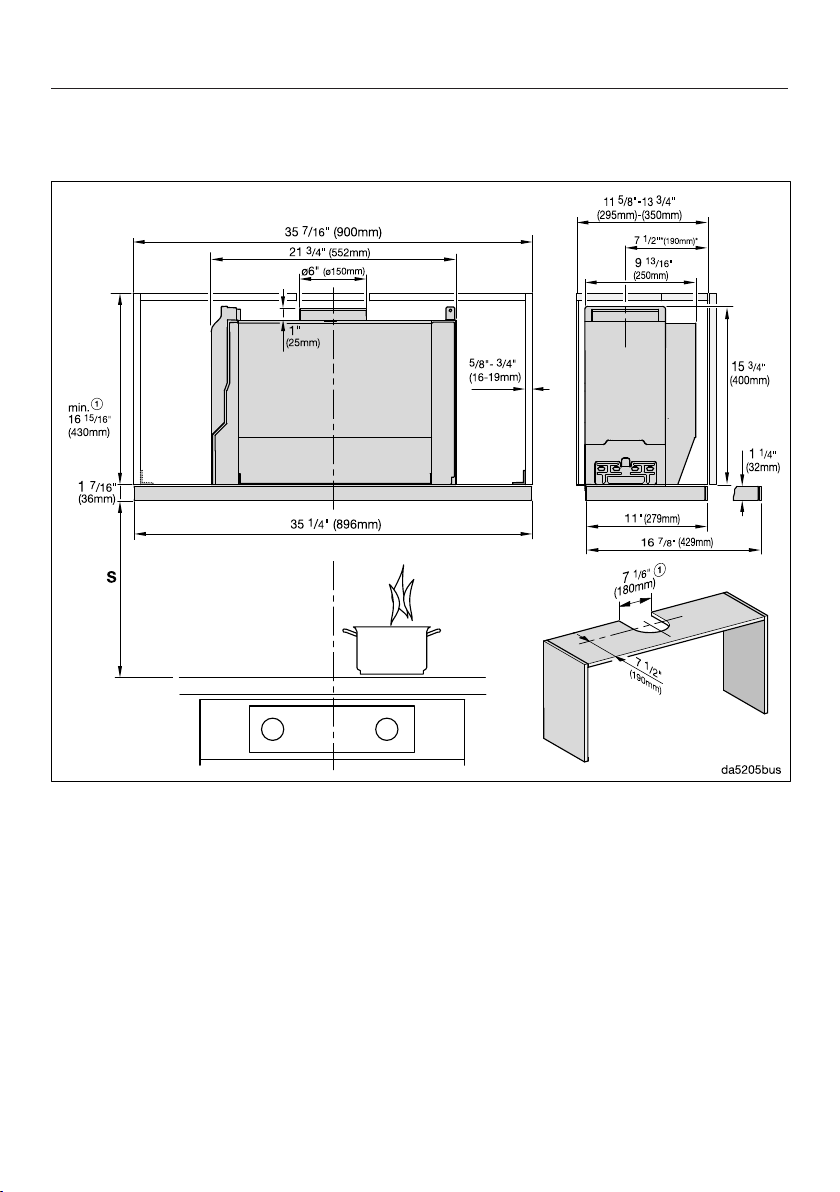

Appliance dimensions ......................................................................................... 35
Distance between cooktop and ventilation hood (S)........................................... 37
Air venting ........................................................................................................... 38

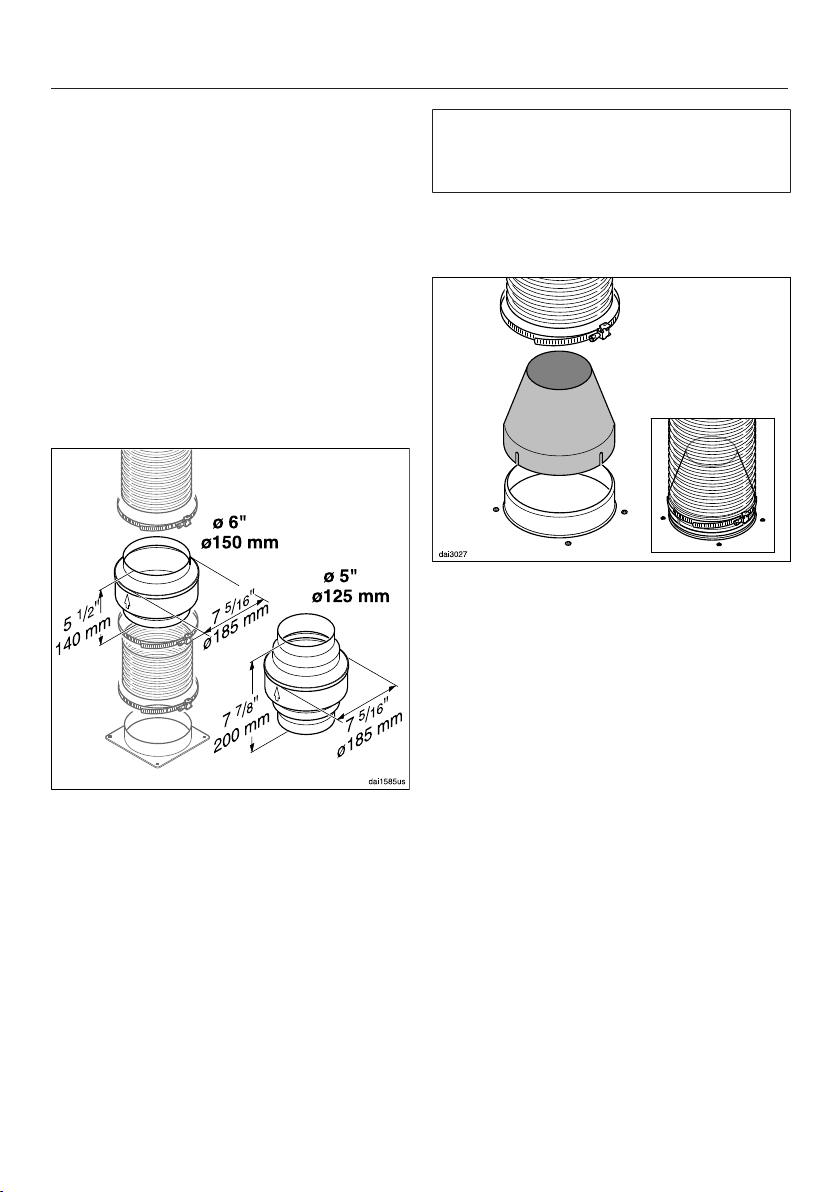

Non-return flap ............................................................................................... 38
Condensate .................................................................................................... 39
Reducing Collar ............................................................................................. 39
Electrical connection ........................................................................................... 40
Customer Service.............................................................................................. 41
Contact in the event of a fault ............................................................................. 41
Location of the data plate ................................................................................... 41
Appliance warranty and product registration ...................................................... 41
Technical data................................................................................................... 42
Optional accessories for recirculation mode....................................................... 42
IMPORTANT SAFETY INSTRUCTIONS
4
READ AND SAVE THESE INSTRUCTIONS
This appliance complies with current safety requirements.
Improper use of the appliance can lead to personal injury and
material damage.
Read all instructions before installing or using the appliance for the
first time. Only use the appliance for its intended purpose.
Keep these operating instructions in a safe place and pass them
on to any future user.
Appropriate use
CAUTION: For General Ventilating Use Only. Do Not Use To
Exhaust Hazardous Or Explosive Materials And Vapors.
This appliance is intended for residential use only. Use only as
described in these operating instructions.
This ventilation hood is not intended for outdoor use.
It must only be used to extract and clean vapors produced during
cooking. Any other use occurs at the owner's own risk.
Where a recirculation ventilation hood is installed above a gas
cooktop, please check that all local codes are observed to insure an
adequate supply of fresh air.
This appliance is suitable for installation above gas or electric
cooking surfaces.
Persons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.
IMPORTANT SAFETY INSTRUCTIONS
5
Safety with children
Children must be kept away from the ventilation hood unless they
are constantly supervised.
Children must not be allowed to clean or service the hood.
Please supervise children in the vicinity of the hood and do not let
them play with it.
The LED ClearView lighting is very intense.
Avoid looking directly into the light for prolonged periods of time.
Danger of suffocation! Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out of the reach of children.
IMPORTANT SAFETY INSTRUCTIONS
6
Technical safety
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- Use this appliance only in the manner intended by the
manufacturer. If you have questions, contact Miele.
- Before servicing or cleaning the appliance, switch power off at the
service panel and lock the service disconnecting means to
prevent power from being switched on accidentally. If the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
Installation, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation
instructions. Contact Miele’s Technical Service Department for
examination, repair or adjustment. Repairs and other work by
unauthorized persons could be dangerous and may void the
warranty.
A damaged ventilation hood can be dangerous. Always check for
visible signs of damage. Never use a damaged ventilation hood.
Be certain your appliance is properly installed and grounded by a
qualified technician. To guarantee the electrical safety of this
appliance, continuity must exist between the appliance and an
effective grounding system. It is imperative that this basic safety
requirement be met. If there is any doubt, have the electrical system
of the house checked by a qualified electrician.
To avoid damaging the ventilation hood, make sure that the
connection data (voltage and frequency) on the data plate
correspond to the building's power supply before connecting the
appliance.
If in doubt, consult a qualified electrician.
IMPORTANT SAFETY INSTRUCTIONS
7
Do not use a power bar or extension cord to connect the
ventilation hood to electricity. These are a fire hazard and do not
guarantee the required level of appliance safety.
To ensure safe operation, only use the ventilation hood after it has
been properly installed.
This ventilation hood may not be used in non-stationary locations
(e.g. on a ship).
Adequate ventilation must be provided when the hood is operated
simultaneously with devices that burn gas or other fuels.
Only open the housing as described in the enclosed “Installation
diagram” and in the “Cleaning and care” section of this manual.
Under no circumstances should any other parts of the housing be
opened.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operation faults.
If the power cord is damaged, it must only be replaced by a
qualified service technician.
During installation, maintenance, and repair work, the ventilation
hood must be disconnected from the electrical supply. It is only
completely isolated from the electricity supply if one of the following
applies:
- The circuit breakers on the electrical service panel are tripped.
- The screw-type fuses on the electrical service panel have been
removed.
- The power cord (if present) has been unplugged from the socket
(pull the plug not the cord).
IMPORTANT SAFETY INSTRUCTIONS
8
Correct use
WARNING: TO REDUCE THE RISK OF A COOKTOP GREASE
FIRE:
- a) Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers may ignite. Heat oils slowly
on low or medium settings.
- b) Always turn the hood on when cooking at a high heat.
- c) Clean the ventilation hood frequently. Grease should not be
allowed to accumulate on the fan or filter.
- d) Use the proper pan size. Always use cookware appropriate for
the size of the cooking area.
Open flames are a fire hazard.
The use of an open flame under the ventilation hood is not
permitted. To avoid the danger of fire, do not flambé or grill over an
open flame. When switched on, the ventilation hood could draw
flames into the filter. Fat deposits could ignite, presenting a fire
hazard.
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A COOKTOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
- a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal tray then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
- b) NEVER PICK UP A FLAMING PAN - You may be burned.
- c) DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
- d) Use a fire extinguisher ONLY if:
– 1) You have a class ABC extinguisher, and you know how to operate it.
– 2) The fire is small and contained in the area where it started.
– 3) The fire department is being called.
IMPORTANT SAFETY INSTRUCTIONS
9
– 4) You can fight the fire with your back to an exit.
*Based on “Kitchen Fire Safety Tips” published by NFPA.
The ventilation hood may become damaged if exposed to
excessive heat from a gas cooktop.
- When using the ventilation hood over a gas cooktop, ensure that
any burners in use are always covered by cookware. Turn burners
off when removing the cookware, even if doing so for just a short
time.
- Select cookware that is suitable for the size of the burner.
- Adjust the flame so that it never extends up the sides of the
cookware.
- Avoid overheating the cookware (e.g., when cooking with a wok).
Always turn the ventilation hood on whenever a burner is in use to
prevent damage from condensation.
Overheated oil and fat can ignite, causing fire damage to the
ventilation hood.
Do not leave cookware, pans, and deep-fat fryers unattended when
cooking with oil or fat. Similarly, never leave an open flame
unattended when grilling.
Fat and debris deposits impair the proper functioning of the
ventilation hood.
To ensure that cooking vapors are properly cleaned, never use the
ventilation hood without the grease filters in place.
Please note that the heat rising from the stovetop during cooking
can cause the ventilation hood to become very hot.
Do not touch the housing or the grease filters until the ventilation
hood has cooled down.
IMPORTANT SAFETY INSTRUCTIONS
10
Proper installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
- b) Sufficient air is needed for combustion and exhausting of gases
through the flue (chimney of fuel burning equipment to prevent
back drafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA) and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
- c) When cutting or drilling into the wall or ceiling, do not damage
electrical wiring and other hidden utilities.
- d) Ducted hoods must always be vented to the outdoors.
- e) Do not use this hood with any solid-state speed control device.
To determine whether a ventilation hood may be operated above
your cooking appliance, please refer to the information provided by
the appliance’s manufacturer.
Safety regulations prohibit the installation of a ventilation hood
over solid fuel stoves.
An insufficient safety distance between the cooktop and the
ventilation hood can result in damage to the ventilation hood.
The minimum safety distances between the top of the cooktop and
the bottom of the ventilation hood given in the “Installation” section
of this manual must be observed, unless the cooktop manufacturer
states that a greater safety distance is required.
If more than one cooking appliance is installed beneath the
ventilation hood, and they have different minimum safety distances
to the ventilation hood, select the greater distance.
IMPORTANT SAFETY INSTRUCTIONS
11
The information provided in “Installation” must be observed when
installing the ventilation hood.
Components can have sharp edges which may cause injury.
Wear gloves to protect your hands.
When installing the exhaust duct, only use pipes or tubes made of
non-flammable material. These can be obtained from your Miele
dealer or from Miele Technical Service. Always observe local building
code requirements when selecting duct material.

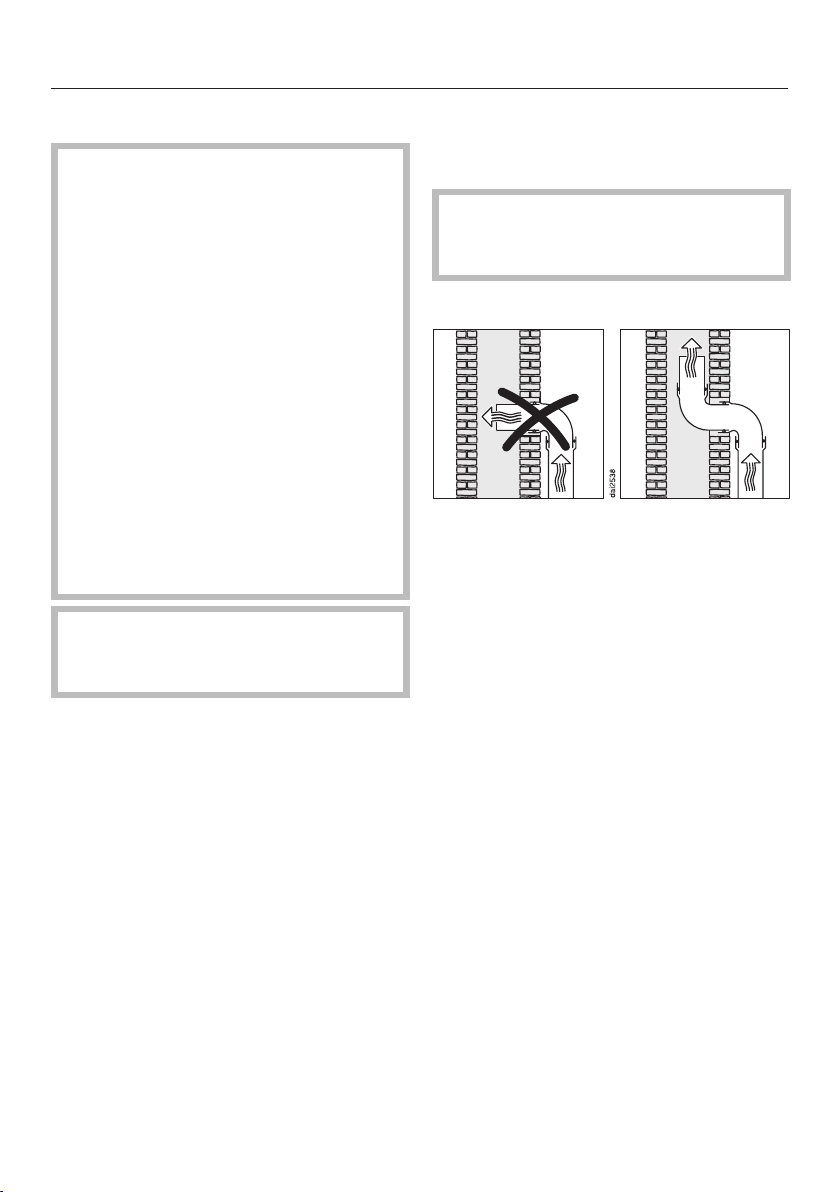

Exhaust air should not be vented into a chimney or vent flue which
is otherwise in use and should not be channeled into ducting which
ventilates rooms with fuel-burning installations.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
WARNING: TO REDUCE THE RISK OF FIRE USE ONLY METAL
DUCTWORK.
Cleaning and maintenance
There is a risk of fire if cleaning is not completed according to the
instructions in this manual.
Never use a steam cleaner to clean the ventilation hood.
The steam can reach the electrical components and cause a short
circuit.
IMPORTANT SAFETY INSTRUCTIONS
12
Accessories and parts
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty may become void.
Defective components should be replaced by Miele original parts
only. Only with these parts can safety of the appliance be assured as
intended by the manufacturer.
Miele will guarantee to supply functional parts for a minimum of
10years and up to 15years following the discontinuation of your
ventilation unit.
Caring for the environment
13
Disposal of the packing
material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these
materials improperly by disposing of
them in your household waste can be
harmful to your health and the
environment. Therefore, please do not
dispose of your old appliance with
regular household waste and follow
local regulations on proper disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please
ensure that your old appliance is kept
away from children until removal.
Observe safety requirements for
appliances that may tip over or pose an
entrapment hazard.
Guide to the ventilation hood
14
Guide to the ventilation hood
15
a
Vent collar
b
Controls
c
Charcoal filters
Optional accessories for recirculation mode
d
Grease filter
e
Pull-out canopy
f
Overhead lighting
g
Sensor control for switching the ventilation hood on and off
h
Sensor controls for switching the blower on and off and for setting the blower
power level
i
Sensor control for the delayed shutdown function
j
Sensor control for the grease filter saturation indicator
k
Sensor control for the charcoal filter saturation indicator
l
Sensor control for switching the lighting on and off and for dimming the lighting
m
Sensor controls for selecting and displaying lighting levels
Description of functions
16
The following functions are available on
your ventilation hood, depending on the
model:
Extraction mode
Air entering through the intake is
cleaned by the grease filters and
conducted out of the building.
Recirculation mode
(only with conversion kit and charcoal
filters as optional accessories, see
“Technical data”)
The air is drawn in and cleaned first by
the grease filter and then by charcoal
filters. The air is then circulated back
into the kitchen.
Before using for the first time
17
Selecting vented mode or
recirculation mode
The ventilation hood can be operated
with either vented mode or
recirculation mode. The power of the
blower is adapted to suit the selected
mode of operation. The ventilation
hood is set up at the factory for
recirculation mode. The ventilation
hood has to be reset for vented mode.
To reset it for vented mode, the filter
saturation indicator for the charcoal
filter(s) has to be deactivated.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the delayed shutdown
control until the grease filter
and charcoal filtersymbols light
up.
Touch the charcoal filter symbol.
The charcoal filter symbol and one of
the blower power level indicators will
flash.
Touch the B control.
Confirm your choice by touching the
charcoal filter control.
All the indicator lights will go out.
Vented mode has now been set.
If the selection is not confirmed within
4minutes, the system will revert to the
previous setting.
Setting up Miele@home
Required:
- a WiFi network
- the Miele app
- a Miele user account. You can
create a user account via the Miele
app.
Your ventilation hood is equipped with
an integrated WiFi module. Connect the
ventilation hood to your household WiFi
network. You will then be able to
operate the ventilation hood via the
Miele app.
Before installing the ventilation hood
in its final location, ensure that the
signal of your WiFi network is strong
enough.
You can connect to the household WiFi
network via the Miele app or via WPS.
Before using for the first time
18
Miele@home availability
The ability to use the Miele app
depends on the availability of the
Miele@home service in your country.
The Miele@home service is not
available in every country.
For information about availability,
please visit www.miele.com.

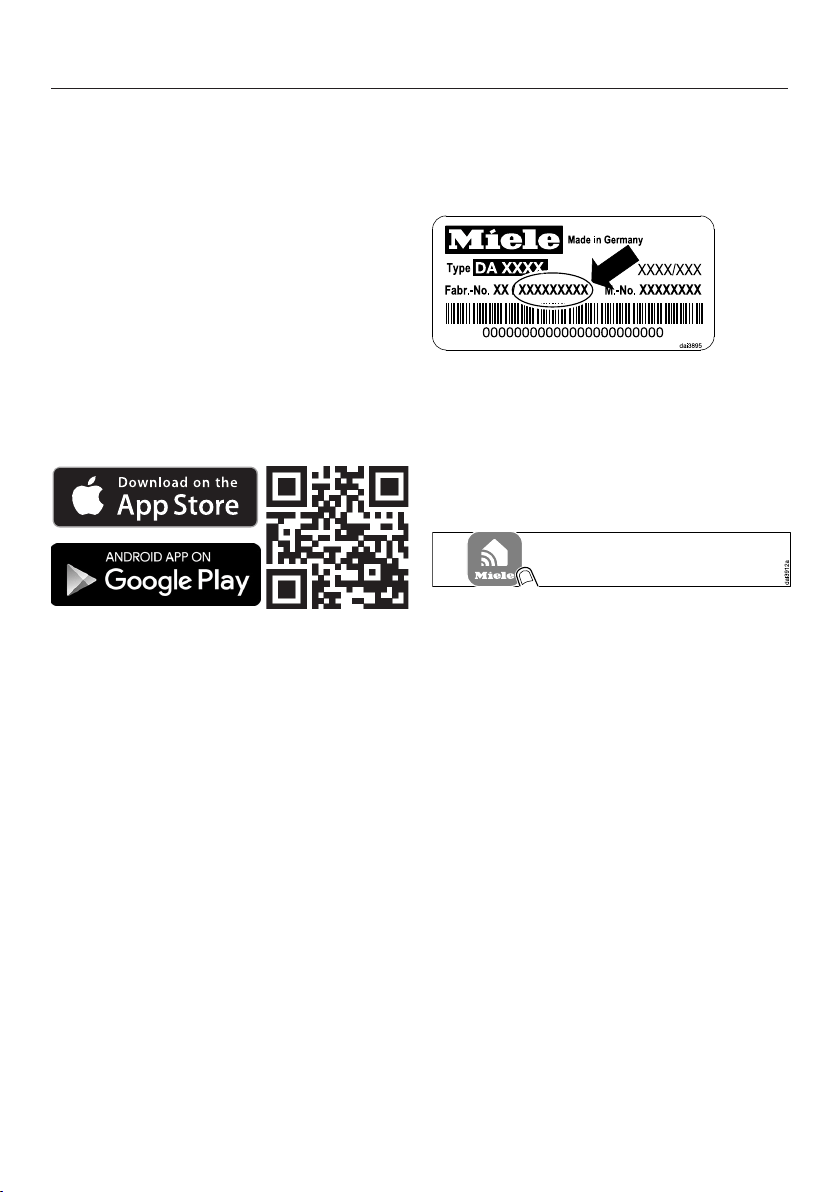

Miele App
The Miele App is available to download
free of charge from the Apple App
Store
®
or from the Google Play Store™.
Connecting via the app
The Miele app can be used to connect
to your network.
Install the Miele app on your mobile
device.
To log in you will need:
1. your WiFi network password
2. your ventilation hood password
The password for your ventilation hood
consists of the last 9digits of the serial
number. This can be found on the
appliance’s data tag.
The data plate is visible once you have
removed the grease filters.
Start signing the appliance on in the
app. Follow the signing in
instructions.
If requested to activate WiFi on the
ventilation hood, proceed as follows:
Before using for the first time
19
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the delayed shutdown
control until the grease filter
and charcoal filtersymbols light
up.
Touch the 2 control.
2 will light up constantly, 3 will flash on
and off.
The ventilation hood will be ready for
connection in the next 2minutes.
Follow the instructions in the app.
When successfully connected, 2 and 3
will light up constantly.
Exit connection mode on the
ventilation hood by touching the
delayed shutdown control.
The ventilation hood can now be
operated via the app.
Connecting via WPS
Your WiFi router must support WPS
(WiFi Protected Setup).
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the delayed shutdown
control until the grease filter
and charcoal filtersymbols light
up.
Touch the 2 control.
2 will light up constantly, 3 will flash on
and off.
The WiFi connection must be started on
the ventilation hood at the same time as
on the WPS router.
Press the B control on the ventilation
hood after a few seconds.
After a short while, 2 will light up
constantly, and 3 and B will flash on
and off.
The ventilation hood is ready for
connection in the next two minutes.
Before using for the first time
20
Start the WiFi connection on your
WiFi router.
When successfully connected, 2 and 3
will light up constantly.
Exit connection mode on the
ventilation hood by touching the
delayed shutdown control.
The ventilation hood can now be
operated via the app.
If the connection fails, you have
probably not activated WPS on your
router quickly enough. Repeat the steps
above.
Tip: If your WiFi router does not support
WPS, please connect via the Miele app.
Signing out of WiFi (reset to factory
settings)
To set up a new WiFi connection, the
existing WiFi connection must be
disconnected.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the delayed shutdown
control until the grease filter
and charcoal filtersymbols light
up.
Touch the 1 control.
With an existing WiFi connection, 2 and
3 will light up constantly.
The ventilation hood is ready for
disconnection during the next two
minutes.
Before using for the first time
21
Touch the 1 control.
2 will light up constantly, 3 will flash on
and off.
After a few seconds, 2 and 3 will flash
on and off. The connection has now
been disconnected.
Exit disconnection mode on the
ventilation hood by touching the
delayed shutdown control.
The WiFi connection has now been
disconnected. A new connection can
now be set up.
Operation
22
Turning on the fan
Switch the fan on as soon as you start
cooking. This is to ensure that vapors
are captured right from the start.
Pull out the canopy. To ensure
optimum extraction and a low noise
level, pull the canopy all the way out.
The fan switches on at power level 2.
Selecting the power level
Power levels 1 to 3 are available for light
to heavy cooking vapors and odors.
For strong vapors and odors that are
temporarily produced when cooking,
e.g., during searing, select the B
booster level.
Select the power level required by
tapping a button from 1 to B.
Selecting the second booster level
When you select the booster level,
the Bsymbol lights up. To increase
the power level further, touch B
again.
The Bsymbol lights up.
The second booster level is activated.
The air throughput is increased for a
short time.
Switching back the booster levels
If power management is activated
(default setting), the first booster level
Bautomatically switches back to
level3 after 5minutes.
The second booster level B switches
back after 2minutes (even if power
management is deactivated).
Operation
23
Selecting the delayed
shutdown time
It is advisable to run the blower for a
few minutes after cooking has finished.
This helps to neutralize any lingering
vapors and odors in the air.
It also reduces the risk of residues
accumulating in the ventilation hood
and any resultant odors.
The delayed shutdown function enables
the blower to continue running for a
pre-determined time before switching
itself off automatically.
After you have finished cooking,
touch the delayed shutdown
control.
- Once: blower switches off after
5minutes (5 lights up).
- Twice: blower switches off after
15minutes (15 lights up).
- If you touch the delayed shutdown
control again, the blower will
remain switched on ( will go out).
Turning off the blower
Touching the control for the active
blower power level again switches
the blower off.
The blower also switches off if you
push the deflector plate in.
Dimming/switching the
cooktop lighting on/off
You can turn the cooktop lighting on
and off by pulling out the canopy and
pushing it in again or by touching the
light sensor.
When the canopy is retracted, if you
simply want to switch the cooktop
lighting on, touch the On/Off
switch first followed by the light
sensor.
The lighting will switch on at maximum
brightness. All 3bars next to the light
sensor light up.
With the lighting switched on, press
and hold the light sensor. The
brightness will gradually dim until the
control is released.
To increase the brightness, press and
hold the light sensor again until
the desired level has been reached
and then release it.
Alternatively, you can select 3
brightness levels by touching the bars
next to the light sensor.
Safety shut-off
If power management has been
deactivated, the blower and cooktop
lighting will switch off automatically
after 12hours.
Press the On/Off switch to switch
them back on again.
Changing settings
24
Adjusting the grease filter filter
saturation indicator
The filter saturation indicator can be set
to suit the customer’s cooking habits.
The factory default setting is a cleaning
interval of 30hours.
- Select a shorter interval of 20hours if
food is fried regularly.
- A shorter cleaning interval is also
recommended if the customer only
cooks occasionally. This will prevent
grease buildup from hardening and
making cleaning more difficult.
- Select a longer cleaning interval of 40
or 50hours if the customer uses very
little fat when cooking.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the delayed shutdown
control until the grease filter
and charcoal filtersymbols light
up.
Touch the grease filter symbol.
The grease filter symbol and one of
the blower power level indicators will
flash.
The indicators 1 to B show the current
time setting:
1............................................... 20hours
2............................................... 30hours
3............................................... 40hours
B .............................................. 50hours
Touch the relevant digits to select the
desired duration.
Confirm your choice by touching the
grease filter control . If the
selection is not confirmed within
4minutes, the system will revert to
the previous setting.
Changing settings
25
Adjusting or deactivating the
filter saturation indicator for
the charcoal filter
Charcoal filters are needed for
recirculation mode.
The filter saturation indicator can be set
to suit the customer’s cooking habits.
It has to be deactivated for extraction
mode.
The factory default setting is an interval
of 180hours.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the delayed shutdown
control until the grease filter
and charcoal filtersymbols light
up.
Touch the charcoal filter symbol.
The charcoal filter symbol and one of
the blower power level indicators will
flash.
The indicators 1 to B show the current
time setting:
1............................................. 120hours
2............................................. 180hours
3............................................. 240hours
Indicator B.......................... deactivated
Touch the relevant digits to select the
desired duration.
Confirm your choice by touching the
charcoal filter control. If the
selection is not confirmed within
4minutes, the system will revert to
the previous setting.
Deactivating power
management
Keep in mind that this may increase
energy consumption.
Activating/deactivating power
management
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the delayed shutdown
control.
After a few seconds, the grease filter
and charcoal filter symbols light up,
and after a further 5seconds the 1
blower power level indicator lights up.
Then press in order:
- the lighting control,
- the 1 control, and then
- the lighting control.
When power management is turned on,
the 1 and B indicators will be
continuously lit.
When it is turned off, the 1 and B
indicators will flash.
Touch the 1 control to deactivate
power management.
The 1 and B indicators will flash.
Touch the B control to activate power
management.
The 1 and B indicators will be
continuously lit.
Confirm the setting by pressing the
delayed shutdown control.
All the indicator lights will go out.
Changing settings
26
If you do not confirm the new setting
within 4minutes, the ventilation hood
will revert to the previous setting.
Audible signal for the sensor
controls
When a function is selected with the
sensor controls, a short audible signal
will sound for confirmation.
The audible signal can be switched off.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the delayed shutdown
control until the grease filter
and charcoal filtersymbols light
up.
Touch the B control.
The audible signal is switched off.
If you want to switch the audible
signal on again, proceed in the same
way.
Regardless of the previous setting, the
audible signal will be reactivated when
power is restored to the ventilation
hood after it has been disconnected
from the power supply or after a
power interruption.
Energy-saving tips
27
This hood operates in a very efficient
and energy-saving manner. The
following will help you to save even
more energy when using it:
- Ensure that there is sufficient
ventilation in the kitchen when
cooking. If there is insufficient air flow
during extraction mode, the hood
cannot operate efficiently, causing
increased operating noise levels.
- Always cook with the lowest possible
setting. This produces fewer cooking
vapors so that you can use a lower
hood power level and therefore
benefit from reduced energy
consumption.
- Check the power level selected on
the hood. A lower power level is
generally sufficient for the majority of
cooking. Only use the booster level
when necessary.
- When a large volume of cooking
vapors are being produced, switch to
a high power level in good time. This
is more efficient than operating the
hood for longer to try to capture
cooking vapors that have already
been distributed throughout the
kitchen.
- Make sure that you switch off the
hood after use.
- Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
Cleaning and care
28
Before proceeding with any
maintenance or cleaning task, the
ventilation hood must be
disconnected from the power supply,
see “IMPORTANT SAFETY
INSTRUCTIONS”.
Stainless steel housing
General information
The surfaces and control buttons
are susceptible to scratching and
chipping.
Observe the following cleaning
instructions.
Clean all surfaces and control buttons
using warm water and liquid dish
soap. Apply with a sponge cloth.
After cleaning, dry the surfaces with a
soft cloth.
Avoid the following:
- Cleaners containing soda, acid or
chloride, or cleaners containing
solvents
- Abrasive cleaners such as scouring
powder, scouring liquid, abrasive
sponges such as pot scourers, or
used sponges that still contain
residues from abrasive cleaners
Important information for appliances
with stainless steel surfaces
Stainless steel surfaces can be cleaned
with a non-abrasive cleaning agent
designed specifically for use on
stainless steel.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel care
product (available from Miele).
Special instructions for glass
surfaces
Glass surfaces can be cleaned using
a cleaner specifically for use on glass.
Cleaning and care
29
Filter saturation indicator
The ventilation hood registers the length
of time it has been operated.
Filter saturation indicators show when
the filters need to be cleaned or
changed by lighting up the grease filter
symbol or charcoal filter symbol.
You can set the filter saturation
indicator to suit the type of cooking you
do (see “Changing settings”).

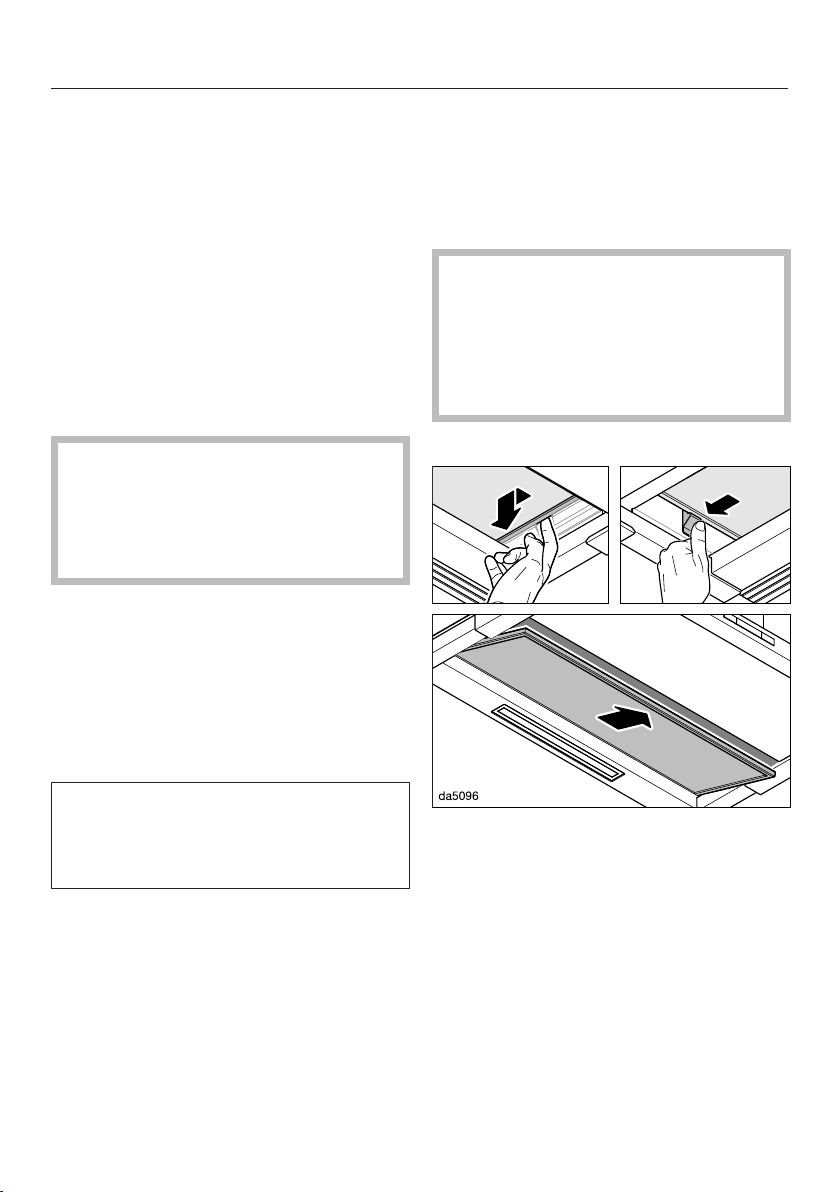

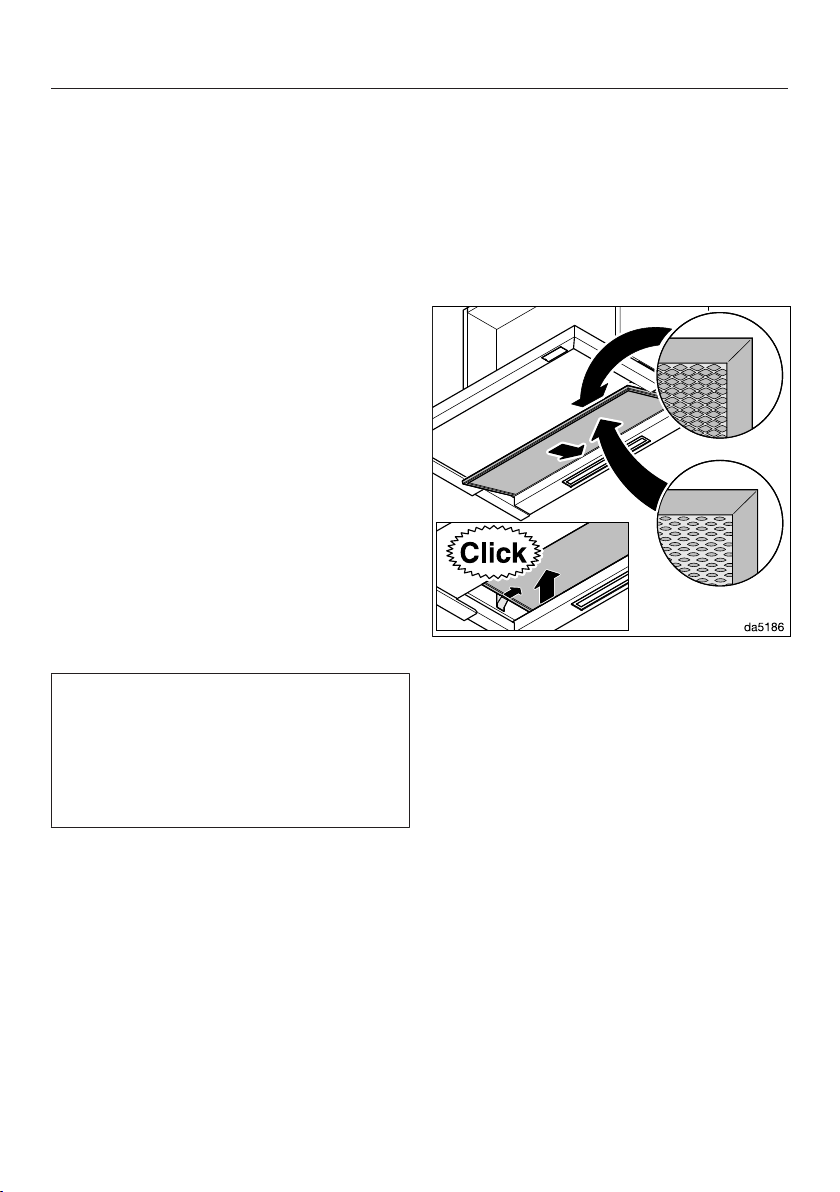

Grease filter
Risk of fire
An oversaturated grease filter is a fire
hazard.
Clean the grease filter at regular
intervals.
The re-usable metal grease filter in the
appliance removes solid particles from
the kitchen vapors (grease, dust, etc.),
preventing soiling of the ventilation
hood.
The grease filter must be cleaned at
regular intervals.
A heavily soiled grease filter hinders
air extraction and will lead to
increased levels of soiling in the
ventilation hood and in the kitchen.
Cleaning intervals
Accumulated grease solidifies over a
longer period of time and makes
cleaning more difficult. The grease filter
should therefore be cleaned at least
every 3 to 4 weeks.
The filter saturation indicator reminds
you to regularly clean the grease filter
by illuminating the grease filter
symbol.
Removing the grease filters
When handling the grease filter,
be careful not to drop it.
This can result in damage to the filter
and the cooktop below.
Make sure you hold the filter securely
at all times when handling it.
Pull out the canopy.
Push the grease filter on the right-
hand side to the left and unlock it on
the left-hand side.
Pull the grease filter down to remove
it.
Cleaning the grease filter by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and dish soap. Do not use undiluted
dish soap.
Cleaning and care
30
Unsuitable cleaning agents
Unsuitable cleaners can cause damage
to the filter surfaces if used regularly.
Do not use any of the following:
- Lime removers
- Abrasive powders or abrasive liquids
- Aggressive all-purpose cleaners and
degreaser sprays
- Oven sprays
Cleaning the grease filter in a
dishwasher
Place the grease filter upright or
slightly inclined in the lower basket.
Ensure the spray arm is not
obstructed.
Use a commonly available household
dishwashing detergent.
In a Miele dishwasher use the
“Normal” program.
Depending on the detergent used,
cleaning the filter in a dishwasher may
cause the inside filter surfaces to
become discolored. However, this will
not affect the functioning of the grease
filter in any way.
After cleaning
After cleaning, leave the filters on an
absorbent surface to dry.
When removing the filter for cleaning,
also clean off any residues of oil or fat
from the now accessible casing to
prevent the risk of these catching fire.
Reinsert the grease filter.
Cleaning and care
31
Resetting the filter saturation
indicator for the grease filter
Once cleaning is complete, the filter
saturation indicator must be reset.
While the blower is turned on, touch
the grease filter control for approx.
3seconds, until only the 1 is flashing.
The grease filter symbol goes out.
Replacing the grease filter
Regular usage and cleaning can cause
the filter surfaces to become worn.
If you identify any damage, replace the
grease filter.
Grease filters are available to order via
Miele Customer Service (see end of
these operating instructions for contact
details) or from your Miele dealer.
OdorFree Charcoal Filter
With recirculation mode, two charcoal
filters must be inserted in addition to
the grease filter. These are designed to
absorb cooking odors.
The charcoal filters are fitted in the
canopy above the grease filter.
Charcoal filters are available to order via
the Miele website or from your Miele
dealer.
The charcoal filters are listed under
“Technical data” at the back of this
booklet.
Cleaning and care
32
Installing/replacing the charcoal
filters
The matching frames must be installed
in order to use the charcoal filter.
Follow the directions on the
installation sheet.
Remove the grease filter from the
ventilation hood.
Remove the charcoal filter packaging.
Push the charcoal filters into the
frames until they engage firmly.
Reinsert the grease filter.
To remove the charcoal filters, press
the holder clip forward slightly and
pull the filters down to remove them.
When to change the OdorFree
Charcoal Filter
Replace the charcoal filters when they
no longer absorb kitchen odors
effectively, and at least every 6months.
The filter saturation indicator reminds
you to regularly replace the charcoal
filters by illuminating the charcoal filter
symbol.
Resetting the filter saturation
indicator for the charcoal filters
After changing the charcoal filters, the
filter saturation indicator must be reset.
Touch the charcoal filter control for
approx. 3seconds with the blower
switched on until only the indicator
light for level 1 is flashing.
The charcoal filter symbol will go
out.
Disposing of charcoal filters
Used charcoal filters can be disposed
of with normal household waste.
Reactivatable charcoal filters
Reactivatable charcoal filters are
available for this ventilation hood. They
can be used several times after being
reactivated in the oven.
Please follow the operating instructions
supplied with the filters.
Installation
*INSTALLATION*
33
Before installation
Before installation, it is important
to read the information contained in
this chapter and in the “IMPORTANT
SAFETY INSTRUCTIONS” chapter.
Information is subject to change. Please
refer to our website to obtain the most
current product specification, technical
& warranty information.
Installation recommendations
- To achieve optimum vapor extraction,
the hood must be centered over the
cooktop, not to the side.
- The cooktop should be no wider than
the hood. Preferably, it should be
narrower for better extraction.
- The mounting area must be easily
accessible. The ventilation hood
should be easy to reach and
disassemble in case a service call is
necessary. This should be taken into
consideration when planning the
position of cabinetry, shelves,
ceilings or decorative elements in the
vicinity of the ventilation hood.

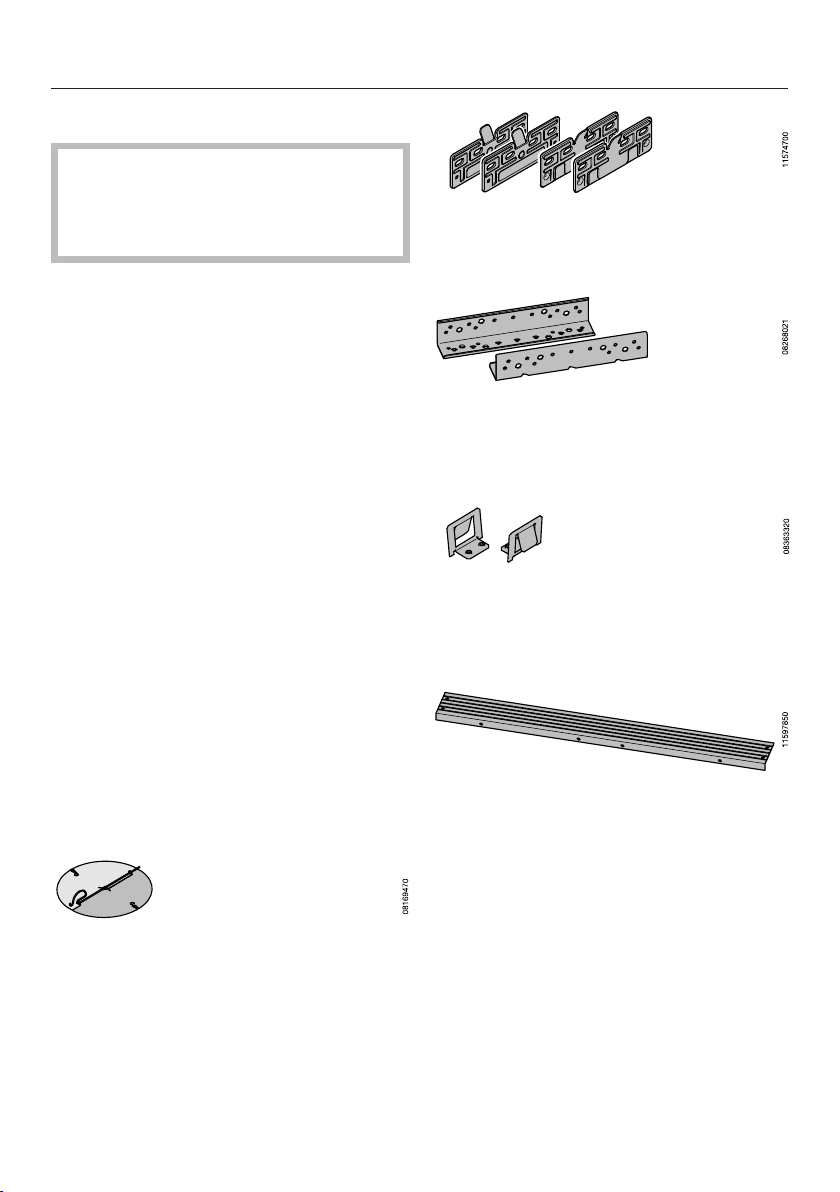

Installation materials
1 non-return flap
for fitting into the exhaust socket on
the motor unit (not needed for
recirculation mode). Depending on the
model, the non-return flap may already
be mounted.
4mounting plates
for installation in a 23 ⁵/₈" (600mm)
wide cabinet
2brackets
for installation in a 35 ⁷/₁₆" (900mm)
wide cabinet (only for 35 ¹/₄" (896mm)
wide appliances)
2 spring clips
for installation in a 35 ⁷/₁₆" (900mm)
wide cabinet (only for 35 ¹/₄" (896mm)
wide appliances)
1 spacer strip
for concealing the gap between the
rear of the appliance and the wall
Installation
*INSTALLATION*
34
4 M4x8mm screws
5 (9)* screws, 4x15mm
4screws, 4x30mm
8 (12)* screws, 4x15mm
4 screws, M4x12mm*
4 screws, M4x8.5mm*
* For 35 ¹/₄" (896mm) wide appliances
Montage
Installation
Montaje
Montaggio
Montering
Montagem
Asennus
Installation plan
See the installation plan for details of
the individual steps involved in the
installation of this appliance.
Leave these instructions with the
appliance for the consumer/user.
Installation materials for recirculation
mode
You need the following optional
accessories for recirculation mode.
DKFS31-x installation kit
contains 2holders and 2 charcoal
filters (DKFS31-900P with single-use
charcoal filters or DKFS31-R with
reactivatable charcoal filters)
DUU15x installation kit
contains a directional unit socket,
hose, and hose clips (DUU150 for the
top of the cabinet or DUU151 for the
sides or front of the cabinet).
Installation
*INSTALLATION*
35
Appliance dimensions
Diagram 2: DAS4930 in a 35 ⁷/₁₆" (900mm) wide cabinet.
The drawing is not to scale
Installation
*INSTALLATION*
36
Diagram 3: DAS4930 in a 23 ⁵/₈" (600mm) wide cabinet or in a 35 ⁷/₁₆" (900mm)
wide cabinet with side compartments.
The drawing is not to scale
See diagram 1 for side view.
Footnotes for diagrams 1to 2:
a
Vented or recirculation with DUU150 conversion kit
* In this installation situation, the deflector plate is flush with the front edge of the
cabinet niche. If you wish to position the ventilation hood further forward or further
back, you must adapt the dimensions accordingly.
Installation
*INSTALLATION*
37
Distance between cooktop and ventilation hood (S)
Provided a larger distance is not given by the manufacturer of the cooktop,
follow the minimum safety distances between a cooktop and the bottom of the
hood.
Please also observe the information contained in the “IMPORTANT SAFETY
INSTRUCTIONS” section.
Minimum distance S
Cooking appliance Miele
appliance
Non-Miele
appliance
Electric Cooktops 24" (610mm)
Electric Barbeques and Fryers 26" (660mm)
Multiburner Gas Cooktops
≤ 43,000 BTU/hr (12.6kW),
no burner > 15,000 BTU/hr (4.5 kW).
26" (660mm) 30" (760mm)
Multiburner Gas Cooktops
≤ 73,800 BTU/hr (21.6kW),
no burner > 16,500 BTU/hr (4.8 kW)
30" (760mm)
Multiburner Gas Cooktops
> 73,800 BTU/hr (21.6kW),
or one of the burners > 16,500 BTU/hr (4.8 kW)
Not possible
Single Burner Gas Cooktops
≤ 20,500 BTU/hr (6 kW)
26" (660mm) 30" (760mm)
Single Burner Gas Cooktops
> 20,500 BTU/hr (6 kW)
≤ 27,600 BTU/hr (8.1 kW)
30" (760mm)
Single Burner Gas Cooktops
> 27,600 BTU/hr (8.1 kW)
Not possible
Installation
*INSTALLATION*
38
Air venting
WARNING: Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.
To reduce the risk of fire and to
properly exhaust air, the exhaust gases
extracted by the hood should be
vented outside of the building only.
Do not vent exhaust air into spaces
within walls or ceilings or in attics,
crawl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
“IMPORTANT SAFETY
INSTRUCTIONS” to reduce the risk of
personal injury. Follow all local building
codes when installing the hood.
Only use smooth pipes or flexible
ducting made from approved non-
flammable materials for ducting.
To achieve the most efficient air
throughput with the lowest noise levels,
please note the following:
- The diameter of the vent ducting
must not be smaller than the cross-
section of the vent collar (see
“Appliance dimensions”). This applies
in particular when using flat ducting.
- The ducting should be as short and
straight as possible.
- Only use wide radius bends.
- The ducting must not be kinked or
compressed.
- All connections must be strong and
airtight.
- If the ducting has flaps, these must
be opened whenever the ventilation
hood is switched on.
Any constriction of the air throughput
will reduce extraction performance
and increase operating noise.
Ventilation stack
If the exhaust air is to be ducted into a
flue, the ducting must be directed in the
flow direction of the flue.
If the flue is used by several ventilation
units, the cross-section of the flue must
be large enough.
Non-return flap
Use a non-return flap in the vent
system.
A non-return flap ensures that when the
ventilation hood is not in operation, the
duct is closed to prevent unwanted
exchange of room air and outside air.
If the exhaust is ducted through an
outside wall, a Miele wall vent or roof
vent (available as an optional
accessory) is recommended. Both of
these have a built-in non-return flap.
If the on-site vent system does not have
a non-return flap, one is supplied with
the ventilation hood.
The non-return flap is installed in the
exhaust socket of the fan.
Installation
*INSTALLATION*
39
Condensate
If the ducting is to run through cool
rooms or ceiling space, for example, the
significant variations in temperature
between the different areas can cause
condensate to form. Insulate the
ducting to reduce temperature
variations.
If the ducting is to be laid horizontally, it
must be laid with a downwards sloping
gradient of at least ³/₈" (1cm) per meter.
This is to ensure that condensate cannot
drain back into the ventilation hood.
In addition to insulating the ducting, it is
advisable to also install a condensate
trap for collecting and evaporating any
potential condensate.
Condensate traps for 5" (125mm) or
6" (150mm) diameter ducting are
available as optional accessories.
When installing a condensate trap,
ensure that it is positioned vertically
and as closely as possible to the
ventilation hood above the exhaust
vent. The arrow on the casing indicates
the direction of airflow.
Miele will not accept warranty claims
for any functional defects or damage
caused by inadequate ducting.
Reducing Collar
(optional accessory)
If you would like to reduce the
environmental impact of your ventilation
system by limiting the CFM output the
Reducing Collar can be installed. It
reduces the air flow to less than
400CFM. Check local building codes
for max. CFM requirements.
Push the Reducing Collar on the
exhaust port of the blower.
Push the exhaust hose over it.
Secure both with a hose clamp.
Installation
*INSTALLATION*
40
Electrical connection
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
All electrical work should be
performed by a qualified electrician
in strict accordance with national
regulations (for USA: ANSI-NFPA 70)
and local safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous.
Ensure that power to the appliance is
OFF while installation or repair work
is performed.
Verify that the voltage, load and
circuit rating information found on
the data plate (see "Technical
Service"), match the household
electrical supply before installing the
hood.
Use only with ventilation hood cord-
connection kits that have been
investigated and found acceptable
for use with this model hood.
If there is any question concerning
the electrical connection of this
appliance to your power supply,
please consult a licensed electrician
or call Miele’s Technical Service
Department.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
Grounding Instructions
WARNING - Improper grounding can
result in a risk of electric shock.
This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing a path of least
resistance. This appliance is equipped
with a cord having a grounding wire
with a grounding plug.
If there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
Do not use an extension cord. If the
power supply cord is too short, have a
qualified electrician install an outlet near
the appliance.
The plug must be plugged into an
outlet that is properly installed and
grounded.
WARNING - Grounding instructions
(Canada)
The grounding-type attachment plug
shall be connected to a grounding-
type receptacle installed in
accordance with CSA C22.1-12,
Canadian Electrical Code, Part I.
Customer Service
41
Contact in the event of a fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Service Call
online at www.miele.com/service.
Contact information for Miele
Customer Service can be found at the
end of this document.
Please quote the model identifier and
serial number of your appliance (SN)
when contacting Miele Customer
Service. Both pieces of information can
be found on the data plate.
Location of the data plate
The data plate is visible once you have
removed the grease filter.
Appliance warranty and
product registration
You can register your product and/or
view the manufacturer´s warranty terms
and conditions for Miele appliances and
vacuum cleaners at
www.mieleusa.com.
Technical data
42
Blower motor 350W
Overhead lighting 3W
Total rated load 353W
Supply voltage, frequency 120VAC, 60Hz
Fuse rating 15A
Power-cord length 2.5ft (0.75m)
Weight 37.5lbs (17kg)
WiFi module
Frequency range 2.400–2.4835GHz
Maximum transmission power < 100mW
Optional accessories for recirculation mode
You need the following installation kits for recirculation mode:
- DUU150 or DUU151
- DKFS31-900P or DKFS31-R (reactivatable). The installation kits contain
2charcoal filters and the required original equipment installation frames.
Charcoal filters DKF31-900P or DKF31-R (reactivatable) must be purchased as
an optional accessory. The packs contain 2charcoal filters.
WiFi module EK037
FCC ID: 2ACUWEK037
IC: 5669C-EK037
This device complies with Part 15 of the FCC Rules and with Industry Canada
licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
9 Independence Way
Princeton, NJ 08540
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
Customer Support
Phone: 888-99-MIELE (64353)
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
Customer Care Centre
Phone:
1-800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 12 039 190 / 00en-US
DAS4930
