THANK YOU for purchasing this high-quality product.

If you should experience a problem not covered in TROUBLESHOOTING. please visit our website at w.maytag.com for additional information.

If you still need assistance. call us at 1-800-688-9900.

In Canada. visit our website at w.maytag.ca or call us at 1-800-807-6777.

You will need your model and serial number located near the door on the right-hand or left-hand side of the dishwasher interior.

Table of Contents

DISHWASHER SAFETY . QUICK STEPS .

DISHWASHER USE .. CYCLE AND OPTION DESCRIPTIONS

DISHWASHER FEEDBACK SECTION .. DISHWASHER FEATURES ..

DISHWASHER CARE ..

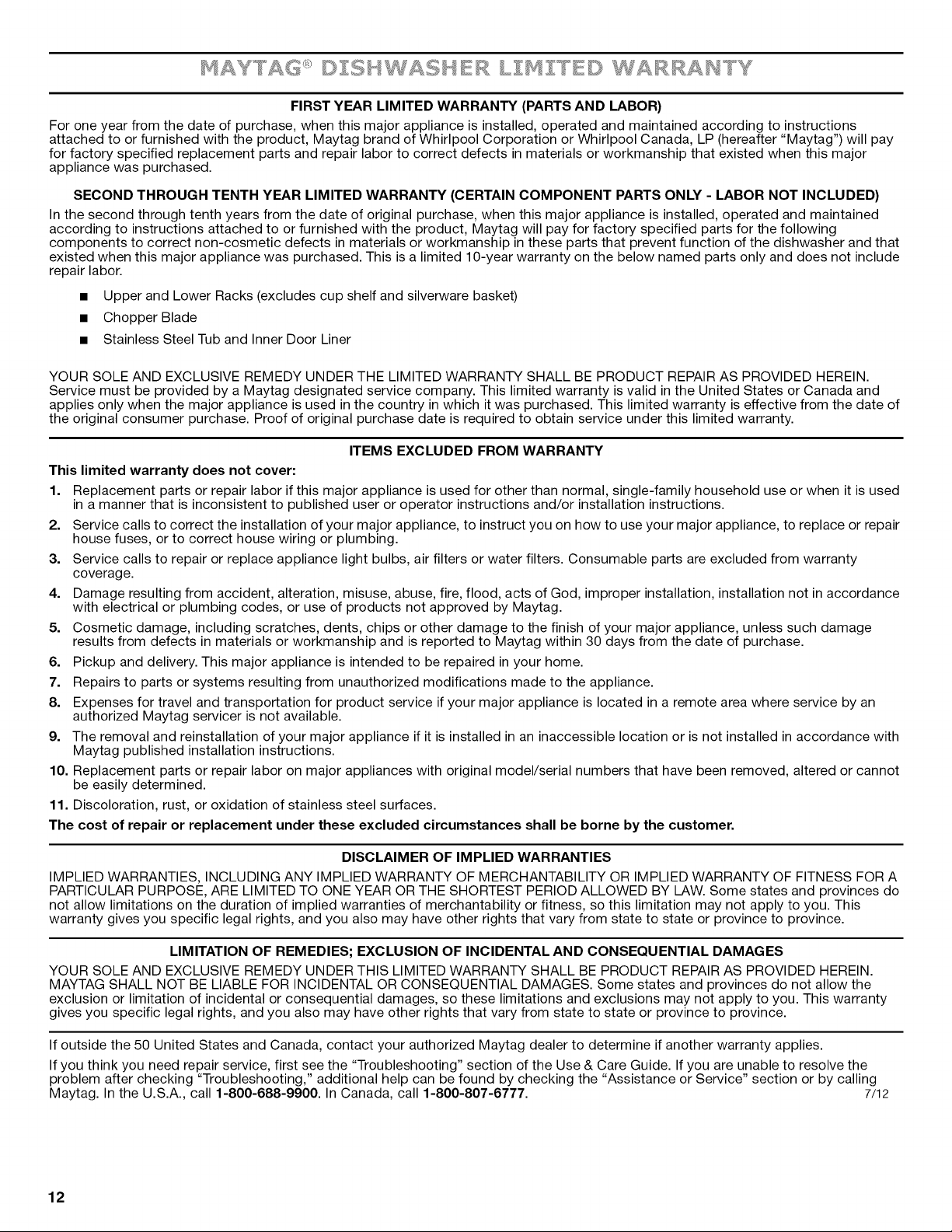

TROUBLESHOOTING WAR RANTY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance.

Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is. tell you how to reduce the chance of injury. and tell you what can happen if the instructions are not followed.

W10596271A

WARNING: When using the dishwasher. follow basic precautions. including the following:

[] Read all instructions before using the dishwasher. [] Do not tamper with controls.

[] Use the dishwasher only for its intended function.

[] Use only detergents or rinse agents recommended for use in a dishwasher. and keep them out of the reach of children.

[] When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal; and

2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.

[] Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent.

For plastic items not so marked. check the manufacturer's recommendations.

[] Do not touch the heating element during or immediately after use.

[] Do not operate the dishwasher unless all enclosure panels are properly in place.

[] Do not abuse. sit on. or stand on the door. lid. or dish racks of the dishwasher.

[] To reduce the risk of injury. do not allow children to play in or on the dishwasher.

[] Under certain conditions. hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period. before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable. do not smoke or use an open flame during this time.

[] Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it.

SAVE THESE iNSTRUCTiONS

GROUNDING iNSTRUCTiONS

For a grounded. cord-connected dishwasher:

The dishwasher must be grounded.

In the event of a malfunction or breakdown. grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.

The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded.

Do not modify the plug provided with the dishwasher; if it will not fit the outlet. have a proper outlet installed by a qualified electrician.

For a permanently connected dishwasher:

The dishwasher must be connected to a grounded metal. permanent wiring system. or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher.

SAVE THESE iNSTRUCTiONS

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

Prepare and load dishwasher.

Select a cycle and option (cycles and options vary by model.)

Add detergent and rinse aid.

Start dishwasher.

Istart I

Prepare and Load the Dishwasher

IMPORTANT: Remove leftover food. bones. toothpicks and other hard items from the dishes. Remove labels from containers before washing.

To avoid thumping/clattering noises during operation: Load dishes so they do not touch one another. Make sure lightweight load items are secured in the racks.

When loading silverware. always place sharp items pointing down. Mix other items pointing up and some pointing down.

Upper rack Lower rack

Make sure nothing keeps spray arm(s) from spinning freely. It is important for the water spray to reach all soiled surfaces.

Make sure that when the dishwasher door is closed no items are blocking the detergent dispenser.

Items should be loaded with soiled surfaces facing down and inward to the spray as shown. This will improve cleaning and drying results.

Avoid overlapping items like bowls or plates that may trap food.

Place plastics. small plates and glasses in the upper rack.

Wash only plastic items marked "dishwasher safe."

Add Detergent

NOTE: If you do not plan to run a wash cycle soon. run a rinse cycle. Do not use detergent.

Use automatic dishwasher detergent only. Add powder. liquid or tablet detergent just before starting a cycle.

Fresh automatic dishwasher detergent results in better cleaning.

Store tightly closed detergent container in a cool. dry place.

For optimum performance. tablet detergent is recommended.

MAiNWASH WASH PRE

A. Cover latch B. Main Washsection

C. Pre-Wash section

Premeasured Detergents

Many detergents now come in premeasured forms (gel packs. tablets. or powder packs). These forms are suitable for all hardness and soil levels. Always place premeasured detergents in the main compartment and close the lid.

Using dishwasher detergent tablets and packs have been proven better than powder. liquid or gel detergents to reduce filming on your dishes.

By using these tablets and packs. over time this will start to reduce or eliminate white film. Also. by using a rinse aid you can minimize repeat buildup of white film.

Powder and Gels

The amount of detergent to use depends on:

How much soil remains on the items - Heavily soiled loads require more detergent.

The hardness of the water - If you use too little in hard water. dishes won't be clean. If you use too much in soft water. glassware will etch.

Soft to Medium Water (0-6 grains per U.S. gallon) [typical water softener water and some city water] Medium to Hard Water (7-12 grains per U.S. gallon) [well water and some city water]

Depending on your water hardness. fill the Main Wash section of the dispenser as shown. Fill the Pre-Wash section to the level shown. if needed.

NOTE: Fill amounts shown are for standard powdered detergent.

Follow instructions on the package when using other dishwasher detergent.

Add Rinse Aid

HardWater

SoftWater HerdWater SoftWater

MainWash Pro-Wash

Your dishwasher is designed to use rinse aid for good drying performance.

Without rinse aid your dishes and dishwasher interior will have excessive moisture. The heat dry option will not perform as well without rinse aid.

Rinse aid keeps water from forming droplets that can dry as spots or streaks. They also improve drying by allowing water to drain off of the dishes after the final rinse.

Rinse aid helps to reduce excess moisture on the dish racks and interior of your dishwasher.

Full

Check the rinse aid indicator. Add rinse aid when indicator drops to "Refill" level.

To add rinse aid. turn the dispenser cap to "Open" and lift off. Pour rinse aid into the opening until the indicator level is at "Full." Replace the dispenser cap and turn to "Lock." Make sure cap is fully locked.

USERINSEAIDFOR

BETTERDRYINGLock

Open Add

1/4turn to lock

NOTE: For most water conditions. the factory setting of 2 will give good results. If you have hard water or notice rings or spots. try a higher setting.

Turn the arrow adjuster inside the dispenser by either using your fingers or inserting a flat-blade screwdriver into the center of the arrow and turning.

STEP3

Select a Cycle (cycles vary by model)

See "Cycle and Option Descriptions" charts in the following section.Heavier cycles and options affect cycle length. Some cycles and options will take up to 31/2hours to complete.

Select Options (options vary by model)

See "Cycle and Option Descriptions" charts in the following section.

You can customize your cycles by pressing the options desired and pressing Start/Resume.

STEP4

Start or Resume a Cycle

Run hot water at the sink nearest your dishwasher until the water is hot. Turn off water.

Push door firmly closed. The door latches automatically.

Select the wash cycle and options desired and press START/RESUME OR press Istart START/RESUME to repeat the same cycle and options as in the previous wash cycle.

You can add an item anytime before the main wash starts.

Open the door slowly and add the item. Close the door firmly.

Press the START/RESUME button. the cycle resumes automatically at the point of interruption.

For fully integrated models (controls on top of console)

Select the wash cycle and options desired.

Press the START/RESUME button once and close the door.

After a brief pause. the cycle will begin. The door must be closed within 3 seconds after pushing START/RESUME or the lights will flash. and the dishwasher will not begin. Press the START/RESUME button again and shut the door within 3 seconds.

You can add an item anytime before the main wash starts. Open the door slowly and add the item. Press the START/RESUME then close the door.

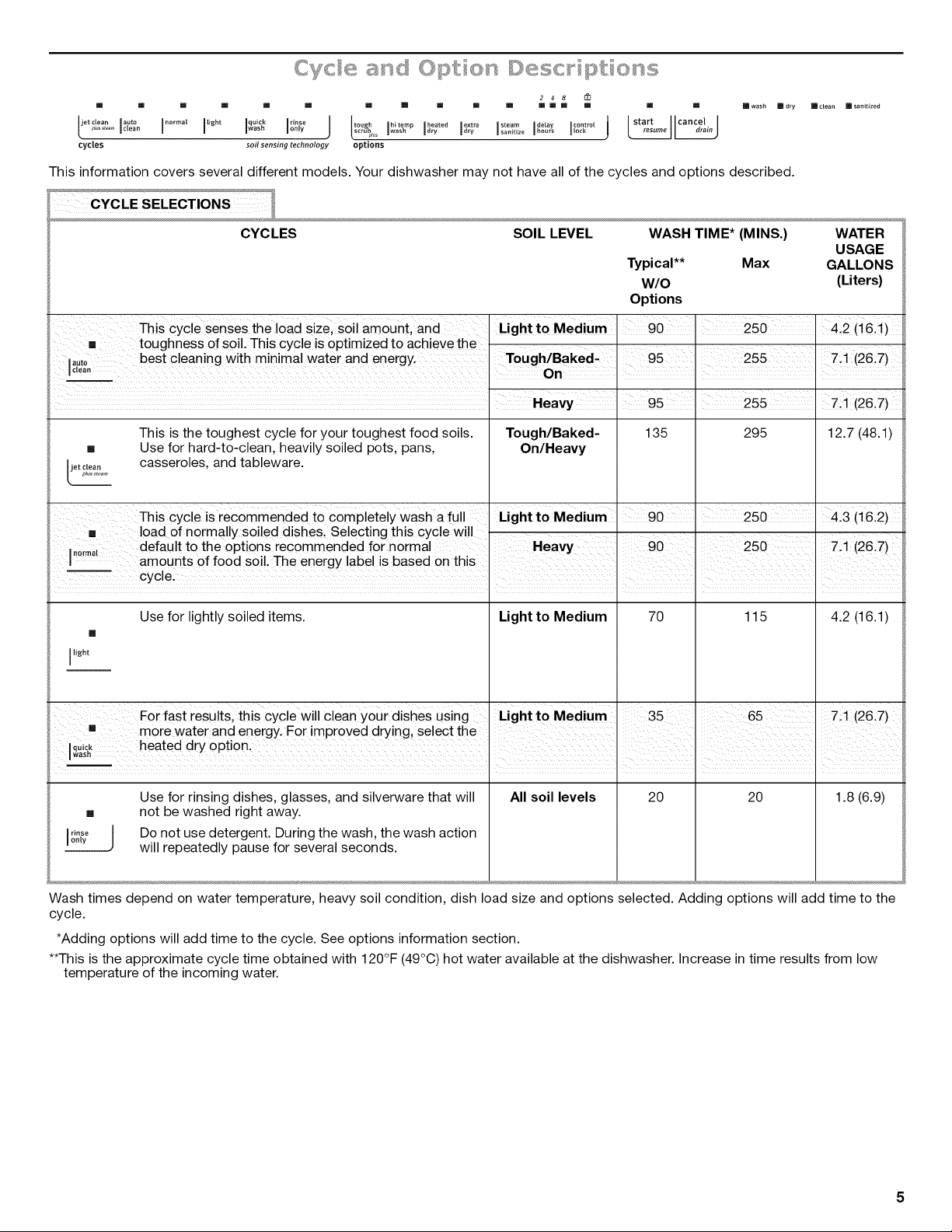

Cyceand

+ptes Desc Dt®ss

This information covers several different models. Your dishwasher may not have all of the cycles and options described.

CYCLE SELECTIONS

CYCLES SOIL LEVEL WASH TIME* (MINS.) WATER USAGE GALLONS (Liters) Typical** Max W/O Options

This cYCle senses the load size. soil amount. and Light to Medium 4.2(16. ) toughness of s0il. This cycle is optimized to achieve the best c!eaning with minimal water and energy.

Tough/Baked.

(26.7) I ctean On

Heavy. i 7;1 (26. )

This is the toughest cycle for your toughest food soils.

Tough/Baked 12.7 (48.1) Use for hard-to-clean. heavily soiled pots. pans.

On/Heavy jetclean casseroles. and tableware.

This cycle is recommended to completely wash a tu!!

Light to Medium (1612) load of normally soiled dishes. Selecting this cycle wil niimi default to the options recommended for normal Heavy 711(26.7) amounts of food sol!. The energy label is based on this CYCe

Use for lightly soiled items.

Light to Medium 4.2 (16.1)

Forfast results. this cYCle will Clean yourdishes Lightt0 Medium 7;1(26"7) more water and energy. For impr0ved drying se!ect the )#_} heated dry opt on

Use for rinsing dishes. glasses. and silverware that will All soil levels 1.8 (6.9) not be washed right away.

Wash times depend on water temperature. heavy soil condition. dish load size and options selected. Adding options will add time to the cycle.

+Adding options will add time to the cycle. See options information section.

+*This is the approximate cycle time obtained with 120°F (49°C) hot water available at the dishwasher. Increase in time results from low temperature of the incoming water.

OPTIONS dish load types DESCRIPTIONS USE WITH: ADDED TIME TO CYCLE

Tough food soils Increases the target water JetClean ®Plus Steam. Normal.

5 rain. temperature during the wash portions and Auto Clean Itough of the cycle. Adds heat. time. and water.

Tough food Soils inCreases the target water JetClean® Plus Steam Noimal rain: temperature during the wash portions and Auto Clean of the cyclei Adds heat. time. and water.

All loads Use for best drying results in JetClean ®Plus Steam. Normal.

45 rain. combination with rinse aid. Turn off Light. Quick Wash and Auto Clean heated when loads contain plastic dry dinnerware that may be sensitive to higher temperatures.

To sanitize your dishes Raises the water temperature in the JetClean ®Plus Steam. Normal.

30 rain. and glassware final rinse to approximately 154°F and Auto Clean (68°C). This high temperature rinse It'_%e sanitizes your dishes and glassware in accordance with NSF/ANSI Standard 184 for Residential Dishwashers.

Certified residential dishwashers are not intended for licensed food establishments.The Sanitize option adds heat and time to the cycle.

All loadS Delays the start Of a CYcleup to All cycles 4. 8 I Shouts

Ihde .ay

All loads When Control Lock is lit. all buttons All cycles are disabled.

If you press any pad while your dishwasher is locked. the light flashes. The door can be opened I. oO. ro. while the controls are locked.

CONTROL PURPOSE COMMENTS

To start or resume a if the door is opened during a CYcle or the power is interrupted. the START/RESUME indicator flashes. The cycle will not resume until the door is closed and START/RESUME is pressed.

NOTE" If the START/RESUME button is located ont0P of door. push door firmly closed Within 3 seconds of pressing START/RESUME.

If the door is not closed within 3 seconds. the start button LED wil! flash. an audible tone wi!! be heard. and the cycle wi!! not start.

Icancel I

To reset any cycle or options during selection.

To cancel a wash cycle after it's started.

Press CANCEL/DRAIN to reset any control selections made.

See "Canceling A Cycle" and "Changing A Cycle After Dishwasher Is Started" sections.

To turn the audible Press and h01d theHi Temp Wash button for 3 seconds to tuin the aUdibie tones on 0roff.

CONTROL PURPOSE COMMENTS

Lights are used to follow the If you select the Sani Rinse option. when the Sani Rinse cycle is finished. progress of the dishwasher the Sanitized indicator glows. If your dishwasher did not properly sanitize cycle. Located on the front your dishes. the light flashes at the end of the cycle. This can happen if the of the dishwasher for front cycle is interrupted. or the water could not be heated to the required control models. and located temperature. on the top of the door for hidden control models.

The Clean and Sanitized lights go off when youopen and close the door or press CANCEL.

Canceling A Cycle

Open the door slightly to stop the cycle. Wait for the spraying action to stop before completely opening the door.

Press CANCEL!DRAIN button once. The Cancel/Drain light will light up.

Close the door and the dishwasher starts a drain cycle (if water remains in bottom of dishwasher).

Let the dishwasher drain completely.

The Cancel/Drain light turns off after 2 minutes.

Changing A Cycle After Dishwasher Is Started

You can interrupt a cycle and restart your dishwasher from the beginning using the following procedure.

Open the door slightly to stop the cycle. Wait for the spraying action to stop. then open the door completely.

Check that detergent dispenser cover is still closed.

If cover is open. you will need to refill the detergent dispenser before restarting your new cycle.

Press CANCEL!DRAIN twice to reset the control.

Select new cycles and options.

Press START/RESUME.

Adding A Dish After Dishwasher Is Started

Check if Add a Dish indicator is lit. (Available on some models. Otherwise. proceed to Step 2.)

Open the door slightly to stop the cycle. Wait for the spraying action to stop. then open the door completely.

Check whether the detergent dispenser cover is still closed.

If it is open. the wash cycle has already started and adding a dish is not recommended.

If detergent has not yet been used (detergent dispenser cover is closed). you may add a dish.

Press START/RESUME.

Your Maytag dishwasher may have some or all of these features.

Split & Fit TM Utensil Basket

The split silverware basket can be separated and placed in various locations in the lower rack. Load flatware and utensils into both sections or just one. depending on your load.

Stack-Rack Shelves

Increase loading flexibility items like casserole dishes stay stable while the folding shelf allows you to load smaller items on top.

To split the basket: Hold the basket firmly along the sides.

Unlock the baskets.

Silverware basket lids: Use silverware basket lids to provide optimal spacing and best cleaning performance.

Utensil Basket

Use the utensil basket to hold specialty cooking utensils (serving spoons. spatulas. and similar items). or overflow silverware items.

The basket hangs on the bottom rack in the right-hand corner. Load the basket while it is on the bottom rack or remove the basket for loading on a counter or table.

NOTE: Spin the spray arms. Be sure items in the basket do not stop the rotation of the spray arms.

Folding Tines

The Folding Tines located in the front right corner (lower rack) provide convenient loading space for large. bulky items such as pots. pans and mixing bowls.

To lower the tines: Gently push the tines out of each holder toward the center rack and lay the tines down.

Cup Clips

The Cup Clips located in the center of the upper rack can be used to hold lightweight plastic items. cooking utensils and knives in place. Clip the item between the tine and the clip.

Cup Shelf

Fold down the extra shelf on the left-hand or right-hand side of the top rack to hold additional cups. stemware. or long items such as utensils and spatulas.

Adjustable Upper Racks

The Adjustable Upper Rack and can be raised or lowered to accommodate taller plates. platters. pots or pans. in the upper or lower racks. Full size dinner plates can be loaded in the upper rack if it is in the lower position.

NOTE: Always unload racks before adjusting.

To raise the rack. press both rack adjusters and lift the rack until it is in the Up position and level.

To lower the rack. press both rack adjusters and slide the rack back to its lower position.

Manual Adjustable 2-Position Top Rack

You can raise or

IMPORTANT: Remove dishes prior to removing the top rack from the dishwasher.

To raise. remove rack and slide lower wheels into the rails as directed in "Removable Top Rack" section.

To lower. remove rack and slide upper wheels into the rails as directed in "Removable Top Rack" section.

Removable Upper Rack

The removable rack allows you to wash larger items such as stock pots. roasters. and cookie sheets in the lower level rack.

IMPORTANT: Remove dishes prior to removing the upper rack from the dishwasher.

To remove the rack (push tab rack stop):

Roll the rack ½ to 1/2of the way out.

Remove each plastic push tab rack stop from the end of each track by pushing inward toward the rack on the ridged area of the rack stop. The rack stop will snap open and can be easily removed by pulling straight out. Be sure to support the track while removing rack stops.

Roll the rack all the way out of the track and remove from the dishwasher.

To replace the rack: Reverse the above steps 1-3 to replace the rack into the dishwasher.

CLEANING THE DISHWASHER

Cleaning the exterior

Clean the exterior of the dishwasher with a soft. damp cloth and mild detergent.

If your dishwasher has a stainless steel exterior. a stainless steel cleaner is recommended Stainless Steel Cleaner and Polish Part Number 31464.

Cleaning the interior

Clean the interior of the dishwasher. with a paste of powdered dishwasher detergent and water or use liquid dishwasher detergent on a damp sponge to clean the cooled-down interior.

A white vinegar rinse may remove white spots and film. Vinegar is an acid. and using it too often could damage your dishwasher.

Put 2 cups (500 mL) white vinegar in a glass or dishwasher-safe measuring cup on the bottom rack. Run the dishwasher through a complete washing cycle using an air-dry or an energy-saving dry option.

Do not use detergent.

Vinegar will mix with the wash water.

Dishwasher Maintenance Procedure

Removal of Hard Water / Filming: Recommended use of a monthly maintenance product such as affresh ®t Dishwasher Cleaner Part Number W10282479.

Load your dishwasher (preferably with dishes affected by filming/hard water).

Place tablet in main wash compartment of detergent dispenser.

Select cycle/option best for heavily soiled dishes and start dishwasher.

NOTE: Recommended to use a premeasured detergent tablet or pack for regular daily use.

Drain air gap

If you have a drain air gap. check and clean it if the dishwasher isn't draining well.

To Reduce Risk of Property Damage During Vacation or Extended Time Without Use

When you will not be using the dishwasher during the summer months. turn off the water and power supply to the dishwasher.

Make sure the water supply lines are protected against freezing conditions.

Ice formations in the supply lines can increase water pressure and cause damage to your dishwasher or home. Damage from freezing is not covered by the warranty.

When storing your dishwasher in the winter. avoid water damage by having your dishwasher winterized by authorized service personnel.

First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions) to possibly avoid the cost of a service call.

In the U.S.A. www.maytag.com In Canada. www.maytag.ca

PROBLEM SOLUTION

DISHWASHER DOES NOTE: It is normal for the dishwasher to repeatedly pause several times during a cycle.

NOT RUN If the START/RESUME light is blinking. press START/RESUME and close the door firmly within 3 seconds.

Press and hold HI TEMP WASH for 3 seconds to turn the audible tones on or off.

Be sure the door is closed and latched.

Be sure you have selected a cycle. (See "Cycles and Options Descriptions.")

Be sure there is power to the dishwasher. A circuit breaker or fuse might have tripped.

If lights other than START/RESUME blink and the unit will not run. you will need to call for service.

DETERGENT REMAINS IN THE Check for dishware such as cookie sheets. cutting boards. or large containers. etc. that may be DISPENSER OR blocking the detergent dispenser from opening properly.

TABLET IS ON BOTTOM OFTUB Be sure your detergent is fresh and lump free.

Be sure the cycle has been completed (green light is on). If it has not been completed. you will need to resume the cycle by pressing START/RESUME and closing the door within 3 seconds.

CYCLE RUNS TOO LONG NOTES:

To use less water and reduce energy consumption you will encounter cycles that typically run for up to 3 hours.

A water heater setting of 120°F (49°C) is best. The dishwasher will delay longer while heating cooler water.

Some options will add time to the cycle. (See "Cycles and Options Descriptions" section.) The Heated Dry option adds 1/2hour.

Try the Quick Wash cycle.

Run the hot water at a faucet close to the dishwasher before starting the cycle.

DISHWASHER NOT DRYING NOTE: Plastic and items with nonstick surfaces are difficult to dry because they have a porous surface which tends to collect water droplets. Towel drying may be necessary.

Use of rinse aid along with the Heated Dry option is needed for proper drying.

Proper loading of items can affect drying. (See specific loading instructions within this guide.)

Glasses and cups with concave bottoms hold water. This water may spill onto other items when unloading. Unload the bottom rack first.

Locate these items on the more slanted side of the rack for improved results.

WILL NOT FILL Be sure the water is turned on to the dishwasher.

Check that the float is free from obstructions. (See "Parts and Features.")

Check for suds in the dishwasher. If foam or suds are detected. the dishwasher may not operate properly or may not fill with water.

WATER REMAINS IN THE TUB/ Be sure the cycle has been completed (the green light is on). If the cycle has not been completed.

WILL NOT DRAIN you will need to resume the cycle by pressing START/RESUME and closing the door within 3 seconds.

If dishwasher is connected to a food waste disposer. be sure the knockout plug has been removed from the disposer inlet.

Check for kinks in the drain hose.

Check for food obstructions in the drain or disposer.

Check your house fuse or circuit breaker.

HARD WATER NOTE: Extremely hard water mineral deposits can cause damage to your dishwasher and make it (WHITE RESIDUE ON difficult to achieve good cleaning. A water softener is strongly recommended if your hardness is DISHWASHER INTERIOR OR 15 grains or more. If a water softener is not installed. the following steps may help: GLASSWARE) Use a commercial cleaner designed for dishwashers once per month.

Always use a rinse aid.

Always use a high-quality. fresh detergent.

Use a detergent booster/water softener additive designed for dishwashers.

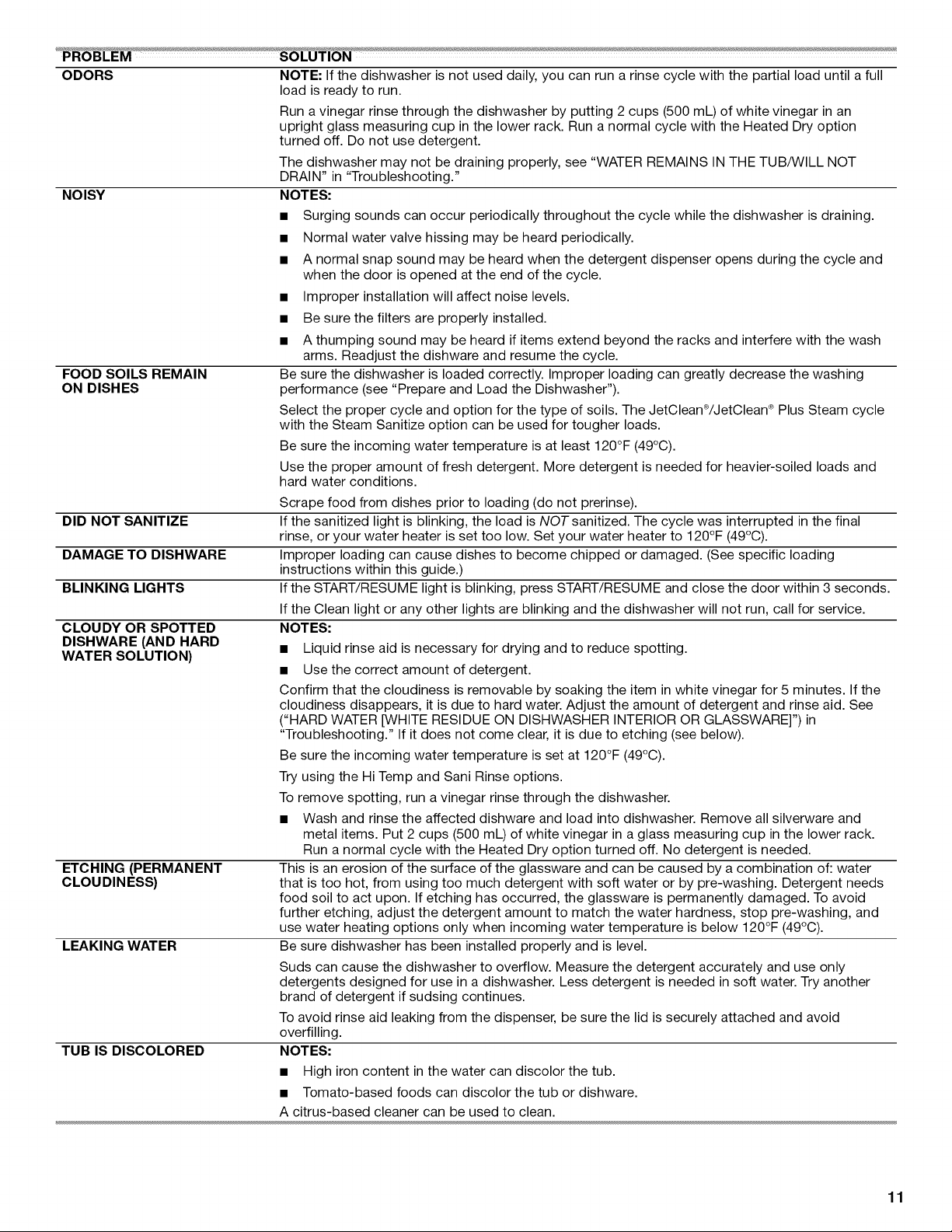

PROBLEM SOLUTION ODORS NOTE: If the dishwasher is not used daily. you can run a rinse cycle with the partial load until a full load is ready to run.

Run a vinegar rinse through the dishwasher by putting 2 cups (500 mL) of white vinegar in an upright glass measuring cup in the lower rack. Run a normal cycle with the Heated Dry option turned off. Do not use detergent.

NOISY

The dishwasher may not be draining properly. see "WATER REMAINS IN THE TUB/WILL NOT DRAIN" in "Troubleshooting." NOTES:

Surging sounds can occur periodically throughout the cycle while the dishwasher is draining.

Normal water valve hissing may be heard periodically.

A normal snap sound may be heard when the detergent dispenser opens during the cycle and when the door is opened at the end of the cycle.

Improper installation will affect noise levels.

Be sure the filters are properly installed.

FOOD SOILS REMAIN ON DISHES

A thumping sound may be heard if items extend beyond the racks and interfere with the wash arms. Readjust the dishware and resume the cycle.

Be sure the dishwasher is loaded correctly.

Improper loading can greatly decrease the washing performance (see "Prepare and Load the Dishwasher").

Select the proper cycle and option for the type of soils. The JetClean®/JetClean ®Plus Steam cycle with the Steam Sanitize option can be used for tougher loads.

Be sure the incoming water temperature is at least 120°F (49°C).

Use the proper amount of fresh detergent.

More detergent is needed for heavier-soiled loads and hard water conditions.

DID NOT SANITIZE

DAMAGE TO DISHWARE

BLINKING LIGHTS

CLOUDY OR SPOTTED DISHWARE (AND HARD WATER SOLUTION)

Scrape food from dishes prior to loading (do not prerinse).

If the sanitized light is blinking. the load is NOT sanitized. The cycle was interrupted in the final rinse. or your water heater is set too low. Set your water heater to 120°F (49°C).

Improper loading can cause dishes to become chipped or damaged. (See specific loading instructions within this guide.) If the START/RESUME light is blinking. press START/RESUME and close the door within 3 seconds.

If the Clean light or any other lights are blinking and the dishwasher will not run. call for service.

NOTES:

Liquid rinse aid is necessary for drying and to reduce spotting.

Use the correct amount of detergent.

Confirm that the cloudiness is removable by soaking the item in white vinegar for 5 minutes. If the cloudiness disappears. it is due to hard water. Adjust the amount of detergent and rinse aid. See ("HARD WATER [WHITE RESIDUE ON DISHWASHER INTERIOR OR GLASSWARE]") in "Troubleshooting." If it does not come clear. it is due to etching (see below).

Be sure the incoming water temperature is set at 120°F (49°C).

ETCHING (PERMANENT CLOUDINESS)

LEAKING WATER

TUB IS DISCOLORED

Try using the Hi Temp and Sani Rinse options.

To remove spotting. run a vinegar rinse through the dishwasher. Wash and rinse the affected dishware and load into dishwasher. Remove all silverware and metal items. Put 2 cups (500 mL) of white vinegar in a glass measuring cup in the lower rack.

Run a normal cycle with the Heated Dry option turned off. No detergent is needed.

This is an erosion of the surface of the glassware and can be caused by a combination of: water that is too hot. from using too much detergent with soft water or by pre-washing.

Detergent needs food soil to act upon. If etching has occurred. the glassware is permanently damaged.

To avoid further etching. adjust the detergent amount to match the water hardness. stop pre-washing. and use water heating options only when incoming water temperature is below 120°F (49°C).

Be sure dishwasher has been installed properly and is level.

Suds can cause the dishwasher to overflow. Measure the detergent accurately and use only detergents designed for use in a dishwasher.

Less detergent is needed in soft water. Try another brand of detergent if sudsing continues.

To avoid rinse aid leaking from the dispenser. be sure the lid is securely attached and avoid overfilling.

NOTES:

High iron content in the water can discolor the tub. Tomato-based foods can discolor the tub or dishware.

A citrus-based cleaner can be used to clean.

FIRST YEAR LIMITED WARRANTY (PARTS AND LABOR)

For one year from the date of purchase. when this major appliance is installed. operated and maintained according to instructions attached to or furnished with the product.

Maytag brand of Whirlpool Corporation or Whirlpool Canada. LP (hereafter "Maytag") will pay for factory specified replacement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased.

SECOND THROUGH TENTH YEAR LIMITED WARRANTY (CERTAIN COMPONENT PARTS ONLY - LABOR NOT INCLUDED) In the second through tenth years from the date of original purchase. when this major appliance is installed. operated and maintained according to instructions attached to or furnished with the product.

Maytag will pay for factory specified parts for the following components to correct non-cosmetic defects in materials or workmanship in these parts that prevent function of the dishwasher and that existed when this major appliance was purchased.

This is a limited 10-year warranty on the below named parts only and does not include repair labor.

Upper and Lower Racks (excludes cup shelf and silverware basket)

Chopper Blade

Stainless Steel Tub and Inner Door Liner

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THE LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.

Service must be provided by a Maytag designated service company. This limited warranty is valid in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased.

This limited warranty is effective from the date of the original consumer purchase.

Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover:

Replacement parts or repair labor if this major appliance is used for other than normal. single-family household use or when it is used in a manner that is inconsistent to published user or operator instructions and/or installation instructions.

Service calls to correct the installation of your major appliance. to instruct you on how to use your major appliance. to replace or repair house fuses. or to correct house wiring or plumbing.

Service calls to repair or replace appliance light bulbs. air filters or water filters. Consumable parts are excluded from warranty coverage.

Damage resulting from accident. alteration. misuse. abuse. fire. flood. acts of God. improper installation. installation not in accordance with electrical or plumbing codes. or use of products not approved by Maytag.

Cosmetic damage. including scratches. dents. chips or other damage to the finish of your major appliance. unless such damage results from defects in materials or workmanship and is reported to Maytag within 30 days from the date of purchase.

Pickup and delivery. This major appliance is intended to be repaired in your home.

Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized Maytag servicer is not available.

The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with Maytag published installation instructions.

10. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed. altered or cannot be easily determined.

11. Discoloration. rust. or oxidation of stainless steel surfaces.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES.

INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness. so this limitation may not apply to you. This warranty gives you specific legal rights. and you also may have other rights that vary from state to state or province to province.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.

MAYTAG SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages. so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights. and you also may have other rights that vary from state to state or province to province.

If outside the 50 United States and Canada. contact your authorized Maytag dealer to determine if another warranty applies.

If you think you need repair service. first see the "Troubleshooting" section of the Use & Care Guide. If you are unable to resolve the problem after checking "Troubleshooting. additional help can be found by checking the "Assistance or Service" section or by calling Maytag.

In the U.S.A. call 1-800-688-9900.

In Canada. call 1-800-807-6777.

7/12

For additional product information. in the U.S.A. visit www.maytag.com In Canada. visit www.maytag.ca

If you do not have access to the Internet and you need assistance using your product or you would like to schedule service. you may contact Maytag at the number below.

Have your complete model number ready. You can find your model number and serial number on the label located near the door on the right-hand or left-hand side of the dishwasher interior.

For assistance or service in the U.S.A. call 1-800-688-9900.

In Canada. call 1-800-807-6777.

If you need further assistance. you can write to Maytag with any questions or concerns at the address below:

In the U.S.A.: In Canada:

Maytag Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor. MI 49022-2692

Please include a daytime phone number in your correspondence.

Maytag Brand Home Appliances Customer eXperience Centre 200 - 6750 Century Ave.

Mississauga.

Ontario L5N 0B7

Please keep this User Instructions and model number information for future reference.

W10596271A ®/[email protected] Used under license in Canada.

All rights reserved.

5/13 Printed in U.S.A.



Newest Added: MDE18MNAZW0 MER6875AAQ MDB5601AWW3 M8RXDGFXB00 MGC7430DS00

Maytag MDB7749SBW3 | Pages: 41 | Created on: 2022-07-16 | File type: PDF | Filename: 57398787_mdb7749sbw3.pdf | Size: 6.03 MB | Language: English | Other documents: 1 files.

Download User Manual

Product Infomation and Reviews - MDB7749SBW3 photo

MDB7749SBW3 Photo

Maytag in United States

1-800-344-1274 Hours of Operation Mon-Fri: 8 a.m. - 8 p.m. EST
