Installation
Instructions
READ
BEFORE
INSTALLING
UNIT
OPP
Window
Mounting
(5,000~6,500
BTU)
INSTALLATION
WARNINGS
AND
CAUTION
%*
Carefully
read
the
installation
manual
before
beginning.
%*
Follow
each
step
as
shown.
%*
Observe
all
local,
state,
and
national
electrical
codes
and
by
qualified,
licensed,
authorized
personnel
only.
%
Pay
attention
to
danger
and
safety
notices.
To
avoid
risk
of
personal
injury,
property
damage,
or
product
damage
due
to
the
weight
of
this
device
and
sharp
edges
that
may
be
exposed:
%
Air
conditioners
covered
in
this
manual
pose
an
excessive
weight
hazard.
Two
or
more
people
are
needed
to
move
and
install
the
unit.
Wear
protective
gloves
whenever
lifting
or
carrying
the
unit.
AVOID
the
sharp
metal
fins
of
front
and
rear
coils.
To
prevent
injury
or
strain,
use
proper
lifting
and
carrying
techniques
when
moving
unit.
%*
Carefully
inspect
location
where
air
conditioner
will
be
installed.
Be
sure
it
will
support
the
weight
of
the
unit
overan
extended
period
of
time.
%
Handle
air
conditioner
with
care.
*
Make
sure
air
conditioner
does
not
fall
during
installation.
yi
NOTE:
Mounting
Hardware
Qty.
1/2"
screws
7
@
SAVE
CARTON
and
these
INSTALLATION
INSTRUCTIONS
for
future
reference.
The
carton
is
lock
frame
2
the
best
way
to
store
unit
during
winter,
or
when
not
(For
Wooden
windows)
in
use.
@
DO
NOT
USE
ANY
SCREWS
OTHER
THAN
THOSE
SPECIFIED
HERE.
@
FOR
SAFETY
REASONS,
THE
TOP
RAIL
MUST
BE
lock
frame
2
(For
Vinyl-Clad
windows)
SECURELY
FASTENED
WITH
ALL
FOUR
(4)
sash
lock
1
SCREWS.
weather
seals
5
(6"X3/4"X1/12")
Some
assembly
is
required.
Please
read
these
instructions
window
sash
seal
foam
1
carefully.
Top
Rail
Hardware
Qty.
TOOLS
NEEDED
SUD
3/8"
Screw
4
e
Philips
Screwdriver
\
Top
Rail
|
e
Drill
(If
pilot
holes
are
needed)
Before
installing,
the
top
rail
must
be
assembled
on
the
unit.
A.
Remove
the
air
conditioner
from
the
carton
and
place
on
a
flat
surface.
B.
Remove
top
rail
from
the
rear
of
the
packaging
material
as
shown
in
Fig.
A
C.
Align
the
hole
in
the top
rail
with
those
on
the top
of
the
unit
as
shown
in
Fig.
B
D.
Secure
the
top
rail
to
the
unit
with
the
3/8”
Screws
as
shown
in
Fig.
C
Top
Rail
Packaging
2020211A1420
1

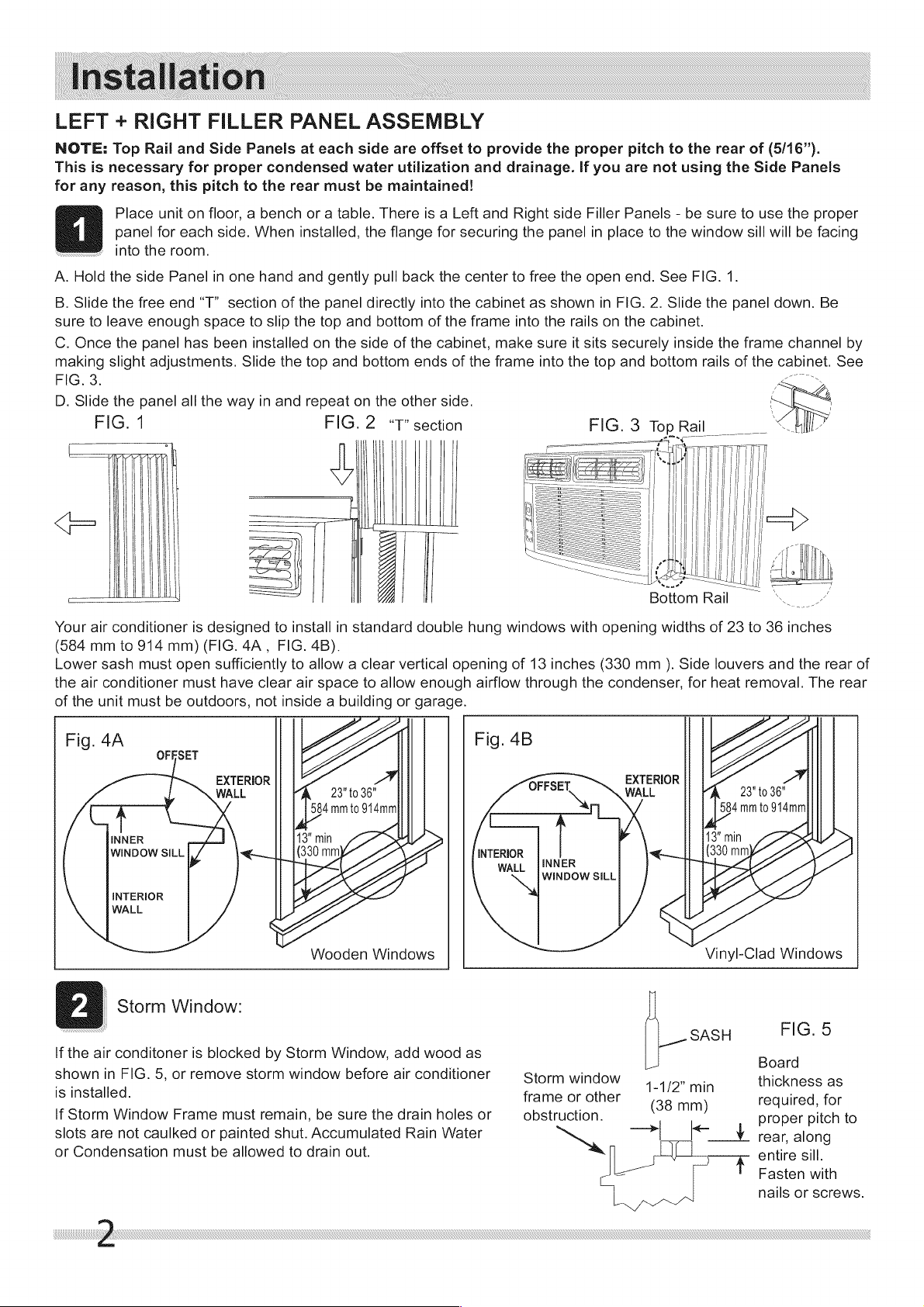

Installation
LEFT
+
RIGHT
FILLER
PANEL
ASSEMBLY
NOTE:
Top
Rail
and
Side
Panels
at
each
side
are
offset
to
provide
the
proper
pitch
to
the
rear
of
(5/16”).
This
is
necessary
for
proper
condensed
water
utilization
and
drainage.
If
you
are
not
using
the
Side
Panels
for
any
reason,
this
pitch
to
the
rear
must
be
maintained!
Place
unit
on
floor,
a
bench
or
a
table.
There
is
a
Left
and
Right
side
Filler
Panels
-
be
sure
to
use
the
proper
panel
for
each
side.
When
installed,
the
flange
for
securing
the
panel
in
place
to
the
window
sill
will
be
facing
into
the
room.
A.
Hold
the
side
Panel
in
one
hand
and
gently
pull
back
the
center
to
free
the
open
end.
See
FIG.
1.
B.
Slide
the
free
end
“T”
section
of
the
panel
directly
into
the
cabinet
as
shown
in
FIG.
2.
Slide
the
panel
down.
Be
sure
to
leave
enough
space
to
slip
the
top
and
bottom
of
the
frame
into
the
rails
on
the
cabinet.
C.
Once
the
panel
has
been
installed
on
the
side
of
the
cabinet,
make
sure
it
sits
securely
inside
the
frame
channel
by
making
slight
adjustments.
Slide
the top
and
bottom
ends
of
the
frame
into
the top
and
bottom
rails
of
the
cabinet.
See
FIG.
3.
D.
Slide
the
panel
all
the
way
in
and
repeat
on
the
other
side.
FIG.
1
FIG.
2
“T’
section
ae)
|
Z
=e
Z
—
Z
Your
air
conditioner
is
designed
to
install
in
standard
double
hung
windows
with
opening
widths
of
23
to
36
inches
(584
mm
to
914
mm)
(FIG.
4A,
FIG.
4B).
Lower
sash
must
open
sufficiently
to
allow
a
clear
vertical
opening
of
13
inches
(330
mm
).
Side
louvers
and
the
rear
of
the
air
conditioner
must
have
clear
air
space
to
allow
enough
airflow
through
the
condenser,
for
heat
removal. The
rear
of
the
unit
must
be
outdoors,
not
inside
a
building
or
garage.
Fig.
4A
OFFSET
EXTERIOR
EXTERIOR
WALL
23"
to
36" 23"
to
36"
INTERIOR
WALL
<{
WINDOW
SILL
INTERIOR
WALL
Vinyl-Clad
Windows
Wooden
Windows
2
Storm
Window:
FIG.
5
SASH
If
the
air
conditoner
is
blocked
by
Storm
Window,
add
wood
as
Board
shown
in
FIG.
5,
or
remove
storm
window
before
air
conditioner
Storm
window
;
thickness
as
is
installed
1-1/2"
min
;
.
frame
or
other
required,
for
.
;
(38
mm)
,
If
Storm
Window
Frame
must
remain,
be
sure
the
drain
holes
or
obstruction.
proper
pitch
to
slots
are
not
caulked
or
painted
shut.
Accumulated
Rain
Water
UN
>|
<<
4
rear,
along
or
Condensation
must
be
allowed
to
drain
out.
Fr
entire
sill.
=
Fasten
with
nails
or
screws.
2
installation

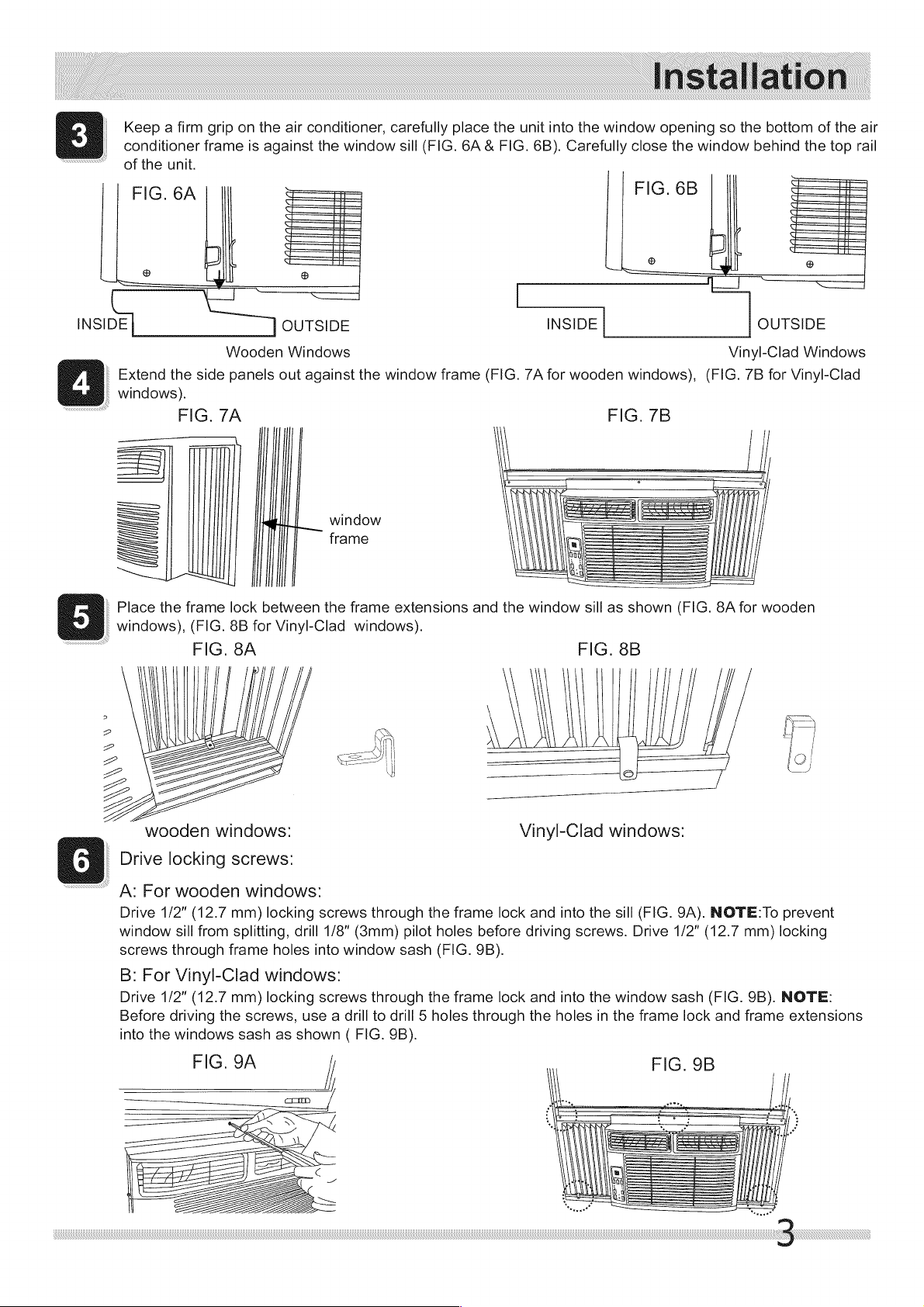

Keep
a
firm grip
on
the
air
conditioner,
carefully
place
the
unit
into
the
window
opening
so
the
bottom
of
the
air
conditioner
frame
is
against
the
window
sill
(FIG.
6A
&
FIG.
6B).
Carefully
close
the
window
behind
the top
rail
of
the
unit.
FIG.
6B
FIG.
6A
INSIDE
OUTSIDE
INSIDE
OUTSIDE
Wooden
Windows
Vinyl-Clad
Windows
Extend
the
side
panels
out
against
the
window
frame
(FIG.
7A
for
wooden
windows),
(FIG.
7B
for
Vinyl-Clad
windows).
FIG.
7A
FIG.
7B
window
frame
Place
the
frame
lock
between
the
frame
extensions
and
the
window
sill
as
shown
(FIG.
8A
for
wooden
windows),
(FIG.
8B
for
Vinyl-Clad
windows).
FIG.
8A
FIG.
8B
a
ry
-
fof
NO
L\A
ZN
L\
wl
;
ot
cl
|)
Ge
lo]
"||
—
iY
wooden
windows:
Vinyl-Clad
windows:
6
|
Drive locking
screws:
A:
For
wooden
windows:
Drive
1/2”
(12.7
mm)
locking
screws
through
the
frame
lock
and
into
the
sill
(FIG.
9A).
NOTE:To
prevent
window
sill
from
splitting,
drill
1/8”
(8mm)
pilot
holes
before
driving
screws.
Drive
1/2”
(12.7
mm)
locking
screws
through
frame
holes
into
window
sash
(FIG.
9B).
B:
For
Vinyl-Clad
windows:
Drive
1/2”
(12.7
mm)
locking
screws
through
the
frame
lock
and
into
the
window
sash
(FIG.
9B).
NOTE:
Before
driving
the
screws,
use
a
drill
to
drill
5
holes
through
the
holes
in
the
frame
lock
and
frame
extensions
into
the
windows
sash
as
shown
(
FIG.
9B).
FIG.
9A
|
FIG.
9B

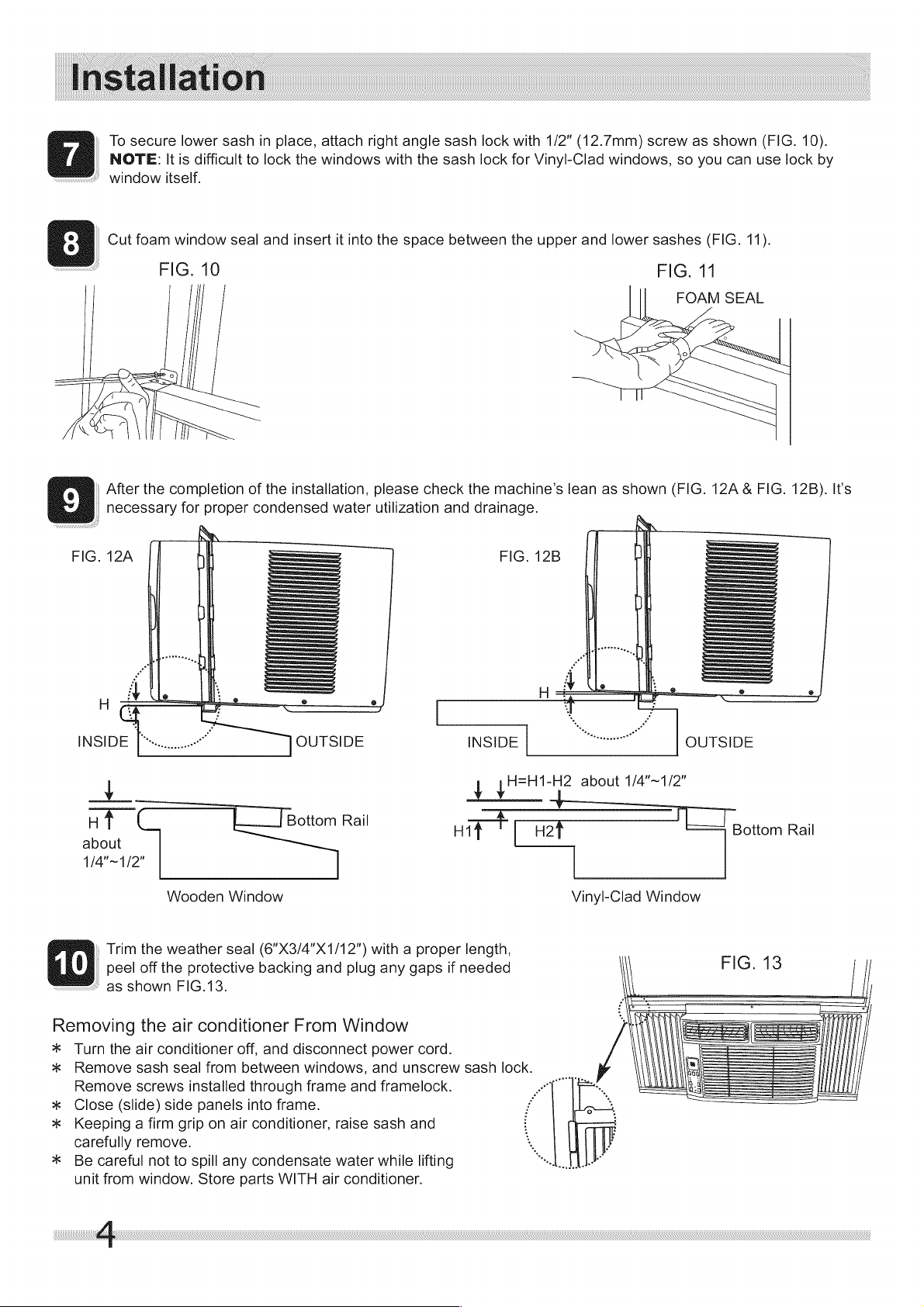

Installation
NOTE:
It
is
difficult
to
lock
the
windows
with
the
sash
lock
for
Vinyl-Clad
windows,
so
you can use
lock
by
To
secure
lower
sash
in
place,
attach
right
angle
sash
lock with
1/2”
(12.7mm)
screw
as
shown
(FIG.
10).
window
itself.
ER
Cut
foam
window
seal
and
insert
it
into
the
space
between
the
upper
and
lower
sashes
(FIG.
11).
FIG.
10
FIG.
11
FOAM
SEAL
After
the
completion
of
the
installation,
please
check
the
machine's
lean
as
shown
(FIG.
12A
&
FIG.
12B).
It's
necessary
for
proper
condensed
waier
utilization
and
drainage.
FIG.
12A
FIG.
12B
INSIDE
[oe
“
OUTSIDE
INSIDE
Tn
OUTSIDE
1
pHeHt-He
about
1/4"~1/2”
-_
‘
H
t
Bottom
Rail
a
|
H1
H2
Bottom
Rail
about
t
L
Het
1/4"~1/2"
Wooden
Window
Vinyl-Clad
Window
Trim
the
weather
seal
(6"X3/4"X1/12")
with
a
proper
length,
peel
off
the
protective
backing
and
plug
any
gaps
if
needed
|
FIG.
13
as
shown
FIG.13.
Removing
the
air
conditioner
From
Window
*
Turn
the
air
conditioner
off,
and
disconnect
power
cord.
%*
Remove
sash
seal
from
between
windows,
and
unscrew
sash
lock.
Remove
screws
installed
through
frame
and
framelock.
%*
Close
(slide)
side
panels
into
frame.
*
Keeping
a
firm
grip
on
air
conditioner,
raise
sash
and
carefully
remove.
*
Be
careful
not
to
spill
any
condensate
water
while
lifting
unit
from
window.
Store
parts
WITH
air
conditioner.
4
