V150 SG2E / V190 SG2E
Instructionsforuse
2
GB
In case this appliance contains hydrocar-
bon refrigerant please refer to guidelines
listed below.
As the appliance contains a ammable
refrigerant, it is essential to ensure that the
refrigerant pipes are not damaged.
Standard EN378 species that the room in
which you install your appliance must have
a volume of 1m³ per 8 g of hydrocarbon
refrigerant used in the appliances. This is
to avoid the formation of ammable gas/
air mixtures in the room where the appli-
ance is located in the event of a leak in the
refrigerant circuit. The quantity of the refrig-
erant used in your appliance is indicated on
the rating plate.
WARNING: Keep ventilation openings in
the appliance’s cabinet or in
the built-in structure clear of
obstruction
WARNING: Do not use other mechanical
devices or other means to ac-
celerate the defrosting process
than those recommended by
the manufacturer
WARNING: Do not damage the refrigerant
system
WARNING: Do not use electricalappli-
ances inside the refrigerated
storage compartment, unless
they are of a type recommend-
ed by the manufacturer
WARNING: Do not expose the appliance
to rain
WARNING: This appliance is not intended
for use by young children or
inrm persons unless they have
been adequately supervised by
a responsible person to ensure
that they can use the appliance
safely. Young children should
be supervised to ensure that
they do not play with the appli-
ance
● Always keep the keys in a separate place
and out of reach of children
● Before servicing or cleaning the appli-
ance, unplug the appliance from the
mains or disconnect the electrical power
supply
● If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent, or similarly qualied persons in
order to avoid a hazard
● RelevantforAustralia: Supply cord
tted with a plug complies with AS/NZS
3112.
● Frost formation on the interior evaporator
wall and upper parts is a natural phenom-
enon. Therefore, the appliance should
be defrosted during normal cleaning or
maintenance
● Please note that changes to the appli-
ance construction will cancel all warranty
and product liability
CLASS 1 LED PRODUCT
Warning.
3
GB
Gettoknowyourwinecooler
g.1
Lighting
Charcoal lter
Wooden shelf
Sealing strip
Nameplate
Door handle
Kick plate
Control panel
Lock
Adjustable feet
4
GB
Placement.
For safety and operational reasons, the ap-
pliance must not be installed outdoors.
The appliance should be placed on a level
surface in a dry, well ventilated room (max.
75% relative air humidity). Never place the
appliance close to sources of heat such as
cookers or radiators, and avoid placing it in
direct sunlight.
Ambienttemperature.
The climate class is stated on the namepla-
te (see page 7 and page 13). This species
the optimum ambient temperature. Wine
coolers with winter position, however, func-
tion at ambient temperatures as low as 5ºC.
Climateclass Optimumroomtem-
perature
SN +10 ºC to +32 ºC
N +16 ºC to +32 ºC
ST +18 ºC to +38 ºC
T +18 ºC to +43 ºC
Installation
The surface on which the appliance is to be
placed must be level. Do not use a frame or
similar.
The appliance can be installed as a free-
standing unit against a wall, built into a
kitchen element, or lined up with other ap-
pliances (gs 2-3).
Installationandstart-up.
Warning ..................................................2
Get to know your wine cooler. ................3
Before use. .............................................4
Installation and start-up ..........................4
Technical data. .......................................7
Reversible door ......................................8
Operation and function .........................10
Defrosting, cleaning and
maintenance .........................................12
Fault nding ..........................................13
Warranty, spare parts and service ........14
Disposal ................................................15
Contents
On receipt, check to ensure that the ap-
pliance has not been damaged during
transport. Transport damage should be
reported to the local distributor before the
wine cooler is put to use.
Remove the packaging. Clean the inside of
the cabinet using warm water with a mild
detergent. Rinse with clean water and dry
thoroughly (see cleaning instructions). Use
a soft cloth.
If during transport the appliance has been
laid down, or if it has been stored in cold
surroundings (colder than +5°C), it must be
allowed to stabilise in an upright position for
at least an hour before being switched on.
Beforeuse.
5
GB
600
600
600
600
600
600
600
600
g. 2
g. 3
600
1075
g. 4
Theapplianceviewedfrom
above.
If the app.liance is placed beside a wall,
there must be sufcient room for its door to
be opened wide enough to allow the shel-
ves to be pulled out (g. 4).
6
GB
The distance pieces on the rear of the ap-
pliance ensure sufcient air circulation. Fit
the two caps supplied with the appliance as
shown in g. 7.
g. 7
g. 6
Ventilation.
It is important that the appliance be well
ventilated and that air can circulate unhin-
dered above, below and around it.
The gures below illustrate how the neces-
sary air circulation around the appliance
can be ensured (gs 5-6).
1650/1950
100
100
1560/1860
g. 5
7
GB
g. 8

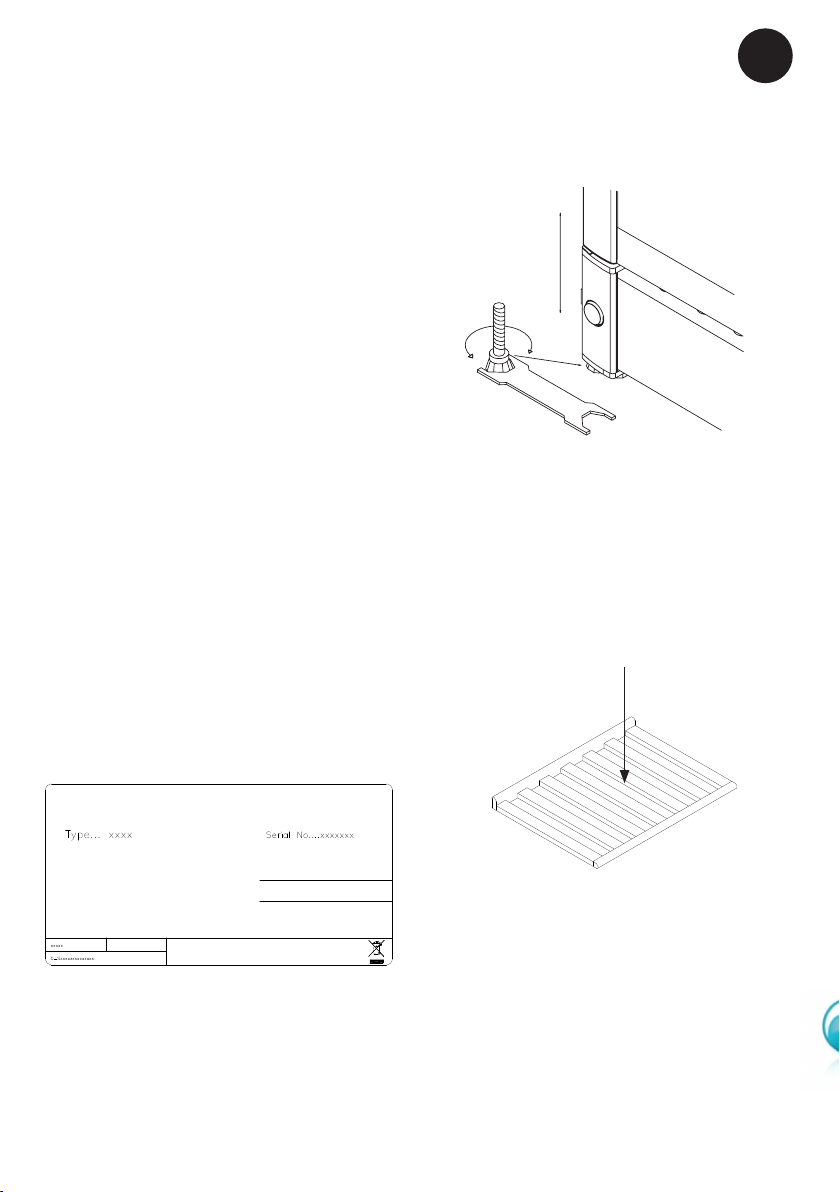

It is important that the appliance be absolu-
tely level. It can be levelled by screwing the
adjustable feet at the front of the appliance
up or down (gs 8-9).
Use a spirit level to check that the appliance
is absolutely level sideways.
Settingup.
This device complies with relevant EU
directives including Low Voltage Directive
2006/95 EEC. and Electromagnetic Compa-
tibility Directive 2004/108/EC
The rating plate provides various techni-
cal information as well as type and serial
number.
Technicaldata.
Max. 20 kg.
8
GB

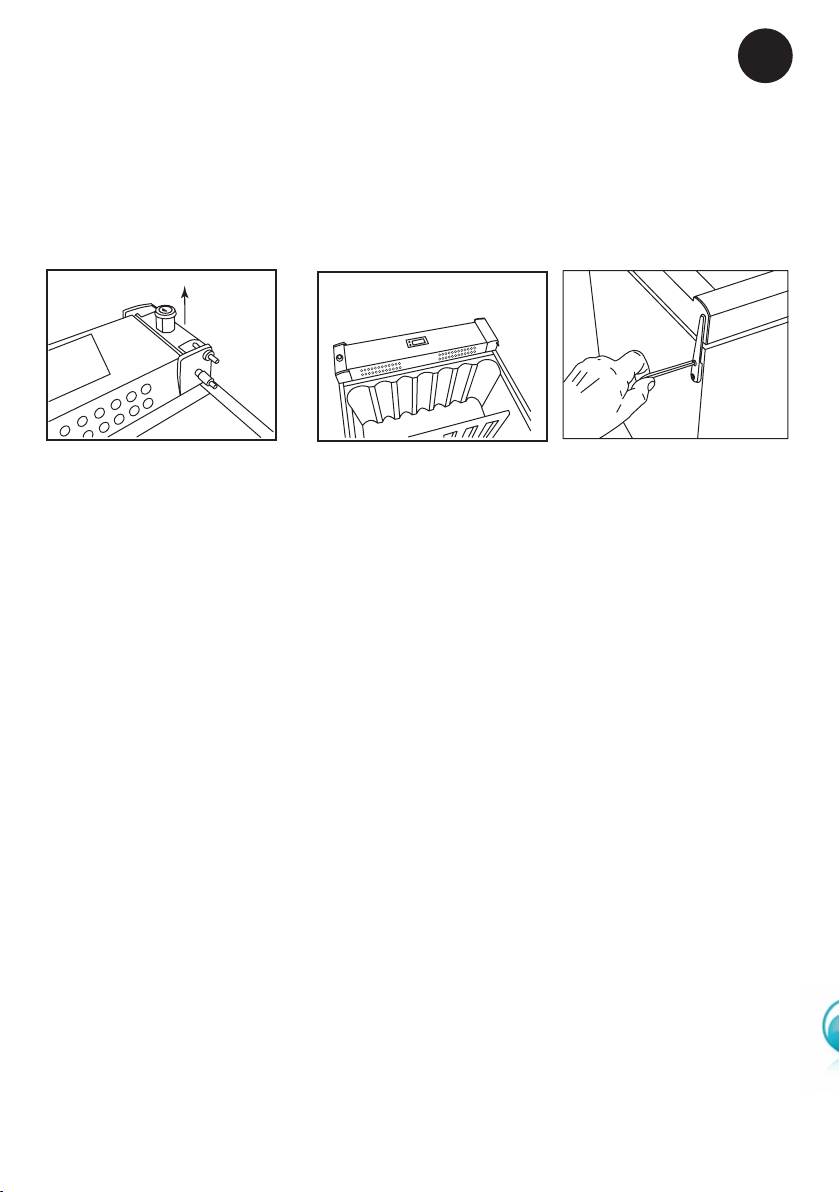

The door can be changed from right-hinged to left-hinged and vice versa as follows:
Reversibledoor.
1. Lay the appliance on its back
and loosen the upper hinge.
2. Remove the upper hinge.
6. Carefully remove the covers
on the side of the plinth using
a at-headed screwdriver.
6. Pull up the hinge pin...
...and t it on the opposite side.
7. Unscrew the lock pin using a
at-headed screwdriver.
3. Rotate the glass door through
180° (on FZ 295 W, pull the
handle to loosen it on the in-
side from beneath the sealing
strip).
4. You will need to remove the magnet on the underside of the door by depressing the clips in pulling the
magnet away from the door. Also with a small Philips head screwdriver remove the Vintec logo badge
and swap the magnet where the badge was and vice versa.
5. Remove the top and bottom bushes on the door frame (the bushes are the black, round plastic pieces
which t into the top and bottom hinges) and swap them så that the bush which was on top is now on
bottom and vice versa.
GB
9
GB
11. After reversing the door, it is important to check that the sealing strip provides a tight seal all the way
round. If it does not, carefully heat the strip all the way round using a hair dryer. Then ease the strip
outwards slightly so that it forms a tight seal against the cabinet. Be careful not to heat the strip so
much that it melts!
9. Click the covers into place
on the plinth sides on the op-
posite side.
10. Fit the door onto the bottom
pin, t the top hinge and
tighten securely.
8. When the lock pin has been
loosened completely, pull
it up together with the lock
cylinder and ret on opposite
side.
10
GB
Operationandfunction.
g. 9
Electroniccontrol
The electronic control ensures that the
temperatures set at the top and at the bot-
tom of the appliance are maintained. This is
achieved by means of an advanced control
of the refrigeration system, the heating ele-
ment, and the fan. The set temperature will
be stored in the event of power failure.
The electronic control has the following
functions:
● On/off switch
● Light switch*
● Temperature setting
● Temperature indication
● Alarm for too high and too low tempera-
tures
* The light may either be turned on
constantly or only when the door is open.
Temperatureindication
The display shows the actual temperature.
The upper digits of the display indicate the
temperature at the top of the appliance, and
the lower digits of the display indicate the
temperature at the bottom of the appliance.
The temperature indicator is equipped with
a built-in lter which simulates the actual
temperature in the bottles. Consequently,
the indicator does not react on short-term
uctuations of the air temperature
Temperaturesetting
The thermostat is equipped with a child lock
device. This device is activated by pushing
the “up and down” buttons simultaneously.
After approx. 3 seconds “Pof” ashes in the
display. Then the actual temperatures are
shown as usual. In addition, the set tempe-
ratures can be shown by pushing SET1 and
SET2, respectively.
The child lock device is cancelled by
pushing the “up and down” buttons simul-
taneously. After approx. 3 seconds “Pon”
ashes in the display, and the temperature
can be set.
Temperaturesettingatthetop
oftheappliance
Push SET1. Then the temperature at the
top of the appliance can be adjusted up and
down by means of the “up and down” but-
tons. The temperature can be adjusted from
8 to 22°C, however so that the temperature
cannot be set at a lower temperature than
the actual set point for the bottom tempera-
ture sensor.
11
GB
Operationandfunction.
Two-zonesettingforserving
temperature
Typical serving temperature settings for the
top and bottom sections are 16°C and 6°C
respectively. With these settings, a suitable
temperature gradient will be achieved in
the cabinet for the storage of various types
of wine distributed from top to bottom as
follows:
● heavy red wines +16 to +19°C
● rosé and light red wines +12 to +16°C
● white wines +10 to +12°C
● champagne and sparkling wines +6 to
+8°C
It is recommended that wine be served at a
temperature which is a couple of degrees
lower than the desired drinking temperature
as the wine will be warmed slightly when it
is poured into the glass.
Single-zonesettingforlong-
termstorage
For long-term wine storage, the top and bot-
tom sections should both be set at 12°C.
With identical settings for the top and bot-
tom sections, the controls will maintain an
even temperature throughout the cabinet.
However, the temperature in the room will
gradually affect the temperature in the
Temperaturesettingatthebot-
tomoftheappliance
Push SET2. Then the temperature at the
bottom of the appliance can be adjusted up
and down by means of the “up and down”
buttons. The temperature can be adjusted
from 5 to 22°C, however so that the tempe-
rature cannot be set at a higher tempera-
ture than the actual set point for the upper
temperature sensor.
Alarmdevices
There is a sub-alarm for the low-tempera-
ture sensor and an excess-alarm for the
high-temperature sensor.
The alarm consists of a beeper and a war-
ning on the display.
Alarm for high temperature: beep sound
+ alternating display of “Hi” and actual
temperature
Alarm for low temperature: beep sound +
alternating display of “Lo” and actual tem-
perature
The alarm temperature depends on the set
points. However, at position 5 of the sub-
alarm is always 3 degrees. It is activated if
the temperature has been below 3°C for 10
minutes.
The beep sound can be cancelled by
pushing a random thermostat button. Push
the on/off button to erase the display alarm,
rst for cancelling the alarm, then again for
restarting the compressor.
Light
When you open the door of your cabinet,
the lights turn on in the winecooler.
In the temperature display image is
displayed when the light is lit.
To turn off the lights, press once
Permanentlighting
For presentation purposes of your wine,
you can turn the lights permanently. Please
press the light switch image twice. To
switch off the lights press on again.
12
GB
Automaticdefrosting.
The wine cooler is defrosted automatically.
Defrost water runs through a pipe and is
collected in a tray above the compressor
where the heat generated by the compres-
sor causes it to evaporate. The defrost
water tray should be cleaned at intervals.
Cleaning.
Before cleaning the appliance, unplug it
from the main supply. The cabinet is best
cleaned using warm water (max. 65°C) with
a little mild detergent. Never use cleaning
agents that scour. Use a soft cloth. Rinse
with clean water and dry thoroughly. The
defrost water channel, in which conden-
sation from the evaporator runs, is located
at the bottom of the rear inside wall of the
cabinet and must be kept clean. Add a few
drops of disinfectant, e.g. Rodalon, to the
defrost water drain a couple of times a year,
and clean the drain using a pipe cleaner or
similar. Never use sharp or pointed imple-
ments.
The sealing strip around the door must be
cleaned regularly to prevent discolouration
and prolong service life. Use clean water.
After cleaning the sealing strip, check that it
continues to provide a tight seal.
Dust collecting on the condenser on the
rear of the cabinet, the compressor and in
the compressor compartment is best remo-
ved using a vacuum cleaner.
Defrosting,cleaning
andmaintenance.
cabinet through its door and sides, creating
a slight temperature gradient from top to
bottom. The controls will maintain the set
temperature at the bottom of the cabinet,
and any deviation from the setting will
therefore occur at the top.
The difference will vary from 0 to 3°C, de-
pending on the ambient temperature.
13
GB
Faultnding.
Fault Possiblecause Remedy
The appliance is not
working.
The appliance is switched off.
Power failure; the fuse is blown;
the appliance is not plugged in
correctly.
Press the on/off switch.
Check that power is connected.
Reset the fuse.
Water collects in
the bottom of the
cabinet.
The defrost water pipe is
blocked.
Clean the defrost water channel
and the drain hole on the rear
wall of the cabinet.
Vibration or
bothersome noise.
The appliance is not level.
The appliance is resting against
other kitchen elements.
Containers or bottles inside the
cabinet are rattling against one
another.
Level the appliance using a spirit
level.
Move the appliance away from
the kitchen elements or appli-
ances it is in contact with.
Move containers and/or bottles
apart.
Compressor runs
continuously.
High room temperature. Ensure adequate ventilation.
P1 is shown on the
display.
The upper sensor is disconnect-
ed or short-circuited.
Call for service. The temperature
within the entire cabinet is main-
tained at the higher of the two
setpoints until the fault has been
corrected.
P2 is shown on the
display.
The lower sensor is disconnected
or short-circuited.
Call for service. The temperature
within the entire cabinet is main-
tained at the higher of the two
setpoints until the fault has been
corrected.
14
GB
Warranty,sparepartsandservice.
Warrantydisclaimer
Faults and damage caused directly or
indirectly by incorrect operation, misuse,
insufcient maintenance, incorrect building,
installation or mains connection. Fire, ac-
cident, lightening, voltage variation or other
electrical interference, including defective
fuses or faults in mains installations.
Repairs performed by others than approved
service centres and any other faults and
damage that the manufacturer can sub-
stantiate are caused by reasons other than
manufacturing or material faults are not
covered by the warranty.
Please note that changes to the construc-
tion of the appliance or changes to the
component equipment of the appliance will
invalidate warranty and product liability, and
the appliance cannot be used lawfully. The
approval stated on rating plate will also be
invalidated.
Transport damage discovered by the buyer
is primarily a matter to be settled between
the buyer and the distributor, i.e. the distri-
butor must ensure that such complaints are
resolved to the buyer’s satisfaction.
Before calling for technical assistance,
please check whether you are able to rectify
the fault yourself. If your request for as-
sistance is unwarranted, e.g. if the appli-
ance has failed as a result of a blown fuse
or incorrect operation, you will be charged
the costs incurred by your call for technical
assistance.
Spareparts
When ordering spare parts, please state
the type, serial and product numbers of
your appliance.This information is given on
the rating plate. The rating plate contains
various technical information, including type
and serial numbers.
Product numbers
15
GB
Disposal
Information for Users on Collection
and Disposal of Old Equipment and
used Batteries
These symbols on the products,
packaging, and/or accompanying
documents mean that used electri-
cal and electronic products and
batteries should not be mixed with
general household waste. For proper
treatment, recovery and recycling
of old products and used batteries,
please take them to applicable collec-
tion points, in accordance with your
national legislation and the Directives
2002/96/EC and 2006/66/EC.
By disposing of these products and
batteries correctly, you will help to
save valuable resources and prevent
any potential negative effects on
human health and the environment
which could otherwise arise from
inappropriate waste handling.
For more information about collec-
tion and recycling of old products and
batteries, please contact your local
municipality, your waste disposal
service or the point of sale where you
purchased the items.
Penalties may be applicable for incor-
rect disposal of this waste, in accord-
ance with national legislation.
ForbusinessusersintheEuro-
peanUnion.
If you wish to discard electrical and
electronic equipment, please contact
your dealer or supplier for further
information.
[InformationonDisposalinother
CountriesoutsidetheEuropean
Union]
These symbols are only valid in the
European Union. If you wish to dis-
card this product, please contact your
local authorities or dealer and ask for
the correct method of disposal.
Noteforthebatterysymbol(bot-
tomtwosymbolexamples):
This symbol might be used in combi-
nation with a chemical symbol. In this
case it complies with the requirement
set by the Directive for the chemical
involved.
0-9193127-02
Reserving the right to alter specications without prior notice.
