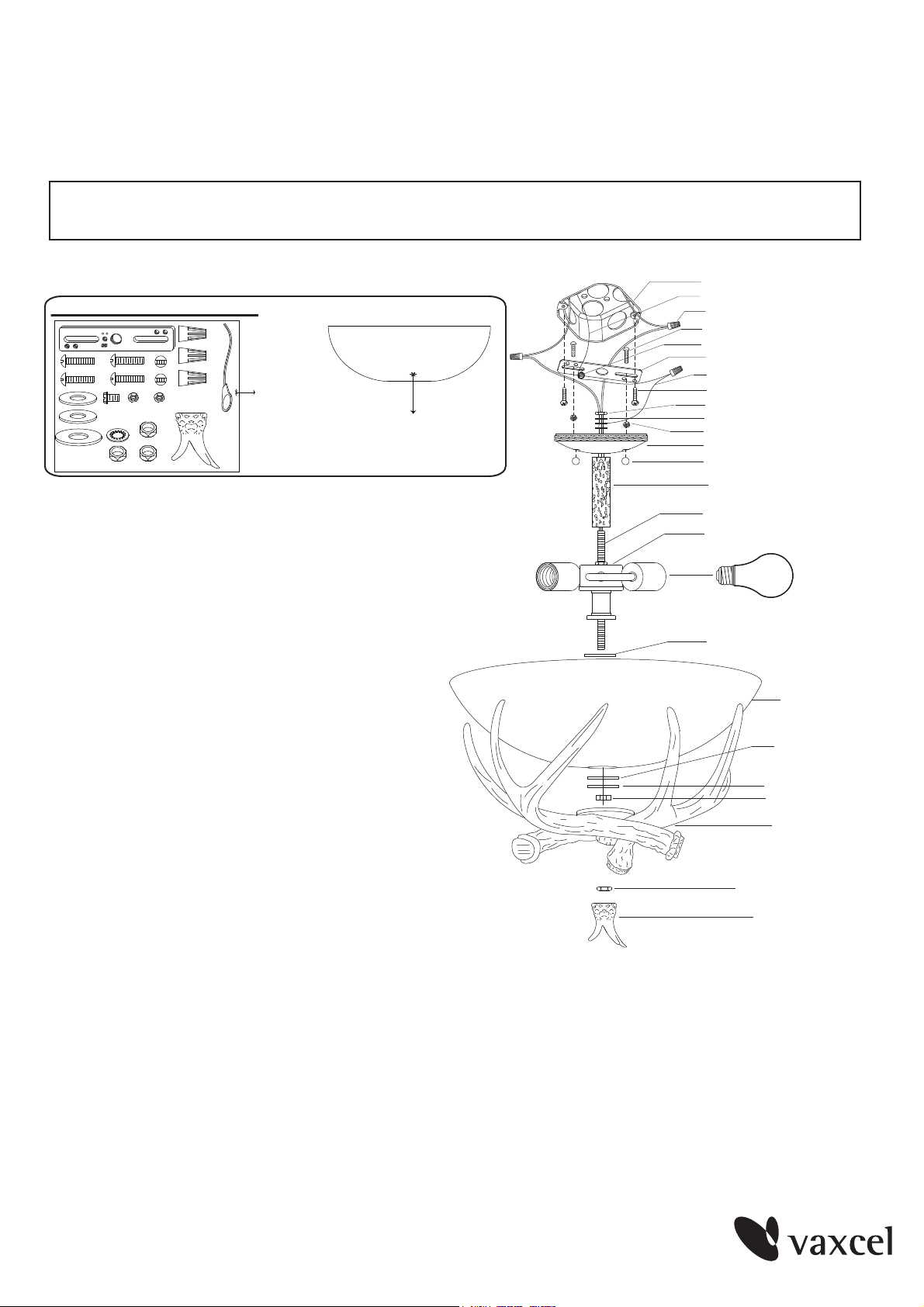

Glass Shade
Finial
Hex Nut
Nipple
Rubber Pad
Fixture
Antler Set
Hex Nut
Metal Pad
Rubber Pad
Canopy
Ball Nut
Bulb Type A Max.60W
(not included)
House Grounding Wire
Wire Nut
Mounting Strap
Green Grounding Screw
Mounting Screw
Lock Nut
Screw
Fixture Grounding Wire
Poly Rod
Outlet Box
1. Thread two screws to the mounting strap, and secure
them with four lock nuts (two on each side of the
mounting strap). Adjust the length of the screws if
necessary.
2. Attach the mounting strap to the outlet box by using
two mounting screws.
3. Thread the fixture wire through the poly rod, canopy,
grounding wire. secure them with washers
and hex nut.
4. Pull out the outlet wires and the house
grounding wire from the outlet box. Make
wire connections using the wire nuts:
---The black wire from the fixture to the
black wire from the power source.
---The white wire from the fixture to the
white wire from the power source.
---Attach the fixture grounding wire to the
mounting strap with the green grounding
screw. Then connect it to the house
grounding wire with a wire nut.
Carefully put the wires back into the outlet box.
5. Attach the canopy to the mounting strap by inserting
the screws, and then secure them with ball nuts.
6. Install bulbs (not included). See relamping label at socket area or packaging for maximum allowed
wattage.
7. Attach the rubber pad and glass shade upward to the fixture, then secure them with a rubber pad,
metal pad and hex nut.
8. Attach the antler set upward to the glass shade carefully by inserting the nipple, and then secure
it with a hex nut and finial.
9. Turn on the power at the main fuse or circuit breaker box.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
C0014
120309
Hex Nut
Washer
Assembly Kit
(1 SET)
(4471MM)
Glass Shade
(1 PC)
(9317CR)
Contents of Spare Parts:
