1 Safety
Observe the following safety instructions.
1.1 General information
¡ Read this instruction manual carefully.
¡ Keep the instruction manual and the
product information safe for future refer-
ence or for the next owner.
¡ Do not connect the appliance if it has been
damaged in transit.
1.2 Intended use
This appliance is designed only to be built
into kitchen units. Read the special installation
instructions.
The appliance can only be used safely if it is
correctly installed according to the safety in-
structions. The installer is responsible for en-
suring that the appliance works perfectly at its
installation location.
Only use this appliance:
¡ To prepare meals and drinks.
¡ Under supervision. Never leave the appli-
ance unattended when cooking for short
periods.
¡ In private households and in enclosed
spaces in a domestic environment.
¡ Up to an altitude of max. 2000m above
sea level.
Do not use the appliance:
¡ On boats or in vehicles.
¡ as a room heater.
¡ with an external timer or a remote control.
1.3 Restriction on user group
This appliance may be used by children aged
15 or over and by people who have reduced
physical, sensory or mental abilities or inad-
equate experience and/or knowledge,
provided that they are supervised or have
been instructed on how to use the appliance
safely and have understood the resulting
dangers.
Children must not play with the appliance.
Children must not perform cleaning or user
maintenance unless they are at least 15 years
old and are being supervised.
Keep children under the age of 15 years
away from the appliance.
1.4 Safe use
WARNING‒Risk of suffocation!
Children may put packaging material over
their heads or wrap themselves up in it and
suffocate.
▶
Keep packaging material away from chil-
dren.
▶
Do not let children play with packaging ma-
terial.
Children may breathe in or swallow small
parts, causing them to suffocate.
▶
Keep small parts away from children.
▶
Do not let children play with small parts.
The use of a gas cooking appliance results in
the production of heat and moisture in the
room in which it is installed. Ensure that the
kitchen is well ventilated: keep natural ventila-
tion holes open or install a mechanical ventila-
tion device (mechanical extractor hood).
Prolonged intensive use of the appliance may
call for additional ventilation, for example
opening of a window, or more effective ventil-
ation, for example increasing the level of
mechanical ventilation where present.
Safety en
3
WARNING‒Risk of explosion!
Escaping gas may cause an explosion. WHAT
TO DO IF YOU SMELL GAS OR IF THERE
ARE FAULTS IN THE GAS INSTALLATION
▶
Immediately shut off the gas supply or
close the gas cylinder valve.
▶
Immediately extinguish all naked flames
and cigarettes.
▶
Do not operate any light switches or appli-
ance switches.
▶
Do not pull any plugs out of any sockets.
▶
Do not use any telephones or mobile
phones within the building.
▶
Open windows and ventilate the room.
▶
Call the after sales service or the gas sup-
plier.
Escaping gas may cause an explosion. Small
amounts of gas can collect over a longer
period of time and ignite.
▶
Close the safety valve for the gas supply
when the appliance is out of use for pro-
longed periods.
Escaping gas may cause an explosion. If the
liquefied gas bottle is not upright, liquefied
propane/butane can enter the appliance. In-
tense darting flames may therefore escape
from the burners. Components may become
damaged and start to leak over time so that
gas escapes uncontrollably.
▶
Always use liquefied gas bottles in an up-
right position.
WARNING‒Risk of fire!
Leaving fat or oil cooking on an unattended
hob can be dangerous and may lead to fires.
▶
Never leave hot oil or fat unattended.
▶
Never attempt to extinguish a fire using wa-
ter; instead, switch off the appliance and
then cover with a lid or a fire blanket.
The appliance becomes very hot.
▶
Never place flammable objects on the hob
or in its immediate vicinity.
▶
Never store any objects on the hob.
The appliance will become hot.
▶
Do not keep combustible objects or aero-
sol cans in drawers directly underneath the
hob.
▶
Never store or use combustible materials
(e.g. spray cans or cleaning agents) under
the appliance or in its immediate vicinity.
The appliance becomes very hot, fabrics and
other objects may ignite.
▶
Keep fabrics (e.g. garments or curtains)
away from the flames.
▶
Never reach over the flames.
▶
Do not place combustible objects (e.g. tea
towels or newspapers) on, next to or be-
hind the appliance.
Food may catch fire.
▶
The cooking process must be monitored. A
short process must be monitored continu-
ously.
Escaping gas may ignite.
▶
If the burner does not ignite after
15seconds, turn the control knob to the
"Off" position and open the door or window
in the room. Wait at least one minute be-
fore igniting the burner again.
▶
In the event of the burner flames being ac-
cidentally extinguished, turn off the burner
control and do not attempt to re-ignite the
burner for at least one minute.
When gas burners are in operation without
any cookware placed on them, they can build
up a lot of heat. The extractor hood above it
may become damaged or catch fire.
▶
Only operate the gas burners with cook-
ware on them.
WARNING‒Risk of burns!
The hob becomes hot during use.
▶
Care should be taken to avoid touching the
heating elements.
▶
Metallic objects such as knives, forks,
spoons and lids should not be placed on
the hob as they can become hot.
Empty cookware becomes extremely hot
when set on gas burners that are operating.
▶
Never heat up empty cookware.
The appliance becomes hot during operation.
▶
Allow the appliance to cool down before
cleaning.
WARNING‒Risk of injury!
The product is assembled by the factory.
Users are not allowed to assemble or modify
the structure. In case of failure, lack of spare
parts or replacement of spare parts, please
contact the after-sales service or local dealer,
and do not purchase spare parts by yourself
for replacement.
en Avoiding property damage
4
Faults or damage to the appliance and re-
pairs that have not been carried out correctly
are dangerous.
▶
Never switch on the appliance if there is a
fault with it.
▶
Always have repairs carried out to the ap-
pliance and damaged gas lines replaced
by trained, specialist personnel.
Strong temperature fluctuations may cause
the glass to break.
▶
When using the hob, avoid draughts and
spilling cold liquids.
The production process and characteristics of
tempered glass determine that there may be
a very small probability of spontaneous break-
age.
▶
Wear protective gloves.
▶
Call customer service.
Cookware that is not the right size, or that is
damaged or incorrectly positioned may cause
serious injuries.
▶
See the notes on cookware.
An appliance with a cracked or broken sur-
face can cause cuts.
▶
Do not use the appliance if it has a cracked
or broken surface.
2 Avoiding property damage
ATTENTION!
A build-up of heat may damage the appliance.
▶
Use only the original accessories specified.
If there is strong wind interference when using the gas
hob, the burner flames may be affected and the hob
may not work properly.
Heat can cause damage to adjacent appliances or kit-
chen units. If the appliance is in operation for an exten-
ded period, heat and moisture will be generated.
▶
Open a window or switch on an extractor hood lead-
ing to the outside.
Moisture ingress may damage the control knobs.
▶
Do not use wet sponges or cloths.
If a control knob is in the wrong position, this could
lead to malfunctions.
▶
Always turn the control knob to the "Off" position
when the appliance is not being used.
3 Environmental protection and saving energy
3.1 Disposing of packaging
The packaging materials are environmentally compat-
ible and can be recycled.
▶
Sort the individual components by type and dispose
of them separately.
3.2 Saving energy
If you follow these instructions, your appliance will use
less energy.
Cover saucepans with
suitable lids.
Cooking without a lid con-
sumes far more energy.
Lift the lid as infrequently
as possible when stewing
or braising.
When you lift the lid, a lot
of energy escapes.
Select a suitable pan ac-
cording to the amount of
ingredients.
More energy will be con-
sumed when using a
large pan to heat a small
amount of food.
Cook with an appropriate
amount of water.
The more water in the
pan, the more energy is
required to heat it up.
4 Applicable standards
BS EN30-1-1:2008
Familiarising yourself with your appliance en
5
5 Familiarising yourself with your appliance
5.1 Appliance

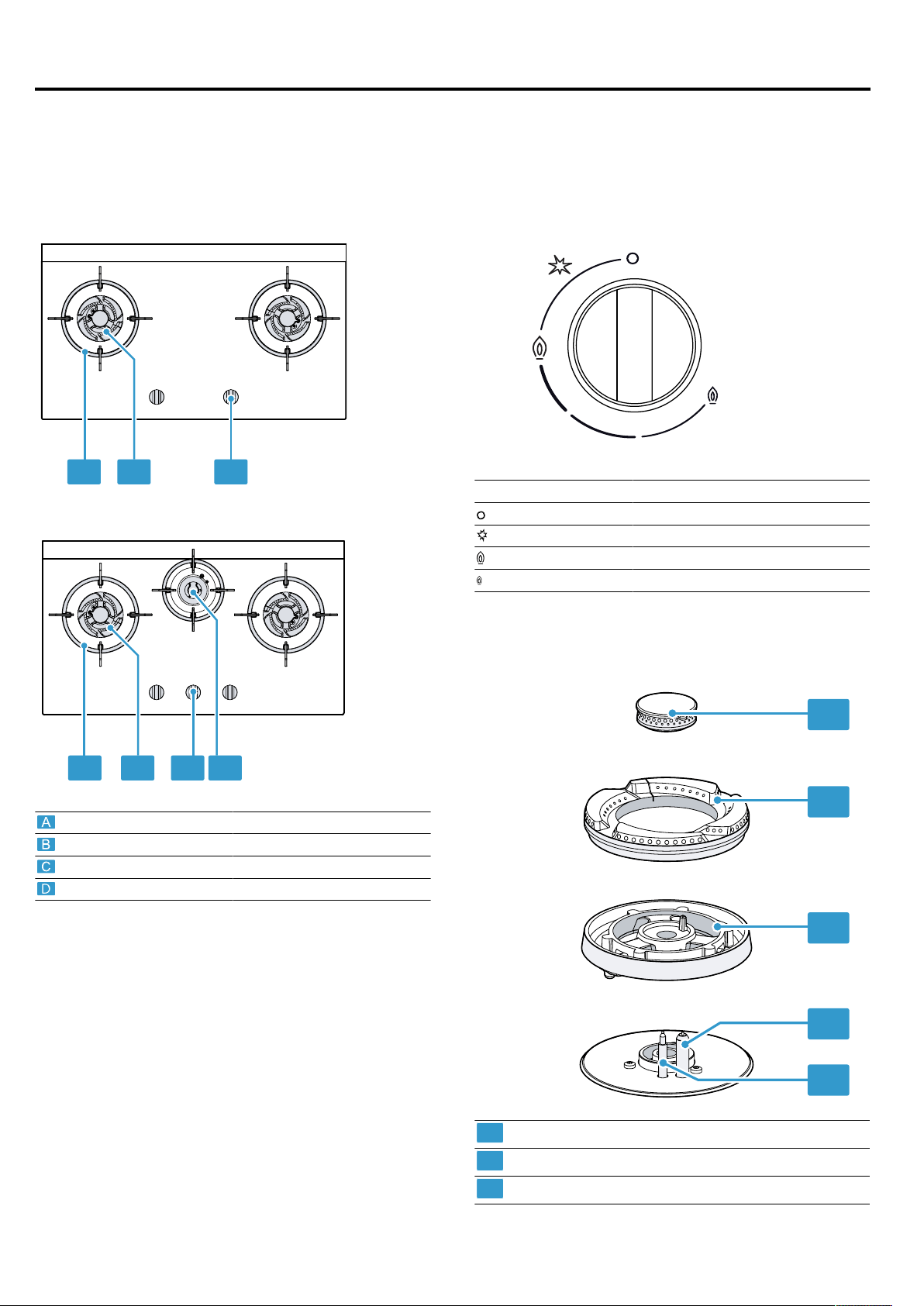

You can find an overview of the parts of your appliance
here.
A B C
A B C D
Pan support
Burner
Control knob
Small burner
5.2 Control knob
You can use the control panel to configure all functions
of your appliance and to obtain information about the
operating status.
Pictogram Description
OFF
Ignition
Maximum burner setting
Minimum burner setting
5.3 Burner

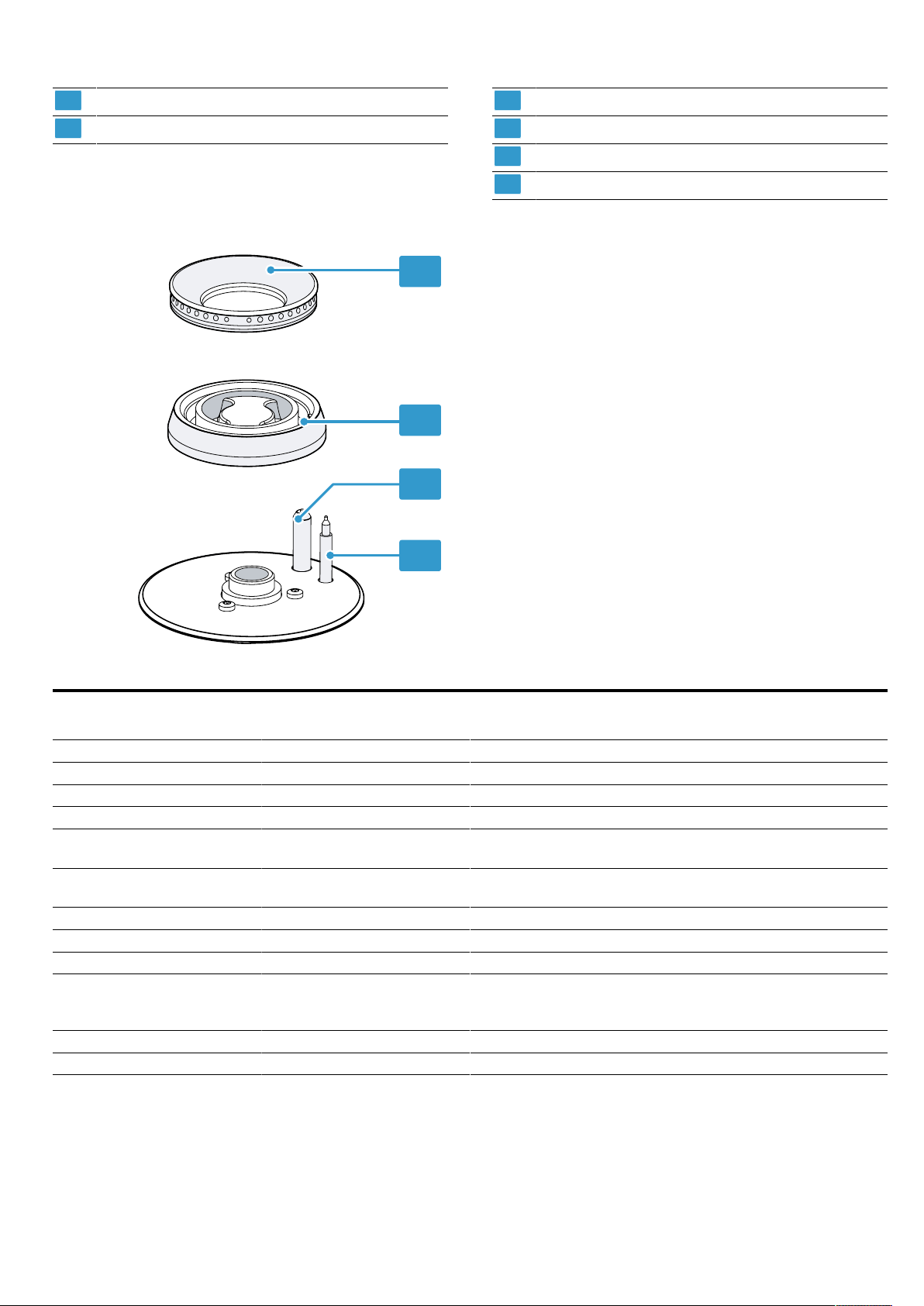

You can find an overview of the parts of the burner
here.
1
2
3
4
5
1
Burner cover
2
Burner ring
3
Burner head
en Technical specifications
6
4
Ignition plug
5
Thermocouple for the flame monitoring
5.4 Small burner
You can find an overview of the parts of the burner
here.
1
2
3
4
1
Burner cover
2
Burner head
3
Ignition plug
4
Thermocouple for the flame monitoring
6 Technical specifications
Product no. PMD82A31AX PMD83A31AX PMD93A31AX
Appliance category I3B/P(30) I3B/P(30) I3B/P(30)
Gas type G30 G30 G30
Rated gas pressure 2900Pa 2900Pa 2900Pa
External dimensions
(WxDxH)
780 x 450 x 150mm 780 x 450 x 150mm 920 x 510 x 150mm
Cut-out dimensions (WxD) 700 x 400 mm Rounded
corners 4 x R20 mm
700 x 400 mm Rounded
corners 4 x R20 mm
880 x 455 mm Rounded
corners 4 x R15 mm
Net weight 12.3kg 13.8kg 17.5kg
Gross weight 14.5kg 16.0kg 20.8kg
Total heat input ΣQn 9.8kW (714g/h) 11.8kW (860g/h) 11.8kW (860g/h)
Gas consumption L: 4.9kW (357g/h)
R: 4.9kW (357g/h)
L: 4.9kW (357g/h)
R: 4.9kW (357g/h)
M: 2.0kW (146g/h)
L: 4.9kW (357g/h)
R: 4.9kW (357g/h)
M: 2.0kW (146g/h)
Rated voltage DC 1.5V DC 1.5V DC 1.5V
Destination Malaysia Malaysia Malaysia
Using cookware en
7
7 Using cookware
The selection and positioning of cookware affects the
safety and energy efficiency of your appliance.
WARNING‒Risk of fire!
Flammable objects may ignite.
▶
Maintain a distance of at least 50mm between the
cookware and flammable objects.
Do not use rim based or convex based vessels on the
hotplate.
Using cookware that is a suitable size, the diameter of
the pot bottom on the pan support is 160-320 mm, and
the diameter of the pot bottom on the small pan sup-
port is 120-220 mm. Use the auxiliary pan support as
needed.
Do not use deformed
cookware. Deformed
cookware is not stable on
the hob and may tip over.
Use cookware with a
thick, flat base.
¡ Position the cookware
in the middle of the
burner, otherwise it
may tip over.
¡ Do not position large
cookware on the burn-
ers close to the con-
trols.
¡ The controls may be
damaged due to over-
heating.
Place cookware onto the
pan supports. Never
place cookware directly
on the burner. Before us-
ing the appliance, ensure
that the pan supports and
gas burner caps are posi-
tioned correctly.
Handle the cookware that
is on the hob carefully.
Do not bang on the hob.
Do not place heavy
weights on the hob.
8 Basic operation

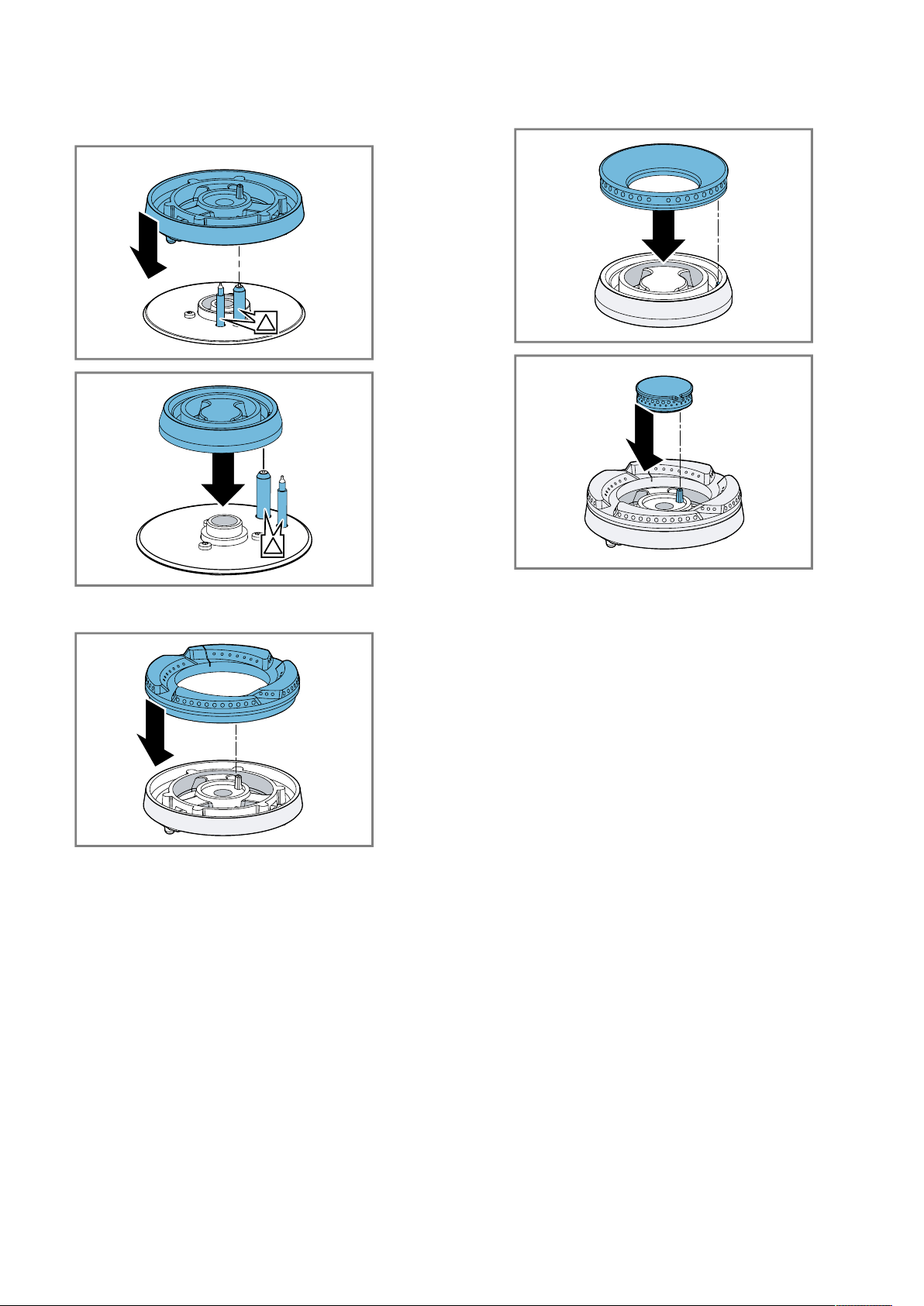

8.1 Placing the burner parts
You can find out how to correctly position the burner
parts here.
1.
Ensure that the burner parts are clean and dry.
2.
Ensure that the individual parts of the burners are fit-
ted in their exact position and are straight; other-
wise, this may result in ignition problems or prob-
lems during operation.
en Basic operation
8
3.
Install the burner head so that the thermocouple
and spark plug are located in the corresponding
slots of the burner head.
!
!
4.
The catching pin on the outer ring cap must fit into
the corresponding slot on the burner head.
5.
The catching pin on the inner ring cap must fit into
the corresponding slot on the burner head.
8.2 Using suitable cookware
1.
Only use cookware with a suitable diameter.
2.
Ensure that the cookware does not protrude over
the edge of the cooktop.
8.3 Starting the hob
Note:Ensure that there is no leakage before operation.
1.
Place a suitable pan on the pan support.
2.
Choose the corresponding burner control knob.
Press and turn it anti-clockwise to the ignition posi-
tion and hold it there for a few seconds.
a The burner ignites.
3.
Turn the control knob anti-clockwise to the position
you require.
a The power of the burner flame will change accord-
ingly.
8.4 Starting the hob after safety switch-
off
Requirement:The safety device shuts off the gas sup-
ply to the burner if the flame is unintentionally extin-
guished.
1.
Turn the control knob to turn off the hob.
2.
Restart the hob as normal.
8.5 Switching off the hob
▶
Turn the knob clockwise to the OFF position.
a The appliance electronics shut off the gas supply.
Cleaning and servicing en
9
9 Cleaning and servicing
To keep your appliance working efficiently for a long
time, it is important to clean and maintain it carefully.
9.1 Cleaning products
You can obtain suitable cleaning products from after-
sales service or the online shop.
ATTENTION!
Unsuitable cleaning products may damage the sur-
faces of the appliance.
▶
Do not use harsh or abrasive detergents.
▶
Do not use cleaning products with a high alcohol
content.
▶
Do not use hard scouring pads or cleaning
sponges.
▶
Do not use any special cleaners for cleaning the ap-
pliance while it is hot.
▶
Only use glass cleaners, glass scrapers or stainless
steel care products if recommended in the cleaning
instructions for the relevant part.
▶
Wash sponge cloths thoroughly before use.
9.2 Cleaning the stainless steel surfaces
1.
Observe the information regarding the cleaning
agents.
2.
Clean using a sponge cloth and hot soapy water in
the direction of the finish.
3.
Dry with a soft cloth.
4.
Apply a thin layer of the stainless steel cleaning
product with a soft cloth.
Tip:You can obtain stainless steel cleaning products
from after-sales service or the online shop.
9.3 Cleaning the control knob
ATTENTION!
Moisture ingress may damage the control knobs.
▶
Do not use wet sponges or cloths.
1.
Observe the information regarding the cleaning
agents.
2.
Clean using a slightly damp sponge cloth and hot
soapy water.
3.
Dry with a soft cloth.
9.4 Cleaning the pan support manually
WARNING‒Risk of burns!
The appliance becomes hot during operation.
▶
Allow the appliance to cool down before cleaning.
1.
Carefully remove the pan support.
2.
Soak the pan support in the sink.
3.
Clean the pan support using a scrubbing brush and
washing-up liquid.
4.
Rinse the pan support rinse with clean water.
5.
Dry the pan support with a kitchen towel.
9.5 Discoloration of the burners
After long use, the brass burner parts become darker
due to natural oxidation. This discolouration does not
affect their usability.
9.6 Cleaning the burners
Clean the burners at least once a month. Clean the
burners whenever there is dirt on the surface or the
flame is uneven.
1.
Wait until the burner cap has cooled before carefully
removing it.
2.
Remove dirt and carbon deposits from the burner
openings using a steel needle and wipe with soapy
water.
3.
Clean the spark plug and thermocouple with a soft
brush and wipe with soapy water.
Do not knock the spark plug when cleaning.
4.
Dry the components completely.
Water droplets or damp patches on the hob at the
start of cooking may damage the burners.
5.
Carefully reinstall all of the components.
Note:The warranty will be invalidated if the face plate
is scratched or a burner is deformed due to improper
installation.
9.7 Using cleaning gel for burnt-on dirt
For hard-to-remove, burnt-on dirt, you can order a
cleaning gel from our online shop, from your specialist
retailer or via our after-sales service.
1.
Follow the instructions on the cleaning product.
2.
Remove the pan supports and the burner parts.
3.
ATTENTION!
On the burner parts, the controls and the aluminium
surfaces, the cleaning gel leads to damage.
▶
Only use the cleaning gel on the pan supports
and stainless steel surfaces.
Apply the cleaning gel to the burnt-on dirt.
4.
If necessary, let the dirt soak overnight.
10 Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-
sales service. This will avoid unnecessary costs.
WARNING‒Risk of injury!
Improper repairs are dangerous.
▶
Repairs to the appliance should only be carried out
by trained specialist staff.
▶
If the appliance is defective, call Customer Service.
en Troubleshooting
10
WARNING‒Risk of electric shock!
Incorrect repairs are dangerous.
▶
Repairs to the appliance should only be carried out
by trained specialist staff.
▶
Only use genuine spare parts when repairing the
appliance.
10.1 Malfunctions
Fault Cause and troubleshooting
Spark plug does not
spark.
Battery not installed, or installed backwards.
▶
Install the battery correctly.
Flame hole not aligned with ignition electrode.
▶
Install the burner correctly so that the flame hole is aligned with the ignition electrode.
Spark plug is wet, or dirty due to food overflows.
▶
Dry the spark plug with a clean, dry cloth.
Knob is not in the OFF position.
▶
Turn the control knob to reset, then re-ignite.
Burner goes out
straight after being ig-
nited.
Control knob not pressed down long enough.
1.
Keep the control knob pressed down for a few seconds after ignition.
2.
Press the control knob down firmly.
Hob does not ignite
or has difficulty ignit-
ing.
Gas valve is closed or not fully open.
▶
Open the gas valve.
There is air in the gas pipeline.
▶
Turn the control knob to reset, then re-ignite, pressing and holding the control knob for a
few seconds to empty the air in the gas pipeline.
Burner incorrectly fitted.
▶
Fit the burner correctly.
Flame hole not aligned with ignition electrode.
▶
Install the burner correctly so that the flame hole is aligned with the ignition electrode.
Burner openings are blocked.
▶
Clean the burner openings.
Gas hose is pinched or kinked, causing it to become deformed.
▶
Check/replace the gas hose. Contact customer service.
→"Customer Service", Page11
Water in the burner.
▶
Wipe or dry the burner, then re-ignite.
Battery charge insufficient.
▶
Change the battery.
Burner flame makes
a loud noise.
Burner incorrectly fitted.
▶
Fit the burner correctly.
High gas pressure.
▶
Adjust the gas valve to lower the pressure.
Flame extinguished
during use.
Thermocouple tip is dirty.
▶
Clean the thermocouple.
Short and weak
flame.
Low gas pressure.
▶
Open the gas valve fully, or replace the gas cylinder.
Long and yellow
flame.
Burner openings are blocked.
▶
Clean the burner openings.
Red flame. Gas supply contains impurities, or the ambient air is damp.
No action required.
The kitchen smells of
gas.
Aging gas pipe or leaking joint.
▶
Open windows for ventilation, then contact customer service.
Customer Service en
11
Fault Cause and troubleshooting
The kitchen smells of
gas.
Burner does not ignite.
▶
Open windows for ventilation, then re-ignite.
11 Customer Service
If you have any queries on use, are unable to rectify
faults on the appliance yourself or if your appliance
needs to be repaired, contact Customer Service.
Detailed information on the warranty period and terms
of warranty in your country is available from our after-
sales service, your retailer or on our website.
If you contact Customer Service, you will require the
product number (E-Nr.) and the production number
(FD) of your appliance.
The contact details for Customer Service can be found
in the enclosed Customer Service directory or on our
website.
11.1 Product number (E-Nr.) and
production number (FD)
You can find the product number (E-Nr.) and the pro-
duction number (FD) on the appliance's rating plate.
Make a note of your appliance's details and the Cus-
tomer Service telephone number to find them again
quickly.

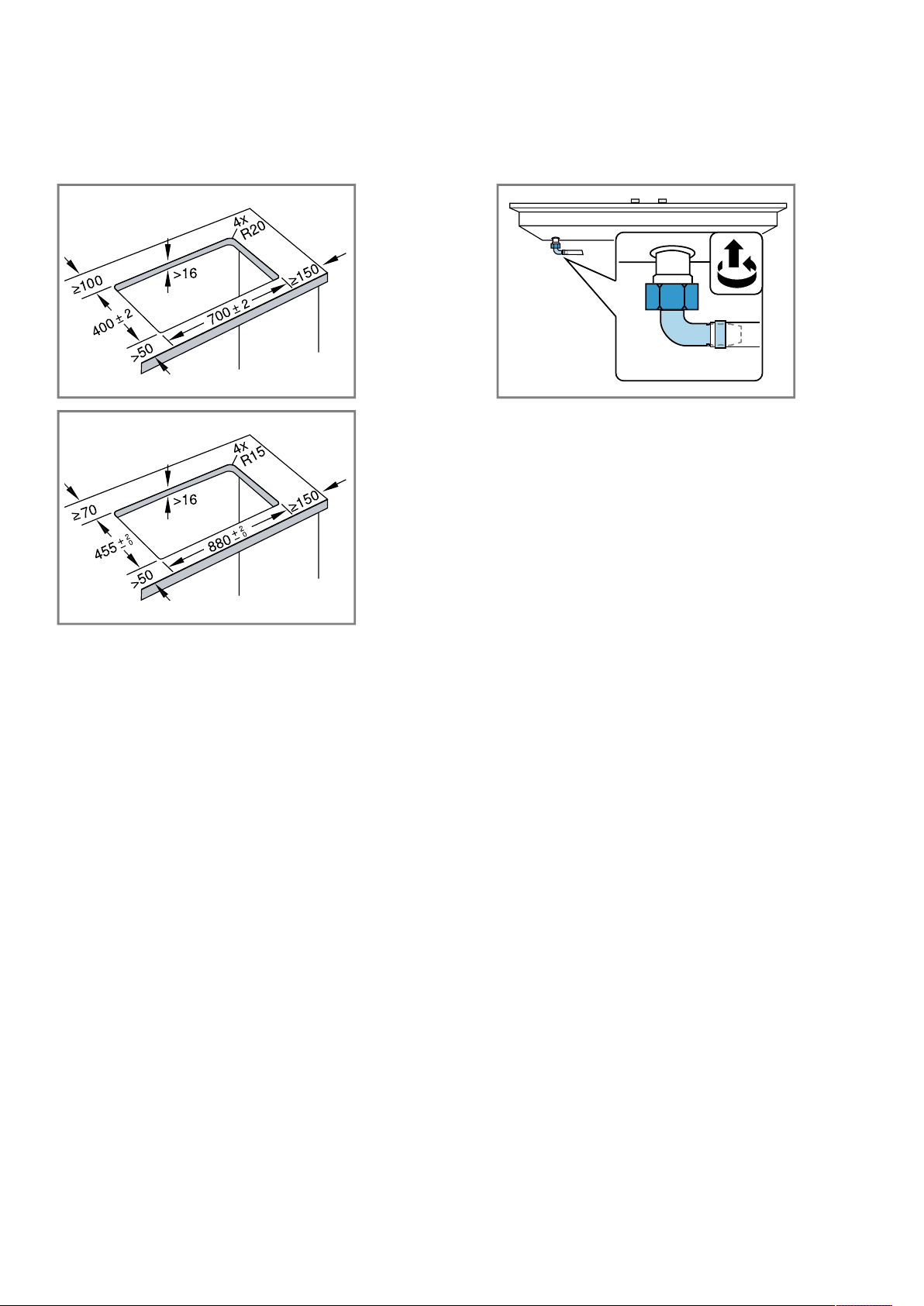

12 Installation and connection
12.1 Safe installation
Follow these safety instructions when in-
stalling the appliance.
The appliance can only be used safely if it is
correctly installed according to the safety in-
structions. The installer is responsible for en-
suring that the appliance works perfectly at its
installation location.
WARNING‒Risk of injury!
Parts that are accessible during installation
may have sharp edges and may lead to cut-
ting injuries.
▶
Wear protective gloves
WARNING‒Risk of fire!
The gas hob becomes very hot, other objects
may ignite.
▶
The gas hob should be installed at dis-
tance of at least 1 m to the kitchen ceiling.
WARNING‒Risk of explosion!
Escaping gas may cause an explosion.
▶
Only a licensed professional may connect
the appliance.
▶
Switch off the power and gas supply before
carrying out any work on the appliance.
▶
For the installation, observe the currently
valid building regulations and the regula-
tions of the local electricity and gas suppli-
ers.
▶
After connecting the appliance to the gas
supply, always check the connection for
leak tightness. The manufacturer accepts
no responsible for any gas leakage caused
by a third party due to gas installation.
Escaping gas may cause an explosion or res-
ult in poisoning.
▶
Ensure that the installation area is well vent-
ilated.
▶
Make sure that there is a door leading to
the open air or a window that can be
opened.
This appliance is not connected to a combus-
tion products evacuation device. It shall be in-
stalled and connected in accordance with cur-
rent installation regulations. Particular atten-
tion shall be given to the relevant require-
ments regarding ventilation.
en Installation and connection
12
WARNING‒Risk of suffocation!
Children may put packaging material over
their heads or wrap themselves up in it and
suffocate.
▶
Keep packaging material away from chil-
dren.
▶
Do not let children play with packaging ma-
terial.
ATTENTION!
Prior to installation, ensure that the local distri-
bution conditions (nature of the gas and gas
pressure) and the adjustment of the appliance
are compatible.
The adjustment conditions for this appliance
are stated on the label (or data plate).
12.2 Information about the installation
room
For safe operation, observe the following information
regarding the installation room.
¡ This appliance complies with appliance class3 for
installation in a kitchen cupboard.
¡ Install the appliance in accordance with the installa-
tion diagram.
¡ Ensure that the wall behind the appliance is made
of non-combustible material.
¡ This appliance must not be installed on boats or in
vehicles.
Independent installation
A space of at least 100mm in height should be kept
available below the hob.
12.3 Gas connection instructions
Please observe these precautions to ensure safe and
reliable connection of the appliance.
¡ For the installation, observe the currently applicable
building regulations and the regulations of the local
gas suppliers.
¡ Ensure that the information on the rating plate re-
garding the gas type and gas pressure complies
with the local connection conditions.
¡ The gas connection must be arranged so that the
shut-off valve is accessible.
The appliance comes with two connection elbows (ap-
pliance-side G½'').
Select the right version according to the country:
¡ ISO 228 G 1/2 cylindrical
¡ EN10226 R 1/2 conical
Use the connection elbow and corresponding seal to
connect the appliance to the gas hose.
The safety gas hose should not exceed a length of 2
·m, and must have no connectors.
Please pay attention to the instructions regarding the
safety gas hose:
¡ The gas safety hose must not come into contact
with moving parts of the fitted unit (e.g. drawers) or
be routed in areas where it could become trapped
or damaged.
¡ The gas safety hose must not come into contact
with a hob, oven, dishwasher, refrigerator, washing
machine, hot water pipes, radiator or any other ap-
pliance installed next to or below the gas hob.
¡ The gas safety hose must not be subject to rubbing,
vibrations, kinking or any other kind of deformation.
It should be checked along its entire length with the
hob in the installation position.
12.4 Included in delivery
After unpacking all parts, check for any damage in
transit and completeness of the delivery.
Two-burner model:
Name Quantity
Gas hob 1 unit
Instructions for installation and use 1 copy
Burner 2 sets
Pan support 2 pcs
Milk pan support 1 pc
Inlet 1 pc
Three-burner model:
Name Quantity
Gas hob 1 unit
Instructions for installation and use 1 copy
Burner 3 sets
Pan support 3 pcs
Inlet 1 pc
12.5 Checking the unit
▶
Check whether the kitchen unit worktop is strong
and level.
Worktop thickness·>16mm, width ≥550mm.
12.6 Preparing the unit
Requirement:The unit is suitable for installation.
Installation and connection en
13
1.
Note:Check the technical specifications of the ap-
pliance and select the cavity dimensions corres-
ponding to the model.
Make a cut-out in the worktop, depending on the in-
stallation position.
The angle between the cut surface and the worktop
must be 90°.
2.
Ensure that the worktop has sufficient load-bearing
capacity and stability.
Use a heat- and humidity-resistant reinforcing mater-
ial for any substructure.
3.
Ensure that the fitted unit is still stable after the cut-
outs have been made.
4.
Remove any shavings.
12.7 Installing the appliance
▶
Lift the hob horizontally and slowly place it into the
opening in the worktop until the edge of the hob is
fully in contact with the worktop.
12.8 Connecting a non-metallic gas hose
Requirement:The gas hose must meet the require-
ments.
1.
Note:Please read the installation instructions for the
gas hose carefully and install in strict accordance
with the regulations.
Use the connection elbow and corresponding seal
to connect the appliance to the gas hose.
2.
Connect the other end of the gas hose to the gas
valve.
3.
The connection between the gas hose and gas
pipeline must be secured by a compression nut or
pipe clamp.
4.
Perform a gas leak test.
12.9 Gas leak test
Use soapy water to test for leaks
1.
Use a soft brush dipped in soapy water to coat the
connecting section of the gas pipeline.
2.
Open the gas valve and carefully observe whether
bubbles form.
If bubbles form, close the gas valve immediately.
3.
Adjust the leaking connecting section.
4.
Repeat the above steps until there are no air
bubbles on the connecting section.
12.10 Installing the battery
▶
The battery box is on the right side of the appliance
base. Install the D-sized battery in the battery box
correctly, paying attention to the positive and negat-
ive symbols.
Notes
¡ Use high-energy alkaline batteries.
¡ Replace with a new battery when the hob becomes
difficult to ignite.
Thank you for buying a
Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help?
You'll find it here.
Expert advice for your Bosch home appliances, help with problems
or a repair from Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service directory.
*8001183531*
8001183531 (010924) 02
en
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München
GERMANY
www.bosch-home.com
