1 Safety Instructions

• Warning: Do not touch exposed cables.

• Warning: Do not use fridge if you suspect any connections could be wet.

• When using the fridge in a vehicle. please ensure the circuit being used is fused at the

• Any installation of DC power systems should be handled by a qualified professional.

• Make sure the source voltage is correct. The technical data label (page 20) has the

• Do not place any electrical devices inside the refrigerator as moisture could harm these

2. Notes On Using The Product

• Your refrigerator requires good ventilation. especially around the vents of the

• Avoid humidity: humidity inside the appliance can form frost and impair cooling. Do not

• Never clean the appliance using a hose and never submerge the unit in any liquid.

• Avoid placing your refrigerator near a heat source. This helps the refrigerator to work

• Place the refrigerator on a flat surface and away from any edges. When using the fridge

• This product is not designed for marine purposes and warranty may become void if

DOWN UNDER SERIES II

3. Operation

• Power: The refrigerator can be powered by a multi-voltage system utilising either 12/24

Volts or with the included 240V adaptor. The electronic module controls the compressor and has the added function of a three stage battery protection. When the input voltage drops below the minimum. the compressor will cut out; when the voltage comes back up to the cut-in value. the compressor will restart automatically.

• Battery Protection: The SECOP compressor requires approximately 11.0 Volts (12 Volt

System) or 23.0 Volts (24V System) to operate. If the voltage drops below this the fridge will stop running.

• Cable Specification: The DC cables must have a suitable cross-section for their length

(measured from the battery to the unit). according to this table:

Cable Thickness (Area) V Max Cable Length

(mm2) AWG (m) (ft) (m) (ft)

DOWN UNDER SERIES II

LED Control Panel

Display

DOWN UNDER SERIES II

4.1 Display Panel Definitions

Large & Small Bins: Wondering which display indicates the temperature for each bin? The outline of the display indicates this. the large bin is represented by a full square. and the small bin is represented by an L shape/stepped bin shape.

Snowflakes: These indicate which bin is currently cycled on (cooling). This fridge has one compressor. meaning it will only cool one bin at a time. This is an automated process within the fridge and cannot be altered within the settings.

4. LED Control Panel

Cooling Light

Increase Button

On/Off Button

Settings LED

Display

Small Bin Decrease Button

Button

Large Bin

Battery Charge

Voltage Indicator

Ambient

Temperature

Small/Stepped Bin Large Bin

Temperature Celsius

Max & Eco

Mode Bluetooth

Battery

Protection

Mode

DOWN UNDER SERIES II

AMB/Ambient Temperature: This indicates the ambient temperature inside the motor compartment of the fridge.

Bluetooth: The bluetooth symbol will turn on and make an audible beep when you have successfully connected to the app. This symbol will not be illuminated unless you have successfully connected. There is no setting within the fridge that turns the bluetooth on or off.

Voltage Indicator: When running your fridge on 12V this indicates the voltage at the fridge (not at your battery). The voltage indicator on the fridge will typically be different to the reading at the battery. This is because there can be voltage drop present between your fridge and battery. This can be to do with the length and quality of your power cord. and also be influenced by the health/life of your battery. When the fridge cycles on. the voltage will typically drop and then increase again when the fridge cycles off. This feature is useful for identifying any fridge errors (such as an E1).

When running your fridge on the supplied EvaPower 240V adaptor the voltage indicator will read approximately 14.5V. as this is the rated output of the 240V adaptor.

Battery Charge: When running the fridge on 12V. this icon will indicate how much battery charge you have left. Just like the voltage indicator reading. the battery charge reading will typically drop when the fridge cycles on. and will increase again when the fridge cycles off.

If you notice the battery symbol on your fridge getting low. we recommend checking your battery voltage and putting it on charge if possible to prevent any power issues to your fridge.

When running your fridge on 240V the battery charge will indicate it’s full.

4.2 Display Panel Settings

To turn on/off the refrigerator:

• Hold the button for three seconds.

• The fridge will make an audible beep and turn on.

Setting the temperature:

• To set the large bin press the button once.

• To set the small/stepped bin press the button twice.

• Once the selected room is flashing use the or buttons to select the desired

• Once the desired temperature is selected. it will flash several times. and after a few

DOWN UNDER SERIES II

Setting the Max & Eco Mode:

• Press the button three times.

• Use the or buttons to select the desired mode. You can find recommendations on

• Once the desired setting is selected. it will flash several times. and after a few seconds it

Setting the Battery Protection Mode:

• Press the button four times.

• Use the or buttons to select the desired battery protection mode. You can find

• Once the desired setting is selected. it will flash several times. and after a few seconds it

Did you know?

Just like your fridge at home. all EvaKool fridge freezers will cycle on and off. This means you will hear the fridge turn on (cycle on) and commence cooling. then once it gets down to the set temperature. it will cycle off again. Subsequently. the temperature displayed on the fridge will fluctuate by a couple of degrees from the set temperature.

The temperature shown is only an indication of the temperature inside the fridge. It is also typical to hear gurgling sounds during this process too.

There is no cause for concern. your fridge at home runs the exact same and means your fridge is running in a healthy state!

Turning one compartment on/off: If you only require cooling for a small amount of product. you can switch off either side and run just one bin/compartment.

• To turn off the large bin press the button for 3 seconds.

• To turn on the large bin press the button again for 3 seconds.

• To turn off the small bin press the button for 3 seconds.

• To turn on the small bin press the button again for 3 seconds.

5. Refrigerator Setting Recommendations To ensure maximum performance from your Down Under Series II Fridge/Freezer please follow these recommendations.

Temperature Settings This fridge can be run as a fridge/fridge. fridge/freezer or freezer/freezer. meaning either compartment can be run as a fridge or freezer. See recommendations below: Fridge: 2°C Freezer: -16°C

Down Under II 65L - Single or Dual Zone Settings The Down Under II 65L Fridge Freezer has the capability to be run as a single or dual zone fridge or freezer. See recommendations below:

Single Zone operation:

• Remove the internal divider. this

• Set the temperature: To run a fridge: have both bins

To run a freezer: have both bins

Dual Zone operation: Leave the divider in place and set a separate fridge and freezer temperature.

Max or Eco Mode Settings This setting controls the compressor speed. Max mode is typically used to quickly pull the fridge down to temperature or to assist in high ambient temperatures. whereas Eco mode will assist with conserving battery power and can be used in low ambient temperatures.

See recommendations below: Eco: Recommended for ambient temperatures of 30°C or less.

Max: Recommended for ambient temperatures of 30°C or less.

DOWN UNDER SERIES II

DOWN UNDER SERIES II

Battery Protection Mode Settings The fridge is equipped with a multi-level battery monitor that protects your vehicle battery against excessive discharging when the fridge is connected to the on-board 12V/24V supply. If the refrigerator is operated when the vehicle’s ignition is switched off. the fridge switches off automatically as soon as the supply voltage falls below a set level. The fridge will switch back on once the battery has been recharged to the restart voltage level. See recommendations below:

Battery Protection Mode

Switch-off voltage at 12V 10.1V 10.5V 11.1V

Restart voltage at 12V 10.9V 11.4V 12.4V

Switch-off voltage at 24V 21.5V 22.3V 24.3V

Restart voltage at 24V 22.7V 23.7V 25.7V

When the power to the refrigerator is supplied by the starter battery of a car. select battery mode “H”. In every other instance. EvaKool recommends using the “L” / low setting. This is safe for your auxiliary battery and will maximise how long your fridge can run off your battery on a single charge. Keep in mind. best 12V practice is to keep your battery as charged as possible to maximise its lifespan. If you wish to operate the fridge from an AC power supply. set the battery mode to “L”.

Helpful Hints

• Pre-chill your fridge before use. this can be done the night before you leave for your

• Clean your fridge regularly by following the cleaning and maintenance guide on

• Do not store any electrical equipment inside the fridge after use.

• Leave the fridge lid left ajar after use to prevent mold.

• Use the included baskets to ensure air circulates freely around the cabinet.

• Ensure the vents are not obstructed to allow maximum airflow.

• Refrain from unnecessary opening of the unit.

DOWN UNDER SERIES II

6. Lid Configuration This series features a bi-directional and completely removable lid for ease of access. Please follow these steps to change the lid configuration.

1. To open left or right. press the latch inwards to release the lid.

2. To completely remove the lid. press both latches on either side of the fridge inwards

3. The lid can be placed back onto the fridge from either side.

DOWN UNDER SERIES II

7. Error Codes

Code Reason / Solution

Low Voltage

• Please check the source voltage to ensure it is above the cut out. Try

• The vehicle cabling may be inadequate/unsuitable. please refer to

• Try on a different power source.

Fan Issue

• Fan is drawing too many Amps (Over 1 Amp).

Contact EvaKool

Compressor Start Issues

• Unplug for 10 minutes.

• Try on a different power source.

• Possible compressor module fault.

Contact EvaKool

The Compressor Speed is Too Low

• Unplug for 10 minutes.

• Move unit to a lower ambient temperature.

• Clean vents / ensure clear air flow over compressor.

• Reduce product load inside unit.

Ambient Temperature Too High

• Move unit to a lower ambient temperature.

• Clean vents / ensure clear air flow.

• Fan fault.

Contact EvaKool

Thermistor is Unplugged Contact EvaKool Thermistor is Short Circuited Contact EvaKool

DOWN UNDER SERIES II

8. Troubleshooting The appliance is not turning on

• Check the power supply.

• Check whether the plug and the socket have a good connection.

• If you have purchased an additional 12V adaptor with a cigarette end. check whether

• Check whether the appliance has been turned on (refer to page 7).

• Check the circuit breaker. this is located to the left of the motor cover. If the circuit

The food inside is frozen

• The set temperature is too low.

Bad performance in refrigeration

• The temperature setting is inappropriate.

• The lid is unlocked/or open.

• The lid seal is broken.

• Problems arising from poor ventilation.

• There is too much food inside the refrigerator.

• There is too much warm product inside the refrigerator.

• There is a heat source near the unit.

Hear the sound of water from inside the unit

• This is normal. due to the flow of the refrigerant.

Unusual noise when refrigerator is working

• The refrigerator is not placed on a level surface.

• Some part has come loose inside the refrigeration compartment (see a service agent).

Replacing the fuse plug (12/24V) NOTE: An Anderson to cigarette adaptor is not included with this product and can be purchased separately via our website.

• You can purchase a fuse from any automotive or electrical retailer near you. The

• Pull off the adaptor sleeve on the plug.

• Unscrew the screw from the upper half of the housing.

• Carefully raise the upper half of the housing from the lower half.

• Take out the contact pin.

• Replace the defective fuse with a new one that has the same rating (15A. 250V).

• Re-assemble the plug in the reverse order.

Replacing the light

• If you require a new LED light please contact Evakool on 1300 385 665.

• The LED light is located internally on the outer left and right hand sides.

• Disconnect the power supply.

• Carefully pry out the plastic light cover with a pointed and flat tool.

• Unscrew the LED mounting screws.

• Pull out the LED.

• Replace them with a new LED.

• Fit the screws in with a screwdriver.

• Press the transparent part of the lamp back into the housing.

• Connect the power supply to the fridge.

If none of the above solves your issue please contact Evakool on 1300 385 665 or

DOWN UNDER SERIES II

9. Preventative Maintenance & Care: Metal & Injection

Moulded Products

To ensure a long life and reliable operation of your metal and injection moulded fridge/ freezer we recommend following our preventative maintenance and care guide.

Cabinet Care

• The cabinet should be cleaned after every use by wiping both the interior and exterior

+To protect the cabinet from the harsh conditions a protective cover can be purchased

• Do not use scourers. harsh cleaning products. solvents. or oil as this will degrade the

• Do not leave the cabinet in direct sunlight as this may cause discolouration in the plastic

Defrosting

• After use. defrost ice off evaporator; switch off unit and disconnect from power source.

Leave the lids open to naturally melt the ice. Once the ice has melted. ensure the unit is completely dry by draining any residue and wiping down with a towel.

• Always make sure the cabinet is completely dry and the lid left ajar when put in storage.

This will ensure no corrosion. mold or odor will form inside the cabinet.

• Do not store electrical devices such as the 12 volt adaptor inside the refrigerator.

• Do not use a sharp object to remove ice. If damage is caused by a sharp object than the

Refrigerator Maintenance

• As your EvaKool fridge is a portable appliance it is subjected to a variety of different

Marine Use

• We do not recommend the use of our fridges in a marine environment. as salt can cause

DOWN UNDER SERIES II

10. App Instructions The following instructions will assist you with downloading and using the EvaKool Down Under Series II App. This app is suitable for Down Under Series II 95L. 80L & 65L only.

Please note that the app is a bonus feature and is not needed for the fridge to function.

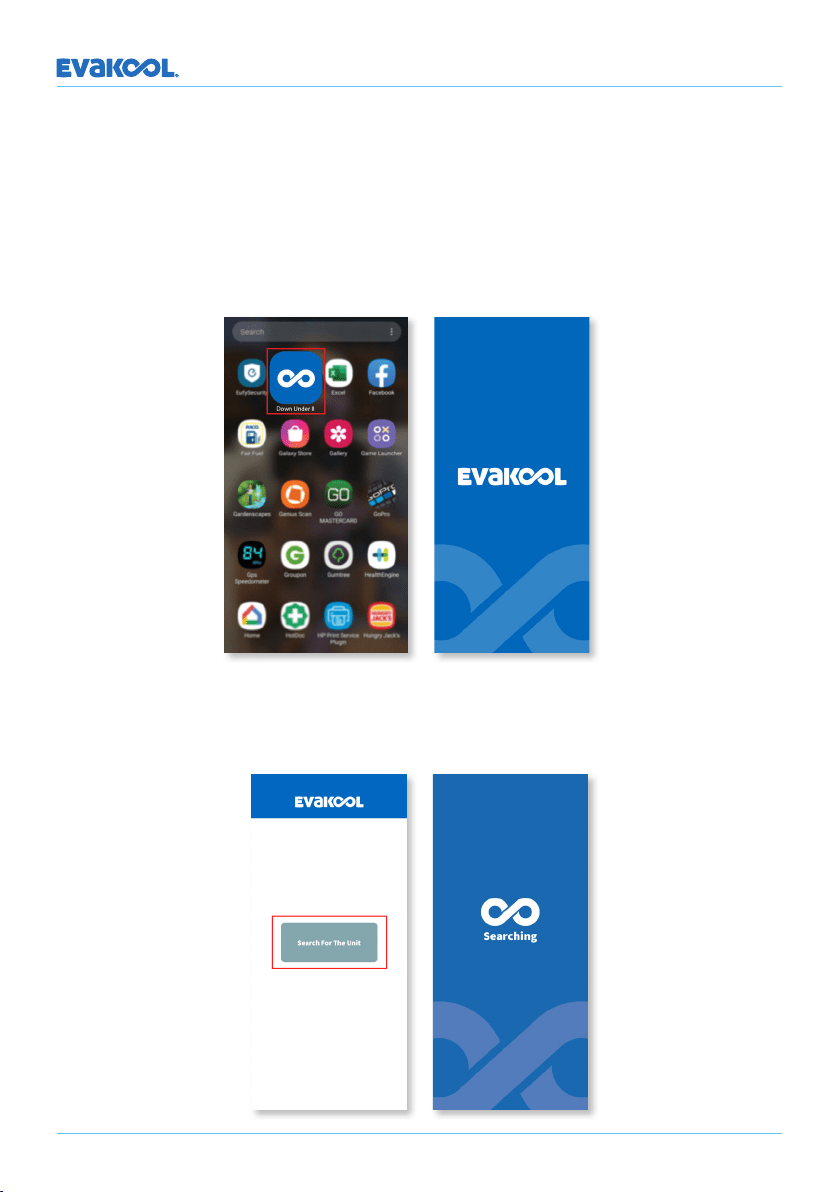

Step 1: Download the app from the Apple App Store or the Google Play Store. Once downloaded. enter the app by clicking its icon on the home screen.

DOWN UNDER SERIES II

Step 2: To connect to the fridge press the Search for the unit’ button. While the app is searching. you will stay on the Searching’ page.

DOWN UNDER SERIES II

Step 3: Once the app has found the fridge. click Connect’ to connect to the fridge. Once you have successfully connected. you will hear an audible beep from the fridge. the bluetooth light on the fridge will turn on. and the app will say Pairing Successful’. When you are ready to proceed click Okay’.

Step 4: Under My Units’. press the button to enter the fridge settings of the selected

DOWN UNDER SERIES II

Step 5: To edit the fridge settings press Edit Settings’. There are three fridge settings that you can changed; On/Off. Temperature & Battery Protection Mode. Once you have chosen the desired settings press Save Settings’.

Step 6: If you experience a fault code. simply press the red button next to Fault Codes’.

You’ll be taken to a page that will indicate what the fault is and how to proceed.

DOWN UNDER SERIES II

Step 7: If you are using more than one Down Under Series II fridge and you are currently in the settings for Fridge 1 but want to change the settings of Fridge 2. simply exit and restart the app. This will take you back to the home screen. where you can select which fridge you want to connect to.

Two users cannot connect at the same time. Please disconnect app if wanting to use app on a different device.

DOWN UNDER SERIES II

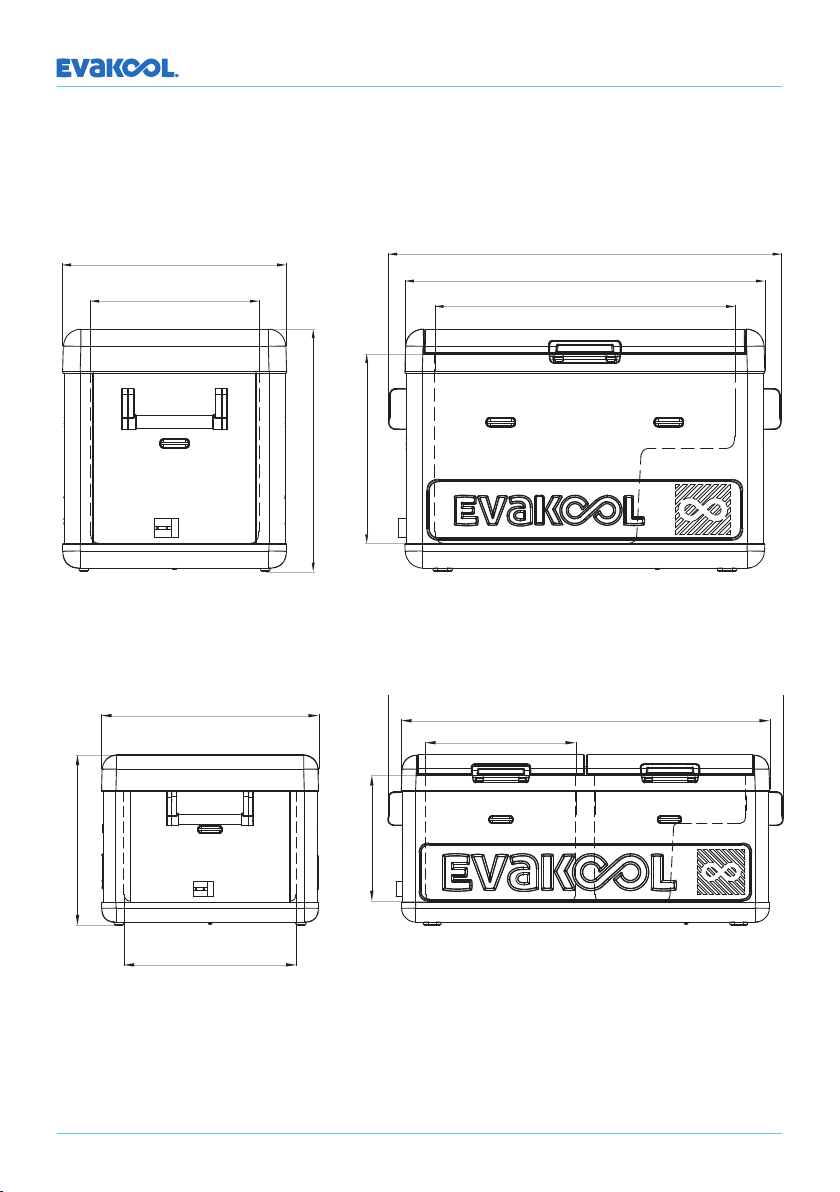

SPECIFICATIONS

Model No.

DU265-DZ DU280-DZ DU295-DZ

Basic Data

Ambient Temperature Rating 43°C

Temperature Range

+10°C to -18°C

Gross Capacity

Power Supply DC 12/24V

Insulation Thickness 50mm

Refrigerating System

Compressor SECOP PCB 2.5

Refrigerant Type R134a

Refrigerant Charge 55g 60g 70g

Packing Information

Net Weight 32kg 35kg

Product Dimension (LxWxH) 787x448x485mm 967x530x415mm 967x530x470mm

11. Product Data

DOWN UNDER SERIES II

12. Down Under Series II Accessories

Shop via our website by scanning the QR code or by visiting

Down Under Series II

Insulated Protective Cover

Large Heavy Duty Fridge Slide

Small Heavy Duty Fridge Slide

EvaPower Watt Meter

EvaPower Heavy Duty

Tie Down Straps

Infinity Drinkware

Range

Water Bottle. Tumbler.

Can Cooler

Choose your lid colour:

EvaKool Blue Midnight Black Phantom Grey

Accessories:

14. Warranty Statement/Terms & Conditions

Nexberg Pty Ltd trading as EvaKool undertakes to the original purchaser that this product is sold free of defect in materials and/or workmanship under normal use for a period of 3 years. Subject to the following:

• The warranty period commences from the date of purchase by the original purchaser from an authorised

EvaKool dealer.

• The Secop compressor in this unit carries a 5 year warranty under normal use.

• EvaKool will honour this warranty on presentation of proof of purchase of the unit to EvaKool or its

• EvaKool will not be held responsible for any costs incurred in making a warranty claim.

• Please telephone 1300 385 665 for the name of an authorised service agent or refer to list provided on

• EvaKool will not be held responsible for any damage or loss suffered or cost incurred whilst fridge is in

• Warranty repairs may only be carried out by an authorised service agent. EvaKool will not reimburse

• Service agents may charge a fee for viewing or testing the unit. This is not covered by EvaKool or this

• Any EvaKool authorised service agent in Australia will be able to carry out the service of your unit. If a

• This warranty does not extend to any products acquired for the purposes of re-supply. to be used up or

• This fridge is intended for recreational use only. If used for commercial use. a 12 month warranty applies.

• To the extent permitted by law. this warranty does not extend to any claim for damages that you or any

• EvaKool will not accept a warranty claim if:

1. Modifications have been carried out to the unit without EvaKool’s written authority.

2. Damage to or failure of the unit has been caused in EvaKool’s opinion by incorrect. extreme or

3. Damage to or failure of the unit has been caused in EvaKool’s opinion by misuse. neglect. accident.

• EvaKool has total discretion of the variation of the warranty terms.

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are

• The above warranty conditions are in addition to any other rights and/or remedies as per the applicable

• Failure to follow the guidelines/recommendations in this manual may void the warranty.

• This warranty cannot be varied by others.

Please retain your receipt or proof of purchase for warranty purposes. You can register your warranty online at www.evakool.com.au under contact us and register product warranty.

DOWN UNDER SERIES II

For your nearest stockist contact Evakool

T: 1300 385 665 (1300 EVKOOL)

E: [email protected]

For Service and Warranty support contact Evakool

T: 1300 385 665 (EVKOOL) E: [email protected]



Newest Added: DU265-DZ-BLU DU265-DZ-BLK

Tags: EvaKool Refrigeration Use Manual

EvaKool DU265-DZ-GRY | Pages: 28 | Created on: 2022-06-02 | File type: PDF | Filename: 30577814_du265-dz-gry.pdf | Size: 2.93 MB | Language: English | Other documents: 1 files.

Download User Manual

Product Infomation and Reviews - DU265-DZ-GRY photo

DU265 DZ GRY Photo

View more photos

T: @manualsFile

https://manualsFile.com

EvaKool DU265-DZ-GRY Questions and Answers


EvaKool

EvaKool

Owner manual PDF of DU265-DZ-GRY EvaKool Down Under II 65Ltr Dual Zone Fridge / Freezer.

Use manuals file type: PDF. EvaKool - Refrigeration

Related Products
