ELECTRIC BUILT-IN CONVECTION OVENS
MODELS RBS277PD RBS307PD RBD277PD RBD307PD

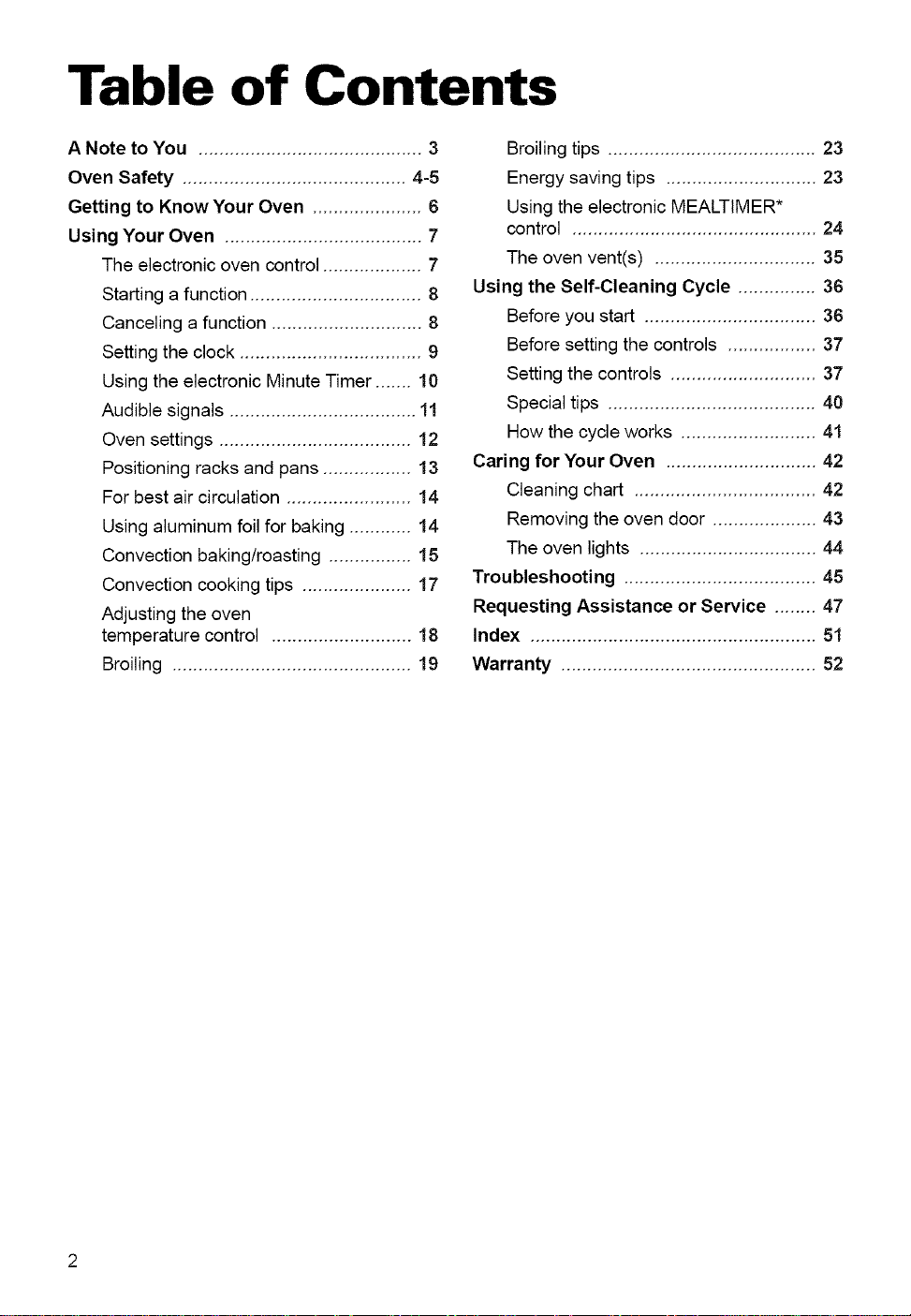

Table of Contents
A Note to You ........................................... 3
Oven Safety ........................................... 4-5
Getting to Know Your Oven ..................... 6
Using Your Oven ...................................... 7
The electronic oven control ................... 7
Starting a function ................................. 8
Canceling a function ............................. 8
Setting the clock ................................... 9
Using the electronic Minute Timer ....... 10
Audible signals .................................... 11
Oven settings ..................................... 12
Positioning racks and pans ................. 13
For best air circulation ........................ 14
Using aluminum foil for baking ............ 14
Convection baking/roasting ................ 15
Convection cooking tips ..................... 17
Adjusting the oven
temperature control ........................... 18
Broiling .............................................. 19
Broiling tips ........................................ 23
Energy saving tips ............................. 23
Using the electronic MEALTIMER*
control ............................................... 24
The oven vent(s) ............................... 35
Using the Self-Cleaning Cycle ............... 36
Before you start ................................. 36
Before setting the controls ................. 37
Setting the controls ............................ 37
Special tips ........................................ 40
How the cycle works .......................... 41
Caring for Your Oven ............................. 42
Cleaning chart ................................... 42
Removing the oven door .................... 43
The oven lights .................................. 44
Troubleshooting ..................................... 45
Requesting Assistance or Service ........ 47
Index ....................................................... 51
Warranty ................................................. 52

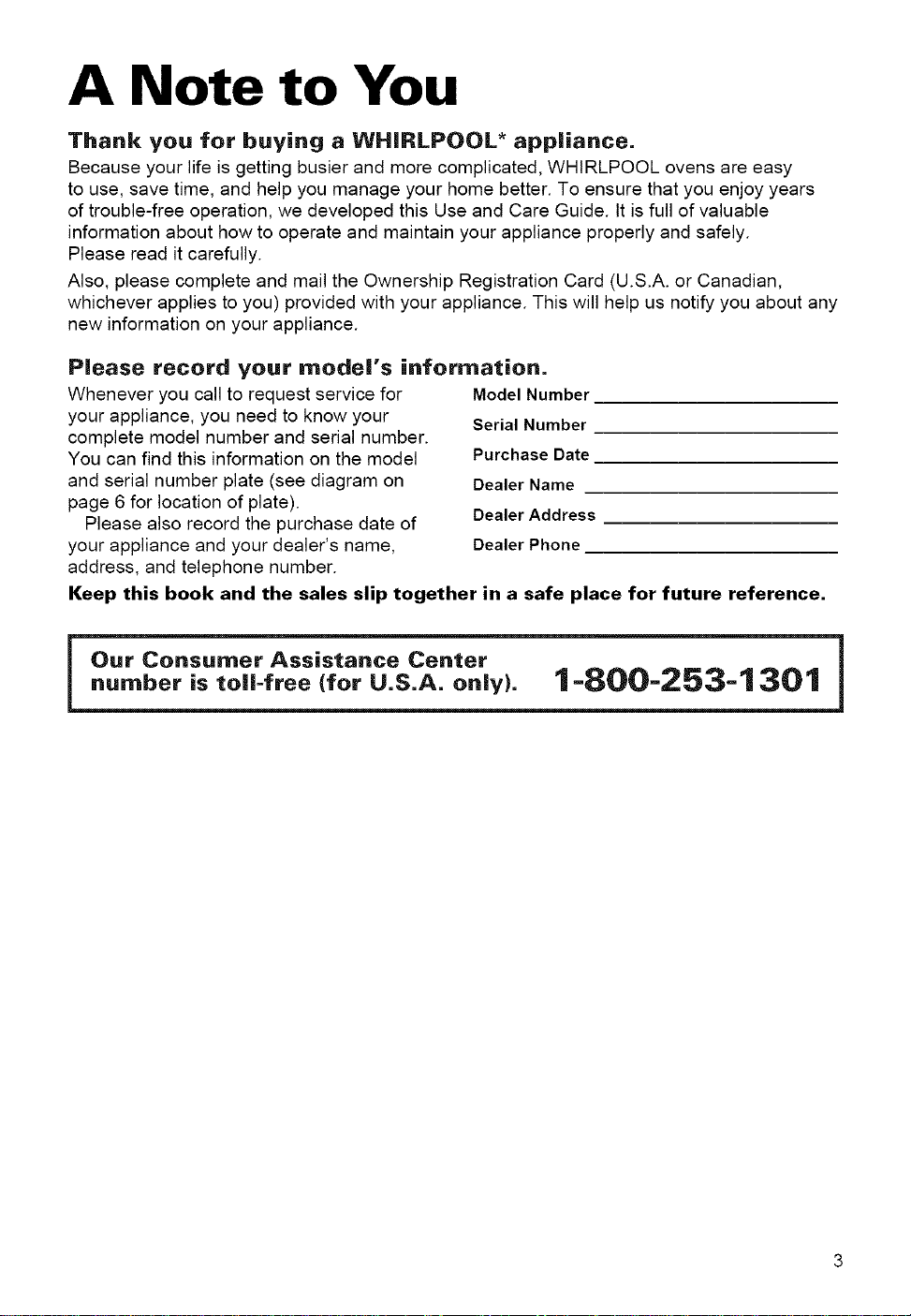

A Note to You
Thank you for buying a WHIRLPOOL* appliance.
Because your life is getting busier and more complicated, WHIRLPOOL ovens are easy
to use, save time, and help you manage your home better. To ensure that you enjoy years
of trouble-free operation, we developed this Use and Care Guide. It is full of valuable
information about how to operate and maintain your appliance properly and safely.
Please read it carefully.
Also, please complete and mail the Ownership Registration Card (U.S.A. or Canadian,
whichever applies to you) provided with your appliance. This will help us notify you about any
new information on your appliance.
Please record your model's information.
Whenever you call to request service for
your appliance, you need to know your
complete model number and serial number.
You can find this information on the model
and serial number plate (see diagram on
page 6 for location of plate).
Please also record the purchase date of
your appliance and your dealer's name,
address, and telephone number.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Address
Dealer Phone
Keep this book and the sales slip together in a safe place for future reference.
I Our Consumer Assistance Center . . . I
number is toll-free (for U.S.A. only}. 1 800 253 1301

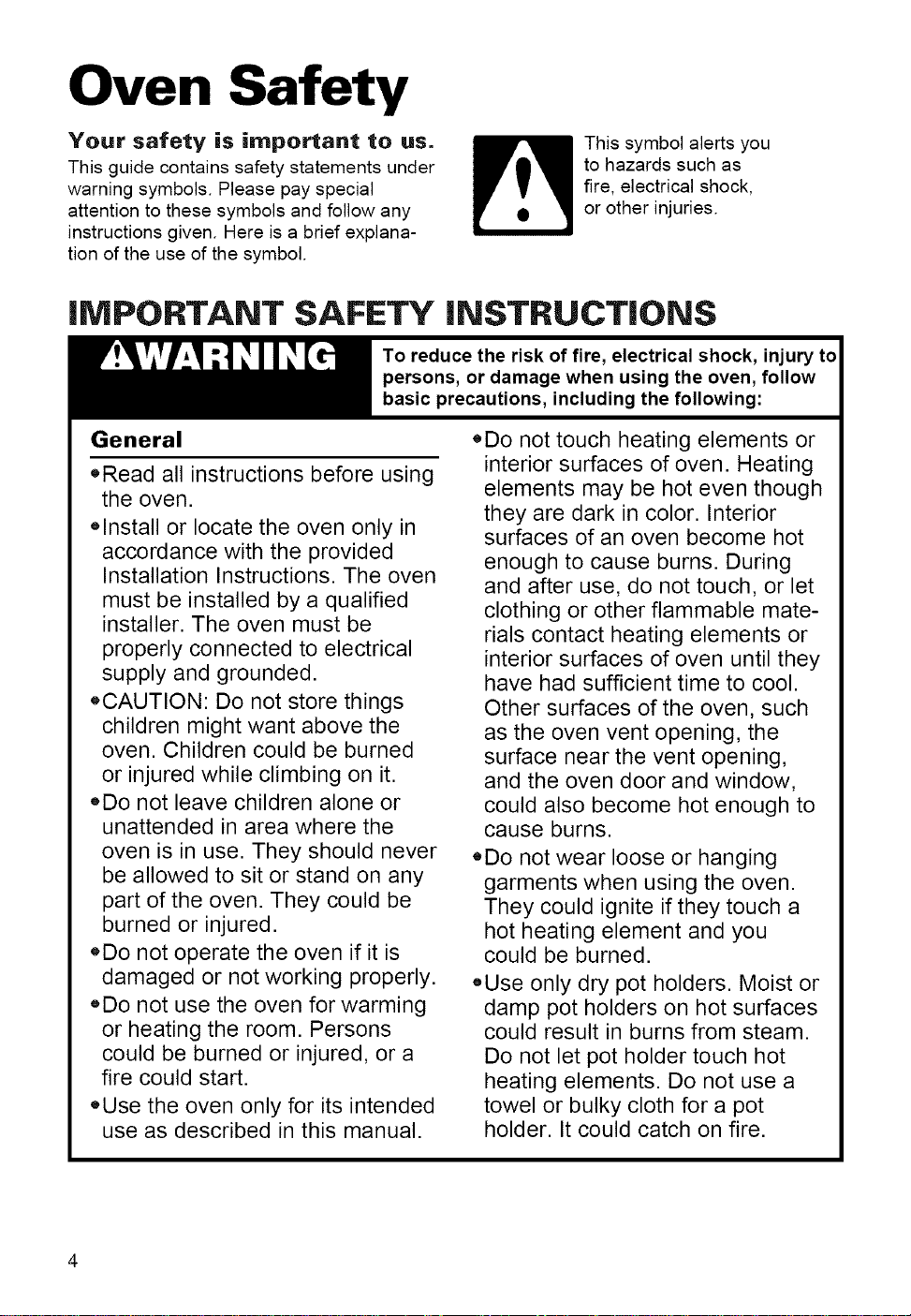

Oven Safety
Your safety is important to us.
This guide contains safety statements under
warning symbols. Please pay special
attention to these symbols and follow any
instructions given. Here is a brief explana-
tion of the use of the symbol.
This symbol alerts you
to hazards such as
fire, electrical shock,
or other injuries.
iMPORTANT SAFETY iNSTRUCTiONS
General
• Read all instructions before using
the oven.
• Install or locate the oven only in
accordance with the provided
Installation Instructions. The oven
must be installed by a qualified
installer. The oven must be
properly connected to electrical
supply and grounded.
oCAUTION: Do not store things
children might want above the
oven. Children could be burned
or injured while climbing on it.
eDo not leave children alone or
unattended in area where the
oven is in use. They should never
be allowed to sit or stand on any
part of the oven. They could be
burned or injured.
eDo not operate the oven if it is
damaged or not working properly.
• Do not use the oven for warming
or heating the room. Persons
could be burned or injured, or a
fire could start.
eUse the oven only for its intended
use as described in this manual.
• Do not touch heating elements or
interior surfaces of oven. Heating
elements may be hot even though
they are dark in color. Interior
surfaces of an oven become hot
enough to cause burns. During
and after use, do not touch, or let
clothing or other flammable mate-
rials contact heating elements or
interior surfaces of oven until they
have had sufficient time to cool.
Other surfaces of the oven, such
as the oven vent opening, the
surface near the vent opening,
and the oven door and window,
could also become hot enough to
cause burns.
eDo not wear loose or hanging
garments when using the oven.
They could ignite if they touch a
hot heating element and you
could be burned.
*Use only dry pot holders. Moist or
damp pot holders on hot surfaces
could result in burns from steam.
Do not let pot holder touch hot
heating elements. Do not use a
towel or bulky cloth for a pot
holder. It could catch on fire.

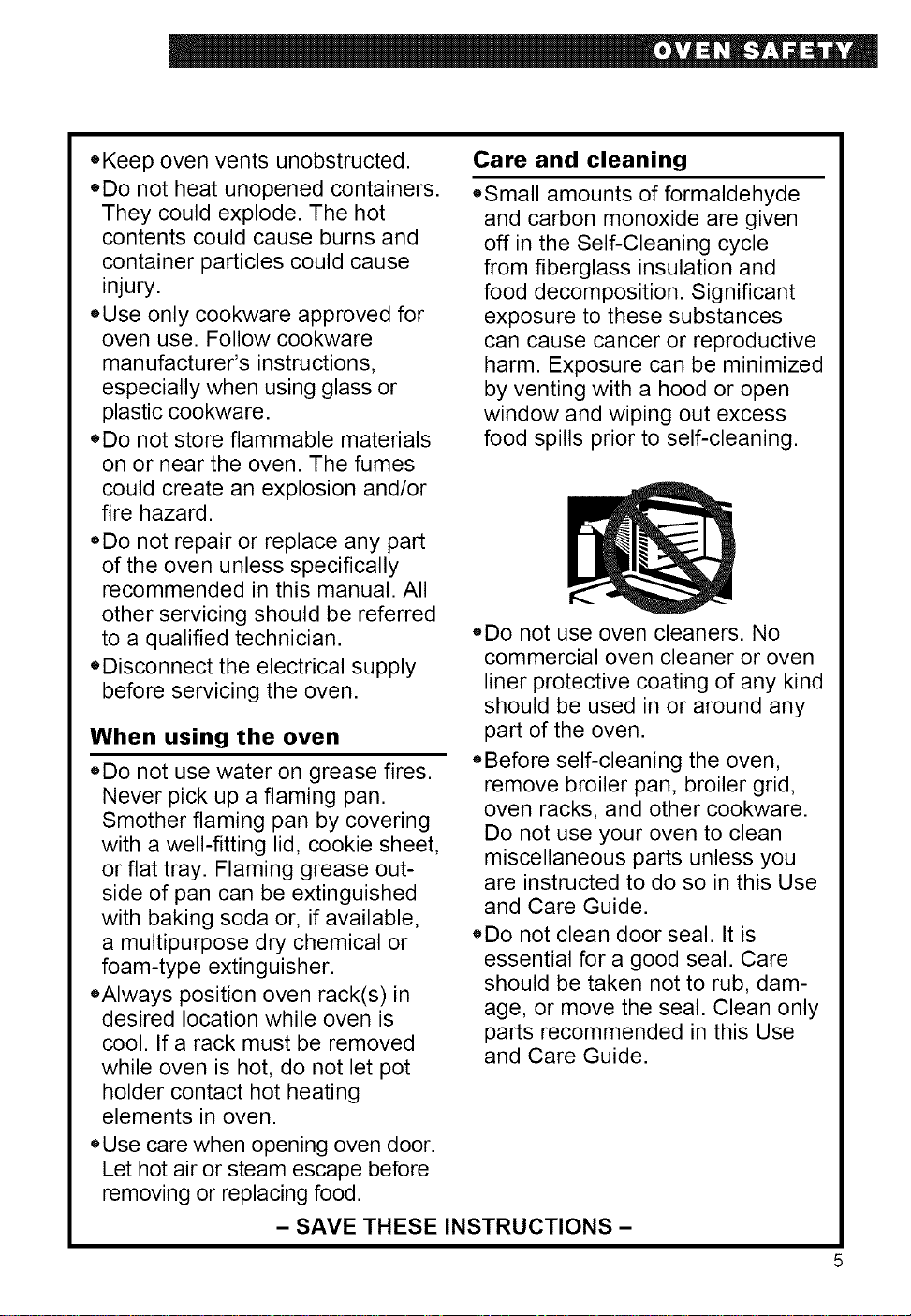

oKeepoven vents unobstructed.
oDo not heat unopened containers.
They could explode. The hot
contents could cause burns and
container particles could cause
injury.
eUseonly cookware approved for
oven use. Follow cookware
manufacturer's instructions,
especially whenusingglassor
plasticcookware.
eDo not storeflammable materials
on or near the oven. The fumes
could create an explosion and/or
fire hazard.
eDo not repair or replace anypart
of the oven unless specifically
recommendedin this manual.All
other servicing should be referred
to a qualifiedtechnician.
eDisconnectthe electrical supply
beforeservicing the oven.
When using the oven
oDo not use water on grease fires.
Never pick up a flaming pan.
Smother flaming pan by covering
with a well-fitting lid, cookie sheet,
or flat tray. Flaming grease out-
side of pan can be extinguished
with baking soda or, if available,
a multipurpose dry chemical or
foam-type extinguisher.
eAIways position oven rack(s) in
desired location while oven is
cool. If a rack must be removed
while oven is hot, do not let pot
holder contact hot heating
elements in oven.
eUse care when opening oven door.
Let hot air or steam escape before
removing or replacing food.
Care and cleaning
eSmall amounts of formaldehyde
and carbon monoxide are given
off in the Self-Cleaning cycle
from fiberglass insulation and
food decomposition. Significant
exposure to these substances
can cause cancer or reproductive
harm. Exposure can be minimized
by venting with a hood or open
window and wiping out excess
food spills prior to self-cleaning.
• Do not use oven cleaners. No
commercial oven cleaner or oven
liner protective coating of any kind
should be used in or around any
part of the oven.
eBefore self-cleaning the oven,
remove broiler pan, broiler grid,
oven racks, and other cookware.
Do not use your oven to clean
miscellaneous parts unless you
are instructed to do so in this Use
and Care Guide.
*Do not clean door seal. It is
essential for a good seal. Care
should be taken not to rub, dam-
age, or move the seal. Clean only
parts recommended in this Use
and Care Guide.
-SAVETHESEINSTRUCTIONS-

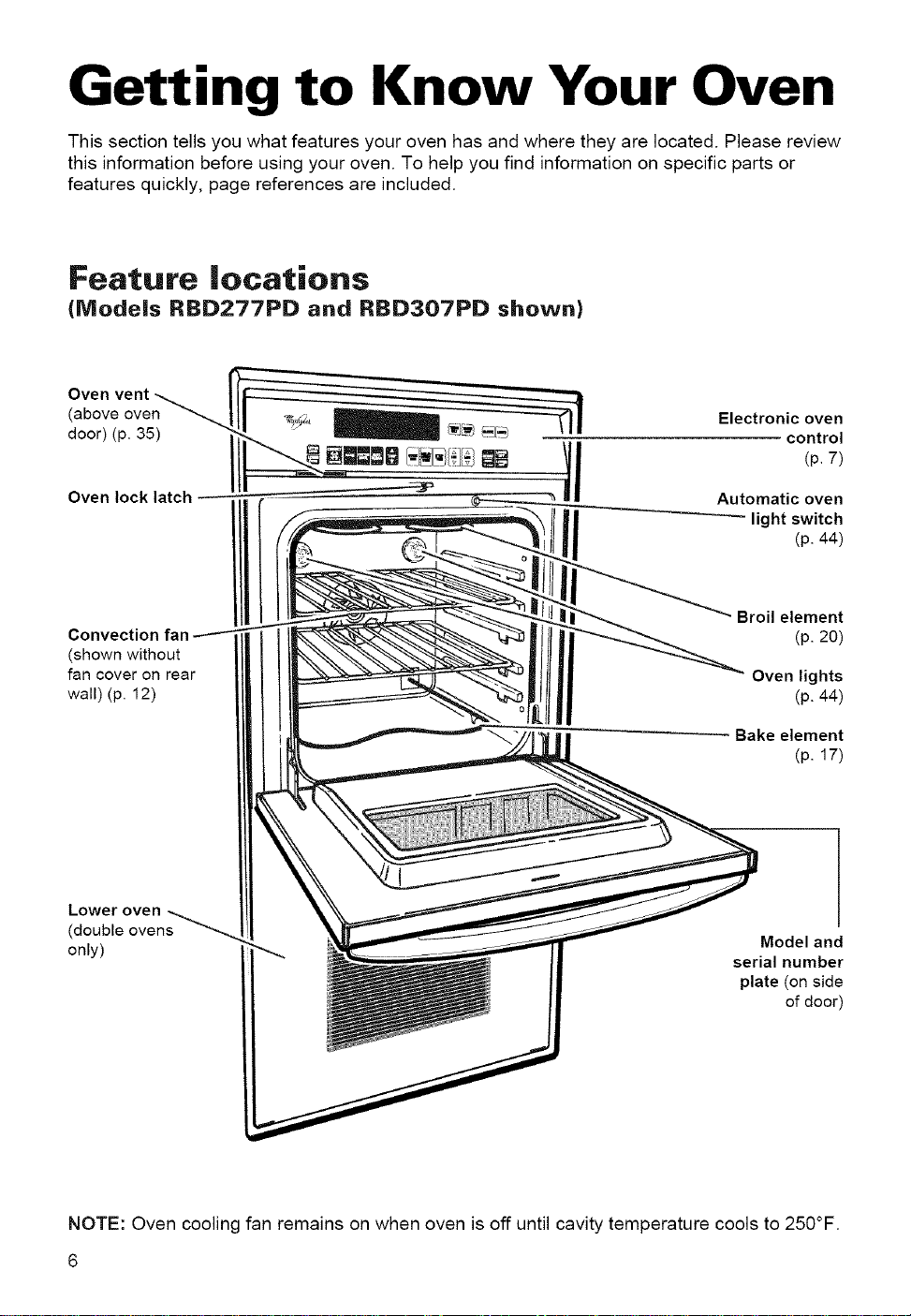

Getting to Know Your Oven
This section tells you what features your oven has and where they are located. Please review
this information before using your oven. To help you find information on specific parts or
features quickly, page references are included.
Feature |ocations
(Mode|s RBD277PD and RBD307PD shown)
Electronic oven
control
(p. 7)
Automatic oven
light switch
(p. 44)
Broil element
Convection (p. 20)
(shown without
fan cover on rear Oven lights
wall) (p. 12) (p. 44)
Bake element
(p. 17)
Lower oven
(double ovens
only)
Model and
serial number
plate (on side
of door)
NOTE: Oven cooling fan remains on when oven is off until cavity temperature cools to 250°F.
6

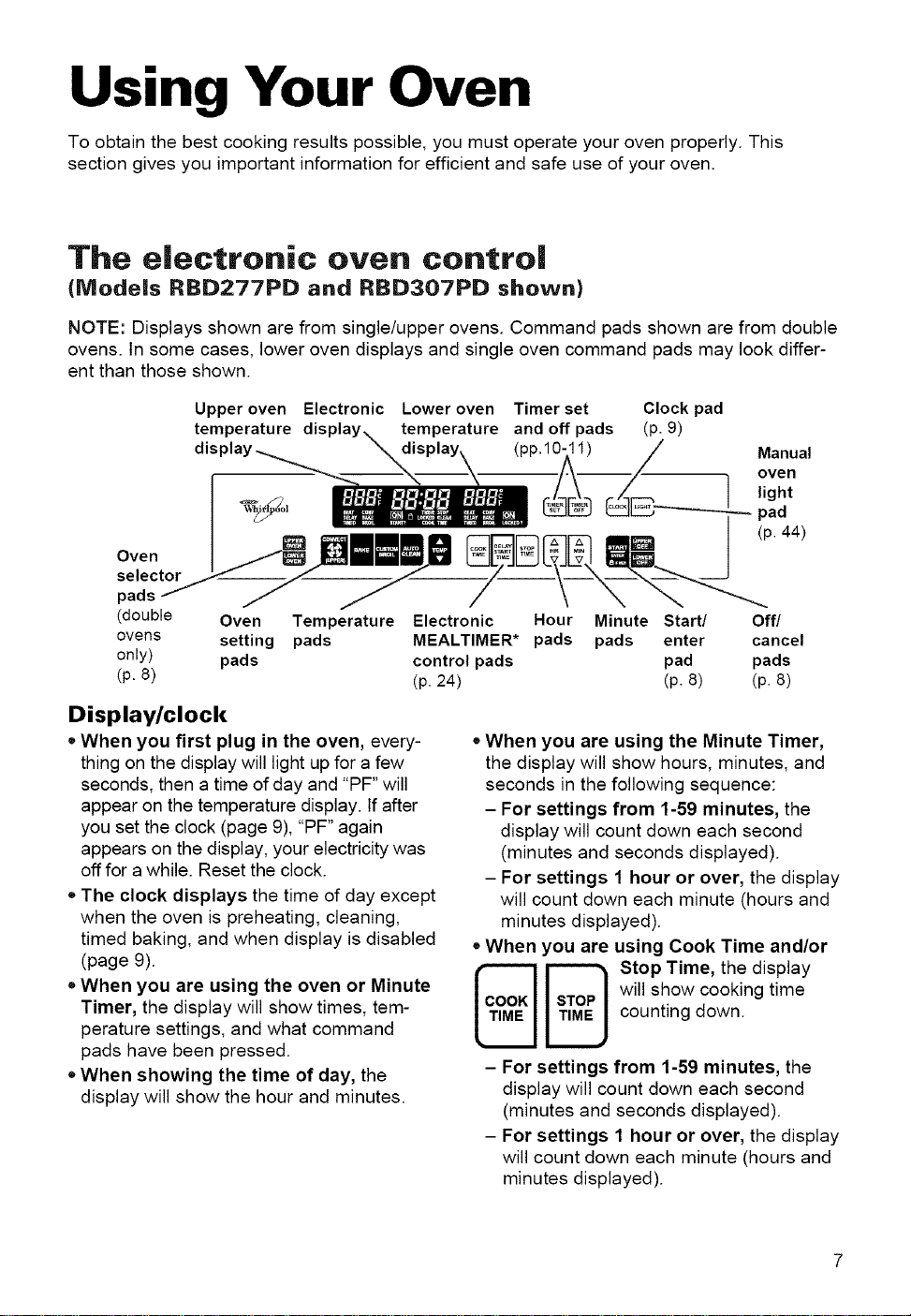

Using Your Oven
To obtain the best cooking results possible, you must operate your oven properly. This
section gives you important information for efficient and safe use of your oven.
The eJectronic oven contro|
(NIode|s RBD277PD and RBD307PD shown}
NOTE: Displays shown are from single/upper ovens. Command pads shown are from double
ovens. In some cases, lower oven displays and single oven command pads may look differ-
ent than those shown.
Upper oven Electronic Lower oven Timer set Clock pad
temperature display,, temperature and off pads (p. 9)
displ___,_p ____ ]Manualovepadlightn
Oven _ (p. 44)
selector
pads
(double Oven Temperature Electronic Hour Minute Start/ Off/
ovens setting pads MEALTIMER* pads pads enter cancel
only) pads control pads pad pads
(p. 8) (p. 24) (p. 8) (p. 8)
Display/clock
=When you first plug in the oven, every-
thing on the display will light up for a few
seconds, then a time of day and "PF" will
appear on the temperature display. If after
you set the clock (page 9), "PF" again
appears on the display, your electricity was
offfor a while. Reset the clock.
• The clock displays the time of day except
when the oven is preheating, cleaning,
timed baking, and when display is disabled
(page 9).
• When you are using the oven or Minute
Timer, the display will show times, tem-
perature settings, and what command
pads have been pressed.
• When showing the time of day, the
display will show the hour and minutes.
, When you are using the Minute Timer,
the display will show hours, minutes, and
seconds in the following sequence:
- For settings from 1-59 minutes, the
display will count down each second
(minutes and seconds displayed).
- For settings 1 hour or over, the display
will count down each minute (hours and
minutes displayed).
, When you are using Cook Time and/or
rcoo lls,o,1 to ,m°,the0,s0,a
will show cooking time
[,,M011,,M0Jcount,ngdown.
- For settings from 1-59 minutes, the
display will count down each second
(minutes and seconds displayed).
- For settings 1 hour or over, the display
will count down each minute (hours and
minutes displayed).
Command pads
The command pads tell the oven what to do
and in what order. Some command pads
have an Indicator Light. The Indicator Light
comes on when you press the command
pad. The ON Indicator Light comes on when
you press the Start/Enter pad for an oven
function.
Selecting an oven
(double ovens)
To choose the oven you want to use, press
the Upper Oven or Lower
Oven pad.
Using the control lock
The control lock prevents unwanted use of
the oven by disabling most of the control
panel command pads (except CLOCK and
TIMER SET/OFF).
NOTES:
• Control lock is only available when oven
is not in use or control has not been set.
• Set control lock when cleaning the control
panel to prevent oven from accidentally
turning on.
To lock or deactivate the control panel:
Press and hold the Start/Enter pad for
5 seconds. A single tone will
sound and "Loc" and _1will appear
on the temperature display. When
the control is locked, "START?"
will appear on the display if you
press any command pad.
To unlock the control panel:
Press and hold the Start/Enter pad for
5 seconds. A single tone will
sound and "Loc" and _ will disap-
pear from the temperature display.
Starting a function
After programming a function, you must press
the Start/Enter pad to start the
function. If you do not press the
Start/Enter pad within 5 seconds of
programming,"START?" will show
on the display as a reminder. The
control will return to time of day mode after
5 minutes if Start/Enter is not pressed.
Canceling a function
The Off/Cancel pad will cancel any function
except for the Clock
and Timer Set func-
tions. When you press
the Off/Cancel pad,
the display will show
(single (double
ovens) ovens) the time of day or, if
Minute Timer is also
being used, the time remaining. To cancel
the Minute Timer see page 11.
8
NOTE: You may hear a fan blowing in the
oven even after you press the Off/Cancel
pad. This is the cooling fan. It will turn
offwhen the oven cools to a certain
temperature.

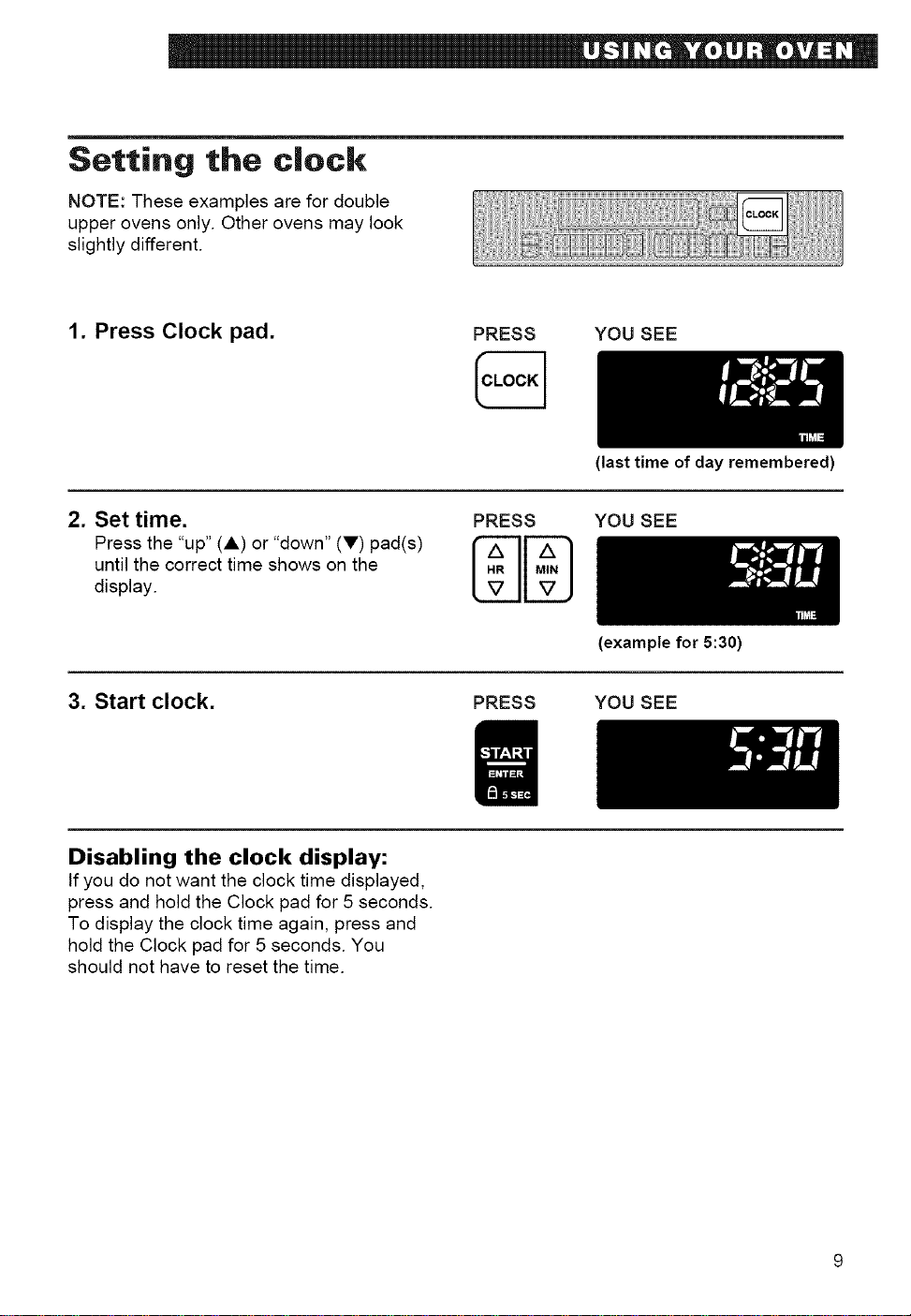

Setting the clock
NOTE: These examples are for double
upper ovens only. Other ovens may look
slightly different.
1. Press Clock pad.
PRESS YOU SEE
2. Set time.
Press the "up" (A) or "down" (V) pad(s)
until the correct time shows on the
display.
PRESS
(last time of day remembered)
YOU SEE
3. Start clock.
(example for 5:30)
PRESS YOU SEE
Disabling the clock display:
If you do not want the clock time displayed,
press and hold the Clock pad for 5 seconds.
To display the clock time again, press and
hold the Clock pad for 5 seconds. You
should not have to reset the time.

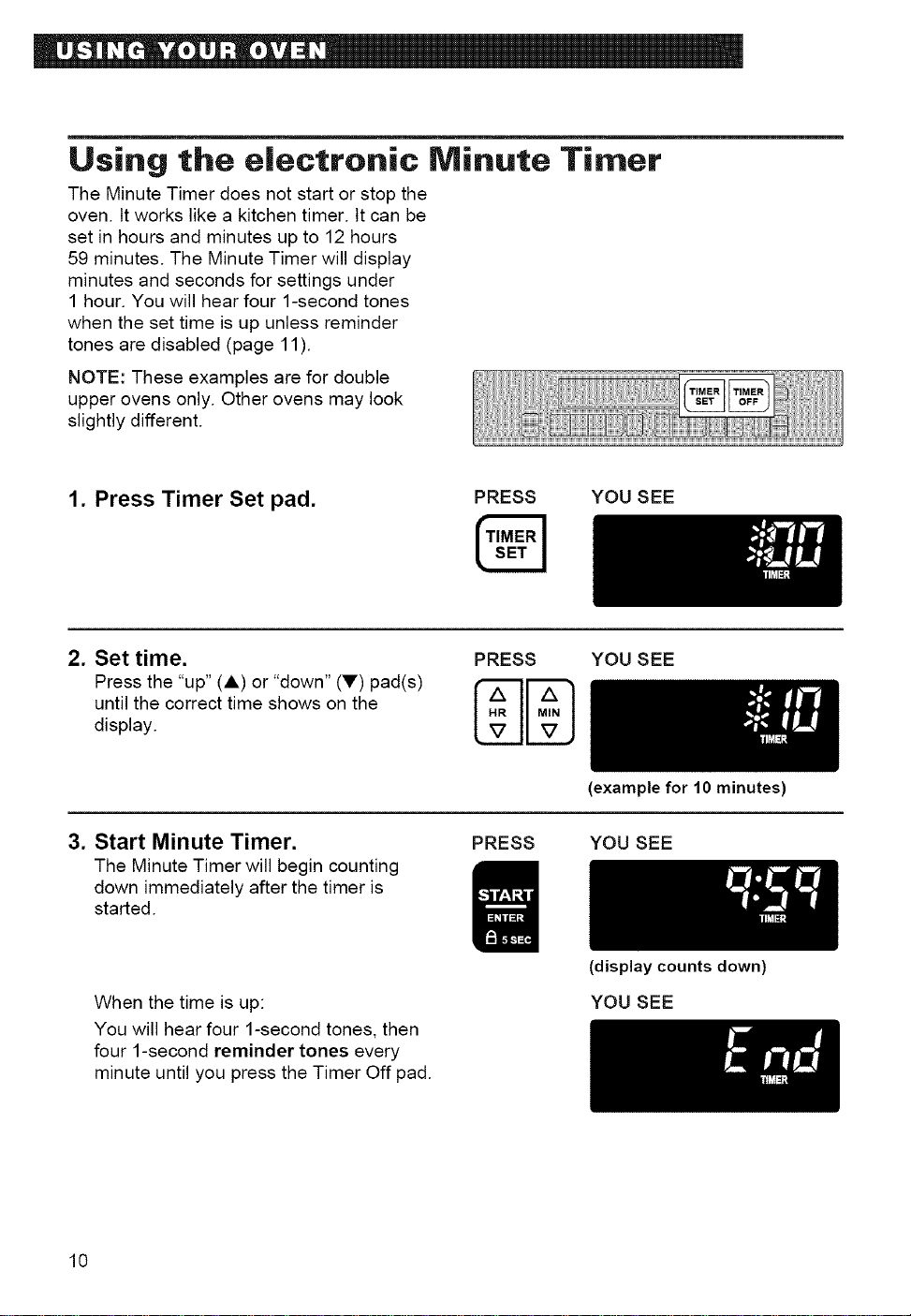

Using the e|ectronic Minute Timer
The Minute Timer does not start or stop the
oven. Itworks like a kitchen timer. It can be
set in hours and minutes up to 12 hours
59 minutes. The Minute Timer will display
minutes and seconds for settings under
1 hour. You win hear four 1-second tones
when the set time is up unless reminder
tones are disabled (page 11).
NOTE: These e×amp[es are for double
upper ovens only. Other ovens may look
slightly different.
1. Press Timer Set pad.
PRESS YOU SEE
2. Set time.
Press the "up" (1) or "down" (V) pad(s)
until the correct time shows on the
display.
PRESS
{ 11
HR MIN
V V
YOU SEE
3. Start Minute Timer.
The Minute Timer will begin counting
down immediately after the timer is
started.
PRESS
(example for 10 minutes)
YOU SEE
When the time is up:
You will hear four 1-second tones, then
four 1-second reminder tones every
minute until you press the Timer Off pad.
(display counts down)
YOU SEE
10

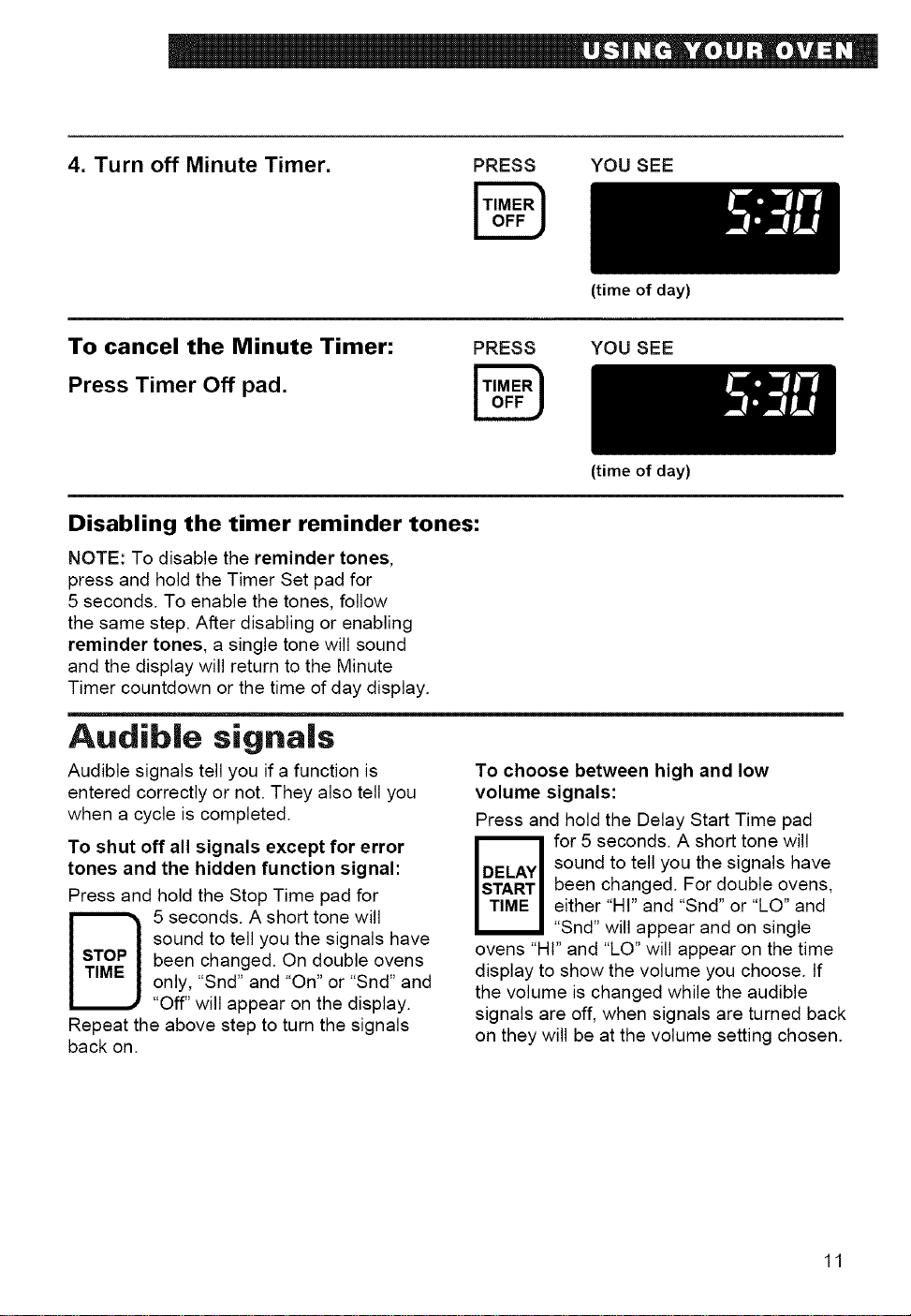

4. Turn off Minute Timer. PRESS YOU SEE
To cancel the Minute Timer:
Press Timer Off pad.
PRESS
(time of day)
YOU SEE
Disabling the timer reminder tones:
NOTE: To disable the reminder tones,
press and hold the Timer Set pad for
5 seconds. To enable the tones, follow
the same step. After disabling or enabling
reminder tones, a single tone will sound
and the display will return to the Minute
Timer countdown or the time of day display.
(time of day)
Audible signals
Audible signals tell you if a function is
entered correctly or not. They also tell you
when a cycle is completed.
To shut off all signals except for error
tones and the hidden function signal:
Press and hold the Stop Time pad for
5 seconds. A short tone will
sound to tell you the signals have
been changed. On double ovens
only, "Snd" and "On" or "Snd" and
"Off" will appear on the display.
Repeat the above step to turn the signals
back on.
To choose between high and low
volume signals:
Press and hold the Delay Start Time pad
for 5 seconds. A short tone will
sound to tell you the signals have
been changed. For double ovens,
either "HI" and "Snd" or "LO" and
"Snd" will appear and on single
ovens "HI" and "LO" will appear on the time
display to show the volume you choose, tf
the volume is changed while the audible
signals are off, when signals are turned back
on they will be at the volume setting chosen.
11

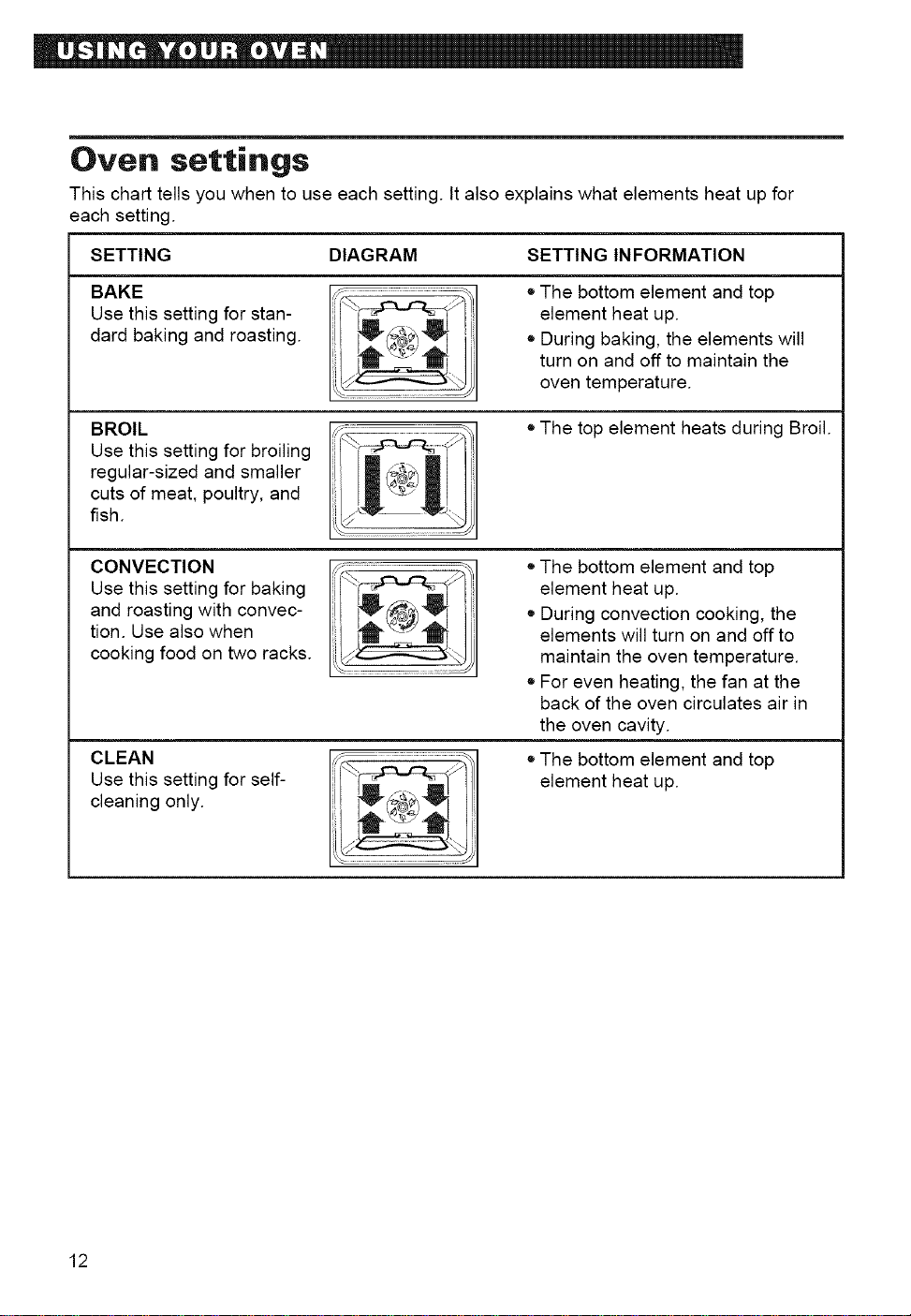

Oven settings
This chart tells you when to use each setting. It also explains what elements heat up for
each setting.
SETTING DIAGRAM SETTING INFORMATION
BAKE
Use this setting for stan-
dard baking and roasting.
• The bottom element and top
element heat up.
• During baking, the elements will
turn on and off to maintain the
oven temperature.
BROIL
Use this setting for broiling
regular-sized and smaller
cuts of meat, poultry, and
fish.
• The top element heats during Broil.
CONVECTION
Use this setting for baking
and roasting with convec-
tion. Use also when
cooking food on two racks.
CLEAN
Use this setting for self-
cleaning only.
I I
//,=®=/
[% ..................... j
l
• The bottom element and top
element heat up.
• During convection cooking, the
elements will turn on and off to
maintain the oven temperature.
• For even heating, the fan at the
back of the oven circulates air in
the oven cavity.
• The bottom element and top
element heat up.
12

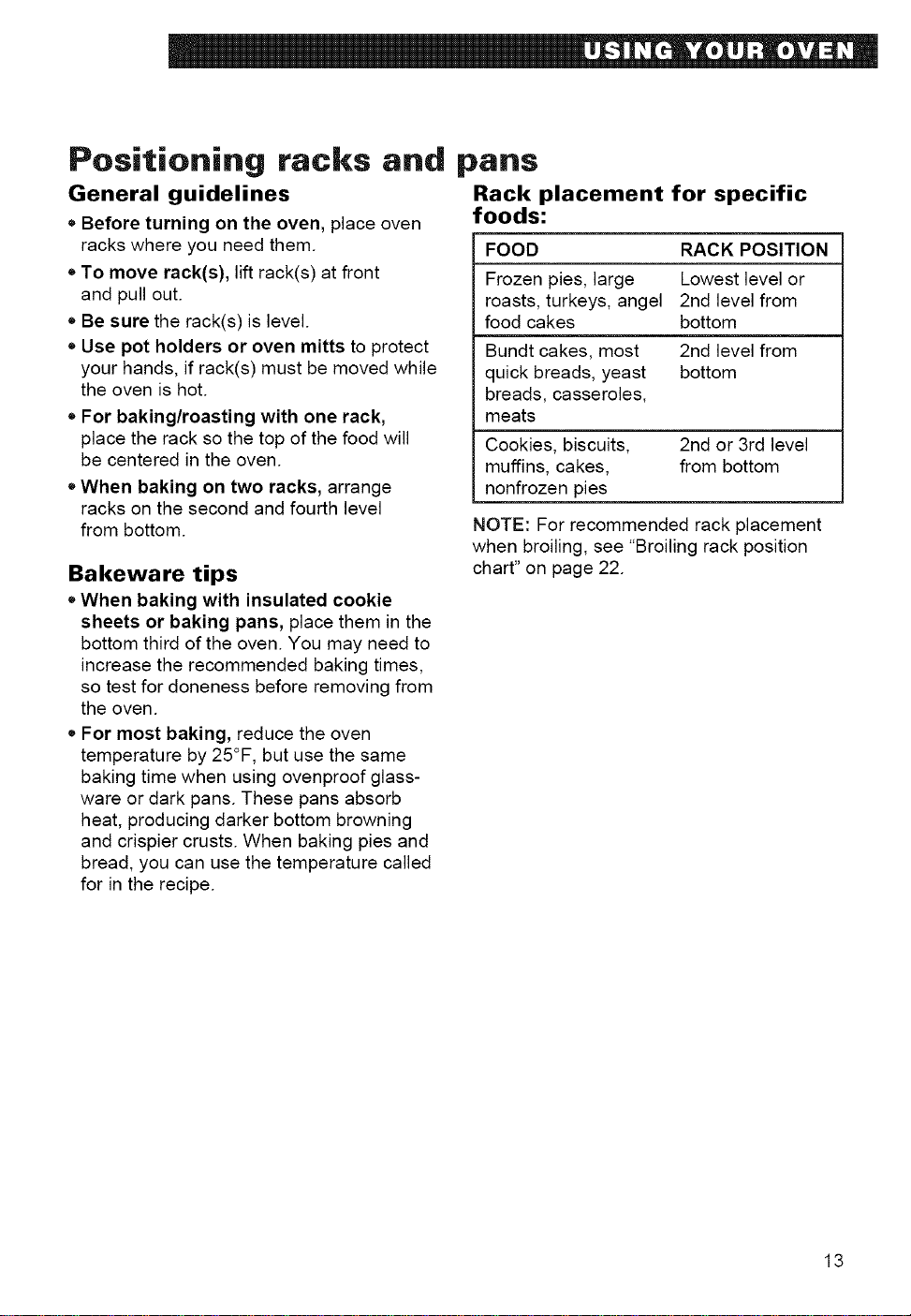

Positioning racks and pans
General guidelines Rack placement for specific
foods:
=Before turning on the oven, place oven
racks where you need them.
• To move rack(s), lift rack(s) at front
and pull out.
• Be sure the rack(s) is level.
• Use pot holders or oven mitts to protect
your hands, if rack(s) must be moved while
the oven is hot.
• For baking/roasting with one rack,
place the rack so the top of the food will
be centered in the oven.
• When baking on two racks, arrange
racks on the second and fourth level
from bottom.
Bakeware tips
• When baking with insulated cookie
sheets or baking pans, place them in the
bottom third of the oven. You may need to
increase the recommended baking times,
so test for doneness before removing from
the oven.
• For most baking, reduce the oven
temperature by 25°F, but use the same
baking time when using ovenproof glass-
ware or dark pans. These pans absorb
heat, producing darker bottom browning
and crispier crusts. When baking pies and
bread, you can use the temperature called
for in the recipe.
FOOD RACK POSITION
Frozen pies, large Lowest level or
roasts, turkeys, angel 2nd level from
food cakes bottom
Bundt cakes, most 2nd level from
quick breads, yeast bottom
breads, casseroles,
meats
Cookies, biscuits, 2nd or 3rd level
muffins, cakes, from bottom
nonfrozen pies
NOTE: For recommended rack placement
when broiling, see "Broiling rack position
chart" on page 22.
13

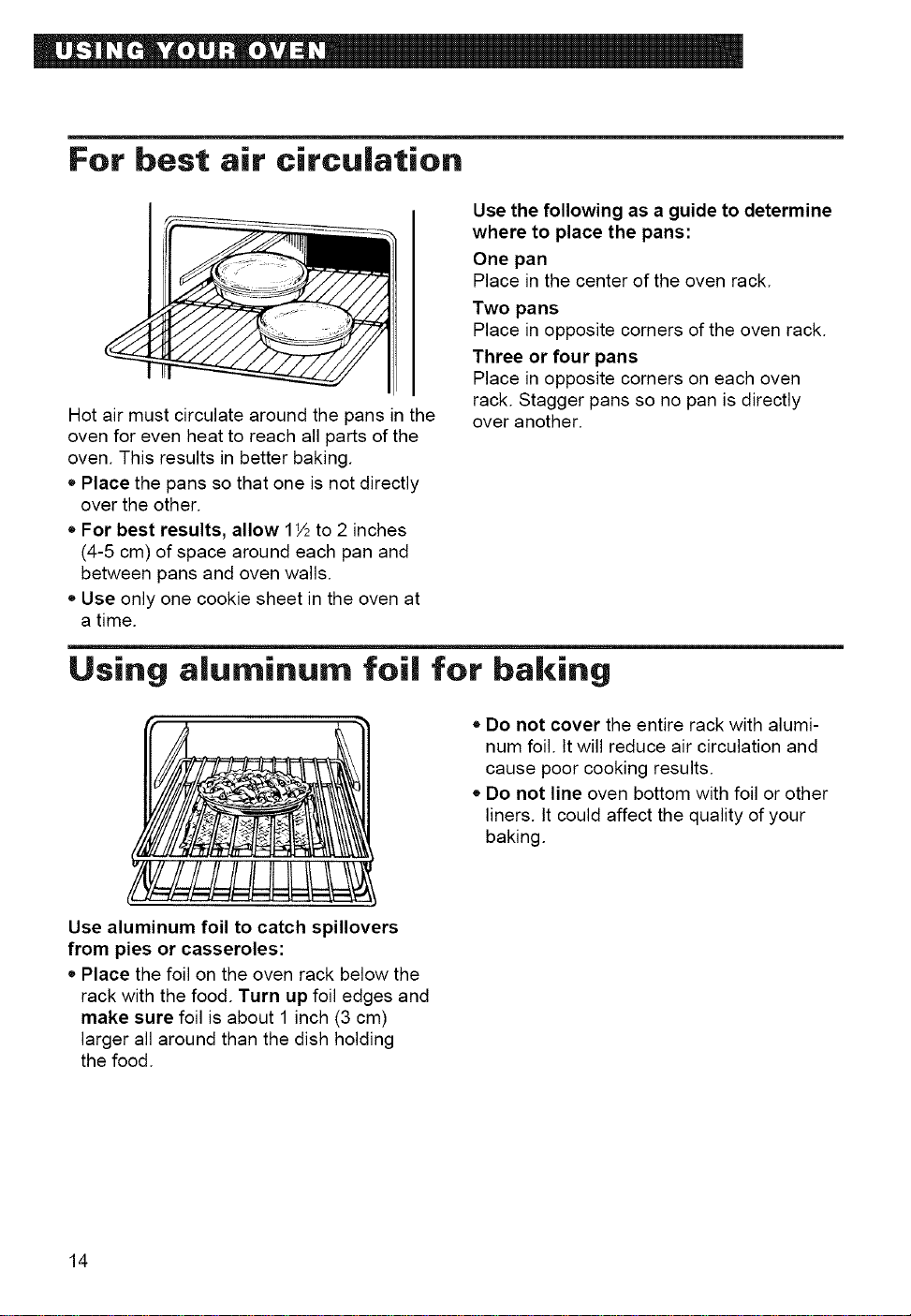

For best air circulation
Hot air must circulate around the pans in the
oven for even heat to reach all parts of the
oven. This results in better baking.
• Place the pans so that one is not directly
over the other.
• For best results, allow 1½ to 2 inches
(4-5 cm) of space around each pan and
between pans and oven walls.
• Use only one cookie sheet in the oven at
a time.
Use the following as a guide to determine
where to place the pans:
One pan
Place in the center of the oven rack.
Two pans
Place in opposite corners of the oven rack.
Three or four pans
Place in opposite corners on each oven
rack. Stagger pans so no pan is directly
over another.
Using aluminum foil for baking
• Do not cover the entire rack with alumi-
num foil. It will reduce air circulation and
cause poor cooking results.
• Do not line oven bottom with foil or other
liners. It could affect the quality of your
baking.
Use aluminum foil to catch spillovers
from pies or casseroles:
• Place the foil on the oven rack below the
rack with the food. Turn up foil edges and
make sure foil is about 1 inch (3 cm)
larger all around than the dish holding
the food.
14
Convection baking/roasting
NOTE: These examples are for double
upper ovens only. Other ovens may look
slightly different.
1. Position racks.
For more information, see "Positioning
racks and pans" on page 13.
2. Choose convection setting.
PRESS YOU SEE
to select
oven (for
double
ovens)
PRESS
(or 177°0)
OR
PRESS YOU SEE
(for convec-
tion on
single/upper
oven only)
3. Set temperature (optional).
Do this step if you want to set a tempera-
ture other than 350°F for bake or 325°F
for convection bake. Press • to raise the
temperature or • to lower the tempera-
ture in 5°F amounts. Use these pads until
the desired temperature shows on the
small display. (If the Temp pads are held
down the temperature will change faster.)
PRESS
(or 163°0)
YOU SEE
(example for Bake at 375°F)
continued on next page
15

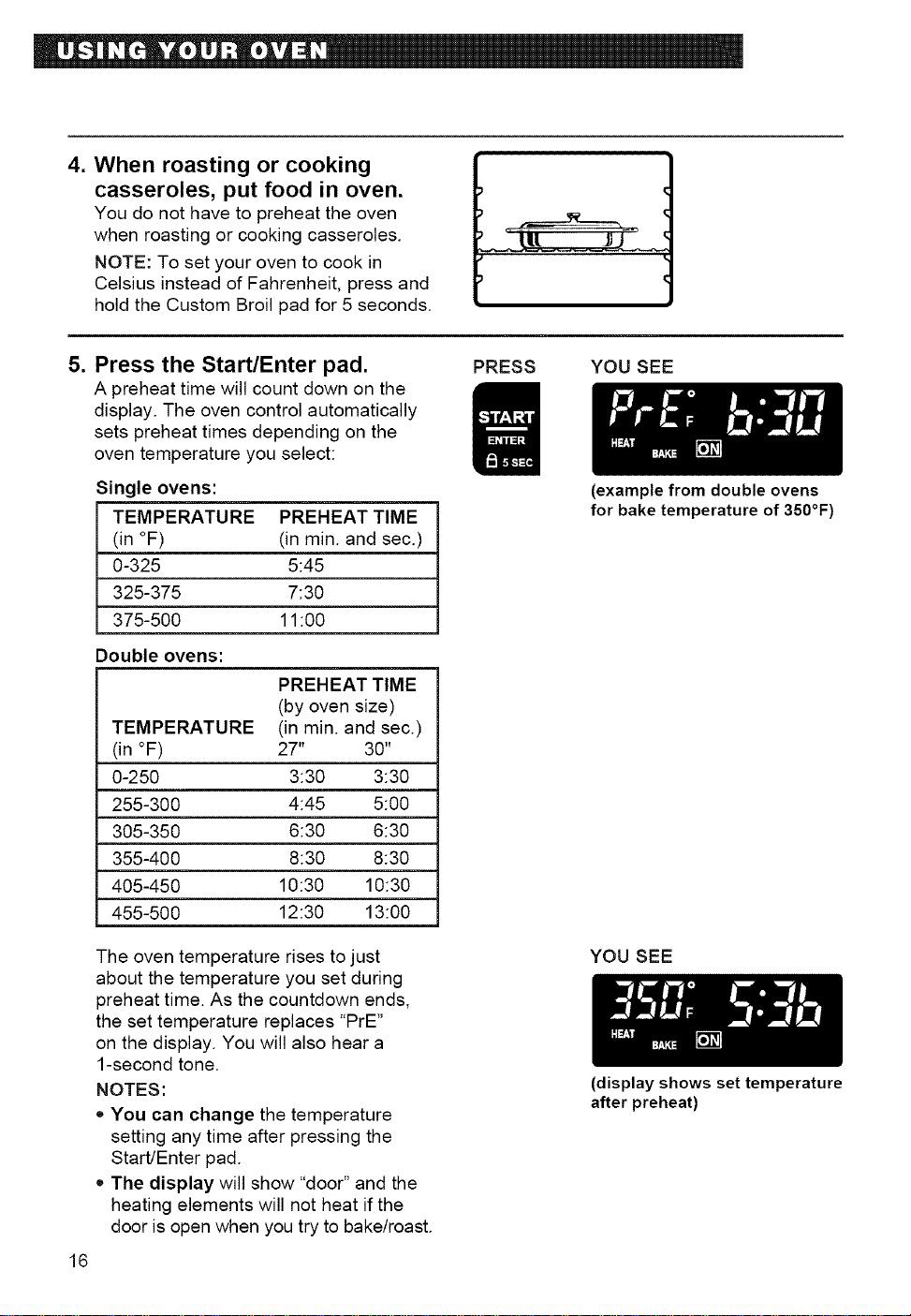

4. When roasting or cooking
casseroles, put food in oven.
You do not have to preheat the oven
when roasting or cooking casseroles.
NOTE: To set your oven to cook in
Celsius instead of Fahrenheit, press and
hold the Custom Broil pad for 5 seconds.
€
5. Press the Start/Enter pad.
A preheat time will count down on the
display. The oven control automatically
sets preheat times depending on the
oven temperature you select:
Single ovens:
TEMPERATURE PREHEAT TIME
(in °F) (in min. and sec.)
0-325 5:45
325-375 7:30
375-500 11:00
Double ovens:
PREHEAT TIME
(by oven size)
TEMPERATURE (in min. and sec.)
(in °F) 27" 30"
0-250 3:30 3:30
255-300 4:45 5:00
305-350 6:30 6:30
355-400 8:30 8:30
405-450 10:30 10:30
455-500 12:30 13:00
The oven temperature rises to just
about the temperature you set during
preheat time. As the countdown ends,
the set temperature replaces "PrE"
on the display. You will also hear a
1-second tone.
NOTES:
• You can change the temperature
setting any time after pressing the
Start/Enter pad.
• The display will show "door" and the
heating elements will not heat if the
door is open when you try to bake/roast.
16
PRESS YOU SEE
(example from double ovens
for bake temperature of 350°F)
YOU SEE
(display shows set temperature
after preheat)
6. When baking, put food in oven
after oven is preheated.
During baking/roasting, the elements will
turn on and off to keep the oven tempera-
ture at the setting.
NOTE: The top element helps heat
during baking/roasting, but does not
turn red.
r I..... I "
7. After cooking, turn off oven.
PRESS YOU SEE
(single ovens) (time of day)
OR
(double ovens)
Convection coo|zing tips
(convection pad)
=Do not use aluminum foil when convection
cooking. Aluminum foil may block airflow.
• Reduce recommended recipe oven
temperature by approximately 25°F.
See recipe adaption chart in the convec-
tion oven cookbook for recommended
temperatures.
• For most recipes, you can reduce con-
vection cooking time compared to standard
baking/roasting times. See recipe adaption
chart or convection baking chart in the
convection oven cookbook for recom-
mended baking times.
NOTE: Cooking time may be longer when
you use more than one rack.
* When baking on two racks, use the
convection setting for more even results.
(You can, however, use only one rack
when convection cooking.)
oWhen roasting with convection, place
the roasting rack provided with your oven
on top of the broiler pan and grid.
17

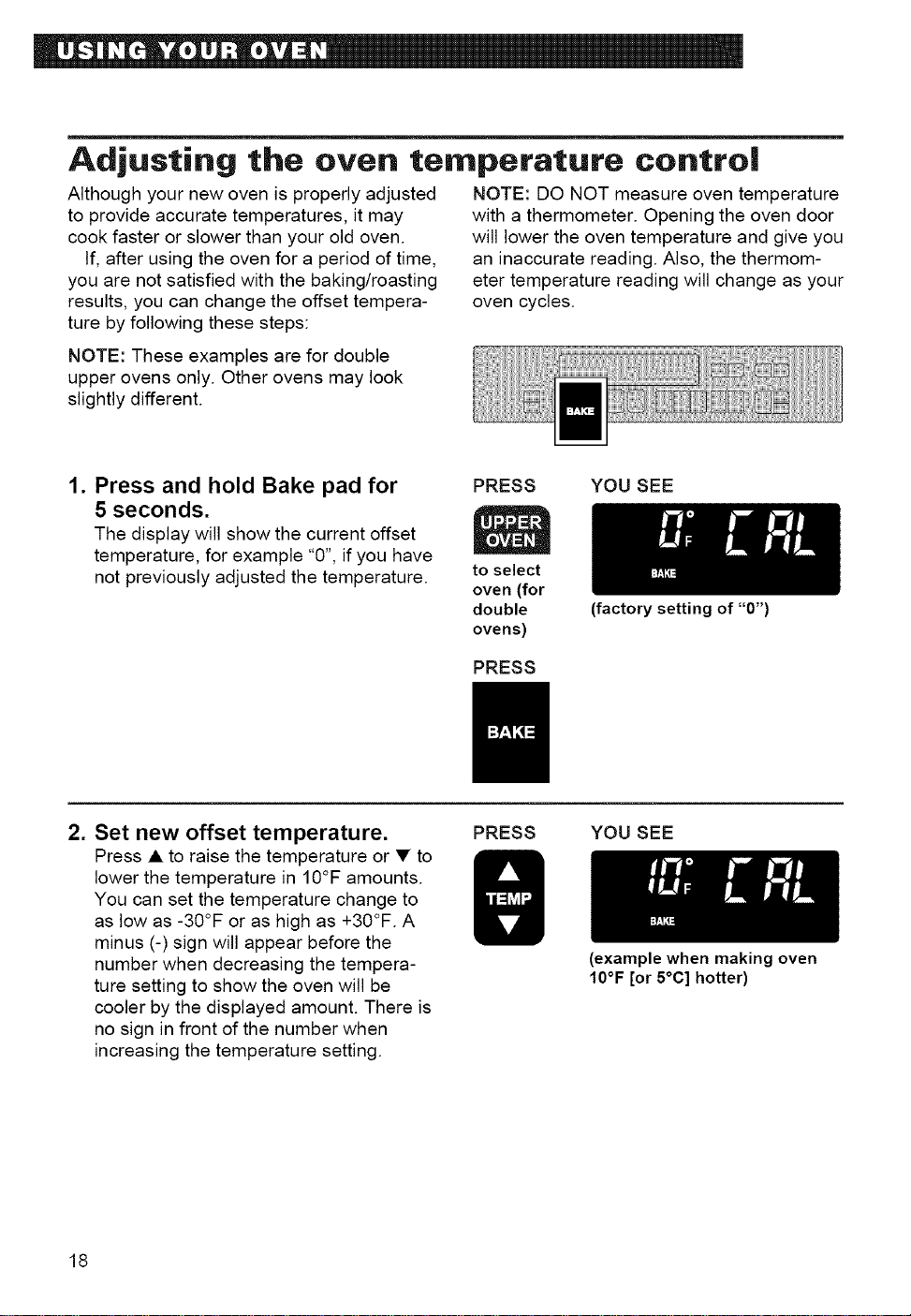

Adjusting the oven temperature control
Although your new oven is properly adjusted
to provide accurate temperatures, it may
cook faster or slower than your old oven.
If, after using the oven for a period of time,
you are not satisfied with the baking/roasting
results, you can change the offset tempera-
ture by following these steps:
NOTE: These examples are for double
upper ovens only. Other ovens may look
slightly different.
NOTE: DO NOT measure oven temperature
with a thermometer. Opening the oven door
will lower the oven temperature and give you
an inaccurate reading. Also, the thermom-
eter temperature reading will change as your
oven cycles.
1. Press and hold Bake pad for
5 seconds.
The display will show the current offset
temperature, for example "0", if you have
not previously adjusted the temperature.
PRESS YOU SEE
to select
oven (for
double
ovens)
PRESS
2. Set new offset temperature.
Press • to raise the temperature or • to
lower the temperature in 10°F amounts.
You can set the temperature change to
as low as -30°F or as high as +30°F. A
minus (-) sign will appear before the
number when decreasing the tempera-
ture setting to show the oven will be
cooler by the displayed amount. There is
no sign in front of the number when
increasing the temperature setting.
PRESS
(factory setting of "0")
YOU SEE
18
(example when making oven
10°F [or 5°C] hotter)
3. Enter the adjustment.
PRESS YOU SEE
(time of day)
How to determine the amount of adjustment needed
The chart at the right tells you how much to
ADJUST BY THIS
adjust the offset temperature to get the
desired cooking results. You can determine
cooking results by the amount of browning,
moistness, and rising times for baked foods.
NUMBER OF
TO MAKE FOOD... DEGREES
A little more done +10°F/+6°C
Moderately more done +20°F/+12°C
Much more done +30°F/+16°C
A little less done -10°F/-6°C
Moderately less done -20°F/-12°C
Much less done -30°F/-16°C
To display temperatures in °C instead of °F:
The oven(s) must be off before switching NOTE: There is no display when switching
between °C and °F. Press and from °F to °C and back. The correct tem-
hold the Custom Broil pad for 5 perature display will appear the next time
seconds. A short tone will sound you press a cook function command pad.
and all temperatures will be
displayed in °C. To switch back
to °F, repeat the instructions above.
Broiling
NOTE: These examples are for double
upper ovens only. Other ovens may look
slightly different.
NOTE: Preheating is not necessary when
broiling.
1. Position rack.
NOTES:
• Always position oven rack(s) in
desired location before turning oven on.
• Be sure the rack(s) is level.
• See "Broiling rack position chart" on
page 22.
continued on next page
19
2. Put food on broiler pan and
place in center of oven rack.
NOTES:
• Place food 3" or more from the broil
element.
• To ensure adequate grease drainage,
do not use cookie sheets or similar
pans for broiling.
• If foil is used to cover broiler grid, cut
slits in foil to allow grease to drain away.
3. Close door.
NOTE: Do not keep the door open as on
other electric ovens. Unlike other electric
ovens, the broil element will only stay on
with the door closed. This gives you the
high heat you need for broiling. However,
if you leave the door open, the broil
element will go off.
4. Press Custom Broil pad.
PRESS YOU SEE
to select
oven (for
double
ovens)
PRESS
5. Start oven.
NOTE: You can change the temperature
setting any time after pressing the Start/
Enter pad. To change the setting, see
"To custom broil at a lower temperature"
on page 21.
PRESS
(or 260°0)
YOU SEE
20
6. When broiling is done, turn off
oven.
PRESS YOU SEE
(single ovens) (time of day)
OR
(double ovens)

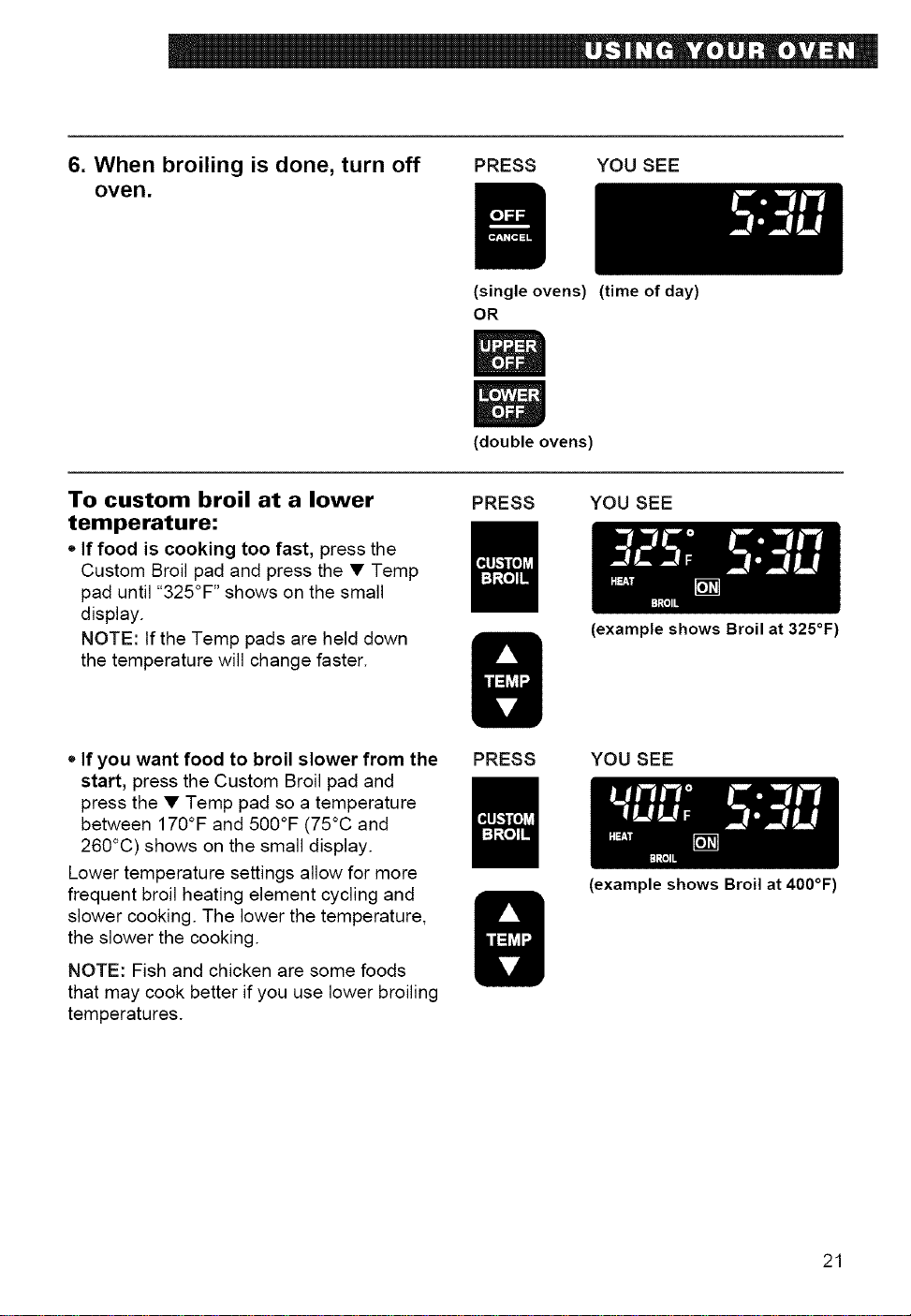

To custom broil at a lower
temperature:
• If food is cooking too fast, press the
Custom Broil pad and press the • Temp
pad until "325°F '' shows on the small
display.
NOTE: If the Temp pads are held down
the temperature will change faster.
PRESS YOU SEE
• If you want food to broil slower from the
start, press the Custom Broil pad and
press the • Temp pad so a temperature
between 170°F and 500°F (75°C and
260°C) shows on the small display.
Lower temperature settings allow for more
frequent broil heating element cycling and
slower cooking. The lower the temperature,
the slower the cooking.
NOTE: Fish and chicken are some foods
that may cook better if you use lower broiling
temperatures.
PRESS
(example shows Broil at 325°F)
YOU SEE
(example shows Broil at 400°F)
21

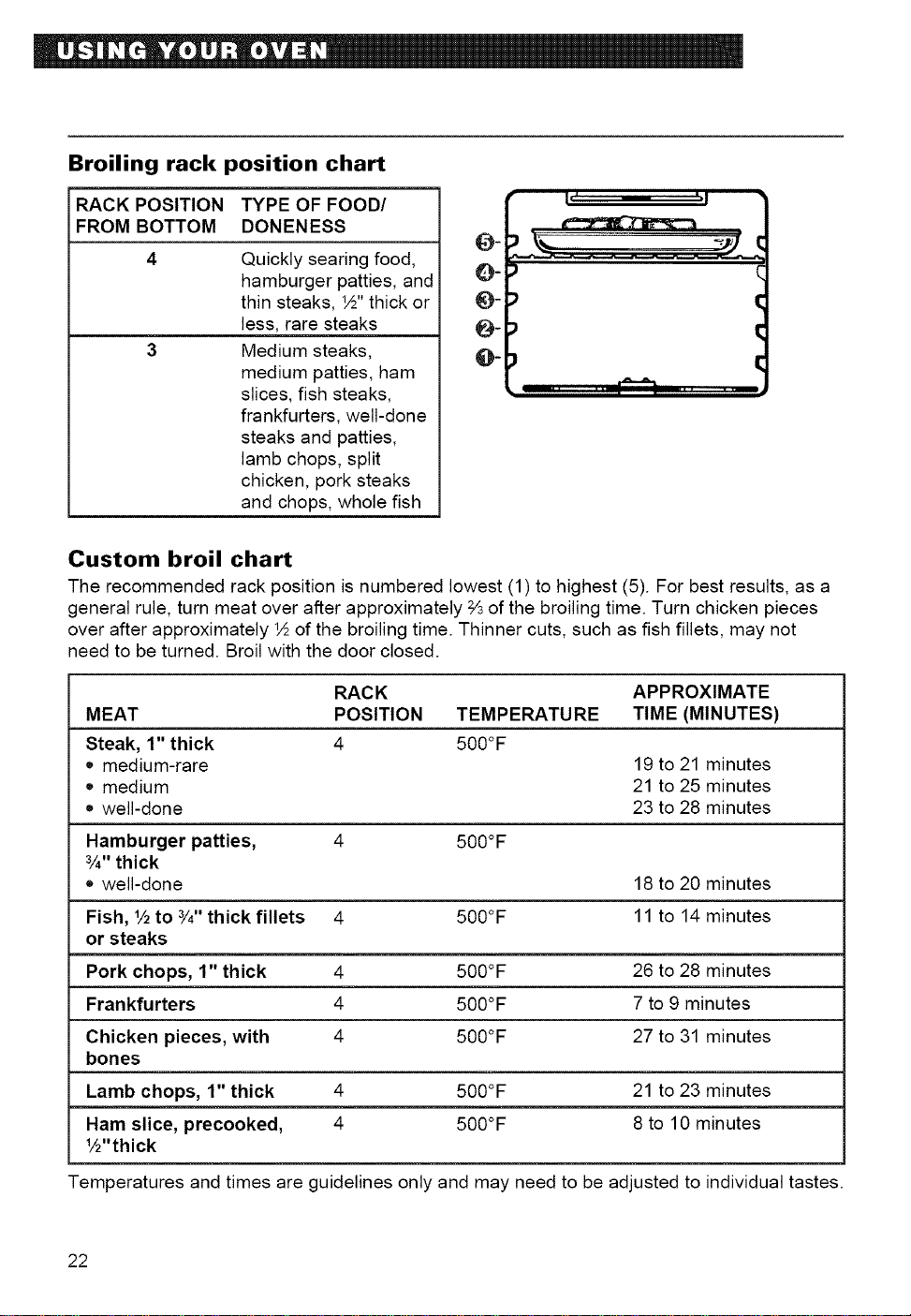

Broiling rack position chart
RACK POSITION TYPE OF FOOD/
FROM BOTTOM DONENESS
4 Quickly searing food,
hamburger patties, and
thin steaks, ½" thick or
less, rare steaks
3 Medium steaks,
medium patties, ham
slices, fish steaks,
frankfurters, well-done
steaks and patties,
lamb chops, split
chicken, pork steaks
and chops, whole fish
• I,' ',1 •
O-
0-
0-
O-
q
€
i i _ if i dl
Custom broil chart
The recommended rack position is numbered lowest (1) to highest (5). For best results, as a
general rule, turn meat over after approximately _ of the broiling time. Turn chicken pieces
over after approximately 1½of the broiling time. Thinner cuts, such as fish fillets, may not
need to be turned. Broil with the door closed.
RACK APPROXIMATE
MEAT POSITION TEMPERATURE TIME (MINUTES)
Steak, 1" thick 4 500°F
• medium-rare 19 to 21 minutes
• medium 21 to 25 minutes
• well-done 23 to 28 minutes
Hamburger patties, 4 500°F
3/4"thick
• well-done 18 to 20 minutes
Fish, ½ to 3/4"thick fillets 4 500°F 11 to 14 minutes
or steaks
Pork chops, 1" thick 4 500°F 26 to 28 minutes
Frankfurters 4 500°F 7 to 9 minutes
Chicken pieces, with 4 500°F 27 to 31 minutes
bones
Lamb chops, 1" thick 4 500°F 21 to 23 minutes
Ham slice, precooked, 4 500°F 8 to 10 minutes
1A"thick
Temperatures and times are guidelines only and may need to be adjusted to individual tastes.
22

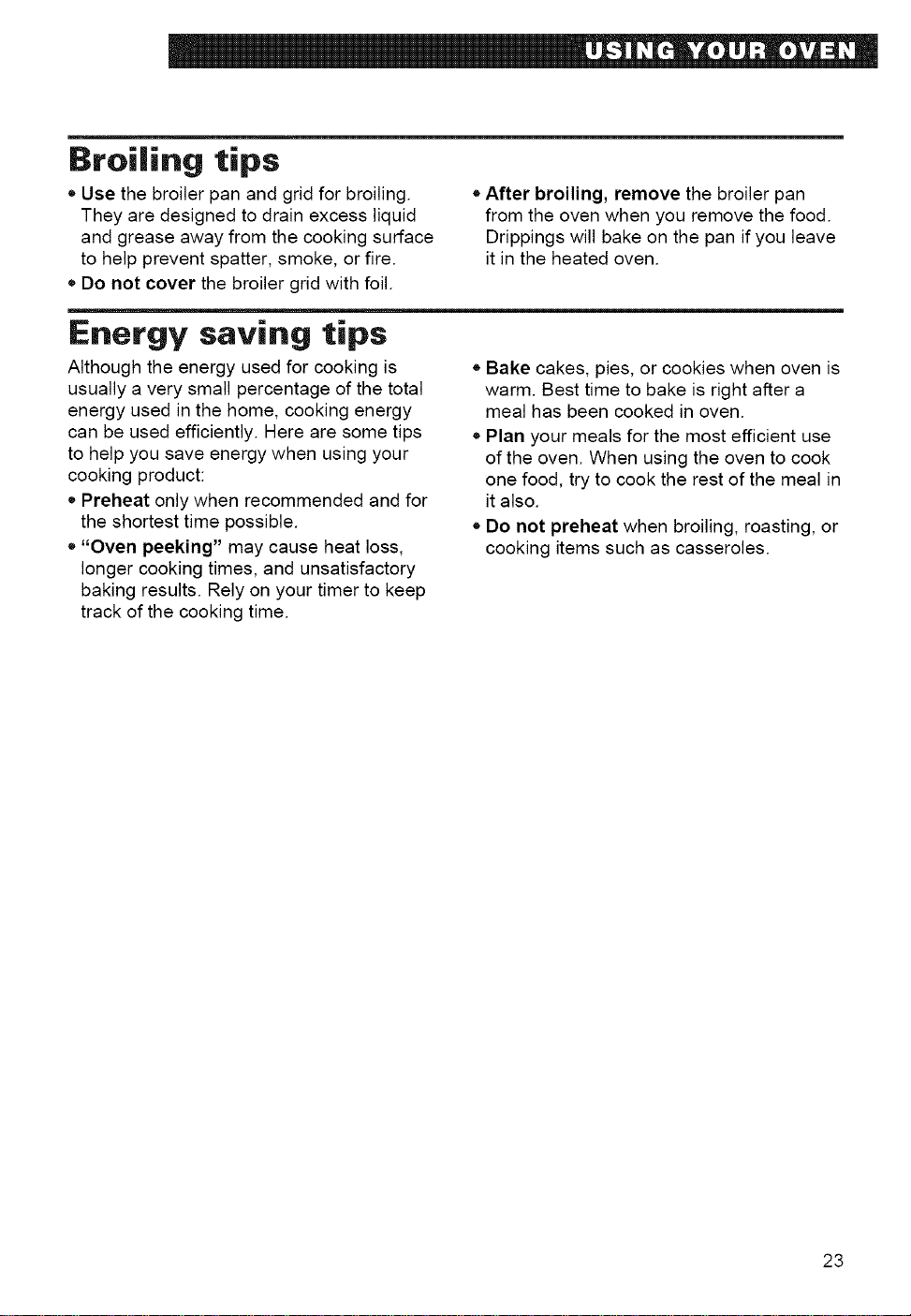

Broiling tips
,, Use the broiler pan and grid for broiling.
They are designed to drain excess liquid
and grease away from the cooking surface
to help prevent spatter, smoke, or fire.
=Do not cover the broiler grid with foil.
Energy saving tips
Although the energy used for cooking is
usually a very small percentage of the total
energy used in the home, cooking energy
can be used efficiently. Here are some tips
to help you save energy when using your
cooking product:
• Preheat only when recommended and for
the shortest time possible.
="Oven peeking" may cause heat loss,
longer cooking times, and unsatisfactory
baking results. Rely on your timer to keep
track of the cooking time.
,, After broiling, remove the broiler pan
from the oven when you remove the food.
Drippings will bake on the pan if you leave
it in the heated oven.
,, Bake cakes, pies, or cookies when oven is
warm. Best time to bake is right after a
meal has been cooked in oven.
• Plan your meals for the most efficient use
of the oven. When using the oven to cook
one food, try to cook the rest of the meal in
it also.
• Do not preheat when broiling, roasting, or
cooking items such as casseroles.
23

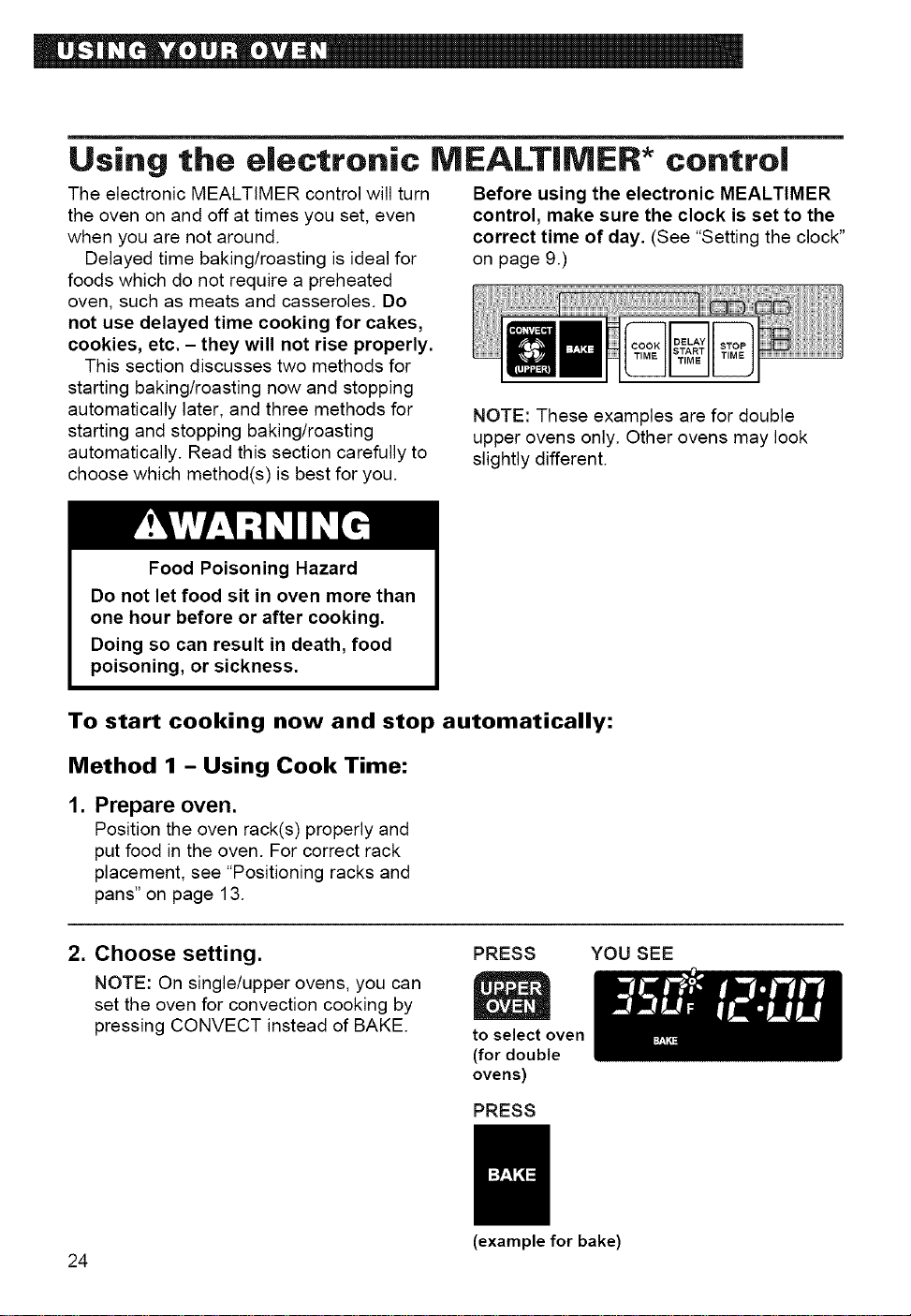

Using the electronic
The electronic MEALTIMER control will turn
the oven on and off at times you set, even
when you are not around.
Delayed time baking/roasting is ideal for
foods which do not require a preheated
oven, such as meats and casseroles. Do
not use delayed time cooking for cakes,
cookies, etc. - they will not rise properly.
This section discusses two methods for
starting baking/roasting now and stopping
automatically later, and three methods for
starting and stopping baking/roasting
automatically. Read this section carefully to
choose which method(s) is best for you.
MEALTIMER* control
Before using the electronic MEALTIMER
control, make sure the clock is set to the
correct time of day. (See "Setting the clock"
on page 9.)
NOTE: These examples are for double
upper ovens only. Other ovens may look
slightly different.
Food Poisoning Hazard
Do not let food sit in oven more than
one hour before or after cooking.
Doing so can result in death, food
poisoning, or sickness.
To start cooking now and stop automatically:
Method 1 - Using Cook Time:
1. Prepare oven.
Position the oven rack(s) properly and
put food in the oven. For correct rack
placement, see "Positioning racks and
pans" on page 13.
2. Choose setting.
NOTE: On single/upper ovens, you can
set the oven for convection cooking by
pressing CONVECT instead of BAKE.
PRESS YOU SEE
to select oven
(for double
ovens)
PRESS
(example for bake)
24

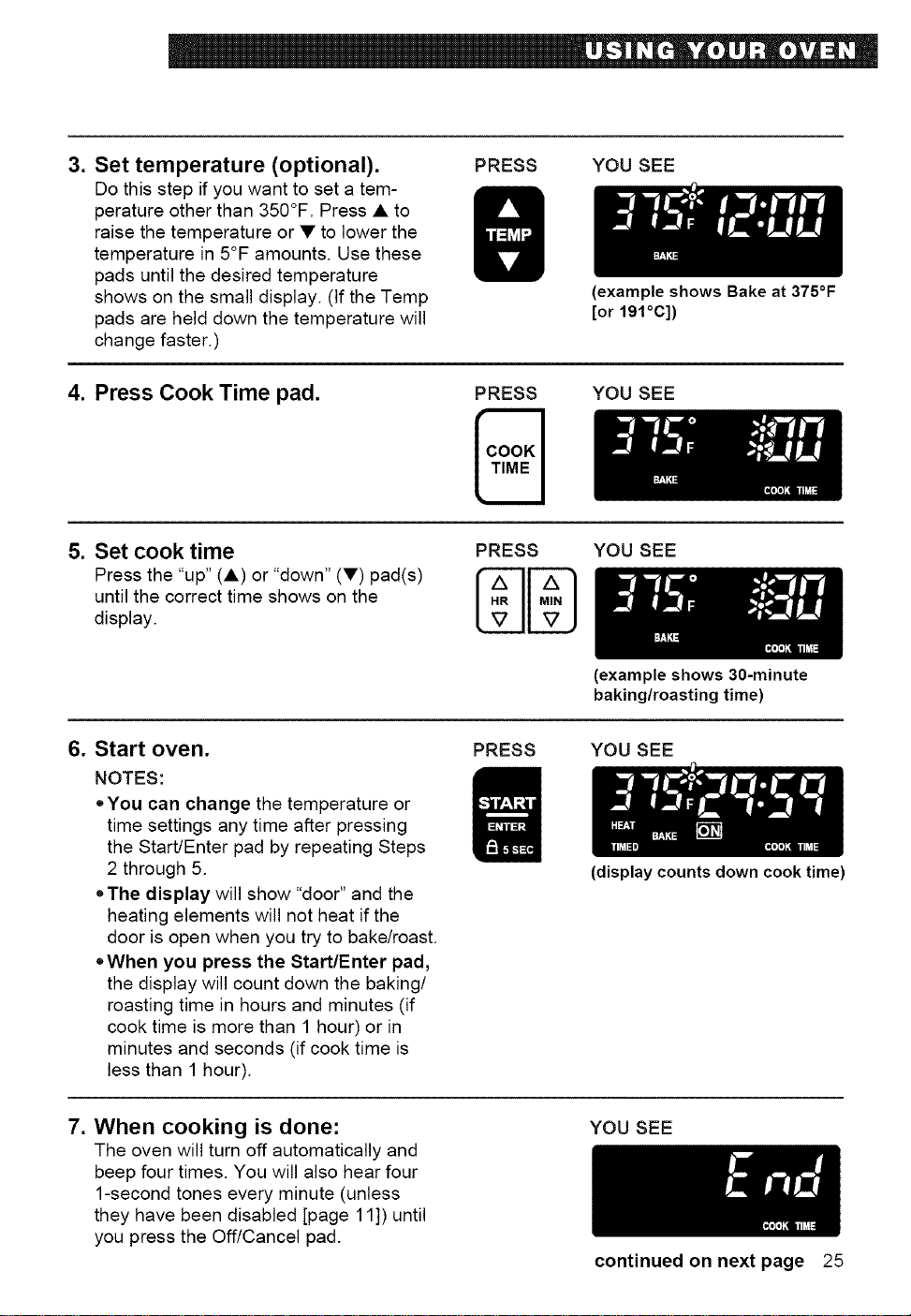

3. Set temperature (optional).
Do this step if you want to set a tem-
perature other than 350°F. Press • to
raise the temperature or • to lower the
temperature in 5°F amounts. Use these
pads until the desired temperature
shows on the small display. (If the Temp
pads are held down the temperature will
change faster.)
PRESS YOU SEE
4. Press Cook Time pad.
PRESS
(example shows Bake at 375°F
[or 191°C])
YOU SEE
5. Set cook time
Press the "up" (•) or "down" (V) pad(s)
until the correct time shows on the
display.
PRESS YOU SEE
6. Start oven.
NOTES:
oYou can change the temperature or
time settings any time after pressing
the Start/Enter pad by repeating Steps
2 through 5.
• The display will show "door" and the
heating elements will not heat if the
door is open when you try to bake/roast.
oWhen you press the Start/Enter pad,
the display will count down the baking/
roasting time in hours and minutes (if
cook time is more than 1 hour) or in
minutes and seconds (if cook time is
less than 1 hour).
PRESS
(example shows 30-minute
baking/roasting time)
YOU SEE
7. When cooking is done:
The oven will turn off automatically and
beep four times. You will also hear four
1-second tones every minute (unless
they have been disabled [page 11]) until
you press the Off/Cancel pad.
(display counts down cook time)
YOU SEE
continued on next page 25

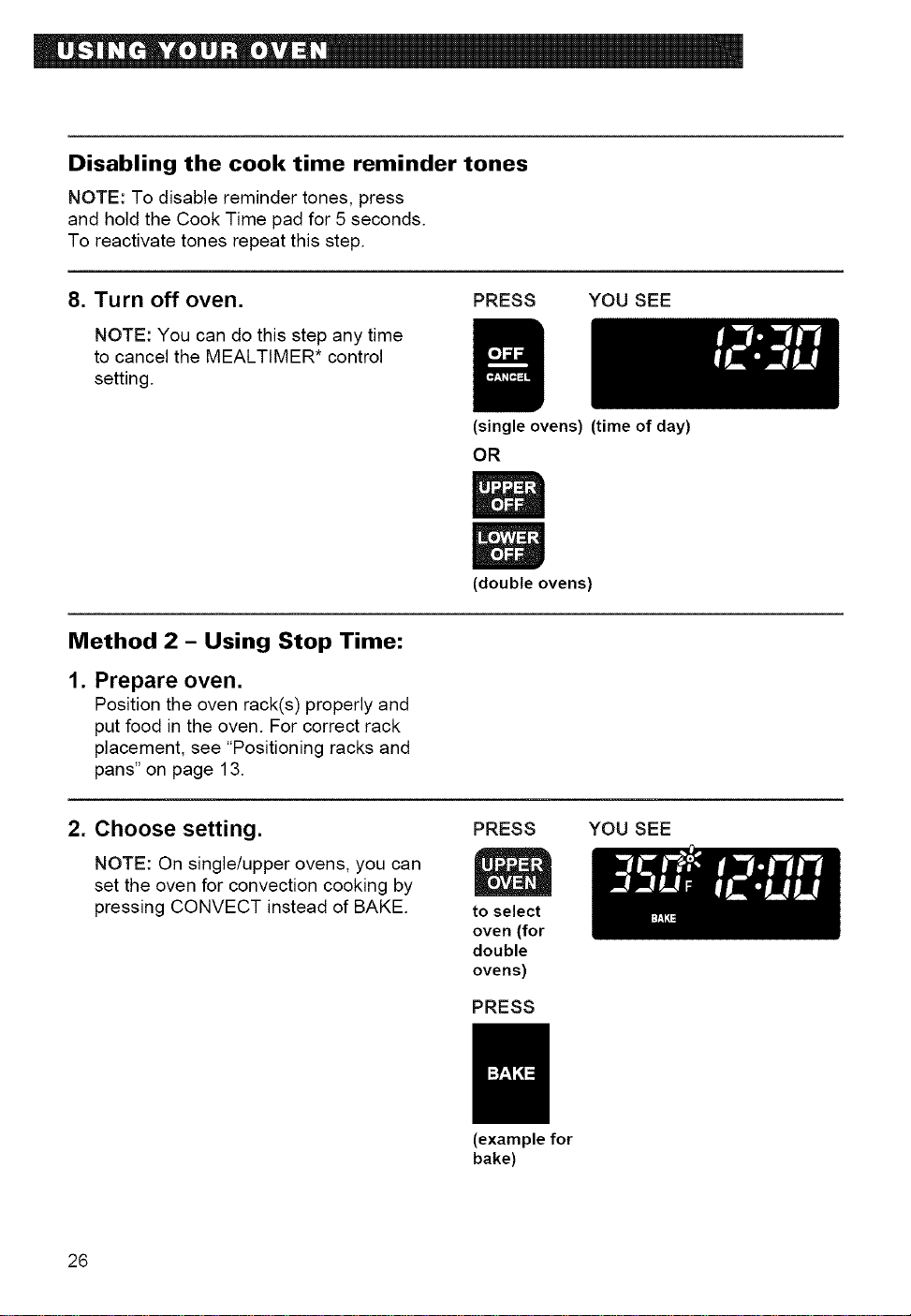

Disabling the cook time reminder tones
NOTE: To disable reminder tones, press
and hold the Cook Time pad for 5 seconds.
To reactivate tones repeat this step.
8. Turn off oven.
NOTE: You can do this step any time
to cancel the MEALTIMER* control
setting.
PRESS YOU SEE
(single ovens) (time of day)
OR
(double ovens)
Method 2 - Using Stop Time:
1. Prepare oven.
Position the oven rack(s) properly and
put food in the oven. For correct rack
placement, see "Positioning racks and
pans" on page 13.
2. Choose setting.
NOTE: On single/upper ovens, you can
set the oven for convection cooking by
pressing CONVECT instead of BAKE.
PRESS
to select
oven (for
double
ovens)
PRESS
YOU SEE
(examplefor
bake)
26

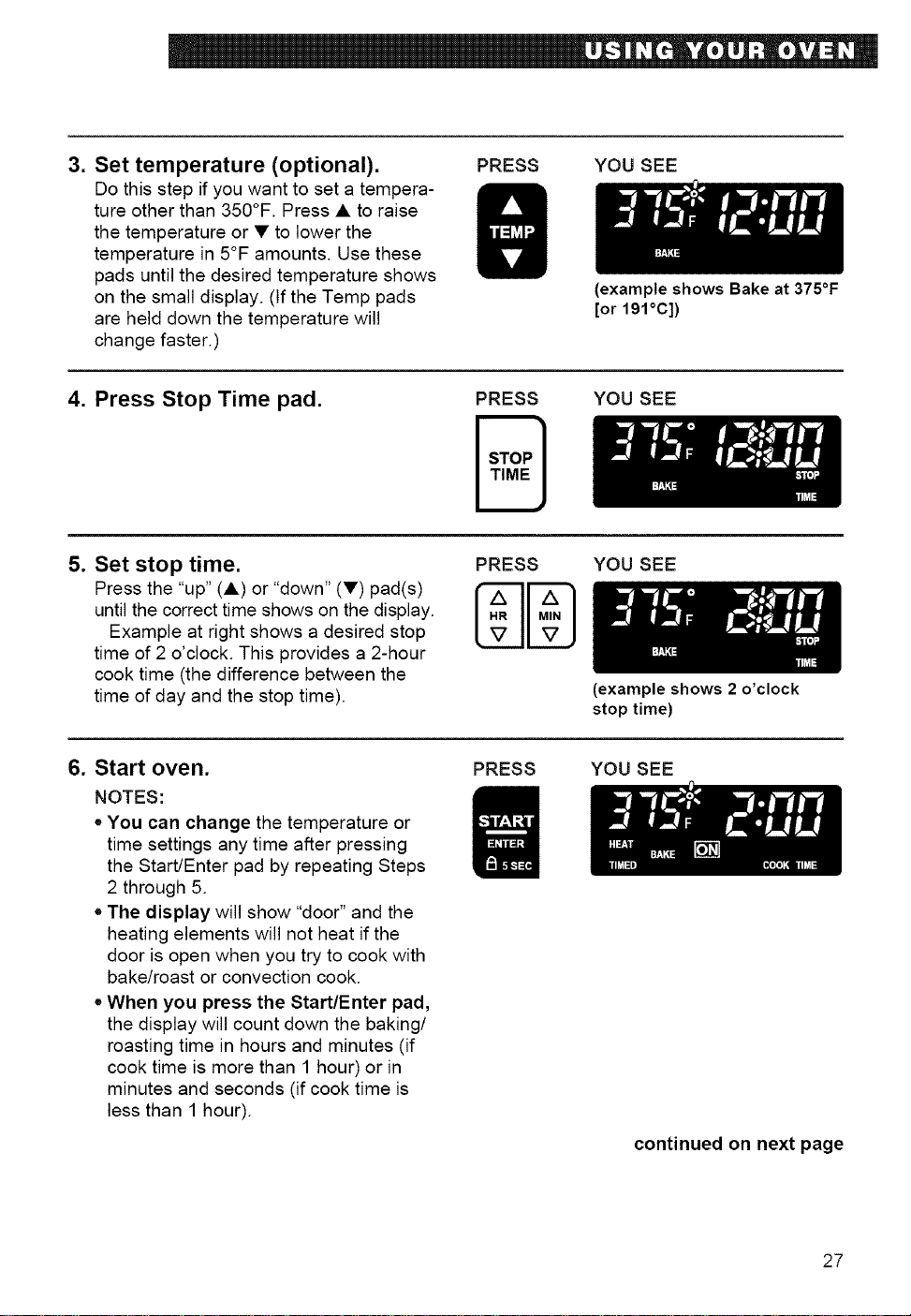

3. Set temperature (optional).
Do this step if you want to set a tempera-
ture other than 350°F. Press • to raise
the temperature or • to lower the
temperature in 5°F amounts. Use these
pads until the desired temperature shows
on the small display. (If the Temp pads
are held down the temperature will
change faster.)
PRESS YOU SEE
4. Press Stop Time pad.
PRESS
D
(example shows Bake at 375°F
[or 191°C])
YOU SEE
5. Set stop time.
Press the "up" (•) or "down" (•) pad(s)
until the correct time shows on the display.
Example at right shows a desired stop
time of 2 o'clock. This provides a 2-hour
cook time (the difference between the
time of day and the stop time).
PRESS
[ ll
HR MIN
V _7
YOU SEE
6. Start oven.
NOTES:
• You can change the temperature or
time settings any time after pressing
the Start/Enter pad by repeating Steps
2 through 5.
• The display will show "door" and the
heating elements will not heat if the
door is open when you try to cook with
bake/roast or convection cook.
• When you press the Start/Enter pad,
the display will count down the baking/
roasting time in hours and minutes (if
cook time is more than 1 hour) or in
minutes and seconds (if cook time is
less than 1 hour).
PRESS
(example shows 2 o'clock
stop time)
YOU SEE
continued on next page
27

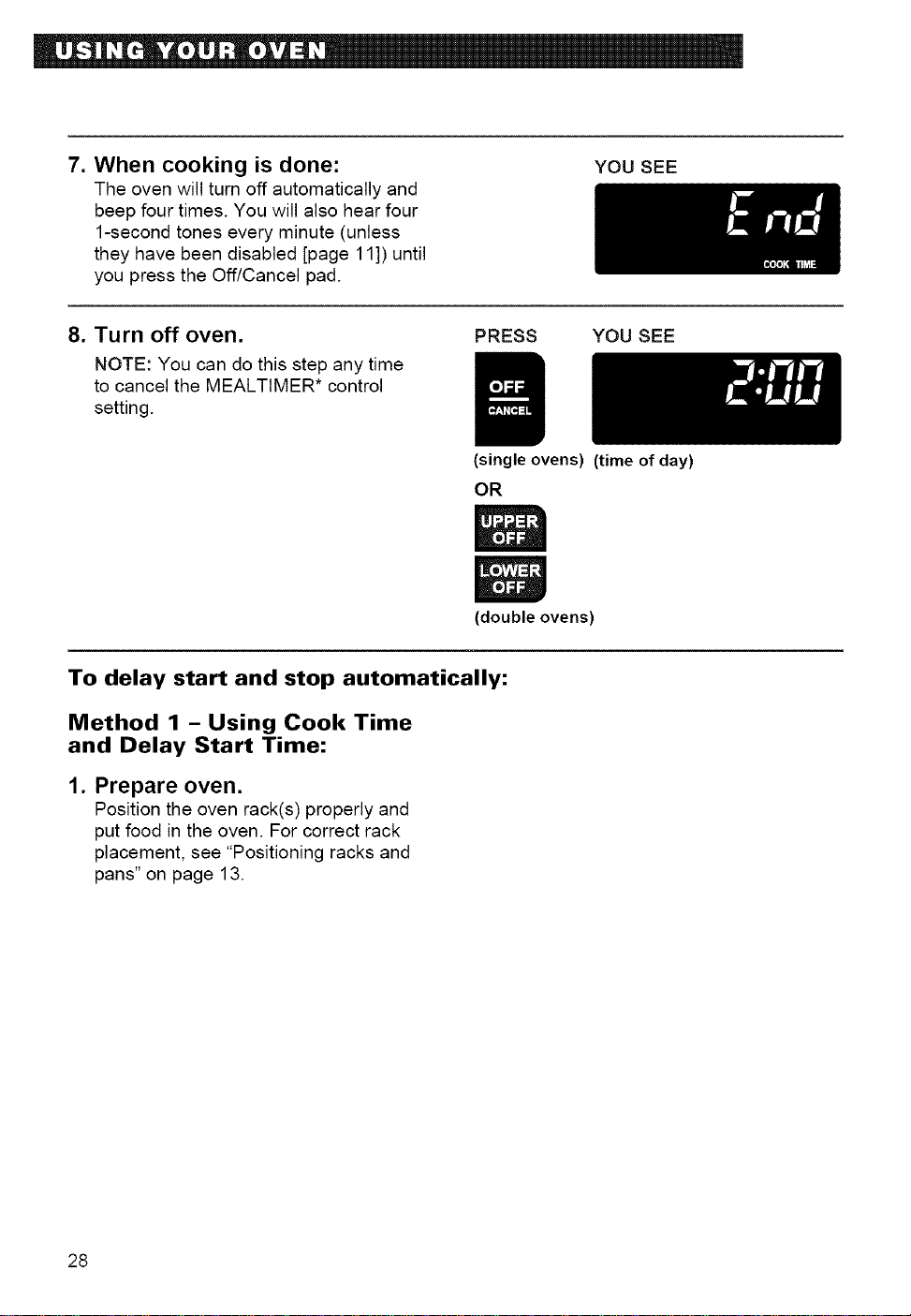

7. When cooking is done:
The oven will turn off automatically and
beep four times. You will also hear four
1-second tones every minute (unless
they have been disabled [page 11]) until
you press the Off/Cancel pad.
YOU SEE
8. Turn off oven.
NOTE: You can do this step any time
to cancel the MEALTIMER* control
setting.
PRESS YOU SEE
(single ovens) (time of day)
OR
(double ovens)
To delay start and stop automatically:
Method 1 - Using Cook Time
and Delay Start Time:
1. Prepare oven.
Position the oven rack(s) properly and
put food in the oven. For correct rack
placement, see "Positioning racks and
pans" on page 13.
28

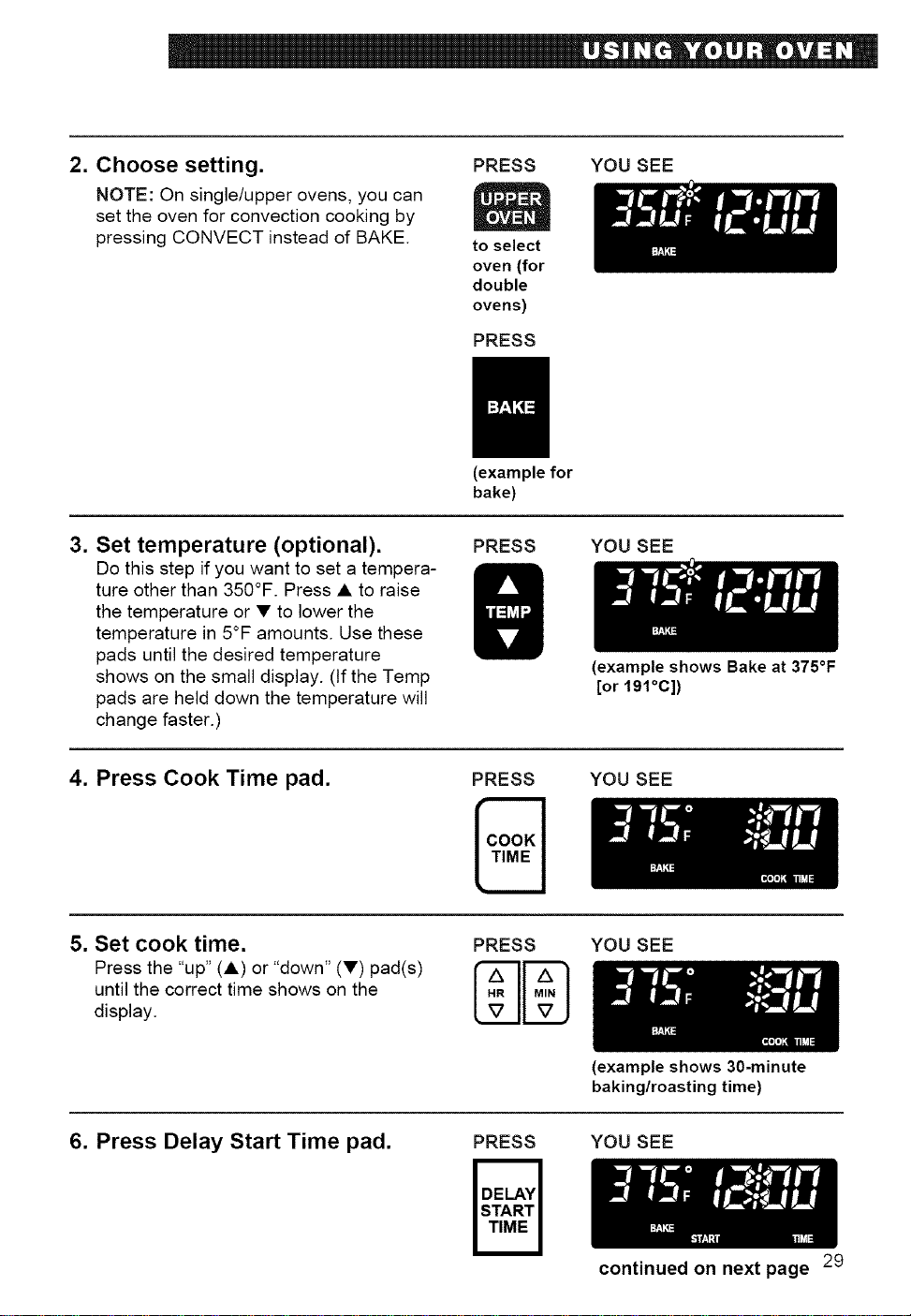

2. Choose setting.
NOTE: On single/upper ovens, you can
set the oven for convection cooking by
pressing CONVECT instead of BAKE.
PRESS
to select
oven (for
double
ovens)
PRESS
YOU SEE
(example for
bake)
3. Set temperature (optional).
Do this step if you want to set a tempera-
ture other than 350°F. Press • to raise
the temperature or • to lower the
temperature in 5°F amounts. Use these
pads until the desired temperature
shows on the small display. (If the Temp
pads are held down the temperature will
change faster.)
PRESS YOU SEE
4. Press Cook Time pad.
PRESS
(example shows Bake at 375°F
[or 191°C])
YOU SEE
5. Set cook time.
Press the "up" (•) or "down" (•) pad(s)
until the correct time shows on the
display.
PRESS
HR MIN
_7 V
YOU SEE
6. Press Delay Start Time pad.
PRESS
(example shows 30-minute
baking/roasting time)
YOU SEE
29
continued on next page

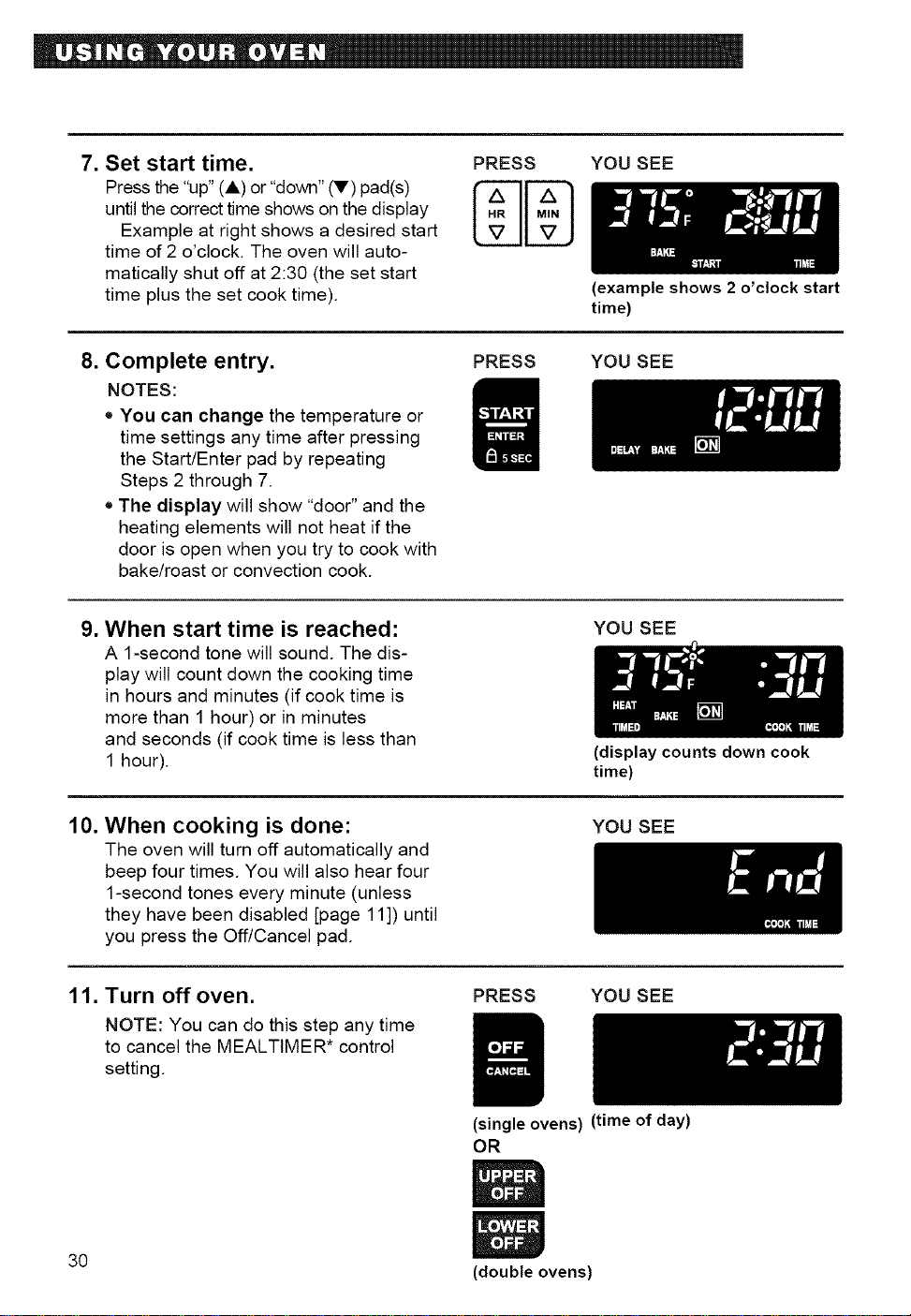

7. Set start time,
Press the "up" (A) or "down" (V) pad(s)
until the correct time shows onthe display
Example at right shows a desired start
time of 2 o'clock. The oven will auto-
matically shut off at 2:30 (the set start
time plus the set cook time).
PRESS
HR MIN
V V
YOU SEE
8. Complete entry.
NOTES:
• You can change the temperature or
time settings any time after pressing
the Start/Enter pad by repeating
Steps 2 through 7.
• The display will show "door" and the
heating elements will not heat if the
door is open when you try to cook with
bake/roast or convection cook.
PRESS
(example shows 2 o'clock start
time)
YOU SEE
9. When start time is reached:
A 1-second tone will sound. The dis-
play will count down the cooking time
in hours and minutes (if cook time is
more than 1 hour) or in minutes
and seconds (if cook time is less than
1 hour).
YOU SEE
10. When cooking is done:
The oven will turn off automatically and
beep four times. You will also hear four
1-second tones every minute (unless
they have been disabled [page 11]) until
you press the Off/Cancel pad.
(display counts down cook
time)
YOU SEE
11. Turn off oven.
NOTE: You can do this step any time
to cancel the MEALTIMER* control
setting.
PRESS YOU SEE
(single ovens) (time of day)
OR
30 (double ovens

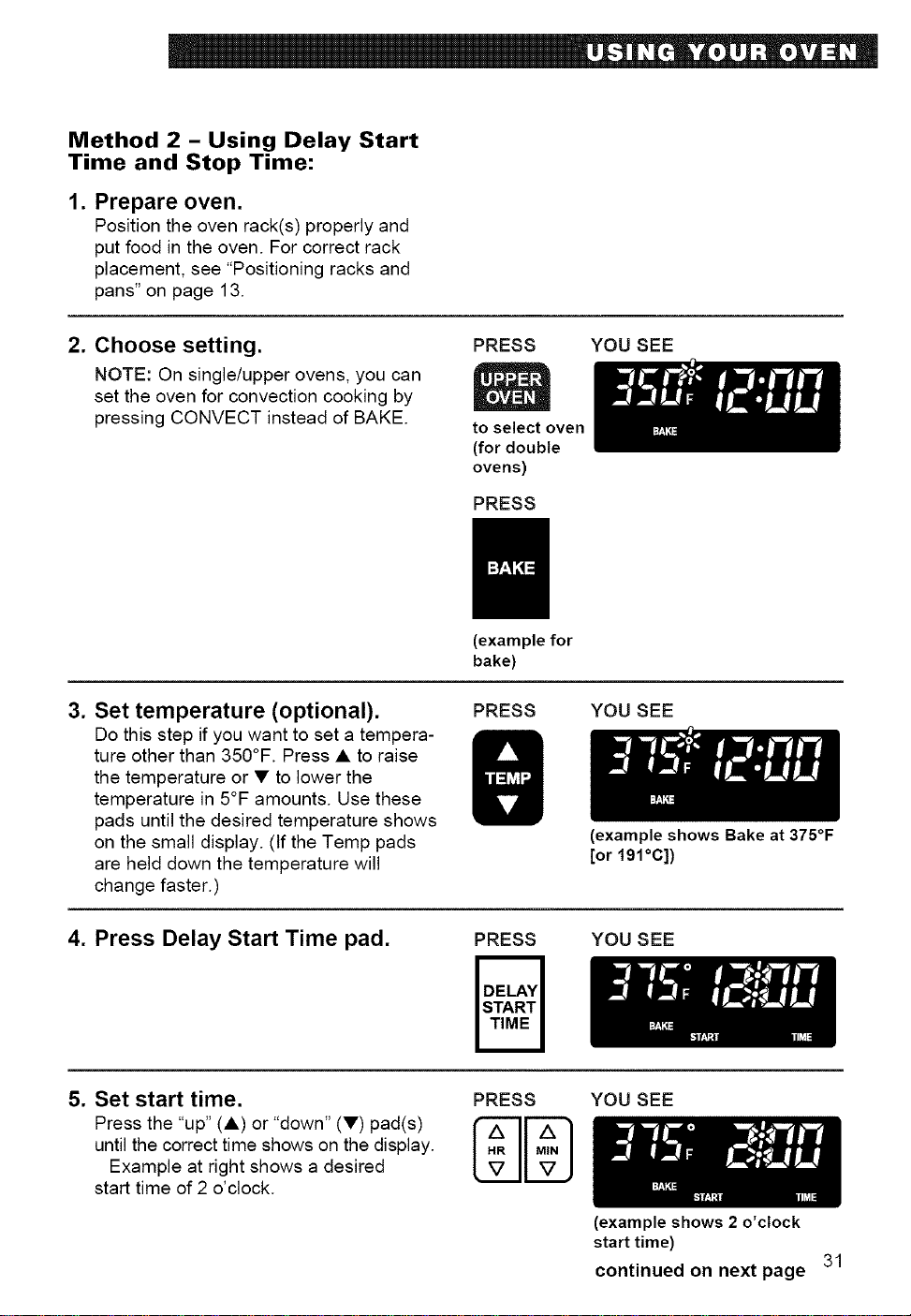

Method 2 - Using Delay Start
Time and Stop Time:
1. Prepare oven.
Position the oven rack(s) properly and
put food in the oven. For correct rack
placement, see "Positioning racks and
pans" on page 13.
2. Choose setting.
NOTE: On single/upper ovens, you can
set the oven for convection cooking by
pressing CONVECT instead of BAKE.
PRESS YOU SEE
to select oven
(for double
ovens)
PRESS
(example for
bake)
3. Set temperature (optional).
Do this step if you want to set a tempera-
ture other than 350°F. Press • to raise
the temperature or • to lower the
temperature in 5°F amounts. Use these
pads until the desired temperature shows
on the small display. (If the Temp pads
are held down the temperature will
change faster.)
PRESS YOU SEE
4. Press Delay Start Time pad.
PRESS
(example shows Bake at 375°F
[or 191°C])
YOU SEE
5. Set start time.
Press the "up" (•) or "down" (•) pad(s)
until the correct time shows on the display.
Example at right shows a desired
start time of 2 o'clock.
PRESS
[ 11
HR MIN
V V
YOU SEE
(example shows 2 o'clock
start time)
continued on next page
31

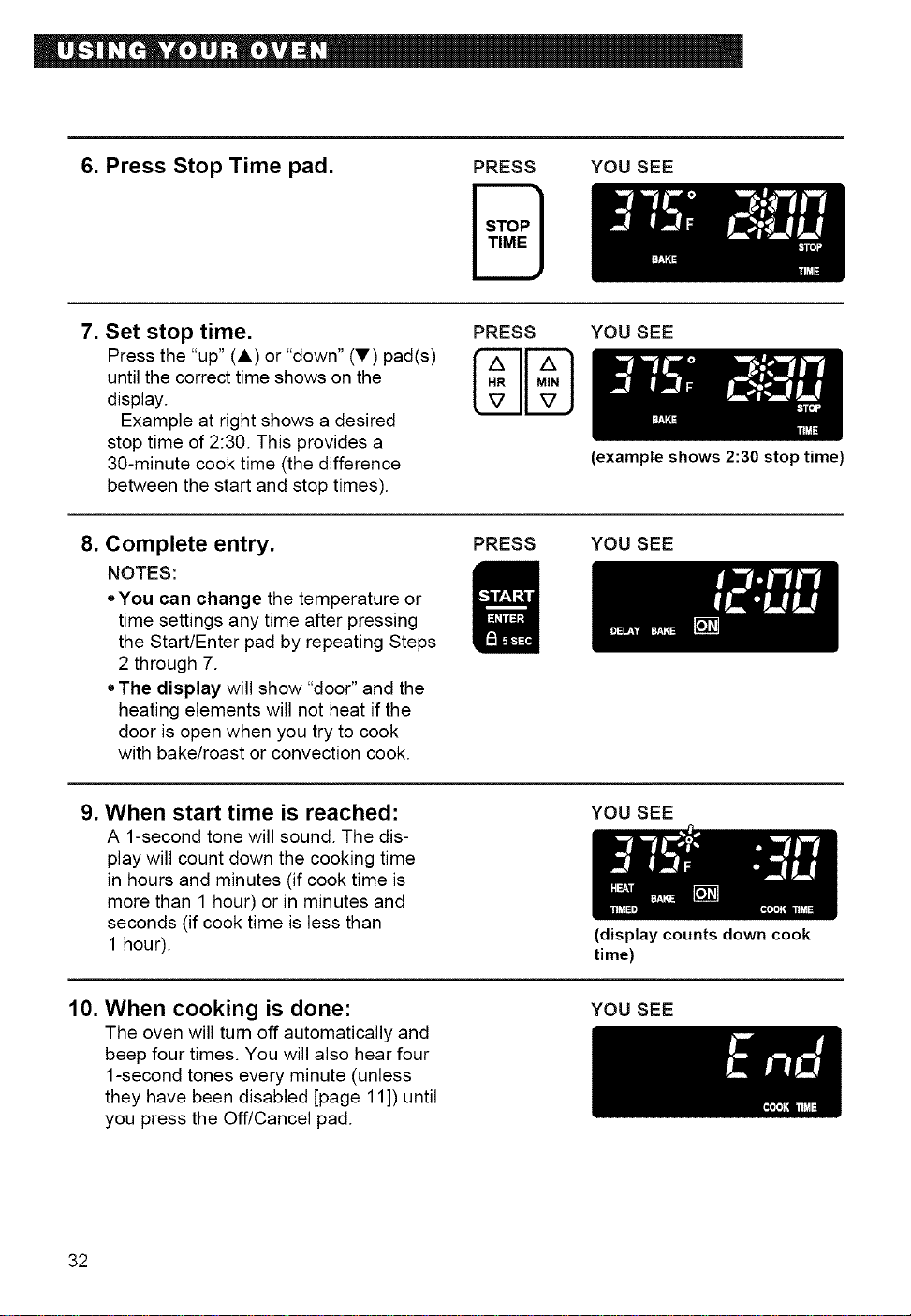

6. Press Stop Time pad.
PRESS YOU SEE
7. Set stop time.
Press the "up" (A) or "down" (V) pad(s)
until the correct time shows on the
display.
Example at right shows a desired
stop time of 2:30. This provides a
30-minute cook time (the difference
between the start and stop times).
PRESS
HR MIN
V _7
YOU SEE
8. Complete entry.
NOTES:
,,You can change the temperature or
time settings any time after pressing
the Start/Enter pad by repeating Steps
2 through 7.
• The display will show "door" and the
heating elements will not heat if the
door is open when you try to cook
with bake/roast or convection cook.
PRESS
(example shows 2:30 stop time)
YOU SEE
9. When start time is reached:
A 1-second tone will sound. The dis-
play will count down the cooking time
in hours and minutes (if cook time is
more than 1 hour) or in minutes and
seconds (if cook time is less than
1 hour).
YOU SEE
10. When cooking is done:
The oven will turn off automatically and
beep four times. You will also hear four
1-second tones every minute (unless
they have been disabled [page 11]) until
you press the Off/Cancel pad.
(display counts down cook
time)
YOU SEE
32

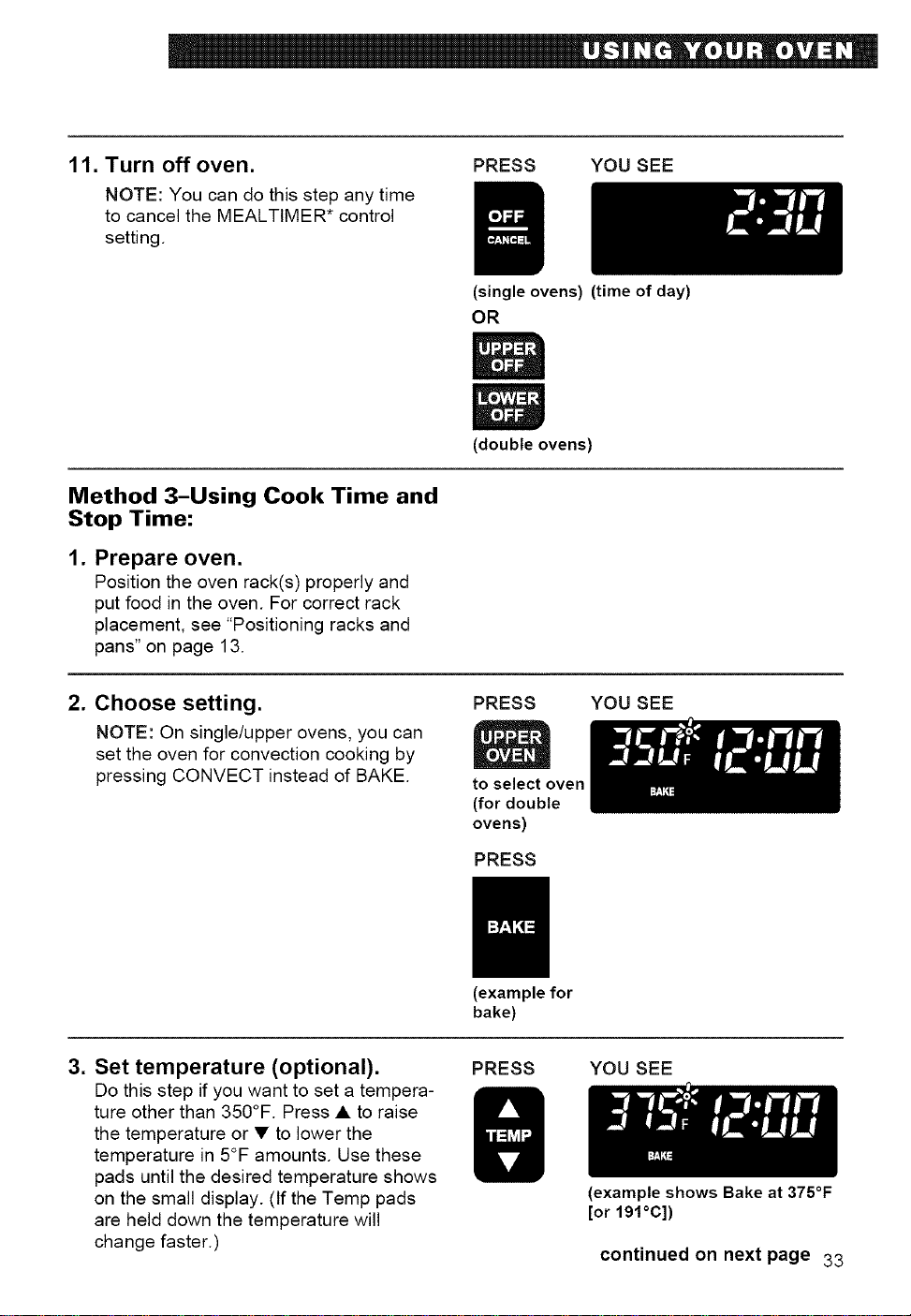

11. Turn off oven.
NOTE: You can do this step any time
to cancel the MEALTIMER* control
setting.
PRESS YOU SEE
(single ovens) (time of day)
OR
(double ovens
Method 3-Using Cook Time and
Stop Time:
1. Prepare oven.
Position the oven rack(s) properly and
put food in the oven. For correct rack
placement, see "Positioning racks and
pans" on page 13.
2. Choose setting.
NOTE: On single/upper ovens, you can
set the oven for convection cooking by
pressing CONVECT instead of BAKE.
PRESS YOU SEE
to select oven
(for double
ovens)
PRESS
(examplefor
bake)
3. Set temperature (optional).
Do this step if you want to set a tempera-
ture other than 350°F. Press • to raise
the temperature or • to lower the
temperature in 5°F amounts. Use these
pads until the desired temperature shows
on the small display. (If the Temp pads
are held down the temperature will
change faster.)
PRESS YOU SEE
(example shows Bake at 375°F
[or 191°C])
continued on next page 33
4. Press Cook Time pad.
PRESS YOU SEE
5. Set cook time.
Press the "up" (A) or "down" (V) pad(s)
until the correct time shows on the
display.
PRESS
[ 11
HR MIN
V V
YOU SEE
6. Press Stop Time pad.
(example shows 30-minute
baking/roasting time)
YOU SEE
7. Set stop time.
Press the "up" (A) or "down" (V) pad(s)
until the correct time shows on the
display.
Example at right shows a desired
stop time of 2:30. The oven will auto-
matically start cooking at 2:00 (the set
stop time minus the set cook time).
PRESS
HR MIN
V V
YOU SEE
(example shows 2:30 stop time)
8. Complete entry.
NOTES:
• You can change the temperature or
time settings any time after pressing
the Start/Enter pad by repeating Steps
2 through 7.
• The display will show "door" and the
heating elements will not heat if the
door is open when you try to cook with
bake/roast or convection cook.
PRESS YOU SEE
34

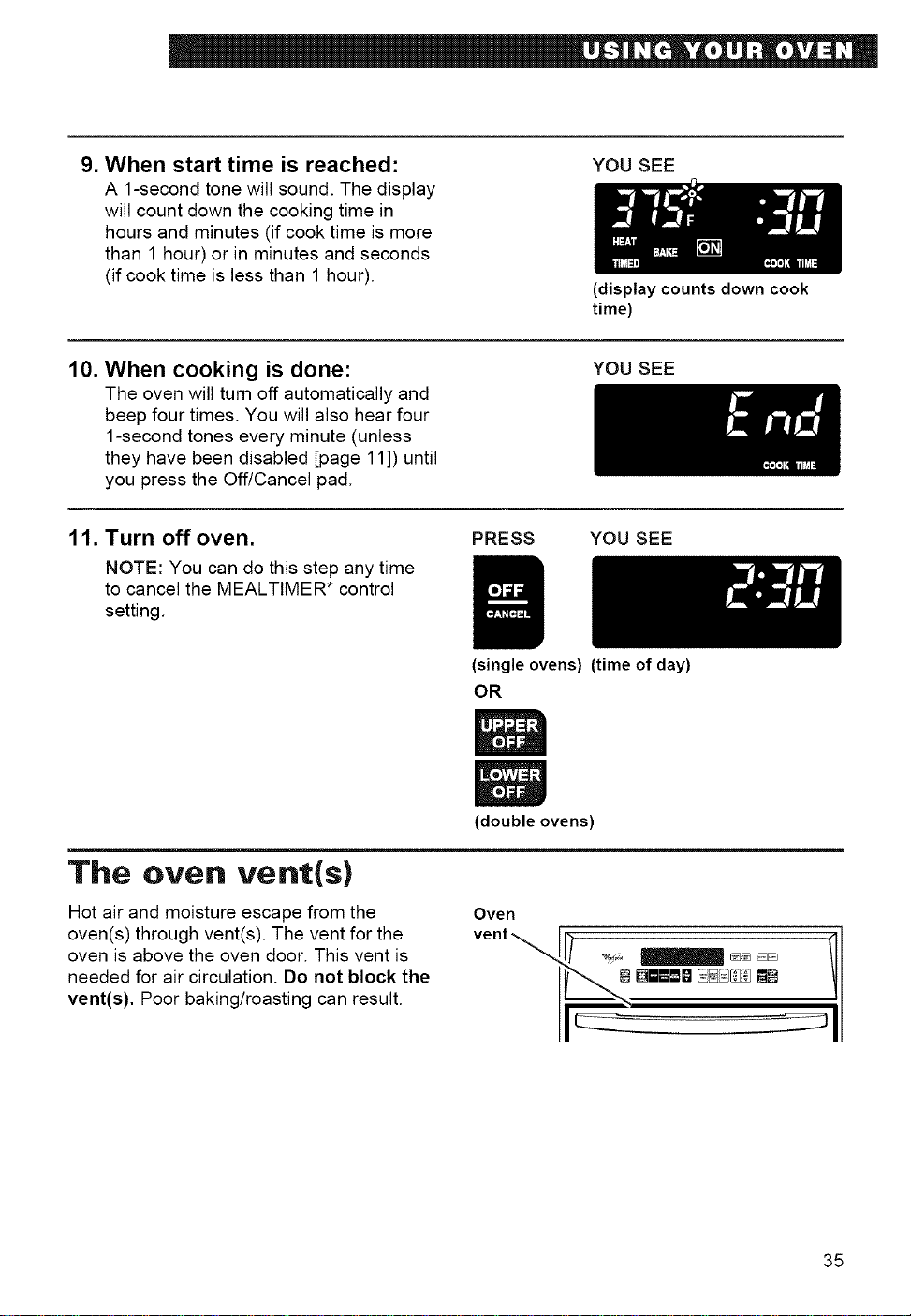

9. When start time is reached:
A 1-second tone will sound. The display
will count down the cooking time in
hours and minutes (if cook time is more
than 1 hour) or in minutes and seconds
(if cook time is less than 1 hour).
YOU SEE
10. When cooking is done:
The oven will turn off automatically and
beep four times. You will also hear four
1-second tones every minute (unless
they have been disabled [page 11]) until
you press the Off/Cancel pad.
(display counts down cook
time)
YOU SEE
11. Turn off oven.
NOTE: You can do this step any time
to cancel the MEALTIMER* control
setting.
PRESS YOU SEE
(single ovens) (time of day)
OR
(double ovens)
The oven vent(s)
Hot air and moisture escape from the
oven(s) through vent(s). The vent for the
oven is above the oven door. This vent is
needed for air circulation. Do not block the
vent(s). Poor baking/roasting can result.
Oven
vent -_ ._ I" 4 I
°,-,,° °°
35

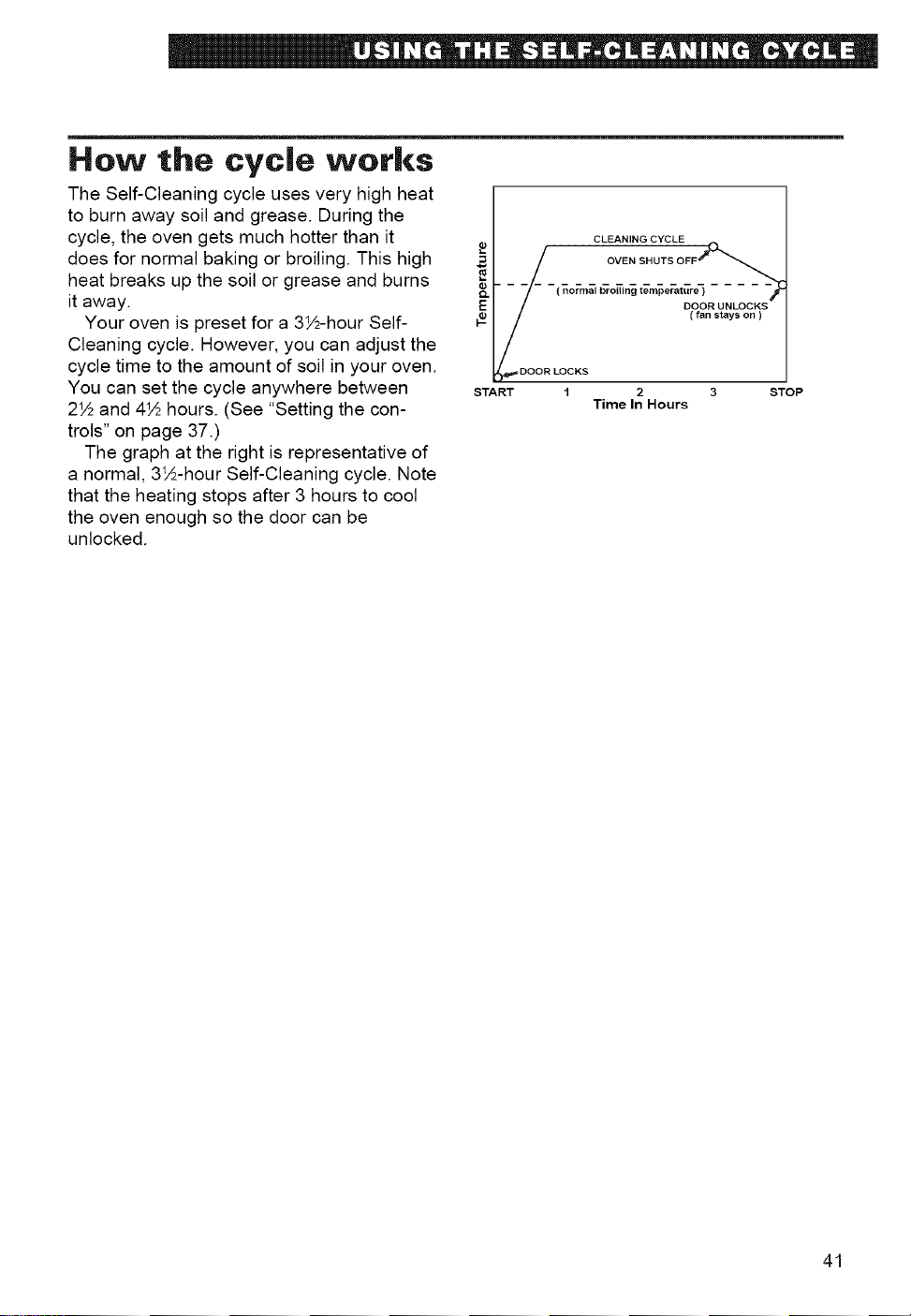

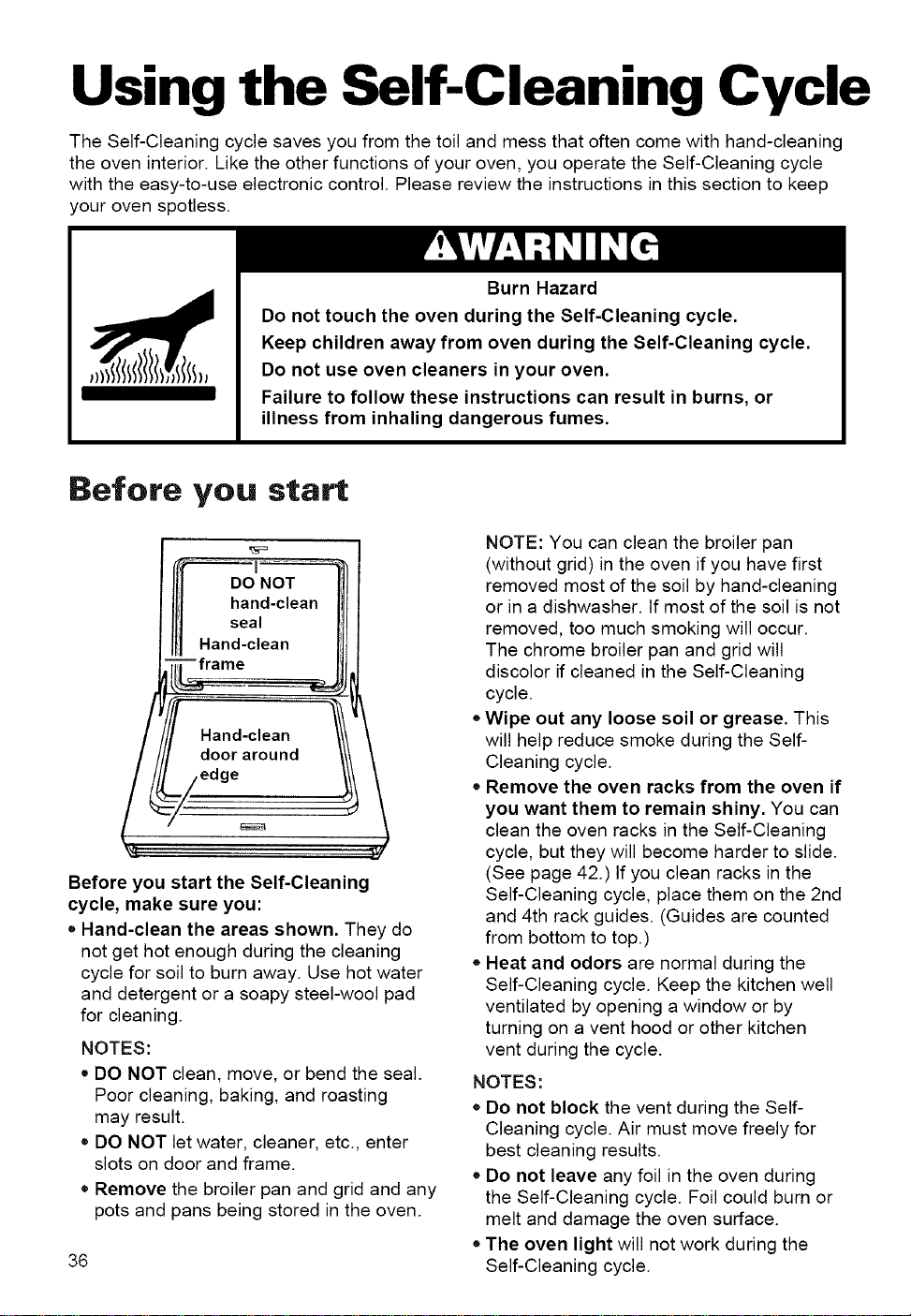

Using the Self-Cleaning Cycle
The Self-Cleaning cycle saves you from the toil and mess that often come with hand-cleaning
the oven interior. Like the other functions of your oven, you operate the Self-Cleaning cycle
with the easy-to-use electronic control. Please review the instructions in this section to keep
our oven spotless.
Burn Hazard
Do not touch the oven during the Self-Cleaning cycle.
Keep children away from oven during the Self-Cleaning cycle.
Do not use oven cleaners in your oven.
Failure to follow these instructions can result in burns, or
illness from inhaling dangerous fumes.
Before you start
DO NOT
hand-clean
seal
Hand-clean
Hand-clean
door around
Before you start the Self-Cleaning
cycle, make sure you:
• Hand-clean the areas shown. They do
not get hot enough during the cleaning
cycle for soil to burn away. Use hot water
and detergent or a soapy steel-wool pad
for cleaning.
NOTES:
• DO NOT clean, move, or bend the seal.
Poor cleaning, baking, and roasting
may result.
• DO NOT let water, cleaner, etc., enter
slots on door and frame.
• Remove the broiler pan and grid and any
pots and pans being stored in the oven.
36
NOTE: You can clean the broiler pan
(without grid) in the oven if you have first
removed most of the soil by hand-cleaning
or in a dishwasher. If most of the soil is not
removed, too much smoking will occur.
The chrome broiler pan and grid will
discolor if cleaned in the Self-Cleaning
cycle.
• Wipe out any loose soil or grease. This
will help reduce smoke during the Self-
Cleaning cycle.
• Remove the oven racks from the oven if
you want them to remain shiny. You can
clean the oven racks in the Self-Cleaning
cycle, but they will become harder to slide.
(See page 42.) tf you clean racks in the
Self-Cleaning cycle, place them on the 2nd
and 4th rack guides. (Guides are counted
from bottom to top.)
• Heat and odors are normal during the
Self-Cleaning cycle. Keep the kitchen well
ventilated by opening a window or by
turning on a vent hood or other kitchen
vent during the cycle.
NOTES:
• Do not block the vent during the Self-
Cleaning cycle. Air must move freely for
best cleaning results.
• Do not leave any foil in the oven during
the Self-Cleaning cycle. Foil could burn or
melt and damage the oven surface.
• The oven light will not work during the
Self-Cleaning cycle.
ill==¸¸

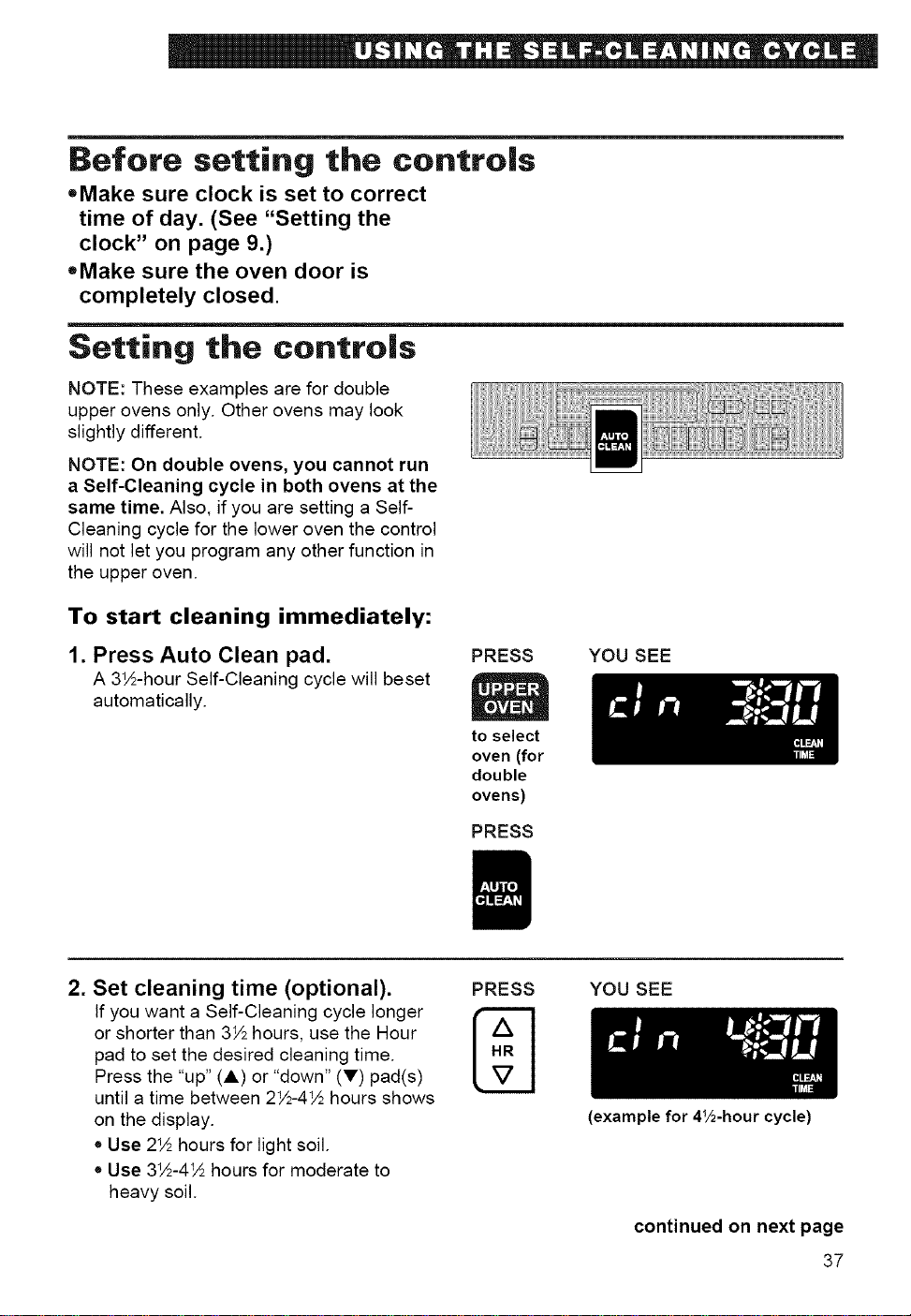

Before setting the controls
• Make sure clock is set to correct
time of day. (See "Setting the
clock" on page 9.)
,,Make sure the oven door is
completely closed.
Setting the controls
NOTE: These examples are for double
upper ovens only. Other ovens may look
slightly different.
NOTE: On double ovens, you cannot run
a Self-Cleaning cycle in both ovens at the
same time. Also, if you are setting a Self-
Cleaning cycle for the lower oven the control
will not let you program any other function in
the upper oven.
To start cleaning immediately:
1. Press Auto Clean pad.
A 31½-hourSelf-Cleaning cycle will beset
automatically.
PRESS
to select
oven (for
double
ovens)
YOU SEE
PRESS
2. Set cleaning time (optional). PRESS
If you want a Self-Cleaning cycle longer
or shorter than 3½ hours, use the Hour
W
pad to set the desired cleaning time.
Press the "up" (A) or "down" (V) pad(s)
until a time between 2½-41½hours shows
on the display.
• Use 21½hours for light soil.
• Use 31½-41½hours for moderate to
heavy soil.
YOU SEE
(example for 41/2-hour cycle)
continued on next page
37

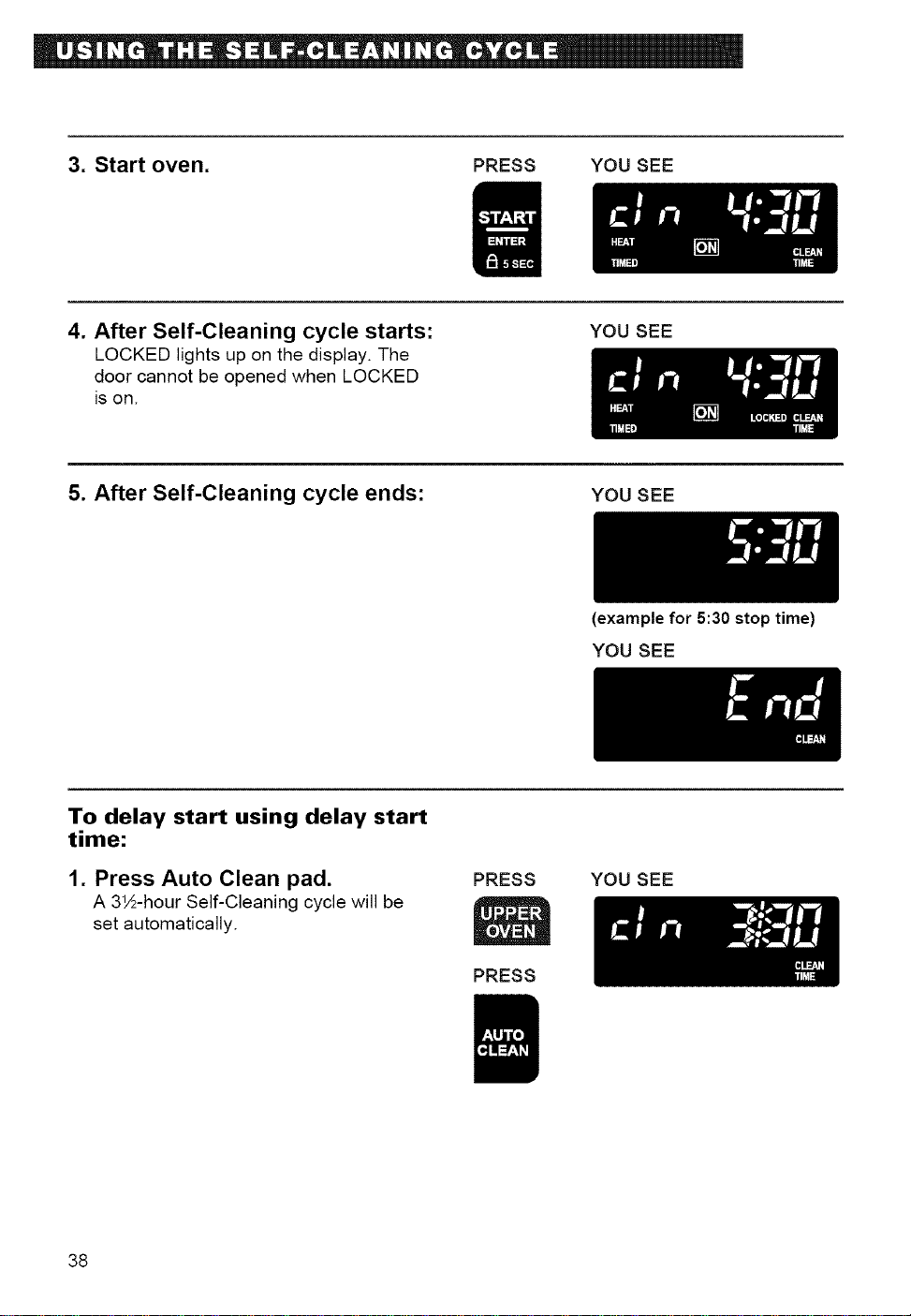

3. Start oven. PRESS YOU SEE
4. After Self-Cleaning cycle starts:
LOCKED lights up on the display. The
door cannot be opened when LOCKED
is on.
YOU SEE
5. After Self-Cleaning cycle ends:
YOU SEE
(example for 5:30 stop time)
YOU SEE
To delay start using delay start
time:
1. Press Auto Clean pad.
A 31½-hourSelf-Cleaning cycle will be
set automatically.
PRESS
PRESS
YOU SEE
38

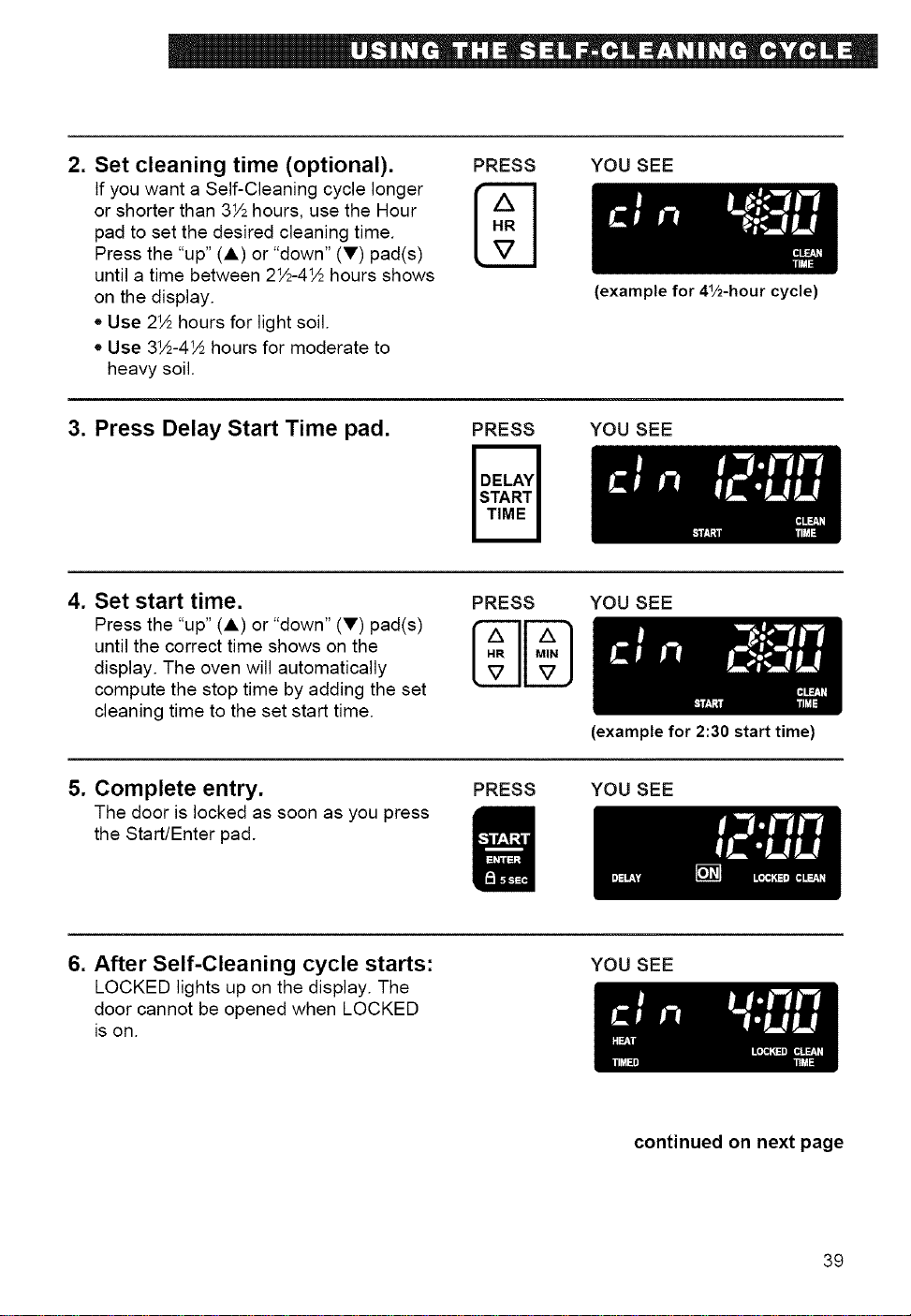

2. Set cleaning time (optional).
If you want a Self-Cleaning cycle longer
or shorter than 3Y2hours, use the Hour
pad to set the desired cleaning time.
Press the "up" (A) or "down" (V) pad(s)
until a time between 2½-41½hours shows
on the display.
• Use 21½hours for light soil.
• Use 31½-41½hours for moderate to
heavy soil.
PRESS
m
YOU SEE
3. Press Delay Start Time pad.
PRESS
(example for 41/2-hour cycle)
YOU SEE
4. Set start time.
Press the "up" (A) or "down" (V) pad(s)
until the correct time shows on the
display. The oven will automatically
compute the stop time by adding the set
cleaning time to the set start time.
PRESS
HR MIN
V V
YOU SEE
5. Complete entry.
The door is locked as soon as you press
the Start/Enter pad.
PRESS
(example for 2:30 start time)
YOU SEE
6. After Self-Cleaning cycle starts:
LOCKED lights up on the display. The
door cannot be opened when LOCKED
is on.
YOU SEE
continued on next page
39

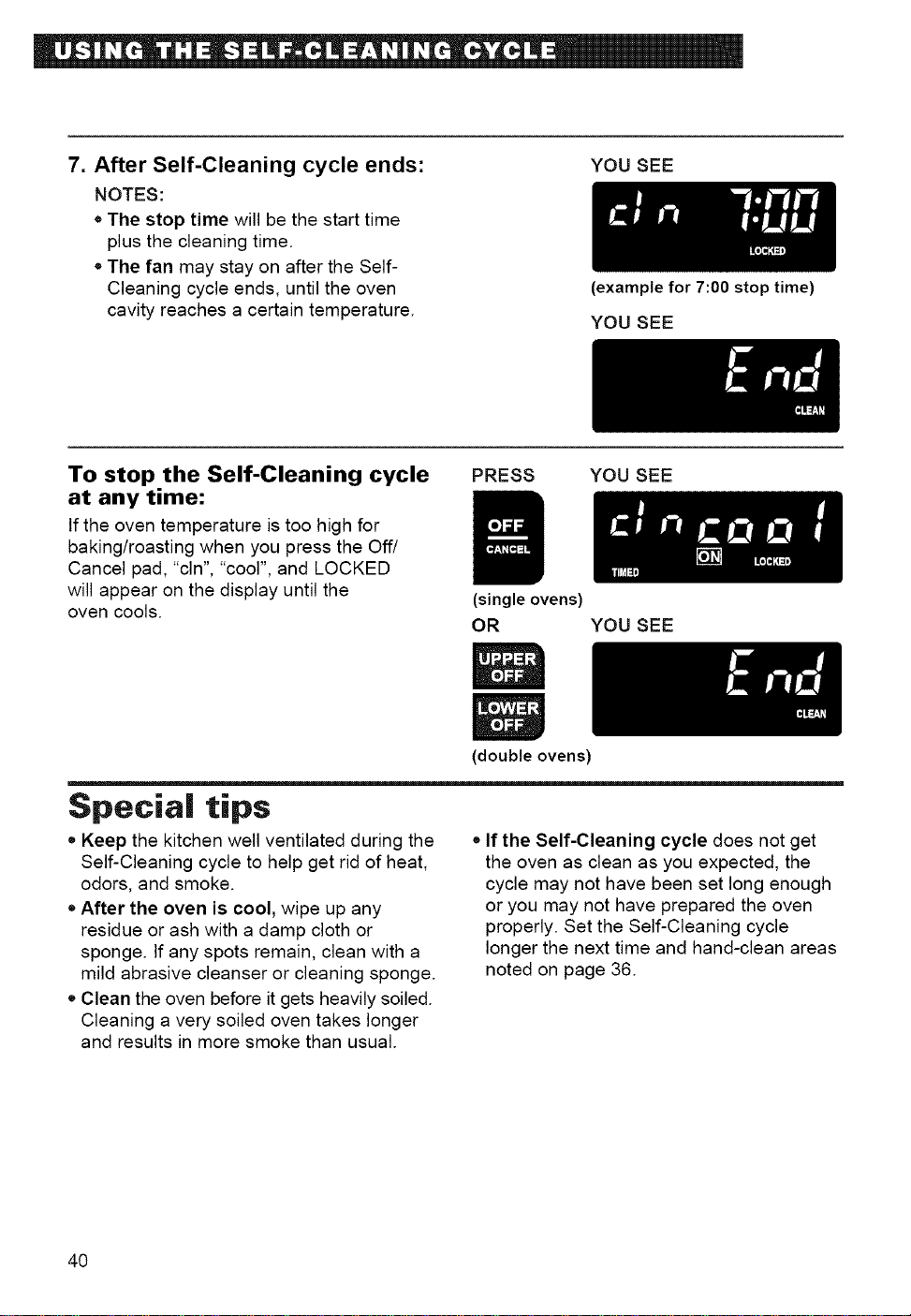

7. After Self-Cleaning cycle ends:
NOTES:
=The stop time will be the start time
plus the cleaning time.
. The fan may stay on after the Self-
Cleaning cycle ends, until the oven
cavity reaches a certain temperature.
YOU SEE
(example for 7:00 stop time)
YOU SEE
To stop the Self-Cleaning cycle
at any time:
if the oven temperature is too high for
baking/roasting when you press the Off/
Cancel pad, "cln", "cool", and LOCKED
will appear on the display until the
oven cools.
PRESS
(single ovens)
OR
YOU SEE
YOU SEE
(double ovens)
Specia| tips
* Keep the kitchen well ventilated during the
Self-Cleaning cycle to help get rid of heat,
odors, and smoke.
. After the oven is cool, wipe up any
residue or ash with a damp cloth or
sponge, tf any spots remain, clean with a
mild abrasive cleanser or cleaning sponge.
* Clean the oven before it gets heavily soiled.
Cleaning a very soiled oven takes longer
and results in more smoke than usual.
* If the Self-Cleaning cycle does not get
the oven as clean as you expected, the
cycle may not have been set long enough
or you may not have prepared the oven
properly. Set the Self-Cleaning cycle
longer the next time and hand-clean areas
noted on page 36.
40
i==,
How the cycle works
The Self-Cleaning cycle uses very high heat
to burn away soil and grease. During the
cycle, the oven gets much hotter than it
does for normal baking or broiling. This high
heat breaks up the soil or grease and burns
it away.
Your oven is preset for a 3½-hour Self-
Cleaning cycle. However, you can adjust the
cycle time to the amount of soil in your oven.
You can set the cycle anywhere between
21½and 41½hours. (See "Setting the con-
trois" on page 37.)
The graph at the right is representative of
a normal, 31½-hour Self-Cleaning cycle. Note
that the heating stops after 3 hours to cool
the oven enough so the door can be
unlocked.
START
CLEANING CYCLE
_/ OVEN SHUTS OF i_ - --_- -
- ( norma_ _ro_ing t;mpeFat _r
DOOR UNLOCKS
( fan stays on )
i,_ DOOR LOCKS
1 2 3 STOP
Time In Hours
41

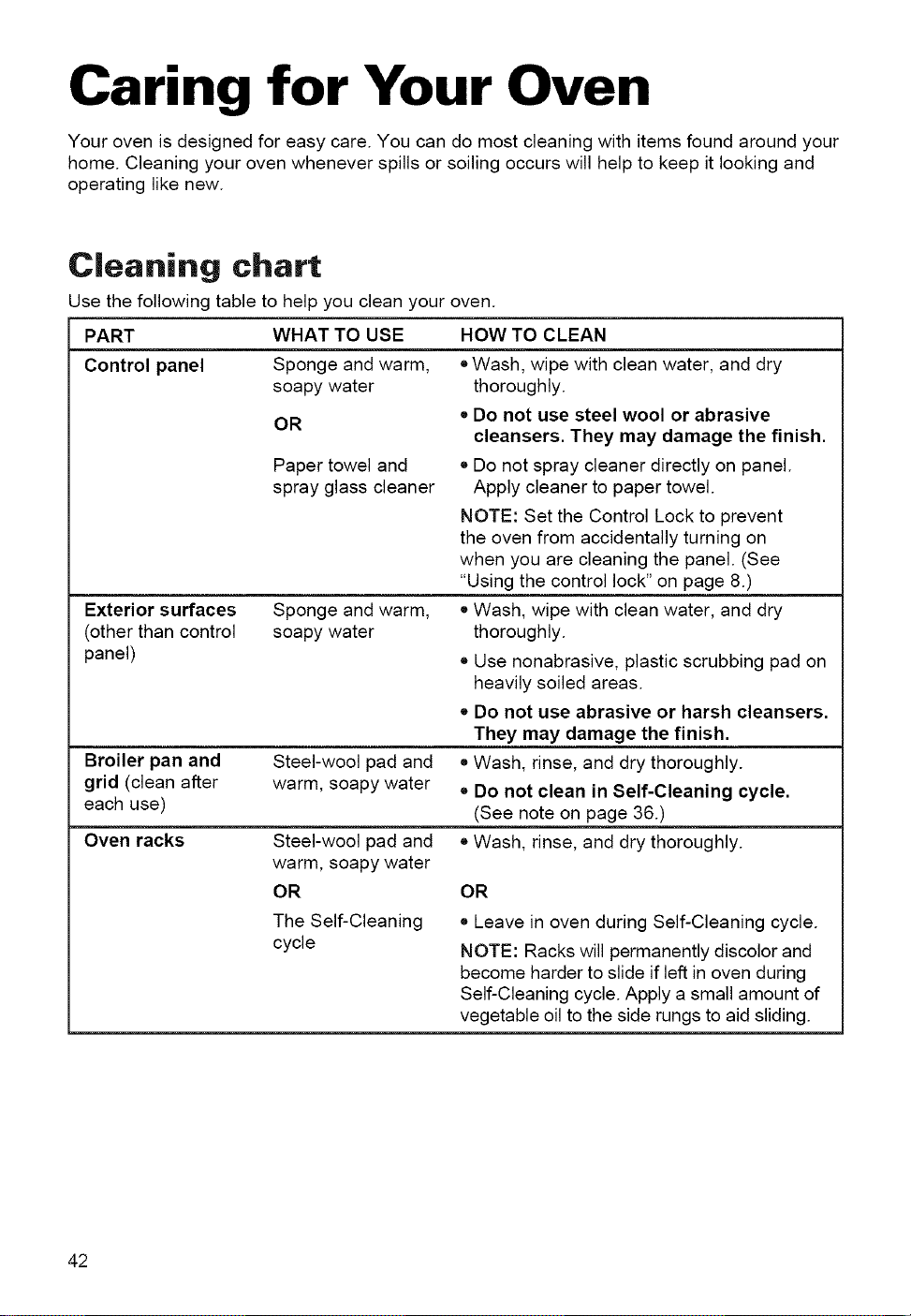

Caring for Your Oven
Your oven is designed for easy care. You can do most cleaning with items found around your
home. Cleaning your oven whenever spills or soiling occurs will help to keep it looking and
operating like new.
Cleaning chart
Use the following table to help you clean your oven.
PART
Control panel
Exterior surfaces
(other than control
panel)
Broiler pan and
grid (clean after
each use)
Oven racks
WHAT TO USE
Sponge and warm,
soapy water
OR
Paper towel and
spray glass cleaner
Sponge and warm,
soapy water
Steel-wool pad and
warm, soapy water
Steel-wool pad and
warm, soapy water
OR
The Self-Cleaning
cycle
HOW TO CLEAN
• Wash, wipe with clean water, and dry
thoroughly.
• Do not use steel wool or abrasive
cleansers. They may damage the finish.
• Do not spray cleaner directly on panel.
Apply cleaner to paper towel.
NOTE: Set the Control Lock to prevent
the oven from accidentally turning on
when you are cleaning the panel. (See
"Using the control lock" on page 8.)
• Wash, wipe with clean water, and dry
thoroughly.
• Use nonabrasive, plastic scrubbing pad on
heavily soiled areas.
• Do not use abrasive or harsh cleansers.
They may damage the finish.
• Wash, rinse, and dry thoroughly.
• Do not clean in Self-Cleaning cycle.
(See note on page 36.)
• Wash, rinse, and dry thoroughly.
OR
• Leave in oven during Self-Cleaning cycle.
NOTE: Racks will permanently discolor and
become harder to slide if left in oven during
Self-Cleaning cycle. Apply a small amount of
vegetable oil to the side rungs to aid sliding.
42

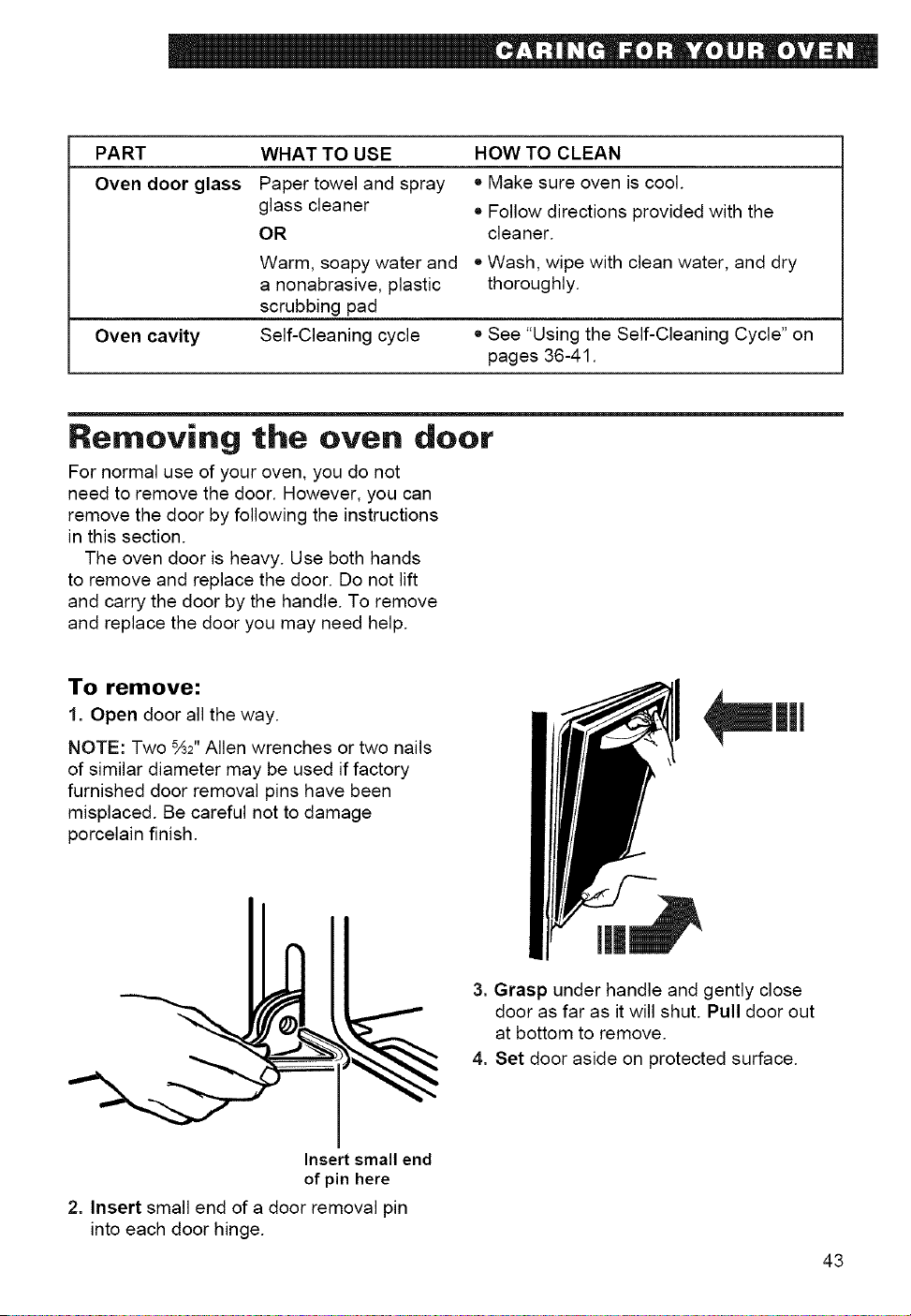

PART
Oven door glass
WHAT TO USE
Paper towel and spray
glass cleaner
OR
Warm, soapy water and
a nonabrasive, plastic
scrubbing pad
Oven cavity Self-Cleaning cycle • See "Using the Self-Cleaning Cycle" on
pages 36-41.
HOW TO CLEAN
• Make sure oven is cool.
• Follow directions provided with the
cleaner.
• Wash, wipe with clean water, and dry
thoroughly.
Removing the oven door
For normal use of your oven, you do not
need to remove the door. However, you can
remove the door by following the instructions
in this section.
The oven door is heavy. Use both hands
to remove and replace the door. Do not lift
and carry the door by the handle. To remove
and replace the door you may need help.
To remove:
1. Open door all the way.
NOTE: Two %2" Allen wrenches or two nails
of similar diameter may be used if factory
furnished door removal pins have been
misplaced. Be careful not to damage
porcelain finish.
3. Grasp under handle and gently close
door as far as it will shut. Pull door out
at bottom to remove.
4. Set door aside on protected surface.
Insert small end
of pin here
2. Insert small end of a door removal pin
into each door hinge.
43

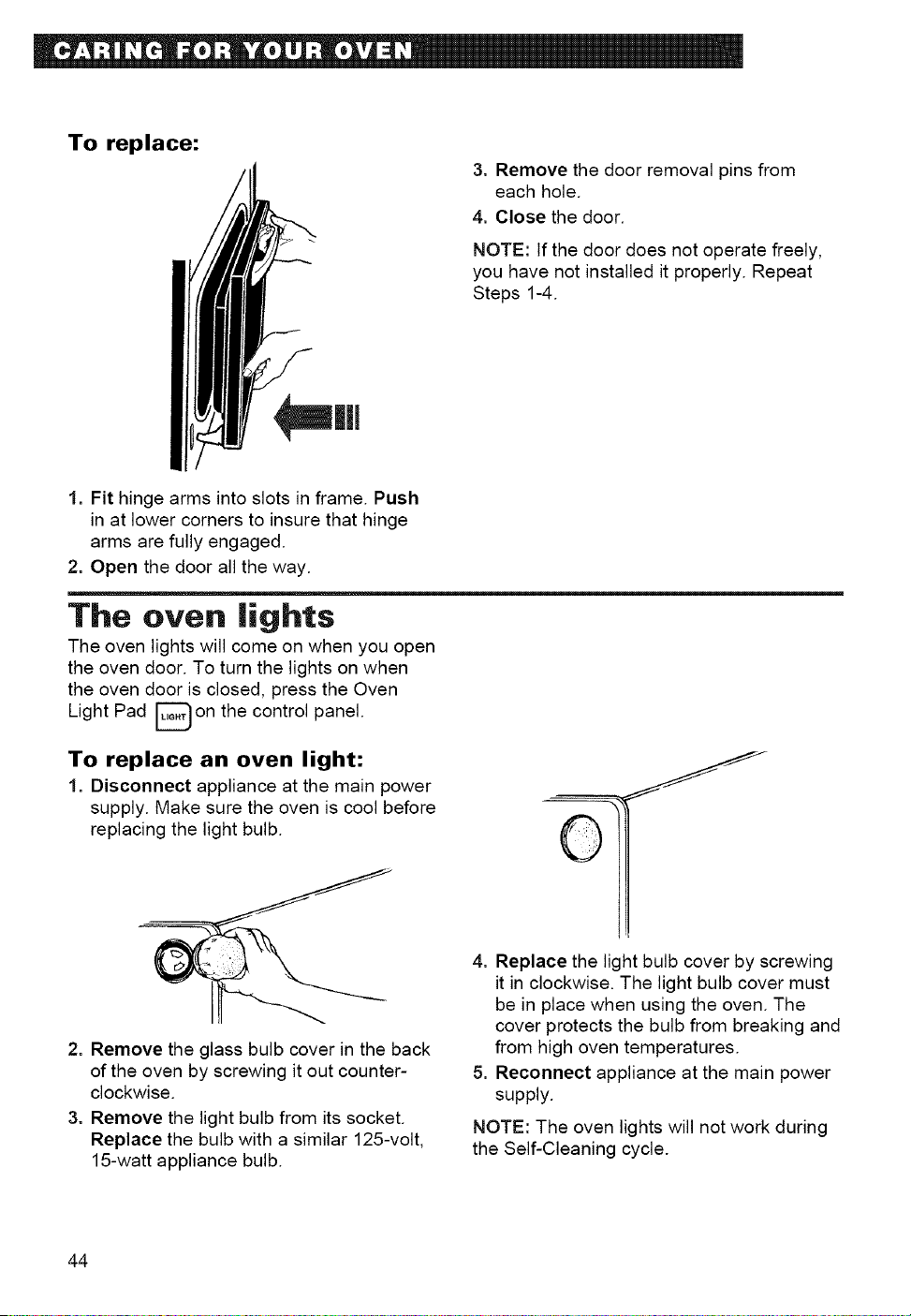

To replace:
3. Remove the door removal pins from
each hole.
4. Close the door.
NOTE: If the door does not operate freely,
you have not installed it properly. Repeat
Steps 1-4.
1. Fit hinge arms into slots in frame. Push
in at lower corners to insure that hinge
arms are fully engaged.
2. Open the door all the way.
The oven lights
The oven lights will come on when you open
the oven door. To turn the lights on when
the oven door is closed, press the Oven
Light Pad _ on the control panel.
I___)
To replace an oven light:
1. Disconnect appliance at the main power
supply. Make sure the oven is cool before
replacing the light bulb.
©
2. Remove the glass bulb cover in the back
of the oven by screwing it out counter-
clockwise.
3. Remove the light bulb from its socket.
Replace the bulb with a similar 125-volt,
15-watt appliance bulb.
4. Replace the light bulb cover by screwing
it in clockwise. The light bulb cover must
be in place when using the oven. The
cover protects the bulb from breaking and
from high oven temperatures.
5. Reconnect appliance at the main power
supply.
NOTE: The oven lights will not work during
the Self-Cleaning cycle.
44

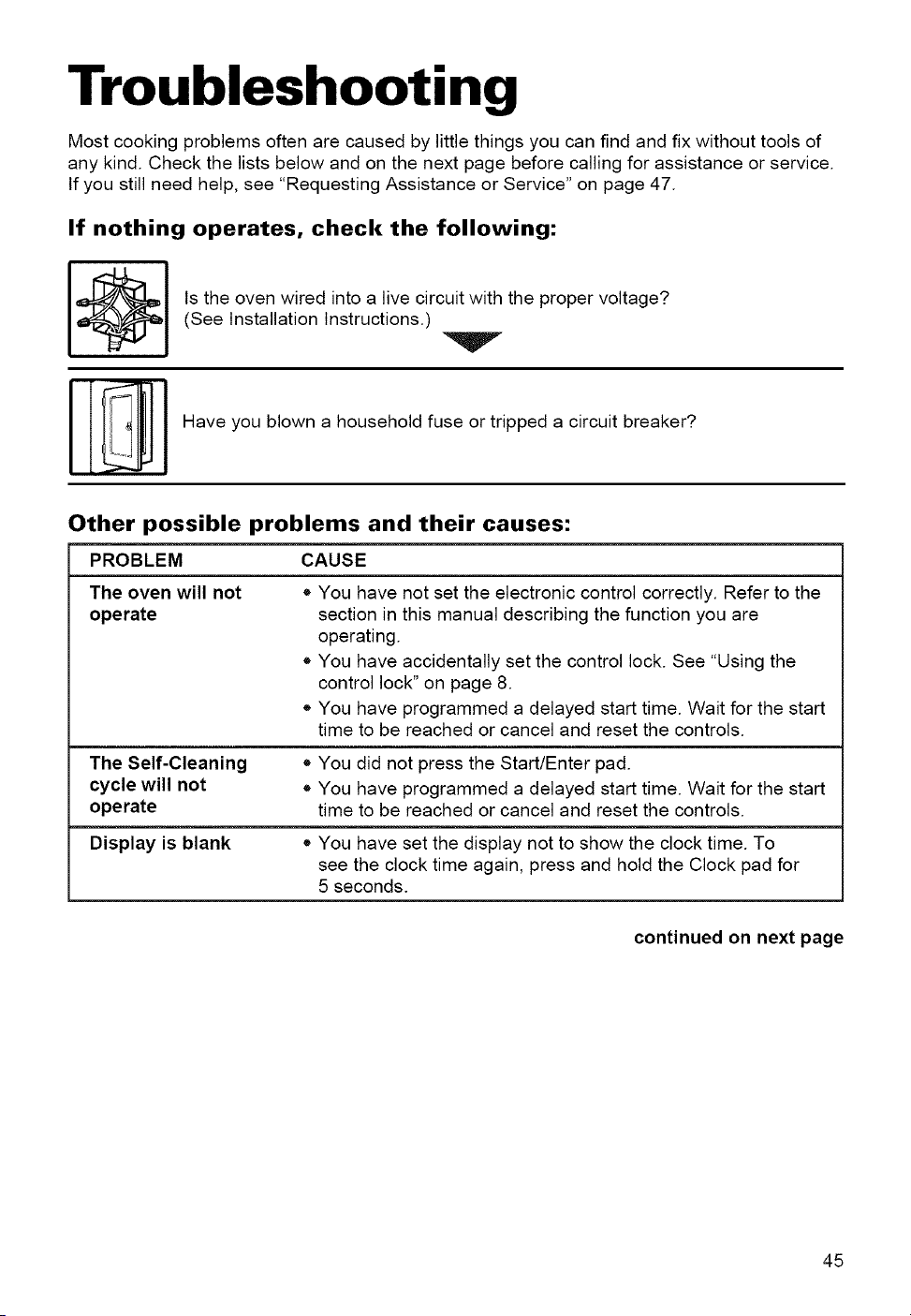

Troubleshooting
Most cooking problems often are caused by little things you can find and fix without tools of
any kind. Check the lists below and on the next page before calling for assistance or service.
If you still need help, see "Requesting Assistance or Service" on page 47.
If nothing operates, check the following:
Is the oven wired into a live circuit with the proper voltage?
(See Installation Instructions.)
Have you blown a household fuse or tripped a circuit breaker?
Other possible problems and their causes:
PROBLEM CAUSE
The oven will not * You have not set the electronic control correctly. Refer to the
operate section in this manual describing the function you are
operating.
• You have accidentally set the control lock. See "Using the
control lock" on page 8.
• You have programmed a delayed start time. Wait for the start
time to be reached or cancel and reset the controls.
The Self-Cleaning • You did not press the Start/Enter pad.
cycle will not • You have programmed a delayed start time. Wait for the start
operate time to be reached or cancel and reset the controls.
Display is blank • You have set the display not to show the clock time. To
see the clock time again, press and hold the Clock pad for
5 seconds.
continued on next page
45

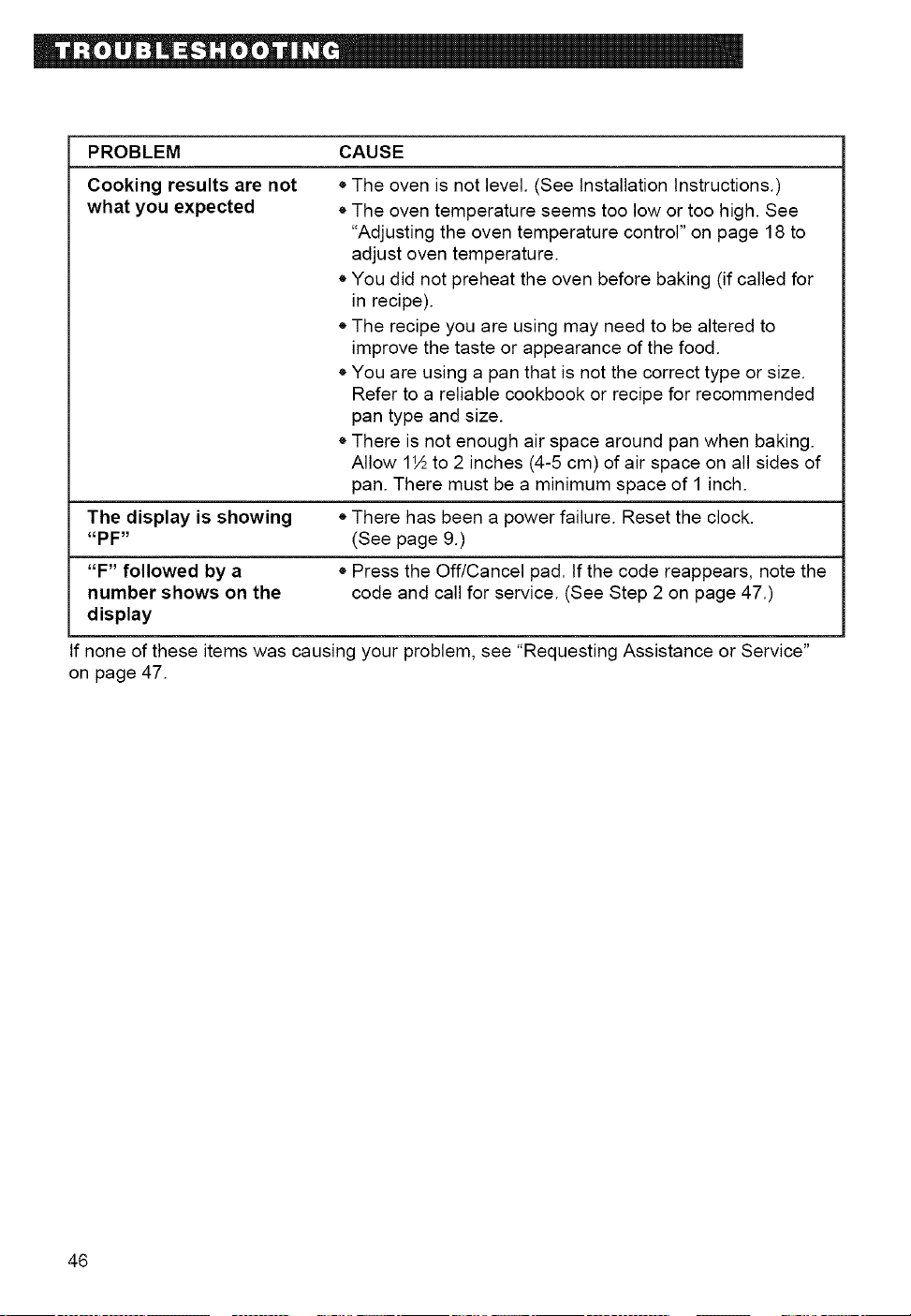

PROBLEM CAUSE
Cookingresults are not
what you expected
• The oven is not level. (See Installation Instructions.)
• The oven temperature seems too low or too high. See
"Adjusting the oven temperature control" on page 18 to
adjust oven temperature.
• You did not preheat the oven before baking (if called for
in recipe).
• The recipe you are using may need to be altered to
improve the taste or appearance of the food.
• You are using a pan that is not the correct type or size.
Refer to a reliable cookbook or recipe for recommended
pan type and size.
• There is not enough air space around pan when baking.
Allow 1½ to 2 inches (4-5 cm) of air space on all sides of
pan. There must be a minimum space of 1 inch.
The display is showing • There has been a power failure. Reset the clock.
"PF" (See page 9.)
"F" followed by a • Press the Off/Cancel pad. If the code reappears, note the
number shows on the code and call for service. (See Step 2 on page 47.)
display
If none of these items was causing your problem, see "Requesting Assistance or Service"
on page 47.
46
Requesting Assistance or
Service
Before calling for assistance or service, please check "Troubleshooting" on pages 45-46. It
may save you the cost of a service call. If you still need help, follow the instructions below.
in U.S.A.:
1. If you need assistance t ...
Call the Whirlpool Consumer Assistance
Center telephone number.
Dial toll-free from
anywhere in the U.S.A.:
1-800-253-1301
and talk with one of our trained
consultants. The consultant can instruct you
in how to obtain satisfactory operation from
your appliance or, if service is necessary,
recommend a qualified service company in
your area.
If you prefer, write to:
Whirlpool Brand Home Appliances
Consumer Assistance Center
c/o Correspondence Dept.
2000 North M-63
Benton Harbor, MI 49022-2692
Please include a daytime phone number in
your correspondence.
2. If you need service t ...
Whirlpool has a nationwide network of
authorized Whirlpool service
companies. Whirlpool service
technicians are trained to fulfill
the product warranty and
provide after-warranty service,
anywhere in the United States. To locate the
authorized Whirlpool service company in
your area, call our Consumer Assistance
Center telephone number (see Step 1) or
look in your telephone directory Yellow
Pages under:
• APPLIANCE-HOUSEHOLD- • WASHING MACHINES &
MAJOR, SERVICE & REPAIR DRYERS, SERVICE & REPAIR
-See: Whirlpool Appliances or -See: Whirlpool Appliances or
Authorized Whirlpool Service Authorized Whirlpool Service
(Example: XYZ Service Co) (Example: XYZ Service Co)
3. If you need FSP*
replacement parts ...
FSP is a registered trademark of Whirlpool
Corporation for quality parts. Look for this
symbol of quality whenever you need a
replacement part for your WHIRLPOOL*
appliance. FSP replacement parts will fit
right and work right, because they are made
to the same exacting specifications used to
build every new WHIRLPOOL appliance.
To locate FSP replacement parts in your
area, refer to Step 2 or call the Whirlpool
Consumer Assistance Center number
in Step 1.
4. If you are not satisfied
with how the problem
was solved ...
• Contact the Major Appliance Consumer
Action Program (MACAP). MACAP is a
group of independent consumer experts
that voices consumer views at the highest
levels of the major appliance industry.
• Contact MACAP only when the dealer,
authorized servicer, and Whirlpool have
failed to resolve your problem.
Major Appliance Consumer Action Program
20 North Wacker Drive
Chicago, IL 60606
• MACAP will in turn inform us of your action.
t When asking for help or service:
Please provide a detailed description of
the problem (including any information
that appears on the electronic control
display), your appliance's complete model
and serial numbers, and the purchase
date. (See page 3.) This information will
help us respond properly to your request.
47
in Canada:
Inglis Limited** Appliance Service - Consumer Services
Direct service branches:
BRITISH COLUMBIA Vancouver Inglis Limited Appliance Service (604) 291-6426
3627 E. 4th Avenue 1-800-665-6788
Victoria Ingtis Limited Appliance Service (604) 383-2280
3! 17 Steele Street 1-800-665-6788
ALBERTA Edmonton Inglis Limited Appliance Service (403) 453-3900
11653 163rd Street 1-800-661-6291
ONTARIO Toronto Inglis Limited Appliance Service (905) 82!-3900
(Mississauga) 5945 Ambler Drive 1-800-807-6777
Toronto
(Markham)
Ottawa
Ingtis Limited Appliance Service
Unit #1, 110 Torbay Road
Inglis Limited Appliance Service
29 Capital Drive
(905) 475-9803
1-800-807-6777
(613) 225-0510
1-800-267-3456
MANITOBA Winnipeg Inglis Limited Appliance Service (204) 694-5308
1683 Church Avenue 1-800-665-1683
QUEBEC Montreal Inglis Limited Appliance Service (514) 382-8110
(Laval) 2750 Francis-Hughes 1-800-361-3032
Brossard Ingtis Limited Appliance Service
9705 Ignace Street
Quebec City Inglis Limited Appliance Service
5275 Wilfrid-Hamel Blvd., Suite 140
Sherbrooke Ingtis Limited Appliance Service
(Rock Forest) 3475 Industrial Blvd.
(5!4) 397-1840
1-800-361-0950
(4!8) 87!-5251
1-800-463-1523
(8! 9) 564-6565
1-800-567-6966
NOVA SCOTIA Dartmouth Ingtis Limited Appliance Service (902) 468-6634
900 Windmill Road, Unit #109 1-800-565-1598
SASKATCHEWAN Regina Ingtis Limited Appliance Service 1-800-665-1683
Saskatoon Inglis Limited Appliance Service 1-800-665-1683
For service in areas other than those listed, contact your Appliance Dealer.
48
49
50
Index
This index is alphabetical. It contains all the topics included in this manual, along with the
page(s) on which you can find each topic.
TOPIC PAGE TOPIC PAGE
ASSISTANCE .................................... 47, 48
BAKING
Aluminum foil ........................................ 14
Pans ...................................................... 14
Setting cycle ......................................... 15
BROILING
Custom broil chart ................................. 22
Grid ....................................................... 23
Pan ....................................................... 20
Rack position chart ............................... 22
Setting cycle ......................................... 20
Tips ....................................................... 23
CLEANING
Broiler pan and grid .............................. 42
Control panel ........................................ 42
Exterior surfaces ................................... 42
Oven cavity ........................................... 43
Oven door glass .................................... 43
Oven racks ............................................ 42
Self-cleaning cycle ................................ 36
CONTROL PANEL
Canceling ................................................ 8
Celsius .................................................. 19
Clock ....................................................... 9
Command pads ....................................... 8
Control lock ............................................. 8
Disabling the clock display ...................... 9
Display .................................................... 7
Hour and minute pads ............................. 9
Minute timer .......................................... 10
Selecting an oven ................................... 8
Signals .................................................. 11
Starting .................................................... 8
Tones .................................................... 11
CONVECTION BAKING
Pans ...................................................... 14
Setting cycle ......................................... 12
Tips ....................................................... 17
ENERGY SAVING TIPS .......................... 23
FEATURES ................................................ 6
LIGHTS .................................................... 44
LOCK
Control .................................................... 8
Self-cleaning cycle ................... 38, 39, 40
MODEL AND SERIAL NUMBER ............... 3
OVEN SETTINGS .................................... 12
OVEN TEMPERATURE
Adjusting ............................................... 18
Setting ............... 15, 18, 25, 27, 29, 31, 33
OVEN VENT(S) ........................................ 35
PARTS ....................................................... 6
RACKS ..................................................... 13
ROASTING
Aluminum foil ........................................ 14
Pans ...................................................... 14
Setting cycle ......................................... 15
SAFETY .................................................. 4-5
SELF-CLEANING
Delay cleaning ................................. 38-40
How cycle works ................................... 41
Preparing oven ................................ 36-37
Setting controls ................................ 37-40
Starting immediately ............................. 37
Stopping cycle ...................................... 40
Tips ....................................................... 40
SERVICE ........................................... 47, 48
TIMED COOKING
Canceling ..................... 26, 28, 30, 33, 35
Cook time ...................... 25, 26, 29, 33, 34
Delay start time .............................. 29, 31
Stop time ............................ 26, 27, 32, 34
TROUBLESHOOTING ............................. 45
WARRANTY ............................................. 52
51
WHIRLPOOL*
Electric Built-in Oven
Warranty
LENGTH OF WARRANTY WHIRLPOOL WILL PAY FOR
FULL ONE-YEAR FSP* replacement parts and repair labor to correct defects
WARRANTY in materials or workmanship. Service must be provided by
FROM DATE OF an authorized Whirlpool service company.
PURCHASE
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1.Correct the installation of your built-in oven.
2.Instruct you how to use your built-in oven.
3.Replace house fuses or correct house wiring.
4.Replace owner-accessible light bulbs.
B. Repairs when your built-in oven is used in other than normal, single-family
household use.
C. Pickup and delivery. Your built-in oven is designed to be repaired in the home.
D. Damage to your built-in oven caused by accident, misuse, fire, flood, acts of God,
or use of products not approved by Whirlpool.
E. Repairs to parts or systems caused by unauthorized modifications made to
the appliance.
7/95
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSE-
QUENTIAL DAMAGES. Some states or provinces do not allow the exclusion or limitation of
incidental or consequential damages, so this exclusion or limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state or province to province.
Outside the United States and Canada, a different warranty may apply. For details,
please contact your authorized Whirlpool dealer.
If you need service, first see the "Troubleshooting" section of this book. After checking
"Troubleshooting," additional help can be found by checking the "Requesting Assistance
or Service" section, or by calling our Consumer Assistance Center telephone number,
1-800-253-1301, from anywhere in the U.S.A. In Canada, contact your authorized Inglis
Limited** Appliance Service company.
4450569 * Registered Trademark/Trademark of Whirlpool, U.S A.; 2/96
© 1996 Whirlpool Corporation Inglis Limited licensee in Canada/**Registered Trademark of Inglis Limited Printed in U.S.A
