Tools and materials Required:
• #1 and #2 Phillips screwdrivers
• Custom grille panel
• Safety glasses
• Gloves to protect against sharp edges
Parts List:
A. Unified grille panel frame
B. 10 Black #8-32 x 3/8 screws
C. Foam spacer pads
ZUG2 Trim Kit
Unified Custom Grille Panel
Installation
Instructions
This kit provides for the installation of a unified grille panel
for a framed or overlay custom panel. The panel will span
the combined width of a side by side installation.
Completion Time: Allow approximately 2 hours to install
this kit.
IMPORTANT: 2 People are required to install this kit.
Disconnect power before you begin.
A
B
Grille Panel
BEFORE YOU BEGIN:
Panels must be cut to the dimensions shown.
Assemble the overlay panels as shown, using glue
and screws. Center the spacer panel on the backer panel.
Center the overlay panel on the backer and spacer panel.
• The water and electrical locations for each product
must be located as shown.
• A separate 115V, 60Hz., 15 or 20 amp power supply
is recommended for each product.

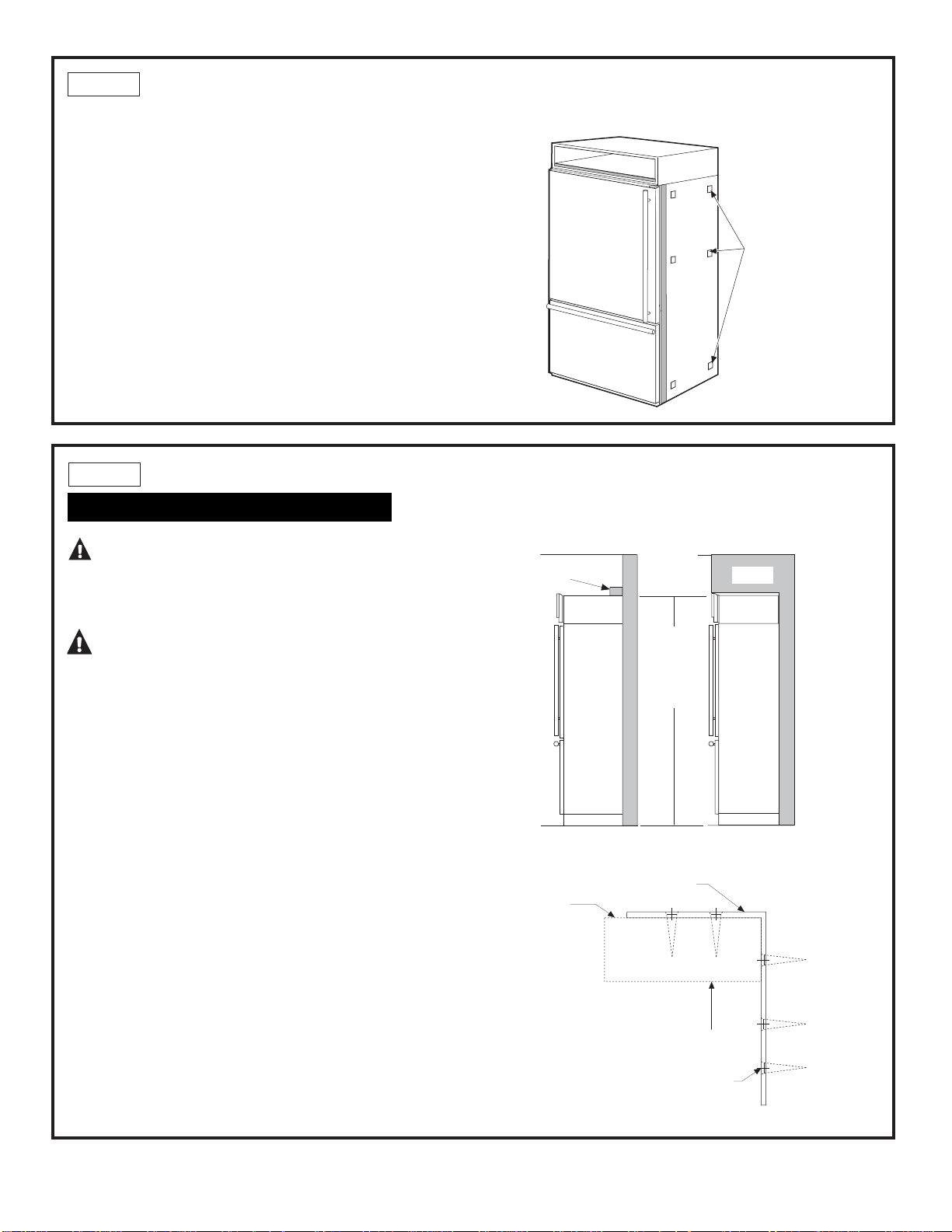

THE INSTALLATION SPACE
• The installation space must be 71-1/2” wide.
NOTE: Additional cutout width may be required when side panels
are used. Add side panel thickness to the finished cutout
to calculate rough-in width.
A
B
C
IMPORTANT NOTE: The maximum weight for the unified
grill is 25 pounds.
Spacer Panel
Backer Panel
Overlay Panel
Framed Panel Dimensions
A (Width) B (Height)
1/4” Framed Panel 69-7/8” 8-7/8”
Overlay Panels Dimensions
A (Width) B (Height)
1/4” Backer Panel 69-7/8” 8-7/8”
0.10” Spacer Panel 68-1/2” 7-5/8”
3/4” Overlay Panel 70-1/8” 9”
IMPORTANT:
Maximum panel weight is 25 lbs.
