  • Owner's manual - (English)

User manual of Kenmore 79579993511 (274 pages)
file thumbnail

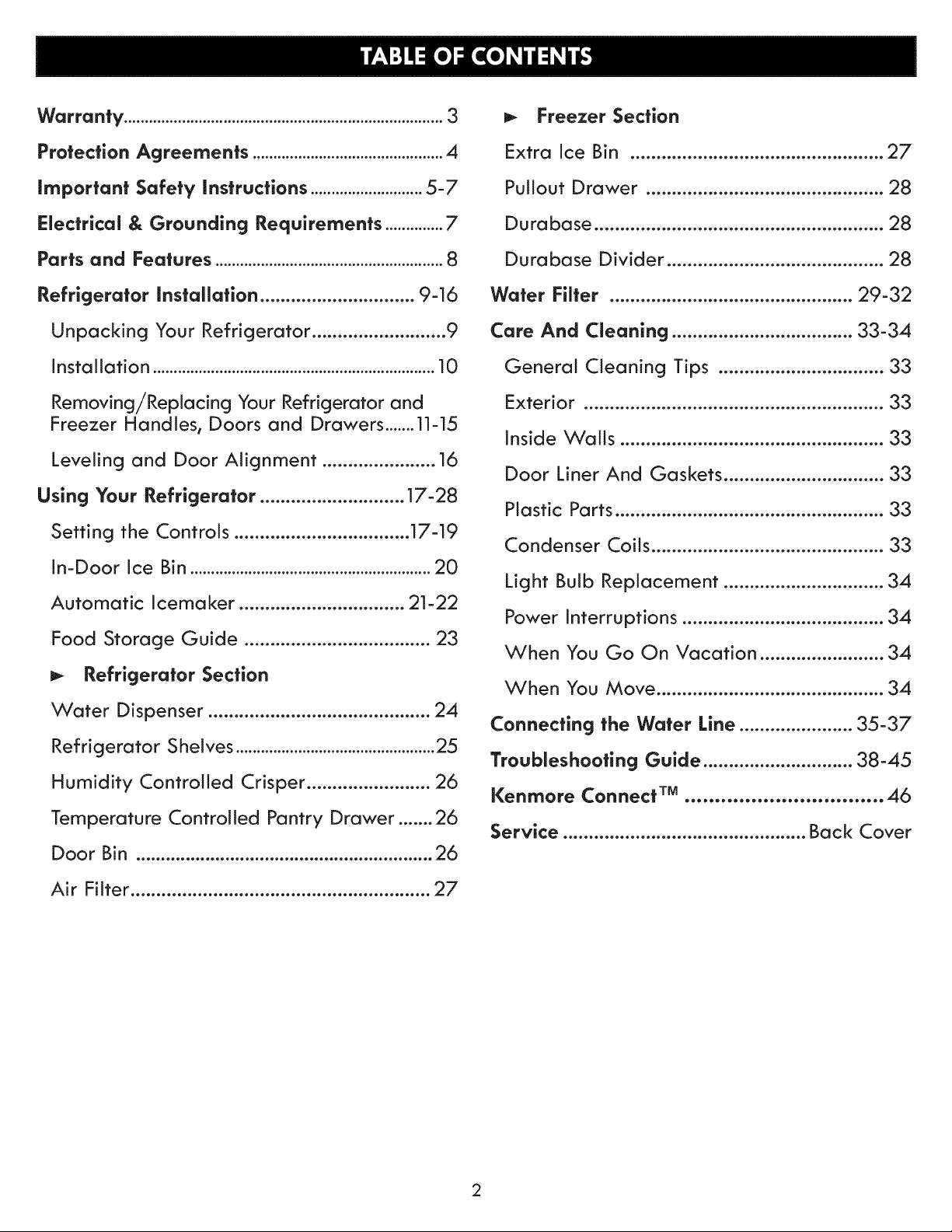

Warranty ..

Protection Agreements

Electrical & Grounding Requirements

Parts and Features .

Refrigerator Installation

9-16

Unpacking Your Refrigerator

Installation

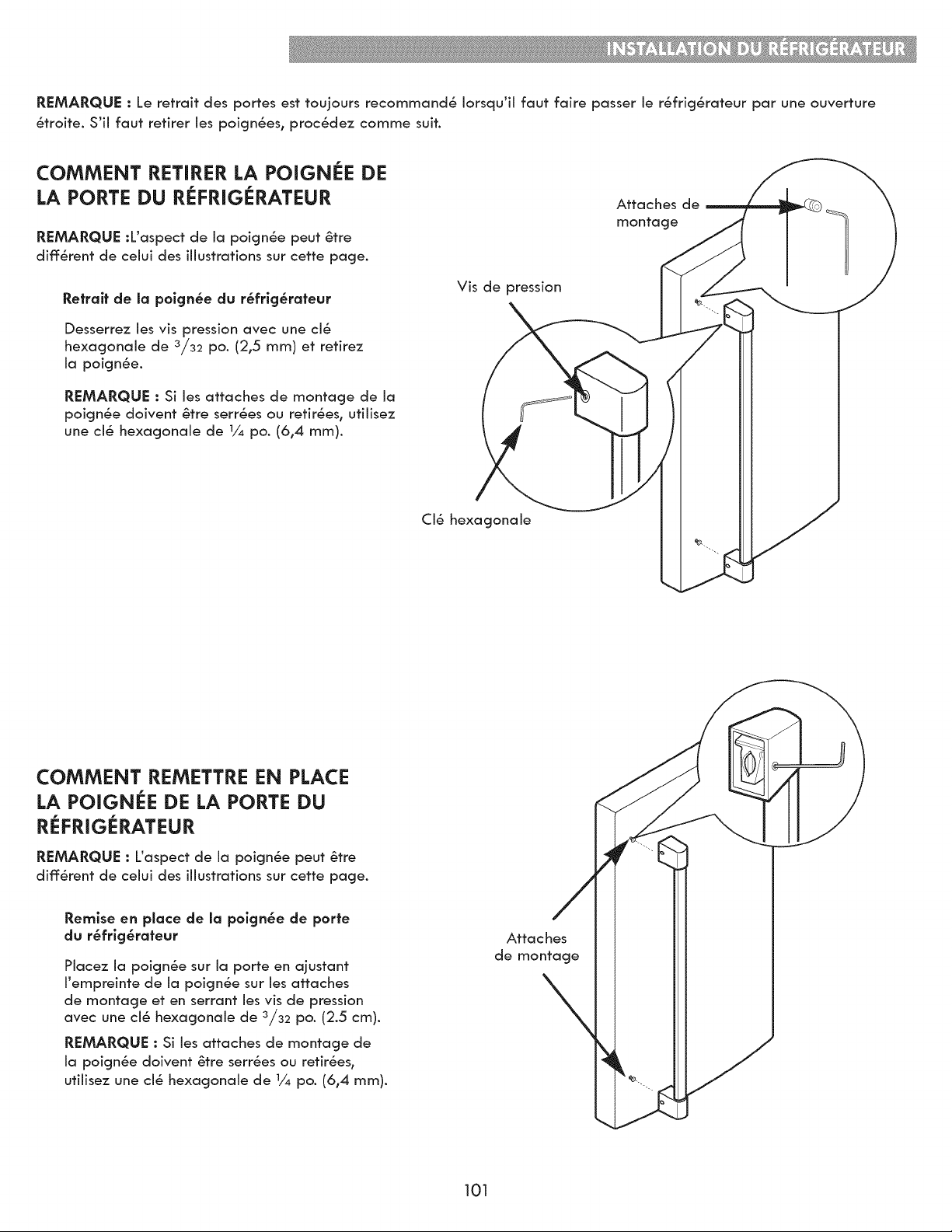

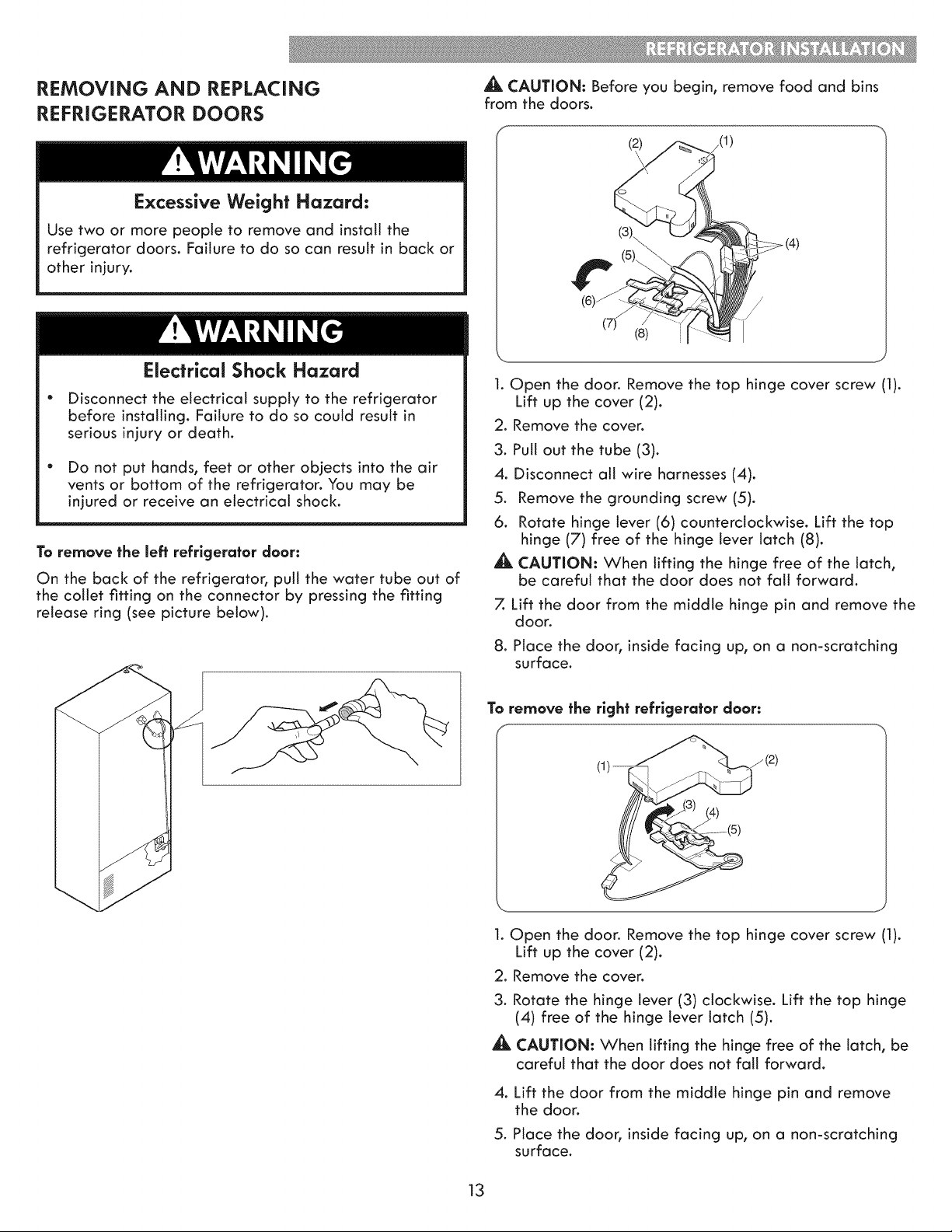

Removing/Replacing Your Refrigerator and Freezer Handles.

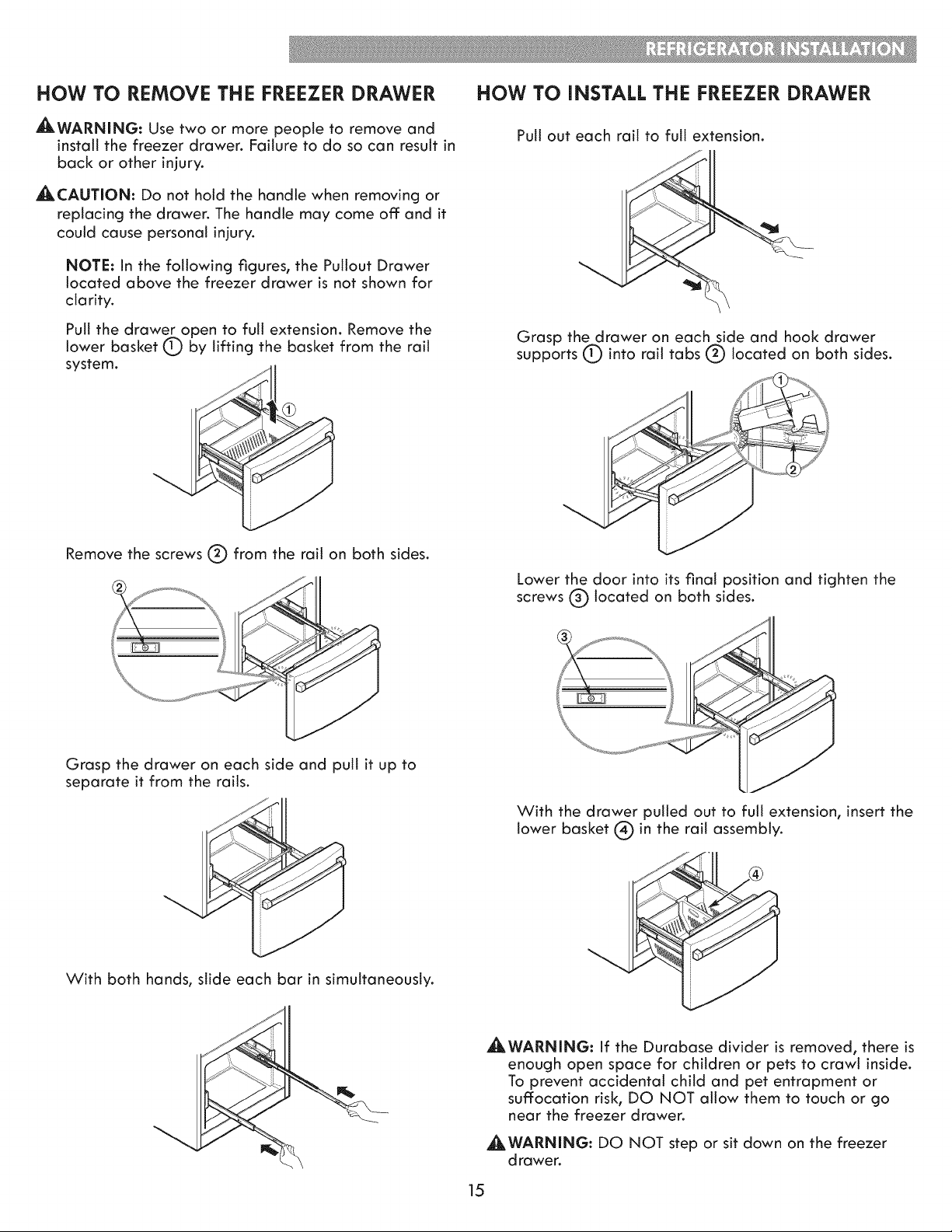

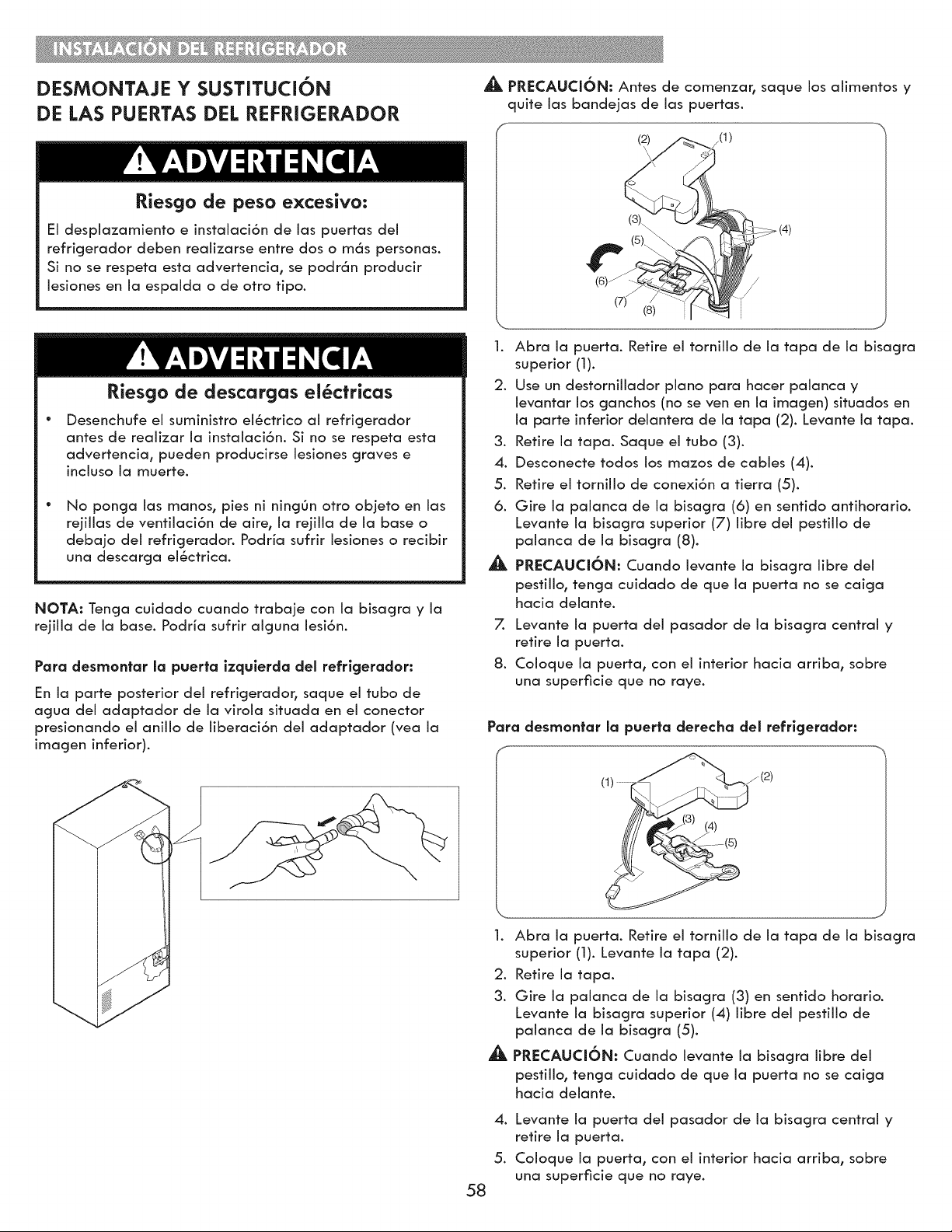

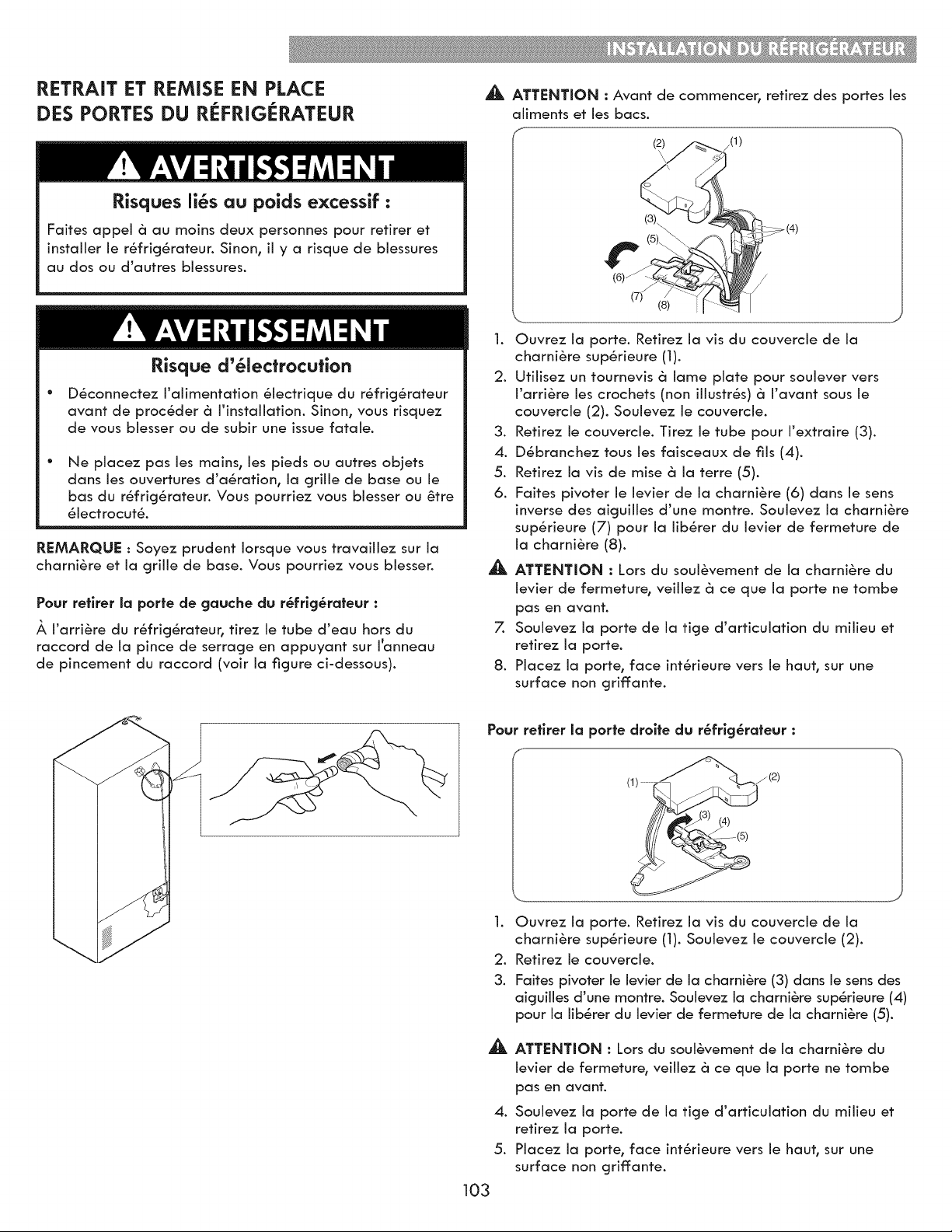

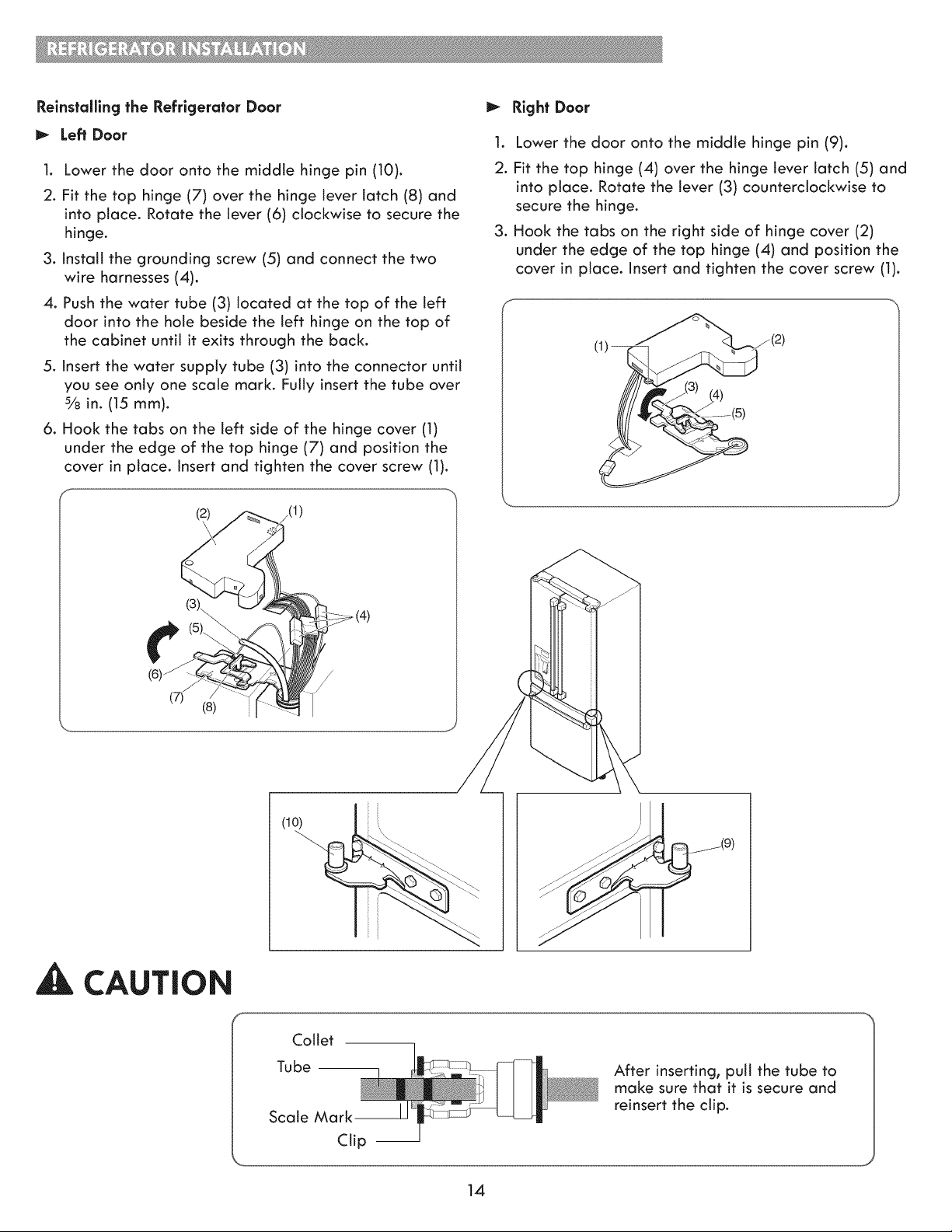

Doors and Drawers .11-15

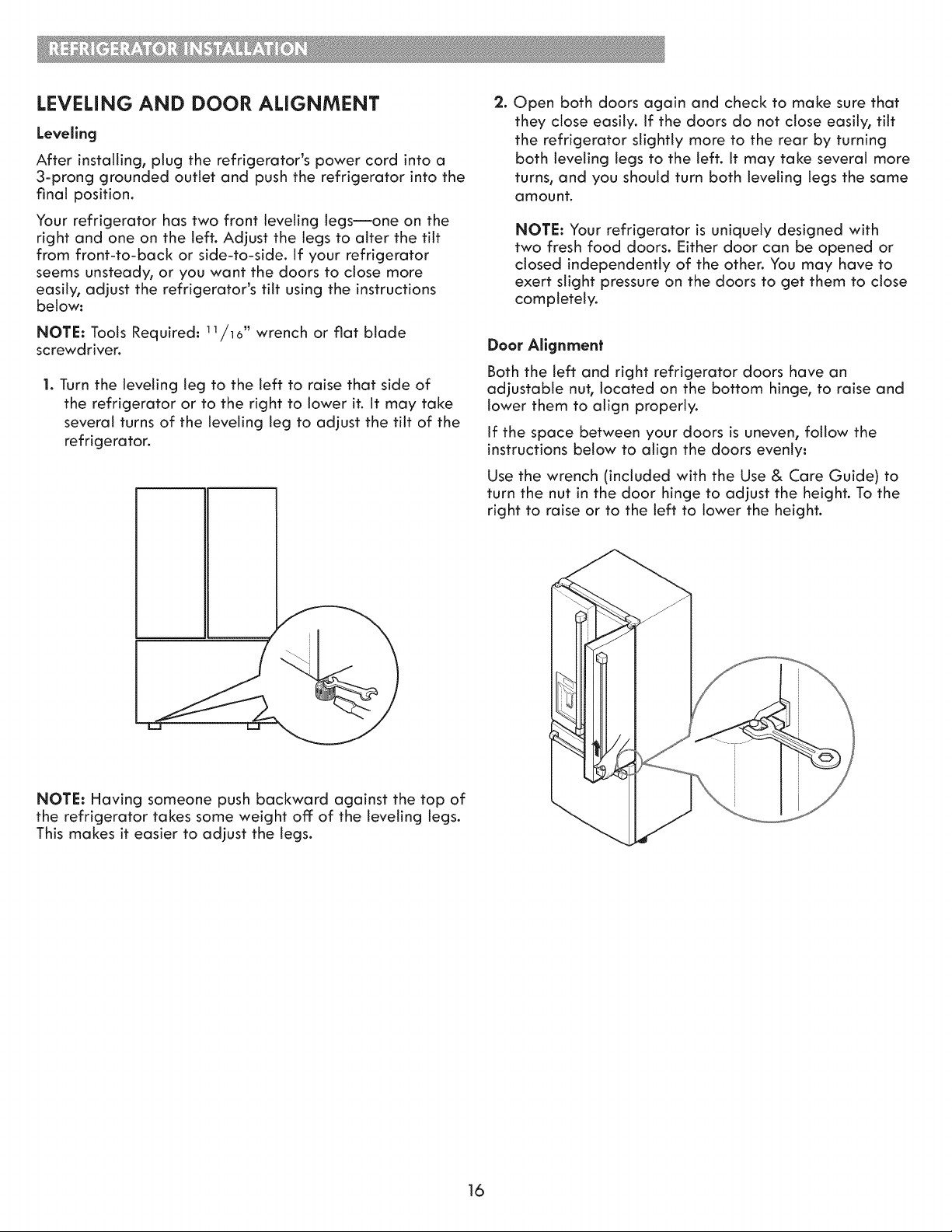

Leveling and Door Alignment

Using Your Refrigerator 17-28

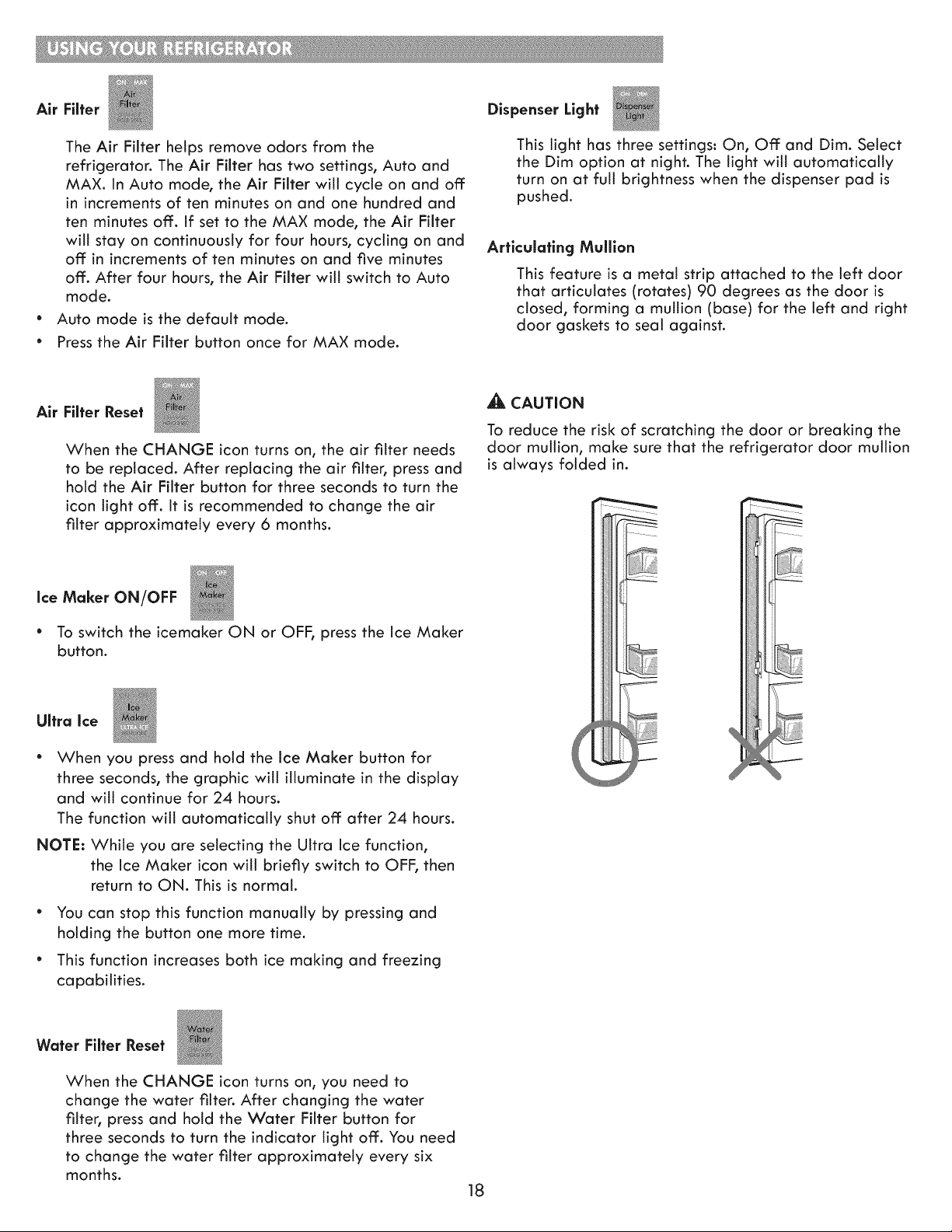

Setting the Controls

17-19

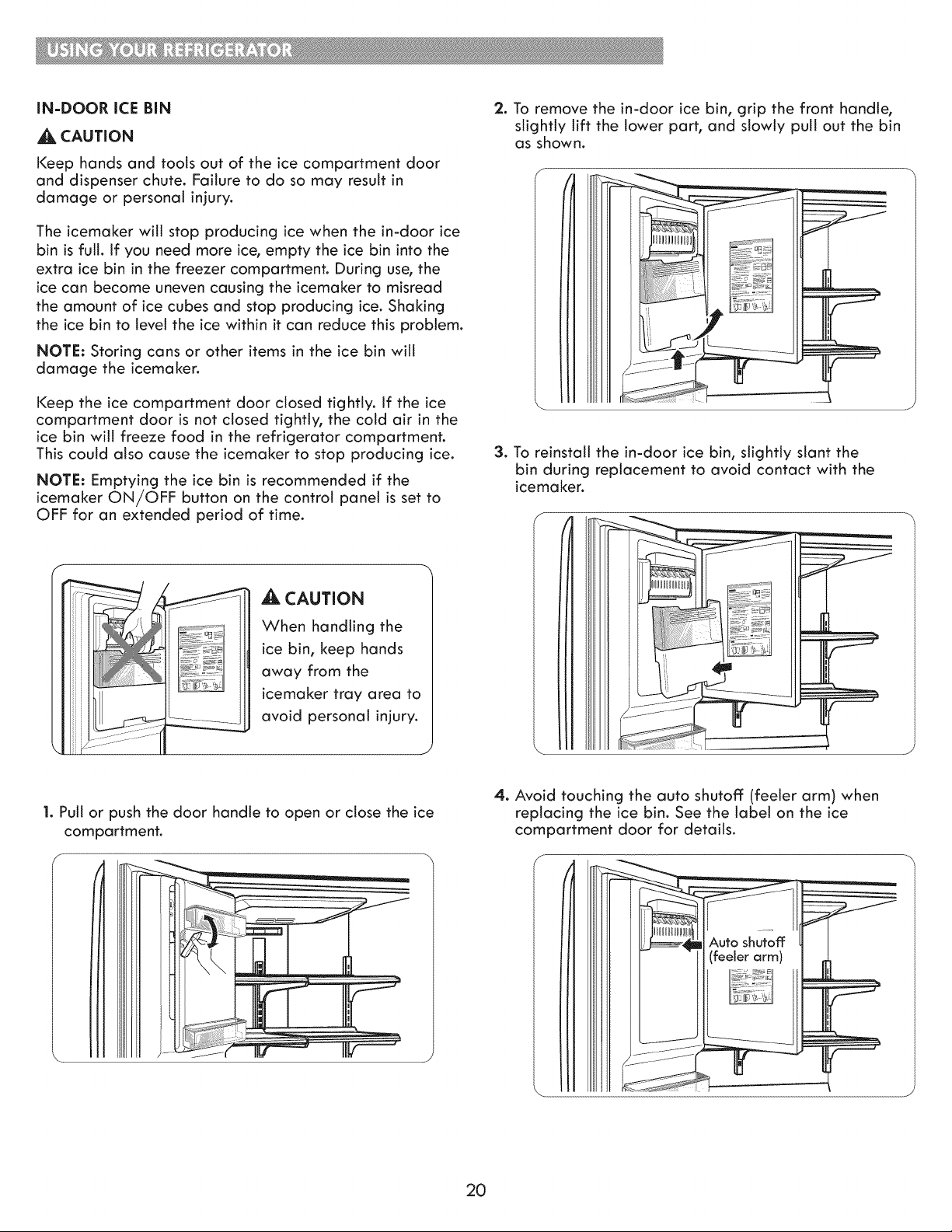

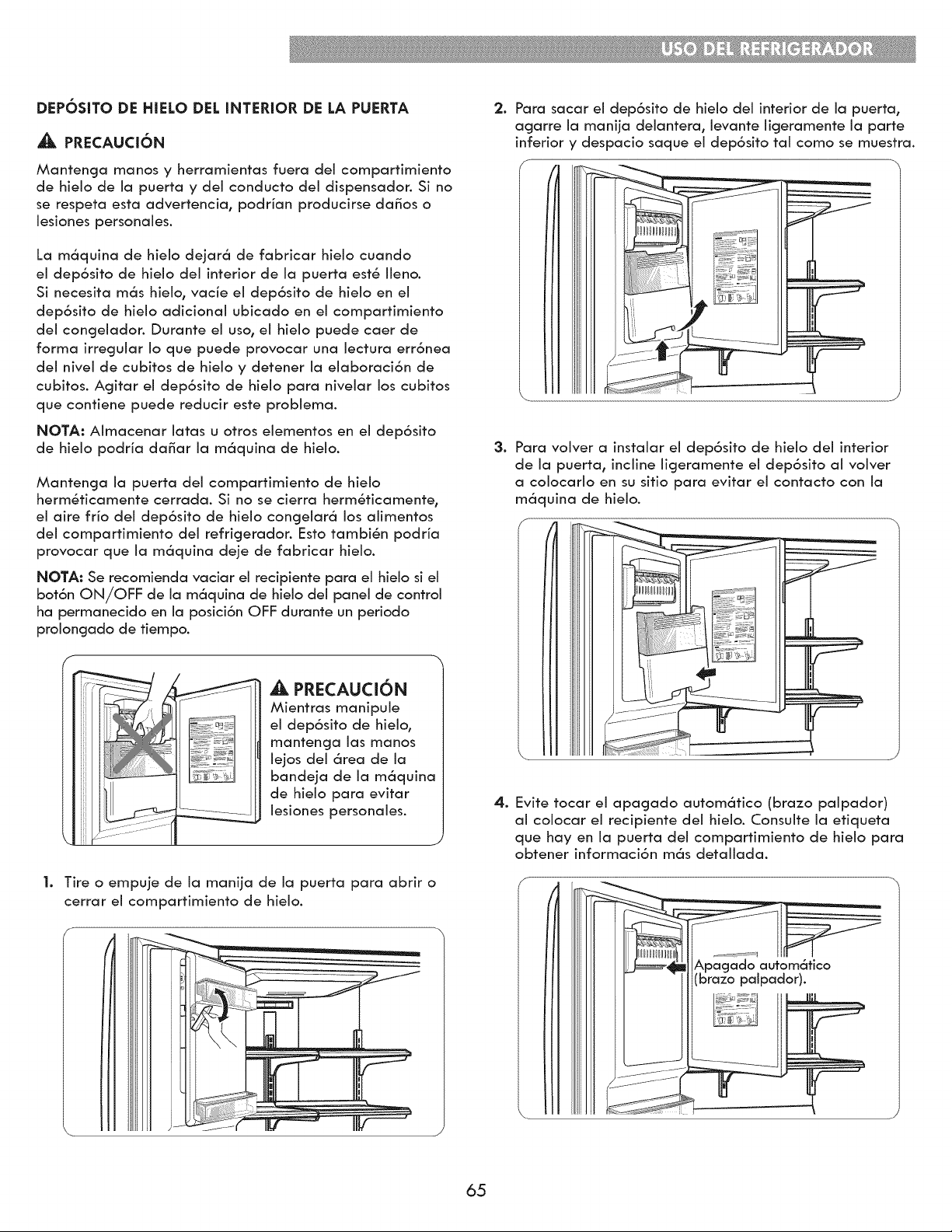

In-Door Ice Bin .

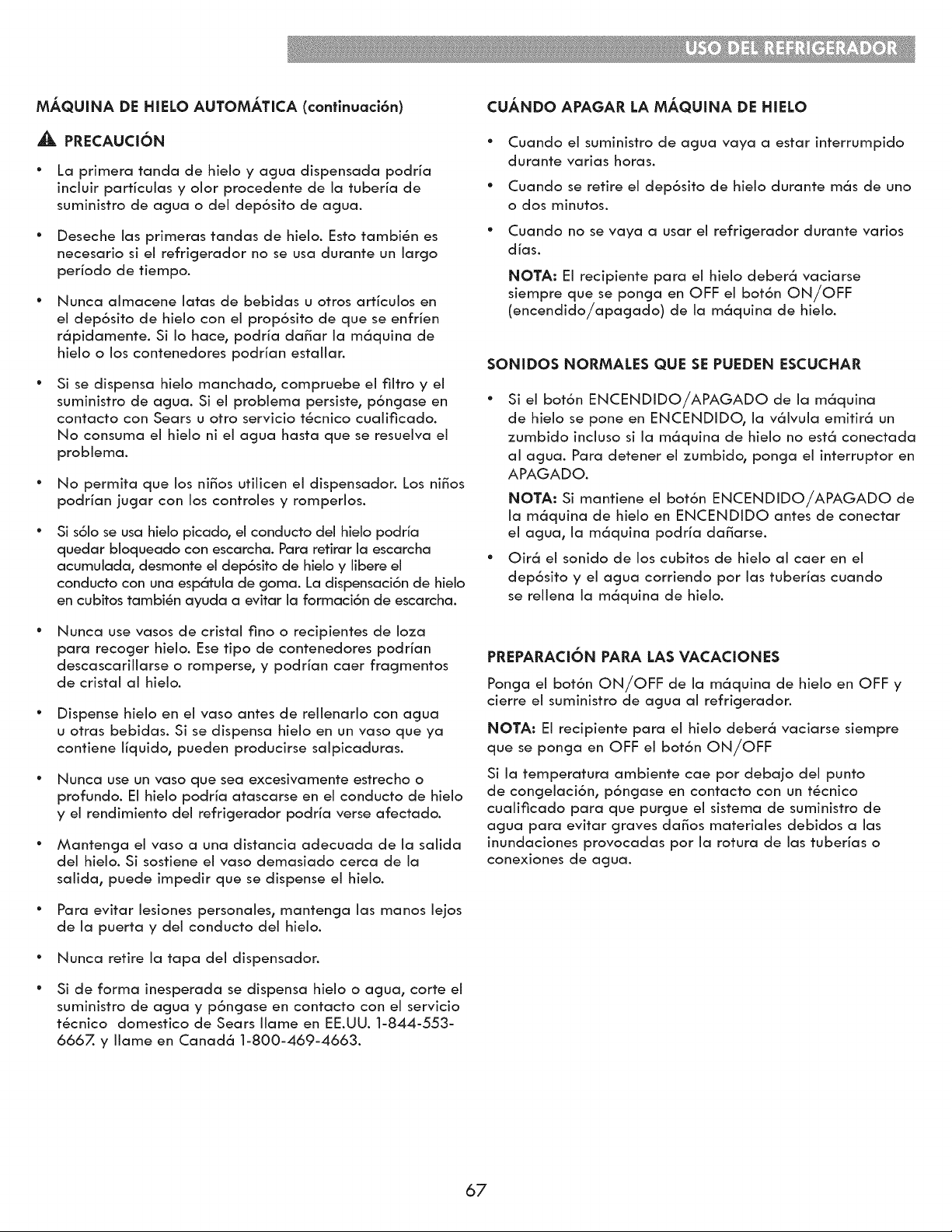

Automatic Icemaker

21-22

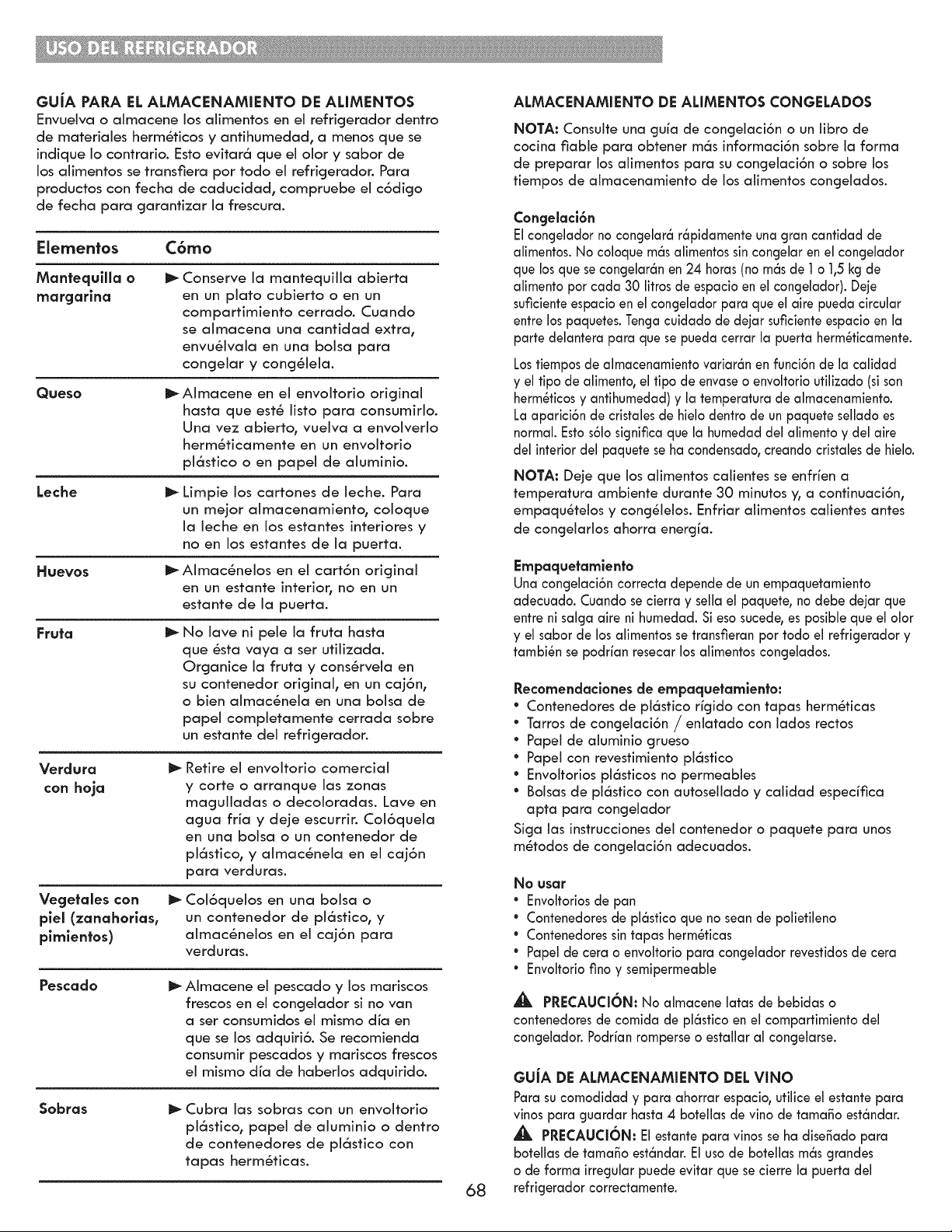

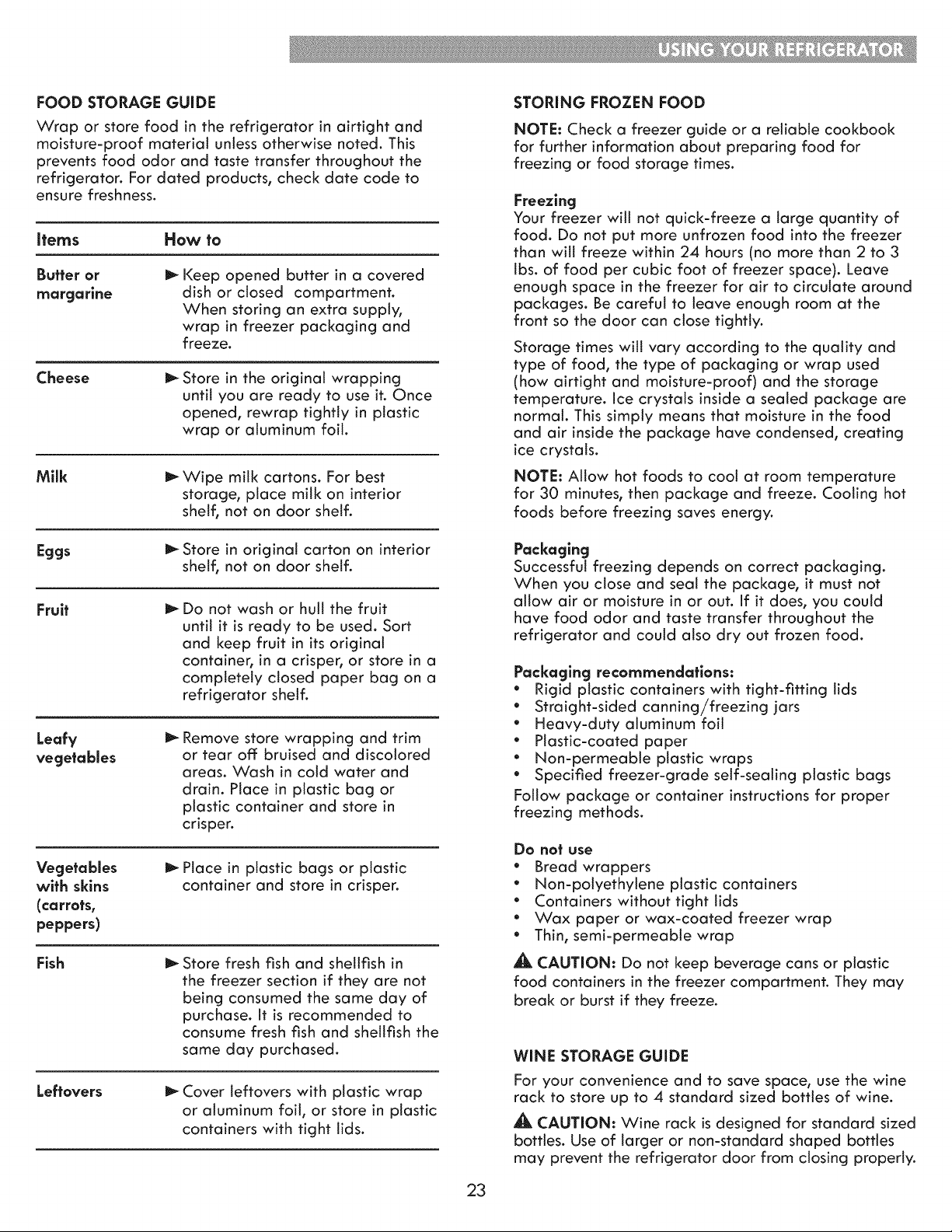

Food Storage Guide

Refrigerator Section

Water Dispenser

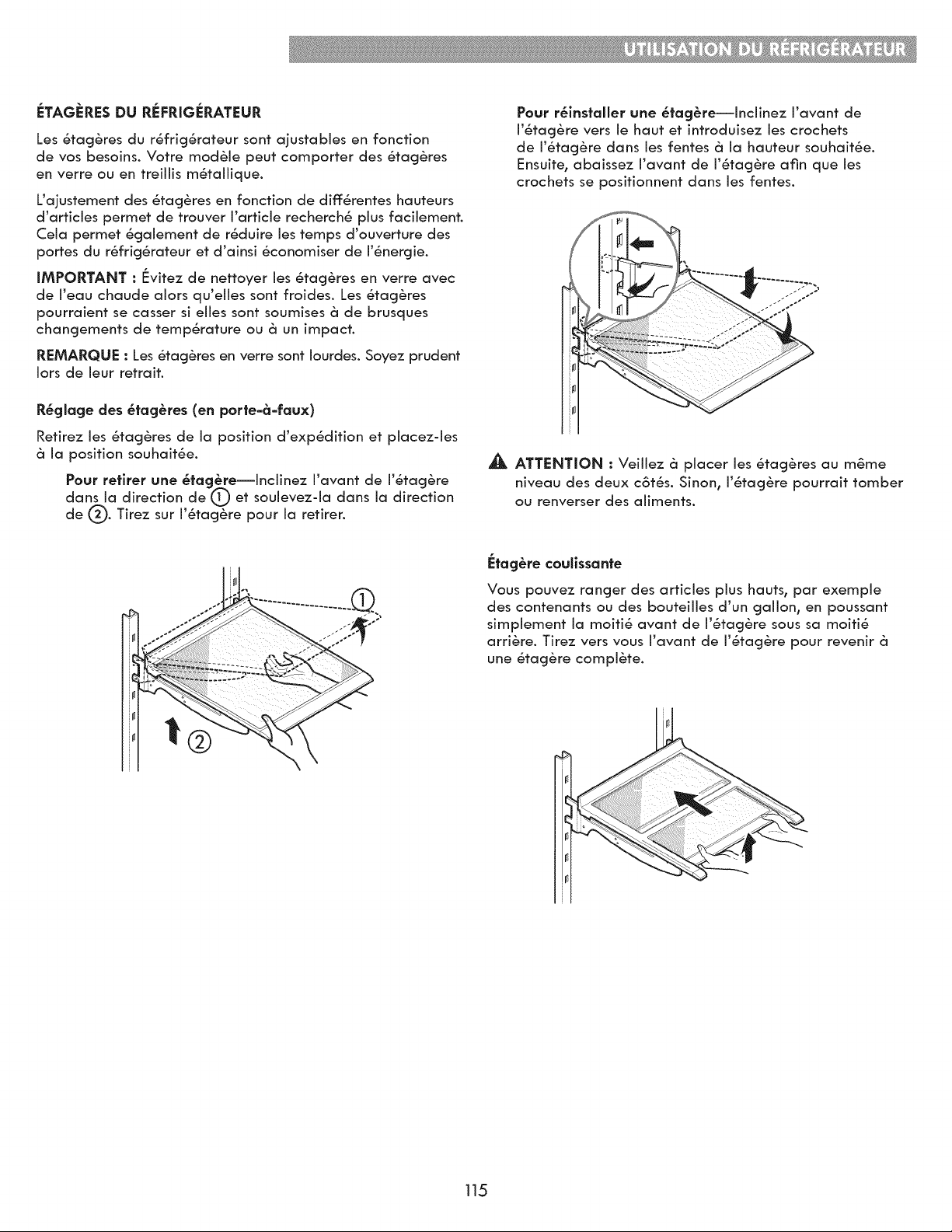

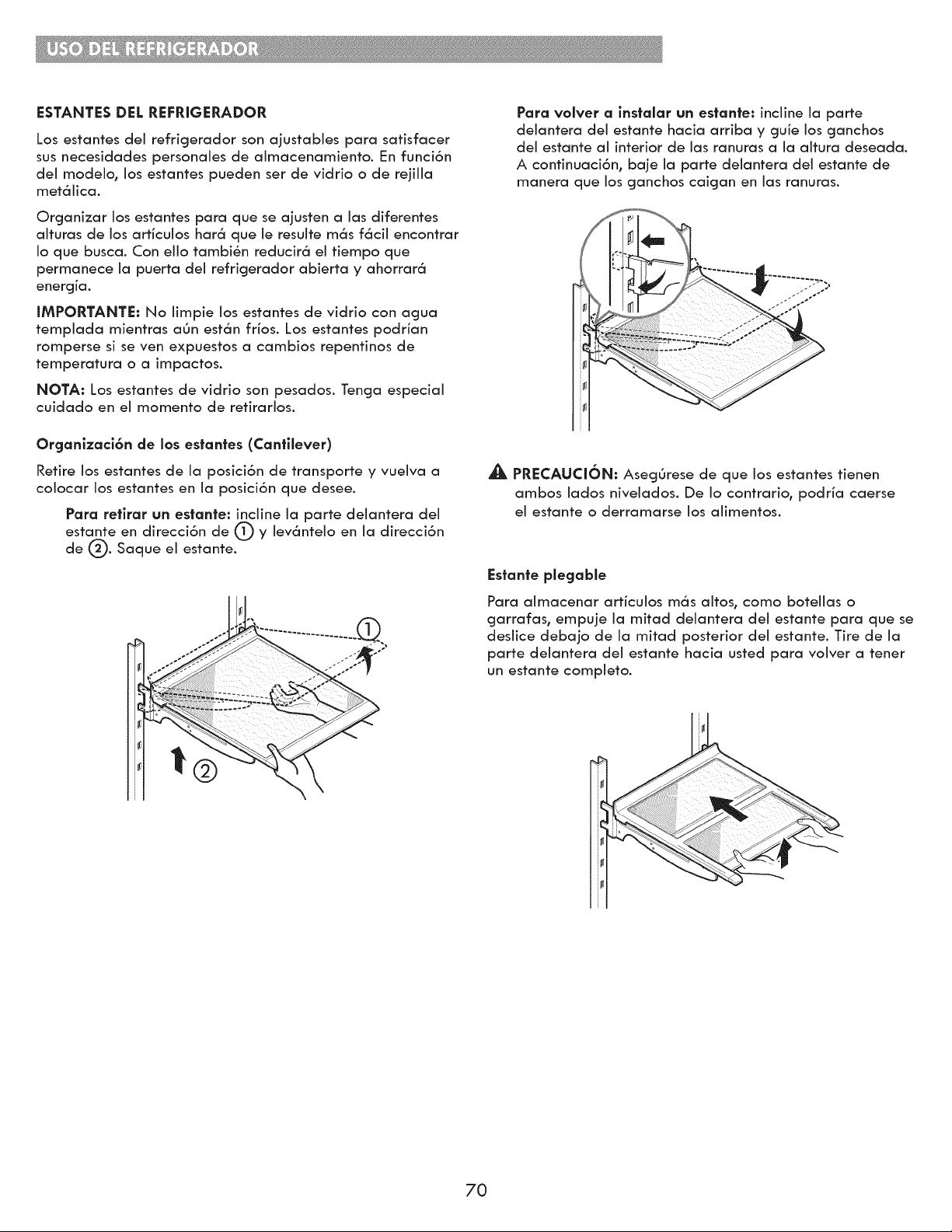

Refrigerator Shelves

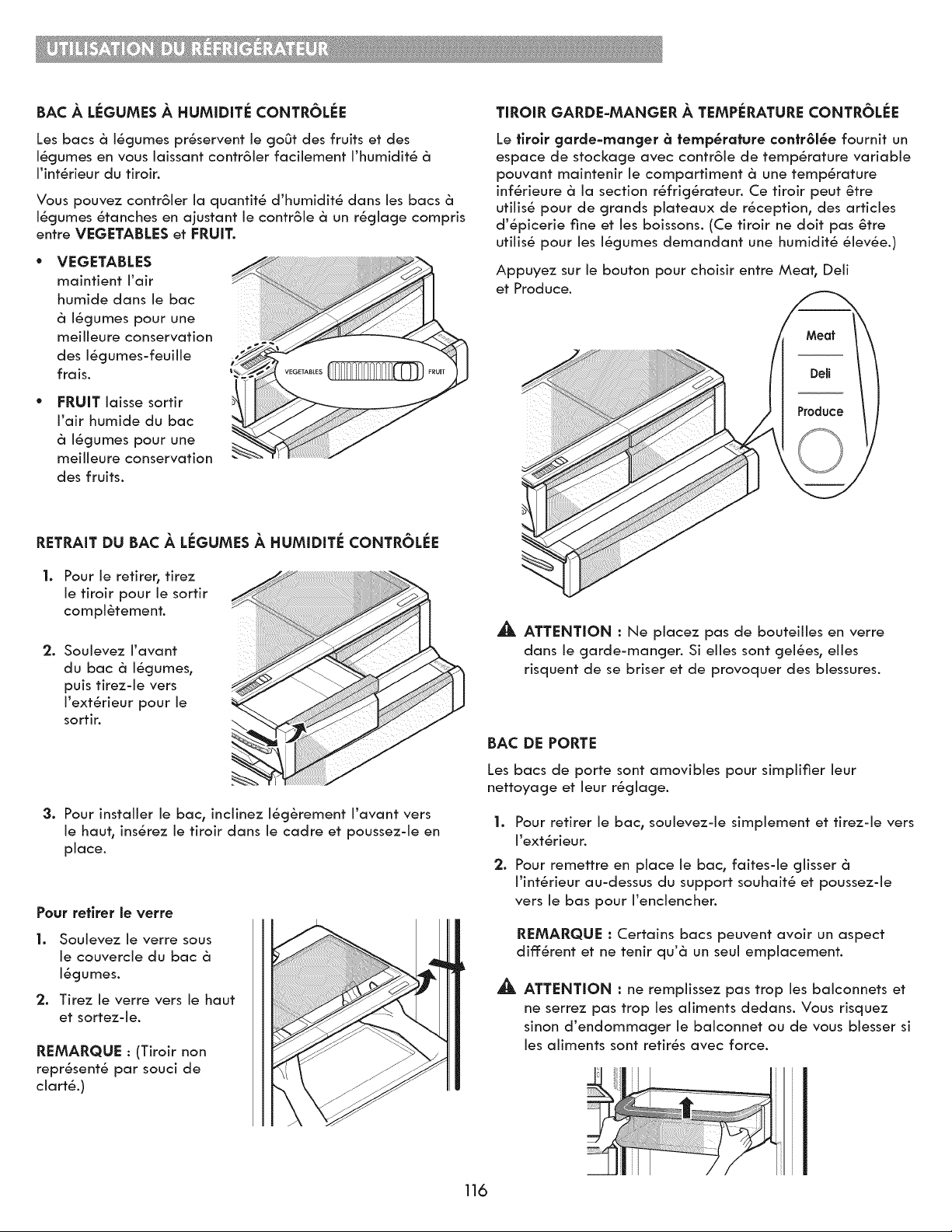

Humidity Controlled Crisper 26

Temperature Controlled Pantry Drawer .26

Door Bin 26

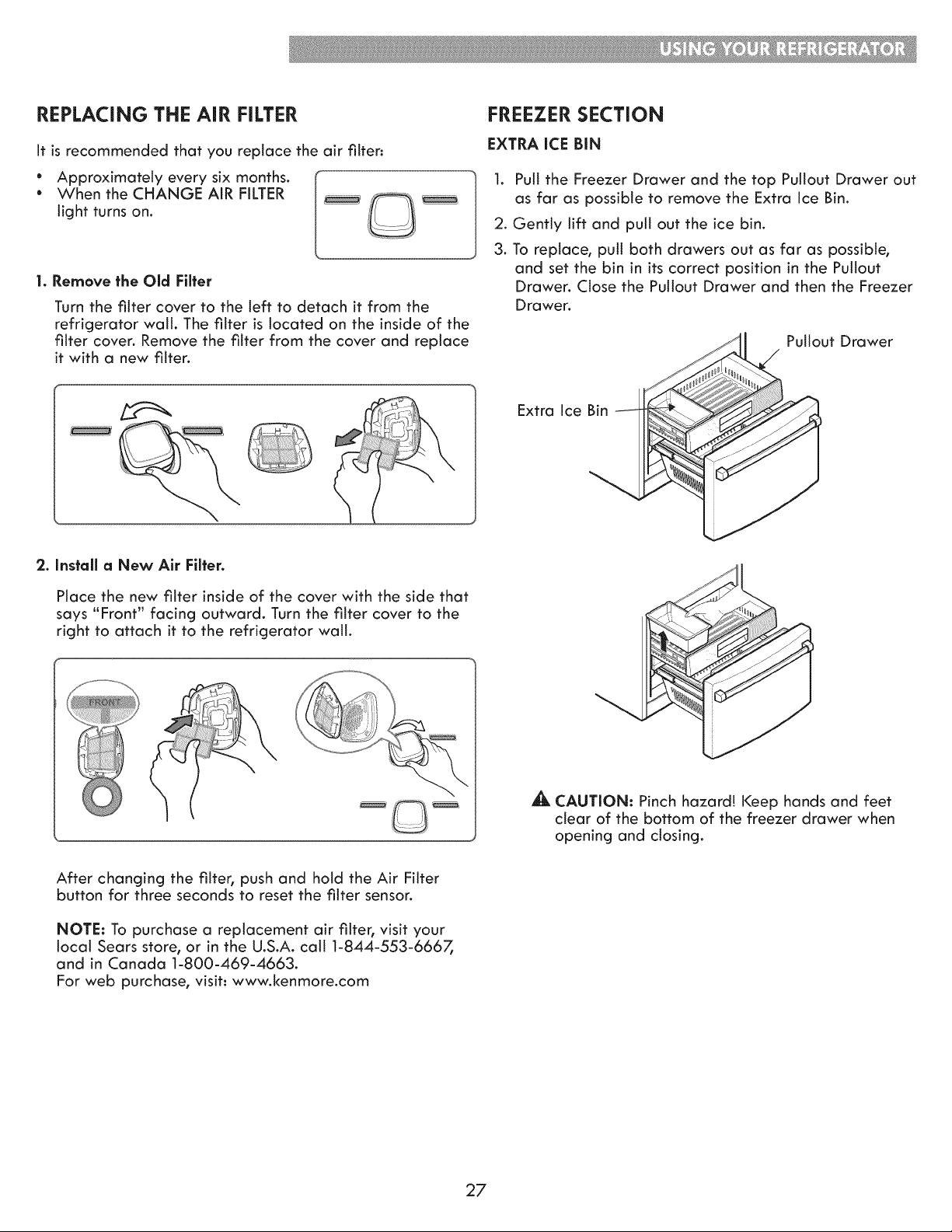

Air Filter .

Freezer Section

Extra Ice Bin .

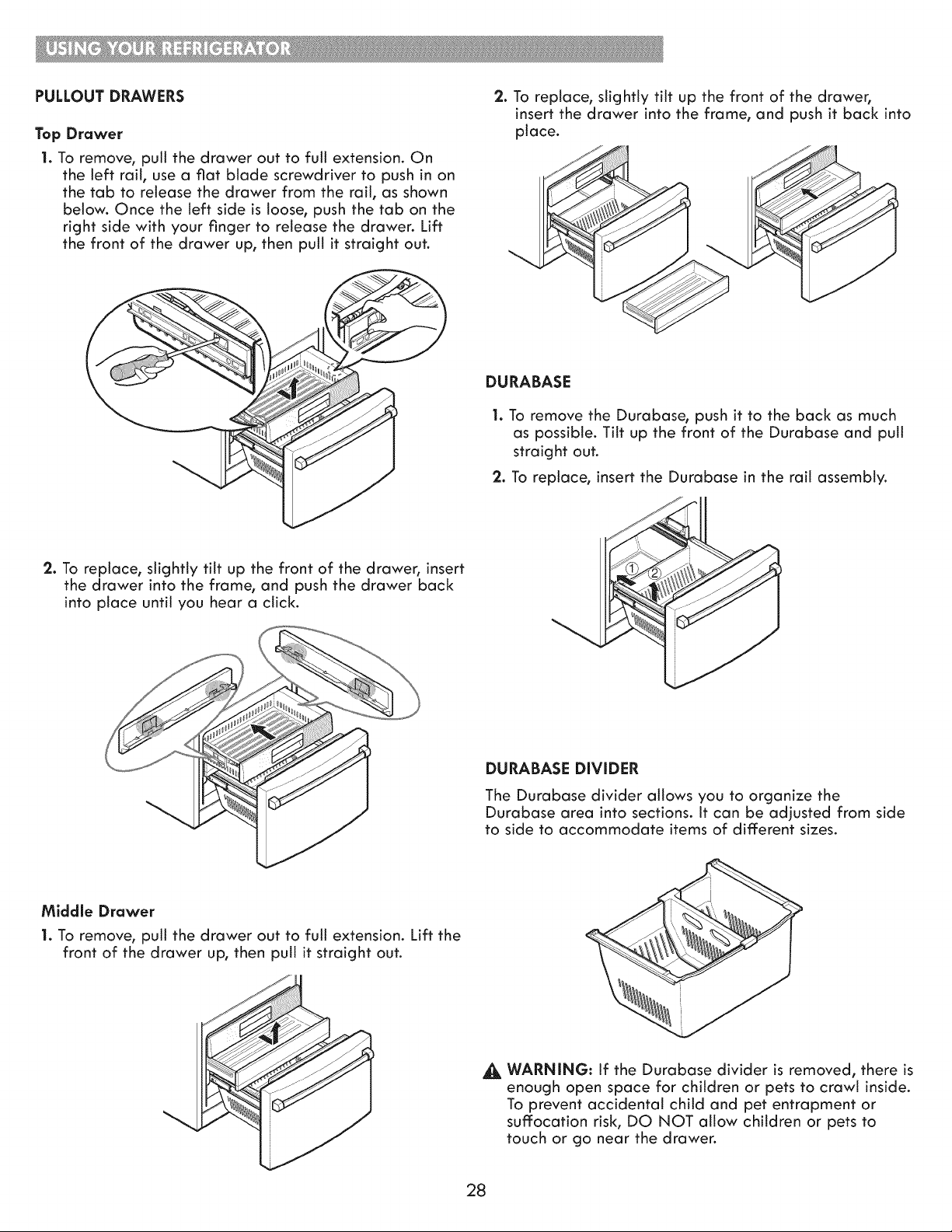

Pullout Drawer

Durabase

Durabase Divider

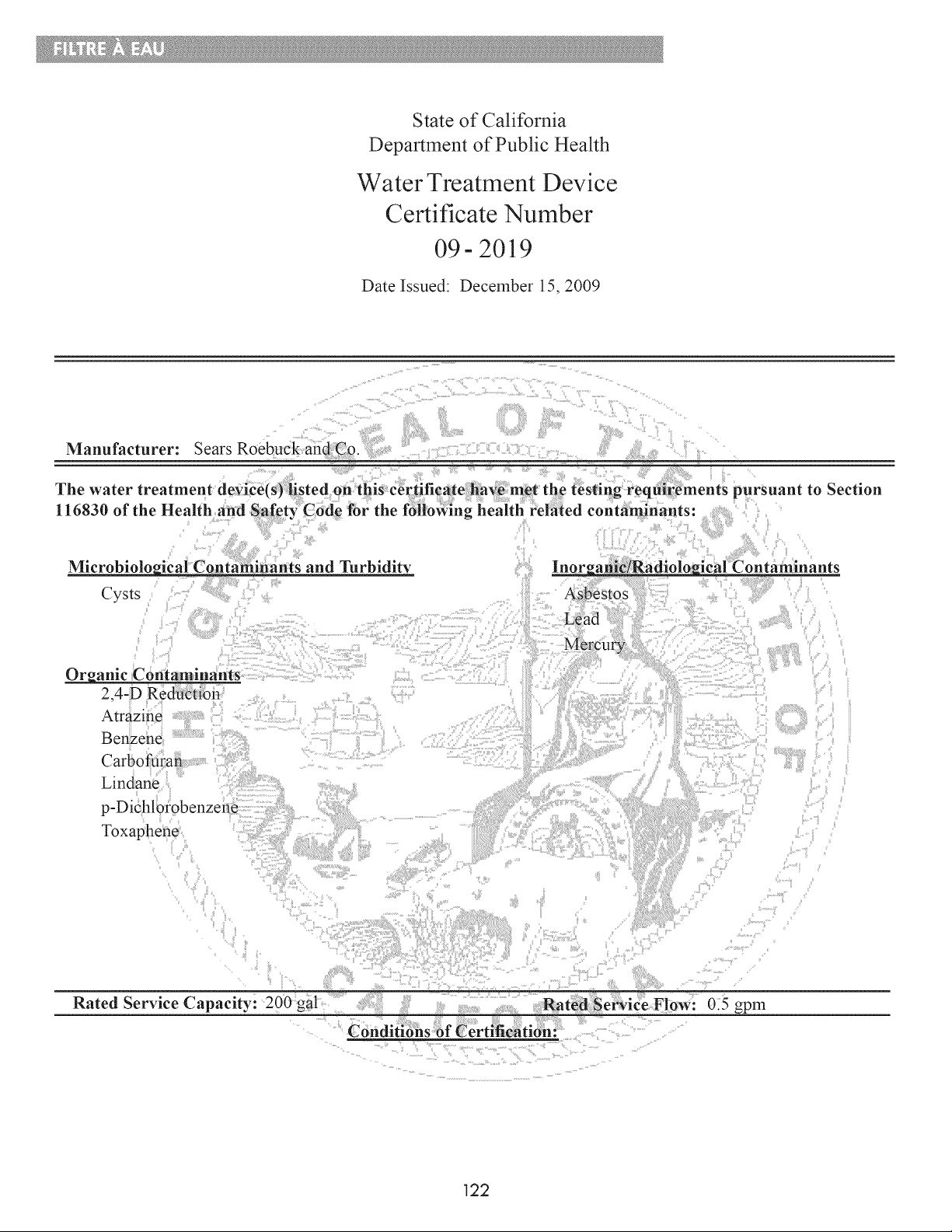

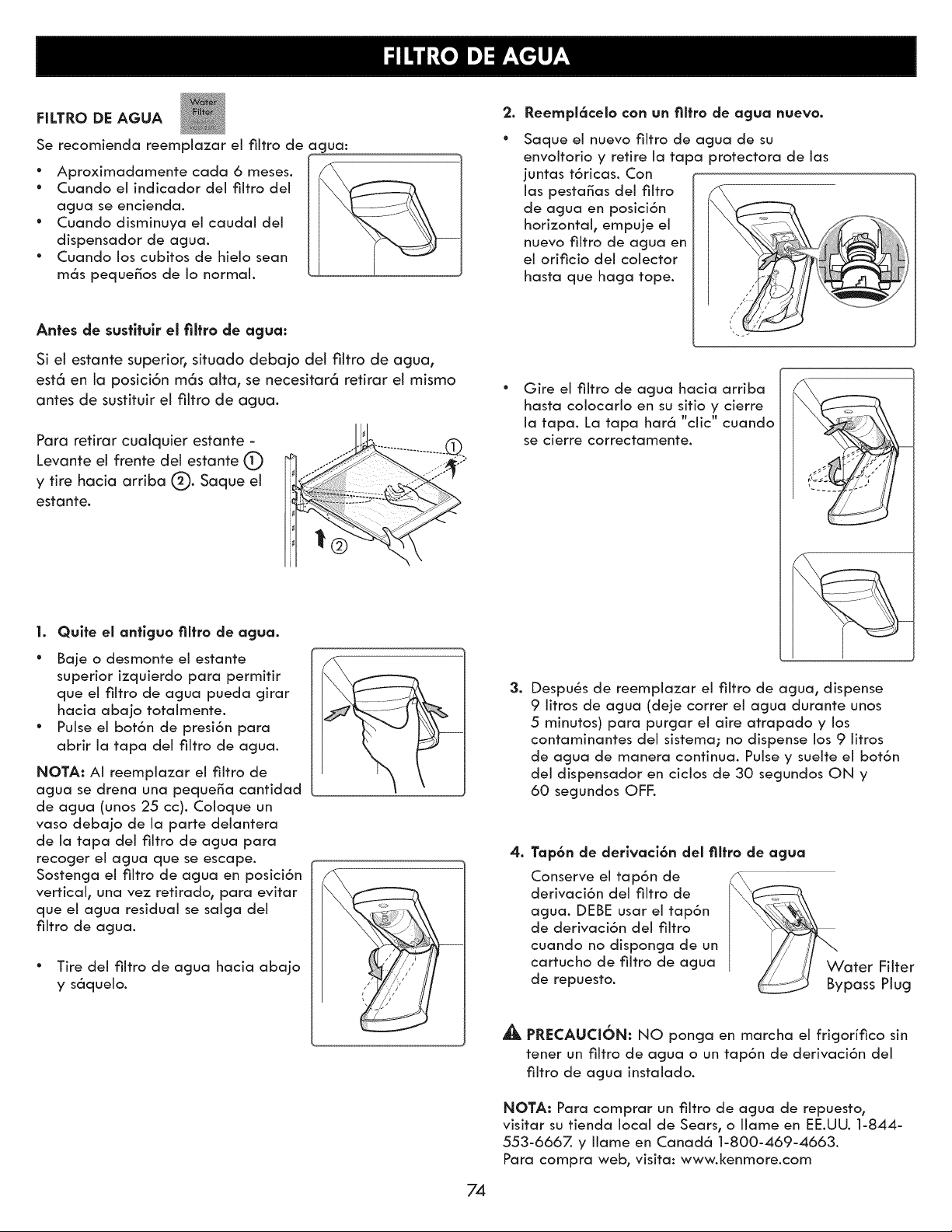

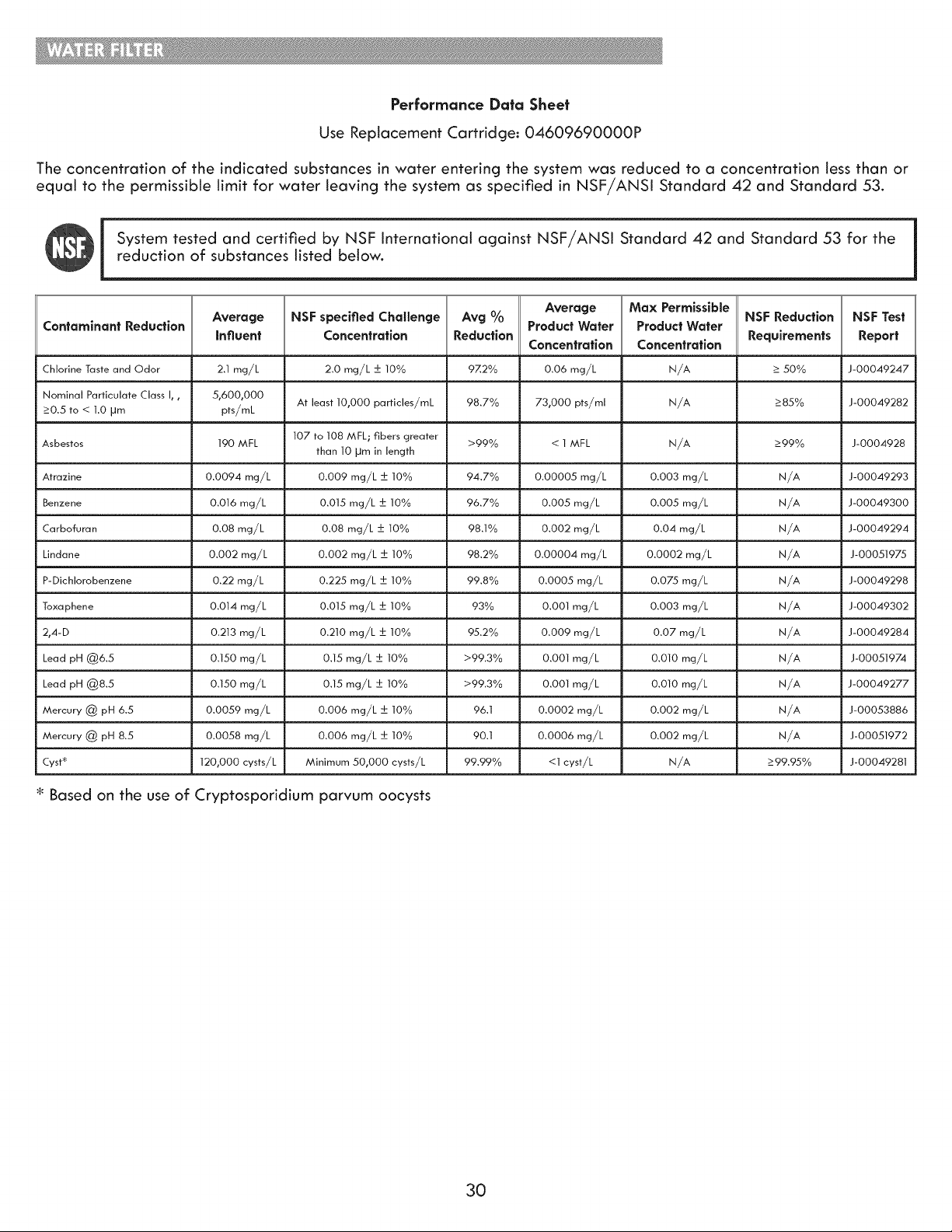

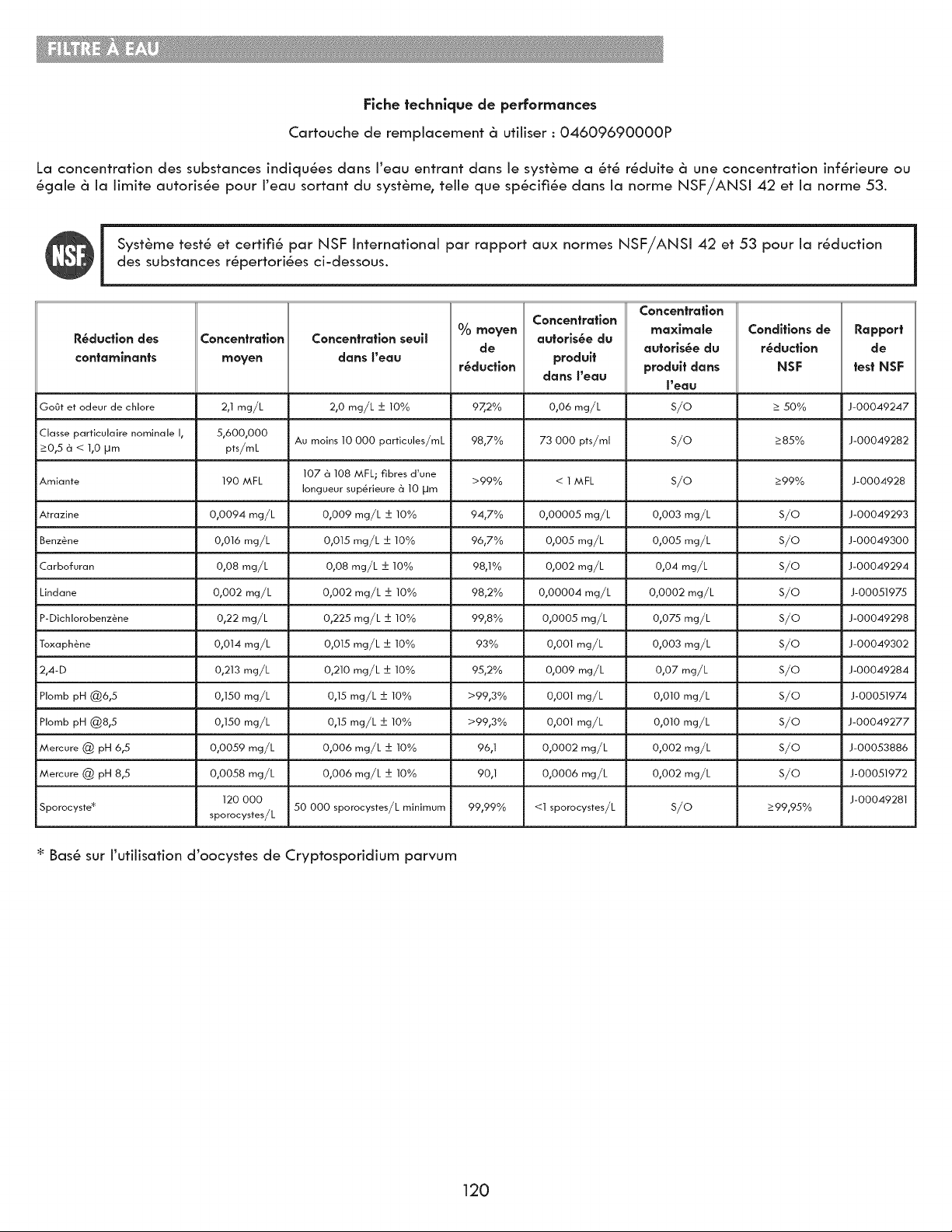

Water Filter

29-32

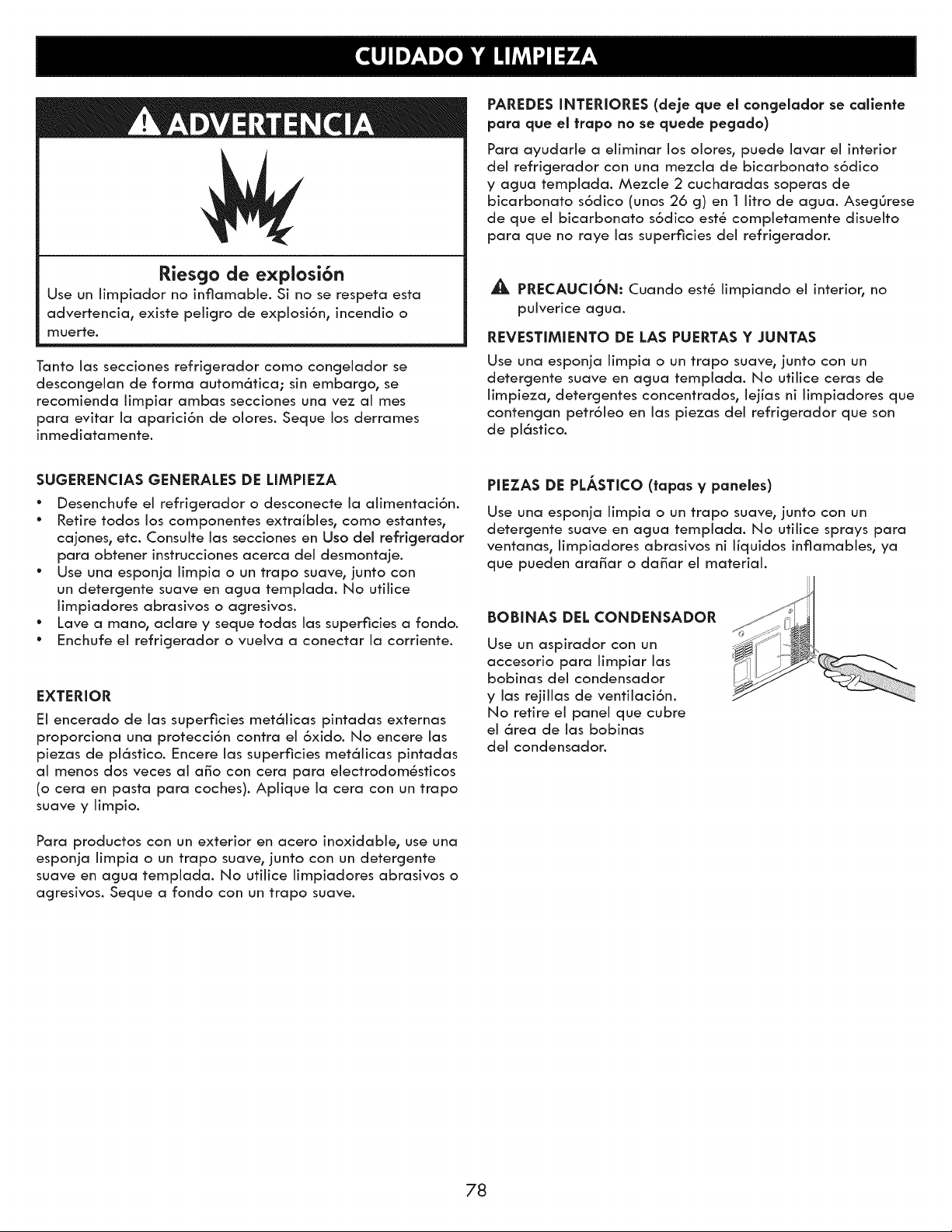

Care And Cleaning

33-34

General Cleaning Tips

Exterior

Inside Walls

Door Liner And Gaskets .

Plastic Parts .

Condenser Coils

Light Bulb Replacement

Power Interruptions

When You Go On Vacation

When You Move ..

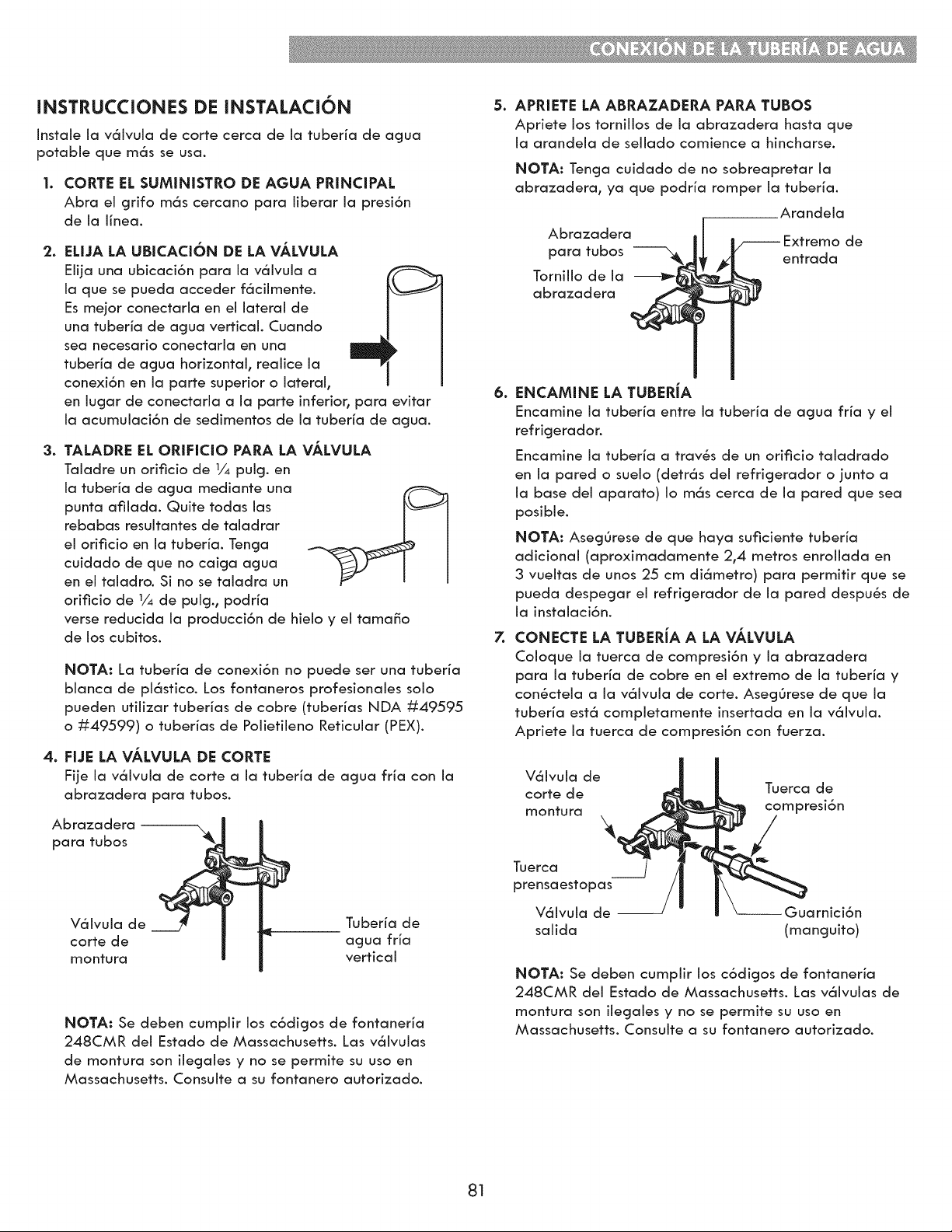

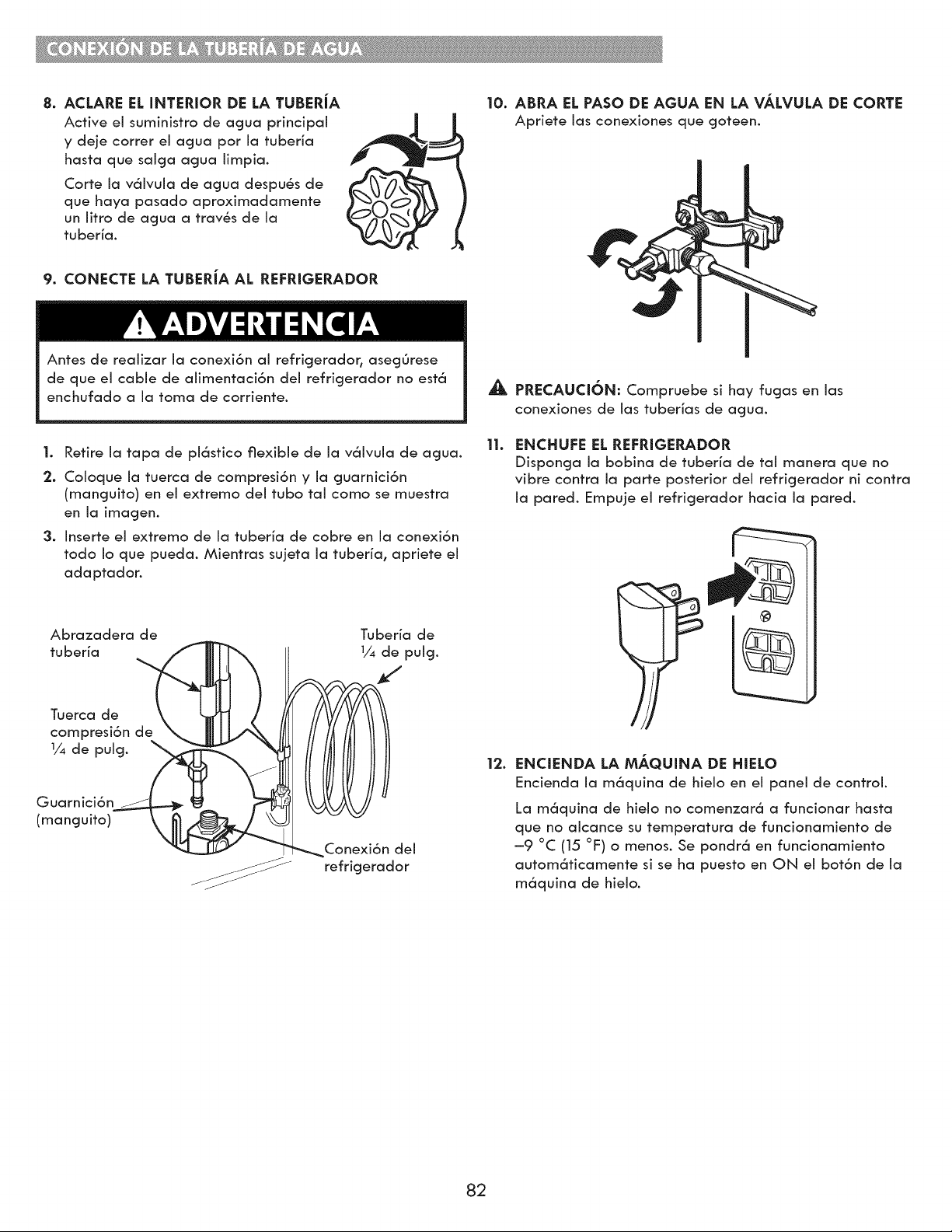

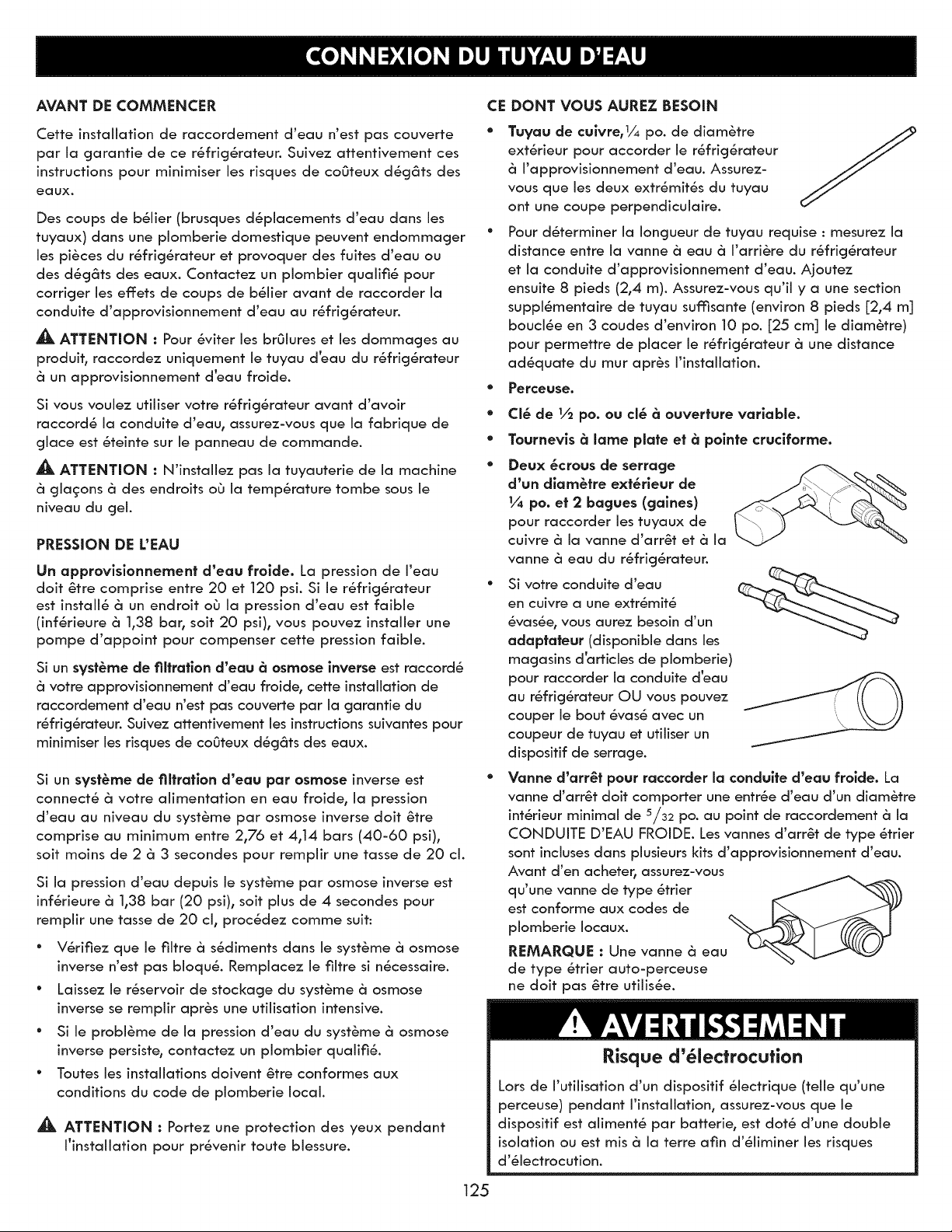

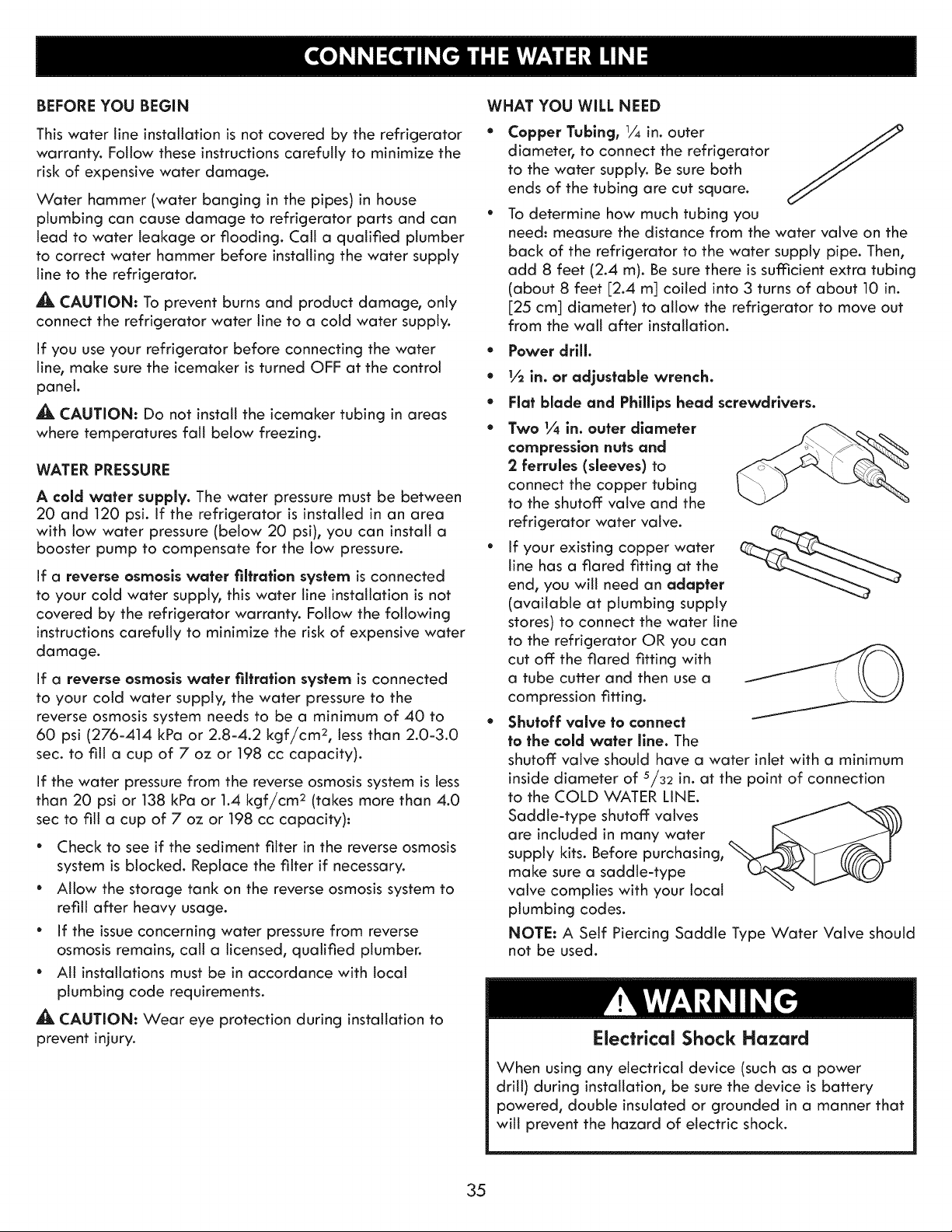

Connecting the Water Line. 35-37

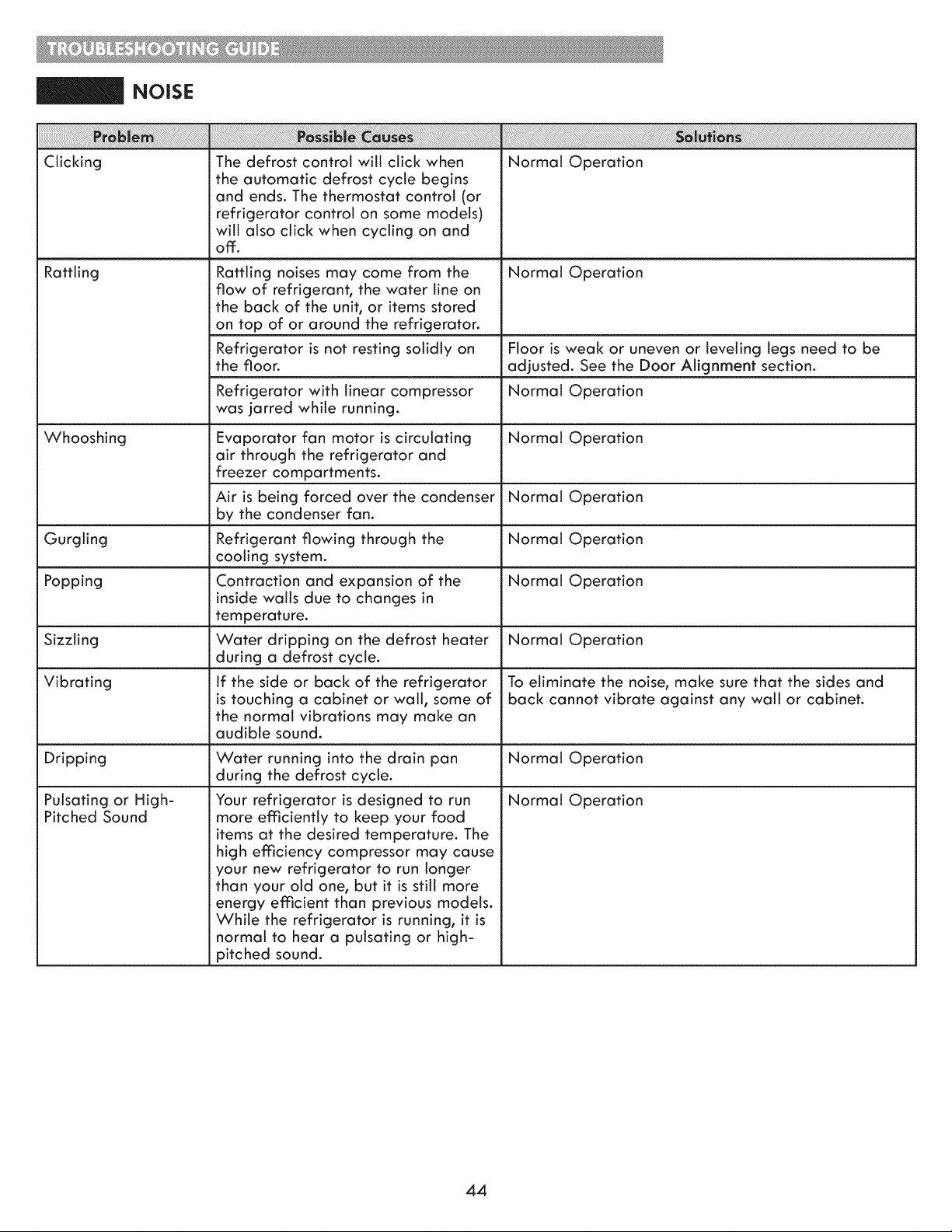

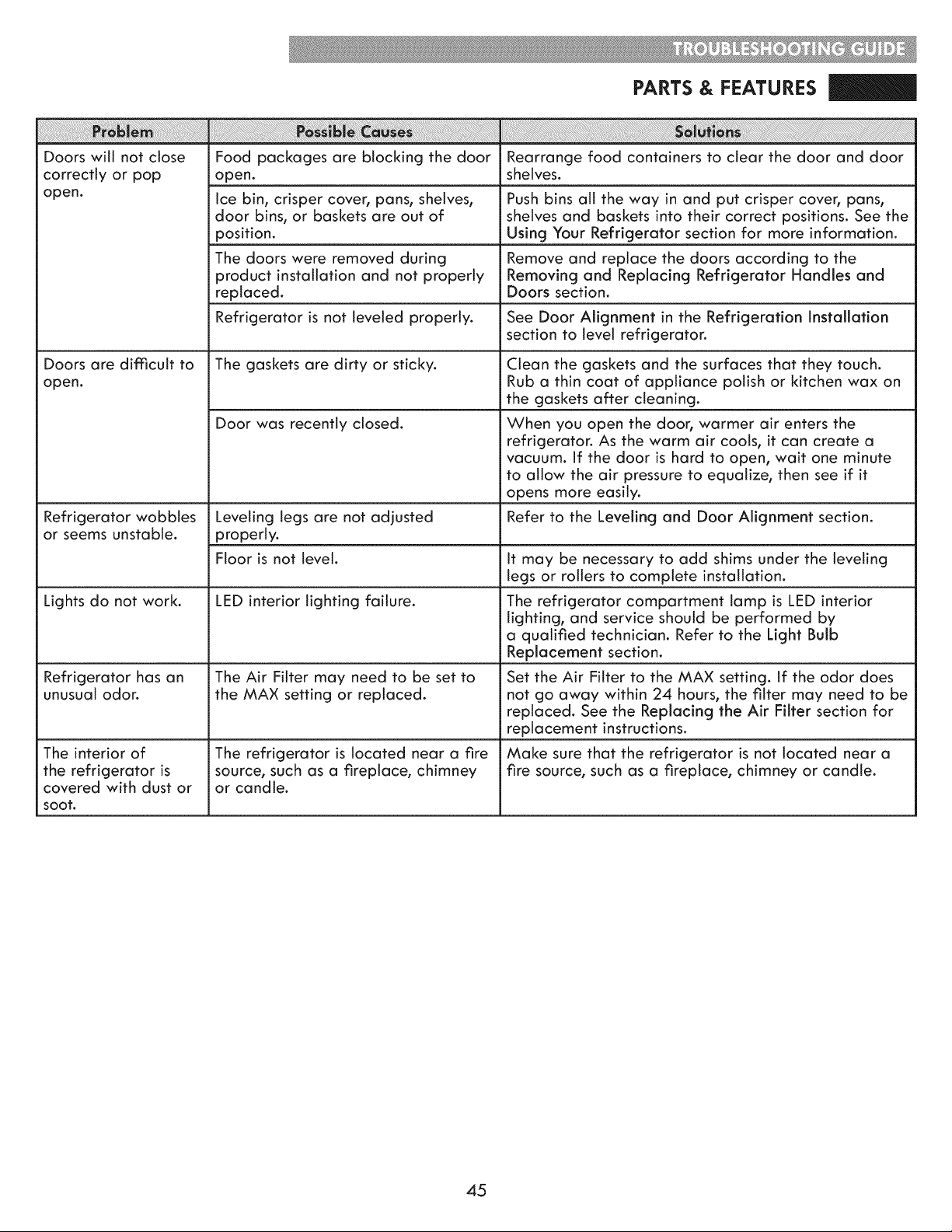

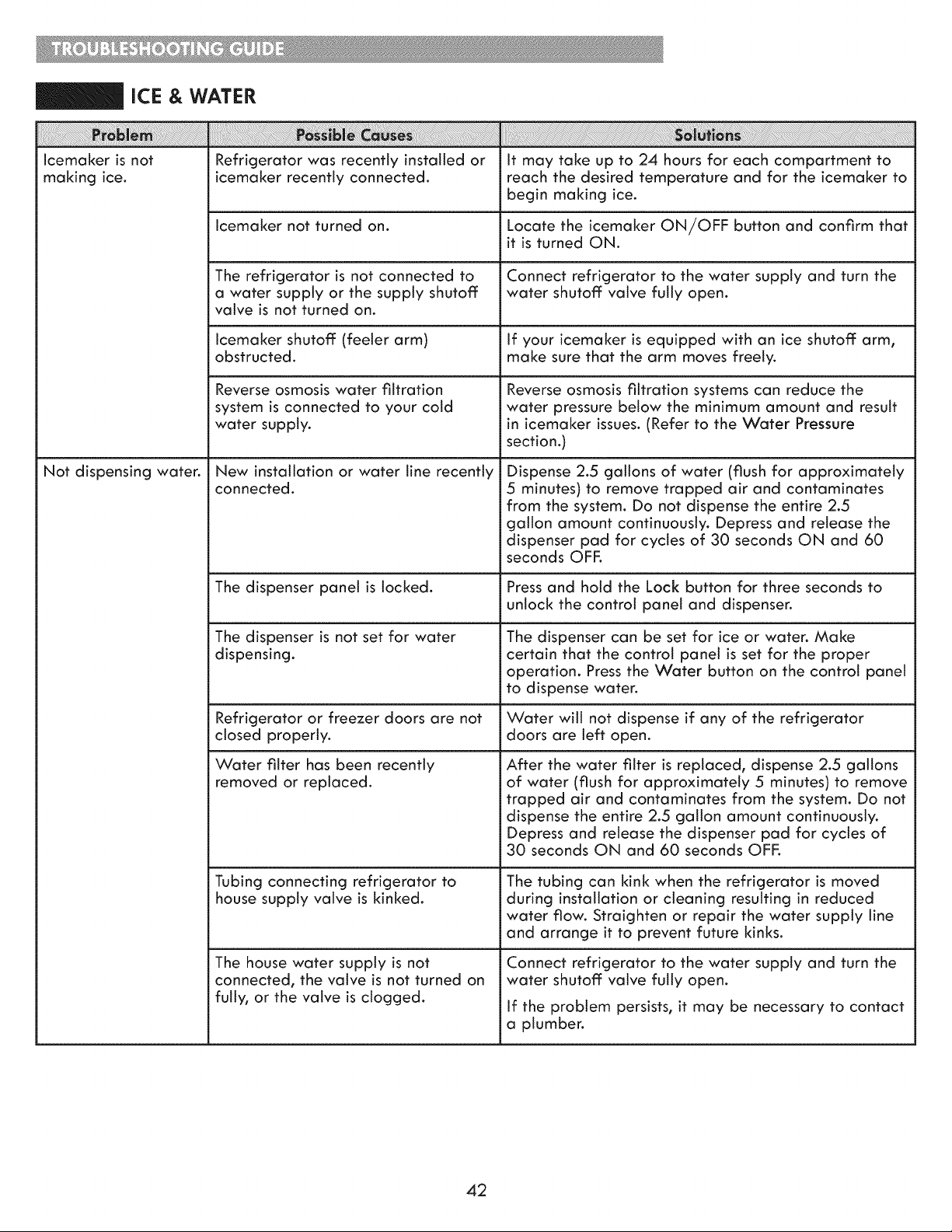

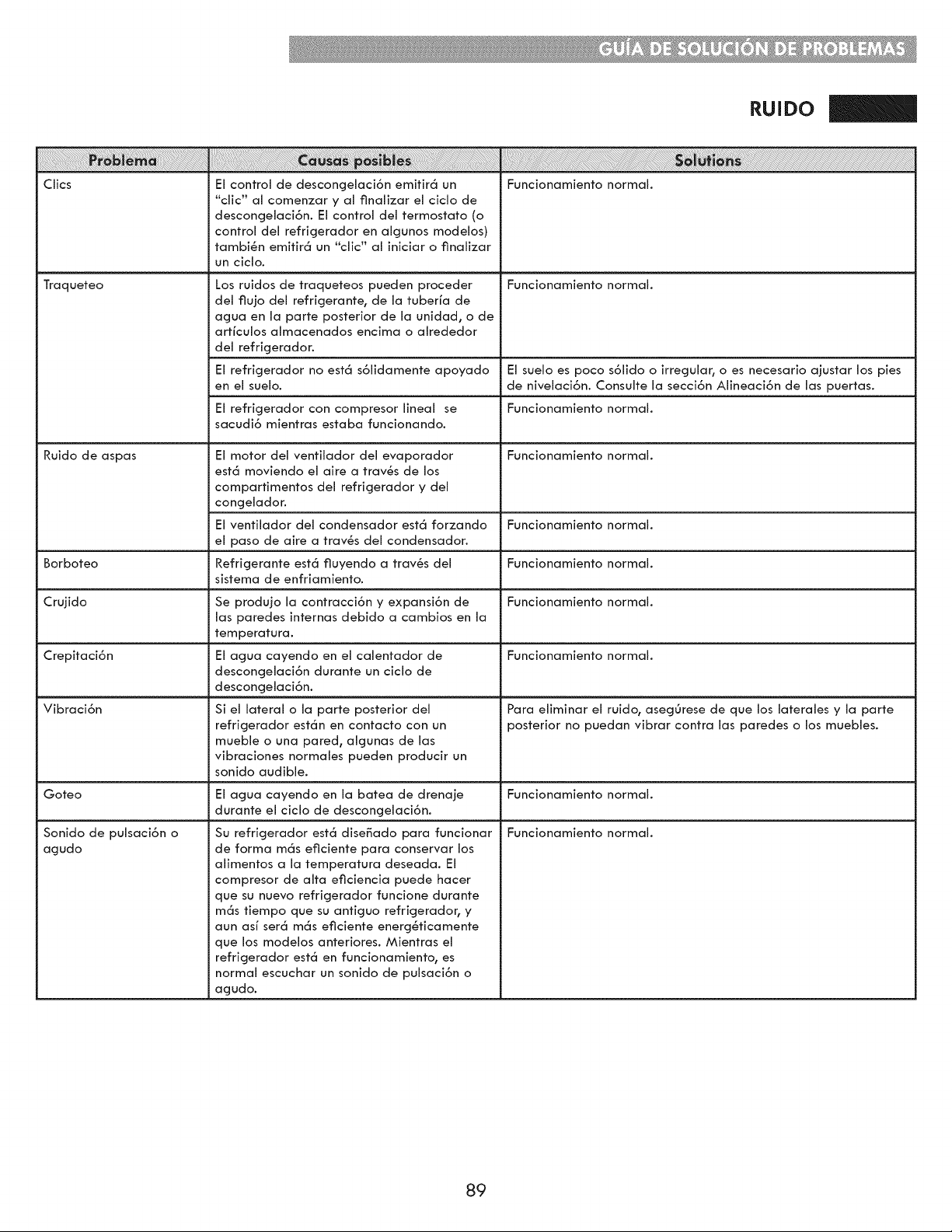

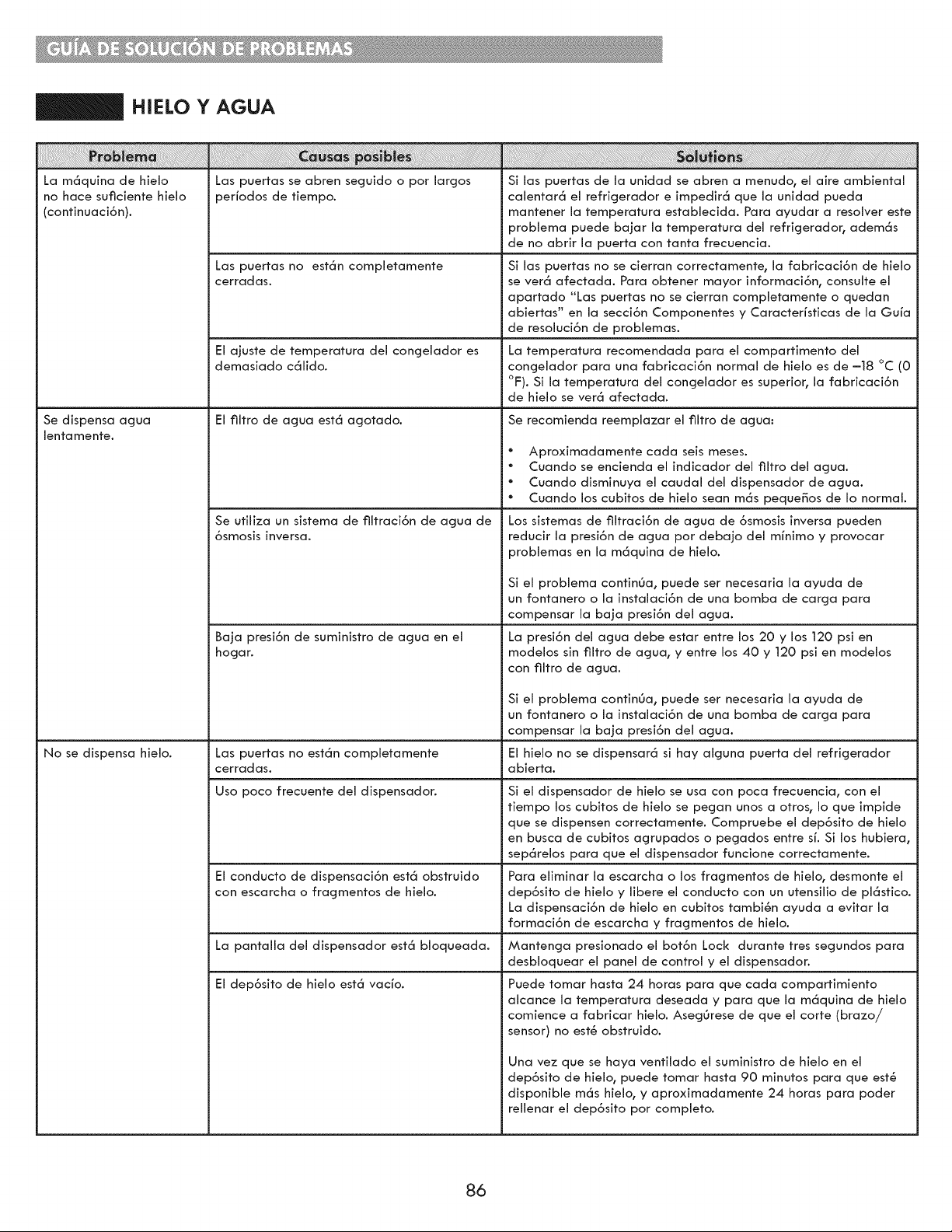

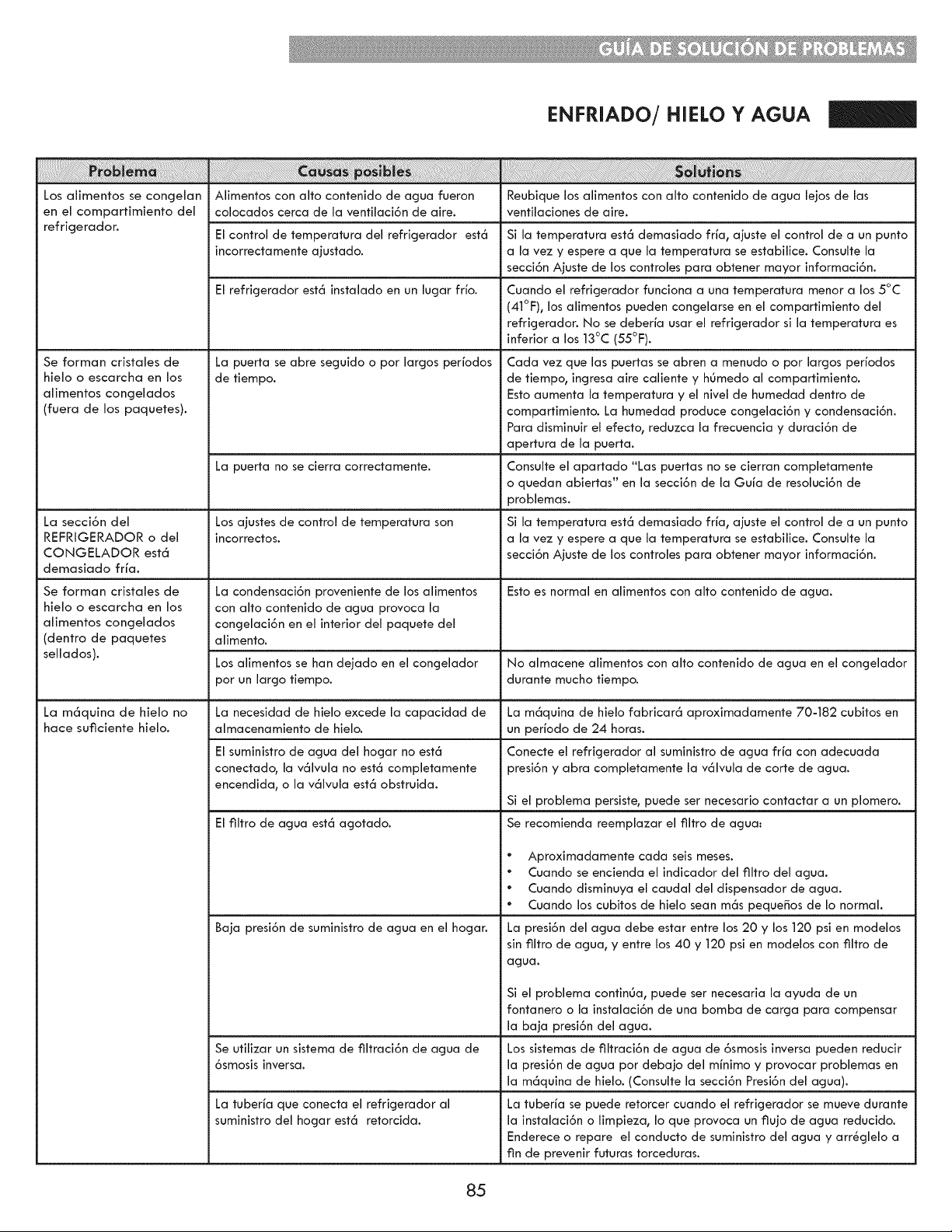

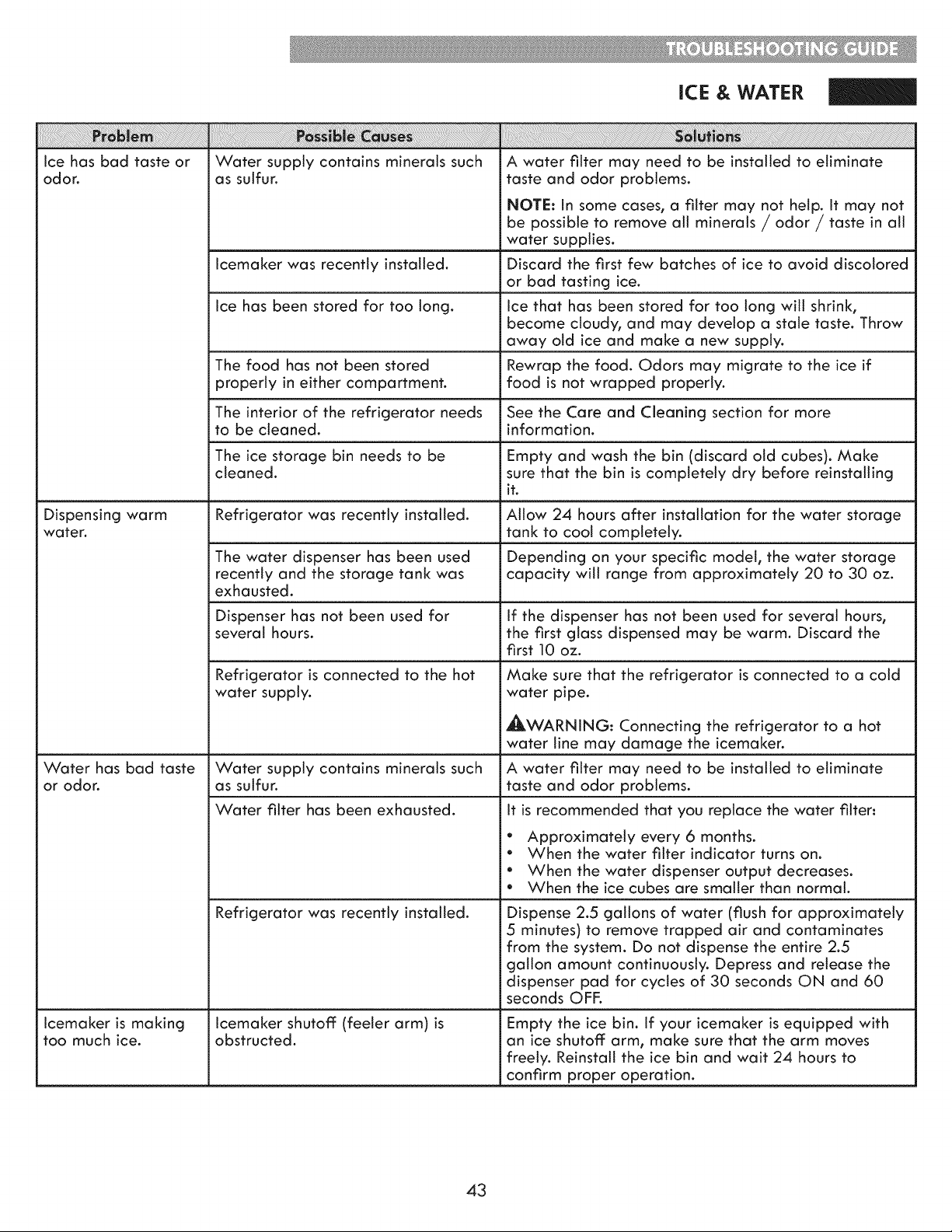

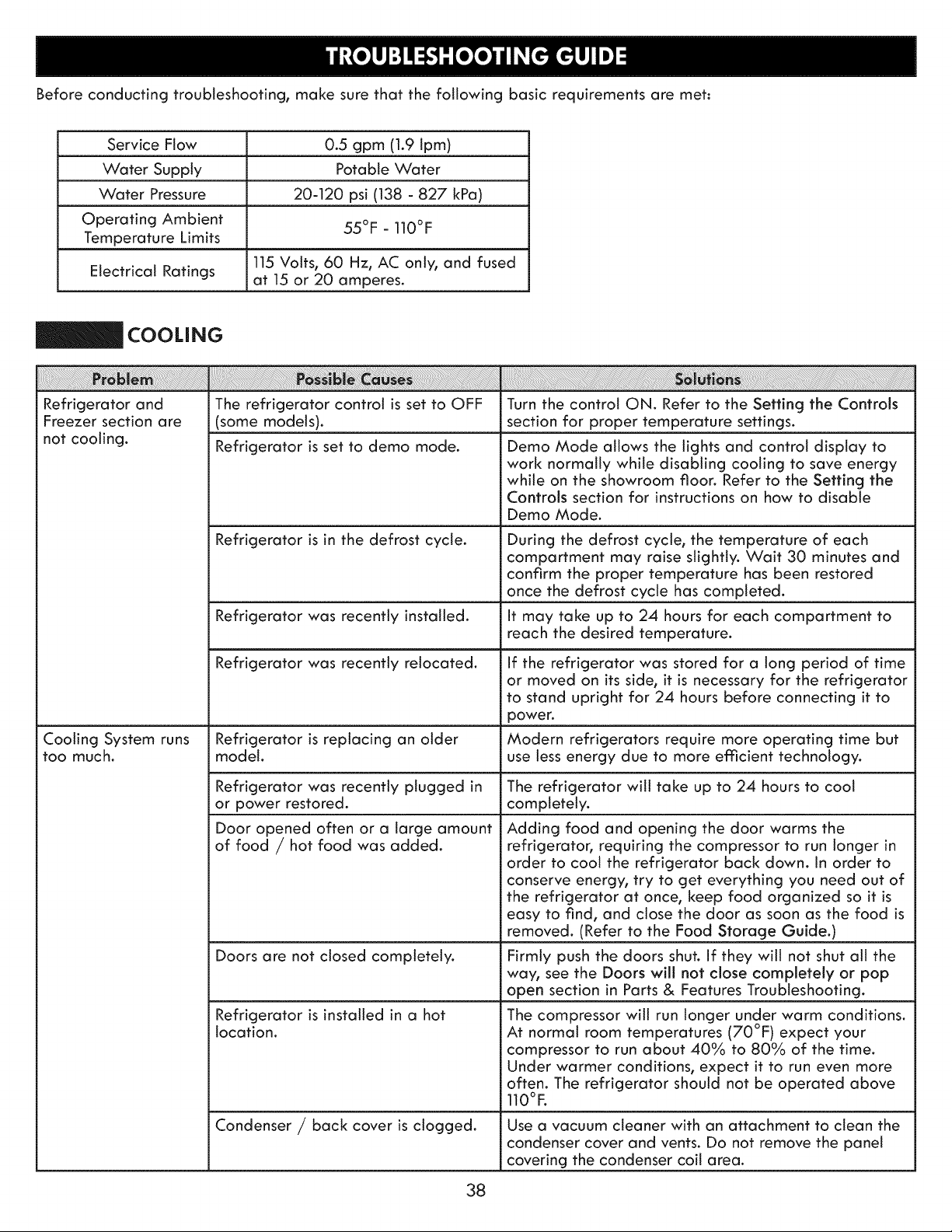

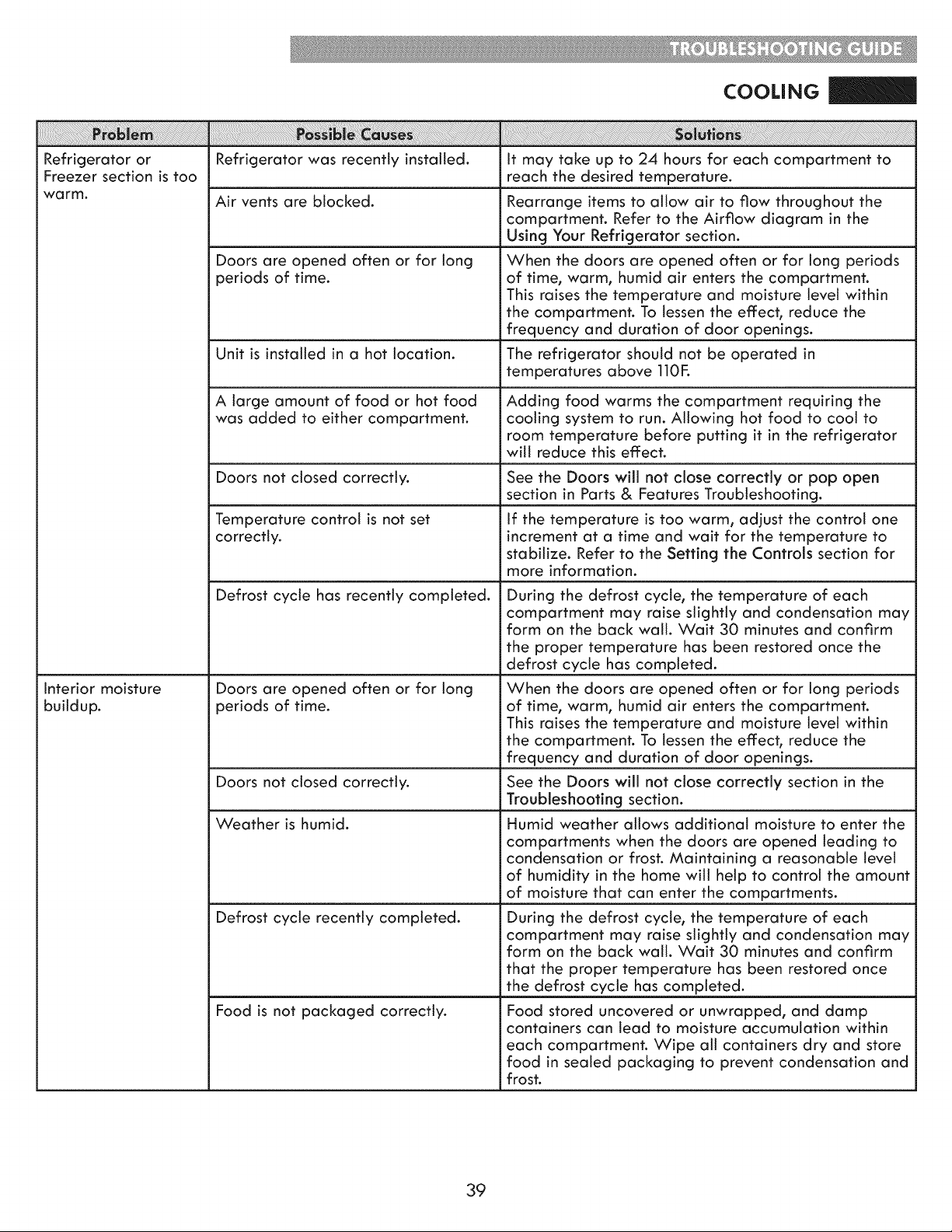

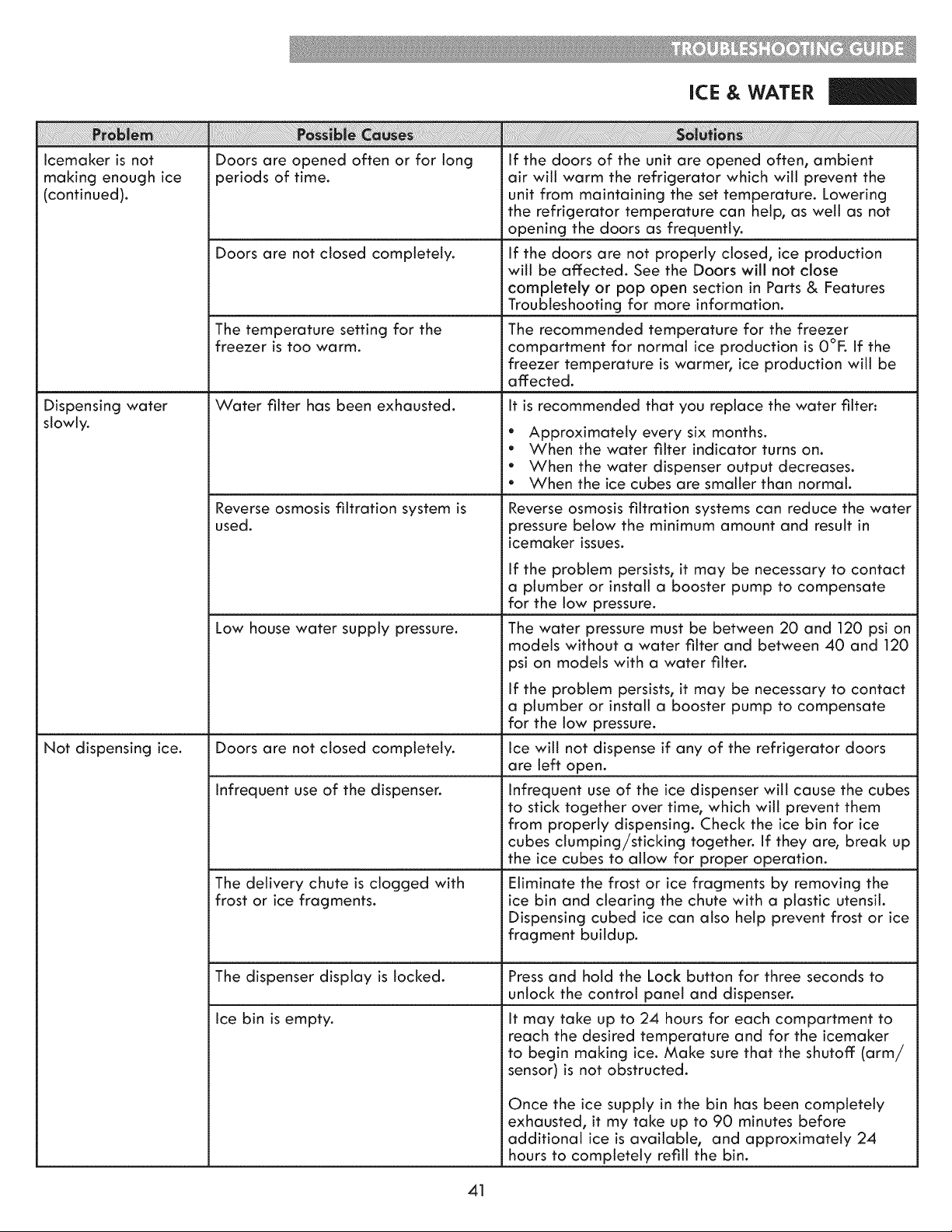

Troubleshooting Guide ..

38-45

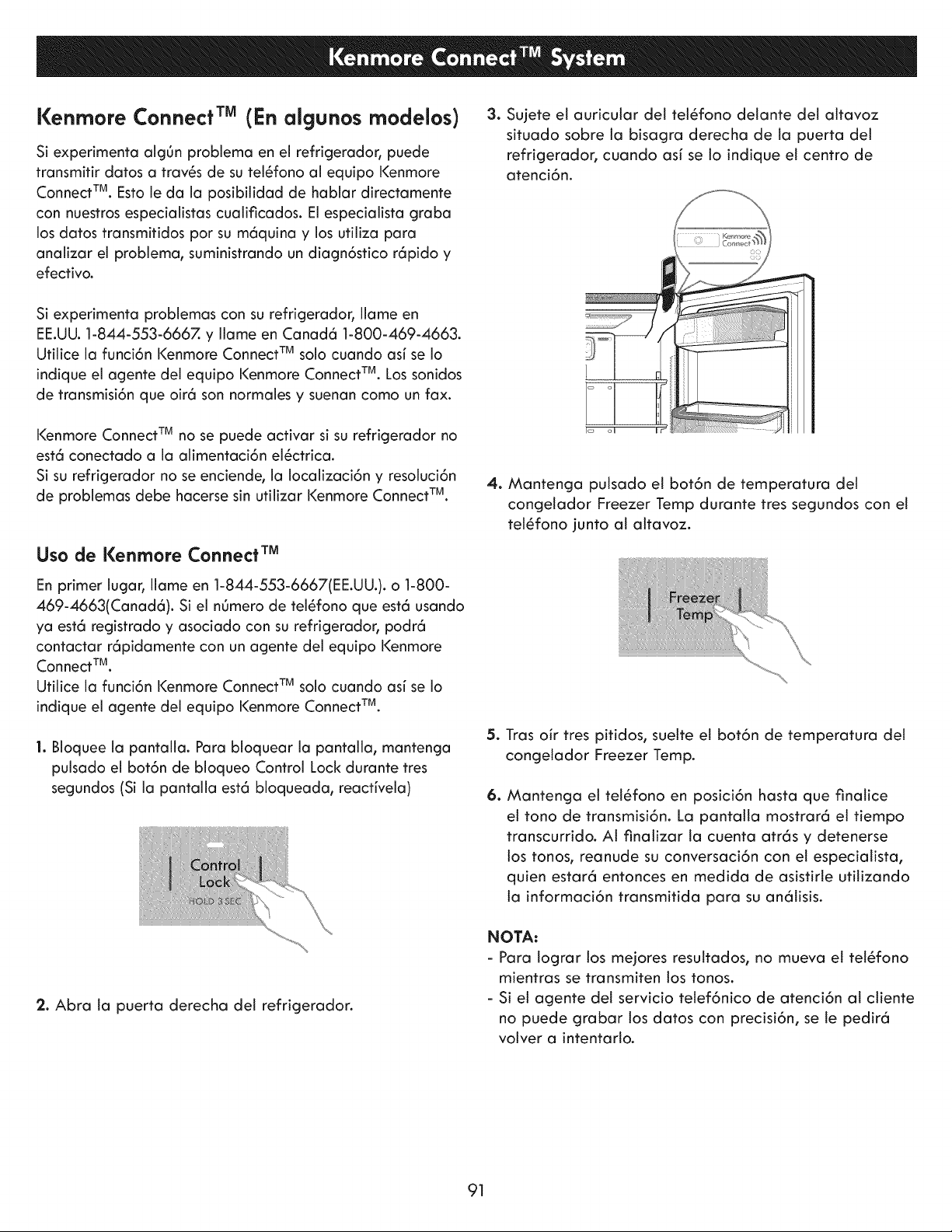

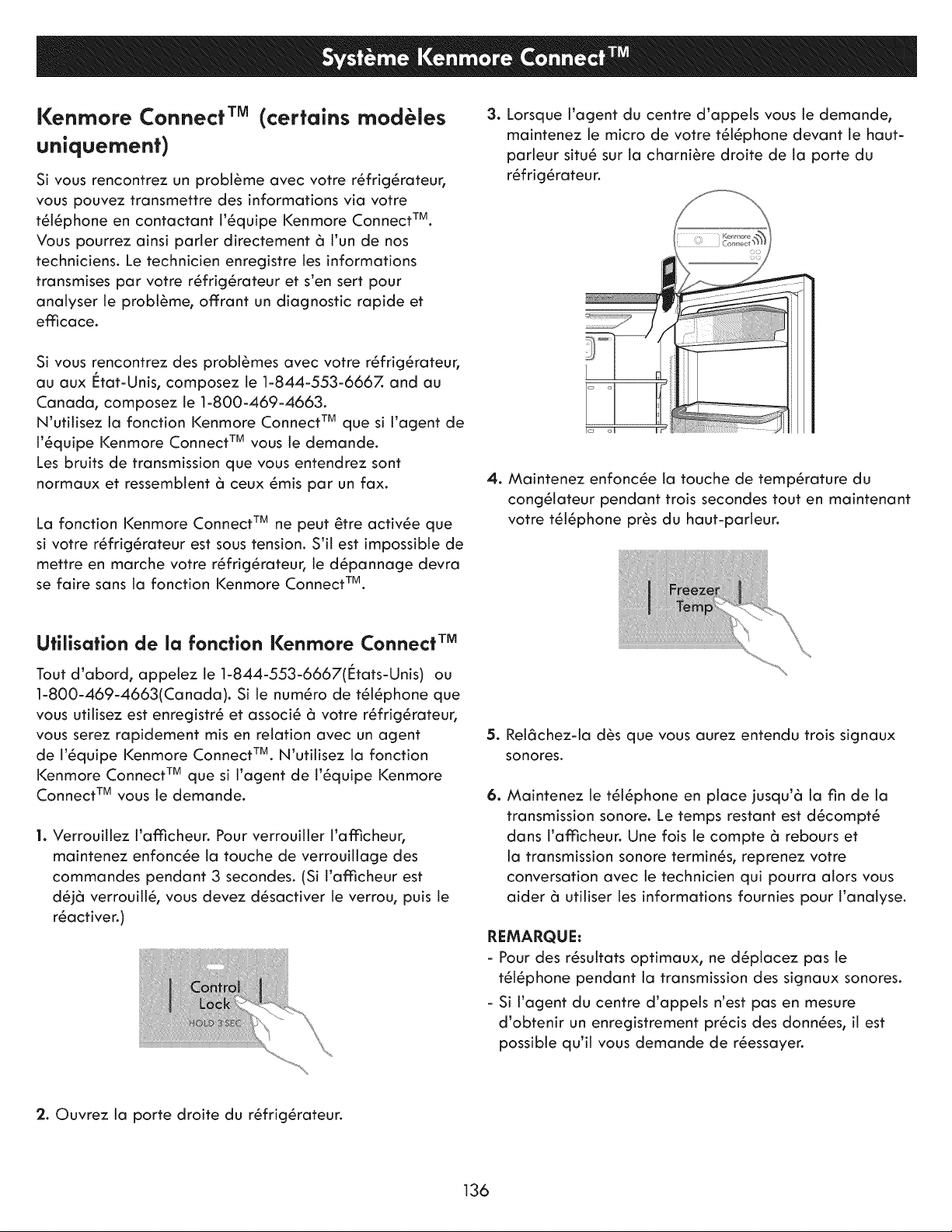

Kenmore Connect TM

Service ..

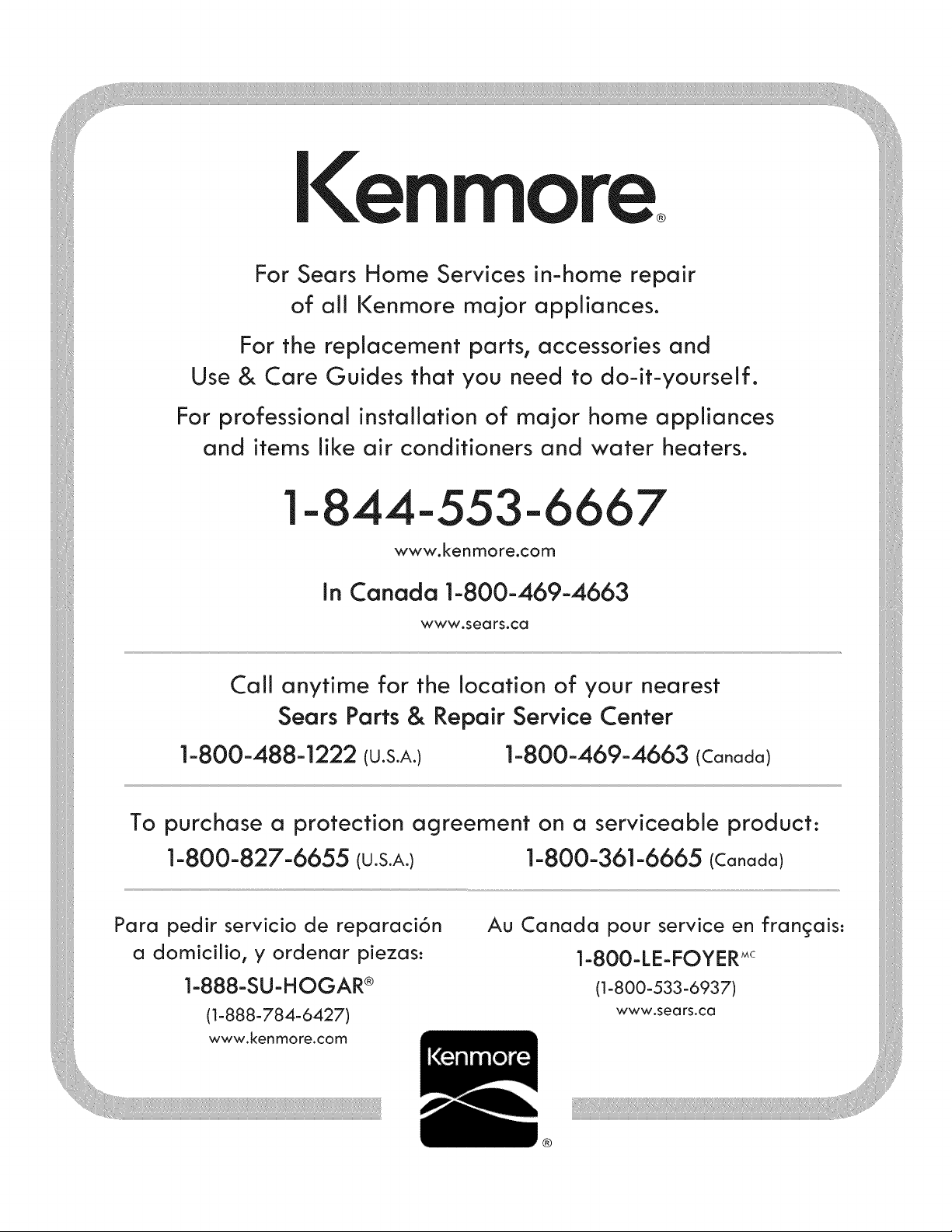

Back Cover

REFRIGERATOR WARRANTY

ENMORE PRO LiMiTED WARRANTY

WiTH PROOF OF SALEthe following warranty coverage appNes when this appliance is correctly installed operated and maintained according to all suppNed instructions.

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship.

A defective appliance will receive free repair or replacement at option of seller. This warranty coverage appNes for only 90 days from the sale date in the United States and is void in Canada if the appliance is ever used for other than private household purposes.

FOR FIVE YEARS from the date of sal% the sealed refrigerant system of this appliance is warranted against defects in material or workmanship.

If a system part is defective within the first year a new part will be supplied and installed at no charge.

If a system part is defective after the first year a new part will be supplied but not installed at no charge. You are responsible for the labor cost of part installation after the first year from the date of sale. This warranty coverage applies for only one year from the sale date in the United States and is void in Canada if the appliance is ever used for other than private household purposes.

FOR TEN YEARS from the date of sal% the linear compressor of this appliance is warranted against defects in material or workmanship.

If the compressor is defective within the first year a new one will be supplied and installed at no charge. If the compressor is defective after the first year a new one will be supplied but not installed at no charge. You are responsible for the labor cost of part installation after the first year from the date of sale. This warranty coverage applies for only two years from the sale date in the United Statesand is void in Canada if the appliance is ever used for other than private household purposes.

For warranty coverage details to obtain free repair or replacement visit the web page: www.kenmore.com/warranty

This warranty covers ONLY defects in material and workmanship. and will NOT pay for:

1. Expendable items that can wear out from normal us% including but not limited to filters belts bags or screw-in base light bulbs.

2. A service technician to clean or maintain this applianc% or to instruct the user in correct appliance instaliation operation and maintenance.

3. Service calls to correct appliance installation not performed by Sears authorized service agents or to repair problems with house fusescircuit breakers house wiring. and plumbing or gas supply systems resulting from such installation.

4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents including installation that was not in accord with electrical gas or plumbing codes.

5. Damage to or failure of this applianc% including discoloration or surface rustif it is not correctly operated and maintained according to all supplied instructions.

6. Damage to or failure of this applianc% including discoloration or surface rustresulting from accident alteration abus% misuse or use for other than its intended purpose.

Z Damage to or failure of this applianc% including discoloration or surface rustcaused by the use of detergents cleaners chemicals or utensils other than those recommended in all instructions supplied with the product.

8. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.

9. Service to an appliance if the model and serial plate is missing altered or cannot easily be determined to have the appropriate certification logo.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warranties. including warranties of merchantability or fitness for a particular purpose. are limited to one year on the applianc% five years on the sealed system. and ten years on the linear compressoror the shortest period allowed by law. Seller shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages. or limitation on the duration of implied warranties of merchantability or fitness. so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

_ In-home repair service is not available in all Canadian geographical areas. nor will this warranty cover useror servicertravel and transportation expensesif this product is located in a remote area (asdefined by SearsCanada Inc.) where an authorized servicer is not available.

Sears Brands Management Corporation.

Hoffman Estates. IL 60179 Sears Canada Inc. Toronto. Ontario.

Canada MSB 2C3

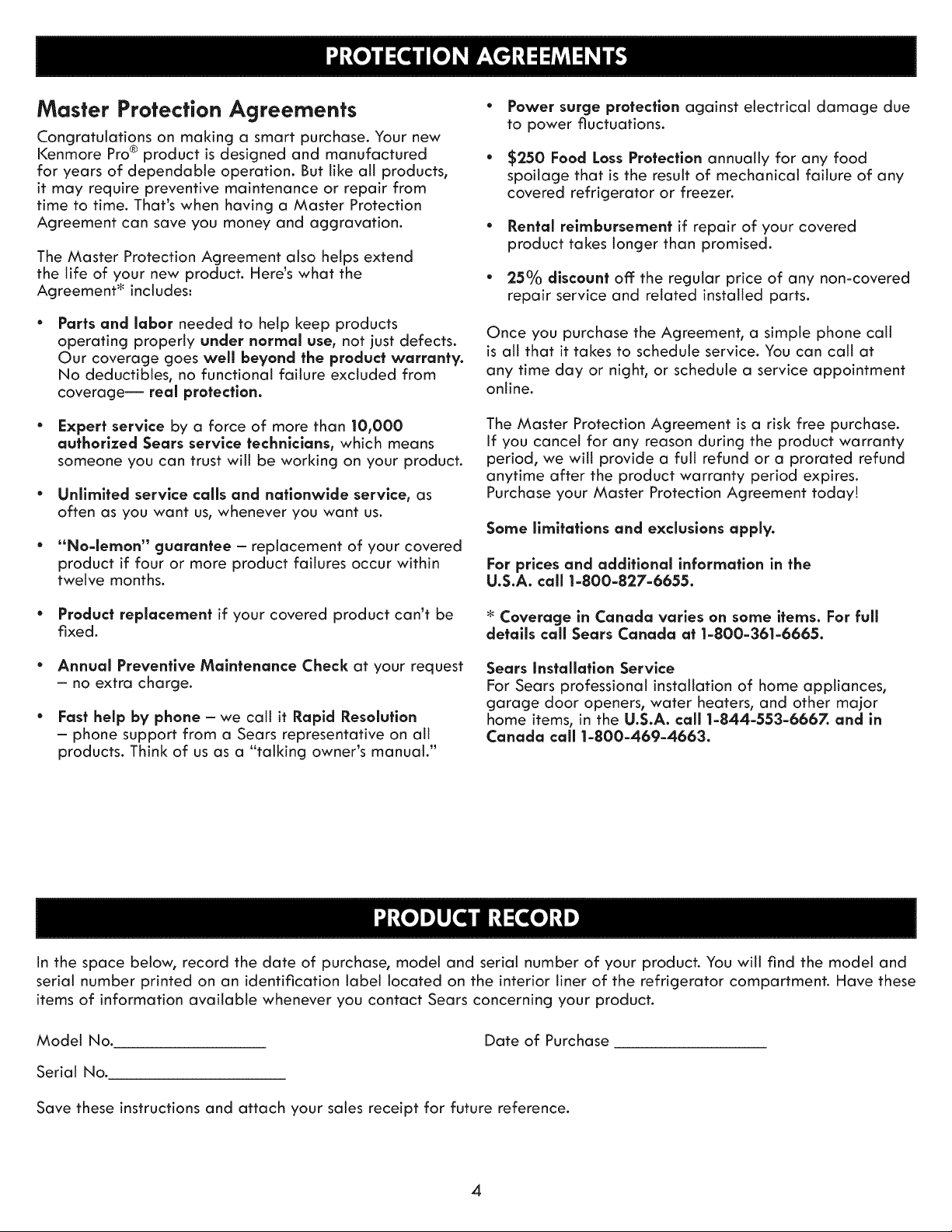

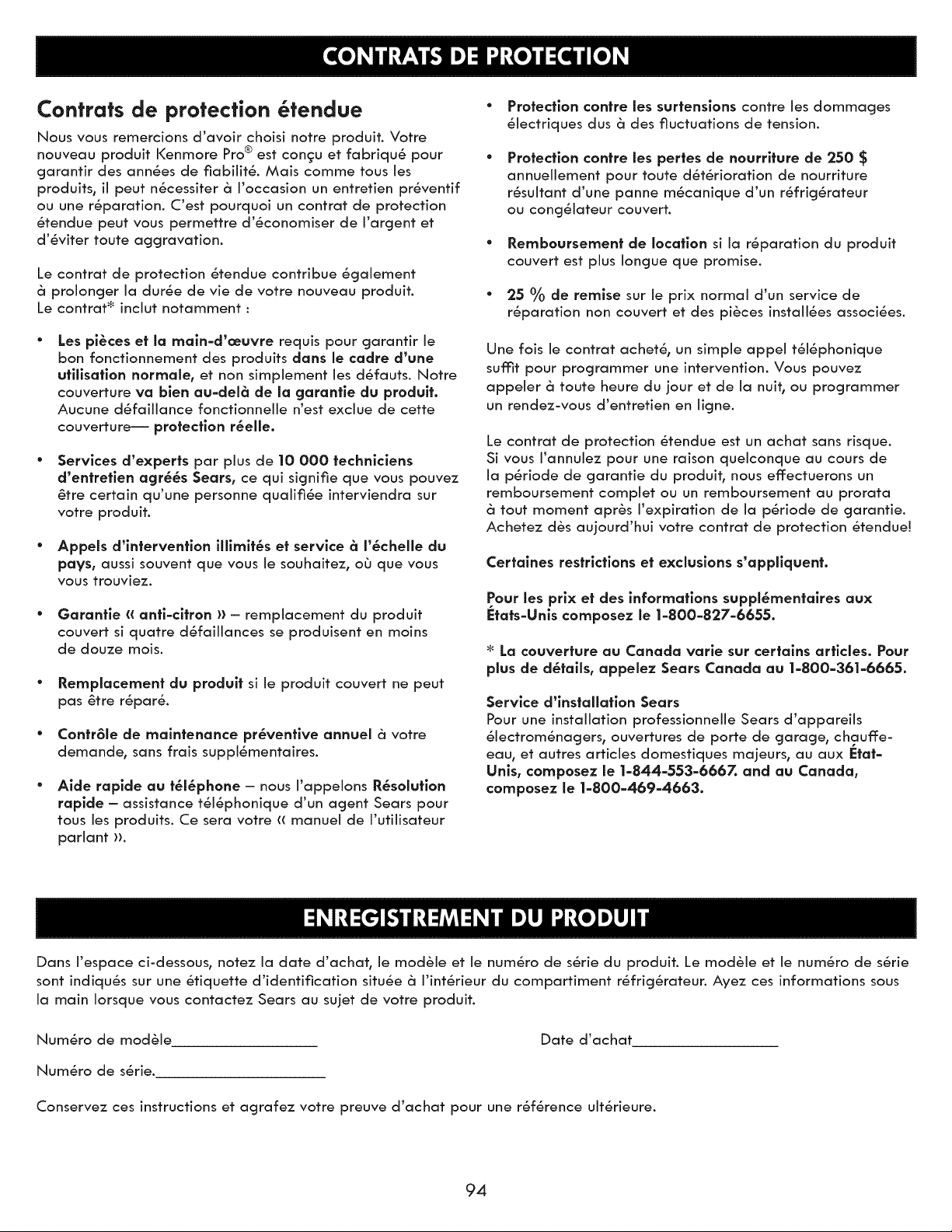

Master Protection Agreements

Congratulations on making a smart purchase.

Your new Kenmore Pro product is designed and manufactured for years of dependable operation.

But like all products. it may require preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend the life of your new product.

Here's what the Agreement* includes:

Parts and labor needed to help keep products operating properly under normal use. not just defects.

Our coverage goes well beyond the product warranty.

No deductibles. no functional failure excluded from coverage real protection.

Expert service by a force of more than 10.000 authorized Sears service technicians. which means someone you can trust will be working on your product.

Unilmited service calls and nationwide service. as often as you want us. whenever you want us.

"No-lemon" guarantee replacement of your covered product if four or more product failures occur within twelve months.

Product replacement if your covered product can't be fixed.

Annual Preventive Maintenance Check at your request no extra charge.

Fast help by phone - we call it Rapid Resolution phone support from a Sears representative on all products.

Think of us as a "talking owner's manual."

Power surge protection against electrical damage due to power fluctuations.

$250 Food Loss Protection annually for any food spoilage that is the result of mechanical failure of any covered refrigerator or freezer.

Rental reimbursement if repair of your covered product takes longer than promised.

25°/0 discount off the regular price of any non-covered repair service and related installed parts.

Once you purchase the Agreement. a simple phone call is all that it takes to schedute service.

You can catt at

The Master Protection Agreement is a risk free purchase.

If you cancel for any reason during the product warranty period. we will provide a full refund or a prorated refund anytime after the product warranty period expires.

Purchase your Master Protection Agreement today!

Same limitations and exclusions apply.

Far prices and additlanal information in the U.S.A. call 1-800-827-6655.

+ Coverage in Canada varies on some items. Far full detalls call Sears Canada at 1=800=361=6665.

Sears Installation Service For Sears professional installation of home appliances. garage door openers. water heaters. and other major home items. in the U.S.A. call 1-844-553-6667. and in Canada call 1-800-469-4663.

In the space below. record the date of purchase. model and serial number of your product.

You will find the model and serial number printed on an identification label located on the interior liner of the refrigerator compartment.

Have these items of information available whenever you contact Sears concerning your product.

Model No.

Serial No.

Date of Purchase

Save these instructions and attach your sales receipt for future reference.

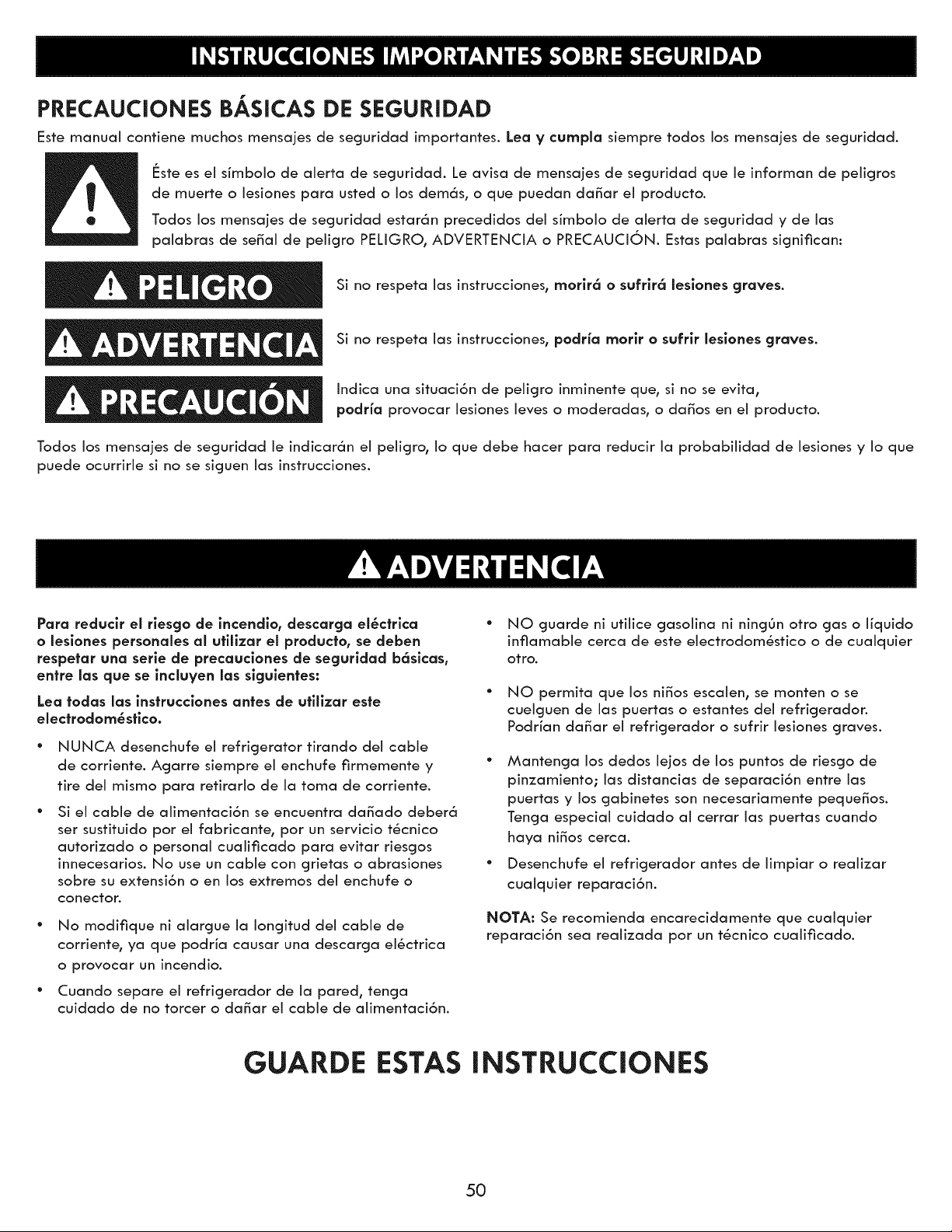

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol.

It alerts you to safety messages that inform you of hazards that can kill or hurt you or others. or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER.

WARNING or CAUTION.

These words mean:

You will be killed or seriously injured if you do not follow instructions.

You can be killed or seriously injured if you do not follow instructions.

Indicates an imminently hazardous situation which. if not avoided. may result in minor or moderate injury. or product damage.

All safety messages will identify the hazard. tell you how to reduce the chance of injury. and tell you what can happen if the instructions are not followed.

To reduce the risk of fire. electrlc shock. or personal injury when using your product. basic safety precautions should be foffowed. includlncj the foffowincj.

Read aft instructions before using this appffance.

NEVER unptug your refrigerator by putting on the power cord. Always grip the plug firmly and putt it straight out from the outlet.

If the suppty cord is damaged. it must be reptaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

Do not modify or extend the power cord length.

It coutd cause electric shock or fire.

When moving your refrigerator away from the wall. be careful not to roll over or damage the power cord.

DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

DO NOT allow children to climb. stand. or hang on the refrigerator doors or shetves in the refrigerator.

They could damage the refrigerator and seriously injure themselves.

Keep fingers out of pinch point areas; clearances between the doors and cabinets are necessarily small.

Be careful closing doors when children are in the area.

Unplug your refrigerator before cleaning or making any repairs.

NOTE: It is strongly recommended that any service be performed by a qualified technician.

SAVE THESE INSTRUCTIONS

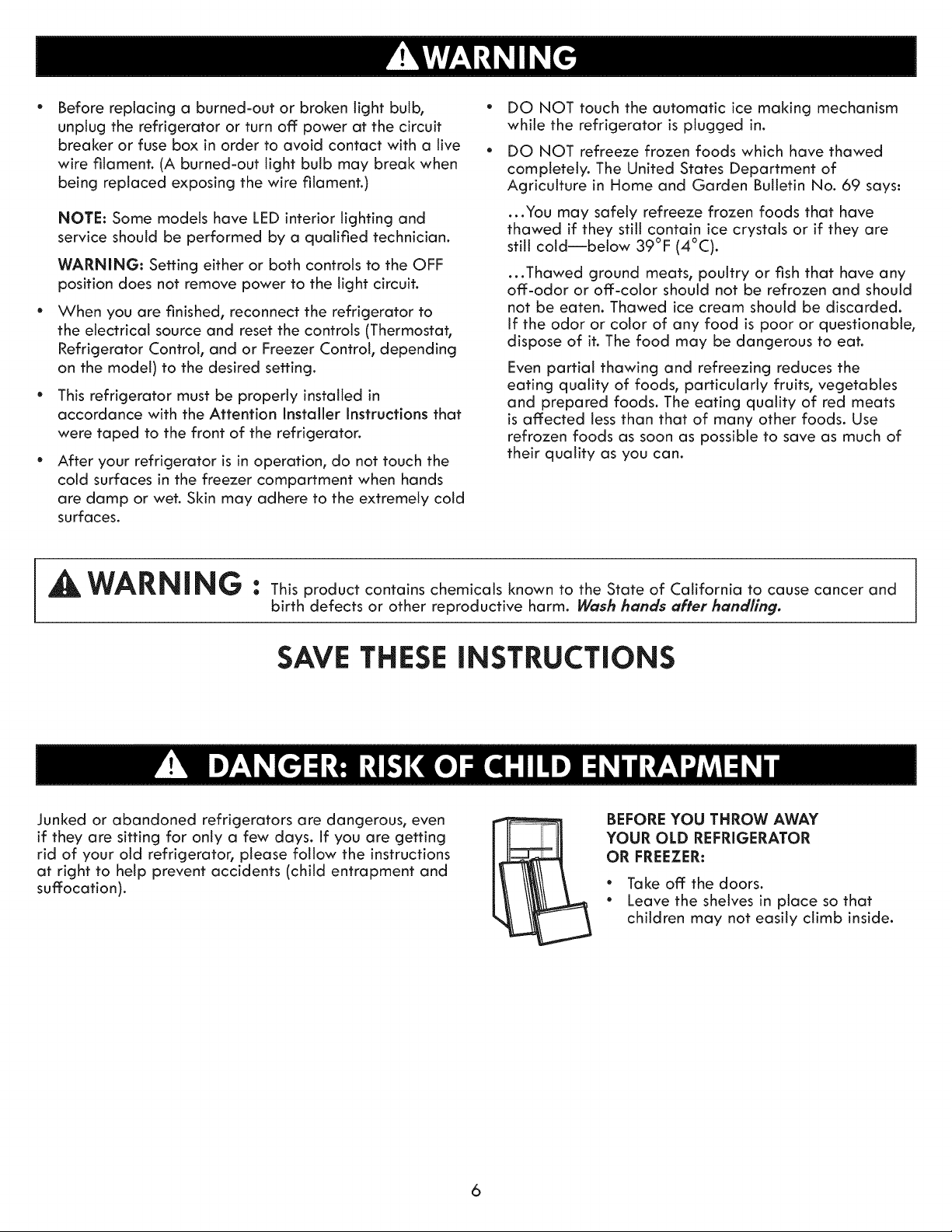

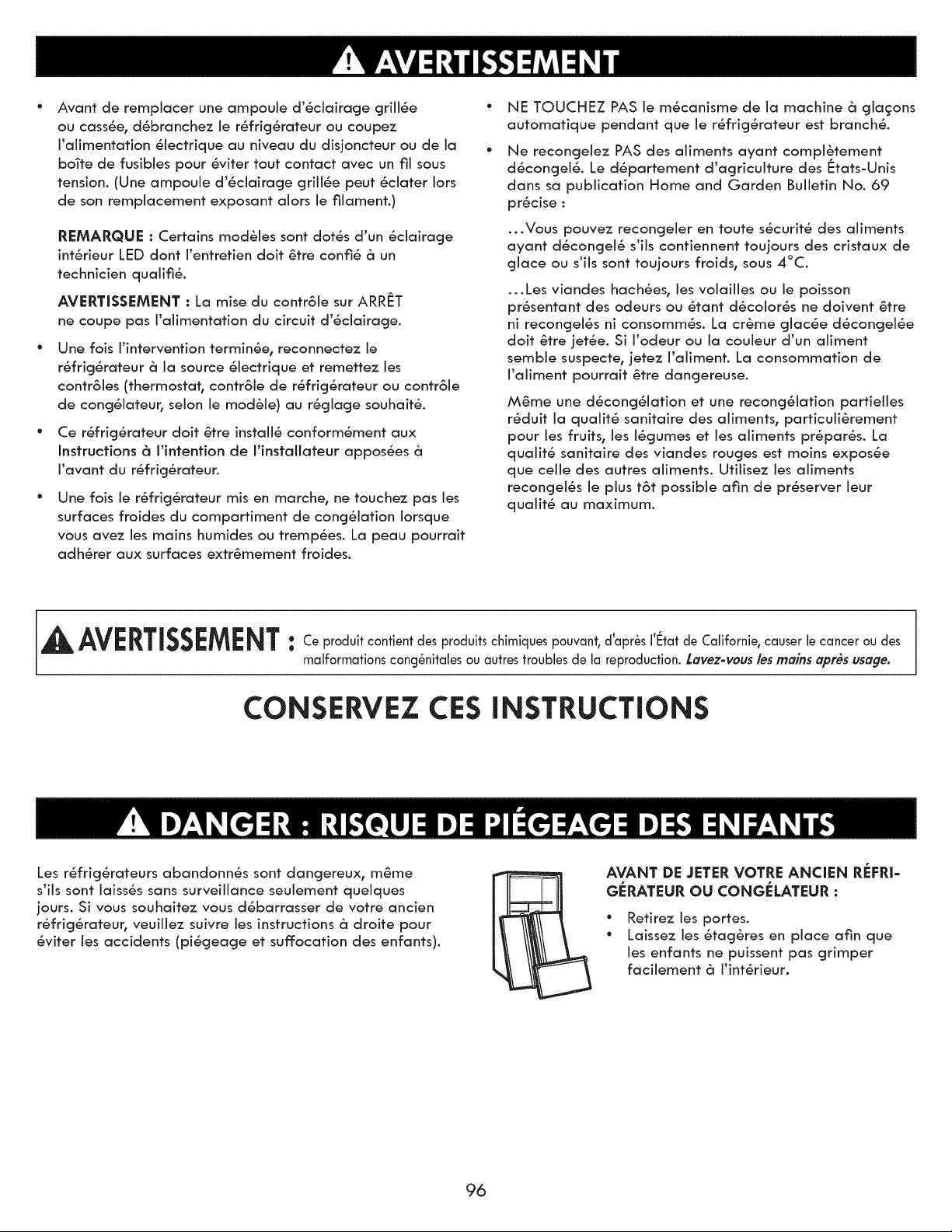

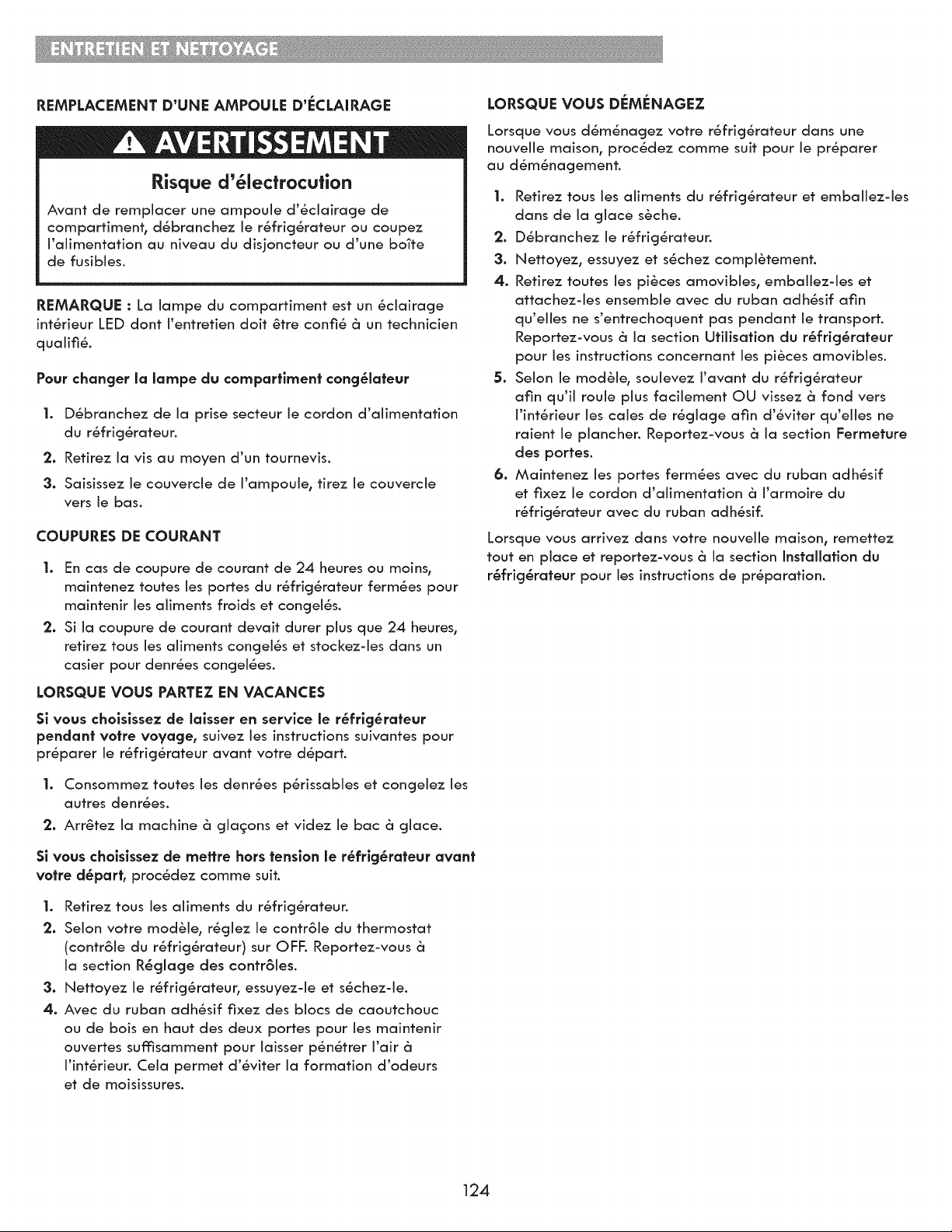

Before replacing a burned-out or broken light bulb. unplug the refrigerator or turn off power at the circuit breaker or fuse box in order to avoid contact with a live

NOTE: Some models have LED interior lighting and service should be performed by a qualified technician.

WARNING: Setting either or both controls to the OFF position does not remove power to the light circuit.

When you are finished. reconnect the refrigerator to the electrical source and reset the controls (Thermostat. Refrigerator Control. and or Freezer Control. depending on the model) to the desired setting.

This refrigerator must be properly installed in accordance with the Attention Installer Instructions that

After your refrigerator is in operation. do not touch the cold surfaces in the freezer compartment when hands are damp or wet. Skin may adhere to the extremely cold surfaces.

DO NOT touch the automatic ice making mechanism while the refrigerator is plugged in.

DO NOT refreeze frozen foods which have thawed completely.

The United States Department of Agriculture in Home and Garden Bulletin No. 69 says:

You may safely refreeze frozen foods that have thawed if they still contain ice crystals or if they are still cold--below 39°F (4°C).

Thawed ground meats. poultry or fish that have any off-odor or off-color should not be refrozen and should not be eaten. Thawed ice cream should be discarded.

If the odor or color of any food is poor or questionable. dispose of it. The food may be dangerous to eat.

Even partial thawing and refreezing reduces the eating quality of foods. particularly fruits. vegetables and prepared foods.

The eating quality of red meats is affected tess than that of many other foods.

Use refrozen foods as soon as possible to save as much of their quality as you can.

WARNING : This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Wash hands after handling.

SAVE THESE iNSTRUCTiONS

Junked or abandoned refrigerators are dangerous. even if they are sitting for only a few days.

If you are getting rid of your old refrigerator. please follow the instructions at right to help prevent accidents (child entrapment and suffocation).

BEFORE YOU THROW AWAY YOUR OLD REFRIGERATOR OR FREEZER:

Take off the doors. Leave the shelves in place so that children may not easily climb inside.

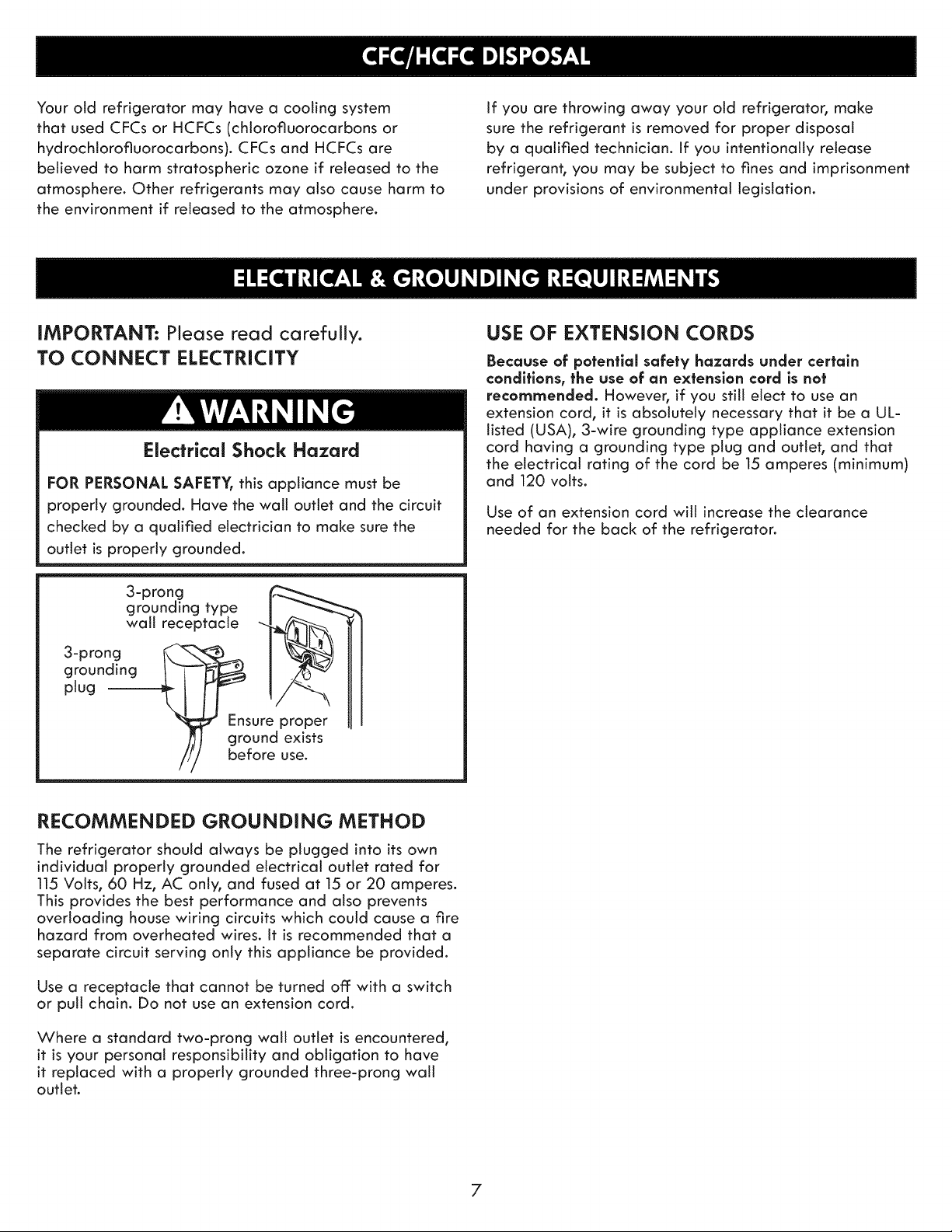

Your old refrigerator may have a cooling system that used CFCs or HCFCs (chlorofluorocarbons or hydrochtorofluorocarbons).

CFCs and HCFCs are believed to harm stratospheric ozone if released to the atmosphere.

Other refrigerants may also cause harm to the environment if released to the atmosphere.

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

Electrical Shock Hazard

FOR PERSONAL SAFETY. this appliance must be

3-prong grounding type I wall receptacle

3-prong

grounding I-_'

VF

Ensure proper _]J ground exists

USE OF EXTENSION CORDS

Because of potenflal safety hazards under certain condlflons. the use of an extension cord is not recommended.

However. if you still elect to use an extension cord. it is absolutely necessary that it be a UL listed (USA). 3-wire grounding type appliance extension cord having a grounding type plug and outlet. and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.

Use of an extension cord will increase the clearance needed for the back of the refrigerator.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own individual properly grounded electrical outlet rated for 115 Volts. 60 Hz. AC only. and fused at 15 or 20 amperes.

This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. It is recommended that a separate circuit serving only this appliance be provided.

Use a receptacle that cannot be turned off with a switch or putt chain.

Do not use an extension cord.

Where a standard two-prong wall outlet is encountered. it is your personal responsibility and obligation to have it replaced with a properly grounded three-prong wall outlet.

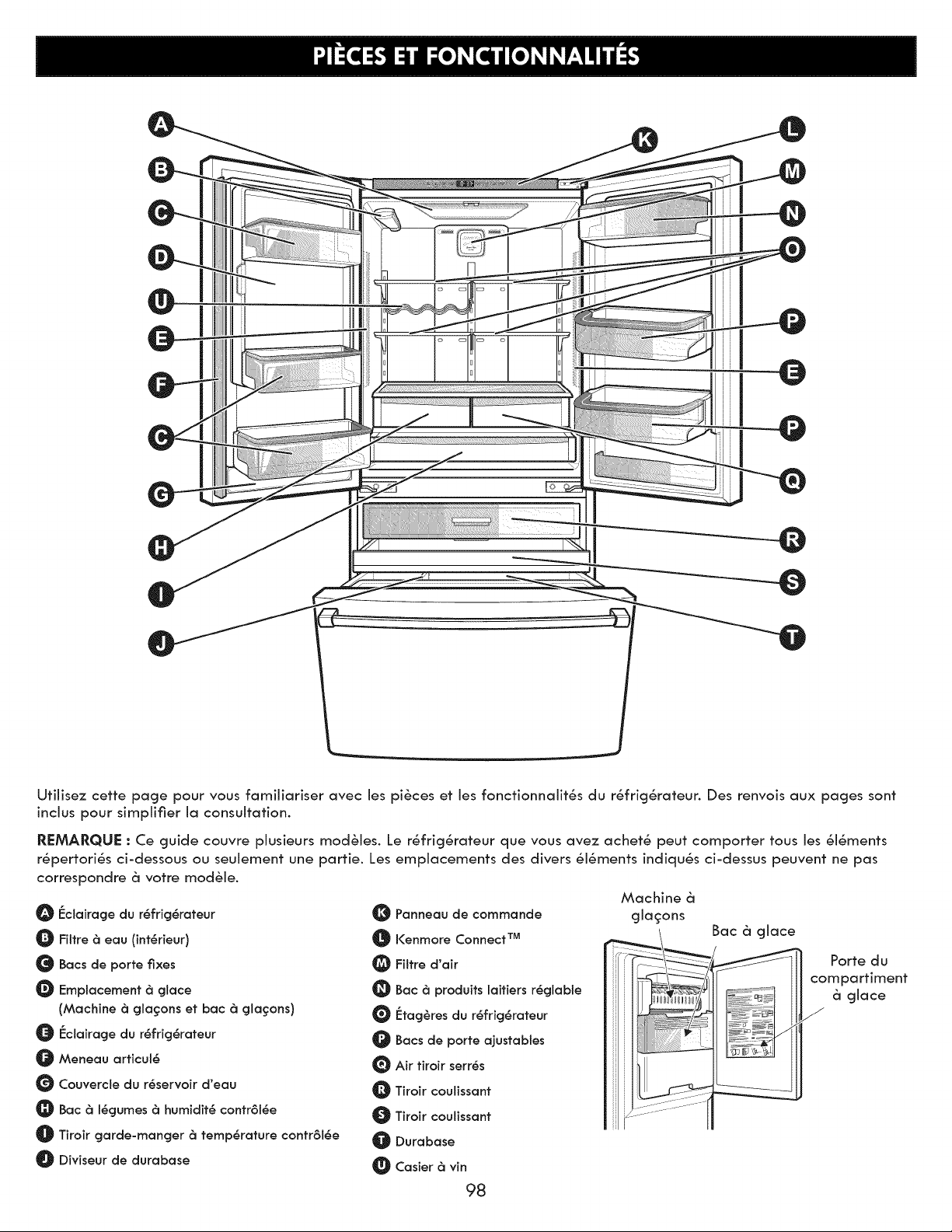

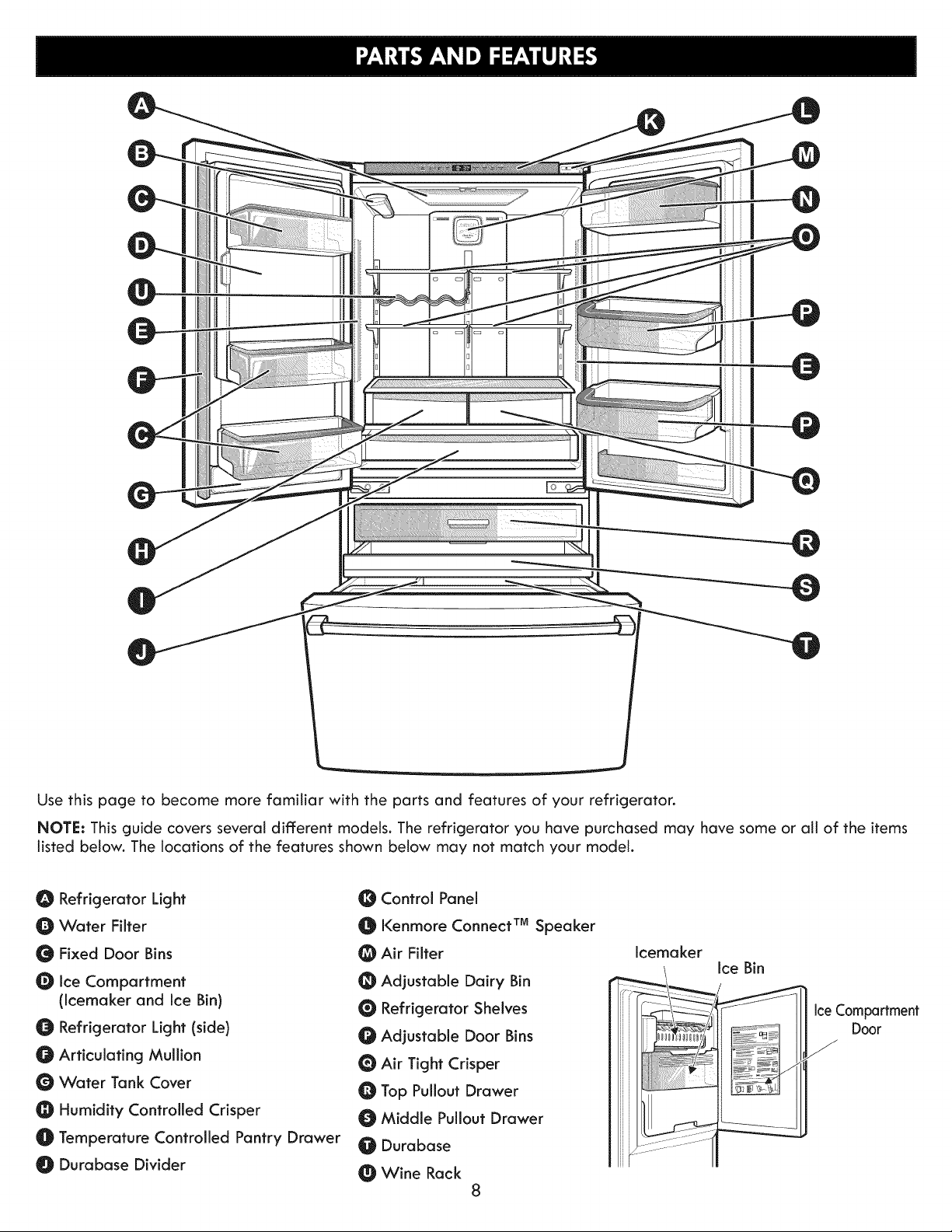

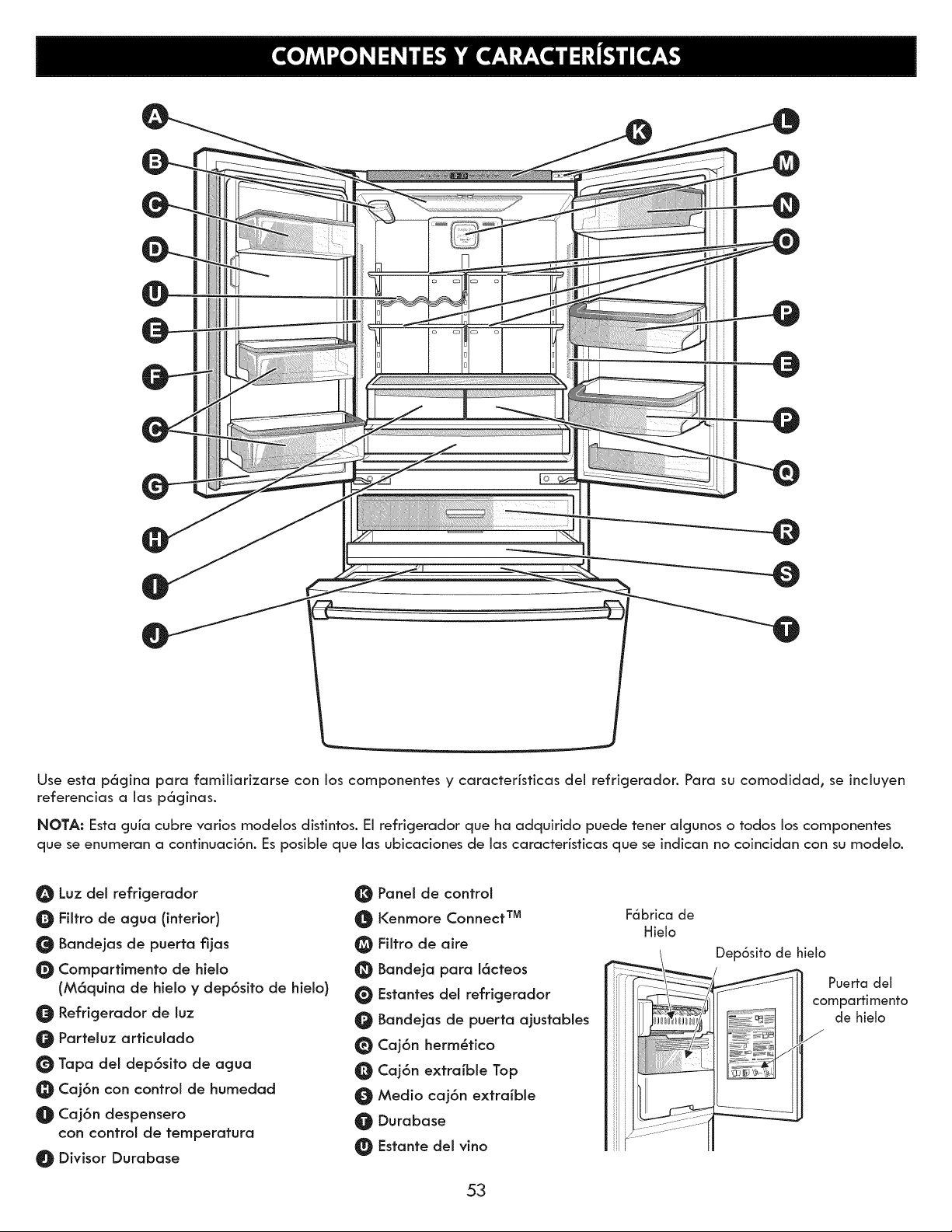

Use this page to become more familiar with the parts and features of your refrigerator.

NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the items listed below. The locations of the features shown below may not match your model.

Refrigerator Light

Water Filter

Fixed Door Bins

Ice Compartment (Icemaker and Ice Bin)

Refrigerator Light (side}

Articulating Mullion

Water Tank Cover

Humidity Controlled Crisper

Temperature Controlled Pantry Drawer

Durabase Divider

Control Panel

Kenmore Connect TM Speaker

_) Air Filter

Adjustable Dairy Bin

Refrigerator Shelves

Adjustable Door Bins

Air Tight Crisper

Top Pullout Drawer

Middle Pullout Drawer

Durabase

Wine Rack

Icemaker Ice Bin

Ice Compartment Door

Excessive Weight Hazard:

Use two or more people to move and install the refrigeraton Failure to do so can result in back or other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your refrigerator before using. Do not remove any warning type labels. the model and serial number label. or the Tech Sheet that is located under the front of the

To remove any remaining tape or glue. rub the area briskly with your thumb.

Tape or gtue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers.

Wipe with warm water and dry.

Do not use sharp instruments. rubbing alcohol. flammable fluids. or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual storage needs.

Excessive Weight Hazard:

Your refrigerator is heavy.

When moving the refrigerator for cleaning or service. be sure to protect the floor. Always pull the refrigerator straight out when moving it. Do not wiggle or walk the refrigerator when trying to move it. as floor damage could occur.

Explosion Hazard:

Keep flammable materials and vapors. such as gasoline. away from the refrigerator.

Failure to do so can result in fire. explosion. or death.

PRIOR TO USE

1. Clean your refrigerator thoroughly and wipe off all dust that accumulated during shipping.

2. Install accessories such as ice cube bin. drawers. shelves. etc. in their proper places.

They are packed together to prevent possible damage during shipment.

3. Allow your refrigerator to run for at least two to three hours before putting food in it. Check the flow of cold air in the freezer compartment to ensure proper cooling.

Your refrigerator is now ready for use.

The refrigerator should always be plugged into its own individual properly grounded electrical outlet rated for 115 Volts. 60 Hz. AC only. and fused at 15 or 20 amperes.

This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. It is recommended that a separate circuit serving only this appliance be provided.

Shock Hazard:

To reduce the risk of electric shock. do not install the refrigerator in a wet or damp area.

INSTALLATION (continued)

NOTE: Installing on carpeting. soft tile surfaces. a platform or weakly supported structure is not recommended.

Select a place where a water supply can be easily connected for the automatic Jcemaken

NOTE: The water pressure must be from 20-120 psi or 138-827 kPa or 1.4-8.4 kgf/cm 2. If the refrigerator is installed in an area with low water pressure (below psi). you can install a booster pump to compensate for the low pressure.

Too small of a distance from adjacent items may result in lowered freezing capability and increased electricity consumption charges.

Allow at least 24 inches (61 cm) in front of the refrigerator to open the doors and at least 2 inches (5.08 cm) between the back of the refrigerator and the wall.

NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow opening. if it is necessary to remove the handles. follow the directions below.

HOW TO REMOVE REFRIGERATOR DOOR HANDLE

NOTE: Handle appearance may vary from the illustrations on this page.

Removing Refrigerator Handle

Loosen the set screws with a 3/32 in. Allen wrench and remove the handle.

Set Screw

Mounting Fasteners

NOTE: If the handle mounting fasteners need to be tightened or removed. use a 1/4 in. Allen wrench.

Allen Wrench

HOW TO REPLACE REFRIGERATOR DOOR HANDLE

NOTE: Handle appearance may vary from the illustrations on this page.

Replaclng Refrigerator Door Handle

Place the handle on the door by fitting the handle footprints over the mounting fasteners and tightening the set screws with a 3/32 in Allen wrench.

NOTE: If the handle mounting fasteners need to be tightened or removed. use a 1/4in. Allen wrench.

Mounting Fasteners

NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow opening. if it is necessary to remove the handles. follow the directions below.

HOW TO REMOVE FREEZER DOOR HANDLE

NOTE: Handle appearance may vary from the illustrations on this page.

Removing Freezer Drawer Handle

Loosen the set screws located on the lower side of the handle with a 1/8 in. Alien wrench and remove the handle.

NOTE: If the handle mounting fasteners need to be tightened or removed. use a 1/4 in. Alien wrench.

HOW TO REPLACE FREEZER DOOR HANDLE

NOTE: Handle appearance may vary from the illustrations

Replacing Freezer Drawer Handle

Place the handle on the door by fitting the handle footprints over the mounting fasteners and tightening the set screws with a 1/8 in. Allen wrench.

NOTE: If the handle mounting fasteners need to be tightened or removed. use a 1/4in. Alien wrench.

When assembling or disassembling the handles:

Grasp the handle firmly to ensure it will not drop or

Prevent the handle from swinging toward nearby people or animals.

Check for any gap between the door and handle after the handle is fixed in place.

State of California

Department of Public Health

Water Treatment Device Certificate Number

09- 2019

Date Issued: December 15. 2009

Manufacturer:

The water treatment device(

116830 of the Health and Safer?

Microbiological Coataminants and Turbidity

Cysts

Organic Contaminants 2.4-D ReduCtion Atrazine Benzene Carbofuran Lindane

Rated Service Capacity: ga!

REMOVING AND REPLACING REFRIGERATOR DOORS

Excessive Weight Hazard:

Use two or more people to remove and install the refrigerator doors.

Failure to do so can result in back or other injury.

Electrical Shock Hazard

Disconnect the electrical supply to the refrigerator before installing. Failure to do so could result in serious injury or death.

Do not put hands. feet or other objects into the air vents or bottom of the refrigerator.

You may be injured or receive an electrical shock.

To remove the left refrigerator door:

On the back of the refrigerator. pull the water tube out of the cotlet fitting on the connector by pressing the fltting release ring (see picture below).

CAUTION Before you begin. remove food and bins from the doors.

1. Open the door.

Remove the top hinge cover screw (1).

Lift up the cover (2).

3. Pull out the tube (3).

4. Disconnect all wire harnesses (4).

Remove the grounding screw (5).

Rotate hinge lever (6) counterclockwise.

Lift the top hinge (7) free of the hinge lever latch (8).

CAUTION: When lifting the hinge free of the latch. be careful that the door does not fall forward.

Remove the cover.

Lift the door from the middle hinge pin and remove the door.

Place the door. inside facing up. on a non-scratching surface.

To remove the right refrigerator door:

1. Open the door.

Remove the top hinge cover screw (1).

Lift up the cover (2).

2. Remove the cover.

Rotate the hinge lever (3) clockwise.

Lift the top hinge (4) free of the hinge lever latch (5).

CAUTION: When lifting the hinge free of the latch. be careful that the door does not fall forward.

Lift the door from the middle hinge pin and remove the door.

Place the door. inside facing up. on a non-scratching surface.

For Sears Home Services in-home repair

For the replacement parts. accessories and

Use Care Guides that you need to do-it-yourself.

For professional installation of major home appliances

44-553-6667

Use & Care Guide

Manual de Uso y Cuidado

Guide d'Utilisafion ef d'Entretien

English / Espafiol / French

Moclels/Moclelos/Moclles: 795.7998% 7999

Kenmore PRO°

MFL69265401

Sears Brands Managemen| Corporation

Hoffman Esaes. _= 60|79 U.S.A.

Sears Canada Inc.

Toron$o.

Ontarlo.

Canada M5B C3

Warranty ..

Protection Agreements

Electrical & Grounding Requirements

Parts and Features .

Refrigerator Installation

9-16

Unpacking Your Refrigerator

Installation

Removing/Replacing Your Refrigerator and Freezer Handles.

Doors and Drawers .11-15

Leveling and Door Alignment

Using Your Refrigerator 17-28

Setting the Controls

17-19

In-Door Ice Bin .

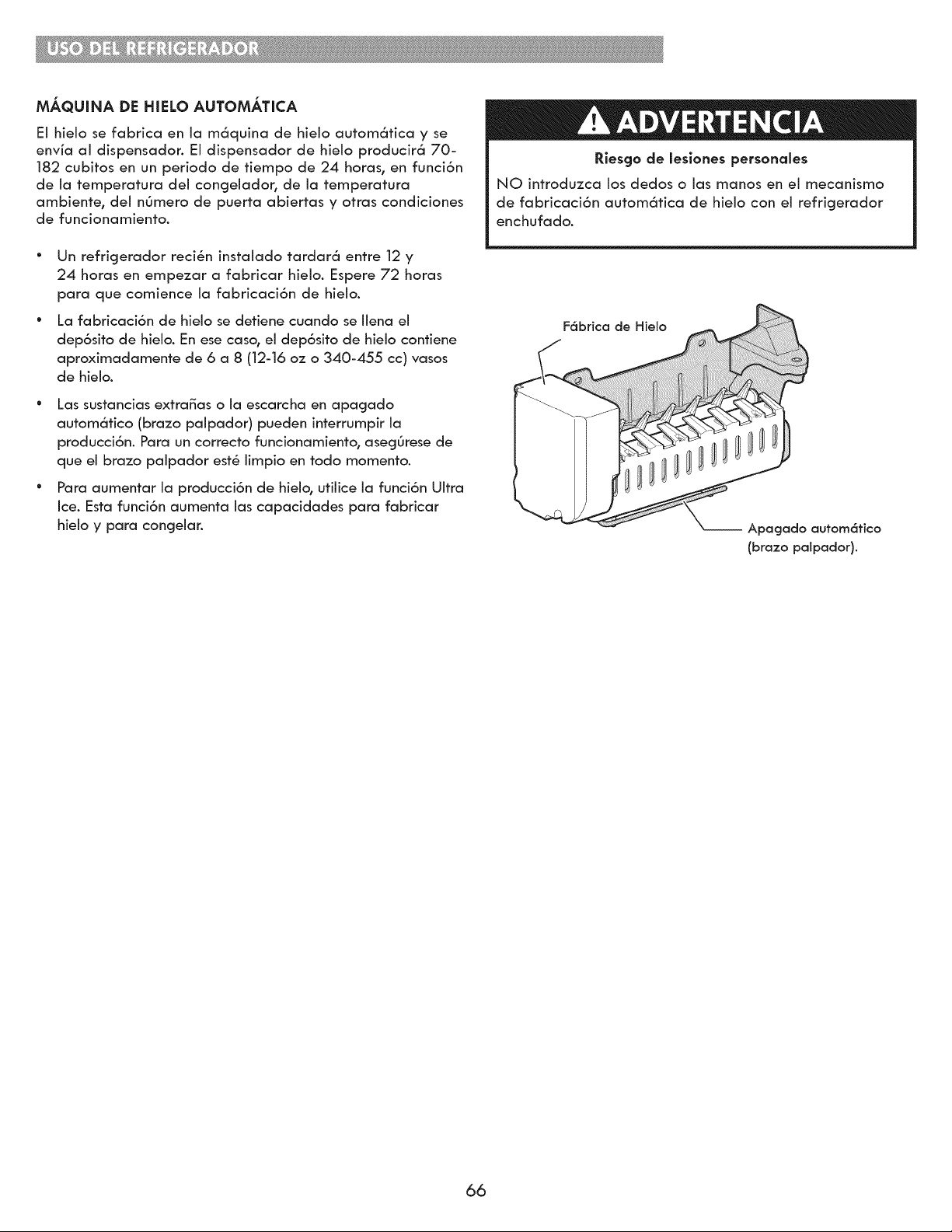

Automatic Icemaker

21-22

Food Storage Guide

Refrigerator Section

Water Dispenser

Refrigerator Shelves

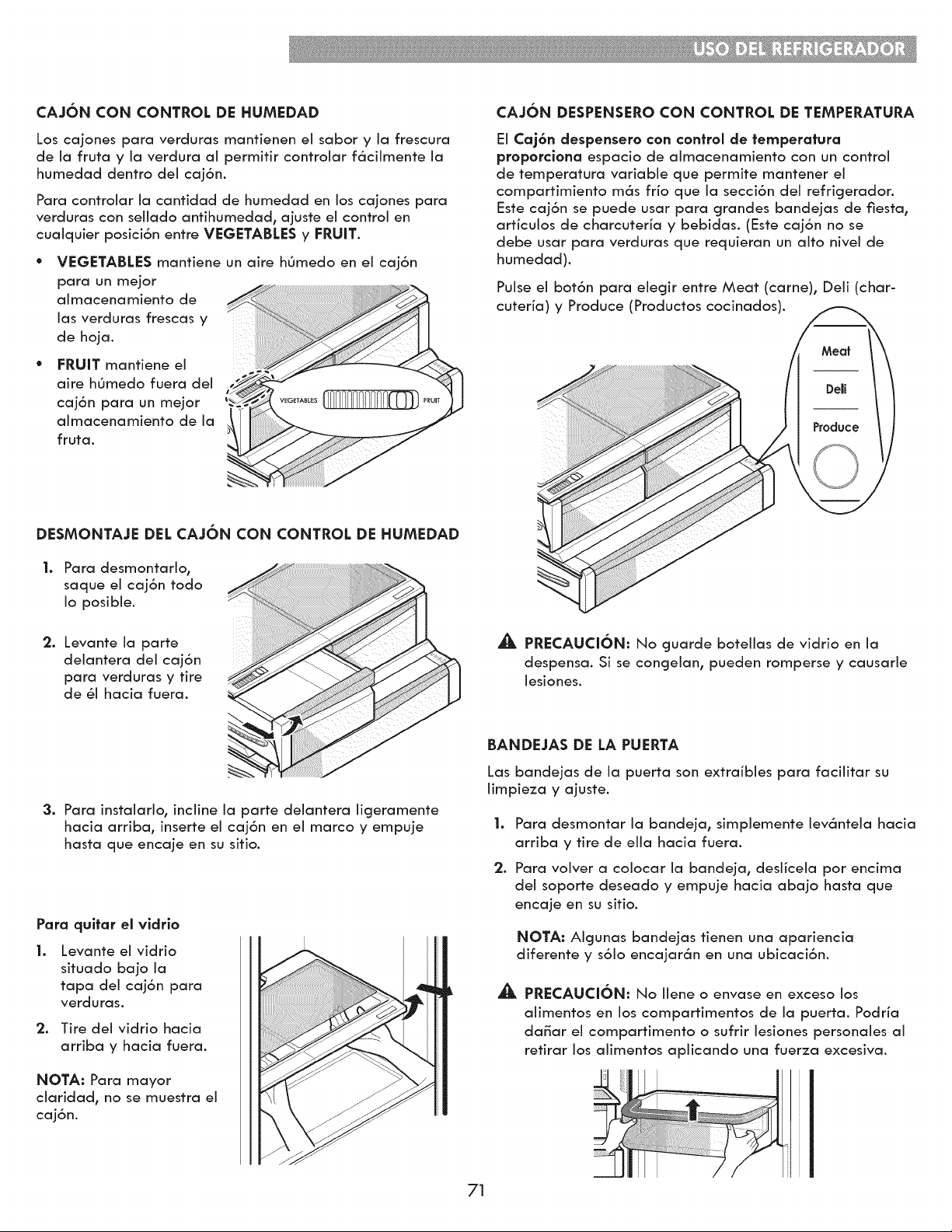

Humidity Controlled Crisper 26

Temperature Controlled Pantry Drawer .26

Door Bin 26

Air Filter .

Freezer Section

Extra Ice Bin .

Pullout Drawer

Durabase

Durabase Divider

Water Filter

29-32

Care And Cleaning

33-34

General Cleaning Tips

Exterior

Inside Walls

Door Liner And Gaskets .

Plastic Parts .

Condenser Coils

Light Bulb Replacement

Power Interruptions

When You Go On Vacation

When You Move ..

Connecting the Water Line. 35-37

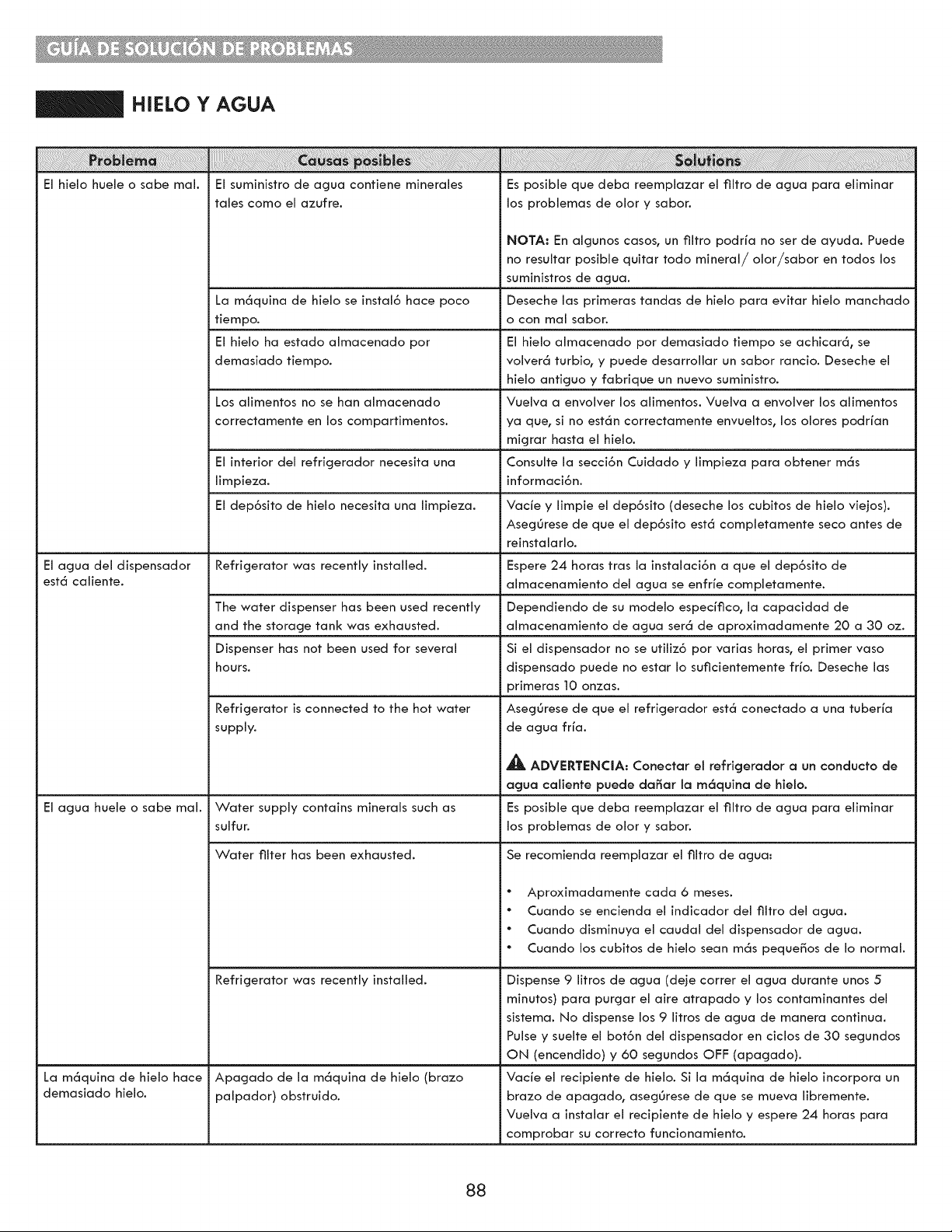

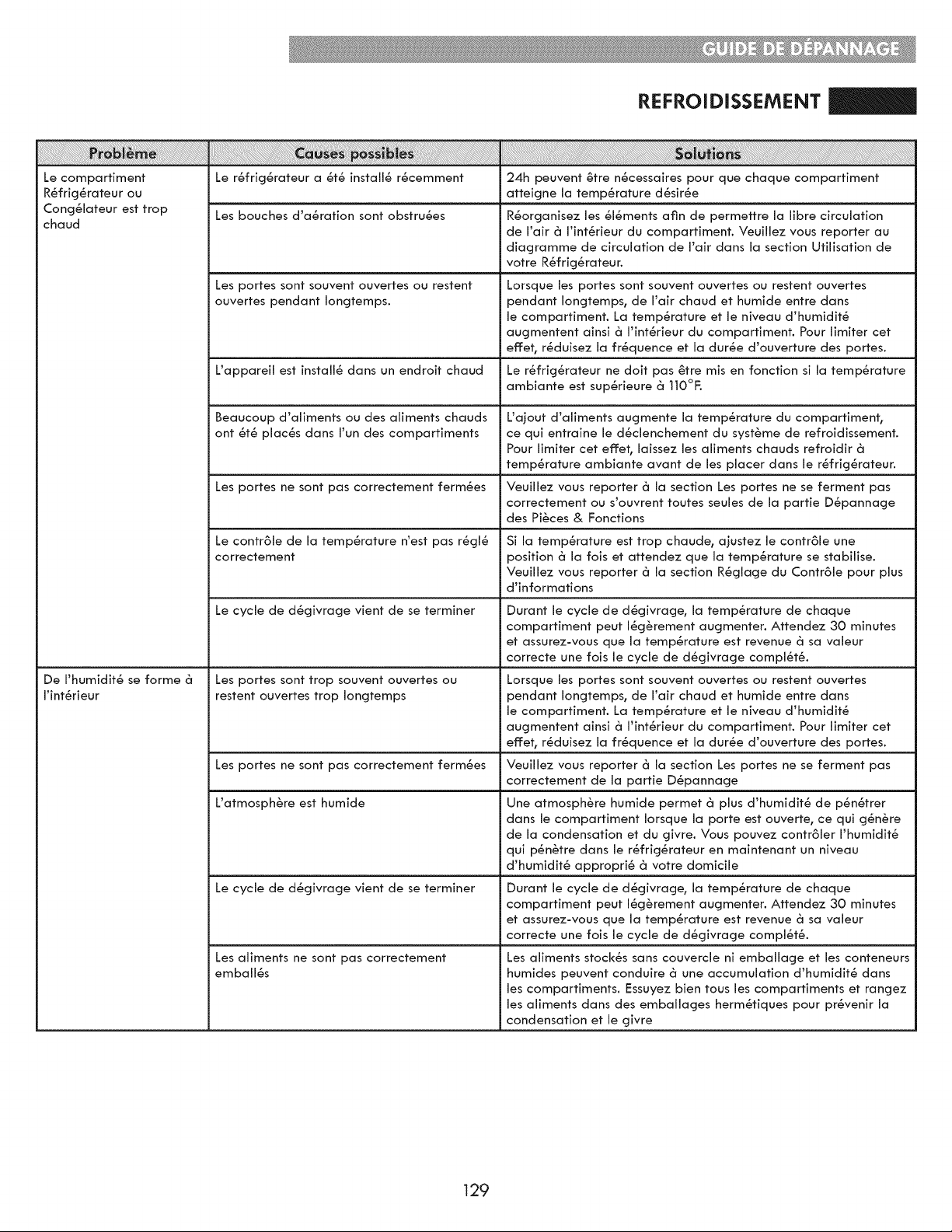

Troubleshooting Guide ..

38-45

Kenmore Connect TM

Service ..

Back Cover

REFRIGERATOR WARRANTY

ENMORE PRO LiMiTED WARRANTY

WiTH PROOF OF SALEthe following warranty coverage appNes when this appliance is correctly installed operated and maintained according to all suppNed instructions.

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship.

A defective appliance will receive free repair or replacement at option of seller. This warranty coverage appNes for only 90 days from the sale date in the United States and is void in Canada if the appliance is ever used for other than private household purposes.

FOR FIVE YEARS from the date of sal% the sealed refrigerant system of this appliance is warranted against defects in material or workmanship.

If a system part is defective within the first year a new part will be supplied and installed at no charge.

If a system part is defective after the first year a new part will be supplied but not installed at no charge. You are responsible for the labor cost of part installation after the first year from the date of sale. This warranty coverage applies for only one year from the sale date in the United States and is void in Canada if the appliance is ever used for other than private household purposes.

FOR TEN YEARS from the date of sal% the linear compressor of this appliance is warranted against defects in material or workmanship.

If the compressor is defective within the first year a new one will be supplied and installed at no charge. If the compressor is defective after the first year a new one will be supplied but not installed at no charge. You are responsible for the labor cost of part installation after the first year from the date of sale. This warranty coverage applies for only two years from the sale date in the United Statesand is void in Canada if the appliance is ever used for other than private household purposes.

For warranty coverage details to obtain free repair or replacement visit the web page: www.kenmore.com/warranty

This warranty covers ONLY defects in material and workmanship. and will NOT pay for:

1. Expendable items that can wear out from normal us% including but not limited to filters belts bags or screw-in base light bulbs.

2. A service technician to clean or maintain this applianc% or to instruct the user in correct appliance instaliation operation and maintenance.

3. Service calls to correct appliance installation not performed by Sears authorized service agents or to repair problems with house fusescircuit breakers house wiring. and plumbing or gas supply systems resulting from such installation.

4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents including installation that was not in accord with electrical gas or plumbing codes.

5. Damage to or failure of this applianc% including discoloration or surface rustif it is not correctly operated and maintained according to all supplied instructions.

6. Damage to or failure of this applianc% including discoloration or surface rustresulting from accident alteration abus% misuse or use for other than its intended purpose.

Z Damage to or failure of this applianc% including discoloration or surface rustcaused by the use of detergents cleaners chemicals or utensils other than those recommended in all instructions supplied with the product.

8. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.

9. Service to an appliance if the model and serial plate is missing altered or cannot easily be determined to have the appropriate certification logo.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warranties. including warranties of merchantability or fitness for a particular purpose. are limited to one year on the applianc% five years on the sealed system. and ten years on the linear compressoror the shortest period allowed by law. Seller shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages. or limitation on the duration of implied warranties of merchantability or fitness. so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

_ In-home repair service is not available in all Canadian geographical areas. nor will this warranty cover useror servicertravel and transportation expensesif this product is located in a remote area (asdefined by SearsCanada Inc.) where an authorized servicer is not available.

Sears Brands Management Corporation.

Hoffman Estates. IL 60179 Sears Canada Inc. Toronto. Ontario.

Canada MSB 2C3

Master Protection Agreements

Congratulations on making a smart purchase.

Your new Kenmore Pro product is designed and manufactured for years of dependable operation.

But like all products. it may require preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend the life of your new product.

Here's what the Agreement* includes:

Parts and labor needed to help keep products operating properly under normal use. not just defects.

Our coverage goes well beyond the product warranty.

No deductibles. no functional failure excluded from coverage real protection.

Expert service by a force of more than 10.000 authorized Sears service technicians. which means someone you can trust will be working on your product.

Unilmited service calls and nationwide service. as often as you want us. whenever you want us.

"No-lemon" guarantee replacement of your covered product if four or more product failures occur within twelve months.

Product replacement if your covered product can't be fixed.

Annual Preventive Maintenance Check at your request no extra charge.

Fast help by phone - we call it Rapid Resolution phone support from a Sears representative on all products.

Think of us as a "talking owner's manual."

Power surge protection against electrical damage due to power fluctuations.

$250 Food Loss Protection annually for any food spoilage that is the result of mechanical failure of any covered refrigerator or freezer.

Rental reimbursement if repair of your covered product takes longer than promised.

25°/0 discount off the regular price of any non-covered repair service and related installed parts.

Once you purchase the Agreement. a simple phone call is all that it takes to schedute service.

You can catt at

The Master Protection Agreement is a risk free purchase.

If you cancel for any reason during the product warranty period. we will provide a full refund or a prorated refund anytime after the product warranty period expires.

Purchase your Master Protection Agreement today!

Same limitations and exclusions apply.

Far prices and additlanal information in the U.S.A. call 1-800-827-6655.

+ Coverage in Canada varies on some items. Far full detalls call Sears Canada at 1=800=361=6665.

Sears Installation Service For Sears professional installation of home appliances. garage door openers. water heaters. and other major home items. in the U.S.A. call 1-844-553-6667. and in Canada call 1-800-469-4663.

In the space below. record the date of purchase. model and serial number of your product.

You will find the model and serial number printed on an identification label located on the interior liner of the refrigerator compartment.

Have these items of information available whenever you contact Sears concerning your product.

Model No.

Serial No.

Date of Purchase

Save these instructions and attach your sales receipt for future reference.

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol.

It alerts you to safety messages that inform you of hazards that can kill or hurt you or others. or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER.

WARNING or CAUTION.

These words mean:

You will be killed or seriously injured if you do not follow instructions.

You can be killed or seriously injured if you do not follow instructions.

Indicates an imminently hazardous situation which. if not avoided. may result in minor or moderate injury. or product damage.

All safety messages will identify the hazard. tell you how to reduce the chance of injury. and tell you what can happen if the instructions are not followed.

To reduce the risk of fire. electrlc shock. or personal injury when using your product. basic safety precautions should be foffowed. includlncj the foffowincj.

Read aft instructions before using this appffance.

NEVER unptug your refrigerator by putting on the power cord. Always grip the plug firmly and putt it straight out from the outlet.

If the suppty cord is damaged. it must be reptaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

Do not modify or extend the power cord length.

It coutd cause electric shock or fire.

When moving your refrigerator away from the wall. be careful not to roll over or damage the power cord.

DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

DO NOT allow children to climb. stand. or hang on the refrigerator doors or shetves in the refrigerator.

They could damage the refrigerator and seriously injure themselves.

Keep fingers out of pinch point areas; clearances between the doors and cabinets are necessarily small.

Be careful closing doors when children are in the area.

Unplug your refrigerator before cleaning or making any repairs.

NOTE: It is strongly recommended that any service be performed by a qualified technician.

SAVE THESE INSTRUCTIONS

Before replacing a burned-out or broken light bulb. unplug the refrigerator or turn off power at the circuit breaker or fuse box in order to avoid contact with a live

NOTE: Some models have LED interior lighting and service should be performed by a qualified technician.

WARNING: Setting either or both controls to the OFF position does not remove power to the light circuit.

When you are finished. reconnect the refrigerator to the electrical source and reset the controls (Thermostat. Refrigerator Control. and or Freezer Control. depending on the model) to the desired setting.

This refrigerator must be properly installed in accordance with the Attention Installer Instructions that

After your refrigerator is in operation. do not touch the cold surfaces in the freezer compartment when hands are damp or wet. Skin may adhere to the extremely cold surfaces.

DO NOT touch the automatic ice making mechanism while the refrigerator is plugged in.

DO NOT refreeze frozen foods which have thawed completely.

The United States Department of Agriculture in Home and Garden Bulletin No. 69 says:

You may safely refreeze frozen foods that have thawed if they still contain ice crystals or if they are still cold--below 39°F (4°C).

Thawed ground meats. poultry or fish that have any off-odor or off-color should not be refrozen and should not be eaten. Thawed ice cream should be discarded.

If the odor or color of any food is poor or questionable. dispose of it. The food may be dangerous to eat.

Even partial thawing and refreezing reduces the eating quality of foods. particularly fruits. vegetables and prepared foods.

The eating quality of red meats is affected tess than that of many other foods.

Use refrozen foods as soon as possible to save as much of their quality as you can.

WARNING : This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Wash hands after handling.

SAVE THESE iNSTRUCTiONS

Junked or abandoned refrigerators are dangerous. even if they are sitting for only a few days.

If you are getting rid of your old refrigerator. please follow the instructions at right to help prevent accidents (child entrapment and suffocation).

BEFORE YOU THROW AWAY YOUR OLD REFRIGERATOR OR FREEZER:

Take off the doors. Leave the shelves in place so that children may not easily climb inside.

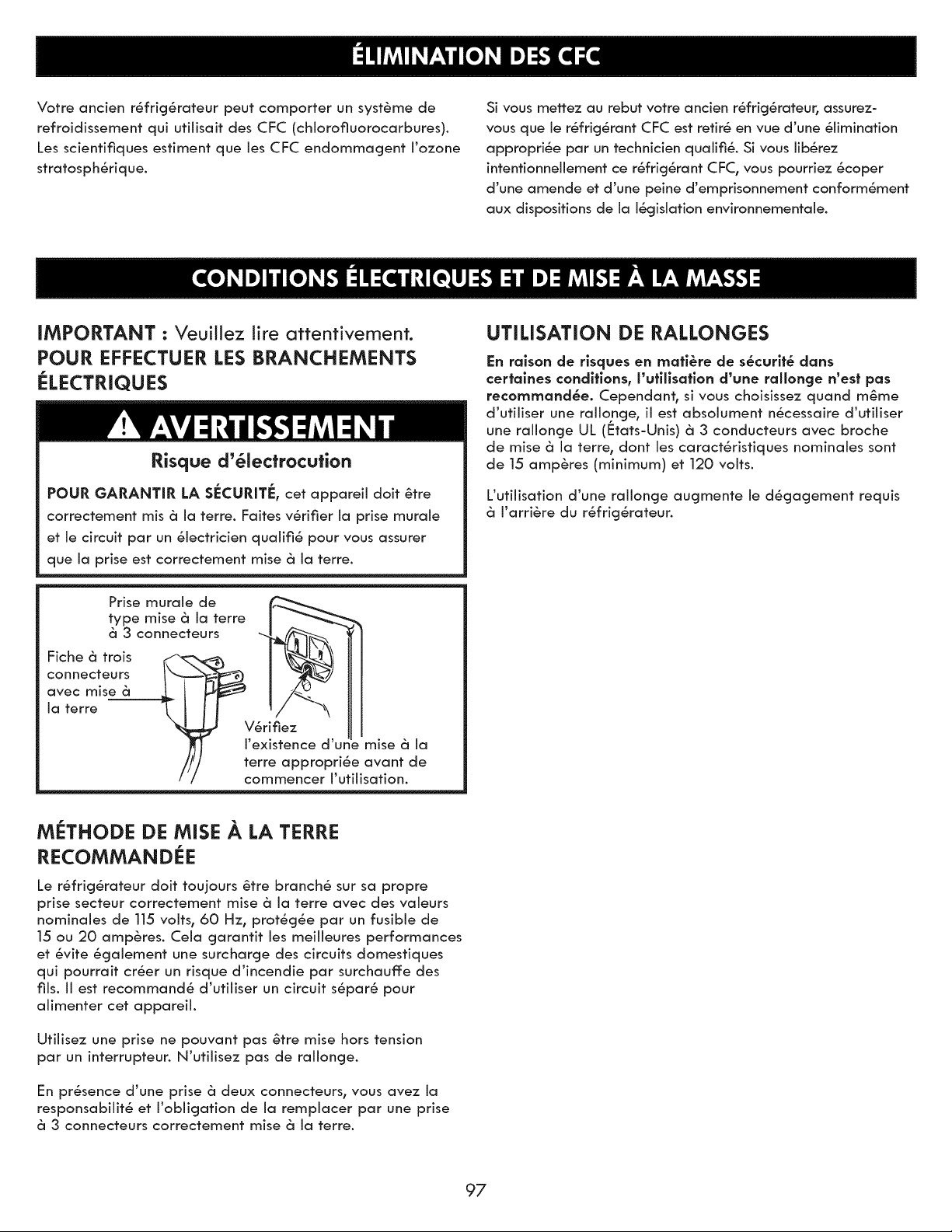

Your old refrigerator may have a cooling system that used CFCs or HCFCs (chlorofluorocarbons or hydrochtorofluorocarbons).

CFCs and HCFCs are believed to harm stratospheric ozone if released to the atmosphere.

Other refrigerants may also cause harm to the environment if released to the atmosphere.

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

Electrical Shock Hazard

FOR PERSONAL SAFETY. this appliance must be

3-prong grounding type I wall receptacle

3-prong

grounding I-_'

VF

Ensure proper _]J ground exists

USE OF EXTENSION CORDS

Because of potenflal safety hazards under certain condlflons. the use of an extension cord is not recommended.

However. if you still elect to use an extension cord. it is absolutely necessary that it be a UL listed (USA). 3-wire grounding type appliance extension cord having a grounding type plug and outlet. and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.

Use of an extension cord will increase the clearance needed for the back of the refrigerator.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own individual properly grounded electrical outlet rated for 115 Volts. 60 Hz. AC only. and fused at 15 or 20 amperes.

This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. It is recommended that a separate circuit serving only this appliance be provided.

Use a receptacle that cannot be turned off with a switch or putt chain.

Do not use an extension cord.

Where a standard two-prong wall outlet is encountered. it is your personal responsibility and obligation to have it replaced with a properly grounded three-prong wall outlet.

Use this page to become more familiar with the parts and features of your refrigerator.

NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the items listed below. The locations of the features shown below may not match your model.

Refrigerator Light

Water Filter

Fixed Door Bins

Ice Compartment (Icemaker and Ice Bin)

Refrigerator Light (side}

Articulating Mullion

Water Tank Cover

Humidity Controlled Crisper

Temperature Controlled Pantry Drawer

Durabase Divider

Control Panel

Kenmore Connect TM Speaker

_) Air Filter

Adjustable Dairy Bin

Refrigerator Shelves

Adjustable Door Bins

Air Tight Crisper

Top Pullout Drawer

Middle Pullout Drawer

Durabase

Wine Rack

Icemaker Ice Bin

Ice Compartment Door

Excessive Weight Hazard:

Use two or more people to move and install the refrigeraton Failure to do so can result in back or other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your refrigerator before using. Do not remove any warning type labels. the model and serial number label. or the Tech Sheet that is located under the front of the

To remove any remaining tape or glue. rub the area briskly with your thumb.

Tape or gtue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers.

Wipe with warm water and dry.

Do not use sharp instruments. rubbing alcohol. flammable fluids. or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual storage needs.

Excessive Weight Hazard:

Your refrigerator is heavy.

When moving the refrigerator for cleaning or service. be sure to protect the floor. Always pull the refrigerator straight out when moving it. Do not wiggle or walk the refrigerator when trying to move it. as floor damage could occur.

Explosion Hazard:

Keep flammable materials and vapors. such as gasoline. away from the refrigerator.

Failure to do so can result in fire. explosion. or death.

PRIOR TO USE

1. Clean your refrigerator thoroughly and wipe off all dust that accumulated during shipping.

2. Install accessories such as ice cube bin. drawers. shelves. etc. in their proper places.

They are packed together to prevent possible damage during shipment.

3. Allow your refrigerator to run for at least two to three hours before putting food in it. Check the flow of cold air in the freezer compartment to ensure proper cooling.

Your refrigerator is now ready for use.

The refrigerator should always be plugged into its own individual properly grounded electrical outlet rated for 115 Volts. 60 Hz. AC only. and fused at 15 or 20 amperes.

This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. It is recommended that a separate circuit serving only this appliance be provided.

Shock Hazard:

To reduce the risk of electric shock. do not install the refrigerator in a wet or damp area.

INSTALLATION (continued)

NOTE: Installing on carpeting. soft tile surfaces. a platform or weakly supported structure is not recommended.

Select a place where a water supply can be easily connected for the automatic Jcemaken

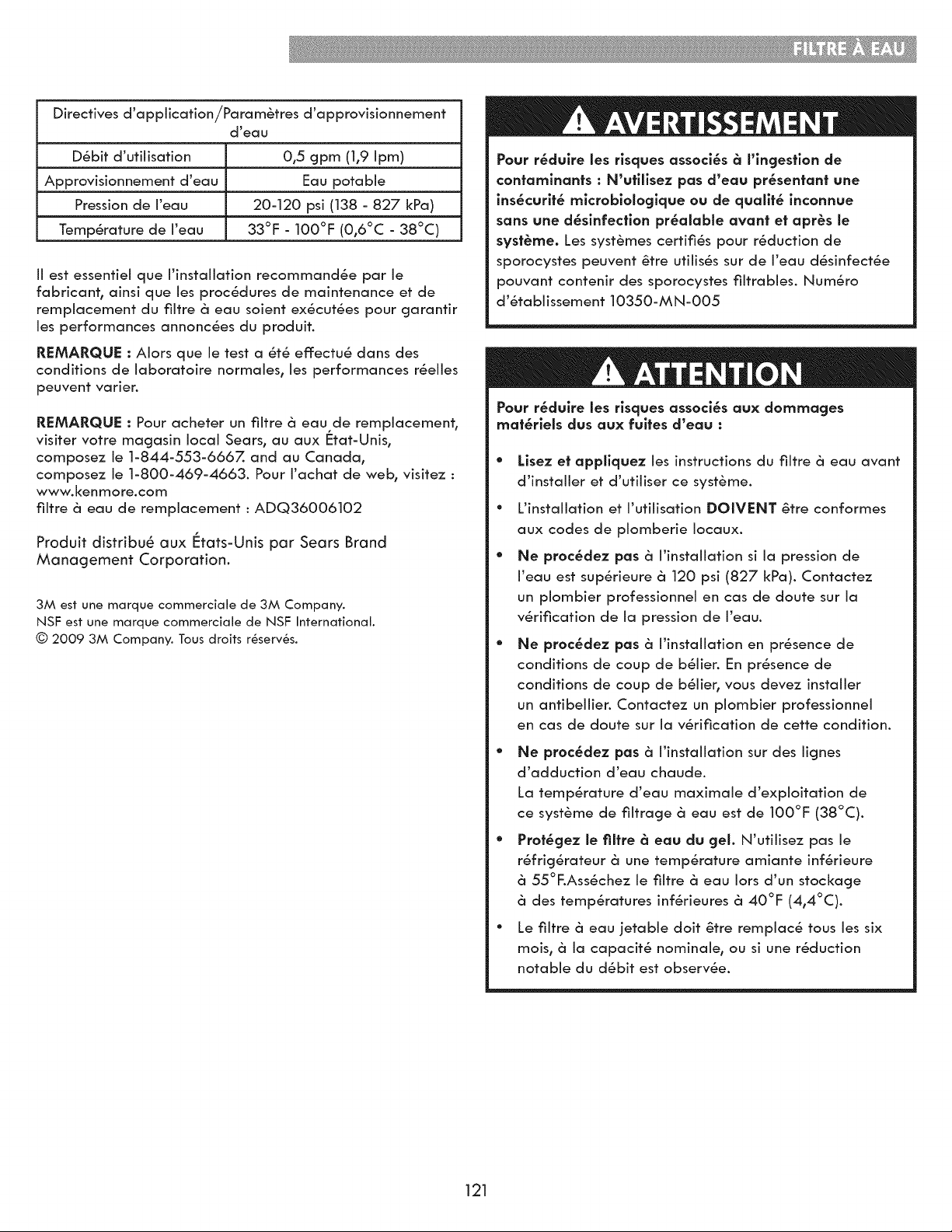

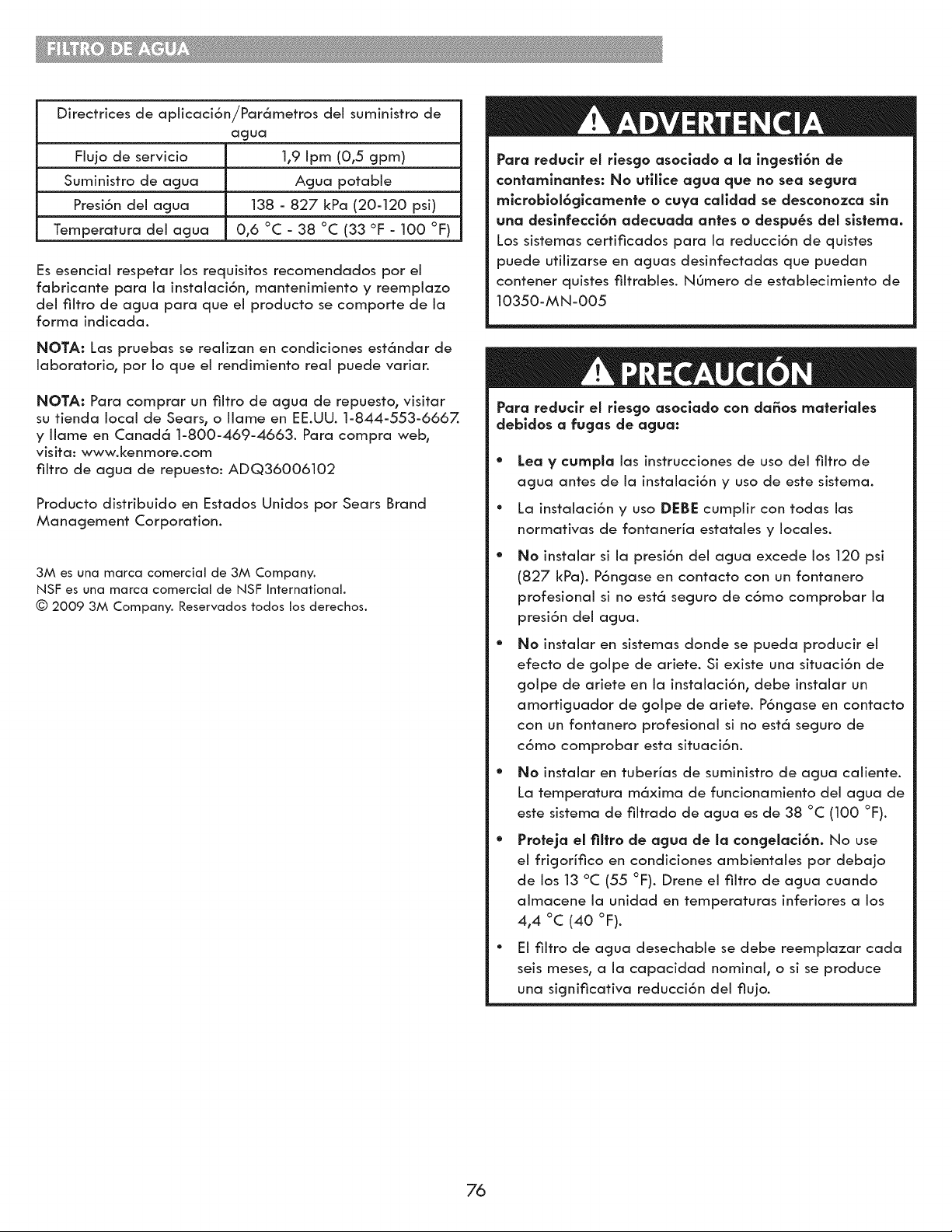

NOTE: The water pressure must be from 20-120 psi or 138-827 kPa or 1.4-8.4 kgf/cm 2. If the refrigerator is installed in an area with low water pressure (below psi). you can install a booster pump to compensate for the low pressure.

Too small of a distance from adjacent items may result in lowered freezing capability and increased electricity consumption charges.

Allow at least 24 inches (61 cm) in front of the refrigerator to open the doors and at least 2 inches (5.08 cm) between the back of the refrigerator and the wall.

NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow opening. if it is necessary to remove the handles. follow the directions below.

HOW TO REMOVE REFRIGERATOR DOOR HANDLE

NOTE: Handle appearance may vary from the illustrations on this page.

Removing Refrigerator Handle

Loosen the set screws with a 3/32 in. Allen wrench and remove the handle.

Set Screw

Mounting Fasteners

NOTE: If the handle mounting fasteners need to be tightened or removed. use a 1/4 in. Allen wrench.

Allen Wrench

HOW TO REPLACE REFRIGERATOR DOOR HANDLE

NOTE: Handle appearance may vary from the illustrations on this page.

Replaclng Refrigerator Door Handle

Place the handle on the door by fitting the handle footprints over the mounting fasteners and tightening the set screws with a 3/32 in Allen wrench.

NOTE: If the handle mounting fasteners need to be tightened or removed. use a 1/4in. Allen wrench.

Mounting Fasteners

NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow opening. if it is necessary to remove the handles. follow the directions below.

HOW TO REMOVE FREEZER DOOR HANDLE

NOTE: Handle appearance may vary from the illustrations on this page.

Removing Freezer Drawer Handle

Loosen the set screws located on the lower side of the handle with a 1/8 in. Alien wrench and remove the handle.

NOTE: If the handle mounting fasteners need to be tightened or removed. use a 1/4 in. Alien wrench.

HOW TO REPLACE FREEZER DOOR HANDLE

NOTE: Handle appearance may vary from the illustrations

Replacing Freezer Drawer Handle

Place the handle on the door by fitting the handle footprints over the mounting fasteners and tightening the set screws with a 1/8 in. Allen wrench.

NOTE: If the handle mounting fasteners need to be tightened or removed. use a 1/4in. Alien wrench.

When assembling or disassembling the handles:

Grasp the handle firmly to ensure it will not drop or

Prevent the handle from swinging toward nearby people or animals.

Check for any gap between the door and handle after the handle is fixed in place.

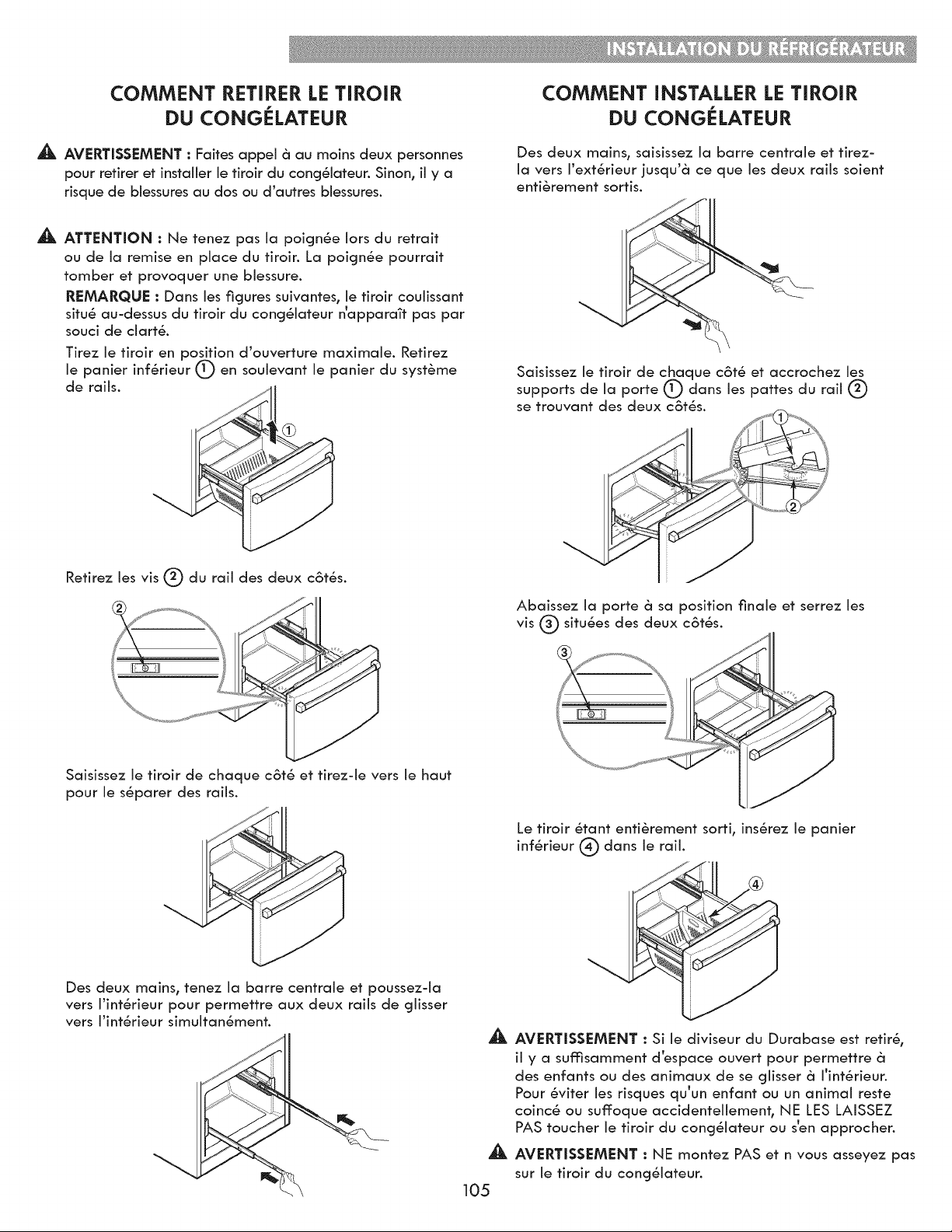

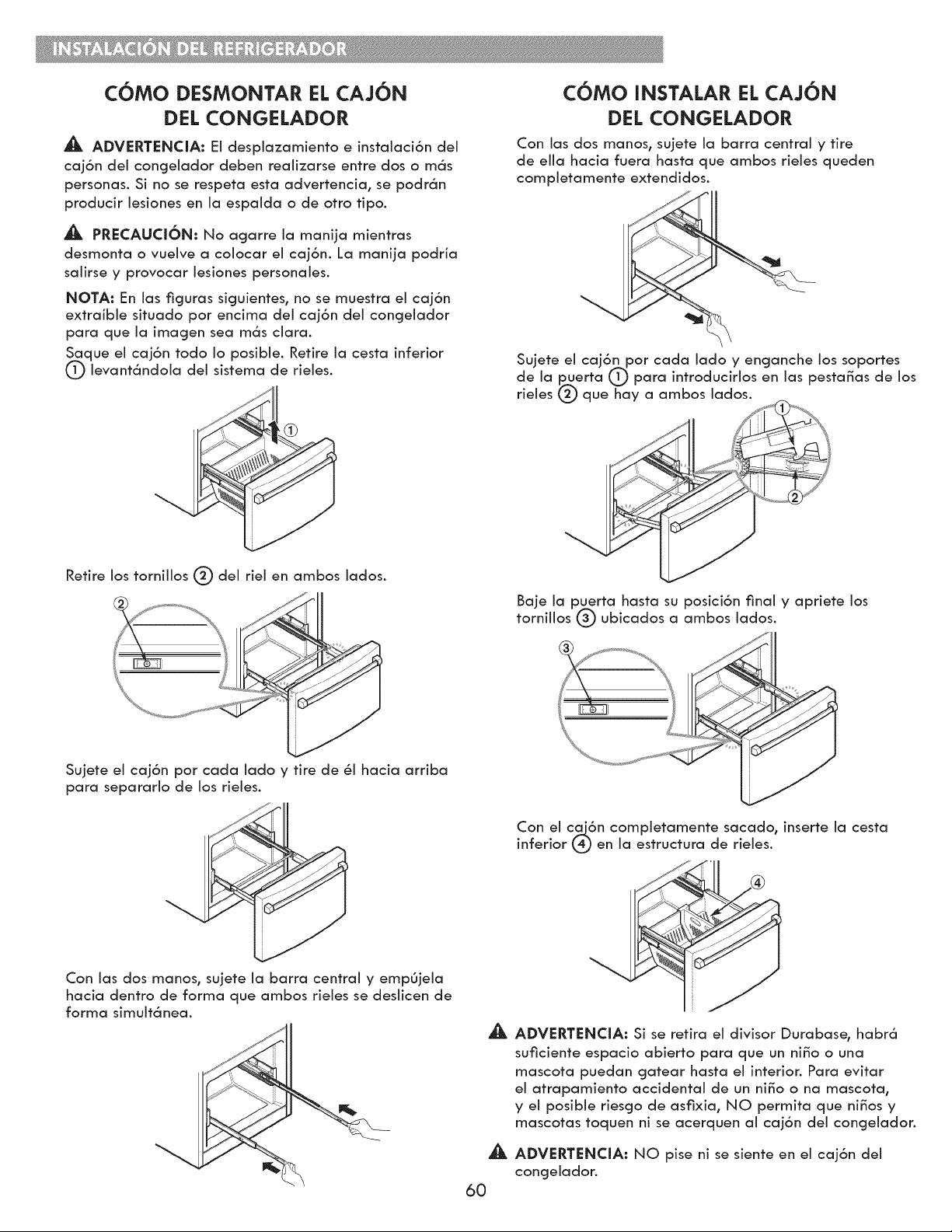

HOW TO REMOVE THE FREEZER DRAWER

WARNING: Use two or more people to remove and install the freezer drawer.

Failure to do so can result in back or other injury.

NOTE: In the following figures. the Pullout Drawer located above the freezer drawer is not shown for clarity.

Pull the drawe open to futt extension.

Remove the lower basket C) by lifting the basket from the rail system.

HOW TO INSTALL THE FREEZER DRAWER

Putt out each rait to futt extension.

Grasp the drawer on each side and hook drawer supports C) into rail tabs C) located on both sides.

Remove the screws C) from the rail on both sides.

Grasp the drawer on each side and putt it up to separate it from the rails.

With both hands. slide each bar in simultaneously.

Lower the door into its final position and tighten the screws ( located on both sides.

With the drawer pulled out to futt extension. insert the lower basket ( in the rail assembly.

_. ARNING: If the Durabase divider is removed. there is enough open space for children or pets to crawl inside.

To prevent accidental child and pet entrapment or suffocation risk. DO NOT allow them to touch or go near the freezer drawer.

_. ARNING: DO NOT step or sit down on the freezer drawer.

REMOVING AND REPLACING REFRIGERATOR DOORS

Excessive Weight Hazard:

Use two or more people to remove and install the refrigerator doors.

Failure to do so can result in back or other injury.

Electrical Shock Hazard

Disconnect the electrical supply to the refrigerator before installing. Failure to do so could result in serious injury or death.

Do not put hands. feet or other objects into the air vents or bottom of the refrigerator.

You may be injured or receive an electrical shock.

To remove the left refrigerator door:

On the back of the refrigerator. pull the water tube out of the cotlet fitting on the connector by pressing the fltting release ring (see picture below).

CAUTION Before you begin. remove food and bins from the doors.

1. Open the door.

Remove the top hinge cover screw (1).

Lift up the cover (2).

3. Pull out the tube (3).

4. Disconnect all wire harnesses (4).

Remove the grounding screw (5).

Rotate hinge lever (6) counterclockwise.

Lift the top hinge (7) free of the hinge lever latch (8).

CAUTION: When lifting the hinge free of the latch. be careful that the door does not fall forward.

Remove the cover.

Lift the door from the middle hinge pin and remove the door.

Place the door. inside facing up. on a non-scratching surface.

To remove the right refrigerator door:

1. Open the door.

Remove the top hinge cover screw (1).

Lift up the cover (2).

2. Remove the cover.

Rotate the hinge lever (3) clockwise.

Lift the top hinge (4) free of the hinge lever latch (5).

CAUTION: When lifting the hinge free of the latch. be careful that the door does not fall forward.

Lift the door from the middle hinge pin and remove the door.

Place the door. inside facing up. on a non-scratching surface.

HOW TO REMOVE THE FREEZER DRAWER

WARNING: Use two or more people to remove and install the freezer drawer.

Failure to do so can result in back or other injury.

NOTE: In the following figures. the Pullout Drawer located above the freezer drawer is not shown for clarity.

Pull the drawe open to futt extension.

Remove the lower basket C) by lifting the basket from the rail system.

HOW TO INSTALL THE FREEZER DRAWER

Putt out each rait to futt extension.

Grasp the drawer on each side and hook drawer supports C) into rail tabs C) located on both sides.

Remove the screws C) from the rail on both sides.

Grasp the drawer on each side and putt it up to separate it from the rails.

With both hands. slide each bar in simultaneously.

Lower the door into its final position and tighten the screws ( located on both sides.

With the drawer pulled out to futt extension. insert the lower basket ( in the rail assembly.

_. ARNING: If the Durabase divider is removed. there is enough open space for children or pets to crawl inside.

To prevent accidental child and pet entrapment or suffocation risk. DO NOT allow them to touch or go near the freezer drawer.

_. ARNING: DO NOT step or sit down on the freezer drawer.

LEVELING AND DOOR ALIGNMENT

Leveling

After installing. plug the refrigerator's power cord into a 3-prong grounded outlet and push the refrigerator into the final position.

Your refrigerator has two front leveling legs--one on the right and one on the left. Adjust the legs to alter the tilt from front-to-back or side-to-side.

If your refrigerator seems unsteady. or you want the doors to close more easily. adjust the refrigerator's tilt using the instructions below=

NOTE: Tools Required= 11/16" wrench or fiat blade screwdriver.

1. Turn the leveling leg to the left to raise that side of the refrigerator or to the right to lower it. It may take several turns of the leveling leg to adjust the tilt of the refrigerator.

+ Open both doors again and check to make sure that they close easily.

If the doors do not close easily. tilt the refrigerator slightly more to the rear by turning both leveling legs to the left. It may take several more turns. and you should turn both leveling legs the same amount.

NOTE: Your refrigerator is uniquely designed with two fresh food doors. Either door can be opened or closed independently of the other. You may have to exert slight pressure on the doors to get them to close completely.

Door Ailgnment

Both the left and right refrigerator doors have an adjustable nut. located on the bottom hinge. to raise and lower them to align properly.

If the space between your doors is uneven. follow the instructions below to align the doors evenly=

Use the wrench (included with the Use & Care Guide) to turn the nut in the door hinge to adjust the height. To the right to raise or to the left to lower the height.

NOTE: Having someone push backward against the top of the refrigerator takes some weight off: of the leveling legs.

This makes it easier to adjust the legs.

SETTING THE CONTROLS

Temperature

The Refrigerator Temp Control ranges from 33°F to 46°F (1°C to 8°C).

Press the Refrigerator Temp button to cycle through the available temperature settings one increment at a time.

The Freezer Temp Control range is from 6°F to 8°F (-21°C to -13°C). Press the Freezer Temp button to cycle through the available temperature settings one increment at a time.

NOTE: When changing control settings. wait 24 hours before making additional adjustments.

The controls are set correctly when milk or juice is as cold as you would like and when ice cream is firm.

If the temperature in either compartment is too cold or too warm. change the setting one increment at a time. Wait 24 hours for the change to stabilize before adjusting again.

Airflow

Be sure not to block vents while packing your refrigerator.

Doing so will restrict airflow and may cause the refrigerator temperature to become too warm or cause interior moisture buildup. (See air flow diagram below.

Dispenser

The dispenser will dispense water. cubed ice or crushed ice. Press the appropriate icon of your choice: ((_)) water ((_)) cubed ice ((_)) crushed ice. When pressed the icon will illuminate.

NOTE: The dispenser will not work if any door is left open or if the control lock is engaged.

NOTE: If the Control Lock icon is illuminated. the Dispenser will not work.

Disable the Control Lock to use the Dispenser again.

CAUTION The control display is operated by touch.

Excessive moisture on the display may cause a malfunction.

Please keep the display clean and dry.

Air Filter

The Air Filter helps remove odors from the refrigerator.

The Air Filter has two settings.

Auto and MAX.

In Auto mode. the Air Filter will cycle on and off in increments of ten minutes on and one hundred and

Auto mode is the default mode.

Press the Air Filter button once for MAX mode.

Dispenser Light

This light has three settings: On. Off: and Dim. Select the Dim option at night. The light will automatically turn on at full brightness when the dispenser pad is pushed.

Articulating Mullion

This feature is a metal strip attached to the left door that articulates (rotates) 90 degrees as the door is closed. forming a mullion (base) for the left and right door gaskets to seal against.

Air Filter Reset

When the CHANGE icon turns on. the air filter needs to be replaced.

After replacing the air filter. press and hold the Air Filter button for three seconds to turn the

To switch the icemaker ON or OFF. press the Ice Maker button.

Ultra ice

When you press and hold the Ice Maker button for three seconds. the graphic will illuminate in the display and will continue for 24 hours.

The function will automatically shut of{ after 24 hours.

NOTE: While you are selecting the Ultra Ice function. the Ice Maker icon will briefly switch to OFF. then return to ON.

This is normal.

You can stop this function manually by pressing and holding the button one more time.

This function increases both ice making and freezing capabilities.

CAUTION

To reduce the risk of scratching the door or breaking the door mullion. make sure that the refrigerator door mullion is always folded in.

Water Filter Reset

When the CHANGE icon turns on. you need to change the water filter. After changing the water filter. press and hold the Water Filter button for three seconds to turn the indicator light of{. You need to change the water filter approximately every six months.

Door Alarm

When power is connected to the refrigerator. the door alarm is initially set to ON. When you press the Door Alarm button. the display will change to OFF and the Door Alarm function will deactivate.

When either the refrigerator or the freezer door is left open for more than 60 seconds. the alarm tone will sound to let you know that the door is open.

When you close the door. the door alarm will stop.

Demo Mode (For Store Use Only)

The Demo Mode disables all cooling in the refrigerator and freezer sections to conserve energy while on display in a retail store. When activated.

OFF will display on the control panel.

Control Lock

When power is initially connected to the refrigerator. the Lock function is off.

When the Lock function is activated. no other buttons will work.

The dispenser pad is also deactivated.

To disable the Lock function. press and hold the Control Lock button for approximately three seconds.

To deactivate:

With either refrigerator door opened. press and hold the Refrigerator Temp and Ice Maker buttons at the same time for five seconds. The control panel will beep and the temperature settings will display to confirm that Demo Mode is deactivated.

Use the same procedure to activate the Demo Mode.

Temperature Mode Switch Function (°F <->°C)

If you want to convert °F to °C or vice versa. press and hold the Freezer Temp and Refrigerator Temp buttons at the same time for approximately five seconds.

IN-DOOR iCE BiN

CAUTION

Keep hands and tools out of the ice compartment door and dispenser chute.

Failure to do so may result in damage or personal injury.

The icemaker will stop producing ice when the in-door ice bin is full. if you need more ice. empty the ice bin into the extra ice bin in the freezer compartment.

During use. the ice can become uneven causing the icemaker to misread the amount of ice cubes and stop producing ice. Shaking the ice bin to level the ice within it can reduce this problem.

NOTE: Storing cans or other items in the ice bin will damage the icemaker.

Keep the ice compartment door closed tightly.

If the ice compartment door is not closed tightly. the cold air in the ice bin will freeze food in the refrigerator compartment.

This could also cause the icemaker to stop producing ice.

NOTE: Emptying the ice bin is recommended if the icemaker ON/OFF button on the controt panel is set to OFF for an extended period of time.

2. To remove the in-door ice bin. grip the front handle. slightly lift the lower part. and slowly putt out the bin as shown.

3. To reinstall the in-door ice bin. slightly slant the bin during replacement to avoid contact with the icemaker.

When handling the

1. Putt or push the door handle to open or close the ice compartment.

4. Avoid touching the auto shutoff (feeler arm) when replacing the ice bin. See the label on the ice compartment door for details.

III Auto shutoff

Ill (feeler arm)

AUTOMATIC ICEMAKER

It takes about 12 to 24 hours for a newly installed refrigerator to begin making ice. Wait 72 hours for full ice production to occur.

Ice making stops when the in-door ice bin is full.

When full. the in-door ice bin holds approximately 6 to 8 (12-16 oz or 340-455 cc) glasses of ice.

Foreign substances or frost on the auto shutoff (feeler arm) can interrupt ice production.

Make sure the feeler arm is clean at all times for proper operation.

To increase ice production. use the Ultra Ice function.

This function increases both ice making and freezing capabilities.

Personal Injury Hazard

DO NOT place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in.

Icemaker

Auto shutoff: (feeler arm)

AUTOMATIC ICEMAKER (continued)

CAUTION

The first ice and water dispensed may include particles or odor from the water supply line or the water tank.

Throw away the first few batches of ice. This is also necessary if the refrigerator has not been used for a long time.

Never store beverage cans or other items in the ice bin for the purpose of rapid cooling.

Doing so may damage the icemaker or the containers may burst.

If discolored ice is dispensed. check the water filter and water supply.

If the problem continues. contact Sears or other qualified service center.

Do not use the ice or water until the problem is corrected.

Keep children away from the dispenser.

Children may play with or damage the controls.

The ice passage may become blocked with frost if only crushed ice is used. Remove the frost that accumulates by removing the ice bin and clearing the passage with a rubber spatula.

Dispensing cubed ice can also help prevent frost buildup.

Never use thin crystal glass or crockery to collect ice.

Such containers may chip or break resulting in glass fragments in the ice.

Dispense ice into a glass before filling it with water or other beverages.

Splashing may occur if ice is dispensed into a glass that already contains liquid.

Never use a glass that is exceptionally narrow or deep.

Ice may jam in the ice passage and refrigerator performance may be affected.

Keep the glass at a proper distance from the ice outlet.

A glass held too close to the outlet may prevent ice from dispensing.

To avoid personal injury. keep hands out of the ice door and passage.

Never remove the dispenser cover.

If ice or water dispenses unexpectedly. turn off: the water supply and contact Sears Home Service in the U.S.A. at 1-844-553-6667 and in Canada at 1-800 469-4663.

WHEN TO SET ICEMAKER TO OFF

When the water supply will be shut off for several hours.

When the ice bin is removed for more than one or two minutes.

When the refrigerator will not be used for several days.

NOTE: The ice bin should be emptied when the icemaker ON/OFF button is turned to the OFF mode.

NORMAL SOUNDS YOU MAY HEAR

If the icemaker ON/OFF button is set to ON. the valve will buzz even if the icemaker has not het been hooked

NOTE: Keeping the icemaker ON/OFF button set to ON before the water is connected can damage the icemaker.

You will hear the sound of cubes dropping into the bin and water running in the pipes as the icemaker refills.

PREPARING FOR VACATION

Set the icemaker ON/OFF button to OFF and shut off the water supply to the refrigerator.

NOTE: The ice bin should be emptied any time the icemaker ON/OFF button is turned OFF.

If the ambient temperature will drop below freezing. have a qualified technician drain the water supply system to prevent serious property damage due to flooding caused by ruptured water lines or connections.

LEVELING AND DOOR ALIGNMENT

Leveling

After installing. plug the refrigerator's power cord into a 3-prong grounded outlet and push the refrigerator into the final position.

Your refrigerator has two front leveling legs--one on the right and one on the left. Adjust the legs to alter the tilt from front-to-back or side-to-side.

If your refrigerator seems unsteady. or you want the doors to close more easily. adjust the refrigerator's tilt using the instructions below=

NOTE: Tools Required= 11/16" wrench or fiat blade screwdriver.

1. Turn the leveling leg to the left to raise that side of the refrigerator or to the right to lower it. It may take several turns of the leveling leg to adjust the tilt of the refrigerator.

+ Open both doors again and check to make sure that they close easily.

If the doors do not close easily. tilt the refrigerator slightly more to the rear by turning both leveling legs to the left. It may take several more turns. and you should turn both leveling legs the same amount.

NOTE: Your refrigerator is uniquely designed with two fresh food doors. Either door can be opened or closed independently of the other. You may have to exert slight pressure on the doors to get them to close completely.

Door Ailgnment

Both the left and right refrigerator doors have an adjustable nut. located on the bottom hinge. to raise and lower them to align properly.

If the space between your doors is uneven. follow the instructions below to align the doors evenly=

Use the wrench (included with the Use & Care Guide) to turn the nut in the door hinge to adjust the height. To the right to raise or to the left to lower the height.

NOTE: Having someone push backward against the top of the refrigerator takes some weight off: of the leveling legs.

This makes it easier to adjust the legs.

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and moisture-proof material unless otherwise noted. This prevents food odor and taste transfer throughout the refrigerator.

For dated products. check date code to ensure freshness.

Butter or margarine Keep opened butter in a covered dish or closed compartment.

When storing an extra supply. wrap in freezer packaging and freeze.

Cheese Store in the original wrapping until you are ready to use it. Once opened. rewrap tightly in plastic wrap or aluminum foil.

Milk I Wipe milk cartons.

For best storage. place milk on interior shelf. not on door shelf.

STORING FROZEN FOOD

NOTE: Check a freezer guide or a reliable cookbook for further information about preparing food for freezing or food storage times.

Freezing Your freezer will not quick-freeze a large quantity of food.

Do not put more unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 lbs. of food per cubic foot of freezer space).

Leave enough space in the freezer for air to circulate around packages.

Be careful to leave enough room at the front so the door can close tightly.

Storage times will vary according to the quality and type of food. the type of packaging or wrap used (how airtight and moisture-proof) and the storage temperature.

Ice crystals inside a sealed package are normal.

This simply means that moisture in the food and air inside the package have condensed. creating ice crystals.

NOTE: Allow hot foods to cool at room temperature for 30 minutes. then package and freeze.

Cooling hot foods before freezing saves energy.

Eggs

Fruit

Leafy vegeta bies

Vegetables with skins (carrats. peppers)

Fish

Leftovers

I Store in originat carton on interior shelf. not on door shelf.

Do not wash or hull the fruit until it is ready to be used. Sort and keep fruit in its original container. in a crisper. or store in a completely closed paper bag on a refrigerator shelf.

Remove store wrapping and trim or tear off bruised and discolored areas. Wash in cold water and drain.

Place in plastic bag or plastic container and store in crisper.

I Place in plastic bags or plastic container and store in crisper.

Store fresh fish and shellfish in the freezer section if they are not being consumed the same day of purchase.

It is recommended to consume fresh fish and shellfish the same day purchased.

Cover leftovers with plastic wrap or aluminum foil. or store in plastic containers with tight lids.

Packaging Successful freezing depends on correct packaging.

When you close and seat the package. it must not allow air or moisture in or out. If it does. you could have food odor and taste transfer throughout the refrigerator and could also dry out frozen food.

Packaging recommendations: Rigid plastic containers with tight-fitting lids Straight-sided canning/freezing jars Heavy-duty aluminum foil Plastic-coated paper Non-permeable plastic wraps Specified freezer-grade self-sealing plastic bags Follow package or container instructions for proper freezing methods.

Do not use Bread wrappers Non-polyethylene plastic containers Containers without tight lids Wax paper or wax=coated freezer wrap Thin. semi-permeable wrap

CAUTION: Do not keep beverage cans or plastic food containers in the freezer compartment.

They may break or burst if they freeze.

WiNE STORAGE GUIDE

For your convenience and to save space. use the wine rack to store up to 4 standard sized bottles of wine.

CAUTION: Wine rack is designed for standard sized bottles.

Use of larger or non-standard shaped bottles may prevent the refrigerator door from closing properly.

REFRIGERATOR SECTION

WATER DISPENSER

To dispense cold water. push on the dispenser switch with a glass.

NOTE: The dispenser is equipped with a light that turns on when the dispenser pad is engaged.

Dispenser Switch

Push

WARNING: Do not put your fingers up the ice chute opening° Doing so can result in severe injury.

CAUTION: Do not dispense ice into fine china or

Some dripping may occur after dispensing° Hold your cup beneath the dispenser for a few seconds after dispensing to catch all of the drops.

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet your individual storage needs. Your model may have glass or wire shelves.

Adjusting the shelves to fit different heights of items will make flnding the exact item you want easier. Doing so will also reduce the amount of time the refrigerator door is open which will save energy.

IMPORTANT: Do not clean glass shelves with warm water while they are cold. Shelves may break if exposed to sudden temperature changes or impact.

CAUTION: Glass shelves are heavy. Use special care when removing them.

Adjusting Shelves (Cantilever)

Remove shelves from the shipping position and replace shelves in the position you want.

To remove a shelf--Tilt up the front of the shelf in the direction of C) and lift it in the direction of C)" Putt the shelf out.

To relnstall a shelf--Tilt the front of the shelf up and guide the shelf hooks into the slots at a desired height.

Then. lower the front of the shelf so that the hooks drop into the slots.

CAUTION: Make sure that shelves are level from one side to the other. Failure to do so may result in the shelf falling or spilling food.

Foldlng Shelf (on some models)

You can store taller items. such as a gallon container or bottles. by simply pushing the front half of the shelf underneath the back half of the shelf.

Putt the front of the shelf toward you to return to a full shelf.

HUMiDiTY CONTROLLED CRISPER

The crispers provide fresher tasting fruit and vegetables by letting you easily control humidity inside the drawer.

You can control the amount of humidity in the moisture sealed crispers by adjusting the control to any setting between VEGETABLES and FRUIT.

V EGETABLES keeps moist air in the crisper for best storage of fresh. leafy vegetables.

FRUIT lets moist air out of the crisper for best storage of fruit.

REMOVING THE HUMiDiTY CONTROLLED CRISPER

1. To remove. putt the drawer out to full extension.

2. Lift the front of the crisper up. then putt it straight out.

3. To install. slightly tilt up the front. insert the drawer into the frame and push it back into place.

To remove the glass

1. Lift up the glass under the crisper cover.

2. Putt the glass up and out.

NOTE: Pantry drawer not shown for clarity.

TEMPERATURE CONTROLLED PANTRY DRAWER

The Temperature Controlled Pantry Drawer provides storage space with a variable temperature control that can keep the compartment at a slightly different temperature than the refrigerator section. This drawer can be used for large party trays. den items and beverages. (This drawer should not be used for vegetables that require high humidity.)

Press the button to choose between Meat (Coldest). DeN (Colder) and Produce (Cold).

CAUTION: Do not store glass bottles in the pantry.

If they are frozen. they can break and cause personal injury.

DOOR BIN

The door bins are removable for easy cleaning and adjustment.

1. To remove the bin. simply lift the bin up and putt straight out.

2. To replace the bin. slide it in above the desired support and push down until it snaps into place.

NOTE: Some bins may vary in appearance and will only fit in one location.

CAUTION: Do not overfill or pack items too tightly into door bins. Doing so may cause damage to the bin or personal injury if items are removed with excessive force.

REPLACING THE AiR FILTER

Approximately every six months.

When the CHANGE AIR FILTER light turns on.

1. Remove the Old Filter

Turn the filter cover to the left to detach it from the refrigerator watt. The filter is located on the inside of the filter cover. Remove the filter from the cover and replace it with a new filter.

FREEZER SECTION

EXTRA iCE BIN

1. Putt the Freezer Drawer and the top Putlout Drawer out as far as possible to remove the Extra Ice Bin.

2. Gently lift and putt out the ice bin.

3. To replace. pull both drawers out as far as possible. and set the bin in its correct position in the Pullout Drawer.

Close the Pullout Drawer and then the Freezer Drawer.

Pullout Drawer

Extra Ice Bin

2. install a New Air Filter.

Place the new filter inside of the cover with the side that says "Front" facing outward.

Turn the filter cover to the right to attach it to the refrigerator wall.

CAUTION= Pinch hazard!

Keep hands and feet clear of the bottom of the freezer drawer when opening and closing.

After changing the filter. push and hold the Air Filter button for three seconds to reset the filter sensor.

NOTE= To purchase a replacement air filter. visit your local Sears store. or in the U.S.A. call 1-844-553-6667. and in Canada 1-800-469-4663.

For web purchase. visit: www.kenmore.com

PULLOUT DRAWERS

Tap Drawer

1. To remove. putt the drawer out to full extension.

On the left rail. use a fiat blade screwdriver to push in on the tab to release the drawer from the rail. as shown below.

Once the left side is loose. push the tab on the right side with your finger to release the drawer.

Lift the front of the drawer up. then putt it straight out.

2. To replace. slightly tilt up the front of the drawer. insert the drawer into the frame. and push it back into place.

DURABASE

]. To remove the Durabase. push it to the back as much as possible.

Tilt up the front of the Durabase and putt straight out.

2. To replace. insert the Durabase in the rail assembly.

2. To replace. slightly tilt up the front of the drawer. insert the drawer into the frame. and push the drawer back into place until you hear a click.

Middle Drawer

1. To remove. putt the drawer out to full extension.

Lift the front of the drawer up. then putt it straight out.

DURABASE DIVIDER

The Durabase divider allows you to organize the Durabase area into sections.

It can be adjusted from side to side to accommodate items of different sizes.

/' .

WARNING; If the Durabase divider is removed. there is enough open space for children or pets to crawl inside.

To prevent accidental child and pet entrapment or suffocation risk. DO NOT allow children or pets to touch or go near the drawer.

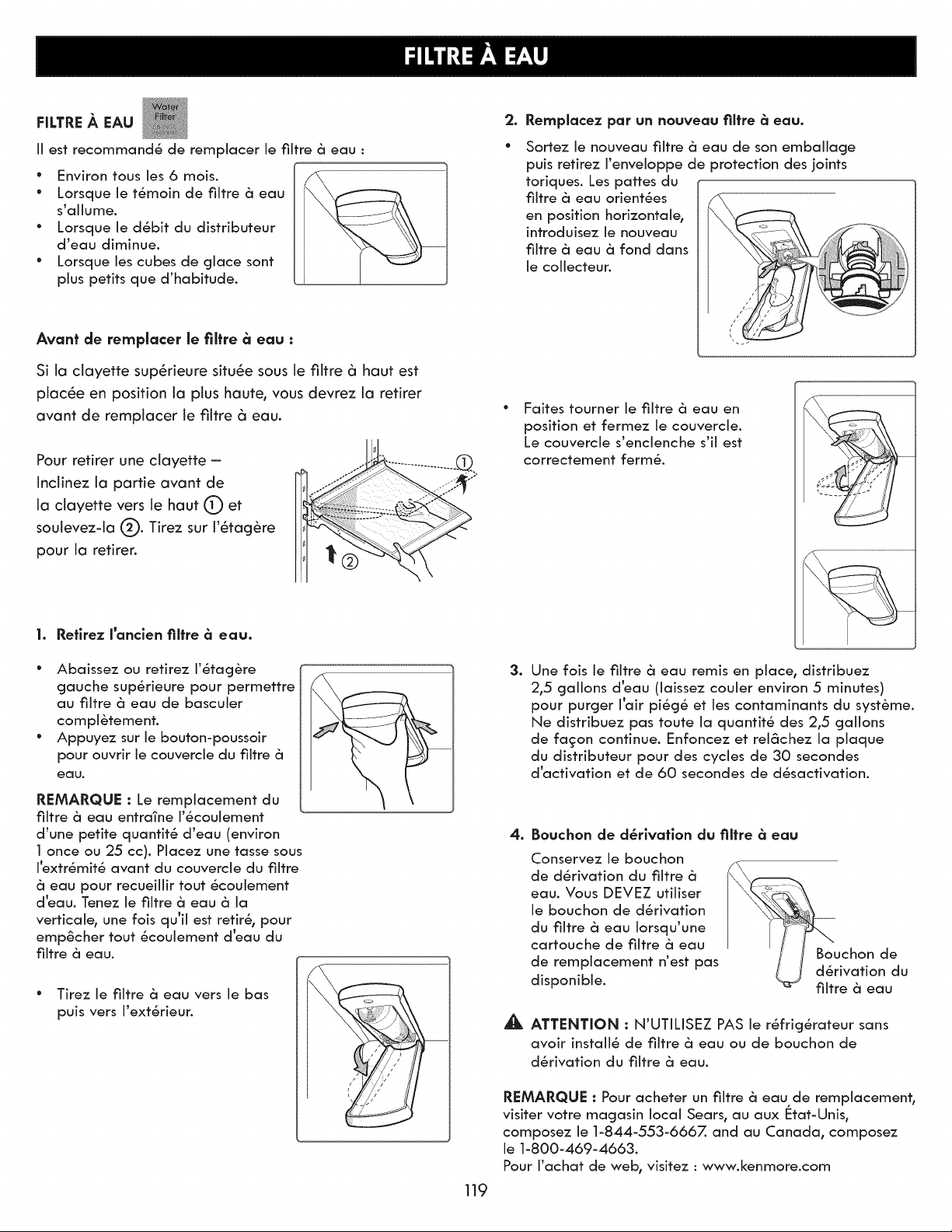

WATER FILTER

Approximately every six months. When the water filter indicator turns on. When the water dispenser output decreases. When the ice cubes are smaller than normal.

Before Replaclng the Water Filter:

If the top shelf. located below the water filter. is in the

To remove any shelf-Tilt up the

I. Remove the aid water filter.

Lower or remove the top left shelf to allow the water filter to rotate all the way down.

Pinch the sides to open the water filter cover.

NOTE: Replacing the water filter causes a small amount of water (around 1 oz. or 25 cc) to drain.

Place a cup under the front end of the water filter cover to collect any leaking water.

Hold the water filter upright. once it is removed. to prevent any remaining water from spilling out of the water filter.

Putt the water filter downward and putl out. Make sure to rotate the filter down completely before pulling it out of the manifold hole.

Replace wlth a new water Niter.

Take the new water filter out of its packing and remove the protective cover from the o-rings.

With water filter tabs in the horizontal position. push the new water filter into the manifold hole until it stops.

Rotate the water filter up into position and close the cover.

The cover will click when closed correctly.

+ After the water filter is replaced. dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously.

Depress and retease the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

4. Water Filter Bypass Plug

Keep the water filter bypass plug. You MUST use the water filter bypass plug when a replacement water filter cartridge is not available.

Water Filter

CAUTION: DO NOT operate refrigerator without water filter or water filter plug installed.

NOTE: To purchase a replacement filter. visit your local Sears store. or in the U.S.A. call 1-844-553-6667. and in Canada 1-800-469-4663.

For web purchase. visit: www.kenmore.com

Application Guidelines/Water Supply Parameters

Service Flow 0.5 gpm (1.9 lpm)

Water Supply Potable Water

Water Pressure 20-120 psi (138 - 827 kPa)

Water Temperature 33°F - 100°F (0.6°C 38°C)

NOTE: While the testing was performed under standard laboratory conditions. actual performance may vary.

NOTE: To purchase a replacement filter. visit your local Sears store. or in the U.S.A. call 1-844-553-6667. and in Canada 1-800-469-4663.

For web purchase. visit: www.kenmore.com Replacement Filter: ADQ36006102

Product distributed in the United States by Sears Brand Management Corporation.

+ 2009 M Company.

All rights reserved.

To reduce the risk associated with ingestion of contaminants: Do not use with water that is

To reduce the risk associated with property damage due to water leakage:

Read and follow the Water Filter instructions before

Installation and use MUST comply with all state and local plumbing codes.

Do not install if water pressure exceeds 120 psi (827 kPa). Contact a plumbing professional if you are uncertain of how to check your water pressure.

Do nat install where water hammer conditions may occur.

If water hammer conditions exist. you must

Do nat install on hot water supply lines.

The maximum operating water temperature of this water filter system is 100°F (38°C).

Protect water filter from freezing.

Do not operate refrigerator in ambient conditions below 55°F

(12.7°C).

Drain water filter when storing unit in temperatures below 40°F (4.4°C).

The disposable water filter must be replaced every six months. at the rated capacity. or if a noticeable reduction in flow rate occurs.

State of California

Department of Public Health

Water Treatment Device Certificate Number

09- 2019

Date Issued: December 15. 2009

Manufacturer: Sears Roebuck andCo.

The water treatment device(s) tisted on this cer. ificale have met the testing reqU[irments pursuant to Section 116830 of the Health and Safety Code for the followlng health relaJed contaminants:

Microbiological Contaminants and Turbidity

Cysts

Organic Cgntaminants 2.4-D Reduction Atrazine Benzene Carbofuran Lindane

Rated Service Capacity: ga!

Rated Servi& Flow: 0.5 gpm

Conditions of Cerfificatiomo

SETTING THE CONTROLS

Temperature

The Refrigerator Temp Control ranges from 33°F to 46°F (1°C to 8°C).

Press the Refrigerator Temp button to cycle through the available temperature settings one increment at a time.

The Freezer Temp Control range is from 6°F to 8°F (-21°C to -13°C). Press the Freezer Temp button to cycle through the available temperature settings one increment at a time.

NOTE: When changing control settings. wait 24 hours before making additional adjustments.

The controls are set correctly when milk or juice is as cold as you would like and when ice cream is firm.

If the temperature in either compartment is too cold or too warm. change the setting one increment at a time. Wait 24 hours for the change to stabilize before adjusting again.

Airflow

Be sure not to block vents while packing your refrigerator.

Doing so will restrict airflow and may cause the refrigerator temperature to become too warm or cause interior moisture buildup. (See air flow diagram below.

Dispenser

The dispenser will dispense water. cubed ice or crushed ice. Press the appropriate icon of your choice: ((_)) water ((_)) cubed ice ((_)) crushed ice. When pressed the icon will illuminate.

NOTE: The dispenser will not work if any door is left open or if the control lock is engaged.

NOTE: If the Control Lock icon is illuminated. the Dispenser will not work.

Disable the Control Lock to use the Dispenser again.

CAUTION The control display is operated by touch.

Excessive moisture on the display may cause a malfunction.

Please keep the display clean and dry.

Explosion Hazard Use non-flammable cleaner.

Failure to do so can result in fire. explosion. or death.

Both the refrigerator and freezer sections defrost automatically; however. clean both sections about once month to prevent odors.

Wipe up spills immediately.

GENERAL CLEANING TIPS

Unplug refrigerator or disconnect power. Remove all removable parts. such as shelves. crispers. etc. Refer to sections in Using Your Refrigerator for removal instructions. Use a clean sponge or soft cloth and a mild detergent in warm water.

Do not use abrasive or harsh cleaners. Hand wash. rinse and dry all surfaces thoroughly. Plug in refrigerator or reconnect power.

EXTERIOR

Waxing external painted metal surfaces helps provide rust protection.

Do not wax plastic parts. Wax painted metal surfaces at least twice a year using appliance wax (or auto paste wax).

Apply wax with a clean. soft cloth.

For products with a stainless steel exterior. use a clean sponge or soft cloth and a mild detergent in warm water.

Do not use abrasive or harsh cleaners.

Dry thoroughly with a soft cloth.

INSIDE WALLS (allow freezer to warm up so the cloth will not slick)

To help remove odors. you can wash the inside of the refrigerator with a mixture of baking soda and warm water.

Mix 2 tablespoons of baking soda to 1 quart of water (26 g soda to 1 liter water.) Be sure the baking soda is completely dissolved so it does not scratch the surfaces of the refrigerator.

CAUTION: While cleaning the inside. do not spray water.

DOOR LINERS AND GASKETS

Use a clean sponge or soft cloth and a mild detergent in warm water.

Do not use cleaning waxes. concentrated detergents. bleaches. or cleaners containing petroleum on plastic refrigerator parts.

PLASTIC PARTS (Covers and Panels)

Use a clean sponge or soft cloth and a mild detergent in warm water.

Do not use window sprays. abrasive cleansers. or flammable fluids.

These can scratch or damage the material.

CONDENSER COILS

Use a vacuum cleaner with an attachment to clean the condenser cover and vents.

Do not remove the panel covering the condenser coil area.

LIGHT BULB REPLACEMENT

Electrical Shock Hazard

Before replacing a Compartment Lamp. either unplug the refrigerator or turn off power at the circuit breaker or fuse box.

NOTE: The refrigerator and freezer compartment lights have LED interior lighting. and service should be performed by a qualified technician.

POWER iNTERRUPTiONS

1. if the power will be out for 24 hours or less. keep all refrigerator doors closed to help foods stay cold and frozen.

2. if the power will be out for more than 24 hours. remove all frozen food and store it in a frozen food locker.

WHEN YOU GO ON VACATION

1. Use up any perishables and freeze other items.

2. Turn off the icemaker and empty the ice bin.

1. Remove all food from the refrigerator.

2. Depending on your model. set the thermostat controt (refrigerator control) to OFF. See the Setting the Controls section.

3. Clean the refrigerator. wipe it and dry well.

4. Tape rubber or wood blocks to the tops of both doors to prop them open far enough for air to get in. This stops odor and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home. follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all frozen food in dry ice.

2. Unplug the refrigerator.

3. Clean. wipe and dry thoroughly.

4. Take out all removable parts. wrap them well and tape them together so they do not shift and rattle during the move. Refer to the Using your Refrigerator section for removable instructions.

5. Depending on the model. raise the front of the refrigerator so it rolls easier OR screw in the leveling legs all the way so they do not scrape the floor. See the Door Closing section.

6. Tape the doors shut and tape the power cord to the refrigerator cabinet.

When you get to your new home. put everything back and refer to the Refrigerator Installation section for preparation instructions.

BEFORE YOU BEGIN

This water line installation is not covered by the refrigerator warranty.

Follow these instructions carefully to minimize the risk of expensive water damage.

Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and can lead to water leakage or flooding.

Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator.

CAUTION: To prevent burns and product damage. only connect the refrigerator water line to a cold water supply.

If you use your refrigerator before connecting the water line. make sure the icemaker is turned OFF at the control panel.

CAUTION: Do not install the icemaker tubing in areas where temperatures fall below freezing.

WATER PRESSURE

A cold water supply.

The water pressure must be between 20 and 120 psi. If the refrigerator is installed in an area with low water pressure (below 20 psi). you can install a booster pump to compensate for the low pressure.

If the water pressure from the reverse osmosis system is Jess than 20 psi or 138 kPa or 1.4 kgf/cm 2 (takes more than 4.0 sec to fill a cup of 7 oz or 198 cc capacity):

Check to see if the sediment filter in the reverse osmosis

Allow the storage tank on the reverse osmosis system to refill after heavy usage.

If the issue concerning water pressure from reverse osmosis remains. call a licensed. qualified plumber.

All installations must be in accordance with local

CAUTION: Wear eye protection during installation to prevent injury.

WHAT YOU WILL NEED

Copper Tubing.

1/4 in. outer diameter. to connect the refrigerator to the water supply. Be sure both ends of the tubing are cut square.

To determine how much tubing you need: measure the distance from the water valve on the

Power drlll.

1½in. or adjustable wrench.

Flat blade and Philllps head screwdrivers.

Two ¼ in. outer diameter

If your existing copper water line has a flared fitting at the end. you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting.

Shutoff valve to connect to the cold water llne. The shutoff valve should have a water inlet with a minimum

Saddle-type shutoff valves

NOTE: A Self Piercing Saddle Type Water Valve should not be used.

Electrical Shock Hazard

When using any electrical device (such as a power drill) during installation. be sure the device is battery powered. double insulated or grounded in a manner that will prevent the hazard of electric shock.

Instatl the shutoff valve on the nearest frequently used drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY Turn on the nearest faucet to relieve the pressure on the line.

2. CHOOSE THE VALVE LOCATION Choose a location for the valve that is

3. DRILL THE HOLE FOR THE VALVE Drill a I/4 in. hole in the water pipe using a sharp bit.

Remove any burrs resulting from drilling the hole in the pipe. Be careful not to allow water to drain into the drill.

Failure to drill a 1/4 in. hole may result in reduced ice production or smaller cubes.

NOTE: The hookup line cannot be white. plastic tubing.

Licensed plumbers must use only copper tubing (NDA tubing #49595 or #49599) or Cross Link Polyethylene (PEX) tubing.

4. FASTEN THE SHUTOFF VALVE Fasten the shutoff valve to the cold water pipe with the pipe clamp.

Pipe Clamp

Saddle-Ty Shutoff Valve Vertical Cold Water Pipe

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegat and use is not permitted in Massachusetts.

Consult with your licensed plumber.

5. TIGHTEN THE PiPE CLAMP

Tighten the clamp screws until the sealing washer begins to swell.

NOTE: Do not overfighten damp or you may crush the tubing.

Washer

Pipe Clamp

Clamp Screw

ROUTE THE TUBING Route the tubing between the cold water line and the refrigerator.

Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing (about 8 feet coiled into 3 turns of about 10 in. diameter) to allow the refrigerator to move out from the wall after installation.

CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve. Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely.

Saddle-Type

Shutoff Valve

Packing Nu

Outlet Valve

Ferrule (sleeve)

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are

8. FLUSH OUT THE TUBING Turn the main water supply on and flush out the tubing until the water is clear.

Shut the water off at the water valve after about one quart of water has been flushed through the tubing.

10. TURN THE WATER ON AT THE SHUTOFF VALVE

Tighten any connections that leak.

9. CONNECT THE TUBING TO THE REFRIGERATOR

Before making the connection to the refrigerator. be sure that the refrigerator power cord is not plugged into the wall outlet.

1. Remove the plastic flexible cap from the water valve.

2. Place the compression nut and ferrule (sleeve) onto the end of the tubing as shown.

3. Insert the end of the copper tubing into the connection as far as possible. While holding the tubing. tighten the fitting.

Tubing Clamp

1/4 in.

Compression

Nut

Ferrule (sleeve)

1/4 in. Tubing l)

_. AUTION: Check to see if leaks occur at the water line connections.

11. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate

Push the refrigerator back to the wail.

12. START THE ICEMAKER

Turn the icemaker ON at the control panel.

The icemaker will not begin to operate until it reaches its operating temperature of 15°F (-9°C) or below. It will then begin operation automatically if the icemaker button has been turned ON.

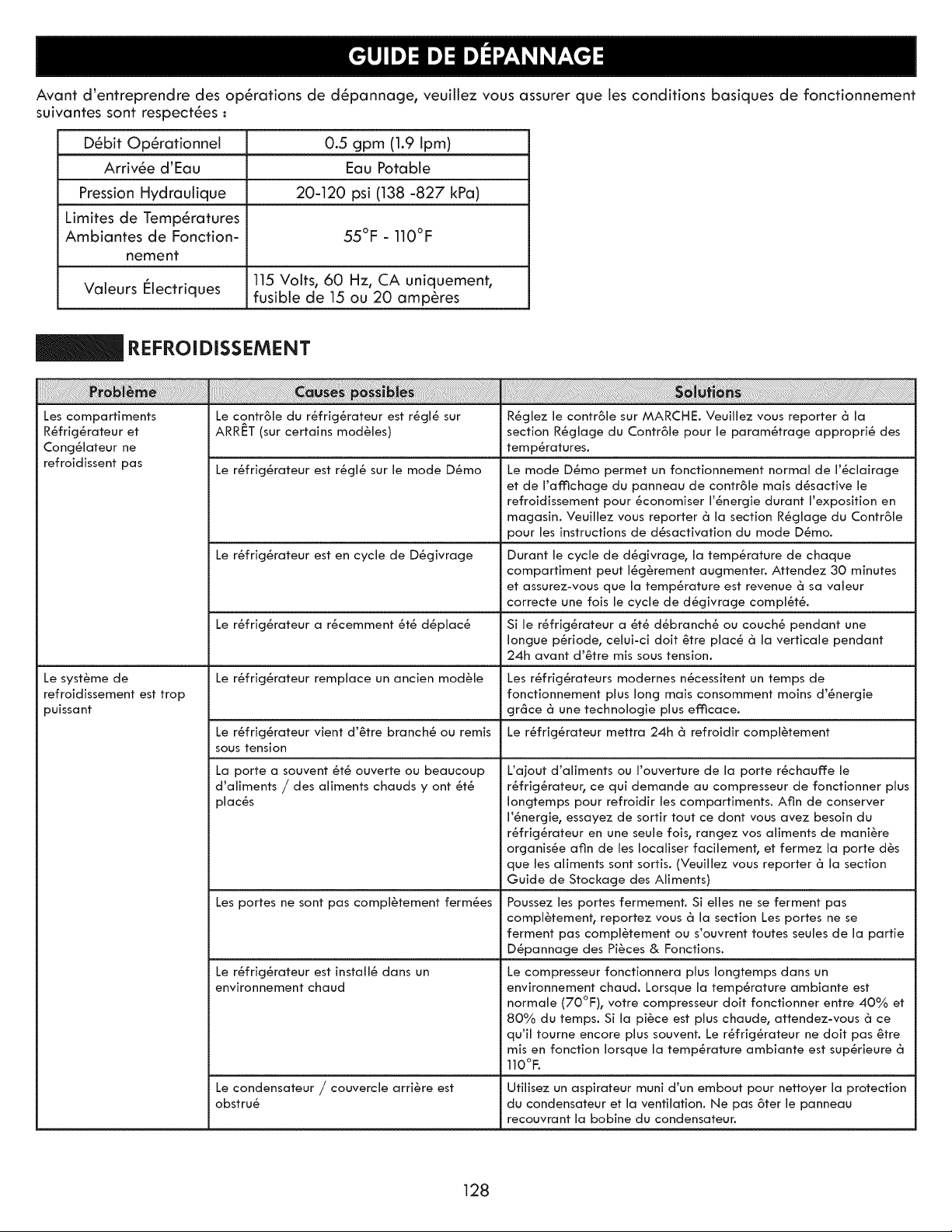

Before conducting troubleshooting. make sure that the following basic requirements are met:

Service Flow 0.5 gpm (1.9 lpm)

Water Supply Potable Water

Water Pressure 20-120 psi (138 - 827 kPa)

Operating Ambient OF _ 110OF Temperature Limits

115 Volts. 60 Hz. AC only. and fused Electrical Ratings at 15 or 20 amperes.

COOLING

Refrigerator and The refrigerator control is set to OFF Turn the control ON.

Refer to the Setting the Controls Freezer section are (some models). section for proper temperature settings.

Refrigerator is in the defrost cycle.

Demo Mode allows the lights and control display to work normally while disabling cooling to save energy while on the showroom floor.

Refer to the Setting the Controls section for instructions on how to disable Demo Mode.

During the defrost cycle. the temperature of each compartment may raise slightly.

Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.

Refrigerator was recently installed.

It may take up to 24 hours for each compartment to reach the desired temperature.

Refrigerator was recently relocated.

If the refrigerator was stored for a long period of time or moved on its side. it is necessary for the refrigerator to stand upright for 24 hours before connecting it to power.

Cooling System runs Refrigerator is replacing an older Modern refrigerators require more operating time but too much. model. use less energy due to more emcient technology.

Refrigerator was recently plugged in The refrigerator will take up to 24 hours to coot or power restored. completely.

Door opened often or a large amount of food / hot food was added.

Doors are not closed completely.

Refrigerator is installed in a hot location.

Condenser / back cover is clogged.

Adding food and opening the door warms the refrigerator. requiring the compressor to run longer in order to cool the refrigerator back down.

In order to conserve energy. try to get everything you need out of the refrigerator at once. keep food organized so it is easy to find. and close the door as soon as the food is removed. (Refer to the Food Storage Guide.)

Firmly push the doors shut. If they witl not shut all the way. see the Doors will not close completely or pop open section in Parts & Features Troubleshooting.

The compressor will run longer under warm conditions.

At normal room temperatures (70°F) expect your compressor to run about to 80% of the time.

Under warmer conditions. expect it to run even more often.

The refrigerator should not be operated above 110°1=.

Use a vacuum cleaner with an attachment to clean the condenser cover and vents.

Do not remove the panet covering the condenser coil area.

COOLING

Refrigerator or Refrigerator was recently installed. it may take up to 24 hours for each compartment to Freezer section is too reach the desired temperature.

Doors are opened often or for long periods of time.

Unit is installed in a hot location.

A large amount of food or hot food was added to either compartment.

Doors not closed correctly.

Temperature controt is not set correctly.

Defrost cycle has recently completed.

Doors are opened often or for long periods of time.

When the doors are opened often or for long periods of time. warm. humid air enters the compartment.

This raises the temperature and moisture level within the compartment.

To lessen the effect. reduce the frequency and duration of door openings.

The refrigerator should not be operated in temperatures above F.

Adding food warms the compartment requiring the cooling system to run. Allowing hot food to coot to room temperature before putting it in the refrigerator will reduce this effect.

See the Doors will not close correctly or pop open section in Parts & Features Troubleshooting.

During the defrost cycle. the temperature of each compartment may raise slightly and condensation may form on the back wall.

Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.

When the doors are opened often or for long periods of time. warm. humid air enters the compartment.

This raises the temperature and moisture level within the compartment.

To lessen the effect. reduce the frequency and duration of door openings.

Doors not closed correctly.

See the Doors will not close correctly section in the Troubleshooting section.

Weather is humid.

Defrost cycle recently completed.

Food is not packaged correctly.

Humid weather allows additional moisture to enter the compartments when the doors are opened leading to condensation or frost. Maintaining a reasonable level of humidity in the home will help to control the amount of moisture that can enter the compartments.

During the defrost cycle. the temperature of each compartment may raise slightly and condensation may form on the back wall.

Wait 30 minutes and confirm that the proper temperature has been restored once the defrost cycle has completed.

Food stored uncovered or unwrapped. and damp containers can lead to moisture accumulation within each compartment.

Wipe all containers dry and store food in sealed packaging to prevent condensation and frost.

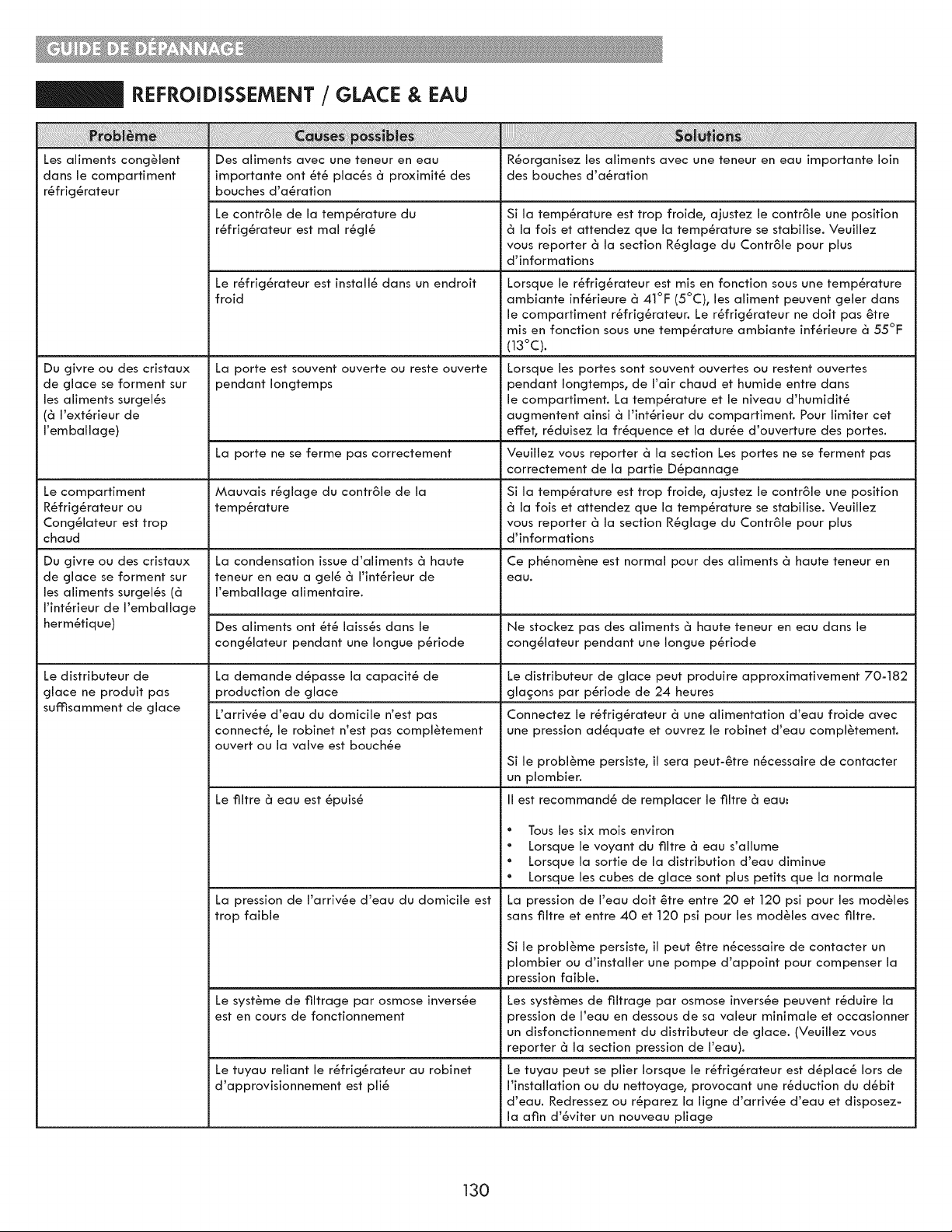

COOLING/ICE & WATER

Food is freezing Food with high water content was Rearrange items with high water content away from air in the refrigerator placed near an air vent. vents.

Refrigerator is installed in a cold When the refrigerator is operated in temperature location. below 41°F (5°C). food can freeze in the refrigerator compartment.

The refrigerator should not be operated in temperature below 55°F (13°C).

Frost or ice crystals form on frozen food (outside of package).

Door is opened frequently or for long periods of time.

When the doors are opened often or for long periods of time. warm. humid air enters the compartment. This raises the temperature and moisture level within the compartment.

Increased moisture will lead to frost and condensation.

To lessen the effect. reduce the frequency and duration of door openings.

Door is not closing properly.

Refer to the Doors will not close correctly or pop open section in the Troubleshooting section.

Refrigerator or Incorrect temperature control settings.

If the temperature is too cold. adjust the control one Freezer section is too increment at a time and wait for the temperature to cold. stabilize. Refer to the Setting the Controls section for more information.

Frost or ice crystals Condensation from food with a high This is normal for food items with a high water content. on frozen food water content has frozen inside of the (inside of sealed food package.

Icemaker is not Demand exceeds ice storage capacity.

The icemaker will produce approximately 70-182 cubes in making enough ice. a 24 hour period.

House water supply is not connected. valve is not turned on fully. or valve is clogged.

Water filter has been exhausted.

Low house water supply pressure.

Reverse Osmosis filtration system is used.

Tubing connecting refrigerator to house supply valve is kinked.

Connect the refrigerator to a cold water supply with adequate pressure and turn the water shutoff valve fully open.

If the problem persists. it may be necessary to contact a plumber.

It is recommended that you replace the water filten

Approximately every six months.

When the water filter indicator turns on.

When the water dispenser output decreases.

When the ice cubes are smaller than normal.

The water pressure must be between 20 and 120 psi on models without a water filter and between 40 and 120 psi on models with a water filter.

If the problem persists. it may be necessary to contact plumber or install a booster pump to compensate for the low pressure.

Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues. (Refer to Water Pressure section.)

The tubing can kink when the refrigerator is moved during installation or cleaning resulting in reduced water flow.

Straighten or repair the water supply line and arrange it to prevent future kinks.

Icemaker is not making enough ice (continued).

Doors are opened often or for long periods of time.

Doors are not closed completely.

The temperature setting for the freezer is too warm.

If the doors of the unit are opened often. ambient air will warm the refrigerator which will prevent the unit from maintaining the set temperature.

Lowering the refrigerator temperature can help. as well as not opening the doors as frequently.

If the doors are not properly closed. ice production will be affected.

See the Doors will not close completely or pop open section in Parts & Features Troubleshooting for more information.

The recommended temperature for the freezer compartment for normal ice production is 0°F. If the freezer temperature is warmer. ice production will be affected.

Water filter has been exhausted.

It is recommended that you replace the water filter:

Reverse osmosis filtration system is used.

Dispensing water slowly.

Low house water supply pressure.

Approximately every six months.

When the water filter indicator turns on.

When the water dispenser output decreases.

When the ice cubes are smaller than normal.

Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues.

If the problem persists. it may be necessary to contact a plumber or install a booster pump to compensate for the low pressure.

The water pressure must be between 20 and 120 psi on models without a water filter and between 40 and 120 psi on models with a water filter.

Not dispensing ice.

Doors are not closed completely.

Ice will not dispense if any of the refrigerator doors are left open.

Infrequent use of the dispenser.

The delivery chute is clogged with frost or ice fragments.

Infrequent use of the ice dispenser will cause the cubes to stick together over time. which will prevent them from properly dispensing.

Check the ice bin for ice cubes clumping/sticking together.

If they are. break up the ice cubes to allow for proper operation.

Eliminate the frost or ice fragments by removing the ice bin and clearing the chute with a plastic utensil.

Dispensing cubed ice can also help prevent frost or ice fragment buildup.

The dispenser display is locked.

Press and hold the Lock button for three seconds to unlock the control panel and dispenser.

Ice bin is empty. it may take up to 24 hours for each compartment to reach the desired temperature and for the icemaker to begin making ice. Make sure that the shutoff (arm/ sensor) is not obstructed.

Once the ice supply in the bin has been completely exhausted. it my take up to 90 minutes before additional ice is available. and approximately hours to completely refill the bin.

Icemaker is not Refrigerator was recently installed or It may take up to 24 hours for each compartment to making ice. icemaker recently connected. reach the desired temperature and for the icemaker to begin making ice.

Icemaker not turned on.

Locate the icemaker ON/OFF button and confirm that it is turned ON.

The refrigerator is not connected to Connect refrigerator to the water supply and turn the a water supply or the supply shutoff water shutoff valve fully open. valve is not turned on.

Icemaker shutoff (feeler arm) If your icemaker is equipped with an ice shutoff arm. obstructed. make sure that the arm moves freely.

Reverse osmosis water filtration Reverse osmosis filtration systems can reduce the system is connected to your cold water pressure below the minimum amount and result water supply. in icemaker issues. (Refer to the Water Pressure section.)

Not dispensing water.

New installation or water line recently connected.

The dispenser panel is locked.

The dispenser is not set for water dispensing.

Dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminates from the system. Do not dispense the entire gallon amount continuously.

Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

Press and hold the Lock button for three seconds to unlock the control panel and dispenser.

The dispenser can be set for ice or waten Make certain that the control panel is set for the proper operation.

Press the Water button on the control panel to dispense water.

Refrigerator or freezer doors are not Water will not dispense if any of the refrigerator closed properly. doors are left open.

Water filter has been recently removed or replaced.

Tubing connecting refrigerator to house supply valve is kinked.

The house water supply is not connected. the valve is not turned on fully. or the valve is clogged.

After the water filter is replaced. dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminates from the system. Do not dispense the entire 2.5 gallon amount continuously.

Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

The tubing can kink when the refrigerator is moved during installation or cleaning resulting in reduced water flow.

Straighten or repair the water supply line and arrange it to prevent future kinks.

Connect refrigerator to the water supply and turn the water shutoff valve fully open.

If the problem persists. it may be necessary to contact a plumber.

Air Filter

The Air Filter helps remove odors from the refrigerator.

The Air Filter has two settings.

Auto and MAX.

In Auto mode. the Air Filter will cycle on and off in increments of ten minutes on and one hundred and

Auto mode is the default mode.

Press the Air Filter button once for MAX mode.

Dispenser Light

This light has three settings: On. Off: and Dim. Select the Dim option at night. The light will automatically turn on at full brightness when the dispenser pad is pushed.

Articulating Mullion

This feature is a metal strip attached to the left door that articulates (rotates) 90 degrees as the door is closed. forming a mullion (base) for the left and right door gaskets to seal against.

Air Filter Reset

When the CHANGE icon turns on. the air filter needs to be replaced.

After replacing the air filter. press and hold the Air Filter button for three seconds to turn the

To switch the icemaker ON or OFF. press the Ice Maker button.

Ultra ice

When you press and hold the Ice Maker button for three seconds. the graphic will illuminate in the display and will continue for 24 hours.

The function will automatically shut of{ after 24 hours.

NOTE: While you are selecting the Ultra Ice function. the Ice Maker icon will briefly switch to OFF. then return to ON.

This is normal.

You can stop this function manually by pressing and holding the button one more time.

This function increases both ice making and freezing capabilities.

CAUTION

To reduce the risk of scratching the door or breaking the door mullion. make sure that the refrigerator door mullion is always folded in.

Water Filter Reset

When the CHANGE icon turns on. you need to change the water filter. After changing the water filter. press and hold the Water Filter button for three seconds to turn the indicator light of{. You need to change the water filter approximately every six months.

Ice has bad taste or odor.

Water supply contains minerals such as sulfur.

A water filter may need to be installed to eliminate taste and odor problems.

NOTE: In some cases. a filter may not help. It may not be possible to remove all minerals / odor / taste in all water supplies.

Icemaker was recently installed.

Discard the first few batches of ice to avoid discolored or bad tasting ice.

Ice has been stored for too long.

Ice that has been stored for too long will shrink. become cloudy. and may develop a stale taste. Throw away old ice and make a new supply.

The food has not been stored Rewrap the food.

Odors may migrate to the ice if properly in either compartment. food is not wrapped properly.

The interior of the refrigerator needs See the Care and Cleaning section for more to be cleaned. information.

The ice storage bin needs to be Empty and wash the bin (discard old cubes). Make cleaned. sure that the bin is completely dry before reinstalling it.

Dispensing warm Refrigerator was recently installed.

Allow 24 hours after installation for the water storage water. tank to cool completely.

The water dispenser has been used Depending on your specific model. the water storage recently and the storage tank was capacity will range from approximately 20 to 30 oz. exhausted.

Dispenser has not been used for If the dispenser has not been used for several hours. several hours. the first glass dispensed may be warm.

Discard the first 10 oz.

Refrigerator is connected to the hot water supply.

Make sure that the refrigerator is connected to a cold water pipe.

WARNING: Connecting the refrigerator to a hot water line may damage the icemaker.

Water has bad taste Water supply contains minerals such A water filter may need to be installed to eliminate or odor. as sulfur. taste and odor problems.

Water filter has been exhausted.

It is recommended that you replace the water filter:

Refrigerator was recently installed.

Icemaker shutoff (feeler arm) is obstructed.

Icemaker is making too much ice.

Approximately every 6 months. When the water filter indicator turns on. When the water dispenser output decreases. When the ice cubes are smaller than normal.

Dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminates from the system. Do not dispense the entire gallon amount continuously.

Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

Empty the ice bin. If your icemaker is equipped with an ice shutoff: arm. make sure that the arm moves freely.

Reinstall the ice bin and wait 24 hours to confirm proper operation.

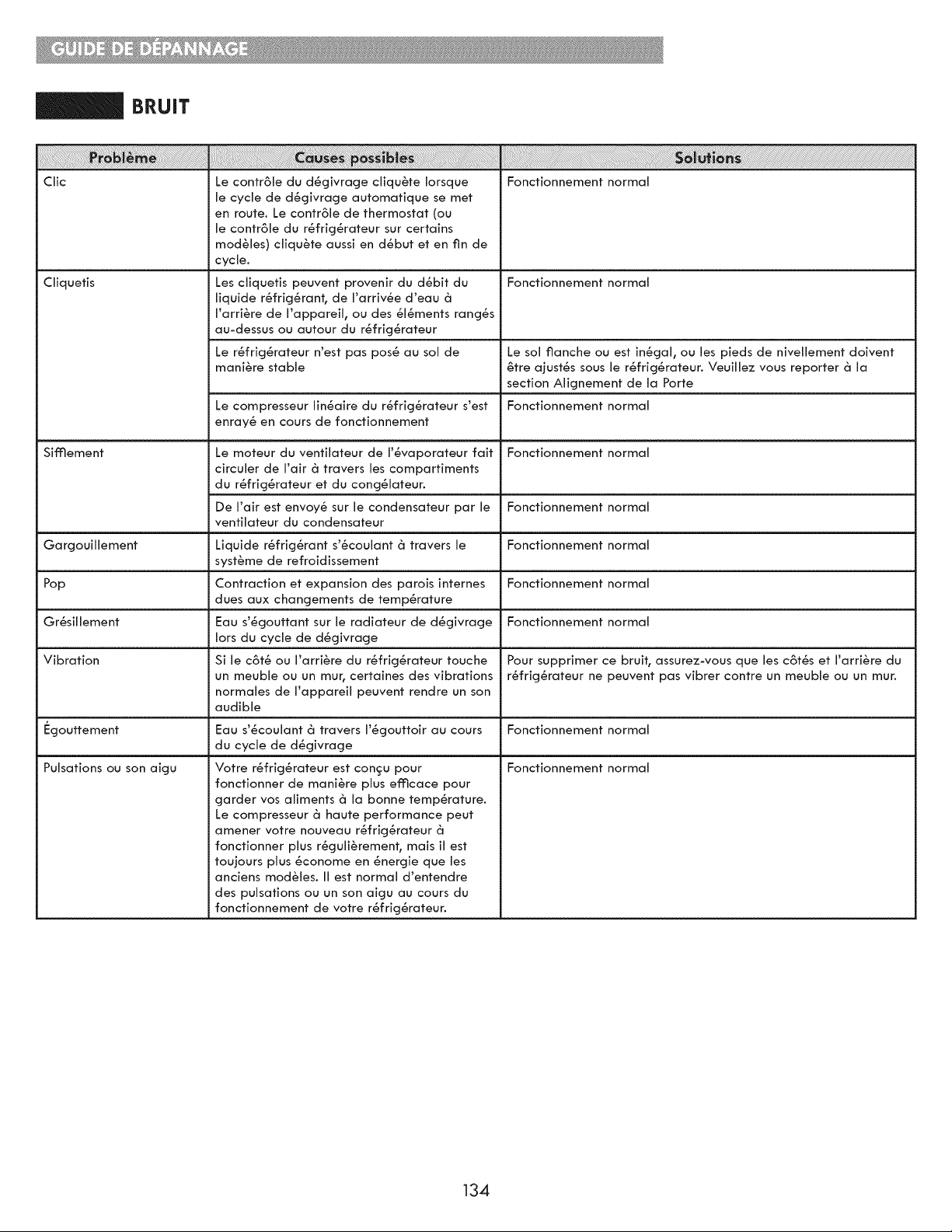

NOISE

Clicking The defrost control will click when the automatic defrost cycle begins and ends. The thermostat control (or refrigerator control on some models) will also click when cycling on and ofF.

Normal Operation

Rattling noises may come from the Normal Operation flow of refrigerant. the water line on the back of the unit. or items stored on top of or around the refrigerator.

Refrigerator is not resting solidly on Floor is weak or uneven or leveling legs need to be the floor. adjusted.

See the Door Alignment section.

Refrigerator with linear compressor Normal Operation was jarred while running.

Whooshing Evaporator fan motor is circulating Normal Operation air through the refrigerator and freezer compartments.

Air is being forced over the condenser Normal Operation by the condenser fan.

Gurgling Refrigerant flowing through the Normal Operation cooling system.

Popping Contraction and expansion of the Normal Operation inside walls due to changes in temperature.

Sizzling Water dripping on the defrost heater Normal Operation during a defrost cycle.

Vibrating If the side or back of the refrigerator To eliminate the noise. make sure that the sides and is touching a cabinet or wall. some of back cannot vibrate against any walt or cabinet. the normal vibrations may make an audible sound.

Dripping Water running into the drain pan Normal Operation during the defrost cycle.

Pulsating or High Normal Operation Pitched Sound Your refrigerator is designed to run more efficiently to keep your food items at the desired temperature.

The high efficiency compressor may cause your new refrigerator to run longer than your old one. but it is still more energy efficient than previous models.

While the refrigerator is running. it is normal to hear a pulsating or high pitched sound.

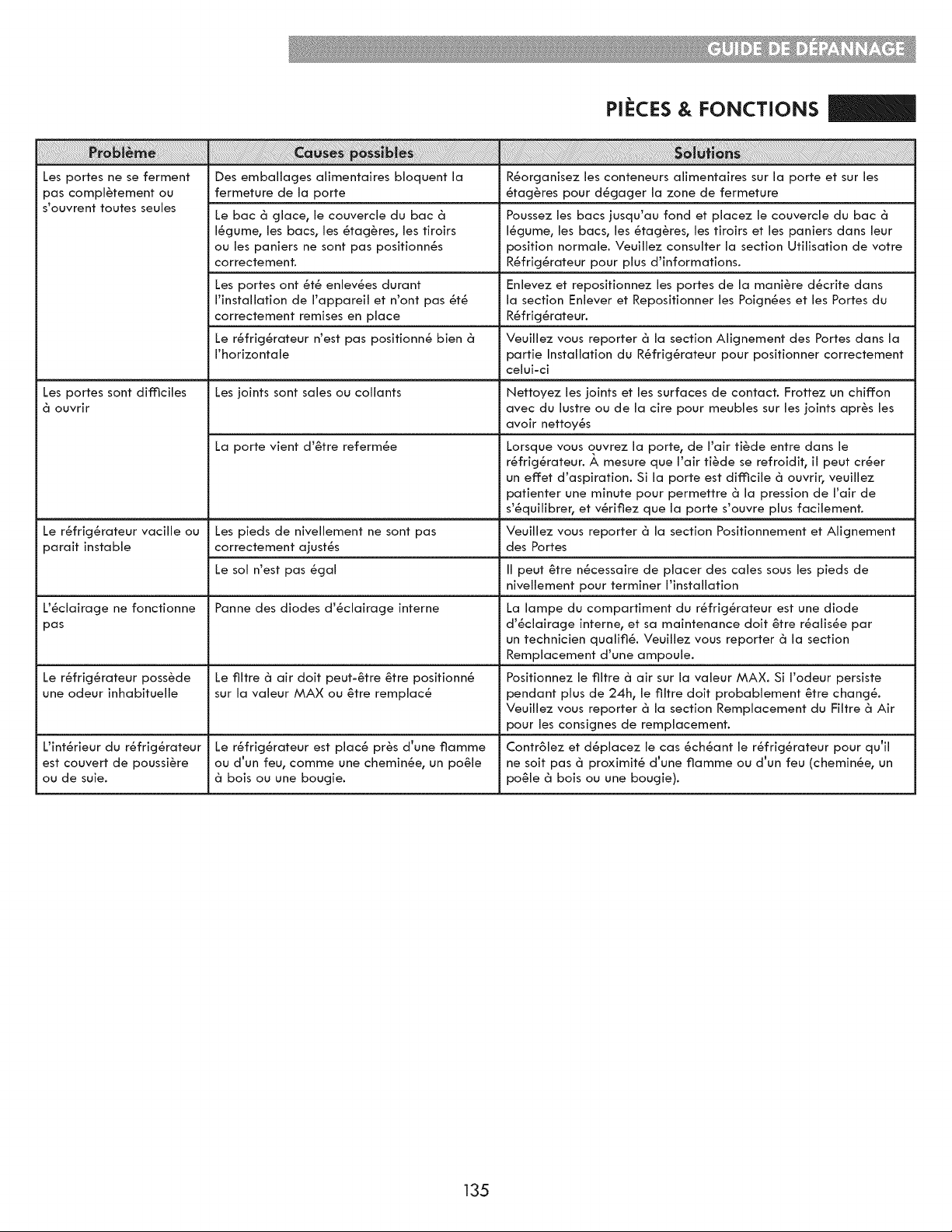

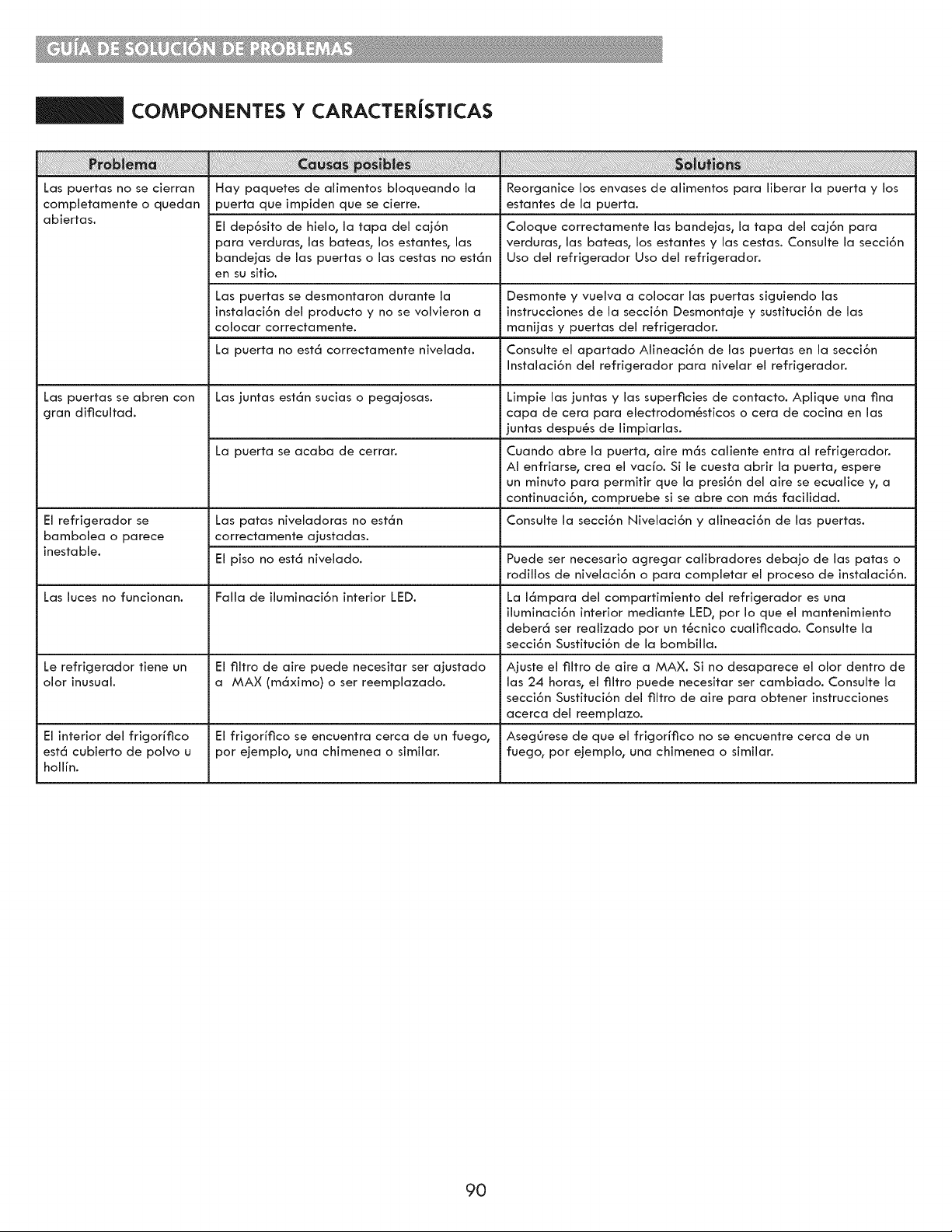

PARTS & FEATURES

Doors will not close Food packages are blocking the door Rearrange food containers to clear the door and door correctly or pop open. shelves.

The doors were removed during Remove and replace the doors according to the product installation and not properly Removing and Replacing Refrigerator Handles and replaced.

Doors section.

Refrigerator is not leveled properly.

See Door Alignment in the Refrigeration Installation section to level refrigerator.

Doors are difficult to The gaskets are dirty or sticky.

Clean the gaskets and the surfaces that they touch. open.

Rub a thin coat of appliance polish or kitchen wax on the gaskets after cleaning.

Door was recently closed.

Refrigerator wobbles or seems unstable.

Lights do not work.

Refrigerator has an unusual odor.

The interior of the refrigerator is covered with dust or soot.

Leveling legs are not adjusted properly.

Floor is not level.

LED interior lighting failure.

The Air Filter may need to be set to the MAX setting or replaced.

The refrigerator is located near a fire source. such as a fireplace. chimney or candle.

When you open the door. warmer air enters the refrigerator.

As the warm air cools. it can create vacuum.

If the door is hard to open. wait one minute to allow the air pressure to equalize. then see if it opens more easily.

Refer to the Leveling and Door Alignment section.

The refrigerator compartment lamp is LED interior lighting. and service should be performed by a qualified technician.

Refer to the Light Bulb Replacement section.

Set the Air Filter to the MAX setting. if the odor does not go away within 24 hours. the filter may need to be replaced.

See the Replacing the Air Filter section for replacement instructions.

Make sure that the refrigerator is not located near a fire source. such as a fireplace. chimney or candle.

Kenmore Connect TM (On some models)

Should you experience any problems with your refrigerator. it has the capability of transmitting data via your telephone to the I

This gives you the capability of speaking directly to our trained specialists.

The specialist records the data transmitted from your machine and uses it to analyze the issue. providing a fast ective diagnosis.

469-4663.

Only use the I

Kenmore Connect TM cannot be activated unless your refrigerator is connected to power.

If your refrigerator is unable to turn on. then troubleshooting must be done without using Kenmore Connect TM.

3. Hold the mouthpiece of your phone in front of the speaker that is located on the right hinge of the refrigerator door. when instructed to do so by the call center.

4. Press and hold the Freezer Temp button for three seconds while continuing to hold your phone to the speaker.

Using Kenmore Connect TM

First. call 1-844-553-6667 (U.S.A.) or 1-800-469-4663 (Canada).

If the number of the phone you are using is on file and is associated with your refrigerator. you will be quickly relayed to a Kenmore Connect TM team agent.

Only use the Kenmore Connect TM feature when instructed to do so by the Kenmore Connect TM Team agent.

1. Lock the display.

To lock the display. press and hold the Control Lock button for three seconds. (if the display has been locked for over five minutes. you must deactivate the lock and then reactivate it.)

2o Open the right refrigerator door.

5o After you hear three beeps. release the Freezer Temp button.

+ Keep the phone in place until the tone transmission has finished.

The display will count down the time. Once the countdown is over and the tones have stopped. resume your conversation with the specialist. who will then be able to assist you in using the information transmitted for analysis.

NOTE:

For best results. do not move the phone while the tones are being transmitted. if the call center agent is not able to get an accurate recording of the data. you may be asked to try again.

Door Alarm

When power is connected to the refrigerator. the door alarm is initially set to ON. When you press the Door Alarm button. the display will change to OFF and the Door Alarm function will deactivate.

When either the refrigerator or the freezer door is left open for more than 60 seconds. the alarm tone will sound to let you know that the door is open.

When you close the door. the door alarm will stop.

Demo Mode (For Store Use Only)

The Demo Mode disables all cooling in the refrigerator and freezer sections to conserve energy while on display in a retail store. When activated.

OFF will display on the control panel.

Control Lock

When power is initially connected to the refrigerator. the Lock function is off.

When the Lock function is activated. no other buttons will work.

The dispenser pad is also deactivated.

To disable the Lock function. press and hold the Control Lock button for approximately three seconds.

To deactivate:

With either refrigerator door opened. press and hold the Refrigerator Temp and Ice Maker buttons at the same time for five seconds. The control panel will beep and the temperature settings will display to confirm that Demo Mode is deactivated.

Use the same procedure to activate the Demo Mode.

Temperature Mode Switch Function (°F <->°C)

If you want to convert °F to °C or vice versa. press and hold the Freezer Temp and Refrigerator Temp buttons at the same time for approximately five seconds.

IN-DOOR iCE BiN

CAUTION

Keep hands and tools out of the ice compartment door and dispenser chute.

Failure to do so may result in damage or personal injury.

The icemaker will stop producing ice when the in-door ice bin is full. if you need more ice. empty the ice bin into the extra ice bin in the freezer compartment.

During use. the ice can become uneven causing the icemaker to misread the amount of ice cubes and stop producing ice. Shaking the ice bin to level the ice within it can reduce this problem.

NOTE: Storing cans or other items in the ice bin will damage the icemaker.

Keep the ice compartment door closed tightly.

If the ice compartment door is not closed tightly. the cold air in the ice bin will freeze food in the refrigerator compartment.

This could also cause the icemaker to stop producing ice.

NOTE: Emptying the ice bin is recommended if the icemaker ON/OFF button on the controt panel is set to OFF for an extended period of time.

2. To remove the in-door ice bin. grip the front handle. slightly lift the lower part. and slowly putt out the bin as shown.

3. To reinstall the in-door ice bin. slightly slant the bin during replacement to avoid contact with the icemaker.

When handling the

1. Putt or push the door handle to open or close the ice compartment.

4. Avoid touching the auto shutoff (feeler arm) when replacing the ice bin. See the label on the ice compartment door for details.

III Auto shutoff

Ill (feeler arm)

AUTOMATIC ICEMAKER

It takes about 12 to 24 hours for a newly installed refrigerator to begin making ice. Wait 72 hours for full ice production to occur.

Ice making stops when the in-door ice bin is full.

When full. the in-door ice bin holds approximately 6 to 8 (12-16 oz or 340-455 cc) glasses of ice.

Foreign substances or frost on the auto shutoff (feeler arm) can interrupt ice production.

Make sure the feeler arm is clean at all times for proper operation.

To increase ice production. use the Ultra Ice function.

This function increases both ice making and freezing capabilities.

Personal Injury Hazard

DO NOT place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in.

Icemaker

Auto shutoff: (feeler arm)

State of California

Department of Public Health

Water Treatment Device Certificate Number

09- 2019

Date Issued: December 15. 2009

Manufacturer:

The water treatment device(

116830 of the Health and Safer?

Microbiological Coataminants and Turbidity

Cysts

Organic Contaminants 2.4-D ReduCtion Atrazine Benzene Carbofuran Lindane

Rated Service Capacity: ga!

AUTOMATIC ICEMAKER (continued)

CAUTION

The first ice and water dispensed may include particles or odor from the water supply line or the water tank.

Throw away the first few batches of ice. This is also necessary if the refrigerator has not been used for a long time.

Never store beverage cans or other items in the ice bin for the purpose of rapid cooling.

Doing so may damage the icemaker or the containers may burst.

If discolored ice is dispensed. check the water filter and water supply.

If the problem continues. contact Sears or other qualified service center.

Do not use the ice or water until the problem is corrected.

Keep children away from the dispenser.

Children may play with or damage the controls.

The ice passage may become blocked with frost if only crushed ice is used. Remove the frost that accumulates by removing the ice bin and clearing the passage with a rubber spatula.

Dispensing cubed ice can also help prevent frost buildup.

Never use thin crystal glass or crockery to collect ice.

Such containers may chip or break resulting in glass fragments in the ice.

Dispense ice into a glass before filling it with water or other beverages.

Splashing may occur if ice is dispensed into a glass that already contains liquid.

Never use a glass that is exceptionally narrow or deep.

Ice may jam in the ice passage and refrigerator performance may be affected.

Keep the glass at a proper distance from the ice outlet.

A glass held too close to the outlet may prevent ice from dispensing.

To avoid personal injury. keep hands out of the ice door and passage.

Never remove the dispenser cover.

If ice or water dispenses unexpectedly. turn off: the water supply and contact Sears Home Service in the U.S.A. at 1-844-553-6667 and in Canada at 1-800 469-4663.

WHEN TO SET ICEMAKER TO OFF

When the water supply will be shut off for several hours.

When the ice bin is removed for more than one or two minutes.

When the refrigerator will not be used for several days.

NOTE: The ice bin should be emptied when the icemaker ON/OFF button is turned to the OFF mode.

NORMAL SOUNDS YOU MAY HEAR

If the icemaker ON/OFF button is set to ON. the valve will buzz even if the icemaker has not het been hooked

NOTE: Keeping the icemaker ON/OFF button set to ON before the water is connected can damage the icemaker.

You will hear the sound of cubes dropping into the bin and water running in the pipes as the icemaker refills.

PREPARING FOR VACATION

Set the icemaker ON/OFF button to OFF and shut off the water supply to the refrigerator.

NOTE: The ice bin should be emptied any time the icemaker ON/OFF button is turned OFF.

If the ambient temperature will drop below freezing. have a qualified technician drain the water supply system to prevent serious property damage due to flooding caused by ruptured water lines or connections.

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and moisture-proof material unless otherwise noted. This prevents food odor and taste transfer throughout the refrigerator.

For dated products. check date code to ensure freshness.

Butter or margarine Keep opened butter in a covered dish or closed compartment.

When storing an extra supply. wrap in freezer packaging and freeze.

Cheese Store in the original wrapping until you are ready to use it. Once opened. rewrap tightly in plastic wrap or aluminum foil.

Milk I Wipe milk cartons.

For best storage. place milk on interior shelf. not on door shelf.

STORING FROZEN FOOD

NOTE: Check a freezer guide or a reliable cookbook for further information about preparing food for freezing or food storage times.

Freezing Your freezer will not quick-freeze a large quantity of food.

Do not put more unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 lbs. of food per cubic foot of freezer space).

Leave enough space in the freezer for air to circulate around packages.

Be careful to leave enough room at the front so the door can close tightly.

Storage times will vary according to the quality and type of food. the type of packaging or wrap used (how airtight and moisture-proof) and the storage temperature.

Ice crystals inside a sealed package are normal.

This simply means that moisture in the food and air inside the package have condensed. creating ice crystals.

NOTE: Allow hot foods to cool at room temperature for 30 minutes. then package and freeze.

Cooling hot foods before freezing saves energy.

Eggs

Fruit

Leafy vegeta bies

Vegetables with skins (carrats. peppers)

Fish

Leftovers

I Store in originat carton on interior shelf. not on door shelf.

Do not wash or hull the fruit until it is ready to be used. Sort and keep fruit in its original container. in a crisper. or store in a completely closed paper bag on a refrigerator shelf.

Remove store wrapping and trim or tear off bruised and discolored areas. Wash in cold water and drain.

Place in plastic bag or plastic container and store in crisper.

I Place in plastic bags or plastic container and store in crisper.

Store fresh fish and shellfish in the freezer section if they are not being consumed the same day of purchase.

It is recommended to consume fresh fish and shellfish the same day purchased.

Cover leftovers with plastic wrap or aluminum foil. or store in plastic containers with tight lids.

Packaging Successful freezing depends on correct packaging.

When you close and seat the package. it must not allow air or moisture in or out. If it does. you could have food odor and taste transfer throughout the refrigerator and could also dry out frozen food.

Packaging recommendations: Rigid plastic containers with tight-fitting lids Straight-sided canning/freezing jars Heavy-duty aluminum foil Plastic-coated paper Non-permeable plastic wraps Specified freezer-grade self-sealing plastic bags Follow package or container instructions for proper freezing methods.

Do not use Bread wrappers Non-polyethylene plastic containers Containers without tight lids Wax paper or wax=coated freezer wrap Thin. semi-permeable wrap

CAUTION: Do not keep beverage cans or plastic food containers in the freezer compartment.

They may break or burst if they freeze.

WiNE STORAGE GUIDE

For your convenience and to save space. use the wine rack to store up to 4 standard sized bottles of wine.

CAUTION: Wine rack is designed for standard sized bottles.

Use of larger or non-standard shaped bottles may prevent the refrigerator door from closing properly.

REFRIGERATOR SECTION

WATER DISPENSER

To dispense cold water. push on the dispenser switch with a glass.

NOTE: The dispenser is equipped with a light that turns on when the dispenser pad is engaged.

Dispenser Switch

Push

WARNING: Do not put your fingers up the ice chute opening° Doing so can result in severe injury.

CAUTION: Do not dispense ice into fine china or

Some dripping may occur after dispensing° Hold your cup beneath the dispenser for a few seconds after dispensing to catch all of the drops.

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet your individual storage needs. Your model may have glass or wire shelves.

Adjusting the shelves to fit different heights of items will make flnding the exact item you want easier. Doing so will also reduce the amount of time the refrigerator door is open which will save energy.

IMPORTANT: Do not clean glass shelves with warm water while they are cold. Shelves may break if exposed to sudden temperature changes or impact.

CAUTION: Glass shelves are heavy. Use special care when removing them.

Adjusting Shelves (Cantilever)

Remove shelves from the shipping position and replace shelves in the position you want.

To remove a shelf--Tilt up the front of the shelf in the direction of C) and lift it in the direction of C)" Putt the shelf out.

To relnstall a shelf--Tilt the front of the shelf up and guide the shelf hooks into the slots at a desired height.

Then. lower the front of the shelf so that the hooks drop into the slots.

CAUTION: Make sure that shelves are level from one side to the other. Failure to do so may result in the shelf falling or spilling food.

Foldlng Shelf (on some models)

You can store taller items. such as a gallon container or bottles. by simply pushing the front half of the shelf underneath the back half of the shelf.

Putt the front of the shelf toward you to return to a full shelf.

State of California

Department of Public Health

Water Treatment Device Certificate Number

09- 2019

Date Issued: December 15. 2009

Manufacturer:

The water treatment device(

116830 of the Health and Safer?

Microbiological Coataminants and Turbidity

Cysts

Organic Contaminants 2.4-D ReduCtion Atrazine Benzene Carbofuran Lindane

Rated Service Capacity: ga!

HUMiDiTY CONTROLLED CRISPER

The crispers provide fresher tasting fruit and vegetables by letting you easily control humidity inside the drawer.

You can control the amount of humidity in the moisture sealed crispers by adjusting the control to any setting between VEGETABLES and FRUIT.

V EGETABLES keeps moist air in the crisper for best storage of fresh. leafy vegetables.

FRUIT lets moist air out of the crisper for best storage of fruit.

REMOVING THE HUMiDiTY CONTROLLED CRISPER

1. To remove. putt the drawer out to full extension.

2. Lift the front of the crisper up. then putt it straight out.

3. To install. slightly tilt up the front. insert the drawer into the frame and push it back into place.

To remove the glass

1. Lift up the glass under the crisper cover.

2. Putt the glass up and out.

NOTE: Pantry drawer not shown for clarity.

TEMPERATURE CONTROLLED PANTRY DRAWER

The Temperature Controlled Pantry Drawer provides storage space with a variable temperature control that can keep the compartment at a slightly different temperature than the refrigerator section. This drawer can be used for large party trays. den items and beverages. (This drawer should not be used for vegetables that require high humidity.)

Press the button to choose between Meat (Coldest). DeN (Colder) and Produce (Cold).

CAUTION: Do not store glass bottles in the pantry.

If they are frozen. they can break and cause personal injury.

DOOR BIN

The door bins are removable for easy cleaning and adjustment.

1. To remove the bin. simply lift the bin up and putt straight out.

2. To replace the bin. slide it in above the desired support and push down until it snaps into place.

NOTE: Some bins may vary in appearance and will only fit in one location.

CAUTION: Do not overfill or pack items too tightly into door bins. Doing so may cause damage to the bin or personal injury if items are removed with excessive force.

REPLACING THE AiR FILTER

Approximately every six months.

When the CHANGE AIR FILTER light turns on.

1. Remove the Old Filter

Turn the filter cover to the left to detach it from the refrigerator watt. The filter is located on the inside of the filter cover. Remove the filter from the cover and replace it with a new filter.

FREEZER SECTION

EXTRA iCE BIN

1. Putt the Freezer Drawer and the top Putlout Drawer out as far as possible to remove the Extra Ice Bin.

2. Gently lift and putt out the ice bin.

3. To replace. pull both drawers out as far as possible. and set the bin in its correct position in the Pullout Drawer.

Close the Pullout Drawer and then the Freezer Drawer.

Pullout Drawer

Extra Ice Bin

2. install a New Air Filter.

Place the new filter inside of the cover with the side that says "Front" facing outward.

Turn the filter cover to the right to attach it to the refrigerator wall.

CAUTION= Pinch hazard!

Keep hands and feet clear of the bottom of the freezer drawer when opening and closing.

After changing the filter. push and hold the Air Filter button for three seconds to reset the filter sensor.

NOTE= To purchase a replacement air filter. visit your local Sears store. or in the U.S.A. call 1-844-553-6667. and in Canada 1-800-469-4663.

For web purchase. visit: www.kenmore.com

For Sears Home Services in-home repair

For the replacement parts. accessories and

Use Care Guides that you need to do-it-yourself.

For professional installation of major home appliances

44-553-6667

PULLOUT DRAWERS

Tap Drawer

1. To remove. putt the drawer out to full extension.

On the left rail. use a fiat blade screwdriver to push in on the tab to release the drawer from the rail. as shown below.

Once the left side is loose. push the tab on the right side with your finger to release the drawer.

Lift the front of the drawer up. then putt it straight out.

2. To replace. slightly tilt up the front of the drawer. insert the drawer into the frame. and push it back into place.

DURABASE

]. To remove the Durabase. push it to the back as much as possible.

Tilt up the front of the Durabase and putt straight out.

2. To replace. insert the Durabase in the rail assembly.

2. To replace. slightly tilt up the front of the drawer. insert the drawer into the frame. and push the drawer back into place until you hear a click.

Middle Drawer

1. To remove. putt the drawer out to full extension.

Lift the front of the drawer up. then putt it straight out.

DURABASE DIVIDER

The Durabase divider allows you to organize the Durabase area into sections.

It can be adjusted from side to side to accommodate items of different sizes.

/' .

WARNING; If the Durabase divider is removed. there is enough open space for children or pets to crawl inside.

To prevent accidental child and pet entrapment or suffocation risk. DO NOT allow children or pets to touch or go near the drawer.

WATER FILTER

Approximately every six months. When the water filter indicator turns on. When the water dispenser output decreases. When the ice cubes are smaller than normal.

Before Replaclng the Water Filter:

If the top shelf. located below the water filter. is in the

To remove any shelf-Tilt up the

I. Remove the aid water filter.

Lower or remove the top left shelf to allow the water filter to rotate all the way down.

Pinch the sides to open the water filter cover.

NOTE: Replacing the water filter causes a small amount of water (around 1 oz. or 25 cc) to drain.

Place a cup under the front end of the water filter cover to collect any leaking water.

Hold the water filter upright. once it is removed. to prevent any remaining water from spilling out of the water filter.

Putt the water filter downward and putl out. Make sure to rotate the filter down completely before pulling it out of the manifold hole.

Replace wlth a new water Niter.

Take the new water filter out of its packing and remove the protective cover from the o-rings.

With water filter tabs in the horizontal position. push the new water filter into the manifold hole until it stops.

Rotate the water filter up into position and close the cover.

The cover will click when closed correctly.

+ After the water filter is replaced. dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously.

Depress and retease the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

4. Water Filter Bypass Plug

Keep the water filter bypass plug. You MUST use the water filter bypass plug when a replacement water filter cartridge is not available.

Water Filter

CAUTION: DO NOT operate refrigerator without water filter or water filter plug installed.

NOTE: To purchase a replacement filter. visit your local Sears store. or in the U.S.A. call 1-844-553-6667. and in Canada 1-800-469-4663.

For web purchase. visit: www.kenmore.com

Application Guidelines/Water Supply Parameters

Service Flow 0.5 gpm (1.9 lpm)

Water Supply Potable Water

Water Pressure 20-120 psi (138 - 827 kPa)

Water Temperature 33°F - 100°F (0.6°C 38°C)

NOTE: While the testing was performed under standard laboratory conditions. actual performance may vary.

NOTE: To purchase a replacement filter. visit your local Sears store. or in the U.S.A. call 1-844-553-6667. and in Canada 1-800-469-4663.

For web purchase. visit: www.kenmore.com Replacement Filter: ADQ36006102

Product distributed in the United States by Sears Brand Management Corporation.

+ 2009 M Company.

All rights reserved.

To reduce the risk associated with ingestion of contaminants: Do not use with water that is

To reduce the risk associated with property damage due to water leakage:

Read and follow the Water Filter instructions before

Installation and use MUST comply with all state and local plumbing codes.

Do not install if water pressure exceeds 120 psi (827 kPa). Contact a plumbing professional if you are uncertain of how to check your water pressure.

Do nat install where water hammer conditions may occur.

If water hammer conditions exist. you must

Do nat install on hot water supply lines.

The maximum operating water temperature of this water filter system is 100°F (38°C).

Protect water filter from freezing.

Do not operate refrigerator in ambient conditions below 55°F

(12.7°C).

Drain water filter when storing unit in temperatures below 40°F (4.4°C).

The disposable water filter must be replaced every six months. at the rated capacity. or if a noticeable reduction in flow rate occurs.

State of California

Department of Public Health

Water Treatment Device Certificate Number

09- 2019

Date Issued: December 15. 2009

Manufacturer: Sears Roebuck andCo.

The water treatment device(s) tisted on this cer. ificale have met the testing reqU[irments pursuant to Section 116830 of the Health and Safety Code for the followlng health relaJed contaminants:

Microbiological Contaminants and Turbidity

Cysts

Organic Cgntaminants 2.4-D Reduction Atrazine Benzene Carbofuran Lindane

Rated Service Capacity: ga!

Rated Servi& Flow: 0.5 gpm

Conditions of Cerfificatiomo

Explosion Hazard Use non-flammable cleaner.

Failure to do so can result in fire. explosion. or death.

Both the refrigerator and freezer sections defrost automatically; however. clean both sections about once month to prevent odors.

Wipe up spills immediately.

GENERAL CLEANING TIPS

Unplug refrigerator or disconnect power. Remove all removable parts. such as shelves. crispers. etc. Refer to sections in Using Your Refrigerator for removal instructions. Use a clean sponge or soft cloth and a mild detergent in warm water.

Do not use abrasive or harsh cleaners. Hand wash. rinse and dry all surfaces thoroughly. Plug in refrigerator or reconnect power.

EXTERIOR

Waxing external painted metal surfaces helps provide rust protection.

Do not wax plastic parts. Wax painted metal surfaces at least twice a year using appliance wax (or auto paste wax).

Apply wax with a clean. soft cloth.

For products with a stainless steel exterior. use a clean sponge or soft cloth and a mild detergent in warm water.

Do not use abrasive or harsh cleaners.

Dry thoroughly with a soft cloth.

INSIDE WALLS (allow freezer to warm up so the cloth will not slick)

To help remove odors. you can wash the inside of the refrigerator with a mixture of baking soda and warm water.

Mix 2 tablespoons of baking soda to 1 quart of water (26 g soda to 1 liter water.) Be sure the baking soda is completely dissolved so it does not scratch the surfaces of the refrigerator.

CAUTION: While cleaning the inside. do not spray water.

DOOR LINERS AND GASKETS

Use a clean sponge or soft cloth and a mild detergent in warm water.

Do not use cleaning waxes. concentrated detergents. bleaches. or cleaners containing petroleum on plastic refrigerator parts.

PLASTIC PARTS (Covers and Panels)

Use a clean sponge or soft cloth and a mild detergent in warm water.

Do not use window sprays. abrasive cleansers. or flammable fluids.

These can scratch or damage the material.

CONDENSER COILS

Use a vacuum cleaner with an attachment to clean the condenser cover and vents.

Do not remove the panel covering the condenser coil area.

LIGHT BULB REPLACEMENT

Electrical Shock Hazard

Before replacing a Compartment Lamp. either unplug the refrigerator or turn off power at the circuit breaker or fuse box.

NOTE: The refrigerator and freezer compartment lights have LED interior lighting. and service should be performed by a qualified technician.

POWER iNTERRUPTiONS

1. if the power will be out for 24 hours or less. keep all refrigerator doors closed to help foods stay cold and frozen.

2. if the power will be out for more than 24 hours. remove all frozen food and store it in a frozen food locker.

WHEN YOU GO ON VACATION

1. Use up any perishables and freeze other items.

2. Turn off the icemaker and empty the ice bin.

1. Remove all food from the refrigerator.

2. Depending on your model. set the thermostat controt (refrigerator control) to OFF. See the Setting the Controls section.

3. Clean the refrigerator. wipe it and dry well.

4. Tape rubber or wood blocks to the tops of both doors to prop them open far enough for air to get in. This stops odor and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home. follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all frozen food in dry ice.

2. Unplug the refrigerator.

3. Clean. wipe and dry thoroughly.

4. Take out all removable parts. wrap them well and tape them together so they do not shift and rattle during the move. Refer to the Using your Refrigerator section for removable instructions.

5. Depending on the model. raise the front of the refrigerator so it rolls easier OR screw in the leveling legs all the way so they do not scrape the floor. See the Door Closing section.

6. Tape the doors shut and tape the power cord to the refrigerator cabinet.

When you get to your new home. put everything back and refer to the Refrigerator Installation section for preparation instructions.

BEFORE YOU BEGIN

This water line installation is not covered by the refrigerator warranty.

Follow these instructions carefully to minimize the risk of expensive water damage.

Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and can lead to water leakage or flooding.

Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator.

CAUTION: To prevent burns and product damage. only connect the refrigerator water line to a cold water supply.

If you use your refrigerator before connecting the water line. make sure the icemaker is turned OFF at the control panel.

CAUTION: Do not install the icemaker tubing in areas where temperatures fall below freezing.

WATER PRESSURE

A cold water supply.

The water pressure must be between 20 and 120 psi. If the refrigerator is installed in an area with low water pressure (below 20 psi). you can install a booster pump to compensate for the low pressure.

If the water pressure from the reverse osmosis system is Jess than 20 psi or 138 kPa or 1.4 kgf/cm 2 (takes more than 4.0 sec to fill a cup of 7 oz or 198 cc capacity):

Check to see if the sediment filter in the reverse osmosis

Allow the storage tank on the reverse osmosis system to refill after heavy usage.

If the issue concerning water pressure from reverse osmosis remains. call a licensed. qualified plumber.

All installations must be in accordance with local

CAUTION: Wear eye protection during installation to prevent injury.

WHAT YOU WILL NEED

Copper Tubing.

1/4 in. outer diameter. to connect the refrigerator to the water supply. Be sure both ends of the tubing are cut square.

To determine how much tubing you need: measure the distance from the water valve on the

Power drlll.

1½in. or adjustable wrench.

Flat blade and Philllps head screwdrivers.

Two ¼ in. outer diameter

If your existing copper water line has a flared fitting at the end. you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting.

Shutoff valve to connect to the cold water llne. The shutoff valve should have a water inlet with a minimum

Saddle-type shutoff valves

NOTE: A Self Piercing Saddle Type Water Valve should not be used.

Electrical Shock Hazard

When using any electrical device (such as a power drill) during installation. be sure the device is battery powered. double insulated or grounded in a manner that will prevent the hazard of electric shock.

Instatl the shutoff valve on the nearest frequently used drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY Turn on the nearest faucet to relieve the pressure on the line.

2. CHOOSE THE VALVE LOCATION Choose a location for the valve that is

3. DRILL THE HOLE FOR THE VALVE Drill a I/4 in. hole in the water pipe using a sharp bit.

Remove any burrs resulting from drilling the hole in the pipe. Be careful not to allow water to drain into the drill.

Failure to drill a 1/4 in. hole may result in reduced ice production or smaller cubes.

NOTE: The hookup line cannot be white. plastic tubing.

Licensed plumbers must use only copper tubing (NDA tubing #49595 or #49599) or Cross Link Polyethylene (PEX) tubing.

4. FASTEN THE SHUTOFF VALVE Fasten the shutoff valve to the cold water pipe with the pipe clamp.

Pipe Clamp

Saddle-Ty Shutoff Valve Vertical Cold Water Pipe

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegat and use is not permitted in Massachusetts.

Consult with your licensed plumber.

5. TIGHTEN THE PiPE CLAMP

Tighten the clamp screws until the sealing washer begins to swell.

NOTE: Do not overfighten damp or you may crush the tubing.

Washer

Pipe Clamp

Clamp Screw

ROUTE THE TUBING Route the tubing between the cold water line and the refrigerator.

Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing (about 8 feet coiled into 3 turns of about 10 in. diameter) to allow the refrigerator to move out from the wall after installation.

CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve. Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely.

Saddle-Type

Shutoff Valve

Packing Nu

Outlet Valve

Ferrule (sleeve)

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are

8. FLUSH OUT THE TUBING Turn the main water supply on and flush out the tubing until the water is clear.

Shut the water off at the water valve after about one quart of water has been flushed through the tubing.

10. TURN THE WATER ON AT THE SHUTOFF VALVE

Tighten any connections that leak.

9. CONNECT THE TUBING TO THE REFRIGERATOR

Before making the connection to the refrigerator. be sure that the refrigerator power cord is not plugged into the wall outlet.

1. Remove the plastic flexible cap from the water valve.

2. Place the compression nut and ferrule (sleeve) onto the end of the tubing as shown.

3. Insert the end of the copper tubing into the connection as far as possible. While holding the tubing. tighten the fitting.

Tubing Clamp

1/4 in.

Compression

Nut

Ferrule (sleeve)

1/4 in. Tubing l)

_. AUTION: Check to see if leaks occur at the water line connections.

11. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate

Push the refrigerator back to the wail.

12. START THE ICEMAKER

Turn the icemaker ON at the control panel.

The icemaker will not begin to operate until it reaches its operating temperature of 15°F (-9°C) or below. It will then begin operation automatically if the icemaker button has been turned ON.

Before conducting troubleshooting. make sure that the following basic requirements are met:

Service Flow 0.5 gpm (1.9 lpm)

Water Supply Potable Water

Water Pressure 20-120 psi (138 - 827 kPa)

Operating Ambient OF _ 110OF Temperature Limits

115 Volts. 60 Hz. AC only. and fused Electrical Ratings at 15 or 20 amperes.

COOLING

Refrigerator and The refrigerator control is set to OFF Turn the control ON.

Refer to the Setting the Controls Freezer section are (some models). section for proper temperature settings.

Refrigerator is in the defrost cycle.

Demo Mode allows the lights and control display to work normally while disabling cooling to save energy while on the showroom floor.

Refer to the Setting the Controls section for instructions on how to disable Demo Mode.

During the defrost cycle. the temperature of each compartment may raise slightly.

Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.

Refrigerator was recently installed.

It may take up to 24 hours for each compartment to reach the desired temperature.

Refrigerator was recently relocated.

If the refrigerator was stored for a long period of time or moved on its side. it is necessary for the refrigerator to stand upright for 24 hours before connecting it to power.

Cooling System runs Refrigerator is replacing an older Modern refrigerators require more operating time but too much. model. use less energy due to more emcient technology.

Refrigerator was recently plugged in The refrigerator will take up to 24 hours to coot or power restored. completely.

Door opened often or a large amount of food / hot food was added.

Doors are not closed completely.

Refrigerator is installed in a hot location.

Condenser / back cover is clogged.

Adding food and opening the door warms the refrigerator. requiring the compressor to run longer in order to cool the refrigerator back down.

In order to conserve energy. try to get everything you need out of the refrigerator at once. keep food organized so it is easy to find. and close the door as soon as the food is removed. (Refer to the Food Storage Guide.)

Firmly push the doors shut. If they witl not shut all the way. see the Doors will not close completely or pop open section in Parts & Features Troubleshooting.

The compressor will run longer under warm conditions.

At normal room temperatures (70°F) expect your compressor to run about to 80% of the time.

Under warmer conditions. expect it to run even more often.

The refrigerator should not be operated above 110°1=.

Use a vacuum cleaner with an attachment to clean the condenser cover and vents.

Do not remove the panet covering the condenser coil area.

COOLING

Refrigerator or Refrigerator was recently installed. it may take up to 24 hours for each compartment to Freezer section is too reach the desired temperature.

Doors are opened often or for long periods of time.

Unit is installed in a hot location.

A large amount of food or hot food was added to either compartment.

Doors not closed correctly.

Temperature controt is not set correctly.

Defrost cycle has recently completed.

Doors are opened often or for long periods of time.

When the doors are opened often or for long periods of time. warm. humid air enters the compartment.

This raises the temperature and moisture level within the compartment.

To lessen the effect. reduce the frequency and duration of door openings.

The refrigerator should not be operated in temperatures above F.

Adding food warms the compartment requiring the cooling system to run. Allowing hot food to coot to room temperature before putting it in the refrigerator will reduce this effect.

See the Doors will not close correctly or pop open section in Parts & Features Troubleshooting.

During the defrost cycle. the temperature of each compartment may raise slightly and condensation may form on the back wall.

Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.

When the doors are opened often or for long periods of time. warm. humid air enters the compartment.

This raises the temperature and moisture level within the compartment.

To lessen the effect. reduce the frequency and duration of door openings.

Doors not closed correctly.

See the Doors will not close correctly section in the Troubleshooting section.

Weather is humid.

Defrost cycle recently completed.

Food is not packaged correctly.

Humid weather allows additional moisture to enter the compartments when the doors are opened leading to condensation or frost. Maintaining a reasonable level of humidity in the home will help to control the amount of moisture that can enter the compartments.

During the defrost cycle. the temperature of each compartment may raise slightly and condensation may form on the back wall.

Wait 30 minutes and confirm that the proper temperature has been restored once the defrost cycle has completed.

Food stored uncovered or unwrapped. and damp containers can lead to moisture accumulation within each compartment.

Wipe all containers dry and store food in sealed packaging to prevent condensation and frost.

COOLING/ICE & WATER

Food is freezing Food with high water content was Rearrange items with high water content away from air in the refrigerator placed near an air vent. vents.

Refrigerator is installed in a cold When the refrigerator is operated in temperature location. below 41°F (5°C). food can freeze in the refrigerator compartment.

The refrigerator should not be operated in temperature below 55°F (13°C).

Frost or ice crystals form on frozen food (outside of package).

Door is opened frequently or for long periods of time.

When the doors are opened often or for long periods of time. warm. humid air enters the compartment. This raises the temperature and moisture level within the compartment.

Increased moisture will lead to frost and condensation.

To lessen the effect. reduce the frequency and duration of door openings.

Door is not closing properly.

Refer to the Doors will not close correctly or pop open section in the Troubleshooting section.

Refrigerator or Incorrect temperature control settings.

If the temperature is too cold. adjust the control one Freezer section is too increment at a time and wait for the temperature to cold. stabilize. Refer to the Setting the Controls section for more information.

Frost or ice crystals Condensation from food with a high This is normal for food items with a high water content. on frozen food water content has frozen inside of the (inside of sealed food package.

Icemaker is not Demand exceeds ice storage capacity.

The icemaker will produce approximately 70-182 cubes in making enough ice. a 24 hour period.

House water supply is not connected. valve is not turned on fully. or valve is clogged.

Water filter has been exhausted.

Low house water supply pressure.

Reverse Osmosis filtration system is used.

Tubing connecting refrigerator to house supply valve is kinked.

Connect the refrigerator to a cold water supply with adequate pressure and turn the water shutoff valve fully open.

If the problem persists. it may be necessary to contact a plumber.

It is recommended that you replace the water filten

Approximately every six months.

When the water filter indicator turns on.

When the water dispenser output decreases.

When the ice cubes are smaller than normal.

The water pressure must be between 20 and 120 psi on models without a water filter and between 40 and 120 psi on models with a water filter.

If the problem persists. it may be necessary to contact plumber or install a booster pump to compensate for the low pressure.

Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues. (Refer to Water Pressure section.)

The tubing can kink when the refrigerator is moved during installation or cleaning resulting in reduced water flow.

Straighten or repair the water supply line and arrange it to prevent future kinks.

Icemaker is not making enough ice (continued).

Doors are opened often or for long periods of time.

Doors are not closed completely.

The temperature setting for the freezer is too warm.

If the doors of the unit are opened often. ambient air will warm the refrigerator which will prevent the unit from maintaining the set temperature.

Lowering the refrigerator temperature can help. as well as not opening the doors as frequently.

If the doors are not properly closed. ice production will be affected.

See the Doors will not close completely or pop open section in Parts & Features Troubleshooting for more information.

The recommended temperature for the freezer compartment for normal ice production is 0°F. If the freezer temperature is warmer. ice production will be affected.

Water filter has been exhausted.

It is recommended that you replace the water filter:

Reverse osmosis filtration system is used.

Dispensing water slowly.

Low house water supply pressure.

Approximately every six months.

When the water filter indicator turns on.

When the water dispenser output decreases.

When the ice cubes are smaller than normal.

Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues.

If the problem persists. it may be necessary to contact a plumber or install a booster pump to compensate for the low pressure.

The water pressure must be between 20 and 120 psi on models without a water filter and between 40 and 120 psi on models with a water filter.

Not dispensing ice.

Doors are not closed completely.

Ice will not dispense if any of the refrigerator doors are left open.

Infrequent use of the dispenser.

The delivery chute is clogged with frost or ice fragments.

Infrequent use of the ice dispenser will cause the cubes to stick together over time. which will prevent them from properly dispensing.

Check the ice bin for ice cubes clumping/sticking together.

If they are. break up the ice cubes to allow for proper operation.

Eliminate the frost or ice fragments by removing the ice bin and clearing the chute with a plastic utensil.

Dispensing cubed ice can also help prevent frost or ice fragment buildup.

The dispenser display is locked.

Press and hold the Lock button for three seconds to unlock the control panel and dispenser.

Ice bin is empty. it may take up to 24 hours for each compartment to reach the desired temperature and for the icemaker to begin making ice. Make sure that the shutoff (arm/ sensor) is not obstructed.

Once the ice supply in the bin has been completely exhausted. it my take up to 90 minutes before additional ice is available. and approximately hours to completely refill the bin.

Icemaker is not Refrigerator was recently installed or It may take up to 24 hours for each compartment to making ice. icemaker recently connected. reach the desired temperature and for the icemaker to begin making ice.

Icemaker not turned on.

Locate the icemaker ON/OFF button and confirm that it is turned ON.

The refrigerator is not connected to Connect refrigerator to the water supply and turn the a water supply or the supply shutoff water shutoff valve fully open. valve is not turned on.

Icemaker shutoff (feeler arm) If your icemaker is equipped with an ice shutoff arm. obstructed. make sure that the arm moves freely.

Reverse osmosis water filtration Reverse osmosis filtration systems can reduce the system is connected to your cold water pressure below the minimum amount and result water supply. in icemaker issues. (Refer to the Water Pressure section.)

Not dispensing water.

New installation or water line recently connected.

The dispenser panel is locked.

The dispenser is not set for water dispensing.

Dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminates from the system. Do not dispense the entire gallon amount continuously.

Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

Press and hold the Lock button for three seconds to unlock the control panel and dispenser.

The dispenser can be set for ice or waten Make certain that the control panel is set for the proper operation.

Press the Water button on the control panel to dispense water.

Refrigerator or freezer doors are not Water will not dispense if any of the refrigerator closed properly. doors are left open.

Water filter has been recently removed or replaced.

Tubing connecting refrigerator to house supply valve is kinked.

The house water supply is not connected. the valve is not turned on fully. or the valve is clogged.

After the water filter is replaced. dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminates from the system. Do not dispense the entire 2.5 gallon amount continuously.

Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

The tubing can kink when the refrigerator is moved during installation or cleaning resulting in reduced water flow.

Straighten or repair the water supply line and arrange it to prevent future kinks.

Connect refrigerator to the water supply and turn the water shutoff valve fully open.

If the problem persists. it may be necessary to contact a plumber.

Ice has bad taste or odor.

Water supply contains minerals such as sulfur.

A water filter may need to be installed to eliminate taste and odor problems.

NOTE: In some cases. a filter may not help. It may not be possible to remove all minerals / odor / taste in all water supplies.

Icemaker was recently installed.

Discard the first few batches of ice to avoid discolored or bad tasting ice.

Ice has been stored for too long.

Ice that has been stored for too long will shrink. become cloudy. and may develop a stale taste. Throw away old ice and make a new supply.

The food has not been stored Rewrap the food.

Odors may migrate to the ice if properly in either compartment. food is not wrapped properly.

The interior of the refrigerator needs See the Care and Cleaning section for more to be cleaned. information.

The ice storage bin needs to be Empty and wash the bin (discard old cubes). Make cleaned. sure that the bin is completely dry before reinstalling it.

Dispensing warm Refrigerator was recently installed.

Allow 24 hours after installation for the water storage water. tank to cool completely.

The water dispenser has been used Depending on your specific model. the water storage recently and the storage tank was capacity will range from approximately 20 to 30 oz. exhausted.

Dispenser has not been used for If the dispenser has not been used for several hours. several hours. the first glass dispensed may be warm.

Discard the first 10 oz.

Refrigerator is connected to the hot water supply.

Make sure that the refrigerator is connected to a cold water pipe.

WARNING: Connecting the refrigerator to a hot water line may damage the icemaker.

Water has bad taste Water supply contains minerals such A water filter may need to be installed to eliminate or odor. as sulfur. taste and odor problems.

Water filter has been exhausted.

It is recommended that you replace the water filter:

Refrigerator was recently installed.

Icemaker shutoff (feeler arm) is obstructed.

Icemaker is making too much ice.

Approximately every 6 months. When the water filter indicator turns on. When the water dispenser output decreases. When the ice cubes are smaller than normal.

Dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminates from the system. Do not dispense the entire gallon amount continuously.

Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

Empty the ice bin. If your icemaker is equipped with an ice shutoff: arm. make sure that the arm moves freely.

Reinstall the ice bin and wait 24 hours to confirm proper operation.

NOISE

Clicking The defrost control will click when the automatic defrost cycle begins and ends. The thermostat control (or refrigerator control on some models) will also click when cycling on and ofF.

Normal Operation

Rattling noises may come from the Normal Operation flow of refrigerant. the water line on the back of the unit. or items stored on top of or around the refrigerator.

Refrigerator is not resting solidly on Floor is weak or uneven or leveling legs need to be the floor. adjusted.

See the Door Alignment section.

Refrigerator with linear compressor Normal Operation was jarred while running.

Whooshing Evaporator fan motor is circulating Normal Operation air through the refrigerator and freezer compartments.

Air is being forced over the condenser Normal Operation by the condenser fan.

Gurgling Refrigerant flowing through the Normal Operation cooling system.

Popping Contraction and expansion of the Normal Operation inside walls due to changes in temperature.

Sizzling Water dripping on the defrost heater Normal Operation during a defrost cycle.

Vibrating If the side or back of the refrigerator To eliminate the noise. make sure that the sides and is touching a cabinet or wall. some of back cannot vibrate against any walt or cabinet. the normal vibrations may make an audible sound.

Dripping Water running into the drain pan Normal Operation during the defrost cycle.

Pulsating or High Normal Operation Pitched Sound Your refrigerator is designed to run more efficiently to keep your food items at the desired temperature.

The high efficiency compressor may cause your new refrigerator to run longer than your old one. but it is still more energy efficient than previous models.

While the refrigerator is running. it is normal to hear a pulsating or high pitched sound.

PARTS & FEATURES

Doors will not close Food packages are blocking the door Rearrange food containers to clear the door and door correctly or pop open. shelves.

The doors were removed during Remove and replace the doors according to the product installation and not properly Removing and Replacing Refrigerator Handles and replaced.

Doors section.

Refrigerator is not leveled properly.

See Door Alignment in the Refrigeration Installation section to level refrigerator.

Doors are difficult to The gaskets are dirty or sticky.

Clean the gaskets and the surfaces that they touch. open.

Rub a thin coat of appliance polish or kitchen wax on the gaskets after cleaning.

Door was recently closed.

Refrigerator wobbles or seems unstable.

Lights do not work.

Refrigerator has an unusual odor.

The interior of the refrigerator is covered with dust or soot.

Leveling legs are not adjusted properly.

Floor is not level.

LED interior lighting failure.

The Air Filter may need to be set to the MAX setting or replaced.

The refrigerator is located near a fire source. such as a fireplace. chimney or candle.

When you open the door. warmer air enters the refrigerator.

As the warm air cools. it can create vacuum.

If the door is hard to open. wait one minute to allow the air pressure to equalize. then see if it opens more easily.

Refer to the Leveling and Door Alignment section.

The refrigerator compartment lamp is LED interior lighting. and service should be performed by a qualified technician.

Refer to the Light Bulb Replacement section.

Set the Air Filter to the MAX setting. if the odor does not go away within 24 hours. the filter may need to be replaced.

See the Replacing the Air Filter section for replacement instructions.

Make sure that the refrigerator is not located near a fire source. such as a fireplace. chimney or candle.

Kenmore Connect TM (On some models)

Should you experience any problems with your refrigerator. it has the capability of transmitting data via your telephone to the I

This gives you the capability of speaking directly to our trained specialists.

The specialist records the data transmitted from your machine and uses it to analyze the issue. providing a fast ective diagnosis.

469-4663.

Only use the I

Kenmore Connect TM cannot be activated unless your refrigerator is connected to power.

If your refrigerator is unable to turn on. then troubleshooting must be done without using Kenmore Connect TM.

3. Hold the mouthpiece of your phone in front of the speaker that is located on the right hinge of the refrigerator door. when instructed to do so by the call center.

4. Press and hold the Freezer Temp button for three seconds while continuing to hold your phone to the speaker.

Using Kenmore Connect TM

First. call 1-844-553-6667 (U.S.A.) or 1-800-469-4663 (Canada).

If the number of the phone you are using is on file and is associated with your refrigerator. you will be quickly relayed to a Kenmore Connect TM team agent.

Only use the Kenmore Connect TM feature when instructed to do so by the Kenmore Connect TM Team agent.

1. Lock the display.

To lock the display. press and hold the Control Lock button for three seconds. (if the display has been locked for over five minutes. you must deactivate the lock and then reactivate it.)

2o Open the right refrigerator door.

5o After you hear three beeps. release the Freezer Temp button.

+ Keep the phone in place until the tone transmission has finished.

The display will count down the time. Once the countdown is over and the tones have stopped. resume your conversation with the specialist. who will then be able to assist you in using the information transmitted for analysis.

NOTE:

For best results. do not move the phone while the tones are being transmitted. if the call center agent is not able to get an accurate recording of the data. you may be asked to try again.

State of California

Department of Public Health

Water Treatment Device Certificate Number

09- 2019

Date Issued: December 15. 2009

Manufacturer:

The water treatment device(

116830 of the Health and Safer?

Microbiological Coataminants and Turbidity

Cysts

Organic Contaminants 2.4-D ReduCtion Atrazine Benzene Carbofuran Lindane

Rated Service Capacity: ga!



Newest Added: 58054501500 59679313511 10661189900 79043494400 79551039011

Kenmore 79579993511 | Pages: 274 | File type: PDF | Filename: 72208037_79579993511.pdf | Size: 26.43 MB | Language: English

Download User Manual

Contact us

T: @manualsFile

https://manualsFile.com
