background
.
Integrated Amplifier
PM5005
Owner’s Manual
You can print more than one page of a PDF onto a single sheet of paper.
Contents Connections Playback
Settings
Tips Appendix
1
Front panel Rear panel
Remote control
unit
Index
background
Accessories
4
Inserting the batteries
5
Operating range of the remote control unit
5
Features
6
High quality sound
6
High performance
6
Easy operation
7
Part names and functions
8
Front panel
8
Rear panel
10
Remote control unit
11
Connections

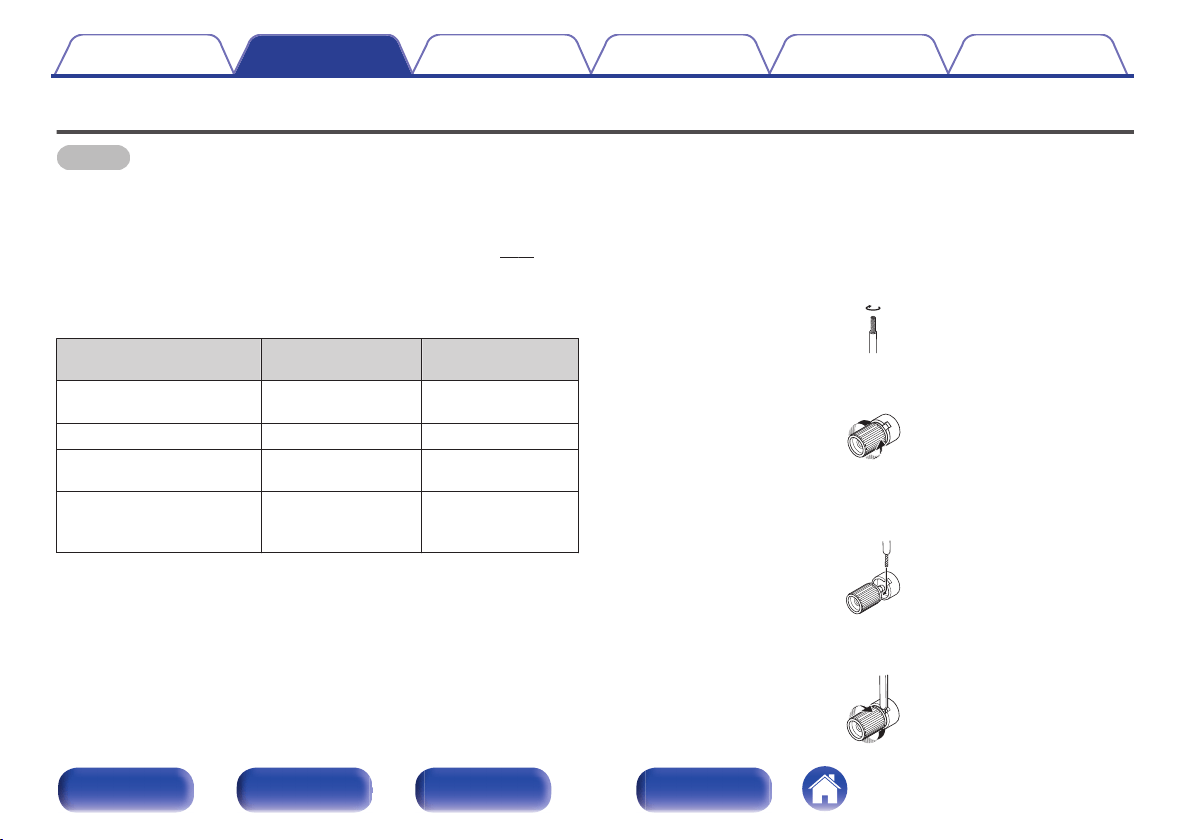

Connecting speakers
17
Speaker A/B connection
18
Bi-wiring connection
19

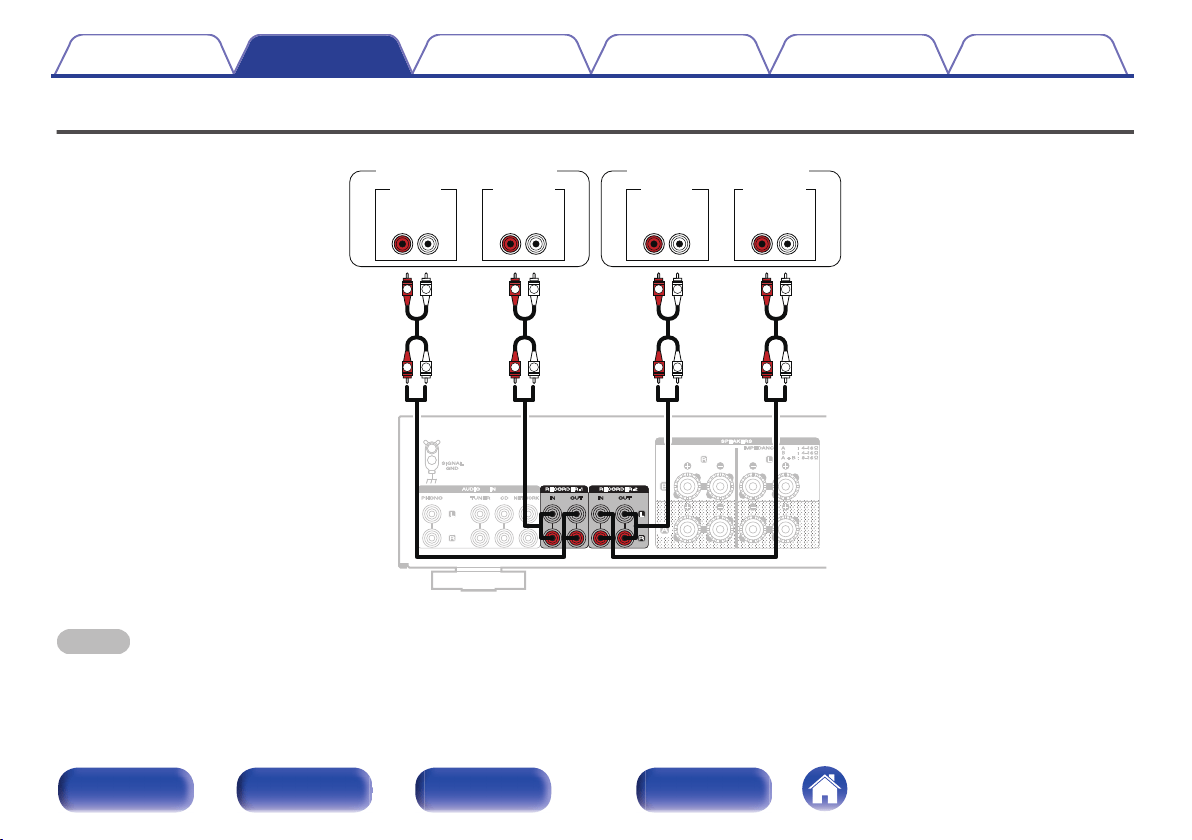

Connecting a playback device
20
Connecting a recording device
21

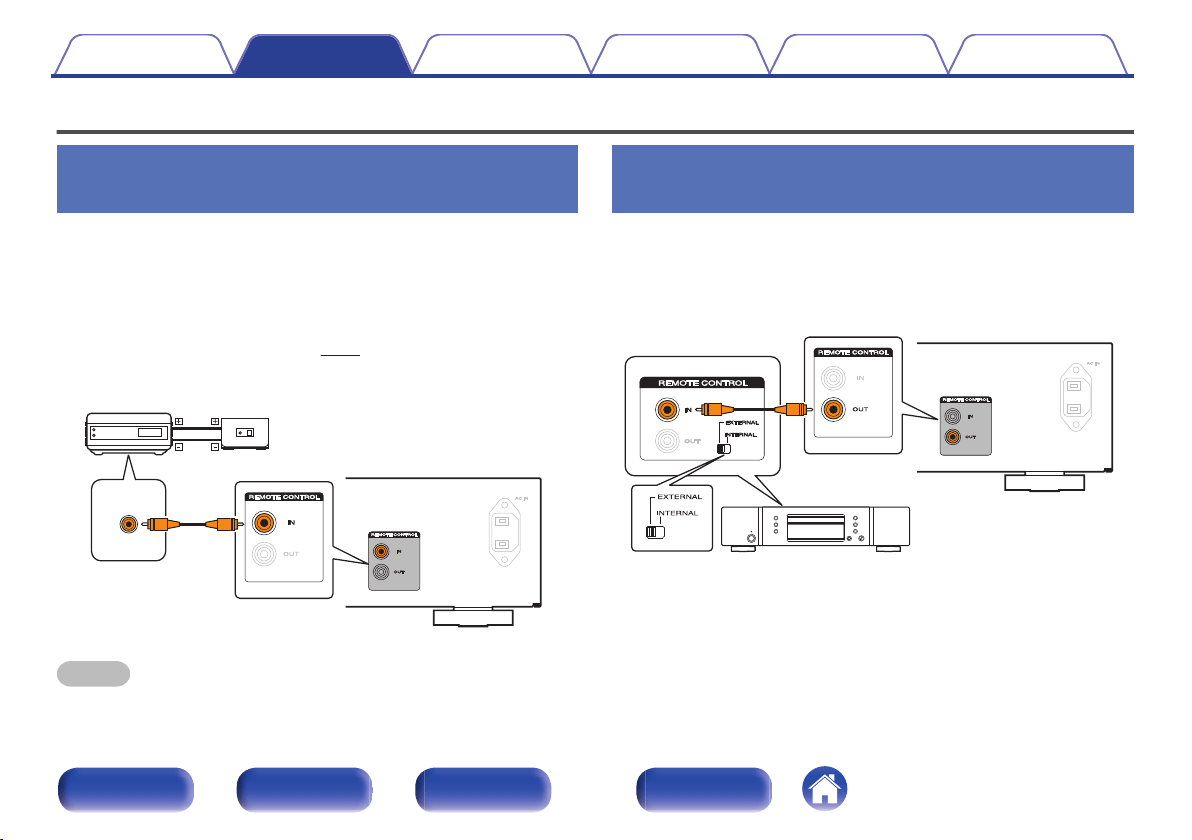

Connecting devices with remote control connectors
22
Performing operations by RC on this unit without visual contact
22
Remotely connecting Marantz audio devices
22

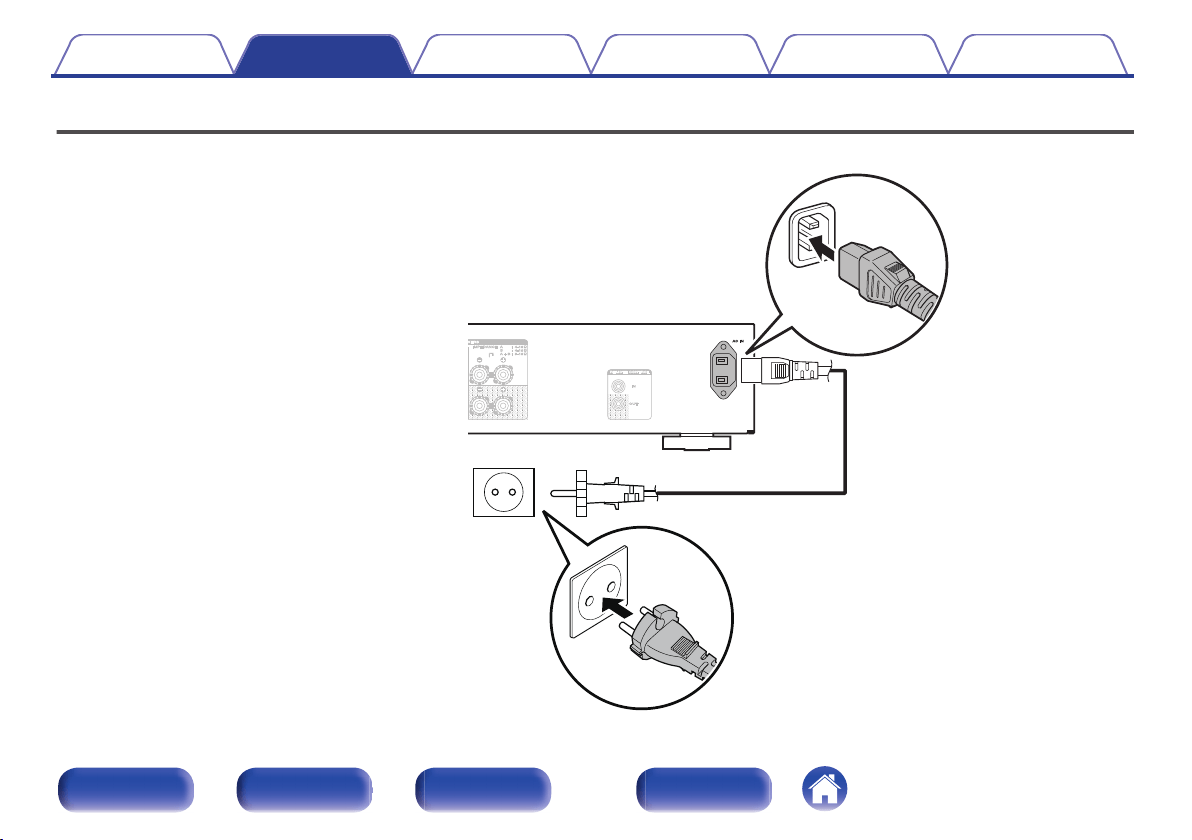

Connecting the power cord
23

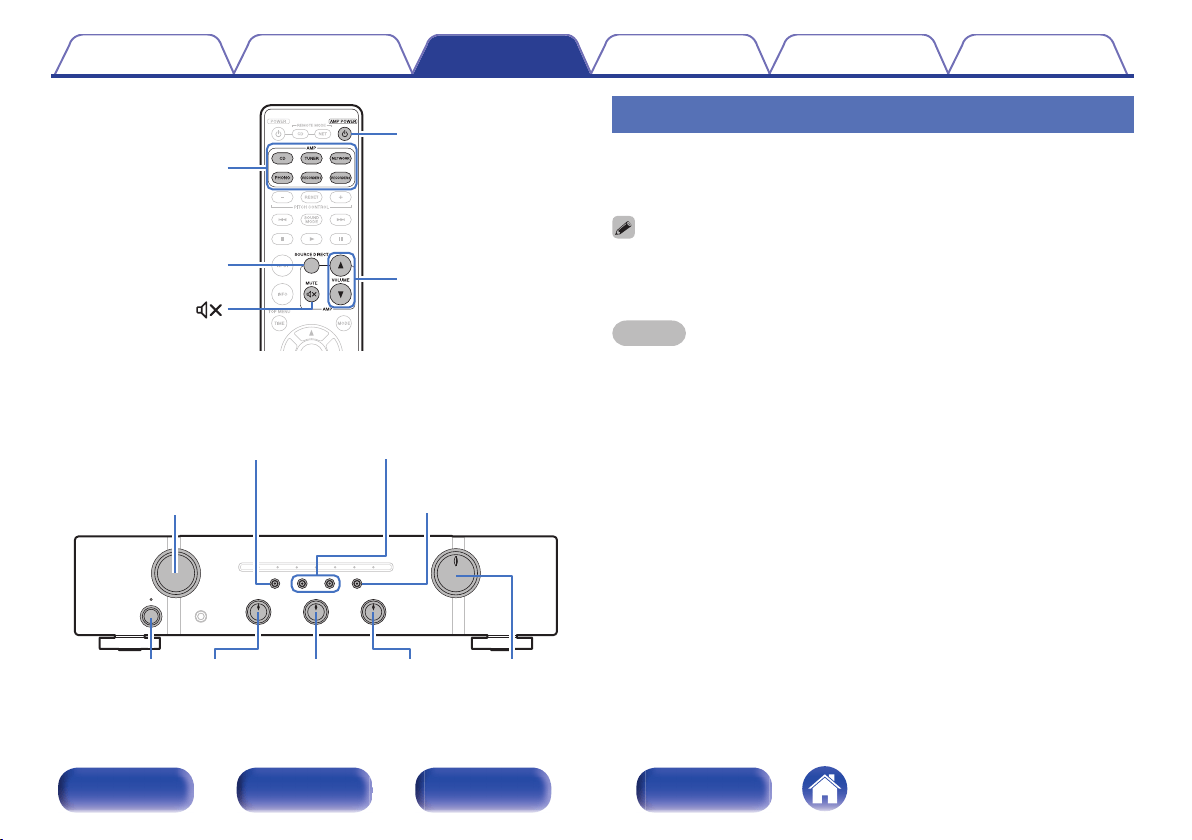

Playback
Turning the power on
25
Selecting the speakers for audio output
26
Selecting the input source
26
Adjusting the volume
26
Turning off the sound temporarily (Muting)
26
Adjusting the tone
26
Playing CDs
27
Recording
28
Contents Connections Playback
Settings
Tips Appendix
Contents
2
Front panel Rear panel
Remote control
unit
Index
background
Settings
Setting the Auto Standby mode
30
Turning Auto Standby mode off
30
Turning Auto Standby mode on
30
Setting the remote signal receiving function
31
Disabling the remote signal receiving function of the remote
control unit
31
Enabling the remote signal receiving function of the remote
control unit
31
Setting remote control codes
32
Setting remote control codes for the remote control
33
Setting remote control codes for this unit
33
Tips
Tips
35
Troubleshooting
36
Appendix
Explanation of terms
40
Specifications
41
Index
43
Contents Connections Playback
Settings
Tips Appendix
3
Front panel Rear panel
Remote control
unit
Index
background
Thank you for purchasing this Marantz product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.

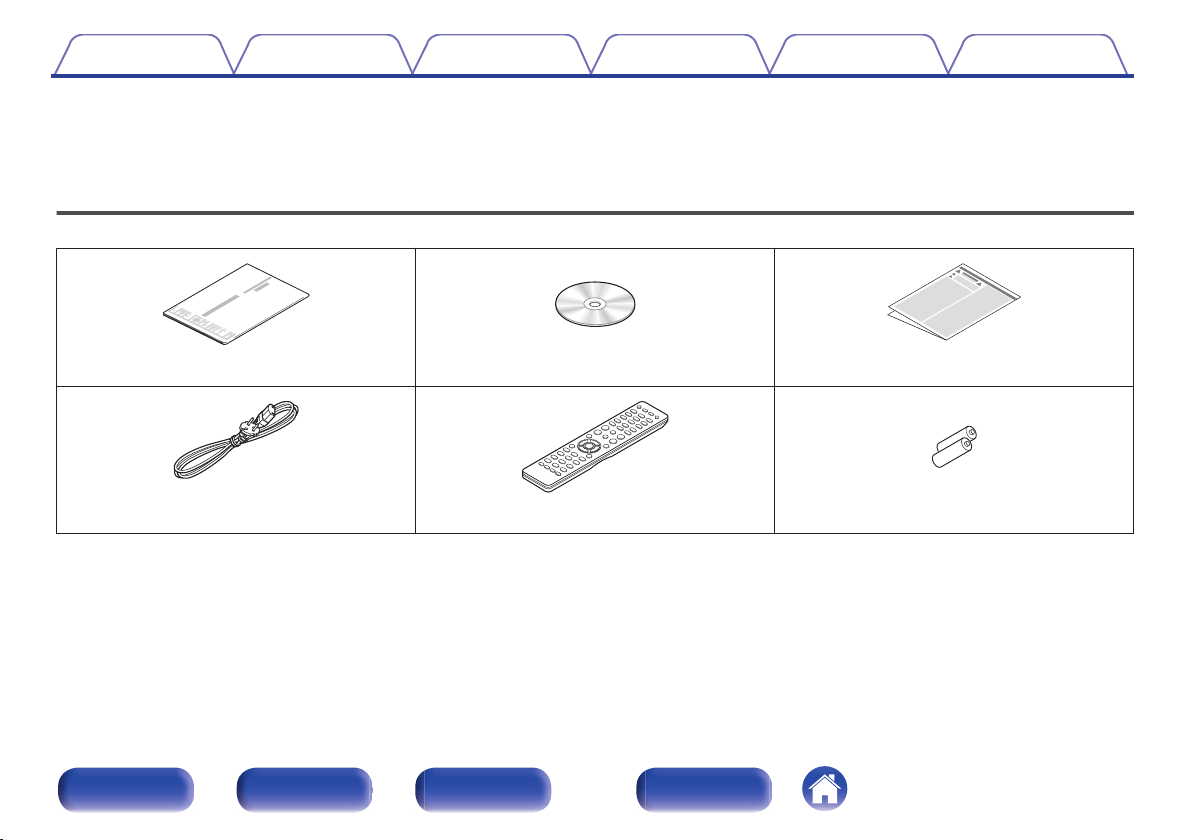

Accessories
Check that the following parts are supplied with the product.
.
.
.
Quick Start Guide CD-ROM (Owner’s Manual) Safety Instructions
.
.
.
Power cord Remote control unit (RC002PMCD) R03/AAA batteries
Contents Connections Playback
Settings
Tips Appendix
4
Front panel Rear panel
Remote control
unit
Index
background

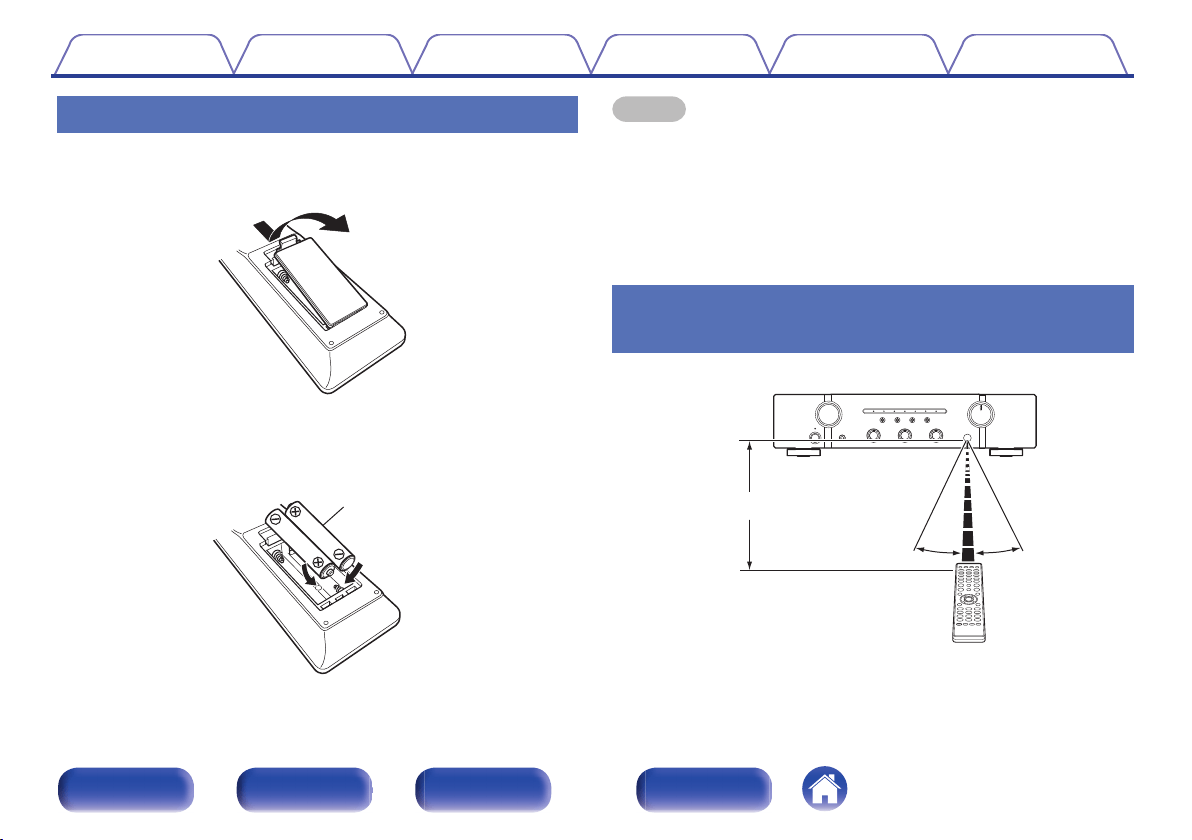

Inserting the batteries
1
Remove the rear lid in the direction of the arrow and
remove it.
.
2
Insert two batteries correctly into the battery
compartment as indicated.
.
R03/AAA batteries
3
Put the rear cover back on.
NOTE
0
To prevent damage or leakage of battery fluid:
0
Do not use a new battery together with an old one.
0
Do not use two different types of batteries.
0
Remove the batteries from the remote control unit if it will not be in use for long
periods.
0
If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30°
Approx. 7 m
30°
Contents
Connections Playback
Settings
Tips Appendix
5
Front panel Rear panel
Remote control
unit
Index
background
Features
High quality sound
0
All-discrete current feedback amplifier
This unit uses a high-speed current feedback amplifier circuit for its
preamplifier and power amplifier so that signals from the Super Audio
CD player can be amplified with high fidelity. The high-speed current
feedback amplifier reproduces a natural sound space.
0
High-power output
This unit features a slimline body, but comes with a large power supply
unit for dynamic music reproduction with high power.
0
High quality audio design
This unit has a high quality audio design such as minimized signal path,
use of high sound quality parts, and large power circuit, which is
possible only in discrete audio components.
0
Phono input connectors for connecting turntables
This unit is provided with a phono amplifier so that you can directly
connect a turntable and play records (Only the MM cartridge can be
used). (v
p. 20)
0
Two-sets of speaker output terminals
In addition to using two sets of speakers (Speakers A and Speakers B),
you can connect to bi-wiring speakers with separate input terminals for
high range and low range. (v
p. 19)
The unit adopts screw terminals that can connect thick audio cables.
High performance
0
Tone control function
This unit has a tone control function for adjustment of bass (low
frequency) and treble (high frequency) sound to produce your preferred
tone. (v p. 27)
0
LOUDNESS function
This unit is provided with a LOUDNESS function that makes it easier to
hear music played back at a low volume level. (v p. 27)
Contents Connections Playback
Settings
Tips Appendix
6
Front panel Rear panel
Remote control
unit
Index
background
Easy operation
0
Remote control compatible with CD players and network audio
players
The remote control provided with this unit can control Marantz CD
players and network audio players in addition to this unit. (v p. 12)
This unit can also switch between three remote control codes. When
using three units in the same area, you can set a different remote
control code for each unit to control them independently. (v p. 33)
Contents Connections Playback
Settings
Tips Appendix
7
Front panel Rear panel
Remote control
unit
Index
background
Part names and functions

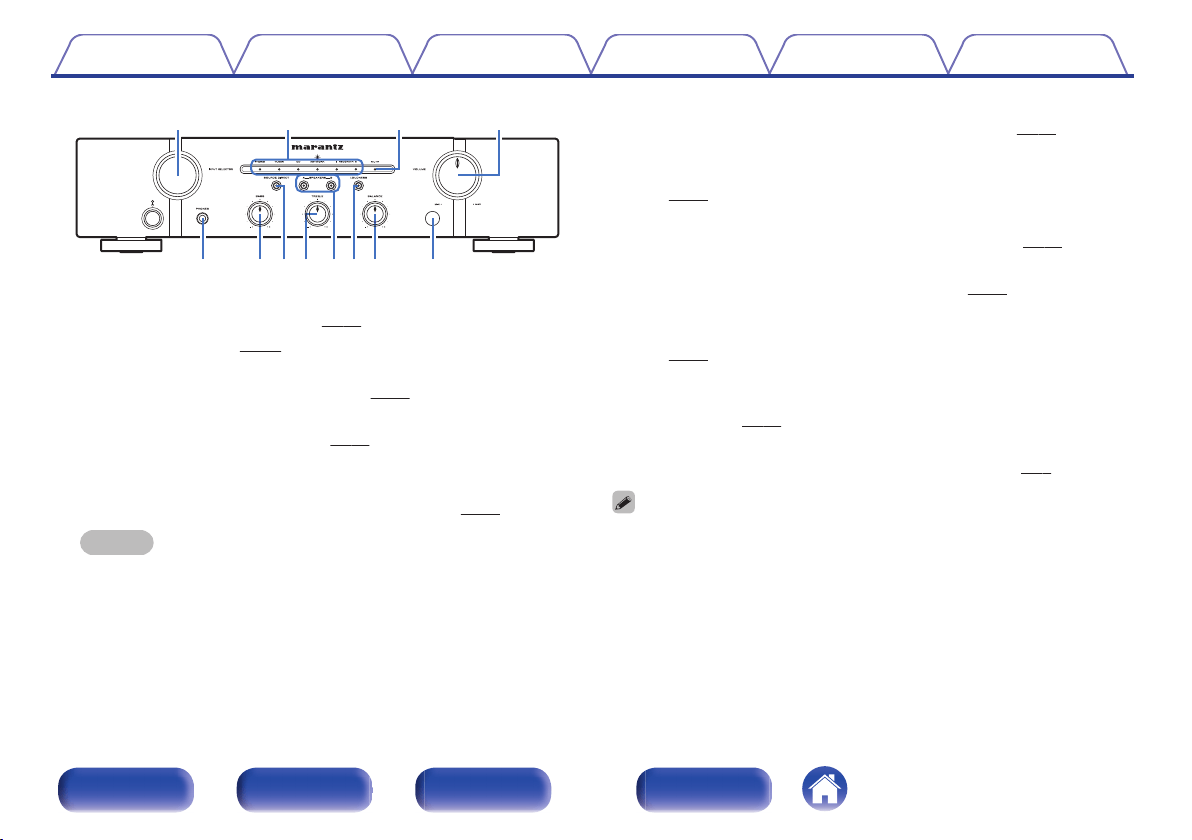

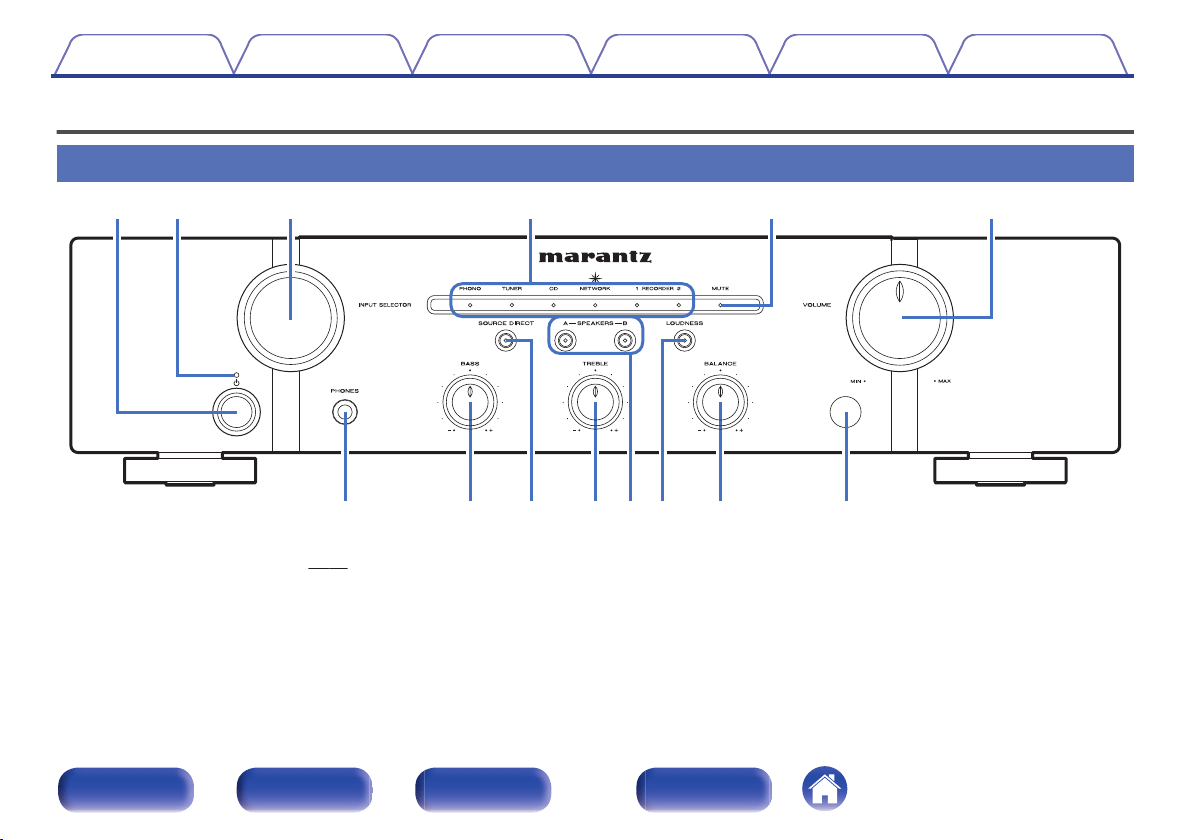

Front panel
.
iQ
3
Q
4
Q
0
Q
1
Q
2
ou
rteqw y
A
Power operation button (X)
This turns the power on/off. (v p. 25)
B
Power indicator
This is lit as follows according to the power status:
0
Power on : Off
0
Standby : Red
0
Power off : Off
0
When the protection circuit is activated : Red (blinking)
Contents
Connections Playback
Settings
Tips Appendix
8
Front panel Rear panel
Remote control
unit
Index
background
.
r t ye
iuQ
3
Q
4
Q
0
Q
1
Q
2
o
C
Input source select knob (INPUT SELECTOR)
This selects the input source. (v
p. 26)
D
Input indicators (v p. 26)
E
MUTE indicator
This lights while the sound is muted. (v p. 26)
F
VOLUME knob
These adjust the volume level. (v
p. 26)
G
Headphones jack (PHONES)
Used to connect headphones.
Turn off speaker output when using headphones. (v p. 26)
NOTE
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
H
BASS control knob
This setting adjusts the volume level for the bass. (v
p. 26)
I
SOURCE DIRECT button/indicator
This turns SOURCE DIRECT mode on/off.
(v
p. 27)
J
TREBLE control knob
This setting adjusts the volume level for the treble. (v
p. 26)
K
Speaker switching buttons/indicators (SPEAKERS A/B)
These select the speaker for audio output. (v
p. 26)
L
LOUDNESS button/indicator
This turns the LOUDNESS mode on/off.
(v p. 27)
M
BALANCE control knob
This adjusts the balance of the volume output from the left and right
speakers. (v
p. 26)
N
Remote control sensor
This receives signals from the remote control unit. (v p. 5)
8, 0, b and c can be adjusted when 9 is off (SOURCE DIRECT mode is off).
Contents Connections Playback
Settings
Tips Appendix
9
Front panel Rear panel
Remote control
unit
Index
background

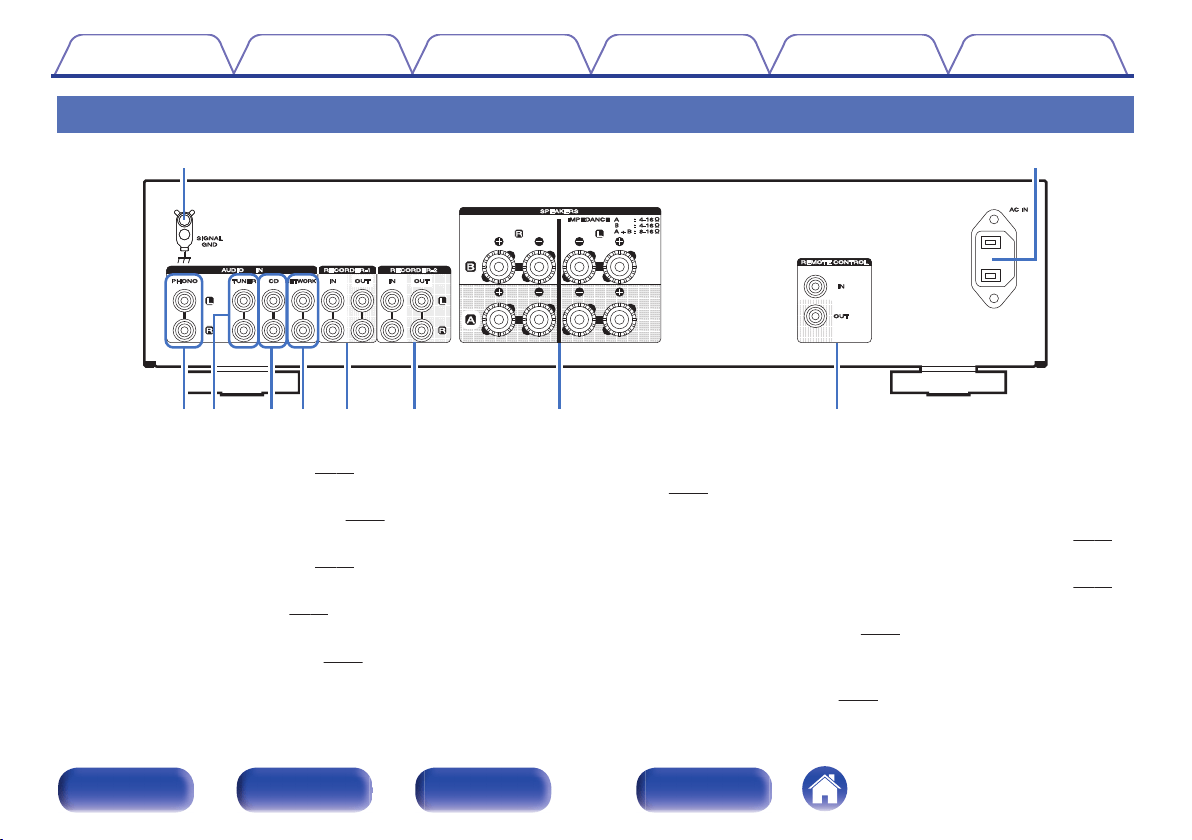

Rear panel
.
oitre Q
0
q w
y u
A
SIGNAL GND jacks
Used to connect a turntable. (v
p. 20)
B
AC inlet (AC IN)
Used to connect the power cord. (v p. 23)
C
Turntable input connectors (PHONO)
Used to connect a turntable. (v
p. 20)
D
Tuner input connectors (TUNER)
Used to connect a tuner. (v
p. 20)
E
CD input connectors
Used to connect a CD player. (v
p. 20)
F
Network audio player input connectors (NETWORK)
Used to connect a network audio player.
(v p. 20)
G
Recorder input/output connectors (RECORDER 1)
Used to connect the input/output connector of a recorder. (v
p. 21)
H
Recorder input/output connectors (RECORDER 2)
Used to connect the input/output connector of a recorder. (v
p. 21)
I
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 17)
J
Remote control input/output connectors (REMOTE CONTROL)
Used to connect to a Marantz audio device that is compatible with the
remote control function. (v
p. 22)
Contents Connections Playback
Settings
Tips Appendix
10
Front panel Rear panel
Remote control
unit
Index
background

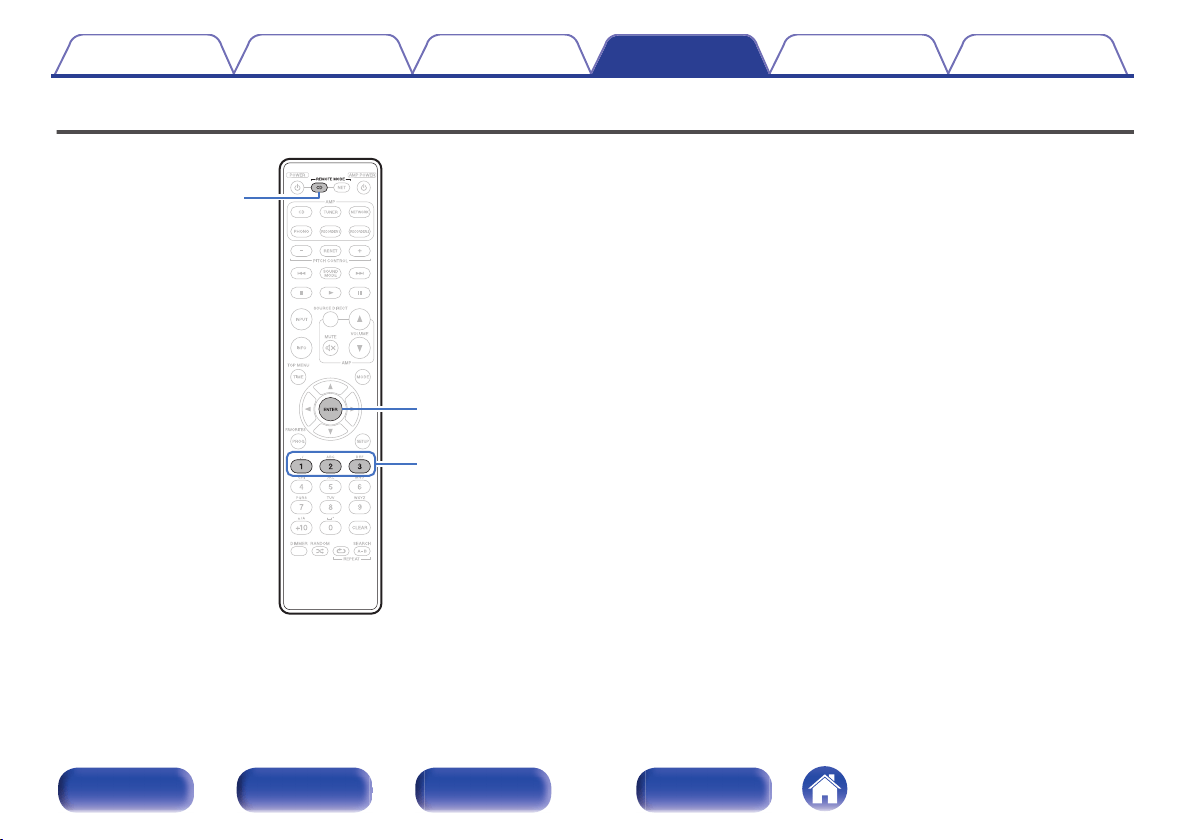

Remote control unit
.
o

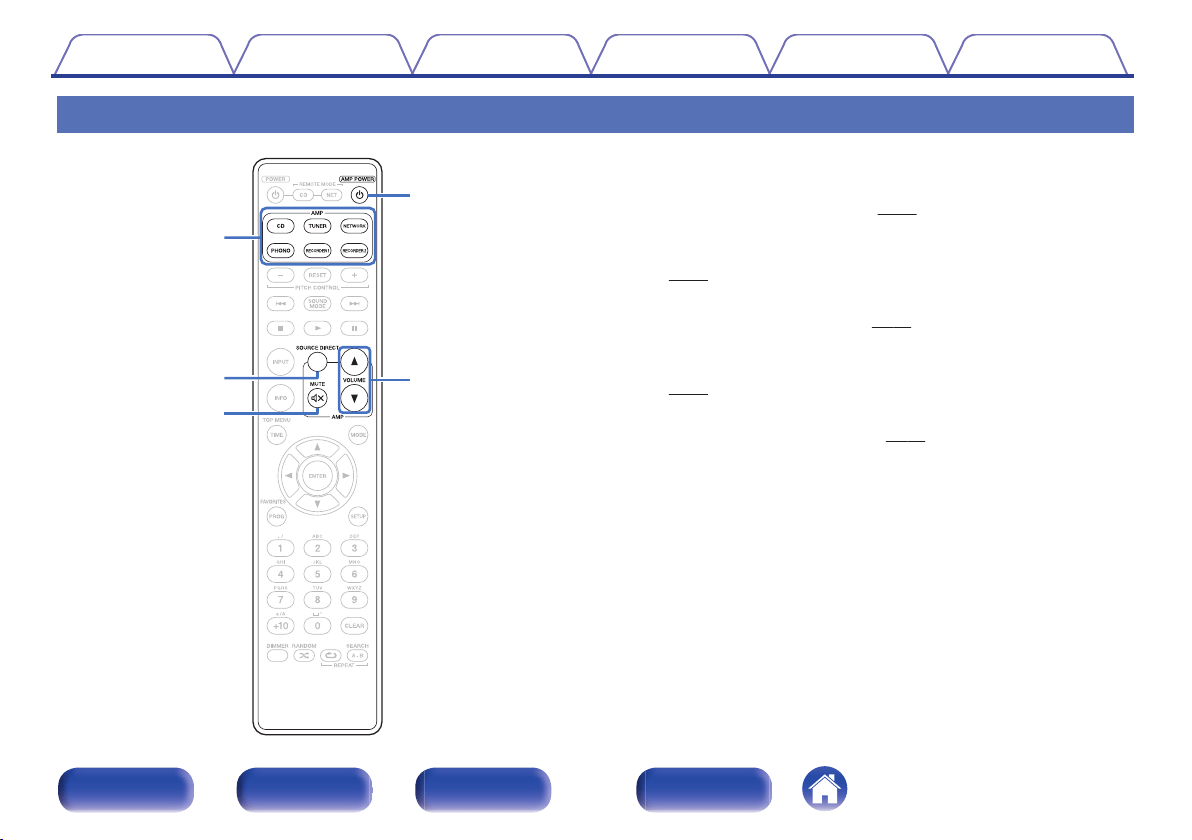

Amplifier operations
A
Input source select buttons
This selects the input source. (v
p. 26)
B
SOURCE DIRECT button
This turns SOURCE DIRECT mode on/off.
(v
p. 27)
C
MUTE button (:)
This mutes the output audio. (v
p. 26)
D
AMP POWER button (X)
This turns the power on/off (standby).
(v p. 25)
E
VOLUME buttons (df)
These adjust the volume level. (v
p. 26)
Contents Connections Playback
Settings
Tips Appendix
11
Front panel Rear panel
Remote control
unit
Index
background
.
o
Q0
i
u
w
q
e
r
y
t
Q3
Q1
Q2
o

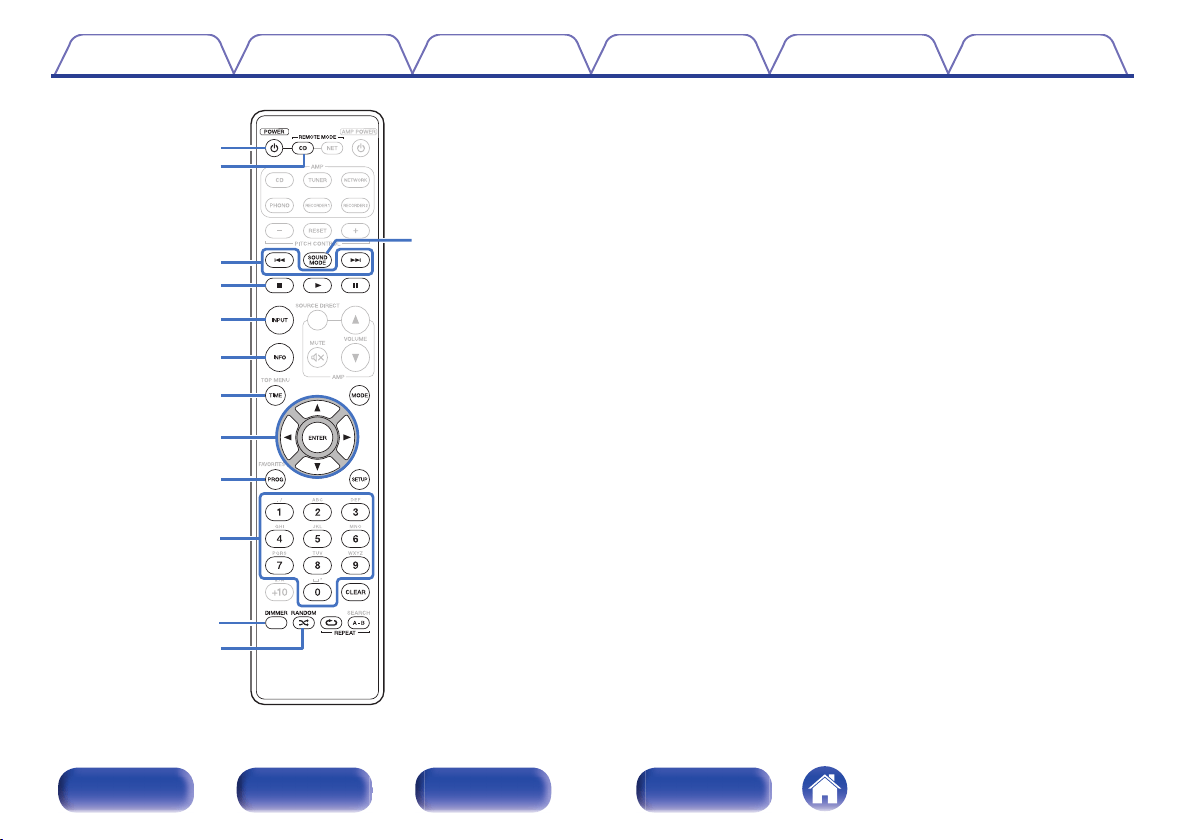

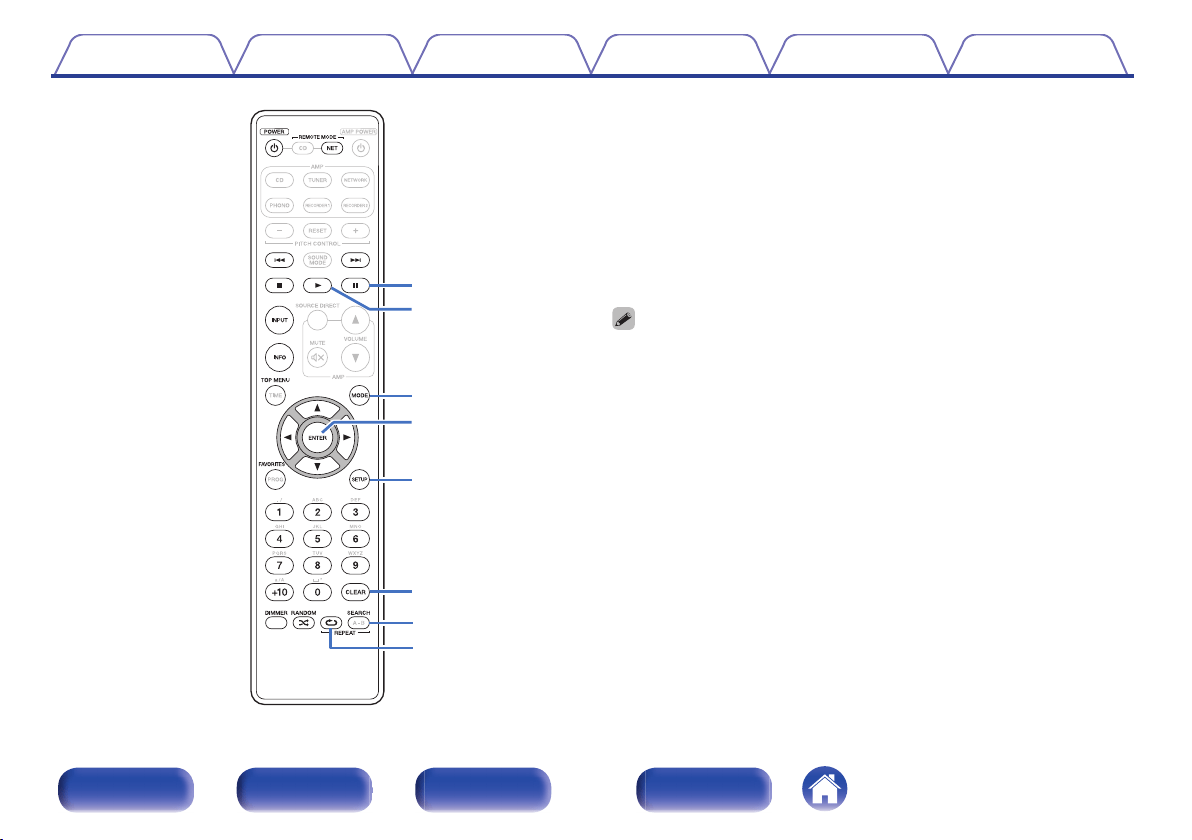

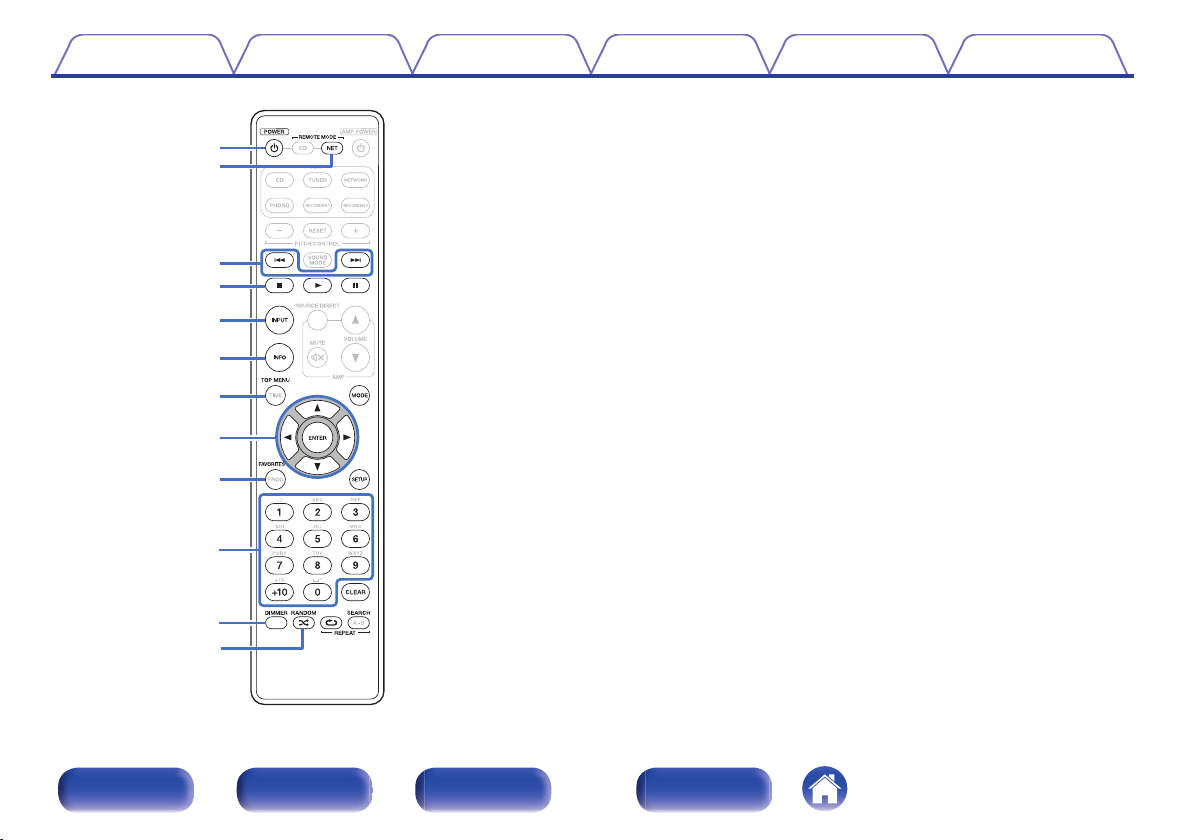

CD player operations
The supplied remote control can be used to control a Marantz CD player in
addition to this unit. To operate a Marantz CD player, press the REMOTE
MODE CD button to switch the remote control to the CD player operation
mode.
0
REMOTE MODE CD button lights for approximately two seconds.
A
POWER button (X)
B
Remote mode select button (REMOTE MODE CD)
C
Skip buttons (8, 9)
D
Stop button (n)
E
Input source select button (INPUT)
F
Information button (INFO)
G
TIME button
H
Cursor buttons (uio p)
I
Program button (PROG)
J
Number buttons (0 – 9)
K
DIMMER button
L
RANDOM button (P)
M
SOUND MODE button
Contents
Connections Playback
Settings
Tips Appendix
12
Front panel Rear panel
Remote control
unit
Index
background
.

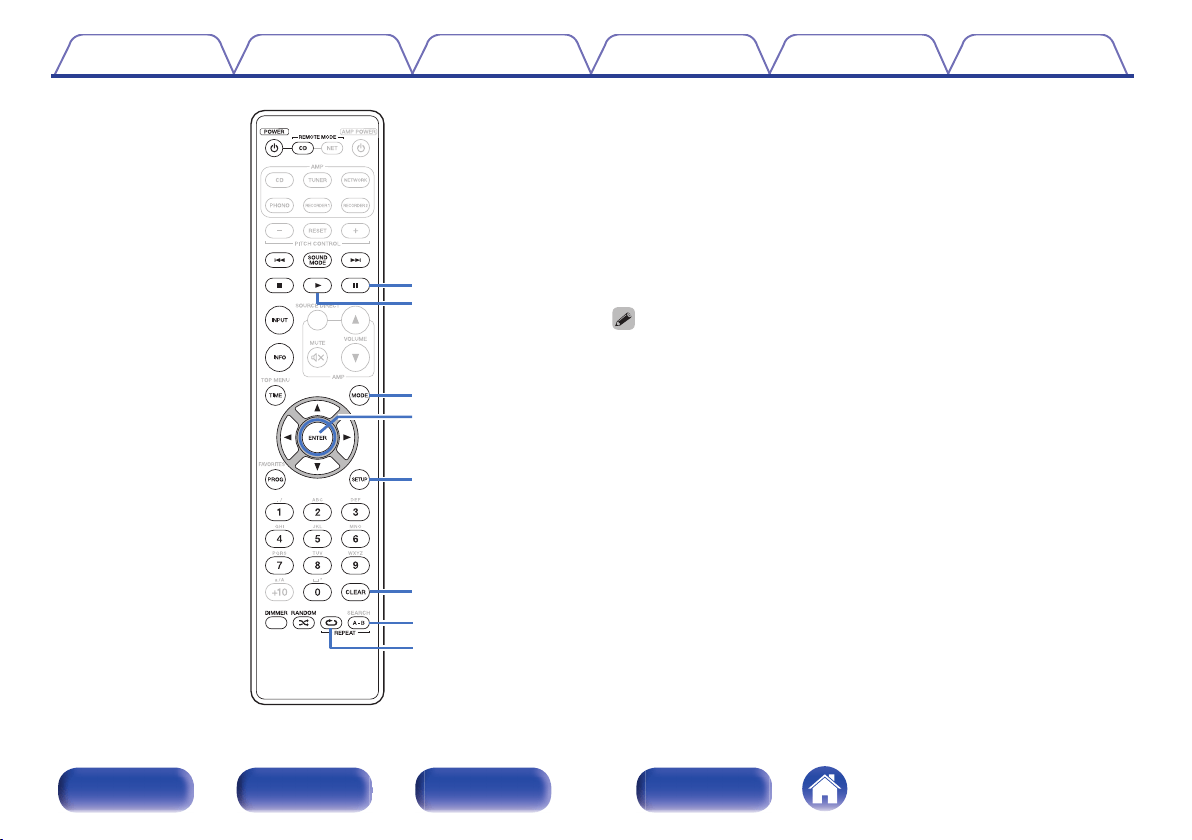

Q5
Q9
W0
W1
Q4
Q6
Q8
Q7
N
Pause button (3)
O
Play button (1)
P
Playback mode switching button (MODE)
Q
ENTER button
R
SETUP button
S
CLEAR button
T
REPEAT A-B button
U
REPEAT button (L)
The amplifier can be operated with the amplifier operation buttons even when the
remote control operation mode is set to CD.
Contents Connections Playback
Settings
Tips Appendix
13
Front panel Rear panel
Remote control
unit
Index
background
.
w
e
q
r
y
i
u
t
Q0
Q1
Q2
o
o
Network audio player operations
The remote control provided with this unit can control a network audio
player in addition to this unit. To operate a Marantz network audio player,
press the REMOTE MODE NET button to switch the remote control to the
network audio player operation mode.
0
REMOTE MODE NET button lights for approximately two seconds.
A
POWER button (X)
B
Remote mode select button (REMOTE MODE NET)
C
Skip buttons (8, 9)
D
Stop button (n)
E
Input source select button (INPUT)
F
Information button (INFO)
G
TOP MENU button
H
Cursor buttons (uio p)
I
FAVORITES button
J
Number buttons (0 – 9, +10)
K
DIMMER button
L
RANDOM button (P)
Contents
Connections Playback
Settings
Tips Appendix
14
Front panel Rear panel
Remote control
unit
Index
background
.
Q4
Q5
Q3
Q7
Q8
Q6
Q9
W0
M
Pause button (3)
N
Play button (1)
O
Playback mode switching button (MODE)
P
ENTER button
Q
SETUP button
R
CLEAR button
S
Search button (SEARCH)
T
REPEAT button (L)
The amplifier can be operated with the amplifier operation buttons even when the
remote control mode is NET.
Contents Connections Playback
Settings
Tips Appendix
15
Front panel Rear panel
Remote control
unit
Index
background
o
Contents
Connecting speakers 17
Connecting a playback device 20
Connecting a recording device 21
Connecting devices with remote control connectors 22
Connecting the power cord 23
NOTE
0
Do not plug in the power cord until all connections have been completed.
0
Do not bundle power cords together with connection cables. Doing so can result in
humming or noise.
o

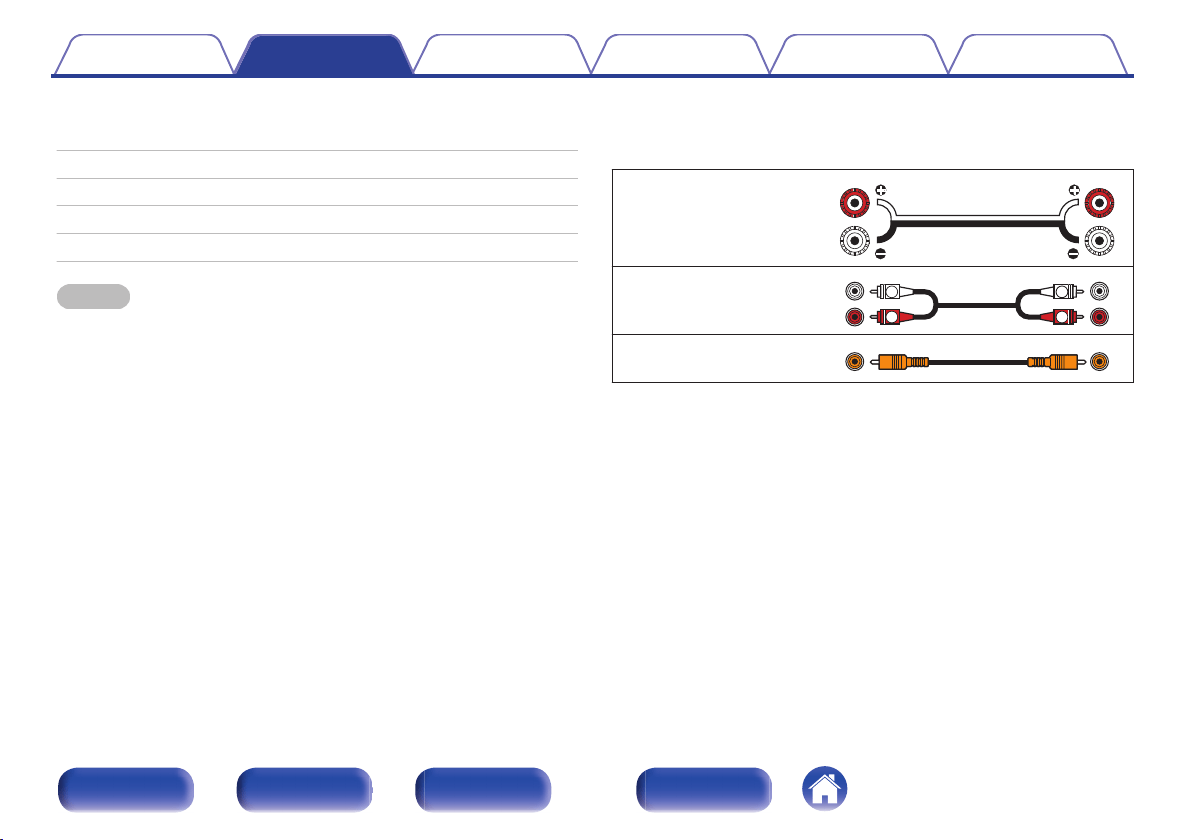

Cables used for connections
Provide necessary cables according to the devices you want to
connect.
Speaker cable
.
Audio cable
.
R
L
R
L
Remote connector cable
.
Contents Connections Playback
Settings
Tips Appendix
Connections
16
Front panel Rear panel
Remote control
unit
Index
background
Connecting speakers
NOTE
0
Disconnect this unit’s power plug from the power outlet before connecting the
speakers.
0
Connect so that the speaker cable core wires do not protrude from the speaker
terminal. The protection circuit may be activated if the core wires touch the rear
panel or if the + and - sides touch each other. (“Protection circuit” (v
p. 40))
0
Never touch the speaker terminals while the power cord is connected. Doing so
could result in electric shock.
0
Use speakers with impedances within the ranges shown below to suit how they
are used.
Speaker terminals used
on this unit
No. of connected
speakers
Speaker
Impedance
SPEAKERS A
(Standard connection)
2 (one set) 4 – 16 Ω/ohms
SPEAKERS B
2 (one set) 4 – 16 Ω/ohms
SPEAKERS A and
SPEAKERS B
4 (two sets) 8 – 16 Ω/ohms
SPEAKERS A and
SPEAKERS B
(Bi-wiring connection)
2 (one set) 4 – 16 Ω/ohms
o
Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and – (black)
polarities on the speakers being connected to this unit, and be sure to
connect the channels and polarities correctly.
1
Peel off about 10 mm of sheathing from the tip of the speaker
cable, then either twist the core wire tightly or terminate it.
.
2
Turn the speaker terminal counterclockwise to loosen it.
.
3
Insert the speaker cable’s core wire to the hilt into the
speaker terminal.
.
4
Turn the speaker terminal clockwise to tighten it.
.
Contents
Connections Playback
Settings
Tips Appendix
17
Front panel Rear panel
Remote control
unit
Index
background
Speaker A/B connection
This unit is equipped with two sets of speaker terminals (SPEAKER A and SPEAKER B). One set of speakers can be connected to each set of terminals,
and a total of two sets of speakers can be connected.
The same signal is output from the SPEAKERS A and SPEAKERS B terminals.
When only one set of speakers is to be connected, use either the SPEAKERS A or SPEAKERS B terminals.
.
wqwq
(R) (L)
wqwq
(R) (L)
SPEAKERS A
SPEAKERS B
Contents
Connections Playback
Settings
Tips Appendix
18
Front panel Rear panel
Remote control
unit
Index
background

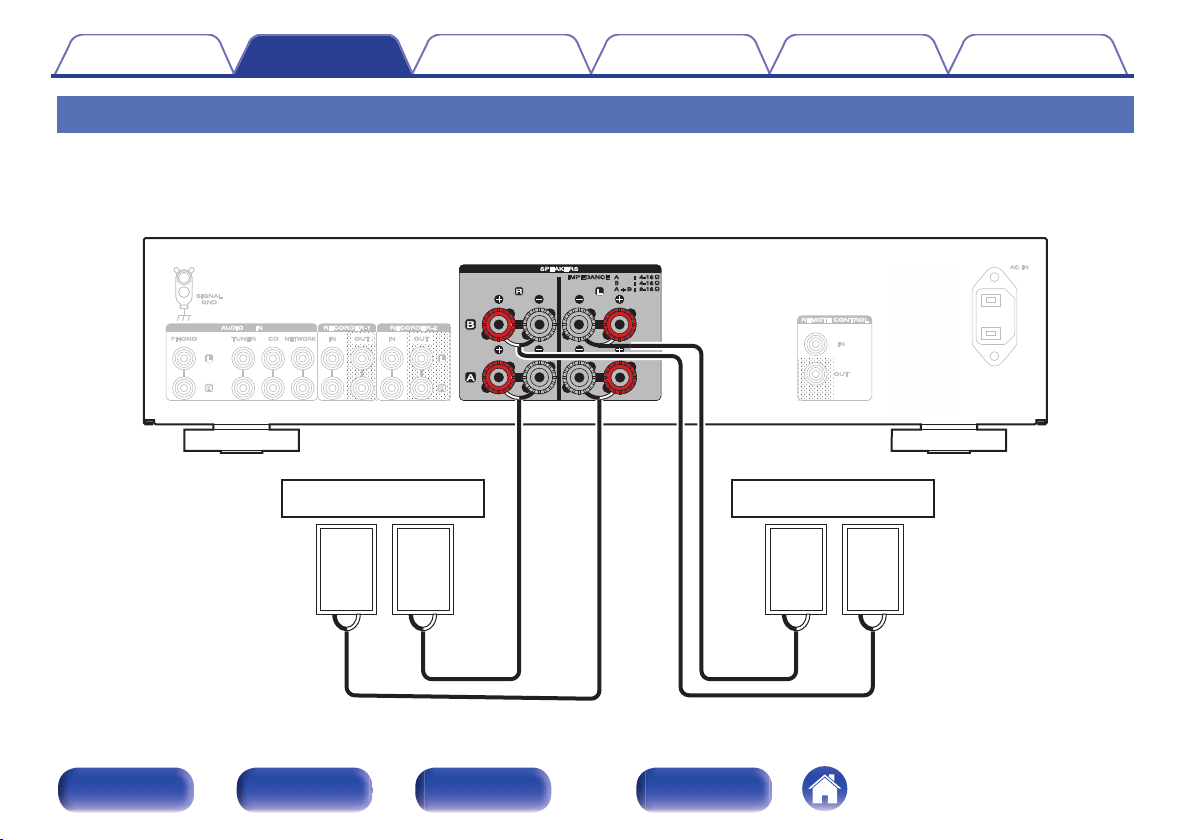

Bi-wiring connection
This connection limits the effects of signal interference between the high range speakers (tweeters) and low range speakers (woofers), allowing you to
enjoy high quality playback.
When bi-wiring with bi-wireable speakers, connect the mid and high range terminals to SPEAKERS A (or SPEAKERS B), the low range terminals to
SPEAKERS B (or SPEAKERS A).
.
wq
wq
HIGH
LOW
wq
wq
HIGH
LOW
Speaker
(R)
Speaker
(L)
Remove shorting bar
Remove shorting bar Remove shorting bar
Remove shorting bar
Contents
Connections Playback
Settings
Tips Appendix
19
Front panel Rear panel
Remote control
unit
Index
background

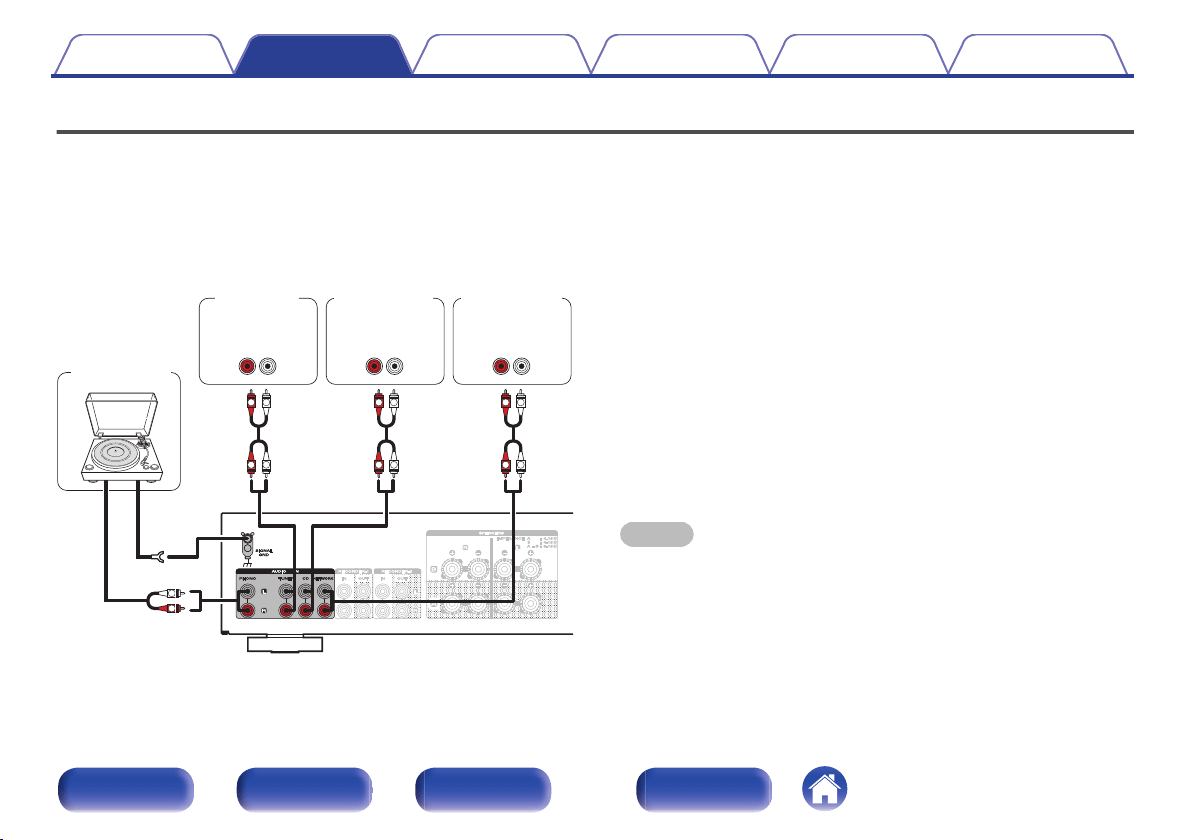

Connecting a playback device
You can connect turntables, tuners, CD players and network audio players to this unit.
This unit is compatible with turntables equipped with a moving magnet (MM) phono cartridge. When you connect to a turntable with a low output moving
coil (MC) cartridge, use a commercially available MC head amp or a step-up transformer.
If you set this unit’s input source to “PHONO” and you accidentally increase the volume without having a turntable connected, you may hear a hum noise
from the speakers.
NOTE
The earth terminal (SIGNAL GND) of this unit is not for safety grounding purposes.
If this terminal is connected when there is a lot of noise, the noise can be reduced.
Note that depending on the turntable, connecting the ground line may have the
reverse effect of increasing noise. In this case, it is not necessary to connect the
ground line.
GND
AUDIO
OUT
L
R
AUDIO
OUT
LR
AUDIO
OUT
LR
AUDIO
OUT
LR
L
L
R
R
L
L
R
R
L
L
R
R
Network audio
player
Tu ne r
Turntable
CD player
Contents
Connections Playback
Settings
Tips Appendix
20
Front panel Rear panel
Remote control
unit
Index
background
Connecting a recording device
.
LR LR
AUDIO IN
L
L
R
R
L
L
R
R
L
L
R
R
L
L
R
R
LR LR
AUDIO INAUDIO OUT AUDIO OUT
Recording Device (Device 1)
Recording Device (Device 2)
NOTE
Never insert the short-circuiting pin plug into the recording output connectors (RECORDER). Doing so could result in damage.
Contents Connections Playback
Settings
Tips Appendix
21
Front panel Rear panel
Remote control
unit
Index
background
Connecting devices with remote control connectors
Performing operations by RC on this
unit without visual contact
You can connect an external IR receiver to the REMOTE CONTROL
connectors to perform operations on this unit with the supplied remote
control unit without visual contact. This might be necessary if the unit is
hidden in a cupboard or corner, so you can’t directly point with the remote
control unit to the device.
To do this, disable the remote control signal receiving function “Setting the
remote signal receiving function” (v
p. 31).
.
RC OUT
Infrared
retransmitter
Infrared
sensor
NOTE
When a remote control receiver unit is not connected, be sure to enable the remote
control signal receiving function. Operations cannot be performed with the remote
control if this function is disabled.
Remotely connecting Marantz audio
devices
You can transmit remote control signals simply by connecting a Marantz
audio device to the REMOTE CONTROL IN/OUT connectors using the
remote connection cable provided with the device.
Set the remote control switch located on the rear panel of the connected
audio component to “EXTERNAL” to use this feature.
.
Contents
Connections Playback
Settings
Tips Appendix
22
Front panel Rear panel
Remote control
unit
Index
background
Connecting the power cord
Wait until all connections have been completed before connecting the power cord.
.
Power cord (supplied)
To household power outlet
(AC 230 V, 50/60 Hz)
Contents
Connections Playback
Settings
Tips Appendix
23
Front panel Rear panel
Remote control
unit
Index
background
o
Contents
Turning the power on 25
Selecting the speakers for audio output 26
Selecting the input source 26
Adjusting the volume 26
Turning off the sound temporarily (Muting) 26
Adjusting the tone 26
Playing CDs 27
Recording 28
Contents Connections Playback
Settings
Tips Appendix
Playback
24
Front panel Rear panel
Remote control
unit
Index
background
.
VOLUME
SOURCE
DIRECT
AMP POWER
MUTE
X
df
Input source
select buttons
.
VOLUMEBALANCETREBLEBASS
SPEAKERS
A/B
INPUT
SELECTOR
LOUDNESS
X
SOURCE
DIRECT

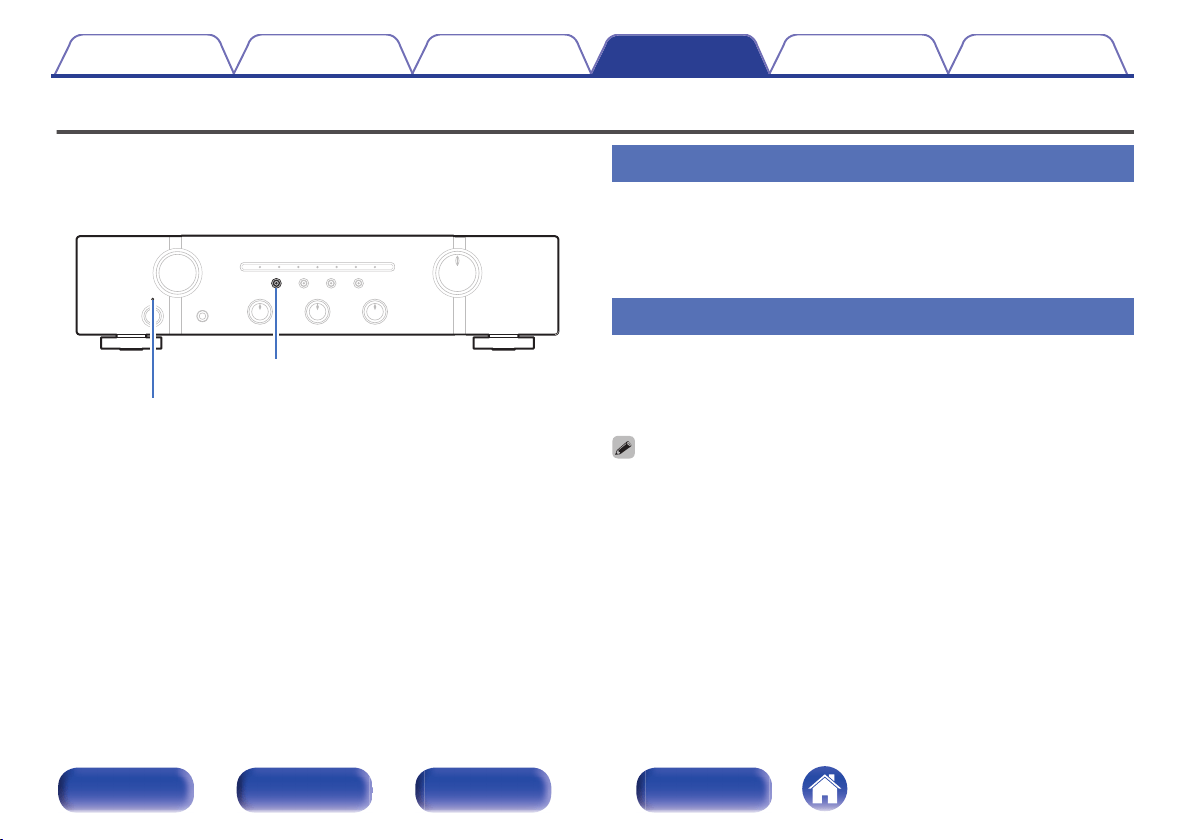

Turning the power on
1
Press X on this unit to turn the power on.
Input indicator for the selected source lights.
0
Press AMP POWER X to turn on power from standby mode.
0
You can turn the INPUT SELECTOR when the unit is in standby mode to turn on
the power.
NOTE
Turn VOLUME on this unit to adjust the volume to the lowest level before turning on
the power.
o
Turning the power off
1
Press X on this unit to turn the power off.
All lit indicators turn off.
o
Switching the power to standby
1
Press AMP POWERX on the remote control.
The standby indicator lights in red.
Contents Connections Playback
Settings
Tips Appendix
25
Front panel Rear panel
Remote control
unit
Index
background

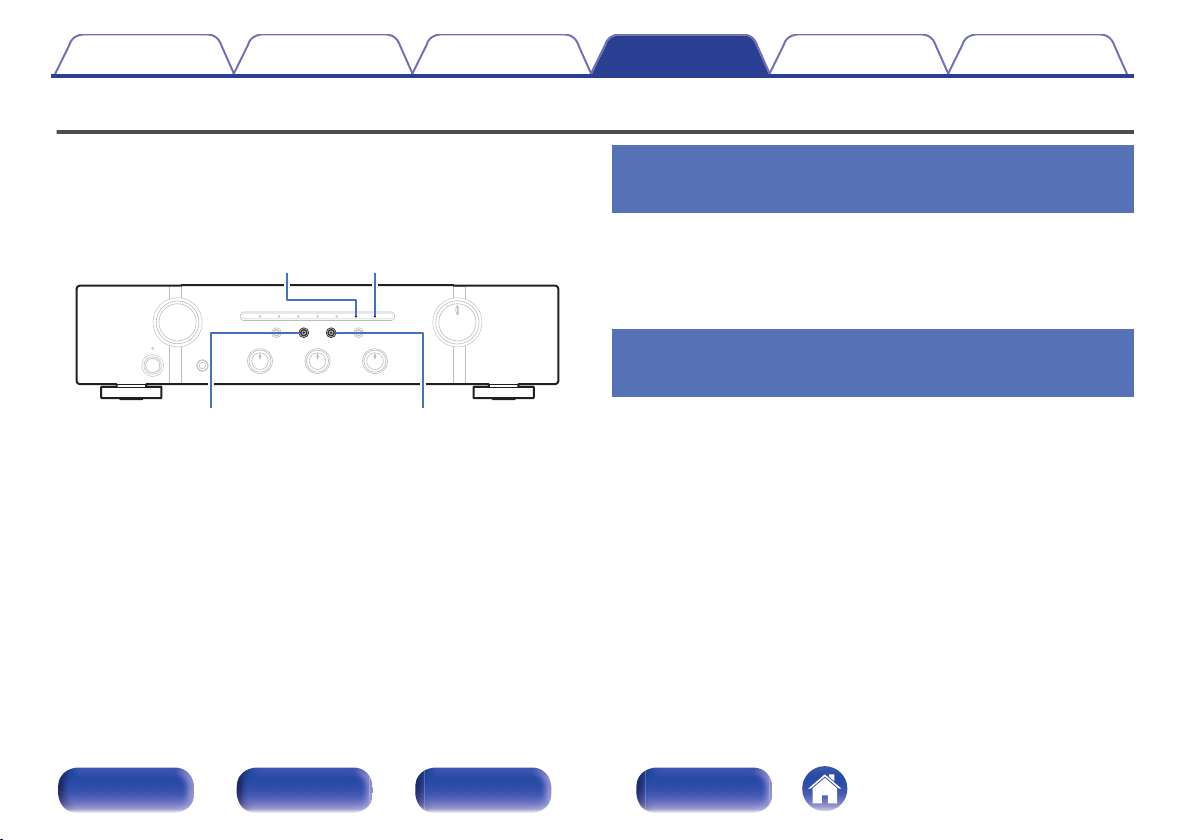

Selecting the speakers for audio output
1
Press SPEAKERS A/B to select the speaker system to
be used for playback.
The indicator of the selected speakers lights.
When using headphones, press SPEAKERS A/B to turn off all of the indicators and
turn audio output from the speaker terminals off.
Selecting the input source
1
Press the input source select button to be played back.
The indicator of the selected input source lights.
You can also select the input source by turning INPUT SELECTOR on the main unit.
Adjusting the volume
1
Press VOLUME df to adjust the volume.
You can also adjust the master volume by turning VOLUME on the main unit.
Turning off the sound temporarily
(Muting)
1
Press MUTE :.
The mute indicator lights.
To cancel mute, press MUTE : again.
Adjusting the tone
1
Press SOURCE DIRECT to turn off source direct mode.
The SOURCE DIRECT indicator turns off.
2
Turn the BASS, TREBLE and BALANCE to adjust the
tone.
You can also press SOURCE DIRECT on this unit to turn off source direct mode.
Contents Connections Playback
Settings
Tips Appendix
26
Front panel Rear panel
Remote control
unit
Index
background
Playing CDs
This section uses playback from a CD as an example.
1
Press X on this unit to turn the power on.
2
Press the input source select button to switch the input
source to “CD”.
The “CD” input indicator lights.
3
Playback the CD.
4
Press VOLUME df to adjust the volume.
o
Playback in source direct mode
The signal does not pass through the tone adjustment circuitry (BASS,
TREBLE and BALANCE), resulting in playback of a higher sound
quality.
1
Press SOURCE DIRECT to turn on source direct mode.
The SOURCE DIRECT indicator lights.
o
Playback in LOUDNESS mode
When music is played at a low volume level, the effect of the bass and
treble cannot be heard easily. The LOUDNESS function corrects the
bass and treble in these situations, allowing you to enjoy natural-
sounding playback.
1
Press LOUDNESS to turn on LOUDNESS mode.
The LOUDNESS indicator lights.
Contents Connections Playback
Settings
Tips Appendix
27
Front panel Rear panel
Remote control
unit
Index
background
Recording
Audio signals input into this unit can be output to an external recording
device. When recording audio from a playback device connected to this
unit, audio can be recorded with the playback device still connected to this
unit.
1
Press X on this unit to turn the power on.
2
Press the input source select button to switch to the
input source from which you want to record.
The indicator of the selected input source lights.
3
Recording starts.
0
For information on operations, see the owner’s manual of the
recording device.
Contents Connections Playback
Settings
Tips Appendix
28
Front panel Rear panel
Remote control
unit
Index
background
o
Contents
Setting the Auto Standby mode 30
Setting the remote signal receiving function 31
Setting remote control codes 32
Contents Connections Playback
Settings
Tips Appendix
Settings
29
Front panel Rear panel
Remote control
unit
Index
background
Setting the Auto Standby mode
You can set the unit to automatically switch to standby mode if the unit is
not operated for 30 minutes when there is no audio input (Auto Standby
mode).
Auto Standby mode is set to on by default.
.
Standby indicator
SOURCE DIRECT
Turning Auto Standby mode off
1
Press and hold SOURCE DIRECT for more than 5
seconds to turn the Auto Standby mode off.
The power indicator flashes once.
Turning Auto Standby mode on
1
Press and hold SOURCE DIRECT for more than 5
seconds to turn the Auto Standby mode on.
The standby indicator flashes three times.
You can also press SOURCE DIRECT on the remote control unit for this operation.
Contents Connections Playback
Settings
Tips Appendix
30
Front panel Rear panel
Remote control
unit
Index
background
Setting the remote signal receiving function
When you connect a IR receiver (sold separately) to the REMOTE
CONTROL IN connector of this unit, use the following procedure to
disable the remote signal receiving function of this unit. When the function
is enabled, you can not perform operations with the remote control unit.
By default, this function is enabled.
.
SPEAKERS A SPEAKERS B
RECORDER 2 indicator MUTE indicator
Disabling the remote signal receiving
function of the remote control unit
1
Press SPEAKERS B for approximately 5 seconds to
disable the remote control signal receiving function.
The MUTE indicator flashes three times.
Enabling the remote signal receiving
function of the remote control unit
1
Press SPEAKERS A for approximately 5 seconds to
enable the remote control signal receiving function.
The “RECORDER2” input indicator flashes three times.
Contents Connections Playback
Settings
Tips Appendix
31
Front panel Rear panel
Remote control
unit
Index
background
Setting remote control codes
.
ENTER
REMOTE
MODE CD
1
-
3
Remote control codes are set between this unit and the supplied remote
control. You can select one of the three types of remote control codes, and
the remote control can be used to control the unit when the same remote
control code is used. If three of these units are used in the same location,
all three units can be controlled simultaneously using one remote control
in the default settings. By setting individual remote control codes between
a unit and the remote control, the remote control can be used to control
only the unit that has the same remote control code.
Be sure to check the operation of each unit after setting the remote control
codes.
The default setting is “AMP1”.
Contents Connections Playback
Settings
Tips Appendix
32
Front panel Rear panel
Remote control
unit
Index
background
Setting remote control codes for the
remote control
o
To set the remote control codes to AMP2
1
Hold down REMOTE MODE CD and the number 2
button for more than 5 seconds.
o
To set the remote control codes to AMP3
1
Hold down REMOTE MODE CD and the number 3
button for more than 5 seconds.
To return the remote control code to the default setting, hold down REMOTE MODE
CD and the number 1 button for more than 5 seconds.
NOTE
The remote control codes returns to the default settings when the batteries are
removed. Set the remote control codes again after replacing the batteries.
Setting remote control codes for this
unit
1
Point the remote control for which the remote control
code was set at this unit, and press REMOTE MODE CD
and ENTER.
The input indicators on the unit flash as shown below according to
the set remote control code.
Remote control codes Input indicator
AMP 1 PHONO indicator flashes three times
AMP 2 TUNER indicator flashes three times
AMP 3 CD indicator flashes three times
Contents Connections Playback
Settings
Tips Appendix
33
Front panel Rear panel
Remote control
unit
Index
background
o
Contents
Tips
I want to adjust the tone myself 35
I want sound playback that is faithful to the original sound 35
I want to hear music that is close to the original sound quality at low
volume 35
I want to operate a Marantz CD player or network audio player using
the remote control of this unit 35
I want to use more than one unit in one location 35
Troubleshooting
Power does not turn on / Power is turned off 36
Operations cannot be performed through the remote control unit 37
No sound comes out 38
Desired sound does not come out 38
Sound is interrupted or noise occurs 39
Contents Connections Playback
Settings
Tips Appendix
Tips
34
Front panel Rear panel
Remote control
unit
Index
background
Tips
I want to adjust the tone myself
0
Use the BASS, TREBLE and BALANCE knobs to adjust the sound as desired.
(v p. 26)
I want sound playback that is faithful to the original sound
0
Set the Source Direct mode on. (v
p. 27)
I want to hear music that is close to the original sound quality at low volume
0
Turn the LOUDNESS mode on. (v p. 27)
I want to operate a Marantz CD player or network audio player using the remote control of this unit
0
Switch the remote control operating mode. (v p. 12, 14)
0
Also refer to the CD player or network audio player instruction manuals.
I want to use more than one unit in one location
0
Set individual remote control codes for each combination of devices and remote control. (v p. 33)
Contents
Connections Playback
Settings
Tips Appendix
35
Front panel Rear panel
Remote control
unit
Index
background
Troubleshooting
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other devices operating properly?
If this unit does not operate properly, check the corresponding symptoms in this section.
If none of the symptoms are applicable, consult your dealer as it could be due to a fault in this unit. In this case, disconnect the power immediately and
contact the store where you purchased this unit.
o
Power does not turn on / Power is turned off
Symptom Cause / Solution Page
Power is not turned on.
0
Check whether the power plug is correctly inserted into the power outlet. 23
Power automatically turns
off.
0
The Auto Standby mode is on. When approx. 30 minutes pass with no audio input and no operations on
the unit, this unit automatically enters the standby mode. To turn off the Auto Standby mode, press the
SOURCE DIRECT button for 5 seconds or longer.
30
Power turns off and the
power indicator flashes in
red approx. every 0.25
seconds.
0
The protection circuit has been activated due to a rise in temperature within this unit. Turn the power off,
wait about an hour until this unit cools down sufficiently, and then turn the power on again.
40
0
Please re-install this unit in a place having good ventilation.
0
Check the speaker connections. The protection circuit may have been activated because speaker cable
core wires came in contact with each other or a core wire was disconnected from the connector and
came in contact with the rear panel of this unit. After unplugging the power cord, take corrective action
such as firmly re-twisting the core wire or taking care of the connector, and then reconnect the wire.
17
0
Turn down the volume and turn on the power again. 25
0
This unit’s amplifier circuit has failed. Unplug the power cord and contact our customer service center.
Contents Connections Playback
Settings
Tips Appendix
36
Front panel Rear panel
Remote control
unit
Index
background
o
Operations cannot be performed through the remote control unit
Symptom Cause / Solution Page
Operations cannot be
performed through the
remote control unit.
0
Batteries are worn out. Replace with new batteries. 5
0
Operate the remote control unit within a distance of about 7 m from this unit and at an angle of within 30°. 5
0
Remove any obstacle between this unit and the remote control unit.
0
Insert the batteries in the proper direction, checking the q and w marks.
5
0
The set’s remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb
light, etc.). Move the set to a place in which the remote control sensor will not be exposed to strong light.
0
When using a 3D video device, the remote control unit of this unit may not function due to effects of
infrared communications between units (such as TV and glasses for 3D viewing). In this case, adjust the
direction of units with the 3D communications function and their distance to ensure they do not affect
operations from the remote control unit of this unit.
0
Enable the remote signal receiving function. 31
0
The remote control code between this unit and the remote control is different. Set this unit and the remote
control to the same remote control code.
33
Contents Connections Playback
Settings
Tips Appendix
37
Front panel Rear panel
Remote control
unit
Index
background
o
No sound comes out
Symptom Cause / Solution Page
No sound comes out of
speakers.
0
Check the connections for all devices. 16
0
Insert connection cables all the way in.
0
Check that input connectors and output connectors are not reversely connected.
0
Check cables for damage.
0
Check that speaker cables are properly connected. Check that cable core wires come in contact with the
metal part on speaker terminals.
17
0
Securely tighten the speaker terminals. Check speaker terminals for looseness. 17
0
Check that the proper input source is selected. 26
0
Adjust the master volume. 26
0
Cancel the muting mode. 26
0
Check the settings of the SPEAKERS A/B button. 26
o
Desired sound does not come out
Symptom Cause / Solution Page
No sound comes out of a
specific speaker.
0
Check that speaker cables are properly connected. 17
0
Adjust the BALANCE control knob. 26
The left and right of stereo
sound is reversed.
0
Check whether the left and right speakers are connected to the correct speaker terminals. 17
Contents Connections Playback
Settings
Tips Appendix
38
Front panel Rear panel
Remote control
unit
Index
background
o
Sound is interrupted or noise occurs
Symptom Cause / Solution Page
When playing a record, the
sound is distorted.
0
Adjust to a proper needle pressure.
0
Check the tip of the needle.
0
Replace the cartridge.
When playing a record, a
humming noise comes out
of the speakers.
0
Check that the turntable is connected correctly. 20
0
If there is a TV or AV device near the turntable, such devices may affect the playback sound. Install the
turntable in a location as far away as possible from the TV or other AV devices.
When playing a record, a
humming noise comes out
of the speakers when the
volume is high. (Howling
phenomenon)
0
Install the turntable and speakers as far from each other as possible. 20
0
The vibrations from the speakers are being transmitted to the player through the floor. Use cushions, etc.,
to absorb the speakers’ vibrations.
Contents Connections Playback
Settings
Tips Appendix
39
Front panel Rear panel
Remote control
unit
Index
background
Explanation of terms
Speaker impedance
This is an AC resistance value, indicated in Ω (Ohms).
Greater power can be obtained when this value is smaller.
Source direct
Playback with higher fidelity to the source becomes possible, as input
audio signals are output by bypassing the audio quality-control circuits
(BASS/TREBLE/BALANCE).
Protection circuit
This is a function to prevent damage to devices within the power supply
when an abnormality such as an overload, excess voltage occurs or over
temperature for any reason.
If a malfunction occurs in this unit, the power indicator blinks red and the
unit switches to standby mode.
Contents
Connections Playback
Settings
Tips Appendix
Appendix
40
Front panel Rear panel
Remote control
unit
Index
background
Specifications
0
RMS Power output (40 Hz – 20 kHz simultaneous drive of both
channels) :
40 W x 2 (8 Ω/ohms load)
55 W x 2 (4 Ω/ohms load)
0
Total harmonic distortion (40 Hz – 20 kHz simultaneous drive of both
channels, 8 Ω/ohms load) :
0.01 %
0
Output band width (8 Ω/ohms load, 0.06 %) : 10 Hz – 30 kHz
0
Frequency response (CD, 1 W, 8 Ω/ohms load) : 10 Hz – 50 kHz +0 dB, –1 dB
0
Dumping factor (8 Ω/ohms load, 40 Hz – 20 kHz) : 100
0
Input sensitivity/Input impedance
PHONO (MM) : 2.2 mV/47 kΩ/kohms
CD, TUNER, NETWORK, RECORDER : 200 mV/20 kΩ/kohms
0
Maximum allowable PHONO input level (1 kHz) MM : 110 mV
0
RIAA deviation (40 Hz – 20 kHz) : ±0.5 dB
0
S/N (IHF-A, 8 Ω/ohms load)
PHONO (MM) : 83 dB (5 mV input, 1 W output)
CD, TUNER, NETWORK, RECORDER : 103 dB (2 V input, Rated output)
0
Tone Control
BASS (100 Hz) : ±10 dB
TREBLE (10 kHz) : ±10 dB
0
Power requirement : AC 230 V, 50/60 Hz
0
Power consumption (EN60065) : 110 W
0
Power consumption in standby mode : 0.3 W
For the purpose of improvement, the specifications and design are subject to change without notice.
Contents
Connections Playback
Settings
Tips Appendix
41
Front panel Rear panel
Remote control
unit
Index
background
o

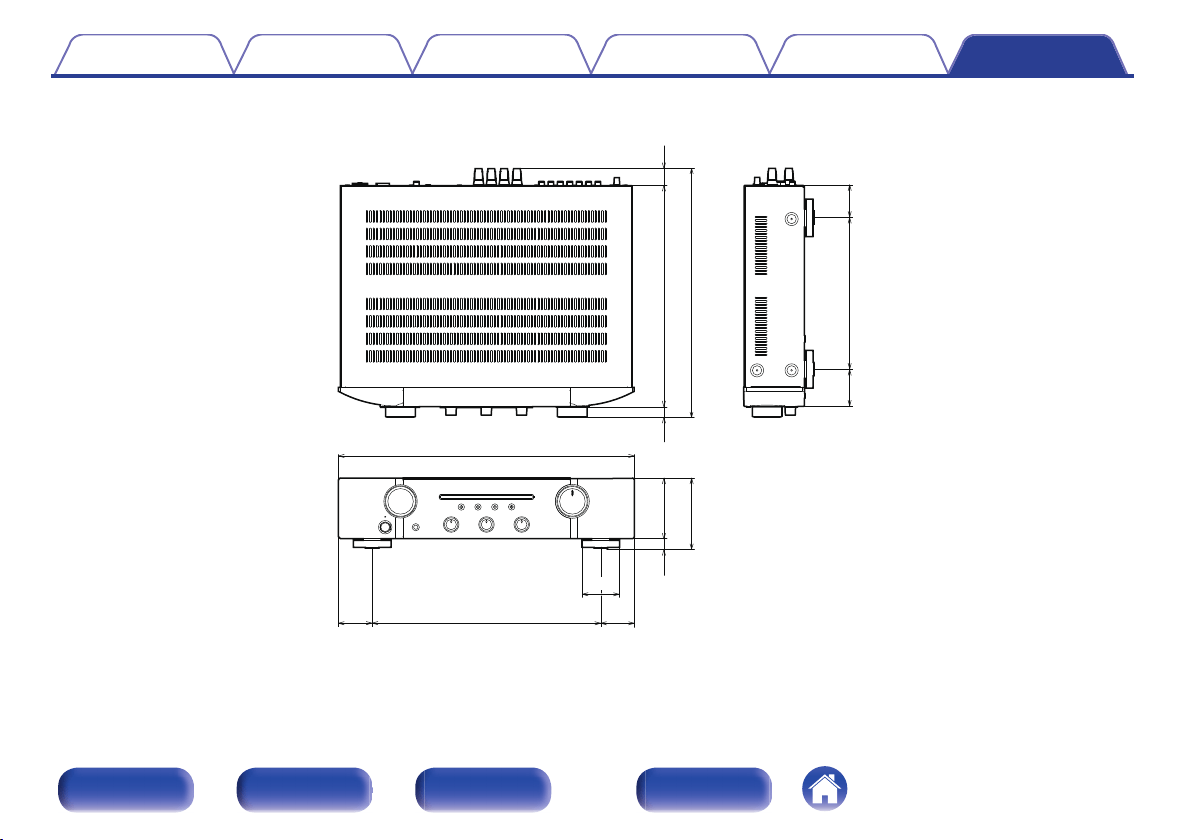

Dimensions (Unit : mm)
.
329
370
225
60
45
14 91
105
440
340
56
5050
16 25
o
Weight : 6.7 kg
Contents Connections Playback
Settings
Tips Appendix
42
Front panel Rear panel
Remote control
unit
Index
background
Index
v A
Adjusting the tone .......................................... 26
Adjusting the volume ...................................... 26
Auto Standby mode ........................................ 30
v B
BALANCE ...................................................... 26
BASS ............................................................. 26
v C
Cables ............................................................ 16
Connecting a playback device ....................... 20
Connecting a recording device ....................... 21
Connecting speakers ..................................... 17
Connecting a power cord ............................... 23
v I
Inserting the batteries ....................................... 5
v L
LOUDNESS mode ......................................... 27
v P
Protection circuit ............................................ 40
v R
Remote control ............................................... 22
Remote control codes settings ....................... 33
Remote control unit ........................................ 11
v S
Selecting the input source .............................. 26
Source direct ............................................ 27, 40
Speaker impedance ....................................... 40
Speaker (Bi-wiring) connection ...................... 19
v T
Tips ................................................................ 35
TREBLE ......................................................... 26
Troubleshooting ............................................. 36
Turning off the sound temporarily (Muting) ..... 26
Contents
Connections Playback
Settings
Tips Appendix
43
Front panel Rear panel
Remote control
unit
Index
background
D&M Holdings Inc.
3520 10332 00AM
44

Specifications

Marantz PM5005 Questions and Answers

Questions and Answers

Related Products

Product Marantz SR6015 VAR image
Marantz SR6015-VAR SR6015
2026-04-25 5 docs
