Owner Instructions
Warning!
Read instructions before using the machine
www.myhenry.co.uk
HVR 160-11
HET 160-11
Kit AS-0
Assembly
1 2
3
4
5 6
Using your machine
Start
Power
on light
1
2
++
+
Low
Low
High
1
2
Cleaning the machine
1 2
3
4
5
6 7
8
9 10

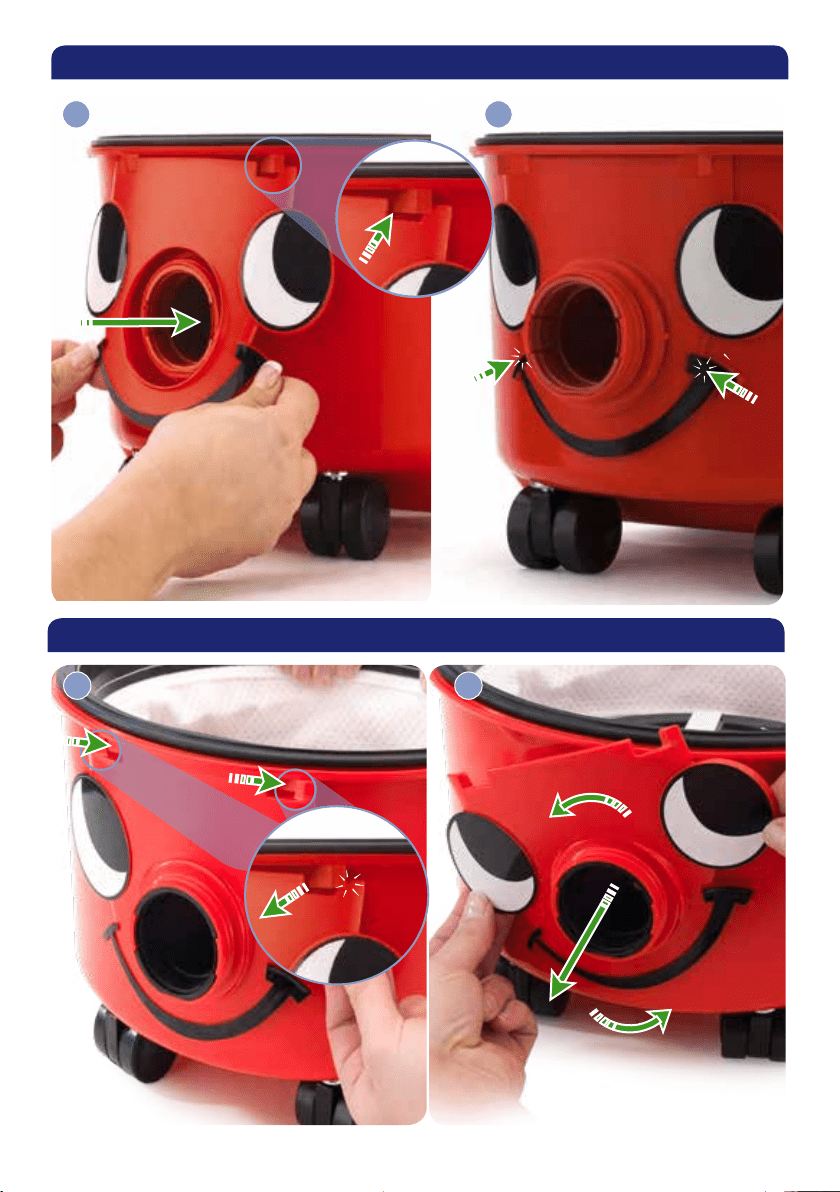

Fitting the face
Removing the face
CLICK
CLICK
CLICK
1 2
1 2

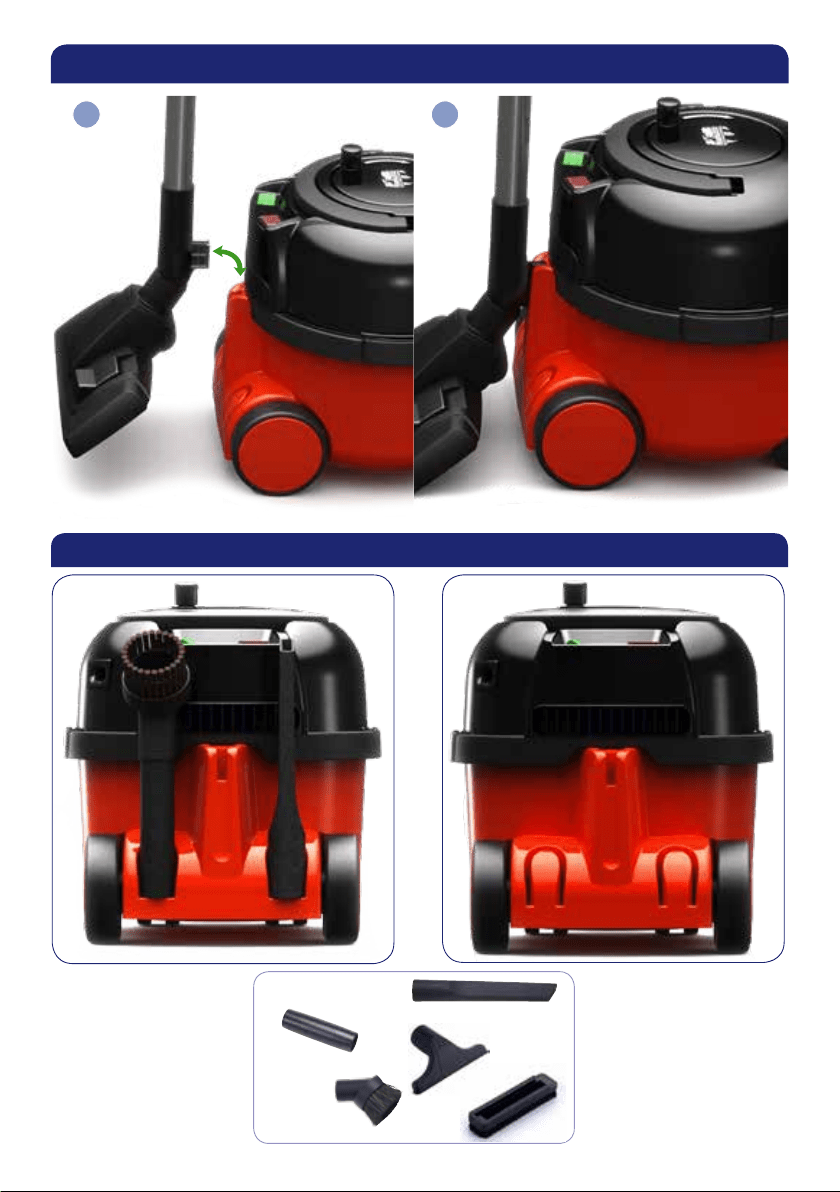

Wand docking
1 2
Tool tidy
About your machine
1
2
3
4
5
6
7
8
9
10
Safety Critical Components
Mains leads:
HO5-V2V2-F 10 x 2 x 0.75 mm
2
Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer
or the Numatic Technical helpline +44 (0)1460 269268.
Daily
Keep the machine clean, including hoses and tubes.
Ensure the bag and lter are tted.
Regularly examine the power cord.
Check dust bag frequently.
Check lters are clean.
Weekly - as daily and:-
Check for any worn or damaged parts and replace immediately.
Do not steam clean or pressure wash.
WEEE Legislation
(Waste, Electrical and Electronic Equipment)
Vacuum cleaner, accessories and packaging should be sorted for
environmentally - friendly recycling. (Only for EU Countries)
Do not dispose of vacuum cleaner into household waste! According to
the European Directive 2012/19/EU on waste electrical and electronic
equipment and its incorporation into national law.
Vacuum cleaners that are no longer suitable for use must be separately
collected and sent for recovery in an environmentally - friendly manner.
Voltage
Frequency
Rated Input Power
Weight (ready to work)
Company Name & Address
Model
Machine yr/wk Serial number
WEEE Logo
Protection Class 2 Symbol
CE Mark
Ear Protection
Safety Footwear
Head Protection
Safety Gloves
Eye Protection
Protective
Clothing
NOTE: A risk assessment should be conducted to determine which PPE should be worn.
Dust / Allergens
Protection
Caution Floor Sign
Hi Vis Jacket
PPE (personal protective equipment) That may be required for certain operations.
1
2
3
4
5
67
8 9
10
Information for dry use vacuum cleaners
Caution
Only use the socket outlet on the machine for purposes specied in the instructions
(where tted).
This machine must not be stored outside, or used in wet environments, or to collect wet
materials.
The vacuum cleaner should be stored in a dry place and is for indoor use only.
Notes
You must ensure that the ltration system tted to the machine is suitable for the material
being collected.
This product complies with the requirements of IEC/EN 60335-2-69 2012.
The primary use for this machine is commercial, for example in hotels, schools, hospitals,
factories, shops and ofces.
If the vacuum cleaner stops working, remove the plug from the wall before investigating
where the fault lies.
If the vacuum cleaner has a blockage, switch off, remove the plug from the socket outlet,
and inspect the oor tool, wands and hose for debris. If the oor tool, wands and hose are
clear, replace the dust bag and clean the lter.
The vacuum cleaner should be inspected after use for damage.
The power light will illuminate, when your machine is connected to a suitable power supply
(where tted).
Warning!
Ensure you read the instruction manual before using the machine.
Operators shall be adequately instructed on the use of these machines, as with all
electrical equipment, care and attention must be exercised at all times during use,
you must also make certain that routine and preventative maintenance is carried out
periodically to ensure safe operation.
Failure to carry out maintenance as necessary, including the replacement of parts to the
correct standard could render this equipment unsafe and the manufacturer can accept no
responsibility in this respect.
This machine is for DRY USE only
You must disconnect the machine from the mains by removing the plug from the supply
socket BEFORE cleaning or maintenance and when replacing parts or converting the
machine to another function.
This appliance is intended to be assembled, cleaned and maintained by an adult.
This machine is not suitable for the collection of biological hazards, hazardous or
explosive dusts. Contact your local distributor if you require a machine capable of
performing these tasks.
This machine is not a toy; children shall not play with this machine.
The machine must not to be used by persons with reduced physical, sensory or mental
capabilities, or lack of experience or knowledge, unless they have been given supervision
or instruction.
You must not allow the supply cord to come into contact with rotating brushes (if tted).
Do
● Keep your machine clean.
● Keep lters clean.
● Use lter bags, they will enhance performance and help keep machine clean.
● Use a Numatic original lter bag under ne dust conditions.
● Keep hoses and tubes clear.
● Replace any worn or damaged parts immediately.
● Regularly examine the power cord. If damage is found such as cracking or ageing the
power cord must be replaced by a competent person using the correct Numatic original
part.
● Change dust bag frequently.
● Keep diffuser lter (where tted) clean.
● Only use the brushes provided with the machine. The use of other brushes may impair
safety.
Don’t
● Unreel the cable with one pull or pull on the cable to unplug the machine from the power
supply.
● Use to suck up hot ashes or lighted cigarette ends.
● Use steam cleaners, pressure washers or immerse in water to clean the machine.
● Attempt machine maintenance or cleaning unless the power supply plug has been
removed from the supply outlet.
● Use in a wet environment or to collect wet materials.
● Store your machine in wet conditions.
Data
Schematic diagram
Drum Size Cleaning
Range
Weight
(Ready to work)
Sound Pressure
6 L 26.1 m 7.5 kg 64 dB (A)
Uncertainty
0.5 dB
Protection Class Size
Class II 315 x 340 x 345 mm

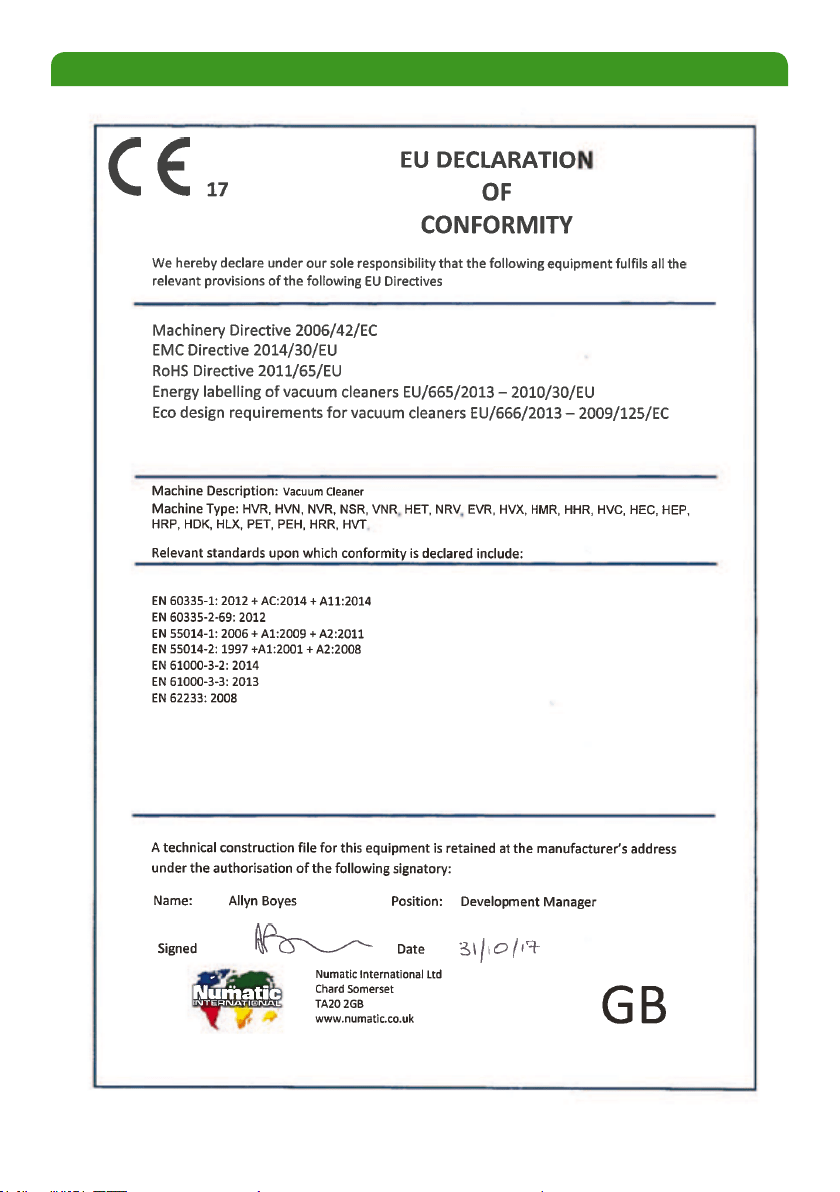

Declaration of conformity
TriTex Filter
901607 Henry and Hetty TriTex Filter
HepaFlo Dust Bags
604015 NVM 1CH (Pack of 10)
Replacement parts
Warranty
Specication subject to change without prior notice
www.myhenry.co.uk © Numatic International Limited
Numatic International Limited, Chard, Somerset, TA20 2GB
Telephone: 01460 68600
Fax: 01460 68458
UNITED KINGDOM: www.numatic.co.uk GERMANY: www.numatic.de SWITZERLAND: www.numatic.ch
FRANCE: www.numatic.fr NETHERLANDS: www.numatic.nl SOUTH AFRICA: www.numatic.co.za
PORTUGAL: www.numatic.pt
902288 03/18 (A05)
Model ID
Vacuum Cleaners - EU Data Sheet
In accordance with (EU) Regulation No 665/2013
Numatic International
HVR 160-11
HET 160-11
Energy efciency class A
Annual energy consumption in kWh per annum
Indicative annual energy consumption (kWh per year), based on 50
cleaning tasks. Actual annual energy consumption will depend on how
the appliance is used.
27.9
Cleaning performance on carpet D
Cleaning performance on hard oor C
Dust re-emission C
Sound power level db (A) 72
Rated input power W 620
