W11218738A
French Door
Bottom Mount
Refrigerator
Use & Care Guide
www.maytag.com
U.S.: 1-800-688-9900
www.maytag.ca
Canada: 1-800-807-6777
2
TABLE OF CONTENTS
Congratulations on your purchase and welcome to the
Maytag Brand family o f high-quality appliances. Your new
Maytag French Door Refrigerator combines advanced cooling
technology with simple operation and high efciency.
Each appliance that leave s our factory is inspected
thoroughly to ensure that it is working properly.
Please read the Use and Care Instructions in this guide
before operating your new refrigerator. Like all appliances,
your refrigerator may require maintenance or repair from
time to time, but you can help to ensure that your refrigerator
provides many years of reliable service by following the
instructions in this guide.
Contents
REFRIGERATOR SAFETY ..............................................................3
Proper Disposal of Your Old Refrigerator ....................................4
PARTS AND FEATURES ................................................................4
What’s New Behind the Doors? ................................................... 5
INSTALLATION INSTRUCTIONS ...................................................6
Unpack the Refrigerator ............................................................... 6
- Remove the Packaging ..............................................................6
- Clean Before Using ....................................................................6
Location Requirements ................................................................6
Remove and Replace Refrigerator Doors .................................... 7
- Remove Right-Hand Refrigerator Door .....................................8
- Remove Left-Hand Refrigerator Door .......................................8
- Replace Right-Hand Refrigerator Door .....................................9
- Replace Left-Hand Refrigerator Door ........................................9
- Final Steps .................................................................................9
Remove and Replace Freezer Drawer Front .............................10
- Remove Drawer Front ..............................................................10
- Replace Drawer Front ..............................................................10
- Final Steps ...............................................................................10
Electrical Requirements .............................................................11
Water Supply Requirements ......................................................11
Connect the Water Supply .........................................................11
- Connect to Water Line .............................................................12
- Connect to Refrigerator ...........................................................12
- Complete the Installation .........................................................13
Handle Installation and Removal ...............................................13
- Install Handles ..........................................................................13
- Remove the Handles................................................................14
Refrigerator Leveling, Door Closing and Alignment ..................14
FILTERS AND ACCESSORIES ....................................................16
Water Filtration System ..............................................................16
- Install the Water Filter ..............................................................16
- The Water Filter Status Light ...................................................16
- Replace the Water Filter ..........................................................17
Install Air Filter (on some models) ..............................................17
- Installing the Air Filter...............................................................17
- Installing the Filter Status Indicator .........................................17
- Replacing the Air Filter .............................................................18
Install Produce Preserver (on some models) .............................18
- Installing the Produce Preserver .............................................. 18
- Installing the Status Indicator ..................................................19
- Replacing the Produce Preserver ............................................ 19
Accessories ................................................................................19
REFRIGERATOR USE ..................................................................20
Opening and Closing Doors .......................................................20
Using the Controls .....................................................................20
- Viewing and Adjusting Temperature Set Points ......................20
- Cooling On/Off .........................................................................21
- Options .....................................................................................22
- Additional Features ..................................................................22
Water and Ice Dispensers ..........................................................23
- Flush the Water System ...........................................................23
- The Water Dispenser ...............................................................23
- The Ice Dispenser ....................................................................23
- Dispensing ...............................................................................23
- The Dispenser Light .................................................................24
- The Dispenser Lock .................................................................24
Ice Maker and Ice Storage Bin (on some models) ....................24
- Ice Production Rate .................................................................24
- Style 1 - Ice Maker in the Refrigerator (on some models) .......24
- Style 2 - Ice Maker in the Freezer (on some models) ..............25
REFRIGERATOR FEATURES .......................................................25
Refrigerator Shelves ...................................................................25
- Shelves and Shelf Frames .......................................................25
Crisper and Crisper Cover .........................................................26
Crisper Humidity Control ...........................................................26
Temperature-Controlled Drawer ................................................26
- Style 1 - Electronic Control ......................................................26
- Style 2 - Manual Control ..........................................................26
- Drawer Removal and Replacement .........................................27
- Drawer Divider .........................................................................27
- Meat Storage Guide .................................................................27
DOOR FEATURES ........................................................................27
Door Bins ....................................................................................27
Pizza Pocket and Drawer Divider ..............................................27
REFRIGERATOR CARE ...............................................................28
Cleaning .....................................................................................28
- Exterior Cleaning ......................................................................28
- Interior Cleaning .......................................................................28
- Condenser Cleaning ................................................................29
Lights ..........................................................................................29
Vacation and Moving Care .........................................................29
- Vacations ..................................................................................29
- Moving .....................................................................................29
TROUBLESHOOTING ..................................................................30
Operation ....................................................................................30
Noise ..........................................................................................31
Temperature and Moisture .........................................................32
Ice and Water .............................................................................33
Doors ..........................................................................................36
PERFORMANCE DATA SHEET ...................................................37
WARRANTY ..................................................................................38
SERVICE NUMBERS ...............................................BACK COVER
3
REFRIGERATOR SAFETY
You can be killed or seriously injured if you don't immediately
You
can be killed or seriously injured if you don't
follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
SAVE THESE INSTRUCTIONS
■ Plug into a grounded 3 prong outlet.
■ Do not remove ground prong.
■ Do not use an adapter.
■ Do not use an extension cord.
■ Disconnect power before servicing.
■ Replace all parts and panels before operating.
■ Remove doors from your old refrigerator.
■ Connect to a potable water supply only.
■ Use nonflammable cleaner.
■ Keep flammable materials and vapors, such as gasoline,
away from refrigerator.
■ Use two or more people to move and install refrigerator.
■ Disconnect power before installing ice maker (on ice maker
kit ready models only).
■ Use a sturdy glass when dispensing ice (on some models).
■ Do not hit the refrigerator glass doors (on some models).
■ This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their
safety.
■ Children should be supervised to ensure that they do not
play with the appliance.
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or
other reproductive harm.
Safety
4
Proper Disposal of Your Old
Refrigerator
IMPORTANT: Child entrapment and suffocation are not
problems of the past. Junked or abandoned refrigerators are still
dangerous—even if they will sit for “just a few days.” If you are
getting rid of your old refrigerator, please follow these instructions
to help prevent accidents.
Before You Throw Away Your Old Refrigerator or Freezer:
■ Take off the doors.
■ Leave the shelves in place so that children may not easily
climb inside.
PARTS AND FEATURES
WARNING
Suffocation Hazard
Remove doors from your old refrigerator.
Failure to do so can result in death or brain damage.
BAC
D
E
F
G
H
I
J
Important information to know about disposal of
refrigerants:
Dispose of refrigerator in accordance with Federal and Local
regulations. Refrigerants must be evacuated by a licensed,
EPA certified refrigerant technician in accordance with
established procedures.

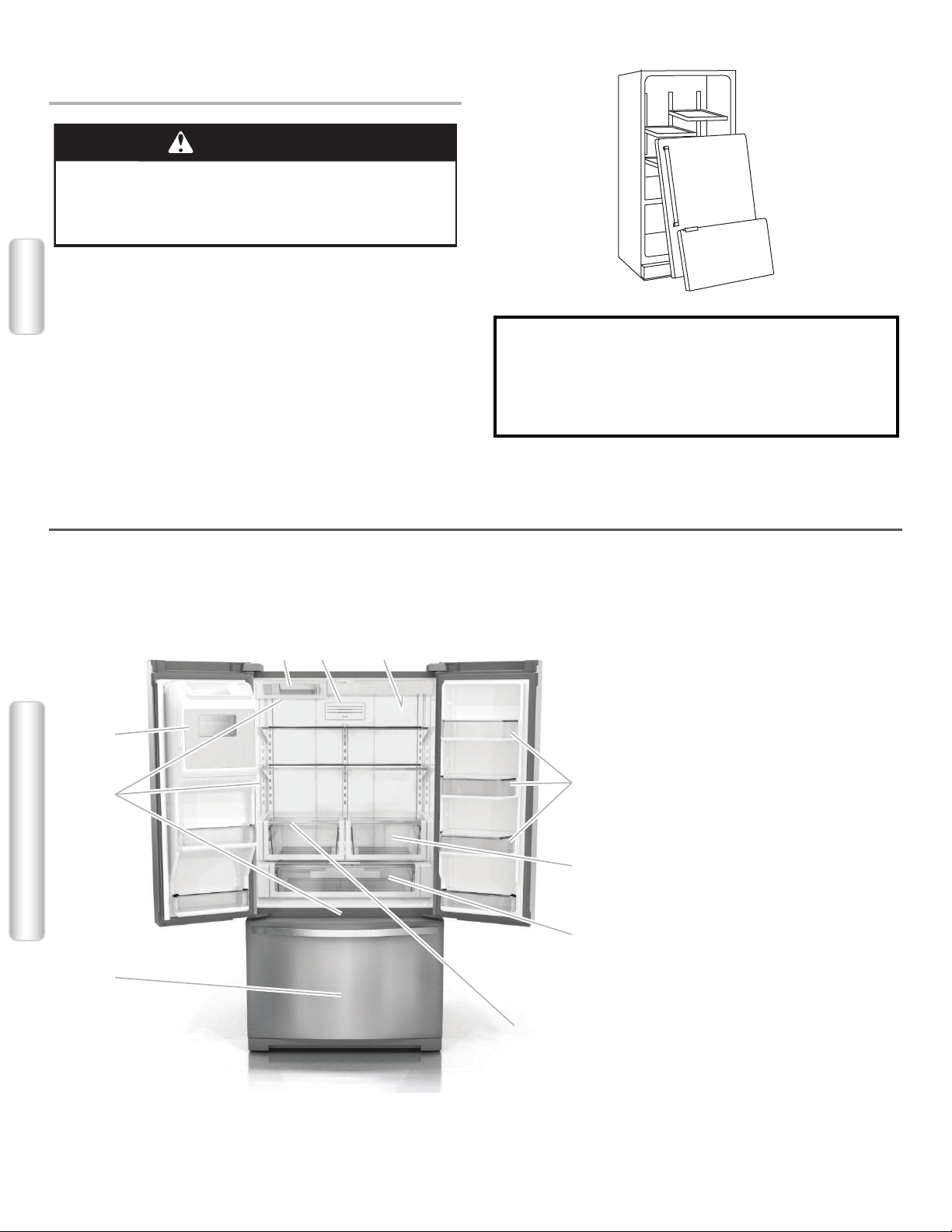

A. Ice maker
B. Air lter
C. Water lter
D. Door bins
E. Crispers
F. Pantry drawer
G. Freezer drawer
H. LED ramp-on lighting
I. In-Door-Ice
®
ice dispensing system
J. Slide-Out Shelf
Parts & Features
Safety
5
What’s New Behind the Doors?
Your Maytag
®
French Door Refrigerator comes equipped with
various innovative storage and energy efficient features.
Energy and Normal Operating Sounds
Your new French Door Bottom Mount refrigerator has been
designed to optimize energy efciency, and better regulate
temperatures to match cooling demand. You may notice that it
operates differently than your previously owned refrigerator. It is
normal for the high-efciency compressor to run for extended
periods of time at varying speeds in order to consume only the
energy necessary for optimum efciency. In addition, during
various stages of the cooling cycle, you may hear normal
operating sounds that are unfamiliar to you.
More Storage Space
The French Door Bottom Mount has the most fresh food storage
space available, including a full-width, temperature controlled,
pantry drawer perfect for storing veggie trays or party platters.
Store-N-Door
®
Ice Dispensing System
The ice storage bin located in the door provides an entire extra
shelf of storage space and the storage bin is removable for easy
access to ltered ice.
Dual Evaporator (on some models)
The refrigerator and freezer compartments have dedicated
evaporators to provide fresh and frozen foods with separate
climates. Frozen food stays cold and dry, while fresh food remains
at the ideal temperature and humidity.
Slide-Out Shelf
This full-width slide-out shelf tucked between the crispers and the
lowest shelf is perfect for leftover family-sized casserole dishes,
pizza boxes, and large party platters.
Water Filter
NSF
®
Certied lter reduces chlorine taste and odor, particulates
(class I), lead, and mercury. Replacing the water lter every 6
months ensures clean, ltered drinking water.
Air Filter
An air lter is 15 times more powerful than baking soda at
reducing common food odors inside the refrigerator.
Produce Preserver (on some models)
Ethylene is a natural gas produced by fruits and vegetables to
promote ripening. The Produce Preserver absorbs ethylene, to
delay the over-ripening of fresh produce. As a result, certain
produce items will stay fresh longer.
LED Lighting
The LED lights do not ever need to be replaced.
Door Alarm
A helpful alarm sounds when the refrigerator door or freezer
drawer is left ajar.
Power Outage Indicator (on some models)
If the power should go out while you are away from home, this
indicator will let you know that the refrigerator has been without
power.
Parts & Features
6
INSTALLATION INSTRUCTIONS
Unpack the Refrigerator
Remove the Packaging
■ Remove tape and glue residue from surfaces before turning
on the refrigerator. Rub a small amount of liquid dish soap
over the adhesive with your ngers. Wipe with warm water
and dry.
■ Do not use sharp instruments, rubbing alcohol, ammable
uids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator.
■ Dispose of/recycle all packaging materials.
Clean Before Using
After you remove all of the packaging materials, clean the inside
of your refrigerator before using it. See the cleaning instructions in
“Refrigerator Care.”
Location Requirements
IMPORTANT: This refrigerator is designed for indoor, household
use only.
To ensure proper ventilation for your refrigerator, allow for a 1/2"
(1.25 cm) of space on each side and at the top. Allow for a 1"
(2.54 cm) space behind the refrigerator. If your refrigerator has
an ice maker, allow extra space at the back for the water line
connections. When installing your refrigerator next to a xed wall,
leave a 3
3
/
4
" (9.5 cm) minimum space between the refrigerator
and wall to allow the door to swing open.
NOTE: This refrigerator is intended for use in a location where the
temperature ranges from a minimum of 55°F (13°C) to a maximum
of 110°F (43°C). The preferred room temperature range for
optimum performance, which reduces electricity usage and
provides superior cooling, is between 60°F (15°C) and 90°F
(32°C). It is recommended that you do not install the refrigerator
near a heat source, such as an oven or radiator.
WARNING
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the refrigerator for
cleaning or service, be sure to cover the oor with
cardboard or hardboard to avoid oor damage. Always pull
the refrigerator straight out when moving it. Do not wiggle or
“walk” the refrigerator when trying to move it, as oor
damage could occur.
Important information to know about glass shelves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
Tempered glass is designed to shatter into many small,
pebble-size pieces. This is normal. Glass shelves and covers
are heavy. Use both hands when removing them to avoid
dropping.
WARNING
Explosion Hazard
Keep ammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or re.
3³⁄₄" (9.5 cm)
¹⁄₂" (1.25 cm)
Instal
l
7
Remove and Replace Refrigerator Doors
NOTE: Measure the width of your door opening, to see whether or not you need to remove the refrigerator doors to move the refrigerator
into your home. If door removal is necessary, see the following instructions.
IMPORTANT: If the refrigerator was previously installed and you are moving it out of the home, before you begin, turn the refrigerator
control OFF. Unplug the refrigerator or disconnect power. Remove food and adjustable door or utility bins from doors.
Gather the required tools and read all instructions before removing doors.
TOOLS NEEDED: 3/16" hex- key wrench and a #2 Phillips screwdriver
WARNING
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.
A
BA
C
A
C
B
A
D
Door Removal and Replacement
Style 1 – Water Dispenser
Tubing Connection
Style 1 – Water Dispenser
Tubing Connection
Top Right Hinge
Wiring Plug
Top Left Hinge
A. Outer Ring A. Outer Ring
A. 3/16" Internal hex-head Screws
B. Hinge Cover Screw
C. Top Hinge Cover
D. Top Hinge
A. 3/16" Internal hex-head Screws
B. Ground Wire (Do Not Remove)
C. Screws (Do Not Remove)
Install
8
Remove Right-Hand Refrigerator Door
1. Unplug refrigerator or disconnect power.
2. Keep the refrigerator doors closed until you are ready to lift
them free from the cabinet.
NOTE: Provide additional support for the refrigerator door
while the hinges are being removed. Do not depend on the
door gasket magnets to hold the door in place while you are
working.
3. Using a Phillips screwdriver, remove the cover from the Top
Hinge.
4. Using the 3/16" hex-key wrench, remove the two internal hex-
head screws from the top hinge, and set aside.
NOTE: Do not remove the two locator screws. These screws
will help you align the hinge when you replace the door..
5. Lift the refrigerator door from the bottom hinge pin. The top
hinge will come away with the door.
Remove Left-Hand Refrigerator Door
IMPORTANT: The tubing and wiring for the water dispenser run
through the left-hand door hinge, so they must be disconnected
before removing the door.
1. Using a Phillips screwdriver, remove the cover from the top
hinge.
2. Disconnect the water dispenser tubing located on top of the
door hinge.
Style 1 - Press the outer ring against the face of the tting and
gently pull the dispenser tubing free.
NOTE: The water dispenser tubing remains attached to the
left-hand refrigerator door.
Style 2 - Firmly pull up on the clasp. Then, pull the tubing out
of the tting.
NOTE: The water dispenser tubing remains attached to the
left-hand refrigerator door.
WARNING
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.
A
B
E
C
D
A. Top hinge cover screw
B. Top hinge cover
C. 3/16" Internal hex-head screws
D. Top Hinge
E. Locator Screws
WARNING
Excessive Weight Hazard
Use two or more people to lift the refrigerator door.
Failure to do so can result in back or other injury.
A
B
A. Top hinge cover screw B. Top hinge cover
AB
A. Outer ring
B. Face of tting
Instal
l
9

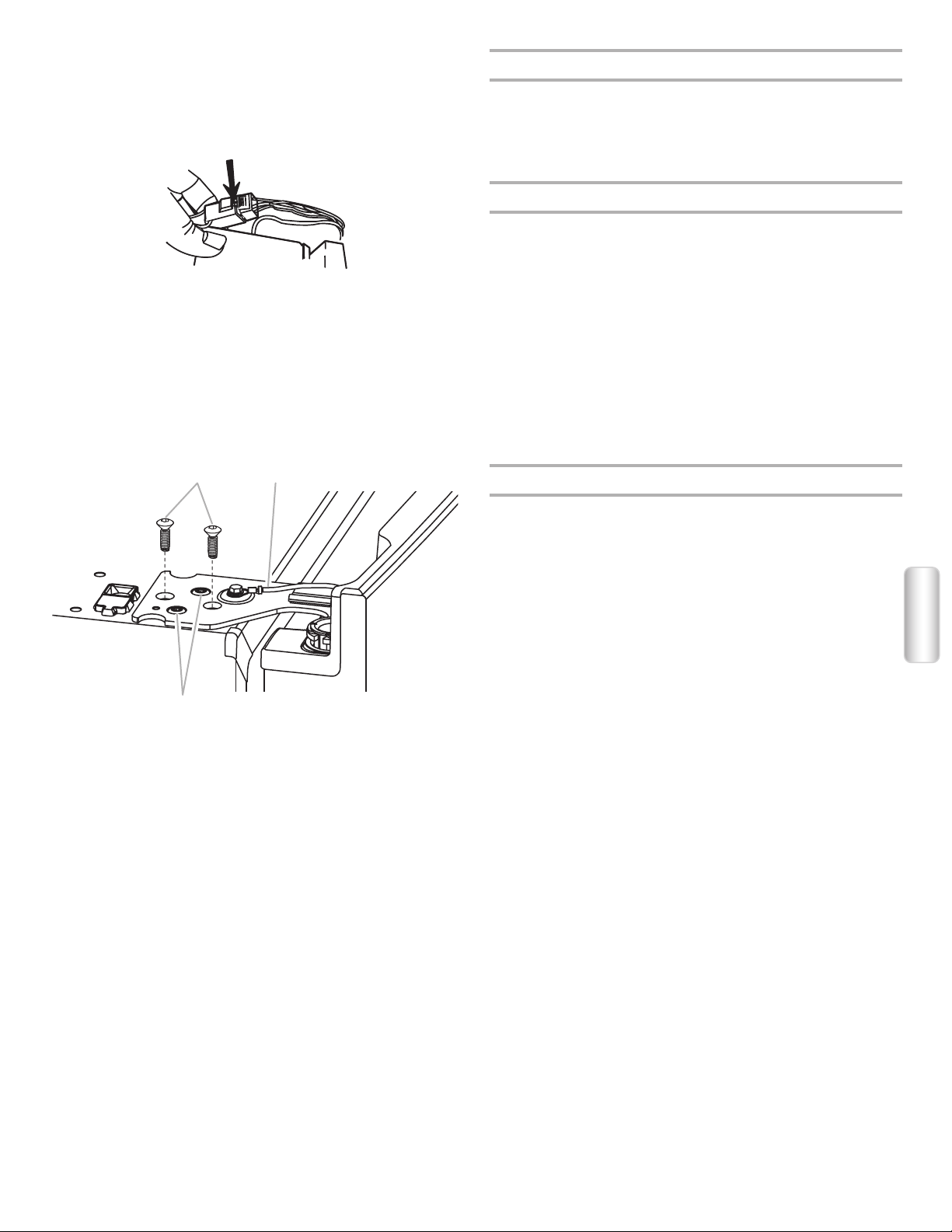

3. Disconnect the wiring plug located on top of the door hinge.
■ Grasp each side of the wiring plug. With your left thumb,
press down to release the catch and pull the sections of
the plug apart.
NOTE: Do not remove the green, ground wire. It should
remain attached to the door hinge.
4. Using the 3/16" hex-key wrench, remove the two internal hex-
head screws from the top hinge, and set aside.
NOTES:
■ Provide additional support for the refrigerator door while
the hinges are being removed. Do not depend on the door
gasket magnets to hold the door in place while you are
working.
■ Do not remove the two locator screws. These screws will
help you align the hinge when you replace the door.
5. Lift the refrigerator door from the bottom hinge pin. The top
hinge will come away with the door.
NOTE: It may not be necessary to remove the bottom hinges
and brake feet assemblies to move the refrigerator through a
doorway.
■ Only if necessary, use a driver with a #2 square bit tip to
remove the bottom hinges and a 3/8" nut driver to remove
the brake feet screws.
Replace Right-Hand Refrigerator Door
1. Set the right-hand door onto the bottom hinge pin.
2. Insert the top hinge pin into the open hole in the top of the
refrigerator door.
3. Using the two 3/16" internal hex-head screws, fasten the
hinge to the cabinet. Do not tighten the screws completely.
Replace Left-Hand Refrigerator Door
IMPORTANT: Do not intertwine the water tubing and wiring
bundles when reconnecting them.
1. Set the left-hand door onto the bottom hinge pin.
2. Using the two 3/16" internal hex-head screws, fasten the
hinge to the cabinet. Do not tighten the screws completely.
3. Reconnect the water dispenser tubing.
Style 1 - Insert the tubing into the tting until it stops and the
outer ring is touching the face of tting.
Style 2 - Insert the tubing rmly into the tting until it stops.
Close the clasp around the tubing. The clasp snaps into place
between the tting and the collar.
4. Reconnect the electrical wiring.
■ Push together the two sections of the wiring plug.
Final Steps
1. Completely tighten the four internal hex-head screws (two
on the right-hand door hinge and two on the left-hand door
hinge).
2. Replace both top hinge covers.
A B
C
A. 3/16" Internal hex-head screws
B. Ground wire (do not remove)
C. Locator screws (do not remove)
Install
10

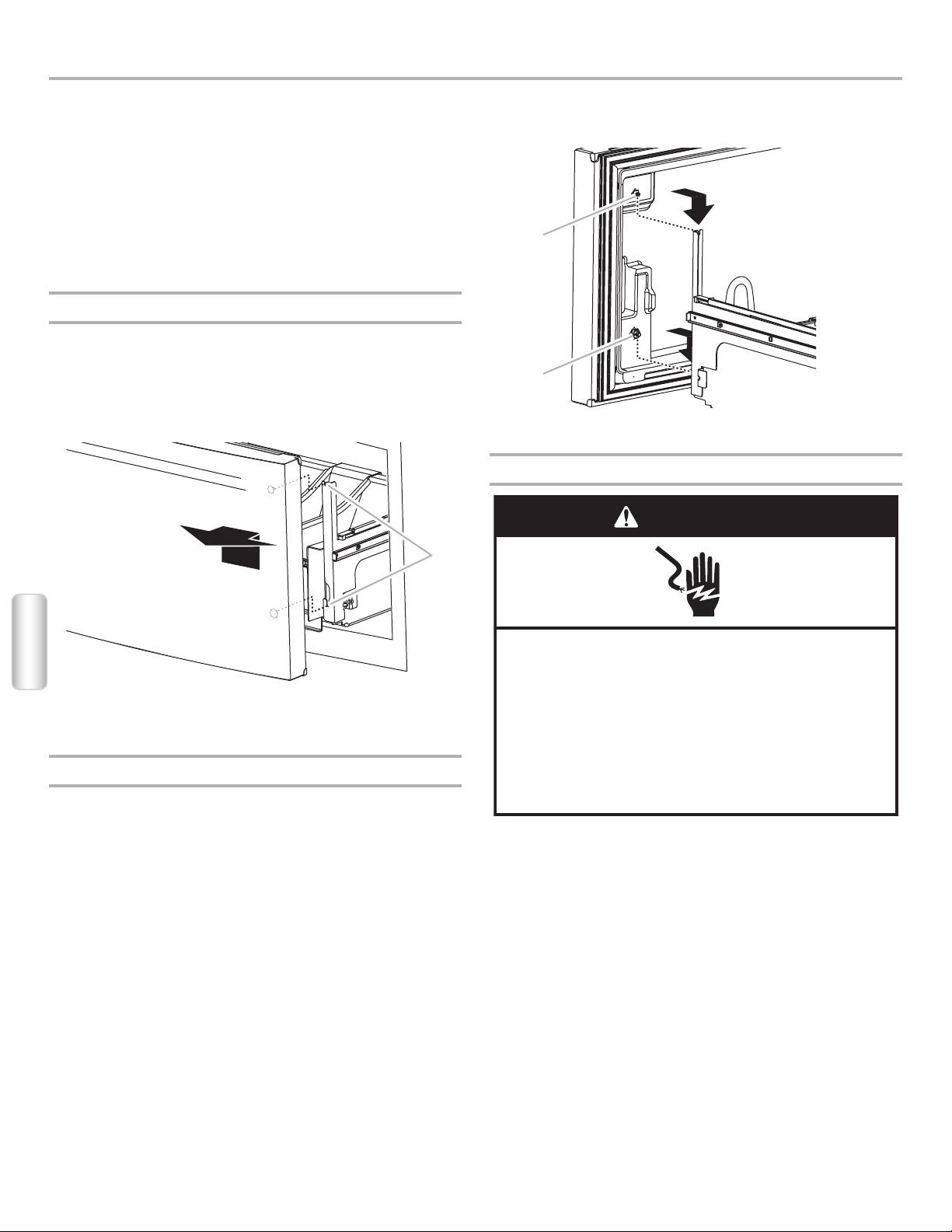

Remove and Replace Freezer Drawer Front
Depending on the width of your door opening, it may be
necessary to remove the freezer drawer front to move the
refrigerator into your home.
IMPORTANT:
■ If the refrigerator was previously installed and you are moving
it out of the home, before you begin, turn the refrigerator
control OFF, and unplug the refrigerator or disconnect power.
Remove food from the freezer drawer.
■ Two people may be required to remove and replace the
freezer drawer front.
Tool Needed: 1/4" hex driver
Remove Drawer Front
1. Open the freezer drawer to its full extension.
2. Remove the two screws at the top, inside the drawer front
(one on the left-hand side and one on the right-hand side) that
fasten the drawer front to the drawer glides.
3. Lift up on the drawer front to release the plastic studs from
the drawer glide bracket slots.
4. Slide the drawer glides back into the freezer.
Replace Drawer Front
1. Pull out the freezer drawer glides to their full extension.
2. Holding the drawer front by its sides, align the two plastic
studs, located at the bottom, inside the drawer front, with the
drawer glide bracket slots.
NOTE: It helps if one person holds the drawer glides steady
while another person aligns the drawer front and inserts the
studs into the slots.
3. Replace and tighten the two screws at the top of the drawer
front (one on the left-hand side and one on the right-hand
side).
Final Steps
1. Plug into a grounded 3 prong outlet.
2. Reset the controls. See “Using the Controls.”
3. Return all removable door parts to doors and the food to
refrigerator.
A
A. Drawer glide bracket slots
A
B
A. Drawer front screw
B. Drawer front plastic stud
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
Instal
l
11
Electrical Requirements
Before you move your refrigerator into its nal location, it is
important to make sure you have the proper electrical connection.
Recommended Grounding Method
A 115 volt, 60 Hz, AC only 15 or 20 A fused, grounded electrical
supply is required. It is recommended that a separate circuit
serving only your refrigerator be provided. Use an outlet that
cannot be turned off by a switch. Do not use an extension cord.
NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, turn Cooling OFF, and then disconnect the
refrigerator from the electrical source. When you have nished,
reconnect the refrigerator to the electrical source and turn
Cooling ON. See “Using the Controls.”
Water Supply Requirements
A cold water supply with water pressure between 35 and 120 psi
(241 and 827 kPa) is required to operate the water dispenser and
ice maker. If you have questions about your water pressure, call a
licensed, qualied plumber.
NOTE: If the water pressure is less than what is required, the ow
of water from the water dispenser could decrease or ice cubes
could be hollow or irregular shaped.
Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water supply coming out of
a reverse osmosis system going to the water inlet valve of the
refrigerator needs to be between 35 and 120 psi (241 and
827 kPa).
If a reverse osmosis water ltration system is connected to your
cold water supply, the water pressure to the reverse osmosis
system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).
■ Check to see whether the sediment lter in the reverse
osmosis system is blocked. Replace the lter if necessary.
■ Allow the storage tank on the reverse osmosis system to rell
after heavy use. The tank capacity could be too small to keep
up with the requirements of the refrigerator.
NOTE: Faucet mounted reverse osmosis systems are not
recommended.
■ If your refrigerator has a water lter, it may further reduce
the water pressure when used in conjunction with a reverse
osmosis system. Remove the water lter. See “Water Filtration
System.”
If you have questions about your water pressure, call a licensed,
qualied plumber.
Connect the Water Supply
Read all directions before you begin.
IMPORTANT:
■ Plumbing shall be installed in accordance with the
International Plumbing Code and any local codes and
ordinances.
■ The gray water tubing on the back of the refrigerator (which
is used to connect to the household water line) is a PEX
(cross-linked polyethylene) tube. Copper and PEX tubing
connections from the household water line to the refrigerator
are acceptable, and will help avoid off-taste or odor in your
ice or water. Check for leaks.
If PEX tubing is used instead of copper, we recommend the
following Part Numbers:
W10505928RP (7 ft [2.14 m] jacketed PEX),
8212547RP (5 ft [1.52 m] PEX), or
W10267701RP (25 ft [7.62 m] PEX).
■ Install tubing only in areas where temperatures will remain
above freezing.
TOOLS NEEDED:
Gather the required tools and parts before starting installation.
■ Flat-blade screwdriver
■ 7⁄16" and 1/2" open-end wrenches or two adjustable
wrenches
■ 1/4" nut driver
NOTE: Do not use a piercing-type or 3/16" (4.76 mm) saddle
valve which reduces water ow and clogs easier.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
Install
12
Connect to Water Line
IMPORTANT: If you turn the refrigerator on before the water is
connected, turn the ice maker OFF.
1. Unplug refrigerator or disconnect power.
2. Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.
3. Use a quarter-turn shutoff valve or the equivalent, served by a
1/2" household supply line.
NOTE: To allow sufcient water ow to the refrigerator, a
minimum 1/2" size household supply line is recommended.
4. Now you are ready to connect the copper tubing to the
shutoff valve. Use 1/4" (6.35 mm) OD soft copper tubing to
connect the shutoff valve and the refrigerator.
■ Ensure that you have the proper length needed for the job.
Be sure both ends of the copper tubing are cut square.
■ Slip compression sleeve and compression nut onto
copper tubing as shown. Insert end of tubing into outlet
end squarely as far as it will go. Screw compression nut
onto outlet end with adjustable wrench. Do not
overtighten.
5. Place the free end of the tubing into a container or sink, and
turn on main water supply to ush out tubing until water is
clear. Turn OFF shutoff valve on the water pipe.
NOTE: Always drain the water line before making the nal
connection to the inlet of the water valve to avoid possible
water valve malfunction.
6. Bend the copper tubing to meet the water line inlet, which
is located on the back of the refrigerator cabinet as shown.
Leave a coil of copper tubing to allow the refrigerator to be
pulled out of the cabinet or away from the wall for service.
Connect to Refrigerator
Follow the connection instructions specic to your model.
Style 1
1. Remove plastic cap from water valve inlet port. Attach the
copper tube to the valve inlet using a compression nut
and sleeve as shown. Tighten the compression nut. Do not
overtighten. Conrm copper tubing is secure by pulling on
copper tubing.
2. Create a service loop with the copper tubing. Avoid kinks
when coiling the copper tubing. Secure copper tubing to
refrigerator cabinet with a “P” clamp.
3. Turn on water supply to refrigerator and check for leaks.
Correct any leaks.
Style 2
1. Unplug refrigerator or disconnect power.
2. Remove and discard the short, black plastic part from the end
of the water line inlet.
3. Thread the nut onto the end of the tubing. Tighten the nut by
hand. Then tighten it with a wrench two more turns. Do not
overtighten.
NOTE: To avoid rattling, be sure the copper tubing does not
touch the cabinet’s side wall or other parts inside the cabinet.
A
B
D
C
A. Sleeve
B. Nut
C. Copper tubing (to refrigerator)
D. Household supply line (1/2" minimum)
B CA
A. Compression sleeve
B. Compression nut
C. Copper tubing
B
A
C
D
A. Copper tubing
B. “P” clamp
C. Compression nut
D. Compression sleeve
D
A B C
A. Household water line
B. Nut (purchased)
C. Ferrule (purchased)
D. Refrigerator water tubing
Instal
l
13
4. Install the water supply tube clamp around the water supply
line to reduce strain on the coupling.
5. Turn shutoff valve ON.
6. Check for leaks. Tighten any connections (including
connections at the valve) or nuts that leak.
7. On some models, the ice maker is equipped with a built-in
water strainer. If your water conditions require a second water
strainer, install it in the 1/4" (6.35 mm) water line at either
tube connection. Obtain a water strainer from your appliance
dealer.
Complete the Installation
1. Plug into a grounded 3 prong outlet.
2. Flush the water system. See “Water and Ice Dispensers.”
NOTE: Allow 24 hours to produce the rst batch of ice.
Discard the rst three batches of ice produced. Allow 3 days
to completely ll the ice storage bin.
Handle Installation and Removal
Parts Included: Door handles (2), Drawer handle(s) (1 or 2
depending on model), 1/8" hex key, spare setscrew(s)
NOTE: With the handles laying on a at surface, the handles
intended for the drawers are more curved. They will not mount
ush against the doors.
Install Handles
NOTE: Handle mounting setscrews are preinstalled inside the
handle.
1. Remove the handles from the packaging inside the
refrigerator, and place them on a soft surface.
2. Open a refrigerator compartment door. On the closed door,
place a handle onto the shoulder screws so that the
setscrews are facing the adjacent door.
3. Firmly push the handle toward the door until the handle base
is ush against the door.
4. While holding the handle, insert the short end of the hex key
into the upper hole and slightly rotate the hex key until it is
engaged in the setscrew.
5. Using a clockwise motion tighten the setscrew just until it
begins to contact the shoulder screw. Do not fully tighten.
6. Repeat steps 4 and 5 to fasten the lower setscrew.
7. Once both setscrews have been partially tightened as
instructed in the previous steps, fully tighten both setscrews.
IMPORTANT: When the screws feel tight, tighten them an
additional quarter-turn. The handle is not properly installed
without this extra tightening.
8. Repeat steps 2 through 7 to install the other handle onto the
adjacent refrigerator door.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
A
B
A. Shoulder screws
B. Setscrews inside the handle
Install
14
9. With the drawer(s) closed, place the handle onto the shoulder
screws so that the setscrews are facing down toward the
oor.
10. Firmly push the handle toward the drawer until the handle
base is ush against the drawer.
11. Insert the short end of the hex key into the left-hand hole and
slightly rotate the hex key until it is engaged in the setscrew.
12. Using a left to right motion tighten the setscrew a quarter-turn
at a time just until it begins to contact the shoulder screw. Do
not fully tighten.
13. Repeat steps 11 and 12 to fasten the right-hand setscrew to
the shoulder screw.
14. Once both setscrews have been partially tightened as
instructed in the previous steps, fully tighten both setscrews.
IMPORTANT: When the screws feel tight, tighten them an
additional quarter-turn. The handle is not properly installed
without this extra tightening.
15. For some models, repeat steps 9 through 14 to install a
handle on the second drawer.
16. Save the hex key and all instructions.
Remove the Handles
1. While holding the handle, insert the short end of the hex key
into a setscrew hole and slightly rotate the hex key until it is
engaged in the setscrew.
2. Using a right to left motion loosen the setscrew a quarter-turn
at a time.
3. Repeat steps 1 and 2 for the other setscrew. Slowly pull the
handle away from the door or drawer.
4. If necessary, use a Phillips screwdriver to remove the shoulder
screws from the door.
Refrigerator Leveling, Door Closing and Alignment
The base grille covers the adjustable brake feet and roller
assemblies located at the bottom of the refrigerator below the
freezer drawer. Before making any adjustments, remove the base
grille and move the refrigerator to its nal location.
Tools Needed: 1/4" hex driver
Tools Provided: 1/8" hex-key wrench
1. Remove the base grille. Grasp the grille rmly and pull it
toward you. Open the freezer drawer to access the brake feet.
NOTE: To allow the refrigerator to roll easier, raise the break
feet by turning them counterclockwise. The front rollers will be
touching the oor.
2. Move the refrigerator to its nal location.
3. Lower the brake feet, by turning them clockwise, until the
rollers are off the oor and both brake feet are snug against
the oor. This keeps the refrigerator from rolling forward when
opening the refrigerator doors or freezer drawer.
IMPORTANT: If you need to make further adjustments
involving the brake feet, you must turn both brake feet the
same amount to keep the refrigerator level.
A
B
A. Shoulder screw
B. Setscrews inside the handle
Instal
l
15
4. Make sure the doors close easily. If you are satised with the
door opening and closing, skip the next section and go to
“Align the Doors.” If, however, the doors do not close easily or
the doors pop open, adjust the tilt.
To Adjust the Cabinet Tilt:
■ Open the freezer drawer. Use a 1/4" hex driver to turn
both brake feet clockwise the same amount. This will raise
the front of the refrigerator. It may take several turns to
allow the doors to close easier.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the brake feet. This makes
it easier to turn them.
Style 1
Style 2
5. Make sure the doors are even at the top and that the space
between the bottom of the refrigerator doors and the top of
the freezer drawer is even. If necessary, align the doors.
To Align the Doors:
■ Keeping both refrigerator doors closed, pull out the freezer
drawer. Locate the bottom hinge pin of the right-hand
refrigerator door. The alignment screw is inside the bottom
hinge pin.
■ Insert the short end of the 1/8" hex- key wrench (packed
with the Door Handle Installation Instructions) into the
bottom hinge pin until it is fully engaged in the alignment
screw.
To raise the refrigerator door, turn the hex key to the right.
To lower the door, turn the hex key to the left.
■ Continue to turn the alignment screw until the doors are
aligned.
6. Make sure the refrigerator is steady. If the refrigerator seems
unsteady or rolls forward when the door or drawer is pulled
open, adjust the brake feet.
To Steady the Refrigerator:
■ Open the freezer drawer. Using a 1/4" hex driver, turn both
brake feet clockwise the same amount until the brake feet
are snug against the oor. Check again. If not satised,
continue to adjust the brake feet by half turns of the screw
until the refrigerator does not roll forward when the drawer
is opened.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the brake feet. This makes
it easier to turn the screws.
7. Replace the base grille by aligning the ends of the grille with
the leveling assemblies on each side and snapping the grille
into place.
A
C
B

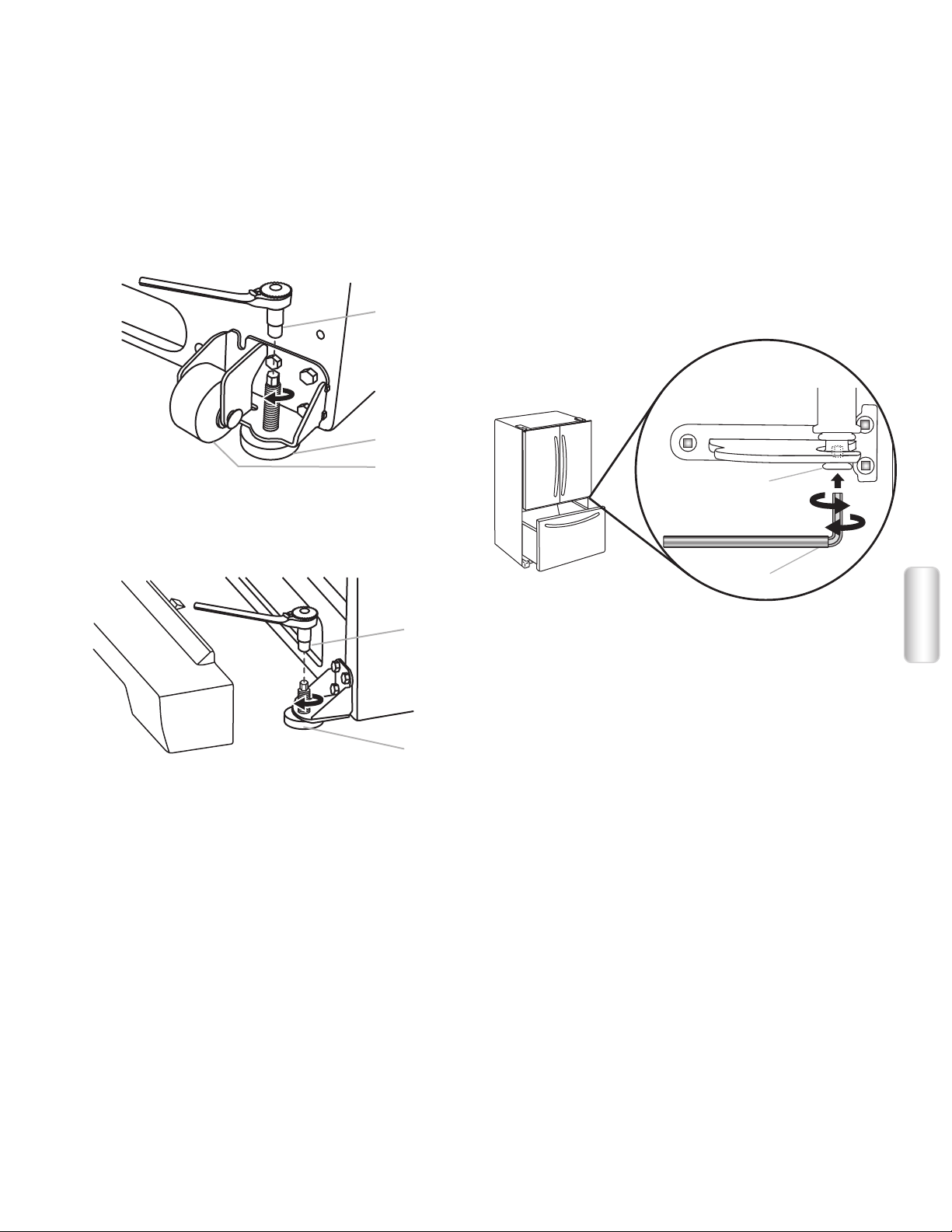

A. Brake foot
B. Front roller
C. 1/4" Hex driver
A
B
A. Brake foot
B. 1/4" Hex driver
A
B
A. Bottom hinge pin
B. 1/8" Hex-key wrench
Install
16
FILTERS AND ACCESSORIES
Water Filtration System
Install the Water Filter
1. Locate the accessory packet in the refrigerator and remove
the water lter.
2. Take the water lter out of its packaging and remove the cover
from the O-rings. Be sure the O-rings are still in place after the
cover is removed.
3. The water lter compartment is located in the right-hand side
of the refrigerator ceiling. Push up on the compartment door
to release the catch, and then lower the door.
4. Align the arrow on the water lter label with the cutout notch
in the lter housing, and insert the lter into the housing.
5. Turn the lter clockwise 90 degrees (1/4 turn), until it locks
into the housing.
NOTE: If the lter is not correctly locked into the housing, the
water dispenser will not operate. Water will not ow from the
dispenser.
6. While the compartment door is still open, lift the lter up into
the compartment. Then, close the lter compartment door
completely.
7. Flush the water system. See “Flushing the Water Filter” in the
“Water and Ice Dispensers” section.
IMPORTANT: If you do not ush the water system, you may
experience dripping and/or decreased ow from the water
dispenser.
The Water Filter Status Light
Press WATER FILTER to display the percentage of lter life
remaining (from 99% to 0%). Press WATER FILTER again to return
to the Normal screen.
The water lter status lights will help you know when to change
your water lter.
■ ORDER (yellow) - it is almost time to change the water lter.
■ REPLACE (red) - Replace the water lter. While you are
dispensing water, “Replace” will blink.
NOTE: If a water lter is not installed or is undetected
because it is not properly installed (locked into place),
“Replace” and “--% remaining” will display on the control
panel. Check the water lter.
■ RESET the water lter status tracking feature. After you
replace the disposable water lter with a new lter, closing the
lter compartment door will automatically reset the lter status
tracking feature. See “Using the Controls.”
NOTE: “Replace” will remain illuminated if a lter is not
installed or is installed incorrectly.
Do not use with water that is microbiologically unsafe or
of unknown quality without adequate disinfection before
or after the system. Systems certified for cyst reduction
may be used on disinfected waters that may contain
filterable cysts.
B
A
A. O-ring cover
B. O-rings
Accessories
17
Replace the Water Filter
To purchase a replacement water lter, see “Accessories.”
Replace the disposable water lter when indicated on the water
lter status display or at least every 6 months. If water ow to
your dispenser or ice maker decreases noticeably, change the
water lter sooner.
1. Locate the water lter compartment in the right-hand side
of the refrigerator ceiling. Push up to release and lower the
compartment door.
2. Turn the water lter counterclockwise (to the left), and pull it
straight out of the compartment.
NOTE: There may be some water in the lter. Some spilling
may occur. Use a towel to wipe up any spills.
3. Install the replacement water lter by following steps 2
through 7 in the “Install the Water Filter” section.
Install Air Filter (on some models)
An air lter is 15 times more powerful than baking soda at
reducing common food odors inside the refrigerator.
On some models, your refrigerator's accessory packet includes
an air lter, which must be installed prior to use.
Installing the Air Filter
Install the air lter behind the vented door, located on the rear wall
near the top of the refrigerator compartment.
1. Remove the air lter from its packaging.
2. Lift open the vented door.
3. Snap the lter into place.
Installing the Filter Status Indicator
The lter comes with a status indicator, which should be activated
and installed at the same time the air lter is installed.
1. Place the indicator face-down on a rm, at surface.
2. Apply pressure to the bubble on the back of the indicator until
the bubble pops to activate the indicator.
3. Lift open the vented air lter door. On some models, there are
notches behind the door.
Models with notches:
■ With the indicator screen facing outward, slide the
indicator down into the notches.
NOTE: The indicator will not easily slide into the notches if the
bubble has not been popped.
■ Close the air lter door, and check that the indicator is
visible through the window in the door.
A
A. Air lter
B
A
C
A. Status indicator window
B. Air lter status indicator
C. Notches
Accessories
18
Models without notches:
■ Place the indicator somewhere it is easily visible — either
inside the refrigerator, or elsewhere in your kitchen or home.
Replacing the Air Filter
The disposable air lter should be replaced every 6 months when
the status indicator has completely changed from white to red.
To order a replacement air lter, contact us. See “Accessories”
in the User Guide, Use and Care Guide or User Instructions for
information on ordering.
1. Remove the used air lter by squeezing in on the side tabs.
2. Remove the used status indicator.
3. Install the new air lter and lter status indicator using the
instructions in the previous sections.

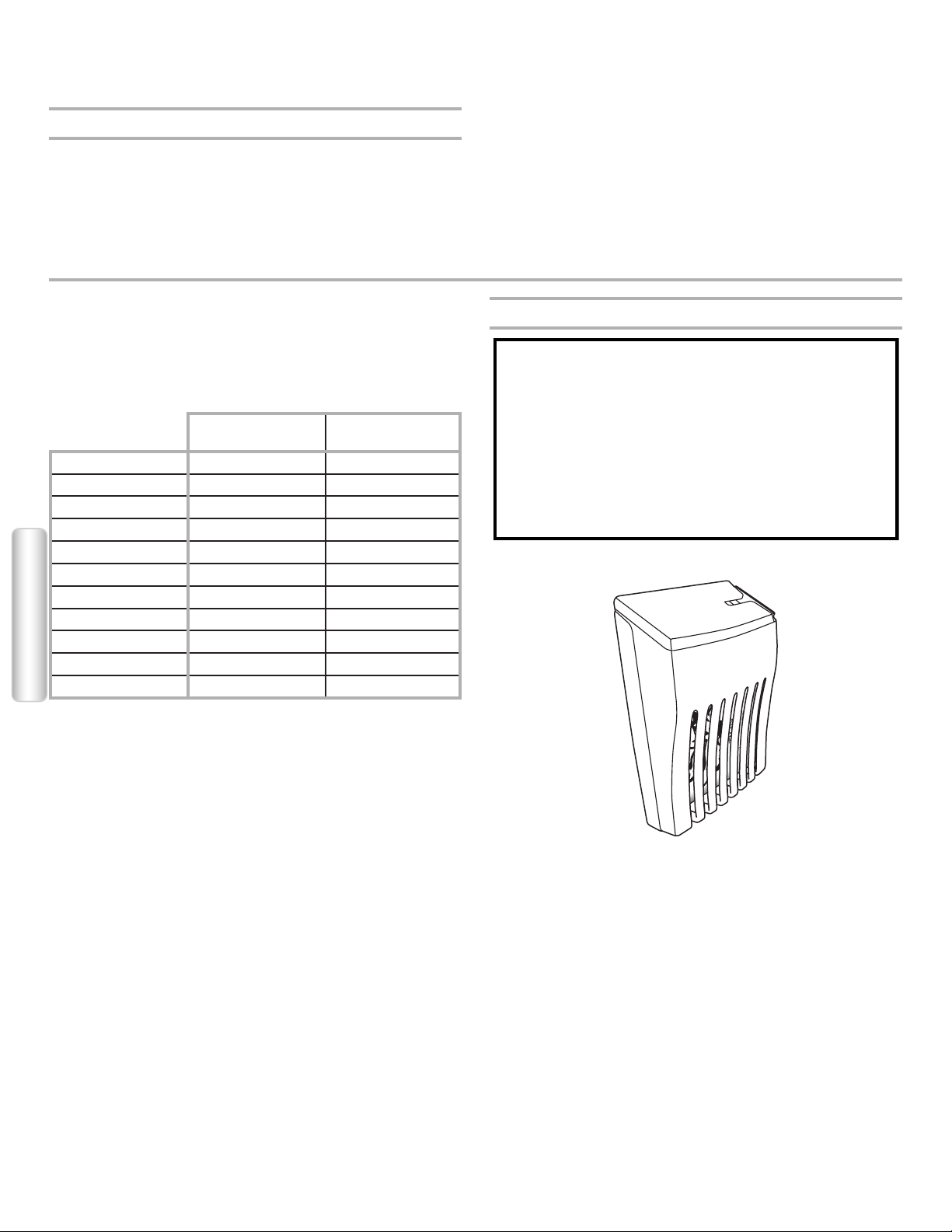

Install Produce Preserver (on some models)
The Produce Preserver absorbs ethylene to slow the ripening
process of many produce items. As a result, certain produce
items will stay fresh longer.
Ethylene production and sensitivity varies depending on the type
of fruit or vegetable. To preserve freshness, it is best to separate
produce with sensitivity to ethylene from fruits that produce
moderate to high amounts of ethylene.
Sensitivity to
Ethylene
Ethylene
Production
Apples High Very High
Asparagus Med. Very Low
Berries Low Low
Broccoli High Very Low
Cantaloupe Med. High
Carrots Low Very Low
Citrus Fruit Med. Very Low
Grapes Low Very Low
Lettuce High Very Low
Pears High Very High
Spinach High Very Low
Installing the Produce Preserver
1. Find the Produce Preserver housing inside the refrigerator.
2. Open the housing by pulling up and out on the back.
3. Remove the Produce Preserver pouches from the packaging
and place them into the housing.
NOTE: For best performance, always use two pouches.
4. Adhere the Produce Preserver housing to the back wall of the
crisper drawer according to the instructions included in the
package.
CAUTION: IRRITANT
MAY IRRITATE EYES AND SKIN. DANGEROUS FUMES
FORM WHEN MIXED WITH OTHER PRODUCTS.
Do not mix with cleaning products containing ammonia,
bleach or acids. Do not get in eyes, on skin or clothing. Do
not breathe dust. Keep out of reach of children.
FIRST AID TREATMENT: Contains potassium
permanganate. If swallowed, call a Poison Control Center or
doctor immediately. Do not induce vomiting. If in eyes, rinse
with water for 15 minutes. If on skin, rinse with water.
CAUTION
IRRITANT
.kcab no snoituac daeR
ATTENTION
IRRITANT
.srever el rus secnedurp sed zesiL
Accessories
19
Installing the Status Indicator
The produce preserver comes with a status indicator, which
should be activated and installed at the same time the pouches
are installed.
1. Place the indicator face-down on a rm, at surface.
2. Apply pressure to the bubble on the back of the indicator until
the bubble pops, to activate the indicator.
3. Slide open the cap on the top of the produce preserver
housing.
4. Place the indicator in the top of the housing, facing outward.
5. Slide the cap closed, and check that the indicator is visible
through the rectangular hole in the cap.
NOTE: The cap will not easily close if the indicator’s bubble
has not been popped.
Replacing the Produce Preserver
The disposable pouches should be replaced every 6 months or
when the status indicator changes completely from white to red.
To order replacements, contact us. See “Accessories” for
information on ordering.
1. Remove the used pouches from the produce preserver
housing.
2. Remove the used status indicator.
3. Install the replacement pouches and status indicator using
the instructions in the previous sections.
Accessories
The following accessories are available for your refrigerator. To
order an accessory, contact us and ask for the part number.
In the U.S.A., visit our www.maytag.com/accessories
accessories or call 1-800-901-2042.
In Canada, visit our webpage www.maytag.ca
or call 1-800-807-6777.
Affresh
®
Stainless Steel Cleaner:
In U.S.A., order Part #W10355016
In Canada, order Part #W10355016B
Affresh
®
Stainless Steel Wipes:
In U.S.A., order Part #W10355049
In Canada, order Part #W10355049B
Affresh
®
Kitchen & Appliance Cleaner:
In U.S.A., order Part #W10355010
In Canada, order Part #W10355010B
Water Filter:
Order Part #W10413645A or FILTER2
Air Filter:
Order Part #W10311524 or AIR1
Produce Preserver:
Order Part # W10346771A or FRESH1
Water Filter, Air Filter and Produce Preserver Bundle Pack:
Order Part # W10413643BL
Accessories
20
REFRIGERATOR USE
Opening and Closing Doors
There are two refrigerator compartment doors. The doors can be
opened and closed either separately or together.
There is a vertically-hinged seal on the left refrigerator door.
■ When the left side door is opened, the hinged seal
automatically folds inward so that it is out of the way.
■ When both doors are closed, the hinged seal automatically
forms a seal between the two doors.
Using the Controls
The controls are located above the external dispenser.
IMPORTANT:
■ Depending on your model you may have Style 1 or Style 2
controls. Please follow the instructions specic to your model.
■ Style 1 controls are shown in the following graphics except
where indicated.
■ The control panel display will turn off automatically and enter
“sleep” mode when the control buttons and dispenser pads
have not been used for 2 minutes or more. Press any control
to reactivate the display screen.
Style 1
Style 2
Viewing and Adjusting Temperature Set Points
For your convenience, your refrigerator and freezer temperature
controls are set to the recommended set points at the factory.
When you rst install your refrigerator, make sure the temperature
controls are still set to the recommended set points. The
recommended set points are 37°F (3°C) for the refrigerator and
0°F (-18°C) for the freezer.
IMPORTANT:
■ Wait 24 hours before you put food into the refrigerator. If you
add food before the refrigerator has cooled completely, your
food may spoil.
NOTE: Adjusting the set points to a colder than
recommended setting will not cool the compartments any
faster.
■ If the temperature is too warm or too cold in the refrigerator
or freezer, rst check the air vents to be sure they are not
blocked before adjusting the controls.
A
A. Hinged seal
Use
21
■ The recommended set points should be correct for normal
household use. The controls are set correctly when milk or
juice is as cold as you like and when ice cream is rm.
NOTE: Areas such as a garage or porch may experience
hotter or colder temperatures and higher humidity than inside
the home. You may need to adjust the temperature away
from the recommended set points to accommodate for these
conditions.
■ Wait at least 24 hours between adjustments. Recheck the
temperatures before other adjustments are made.
View Temperature Set Points
1. Press and hold TEMP for 3 seconds to activate Temperature
mode.
2. When Temperature mode is activated, press TEMP to toggle
between the Refrigerator and the Freezer. The display will
show the temperature set point of the selected compartment,
as shown.
NOTE: To view temperatures in degrees Celsius, press
OPTIONS. To return the display setting to degrees Fahrenheit,
press OPTIONS again.
Recommended Refrigerator Temperature
Recommended Freezer Temperature
Adjust Temperature Set Points
Refrigerator set point range: 33°F to 45°F (0°C to 7°C).
Freezer set point range: -5°F to 5°F (-21°C to -15°C).
1. Press and hold TEMPERATURE for 3 seconds to activate
Temperature mode.
2. When Temperature mode is activated, press TEMP to select
the Refrigerator zone. The display will show the temperature
set point of the selected compartment as shown.
3. Press the adjust UP ARROW to raise the temperature
set point or press the adjust DOWN ARROW to lower the
temperature set point.
4. When you have nished adjusting the refrigerator set point,
press TEMP to change the display to show the freezer set
point. When the zone has been changed, “freezer” appears on
the display screen.
5. Press the adjust UP ARROW to raise the temperature
set point or press the adjust DOWN ARROW to lower the
temperature set point.
6. Press LIGHT to save and conrm the new set points, and to
return to the home screen.
NOTE: To exit Temp mode without saving changes, allow about
60 seconds of inactivity. The temperature mode will turn off
automatically and return to the normal screen.
When adjusting temperature set points,
use the following chart as a guide:
CONDITION: TEMPERATURE
ADJUSTMENT:
REFRIGERATOR too cold REFRIGERATOR Setting 1°
higher
REFRIGERATOR too warm REFRIGERATOR Setting 1°
lower
FREEZER too cold FREEZER Setting
1° higher
FREEZER too warm /
Too little ice
FREEZER Setting
1° lower
Cooling On/Off
Your refrigerator and freezer will not cool when cooling is turned
off. When cooling is off, “cooling off” will light up on the display
screen.
To turn cooling Off and On:
Style 1 - Press and hold OPTIONS and WATER FILTER, at the
same time, for 3 seconds, as shown.
Style 2 - Press and hold FAST ICE and WATER FILTER, at the
same time, for 3 seconds.
IMPORTANT: To avoid unintentionally changing other settings,
press both buttons at exactly the same time.
Use
22
Options
Style 1
To access available features, press the OPTIONS button to toggle
through the following choices in a continuous loop:
■ Fast Ice - The Fast Ice feature assists with temporary periods
of heavy ice use by increasing ice production over a 24-hour
period. Fast Ice will remain on for 24 hours unless manually
turned off.
NOTES:
■ Fast Ice works only if the ice maker is turned on. See “Ice
Maker and Storage Bin.”
■ If increased ice production is desired at all times, change
the freezer set point to a lower setting. Setting the freezer
to a colder temperature may make some foods, such as
ice cream, harder.
■ PowerCold™ - The PowerCold™ feature assists with periods
of high refrigerator use, full grocery loads, or temporarily warm
room temperatures. PowerCold™ will remain on for 24 hours
unless manually turned off.
NOTE: If you adjust the refrigerator temperature set point,
PowerCold™ will turn off.
■ Fast Ice and PowerCold™ - Indicates that both features are
on.
■ Turn all OFF (default) - All options are off.
Style 2
■ Fast Ice - The Fast Ice feature assists with temporary periods
of heavy ice use by increasing ice production over a 24-hour
period. Fast Ice will remain on for 24 hours unless manually
turned off.
■ Press the FAST ICE button to activate the Fast Ice feature.
NOTES:
■ Fast Ice works only if the ice maker is turned on. See “Ice
Maker and Storage Bin.”
■ If increased ice production is desired at all times, change
the freezer set point to a lower setting. Setting the freezer
to a colder temperature may make some foods, such as
ice cream, harder.
Additional Features
Water Filter Status
Press WATER FILTER to display the percentage of use remaining
in the water lter (from 99% to 1%).
ALSO
The water lter status lights will let you know when to replace the
water lter. See “Water Filtration System.”
■ ORDER (Yellow) - Order a replacement water lter.
■ REPLACE (Red) - Replace the water lter.
NOTE: REPLACE will remain illuminated if a lter is not installed
or installed incorrectly.
Door Ajar Alarm
The Door Ajar alarm lets you know when the refrigerator door or
freezer drawer has been open for 5 minutes or longer and the
cooling is turned on.
The words “Door Ajar” will appear on the control panel display
and the Alarm feature will sound an alert tone. The alert tone will
repeat every 2 minutes. Close the doors and drawer to turn off the
tone. The feature is reset and will reactivate when either door or
drawer is again left open for 5 minutes.
NOTE: To mute the alert tone while keeping the doors open, such
as while cleaning the inside of the refrigerator, press any button
on the control panel. The alert tone will be temporarily turned off,
but the “Door Ajar” icon will still be displayed on the dispenser
control panel.
Power Outage Indicator (on some models)
The Power Outage indicator lets you know if the power supply to
the refrigerator has been off and the freezer temperature has risen
to 18°F (-8°C) or higher.
The words “Power Outage” will appear on the control panel
display and an alert tone will sound three times. “Power Outage”
will continue to blink until you acknowledge the power outage.
■ Press any control button to conrm. The Power Outage icon
will disappear, and the control panel will return to the Home
screen.
Disabling Sounds (on some models)
When the control panel is muted, all tones, except alert tones are
disabled.
■ To turn Off/On control and dispenser sounds, press and hold
LIGHT and WATER FILTER at the same time for 3 seconds.
Showroom Mode
This mode is used only when the refrigerator is on display in
a retail store. If you unintentionally turn on Showroom mode,
the word “Showroom” will appear on the display. All lights and
controls will function, but the refrigerator will not cool.
To exit Showroom Mode:
Style 1 - Press TEMP and OPTIONS at the same time for 3
seconds
Style 2 - Press TEMP and FAST ICE at the same time for 3
seconds.
Use
23
Water and Ice Dispensers
IMPORTANT:
■ Allow 3 hours for the refrigerator to cool down and chill water.
■ Allow 24 hours to produce the rst batch of ice. Discard the
rst three batches of ice produced. Allow 2 to 3 days for the
storage bin to ll completely following installation.
■ The dispensing system will not operate when either
refrigerator door or the freezer drawer is open.
Flush the Water System
Air in the water dispensing system can cause the water dispenser
to drip. After connecting the refrigerator to a water source or
replacing the water lter, ush the water system.
Flushing the water dispensing system forces air from the water
line and lter and prepares the water lter for use. Additional
ushing may be required in some households.
NOTE: As air is cleared from the system, water may spurt out of
the dispenser.
1. Using a sturdy container, depress and hold the water
dispenser paddle for 5 seconds.
2. Release the dispenser paddle for 5 seconds. Repeat steps 1
and 2 until water begins to ow.
3. Once water begins to ow, continue depressing and releasing
the dispenser pad (5 seconds on, 5 seconds off) until a total
of 3 gal. (12 L) has been dispensed.
The Water Dispenser
IMPORTANT:
■ Dispense at least 1 qt (1 L) of water every week to maintain a
fresh supply.
■ If the ow of water from the dispenser decreases, it could be
caused by low water pressure.
To check water pressure:
■ With the water lter removed, dispense 1 cup of water.
If 1 cup of water is dispensed in 8 seconds or less, the
water pressure to the refrigerator meets the minimum
requirement.
■ If it takes longer than 8 seconds to dispense 1 cup of
water, the water pressure to the refrigerator is lower than
recommended. See “Water Supply Requirements” and
“Troubleshooting” for suggestions.
The Ice Dispenser
Ice dispenses from the ice maker storage bin. To turn off the ice
maker, see “Ice Maker and Storage Bin.”
The dispenser may continue to make noise and ice may continue
to dispense for several seconds after releasing the dispenser
button or paddle.
IMPORTANT: If the ice cubes are hollow or have an irregular
shape, it could be because of low water pressure. See “Water
Supply Requirements.”
To Clean the Ice Dispenser Chute:
Humidity causes ice to naturally clump together. Ice particles can
build up until the ice dispenser chute becomes blocked.
If ice is not dispensed regularly, it may be necessary to empty the
ice storage bin and clean the ice delivery chute, the ice storage
bin and the area beneath the storage bin every 2 weeks.
■ If necessary, remove the ice clogging the storage bin and
delivery chute, using a plastic utensil.
■ Clean the ice delivery chute and the bottom of the ice storage
bin using a warm, damp cloth and dry thoroughly.
Dispensing
IMPORTANT:
■ Hold the glass close to the dispenser opening so water or ice
will fall into the glass.
■ You do not need to apply a lot of pressure to the button or
pad to activate the dispenser. Pressing hard will not make
water or ice dispense faster or in greater quantities.
Press SELECT to toggle through the following choices in a
continuous loop. The icons on the display indicate your selection.
■ Water (default) - Dispenses water
■ Crushed Ice - Dispenses crushed ice
NOTE: Cubes are crushed before being dispensed. This may
cause a slight delay when dispensing crushed ice. Noise from
the ice crusher is normal, and pieces of ice may vary in size.
■ Cubed Ice - Dispenses cubed ice.
NOTE: When changing from crushed to cubed, a few ounces
of crushed ice will be dispensed along with the rst cubes.
To Dispense Water
1. Press and hold the WATER button to start dispensing water.
2. Release the button to stop dispensing.
OR
1. Press a sturdy glass against the dispenser pad.
2. Remove the glass to stop dispensing.
To Dispense Ice
1. Press the ICE button to start dispensing ice.
2. Release the button to stop dispensing.
OR
Water Crushed Cubed
Cut Hazard
Use a sturdy glass when dispensing ice.
Failure to do so can result in cuts.
WARNING
Use
24
1. Press a sturdy glass against the dispenser paddle.
2. Remove the glass to stop dispensing.
To Dispense Ice and Water
Two dispenser types will be shown on the control panel. Either
Water and Crushed Ice or Water and Cubed Ice will appear on the
display.
1. Press SELECT to select crushed or cubed ice.
2. Press the ICE button and the WATER button at the same time.
Release the buttons when you want to stop dispensing.
OR
1. Press SELECT to select crushed or cubed ice.
2. Press the WATER button and the dispenser paddle at the
same time. Release the button and paddle when you want to
stop dispensing.
The Dispenser Light
When you use the dispenser, the light will automatically turn on.
To turn on the light when you are not dispensing:
Press LIGHT to toggle through the following choices in a
continuous loop:
■ OFF (default) - The dispenser light is off
■ ON - The dispenser light is on at 100% brightness
■ DIM - The dispenser light is on at 50% brightness
The dispenser lights are LEDs that cannot be changed. If
it appears that your dispenser lights are not working, see
“Troubleshooting” for more information.
The Dispenser Lock
The dispenser can be turned off for easy cleaning or to avoid
unintentional dispensing by small children and pets.
NOTE: The lock feature does not shut off power to the
refrigerator, to the ice maker, or to the dispenser light. It simply
deactivates the controls and dispenser levers. To turn off the ice
maker, see “Ice Maker and Storage Bin.”
■ To Lock/Unlock the dispenser, press and hold LIGHT for 3
seconds. “Dispenser Locked” will appear on the display.
Ice Maker and Ice Storage Bin (on some models)
IMPORTANT: To avoid low ice production and poor quality ice,
ush the water system before turning on the ice maker. See
“Water Dispenser.”
■ Allow 24 hours to produce the rst batch of ice. Discard the
rst three batches of ice produced. Allow 2 to 3 days for the
storage bin to ll completely following installation.
■ The quality of your ice will be only as good as the quality of
the water supplied to your ice maker. Avoid connecting the ice
maker to a softened water supply. Water softener chemicals
(such as salt) can damage parts of the ice maker and lead
to poor quality ice. If a softened water supply cannot be
avoided, make sure the water softener is operating properly
and is well maintained.
■ If the ice in the storage bin clumps together, break up ice
using a plastic utensil and discard. Do not use anything sharp
to break up the ice. This can cause damage to the ice bin and
the dispenser mechanism.
■ Do not store anything in the ice storage bin.
Ice Production Rate
■ The ice maker should produce approximately 3 lbs (1.4 kg) of
ice per day under normal operation.
■ To increase ice production, select the increased ice
production feature from the Options menu on the control
panel. See “Using the Controls.”
Style 1 - Ice Maker in the Refrigerator
(on some models)
The ice maker is located on the left-hand side of the refrigerator
compartment ceiling. Ice cubes are ejected into the ice storage
bin, located on the left-hand refrigerator door.
Turn the Ice Maker On/Off
1. Push up on the latch on the left-hand side of the ice
compartment to open the door.
2. Turn on the ice maker by moving the switch to the (left) ON
position.
NOTES:
■ To manually turn off the ice maker, move the control to the
OFF (right) position.
A
A. Ice compartment door latch
Use
25
■ Your ice maker has an automatic shutoff. The sensor will
automatically stop ice production if the storage bin is full,
if the door is open or the storage bin is removed. The
control will remain in the ON (left) position.
3. Close the ice compartment door.
Remove and Replace the Ice Storage Bin
■ Remove the ice storage bin by inserting your ngers into the
hole at the base of the bin and squeezing the latch to release
the bin from the compartment. Lift the storage bin up and pull
it straight out.
■ Replace the storage bin inside the ice compartment and push
down to make sure it is rmly in place.
Style 2 - Ice Maker in the Freezer (on some
models)
Turn the Ice Maker On/Off
To turn the ice maker ON, simply lower the wire shutoff arm.
To manually turn the ice maker OFF, lift the wire shutoff arm to the
OFF (arm up) position and listen for the click.
NOTE: Your ice maker has an automatic shutoff. As ice is made,
the ice cubes will ll the ice storage bin and the ice cubes will
raise the wire shutoff arm to the OFF (arm up) position. Do not
force the wire shutoff arm up or down.
NOTE: Turn off the ice maker before removing the ice storage bin
to serve ice or to clean the bin. This will keep the ice cubes from
dropping out of the ice maker and into the freezer compartment.
After replacing the ice storage bin, turn on the ice maker.
REFRIGERATOR FEATURES
Refrigerator Shelves
The shelves in your refrigerator are adjustable to meet your
individual storage needs.
Storing similar food items together in your refrigerator and
adjusting the shelves to t different heights of items will make
nding the exact item you want easier. It will also reduce the
amount of time the refrigerator door is open and save energy.
Shelves and Shelf Frames
To remove and replace a shelf/shelf frame:
1. Remove the shelf/frame by tilting it up at the front and lifting it
out of the shelf supports.
2. Replace the shelf/frame by guiding the rear shelf hooks into
the shelf supports. Tilt the front of the shelf up until rear sh elf
hooks drop into the shelf supports.
3. Lower the front of the shelf and make sure that the shelf is in
position.
A
A. Ice storage bin release latch
Important information to know about glass shelves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
Tempered glass is designed to shatter into many small,
pebble-size pieces. This is normal. Glass shelves and covers
are heavy. Use both hands when removing them to avoid
dropping.
Features
26

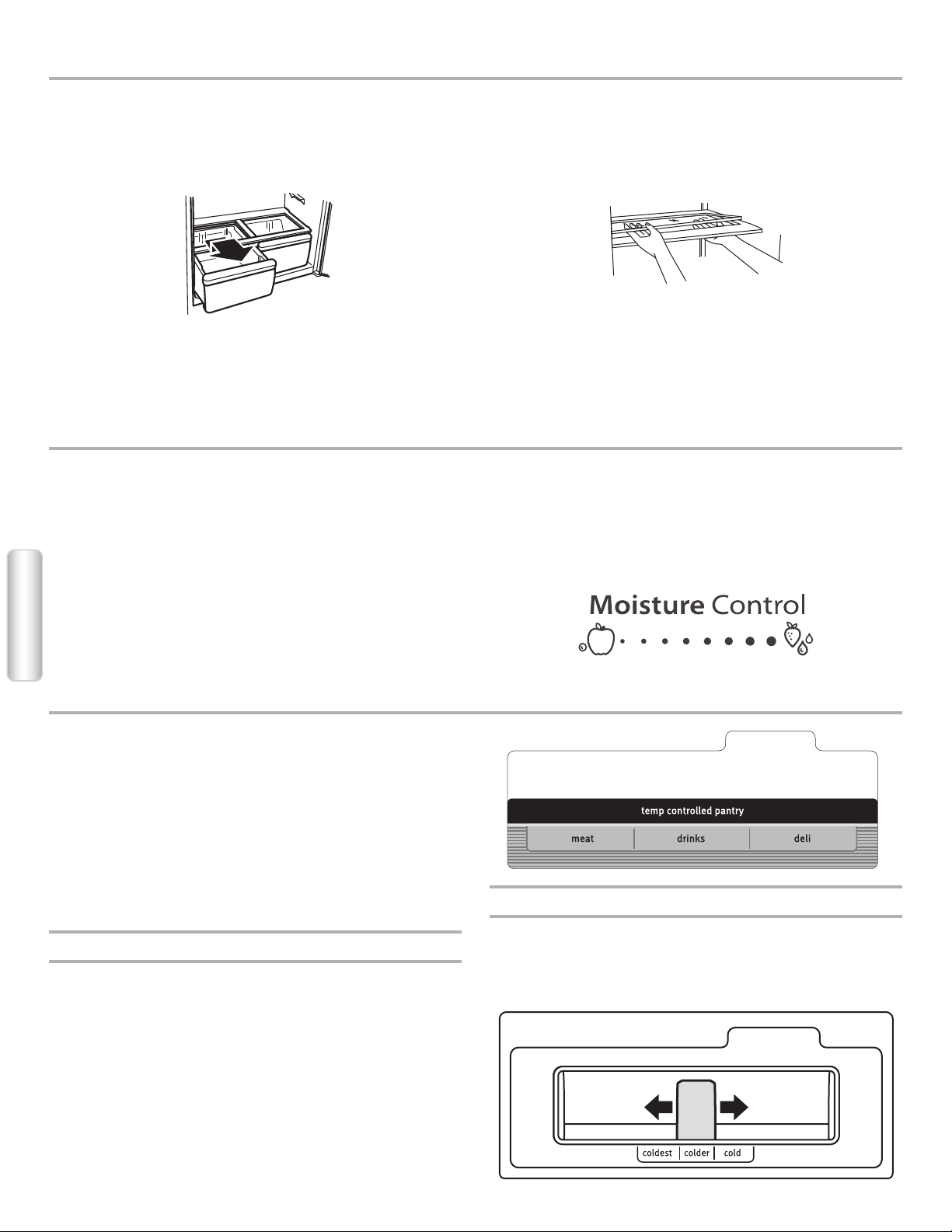

Crisper and Crisper Cover
To remove and replace the crisper(s):
1. Slide crisper(s) straight out to the stop. Lift the crisper(s) from
the slide rails and pull out the rest of the way.
2. Replace the crisper(s) by placing them on the slide rails and
pushing them back into position past the drawer stop.
To remove the crisper(s) cover:
1. Remove crisper(s).
2. Holding the glass insert rmly with one hand, press up in
center of glass insert until it rises above the plastic frame.
Gently slide the glass insert forward to remove.
3. Lift the cover frame up and remove it.
To replace crisper(s) cover:
1. Fit back of cover frame into supports on side walls of the
refrigerator and lower the front of the cover frame into place.
2. Slide rear of glass insert into cover frame and lower front into
place.
Crisper Humidity Control
You can control the amount of humidity in the moisture-sealed
crisper. Adjust the control to any setting between LOW (open) and
HIGH (closed).
LOW - Move control to the far left-hand side to allow moist air out
of the crisper for best storage of fruits and vegetables with skins.
■ Fruit: Wash, let dry and store in refrigerator in plastic bag or
crisper. Do not wash or hull berries until they are ready to use.
Sort and keep berries in original container in crisper, or store
in a loosely closed paper bag on a refrigerator shelf.
■ Vegetables with skins: Place in plastic bags or plastic
container and store in crisper.
HIGH - Move control to the far right-hand side to keep moist air in
the crisper for best storage of fresh, leafy vegetables.
■ Leafy vegetables: Wash in cold water, drain and trim or tear
off bruised and discolored areas. Place in plastic bag or
plastic container and store in crisper.
Temperature-Controlled Drawer
IMPORTANT: This control sets the temperature for only this
drawer. It does not set the temperature for, or turn off cooling to
the refrigerator or freezer compartments.
The full-width, temperature-controlled drawer can be used to
store large deli trays, fresh meat, beverages or other items that
you want to store at an optimum temperature.
Depending on your model, you will have either an Electronic
Control or a Manual Control. Use the directions specic to your
model.
NOTE: Do not place leafy vegetables in the temperature-
controlled drawer. The colder temperatures could damage leafy
produce.
Style 1 - Electronic Control
Press the button that corresponds with the items stored in the
drawer.
■ Meat (coldest)
■ Drinks (default)
■ Deli (least cold)
NOTE: If no button is pressed, the control will revert to DRINKS,
the default setting.
Style 2 - Manual Control
Slide the control to the temperature setting best suited for the
items stored in the drawer.
■ Coldest - Meat
■ Colder - Drinks
■ Cold - Deli
Features
27

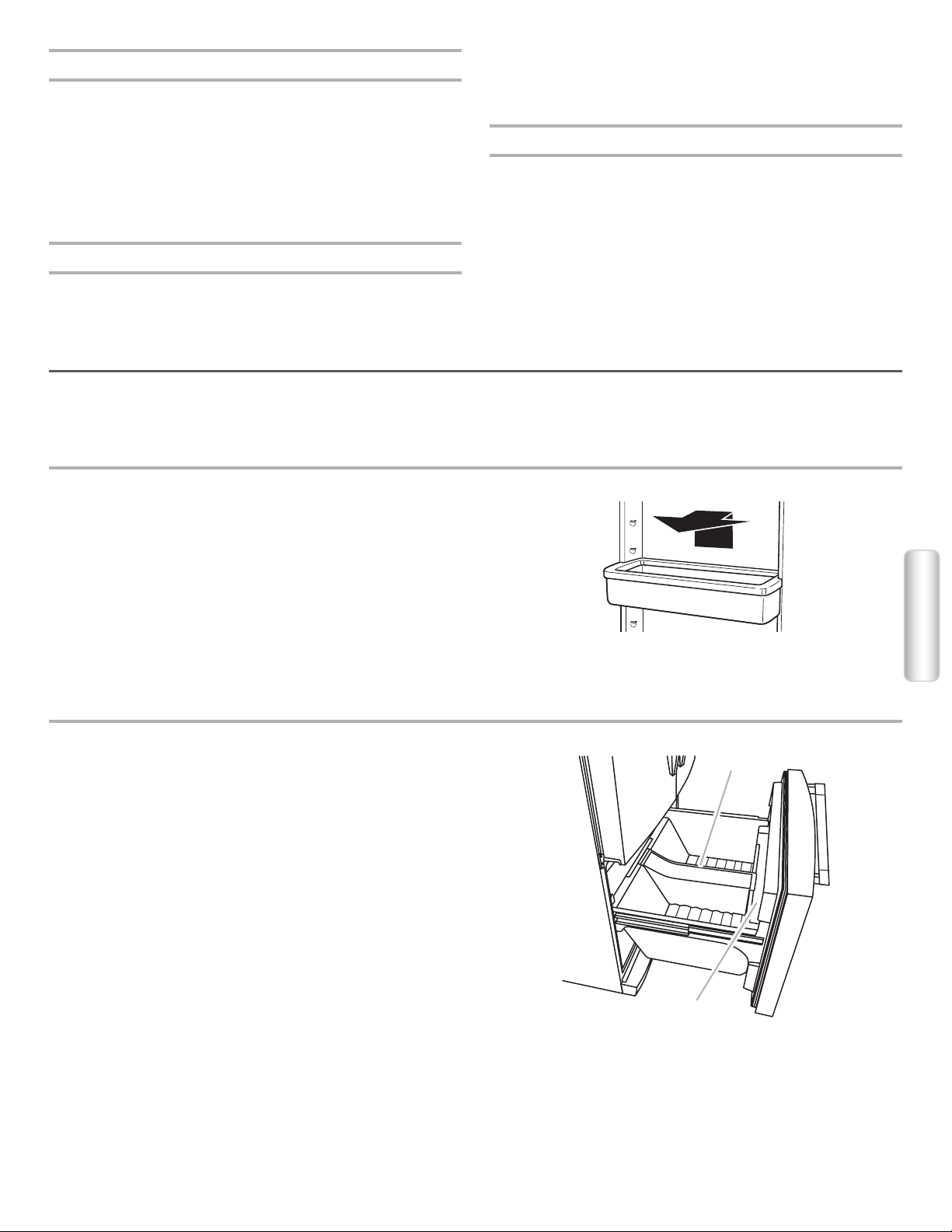

Drawer Removal and Replacement
To remove the drawer:
1. Push the drawer completely closed.
2. Lift up the front of the drawer and pull it straight out.
To replace the drawer:
1. Push the metal glide rails to the rear of the refrigerator.
2. Place the drawer onto the glide rails. While tilting the rear of
the drawer upward, slide the drawer toward the rear of the
refrigerator.
Drawer Divider
To remove the divider:
1. Pull the drawer out to its full extension.
2. Lift the front of the divider and lift the divider out.
To replace the divider:
1. Position the divider so that the features on the bottom of the
divider align with the matching features in the drawer.
2. Lower the divider into place.
Meat Storage Guide
Store most meat in original wrapping as long as it is airtight and
moisture-proof. Re-wrap if necessary. See the following chart for
storage times. When storing meat longer than the times given,
freeze the meat.
Fresh sh or shellsh.........................use same day as purchased
Chicken, ground beef, variety meats (liver) ...................... 1-2 days
Cold cuts, steaks/roasts ...................................................3-5 days
Cured meats....................................................................7-10 days
Leftovers - Cover leftovers with plastic wrap, aluminum foil, or
plastic containers with tight lids.
DOOR FEATURES
Door Bins
To remove and replace the bins:
1. Remove the bin by lifting it up and pulling it straight out.
2. Replace the bin by sliding it in above the desired support and
pushing it down until it stops.
Pizza Pocket and Drawer Divider
The drawer divider is not removable. For storage exibility, the
divider can be moved a few inches to either side allowing you to
store larger items in one section of the freezer drawer.
B
A
A. Drawer divider
B. Pizza pocket
Features
28
REFRIGERATOR CARE
Cleaning
Both the refrigerator and freezer sections defrost automatically.
However, clean both sections about once a month to avoid
buildup of odors. Wipe up spills immediately.
Exterior Cleaning
Please see the exterior cleaning information specic to your
model.
Style 1 - Smooth Door
IMPORTANT: Damage to smooth nish due to improper use of
cleaning products, or using non-recommended cleaning products,
is not covered under the warranty. Sharp or blunt instruments will
mar the nish.
DO USE DO NOT USE
✔ Soft, clean cloth ✘ Abrasive cloths
✘ Paper towels or newsprint
✘ Steel-wool pads
✔ Warm, soapy water - use a
mild detergent
✘ Abrasive powders or
liquids
✘ Window sprays
✘ Ammonia
✘ Acidic or vinegar based
cleaners
✘ Oven cleaners
✘ Flammable uids
NOTE: Paper towels scratch and may dull the clear coat of the
painted door. To avoid possible damage, use only soft clean
cloths to polish and wipe the door.
Style 2 - Stainless Steel
IMPORTANT:
■ Damage to stainless steel nish due to improper use of
cleaning products, or using non-recommended cleaning
products, is not covered under the warranty.
DO USE DO NOT USE
✔ Soft, clean cloth ✘ Abrasive cloths
✘ Paper towels or newsprint
✘ Steel-wool pads
✔ Warm, soapy water ✘ Abrasive powders or
liquids
✘ Ammonia
✘ Citrus-based cleaners
✘ Acidic or vinegar-based
cleaners
✘ Oven cleaners
✔ For heavy soil, ONLY a
stainless steel cleaner
designed for appliances.
To order the cleaner, see
“Accessories.”
✘ Stainless steel cleaner is
for stainless steel parts
only! Do not allow the
Stainless Steel Cleaner
and Polish to come into
contact with any plastic
parts such as the trim
pieces, dispenser covers
or door gaskets.
NOTES:
■ If unintentional contact does occur, clean plastic part with a
sponge and mild detergent in warm water. Dry thoroughly with
a soft cloth.
■ Just because a cleaner is a liquid does not mean it is
nonabrasive. Many liquid cleansers formulated to be gentle on
tile and smooth surfaces still damage stainless steel.
■ Citric acid permanently discolors stainless steel. To avoid
damaging the nish of your stainless steel refrigerator:
Do not allow these substances to remain on the nish
✘ Mustard ✘ Citrus-based sauces
✘ Tomato juice ✘ Citrus-based products
✘ Marinara sauce
Interior Cleaning
1. Unplug refrigerator or disconnect power.
2. Hand wash, rinse, and dry removable parts and interior
surfaces thoroughly. Use a clean sponge or soft cloth and a
mil d detergent in warm water.
NOTE: Do not use abrasive or harsh cleaners such as window
prays, scouring cleansers, ammable uids, cleaning waxes,
concentrated detergents, bleaches or cleansers containing
petroleum products on plastic parts, interior and door liners or
gaskets.
3. Plug in refrigerator or reconnect power.
WARNING
Explosion Hazard
Use nonammable cleaner.
Failure to do so can result in death, explosion, or re.
Care
29
Condenser Cleaning
There is no need for routine condenser cleaning in normal
home operating environments. If the environment is particularly
greasy or dusty or there is signicant pet trafc in the home, the
condenser should be cleaned every 2 to 3 months to ensure
maximum efciency.
If you need to clean the condenser:
1. Unplug refrigerator or disconnect power.
2. Remove the base grille.
3. Use a vacuum cleaner with a soft brush to clean the grille, the
open areas behind the grille and the front surface area of the
condenser.
4. Replace the base grille when nished.
5. Plug in refrigerator or reconnect power.
Lights
The lights in both the refrigerator and freezer compartments are LEDs which do not need to be replaced. If the lights do not illuminate
when the door or drawer is opened, call for assistance or service. In the U.S.A., call 1-800-253-1301. In Canada call 1-800-807-6777.
Vacation and Moving Care
Vacations
If You Choose to Leave the Refrigerator On While
You’re Away:
1. Use up any perishables and freeze other items.
2. If your refrigerator has an automatic ice maker, and is
connected to the household water supply, turn off the water
supply to the refrigerator. Property damage can occur if the
water supply is not turned off.
3. If you have an automatic ice maker, turn off the ice maker.
NOTE: Depending on your model, raise the wire shutoff arm
to OFF (up) position, or press the switch to OFF.
4. Empty the ice bin.
If You Choose to Turn Off the Refrigerator Before
You Leave:
1. Remove all food from the refrigerator.
2. If your refrigerator has an automatic ice maker:
■ Turn off the water supply to the ice maker at least one day
ahead of time.
■ When the last load of ice drops, raise the wire shutoff
arm to the OFF (up) position or press the switch to OFF,
depending on your model.
3. Turn off the Temperature control(s). See “Using the Controls.”
4. Clean refrigerator, wipe it, and dry well.
5. Tape rubber or wood blocks to the tops of both doors to prop
them open far enough for air to get in. This stops odor and
mold from building up.
Moving
When you are moving your refrigerator to a new home, follow
these steps to prepare it for the move.
1. If your refrigerator has an automatic ice maker:
■ Turn off the water supply to the ice maker at least one day
ahead of time.
■ Disconnect the water line from the back of the refrigerator.
■ When the last load of ice drops, raise the wire shutoff
arm to the OFF (up) position or press the switch to OFF,
depending on your model.
2. Remove all food from the refrigerator and pack all frozen food
in dry ice.
3. Empty the ice bin.
4. Turn off the Temperature control(s). See “Using the Controls.”
5. Unplug refrigerator.
6. Clean, wipe, and dry thoroughly.
7. Take out all removable parts, wrap them well, and tape them
together so they don’t shift and rattle during the move.
8. Depending on the model, raise the front of the refrigerator so
it rolls more easily or raise the leveling screws so they don't
scrape the oor. See “Adjust the Doors or “Door Closing and
Door Alignment.”
9. Tape the doors closed and tape the power cord to the back of
the refrigerator.
When you get to your new home, put everything back and refer to
the “Installation Instructions” section for preparation instructions.
Also, if your refrigerator has an automatic ice maker, remember to
reconnect the water supply to the refrigerator.
Care
30
TROUBLESHOOTING
First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call,
refer to the warranty page in this manual, or visit www.maytag.com/product_help.
In Canada, visit www.maytag.ca.
Contact us by mail with any questions or concerns at the address below:
In the U.S.A.: In Canada:
Maytag Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
Maytag Brand Home Appliances
Customer eXperience Centre
200 – 6750 Century Ave.
Mississauga, Ontario L5N 0B7
Please include a daytime phone number in your correspondence.
Operation
PROBLEM POSSIBLE CAUSES SOLUTIONS
The refrigerator will not
operate
Check electrical supply Plug the power cord into a grounded 3 prong outlet.
Do not use an extension cord.
Make sure there is power to the outlet. Plug in a lamp to see if
the outlet is working.
Reset a tripped circuit breaker. Replace any blown fuses.
NOTE: If problems continue, contact an electrician.
Check controls Make sure the controls are turned on. See “Using the Controls.”
New installation Allow 24 hours following installation for the refrigerator to cool
completely.
NOTE: Adjusting the temperature controls to the coldest setting
will not cool either compartment more quickly.
Refrigerator control is in Showroom
mode (on some models)
If the refrigerator is in Showroom mode, cooling is turned off and
“Showroom” will be illuminated on the control panel. See “Using
the Controls” for more information.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
Troubles
hooting
31
PROBLEM POSSIBLE CAUSES SOLUTIONS
The motor seems to run too
much
High efciency compressor and fans Larger, more efcient refrigerators run longer at lower, more
energy efcient speeds.
The room or outdoor temperature is
hot.
It is normal for the refrigerator to work longer under
these conditions. For optimum performance, place
the refrigerator in an indoor, temperature controlled
environment. See “Location Requirements.”
A large amount of warm food has been
recently added.
Warm food will cause the refrigerator to run longer until the
air cools to the desired temperature.
The door(s) are opened too frequently
or for too long.
Warm air entering the refrigerator causes it to run more.
Open the door less often.
The refrigerator door or freezer drawer
is ajar.
Make sure the refrigerator is level. See “Door Closing and
Door Alignment.” Keep food and containers from blocking
the door.
The refrigerator control is set too cold. Adjust the refrigerator control to a less cold setting until the
refrigerator temperature is as desired.
The door or drawer gasket is dirty,
worn, or cracked.
Clean or change the gasket. Leaks in the door seal will
cause the refrigerator to run longer in order to maintain
desired temperatures.
The lights do not work Your refrigerator is equipped with LED
lighting which does not need to be
replaced.
If there is power to the refrigerator and the lights do not
illuminate when a door or drawer is opened, call for service
or assistance.
The dispenser light is set to OFF On some models, the dispenser light will operate only
when a dispenser paddle is pressed. If you want the
dispenser light to stay on continuously, see “Water and Ice
Dispensers.”
Doors have been open longer than 10
minutes
Close the doors and drawer to reset, and open to resume
lighted task.
MicroEdge
®
Glo shelves (on
some models) are not lit
Shelf hooks are not fully engaged in
shelf supports.
Check that the rear shelf hooks are completely seated into
the slots in the shelf supports.
Shelf supports, fastened to the back
wall of the refrigerator cabinet, are
loose
Check all shelf support screws to ensure they are fully
tightened. Tighten all loose screws.
Pantry Temperature Control
not lit/ unresponsive
The refrigerator is in Cooling Off mode Exit Cooling Off mode. See “Using the Control(s).”
The refrigerator ’s control initialization
process did not complete successfully.
Unplug the refrigerator, wait 5 seconds. Plug in the
refrigerator, and wait 30 seconds before opening any of the
refrigerator doors or touching the control panel.
Noise
To listen to normal refrigerator sounds, go to the Product Help/FAQ section of the brand website and search for “normal sounds.”
Be low are listed some normal sounds with explanations.
PROBLEM POSSIBLE CAUSES SOLUTIONS
The refrigerator seems noisy The compressor in your new refrigerator regulates
temperature more efciently while using less energy,
and operates quietly.
Due to this reduction in operating noise
you may notice unfamiliar noises that are
normal.
Sound of the compressor
running longer than
expected
High-efciency compressor and fans Larger, more efcient refrigerators run
longer at lower, more energy efcient
speeds.
Troubleshooting
32
PROBLEM POSSIBLE CAUSES SOLUTIONS
Pulsating/Whirring Fans/compressor adjusting to optimize performance
during normal compressor operation
This is normal.
Popping Contraction/expansion of inside walls, especially during
initial cool-down
This is normal.
Hissing/Dripping Flow of refrigerant, or ow of oil in the compressor This is normal.
Vibration The refrigerator may not be steady Adjust the leveling screws and lower the
leveling foot rmly against the oor. See
“Door Closing and Door Alignment.”
Rattling/Banging Movement of the water lines against the refrigerator
cabinet, or of items placed on top of the refrigerator
cabinet
Move excess water line away from the
refrigerator cabinet or fasten excess
tubing to the cabinet. See “Connecting the
Water,” or remove items from the top of the
refrigerator.
Sizzling Water dripping on the heater during defrost cycle This is normal.
Water running/Gurgling May be heard when ice melts during the defrost cycle
and water runs into the drain pan
This is normal.
Buzzing and Clicking Heard when the water valve opens and closes to
dispense water and/or ll the ice maker.
If the refrigerator is connected to a water
line, this is normal.
If the refrigerator is not connected to a water
line, turn off the ice maker.
Repetitive Clicking Dual evaporator valve regulating the cooling operation You may hear rapid repetitive clicking
sounds as the unit switches from cooling
one compartment to cooling the other. This
sound is normal.
Creaking/Cracking/Grinding May be heard as ice is being ejected from the ice maker
mold
This is normal.
Clatter May be heard when the ice falls into the ice storage bin This is normal.
Temperature and Moisture
PROBLEM POSSIBLE CAUSES SOLUTIONS
Temperature is too warm The refrigerator has just been
installed.
Allow 24 hours following installation for the
refrigerator to cool completely.
Cooling is turned off. Turn on cooling. See “Using the Controls.”
The controls are not set correctly
for the surrounding conditions.
Adjust the controls a setting colder. Check the
temperature in 24 hours. See “Using the Controls.”
The door(s) are opened often or not
closed completely.
Allows warm air to enter refrigerator. Minimize door
openings and keep doors fully closed.
A large load of food was recently
added.
Allow several hours for refrigerator to return to
normal temperature.
Troubles
hooting
33
PROBLEM POSSIBLE CAUSES SOLUTIONS
Temperature is too cold in the
refrigerator/crisper
The refrigerator air vent(s) are blocked. If the air vent located in the top, left, rear corner of the
refrigerator compartment is blocked by items placed
directly in front of it, the refrigerator will get too cold.
Move items away from the air vent.
The controls are not set correctly for the
surrounding conditions.
Adjust the controls a setting warmer. Check the
temperature in 24 hours. See “Using the Controls.”
The ice storage bin is not in the correct
position.
See “Ice Maker and Ice Storage Bin.”
Temperature is too cold in the
pantry drawers
The control is not set correctly for the
items stored in drawer.
Adjust the temperature setting. See “Temperature
Controlled Drawer” in the “Refrigerator Features”
section.
There is interior moisture
buildup
NOTE: Some moisture buildup
is normal.
The room is humid A humid environment contributes to moisture buildup.
The door(s) are opened often or not
closed completely.
Allows humid air to enter the refrigerator. Minimize door
openings and close doors completely.
The door is blocked open Move food packages away from door.
A bin or shelf is in the way Push bin or shelf back into the correct position.
Storing liquid in open containers This adds humidity to the refrigerator interior. Keep all
containers tightly covered.
There is frost/ice buildup in
the freezer compartment
The drawer is opened often or left open. Minimize drawer openings and close drawer completely
after use.
Poor door seal Ensure door seals are making full contact with the
refrigerator cabinet to allow for an adequate seal.
Temperature controls are not set correctly See “Using the Controls” for recommended
temperature settings.
Ice and Water
PROBLEM POSSIBLE CAUSES SOLUTIONS
The ice maker is not
producing ice or is not
producing enough ice
The refrigerator is not connected to a
water supply or the water supply shutoff
valve is not turned on.
Connect refrigerator to water supply and turn water shutoff
valve fully open.
There is a kink in the water source line. A kink in the line can reduce water ow. Straighten the water
source line.
The ice maker is not turned on. Make sure the ice maker is on. See “Ice Maker and Ice
Storage Bin.”
The refrigerator has just been installed. Wait 24 hours after ice maker installation for ice production to
begin. Wait 3 days for full ice production.
The refrigerator door is not closed
completely.
Close the door rmly. If it does not close completely, see “The
doors will not close completely.”
A large amount of ice was recently
removed.
Allow sufcient time for ice maker to produce more ice. See
“Ice Maker and Ice Storage Bin” for ice production rates.
An ice cube is jammed in the ice maker
ejector arm.
Remove ice from the ejector arm with a plastic utensil.
A water lter is installed on the refrigerator. Remove the water lter and operate the ice maker. If ice
volume improves, then the lter may be clogged or incorrectly
installed. Replace lter or reinstall it correctly.
A reverse osmosis water ltration system
is connected to your cold water supply.
This can decrease water pressure See “Water Supply
Requirements.”
Troubleshooting
34
PROBLEM POSSIBLE CAUSES SOLUTIONS
The ice cubes are hollow
or small
NOTE: This is an indication
of low water pressure.
The water shutoff valve is not fully
open.
Turn the water shutoff valve fully open.
There is a kink in the water source line. A kink in the line can reduce water ow. Straighten the water
source line.
A water lter is installed on the
refrigerator.
Remove lter and operate ice maker. If ice quality improves,
then the lter may be clogged or incorrectly installed. Replace
lter or reinstall it correctly.
A reverse osmosis water ltration
system is connected to your cold
water supply.
This can decrease water pressure. See “Water Supply
Requirements.”
Questions remain regarding water
pressure.
Call a licensed, qualied plumber.
Off-taste, odor or gray
color in the ice or water
Newly installed refrigerator requires
ush of water system.
Flush the water system. See “Water and Ice Dispensers” for
water system ushing instructions.
Recently installed or replaced
plumbing connections. New plumbing
connections can cause discolored or
off-avored ice and water.
Discard the ice and wash the ice storage bin. Flush the water
system with 3 gal. (12 L) of water. Allow 24 hours for the ice
maker to make new ice, and discard the rst 3 batches of ice
produced.
Using a water supply connection type
other than recommended.
It is recommended to use copper tubing or Whirlpool supply
line, Part Number 8212547RP. See “Connect to Water Line.”
The ice has been stored too long. Discard ice. Wash ice storage bin. Allow 24 hours for ice maker
to make new ice.
The water has been stored too long. Dispense at least 1 qt (1 L) of water per week to maintain a
fresh supply.
Odor from stored food has transferred
to the ice.
Use airtight, moisture proof packaging to store food.
There are minerals (such as sulfur) in
the water.
A water lter may need to be installed to remove the minerals.
There is a water lter installed on the
refrigerator.
Gray or dark discoloration in ice may indicate that the water
ltration system needs additional ushing. Flush the water
system after installing and before using a new water lter. See
“Water and Ice Dispensers” for water lter ushing instructions.
The water lter needs to be replaced. Replace the disposable water lter at least every 6 months or
when indicated. See “Water Filtration System.”
Troubles
hooting
35
PROBLEM POSSIBLE CAUSES SOLUTIONS
The water and ice
dispenser will not operate
properly
The refrigerator is not connected to
a water supply or the water supply
shutoff valve is not turned on.
Connect the refrigerator to the water supply and turn the water
shutoff valve fully open.
There is a kink in the water source
line
A kink in the water line can reduce water ow from the
water dispenser and result in hollow or irregular shaped ice.
Straighten the water source line.
The refrigerator has just been
installed.
Flush and ll the water system. See “Water and Ice Dispensers.”
The water pressure to the house is
not at or above 35 psi (241 kPa).
The water pressure to the house determines the ow from the
dispenser. See “Water Supply Requirements.”
A reverse osmosis water ltration
system is connected to your cold
water supply.
A reverse osmosis water ltration system can decrease water
pressure. See “Water Supply Requirements.”
The water lter may be clogged. Remove the water lter and operate dispenser. If water ow
increases, your lter is clogged and needs to be replaced. See
“Water Filtration System.”
The water lter is installed incorrectly Remove the water lter and reinstall. See “Water Filtration
System.”
The refrigerator door or freezer
drawer is not closed completely.
Close the door or drawer rmly. If it does not close completely,
see “The doors will not close completely.”
The refrigerator doors were recently
removed.
Make sure the water dispenser wire/tube assembly has been
properly reconnected at the top of the refrigerator door. See
“Refrigerator Doors and Drawer.”
Ice is clogged in the ice storage bin
or ice is blocking the ice delivery
chute.
Remove the ice clogging the storage bin and delivery chute,
using a plastic utensil if necessary. Clean the ice delivery chute
and the bottom of the ice storage bin using a warm, damp
cloth, then dry both thoroughly. To avoid clogging and to
maintain a fresh supply of ice, empty the storage bin and clean
both the storage bin and delivery chute every 2 weeks.
The ice dispenser jams
while dispensing crushed
ice
Crushed ice is blocking the ice
delivery chute.
Switch from crushed ice to cubed ice to clear the ice dispenser.
Then switch back to crushed ice.
Water is leaking or
dripping from the
dispenser system
NOTE: A few drops of water
after dispensing is normal.
The glass was not held under the
dispenser long enough.
Hold the glass under the dispenser 2 to 3 seconds after
releasing the dispenser lever.
Water continues to drip
from the dispenser beyond
the rst few drops.
The refrigerator has just been
installed.
Flushing the water system removes the air from the lines which
causes the water dispenser to drip. Flush the water system. See
“Water and Ice Dispensers.”
The water lter was recently installed
or replaced.
Flushing the water system removes the air from the lines which
causes the water dispenser to drip. Flush the water system. See
“Water and Ice Dispensers.”
Water is leaking from the
back of the refrigerator
The water line connections were not
fully tightened.
See “Connecting the Water.”
Recently removed the doors and did
not fully tighten water line connection
See “Refrigerator Doors and Drawer.”
Troubleshooting
36
PROBLEM POSSIBLE CAUSES SOLUTIONS
Water from the dispenser is
warm
Water from the dispenser is chilled
to 50°F (10°C).
This is normal.
The refrigerator has just been
installed.
Allow 24 hours after installation for the water supply to cool
completely.
A large amount of water was
recently dispensed.
Allow 3 hours for the water supply to cool completely.
Water has not been recently
dispensed.
The rst glass of water may not be cool. Discard the rst glass of
water dispensed.
The refrigerator is not connected to
a cold water pipe.
Make sure the refrigerator is connected to a cold water pipe. See
“Water Supply Requirements.”
Doors
To view an animation showing how to adjust and align the doors, refer to the Product Help/FAQ section of the brand website and search
for “door closing and door alignment.”
PROBLEM POSSIBLE CAUSES SOLUTIONS
The doors will not close
completely
The door is blocked open. Move food packages away from door.
A bin or shelf is in the way. Push bin or shelf back into the correct position.
Recently installed Remove all packaging materials.
The doors are difcult to
open
The door gaskets are dirty or
sticky.
Clean gaskets and contact surfaces with mild soap and warm
water. Rinse and dry with soft cloth.
The doors appear to be
uneven
The doors need to be aligned,
or the refrigerator needs to be
leveled.
See “Refrigerator Leveling, Door Closing and Alignment.”
The refrigerator is unsteady
or it rolls forward when
opening and closing doors
The refrigerator brake feet are not
snug against the oor
Remove the base grille. Turn both brake feet (one on each side)
clockwise, the same amount, until they are snug against the oor.
See “Refrigerator Leveling, Door Closing and Alignment.”
WARNING
Explosion Hazard
Use nonammable cleaner.
Failure to do so can result in death, explosion, or re.
Troubles
hooting
37
PERFORMANCE DATA SHEET
Water Filtration System
Model P9WB2L/P9RFWB2L Capacity 200 Gallons (757 Liters)
This system has been tested according to NSF/ANSI Standards 42, 53, 401, and CSA B483.1 for the reduction of the substances listed
below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to
the permissible limit for water leaving the system, as specied in NSF/ANSI Standa rds 42, 53, 401, and CSA B483.1.
Substance Reduction Aesthetic
Effects
Inuent Challenge Concentration Maximum Permissable Product
Water Concentration
Average % Reduction
Chlorine Taste/Odor 2.0 mg/L ± 10% 50% reduction 9 7.0%
Particulate Class I* At least 10,000 particles/mL 85% reduction >99.9%
Contaminant Reduction Inuent Challenge Concentration Maximum Permissable Product
Water Concentration
Average % Reduction
Lead: @ pH 6.5 / @ pH 8.5 0.15 mg/L± 10% 0.010 mg/L >99.3%/98.6%
Benzene 0.015 mg/L ± 10% 0.005 mg/L 93.8%
p-Dichlorobenzene 0.225 mg/L ± 10% 0.075 mg/L 99.8%
Carbofuran 0.08 mg/L ± 10% 0.040 mg/L 81.9%
Toxaphene 0.015 ± 10% 0.003 mg/L >95%
Atrazine 0.009 mg/L ± 10% 0.003 mg/L 87.0%
Asbestos 10
7
to 10
8
bers/L†† 99% >99%
Live Cysts† 50,000/L min. 99.95% >99.99%
Turbidity 11 NTU ± 10% 0.5 NTU 96.9%
Lindane 0.002 ± 10% 0.0002 mg/L >99.2%
Tetrachloroethylene 0.015 mg/L ± 10% 0.005 mg/L 96.6%
O-Dichlorobenzene 1.8 mg/L ± 10% 0.60 mg/L 92.3%
Ethylbenzene 2.1 mg/L ± 10% 0.70 mg/L 86.9%
1,2,4-Trichlorobenzene 0.210 mg/L ± 10% 0.07 mg/L >99.8%
2,4 - D 0.210 mg/L ± 10% 0.07 mg/L 88.5%
Styrene 2.0 mg/L ± 10% 0.1 mg/L 99.6%
Toluene 3.0 mg/L ± 10% 1.0 mg/L 93.5%
Endrin 0.006 mg/L ± 10% 0.002 mg/L 81.7%
Atenolol 200 ± 20% 30 ng/L 95.7%
Trimethoprim 140 ± 20% 20 ng/L 96.1%
Linuron 140 ± 20% 20 ng/L 96.3%
Estrone 140 ± 20% 20 ng/L 95.3%
Nonylphenol 1400 ± 20% 200 ng/L 95.5%
Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.75 gpm (2.84 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F to 71.6°F (20°C to
22°C). Rated service capacity = 200 gallons (757 liters).
The compounds certied under NSF 401 have been deemed as “emerging compounds/incidental contaminants.” Emerging compounds/incidental
contaminants are those compounds that have been detected in drinking water supplies at trace levels. While occurring at only trace levels, these
compounds can affect the public acceptance/perception of drinking water quality.
■ PERFORMANCE DATA SHEET It is important that operational,
maintenance, and lter replacement
requirements be carried out for the product to perform as advertised.
Property damage can occur if all instructions are not followed.
■ The disposable cartridge must be changed at least every 6 months.
■ Use replacement lter P9RFWB2L, part #EDR2RXD1/EDR2RXD1B.
2015 suggested retail price of $49.99 U.S.A./$49.99 Canada. Prices
are subject to change without notice.
■ The lter monitor system measures the amount of water that passes
through the lter and alerts you when it is time to replace the lter.
Refer to the “Using the Controls” or “Water Filtration System” section
(in the User Instructions or User Guide) to learn how to check the
water lter status.
■ After changing the water lter, ush the water system. See “Water
and Ice Dispensers” or “Water Dispenser” in the User Instructions or
User Guide.
■ These contaminants are not necessarily in your water supply. While
testing was performed under standard laboratory conditions, actual
performance may vary.
■ The product is for cold water use only.
■ The water system must be installed in compliance with state and
local laws and regulations.
■ Do not use with water that is microbiologically unsafe or of unknown
quality without adequate disinfection before or after the system.
Systems certied for cyst reduction may be used on disinfected
waters that may contain lterable cysts.
EPA Est. No. 082047-TWN-001
■ Refer to the “Warranty” section (in the User Instructions or User
Guide) for the Manufacturer’s limited warranty, name, and telephone
number.
Application Guidelines/Water Supply Parameters
Water Supply
Water Pressure
Water Temperature
Service Flow Rate
Potable City or Well
35 - 120 psi (241 - 827 kPa)
33° - 100°F (1° - 38°C)
0.75 gpm (2.84 L/min.) @ 60 psi
System tested and certified by NSF International against
NSF/ANSI Standard42, Standard 53, and Standard 401 for
the reduction of contaminants specified on the Performance
Data Sheet.
*Class I particle size: >0.5 to <1 um
†
Based on the use of Cryptosporidium parvum oocysts
†
Fibers greater than 10 um in length
®
NSF is a registered trademark of NSF International.
Data Sheet
38
11/14
IF YOU NEED SERVICE:
1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without
service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, or visit
https://www.maytag.com/product_help.
2. All warranty service is provided exclusively by our authorized Maytag Service Providers. In the U.S. and Canada, direct all requests for warranty
service to:
Maytag Customer eXperience Center
In the U.S.A., call 1-800-688-9900. In Canada, call 1-800-807-6777.
If outside the 50 United States or Canada, contact your authorized Maytag dealer to determine whether another warranty applies.
MAYTAG
®
REFRIGERATION
LIMITED WARRANTY
ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED
TO OBTAIN WARRANTY SERVICE.
Please have the following information available when you call the
Customer eXperience Center:
■ Name, address and telephone number
■ Model number and serial number
■ A clear, detailed description of the problem
■ Proof of purchase including dealer or retailer name and address
TEN YEAR LIMITED WARRANTY
WHAT IS COVERED WHAT IS NOT COVERED
FIRST YEAR LIMITED WARRANTY (PARTS AND LABOR)
For one year from the date of purchase, when this major
appliance is installed, operated and maintained according
to instructions attached to or furnished with the product,
Maytag brand of Whirlpool Corporation or Whirlpool
Canada, LP (hereafter “Maytag”) will pay for factory
specied replacement parts and repair labor to correct
defects in materials or workmanship that existed when this
major appliance was purchased, or at its sole discretion
replace the product. In the event of product replacement,
your appliance will be warranted for the remaining term of
the original unit’s warranty period.
SECOND THROUGH TENTH YEAR LIMITED
WARRANTY (COMPRESSOR ONLY - LABOR NOT
INCLUDED)
In the second through tenth years from the date of original
purchase, when this major appliance is installed, operated
and maintained according to instructions attached to or
furnished with the product, Maytag will pay for a factory
specied replacement compressor to correct non-cosmetic
defects in materials or workmanship in this part that prevent
function of the refrigerator and that existed when this major
appliance was purchased. This limited 10-year warranty is
for the compressor only and does not include labor.
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS
LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS
PROVIDED HEREIN. Service must be provided by a Maytag
designated service company. This limited warranty is valid
only in the United States or Canada and applies only when
the major appliance is used in the country in which it was
purchased. This limited warranty is effective from the date of
original consumer purchase. Proof of original purchase date
is required to obtain service under this limited warranty.
1. Commercial, non-residential or multiple-family use, or use inconsistent with
published user, operator or installation instructions.
2. In-home Instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in
accordance with electrical or plumbing codes or correction of household electrical
or plumbing (i.e. house wiring, fuses or water inlet hoses).
4. Consumable parts (i.e. light bulbs, batteries, air or water lters, preservation
solutions, etc.).
5. Defects or damage caused by the use of non-genuine Maytag parts or
accessories.
6. Damage from accident, misuse, abuse, re, oods, acts of God or use with
products not approved by Maytag.
7. Repairs to parts or systems to correct product damage or defects caused by
unauthorized service, alteration or modication of the appliance.
8. Cosmetic damage including scratches, dents, chips, and other damage to
appliance nishes unless such damage results from defects in materials and
workmanship and is reported to Maytag within 30 days.
9. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive
environments including but not limited to high salt concentrations, high moisture or
humidity or exposure to chemicals.
10. Food or medicine loss due to product failure.
11. Pick-up or delivery. This product is intended for in-home repair.
12. Travel or transportation expenses for service in remote locations where an
authorized Maytag servicer is not available.
13. Removal or reinstallation of inaccessible appliances or built-in xtures (i.e. trim,
decorative panels, ooring, cabinetry, islands, countertops, drywall, etc.) that
interfere with servicing, removal or replacement of the product.
14. Service or parts for appliances with original model/serial numbers removed, altered
or not easily determined.
The cost of repair or replacement under these excluded circumstances shall be
borne by the customer.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow
limitations on the duration of implied warranties of merchantability or tness, so this limitation may not apply to you. This warranty gives you specic
legal rights, and you also may have other rights that vary from state to state or province to province.
DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY
Maytag makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations
contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you
should ask Maytag or your retailer about buying an extended warranty.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. MAYTAG
SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of
incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specic legal rights, and you
also may have other rights that vary from state to state or province to province.
Guide D’utilisation et D’entretien
CountryCall
U.S.A. 1-800-688-9900
www.maytag.ca
or Visit Us Online At
www.maytag.com
Canada 1-800-807-6777
Write
Maytag Brand Home Appliances
Customer eXperience Center
553 Benson Rd.
Benton Harbor, MI 49022-2692
AT YOUR SERVICE
Maytag Brand Home Appliances
Customer eXperience Center
200 – 6750 Century Ave.
Mississauga, Ontario L5N 0B7
Model NumberSerial Number
Canada www.maytag.ca1-800-807-6777
Please refer to the warranty page for additional instructions on how to obtain service for your
product.
WE CAN HELP WITH YOUR QUESTIONS
You will need the model and serial number, located on the inside wall of the refrigerator compartment.
For future reference, record the model and serial number here.
Maytag Brand Home Appliances
Customer eXperience Center
200 – 6750 Century Ave.
Mississauga, Ontario L5N 0B7
Consulte la página de la garantía para instrucciones adicionales sobre cómo obtener servicio para
su producto.
®
/™ ©2018 All rights reserved. Used under license in Canada.
®
/™ © 2018 Tous droits réservés. Utilisé sous licence au Canada.
®
/™ ©2018 Todos los derechos reservados. Usado en Canadá bajo licencia.
02/18
Printed in U.S.A.
Imprimé aux É.-U.
Impreso en EE. UU.
W11218738A
W11218737A-EN/FR
