OWNER’S GUIDE
JUN21V1
BOTTOM MOUNT
REFRIGERATOR
serial number:
MODEL NUMBERS: UGP-330L W AC ,UGP-330L B AC,
UGP-330L RB AC, UGP-330L LG AC, UGP-330L T AC
5013515
2
NEED HELP?
WELCOME
TABLE OF CONTENTS
Congratulations! You have purchased one of the most efcient refrigeration products available on
the market today. We are proud of our quality products and we believe in the dependable service
we provide.
Before using the appliance, read through this manual carefully including all the information on
safety, installation, operation, and cleaning. These guidelines do not cover every possible condition
or situation that may occur. Be safe using common sense and caution when installing, operating
and cleaning this appliance. If you are unsure about any of these instructions or warnings, contact
your local product dealer or Unique Appliances for assistance.
Before you call for service, here are a few things you can do to help us serve you better.
Read this owner’s manual: It contains instructions to help you use and maintain your appliance
properly.
Visit out website: Our website www.UniqueAppliances.com will give you access to self service
tools, FAQs and much more.
If you receive a damaged appliance: Immediately contact the retailer that sold you the
appliance.
Save time and money: Check the troubleshooting section at the end of this manual before
calling. This section will help you solve common problems that may occur.
03 Important safety notes
04 Grounding instructions
05 Installation instructions
07 Product features
08 Operation
10 Care and maintenance
11 Energy saving tips
11 Troubleshooting

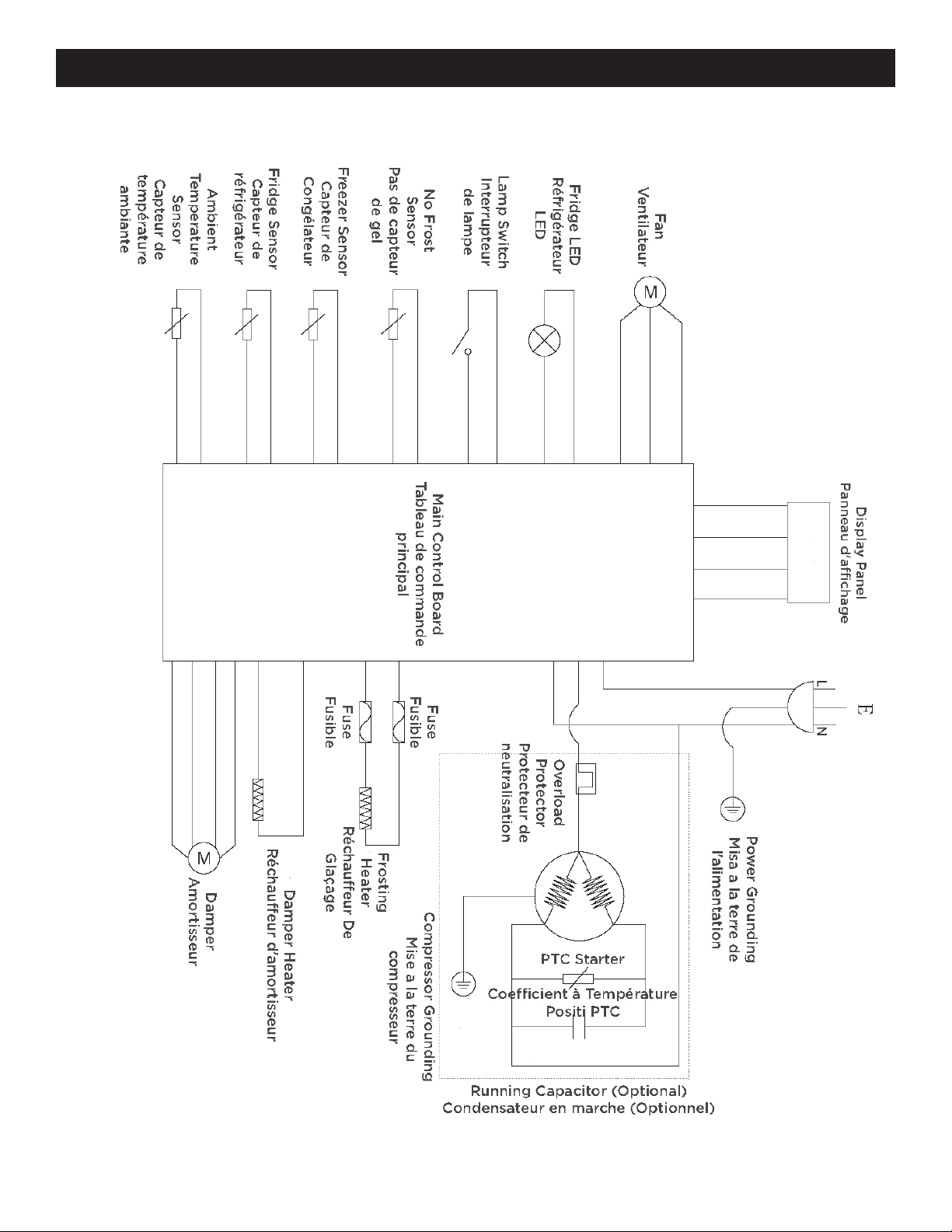

12 Electrical diagram
13 Parts diagram
14 Parts list
15 Warranty
16 Appliance information
16 Notes
16 Product registration
16 Contact us
3
IMPORTANT SAFETY NOTES
These warnings are provided in the interest of your safety. Please ensure that you understand
them all before installing or using this fridge. Your safety is of paramount importance. If you
are unsure about any of these meanings or warnings, contact your local product dealer or
Unique Appliances for assistance.
IMPORTANT: After transit where the fridge has been on its side or back, ensure that the fridge is in
a level, upright position for 12 hours to allow compressor uids to redistribute evenly before use.
PRIOR TO INSTALLATION
At delivery, please check that the fridge is complete and has not been damaged during transport.
It is not advised to connect an appliance that has been damaged, especially damage to the elec-
trical supply cable or refrigerant circuit. In the event of damage please contact your local product
dealer or Unique Appliances for assistance.
DANGER
• Risk of re or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.
• Do not use mechanical devices to defrost refrigerator.
• Ensure that servicing is done by factory authorized service personnel, to minimize product dam-
age or safety issues.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
• WARNING: Risk of child entrapment. Before you throw away your old refrigerator or freezer:
- Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.
CAUTION
• Risk of re or explosion. Flammable refrigerant used.
• Consult repair manual or owner’s guide before attempting to service this product. All safety pre-
cautions must be followed. Service the fridge/freezer only if you are a trained or authorized refrig-
eration technician.
• Dispose of properly in accordance with federal or local regulations.
• Follow handling instructions carefully.
IMPORTANT
• To allow the interior to cool down properly, run the fridge for at least 4 hours empty before add-
ing food.
• This fridge is designed for domestic use only! It is intended for the storage of edible/consumable
food and drinks. It is not intended for commercial or industrial use.
• Never use excessive force on the handle to open the door.
• If the room/ambient temperature approaches the fridge’s operating temperature, the fridge may
not function correctly. If the room/ambient temperature exceeds 100˚F (38˚C) the fridge may not
function correctly.
4
IMPORTANT SAFETY NOTES
CHILD SAFETY: Do not allow children to play in, on or around the fridge. It is not a toy. THERE IS
A DANGER OF SUFFOCATION IF A CHILD BECOMES TRAPPED INSIDE. When the appliance is
not in use, secure or remove the doors to prevent children from playing inside the cabinets.
DANGER
• Risk of child entrapment. Before throwing away an old appliance:
• Remove the door or lid.
• Leave shelves in place so that children may not easily climb inside.
• Cleaning and use maintenance shall not be made by children wihtout supervision.
DANGER OF SUFFOCATION: Keep children away from all packaging material.
This appliance is not intended for use by persons (including children) whose physical, sensory
or mental capabilities may be different or reduced, or who lack experience or knowledge, unless
such persons receive supervision or training to operate the appliance by a person responsible
for their safety.
DISPOSING OF THE APPLIANCE
When disposing of your fridge, use an authorized disposal site. The refrigerant must be completely
drained and collected by an authorized technician for recycling prior to disposal. Check with your
local Environmental Agency for recommendations on recycling this appliance in your area. Before
disposal remove the electrical connection wiring and also ensure that the doors are removed to
pre-vent children from being trapped inside - DANGER OF SUFFOCATION!
This marking indicates that this product should not be disposed with other household
wastes throughout North America. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources.
This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an
escape wire for the electrical current.
This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be
plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be
replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage
and frequency the appliance is designed for.
WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a
qualied electrician or service agent if the grounding instructions are not completely understood,
or if doubt exists as to whether the appliance is properly grounded. Do not connect your appliance
to extension cords or together with another appliance in the same wall outlet. Do not splice the
power cord. Do not under any circumstances cut or remove the third ground prong from the pow-
er cord. Do not use extension cords or ungrounded (two prongs) adapters.
If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similar qualied person in order to avoid hazard.
GROUNDING INSTRUCTIONS
5
INSTALLATION INSTRUCTIONS
IMPORTANT: After transit where the fridge has been on its side or back, ensure that the fridge is
in a level, upright position for 12 hours before connecting the appliance to a power source, this will
reduce the possibility of a malfunction in the cooling system from handling during transportation..
UNPACKING AND CLEANING
Remove all packaging and securing tapes from the appliance. To avoid injury and causing dam-
age to the appliance, be extremely cautious when using sharp or pointed tools to complete this
task. Keep children away from the packaging material - DANGER OF SUFFOCATION! Wash the
inside and outside of the appliance with luke warm water and a mild soap or detergent. Abrasive
or corrosive cleaning agents, steel wool, scouring sponges, or chemical cleaning agents should
not be used under any circumstances. A sponge, soft brush or towel is recommended. After clean-
ing, thoroughly rinse and dry. You may want to leave the doors open allowing the compartments
to ventilate for 20-30 minutes to get rid of residual odors. Check with your local Environmental
Agency for recommendations on recycling packaging materials in your area.
INSTALLATION
• This appliance is heavy. Care should be taken when moving it.
• Be sure that the appliance does not stand on the electrical supply cable. Also, be sure the electri-
cal cable is not squeezed or bent when the appliance is being installed or moved.
• Do not install the appliance near water, for example in a wet basement or near a sink.
• Installation work and adjustments on the appliance must be carried out by qualied personnel
only. Work performed by persons with inadequate technical knowledge may adversely effect the
performance of the appliance, causing damage to the equipment, and void the warranty.
• It is dangerous to make alterations or attempt to modify this product in any way. Product alter-
ations will void the warranty.
USE
• This appliance is intended for household use only. It is not designed for outside installation, in-
cluding anywhere that is not temperature controlled (garages, porches, vehicles, etc.).
• Do not store any containers with ammable vapors or liquids in or around the appliance, such as
organic solvents, spray cans, gas cans, etc. Danger of explosion!
CLEANING
• Before cleaning your appliance always disconnect it from the electrical power supply.
• Allow inside of fridge/freezer to fully thaw, then wash the inside and outside of the appli-ance
with luke warm water and a mild soap or detergent. Abrasive or corrosive cleaning agents, steel
wool, scouring sponges, or chemical cleaning agents should not be used under any circumstances.
SERVICING
• This product should be serviced by an authorized technician and only genuine spare parts should
be used.
• Under no circumstances should you attempt to repair the appliance yourself unless advised by
Unique. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning
of the appliance. Unauthorized work may void the warranty.
6
POSITIONING THE APPLIANCE
The area in which the fridge is to be installed must be relatively cool, dry, and suitably ventilated.
The area must be protected against any inclement weather (rain, snow) and excessive surface dust.
To ensure proper function, the appliance must be placed on a at, rm, and stable surface resting
level on all four supports. The oor must be strong enough to support a fully loaded cabinet. Use
wood or metal shims to level the fridge if necessary. Do not place the appliance in direct sunlight
or near sources of heat, such as a stove or heater, as this can increase electrical consumption. Ex-
treme cold ambient temperatures may also cause the appliance to perform improperly.
Do not place the fridge close to heat sources (heater, stove, boiler, chimney, etc.), and avoid pro-
longed exposure to direct sunlight. This appliance uses the exterior walls to transfer heat from the
inside of the cabinet. Ensure that there is adequate space between the fridge and neighboring
walls or large objects. A minimum spacing of 3 inches (7.6 cm) is highly recommended. This will
provide sufcient airow around the appliance resulting in more efcient operation and longer ap-
pliance lifetime. Always keep the air vent openings of the compressor housing cover free from dust
and obstructions. This appliance is intended for free-standing installation only and is not intended
to be built into a cabinet or counter.
INSTALLATION INSTRUCTIONS
74.6”
23.6”
29.3”
27.2”
23.4”
2”
90°
135°
42.6”
48.6”
49.4”
40”
42.1”
7
PRODUCT FEATURES
1
2
3
4
5
6
11
8
9
10
7
12
FEATURES:
1: Shelf
2: Freezer compartment
3: Freezer drawers
4: Control panel
5: Doors
6: Upper hinge
7: Lower hinge
8: Adjustable feet
9: Crisper
10: Detachable door shelf
11: Middle hinge
12: Wine rack
8
OPERATION
STARTING THE FRIDGE
After the fridge has been properly connected to a power source, the compressor will automatically
turn on and the cabinet will begin cooling. Allow the cabinet to cool for at least 4 hours prior to
adding food stuff.
OPERATION
Tap any key for the rst time and the control panel will be activated. If there is no button selection
for one minute, the LED display will automatically go off.
MODE
Tap the “Mode” button to select your desired operation mode. Available modes are: Quick Cool,
Quick Freezer and Optimal.
QUICK COOL
The fridges temperature will be set to 2° and will run for 12 hours. After 12 hours, this mode will au-
tomatically disable and resume normal operation.
QUICK FREEZE
The freezers temperature will be set to -22° and will run for 24 hours. After 24 hours, this mode will
automatically disable and resumre normal operation. Note: Quick cool mode does not change the
Quick Freezer mode.
OPTIMAL
Tapping the “Optimal” button will adjust the fridge temperature to 2° and the freezer temperature
ito -22°. If press any button other mode or temperature is selected the “Optimal” mode will be dis-
abled.
FRIDGE +/-
Tap the “Fridge +/-” button to adjust the temperature of your fridge. Note: The temprature range
for the fridge is 1°C to 7°C.
FREEZER +/-
Tap the “Freezer +/-” button to adjust the temperature of your freezer. Note: The temprature range
for the freezer is -14°C to -22°C.
When desired temperature is selected the numbers will ash 5 times to conrm. If another mode is
selected during that period switched during the ashing period, swtich will take effect immediately.
CELCIUS & FAHRENHEIT SELECTION
Press and hold down the “Fridge +/-” and the “Freezer +/-” button to switch between celcius and
fahrenheit.
DOOR ALARM
Press and hold the “Mode” button for 3 seconds to disable the door alarm function. Note: the door
9
alarm function will be reactivacted if the door is left open for more then 3 minutes and will beep
3 times every 3 minutes until the door is closed. The sound will stop after 10 minutes if the door is
not closed.
INTERIOR LIGHT
The interior LED light is situated on the inside ceiling of the fridge compartment, it will turn on
when the door of the appliance is opened and will turn off when the door is closed. If the interior
light burns out, contact a certied service technician to have it replaced. Note: The functionality of
the appliance is not affected if the light is not working.
LEVELING INSTRUCTIONS
There are adjustable legs on the bottom of the front of the appliance that can be turned up or
down to ensure that the appliance is level.
1. Turn the leveling leg counter-clockwise as far as it will go, until the top of the foot is touching the
bottom of the cabinet.
2. Slowly turn the leveling leg clockwise until the appliance is level.
OPENING AND CLOSING THE DOOR
The doors are tted with uniform sealing strips to prevent warm air and moisture from entering the
fridge and freezer compartments.
Be sure that the doors and door seals are free from obstructions and form a complete seal around
the rim of the fridge/freezer cabinets. Over-stufng and/or unlevel installation of the appliance will
prevent a good seal. It might be hard to open the door immediately after the door is closed. This
is due to air contraction in the fridge/freezer cabinets. This pressure difference will equalize in a
few seconds, making the doors easy to open once again.
LOADING THE FRIDGE AND FREEZER
Avoid packing food too tightly around the cooling plates located on the back wall of the fridge/
freezer. Allow air ow around these plates to ensure proper operation.
When adding unfrozen food to the freezer for the rst time, ll the freezer only 1/3 full and wait
until that food is sufciently frozen
before adding more. It will also help to cool food more quickly if the food is packaged in smaller
containers rather than large ones. Food packages more than 2 inches thick will cool slowly. Avoid
placing warm food in contact with cold food.
NORMAL OPERATING SOUNDS
• You may hear faint gurgling or bubbling sounds when the refrigerant is being pumped through
the refrigerant coils.
• When the compressor is on, the refrigerant is being pumped through the appliance and you will
hear a whirring or pulsing sound from the compressor.
• A thermostat controls the compressor and you may hear a ‘click’ when the thermostat cuts in
and out.
IMPORTANT: Your appliance is “Frost Free” and does not require defrosting
WATER CATCH BASIN
There is a water catch basin located at the back of the fridge for excess water. With frost free wa-
ter will ow from the walls of the fridge compartment through the defrost water drain down into
the catch basin. The hot condenser coil runs into the water catch basin and evaporates the water
slowly: Note: if the fridge has to be moved after some time, it would be best to remove the water
from the catch basin rst..
OPERATION
10
INTERNAL CLEANING
Wash the inside of the appliance with luke warm water and a mild soap. Never use abrasive or cor-
rosive cleaning agents, steel wool, scouring sponges, chemical cleaning agents, or highly perfumed
cleaning products to clean the interior as these will damage the surface and leave behind a strong
odor. A sponge, towel, or soft brush is recommended. Wash with a mixture of two tablespoons
(30ml) of baking soda to 1 quart (1.14L) warm water. After cleaning, wipe all surfaces with a soft
cloth and clean water to rinse, and allow the fridge/freezer to dry.
EXTERNAL CLEANING
Wash the outside of the cabinet with warm water and a mild soap or detergent.
Do not use abrasive or corrosive cleaning agents, chemical cleaning agents, steel wool or scouring
sponges to clean the fridge as it may cause damage to the surfaces.
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the internal tempera-
ture of the appliance if the number of times the door is opened is kept to a minimum. If the power
is going to be off for a longer period of time, take the proper steps to protect the contents.
Note: Wait 3 to 5 minutes before attempting to restart the refrigerator if operation has been inter-
rupted.
VACATION
• Short vacations: Leave the appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and discon-
nect the appliance from its power source. Clean and dry the interior thoroughly. To prevent odor
and mold growth, leave the door open slightly, blocking it open if necessary.
MOVING
• Remove all items.
• Tape down shelves inside the appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays in the upright position during transportation. Protect the outside of
the appliance with a blanket.
• If the appliance is placed on its back or side during transportation, upon reaching the destination,
allow it to remain upright for 6 hours before plugging in to avoid damage to internal components.
CUSTOMER RESPONSIBILITIES
The following items are the responsibility of the customer and are not covered by the warranty: •
Proper care and use of the appliance as described in this manual. • Damage to the interior or exte-
rior nish or components after
delivery.
• Proper power supply, circuit breaker, wiring, and connections.
• Replacement of LED lights. - Contact Unique’s technical service department for instructions on
how to x the issue.
• Service required as a result of alteration, misuse, abuse, ooding, re, lightning, or other
acts of God.
CARE AND MAINTENANCE
11
ENERGY SAVING TIPS
• Do not install the fridge close to sources of heat, such as a stove, boiler, heater, chimney, etc, and
avoid exposure of the appliance to direct sunlight.
• Locate the appliance in a cool well-ventilated room and make sure that the air vents of the com-
pressor housing cover are not obstructed. Also allow adequate spacing around the cabinet for air
circulation (3” or 7.5cm)
• Avoid unnecessary frosting in the cabinet by packing all food and liquids in airtight packages or
containers.
• Always keep food stored in tightly sealed packaging or containers, and allow some space for air
to circulate around each item.
• Avoid keeping the door open for extended periods of time or opening the door too frequently as
warm air will enter the cabinet and cause the compressor to run unnecessarily often.
• Ensure there are no obstructions preventing the doors from closing properly and forming a tight
seal.
• To ensure a safe food storage temperature, maintain an operating temperature inside the fridge
cabinet of 2˚C/36˚F to 4˚C/39˚F. Fridge temperatures warmer than 4˚C/39˚F can promote unsafe
bacterial growth in food.
TROUBLESHOOTING
PROBLEM SOLUTION
Appliance is
connected but
no power
• Check your circuit breaker as it might have tripped
• Plug not fully inserted into the wall outlet
Appliance is
operating, but
the interior
(cabinet) is not
cold
• Allow the appliance at least 4 hrs to cool down once turned on.
• Check that the thermostat control knob is turned to the correct setting relevant to the
room/ambient temperatures.
• Check that the room/ambient temperature is not approaching the internal operating
temperature and does not exceed to 100˚F (38˚C).
• Has too much warm food been added to the fridge/freezer recently? If so, it will take
some time for the appliance to return to temperature.
• Does the cabinet have adequate ventilation around the side walls, allowing it to transfer
heat properly? (See Installation section)
Appliance runs
continuously
• Temperature setting is too cold
• Door not shut properly or opened excessively
• Recently added a large quantity of warm food to the cabinet
• Close proximity to heat source or direct sunlight
• Ambient temperature or humidity is very high
The door will
not open
• Has the door just been opened? If so, leave the appliance closed for a few minutes to
allow the air pressure to equalize and try again.
Excessive frost
and ice has
built up
• Is the weather hot and humid? If so, this will increase the rate of frost build-up in the
cabinet.
• Ensure that stored food is properly packaged.
• Check that the door is closed and has a good seal, and that nothing is preventing the
door from closing properly.
• Large quantities of food have recently been placed in the fridge/freezer, and/or the
door is frequently opened.
• Ensure that proper care and maintenance of the appliance has been performed
(cleaning, defrosting, etc...)
Noise • Refer to “Normal Operating Sounds” (page 8)
Light does not
work
• Contact Unique’s technical service department for instructions on how to x the issue.
12
ELECTRICAL DIAGRAM
13
PARTS DIAGRAM
Please visit our website www.uniqueappliances.com to view a PDF
version of the schematics which will allow you to zoom in & out
14
PARTS LIST
NO. QTY PART NUMBER DESCRIPTION
1 1
N/A N/A
2 1
UGP-BCD330-09-00 UGP-330L Top Cover Foam Insert
UGP-BCD330-60-00W UGP-330L Top Cover White
UGP-BCD330-60-00B UGP-330L Top Cover Black
UGP-BCD330-60-00T UGP-330L Top Cover Turquoise
UGP-BCD330-60-00LG UGP-330L Top Cover Light Green
UGP-BCD330-60-00RB UGP-330L Top Cover Robin Egg Blue
4 6
N/A N/A
UGP-BCD330-10-00W UGP-330L Top Cover Support White
UGP-BCD330-10-00B UGP-330L Top Cover Support Black
UGP-BCD330-10-00T UGP-330L Top Cover Support Turquoise
UGP-BCD330-10-00LG UGP-330L Top Cover Support Light Green
UGP-BCD330-10-00RB UGP-330L Top Cover Support Robin Egg Blue
6 1
N/A N/A
7 2
N/A N/A
8 1
UGP-BCD328330-21-02 UGP-328L/330L Lamp Cover
9 1
UGP-BCD328330-21-01 UGP-328L/330L Lamp Base
10 1
UGP-BCD328330-DJ00-004 UGP-328L/330L Lamp Board
11 1
N/A N/A
12 1
UGP-BCD328330-DJ00-003 UGP-328L/330L Display Panel
13 1
UGP-BCD328330-22-01
UGP-328L/330L Display Panel Base
14 1
UGP-BCD328330-22-02
UGP-328L/330L Display Panel Decal
15 1
UGP-BCD328330-03-05 UGP-328L/330L Fridge Foam Air Duct Insulation
16 1
UGP-BCD328330-DJ00-006 UGP-328L/330L Fridge Temperature Sensor
17 1
UGP-BCD328330-03-03 UGP-328L/330L Air Duct Foam
18 1
UGP-BCD328330-DJ00-005 UGP-328L/330L Air Damper
19 1
UGP-BCD328330-03-02 UGP-328L/330L Air Duct
20 1
UGP-BCD328330-03-01 UGP-328L/330L Fridge Air Duct Decorative Cover
21 1
N/A N/A
22 1
UGP-BCD328330-03-07 UGP-328L/330L Air Duct Access Door
23 2
N/A N/A
24 2
UGP-BCD328330-25-00 UGP-328L/330L Screw Cover
25 1
UGP-BCD328330-03-06 UGP-328L/330L Fridge Air Duct EPDM
26 1
UGP-BCD328330-18-00 UGP-328L/330L Middle Hinge
27
2 N/A N/A
28
2 N/A N/A
29 1
UGP-BCD328330-ZL00-05 UGP-328L/330L Evaporator
30 1
UGP-BCD328330-DJ00-010 UGP-328L/330L Defrost Heater
31 1
UGP-BCD328330-26-00 UGP-328L/330L Drip Tray
32 1
UGP-BCD328330-07-04 UGP-328L/330L Freezer Air Duct EPDM
33 1
UGP-BCD328330-07-05 UGP-328L/330L Freezer Air Duct XPE Insulation
34 3
N/A N/A
35 1
UGP-BCD328330-WD09-01A UGP-328L/330L Air Duct Fan
36 1
UGP-BCD328330-07-03 UGP-328L/330L Freezer Foam Air Duct Insulation
37 1
UGP-BCD328330-WD03-06A UGP-328L/330L Freezer Temperature Sensor
38 1
UGP-BCD328330-07-01 UGP-328L/330L Freezer Air Duct Decorative Cover
39 4
N/A N/A
40 3
N/A N/A
41 1
UGP-BCD328330-07-00 UGP-328L/330L Wine Rack
42 3
UGP-BCD328330-04-01 UGP-328L/330L Glass Shelf with Trim
43 3
N/A N/A
44 1
UGP-BCD328330-05-03 UGP-328L/330L Crisper Cover Glass Shelf with Air Damper
45 1
N/A N/A
46 1
N/A N/A
47 1
UGP-BCD328330-06-00 UGP-328L/330L Fridge Crisper Drawer
48 2
UGP-BCD328330-11-00 UGP-328L/330L Freezer Upper Crisper Drawer
49 1
UGP-BCD328330-12-00 UGP-328L/330L Freezer Bottom Crisper Drawer
50 1
UGP-BCD328330-20-00 UGP-328L/330L Fridge Door Upper Balcony
51
1 UGP-BCD328330-6001-06 UGP-328L/330L Fridge Door Seal
UGP-BCD330-6001-00W UGP-330L Fridge Door White
UGP-BCD330-6001-00B UGP-330L Fridge Door Black
UGP-BCD330-6001-00T UGP-330L Fridge Door Turquoise
UGP-BCD330-6001-00LG UGP-330L Fridge Door Light Green
UGP-BCD330-6001-00RB UGP-330L Fridge Door Robin Egg Blue
53 2
UGP-BCD328330-23-00 UGP-328L/330L Fridge Door Middle Balcony
54
1 UGP-BCD328330-24-00 UGP-328L/330L Fridge Door Bottom Balcony
55 2
N/A N/A
56 2
UGP-BCD328330-6001-07 UGP-328L/330L Fridge and Freezer Door Stopper
57
2 N/A N/A
UGP-BCD330-7001-00W UGP-330L Freezer Door White
UGP-BCD330-7001-00B UGP-330L Freezer Door Black
UGP-BCD330-7001-00T UGP-330L Freezer Door Turquoise
UGP-BCD330-7001-00LG UGP-330L Freezer Door Light Green
UGP-BCD330-7001-00RB UGP-330L Freezer Door Robin Egg Blue
59 1 UGP-BCD328330-7001-06 UGP-328L/330L Freezer Door Seal
60 1 UGP-BCD328330-10906-07 UGP-328L/330L Egg Tray
1
5 1
58
1
3
52
1
NO. QTY PART NUMBER DESCRIPTION
1 1
N/A N/A
2 1
UGP-BCD330-09-00 UGP-330L Top Cover Foam Insert
UGP-BCD330-60-00W UGP-330L Top Cover White
UGP-BCD330-60-00B UGP-330L Top Cover Black
UGP-BCD330-60-00T UGP-330L Top Cover Turquoise
UGP-BCD330-60-00LG UGP-330L Top Cover Light Green
UGP-BCD330-60-00RB UGP-330L Top Cover Robin Egg Blue
4 6
N/A N/A
UGP-BCD330-10-00W UGP-330L Top Cover Support White
UGP-BCD330-10-00B UGP-330L Top Cover Support Black
UGP-BCD330-10-00T UGP-330L Top Cover Support Turquoise
UGP-BCD330-10-00LG UGP-330L Top Cover Support Light Green
UGP-BCD330-10-00RB UGP-330L Top Cover Support Robin Egg Blue
6 1
N/A N/A
7 2
N/A N/A
8 1
UGP-BCD328330-21-02 UGP-328L/330L Lamp Cover
9 1
UGP-BCD328330-21-01 UGP-328L/330L Lamp Base
10 1
UGP-BCD328330-DJ00-004 UGP-328L/330L Lamp Board
11 1
N/A N/A
12 1
UGP-BCD328330-DJ00-003 UGP-328L/330L Display Panel
13 1
UGP-BCD328330-22-01
UGP-328L/330L Display Panel Base
14 1
UGP-BCD328330-22-02
UGP-328L/330L Display Panel Decal
15 1
UGP-BCD328330-03-05 UGP-328L/330L Fridge Foam Air Duct Insulation
16 1
UGP-BCD328330-DJ00-006 UGP-328L/330L Fridge Temperature Sensor
17 1
UGP-BCD328330-03-03 UGP-328L/330L Air Duct Foam
18 1
UGP-BCD328330-DJ00-005 UGP-328L/330L Air Damper
19 1
UGP-BCD328330-03-02 UGP-328L/330L Air Duct
20 1
UGP-BCD328330-03-01 UGP-328L/330L Fridge Air Duct Decorative Cover
21 1
N/A N/A
22 1
UGP-BCD328330-03-07 UGP-328L/330L Air Duct Access Door
23 2
N/A N/A
24 2
UGP-BCD328330-25-00 UGP-328L/330L Screw Cover
25 1
UGP-BCD328330-03-06 UGP-328L/330L Fridge Air Duct EPDM
26 1
UGP-BCD328330-18-00 UGP-328L/330L Middle Hinge
27
2 N/A N/A
28
2 N/A N/A
29 1
UGP-BCD328330-ZL00-05 UGP-328L/330L Evaporator
30 1
UGP-BCD328330-DJ00-010 UGP-328L/330L Defrost Heater
31 1
UGP-BCD328330-26-00 UGP-328L/330L Drip Tray
32 1
UGP-BCD328330-07-04 UGP-328L/330L Freezer Air Duct EPDM
33 1
UGP-BCD328330-07-05 UGP-328L/330L Freezer Air Duct XPE Insulation
34 3
N/A N/A
35 1
UGP-BCD328330-WD09-01A UGP-328L/330L Air Duct Fan
36 1
UGP-BCD328330-07-03 UGP-328L/330L Freezer Foam Air Duct Insulation
37 1
UGP-BCD328330-WD03-06A UGP-328L/330L Freezer Temperature Sensor
38 1
UGP-BCD328330-07-01 UGP-328L/330L Freezer Air Duct Decorative Cover
39 4
N/A N/A
40 3
N/A N/A
41 1
UGP-BCD328330-07-00 UGP-328L/330L Wine Rack
42 3
UGP-BCD328330-04-01 UGP-328L/330L Glass Shelf with Trim
43 3
N/A N/A
44 1
UGP-BCD328330-05-03 UGP-328L/330L Crisper Cover Glass Shelf with Air Damper
45 1
N/A N/A
46 1
N/A N/A
47 1
UGP-BCD328330-06-00 UGP-328L/330L Fridge Crisper Drawer
48 2
UGP-BCD328330-11-00 UGP-328L/330L Freezer Upper Crisper Drawer
49 1
UGP-BCD328330-12-00 UGP-328L/330L Freezer Bottom Crisper Drawer
50 1
UGP-BCD328330-20-00 UGP-328L/330L Fridge Door Upper Balcony
51
1 UGP-BCD328330-6001-06 UGP-328L/330L Fridge Door Seal
UGP-BCD330-6001-00W UGP-330L Fridge Door White
UGP-BCD330-6001-00B UGP-330L Fridge Door Black
UGP-BCD330-6001-00T UGP-330L Fridge Door Turquoise
UGP-BCD330-6001-00LG UGP-330L Fridge Door Light Green
UGP-BCD330-6001-00RB UGP-330L Fridge Door Robin Egg Blue
53 2
UGP-BCD328330-23-00 UGP-328L/330L Fridge Door Middle Balcony
54
1 UGP-BCD328330-24-00 UGP-328L/330L Fridge Door Bottom Balcony
55 2
N/A N/A
56 2
UGP-BCD328330-6001-07 UGP-328L/330L Fridge and Freezer Door Stopper
57
2 N/A N/A
UGP-BCD330-7001-00W UGP-330L Freezer Door White
UGP-BCD330-7001-00B UGP-330L Freezer Door Black
UGP-BCD330-7001-00T UGP-330L Freezer Door Turquoise
UGP-BCD330-7001-00LG UGP-330L Freezer Door Light Green
UGP-BCD330-7001-00RB UGP-330L Freezer Door Robin Egg Blue
59 1 UGP-BCD328330-7001-06 UGP-328L/330L Freezer Door Seal
60 1 UGP-BCD328330-10906-07 UGP-328L/330L Egg Tray
1
5
1
58 1
3
52 1
NO. QTY PART NUMBER DESCRIPTION
1 1
N/A N/A
2 1
UGP-BCD330-09-00 UGP-330L Top Cover Foam Insert
UGP-BCD330-60-00W UGP-330L Top Cover White
UGP-BCD330-60-00B UGP-330L Top Cover Black
UGP-BCD330-60-00T UGP-330L Top Cover Turquoise
UGP-BCD330-60-00LG UGP-330L Top Cover Light Green
UGP-BCD330-60-00RB UGP-330L Top Cover Robin Egg Blue
4 6
N/A N/A
UGP-BCD330-10-00W UGP-330L Top Cover Support White
UGP-BCD330-10-00B UGP-330L Top Cover Support Black
UGP-BCD330-10-00T UGP-330L Top Cover Support Turquoise
UGP-BCD330-10-00LG UGP-330L Top Cover Support Light Green
UGP-BCD330-10-00RB UGP-330L Top Cover Support Robin Egg Blue
6 1
N/A N/A
7 2
N/A N/A
8 1
UGP-BCD328330-21-02 UGP-328L/330L Lamp Cover
9 1
UGP-BCD328330-21-01 UGP-328L/330L Lamp Base
10 1
UGP-BCD328330-DJ00-004 UGP-328L/330L Lamp Board
11 1
N/A N/A
12 1
UGP-BCD328330-DJ00-003 UGP-328L/330L Display Panel
13 1
UGP-BCD328330-22-01
UGP-328L/330L Display Panel Base
14 1
UGP-BCD328330-22-02
UGP-328L/330L Display Panel Decal
15 1
UGP-BCD328330-03-05 UGP-328L/330L Fridge Foam Air Duct Insulation
16 1
UGP-BCD328330-DJ00-006 UGP-328L/330L Fridge Temperature Sensor
17 1
UGP-BCD328330-03-03 UGP-328L/330L Air Duct Foam
18 1
UGP-BCD328330-DJ00-005 UGP-328L/330L Air Damper
19 1
UGP-BCD328330-03-02 UGP-328L/330L Air Duct
20 1
UGP-BCD328330-03-01 UGP-328L/330L Fridge Air Duct Decorative Cover
21 1
N/A N/A
22 1
UGP-BCD328330-03-07 UGP-328L/330L Air Duct Access Door
23 2
N/A N/A
24 2
UGP-BCD328330-25-00 UGP-328L/330L Screw Cover
25 1
UGP-BCD328330-03-06 UGP-328L/330L Fridge Air Duct EPDM
26 1
UGP-BCD328330-18-00 UGP-328L/330L Middle Hinge
27
2 N/A N/A
28
2 N/A N/A
29 1
UGP-BCD328330-ZL00-05 UGP-328L/330L Evaporator
30 1
UGP-BCD328330-DJ00-010 UGP-328L/330L Defrost Heater
31 1
UGP-BCD328330-26-00 UGP-328L/330L Drip Tray
32 1
UGP-BCD328330-07-04 UGP-328L/330L Freezer Air Duct EPDM
33 1
UGP-BCD328330-07-05 UGP-328L/330L Freezer Air Duct XPE Insulation
34 3
N/A N/A
35 1
UGP-BCD328330-WD09-01A UGP-328L/330L Air Duct Fan
36 1
UGP-BCD328330-07-03 UGP-328L/330L Freezer Foam Air Duct Insulation
37 1
UGP-BCD328330-WD03-06A UGP-328L/330L Freezer Temperature Sensor
38 1
UGP-BCD328330-07-01 UGP-328L/330L Freezer Air Duct Decorative Cover
39 4
N/A N/A
40 3
N/A N/A
41 1
UGP-BCD328330-07-00 UGP-328L/330L Wine Rack
42 3
UGP-BCD328330-04-01 UGP-328L/330L Glass Shelf with Trim
43 3
N/A N/A
44 1
UGP-BCD328330-05-03 UGP-328L/330L Crisper Cover Glass Shelf with Air Damper
45 1
N/A N/A
46 1
N/A N/A
47 1
UGP-BCD328330-06-00 UGP-328L/330L Fridge Crisper Drawer
48 2
UGP-BCD328330-11-00 UGP-328L/330L Freezer Upper Crisper Drawer
49 1
UGP-BCD328330-12-00 UGP-328L/330L Freezer Bottom Crisper Drawer
50 1
UGP-BCD328330-20-00 UGP-328L/330L Fridge Door Upper Balcony
51
1 UGP-BCD328330-6001-06 UGP-328L/330L Fridge Door Seal
UGP-BCD330-6001-00W UGP-330L Fridge Door White
UGP-BCD330-6001-00B UGP-330L Fridge Door Black
UGP-BCD330-6001-00T UGP-330L Fridge Door Turquoise
UGP-BCD330-6001-00LG UGP-330L Fridge Door Light Green
UGP-BCD330-6001-00RB UGP-330L Fridge Door Robin Egg Blue
53 2
UGP-BCD328330-23-00 UGP-328L/330L Fridge Door Middle Balcony
54
1 UGP-BCD328330-24-00 UGP-328L/330L Fridge Door Bottom Balcony
55 2
N/A N/A
56 2
UGP-BCD328330-6001-07 UGP-328L/330L Fridge and Freezer Door Stopper
57
2 N/A N/A
UGP-BCD330-7001-00W UGP-330L Freezer Door White
UGP-BCD330-7001-00B UGP-330L Freezer Door Black
UGP-BCD330-7001-00T UGP-330L Freezer Door Turquoise
UGP-BCD330-7001-00LG UGP-330L Freezer Door Light Green
UGP-BCD330-7001-00RB UGP-330L Freezer Door Robin Egg Blue
59 1 UGP-BCD328330-7001-06 UGP-328L/330L Freezer Door Seal
60 1 UGP-BCD328330-10906-07 UGP-328L/330L Egg Tray
1
5
1
58
1
3
52
1
15
Unique Appliances Ltd. (hereafter “Unique”) warrants that this UNIQUE fridge is free from manufacturer’s
defects in material and workmanship under normal usage and service under the following terms.
TERMS OF WARRANTY
Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.
Parts Warranty
This appliance has been designed for domestic household use. If properly installed, adjusted and operated under normal conditions in
accordance with printed instructions, it will satisfactorily perform the functions that are generally expected of this type of appliance.
If the appliance fails to do so because of a defect in material or workmanship within one year from the original date of purchase: Unique
will at our option, repair, exchange, or correct by other means Unique consider appropriate, any part(s) Unique nds to be defective
except for the surface nish.
Ownership
This Warranty is made only to the rst purchaser (”original purchaser”) who acquires this fridge for his/her own use and will be honored
by Unique Appliances Ltd. and by the Seller. Purchaser must retain their receipt as proof of purchase date.
Warranty Conditions
This warranty does not apply to any appliance that has been subjected to alterations, misuse, abuse (including damage by foreign
agents or chemicals), accident, improper installation or service, delivery damage, or other than normal household use and service. This
UNIQUE appliance must be serviced regularly as outlined in the Owner’s Manual. Neither Unique Appliances Ltd. nor the selling deal-
er will be liable for direct or indirect loss of foods caused by failure in operation. In case of damage, the owner must provide proof of
purchase, Model, and Serial Number to the selling dealer or Unique Appliances Ltd. This warranty is LIMITED STRICTLY to the terms
indicated herein, and no other expressed warranties or remedies thereunder shall be binding on Unique.
Purchaser’s Responsibilities
The purchaser will be responsible for the costs of any service calls requested to demonstrate or conrm the proper operation of the
appliance, the installation, or to correct malfunctions in the appearance created by the operation of the appliance in a manner not pre-
scribed by or cautioned against in the use and care instructions.
Model and Serial Number
The appliance model number and serial number can be found on a rating plate attached at the back of the fridge. The purchaser should
always refer to the model and serial number when talking to or contacting the dealer from whom the appliance was purchased.
EXCLUSIONS
Save as herein provided, by Unique, there are no other warranties, conditions, representations or guarantees, express or implied, made
or intended by Unique or its authorized distributors and all other warranties, conditions, representations or guarantees, including any
warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly
excluded. Save as herein provided, Unique shall not be responsible for any damages to persons or property, including the unit itself,
howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchas-
er does hereby agree to indemnify and hold harmless Unique from any claim for damages to persons or property caused by the unit
Removal or disgurement of the serial plate will void the warranty. The purchaser will be responsible for any expenses involved in mak-
ing the refrigerator readily accessible for servicing. The purchaser will be responsible for any extra charges where the installation is in a
remote location such as un-assumed roads, islands, areas known as cottage country, more than 20 Km outside a Metropolitan area, or
where a technician is not available. Freight damage is not covered by this warranty.
GENERAL PROVISIONS
No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:
1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating
conditions (ie. extremely high or low room temperature).
5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, oods etc.
7) Service calls resulting in customer education.
8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor
application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).
Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present
the proof of purchase to our authorized service depot.
Nothing within this warranty shall imply that Unique will be responsible or liable for any spoilage or damage to food or other con-
tents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper
Factory Assistance
If the purchaser is unable to locate an authorized dealer/service agent, or if the purchaser does not receive satisfaction from the dealer,
they may contact Unique Appliances Customer Service directly at Toll Free 1-877-427-2266 or 905-827- 6154
WARRANTY
16
For questions related to the operation, safety or the purchase of your fridge, please contact your
dealer for more information. For general information, contact our customer service department:
NOTES
APPLIANCE INFORMATION
(manual copy - keep with your records)
To make care and servicing of your fridge easy and efcient, please record the following informa-
tion for future reference:
Model:
Serial Number:
Purchased From:
Date Purchased:
APPLIANCE INFORMATION
CONTACT US
Toll-free
1-877-427-2266 or 1-905-827-6154
(available during regular business
hours, 8:30 am to 4:30 pm, EST.
Website
www.uniqueappliances.com
Email
info@UniqueAppliances.com
Please visit our website at https://uniqueappliances.com/product-registration/
to register your product.
PRODUCT REGISTRATION
© 2021 Unique Appliances Ltd., 2245 Wyecroft Road,
Oakville, Ontario, Canada, L6L 5L7
www.uniqueappliances.com
