DO NOT REMOVE this label until you have leveled the refrigerator.
Please follow all instructions for leveling your refrigerator.
P/N: A22741903
*Please refer to your Use & Care Manual for more details.
If you are not satisfied with the installation of your refrigerator, please contact the store where you purchased it.
Installation Instructions* for Multi-Door Refrigerator
WARNING
To avoid electric shock, which can cause death or severe personal injury, do not connect your
refrigerator to an electrical power source until you have completed Step 2 of these instructions.
CAUTION
Shifting the refrigerator from side
to side may damage flooring.
IMPORTANT
If you are installing your refrigerator without connecting it
to a water supply, make sure the ice maker’s power switch is
turned O (see the Use & Care Manual for more details).
NOTE
If you need to remove the doors to get your refrigerator into the house, please refer to Section 3:
Door Removal, or, for more detailed instructions, DOOR REMOVAL in the Use & Care Manual. These
installation instructions are provided only as a possible customer option. We recommend you use a
service or kitchen contracting professional to install your refrigerator.
1
Installation Preparation
Be sure to coordinate site preparation and installation with your kitchen contractor. Include these
minimum guidelines in your site preparation:
• Choose a place near a grounded electrical outlet.
• Do not use an extension cord or an
adapter plug.
• Avoid direct sunlight and close
proximity to a range, dishwasher or
other heat source.
• Floor should be level and able to
support a fully loaded refrigerator.
• The refrigerator’s Ice Dispenser
requires water supply access.
• Plan for easy access to counter tops when removing food.
• For complete access to drawers and freezer baskets, doors must be able to fully open.
• Load refrigerator from side of cabinet only.
• Do not run retaining straps over handles nor overtighten straps.
• Never use refrigerator handles to move the refrigerator.
Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical
connections: Sides & Top: ⅜" / Rear: 1"
CAUTION
Room temperatures below 55°F
(13°C) or above 110°F (43°C) will
impair cooling ability of your
refrigerator’s compressor.
7
We use packing foam and tape to secure the internal parts of your refrigerator for shipping. Once the
refrigerator is in position, you can remove this material.
What’s Next?
Congratulations! You are ready to begin enjoying your new refrigerator.
• For important safety instructions and to learn how to operate your refrigerator, please read the
entire Use & Care Manual.
• You may want to start with the NORMAL OPERATING SOUNDS section of the Manual to learn what
to expect during typical operation.
• Please register your product by sending in the Registration Card.
Internal Shipping Materials Removal
8

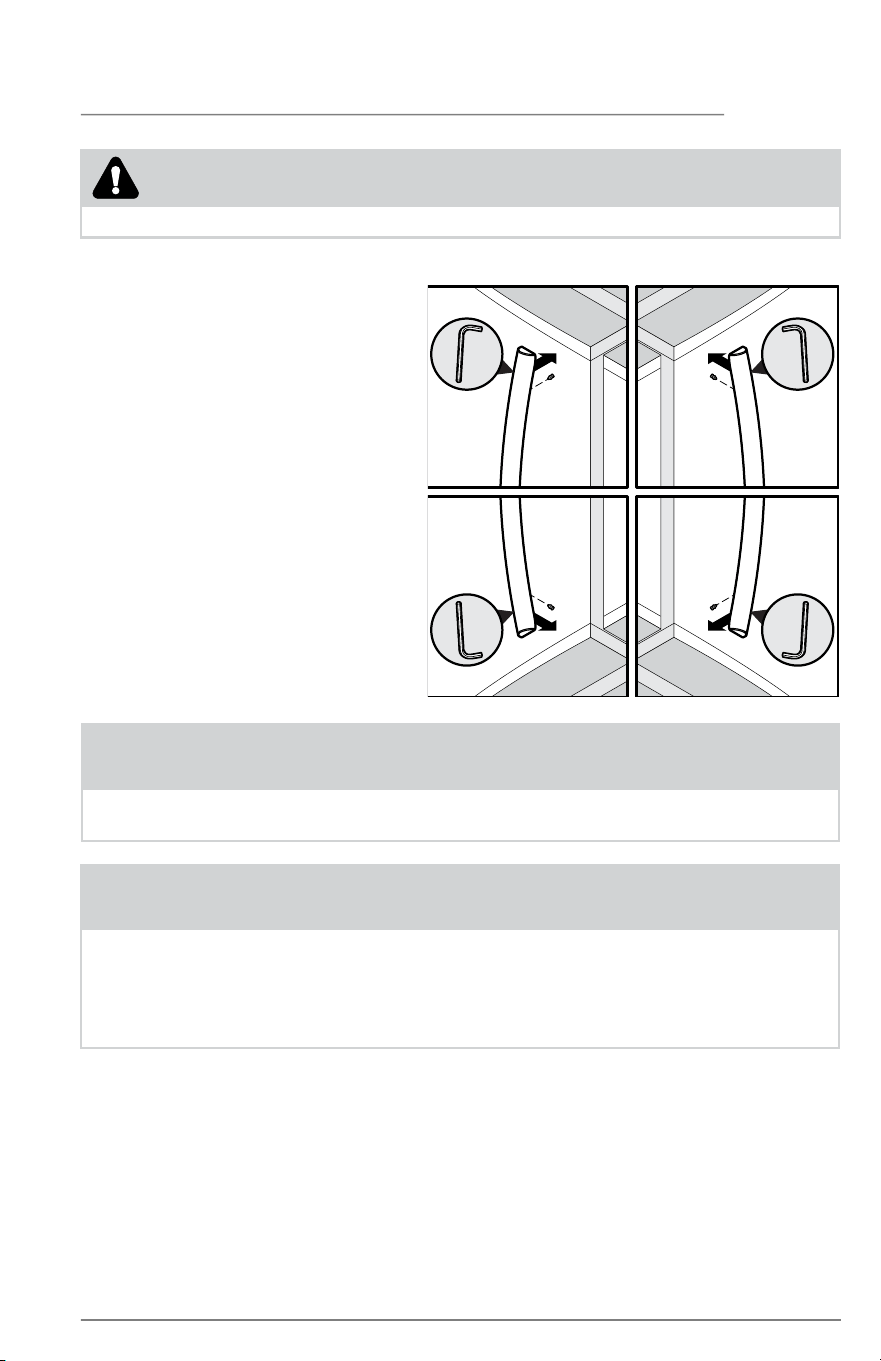

Doors
□ Handles are secure and tight
□ Door seals completely to cabinet on all sides
□ Fresh Food doors are level
Leveling
□ Refrigerator is level, side to side and tilted ¼
in. (6 mm) front to back
□ Cabinet is sitting solid on all corners
Installation Check List
Electrical Power
□ House power turned on
□ Refrigerator plugged in
Ice Maker
□ House water supply connected to refrigerator
□ No water leaks present at all connections
□ Ice Maker is turned ON.
Final Checks
□ Shipping material removed
□ Fresh Food and Freezer temperatures set
To reinstall the freezer drawer:
See
Use & Care Manual for details.
5

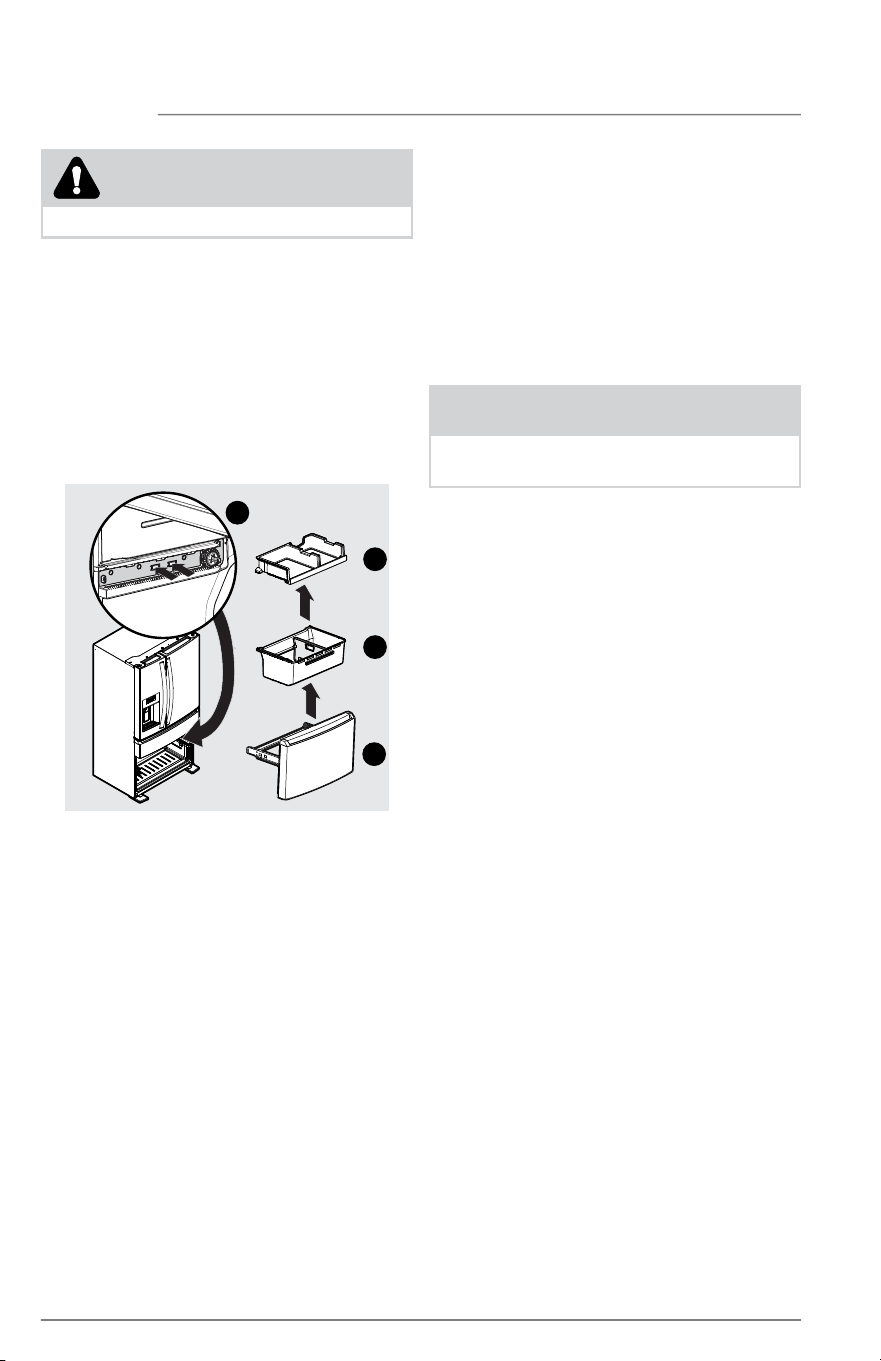

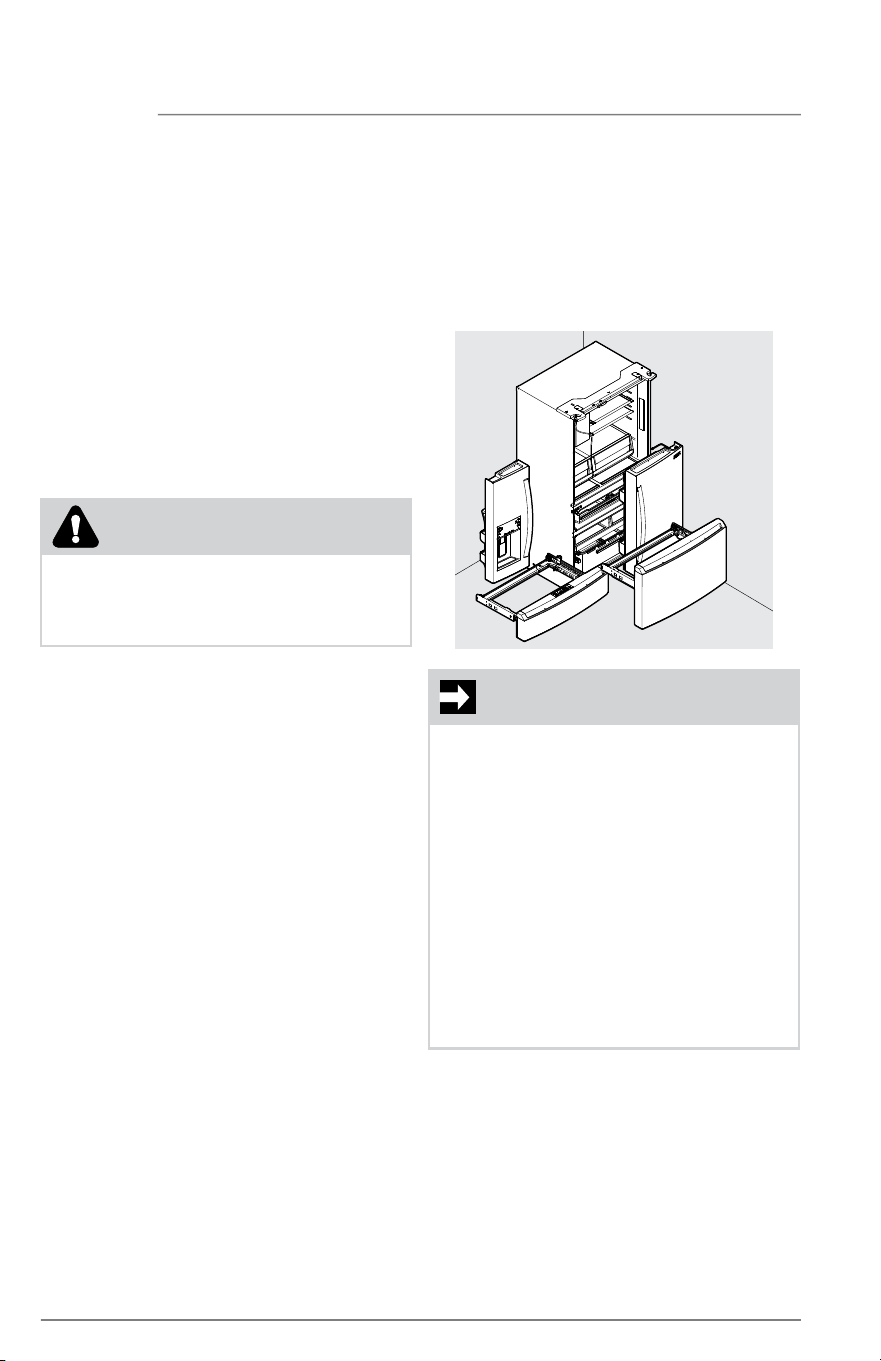

Freezer Drawer Removal
1. Open and fully extend the drawer.
2. Remove the freezer drawer.
3. Remove the freezer basket.
4. Inside the cabinet, press the 2 tabs on both sides to
release the sliders.
5. Remove the drawer with brackets and sliders.
CAUTION
Drawer is heavy. Use caution when lifting.
Freezer
Drawer
Freezer
Basket
Press the two tabs
on both sides to
release the sliders
4

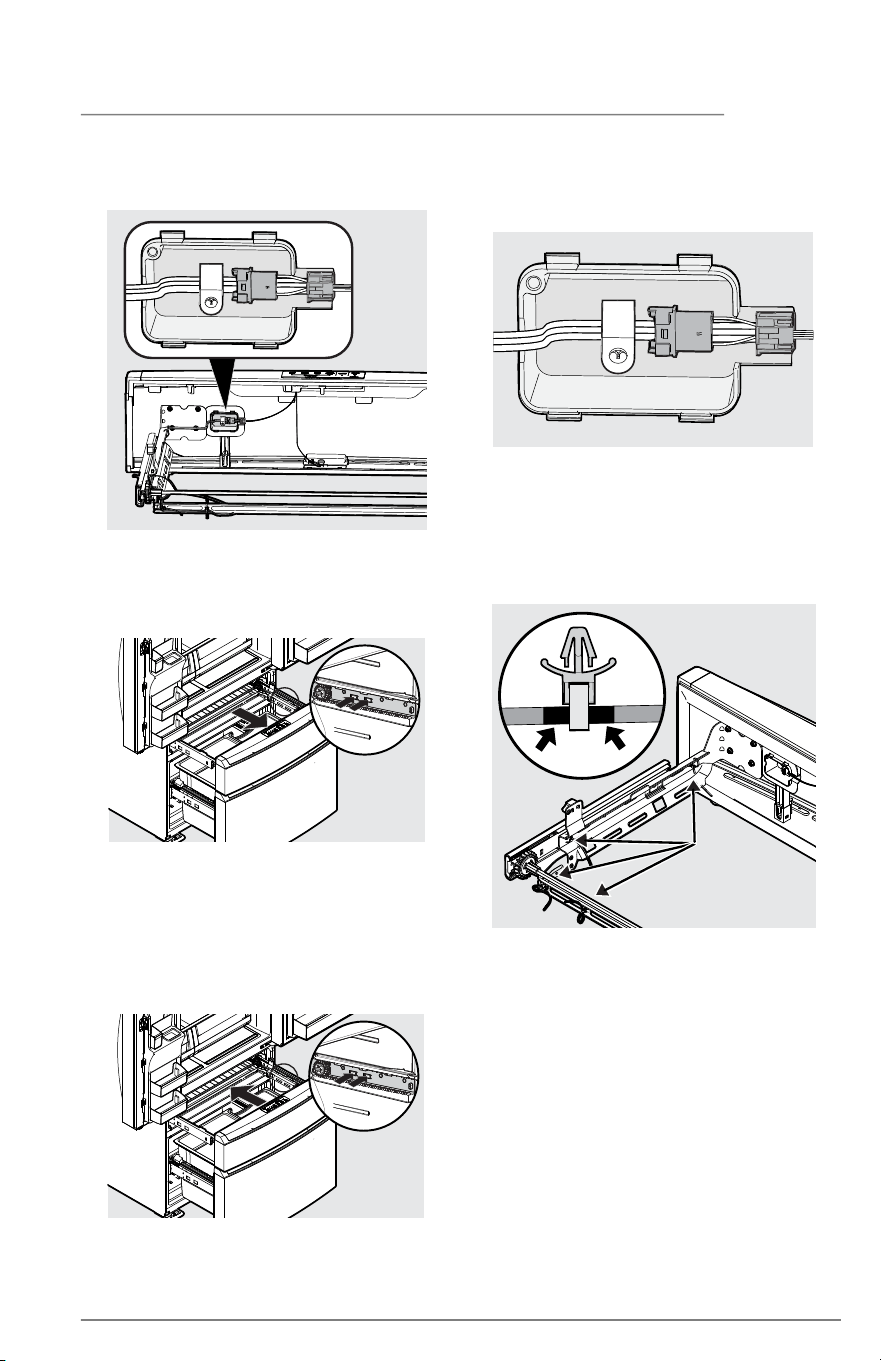

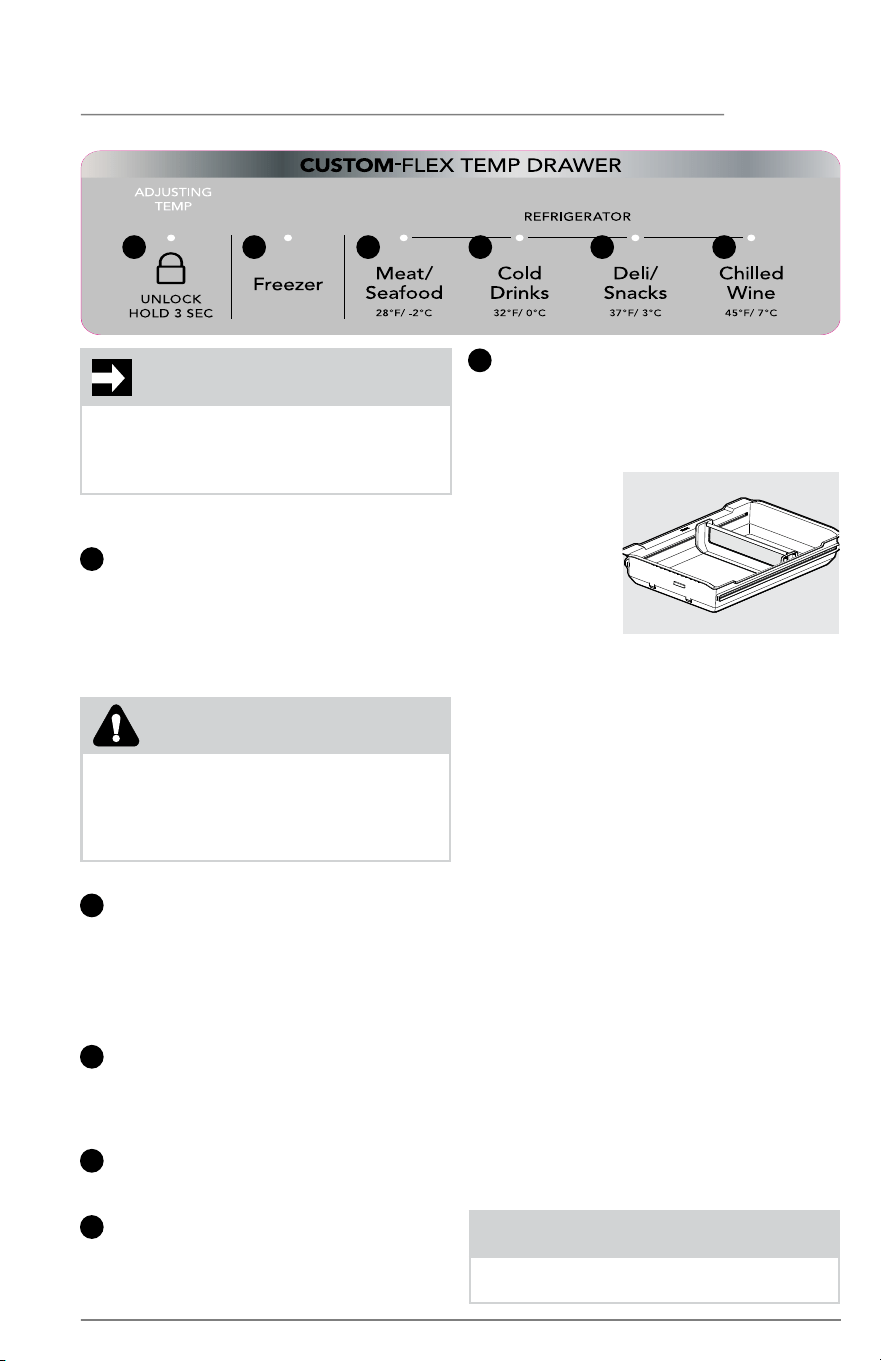

Custom-Flex™ Temp Drawer Removal
1. Fully open the drawer and remove the basket.
2. Unsnap the 4 cable ties by pressing the clip sides
together and pushing through the opening.
3. Remove the screw and retaining clip, and
disconnect the harness.
4. Inside the cabinet, press the 2 tabs on both sides
to release the sliders. Remove the drawer with
brackets and sliders.
Cable
Tie
Cable
Clip
NOTE: Do Not Remove or Cut
Cable Ties From Wire Harness
(4) Cable
Ties
Retaining
Clip
Retaining Clip
To Cabinet
Harness
Screw
To reinstall the Custom-Flex temp drawer:
See
Use & Care Manual for details.
Press the two
tabs on both
sides to release
the sliders

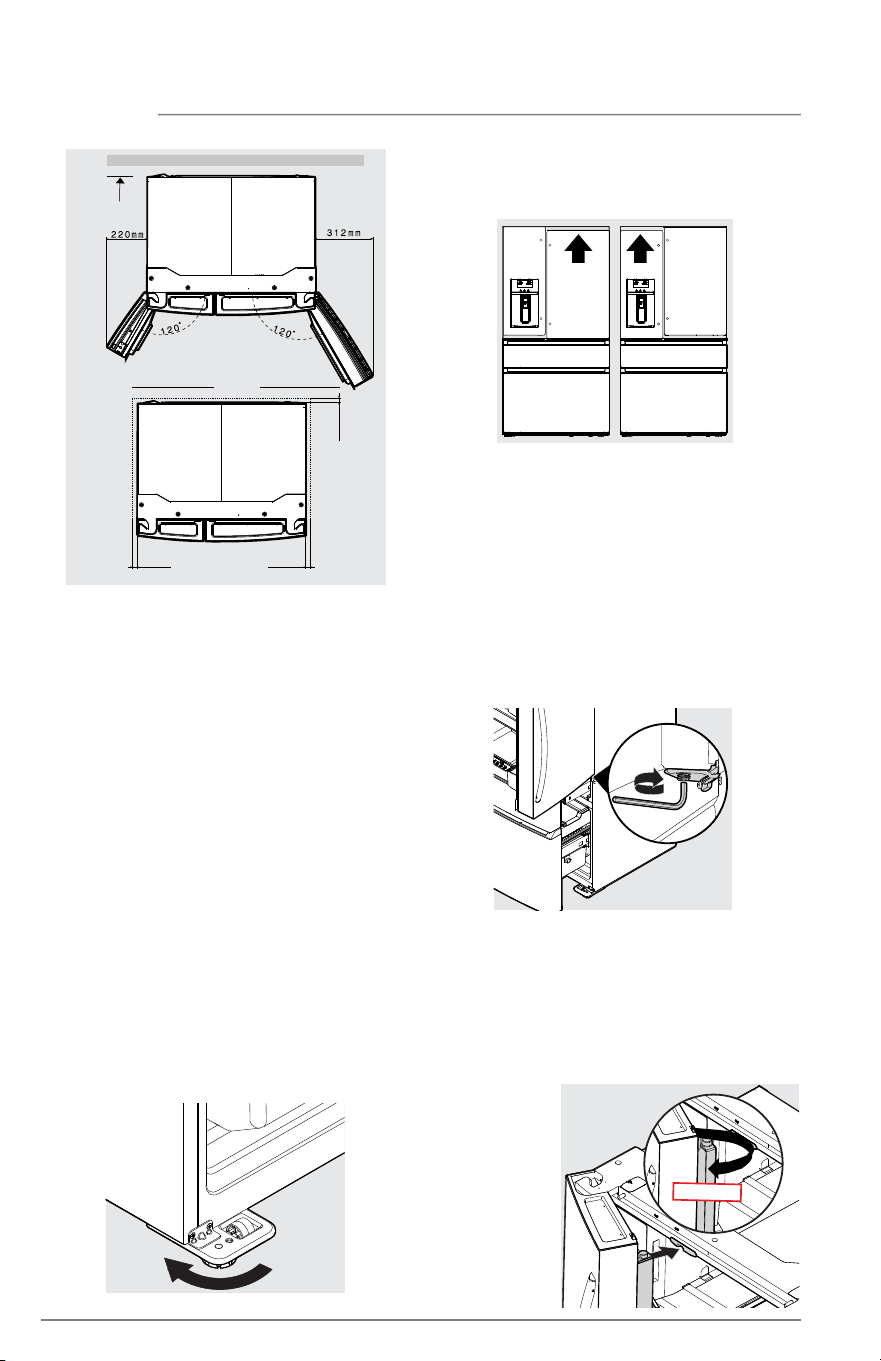

Leveling & Door Alignment
6
Final Positioning of Refrigerator:
• Rest all 4 corners of the cabinet firmly on the floor.
• Slightly elevate the front to ensure the doors close and
seal properly.
• Align and level the doors with each other.
Meet most of these conditions by raising or lowering the
adjustable front rollers.
To level the cabinet using the anti-tip legs:
1. Slightly open the freezer drawer.
2.
Lower the anti-tip legs until they are both touching the
floor. Use a pair of pliers to adjust.
To raise: turn leg
clockwise.
To lower: turn leg
counterclockwise.
3. Ensure both doors are bind-free
with their seals touching the
cabinet on all 4 sides and that
cabinet is stable.
To make final door height adjustments:
1. Open Custom-Flex temp drawer to
make lower hinge visible.
2. Insert 6 mm Allen wrench into the
shaft of the lower hinge.
To lower unit: turn adjustment
screw clockwise.
To raise unit: turn adjustment
screw counterclockwise.
Raise
Anti-Tip
Legs
Door
Door
Door
Door
2

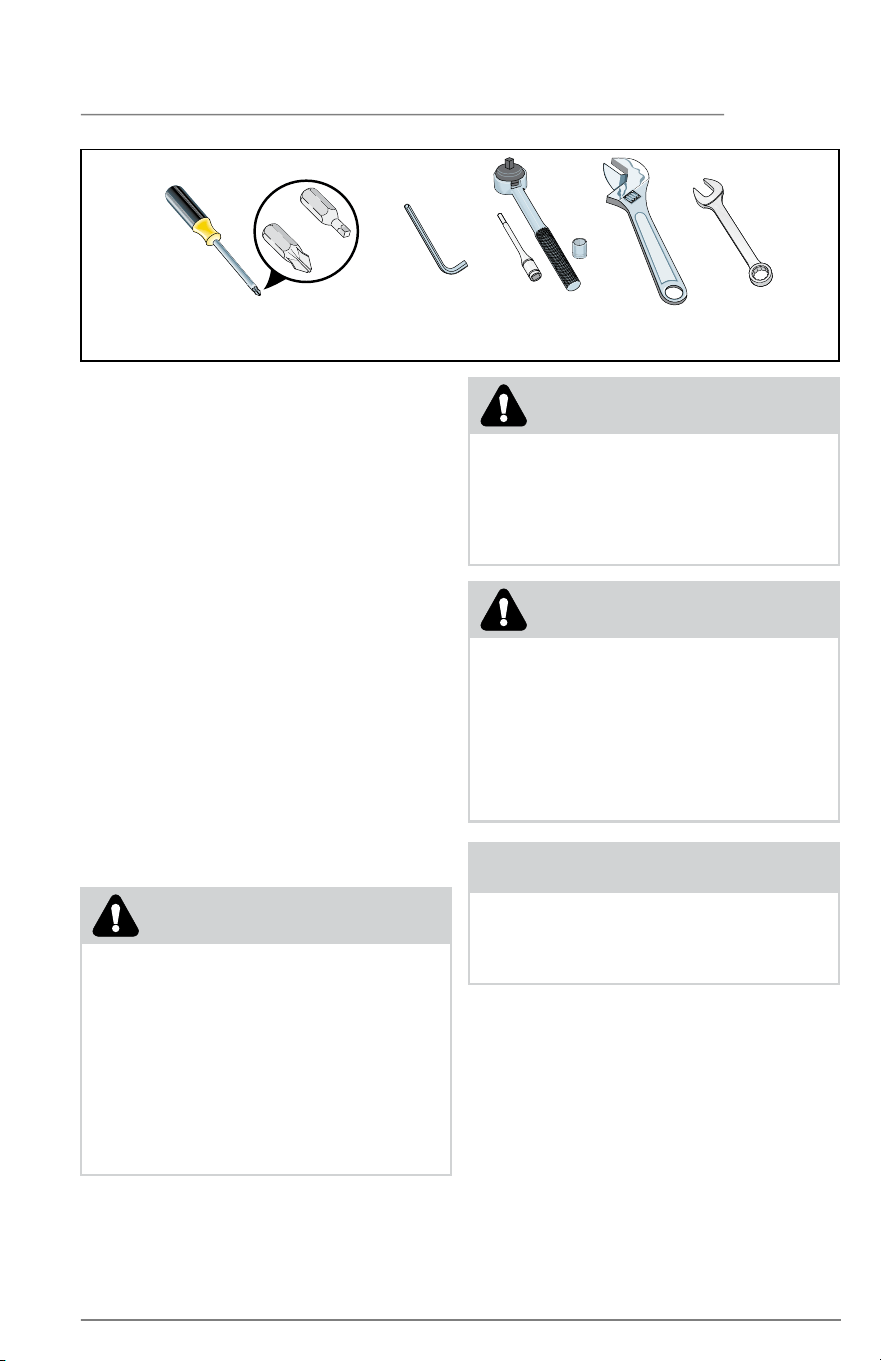

Before Installing The Water Supply Line, You Will Need:
• Basic Tools: adjustable wrench, flat blade screwdriver,
and Phillips
TM
screwdriver.
• Access to a household cold water line with water
pressure between 30 and 100 psi.
A water supply line made of¼" (6 mm) OD, copper or
braided, flexible stainless steel tubing. To determine the
length of tubing needed, measure the distance from the
ice maker inlet valve at the back of the refrigerator to
your cold water pipe. Then add approximately 7', so the
refrigerator can be moved out for cleaning.
• A shuto valve to connect the water supply line to your household water system. DO NOT use a
self-piercing type shuto valve.
• A compression nut and ferrule (sleeve) for connecting a copper water supply line to the ice maker
inlet valve.
Water Supply Connection
WARNING
To avoid electric shock, which
can cause death or severe
personal injury, disconnect
the refrigerator from electrical
power before connecting a water
supply line to the refrigerator.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided, flexible tubing is recommended for the water supply
line. Water supply tubing made of ¼" (6 mm) plastic is not recommended to be used.
Plastic tubing greatly increases the potential for water leaks, and the manufacturer will
not be responsible for any damage if plastic tubing is used for the supply line.
• DO NOT reuse compression fitting or use thread seal tape.
• DO NOT install water supply tubing in areas where temperatures fall below freezing.
• Chemicals from a malfunctioning softener can damage the ice maker. If the ice maker is
connected to soft water, ensure that the softener is maintained and working properly.

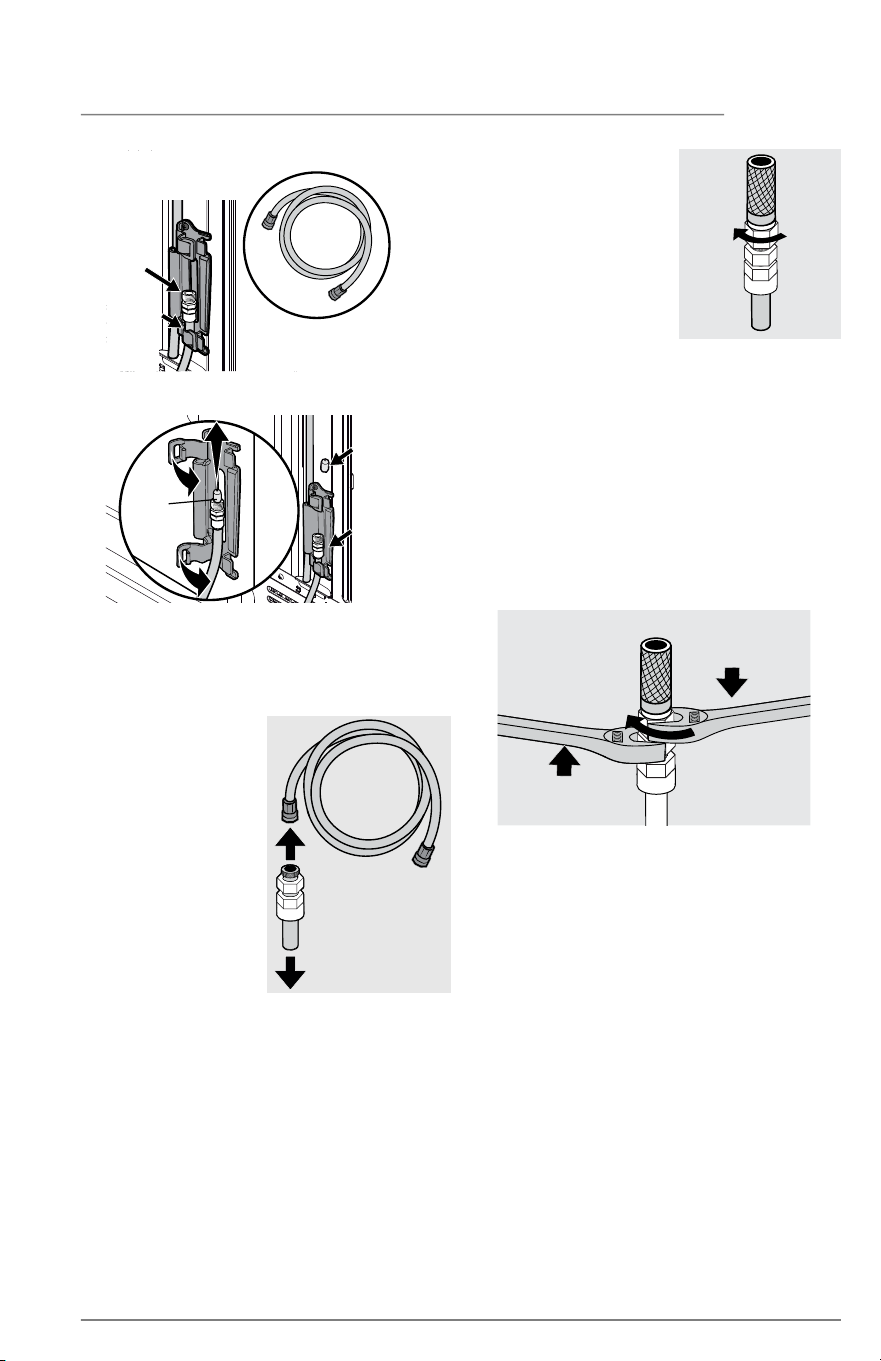

To Connect Water Supply Line To Household Water Supply
1. Disconnect the refrigerator from the electrical power source.
2. Place the end of the water supply line into a sink or bucket. Turn ON the water supply and flush the
supply line until the water is clear. Turn OFF the water supply at shuto valve.
3. Open the locking clips and grab the water line coming from the refrigerator. Remove the plastic cap
from the water inlet fitting and discard the cap.
4. If using (recommended) stainless steel braided tubing, the nut and ferrule are already assembled on
the tubing. Slide the compression nut onto the water inlet fitting and finger tighten.
NOTE
Check with local building authority for
recommendations on water lines and
associated materials prior to installing
the refrigerator. Depending on local/state
building codes, we recommend, for homes
with existing valves, using Smart Choice®
Water Line Kit 5304437642 with a 6' (1.8
m) Stainless Steel Water Line.
5. Using ½" and
7
/
16
" wrenches (one to hold
the household water line nut and the
other to hold the water inlet fitting nut),
tighten a half turn with a wrench.
DO NOT overtighten.
6. Replace the connected tubes into clips,
and lock the clips back in place to keep
the tubing in the right position.
7. Turn ON the water supply at the
shuto valve and tighten any leaking
connections.
8. Reconnect the refrigerator to the
electrical power source.
9. Ensure the ice maker is turned ON.
10. Purge air from Ice & Water Dispenser
System.
by operating the water dispenser
for 3-4 minutes. This will require
dispensing several glasses of water.
Water
inlet
fitting
Plastic
tubing
to
water
valve
6 ft. (1.8 Meters) Stainless
Steel water line from
household water supply line
Connection to Household Water Supply
with 1/4" compression
fitting
Plastic
Cap
Remove
plastic cap
from water
inlet fitting
Water Inlet
Brass
Fitting
¼ inch
plastic tube
to water
valve
To
household
water
supply
To
unit
water valve
Place 7/16" wrench
here. Do not turn.
Place 1/2" wrench
here. Turn
clockwise.

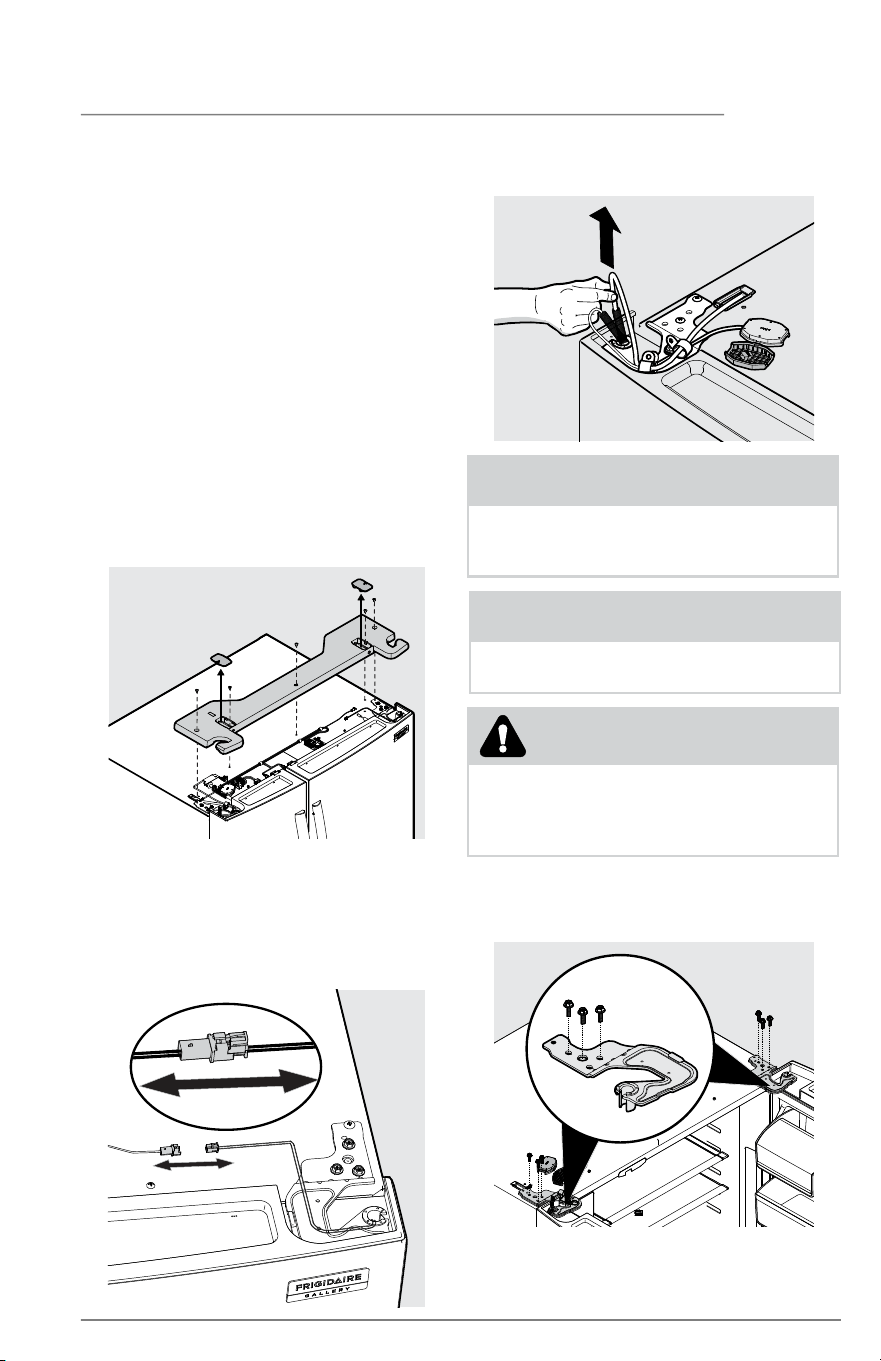

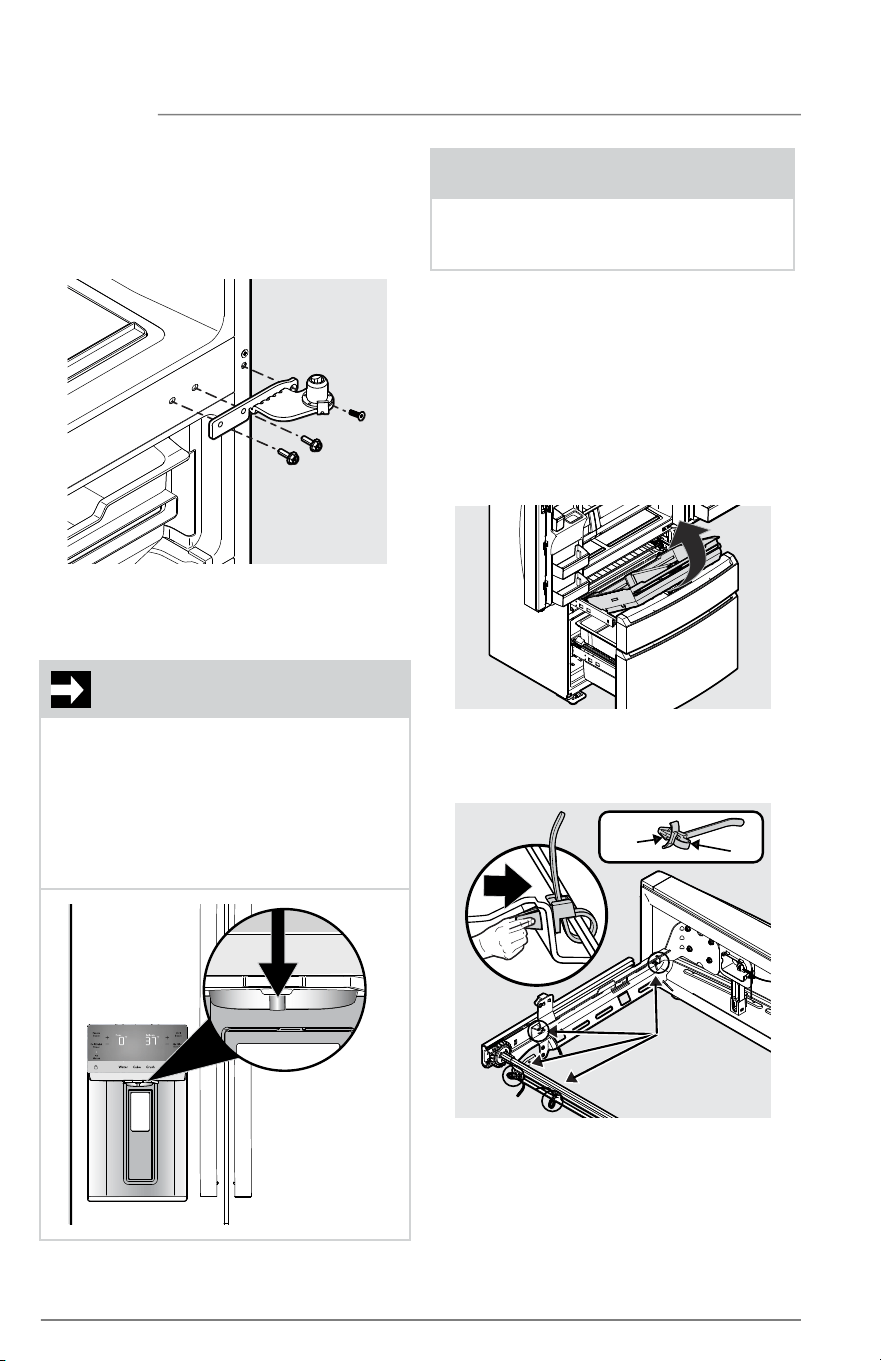

Door Removal
Removing the Doors:
3
WARNING
Turn off power to the refrigerator by
unplugging the power cord from the
wall outlet.
1. Remove all screws from the top hinge
cover, including those under dampener
covers, and lift up. See Figure 1.
2. Disconnect any electrical harnesses
running from the door to the hinge
cover. See Figure 2.
3. Gently pull up on the water line to remove
it from the door. See Figure 3.
4. Remove three 8 mm bolts from both
top hinges. See Figure 4.
Lift the doors up o the lower hinges
and carefully set aside.
5. To gain access to the lower hinge, extend
the drawer. Unscrew the 3 lower hinge
screws and slide the hinge inward.
See Figure 5.
NOTE
Approximately 4' of water tube will be
pulled from the refrigerator door. Use
care while pulling the water tube from the
door to be sure the tube does not kink.
Figure 1
Figure 2
Waterline
Figure 3
x2
Figure 4
Figure 5
IMPORTANT
Open the refrigerator doors to a 90° angle
before removing or installing the doors on the
lower hinges.
To reinstall the doors:
See
Use & Care
Manual for details.
IMPORTANT
If you remove the doors during product
installation, ensure the water line tubing
goes through the hole at the top of the
water dispenser your unit is equipped
with and the tubing is inserted in the
protective metal spring (protecting
the water tube from the hinge) during
door reinstallation.
Front Water Dispenser
Side Water Dispenser
