Operating and Installation Instructions
Speed Oven
To prevent accidents and machine damage, read these instructions
before installation or use.
en-US, CA M.-Nr. 10 228 070
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
2
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since
open-door operation can result in harmful exposure to microwave
energy. It is important not to defeat or tamper with the safety
interlocks.
(b) Do not place any object between the oven front and the door or
allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly
important that the oven door closes properly and that there is no
damage to the: (1) door (bent), (2) hinges and latches (broken or
loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except
properly qualified service personnel.
Contents
3
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY .......................................................................................... 2
IMPORTANT SAFETY INSTRUCTIONS ................................................................ 6
Guide to the Speed Oven ................................................................................... 18
Control panel ....................................................................................................... 19
Mode selector ....................................................................................................... 19
Display................................................................................................................... 20
Symbols in the display ..................................................................................... 20
Rotary selector ...................................................................................................... 20
Sensor buttons...................................................................................................... 21
Features................................................................................................................ 23
Model numbers .................................................................................................... 23
Data plate ............................................................................................................. 23
Items included....................................................................................................... 23
Standard and optional accessories....................................................................... 23
Glass Tray......................................................................................................... 23
Wire rack with non-tip safety notches.............................................................. 24
Speed Oven controls ............................................................................................ 26
Oven safety features ............................................................................................. 26
System lock for the oven ............................................................................. 26
Safety shutoff ...................................................................................................26
Cooling fan ....................................................................................................... 26
PerfectClean surfaces ........................................................................................... 26
Before using for the first time ............................................................................ 27
Before using for the first time................................................................................ 27
Setting the time of day for the first time ............................................................... 27
Heating the oven ................................................................................................... 27
Settings ................................................................................................................ 29
Changing the time of day ...................................................................................... 29
Changing factory default settings ......................................................................... 30
System lock ..................................................................................................... 34
Timer..................................................................................................................... 36
Setting the timer.................................................................................................... 36
Guide to the modes............................................................................................. 38
Solo Modes ........................................................................................................... 38
Microwave (Solo) ............................................................................................ 39
Combination modes.............................................................................................. 40
Contents
4
Microwave power ................................................................................................ 41
How it works.......................................................................................................... 41
Microwave power level.......................................................................................... 41
Selecting cookware............................................................................................. 42
Containers suitable for microwave use ................................................................. 42
Unsuitable containers for microwave use ............................................................. 44
Testing dishes for their suitability .......................................................................... 45
Placing the dish in the Speed Oven ...................................................................... 46
Lid.......................................................................................................................... 46
Energy saving tips ............................................................................................... 48
Solo modes .......................................................................................................... 49
Quick Guide........................................................................................................... 49
Cooling fan ........................................................................................................... 49
Changing the temperature..................................................................................... 50
Temperature indicator....................................................................................... 50
Turning a cooking program On / Off automatically ............................................... 51
Setting the duration.......................................................................................... 51
Setting a cooking duration and a finish time....................................................52
At the end of the cooking duration................................................................... 53
Changing the cooking duration ........................................................................ 53
Deleting a cooking duration ............................................................................. 53
Deleting a finish time ........................................................................................ 54
Microwave (Solo) .......................................................................................... 55
Quick Guide........................................................................................................... 55
Cooling fan ........................................................................................................... 56
Changing the microwave power............................................................................ 56
Changing the cooking time ................................................................................... 56
Turning a cooking program On / Off automatically ............................................... 57
Setting a finish time.......................................................................................... 57
Deleting a finish time ........................................................................................ 57
Combi Modes....................................................................................................... 58
Quick Guide........................................................................................................... 58
Cooling fan ........................................................................................................... 59
Changing the cooking time ................................................................................... 59
Changing the microwave power............................................................................ 60
Changing the temperature..................................................................................... 60
Turning a cooking program On / Off automatically ............................................... 60
Minute +................................................................................................................ 61
Contents
5
Popcorn ................................................................................................................ 62
Bake...................................................................................................................... 63
Roast .................................................................................................................... 65
Broil....................................................................................................................... 67
Microwave: Defrosting/Reheating/Cooking ..................................................... 69
Tables for defrosting, reheating and cooking food using Microwave (Solo) ... 72
Table for defrosting food .................................................................................. 73
Table for reheating food ................................................................................... 74
Table for cooking food...................................................................................... 75
Defrosting without Microwave power ............................................................... 76
Canning ................................................................................................................ 77
Preparation ............................................................................................................ 77
Canning with Convection Bake ...................................................................... 78
Canning with Microwave ................................................................................ 78
Gentle Bake.......................................................................................................... 80
Frozen food .......................................................................................................... 81
Cleaning and care ............................................................................................... 82
Unsuitable cleaning agents ................................................................................... 82
Tips........................................................................................................................ 83
Normal soiling........................................................................................................ 83
Stubborn soiling .................................................................................................... 84
Lowering the Browning / Broiling element ............................................................ 85
Frequently asked questions ............................................................................... 86
Technical Service................................................................................................. 91
Caring for the environment ................................................................................ 92
Electrical connection .......................................................................................... 93
Installation diagrams........................................................................................... 94
Appliance and cut-out dimensions ....................................................................... 94
Installation in a tall cabinet ............................................................................... 94
Undercounter installation ................................................................................. 95
Combination installation with an oven into a tall cabinet.................................96

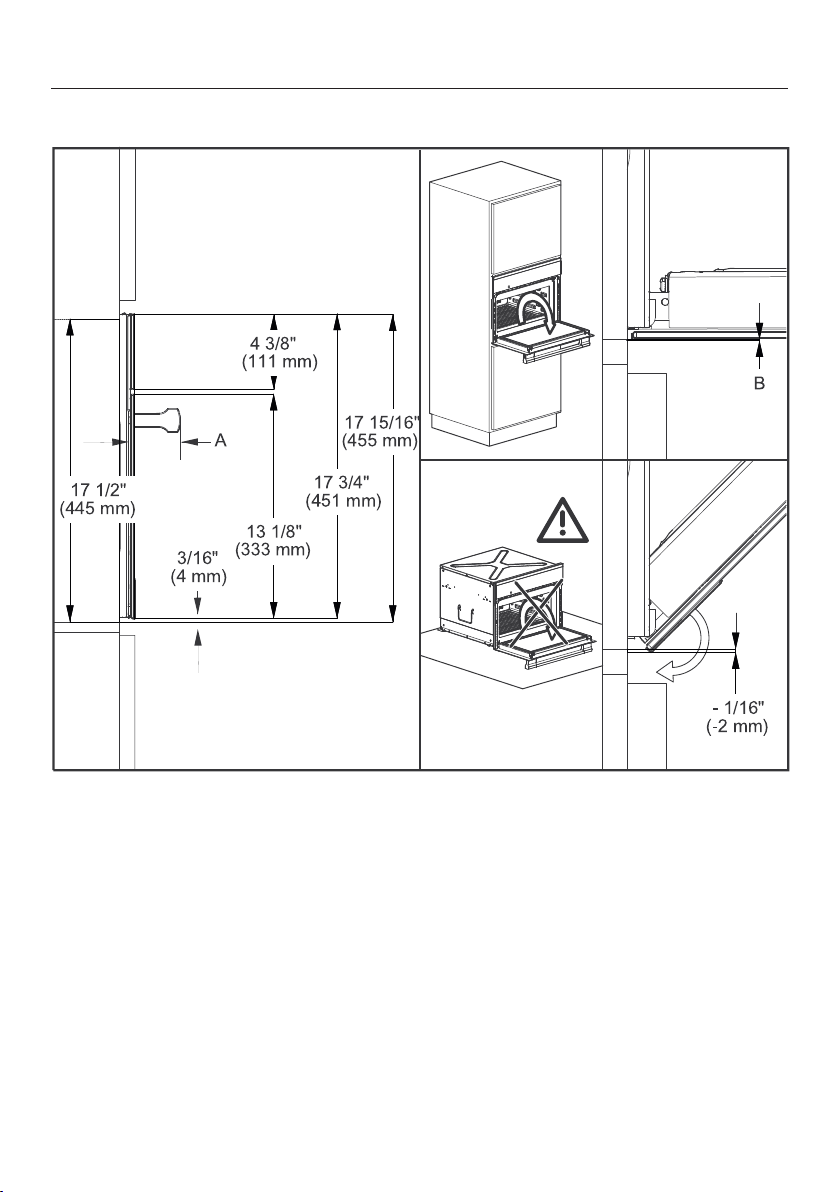

Front dimensions................................................................................................... 97
Installation............................................................................................................ 98
IMPORTANT SAFETY INSTRUCTIONS
6
When using the appliance, follow basic safety precautions, including the
following:
Read all instructions before installation and use of the oven to prevent
accidents and machine damage.
WARNING - To reduce the risk of burns, electric shock, fire, injury to persons,
or exposure to excessive microwave energy:
This appliance complies with current safety requirements.
Improper use of the appliance can lead to personal injury and
material damage.
Read all instructions before installing or using the oven for the first
time. Only use the appliance for its intended purpose.
Keep these operating instructions in a safe place and pass them
on to any future user.
Read and follow the specific “PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY”
found at the beginning of this manual.
Only use the appliance for its intended purpose. Install or locate
this appliance only in accordance with the provided installation
instructions and all local codes.
Appropriate use
This appliance is intended for residential use only. Use only as
described in these operating instructions.
This appliance is not intended for outdoor use.
The oven is intended for domestic use only: cooking, baking,
roasting, broiling, canning, defrosting and reheating of food.
Only use this appliance for its intended purpose.
IMPORTANT SAFETY INSTRUCTIONS
7
Risk of fire! Do not use the speed oven to store or dry items which
could ignite easily.
If such items were dried in the Speed Oven, the moisture in the item
would evaporate causing it to dry out and even self-ignite.
Persons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.
Safety with children
Children should not be left alone or unattended in an area where
an oven is in use. Never allow children to operate, sit or stand on any
part of the oven. Caution: Do not store items of interest to children
in cabinets above an oven. Children climbing on the oven to reach
these items could be injured.
Burn Hazard - Do not allow children to use the oven.
Danger of suffocation! Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out of the reach of children.
Danger of burns. The oven gets hot at the oven door glass, the
vapor vent, the handle and the operating controls. Do not allow
children to touch or play in, on or near the oven.
Technical safety
This appliance must be installed and connected in compliance
with the installation instructions.
Unauthorized installation, maintenance, and repairs can cause
considerable danger for the user. Installation, maintenance, and
repairs must only be carried out by a Miele authorized technician.
Maintenance by the user: Never repair or replace any part of the
appliance unless the instructions specifically recommend doing so.
Service work should only be performed by a qualified technician.
IMPORTANT SAFETY INSTRUCTIONS
8
Before installing the oven, check for externally visible damage. Do
not operate a damaged appliance.
Reliable and safe operation of the oven can only be guaranteed if
it is connected to the power supply.
Operating a damaged appliance can result in microwave leakage
and present a hazard to the user. Do not use the appliance if:
– the door is warped or bent,
– the door hinges are loose,
– holes or cracks are visible in the housing, the door, the door seal
or the oven interior walls.
To guarantee the electrical safety of this appliance, continuity
must exist between the appliance and an effective grounding
system. This appliance must be grounded. Connect only to properly
grounded outlet. See “Electrical connection - GROUNDING
INSTRUCTIONS”. It is imperative that this basic safety requirement
be met. If there is any doubt, have the electrical system of the house
checked by a qualified electrician.
Proper installation: Make sure that your appliance has been
installed correctly and that it has been grounded by a qualified
technician.
Before installation, make sure that the voltage and frequency
listed on the data plate correspond with the household electrical
supply. This data must correspond to prevent injury and machine
damage. Consult a qualified electrician if in doubt.
Before installation or service, disconnect the power supply to the
work area by
– removing the fuse,
– “tripping” the circuit breaker, or
– unplugging the unit. Pull the plug not the cord.
IMPORTANT SAFETY INSTRUCTIONS
9
Extension cords do not guarantee the required safety of the
appliance (e.g. danger of overheating). Do not use an extension cord
to connect this appliance to electricity.
The oven is not to be operated until it has been properly installed
within cabinetry.
Danger of electric shock!
Under no circumstances open the outer casing of the appliance.
This appliance must not be used in a non-stationary location (e.g.
on a ship).
Do not repair or replace any part of the appliance unless
specifically recommended in the operating instructions. All other
servicing should be referred to a qualified technician.
Defective components should be replaced by Miele original parts
only. Only with these parts can safety of the appliance be assured as
intended by the manufacturer.
In order for the oven to function correctly, it requires an adequate
supply of cool air. Ensure that the air flow is not impaired (e.g.
insulation in the cabinetry). Also be sure that the cool air supply is
not heated by other sources nearby.
If the oven is installed behind a cabinet door, do not close the
door while the oven is in operation. Heat and moisture can build up
behind the closed door and cause damage to the oven, cabinetry
and flooring. Do not close the door until the oven has completely
cooled down.
IMPORTANT SAFETY INSTRUCTIONS
10
Correct use
Danger of burns!
The Speed Oven becomes hot when in use.
Depending on the mode selected, you could burn yourself on the
heating elements, oven interior, cooked food or oven accessories.
Wear pot holders when placing food in or removing food, or when
making adjustments to items being cooked in the hot Speed
Oven.
Caution: Heating elements may be hot even though they are not
glowing. Interior surfaces of an oven become hot enough to cause
burns. External parts of the oven such as the door glass, vents, and
the control panel can become hot. During and after use, do not
touch, or let clothing or other flammable materials come into contact
with heating elements or interior surfaces of the oven until they have
had sufficient time to cool.
Do not let food sit in the oven for an extended period of time
before or after cooking. Doing so can result in food poisoning or
sickness.
It is important that the heat is allowed to spread evenly
throughout the food being cooked.
This can be achieved by stirring and/or turning the food, and
observing a sufficiently long standing time, which should be added
to the time needed for cooking, reheating or defrosting.
Use only dry, heat-resistant potholders. Moist or damp potholders
used on hot surfaces may result in steam burns. Do not let
potholders come in contact with oil or grease. Do not substitute dish
towels or other bulky items for potholders. Do not let potholders
touch hot heating elements.
Loose fitting or hanging garments present a fire hazard. Wear
proper apparel while operating the appliance.
Do not heat unopened containers of food in the oven, pressure
may cause the containers to burst and result in injury.
IMPORTANT SAFETY INSTRUCTIONS
11
To prevent burns, always place oven racks at their desired height
while the oven is cool. If the rack must be moved while the oven is
hot, do not let pot holders touch hot heating elements.
Open the door carefully to allow hot air or steam to escape before
placing or removing food.
To prevent burns, allow the heating elements to cool before
cleaning by hand.
Do not leave the oven door open unnecessarily as someone may
trip over it or be injured by it.
Never leave the appliance unattended when cooking with oil or
fat. They can ignite if overheated. Do not use the oven for frying.
Do not use water on grease fires. Turn off the Speed Oven
immediately and suffocate the flames by keeping the door closed.
Never store flammable liquids and materials in, above or under an
oven, or near cooking surfaces.
To avoid fueling any flames, do not open the Speed Oven door if
smoke occurs inside the appliance. Interrupt the process by turning
the appliance off and disconnecting it from the power. Do not open
the door until the smoke has dissipated.
Do not use the oven to heat the room. The high temperatures
radiated could cause objects near the oven to catch fire.
WARNING
NEVER use this appliance as a space heater to heat or warm the
room. Doing so may result in carbon monoxide poisoning and
overheating of the oven.
WARNING
NEVER use this appliance as storage space. Doing so may result
in carbon monoxide poisoning and overheating of the oven.
IMPORTANT SAFETY INSTRUCTIONS
12
WARNING
NEVER cover any slots, holes or passages in the oven bottom or
cover an entire rack with materials such as aluminum foil. Doing so
blocks air flow through the oven and may cause carbon monoxide
poisoning. Aluminum foil linings may also trap heat, causing a fire
hazard.
Please be aware that durations for using microwave power are
often considerably shorter when cooking, reheating and defrosting
than when using modes without microwave power. Excessively long
cooking times can lead to food drying out and burning or could even
cause it to catch fire.
Be sure you keep to recommended broiling times when using the
“Broil” mode. Do not use the “Microwave” mode for dehydrating
items such as flowers, herbs, bread, or rolls. Never use “Broil”
modes for pre-baked products such as bread or rolls or for drying
flowers or herbs. Use “Convection Bake” for these items and
monitor the process carefully.
Use caution when using alcohol in your recipes. Alcohol
evaporates at high temperatures but may, in rare circumstances,
combust on the hot heating elements.
Dishes with hollow knobs or handles are not suitable for use with
microwave modes. Moisture which has gathered in the hollow
recesses can cause pressure to build up and the item can explode.
Fire hazard! Using Microwave or Microwave combination
modes with plastic dishes which are not microwave safe can cause
them to melt and damage the appliance.
Do not use any containers or cutlery made from or containing metal,
aluminum foil, lead, crystal glassware, temperature-sensitive
plastics, wooden utensils or cutlery, metal clips or plastic or paper
covered wire ties. Do not use plastic containers with the foil lid only
partially removed (see “Containers suitable for microwave use”).
IMPORTANT SAFETY INSTRUCTIONS
13
For modes without microwave power: Plastic containers which are
not suitable for use in an oven can melt at high temperatures and
can even damage the oven or catch fire.
Only use containers which are declared by the manufacturer as
being suitable for use in an oven. Follow the manufacturer's
instructions on use.
Do not leave the microwave oven unattended when reheating or
cooking food in disposable containers made of plastic, paper or
other inflammable materials.
Before using single-use containers, make sure they are suitable for
use in microwave ovens (See “Containers suitable for microwave use
- Plastics”).
Do not reheat food in the oven in heat-retaining bags which are
intended for use in normal ovens.
These heat-retaining bags usually contain a thin layer of aluminum
foil which reflects microwaves.This reflected energy can, in turn,
cause the outer paper covering to become hot and ignite.
The Speed Oven can be damaged when using Microwave or
Microwave Combination programs if it is empty or incorrectly loaded.
For this reason please do not use modes with microwave power to
pre-heat cookware or to dry herbs.
Instead use Convection Bake for these procedures.
When using residual heat to keep food in the oven warm, the high
humidity and amount of condensation in the Speed Oven can cause
corrosion. The control panel, the countertop or the cabinetry can
also suffer damage.
Always cover food when using Microwave . Once food is cooked
through, use a lower power for continued cooking to reduce the
amount of steam produced from the food. When using residual heat
do not turn the Speed Oven off. Instead set the temperature to the
lowest setting and leave the oven on the selected mode. The fan will
then remain on automatically and dissipate the moisture.
IMPORTANT SAFETY INSTRUCTIONS
14
It is recommended to cover all cooked food that is left in the oven
to be kept warm. This will prevent moisture from condensing on the
interior of the oven.
A build-up of heat can cause damage to the coating on the floor
of the oven.
When using Convection Bake do not line the floor of the Speed
Oven with anything, e.g. aluminum foil or oven liners. Universal trays
and glass trays should not be placed directly on the oven floor.
The door can support a maximum weight of 17.5lbs (8kg). Do not
sit on or lean against an open door, and do not place heavy objects
on it. Also make sure that nothing can get trapped between the door
and the oven cavity. The oven could get damaged.
When heating food and drinks, remember that the heat is created
in the food itself, and that the container will normally be cooler. The
dish is only warmed by the heat of the food. The temperature of the
container is not an indication of the temperature of the food or liquid
in it.
Check the food for the desired temperature after removing it. This is
particularly important when preparing food for babies. Shake or
stir baby milk and food thoroughly after heating, and try it for
temperature to ensure that it will not scald the baby.
The Speed Oven is not suitable for cleaning or disinfecting items.
Items can get extremely hot and there is a danger of burning when
the item is removed from the appliance.
Do not cook or reheat food or liquids in sealed containers, jars or
bottles. With baby bottles, the screw top and nipple must be
removed.
Otherwise pressure will build up which can cause the bottle or
container to explode. Risk of injury.
IMPORTANT SAFETY INSTRUCTIONS
15
When boiling and in particular when re-heating liquids, milk,
sauces etc., using microwave power without a boiling rod, the
boiling point of the liquid may be reached without the production of
typical bubbles. The liquid does not boil evenly throughout. This so-
called 'boiling delay' can cause a sudden build up of bubbles when
the container is removed from the oven or shaken. This can lead to
the liquid boiling over suddenly and explosively. Danger of scalding
and burning! The formation of bubbles can be so strong that the
pressure forces the oven door open, with a danger of injury and
damage.
Before cooking or reheating, thoroughly stir the liquid. Then wait at
least 20seconds before removing the container from the oven.
During cooking and reheating you can also place a glass rod or
similar in the container and use as a boiling rod, if available.
Eggs can be cooked without their shells using microwave power
only if the yolk membrane has been punctured several times first.
The pressure could otherwise cause the egg yolk to explode.
Eggs in their shells will explode if cooked with microwave power,
even after taking them out of the oven.
They can only be cooked in their shells using microwave heat in a
specially designed egg-boiling device available from specialist
shops. Hard-boiled eggs must not be reheated in the microwave
oven either as they too will explode.
Food with a thick skin or peel, such as tomatoes, sausage,
potatoes and eggplant, should be pierced or cut in several places to
allow steam to escape and prevent the food from bursting.
To check food temperature, first interrupt the cooking process.
Only use a thermometer specifically approved for food use to
measure the temperature of the food. Do not use a thermometers
containing mercury or liquid as these are not suitable for use with
very high temperatures and break very easily
IMPORTANT SAFETY INSTRUCTIONS
16
Do not use the oven to heat up heating pads filled with grains, gel,
etc.
These pads can ignite even after they have been removed from the
Speed Oven.
This oven must only be used for cooking food. Fumes, vapors or
heat given off by glues, plastics or flammable liquids and materials
could be hazardous. Do not use it as a dryer, kiln, dehumidifier, etc.
Do not obstruct the flow of combustion and ventilation air.
Do not let metal objects (aluminum foil, pans) come in contact
with the heating element.
Make certain that the power cords of small appliances do not
come in contact with or get caught in the oven door.
IMPORTANT SAFETY INSTRUCTIONS
17
Cleaning and maintenance
Do not use a steam cleaner to clean this oven.
Steam could penetrate electrical components and cause a short
circuit.
Only clean parts listed in these Operating and Installation
Instructions.
Scratches on the door glass can cause the glass to break.
Do not use abrasive cleaners, hard sponges, brushes or sharp metal
tools to clean the door glass.
To avoid corrosion on the stainless steel surfaces of the Speed
Oven, remove any splashes on the interior walls of the oven from
food or liquids containing salt.
Do not use a protective coating to line the oven and do not use
commercial oven cleaner unless certified for use in a self-cleaning
oven.
Accessories
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty will become void.
SAVE THESE INSTRUCTIONS AND REVIEW THEM PERIODICALLY
Guide to the Speed Oven
18
a
Control panel
b
Upper heating element
c
3 Shelf levels for the glass tray and rack
d
Front frame with data plate
e
Door
Control panel
19
a
On / Off button
To turn the appliance on and off
b
Mode selector
To select oven modes
c
Display
Displays the time of day and settings
d
Rotary selector
To select values
e
“OK” sensor button
Confirms settings and instructions
f
“Back” sensor button
To go back one step at a time
g
“Timer” sensor button
To set the timer
h
“Light” sensor button
To turn the oven interior lighting on
and off
i
“Settings” sensor button
To access settings
j
“Popcorn” sensor button
To start the “Popcorn” function
k
“Minute +” button
To start the “Minute +” function
l
Optical interface
(for service technician use only)
Mode selector
To select an oven mode.
It can be turned clockwise or counter-
clockwise.
Oven modes
Maxi Broil
Defrost
Microwave
Combi Bake
Combi Auto Roast
Rapid PreHeat
Convection Bake
Convection Broil
Auto Roast
Gentle Bake
Control panel
20
Display
The display shows the time of day or
your settings.
°C °F
g lb/oz
h min
Start
Symbols in the display
Depending on the position of the mode
selector and/or which button is
pressed, the following symbols will
appear:
Symbol / Mode
Timer Any
Temperature
indicator
Operating
mode
Temperature
Microwave power
level
Cooking time
Finish time
Start Start Microwave
Settings
Time of day
System lock
A mode can only be set or changed if
the mode selector is in the correct
position.
Rotary selector
Use the rotary selector to set
temperatures, microwave powers and
durations.
Turning it clockwise will increase the
values, and turning it counter-clockwise
will decrease them.
It can also be used to highlight a mode
by moving the in the display.
It can be turned clockwise or counter-
clockwise.
Control panel
21
Sensor buttons
The sensor buttons react to touch. Each touch is confirmed with an audible tone.
The tone can be turned on or off by selecting the status in the settings (see
“Settings”).
Sensor
button
Function Notes
OK For accessing
functions and
saving settings
When functions are marked with a they can be
accessed by selecting OK. As long as the triangle
is flashing you can change the selected
function.
Press OK to save the change.
Back To go back a step
Timer For setting the
kitchen timer
If the time of day is visible, you can enter a timer
duration at any time, e.g. when boiling eggs on the
cooktop.
If the display is turned off, the “Timer” button will
not react until the oven is turned on.
Light For turning the
oven interior
lighting on and off
If the time of day display is turned on, the oven
interior lighting can be turned on and off by
touching the “Light” sensor button, for example
when cleaning the oven.
If the time of day display is turned off, the “Light”
sensor button will not react until the oven is turned
on.
The oven interior lighting turns off after 15 seconds
during cooking or remains constantly turned on,
depending on the setting selected.
Control panel
22
Sensor
button
Function Notes
Settings To access
functions
If the time of day is visible in the display and the
mode selector is in the position, “Settings,”
“Time of Day,” and “System Lock” will appear
when the “Settings” sensor button is tapped.
If the time of day display is turned off, the
“Settings” sensor button will not react until the
oven is turned on.
During the cooking process, you can adjust the
temperature , cooking duration , and finish
time and set the microwave power level in
the combi modes by selecting the appropriate
sensor button.
Popcorn “Popcorn” function The Microwave mode starts with a microwave
power level of and a duration of 3 minutes
(see “Popcorn”).
The mode selector must be pointing to •.
Minute
+
“Minute +” function The microwave starts at maximum microwave
power level and a cooking time of 1 minute (see
the “Minute +” chapter). Tapping the button
increases the cooking time step by step.
The mode selector must be pointing to •.
Features
23
Model numbers
A list of the ovens described in these
operating instructions can be found on
the back page.
Data plate
The data plate located on the front
frame of the oven is visible when the
door is open.
Printed on the data plate are the model
number, serial number and the
connection data (voltage/frequency/
maximum rated load) of the oven.
Have this information available when
contacting Miele Technical Service.
Items included
The following items are included with
this appliance:
– The operating and installation
instructions for using the Speed
Oven
– Screws for securing your appliance
into the cabinetry
– Various accessories
Standard and optional
accessories
This Speed Oven is supplied with a
glass tray and rack.
All accessories and cleaning and care
products in these instructions are
designed to be used with Miele ovens.
These can be ordered from the Miele
web store, Miele Technical Service, or
from your Miele dealer.
When ordering, please have ready the
model number of your oven and of the
desired accessories.
Glass Tray
The glass tray is suitable for use with all
operating modes.
Always use the glass tray when
using Microwave (Solo) .
Do not place items weighing more
than 17.5 lbs (8 kg) on it.
Do not place the hot glass tray on a
cold surface, such as a tiled or
granite countertop. The glass tray
could get damaged. Use a suitable
heat-resistant mat or pot rest.
Features
24
Wire rack with non-tip safety notches
The rack is only suitable for cooking in
Combination modes and modes that do
not use microwave. It is not suitable for
cooking in the Microwave (Solo)
mode.
Danger of burns! The rack gets hot
during the cooking process.
Use pot holders when placing food
in and taking food out of a hot oven.
Use of the rack with the Microwave
(Solo) mode can cause damage
to the oven and rack due to possible
sparking. The rack should be used
on a shelf level. Do not place it on
the floor of the oven.
Do not place items weighing more
than 17.5 lbs (8 kg) on the rack.
The rack has non-tip safety notches
which prevent it being pulled
completely out when it only needs to be
pulled out partially.
When pushing the rack back in,
always ensure that the safety
notches are at the back of the oven.
To remove the rack, lift it upwards
slightly at the front when the safety
notches connect with the sides of the
oven.
We recommend using the rack
together with the glass tray when
cooking items on the rack which
might drip.
Features
25
Round Baking Form HBF27-1
Microwave modes will damage the
Round Baking Form.
Do not use the round baking form
when using Microwave (Solo) or
Combi modes.
This circular form is suitable for cooking
fresh or frozen pizzas, flat cakes, tarts
and baked goods.
Place the round baking form on the
rack.
The surface has been treated with
PerfectClean enamel.
Miele Oven Cleaner
Miele oven cleaner is suitable for
removing stubborn soiling. It is not
necessary to preheat the oven before
use.
Features
26
Speed Oven controls
The oven controls enable you to use the
various cooking modes to bake, roast,
broil and reheat.
It also allows you to access:
– the time of day display,
– a kitchen timer,
– a timer to automatically turn cooking
programs on and off,
– settings that can be customized.
Oven safety features
System lock for the oven
The system lock prevents the oven from
being used unintentionally (see “System
lock ”).
The system lock will remain activated
even after a power failure.
Safety shutoff
A mode without microwave can be
started without selecting a cooking
duration. To prevent continuous use
and avoid the risk of fire, the oven will
turn itself off automatically after a time
between 1hour and 12hours
depending on the mode and
temperature selected.
If a combi mode is followed in quick
succession by another program using
microwave power, the magnetron
(which produces the microwaves)
cannot be turned on again until approx.
10seconds have elapsed. Therefore,
wait a short time before starting the
second process.
Cooling fan
The cooling fan comes on automatically
when a cooking program is started. The
cooling fan mixes hot air from the oven
cavity with cool room air before venting
it out into the kitchen through vents
located between the appliance door
and the control panel.
The cooling fan will continue to run for a
while after a cooking process to prevent
moisture building up in the oven, on the
control panel or on the surrounding
cabinetry. It will turn itself off
automatically after a while.
PerfectClean surfaces
The revolutionary PerfectClean finish is
a smooth, non-stick surface that is
exceptionally easy to clean.
Food and grime from baking or roasting
are easily removed.
Do not use ceramic knives, as these
will scratch the PerfectClean surface.
Follow the instructions in the “Cleaning
and Care” section of this manual so the
anti-stick and easy cleaning properties
are retained.
The oven compartment and the rack
have a PerfectClean finish.
Before using for the first time
27
Before using for the first time
The oven must not be operated
until it has been properly installed
within cabinetry.
The time of day can only be changed
when the mode selector is in the •
position.
Set the time of day.
Setting the time of day for the
first time
The time of day is shown in 12 hour
clock format.
After connection the oven to the
electrical supply will appear in the
display and a will flash under :
Use the rotary selector to enter the
time of day.
Confirm with OK.
The time of day is now saved.
To change the time of day to a 24-
hour format setting, choose in the
Settings menu (see “Settings”).
During a power outage, the time of
day will be saved for approx. 200
hours. If the power returns within this
period of time the current time of day
is displayed again. If the power is out
for an extended period of time the
time of day will need to be reset.
The time is day is turned off by default
(see “Settings - ”).
The display will appear dark when the
oven is turned off. The time of day
continues to run unseen in the
background.
Heating the oven
New ovens may have a slight odor
during their first use. Heating up the
oven for at least one hour with nothing
in it will eliminate the odor.
Ensure that the kitchen is well
ventilated while the appliance is
being heated up for the first time.
Close doors to other rooms to
prevent the smell spreading
throughout the house.
Remove any protective wrapping and
sticky labels from the oven.
Take all accessories out of the oven
and clean them (see “Cleaning and
care”).
Before heating the oven up, wipe the
interior with a damp cloth to remove
any dust or bits of packaging that
may have accumulated in the oven
cavity during storage and unpacking.
Before using for the first time
28
Turn on the oven.
Select Convection Bake .
The default temperature appears in the
display and a flashes under :
°F
Use the rotary selector to set the
maximum temperature possible.
Confirm with OK.
The oven heating will turn on.
Heat up the oven for at least an hour.
After at least an hour:
Turn the mode selector to •.
After heating up for the first time
Danger of burns! Allow the oven
to cool before cleaning.
Select “Light” to turn on the oven
light.
Clean the oven interior with warm
water and liquid dish soap, applied
with a soft sponge or microfiber
cloth.
Dry all surfaces with a soft cloth.
Turn the lighting and the oven off.
Leave the oven door open until the
oven interior is completely dry.
Settings
29
Changing the time of day
The time of day can only be changed
when the oven is turned on and the
mode selector is at the position.
Turn on the oven.
Select “Settings”.
Use the rotary selector to move the
until it appears under .
Confirm with OK.
The symbol will flash under .
Use the rotary selector to enter the
time of day.
Confirm with OK.
The time of day is now saved.
During a power failure, the time of day
will be saved for approx. 200 hours.
When the power returns within this
period of time the current time is
displayed again.
After an extended power failure, the
time of day will need to be reset.
Settings
30
Changing factory default
settings
The appliance is supplied with a
number of default settings (see the
“Settings overview” chart).
A setting can be changed by altering its
status.
The settings can only be changed
when the oven is turned on and the
mode selector is at the position.
Select “Settings”.
If necessary, use the rotary selector
to move the symbol until it
appears under Settings.
Confirm with OK.
appears:
If you would like to change another
setting, use the rotary selector to
select the appropriate number.
Confirm with OK.
The setting is selected and the current
status appears, e.g. .
To change the status:
Use the rotary selector to select the
desired status.
Confirm with OK.
The status is saved and the setting
appears again.
If you would like to change additional
settings, repeat the process.
If you do not wish to change the
setting shown and would like to move
to another setting select Back.
If you have completed changing
settings, select Settings.
The settings will remain in memory
even in the event of a power failure.
Settings
31
Settings overview
Setting Status
Time of day
display
* The time of day display is turned off.
The display is dark when the oven is turned off. The
time of day continues to run unseen in the background.
If you have selected status , the oven must be turned
on before it can be used. This also applies for the Timer
and Light.
The oven also switches off automatically if no settings
are selected within a certain period of time (approx. 30
minutes).
The time of day display is turned on
and is visible in the display.
Buzzer
volume
The buzzer is Off.
to
*
The buzzer is On.
The volume can be changed. The corresponding buzzer
will be heard when a status is selected.
Keypad tone
The keypad tone is turned off.
* The keypad tone is turned on.
Clock format
The time of day is shown in a 24-hour format.
* The time of day is shown in the 12-hour format.
If you change the clock after 1 pm (13:00) from a 12-
hour clock to a 24-hour clock, you will need to update
the hours for the time of day accordingly.
Temperature
unit
° The temperature is displayed in Celsius.
° * The temperature is displayed in Fahrenheit.
* Factory default
Settings
32
Setting Status
Display
brightness
–
,
*
Different levels of brightness can be selected for the
display.
: Minimum brightness
: Maximum brightness
Lighting
* The oven interior lighting is on for 15 seconds and then
turns off automatically.
The oven interior lighting is permanently turned on.
Keep Warm
* Keep warm is deactivated.
Keep warm is activated.
Keep warm is activated when the Microwave mode
is selected with a minimum power of and a cooking
time of at least 5 minutes. If the food is not removed
from the oven at the end of the program, the Keep
Warm function will start automatically after approx. 2
minutes. The food will be kept warm for approx. 15
minutes using a power level of . The function turns
itself off if the door is opened.
Minute +
The Microwave mode starts at the maximum microwave
power level by default and a duration of 1 minute.
The microwave power level can be changed to , , ,
, or . The cooking duration can also be changed.
The maximum possible cooking duration depends on
the microwave power selected.
and : Max. 10minutes
to : Max. 5minutes
* Factory default
Settings
33
Setting Status
Popcorn
The microwave starts at the maximum power level of
by default and a duration of 3 minutes.
This setting meets the requirements for most microwave
popcorn manufacturers. The cooking duration can be
changed and set for a maximum of 4 minutes. The
microwave power cannot be changed.
Calibrate
temperature
*
to
The temperature can be modified, so that it is slightly
higher or lower than shown.
The higher the level, the higher the cooking
temperature.
Electrical
Version
The Speed Oven is connected to a 208 V power supply.
The Speed Oven is connected to a 220 V power supply.
The Speed Oven is connected to a 240 V power supply.
Demo Mode
* Select and press OK for approx. 4 seconds.
When appears in the display the demo mode is
deactivated.
Select and press OK for approx. 4 seconds.
When appears in the display the demo mode is
active.
The Speed Oven can be operated, but the oven heating
and the microwave modes do not work. For personal
use you do not need this setting.
* Factory default
System lock
34
The system lock prevents the oven
from being used unintentionally.
The system lock is set of off by default.
This can be changed by setting the
status :
– = Off
– = On
The status of the system lock can only
be altered when the oven is turned on
and the mode selector is at •.
To activate the system lock
Select “Settings”.
Use the rotary selector to move the
until it appears under .
The currently set Status appears:
Confirm with OK.
Use the rotary selector to set Status
.
Confirm with OK.
Select “Settings”.
The current time of day appears.
Turn the oven off.
The system lock is On.
When the appliance is turned on again,
the symbol will appear in the display
to remind you that the system lock has
been activated.
The system lock will remain activated
even after a power failure.
System lock
35
Deactivating the system lock for a
cooking process
Turn on the oven.
The and symbols will appear
along with the current time of day:
Press and hold OK until goes out.
The oven can now be used.
Deactivating the system lock
Turn on the oven.
Press and hold OK until goes out.
Select “Settings”.
Use the rotary selector to move the
until it appears under .
Confirm with OK.
The currently set status appears.
Use the rotary selector to set Status
.
Confirm with OK.
Select “Settings”.
The system lock is Off.
The symbol disappears.
Timer
36
The timer can be used to time any
activity in the kitchen, e.g. boiling eggs.
The timer can also be used at the same
time as a cooking program if a start and
finish time have been set, e.g. a
reminder to stir the dish or add
seasoning.
A maximum time of 99 minutes and 55
seconds can be set for the timer.
Setting the timer
Example: Boiling eggs and setting the
timer for 6 minutes and 20 seconds
Select “Timer”.
If you have selected the “- ”
setting for the time of day display, you
will need to turn the oven on before
you can set a kitchen timer time.
will appear in the display with
flashing under the Timer symbol:
min
Use the rotary selector to set the
kitchen timer time desired.
min
Confirm with OK.
The timer settings are saved and will
count down in seconds.
min
The Timer symbol indicates that the
timer has been set.
Timer
37
At the end of the timer
– the Timer symbol flashes,
– the time starts counting upwards,
– a buzzer will sound if turned on (see
“Settings - ”).
Select “Settings”.
The buzzer will turn off and the symbols
in the display will go out.
Resetting the timer
Select “Timer”.
The time previously set appears.
Use the rotary selector to change the
kitchen timer time.
Confirm with OK.
The changed time is saved and will
count down in seconds.
Canceling the timer
Select “Timer”.
Use the rotary selector to reduce the
kitchen timer time to .
Confirm with OK.
The timer has been canceled.
Guide to the modes
38
The oven has a wide range of modes for preparing a variety of foods.
Due to country-specific preferences for preparation of food, default temperatures
and temperature ranges in °F and °C do not correspond. The temperature values
have been defined as given in the chart.
Solo Modes
Mode Default
temperature
Temperature
range
Broil
For grilling meats and browning. The entire
Browning/Broiling element will glow red to
produce the required heat. Provides great
browning and searing results. The temperature
cannot be altered in this mode.
– –
Defrost
For gently defrosting of frozen food. The fan is
used to gently circulate the air inside the oven
cavity.
– –
Rapid PreHeat
This mode allows the oven to be heated to the
desired temperature quickly. Once the desired
temperature has been reached the oven mode
must be selected.
350 °F (160 °C) 200–475 °F
(100–250 °C)
Convection Bake
Use this mode for baking and roasting on several
levels at the same time.
350 °F (160 °C) 75–475 °F
(30–250 °C)
Convection Broil
This mode distributes hot air from the Browning/
Broiling element over the food using the fan. This
allows for a lower temperature to be used than
when using Broil . Ideal for broiling thicker cuts
of meat (e.g. chicken, roulades).
350 °F (200 °C) 200–500 °F
(100–220 °C)
Guide to the modes
39
Mode Default
temperature
Temperature
range
Auto Roast
For a premium result, the meat is seared at a high
temperature keeping meat tender and juicy.
350 °F (160 °C) 200–450 °F
(100–230 °C)
Gentle Bake
A combination of different heating elements
ensures excellent baked good, gratins and
lasagna.
350 °F (190 °C) 200–475 °F
(100–230 °C)
Microwave (Solo)
Mode Default power
level
Power level
range
Microwave
This mode is used to rapidly defrost, reheat and
cook food.
–
Guide to the modes
40
Combination modes
With microwave combination programs, the heating element and the magnetron
turn on and off alternating one after the other. The heating element browns the
food and the magnetron helps it cook quickly. A maximum microwave power level
of can be used with microwave combination programs.
Mode Default
temperature
Temperature
range
Combi Bake
For rapid heating and cooking of food, while
browning at the same time. Microwaves will speed
up your cooking process without sacrificing the
quality of food.
When baking do not set the microwave power
level higher than .
320°F (160°C) 85-425°F
(30-220°C)
Combi Auto Roast
For roasting at high temperatures and slow
cooking at low temperatures. The Microwaves will
speed up your cooking process without sacrificing
the quality of food. During the searing phase the
oven heats up to 450°F (230°C) to seal the meat.
Once this temperature has been reached, the
oven temperature automatically drops back down
to the pre-set cooking temperature for continued
roasting.
The maximum adjustable microwave power level
is .
320°F (160°C) 212-395°F
(100-200°C)
Microwave power
41
How it works
The Speed Oven contains a high-
frequency tube called a magnetron. It
converts electrical energy into
microwaves. The microwaves are then
distributed evenly throughout the metal
sides of the oven interior to reach the
food from all sides.
In order for microwaves to reach the
food, they must be able to penetrate the
cooking container being used.
Microwaves can pass through
porcelain, glass, cardboard, and
plastics, but not metal. Therefore, do
not use containers that are made of
metal or contain metal (in the form of
gold or silver trim, for example). The
metal reflects microwaves and this
could cause sparking. The microwaves
cannot be absorbed.
The microwaves will pass through any
suitable cookware and find their way
directly into the food. All food contains
moisture molecules which, when
subjected to microwave energy, begin
to oscillate at a rate of 2.5billion times
per second. The friction caused by
these vibrations creates heat, which
first starts developing around the
outside of the food and then slowly
penetrates it toward the center. The
more water a food contains, the faster it
is reheated or cooked. The heat is
produced directly in the food.
Advantages
– Food can generally be cooked in a
microwave with little or no liquid or
oil.
– Defrosting, heating, and cooking is
faster than when using a
conventional cooktop or oven.
– Nutrients, such as vitamins and
minerals, are generally retained.
– The natural color, texture, and taste
of food are not impaired.
Microwaves stop being produced as
soon as the cooking process is
interrupted or the appliance door is
opened. When the appliance is in
operation, the closed, sealed door
prevents microwaves escaping from
the appliance.
Microwave power level
The following power levels can be
selected:
, , , , , .
Selecting cookware
42
Microwaves are reflected by metal.
They pass through glass, porcelain,
plastic and cardboard.
They are absorbed by food.
Non-microwave safe dishes can
suffer damage or cause damage to
the oven when using the the
Microwave (Solo) and
Combination modes with Microwave.
Risk of Fire!
The material and shape of containers
used affect cooking results and times.
Circular and oval containers work best.
The food will heat more evenly than in a
square container.
Containers suitable for
microwave use
Glassware
Heat-resistant glass or ceramic glass
are ideal for use with microwave power.
Exception: Do not use crystal glass
as it contains lead which can crack
or shatter in a microwave.
Porcelain
Porcelain is a suitable material.
Exception: Do not use porcelain with
gold, silver or cobalt blue edging or
items with hollow knobs or handles,
as insufficient ventilation may cause
a build-up of pressure.
Earthenware
Decorated earthenware is only suitable
if the decoration is beneath an all-over
glaze.
Danger of burning! Wear pot holders
when removing earthenware dishes
from the Speed Oven.
Selecting cookware
43
Plastics
Plastic containers and plastic
disposable containers may only be
used with Microwave (Solo) if they
have been declared as suitable for
microwave use by the manufacturer. To
protect the environment, it is best to
avoid using single-use containers.
Do not leave the Speed Oven
unattended when reheating or
cooking food in disposable
containers made of plastic, paper or
other flammable materials.
Plastic cookware must be heat-
resistant up to at least 230°F (110°C).
Otherwise the cookware will deform
and possibly come in contact with
the food.
Only use plastic dishes in the
Microwave and combination
modes.
– Plastic microwave containers
Readily available from retail stores.
– Styrofoam containers
Disposable containers, such as trays
made from styrofoam, can only be used
for very short, timed warming and
reheating of food.
– Plastic cooking bags
Plastic cooking bags can be used for
cooking and reheating food.
They should be pierced beforehand so
that steam can escape. This prevents a
build-up of steam and reduces the rish
of the bag bursting.
There are also cooking bags that do not
need to be pierced. Following the
instructions listed on the packaging.
– Roasting bags
Follow the manufacturer's instructions.
Fire hazard!
Do not use metal clips, plastic clips
containing metal parts, or paper ties
containing wire. There is a danger
that they will ignite when heated.
– Melamine
Plastic tableware made from melamine
is not suitable for use in this oven.
Melamine absorbs microwave energy
and becomes very hot. Before
purchasing plasticware be sure that is is
microwave-safe.
Selecting cookware
44
Unsuitable containers for
microwave use
Dishes with hollow knobs or
handles are not suitable for use with
microwave modes. Moisture which
has gathered in the hollow recesses
can cause pressure to build up and
the item can explode.
Metal
Metal reflects microwaves and
obstructs the cooking process.
Do not use metal containers, aluminum
foil, or metal cutlery and dishes with a
metallic finish (gold rims or cobalt blue,
forexample) with Microwave
combination programs.
Do not use containers where the foil
lid has not been completely removed
as small pieces of foil can cause
sparking.
Exceptions:
The rack supplied is only suitable for
cooking in Combination modes and
modes that do not use microwave. It
is not suitable for cooking in the
Microwave (Solo) mode.
The rack should be used on a shelf
level. Do not place it on the floor of
the oven.
– Metal bakeware can be used with
Microwave combination programs.
– Ready-meals in aluminum foil trays
can be defrosted and reheated using
microwave power as long as the lid is
removed.
Using aluminum foil trays can cause
crackling and sparking. Therefore,
place aluminum foil trays on the
glass tray and not on the wire rack.
Make sure that the aluminum tray is
at least 3/4"(2cm) from the oven
walls at all times. It must not touch
the walls.
However, as food is only heated from
the top, it is better to remove the food
from the aluminum foil container and
transfer it to a dish suitable for use in a
microwave oven. The heat distribution
will be more even.
Selecting cookware
45
– Aluminum foil pieces
For even defrosting and to avoid
overcooking unevenly shaped cuts of
meat, poultry, or fish, small pieces of
aluminum foil may be used to mask thin
pieces for the last few minutes of the
program.
Make sure that the aluminum foil is
at least 3/4"(2cm) from the oven
walls at all times. It must not touch
the walls.
– Metal meat skewers or clamps
These should only be used if they are
very small in comparison to the size of
the cut of meat.
Glazes and colors
Some glazes and colors contain metal
and are therefore unsuitable for
microwave modes.
Wood
Wooden dishes are not suitable.
Moisture contained in the wood
evaporates when exposed to
microwave energy, causing the wood to
dry and crack.
Testing dishes for their
suitability
If in doubt as to whether glass,
earthenware or porcelain plates or
dishes are suitable for use with
microwave energy, a simple test can be
performed:
Insert the glass tray on shelf level 1
and place the empty item you wish to
test on the glass tray. Fill a suitable
glass with water and also place this
on the glass tray.
Close the door.
Select Microwave .
Set the highest microwave power ()
and a duration of 30seconds.
Confirm with OK and start the
program.
If a cracking noise is heard
accompanied by sparks during the
test, turn the appliance off
immediately. Any cookware which
causes this reaction is unsuitable for
use with microwave power. If in
doubt, contact the cookware
manufacturer.
This test cannot be used to check
whether hollow knobs or handles are
properly ventilated.
Selecting cookware
46
Placing the dish in the Speed
Oven
Insert the glass tray on shelf level 1.
The dish containing the food should
always be placed in the middle of the
glass tray.
Placing the food directly on the floor
of the oven would give unsatisfactory
and uneven results as the microwaves
would not be able to reach the food
from below.
Lid
The lid offers the following advantages:
– Prevents too much steam escaping,
especially when cooking foods which
need longer to cook, such as
potatoes.
– Speeds up the cooking process.
– Prevents food from drying out.
– Helps keep the oven interior clean.
When using Microwave (Solo),
always cover the food with a lid or
cover made of microwave-safe glass
or plastic.
Suitable covers are available from
retail outlets.
Alternatively, use plastic wrap
recommended for use in a microwave
oven (pierce as instructed by the
manufacturer). Heat can cause normal
plastic wrap to distort and fuse with
the food.
Selecting cookware
47
The cover can withstand
temperatures of up to 320°F (110°C).
At higher temperatures (e.g.,in
Broil or Convection Bake
mode) the plastic may distort and
fuse with the food. Only use a cover
in Microwave mode.
The cover should not form a seal
with the container. If the cover is
used with a container which only has
a narrow diameter, there might not
be enough room for condensation to
escape through the holes in the side.
The cover could get too hot and start
to melt.
When reheating food, do not use a
cover for for:
– breaded food
– food which requires a crisp finish,
e.g.toast
– food which you are reheating in a
Combi mode
Otherwise pressure can build up,
causing the container to explode and
posing a severe risk of injury.
Do not cook or reheat food or liquids
in sealed containers, jars, or bottles.
Open containers beforehand and
with baby bottles, the screw top and
teat must be removed.
Energy saving tips
48
– Remove any accessories from the
oven that you do not require for
cooking.
– If possible, do not open the door
during a program. If the door is
opened during a program that is not
using microwave power, the heat in
the oven automatically turns off. The
fan continues to run. As soon as the
door is closed again, the program will
continue.
– If a temperature range is given, it is
best to select the lower temperature
and check the food after the shortest
cooking time given.
– Convection Broil can be used for
a wide variety of foods. Lower
temperatures can be used than with
other Broil modes which use the
maximum temperature setting.
– The factory default setting “ – ”
for the time of day display will
consume the least amount of energy.
– With the factory default setting “ –
” the oven interior lighting turns off
automatically after 15 seconds. It can
be turned on again at any time by
touching .
– When cooking with temperatures
above 285°F (140°C) and cooking
durations longer than 30 minutes,
turn the temperature selector down
approx. 5 minutes before the end of
cooking. The oven heating elements
will turn off and the residual heat will
finish cooking the food.
– The oven turns off automatically if a
button is not pressed to save power.
The amount of time before the oven
turns off depends on the selected
settings, e.g. oven mode,
temperature, cooking duration, etc.
Solo modes
49
Quick Guide
Turn on the oven.
Place the food in the oven.
Using the mode selector select the
required oven mode.
The default temperature is displayed:
°F
The oven heating, lighting and cooling
fan will turn on.
Use the rotary selector to change the
temperature if necessary.
The current temperature and
temperature indicator light appear
after a short time.
°F
You will see the temperature rising in
the display. A buzzer will sound when
the oven temperature is reached if this
option is selected (see “Settings - ”).
After the cooking process:
Turn the mode selector to .
Take the food out of the oven.
Turn the oven off.
Cooling fan
After the cooking process the cooling
fan will continue to run for a while after
a program is complete to prevent
moisture from building up in the oven,
on the control panel or surrounding
cabinetry.
When the temperature in the oven has
fallen sufficiently the cooling fan will
turn off automatically.
Solo modes
50
Changing the temperature
Example: You have selected Convection
Bake and 350°F (175°C) and you
can see the temperature rising in this
display.
°F
You would like to reduce the set
temperature to 310°F (155 °C).
Use the rotary selector to reduce the
temperature.
The symbol will flash under and
the temperature is altered in 5°F (5°C)
increments.
°F
The altered target temperature is saved.
The actual temperature is displayed.
Select “Settings” to toggle between
displaying the actual temperature and
the set temperature.
Temperature indicator
The temperature indicator light turns
on whenever the oven heating is turned
on.
Once the set temperature has been
reached:
– a buzzer will sound if turned on (see
“Settings - ”),
– the temperature indicator light will
go out, and
– the oven heating will turn off.
The temperature regulator ensures that
the oven heating and temperature
indicator light turn back on when the
oven temperature falls below the level
set.
Solo modes
51
Rapid PreHeat
With Rapid PreHeat the preheating
phase can be shortened.
Do not use Rapid PreHeat when
baking pizza or delicate mixtures.
The tops of these items will brown
too quickly.
Select Rapid PreHeat .
Select a temperature.
Set the desired oven mode when the
temperature indicator light goes
out for the first time.
Place the food in the oven.
Turning a cooking program
On / Off automatically
You can set a cooking program to turn
on or off automatically. First the mode
and cooking temperature must be
selected.
The maximum duration that can be set
for a cooking program is 12hours.
It It is recommended to use the
automatic On/Off feature when roasting.
Do not delay the start of the program
for too long when baking. Cake
mixtures and doughs will dry out, and
the leavening agents will lose their
effectiveness.
Setting the duration
Example: Baking a cake for 1 hour 5
minutes
Place the food in the oven.
Select the required oven mode and
temperature.
The oven heating, lighting and cooling
fan will turn on.
Select “Settings”.
°F
If necessary, use the rotary selector
to move the symbol until it
appears under .
Confirm with OK.
will appear in the display along
with a flashing under .
Solo modes
52
h
Use the rotary selector to select the
cooking duration ().
Confirm with OK.
The cooking duration is saved and then
counts down in minutes, with the last
minute counting down in seconds.
The symbol indicates that a cooking
duration has been set.
Setting a cooking duration and a
finish time
Example: the current time of day is
11:15; a roast with a cooking duration
of 90minutes needs to be ready at
13:30.
Place the food in the oven.
Select the required oven function and
the temperature.
The oven heating, lighting and cooling
fan will switch on.
First set the cooking duration:
Select .
If necessary, use the rotary
selector to move the triangle
until it appears under.
Confirm with OK.
will appear in the display with
flashing under .
Use the rotary selector to set the
cooking duration ().
Confirm with OK.
The cooking duration is saved and
then counts down in minutes:
h
Solo modes
53
Then set the finish time:
Use the rotary selector to move
the triangle until it appears
under.
appears:
Confirm with OK.
As soon as you turn the rotary
selector clockwise, will
appear (= current time of day + cooking
duration = +):
Use the rotary selector to enter
the cooking duration finish time
().
Confirm with OK.
The finish time is now saved:
The oven heating, lighting and cooling
fan will switch off.
As soon as the start time ( - =
) has been reached, the oven
heating, lighting and cooling fan will
switch on.
At the end of the cooking duration
– appears in the display.
– flashes.
– The oven heating and lighting will
turn off.
– The cooling fan will continue to run.
– A buzzer will sound if turned on (see
“Settings - ”).
Turn the mode selector to .
Take the food out of the oven.
Turn the oven off.
If the dish is not cooked to your liking,
you can extend the cooking duration
by entering a new duration.
Changing the cooking duration
Select “Settings”.
If necessary, use the rotary selector
to move the symbol until it
appears under .
The cooking time remaining appears in
the display.
Confirm with OK.
Use the rotary selector to adjust the
cooking duration.
Confirm with OK.
The changed cooking duration is now
saved.
Deleting a cooking duration
Select “Settings”.
If necessary, use the rotary selector
to move the symbol until it
appears under .
Solo modes
54
Confirm with OK.
The symbol will flash under .
Use the rotary selector to select the
cooking duration ().
Confirm with OK.
The cooking duration and finish time are
deleted.
Select “Settings”.
The current temperature will appear.
The oven heating remains turned on.
To complete the cooking program:
Turn the mode selector to .
Take the food out of the oven.
Turn the oven off.
If you turn the mode selector to or
turn the oven off, the settings for the
cooking duration and the finish time
will be deleted.
Deleting a finish time
Select “Settings”.
If necessary, use the rotary selector
to move the symbol until it
appears under .
Confirm with OK.
The symbol will flash under .
Use the rotary selector to enter the
finish time (1:30).
Confirm with OK.
The finish time is now deleted.
Microwave (Solo)
55
Quick Guide
Turn the oven on.
Put the food in the oven.
Turn the mode selector to Microwave
.
The suggested power level appears
and the triangle flashes under :
The following power levels can be
selected: , , , , , .
Turn the mode selector to set the
microwave power level, if necessary.
Confirm with OK.
min appears and the triangle
flashes under :
min
Use the rotary selector to select the
cooking duration (e.g., minutes).
The maximum settable cooking
duration depends on the selected
microwave power level.
Confirm with OK.
min appears and the triangle
flashes under Start:
min
Start
Confirm with OK.
The magnetron, lighting and cooling fan
will come on and the cooking program
will start.
At the end of the cooking duration
– appears in the display,
– flashes,
– the cooling fan will continue to run,
– a buzzer will sound if turned on (see
“Settings - ”).
Turn the mode selector to .
Take the food out of the oven.
Turn the oven off.
If the dish is not cooked to your liking,
you can extend the cooking duration
by entering a new duration.
Microwave (Solo)
56
Cooling fan
After the cooking process the cooling
fan will continue to run for a while after
a program is complete to prevent
moisture from building up in the oven,
on the control panel or surrounding
cabinetry.
The cooling fan will turn off after a set
time.
Changing the microwave
power
Select “Settings”.
If necessary, use the rotary selector
to move the symbol until it
appears under .
The microwave power level will appear.
Confirm with OK.
The symbol will flash under .
Use the rotary selector to adjust the
power level.
Confirm with OK.
Select “Settings”.
The adjusted power level is now saved
and will appear in the display.
To track the cooking duration in the
display:
Select “Settings”.
If necessary, use the rotary selector
to move the symbol until it
appears under .
Select “Settings”.
The cooking duration remaining will
appear in the display.
Changing the cooking time
The duration can be seen counting
down in the display.
Use the rotary selector to adjust the
cooking duration.
Confirm with OK.
The adjusted cooking duration appears
in the display. The symbol flashes
under Start:
Confirm with OK.
The program will restart using the new
duration.
Microwave (Solo)
57
Turning a cooking program
On / Off automatically
You can set a cooking program to turn
on or off automatically. First the mode
and cooking duration must be selected.
Setting a finish time
In addition to setting a start time, you
can set a finish time.
Set the microwave power level and
cooking duration.
After selecting the cooking duration
select “Settings”.
If necessary, use the rotary selector
to move the symbol until it
appears under .
appears:
Confirm with OK.
The finish time will appear in the display
(current time of day + duration).
If necessary, set the finish time using
the rotary selector.
Confirm with OK.
The finish time is now saved.
The program will begin at the set start
time.
Deleting a finish time
Select “Settings.”
If necessary, use the rotary selector
to move the triangle until it
appears under .
Confirm with OK.
The triangle flashes under .
Turn the rotary selector counter-
clockwise until appears in the
display.
Confirm with OK.
Select “Settings.”
The duration will appear and the
triangle flashes under Start.
Confirm with OK.
The finish time is now deleted.
The program will start using the
duration set.
Combi Modes
58
Quick Guide
Microwave Combi modes use
microwave power with another
cooking mode (e.g. Convection Bake,
Auto Roast). This combination enables
shorter cooking durations.
Turn the oven on.
Put the food in the oven.
Using the mode selector, select the
required oven mode.
The oven lighting does not turn on.
The oven suggests a power level of
and the triangle flashes under :
The following microwave power levels
can be selected: and .
Turn the mode selector to set the
microwave power level, if necessary.
Confirm with OK.
The suggested temperature appears in
the display and the triangle flashes
under :
°F
If necessary, adjust the temperature
within the given range using the
rotary selector.
min appears and the triangle
flashes under :
min
A maximum duration of 2:00 hours
can be set.
Use the rotary selector to set the
cooking duration (e.g., h).
Confirm with OK.
h appears and the triangle
flashes under Start:
h
Start
Confirm with OK.
The cooking program will start. The
oven heating and cooling fan will turn
on.
You will see the temperature rising in
the display. A buzzer will sound when
the oven temperature is reached if this
option is selected (see “Settings - ”).
The remaining time appears on the
display.
The microwave will switch on once the
target temperature is reached.
Combi Modes
59
At the end of the cooking duration
– appears in the display,
– flashes,
– the oven heating turns off
automatically,
– the cooling fan will continue to run,
– a buzzer will sound if turned on (see
“Settings - ”).
Turn the mode selector to .
Take the food out of the oven.
Turn the oven off.
If the dish is not cooked to your liking,
you can extend the cooking duration
by entering a new duration.
Cooling fan
After the cooking process the cooling
fan will continue to run for a while after
a program is complete to prevent
moisture from building up in the oven,
on the control panel or surrounding
cabinetry.
When the temperature in the oven has
fallen sufficiently the cooling fan will
turn off automatically.
Changing the cooking time
Select “Settings.”
If necessary, use the rotary selector
to move the triangle until it
appears under .
The cooking time remaining appears in
the display.
Confirm with OK.
The triangle flashes under .
Use the rotary selector to adjust the
cooking duration.
Confirm with OK.
Select “Settings.”
The adjusted cooking duration appears
in the display and the triangle
flashes under Start:
Confirm with OK.
The program will restart using the new
duration.
Combi Modes
60
Changing the microwave
power
Select “Settings”.
If necessary, use the rotary selector
to move the symbol until it
appears under .
The microwave power level will appear.
Confirm with OK.
The symbol will flash under .
Use the rotary selector to adjust the
power level.
Confirm with OK.
Select “Settings”.
The adjusted power level is now saved
and will appear in the display.
To track the cooking duration in the
display:
Select “Settings”.
If necessary, use the rotary selector
to move the symbol until it
appears under .
Select “Settings”.
The cooking duration remaining will
appear in the display.
Changing the temperature
Use the rotary selector to change the
temperature if necessary (see “Modes
without microwave - Changing the
temperature”).
Turning a cooking program
On / Off automatically
You can automatically turn a cooking
process on and off (see "Microwave
(Solo) - Turning a cooking process
on and off).
Minute +
61
With the Minute + button, the
microwave starts with a set microwave
power level and cooking time, e.g. for
heating liquids.
The maximum default power level of
and a cooking duration of 1 minute are
preset.
Tip: You can alter the power level and
the duration. The maximum duration will
depend on the microwave power level
selected (see “Settings – ”).
This mode can only be used when no
other cooking programs are in use and
the mode selector is in the • position.
Select “Minute +”, and the cooking
process will start.
Touching it repeatedly will increase
the cooking time.
The time remaining appears in the
display.
You can cancel the program at any
time by selecting .
At the end of the program
– a buzzer will sound if turned on (see
“Settings - ”).
– the oven will turn itself off
automatically.
Popcorn
62
With the “Popcorn” button, the
microwave starts with a set power level
and cooking time.
A microwave power level of and a
cooking time of 3 minutes are preset.
This is suitable for most brands of
microwave popcorn.
Tip: The duration can be changed up to
a maximum of 4 minutes. The
microwave power level cannot be
changed (see “Settings – ”).
This mode can only be used when no
other cooking programs are in use and
the mode selector is in the • position.
Touch “Popcorn” to start the
program.
The time remaining appears in the
display.
You can cancel the program at any
time by selecting .
Do not leave the oven unattended
during this program and follow the
manufacturers instructions.
At the end of the program
– a buzzer will sound if turned on (see
“Settings - ”).
– the oven will turn itself off
automatically.
Bake
63
Eating food which has been cooked
correctly is important for good
health.
Only bake cakes, pizza, french fries,
etc. until they are golden brown. Do
not overcook them.
Operating modes
Convection Bake
Recommended for cookies, quick
batters, choux pastry, phyllo, and
strudel.
Combi Bake
Recommended for baked goods that
require a longer baking time, such as
doughs.
The baking time is shortened.
A maximum power level of must not
be exceeded throughout the entire
baking time.
Bakeware
The bakeware used depends on the
oven mode chosen and how the food is
prepared.
– Convection Bake
Bakeware made of any heat-resistant
material is suitable. Light-colored,
thin, non-reflective metal baking pans
can be used, but results may not be
as good as with dark non-reflective
bakeware.
– Combi Bake
Only use oven-safe dishware suitable
for microwave use (see “Suitable
containers for microwave use”), such
as oven-safe glass or ceramic dishes
as these allow microwaves through
them.
Metal containers reflect microwaves
so food will only cook from above.
Cooking durations would therefore be
longer and metal tins could also
cause sparking.Place the dish on the
glass tray such that it cannot touch
the oven walls. If the dish being used
causes sparking, do not use it for
combination cooking programs
again.
Parchment paper
Place french fries, croquettes and
similar types of food on paper.
Bake
64
Temperature
Select the suggested temperature if
possible.
Choosing a baking temperature higher
than those recommended may reduce
the cooking time, but will lead to
uneven browning, and unsatisfactory
cooking results.
Baking duration
Check if the food is cooked at the end
of the shortest duration quoted. To
check if a cake is ready insert a wooden
skewer or toothpick into the center, it
should come out clean.
Shelf levels
– Convection Bake
Cakes in bakeware: Level 1 from the
bottom
Flat baked goods (e.g. cookies):
Level 2 from the bottom
When cooking on 2 levels at one
time:
Levels 1+3 from the bottom or levels
2+3
– Combi Bake
Insert the glass tray on shelf level 1
and place the bakeware on it.
Tips
– Setting the cooking duration. When
baking, the oven should not be set to
start after an extended period of time.
Otherwise the cake mixture or dough
will dry out, and the raising agents
will lose their effectiveness.
– Place cakes in rectangular bakeware
on the rack with the longer side
across the width of the oven for
optimum heat distribution and even
results.
Roast
65
Always observe the USDA guidelines
for food safety.
Operating modes
Convection Bake , Auto Roast
For roasting meat, fish and poultry
dishes in which a browned finish is
desired.
Combi Bake ,
Combi Auto Roast
The program duration is shorter with
these modes.
Set the microwave to the following
power levels for the entire roasting time:
– For meat and fish: ,
– For poultry: .
This combination program is not
suitable for cooking roast beef or
tenderloins. The center would be too
well cooked before the exterior is
browned.
Cookware
Please take into account the material of
your bakeware in your choice of oven
mode:
– Convection Bake / Auto Roast
:
Oven dishes, ovenproof ceramic
dishes and glass dishes.
Make sure that the pot and lid have
heat-resistant handles.
– Combi Bake /
Combi Auto Roast :
Dishes must be suitable for use in a
microwave oven and must not have
metal lids (see “Containers suitable
for microwave use”).
Roasting in a closed pan
Season the meat and place it in the
roasting dish. Dot with butter or
margarine or brush with oil if
necessary. For large lean cuts of meat
(4–6 lbs.) and fatty poultry, add about
1/2 cup of water to the dish.
When using a roasting bag, follow the
manufacturer's instructions.
Roasting on the rack
Add a little fat or oil to very lean meat or
wrap with bacon.
Do not add too much liquid during
cooking as this will hinder the
browning process.
Roast
66
Temperature
Select the suggested temperature if
possible.
If higher temperatures are used, the
meat will brown on the outside, but will
not be properly cooked through.
Shelf levels
– Convection Bake / Auto Roast
:
Rack with meat on it on shelf level 1
– Combi Bake /
Combi Auto Roast :
Rack or glass tray with meat on it on
shelf level 1
Tips
– Resting time: At the end of the
program, take the roast out of the
oven, cover with aluminum foil and let
stand for about 10 minutes. This
helps retain the juices when the meat
is sliced.
– The larger the cut of meat, the lower
the temperature setting should be.
– Use a roast probe for accurate
cooking temperatures and best
results.
Broil
67
Danger of burns!
Broil with the oven door closed. If
you broil with the door open the hot
air will escape from the oven before
it has been cooled by the cooling
fan.
The controls will get hot.
Oven modes
Maxi Broil
For broiling thin cuts of meat and
browning.
The entire Browning / Broiling element
will get hot and glow red.
Convection Broil
For broiling thicker items, e.g. poultry or
London broil.
The Browning/Broiling element and the
fan switch on in alternating phases.
Cooking accessories
Broiling on the wire oven rack.
Brush the rack with oil, and place the
food on it. It is best to broil food of a
similar thickness at the same time so
that the broiling duration for each
item does not vary too greatly.
Temperature
– Maxi Broil
A fixed temperature is used for
broiling, i.e., the temperature is
automatically set by the oven and
cannot be changed.
– Convection Broil
As a general rule, select the
suggested temperature if possible. If
higher temperatures are used, the
meat will brown on the outside but
will not be properly cooked
through.Thin cuts can generally be
broiled at 400°F (220°C), thicker cuts
at 355-400°F (180-200°C).
Preheating
Always preheat the oven for about
5minutes with the door closed before
Broiling.
Do not set a microwave power level
during pre-heating.
Shelf levels
– Broil
Use shelf level 2 or 3 depending on
the thickness of the food.
– Convection Broil
Use shelf level 1 or 2 depending on
the thickness of the food.
Broil
68
Testing doneness
Always observe USDA food safety
guidelines.
Preparing food for broiling
Rinse the meat under cold water and
pat dry. Do not season the meat with
salt before broiling, this will draw out
the juices.
Brush the meat with oil, if necessary.
Do not use other types of fat as they
can easily burn and cause smoke.
Clean fish as usual. To enhance the
flavor, salt or lemon can be added.
Broiling
PreHeat the browning/broiling
element for approx. 5 minutes with
the door closed.
Do not set a microwave power level
during pre-heating.
Place the food on the wire rack.
Select the required oven mode and
the temperature (only with
Convection Broil ).
Burn hazard!
When the oven is hot use pot holders
to insert, remove or turn the food, or
when adjusting the oven shelves,
etc.
Place the food on the appropriate
shelf level (see the “Broiling chart”).
Close the door.
Microwave: Defrosting/Reheating/Cooking
69
Always observe the USDA guidelines for food safety.
Operating
mode
/ Suitable for:
Defrost Very delicate foods such as cream,
butter, filled sponge cakes, cheese
All other types of food
Reheat Food for infants and children
All types of food; frozen meals that do
not need browning
Drinks
Cooking
Heating-up
Casseroles, puddings, frozen foods that
do not need browning
Continued
cooking
Simmering
Select a “Microwave Combi” mode if you want to shorten
cooking durations and have a crisp finish to the dish.
+
320-355°F /
160–180°C
Sear using a high temperature to start
with, then continue cooking with a
lower temperature.
+
300-340°F /
150–170°C
Ready-meals which need to be
browned, e.g., gratins
Microwave / Microwave power level / Combi Auto Roast / Combi Bake /
Temperature
The duration required depends largely on the nature of the food, the amount and its initial
temperature. Food that has been refrigerated, for example, takes longer to reheat than food
at room temperature. Please refer to the relevant charts.
Microwave: Defrosting/Reheating/Cooking
70
Before defrosting, reheating
and cooking
Place food (frozen or unfrozen) in a
dish that is suitable for microwave
use, and cover it.
Place the dish in the middle of the
glass tray on shelf level 1.
With Microwave Combi modes
Use only microwave-safe and heat-
resistant cookware.
A lid is not usually required.
Never use a lid with Combi Auto Roast
as the food will not brown.
Place the glass tray on shelf level 2.
Place pre-made meals in aluminum
containers directly on the glass tray.
During the defrosting,
reheating and cooking process
Turn or stir the food several times.
Stir the food from the outside
towards the middle, as food heats
more quickly from the outside.
After defrosting, reheating and
cooking
Compensating times are resting periods
in which the temperature is uniformly
distributed in the food.
Allow the food to stand at room
temperature for a few minutes to
enable the heat to spread evenly
throughout the food.
Burn hazard!
After reheating food, especially food
for babies and small children, stir the
food or shake the container and
check that the temperature does not
pose any danger. Double check after
it has been left to stand.
Danger of burns!
Be careful when removing dishes
from the appliance. Although heat is
not normally produced in the
container itself by the microwaves
(apart from stoneware), heat transfer
from the food to the container may
be considerable, making the
container itself hot.
Use pot holders when removing
dishes.
Always ensure that food is sufficiently
cooked or reheated.
If you are unsure whether a
sufficiently high temperature has
been reached or whether the food is
sufficiently cooked, continue
reheating a little longer.
Always follow proper food safety
guidelines.
Microwave: Defrosting/Reheating/Cooking
71
Tips on reheating
Danger of burns! Food for infants
and children must not be too hot.
Heat food for babies and children at
power level for only 30–
60seconds.
Otherwise pressure can build up,
causing the container to explode,
posing a severe risk of injury.
Do not cook or reheat food or liquids
in sealed containers, jars or bottles.
Otherwise pressure will build up
which can cause the bottle or
container to explode. Risk of injury.
Eggs may burst.
Never reheat hard boiled eggs using
Microwave , even without the
shell. The eggs can explode.
When boiling and in particular when
reheating liquids using microwave
power, the boiling point of the liquid
may be reached without the
production of typical bubbles. The
liquid does not boil evenly
throughout.
This so-called “boiling delay” can
cause a sudden build up of bubbles
when the container is removed from
the oven or shaken. This can lead to
the liquid boiling over suddenly and
explosively. The formation of bubbles
can be so strong that the pressure
forces the oven door open.
To avoid this, always wait a minimum
of 20seconds before removing the
container from the oven and place a
suitable glass rod or utensil into the
cup or glass when heating liquids.
Cooking tips
Food with a thick skin or peel, such
as tomatoes, sausage, potatoes, and
egg plant, can burst when heated.
Pierce or score the skin of these
foods several times to allow steam to
escape.
Eggs heated in their shell can burst,
even after they have been removed
from the oven.
Eggs can only be cooked in their
shells using Microwave (Solo) in
a specially designed egg-boiling
device available from speciality
stores.
When heating shelled eggs, the yolk
may still burst after cooking.
Prick the yolk several times before
cooking to avoid this.
Microwave: Defrosting/Reheating/Cooking
72
When to use Notes
Defrosting large quantities
of food at once, e.g. 4.5 lbs
(2 kg) fish
The glass tray can be used on shelf level 1 for
defrosting food.
Reheating food Always cover food when reheating it, except when
reheating fried food or food with breading.
Cooking vegetables Add a little water to vegetables which have been
kept stored. Vegetable cooking times depend on the
texture of the vegetable. Fresh vegetables contain
more water than vegetables which have been stored
and usually cook more quickly.
Cooking frozen meals Deep frozen meals can be defrosted and then
reheated or cooked in one process. Follow the
instructions on the package.
Tables for defrosting, reheating and cooking food using
Microwave (Solo)
The following notes apply to all tables:
Always follow USDA guidelines on food safety.
Take note of the recommended microwave power levels, durations and standing
times. These take the consistency, the quantity and the initial temperature of the
food into account.
In general you are recommended to select the middle duration.
Place the food on the glass tray and use shelf level 1.
Microwave: Defrosting/Reheating/Cooking
73
Table for defrosting food
Quantity
[min]
[min]
1)
Dairy products
Cream 1 cup (250ml) 13–17 10–15
Butter 1/2lb (250 g) 8–10 5–10
Cheese slices 1/2lb (250 g) 6–8 10–15
Milk 1 pt (500ml) 14–16 10–15
Baked Goods
Pound Cake (1 slice) Approx. 1/4lb
(100 g)
1–2 5–10
Pound Cake Approx. 3/4lb
(300 g)
4–6 5–10
Fruit Cake (3 slices) Approx. 3/4lb
(300 g)
6–8 10–15
Butter Cake (3 slices) Approx. 3/4lb
(300 g)
5–7 5–10
Cream Cake (1 slice) Approx. 1/4lb
(100 g)
1:30 5–10
Cream Cake (3 slices) Approx. 3/4lb
(300 g)
4–4:30 5–10
Yeast rolls, puff pastries (4 pieces) 6–8 5–10
Fruit
Strawberries, raspberries 1/2lb (250 g) 7–8 5–10
Currants 1/2lb (250 g) 8–9 5–10
Plums 1lb (500 g) 12–16 5–10
Meat
Ground Meat 1lb (500 g) 16–18 5–10
Chicken 2lbs (1000g) 34–36 5–10
Vegetables
Peas 1/2lb (250 g) 8–12 5–10
Asparagus 1/2lb (250 g) 8–12 10–15
Beans 1lb (500 g) 13–18 10–15
Red cabbage 1lb (500 g) 15–20 10–15
Spinach 10.5 oz (300 g) 12–14 10–15
Microwave power level / thawing time / resting time
1)
Allow food to stand at room temperature. During this resting time, the temperature will
distribute throughout the food more evenly.
Microwave: Defrosting/Reheating/Cooking
74
Table for reheating food
Quantity
[min:sec]
[min]
1)
Drinks
2)
Coffee, drink temperature 140-150°F /
60–65°C
1 drink
(2/3 cup / 200ml)
0:50–1:10 –
Milk, drink temperature 140-150°F /
60–65°C
1 drink
(2/3 cup / 200ml)
1:00–1:50
3)
–
Boiling water 1 drink
(1/2 cup / 125ml)
1:00–1:50 –
Baby bottle (milk) Approx. 2/3 cup /
200ml
0:50–1:00
3)
1
Mulled wine, drink temperature
140-150°F / 60–65°C
1 glass
(2/3 cup / 200ml)
0:50–1:10 –
Food
3)
Baby Food (room temperature) 1 jar (7 oz / 200 g) 0:30–1:00 1
Cutlets, fried 7 oz (200 g) 3:00–5:00 2
Fish fillet, fried 7 oz (200 g) 3:00–4:00 2
Roast meat in gravy 7 oz (200 g) 3:00–5:00 1
Side dishes 1/2lb (250 g) 3:00–5:00 1
Vegetables 1/2lb (250 g) 4:00–5:00 1
Gravy 1 cup (250ml) 4:00–5:00 1
Soup / Casserole 1 cup (250ml) 4:00–5:00 1
Soup / Casserole 1 pt (500ml) 7:00–8:00 1
Microwave power level / heating-up time / resting time
1)
Allow food to stand at room temperature. During this resting time, the temperature will
distribute throughout the food more evenly.
2)
To avoid a boiling delay, always wait a minimum of 20seconds before removing the
container from the oven and place a suitable utensil into the cup or glass when heating
liquids.
3)
Durations apply for food with an initial temperature of approx. 41°F / 5°C.
For food which is not normally stored in the fridge an initial temperature of approx. 68°F /
20°C is assumed.
With the exception of baby food and delicate sauces, food should be heated to a
temperature of 158-167°F / 70–75°C.
Microwave: Defrosting/Reheating/Cooking
75
Table for cooking food
Quantity
[min]
1)
Level
[min]
+ Level
[min]
Meat
Meatballs in gravy (14 oz / 400 g
meat)
10–12 – 2–3
Stew (1.5lb / 750 g meat) 16 + 15 2–3
Poultry
Chicken in sauce Approx. 1 3/4lb (800 g) 4 + 12 2–3
Chicken Curry Approx. 2lbs (900 g) 5 + 12 2–3
Chicken Risotto Approx. 3 1/2lbs (1.6kg) 10 + 15 3–5
Fish
Fillet in sauce Approx. 2lbs (900 g) 8–10 – 2–3
Fish Curry Approx. 3lbs (1.5kg) 5 + 12 3–5
Fresh vegetables
Carrots 10.5 oz (300 g) 2 + 6 2
Cauliflower florets 1lb (500 g) 6 + 10 2
Peas 1lb (450 g) 5 + 10 2
Peppers, cut into strips 1lb (500 g) 5 + 10 2
Kohlrabi, batons 1lb (500 g) 3 + 8 2
Brussels sprouts 10.5 oz (300 g) 3 + 9 2
Asparagus 1lb (500 g) 5 + 8 2
Broccoli, florets 10.5 oz (300 g) 4 + 4 2
Leeks 1lb (500 g) 5 + 8 2
Green Beans 1lb (500 g) 4 + 12 2
Frozen Vegetables
Peas, Mixed Vegetables 1lb (450 g) 5 + 11 2
Spinach 1lb (450 g) 5 + 7 2
Brussels sprouts 10.5 oz (300 g) 4 + 6 2
Broccoli 10.5 oz (300 g) 3 + 6 2
Leeks 1lb (450 g) 4 + 8 2
Desserts
Fruit compote (2 cups / 500ml
fruit juice or 1lb / 500 g fruit)
6–8 – –
Microwave power level / cooking duration / resting time
1)
Allow food to stand at room temperature. During this resting time, the temperature will
distribute throughout the food more evenly.
Defrosting without Microwave power
76
To gently defrost food use the Defrost
mode.
When this mode is selected, the fan
turns on and circulates the air around
the oven cavity.
Risk of salmonella poisoning!
Be sure to observe proper hygiene
rules when defrosting poultry.
Do not use the liquid from the
defrosted poultry.
Tips
– Place the food to be defrosted on the
glass tray or in a suitable dish.
– Small pieces of poultry can be placed
on an upside down dish in the glass
tray. This way they will not be lying in
defrosting liquid.
– Use shelf level 1 or 2 depending on
the thickness of the food.
Canning
77
Always observe USDA food safety
guidelines.
Canning containers
Danger of injury!
Do not use the appliance to heat up
or can food in sealed jars or
containers.
Pressure will build up inside them
and they can explode causing
damage to the appliance, as well as
the risk of injury and scalding.
Only use jars designed for canning:
– “Convection Bake” : Jars with
screw-top lids.
– “Microwave” : Microwave-safe
bottling jars sealed with clips or clear
adhesive tape.
Sparking can be cause by metal
brackets on jars!
Close the jars with clear adhesive
tape or with clips suitable for
microwave use. Never use metal
clips or jars with screw-on lids.
Preparation
The instructions below are for 516
ounce (0.5 liter) glass jars.
Prepare the jars in the usual way. Fill
the jars up to 3/4" (2 cm) below the
rim.
Insert the glass tray on shelf level 1
and place the jars on it.
Canning
78
Canning with Convection Bake
Select the Convection Bake
mode and a temperature of
300-340°F (150–170°C).
Wait until bubbles rise evenly in the
jars.
Then reduce the temperature to
prevent the contents from boiling
over.
Fruit / Cucumbers
Switch the oven off as soon as
bubbles are visible in the jars. Then
leave the jars in the warm oven for a
further 25–30minutes.
Vegetables
Reduce the temperature to 210°F
(100°C) as soon as bubbles are
visible in the jars.
Canning duration
[min]
Asparagus,
Carrots
60–90
Peas, Beans 90–120
Switch off the oven after the canning
duration. Then leave the jars in the
warm oven for an additional 25–
30minutes.
Canning with Microwave
Select Microwave with power
level .
Wait until bubbles evenly rise in the
jars.
This takes about 3minutes per jar.
With 5jars, therefore, it takes
15minutes.
Then reduce the power level in a
timely manner to prevent the
contents from boiling over.
Fruit / Cucumbers
Switch the oven off as soon as
bubbles are visible in the jars. Then
leave the jars in the warm oven for a
further 25–30minutes.
Vegetables
Reduce the power level to as soon
as bubbles are visible in the jars.
Canning duration
[min]
Asparagus,
Carrots
approx. 15
Peas, Beans approx. 25
Switch the oven off after the canning
duration.
Canning
79
After canning
Danger of burns!
Use pot holders when removing the
jars from the oven.
Take the jars out of the oven.
Cover the jars with a towel and leave
to set for approx. 24 hours.
Remove any clips or the adhesive
tape.
Make sure all jars are closed properly
when storing them.
Gentle Bake
80
The Gentle Bake mode is ideal for
casseroles and gratins which require a
crisp top.
Frozen food
81
Tips
Cakes, pizza, baguettes
– Bake on parchment paper placed on
the wire oven rack.
– Use the lowest temperature
recommended by the manufacturer.
French fries, croquettes and similar
items
– Place these frozen foods on the glass
tray.
Place parchment paper underneath.
– Use the lowest temperature
recommended by the manufacturer.
– Turn several times during cooking.
Preparation
Handling food carefully will help
protect your health.
Select the oven mode and
temperatures recommended on the
food's packaging.
Preheat the oven.
Place the food in the preheated oven
on the shelf level recommended on
the packaging.
Check the food at the end of the
shortest time recommended on the
packaging.
Cleaning and care
82
Danger of burning!
The heater elements must be turned
off. Make sure the oven has cooled
down.
Risk of injury!
The steam from a steam cleaning
appliance could reach live electrical
components and cause a short
circuit.
Do not use a steam cleaner to clean
this appliance.
All surfaces could be discolored or
damaged if unsuitable cleaning
agents are used. The oven front is
particularly susceptible to damage
from oven cleaners.
All surfaces of this machine are
susceptible to scratching. Scratches
on glass can in some circumstances
lead to breakage.
Remove all cleaning agent residues
immediately.
Stubborn soiling may damage the
oven.
Once the oven has cooled clean the
oven, the inside of the door, and the
door seal. Waiting too long to clean
the oven will make if much more
difficult to clean.
Check the door and door seal for any
sign of damage. If any damage is
seen, the oven should not be used
again. Contact Miele.
Unsuitable cleaning agents
To avoid damaging the surfaces of your
appliance, do not use:
– cleaning agents containing soda,
ammonia, acids, or chlorides
– cleaning agents containing descaling
agents on the oven front
– abrasive cleaning agents,
e.g.,powder cleaners and cream
cleaners,
– solvent-based cleaning agents
– stainless steel cleaning agents
– dishwasher cleaners
– glass cleaners
– cleaning agents for ceramic cooktops
– hard, abrasive brushes or sponges,
e.g.,pot scourers, brushes, or
sponges which have been previously
used with abrasive cleaning agents)
– eraser sponges
– sharp metal scrapers
– steel wool
– stainless steel scouring pads
– spot cleaning with mechanical
cleaning agents
– oven cleaners *
* These can, however, be used to
remove very heavy soiling from
PerfectClean treated surfaces
Cleaning and care
83
If soiling is allowed to sit for any
length of time, it may become
impossible to remove. If items are
used frequently without being
cleaned, it may become very difficult
to clean them.
Soiling is, therefore, best removed
after each use.
Only the glass tray is dishwasher
proof.
Tips
– Soiling caused by spilt juices and
cake mixtures is best removed while
the oven is still warm. Use caution
and make sure the oven is not too hot
- Danger of burns.
– The Browning/Broiling element can
be lowered for easier cleaning.
– To neutralize odors in the oven, put a
container of water with some lemon
juice in the oven and heat for a few
minutes.
Normal soiling
Moisture inside the oven can cause
damage.
Wipe out the oven with a damp cloth
so no excess moisture enters the
interior of the appliance through the
openings.
Remove normal soiling immediately
using a clean sponge with warm
water and liquid dish soap applied
with a clean, damp microfiber cloth.
After cleaning, ensure that any
detergent residue is removed with
clean water.
This is particularly important when
cleaning surfaces treated with
PerfectClean enamel as detergent
residue can impair the non-stick
properties.
After cleaning, dry the surfaces with a
soft cloth.
Cleaning and care
84
Stubborn soiling
Spilled fruit and roasting juices may
cause lasting discoloration or matte
patches. This does not affect the
functional characteristics of the
finish.
Do not attempt to remove these
marks. Clean them following the
instructions given here.
Moisten stubborn soiling with a
solution of warm water and liquid
dish soap, leave for a few minutes to
take effect.
If necessary, the rough side of a dish
sponge can be used to remove the
soiling.
After cleaning, rinse thoroughly with
clean water, and dry with a soft cloth.
Stubborn soiling on PerfectClean
surfaces can be cleaned using Miele
Oven Cleaner. Follow the instructions
on the packaging.
Non-Miele oven cleaner must only be
used in a cold oven and not left on for
longer than a maximum of 10minutes.
If necessary, the scouring pad on the
back of a non-scratching washing-up
sponge can be used to remove the
soiling after the holding time.
After cleaning, remove all oven
cleaning agent residues thoroughly
with clean water, and then dry the
surfaces.
Cleaning and care
85
Lowering the Browning /
Broiling element
If the oven interior is very dirty, the
Browning / Broiling element can be
lowered. It is recommended to clean
the oven interior with a damp sponge
regularly.
Burn hazard!
Make sure the heating elements are
turned off and allowed to cool
completely.
Unscrew the nut and lower the
Browning / Broiling element.
Use caution not to damage the
Browning / Broiling element.
Do not use force to lower the
Browning / Broiling element.
Carefully lower the Browning /
Broiling element.
The cover at the top of the oven
cavity can be damaged.
Do not use the hard side of a dish
sponge to clean the cover.
Clean the oven interior with a damp
cloth or sponge.
After cleaning, raise the Browning /
Broiling element gently back up
again. Refit the nut and tighten to
secure the element back in position.
Frequently asked questions
86
The following faults can be corrected without contacting the Miele Service
Department. If in doubt, please contact Miele.
Danger of injury! Repairs should only be carried out by a qualified and
trained professional in accordance with local and national safety regulations.
Unauthorized repairs could cause personal injury or machine damage.
Problem Possible cause and solution
This display is dark. The time of day display is deactivated, so when the
appliance is turned off, the time of day display is
turned off.
As soon as the oven is turned on, the time of day
will appear. If you want it to be displayed
continuously, the setting to turn the time of day
display back on must be changed (see “Settings –
”).
There is no power to the appliance.
Check if the circuit breaker has tripped.
A program will not start. If running a program with Microwave, the door is
open.
Check if the door is closed properly.
If running a program with Microwave, a microwave
power level or cooking time have not been set.
Be sure to set the power level and cooking time.
If running a Combi mode, all necessary setting have
not been set.
Be sure to set the microwave power level,
temperature and cooking time.
Frequently asked questions
87
Problem Possible cause and solution
An oven mode has been
selected and the time of
day and the symbol
still appear in the
display.
The system lock is On.
Turn off the system lock (see “System lock ”).
The oven does not heat
up.
Demo mode has been activated. appears in the
display.
The oven can be operated but does not heat up.
Deactivate Demo mode (see “Settings – ”).
An oven mode has been
selected but the oven is
not working.
There has been a power failure which has caused the
current cooking process to stop.
Turn the mode selector to the • position and turn
the oven off. Start the cooking process again.
will appear in the
display with flashing
under :
The power supply was interrupted for longer than 200
hours.
Reset the time of day (see “Before using for the
first time”).
appears
unexpectedly in this
display and the
symbol flashes at the
same time. The buzzer
may also be sounding.
The oven has been operating for an unusually long
period of time, this has activated the “Safety cut-out
feature”.
Turn the mode selector to •. The oven is now
ready to use again immediately.
appears in the
display.
A fault has occurred that you cannot resolve.
Contact Miele Technical Service.
If the door is opened
while using
“Microwave” , the
oven stops making a
noise.
This is not a fault. If the door is opened while
“Microwave” is being used, the door contact
switch will turn off the microwave and switch the
cooling fan to a lower speed.
A noise is heard after
the cooking process is
complete.
The cooling fan has turned on.
It will turn off automatically after a short time.
Frequently asked questions
88
Problem Possible cause and solution
An strange sound is
heard when the oven is
operating in microwave
mode.
Metal was used in the oven during a program with
microwave.
Check if there are sparks caused by using metal
dishes (see “Suitable containers for microwave
use”).
When using a program with microwave the dish was
covered with alumimum foil.
If necessary, remove the cover.
The wire oven rack was used during a program with
microwave.
Always use the glass tray for programs with
microwave.
The oven has turned
itself off.
The oven turns off automatically if a button is not
pressed after a certain amount of time or after a
cooking program has ended to save power.
Turn the oven back on.
Baked goods are not
cooked properly after
following the times
given in the chart.
A different temperature than that given in the recipe
was used.
Select the temperature required for the recipe.
The ingredient quantities are different from those
given in the recipe.
Double check the recipe. The addition of more
liquid or more eggs will make a wetter mixture
which will take longer to cook.
The browning is
uneven.
The wrong temperature or shelf level was selected.
There will always be a slight unevenness. If the
unevenness is great, check whether the correct
temperature and shelf level were selected.
The cookware used was not right for the program
chosen. Bright, shiny pans are not very suitable.
These reflect heat, which means that the heat does
not penetrate to the food effectively, resulting in
uneven or poor browning.
Dark, matte pans are best for baking.
Frequently asked questions
89
Problem Possible cause and solution
The food is not
sufficiently heated or is
not cooked at the end
of a set duration when
using Microwave (Solo)
.
Check that the program was restarted after
interrupting a cooking process using microwave
power.
Restart the program to ensure the food is heated
or cooked properly.
When cooking for heating with microwave, the time
set was too short.
Check that the correct time is selected for the
microwave power level. The lower the microwave
power level the longer the cooking time.
The food has cooled
down too quickly after
being reheated or
cooked in microwave
mode.
Due to the microwave properties, the heat is
generated first at the edges of the food and is then
transferred to the center of the food. If the food is
heated with a high microwave power level the food
may be hot on the outside but not heated through to
the center.
When cooking foods with different sizes, such as
with menu cooking, a lower microwave power level
for a longer period of time is most suitable.
The oven lighting turns
off after a short time.
The oven is facotry set to turn off automatically after
15 seconds. This setting can be changed (see
“Settings”).
Frequently asked questions
90
Problem Possible cause and solution
The oven lighting does
not turn on.
The halogen bulb needs to be replaced.
Danger of burns!
Make sure the heating elements are turned off and
allowed to cool completely.
The light cover consists of two seperate parts, a
glass cover and mounting. If it falls it can be
damaged.
When removing the cover hold it firmly so that it
does not fall. Place a towel on the oven floor and
open door to avoid damage.
Disconnect the appliance from the power supply.
Remove the screw to the lamp cover using a T20
Torx screwdriver, and take off the cover.
Do not touch the halogen bulb with bare fingers.
Observe the manufacturers instructions.
Remove the halogen bulb.
Replace it with a new halogen bulb (Sylvania
66740, 120V, 40W, G9, FS1). It must be thermally
stable up to 575°F (300°C).
Replace the glass piece in the mounting, and refit
the lamp cover. Make sure that the lug on the
mounting is correctly located in the notch in the
roof of the oven, then screw the mounting back
into place.
Reconnect the oven to the electrical supply.
Technical Service
91
After sales service
In the event of a fault which you cannot
easily correct yourself, please contact:
– your Miele dealer, or
– the Miele Technical Service
Department.
See back cover for contact details.
Please quote the model and serial
number of your appliance when
contacting Miele.
This information is given on the data
plate, visible on the front frame of the
oven, with the door fully open.
Warranty
For further information, please refer to
your warranty booklet.
Caring for the environment
92
Disposal of the packing
material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these
materials improperly by disposing of
them in your household waste can be
harmful to your health and the
environment. Therefore, please do not
dispose of your old appliance with
regular household waste and follow
local regulations on proper disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please
ensure that your old appliance is kept
away from children until removal.
Observe safety requirements for
appliances that may tip over or pose an
entrapment hazard.
Electrical connection
93
CAUTION:
Before servicing, disconnect the
power supply by either removing the
fuse, shutting off the power main or
manually “tripping” the circuit
breaker.
Installation, repair and maintenance
work must be performed by a Miele
authorized service technician. Work
by unqualified persons could be
dangerous and may void the
warranty.
Before connecting the appliance to
the power supply, make sure that the
voltage and frequency listed on the
data plate correspond with the
household electrical supply. This
data must correspond to prevent
machine damage. Consult an
electrician if in doubt.
Only operate the appliance after it
has been installed into cabinetry.
The plug must be inserted into a
suitable outlet that has been installed
and grounded in compliance with all
applicable local regulations.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
Installer: Please pass these
instructions on to the customer.
Electrical connection
The oven is equipped with a power cord
approx. 6ft. (1.8m) in length with a 4-
prong NEMA 14-30P plug ready for
connection to the power supply:
– 120/208 V, 30 A, 60 Hz
or
– 120/240 V, 30 A, 60 Hz
The voltage can be adjusted (see
“Settings - ”).
SAVE THESE INSTRUCTIONS FOR
THE ELECTRICAL INSPECTOR'S
USE.
Installation diagrams
94
Appliance and cut-out dimensions
Miele ovens can be installed flush or proud. Discuss your installation
requirements with your architect, designer and installer.
Installation in a tall cabinet
B
A
B
A
7/8" (22*/23** mm)
22 1/16"
(560 mm)
17 1/2" (445 mm)
21 9/16" (549 mm)
23 7/16"
(595 mm)
17 15/16"
(455 mm)
4"
(100 mm)
17 3/4" - 17 13/16"
(450-452 mm)
21 5/8"
( 550 mm)
22 1/16" - 22 3/8"
(561-568 mm)
Cut-out (4" x 22" / 100mm x 560mm) in the bottom of the cabinet for power
cord and ventilation
Power cord with plug
* Oven with glass front
** Oven with metal front
Depending on the model, the oven front may differ from the one shown the
drawing. Current specifications can be found on the Miele website.
Installation diagrams
95
Undercounter installation
B
A
B
A
7/8" (22*/23** mm)
22 1/16"
(560 mm)
17 1/2" (445 mm)
21 9/16" (549 mm)
23 7/16"
(595 mm)
17 15/16"
(455 mm)
22 1/16" - 22 3/8"
(561-568 mm)
4"
(100 mm)
18 1/8" - 18 5/16"
(460-465 mm)
21 5/8"
( 550 mm)
Cut-out (4" x 22" / 100mm x 560mm) in the bottom of the cabinet for power
cord and ventilation
Power cord with plug
* Oven with glass front
** Oven with metal front
Depending on the model, the oven front may differ from the one shown the
drawing. Current specifications can be found on the Miele website.
Installation diagrams
96
Combination installation with an oven into a tall cabinet
7/8"
(22*/23** mm)
22 1/16"
(560 mm)
17 1/2"
(445 mm)
21 9/16"
(549 mm)
23 7/16"
(595 mm)
17 15/16"
(455 mm)
7/8"
(22*/23** mm)
16" (407 mm)
21 11/16"
(551 mm)
22 11/16"
(577 mm)
20 1/16"
(510 mm)
21 1/2" (546 mm)
23 7/16"
(595 mm)
23 7/16"
(596 mm)
A
A
4"
(100 mm)
4"
(100 mm)
23 3/8"-23 7/16"
(593-595 mm)
17 3/4"-17 13/16"
(450-452 mm)
22 1/16"-22 3/8"
(561-568 mm)
21 5/8"
( 550 mm)
Cut-out (4" x 22" / 100mm x 560mm) in the bottom of the cabinet for power
cord and ventilation
* Oven with glass front
** Oven with metal front
Depending on the model, the oven front may differ from the one shown the
drawing. Current specifications can be found on the Miele website.
Installation diagrams
97
Front dimensions
A H61xx: 2 5/16" (59mm)
H62xx: 1 5/8" (42mm)
B Speed Oven with glass front: 1/16" (2.2mm)
Speed Oven with metal front: 1/16 (1.2mm)
Installation
98
The oven must not be operated
until it has been properly installed
within cabinetry.
Remove the side handles, if any.
Connect the power cord to the
electrical supply.
Push the oven into the cabinetry up
to the oven trim and align it.
Open the door and use the screws
supplied to secure the oven to the
side walls of the cabinetry through
the holes in the oven trim.
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-4298
Customer Service & Support
Phone:
Fax:
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
888-99-MIELE(64353)
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 10 228 070 / 05
en-US, CA
H6100BM; H6200BM
