Some pieces contain sharp edges, Which may cause personal injury or property damage.
To prevent injury or damage, please wear protective gloves during assembly.
This product and fuels used to operate this product, and the product of combustion
of such fuels, can expose you to chemicals including benzene, which is known to the
State of California to cause cancer and reproductive harm.

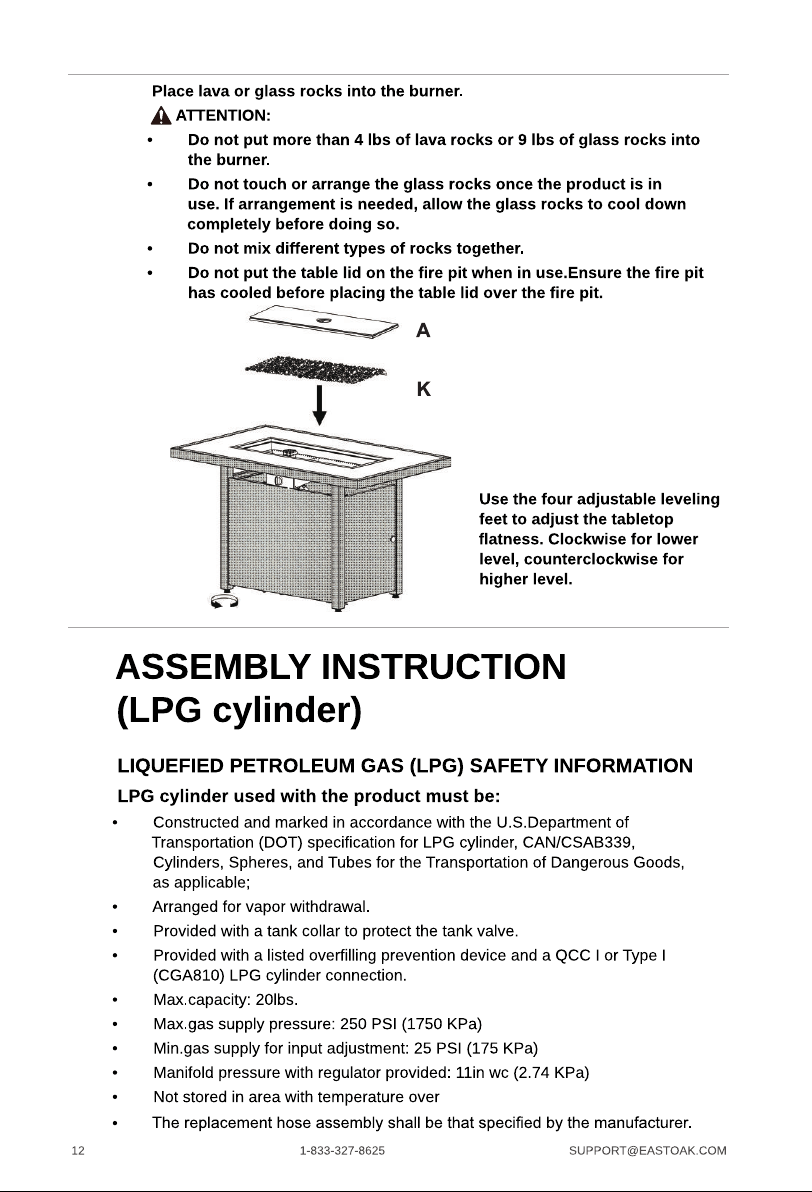

When using the lava/glass rocks in the fire pit for the first time, you may hear popping sound
and lava/glass rocks may bounce in the fire pit for the first 30 minutes. Keep a safe distance
from the fire pit until the rocks settle.
ed
To ensure the product can be used for many years,
14 Pieces
SCREW
SIZE
QUANTITY
D×L=M5×12mm
D×L=M6×14mm
AABB
16 Pieces
C
Note:(D) the hole in the frame is facing inside,
and the door handle is facing outside
step2
step3
step1
Step 1: Insert panel(D) into L piece (fixed);
Step 2: bracket(L) passes through the bolt;
Step3: Fasten bracket(L) with two screws.
Assemble the panels (F , J , H) as shown below
and secure them together using 4 screws (BB).
Note: Please observe that the side with three holes
on board (J) and (F) is mounted in the same direction
as the foot.
4x
4x
Assemble the panels (E) as shown below
and secure them together using 4 screws (BB).
Do not lock all the
screws at first, and
lock them after all
the mounting holes
are aligned.
Note: Please install it in the positive and
negative directions as shown in the figure
to prevent reverse installation.

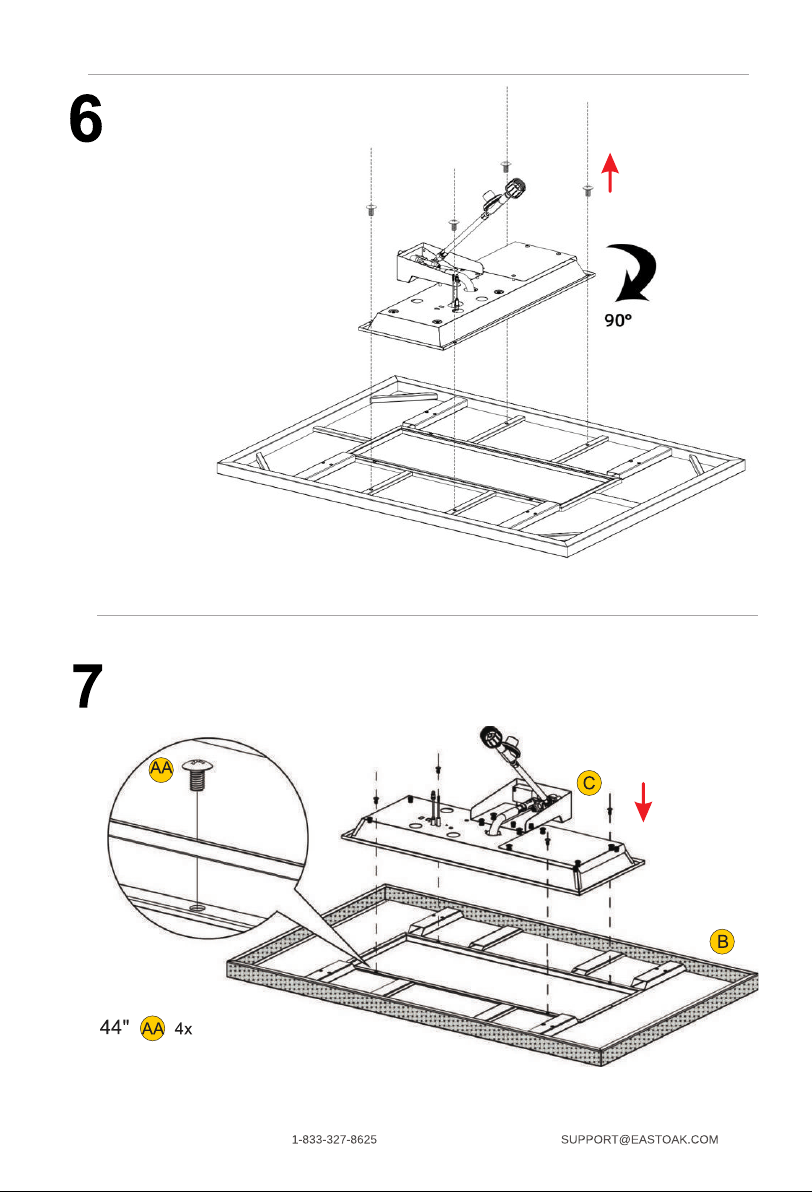

Remove the four white screws
and put them in the trash bin.
Turn the burning system 90° .
The knob should be aligned
with the logo
Turns out
Tighten the
four screws in
When the stove table is installed, turn it over and place the table
heat shield
.
.
125℉/51.7℃
9

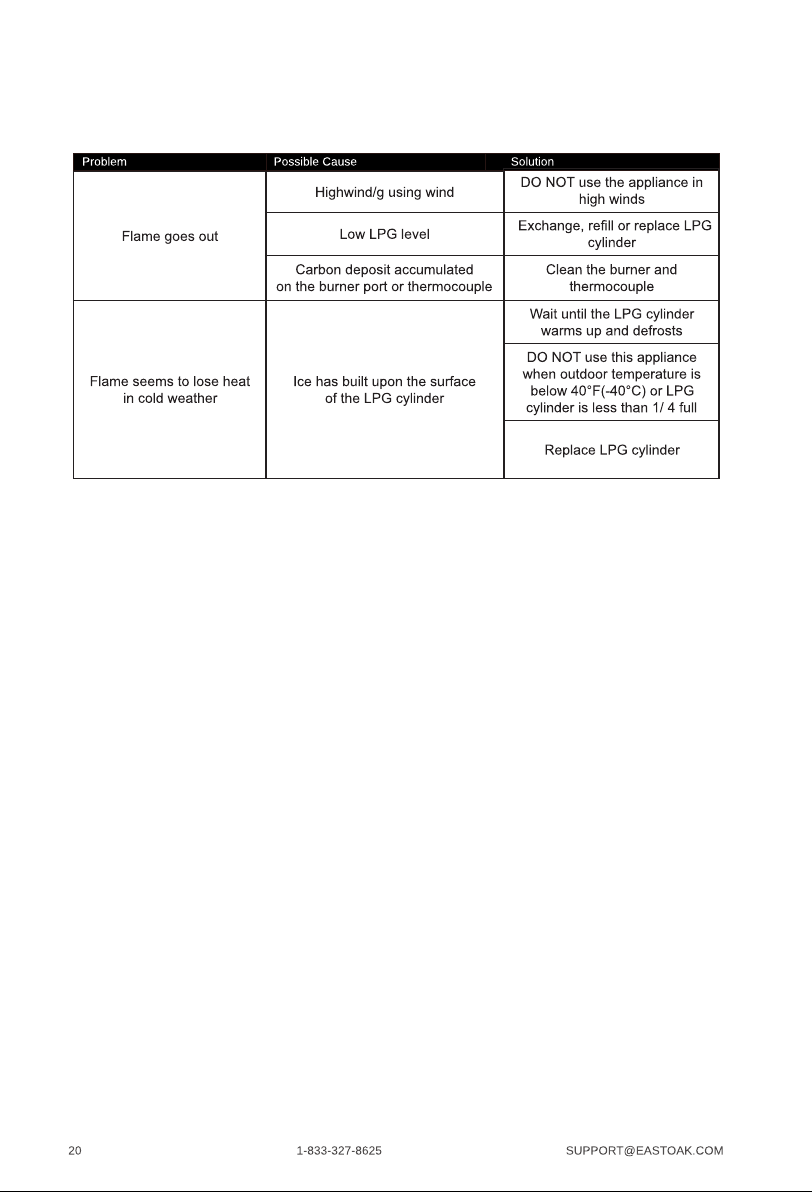

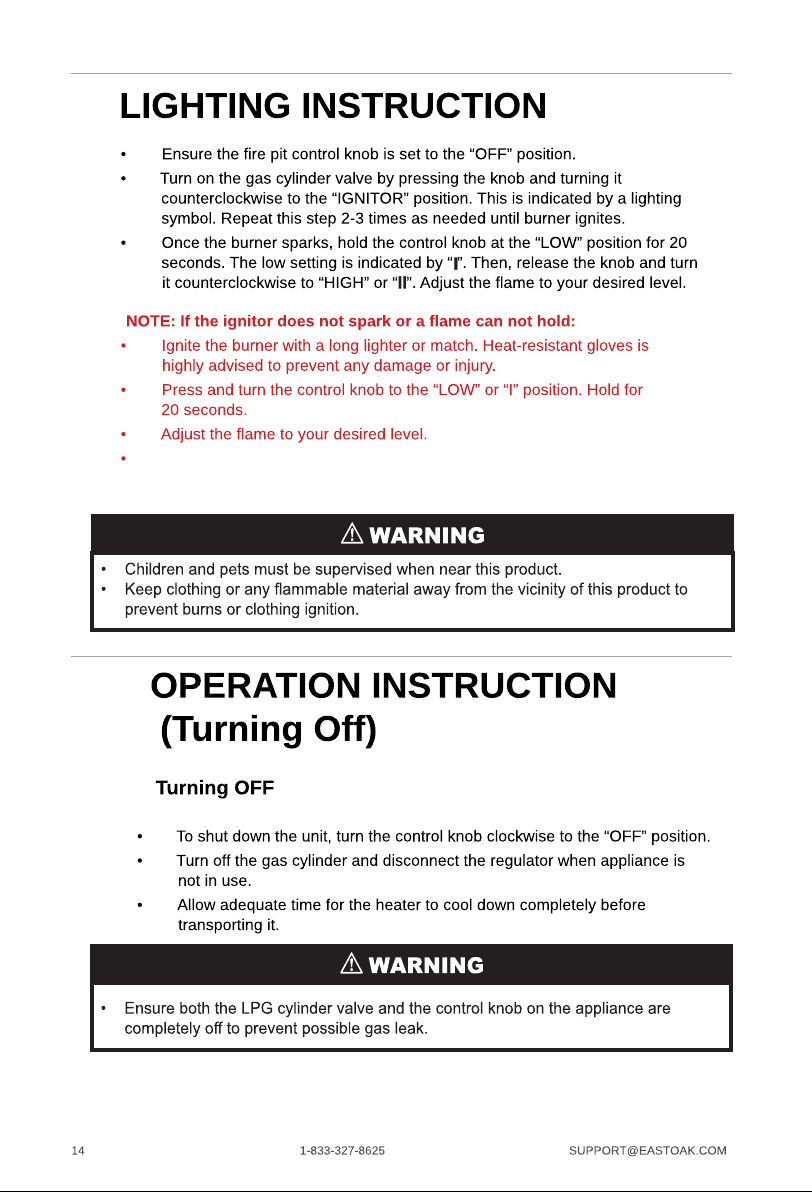

Keep in mind there may be a default shutdown time of 5 minutes before
the burner can be re-ignited.
