STJÄRNSTATUS
2
EN
CONTENTS
Contents 2
Important Safety Information 3
Features 6
Installation 7
Door Removal 10
Door Handle Installation 14
Water Supply Connection 15
Controls and Settings 17
Automatic Ice and Water Dispenser 21
Storage Features 24
Storing Food and Saving Energy 29
Normal Operating Sounds 30
Filter Replacement 31
Care and Cleaning 33
Troubleshooting 36
IKEA Limited Guarantee 41
3
EN
Doors
Handles are secure and tight
Door seals completely to cabinet on
all sides
Leveling
Refrigerator is level side-to-side
and slightly elevated in front to
assist with door and drawer closing
(front should be higher than back)
Toe grille is properly attached to
refrigerator
Cabinet is setting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker
House water supply connected to
refrigerator
No water leaks present at all
connections - recheck in 24 hours
Ice maker is turned ON
Ice & water dispenser operates
correctly
Final Checks
Shipping material removed
Fresh food and freezer
temperatures set
Crisper humidity controls set
Installation Checklist
IMPORTANT SAFETY INFORMATION
Thank you for choosing IKEA.
This User Manual is part of our commit-
ment to customer satisfaction and product
quality throughout the service life of your
new appliance.
We view your purchase as the beginning
of a relationship. To ensure our ability to
continue serving you, please use this page
to record important product information.
________________________________
Purchase Date
________________________________
Model Number
________________________________
Serial Number
4
EN
IMPORTANT
IMPORTANT indicates installation, oper-
ation or maintenance information which
is important but not hazard-related.
Denitions
This is the safety alert symbol. It is
used to alert you to potential personal
injury hazards. Obey all safety messages
that follow this symbol to avoid possible
injury or death.
IMPORTANT SAFETY INFORMATION
For your Safety
• DO NOT store or use gasoline,
or other ammable liquids in
the vicinity of this or any other
appliance. Read product labels for
warnings regarding ammability and
other hazards.
• DO NOT operate the refrigerator in
the presence of explosive fumes.
• Avoid contact with any moving parts
of automatic ice maker.
CAUTION
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
WARNING
WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
DANGER
DANGER indicates an imminently haz-
ardous situation which, if not avoided,
will result in death or serious injury.
WARNING
Please read all instructions before using this refrigerator.
• Remove all staples from the carton.
Staples can cause severe cuts, and
also destroy nishes if they come
in contact with other appliances or
furniture.
Child Safety
Destroy or recycle the carton, plastic
bags, and any exterior wrapping material
immediately after the refrigerator is
unpacked. Children should NEVER use
these items to play. Cartons covered
with rugs, bedspreads, plastic sheets
or stretch wrap may become airtight
chambers, and can quickly cause
suffocation.
Proper Disposal of your
Refrigerator or Freezer
Risk of child entrapment
Child entrapment and suffocation are
not problems of the past. Junked or
abandoned refrigerators or freezers are
still dangerous – even if they will sit for
“just a few days”. If you are getting rid
of your old refrigerator or freezer, please
follow the instructions below to help
prevent accidents.
Proper Disposal of Refrigerators/
Freezers
We strongly encourage responsible
appliance recycling/disposal methods.
Check with your utility company or visit
www.energystar.gov/recycle for more
information on
recycling your
old refrigerator.
Before you
throw away
your old
refrigerator/
freezer:
• Remove
doors.
• Leave shelves in place so children
may not easily climb inside.
• Have refrigerant removed by a
qualied service technician.
5
EN
IMPORTANT
CFC/HCFC Disposal
Your old refrigerator may have a cool-
ing system that used CFCs or HCFCs
(chlorouorocarbons or hydrochloro-
uorocarbons). CFCs and HCFCs are
believed to harm stratospheric ozone
if released to the atmosphere. Other
refrigerants may also cause harm to
the environment if released to the
atmosphere.
If you are throwing away your old
refrigerator, make sure the refrigerant
is removed for proper disposal by a
qualied technician. If you intention-
ally release refrigerant, you may be
subject to nes and imprisonment
under provisions of environmental
legislation.
Electrical information
• The refrigerator must be plugged
into its own dedicated 115 Volt,
60 Hz., 15 Amp, AC only electrical
outlet. The power cord of the
appliance is equipped with a three-
prong grounding plug for your
protection against electrical shock
hazards. It must be plugged directly
into a properly grounded three
prong receptacle. The receptacle
must be installed in accordance
with local codes and ordinances.
Consult a qualied electrician. Avoid
connecting refrigerator to a Ground
Fault Interrupter (GFI) circuit. Do
not use an extension cord or adapter
plug.
• If the power cord is damaged, it
should be replaced by an authorized
service technician to prevent any
risk.
• Never unplug the refrigerator by
pulling on the power cord. Always
grip the plug rmly, and pull straight
out from the receptacle to prevent
damaging the power cord.
• Unplug the refrigerator before
cleaning and before replacing a light
bulb to avoid electrical shock.
• Performance may be affected if the
voltage varies by 10% or more.
Operating the refrigerator with
insufcient power can damage the
compressor. Such damage is not
covered under your warranty.
IMPORTANT
Pressing and holding the On/Off but-
ton for three seconds, located on the
temperature control panel, will disable
your refrigerator’s cooling system but
does not disconnect the power to the
light bulb and other electrical compo-
nents. To turn off power to your refrig-
erator you must unplug the power cord
from the electrical outlet.
Grounding type wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
IMPORTANT SAFETY INFORMATION
• Do not plug the unit into an
electrical outlet controlled by a wall
switch or pull cord to prevent the
refrigerator from being turned off
accidentally.
CAUTION
To avoid personal injury or property
damage, handle tempered glass shelves
carefully. Shelves may break suddenly if
nicked, scratched, or exposed to sudden
temperature change.
WARNING
WARNING! CALIFORNIA RESIDENTS
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
6
EN

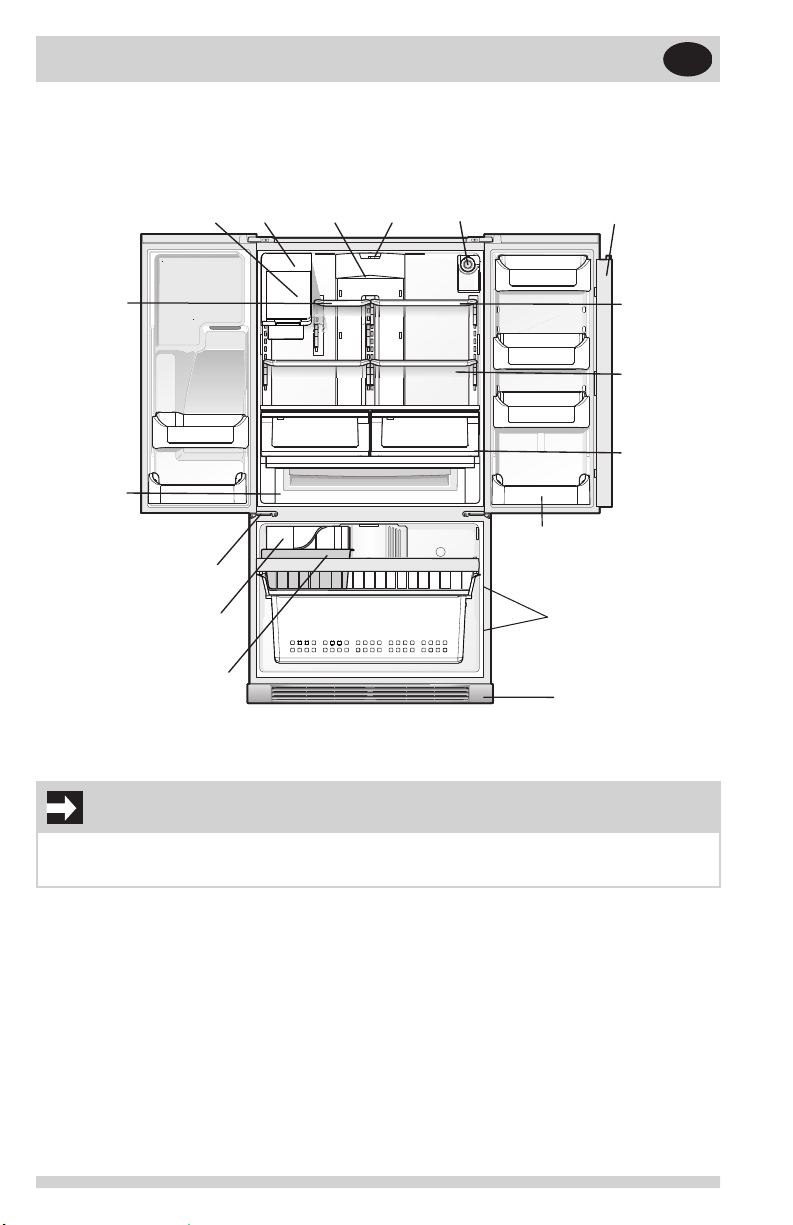

Flip Shelf
Deli
Drawer
Water
Filter
*Removable
Ice Bin
*Freezer Ice
Maker
Adjustable Hinges
Freezer Baskets
Toe Grille
Door Bin
Glass
Shelves
Flipper
Mullion
Air
Filter
Flipper
Guide
*Fresh Food
Ice Maker
*Ice Bin
Crisper
Drawer
Glass
Shelves
IMPORTANT
Features not purchased with your refrigerator can be purchased at
www.ikea.com or by calling IKEA US: (833) 337-4006.
FEATURES
*Features may vary according to model
7
EN
INSTALLATION
This Use & Care Guide provides general
installation and operating instructions
for your model. We recommend
using a service or kitchen contracting
professional to install your refrigerator.
Use the refrigerator only as instructed in
this Use & Care Guide. Before starting
the refrigerator, follow these
important rst steps.
Location
• Choose a place that is near a
grounded, non-GFCI, electrical
outlet. Do Not use an extension
cord or an adapter plug.
• If possible, place the refrigerator
out of direct sunlight and away from
the range, dishwasher, or other heat
sources.
• The refrigerator must be installed
on a oor that is level and strong
enough to support a fully loaded
refrigerator.
• Consider water supply availability for
models equipped with an automatic
ice maker.
Installation
Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top ⅜ inch (9.5 mm)
Back 1 inch (25.4 mm)
Door opening
Your refrigerator should be positioned
to allow easy access to a counter
when removing food. For best use of
refrigerator drawers and freezer baskets,
the refrigerator should be in a position
where both can be fully opened.
Top Hinge
Cover Front
Screw
Top Hinge
Cover Rear
Screw
Lower
Hinge
Screw
Top
Hinge
Screw
Components Provided:
Tools Necessary:
Phillips Head
or
Quadrex Head
Screwdriver
(OR)
OR
⅜" and ¼"
Socket
Wrench
Adjustable
Wrench
OR
⅜"
Fixed
Wrench
ANDAND
6mm
Allen Wrench
CAUTION
Do Not install the refrigerator where
the temperature will drop below 55°F
(13°C) or rise above 110°F (43°C).
The compressor will not be able to
maintain proper temperatures inside
the refrigerator.
Do Not block the toe grille on the lower
front of your refrigerator. Sufcient air
circulation is essential for the proper
operation of your refrigerator.
Note
If your refrigerator is placed with the
door hinge side against a wall, you
may have to allow additional space so
the door can be opened wider.
8
EN
INSTALLATION
Toe Grille Must
Fit in Slot on
Anti-tip Bracket
Screw/Washer
Assembly
(2) Retaining Clips
3 Ensure both doors are bind-free with
their seals touching the cabinet on all
four sides and that cabinet is stable.
4 After unit is leveled, lower anti-tip
leg using a 3/8 inch socket wrench
until it rmly contacts the oor.
5 Install the toe grille by tting into
place.

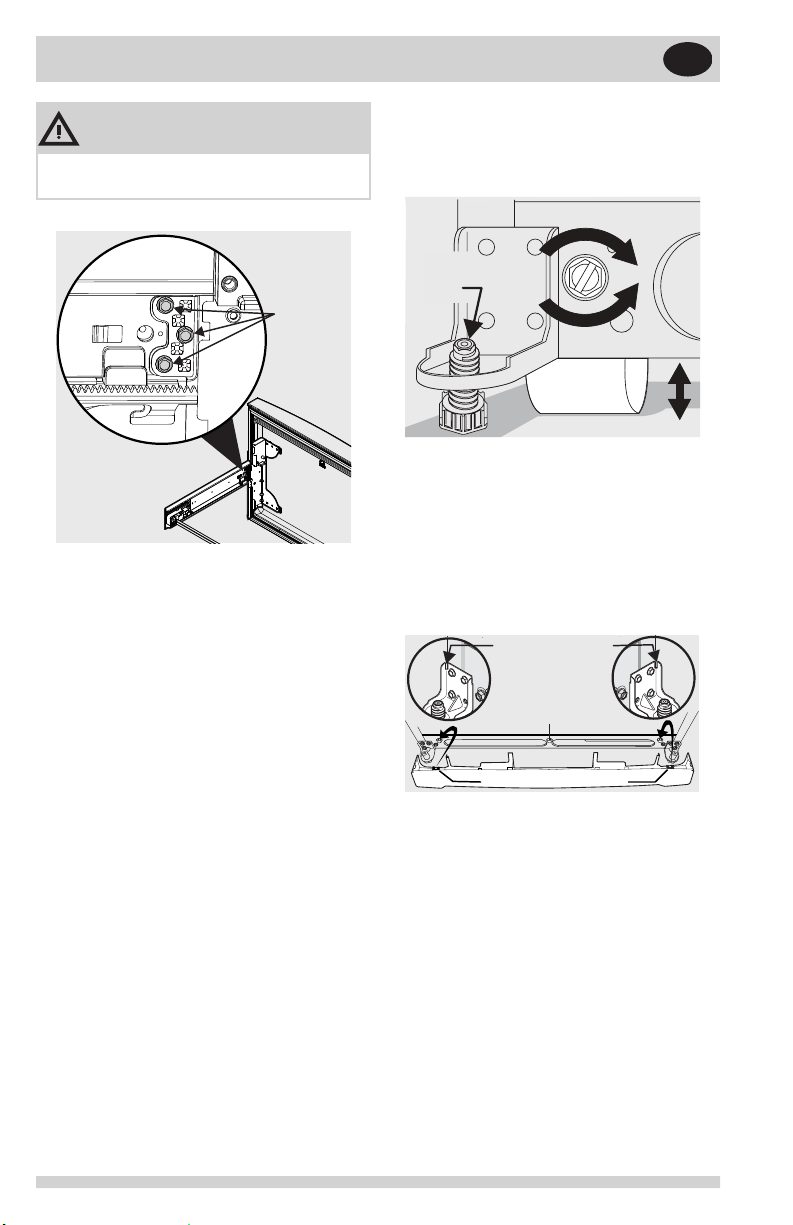

Cabinet Leveling &
Refrigerator Door Alignment
(if necessary)
Guidelines for nal positioning of your
refrigerator:
• All four corners of the cabinet must
rest rmly on the oor.
• The front should be slightly elevated
to ensure that doors close and seal
properly.
• Doors should align with each other
and be level.
Most of these conditions can be met by
raising or lowering the adjustable front
rollers.
To level the cabinet using the front
rollers:
1 Slightly open freezer drawer if the
toe grill is installed. Lift the toe grille
and gently pull forward.
2 Make initial cabinet adjustments by
using the front roller height adjusting
screws. Use a 3/8 inch socket wrench
to turn the adjustment screws (1 per
side).
DO NOT
Loosen
or
Remove
These 3
Hex
Screws
Raise
Lower
Anti-tip
Leg
To raise: turn adjustment screw
clockwise.
To lower: turn adjustment screw
counterclockwise.
CAUTION
Do Not loosen or remove these 3 hex
screws.
9
EN
Raise

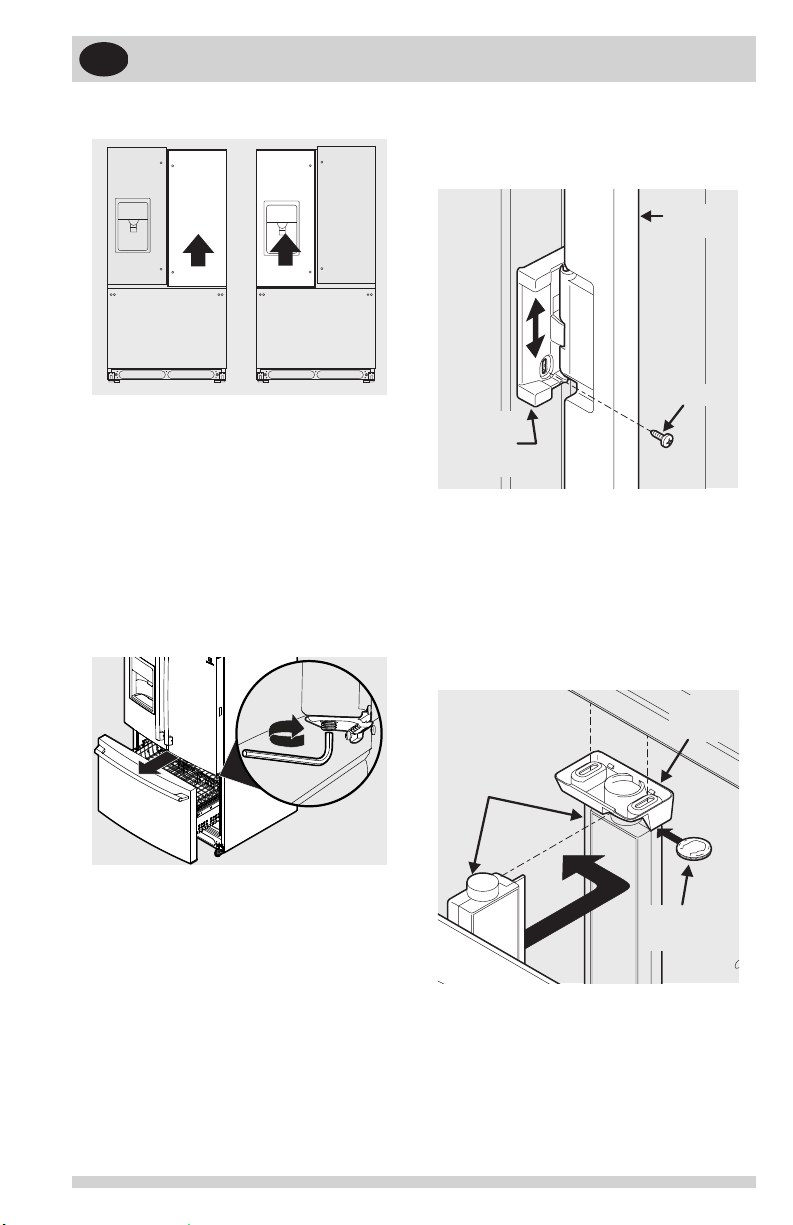

To make nal door height adjustments:
Flipper
Mullion
Screw
Flipper
Mullion
Hinge
Adjusting Flipper Mullion Screw
2 Adjust ipper mullion height. For
proper connection with the ipper
mullion guide, there should be a
separation about the thickness of
a coin (0.060 inches, or 1.5 mm)
between the guide and ipper
mullion.
3 Re-tighten screw.
To adjust the ipper mullion:
1 Loosen the screw located on the
ipper mullion hinge.
Flipper
Mullion
Mullion
Guide
Thickness
of a Coin
Adjusting Flipper Mullion Height
INSTALLATION
1. Open freezer drawer to make lower
hinge visible.
2. Insert 6mm Allen wrench into the
shaft of the lower hinge.
3. Adjust the height by turning
clockwise or counterclockwise.
Turning clockwise will lower the door.
Turning counterclockwise will raise
the door. Default setting is to the
lowest height when you receive your
appliance.
Door
Door
10
EN
DOOR REMOVAL
2 Disconnect the harness by grasping
both sides of the connector rmly,
depress the latch and pull apart.
Getting through narrow
spaces
If your refrigerator will not t through
an entrance area, you can remove the
doors. Check rst by measuring the
entrance.
To prepare for removing the doors:
1 Make sure the electrical power cord
is unplugged from the wall outlet.
2 Open the freezer drawer and remove
the toe grille (see Installation
section).
3 Remove any food from the door
shelves and close the doors.

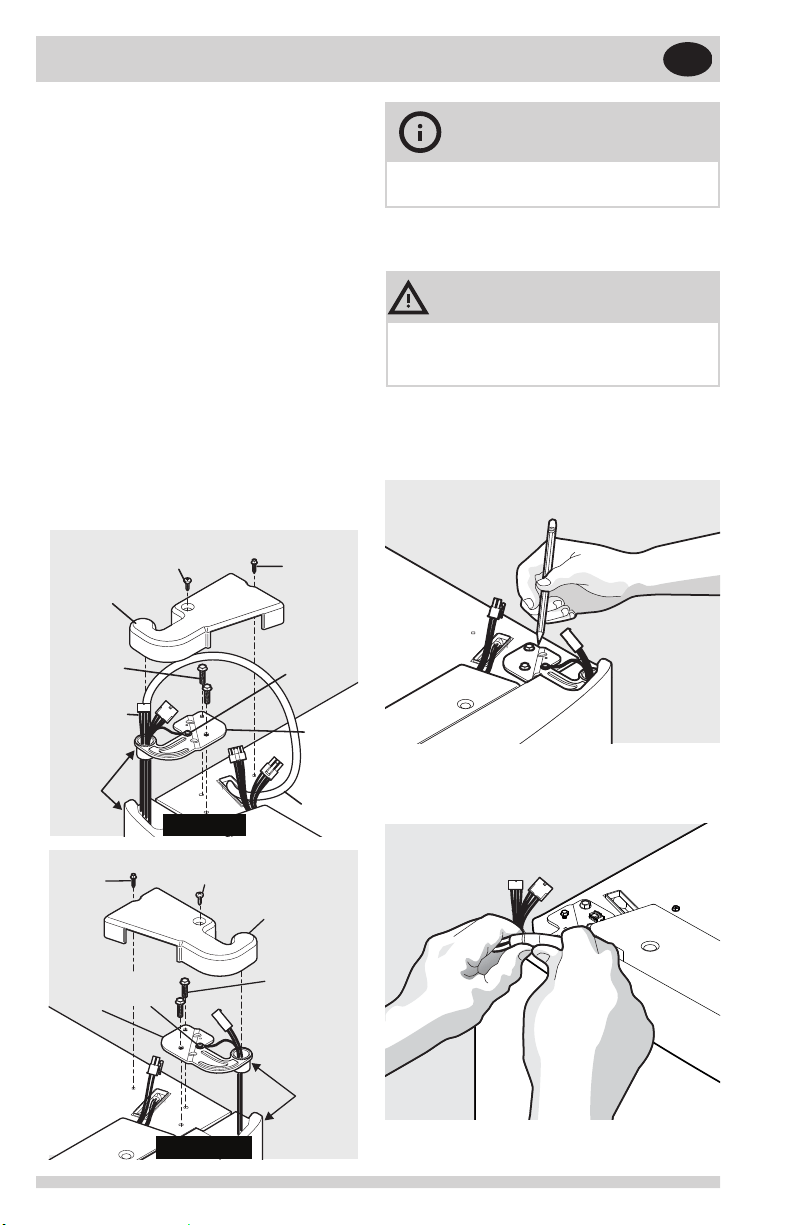

To remove the top hinge covers:
1 Remove the two screws from each
cover over the top door hinges.
2 Lift inside edge of hinge cover and
tilt back.
Rear
Cover
Screw
Ground
Screw
Top
Hinge
Top Hinge
Cover
Hinge
Screws
Multi-wire
Cables
Leave
Hinge
With
Door
Front
Cover Screw
Water
Line
Left Door
Rear
Cover
Screw
Top
Hinge
Ground
Screw
Front
Cover Screw
Top Hinge
Cover
Hinge
Screws
Leave
Hinge
With
Door
Right Door
To remove the refrigerator
doors
1 Remove top hinge covers. Trace
lightly around the door’s top
hinges with a pencil. This makes
reinstallation easier.
Note
DO NOT remove the ground screw
from hinge.
WARNING
Make sure the electrical power cord is
unplugged from the wall outlet.
11
EN
IMPORTANT
Open the refrigerator doors to a 90
degree angle before lifting the doors
off the bottom hinges and setting them
aside.
DOOR REMOVAL
4 Open the refrigerator doors to a 90
degree angle and remove the two
screws from the top hinge. Lift and
remove door from lower hinge.
5 Unscrew the three lower hinge
screws and remove the hinge.
Lower Hinge Removal
Water
Line
Water
Line
Press
Press
3 Detach the water tube from the
connector located behind the
refrigerator, the connector releases
when you press inward on the
connector’s outer sleeve. Pull the
water tube out toward the front of
the unit.
90˚
Top View
Cabinet
Left Door
Right Door
Top View
of
Cabinet
Note
Use care while pulling the water tube
from the unit to be sure that you do
not kink the tube.
Note
You will be pulling approximately ve
feet of water tube from the back of the
refrigerator.
CAUTION
Be sure doors are set aside in a secure
position where they cannot fall and
cause personal injury, or damage to
the doors or handles.
12
EN
IMPORTANT
When replacing the doors on the lower
hinge, they must be installed at a 90
degree angle.
DOOR REMOVAL

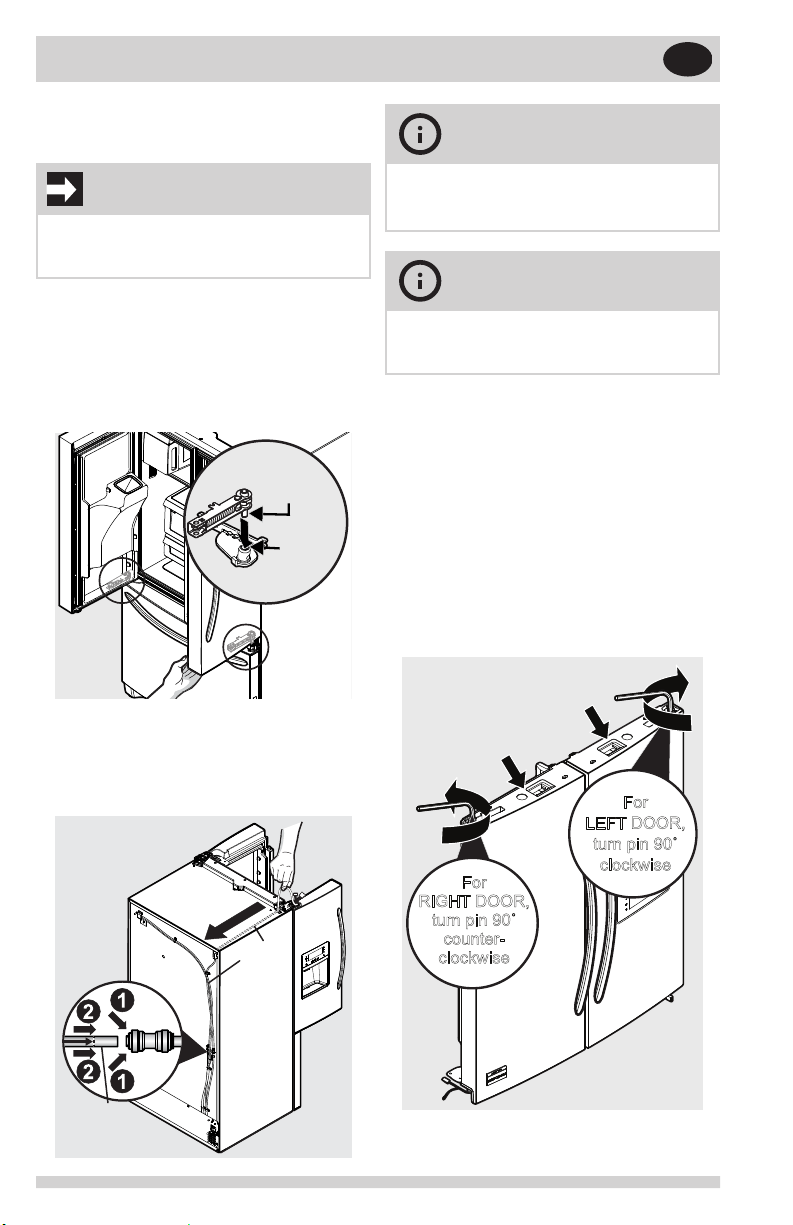

To reinstall the refrigerator
doors:
Water
Line
Water
Line
Insert
tube up
to the
marking
line
Press
Press
Bottom of the Doors
For
RIGHT DOOR,
turn pin 90˚
counter-
clockwise
For
LEFT DOOR,
turn pin 90˚
clockwise
1 Replace the lower hinge screws.
2 Holding the door at a 90 degree
angle, drop the pin down into the
center hinge opening. Rotate it
slightly in either direction until the
door falls down into place.
5 Reconnect the harnesses.
6 Replace the top hinge covers.
7 Reconnect electrical power cord to
the wall outlet.
To reset door pin:
If doors are removed at less than a 40
degree angle, the pin returns to the
home position. It can be reset by turning
the door upside and using a 5/32” Allen
wrench to rotate the left hand pin 90
degrees clockwise and the right hand pin
90 degrees counterclockwise.
Pin
Mechanism
Bottom
Hinge
Opening
Doors
at 90º
(Door Bottom)
3 Reinstall top hinge.
4 Insert the water line in the top left
tunnel pushing from the front to the
back of the unit.
Once the door pins are reset, follow the
steps “To reinstall the refrigerator doors”.
Note
When reinserting the water tube and
replacing the top hinge cover, use care
to be sure you do not kink the tube.
Note
Upon replacement, the tube needs to
be fully inserted up to the marking
line.
13
EN
DOOR REMOVAL
Removing Freezer Drawer
Remove
Hex Head
Drawer Screw
DO NOT
Remove
Other
Screws
DO NOT
Loosen
or
Remove
These 3
Hex
Screws
Replacing Freezer Drawer
1 Extend the Freezer slides from the
unit.
2 Carefully align support pin with
hooks on end of freezer slides and
then lower freezer door onto slides.
3 Replace the 4 hex head screws that
secure the slides to the door (2 on
each side) and tighten.
1 Remove 4 hex head drawer screws.
2 Lift up drawer to remove.
Pin
Hook
CAUTION
Drawer is heavy. Use caution when
lifting.
Note
To locate the pin, look inside the
drawer and the pin is next to the door
liner and the slides. Not all parts are
shown in the illustration.
14
EN

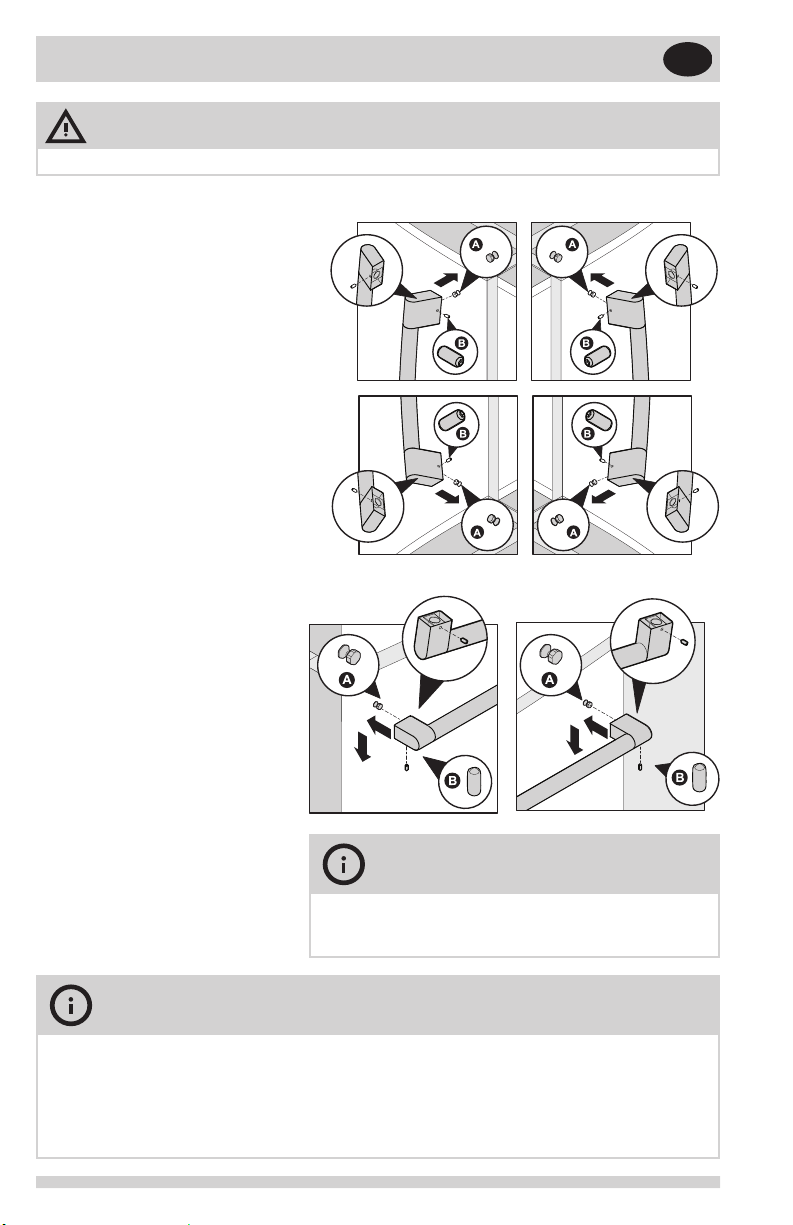

DOOR HANDLE INSTALLATION
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
NOTE
All set screws should be tightened so the screw is below the surface of the handle.
The handles should be drawn tight to freezer and refrigerator doors with no gaps.
Opening the opposite door while tightening the Allen screw makes installation
easier.
The door handle may loosen over time or if it was installed improperly. If this hap-
pens, tighten the set screws on the handles.
Door Handle Mounting
Instructions
1 Remove handles from carton
and any other protective
packaging.
2 Position fresh food handle
end caps over upper and
lower pre-installed shoulder
bolts (A) that are fastened
into door, ensuring the holes
for the set screws are facing
towards the opposite door.
3 While holding handle rmly
against door, fasten upper
and lower Allen set screws (B)
with supplied Allen wrench.
4 Repeat steps 2 and 3 to install
opposite handle. Ensure the
holes for the set screws are
facing towards the rst door.
5 Position freezer handle end
caps over left and right pre-
installed shoulder bolts (A)
that are fastened to the door,
ensuring the holes for the set
screws are facing down.
6 While holding handle rmly
against door, loosely tighten
right Allen set screw (B)
with supplied Allen wrench
until there is no gap
between handle and door.
7 Still holding the handle rmly
to the door, rmly tighten
left Allen set screw (B) with
supplied Allen wrench.
8 Return to the right Allen set
screw (B) and rmly tighten
with supplied Allen wrench.
Mounting Freezer Handle
Mounting Refrigerator Handles
NOTE
When tightening the Allen set screws, it is impera-
tive that force be applied to the longer arm of the
Allen wrench supplied in the handle packaging.
15
EN
WATER SUPPLY CONNECTION
WARNING
To avoid electric shock, which can
cause death or severe personal injury,
disconnect the refrigerator from
electrical power before connecting a
water supply line to the refrigerator.
NOTE
Check with your local building author-
ity for recommendations on water
lines and associated materials prior
to installing your new refrigerator.
Depending on your local/state building
codes, IKEA recommends for homes
with existing valves its water line kit
5305513409 with a 6 ft.
(1.8 meters) Stainless Steel Water
Line, and for homes without an existing
valve IKEA recommends its water line
kit 5305510264 with a 20 ft.
(6 meters) Copper Water Line with self-
tapping saddle valve.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided
tubing is recommended for the
water supply line. Water supply
tubing made of ¼ inch plastic is
not recommended to be used.
Plastic tubing greatly increases the
potential for water leaks, and the
manufacturer will not be responsible
for any damage if plastic tubing is
used for the supply line.
• DO NOT install water supply tubing
in areas where temperatures fall
below freezing.
• Chemicals from a malfunctioning
water softener can damage the ice
maker. If your home has a water
softening system, ensure the
softener is maintained and working
properly.
IMPORTANT
Ensure that your water supply line
connections comply with all local
plumbing codes.
Before Installing The Water
Supply Line, You Will Need:
• Basic Tools: adjustable wrench,
at-blade screwdriver, and Phillips
TM
screwdriver
• Access to a household cold water
line with water pressure between 30
and 100 psi.
• A water supply line made of ¼ inch
(6.4 mm) OD, copper or stainless
steel tubing. To determine the
length of tubing needed, measure
the distance from the ice maker inlet
valve at the back of the refrigerator
to your cold water pipe. Then add
approximately 7 feet (2.1 meters),
so the refrigerator can be moved out
for cleaning (as shown).
• A shutoff valve to connect the water
supply line to your household water
system. DO NOT use a self-piercing
type shutoff valve.
• Do not re-use compression tting or
use thread seal tape.
• A compression nut and ferrule
(sleeve) for connecting a copper
water supply line to the ice maker
inlet valve.
To Connect Water Supply
Line To Ice Maker Inlet Valve
1 Disconnect refrigerator from electric
power source.
2 Place end of water supply line into
sink or bucket. Turn ON water supply
and ush supply line until water
is clear. Turn OFF water supply at
shutoff valve.
3 Remove plastic cap from water valve
inlet and discard cap.
4 If you use copper tubing - Slide
brass compression nut, then
ferrule (sleeve) onto water supply
line. Push water supply line into
water valve inlet as far as it will
go (¼ inch/6.4 mm). Slide ferrule
(sleeve) into valve inlet and nger
tighten compression nut onto valve.
16
EN
IMPORTANT
Your refrigerator’s water supply system
includes several tubing lines, a water
lter, and a water valve. To ensure that
your water dispenser works properly,
this system must be completely lled
with water when your refrigerator is
rst connected to the household water
supply line.
WATER SUPPLY CONNECTION
NOTE
These instructions do not cover after
market ice maker installation. Instruc-
tions in after market ice maker kit
should be used.
Figure 1
Plastic Water
Tubing to Ice
Maker Fill
Tube
Steel
Clamp
Brass
Compression
Nut
Ferrule
(Sleeve)
Copper
water line
Water Valve
Bracket
Valve Inlet
Water Valve
Copper water line
from household
water supply
(Include enough tubing in loop to allow
moving refrigerator out for cleaning.)
Steel
Clamp
Braided
Flexible
Stainless
Steel
Water Line
Water Valve
Bracket
Valve Inlet
Water Valve
6 ft (1.8 Meters) Braided flexible
stainless steel water line from
household water supply.
Plastic Water Tubing
to Ice Maker
Fill Tube
(Include enough tubing in loop to allow
moving refrigerator out for cleaning.)
Figure 2
Tighten another half turn with a
wrench; DO NOT over tighten. See
Figure 1.
If you use braided exible stainless
steel tubing - The nut is already
assembled on the tubing. Slide nut
onto valve inlet and nger tighten
nut onto valve. Tighten another half
turn with a wrench; DO NOT over
tighten. See Figure 2.
5 With steel clamp and screw, secure
water supply line to rear panel of
refrigerator as shown.
6 Coil excess water supply line (copper
tubing only), about 2½ turns, behind
refrigerator as shown and arrange
coils so they do not vibrate or wear
against any other surface. Do not
kink tubing.
7 Turn ON water supply at shutoff
valve and tighten any connections
that leak.
8 Reconnect refrigerator to electrical
power source.
9 To turn ice maker on, lower wire
signal arm (freezer ice maker) or set
the ice maker’s On/Off power switch
to the “On” position (fresh food ice
maker).
17
EN

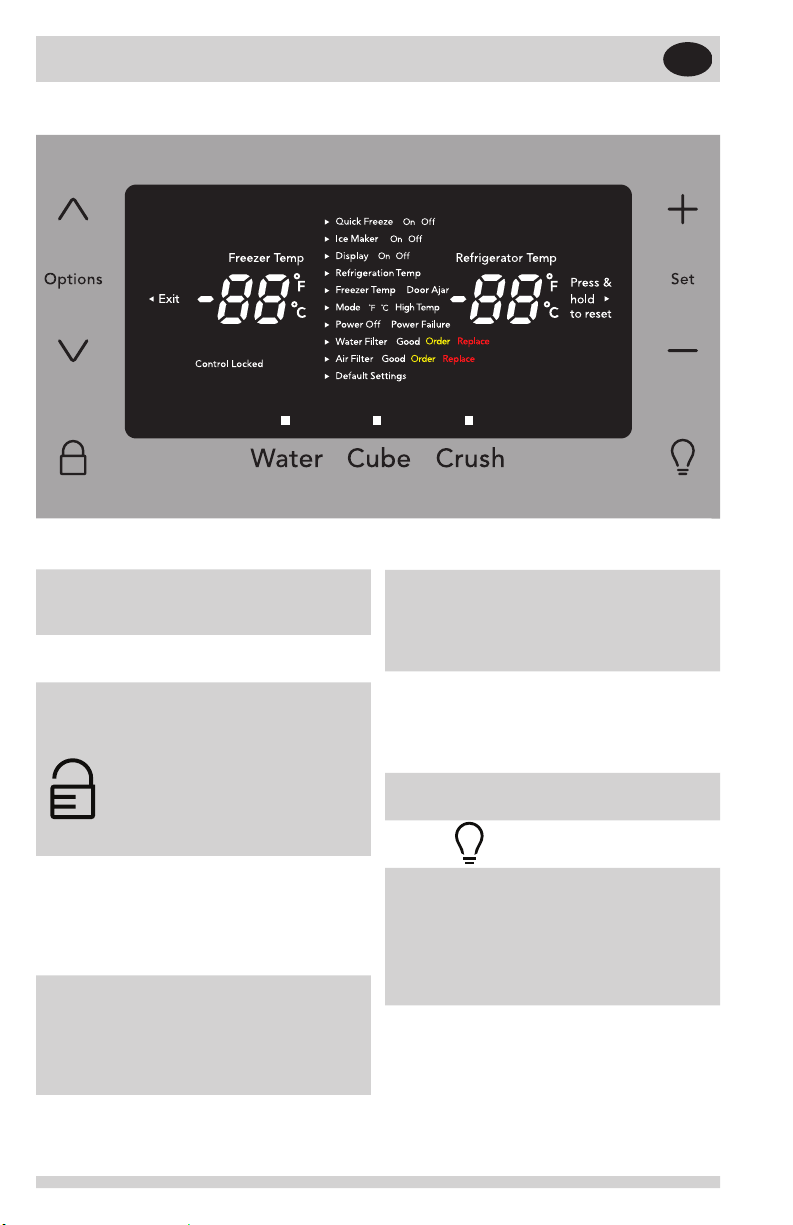

CONTROLS AND SETTINGS
Refrigerator Settings Display Instructions
1. The default setting
of the refrigerator
display activates
upon touch and
fades away the
temperature settings
after 10 seconds.
2. To reawaken
the temperature
settings, simply
select “∧ / ∨” or “+
/ -” buttons on the
display or use the
Dispenser Paddle.
After 10 seconds
the display will fade,
excluding the ice/
water selection LED.
3. To keep the
temperature display
on at all times,
follow these steps:
• Select “Options” on
the display
• Scroll to “Display”
in the menu using
the arrows
• Select “+” to
change the display
from “Off” to “On”
• Select “Options”
to exit the menu
screen
18
EN
Options
(∧ or ∨)
Used to enter and exit
the options menu and
make selections.
Exit Toggles the options and
run modes.
Control
Locked
While in the locked state,
you will not be able to
change any settings
on the display nor
dispense ice and water.
The “Control Locked”
indicator will ash and an
audible warning tone is
played.
Quick
Freeze
On Off
Activates a faster
rate for freezing food
and increases ice
production in the freezer.
Deactivates after 12
hours.
Ice Maker
On Off
Toggles the ice maker
in the refrigerator
compartment “ON” or
“OFF”. In the “Off” state,
the indicator will blink
when ice is dispensed.
Display
On Off
Toggles the display of the
temperature settings On
and Off.
Refrige-
ration
Temp
Allows the temperature
set-points to be adjusted.
Control temperatures
range from +33°F / +1°C
to +47°F / +8°C.
Freezer
Temp
Allows the temperature
set-points to be adjusted.
Control temperatures
range from -6°F / -21°C
to +6°F / -15°C.
Mode
°F °C
Toggles display from
Fahrenheit to Celsius.
Light Toggles dispenser light
On and Off.
Power Off Press and hold for three
seconds to turn off
the cooling system. It
also turns off the ice
maker and all dispenser
functions. The display will
read “power off”.
Water
Filter
Displays the current status
of the water lter (Good,
Order, or Replace). To reset
the lter status to “Good”,
press and hold the “set”
key for three seconds.
Options May Vary
User Interface
CONTROLS AND SETTINGS
19
EN
NOTE
Control features and alarms may vary
by model.
Air Port
Air Filter Displays the current status
of the air lter (Good,
Order, or Replace). To reset
the lter status to “Good”,
press and hold the “set”
key for three seconds.
Default
Settings
While in the default
option, press and hold
the “set” key for three
seconds to reset all
refrigerator settings
to their factory default
settings.
Set
(+ or −)
Selects the current menu
selection option.
Water Press the “water” key to
select water. An indicator
light will be illuminated
above the active feature.
Cube Press the “cube” key
to select cubed ice. An
indicator light will be
illuminated above the
active feature.
Crush Press the “crush” key
to select crushed ice.
An indicator light will be
illuminated above the
active feature.
Setting cooling temperatures
(options may vary)
NOTE
The recommended settings for a prod-
uct installed in a kitchen is 37˚F for the
fresh food compartment and 0˚F for
the freezer.
IMPORTANT
If your product has food freezing in the
fresh food compartment, increase the
temperature setting 1 or 2 degrees.
IMPORTANT
If you place food within 1 inch in front
of the air ports, there may be the
chance of freezing food.
Options May Vary (Continued)
CONTROLS AND SETTINGS
20
EN
Alarms
Power Failure
In the event of a power failure, the
power fail alert will be illuminated. Press
set to acknowledge the alarm. Other
modes may be turned off until the alarm
is acknowledged. While a power fail alert
is displayed on the control panel, the
unit will continue normal operation. The
power fail alert on the control panel will
be removed once in the user acknowl-
edges the power fail condition by press-
ing any key on the control panel. The
high temp alarm may also be illuminated
until a safe operating range temperature
has been reached.
Freezer Temp
If the freezer temperature reaches 26°F
or greater, the alarm will sound and the
temperature will ash. You can disable
the alarm by pressing the set key but the
“High Temp” indicator will illuminate until
the temperature goes below 26°F.
Fresh Food Temp
If the fresh food temperature reaches
55°F or greater, the alarm will sound
and the temperature will ash. You can
disable the alarm by pressing the set
key but the “High Temp” indicator will
illuminate until the temperature goes
below 55°F.
Door Ajar
If the freezer or fresh food doors have
been left open for ve minutes or more,
an alarm will sound and the door ajar
indicator will illuminate on the display.
Press the set key to reset any system
alarms.
Flapper
When “Cube” or “Crush” is selected, if
the apper (or ice chute door) is being
held open by a jammed ice cube, an
alarm will sound for two minutes. The
alarm will reset after two minutes or
when the ice cube is removed and the
set key is pressed to reset.
Sabbath Mode
The Sabbath Mode is a feature that
disables portions of the refrigerator
and its controls in accordance with
observance of the weekly Sabbath and
religious holidays within the Orthodox
Jewish community.
Sabbath Mode is turned ON and OFF
by simultaneously pressing and holding
both the “∨” and “+” for ve seconds.
The display shows “Sb” while in Sabbath
mode.
In the Sabbath Mode, the High Temp
alarm is active for health reasons. For
example, if the door is left ajar the High
Temp alarm is activated. The refrigerator
will function normally once the door
is closed, without any violation of the
Sabbath/Holidays. The High Temp alarm
is permitted when cabinet temperature
is outside the safe zone for 20 minutes.
The alarm silences itself after 10 minutes
while the High Temp icon stays lit until
the Sabbath mode is exited.
For further assistance, guidelines for
proper usage and a complete
list of models with the Sabbath
feature, please visit the web at
http:\\www.star-k.org.
NOTE
While in Sabbath Mode, neither the
lights, dispenser, nor the control panel
will work until Sabbath Mode is deac-
tivated.
Refrigerator stays in Sabbath Mode
after power failure recovery. It must
be deactivated with the buttons on the
control panel.
NOTE
Although you have entered the Sab-
bath Mode, the ice maker will complete
the cycle it had already initiated. The
ice cube compartment will remain cold
and new ice cubes can be made with
standard trays.
CONTROLS AND SETTINGS
21
EN
IMPORTANT
Your ice maker is turned on at the
factory so it can work as soon as you
install your refrigerator. If you can-
not connect a water supply, set the ice
maker’s On/Off feature to Off; oth-
erwise, the ice maker’s ll valve may
make a loud chattering noise when it
attempts to operate without water.
IMPORTANT
Turning off the ice maker simply dis-
ables ice making. You will still be able
to dispense existing ice, and you will
still be able to dispense water.
AUTOMATIC ICE AND WATER DISPENSER
NOTE
The water dispenser has a built-in de-
vice that shuts off the water ow after
three minutes of continuous use. To
reset this shutoff device, simply release
the dispenser paddle.
NOTE
The ice maker also has a built-in plas-
tic signal arm that automatically stops
ice production when the ice bin is full.
This signal arm should not be used to
manually stop the ice maker.
CAUTION
For proper dispenser operation,
recommended water supply pressure
should fall between 30 psi and 100 psi.
Excessive pressure may cause the
system to malfunction.
Priming the water supply
system
Ice maker operation & care
After the refrigerator is installed properly
and has cooled for several hours, the ice
maker can produce ice within 24 hours.
The ice maker will ll the ice bin from
the rear. You must dispense some ice to
force the ice forward in the bin. This will
allow the bin to ll completely.
Ice Maker and Storage Bin
Capacity
This ice maker should produce 2.0 to 2.5
pounds of ice per 24 hours.
In a Standard Depth model, the ice bin will
hold about 6.5 pounds of ice. In a Counter
Depth model, the ice bin will hold about 4
pounds of ice.
Turning the fresh food ice
maker on and off
Ice production is controlled by the ice
maker’s On/Off feature on the control
panel. Pressing the On/Off feature turns
the ice maker on & off.
Using the ice maker after
installation
Before making ice for the rst time,
be sure to prime the water supply
system. Air in new plumbing lines can
result in two or three empty ice maker
cycles. Furthermore, if the system is
not ushed, the rst ice cubes may be
discolored or have an odd avor.
NOTE
Dispensed water is not chilled. For
colder water, add ice to cup or con-
tainer before dispensing water.
1 Begin lling the system by pressing
and holding a drinking glass against
the water
dispenser
paddle.
2 Keep the
glass in this
position until
water comes
out of the
dispenser.
It may take
about 1½
minutes.
3 Continue
dispensing
water for about four minutes to
ush the system and plumbing
connections of any impurities
(stopping to empty the glass as
necessary).
Dispenser
(varies by model)
22
EN
CAUTION
If the water supply to your refrigerator
is softened, be sure the softener is
properly maintained. Chemicals from
a water softener can damage the ice
maker.
IMPORTANT
On occasion, unusually small ice cubes
may be noticed in the bucket or in
dispensed ice. This could occur in nor-
mal operation of the ice maker. If you
start seeing these more frequently,
it may be an indication of low water
pressure or the water lter needs to
be replaced. As the water lter nears
the end of its useful life and becomes
clogged with particles, less water is
delivered to the ice maker during
each cycle. Remember, if it’s been
six months or longer since you last
changed your water lter, replace the
water lter with a new one. Poor qual-
ity household water may require the
lter to be changed more frequently.
AUTOMATIC ICE AND WATER DISPENSER
Ice maker/dispenser tips
• If your refrigerator is not connected
to a water supply or the water
supply is turned off, turn off the ice
maker as described in the previous
section.
• The following sounds are normal
when the ice maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
• If you need a large quantity of ice
at one time, it is best to get cubes
directly from the ice bin.
• Ice cubes stored too long may
develop an odd avor. Empty the ice
bin as explained below.
• When dispensing cubed ice, it is
normal to have a small quantity of
little pieces along with the whole
cubes.
• To avoid splashing, dispense ice into
your container before adding liquids.
• It is normal for ice to ll to the top
of the ice bin.
Cleaning the ice maker
Clean the
ice maker
and ice bin
at regular
intervals,
especially
prior to
vacation or
moving.
1 Turn off
the ice
maker.
2 Remove
the ice bin by pulling straight out.
3 Empty and carefully clean the ice
bin with mild detergent. Do not use
harsh or abrasive cleaners. Rinse
with clear water.
4 Allow the ice bin to dry completely
before replacing in the freezer.
5 Replace the ice bin. Turn the ice
maker on.
Remove and empty the ice bin if:
• An extended power failure (one hour
or longer) causes ice cubes in the
ice bin to melt and refreeze together
after power is restored, jamming the
dispenser mechanism.
• You do not use the ice dispenser
frequently. Ice cubes will freeze
together in the bin, jamming the
dispenser mechanism.
Remove the ice bin and shake to loosen
the cubes or clean as explained above.
Removing Ice Bin
23
EN
CAUTION
NEVER use an ice pick or similar sharp
instrument to break up the ice. This
could damage the ice bin and dispenser
mechanism.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure
it is completely dry.
IMPORTANT
When removing or replacing the ice
bin, avoid rotating the auger in the
ice bin. If the auger is accidentally
rotated, you must realign the auger
by turning it in 45 degree turns (see
below) until the ice bin ts into place
with the drive mechanism. If the auger
is not properly aligned when replac-
ing the ice bin, the refrigerator will not
dispense ice. The fresh food door also
may not close properly causing warm
air to leak into the fresh food compart-
ment.
Adjusting Ice Bin Auger
Auger
AUTOMATIC ICE AND WATER DISPENSER
24
EN
CAUTION
To avoid personal injury or property
damage, handle tempered glass
shelves carefully. Shelves may break
suddenly if nicked, scratched, or
exposed to sudden temperature
change. Allow the glass shelves to
stabilize to room temperature before
cleaning. Do not wash in dishwasher.
STORAGE FEATURES
NOTE
Features may vary according to model.
You can easily adjust shelf positions in
the fresh food compartments to suit
your needs. The shelves have mounting
brackets that attach to slotted supports
at the rear of each compartment.
Change the Position of a Shelf
1 Remove all food from shelf.
2 Lift the front edge up and pull the
shelf out.
3 Replace by inserting the mounting
bracket hooks into the desired
support slots.
4 Lower the shelf and lock into position.
IMPORTANT
Be aware of the air seal located at the
rear of the shelf. Shelves located on
the left side should have the air seal
mounted on the far left side. Shelves
located on the right side should have
the air seal mounted on the far right
side. This is to ensure there is no
interference with the large air tower on
the back wall of the cabinet. This also
applies to the crisper shelves.
Reposition the Air Seal
For crisper shelves:
1 Remove air seal by pushing down on
the ap with a downward rotation.
2 Position the air seal towards the
outside end of the shelf to avoid the
air tower when shelf is pushed back
into place.
3 Install seal by sliding lower tab of seal
up into bottom rear slot of shelf with
seal at a downward angle then pulling
up on seal ap until seal sits snug on
back of shelf and ap sits at about a
10 degree angle from shelf surface.
For glass shelves:
1 Remove air seal by pushing seal
straight back.
2 Position the air seal towards the
outside edge of the shelf to avoid the
air tower when shelf is pushed back
into place.
3 Install seal by sliding the open
channel end of the seal onto back
edge of shelf until seal sits snug on
back of shelf and ap sits at about a
10 degree angle from shelf surface.
Flip Shelf
25
EN
STORAGE FEATURES
Drawers
Your refrigerator includes a variety of
storage drawers.
Crispers
Crisper drawers are designed for storing
fruits, vegetables, and other fresh produce.
Crisper humidity control
Crisper drawers include a sliding control
for adjusting the humidity inside the
crisper. Leafy vegetables keep best when
stored with the Humidity Control set on
Higher Humidity. Fresh fruits keep best
when stored with the Humidity Control
set on Lower Humidity.
Opening Crisper Drawer
Adjusting Crisper Humidity
Vegetables Fruits
Humidity Control
Higher
Humidity
Lower
Humidity
26
EN
Adjustable Door Bin
6 Place bin liner into bin.
STORAGE FEATURES
Doors
Storage bins (varies by model)
The doors to your fresh food
compartment use a system of modular
storage bins. All of these bins are
removable for easy cleaning. Some of
them have xed positions, while others
can be adjusted to your needs.
Door bins are ideal for storing jars,
bottles, cans, and large drink containers.
They also enable quick selection of
frequently used items.
Deli drawer
Ideal for storage of deli meats, cheese,
and beverages.
Removing Crisper Drawer
To remove the Crisper Drawer for
cleaning:
1 Pull the drawer out until it stops.
2 Lift the front slightly and remove the
drawer.
To change the position of an
adjustable door bin:
1 Remove all food from door bin.
2 Grip the bin rmly with both hands
and lift it upward.
3 Remove the bin.
4 Place the bin just above desired
position.
5 Lower the bin onto supports until
locked in place.
27
EN
Accessories
Dairy compartment
Use the dairy compartment, at the top
of the fresh food compartment door, for
short-term storage of cheese, spreads, or
butter. The dairy compartment is designed
to be warmer than the open area and
includes a lift-up cover and a dairy divider
(select models).
Dairy Compartment
To Remove Upper Freezer Basket
1 Find the side where the basket frame is
aligned to the clip opening. The basket
frame should be aligned to both front
and rear clips on the same side (either
left or right side).
2 If the basket frame is not aligned to
the left or right side, push the basket
sideways (to either side) until it is
aligned.
3 By grabbing the basket wire frame close
to the frontal clip, pull up to take the
basket frame out.
4 Grab the basket frame close to the
rear clip and pull up until it comes out
of the clip.
5 Once one side of the basket is off the
clips or retainers, slide the basket
sideways until the other side of the
frame is aligned with the clip openings
on the opposite side of the freezer.
6 In the same way, pull up the basket
frame from the frontal and rear clips
until it is out of the clips.
7 Remove the basket.
Reverse the steps to reinstall the basket.
Freezer Baskets
Clip
Stabilizer
Bar
Freezer Features
STORAGE FEATURES
NOTE
If basket is not resting on stabilizer bar
retainer clips, the drawer will not close
properly.
28
EN
STORAGE FEATURES
Dividers Removal
Lift up on the front of the upper divider
and pull out.
Squeeze handle and lift up in the center
of the divider to move it side-to-side.
(The divider cannot be removed.)
Upper Basket Divider
Upper Basket
Divider
Retainers
Stabilizer
Bar
Plastic Lower Basket Divider
Lower Basket
Divider
Tilt Wire Shelf
The freezer tilt wire shelf (located on
the inside of the freezer drawer) is not
designed to be removed.
Pull to Remove
Push to Replace

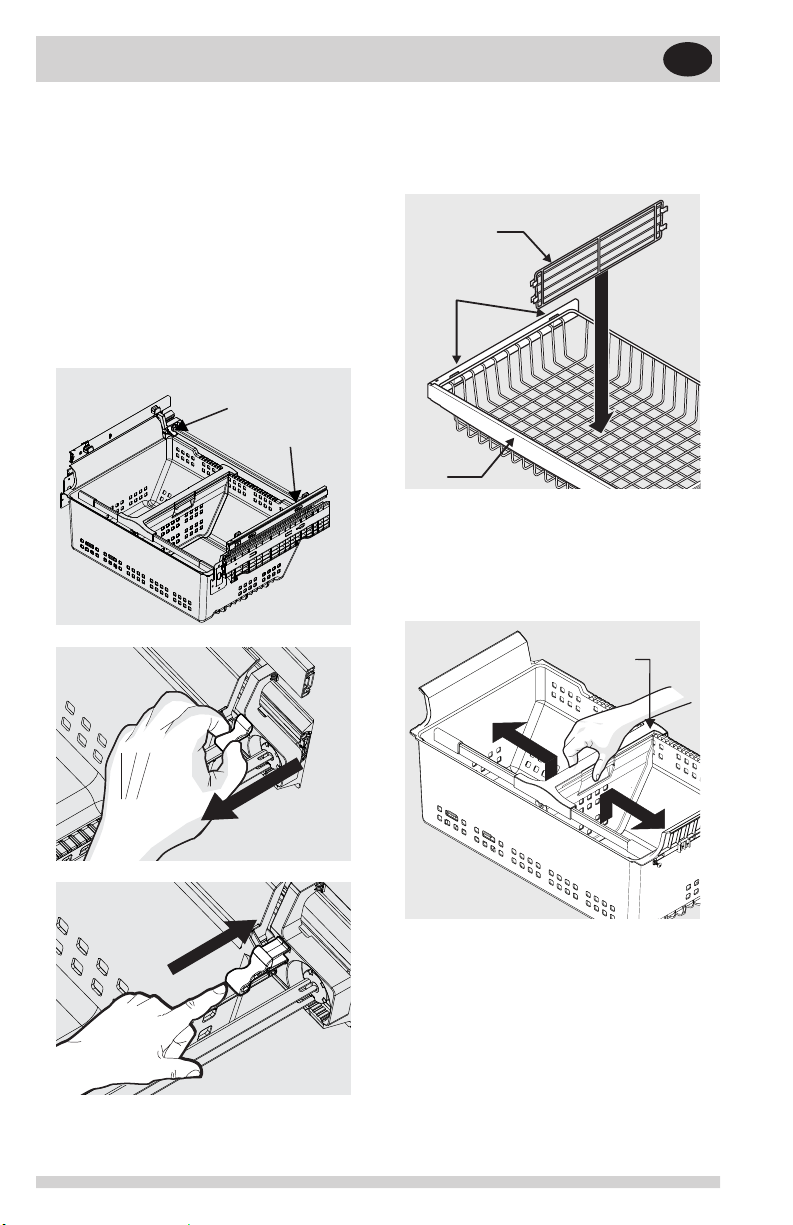

Removing Freezer Basket Instructions
1 Locate the basket clips in the rear
corners of the basket and pull them
out to remove.
2 Open fresh food doors completely.
3 Lift the basket up and remove.
Replacing Freezer Basket Instructions
1 Place freezer basket back inside the
freezer drawer.
2 Replace clips by sliding them back
into the slots.
Location of
basket clip.
One each side.
29
EN
STORING FOOD AND SAVING ENERGY
Ideas for storing foods
Fresh food storage
• Keep the fresh food compartment
between 34°F and 40°F with an
optimum temperature of 37°F.
• Avoid overcrowding the refrigerator
shelves, which reduces air circulation
and causes uneven cooling.
• Avoid placing food in front of air ports.
(See Controls Section for illustration.)
Fruits and vegetables
• Store fruits and vegetables in crisper
drawers, where trapped moisture
helps preserve food quality for
longer time periods.
• Wash items and remove excess water.
• Wrap any items that have strong
odors or high moisture content.
Meat
• Wrap raw meat and poultry
separately and securely to prevent
leaks and contamination of other
foods or surfaces.
• Use the deli drawer to store meat/
poultry for short-term storage. Any
meat to be kept longer than two
days should be frozen.
Frozen food storage
• Keep the freezer compartment at
0°F or lower.
• A freezer operates most efciently
when it is at least ⅔ full.
Packaging foods for freezing
• To minimize food dehydration and
quality deterioration, use aluminum
foil, freezer wrap, freezer bags, or
airtight containers. Force as much
air out of the packages as possible
and seal them tightly. Trapped air
can cause food to dry out, change
color, and develop an off-avor
(freezer burn).
• Wrap fresh meats and poultry with
suitable freezer wrap prior to freezing.
• Do not refreeze meat that has
completely thawed.
Loading the freezer
• Prior to grocery shopping, activate
“quick freeze” so that on your
return you can ensure your newly
purchased food designated for the
freezer will be preserved as quickly
as possible.
• Activating “quick freeze” also will
help your freezer more efciently
maintain the selected temperature
after placing new purchases with
pre-existing frozen foods.
• Avoid adding too much warm food
to the freezer at one time. This
overloads the freezer, slows the
rate of freezing, and can raise the
temperature of frozen foods.
• Leave a space between packages, so
cold air can circulate freely, allowing
food to freeze as quickly as possible.
Ideas for saving energy
Installation
• Locate the refrigerator in the coolest
part of the room, out of direct
sunlight, and away from heating
ducts or registers.
• Do not place the refrigerator next to
heat-producing appliances such as a
range, oven, or dishwasher. If this is
not possible, a section of cabinetry or
an added layer of insulation between
the two appliances will help the
refrigerator operate more efciently.
• Level the refrigerator so that the
doors close tightly.
Temperature settings
• Refer to the “Controls” section for
procedures on temperature settings.
Food storage
• Avoid overcrowding the refrigerator
or blocking cold air vents. Doing so
causes the refrigerator to run longer
and use more energy.
• Cover foods and wipe containers
dry before placing them in the
refrigerator. This cuts down on
moisture build-up inside the unit.
• Organize the refrigerator to reduce
door openings. Remove as many
items as needed at one time and
close the door as soon as possible.
• Do not place a hot container directly
on a cold shelf. Remember, such an
extreme temperature change may
damage the glass.
30
EN
NORMAL OPERATING SOUNDS
Understanding the sounds
you may hear
Your new, high-efciency refrigerator
may introduce unfamiliar sounds.
These sounds normally indicate your
refrigerator is operating correctly. Some
surfaces on oors, walls, and kitchen
cabinets may make these sounds more
noticeable.
The following is a list of major
components in your refrigerator and the
sounds they can cause:
A Evaporator Refrigerant through the
evaporator may create a boiling or
gurgling sound.
B Evaporator fan You may hear air
being forced through the refrigerator
by the evaporator fan.
C Defrost heater During defrost
cycles, water dripping onto the
defrost heater may cause a hissing
or sizzling sound. After defrosting, a
popping sound may occur.
D Automatic ice maker When ice
has been produced, you will hear
ice cubes falling into the ice bin. Ice
maker fan, water valve activation,
and refrigerant gas uid may create
sounds from its operation.
E Electronic control & automatic
defrost control These parts can
produce a snapping or clicking sound
when turning the cooling system on
and off.
F Condenser fan You may hear air
being forced through the condenser.
G Compressor Modern, high-efciency
compressors run much faster than
older models. The compressor may
have a high-pitched hum or pulsating
sound.
H Water valve Makes a buzzing sound
each time it opens to ll the ice
maker.
I Drain pan (not removable) You may
hear water dripping into the drain
pan during the defrost cycle.
J Condenser May create minimal
sounds from forced air.
K Motorized damper May produce a
light humming during operation.
K
Features vary by model
NOTE
Energy efcient foam in your refrigera-
tor is not a sound insulator.
NOTE
During automatic defrost cycle, a red
glow in the back wall vents of your
freezer compartment is normal.
L Ice dispensing paddle When
dispensing ice, you will hear a
snapping, clicking, or popping sound.
31
EN
FILTER REPLACEMENT
Air lter
The air lter is located at the top of the
air tower.
Replacing your air lter
To ensure optimal ltering of refrigerator
odors, you should change the air lter
every six months (the lter status light
on the Touch Panel prompts you to
replace the lter after six months).
1 Insert ngers in circled area.
2 Push clips in to release front cover.
3 Remove front cover by pulling
towards you and lifting up.
4 Replace air lter by sliding into slots.
5 Installation of front cover is reverse
of removal.
6 To reset Air Filter status, refer to
instructions under “Controls Section”.
Ordering replacement lters
Order new lters by calling
833-337-4006. You may want to consider
ordering extra lters when you rst install
your refrigerator.
Air Filter Replacement cartridge,
part #PAULTRA2
Locating the Filters
Your refrigerator is equipped with water
ltering system. The water lter system
lters all dispensed drinking water, as
well as the water used to produce ice.
Water Filter
The water lter is located at the top right
side of the fresh food compartment.
Replacing the Water Filter
In general, you should change the water
lter every six months to ensure the
highest possible water quality. Water
Filter Status on the user interface
prompts you to replace the lter after
a standard amount of water (125
gallons/473 liters) has owed through
the system.
If your refrigerator has not been used
for a period of time (during moving
for example), change the lter before
reinstalling the refrigerator.
Ordering Replacement Filters
Order new lters by calling
833-337-4006. IKEA recommends that
you order extra lters when you rst install
your refrigerator, and that you replace your
lters at least once every six months.
Here is the product number to request
when ordering:
Water Filter
Part #EPTWFU01
NOTE
When ordering your replacement lter,
please reorder the same lter type
that is currently in your refrigerator.
Filter Cartridge
32
EN
Do not use with water that is
microbiologically unsafe or of unknown
quality without adequate disinfection before
or after the system. Systems certied for
cyst reduction may be used on disinfected
waters that may contain lterable cysts.
Test & certication results:
• Rated Capacity - 125 gallons/473
liters for the ice and water lter
• Rated service ow - .65 gallons per
minute
• Operating Temp: Min. 33°F, Max.
100°F
• Maximum Rated Pressure - 100
pounds per square inch
• Recommended Minimum Operating
Pressure: 30 pounds per square inch
To replace your water lter:
It is not necessary to turn the water
supply off to change the lter. Be ready
to wipe up any small amounts of water
released during the lter replacement.
1 Turn Off the ice maker power switch.
2 Remove the old lter by rotating it
counter-clockwise (to the left) 90
degrees to release it.
3 Slide the old lter cartridge straight
out of the housing and discard it.
4 Unpackage the new lter cartridge.
Slide it into the lter housing as far as
it will go with the grip end horizontal.
5 Push lightly inward on the lter while
rotating it clockwise (to the right). The
lter will then pull itself inward as it is
rotated. Rotate the lter 90 degrees
until it stops and the grip end is
vertical. You may be able to feel a very
light click as the lter locks into place.
6 Press a drinking glass against the
water dispenser while checking for
any leaks at the lter housing. Any
spurts and sputters that occur as
the system purges air out of the
dispenser system are normal.
The ice and water lter
system is tested and certied
to NSF/ANSI Standards 43,
53 and 401 for the reduction
of claims specied on the
performance data sheet.
More about your Advanced
Water Filter
FILTER REPLACEMENT
7 Continue dispensing water for 3-4
minutes or until 1.5 gallons of water
has owed through the system. You
will likely need to empty and rell
your glass several times.
8 Turn On the ice maker.
9 Press and hold the Water Filter reset
button on the control panel for three
seconds. When the display changes
from Red to Green, the status has
been reset.
33
EN
IMPORTANT
If you store or move your refrigerator in freezing temperatures, be sure to com-
pletely drain the water supply system. Failure to do so could result in water leaks
when the refrigerator is put back into service. Contact a service representative to
perform this operation.
CAUTION
• Pull the refrigerator straight out to move it. Shifting it from side to side may
damage ooring. Be careful not to move the refrigerator beyond the plumbing
connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces
with wet or damp hands.
NOTE
Do not use abrasive cleaners such as window sprays, scouring cleansers, ammable
uids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing
petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do
not use paper towels, scouring pads, or other abrasive cleaning materials.
NOTE
If you set your temperature controls to turn off cooling, power to lights and other
electrical components will continue until you unplug the power cord from the wall
outlet.
CARE AND CLEANING
Protecting your investment
Keeping your refrigerator clean maintains its appearance and prevents odor
build-up. Wipe up any spills immediately and clean the freezer and fresh food
compartments at least twice a year.
• Remove adhesive labels by hand. Do not use razor blades or other sharp
instruments which can scratch the appliance surface.
• Do not remove the serial plate. Removal of your serial plate voids your
warranty.
• Before moving your refrigerator, raise the anti-tip brackets so the rollers will
work correctly. This will prevent the oor from being damaged.
Refer to the guide on the next page for details on caring and cleaning specic areas
of your refrigerator.
• Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline
solutions on any surface.
• Never use CHLORIDE or cleaners with bleach to clean stainless steel.
• Do not wash any removable parts in a dishwasher.
• Always unplug the electrical power cord from the wall outlet before cleaning.
34
EN
CARE AND CLEANING
Vacation and Moving Tips
Occasion Tips
Short
Vacations
• Leave refrigerator operating during vacations of three weeks
or less.
• Use all perishable items from refrigerator compartment.
• Turn automatic ice maker off and empty ice bucket, even if
you will only be gone a few days.
Long
Vacations
• Remove all food and ice if you will be gone one month or
more.
• Turn the cooling system off (see “Controls” section for
location of On/Off button) and disconnect power cord.
• Turn water supply valve to closed position.
• Clean interior thoroughly.
• Leave both doors open to prevent odors and mold build-up.
Block doors open if necessary.
Moving • Remove all food and ice.
• If using a handcart, load from the side.
• Adjust rollers all the way up to protect them during sliding or
moving.
• Pad cabinet to avoid scratching surface.
35
EN
Care & Cleaning Tips
Part What To Use Tips and Precautions
Interior &
Door Liners
• Soap and water
• Baking soda and
water
Use two tablespoons of baking soda in
one quart of warm water. Be sure to
wring excess water out of sponge
or cloth before cleaning around
controls, light bulb or any electrical
part.
Door Gaskets • Soap and water Wipe gaskets with a clean soft cloth.
Drawers &
Bins
• Soap and water Use a soft cloth to clean drawer runners
and tracks.
Glass Shelves • Soap and water
• Glass cleaner
• Mild liquid sprays
Allow glass to warm to room temperature
before immersing in warm water.
Toe Grille • Soap and water
• Mild liquid sprays
• Vacuum attachment
Vacuum dust from front of toe grille.
Remove toe grille (see Installation
Instructions). Vacuum backside, wipe
with sudsy cloth or sponge. Rinse and
dry.
Exterior &
Handles
• Soap and water
• Non Abrasive Glass
Cleaner
Do not use commercial household
cleaners containing ammonia, bleach or
alcohol to clean handles. Use a soft cloth
to clean smooth handles. DO NOT use a
dry cloth to clean smooth doors.
Exterior &
Handles
(Stainless
Steel Models
Only)
• Soap and water
• Stainless Steel
Cleaners
Never use CHLORIDE or cleaners
with bleach to clean stainless steel.
Clean stainless steel front and handles
with non-abrasive soapy water and a
dishcloth. Rinse with clean water and a
soft cloth. Use a non-abrasive stainless
steel cleaner. These cleaners can be
purchased at most home improvement or
major department stores. Always follow
manufacturer’s instructions. Do not use
household cleaners containing ammonia
or bleach.
NOTE: Always clean, wipe and dry
with the grain to prevent scratching.
Wash the rest of the cabinet with warm
water and mild liquid detergent. Rinse
well, and wipe dry with a clean soft cloth.
CARE AND CLEANING
36
EN
TROUBLESHOOTING
Concern Potential Cause Common Solution
Automatic Ice Maker
Ice maker is
not making
any ice.
• Ice maker is turned off.
• Refrigerator is not
connected to water line
or water valve is not
open.
• The water supply line is
kinked.
• The water lter is not
seated properly.
• The water lter may be
clogged with foreign
material.
• Freezer ice maker wire
signal arm is being
held up by an item not
allowing it to go in the
on or down position.
• Turn on ice maker. For the fresh
food ice maker, press ice maker on-
off button once. For the freezer ice
maker, lower the arm to turn the
ice maker on, or raise it and snap it
in its upper position to turn the ice
maker off.
• Connect the unit to the household
water supply and ensure the water
valve is open.
• Ensure that the supply line does
not kink when the refrigerator is
pushed into place against the wall.
• Remove and re-install the water
lter. Be sure to seat it fully into
the locked position.
• If water dispenses slowly or not at
all, or if the lter is six months old
or older, it should be replaced.
• Move any item or frozen ice cubes
that may block the signal arm
from being in the on or down
position. Additionally, the ice bin
itself may be out of position so that
it prevents the signal arm from
dropping all the way down. Be sure
the bin is pushed all the way to the
rear of the shelf. See Automatic Ice
Maker-Freezer section in manual.
Visit our web site at
www.ikea.com
IKEA US: (833) 337-4006
37
EN
TROUBLESHOOTING
Concern Potential Cause Common Solution
Automatic Ice Maker (Cont’d)
Ice maker is
not making
enough ice.
• Ice maker is producing
less ice than you
expect.
• The water lter may be
clogged with foreign
material.
• The water supply line is
kinked.
• Saddle valve on cold
water pipe is clogged
or restricted by foreign
material.
• Heavy trafc, opening
or closing of the doors
excessively.
• Freezer control is set
too warm (freezer ice
maker).
• Water pressure is
extremely low. Cut-off
and cut-on pressures
are too low (well
systems only).
• Reverse osmosis system
is in regenerative
phase.
• The ice maker will produce
approximately 2.0 to 2.5 pounds of
ice every 24 hours depending on
usage conditions.
• If water dispenses slower than
normal, or if the lter is six months
old or older, it should be replaced.
• Ensure that the supply line does
not kink when the refrigerator is
pushed into place against the wall.
• Turn off household water line valve.
Remove valve. Clean valve. Replace
valve if necessary.
• Press Fast Freeze to temporarily
increase ice production rate.
(Freezer ice maker only.)
• Set freezer control to colder setting
to improve performance of the
ice maker (freezer ice maker).
Allow 24 hours for temperature to
stabilize.
• Have someone turn up the cut-off
and cut-on pressure on the water
pump system (well systems only).
• It is normal for a reverse osmosis
system to be below 20 psi during
the regenerative phase.
Freezer ice
maker will
not stop
making
ice (select
models).
• Ice maker wire signal
arm is being held down
by a package in the
freezer that has fallen
against ice maker.
• Move any item or frozen ice cubes
that may block the signal arm from
being in the off or upward position.
See Automatic Ice Maker-Freezer
section in manual.
Ice cubes
are freezing
together.
• Ice cubes are not being
used frequently enough
or interruption of power
for prolonged time.
• Ice cubes are hollow
(shells of ice with water
inside). The hollow
cubes break open in the
bin and leak their water
onto existing ice, which
causes it to freeze
together.
• Remove ice container and discard
ice. The ice maker will produce
fresh supply. Ice should be used
at least twice weekly to keep the
cubes separated.
• This generally occurs when the
ice maker does not get enough
water. This is usually the result of
a clogged water lter or restricted
water supply. Replace the water
lter and if the condition still occurs
check for a clogged Saddle Valve,
water valve not turned on all the
way or kinked water supply line.
38
EN
TROUBLESHOOTING
Concern Potential Cause Common Solution
Dispenser (Ice & Water)
Dispenser
will not
dispense
ice.
• There is no ice in the
bin to be dispensed.
• The refrigerator doors
are not completely
closed.
• Dispenser paddle has
been pressed too long
and the dispenser motor
has overheated.
• See the “Ice maker is not making
any ice” section above.
• Be sure the refrigerator doors are
completely closed.
• The motor overload protector will
reset in about three minutes and
then ice can be dispensed.
Ice
dispenser is
jammed.
• Ice has melted and
frozen around auger
due to infrequent
use, temperature
uctuations, and/or
power outages.
• Ice cubes are jammed
between ice maker and
back of ice container.
• Remove ice container, thaw,
and empty the contents. Clean
container, wipe dry, and replace in
proper position. When new ice is
made, dispenser should operate.
• Remove ice cubes that are jamming
the dispenser.
Dispenser
will not
dispense
water.
• Water lter not seated
properly.
• Water lter is clogged.
• Household water line
valve is not open.
• Remove and reinstall the water
lter. For Puresource Ultra II, be
sure to rotate it to the right until it
stops and the grip end is vertical.
• Replace lter cartridge. Be sure to
rotate it to the right until it stops
and the grip end is vertical.
• Open household water line valve.
See CONCERN column AUTOMATIC
ICE MAKER.
Water
not cold
enough.
• The water dispensing
system is not designed
to chill water.
• Add ice to cup or container before
dispensing water.
Water has
an odd
taste and/
or odor.
• Water has not been
dispensed for an
extended period of
time.
• Unit not properly
connected to cold water
line.
• Draw and discard 10-12 glasses of
water to freshen the supply.
• Connect unit to cold water line
that supplies water to the kitchen
faucet.
39
EN
TROUBLESHOOTING
Concern Potential Cause Common Solution
Opening/Closing Of Doors/Drawers
Door(s) will
not close.
• Door was closed too
hard, causing other
door to open slightly.
• Refrigerator is not level.
It rocks on the oor
when moved slightly.
• Refrigerator is touching
a wall or cabinet.
• Close both doors gently.
• Ensure oor is level and solid,
and can adequately support the
refrigerator. Contact a carpenter to
correct a sagging or sloping oor.
• Ensure oor is level and solid,
and can adequately support the
refrigerator. Contact a carpenter to
correct a sagging or sloping oor.
Drawers
are difcult
to move.
• Food is touching shelf
on top of drawer.
• Track that drawers slide
on is dirty.
• Remove top layer of items in
drawer.
• Ensure drawer is properly installed
on track.
• Clean drawer, rollers, and track.
See Care & Cleaning.
Running of Refrigerator
Compressor
does not
run.
• Freezer control is set to
“OF”.
• Refrigerator is in defrost
cycle.
• Plug at electrical outlet
is disconnected.
• House fuse blown or
tripped circuit breaker.
• Power outage.
• Set freezer control.
• This is normal for a fully automatic
defrost refrigerator. The defrost
cycle occurs periodically, lasting
about 30 minutes.
• Ensure plug is tightly pushed into
outlet.
• Check/replace fuse with a 15 amp
time-delay fuse. Reset circuit
breaker.
• Check house lights. Call local
electric company.
Refrigerator
seems to
run too
much or too
long.
• Your variable speed
compressor is designed
to run 100% of the
time except during the
defrost cycle. At times it
will run faster, such as
after a defrost cycle.
• It is normal for the compressor
to run continuously except during
defrost mode.
Digital Temperature Setting Display
Digital
temperature
displays an
error.
• Electronic control
system has detected a
performance problem.
• Call your service representative,
who can interpret any messages
or number codes ashing on the
digital displays.
40
EN
Concern Potential Cause Common Solution
Water/Moisture/Frost Inside Refrigerator
Moisture
collects on
inside of
refrigerator
walls.
• Weather is hot and
humid.
• Flipper mullion
• The rate of frost buildup and
internal sweating increases.
• Adjust ipper mullion. (See “To
adjust the ipper mullion” in the
Installation section.)
Water
collects on
bottom side
of drawer
cover.
• Vegetables contain and
give off moisture.
• It is not unusual to have moisture
on the bottom side of the cover.
Move humidity control (some
models) to lower setting.
Water
collects in
bottom of
drawer.
• Washed vegetables and
fruit drain while in the
drawer.
• Water collecting in bottom of
drawer is normal. Dry items before
putting them in the drawer or store
produce in tightly sealed bags to
help reduce condensation inside of
the drawer.
Water/Moisture/Frost Outside Refrigerator
Moisture
collects on
outside of
refrigerator
or between
doors.
• Weather is humid. • This is normal in humid weather.
When humidity is lower, the
moisture should disappear.
Food in Fresh Food Compartment
Food is
freezing.
• Temperature setting is
too low.
• Temperature sensor is
covered by food (right
side of fresh food area).
• Food is covering the air
ports.
• Move the setting to a higher
degree.
• Allow space for air ow to the
sensor.
• Allow space between the air ports
and the food.
TROUBLESHOOTING
41
EN
IKEA LIMITED GUARANTEE
How long is the IKEA guarantee valid?
This guarantee is valid for ve (5) years from the original date of purchase of Your
appliance at IKEA, unless the appliance is named LAGAN or TILLREDA in which case
two (2) years of guarantee apply. The original sales receipt is required as proof of
purchase. If service work is carried out under guarantee, this will not extend the
guarantee period for the appliance.
Who will execute the service?
IKEA “Service Provider” will provide the service through its own service operations
or authorized service partner network.
What does this guarantee cover?
The guarantee covers faults of the appliance which have been caused by faulty con-
struction or material faults from the date of purchase from IKEA. This guarantee applies
to domestic use only. Some exceptions not guaranteed are specied under the headline
“What is not covered under this guarantee?” Within the guarantee period, the costs to
remedy the fault (e.g., repairs, parts, labour and travel) will be covered, provided that
the appliance is accessible for repair without special expenditure. On these conditions
the local regulations are applicable. Replaced parts become the property of IKEA.
What will IKEA do to correct the problem?
IKEA appointed Service Provider will examine the product and decide, at its sole
discretion, if it is covered under this guarantee. If considered covered, IKEA Service
Provider or its authorized service partner through its own service operations, will
then, at its sole discretion, either repair the defective product or replace it with the
same or a comparable product.
What is not covered under this guarantee?
• Normal wear and tear.
• Deliberate or negligent damage, damage caused by failure to observe operating
instructions, incorrect installation or by connection to the wrong voltage, dam-
age caused by chemical or electrochemical reaction, rust, corrosion or water
damage including but not limited to damage caused by excessive lime in the
water supply, damage caused by abnormal environmental conditions.
• Consumable parts including batteries and lamps.
• Non-functional and decorative parts which do not affect normal use of the appli-
ance, including any scratches and possible colour differences.
• Accidental damage caused by foreign objects or substances and cleaning or
unblocking of lters, drainage systems or soap drawers.
• Damage to the following parts: ceramic glass, accessories, crockery and cut-
lery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens,
knobs, casings and parts of casings. Unless such damages can be proved to
have been caused by production faults.
• Cases where no fault could be found during a technician’s visit.
• Repairs not carried out by our appointed service providers and/or an authorized
service contractual partner or where non-original parts have been used.
• Repairs caused by installation which is faulty or not according to specication.
• The use of the appliance in a non-domestic environment i.e. professional use.
• Transportation damages. If a customer transports the product to his home or an-
other address, IKEA is not liable for any damage that may occur during transport.
However, if IKEA delivers the product to the customer’s delivery address, then
damage to the product that occurs during this delivery will be covered by IKEA.
• Cost for carrying out the initial installation of the IKEA appliance. However, if
an IKEA appointed Service Provider or its authorized service partner repairs or
replaces the appliance under the terms of this guarantee, the appointed Service
Provider or its authorized service partner will reinstall the repaired appliance or
install the replacement, if necessary.
42
EN
How country law applies
The IKEA guarantee gives you specic legal rights, and you may also have other
rights which vary from state to state or jurisdiction to jurisdiction. However these
conditions do not limit in any way consumer rights described in the local legislation.
Area of validity
For appliances which are purchased in United States or Canada, or moved to one
of the mentioned countries, the services will be provided in the framework of the
guarantee conditions normal in the specied country.
An obligation to carry out services in the framework of the guarantee exists only if
the appliance complies and is installed in accordance with:
- the technical specications of the country in which the guarantee claim is made;
- the Assembly Instructions and User Manual Safety Information.
The dedicated AFTER SALES for IKEA appliances
Please don’t hesitate to contact IKEA appointed After Sales Service Provider to:
• make a service request under this guarantee;
• ask for clarications on installation of the IKEA appliance in the dedicated IKEA
kitchen furniture;
• ask for clarication on functions of IKEA appliances.
To ensure that we provide you with the best assistance, please read carefully the
Assembly Instructions and/or the User Manual before contacting us.
How to reach us if you need our service
Phone number:
(
833) 337-4006
O
pening hours:
M
onday - Friday
8:30 am - 8:00 pm EST
In order to provide you a quicker service, we recommend to use the specic
phone numbers listed on this manual. Always refer to the numbers listed in
the booklet of the specic appliance you need an assistance for.
Please also always refer to the IKEA article number (8 digit code) placed on
the rating plate of your appliance.
SAVE THE SALES RECEIPT!
It is your proof of purchase and required for the guarantee to apply. The sales
receipt also reports the IKEA name and article number (8 digit code) for each of the
appliances you have purchased.
Do you need extra help?
For any additional questions not related to After Sales of your appliances please
contact your nearest IKEA store call centre. We recommend you read the appliance
documentation carefully before contacting us.
IKEA LIMITED GUARANTEE
© Inter IKEA Systems B.V. 2020 2020-04-06
23430
AA-2194807-2
A18664001
