Operating and Installation
Instructions
Wine Conditioning Unit
To prevent accidents and machine damage, read these instructions
before installation or use.
en-US, CA M.-Nr. 11 508 730
Contents
2
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 5
Caring for the environment .............................................................................. 14
Installation.......................................................................................................... 15
Installation location ............................................................................................. 15
Climate class .................................................................................................. 16
Installation notes ................................................................................................. 17
Adjoining cabinetry......................................................................................... 17
Load-bearing capacity of the niche floor ....................................................... 17
Ventilation....................................................................................................... 18
Door hinge...................................................................................................... 18
Side-by-side................................................................................................... 18
Installation dimensions........................................................................................ 20
Position of the electrical connection .............................................................. 20
Dimensions when the appliance door is open (opening angle 90°/115°)....... 23
Dimensions of the cabinet front .......................................................................... 24
Installing the wine conditioning unit .................................................................... 25
Before starting................................................................................................ 25
Tools required................................................................................................. 26
Weight of door front ....................................................................................... 26
Aligning the installation niche......................................................................... 27
Checking the installation niche ...................................................................... 27
Before installation........................................................................................... 28
Preparing the installation niche ...................................................................... 29
Pushing the wine conditioning unit into the niche.......................................... 31

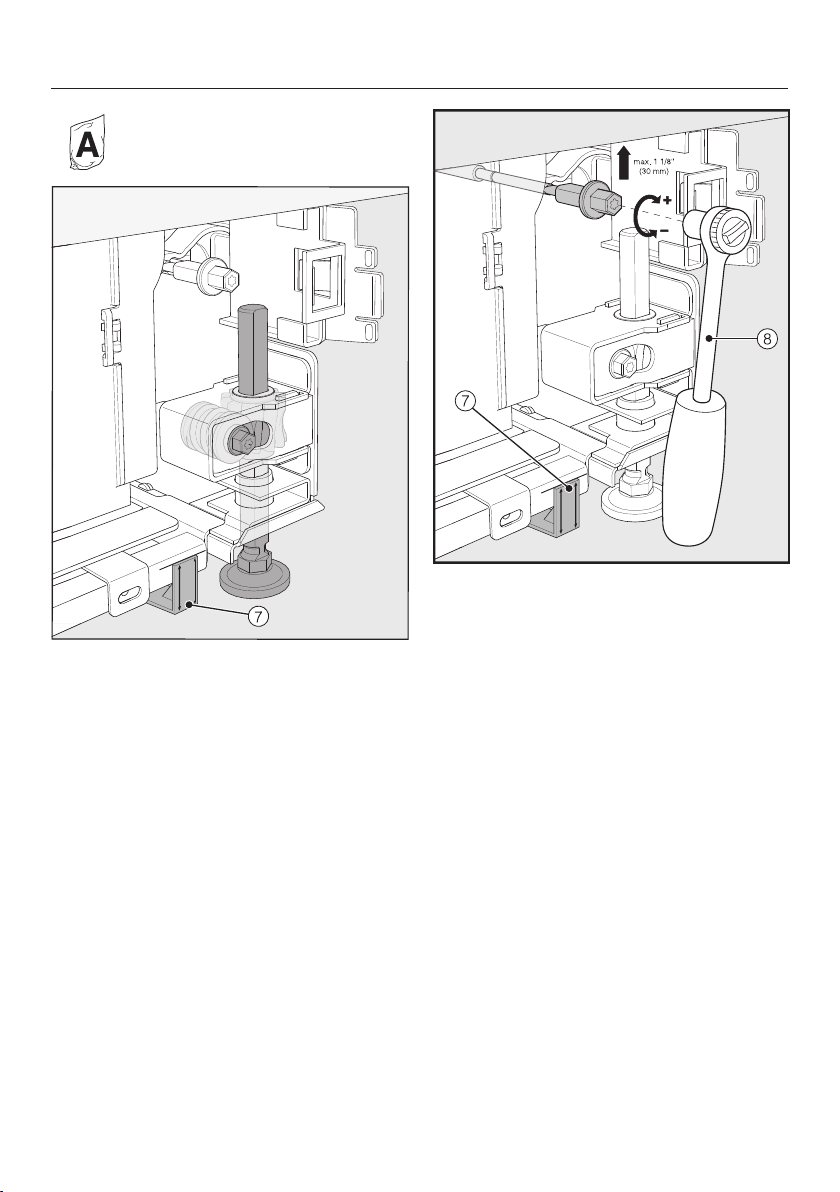

Aligning the wine conditioning unit ................................................................ 33
Securing the wine conditioning unit in the niche ........................................... 36
Preparing the cabinet fronts........................................................................... 38

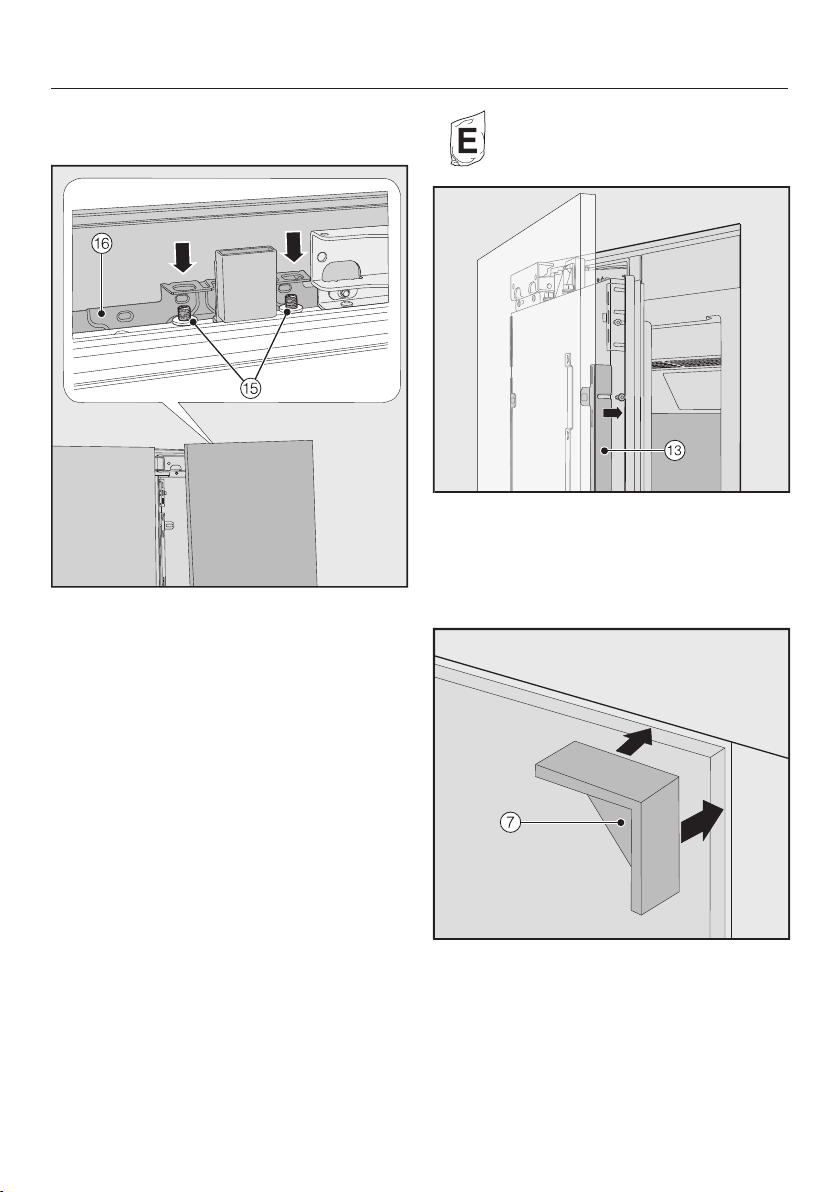

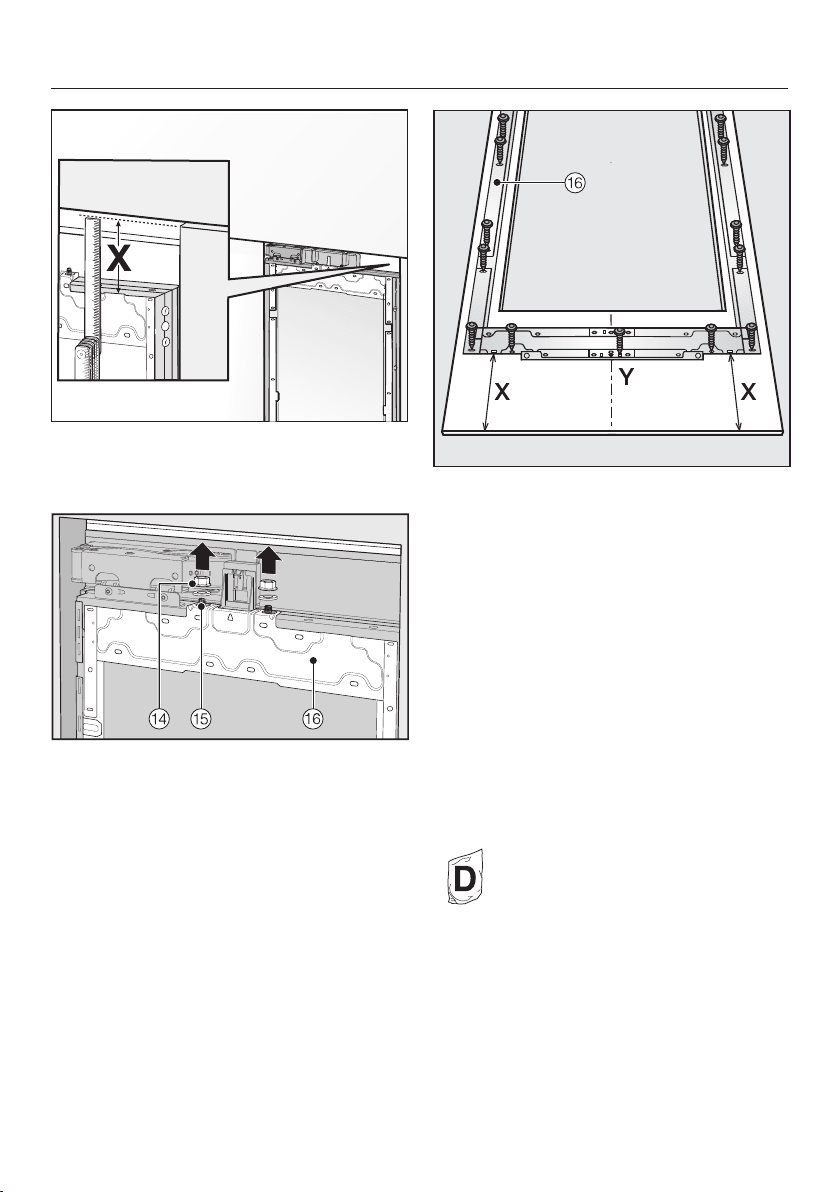

Securing and aligning the cabinet front ......................................................... 41
Securing the covers ....................................................................................... 45
Fitting the door trim........................................................................................ 47
Securing the toe-kick ventilation grille and toe-kick panel ............................ 48
Limiting the opening angle of the appliance door.......................................... 49
Electrical connection ........................................................................................... 50
Saving energy .................................................................................................... 52
Guide to the appliance...................................................................................... 54
Start screen ......................................................................................................... 56
Settings mode ................................................................................................ 57
Accessories ....................................................................................................... 59
Accessories supplied .......................................................................................... 59
Contents
3
Optional accessories........................................................................................... 59
Before first use .................................................................................................. 60
Choosing the right Door Assistant (Push2Open/Pull2Open) ........................ 60
Operating the wine conditioning unit .................................................................. 61
Starting up for the first time ........................................................................... 62
Switching the wine conditioning unit on and off ............................................ 63
Switching off for longer periods of time .............................................................. 63
Selecting additional settings............................................................................ 64
Switching Keypad Lock on or off /.............................................................. 64
Performing a Self Test..................................................................................... 65
Switching on the Door Assistant ..................................................................... 66
Switching off the Door Assistant ..................................................................... 68
Miele@home ........................................................................................................ 68
Switching off Demo Mode................................................................................ 72
Resetting the settings to their default settings.............................................. 73
Switching Sabbath Mode on or off .................................................................. 75
Switching Ambient Lighting on or off............................................................. 76
Selecting the Ambient Display............................................................................. 77
The ideal temperature and humidity................................................................ 78
Temperature ........................................................................................................ 78
Isolator panels for thermal separation............................................................ 79
Setting the temperature.................................................................................. 79
Humidity .............................................................................................................. 80
Increasing the humidity ............................................................................... 80
Door alarm ......................................................................................................... 82
Storing wine bottles .......................................................................................... 83
Wooden shelves.................................................................................................. 84
Moving the wooden shelves........................................................................... 84
Adjusting the wooden shelves ....................................................................... 84
Labeling the wooden shelves......................................................................... 85
Maximum capacity ......................................................................................... 85
SommelierSet .................................................................................................... 86
Setting up the SommelierSet .............................................................................. 86
Automatic defrosting ........................................................................................ 88
Cleaning and care ............................................................................................. 89
Cleaning agents................................................................................................... 89
Contents
4
Before cleaning the wine conditioning unit ......................................................... 90
Interior, accessories, and appliance door ........................................................... 90
Cleaning the door seal ........................................................................................ 91
Cleaning the ventilation gaps .............................................................................. 91
After cleaning ...................................................................................................... 91
Frequently Asked Questions ............................................................................ 92
Causes of noises ............................................................................................... 98
Customer Service.............................................................................................. 99
Contact in the event of a fault ............................................................................. 99
Appliance warranty and product registration ...................................................... 99
Declaration of conformity................................................................................. 100
Copyrights and licenses ................................................................................... 101
IMPORTANT SAFETY INSTRUCTIONS
5
This wine conditioning unit complies with all current local and na-
tional safety requirements. Inappropriate use can, however, lead to
personal injury and material damage.
Read the operating and installation instructions carefully before
using the wine conditioning unit. They contain important informa-
tion on safety, installation, use, and maintenance. This is to protect
yourself from injury, and from damaging your wine conditioning
unit.
Please read and follow the instructions in the chapter on installing
the wine conditioning unit, as well as the safety instructions and
warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Danger of injury and damage to the appliance due to the wine
conditioning unit tipping over.
The wine conditioning unit is very heavy and can tip forwards
when the appliance door is open.
Keep the appliance door shut until the wine conditioning unit has
been built in and secured in the installation niche in accordance
with the operating and installation instructions.
Risk of injury from broken glass.
If installed at altitudes above 6,560 ft (2,000m), there is a risk of
the glass in the door breaking because of changes in air pressure.
Shards of glass can cause severe injury.
IMPORTANT SAFETY INSTRUCTIONS
6
Appropriate use
This wine conditioning unit is intended for use in domestic house-
holds and similar residential environments such as
- staff kitchen areas in shops, offices and other working environ-
ments
- farm houses and by clients in hotels, motels and other residential
type environments
- bed and breakfast type environments
- catering and similar non-retail applications.
This wine conditioning is not intended for use outdoors, in damp en-
vironments or in places exposed to rain.
The wine conditioning unit is intended for domestic use only for
storing wine.
It must not be used for any other purpose.
The wine conditioning unit is not suitable for storing and keeping
cool medicines, blood plasma, laboratory preparations or other such
materials or products. Incorrect use of the wine conditioning unit for
such purposes can cause deterioration of the items stored. The wine
conditioning unit is not suitable for use in areas where there is a risk
of explosion.
Miele cannot be held liable for damage resulting from improper or in-
correct use of the appliance.
This wine conditioning unit may only be used by people (including
children) with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they are supervised while using
it.
The wine conditioning unit may only be used by these people with-
out supervision if they have been shown how to use it in a safe way
and recognize and understand the consequences of incorrect opera-
tion.
IMPORTANT SAFETY INSTRUCTIONS
7
Safety with children
Children near the wine conditioning unit must be supervised. Do
not let children play with the wine conditioning unit.
The wine conditioning unit door hinges can cause injury. Keep
children away at all times.
Ensure that any packing material is disposed of safely and kept
out of the reach of children. DANGER of suffocation!
IMPORTANT SAFETY INSTRUCTIONS
8
Technical safety
The refrigerant circuit has been checked for leaks. The wine con-
ditioning unit complies with statutory safety requirements.
This wine conditioning unit contains the coolant Isobutane
(R600a), a natural gas which is environmentally friendly. The coolant
does not damage the ozone layer and does not contribute to the
greenhouse effect.
The use of this coolant has, however, led to a slight increase in the
noise level of the appliance. In addition to the noise of the compres-
sor, you might be able to hear the coolant flowing around the cooling
circuit. Unfortunately, this cannot be avoided, but it does not affect
the performance of the wine conditioning unit.
When transporting and installing the wine conditioning unit, ensure
that no parts of the cooling circuit are damaged. Splashes of coolant
can damage the eyes.
In the event of damage:
- Avoid open flames or anything which creates a spark.
- Disconnect the wine conditioning unit from the electricity supply.
- Ventilate the room where the wine conditioning unit is located for
several minutes.
- Contact Miele Service.
The more coolant there is in a wine conditioning unit, the larger
the room it should be installed in. In the event of a leakage, if the
wine conditioning is in a small room, there is the danger of com-
bustible gases building up. For every 0.38oz (11g) of coolant at
least 35.3 cubic feet (1m
3
) of room space is required. The amount of
coolant in the wine conditioning unit is stated on the data plate in-
side the wine conditioning unit.
IMPORTANT SAFETY INSTRUCTIONS
9
To avoid the risk of damage to the wine conditioning unit, make
sure that the connection data (fuse rating, frequency and voltage) on
the data plate corresponds to the household supply.
Check that this is the case before connecting the wine conditioning
unit. Consult a qualified electrician if in any doubt.
The electrical safety of the wine conditioning unit can only be
guaranteed when correctly grounded. It is essential that this stan-
dard safety requirement is met. If in any doubt please have the elec-
trical installation tested by a qualified electrician.
Reliable and safe operation of the wine conditioning unit can only
be guaranteed if it is connected to the power supply.
The electrical outlet must not be concealed behind the wine con-
ditioning unit and must be easily accessible so that the appliance
can be quickly disconnected from the electrical supply in case of an
emergency.
If the power cord supplied is damaged, it must only be replaced
by an original part to prevent a hazard for the user. Miele can only
guarantee the safety of the appliance when original Miele parts are
used.
The electrical outlet must be properly grounded.
Do not connect the appliance to the electrical supply with a power
bar or extension cord. These are a fire hazard and do not guarantee
the required safety of the appliance.
If moisture gets into electrical components or into the power cord,
it could cause a short circuit. Therefore, do not operate the wine
conditioning in areas where there may be moisture or splashing wa-
ter (e.g., garages, laundry rooms).
This wine conditioning unit must not be used in a non-stationary
location (e.g. on a ship).
IMPORTANT SAFETY INSTRUCTIONS
10
In environments with a tropical climate (above approximately 90°F
(32°C) and above approximately 70% humidity), the wine condition-
ing unit must be operated in an air-conditioned room. Otherwise, it is
not possible to guarantee that the wine conditioning unit will operate
without issues.
Before installation and use check the wine conditioning unit for
any visible damage. Do not operate or install a damaged appliance.
To ensure safe operation, use the wine conditioning unit only
when it has been installed.
The wine conditioning unit must be disconnected from the power
supply during installation, side-by-side heater installation, mainte-
nance and repair work. The appliance is only disconnected from the
power supply if:
- the circuit breaker has been tripped, or
- the power cord has been unplugged. Pull on the plug and not on
the cord when removing it from the outlet.
Installation, repair, and maintenance work should only be per-
formed by a Miele-authorized service technician.
Work by unqualified persons could be dangerous and may void the
warranty.
Repairs and other work performed by unauthorized persons could
be dangerous and may void the warranty.
Faulty components must only be replaced by genuine Miele re-
placement parts. Miele can only guarantee the safety standards of
the appliance when Miele replacement parts are used.
IMPORTANT SAFETY INSTRUCTIONS
11
Correct use
The wine conditioning unit is designed for use within a specific cli-
mate class (room temperature range). Do not use in a climate class
for which it is not designed. A lower room temperature will cause the
compressor to switch off for longer periods, meaning that the wine
conditioning unit is unable to maintain the required temperature.
WARNING! DANGER of overheating! Do not cover or block the air
vents. This can impair the efficiency of the appliance, increase the
power consumption and cause damage to the appliance.
If the wine conditioning unit is used for storing food which con-
tains fat or oil, make sure that it does not come into contact with
plastic components. Any spillages of oil or fat could cause stress
cracks to the plastic and cause it to break or split.
Risk of fire and explosion. Do not store explosive materials in the
wine conditioning unit or any products containing propellants (e.g.,
spray cans). Electrical components can cause flammable mixes of
gases to ignite.
Risk of explosion. Do not operate any electrical appliances inside
the wine conditioning unit. Risk of sparking and explosion.
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty may become invalid.
IMPORTANT SAFETY INSTRUCTIONS
12
Cleaning and maintenance
Do not use any oil or grease on the door seals.
They can cause the seals to deteriorate over time.
Do not use a steam cleaning appliance to clean this wine condi-
tioning unit.
The steam could reach electrical components and cause a short cir-
cuit.
Sharp edged or pointed objects will damage the evaporator, caus-
ing irreversible damage to the wine conditioning unit. Do not use
sharp edged or pointed objects to
- remove frost and ice,
- remove labels, stickers, etc.
Transport
Always transport the wine conditioning unit in an upright position
and in its original transport packaging to avoid damage in transit.
Risk of injury and damage. The wine conditioning unit is very
heavy and must be transported by two people.
IMPORTANT SAFETY INSTRUCTIONS
13
Disposal of your old appliance
Children could become trapped in the machine and could suffo-
cate.
- Remove the machine doors.
- Leave the wooden shelves in the machine so children cannot
climb inside.
DANGER of electric shock!
- Cut the plug off the power cord.
- Cut the power cord off the old appliance.
Dispose of them separately from the appliance.
Ensure that the wine conditioning unit is not stored in the vicinity
of gasoline or inflammable gases and liquids during and after dis-
posal.
Make sure that the coolant pipework is not damaged during dis-
posal to avoid uncontrolled leakage of oil and coolant (see data plate
for coolant type).
Splashes of coolant can cause damage to the eyes. Be careful not
to damage any part of the pipework while awaiting disposal, e.g. by
- puncturing the coolant channels in the evaporator,
- kinking any pipework,
- scratching the surface coating.
Caring for the environment
14
Disposal of packaging material
The packaging is designed to protect
the wine conditioning unit from damage
during transportation. The packaging
materials used are selected from mate-
rials which are environmentally friendly
for disposal and should be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children. Return
the packaging to your dealer.
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these mate-
rials improperly by disposing of them in
your household waste can be harmful to
your health and the environment. There-
fore, please do not dispose of your old
appliance with regular household waste
and follow local regulations on proper
disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed.
Take care not to damage the pipework
at the back of your wine conditioning
unit before or during transportation to
an authorized, environmentally friendly
collection depot.
This way, coolant in the pipework and
oil in the compressor will be contained,
and will not leak into the environment.
Please ensure that your old appliance
does not pose a danger to children
while being stored prior to disposal.
See “IMPORTANT SAFETY INSTRUC-
TIONS” for more information.
Installation
*INSTALLATION*
15
Installation location
This appliance should be installed in a
dry, well-ventilated room.
When deciding where to install your
wine conditioning unit, please bear in
mind that it will use more energy if in-
stalled near to a heater, a range, or an-
other appliance that gives off heat. Di-
rect sunlight should also be avoided.
The higher the room temperature, the
longer the compressor runs and the
higher the energy consumption of the
wine conditioning unit is.
When installing the wine conditioning
unit, please note the following:
- The electrical socket must be easily
accessible in an emergency and not
concealed behind the appliance.
- The plug and power cord must not
touch the rear of the wine condition-
ing unit as they could be damaged by
vibrations from the appliance.
- Do not plug in other appliances be-
hind the wine conditioning unit.
If installation near a heat source is un-
avoidable, observe the following mini-
mum distances between the appliance
and the heat source:
- At least 1 1/4" (3cm) to electric or
gas stoves
- At least 11 3/4" (30cm) to oil or coal-
based stoves
If it is not possible to observe these
minimum distances, an isolation plate
must be installed between the Wine
conditioning unit and the heat source.
Installation
*INSTALLATION*
16
Climate class
This wine storage unit is designed for
use in climate class SN-T (room tem-
perature range). Do not use in a climate
class for which it is not designed.
Climate class Room tempera-
ture
SN 50°F to 90°F/
+10°C to +32°C
N 60°F to 90°F/
+16°C to +32°C
ST 60°F to 100°F/
+16to +38°C
T 60°F to 109°F/
+16to +43°C
A lower room temperature will cause
the compressor to switch off for longer
periods. This can cause the internal
temperature in the wine storage unit to
rise with the risk of wine deteriorating
and going off.
Risk of damage due to high hu-
midity.
In environments with high humidity,
condensation can build up on the ex-
ternal wine conditioning unit panels,
which can cause corrosion.
Install the wine conditioning unit with
sufficient ventilation in a dry and/or
air-conditioned room.
After installation, make sure that the
appliance door closes properly, the
ventilation gaps are not covered, and
the wine conditioning unit has been
installed in accordance with these
operating and installation instruc-
tions.
Impaired functionality due to
high humidity and high temperature.
High humidity (over approx. 70%)
combined with a high room tempera-
ture (over approx. 90°F/32°C) can
impair the function of your wine con-
ditioning unit.
In environments with a tropical cli-
mate, the wine conditioning unit
must be operated in an air-condi-
tioned room.
Installation
*INSTALLATION*
17
Installation notes
Risk of damage and injury from
the wine conditioning unit tipping
over.
The wine conditioning unit is very
heavy and can tip forwards when the
appliance door is open.
Keep the appliance door shut until
the wine conditioning unit has been
installed and secured in its installa-
tion niche in accordance with these
operating and installation instruc-
tions.
Due to its weight and size, the wine
conditioning unit must be installed
by two people.
Adjoining cabinetry
The wine conditioning unit is screwed
to the adjoining cabinetry to the side
and above. For this reason, it is essen-
tial that all of the relevant cabinetry are
secured to the ground or wall.
Load-bearing capacity of the niche
floor
To ensure the safe installation of the
wine conditioning unit and to guarantee
its correct functioning, the floor of the
niche where the appliance is to be in-
stalled must be smooth and even.
It must be made from strong, rigid ma-
terial.
Because the wine conditioning unit is
extremely heavy when fully loaded, it is
essential that the floor it stands on is
able to bear its weight. If necessary,
seek the advice of an architect or con-
struction expert.
When fully loaded, the weight of the
wine conditioning unit is approx.:
KWT 26x2 ViS 1497 lbs
(679 kg)
Installation
*INSTALLATION*
18
Ventilation
Risk of fire and damage due to
insufficient ventilation.
If the wine conditioning unit is not
ventilated sufficiently, the compres-
sor will run more frequently and for
longer periods.
This causes increased energy con-
sumption and an increased com-
pressor operating temperature,
which can result in damage to the
compressor.
Please ensure that there is adequate
ventilation around the wine condi-
tioning unit.
It is essential to observe the required
ventilation gaps. The ventilation gaps
must never be obstructed.
Door hinge
Risk of damage and injury when
changing the door hinges.
Changing the door hinges single-
handedly can cause damage to the
appliance and injury.
The wine conditioning unit is sup-
plied with a fixed hinge. On no ac-
count should you attempt to change
the door hinge yourself.
If you need to change the door hinge
to the other side, please contact the
Miele Service department.
Side-by-side
This wine conditioning unit can be in-
stalled side-by-side with another wine
conditioning unit or refrigeration appli-
ance. The following overview will show
you which side-by-side installation op-
tions you have with your wine condi-
tioning unit.
Depending on the installation situa-
tion, you will need the side-by-side in-
stallation kit for side-by-side installa-
tion (see “Accessories – Optional ac-
cessories”).
Instructions for installing appliances
side-by-side can be found in the side-
by-side installation kit installation in-
structions.
. . .with partition wall
The wall a between the side-by-side
wine conditioning units/refrigeration
appliances must be at least
5/8" (16mm) thick.
Installation
*INSTALLATION*
19
If the door hinges of the appliances
are next to each other, you must take
into account the thickness of the
cabinet fronts and door handles so
that the appliance doors do not col-
lide and become damaged if they are
opened at the same time.
The wine conditioning units/refrigeration
appliances are secured individually in
their installation niche using the sup-
plied installation material.
If the partition wall a is narrower than
6 5/16" (160mm), you will need the
side panel heater from the side-by-side
installation kit to prevent condensation
from forming and any resulting damage.
When planning installation niches,
please note that the niche into which
the appliance with the side panel
heater is installed must be
3/16" (4mm) wider (see “Installation
– Installation dimensions”).
If the partition wall a is thicker than
6 5/16" (160mm), you do not need the
side-by-side installation kit, nor the side
panel heater.
. . . without partition wall
If the wine conditioning unit/appliances
are to be installed next to each other
without a partition wall between them,
they will need to be joined together with
the side-by-side merging kit. In addi-
tion, you must install the heating mat to
prevent condensation from forming and
any resulting damage.
Installation
*INSTALLATION*
20
Installation dimensions
Position of the electrical connection
- The electrical connection must not be positioned higher than 9" (228 mm) above
the floor.
The electrical socket must not be concealed behind the appliance and must be
easily accessible in an emergency.
Installation
*INSTALLATION*
21
A
B
C
A B C
KWT26x2Vi(S) 84"-85 3/16"
(2134–2164mm)
24" (610mm) 24" (610mm) + door
front 3/4"-1 1/2"
(19–38mm)
Installation
*INSTALLATION*
22
1 3/16"
(30 mm)
7/8"
(22 mm)
10 5/16"
(262 mm)
4"
(102 mm)
4"
(102 mm)
3 3/8"
(85 mm)
Side view
Installation
*INSTALLATION*
23
Dimensions when the appliance door is open (opening angle 90°/115°)
3/8" (10 mm)
A
D
B
C
A B* C* D (with a door front
of 3/4" (19mm))
26 5/8" (677mm) Door front
(3/4"-1 1/2"
(19–38mm))
Door handle 11 5/8" (296mm)
* The dimensions of the door front and the door handle vary depending on the de-
sign of the kitchen.
Installation
*INSTALLATION*
24
Dimensions of the cabinet front
23 3/4"
(604 mm)
17 3/4"
(450 mm)
3"
(77 mm)
5 7/8"
(149,5 mm)
63 7/8"
(1622 mm)
79 7/8"
(2029 mm)
10 1/8"
(257,5 mm)
≥ 4" – 5 3/16"
(≥ 102 – 132 mm)
Installation
*INSTALLATION*
25
Installing the wine conditioning
unit
Before starting...
It is essential to read these installa-
tion instructions carefully before
starting to install the wine condition-
ing unit.
The wine conditioning unit should be
installed by a suitably qualified
tradesman in accordance with these
installation instructions. Safe opera-
tion of the wine conditioning unit is
only assured if it has been installed
and connected in accordance with
the installation instructions.
DANGER of damage and injury!
The wine conditioning unit is very
heavy and can tip forwards when the
appliance door is open.
Keep the door shut until the wine
conditioning unit has been built in
and secured in its installation niche
in accordance with the operating and
installation instructions.
The wine conditioning unit is both
large and heavy. Installation must be
carried out by two people.
The wine conditioning unit must be in-
stalled in accordance with local regula-
tions. If local regulations are not avail-
able, the following regulations must be
observed:
- in the USA: the National Electrical
Code, ANSI/NFPA 70 – latest edition/
State and Municipal codes and/or lo-
cal codes.
- in Canada: the Canadian Electrical
Code C22.1 – latest edition/Provincial
and Municipal codes and/or local
codes.
Installation
*INSTALLATION*
26
Tools required
- Cordless drill
- TX20 screwdriver
- Hammer drill
- Drill bits in various sizes, depending
on materials
- Hammer
- Open-ended wrench
- Ratchet wrench, attachment: socket,
5/16" (8mm)
- Adhesive tape
- Utility knife
- Pipe wrench
- Level
- Tape measure
- Pencil
Other
- Step ladder
- Hand truck
Weight of door front
Before installing the door front, ensure
that the weight of the door does not ex-
ceed the maximum permitted:
Wine conditioning
unit
Max. weight of
door front
KWT26x2Vi(S) 161 lb (73kg)
If the door front is too heavy, this
can cause damage.
Installing a door front which is heav-
ier than the maximum permitted
weight could damage the hinges.
This damage can affect various fac-
tors, such as operation of the appli-
ance.
Before installing the door front, en-
sure that the weight of the door does
not exceed the maximum permitted.
Installation
*INSTALLATION*
27
Aligning the installation niche
The installation niche must be carefully
aligned using a bubble level before in-
stalling the wine conditioning unit. The
niche corners must be at 90° angles to
each other, otherwise the cabinet front
will not sit straight on all 4corners of
the installation niche.
Checking the installation niche
Check the installation dimensions
(see “Installation – Installation dimen-
sions”).
Check the position of the electrical
connection. The length of the power
cord is 9' 10" (3m).
The electrical socket must not be
concealed behind the appliance and
must be easily accessible in an
emergency.
Check the surroundings for possible
collisions (see “Installation – Dimen-
sions with appliance door open”).
Only install the wine storage unit in
stable, solid installation niches, posi-
tioned on an even and level floor.
Also check the installation niche for
the following criteria:
- The side panels of the installation
niche must be even.
- The surrounding walls of the installa-
tion niche must be at least
5/8" (16mm) thick.
- The surrounding walls must be se-
curely fixed to the floor or wall.
- Shortened side walls must be at least
4" (100mm) deep.
Installation
*INSTALLATION*
28
Before installation
Before installation, remove any ac-
cessories from the back of the appli-
ance.
Check the wine conditioning unit for
damage during transportation.
Do not install the wine conditioning
unit if it is damaged.
Check that all parts at the back of the
appliance are unhindered.
To protect the floor during installation,
secure an off-cut of flooring or similar
material to the floor in front of the in-
stallation area.
Do not remove the installation aids
from the appliance door. These will
be required later for aligning the ap-
pliance in the installation niche.
Risk of damage and injury from
the wine conditioning unit tipping
over.
As soon as you unscrew the brack-
ets that fix the wine conditioning unit
to the pallet, the appliance is no
longer secured.
Due to its weight and size, the wine
conditioning unit must be installed
by two people.
2
Unscrew the fixing brackets .
With the help of several people as re-
quired, carefully lift the wine condi-
tioning unit from the pallet, starting
with the back of the appliance.
Risk of damaging the floor from
the load.
Moving the wine conditioning unit
can cause damage to the floor.
Move the wine conditioning unit
carefully on floors that are sensitive
to scratching.
As soon as you have set the wine con-
ditioning unit upright, you can move it
using the rollers on the bottom.
Installation
*INSTALLATION*
29
Preparing the installation niche
Risk of damage and injury from
the wine conditioning unit tipping
over.
The wine conditioning unit is very
heavy and can tip forwards when the
appliance door is open.
The installation niche must be se-
cured to the wall behind it and/or
above it with several screws. Only
this can ensure that the wine condi-
tioning unit will not tip over after be-
ing installed in the installation niche.
In addition, use the provided anti-tip
brackets to secure the installation
niche.
Parts required for installation are sup-
plied with the wine conditioning unit.
The plastic bags supplied are marked
with letters for easy identification.
When performing the individual as-
sembly steps, observe the letters
specified and use the matching plas-
tic bag with the required installation
equipment.
The anti-tip brackets prevent the wine
conditioning unit from tipping.
The anti-tip brackets are also used to fix
the installation niche securely to the
surrounding walls.
Use 2 anti-tip brackets for each in-
dividual appliance or 4 anti-tip brack-
ets for each (side-by-side) combina-
tion of 2 appliances.
Position the anti-tip brackets on
the left and right of the niche.
Depending on the subsequent adjust-
ment of the feet, the anti-tip brackets
are positioned 84"-85 3/16" (2,134–
2,164mm) from the floor of the niche.
Installation
*INSTALLATION*
30
Danger of injury and damage to
the appliance due to the wine condi-
tioning unit tipping over.
If the anti-tip brackets are fixed too
high up, they cannot be used to se-
cure the wine conditioning unit.
The distance between the anti-tip
brackets and the wine conditioning
unit must not exceed 5/16" (8mm).
Make sure that the gap between the
wine conditioning unit‘s rear wall and
the installation niche does not exceed
2" (51mm).
Place a wooden wedge behind the
anti-tip brackets if necessary.
While holding the anti-tip brackets in
place, mark the necessary drill holes
on the rear wall of the installation
niche.
Retaining screws for different uses
and types of material are supplied in
the accompanying pack.
Securing to a concrete wall
Securing to a wooden wall
Installation
*INSTALLATION*
31
Securing with a wooden wedge
Secure the installation niche to the
wall behind it and/or above it as re-
quired using the anti-tip brackets .
Pushing the wine conditioning unit
into the niche
Then push the wine conditioning unit
into the niche, taking care not to
damage the electrical cord.
If you are installing several appliances
side by side, secure the wine condi-
tioning units/refrigeration appliances
to one another now (see the installa-
tion instructions for the side-by-side
installation kit).
To ensure that the wine conditioning
unit can then be aligned correctly, the
toe-kick ventilation grille must be re-
moved from the appliance toe-kick:
Carefully guide a flat-head screw-
driver through the toe-kick ventilation
grille on both sides and use it to
push the internal plastic latches out-
wards to release the toe-kick ventila-
tion grille.
Place the toe-kick ventilation grille to
one side.
Installation
*INSTALLATION*
32
6
5
Affix edge protection to the adja-
cent cabinet fronts.
Insert the plug connector at the back
of the wine conditioning unit (see “In-
stallation – Electrical connection”).
Insert the plug into the electrical
socket.
The electrical socket should be close
to the wine conditioning unit and
easily accessible.
Risk of damage due to electrical
overload.
If the wine conditioning unit is electri-
cally overloaded, this can cause a
short circuit and therefore damage to
your appliance.
When you install appliances side by
side, each appliance must have its
own separate electrical socket.
Tip: Secure the power cord to prevent it
becoming caught: tie a piece of string
to the middle of the power cord and as
the wine conditioning unit is being
pushed into the niche, pull the cord for-
ward underneath the appliance.
Push the wine conditioning unit care-
fully into the installation niche.
If the wine conditioning unit cannot
be pushed into the niche (because
the floor is uneven, for example), un-
screw the rear feet slightly (see “In-
stallation – Aligning the wine condi-
tioning unit”) and slide the appliance
into the installation niche.
Remove the edge protection from
the adjacent cabinet fronts.
Installation
*INSTALLATION*
33
Aligning the wine conditioning unit
The installation aids on the appli-
ance door provide assistance with the
alignment of the wine conditioning unit
in the installation niche.
The installation aids are suitable for a
cabinet front thickness of 3/4" or
1 1/2" (19mm or 38mm).
Align the wine conditioning unit with
adjacent cabinet fronts as described
below.
Cabinet-front thickness of 3/4" (19mm)
Cabinet-front thickness of 1 1/2" (38mm)
The adjustable feet at the front and
back of the appliance can all be ad-
justed from the front of the appliance.
Risk of damage due to incorrect
feet adjustment.
You may damage the adjustable feet
if you use a cordless screwdriver.
Always adjust the front and rear feet
by hand.
Installation
*INSTALLATION*
34
Position the supplied spacers on
both sides on the markings next to
the adjustable feet at the front of the
wine conditioning unit.
Adjust the rear feet with a ratchet (at-
tachment: socket, 8mm) or a TX20
screwdriver .
Installation
*INSTALLATION*
35
Adjust the front feet with a ratchet (at-
tachment: socket, 8mm) or a TX20
screwdriver.
Tip: Proceed carefully when adjusting
the feet, alternating between the left
and right feet.
Place a bubble level across the instal-
lation aids on the appliance door
to check the wine conditioning unit's
alignment.
Unscrew the adjustable feet and
on both sides at least until the
marking on the toe-kick is aligned
with the required 1 1/4" (32mm) on
the spacer . The standard dimen-
sion of 1 1/4" (32mm) relates to a
niche height of 84" (2,134mm).
It is important to adjust the feet to a
height of at least 1 1/4" (32mm) so
that the ventilation of the wine condi-
tioning unit via the toe-kick functions
correctly.
Installation
*INSTALLATION*
36
Risk of damage if the feet are
adjusted too much.
The rear adjustable feet can be dam-
aged.
Unscrew the feet only until the
marking on the toe-kick is aligned to
a maximum of 2 7/16" (62mm) (max.
niche height of 85 3/16" (2,164mm)).
Check the alignment of the wine con-
ditioning unit again using the installa-
tion aids and the bubble level.
Securing the wine conditioning unit
in the niche
Screw the lugs for the retaining plate
into the cabinetry above the appli-
ance.
Installation
*INSTALLATION*
37
If it is not possible to secure the wine
conditioning unit at the top, it can be at-
tached to the installation niche with the
side retaining lugs:
Flip open the side retaining lugs .
Screw the side retaining lugs to
the adjacent cabinetry.
Open the appliance door.
Screw the retaining plate lugs at
the top and bottom to the cabinetry
adjacent to the appliance.
In a side-by-side combination, only
the external panels of the wine condi-
tioning units/refrigeration appliances
can be secured to the adjacent cabi-
netry.
Installation
*INSTALLATION*
38
Preparing the cabinet fronts
Open the appliance door as far as it
will go.
Unscrew the installation aids from
the appliance door.
Unscrew the angle trims from both
sides of the appliance door and place
the trims and screws to one side –
they will be required later.
Close the appliance door.
Installation
*INSTALLATION*
39
Measure the gapX between the
mounting frame and the upper edge
of the adjacent cabinet front.
Remove the nuts and washers
from the threaded bolts and store
them in a safe place – they will be re-
quired later.
Take the mounting frame off the
appliance door by removing it up-
wards.
Place the cabinet front on a firm sur-
face, with the external side facing
downwards (place on a blanket or
similar to avoid it becoming
scratched).
Mark the distanceX-1/8" (-3mm) on
the inner side of the cabinet front.
Similarly, locate and mark the mid-
pointY on the cabinet front.
Position the mounting frame ac-
cording to the markings on the cabi-
net front.
Pre-drill the holes.
Screw the mounting frame to the
cabinet front:
Use at least one screw for each re-
taining point on the mounting frame
.
Installation
*INSTALLATION*
40
Secure the mounting frame to the
top of the cabinet front, using at least
6screws.
The mounting frame has several differ-
ent types of holes to take account of a
variety of cabinet fronts.
When securing the frame, always
screw into the strongest part of the
cabinet front. To do this, select screws
which are slightly shorter than the
thickness of the cabinet front.
Screw the appliance handle to the
cabinet front from the inside if neces-
sary (not for handle-free kitchens).
Now insert the angle trims on both
sides as far as they will go into the
provided spaces in the mounting
frame .
Installation
*INSTALLATION*
41
Securing and aligning the cabinet
front
Open the appliance door and hang
the cabinet front on its frame onto
the threaded bolts .
Press the angle trims into the white
plastic frame on both sides and
screw them on loosely at first. Spare
screws are provided in the plastic
bag marked with the letter E.
Place the spacers on top of the
corners of the cabinet front on both
sides.
Close the appliance door and check
the distance between the door and
adjacent cabinet fronts.
Installation
*INSTALLATION*
42
Align the depth of the cabinet front
via the gaps in the angle trims .
Align the height and sides of the cabi-
net front using the threaded bolts .
Close the appliance door and check
the distance between the door and
adjacent cabinet fronts.
Place the washers and nuts back
in position and tighten the nuts .
The cabinet front is now secured.
Now tighten the screws in the angle
trims .
Open the appliance door.
Remove the spacers from the cab-
inet front.
Installation
*INSTALLATION*
43
Mounting the fixing brackets
The fixing bracket is used to secure the
cabinet front to the bottom of the appli-
ance door.
Do not mount the fixing brackets until
the wine conditioning unit (or side-by-
side combination, if applicable) has
been installed and the cabinet fronts
have been aligned.
Open the appliance door as far as it
will go.
Slide the fixing bracket from the
outside onto the screw at the bottom
of the appliance door.
Screw the fixing bracket securely
to the cabinet front.
Installation
*INSTALLATION*
44

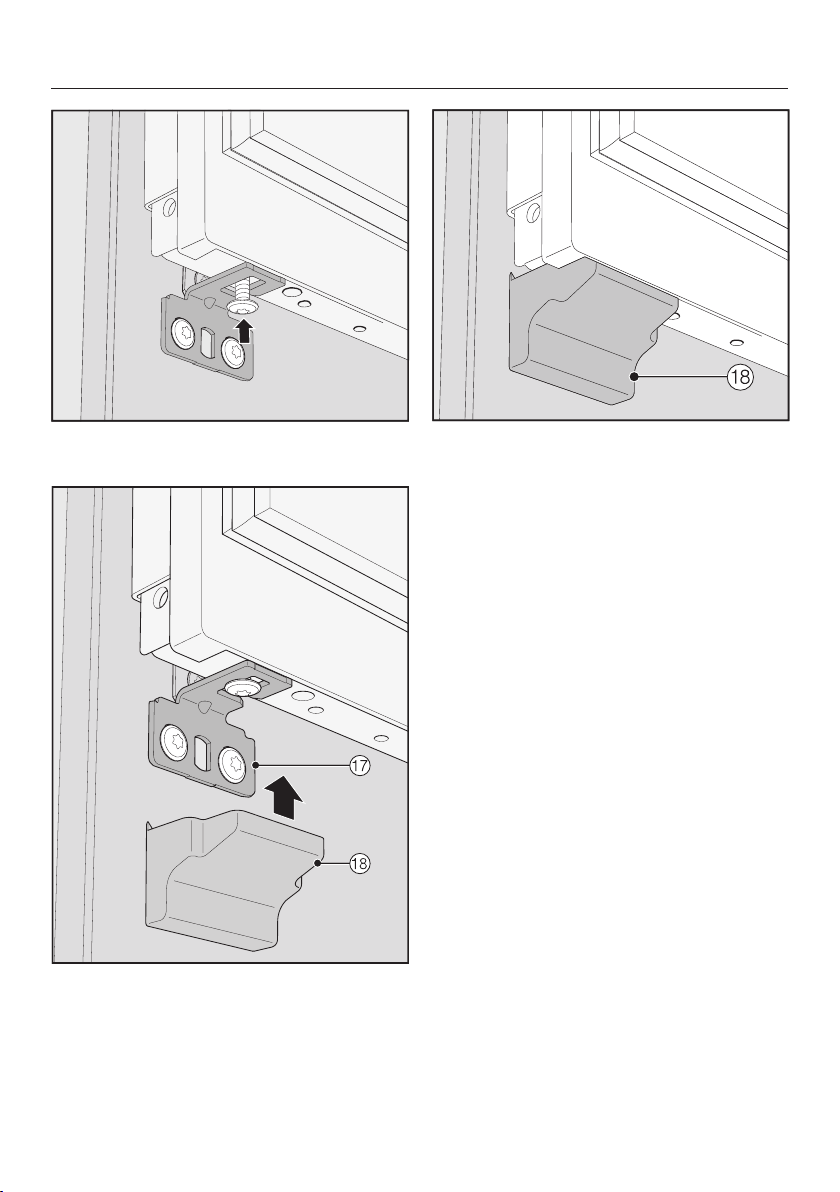

Tighten the screw at the bottom of
the appliance door.
Install the cover over the fixing
bracket .
Click the covers onto the fixing
brackets.
Installation
*INSTALLATION*
45
Securing the covers
Before the cover can be installed
in the gap above the wine condition-
ing unit, it must be assembled as fol-
lows:
Insert the two parts of the cover into
one another.
Cover viewed from the side
Place the assembled cover into
the gap above the wine conditioning
unit so it clicks into place. While do-
ing so, slide both parts of the cover
together as required.
Installing the cover in a side-by-side
combination
Insert the joining peg (from the side-
by-side installation kit) halfway into
the channel in the cover for the left-
hand appliance.
Place the second cover onto the join-
ing peg and press the two covers to-
gether.
Click the two covers together into the
gap above the appliances.
Installation
*INSTALLATION*
46
Install the two plastic covers on
both sides of the appliance door by
clicking them into the gap between
the appliance door and the cabinet
door, starting at the bottom and
working up to the top.
Secure both sides of the wine condi-
tioning unit using at least 3 clips
for the covers.
Now attach the covers onto the re-
taining clips on both sides.
In the case of side-by-side installa-
tion, the covers are only required on
the outer side.
Installation
*INSTALLATION*
47
Install the cover onto the light con-
tact switch.
Fitting the door trim
Cut the door trim to the width of the
cut-out in the cabinet front as re-
quired. An extra length of trim is sup-
plied to help calculate the length re-
quired.
Trim the long pieces of door trim for
the right and left sides to the length
required X.
Fit the door trim into the gap between
the cabinet front and the glass.
Installation
*INSTALLATION*
48
Cut the short pieces of door trim for
the top and bottom of the door to the
length required Y.
Fit the door trim into the gap between
the cabinet front and the glass.
Securing the toe-kick ventilation
grille and toe-kick panel
Click the toe-kick ventilation grille
onto the bottom of the appliance toe-
kick.
If necessary, cut the toe-kick panel to
the required length and height (cut
along the lower edge of the toe-kick
facing where it touches the floor).
Secure the toe-kick panel to the bot-
tom of the toe-kick ventilation grille.
Installation
*INSTALLATION*
49
Limiting the opening angle of the ap-
pliance door
The door hinges on the wine condition-
ing unit are set at the factory to enable
the appliance door to be opened wide.
If, for example, the appliance door hits
an adjacent wall when it is opened, you
should limit the opening angle of the
appliance door to 90°.
Open the appliance door.
Insert the pin into the lower hinge
from above.
This will limit the opening angle of the
appliance door to 90°.
Installation
*INSTALLATION*
50
Electrical connection
Risk of electric shock!
The wine conditioning unit must only
be switched on when it has been in-
stalled in accordance with the instal-
lation instructions.
Ground the wine conditioning unit.
The wine conditioning unit must not
be grounded via a gas pipe.
If in doubt, have a suitably qualified
and experienced electrician check
that the wine conditioning unit com-
plies with relevant regulations.
Do not install a fuse into neutral cur-
rent or grounding electrical circuit.
Do not use an extension cord or
power bar.
Do not use a frayed or damaged
power cord.
Risk of electric shock!
For protection against electric shock,
this wine conditioning unit is
equipped with a pole-free plug which
is protected against reverse polarity.
The plug must be grounded in the
usual way.
Do not remove the round grounding
connector pin from the plug.
Use only a grounded plug adapter.
Wait for 1hour after installation before
plugging the wine conditioning unit into
the power supply. This allows coolant
and refrigerator oil to settle in accor-
dance with regulations.
Ensure that the voltage of the power
supply corresponds to the connection
voltage of the wine conditioning unit. A
power supply of 110–120V, 60Hz and
10 –16Amps, which is protected by a
power switch or a fuse, is required to
operate the wine conditioning unit.
The manufacturer recommends operat-
ing the wine conditioning unit on a sep-
arate circuit to avoid overloading the
electrical circuit.
All relevant legal electrical, fire, and
building regulations must be observed
when installing the outlet and/or the
wine conditioning unit.
In certain countries, wine conditioning
units are required to be connected to
the electrical supply via a wall-mounted
ON/OFF switch.
To avoid the risk of fire, electric shock,
or other injuries, the wine conditioning
unit must be installed and connected by
a suitably qualified electrician in accor-
dance with all relevant local and na-
tional regulations and standards, in-
cluding fire prevention.
The outlet must be easily accessible so
that the wine conditioning unit can be
quickly disconnected from the electrical
supply in case of an emergency.
Installation
*INSTALLATION*
51
If the outlet is no longer accessible after
installation, an additional means of dis-
connection must be provided for all
poles. Suitable means of disconnection
include switches with an all-pole con-
tact gap of at least 1/8" (3 mm). These
can be circuit breakers, fuses, and re-
lays.
The plug and power cord must not
come into contact with the back of the
wine conditioning unit as vibrations can
cause damage to these components.
This could result in a short circuit.
Do not plug in other appliances behind
the wine conditioning unit.
Do not connect the wine conditioning
unit to a stand-alone inverter such as
those used with an autonomous energy
source; for example, solar power.
When the wine conditioning unit is
switched on, power surges could result
in a safety switch-off. The electronic
unit could be damaged. The wine con-
ditioning unit must not be used with
what are known as energy-saving de-
vices either. These reduce the amount
of energy supplied to the unit, causing it
to overheat.
If the power cord needs to be replaced,
this must be done by a qualified techni-
cian.
Connecting the wine storage unit
Insert the electrical plug into the back
of the wine storage unit.
Make sure that the electrical plug has
clicked into position correctly.
Insert the wine storage unit’s plug
into the electrical socket.
Saving energy
52
Normal
energy consumption
Increased
energy consumption
Installation /
Maintenance
In a well-ventilated room. In an enclosed, poorly venti-
lated room.
Protected from direct sun-
light.
In direct sunlight.
Away from heat sources (ra-
diator, range/oven).
Near a heat source (radiator,
oven).
Where the ideal room tem-
perature is approx. 68°F
(20°C).
Where the ambient room
temperature is above 77°F
(25°C).
Air vents uncovered and
dusted regularly.
Where the ventilation open-
ings are blocked and full of
dust.
Temperature
setting
50° to 54°F / 10° to 12°C The lower the temperature in
the appliance, the higher the
energy consumption.
Saving energy
53
Normal
energy consumption
Increased
energy consumption
Use Wooden shelves arranged
as they were when the appli-
ance was delivered.
Only open the door when
necessary and for as short a
time as possible. Store wine
bottles in an organized way.
Frequent opening of the
door for long periods will
cause a loss of coldness.
The wine conditioning unit
works harder to cool down
and the compressor runs for
longer periods.
Do not overfill the appliance
in order to allow the air to
circulate.
Poor air circulation will
cause a loss of coldness.
Guide to the appliance
54
a
Display
b
On/Off switch
c
Wooden shelves with labels
d
Interior lighting
e
Isolator plate for thermal separation of the wine conditioning zones
f
SommelierSet*
g
Glass door with UV filter
h
Automatic door opening (Push2open/Pull2open)
Guide to the appliance
55
* The SommelierSet consists of:
A glass holder, a bottle holder, 2accessory boxes, and a decanter plate. The
SommelierSet also includes felt inserts in various sizes.
Guide to the appliance
56
Start screen
°F
52
1
2
3
4
5
°F
52
°F
52
a
Temperature display (target temperature) for the three wine conditioning zones
b
sensor
For setting the temperature and humidity
c
sensor control
For switching the interior lighting on and off when the appliance door is closed
(ambient lighting)
d
Display for Miele@home connection status
(only visible when Miele@home has been set up)
e
Sensor control
for adjusting various settings in Settings mode
Guide to the appliance
57
Settings mode
In Settings mode, you can select the following appliance functions and alter their
settings to some extent:
Symbol Function
Language Set
Display Brightness Adjust (darker to brighter)
Color Scheme Set (dark or bright)
/ Buzzer Tones Adjust the volume or switch off the Buzzer Tones
completely (e.g., for the door alarm)
/
Keypad Tone Adjust the volume or switch off the Keypad Tone
completely
°F / °C Temperature Unit Set (°Fahrenheit or °Celsius)
/ Keypad Lock Switch on or off
(see “Selecting additional settings”)
Self Test The system restarts and is checked for faults or
malfunctions
(see “Selecting additional settings”)
Door Assistant Switch on (Push2Open or Pull2Open) or switch off
(see “Selecting additional settings”)
Miele@home Set up, deactivate, or query WiFi connection sta-
tus (see “Selecting additional settings”)
* Demo Mode Switch off
* (only visible when Demo Mode, is switched on
see “Selecting additional settings”)
Guide to the appliance
58
Factory Default Reset to default settings
(see “Selecting additional settings”)
Ambient Lighting Choose between 5different settings for ambient
lighting
(see “Selecting additional settings”)
Ambient Display Set the appearance of the display when the door
is closed
(see “Selecting additional settings”)
Sabbath Mode Switch on or off
(see “Selecting additional settings”)
Symbols in settings mode
/ Scroll in settings mode or select a setting
/ Change a setting (e.g., display brightness)
OK Confirm a setting
Exit the menu level
Accessories
59
Accessories supplied
Appliance plug
Chalk
Use the chalk supplied to write on the
magnetic strips on the wooden shelves
for easy identification of the wines in
storage.
Optional accessories
A range of useful Miele accessories and
care products are available for your
wine conditioning unit.
Stainless steel front panel
Stainless steel front panels give your
wine conditioning unit a high-quality ap-
pearance.
Handles and toe-kick panels are also
available in a stainless steel look.
Side-by-side installation kit
To install two or more wine conditioning
units/refrigeration appliances next to
one another, you will need the side-by-
side installation kit (see “Installation –
Side-by-side”).
Hinge pocket
If the door hinging needs to be changed
on your wine conditioning unit, the up-
per toe-kick ventilation grille must be
converted. A new hinge pocket is re-
quired in order to do this.
The door hinging must only be replaced
by Miele Service.
Optional accessories are available
from Miele, your Miele dealer or online
via the Miele website.
Before first use
60
Before first use
Allow the wine conditioning unit to
stand for approx. 1hour prior to con-
necting it to the power supply.
This will help prevent any malfunc-
tions.
Packaging material
Remove all packaging material from
the inside of the wine conditioning
unit.
Always remove all packaging mate-
rial, including adhesive tape, before
switching on the wine conditioning
unit. The adhesive tape is difficult to
remove from cold surfaces.
Cleaning
Please refer to the relevant instruc-
tions in “Cleaning and care”.
Clean the inside of the wine condi-
tioning unit and the accessories.
Choosing the right Door Assistant
(Push2Open/Pull2Open)
The Door Assistant helps you to open
the appliance door.
You can choose between the two Door
Assistants Push2Open and Pull2Open
(see “Selecting additional settings –
Switching on the Door Assistant ”).
The default Door Assistant is
Push2Open.
Select the
Pull2Open Door Assistant if your wine
conditioning unit has a cabinet front
with a handle.
Select the
Push2Open Door Assistant if your
wine conditioning unit has a handle-
free cabinet front.
Using the SommelierSet
“The SommelierSet” describes how
to use the SommelierSet.
Before first use
61
Operating the wine condition-
ing unit
The touch display can be scratched
by pointed or sharp objects, e.g.,
pens.
Only touch the display with your fin-
gers.
If your fingers are cold, the touch
display may not react.
°F
°C
-18
°C
°F
52
°F
52
°F
52
The sensor controls underneath the
temperature display can be selected
directly by touch; the symbols and text
in or above the temperature display can
only be displayed.
Settings mode
In Settings mode, you can select
different wine conditioning unit func-
tions and alter their settings to some
extent (see “Selecting additional set-
tings”).
Touch the sensor control to open
Settings mode.
Use the and sensor controls to
select the function for which you wish
to adjust the settings.
Confirm your selection with OK.
Adjust the settings using either the
and sensor controls or the and
sensor controls.
Confirm your selection with OK.
The setting with the colored back-
ground is always the selected setting;
it can be confirmed directly with OK.
Touch the sensor control if you
wish to switch to the previous menu
level or terminate the process.
Every touch of the display is con-
firmed with an audible keypad tone.
You can switch off this keypad tone in
Settings mode.
Before first use
62
Starting up for the first time
Open the appliance door.
Switch the wine conditioning unit on
by pressing the On/Off switch.
The On/Off switch is located below
the display.
The wine conditioning unit will start to
cool and the interior lighting will come
on when the appliance door is opened.
Miele will appear in the wine condition-
ing unit display.
When you switch the wine condition-
ing unit on for the first time, you will
be asked to make the following set-
tings:
- Set the Language
(if you accidentally select the wrong
Language, return to Settings
mode and use the symbol to
change the language)
- Set the Temperature Unit:
°C (degrees Celsius) or °F (degrees
Fahrenheit)
- Set up Miele@home:
Select Continue if you wish to set up
Miele@home now (to do this, follow
the instructions under “Selecting ad-
ditional settings – Miele@home”).
Select Skip if you would prefer to set
up Miele@home later.
Use the and sensor controls to
select the right setting and select OK
to confirm your selection.
Touch the sensor control if you
want to return to the previous menu
level.
Set-up Successful will appear on the dis-
play.
Confirm the first use with OK.
The main screen will appear on the dis-
play (see “Appliance description – Main
screen”).
You cannot terminate the initial start-
up process. The only way to terminate
the process is to switch off the wine
conditioning unit, though the process
will continue when the appliance is
switched back on.
Switching the wine conditioning unit on and off
63
Switching the wine condition-
ing unit on
Open the appliance door.
Switch the wine conditioning unit on
by pressing the On/Off switch.
The wine conditioning unit will start to
cool and the interior lighting will come
on when the appliance door is opened.
Miele will appear, followed by the main
screen on the wine conditioning unit
display:
°F
°C
-18
°C
°F
52
°F
52
°F
52
Switching the wine conditioning unit
off
Switch the wine conditioning unit off
by pressing the On/Off switch.
The cooling and interior lighting are
switched off.
Please note: the wine conditioning
unit is not disconnected from the
power supply when it is switched off
with the On/Off switch.
Switching off for longer peri-
ods of time
If the wine storage unit is not going to
be used for a longer period of time:
Switch the wine storage unit off.
Unplug the appliance or switch off
the breaker.
Clean the wine storage unit.
Leave the door to the wine storage
unit ajar to enable air to circulate and
to avoid odors building up inside it.
If, during a long absence, the wine
storage unit is switched off but not
cleaned and the door(s) left shut,
there is a danger of bacteria building
up inside the appliance.
The wine storage unit must be
cleaned.
Selecting additional settings
64
In Settings mode, you can select dif-
ferent wine conditioning unit functions
and alter their settings to some extent,
allowing you to adjust the appliance to
suit your requirements.
Only the functions in Settings mode
that require further explanation are de-
scribed below.
The door alarm and other warnings
are automatically disabled when the
appliance is in Settings mode.
Switching Keypad Lock on or
off /
Switch on Keypad Lock if you wish to
protect your wine conditioning unit from
unwanted temperature changes or other
unintentional adjustments in settings
mode .
In settings mode , use the and
arrow buttons to select Keypad Lock
and touch OK to confirm your selec-
tion.
Use the arrow buttons and to
switch the keypad lock On or Off and
confirm your selection with OK.
The keypad lock will not be activated
until you close the door of the wine
conditioning unit.
Nothing will appear in the display to in-
dicate that the keypad lock is switched
on.
The message Press OK for 6 seconds to
unlock will appear in the display if you
select a sensor control while the keypad
lock is switched on.
Follow the instructions on the display.
The display is unlocked briefly so you
can adjust the settings as required.
Closing the door of the wine condition-
ing unit will reactivate the keypad lock.
Selecting additional settings
65
Performing a Self Test
Perform a Self Test if you are concerned
that your wine conditioning unit is not
working properly and want to check if it
is suffering from any problems.
In Settings mode, use the and
sensor controls to select the Self
Test and select OK to confirm your
selection.
Touch the sensor control if you
wish to terminate the process.
The Self Test starts and the wine condi-
tioning unit is checked for any faults or
malfunctions.
- The message System restart appears
in the display if the Self Test does not
discover any faults or malfunctions.
- If the Self Test does discover any
faults or malfunctions, they are indi-
cated as error messages in the dis-
play.
An alarm will also sound.
If you find the alarm disruptive, you
can switch it off in advance by touch-
ing the sensor control.
Make a note of the error message(s)
displayed.
Contact Miele Service and inform
them of the error message(s) on the
display.
Confirm the message with OK.
System restart will appear on the display.
The wine conditioning unit briefly
switches off and then back on automat-
ically.
Self test completed will appear on the dis-
play.
Confirm the message with OK.
The main screen appears in the display
again.
Selecting additional settings
66
Switching on the Door Assis-
tant
You can choose between the two Door
Assistants Push2Open and Pull2Open.
The default Door Assistant is
Push2Open.
The Push2Open Door Assistant is suit-
able for cabinet fronts without handles.
The door will then open automatically
when you gently press against it.
The Pull2Open Door Assistant is suitable
for cabinet fronts with handles. The ap-
pliance door can be opened easily with
little force.
Risk of damage if the appliance
door is closed prematurely.
When the Door Assistant is switched
on, repeatedly closing the appliance
door early can lead to damage or
malfunctions.
Refrain from holding onto or closing
the appliance door while automatic
door opening is still extended. If you
have indeed closed the appliance
door, leave it closed for 5minutes.
Automatic door opening resets itself.
Switching on Push2Open
In Settings mode, use the and
sensor controls to select Door As-
sistant and select OK to confirm your
selection.
Use the and sensor controls to
select Mode and select OK to confirm
your selection.
Use the and sensor controls to
select Push2Open and select OK to
confirm your selection.
Touch the sensor control to return
to the previous menu level.
– Adjusting the intensity
You can also adjust the intensity of the
Push2Open function. The lower the set
intensity, the less force required when
you push against the appliance door.
In Settings mode, use the and
sensor controls to select Door As-
sistant and select OK to confirm your
selection.
In Settings mode, use the and
sensor controls to select Intensity
and select OK to confirm your selec-
tion.
Use the and sensor controls to
select the right intensity (Low, Medium,
High) and select OK to confirm your
selection.
Selecting additional settings
67
– Adjusting the duration of the Auto-
Close function
You can also adjust the duration for
how long the appliance door will remain
open until it closes automatically.
In Settings mode, use the and
sensor controls to select Door As-
sistant and select OK to confirm your
selection.
In Settings mode, use the and
sensor controls to select AutoClose
and select OK to confirm your selec-
tion.
Use the and sensor controls to
select the duration (5 to 30seconds)
and touch OK to confirm your selec-
tion.
To protect against inadvertent open-
ing: if you do not pull the appliance
door open, it will close again by itself
after a duration defined by you.
Switching on Pull2Open
In Settings mode, use the and
sensor controls to select Door As-
sistant and select OK to confirm your
selection.
Use the and sensor controls to
select Mode and select OK to confirm
your selection.
Use the and sensor controls to
select Pull2Open and select OK to
confirm your selection.
Touch the sensor control to return
to the previous menu level.
– Adjusting the intensity
You can also adjust the intensity of the
Pull2Open function. The lower the set in-
tensity, the less force required when
you pull the appliance door.
In Settings mode, use the and
sensor controls to select Door As-
sistant and select OK to confirm your
selection.
In Settings mode, use the and
sensor controls to select Intensity
and select OK to confirm your selec-
tion.
Use the and sensor controls to
select the right intensity (Low, Medium,
High) and select OK to confirm your
selection.
Selecting additional settings
68
Switching off the Door Assis-
tant
In Settings mode, use the and
sensor controls to select Door As-
sistant and select OK to confirm your
selection.
Use the and sensor controls to
select Mode and select OK to confirm
your selection.
Use the and sensor controls to
select Off and select OK to confirm
your selection.
Touch the sensor control to return
to the previous menu level.
Miele@home
Your wine conditioning unit is
equipped with an integrated WiFi
module.
Networking is deactivated at the fac-
tory.
To use this feature, you will need:
- A WiFi network
- The Miele@mobile app
- A Miele user account The user ac-
count can be created via the
Miele@mobile app.
The Miele@mobile app will guide you as
you connect your wine conditioning unit
to your home WiFi network.
Once your wine conditioning unit is
connected to your WiFi network you
can use the app to carry out the follow-
ing activities, for example:
- Call up information on the operating
status of your wine conditioning unit
- Change the settings on your wine
conditioning unit
Connecting your wine conditioning unit
to your WiFi network will increase en-
ergy consumption, even when the wine
conditioning unit is switched off.
Make sure that the signal of your
WiFi network is sufficiently strong in
the place where you want to set up
your wine conditioning unit.
Selecting additional settings
69
Availability of the WiFi connection
The WiFi connection shares a frequency
range with other appliances (including
microwave ovens and remote control
toys). This can cause sporadic or even
complete connection failures. There-
fore, the availability of featured func-
tions cannot be guaranteed.
Miele@home availability
The ability to use the Miele@mobile app
depends on the availability of the
Miele@home service in your country.
The Miele@home service is not avail-
able in every country.
For information about availability,
please visit www.miele.com.
Miele@mobile App
The Miele@mobile App is available to
download free of charge from the Apple
App Store
®
or from the Google Play
Store™.
Connecting your wine conditioning
unit via the Miele@mobile app
You will also require the following to log
in:
- the password to your WiFi network
- the password for your wine condi-
tioning unit
Your wine conditioning unit’s password
is its serial number, which can be found
on the data plate.
The data plate can be found inside the
wine conditioning unit.
XXXXXX
XXXX XX / XXXXXXXXXXXXXXXXXXX / XX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXX XXXXXXXXX
If your serial number is “78000001” for
example, your password will be
“78000001”.
In Settings mode, use the and
sensor controls to select the
Miele@home and select OK to confirm
your selection.
Set up will appear on the display.
Confirm your selection with OK.
Use the and sensor controls to
select via the App and select OK to
confirm your selection.
Open the Miele@mobile app and fol-
low the instructions in the app.
Selecting additional settings
70
As soon as your wine conditioning
unit has been integrated into your
WiFi network via the app, the mes-
sage Connection successful will appear
on your wine conditioning unit‘s dis-
play.
Confirm the process with OK again.
If the WiFi connection is active, will
appear in the display.
Connecting your wine conditioning
unit via WPS
Your router must be equipped with the
WPS function for this connection op-
tion.
In Settings mode, use the and
sensor controls to select the
Miele@home and select OK to confirm
your selection.
Set up will appear in the display.
Confirm your selection with OK.
Use the and sensor controls to
select via WPS and select OK to con-
firm your selection.
Now follow the instructions in the dis-
play.
Confirm the process with OK.
To be able to use the Miele@home
functions, you also have to register
your wine conditioning unit in the app.
As soon as your wine conditioning
unit has been integrated into your
home network via WPS, the message
Connection successful will appear on
the display.
Confirm the process with OK again.
If the WiFi connection is active, will
appear in the display.
Selecting additional settings
71
Deactivating Miele@home
In Settings mode, use the and
sensor controls to select the
Miele@home and select OK to confirm
your selection.
Use the and sensor controls to
select Deactivate and select OK to
confirm your selection.
Deactivation successful will appear on the
display.
Confirm the message with OK.
Your wine conditioning unit is now dis-
connected from your WiFi network.
The symbol will go out on the dis-
play.
Activating Miele@home
If you have already activated
Miele@home and then disconnected
the connection, you will need to reac-
tivate the connection.
In Settings mode, use the and
sensor controls to select
Miele@home and select OK to confirm
your selection.
Use the and sensor controls to
select Activate and select OK to con-
firm your selection.
Activation successful will appear on the
display.
Confirm the message with OK.
If the WLAN connection is active, will
appear on the display.
Checking the WLAN connection sta-
tus
In Settings mode, use the and
sensor controls to select
Miele@home and select OK to confirm
your selection.
Use the and sensor controls to
select Connection status and select OK
to confirm your selection.
Information about the WLAN connec-
tion status will then appear on the dis-
play:
- connected: there is a strong con-
nection
- connected: there is an average
connection
- connected: there is a weak con-
nection
- disconnected
Setting up Miele@home again
If you have changed your WiFi network,
you can set up Miele@home again for
your wine conditioning unit.
In settings mode, use the and
arrow buttons to selectMiele@home
and selectOK to confirm your selec-
tion.
Use the and arrow buttons to
selectSet up again and touchOK to
confirm your selection.
Reset configuration?appears on the dis-
play.
Use the and arrow buttons to
selectYes orNo and touchOK to
confirm your selection.
Selecting additional settings
72
Resetting the network configuration
Reset the wine conditioning unit’s set-
tings to the default settings when dis-
posing of your wine conditioning unit,
selling it, or putting a used wine condi-
tioning unit into operation. This will re-
set the network configuration so that
all personal data is deleted from the
wine conditioning unit. This will also
ensure that a previous owner is no
longer able to access the wine condi-
tioning unit.
Reset the settings of the wine condi-
tioning unit as described in the chap-
ter “Resetting the settings to their de-
fault settings”.
Switching off Demo Mode
Demo mode allows the wine condi-
tioning unit to be presented in the
showroom without the cooling sys-
tem being switched on. Do not acti-
vate this setting for domestic use.
If Demo mode has been switched on
as a default setting, will show in the
display.
In settings mode, use the and
arrow buttons to select Demo Mode
and select OK to confirm your selec-
tion.
Press OK for 4 seconds to deactivate ap-
pears in the display.
Follow the instructions on the display
and touch and hold the sensor con-
trol OK for 4seconds.
The countdown Demo Mode will deacti-
vate in seconds. will appear in the dis-
play.
Demo Mode deactivated. The appliance will
cool down. appears in the display.
Confirm the message with OK.
The main screen appears in the display
again.
Selecting additional settings
73
Resetting the settings to their default settings
You can reset the wine conditioning unit‘s settings to their default settings.
Reset the wine conditioning unit’s settings to the default settings when disposing
of your wine conditioning unit, selling it, or putting a used wine conditioning unit
into operation. This will reset the network configuration so that all personal data
is deleted from the wine conditioning unit. This will also ensure that a previous
owner is no longer able to access the wine conditioning unit.
In Settings mode, use the and sensor controls to select the Factory De-
fault and select OK to confirm your selection.
Use the and sensor controls to select Reset and select OK to confirm your
selection.
After a brief delay, Settings reset appears in the display.
Confirm the message with OK.
The initial commissioning process restarts (see “Before first use – Starting up for
the first time”).
Selecting additional settings
74
The wine conditioning unit‘s settings will be reset to the following values:
Function Default settings
Language English
Display Brightness Average value
(4 of 7 segments)
Color Scheme Dark
/ Buzzer Tones Average value
(4 of 7 segments)
/
Keypad Tone Average value
(4 of 7 segments)
°F / °C Temperature Unit °Fahrenheit
/ Keypad Lock Switched off
Door Assistant Push2open
Miele@home Switched off
Ambient Lighting Ambient 2
Ambient Display Temperature display
Sabbath Mode Switched off
Humidity Not increased
Temperature in the wine sec-
tion
52°F (11°C)
Selecting additional settings
75
Switching Sabbath Mode on
or off
The wine conditioning unit offers a Sab-
bath Mode for the purposes of religious
observance.
When Sabbath Mode is switched on,
you cannot make any settings on your
wine conditioning unit.
Ensure that the appliance door is
properly closed, as visual and audible
alarms are switched off in Sabbath
Mode.
In Settings mode, use the and
sensor controls to select the Sab-
bath Mode and select OK to confirm
your selection.
Use the and sensor controls to
select On or Off and select OK to con-
firm your selection.
When Sabbath Mode is switched on,
will appear on the display and the
display brightness will be reduced (the
display does not change when the ap-
pliance door is closed).
When Sabbath Mode is switched on,
the following functions are switched off:
- Door Assistant
(for cabinet fronts without handles,
the appliance door will have to be
pulled from the bottom or side)
- Lighting
- All audible and visual signals,
- Temperature display
- The ambient lighting
(if previously switched on)
You can still select:
- the sensor control for Settings
mode so that Sabbath Mode can be
switched off
The Sabbath Mode function will switch it-
self off automatically after approx.
125hours.
Selecting additional settings
76
Switching Ambient Lighting
on or off
The Ambient Lighting can be switched on
so your wines are on display even when
the appliance door is closed. The inte-
rior lighting now remains on even when
the appliance door is closed.
Each wine conditioning zone has its
own light so that your wine conditioning
unit is lit up to maximum effect.
Touch the sensor control on the
display so that it is highlighted in
color.
Close the appliance door.
The interior lighting now remains on
even when the door is closed.
To switch the Ambient Lighting off,
touch the sensor control so that it
is no longer highlighted in color.
The interior lighting is now switched off
when the appliance door is closed.
Selecting the intensity of the Ambient
Lighting
You can set the intensity of the Ambient
Lighting in Settings mode.
You can also choose the wine condi-
tioning zones in which the Ambient Light-
ing should be switched on.
In Settings mode, use the and
sensor controls to select the Ambi-
ent Lighting and select OK to confirm
your selection.
Use the and sensor controls to
select the correct setting (Ambience 1
– Ambience 5):
- Ambience 1 – Ambience 3:
Weak to strong lighting in all wine
conditioning zones
- Ambience 4:
Only the lighting in the wine condi-
tioning zone in the center is switched
on
- Ambience 5:
The lighting in the wine conditioning
zone in the center is stronger than
the lighting in the top and bottom
wine conditioning zones.
Confirm your selection with OK.
Close the appliance door.
The Ambient Lighting is now set to the
desired setting.
Thanks to the use of LED lighting, the
wine will not be adversely affected by
heat or UV light.
Selecting additional settings
77
Risk of injury from LED lighting.
This lighting corresponds to risk
group RG2. If the cover is defective,
there is a risk of eye injury.
If the lighting cover is defective, do
not look from a close range directly
into the lighting with optical instru-
ments (e.g., magnifying glass or simi-
lar).
Selecting the Ambient Display
You can choose what the display
should look like when the appliance
door is closed.
In Settings mode, use the and
sensor controls to select the Ambi-
ent Display and select OK to confirm
your selection.
Use the and sensor controls to
select the required display settings:
- Temperature
- Miele logo
- Off (display switched off completely).
Confirm your selection with OK.
The display settings you have selected
are now active when the appliance door
is closed.
As soon as you open the door, the main
screen appears in the display in the
usual way.
The ideal temperature and humidity
78
Wine continues to mature depending on
the surrounding conditions. The length
of time for which wine can be kept in
good condition will therefore depend
not only on the temperature but also on
the air quality.
The wine conditioning unit with its con-
stant ideal temperature, increased air
humidity and odor-free atmosphere of-
fers the perfect conditions for storing
your wine.
The wine conditioning unit also guaran-
tees a vibration-free environment (in
contrast to a refrigerator) so that the
maturing process is not disturbed.
Temperature
Wine can be stored at a temperature
between 42° and 64°F (6° and 18°C). If
you are storing white and red wines to-
gether, select a temperature between
53° and 57°F (12° and 14°C). This is
suitable for both white and red wines.
Red wine should be taken out of the
wine conditioning unit and opened at
least two hours before drinking to allow
it to breathe and develop its aroma.
At too high a temperature (over 72°F /
22°C), wine matures too quickly, which
prevents the aromas from developing
further. Wine cannot mature fully at too
low a temperature (below 41°F / 5°C).
Fluctuations in temperature put wine
under stress and interrupt the maturing
process. It is therefore very important to
maintain a constant temperature.
Type of wine Recommended
drinking temper-
ature
Light, fruity red
wines:
57° to 61°F (14°
to 16°C)
Full-bodied
red wines:
64°F (18°C)
Rosé wines: 46° to 50°F (8° to
10°C)
Delicate, aromatic
white wines:
46° to 54°F (8° to
12°C)
Full-bodied or
sweet white
wines:
46° to +57°F (12°
to 14°C)
Champagne,
sparkling white
wines:
43° to 50°F (6° to
10°C)
Tip: Store the wine 1° or 2° cooler than
the recommended drinking temperature
as it warms up a little when poured into
the glass.
Tip: Full-bodied reds should be opened
for 2-3 hours before drinking to allow it
to breathe and develop its aroma.
Tip: We recommend removing the oxy-
gen from opened bottles of wine to
avoid loss of aroma and taste, as well
as spoiling. Special devices (a wine
pump with bottle stopper, for example)
create a vacuum by extracting the air.
The ideal temperature and humidity
79
Isolator panels for thermal separation
The wine conditioning unit has two
fixed isolator panels that divide the inte-
rior into three zones, which can be con-
ditioned in different ways. This means
that you can store up to three different
types of wine at the same time – for ex-
ample, red wine, white wine, and cham-
pagne.
Setting the temperature
Touch the sensor control to set the
temperature.
The previously set temperatures for the
3wine conditioning zones are dis-
played.
Use the and sensor controls to
select the wine conditioning zone for
which you want to adjust the temper-
ature and select OK to confirm your
selection.
Use the and sensor controls to
set the temperature. Keeping your fin-
ger on the sensor control changes
the temperature continuously.
Confirm the temperature setting with
OK or wait approx. 8seconds after
the last touch of the sensor. This tem-
perature will be automatically
adopted.
Tip: The new temperature setting can
also be confirmed and adopted by clos-
ing the appliance door.
The temperature display always shows
the required temperature.
If you have adjusted the temperature,
wait for approx. 6hours if the wine
conditioning unit is not very full and
for approx. 24hours if the wine con-
ditioning unit is full before checking
the temperature display. It will take this
long for an accurate reading to be
given.
If, after this time, the temperature is
still too high or too low, adjust it
again.
The ideal temperature and humidity
80
Temperature range
In all three zones, it is possible to set
temperatures between 41°F and 68°F
(5°C and 20°C).
Humidity
In most refrigerators the humidity is too
low for wine and therefore a refrigerator
is not suitable for wine conditioning.
Higher humidity levels are necessary
when storing wine to moisturize natural
corks from the outside. When the hu-
midity is too low the natural corks dry
out and the bottle is no longer tightly
sealed. For this reason wine bottles
should always be stored horizontally to
ensure that natural corks are also mois-
turized from the inside. If air gets into
the bottle, this will have a negative im-
pact on the wine!
Tip: Humidity levels can be set sepa-
rately for each wine conditioning zone.
Always increase the humidity level in a
wine conditioning zone whenever you
are using it to store wine bottles sealed
with natural corks.
Risk of damage caused by ex-
cess moisture
This will lead to condensation on the
interior walls, which can cause corro-
sion damage.
Do not introduce additional moisture
into the air, e.g., by placing a dish of
water inside the wine conditioning
unit.
Increasing the humidity
If you have set a higher level of humid-
ity, the fans will switch on automati-
cally. This will distribute the humidity
and the temperature evenly around the
wine conditioning unit so that you can
store all your wine under the same ex-
cellent conditions. The fans switch off
automatically when the appliance door
is opened and remain switched off for
as long as it is kept open.
Touch the sensor control to set the
temperature.
Use the and sensor controls to
select the wine conditioning zone for
which you want to increase the hu-
midity and select OK to confirm your
selection.
Touch the button.
The button will then be highlighted in
color.
Confirm your selection with OK or
wait approx. 8seconds after touching
the button for the last time. The set-
ting will be automatically adopted.
The humidity increases in the selected
wine conditioning zone.
The ideal temperature and humidity
81
Not increasing the humidity
Touch the sensor control to set the
temperature.
Use the and sensor controls to
select the wine conditioning zone for
which you do not want to increase
the humidity and select OK to confirm
your selection.
Touch the button.
The button will then no longer be
highlighted in color.
Confirm your selection with OK or
wait approx. 8seconds after touching
the button for the last time. The set-
ting will be automatically adopted.
The humidity decreases in the selected
wine conditioning zone.
Door alarm
82
Door alarm
An alarm will sound if the appliance
door has been left open for longer than
approx. 2minutes.
The Close the door message also ap-
pears on the display.
As soon as the door is closed, the
alarm will stop and the message on the
display will disappear.
Turning the door alarm off early
If the alarm disturbs you, it can be
turned off early.
Touch the OK sensor control in the
display.
The alarm stops and the message dis-
appears from the display.
After a certain time the alarm will sound
again and the message will reappear in
the display until the appliance door is
closed.
Storing wine bottles
83
Always observe USDA food safety
guidelines.
WARNING! Fire hazard!
Do not operate any electrical equip-
ment inside the wine conditioning.
This can cause sparking.
Vibration and movement have a nega-
tive effect on the maturing process
which can in turn affect the taste of the
wine.
To avoid disturbing other bottles when
removing a bottle of wine, store bottles
of the same type beside each other on
the same shelf. Avoid stacking bottles
on top of one another on the wooden
shelves.
Always place the bottles in a horizontal
position so that the natural corks can
be kept moist on the inside and air is
prevented from getting into the bottles.
Tip: We also recommend increasing the
humidity level inside the wine condition-
ing unit for wine bottles with natural
corks (see “Increasing the humidity”
under “Optimum temperature and air
quality”).
Risk of injury from falling wine
bottles.
Wine bottles may become wedged in
the wooden shelves above and fall
out of the wine conditioning unit
when the shelves are pulled out.
Always pull out the wooden shelves
slowly and carefully.
Risk of damage and injury from
broken glass.
If wooden shelves and bottles pro-
trude too far forwards, they will dam-
age the glass door when it is closed.
Please ensure that the wooden
shelves and wine bottles do not pro-
trude.
Do not cover the vents in the rear
wall, as they are essential for keeping
the appliance cool.
Storing wine bottles
84
Wooden shelves
The wooden shelves are mounted on
telescopic runners which can be pulled
out to make it easier to store and re-
move bottles.
Moving the wooden shelves
The wooden shelves can be removed
and replaced again if required.
Pull the wooden shelf out until it
stops, then lift it up and off the run-
ners. Hold onto the frame to do this.
To replace the shelf, click it into place
on the extended rails from above. The
strip must face the front.
Adjusting the wooden shelves
The slats in the wooden shelves can be
individually adjusted to suit, so that ev-
ery bottle is stored in perfect safety re-
gardless of shape or size.
Simply lift individual slats to move or
remove them from the wooden
shelves. This makes it easy to adjust
the wooden shelf for any size of your
wine bottle.
Storing wine bottles
85
Labeling the wooden shelves
For quick and easy identification of the
wines stored, you can write on the
blackboard-painted surface of the strips
on the wooden shelves.
You can write directly on the strip or re-
move it from the wooden shelf. To do
so:
Hold the strip by the sides and pull it
forwards.
The strip can be wiped clean with a
damp cloth.
Risk of damage due to incorrect
cleaning.
The blackboard coating on the label-
ing strips may be damaged.
Use clean water only to wipe the
strip. Do not use a cleaning agent.
Label the strip with the chalk supplied
and replace it on the wooden shelf
from above.
Maximum capacity
Risk of damage due to heavy
loads.
Excessive loads can damage the
wooden shelves.
Do not exceed the maximum load-
bearing capacity of 77 lb (35kg) for
each wooden shelf.
Do not stack bottles on the wooden
shelves.
Up to 91Bordeaux bottles (0.75l
(25.4floz.)) can be stored in the wine
conditioning unit.
SommelierSet
86
Setting up the SommelierSet
The SommelierSet can be used to have
your wine ready for drinking, straight
from the wine conditioning unit. You can
store wine glasses and accessories, de-
cant your wine, and store open bottles
in the wine conditioning unit.
a
Large and small box for accessories
b
Decanter plate, e.g., for wine carafes
c
Glass holder to store and cool wine
glasses
d
Bottle holder with adjustable retain-
ers for wine bottles of varying sizes
For ideal access, the SommelierSet sits
on the wooden shelf at the bottom of
the wine conditioning zone in the center
of the wine conditioning unit.
Place the large accessory box on the
left and the small accessory box
on the right on the wooden shelf.
Place the decanter plate in the
centre of the wooden shelf.
SommelierSet
87
Pull the runners above the bottom
shelf out as far as they will go on
both sides.
Position the glass holder on the
runner on the left and the bottle
holder on the runner on the right.
Check that the pins on the runners
engage in the mounts on the both the
glass holder and the bottle holder.
Push the glass holder and the bot-
tle holder all the way into the unit.
Next, place the felt inside the acces-
sory boxes and on top of the de-
canter plate, the glass holder,
and the bottle holder.
Insert the two racks into the glass
holder.
Slide the retainers into the bottle
holder.
Tip: The retainers can be adjusted indi-
vidually to suit the size of your wine
bottles.
Automatic defrosting
88
WARNING! DANGER of injury
and damage!
Do not use any mechanical or other
types of aids which are not recom-
mended by the manufacturer to ac-
celerate the defrosting process.
The wine conditioning unit defrosts au-
tomatically.
Cleaning and care
89
WARNING! DANGER of electric
shock!
Unplug the appliance or trip the cir-
cuit breaker.
WARNING! Fire hazard!
Do not damage the coolant
pipework.
Do not let water get into the elec-
tronic unit or the lighting.
Do not use a steam cleaning appli-
ance to clean this wine conditioning
unit. The steam could reach electrical
components and cause a short cir-
cuit.
Do not remove the data plate located
inside the wine conditioning. It con-
tains information which is required in
the event of a service call.
Cleaning agents
To avoid damaging the surfaces of your
appliance, do not use:
- cleaning agents containing soda, am-
monia, acids, or chloride
- cleaning agents containing lime scale
remover
- abrasive cleaning agents, such as
scouring powder, scouring liquid, or
pumice stones
- cleaning agents containing solvents
- stainless-steel cleaning agents
- dishwasher cleaner
- oven sprays
- glass cleaner (except on the glass in
the appliance door)
- hard, abrasive sponges and brushes,
such as pot scrubbers
- eraser sponges
- sharp metal scrapers
Cleaning and conditioning agents
used inside the wine conditioning
unit must be food safe.
We recommend using lukewarm water
and a little liquid dish soap for cleaning.
Cleaning and care
90
Before cleaning the wine con-
ditioning unit
Switch the wine conditioning unit off
by pressing the On/Off switch.
Take any wine bottles out of the wine
conditioning unit and store them in a
cool place.
Take out all other removable parts for
cleaning (see “Storing wine bottles –
Moving the wooden shelves”).
Remove the labeling strips from the
wooden shelves before cleaning them
(see “Storing wine bottles – Labeling
wooden shelves”).
Interior, accessories, and ap-
pliance door
Clean the wine conditioning unit reg-
ularly, or at least once a month.
Clean up any spills, stains, or food
immediately. Do not allow them to
dry and stick to the appliance.
Clean the interior cabinet of the wine
conditioning unit with a solution of
lukewarm water and a little liquid dish
soap. Rinse all parts by hand. Do not
wash in a dishwasher.
After cleaning, wipe with clean water
and dry with a soft cloth.
Risk of damage due to incorrect
cleaning.
The blackboard coating on the label-
ing strips may be damaged.
Use clean water only to wipe the la-
beling strips on the wooden shelves.
Do not use a cleaning agent.
The wooden shelves should only be
wiped with a well wrung-out damp
cloth. They must not be allowed to
get wet.
Leave the wine conditioning unit open
to air it sufficiently for a short while
and to prevent odor build-up.
Clean the glass panes in the appli-
ance door with a proprietary glass
cleaner.
Cleaning and care
91
Cleaning the door seal
Risk of damage as a result of in-
correct cleaning.
If you treat the door seal with oils or
grease, it can become porous.
Do not use any oils or grease on the
door seal.
The door seals should be cleaned
regularly with clean water, and then
wiped dry with a soft cloth.
Cleaning the ventilation gaps
A build-up of dust will increase the en-
ergy consumption of the appliance.
The ventilation gaps should be
cleaned on a regular basis with a
brush or vacuum cleaner (you could
use a Miele Vacuum Cleaner dust
brush, for example).
After cleaning
Replace all parts in the wine condi-
tioning unit.
Reconnect to the electricity supply
and switch the wine conditioning unit
back on.
Place the wine bottles back in the
wine conditioning unit and close the
appliance door.
Frequently Asked Questions
92
With the help of the following guide minor faults in the performance of the ma-
chine, some of which may result from incorrect operation, can be remedied with-
out contacting the Service Department.
This guide may help you to find the reason for the fault, and how to correct it.
To prevent cold from escaping, open the appliance doors as little as possible un-
til the fault has been corrected.
Problem Possible cause and solution
If you are concerned
that your appliance is
not working properly,
you can perform a Self
Test. Your appliance will
be checked for any
faults or malfunctions.
Any errors identified during the Self Test are shown
on the display.
Perform a Self Test (see “Additional settings”, sec-
tion “Performing a Self Test ”).
Contact Miele Service and inform them of the error
message(s) on the display.
The wine conditioning
unit is not getting cold
and the interior lighting
does not come on when
the appliance door is
opened.
The wine conditioning unit is not switched on.
Switch the wine conditioning unit on. The tempera-
ture appears in the display.
The plug is not properly plugged into the electrical
outlet.
Insert the plug into the outlet.
The fuse has tripped. There could be a fault with the
wine conditioning unit, the household electrical
wiring, or another appliance.
Contact a technician or the Miele Service depart-
ment.
The compressor is turn-
ing on more frequently
and for longer periods
of time; the temperature
inside the wine condi-
tioning unit is too low.
The temperature in the wine conditioning unit is set
too low.
Correct the temperature setting.
The ventilation gaps in the cabinetry have been cov-
ered or become too dusty.
Do not block the ventilation gaps.
Clean the ventilation gaps on a regular basis to re-
move any dust.
The appliance door has been opened too frequently,
or a large number of wine bottles have been put in-
side the unit all at once.
Frequently Asked Questions
93
Problem Possible cause and solution
Only open the appliance door when necessary and
for as short a time as possible.
After a while, the temperature will return to normal by
itself.
The appliance door is not properly closed.
Close the appliance door.
After a while, the temperature will return to normal by
itself.
The ambient temperature is too high. The higher the
ambient temperature, the longer the compressor has
to run.
See the information in the section on “Installation –
Installation location”.
The wine conditioning unit has not been installed
properly in the installation niche.
See the information in “Installation – Installing the
wine conditioning unit”.
The compressor comes
on less and less often
and for shorter periods
of time. The tempera-
ture inside the wine
conditioning unit rises.
This is not a fault. The temperature setting is too
high.
Correct the temperature setting.
Check the temperature again after 24hours.
The compressor runs
continuously.
Not a fault. To save energy, the compressor runs at
a lower speed when less cooling is required. This
increases the compressor run time.
An alarm sounds. The door of the wine conditioning unit has been open
for longer than approx. 2minutes.
Close the door.
Frequently Asked Questions
94
Problem Possible cause and solution
No alarm sounds de-
spite the appliance door
being open.
You have switched off the audible signal.
Switch the audible signal back on using Settings
mode.
The Sabbath Mode function is switched on: the tem-
perature display is dark and the symbol is shown
on the display.
You can switch off Sabbath mode at any time (see
“Selecting additional settings – Switching Sabbath
Mode on or off”).
The door of the wine
conditioning unit cannot
be opened.
The Pull2OpenDoor Assistant is switched on but the
wine conditioning unit has a handle-free cabinet
front.
For handle-free cabinet fronts, switch on the
Push2Open Door Assistant (see “Selecting addi-
tional settings – Switching on the Door Assis-
tant”).
The appliance door
cannot be opened when
Sabbath Mode is
switched on.
The Push2OpenDoor Assistant is switched on at the
same time as Sabbath Mode.
When Sabbath Mode is switched on, the Door As-
sistant is deactivated.
Pull the door open from below or from the side.
Frequently Asked Questions
95
Messages in the display
Message Possible cause and solution
The warning sounds
and the message Close
the door appears on the
display.
The appliance door is open.
Close the appliance door.
If you wish to turn the alarm off early, touch the
sensor control OK on the display.
The alarm will stop.
The temperature display
is dark and the sym-
bol is shown on the dis-
play.
The Sabbath Mode function is switched on. The in-
terior lighting is switched off and the wine condition-
ing unit is cooling down.
You can switch off Sabbath mode at any time (see
“Selecting additional settings – Switching Sabbath
Mode on or off”).
“F Please contact Miele
Technical Service.” ap-
pears in the display and
an alarm sounds.
There is a fault.
Make a note of the fault message if necessary.
Contact Miele Service.
To turn the alarm off, touch the symbol.
The error message does not disappear from the dis-
play until the error has been rectified.
The voltage level is too high/low.
Observe the connection data under “Electrical
connections”.
Contact Miele Service if necessary.
To turn the alarm off, touch the symbol.
The error message does not disappear from the dis-
play until the error has been rectified.
is shown in the dis-
play. The machine does
not get cold, but the
machine controls are
working.
Demo Mode is switched on. Demo mode allows the
appliance to be presented in the showroom without
the cooling system being turned on. Do not activate
this setting for domestic use.
Switch off Demo mode (see “Selecting additional
settings”, section “Switching off Demo Mode ”).
Frequently Asked Questions
96
The interior lighting is not working.
Problem Possible cause and solution
The interior lighting is
not working.
The wine conditioning unit is not switched on.
Switch the wine conditioning unit on.
The Sabbath Mode function is switched on: the tem-
perature display is dark and the symbol is shown
on the display.
You can switch off Sabbath Mode at any time via
the Settings mode.
There is a fault.
Risk of electric shock due to exposed, live
electrical components.
When removing the lighting cover, there is a risk of
coming into contact with live electrical compo-
nents.
Do not remove the lighting cover. The LED lighting
may only be repaired or replaced by Miele Service.
Risk of injury from LED lighting.
This lighting corresponds to risk group RG2. If the
cover is defective, there is a risk of eye injury.
If the lighting cover is defective, do not look from a
close range directly into the lighting with optical in-
struments (e.g., magnifying glass or similar).
Contact Miele Service.
The interior lighting is
on even when the appli-
ance door is closed.
The Ambient Lighting function is switched on.
Switch off the Ambient Lighting function (see
“Selecting additional settings – Switching Ambient
Lighting on or off”).
Frequently Asked Questions
97
General problems with the wine conditioning unit
Problem Possible cause and solution
Bacteria has begun to
form on the wine bottle
labels.
Bacteria may form on the labels, depending on the
type of label adhesive used.
Clean the wine bottles and remove any adhesive
residue.
The slats on the
wooden shelves are
warping.
Volume change due to moisture absorption or drying
out is a typical characteristic of wood. An increase in
humidity will cause wooden components to warp,
which can lead to cracking. Knots and wavy grain are
characteristic for wood and cannot be avoided.
A white deposit has
formed on the wine bot-
tle corks.
The corks have oxidized due to contact with the air.
Use a dry cloth to wipe off the deposit. The de-
posit will not affect the quality of the wine.
Causes of noises
98
Normal
noises
Cause
Brrrrr... A humming noise is made by the motor (compressor). This noise
can get louder for brief periods when the motor switches on.
Blub, blub... A gurgling noise can be heard when the refrigerant circulates
through the pipes.
Click... Clicking sounds occur whenever the thermostat switches the
motor on or off.
Crack... A cracking sound can be heard when material inside the wine
conditioning unit expands.
Please bear in mind that a certain amount of noise is unavoidable (from the com-
pressor and the refrigerant circulating through the system).
Noises Cause and solution
Rattling,
clinking
The wine conditioning unit is uneven. Realign it using a spirit
level by raising or lowering the adjustable feet underneath the
wine conditioning unit or placing something underneath it.
The wine conditioning unit is touching other appliances or
pieces of furniture. Move it away.
Shelves are unstable or sticking. Check all removable items and
refit them correctly.
Bottles or containers are touching each other. Separate them.
Customer Service
99
Contact in the event of a fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Service Call on-
line at www.miele.com/service.
Contact information for Miele Cus-
tomer Service can be found at the end
of this document.
Please quote the model identifier and
serial number of your appliance (SN)
when contacting Miele Customer Ser-
vice. Both pieces of information can be
found on the data plate.
You will find the data plate inside your
appliance.
Appliance warranty and prod-
uct registration
You can register your product and/or
view the manufacturer´s warranty terms
and conditions for Miele appliances and
vacuum cleaners at
www.mieleusa.com.
Declaration of conformity
100
Frequency band 2.412 GHz –
2.462 GHz
Maximum trans-
mitting power
< 100 mW
Copyrights and licenses
101
Miele uses their own and third party software which is not subject to any so-called
open source license for the operation and control of the device/appliance. This
software/these software components are protected by copyright. The copyright
powers of Miele and third parties have to be respected.
Furthermore, this device/appliance contains software components which are dis-
tributed under open source license conditions. Please refer to the document
“Open Source Information and Licenses” for the Open Source components con-
tained therein, together with the corresponding copyright notices, copies of the li-
censing conditions valid at the time, and any further information. The liability and
warranty provisions of the open source licensing conditions as stated therein apply
only in relation to the respective rights holders.
In particular, the device/appliance contains software components licensed by the
copyright holders under the GNU General Public License, Version 2, or the GNU
Lesser General Public License, Version 2.1. For a period of at least 3 years from
the date of purchase or delivery of the device/appliance respectively, Miele offers
to provide you or third parties with a machine-readable copy of the source code of
the Open Source components contained in the device/appliance and licensed un-
der the terms of the GNU General Public License, Version 2, or the GNU Lesser
General Public License, Version 2.1, on a data carrier (CD-ROM, DVD or USB
stick). Please contact us via e-mail ([email protected]) or the below postal address
and state the product name, the serial number and the date of purchase to obtain
this source code.
Miele & Cie. KG
Open Source
GTZ/TIM
Carl-Miele-Straße 29
33332 Gütersloh
Please note the limited warranty in favor of the rights holders under the terms of
the GNU General Public License, Version 2, and the GNU Lesser General Public Li-
cense, Version 2.1:
This program is distributed in the hope that it will be useful, but WITHOUT ANY
WARRANTY, without even the implied warranty of MERCHANTABILITY of FITNESS
FOR A PARTICULAR PURPOSE. See the GNU General Public License and GNU
Lesser General Public License for more details.
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-4298
Customer Service & Support
Phone:
Fax:
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
888-99-MIELE(64353)
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 11 508 730 / 01en-US, CA
KWT 2662 ViS, KWT 2672 ViS
