CONTENTS | SPECIAL INFORMATION
SPECIAL INFORMATION
- The appliance may be used by children aged 8
and up and persons with reduced physical, sen-
sory or mental capabilities or a lack of experi-
ence provided that they are supervised or they
have been instructed on how to use the appliance
safely and have understood the resulting risks.
Children must never play with the appliance. Chil-
dren must never clean the appliance or perform
user maintenance unless they are supervised.
SPECIAL INFORMATION
OPERATION
1. General information ��������������������������������������� 13
1.1 Safety instructions ���������������������������������������������� 13
1.2 Other symbols in this documentation ���������������������� 13
1.3 Information on the appliance ��������������������������������13
1.4 Units of measurement ����������������������������������������� 13
2. Safety �������������������������������������������������������� 13
2.1 Intended use �����������������������������������������������������13
2.2 General safety instructions ����������������������������������� 13
2.3 Safety clearances ����������������������������������������������� 14
2.4 CE designation �������������������������������������������������� 14
2.5 Test symbols ����������������������������������������������������� 14
3. Appliance description ������������������������������������� 14
4. Operation ��������������������������������������������������� 14
5. Cleaning, care and maintenance ������������������������� 14
6. Troubleshooting �������������������������������������������� 14
INSTALLATION
7. Safety �������������������������������������������������������� 15
7.1 General safety instructions ����������������������������������� 15
7.2 Regulations, standards and instructions ������������������� 15
8. Preparations ������������������������������������������������ 15
8.1 Installation wall ������������������������������������������������� 15
8.2 Installation in bathrooms ������������������������������������� 15
8.3 Minimum clearances ������������������������������������������� 15
9. Installation �������������������������������������������������� 16
9.1 Dismantling the casing cover ��������������������������������� 16
9.2 Wall mounting ��������������������������������������������������� 16
9.3 Power supply ���������������������������������������������������� 17
9.4 Assembling the casing cover ��������������������������������� 17
10. Handover ���������������������������������������������������� 17
11. Specification ������������������������������������������������ 18
11.1 Wiring diagram ������������������������������������������������� 18
11.2 Minimum clearances and detection range ����������������18
11.3 Guidelines for installation height ����������������������������18
11.4 Dimensions and connections ��������������������������������� 19
11.5 Data table �������������������������������������������������������� 19
WARRANTY
ENVIRONMENT AND RECYCLING
OPERATION
General information
www.stiebel-eltron.com Ultronic S/W | 13
ENGLISH
OPERATION
1. General information
The chapter "Operation" is intended for appliance users and heat-
ing contractors.
The chapter "Installation" is intended for heating contractors.
Note
Read these instructions carefully before using the appli-
ance and retain them for future reference.
Pass on the instructions to a new user if required.
1.1 Safety instructions
1.1.1 Structure of safety instructions
KEYWORD Type of risk
Here, possible consequences are listed that may result
from failure to observe the safety instructions.
Steps to prevent the risk are listed.
1.1.2 Symbols, type of risk
Symbol Type of risk
Injury
Electrocution
Fire
1.1.3 Keywords
KEYWORD Meaning
DANGER Failure to observe this information will result in serious
injury or death.
WARNING Failure to observe this information may result in serious
injury or death.
CAUTION Failure to observe this information may result in non-
serious or minor injury.
1.2 Other symbols in this documentation
Note
General information is identified by the symbol shown
on the left.
Read these texts carefully.
Symbol
Damage to the appliance and environment
Appliance disposal
This symbol indicates that you have to do something. The ac-
tion you need to take is described step by step.
1.3 Information on the appliance
Symbol
Appliance disposal
Appliances with this marking are not suitable for general
waste disposal, and should therefore be collected and dis-
posed of separately.
1.4 Units of measurement
Note
All measurements are given in mm unless stated oth-
erwise.
2. Safety
2.1 Intended use
The appliance is used to dry wet hands.
This appliance is designed for domestic use. It can be used safely
by untrained persons. The appliance can also be used in a non-
domestic environment, e.g. in a small business, as long as it is
used in the same way.
Any other use beyond that described shall be deemed inappropri-
ate. Observation of these instructions and of instructions for any
accessories used is also part of the correct use of this appliance.
2.2 General safety instructions
WARNING Electrocution
Never insert any objects into apertures in the appliance.
WARNING Fire
Never operate this appliance
- in rooms where the appliance is at risk from fire or
explosion as a result of chemicals, dust, gases or
vapours.
- in the direct proximity of pipes or receptacles that
carry or contain flammable or explosive materials.
- if work such as laying cables, grinding or sealing is
carried out in the installation room.
- if naphtha, sprays, floor polish or similar products
are handled. Ensure the room is adequately venti-
lated before using the appliance.
WARNING Combustion
Never place any flammable, combustible or insulating
objects or materials, such as laundry, blankets, maga-
zines, containers with floor polish or naphtha, spray cans
or similar on the appliance or in direct proximity to it.
!
!
OPERATION
Appliance description
14 | Ultronic S/W www.stiebel-eltron.com
WARNING Electrocution
Never lean any objects against the appliance or insert
them between the appliance and the fixing wall.
!
WARNING Injury
The appliance may be used by children aged 8 and up
and persons with reduced physical, sensory or mental
capabilities or a lack of experience provided that they
are supervised or they have been instructed on how to
use the appliance safely and have understood the result-
ing risks. Children must never play with the appliance.
Children must never clean the appliance or perform user
maintenance unless they are supervised.
Never cover the appliance
Never cover the appliance to prevent overheating of the
appliance.
Note
If the appliance is installed in rooms where flue gas, oil
or petrol vapours occur or where work involves solvents
and chemicals, the operation of the appliance can result
in long-lasting nuisance through odours or contamina-
tion of the appliance.
2.3 Safety clearances
!
Damage to the appliance and environment
Maintain the required minimum clearances.
The appliance’s air inlet and outlet must not be obstruct-
ed by any objects.
The minimum clearances of the appliance can be found in chapter
"Specification / Minimum clearances and detection range".
2.4 CE designation
The CE designation shows that the appliance meets all essential
European requirements:
- Low Voltage Directive
- Electromagnetic Compatibility Directive
The maximum permissible mains impedance is indicated in chap-
ter "Specification".
2.5 Test symbols
See type plate.
3. Appliance description
The appliance works without contact. If you hold your hands in
the IR sensor detection range, the appliance fan is automatically
enabled.
Heated air is discharged from the appliance at high speed. Any
moisture left on your hands is removed and your hands are dried.
When you move your hands away from the IR sensor detection
range, the appliance stops automatically after approx.3seconds.
4. Operation
Shake your wet hands over the sink before drying to reduce
the drying time.
Hold your hands under the air outlet and rub them together
in the air current.
Note
The IR sensor response area is located approx.3-4cm
below the air outlet. More information on the detection
range of the IR sensor can be found in chapter "Specifica-
tion / Minimum clearances and detection range".
5. Cleaning, care and maintenance
!
Damage to the appliance and environment
Never spray the appliance using a water hose or other
tools. This would let water penetrate the appliance.
A damp cloth is sufficient for cleaning the casing. Never use abra-
sive or corrosive cleaning agents. Go over with a soft cloth if re-
quired.
6. Troubleshooting
Problem Cause Remedy
The appli-
ance does
not start.
No power supply
Check whether a fuse or RCD
has blown or tripped in your
fuse box.
Covering the optical proximity
sensor impairs the function of
the appliance. In this case, the
appliance stops after approx.
3seconds to avoid constant op-
eration.
Check whether the sensor sur-
face is clear. Once you have re-
moved any objects, the appli-
ance will work correctly again.
If you cannot remedy the fault, notify your contractor. To facilitate
and speed up your enquiry, please provide the serial number from
the type plate (000000-0000-000000).
The type plate is located at the bottom of the appliance.
www.stiebel-eltron.com Ultronic S/W | 15
ENGLISH
INSTALLATION
Safety
INSTALLATION
7. Safety
Only a qualified contractor should carry out installation, commis-
sioning, maintenance and repair of the appliance.
7.1 General safety instructions
We guarantee trouble-free operation and operational reliability
only if the original accessories and spare parts intended for the
appliance are used.
7.2 Regulations, standards and instructions
WARNING Electrocution
Carry out all electrical connection and installation work
in accordance with relevant regulations.
WARNING Electrocution
Only use a permanent connection to the power supply.
The appliance must be able to be separated from the
power supply by an isolator that disconnects all poles
with at least 3 mm contact separation.
!
Damage to the appliance and environment
Observe the type plate. The specified voltage range must
match the mains voltage.
Note
Observe all applicable national and regional regulations
and instructions.
8. Preparations
8.1 Installation wall
Note
Observe the information in chapter "Operation / Safety".
Always install the appliance on a vertical wall.
The back panel of the appliance must be flush with the wall to
ensure that the appliance cannot be pulled off.
Ensure that the wall on which the appliance is mounted is
solid and has no recesses.

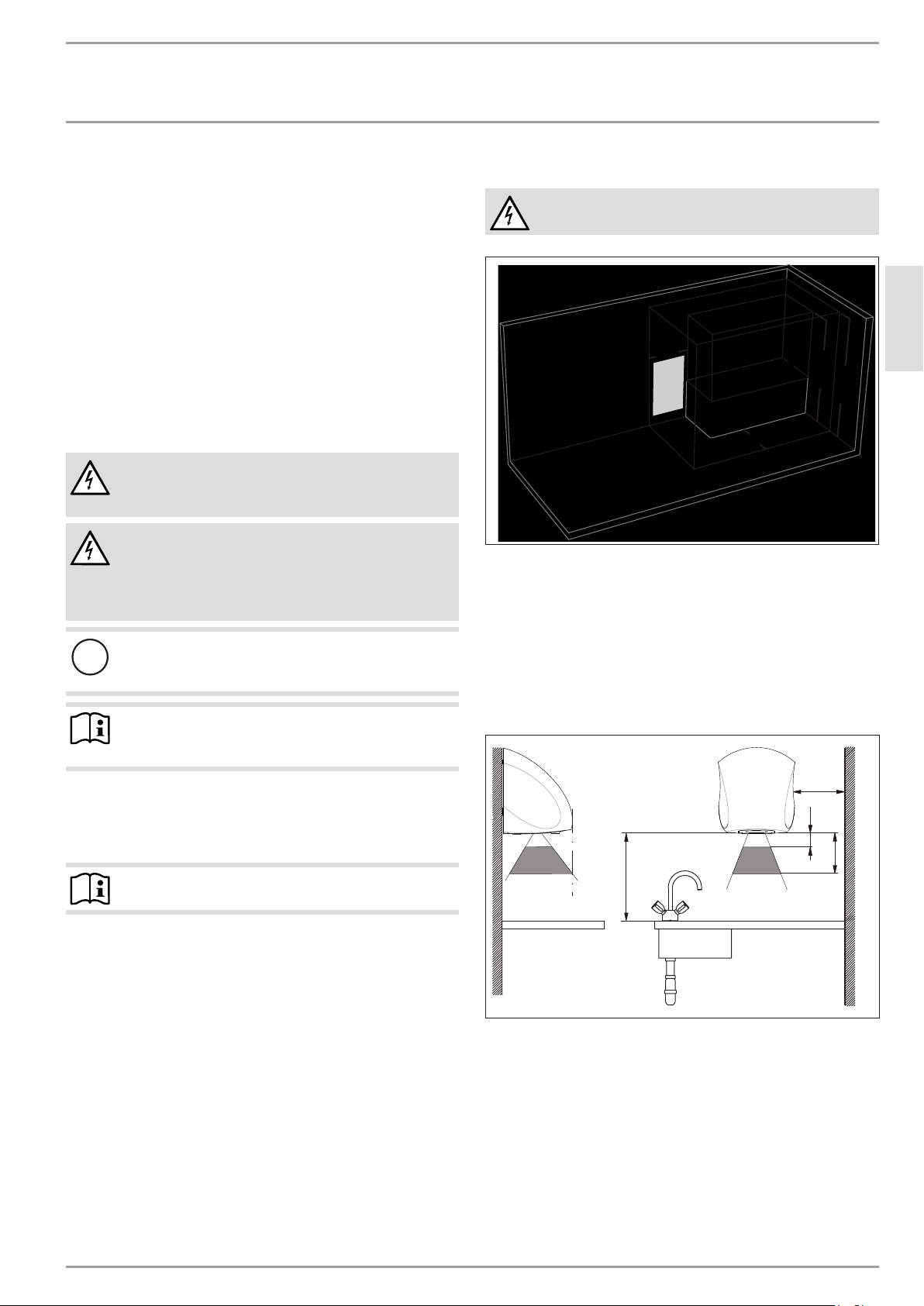

8.2 Installation in bathrooms
WARNING Electrocution
Install the appliance exclusively outside safety zone2.
600
600
2250
3000
1
2
3
0
26�07�31�0167
0 Safety zone 0
1 Safety zone 1
2 Safety zone 2
3 Safety zone 3
Ensure that you maintain the safety clearances of safety
zone2 towards bath tubs and shower cubicles.
8.3 Minimum clearances
40
130
≥ 300
≥ 127
D0000019937
Prior to installing the appliance, ensure the minimum per-
missible clearances to adjacent objects are observed.
Ensure that the ambient air can enter the inlet on the bottom
of the appliance without obstruction.
Ensure that the air can escape from the appliance without
obstruction.
16 | Ultronic S/W www.stiebel-eltron.com
INSTALLATION
Installation
9. Installation

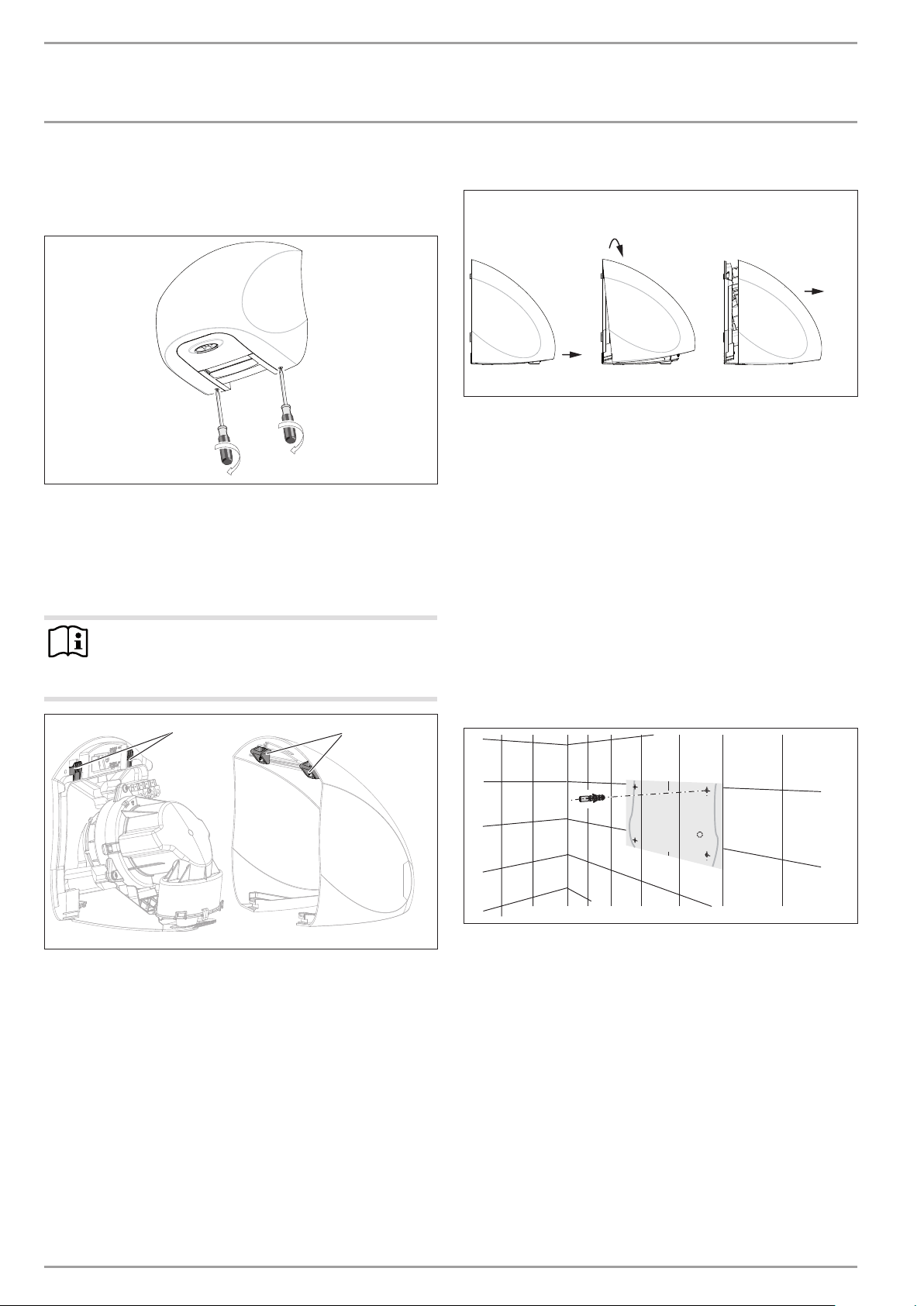

9.1 Dismantling the casing cover
26�07�32�0047
Undo the 2internal torx screws with a torx screwdriver25,
turning it clockwise as far as it will go.
The torx screws are rotated into the casing and remain in the
casing.
9.1.1 Connecting the appliance back panel and casing cover
Note
The casing cover has 2 internal fixing eyes at the top,
which are hooked into place in the 2 hooks on the appli-
ance back panel.
26�07�32�0041
1
2
1 Hook
2 Fixing eye
9.1.2 Removing the casing cover
3.
2.
1.
26�07�32�0046
Detach the casing cover from the appliance at the bottom.
Lift the casing cover up until the cover’s fixing eyes have
come free of the hooks on the appliance back panel.
Pull the casing cover forwards to remove it from the
appliance.
9.2 Wall mounting
You can find a drilling template in the appendix to these instruc-
tions.
When positioning the drilling template, be aware of the loca-
tion and length of the power cable (see chapter "Electrical
connections / Power cable").
Use our standard values as a guide for the installation height
(see chapter "Specification / Standard values for the installa-
tion height").
Use suitable fixing screws and rawl plugs.
lone für M
ont
a
26�07�32�0025
Cut out the drilling template and mark the 4fixing points on
the wall.
Drill the 4holes and insert rawl plugs.
Screw the 2 lower fixing screws into the wall.
www.stiebel-eltron.com Ultronic S/W | 17
ENGLISH
INSTALLATION
Handover
9.3 Power supply
WARNING Electrocution
Only use a permanent connection to the power supply.
The appliance must be able to be separated from the
power supply by an isolator that disconnects all poles
with at least 3 mm contact separation.
9.3.1 Power cable
The length of the power cable must be at least 100mm.
The individual wires of the power cable must be stripped ap-
prox.6.5mm so they can be connected to the mains terminal.

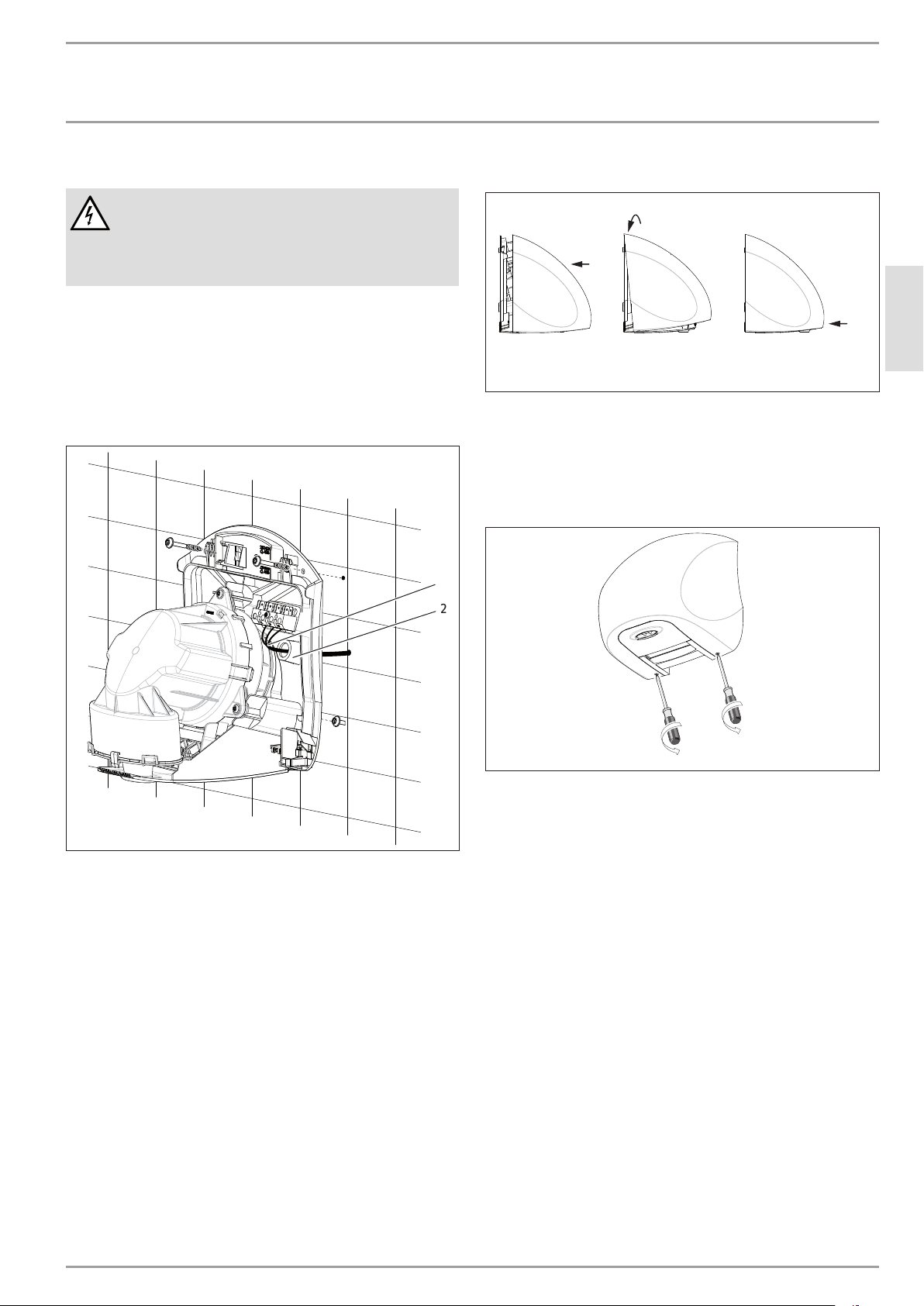

9.3.2 Connecting the appliance
26�07�32�0049
2
1
1 Power cable
2 Cable entry
Pull the power cable through the cable entry in the back
panel of the appliance.
Fit the appliance by placing the keyhole eyelets on to the fix-
ing screws.
Secure the appliance to the wall with the 2upper fixing
screws and then tighten the 2 lower screws.
Connect the appliance to the power supply according to
the wiring diagram (see chapter "Specification / Wiring
diagram").
9.4 Assembling the casing cover
1.
2.
3.
26�07�32�0042
Push the casing cover on to the appliance from the front.
Place the top of the casing cover on the back panel of the
appliance so that the fixing eyes lock under the hooks (see
chapter "Dismantling the casing cover").
Press the bottom of the casing cover on to the appliance so
that it clicks into place.
26�07�32�0043
Check that the casing cover is fitted correctly on the
appliance.
Tighten the 2internal torx screws with a torx screwdriver 25,
turning it anti-clockwise as far as it will go.
10. Handover
Explain the functions of the appliance to the user. Draw special
attention to the safety instructions. Hand over these operating and
installation instructions to the user.
18 | Ultronic S/W www.stiebel-eltron.com
INSTALLATION
Specication
11. Specification

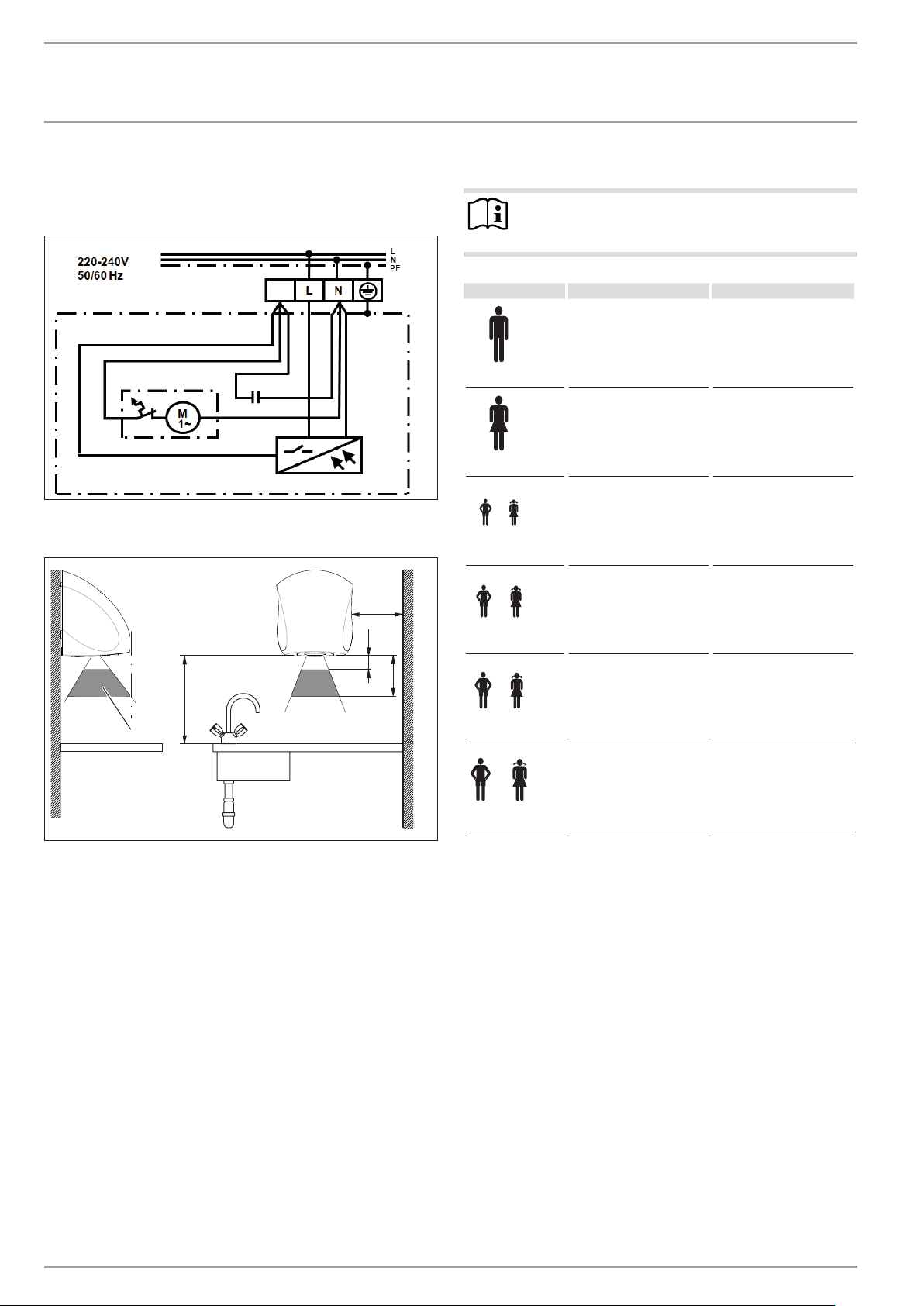

11.1 Wiring diagram
85�07�32�0001
11.2 Minimum clearances and detection range
40
130
≥ 300
≥ 127
D0000019937
1
1 IR sensor detection range
11.3 Guidelines for installation height
Note
Height (mm) indicates the clearance between the bottom
of the appliance and the floor.
Age Age Height (mm)
Adult man 1350
Adult woman 1250
Nursery school 4 - 7 810
Primary school 7 - 10 910
High school 10 - 13 1120
High school 13 - 16 1250
www.stiebel-eltron.com Ultronic S/W | 19
ENGLISH
INSTALLATION
Specication

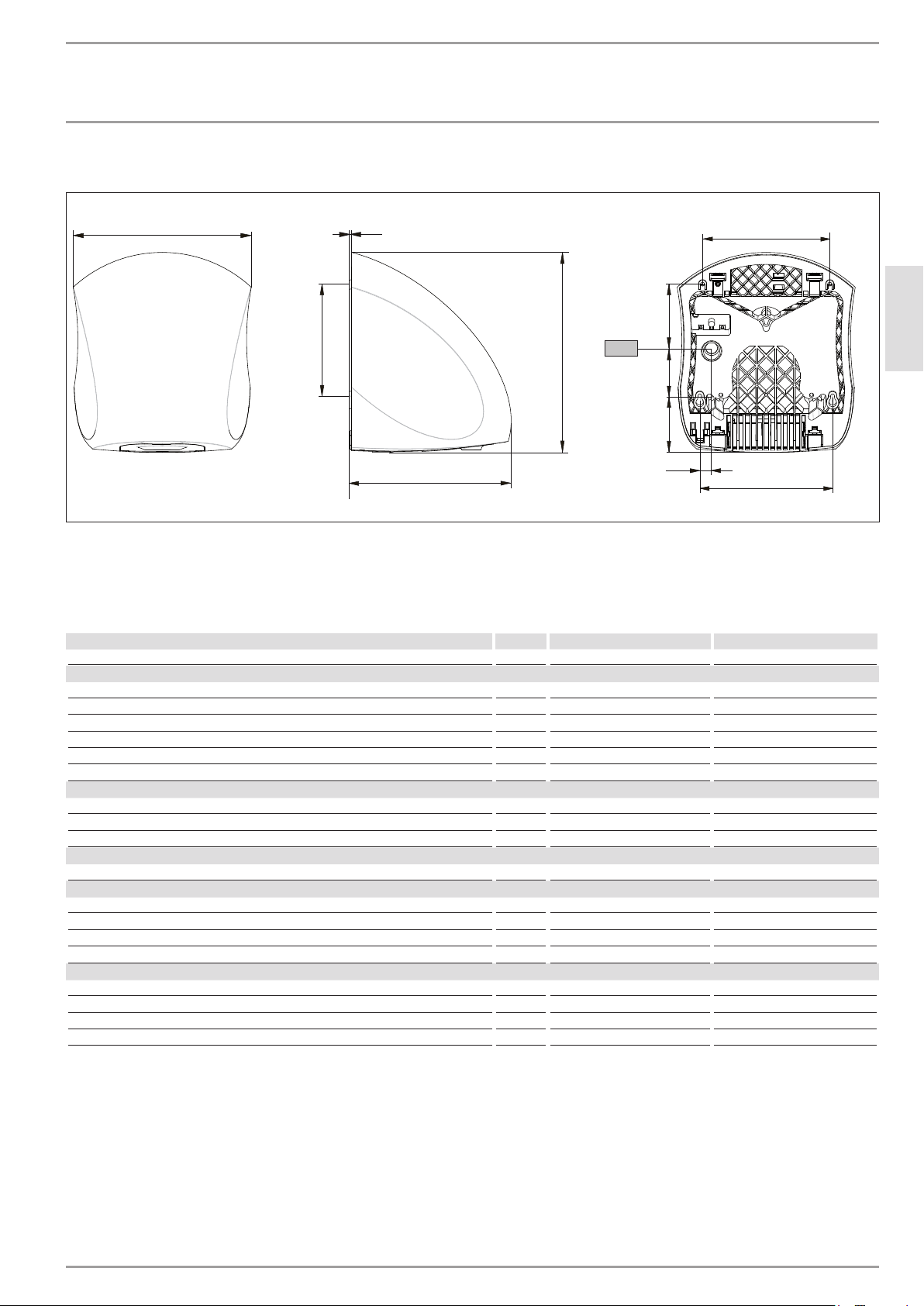

11.4 Dimensions and connections
257
289
98
63
81
161
184
192
17
3
234
b01
D0000019899
b01 Entry electrical cables
(view from the back of the appliance)
11.5 Data table
Ultronic S Ultronic W
231582 231583
Electrical details
Power connection 1/N/PE ~ 220-240 V 1/N/PE ~ 220-240 V
Frequency Hz 50/60 50/60
Rated voltage V 230 230
Rated current A 4,0 4,0
Rated output W 910 910
Max. mains impedance Zmax to DIN EN 61000-3-11 Ohm 257 257
Dimensions
Height mm 289 289
Width mm 257 257
Depth mm 234 234
Weights
Weight kg 4,4 4,4
Versions
Colour Stainless steel off white, RAL 9003
Casing material Diecast aluminium Diecast aluminium
IP-Rating IP24 IP24
Protection class I I
Values
Operating noise dB(A) 82 82
Air velocity m/s 94 94
Air flow rate m³/h 200 200
Drying time s 15 15
20 | Ultronic S/W www.stiebel-eltron.com
Warranty | EnvironmEnt and rEcycling
Warranty
EnvironmEnt and rEcycling
WARRANTY
ENVIRONMENT AND RECYCLING
Warranty
The warranty conditions of our German companies do not
apply to appliances acquired outside of Germany. In countries
where our subsidiaries sell our products, it is increasingly the
case that warranties can only be issued by those subsidiaries.
Such warranties are only granted if the subsidiary has issued
its own terms of warranty. No other warranty will be granted.
We shall not provide any warranty for appliances acquired in
countries where we have no subsidiary to sell our products.
This will not aect warranties issued by any importers.
Environment and recycling
We would ask you to help protect the environment. After use,
dispose of the various materials in accordance with national
regulations.
Stiebel Eltron Warranty for Hand Dryers & Space Heaters –
Models HTE, ULTRONIC, CNS, CK & CK Z.
Who gives the warranty
1. The warranty is given by Stiebel Eltron (Aust) Pty Ltd (A.B.N.
82 066 271 083) of 6 Prohasky Street, Port Melbourne, Victoria,
3207 (“we”, “us” or “our”).
The warranty
2. This warranty applies to Stiebel Eltron Hand Dryers and
Space Heaters – Models HTE 4, HTE 5, ULTRONIC, CNS 100,
CNS 150, CNS 200, CNS 250, CK 20S and CKZ 20S (the “unit”)
manufactured after 1 May 2015.
3. Subject to the warranty exclusions we will repair or replace,
at our absolute discretion, a faulty component in your unit
free of charge if it fails to operate in accordance with its
specifications during the warranty period.
4. If we repair or replace a faulty component to your unit under
this warranty, the warranty period is not extended from the
time of the repair or replacement.
5. The warranty period commences on the date of purchase of
the unit. Where the date of purchase is not known, then the
warranty period will commence 2 months after the date of
manufacture.
6. The warranty period for a unit is shown in the table below.
Component Warranty period
All components 5 years from the date of
purchase of the unit.
Your entitlement to make a warranty claim
7. You are entitled to make a warranty claim if:
7.1. you own the unit or if you have the owner’s
consent to represent the owner of the unit;
7.2. you contact us within a reasonable time of
discovering the problem with the unit;
How you make a warranty claim
8. To make a warranty claim you must provide us with the
following information:
8.1. The model number of the unit;
8.2. A description of the problem with the unit;
8.3. The name, address and contact details (such as
phone number and e-mail address) of the owner;
8.4. The address where the unit is installed and the
location (e.g. in living room);
8.5. The serial number of the unit;
8.6. The date of purchase of the unit and the name of
the seller of the unit;
8.7. The date of installation of the unit where
appropriate;
8.8. A copy of the certificate of compliance when the
unit was installed where appropriate.
9. The contact details for you to make your warranty claim are:
Name: Stiebel Eltron (Aust) Pty Ltd
Address: 6 Prohasky Street, Port Melbourne,
Victoria, 3207
Telephone: 1800 153 351
(8.00 am to 5.00 pm AEST Monday to Friday)
Contact person: Customer Service Representative
10. We will arrange a suitable time with you to inspect and test
the unit.
Warranty exclusions
11. We may reject your warranty claim if:
11.1. The unit was not installed by registered and
qualified tradespeople, where required.
11.2. The unit was not installed and commissioned:
(a) in Australia;
(b) in accordance with the Operating and
Installation Guide; and
(c) in accordance with the relevant statutory
and local requirements of the State or
Territory in which the unit is installed.
11.3. The unit has not been operated or maintained in
accordance with the Operating and Installation Guide.
11.4. The unit does not bear its original Serial Number
or Rating Label.
11.5. The unit was damaged by any or any
combination of the following:
(a) normal fair wear and tear;
(b) connection to an incorrect power supply;
(c) connection to faulty equipment, such as
faulty circuit breaker;
(d) accidental damage;
(e) act of God, including damage by flood,
storm, fire, lightning strike and the like;
(f) wiring not to AS3000 Standards
11.6. The unit was damaged before it was installed
e.g. it was damaged in transit.
11.7. An unauthorised person has modified, serviced,
repaired or attempted to repair the unit without our
consent.
11.8. Non genuine parts other than those
manufactured or approved by us have been used on
the unit.
12. We may charge you:
12.1. for any additional transport costs if the unit is
installed more than 30 kilometres from our closest
authorised service technician.
12.2. for the extra time it takes our authorised service
technician to access the unit for inspection and
testing if it is not sited in accordance with the
Operating and Installation Guide and not readily
accessible for inspection.
12.3. for any extra costs of our authorised service
technician to make the unit safe for inspection.
13. You must ensure that access to the unit by our authorised
service technician is safe and free from obstruction.
14. Our authorised service technician may refuse to inspect and
test the unit until you provide safe and free access to it, at your
cost.
15. If we reject your warranty claim in accordance with clause
11, we may charge you for our authorised service technician’s
labour costs to inspect and test the unit.
16. In order to properly test the unit we may remove it to
another location for testing.
Australian Consumer Law
17. Our goods come with guarantees that cannot be excluded
under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail
to be of acceptable quality and the failure does not amount to a
major failure.
18. The Stiebel Eltron warranty for the unit is in addition to
any rights and remedies you may have under the Australian
Consumer Law.
Deutschland
STIEBEL ELTRON GmbH & Co. KG
Dr.-Stiebel-Straße 33 | 37603 Holzminden
Tel. 05531 702-0 | Fax 05531 702-480
www.stiebel-eltron.de
Verkauf Tel. 05531 702-110 | Fax 05531 702-95108 | [email protected]
Kundendienst Tel. 05531 702-111 | Fax 05531 702-95890 | [email protected]
Ersatzteilverkauf Tel. 05531 702-120 | Fax 05531 702-95335 | [email protected]
Irrtum und technische Änderungen vorbehalten! | Subject to errors and technical changes! | Sous réserve
d‘erreurs et de modifications techniques! | Onder voorbehoud van vergissingen en technische wijzigingen! |
Salvo
error o modificación técnica! | Excepto erro ou alteração técnica | Zastrzeżone zmiany techniczne i
ewentua
lne błędy | Omyly a technické změny jsou vyhrazeny! | A muszaki változtatások és tévedések jogát
fenntartjuk! |
Отсутствие ошибок не гарантируется. Возможны технические изменения.
| Chyby a
technické zmeny sú vyhradené! Stand 8845
Australia
STIEBEL ELTRON Australia Pty. Ltd.
6 Prohasky Street | Port Melbourne VIC 3207
Tel. 03 9645-1833 | Fax 03 9645-4366
www.stiebel.com.au
Austria
STIEBEL ELTRON Ges.m.b.H.
Eferdinger Str. 73 | 4600 Wels
Tel. 07242 47367-0 | Fax 07242 47367-42
www.stiebel-eltron.at
Belgium
STIEBEL ELTRON bvba/sprl
't Hofveld 6 - D1 | 1702 Groot-Bijgaarden
Tel. 02 42322-22 | Fax 02 42322-12
www.stiebel-eltron.be
Czech Republic
STIEBEL ELTRON spol. s r.o.
K Hájům 946 | 155 00 Praha 5 - Stodůlky
Tel. 251116-111 | Fax 235512-122
www.stiebel-eltron.cz
Denmark
Pettinaroli A/S
Mandal Allé 21 | 5500 Middelfart
Tel. 06341 666-6 | Fax 06341 666-0
www.stiebel-eltron.dk
Finland
STIEBEL ELTRON OY
Kapinakuja 1 | 04600 Mäntsälä
Tel. 020 720-9988
www.stiebel-eltron.fi
France
STIEBEL ELTRON SAS
7-9, rue des Selliers
B.P 85107 | 57073 Metz-Cédex 3
Tel. 0387 7438-88 | Fax 0387 7468-26
www.stiebel-eltron.fr
Hungary
STIEBEL ELTRON Kft.
Gyár u. 2 | 2040 Budaörs
Tel. 01 250-6055 | Fax 01 368-8097
www.stiebel-eltron.hu
Japan
NIHON STIEBEL Co. Ltd.
Kowa Kawasaki Nishiguchi Building 8F
66-2 Horikawa-Cho
Saiwai-Ku | 212-0013 Kawasaki
Tel. 044 540-3200 | Fax 044 540-3210
www.nihonstiebel.co.jp
Netherlands
STIEBEL ELTRON Nederland B.V.
Daviottenweg 36
5222 BH 's-Hertogenbosch
Tel. 073 623-0000 | Fax 073 623-1141
www.stiebel-eltron.nl
Poland
STIEBEL ELTRON Polska Sp. z o.o.
ul. Działkowa 2 | 02-234 Warszawa
Tel. 022 60920-30 | Fax 022 60920-29
www.stiebel-eltron.pl
Russia
STIEBEL ELTRON LLC RUSSIA
Urzhumskaya street 4,
building 2 | 129343 Moscow
Tel. 0495 7753889 | Fax 0495 7753887
www.stiebel-eltron.ru
Slovakia
TATRAMAT - ohrievače vody, s.r.o.
Hlavná 1 | 058 01 Poprad
Tel. 052 7127-125 | Fax 052 7127-148
www.stiebel-eltron.sk
Switzerland
STIEBEL ELTRON AG
Industrie West
Gass 8 | 5242 Lupfig
Tel. 056 4640-500 | Fax 056 4640-501
www.stiebel-eltron.ch
Thailand
STIEBEL ELTRON Asia Ltd.
469 Moo 2 Tambol Klong-Jik
Amphur Bangpa-In | 13160 Ayutthaya
Tel. 035 220088 | Fax 035 221188
www.stiebeleltronasia.com
United Kingdom and Ireland
STIEBEL ELTRON UK Ltd.
Unit 12 Stadium Court
Stadium Road | CH62 3RP Bromborough
Tel. 0151 346-2300 | Fax 0151 334-2913
www.stiebel-eltron.co.uk
United States of America
STIEBEL ELTRON, Inc.
17 West Street | 01088 West Hatfield MA
Tel. 0413 247-3380 | Fax 0413 247-3369
www.stiebel-eltron-usa.com
A 296654-37730-8870
4<AMHCMN=jggfej>
