Because Whirlpool Corporation policy includes a continuous commitment
to improve our products, we reserve the right to change materials and
specifications without notice.
Dimensions are for planning purposes only. For complete details, see
Installation Instructions packed with product. Specifications subject to
change without notice.
PRODUCT MODEL NUMBERS
WZC3209LW WZC5116LW WZC5216LW
ELECTRICAL REQUIREMENTS
A 110 V - 120 V, 60 Hz., AC only, 15 A or 20 A fused (or
circuit breaker), grounded electrical supply is required. It is
recommended that a separate circuit serving only your freezer be
provided. Use an outlet that cannot be turned off by a switch or
pull chain. Do not use an extension cord.
LOCATION REQUIREMENTS

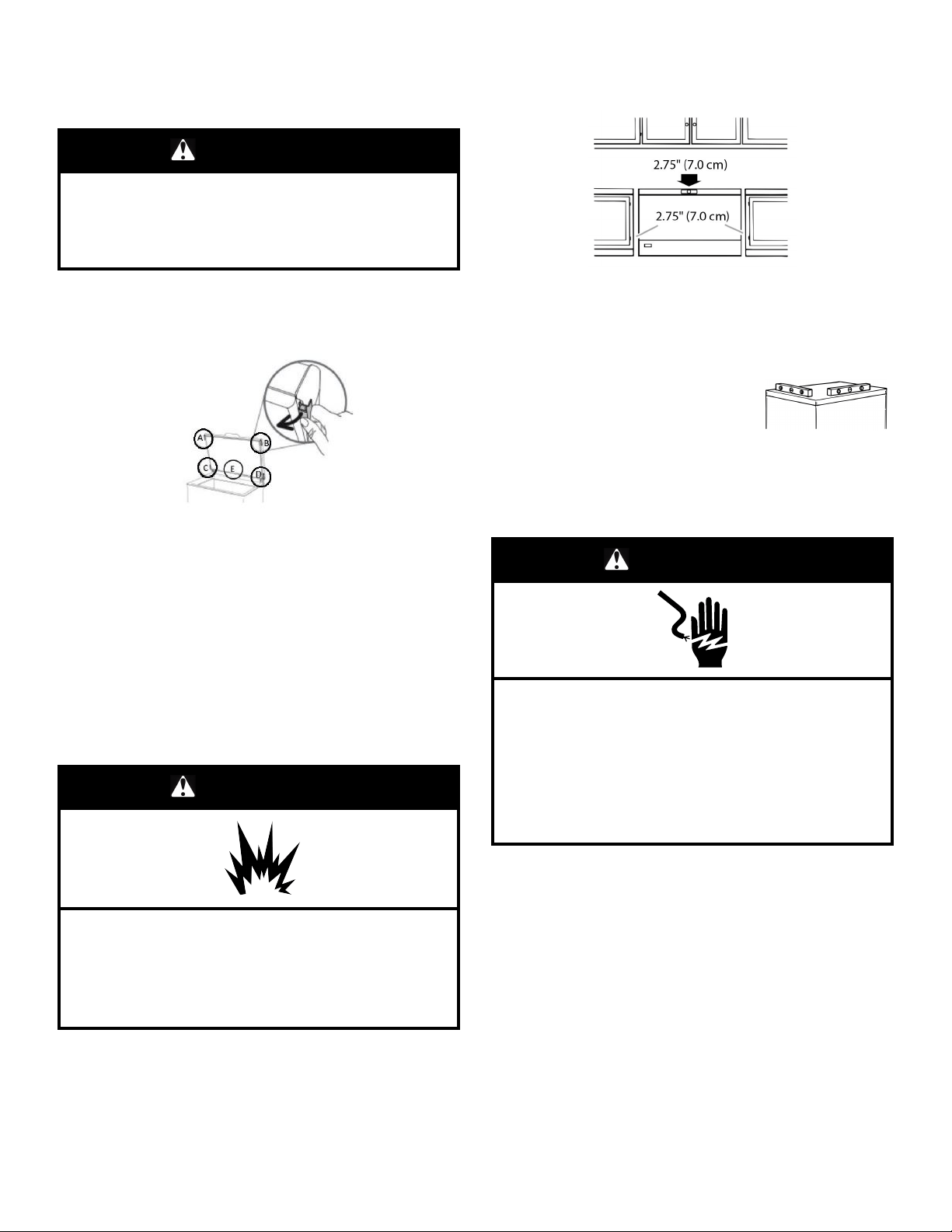

Allow at least 2.75" (7 cm) of air space on both sides of the freezer
and 2.75" (7 cm) between the back of the freezer and the wall.
Leave room above the freezer to open the lid.
Your freezer operates most efciently when located in an area
where the temperature is normally between 32°F (0°C) and
110°F (43°C).
Do not install the freezer near an oven, radiator or other heat
source.
Check the strength of the oor before installing your freezer. It
should hold the weight of a freezer fully loaded with food.
PRODUCT DIMENSIONS
Model
Numbers
Model Size Width “A” Height “B” Depth “C”
WZC3209LW 9 cu ft
(255 l)
39.8"
(101 cm)
36"
(91.6 cm)
27.4"
(69.8 cm)
WZC5216LW
WZC5116LW
16 cu ft
(454 l)
36"
(91.6 cm)
55.3"
(140.5 cm)
27.4"
(69.8 cm)
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
WARNING
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator or freezer.
Failure to do so can result in death, explosion, or fire.
B
C
A
W11569006A
Chest Freezer
2.75" (7 cm)
2.75" (7 cm)
