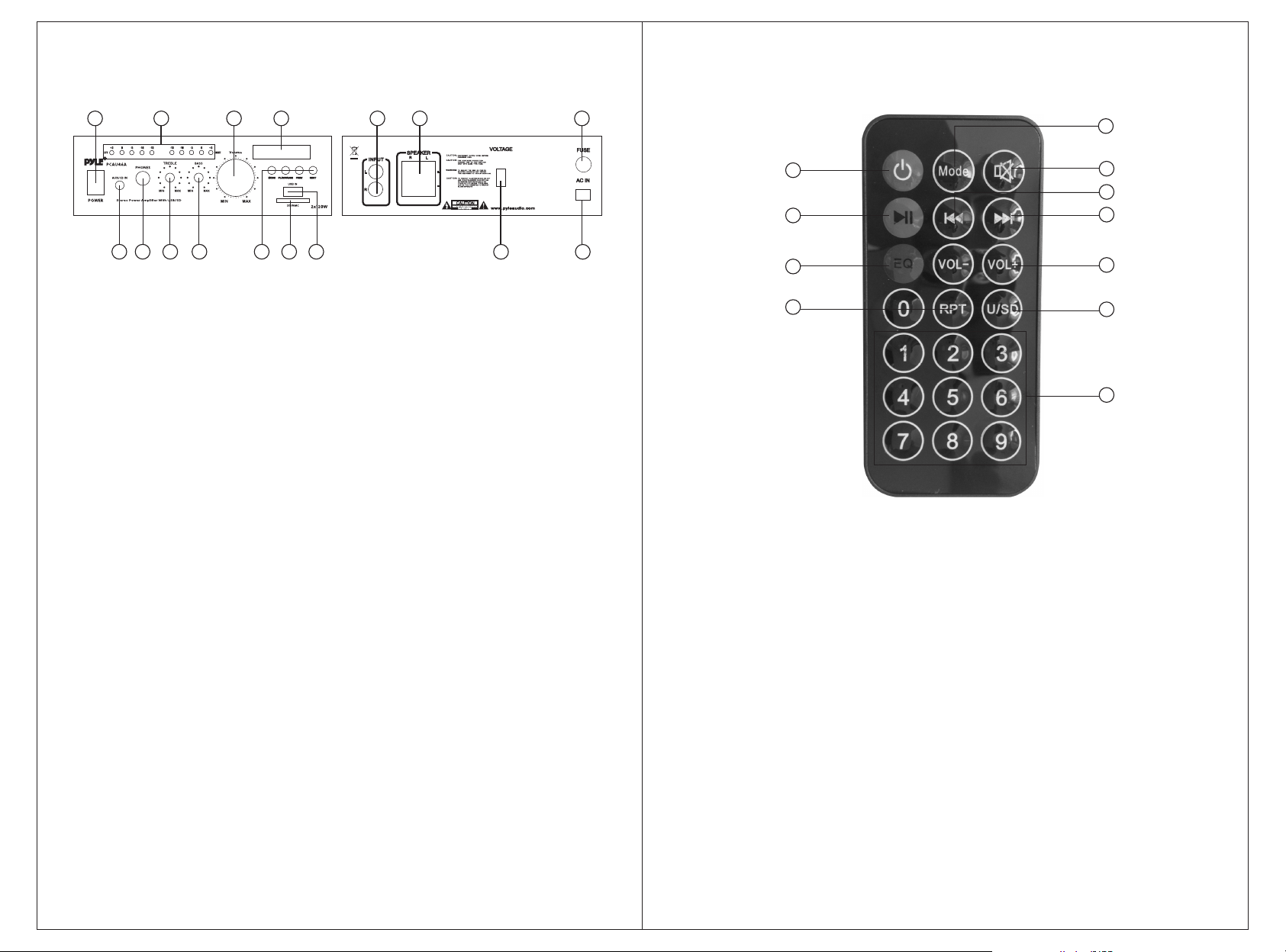

Features and Controls
1 2
5 6 8 9
10
11
12
13
15
14
43
1. Power ON LED Indicator
-Lights to indicate power is turned on.
2. Blue LED Output Level Display
3. Master Volume Control
-Lets you adjust the overall sound level,turn the knob clockwise to increase the volume.
4. Function Blue LED Display Window
5. AUX/CD IN
-Lets you easily connect the computerized MP3 Device (player) sources, such as PC(CD ROM),
laptop, walkman, iPod,and cell phone.
6. TREBLE
-Lets you adjust the TREBLE volume to high or low.
7. BASS
-Lets you adjust the BASS volume to high or low.
8. Buttons for MP3(USB/SD/MMC) Function Control
-Mode: For audio input selection.
-Play/Pause: Play and pause control.
-Prev./Next: Quick backward or next song.
9. SD/MMC Socket for playing SD/MMC cards
10. USB Socket for playing the USB funtion.
11. RCA L/R LINE Input
-Let you connect to the desired LINE input sources.
12. Push Type Speaker L/ R Terminals
-Let you easily connect the speakers'wires directly to the amplifier
13. Fuse
-The amplifier uses a fuse for protection against surges and short circuit. If the amplifer
suddenly turn off and will not turn on, check the fuse. If necessary, replace it with a
1-amp, 250- volt, fast-acting, 5x20mm fuse( not supplied)
14. 110V/220V Switch
-According to power voltage, push this button to the correct station of the 110V or 220V.
15. AC IN Power Cord
-Connect to AC 110V/60Hz or 220V/ 50Hz
