Instructions
36
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or flames
with water: Turn off the appliance
and smother the flames with a fire
blanket or other appropriate
cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless they
are constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by unsupervised
children.
• Do not cook dishes containing
large quantities of strong alcoholic
beverages. Alcohol vapours in the
oven could catch fire.
• The cooking process must always
be monitored. A short cooking
process must be continuously
monitored.
• Never leave the appliance
unattended during cooking
operations where fats or oils could
be released, as these could then
heat up and catch fire. Be very
careful.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed during
cooking.
• If you need to move food or at
the end of cooking, open the
door 5 cm for a few seconds, let
the steam come out, then open it
fully.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.
Instructions
37
EN
• Switch off the appliance
immediately after use.
• DO NOT USE OR STORE
FLAMMABLE MATERIALS NEAR
THE APPLIANCE.
• DO NOT USE AEROSOLS IN
THE VICINITY OF THIS
APPLIANCE WHILST IT IS IN
USE.
• DO NOT MODIFY THIS
APPLIANCE.
• Installation and servicing should
be carried out by qualified
personnel in accordance with
current standards.
• Do not try to repair the appliance
yourself or without the assistance
of a qualified technician.
• Do not pull the cable to unplug the
appliance.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
Use wooden or plastic utensils.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not sit on the appliance.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
• Racks and trays should be inserted
as far as they will go into the side
guides. The mechanical safety
locks that prevent them from being
removed must face downwards
and towards the back of the oven
cavity.
• Do not use steam jets to clean the
appliance.
• Do not spray any spray products
near the appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave objects on the
cooking surface.
• DO NOT FOR ANY REASON
USE THE APPLIANCE AS A
SPACE HEATER.
Instructions
38
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays directly
on the bottom of the oven cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
• Do not use the open door to rest
pans or trays on the internal glass
pane.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the oven door when open.
• Do not use the handle to lift or
move the appliance.
Installation and maintenance
• THIS APPLIANCE MUST NOT BE
INSTALLED IN BOATS OR
CARAVANS
.
• The appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cut-out with the help of a
second person.
• To avoid potential overheating, the
appliance must not be installed
behind a decorative door or a
panel.
• Installation and servicing should
be carried out by qualified
personnel in accordance with
current standards.
• Have the electrical connection
performed by authorised technical
personnel.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90 °C.
• The tightening torque of the screws
of the terminal supply wires must
be 1.5 - 2 Nm.
Instructions
39
EN
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
• Always use any necessary/
required personal protective
equipment (PPE) before performing
any work on the appliance
(installation, maintenance,
positioning or movement).
• Before performing any work on
the appliance, switch off the
power supply.
• This appliance can be used up to a
maximum altitude of 4,000 metres
above sea level.
For this appliance
• Take care because steam may not
be visible at certain temperatures.
• The maximum capacity of the
evaporation tray is 250 ml.
• Be very careful not to exceed the
maximum capacity of the
evaporation tray.
• Open the appliance door
carefully during or after cooking.
• Dishes must be heat and steam
resistant.
• Ensure that the appliance is
switched off before replacing the
bulb.
• Do not place food and/or any
other object directly on the bottom
of the oven cavity.
• Do not rest any weight or sit on the
open door of the appliance.
• Take care that no objects are stuck
in the doors.
• Do not install / use the appliance
outdoors.
1.2 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.3 Manufacturer’s liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• Use of the appliance other than
that specified
• Failure to comply with the
instructions in the user manual
• Tampering with any part of the
appliance
• The use of non-original spare parts.
Instructions
40
1.4 This user manual
This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the
user’s reach for the whole working
life of the appliance.
Read this user manual carefully
before using the appliance.
1.5 Identification plate
The identification plate bears the
technical data, serial number and
brand name of the appliance. Do not
remove the identification plate for
any reason.
1.6 Disposal
This appliance must be
disposed of separately from
other waste (Directives
2002/95/EC, 2002/96/EC,
2003/108/EC). The appliance
does not contain substances in
quantities sufficient to be considered
hazardous to health and the
environment, in accordance with
current European directives.
To dispose of the appliance:
• Cut the power supply cable and
remove it along with the plug.
Power voltage
Danger of electrocution
• Disconnect the mains power
supply.
• Unplug the appliance.
Instructions
41
EN
• Deliver the appliance to the
appropriate recycling centre for
electrical and electronic
equipment waste, or return it to the
retailer when purchasing an
equivalent product, on a one for
one basis.
Our appliances are packaged in
non-polluting and recyclable
materials.
• Deliver the packing materials to
the appropriate recycling centre.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or
any part of it unattended.
• Do not let children play with the
plastic bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice
Description
42
2 Description

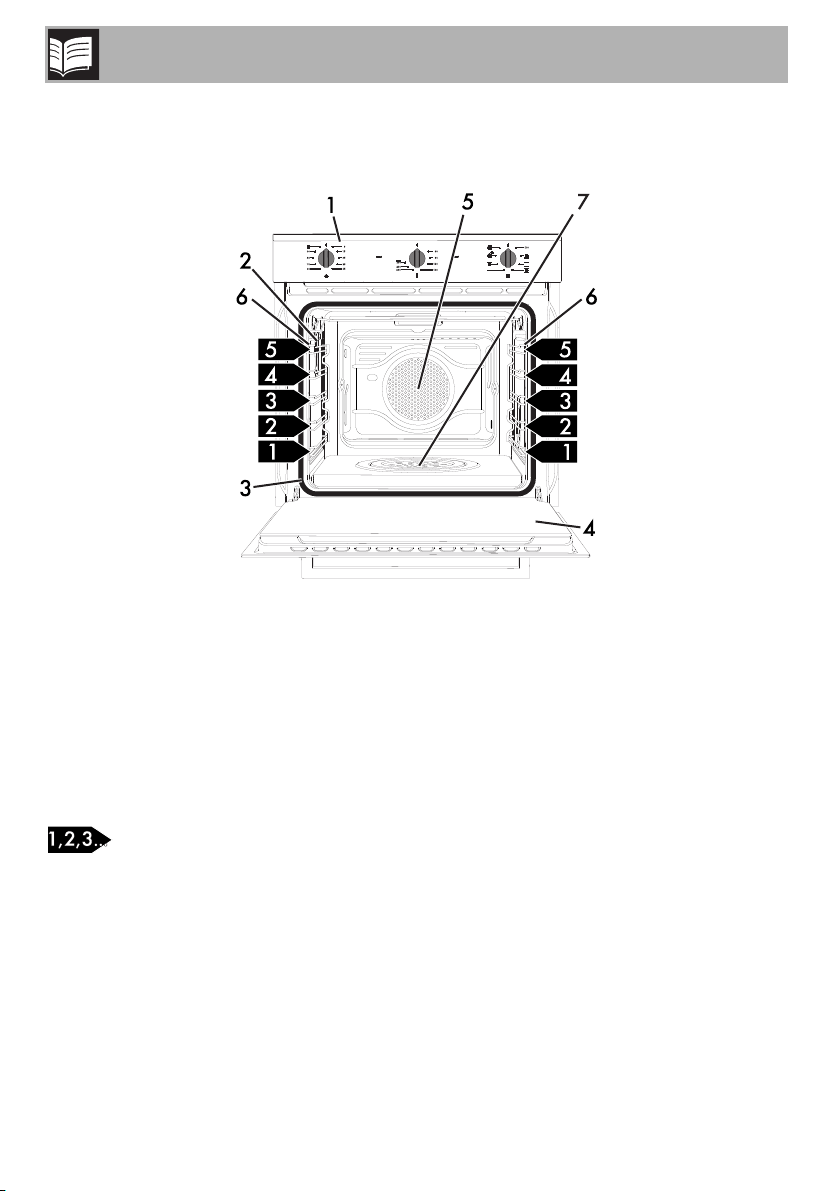

2.1 General Description
1 Control panel
2 Oven light
3 Seal
4 Door
5 Fan
6 Rack/tray support frames
7 Evaporation tray
Frame shelf
Description
43
EN
2.2 Control panel
1 Timer knob
It allows you to use the minute minder timer
or to perform manual cooking.
2 Thermostat indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It will then
turn on and off regularly, indicating that the
temperature set inside the oven is being
kept constant.
3 Temperature knob
This knob allows you to select the cooking
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
setting.
4 Direct Steam indicator light
It lights up when the “Direct Steam” function
is selected via the function knob.
5 Function knob
The oven’s various functions are suitable for
different cooking modes. After selecting the
required function, set the cooking
temperature using the temperature knob.
Description
44
2.3 Other parts
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see ”General
Description”).

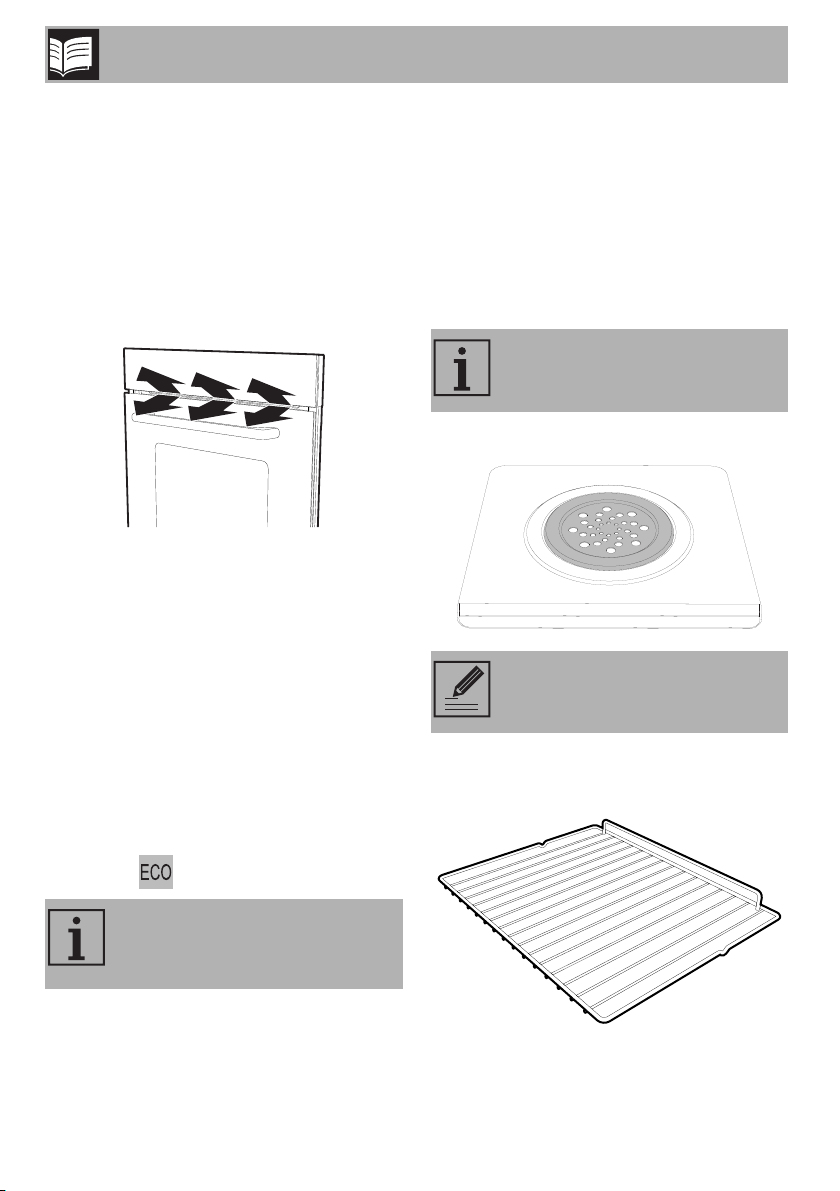

Cooling fan
The fan cools the appliance and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a
brief period of time even after the appliance
has been turned off.
Interior lighting
The appliance’s interior lighting comes on:
• When the door is opened (on some
models only).
• When any function is selected, apart
from the
function (where present).
2.4 Advantages of steam cooking
The steam cooking system cooks any type
of food much more delicately.
It is also ideal for defrosting foods rapidly,
for heating up foods without hardening or
drying them out, and for naturally removing
salt from foodstuffs preserved with salt.
2.5 Available accessories
Evaporation tray and cover
Used to distribute the steam inside the oven.
Rack
Useful for supporting containers with food
during cooking.
On some models, when the door is
open, it is not possible to turn off
the oven light.
Some models are not provided
with all accessories.
The maximum capacity of the
evaporation tray is 250 ml.
Description
45
EN
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
2.6 Other cooking containers
• You may also use your own containers
for cooking, as long as they are resistant
to high temperatures.
• For steam cooking, the use of metal
containers is recommended. Metal
facilitates better distribution of heat to the
foods.
• It is normal for metal containers to deform
somewhat during high-temperature
cooking, but they will return to their
original shape when they cool down.
• Thick ceramic plates may require more
heat than normal. Longer cooking times
may be necessary.
The appliance accessories
intended to come into contact with
food are made of materials that
comply with the provisions of
current legislation.
Original supplied and optional
accessories can be requested to
Authorised Assistance Centres.
Use only original accessories
supplied by the manufacturer.
Use
46
3 Use
3.1 Instructions
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands by wearing oven
gloves when moving food inside the
oven.
• Open the appliance door carefully
during or after cooking.
• Take care because steam may not be
visible at certain temperatures.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Do not allow children to approach the
appliance when it is in operation.
Excessive build-up of steam
Risk of damages to the appliance
• When cooking with the Direct Steam
function, be careful not to exceed the
capacity of the tray.
• The maximum capacity of the
evaporation tray is 250 ml.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Fill the tray with sufficient water for the
cooking duration.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.
Use
47
EN
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see ”Direct Steam
cooking information table”).
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
3.3 Using the accessories
Racks and trays

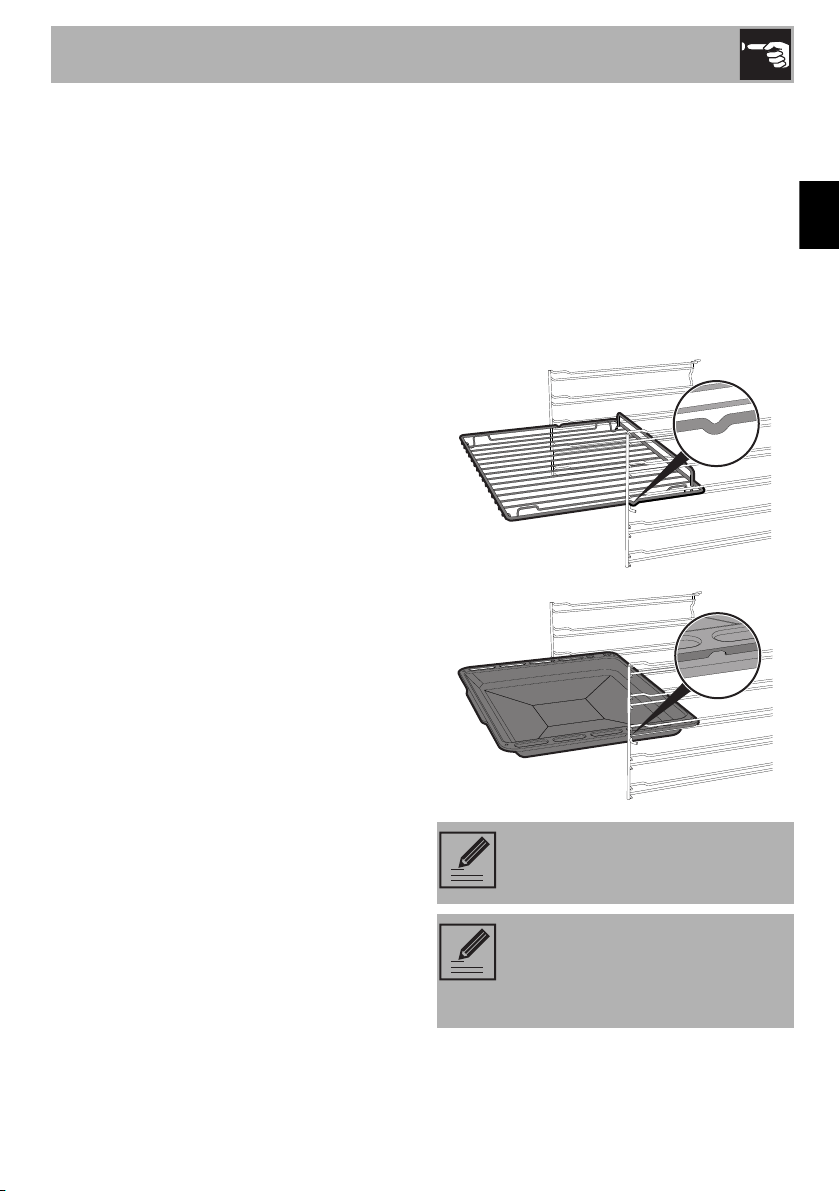

Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being removed
accidentally must face downwards and
towards the back of the oven cavity.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.
Use
48
Tray rack

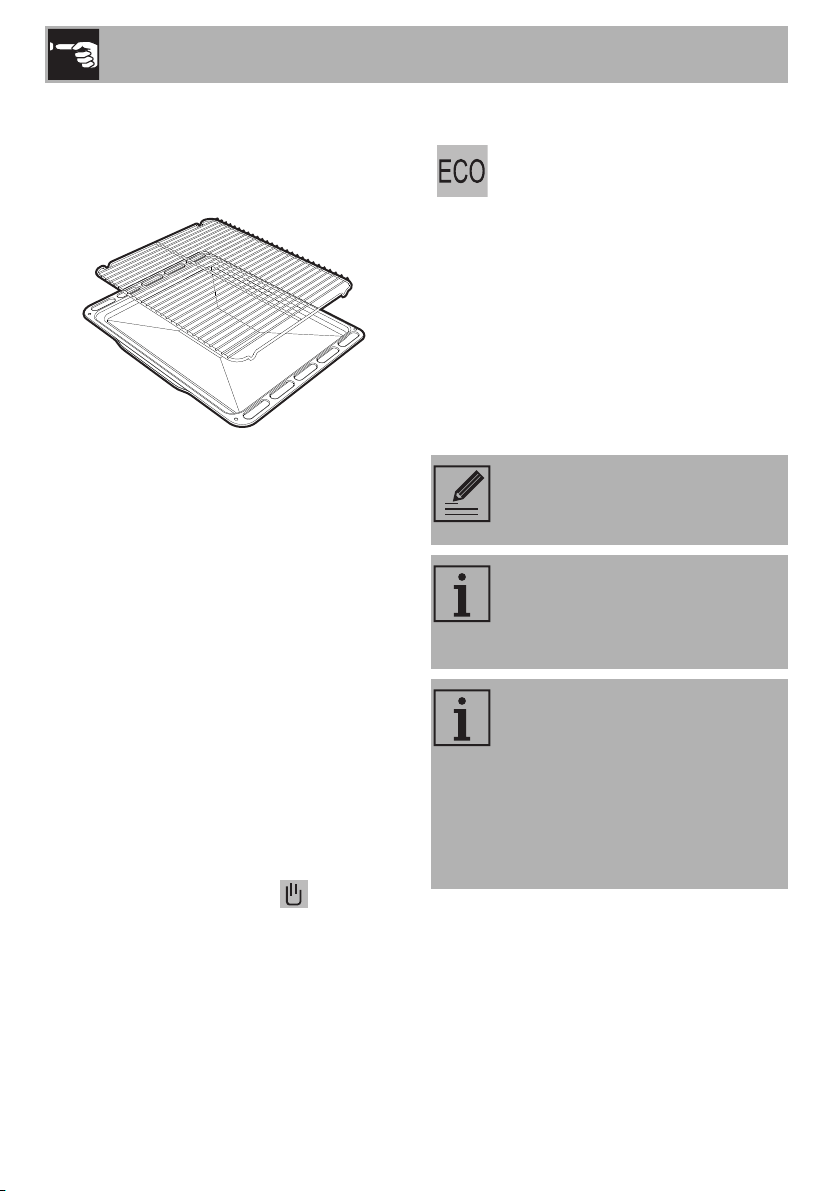

The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
3.4 Using the oven
Switching on the oven
To switch on the oven:
1. Select the cooking function using the
function knob.
2. Select the temperature using the
temperature knob.
3. Select cooking with the minute minder or
manual cooking using the timer knob.
Turn the knob clockwise to set the
buzzer. The numbers indicate the
minutes. Adjustment is progressive and
intermediate positions between the
figures can be used. The end of cooking
buzzer interrupts oven operation. Turn
the knob anticlockwise to to perform
manual cooking.
List of cooking functions
Eco
This function is particularly suitable
for cooking on a single shelf with
low energy consumption.
It is recommended for all types of
food except those that may
produce a large amount of moisture
(e.g. vegetables).
To obtain maximum energy savings
and reduce cooking times, it is
recommended not to preheat the
oven before placing food in it.
When using the ECO function,
avoid opening the door during
cooking.
Cooking (and preheating) times
are longer with the ECO function
and may depend on the amount of
food in the oven cavity.
The ECO function is a delicate
cooking function and is
recommended for cooking that
does not require temperatures
higher than 210°C. It is
recommended that you select a
different function for cooking at
higher temperatures.
Use
49
EN
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes, and in any case,
particularly suitable for fatty meats
such as goose and duck.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and, in combination
with the rotisserie (where fitted),
gives the food an even browning at
the end of cooking. Perfect for
sausages, spare ribs and bacon.
This function enables large
quantities of food, particularly meat,
to be grilled evenly.
Fan assisted
The operation of the fan, combined
with traditional cooking, ensures
consistent cooking even with
complex recipes. Perfect for biscuits
and cakes, even when
simultaneously cooked on several
levels. (For multiple-level cooking,
we recommend using the 2
nd
and 4
th
shelf).
Fan with grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. shin of pork).
Fan + lower element
The combination of the fan with just
the lower heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.
Fan with circulaire
The combination of the fan and the
circulaire heating element
(incorporated in the rear of the
oven) allows you to cook different
foods on several levels, as long as
they need the same temperatures
and same type of cooking. Hot air
circulation ensures instant and even
distribution of heat. It will be
possible, for instance, to cook fish,
vegetables and biscuits
simultaneously (on different levels)
without odours and flavours
mingling.
Use
50

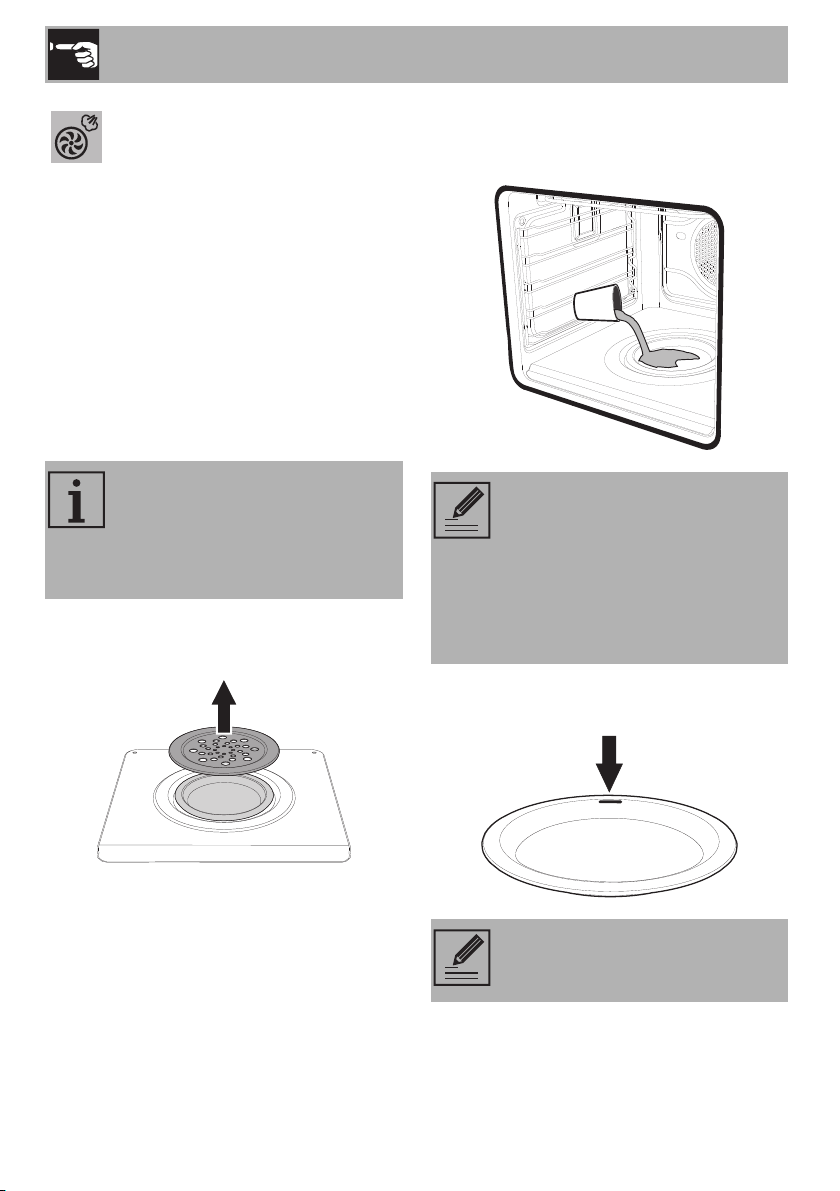

3.5 Cooking with the Direct Steam
function
1. Open the oven door.
2. Lift the cover of the evaporation tray.
3. Fill the tray with sufficient water for the
cooking duration (see ”Direct Steam
cooking information table”)
.
The maximum level is indicated by a mark
on the inside of the tray.
Direct Steam
This function activates the central
part of the lower heating element
together with the circulaire heating
element and fan, allowing the food
to be cooked by the evaporation of
the water in the tray. The fan evenly
distributes the heat and steam that
cooks the food delicately and
keeps the appearance of the food
and its nutrients unaltered.
Do not place food or any other
object directly on the bottom of the
oven. The base of the oven and
the evaporation tray must always
be left free.
• Use cold tap water which is not
too hard, softened water or still
mineral water.
• Do not use distilled water, tap
water with a high chloride
content (> 40 mg/l), or other
liquids.
The maximum capacity of the
evaporation tray is 250 ml.
Use
51
EN
4. Put the cover back on the tray.
5. Place the food on the oven tray.
6. Place the tray with the food in the oven.
7. Select the Direct Steam function using
the function knob.
8. Select the cooking temperature and
time using the appropriate knobs.

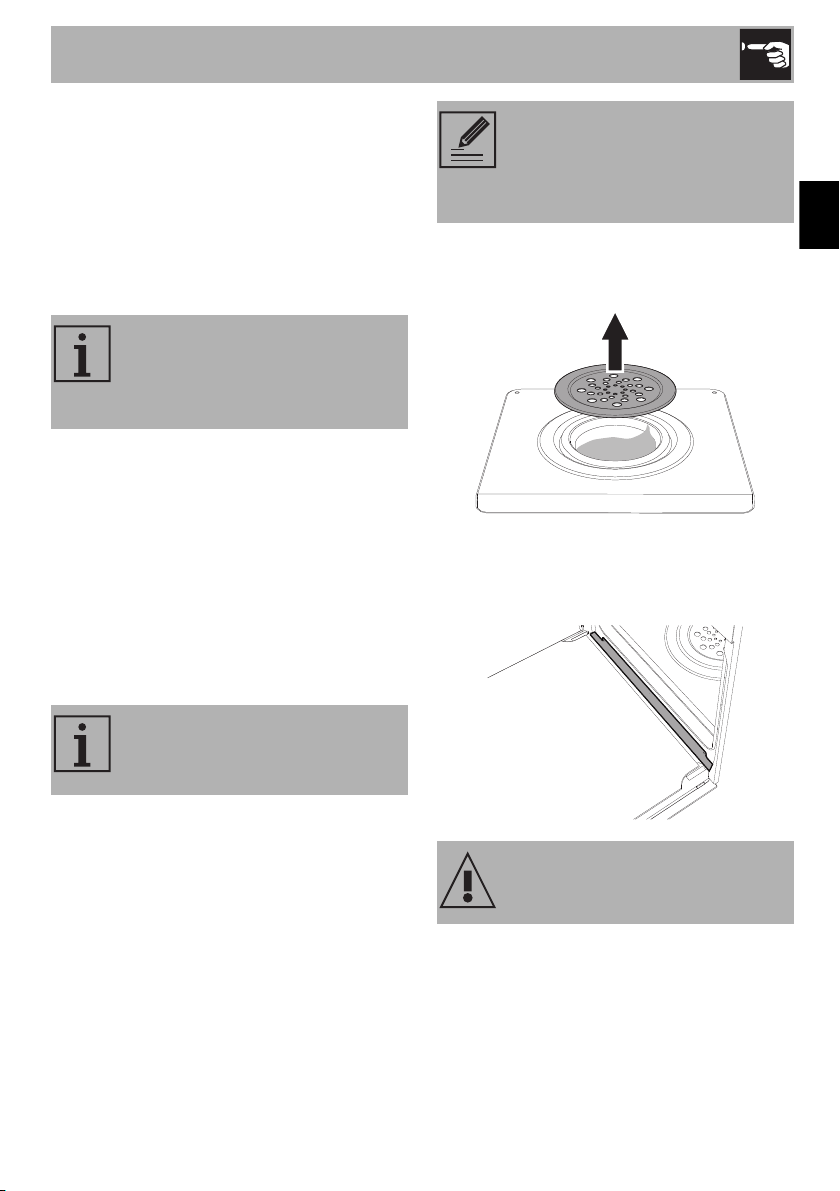

End of Direct Steam cooking
1. Stand to the side of the appliance and
open the door ajar for a few seconds
to allow excess steam to escape.
2. Fully open the door when safe to do so
and cautiously remove the food from
the oven.
3. Wait for the appliance to cool down
completely before cleaning it.
4. Remove the cover from the evaporation
tray inside the oven cavity, remove any
remaining water and dry thoroughly.
5. Use a sponge to remove any
condensation from the base and walls of
the oven cavity, the door glass and the
drip tray at the front of the appliance.
For best results and to save
energy, it is recommended to fill
the tray with sufficient water for the
required cooking.
Note: The evaporation tray cover
may be very hot: use appropriate
protection.
If cooking has just been carried
out with temperatures greater
than 100°C, you must wait for
the oven to cool in order to use
the Direct Steam function.
Take care: the water may be very
hot.
Use
52
3.6 Cooking advice
General advice
• Use a fan assisted function to achieve
consistent cooking at several levels.
• It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is firm to the touch, it is ready;
if not, it needs to be cooked for a few
more minutes.
Advice for cooking with the Grill and the
Fan with grill
• Meat can be grilled even when it is put
into the cold oven or into the preheated
oven if you wish to change the effect of
the cooking.
• With the Fan with grill function, we
recommend that you preheat the oven
before grilling.
• We recommend placing the food at the
centre of the rack.
• With the Grill function, we recommend
that you set the temperature to the
maximum value to optimise cooking.
Advice for cooking desserts/pastries and
biscuits
• Use dark metal moulds: They help to
absorb the heat better.
• The temperature and the cooking time
depend on the quality and consistency
of the dough.
• To check whether the dessert is cooked
right through: At the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes out
of the oven, on the next occasion reduce
the set temperature by about 10°C,
selecting a longer cooking time if
necessary.
Advice for defrosting and proving
• Place frozen foods without their
packaging in a lidless container on the
first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on
the second level and a tray on the first
level. In this way, the liquid from the
defrosting food drains away from the
food.
• The most delicate parts can be covered
with aluminium foil.
• For successful proving, a container of
water should be placed in the bottom of
the oven.
To save energy
• Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the appliance clean
at all times.
Use
53
EN
Traditional cooking information table
Food
Weight
(Kg)
Function Shelf
Temperature
(°C)
Time
(minutes)
Lasagne
3 - 4 Static 1 220 - 230 45 - 50
Pasta bake
3 - 4 Static 1 220 - 230 45 - 50
Veal roast
2 Fan assisted 2 180 - 190 90 - 100
Pork loin
2 Fan assisted 2 180 - 190 70 - 80
Sausages
1.5 Fan with grill 4 280 15
Roast beef
1 Fan assisted 2 200 40 - 45
Roast rabbit
1.5 Circulaire/Fan assisted 2 180 - 190 70 - 80
Turkey breast
3 Fan assisted 2 180 - 190 110 - 120
Roast pork neck
2 - 3 Fan assisted 2 180 - 190 170 - 180
Roast chicken
1.2 Fan assisted 2 180 - 190 65 - 70
1
st
surface 2
nd
surface
Pork chops
1.5 Fan with grill 4 280 15 5
Spare ribs
1.5 Fan with grill 4 280 10 10
Bacon
0.7 Grill 5 280 7 8
Pork fillet
1.5 Fan with grill 4 280 10 5
Beef fillet
1 Grill 5 280 10 7
Salmon trout
1.2 Fan assisted 2 150 - 160 35 - 40
Monkfish
1.5 Fan assisted 2 160 60 - 65
Turbot
1.5 Fan assisted 2 160 45 - 50
Pizza
1 Fan assisted 2 280 8 - 9
Bread
1 Circulaire/Fan assisted 2 190 - 200 25 - 30
Focaccia
1 Fan assisted 2 180 - 190 20 - 25
Bundt cake
1 Circulaire/Fan assisted 2 160 55 - 60
Tart
1 Circulaire/Fan assisted 2 160 35 - 40
Ricotta cake
1 Circulaire/Fan assisted 2 160 - 170 55 - 60
Jam tarts
1 Fan assisted 2 160 20 - 25
Paradise cake
1.2 Circulaire/Fan assisted 2 160 55 - 60
Profiteroles
1.2 Fan assisted 2 180 80 - 90
Sponge cake
1 Circulaire/Fan assisted 2 150 - 160 55 - 60
Rice pudding
1 Fan assisted 2 160 55 - 60
Brioches
0.6 Circulaire/Fan assisted 2 160 30 - 35
The times indicated in the table do not include preheating times and are provided only as a guide.
Use
54
Direct Steam cooking information table
Food Weight (Kg) Water (ml) Shelf
Temperature
(°C)
Time (minutes)
Lasagne
1.6 120 - 130 2 190 - 200 35 - 40
Pasta bake
1.2 - 1.5 120 - 130 2 190 - 200 35 - 40
MEAT
Roast turkey
1.5 180 2 190 - 200 80 - 90
Pork loin
1.5 180 2 190 - 200 85 - 90
Roast rabbit
(pieces)
1 160 2 180 - 190 80 - 90
Spare ribs
(attached)
0.5 160 2 200 55 - 60
Leg of lamb (well
done)
2 160 2 190 - 200 95 - 100
DOUGH
Rolls
100 g each 60 2 180 30 - 35
Bread (loaf)
0.4 80 2 180 40 - 45
Focaccia
1 80 2 190 - 200 20 - 25
FRESH FISH
Sea bass
0.4 - 0.5 100 2 200 25
Salmon steak (2
cm thick)
0.18 80 2 180 17
Monkfish (whole)
0.7 100 2 200 - 210 45 - 50
Use
55
EN
Food Weight (Kg) Water (ml) Shelf
Temperature
(°C)
Time (minutes)
VEGETABLES
Roast potatoes
1 80 2 210 - 220 40 - 45
Mixed roasted
vegetables
0.6 80 2 210 35
REHEATING FOOD
Pasta
0.3 100 - 110 2 120 15 - 25
Sliced roasted
meats / spare
0.5 100 - 110 2 120 15 - 25
Bread
0.5 100 - 110 2 120 15 - 25
Strudel
0.5 100 - 110 2 120 15 - 25
DESSERTS/PASTRIES
Bundt cake
1 60 2 160 50 - 55
Strudel
1 60 2 170 35 - 40
Muffins
40 g for each
baking cup
60 2 160 15 - 17
Paradise cake
1 60 2 160 55 - 60
Sponge cake
1 60 2 160 60 - 65
Biscuits (0.5 cm
thick)
total dough 0.3 60 2 170 18 - 20
The quantity of water recommended in the table may vary according to the type of food, weight and cooking
time.
The oven is always preheated when the Direct Steam function is used.
Roasts, vegetables and potatoes should be mixed and/or turned during cooking to achieve uniform browning
on all sides.
The times indicated in the table do not include preheating and are provided only as a guide.
Cleaning and maintenance
56
4 Cleaning and maintenance
4.1 Instructions
4.2 Cleaning the appliance
Recommendations for cleaning the oven
cavity
In order to keep your oven in the best
possible condition, clean it regularly after
letting it cool down.
Avoid letting food residue dry inside the
oven cavity, as this could damage the
enamel.
Take out all removable parts before
cleaning.
For easier cleaning, we recommend
removing:
• The door
• The rack/tray support frames
• The seal
Cleaning the evaporation tray and cover
It is recommended that you clean and dry
the evaporation tray and the perforated
cover after using the Direct Steam function.
Common cleaning products can be used:
avoid using products that are too harsh
and/or acidic.
The cover and the tray can be washed in a
dishwasher.
If limescale forms, use a limescale remover
for steel surfaces.
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not use cleaning products containing
chlorine, ammonia or bleach on parts
made of steel or that have metallic
surface finishes (e.g. anodizing, nickel-
or chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring powders, stain
removers and metallic sponges) on
glass parts.
• Do not use rough or abrasive materials
or sharp metal scrapers.
We recommend the use of
cleaning products distributed by
the manufacturer.
In the event you are using specific
cleaning products, we recommend
running the oven at maximum
temperature for 15-20 minutes in
order to eliminate any residue.
Cleaning and maintenance
57
EN
Cleaning the lower part
It is recommended that you clean and dry
the bottom of the oven after using the Direct
Steam function:

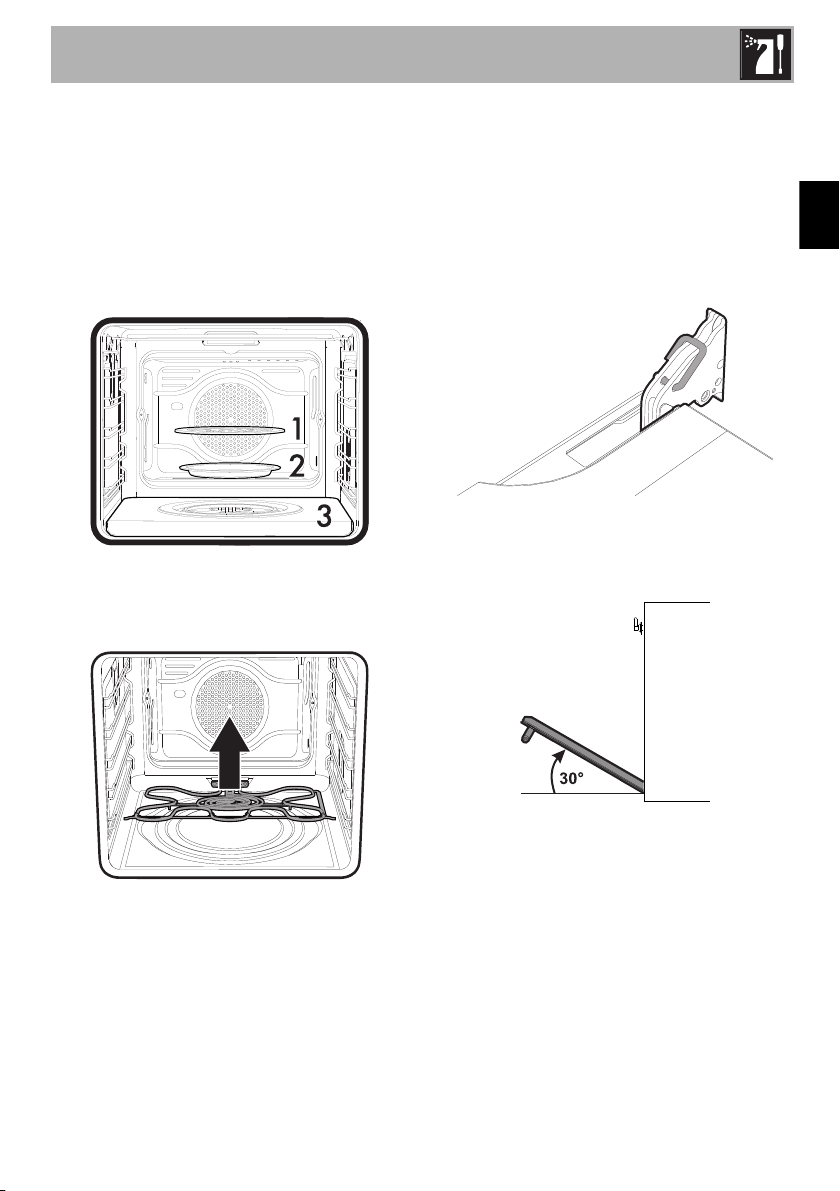

1. Remove in sequence, the perforated
cover (1), the evaporation tray (2) and
the bottom (3); lift the bottom by a few
millimetres and pull it outwards.
2. Carefully lift the end of the lower
heating element by a few centimetres
and clean the bottom of the oven.
3. Put the heating element back into its
seat when finished. Wait until the oven
cavity is completely dry before putting
back the accessories.
4.3 Removing the door
For easier cleaning it is recommended to
remove the door and place it on a tea
towel.
To remove the door proceed as follows:
1. Open the door completely and insert two
pins into the holes on the hinges
indicated in the figure.
2. Grasp the door on both sides with both
hands, lift it so that it forms an angle of
around 30° and remove it.
3. To reassemble the door, put the hinges in
the relevant slots in the oven, making sure
that grooved sections A are resting
completely in the slots. Lower the door
Cleaning and maintenance
58
and once it is in place remove the pins
from the holes in the hinges.
4.4 Cleaning the door glazing
The glass in the door should always be kept
thoroughly clean. Use absorbent kitchen
roll. In case of stubborn dirt, wash with a
damp sponge and an ordinary detergent.

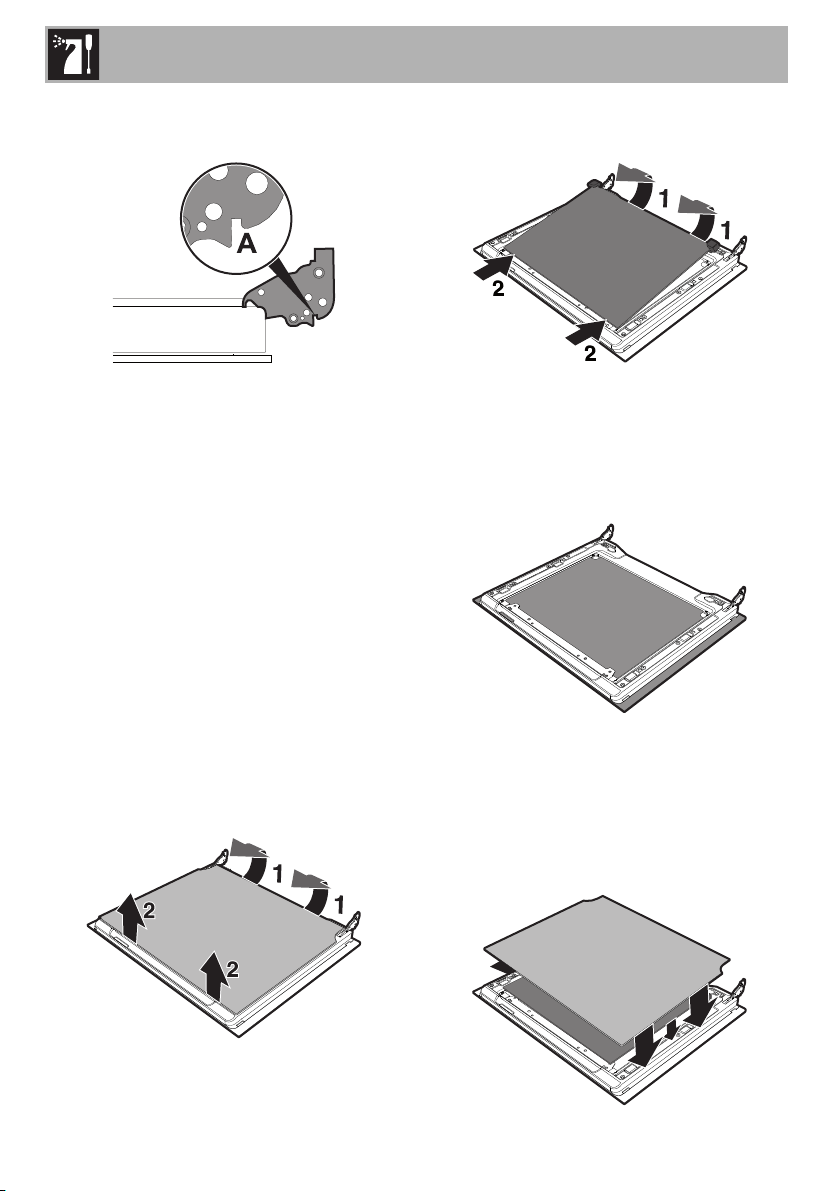

Removing the internal glass panes
For easier cleaning the internal glass panes
of the door can be removed.
1. Remove the internal glass pane by
pulling the rear part gently upwards,
following the movement indicated by the
arrows (1).
2. Then, pull the front part upwards (2). This
way, the 4 pins attached to the glass
detach from their housings in the oven
door.
3. Remove the intermediate glass pane by
lifting it upwards.
4. Clean the external glass pane and the
panes removed previously. Use
absorbent kitchen roll. In case of
stubborn dirt, wash with a damp sponge
and neutral detergent.
5. Refit the panes in the reverse order in
which they were removed.
6. Reposition the internal glass pane. Take
care to centre and insert the 4 pins into
their housings in the oven door by
applying slight pressure.
Cleaning and maintenance
59
EN
Removing rack/tray support frames
Removing the rack/tray support frames
enables the sides to be cleaned more
easily. This operation should be performed
each time the automatic cleaning cycle is
used (on some models only).

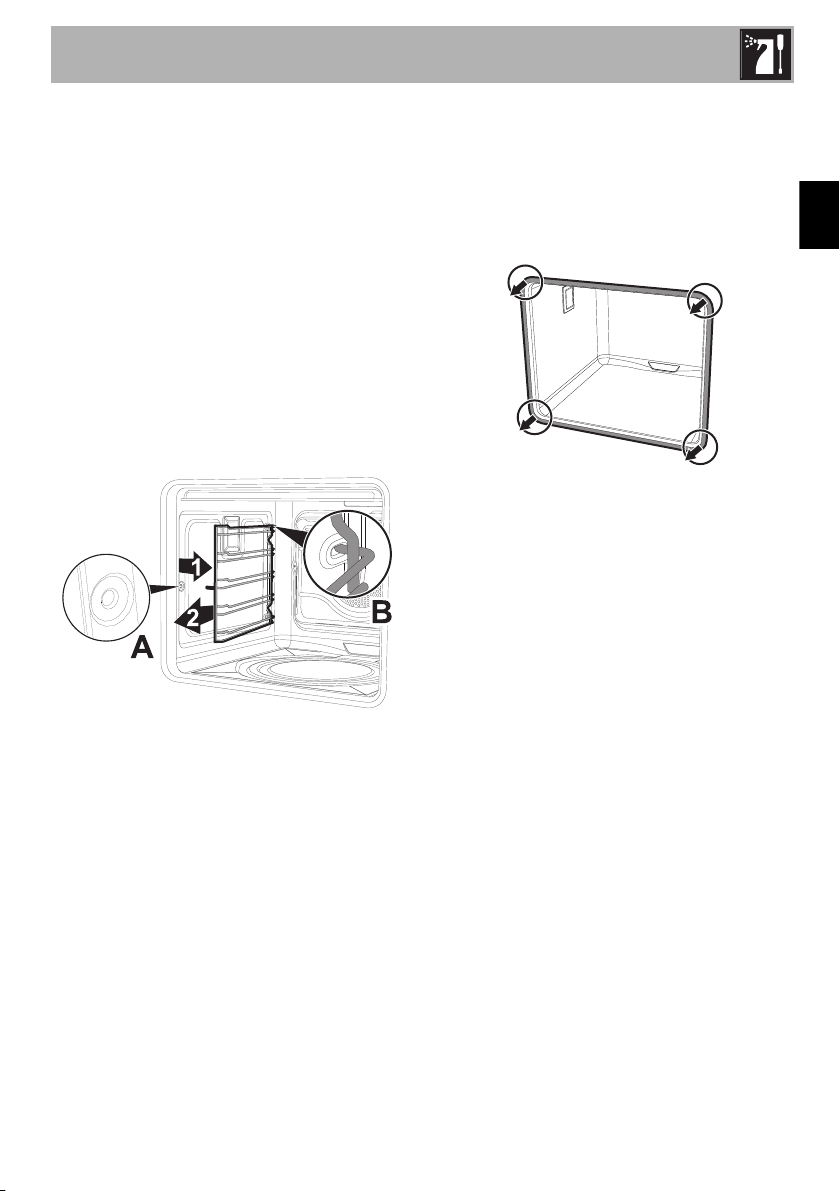

To remove the rack/tray support frames:
1. Pull the frame towards the inside of the
oven cavity to unhook it from groove A.
2. Then slide it out of the seats at the
back B.
3. When cleaning is complete, repeat the
above procedures to put the rack/tray
support frames back in.
4.5 Extraordinary maintenance
Installing and removing the seal
To remove the seal:
• Release the clips located in the 4 corners
and pull the seal outwards.
To refit the seal:
• Hook the clips in the 4 corners onto the
seal.
Seal maintenance tips
The seal should be soft and elastic.
• To keep the seal clean, use a non-
abrasive sponge and wash with
lukewarm water.
Cleaning and maintenance
60

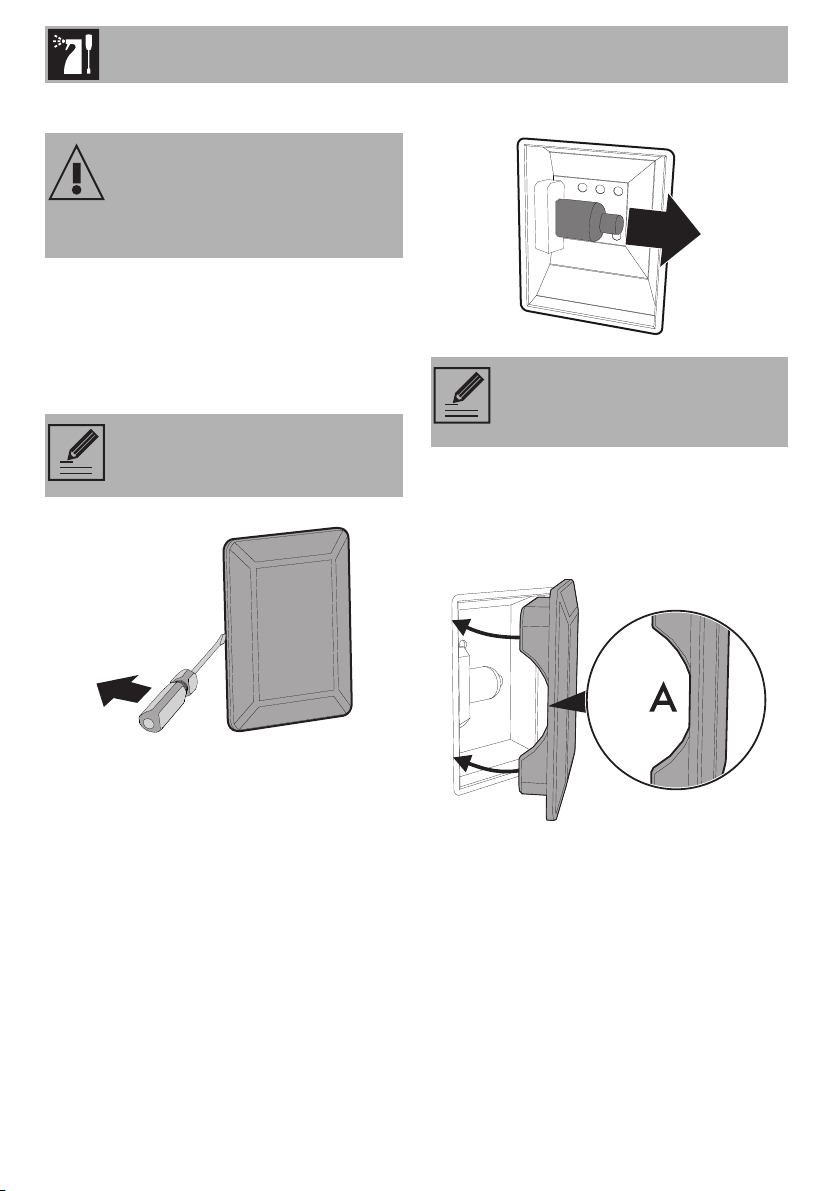

Replacing the internal light bulb
1. Completely remove all accessories from
inside the oven.
2. Remove the rack/tray support frames.
3. Remove the bulb cover using a tool (e.g.
a screwdriver).
4. Slide out and remove the light bulb.
5. Replace the light bulb with one of the
same type (40W).
6. Refit the cover. Ensure the moulded part
of the glass (A) is facing the door.
7. Press the cover completely down so that
it attaches perfectly to the bulb support.
Live parts
Danger of electrocution
• Unplug the appliance.
Pay attention not to scratch the oven
cavity enamel.
Do not touch the halogen light
bulb directly with your fingers, but
wrap it in insulating material.
Installation
61
EN
5 Installation
5.1 Electrical connection
General information
Check the grid characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
The appliance operates at 220-240 V~.
Use a three-core cable (3 x 1.5 mm
2
internal conductors).
Perform the ground connection using a wire
that is 20 mm longer than the other wires.
Fixed connection
Fit the power line with an all-pole circuit
breaker in compliance with installation
regulations.
The circuit breaker should be located near
the appliance and in an easily reachable
position.
Connection with plug and socket
Make sure that the plug and socket are of
the same type.
Avoid using adapters and shunts as these
could cause overheating and a risk of
burns.
5.2 Cable replacement
1. Unscrew the rear casing screws and
remove the casing to access the terminal
board.
2. Replace the cable.
3. Make sure that the cables (for the oven
or any hob) follow the best route in order
to avoid any contact with the appliance.
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised technical
personnel.
• The appliance must be connected to
earth in compliance with electrical
system safety standards.
• Disconnect the mains power supply.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
Installation
62
5.3 Positioning

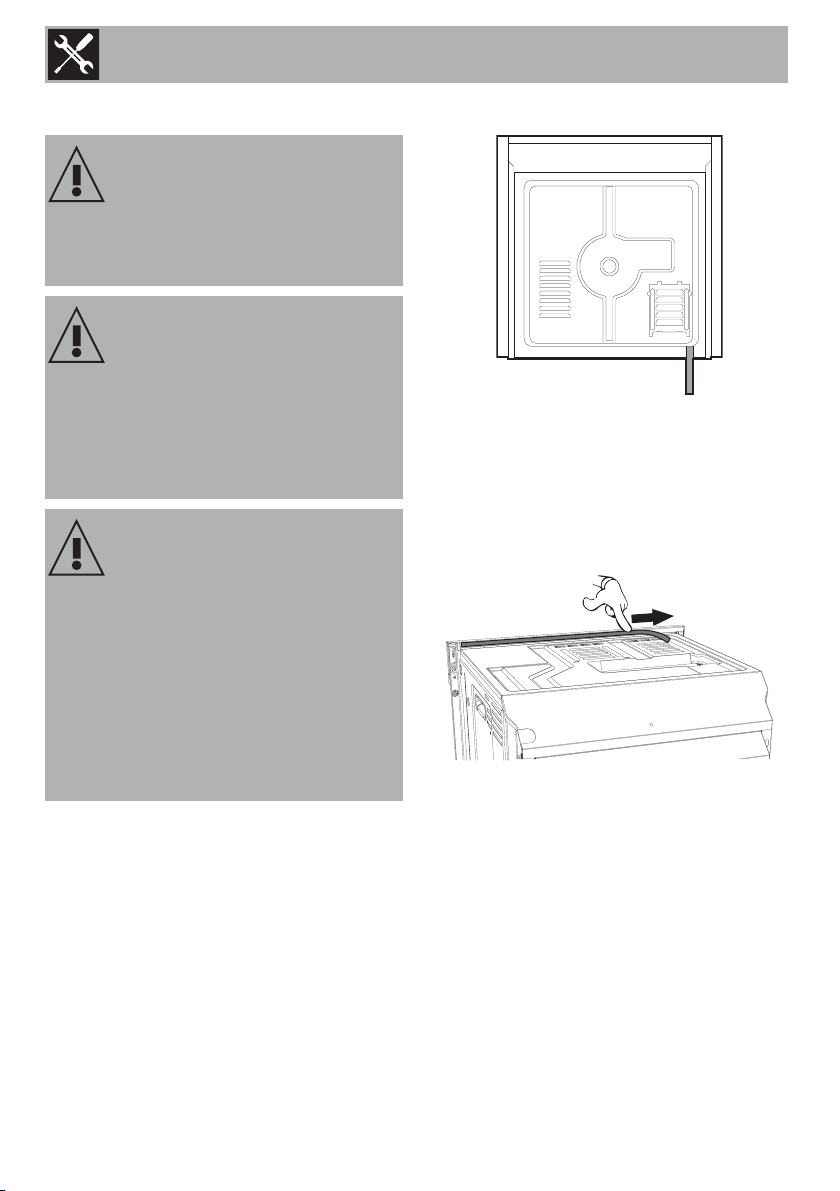

Position of the power cable
(rear view)
Front panel seal
Glue the supplied seal to the rear part of
the front panel to avoid water or other
liquids from leaking in.
Heavy appliance
Crushing hazard
• Position the appliance into the cabinet
cut-out with the help of a second person.
Pressure on the open door
Risk of damage to the appliance
• Never use the oven door to lever the
appliance into place when fitting.
• Avoid exerting too much pressure on the
oven door when open.
Heat production during appliance
operation
Risk of fire
• Check that the carcase material is heat
resistant.
• Check that the carcase has the required
openings.
• Do not install the appliance in a recess
which can be closed with a door, or in a
cupboard.
Installation
63
EN
Fastening bushings
1. Remove the bushing covers on the front
of the appliance.
2. Mount the appliance into the recess.
3. Secure the appliance to the carcase
using the screws.
4. Cover the bushings with the previously
removed covers.

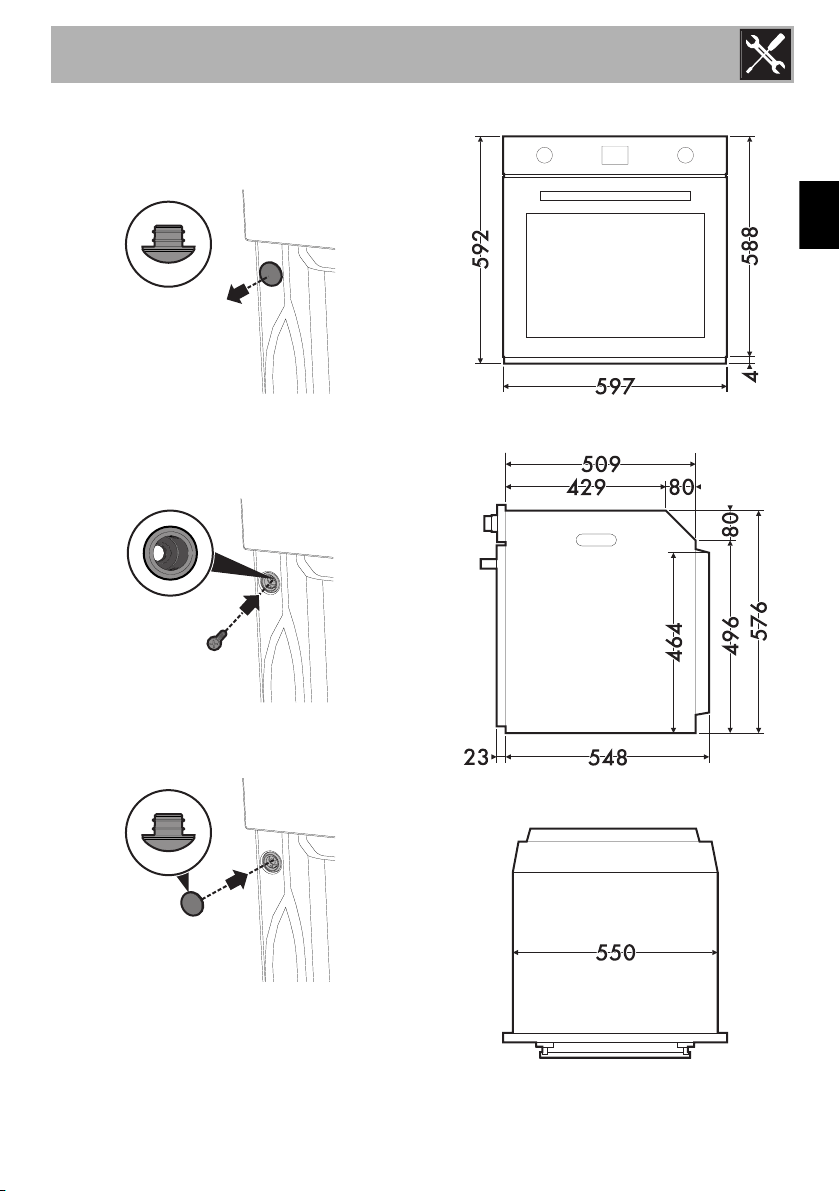

Appliance overall dimensions (mm)
Installation
64

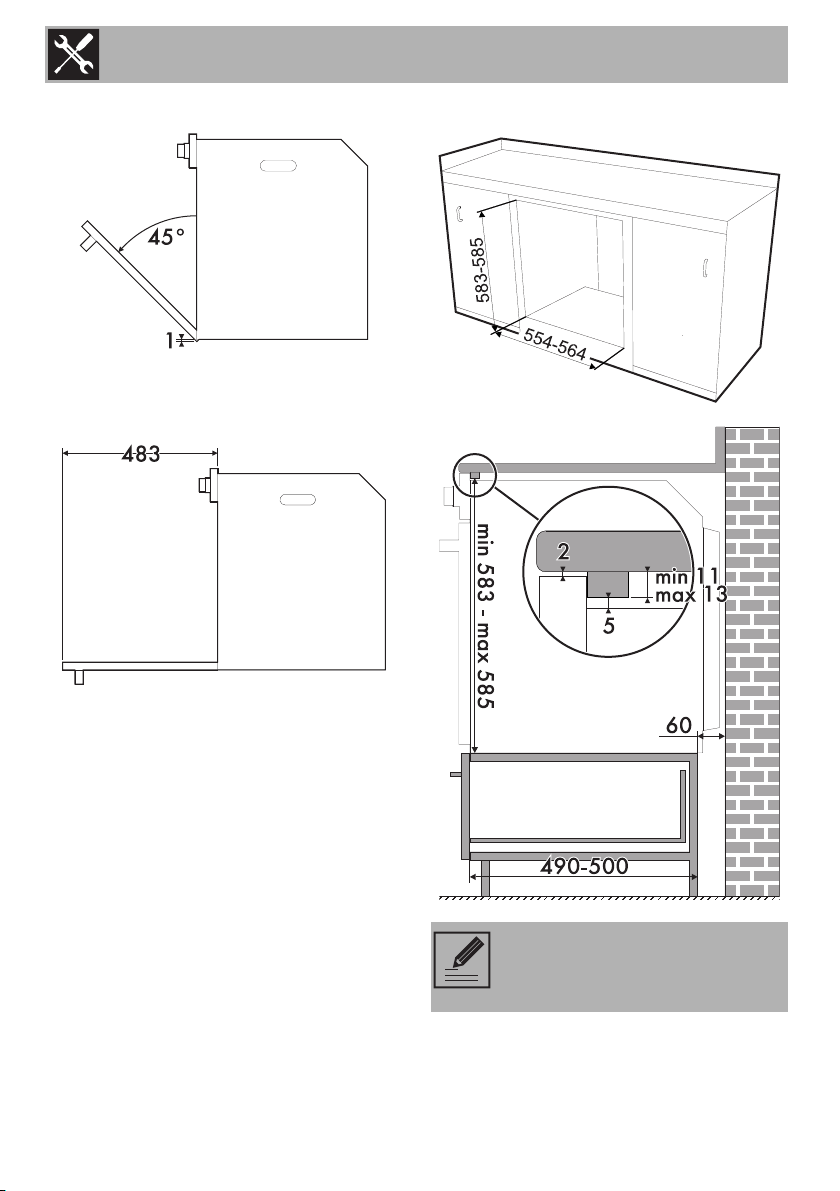

Mounting under worktops (mm)
Make sure that the carcase rear/
bottom section has an opening of
approx. 60 mm.
Installation
65
EN

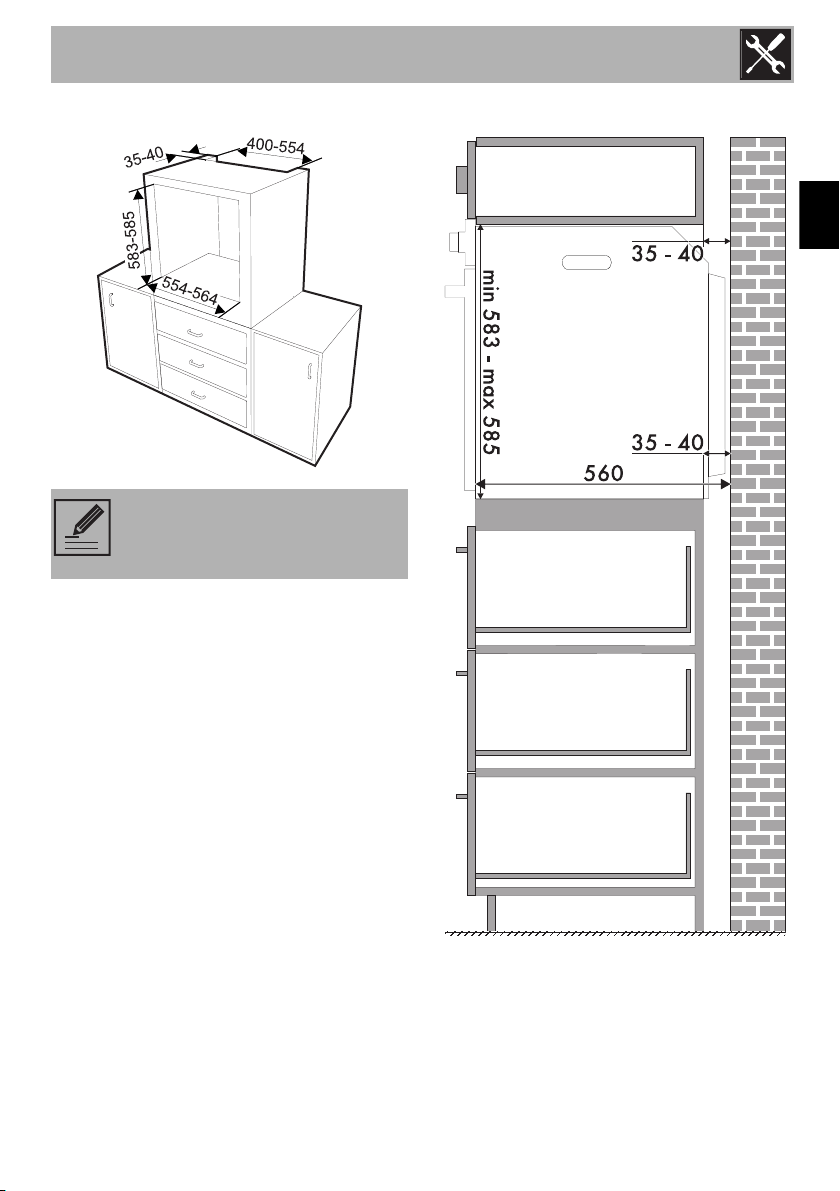

Mounting into a column (mm)
Make sure that the carcase top/
rear section has an opening
approx. 35-40 mm deep.
Installation
66
5.4 Instructions for the installer
• The plug must be accessible after
installation. Do not bend or trap the
power cable.
• The appliance must be installed
according to the installation diagrams.
• If the appliance does not work correctly
after having carried out all the checks,
contact your local Authorised Service
Centre.
• Once the appliance has been installed,
please explain to the user how to use it
correctly.
Testing
At the end of installation, carry out a brief
inspection test. If the hob fails to operate,
after checking that you have carried out the
instructions correctly, unplug the appliance
and contact Technical Support.
