Use _ Guide

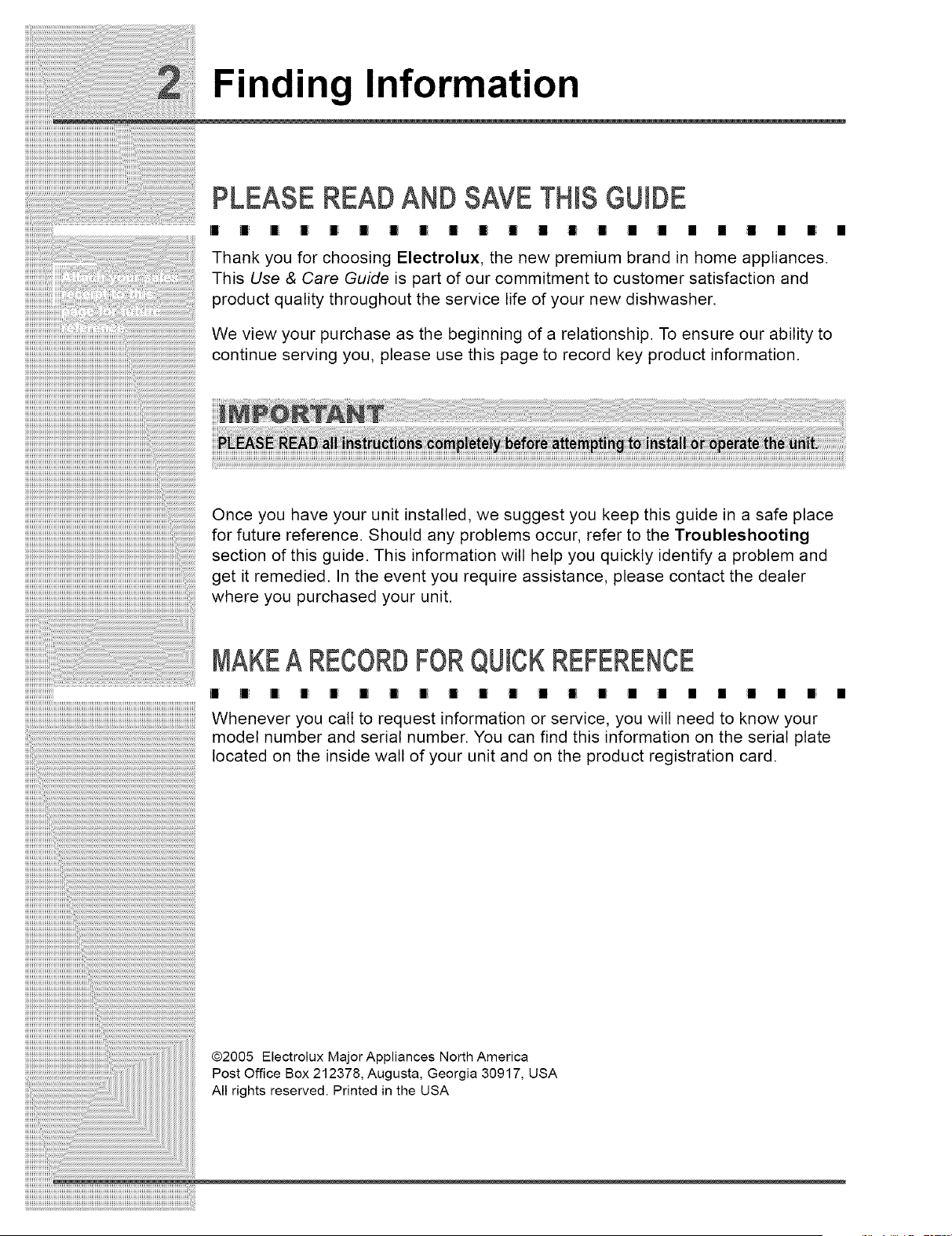

Finding Information
PLEASEREADAND SAVETHiS GUIDE
[] i i I i I I i I | I I I I I I • • i • •
Thank you for choosing Electrolux, the new premium brand in home appliances.
This Use & Care Guide is part of our commitment to customer satisfaction and
product quality throughout the service life of your new dishwasher.
We view your purchase as the beginning of a relationship. To ensure our ability to
continue serving you, please use this page to record key product information.
Once you have your unit installed, we suggest you keep this guide in a safe place
for future reference. Should any problems occur, refer to the Troubleshooting
section of this guide. This information will help you quickly identify a problem and
get it remedied. In the event you require assistance, please contact the dealer
where you purchased your unit.
MAKEA RECORDFORQUICKREFERENCE
i | i | | i | | I | | | | | m | • • i • •
Whenever you call to request information or service, you will need to know your
model number and serial number. You can find this information on the serial plate
located on the inside wall of your unit and on the product registration card.
@2005 Electrolux MajorAppliances North America
Post Office Box 212378, Augusta, Georgia 30917, USA
All rights reserved. Printed in the USA
Finding Information

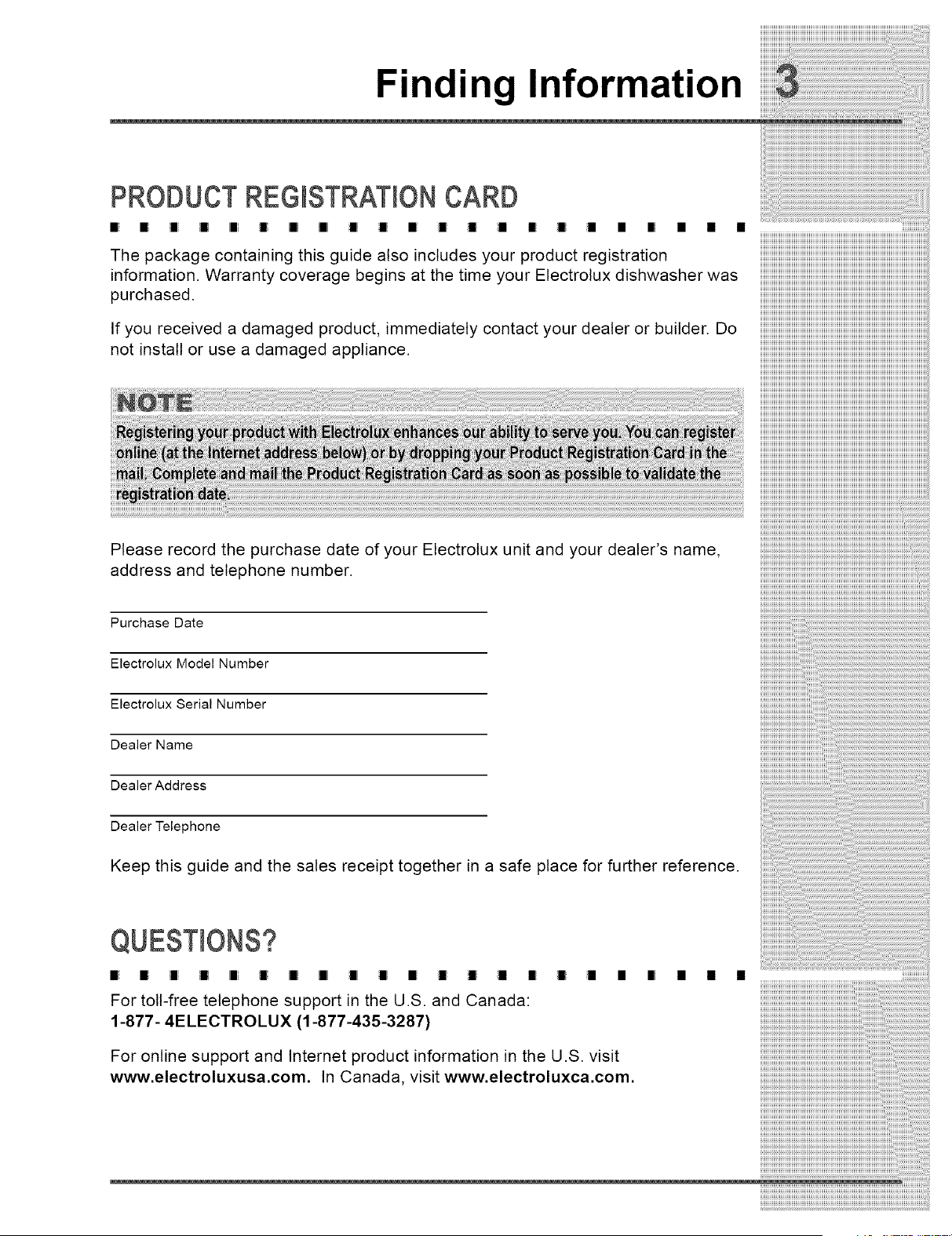

PRODUCT REGiSTRATiON CARD
Electrolux Model Number
Electrolux Serial Number
Dealer Name
Dealer Address
Dealer Telephone
Keep this guide and the sales receipt together in a safe place for further reference.
QUESTIONS?
For toll-freetelephone support inthe UISI and Canada:
1-877- 4ELECTROLUX (1-877-435-3287)
For online support and Intemet product information in the U.S. visit
www.electroluxusa.com. In Canada, visit www.electroluxca.com.
• I • •
Finding Information

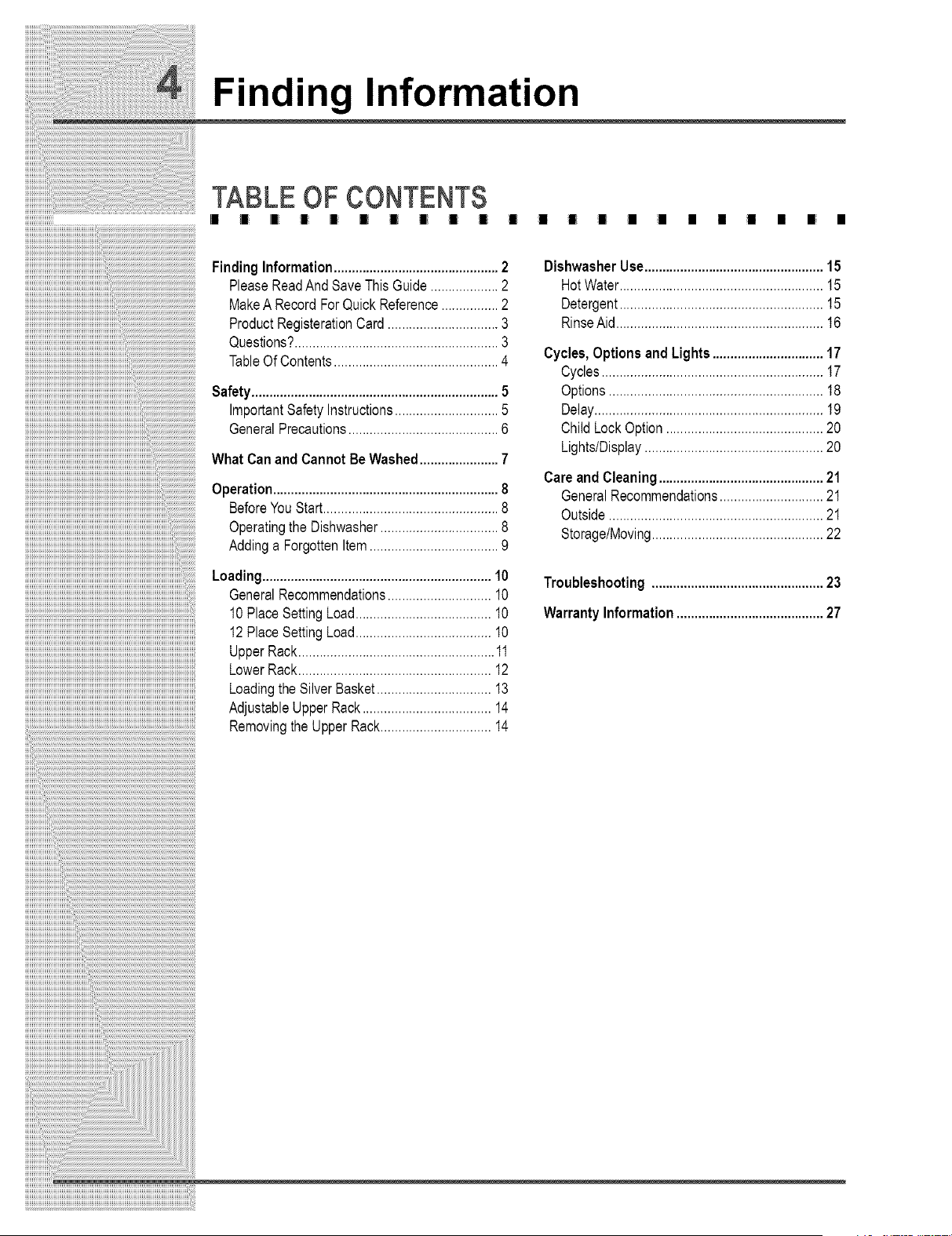

TABLE OF CONTENTS
[] | m • [] I | II m | | II | | • • • • • • • •
FindingInformation..............................................2
PleaseReadAndSaveThis Guide...................2
MakeA RecordForQuickReference................2
ProductRegisterationCard ...............................3
Questions?.........................................................3
TableOf Contents..............................................4
Safety.....................................................................5
ImportantSafetyInstructions.............................5
GeneralPrecautions..........................................6
What Can and CannotBe Washed......................7
Operation...............................................................8
BeforeYouStart.................................................8
Operatingthe Dishwasher.................................8
Addinga ForgottenItem....................................9
Loading................................................................10
GeneralRecommendations.............................10
10PlaceSettingLoad......................................10
12PlaceSettingLoad......................................10
UpperRack.......................................................11
LowerRack......................................................12
LoadingtheSilverBasket................................13
AdjustableUpperRack....................................14
Removingthe UpperRack...............................14
DishwasherUse..................................................15

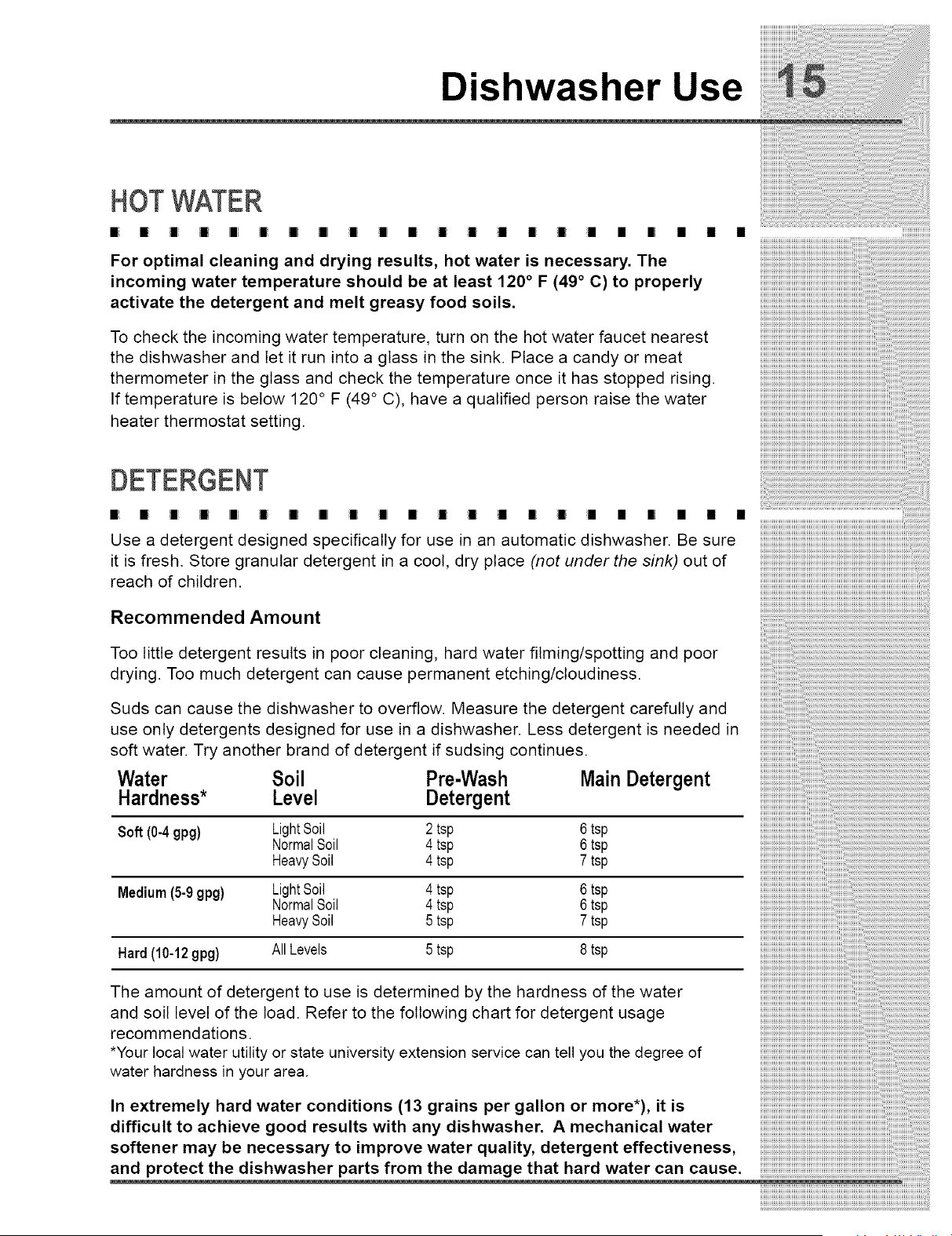

HotWater.........................................................15
Detergent.........................................................15

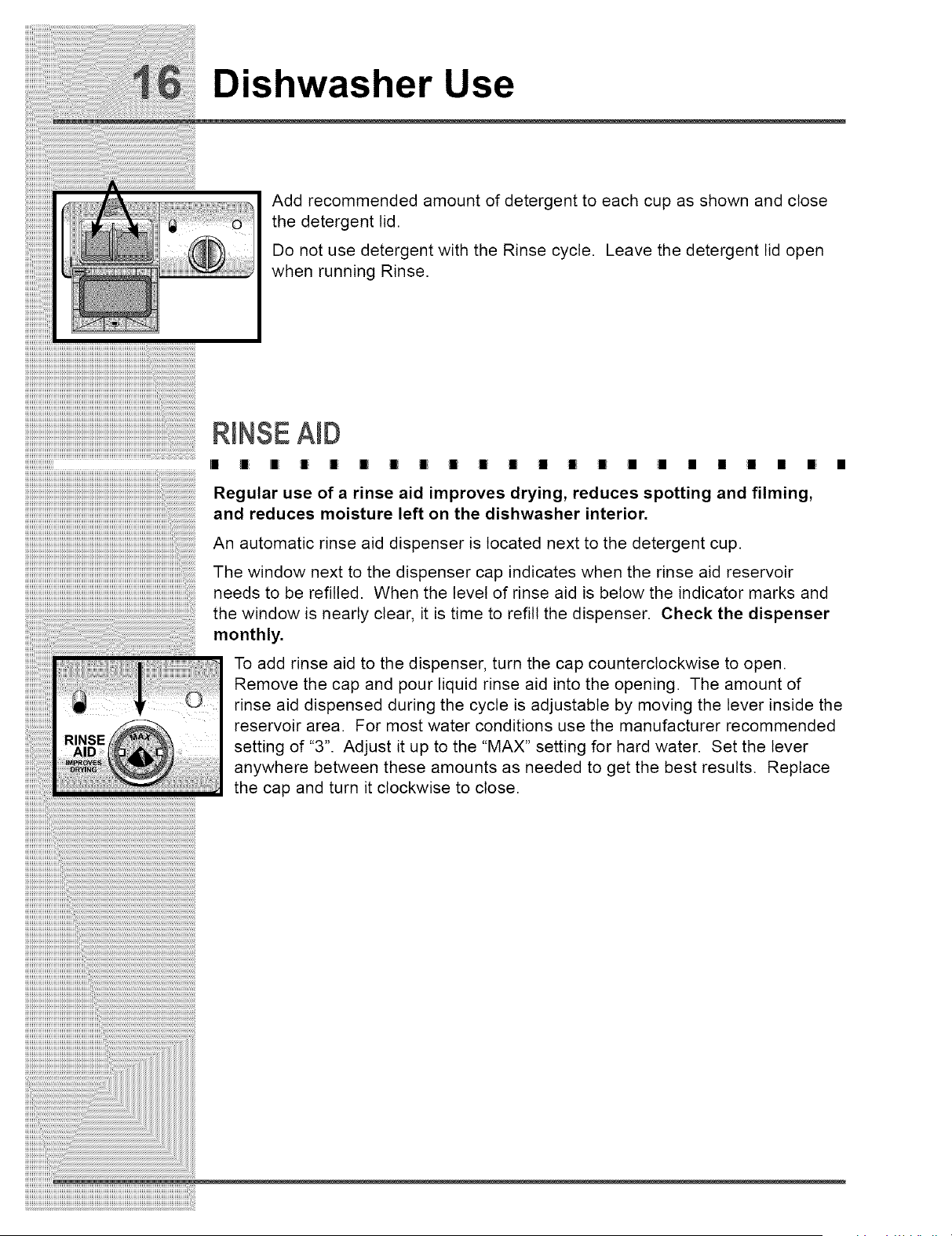

RinseAid..........................................................16

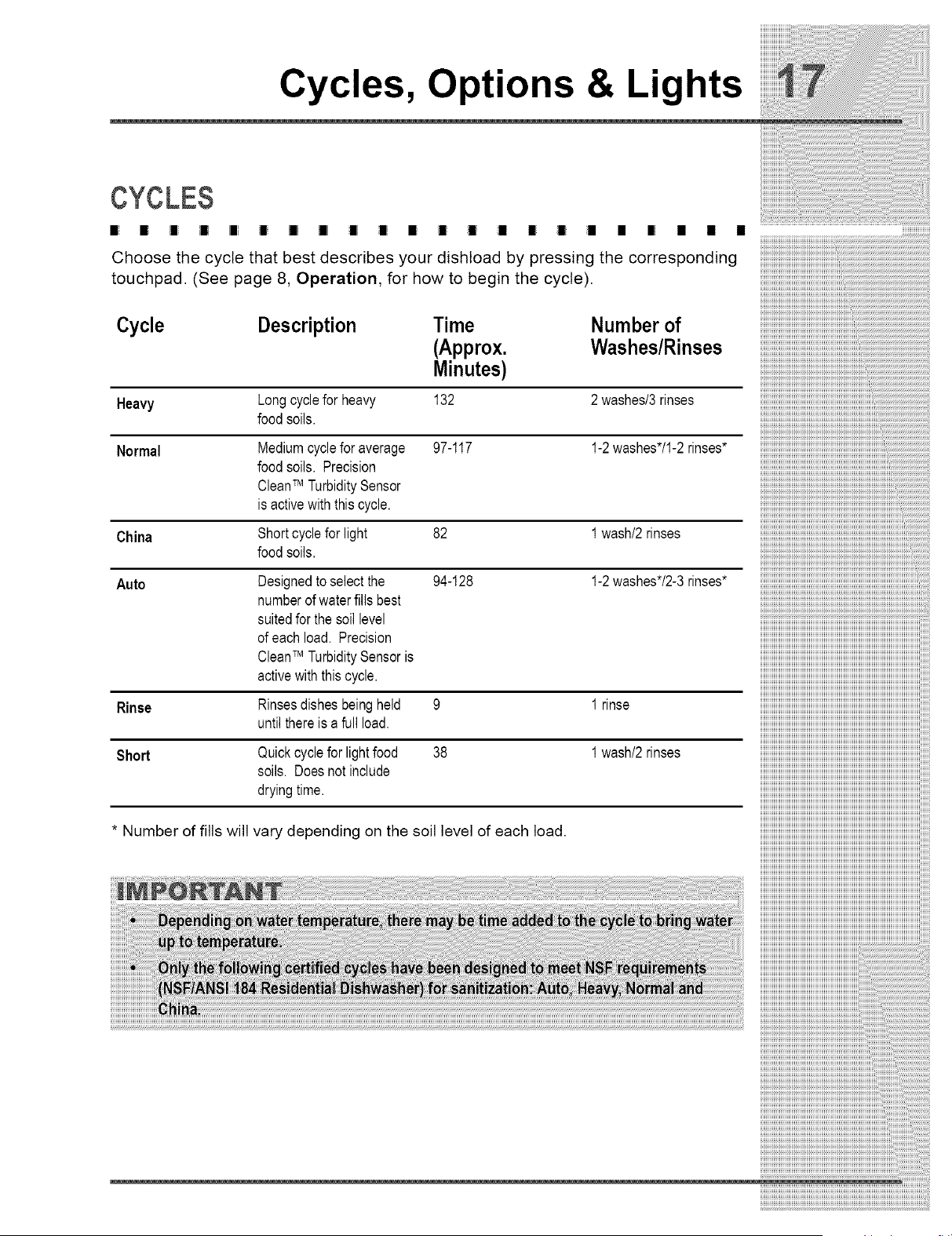

Cycles, Options andLights...............................17
Cycles..............................................................17

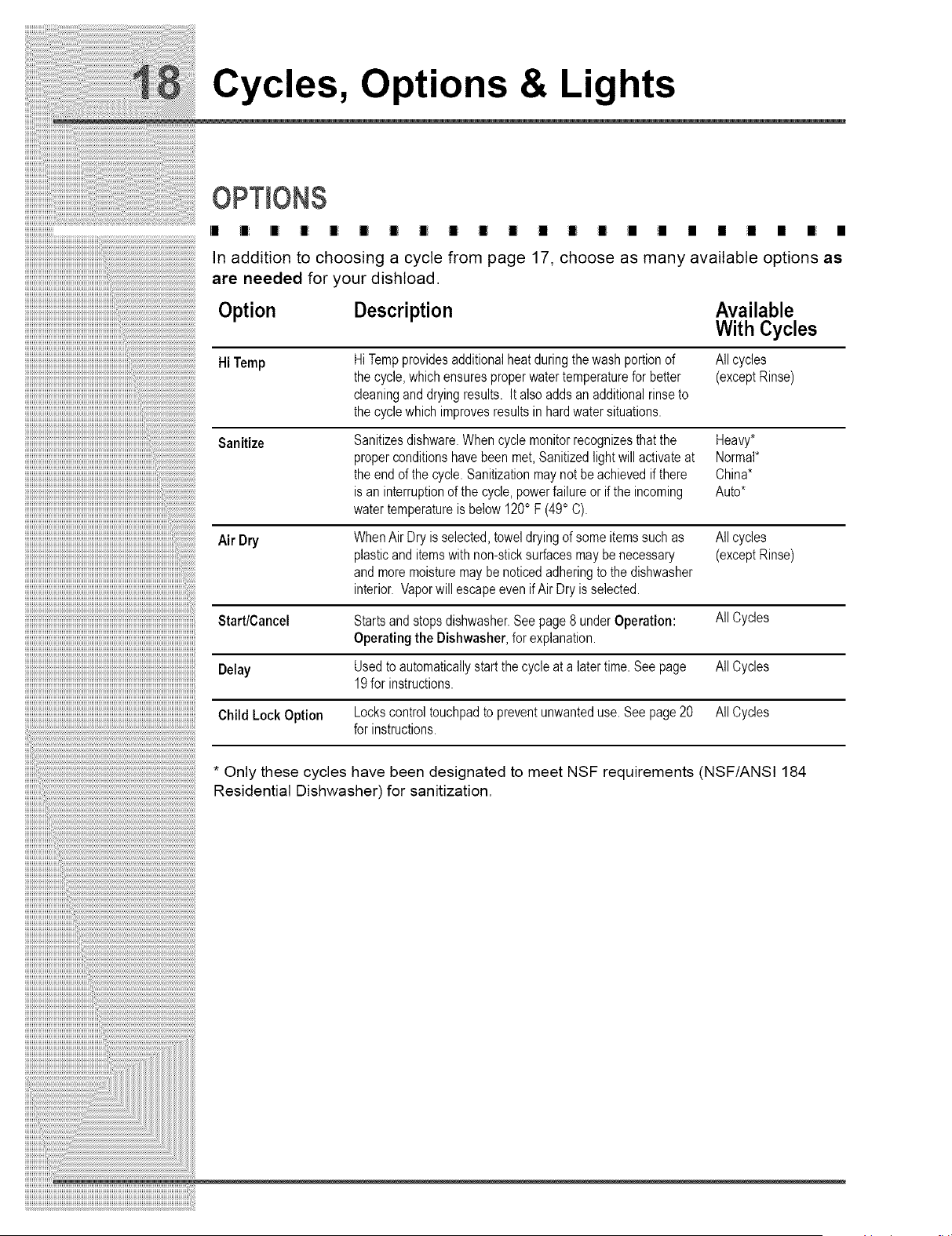

Options............................................................18

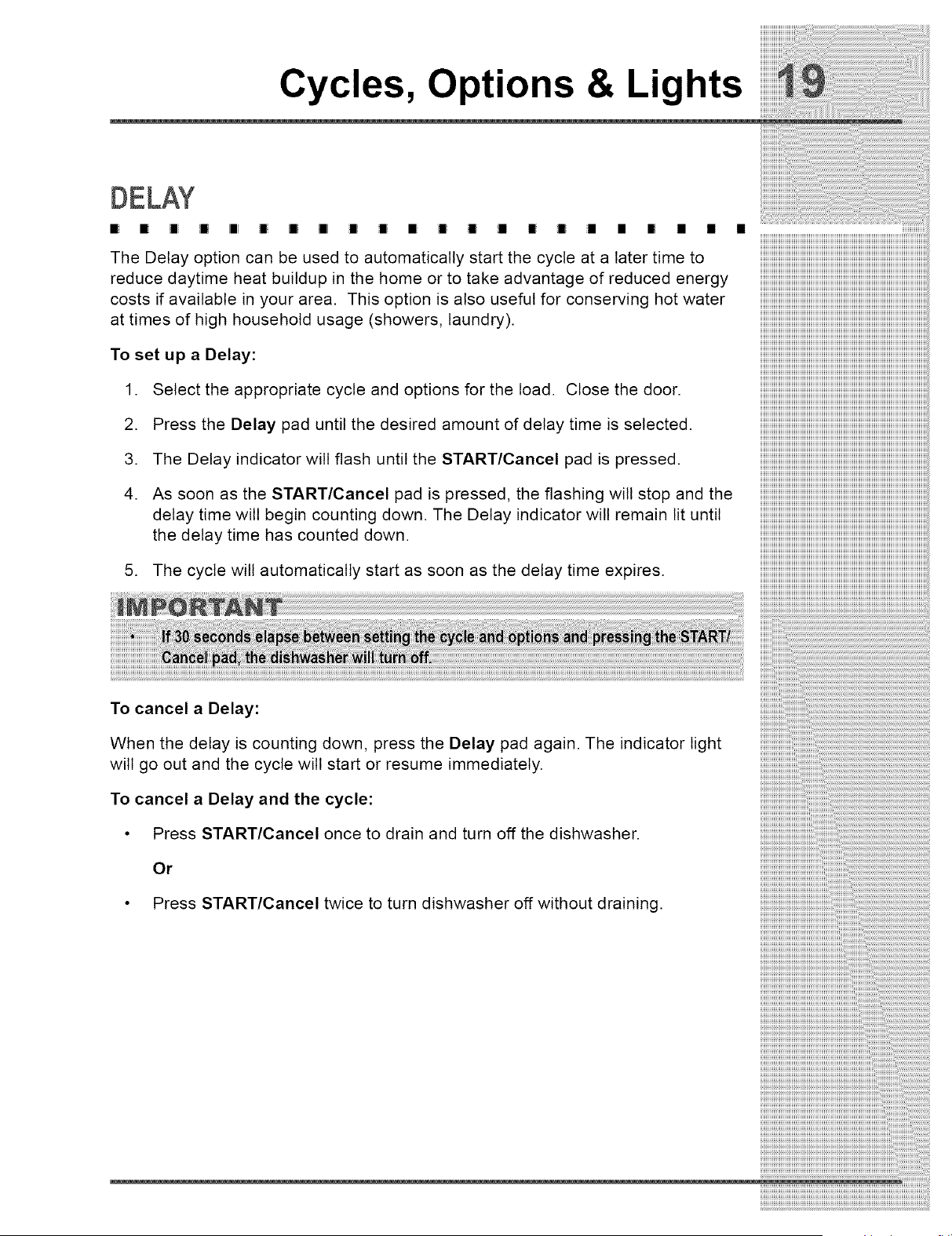

Delay................................................................19

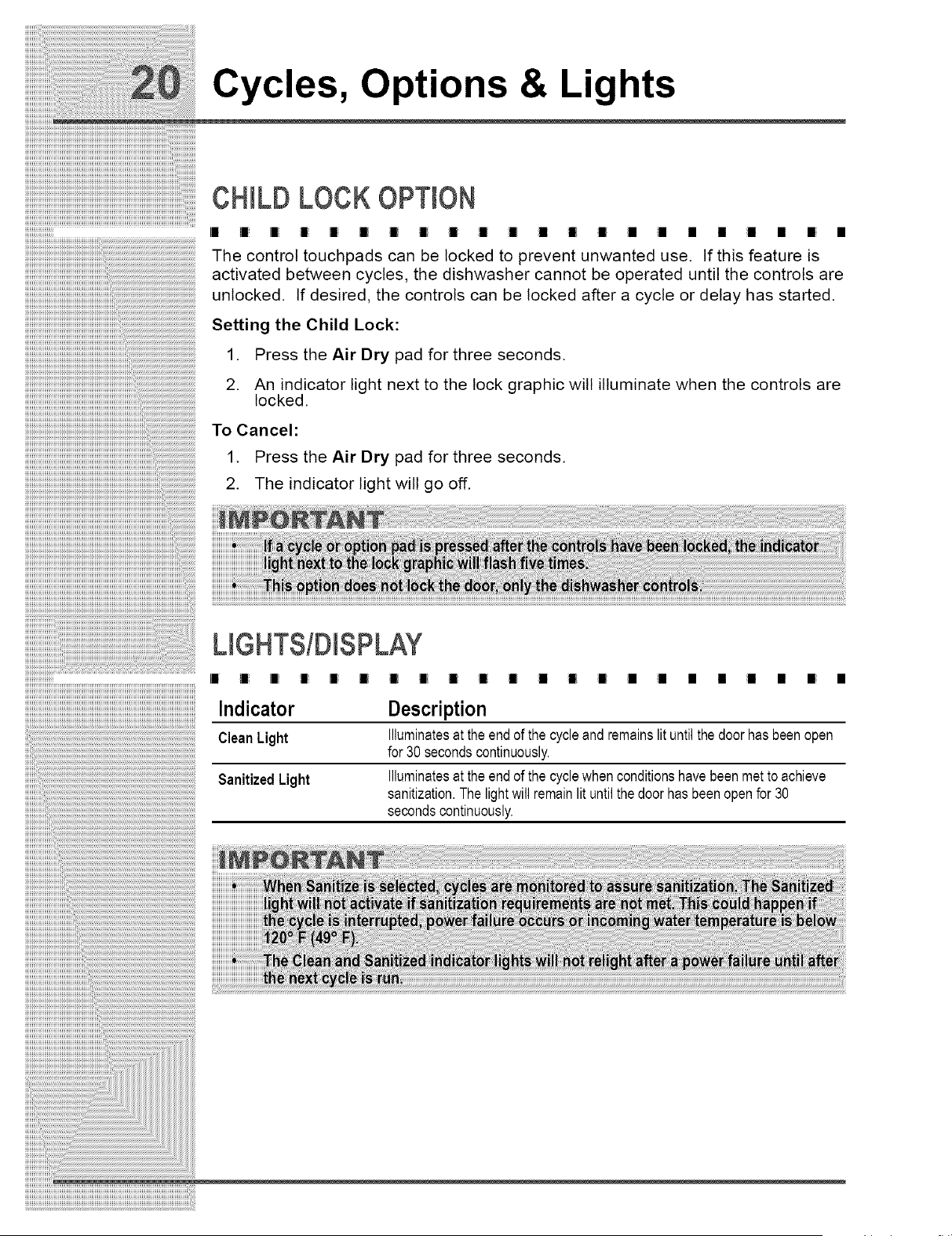

ChildLockOption............................................20
Lights/Display..................................................20

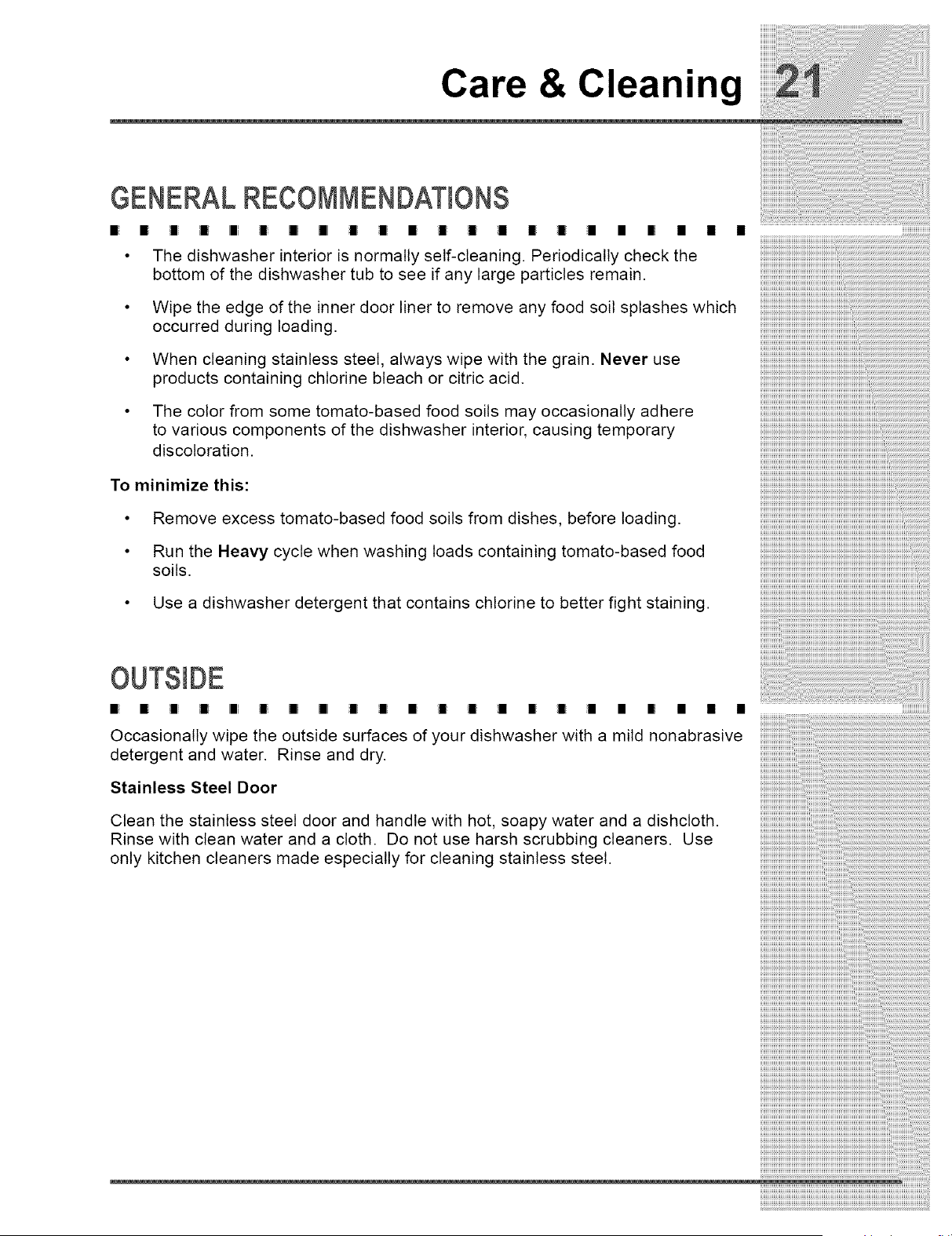

Care andCleaning..............................................21
GeneralRecommendations.............................21
Outside............................................................21

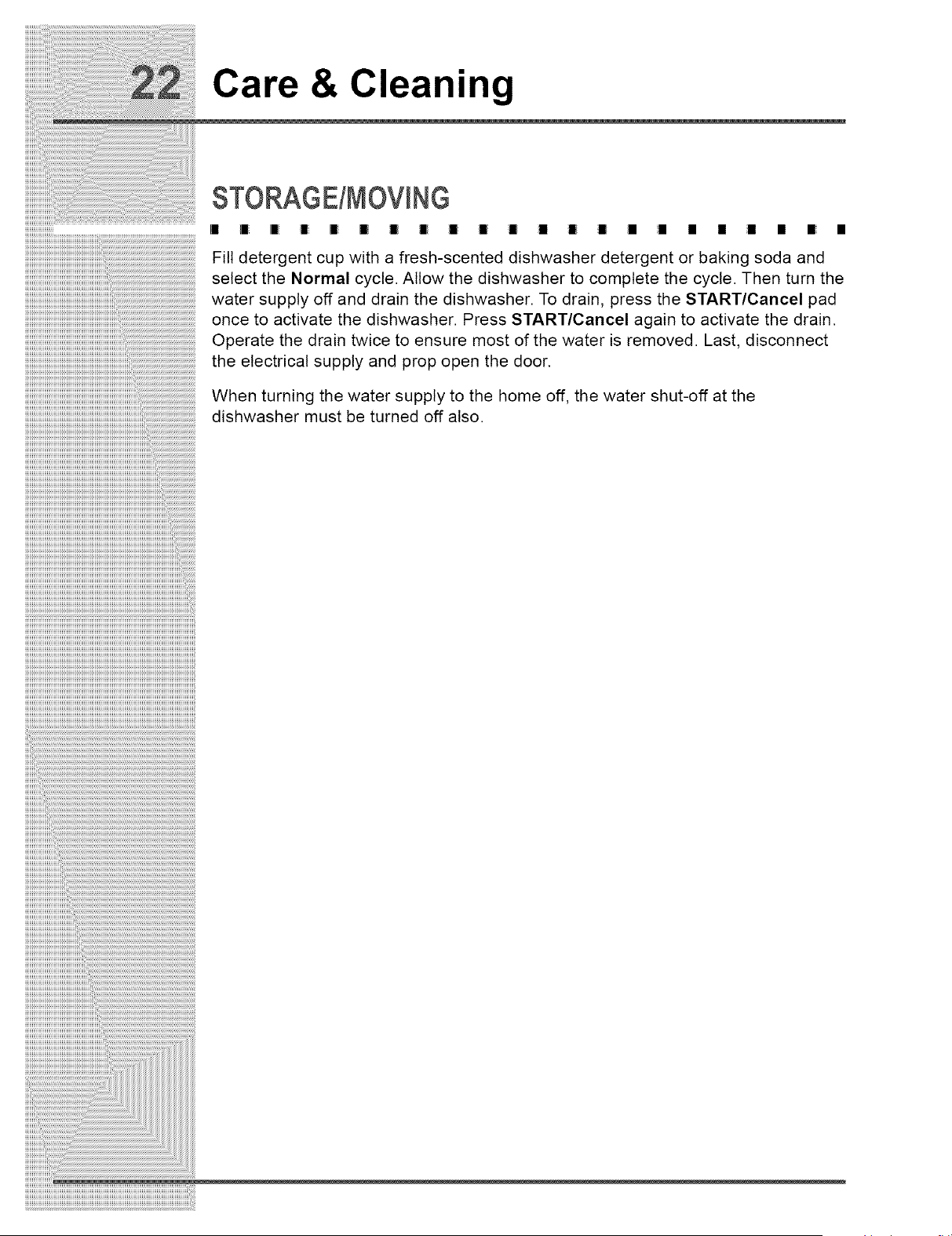

Storage/Moving................................................22

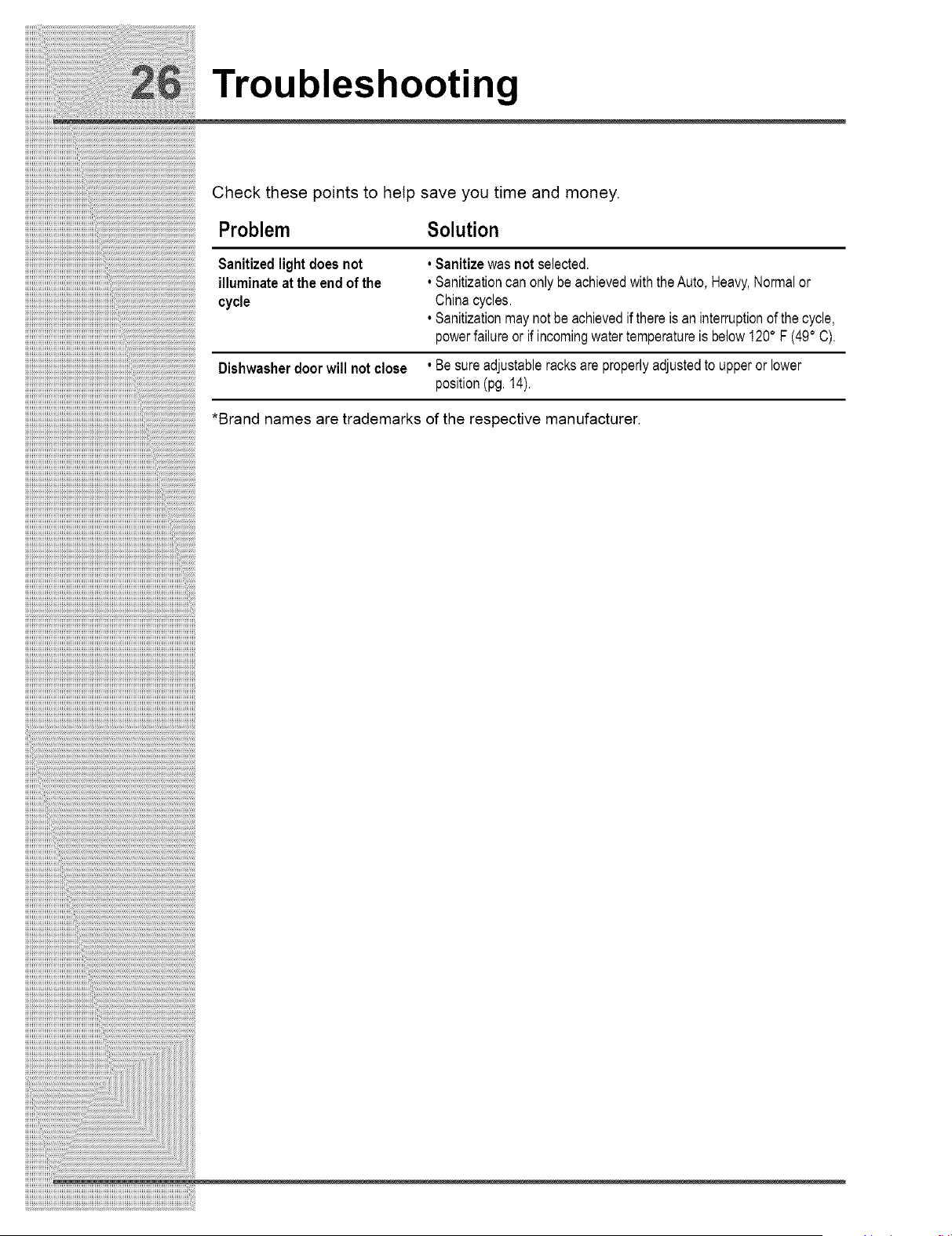

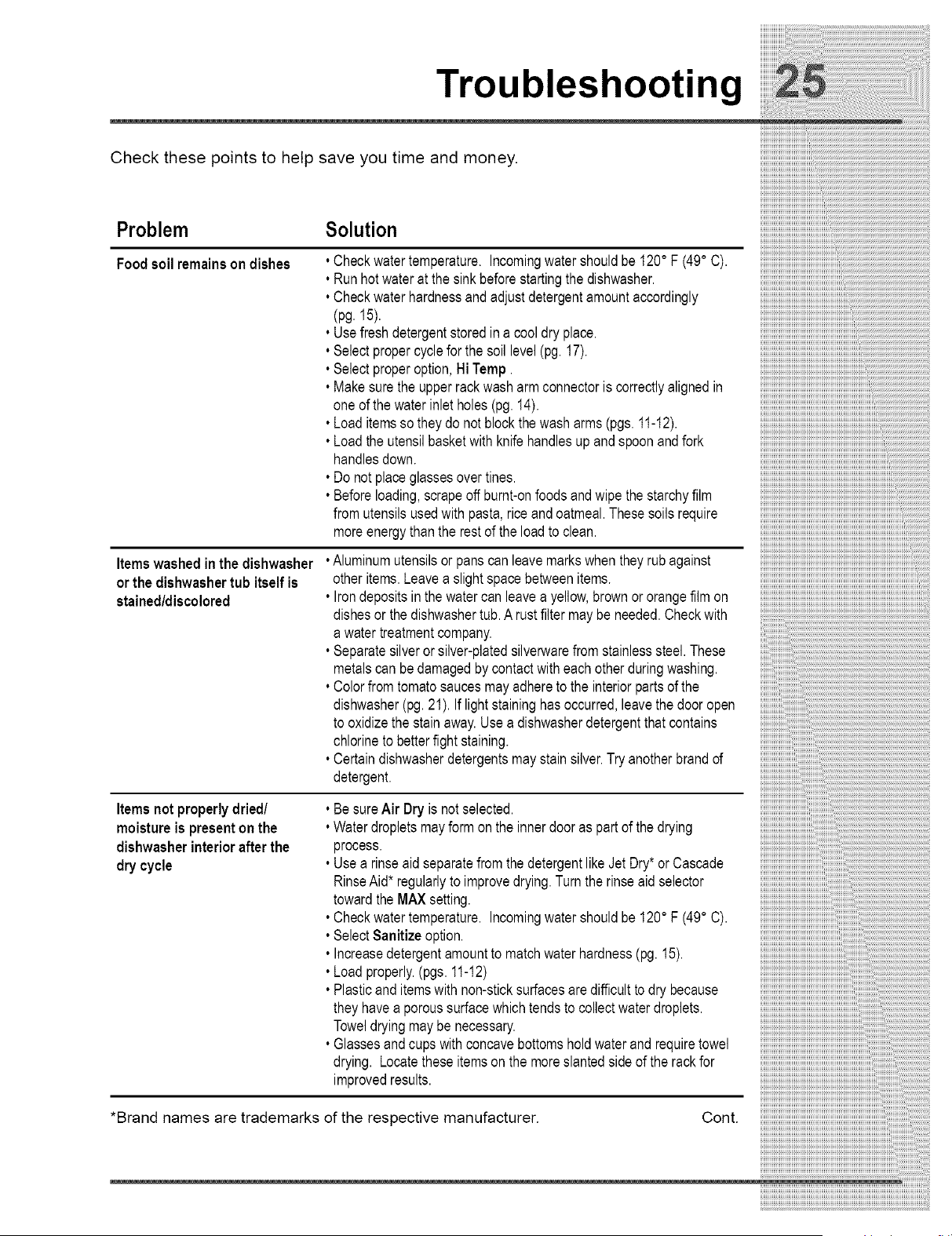

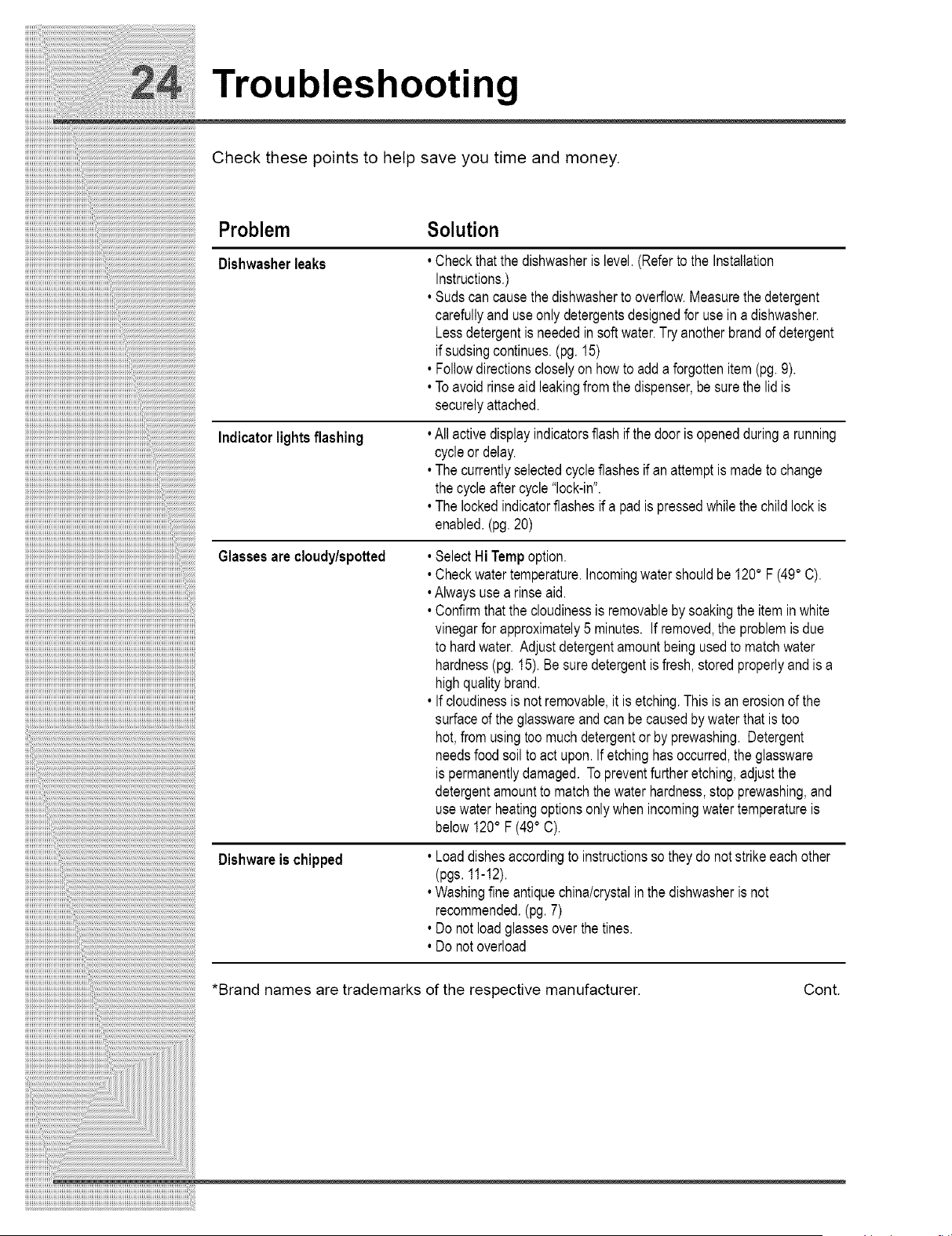

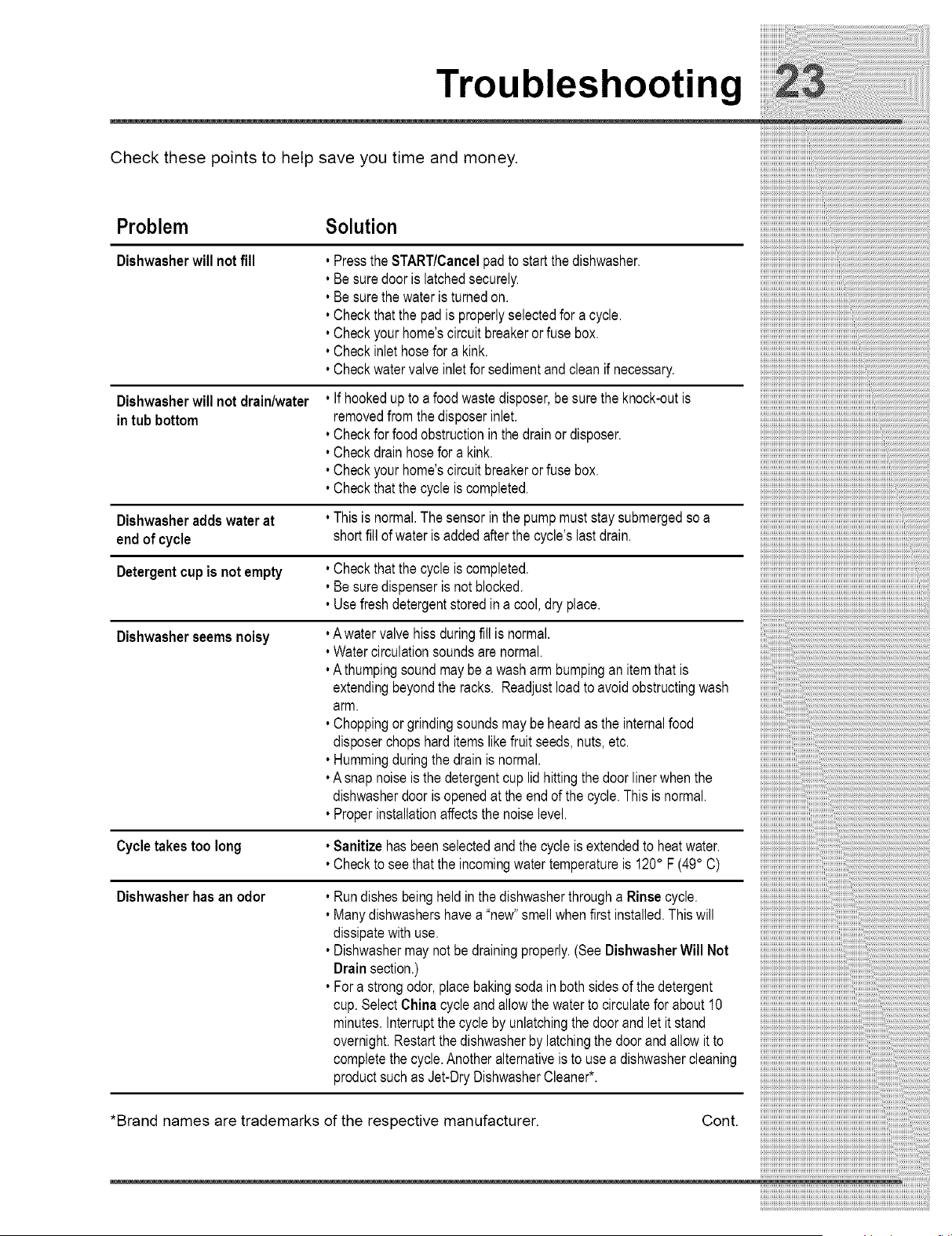

Troubleshooting ................................................23

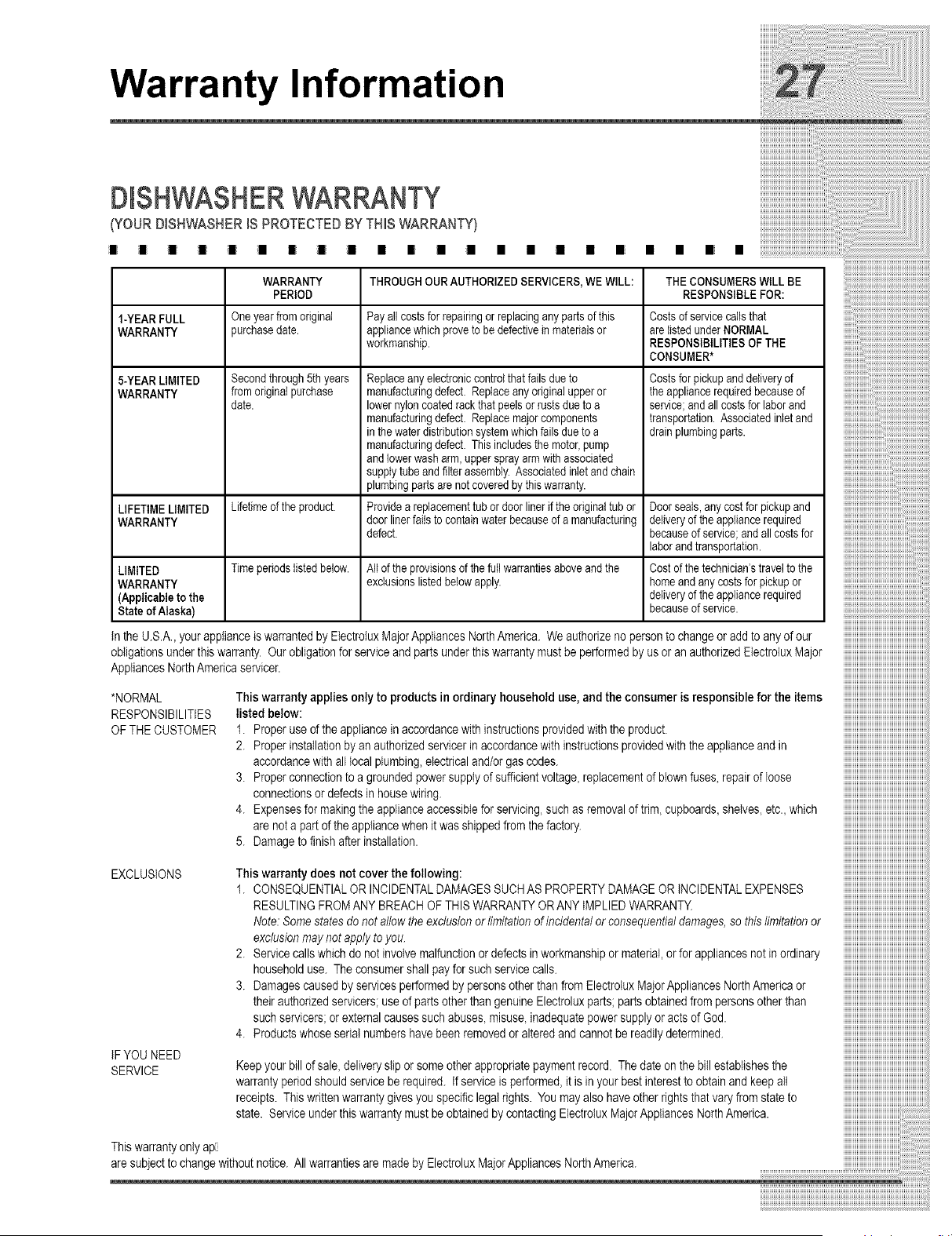

WarrantyInformation.........................................27
Safety

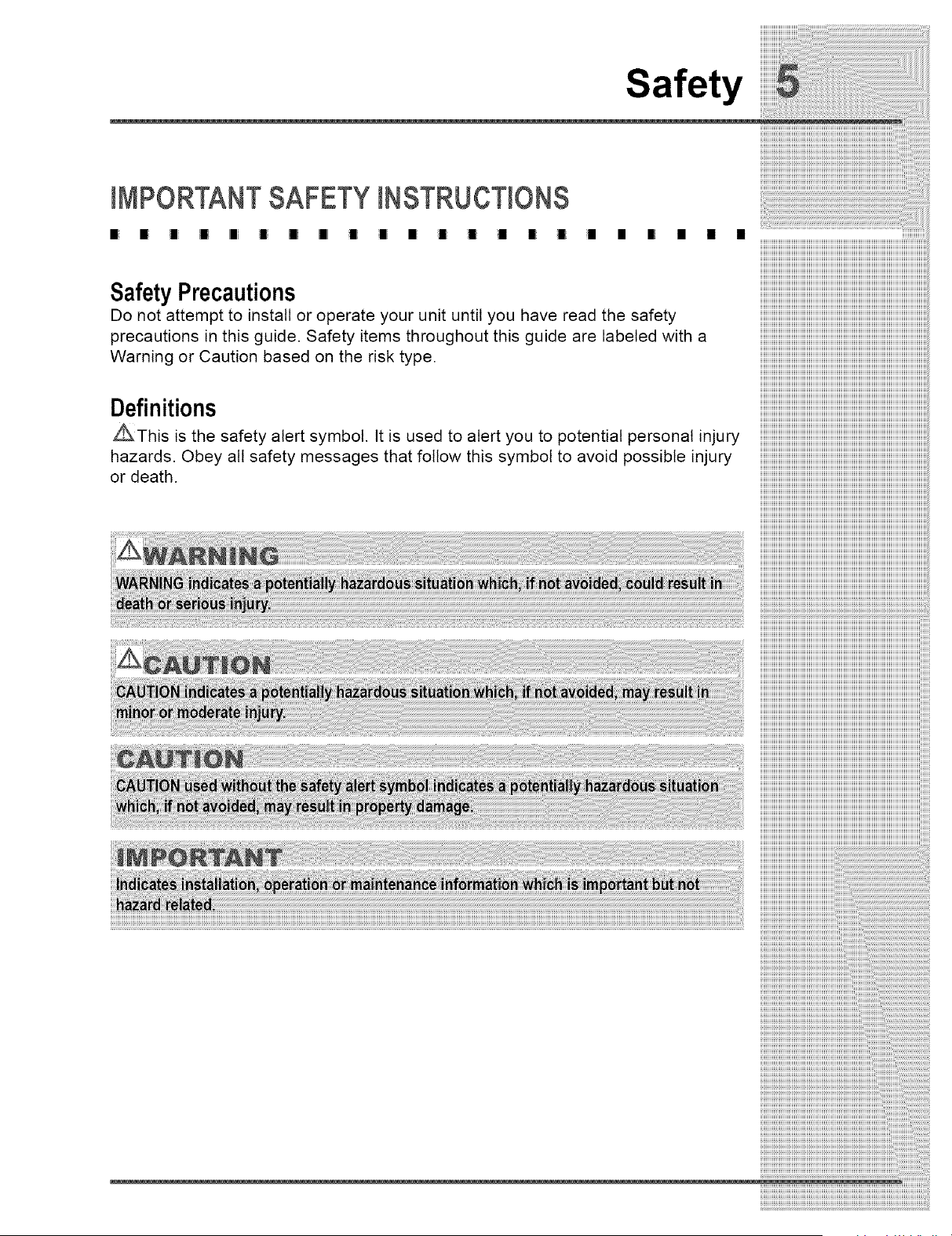

iMPORTANTSAFETYiNSTRUCTiONS
• • i I i I ! ! I I li I I I I I • • I • • •
SafetyPrecautions
Do not attempt to install or operate your unit until you have read the safety
precautions in this guide. Safety items throughout this guide are labeled with a
Warning or Caution based on the risk type.
Definitions
_This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Safety

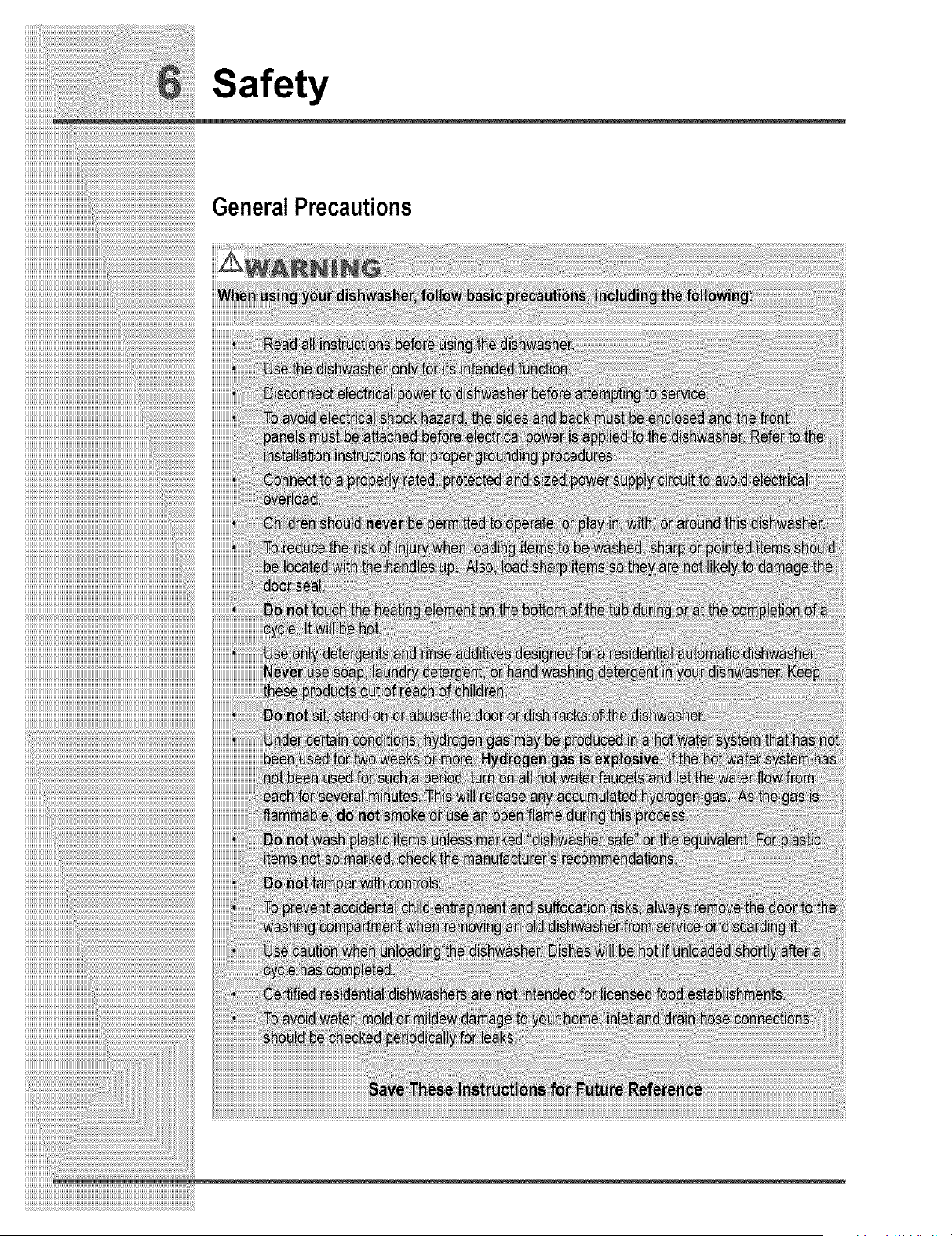

GeneralPrecautions
iiii

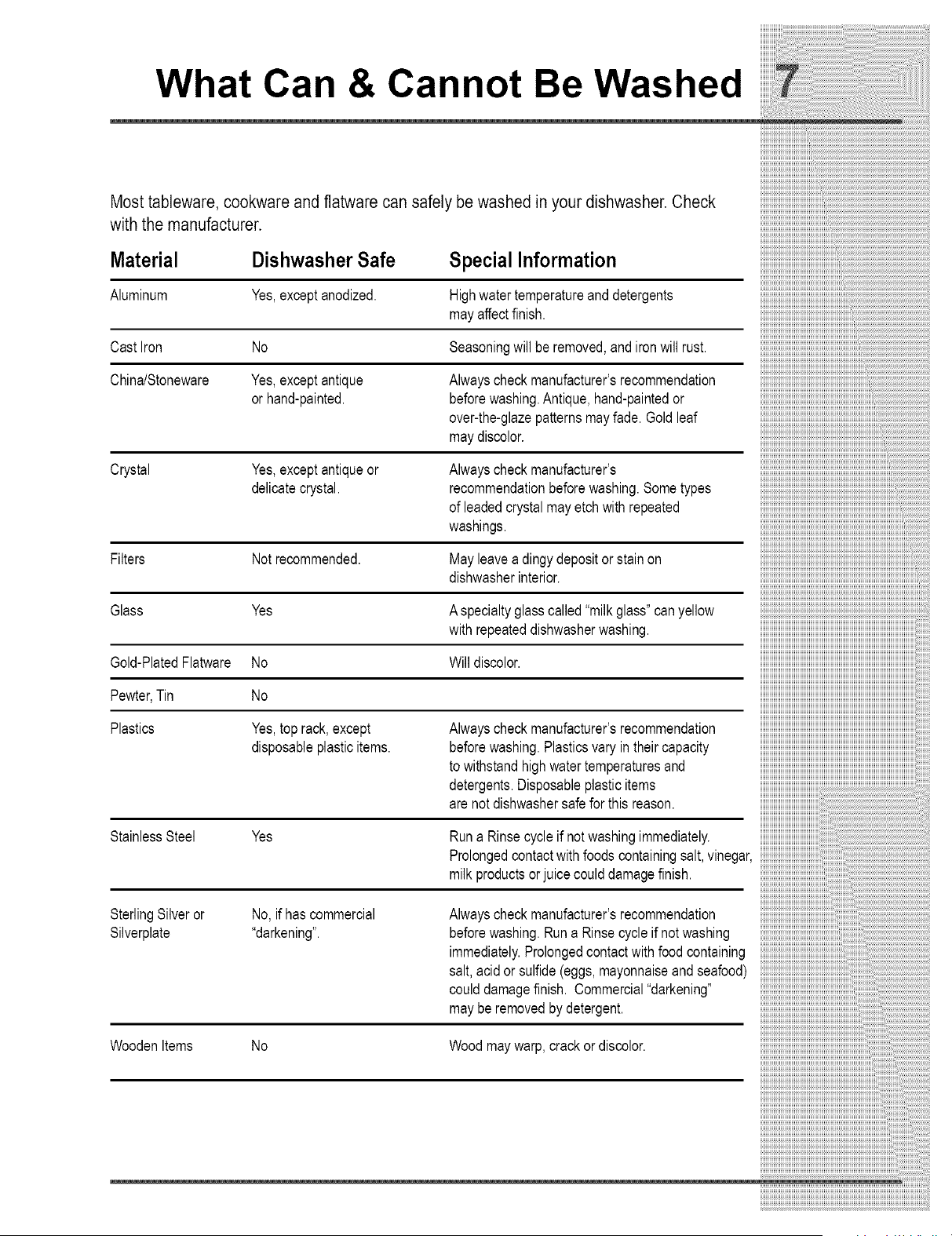

What Can & Cannot Be Washed
Most tableware, cookware and flatware can safely be washed in your dishwasher, Check
with the manufacturer.
Material DishwasherSafe Special Information
Aluminum Yes,exceptanodized. Highwatertemperatureanddetergents
mayaffectfinish.
CastIron No Seasoningwill be removed,and iron will rust.
China/Stoneware Yes,exceptantique Alwayscheckmanufacturer'srecommendation
or hand-painted, beforewashing.Antique,hand-paintedor
over-the-glazepatternsmayfade.Goldleaf
maydiscolor.
Crystal Yes,exceptantiqueor Alwayscheckmanufacturer's
delicatecrystal, recommendationbeforewashing.Sometypes
of leadedcrystalmayetchwithrepeated
washings.
Filters Notrecommended. Mayleaveadingydepositorstainon
dishwasherinterior.
Glass Yes A specialtyglass called"milkglass"canyellow
with repeateddishwasherwashing.
Gold-PlatedFlatware No Willdiscolor.
Pewter,Tin No
Plastics Yes,top rack,except Alwayscheckmanufacturer'srecommendation
disposableplasticitems, beforewashing.Plasticsvary intheircapacity
to withstandhighwatertemperaturesand
detergents.Disposableplasticitems
arenot dishwashersafefor thisreason.
StainlessSteel Yes
Runa Rinsecycleif notwashingimmediately.
Prolongedcontactwithfoodscontainingsalt,vinegar,
milkproductsorjuice coulddamagefinish.
SterlingSilveror No,if hascommercial
Silverplate "darkening".
Alwayscheckmanufacturer'srecommendation
beforewashing.Runa Rinsecycle if notwashing
immediately.Prolongedcontactwithfoodcontaining
salt,acidor sulfide(eggs,mayonnaiseand seafood)
coulddamagefinish. Commercial"darkening"
mayberemovedby detergent.
WoodenItems No Woodmaywarp,crackor discolor.

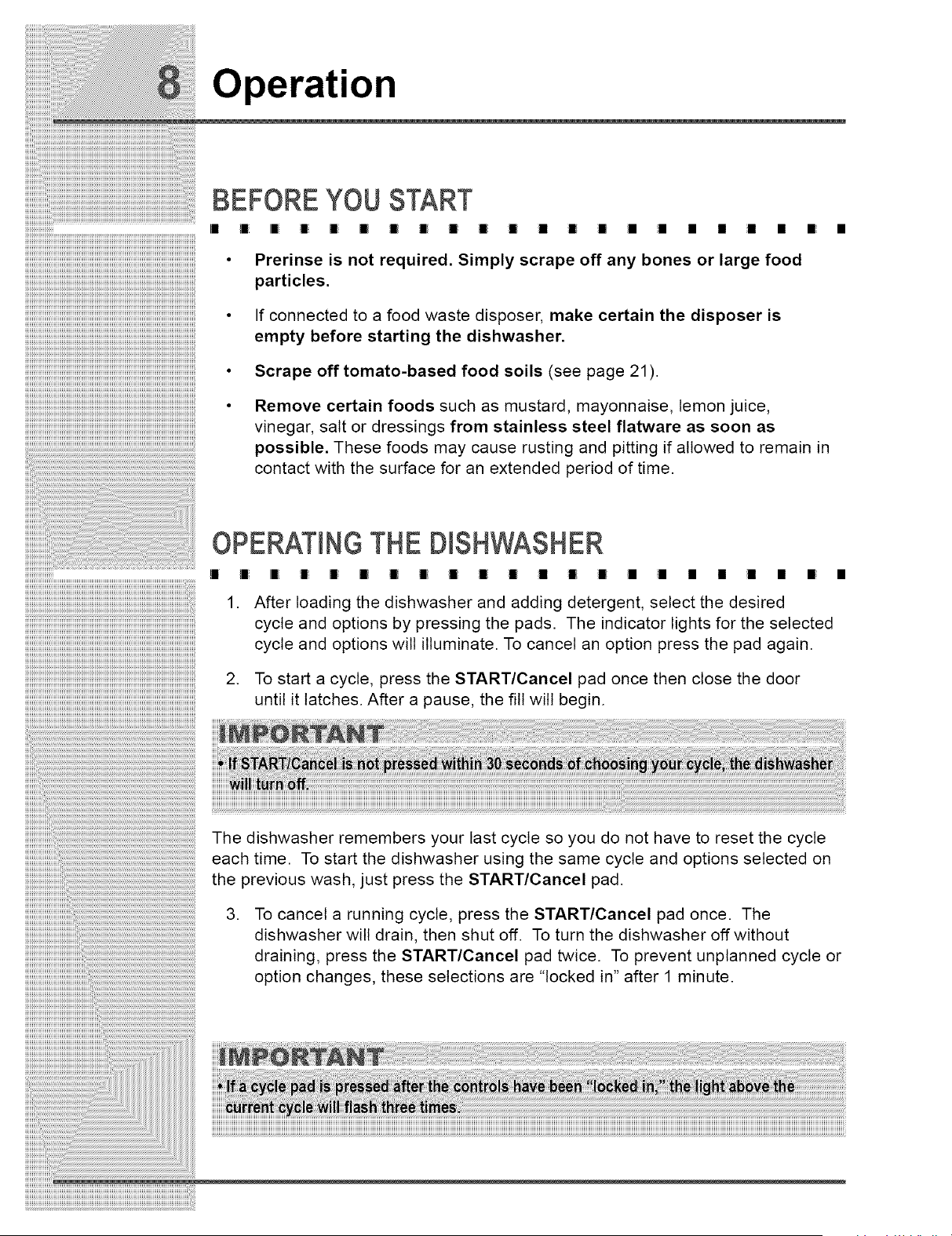

Operation
(((((((((((((((((((((
(((((((((((((((((((((
BEFORE YOU START
[] _m _ a • E = m s E • m = = m m • • m •
• Prerinse is not required. Simply scrape off any bones or large food
particles.
• If connected to a food waste disposer, make certain the disposer is
empty before starting the dishwasher.
• Scrape off tomato-based food soils (see page 21 ).
Remove certain foods such as mustard, mayonnaise, lemon juice,
vinegar, salt or dressings from stainless steel flatware as soon as
possible. These foods may cause rusting and pitting if allowed to remain in
contact with the surface for an extended period of time.
OPERATINGTHE DISHWASHER
( ( ( m i ( = m s ( = m = ( m m • • m • •
1m After loading the dishwasher and adding detergent, select the desired
cycle and options by pressing the pads. The indicator lights for the selected
cycle and options will illuminate. To cancel an option press the pad again.
2. To start a cycle, press the START/Cancel pad once then close the door
until it latches. After a pause, the fill will begin.
The dishwasher remembers your last cycle so you do not have to reset the cycle
each time. To start the dishwasher using the same cycle and options selected on
the previous wash, just press the START/Cancel pad.
To cancel a running cycle, press the START/Cancel pad once. The
dishwasher will drain, then shut off. To turn the dishwasher off without
draining, press the START/Cancel pad twice. To prevent unplanned cycle or
option changes, these selections are "locked in" after 1 minute.
Operation

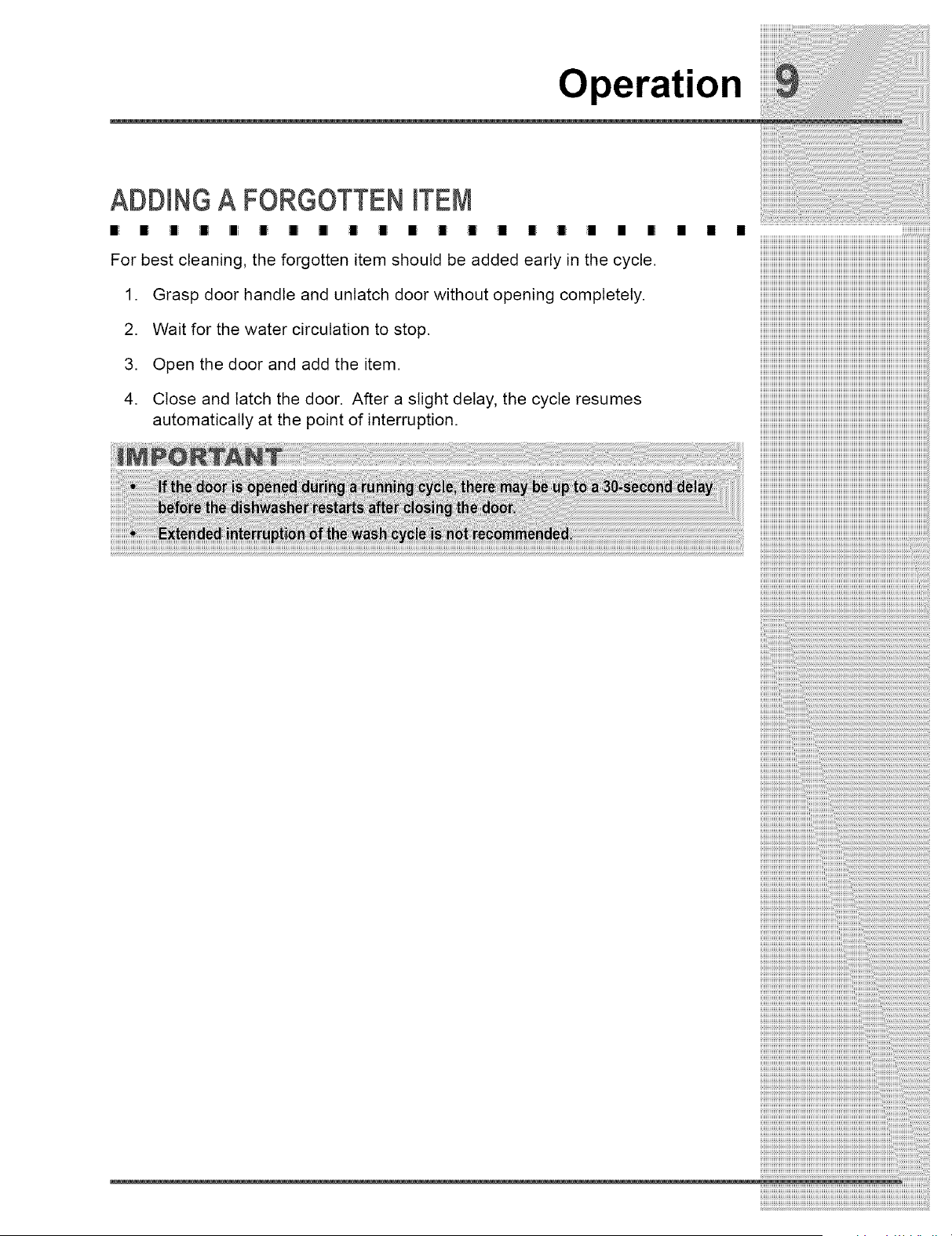

ADDING A FORGOTTEN iTEM
I • i I i i ! ! ;i I I| | | ;| | ! • • I • • •
For best cleaning, the forgotten item should be added early in the cycle.
1. Grasp door handle and unlatch door without opening completely.
2. Wait for the water circulation to stop.
3. Open the door and add the item.
4. Close and latch the door. After a slight delay, the cycle resumes
automatically at the point of interruption.
Loading

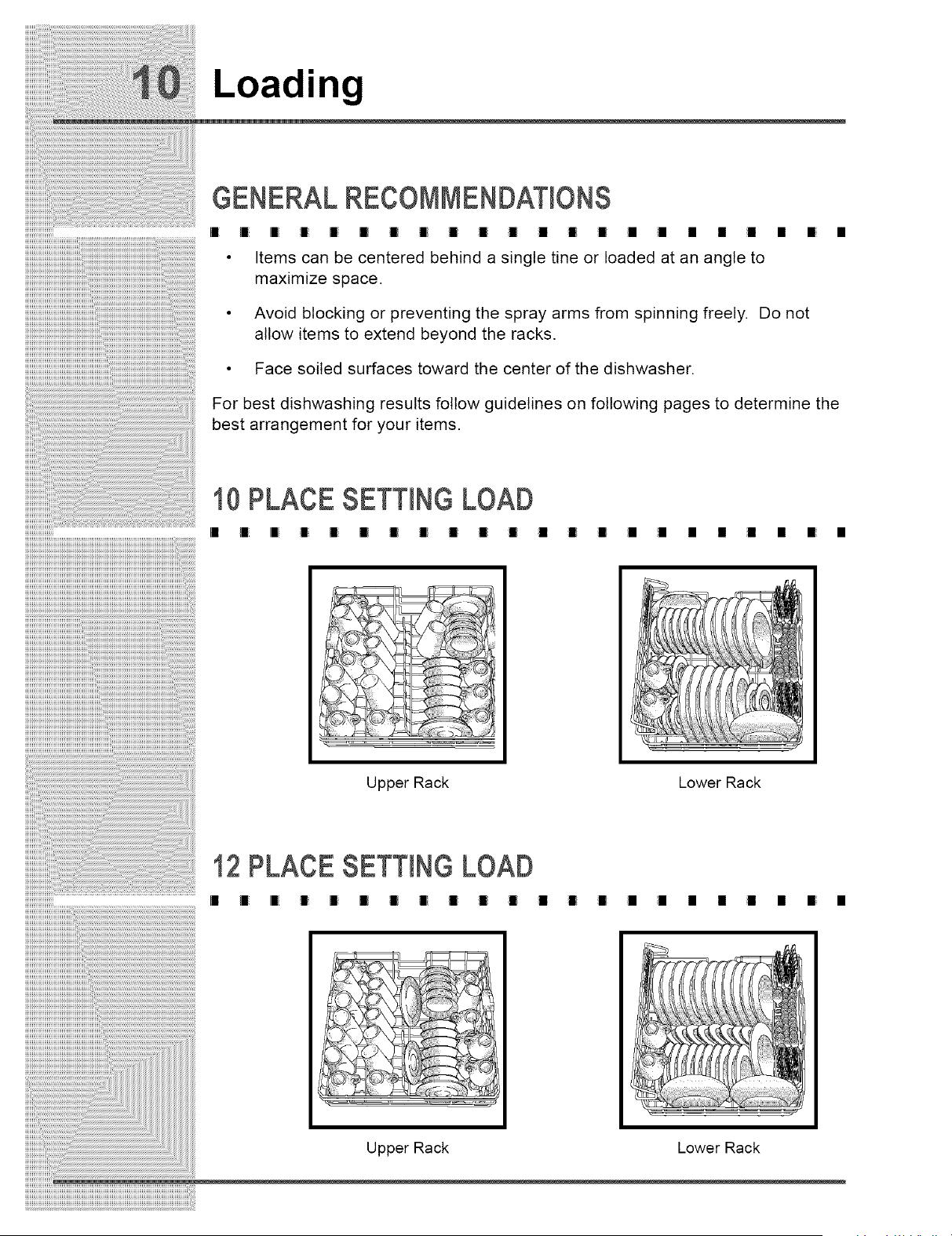

GENERAL RECOMMENDATIONS
[] i i i i i i _1 i I i I i i I I • • ! • I •
• items can be centered behind a single tine or loaded at an angle to
maximize space.
• Avoid blocking or preventing the spray arms from spinning freely. Do not
allow items to extend beyond the racks.
• Face soiled surfaces toward the center of the dishwasher.
For best dishwashing results follow guidelines on following pages to determine the
best arrangement for your items.
10 PLACE SETTING LOAD
[] i i I i I I i I | I :1 I I I I • • I • • •
Upper Rack Lower Rack
12 PLACE SETTING LOAD
[] i i I i I I i I | I :1 I I I I • • I • • •
Upper Rack Lower Rack
Loading

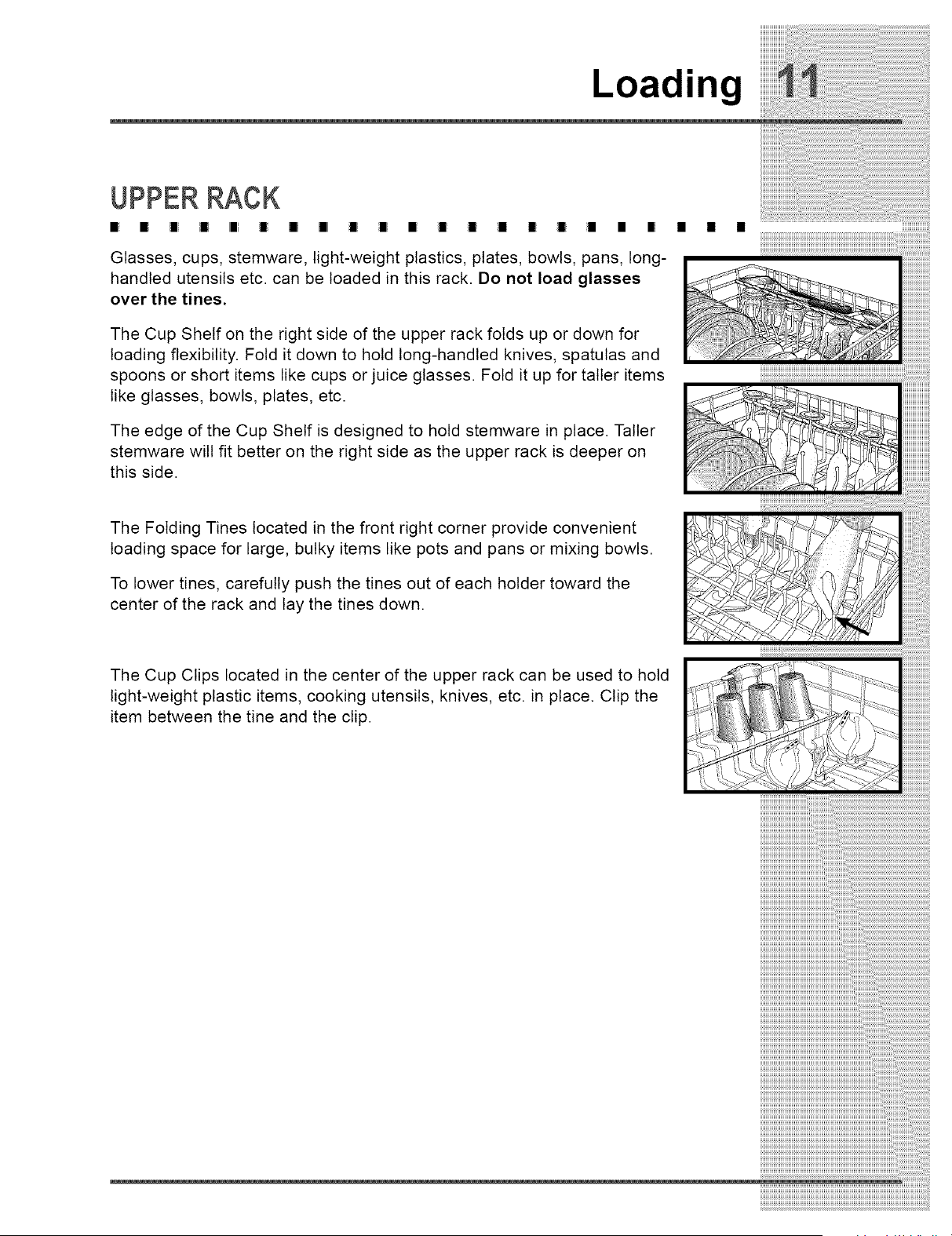

UPPER RACK
• • I I I I I I I I II II II ! I I • • I
Glasses, cups, stemware, light-weight plastics, plates, bowls, pans, long-
handled utensils etc. can be loaded in this rack. Do not load glasses
over the tines.
The Cup Shelf on the right side of the upper rack folds up or down for
loading flexibility. Fold it down to hold long-handled knives, spatulas and
spoons or short items like cups or juice glasses. Fold it up for taller items
like glasses, bowls, plates, etc.
The edge of the Cup Shelf is designed to hold stemware in place. Taller
stemware will fit better on the right side as the upper rack is deeper on
this side.
The Folding Tines located in the front right corner provide convenient
loading space for large, bulky items like pots and pans or mixing bowls.
To lower tines, carefully push the tines out of each holder toward the
center of the rack and lay the tines down.
The Cup Clips located in the center of the upper rack can be used to hold
light-weight plastic items, cooking utensils, knives, etc. in place. Clip the
item between the tine and the clip.
• • •
Loading

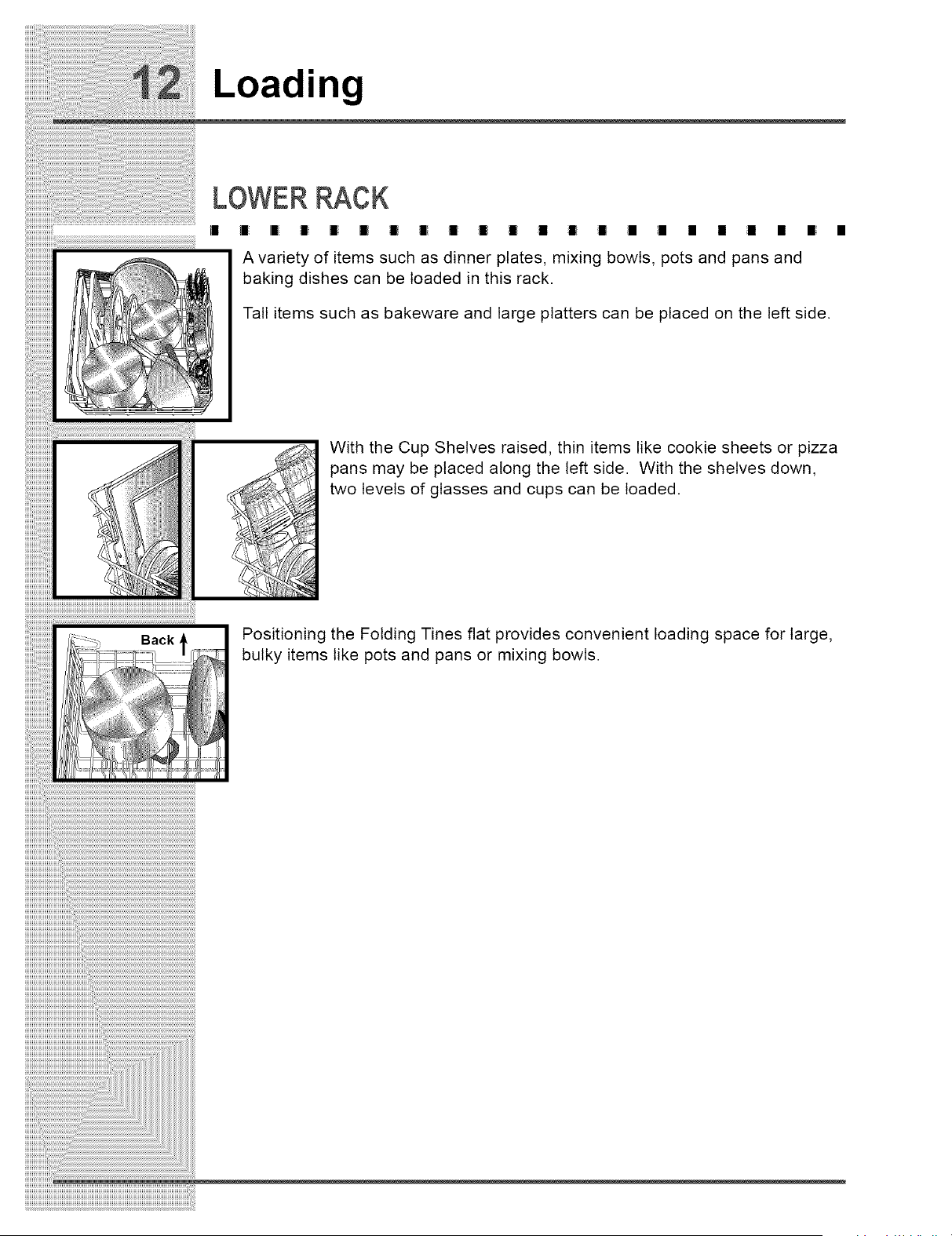

LOWER RACK
i i i I i I I i I | I :1 I I I I • • I • • •
A variety of items such as dinner plates, mixing bowls, pots and pans and
baking dishes can be loaded in this rack.
Tall items such as bakeware and large platters can be placed on the left side.
With the Cup Shelves raised, thin items like cookie sheets or pizza
pans may be placed along the left side. With the shelves down,
two levels of glasses and cups can be loaded.
Positioning the Folding Tines flat provides convenient loading space for large,
bulky items like pots and pans or mixing bowls.
Loading

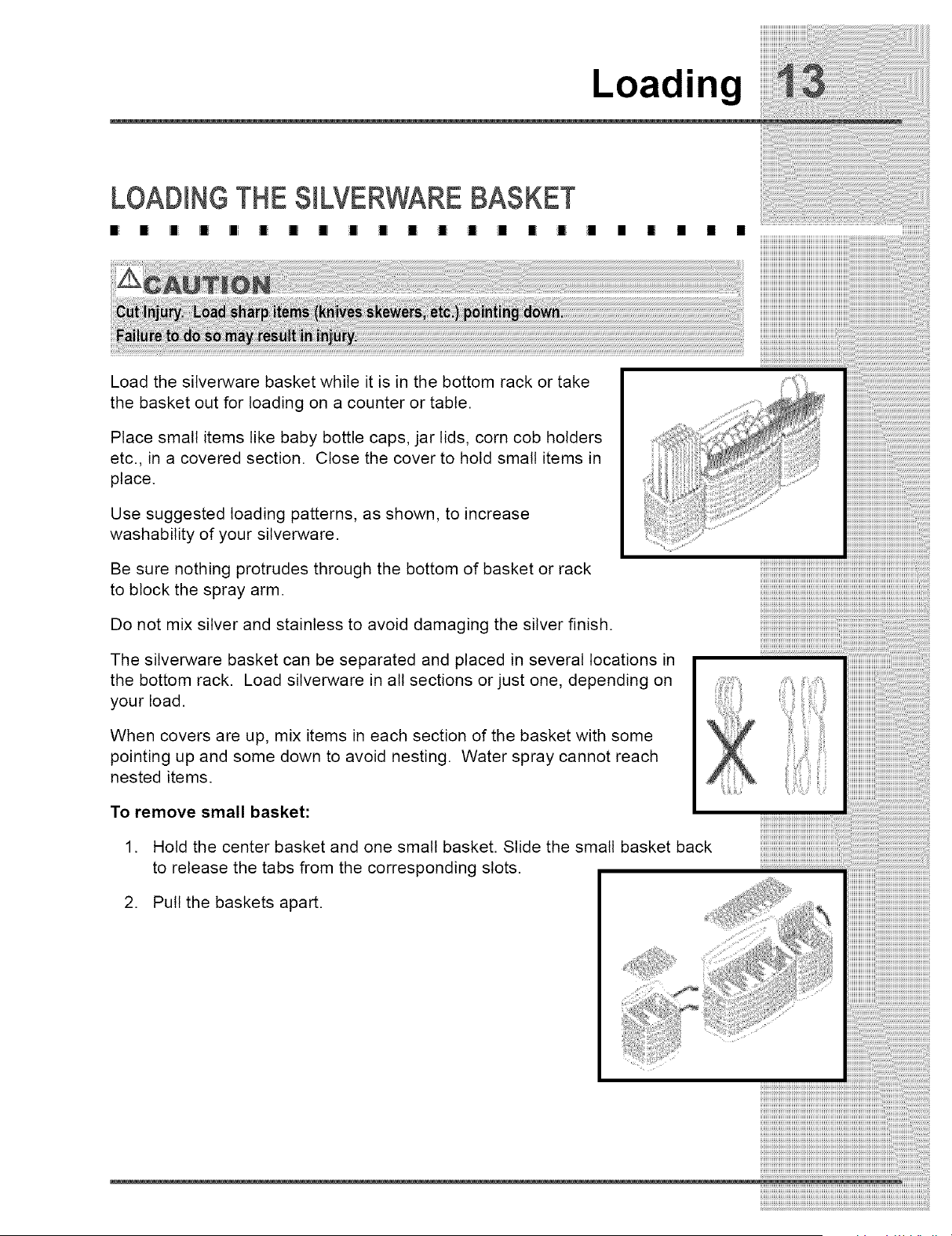

LOADING THE SILVERWAREBASKET
I • [] ! I i I I I I I I I • I I
Load the silverware basket while it Jsin the bottom rack or take
the basket out for loading on a counter or table.
Place small Jtems like baby bottle caps, jar lids, corn cob holders
etc., in a covered section. Close the cover to hold small items in
place.
Use suggested loading patterns, as shown, to Jncrease
washability of your silverware.
Be sure nothing protrudes through the bottom of basket or rack
to block the spray arm.
I • E • • •
Loading

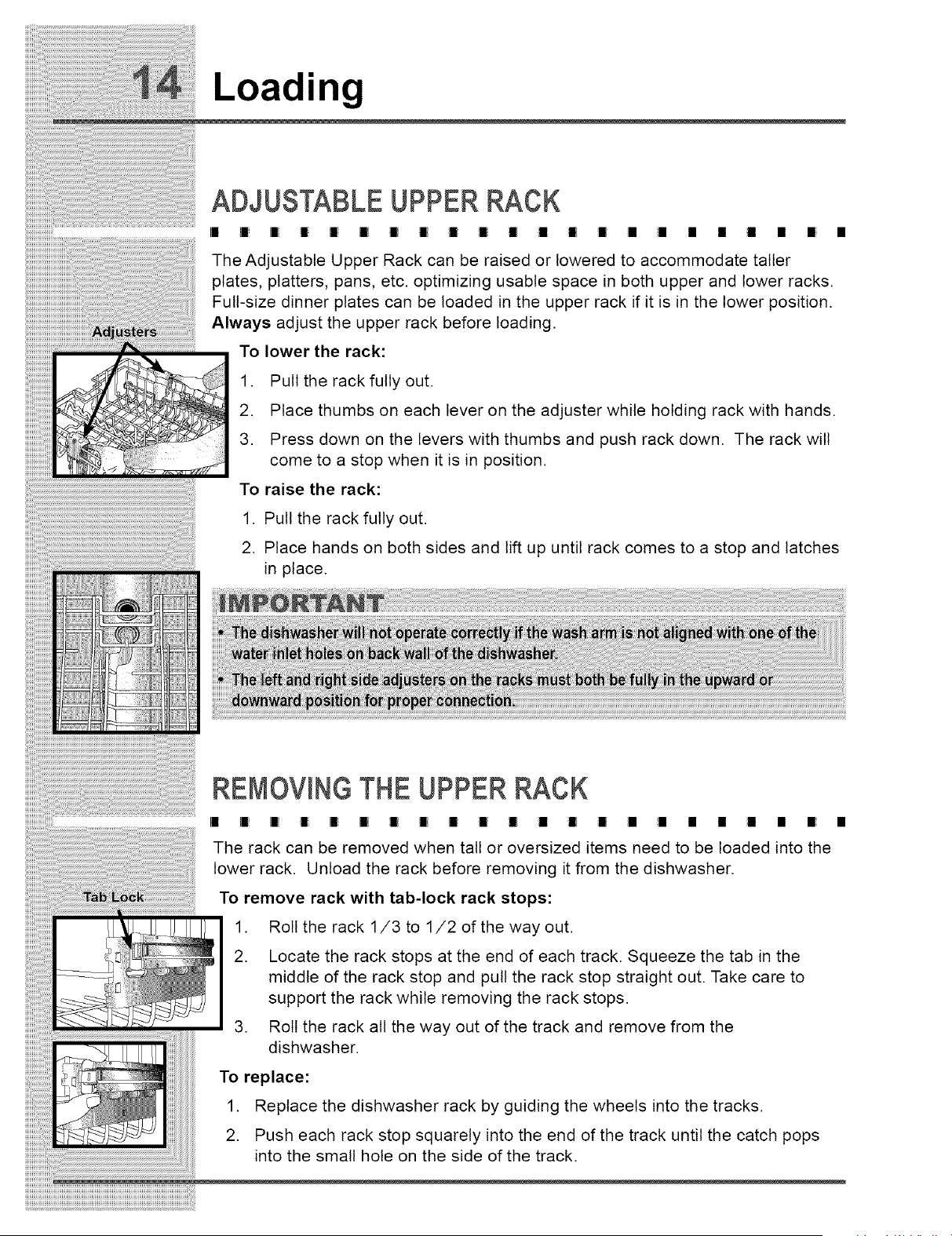

ADJUSTABLE UPPER RACK
[] i I ! i I ! m s i I n l I n n • • n • i
The Adjustable Upper Rack can be raised or lowered to accommodate taller
plates, platters, pans, etc. optimizing usable space in both upper and lower racks.
Full-size dinner plates can be loaded in the upper rack if it is in the lower position.
Always adjust the upper rack before loading.
To lower the rack:
1. Pull the rack fully out.
2. Place thumbs on each lever on the adjuster while holding rack with hands.
3. Press down on the levers with thumbs and push rack down. The rack will
come to a stop when it is in position.
raise the rack:
Pull the rack fully out.
Place hands on both sides and lift up until rack comes to a stop and latches
in place.
To
1.
2.
i¸!i!i!!i!iJii!i!;_ii!ij_iii_i!ii_ili_ii!_iiiiiiii!i!iiliiiii!ii!iiiii!iiiiiiii!ii!ii!ii!i!!ii!i!ili!i!ii!!i!iil!i!!i!!i!!i!!i!!ii!i!iiiiiiii!ii!i!!iiii!!!i!i!!!iiiiiilii!iiiii!i!!!i!ii!ii!!i!!i!iii!iiiiiiiii!i!ilili!i!i!!!i!i!i!i!ii!ii!iil!i!i!!ii!ii!i!!i!iii!i!iiiiiiii!!i!ii!ii!i!!!i!i!i!iiiili!!i!iil!i!!i!!i!!i!!i!!ii!i!iiiiiiii!ii!i!!iiii!!!i!i!!!i!i!i!iii!iiiii!i!!!i!ii!ii!!i!!i!iiiiiiiiilili!i!ilili!i!i!!!i!i!!!i!ii!ii!iil!i!i!!ii!ii!i!!i!iiiiiiiiiiiiii!!i!ii!ii!i!!!i!i!i!i!i!iii!i!iil!i!!!!!i!!i!!!!!!iiiiiiiiiiii!i!!i!!i!ii!!!!!i!!!i!i!i!iii!i!iil!i!!!!!i!!i!!!!!!iiiiiiiiiiii!i!!i!!i!ii!!!!!!!!!i!!!i!ii!!i!ii!!i!i!!!i!ii!!!!!iiiiiiiiiiiii!i!!i!!i!ii!!!!!!!!!!!!!i!ii!!i!!i!!i!i!!!i!ii!!!!!iiiiiiiiiiiii!i!!i!!i!ii!!!!!!!!!!!!!i!ii!!i!!i!!i!i!!!i!ii!!!!!iiiiiiiiiiiii!i!!i!!i!ii!!!!!!!!!!!!!i!ii!!i!!i!!i!i!!!i!ii!!!!!iiiiiiiiiiiii!i!!i!!i!ii!!!!!!!!!!!!!i!ii!!i!!i!!i!i!!!i!ii!!!!!iiiiiiiiiiiii!i!!i!!i!ii!!!!!!!!!!!!!i!ii!!i!!i!!i!i!!!i!ii!!!!!iiiiiiiiiiiii!i!!i!!i!ii!!!!!!!!!!!!!i!ii!!i!!i!!i!i!!!i!ii!!!!!!i!i!i!iiiiii!i!iiiiiiiiiiiiii
REMOVINGTHE UPPER RACK
[] i I I i I ! m s i I n l i n n • • n • i
The rack can be removed when tall or oversized items need to be loaded into the
lower rack. Unload the rack before removing it from the dishwasher.
To remove rack with tab-lock rack stops:
1. Roll the rack 1/3 to 1/2 of the way out.
2. Locate the rack stops at the end of each track. Squeeze the tab in the
middle of the rack stop and pull the rack stop straight out. Take care to
support the rack while removing the rack stops.
3. Roll the rack all the way out of the track and remove from the
dishwasher.
To replace:
1. Replace the dishwasher rack by guiding the wheels into the tracks.
2. Push each rack stop squarely into the end of the track until the catch pops
into the small hole on the side of the track.
Dishwasher Use
HOT WATER
i • i I i i I I i I • I | | | I • • I •
For optimal cleaning and drying results, hot water is necessary. The
incoming water temperature should be at least 120 ° F (49 ° C) to properly
activate the detergent and melt greasy food soils.
To check the incoming water temperature, turn on the hot water faucet nearest
the dishwasher and let it run into a glass in the sink. Place a candy or meat
thermometer in the glass and check the temperature once it has stopped rising.
If temperature is below 120 ° F (49 ° C), have a qualified person raise the water
heater thermostat setting.
DETERGENT
• • • I • i ! ! ;! i If | | • • | • • I • • •
Use a detergent designed specifically for use in an automatic dishwasher. Be sure
it is fresh. Store granular detergent in a cool, dry place (not under the sink) out of
reach of children.
Recommended Amount
Too little detergent results in poor cleaning, hard water filming/spotting and poor
drying. Too much detergent can cause permanent etching/cloudiness.
Suds can cause the dishwasher to overflow. Measure the detergent carefully and
use only detergents designed for use in a dishwasher. Less detergent is needed in
soft water. Try another brand of detergent if sudsing continues.
Water Soil Pre-Wash
Hardness* Level Detergent
Main Detergent
Soft (0-4gpg) LightSoil 2 tsp 6 tsp
NormalSoil 4 tsp 6 tsp
HeavySoil 4 tsp 7 tsp
Medium(5-9gpg) LightSoil 4 tsp 6 tsp
NormalSoil 4 tsp 6 tsp
HeavySoil 5 tsp 7 tsp
Hard (10-12gpg) AllLevels 5 tsp 8 tsp
The amount of detergent to use is determined by the hardness of the water
and soil level of the load. Refer to the following chart for detergent usage
recommendations.
*Your local water utility or state university extension service can tell you the degree of
water hardness in your area.
In extremely hard water conditions (13 grains per gallon or more*), it is
difficult to achieve good results with any dishwasher. A mechanical water
softener may be necessary to improve water quality, detergent effectiveness,
and protect the dishwasher parts from the damage that hard water can cause.
Dishwasher Use
Add recommended amount of detergent to each cup as shown and close
the detergent lid.
Do not use detergent with the Rinse cycle. Leave the detergent lid open
when running Rinse.
RINSE AiD
[] | m [] I | II m | | | ;| | _• | • • ;• • •
Regular use of a rinse aid improves drying, reduces spotting and filming,
and reduces moisture left on the dishwasher interior.
An automatic rinse aid dispenser is located next to the detergent cup.
The window next to the dispenser cap indicates when the rinse aid reservoir
needs to be refilled. When the level of rinse aid is below the indicator marks and
the window is nearly clear, it is time to refill the dispenser. Check the dispenser
monthly.
To add rinse aid to the dispenser, turn the cap counterclockwise to open.
Remove the cap and pour liquid rinse aid into the opening. The amount of
rinse aid dispensed during the cycle is adjustable by moving the lever inside the
reservoir area. For most water conditions use the manufacturer recommended
setting of "3". Adjust it up to the "MAX" setting for hard water. Set the lever
anywhere between these amounts as needed to get the best results. Replace
the cap and turn it clockwise to close.
Cycles, Options & Lights
CYCLES
i • | I | | ! I E E IE R E :i E E • • i • • •
Choose the cycle that best describes your dishload by pressing the corresponding
touchpad. (See page 8, Operation, for how to begin the cycle).
Cycle Description Number of
Washes/Rinses
Time
(Approx.
Minutes)
Heavy Longcyclefor heavy 132 2 washes/3rinses
food soils.
Normal Mediumcyclefor average 97-117 1-2washes*/1-2rinses*
food soils. Precision
CleanTMTurbiditySensor
is activewith thiscycle.
China Shortcyclefor light 82 1 wash/2rinses
food soilSr
Auto Designedto selectthe 94-128 1-2 washes*/2-3rinses*
numberof waterfills best
suitedfor thesoil level
of eachload. Precision
CleanTMTurbiditySensoris
activewiththiscycle.
Rinsesdishesbeingheld
untilthereis a full load.
Rinse 9 1 rinse
Short Quickcyclefor lightfood 38 1 wash/2rinses
soils. Doesnotinclude
dryingtime.
* Number of fills will vary depending on the soil level of each load.
iiiiiiiiiiiiiiiiiiiii
Cycles, Options & Lights
OPTIONS
[] i i l [] i | l I | | :| ;| ! m | • • ;1 • • •
In addition to choosing a cycle from page 17, choose as many available options as
are needed for your dishload.
DescriptionOption
Hi Temp Hi Tempprovidesadditional heat during thewash portionof All cycles
the cycle, which ensures properwater temperature for better (exceptRinse)
cleaning and drying results. It also adds an additional rinseto
the cycle which improves results in hard water situations.
Sanitize Sanitizes dishware.When cycle monitor recognizes that the Heavy*
proper conditions have been met, Sanitized light will activate at Normal*
the end of the cycle. Sanitization maynot be achieved ifthere China*
is an interruptionof the cycle, powerfailure or ifthe incoming Auto*
water temperature is below 120° F (49° C).
Air Dry WhenAir Dry is selected, towel drying of some items such as All cycles
plastic and items with non-stick surfaces may be necessary (exceptRinse)
and moremoisture may be noticed adhering to the dishwasher
interior. Vaporwill escape even if Air Dry is selected.
Start/Cancel Starts and stopsdishwasher. See page 8 under Operation: All Cycles
Operating the Dishwasher, for explanation.
Delay Used to automatically start the cycle at a later time. See page All Cycles
19for instructions.
Child Lock Option Locks control touchpadto prevent unwanted use. See page 20 All Cycles
for instructions.
Available
With Cycles
* Only these cycles have been designated to meet NSF requirements (NSF/ANSI 184
Residential Dishwasher) for sanitization.
Cycles, Options & Lights
DELAY
m • m ( • m; • • R ( i= = • m = = • • = • • •
The Delay option can be used to automatically start the cycle at a later time to
reduce daytime heat buildup in the home or to take advantage of reduced energy
costs if available in your area. This option is also useful for conserving hot water
at times of high household usage (showers, laundry).
To set up a Delay:
1. Select the appropriate cycle and options for the load. Close the door.
2. Press the Delay pad until the desired amount of delay time is selected.
3. The Delay indicator will flash until the START/Cancel pad is pressed.
4. As soon as the START/Cancel pad is pressed, the flashing will stop and the
delay time will begin counting down. The Delay indicator will remain lit until
the delay time has counted down.
5. The cycle will automatically start as soon as the delay time expires.
N N
To cancel a Delay:
When the delay is counting down, press the Delay pad again. The indicator light
will go out and the cycle will start or resume immediately.
To cancel a Delay and the cycle:
• Press START/Cancel once to drain and turn off the dishwasher.
Or
• Press START/Cancel twice to turn dishwasher off without draining.
lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll_llllllllllllllllllll
HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH_
Cycles, Options & Lights
CHILDLOCK OPTION
..................... [] II I [] [] I I I I II I I I I I I • • • • • •
The controltouchpads can be locked to prevent unwanted use. Ifthisfeatureis
activatedbetween cycles,the dishwasher cannot be operated untilthe controlsare
unlocked. Ifdesired,the controlscan be locked aftera cycleor delay has started.
Setting the Child Lock:
1. Press the Air Dry pad for three seconds.
2. An indicator light next to the lock graphic will illuminate when the controls are
locked.
To Cancel:
1. Press the Air Dry pad for three seconds.
2. The indicator light will go off.
LIGHTS/DISPLAY
[] • I I • I I I I I • I I I • • • • I • • •
Indicator
lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll_
CleanLight
SanitizedLight
Description
Illuminatesat the end of the cycleand remainslit until thedoorhas beenopen
for 30 secondscontinuously.
Illuminatesat the end of the cyclewhenconditionshavebeenmet to achieve
sanitization.The lightwill remainlit untilthe doorhasbeenopenfor 30
secondscontinuously.
Care & Cleaning
GENERAL RECOMMENDATIONS
l I i i i i i i i i it m i m | | in • i • • •
• The dishwasher interior is normally self-cleaning. Periodically check the
bottom of the dishwasher tub to see if any large particles remain.
• Wipe the edge of the inner door liner to remove any food soil splashes which
occurred during loading.
• When cleaning stainless steel, always wipe with the grain. Never use
products containing chlorine bleach or citric acid.
• The color from some tomato-based food soils may occasionally adhere
to various components of the dishwasher interior, causing temporary
discoloration.
To minimize this:
• Remove excess tomato-based food soils from dishes, before loading.
• Run the Heavy cycle when washing loads containing tomato-based food
soils.
• Use a dishwasher detergent that contains chlorine to better fight staining.
OUTSIDE
l I i i i i i i i i it m m m | | _1 • I • • •
Occasionally wipe the outside surfaces of your dishwasher with a mild nonabrasive
detergent and water. Rinse and dry.
Stainless Steel Door
Clean the stainless steel door and handle with hot, soapy water and a dishcloth.
Rinse with clean water and a cloth. Do not use harsh scrubbing cleaners. Use
only kitchen cleaners made especially for cleaning stainless steel.
Care & Cleaning
STORAGE/MOVING
[] ! | I ! | I I | | I I I I I I • • I • • •
Fill detergent cup with a fresh-scented dishwasher detergent or baking soda and
select the Normal cycle. Allow the dishwasher to complete the cycle. Then turn the
water supply off and drain the dishwasher. To drain, press the START/Cancel pad
once to activate the dishwasher. Press START/Cancel again to activate the drain.
Operate the drain twice to ensure most of the water is removed. Last, disconnect
the electrical supply and prop open the door.
When turning the water supply to the home off, the water shut-off at the
dishwasher must be turned off also.
___________________________________________________________________________________________________________________________
Troubleshooting
Check these points to help save you time and money.
Problem Solution
Dishwasherwill notfill
Dishwasherwill notdrain/water
intub bottom
Pressthe START/Cancelpad to start thedishwasher.
Besure dooris latchedsecurely.
Besure thewater is turnedon.
Checkthat the padis properlyselectedfor a cycle.
Checkyourhome'scircuitbreakeror fuse box.
Checkinlethosefor a kink.
Checkwatervalveinletfor sedimentandcleanif necessary.
• Ifhookedup to a food wastedisposer,besurethe knock-outis
removedfromthe disposerinlet.
• Checkfor food obstructionin thedrain or disposer.
• Checkdrainhosefor a kink.
• Checkyourhome'scircuitbreakeror fuse box.
• Checkthat thecycle iscompleted.
Dishwasheraddswaterat • Thisis normal.The sensorinthe pumpmuststaysubmergedsoa
endof cycle shortfill ofwater is addedafterthe cycle'slastdrain.
Detergentcupis notempty • Checkthat thecycle iscompleted.
• Besure dispenseris notblocked.
• Usefreshdetergentstoredina cool, dry place.
Dishwasherseemsnoisy , Awater valvehiss duringfill is normal.
• Watercirculationsoundsarenormal.
•A thumpingsoundmaybeawash arm bumpingan itemthat is
extendingbeyondthe racks. Readjustloadto avoidobstructingwash
arm.
• Choppingor grindingsoundsmaybe heardas the internalfood
disposerchopsharditemslikefruit seeds,nuts,etc.
• Hummingduringthedrain is normal.
•A snapnoiseisthe detergentcup lid hittingthedoorliner whenthe
dishwasherdoorisopenedat the endof the cycle.This is normal.
• Properinstallationaffectsthe noiselevel.
Cycle takes too long • Sanitize hasbeenselectedandthe cycleis extendedto heatwater.
• Checkto seethat the incomingwatertemperatureis 120° F(49° C)
Dishwasherhas anodor , Rundishesbeingheldinthe dishwasherthrougha Rinsecycle.
• Manydishwashershavea "new"smellwhenfirst installed.Thiswill
dissipatewith use.
• Dishwashermaynot bedrainingproperly.(SeeDishwasherWill Not
Drain section.)
• Fora strongodor,placebakingsodainbothsidesof the detergent
cup.SelectChina cycleand allowthewater to circulatefor about10
minutes.Interruptthe cycleby unlatchingthedoorandlet it stand
overnight.Restartthe dishwasherby latchingthe doorandallow it to
completethecycle.Anotheralternativeis to usea dishwashercleaning
productsuchas Jet-DryDishwasherCleaner*.
iii_iiiiiiii_iiiiiiii_iiiiiiii_iiiiiiii_iiiiiiii_iiiiiiii_iiiiiiii_iiii_:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_i:_i:_i:_i:_ii
ll_lllllll_lllllll_lllllll_lllllll_lllllll_lllllll_lllllll_lllllll_ll_:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_I:_i:_i:_i:_i:_ii
iii
___ ............
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
___Z
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
_[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[___
*Brand names are trademarks of the respective manufacturer. Cont.
Troubleshooting
Check these points to help save you time and money.
Problem Solution
Dishwasherleaks
Indicator lights flashing
Glassesare cloudy/spotted
Dishwareis chipped
• Checkthat the dishwasheris level.(Referto the Installation
Instructions.)
• Sudscancause thedishwasherto overflow.Measurethe detergent
carefullyanduseonly detergentsdesignedfor use in a dishwasher.
Lessdetergentis neededin softwater.Try anotherbrand of detergent
if sudsingcontinues.(pg.15)
• Followdirectionscloselyon howto adda forgottenitem (pg.9).
• Toavoidrinseaid leakingfrom the dispenser,be surethe lidis
securelyattached.
•All activedisplayindicatorsflash if the dooris openedduringa running
cycleor delay.
• Thecurrentlyselectedcycleflashesif an attemptis madeto change
thecycleafter cycle"lock-in".
• The lockedindicatorflashesif a padis pressedwhilethe childlockis
enabled.(pg.20)
• SelectHi Tempoption.
• Checkwatertemperature.Incomingwater shouldbe 120° F (49° C).
•Alwaysusea rinseaid.
• Confirmthat the cloudinessis removableby soakingthe item in white
vinegarfor approximately5 minutes. If removed,the problemis due
to hardwater. Adjust detergentamountbeingusedto matchwater
hardness(pg. 15).Be suredetergentisfresh,stored properlyandis a
highqualitybrand.
• If cloudinessis not removable,it is etching.This is an erosionof the
surfaceof the glasswareandcan becausedbywater thatis too
hot,fromusingtoomuchdetergentor by prewashing.Detergent
needsfood soilto act upon.If etchinghas occurred,the glassware
is permanentlydamaged.To preventfurtheretching,adjustthe
detergentamountto matchthe waterhardness,stop prewashing,and
usewater heatingoptionsonlywhenincomingwatertemperatureis
below120° F (49° C).
• Loaddishesaccordingto instructionsso they do notstrikeeachother
(pgs.11-12).
• Washingfineantiquechina/crystalinthe dishwasheris not
recommended.(pg.7)
• Do not loadglassesover thetines.
• Do notoverload
*Brand names are trademarks of the respective manufacturer. Cont.
Troubleshooting
Check these points to help save you time and money.
Problem Solution
Foodsoil remainsondishes • Checkwater temperature.Incomingwatershouldbe 120° F (49° C).
• Run hotwaterat thesink beforestartingthe dishwasher.
• Checkwater hardnessandadjustdetergentamountaccordingly
(pg. 15).
• Usefreshdetergentstoredina cooldry place.
• Selectpropercyclefor the soil level(pg.17).
• Selectproperoption,HiTemp.
• Makesurethe upperrackwash armconnectoris correctlyalignedin
oneof the waterinlet holes(pg.14).
• Loaditemsso they do notblockthewasharms (pgs.11-12).
• Loadthe utensilbasketwith knifehandlesup andspoonandfork
handlesdown.
• Do not placeglassesover tines.
• Beforeloading,scrapeoff burnt-onfoodsandwipethe starchyfilm
fromutensilsusedwithpasta,riceand oatmeal.Thesesoilsrequire
moreenergythan the restof the loadto clean.
Itemswashedinthe dishwasher
orthe dishwashertub itselfis
stained/discolored
•Aluminumutensilsor panscan leavemarkswhentheyrubagainst
otheritems.Leavea slightspacebetweenitems.
• Irondepositsinthewatercan leavea yellow,brownororangefilm on
dishesor thedishwashertub.A rustfilter may be needed.Checkwith
a watertreatmentcompany.
• Separatesilveror silver-platedsilverwarefromstainlesssteel.These
metalscanbe damagedby contactwith each otherduringwashing.
• Colorfrom tomatosaucesmayadhereto the interiorpartsof the
dishwasher(pg.21). If lightstaininghasoccurred,leavethe door open
to oxidizethe stainaway.Usea dishwasherdetergentthat contains
chlorineto betterfight staining.
• Certaindishwasherdetergentsmaystain silver.Try anotherbrandof
detergent.
Items not properlydried/
moistureis presenton the
dishwasherinteriorafterthe
drycycle
• BesureAir Dry is notselected.
• Waterdropletsmayformonthe innerdooras partof thedrying
process.
• Usea rinseaid separatefrom the detergentlikeJet Dry*or Cascade
RinseAid* regularlyto improvedrying.Turnthe rinseaidselector
towardthe MAXsetting.
• Checkwater temperature.Incomingwatershouldbe 120° F (49° C).
• SelectSanitize option.
• Increasedetergentamountto matchwater hardness(pg.15).
• Loadproperly.(pgs. 11-12)
• Plasticand itemswith non-sticksurfacesaredifficulttodry because
theyhavea poroussurfacewhichtendsto collectwaterdroplets.
Toweldryingmaybe necessary.
• Glassesand cupswith concavebottomsholdwater andrequiretowel
drying. Locatethese itemson the moreslantedsideof therack for
improvedresults.
*Brand names are trademarks of the respective manufacturer. Cont.
Troubleshooting
Check these points to help save you time and money.
Problem Solution
Sanitizedlight doesnot
illuminateat the endof the
cycle
• Sanitizewasnot selected.
• Sanitizationcan onlybe achievedwiththeAuto,Heavy,Normalor
Chinacycles.
• Sanitizationmaynotbe achievedif thereis aninterruptionof thecycle,
powerfailureor if incomingwatertemperatureis below120° F (49° C).
Dishwasherdoor will not close • Besureadjustableracksareproperlyadjustedto upperor lower
position(pg.14).
*Brand names are trademarks of the respective manufacturer.
Warranty Information
DISHWASHERWARRANTY
(YOURDISHWASHERIS PROTECTEDBYTHISWARRANTY)
i | I i i I E E i • i • I • • l • i • • • •
WARRANTY THROUGHOURAUTHORIZEDSERVICERS,WE WILL:
PERIOD
1-YEARFULL Oneyearfrom original Pay at] costsfor repairingor replacingany parts of this
WARRANTY purchasedate. appliancewhich proveto be defective inmaterialsor
workmanship.
5-YEARLIMITED
WARRANTY
Secondthrough5th years
from originalpurchase
date.
Replaceanyelectroniccontrol that failsdue to
manufacturingdefect. Replaceanyoriginalupper or
lower nyloncoated rack that peelsor rustsdueto a
manufacturingdefect. Replacemajorcomponents
in the water distributionsystem which failsdue to a
manufacturingdefect. This includesthe motor,pump
and lowerwash arm,upperspray armwith associated
supplytubeand filter assembly.Associatedinlet and chain
plumbingpartsare notcovered bythis warranty.
Providea replacementtub or door liner ifthe originaltub or
door linerfails to containwater becauseof a manufacturing
defect.
THE CONSUMERSWILL BE
RESPONSIBLEFOR:
Costs of service callsthat
are tistedunderNORMAL
RESPONSIBILITIESOF THE
CONSUMER*
Costs for pickupand deliveryof
the appliancerequiredbecauseof
service; and all costsfor laborand
transportation.Associatedinletand
drain plumbingparts.
LIFETIMELIMITED Lifetimeof the product. Doorseals,any costfor pickupand
WARRANTY delivery of the appliancerequired
becauseof service; andall costsfor
laborand transportation.
LIMITED Timeperiodslistedbetow. All of the provisionsof the furlwarrantiesaboveand the Cost of thetechnician'stravelto the
WARRANTY exclusionslistedbelow apply, homeand any costsfor pickupor
(Applicable to the delivery of the appliancerequired
State of Alaska) becauseof service.
In the U.S.A., your appliance is warranted by EiectroIux Major Appliances NorthAmerica. We authorize no person to change or add to any of our
obligations under this warranty. Our obligation for service and parts under this warranty must be performed by us or an authorized Electrolux Major
Appliances North America servicer.
*NORMAL
RESPONSIBILITIES
OFTHECUSTOMER
EXCLUSIONS
IFYOU NEED
SERVICE
This warranty applies only to products in ordinary household use, and the consumer is responsible for the items
listed below:
t. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in
accordance with all local plumbing, electrical and/or gas codes.
3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, sheIves, etc., which
are not a part of the appliance when it was shipped from the factory.
5. Damage to finish after installation.
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTALDAMAGES SUCH AS PROPERTY DAMAGE OR INCIDENTAL EXPENSES
RESULTING FROMANY BREACH OF THIS WARRANTY OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or
exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects inworkmanship or material, or for appliances not in ordinary
household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by persons other than from Electrolux MajorAppliances North America or
their authorized servicers; use of parts other than genuine Electrolux parts; parts obtained from persons other than
such servicers; or external causes such abuses, misuse, inadequatepower supply or acts of God.
4. Products whose serial numbers have been removed or altered and cannot be readily determined.
Keep your bill of sale, delivery slip or some other appropriate payment record. The date on the bill establishes the
warranty period should service be required. If service is performed, it isin your best interestto obtain and keep all
receipts. This written warranty gives you specific legal rights. You may also have other rights that vary from state to
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHi_
