Frigidaire FGMV175QBA Gallery 1.7 Cu. Ft. Over-The-Range User Manual

FRIGIDAIRE

TABLE OF

WELCOME & CONGRATULATION ............................ 2

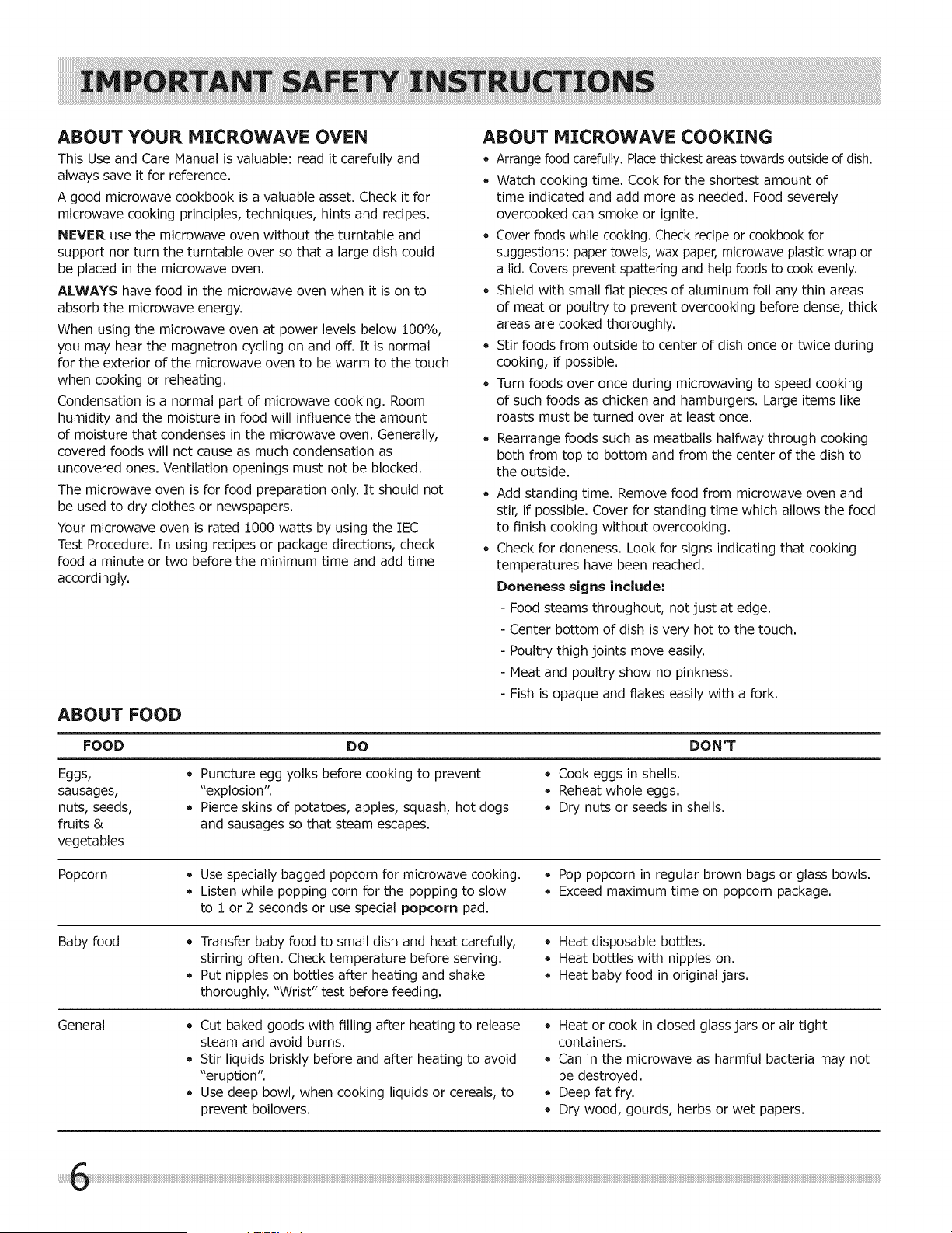

IMPORTANT SAFETY INSTRUCTIONS ...................... 2

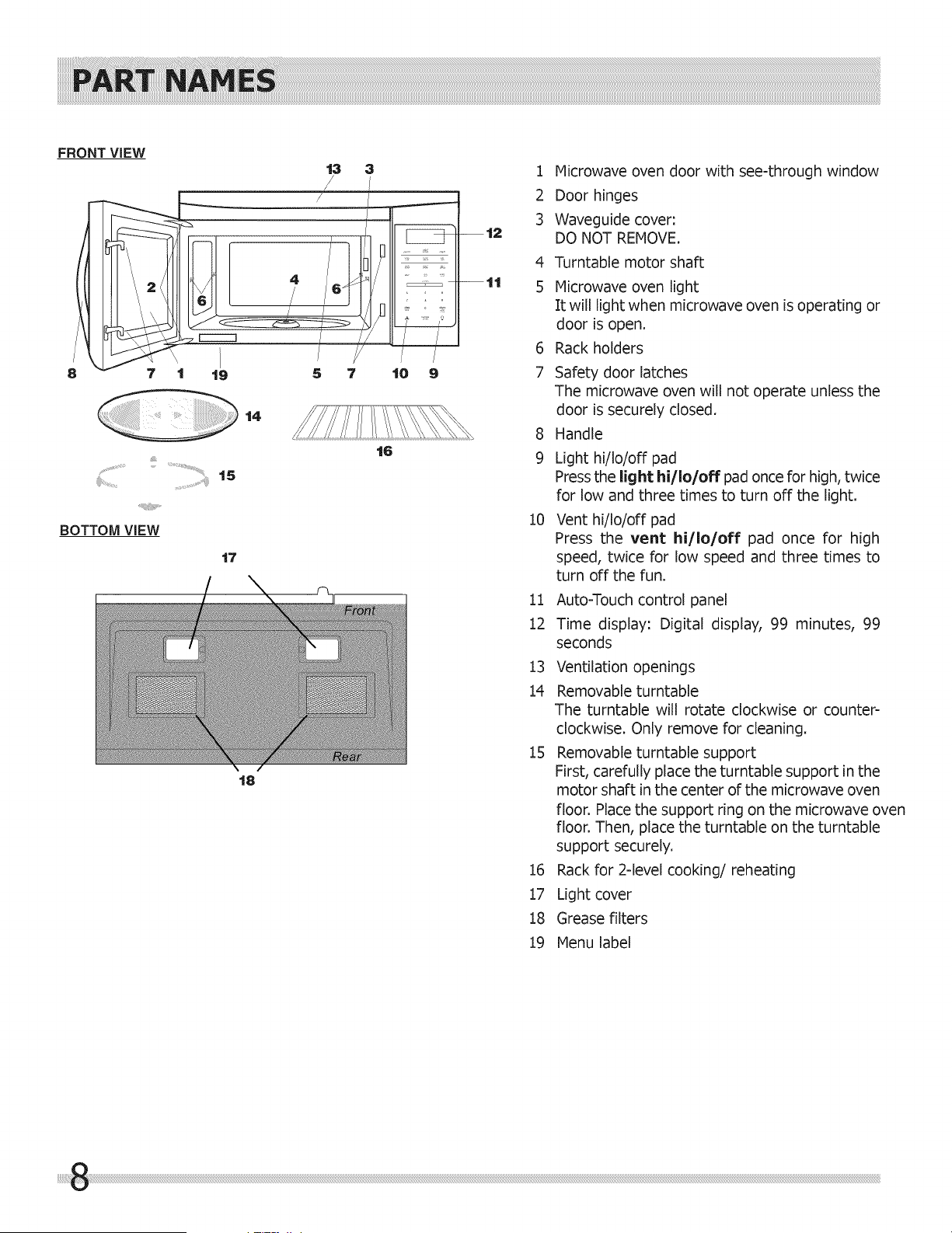

PART NAMES ........................................................ 8

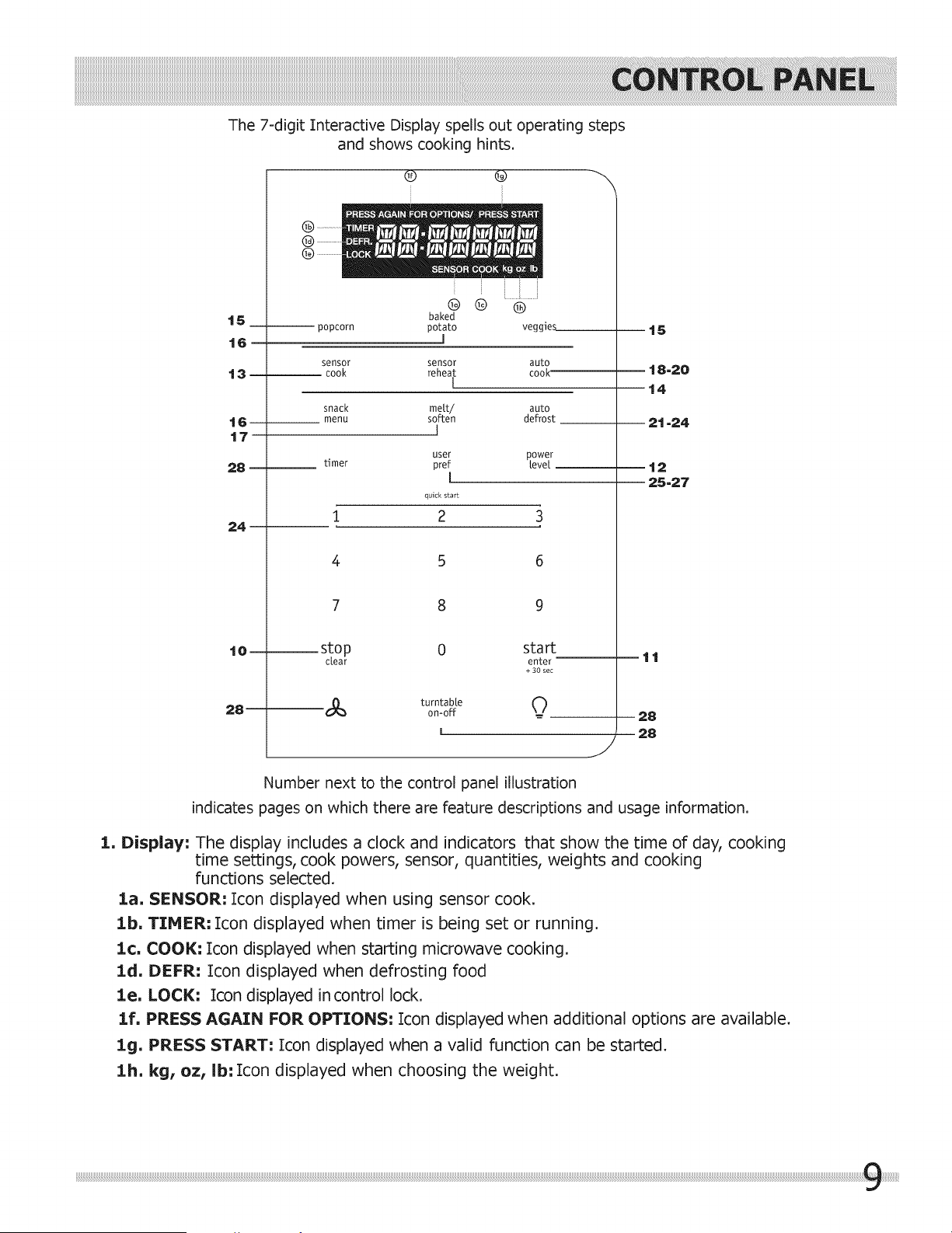

CONTROL PANEL .................................................. 9

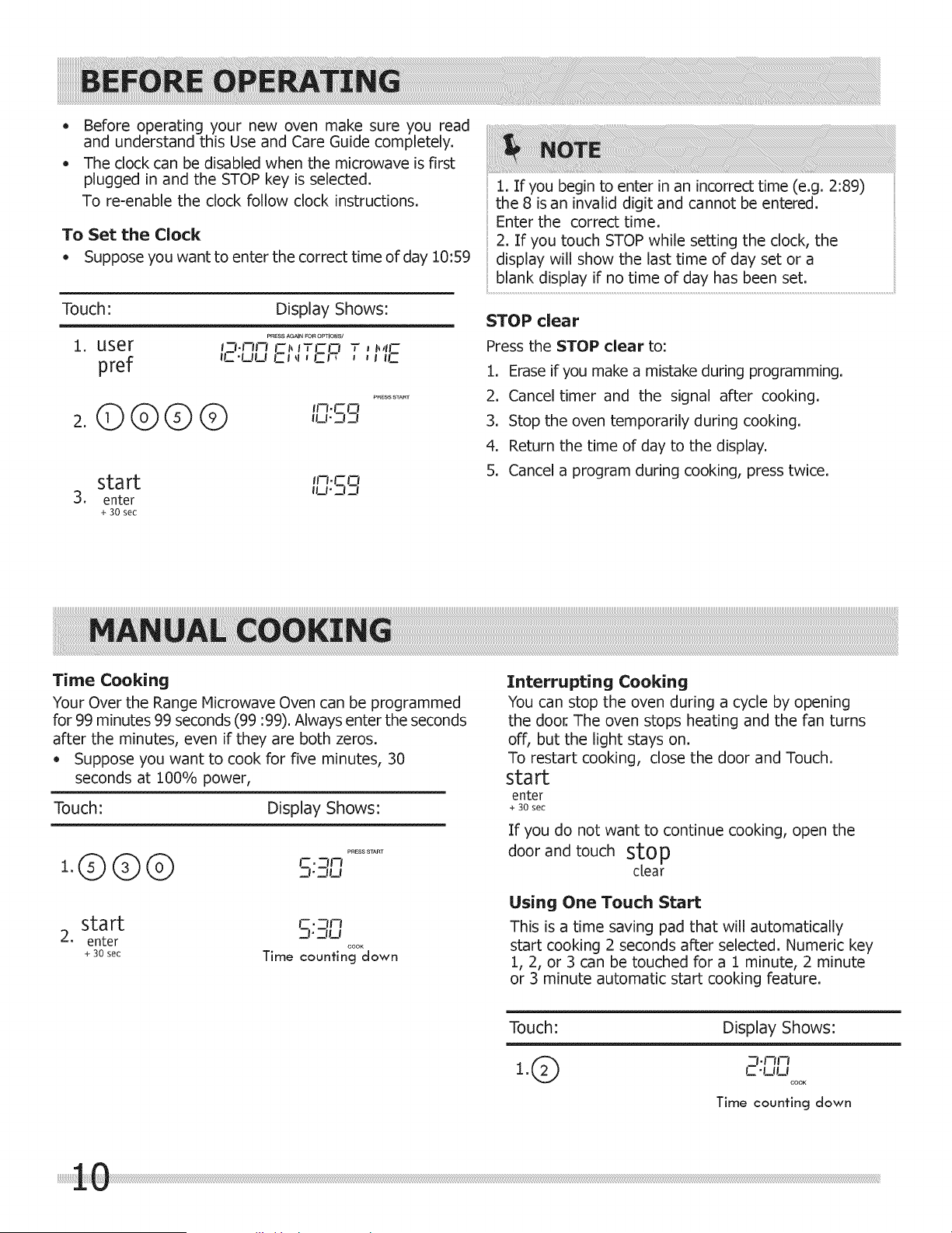

BEFOREOPERATING ........................................... 10

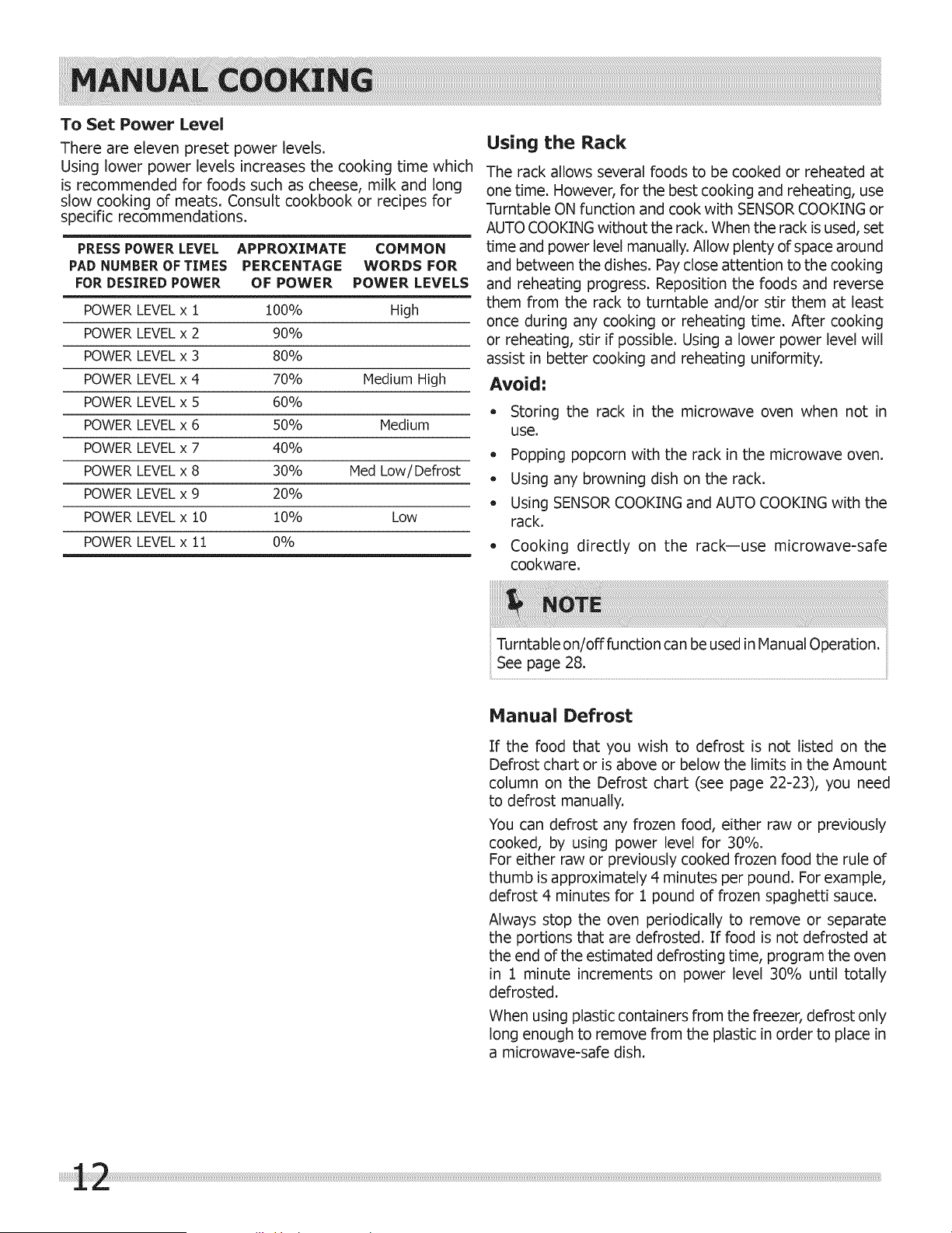

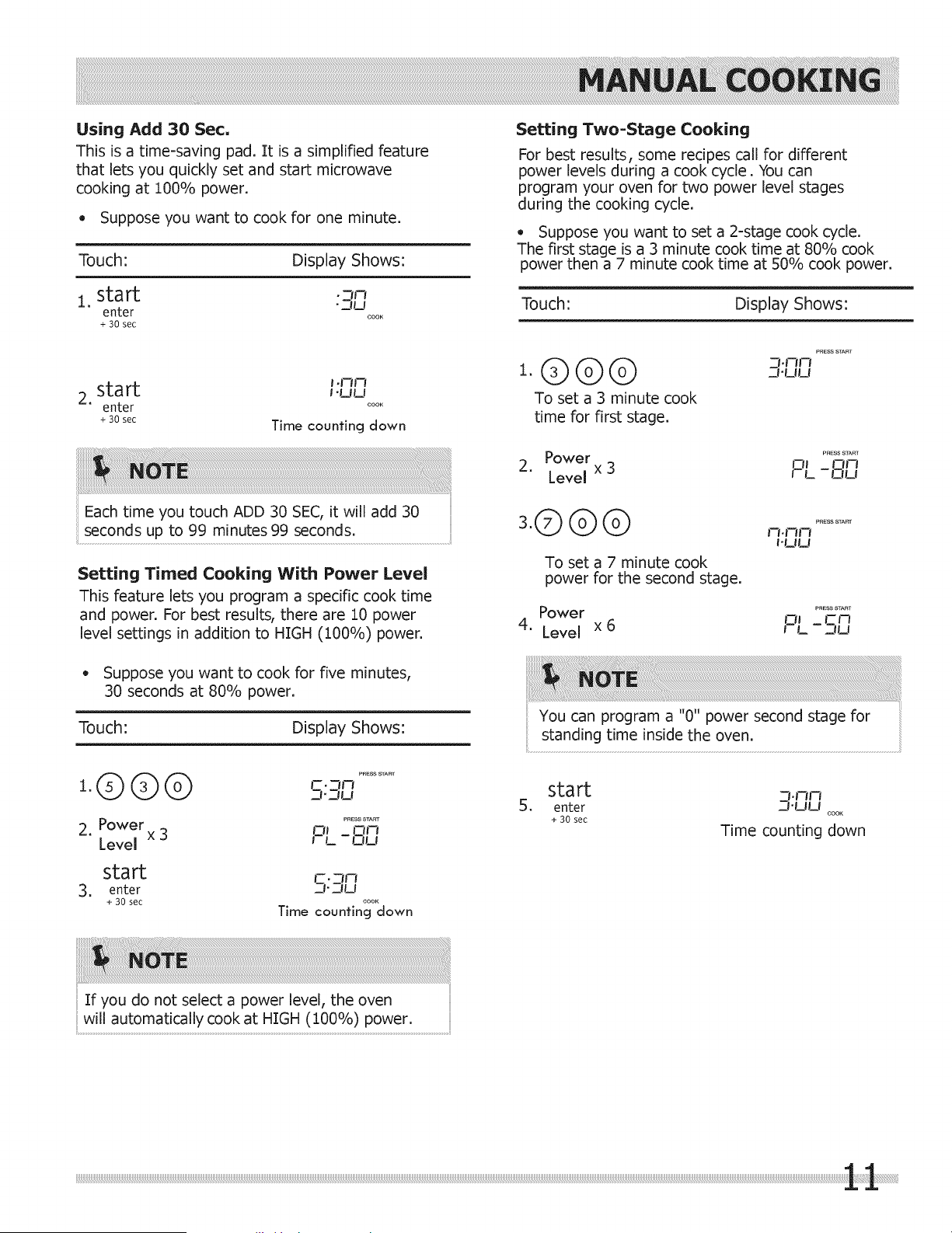

MANUAL COOKING .............................................. 10

SENSOR COOKING ............................................. 13

CONTENTS

ONE TOUCH COOK ............................................. 15

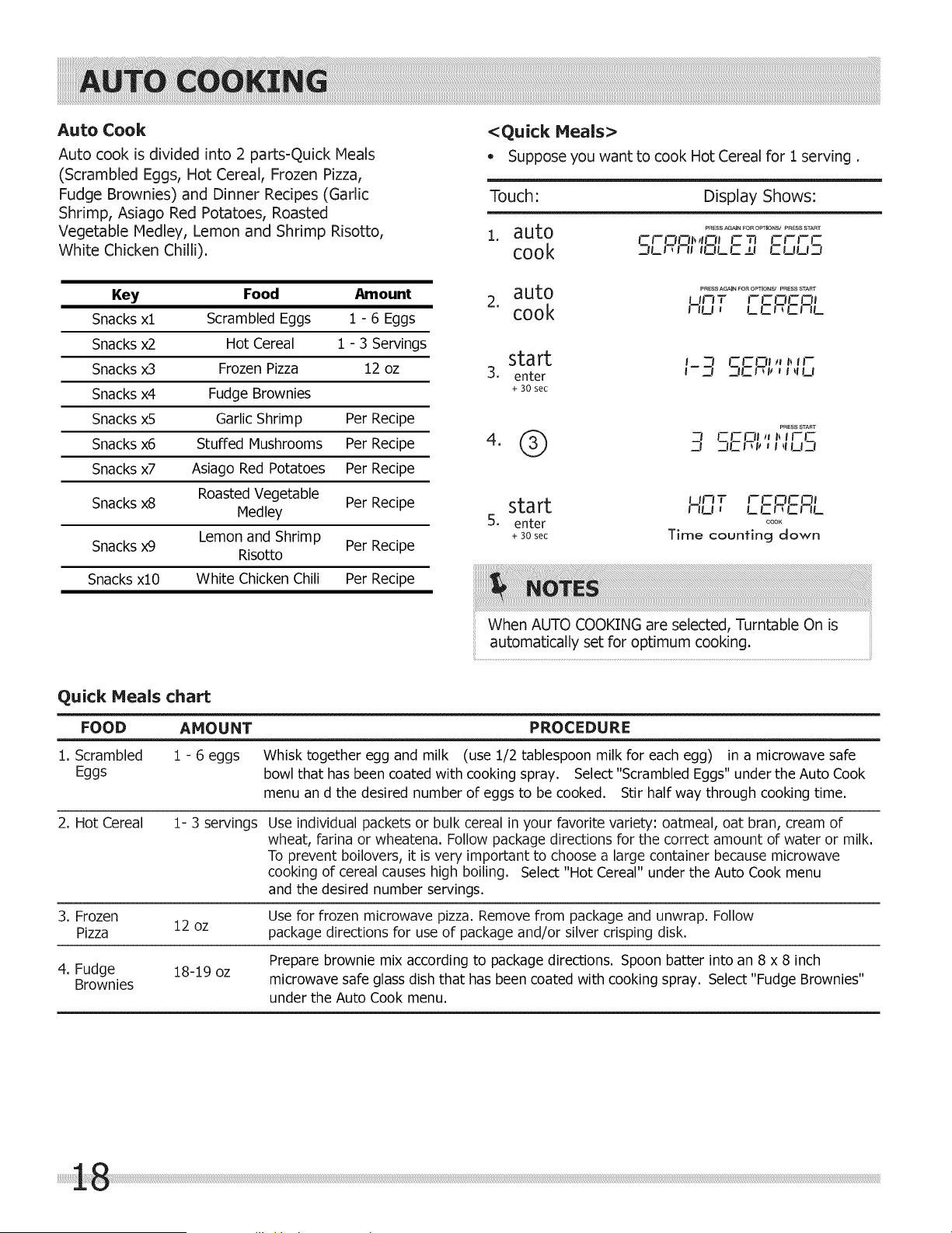

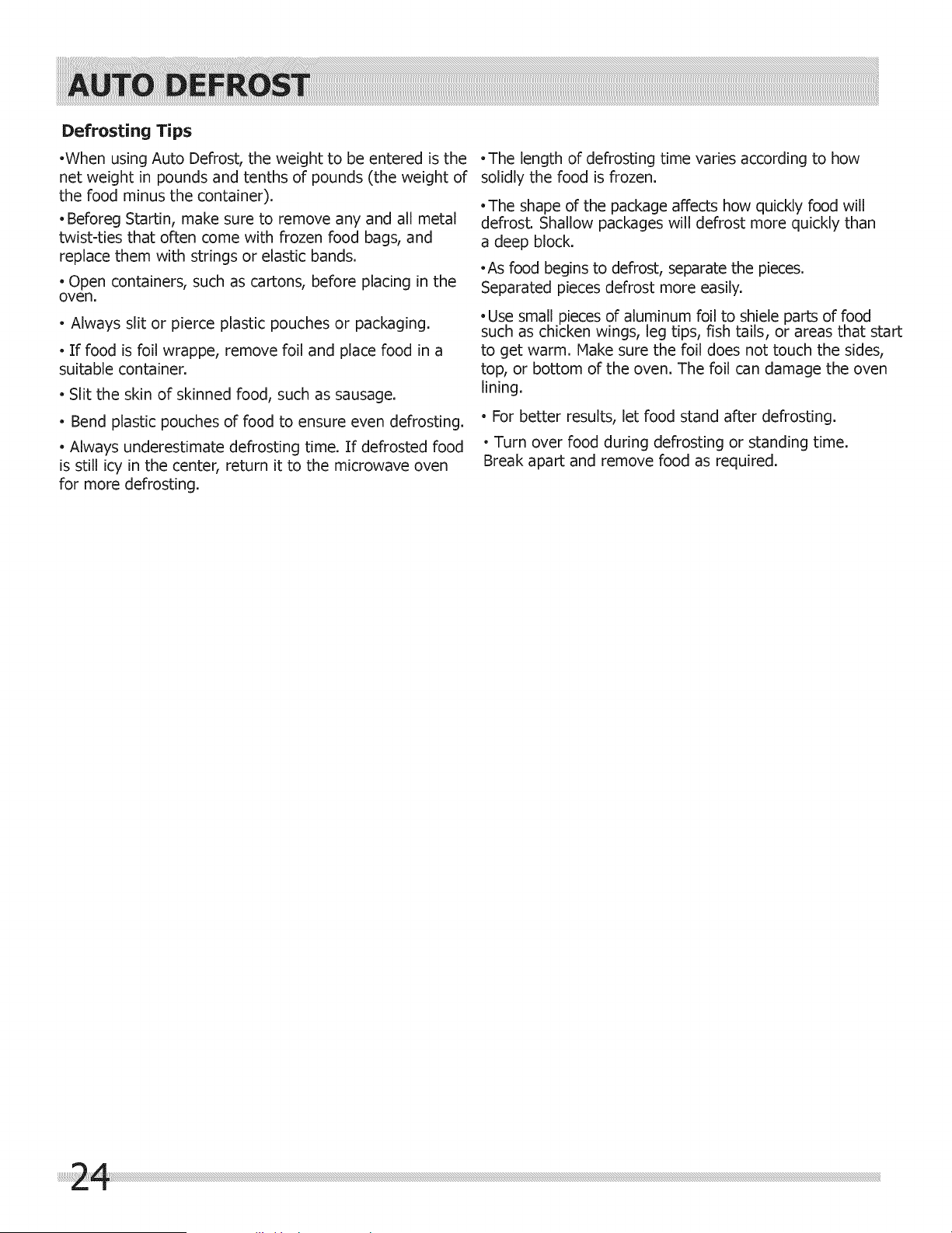

AUTO COOKING .................................................. 18

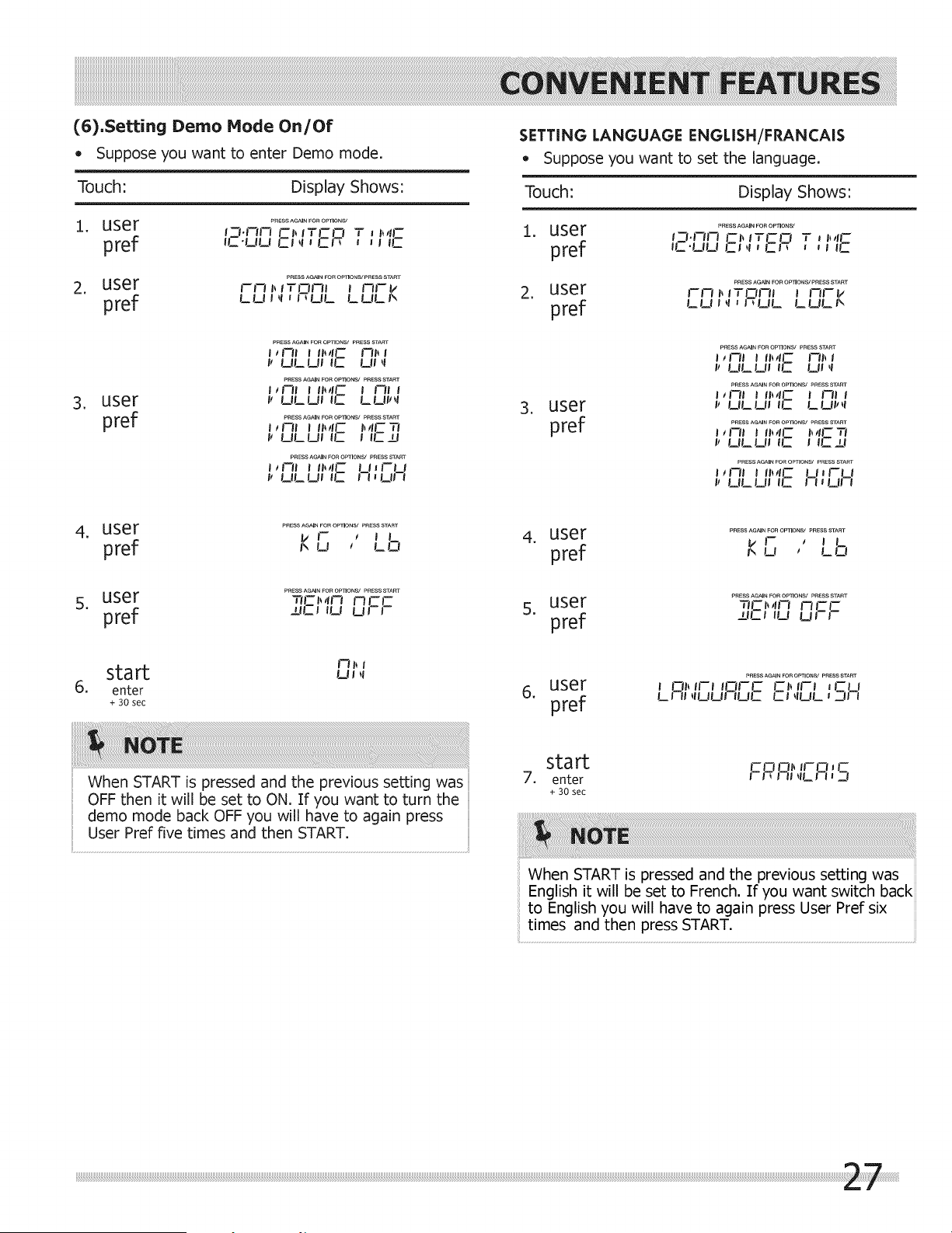

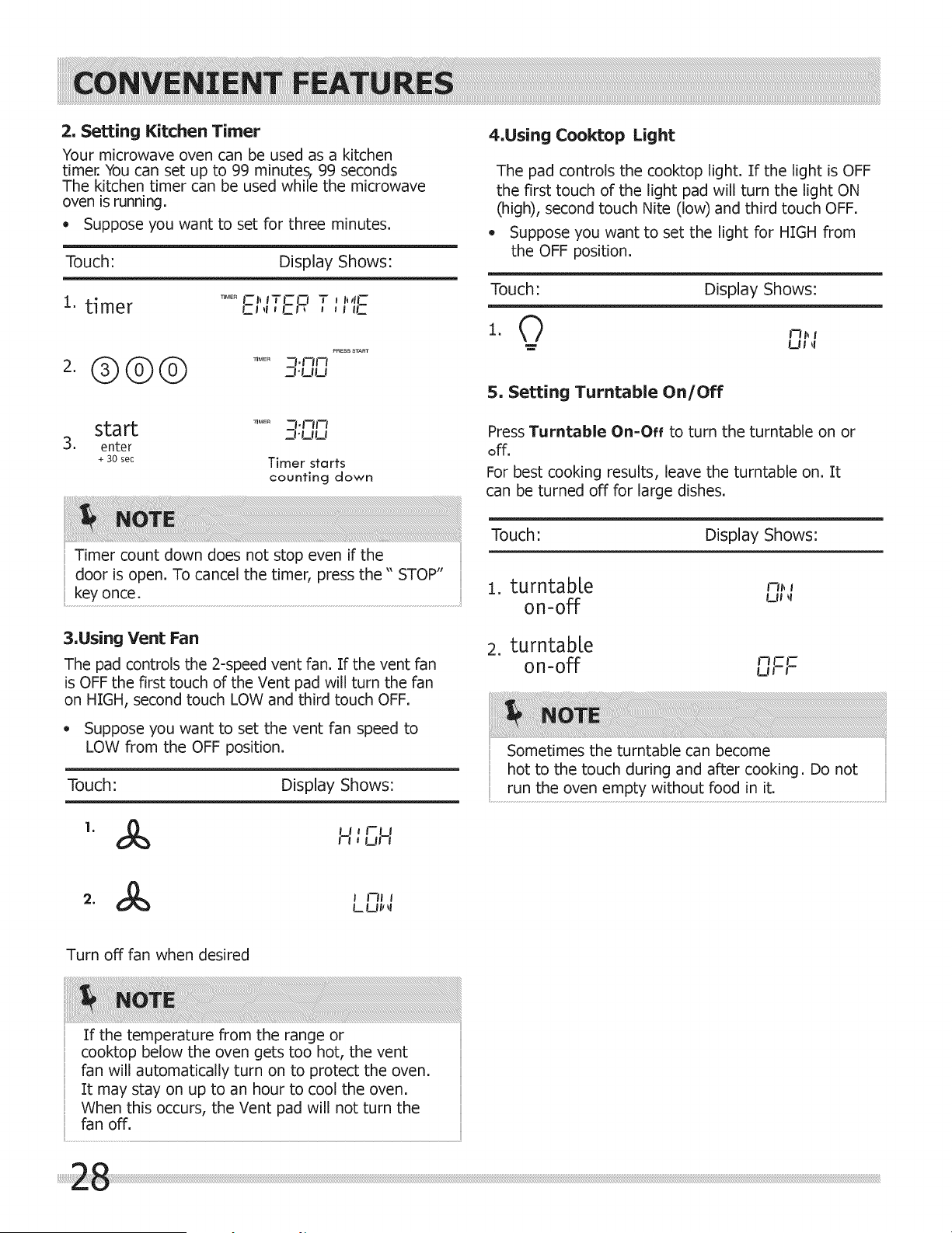

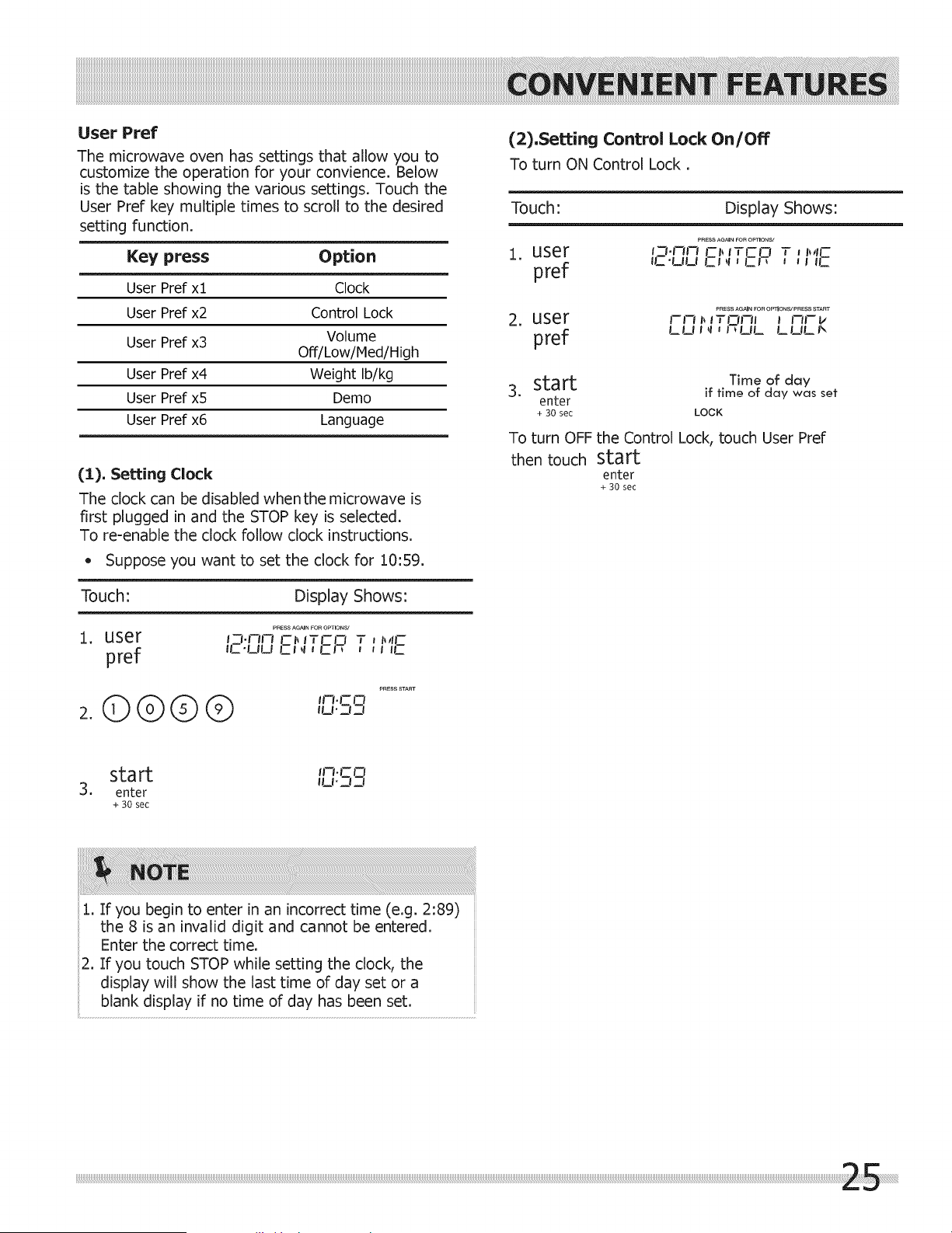

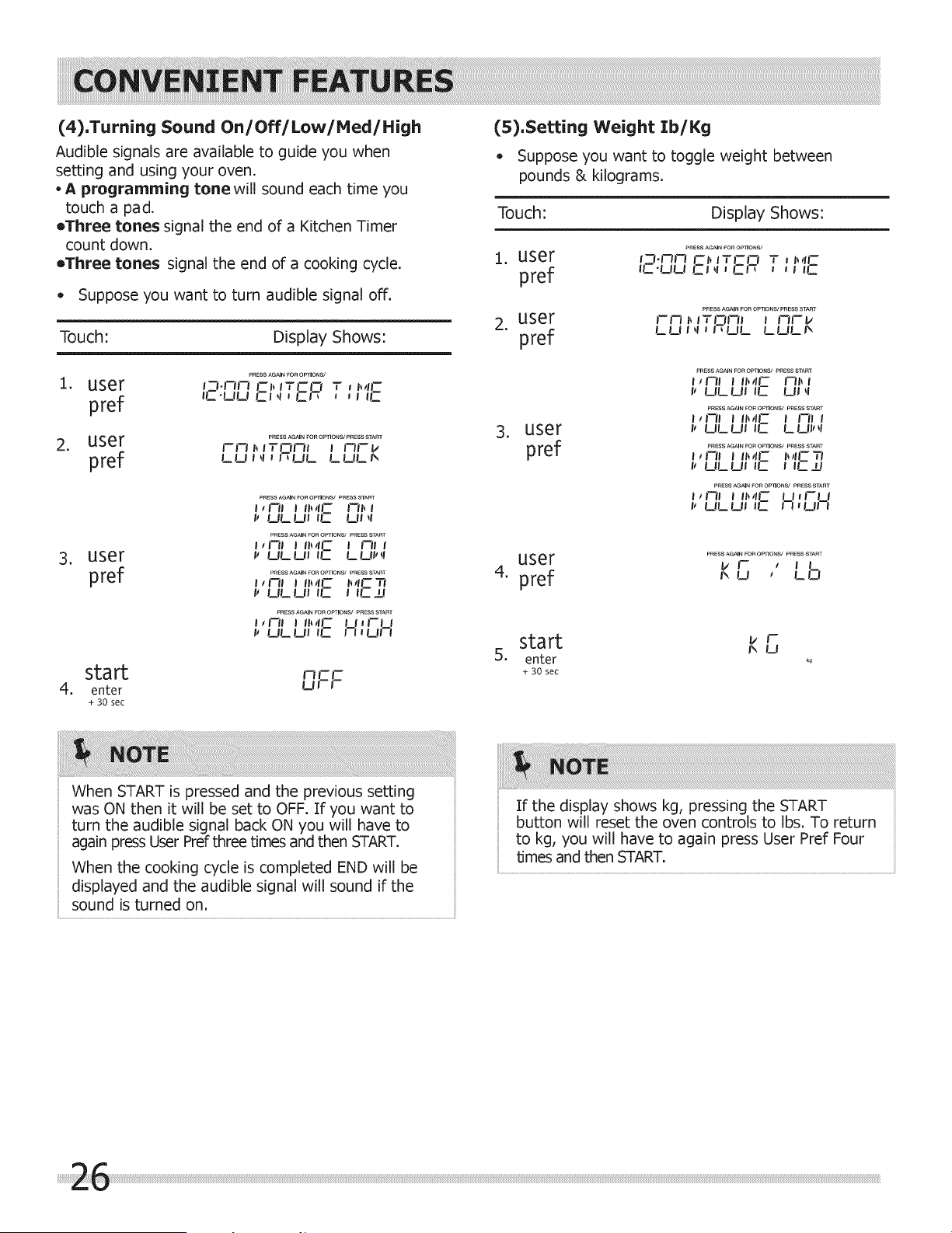

CONVENIENT FEATURES...................................... 25

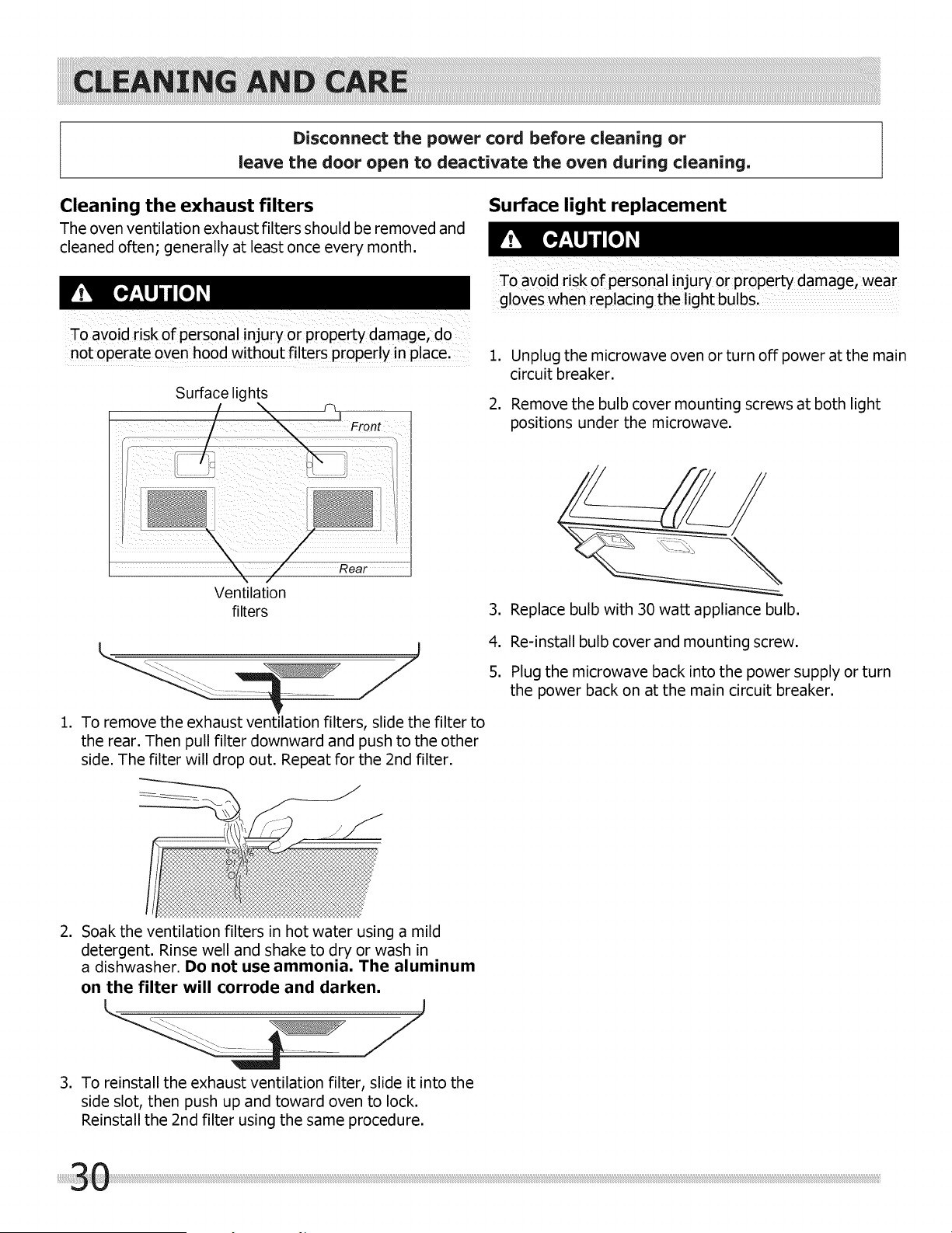

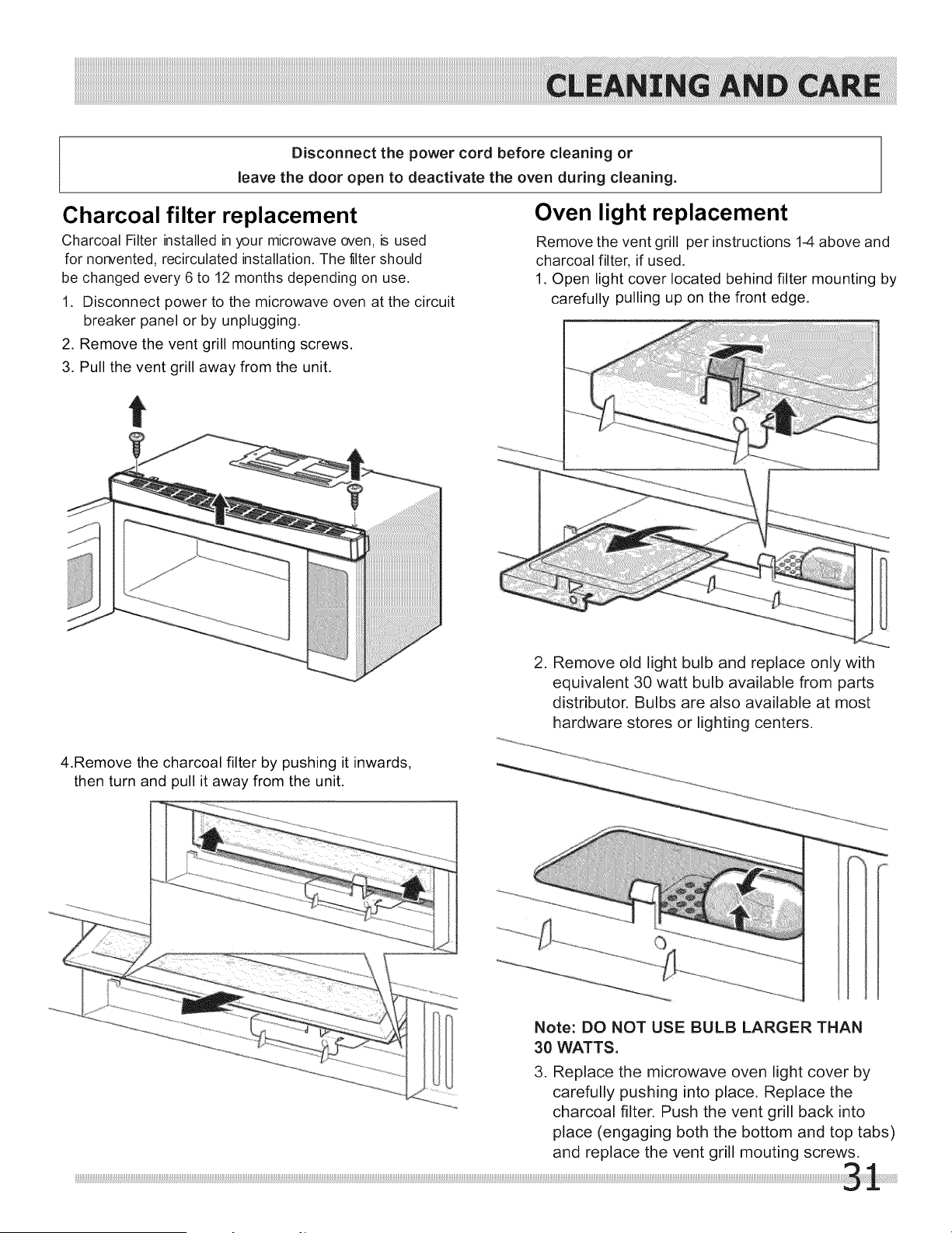

CLEANING AND CARE.......................................... 29

SERVICE CALL CHECK ......................................... 32

SPECIFICATIONS................................................. 32

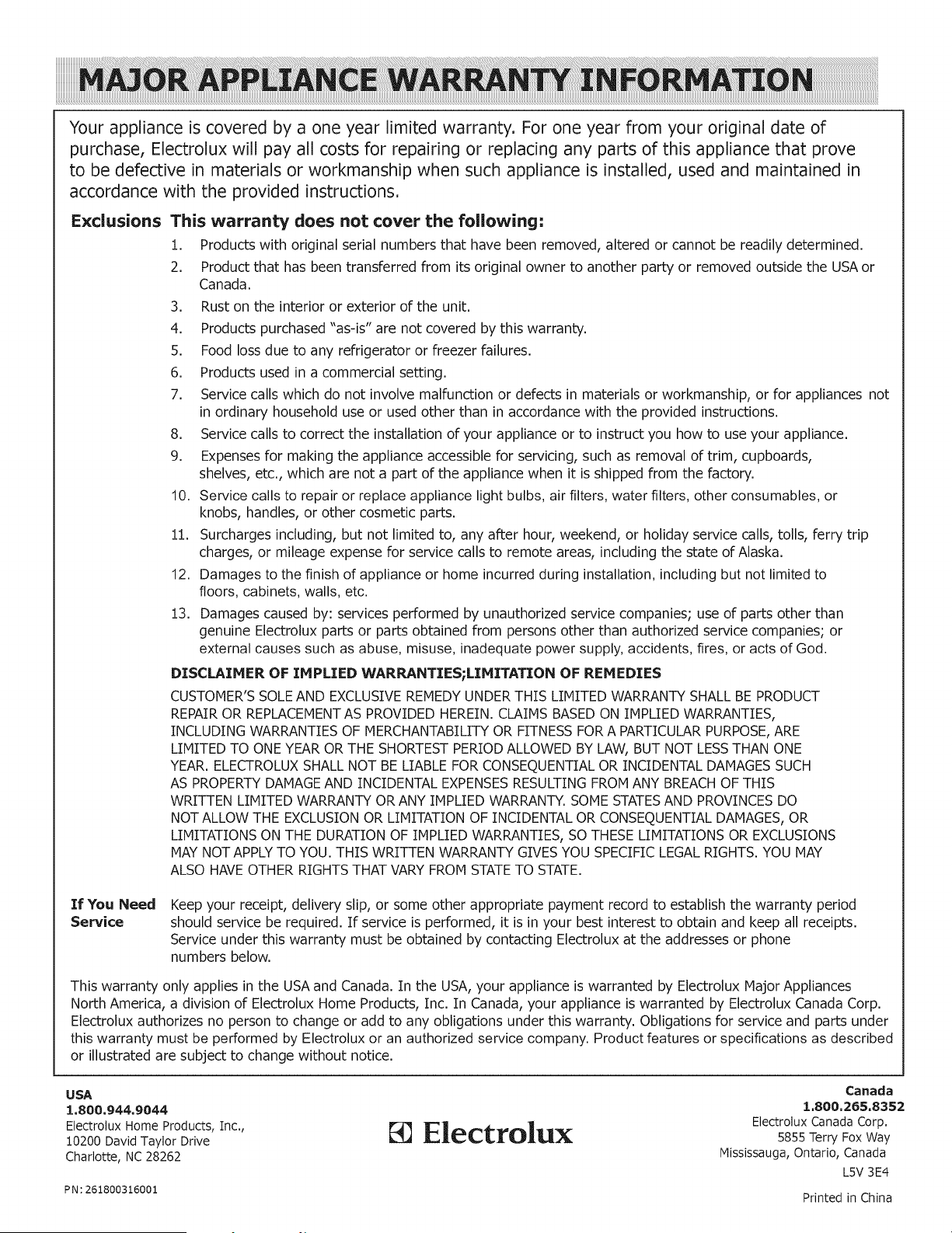

WARRANTY......................................................... 33

Lrl

O'-

L_J

www.frigidaire.c0m USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Congratulations on your purchase of a new microwave oven! At Electrolux Home Products,

we are very proud of our product and are completely committed to providing you with the best

service possible. Your satisfaction is our number one priority.

We know you'll enjoy your new microwave oven and Thank You for choosing our product. We

hope you consider us for future purchases.

PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS

This Use & Care Manual provides specific operating instructions for your model. Use your

microwave oven only as instructed in this manual. These instructions are not meant to cover

every possible condition and situation that may occur. Common sense and caution must be

practiced when installing, operating and maintaining any appliance.

Please record your model and serial numbers below for future reference.

Model Number:

Serial Number:

Purchase Date:

NEED HELP?

Visit the Frigidaire Web Site at: http://www.frigidaire,com

Before you call for service, there are a few things you can do to help us serve you better.

Read this manual,

It contains instructions to help you use and maintain your microwave oven properly.

If you received a damaged Microwave Oven... immediately contact the dealer (or builder)

that sold you the Microwave Oven.

Save time and money.

Check the section titled "Service Call Check". This section helps you solve common problems

that might occur. If you do need service, you can relax knowing help is only a phone call away.

A list of toll-free customer service numbers is included in the back of this manual. Or call

Frigidaire Customer Services at 1-800-944-9044, 24 hours a day, 7 days a week.

For your safety the information in this manual must be followed to minimize the risk

of fire or explosion or to prevent property damage, personal injury or loss of life.

PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to

microwave energy. It is important not to defeat or tamper with the safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on

sealing surfaces.

there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and

sealing surfaces.

(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

Definitions

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages

that follow this symbol to avoid possible injury or death.

WARNING indicates a potentially hazardous situation which,

if not avoided could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which,

if not avoided, may result in minor or moderate injury.

READ ALL INFORMATION BEFORE USING

To reduce the risk of fire, burns, electric shock, injury

to persons, or exposure to excessive microwave energy

when using your appliance, follow basic precautions,

including the following sections.

- Read all instructions before using the appliance.

- Read and follow the specific "PRECAUTIONS TO

AVOID POSSIBLE EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY" on page 2.

- This appliance must be grounded. Connect only

to properly grounded outlet. See "GROUNDING

INSTRUCTIONS" on page 4.

- Install or locate this appliance only in accordance with

the provided installation instructions.

- Some products such as whole eggs and sealed containers

--for example, closed glass jars--are able to explode

and should not be heated in this microwave oven.

- Use this appliance only for its intended use as described

in this manual. Do not use corrosive chemicals or

vapors in this appliance. This type of microwave oven is

specifically designed to heat, cook or dry food. It is not

designed for industrial or laboratory use.

- As with any appliance, close supervision is necessary

when used by children.

- Do not operate this appliance if it has a damaged cord

or plug, if it is not working properly or if it has been

damaged or dropped.

- This appliance should be serviced only by qualified

service personnel. Contact nearest Electrolux Authorized

Servicer for examination, repair or adjustment.

- Do not cover or block any openings on the appliance.

- Do not store or use this appliance outdoors. Do not use

this product near water--for example, near a kitchen

sink, in a wet basement or near a swimming pool, or

similar locations.

- Do not immerse cord or plug in water.

- Keep cord away from heated surfaces.

- Do not let cord hang over edge of table or counter.

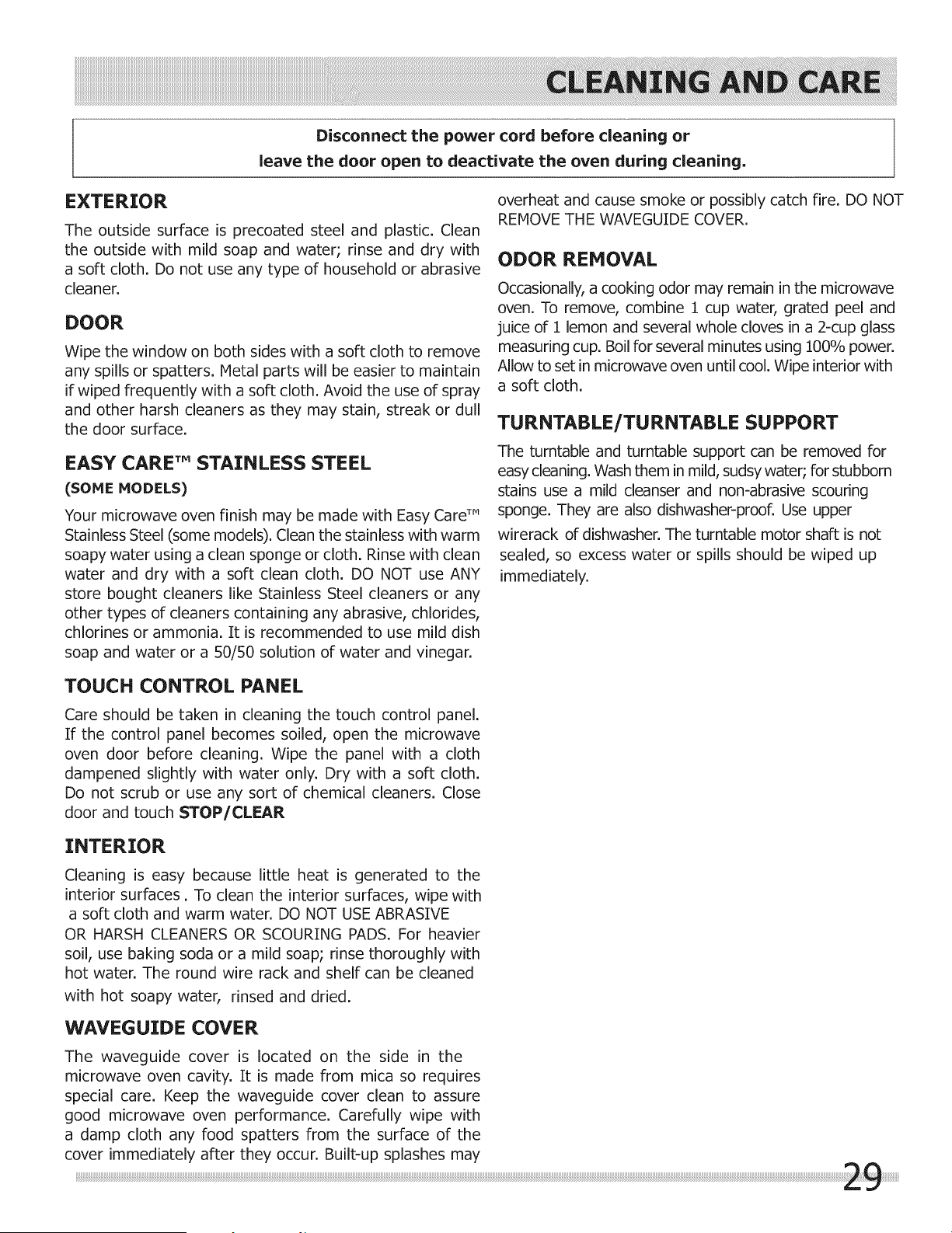

- See door surface cleaning instructions on page 29.

- Do not mount over a sink.

- Do not store anything directly on top of the appliance

surface when the appliance is in operation.

- To reduce the risk of fire in the microwave oven cavity:

= Do not overcook food. Carefully attend

appliance when paper, plastic or other

combustible materials are placed inside the

microwave oven to facilitate cooking.

= Remove wire twist=ties from paper or plastic bags

before placing bag in microwave oven.

- If materials inside the microwave oven ignite,

keep microwave oven door closed, turn

microwave oven off and disconnect the power

cord or shut off power at the fuse or circuit

breaker panel.

- Do not use the cavity for storage purposes. Do not

leave paper products, cooking utensils or food in the

cavity when not in use.

- Liquids, such as water, coffee or tea are able to be

overheated beyond the boiling point without appearing to

be boiling. Visible bubbling or boiling when the container

is removed from the microwave oven is not always

present, THIS COULD RESULT IN VERY HOT LIQUIDS

SUDDENLY BOILING OVER WHEN A SPOON OR

OTHER UTENSIL IS INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons:

Do not overheat the liquid.

Stir the liquid both before and halfway through heating it.

Do not use straight=sided containers with narrow

necks. Use a wide-mouthed container.

After heating, allow the container to stand in the

microwave oven at least for 20 seconds before

removing the container.

Use extreme care when inserting a spoon or other

utensil into the container.

- Clean ventilation openings and grease filters frequently.

Grease should not be allowed to accumulate on

ventilation openings, louver or grease filters.

- Use care when cleaning the louver and the grease filters.

Corrosive cleaning agents, such as lye-based oven

cleaners, may damage the louver and the grease filters.

- When flaming food under the hood, turn the fan on.

- This appliance is suitable for use above both gas and

electric cooking equipment 36" wide or less.

SAVE THESE INSTRUCTIONS,

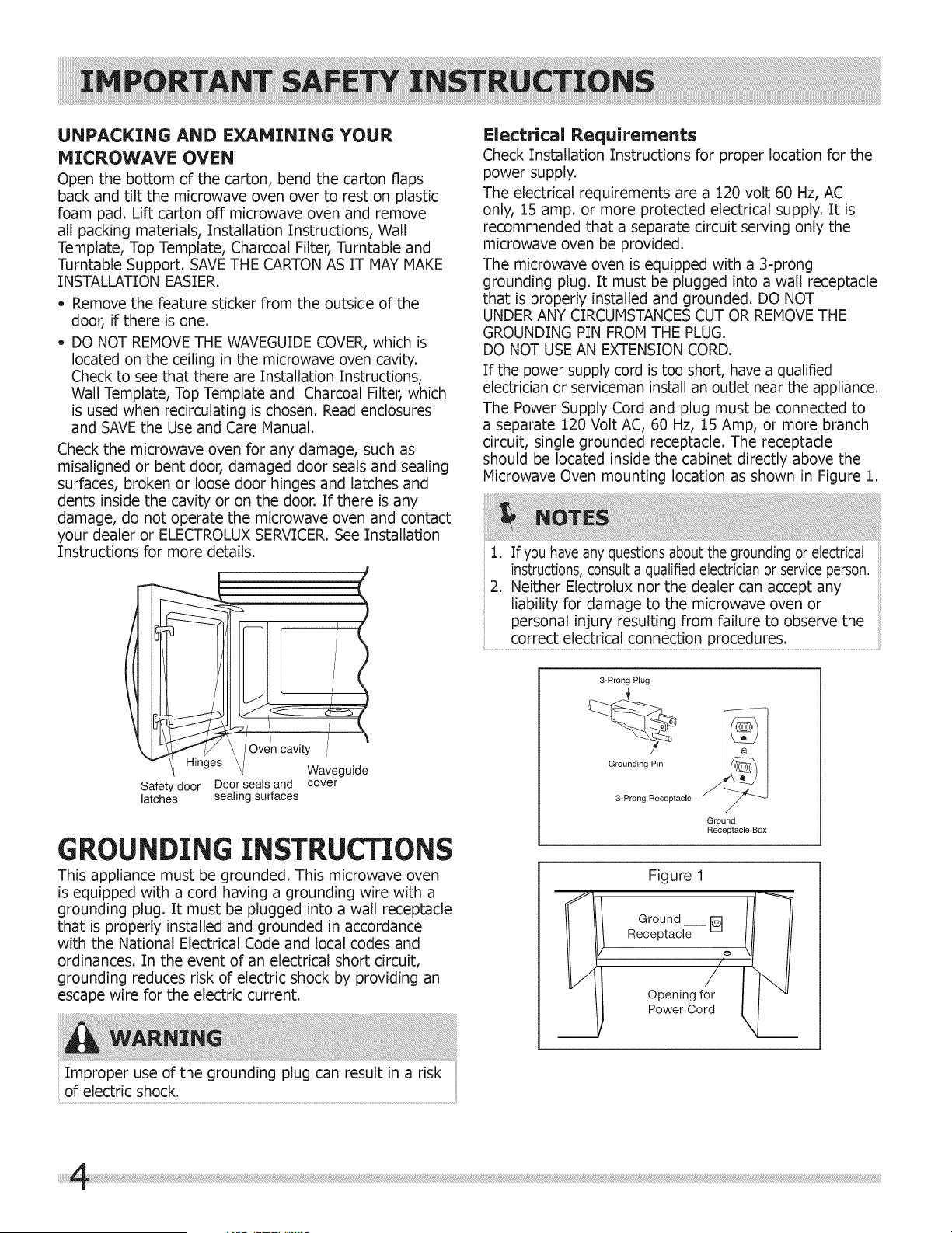

UNPACKING AND EXAMINING YOUR

MICROWAVE OVEN

Open the bottom of the carton, bend the carton flaps

back and tilt the microwave oven over to rest on plastic

foam pad. Lift carton off microwave oven and remove

all packing materials, Installation Instructions, Wall

Template, Top Template, Charcoal Filter, Turntable and

Turntable Support. SAVE THE CARTON AS IT MAY MAKE

INSTALLATION EASIER.

- Remove the feature sticker from the outside of the

door, if there is one.

- DO NOT REMOVE THE WAVEGUIDE COVER, which is

located on the ceiling in the microwave oven cavity.

Check to see that there are Installation Instructions,

Wall Template, Top Template and Charcoal Filter, which

is used when recirculating is chosen. Read enclosures

and SAVEthe Use and Care Manual.

Check the microwave oven for any damage, such as

misaligned or bent door, damaged door seals and sealing

surfaces, broken or loose door hinges and latches and

dents inside the cavity or on the door. If there is any

damage, do not operate the microwave oven and contact

your dealer or ELECTROLUX SERVICER. See Installation

Instructions for more details.

)

Safeb door

latches

/ i

\/Oven cavity i

Hin

Waveguide

Door seals and cover

sealing surfaces

GROUNDING INSTRUCTIONS

This appliance must be grounded. This microwave oven

is equipped with a cord having a grounding wire with a

grounding plug. It must be plugged into a wall receptacle

that is properly installed and grounded in accordance

with the National Electrical Code and local codes and

ordinances. In the event of an electrical short circuit,

grounding reduces risk of electric shock by providing an

escape wire for the electric current.

Improper use of the grounding plug can result in a risk

of electric shock.

Electrical Requirements

Check Installation Instructions for proper location for the

power supply.

The electrical requirements are a 120 volt 60 Hz, AC

only, 15 amp. or more protected electrical supply. It is

recommended that a separate circuit serving only the

microwave oven be provided.

The microwave oven is equipped with a 3=prong

grounding plug. It must be plugged into a wall receptacle

that is properly installed and grounded. DO NOT

UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE

GROUNDING PIN FROM THE PLUG.

DO NOT USE AN EXTENSION CORD.

If the power supply cord is too short, have a qualified

electrician or serviceman install an outlet near the appliance.

The Power Supply Cord and plug must be connected to

a separate 120 Volt AC, 60 Hz, 15 Amp, or more branch

circuit, single grounded receptacle. The receptacle

should be located inside the cabinet directly above the

Microwave Oven mounting location as shown in Figure 1.

1. If you have any questionsabout the grounding or electrical

instructions,consult a qualified electricianor serviceperson.

2. Neither Electrolux nor the dealer can accept any

liability for damage to the microwave oven or

personal injury resulting from failure to observe the

correct electrical connection procedures.

3-Prong Plug

Grounding Pin

3-Prong Receptacle

Ground

Receptacle Box

Figure 1

Ground __

Receptacle

Opening for

Power Cord

Federal Communications Commission Radio Frequency Interference Statement

(U.S.A. Only)

This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance

with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested

and found to comply with limits for ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide

reasonable protection against such interference in a residential installation.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following:

o Reorient the receiving antenna of the radio or television.

Relocate the microwave oven with respect to the receiver.

Move the microwave oven away from the receiver.

Plug the microwave oven into a different outlet so that the microwave oven and the receiver are on different branch

circuits.

The manufacturer is not responsible for any radio or television interference caused by unauthorized modification

to this microwave oven. It is the responsibility of the user to correct such interference.

ABOUT YOUR MICROWAVE OVEN

This Use and Care Manual is valuable: read it carefully and

always save it for reference.

A good microwave cookbook is a valuable asset. Check it for

microwave cooking principles, techniques, hints and recipes.

NEVER use the microwave oven without the turntable and

support nor turn the turntable over so that a large dish could

be placed in the microwave oven.

ALWAYS have food in the microwave oven when it is on to

absorb the microwave energy.

When using the microwave oven at power levels below 100%,

you may hear the magnetron cycling on and off. It is normal

for the exterior of the microwave oven to be warm to the touch

when cooking or reheating.

Condensation is a normal part of microwave cooking. Room

humidity and the moisture in food will influence the amount

of moisture that condenses in the microwave oven. Generally,

covered foods will not cause as much condensation as

uncovered ones. Ventilation openings must not be blocked.

The microwave oven is for food preparation only. It should not

be used to dry clothes or newspapers.

Your microwave oven is rated 1000 watts by using the [EC

Test Procedure. In using recipes or package directions, check

food a minute or two before the minimum time and add time

accordingly.

ABOUT FOOD

ABOUT MICROWAVE COOKING

• Arrange food carefully. Placethickest areas towards outside of dish.

Watch cooking time. Cook for the shortest amount of

time indicated and add more as needed. Food severely

overcooked can smoke or ignite.

Cover foods while cooking. Check recipe or cookbook for

suggestions: paper towels, wax paper, microwave plastic wrap or

a lid. Covers prevent spattering and help foods to cook evenly.

Shield with small fiat pieces of aluminum foil any thin areas

of meat or poultry to prevent overcooking before dense, thick

areas are cooked thoroughly.

Stir foods from outside to center of dish once or twice during

cooking, if possible.

Turn foods over once during microwaving to speed cooking

of such foods as chicken and hamburgers. Large items like

roasts must be turned over at least once.

Rearrange foods such as meatballs halfway through cooking

both from top to bottom and from the center of the dish to

the outside.

Add standing time. Remove food from microwave oven and

stir, if possible. Cover for standing time which allows the food

to finish cooking without overcooking.

Check for doneness. Look for signs indicating that cooking

temperatures have been reached.

Doneness signs include:

- Food steams throughout, not just at edge.

- Center bottom of dish is very hot to the touch.

- Poultry thigh joints move easily.

- Meat and poultry show no pinkness.

- Fish is opaque and flakes easily with a fork.

FOOD DO DON'T

Eggs,

sausages,

nuts, seeds,

fruits &

vegetables

Puncture egg yolks before cooking to prevent

"explosion".

Pierce skins of potatoes, apples, squash, hot dogs

and sausages so that steam escapes.

Cook eggs in shells.

Reheat whole eggs.

Dry nuts or seeds in shells.

Popcorn Use specially bagged popcorn for microwave cooking. • Pop popcorn in regular brown bags or glass bowls.

Listen while popping corn for the popping to slow • Exceed maximum time on popcorn package.

to 1 or 2 seconds or use special popcorn pad.

Baby food Transfer baby food to small dish and heat carefully,

stirring often. Check temperature before serving.

Put nipples on bottles after heating and shake

thoroughly. "Wrist" test before feeding.

Heat disposable bottles.

Heat bottles with nipples on.

Heat baby food in original jars.

General

Cut baked goods with filling after heating to release

steam and avoid burns.

Stir liquids briskly before and after heating to avoid

"eruption".

Use deep bowl, when cooking liquids or cereals, to

prevent boilovers.

Heat or cook in closed glass jars or air tight

containers.

Can in the microwave as harmful bacteria may not

be destroyed.

Deep fat fry.

Dry wood, gourds, herbs or wet papers.

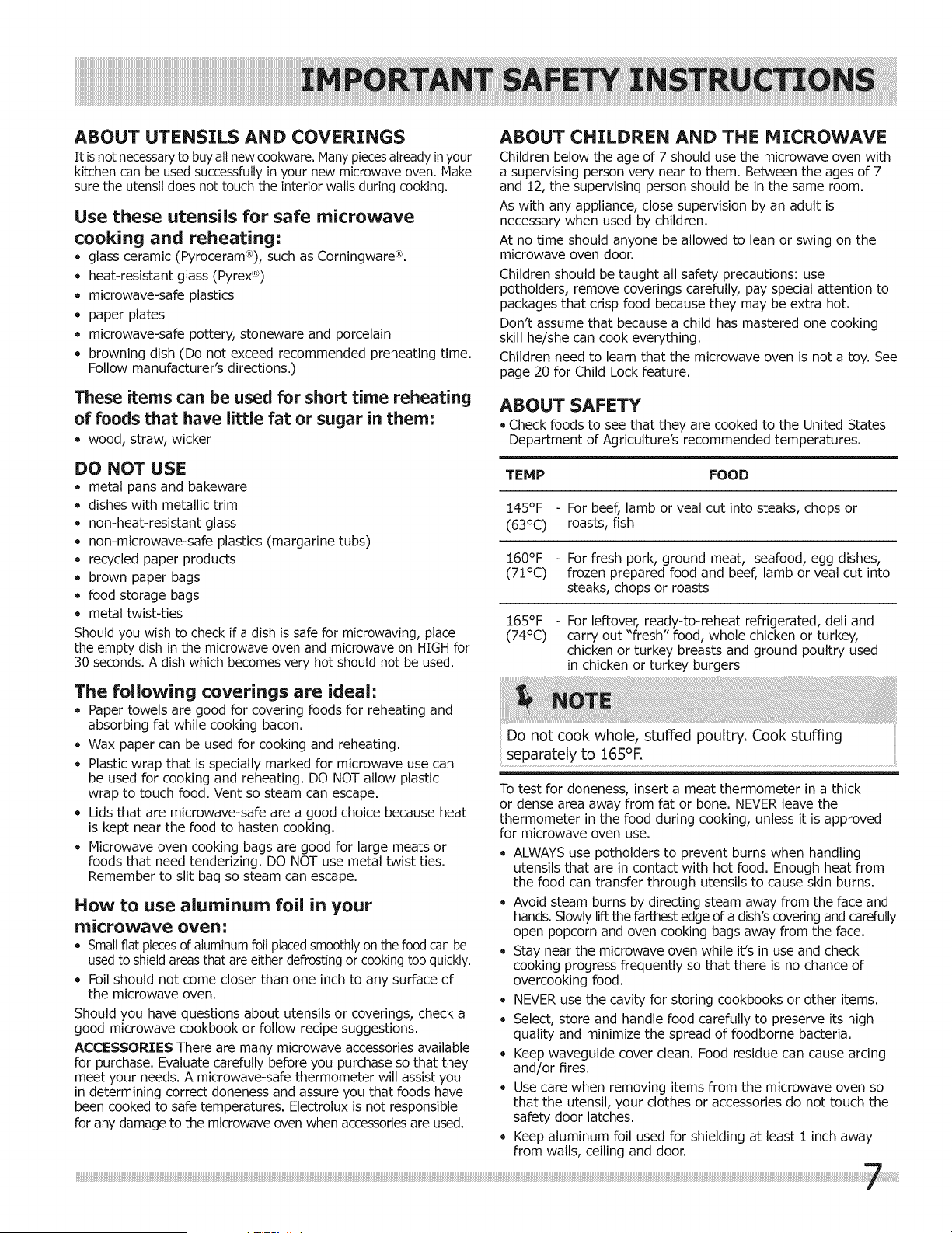

ABOUT UTENSILS AND COVERINGS

It is not necessary to buy all new cookware, Many piecesalready in your

kitchen can be used successfully in your new microwave oven, Make

sure the utensil does not touch the interior walls during cooking,

Use these utensils for safe microwave

cooking and reheating:

+ glass ceramic (Pyroceram®), such as Corningware%

• heat-resistant glass (Pyrex ®)

• microwave-safe plastics

• paper plates

• microwave-safe pottery, stoneware and porcelain

• browning dish (Do not exceed recommended preheating time.

Follow manufacturer's directions.)

These items can be used for short time reheating

of foods that have little fat or sugar in them:

• wood, straw, wicker

DO NOT USE

+ metal pans and bakeware

+ dishes with metallic trim

+ non-heat-resistant glass

+ non-microwave-safe plastics (margarine tubs)

+ recycled paper products

• brown paper bags

• food storage bags

• metal twist-ties

Should you wish to check if a dish is safe for microwaving, place

the empty dish in the microwave oven and microwave on HIGH for

30 seconds. A dish which becomes very hot should not be used.

The following coverings are ideal:

+ Paper towels are good for covering foods for reheating and

absorbing fat while cooking bacon.

• Wax paper can be used for cooking and reheating.

• Plastic wrap that is specially marked for microwave use can

be used for cooking and reheating. DO NOT allow plastic

wrap to touch food. Vent so steam can escape.

• Lids that are microwave-safe are a good choice because heat

is kept near the food to hasten cooking.

• Microwave oven cooking bags are good for large meats or

foods that need tenderizing. DO NOT use metal twist ties.

Remember to slit bag so steam can escape.

How to use aluminum foil in your

microwave oven:

+ Small flat piecesof aluminum foil placed smoothly on the food can be

used to shield areas that are either defrosting or cooking too quickly,

+ Foil should not come closer than one inch to any surface of

the microwave oven,

Should you have questions about utensils or coverings, check a

good microwave cookbook or follow recipe suggestions.

ACCESSORIES There are many microwave accessories available

for purchase. Evaluate carefully before you purchase so that they

meet your needs. A microwave-safe thermometer will assist you

in determining correct doneness and assure you that foods have

been cooked to safe temperatures. Electrolux is not responsible

for any damage to the microwave oven when accessories are used.

ABOUT CHILDREN AND THE MICROWAVE

Children below the age of 7 should use the microwave oven with

a supervising person very near to them. Between the ages of 7

and 12, the supervising person should be in the same room.

As with any appliance, close supervision by an adult is

necessary when used by children.

At no time should anyone be allowed to lean or swing on the

microwave oven door.

Children should be taught all safety precautions: use

potholders, remove coverings carefully, pay special attention to

packages that crisp food because they may be extra hot.

Don't assume that because a child has mastered one cooking

skill he/she can cook everything.

Children need to learn that the microwave oven is not a toy. See

page 20 for Child Lock feature.

ABOUT SAFETY

+ Check foods to see that they are cooked to the United States

Department of Agriculture's recommended temperatures,

TEIvIP FOOD

145°F - For beef, lamb or veal cut into steaks, chops or

(63oc) roasts, fish

160°F - For fresh pork, ground meat, seafood, egg dishes,

(71°C) frozen prepared food and beef, lamb or veal cut into

steaks, chops or roasts

165°F - For leftover, ready-to-reheat refrigerated, dell and

(74°C) carry out "fresh" food, whole chicken or turkey,

chicken or turkey breasts and ground poultry used

in chicken or turkey burgers

Do not cook whole, stuffed poultry. Cook stuffing

separately to 165°F.

To test for doneness, insert a meat thermometer in a thick

or dense area away from fat or bone. NEVER leave the

thermometer in the food during cooking, unless it is approved

for microwave oven use.

+ ALWAYS use potholders to prevent burns when handling

utensils that are in contact with hot food. Enough heat from

the food can transfer through utensils to cause skin burns.

+ Avoid steam burns by directing steam away from the face and

hands. Slowly lift the farthest edge of a dish's covering and carefully

open popcorn and oven cooking bags away from the face.

+ Stay near the microwave oven while it's in use and check

cooking progress frequently so that there is no chance of

overcooking food.

+ NEVER use the cavity for storing cookbooks or other items.

+ Select, store and handle food carefully to preserve its high

quality and minimize the spread of foodborne bacteria.

+ Keep waveguide cover clean. Food residue can cause arcing

and/or fires.

+ Use care when removing items from the microwave oven so

that the utensil, your clothes or accessories do not touch the

safety door latches.

+ Keep aluminum foil used for shielding at least 1 inch away

from walls, ceiling and door.

FRONT ViEW

BOTTOM ViEW

13 3

1 19 5 7

1 Microwave oven door with see-through window

2 Door hinges

3 Waveguide cover:

DO NOT REMOVE.

Turntable motor shaft

Microwave oven light

It will light when microwave oven is operating or

door is open.

Rack holders

Safety door latches

The microwave oven will not operate unless the

door is securely closed.

Handle

Light hi/Io/off pad

Press the light N/Io/off pad once for high, twice

for low and three times to turn off the light.

Vent hi/Io/off pad

Press the vent hi/Io/off pad once for high

speed, twice for low speed and three times to

turn off the fun.

11 Auto-Touch control panel

12 Time display: Digital display, 99 minutes, 99

seconds

Ventilation openings

Removable turntable

The turntable will rotate clockwise or counter-

clockwise. Only remove for cleaning.

Removable turntable support

First, carefully place the turntable support in the

motor shaft in the center of the microwave oven

floor. Place the support ring on the microwave oven

floor. Then, place the turntable on the turntable

support securely.

Rack for 2-level cooking/reheating

Light cover

Grease filters

Menu label

The7-digitInteractiveDisplayspellsoutoperatingsteps

andshowscookinghints.

popcorn

sensor

cook

snack

baked

potato

® ®

veggies

sensor auto

reheat cook

mett/ auto

soften defrost

user power

timer pref revel

quick start

1 2 3

7 8

stop 0

clear

turntable

on-off

start

enter

+ 30 sec

t 8-20

2t -24

25-27

Number next to the control panel illustration

indicates pages on which there are feature descriptions and usage information.

1. Display: The display includes a clock and indicators that show the time of day, cooking

time settings, cook powers, sensor, quantities, weights and cooking

functions selected.

la. SENSOR: Icon displayed when using sensor cook.

lb. TIMER: Icon displayed when timer is being set or running.

1¢. COOl(: Icon displayed when starting microwave cooking.

ld. DEFR: Icon displayed when defrosting food

le. LOCI(: Icon displayed in control lock.

lf. PRESS AGAIN FOR OPTIONS: Icon displayed when additional options are available.

lg. PRESS START: Icon displayed when a valid function can be started.

lb. kg, oz, ib: Icon displayed when choosing the weight.

Before operating your new oven make sure you read

and understand this Use and Care Guide completely.

The clock can be disabled when the microwave is first

plugged in and the STOP key is selected.

To re-enable the clock follow clock instructions.

To Set the Clock

o Suppose you want to enter the correct time of day 10:59

Touch:

1. user

pref

Display Shows:

PRESS AGAIN FOR OPTIONS/

1_.1717 I--I_ IXl--17 T [ I_,II--

IC'UU IcI q _ CI'_ I IC

PRESS START

2.©@©® ,,-,,--,--,

IU._IJ

start _n.m7

_u-_7_7

3, enter

+ 30 sec

1. If you begin to enter in an incorrect time (e.g. 2:89)

the 8 is an invalid digit and cannot be entered.

Enter the correct time.

2. If you touch STOP while setting the clock, the

display will show the last time of day set or a

blank display if no time of day has been set.

STOP clear

Press the STOP clear to:

1. Erase if you make a mistake during programming.

2. Cancel timer and the signal after cooking.

3. Stop the oven temporarily during cooking.

4. Return the time of day to the display.

5. Cancel a program during cooking, press twice.

ii!!i;iiiiiiiiiiiiiiiiiiiiiiii_ii:ii::;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:;:i;:i;:i;:i;:i;:i;:i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;:_;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_

Time Cooking

Your Over the Range Microwave Oven can be programmed

for 99 minutes 99 seconds (99:99). Always enter the seconds

after the minutes, even if they are both zeros.

. Suppose you want to cook for five minutes, 30

seconds at !00% power,

Touch: Display Shows:

PRESSSTART

I--. 717

_7-7U

Interrupting Cooking

You can stop the oven during a cycle by opening

the door. The oven stops heating and the fan turns

off, but the light stays on.

To restart cooking, close the door and Touch.

start

enter

+ 30 sec

If you do not want to continue cooking, open the

door and touch sto

c[eaP

start c.Dn

__1"__ILl

enter

COOK

+ 30 sec Time counting down

Using One Touch Start

This is a time saving pad that will automatically

start cooking 2 seconds after selected. Numeric key

!, 2, or 3 can be touched for a 1 minute, 2 minute

or 3 minute automatic start cooking feature.

Touch: Display Shows:

--I. i--II--I

i, C'uu

COOK

Time counting down

Using Add 30 Sec,

This is a time-saving pad. it is a simplified feature

that lets you quickly set and start microwave

cooking at 100% power.

. Suppose you want to cook for one minute.

Touch: Display Shows:

1. start .-.-i

"-IU

enter oooK

+ 30 sec

2. start iI"nn.uu

enter ooo.

+ 30 sec Time counting down

Each time you touch ADD 30 SEC, it will add 30

seconds up to 99 minutes 99 seconds.

Setting Timed Cooking With Power Level

This feature lets you program a specific cook time

and power. For best results, there are 10 power

level settings in addition to HiGH (100%) power.

. Suppose you want to cook for five minutes,

30 seconds at 80% power.

Touch: Display Shows:

2. Power ..........

Level x 3 ml mm

I-L -OU

start r. nn

3. enter _1" "-IU

COOK

+ 30 sec Time counting down

Setting Two-Stage Cooking

For best results, some recipes call for different

power levels during a cook cycle. You can

program your oven for two power level stages

during the cooking cycle.

. Suppose you want to set a 2-stage cook cycle.

The first stage is a 3 minute cook time at 80% cook

power then a 7 minute cook time at 50% cook power.

Touch: Display Shows:

To set a 3 minute cook

time for first stage.

PRESSSTART

il.uu

2, Power ....._....

Level x 3 ml mm

i-i_ -Ou

,-,.,-,,-,..........

I-LIt1

To set a 7 minute cook

power for the second stage.

Power ..........

4. Level x 6 rLmJ--iLirm

You can program a "0" power second stage for

standing time inside the oven.

start _.mm

enter _-I.LU_I ....

+ 30 sec

Time counting down

If you do not select a power level, the oven

will automatically cook at HIGH (100%) power.

To Set Power Level

There are eleven preset power levels.

Using lower power levels increases the cooking time which

is recommended for foods such as cheese, milk and long

slow cooking of meats. Consult cookbook or recipes for

specific recommendations.

PRESS POWER LEVEL APPROXIHATE COHION

PAD NUMBER OF TINES PERCENTAGE WORDS FOR

FOR DESIRED POWER OF POWER POWER LEVELS

POWER LEVEL x 1 100% High

POWER LEVEL x 2 90%

POWER LEVEL x 3 80%

POWER LEVEL x 4 70% Medium High

POWER LEVEL x 5 60%

POWER LEVEL x 6 50% Medium

POWER LEVEL x 7 40%

POWER LEVEL x 8 30% IVied Low/Defrost

POWER LEVEL x 9 20%

POWER LEVEL x 10 10% Low

POWER LEVEL x 11 0%

Using the Rack

The rack allows several foods to be cooked or reheated at

one time. However, for the best cooking and reheating, use

Turntable ON function and cook with SENSOR COOKING or

AUTO COOKING without the rack. When the rack is used, set

time and power level manually. Allow plenty of space around

and between the dishes. Pay close attention to the cooking

and reheating progress. Reposition the foods and reverse

them from the rack to turntable and/or stir them at least

once during any cooking or reheating time. After cooking

or reheating, stir if possible. Using a lower power level will

assist in better cooking and reheating uniformity.

Avoid:

o Storing the rack in the microwave oven when not in

use.

Popping popcorn with the rack in the microwave oven.

Using any browning dish on the rack.

Using SENSORCOOKING and AUTO COOKING with the

rack.

Cooking directly on the rack--use microwave-safe

coo kwa re.

Turntable on/off function can be used in Manual Operation.

See page 28.

Manual Defrost

If the food that you wish to defrost is not listed on the

Defrost chart or is above or below the limits in the Amount

column on the Defrost chart (see page 22-23), you need

to defrost manually.

You can defrost any frozen food, either raw or previously

cooked, by using power level for 30%.

For either raw or previously cooked frozen food the rule of

thumb is approximately 4 minutes per pound. For example,

defrost 4 minutes for 1 pound of frozen spaghetti sauce.

Always stop the oven periodically to remove or separate

the portions that are defrosted. If food is not defrosted at

the end of the estimated defrosting time, program the oven

in 1 minute increments on power level 30% until totally

defrosted.

When using plastic containers from the freezer, defrost only

long enough to remove from the plastic in order to place in

a microwave-safe dish.

Sensorcookinghasan electroniccontrolledsensorthat

detectsthevapor(moistureandhumidity)emittedfromthe

foodasit heats,Thesensoradjuststhecookingtimesand

powerlevelforvariousfoodsandquantitiesautomatically,

Using Sensor Settings:

1, Be sure the exterior of the cooking container and the

interior of the oven are dry. Wipe off any moisture with

a dry cloth or paper towel.

2. The oven works with foods at normal storage tem-

perature. For example, popcorn would be at room

temperature.

3. lore or less food than the quantity listed in the chart

should be cooked following the guidelines in any micro-

wave cookbook.

4. During the first part of SENSOR COOKING, food name will

appear in the display. Do not open the oven door or press

the STOP clear pad during this part of the cycle. The

measurement of vapor will be interrupted.

When the sensor detects the vapor emitted from the

food, remainder of cooking time will appear. Door may

be opened when remaining cooking time appears in the

display. At this time, you may stir or season food, as

desired.

5. If the sensor does not detect vapor properly when pop=

ping popcorn, the oven will turn off, and the correct time

of day will be displayed. If the sensor does not detect

vapor properly when cooking other foods, AN ERROR

CODE will be displayed, and the oven will turn off.

6. Check food for temperature after cooking. If additional

time is needed, continue to cook manually.

Covering Foods:

Some foods cook better when covered.

1. Casserole lid.

2. Plastic wrap: Useplastic wrap recommended for microwave

cooking. Cover dish loosely; allow approximately 1/2 inch

to remain uncovered to allow steam to escape. Plastic

wrap should not touch food.

3. Wax paper: Cover dish completely; fold excess wrap

under dish to secure. If dish is wider than paper, overlap

two pieces at least one inch to cover.

Be careful when removing any covering to allow steam to

escape away from you.

1. The final cooking result will vary according to the

food condition (e.g. initial temperature, shape,

quality). Check food for temperature after cooking. If

additional time is needed, continue to cook manually.

2. Stay near the oven while it's in use and check

cooking progress frequently so that there is no

chance of overcooking food.

3. When SENSORCOOKING are selected Turntable

On is automatically set for optimum cooking.

SensorCook

You can cook foods by pressing the sensor cook pad

multiple times. You don't need to calculate cooking

time or power level.

. Suppose you want to cook frozen breakfast.

Touch: Display Shows:

PRESS AGAIN FOR OPTIONS/ PRESS START

sensor r.-.-mJ, i

1. cook mnLUIsENSOR'_

PRESS AGAIN FOR OPTIONS/ PRESS START

sensor 1-17 i,ii,11-17

2. cook FI= u,._CJ ,I ±loENoo,II'll 'lCl=

PRESS AGAIN FOR OPTIONS/ PRESS START

3 sensor ol m-

. Ill LI--

cook ......

4. sensor

PRESS AGAIN FOR OPTIONS/ PRESS START

cook 1--17 17 _TI--I_ I i71--11-- 17 I/I-- I--I i-- T

I-I-; ULCI q I--i1"_CJ71\FI7-1

SENSOR

start

5. enter CI-I I-I-_CI_I

+30sec I I-_ I_l___Lltl

CIr CN I\1-!-I D T

SENSOR COOK

Sensor Cook chart

FOOD AMOUNT PROCEDURE

Place bacon strips on a microwave bacon rack for best

1.Bacon 1-3 slices results. (Use dinner plate lined with paper towels if rack

is not available)_

Place in a appropriately sized microwave container.

Cover with plastic wrap. After cooking, stir and allow

2. Frozen Dinner 10 oz./20 oz.

to stand for 3 minutes.

3. Rice

4. Frozen Breakfast

1-2 cups

Use medium or long

grain rice. Cook

instant rice according

to directions on the

package.

8/12 oz.

Place rice and twice as much liquid (water, chicken

or vegetable stock) in a 2 quart microwave dish.

Cover with plastic wrap and vent. After cooking,

allow to stand for 10 minutes. Stir for fluffier rice.

Place in a appropriately sized microwave container.

Cover with plastic wrap. After cooking, stir and allow

to stand for 3 minutes.

Sensor Reheat

• Suppose you want to reheat rolls with sensor reheat.

Touch: Display Shows:

PRESS AGAIN FOR OPTIONS/ pRESS STAR _r

TI I I_ I1_11--17 131 I-ITI-

sensor ±___,,,cr_ rLn, c

1. reheat ......

PRESS AGAIN FOR OPTIONS/ PRESS START

2. sensor _-n_ .n rn_ .-_-

reheat :_uur SENSORZ"TULC

PRESS AGAIN FOR OPTIONS/ pRESS START

3. sensor ro CCL-mn mC

reheat L, _J_.__=u LL

SENSOR

pRESS AGAIN FOR OPTIONS/ PRESS START

sensor nn_ r

4. reheat _ULL :u

SENSOR

start

I-INi I i--

5. enter I-;UL L :1

+ 30 sec SENSORCOOK

Sensor Reheat chart

FOOD AMOUNT PROCEDURE

Dinner Plate 1-2 Plates Place on a low plate. Cover with vented plastic wrap.

Let stand 3 minutes after cooking.

Soup/Sauce !-2 Cups Place in shallow microwavable casserole.Cover with vented

plastic wrap. After cooking, stir and let stand 3 minutes.

Casserole/ 1-4 Servings Place in a microwavable bowl or casserole. Cover with

Lasagna vented plastic wrap. After cooking, stir and let stand

3 minutes.

Roll/Muffin !-3 Pieces Place on paper towel. Do not cover.

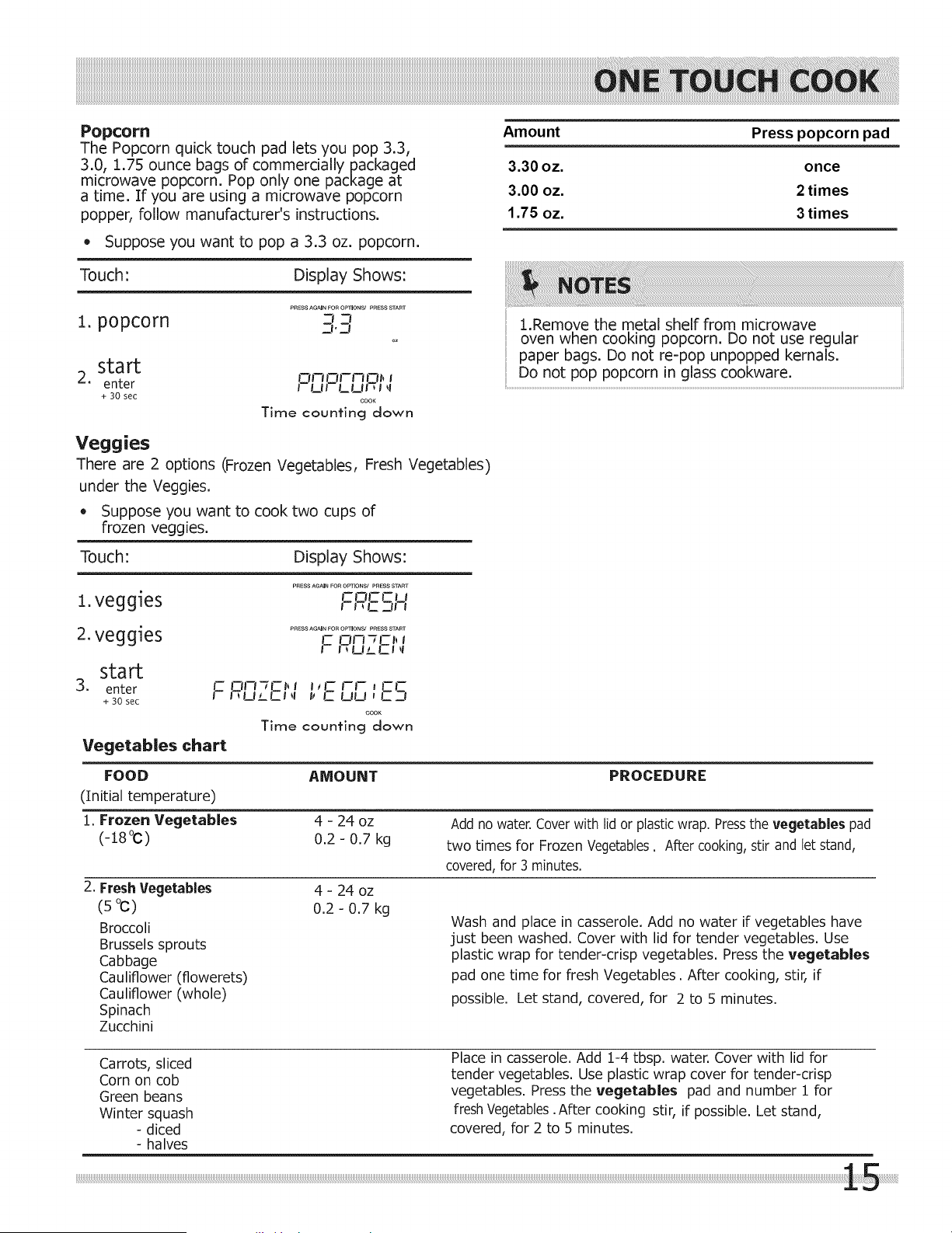

Popcorn

The Popcorn quick touch pad lets you pop 3.3,

3.0, 1.75 ounce bags of commercially packaged

microwave popcorn. Pop only one package at

a time. If you are using a microwave popcorn

popper, follow manufacturer's instructions.

. Suppose you want to pop a 3.3 oz. popcorn.

Touch: Display Shows:

PRESS AGAIN FOR OPTIONS/ PRESS START

1. popcorn n n

start nnnrnn ,

2. enter !-I_U-LUF_! ,I

+ 30 sec

cook

Time counting down

Amount Press popcorn pad

3.30 oz. once

3.00 oz. 2 times

1.75 oz. 3 times

1.Remove the metal shelf from microwave

oven when cooking popcorn. Do not use regular

paper bags. Do not re-pop unpopped kernals.

Do not pop popcorn in glass cookware.

Veggies

There are 2 options (Frozen Vegetables, Fresh Vegetables)

under the Veggies.

, Suppose you want to cook two cups of

frozen veggies.

Touch: Display Shows:

1.veggies

PRESS AGAIN FOR OPTIONS/ PRESS START

I- Nl--I--I I

i- i_ i- _-In

2. veggies ......._°"_q'iq'_'i-_S_T,'°;

I'_ LIL. L- I _1

start

3. enter FoI-I-H-I_I I_I-I-I- I-I-

+ 30 sec

cook

Time counting down

Vegetables chart

FOOD AMOUNT

(Initial temperature)

1. Frozen Vegetables 4 - 24 oz

(-18°C) 0.2- 0.7 kg

2. Fresh Vegetables

(5 °C)

Broccoli

Brussels sprouts

Cabbage

Cauliflower (flowerets)

Cauliflower (whole)

Spinach

Zucchini

4 - 24 oz

0.2 - 0.7 kg

PROCEDURE

Addno water. Coverwith lid or plastic wrap. Pressthe vegetables pad

two times for Frozen Vegetables. After cooking,stir and let stand,

covered,for 3 minutes.

Wash and place in casserole. Add no water if vegetables have

just been washed. Cover with lid for tender vegetables. Use

plastic wrap for tender-crisp vegetables. Press the vegetables

pad one time for fresh Vegetables. After cooking, stir, if

possible. Let stand, covered, for 2 to 5 minutes.

Carrots, sliced

Corn on cob

Green beans

Winter squash

- diced

- halves

Place in casserole. Add 1-4 tbsp. water. Cover with lid for

tender vegetables. Use plastic wrap cover for tender-crisp

vegetables. Press the vegetables pad and number 1 for

freshVegetables.After cooking stir, if possible. Let stand,

covered, for 2 to 5 minutes.

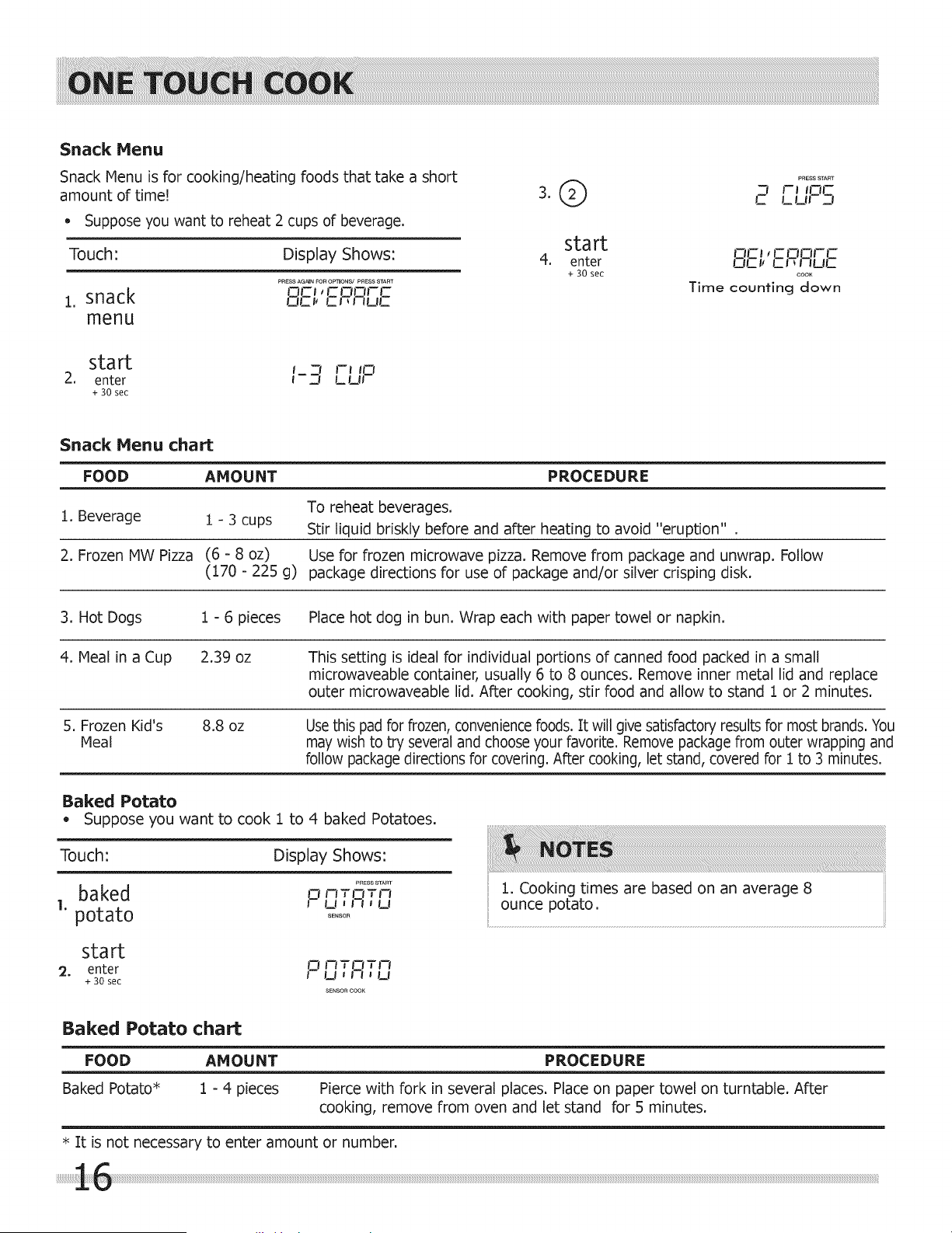

Snack Menu

Snack Menu is for cooking/heating foods that take a short

amount of time!

- Suppose you want to reheat 2 cups of beverage,

Touch: Display Shows:

PRESS AGAIN FOR OPTIONS/ PRESS START

1. snack ram, _-nn1-1-

0C1_ CI_nUC

3.©

start

4. enter

+ 30 sec

PRESS START

1_7 i-I 1171--

_ L UI- _-I

I-I1--1 _1--17171--1--

OCI, L-17nUL-

COOK

Time counting down

start i -_ r1117

2. enter I--_ LLU-

+ 30 sec

Snack Menu chart

FOOD AMOUNT PROCEDURE

To reheat beverages.

1. Beverage 1 - 3 cups Stir liquid briskly before and after heating to avoid "eruption" .

2. Frozen MW Pizza (6 - 8 oz) Use for frozen microwave pizza. Remove from package and unwrap. Follow

(170 - 225 g) package directions for use of package and/or silver crisping disk.

3. Hot Dogs 1 - 6 pieces Place hot dog in bun. Wrap each with paper towel or napkin.

4. Meal in a Cup 2.39 oz This setting is ideal for individual portions of canned food packed _na small

microwaveable container, usually 6 to 8 ounces. Remove inner metal lid and replace

outer microwaveable lid. After cooking, stir food and allow to stand 1 or 2 minutes.

5. Frozen Kid's 8.8 oz Use this pad for frozen, convenience foods, it will give satisfactory results for most brands. You

Meal may wish to try several and choose your favorite. Remove package from outer wrapping and

follow package directions for covering. After cooking, let stand, covered for 1 to 3 minutes.

Baked Potato

. Suppose you want to cook i to 4 baked Potatoes.

Touch: Display Shows:

PRESSSTART

1. baked in i-,Tr_Trl

I-- UII_IU

potato ......

start

enter I--I I'i] T 1"_T I--I

I-- U s I-I _ U

+ 30 sec

SENSOR COOK

1. Cooking times are based on an average 8

ounce potato.

Baked Potato chart

FOOD AMOUNT PROCEDURE

Baked Potato* 1 - 4 pieces Pierce with fork in several places. Place on paper towel on turntable. After

cooking, remove from oven and let stand for 5 minutes.

* It is not necessary to enter amount or number.

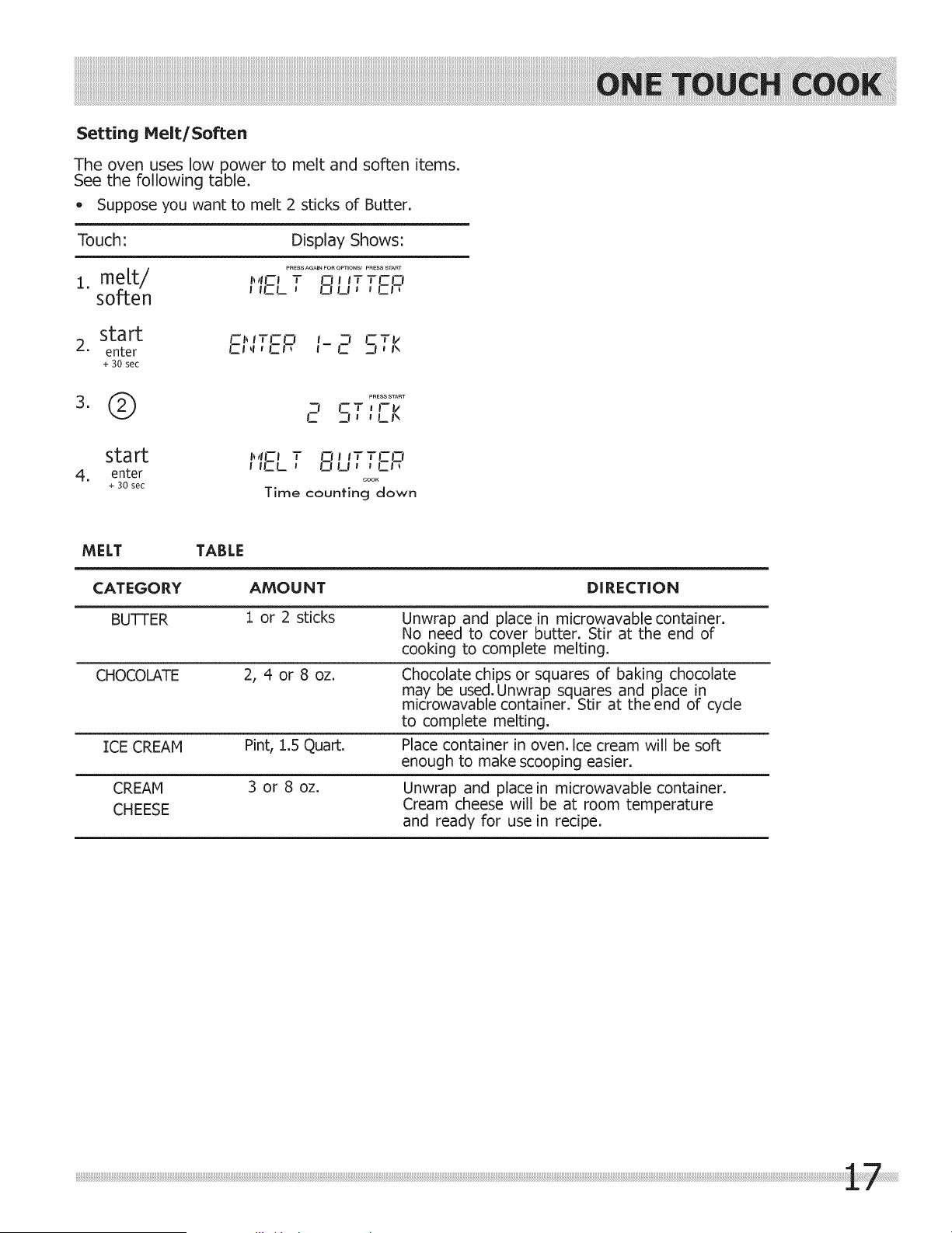

Setting Melt/Soften

The oven uses low power to melt and soften items.

See the following table,

• Suppose you want to melt 2 sticks of Butter.

Touch: Display Shows:

PRESS AGAIN FOR OPTIONS/ PRESS START

1. melt/ I,,.-_ T O_,TTrm

soften _ICE, u u, , =x'_

start m,,T,-n I- 7 _-Tv

2. enter CI q _ Cl-_ C _1 u I\

+ 30 sec

Q PRESS START

3. 5Tlr

start ""-' r 1711TTI--17

4. enter

COOK

+ 30 sec Time counting clown

MELT TABLE

CATEGORY AMOU NT DI RECTION

BUTTER 1 or 2 sticks Unwrap and place in microwavable container.

No need to cover butter. Stir at the end of

cooking to complete melting.

CHOCOLATE 2, 4 or 8 oz. Chocolate chips or squares of baking chocolate

may be used. Unwrap squares and place in

microwavable container. Stir at the end of cycle

to complete melting.

ICE CREAM Pint, 1.5 Quart. Place container in oven. Ice cream will be soft

enough to make scooping easier.

CREAM 3 or 8 oz. Unwrap and place in microwavable container.

Cream cheese will be at room temperature

CHEESE and ready for use in recipe.

Auto Cook

Auto cook is divided into 2 parts-Quick Meals

(Scrambled Eggs, Hot Cereal, Frozen Pizza,

Fudge Brownies) and Dinner Recipes (Garlic

Shrimp, Asiago Red Potatoes, Roasted

Vegetable Medley, Lemon and Shrimp Risotto,

White Chicken Chilli).

- Suppose you want to cook Hot Cereal for 1 serving.

Touch:

1. auto

cook

Key Food .aumount 2. auto

Snacks xl Scrambled Eggs 1 - 6 Eggs cook

Snacks x2 Hot Cereal 1 - 3 Servings

start

Snacks x3 Frozen Pizza 12 oz 3. enter

Snacks x4 Fudge Brownies +30sec

Snacks x5 Garlic Shrimp Per Recipe

Stuffed Mushrooms Per Recipe 4.

Snacks x6

Snacks x7 Asiago Red Potatoes Per Recipe

Snacks x8 Roasted Vegetable Per Recipe start

Medley 5. enter

Lemon and Shrimp +30sec

Snacks x9 Risotto Per Recipe

Snacks xl0 White Chicken Chili Per Recipe

Display Shows:

PRESS AGAIN FOR OPTIONS/ PRESS START

1--1--1--11--11_4171 I--TI I--t--I--I--

--ILl'_rlJ IOL_±1 CUU_-I

PRESS AGAIN FOR OPTIONS/ PRESS START

I I1--1T I--1--1--11--171

I-ILI i L I- I"_ L_ f-I L

I _ i--1--171_ I_ii--

I-_.-I _-I1_-1"_1_i I q!_t

PRESS START

I--I--I-11 _1I_ I I--I--

"-ICI_I_ I I q I_l_l

--IT I-- I-- 01-- I"ll

IJ _ L C I-; CI-IL

cook

Time counting clown

When AUTO COOKING are selected, Turntable On is

automatically set for optimum cooking.

Quick Meals chart

FOOD AMOUNT PROCEDURE

1. Scrambled 1 - 6 eggs Whisk together egg and milk (use 1/2 tablespoon milk for each egg) in a microwave safe

Eggs bowl that has been coated with cooking spray. Select "Scrambled Eggs" under the Auto Cook

menu an d the desired number of eggs to be cooked. Stir half way through cooking time.

2. Hot Cereal 1- 3 servings Use individual packets or bulk cereal in your favorite variety: oatmeal, oat bran, cream of

wheat, farina or wheatena. Follow package directions for the correct amount of water or milk.

To prevent boilovers, it is very important to choose a large container because microwave

cooking of cereal causes high boiling. Select "Hot Cereal" under the Auto Cook menu

and the desired number servings.

3. Frozen Usefor frozen microwave pizza. Remove from package and unwrap. Follow

Pizza 12 oz package directions for use of package and/or silver crisping disk.

Prepare brownie mix according to package directions. Spoon batter into an 8 x 8 inch

4. Fudge 18-19 oz

Brownies microwave safe glass dish that has been coated with cooking spray. Select "Fudge Brownies"

under the Auto Cook menu.

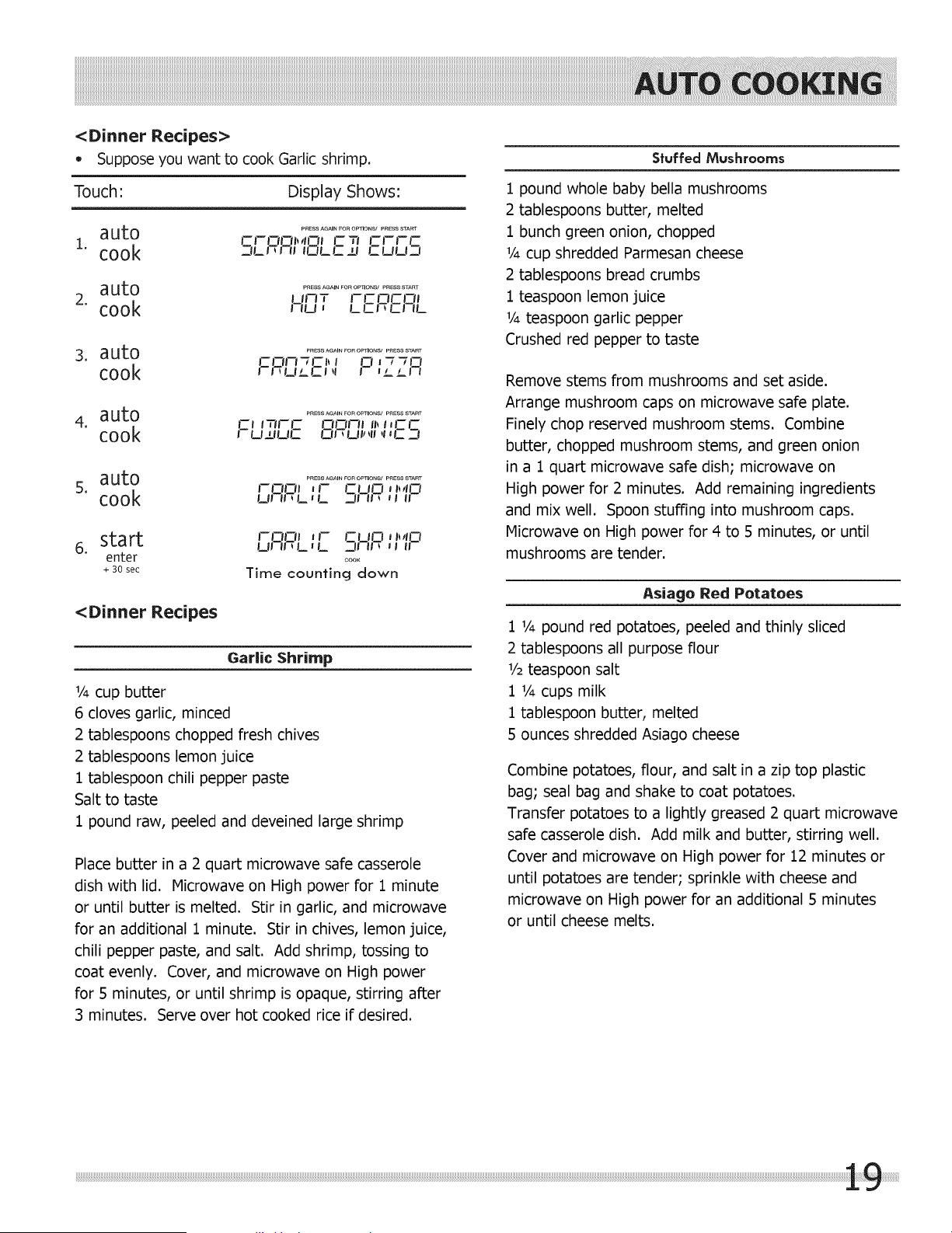

- Suppose you want to cook GarLic shrimp.

Touch: Display Shows:

auto

cook

auto

2. cook

PRESS AGAIN FOR OPTIONS/ PRESS START

I--1--1--1171_J1171 I--TI i--I--I--I--

_-ILFtFll IOLC±I _UU_-r

PRESS AGAIN FOR OP_ONS/ PRESS START

I II--IT t-- I-- NI-- i--Ii

FlU _ L !_-I-1_I-IL

3. auto

cook

PRESS AGAIN FOR OPTIONS/ PRESS START

I-- I--IIq -/I-- F I J -/-/'1--1

PRESS AGAIN FOR OPTIONS/ PRESS START

4. auto i-_ ITll--I-- NNnl I1_In-I-

cook FU±IUC OrTu1-11_t_CZJ

5. auto _-nnl P;E_=OA'N;_T;_PRESiI'i_;

cook Unl C,,_ 11'-

6. start ,-i-,i-,i,i- i-i 117,I,111_nLtI--II_L I L :II-II'T I

enter ooo,

+30sec Time counting down

<Dinner Recipes

Garlic Shrimp

1/4cup butter

6 cloves garlic, minced

2 tablespoons chopped fresh chives

2 tablespoons lemon juice

1 tablespoon chili pepper paste

Salt to taste

1 pound raw, peeled and deveined large shrimp

Place butter in a 2 quart microwave safe casserole

dish with lid. Microwave on High power for 1 minute

or until butter is melted. Stir in garlic, and microwave

for an additional 1 minute. Stir in chives, lemon juice,

chili pepper paste, and salt. Add shrimp, tossing to

coat evenly. Cover, and microwave on High power

for 5 minutes, or until shrimp is opaque, stirring after

3 minutes. Serve over hot cooked rice if desired.

Stuffed Mushrooms

1 pound whole baby bella mushrooms

2 tablespoons butter, melted

1 bunch green onion, chopped

1/4cup shredded Parmesan cheese

2 tablespoons bread crumbs

1 teaspoon lemon juice

1//4teaspoon garlic pepper

Crushed red pepper to taste

Remove stems from mushrooms and set aside.

Arrange mushroom caps on microwave safe plate.

Finely chop reserved mushroom stems. Combine

butter, chopped mushroom stems, and green onion

in a 1 quart microwave safe dish; microwave on

High power for 2 minutes. Add remaining ingredients

and mix well. Spoon stuffing into mushroom caps.

Microwave on High power for 4 to 5 minutes, or until

mushrooms are tender.

Asiago Red Potatoes

1 1/4pound red potatoes, peeled and thinly sliced

2 tablespoons all purpose flour

1/2teaspoon salt

1 1//4cups milk

1 tablespoon butter, melted

5 ounces shredded Asiago cheese

Combine potatoes, flour, and salt in a zip top plastic

bag; seal bag and shake to coat potatoes.

Transfer potatoes to a lightly greased 2 quart microwave

safe casserole dish. Add milk and butter, stirring well.

Cover and microwave on High power for 12 minutes or

until potatoes are tender; sprinkle with cheese and

microwave on High power for an additional 5 minutes

or until cheese melts.

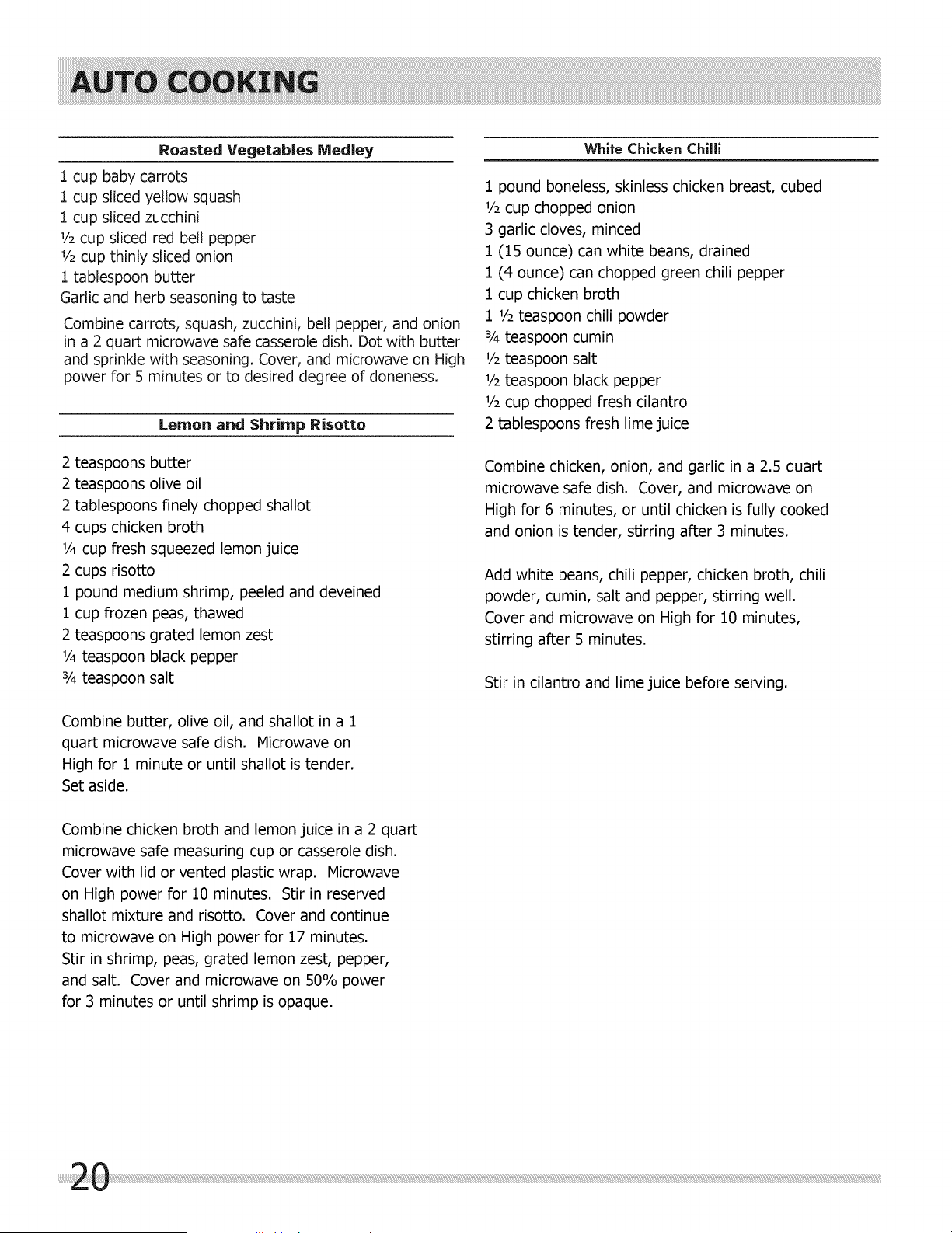

Roasted Vegetab|es Med|ey

1 cup baby carrots

1 cup sliced yellow squash

1 cup sliced zucchini

1/2cup sliced red bell pepper

1/2cup thinly sliced onion

1 tablespoon butter

Garlic and herb seasoning to taste

Combine carrots, squash, zucchini, bell pepper, and onion

in a 2 quart microwave safe casserole dish. Dot with butter

and sprinkle with seasoning. Cover, and microwave on High

power for 5 minutes or to desired degree of doneness.

Lemon and Shrimp Risotto

2 teaspoons butter

2 teaspoons olive oil

2 tablespoons finely chopped shallot

4 cups chicken broth

1/4cup fresh squeezed lemon juice

2 cups risotto

1 pound medium shrimp, peeled and deveined

1 cup frozen peas, thawed

2 teaspoons grated lemon zest

1/4teaspoon black pepper

3/4teaspoon salt

Combine butter, olive oil, and shallot in a 1

quart microwave safe dish. Microwave on

High for 1 minute or until shallot is tender.

Set aside.

While Chicken Chilli

1 pound boneless, skinless chicken breast, cubed

1/2cup chopped onion

3 garlic cloves, minced

1 (15 ounce) can white beans, drained

1 (4 ounce) can chopped green chili pepper

1 cup chicken broth

1 1/2teaspoon chili powder

3/4teaspoon cumin

1/2teaspoon salt

1/2teaspoon black pepper

1/2cup chopped fresh cilantro

2 tablespoons fresh lime juice

Combine chicken, onion, and garlic in a 2.5 quart

microwave safe dish. Cover, and microwave on

High for 6 minutes, or until chicken is fully cooked

and onion is tender, stirring after 3 minutes.

Add white beans, chili pepper, chicken broth, chili

powder, cumin, salt and pepper, stirring well.

Cover and microwave on High for 10 minutes,

stirring after 5 minutes.

Stir in cilantro and lime juice before serving.

Combine chicken broth and lemon juice in a 2 quart

microwave safe measuring cup or casserole dish.

Cover with lid or vented plastic wrap. Microwave

on High power for 10 minutes. Stir in reserved

shallot mixture and risotto. Cover and continue

to microwave on High power for 17 minutes.

Stir in shrimp, peas, grated lemon zest, pepper,

and salt. Cover and microwave on 50% power

for 3 minutes or until shrimp is opaque.

Using Auto Defrost

The auto defrost feature provides you with the best

defrosting method for frozen foods. The cooking guide

will show you which defrost sequence is recommended

for the food you are defrosting.

For added convenience, the Auto Defrost includes a

built-in beep mechanism that reminds you to check,

turn over, separate, or rearrange the food in order to

get the best defrost results. Three different defrosting

levels are provided:

1. MEAT

2. POULTRY

3. FISH

Available weight is 0.1-6.0 Ibs

• Suppose you want to defrost 1.2 Ibs of fish.

Touch: Display Shows:

1. auto ................. ., FEIqT :

defrost i1 n,

PRESS AGAIN FOR OPTIONS/ PRESS START

auto 1717 III TI711

I--IJ IJL _1-_ i"

2. defrost

auto ...............................

3. defrost F I r11:.7

start

I--I_ITI--17 tlll-- I I--I IT

4. enter 121 _! i CI'_ IJ_l C _ IJl-I J

+ 30 sec

5. Qand@ _'a ..........

To enter weight

start

6. enter

+ 30 sec

F --1 I

..... _ __71--1

Time counting down

The oven will beep during the DEFROSTcycle. At this time,

open the door and turn, separate, or rearrange the food.

Remove any portions that have thawed. Return frozen

defrostportions cycle,to the oven and touch START to resume the

Operating Tips

- For best results, remove fish, shell fish, meat and

poultry from its original closed paper or plastic

package (wrapper). Otherwise, the wrap will hold

steam and juice close to the foods, which can

cause the outer surface of the foods to cook.

- For best results, roll your ground meat into a ball

before freezing. During the DEFROST cycle, the

microwave will signal when it is time to turn the

meat over. Scrape off any excess frost from

the meat and continue defrosting.

- Place foods in a shallow container or on a

microwave roasting rack to catch drippings.

This table shows food type selections and the

weights you can set for each type. For best results,

loosen or remove covering on food.

KEY WEIGHTS YOU

PRESS Category CAN SET

(tenths of a pound)

Defrost Meat 0.1 to 6.0

Defrost Poultry 0.1 to 6.0

Defrost Fish 0.1 to 6.0

Weight conversion table

You are probably used to measuring food in pounds

and ounces that are fractions of a pound (for

example, 4 ounces equals :[/4 pound). However,

in order to enter food weight in Auto Defrost, you

must specify pounds and tenths of a pound.

if the weight on the food package is in fractions of a

pound, you can use the following table to convert

the weight to decimals.

Equivalent Weight

OUNCES DECIMAL WEIGHT

1.6 .10

3.2 .20

4.0 .25 One-Quarter Pound

4.8 .30

6.4 .40

8.0 .50 One-Half Pound

9.6 .60

11,2 .70

12.0 .75 Three-Quarters Pound

12.8 .80

14.4 .90

16.0 1.0 One Pound

if between two decimal weights, choose the lower

weight for the best defrosting results.

Auto Defrost Table

NOTE: Meat of irregular shape and large, fatty cuts of meat should have the narrow or fatty areas shielded with

foil at the beginning of the defrost sequence.

Meat Settings

FOOD SETTING AT BEEP SPECIAL INSTRUCTIONS

BEEF

Ground Beef, MEAT Remove thawed portions with fork. Do not defrost less than !/4 lb.

Bulk Turn over. Return remainder to oven. Freeze in ball shape.

Ground Beef, MEAT Separate and rearrange. Do not defrost less than 2 oz. patties.

Patties Depress center when freezing.

Round Steak MEAT Turn over. Cover warm areas with Place in a microwave safe dish.

aluminum foil.

Tenderloin MEAT Turn over. Cover warm areas with Place in a microwave safe dish.

Steak aluminum foil.

Stew Beef MEAT Remove thawed portions with fork. Place in a microwave safe dish.

Separate remainder.

Pot Roast, MEAT Return remainder to oven. Place in a microwave safe dish.

Chuck Roast

Rib Roast MEAT Turn over. Cover warm areas with Place in a microwave safe dish.

aluminum foil.

Rolled Rump MEAT Turn over. Cover warm areas with Place in a microwave safe dish.

Roast aluminum foil.

LAMB

Cubes for

Stew

Chops

(1 inch thick)

PORK

Chops

(1/2 inch thick)

Hot Dogs

Spareribs

Country-style

Ribs

Sausage,

Links

Sausage,

Bull<

Loin Roast,

Boneless

MEAT

Turn over. Cover warm areas with

aluminum foil.

Remove thawed portions with fork.

Return remainder to oven.

Separate and rearrange.

Turn over. Cover warm areas with

aluminum foil.

Separate and rearrange.

Place in a microwave safe dish.

Turn over. Cover warm areas with

aluminum foil.

Remove thawed portions with fork.

Turn over. Return remainder to oven

Place in a microwave safe dish.

Auto Defrost Table (Continued)

Poultry Settings

FOOD

CHICKEN

Whole

(up to 6 Ibs)

Cut-up

CORNISH

HENS

Whole

TURKEY

Breast

(up to 6 Ibs)

SETTING SPECIAL INSTRUCTIONS

POULTRY

AT BEEP

Turn over breast side dow_over warm

areas with aluminum foil.

Separate pieces and rearrange.

Turn over. Cover warm areas with

aluminum foil.

Turn over. Cover warm areas with

aluminum foil.

Place chicken breast-side up in a

microwave safe dish. Finish defrosting

by immersing in cold water. Remove

giblets when chicken is partially

defrosted.

Place in a microwave safe dish.

Finish defrosting by immersing in cold

water.

Place in a microwave safe dish.

Finish defrosting by immersing in cold

water.

POULTRY Turn over. Cover warm areas with Place in a microwave safe dish.

aluminum foil. Finish defrosting by immersing in cold

water.

Fish Settings

FOOD SETTING SPECIAL INSTRUCTIONS

FISH

Fillets

Steaks

Whole

SHELLFISH

Crab meat

Lobster tails

Shrimp

Scallops

FISH

AT BEEP

Turn over. Separate fillets when

partially thawed, if possible.

Separate and rearrange.

FISH Turn over

FISH

Break apart. Turn over.

Turn over and rearrange.

Separate and rearrange,

Place in a microwave safe dish.

Carefully separate fillets under cold

water.

Place in a microwave safe dish.

Run cold water over to finish

defrosting.

Place in a microwave safe dish.

Cover head and tail with foil; do not

let foil touch sides of microwave.

Finish defrosting by immersing in cold

water.

Place in a microwave safe dish.

Defrosting Tips

-When using Auto Defrost, the weight to be entered is the

net weight in pounds and tenths of pounds (the weight of

the food minus the container).

-Beforeg Startin, make sure to remove any and all metal

twist-ties that often come with frozen food bags, and

replace them with strings or elastic bands.

- Open containers, such as cartons, before placing in the

oven.

- Always slit or pierce plastic pouches or packaging.

- If food is foil wrappe, remove foil and place food in a

suitable container.

- Slit the skin of skinned food, such as sausage.

- Bend plastic pouches of food to ensure even defrosting.

- Always underestimate defrosting time. If defrosted food

is still icy in the center, return it to the microwave oven

for more defrosting.

-The length of defrosting time varies according to how

solidly the food is frozen.

-The shape of the package affects how quickly food will

defrost. Shallow packages will defrost more quickly than

a deep block.

-As food begins to defrost, separate the pieces.

Separated pieces defrost more easily.

- Use small pieces of aluminum foil to shiele parts of food

such as chicken wings, leg tips, fish tails, or areas that start

to get warm. Hake sure the foil does not touch the sides,

top, or bottom of the oven. The foil can damage the oven

lining.

- For better results, let food stand after defrosting.

- Turn over food during defrosting or standing time.

Break apart and remove food as required.

User Pref

The microwave oven has settings that allow you to

customize the operation for your convience. Below

is the table showing the various settings. Touch the

User Pref key multiple times to scroll to the desired

setting function.

Key press Option

User Pref xl Clock

User Pref x2 Control Lock

User Pref x3 Volume

Off/Low/Med/High

User Pref x4 Weight Ib/kg

User Pref x5 Demo

User Pref x6 Language

(1), Setting Clock

The clock can be disabled whenthe microwave is

first plugged in and the STOP key is selected.

To re-enable the clock follow clock instructions.

o Suppose you want to set the clock for 10:59.

Touch: Display Shows:

1. user

pref

pRESS AGAIN FOR OPTIONS/

I_.nN i--I_ITi--J7 T _m_,II--

IC'LILt 121 q I I_--f'T I I1__.--

PRESS START

©@©C) ,n.,-N

(2),Setting Control Lock OnlOff

To turn ON Control Lock.

Touch: Display Shows:

1. user

pref

PRESS AGAIN FOR OPTIONS/

I__-i--I1--11--I_ ITI--I--I I_ll--

,_.uu CJ ,a, _:_l-; T I j ,2

2. user

pref

PRESS AGAIN FOR OPTIONS/PRESS START

l--rl I_ lTl-_l-il I I-_I--I/

ELI I _11 I-fLIl_ I_I_ILIN

Time of day

start if time of day was set

enter

+ 30 sec LOCK

To turn OFF the Control Lock, touch User Pref

then touch start

enter

+ 30 sec

start

3. enter

+ 30 sec

1. If you begin to enter in an incorrect time (e.g. 2:89)

the 8 is an invalid digit and cannot be entered.

Enter the correct time.

2. If you touch STOP while setting the clock, the

display will show the last time of day set or a

blank display if no time of day has been set.

(4),Turning Sound On/Off/Low/Meal/High

Audible signals are available to guide you when

setting and using your oven.

• A programming tone will sound each time you

touch a pad.

oThree tones signal the end of a Kitchen Timer

count down.

oThree tones signal the end of a cooking cycle.

. Suppose you want to turn audible signal off.

Touch: Display Shows:

1. user

pref

2. user

pref

3. user

pref

PRESS AGAIN FOR OPTIONS/

I--I-NN a--J_IT'l--I--I T _ I-n-

PRESS AGAIN FOR OPTIONS/PRESS START

I--f-I I_ ITI--INI I I=11=1t

LI_I I q I I-_LIL LIJLI_

pRESS AGAIN FOR OPTIONS/ PRESS START

11171 i 11_41-- I--I1_1

IJ LJL UI t1_.- UI q

PRESS AGAIN FOR OPTIONS/ PRESS START

IsNI I 11_41-- I f_l I

I_ LILLII IL- LLIIJq

pRESS AGAIN FOR OPTIONS/ PRESS START

ItNI I 11_41-- I,!fl--TI

I_ LILLII IC I IL-_I

PRESS AGAIN FOR OPTIONS/ PRESS START

IIi-_l I 11_4i-- I I_l--i I

I_ LIL I_11 IL- I'-I _LII-I

start m,-r

Lll-J-

4. enter

+ 30 sec

(5),Setting Weight Ib/Kg

* Suppose you want to toggle weight between

pounds & kilograms.

Touch: Display Shows:

1. user

pref

2. user

pref

3. user

pref

PRESS AGAIN FOR OPTIONS/

I--1.1"71-_ I--I_ ITi--I--I I_tlL-"

_c.uucJ,,L-r; TIj._

PRESS AGAIN FOR OPTIONS/PRESS START

I--I--i I_ ITI-Jf"Jl I I-_I--V

LU I _! J I-_UL LULl\

PRESS AGAIN FOR OPTIONS/ PRESS START

IJl--II ! IltJll_ Nltl

I_ ULUI IL-- UI_I

PRESS AGAIN FOR OPTIONS/ pRESS START

!_l-II I 11_41"- I NI I

I_ LILIJI tL- LLIltq

pRESS AGAIN FOR OPTIONS/ PRESS START

I _Ill I I1__11-- I_41-" TI

IJ LII_ LII I1__.- I I1__.-±1

PRESS AGAIN FOR OPTIONS/ PRESS START

IIi--II I 11_41"- I IIl--I I

I_ LII_ I_11 IL-- t'-I _LII'-I

PRESS AGAIN FOR OPTIONS/ PRESS START

user _ r , _

!\LI i LO

4. pref

start I( r

5. enter

+ 30 sec

When START is pressed and the previous setting

was ON then it will be set to OFF. If you want to

turn the audible signal back ON you will have to

again press User Pref three times and then START.

When the cooking cycle is completed END will be

displayed and the audible signal will sound if the

sound is turned on.

If the display shows kg, pressing the START

button will reset the oven controls to Ibs. To return

to kg, you will have to again press User Pref Four

times and then START.

(6),Setting Demo Mode On/Of

, Suppose you want to enter Demo mode.

Touch: Display Shows:

1. user

pref

2. user

pref

pRESS AGAIN FOR OPTIONS/

I-m-I1-1 s-_,IT1--1--1_T_ Hr

u_--UU L_-I_I_I_-F_ I U__--

PRESS AGAIN FOR OPTIONS/PRESS START

I--I-1 I_ ITI-1NI I 171--1z

I_LI ! _1_ 1"7"1_11,_ I_LILI_

3. user

pref

PRESS AGAIN FOR OPTIONS/ PRESS STAR _r

I _l-1t I I1_11_-- 171_ I

I_ I_11__LII IL LII _1

PRESS AGAIN FOR OPTIONS/ PRESS START

I_1-11 I Ii_ll-- I 1-111

II I_ILLII IC LI_I!_I

PRESSAQAINFOROPTIONS/PRESSSTART

I_1-11 I I1_11-- IwlI--TI

I_ I_11,_LII IL-- I I1_--LI

PRESS AGAIN FOR OPTIONS/ PRESS START

I_1-11 I I1_11__ I_111--1...I

Is I_ILLII I1_ I I_LII I

SETTING LANGUAGE ENGLISH/FRANCAIS

* Suppose you want to set the language.

Touch: Display Shows:

1. user

pref

2. user

pref

PRESS AGAIN FOR OPTIONS/

I-1"1-11-1 I--I_ ITI--17 T I I_II--

IC-UU I_-I_lll_-I_ _ Jl II__--

PRESS AGAIN FOR OPTIONS/PRESS START

I--I--I I_ IT1-11-11 I 1-11--1,'

I_1_11 _11 I_1_11._ I_LILI\

3. user

pref

PRESS AGAIN FOR OPTIONS/ PRESS START

I _l-11 I I1_11-- 1-11_I

I_ I_IL LII IL- LII _1

PRESS AGAIN FOR OPTIONS/ pRESS START

I_1-11 I I1_11-- I 1-111

I_ I_ILLII IC LI__III_I

PRESSAGAIN_OROPTIONSIP_ESSSTART

IJl-11 I I1_11-- I_II--TI

PRESS AGAIN FOR OPTIONS/ PRESS St"ART

I_l-1l I II_ll-- I lift I

I_ I_11_ LII IL-- I--I _I_1!--I

4. user ....._A,_.......,IPR_??.

pref _ u , i_o

PRESS AGAIN pOR O_TIONS/ PRESS START

5. user T_CI,,,-1 mn-

pref _,,___u urn-

start DI',I

enter

+ 30 sec

_RESS AGAIN FOR OPTIONS/ PRESS START

4. user _ _- , _

pref _\ u , i_o

5. user P"_i=,",_,_q"°_qP;_s__

pref '-':_"J u,-_-

6. user

pref

_RESS A6AIN FOR OPTION,/ PRESS START

I 1-11_I1--1 1171--1-- I--I_ I1--1 _I--I I

LI--II _II_ILII-ILIL- L-I _ILII_ _ __-I1-1

When START is pressed and the previous setting was

OFF then it will be set to ON. if you want to turn the

demo mode back OFF you will have to again press

User Pref five times and then START.

start i-n n,,.-m,,-

7. enter !--I_ I--II _ILI--I __1

+ 30 sec

When START is pressed and the previous setting was

English it will be set to French. If you want switch back

to English you will have to again press User Pref six

times and then press START.

2. Setting Kitchen Timer

Your microwave oven can be used as a kitchen

timer. You can set up to 99 minutes, 99 seconds

The kitchen timer can be used while the microwave

oven is running.

o Suppose you want to set for three minutes.

Touch: Display Shows:

1. timer

..... I--I_ I TI--17 l_,fl--

CI,I,Cl7 Tllic

PRESS START

start ..... n.mn

7-UU

enter

+ 3o sec Timer starts

counting down

Timer count down does not stop even if the

door is open. To cancel the timer, press the" STOP"

key once.

3,Using Vent Fan

The pad controls the 2-speed vent fan. If the vent fan

is OFF the first touch of the Vent pad will turn the fan

on HIGH, second touch LOW and third touch OFF.

Suppose you want to set the vent fan speed to

LOW from the OFF position.

Touch" Display Shows:

|" 0 II |--II

n fun

4,Using Cooktop Light

The pad controls the cooktop light. If the light is OFF

the first touch of the light pad will turn the light ON

(high), second touch Nite (low) and third touch OFF.

Suppose you want to set the light for HIGH from

the OFF position.

Touch: Display Shows:

1. 0 ml_ I

_._ Lll q

5, Setting Turntable On/Off

Press Turntable On=Off to turn the turntable on or

off.

For best cooking results, leave the turntable on. It

can be turned off for large dishes.

Touch" Display Shows:

1. turntable

on-off L,,

2. turntable

on-off nm-

LI I- i-

Sometimes the turntable can become

hot to the touch during and after cooking. Do not

run the oven empty without food in it.

2. _ | rill

LUll q

Turn off fan when desired

If the temperature from the range or

cooktop below the oven gets too hot, the vent

fan will automatically turn on to protect the oven.

It may stay on up to an hour to cool the oven.

When this occurs, the Vent pad will not turn the

fan off.

Disconnect the power cord before cleaning or

leave the door open to deactivate the oven during cleaning.

EXTERIOR

The outside surface is precoated steel and plastic. Clean

the outside with mild soap and water; rinse and dry with

a soft cloth. Do not use any type of household or abrasive

cleaner.

DOOR

Wipe the window on both sides with a soft cloth to remove

any spills or spatters. Metal parts will be easier to maintain

if wiped frequently with a soft cloth. Avoid the use of spray

and other harsh cleaners as they may stain, streak or dull

the door surface.

EASY CARE TM STAINLESS STEEL

(SOME MODELS)

Your microwave oven finish may be made with Easy Care TM

Stainless Steel (some models). Clean the stainless with warm

soapy water using a clean sponge or cloth. Rinse with clean

water and dry with a soft clean cloth. DO NOT use ANY

store bought cleaners like Stainless Steel cleaners or any

other types of cleaners containing any abrasive, chlorides,

chlorines or ammonia. It is recommended to use mild dish

soap and water or a 50/50 solution of water and vinegar.

TOUCH CONTROL PANEL

Care should be taken in cleaning the touch control panel.

If the control panel becomes soiled, open the microwave

oven door before cleaning. Wipe the panel with a cloth

dampened slightly with water only. Dry with a soft cloth.

Do not scrub or use any sort of chemical cleaners. Close

door and touch STOP/CLEAR

overheat and cause smoke or possibly catch fire. DO NOT

REMOVE THE WAVEGUIDE COVER.

ODOR REMOVAL

Occasionally, a cooking odor may remain in the microwave

oven. To remove, combine 1 cup water, grated peel and

juice of 1 lemon and several whole cloves in a 2-cup glass

measuring cup. Boil for several minutes using 100% power.

Allow to set in microwave oven until cool. Wipe interiorwith

a soft cloth.

TU RNTABLE/TU RNTABLE SU PPO RT

The turntable and turntable support can be removed for

easy cleaning. Wash them in mild, sudsy water; for stubborn

stains use a mild cleanser and non-abrasive scouring

sponge. They are also dishwasher-proof. Use upper

wirerack of dishwasher. The turntable motor shaft is not

sealed, so excess water or spills should be wiped up

immediately.

INTERIOR

Cleaning is easy because little heat is generated to the

interior surfaces. To clean the interior surfaces, wipe with

a soft cloth and warm water. DO NOT USE ABRASIVE

OR HARSH CLEANERS OR SCOURING PADS. For heavier

soil, use baking soda or a mild soap; rinse thoroughly with

hot water. The round wire rack and shelf can be cleaned

with hot soapy water, rinsed and dried.

WAVEGUIDE COVER

The waveguide cover is located on the side in the

microwave oven cavity. It is made from mica so requires

special care. Keep the waveguide cover clean to assure

good microwave oven performance. Carefully wipe with

a damp cloth any food spatters from the surface of the

cover immediately after they occur. Builbup splashes may

Disconnect the power cord before cleaning or

leave the door open to deactivate the oven during cleaning,

Cleaning the exhaust filters

The oven ventilation exhaust filters should be removed and

cleaned often; generally at least once every month.

Surface light replacement

To avoid risk of personal injury or property damage, do

not operate oven hood without filters properly in place,

Surface lights

To avoid risk of personal injury or property damagel wear

gloves when replacing the light bulbs.

Unplug the microwave oven or turn off power at the main

circuit breaker.

Remove the bulb cover mounting screws at both light

positions under the microwave.

Ventilation

filters

To remove the exhaust ventilation filters, slide the filter to

the rear. Then pull filter downward and push to the other

side. The filter will drop out. Repeat for the 2nd filter.

3. Replace bulb with 30 watt appliance bulb.

4. Re-install bulb cover and mounting screw.

5. Plug the microwave back into the power supply or turn

the power back on at the main circuit breaker.

2. Soak the ventilation filters in hot water using a mild

detergent. Rinse well and shake to dry or wash in

a dishwasher. Do not use ammonia. The aluminum

on the filter will corrode and darken,

3. To reinstall the exhaust ventilation filter, slide it into the

side slot, then push up and toward oven to lock.

Reinstall the 2nd filter using the same procedure.

Disconnect the power cord before cleaning or

leave the door open to deactivate the oven during cleaning.

Charcoal filter replacement

Charcoal Filter installed in your microwave oven, is used

for nonvented, recirculated installation. The filter should

be changed every 6 to 12 months depending on use.

1. Disconnect power to the microwave oven at the circuit

breaker panel or by unplugging.

2. Remove the vent grill mounting screws.

3. Pull the vent grill away from the unit.

Oven light replacement

Remove the vent grill per instructions 1-4 above and

charcoal filter, if used.

1. Open light cover located behind filter mounting by

carefully pulling up on the front edge.

4.Remove the charcoal filter by pushing it inwards,

then turn and pull it away from the unit.

2. Remove old light bulb and replace only with

equivalent 30 watt bulb available from parts

distributor. Bulbs are also available at most

hardware stores or lighting centers.

Note: DO NOT USE BULB LARGER THAN

30 WATTS.

3. Replace the microwave oven light cover by

carefully pushing into place. Replace the

charcoal filter. Push the vent grill back into

place (engaging both the bottom and top tabs)

and replace the vent grill mouting screws.

Pleasecheckthefollowingbeforecallingforservice:

Placeonecupof waterina glassmeasuringcupinthemicrowaveovenandclosethedoorsecurely.

Operatethe microwaveovenforoneminuteat HIGH100%.

A Doesthemicrowaveovenlightcomeon? YES.... NO....

B Doesthecoolingfanwork?(PutyourhandonthelouverabovetheControlPanel.) YES.... NO....

C Doestheturntablerotate?(It is normalfortheturntableto turn in eitherdirection.) YES.... NO....

D Isthewaterin themicrowaveovenwarm? YES NO

If "NO" is the answer to any of the above questions,

please check electrical outlet, fuse and/or circuit

breaker. If they are functioning properly, CONTACT

YOUR NEAREST ELECTROLUX AUTHORIZED SER=

VILER.

A microwave oven should never be serviced by a

"do=it=yourself" repair person.

If time appearing in the display is counting down

very rapidly, check Demonstration Mode on page 27

and cancel.

AC Line Voltage: Single phase 120V, 60Hz, AC only

AC Power Required: 1600W 14.2 amps. (for FGMV173QF, FGMV173QB/W/Q/N)

Output Power*: 1000 W

Frequency: 2450 MHz (Class B/Group2)**

Outside Dimensions: 29 7/8"(W) x 16 13/32"(H) x 15 1/32"(D)

Cavity Dimensions: 2015/16"(W) x 9 7/16"(H) x 14 13/32"(D)

Microwave oven Capacity***: 1.7 Cu.Ft.

Cooking Uniformity: Turntable

Weight: Approx. (net) 61.7 Ib, (gross) 28.0 Ib

Work/Night Light: 2 bulbs 30w each (incandescent light bulbs)

Oven Light: 1 bulb 30w (incandescent light bulbs)

* The International Electrotechnical Commission's standardized method for measuring output wattage. This test method

is widely recognized.

** This is the classification of ISM (Industrial, Scientific and Medical) equipment described in the International Standard CISPRll.

*** Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less.

In compliance with standards set by:

FCC Federal Communications Commission Authorized.

DHHS

NHW

CQus

Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I, Subchapter ].

Department of National Health and Welfare of Canada.

This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc.

This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc. for use in

USA or Canada.

Yourapplianceis covered by a one year limited warranty. Forone year from your original date of

purchase,Electroluxwill pay all costsfor repairingor replacingany parts of this appliancethat prove

to be defectivein materialsor workmanshipwhen such applianceis installed, usedand maintainedin

accordancewith the providedinstructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or

Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased "as-is" are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not

in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,

shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or

knobs, handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip

charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to

floors, cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than

genuine Electrolux parts or parts obtained from persons other than authorized service companies; or

external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES;LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT

REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,

INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE

LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE

YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH

AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS

WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO

NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR

LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS

MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY

ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need

Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period

should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.

Service under this warranty must be obtained by contacting Electrolux at the addresses or phone

numbers below.

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances

North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.

Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under

this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described

or illustrated are subject to change without notice.

USA

1.800.944.9044

Electrolux Home Products, Inc.,

10200 David Taylor Drive

Charlotte, NC 28262

PN:261800316001

Electrolux

Canada

1.800.265.8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

L5V 3E4

Printed in China

Frigidaire FGMV175QBA Gallery 1.7 Cu. Ft. Over-The-Range Microwave

Product's Documents

Use & Care Guide

Specifications

Frigidaire FGMV175QBA Questions and Answers
