Accessories
4
Inserting the batteries
5
Operating range of the remote control unit
5
Features
6
High quality sound
6
High performance
7
Easy operation
7
Part names and functions
8
Front panel
8
Rear panel
10
Remote control unit
12

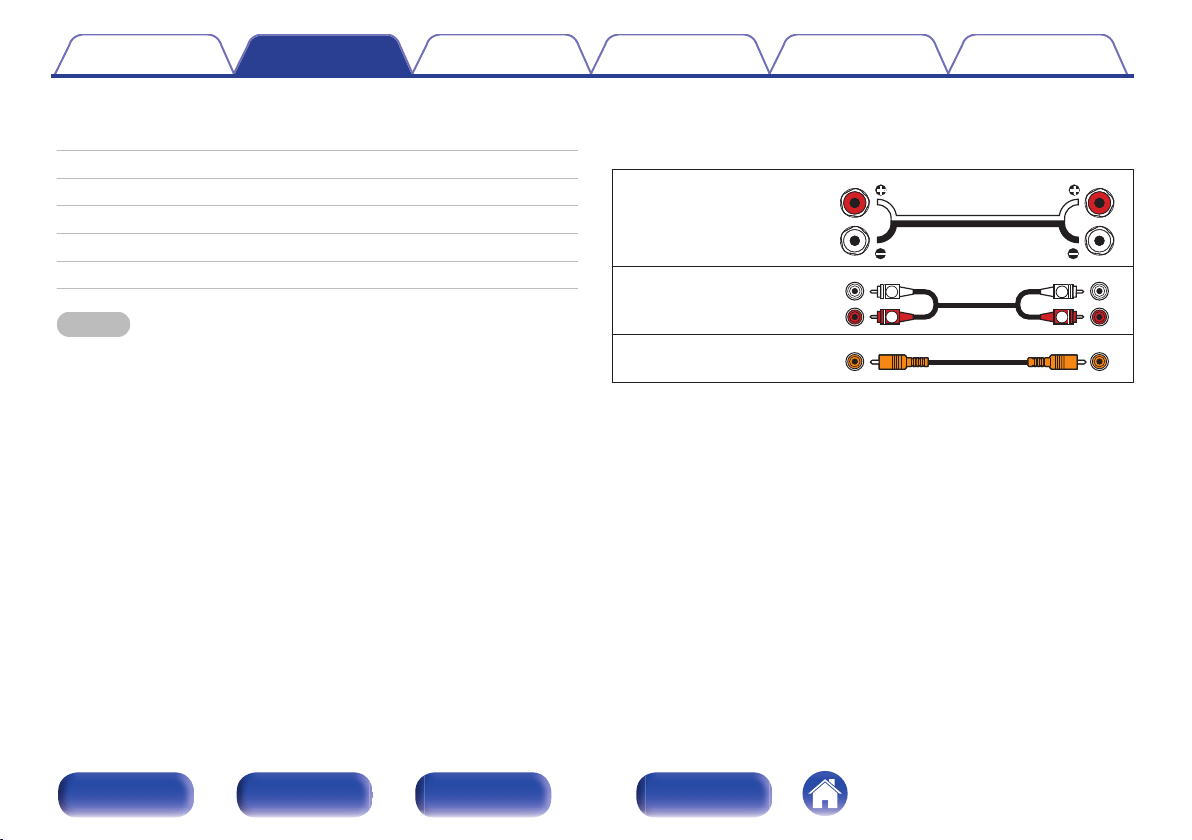

Connections

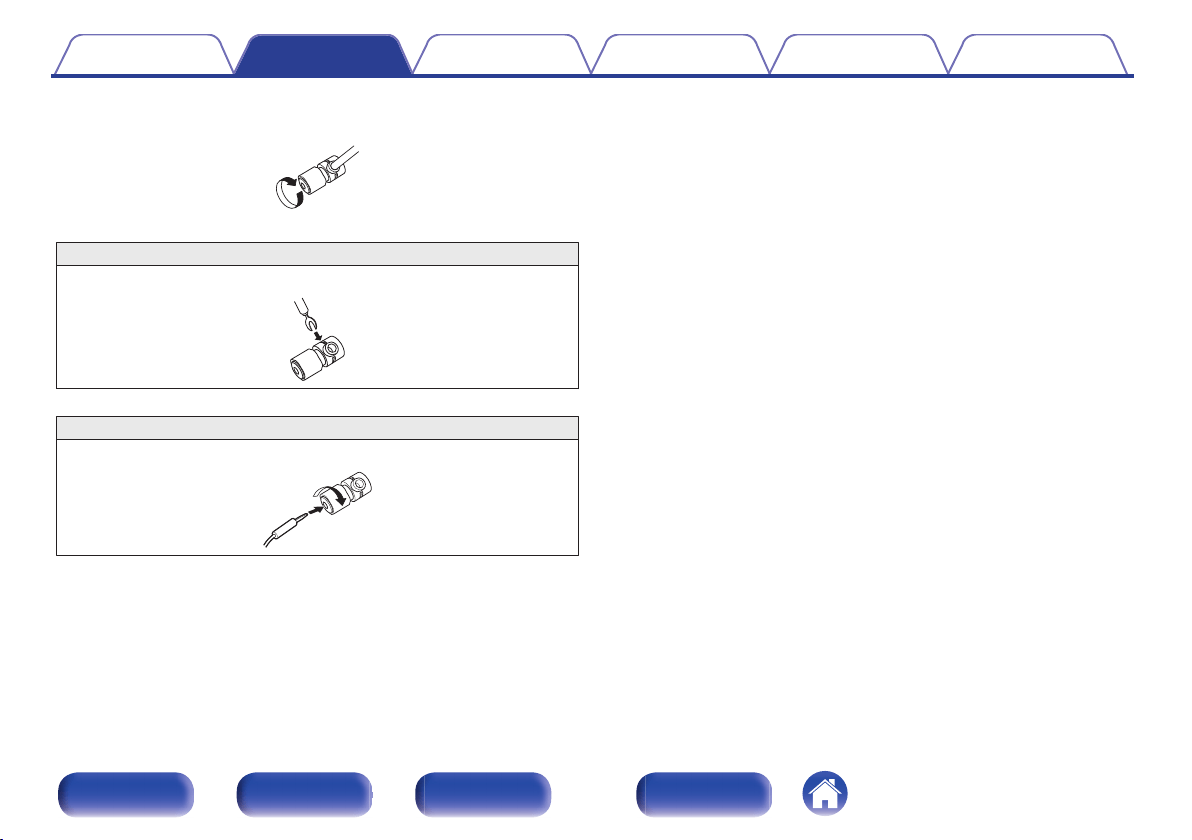

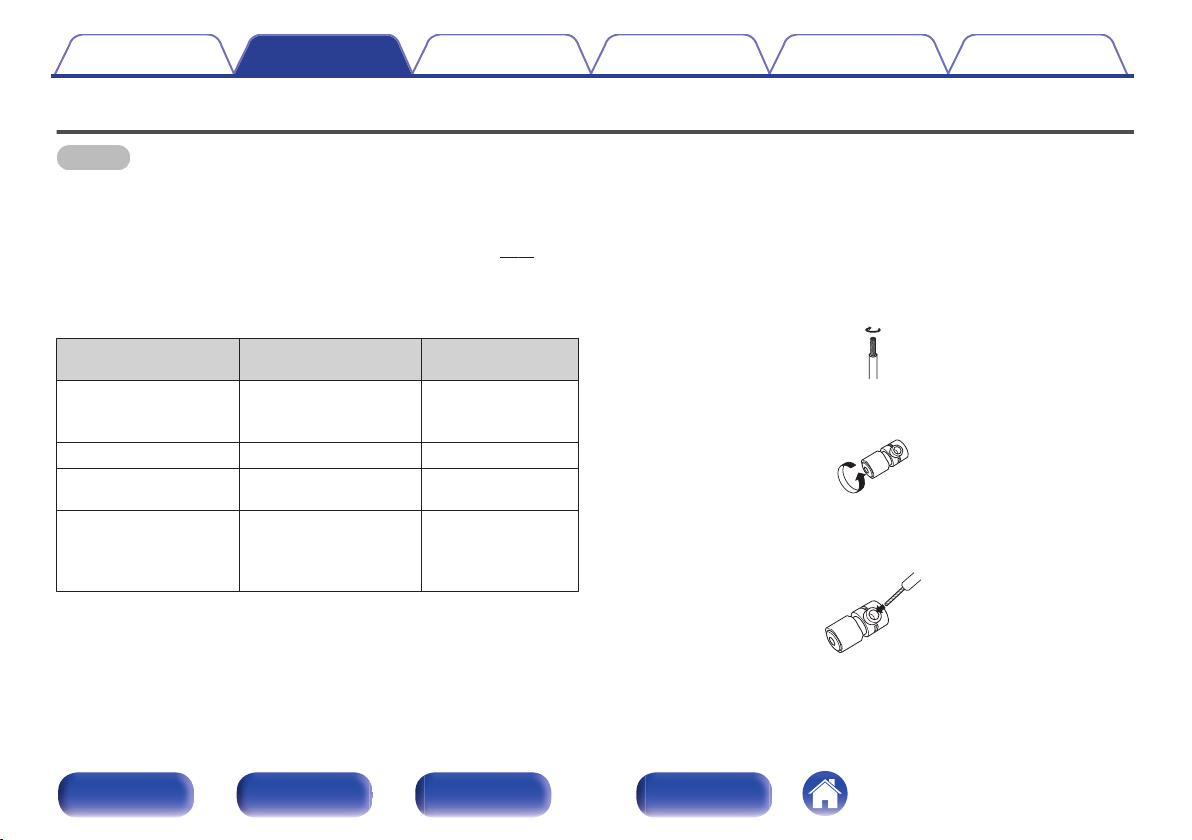

Connecting speakers
16
Speaker A/B connection
18
Bi-wiring connection
19

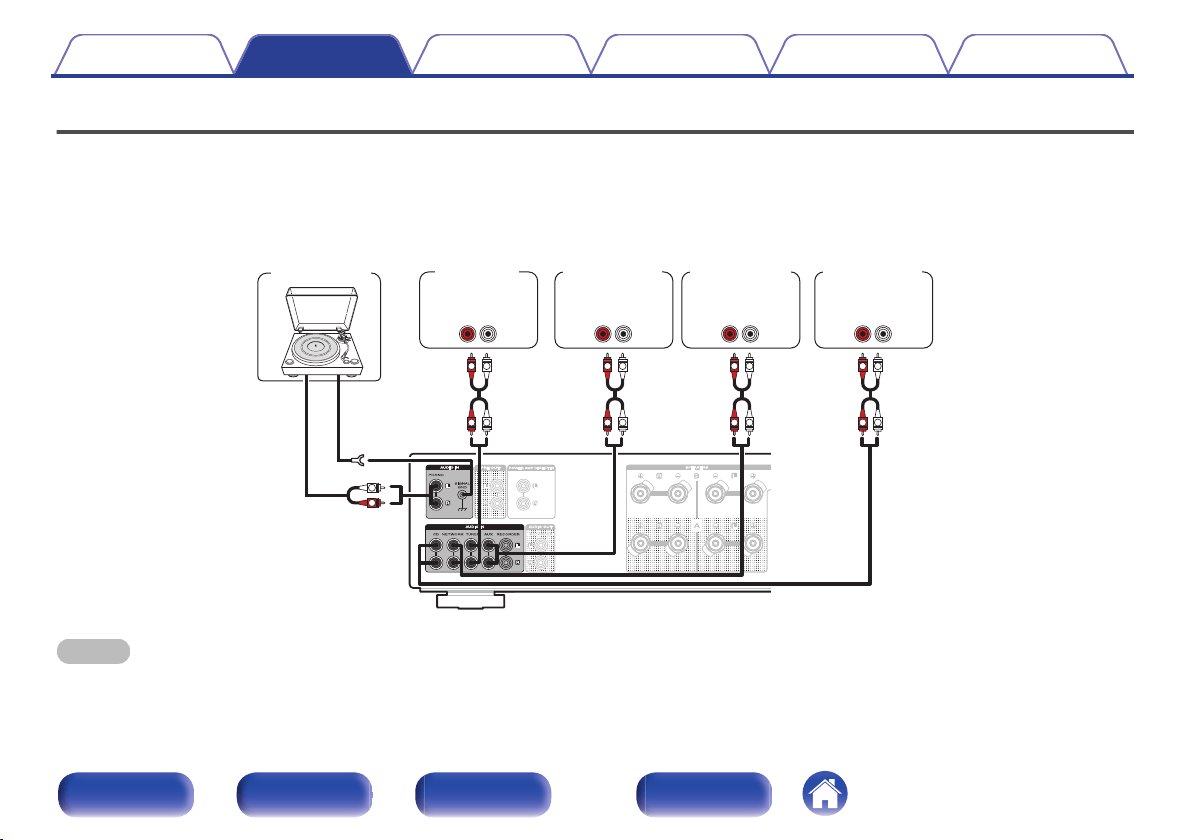

Connecting a playback device
20

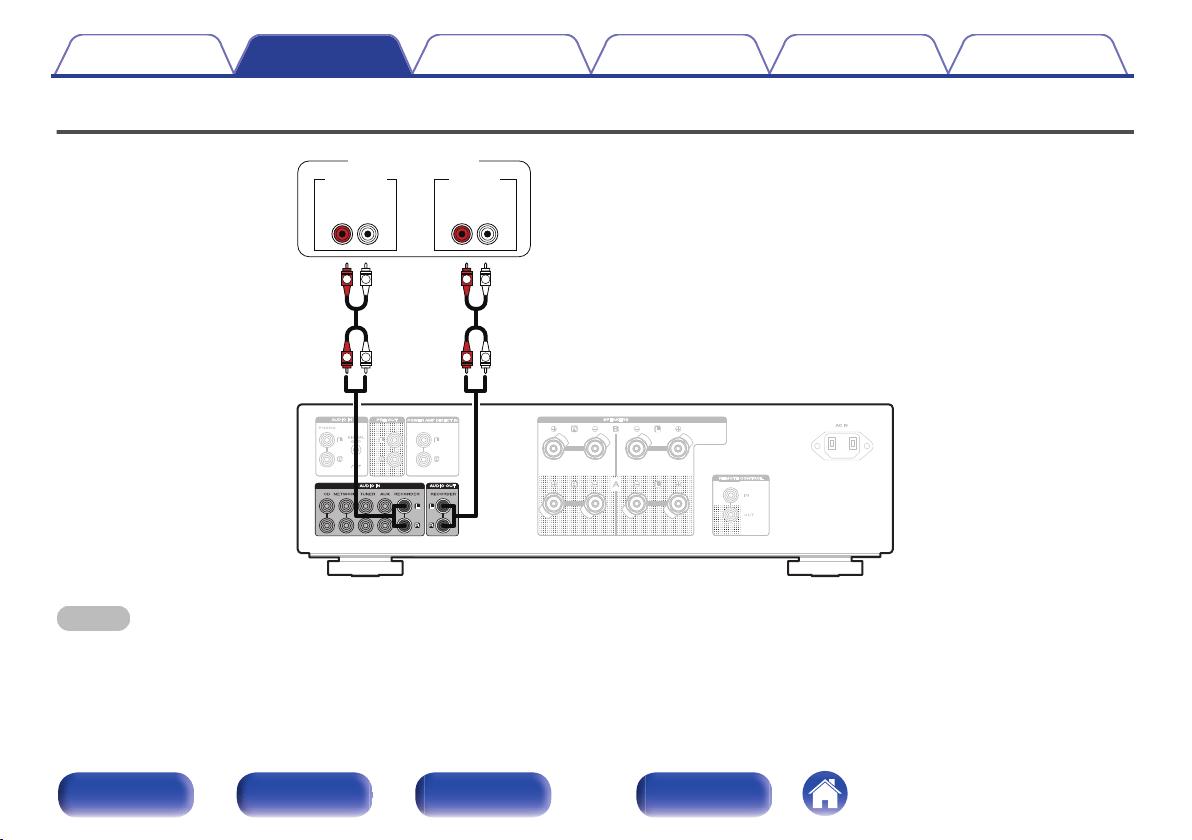

Connecting a recording device
21

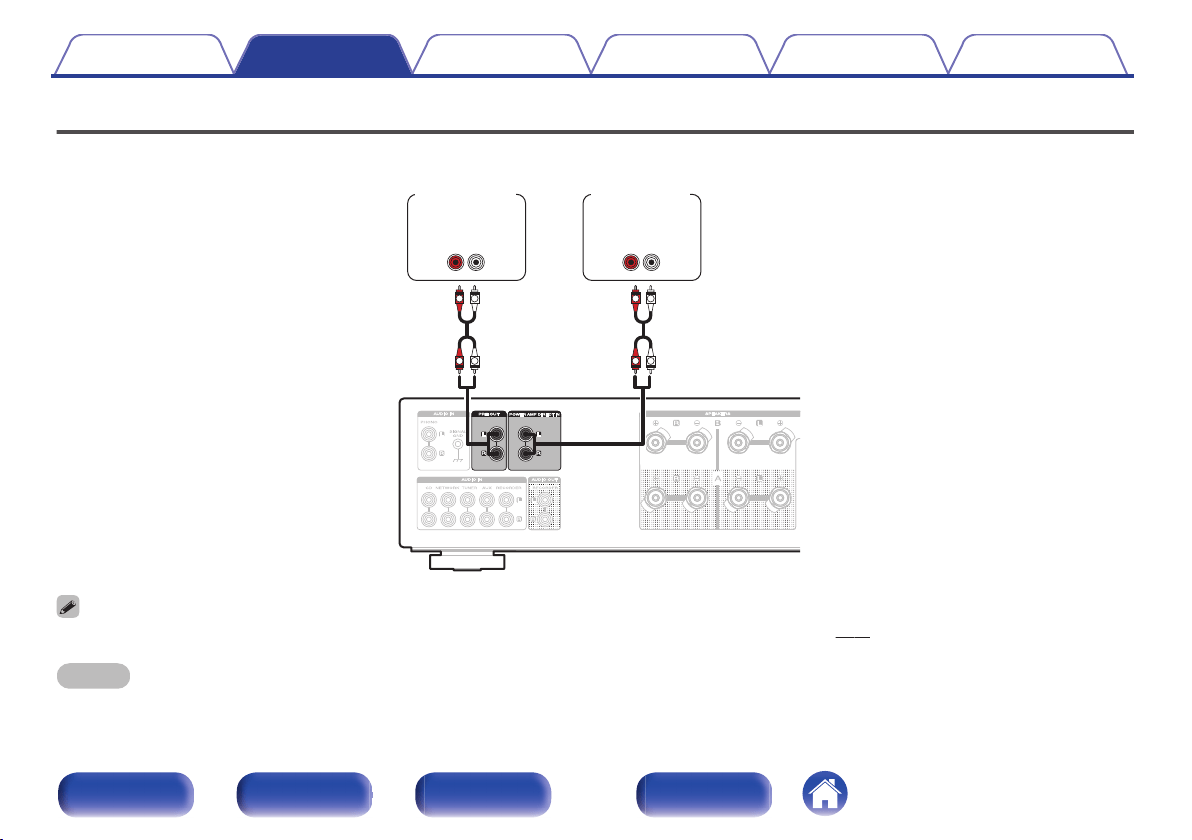

Connecting a pre-amplifier or power amplifier
22

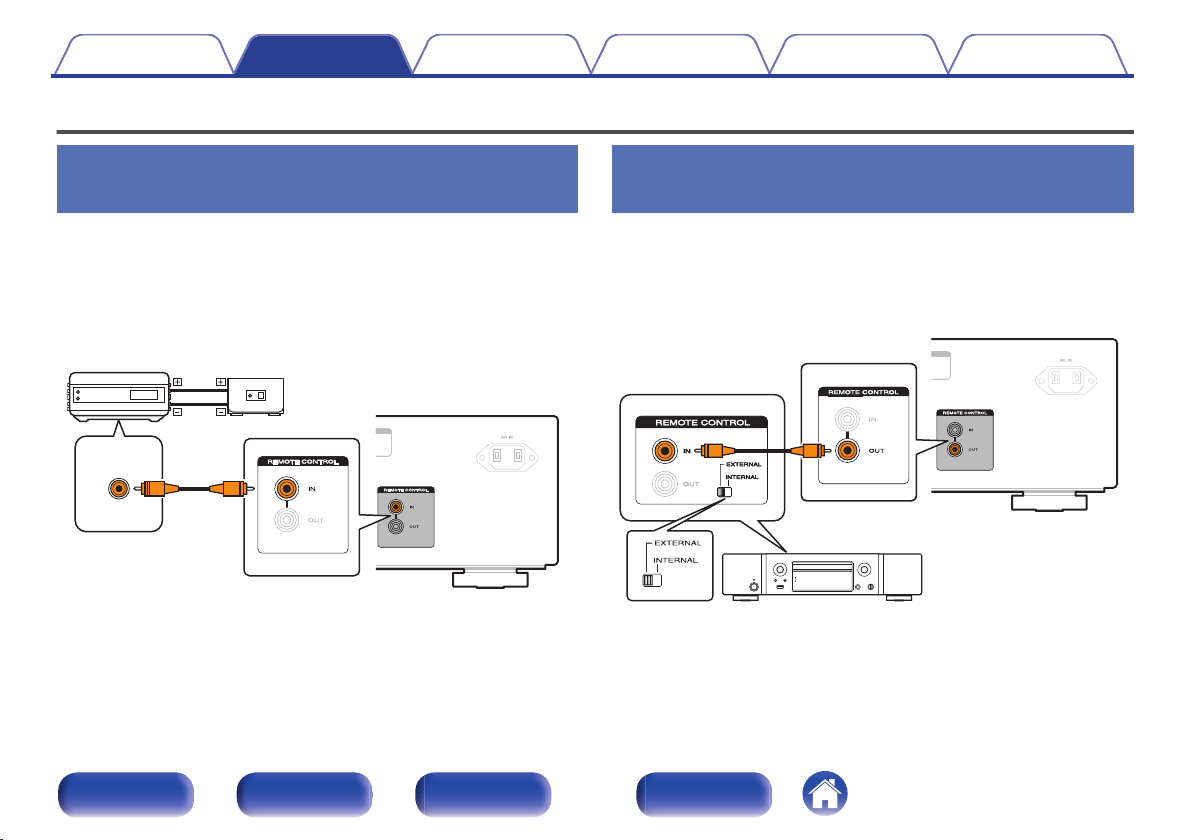

Connecting devices with remote control connectors
23
Performing operations by RC on this unit without visual contact
23
Remotely connecting Marantz audio devices
23

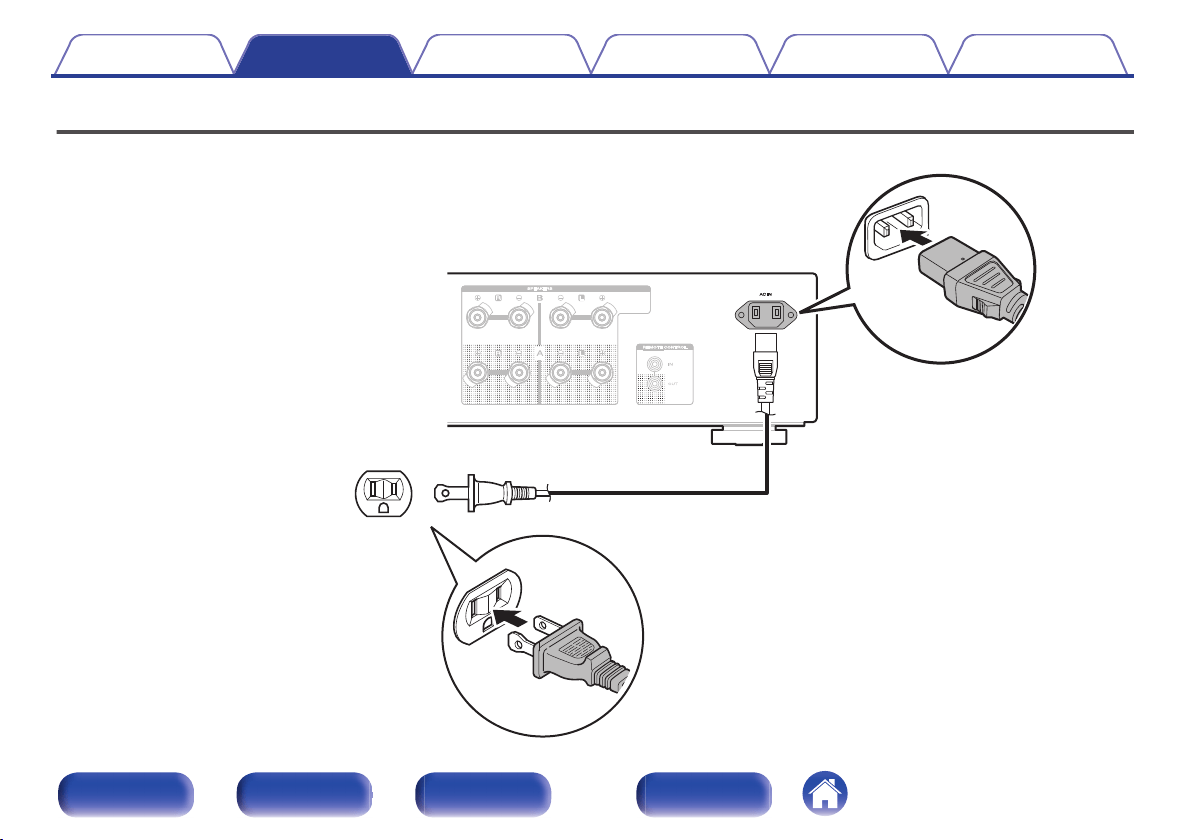

Connecting the power cord
24
Playback
Turning the power on
26
Switching the power to standby
26
Selecting the speakers for audio output
27
Selecting the input source
27
Adjusting the volume
27
Turning off the sound temporarily (Muting)
27
Adjusting the tone
28
Playing CDs
28
Recording
29
Contents Connections Playback Settings Tips Appendix
2
Front panel Rear panel
Remote control
unit
Index
Settings
Setting the Auto Standby mode
31
Turning Auto Standby mode on
31
Turning Auto Standby mode off
31

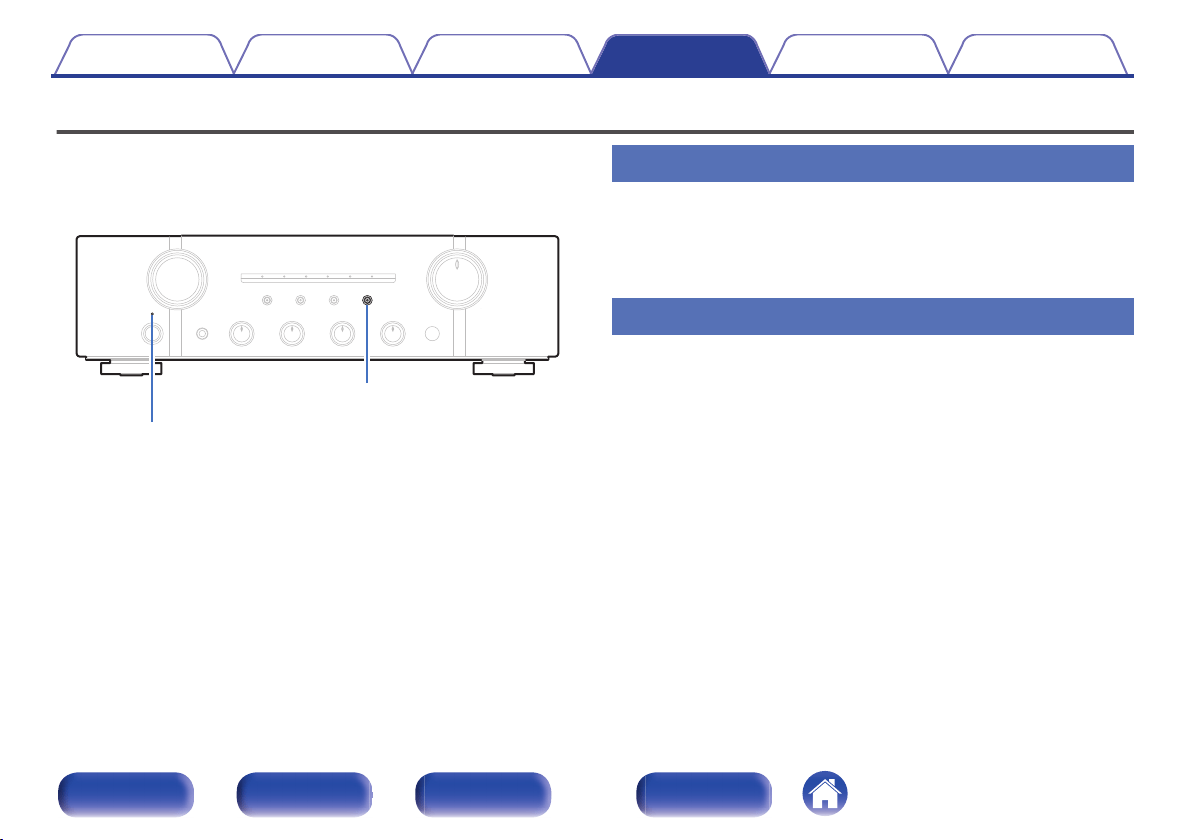

Setting the power amp direct mode
32
Turning power amp direct mode on
32
Turning power amp direct mode off
32
Tips
Tips
34
Troubleshooting
35
Power does not turn on / Power is turned off
36
Operations cannot be performed through the remote control unit
37
No sound comes out
38
Desired sound does not come out
38
Sound is interrupted or noise occurs
39
Appendix
Explanation of terms
40
Trademark information
40

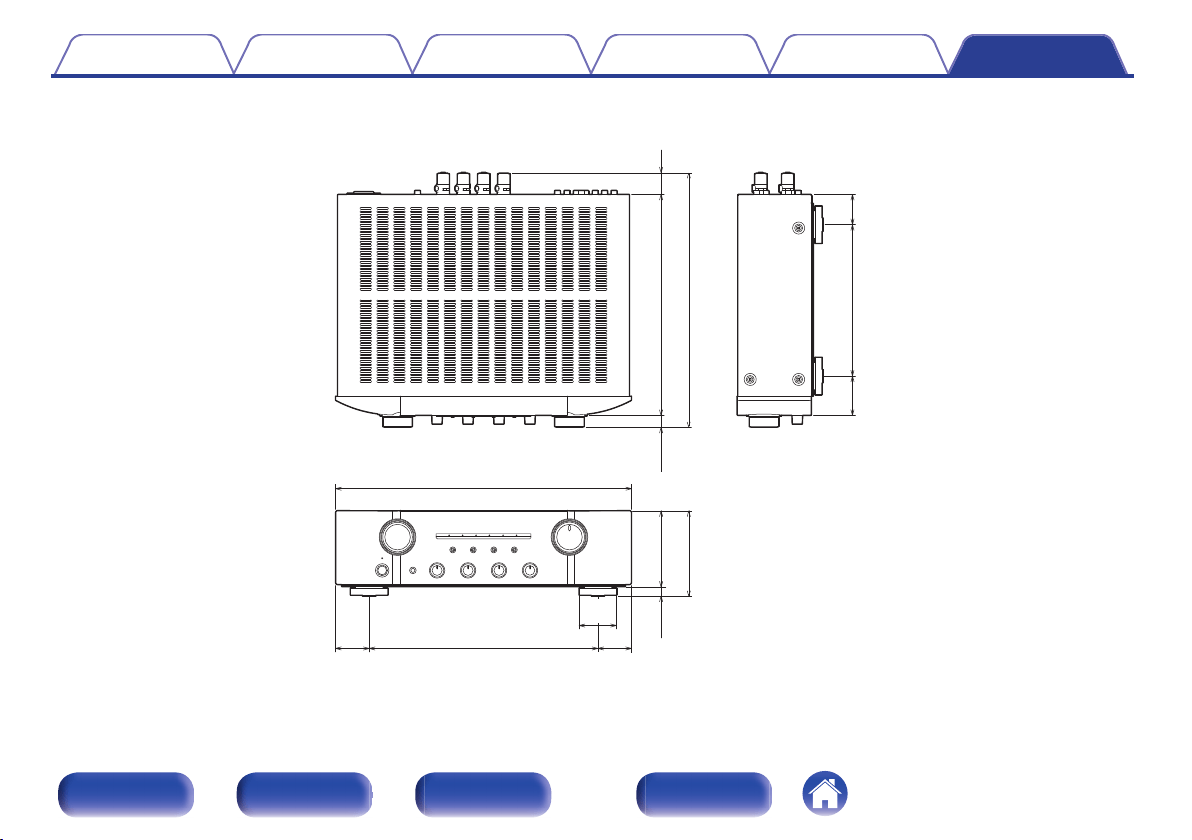

Specifications
41
Index
44
Contents Connections Playback Settings Tips Appendix
3
Front panel Rear panel
Remote control
unit
Index
Thank you for purchasing this Marantz product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.

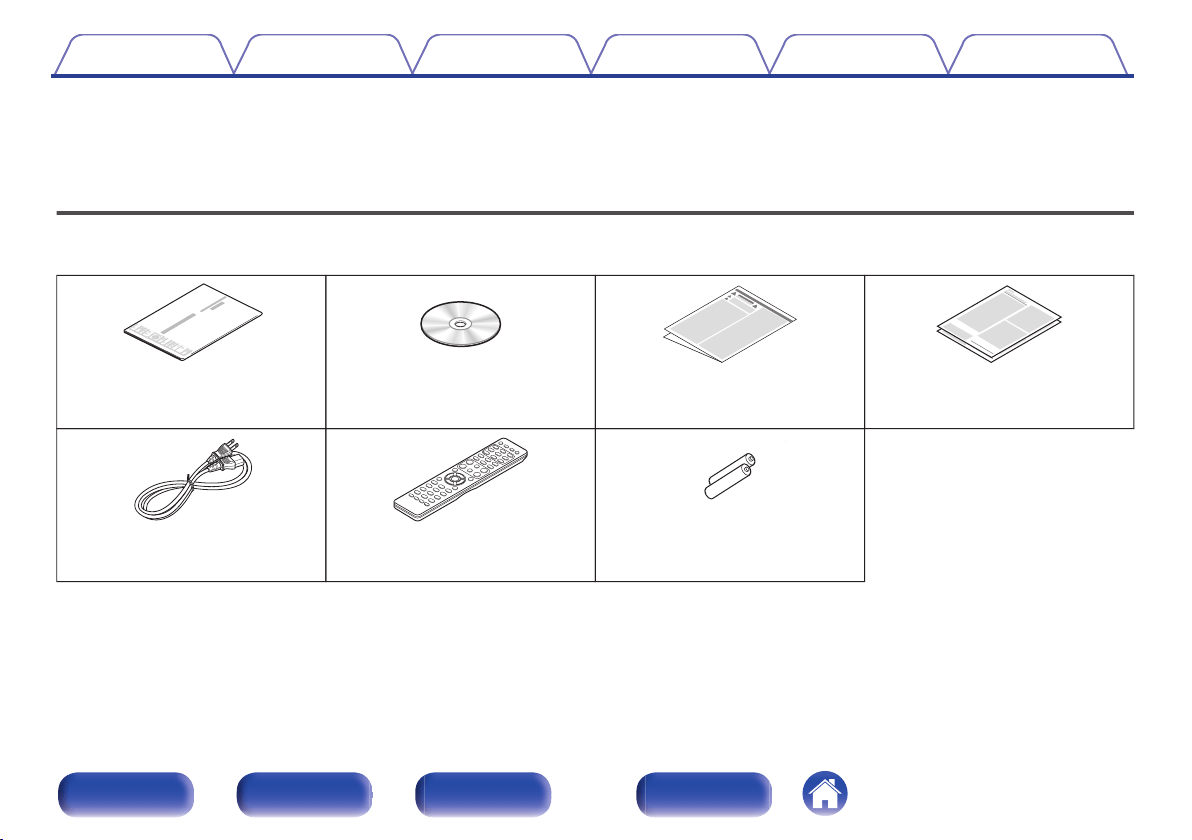

Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide
CD-ROM
(Owner’s Manual)
Safety Instructions
Warranty
(for USA/for CANADA)
R03/AAA batteries
Remote control unit
(RC001PMND)
Power cord
Contents Connections Playback Settings Tips Appendix
4
Front panel Rear panel
Remote control
unit
Index

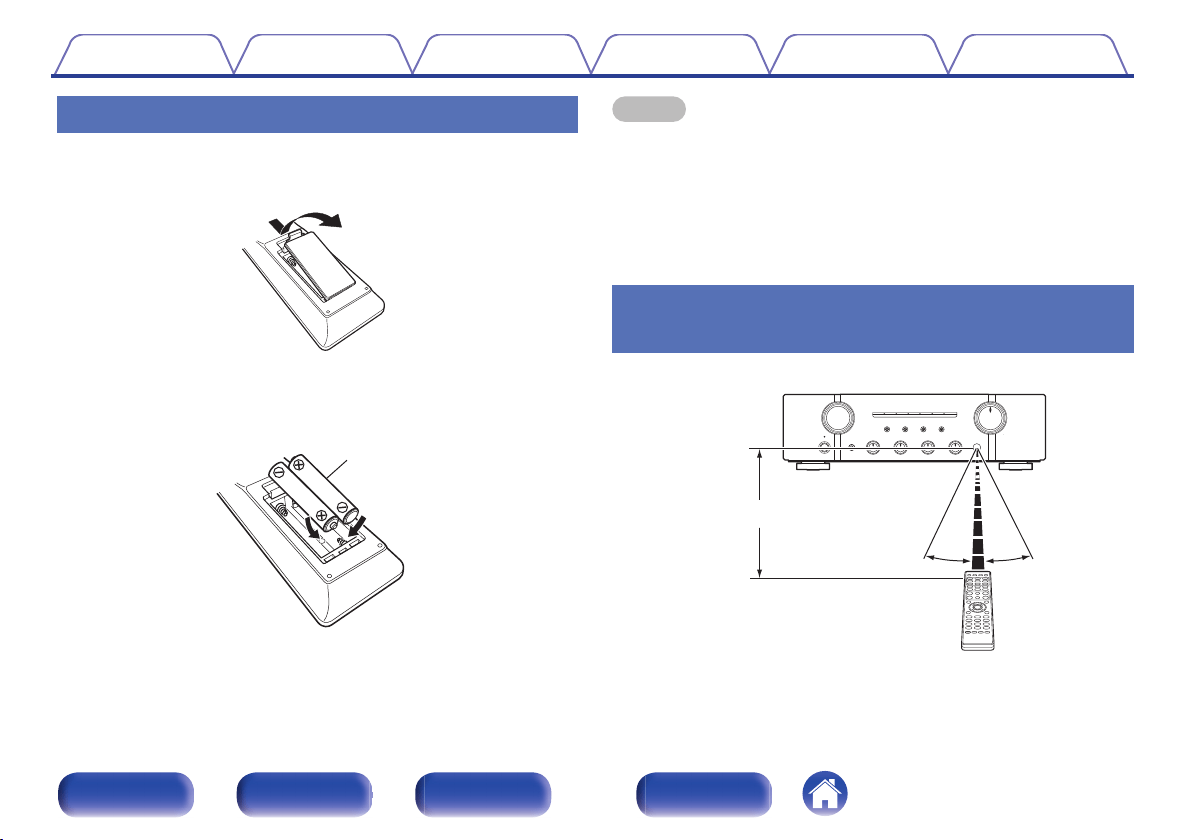

Inserting the batteries
1
Remove the rear lid in the direction of the arrow and
remove it.
.
2
Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3
Put the rear cover back on.
NOTE
0
To prevent damage or leakage of battery fluid:
0
Do not use a new battery together with an old one.
0
Do not use two different types of batteries.
0
Remove the batteries from the remote control unit if it will not be in use for long
periods.
0
If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
Approx. 23 ft/7 m
30° 30°
Contents
Connections Playback Settings Tips Appendix
5
Front panel Rear panel
Remote control
unit
Index
Features
High quality sound
0
All-discrete current feedback amplifier
Marantz proprietary current-feedback circuit, using discrete
components, is adopted in the pre-amplifier and power amplifier. It is a
high-speed amplifier using the technology developed for the higher-
grade amplifiers.
0
HDAM
®
SA3 Module
This unit includes the HDAM
®
SA3 which had been developed for
highend models. The HDAM
®
SA3 is incorporated into many
components, such as the current feedback phono equalizer.
0
Improved momentary current supply ability
It is generally known that the sound quality is not necessarily the same
even if amplifiers have the same specifiations. Marantz considers the
cause to be the power to drive speakers. The power amplifier of this unit
has the ability to momentarily supply current of 45 A or more to drive
speakers strongly.
0
Short-power-line layout
For strong momentary current supply, a short power-line layout unifies
the power circuit and output stage of the power amplifier section.
This layout allows connecting the large-current lines via the shortest
route while to arranging the left and right channels symmetrically.
0
CD direct buffer amplifier
An input buffer amplifier exclusive for CD is mounted near the CD input
jacks. This is a high-speed buffer amplifier made with discrete
components, which avoids interference between right and left channels
and can send the signals to the pre-amplifier with very high fidelity.
0
Newly developed circuit
As a phono equalizer amplifier for MM cartridges, new phono equalizer
circuit has been developed for PM8006.
Contents
Connections Playback Settings Tips Appendix
6
Front panel Rear panel
Remote control
unit
Index
0
Double-shielded triodal transformer
The unit is equipped with a toroidal power transformer to minimize
vibration and leakage flux specific to the transformer. Especially to
reduce leakage flux, which affects sound quality, the periphery is
doubleshielded, using a core ring and a short ring.
0
Block condenser of large capacity
The unit is equipped with a newly developed 18000 μF large capacity
condenser that incorporates the concepts of high-end devices into the
power amplifier power circuit.
0
Tripple layer bottom plate to minimize vibration
High performance
0
Tri-tone control
This unit is equipped with a tone control function that enables
adjustment of the strength of the mid range as well as the low and high
ranges. (v p. 28)
0
Power Amplifier Direct In Mode
In this mode, this unit works as a power amplifier.
0
Two-sets of speaker output terminals
In addition to using two sets of speakers (Speakers A and Speakers B),
you can connect to bi-wiring speakers with separate input terminals for
high range and low range. (v p. 19) The unit adopts screw terminals
that can connect thick audio cables.
Easy operation
0
System remote control
This unit comes with a system remote control that can also operate the
Marantz's Network CD Player ND8006.
Contents
Connections Playback Settings Tips Appendix
7
Front panel Rear panel
Remote control
unit
Index
Part names and functions

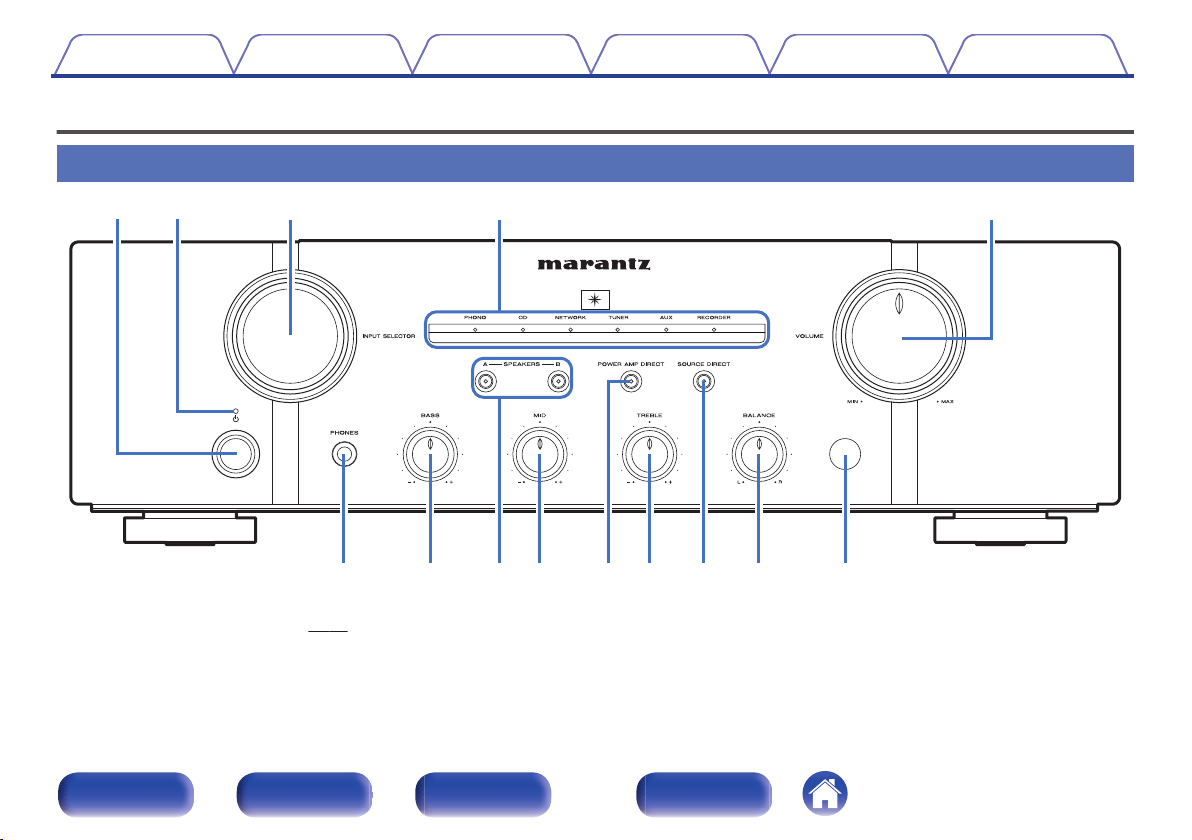

Front panel
.
uQ
1
oQ
3
Q
2
Q
4
iQ
0
y
er
qw
t
A
Power operation button (X)
This turns the power on/off. (v p. 26)
B
Power indicator
This is lit as follows according to the power status:
0
Power on : Off
0
Standby : Red
0
Power off : Off
Contents Connections Playback Settings Tips Appendix
8
Front panel Rear panel
Remote control
unit
Index
.

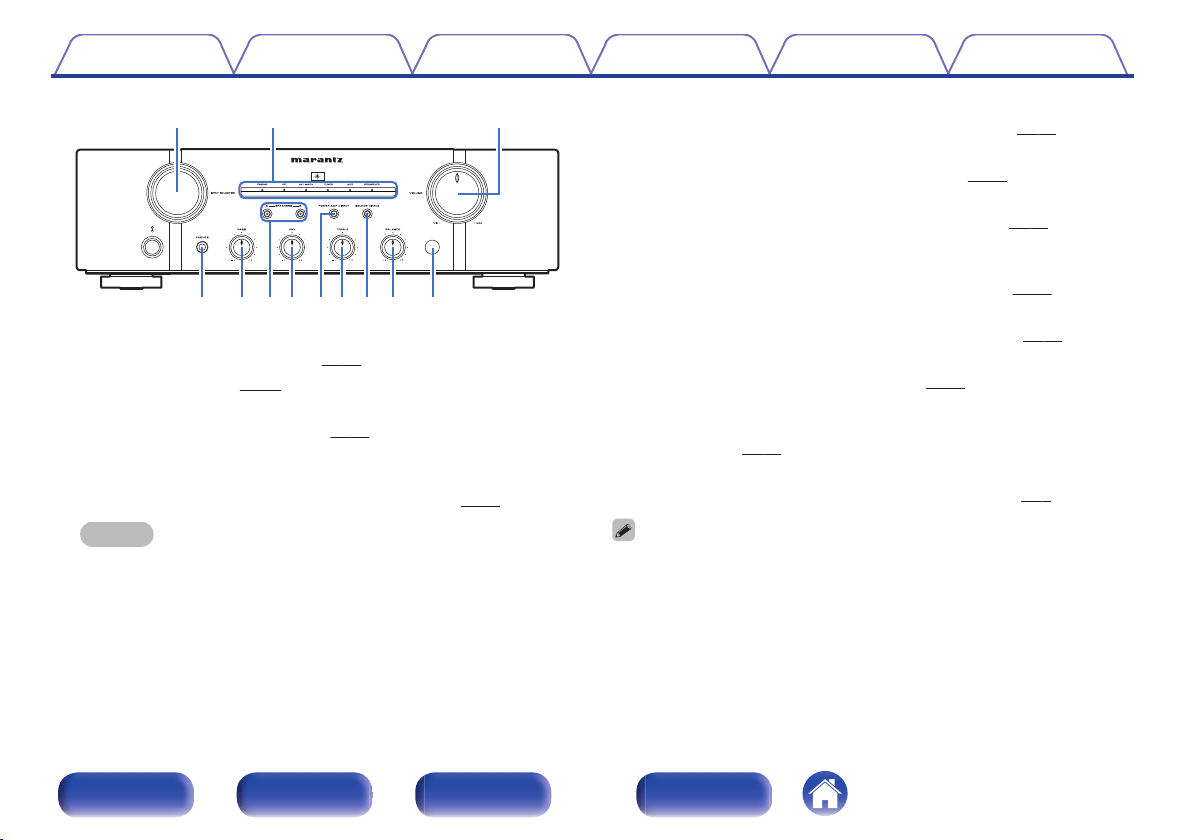

uQ1oQ3Q2 Q4iQ0y
er t
C
INPUT SELECTOR knob
This selects the input source. (v p. 27)
D
Input indicators (v p. 27)
E
VOLUME knob
These adjust the volume level. (v p. 27)
F
Headphones jack (PHONES)
Used to connect headphones.
Turn off speaker output when using headphones. (v
p. 27)
NOTE
0
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
G
BASS control knob
This setting adjusts the volume level for the bass. (v
p. 28)
H
Speaker switching buttons/indicators (SPEAKERS A/B)
These select the speaker for audio output. (v p. 27)
I
MID control knob
This setting adjusts the volume level for the mid. (v
p. 28)
J
Power amplifier direct mode button/indicator
(POWER AMP DIRECT)
This switches the power amp direct mode on/off. (v
p. 32)
K
TREBLE control knob
This setting adjusts the volume level for the treble. (v p. 28)
L
SOURCE DIRECT button/indicator
This turns source direct mode on/off. (v p. 28)
M
BALANCE control knob
This adjusts the balance of the volume output from the left and right
speakers. (v
p. 28)
N
Remote control sensor
This receives signals from the remote control unit. (v p. 5)
0
7, 9, a and c can be adjusted when b is off (Source direct mode is off).
Contents Connections Playback Settings Tips Appendix
9
Front panel Rear panel
Remote control
unit
Index

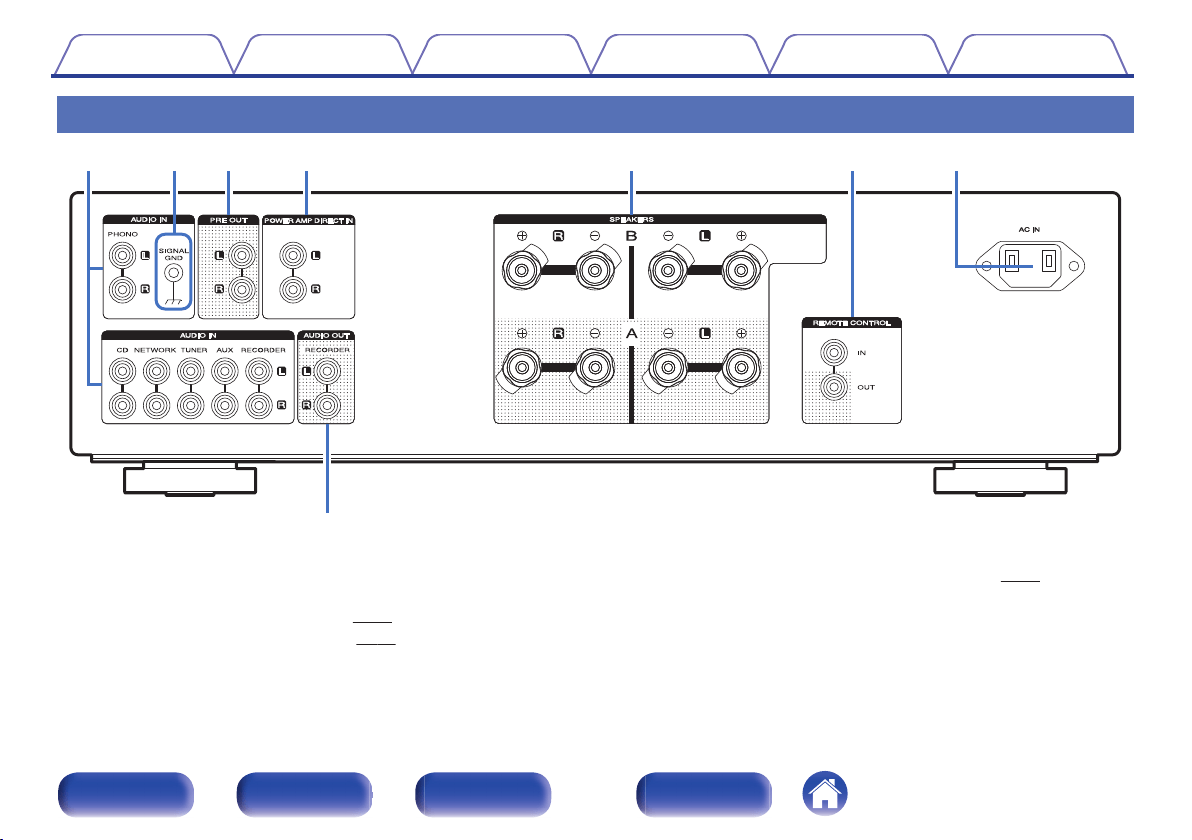

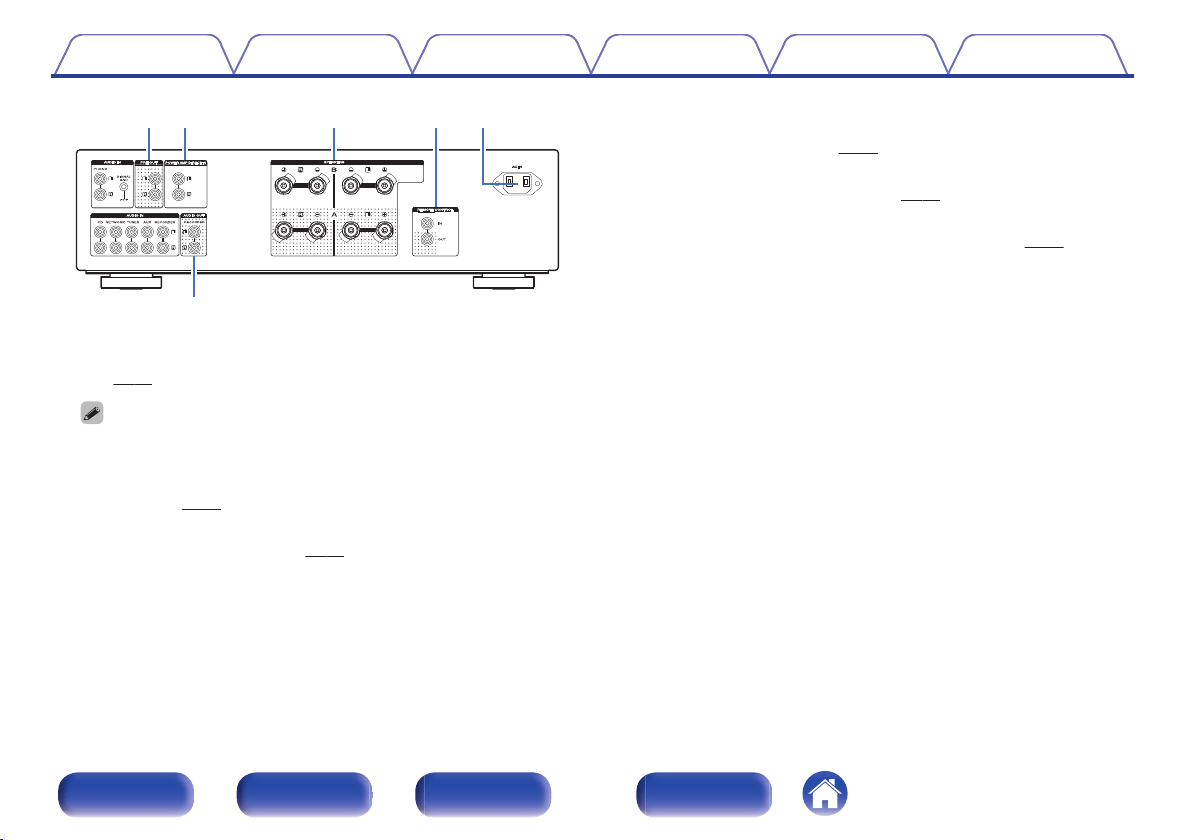

Rear panel
.
i
qw retyu
A
Analog audio input connectors (AUDIO IN)
Used to connect devices equipped with analog audio output
connectors.
0
“Connecting a playback device” (v
p. 20)
0
“Connecting a recording device” (v p. 21)
B
SIGNAL GND terminal
Used to connect the ground wire of a turntable. (v
p. 20)
Contents Connections Playback Settings Tips Appendix
10
Front panel Rear panel
Remote control
unit
Index
.
u
i
er t y
C
PRE OUT connectors
Use this to add such equipment as a power amplifier or subwoofer.
(v p. 22)
0
When connecting a subwoofer, also consult the subwoofer instruction manual.
D
Power amplifier direct connectors (POWER AMP DIRECT IN)
Used to connect a pre-amplifier when this unit is used as a power
amplifier. (v
p. 22)
E
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 16)
F
Remote control input/output connectors (REMOTE CONTROL)
Used to connect to a Marantz audio device that is compatible with the
remote control function. (v p. 23)
G
AC inlet (AC IN)
Used to connect the power cord. (v
p. 24)
H
AUDIO OUT connectors (RECORDER)
Used to connect the input connector of a recorder. (v
p. 21)
Contents Connections Playback Settings Tips Appendix
11
Front panel Rear panel
Remote control
unit
Index

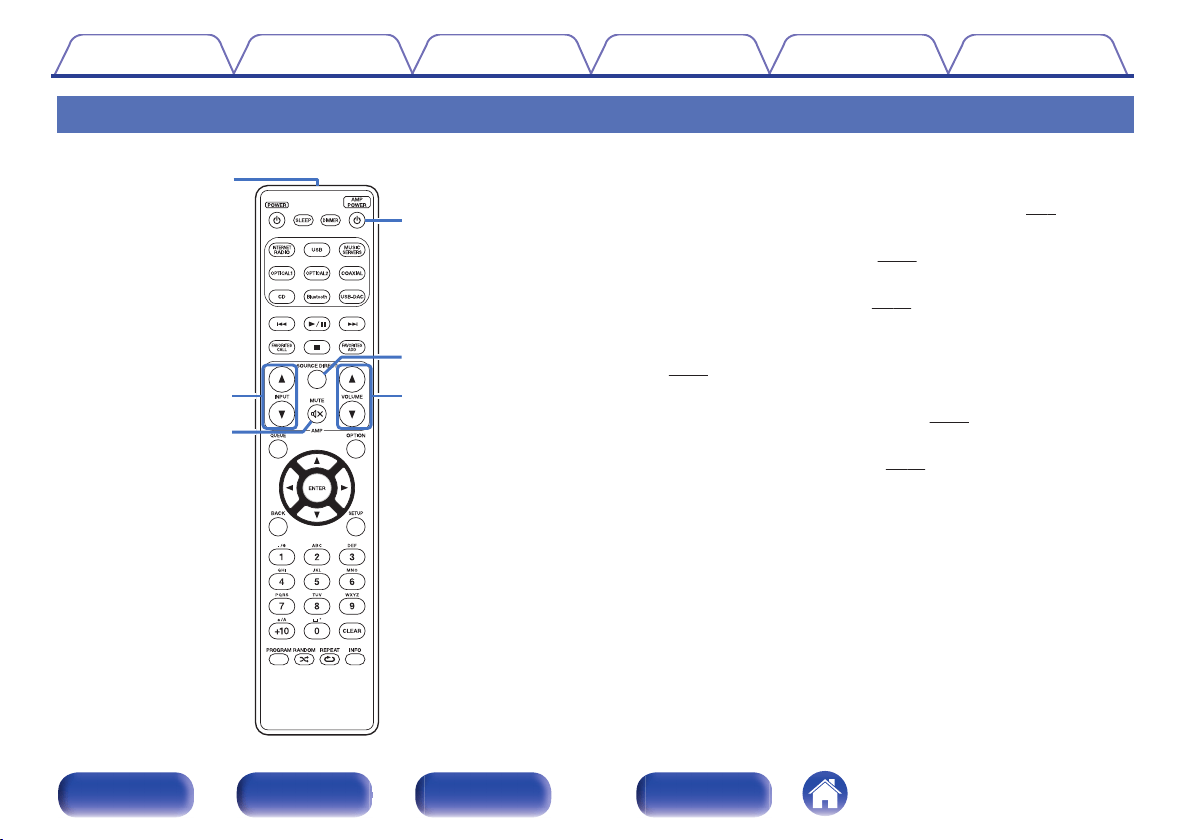

Remote control unit
.
w
e
y
r
t
q
o
Operating this unit
A
Remote control signal transmitter
This transmits signals from the remote control unit. (v
p. 5)
B
Input source select buttons (INPUT df)
This selects the input source. (v p. 27)
C
MUTE button (:)
This mutes the output audio. (v
p. 27)
D
AMP POWER button (X)
This turns the power on/off (standby).
(v
p. 26)
E
SOURCE DIRECT button
This turns source direct mode on/off. (v
p. 28)
F
VOLUME buttons (df)
These adjust the volume level. (v p. 27)
Contents
Connections Playback Settings Tips Appendix
12
Front panel Rear panel
Remote control
unit
Index
.
q
e
w
r
t
o
Q0
Q1
Q2
y
u
i
o

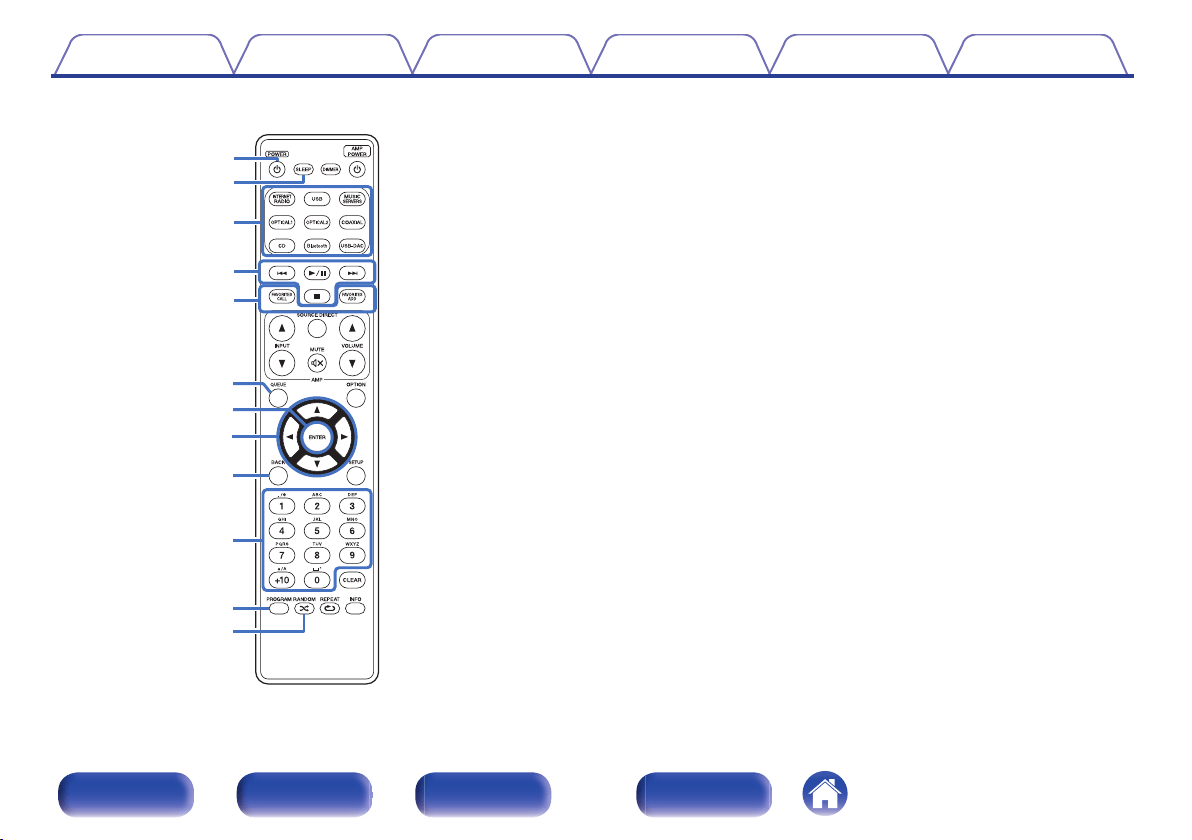

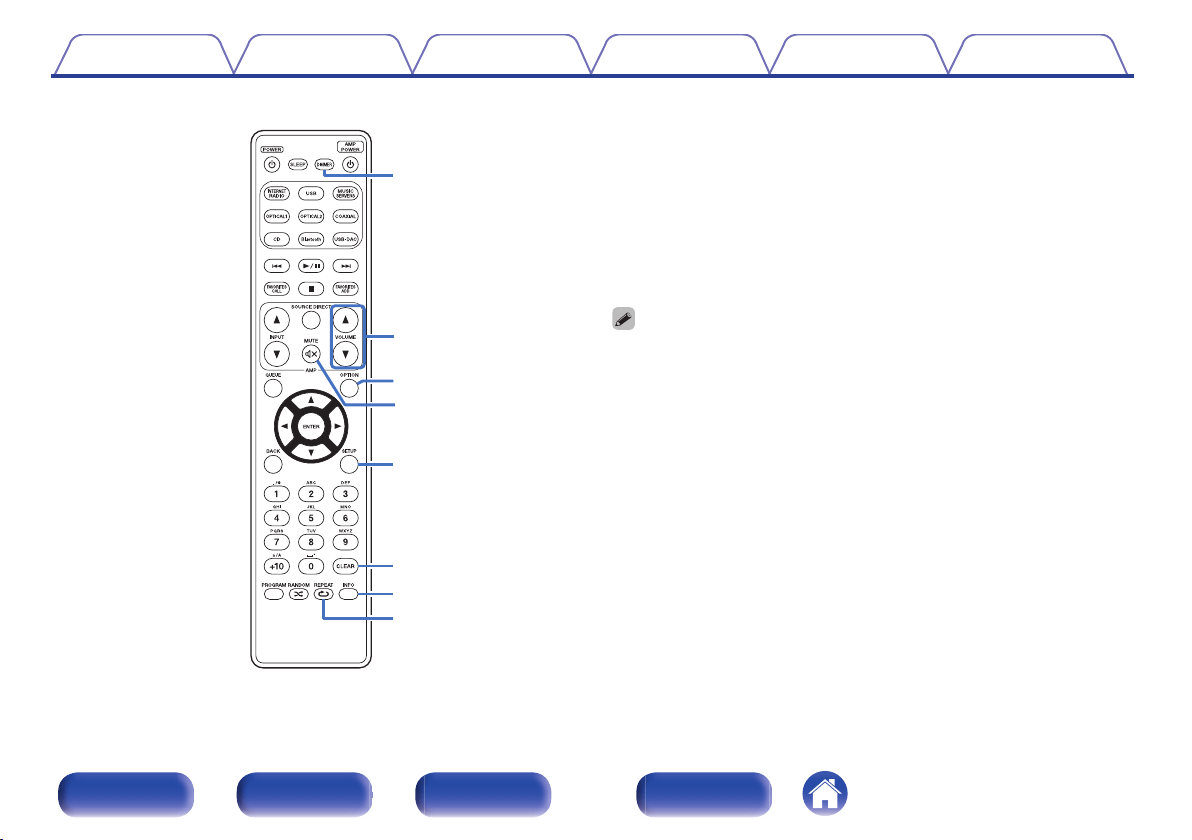

Network CD player operations
A Marantz Network CD player can be operated.
A
POWER button (X)
B
SLEEP button
C
Input source select buttons
D
System buttons
0
Skip buttons (8 / 9)
0
Play/pause button (1/3)
0
Stop button (n)
E
FAVORITES CALL / ADD buttons
F
QUEUE button
G
ENTER button
H
Cursor buttons (uio p)
I
BACK button
J
Number buttons (0 – 9, +10)
K
PROGRAM button
L
RANDOM button (P)
Contents
Connections Playback Settings Tips Appendix
13
Front panel Rear panel
Remote control
unit
Index
Q8
Q9
Q5
Q7
Q3
W0
Q4
Q6
M
DIMMER button
N
VOLUME buttons (df)
O
OPTION button
P
MUTE button (:)
Q
SETUP button
R
CLEAR button
S
Information button (INFO)
T
REPEAT button (L)
0
The remote control may not operate some products.
0
d and f only work when the remote control code is set to Network CD player
operation mode. See the instruction manual of your Marantz Network CD player
for details.
Contents
Connections Playback Settings Tips Appendix
14
Front panel Rear panel
Remote control
unit
Index
o
Contents
Connecting speakers 16
Connecting a playback device 20
Connecting a recording device 21
Connecting a pre-amplifier or power amplifier 22
Connecting devices with remote control connectors 23
Connecting the power cord 24
NOTE
0
Do not plug in the power cord until all connections have been completed.
0
Do not bundle power cords together with connection cables. Doing so can result in
humming or noise.
o
Cables used for connections
Provide necessary cables according to the devices you want to
connect.
Speaker cable
.
Audio cable
.
R
L
R
L
Remote connector cable
.
Contents Connections Playback Settings Tips Appendix
15
Front panel Rear panel
Remote control
unit
Index
Connecting speakers
NOTE
0
Disconnect this unit’s power plug from the power outlet before connecting the
speakers.
0
Connect so that the speaker cable core wires do not protrude from the speaker
terminal. The protection circuit may be activated if the core wires touch the rear
panel or if the + and - sides touch each other. (“Protection circuit” (v
p. 40))
0
Never touch the speaker terminals while the power cord is connected. Doing so
could result in electric shock.
0
Use speakers with impedances within the ranges shown below to suit how they
are used.
Speaker terminals
used on this unit
No. of connected
speakers
Speaker
Impedance
SPEAKERS A
(Standard
connection)
2 (one set) 4 – 16 Ω/ohms
SPEAKERS B
2 (one set) 4 – 16 Ω/ohms
SPEAKERS A and
SPEAKERS B
4 (two sets) 8 – 16 Ω/ohms
SPEAKERS A and
SPEAKERS B
(Bi-wiring
connection)
2 (one set) 4 – 16 Ω/ohms
o
Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and - (white)
polarities on the speakers being connected to this unit, and be sure to
connect the channels and polarities correctly.
1
Peel off about 3/8 inch (10 mm) of sheathing from the
tip of the speaker cable, then either twist the core wire
tightly or terminate it.
.
2
Turn the speaker terminal counterclockwise to loosen it.
.
3
Insert the speaker cable’s core wire to the hilt into the
speaker terminal.
.
Contents
Connections Playback Settings Tips Appendix
16
Front panel Rear panel
Remote control
unit
Index

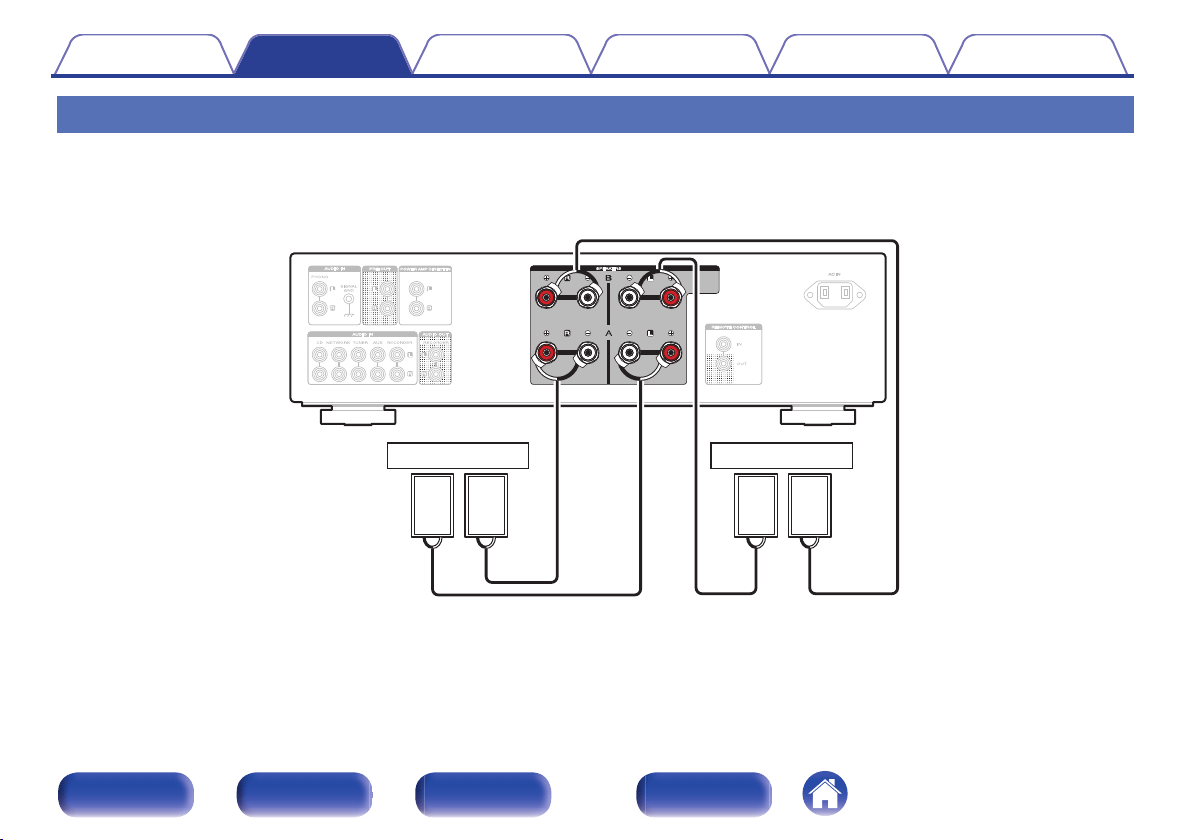

Speaker A/B connection
This unit is equipped with two sets of speaker terminals (SPEAKER A and SPEAKER B). One set of speakers can be connected to each set of terminals,
and a total of two sets of speakers can be connected.
The same signal is output from the SPEAKERS A and SPEAKERS B terminals.
When only one set of speakers is to be connected, use either the SPEAKERS A or SPEAKERS B terminals.
.
wqwq
(R) (L)
wqwq
(R) (L)
SPEAKERS A
SPEAKERS B
Contents
Connections Playback Settings Tips Appendix
18
Front panel Rear panel
Remote control
unit
Index

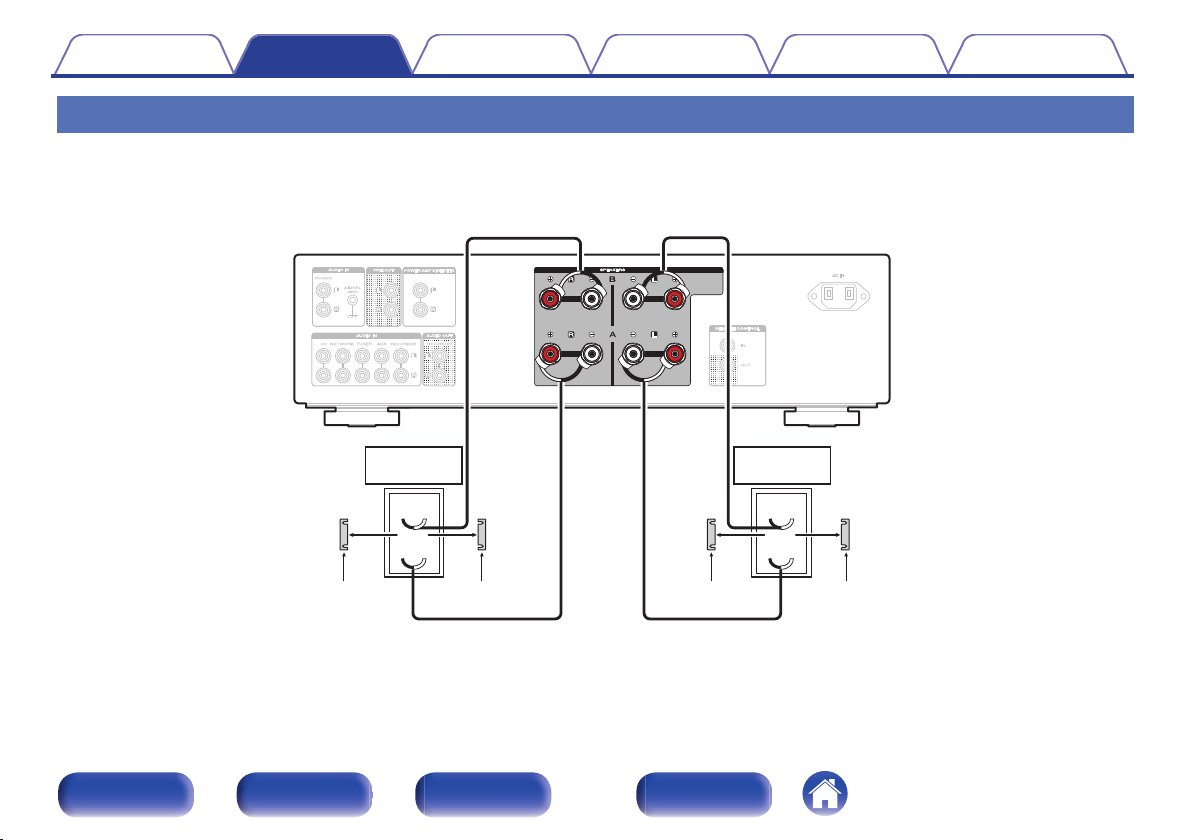

Bi-wiring connection
This connection limits the effects of signal interference between the high range speakers (tweeters) and low range speakers (woofers), allowing you to
enjoy high quality playback.
When bi-wiring with bi-wireable speakers, connect the mid and high range terminals to SPEAKERS B (or SPEAKERS A), the low range terminals to
SPEAKERS A (or SPEAKERS B).
.
wq
wq
HIGH
LOW
wq
wq
HIGH
LOW
Speaker
(R)
Speaker
(L)
Remove shorting bar
Remove shorting bar Remove shorting bar
Remove shorting bar
Contents
Connections Playback Settings Tips Appendix
19
Front panel Rear panel
Remote control
unit
Index
Connecting a playback device
You can connect turntables, tuners, Blu-ray disc players, network audio players and CD players to this unit.
This unit is compatible with turntables equipped with a moving magnet (MM) phono cartridge. When you connect to a turntable with a low output moving
coil (MC) cartridge, use a commercially available MC head amp or a step-up transformer.
If you set this unit’s input source to “PHONO” and you accidentally increase the volume without having a turntable connected, you may hear a hum noise
from the speakers.
.
GND
AUDIO
OUT
L
R
AUDIO
OUT
LR
AUDIO
OUT
LR
AUDIO
OUT
LR
AUDIO
OUT
LR
L
L
R
R
L
L
R
R
L
L
R
R
L
L
R
R
Turntable
Tu n e r
Blu-ray disc
player
Network audio
player
CD player
NOTE
0
The earth terminal (SIGNAL GND) of this unit is not for safety grounding purposes. If this terminal is connected when there is a lot of noise, the noise can be reduced. Note
that depending on the turntable, connecting the ground line may have the reverse effect of increasing noise. In this case, it is not necessary to connect the ground line.
Contents Connections Playback Settings Tips Appendix
20
Front panel Rear panel
Remote control
unit
Index
Connecting a recording device
.
LR
L
L
R
R
L
L
R
R
LR
AUDIO INAUDIO OUT
Recording device
NOTE
0
Never insert the short-circuiting pin plug into the recording output connectors (AUDIO OUT RECORDER). Doing so could result in damage.
Contents Connections Playback Settings Tips Appendix
21
Front panel Rear panel
Remote control
unit
Index
Connecting a pre-amplifier or power amplifier
Connect a power amplifier to the unit to use it as a pre-amplifier, or connect a pre-amplifier to the unit to use it as a power amplifier.
.
AUDIO
IN
LR
AUDIO
OUT
LR
L
L
R
R
L
L
R
R
Power
amplifier
Pre-
amplifier
0
When a pre-amplifier is connected to this unit and the unit is used as a power amplifier, turn power amp direct mode on. (v p. 32)
NOTE
0
Never insert the short-circuiting pin plug into the PRE OUT terminals. Doing so could result in damage.
Contents Connections Playback Settings Tips Appendix
22
Front panel Rear panel
Remote control
unit
Index
Connecting devices with remote control connectors
Performing operations by RC on this
unit without visual contact
You can connect an external IR receiver to the REMOTE CONTROL
connectors to perform operations on this unit with the supplied remote
control unit without visual contact. This might be necessary if the unit is
hidden in a cupboard or corner, so you can’t directly point with the remote
control unit to the device.
.
RC OUT
Infrared
retransmitter
Infrared
sensor
Remotely connecting Marantz audio
devices
You can transmit remote control signals simply by connecting a Marantz
audio device to the REMOTE CONTROL IN/OUT connectors using the
remote connection cable provided with the device.
Set the remote control switch located on the rear panel of the connected
audio component to “EXTERNAL” to use this feature.
.
Contents
Connections Playback Settings Tips Appendix
23
Front panel Rear panel
Remote control
unit
Index
o
Contents
Turning the power on 26
Switching the power to standby 26
Selecting the speakers for audio output 27
Selecting the input source 27
Adjusting the volume 27
Turning off the sound temporarily (Muting) 27
Adjusting the tone 28
Playing CDs 28
Recording 29
Contents Connections Playback Settings Tips Appendix
25
Front panel Rear panel
Remote control
unit
Index
.
AMP POWER
X
VOLUME
df
INPUT
df
SOURCE
DIRECT
MUTE
.
VOLUMEBALANCETREBLEBASS
INPUT
SELECTOR
SOURCE
DIRECT
X
MID
SPEAKERS
A/B

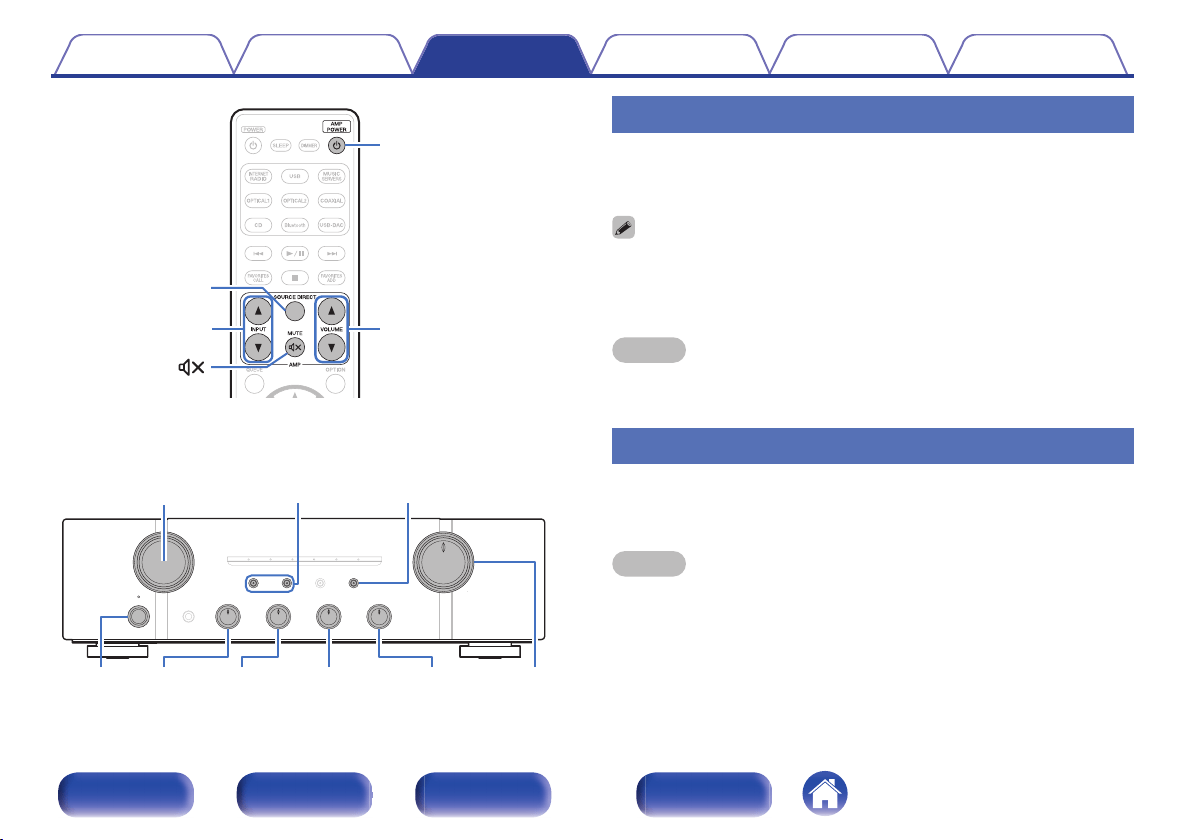

Turning the power on
1
Press X on the main unit to turn the power on.
Input indicator for the selected source lights in blue.
0
Press AMP POWER X on the remote control unit to turn on power from standby
mode.
0
You can also turn the INPUT SELECTOR on the main unit when the unit is in
standby mode to turn on the power.
NOTE
0
Turn VOLUME on the main unit to adjust the volume to the lowest level before
turning on the power.
Switching the power to standby
1
Press AMP POWER X on the remote control unit.
The power indicator lights in red.
NOTE
0
Power continues to be supplied to some of the circuitry even when the power is in
the standby mode. When leaving home for long periods of time or when going on
vacation, either press X on the main unit to turn off the power, or unplug the power
cord from the power outlet.
Contents Connections Playback Settings Tips Appendix
26
Front panel Rear panel
Remote control
unit
Index
Selecting the speakers for audio output
1
Use SPEAKERS A/B on the main unit to select the
speaker system to be used for playback.
The indicator of the selected speakers lights.
0
When using headphones, press SPEAKERS A/B to turn off all of the indicators and
turn audio output from the speaker terminals off.
Selecting the input source
1
Use INPUT df to select the input source to be played
back.
The indicator of the selected input source lights in blue.
0
You can also select the input source by turning INPUT SELECTOR on the main
unit.
Adjusting the volume
1
Use VOLUME df to adjust the volume.
0
You can also adjust the volume by turning VOLUME on the main unit.
Turning off the sound temporarily
(Muting)
1
Press MUTE :.
The indicator of the currently set input source lights in red.
0
To cancel mute, press MUTE : again.
Contents Connections Playback Settings Tips Appendix
27
Front panel Rear panel
Remote control
unit
Index
Adjusting the tone
1
Press SOURCE DIRECT to turn off source direct mode.
The SOURCE DIRECT indicator turns off.
2
Turn the BASS, MID, TREBLE and BALANCE on this
unit to adjust the tone.
0
You can also press SOURCE DIRECT on the main unit to turn off source direct
mode.
Playing CDs
This section uses playback from a CD as an example.
1
Press X on the main unit to turn the power on.
2
Use INPUT df to switch the input source to “CD”.
The “CD” input indicator lights in blue.
3
Playback the CD.
4
Use VOLUME df to adjust the volume.
o
Playback in source direct mode
The signal does not pass through the tone adjustment circuitry (BASS,
MID, TREBLE and BALANCE), resulting in playback of a higher sound
quality.
1
Press SOURCE DIRECT to turn on source direct mode.
The SOURCE DIRECT indicator lights.
Contents Connections Playback Settings Tips Appendix
28
Front panel Rear panel
Remote control
unit
Index
Recording
Audio signals input into this unit can be output to an external recording
device. When recording audio from a playback device connected to this
unit, audio can be recorded with the playback device still connected to this
unit.
1
Press X on the main unit to turn the power on.
2
Use INPUT df to switch to the input source from which
you want to record.
The indicator of the selected input source lights in blue.
3
Recording starts.
0
For information on operations, see the owner’s manual of the
recording device.
Contents Connections Playback Settings Tips Appendix
29
Front panel Rear panel
Remote control
unit
Index

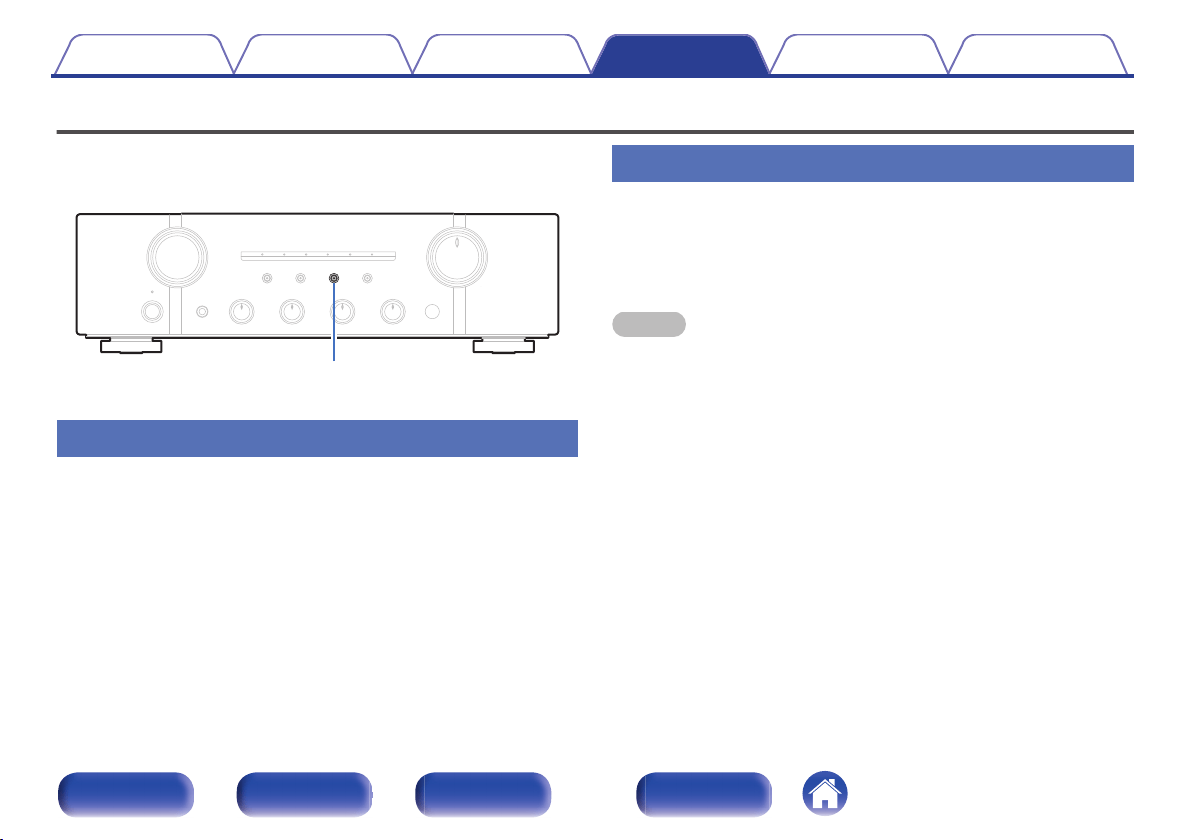

Setting the Auto Standby mode
You can set the unit to automatically switch to standby mode if the unit is
not operated for 30 minutes when there is no audio input (Auto Standby
mode).
Auto Standby mode is set to off by default.
.
SOURCE DIRECT
Power indicator
Turning Auto Standby mode on
1
Press and hold SOURCE DIRECT on the main unit for
more than 5 seconds to turn the Auto Standby mode on.
The power indicator flashes three times.
Turning Auto Standby mode off
1
Press and hold SOURCE DIRECT on the main unit for
more than 5 seconds to turn the Auto Standby mode off.
The power indicator flashes once.
Contents Connections Playback Settings Tips Appendix
31
Front panel Rear panel
Remote control
unit
Index
Setting the power amp direct mode
When a pre-amplifier is connected to this unit and the unit is used as a
power amplifier, follow the instructions below to turn power amp direct
mode on.
.
POWER AMP DIRECT
Turning power amp direct mode on
1
Press and hold POWER AMP DIRECT for more than 3
seconds to turn the power amp direct mode on.
The power amp direct indicator lights and the power amp direct
mode turns on. The input source switching function of the unit is
disabled, and the device connected to the power amp direct input
terminal is played back.
Turning power amp direct mode off
1
Press and hold POWER AMP DIRECT for more than 3
seconds to turn the power amp direct mode off.
The power amp direct indicator turns off and the power amp direct
mode turns off.
NOTE
0
When the power amp direct mode is on, adjustment of the volume, balance and
tone has no effect. Adjust the volume on the pre-amplifier.
0
The input source cannot be switched when power amp direct mode is on.
0
When the power amp direct mode is on, the main unit outputs at maximum
volume. Check the output level on the input device before playing it and adjust the
volume accordingly.
Contents Connections Playback Settings Tips Appendix
32
Front panel Rear panel
Remote control
unit
Index
o
Contents
Tips
I want to adjust the tone myself 34
I want sound playback that is faithful to the original sound 34
I want to use bi-wiring compatible speakers 34
I want to operate a Marantz Network CD player using the remote
control of this unit 34
I want to use this unit as a power amplifier 34
I want to use this unit as a pre-amplifier 34
Troubleshooting
Power does not turn on / Power is turned off 36
Operations cannot be performed through the remote control unit 37
No sound comes out 38
Desired sound does not come out 38
Sound is interrupted or noise occurs 39
Contents Connections Playback Settings Tips Appendix
33
Front panel Rear panel
Remote control
unit
Index
Tips
I want to adjust the tone myself
0
Use the BASS, MID, TREBLE and BALANCE knobs to adjust the sound as desired. (v p. 28)
I want sound playback that is faithful to the original sound
0
Set the source direct mode on. (v p. 28)
I want to use bi-wiring compatible speakers
0
This unit is compatible with bi-wiring connections. Enjoy high quality playback by using bi-wiring connections.
(v p. 19)
I want to operate a Marantz Network CD player using the remote control of this unit
0
Marantz Network CD Players can also be operated with the remote control of this unit. Also refer to the Network CD player's instruction
manuals. (v p. 13)
I want to use this unit as a power amplifier
0
Set the power amp direct mode on. (v p. 32)
I want to use this unit as a pre-amplifier
0
Connect a power amplifier to the pre out connectors of this unit. (v p. 22)
Contents
Connections Playback Settings Tips Appendix
34
Front panel Rear panel
Remote control
unit
Index
Troubleshooting
If a problem should arise, first check the following:
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other devices operating properly?
If this unit does not operate properly, check the corresponding symptoms in this section.
If the symptoms do not match any of those described here, consult your dealer as it could be due to a fault in this unit. In this case, disconnect the power
immediately and contact the store where you purchased this unit.
Contents Connections Playback Settings Tips Appendix
35
Front panel Rear panel
Remote control
unit
Index
Power does not turn on / Power is turned off
Power is not turned on.
0
Check whether the power plug is correctly inserted into the power outlet. (v
p. 24)
Power automatically turns off.
0
The Auto Standby mode is on. When approx. 30 minutes pass with no audio input and no operations on the unit, this unit automatically enters the
standby mode. To turn off the Auto Standby mode, press the SOURCE DIRECT button for 5 seconds or longer. (v p. 31)
Power turns off and the power indicator flashes in red approx. every 0.5 seconds.
0
The protection circuit has been activated due to a rise in temperature within this unit. Turn the power off, wait about an hour until this unit cools down
sufficiently, and then turn the power on again. (v p. 40)
0
Please re-install this unit in a place having good ventilation.
Power turns off and the power indicator flashes in red approx. every 0.25 seconds.
0
Check the speaker connections. The protection circuit may have been activated because speaker cable core wires came in contact with each other or a
core wire was disconnected from the connector and came in contact with the rear panel of this unit. After unplugging the power cord, take corrective
action such as firmly re-twisting the core wire or taking care of the connector, and then reconnect the wire. (v p. 16)
0
Turn down the volume and turn on the power again. (v p. 26)
When the power is turned on, the power indicator flashes in red approx. every 0.25 seconds.
0
This unit’s amplifier circuit has failed. Unplug the power cord and contact our customer service center.
Contents
Connections Playback Settings Tips Appendix
36
Front panel Rear panel
Remote control
unit
Index
Operations cannot be performed through the remote control unit
Operations cannot be performed through the remote control unit.
0
Batteries are worn out. Replace with new batteries. (v
p. 5)
0
Operate the remote control unit within a distance of about 23 ft/7 m from this unit and at an angle of within 30°. (v p. 5)
0
Remove any obstacle between this unit and the remote control unit.
0
Insert the batteries in the proper direction, checking the q and w marks. (v p. 5)
0
The set’s remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb light, etc.). Move the set to a place in which the
remote control sensor will not be exposed to strong light.
0
When using a 3D video device, the remote control unit of this unit may not function due to effects of infrared communications between units (such as TV
and glasses for 3D viewing). In this case, adjust the direction of units with the 3D communications function and their distance to ensure they do not
affect operations from the remote control unit of this unit.
0
The remote control code of the volume buttons on the remote control (VOLUME df and MUTE :) is set to the mode for operating a Marantz Network
CD player. If the volume of this unit cannot be adjusted using the remote control, press and hold ENTER and the number 2 button together for 5
seconds or more to change the remote control code to AMP operation mode.
Contents
Connections Playback Settings Tips Appendix
37
Front panel Rear panel
Remote control
unit
Index
No sound comes out
No sound comes out of speakers.
0
Check the connections for all devices. (v
p. 15)
0
Insert connection cables all the way in.
0
Check that input connectors and output connectors are not reversely connected.
0
Check cables for damage.
0
Check that speaker cables are properly connected. Check that cable core wires come in contact with the metal part on speaker terminals. (v p. 16)
0
Securely tighten the speaker terminals. Check speaker terminals for looseness. (v
p. 16)
0
Check that the proper input source is selected. (v p. 27)
0
The volume is set to the minimum level. Adjust the volume to a suitable level. (v p. 27)
0
Cancel the muting mode. (v p. 27)
0
Check the settings of the SPEAKERS A/B buttons. (v
p. 27)
Desired sound does not come out
No sound comes out of a specific speaker.
0
Check that speaker cables are properly connected. (v p. 16)
0
Adjust the BALANCE control knob. (v
p. 28)
The left and right of stereo sound is reversed.
0
Check whether the left and right speakers are connected to the correct speaker terminals. (v p. 18)
Contents
Connections Playback Settings Tips Appendix
38
Front panel Rear panel
Remote control
unit
Index
Sound is interrupted or noise occurs
When playing a record, the sound is distorted.
0
Adjust to a proper needle pressure.
0
Check the tip of the needle.
0
Replace the cartridge.
When playing a record, a humming noise comes out of the speakers.
0
Check that the turntable is connected correctly. (v p. 20)
0
If there is a TV or AV device near the turntable, such devices may affect the playback sound. Install the turntable in a location as far away as possible
from the TV or other AV devices.
When playing a record, a humming noise comes out of the speakers when the volume is high. (Howling phenomenon)
0
Install the turntable and speakers as far from each other as possible. (v p. 20)
0
The vibrations from the speakers are being transmitted to the player through the floor. Use cushions, etc., to absorb the speakers’ vibrations.
Contents
Connections Playback Settings Tips Appendix
39
Front panel Rear panel
Remote control
unit
Index
Explanation of terms
Speaker impedance
This is an AC resistance value, indicated in Ω (ohms).
Greater power can be obtained when this value is smaller.
Source direct
Playback with higher fidelity to the source becomes possible, as input
audio signals are output by bypassing the audio quality-control circuits
(BASS/MID/TREBLE/BALANCE).
Protection circuit
This is a function to prevent damage to devices within the power supply
when an abnormality such as an overload, excess voltage occurs or over
temperature for any reason.
Trademark information
.
Adobe, the Adobe logo and Reader are either registered trademarks or
trademarks of Adobe Systems Incorporated in the United States and/or
other countries.
Contents Connections Playback Settings Tips Appendix
40
Front panel Rear panel
Remote control
unit
Index
Specifications
0
RMS Power output (20 Hz – 20 kHz simultaneous drive of both
channels) :
70 W x 2 (8 Ω/ohms load)
100 W x 2 (4 Ω/ohms load)
0
Total harmonic distortion (20 Hz – 20 kHz simultaneous drive of
both channels, 8 Ω/ohms load) :
0.02 %
0
Output band width (8 Ω/ohms load, 0.06 %) : 5 Hz – 60 kHz
0
Frequency response (CD, 1 W, 8 Ω/ohms load) : 5 Hz – 100 kHz ±3 dB
0
Damping factor (8 Ω/ohms load, 40 Hz – 20 kHz) : 100
0
Input sensitivity/Input impedance
PHONO (MM) :
2.0 mV/47 kΩ/kohms
CD, TUNER, NETWORK, AUX, RECORDER :
220 mV / 20 kΩ/kohms
POWER AMP DIRECT IN :
1.6 V / 15 kΩ/kohms
0
Output voltage/Output impedance
PRE OUT :
1.6 V / 600 Ω/ohms
0
Maximum allowable PHONO input level (1 kHz) MM : 80 mV
0
RIAA deviation (20 Hz – 20 kHz) : ±0.5 dB
0
S/N (IHF-A, 8 Ω/ohms load)
PHONO (MM) :
87 dB (5 mV input, 1 W output)
CD, TUNER, NETWORK, AUX, RECORDER :
106 dB (2 V input, Rated output)
POWER AMP DIRECT IN :
125 dB (Rated output)
Contents Connections Playback Settings Tips Appendix
41
Front panel Rear panel
Remote control
unit
Index
0
Tone Control
BASS (50 Hz) :
±10 dB
MID (900 Hz) :
±6 dB
TREBLE (15 kHz) :
±10 dB
0
Power supply : AC 120 V, 60 Hz
0
Power consumption : 220 W
0
Power consumption in standby mode : 0.2 W
For the purpose of improvement, the specifications and design are subject to change without notice.
Contents Connections Playback Settings Tips Appendix
42
Front panel Rear panel
Remote control
unit
Index
o
Dimensions (Unit : in. (mm))
.
8 7/8 (225)
2 3/8
(59)
1 7/8
(45)
13 (329)
15 (379)
3/4 (17)
1 3/8
(33)
3/4 (17) 4 3/8 (111)
5 1/8 (128)
17 3/8 (440)
13 1/2 (340)
2 1/4
(56)
2 (50)2 (50)
o
Weight : 26 lb 7 oz (12.0 kg)
Contents Connections Playback Settings Tips Appendix
43
Front panel Rear panel
Remote control
unit
Index
Index
v A
Auto Standby mode ........................................ 31
v B
Bi-wiring ......................................................... 19
Blu-ray Disc player ......................................... 20
v C
CD player ................................................. 20, 28
v F
Front panel ....................................................... 8
v I
Input source ................................................... 27
v M
Muting ............................................................ 27
v N
Network audio player ..................................... 20
v P
Power amp direct mode ................................. 32
Power amplifier .............................................. 22
Pre-amplifier ................................................... 22
Protection circuit ............................................ 40
v R
Rear panel ...................................................... 10
Recording device ........................................... 21
Remote control unit ........................................ 12
v S
Source direct ............................................ 28, 40
Speaker impedance ....................................... 40
Speakers ........................................................ 16
v T
Tips ................................................................ 34
Tone ............................................................... 28
Troubleshooting ............................................. 35
Tuner .............................................................. 20
Turntable ........................................................ 20
v V
Volume ........................................................... 27
Contents
Connections Playback Settings Tips Appendix
44
Front panel Rear panel
Remote control
unit
Index
3520 10570 00AMA
Copyright © 2017 D&M Holdings Inc. All Rights Reserved.
45
