READ AND SAVE THESE INSTRUCTIONS p/_24o4oo1_1(0304)

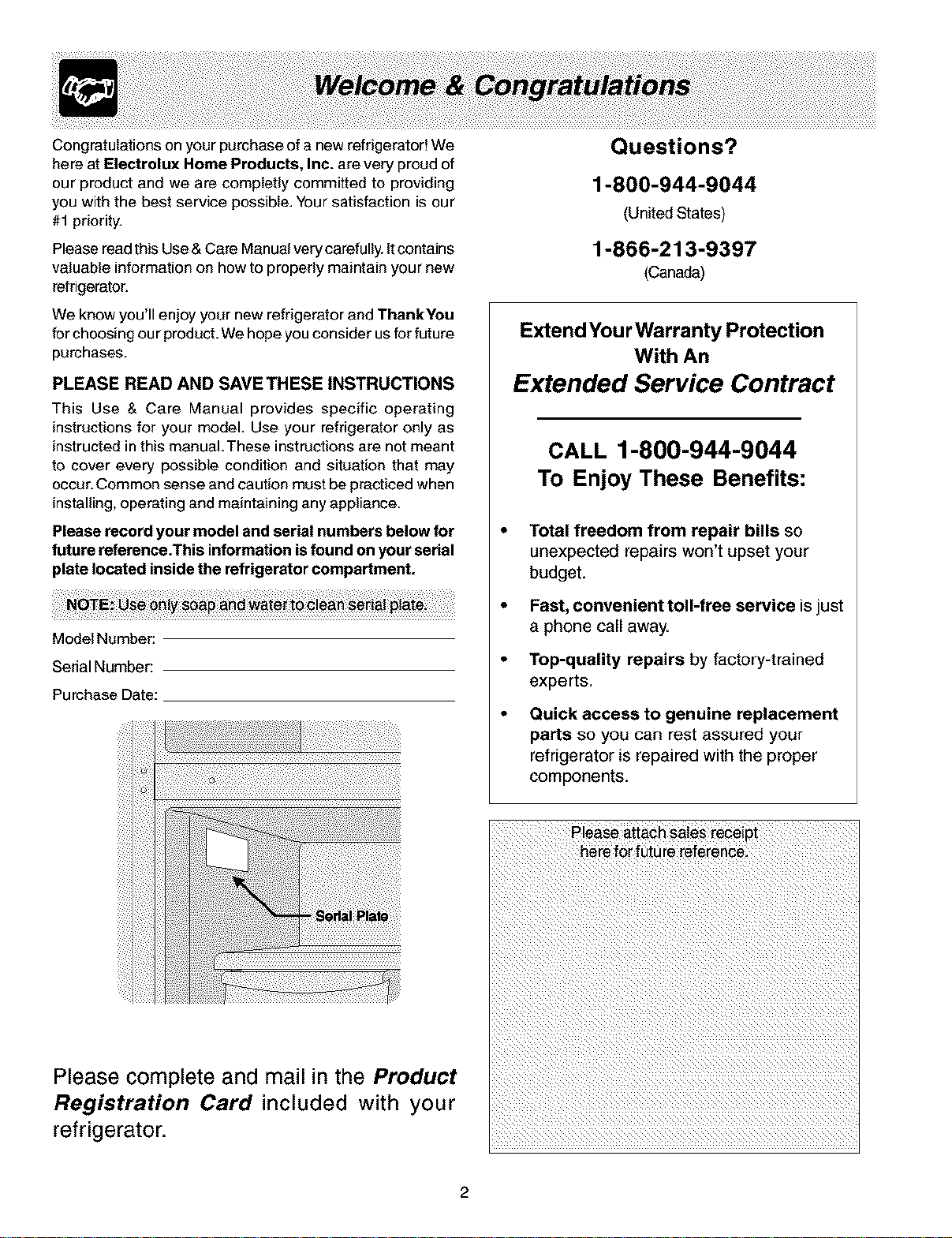

Congratulations on your purchase of a new refrigerator! We
here at Electrolux Home Products, Inc. are very proud of
our product and we are compIetly committed to providing
you with the best service possible, Your satisfaction is our
#1 priority,
Please read this Use & Care Manual very carefully. Itcontains
valuable information on how to properly maintain your new
refrigerator.
We know you'll enjoy your new refrigerator and ThankYou
for choosing our product.We hope you consider us for future
purchases.
PLEASE READ AND SAVETHESE INSTRUCTIONS
This Use & Care Manual provides specific operating
instructions for your model. Use your refrigerator only as
instructed in this manual.These instructions are not meant
to cover every possible condition and situation that may
occur. Common sense and caution must be practiced when
installing, operating and maintaining any appliance.
Please record your model and serial numbers below for
future reference.This information isfound on your serial
plate located inside the refrigerator compartment.
Model Number:
Serial Number:
Purchase Date:
Please complete and mail in the Product
Registration Card included with your
refrigerator.
Questions?
1-800-944-9044
(United States)
1-866-213-9397
(Canada)
Extend Your Warranty Protection
With An
Extended Service Contract
CALL 1-800-944-9044
To Enjoy These Benefits:
Total freedom from repair bills so
unexpected repairs won't upset your
budget.
Fast, convenient toll-tree service is just
a phone call away
Top-quality repairs by factory-trained
experts.
Quick access to genuine replacement
parts so you can rest assured your
refrigerator is repaired with the proper
components.
Please attach sales rece{Dt
'_ere for tuture reference.

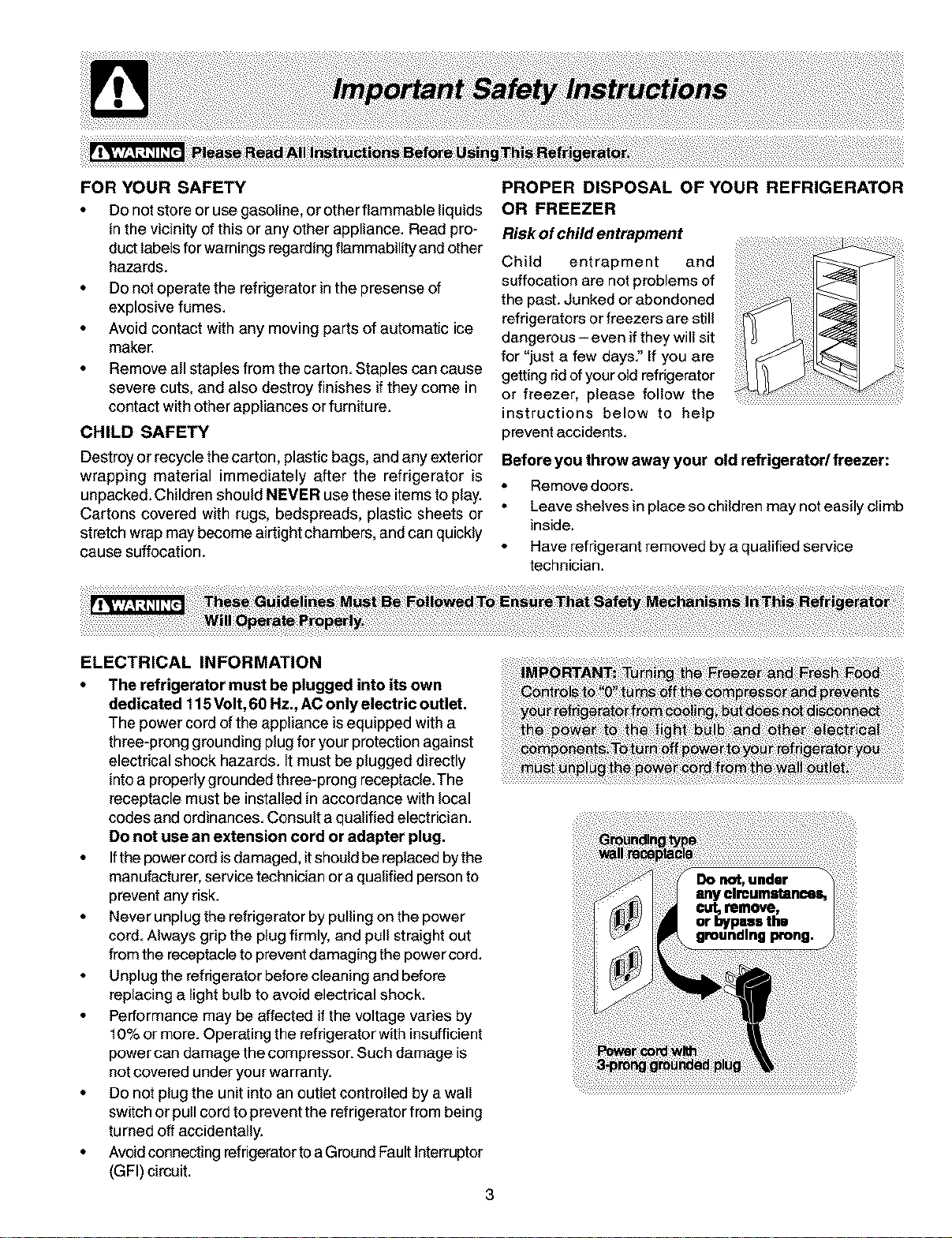

FOR YOUR SAFETY
Do not store or use gasoline, or other flammable liquids
inthe vicinity of this or any other appliance. Read pro-
duct Iabels for warnings regarding flammability and other
hazards.
Do not operate the refrigerator in the presense of
explosive fumes.
• Avoid contact with any moving parts of automatic ice
maker.
Remove all staples from the carton. Staples can cause
severe cuts, and also destroy finishes ifthey come in
contact with other appliances or furniture.
CHILD SAFETY
Destroy or recycle the carton, plastic bags, and any exterior
wrapping material immediately after the refrigerator is
unpacked. Children should NEVER use these items to play.
Cartons covered with rugs, bedspreads, plastic sheets or
stretch wrap may become airtight chambers, and can quickly
cause suffocation.
PROPER DISPOSAL OF YOUR REFRIGERATOR
OR FREEZER
Risk of child entrapment
Child entrapment and
suffocation are not problems of
the past. Junked or abondoned
refrigerators or freezers are still
dangerous- even if they will sit
for "just a few days:' If you are
getting rid of your old refrigerator
or freezer, please follow the
instructions below to help
prevent accidents.
Before you throw away your old refrigerator/freezer:
Remove doors.
Leave shelves in place so children may not easily climb
inside.
Have refrigerant removed by a qualified service
technician.
ELECTRICAL INFORMATION
• The refrigerator must be plugged into its own
dedicated 115 Volt, 60 Hz., AC only electric outlet.
The power cord of the appliance is equipped with a
three-prong grounding plug for your protection against
electrical shock hazards. It must be plugged directly
into a properly grounded three-prong receptacle.The
receptacle must be installed in accordance with local
codes and ordinances. Consult a qualified electrician.
Do not use an extension cord or adapter plug.
Ifthe power cord is damaged, it should be replaced by the
manufacturer, service technician or a qualified person to
prevent any risk.
Never unplug the refrigerator by pulling on the power
cord. Always grip the plug firmly, and pull straight out
from the receptacle to prevent damaging the power cord.
Unplug the refrigerator before cleaning and before
replacing a light bulb to avoid electrical shock.
Performance may be affected if the voltage varies by
10% or more. Operating the refrigerator with insufficient
power can damage the compressor. Such damage is
not covered under your warranty.
Do not plug the unit into an outlet controlled by a wall
switch or pull cord to prevent the refrigerator from being
turned off accidentally.
• Avoid connec_ng refrigerator to a Ground Fault Interruptor
(GFI) circuit.
3
Do not,under
This Use & Care Manual provides specific operating
instructions for your model. Use the refrigerator only as
instructed in this Use & Care Manual. Before starting the
refrigerator, follow these important first steps.
LOCATION
Choose a place thatisnear a grounded electrical outlet.
Do Not use an extension cord or an adapter plug.
If possible, place the refrigerator out of direct sunlight
and away from the range, dishwasher or other heat
sources.
The refrigerator must be installed on a floor that is level
and strong enough to support a fully loaded refrigerator.
Consider water supply availability for models equipped
with an automatic ice maker.
INSTALLATION
rei
Installation Clearances
Allow the following clearances for ease of installation,
proper air circulation, and plumbing and electrical
connections:
Sides & Top 3/8"
Back 1"
LEVELING
All four corners of your refrigerator must rest firmly on a
solid floor.Your refrigerator is equipped with adjustable front
rollers to help level your unit.
TOLevel Your Refrigerator:
1. Remove toe grille.
2. Use flat-blade screwdriver or 3/8" socket wrench
to adjust front rollers.
DOOR OPENING
Your refrigerator should be positioned to allow easy access
to acounter when removing food.To make this possible, the
direction in which the doors open can be reversed. See Door
Removal & Reversal Instructions on page 6.
i!ii iiiil¸ii i !i!i i!i ii! ii

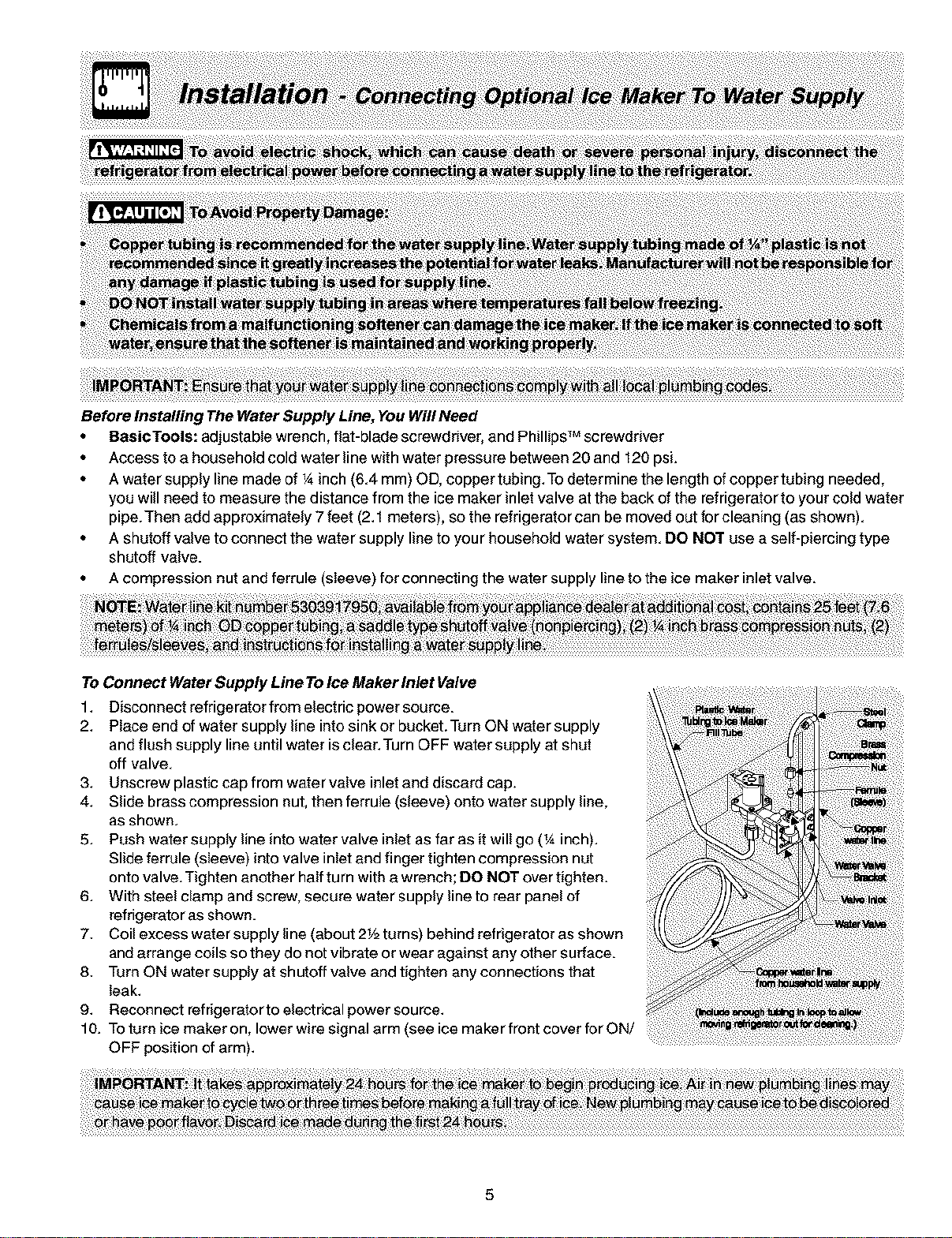

Before Installing The Water Supply LIne, You Will Need
Basic Tools: adjustable wrench, flat-blede screwdriver, and PhillipsTM screwdriver
• Access to a household cold water line with water pressure between 20 and 120 psi.
• A water supply line made of '_ inch (6,4 mm) OD, copper tubing,To determine the length of copper tubing needed,
you will need to measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water
pipe.Then add approximately 7 feet (2,1 meters), so the refrigerator can be moved out for cleaning (as shown),
• A shutoff valve to connect the water supply line to your household water system, DO NOT use a self-piercing type
shutoff valve.
• A compression nut and ferrule (sleeve) for connecting the water supply line to the ice maker inlet valve,
TOConnect Water Supply Line TOIce Maker Inlet Valve
1, Disconnect refrigerator from electric power source.
2, Place end of water supply line into sink or bucket.Turn ON water supply
and flush supply line until water is clear, Turn OFF water supply at shut
off valve,
3, Unscrew plastic cap from water valve inlet and discard cap.
4, Slide brass compression nut, then ferrule (sleeve) onto water supply line,
as shown,
5, Push water supply line into water valve inlet as far as it will go ('_ inch),
Slide ferrule (sleeve) into valve inlet and finger tighten compression nut
onto valve.Tighten another half turn with a wrench; DO NOT over tighten.
6, With steel clamp and screw, secure water supply line to rear panel of
refrigerator as shown,
7, Coil excess wafer supply line (about 2V=turns) behind refrigerator as shown
and arrange coils so they do not vibrate or wear against any other surface.
8, Turn ON water supply at shutoff valve and tighten any connections that
leak.
9. Reconnect refrigerafortoelectricalpower source.
10. To turn ice maker on, lower wire signal arm (see ice maker front cover for ON/
OFF position of arm).
DOOR REMOVAL AND REVERSAL INSTRUCTIONS:
t. Remove toe grille and top hinge cover.
2. Remove top hinge with 3/8" hex driver and lift freezer door off of
center hinge pin. Set door aside.
3. Unscrew center hinge pin using adjustable wrench and save for
reassembly, Ensure plastic washer stays on hinge pin,
4. Lift refrigerator door off of bottom hinge and set aside,
5. Remove center hinge and shim by removing inside screw and
loosening two outside screws enough to allow hinge and shim to
slide out, Tighten screws,
6. Loosen two outside screws on opposite side of refrigerator, remove
inside screw and install center hinge.
7. Remove two screws on bottom hinge with 3/8" socket wrench,
8. Install bottom hinge on opposite side with the two screws removed
from step 7,
9. Unscrew bottom hinge pin using adjustable wrench, Move hinge pin
to other hole in hinge and tighten with adjustable wrench,
t0, Reverse door handles (see instructions on next page),
tt, Move freezerand refrigerator door stopstooppositeside, Before
starting screws, use an awl to puncture the foam.
t2, Position refrigerator door onto bottom hinge pin and screw center
hinge pin through center hinge into top of door. Close refrigerator door
to help align hinge hole,
13, Tighten center hinge pin with adjustable wrench.
14, Remove cabinet and hinge hole plugs and move to opposite side,
15, Lower freezer door onto center hinge pin.
16, Close freezer door. Have an assistant lift up on opposite side of door
while tightening screws to install top hinge,
17, Replace toe grille and top hinge cover.
18, Plug in electrical power cord and turn refrigerator temperature control
to center position. Adjust setting as necessary.

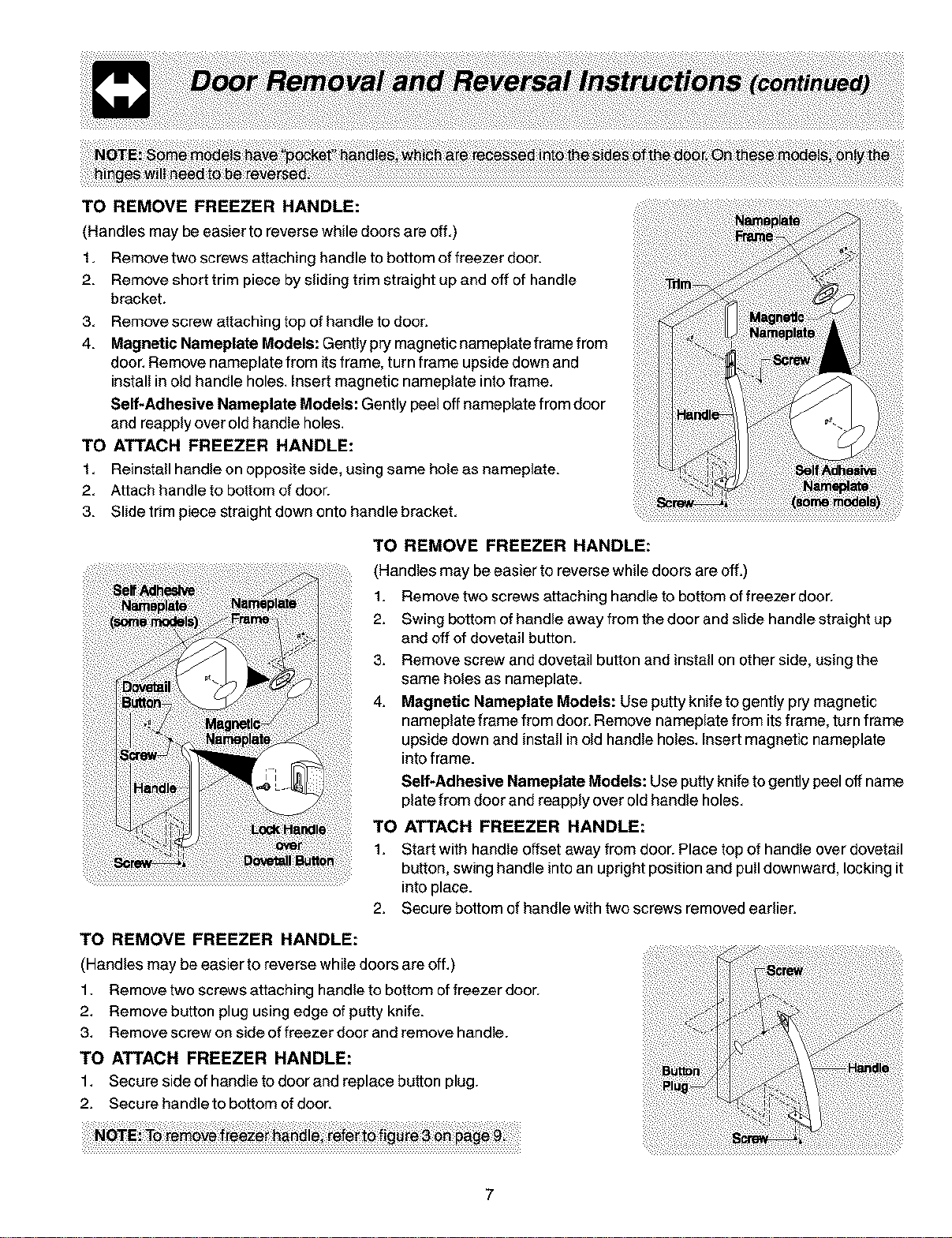

TO REMOVE FREEZER HANDLE:
(Handles may be easier to reverse while doors are off,)
1, Remove two screws attaching handle to bottom of freezer door.
2. Remove short trim piece by sliding trim straight up and off of handle
bracket.
3, Remove screw attaching top of handle to door.
4. Magnetic Nameplate Models: Gently pry magnetic nameplate frame from
door, Remove nameplate from itsframe, turn frame upside down and
instal_ in o{d handle holes, Insert magnetic nameplate into frame,
Self-Adhesive Nameplate Models: Gently peel off nameplate from door
and reapply over old handle holes,
TO ATTACH FREEZER HANDLE:
1, Reinstall handle on opposite side, using same hole as nameplate.
2, Attach handle to bottom of door.
3. Slide tdm piece straight down onto handle bracket,
TO REMOVE FREEZER HANDLE:
(Handles may be easier to reverse while doors are off.)
1. Remove two screws attaching handle to bottom of freezer door.
2. Swing bottom of handle away from the door and slide handle straight up
and off of dovetail button.
3. Remove screw and dovetail button and install on other side, using the
same holes as nameplate,
4. Magnetic Nameplate Models: Use putty knife to gently pry magnetic
nameplate frame from door. Remove nameplate from its frame, turn frame
upside down and install in old handle holes, Insert magnetic nameplate
into frame.
Self-Adhesive Narneplat_ Models: Use putty knife to gently peel off name
plate from door and reapp{y over old handle holes,
TO ATTACH FREEZER HANDLE:
1. Start with handle offset away from door. Place top of handle over dovetail
button, swing handle intoan upright position and pull downward, locking it
into place.
2. Secure bottom of handle with two screws removed earlier.
TO REMOVE FREEZER HANDLE:
(Handles may be easier to reverse whi_edoors are off,)
1, Remove two screws attaching handle to bottom of freezer door.
2, Remove button plug using edge of putty knife.
3, Remove screw on side of freezer door and remove handle.
TO ATTACH FREEZER HANDLE:
1, Secure side of handle to door and replace button plug.
2. Secure handle to bottom of door,
TRIM REMOVAL (FULL-LENGTH TRIM MODELS ONLY)
In some models, the refrigerator door has a full length trim piece which
continues from the bottom ofthe handle tothe bottom of the door.The top
ofthe trim attaches tothe handle bracket (Figure 1) or fits aroundthe base
ofthe handle (Figure 2). An adhesive '_rim_ock"ispositionedabout halfway
down.The bottom ofthetrim ishe_din place by eitheran adhesive trimlock,
ora trim lock withtwo prongsinserted intoa hole on the face ofthe door.
TO REMOVE TRIM:
1, Remove trim by gently pulling trimlock areas out and away from door.
2. When trim is free from door, s_idethe trim straight down and away
from base of handle.
TO REMOVE REFRIGERATOR HANDLE:
(Handles may be easier to reverse while doors are off.)
Figure 1Style Handles
1, Remove two screws attaching handle totop of refrigerafordoor,
2, Remove screw attaching bottom of handle todoor.
3. Remove two hole plugs and hinge pinplug on top of door and install
on opposite side. Use Phillips head screwdriver to remove plastic
screw plug from front ofdoor and install on opposite side
Figure 2 Style Handles
1, Remove two screws attaching handJe tofop of refrigeratordoor.
2. Swing top of handle away from door and slide handle down and offof
dovetail button.
3. Remove screw and dovetail button and instal_ on other side, moving
hole plugs from corresponding holes to opposite side.
TO ATTACH REFRIGERATOR HANDLE:
Figure 1Style Handles
1, Secure bottom of handle with screws.
2. Secure top of handle with screws,
Figure 2 Style Handles
1. Start with handle offset away from door. Place bottom of handle over
dovetail button, swing handle into an upright posffion and pul_upward,
locking it into place,
2. Secure top of handle with screws,
TO ATTACH TRIM:
1, Slide both trim locks out of tdm,
2, insert new adhesive trim locks contained {nyour literature pack,
Figure 1
3. Install trim to handle by sliding under base of handle. Carefully align
tdm and press down at trim lock locations.
4. Use rubbing alcohol to remove any adhesive residue from old trim
lock locations,
Figure2
TO REMOVE REFRIGERATOR HANDLE:
(Handles may be easier to reverse while doors are off,)
1, Remove two screws attaching handle to top of refrigerator door.
2, Remove button plug using edge of putty knife,
3, Remove screw on side of refrigerator door and remove handle.
4, Reverse freezer and refrigerator handles as shown in figure 3.
Figure 3 - Handle Reversal
...............
_" _.i_ _ _i_ii_ii_i_i_ii_iii_iiiii_i_iiiii_i,iiill_
Refrigerator Door Without Trim
TO ATTACH REFRIGERATOR HANDLE:
f, Secure side of handle to door and replace plug button.
2. Secure handle to top of door.
REMOVING STAINLESS STEEL DOORS AND HANDLES
To Remove Doors
Stainless steel doors are not reversible. Follow these steps to remove doors.
1, Remove toe grille and top hinge cover,
2, Remove top hinge and lift freezer door off of center hinge pin, Set door
aside,
3, Unscrew center hinge pinusing adjustable wrench and save for
reassembly, Ensure plastic washer stays on hinge pin,
4. Lift refrigerator door off of bottom hinge and set aside.
5, Remove center hinge and shim by removing inside screw and loosening
two outside screws enough to allow hinge to slide out.
6, Remove bottom hinge, Reinsert two outside screws in holes and tighten.
7, Reverse steps 1 - 6 to reinstall doors
To Remove Handles
1, Firmly hold freezer handle while loosening set screws with 3/32" allen
wrench. Remove freezer handle.
2, Repeat step I for refrigerator door.
Typical Handle
Ice Maker_
\
Ice Bucket
Freezer Shelf
Freezer
Control
Refrigerator
Control
IceTray_
\
Freezer Light
F Fixed Door Bin
_Door Rack
Deli Drawer
Cover
Dell Drawer J
Half Shelf
Wine Rack
Full
Dairy Door
Tall Bottle
Retainer
Snugger
Door Bin
Mid Level
Fixed Door Bin
Door Rack
Crisper
D_we_
\\\
Toe Grille
Features may vary according to model
10
COOL DOWNPERIOD
To ensure safe food storage, allow the refrigerator to operate with the doors closed for at least 8 to 12 hours before loading
it with food.

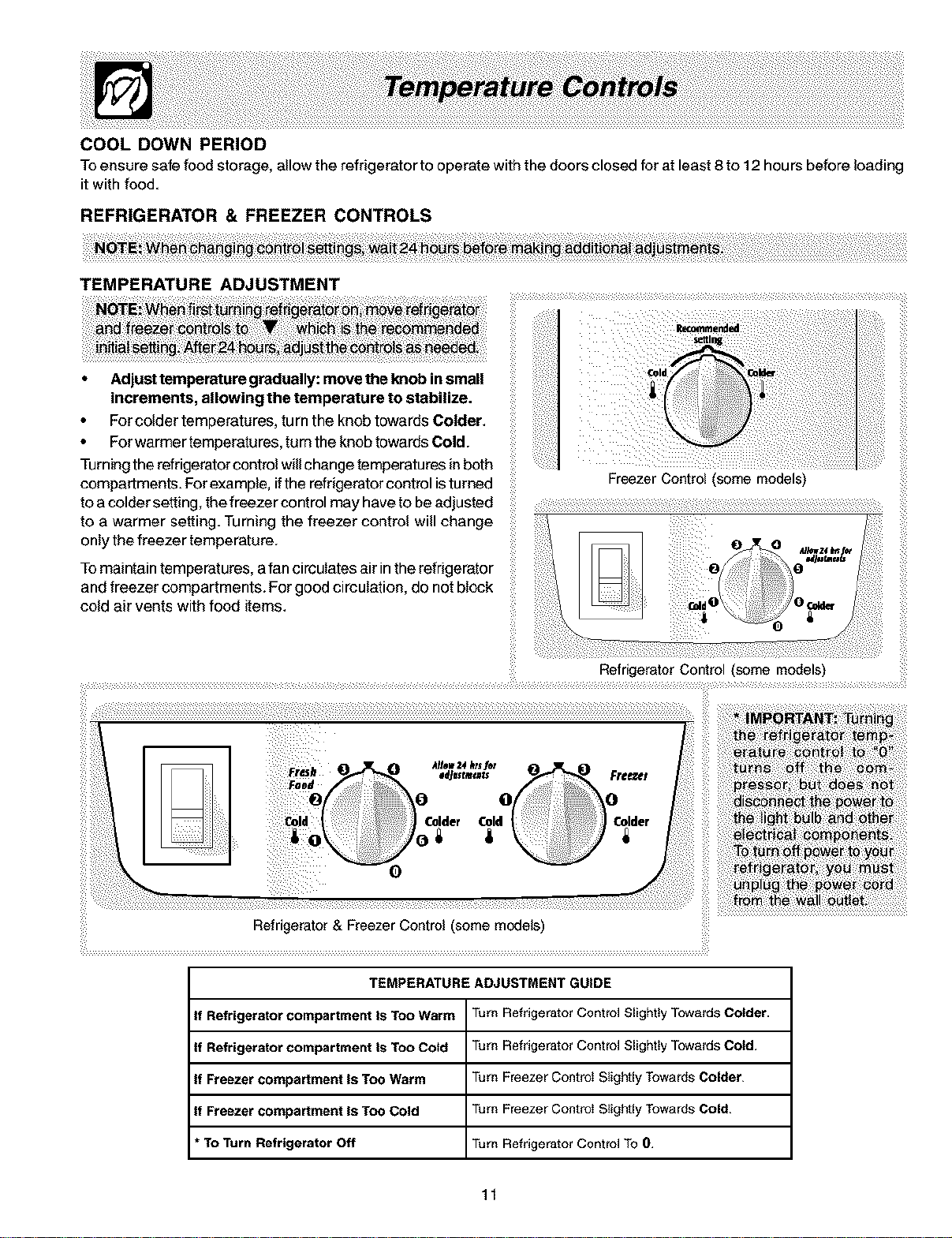

REFRIGERATOR & FREEZER CONTROLS
TEMPERATURE ADJUSTMENT
Adjust temperature gradually: move the knob in small
increments, allowing the temperature to stabilize.
For colder temperatures, turn the knob towards Colder.
For warmer temperatures, turn the knob towards Cold.
Turning the refrigerator control willchange temperatures in both
compartments. Forexample, ifthe refrigerator control isturned
to acolder setting, the freezer control may have to be adjusted
to a warmer setting. Turning the freezer control will change
only the freezer temperature.
To maintain temperatures, afan circulates air in the refrigerator
and freezer compartments. For good circulation, do not block
cold air vents with food items,
Freezer Control _some moQels)
Refrigerator Control (some models)
i!;ili _ ! !
Refrigerator & Freezer Control (some models)
TEMPERATURE ADJUSTMENT GUfDE
If Refrigerator compartment Is Too Warm Turn Refrigerator Control Slightty Towards Colder.
ff Refrigerator compartment fs Too Cold Turn Refrigerator Control Slightly Towa_s Cold¸
ff Freezer compartment fs Too Warm Turn Freezer Cont_t S_ightly Towards Colder¸
ff Freezer compartment fs Too Cold Turn Freezer Cont_t S_ightly Towards Cola
* To Turn Refrigerator Off Turn Refrigerator Control TO 0
11
¸
tempered

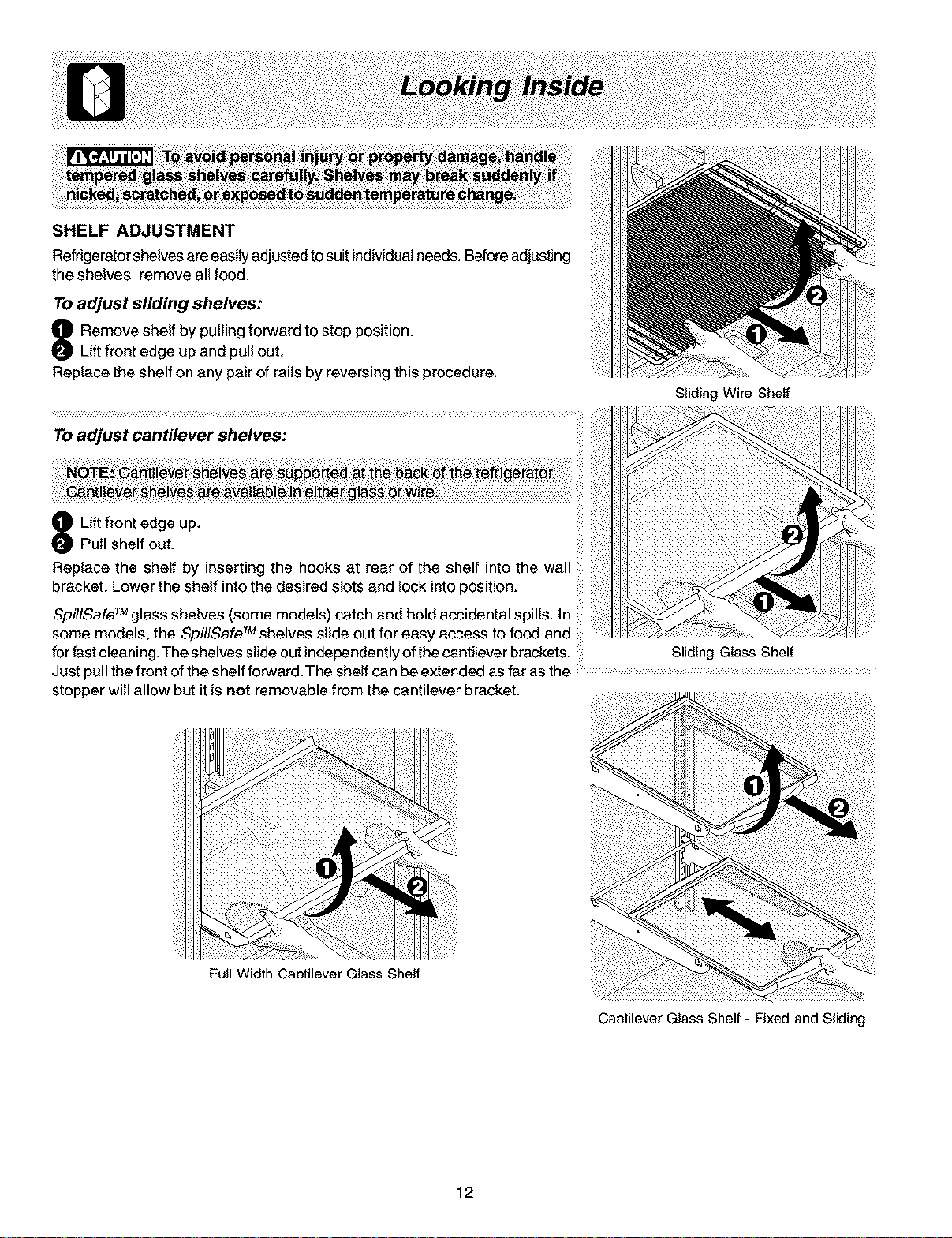

SHELF ADJUSTMENT
Refrigerator shelves are easily adjusted to suit individual needs, Before adjus_ng
the shelves, remove all food.
TOadjust sliding shelves:
Remove shelf by pulfing forward to stop position.
Lift front edge up and pull out,
Replace the shelf on any pair of rai{s by reversing this procedure.
To adjust cantilever shelves:
Lift front edge up,
Puff shelf out.
Replace the shelf by inserting the hooks at rear of the shelf into the wall
bracket. Lower the shelf into the desired slots and lock into position.
S{iding Wire Shelf
SpillSaferYglass shelves (some models) catch and hold accidental spills. In
some models, the SpillSafe TM shelves slide out for easy access to food and
for fast cleaning.The shelves slide out independently of the cantilever brackets. Sliding G{ass Shelf
Just pull the front of the shelf forward, The shelf can be extended as far as the
stopper will allow b_t it is not removable from the cantilever bracket,
Fu{I Width Cantilever Glass She_f
12
Cantilever Glass Shelf - Fixed and Sliding
DOOR STORAGE
Door bins, shelves, and racks are provided for convenient
storage of jars, bottles, and cans. Frequently used items
can be quickly selected.
Some models have door racks or bins that can accommodate
gaIIon-sized plastic drink containers and economy-sized jars
and containers. Some racks are adjustable for maximum
storage capacity.
The dairy compartment, which is warmer than the general
food storage section, is intended for short term storage of
cheese, spreads, or butter.
Door Rack
TALL BOTTLE RETAINER (SOME MODELS)
The Tall Bottle Retainer keeps tall containers in the bin from
falling forward when opening or closing the refrigerator door.
TO install, hold the retainer at the top, and slide it over the
outside wall of the bin, as shown in the diagram. The Tail
Bottle Retainer works best with a Bin Snugger.
ADJUSTABLE DOOR BINS
Some models have adjustable door bins that can be moved
to suit individual needs.
TOmove door bins
t. Lift bin straight up.
2. Remove bin.
3. Place bin in desired position.
4. Lower bin onto supports until locked in place.
Adjustable Door Bin
Tall Bottle Retainer (left) and Bin Snugger (right)
SPECIAL ITEM RACK (SOME MODELS)
The innovativedesign of the Speclal item Rack a{Iowsyou
to store a six*pack of 12 ounce drink cans, a bottle of wine,
a twoqiter soft drink bottle, or a carton of eggs. The Speciat
Item Rack mounts on the left side of your refrigerator. TO
install, just slide the Special Item Rack onto any shelf as
shown in the drawing.
13
Specia_ _tem Rack
CRISPERS (SOME MODELS)
The crispers, located under the bottom refrigerator shelf,
are designed for storing fruits, vegetables, and other fresh
produce. Wash itemsin clear water and remove excess water
before placing them in the crispers. Items with strong odors
or high moisture content should be wrapped before stonng.
Crisper Drawer
DELl DRAWER (SOME MODELS)
Some models are equipped with a Dell Drawer for storage of
luncheon meats, spreads, cheeses, and other deli items.
HUMIDITY CONTROL (SOME MODELS)
The Humidity Control, present on some models withcrisper
drawers, allowsyou toadjust the humidity within thecrisper.
This can extend the life offresh vegetables that keep best
in high humidity.
Low
Humidity_
i t
_-High
Deli Drawer
WINE RACK (SOME MODELS)
The Wine Rack stores bottles of wine, or single two-liter
plasticbottles of juice or soda pop,To install, slide theWine
Rack onto the shelf with the curve facing in, To remove,
slide theWine Rack out, Install on either side of shelf,
Wine Rack
Crisper Humidity Control
14

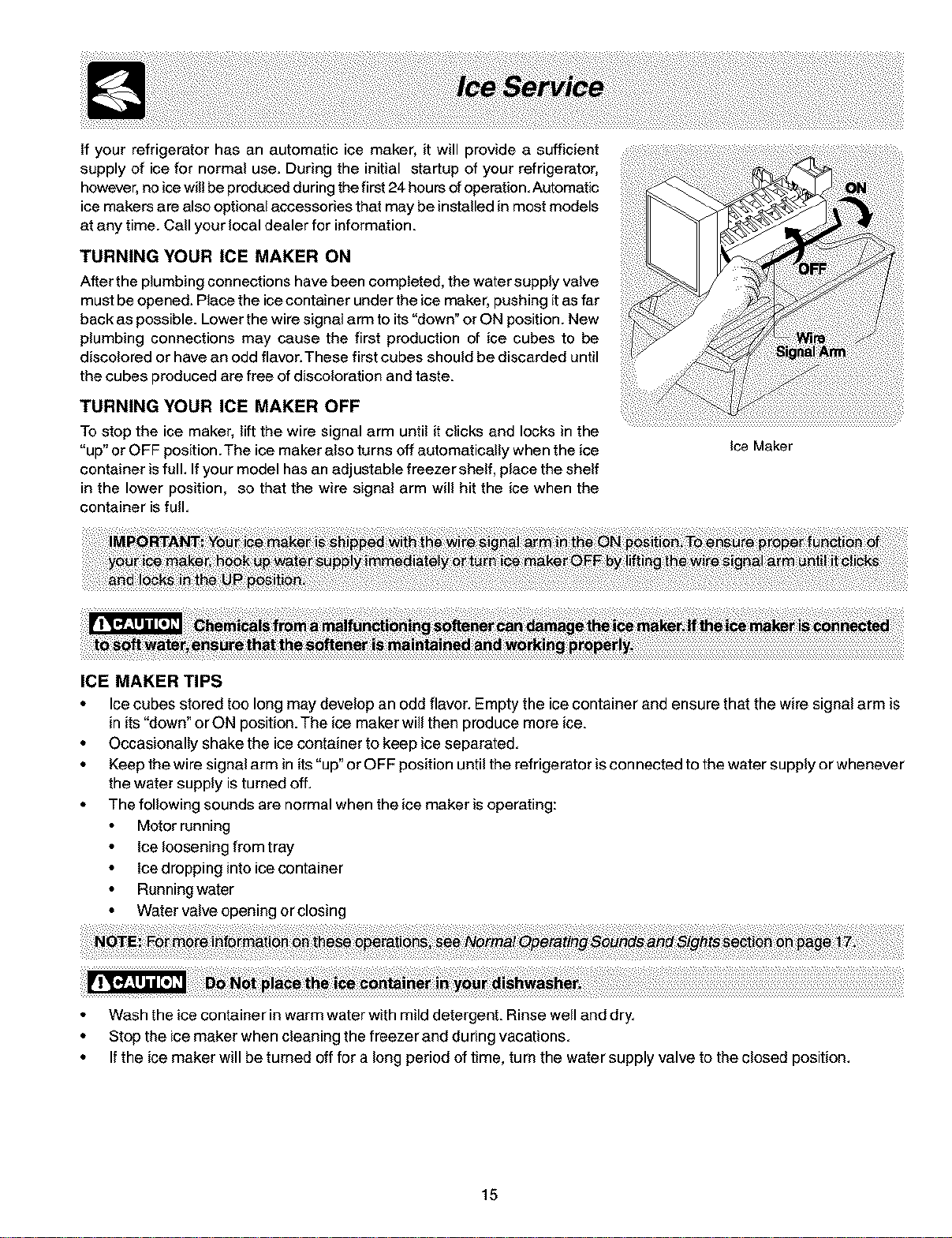

If your refrigerator has an automatic ice maker, it will provide a sufficient
sapply of ice for normal use. During the initial startup of your refrigerator,
however, no ice wilt be produced during thefirst 24 hours of operation. Automatic
ice makers are also optional accessories that may be installed in most models
at any time. Call your local dealer for information.
TURNING YOUR ICE MAKER ON
After the plumbing connections have been completed, the water supply valve
must beopened. Place the icecontainer under the ice maker, pushing it as far
back as possible. Lower the wire signal arm to its "down" or ON position.New
plumbing connections may cause the first production of ice cubes to be
discolored or have an odd flavor. These first cubes should be discarded until
the cubes produced are free of discoloration and taste.
TURNING YOUR ICE MAKER OFF
To stop the ice maker, lift the wire signal arm until it clicks and locks in the
"up" or OFF position.The ice maker also turns off automatically when the ice
container isfull. If your model has an adjustable freezer shelf, place the shelf
in the lower position, so that the wire signal arm will hit the ice when the
container is full.
Ice Maker
ICE MAKER TIPS
Ice cubes stored too long may develop an odd flavor, Empty the icecontainer and ensure that the wire signal arm is
in its "down" or ON position.The ice maker will then produce more ice.
• Occasionally shake the ice container to keep ice separated,
Keep the wire signal arm in its "up" or OFF position until the refrigerator is connected tothe water supply or whenever
the water supply is turned off.
• The following sounds are normal when the ice maker is operating:
Motor running
Ice loosening from tray
Ice dropping into ice container
Running water
Water valve opening or closing
• Wash the ice container in warm water with mild detergent. Rinse well and dry.
Stop the ice maker when cleaning the freezer and during vacations.
If the ice maker will be turned off for a long period of time, turn the water supply valve to the closed position.
15
FOOD STORAGE IDEAS
Fresh Food Storage
The fresh food compartment should be kept between 34° F and 40° F with an optimum temperature of 37 ° F.
Avoid overcrowding the refrigerator shelves.This reduces the circulation of air around the food and results in uneven
cooling.
Fruits and Vegetables
Storage in the crisper drawers traps moisture to help preserve the fruit and vegetable quality for longer time periods.
Meat
Raw meat and poultry should be wrapped securely so _eakage and contamination of other foods or surfaces does not
OCCUE
Frozen Food Storage
The freezer compartment should be kept at 0° F or _ower.
A freezer operates most efficiently when it isat least 2/3 full.
Packaging Foods for Freezing
To minimize dehydration and quality deterioration, use aluminum foil freezer wrap, freezer bags or airtight containers,
Force as much air out of the packages as possible and seal them tightly, Trapped air can cause food to dry out,
change color, and develop an off-flavor (freezer burn),
Wrap fresh meats and poultry with suitable freezer wrap prior to freezing,
Do not refreeze meat that has completely thawed.
Loading the Freezer
Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing,
and can raise the temperature of frozen foods.
Leave a space between the packages, so cold air can circulate freely, allowing food to freeze as quickly as possible.
Avoid storing hard-to-freeze foods such as ice cream and orange juice on the freezer door shelves. These foods are
best stored inthe freezer interior where the temperature vades less.
ENERGY SAVING IDEAS
Locate the refrigerator inthe coolestpart ofthe room, out of directsunlight,
and away from heating ducts or registers. Do not place the refrigerator
next to heat-producing appliances such as a range, oven, or dishwasher,
If this is not possible, a section of cabinetry or an added layer of insulation
between the two appliances wil_help the refrigerator operate more
efficiently.
Level the refrigerator so that the doors close tightly,
Refer to this Use & Care Manual for the suggested temperature control
settings.
Periodic cleaning of the condenser will help the refrigerator run more
efficiently. See the Care and Cleaning Chart on page 18.
Do not overcrowd the refrigerator or block co_dair vents. Doing so causes
the refrigerator to run longer and use more energy.
Cover foods and wipe containers dry before placing them in the
refrigerator. This cuts down on moisture build-up inside the unit.
Organize the refrigerator to reduce door openings. Remove as many
items as needed at one time and dose the door as soon as possible.
16
UNDERSTANDING THE SOUNDSYOU MAY HEAR
Your new high-efficiency refrigerator may make unfamiliar
sounds.These are all normal sounds and soon will become
familiar toyou.They a_soindicateyour refrigerator isoperating
as designed. Hard surfaces, such as vinyl or wood floors,
walls, and kitchen cabinets may make sounds more
noticeable. Listed below are descriptions of some of the most
common sounds you may hear, and what is causing them.
A. Evaporator
The flow of refrigerant through the evaporator may
create a boiling or gurgling sound.
B. Evaporator Fan
You may hear air being forced through the refrigerator
by the evaporator fan.
C. Defrost Heater
During defrost cycles, water dripping onto the defrost
heater may cause a hissing or sizzling sound, After
defrosting, a popping sound may occur.
D.
E.
Automatic Ice Maker
If your refrigerator is equipped with an automatic ice
maker, you will hear ice cubes failing into the ice bin,
Cold Control & Defrost Timer or Automatic
Defrost Control
These parts can produce a snapping or clicking sound
when turning the refrigerator on and off.The timer also
produces sounds similar to an electric clock.
E Condenser Fan
If condenser coi_sare located underneath your
refrigerator as shown in the drawing at the left, you
have a condenser fan.You may hear air being forced
through the condenser by the condenser fan.
G. Compressor
Modern, high-efficiencycompressors operate much
faster than older models,The compressor may have a
high-pitched hum or pulsating sound.
H. Water Valve
[f your refrigerator is equipped with an automatic ice
maker, you will hear a buzzing sound as the water valve
opens to fill the ice maker during each cycle.
L Drain Pan (Nonremovable)
You may hear water running into the drain pan during
the defrost cycle. The drain pan will be located on top
ofthe compressor for air-cooled condensers (black coils
on back of refrigerator).
J. Condenser Coile (Fen.cooled models only)
17

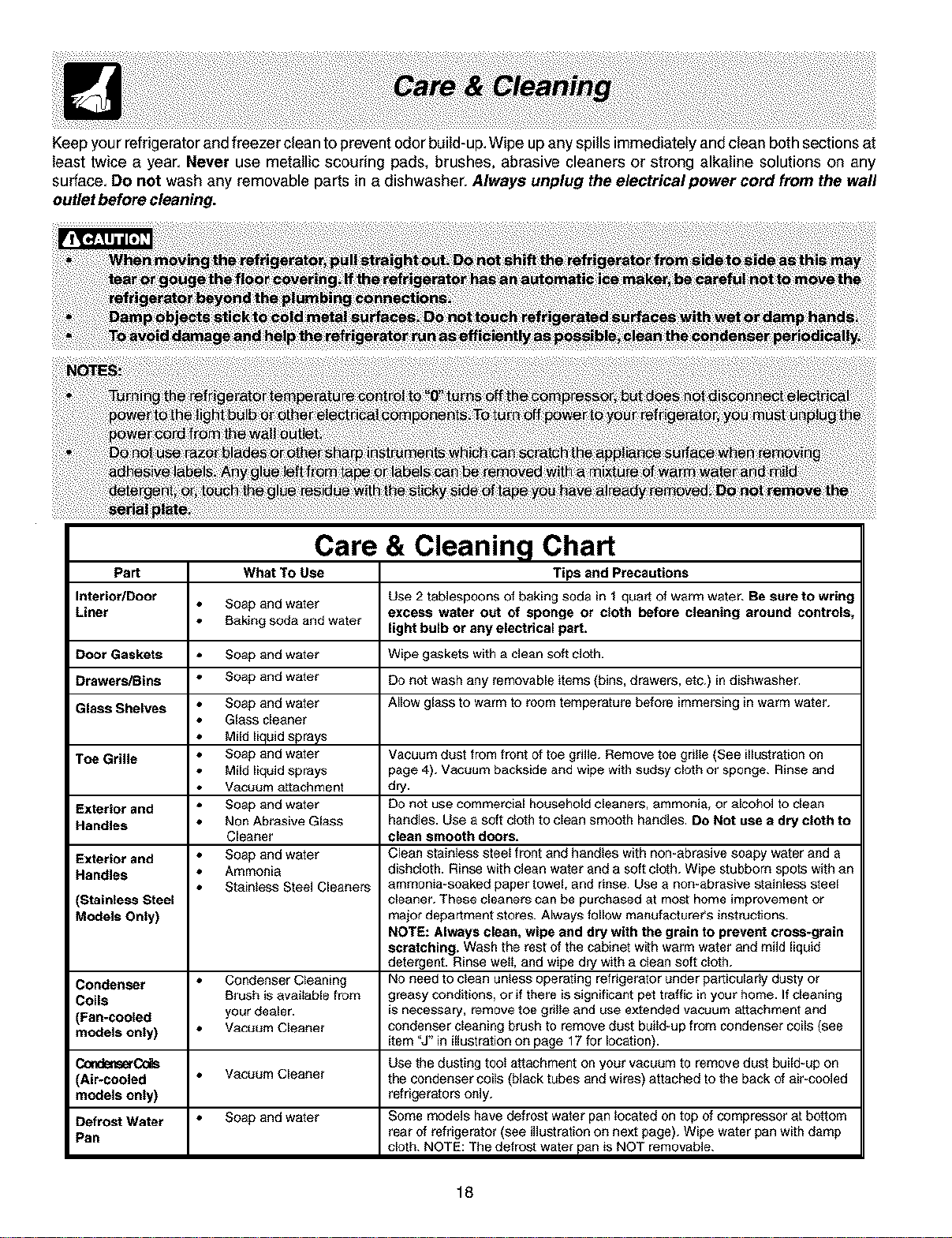

Keepyourrefrigeratorandfreezercleantopreventodorbuild-up,Wipeupanyspillsimmediatelyandcleanbothsectionsat
leasttwiceayear.Neverusemetallicscouringpads,brushes,abrasivecleanersorstrongalkalinesolutionsonany
surface,Do not wash any removable parts in a dishwasher. Always unplug the electrical power cord from the wall
outlet before cleaning.
Part
IntedodDoor
Liner
Door Gaskets
Drawers!Bins
Glass Shelves
Toe Grille •
Exterior and
Handles
Exterior and
Handles •
(Stainless Steel
Models Only)
Care & Cleaning Chart
Soap and water
Baking soda and water
Soap and water
Soap and water
Soap and water
Glass cleaner
Mild liquid sprays
Soap and water
Mild liquid sprays
Vacuum attachment
Soap and water
Non Abrasive Glass
Cleaner
Soap and water
Ammonia
Star n_ess Steel Cleaners
Condenser Condenser C_eaning
Coils Brush is avat_abie from
(Fan-cooled your dealer.
models only) Vacuum Cleaner
Condemet Co_s
(Air-cooled Vacuum Cleaner
models only)
Defrost Water Soap and water
Pan
What TO Use Tips and Precautions
Use 2 tablespoons of baking soda in I quaa of warm water. Be sure to wring
excess water out of sponge or cloth before cleaning around controls,
light bulb or any electrical part.
Wipe gaskets with a cle_n so_t cloth.
DO not wash any removable items (bins, drawers, eat.) in dishwasher.
Allow glass to warm to room temperature before immersing in warm water.
Vacuum dust from front of toe gdlle. Remove toe gdt_e (See illustration on
page 4). Vacuum backside and wipe with sudsy cloth or sponge. Rinse and
dry.
DO not use commercial household cleaners, ammonia, or alcohol to clean
handles. Use a soft cloth to clean smooth handles. DO Not use a dry cloth to
clean smooth doors.
Clean stainless stee_ front and hand{es with non-abrasive soapy water and a
dishcloth. Rinse with clean water and a soft cloth. Wipe stubborn spots with 8n
ammonia-soaked paper towel, and rinse. Use a non-abrasive stainless steel
cleaner. These cleaners can be purchased at most home improvement or
major department stores. Always follow manufacturer's instructions.
NOTE: Always clean, wipe and dry with the grain to prevent cross-grain
scratching. Wash the rest of the cabinet with warm water and mild liquid
detergent. Rinse we_L and wipe dry with a clean soft cloth.
NO need to clean unless operating refnge_ator under patticular_y dusty or
greasy conditions, or if there is significant pet traffic in your home. If cleaning
is necessary, remove toe gntte and use extended vacuum attachment and
condenser cteaning brush to remove dust buitd-up from condenser coils (see
item "J" in illust ration on page 17 for location).
Use the dusting toot attachment on your vacuum to remove dust build-up on
the condenser coils (black tubes and wires) attached to the back of air-cooled
refrigerators only.
Some models have defrost water pan located on top of compressor at bottom
rear of refrigerator (see illustration On next page). Wipe water pan with damp
cloth. NOTE: The defrost water pan is NOT removable.
18
NEVER CLEAN CONDENSER (SOME MODELS)
If your refrigerator is
equipped with a
Never Clean
condenser, there's
no need to clean the
condenser under
normal operating
conditions. If the
refrigerator is
operated under
particularly dusty or
greasycondition& or
if there is significant
pet traffic in your home, it may be necessary to periodically
clean the condenser for maximum efficiency.
Defrost Water Pan (some models)
REPLACING THE FREEZER LIGHT BULB
(SOME MODELS)
t. Unplug refrigerator.
2. Wear gloves as protection against possible broken
glass.
3. Unsnap light shield as shown.
4. Unscrew and replace old bulb with an appliance bulb
of the same wattage.
5. Replace light shield.
6. Rememberto plug the refrigerator back in.
Freezer Light Cover Removal
Refrigerator Mid-Leve_ Light Cover RemovsI
Vacation and Moving Tips
Leave refrigerator operating during vacations of 3 weeks or _ess,
Short Use all perishable items from refrigerator compartment,
Vacations Turn automatic ice maker off and empty ice bucket, even if you will only be
gone for a few days,
Remove all food and ice ityou will be gone one month or more,
Turn controls to "O"( the OFF position) and disconnect power,
Long Turn off automatic ice maker and turn water supply valve to closed position,
Vacations Clean interior thoroughly.
Leave both doors open to prevent odors and mold build*up, Block doors open if
necessary.
Remove all food and ice.
If using handcart, load from side.
Moving Adjust rollers all the way up to protect them during sliding or moving.
Pad cabinet to avoid scratching surface.
19
REFRIq ;ERATOR WARRANTY
Your refrigerator is protected by this warranty
WARRANTY THROUGH OUR AUTHORIZED SERVICERS, THE CONSUMER WILL BE RESPONSIBLE FOR:
PERIOD WE WILL:
FULLONE=YEAR Oneyee=_fr0modg_nal Paya_costsforrepeJr_ngofrepladr_ganypartsOfthis Co.sls of service ¢all_ th,_l ate ]_sted t_nc_er NORMAL
WARRANTY p_rchaSe date appliance which pr0ve to be defective in materials or RESPONSIBILITIES OF THE CONSUMER.,
workmanship Excludes ot_gir_aland ieplacement ice
& Walel fi_ter cei_dges (if eqt_pped) Odg_na_ and
leplacernent cattlidges ale warlanted for 30 days
(parts only)
UM_ED 2_.5 TM Secon_ t hlo_gh fifth Repa_ior ieplace any parts ]_ tJle Cabinet linel ol Costs fol p_ck upand de_vely of the app]_aoselequited because
YEAR WARRANTY yee_sfrom OIi_4_al SeeJe_ Refdgelation SyStem (complessol, conde_sel, of se_e Costs fol _abor,parts and tlanspodat_on othe" than
(CabiPet Liner a_d pulchase date evaporalor, dliel an_ tubing) which plove to be withrespect to the cabinet I_nelof Sealed Refdgelatic_l SyStem
Sealed System) defective in n_tedals or workmanship
LJM_ED Time periods _isted A_Iofthe pr0v_s_0nsof the fu_lwallant_es above and Costs of the teChn_an's trave_to the home ar_ any _Osts for
WARRANTY above the exclusions ]]$_edbelow apply piCkup artd de_ivery of the app_iat',ceieq{_ied because of
(App_Icable to the service
State of AlaSka)
in tire USA, your appliance is warr_ted by Eiectro_ux Home Products, irc We au_odze no person to ch_lge or add to any of our obligations
under this w_r raoty_Our obEiga_onsfo_ service and pade under _his w_rranty must be performedby us or an at.,_or_zed Ele_'_ux Home Producb
Inc service_ EnCanada, your appt_nce is warranted by Elec#olux Canad_ Corl&
*NORMAL This warranty applies only to products in ordinary household use, and the consumer is responsibta for the
RESPONSiBiLiTiES items listed below:
OF THE CONSUMER 1 Proper u_e of the _ppEiance in accordance w_h instructions prov_de_ with the product
2 Proper inst_llot_on by an authorized servicer in accordance with instr_ons provided with the appEi_ce _J_d in
accordance with ale IDeal pEumbing_ electdcaE and/or gas c_es.
3 Proper connection to a grounded power supbjy of suf f_cieot voyage, rebjacement of bfown fuses, repair of loose
conne_ons or defects in house wiring¸
4 Expenses for making the appliance acce_sible for servicing, such _s r_mov_ of trim, c_Jpboards, sheEves,stc,
which are not a part of the apbjiance when it was shipped from the f_cter_
5 Damages _ finish after ins_H_tion
6 RepEacement of _ight bulbs an_o_ fluorescent tubes (on models with these feafor_s).
EXCLUSIONS This warranty does not cover the fogowing:
1 CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCEDENTAL
EXPENSES RESULTENG FROM ANY BREACH OF THiS WRETTEN OR ANY _MPLIED WARRANT_
NOTE: Some states do not _llow the exclusion or _imitotion of inciden_ or consequen_al damages, so this
_imitotion or excltJSiOn may not _pbjy to you
2 Service tales which do not involve m_ftun_on or _stects in workmanship or materiaE, or for apbjiances not in
ordinary household use. The consumer sh_ll pay th_ SUch service c_dta
3 DP_nages caused by services performed by servicer_ other than Elect_olux Home Products, tnc, EIeotro_ux
C_ada Corp or its authonze(_ seP/icer_; Use of parts other than genuine EEectrolux Home Prc_cts, Inc p_F3;
obtained from persons other than such servicers; or estemal causes such as _use, misuse, inadequate power
supbjy or acts of God
4 Products with original seri_ number_ that have been r_moved or _gered and cannot be re_i_y determined¸
IFYOU NEED
_ERVICE K_ep yo_Jr bill of sale, delivery s_ip, o_ some other approprtate pay_neot record. The date on the bill estabEishes the
warr_ty peride should service be required. Efservice is performed, it is in your best interest to obtain and keep _lE
receipts. This written warranty gives you specific tegal rights¸ You may _so have other r_ghts that v_y from state to
state¸ Service under this w_r_nty must be obtained by contacting EEectrchJx Home Products, _nc. or ElectroEux
Canade Corp
This warranty onEy spplies in the 50 States of the U.SA, in Puerfo Rico, ar_J in Cana_ Product features or speciflc_ons _s desc_bed or i_ltJStrated
are subject to change witho_ no_ce AE_warranties are made by EEectroEtJX Home Products, Inc _n Canna, your _pIiar_e is warr_J_ted by
E_ectrolux Canad_ Corp
01-U+RE*02 (Rev 01/200;
USA
800o944"9044
Electrolux Home Products, foc
F_O Box 212378
Augusta, GA 30917
Canada
866.213.9397
Electrolux Cansd_ Corp
6150 McLaugh_in Road
Missiseauga, Ontario
L_R 4C2
20
ATTENTION
To Properly Install Your Refrigerator
See "Installation" Section On Pages 4-5
OR
To Reverse The Doors
See "Door Removal & Reversal" Section On Pages 6-9
Common
Occurrences
Refrigerator does not run.
Before catling for service, review this _ist. It may save you time and
expense, This list inc{udes common occurrences that are not the result of
defective workmanship or materials in this appliance.
Ensure plug is tightly pushed into e_ectrical outlet.
Check/replace fuse with a 15 amp time-delay fuse, Beset circuit
breaker.
The temperature control is turned to "0%
Refrigerator may be in defrost cycle, Wait 20 minutes and check again,
Set freezer control to a warmer setting unti_ freezer temperature is
satisfactory. Allow 24 hours for the temperature to stabilize.
Freezer temperature too cold.
Refrigerator temperature is
satisfactory.
Refrigerator temperaturetoo cold. Set refrigerator control to a warmer setting. Allow 24 hours for
Freezer temperature is temperature to stabilize, Then check freezer temperatures and adjust
satisfactory, as needed,
The cabinet is not level.
* Refrigerator is noisy or vibrates.
Floor is weak.
Interior needs to be cleaned.
Odors in refrigerator. Foods that produce odors should be covered or wrapped.
Replace light bulb.
Cabinet light not working. Ensure p_ug is tightly pushed into e_ectrical outlet,
Light switch may be stuck. Push in light switch, located on the
refrigerator control box, to release,
Ensure the Wire Signal Arm is not in UP position,
Ice maker should produce 4 to 5 pounds of ice in a 24 hour period.
Automatic ice maker not working. Water supply is turned off.
(some models) Water pressure is too low.
The freezer is not cold enough,
* See Normal Operating Sounds and Sights section on page 1Z
21
