Dear Customer,
Please read and comply with
these original instructions prior
to the initial operation of your appliance and
store them for later use or subsequent own-
ers.
In accordance with the descriptions and the
safety information in these operating in-
structions the appliance is intended for use
as a multi-purpose vacuum cleaner.
This appliance has been designed for use
in private households and is not intended
for commercial use.
– Protect the unit from rain. Do not store
outside.
– This device may not be used to suck in
ash and soot.
Use the multi-purpose vacuum cleaner only
with:
– Original filter bag.
– Original spare parts, accessories and
special accessories.
The manufacturer is not responsible for any
damages that may occur on account of im-
proper use or wrong operations.
The packaging material can be recy-
cled. Please do not place the packag-
ing into the ordinary refuse for disposal, but
arrange for the proper recycling.
Old appliances contain valuable ma-
terials that can be recycled. Please
arrange for the proper recycling of old
appliances. Please dispose your old appli-
ances using appropriate collection sys-
tems.
Filters and filter bags are made from envi-
ronment-friendly materials.
They can therefore be disposed off through
the normal household garbage provided
you have not sucked in substances that are
not permitted to be thrown into household
garbage.
Notes about the ingredients (REACH)
You will find current information about the
ingredients at:
www.kaercher.com/REACH
The terms of the guarantee applicable in
each country have been published by our
respective national distributors. We will re-
pair possible faults on your unit free of
charge within the warranty period, insofar
as the faults are caused by material defects
or defective workmanship. Guarantee
claims should be addressed to your dealer
or the nearest authorized customer service
centre, and supported by documentary evi-
dence of purchase.
Our KÄRCHER branch will be pleased to
help you further in the case of questions or
faults.
Contents
General notes . . . . . . . . . . . . . EN 5
Safety instructions. . . . . . . . . . EN 6
Description of the Appliance . . EN 7
Operation . . . . . . . . . . . . . . . . EN 9
Care and maintenance . . . . . . EN 11
Troubleshooting . . . . . . . . . . . EN 11
Customer Service . . . . . . . . . . EN 11
Technical specifications . . . . . EN 12
General notes
Proper use
Environmental protection
Disposing the filters and filter bags
Warranty
Customer Service
5EN
– 6
At the end of the operating instructions you
will find a selected list of spare parts that
are often required.
You can procure the spare parts and the at-
tachments from your dealer or your
KÄRCHER branch office.
– This appliance is not intended for use
by persons with limited physical, senso-
ry or mental capacities or lacking expe-
rience and/or skills, unless such per-
sons are accompanied and supervised
by a person in charge of their safety or
they have received precise instructions
on the use of this appliance and have
understood the resulting risks.
– Children may only use this appliance if
they are over the age of 8 and super-
vised by a person in charge of their
safety, or if they have received instruc-
tions on the use of this appliance and
have understood the resulting risks.
– Children must not play with this appli-
ance.
– Supervise children to prevent them
from playing with the appliance.
– Cleaning and user maintenance must
not be performed by children without
supervision.
– Keep packaging film away from children
- risk of suffocation!
– Switch the appliance off after every use
and prior to every cleaning/mainte-
nance procedure.
– Risk of fire. Do not vacuum up any burn-
ing or glowing objects.
– The appliance may not be used in areas
where a risk of explosion is present.
몇 Electrical connection
The appliance may only be connected to al-
ternating current. The voltage must corre-
spond with the type plate on the appliance.
Risk of electric shock
Never touch the mains plug and the socket
with wet hands.
Do not pull the plug from the socket by pull-
ing on the connecting cable.
Check the power cord with mains plug for
damage before every use. To avoid risks,
arrange immediately the exchange by an
authorized customer service or a skilled
electrician, if the power cord is damaged.
To avoid accidents due to electrical faults
we recommend the use of sockets with a
line-side current-limiting circuit breaker
(max. 30 mA nominal tripping current).
WARNING
Certain materials may produce explosive
vapours or mixtures when agitated by the
suction air!
Never vacuum up the following materials:
– Explosive or combustible gases, liquids
and dust particles (reactive dust parti-
cles)
– Reactive metal dust particles (such as
aluminium, magnesium, zinc) in combi-
nation with highly alkaline or acidic de-
tergents
– Undiluted, strong acids and alkalies
– Organic solvents (such as petrol, paint
thinners, acetone, heating oil).
In addition, these substances may cause
the appliance materials to corrode.
DANGER
Immediate danger that can cause severe
injury or even death.
몇 WARNING
Possible hazardous situation that could
lead to severe injury or even death.
몇 CAUTION
Possible hazardous situation that could
lead to mild injury to persons or damage to
property.

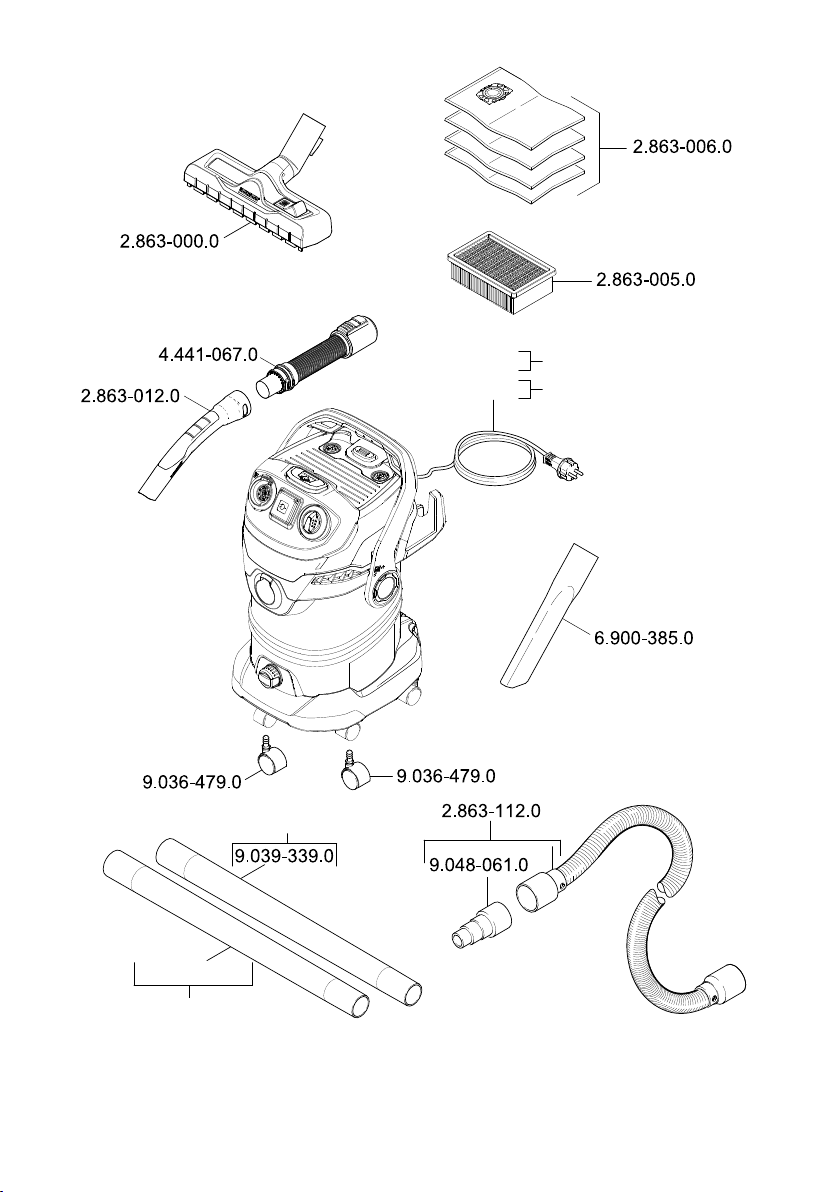

Ordering spare parts and special
attachments
Safety instructions
Symbols in the operating
instructions
6 EN

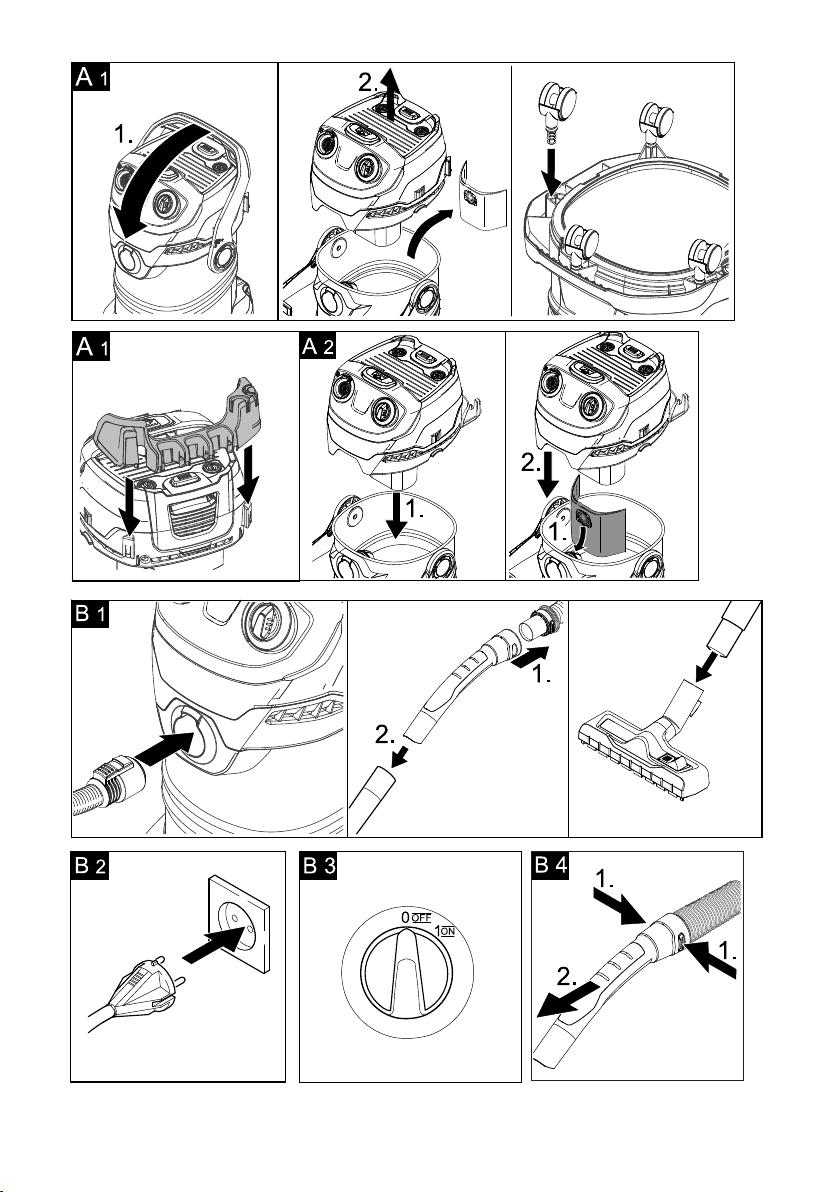

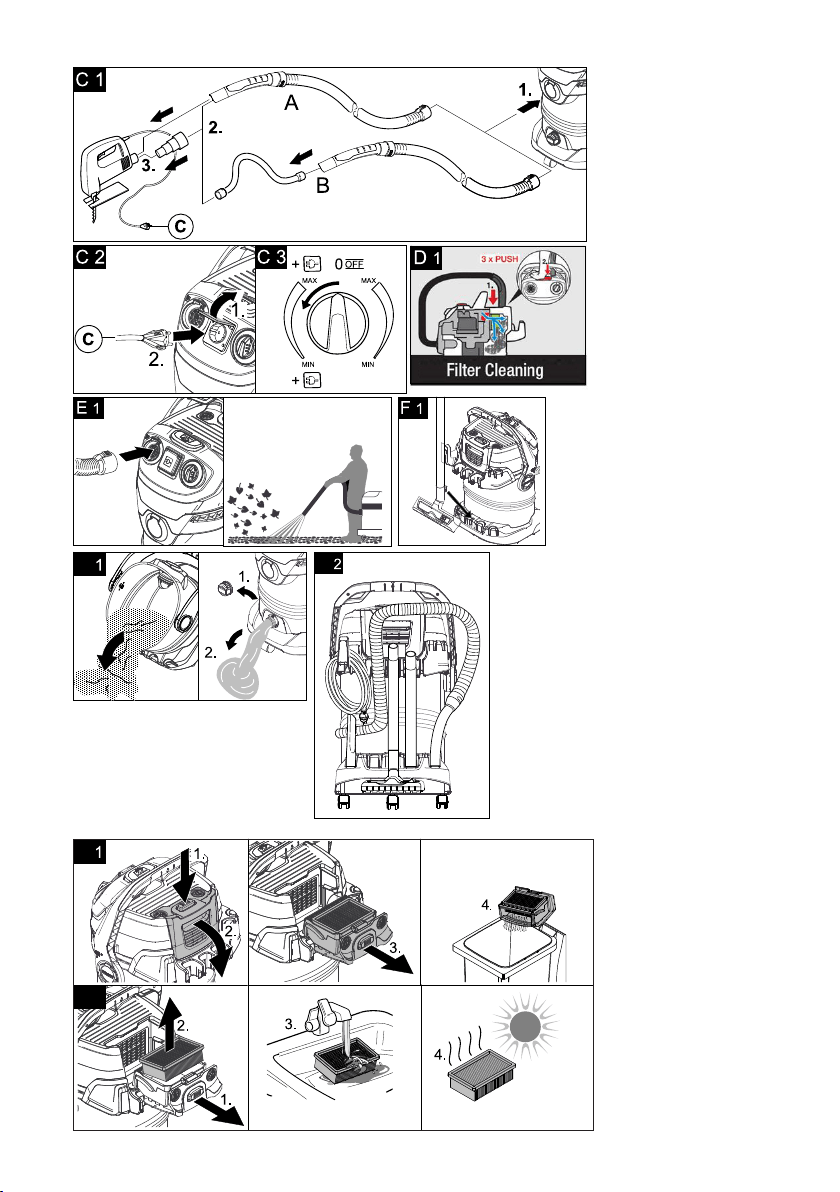

– 7
Illustrations on fold-out page!
These operating instructions describe
the multi-purpose vacuum cleaners list-
ed on the front cover.
The illustrations show the maximum
equipment; depending on the model,
there are differences in equipment and
supplied accessories.
When unpacking the product, make sure
that no accessories are missing and that
none of the package contents have been
damaged. If you detect any transport dam-
ages please contact your dealer.
Illustration
To connect the suction hose during vac-
uuming.
Illustration
Position I: Suction or blowing
Position 0: Appliance is switched off
Illustration
Position MAX: Vacuuming or blowing.
Position MAX: Vacuuming with
connected electric tool
Performance regulation: Reduce the
suction if necessary during vacuuming,
blowing or when working with an elec-
tric tool.
Position 0: The appliance is switched
off. Electric tool is supplied with voltage.
Note: Observe the maximum connected
load (see Chapter "Technical data").
Illustration
To connect an electric tool.
Illustration
Connect the suction hose to the blower
connection, this will activate the blower
function.
Illustration
For cleaning the flat pleated filter fitted.
Note: Do not operate the button when the
flat pleated filter is wet.
After unlocking it, grab the appliance
head by the handle recess and remove
it.
Illustration
The carrying handle is also used to lock
the appliance head and the container.
To unlock, push the bow all the way for-
ward until you clear the lock.
Grab the appliance head by the handle
recess and remove it.
Illustration
Illustration
In order to clean the filter, press the re-
lease key, fold out and remove the filter
box.
Illustration
The accessories compartment allows
the storage of suction pipes and suction
nozzles on the appliance.
Illustration
To store the mains cable.

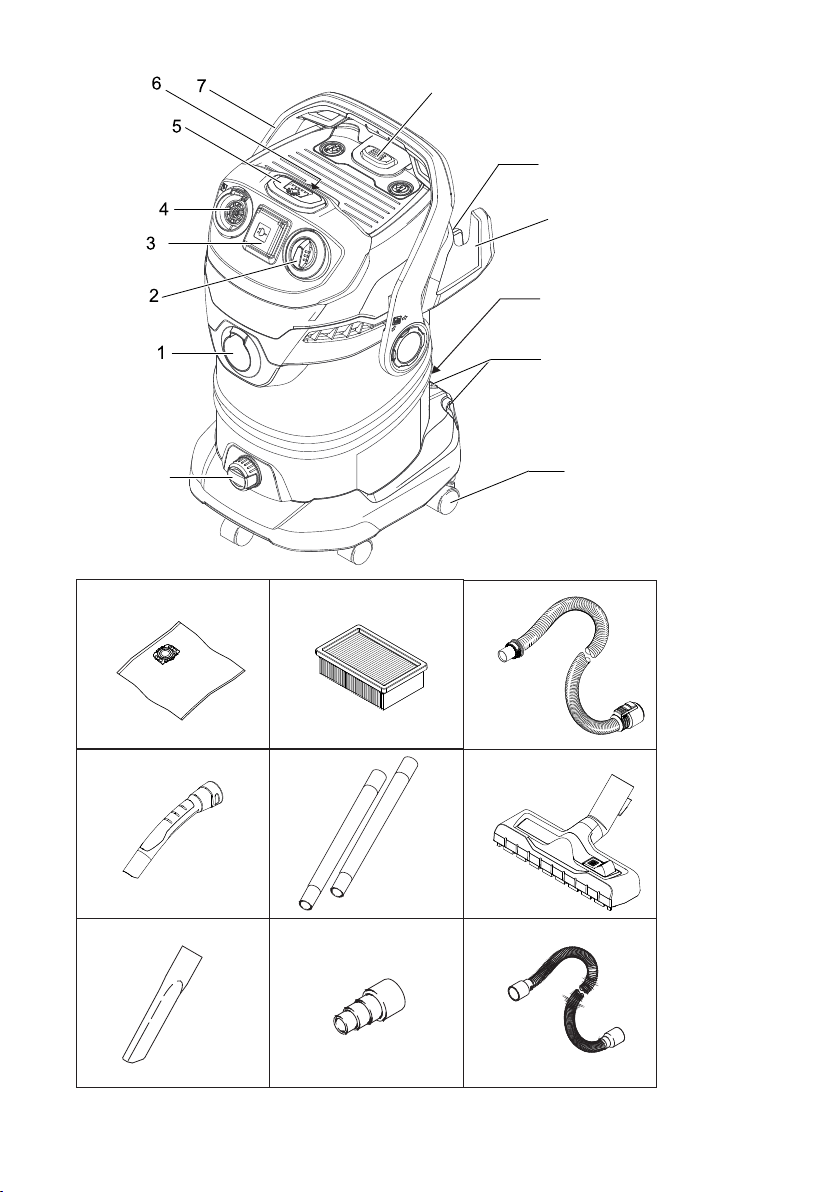

Description of the Appliance
Suction hose connection
ON/OFF switch for appliance
(without built-in socket)
ON/OFF switch for appliance
(with built-in socket)
Machine socket
Blowing connection
Filter cleaning button
Recessed grip
Carry handle
Filter box and release key
Accessory mount
Cable hook
H
2
7EN
– 8
Illustration
To rest the floor nozzle during work in-
terruptions.
Illustration
Turn the container, press in the steering
roller in the openings at the base of the
container till the end-point.
Illustration
The drain screw is used to quickly and
comfortably empty wastewater in the
container. Tilt the container forward for
easier emptying.
Illustration
Note: Do not use a filter bag for wet vacu-
uming!
-CAUTION
Always work with an inserted flat fold filter -
during wet as well as dry vacuum cleaning!
Illustration
Push the suction hose into the connec-
tion on the appliance, it snaps in place.
In order to disconnect it, push down
with your thumb and pull the suction
hose out.
Note: Accessories, such as suction brush-
es (optional) can be directly attached to the
connecting piece and thus connected to the
suction hose.
For convenient working even in tight spac-
es.
The removable handle can be attached be-
tween the accessories and the suction
hose if necessary.
See position 17.
Recommendation: In order to vacuum the
floor, attach the handle to the suction hose.
Illustration
Connect the handle with the suction
hose until it snaps in place.
Illustration
To remove the handle from the suction
hose, press the notch using your thumb
and pull off the handle.
Note: Due to removing the handle, acces-
sories can be directly attached to the suc-
tion hose.
Recommendation: In order to vacuum the
floor, attach the handle to the suction hose.
See position 16.
Illustration
Put both suction tubes together and
connect them with the handle.
Illustration
For convenient switching between dry and
wet dirt:
For vacuuming dry dirt off the floor, use
position with extended brush strips.
For vacuuming water off the floor, use
position with extended rubber lips.
For edges, joints, heaters and hard to
reach locations.
Illustration
To connect the suction hose with an
electric tool
Adapt the adapter to the connection di-
ameter of the electric tool using a knife
if necessary.
Illustration
For more flexibility when working with
electric tools.
Note: Can also be used with an adapt-
er.
Parking position
Steering roller
Drain screw
Filter bag
Flat fold filter
(already installed in the appliance)
Suction hose with connecting piece
Removable handle
Suction tubes 2 x 0.5 m
Floor nozzle
(with switching lever)
Crevice nozzle
Adapter
Flexible tool hose
8 EN
– 9
몇 CAUTION
Always work with an inserted flat fold filter -
during wet as well as dry vacuum cleaning!
Illustration
Remove the appliance head and take
the contents out of the container.
Turn the container, press in the steering
roller in the openings at the base of the
container till the end-point.
Insert and lock the appliance head.
Clip the holder for the accessory com-
partment onto the rear side of the appli-
ance.
Illustration
Connect accessories.
Illustration
Plug in the mains plug.
Illustration
Turn on the machine.
몇 CAUTION
Work with a dry flat fold filter only.
Check the filter for damage prior to installa-
tion and replace as necessary.
Illustration
For vacuuming dry dirt an additional fil-
ter bag can be inserted if necessary.
몇 CAUTION
Only operate the filter cleaning without a fil-
ter bag inserted, otherwise the filter bag
can get damaged.
– The filling level of the filter bag depends
on the dirt that is sucked in.
– The filter bag needs to be replaced
more frequently while sucking in fine
dust, sand, etc.
– Clogged filter bags can burst - therefore
make sure to replace the filter bag in a
timely manner!
몇 CAUTION
Vacuum cold ashes only when using a pre-
filter.
Order no. basic design: 2.863-139.0, pre-
mium design: 2.863-161.0.
몇 CAUTION
Immediately switch the appliance off or pull
the power plug if foam forms or liquids es-
cape!
Do not use a filter bag!
Note: If the container is full, a float closes
the suction opening, and the appliance
works at a higher speed. Switch off the ap-
pliance immediately, and empty the con-
tainer.
For vacuuming up moisture or wetness
pay attention to the correct floor nozzle
setting and connect the corresponding
accessories.
Adapt the adapter to the connection di-
ameter of the electric tool using a knife
if necessary.
Illustration
A) Plug the enclosed adapter onto the
handle of the suction hose and connect
the electric tool with the connection.
or
B) Use the flexible tool hose to gain
more flexibility in your work. Connect
this hose to the suction hose and to the
adapter and then to the connection of
the electric tool.
Operation
Before Startup
Start up
Dry vacuum cleaning
Information filter bag
Wet vacuum cleaning
Working with electrical power tools
9EN
– 10
Illustration
For appliances with built-in socket:
Connect the mains plug of the electric
power tool to the vacuum cleaner.
Illustration
-Switch the appliance on (move the rotary
switch to the left to position MAX)
and start working.
Note: As soon as the electric tool is
switched on, the suction turbine starts with
a 0.5 second delay. If the electric tool is
switched off, the suction turbine continues
to run for approx. 5 seconds in order to vac-
uum up the remaining dirt in the suction
hose.
The filter cleaning system is intended for
vacuuming up large volumes of fine dust
without an inserted filter bag.
Note: Thanks to the filter cleaning system
the soiled flat pleated filter can be cleaned
at the push of the button and the suction
performance can be increased again.
Illustration
Place the handle of the suction hose in
the accessory compartment on the ap-
pliance head. Push the filter cleaning
button 3 x while the appliance is
switched on, wait 4 seconds between
the individual operations.
Note: After operating the filter cleaning but-
ton several times, check the container for
its filling volume. Otherwise, the dirt might
escape when the container is opened.
Cleaning hard to reach locations or, where
vacuuming is not possible, like leaves from
a gravel bed.
Illustration
Connect the suction hose to the blower
connection, this will activate the blower
function.
Illustration
Turn off the appliance.
Illustration
Hook the floor nozzle into the parking
position.
Turn off the appliance and disconnect
the mains plug.
Illustration
Remove the appliance head and empty
the reservoir filled with wet or dry dirt.
For appliances with drain screw:
Empty the dry dirt over the container.
Use the drain screw to empty liquids.
Illustration
Stow away the mains cable and acces-
sory at the machine. Store the appli-
ance in a dry room.
Integrated filter cleaning system
Blowing function
Interrupting operation
Finish operation
Empty the container
Storing the appliance
10 EN
– 11
DANGER
Turn off the appliance and remove the
mains plug prior to any care and mainte-
nance work.
Repair works may only be performed by the
authorised customer service.
몇 WARNING
Do not use abrasives, glass or universal
cleaners! Never immerse the appliance in
water.
Clean the appliance and accessory
parts made of plastic with a commercial
plastic cleaner.
If required, rinse the container and ac-
cessories with water properly and dry
them before reuse.
Recommendation: Clean the filter box
after every use.
Illustration
Unlock, fold out and remove the filter
cartridge, empty dirt from the filter car-
tridge over a waste bin.
In order to clean the inserted flat fold fil-
ter, knock the filter box against the edge
of the waste bin. It is not necessary to
remove the flat fold filter from the filter
box.
If necessary, clean the flat fold filter sep-
arately.
Illustration
Unlock, fold out and remove the filter
cartridge.
Illustration
Remove the flat fold filter from the filter
box and tab it out.
When necessary, clean under running
water only, do not wipe or brush down.
Allow to dry completely prior to use.
Finally, reinstall the dry flat fold filter into
the appliance. Insert the filter cartridge
into the appliance.
If the suction power becomes less, check
the following points:
Accessories, suction hose or suction
pipes are clogged, please remove the
obstruction using a stick.
Illustration
Filter bag is full: Insert new filter bag.
Illustration
Flat fold filter contaminated: Remove
the filter box and clean filter (see Chap-
ter "Cleaning the flat fold filter").
Replace damaged flat fold filter.
Care and maintenance
Clean flat fold filter
H
2
Troubleshooting
Decreasing cleaning power
Customer Service
H
2
11EN
Australia
KÄRCHER Pty. Ltd.
385 Ferntree Gully Road,
Mount Waverley, Victoria, AU. 3149
1800 675 714 (Free Call)
www.karcher.com.au
New Zealand
Karcher Ltd.
66 Allens Road,
East Tamaki, Aukland
(09) 274-4603
www.karcher.co.nz
– 12
Subject to technical modifications!
Technical specifications
WD 5 Premium WD 6 P Premium
Mains voltage 220 - 240 220 - 240 V
Frequency 1~50-60 1~50-60 Hz
Output P
nom
1100 1300 W
Max. connection output of appli-
ance socket
- 1000 W
Mains fuse (slow-blow) 10 10 A
Container capacity 30 30 l
Water intake with handle 15 20 l
Water intake with floor nozzle 13 18 l
Power cord H 05VV-F2x0,75 H 05VV-F3G1,5
Weight (without accessories) 9,0 9,4 kg
Sound pressure level (EN
60704-2-1)
71 71 dB(A)
12 EN
2.863-148.0
WD 5 Premium
WD 6 P Premium
5.965-797.0 01.09.15
9.084-160.0 *AU WD 5 Premium
6.650-501.0 *AU WD 6 P Premium
www.kaercher.com/dealersearch
Alfred Kärcher SE
& Co. KG
Alfred-Kärcher-Str. 28-40
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
