Welcome
Liebherr's engineering excellence in Germany provides the largest
selection of freezers, refrigerators and wine refrigerators worldwide.
Liebherr is one of the World’s leading Manufacturers of Premium Refrigeration.
For more than 60 years, Liebherr has specialized in developing and manufacturing
first class refrigerators and freezers as well as wine cabinets. We focus on
performance and efficiency as well as keeping food fresher longer. Produced
in Austria and Germany, Liebherr has a full line of premium models tailored
specifically for the North American marketplace to fit any design vision you have
for your kitchen.
Our freestanding stainless models are sleek centerpieces that make a definite
statement. Our built-in models are perfect for designs that call for units that slide
into cabinet surrounds. And our fully-integrated models become one with your
kitchen design, hidden seamlessly behind your custom cabinetry.
High quality materials, perfectly detailed finishes, precise electronic control
systems, elite cooling components, variable speed compressors and the latest
production processes ensure energy efficiency and performance for years to
come. Our superior products offer premium quality, cutting edge design and
innovative features that fit with your busy lifestyle.
Liebherr's Commitment to the Environment
The components of Liebherr products can be recycled when the necessary
resources are available. A concern for the environment and a desire to protect
resources has led to increased levels of recycling year after year. When Liebherr
manufactures products, it is essential that the recyclable recovery rate of the
materials we use constantly increases.
Recycling is a common goal among all manufacturers, municipalities and
recycling companies to protect our environment. Protecting the environment
and producing products which have a low impact on the environment, is one of
Liebherr's core values. When the time comes, please attempt to dispose of your
old appliances in an environmentally safe and friendly manner.
3
Introduction
LIEBHERR WARRANTY PLAN
FULL TWO YEAR WARRANTY
For two years from the date of original purchase, your Liebherr warranty covers all parts and labor to repair or replace
any part of the product which proves to be defective in materials or workmanship.
FULL FIVE YEAR WARRANTY
For five years from the date of original purchase, your Liebherr warranty covers all parts and labor to repair or replace
any components that prove to be defective in materials or workmanship in the sealed system. The “Sealed System”
means only the compressor, condenser, evaporator, drier and all connecting tubing.
LIMITED 6TH THROUGH 12TH YEAR WARRANTY
From the 6th through 12th year from the date of original purchase, your Liebherr warranty covers all parts that prove to
be defective in materials or workmanship in the Sealed System (parts only).
For Service in the U.S.
Liebherr Service Center
Toll Free: 1-866-LIEBHER
1-866-543-2437
Email: Service-appliances.us@liebherr.com
PlusOne Solutions, Inc.
3501 Quadrangle Blvd, Suite 120
Orlando, FL 32817
For Service in Canada
Liebherr Service Center
Toll Free: 1-888-LIEBHER
1-888-543-2437
www.euro-parts.ca
EURO-PARTS CANADA
39822 Belgrave Road
Belgrave, Ontario, N0G 1E0
Phone: (519) 357-3320
Fax: (519) 357-1326
For Installation Questions
Install.Americas@liebherr.com
4
Contents
Safety Warnings .............................................................................................................................................................................5
Electrical Requirements & Safety .......................................................................................................................................... 6
IceMaker (if equipped) ................................................................................................................................................................. 6
Area Requirements .......................................................................................................................................................................7
Safety Regulations ........................................................................................................................................................................ 7
Specifications 30" Models
HC 1540 (right hinged) HC 1541 (left hinged) .........................................................................................................................8
HC 1550 (right hinged) .............................................................................................................................................................8
HCB 1580 (right hinged) HCB 1581 (left hinged) ................................................................................................................... 9
Specifications 36" Models
HC 2080 (right hinged) HC 2081 (left hinged) ...................................................................................................................... 10
HCB 2080 (right hinged) HCB 2081 (left hinged) ................................................................................................................. 10
HC 2082 .................................................................................................................................................................................. 11
HCB 2082 ............................................................................................................................................................................... 11
Unit Dimensions
Unit Dimensions HC 1540, HC 1541, HC 1550, HC 1551, HCB 1580, HCB 1581 ............................................................... 12
Unit Dimensions HC 2080, HC 2081, HCB 2080, HCB 2081 .............................................................................................. 13
Unit Dimensions HC 2082, HCB 2082 .................................................................................................................................. 14
Ventilation Requirements......................................................................................................................................................... 15
Cabinet Opening Dimensions
Cabinet Opening Dimensions HC 1540, HC 1541, HC 1550, HCB 1580, HCB 1581 ......................................................... 16
Cabinet Configuration HC 1540, HC 1541, HC 1550, HCB 1580, HCB 1581 ...................................................................... 17
Cabinet Opening Dimensions HC/HCB 2080, HC/HCB 2081, HC 2082, HCB 2082 ......................................................... 18
Cabinet Configuration HC/HCB 2080, HC/HCB 2081, HC 2082, HCB 2082 ...................................................................... 19
Installation Styles ........................................................................................................................................................................20
Panel Dimensions
Panel Dimensions Inset Installation Style HC 1540, HC 1541, HC 1550, HCB 1580, HCB 1581 ....................................... 21
Panel Dimensions Frameless Installation Style HC 1540, HC 1541, HC 1550, HCB 1580, HCB 1581 ............................. 21
Panel Dimensions Inset Installation Style HC 2080, HC 2081, HCB 2080, HCB 2081 ......................................................22
Panel Dimensions Frameless Installation Style HC 2080, HC 2081, HCB 2080, HCB 2081 .............................................22
Panel Dimensions Inset Installation Style HC 2082, HCB 2082 .......................................................................................... 23
Panel Dimensions Frameless Installation Style HC 2082, HCB 2082 ................................................................................. 23
Door swing clearance
Door Swing Clearance - Inset installation style HC 1540, HC1541, HC 1550, HCB 1580, HCB 1581 ...............................24
Door Swing Clearance - Inset installation style HC 2080, HC 2081,HCB 2080, HCB 2081 ...............................................24
Door Swing Clearance - Frameless installation style HC 1540, HC1541, HC 1550, HCB 1580, HCB 1581 ...................... 25
Door Swing Clearance - Frameless installation style HC 2080, HC 2081, HCB 2080, HCB 2081 ....................................25
Door Swing Clearance - Inset installation style - HC 2082 / HCB 2082 Front panel 5/8" .................................................. 26
Door Swing Clearance - Inset installation style - HC 2082 / HCB 2082 Front panel 3/4" ..................................................27
Door Swing Clearance - Frameless installation style - HC 2082 / HCB 2082 Front panel 5/8" ......................................... 28
Door Swing Clearance - Frameless installation style - HC 2082 / HCB 2082 Front panel 3/4" .........................................29
Accessories ....................................................................................................................................................................................30
5
Safety Warnings
PLEASE READ AND FOLLOW THESE INSTRUCTIONS
This design guide contains Warning and Important statements. This information is important for planning a safe and
efficient installation. Please refer to the Installation Manual specific to your model for complete installation instructions.
This design guide is intended for planning purposes and is not a replacement for your appliance's Use and Care
Manual which contains important information on how to use Liebherr appliances.
Always read and follow all Warning and Important statements!
WARNING!
Warning indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury.
IMPORTANT
This highlights information that is especially relevant
to a problem-free installation and operation.
Make sure incoming voltage is the same as the unit rating.
To reduce the risk of fire, electric shock, or personal injury, the installation work and electrical wiring must be done by a
qualified electrician in accordance with all applicable codes and standards, including fire rated construction.
To the Installer
It is very important that the guidelines and instructions are followed in this design guide to ensure proper installation
and operation of the unit. The Installation Guidelines section contains important information for making sure the instal-
lation is correct. Read and understand all the information and installation guidelines in this manual before the unit is
installed.
It is also very important to know the Safety Information.
General Remarks
6
IceMaker (if equipped)
The icemaker is located in the freezer compartment. It
must be connected to the water supply. The appliance
must be level for the icemaker to function properly.
The water supply pressure requirements are different
based on whether or not the supplied Liebherr water filter
is installed. With the filter installed, the pressure must be
in the range of 40-90 psi (2.8-6.2 bar). Without the filter
installed the acceptable pressure range is 22-87 psi (1.5-
6 bar).
For the water supply, we recommend braided style ice
maker hoses with 1/4" connectors.
To connect a 1/4" copper line, use a 1/4" compression
nut and a metal compression ring.
To connect a 1/4" PEX line, use a 1/4" compression nut
and a plastic compression ring.
The supplied brass fitting
must be used to connect to the solenoid
as the plastic threads on the solenoid are
metric.
If you have hard water, we recommend you install a
water softener. Also, a filter must be installed if the water
contains solids such as sand.
All equipment and devices used to supply the water to
the appliance must comply with the current regulations
for your geographical area.
Safety Instructions and Warnings
• Donotattachthewatersourcewhiletheapplianceis
connected to an electrical outlet.
• Ashut-offvalve,mustbeinstalledbetweenthehose
line and the main water supply so that the water sup-
ply can be stopped if necessary. Do not install the
shut-off valve behind the refrigeration unit.
• Theconnectiontothewatersupplymayonlybemade
by a trained and licensed plumber.
• Thewaterqualitymustcomplywiththedrinkingwater
regulations for the geographical area where the appli-
ance is located.
• Theicemakerisdesignedexclusivelytomakeice
cubes in quantities needed by a household and may
only be operated with water appropriate for this pur-
pose.
• Allrepairsandworkontheicemakermayonlybe
done by customer service personnel or other trained
personnel.
• Themanufacturercannotacceptliabilityfordamage
caused by equipment or water lines between the sole-
noid valve and the water supply.
Electrical Requirements & Safety
A 15 amp or 20 amp, 110-120 VAC, circuit which is
grounded and protected by a circuit breaker or fuse is
required.
We recommend using a dedicated circuit for each
appliance to prevent circuit overload and the chance of
interruption to the appliance.
The appliances are equipped with a three-prong
(grounding) polarized plug for protection against possible
shock hazards.
Comply with the National Electrical Code as well
as local codes and ordinances when installing the
receptacle.
WARNING!
Electrocution hazard.
Electrical grounding required.
•
Do not remove the round grounding
prong from the plug.
•

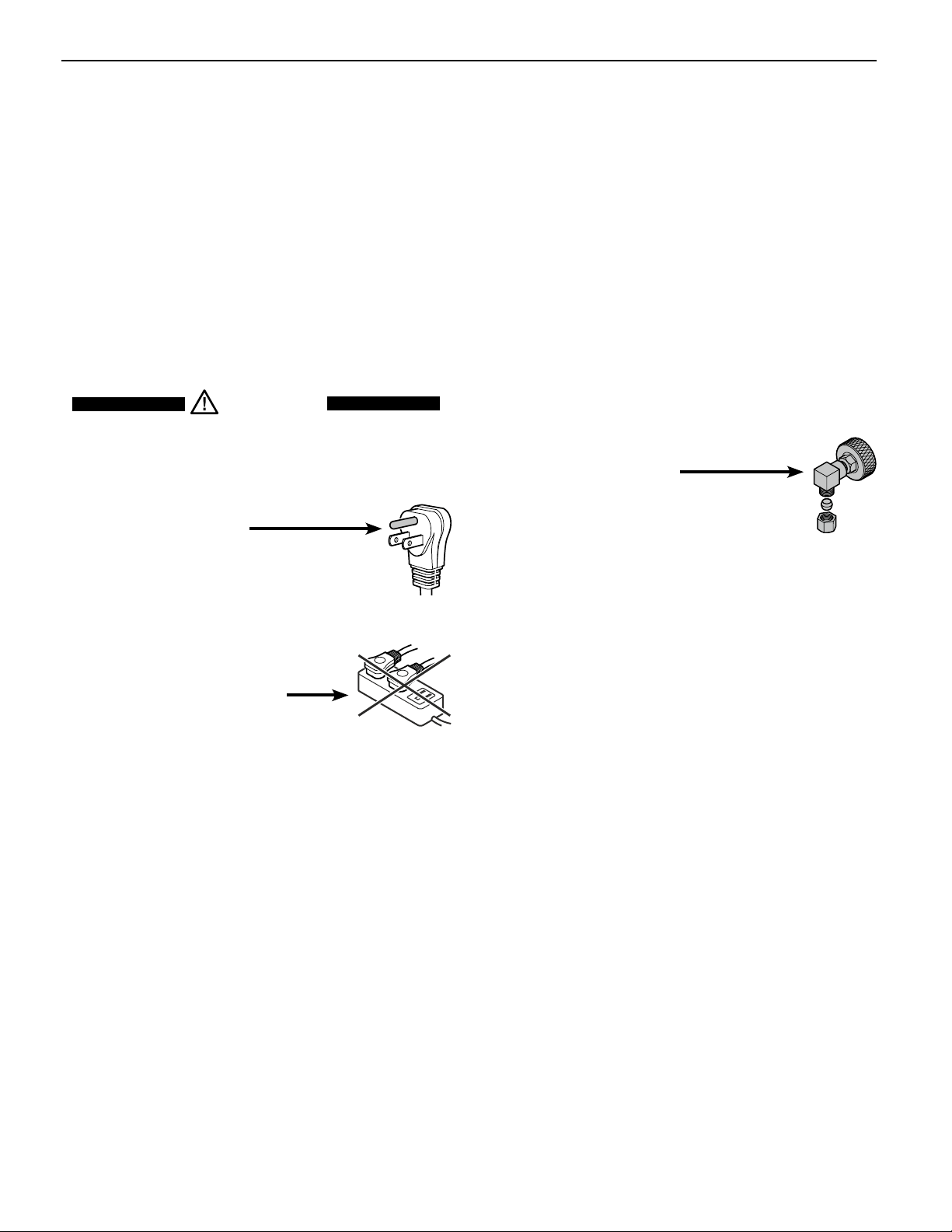

Do not use extension cords or
ungrounded (two-prong) adapters.
• Donotuseapowercordthatisfrayedor
damaged.
•
Do not use a power strip.
Failure to follow these instructions may
result in fire, electrical shock or death.
General Remarks
7
Area Requirements
Verify the following:
• Floorscansupportrefrigerator’sweightplusapproxi-
mately 1200 pounds (544 kg) of food weight. Not
all Liebherr products are designed for 1200 pounds
(544 kg) of food. Some units are smaller and total
weights may vary.
• Finishedkitchenoorheightislevel.Refrigeratormust
beshimmedtotheoorlevelorlevelledtomakesure,
air vents are not obstructed.
• Removeanythingattachedtotherearorsidewalls
that can obstruct refrigerator opening.
• Cutoutdimensionsareaccurate.
• Electricaloutletisincorrectlocation.
Do not install this unit next to any other refrigerator or
freezer except another Liebherr model. Liebherr models
are designed to allow side by side installation. They are
equipped with a heating system to eliminate condensa-
tion when units are installed side by side. Installing this
unit next to any other refrigerator or freezer can cause
condensation or cause damage to the Liebherr unit.
IMPORTANT
To protect the refrigerator from possible damage,
allow the appliance to stand 1 hour in place before
turning the electricity on. This allows the refrigerant
and system lubrication to reach equilibrium.
Blocking For Safety
The anti-tip bracket must be installed to prevent the unit
from tipping after it is installed. Refer to chapter "Block-
ing For Safety" in the installation instructions.
Safety Regulations
The appliances and are designed to cool, freeze, store
food as well and make ice (if equipped).
The appliances are manufactured to operate within
specific ambient temperature limits according to its
climate rating.
The climate rating indicates the ambient temperature at
which the appliance may be operated in order to deliver
optimal refrigeration performance.
The climate rating for each model is visible in chapter
"Specifications".
Climate Rating Ambient Temperature
SN 50°F to 90°F (10°C to 32°C)
N 61°F to 90°F (16°C to 32°C)
ST 61°F to 100°F (16°C to 38°C)
T 61°F to 109°F (16°C to 43°C)
SN-ST 50°F to 100°F (10°C to 38°C)
SN-T 50°F to 109°F (10°C to 43°C)
IMPORTANT
Do not operate the appliance outside the specified
ambient temperature range.
- Refrigerant circuits are tested for leaks.
- The appliances complies with current safety
regulations
CAN/CSA C22.2 No.60335-1-11
UL 60335-1 Fifth Edition
CAN/CSA C22.2 No. 60335-2-24-06
UL 60335-2-24 First Edition
General Remarks
8
Specifications 30" Models
Energy Star: certified
Energy consumption p. a.: 507 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 14.1 cu ft (400 L)
Refrigerator: 9.8 cu ft (278 L)
Freezer: 4.3 cu ft (122 L)
Ice cube output: 2.2 lbs/24h
Ice cube stock: 6 lbs
IceMaker water tank capacity: 73.2 cu in (1.2 L)
Climate Rating: SN-T
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•AutomaticIceMakercanbeswitchedoff
•Maximumdooropeningangleis115°
•LEDceilingandfreezerlighting

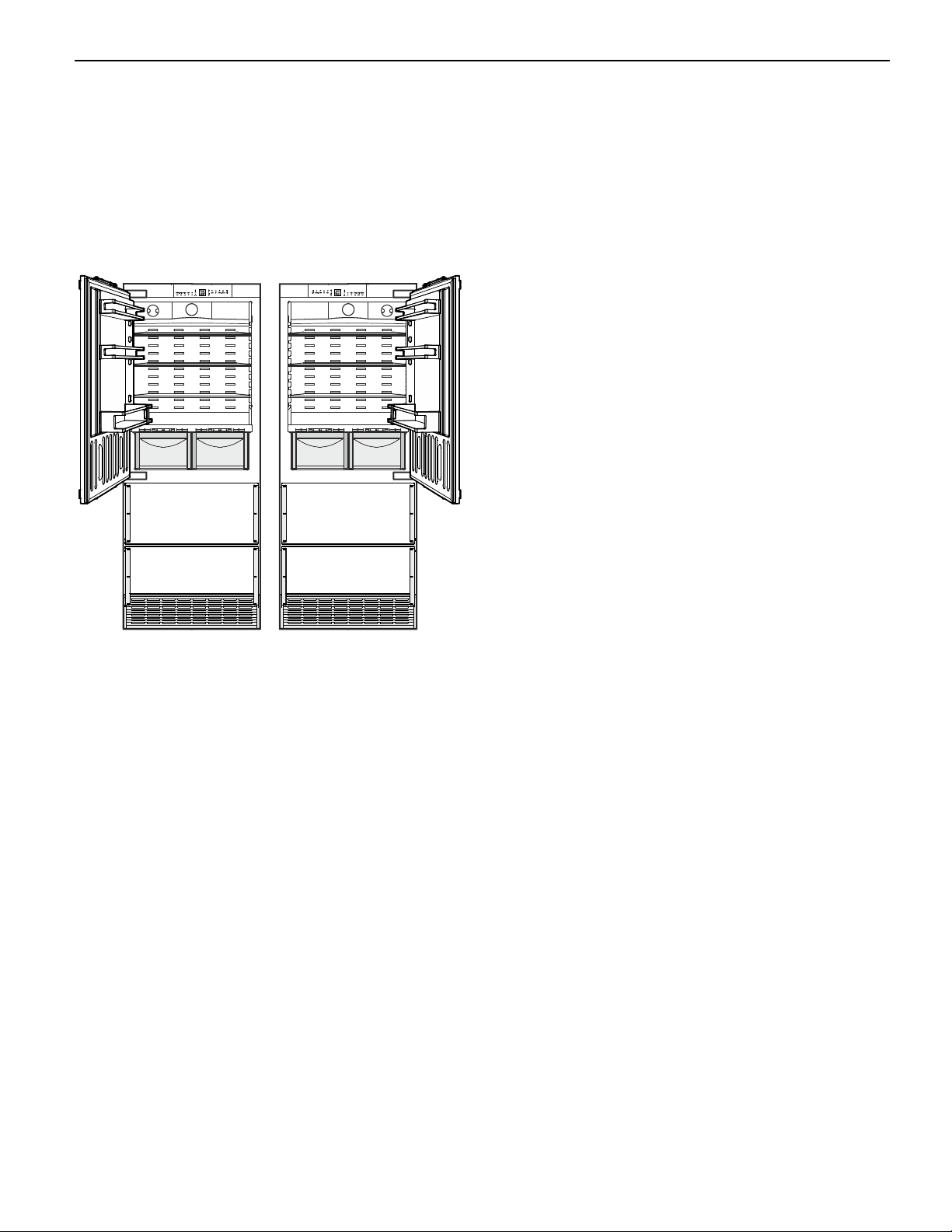

Fully Integrated
HC 1541
(left hinged)
HC 1540
(right hinged)
HC 1550 (right hinged)
Energy Star: certified
Energy consumption p. a.: 507 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 14.1 cu ft (400 L)
Refrigerator: 9.8 cu ft (278 L)
Freezer: 4.3 cu ft (122 L)
Ice cube output: 2.2 lbs/24h
Ice cube stock: 6 lbs
Climate Rating: SN-T
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•AutomaticIceMakercanbeswitchedoff
•Maximumdooropeningangleis115°
•LEDceilingandfreezerlighting
HC 1550
(right hinged)
9
Energy Star: certified
Energy consumption p. a.: 507 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 14.1 cu ft (400 L)
Refrigerator: 9.8 cu ft (278 L)
Freezer: 4.3 cu ft (122 L)
Ice cube output: 2.2 lbs/24h
Ice cube stock: 6 lbs
Climate Rating: SN-T
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•AutomaticIceMakercanbeswitchedoff
•Maximumdooropeningangleis115°
•LEDlightcolumnandLEDfreezerlighting
•BioFreshdrawerswithadjustablehumidity
Fully Integrated
HCB 1581
(left hinged)
HCB 1580
(right hinged)
10

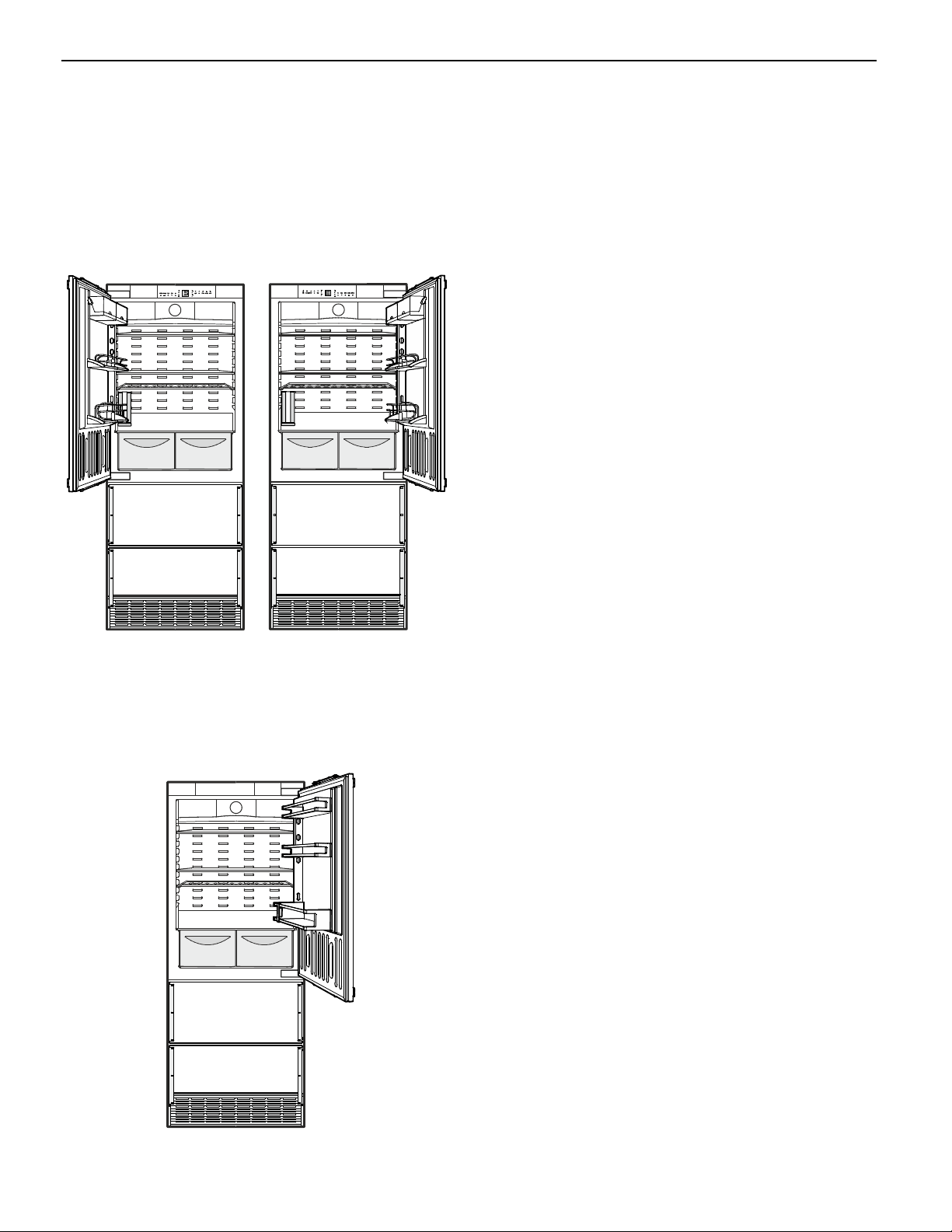

Specifications 36" Models
Energy Star: certified
Energy consumption p. a.: 556 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 18.9 cu ft (535 L)
Refrigerator: 12.9 cu ft (365 L)
Freezer: 6 cu ft (170 L)
Ice cube output: 3 lbs/24h
Ice cube stock: 6 lbs
Climate Rating: SN-T
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•AutomaticIceMakercanbeswitchedoff
•Maximumdooropeningangleis115°
•LEDlightcolumnandLEDfreezerlighting
•BioFreshdrawerswithadjustablehumidity
Fully Integrated
Energy Star: certified
Energy consumption p. a.: 561 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 19.5 cu ft (552 L)
Refrigerator: 13.5 cu ft (382 L)
Freezer: 6 cu ft (170 L)
Ice cube output: 3 lbs/24h
Ice cube stock: 6 lbs
Climate Rating: SN-T
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•AutomaticIceMakercanbeswitchedoff
•Maximumdooropeningangleis115°
•LEDlightcolumnandLEDfreezerlighting

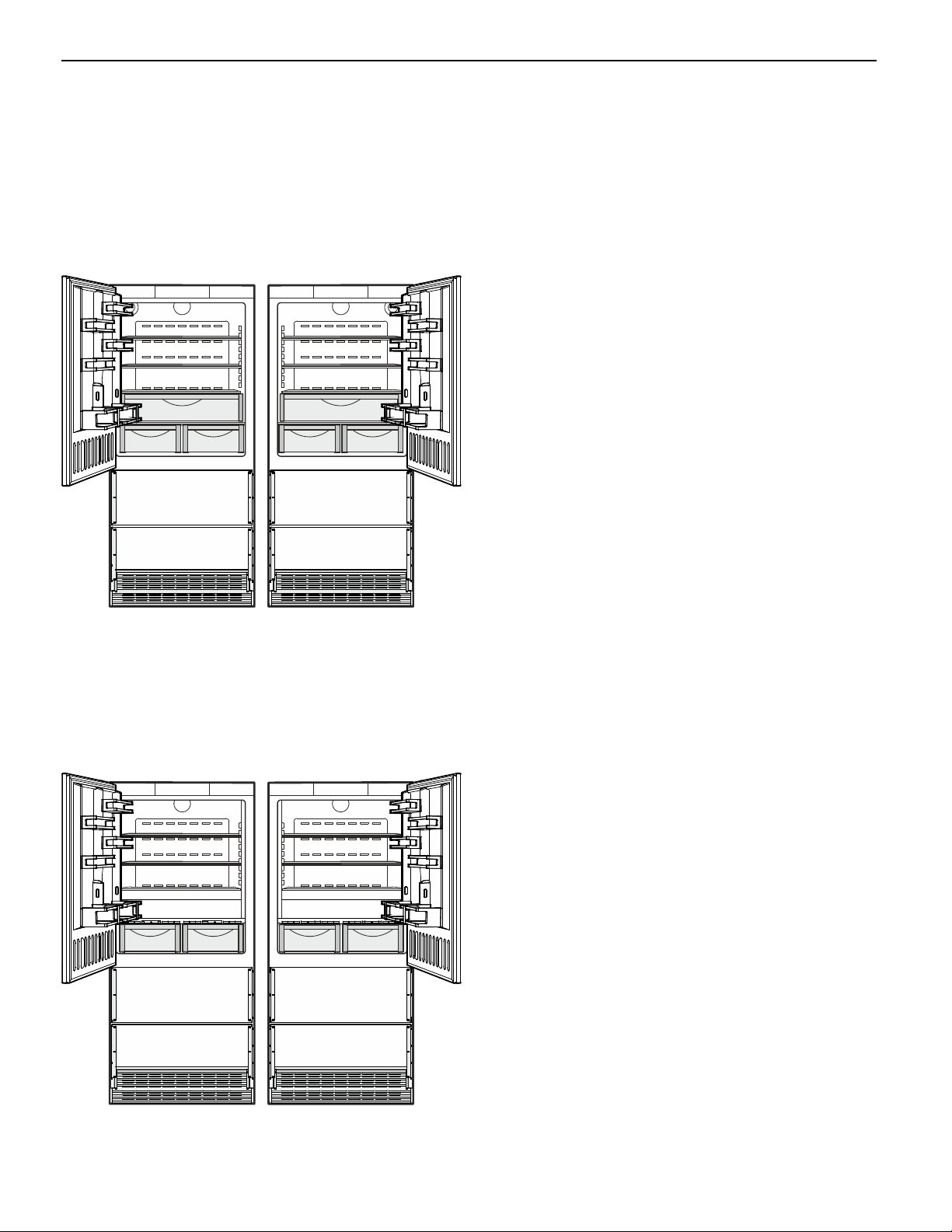

HC 2081
(left hinged)
HC 2080
(right hinged)
HCB 2081
(left hinged)
HCB 2080
(right hinged)
11
Fully Integrated
Energy Star: certified
Energy consumption p. a.: 561 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 19.5 cu ft (552 L)
Refrigerator: 13.5 cu ft (382 L)
Freezer: 6 cu ft (170 L)
Ice cube capacity: 3 lbs/24h
Ice cube stock: 6 lbs
Climate Rating: SN-T
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•AutomaticIceMakercanbeswitchedoff
•Maximumdooropeningangleis105°
•LEDlightcolumnandLEDfreezerlighting
Energy Star: certified
Energy consumption p. a.: 556 kWh
Energy Supply: 115V / 60Hz / 2.5A
Total capacity: 18.9 cu ft (535 L)
Refrigerator: 12.9 cu ft (365 L)
Freezer: 6 cu ft (170 L)
Ice cube output: 3 lbs/24h
Ice cube stock: 6 lbs
Climate Rating: SN-T
•Automaticrefrigeratordefrosting
•Automaticfreezercompartmentdefrosting
•AutomaticIceMakercanbeswitchedoff
•Maximumdooropeningangleis105°
•LEDlightcolumnandLEDfreezerlighting
•BioFreshdrawerswithadjustablehumidity
HC 2082
(frenchdoor)
HCB 2082
(frenchdoor)
12

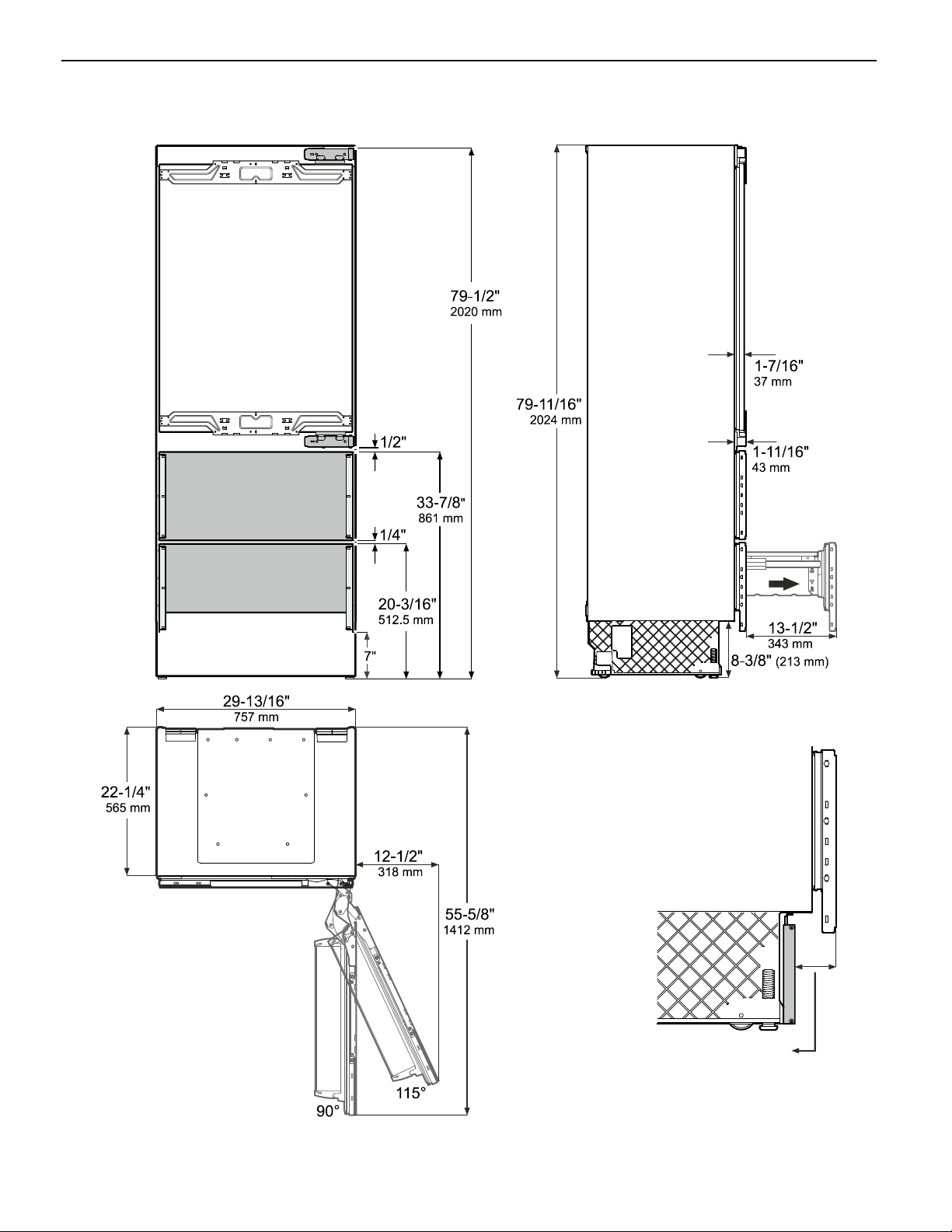

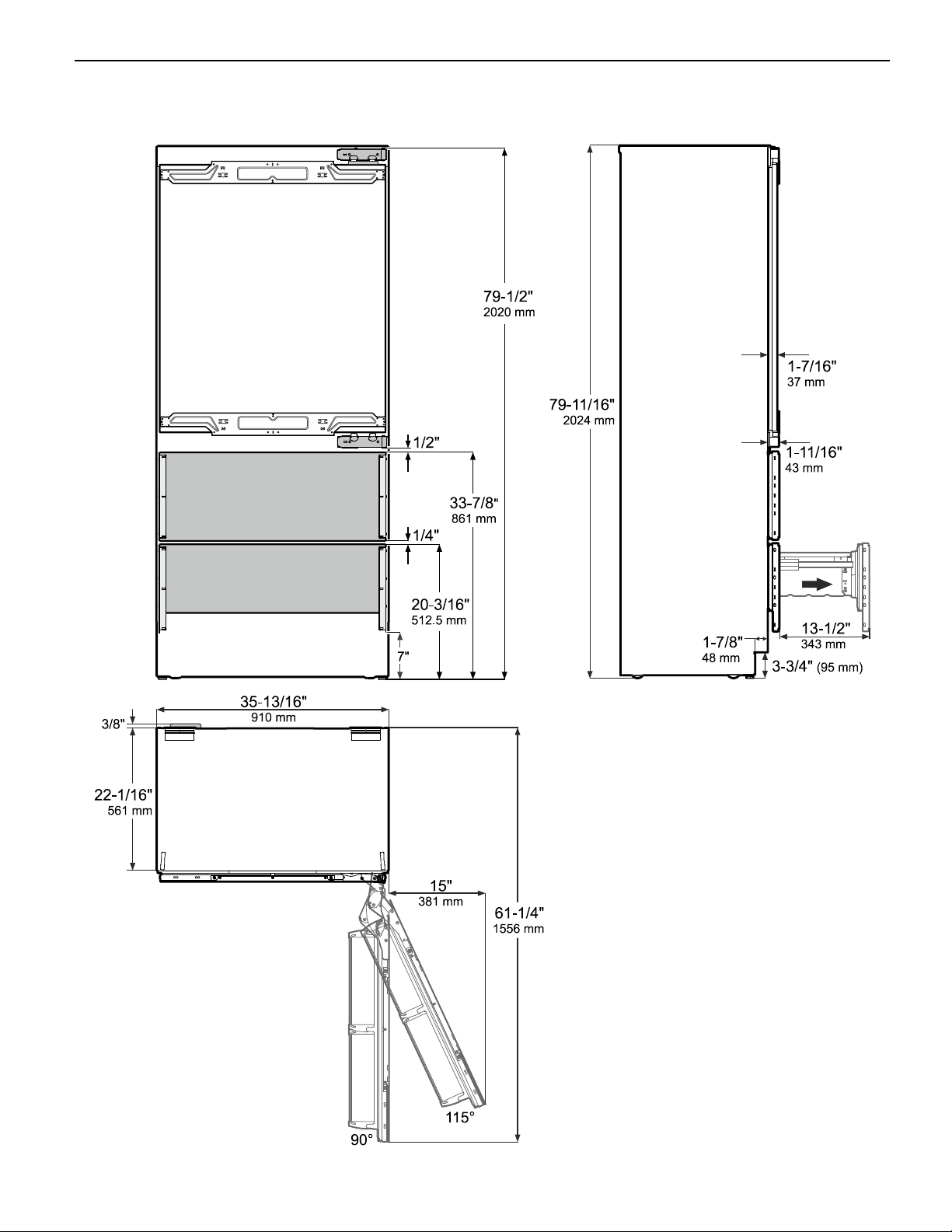

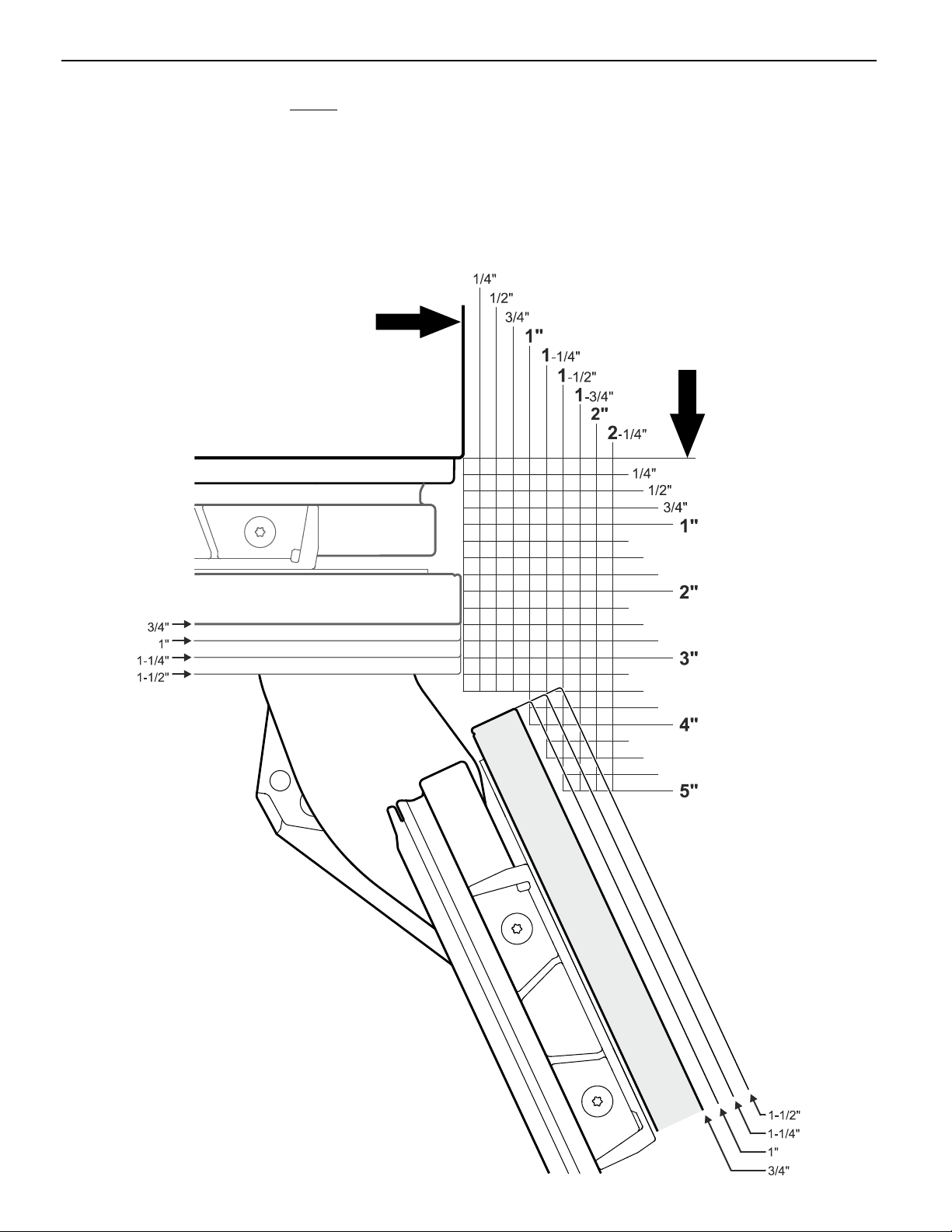

Unit Dimensions HC 1540, HC 1541, HC 1550, HCB 1580, HCB 1581
Fully Integrated
Hinge
Door
Adjusting range of ventilation grille
1-5/8" min. > 3" max.
Height can be increased by
1-1/2" (40 mm) by turning the
levelling feet at the front and the
height adjustable roller units at
the appliance rear.
Allow door swing clearance at
locations next to a wall.
The refrigerator door must open
to a minimum of 90° to allow the
crispers to open and the shelves
to be removed.
13
Fully Integrated

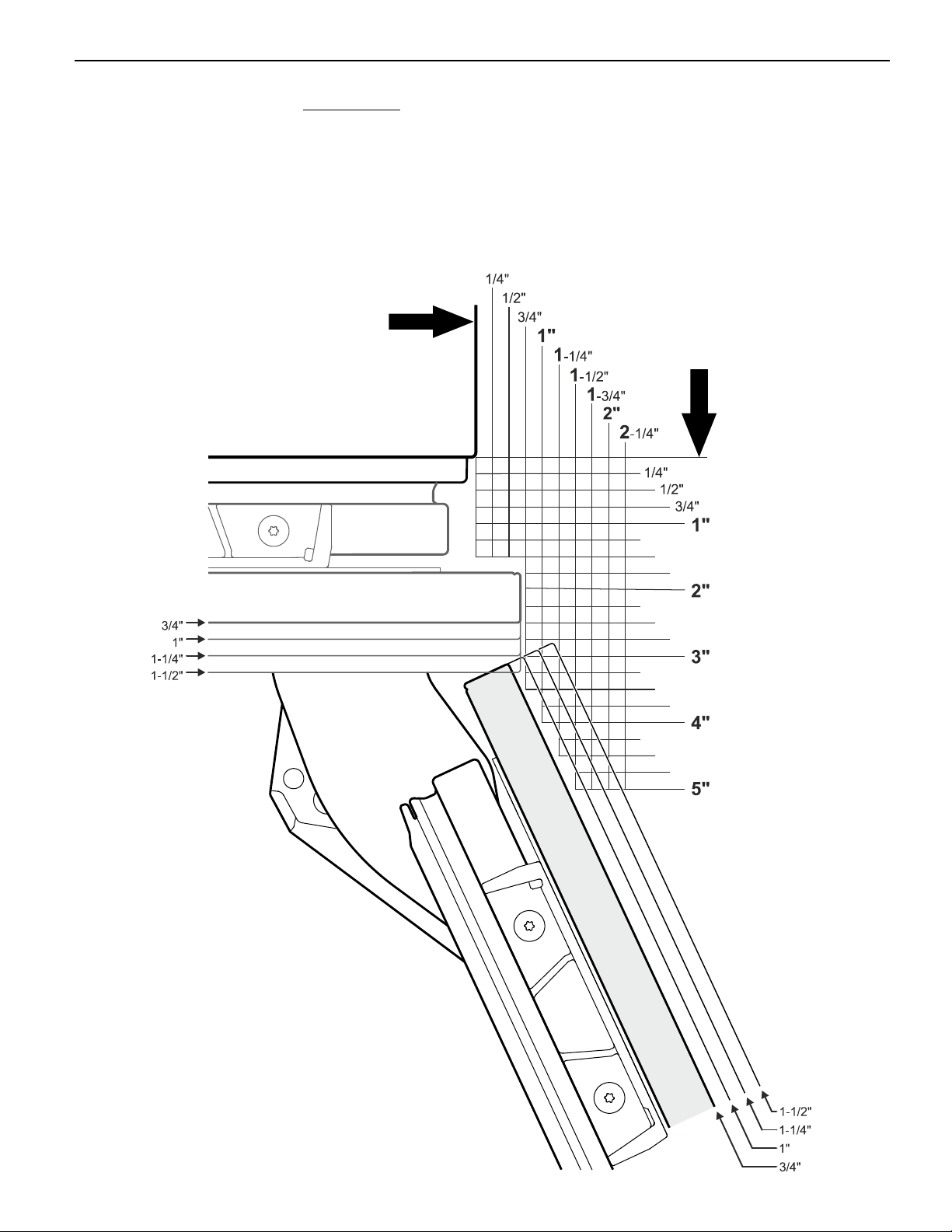

Unit Dimensions HC 2080, HC 2081, HCB 2080, HCB 2081
Allow door swing clearance at
locations next to a wall.
The refrigerator door must open
to a minimum of 90° to allow the
crispers to open and the shelves to
be removed.
Height can be increased by
1-1/2" (40 mm) by turning the
levelling feet at the front and the
height adjustable roller units at
the appliance rear.
Hinge
Door
14
Fully Integrated

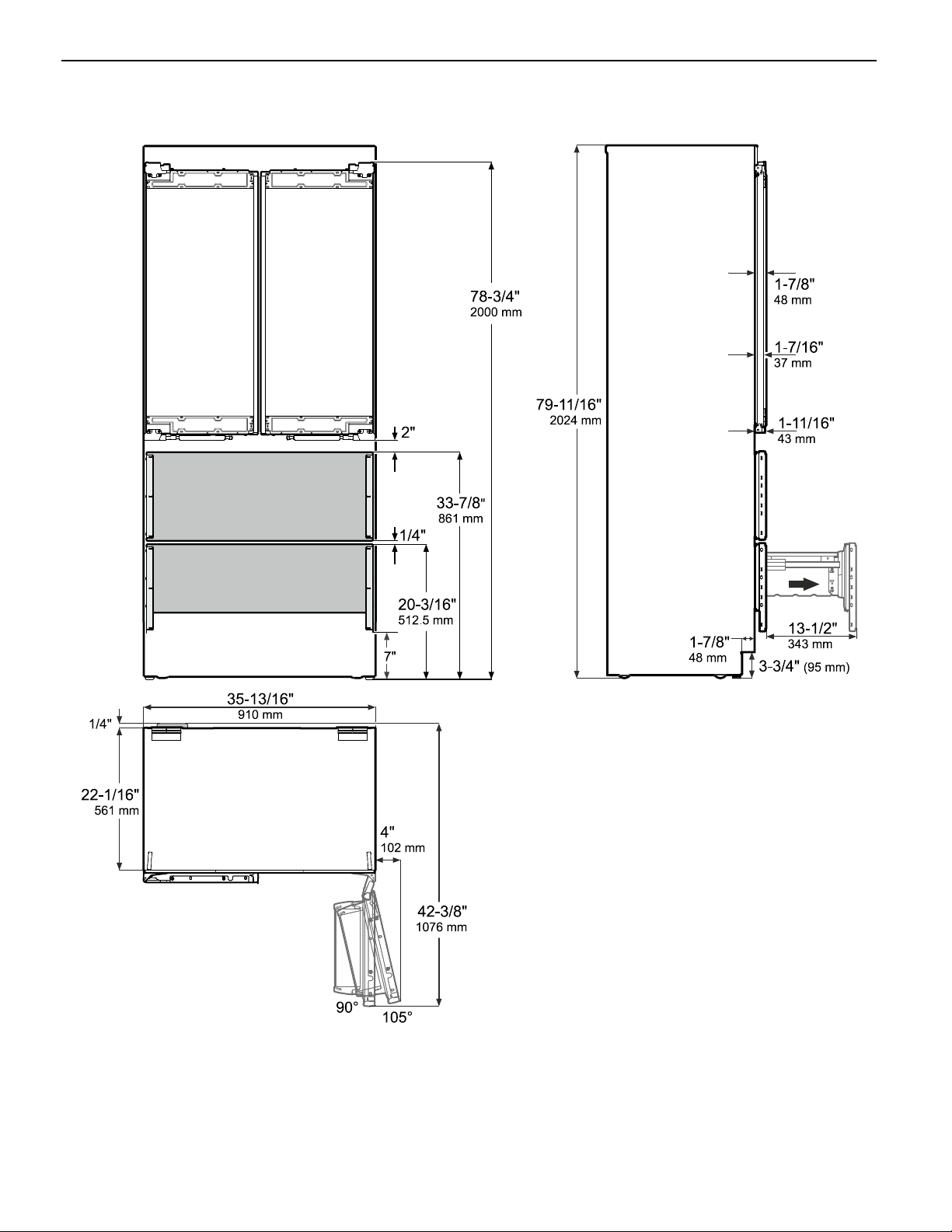

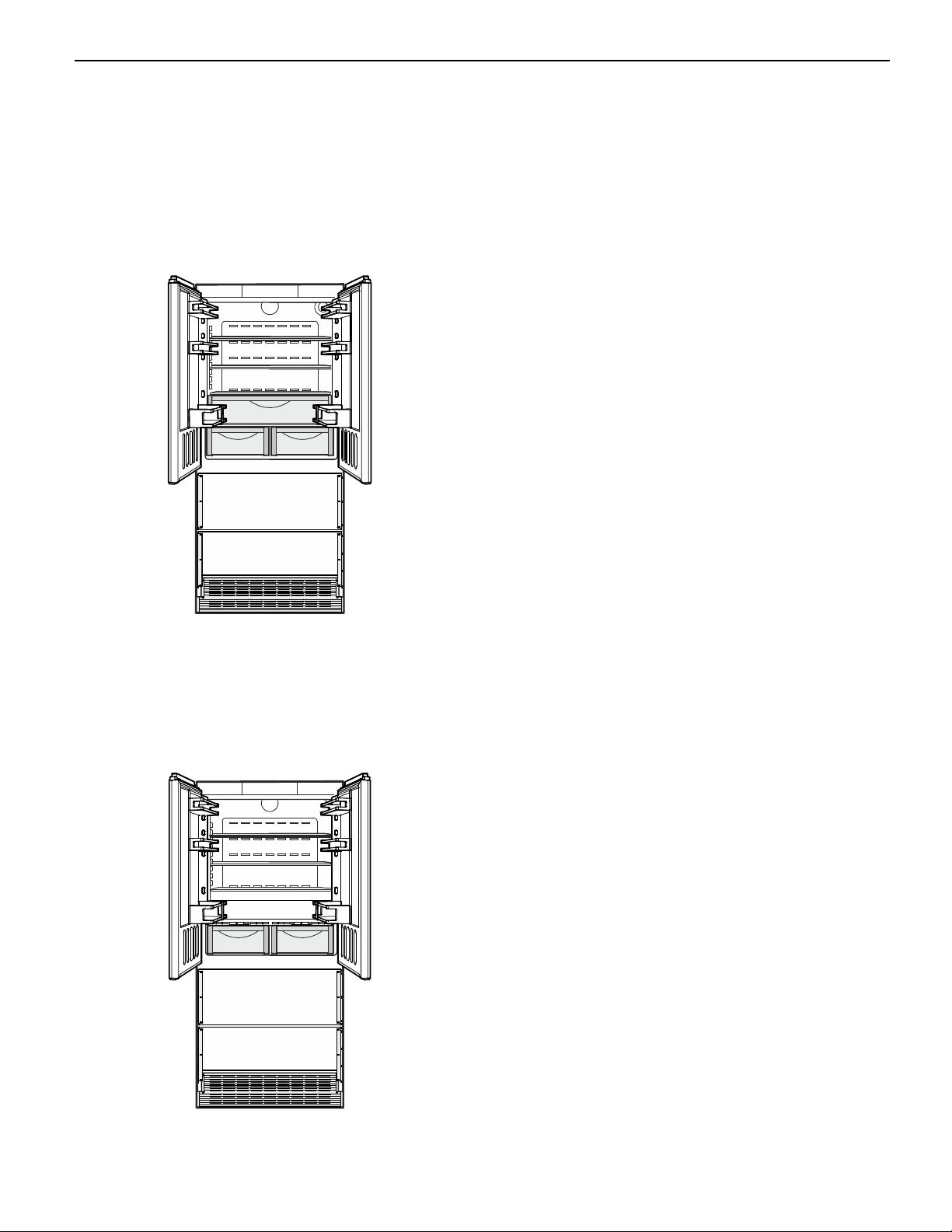

Unit Dimensions HC 2082, HCB 2082
Allow door swing clearance at
locations next to a wall.
The refrigerator door must open
to a minimum of 90° to allow the
crispers to open and the shelves to
be removed.
Height can be increased by
1-1/2" (40 mm) by turning the
levelling feet at the front and the
height adjustable roller units at
the appliance rear.
Hinge
Door
Center rail
15

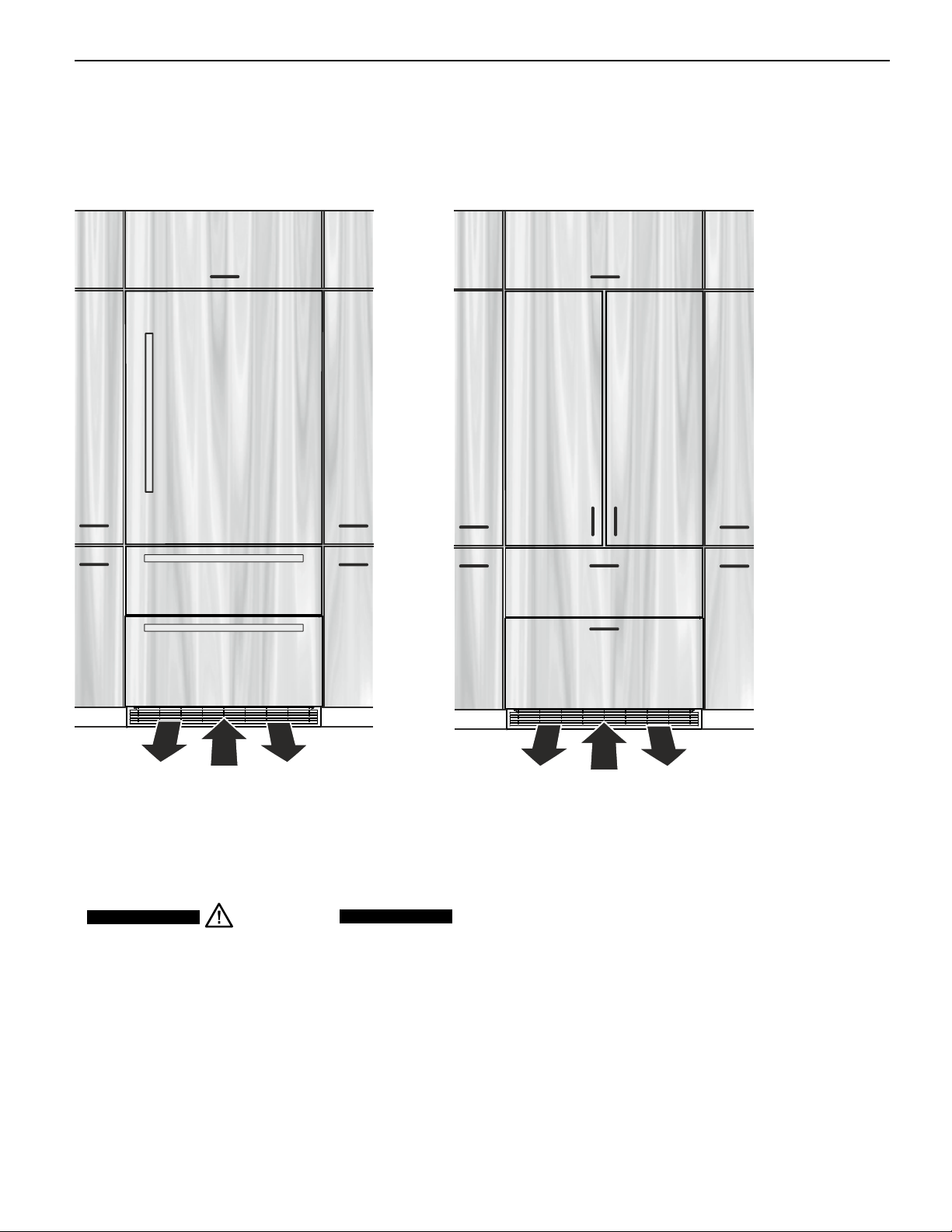

Ventilation Requirements
HC and HCB appliances do not require ventilation considerations in the cabinetry.
Therequiredairowisdirectedthroughthetoekickbase.
It is important to use the provided cover grille for the ventilation
opening. This opening must not be covered.
R600a Refrigerant
WARNING!
The refrigerant R600a contained within the
appliances is environmentally friendly, but
flammable. Leaking refrigerant can ignite.
To prevent possible ignition, designed
ventilation is required.
Fully Integrated
16

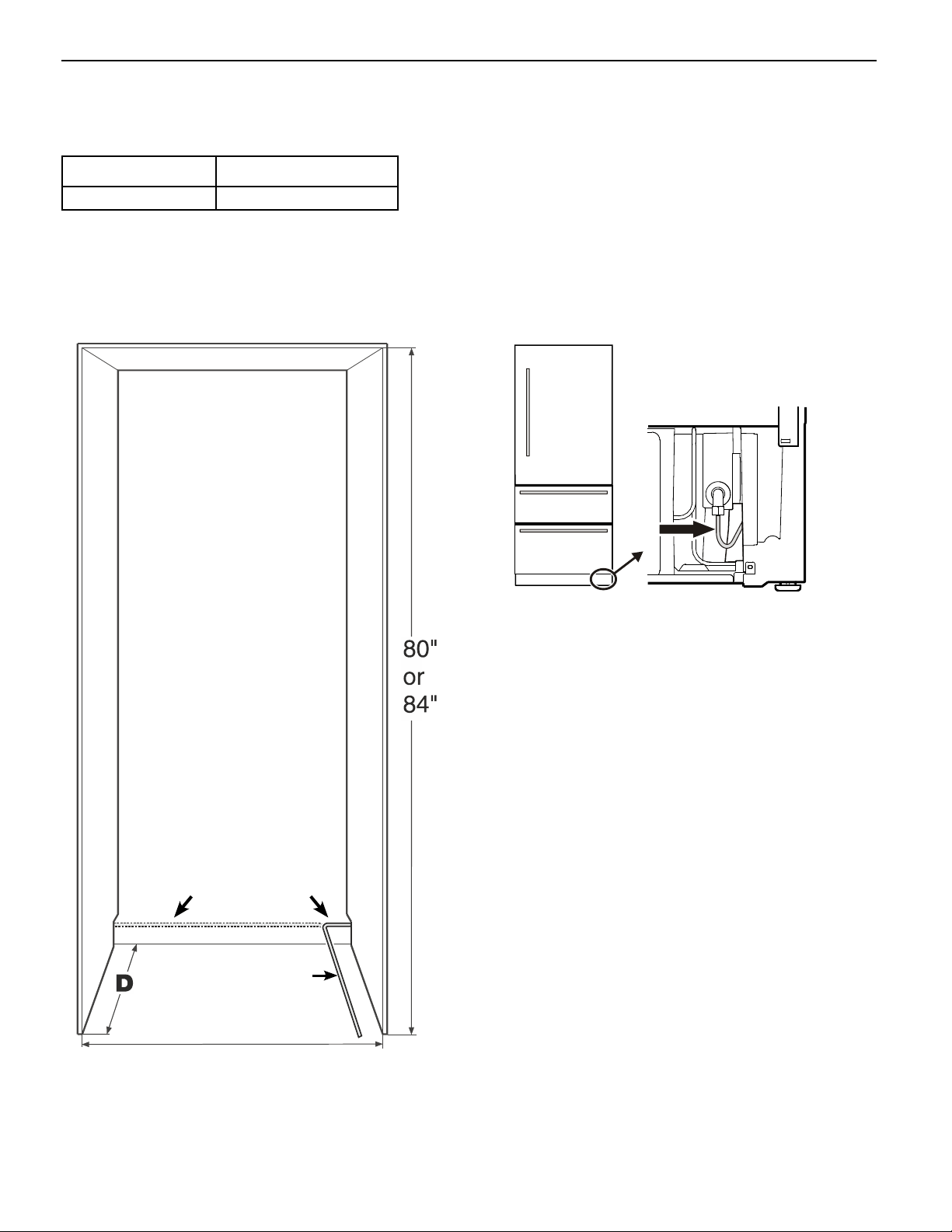

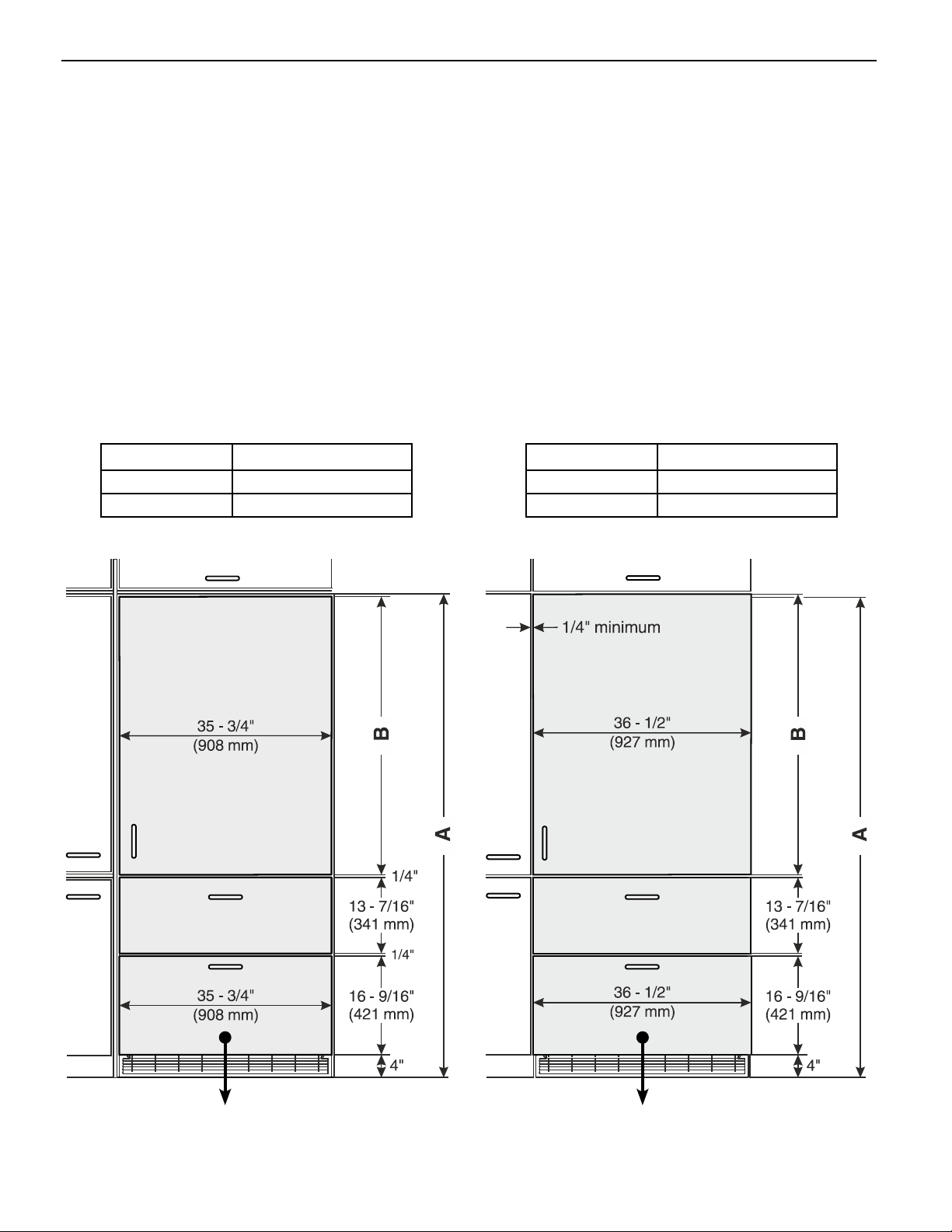

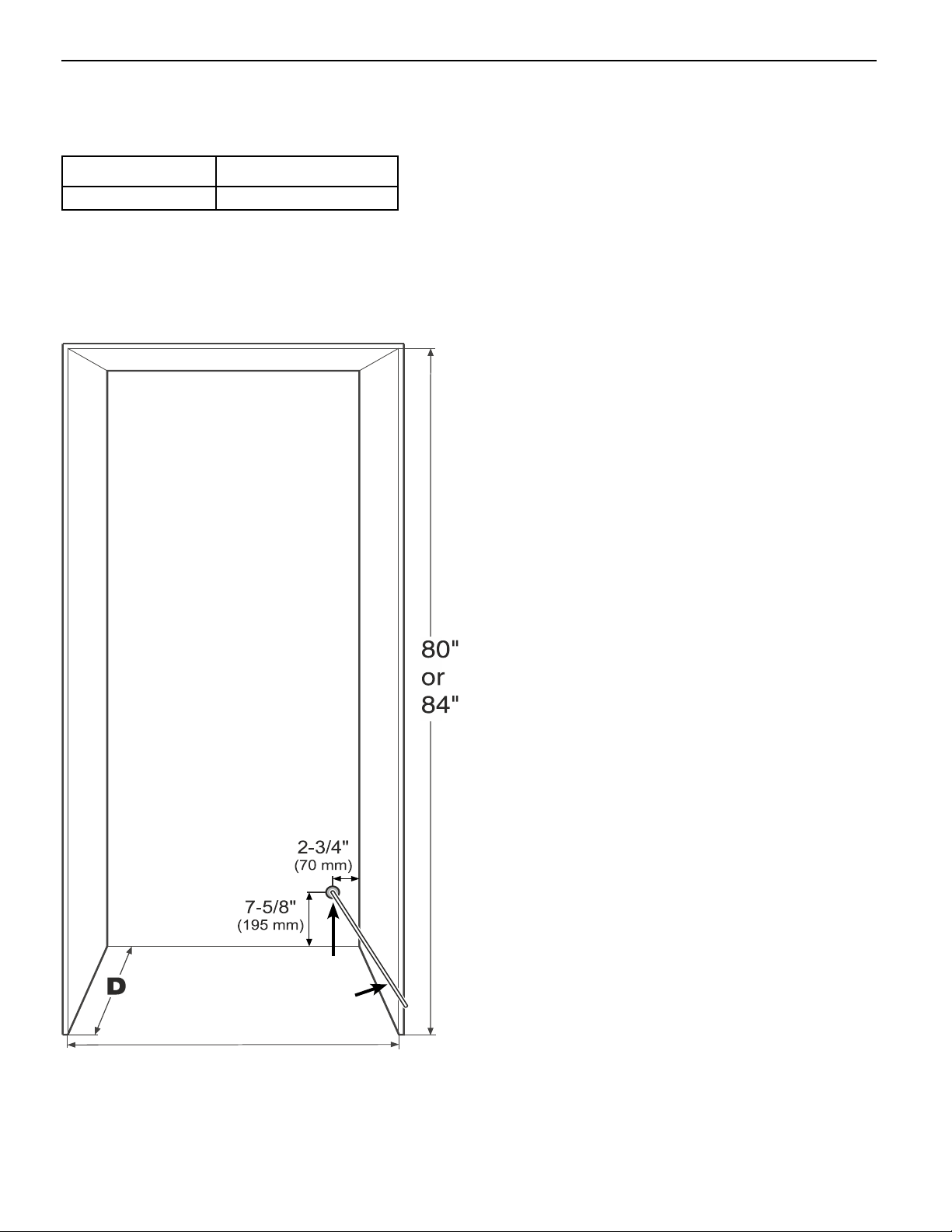

Cabinet Opening Dimensions HC 1540, HC 1541, HC 1550, HCB 1580, HCB 1581
Inset cabinet Depth D Frameless cabinet Depth D
24" + panel thickness 24"
Concerning the refrigerator compartment there is the op-
tion to choose between stainless steel panels for a 80”
or a 84” installation situation.
When using your own custom overlay panels, only the
80" opening minimum would apply. Opening height can
be taller than the 80" minimum by any amount but be
sure to adjust panel height accordingly.
IMPORTANT
Factory available stainless steel panels are designed for
an inset installation only and require a cabinet / gable
depth of 24 - 3/4".
The water line lead-through is at
the bottom right of the appliance.
HC 1550
HCB 1580/1581
Water line feed-in from
left or right above the
anti tipping bracket
30" Single
60" Side by Side
IceMaker water
supply line
Water connection requirements for the IceMaker see
chapter IceMaker on page 6.
Fully Integrated
17
Fully Integrated

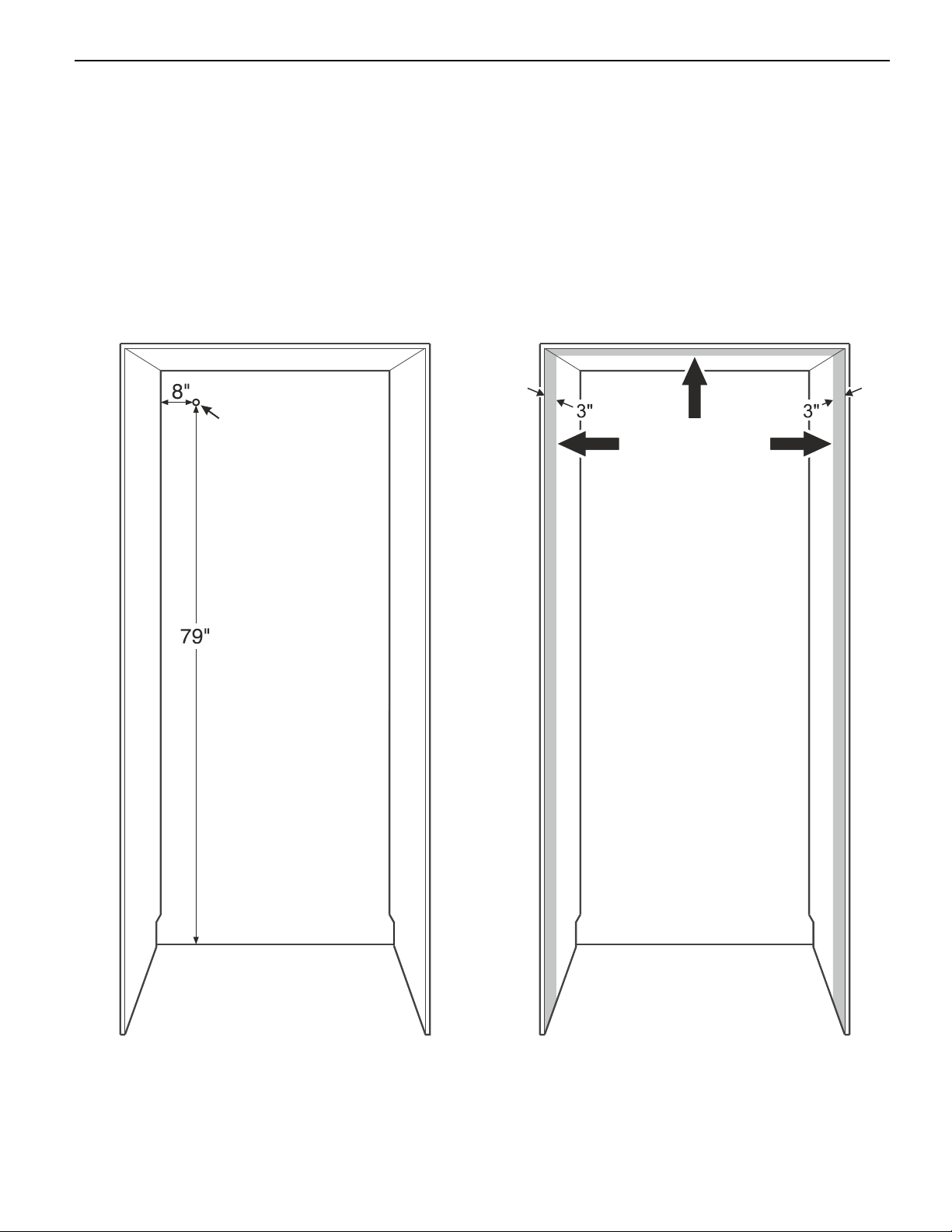

Cabinet Configuration HC 1540, HC 1541, HC 1550, HCB 1580, HCB 1581
IMPORTANT
These areas are visible
when the appliance door
is opened. Designed
finish is required.
The power cord exits the
rear of the appliance at
this location.
Free length of the power cord is 90".
The electrical outlet must
not be situated behind the
appliance and must be easily
accessible.
18
Fully Integrated
Cabinet Opening Dimensions HC/HCB 2080, HC/HCB 2081, HC 2082, HCB 2082
IMPORTANT
With 24" cabinets, the water line outlet must be in the
location as shown.
With cabinets deeper than 24" there is room to fit the
pipe behind the appliance and the wall so there are no
requirements for the water line lead out position.
The free length of the water supply line must be at least
31 - 1/2" (800 mm) when the tube comes out of the
prescribed opening.
Water connection requirements for the IceMaker see
chapter IceMaker on page 6.
Water line outlet
IceMaker water supply line
Inset cabinet Depth D Frameless cabinet Depth D
24" + panel thickness 24"
Concerning the refrigerator compartment there is the op-
tion to choose between stainless steel panels for a 80”
or a 84” installation situation.
When using your own custom overlay panels, only the
80" opening minimum would apply. Opening height can
be taller than the 80" minimum by any amount but be
sure to adjust panel height accordingly.
IMPORTANT
Factory available stainless steel panels are designed for
an inset installation only and require a cabinet / gable
depth of 24 - 3/4".
36" Single
72" Side by Side
19
Fully Integrated
Free length of the power cord is 90".
The electrical outlet must not be
situated behind the appliance
and must be easily accessible.
The power cord exits
the rear of the appli-
ance at this location.
IMPORTANT
These areas are visible
when the appliance door
is opened. Designed
finish is required.
Cabinet Configuration HC/HCB 2080, HC/HCB 2081, HC 2082, HCB 2082
20
Inset Installation Style
Appliance and panels sit fully within the opening and
are flush with what could be its own box, between two
pantry cabinets or decorative columns, etc. This is the
most common installation scenario.
Frameless Installation Style
With this installation style, these wider appliance
panels partially overlay the shared side gables of
adjacent cabinetry so as to mimic the look of a
frameless style cabinet.
Side view of cabinet (sectional view)
Cabinet frame
Door panel
Side view of cabinet (sectional view)
Cabinet frame
Door panel
Installation Styles
Fully Integrated
21

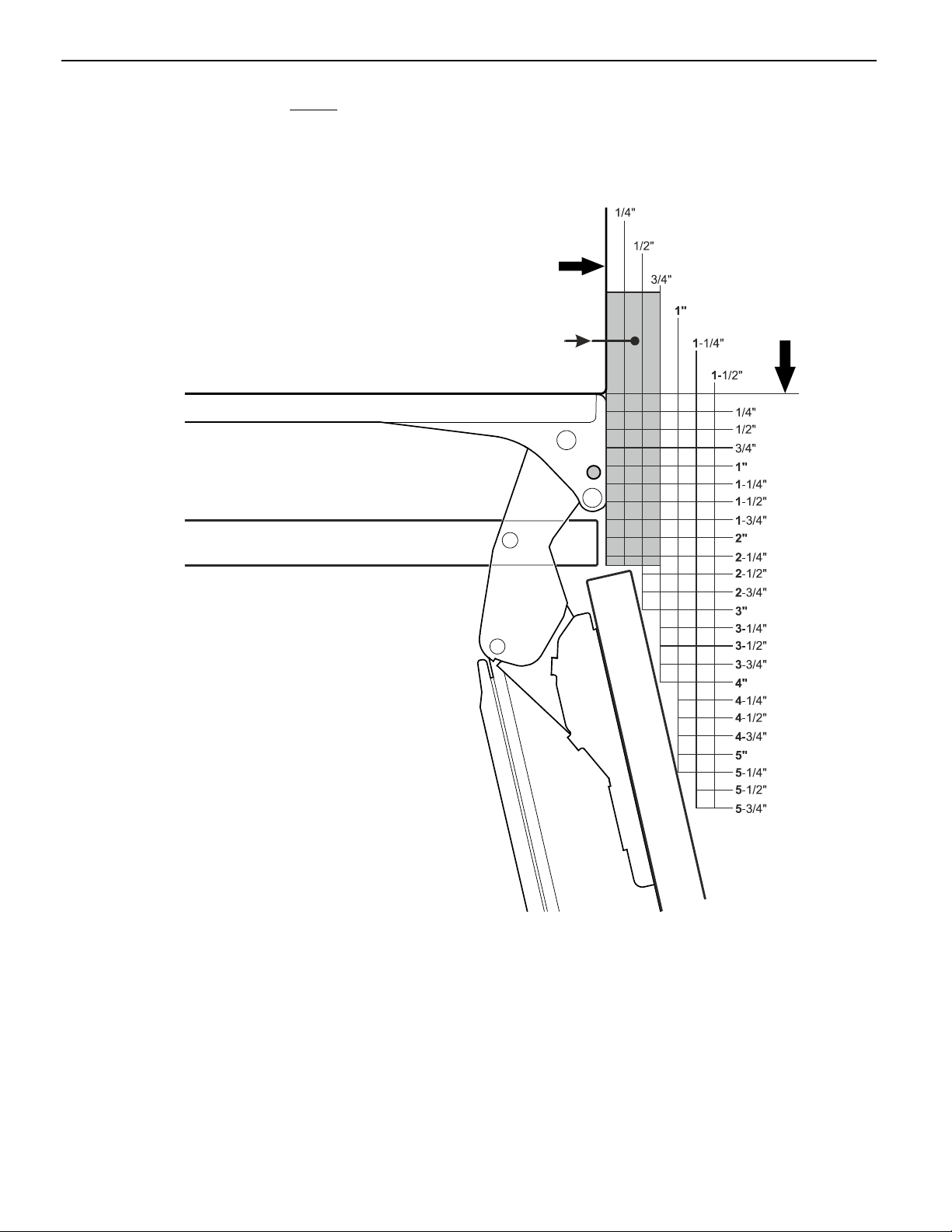

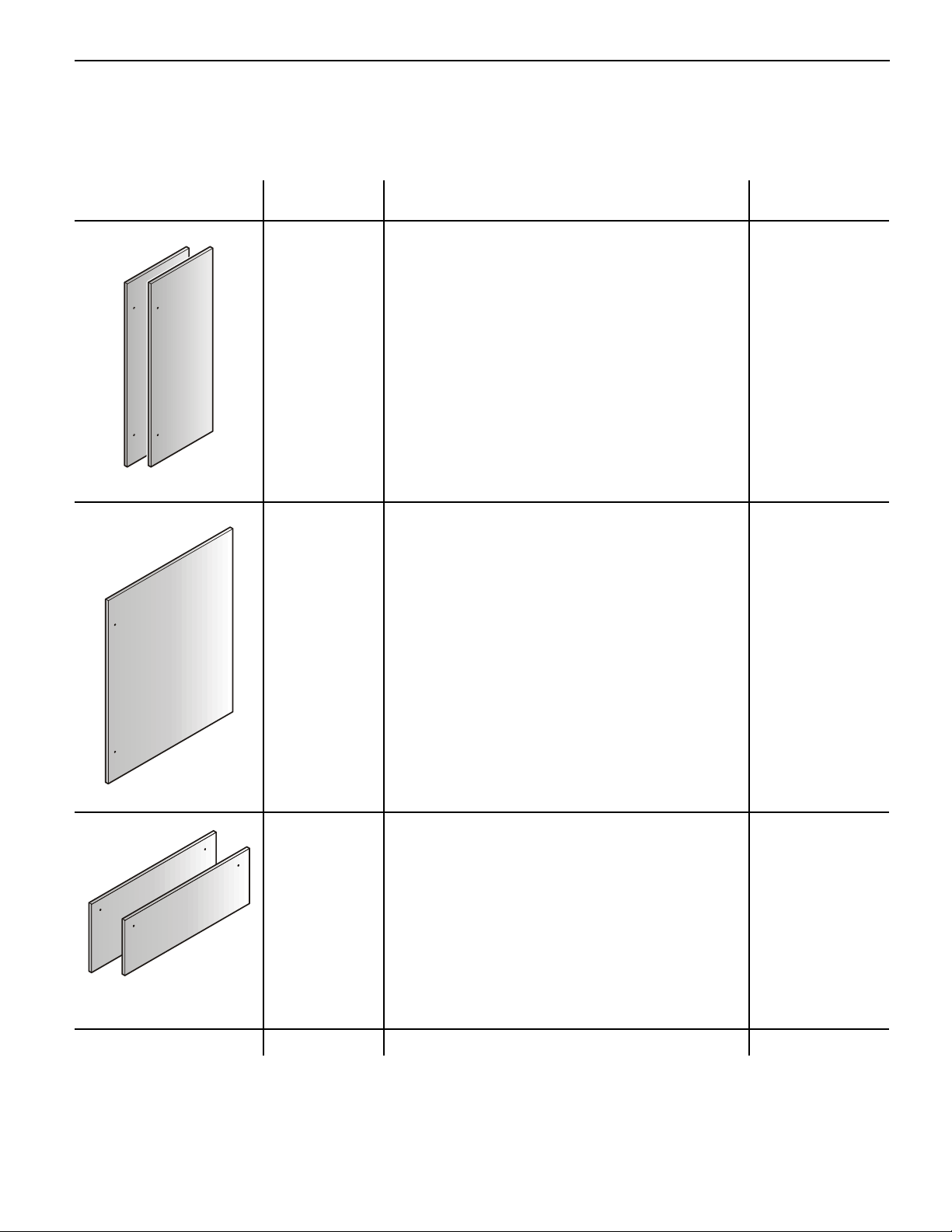

Panel Dimensions
Inset Installation Style
HC 1540, HC 1541, HC 1550
HCB 1580, HCB 1581

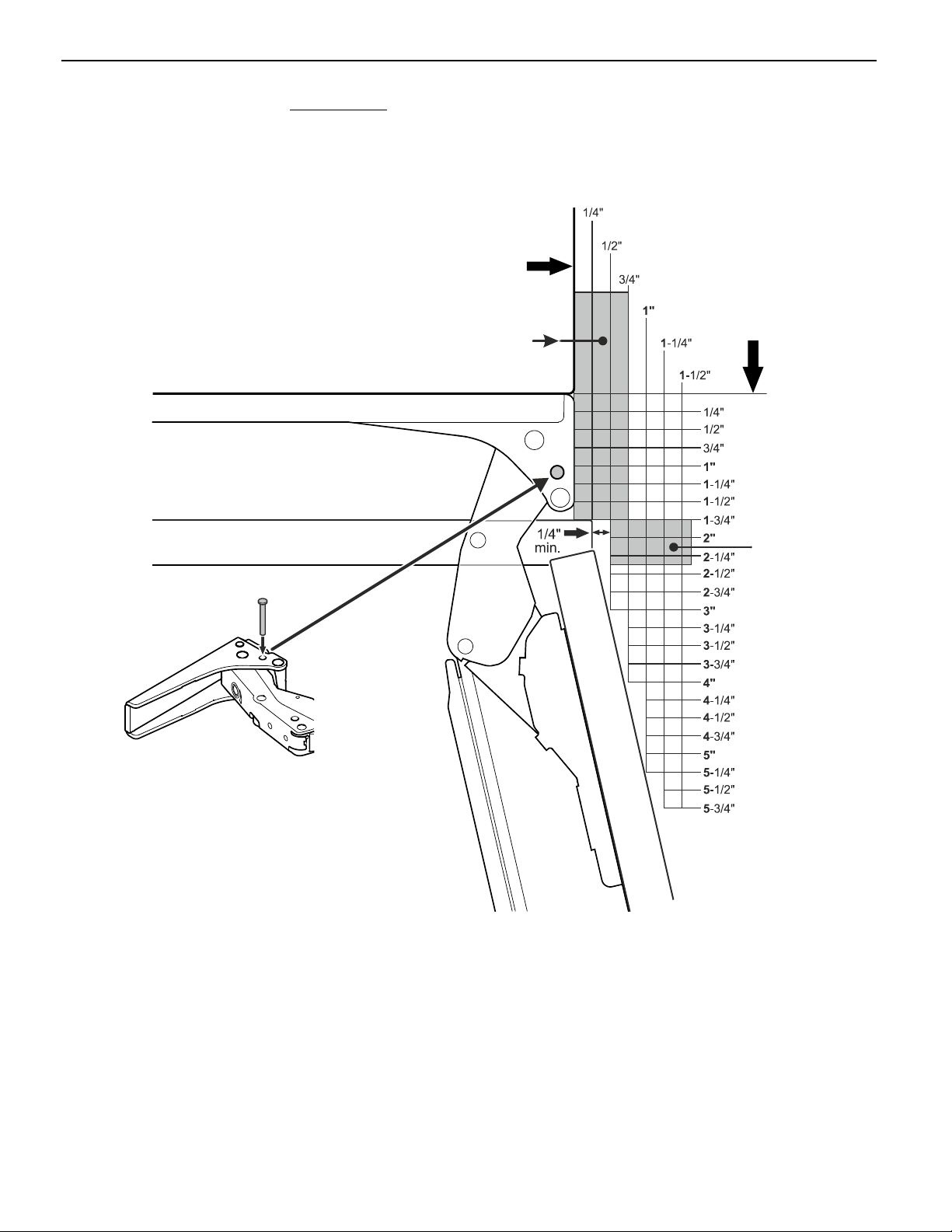

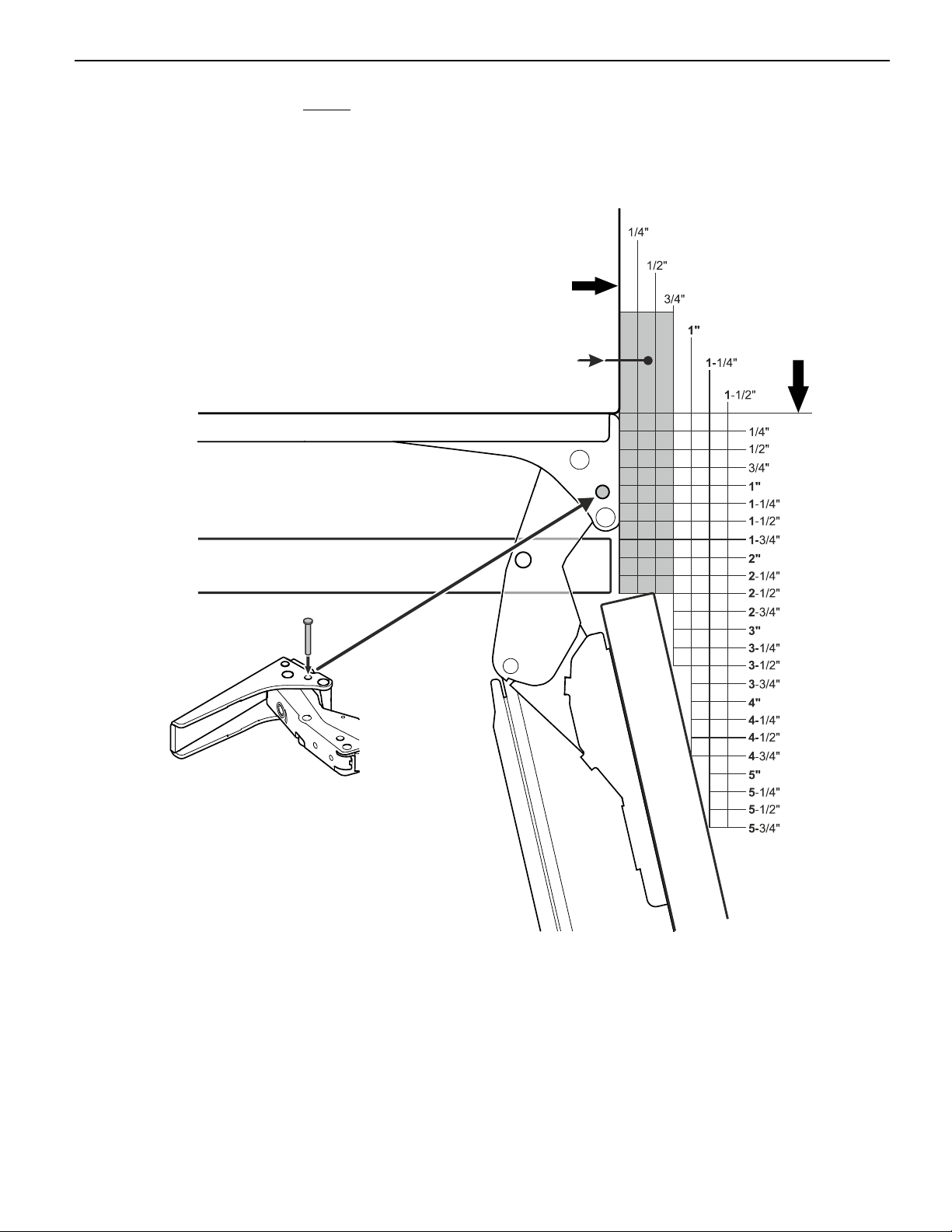

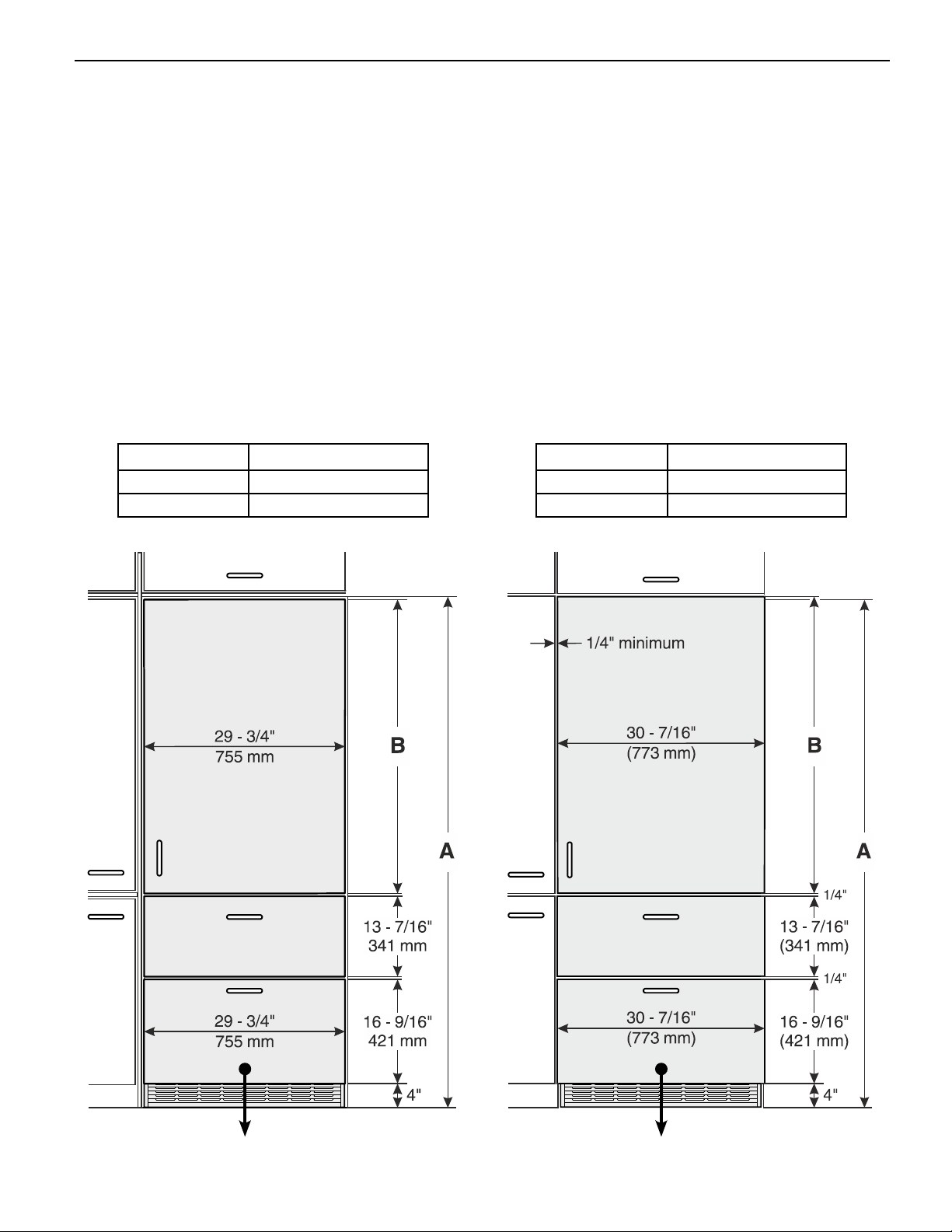

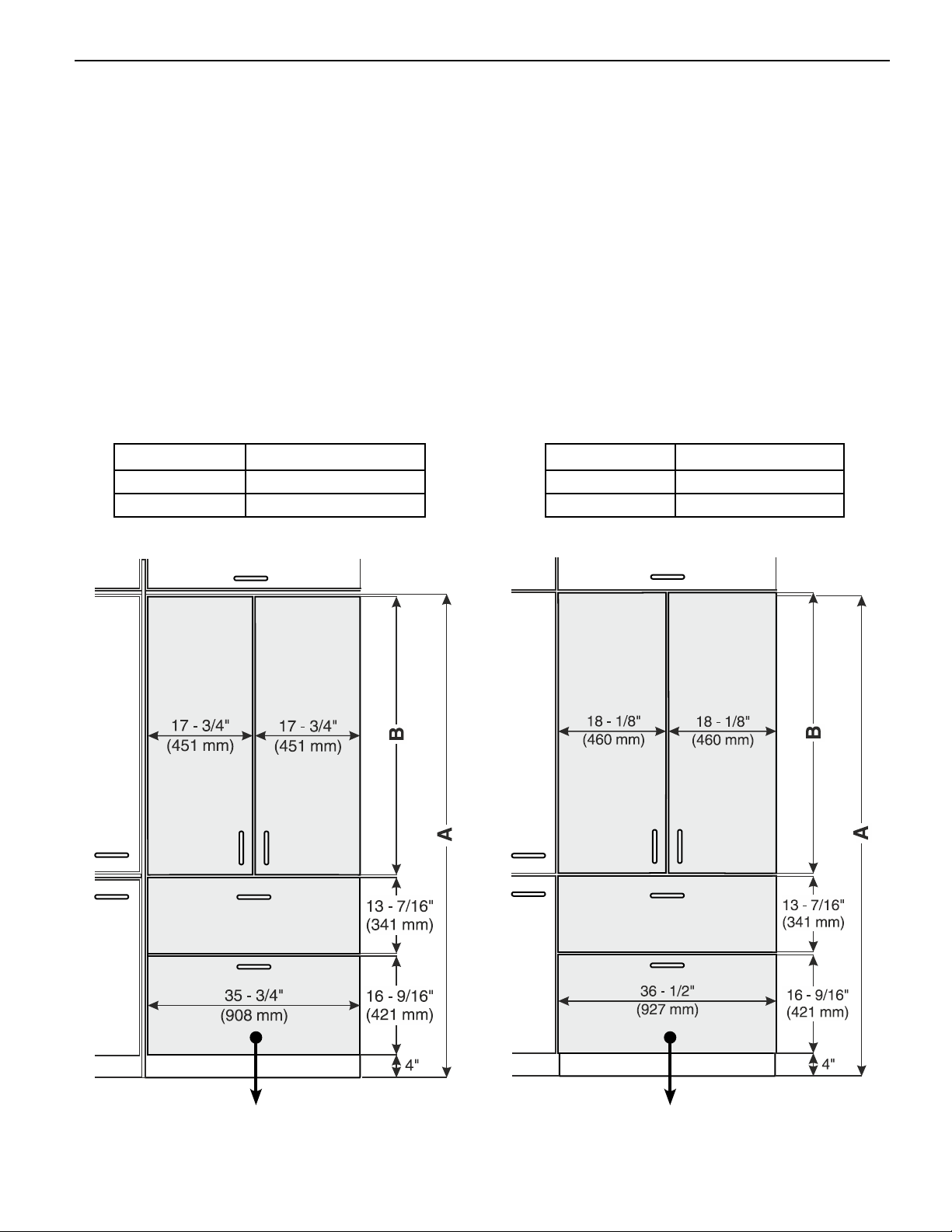

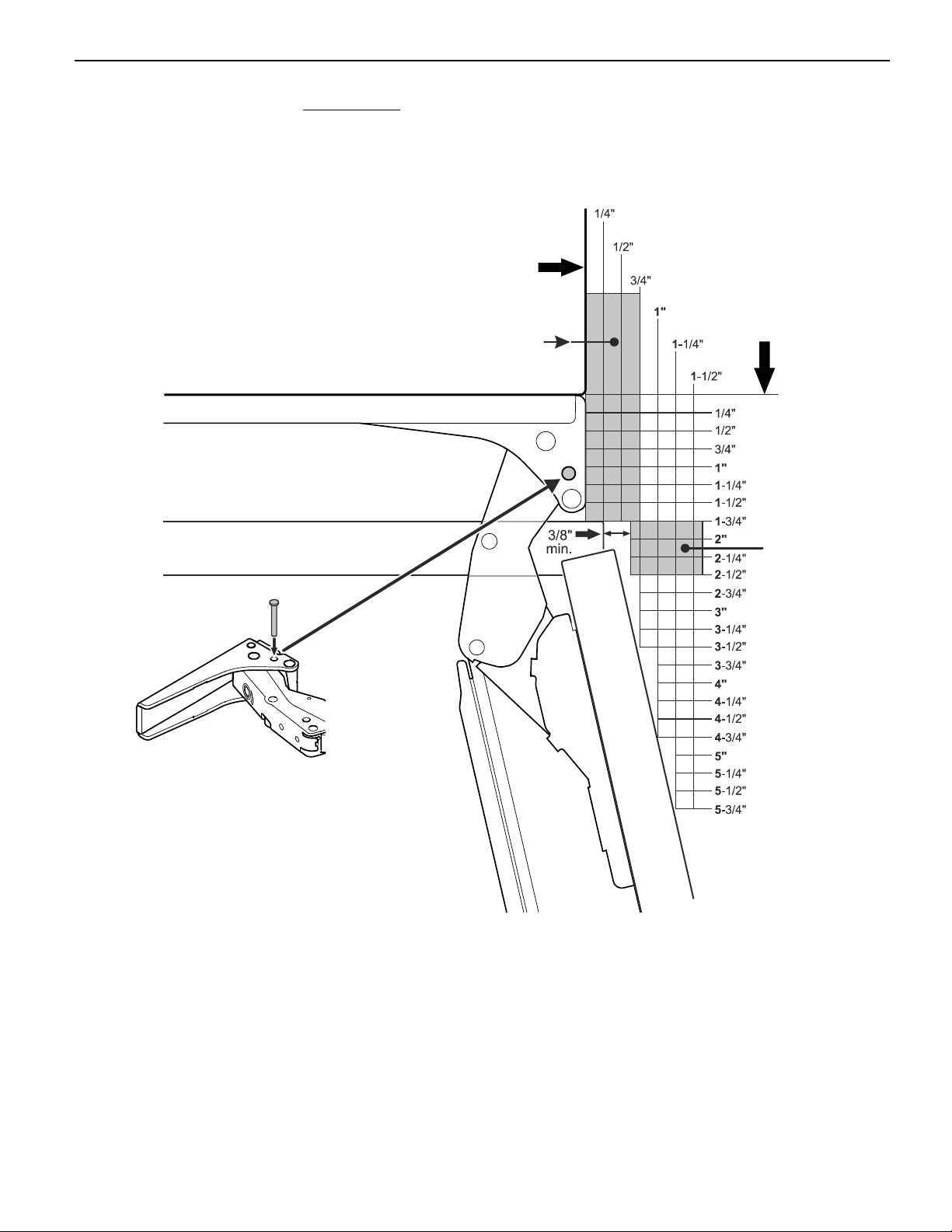

Cabinet opening A Refrigerator door panel B
80" 45-1/4" (1150 mm)
84" 49-1/4" (1251 mm)
Cabinet opening C Refrigerator door panel D
80" 45-3/4" (1162 mm)
84" 49-3/4" (1264 mm)
Minimum panel thickness is 5/8" (16 mm).
Maximum panel thickness is 1-1/2" (38 mm).
Maximum weight of the refrigerator panel is 60 lbs (27 kg).
Maximum weight of each freezer panel is 26.5 lbs (12 kg).
Panel Dimensions
Frameless Installation Style
HC 1540, HC 1541, HC 1550
HCB 1580, HCB 1581
Minimum panel thickness is 5/8" (16 mm).
Maximum panel thickness is 1-1/2" (38 mm).
Maximum weight of the refrigerator panel is 60 lbs (27 kg).
Maximum weight of each freezer panel is 26.5 lbs (12 kg).
The height of this panel can be reduced by up to 2" to accommodate higher toe kicks
Fully Integrated
22
Panel Dimensions
Inset Installation Style
HC 2080, HC 2081
HCB 2080, HCB 2081
Panel Dimensions
Frameless Installation Style
HC 2080, HC 2081
HCB 2080, HCB 2081
Cabinet opening A Refrigerator door panel B
80" 45-1/4" (1150 mm)
84" 49-1/4" (1251 mm)
Cabinet opening A Refrigerator door panel B
80" 45-3/4" (1162 mm)
84" 49-3/4" (1264 mm)
Minimum panel thickness 5/8" (16 mm).
Maximum panel thickness is 1-1/2" (38 mm).
Maximum weight of the refrigerator panel is 60 lbs (27 kg).
Maximum weight of each freezer panel is 26.5 lbs (12 kg).
Minimum panel thickness 5/8" (16 mm).
Maximum panel thickness is 1-1/2" (38 mm).
Maximum weight of the refrigerator panel is 60 lbs (27 kg).
Maximum weight of each freezer panel is 26.5 lbs (12 kg).
The height of this panel cannot be reduced for higher toe kicks as it will reveal structural elements of the
appliance. Instead, install appliance on a platform and adjust the opening height to accommodate.
Fully Integrated
23
Cabinet Opening A Refrigerator door panel B
80" 45 - 3/4" (1162 mm)
84" 49 - 3/4" (1264 mm)
Minimum panel thickness is 5/8" (16 mm).
Maximum panel thickness is 3/4" (19 mm).
Maximum weight for each panel is 26.5 lbs (12 kg).
Cabinet Opening A Refrigerator door panel B
80" 45 - 1/4" (1150 mm)
84" 49 - 1/4" (1251 mm)
Panel Dimensions
Inset Installation Style
HC 2082, HCB 2082
Panel Dimensions
Frameless Installation Style
HC 2082, HCB 2082
Minimum panel thickness is 5/8" (16 mm).
Maximum panel thickness is 3/4" (19 mm).
Maximum weight for each panel is 26.5 lbs (12 kg).
The height of this panel cannot be reduced for higher toe kicks as it will reveal structural elements of the
appliance. Instead, install appliance on a platform and adjust the opening height to accommodate.
IMPORTANT
Risk of interference with the adjacent panels!
Do not use wider panels as given in the
illustration below!
Fully Integrated
24
Door Swing Clearance - Inset installation style
HC 1540, HC1541, HC 1550
HCB 1580, HCB 1581
HC 2080, HC 2081
HCB 2080, HCB 2081
Right side wall of appliance housing
Front of appliance housing
Top View
Front panel - door closed
Panel
thickness
Panel
thickness
Front panel - door opening angle = 115°
Fully Integrated
25
Right side wall of appliance housing
Front of appliance housing
Front panel - door closed
Panel
thickness
Panel
thickness
Front panel - door opening angle = 115°
Door Swing Clearance - Frameless installation style
HC 1540, HC1541, HC 1550
HCB 1580, HCB 1581
HC 2080, HC 2081
HCB 2080, HCB 2081
IMPORTANT
The gap between panels at frameless installation
style must be at least 1/4" (6 mm).
Fully Integrated
26
Door Swing Clearance - Inset installation style - HC 2082 / HCB 2082
Front panel 5/8"
Front of
appliance housing
Right side wall of appliance housing
5/8" Front panel - door closed
5/8" Front panel - door opening angle = 105°
3/4" cabinet frame
Fully Integrated
27
Front of
appliance housing
Right side wall of appliance housing
3/4" cabinet frame
3/4" Front panel - door closed
3/4" Front panel - door opening angle = 105°
Door Swing Clearance - Inset installation style - HC 2082 / HCB 2082
Front panel 3/4"
Fully Integrated
IMPORTANT
The use of 5/8" panels, with a reveal of less than
1/4" to the adjacent cabinet panel requires 95°
hinge limitation.
Door stop pins are included with the appliance.
If the reveal is less than 1/4" the panel will
interfere with the adjacent cabinet panel at
105° opening angle.
When the hinge is limited to 95°, the minimum
reveal is 1/8".
28
Door Swing Clearance - Frameless installation style - HC 2082 / HCB 2082
Front panel 5/8"
Front of
appliance housing
Right side wall of appliance housing
3/4" cabinet frame
5/8" cabinet
door beside the
appliance
5/8" Front panel - door opening angle = 105°
5/8" Front panel - door closed
IMPORTANT
The use of 5/8" panels, with a reveal of less
than 1/4" to the adjacent cabinet panel
requires 95° hinge limitation.
Door stop pins are included with the appliance.
If the reveal is less than 1/4" the panel will
interfere with the adjacent cabinet panel
at 105° opening angle.
When the hinge is limited to 95°, the
minimum reveal is 1/8".
Fully Integrated
29
Door Swing Clearance - Frameless installation style - HC 2082 / HCB 2082
Front panel 3/4"
3/4" Front panel - door opening angle = 105°
3/4" Front panel - door closed
Front of
appliance housing
Right side wall of appliance housing
3/4" cabinet frame
3/4" cabinet
door beside the
appliance
Fully Integrated
IMPORTANT
The use of 5/8" panels, with a reveal of less
than 1/4" to the adjacent cabinet panel
requires 95° hinge limitation.
Door stop pins are included with the appliance.
If the reveal is less than 1/4" the panel will
interfere with the adjacent cabinet panel
at 105° opening angle.
When the hinge is limited to 95°, the
minimum reveal is 1/8".
30

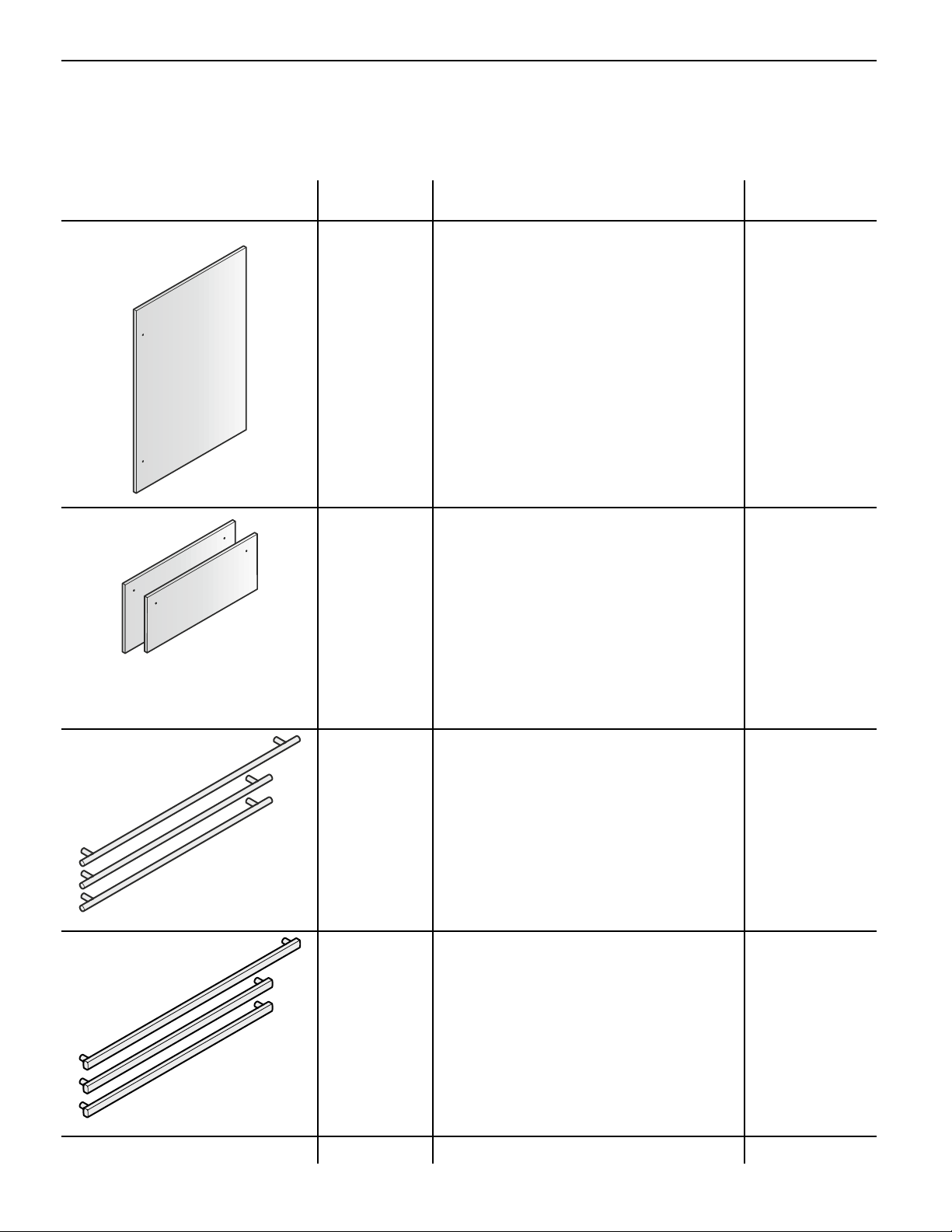

Accessories
Image Article number Name of the item For use with
model
9900 287-00
9900 285-00
Stainless steel panel refrigerator door 80" re-
cess height. (Inset installation style)
Height: 45 - 1/4"
Width: 29 - 3/4"
Thickness: 3/4"
Stainless steel panel refrigerator door 84" re-
cess height. (Inset installation style)
Height: 49 - 1/4"
Width: 29 - 3/4"
Thickness: 3/4"
HC 1540
HC 1541
HC 1550
HCB 1580
HCB 1581
9900 283-00 Stainless steel panels freezer drawers
(Inset installation style)
Top panel
Height: 13 - 7/16"
Width: 29 - 3/4"
Thickness: 3/4"
Bottom panel
Height: 16 - 9/16"
Width: 29 - 3/4"
Thickness: 3/4"
HC 1540
HC 1541
HC 1550
HCB 1580
HCB 1581
9900 279-00 Handle set stainless steel
HC 1540
HC 1541
HC 1550
HCB 1580
HCB 1581
9900 281-00 Handle set aluminium
HC 1540
HC 1541
HC 1550
HCB 1580
HCB 1581
Fully Integrated
31
Image Article number Name of the item For use with model
9900 337-00
9900 335-00
Stainless steel panels refrigerator doors 80" recess
height. (Inset installation style)
Height: 45 - 1/4"
Width: 17 - 3/4"
Thickness: 3/4"
Stainless steel panels refrigerator doors 84" recess
height. (Inset installation style)
Height: 49 - 1/4"
Width: 17 - 3/4"
Thickness: 3/4"
HC 2082
HCB 2082
HC 2082
HCB 2082
9900 333-00
9900 331-00
Stainless steel panel refrigerator door 80" recess height.
(Inset installation style)
Height: 45 - 1/4"
Width: 35 - 3/4"
Thickness: 3/4"
Stainless steel panel refrigerator door 84" recess height.
(Inset installation style)
Height: 49 - 1/4"
Width: 35 - 3/4"
Thickness: 3/4"
HC 2080
HC 2081
HCB 2080
HCB 2081
HC 2080
HC 2081
HCB 2080
HCB 2081
9900 323-00 Stainless steel panels freezer drawers
(Inset installation style)
Top panel
Height: 13 - 7/16"
Width: 35 - 3/4"
Thickness: 3/4"
Bottom panel
Height: 16 - 9/16"
Width: 35 - 3/4"
Thickness: 3/4"
HC 2082
HCB 2082
HC 2080
HC 2081
HCB 2080
HCB 2081
Fully Integrated
32

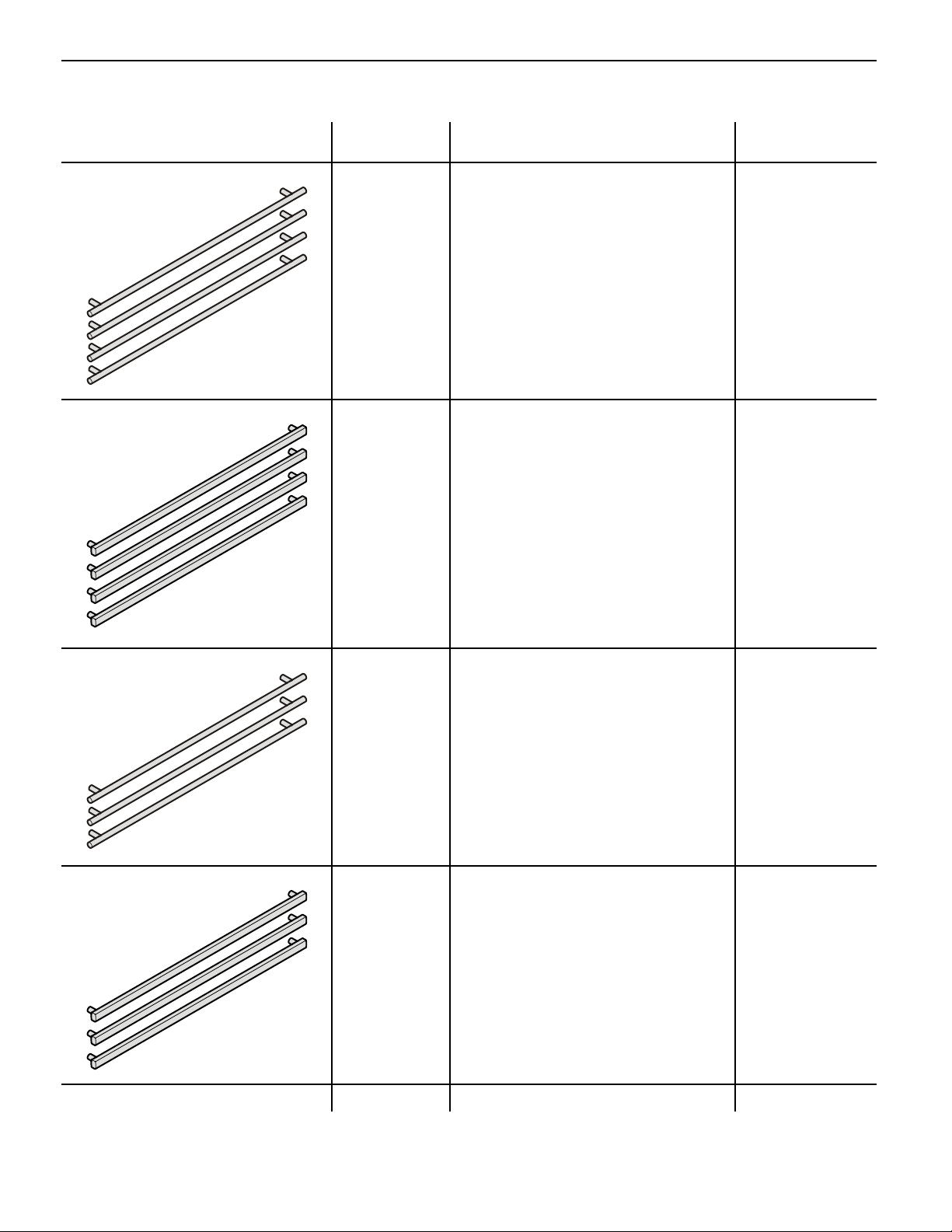

Image Article number Name of the item For use with model
9900 339-00 Handles stainless steel (4 pcs) HC 2082
HCB 2082
9900 513-00 Handles aluminium (4 pcs) HC 2082
HCB 2082
9900 327-00 Handles stainless steel (3 pcs) HC 2080
HC 2081
HCB 2080
HCB 2081
9900 329-00 Handles aluminium (3 pcs) HC 2080
HC 2081
HCB 2080
HCB 2081
Fully Integrated
33

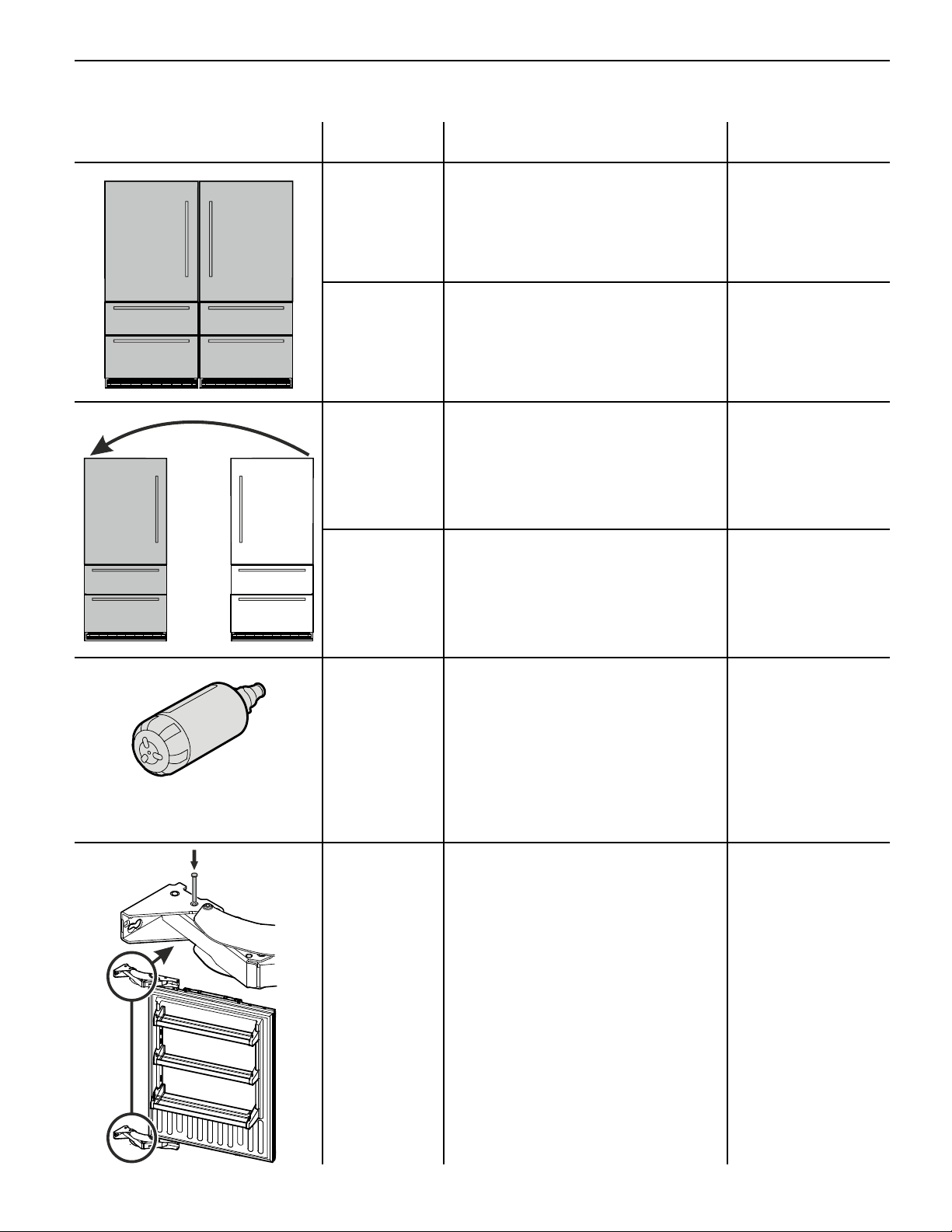

Image Article number Name of the item For use with model
9900 219-00 Side by Side Kit
Includes anti-sweat panel, connecting parts,
covers and assembly instruction.
HC 1540
HC 1541
HC 1550
HCB 1580
HCB 1581
9900 183-00 Side by Side Kit
Includes anti-sweat panel, connecting parts,
covers and assembly instruction.
HC 2080
HC 2081
HCB 2080
HCB 2081
9900 167-00 Door reverse kit
HC 1540
HC 1541
HC 1550
HCB 1580
HCB 1581
9900 165-00 Door reverse kit
HC 2080
HC 2081
HCB 2080
HCB 2081
7440 002-00
Water filter HCB 1580
HCB 1581
HC 2080
HC 2081
HCB 2080
HCB 2081
HC 2082
HCB 2082
9096 699-00 Door stop pins 90° Largedoor
Includes 2 pins and assembly instruction.
HC 1540
HC 1541
HC 1550
HCB 1580
HCB 1581
HC 2080
HC 2081
HCB 2080
HCB 2081
Fully Integrated
34

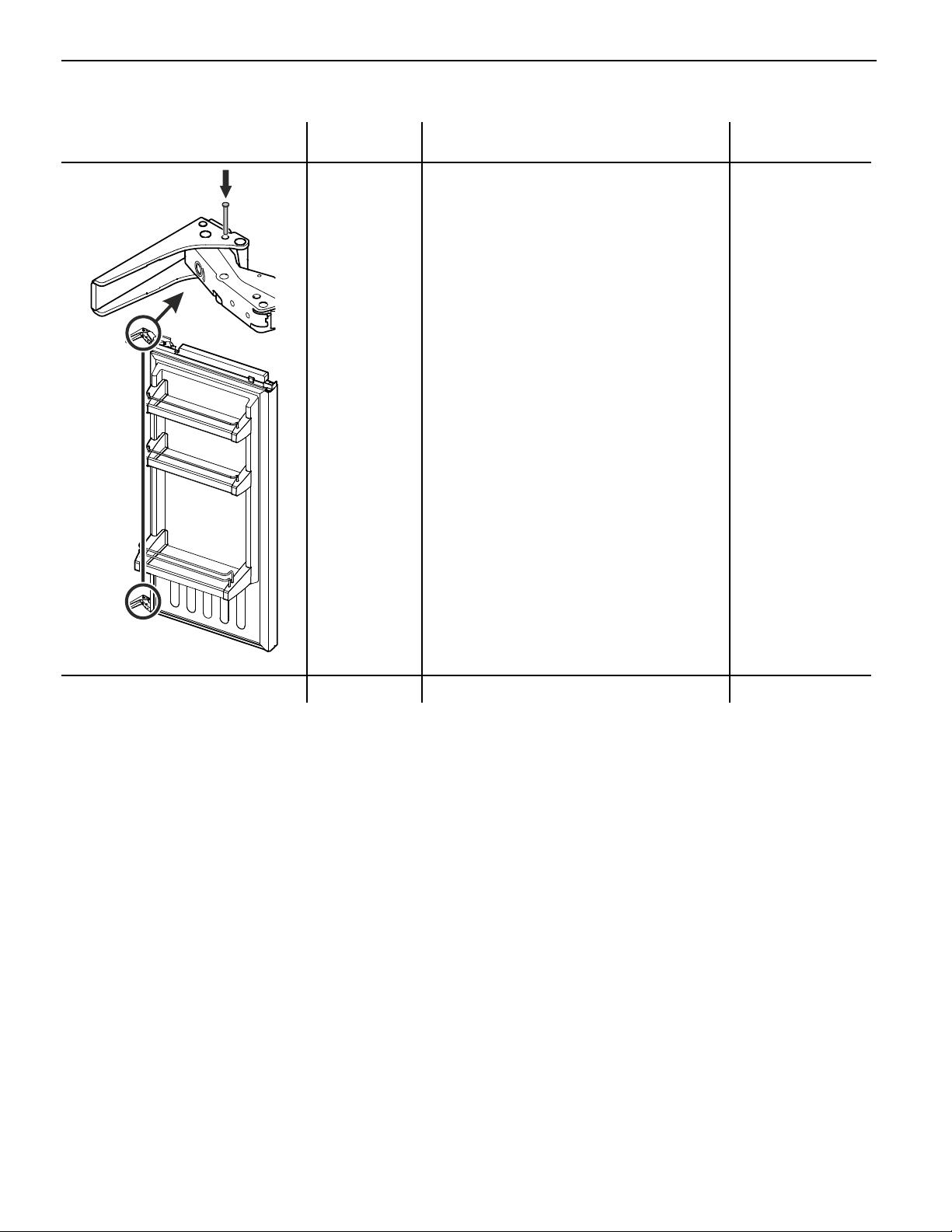

Image Article number Name of the item For use with model
9096 214-00 Door stop pins 95° Frenchdoor.
One set is included with the appliance.
Includes 4 pins and assembly instruction.
HC 2082
HCB 2082
Fully Integrated
35
Fully Integrated
