SAFETY PRECAUTIONS:
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
3. CAUTION – RISK OF FIRE. CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT
BRANCH CIRCUIT CONDUCTOR.
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers
!
“INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS”
“READ ALL INSTRUCTIONS”
“IMPORTANT SAFETY
INSTRUCTIONS”
“SAVE THESE INSTRUCTIONS”
PART DESCRIPTION QTY
A LED disk light 1
B 2
C 2
D Wire nut 1
F
Mounting screw
Adaptor plate screw
Adaptor plate
FLUSH MOUNT
A B
F
D
EC
E 2
Power connector
L
I
G
H
T
I
N
G
&
F
A
N
S
E
C
L
A
I
R
A
G
E
S
&
V
E
N
T
I
L
A
T
E
U
R
S

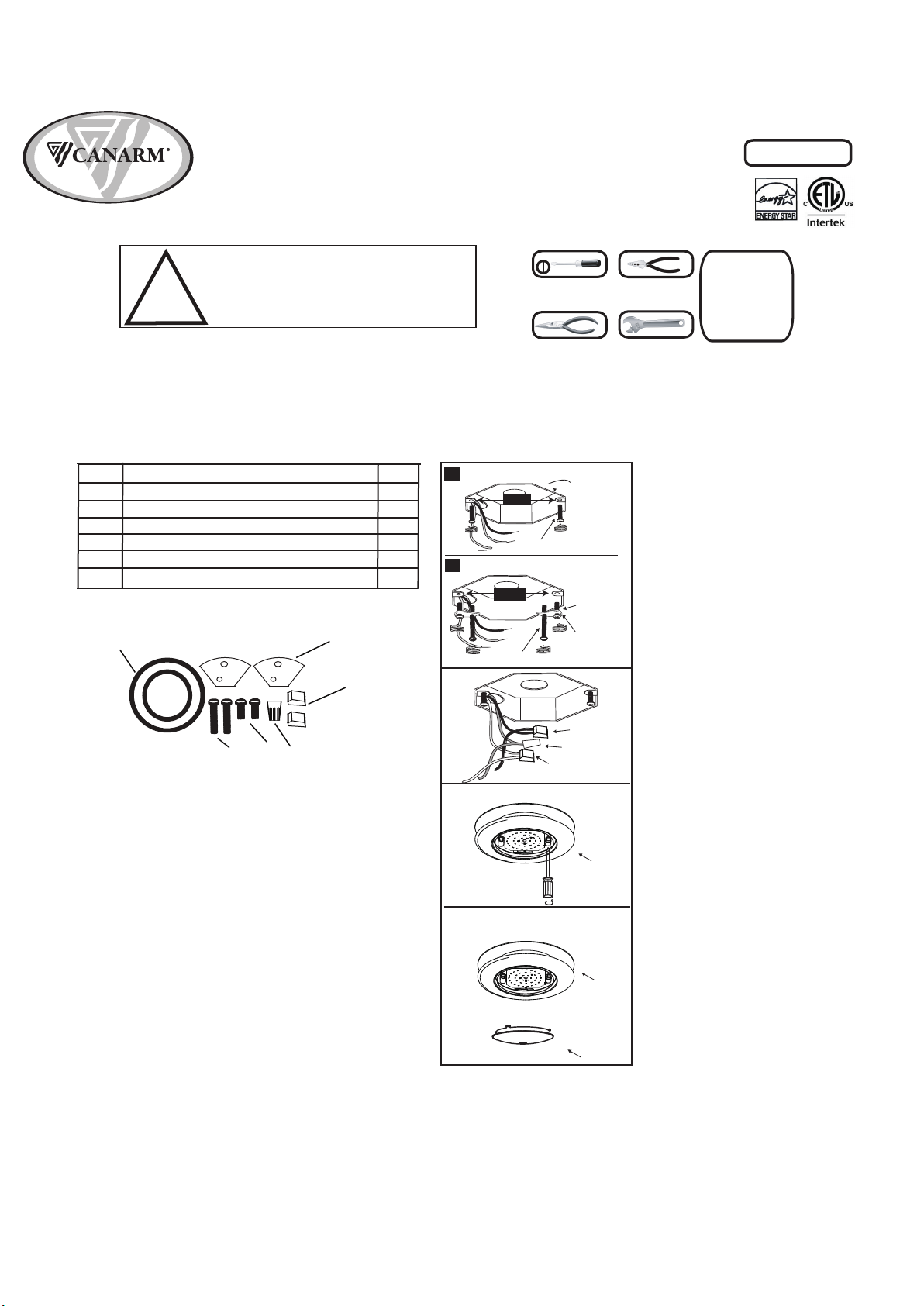

LED DISK LIGHT
QUESTIONS OR CONCERNS CONTACT CANARM AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
Max # of Lamps per 600W Dimmer: 6pcs
1.
2.
Electrical
Outlet Box
Mounting Screw
Prior to installation you will need
to determine if the electrical box
requires the adaptor plate.
If the distance between the
mounting screws in your electrical
outlet box is greater than 2¾"
you will need to use the adaptor
plate. Securely tighten adaptor
plate, with adaptor plate screws.
Do not drive mounting screws
completely to the end of the
junction box.
Connect supply wires to wires on
fixture with wire nuts or push wires
into Quick Connector. Connect
white to white, black to black, and
copper wire to copper wire as
grounding connection.
3.
With the lens off of fixture,
attach disk light to mounting
screws, turn fixture
clockwise to lock.
Tighten screws to firmly
hold the fixture in place.
White
Black
Ground
4.
Complete the installation by
twisting the lens on the disk
light.
Lens
Disk light
Disk light
Mounting Screw
Adaptor
Plate Screw
Adaptor plate
A
B
ADAPTOR PLATE INSTALL
2 ¾"
3 ½"
This LED light is suitable to be dimmed by LEVITON# 6633,
LEVITON # 6672 (1st choice), and 2nd option for
LUTRON # CTCL-153PD (dimming may be adjustable by
the level head at the side of the switch)
2
Wiring supplies
as required
by your local
Provincial or
State Electrical
Code
