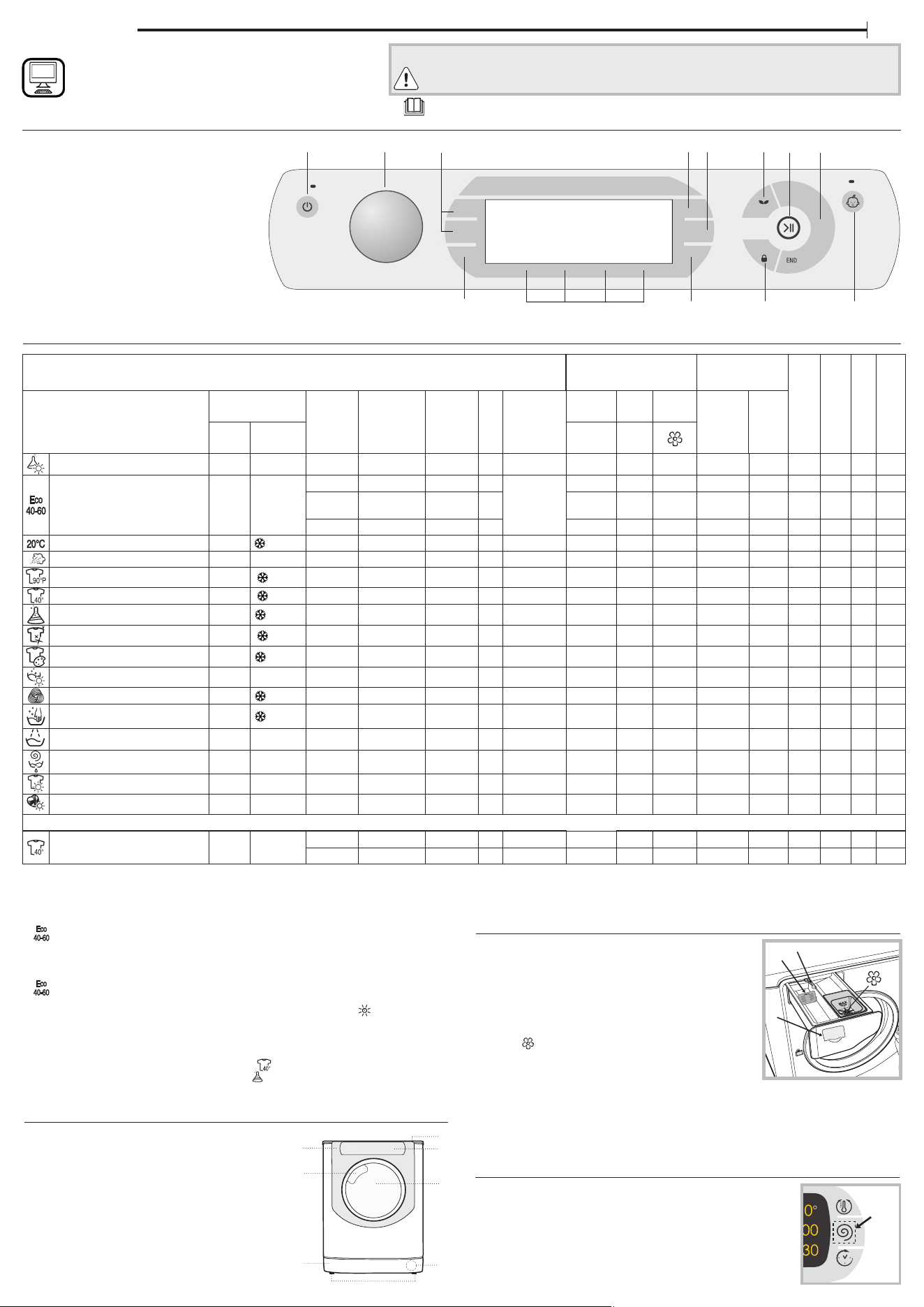

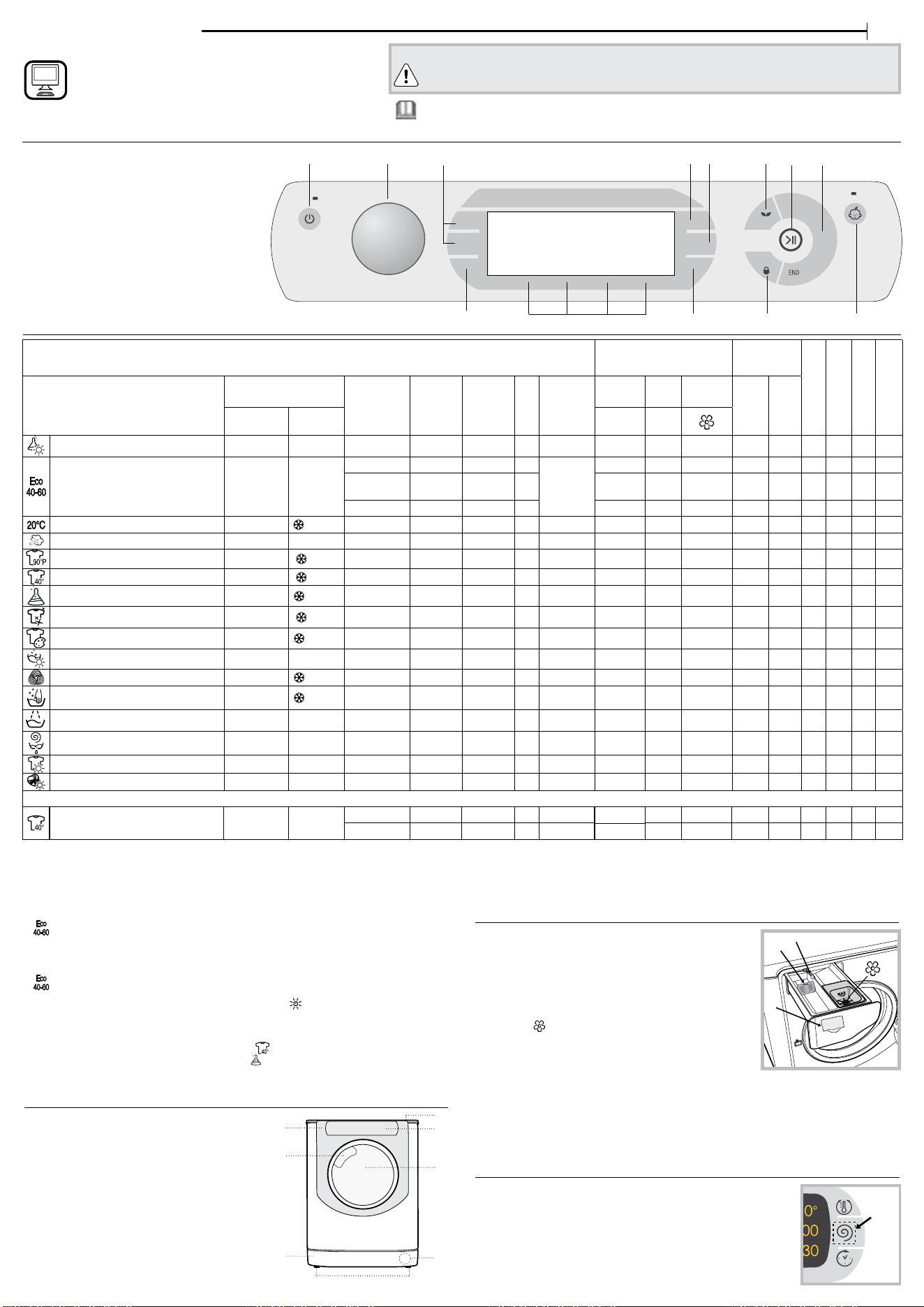

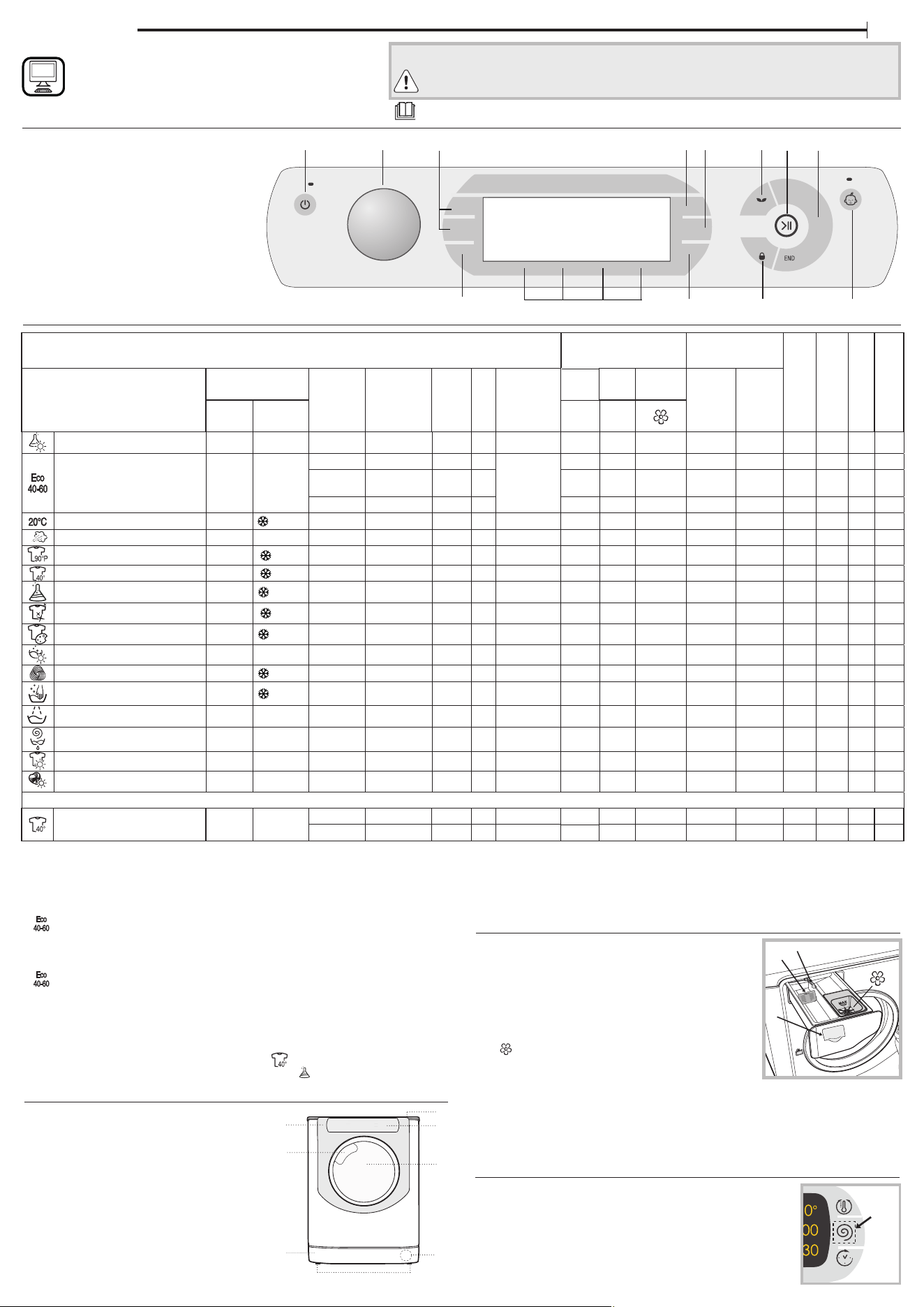

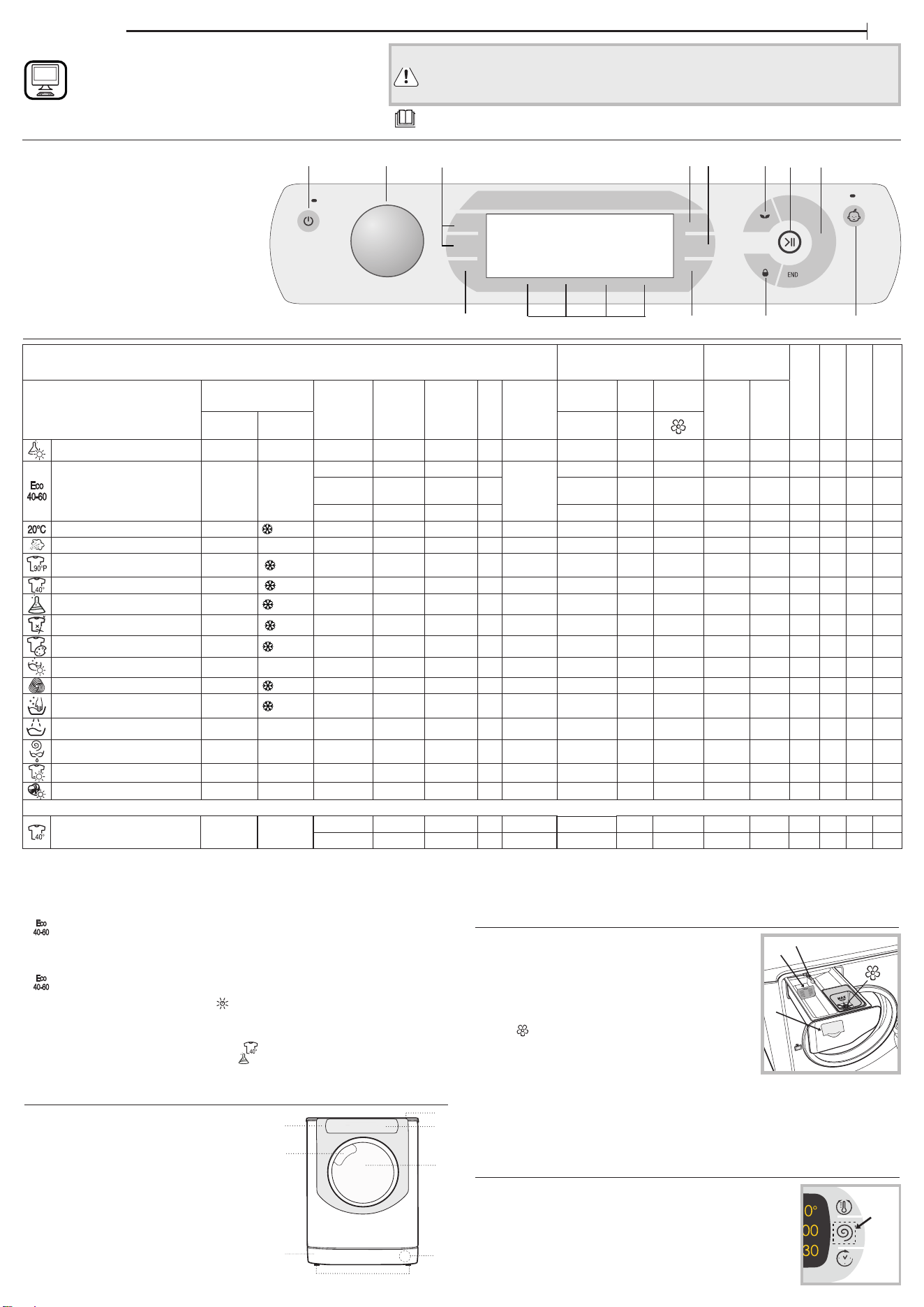

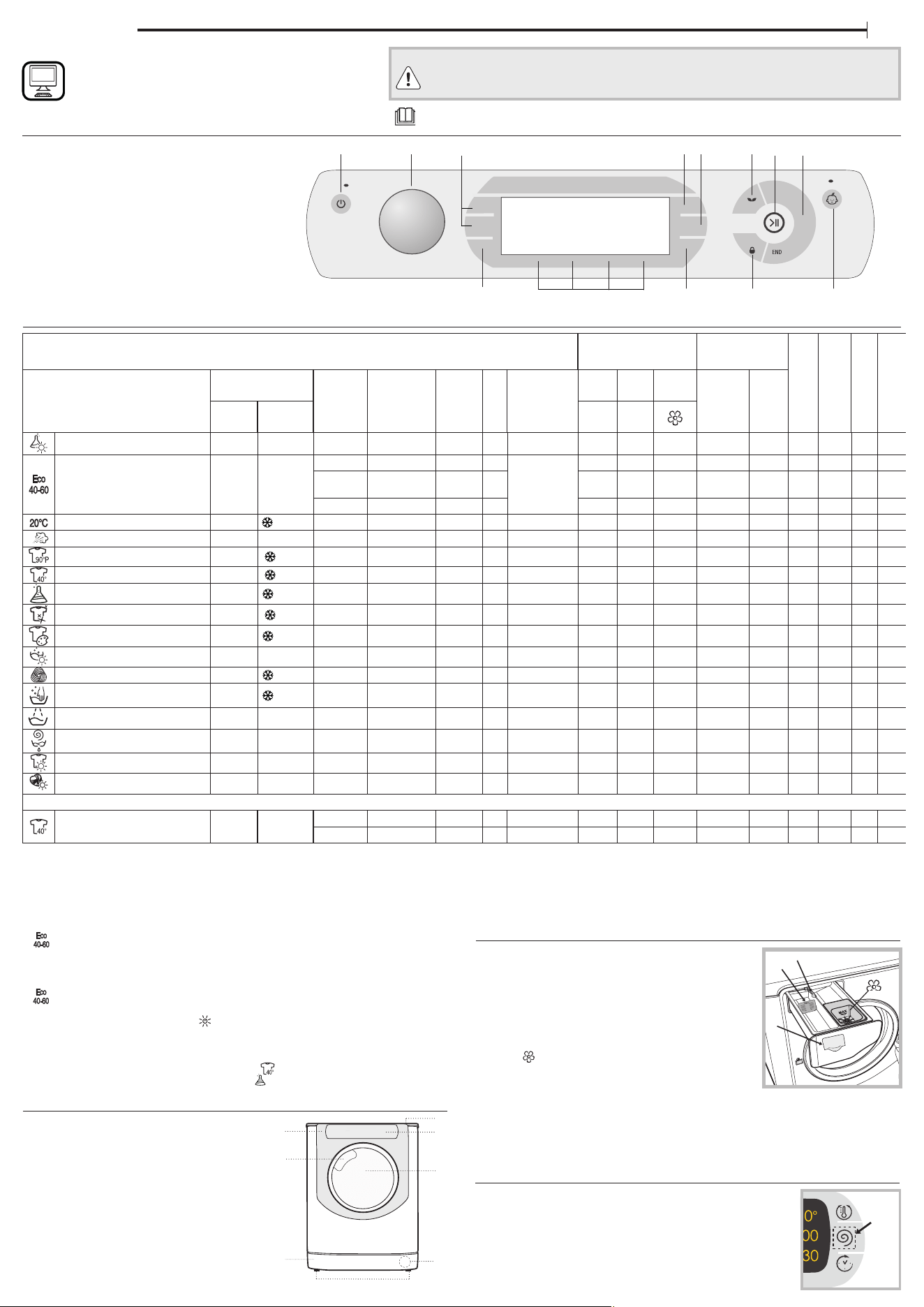

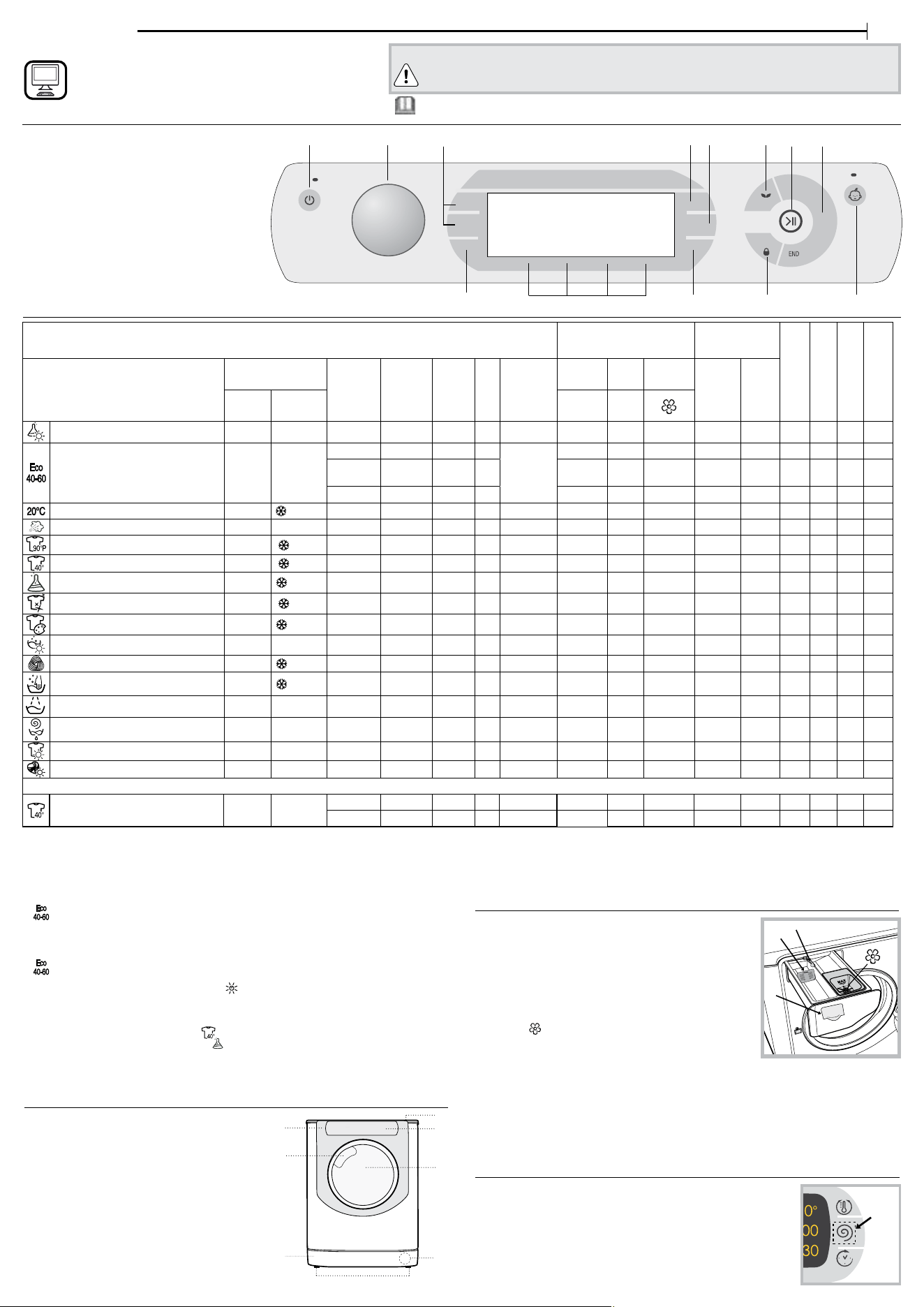

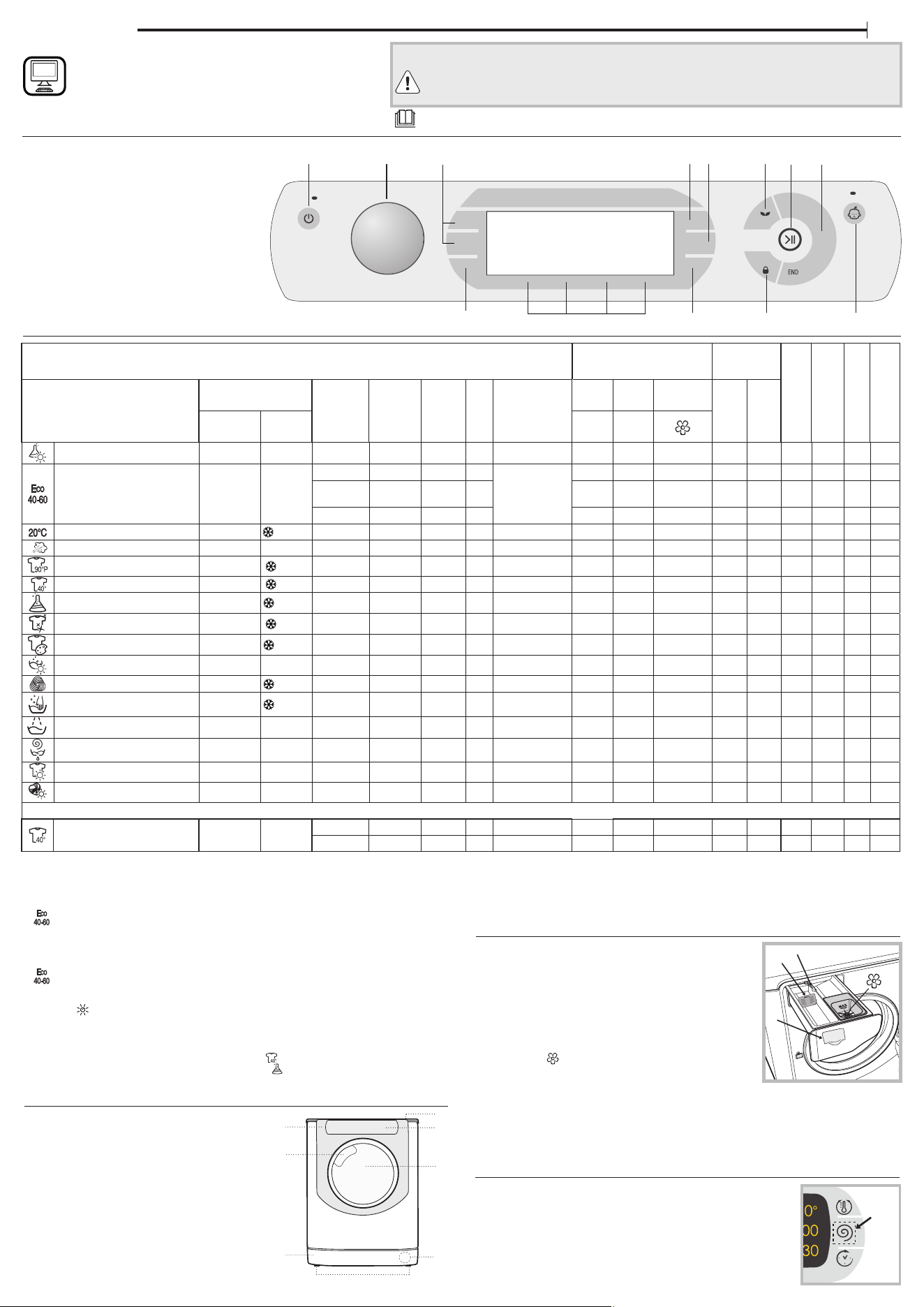

TOUCH CONTROL PANEL
WASH CYCLE TABLE
PRODUCT DESCRIPTION
1. Top
2. Detergent dispenser drawer (The detergent
dispenser drawer is located inside the machine and can be
accessed by opening the door)
3. Control panel
4. Handle
5. Porthole door
6. Drain pump (behind the plinth)
7. Plinth (removable)
8. Adjustable feet (2)
DETERGENT DISPENSER DRAWER
Compartment 1: Pre-wash detergent (powder)
Compartment 2: Washing detergent (powder
or liquid)
If liquid detergent is used, the removable plastic
partition A (supplied) should be used for proper
dosage. If powder detergent is used, place the
partition into slot B.
Compartment : Additives (fabric softeners,
etc.)
We recommend that the maximum level
indicated by the grille is not exceeded, and that concentrated fabric
softeners are diluted.
! Use powder detergent for white cotton garments, for pre-washing, and
for washing at temperatures over 60°C.
! Follow the instructions given on the detergent packaging.
! To remove the drawer, press lever C and pull the drawer outwards.
1
2
180
210
150
120
90
60
B
A
C
1.
3.
2.
5.
7.
6.
8.
4.
GB
Quick Guide
THANK YOU FOR PURCHASING A HOTPOINT PRODUCT.
To receive more comprehensive assistance, register the
appliance on www.hotpoint.eu/register
Prior to using the appliance, carefully read the Safety and installation instructions.
Prior to using the appliance, the bolts used for transport must be removed. For detailed
instructions on the removal procedure, consult the safety and installation instructions.
1. ON/OFF button with indicator light
2. WASH CYCLE SELECTOR knob
3. Buttons M1-M2
4. TEMPERATURE button
5. SPIN button
6. GREEN indicator light
7. START/PAUSE button with indicator light
8. WASH CYCLE PHASE icons
9. CONTROL PANEL LOCK indicator light
10. LOCK indicator light
11. DELAYED START button
12. OPTION buttons
13. DRYING button
TOUCH CONTROL PANEL
To adjust the settings, gently press the icon inside
the sensitive (touch control) area as illustrated in the
gure.
GREEN
1
2
3
DISPLAY
6 7 8
910
4 5
11
12
13
Max load 11 Kg
Power consumption in o -mode 0.5 W / in left-on mode 8 W
Detergents and
additives
Recommended
detergent
Residual
dampness % (***)
Energy
consumption kWh
Total water lt
Laundry
temperature °C
Programme
Temperatures
Max.
spin
speed
(rpm)
Max.
load for
washing
(kg)
Duration
(h : m)
Drying
Max.
load for
drying
(kg)
Prewash Wash
Fabric
softener
Powder Liquid
Setting Range 1 2
Drying Synthetics – – – – **
5.0 – – – – – – – – –
Eco 40-60 (1)
(Wash)
40 °C 40°C
1551 11.0 4:00
7.0
–
44 1.05 60 40
1551 5.5 3:00
–
44 0.71 63 30
1551 2.75 2:20
–
44 0.52 43 30
20°C 20 °C
- 20 °C
1600 11.0 1:50
7.0 –
–
54.5 0.20 95 22
Steam Refresh – – – 2.0 ** – – – – – – – – – – –
Cotton Hygiene Prewash
90°C
- 90°C
1600 11.0 3:10
7.0
54 1.90 100 70
Cotton (2)
40°C
- 60°C
1600 11.0 3:55
7.0 –
49 1.14 107 45
Synthetics Resistant (3) 40°C
- 60°C
1200 5.5 2:55
5.5
35 0.83 80
43
Whites
60°C
- 60°C
1600 11.0 **
7.0
– – – –
Coloureds 40°C
- 40°C
1600 11.0 **
7.0 –
–
– – – –
Wash&Dry 30°C 30°C 1600 1.0 **
1.0 –
–
– – – –
Wool 40°C
- 40°C
800 2.5 **
2.5 –
–
– – – –
Ultradelicates 30°C
- 30°C
600
(****)
1.0 **
1.0 –
–
– – – –
Rinse – – 1600 11.0 **
7.0 – –
– – – – – –
Spin + Pump out – – 1600 11.0 **
7.0 – – – – – – – –
Drying Cottons – – – – **
7.0 – – – – – – – – –
Drying Wool – – – – **
2.5 – – – – – – – – –
Dosing required Dosing optional
Eco 40-60 (4)
(Wash & Drying)
40 °C 40 °C
1551 7.0 9:50
7.0 –
0 5.10 75 33
1551 3.5 6:00
3.5 –
0 2.70 53 33
This data may dier in your home due to changing conditions in inlet water temperature,
water pressure etc. Approximate programme duration values refer to the default setting of
the programmes, without options.
The values given for programmes other than the Eco 40-60
programme are indicative only.
Note: 10 minutes after the START, the machine will recalculate the time remaining until the end of
the wash cycle on the basis of the load inside it; this value will then be shown on the display.
1) (Wash)- Test wash cycle in compliance with EU Ecodesign regulation 2019/2014.
The most ecient programme in terms of energy and water consumption for washing
normally soiled cotton laundry.
Note: spin speed values shown on the display can slightly diers from the values stated in
the table.
4) (Wash & Drying)- Test wash and drying cycle in compliance with EU Ecodesign
regulation 2019/20144
. To access “wash and dry” cycle select “Eco 40-60” wash programme and
set option level to
“Cupboard”.
The most ecient programme in terms of energy and water
consumption for washing and drying normally soiled cotton laundry. At the end of cycle the
garments can be immediately stored to the cupboard.
For all testing institutes:
2) Long cotton cycle: set cycle
at a temperature of 40°C.
3) Long synthetics cycle: set cycle at a temperature of 40°C.
** The duration of the wash cycles can be checked on the display.
*** After programme end and spinning with maximum selectable spin speed, in default
programme setting.
**** The display will show the suggested spin speed as default value.
! This symbol reminds you to read this instruction manual.
