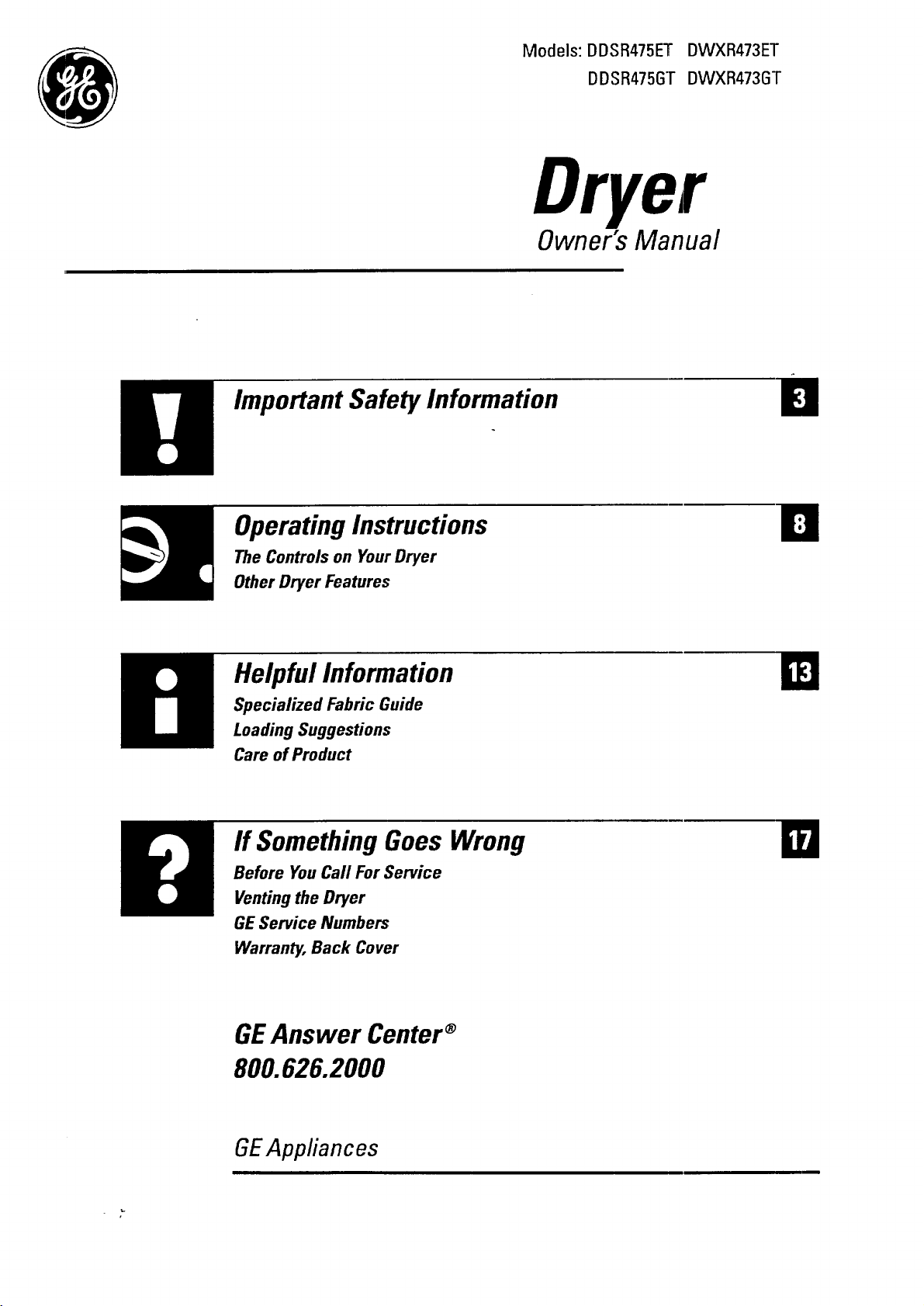

Models:DDSR475ET DWXR473ET
DDSR4756T DWXR473GT
Drye,r
Owner's Manual
Important Safety Information
Operating Instructions
The Controls on Your Dryer

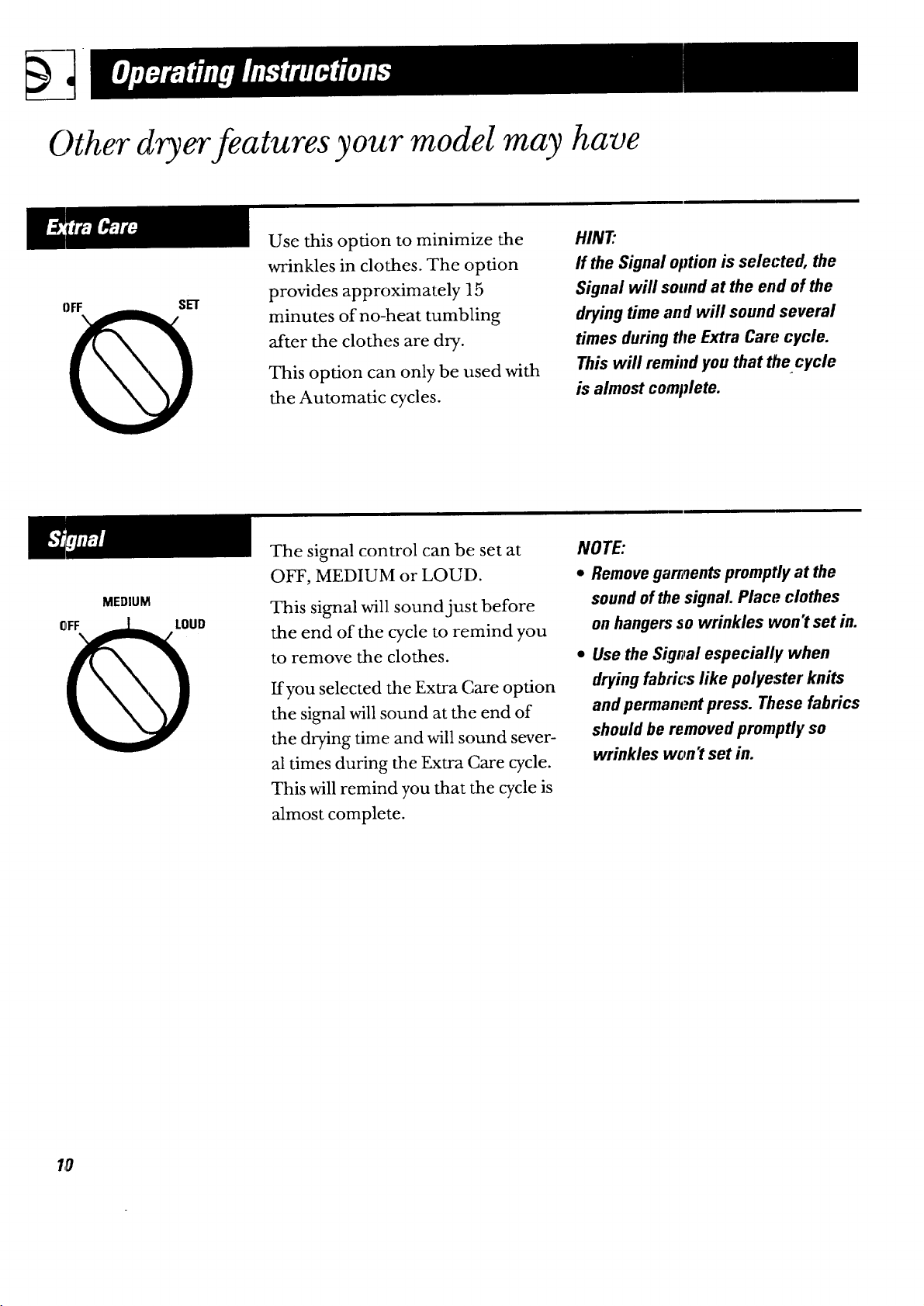

Other Dryer Features
Helpful Information

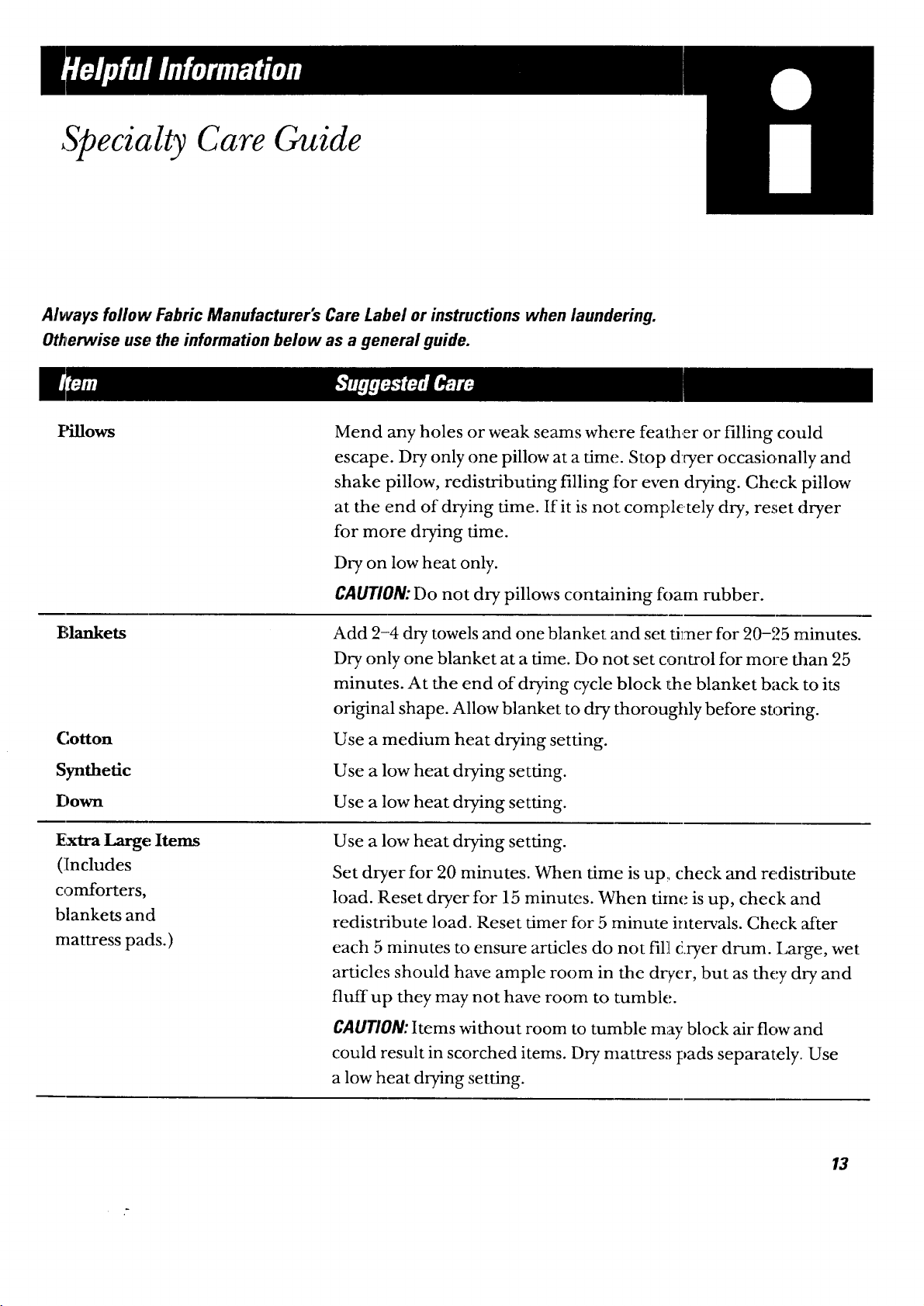

Specialized Fabric Guide
Loading Suggestions

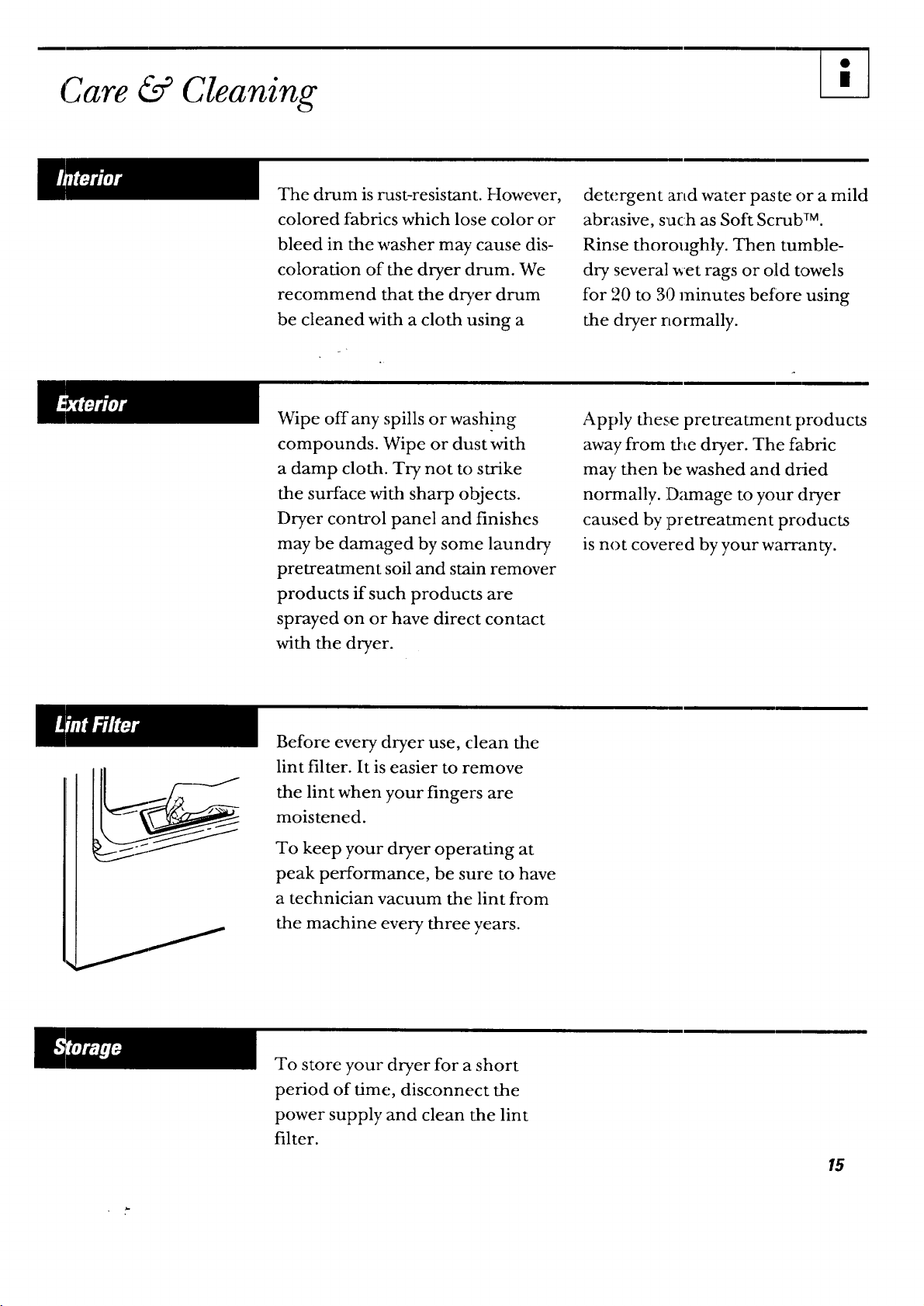

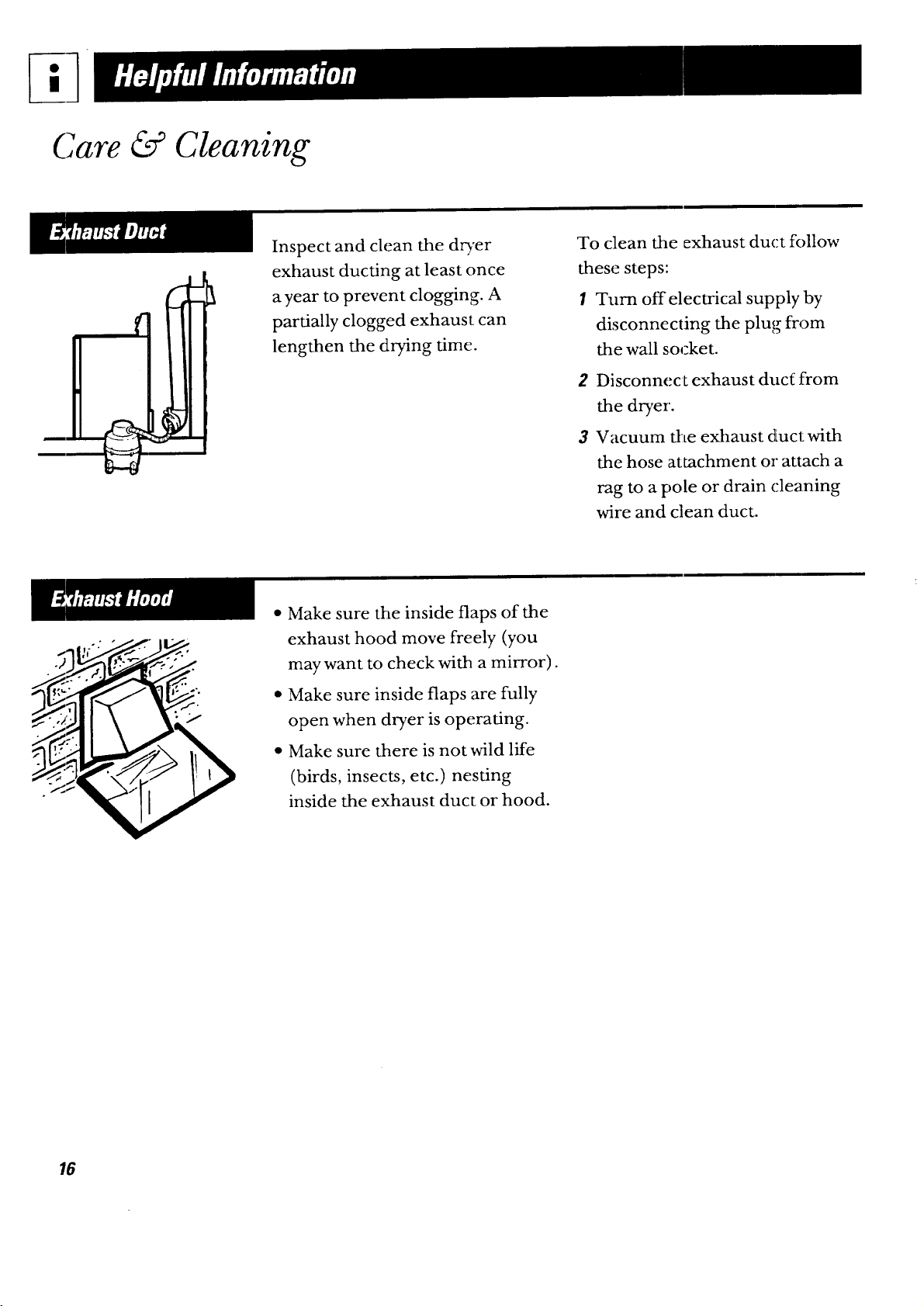

Care of Product

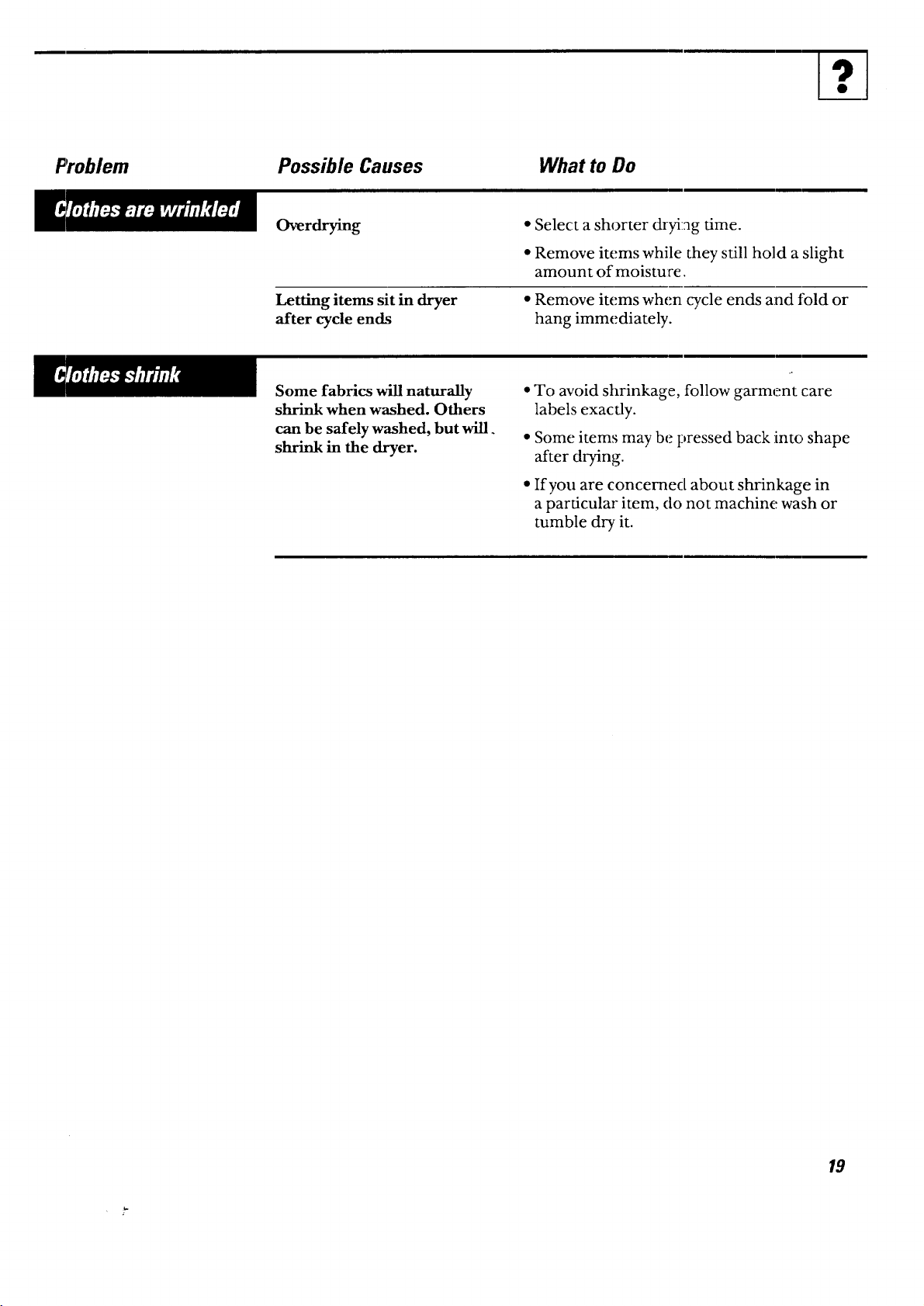

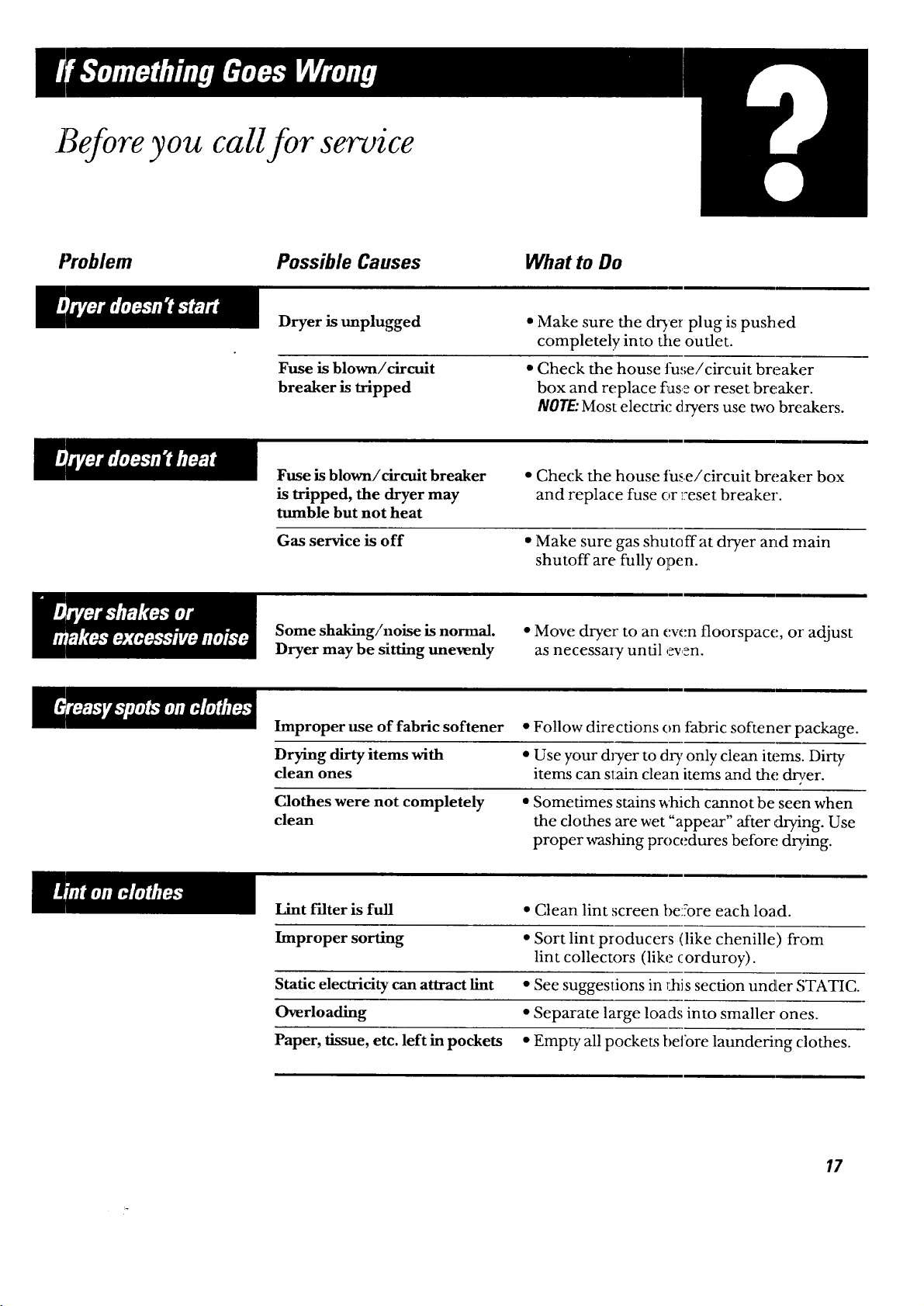

If Something Goes Wrong
Before You Call For Service

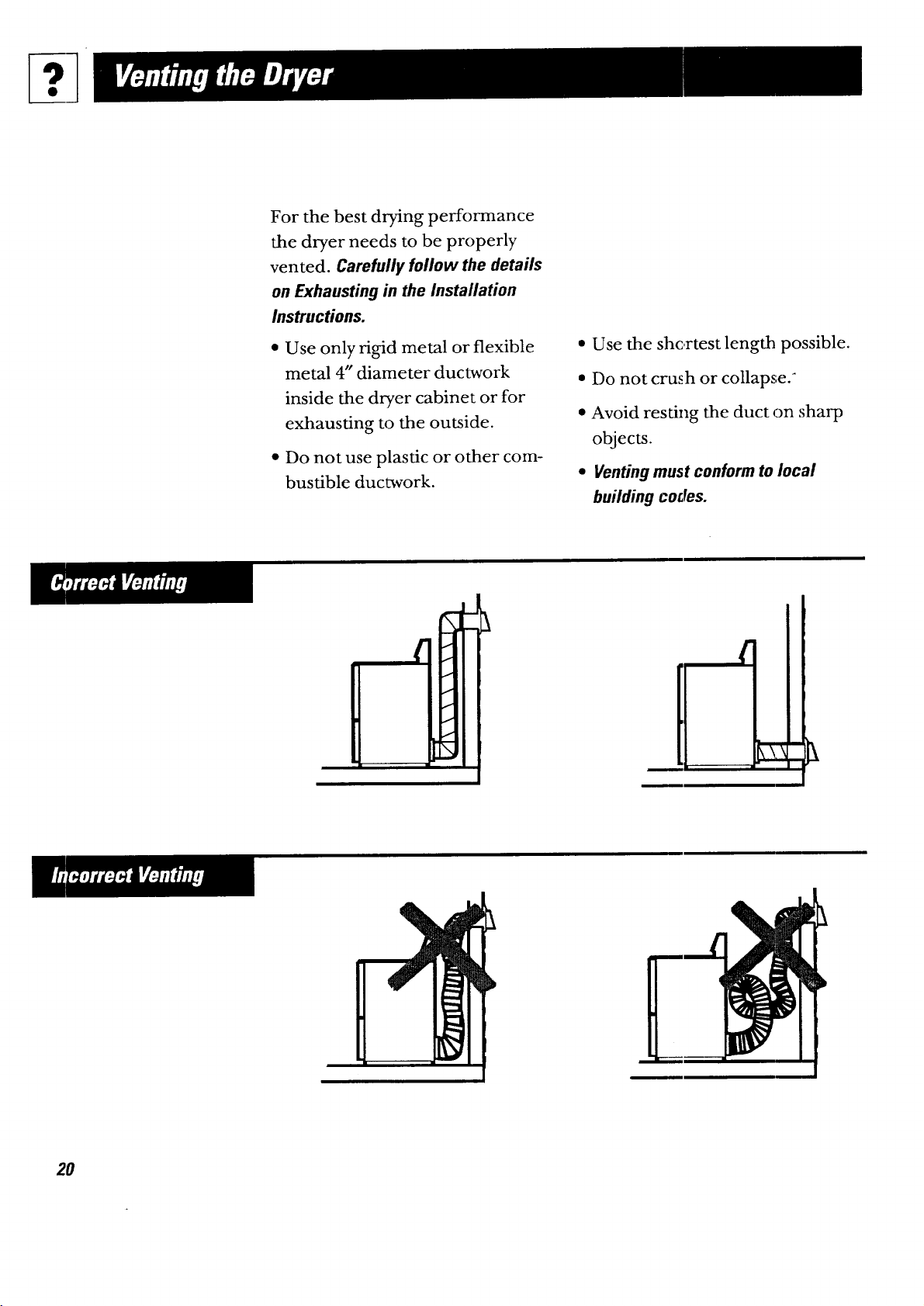

Venting the Dryer

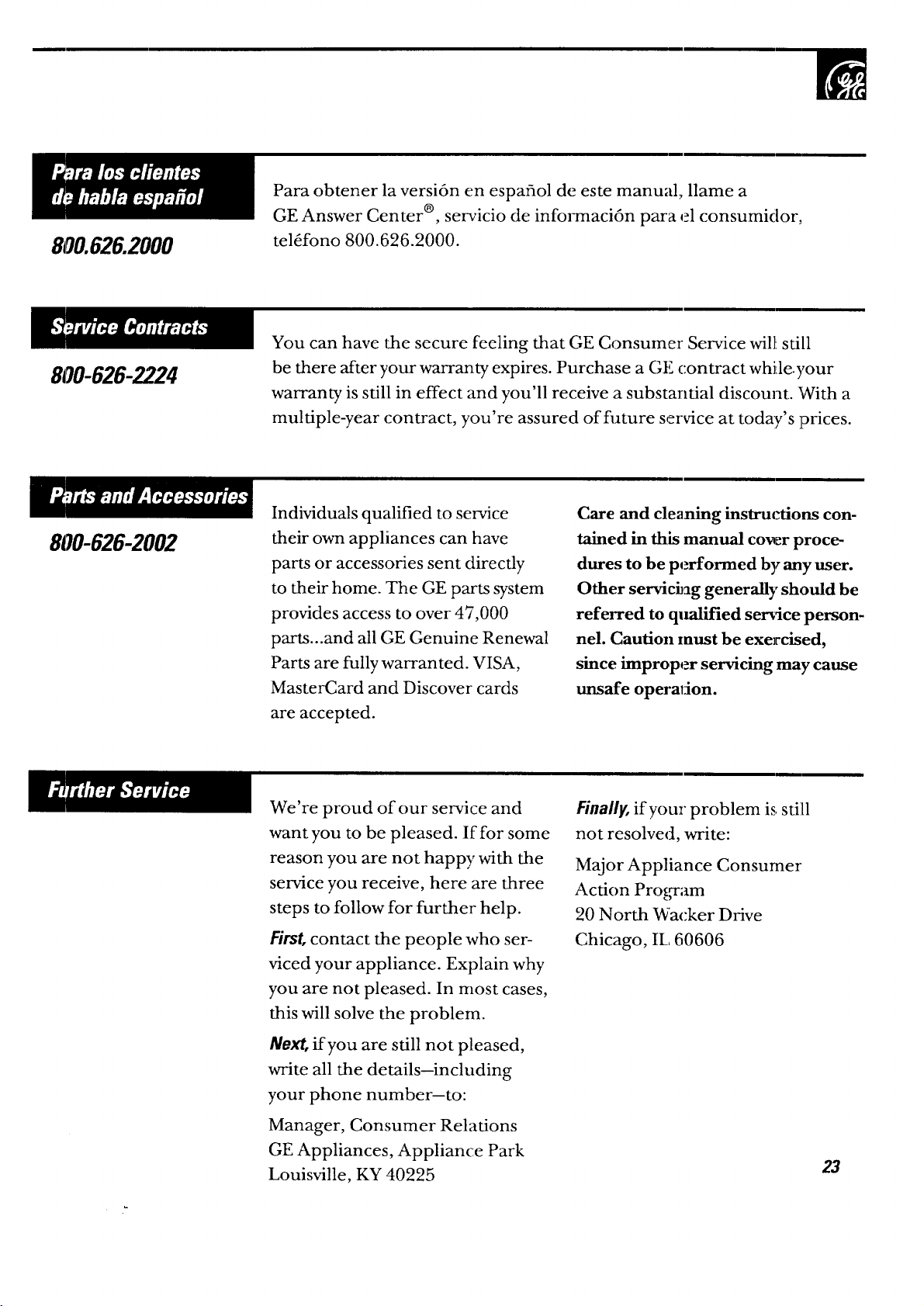

GE Service Numbers
Warranty, Back Cover
GEAnswer Center®
800.626.2000
GEAppliances

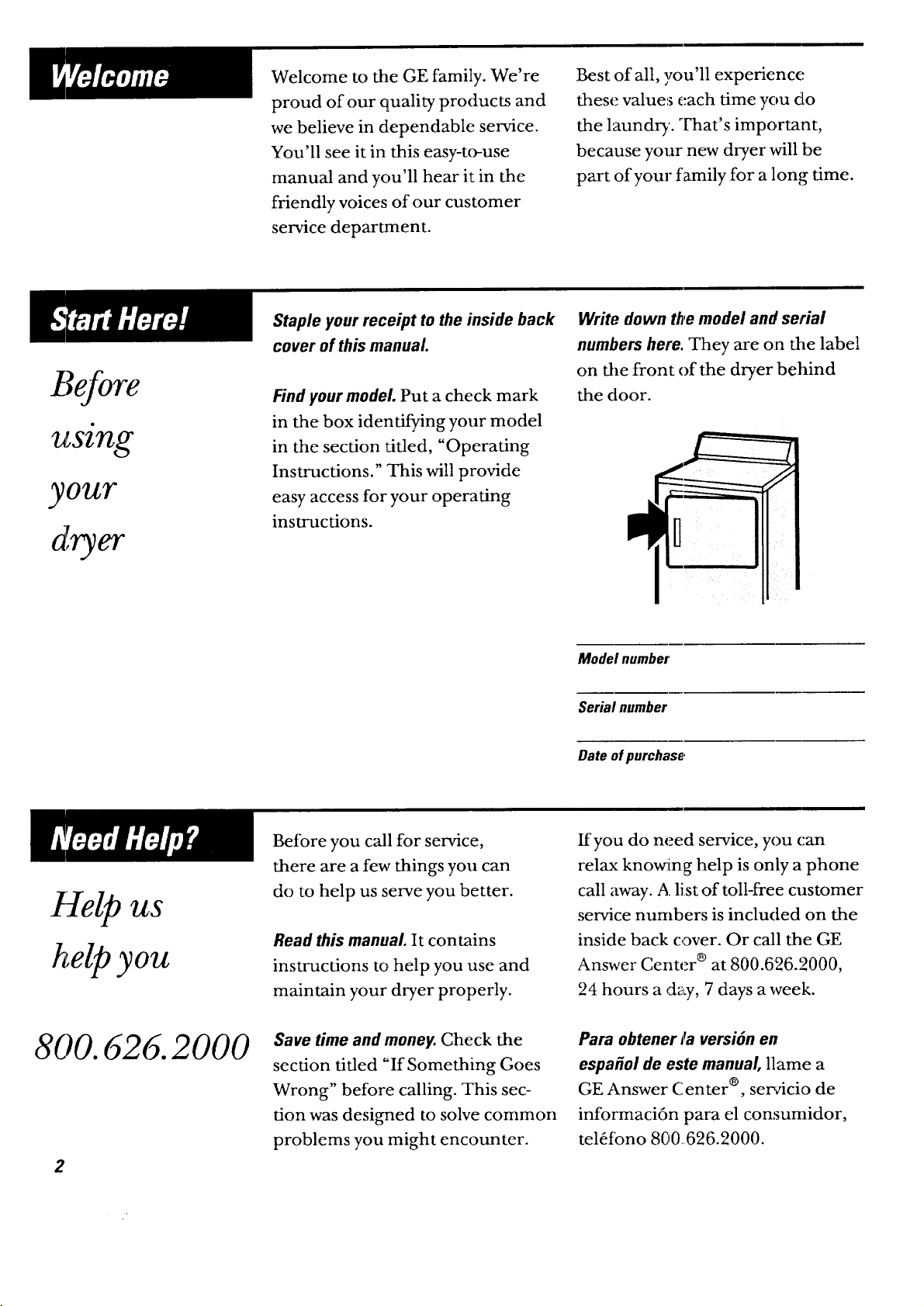

Welcome to the GE family. We're
proud of our quality products and
we believe in dependable service.
You'll see it in this easy-to-use
manual and you'll hear it in the
friendly voices of our customer
service department.
Best of all, you'll experience
these values each time you do
the laundry. That's important,
because your new dryer will be
part of your family for a long time.
Before
using
your
dryer
Staple your receipt to the inside back
cover of this manual.
Find your model Put a check mark
in the box identifying your model
in the section rifled, "Operating
Instructions." This will provide
easy access for your operating
instructions.
Write down the model and serial
numbers here. They are on the label
on the front of the dryer behind
the door.
Model number
Serial number
Date of purchase
ttelp us
help you
Before you call for service,
there are a few things you can
do to help us serve you better.
Read this manual It contains
instructions to help you use and
maintain your dryer properly.
If you do need service, you (:an
relax knowing help is only a phone
call away. A list of toll-free customer
service numbers is included on the
inside back cover. Or call the GE
Answer Center ® at 800.626.2000,
24 hours a ,:lzy, 7 days a week.
800. 626. 2000
2
Save time and money. Check the
section rifled "If Something Goes
Wrong" before calling. This sec-
tion was designed to solve common
problems you might encounter.
Para obtener la versi6n en
espafiol de este manual, llame a
GE Answer Center ®, servicio de
informaci6n para el consumidor,
tel_fono 800626.2000.

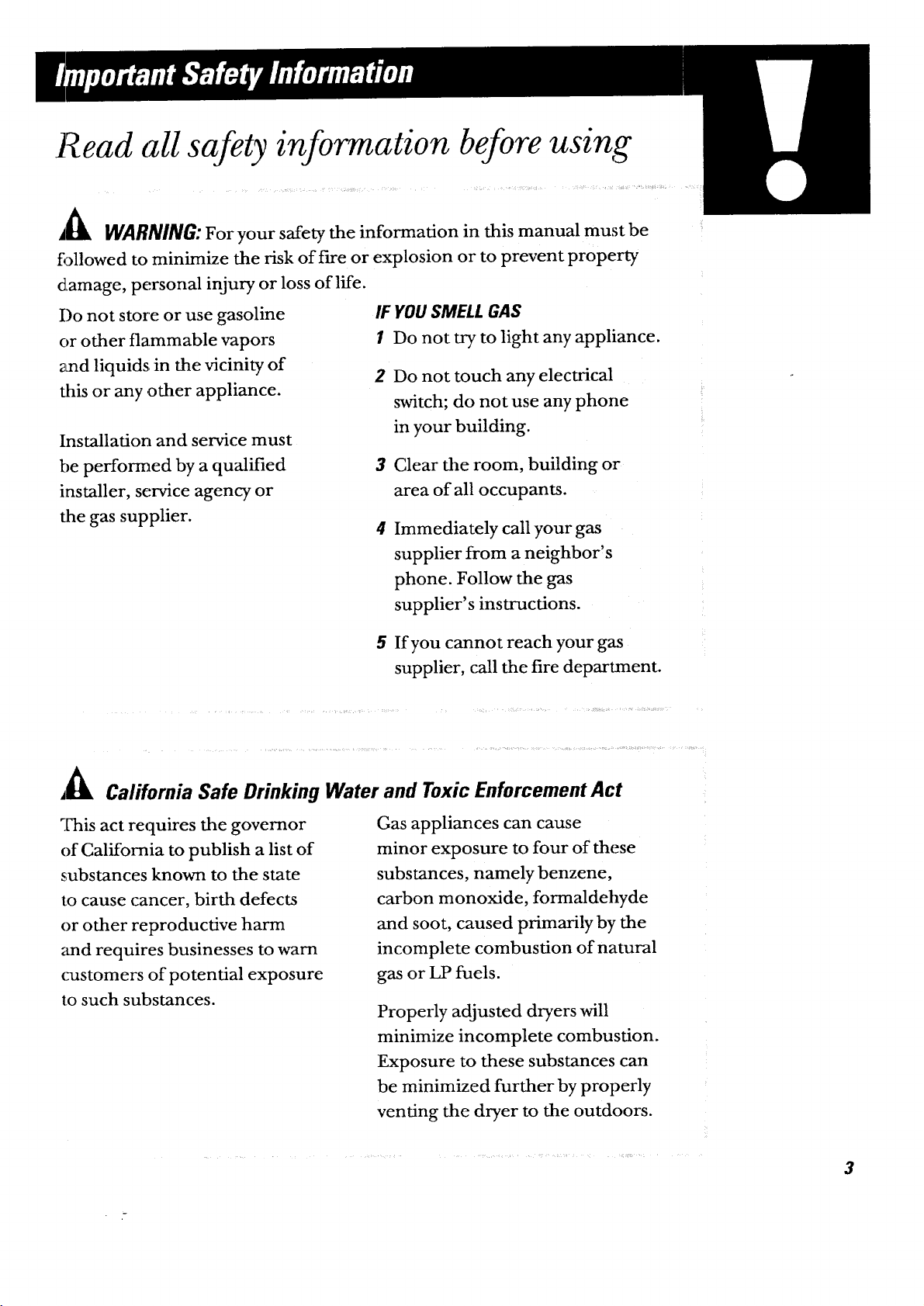

Read all s@ty information before using
^
ill WARNING:For your safety the information in this manual must be
fi_llowed to minimize the risk of fire or explosion or to prevent property
damage, personal injury or loss of life.
Do not store or use gasoline
or other flammable vapors
_aad liquids, in the vicinity of
this or any other appliance.
Installation and service must
be performed by a qualified
installer, service agency or
the gas supplier.
IF YOUSMELL GAS
I Do not try to light any appliance.
2
Do not touch any electrical
switch; do not use any phone
in your building.
3 Clear the room, building or
area of all occupants.
4
Immediately call your gas
supplier from a neighbor's
phone. Follow the gas
supplier's instructions.
5 If you cannot reach your gas
supplier, call the fire department.
_ California Safe Drinking Water and Toxic Enforcement Act
This act requires the governor
of California to publish a list of
substances known to the state
to cause cancer, birth defects
or other reproductive harm
_md requires businesses to warn
customers of potential exposure
to such substances.
Gas appliances can cause
minor exposure to four of these
substances, namely benzene,
carbon monoxide, formaldehyde
and soot, caused primarily by the
incomplete combustion of natural
gas or LP fuels.
Properly adjusted dryers will
minimize incomplete combustion.
Exposure to these substances can
be minimized further by properly
venting the dryer to the outdoors.
3
Read
all safety
information before using
To reduce the risk of fh-e, electric shock, or injury to persorLs
when using your appliance, follow basic precautions, including
the following sections.
Use this appliance only for its
intended purpose as described
in this Owner's Manual.
This dryer must be properly
installed and located in
accordance with the Installation
Instructions before it is used.
If you did not receive an
Installation Instructions sheet
with your dryer, you can obtain
one by calling, toll free, the GE
Answer Center ®, 800.626.2000.
Properly ground to conform
with all governing codes and
ordinances. Follow details in
Installation Instructions.
- Install or store where the tempera-
ture is above 50°F. (10°C.). Do
not install the dryer where it will
be exposed to the weather.
- Connect to a properly rated,
protected and sized power supply
circuit to avoid electrical overload.
Gas dryers MUST be exhausted
to the outside. Carefully follow
the Exhausting details in the
Installation Instructions.
Exhausting electric dryer,; to
the outside is STRONGLY
RECOMMENDED to prevent
large amounts of moisture and
lint from being blown into the
room. Carefully follow the
Exhausti:ng details in the
Installation Instructions.
Do not repair or replace
any part of the appliance or
attempt any servicing unless
specifically recommended in this
Owner's M_mual or in puMished
user-repair instructions that you
understand and have the ,;kills
to carry out.
When disconnecting this
appliance pull by the plug rather
than the cord to avoid darnage to
the cord or junction of cord and
plug. Make sure that the cord
is located so that it will not be
stepped on, tripped over or
otherwise s_.lbjected to damage
or stress.

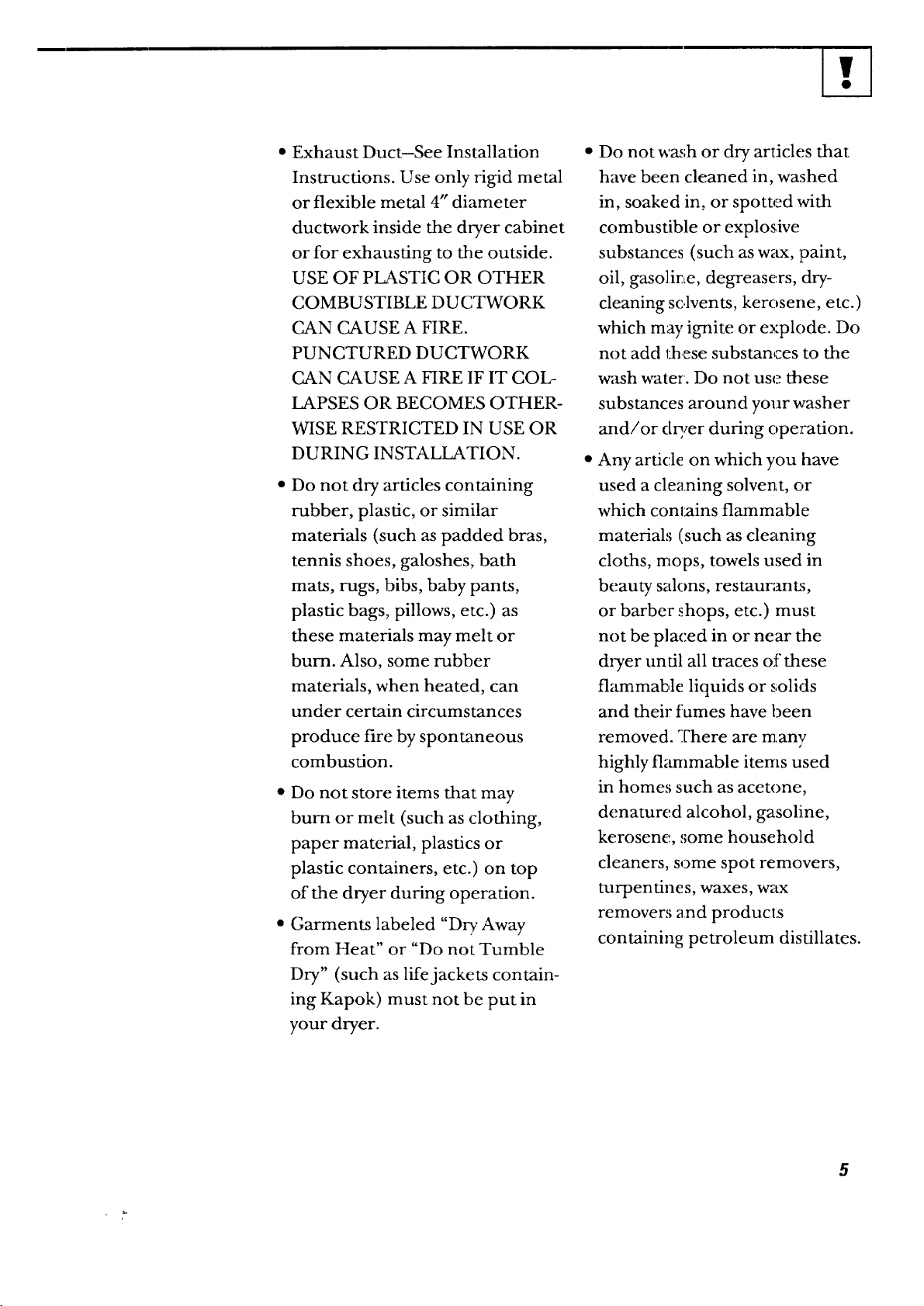

Exhaust Duct-See Installation
Instructions. Use only rigid metal
or flexible metal 4" diameter
ductwork inside the dryer cabinet
or for exhausting to the outside.
USE OF PLASTIC OR OTHER
COMBUSTIBLE DUCTWORK
CAN CAUSE A FIRE.
PUNCTURED DUCTWORK
CAN CAUSE A FIRE IF IT COL-
LAPSES OR BECOMES OTHER-
WISE RESTRICTED IN USE OR
DURING INSTALLATION.
Do not dry articles containing
rubber, plastic, or similar
materials (such as padded bras,
tennis shoes, galoshes, bath
mats, rugs, bibs, baby pants,
plastic bags, pillows, etc.) as
these materials may melt or
burn. Also, some rubber
materials, when heated, can
under certain circumstances
produce fire by spontaneous
combustion.
• Do not store items that may
burn or melt (such as clothing,
paper material, plastics or
plastic containers, etc.) on top
of the dryer during operation.
• Garments labeled "Dry Away
from Heat" or "Do not Tumble
Dry" (such as life jackets contain-
ing Kapok) must not be put in
your dryer.
Do not wm'.h or dry articles that
have been cleaned in, washed
in, soaked in, or spotted _dth
combustible or explosive
substances (such as wax, paint,
oil, gasoline, degreasers, dry-
cleaning solvents, kerosene, etc.)
which may ignite or explode. Do
not add these substances to the
wash water. Do not use these
substances around your washer
and/or dryer during operation.
Any article on which you have
used a cleaning solvent, or
which contains flammable
materials (such as cleaning
cloths, mops, towels used in
beauty salons, restaurants,
or barber shops, etc.) must
not be placed in or near the
dryer until all traces of these
fl_unmable liquids or solids
and their fumes have been
removed. There are many
highly fl_mlmable items used
in homes such as acetone,
denatured alcohol, gasoline,
kerosene, t;ome household
cleaners, some spot removers,
turpentines, waxes, wax
removers and products
containing petroleum distillates.
5

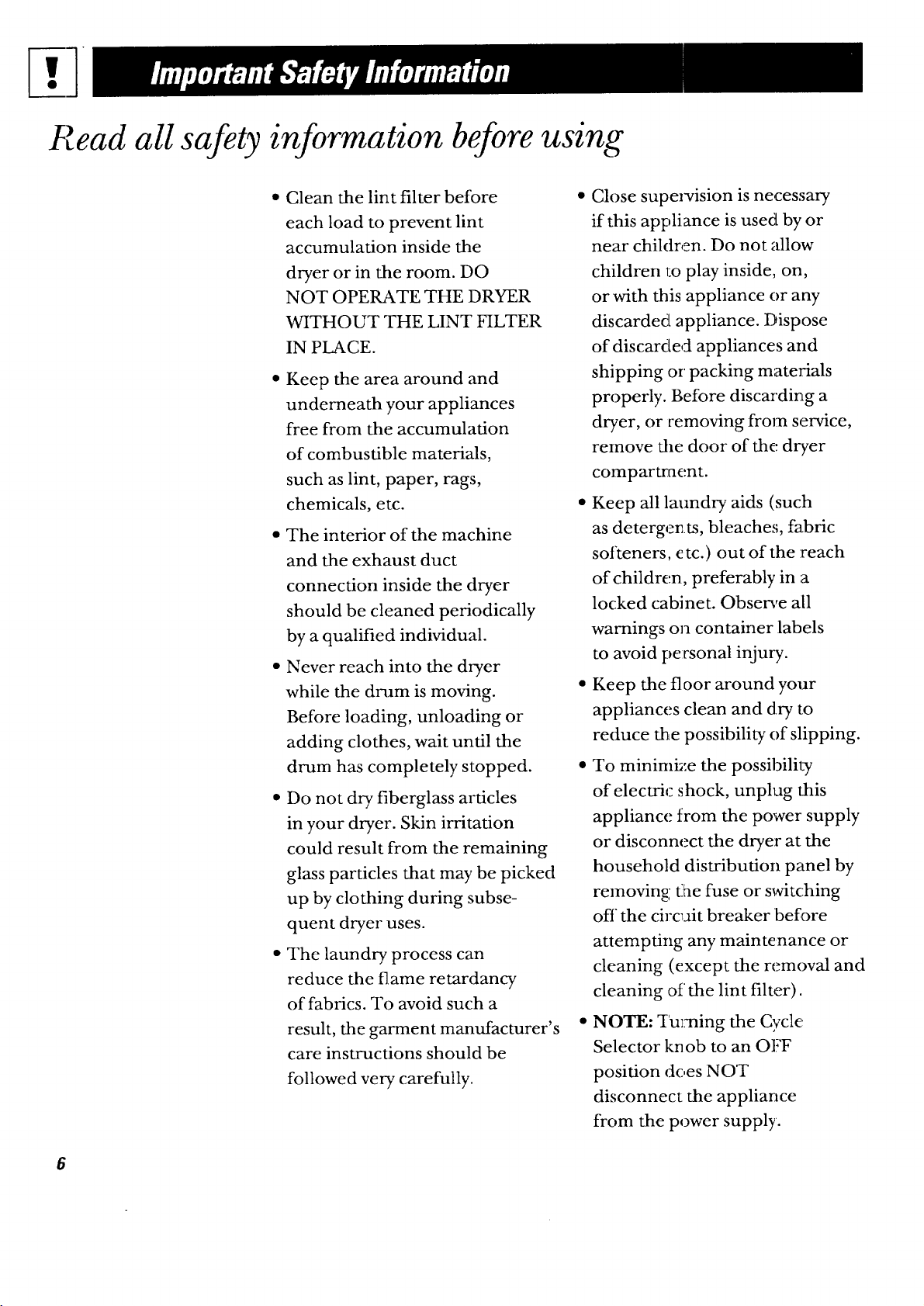

Read all safety information before using
Clean the lint filter before
each load to prevent lint
accumulation inside the
dryer or in the room. DO
NOT OPERATE THE DRYER
WITHOUT THE LINT FILTER
IN PLACE.
Keep the area around and
underneath your appliances
free from the accumulation
of combustible materials,
such as lint, paper, rags,
chemicals, etc.
• The interior of the machine
and the exhaust duct
connection inside the dryer
should be cleaned periodically
by a qualified individual.
• Never reach into the dryer
while the drum is moving.
Before loading, unloading or
adding clothes, wait until the
drum has completely stopped.
• Do not dry fiberglass articles
in your dryer. Skin irritation
could result from the remaining
glass particles that may be picked
up by clothing during subse-
quent dryer uses.
• The laundry process can
reduce the flame retardancy
of fabrics. To avoid such a
result, the garment manufacturer's
care instructions should be
followed very carefully.
• Close supervision is necessary
if this appliance is used by or
near children. Do not allow
children to play inside, on,
or with this appliance or any
discarded appliance. Dispose
of discarded appliances and
shipping or packing materials
properly. Before discarding a
dryer, or removing from service,
remove the door of the dryer
compartrnent.
• Keep all laundry aids (such
as deterger ts, bleaches, fabric
softeners, etc.) out of the :reach
of children, preferably in a
locked cabinet. Observe all
warnings on container labels
to avoid personal injury.
• Keep the floor around your
appliances clean and dry to
reduce the possibility of slipping.
• To mininfize the possibility
of electric shock, unplug this
appliance from the power supply
or disconnect the dryer at the
household distribution panel by
removing t2hefuse or switching
off the circn.fit breaker before
attempting any maintenance or
cleaning (except the removal and
cleaning of the lint filter).
• NOTE: Tu_:ning the Cycle
Selector kn ob to an OFF
position dc,es NOT
disconnect the appliance
from the power supply.

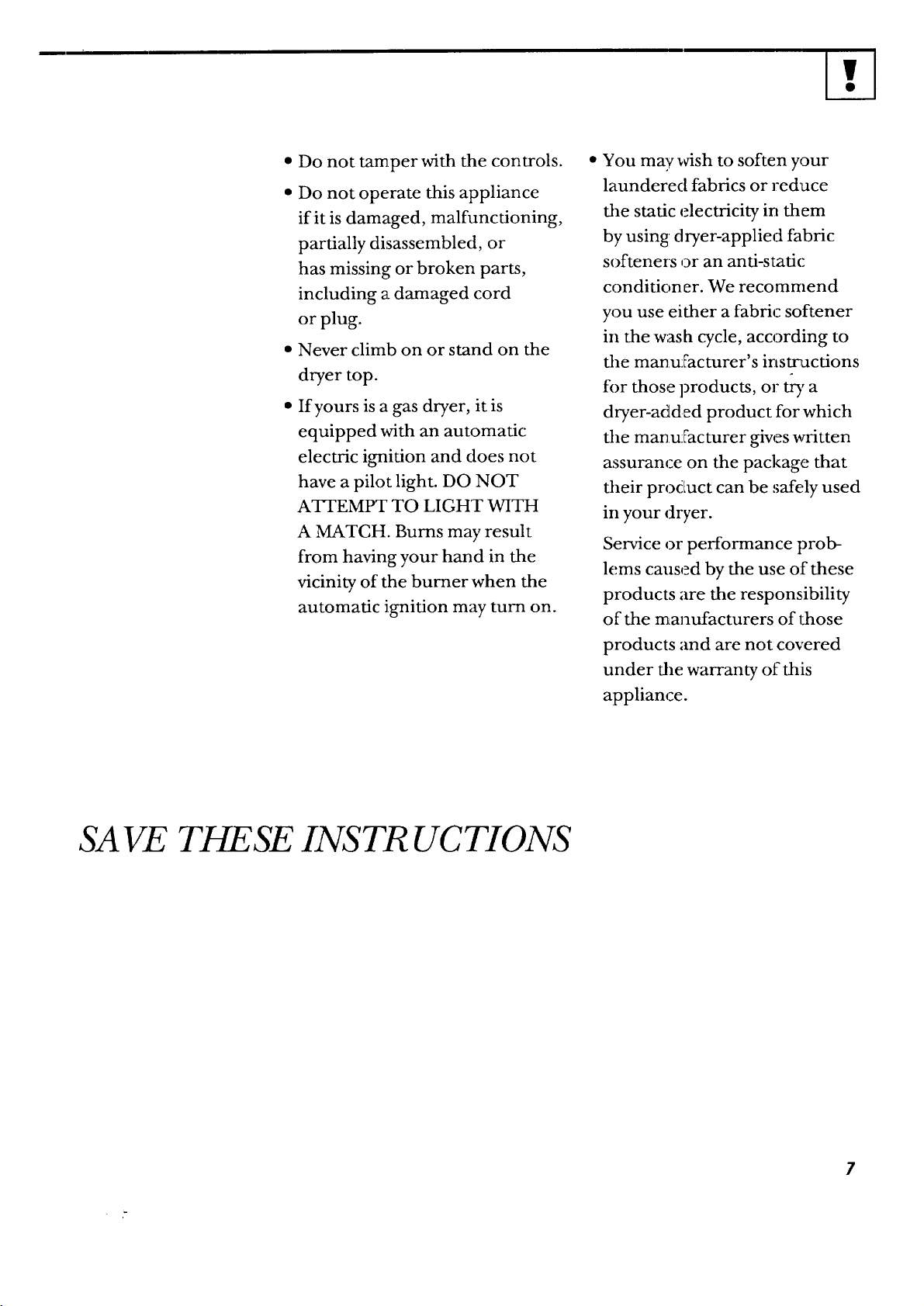

• Do not tamper with the controls.
• Do not operatethisappliance
if it isdamaged,malfunctioning,
partially disassembled,or
hasmissingor broken parts,
including adamagedcord
or plug.
• Neverclimb on or standon the
dryer top.
• If yours isagasdryer, it is
equipped with an automatic
electric ignition and doesnot
haveapilot light. DO NOT
ATTEMPT TO LIGHT WITH
A MATCH. Burns mayresult
from havingyour hand in the
vicinity of theburner when the
automatic ignition mayturn on.
You may wish to soften your
laundered fabrics or reduce
the static electricity in them
by using dryer-applied fabric
softeners or an anti-static
conditioner. We recommend
you use either a fabric softener
in the wash cycle, according to
the manufacturer's instractions
for those products, or try a
dryer-added product for which
the manu:E'acturer gives written
assurance on the package that
their product can be safely used
in your dryer.
Service or performance prob-
lems caused by the use of these
products are the responsibility
of the manufacturers of lahose
products and are not covered
under the warranty of this
appliance.
SAVE THE SE INS TR UCTIONS
7

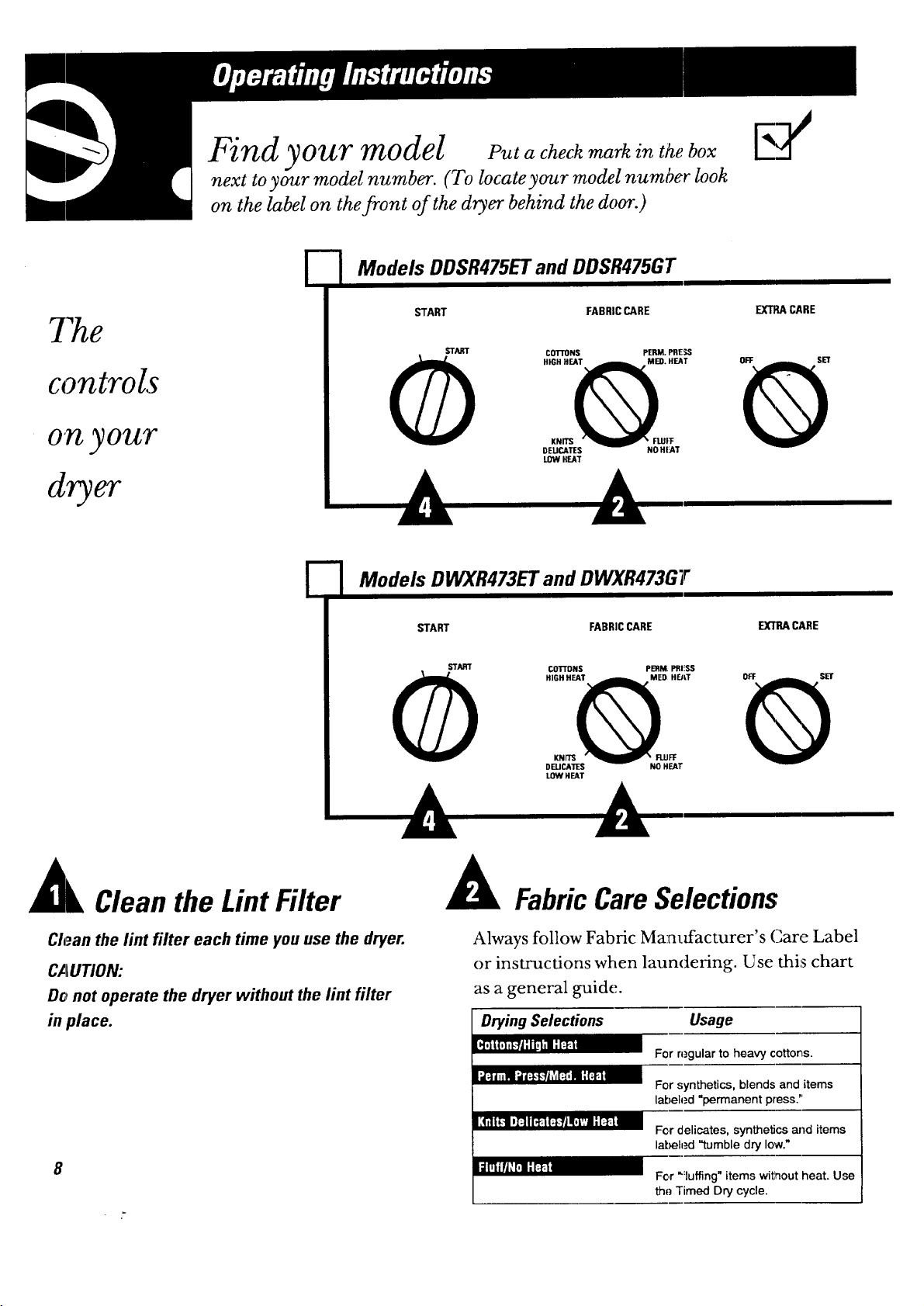

Find your model Put a check mark in the box
next to your model number. (To locate your model number look
on the label on the front of the dryer behind the door.)
The
controls
on youT
dryer
Models DDSR475ETand DDSR475GT
START FABRIC CARE EXTRA CARE
START
COTION$ PER]_L PRE_S
HIGH HEAT MED. HEAT OFF SET
DELICATES NO HI!AT
LOW HEAT
Models DWXR473ET and DWXR473GT
START FABRIC CARE EXTRA CARE
START
COTTONS PERM. PRESS
HIGH HEAT MED HE/tT OFF SET
DItlCA'fl_ NO HEAl"
LOWHEAT
_ Clean the Lint Filter
Clean the lint filter each time you use the dryer.
CAUTION:
Do not operate the dryer without the lint filter
in place.
A FabricCareSelections
Always follow Fabric Manufacturer s Car,_ Label
or instructions when laundering. Use this chart
as a general guide.
Drying Selections Usage
For regular to heavy cottons.
For synthetics, blends and items
labeled "permanent press."
For delicates, synthetics and items
labeled "tumble dry low."
II_MLLEl:r_fl
For "=luffing" items witlnout heat. Use
the Timed Dry cycle.

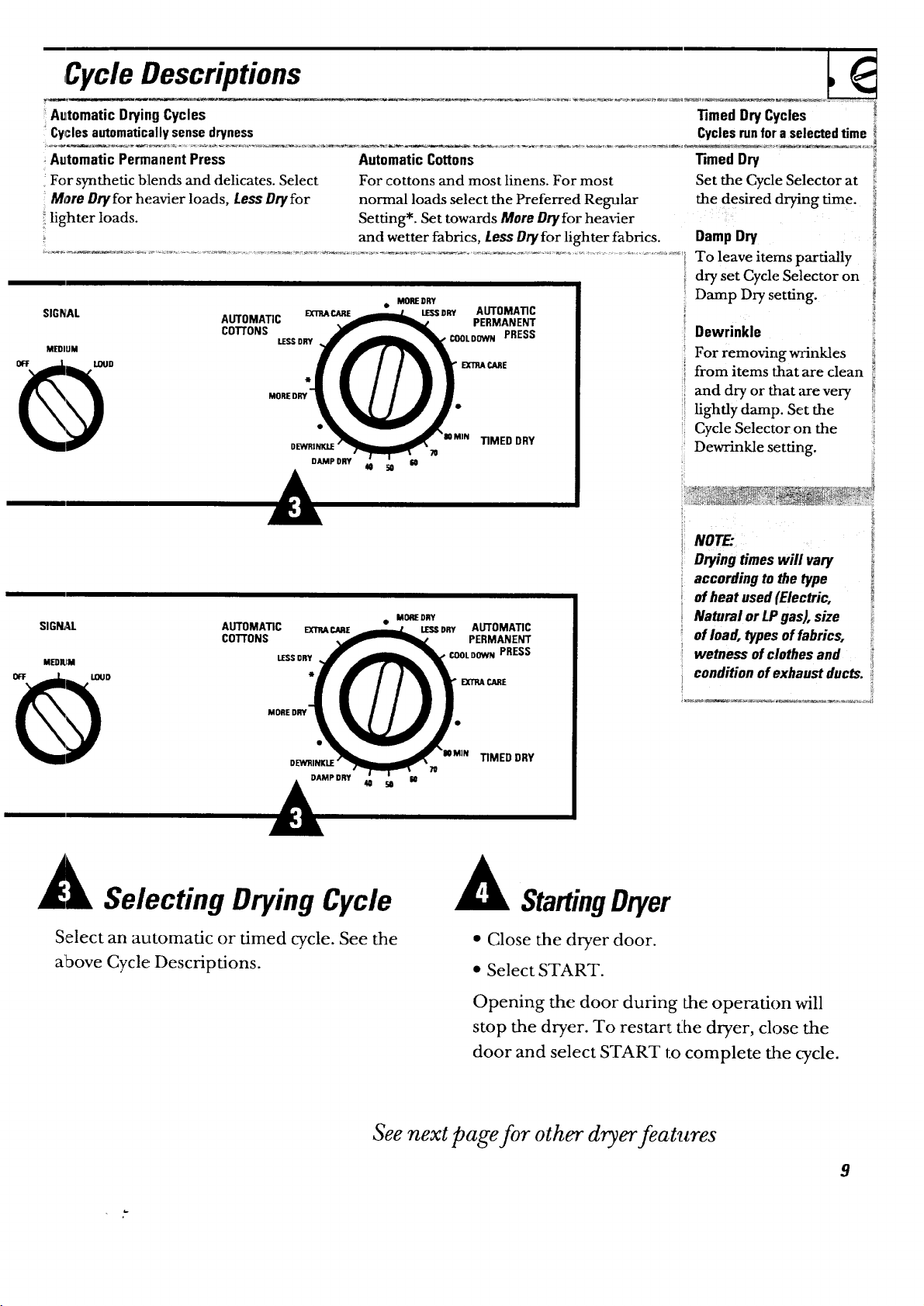

,CycleDescriptions
Au,tomatic Drying Cycles
Cy,_lesautomaticallysensedryness
Automatic Permanent Press Automatic Cottons
For synthetic blends and delicates. Select For cottons and most linens. For most Set the Cycle Selector at !
More Dry for heavier loads, Less Dry for normal loads select the Preferred Regular the desired drying time. !
i lighter loads. Setting*. Set towards More Dry for heavier i
:, and wetter fabrics, Less Dry for lighter fabrics. Damp Dry
.................................................................................................................................................................................... To leave items partially
dry set Cycle Selector on
Damp Dry setting.
o
SIGNAL AUTOMATIC EXTRACARE LESSeRY AUTOMATIC
PERMANENT
COTTONS LESSDRY _,COOLDOWN PRESS
MEDIUM
DEWRINKIJ
DAMP DRY
TIMED DRY
70
Timed Dry Cycles I
Cyclesrunfor a selectedtime t
Timed Dry
Dewrinkle
For removing wrinkles
from items that are clean
and dry or that are very
lightly damp. Set the
Cycle Selector on the
Dewfinkle setting.
==:. °o ==.
l
A Selecting Drying Cycle _ StartingDryer
Select an automatic or timed cycle. See the
above Cycle: Descriptions.
• Close the dryer door.
• Select START.
NOTE."
Dryingtimeswill vary
accordingtothe type
ofheatused(Electric,
Natural orLPgas),size
ofload, typesoffabrics,
wetnessofclothesand i
conditionofexhaustducts.
Opening the door during the operation will
stop the dryer. To restart the dryer, close the
door and select START to complete the cycle.
See next page for other dryer features
Other dryer features your model may have
OFF SET
Use this option to minimize the
wrinkles in clothes. The option
provides approximately 1B
minutes of no-heat tumbling
after the clothes are dry.
This option can only be used with
the Automatic cycles.
HINT"
If the Signal option is selected, the
Signal will solmd at the end of the
drying time and will sound several
times during tire Extra Care cycle.
This will remi, d you that the cycle
is almost complete.
MEDIUM
OFF_LOUD
The signal control can be set at
OFF, MEDIUM or LOUD.
This signal will sound just before
the end of the cycle to remind you
to remove the clothes.
If you selected the Extra Care option
the signal will sound at the end of
the drying time and will sound sever-
N times during the Extra Care cycle.
This will remind you that the cycle is
almost complete.
NOTE:
* Remove garments promptly at the
sound of the signal. Place clothes
on hangers so wrinkles won't set in.
• Use the Sigr_al especially when
drying fabrics like polyester knits
and permanent press. These fabrics
should be removed promptly so
wrinkles won't set in.
1,0

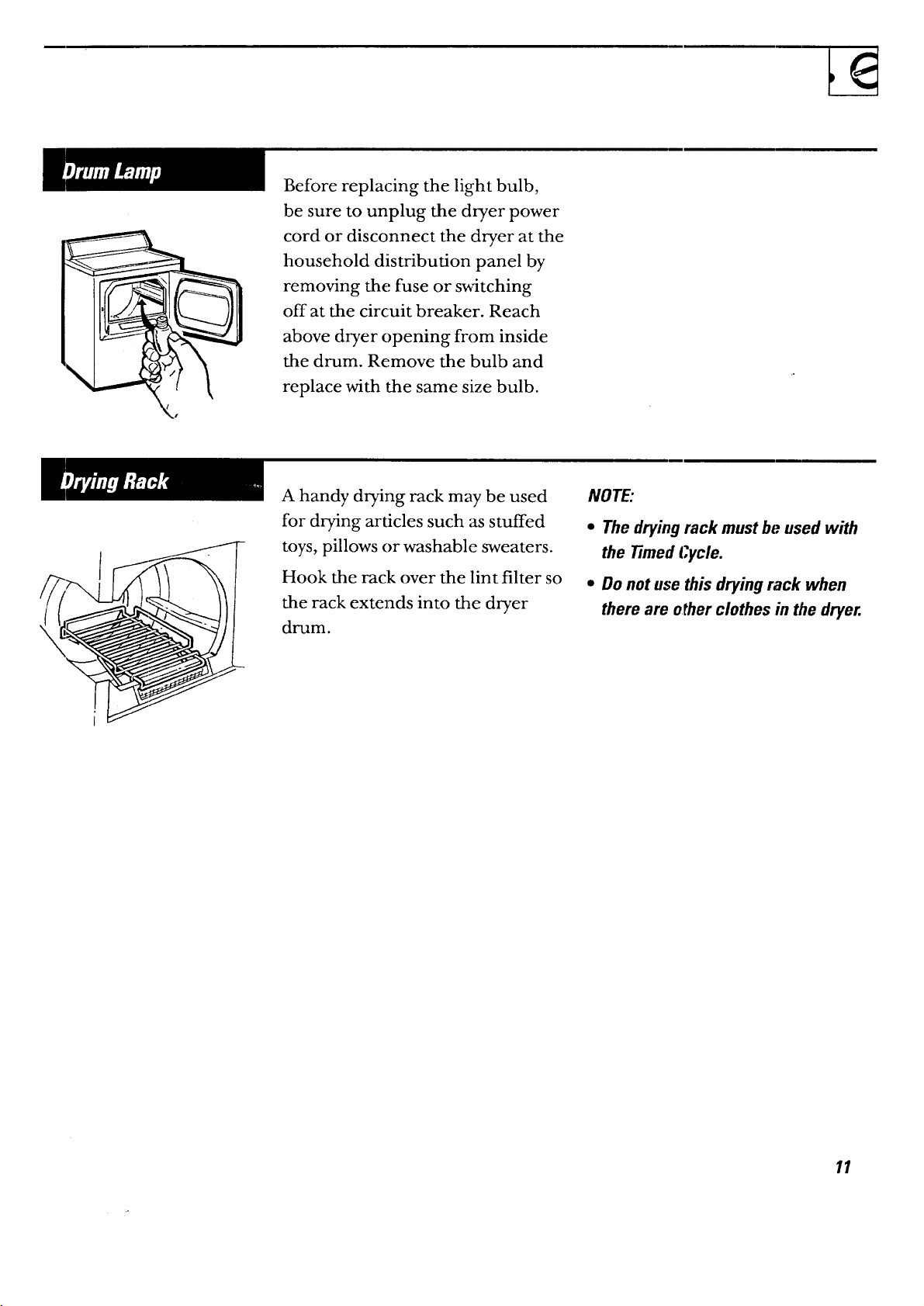

Before replacing the light bulb,
be sure to unplug the dryer power
cord or disconnect the dryer at the
household distribution panel by
removing the fuse or switching
off at the circuit breaker. Reach
above dryer opening from inside
the drum. Remove the bulb and
replace with the same size bulb.
A handy drying rack may be used
for drying articles such as stuffed
toys, pillows or washable sweaters.
Hook the rack over the lint filter so
the rack extends into the dryer
drum.
NOTE:
• The drying rack must be used with
the 7Tmed Cycle.
* Do not use this drying rack when
there are other clothes in the dryer.
11

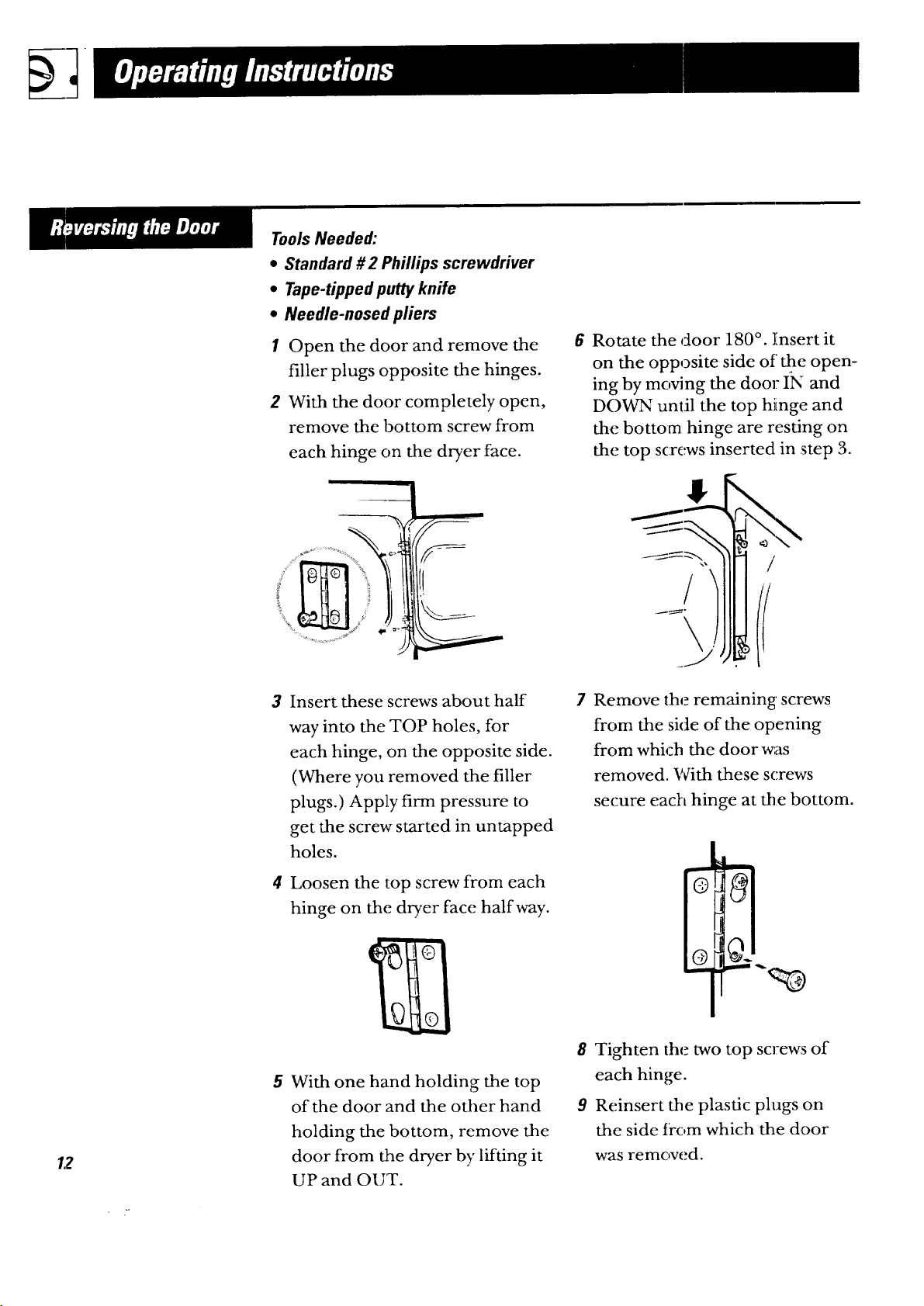

Tools Needed:
• Standard # 2 Phillips screwdriver
• Tape-tipped putty knife
• Needle-nosedpliers
1 Open the door and remove the
filler plugs opposite the hinges.
2 With the door completely open,
remove the bottom screw from
each hinge on the dryer face.
x
6 Rotate the door 180 °. Insert it
on the opposite side of the open-
ing by moving the door I}¢ and
DOWN until the top hinge and
the bottom hinge are resting on
the top screws inserted in step 3.
/
\
3
4
Insert these screws about half
way into the TOP holes, for
each hinge, on the opposite side.
(Where you removed the filler
plugs.) Apply firm pressure to
get the screw started in untapped
holes.
Loosen the top screw from each
hinge on the dryer face halfway.
7 Remove the remaining screws
from the side of the opening
from which the doorwas
removed. With these screws
secure each hinge at the bottom.
12
5 With one hand holding the top
of the door and the other hand
holding the bottom, remove the
door from the dryer by lifting it
UP and OUT.
8 Tighten the two top screws of
each hinge.
9 Reinsert the plastic plugs on
the side frc,m which the door
was removed.
Specialty Care C ide
Always follow Fabric Manufacturer's Care Label or instructions when laundering.
Otherwise use the information below as a general guide.
]_llows
Blankets
Cotton
Synthetic
Down
Extra Large: Items
(Includes
comforters,
blankets and
mattress pads.)
Mend any holes or weak seams where feath.er or filling could
escape. Dry only one pillow at a time. Stop dryer occasio.nally and
shake pillow, redistributing filling for even drying. Check pillow
at the end of drying time. If it is not completely dry, reset dryer
for more drying time.
Dry on low heat only.
CAUTION: Do not dry pillows containing foam rubber.
Add 2-4 dry towels and one blanket and set tilnaer for 20-25 minutes.
Dry only one blanket at a time. Do not set control for more than 25
minutes. At the end of drying cycle block the blanket back to its
original shape. Allow blanket to dry thoroughly before storing.
Use a medium heat drying setting.
Use a low heat drying setting.
Use a low heat drying setting.
Use a low heat drying setting.
Set dryer for 20 minutes. When time is up, check and redistribute
load. Reset dryer for 15 minutes. When time is up, check and
redistribute load. Reset timer for 5 minute intervals. Check after
each 5 minutes to ensure articles do not ill] dryer drum. Large, wet
articles should have ample room in the dryer, but as they dry and
fltfffup they may not have room to tumble.
CAUTION'. Items without room to tumble may block air flow and
could result in scorched items. Dry mattress pads separately, Use
a low heat drying setting.
13
I_,oading
As general rule, if clothes are
sorted properly for the washer, they
are sorted properly for the dryer.
Sort by color
(Separate colorfast from
non-colorfast fabrics*)
• Whites
• Lights
• Darks
Separate by fabric type
• Cottons and linens
• Permanent press cottons
and blends
• Synthetic and poly knits
• Delicates
Separate lint producers from
lint collectors
• Lint producers: terry cloth and
chenille
• Lint collectors: velveteen and
corduroy
Sort by weight
• Heavy Items
• Light Items
* Non-colorfastfab_ics may bleed orfl_de. Sort by
individual col_o.
• Avoid drying very small loads.
• Sort clothes by weight so you
won't have to run an extra cycle
for one or two heavier, slower
drying items.
• Do not add fabric softener sheets
once the load has become warm.
This may cause fabric softener
stains.
Do not overload. This causes
inefficient operation and
unnecessary wrinkling. Clothes
need to tumble freely.
• Do not dry the following items:
• Fiberglass items
• Woolens
• Rubber coated items
• Plastics
• Items with plastic trina
• Foam-filled items
14
Care &
Cleaning
The drum is rust-resistant. However,
colored fabrics which lose color or
bleed in the washer may cause dis-
coloration of the dryer drum. We
recommend that the dryer drum
be cleaned with a cloth using a
detergent and water paste or a mild
abrasive, s'uch as Soft Scrub TM.
Rinse thoroughly. Then tumble-
dry several _et rags or old towels
for 20 to 30 minutes before using
the dryer normally.
Wipe off any spills or wash!ng
compounds. Wipe or dust with
a damp cloth. Try not to strike
the surface with sharp objects.
Dryer control panel and finishes
may be damaged by some laundry
pretreatment soil and stain remover
products if such products are
sprayed on or have direct contact
with the dryer.
Apply these pretreatment products
away from the dryer. The fabric
may then be washed and dried
normally. Damage to your dryer
caused by pretreatment products
is not covered by your warranty.
Before every dryer use, clean the
lint filter. It is easier to remove
the lint when your fingers are
moistened.
To keep your dryer operating at
peak performance, be sure to have
a technician vacuum the lint from
the machine every three years.
To store your dryer for a short
period of time, disconnect the
power supply and clean the lint
filter.
15
Care &
Cleaning
Inspect and clean the dryer
exhaust ducting at least once
a year to prevent clogging. A
partially clogged exhaust can
lengthen the drying time.
To clean the exhaust duct follow
these steps:
I Turn off electrical supply by
disconnecting the plug from
the wall socket.
2 Disconnect exhaust duO/from
the dryer.
3 Vacuum the exhaust ducT: with
the hose attachment or attach a
rag to a pole or drain cleaning
wire and clean duct.
• Make sure the inside flaps of the
exhaust hood move freely (you
may want to check with a mirror).
• Make sure inside flaps are fully
open when dryer is operating.
• Make sure there is not wild life
(birds, insects, etc.) nesting
inside the exhaust duct or hood.
16
Before you caUfor service
Problem
Possible Causes What to Do
Dryer is unplugged
Fuse is blown/circuit
breaker is tripped
• Make sure the dryer plug is pushed
completely into the outlet.
• Check the house fuse/circuit breaker
box and replace t_as,eor reset breaker.
NOTE:Most electric dryers use two breakers.
Fuse is blown/circuit breaker
is tripped, the dryer may
tumble but not heat
Gas service is off
• Check the house tu,,_-.e/circuit breaker box
and replace fuse or _mset breaker.
• Make sure gas shu t0ff at dryer and main
shutoff are fully open.
Some shaking/noise is normal.
Dryer may be sitting unevenly
• Move dryer to an even floorspace, or adjust
as necessary until even.
Improper use of fabric softener * Follow directions on fabric softener package.
Drying dirty items with • Use your dlyer to dU only clean items. Dirty
clean ones items can stain clean items and the dryer.
Clothes were not completely • Sometimes stains which cannot be seen when
clean the clothes are wet "appear" after ch-ying. Use
proper washing procedures before d_ring.
Lint filter is full • Clean lint screen be:Yore each load.
Improper sorting • Sort lint producers (like chenille) from
lint collectors (like ¢:orduroy).
Smile electricity can attract lint • See suggestions in _xhis section under STATIC.
Overloading • Separate large loads into smaller ones.
Paper, tissue, etc. left in pockets s Empty' all pockets before laundering clothes.
17
Problem Possible Causes What to Do
Overlying
No fabric softener was used
Synthetics, permanent press
and blends can cause static
', Try a fiabric softener.
• Adjust controls for less drying.
• Try a fabric softener,
• Try a fabric softener
Improper sorting Separate heavy items from light weight items
(generally, a well-so_:ted washer load is a
well-sorted dryer lo:td).
Large loads of heavy items • Large, heavy loads contain more moisture
(like beach towels) and take longer to dry. Separate large, heavy
items into smaller loads to speed drying time.
Controls improperly set • Match control settings to the load you
are drying.
Lint filter is full • Clean lint filter before every load.
Improper or obstructed • Check installation instructions fi)r proper
ducting ducting/venting.
Blown fuses or tripped
circuit breakers
Overloading/
combining loads
Underloading
Make sure ducting is clean, free of kinks
and unobstructed.
Check to see if outside wall damper
operates easily.
See the Venting the Drying section.
Replace fuses or reset circuit breakers. Since
most dryers use 2 fuses/breakers, make sure
both are operating.
Do not put more than one washer load in
the dryer at a time.
If you are drying only one or two items,
add a few items to ensure proper tumbling.
1'8
Problem Possible Causes What to Do
Overclrying
Letting items sit in dryer
after cycle ends
• Select a shorter dryi:ag time.
• Remove items while they still hold a slight
amount of moisture.
• Remove items when cycle ends and fold or
hang immediately.
Some fabrics will naturally
shrink when washed. Others
can be safely washed, but will.
shrink in the dryer.
To avoid shrinkage, follow garment care
labels exactly.
Some items may be pressed back into shape
after drying.
If you are concerned about shrinkage in
a particular item, do not machine wash or
tumble dry it.
19
For the best drying performance
the dryer needs to be properly
vented. Carefully follow the details
onExhausting in the Installation
Instructions.
• Use only rigid metal or flexible
metal 4" diameter ductwork
inside the dryer cabinet or for
exhausting to the outside.
* Do not use plastic or other com-
bustible ductwork.
• Use the shc,rtest length possible.
• Do not crush or collapse. _
• Avoid resting the duct on sharp
objects.
• Venting must conform to local
building codes.
!
20

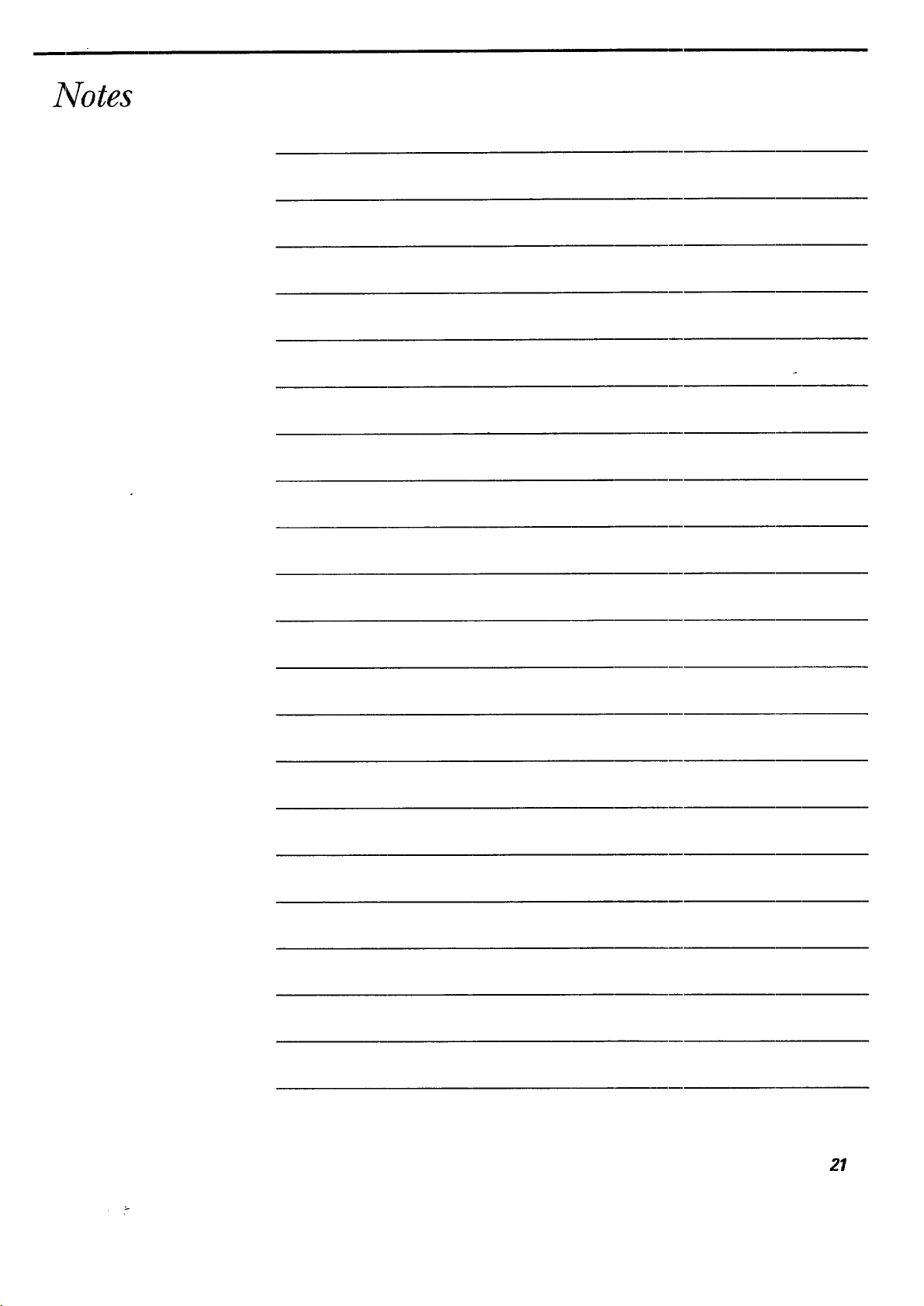

Notes
21
We 71be there]
800.626.2000
800-GE-CARES
(800-432-2737)
Whatever your question about any
GE major appliance, GE Answer
Center ® information service is
available to help. Your call-and
your question-will be answered
promptly and courteously.
And you can call any time. GE
Answer Center ® service is Open
24 hours a day, 7 days a week.
AGE consumer service professional
will provide expert repair service,
scheduled at it time that's conve-
nient for you. Many GE Consumer
Service company-operated loca-
tions offer you service today or
tomorrow, or at your convenience
(7:00 a.m. to 7:00 p.m. weekdays,
9:00 a.m. to 2:00 p.m. Saturdays).
Our factory+rained technicians
know your appliance inside and
out--so most repairs can be han-
dled in just one visit.
800.626.2000
Upon request, GE will provide
Braille controls for a variety of
GE appliances, and a brochure
to assist in planning a barrier-free
kitchen for persons with limited
mobility. To obtain these items,
free of charge, call 800.626.2000.
Consumers with impaired hearing
or speech who have access to a
TDD or a conventional teletype-
writer may call 800-TDD-GEAC
(800-833-4322) to request informa-
tion or service.
800.626.2000
Para obtener la versi6n en espafiol de este manual, llame a
GE Answer Center ®, servicio de informaci6n para el consumidor,
tel_fono 800.626.2000.
800-626-2224
800-626-2002
You can have the secure feeling that GE Consumer Service will! still
be there after your warranty expires. Purchase a Gig contract while.your
warranty is still in effect and you'll receive a substantial discount. 'With a
multiple-year contract, you're assured offilture service at today's prices.
Individuals qualified to service
their own appliances can have
parts or accessories sent directly
to their home. The GE parts system
provides access to over 47,000
parts...and all GE Genuine Renewal
Parts are fully warranted. VISA,
MasterCard and Discover cards
are accepted.
Care and cleaning instructions con-
tained in this manual cover proce-
dures to be performed by any user.
Other servici_ag generally should be
referred to qlmlified service person-
nel. Caution must be exercised,
since improper servicing may cause
unsafe operation.
We're proud of our service and
want you to be pleased. If for some
reason you are not happy with the
service you receive, here are three
steps to follow for further help.
First, contact the people who ser-
viced your appliance. Explain why
you are not pleased. In most cases,
this will solve the problem.
Next, if you are still not pleased,
write all the details-including
your phone number-to:
Manager, Consumer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
Finally, if your problem is. still
not resolved, write:
Major Appliance Consumer
Action Pro_vam
20 North Wacker Drive
Chicago, II, 60606
23
Staple sales slip or cancelled check here. ProoJof or_,4nal purchase
date is needed to obtain service under warranty.
FULL ONE-YEAR WARRANTY
For one year from date of original
purchase, we will provide, free of charge,
parts and service labor in your home to
repair or replace any part of the &yet that
fails because of a manufacturing defect.
LIMITED ADDITIONAL
FOUR-YEAR WARRANTY
From the second through fifth year
from date of original purchase, we will
replace, free of charge, an extra large
or super capacity dryer drum that fails
because of a manufacturing defect. You
pay for the service trip to your home and
service labor charges.
This warranty is extended to the original
purchaser and[ any succeeding owner for
products purchased for ordinary home
use in the 48 mainland states;, Hawaii and
Washington, I).C. In Alaska the warranty
is the same except that it is LIMITED
because you must pay to ship the product
to the service shop or for the service
technician's travel costs to your home.
All warranty sel_,ice will be provided by
our Factory Service Centers or by our
authorized Customer Care ® servicers
during normal working hours.
Should your appliance need service,
during warrant), period or beyond, call
800-GE-CARES (800-432-2737).
• Service trips to your home to teach you
how to use the product.
Read your Owner's Manual. If you then
have any questions about operating the
product, please contact your dealer or our
Consumer Affairs office at the address
below, or call, toll ti-ee:
GE Answer Center ®
800.626.2000
consumer information service
• Improper installation.
If you have an installation problem,
contact your dealer or installer. You are
responsible for providing adequate
electrical, exhausting and other
connecting facilities.
• Replacement of house fuses or resetting
of circuit breakers.
• Failure of the product if it is misused,
or used for other than the intended
purpose or used commercially.
• Damage to product caused by accident,
fire, floods or acts of God.
I WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.
Some states, do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may
also have olher fights which vary from state to state. To know what your legal righl;s '.are in your state,
consult your local or state consumer affairs office or your state's Attorney GeneraJt.
Warrantor: General Electric Company If further help is needed concerning this warranty, write:
Manager--Consumer Affairs, GE Appliance;, Louisville, KY 40225
Part No. 175D1807P074
Pub. No. 49-9841
DDSR475ET DWXR473ET
DI)SR475GT DWXR4736T
6-95 CG Printed in the United States
