User Manual Viking PMF272TK RETIRED: 27"W. Flush Mount Kit for Microwave Trim

Documents for Viking PMF272TK

The following documents are available:

User Manual

For PMF272TK.

@" Centerline to cutout 14-15/16" (379.71 mm)
@" Centerline to hole 14-5/16" (362.73 mm)
5/16" (8.77 mm)
FIGURE 1
Side Spacer (2 required)
Must protrude from edge of cabinet
cutout towards center as shown.
(2) bottom spacers
24-5/8" width
1-9/16" height
FIGURE 2
Bottom Spacers (2 required).
FIGURE 3
Front of Cabinet

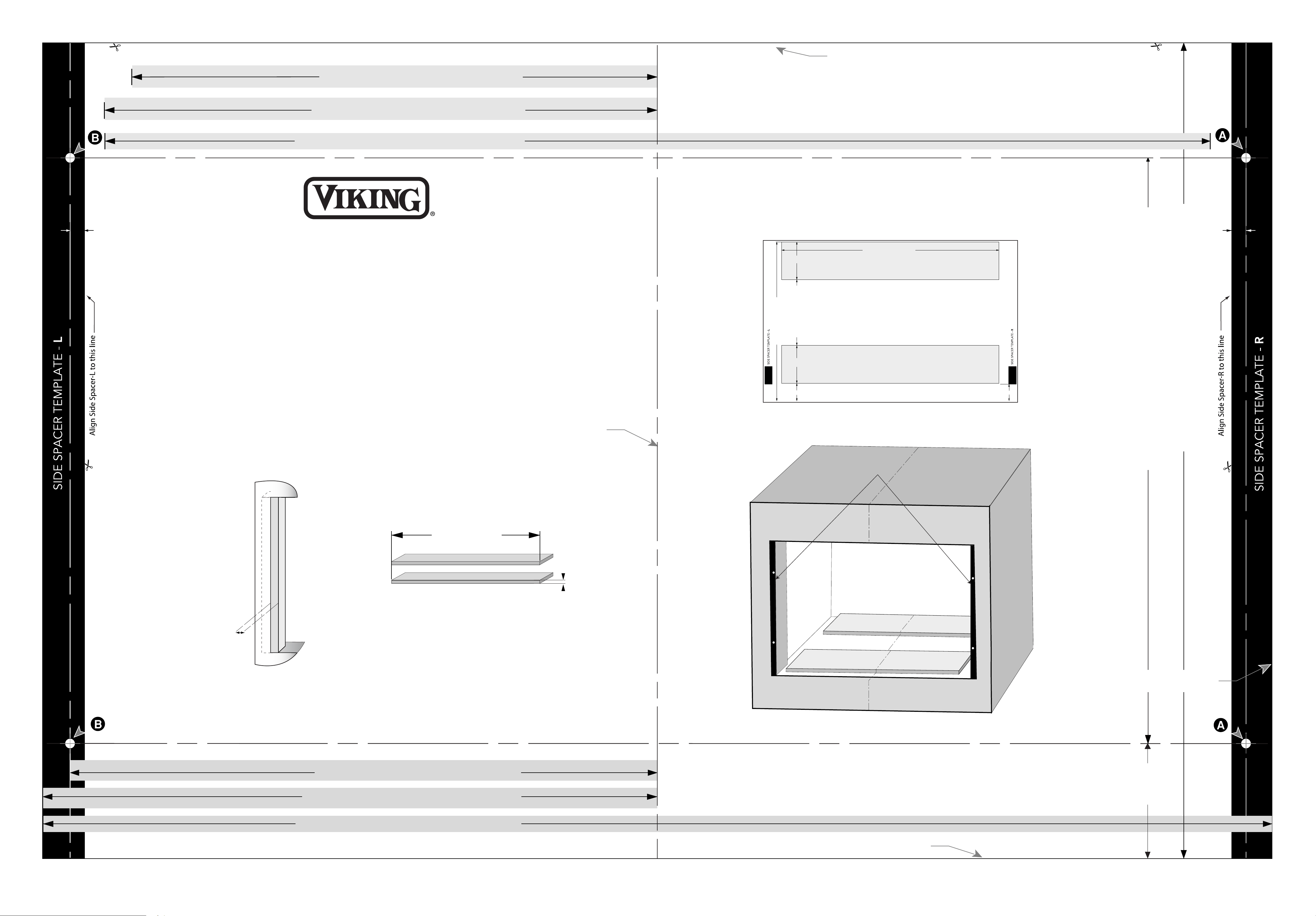

BUILT-IN TRIM KIT
FLUSH MOUNTING TEMPLATE
FOR CUSTOM SERIES MICROWAVE OVEN
5/16" (8.77 mm)
@" Cutout Opening Width 29-15/16" (759.42 mm)
CABINET CUTOUT LINE
FLOOR LINE OF CUTOUT OPENING
CENTER LINE
Cutout Opening Height 19-7/8" (504 mm)
1"
(25.4 mm)
VBA
1. Align the Flush Mounting Template center line with the center of the cabinet. Align
the Floor Line with the bottom of the cabinet at the desired height. Tape it in place.
2. Cut the cabinet opening along the three Cabinet Cutout Lines and the Floor Line.
3. Install two Side Spacers (see FIGURE 1) and two Bottom Spacers (see FIGURE 2) as
specified in FIGURE 4.
4. Cut out the Side Spacer Templates (R and L) and align the indicated edge to the
corresponding Side Spacer (see FIGURE 3). Be careful to align the Floor Line to the
bottom edges of the Side Spacers.
5. Predrill two holes indicated “A“ in Side Spacer - R with a /" drill bit.
6. Predrill two holes indicated ”B“ in Side Spacer - L with a /" drill bit.
7. Remove template from the cabinet.
The exhaust duct should be aligned left to right with the left and right edges of the
bottom spacer. The front edge of the exhaust duct should be recessed from the edge of
the bottom spacer by 5 mm in order for the unit to be flush with the front surface of the
trim kit. The exhaust duct should be secured to the bottom spacer with Screw (C).
1-15/16" (50.35 mm)
1-15/16" (49.9 mm)
22-1/16" (561.0 mm)
24-5/8" (625.5 mm)
4"
4"
(1) Bottom Spacer
(2) Bottom Spacer
TOP VIEW
12-1/8" (308.45 mm)
FIGURE 4
Bottom Spacers centered with cabinet cutout
Edges to align Side Spacer Templates (R and L)
Side Spacer -
L
Side Spacer -
R
Height Distance Between Holes
A
14-1/4" (361.8 mm)
2-13/16"
(71.1 mm)
CABINET CUTOUT LINE
=
"
Center
line to hole 12-13/16" (324.63 mm)
=
"
Center
line to cutout 13-7/16" (341.6 mm)
=
"
Cutout Opening Width 26-15/16" (683.2 mm)
TINSKB140MRR0
