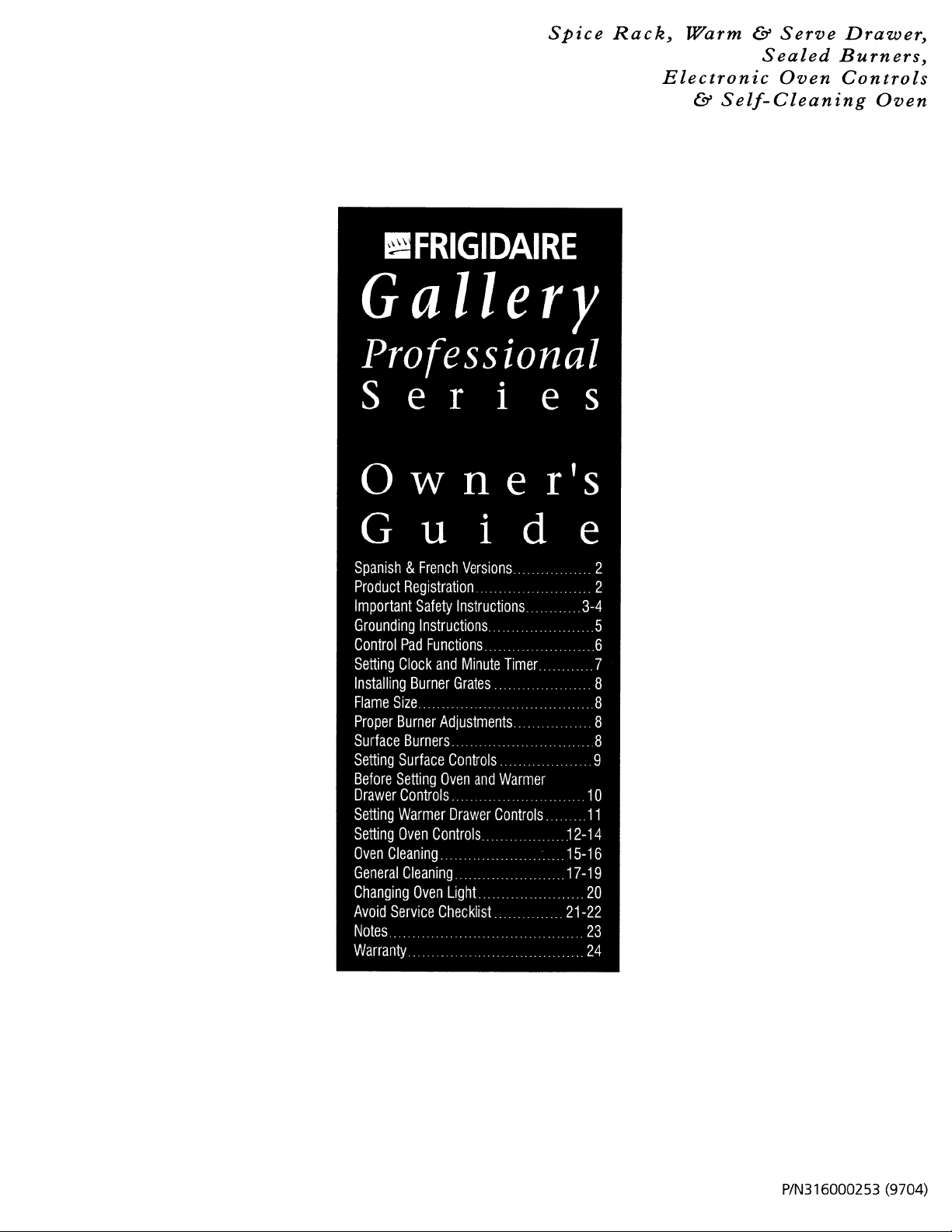

Spice Rack, Warm & Serve Drawer,
Sealed Burners,
Electronic Oven Controls
& Self-Cleaning Oven
P/N316000253 (9704)

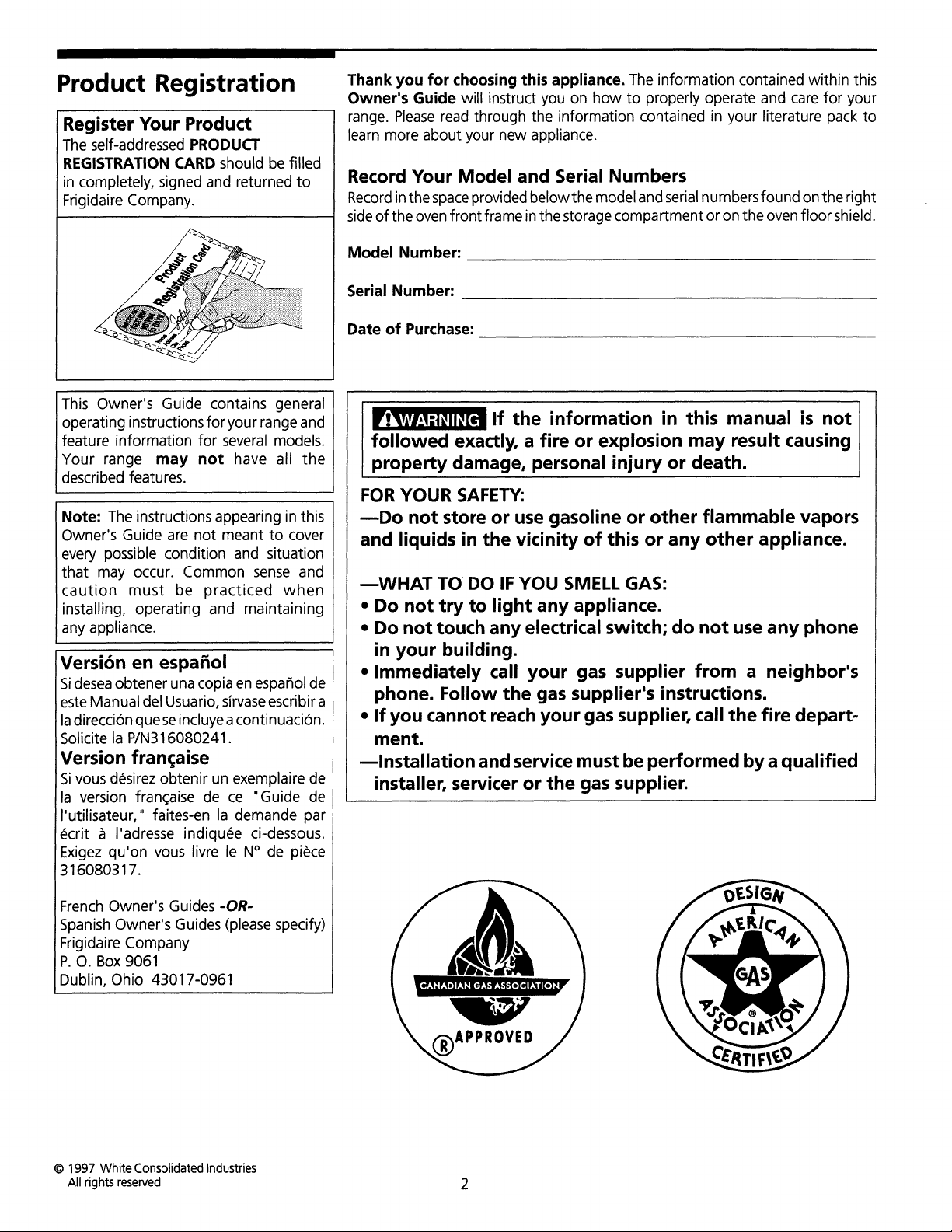

Product Registration
Register Your Product
The self-addressed PRODUCT
REGISTRATION CARD should be filled
in completely, signed and returned to
Frigidaire Company.
Thank you for choosing this appliance. The information contained within this
Owner's Guide will instruct you on how to properly operate and care for your
range. Pleaseread through the information contained in your literature pack to
learn more about your new appliance.
Record Your Model and Serial Numbers
Record inthe space provided below the model and serial numbers found onthe right
sideof the oven front frame inthe storage compartment or on the oven floor shield.
Model Number:
Serial Number:
Date of Purchase:
This Owner's Guide contains general
operating instructions for your range and
feature information for several models.
Your range may not have all the
described features.
Note: The instructions appearing in this
Owner's Guide are not meant to cover
every possible condition and situation
that may occur. Common sense and
caution must be practiced when
installing, operating and maintaining
any appliance.
Versibn en espa_ol
Sideseaobtener una copia en espa_ol de
este Manual del Usuario, sirvaseescribir a
ladireccibn que seincluye acontinuaci6n.
Solicite la P/N316080241.
Version fran(;aise
Sivous d_sirez obtenir un exemplaire de
la version fran(;aise de ce "Guide de
I'utilisateur," faites-en la demande par
_crit _ I'adresse indiqu_e ci-dessous.
Exigez qu'on vous livre le N° de pi_ace
316080317.
French Owner's Guides -OR-
Spanish Owner's Guides (please specify)
Frigidaire Company
P. O. Box 9061
Dublin, Ohio 43017-0961
If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
FOR YOUR SAFETY:
--Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
_--Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone
in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire depart-
ment.
mlnstallation and service must be performed by a qualified
installer, servicer or the gas supplier.
© 1997 White Consolidated Industries
All rights reserved 2

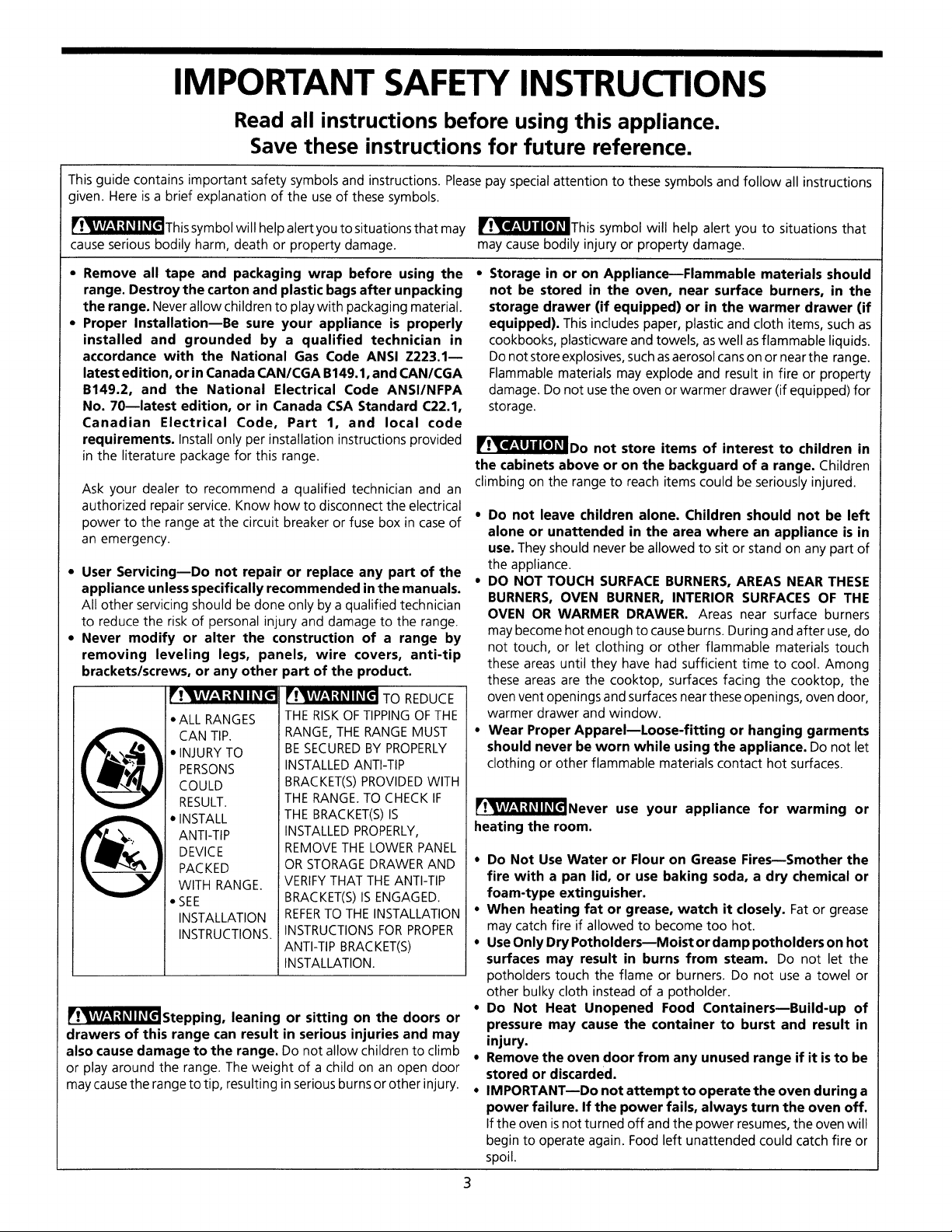

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future reference.
This guide contains important safety symbols and instructions. Pleasepay special attention to these symbols and follow all instructions
given. Here is a brief explanation of the use of these symbols.
_This symbol will help alert you to situations that may _This symbol will help alert you to situations that
cause serious bodily harm, death or property damage, may cause bodily injury or property damage.
• Remove all tape and packaging wrap before using the
range. Destroy the carton and plastic bags after unpacking
the range. Never allow children to play with packaging material.
• Proper Installation--Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Gas Code ANSI Z223.1--
latest edition, or in Canada CAN/CGA B149.1, and CAN/CGA
B149.2, and the National Electrical Code ANSI/NFPA
No. 70--latest edition, or in Canada CSA Standard C22.1,
Canadian Electrical Code, Part 1, and local code
requirements. Install only per installation instructions provided
in the literature package for this range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the electrical
power to the range at the circuit breaker or fuse box in case of
an emergency.
• User Servicing--Do not repair or replace any part of the
appliance unless specifically recommended in the manuals.
All other servicing should be done only by a qualified technician
to reduce the risk of personal injury and damage to the range.
• Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.
• ALL RANGES
CAN TIP.
• INJURYTO
PERSONS
COULD
RESULT.
• INSTALL
ANTI-TIP
DEVICE
PACKED
WITH RANGE.
oSEE
INSTALLATION
INSTRUCTIONS.
_'!Vivf±l_t_ll_[Cl TO REDUCE
THE RISK OF TIPPING OF THE
RANGE, THE RANGE MUST
BE SECURED BY PROPERLY
INSTALLED ANTI-TIP
BRACKET(S) PROVIDED WITH
THE RANGE. TO CHECK IF
THE BRACKET(S)IS
INSTALLED PROPERLY,
REMOVE THE LOWER PANEL
OR STORAGE DRAWER AND
VERIFY THAT THE ANTI-TIP
BRACKET(S) IS ENGAGED.
REFERTO THE INSTALLATION
INSTRUCTIONS FOR PROPER
ANTI-TIP BRACKET(S)
INSTALLATION.
_Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and may
also cause damage to the range. Do not allow children to climb
or play around the range. The weight of a child on an open door
may cause the range to tip, resulting in serious burns or other injury.
Storage in or on Appliance--Flammable materials should
not be stored in the oven, near surface burners, in the
storage drawer (if equipped) or in the warmer drawer (if
equipped). This includes paper, plastic and cloth items, such as
cookbooks, plasticware and towels, as well asflammable liquids.
Do not store explosives, such asaerosol cans on or near the range.
Flammable materials may explode and result in fire or property
damage. Do not use the oven or warmer drawer (if equipped) for
storage.
[_Ir_Do not store items of interest to children in
the cabinets above or on the backguard of a range. Children
climbing on the range to reach items could be seriously injured.
• Do not leave children alone. Children should not be left
alone or unattended in the area where an appliance is in
use. They should never be allowed to sit or stand on any part of
the appliance.
• DO NOT TOUCH SURFACE BURNERS, AREAS NEAR THESE
BURNERS, OVEN BURNER, INTERIOR SURFACES OF THE
OVEN OR WARMER DRAWER. Areas near surface burners
may become hot enough to cause burns. During and after use, do
not touch, or let clothing or other flammable materials touch
these areas until they have had sufficient time to cool. Among
these areas are the cooktop, surfaces facing the cooktop, the
oven vent openings and surfaces near these openings, oven door,
warmer drawer and window.
• Wear Proper ApparelmLoose-fltting or hanging garments
should never be worn while using the appliance. Do not let
clothing or other flammable materials contact hot surfaces.
_Never use your appliance for warming or
heating the room.
• Do Not Use Water or Flour on Grease Fires--Smother the
fire with a pan lid, or use baking soda, a dry chemical or
foam-type extinguisher.
• When heating fat or grease, watch it closely. Fat or grease
may catch fire if allowed to become too hot.
• UseOnly Dry PotholdersmMoist or damp potholders on hot
surfaces may result in burns from steam. Do not let the
potholders touch the flame or burners. Do not use a towel or
other bulky cloth instead of a potholder.
• Do Not Heat Unopened Food Containers--Build-up of
pressure may cause the container to burst and result in
injury.
• Remove the oven door from any unused range if it isto be
stored or discarded.
• IMPORTANT--Do not attempt to operate the oven during a
power failure. If the power fails, always turn the oven off.
If the oven isnot turned off and the power resumes, the oven will
begin to operate again. Food left unattended could catch fire or
spoil.

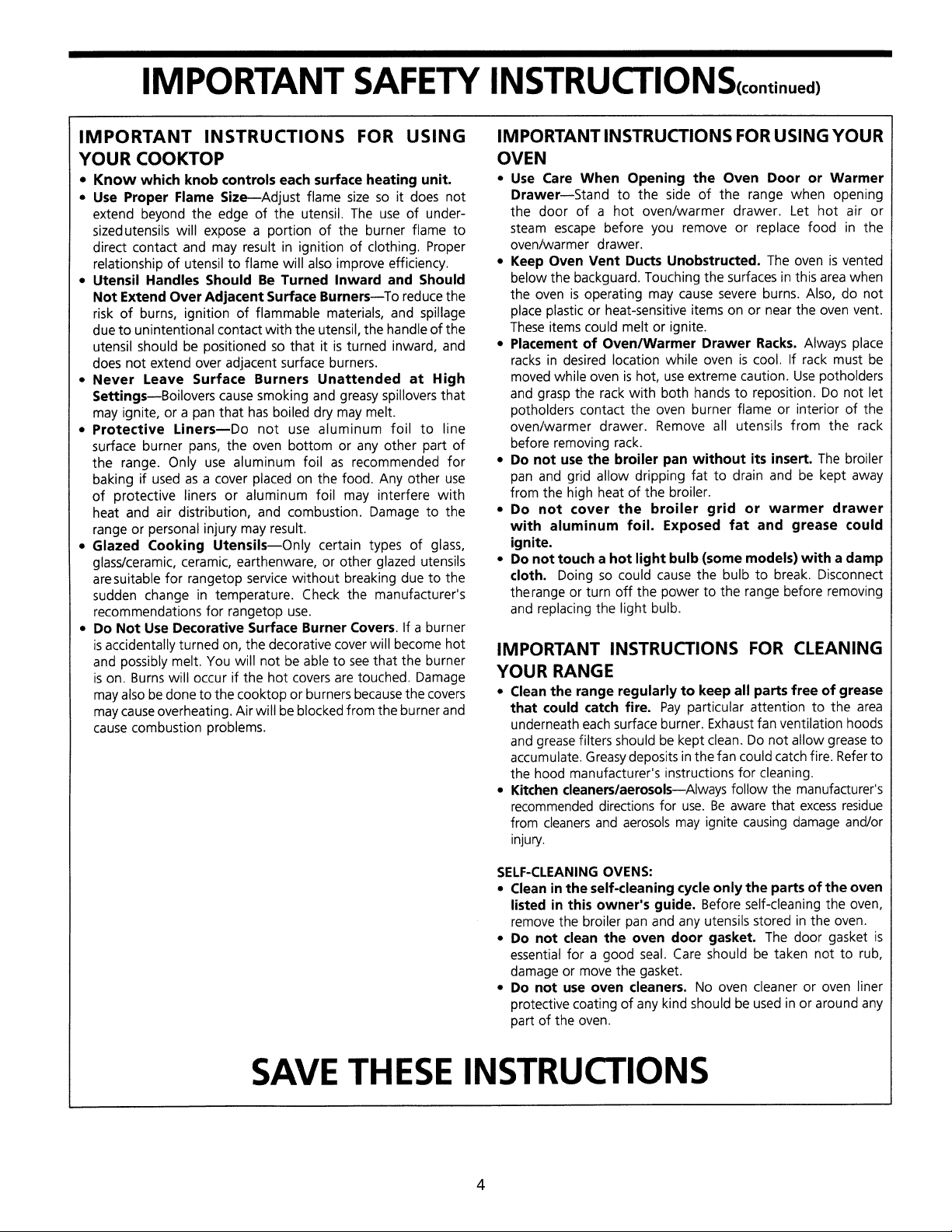

IMPORTANT SAFETY INSTRUCTIONS(continued)
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
• Know which knob controls each surface heating unit.
• Use Proper Flame Size--Adjust flame size so it does not
extend beyond the edge of the utensil. The use of under-
sizedutensils will expose a portion of the burner flame to
direct contact and may result in ignition of clothing. Proper
relationship of utensil to flame will also improve efficiency.
• Utensil Handles Should Be Turned Inward and Should
Not Extend Over Adjacent Surface Burners--To reduce the
risk of burns, ignition of flammable materials, and spillage
due to unintentional contact with the utensil, the handle of the
utensil should be positioned so that it isturned inward, and
does not extend over adjacent surface burners.
• Never Leave Surface Burners Unattended at High
Settings--Boilovers cause smoking and greasy spillovers that
may ignite, or a pan that has boiled dry may melt.
• Protective Liners--Do not use aluminum foil to line
surface burner pans, the oven bottom or any other part of
the range. Only use aluminum foil as recommended for
baking if used as a cover placed on the food. Any other use
of protective liners or aluminum foil may interfere with
heat and air distribution, and combustion. Damage to the
range or personal injury may result.
• Glazed Cooking Utensils--Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed utensils
aresuitable for rangetop service without breaking due to the
sudden change in temperature. Check the manufacturer's
recommendations for rangetop use.
• Do Not Use Decorative Surface Burner Covers. If a burner
isaccidentally turned on, the decorative cover will become hot
and possibly melt. You will not be able to see that the burner
ison. Burns wilt occur if the hot covers are touched. Damage
may also be done to the cooktop or burners because the covers
may cause overheating. Air will be blocked from the burner and
cause combustion problems.
IMPORTANT INSTRUCTIONS FOR USING YOUR
OVEN
• Use Care When Opening the Oven Door or Warmer
Drawer--Stand to the side of the range when opening
the door of a hot oven/warmer drawer. Let hot air or
steam escape before you remove or replace food in the
oven/warmer drawer.
• Keep Oven Vent Ducts Unobstructed. The oven isvented
below the backguard. Touching the surfacesin this area when
the oven is operating may cause severe burns. Also, do not
place plastic or heat-sensitive items on or near the oven vent.
These items could melt or ignite.
• Placement of Oven/Warmer Drawer Racks. Always place
racks in desired location while oven is cool. If rack must be
moved while oven ishot, useextreme caution. Use potholders
and grasp the rack with both hands to reposition. Do not let
potholders contact the oven burner flame or interior of the
oven/warmer drawer. Remove all utensils from the rack
before removing rack.
• Do not use the broiler pan without its insert. The broiler
pan and grid allow dripping fat to drain and be kept away
from the high heat of the broiler.
• Do not cover the broiler grid or warmer drawer
with aluminum foil. Exposed fat and grease could
ignite.
• Do not touch a hot light bulb (some models) with a damp
cloth. Doing so could cause the bulb to break. Disconnect
therange or turn off the power to the range before removing
and replacing the light bulb.
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
• Clean the range regularly to keep all parts free of grease
that could catch fire. Pay particular attention to the area
underneath each surface burner. Exhaustfan ventilation hoods
and grease filters should be kept clean. Do not allow grease to
accumulate. Greasy deposits in the fan could catch fire. Referto
the hood manufacturer's instructions for cleaning.
• Kitchen cleaners/aerosols--Always follow the manufacturer's
recommended directions for use. Be aware that excess residue
from cleaners and aerosols may ignite causing damage and/or
injury.
SELF-CLEANING OVENS:
• Clean in the self-cleaning cycle only the parts of the oven
listed in this owner's guide. Before self-cleaning the oven,
remove the broiler pan and any utensilsstored in the oven.
• Do not clean the oven door gasket. The door gasket is
essential for a good seal. Care should be taken not to rub,
damage or move the gasket.
• Do not use oven cleaners. No oven cleaner or oven liner
protective coating of any kind should be used in or around any
part of the oven.
SAVE THESE INSTRUCTIONS
4

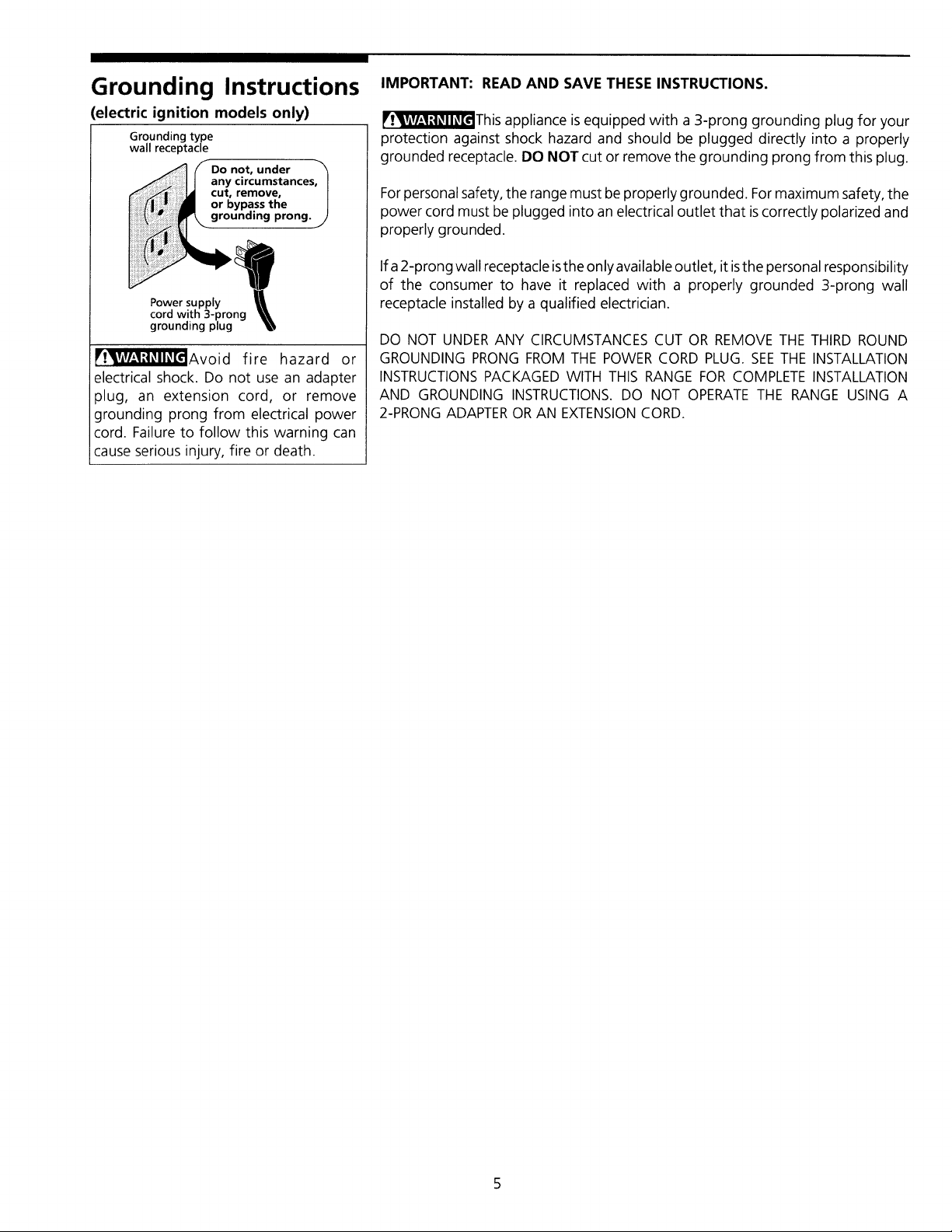

Grounding Instructions
electric ignition models only)
Grounding type
wall receptacle
DO not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Power supply
cord with 3-prong
grounding plug
_Avoid fire hazard or
electrical shock. Do not use an adapter
plug, an extension cord, or remove
grounding prong from electrical power
cord. Failure to follow this warning can
cause serious injury, fire or death.
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.
_This appliance is equipped with a 3-prong grounding plug for your
protection against shock hazard and should be plugged directly into a properly
grounded receptacle. DO NOT cut or remove the grounding prong from this plug.
For personal safety, the range must be properly grounded. For maximum safety, the
power cord must be plugged into an electrical outlet that is correctly polarized and
properly grounded.
If a2-prong wall receptacle isthe only available outlet, it isthe personal responsibility
of the consumer to have it replaced with a properly grounded 3-prong wall
receptacle installed by a qualified electrician.
DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE THIRD ROUND
GROUNDING PRONG FROM THE POWER CORD PLUG. SEE THE INSTALLATION
INSTRUCTIONS PACKAGED WITH THIS RANGE FOR COMPLETE INSTALLATION
AND GROUNDING INSTRUCTIONS. DO NOT OPERATE THE RANGE USING A
2-PRONG ADAPTER OR AN EXTENSION CORD.

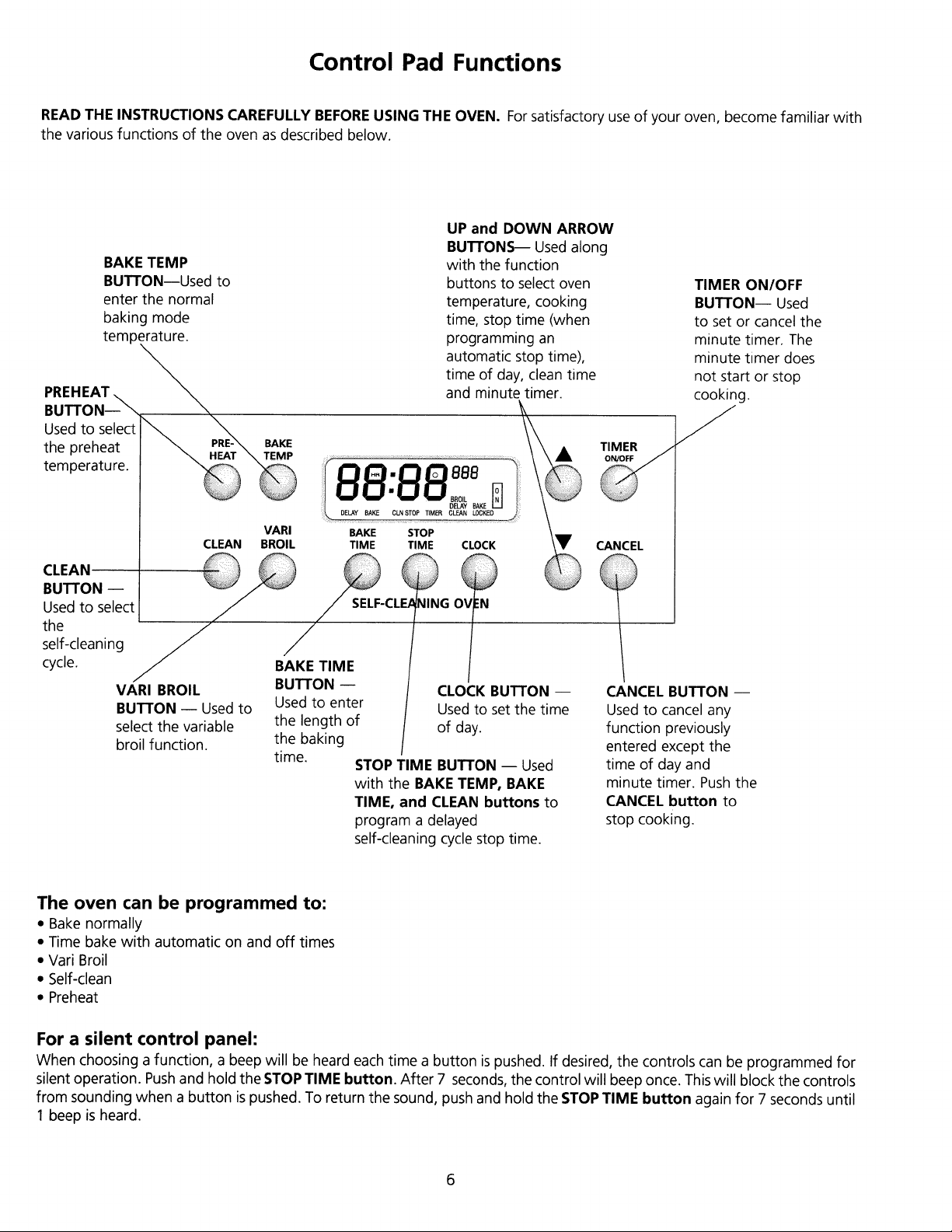

Control Pad Functions
READ THE INSTRUCTIONS CAREFULLYBEFOREUSING THE OVEN. Forsatisfactory useof your oven, become familiar with
the various functions of the oven as described below.
BAKETEMP
BUTTON--Used to
enter the normal
baking mode
temperature.
PREHEAT
BI.
Used to select
the preheat
temperature.
UP and DOWN ARROW
BUTTONS-- Used along
with the function
buttons to select oven
temperature, cooking
time, stop time (when
programming an
automatic stop time),
time of day, clean time
and minute timer.
BAKE
TEMP
VARI BAKE
CLEAN BROIL TIME
c E,. QQ Q
BUTTON -- ___ _
Used to select /// J -_
the _ /_
self-cleaning _ J
cycle. _ BAKE TIME
VARI_BROIL BUTTON-
BUTTON -- Used to Used to enter
select the variable the length of
broil function, the baking
time.
STOP
TIME CLOCK
CLOCK BUTTON --
Used to set the time
of day.
STOPTIME BUTTON -- Used
with the BAKE TEMP, BAKE
TIME, and CLEAN buttons to
program a delayed
self-cleaning cycle stop time.
TIMER
CANCEL
(
TIMER ON/OFF
BUTTON-- Used
to set or cancel the
minute timer. The
minute timer does
not start or stop
cooking.
CANCEL BUTTON --
Used to cancel any
function previously
entered except the
time of day and
minute timer. Push the
CANCEL button to
stop cooking.
The oven can be programmed to:
• Bake normally
• Time bake with automatic on and off times
° Vari Broil
• Self-clean
° Preheat
For a silent control panel:
When choosing a function, a beep will be heard each time a button is pushed. If desired, the controls can be programmed for
silent operation. Pushand hold the STOPTIME button. After 7 seconds, the control will beep once. Thiswill block the controls
from sounding when a button ispushed. To return the sound, push and hold the STOPTIME button again for 7 seconds until
1 beep is heard.
6

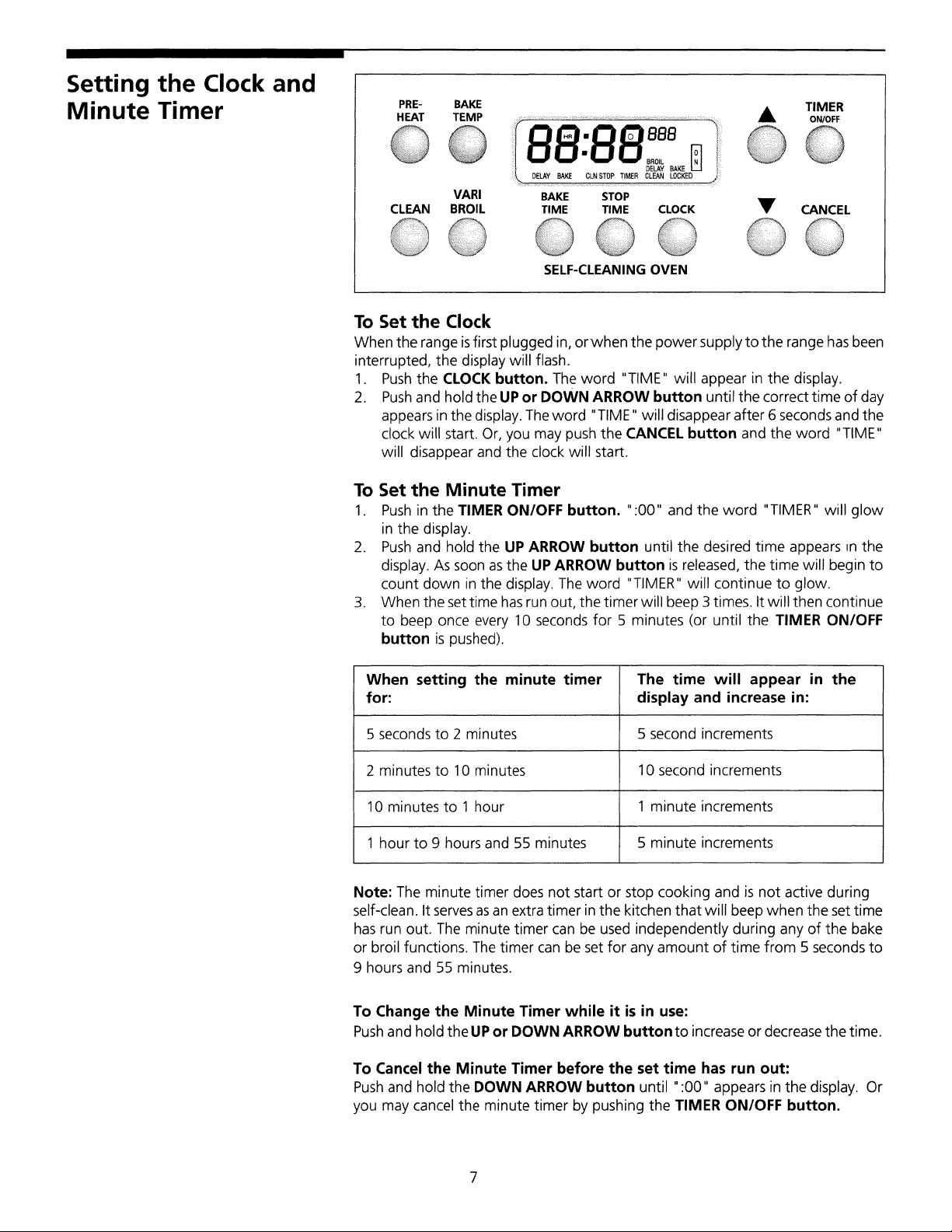

Setting the Clock and
Minute Timer
PRE- BAKE TIMER
HEAT TEMP A ON/OFF
VARI BAKE STOP
CLEAN BROIL TIME TIME CLOCK • CANCEL
SELF-CLEANING OVEN
To Set the Clock
When the range isfirst plugged in, orwhen the power supply to the range has been
interrupted, the display will flash.
1. Push the CLOCK button. The word "TIME" will appear in the display.
2. Push and hold the UP or DOWN ARROW button until the correct time of day
appears in the display. The word "TIME" will disappear after 6 seconds and the
clock will start. Or, you may push the CANCEL button and the word "TIME"
will disappear and the clock will start.
To Set the Minute Timer
1. Push in the TIMER ON/OFF button. ":00" and the word "TIMER" will glow
in the display.
2. Push and hold the UP ARROW button until the desired time appears in the
display. As soon as the UP ARROW button is released, the time will begin to
count down in the display. The word "TIMER" will continue to glow.
3. When the set time has run out, the timer will beep 3 times. It will then continue
to beep once every 10 seconds for 5 minutes (or until the TIMER ON/OFF
button is pushed).
When setting the minute timer The time will appear in the
for: display and increase in:
5 seconds to 2 minutes 5 second increments
2 minutes to 10 minutes 10 second increments
10 minutes to 1 hour 1 minute increments
1 hour to 9 hours and 55 minutes 5 minute increments
Note: The minute timer does not start or stop cooking and is not active during
self-clean. It serves asan extra timer in the kitchen that will beep when the set time
has run out. The minute timer can be used independently during any of the bake
or broil functions. The timer can be set for any amount of time from 5 seconds to
9 hours and 55 minutes.
To Change the Minute Timer while it is in use:
Pushand hold the UPor DOWN ARROW button to increase or decrease the time.
To Cancel the Minute Timer before the set time has run out:
Pushand hold the DOWN ARROW button until ":00" appears in the display. Or
you may cancel the minute timer by pushing the TIMER ON/OFF button.

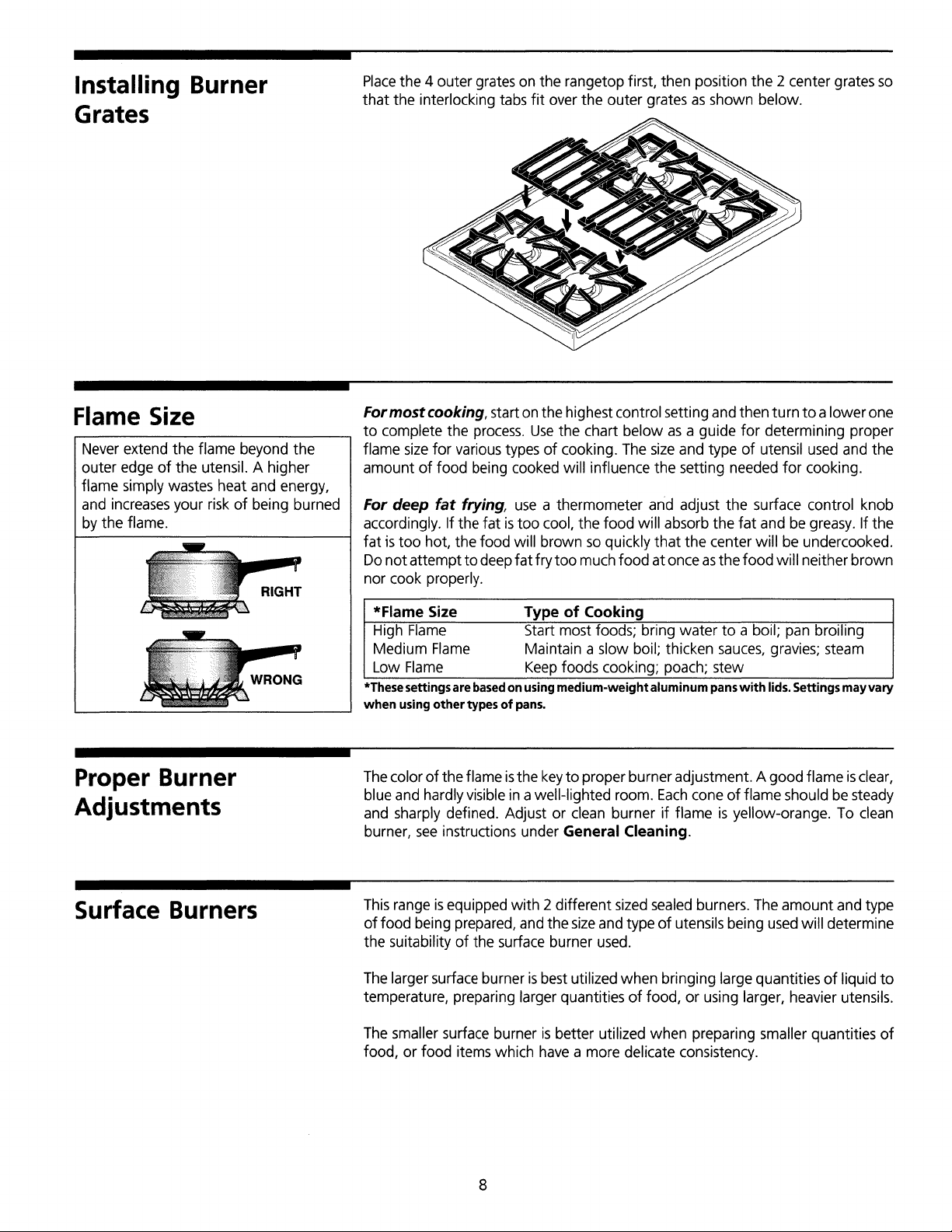

Installing Burner
Grates
Placethe 4 outer grates on the rangetop first, then position the 2 center grates so
that the interlocking tabs fit over the outer grates as shown below.
Flame Size
Never extend the flame beyond the
outer edge of the utensil. A higher
flame simply wastes heat and energy,
and increasesyour risk of being burned
by the flame.
RIGHT
WRONG
For most cooking, start on the highest control setting and then turn to a lowerone
to complete the process. Use the chart below as a guide for determining proper
flame sizefor various types of cooking. The size and type of utensil used and the
amount of food being cooked will influence the setting needed for cooking.
For deep fat frying, use a thermometer and adjust the surface control knob
accordingly. If the fat istoo cool, the food will absorb the fat and be greasy. If the
fat istoo hot, the food will brown so quickly that the center will be undercooked.
Donot attempt to deep fat fry too much food at once asthe food will neither brown
nor cook properly.
*Flame Size Type of Cooking
High Flame Start most foods; bring water to a boil; pan broiling
Medium Flame Maintain a slow boil; thicken sauces, gravies; steam
Low Flame Keep foods cooking; poach; stew
*These settings are based on using medium-weight aluminum pans with lids. Settings may vary
when using other types of pans.
Proper Burner
Adjustments
The color of the flame isthe keyto proper burner adjustment. A good flame isclear,
blue and hardly visible in a well-lighted room. Eachcone of flame should be steady
and sharply defined. Adjust or clean burner if flame is yellow-orange. To clean
burner, see instructionsunder General Cleaning.
Surface Burners
This range isequipped with 2 different sized sealed burners. The amount and type
of food being prepared, and the sizeand type of utensils being used will determine
the suitability of the surface burner used.
The larger surface burner isbest utilized when bringing large quantities of liquid to
temperature, preparing larger quantities of food, or using larger, heavier utensils.
The smaller surface burner is better utilized when preparing smaller quantities of
food, or food items which have a more delicate consistency.

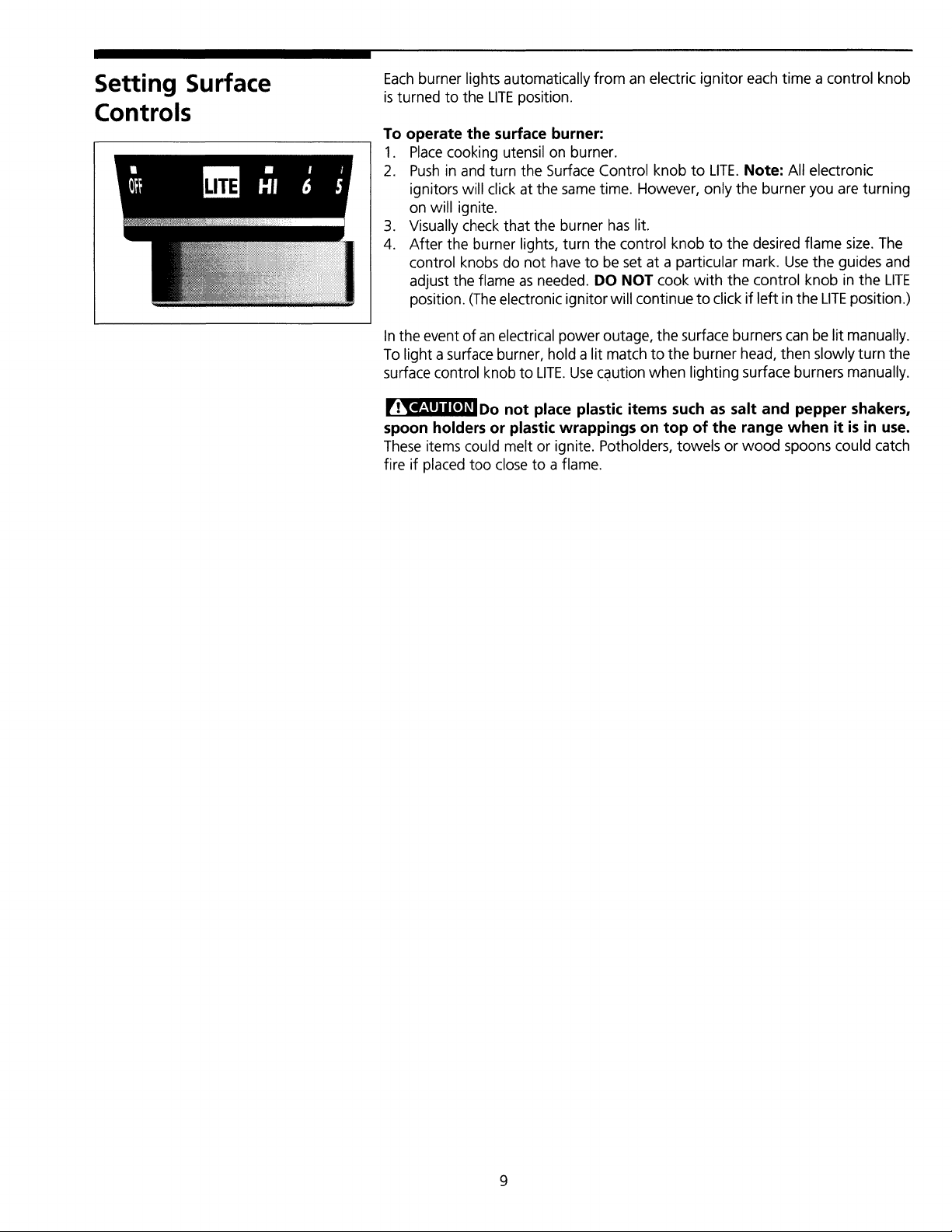

Setting Surface
Controls
Eachburner lights automatically from an electric ignitor each time a control knob
is turned to the LITEposition.
To operate the surface burner:
1. Placecooking utensil on burner.
2. Pushin and turn the Surface Contro! knob to LITE.Note: All electronic
ignitors will clickat the sametime. However, only the burner you are turning
on will ignite.
3. Visually check that the burner has lit.
4. After the burner lights, turn the control knob to the desired flame size.The
control knobs do not haveto be set at a particular mark. Use the guides and
adjust the flame as needed. DO NOT cook with the control knob in the LITE
position. (Theelectronic ignitor will continue to click if left in the LITEposition.)
Inthe event of an electrical power outage, the surface burners can be lit manually.
To light a surface burner, hold a lit match to the burner head, then slowly turn the
surface control knob to LITE.Usecaution when lighting surface burners manually.
_Do not place plastic items such as salt and pepper shakers,
spoon holders or plastic wrappings on top of the range when it is in use.
These items could melt or ignite. Potholders, towels or wood spoons could catch
fire if placed too close to a flame.
Before Setting Oven
and Warmer Drawer
Controls

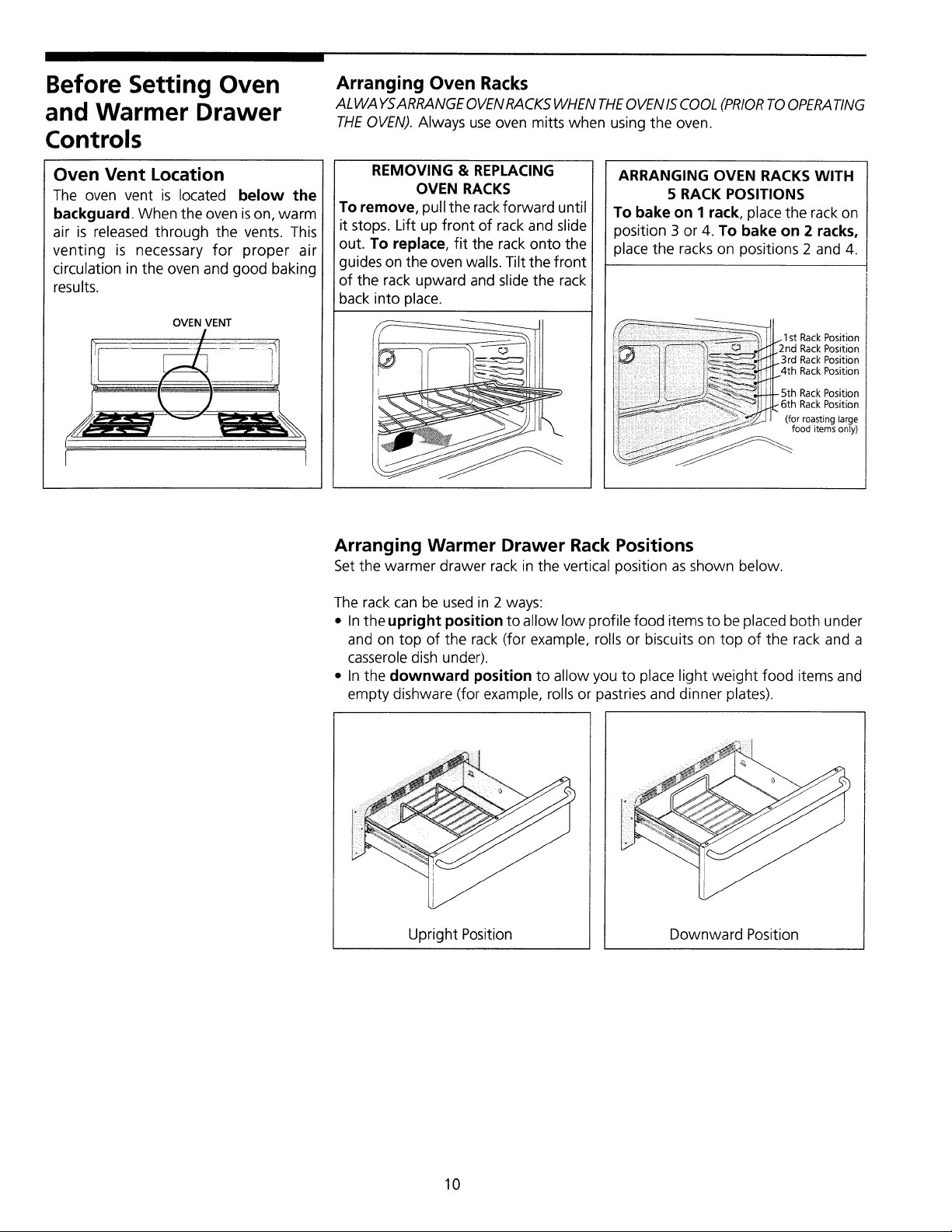

Oven Vent Location
The oven vent is located below the
backguard When the oven ison, warm
air is released through the vents. This
venting is necessary for proper air
circulation in the oven and good baking
results.
OVEN VENT
r 1
Arranging Oven Racks
ALWAYSARRANGEOVENRACKSWHENTHEOVENISCOOL(PRIORTOOPERATING
THEOVEN). Always useoven mitts when using the oven.
REMOVING & REPLACING
OVEN RACKS
To remove, pull the rack forward until
it stops. Lift up front of rack and slide
out. To replace, fit the rack onto the
guides on the oven walls. Tilt the front
of the rack upward and slide the rack
back into place.
ARRANGING OVEN RACKS WITH
5 RACK POSITIONS
To bake on I rack, place the rack on
position 3 or 4. To bake on 2 racks,
place the racks on positions 2 and 4.
Arranging Warmer Drawer Rack Positions
Setthe warmer drawer rack in the vertical position asshown below,
The rack can be used in 2 ways:
• Inthe upright position to allow low profile food items to be placed both under
and on top of the rack (for example, rolls or biscuits on top of the rack and a
casserole dish under).
• In the downward position to allow you to place light weight food items and
empty dishware (for example, rolls or pastries and dinner plates).
Upright Position
Downward Position
10

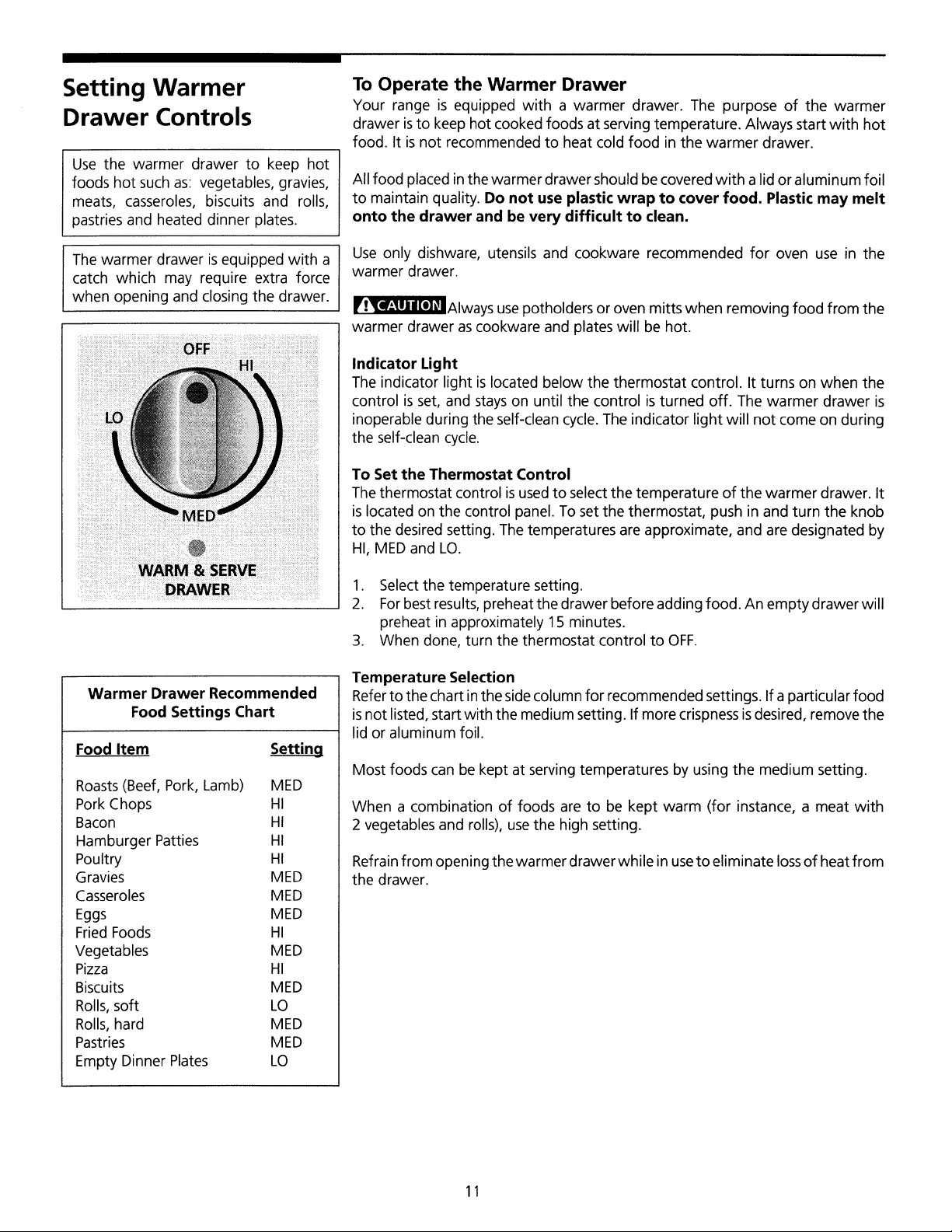

Setting Warmer
Drawer Controls
Use the warmer drawer to keep hot
foods hot such as: vegetables, gravies,
meats, casseroles, biscuits and rolls,
pastries and heated dinner plates.
The warmer drawer isequipped with a
catch which may require extra force
when opening and closing the drawer.
WARM & SERVE
DRAWER
Warmer Drawer Recommended
Food Settings Chart
Food Item
Roasts(Beef, Pork, Lamb) MED
Pork Chops HI
Bacon Ht
Hamburger Patties HI
Poultry HI
Gravies MED
Casseroles MED
Eggs MED
Fried Foods HI
Vegetables MED
Pizza HI
Biscuits MED
Rolls,soft LO
Roils, hard MED
Pastries MED
Empty Dinner Plates LO
To Operate the Warmer Drawer
Your range is equipped with a warmer drawer. The purpose of the warmer
drawer isto keep hot cooked foods at serving temperature. Always start with hot
food. It is not recommended to heat cold food in the warmer drawer.
All food placed in the warmer drawer should be covered with a lid or aluminum foil
to maintain quality. Do not use plastic wrap to cover food. Plastic may melt
onto the drawer and be very difficult to clean.
Use only dishware, utensils and cookware recommended for oven use in the
warmer drawer.
L!_wJ_l_'m'_lAIways use potholders or oven mitts when removing food from the
warmer drawer as cookware and plates will be hot.
Indicator Light
The indicator light is located below the thermostat control. It turns on when the
control is set, and stays on until the control is turned off. The warmer drawer is
inoperable during the self-clean cycle. The indicator light will not come on during
the self-clean cycle.
To Set the Thermostat Control
The thermostat control isused to select the temperature of the warmer drawer. It
is located on the control panel. To set the thermostat, push in and turn the knob
to the desired setting. The temperatures are approximate, and are designated by
HI, MED and LO.
1. Select the temperature setting.
2. Forbest results, preheat the drawer before adding food. An empty drawer will
preheat in approximately 15 minutes.
3. When done, turn the thermostat control to OFF.
Temperature Selection
Referto the chart in the side column for recommended settings. If a particular food
isnot listed, start with the medium setting. If more crispness isdesired, remove the
lid or aluminum foil.
Most foods can be kept at serving temperatures by using the medium setting.
When a combination of foods are to be kept warm (for instance, a meat with
2 vegetables and rolls), usethe high setting.
Refrain from opening the warmer drawer while in useto eliminate lossof heat from
the drawer.
11

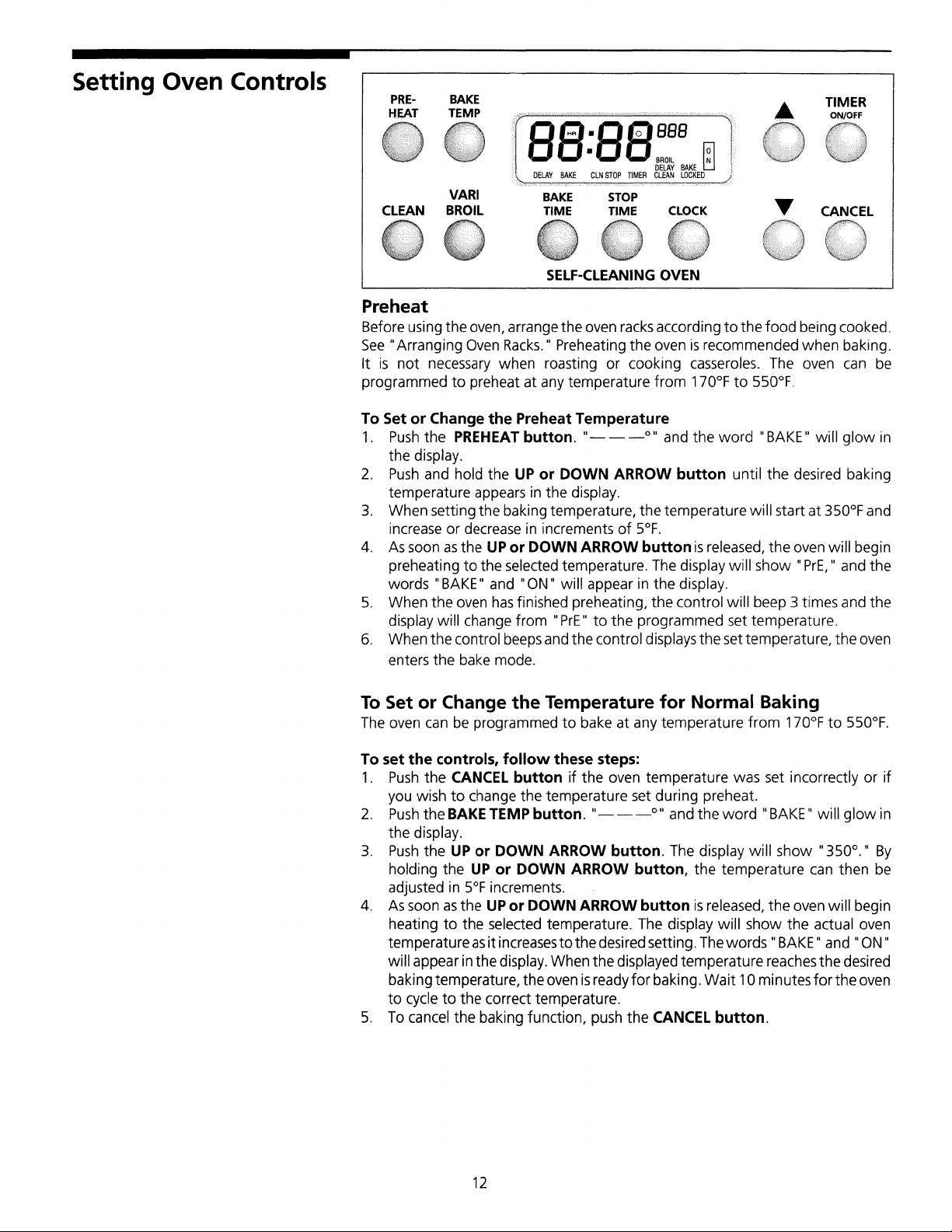

Setting Oven Controls
PRE- BAKE TIMER
HEAT TEMP ON/OFF
88:88
VARI BAKE STOP
CLEAN BROIL TIME TIME CLOCK • CANCEL
@
SELF-CLEANINGOVEN
Preheat
Before using the oven, arrange the oven racks according to the food being cooked_
See "Arranging Oven Racks." Preheating the oven isrecommended when baking.
It is not necessary when roasting or cooking casseroles. The oven can be
programmed to preheat at any temperature from 170°F to 550°F
To Set or Change the Preheat Temperature
1. Pushthe PREHEATbutton. '.... and the word "BAKE" will glow in
the display.
2. Pushand hold the UP or DOWN ARROW button until the desired baking
temperature appears in the display.
3. When setting the baking temperature, the temperature will start at 350°F and
increaseor decrease in incrementsof 5°F.
4. As soon asthe UPor DOWN ARROW button isreleased,the oven will begin
preheating to the selected temperature. The display will show "PrE," and the
words "BAKE" and "ON" will appear in the display.
5. When the oven hasfinished preheating, the control will beep 3 times and the
display will changefrom "PrE" to the programmed set temperature.
6. When the controlbeepsand the controldisplaysthe set temperature, the oven
enters the bake mode.
To Set or Change the Temperature for Normal Baking
The oven can be programmed to bake at any temperature from 170°F to 550°F.
To set the controls, follow these steps:
1. Pushthe CANCEL button if the oven temperature was set incorrectly or if
you wish to changethe temperature set during preheat.
2. Pushthe BAKE TEMP button. "------°" andtheword "BAKE" willglowin
the display.
3. Pushthe UP or DOWN ARROW button. The display will show "3500. '' By
holding the UP or DOWN ARROW button, the temperature can then be
adjusted in 5°F increments.
4. As soon asthe UPor DOWN ARROW button isreleased, the oven will begin
heating to the selected temperature. The display will show the actual oven
temperature asit increasesto the desired setting. Thewords "BAKE" and "ON"
will appear in the display. When the displayed temperature reaches the desired
baking temperature, the oven isreadyfor baking. Wait 10 minutes for the oven
to cycle to the correct temperature.
5. To cancel the baking function, push the CANCELbutton.
12

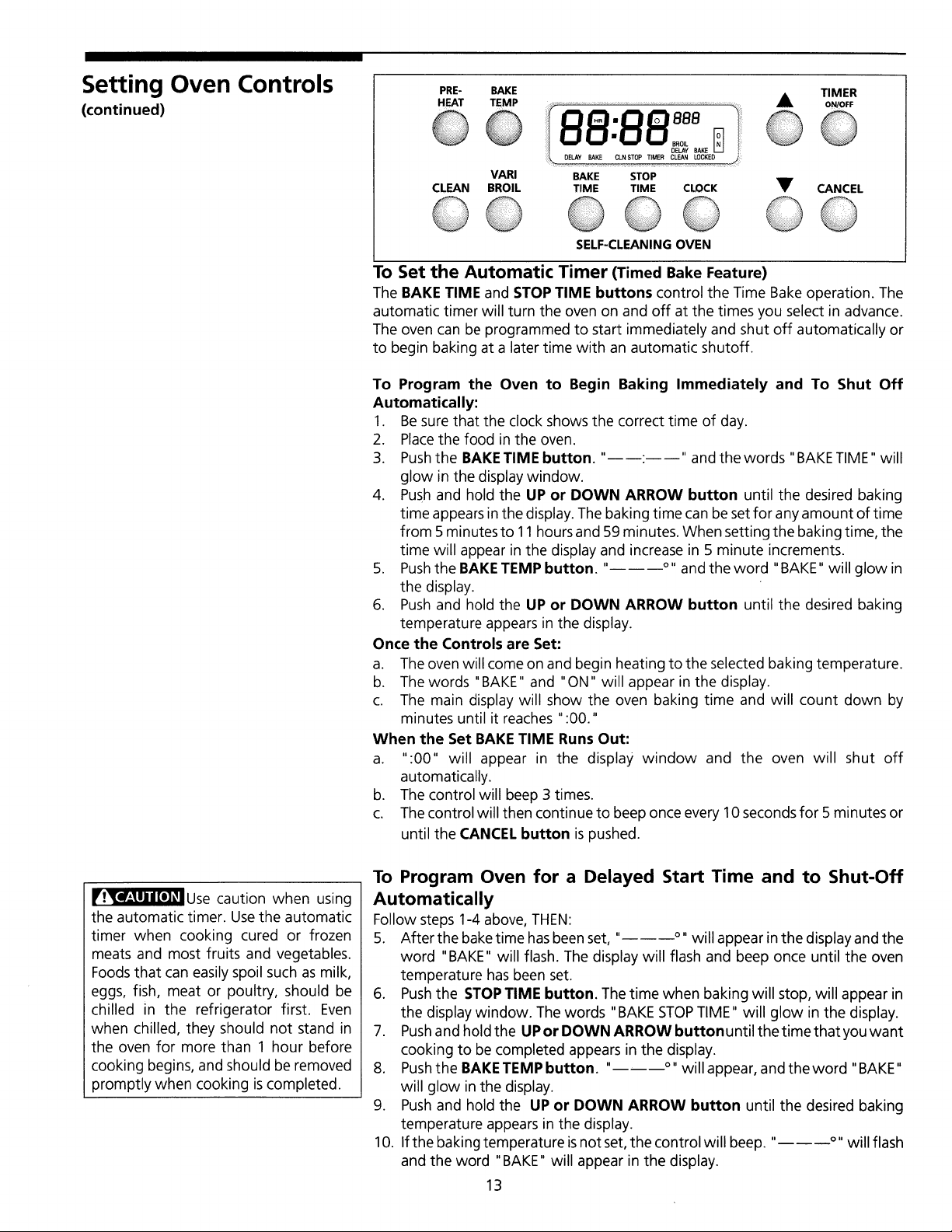

Setting Oven Controls
(continued)
PRE- BAKE
HEAT TEMP
88:88
TIMER
ON/OFF
@
VARI BAKE STOP
CLEAN BROIL TIME TIME CLOCK
© @@@
SELF-CLEANING OVEN
V CANCEL
To Set the Automatic Timer (Timed Bake Feature)
The BAKE TIME and STOPTIME buttons controlthe Time Bake operation. The
automatic timer will turn the oven on and off at the times you select in advance.
The oven can be programmed to start immediately and shut off automatically or
to begin baking at a later time with an automatic shutoff.
To Program the Oven to Begin
Automatically:
1.
2.
3.
Baking Immediately and To Shut Off
Besure that the clock shows the correct time of day.
Placethe food in the oven.
Pushthe BAKETIME button. " : " and the words "BAKE TIME" will
glow in the display window.
4. Pushand hold the UP or DOWN ARROW button until the desired baking
time appears in the display. The baking time can be set for any amount of time
from 5 minutes to 11 hours and 59 minutes. When setting the baking time, the
time will appear in the display and increase in 5 minute increments.
5. Pushthe BAKETEMP button. ,, o,,and the word "BAKE" will glow in
the display.
6. Pushand hold the UP or DOWN ARROW button until the desired baking
temperature appears in the display.
Once the Controls are Set:
a. The oven will come on and begin heating to the selected baking temperature.
b. The words "BAKE" and "ON" will appear in the display.
c. The main display will show the oven baking time and will count down by
minutes until it reaches ":00."
When the Set BAKETIME Runs Out:
a. ":00" will appear in the display window and the oven will shut off
automatically.
b. The control will beep 3 times.
c. The control will then continue to beep once every 10 seconds for 5 minutes or
until the CANCEL button is pushed.
_Use caution when using
the automatic timer. Use the automatic
timer when cooking cured or frozen
meats and most fruits and vegetables.
Foods that can easily spoil such as milk,
eggs, fish, meat or poultry, should be
chilled in the refrigerator first. Even
when chilled, they should not stand in
the oven for more than ! hour before
cooking begins, and should be removed
promptly when cooking iscompleted.
To Program Oven for a Delayed Start Time and to Shut-Off
Automatically
Follow steps 1-4 above, THEN:
5. After the baketime hasbeen set, '.... will appear in the display and the
word "BAKE" will flash. The display will flash and beep once until the oven
temperature has been set.
6. Pushthe STOPTIME button. The time when baking will stop, will appear in
the display window. The words "BAKE STOPTIME" will glow in the display.
7. Pushand hold the UPorDOWNARROWbuttonuntilthetimethatyouwant
cooking to be completed appears in the display.
8. Pushthe BAKETEMP button. '.... willappear, andtheword "BAKE"
will glow in the display.
9. Pushand hold the UP or DOWN ARROW button until the desired baking
temperature appears in the display.
10. Ifthe baking temperature isnot set,the control wi IIbeep. "------°" will flash
and the word "BAKE" will appear in the display.
13

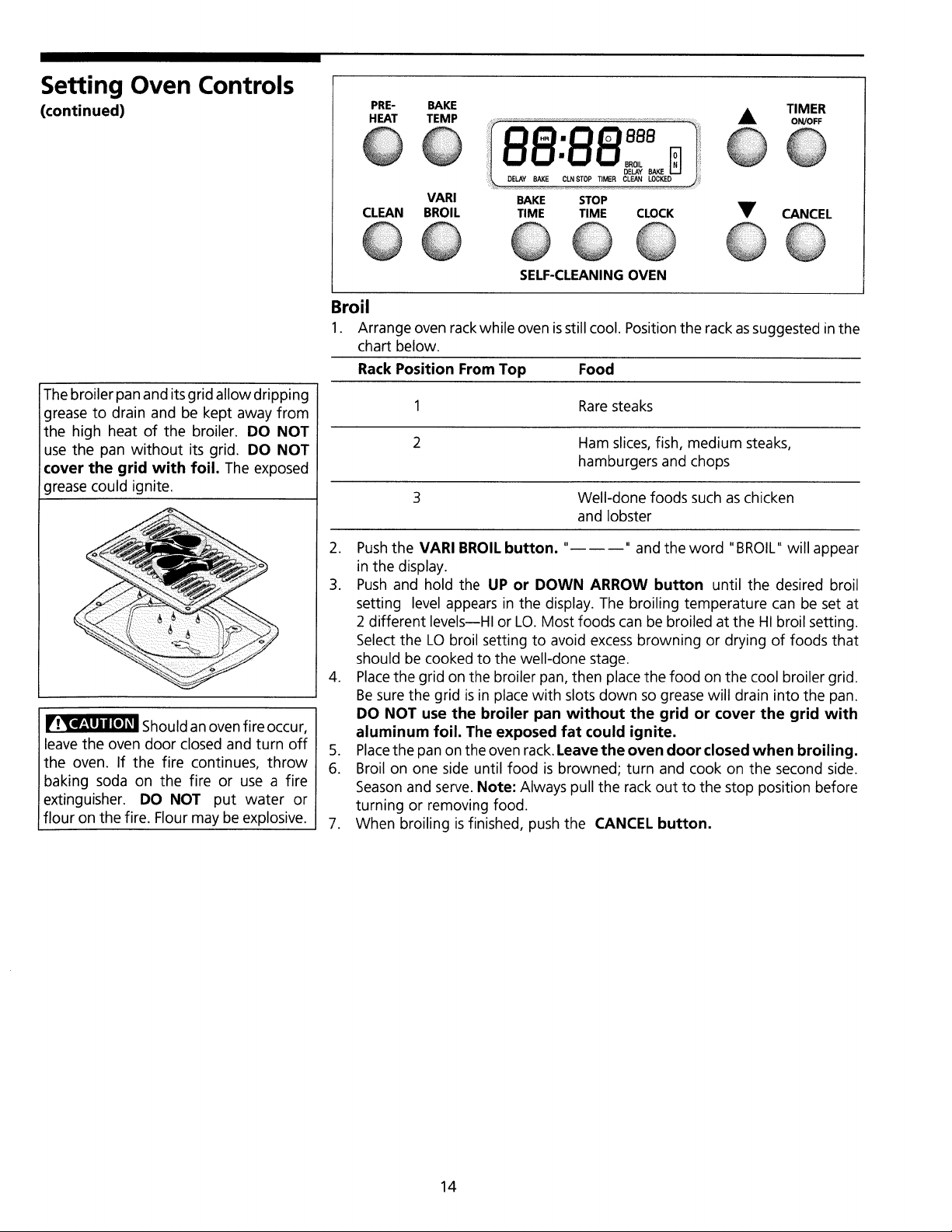

Setting Oven Controls
(continued)
The broiler pan and itsgrid allow dripping
grease to drain and be kept away from
the high heat of the broiler. DO NOT
use the pan without its grid. DO NOT
cover the grid with foil. The exposed
grease could ignite.
Should an oven fire occur,
leave the oven door closed and turn off
the oven. If the fire continues, throw
baking soda on the fire or use a fire
extinguisher. DO NOT put water or
flour on the fire. Flour may be explosive.
PRE- BAKE TIMER
HEAT TEMP • ON/OFF
88"88
VARI BAKE STOP
CLEAN BROIL TIME TIME CLOCK V CANCEL
SELF-CLEANINGOVEN
Broil
1. Arrange oven rackwhile oven isstill cool. Position the rack assuggested in the
chart below.
Rack Position From Top Food
1 Raresteaks
2 Ham slices, fish, medium steaks,
hamburgers and chops
3 Well-done foods such as chicken
and lobster
2. Pushthe VARI BROILbutton. "------" and the word "BROIL" will appear
in the display.
3. Push and hold the UP or DOWN ARROW button until the desired broil
setting level appears in the display. The broiling temperature can be set at
2 different levels--HI or LO. Most foods can be broiled at the HI broil setting.
Select the LO broil setting to avoid excess browning or drying of foods that
should be cooked to the well-done stage.
4. Placethe grid on the broiler pan, then place the food on the cool broiler grid.
Be sure the grid isin place with slots down so grease will drain into the pan.
DO NOT use the broiler pan without the grid or cover the grid with
aluminum foil. The exposed fat could ignite.
5. Placethe pan on the oven rack.Leave the oven door closed when broiling.
6. Broil on one side until food is browned; turn and cook on the second side.
Seasonand serve.Note: Always pull the rack out to the stop position before
turning or removing food.
7. When broiling isfinished, push the CANCEL button.
14

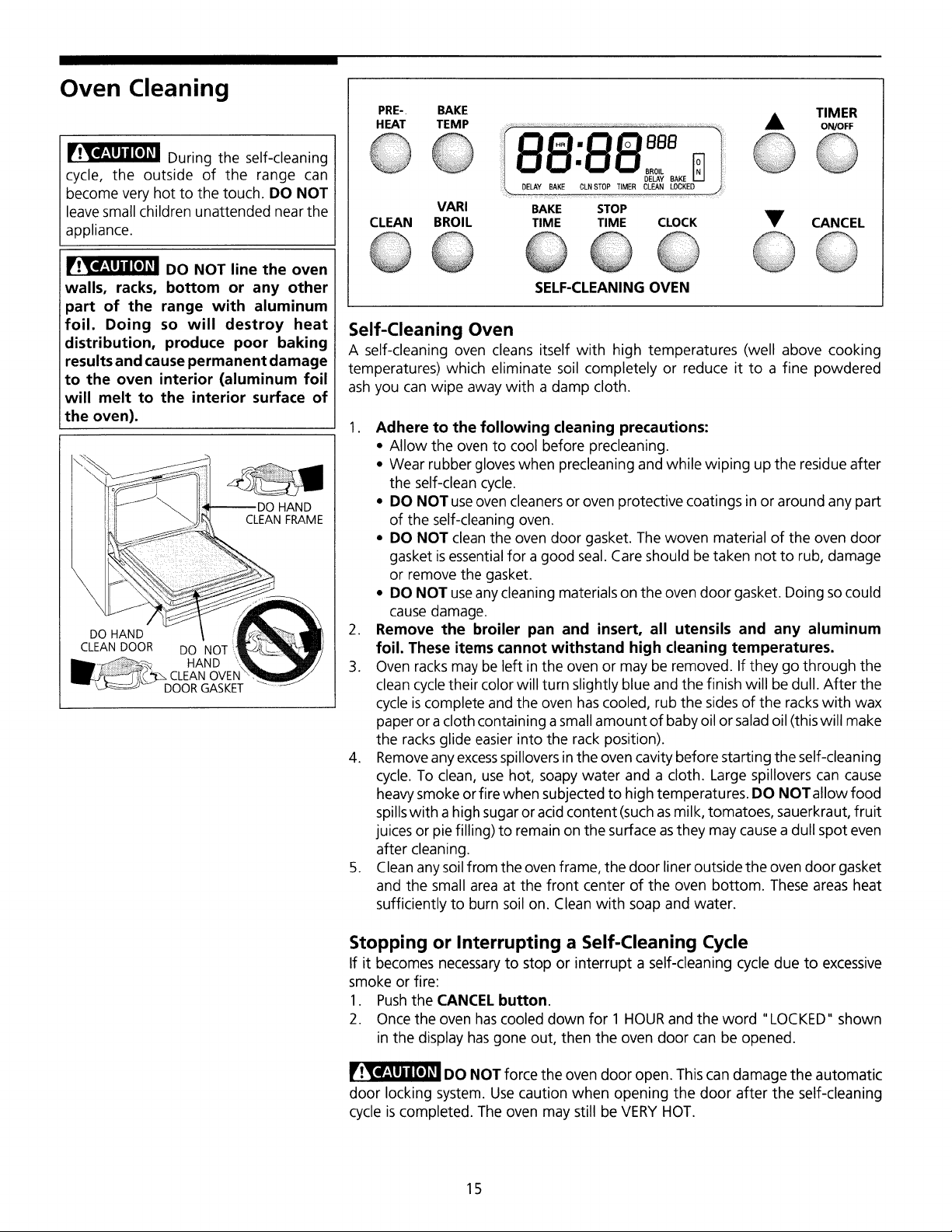

Oven Cleaning
During the self-cleaning
cycle, the outside of the range can
become very hot to the touch. DO NOT
leave small children unattended near the
appliance.
DO NOT line the oven
walls, racks, bottom or any other
part of the range with aluminum
foil. Doing so will destroy heat
distribution, produce poor baking
results and cause permanent damage
to the oven interior (aluminum foil
will melt to the interior surface of
the oven).
HAND
CLEAN FRAME
DO HAND
CLEAN DOOR
DO NOT
HAND
CLEAN OVEN
)OR GASKET
PRE- BAKE TIMER
HEAT TEMP • ON/OFF
88:88 ©
VARI
CLEAN BROIL CANCEL
BAKE STOP
TIME TIME CLOCK
@
SELF-CLEANINGOVEN
Self-Cleaning Oven
A self-cleaning oven cleans itself with high temperatures (well above cooking
temperatures) which eliminate soil completely or reduce it to a fine powdered
ash you can wipe away with a damp cloth.
1 Adhere to the following cleaning precautions:
• Allow the oven to cool before precleaning.
• Wear rubber gloves when precleaning and while wiping up the residue after
the self-clean cycle.
• DO NOTuse oven cleaners or oven protective coatings in or around any part
of the self-cleaning oven.
• DO NOT clean the oven door gasket. The woven material of the oven door
gasket isessentialfor a good seal. Care should be taken not to rub, damage
or remove the gasket.
• DO NOT useany cleaning materials on the oven door gasket. Doing socould
cause damage.
2. Remove the broiler pan and insert, all utensils and any aluminum
foil. These items cannot withstand high cleaning temperatures.
3. Oven racksmay be left in the oven or may be removed. If they go through the
clean cycletheir colorwill turn slightly blue and the finish will be dull. After the
cycleiscompleteand the oven hascooled, rubthe sides of the rackswith wax
paper or a clothcontainingasma!lamount of baby oil or saladoil (this will make
the racks glide easier into the rackposition).
4. Removeany excessspilloversinthe oven cavitybefore starting the self-cleaning
cycle. To clean,use hot, soapywater and a cloth. Large spilloverscan cause
heavysmokeor fire when subjectedto hightemperatures. DO NOTallow food
spillswith a highsugaroracid content(such asmilk, tomatoes, sauerkraut,fruit
juices or pie filling) to remainon the surfaceasthey may causea dull spot even
after cleaning.
5. Clean anysoil from the ovenframe, the door liner outsidethe ovendoor gasket
and the small area at the front center of the oven bottom. These areas heat
sufficientlyto burn soilon. Clean with soap and water.
Stopping or Interrupting a Self-Cleaning Cycle
If it becomes necessaryto stop or interrupt a self-cleaning cycle due to excessive
smoke or fire:
1. Pushthe CANCELbutton.
2. Once the oven hascooled down for 1 HOURand the word "LOCKED" shown
in the display hasgone out, then the oven door can be opened.
DO NOT force the oven door open. This can damage the automatic
door locking system. Use caution when opening the door after the self-cleaning
cycle is completed. The oven may still be VERY HOT.
15

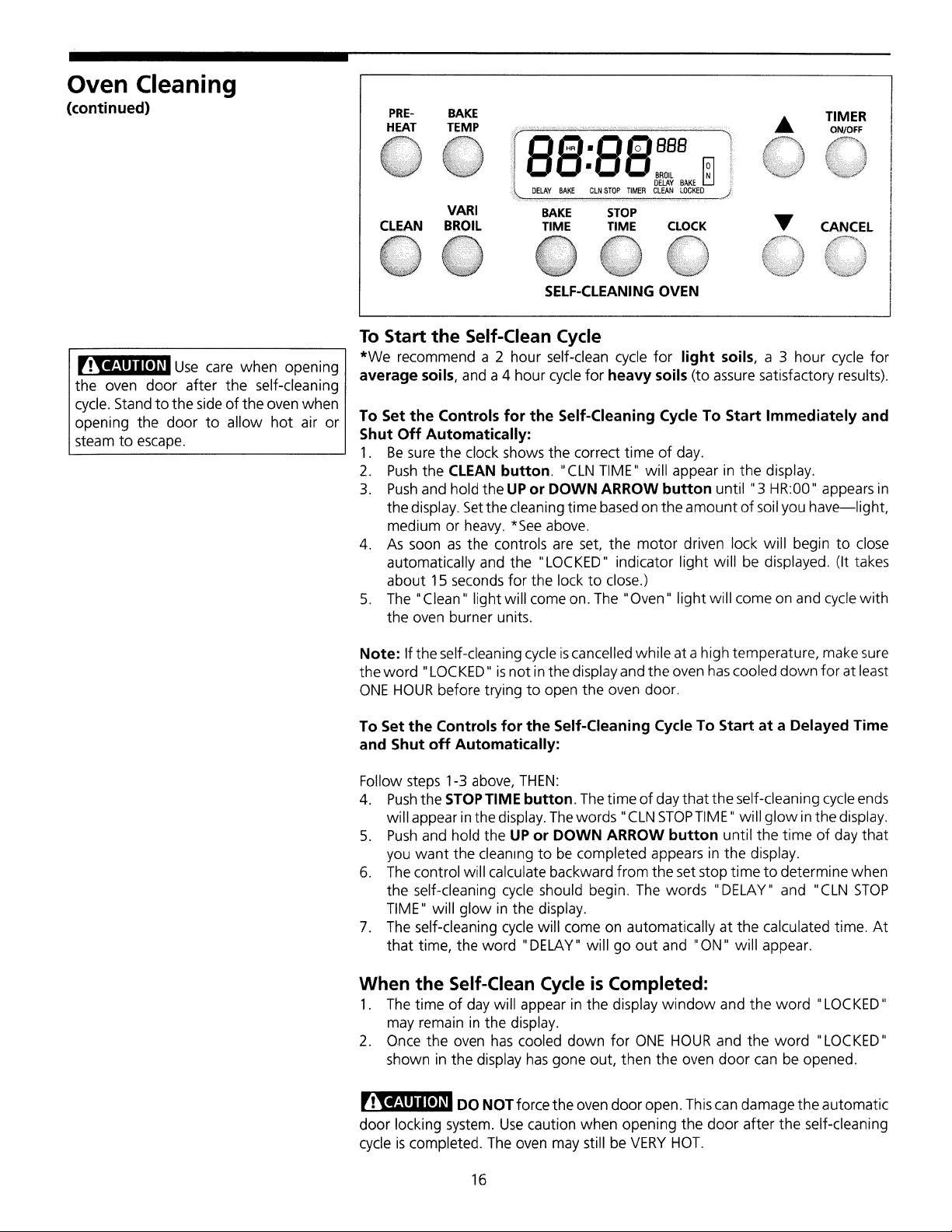

Oven Cleaning
(continued)
PRE- BAKE TIMER
HEAT TEMP A ON/OFF
BROIL F_I
DELAY BAKE
DELAY BAKE CLNSTOP TIMER CLEAN LOCKED
BAKE STOP
TIME TIME CLOCK
©
VARI
CLEAN BROIL _r CANCEL
SELF-CLEANING OVEN
Use care when opening
the oven door after the self-cleaning
cycle. Stand to the side of the oven when
opening the door to allow hot air or
steam to escape.
To Start the Self-Clean Cycle
*We recommend a 2 hour self-clean cycle for light soils, a 3 hour cycle for
average soils, and a 4 hour cycle for heavy soils (to assure satisfactory results).
To Set the Controls for the Self-Cleaning Cycle To Start Immediately and
Shut Off Automatically:
1. Be sure the clock shows the correct time of day.
2. Pushthe CLEAN button. "CLN TIME" will appear in the display.
3. Pushand hold the UPor DOWN ARROW button until "3 HR:00" appears in
the display. Setthe cleaning time based on the amount of soil you have--light,
medium or heavy. *See above.
4. As soon as the controls are set, the motor driven lock will begin to close
automatically and the "LOCKED" indicator light will be displayed. (It takes
about ! 5 seconds for the lock to close.)
5. The "Clean" light will come on. The "Oven" light will come on and cyclewith
the oven burner units.
Note: If the self-cleaning cycle iscancelled while at a high temperature, make sure
the word "LOCKED" is not in the display and the oven has cooled down for at least
ONE HOUR before trying to open the oven door.
To Set the Controls for the Self-Cleaning Cycle To Start at a Delayed Time
and Shut off Automatically:
Follow steps I-3 above, THEN:
4. Pushthe STOPTIME button. The time of day that the self-cleaning cycleends
will appear in the display. Thewords "CLN STOPTIME" will glow inthe display.
S. Pushand hold the UPor DOWN ARROW button until the time of day that
you want the cleaning to be completed appears in the display.
6. The control will calculate backward from the set stop time to determine when
the self-cleaning cycle should begin. The words "DELAY" and "CLN STOP
TIME" will glow in the display.
7. The self-cleaning cycle will come on automatically at the calculated time. At
that time, the word "DELAY" will go out and "ON" will appear.
When the Self-Clean Cycle is Completed:
1. The time of day will appear in the display window and the word "LOCKED"
may remain in the display.
2. Once the oven has cooled down for ONE HOUR and the word "LOCKED"
shown in the display has gone out, then the oven door can be opened.
DO NOT force the oven door open. This can damage the automatic
door locking system. Use caution when opening the door after the self-cleaning
cycle is completed. The oven may still be VERYHOT.
16

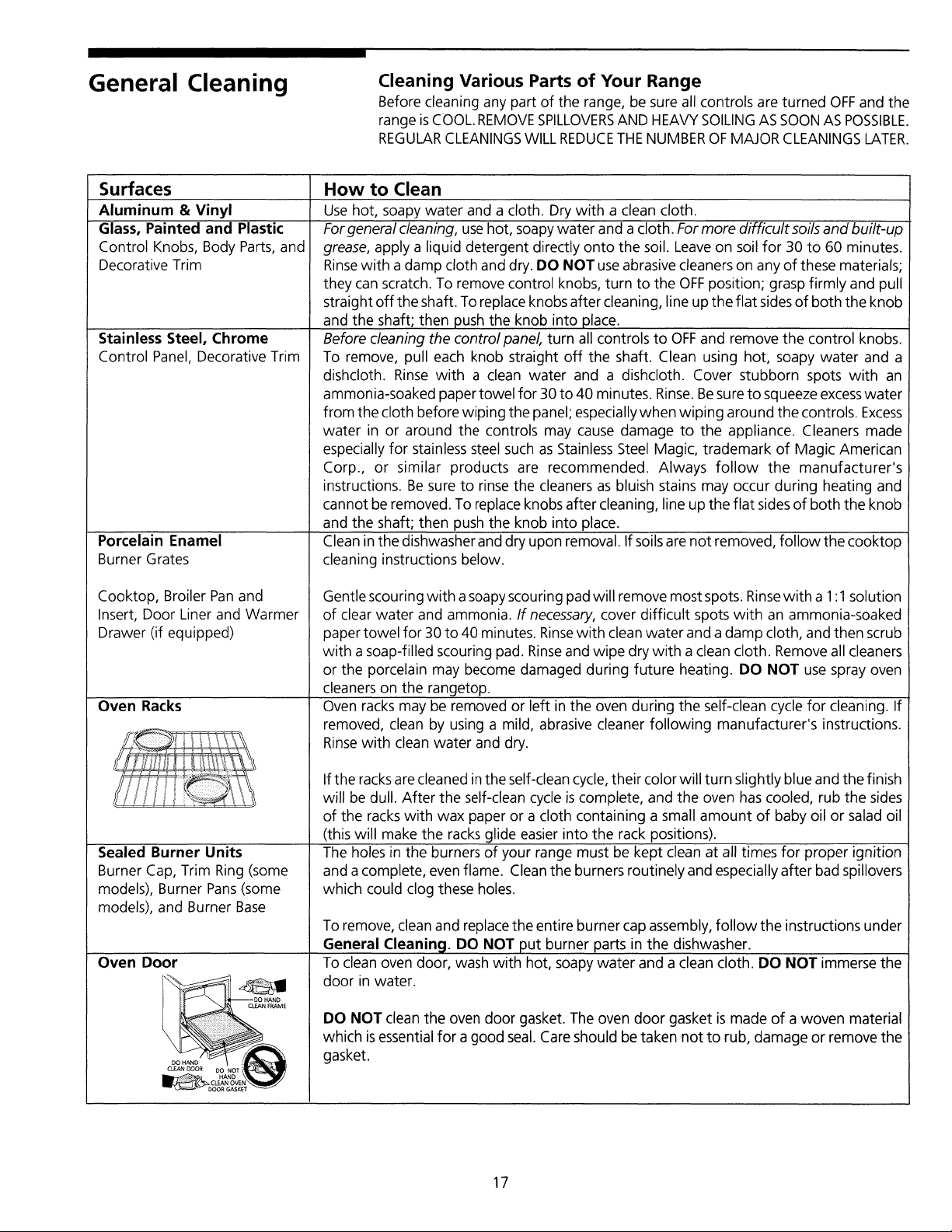

General Cleaning
Cleaning Various Parts of Your Range
Before cleaning any part of the range, be sure all controls are turned OFF and the
range isCOOL. REMOVE SPILLOVERSAND HEAVY SOILING AS SOON AS POSSIBLE.
REGULAR CLEANINGS WILL REDUCE THE NUMBER OF MAJOR CLEANINGS LATER.
Surfaces
Aluminum & Vinyl
Glass, Painted and Plastic
Control Knobs, Body Parts, and
Decorative Trim
Stainless Steel, Chrome
Control Panel, Decorative Trim
Porcelain Enamel
Burner Grates
Cooktop, Broiler Pan and
Insert, Door Liner and Warmer
Drawer (if equipped)
Oven Racks
Sealed Burner Units
Burner Cap, Trim Ring (some
models), BurnerPans(some
models), and Burner Base
Oven Door
DO HAND
CLEAN FRAME
CbEAN DOOR DO NO? i_
-- _- DOOR GASKET "
How to Clean
Use hot, soapy water and a cloth. Dry with a clean cloth.
For general cleaning, use hot, soapy water and a cloth. For more difficult soils and built-up
grease, apply a liquid detergent directly onto the soil. Leave on soil for 30 to 60 minutes.
Rinse with a damp cloth and dry. DO NOT use abrasive cleaners on any of these materials;
they can scratch. To remove control knobs, turn to the OFF position; grasp firmly and pull
straight off the shaft. To replace knobs after cleaning, line up the flat sides of both the knob
and the shaft; then push the knob into place.
Before cleaning the controlpanel, turn all controls to OFF and remove the control knobs.
To remove, pull each knob straight off the shaft. Clean using hot, soapy water and a
dishcloth. Rinse with a clean water and a dishcloth. Cover stubborn spots with an
ammonia-soaked paper towel for 30 to 40 minutes. Rinse. Be sure to squeeze excess water
from the cloth before wiping the panel; especially when wiping around the controls. Excess
water in or around the controls may cause damage to the appliance. Cleaners made
especially for stainless steel such as Stainless Steel Magic, trademark of Magic American
Corp., or similar products are recommended. Always follow the manufacturer's
instructions. Be sure to rinse the cleaners as bluish stains may occur during heating and
cannot be removed. To replace knobs after cleaning, line up the flat sides of both the knob
and the shaft; then push the knob into place.
Clean in the dishwasher and dry upon removal. If soils are not removed, follow the cooktop
cleaning instructions below.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution
of clear water and ammonia. If necessary, cover difficult spots with an ammonia-soaked
paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and then scrub
with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners
or the porcelain may become damaged during future heating. DO NOT use spray oven
cleaners on the rangetop.
Oven racks may be removed or left in the oven during the self-clean cycle for cleaning. If
removed, clean by using a mild, abrasive cleaner following manufacturer's instructions.
Rinse with clean water and dry.
Ifthe racks are cleaned in the self-clean cycle, their color will turn slightly blue and the finish
will be dull. After the self-clean cycle is complete, and the oven has cooled, rub the sides
of the racks with wax paper or a cloth containing a small amount of baby oil or salad oil
(this will make the racks glide easier into the rack positions).
The holes in the burners of your range must be kept clean at all times for proper ignition
and a complete, even flame. Clean the burners routinely and especially after bad spillovers
which could clog these holes.
To remove, cleanand replacethe entire burner cap assembly, follow the instructions under
General Cleaning. DO NOT put burner parts in the dishwasher.
To clean oven door, wash with hot, soapy water and a clean cloth. DO NOT immerse the
door in water.
DO NOT clean the oven door gasket. The oven door gasket is made of a woven material
which isessential for a good seal. Careshould be taken not to rub, damage or remove the
gasket.
17

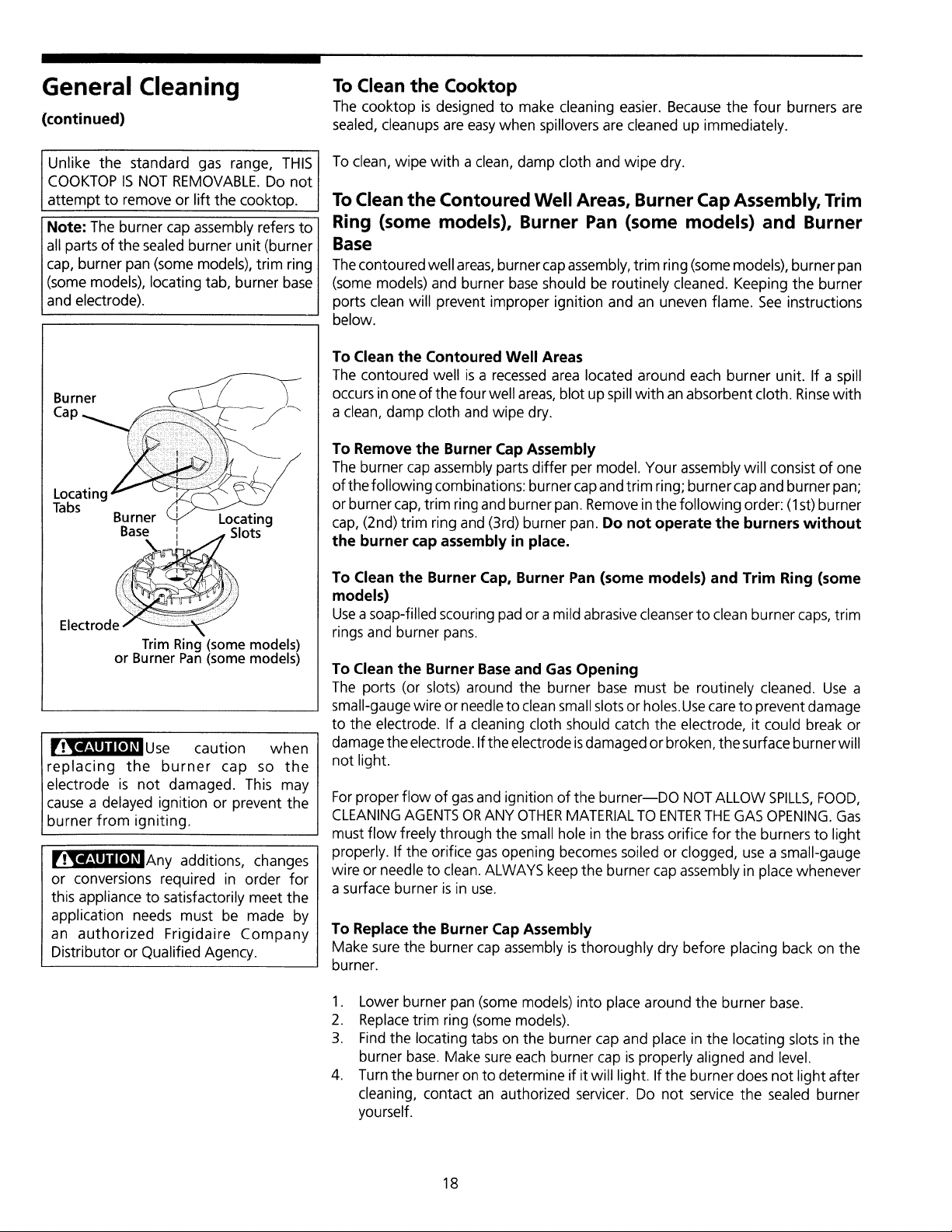

General Cleaning
(continued)
Unlike the standard gas range, THIS
COOKTOP IS NOT REMOVABLE.Do not
attempt to remove or lift the cooktop.
Note: The burner cap assembly refers to
all parts of the sealed burner unit (burner
cap, burner pan (some models), trim ring
(some models), locating tab, burner base
and electrode).
Burner
Cap
Locating
Tabs
Burner Locating
Electrod_ I°ts
Trim Ring (some models)
or Burner Pan (some models)
_Use caution when
replacing the burner cap so the
electrode is not damaged. This may
cause a delayed ignition or prevent the
burner from igniting.
_l_l_Any additions, changes
or conversions required in order for
this appliance to satisfactorily meet the
application needs must be made by
an authorized Frigidaire Company
Distributor or Qualified Agency.
To Clean the Cooktop
The cooktop is designed to make cleaning easier. Because the four burners are
sealed, cleanups are easywhen spillovers are cleaned up immediately.
To clean, wipe with a clean, damp cloth and wipe dry.
To Clean the Contoured Well Areas, Burner Cap Assembly, Trim
Ring (some models), Burner Pan (some models) and Burner
Base
Thecontoured well areas,burner cap assembly,trim ring (some models), burner pan
(some models) and burner baseshould be routinely cleaned. Keeping the burner
ports clean will prevent improper ignition and an uneven flame. See instructions
below.
To Clean the Contoured Well Areas
The contoured well isa recessedarea located around each burner unit. If a spill
occurs in one of the four well areas, blot up spill with an absorbent cloth. Rinsewith
a clean, damp cloth and wipe dry.
To Remove the Burner Cap Assembly
The burner cap assembly parts differ per model. Your assembly will consist of one
of the following combinations: burner capand trim ring; burner cap and burner pan;
or burner cap, trim ring and burner pan. Removein the following order: (1st) burner
cap, (2nd) trim ring and (3rd) burner pan. Do not operate the burners without
the burner cap assembly in place.
To Clean the Burner Cap, Burner Pan (some models) and Trim Ring (some
models)
Use a soap-filled scouring pad or a mild abrasive cleanser to clean burner caps, trim
rings and burner pans.
To Clean the Burner Baseand Gas Opening
The ports (or slots) around the burner base must be routinely cleaned. Use a
small-gauge wire or needle to cleansmall slotsor holes.Usecareto prevent damage
to the electrode. If a cleaning cloth should catch the electrode, it could break or
damage the electrode. Ifthe electrode isdamaged or broken, the surface burner will
not light.
For proper flow of gas and ignition of the burner--DO NOT ALLOW SPILLS, FOOD,
CLEANING AGENTS OR ANY OTHER MATERIAL TO ENTERTHE GAS OPENING. Gas
must flow freely through the small hole in the brass orifice for the burners to light
properly. If the orifice gas opening becomes soiled or clogged, use a small-gauge
wire or needle to clean. ALWAYS keep the burner cap assembly in place whenever
a surface burner is in use.
To Replace the Burner Cap Assembly
Make sure the burner cap assembly isthoroughly dry before placing back on the
burner.
1. Lower burner pan (some models) into place around the burner base.
2. Replacetrim ring (some models).
3. Findthe locating tabs on the burner cap and place in the locating slots in the
burner base. Make sure each burner cap isproperly aligned and level.
4. Turn the burner on to determine if itwil! light. If the burner does not light after
cleaning, contact an authorized servicer. Do not service the sealed burner
yourself.
18
General Cleaning
(continued)

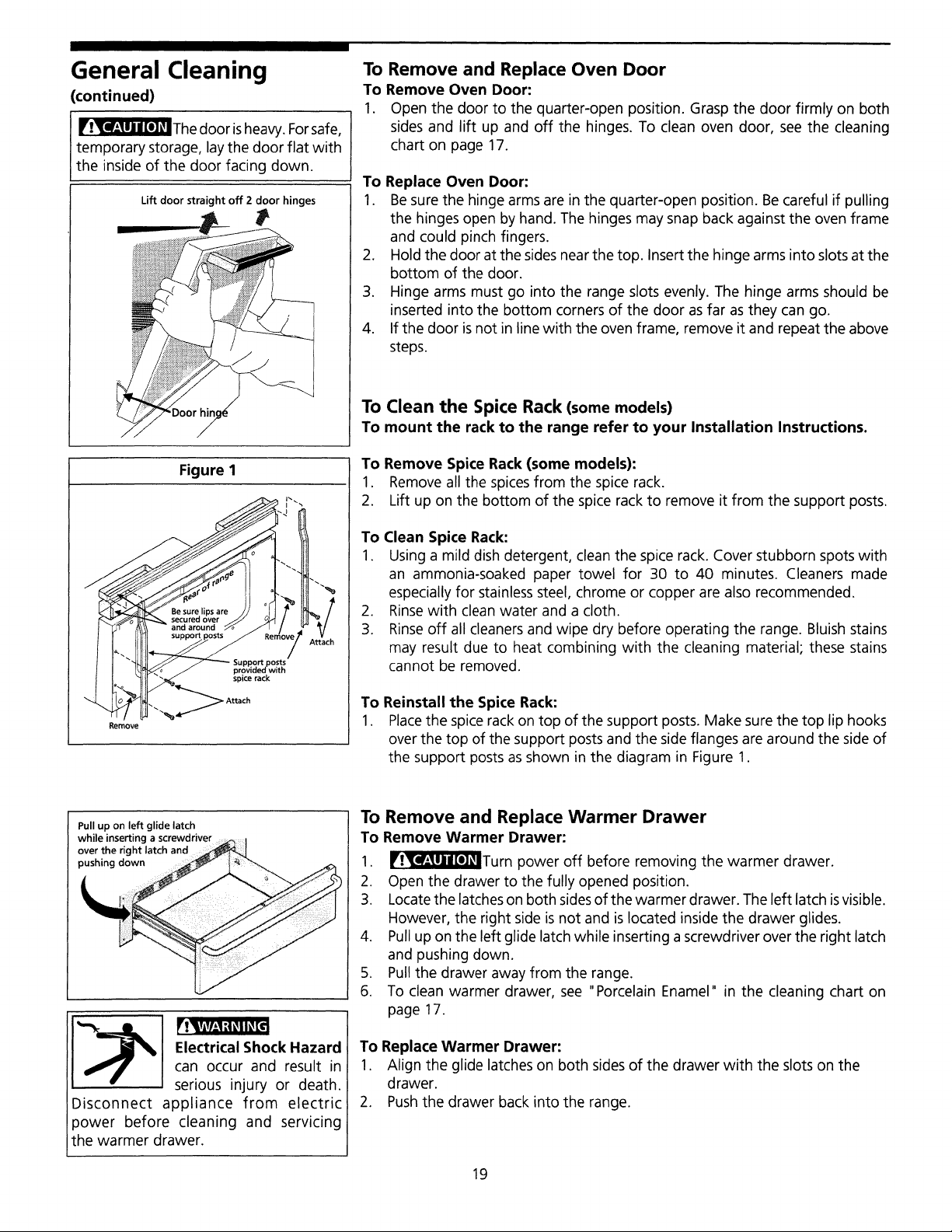

_IW_T_=_T_ Thedoor isheavy.Forsafe,
temporary storage, laythe door flat with
the inside of the door facing down.
Lift door straight off 2 door hinges
L t
!!i__i_;_...........
:d!!iiiiiiiiiiiiii!iF: !
Remove
Figure 1
_ Be sure ilps are /
fJ _ Support posts
J provided with
___ spi..... k
_ _ Attach
To Remove and Replace Oven Door
To Remove Oven Door:
1. Open the door to the quarter-open position. Grasp the door firmly on both
sides and lift up and off the hinges. To clean oven door, see the cleaning
chart on page 17.
To Replace Oven Door:
1. Be surethe hinge arms are in the quarter-open position. Be careful if pulling
the hingesopen by hand. The hingesmay snap back against the oven frame
and could pinch fingers.
2. Hold the door at the sidesnear the top. Insertthe hinge arms into slotsat the
bottom of the door.
3. Hinge arms must go into the range slotsevenly. The hinge arms should be
inserted intothe bottom cornersof the door asfar asthey can go.
4. Ifthe door isnot in linewith the oven frame, remove it and repeat the above
steps.
To Clean the Spice Rack (some models)
To mount the rack to the range refer to your Installation Instructions.
To Remove Spice Rack (some models):
1. Remove all the spices from the spice rack.
2. Lift up on the bottom of the spicerackto remove it from the support posts.
To Clean Spice Rack:
1. Using a mild dishdetergent, clean the spice rack. Cover stubborn spotswith
an ammonia-soaked paper towel for 30 to 40 minutes. Cleaners made
especially for stainlesssteel, chrome or copper are also recommended.
2. Rinsewith clean water and a cloth.
3. Rinse off all cleanersand wipe dry before operating the range. Bluishstains
may result due to heat combining with the cleaning material; these stains
cannot be removed.
To
1.
Reinstall the Spice Rack:
Placethe spicerack on top of the supportposts. Make surethe top lip hooks
overthe top of the supportposts and the side flanges are around the side of
the support posts as shown in the diagram in Figure 1.
Pullup on left glide latch
while inserting a screwdriver
over the right latch and
pushing down
Electrical Shock Hazard
can occur and result in
serious injury or death.
Disconnect appliance from electric
power before cleaning and servicing
the warmer drawer.
To Remove and Replace Warmer Drawer
To Remove Warmer Drawer:
1. [Ir[_l_lTF_J'_Turn power off before removingthe warmer drawer.
2. Open the drawer to the fully opened position.
3. Locate the latcheson both sidesofthe warmer drawer. The left latch isvisible.
However, the right sideisnot and islocated insidethe drawer glides.
4. Pullup on the left glide latchwhile insertinga screwdriveroverthe right latch
and pushing down.
5. Pullthe drawer away from the range.
6. To clean warmer drawer, see "Porcelain Enamel" in the cleaning chart on
page 17.
To Replace Warmer Drawer:
1. Align the glide latches on both sidesof the drawer with the slotson the
drawer.
2. Pushthe drawer back intothe range.
19

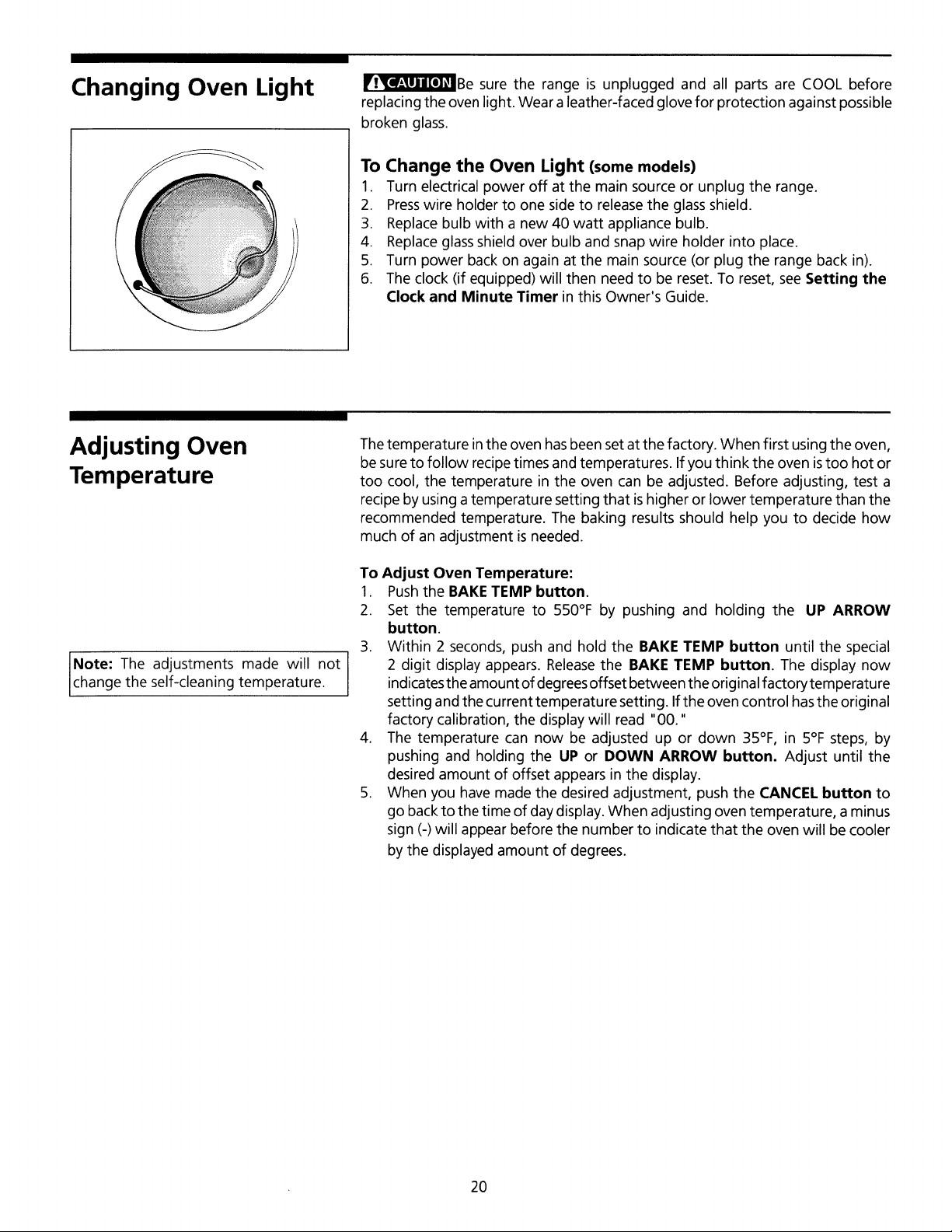

Changing Oven Light
_Be sure the range is unplugged and all parts are COOL before
replacing the oven light. Wear a leather-faced glove for protection against possible
broken glass.
To Change the Oven Light (some models)
1. Turn electrical power off at the main source or unplug the range.
2. Presswire holder to one side to release the glass shield.
3. Replace bulb with a new 40 watt appliance bulb.
4. Replace glassshield over bulb and snap wire holder into place.
5. Turn power back on again at the main source (or plug the range back in).
6. The clock (if equipped) will then need to be reset. To reset, see Setting the
Clock and Minute Timer in this Owner's Guide.
Adjusting Oven
Temperature
Note: The adjustments made will not
change the self-cleaning temperature.
Thetemperature in the oven hasbeen set at the factory. When first using the oven,
be sureto follow recipe times and temperatures. If you think the oven istoo hot or
too cool, the temperature in the oven can be adjusted. Before adjusting, test a
recipe by using a temperature setting that ishigher or lower temperature than the
recommended temperature. The baking results should help you to decide how
much of an adjustment is needed.
To Adjust Oven Temperature:
t. Pushthe BAKETEMP button.
2. Set the temperature to 550°F by pushing and holding the UP ARROW
button.
3. Within 2 seconds, push and hold the BAKE TEMP button until the special
2 digit display appears. Releasethe BAKE TEMP button. The display now
indicatesthe amount ofdegreesoffsetbetween the originalfactory temperature
setting and the currenttemperature setting. Ifthe oven controlhasthe original
factory calibration,the display will read "00."
4. The temperature can now be adjusted up or down 35°F, in 5°F steps, by
pushing and holdingthe UP or DOWN ARROW button. Adjust until the
desired amount of offset appears in the display.
5. When you have made the desired adjustment, push the CANCEL button to
go back to the time of daydisplay. When adjusting oventemperature, a minus
sign(-) will appear before the number to indicatethat the oven will be cooler
by the displayed amount of degrees.
2O

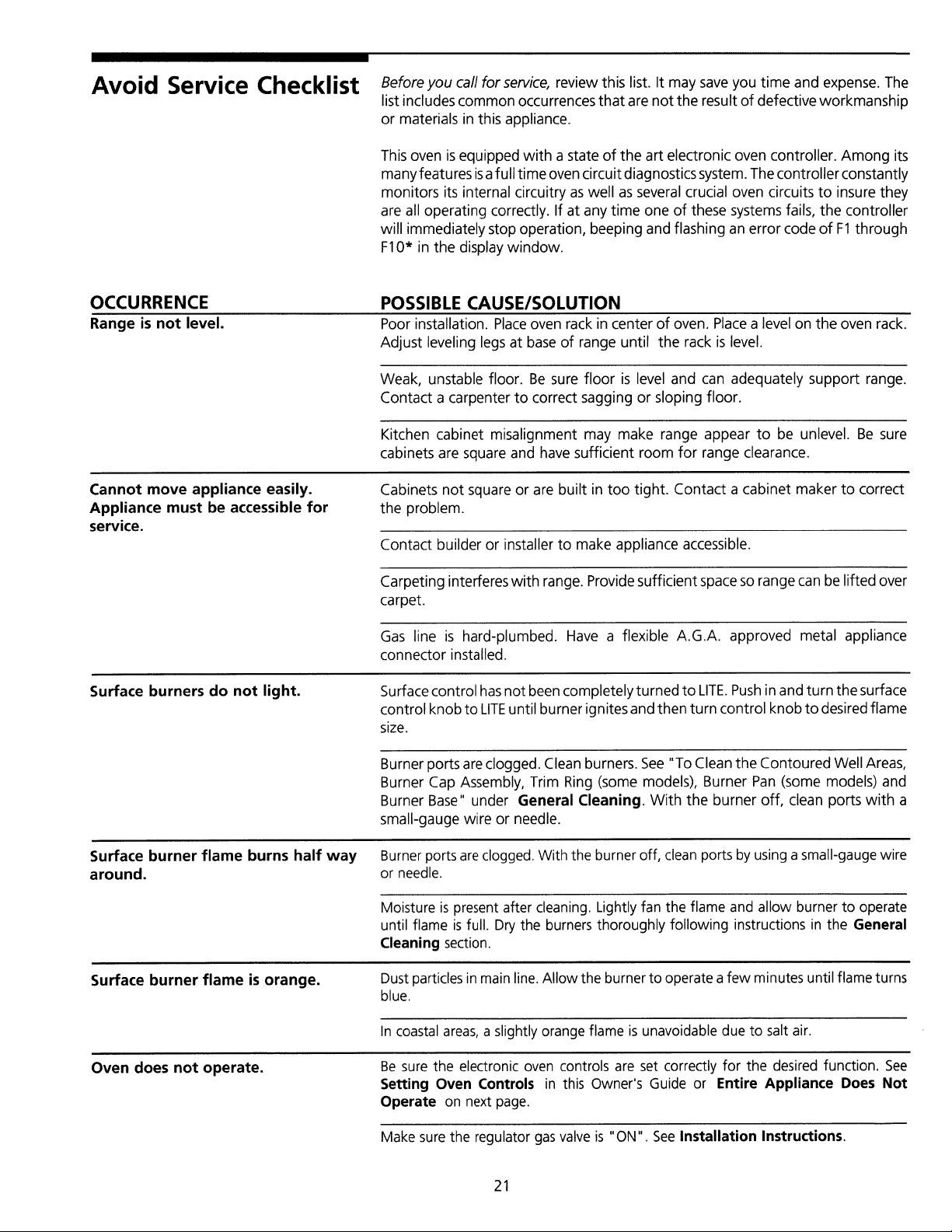

Avoid Service Checklist
Before you carlfor service, review this list. It may saveyou time and expense. The
list includes common occurrences that are not the result of defective workmanship
or materials in this appliance.
This oven isequipped with a state of the art electronic oven controller. Among its
many features isafull time oven circuit diagnostics system. Thecontroller constantly
monitors its internal circuitry as well as several crucial oven circuits to insure they
are all operating correctly. If at any time one of these systems fails, the controller
will immediately stop operation, beeping and flashing an error code of F1through
FIO* in the display window.
OCCURRENCE
Range is not level.
POSSIBLE CAUSE/SOLUTION
Poor installation. Placeoven rack in center of oven. Placea level on the oven rack.
Adjust leveling legsat base of range until the rack is level.
Weak, unstable floor. Be sure floor is level and can adequately support range.
Contact a carpenter to correct sagging or sloping floor.
Kitchen cabinet misalignment may make range appear to be unlevel. Be sure
cabinets are square and have sufficient room for range clearance.
Cannot move appliance easily.
Appliance must be accessible for
service.
Cabinets not square or are built in too tight. Contact a cabinet maker to correct
the problem.
Contact builder or installer to make appliance accessible.
Carpeting interferes with range. Providesufficient spaceso range can be lifted over
carpet.
Gas line is hard-plumbed. Have a flexible A.G.A. approved metal appliance
connector installed.
Surface burners do not light.
Surface control has not been completely turned to LITE. Push in and turn the surface
control knob to LITEuntil burner ignites and then turn control knob to desired flame
size.
Burner ports are clogged. Clean burners. See "To Cleanthe Contoured Well Areas,
Burner Cap Assembly, Trim Ring (some models), Burner Pan (some models) and
Burner Base" under General Cleaning. With the burner off, clean ports with a
small-gauge wire or needle.
Surface burner flame burns half way Burner ports are clogged. With the burner off, clean ports by using a small-gauge wire
around, or needle.
Moisture is present after cleaning. Lightly fan the flame and allow burner to operate
until flame is full. Dry the burners thoroughly following instructions in the General
Cleaning section.
Surface burner flame is orange.
Dust particles in main line. Allow the burner to operate a few minutes until flame turns
blue.
Oven does not operate.
In coastal areas, a slightly orange flame is unavoidable due to salt air.
Be sure the electronic oven controls are set correctly for the desired function. See
Setting Oven Controls in this Owner's Guide or Entire Appliance Does Not
Operate on next page.
Make sure the regulator gas valve is "ON". See Installation Instructions.
21

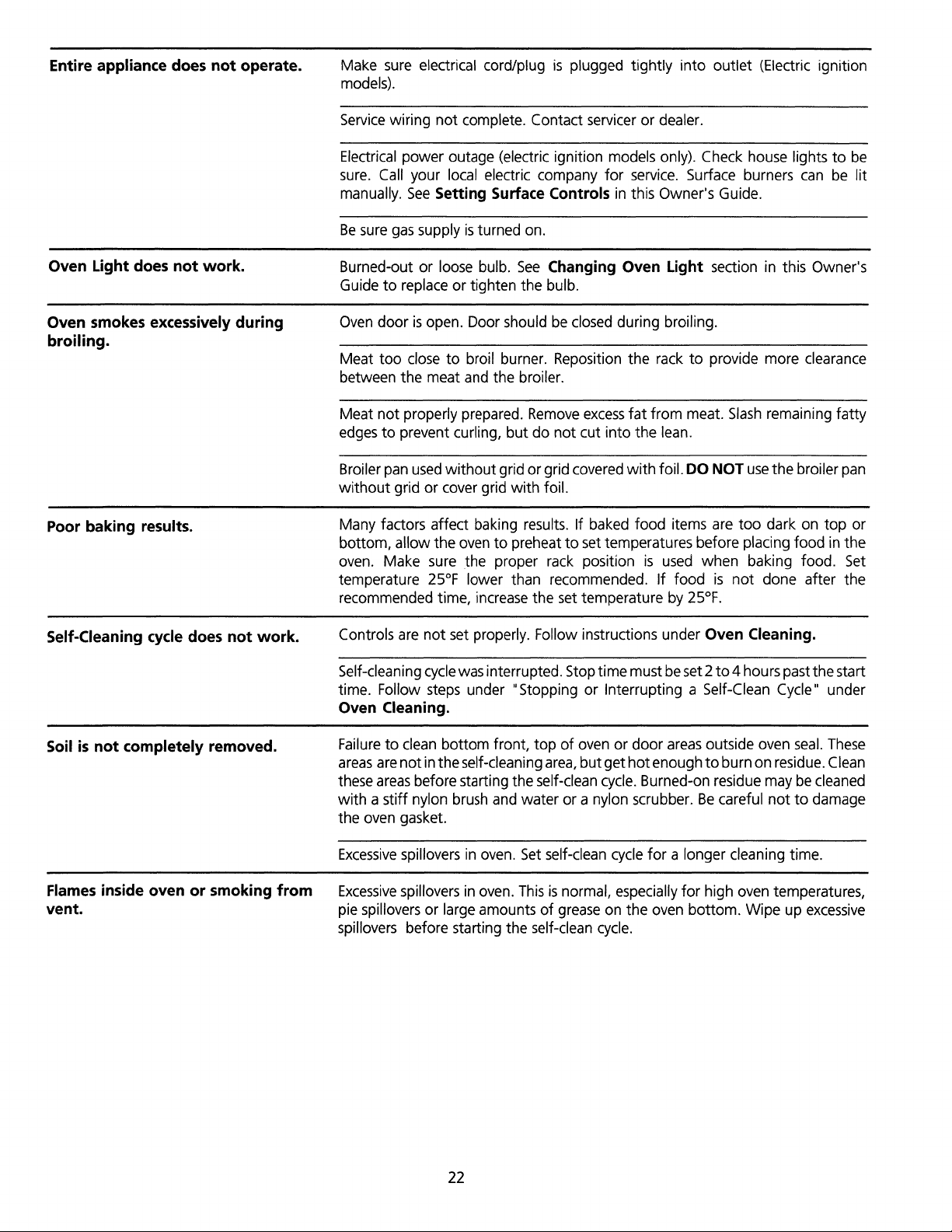

Entire appliance does not operate. Make sure electrical cord/plug is plugged tightly into outlet (Electric ignition
models).
Service wiring not complete. Contact servicer or dealer.
Electrical power outage (electric ignition models only). Check house lights to be
sure. Call your local electric company for service. Surface burners can be lit
manually. See Setting Surface Controls in this Owner's Guide.
Besure gas supplyisturned on.
Oven Light does not work.
Burned-out or loose bulb. See Changing Oven Light section in this Owner's
Guide to replaceor tighten the bulb.
Oven smokes excessively during
broiling.
Oven door is open. Door should be closed during broiling.
Meat too close to broil burner. Reposition the rack to provide more clearance
between the meat and the broiler.
Meat not properly prepared. Remove excessfat from meat. Slashremaining fatty
edges to prevent curling, but do not cut into the lean.
Broiler pan used without grid or grid covered with foil. DO NOT usethe broiler pan
without grid or cover grid with foil.
Poor baking results.
Many factors affect baking results. If baked food items are too dark on top or
bottom, allow the oven to preheat to set temperatures before placing food in the
oven. Make sure the proper rack position is used when baking food. Set
temperature 25°F lower than recommended. If food is not done after the
recommended time, increase the set temperature by 25°F.
Self-Cleaning cycle does not work.
Controls are not set properly. Follow instructions under Oven Cleaning.
Self-cleaning cyclewas interrupted. Stoptime must be set 2 to 4 hours past the start
time. Follow steps under "Stopping or Interrupting a Self-Clean Cycle" under
Oven Cleaning.
Soil is not completely removed.
Failure to clean bottom front, top of oven or door areasoutside oven seal. These
areas are not in the self-cleaning area,but get hot enough to burn on residue. Clean
these areasbefore starting the self-clean cycle. Burned-on residue may be cleaned
with a stiff nylon brush and water or a nylon scrubber. Be careful not to damage
the oven gasket.
Excessivespillovers in oven. Setself-clean cycle for a longer cleaning time.
Flames inside oven or smoking from
vent.
Excessivespillovers in oven. This is normal, especially for high oven temperatures,
pie spillovers or large amounts of grease on the oven bottom. Wipe up excessive
spillovers before starting the self-clean cycle.
22
Notes
23
FRIGIDAIRE GALLERY RANGE WARRANTY
Your Frigidaire product is protected by this warranty
WARRANTY FRIGIDAIRE, THROUGH ITS AUTHORIZED THE CONSUMER WILL BE
PERIOD SERVICERS, WILL: RESPONSIBLE FOR:
FULL TWO-YEAR Two years from original Pay all costs for repairing or replacing any parts of this Costs ofservicecallsthatarelisted underNORMAL
WARRANTY purchase date. appliance which prove to be defective in materials or RESPONSlBILITIES OFTHECONSUMER.*
workmanship,
UMITEDWARRANTY Time period listed above. All of the provisions of the full warranty above and the Costsofthetechnician'straveltothehomeandany
(Applicable to the exclusions listed below apply, costs for pick up and delivery of the appliance
State of Alaska) required because of service.
Your appliance is warranted by Frigidaire Company, a division of White Consolidated Industries, Inc. We authorize no person to change or add to
any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performed by Frigidaire Company
Consumer Services or an authorized Frigidaire servicer.
*NORMAL
RESPONSIBILITIES
OF THE CONSUMER
EXCLUSIONS
IF YOU NEED
SERVICE
This warranty applies only to products in ordinary household use, and the consumer is responsible for the
items listed below:
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in
accordance with all local plumbing, electrical and/or gas codes.
3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are
not a part of the appliance when it was shipped from the factory.
5. Damages to finish after installation.
6. Replacement of light bulbs and/or fluorescent tubes (on models with these features).
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSESRESULTING
FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation
or exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in ordinary
household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by persons other than authorized Frigidaire servicers; use of parts other than
Frigidaire Company Genuine Renewal Parts; obtained from persons other than such servicers; or external causes such
as abuse, misuse, inadequate power supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be readily determined.
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the
warranty period should service be required. If service isperformed, it is in your best interest to obtain and keep all receipts.
This written warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service
under this warranty must be obtained by following these steps, in order:
1. Contact Frigidaire Company Consumer Services or an authorized Frigidaire servicer.
2. If there is a question as to where to obtain service, contact our Consumer Relations Department at:
Frigidaire
P.O. Box 7181
Dublin, Ohio 43017
(800) 944-9044
NFRIGIDAIRE
COMPANY
Product features or specifications as described or illustrated are subject to change without notice. All warranties are made
by White Consolidated Industries, Inc. This warranty applies only in the 50 states of the U.S.A. and Puerto Rico.
