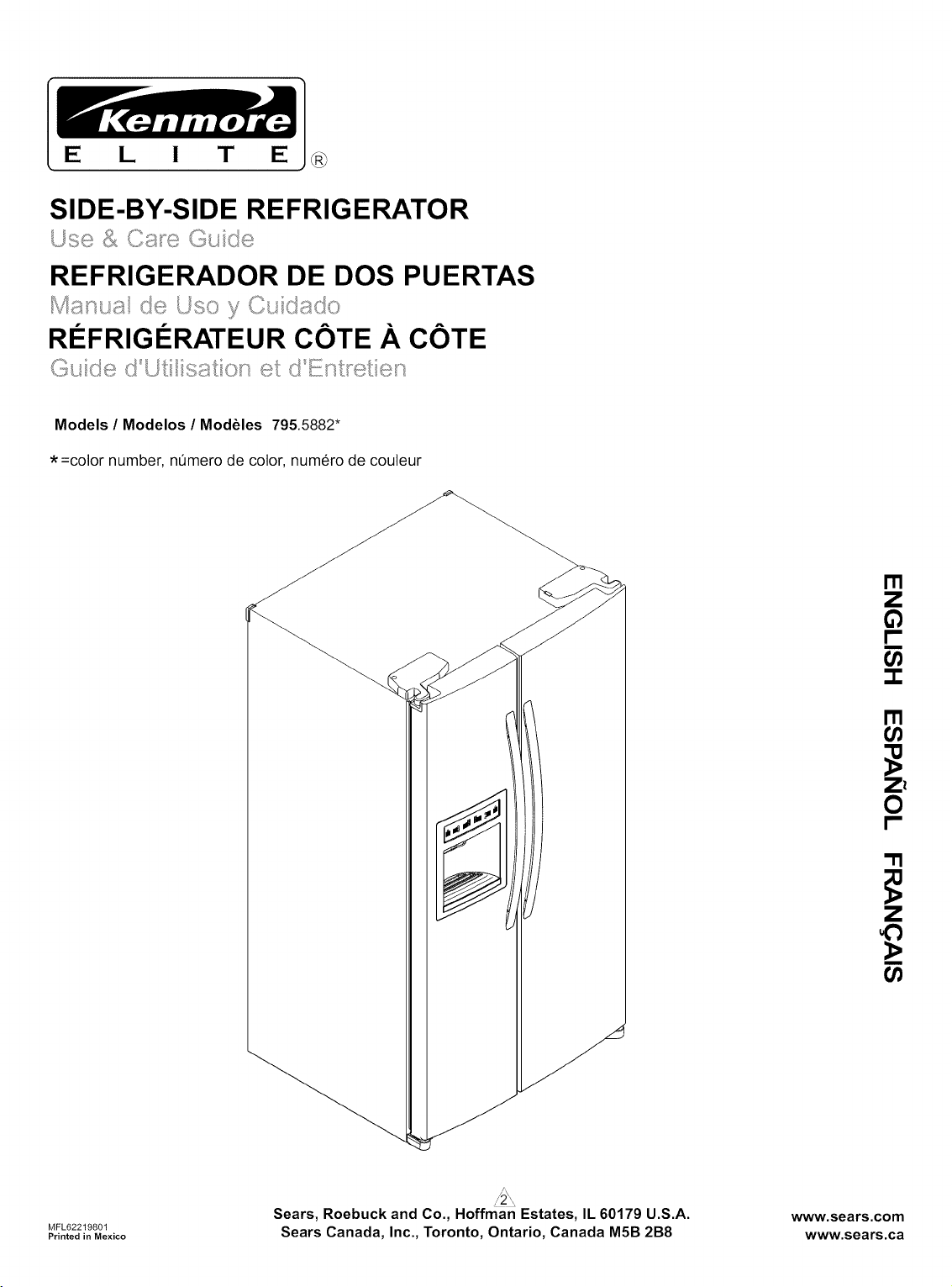

SIDE-BY-SIDE REFRIGERATOR
REFRIGERADOR DE DOS PUERTAS
RI_FRIGI_RATEUR COTE .A,COTE
Models / Modelos / ModUles 795.5882*
* =color number, nOmero de color, num6ro de couleur
i
Z !
0
I-
Z
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com
MFL62219801
PrintedinMexico Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8 www.sears.ca

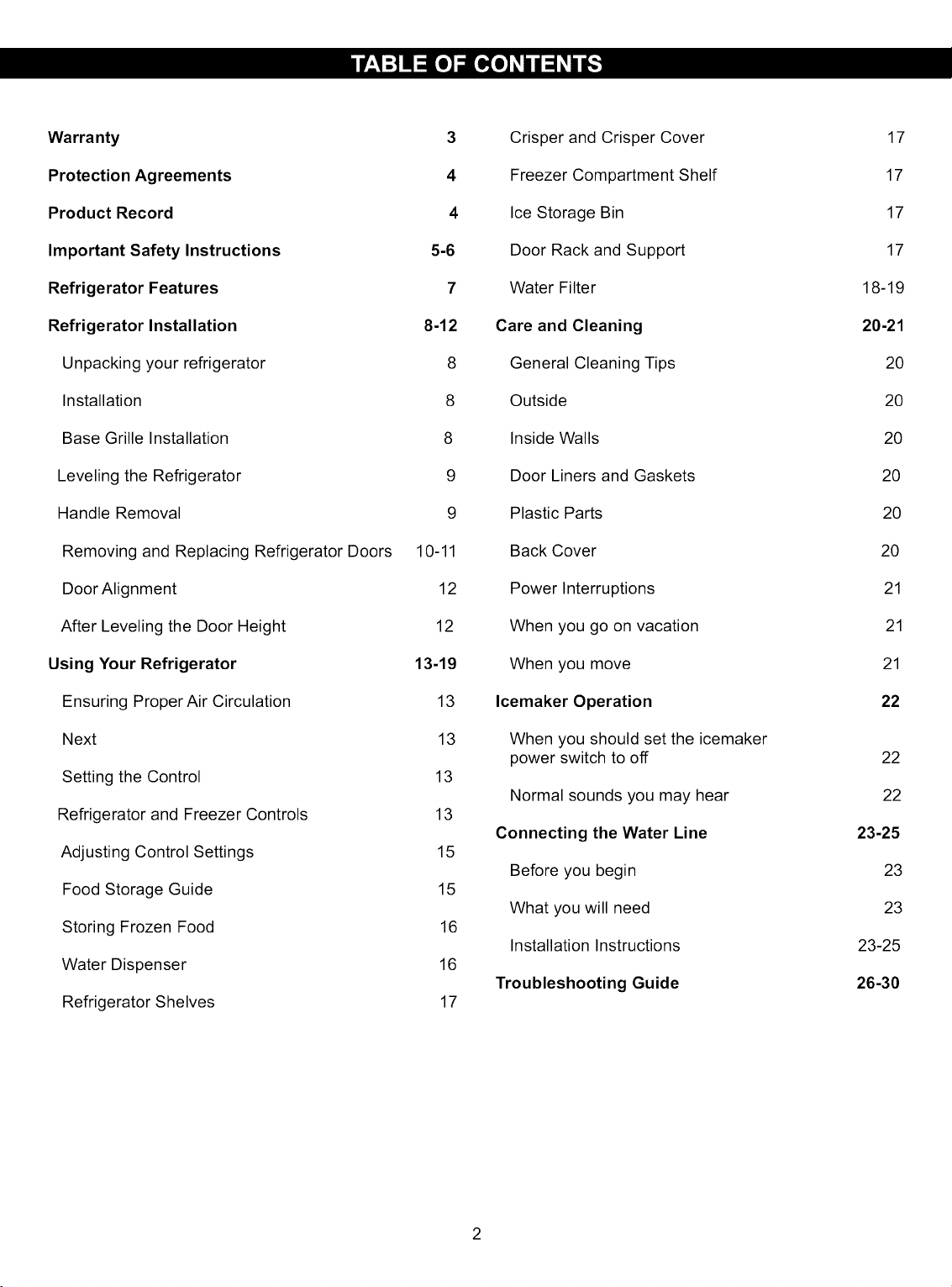

Warranty 3
Protection Agreements 4
Product Record 4
Important Safety Instructions 5-6

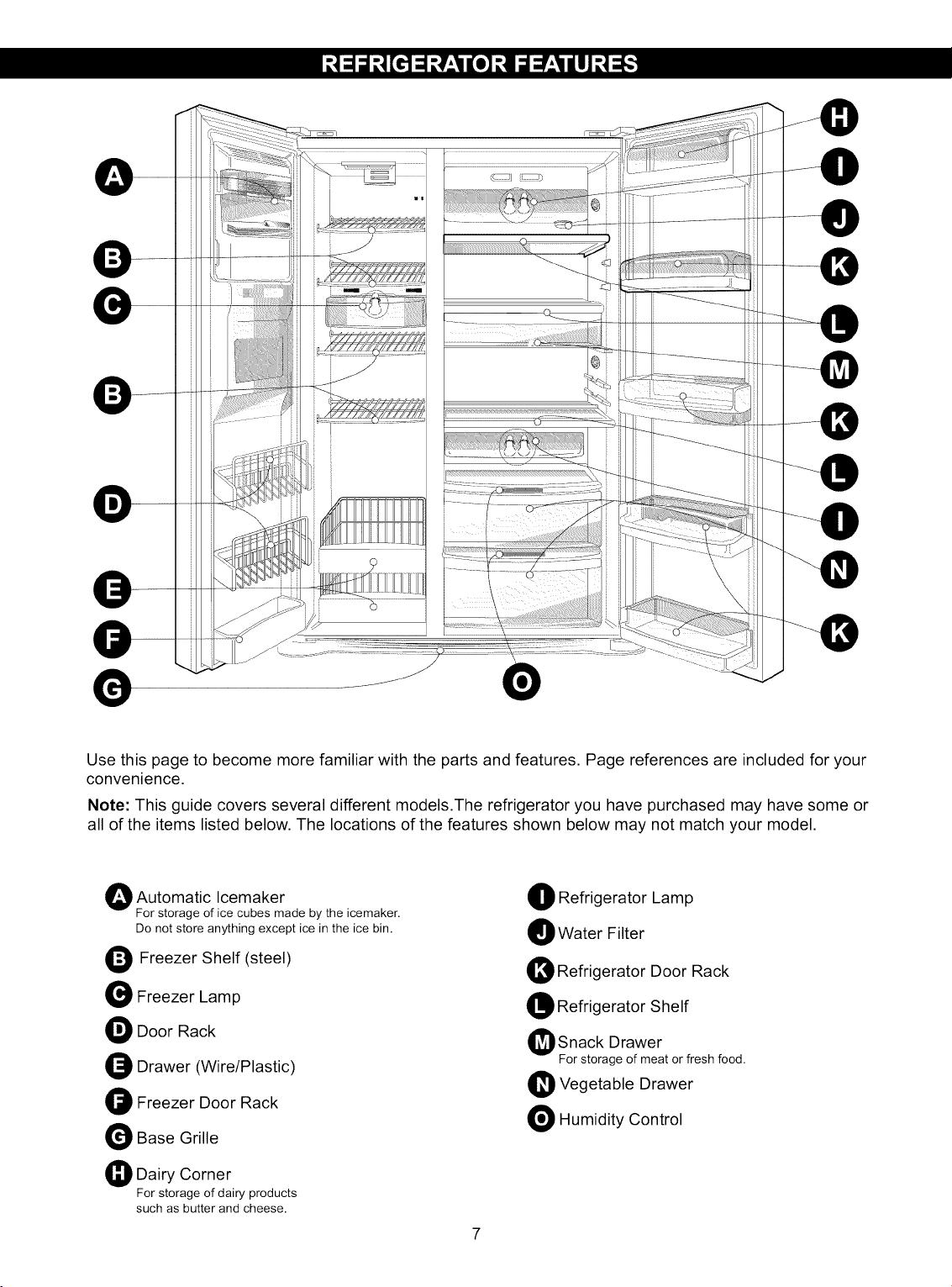

Refrigerator Features 7

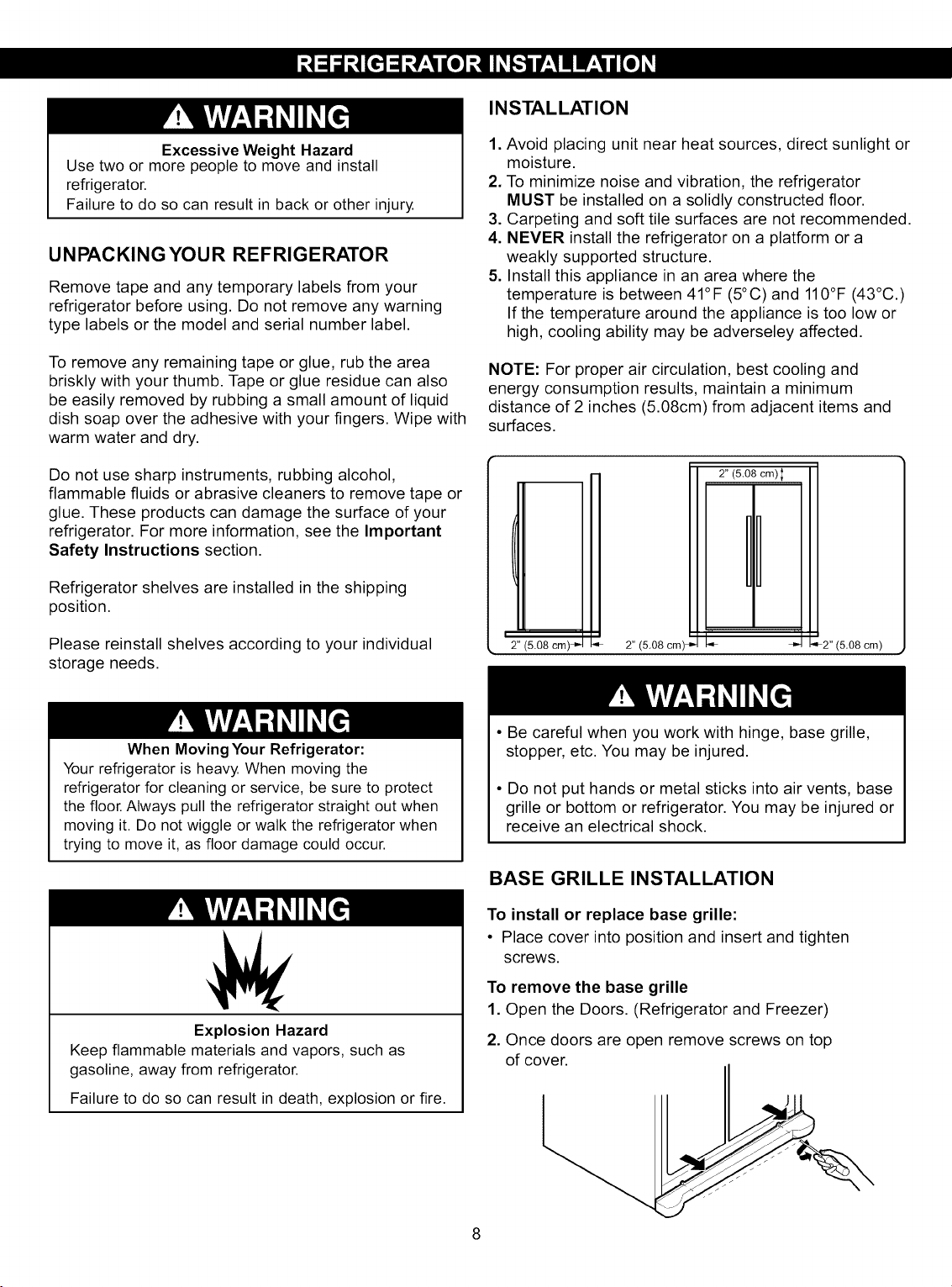

Refrigerator Installation 8-12
Unpacking your refrigerator 8
Installation 8
Base Grille Installation 8

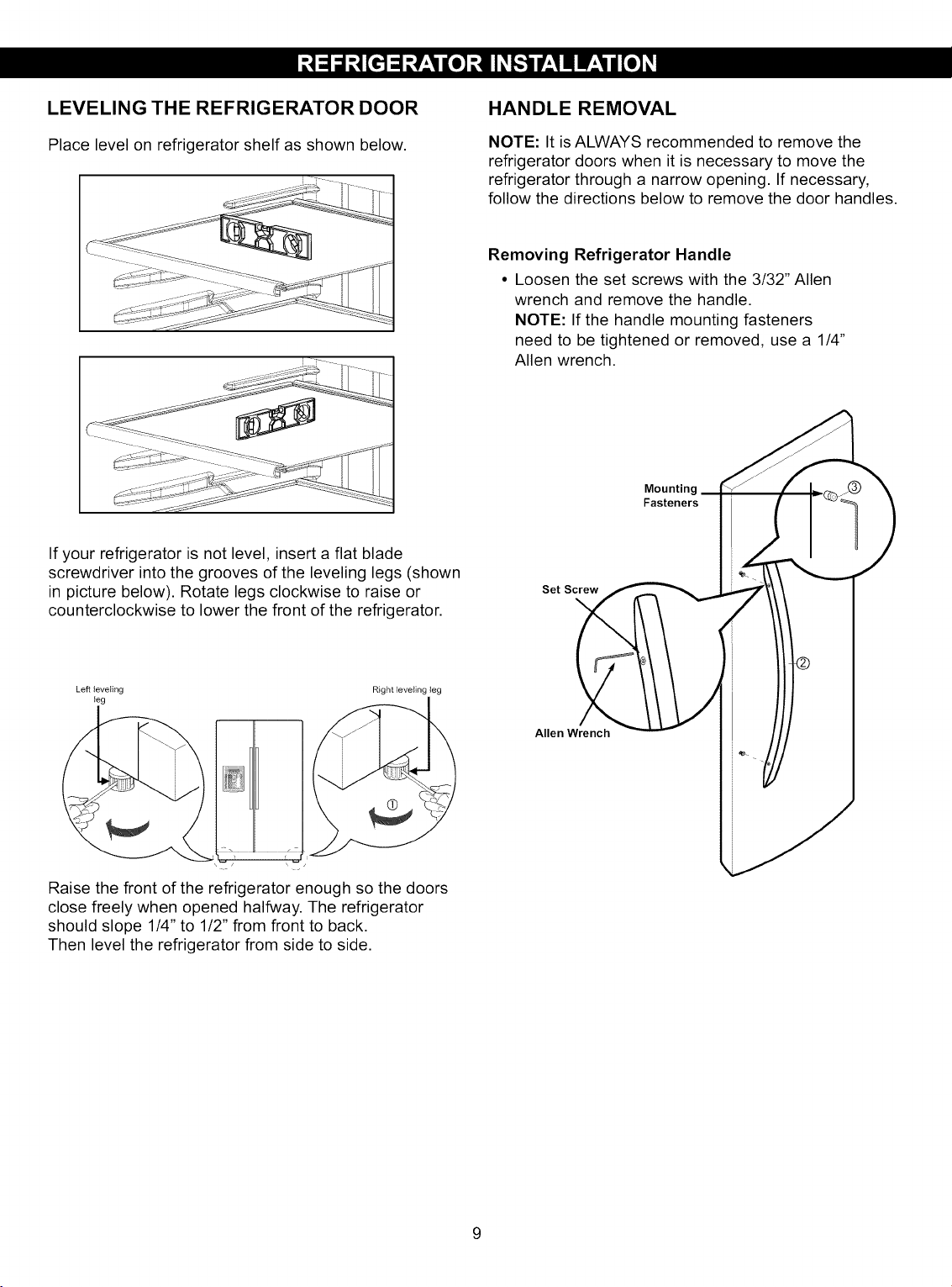

Leveling the Refrigerator 9
Handle Removal 9
Removing and Replacing Refrigerator Doors 10-11

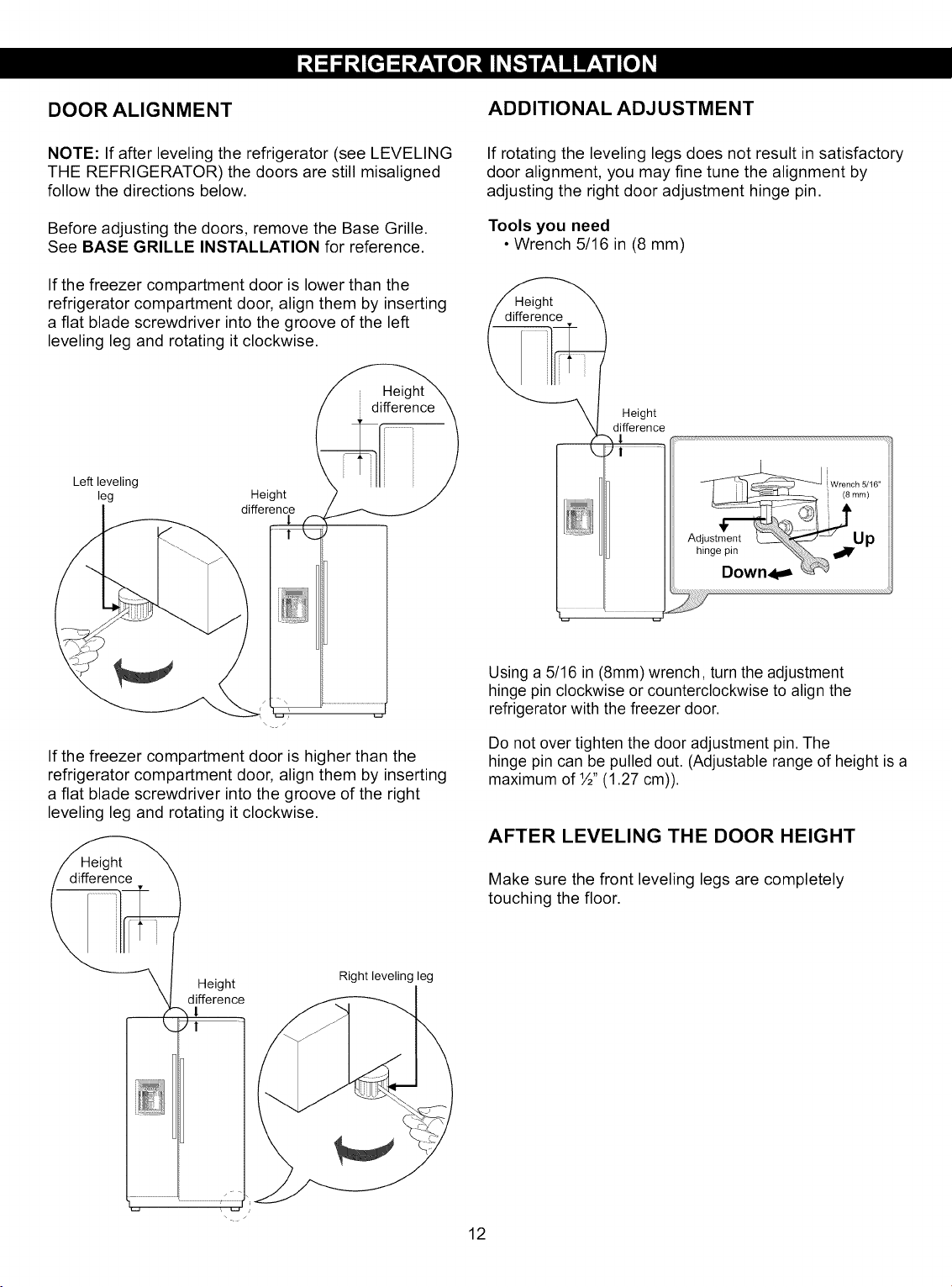

Door Alignment 12
After Leveling the Door Height 12
Using Your Refrigerator 13-19

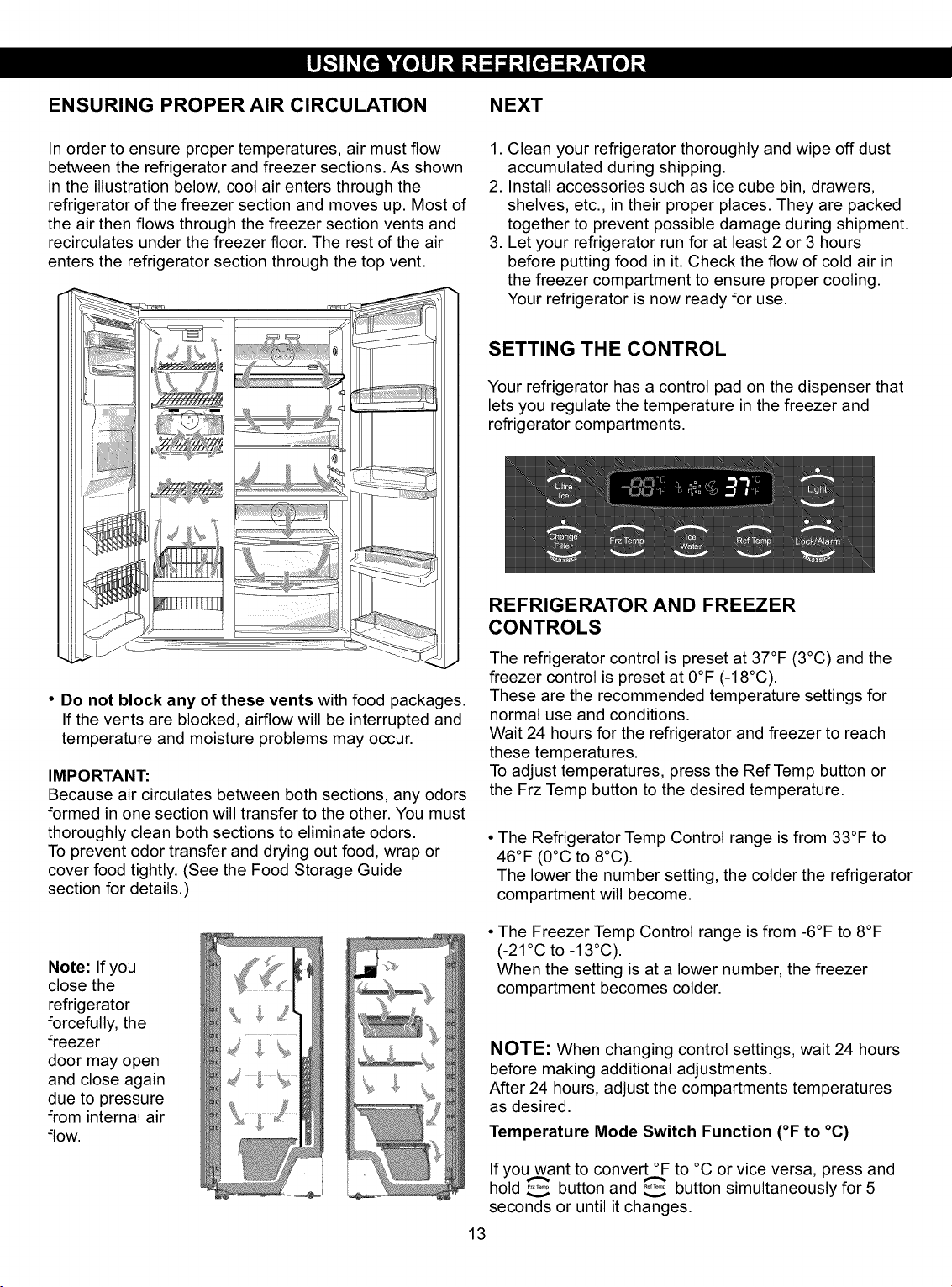

Ensuring Proper Air Circulation 13
Next 13
Setting the Control 13
Refrigerator and Freezer Controls 13

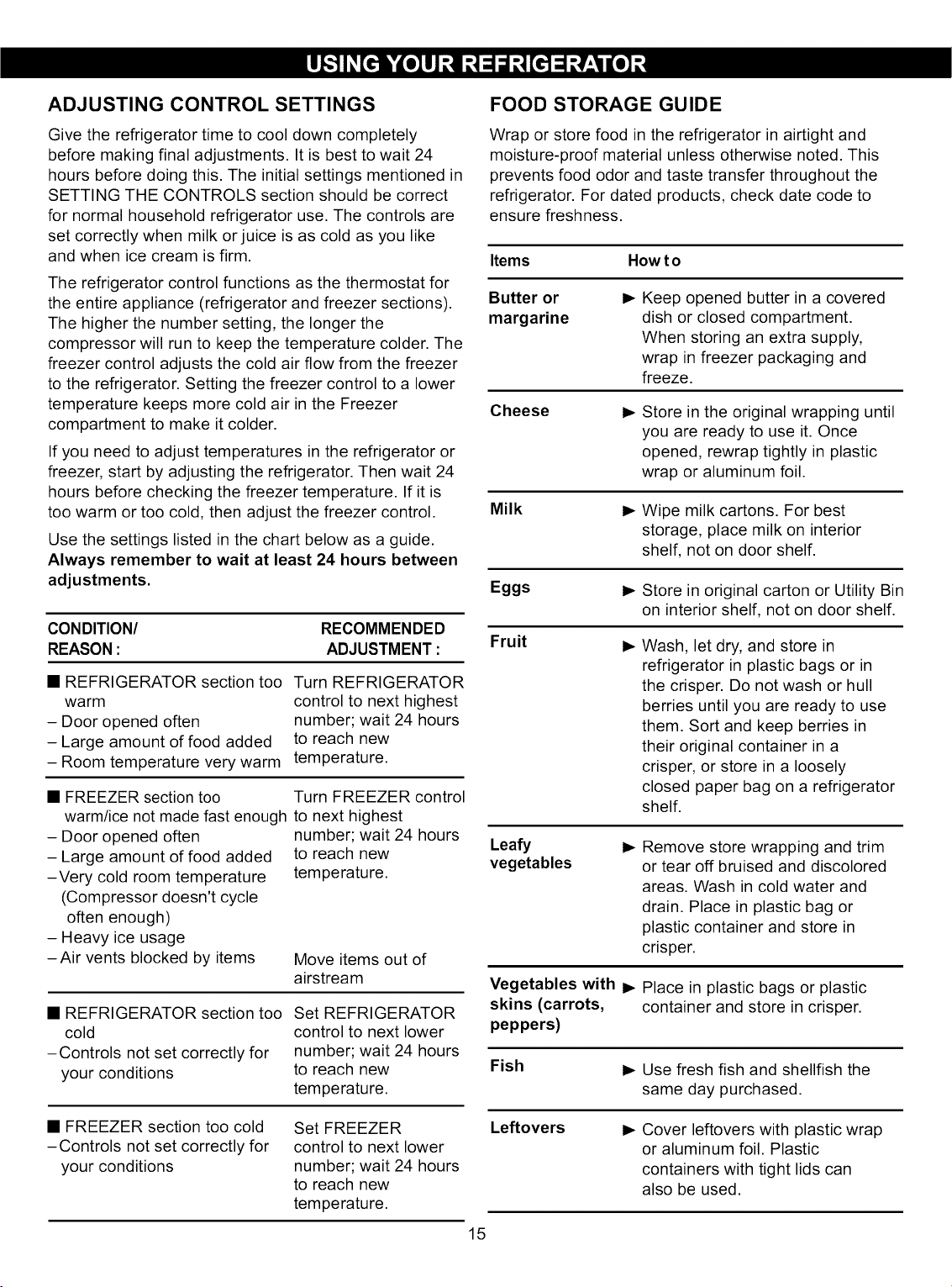

Adjusting Control Settings 15
Food Storage Guide 15

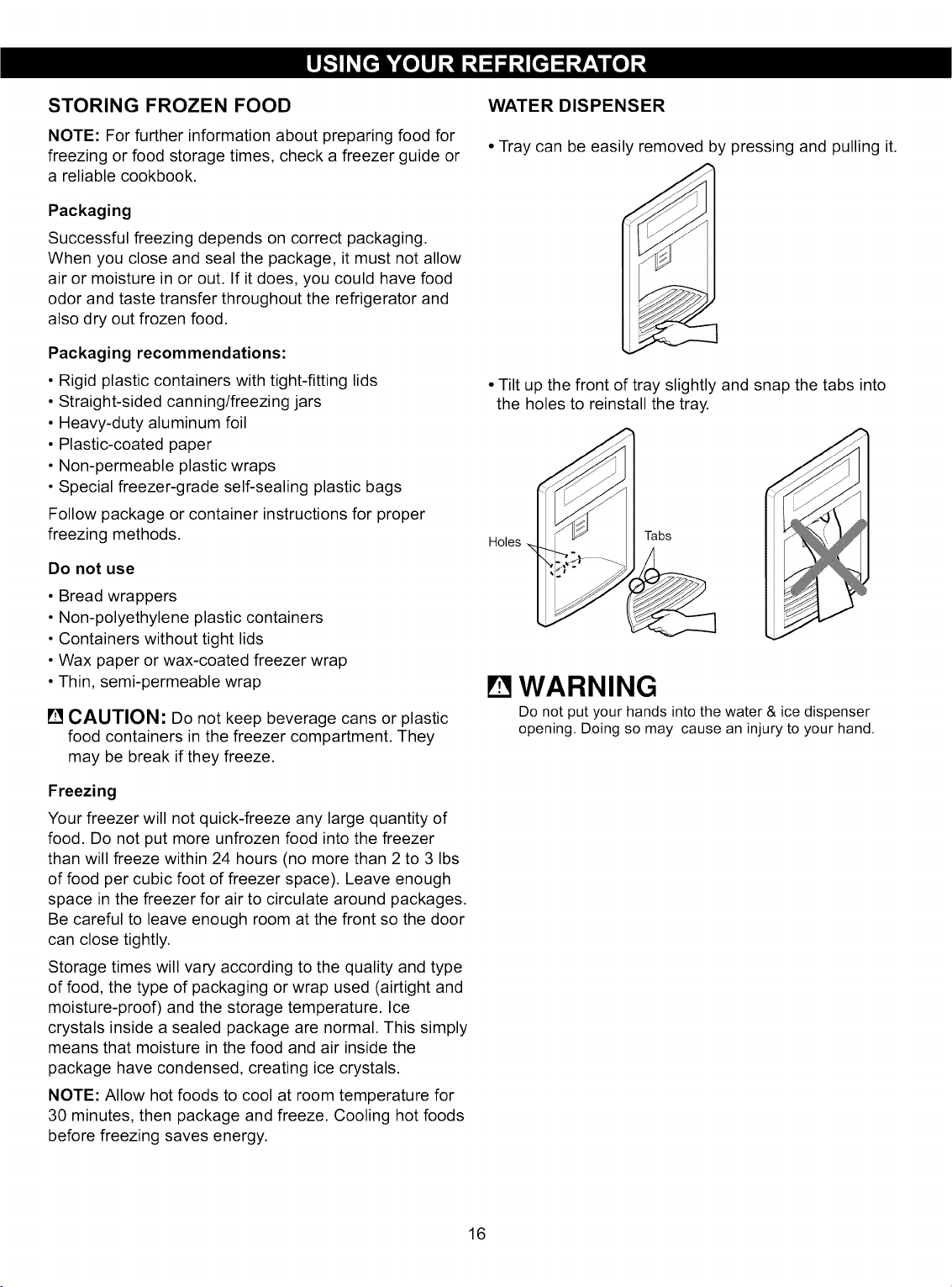

Storing Frozen Food 16
Water Dispenser 16

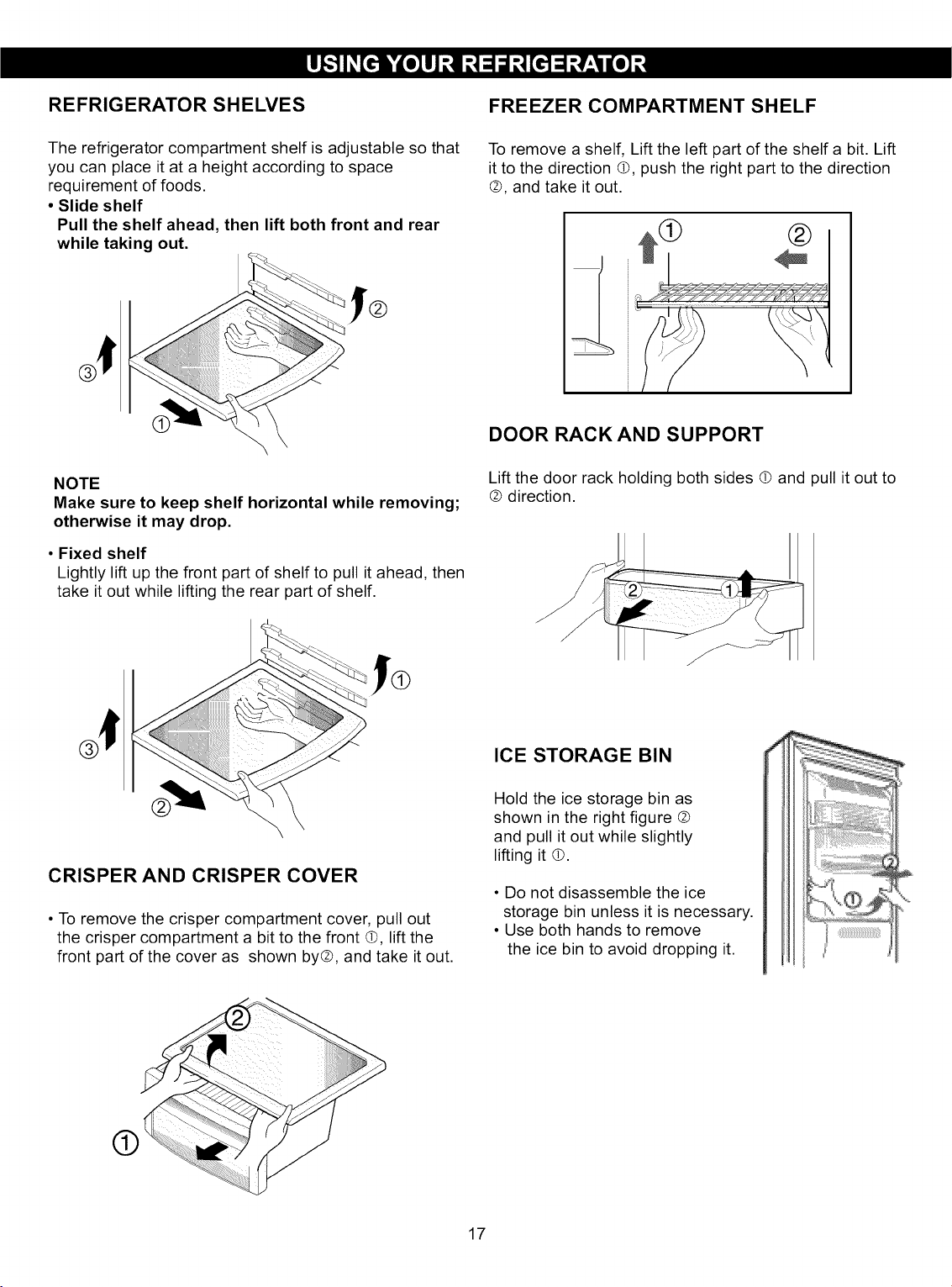

Refrigerator Shelves 17
Crisper and Crisper Cover
Freezer Compartment Shelf
Ice Storage Bin
Door Rack and Support

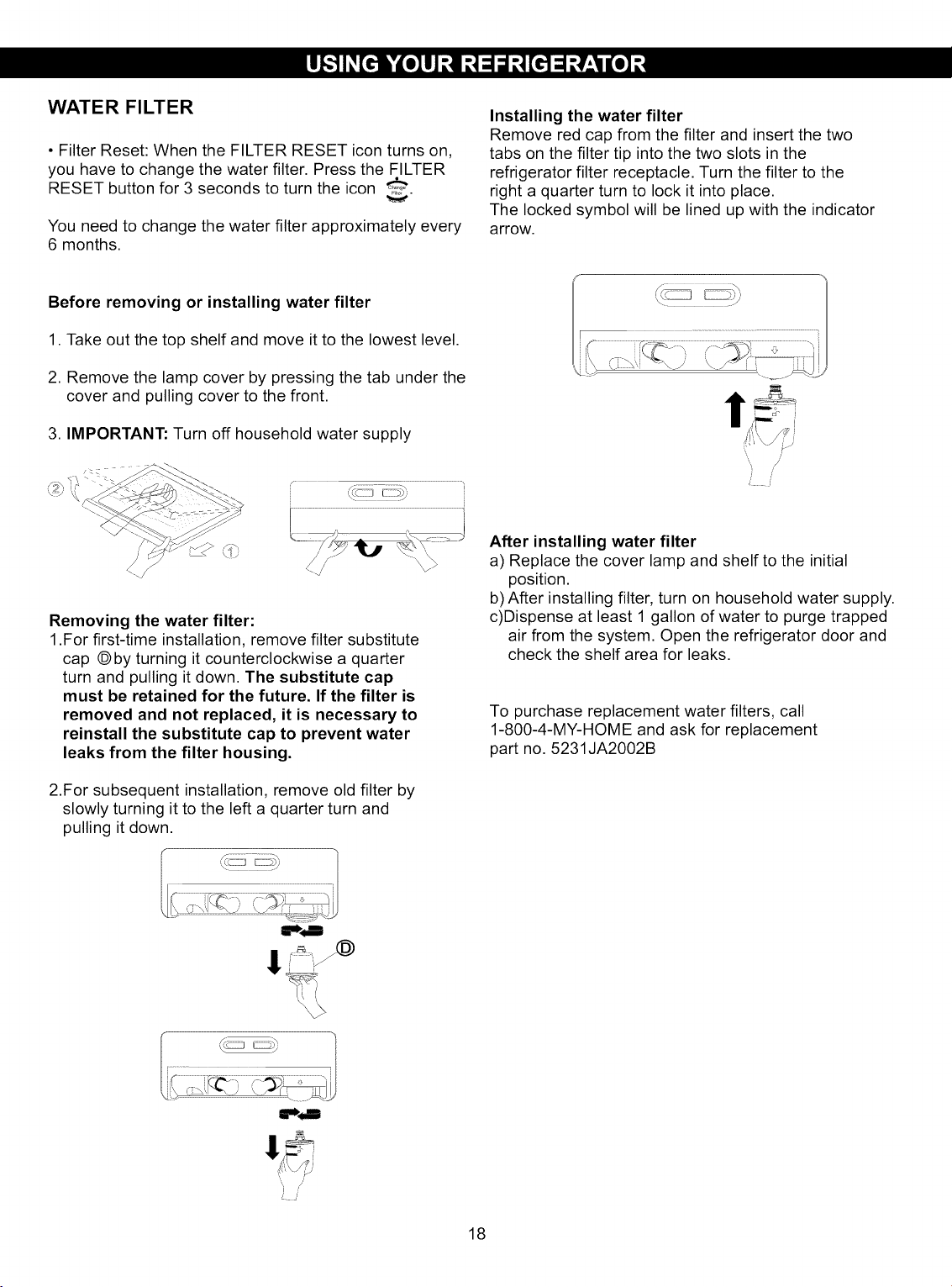

Water Filter

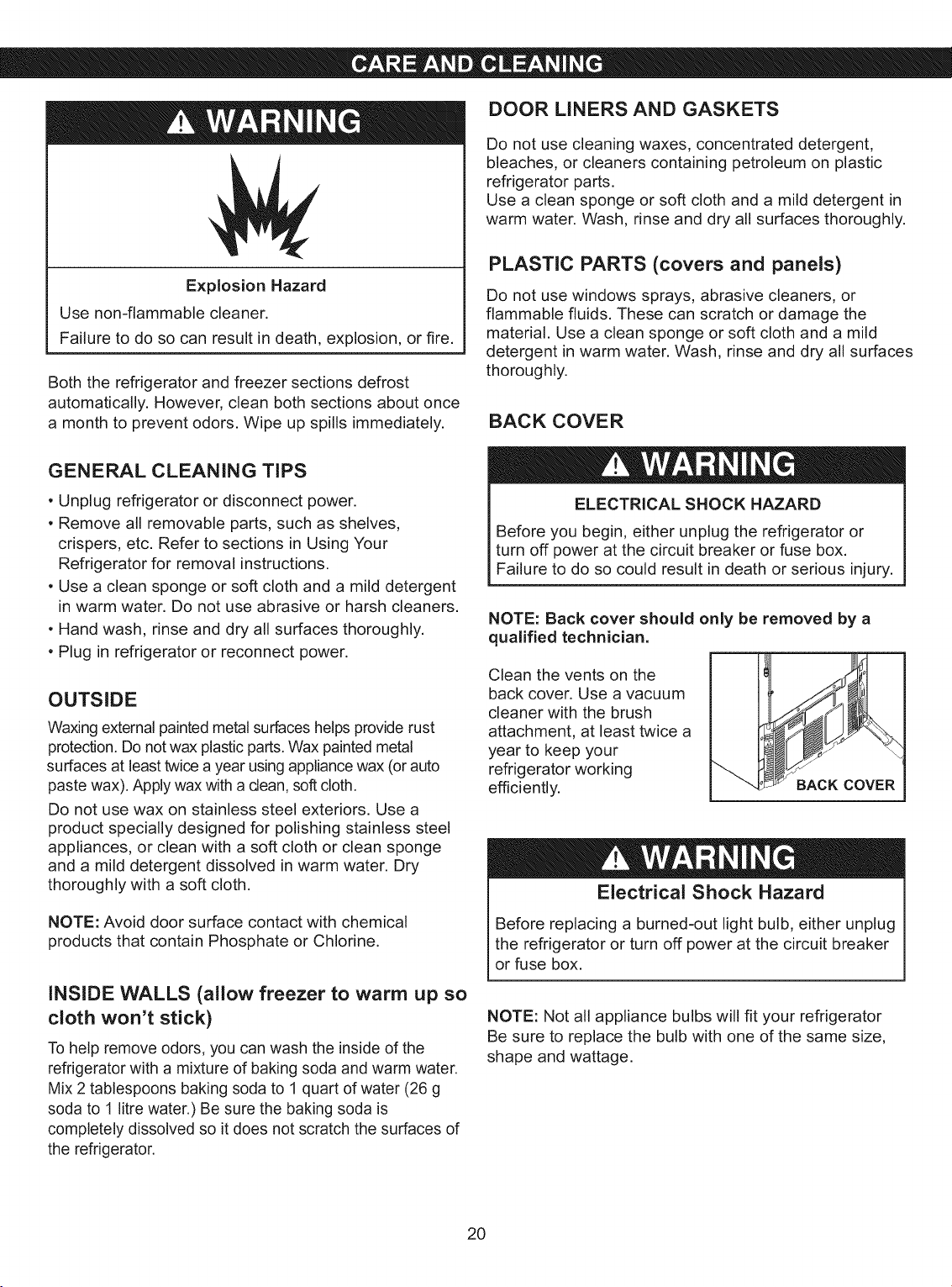

Care and Cleaning
General Cleaning Tips
Outside
Inside Walls
Door Liners and Gaskets
Plastic Parts
Back Cover
Power Interruptions
When you go on vacation
When you move

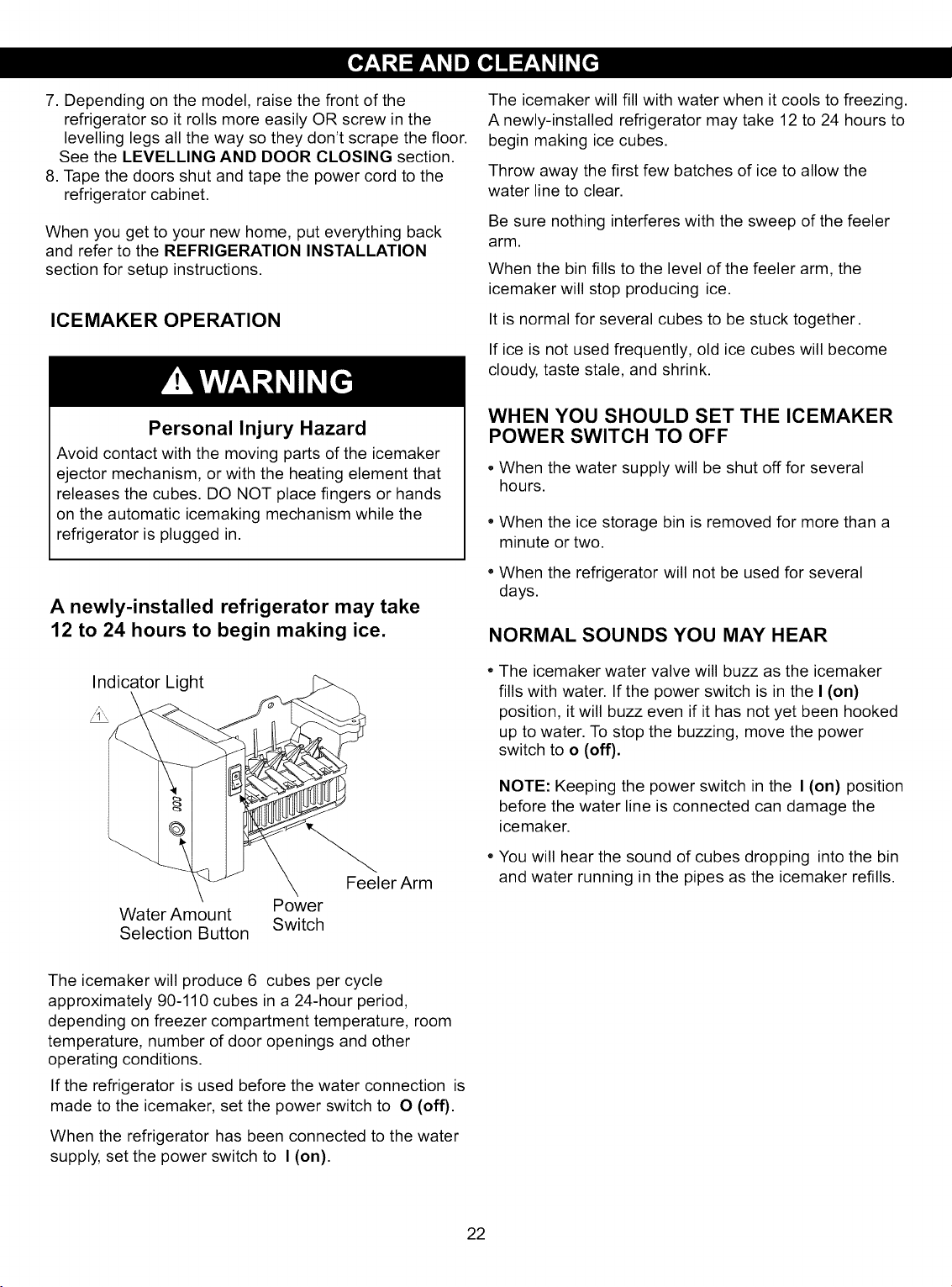

Icemaker Operation
When you should set the icemaker
power switch to off
Normal sounds you may hear

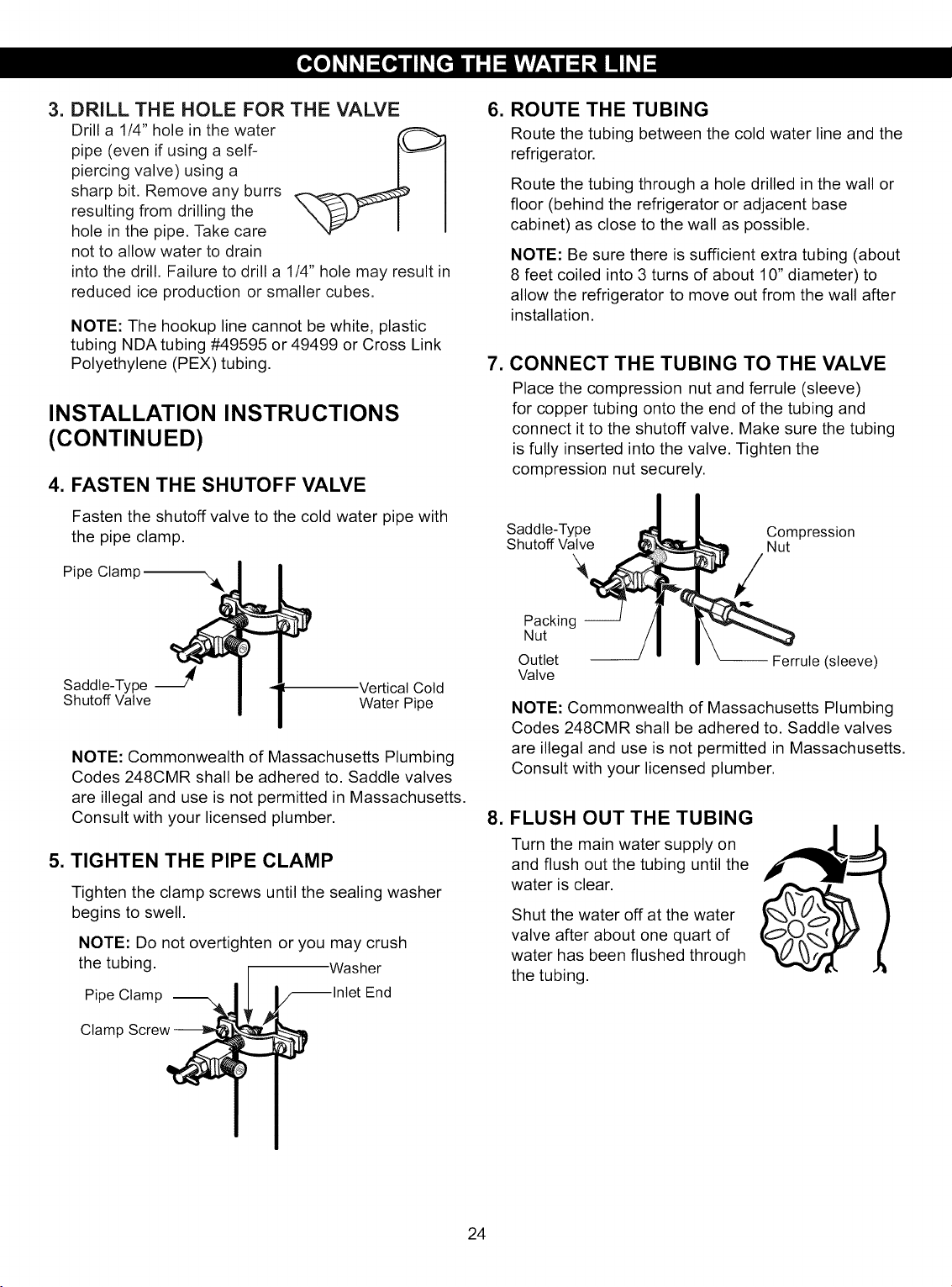

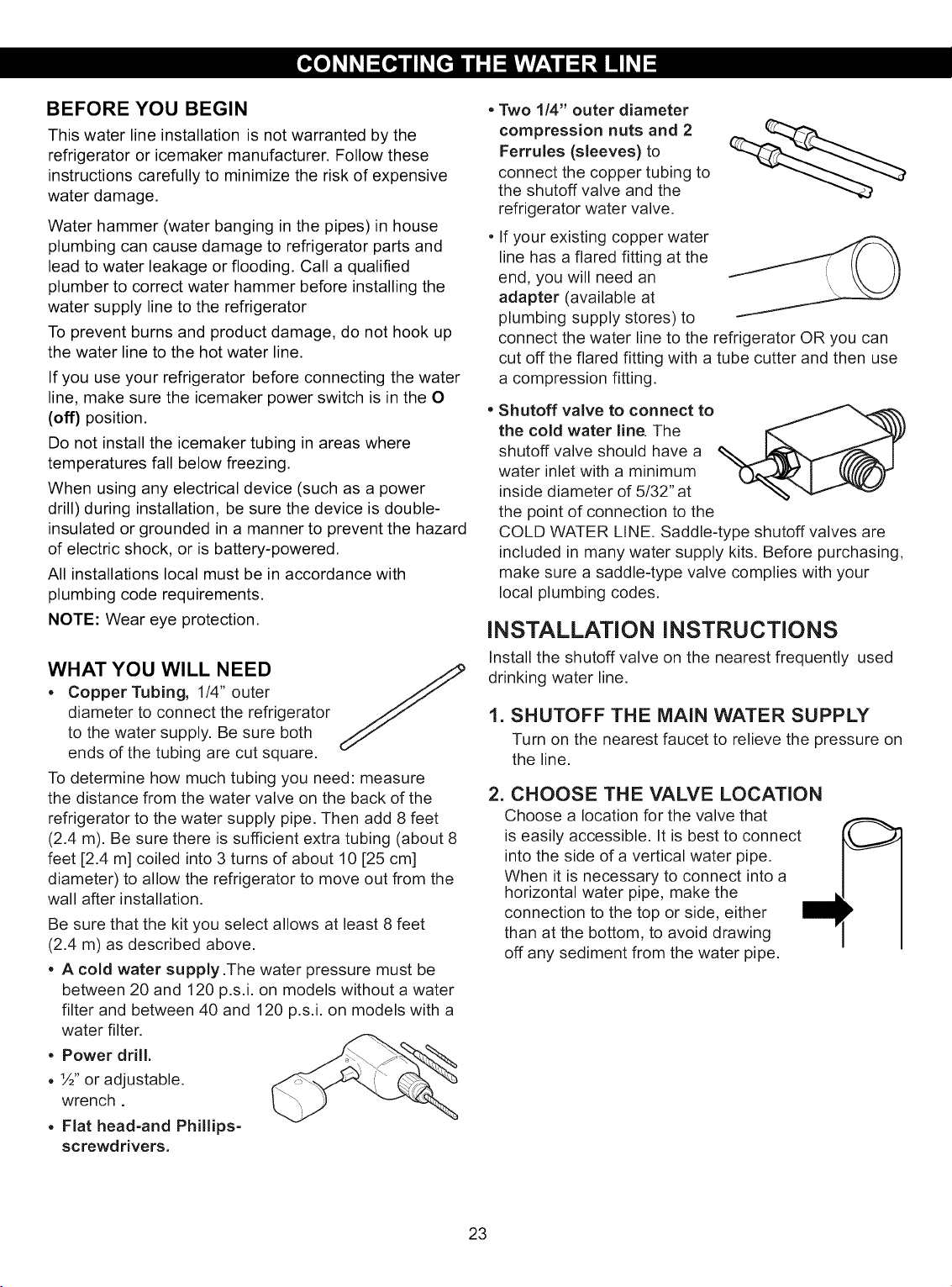

Connecting the Water Line
Before you begin
What you will need
Installation Instructions

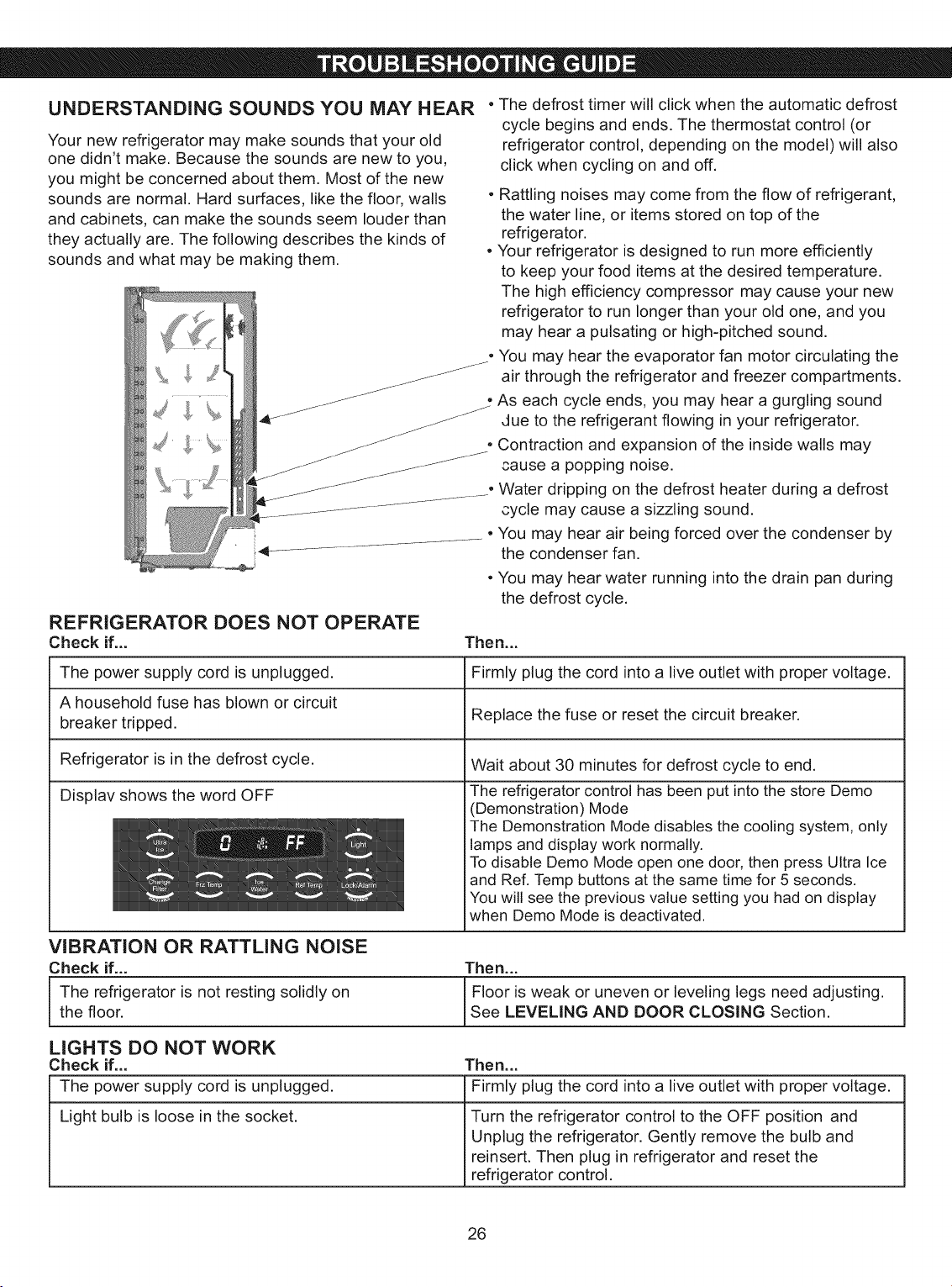

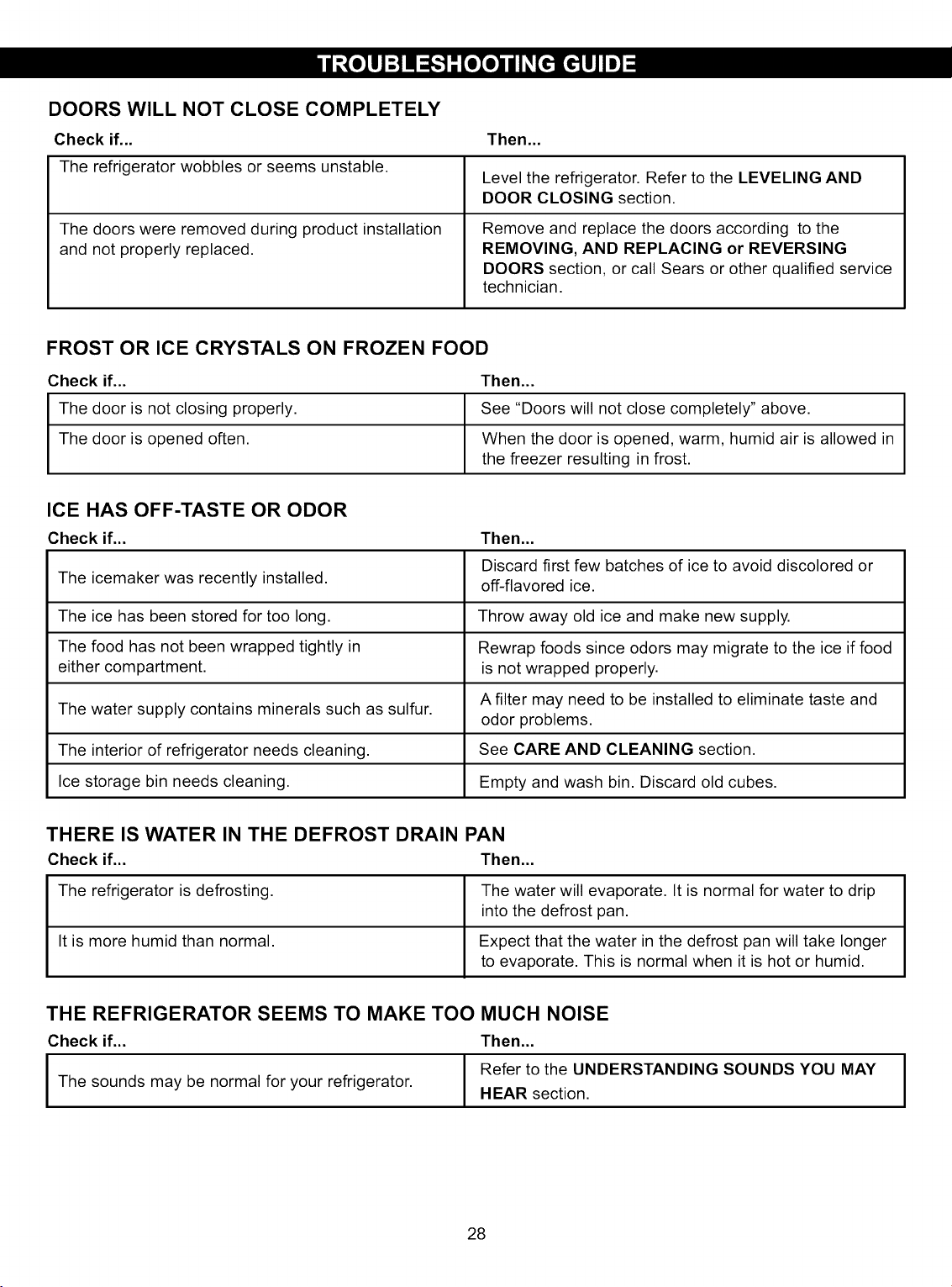

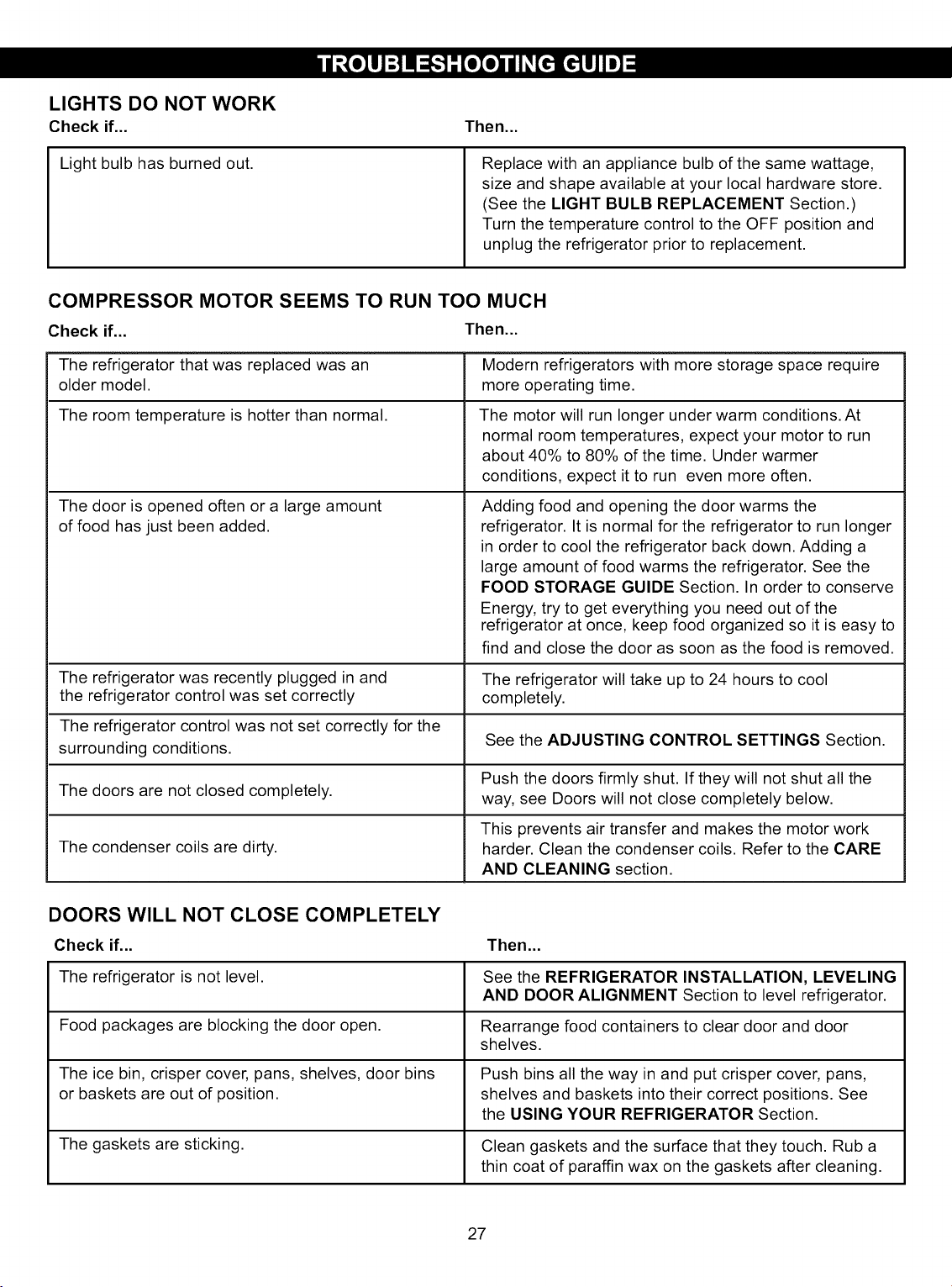

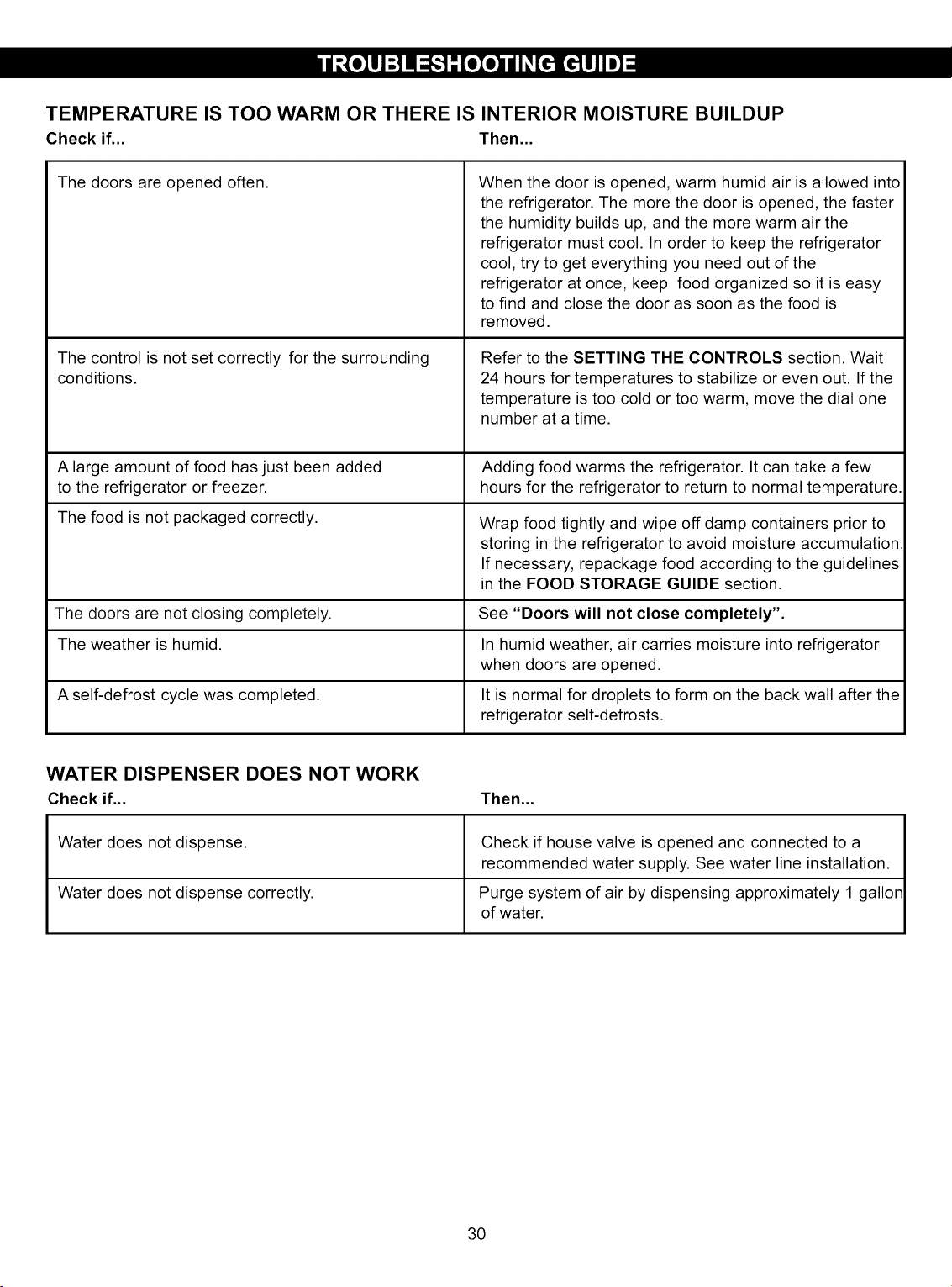

Troubleshooting Guide
17
17
17
17
18-19
20-21
20
20
20
20
20
20
21
21
21
22
22
22
23-25
23
23
23-25
26-30
SIDE-BY-SIDE REFRIGERATOR
E
I T E @

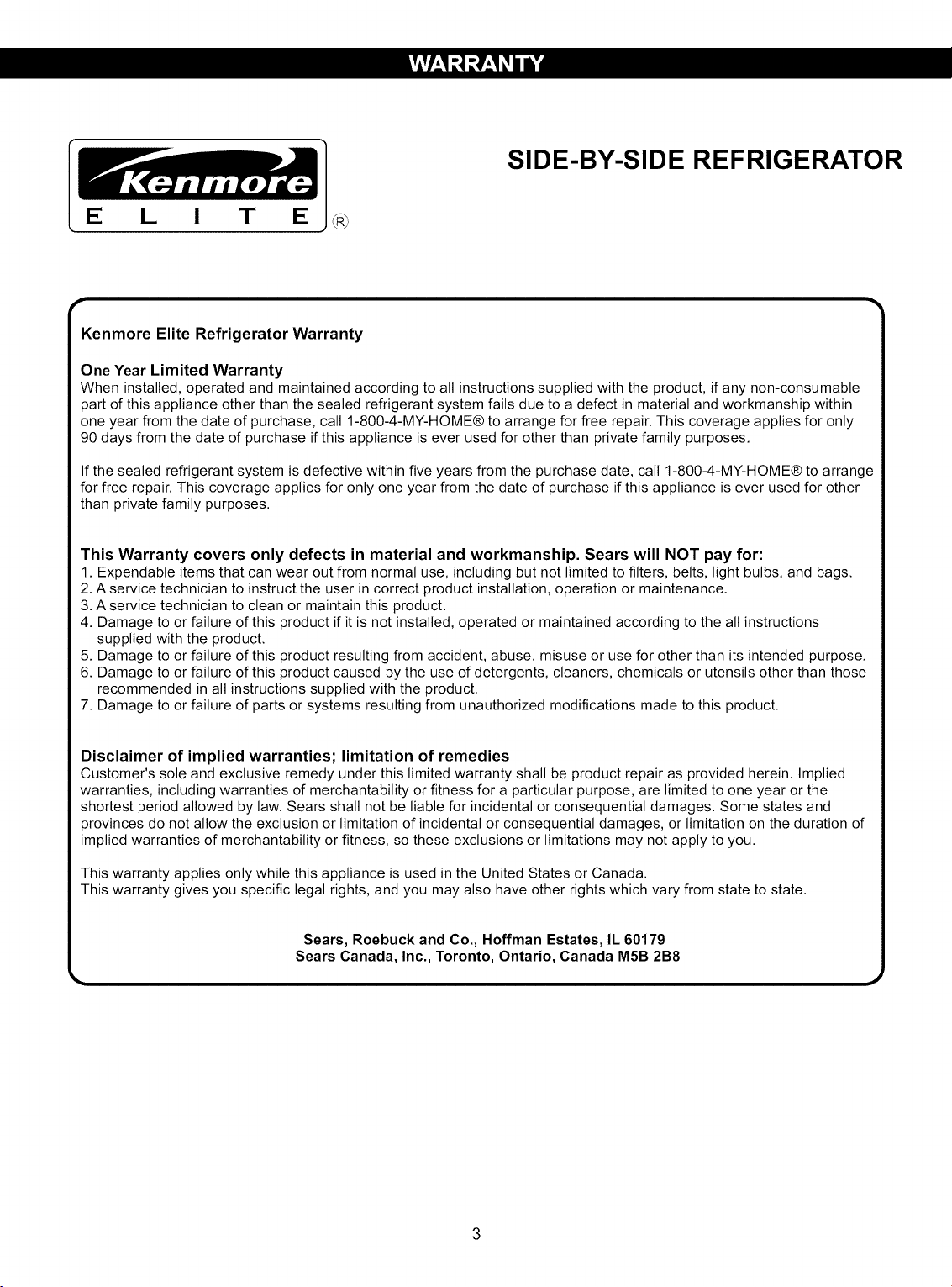

Kenmore Elite Refrigerator Warranty
One Year Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if any non-consumable
part of this appliance other than the sealed refrigerant system fails due to a defect in material and workmanship within
one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair. This coverage applies for only
90 days from the date of purchase if this appliance is ever used for other than private family purposes.
If the sealed refrigerant system is defective within five years from the purchase date, call 1-800-4-MY-HOME® to arrange
for free repair. This coverage applies for only one year from the date of purchase if this appliance is ever used for other
than private family purposes.
This Warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to the all instructions
supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the
shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and
provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of
implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8

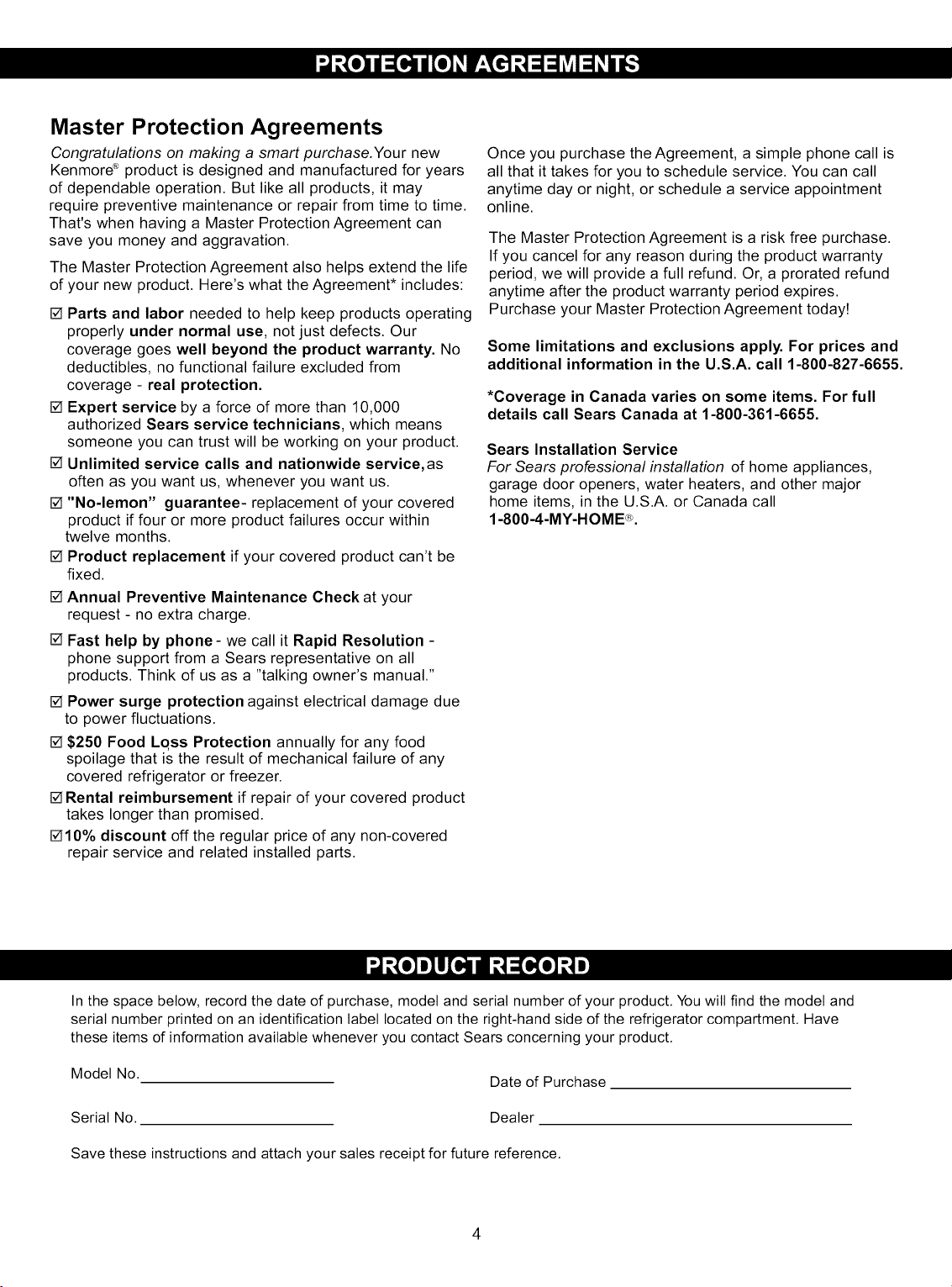

Master Protection Agreements
Congratulations on making a smart purchase.Your new
Kenmore _ product is designed and manufactured for years
of dependable operation. But like all products, it may
require preventive maintenance or repair from time to time.
That's when having a Master Protection Agreement can
save you money and aggravation.
The Master Protection Agreement also helps extend the life
of your new product. Here's what the Agreement* includes:
[] Parts and labor needed to help keep products operating
properly under normal use, not just defects. Our
coverage goes well beyond the product warranty. No
deductibles, no functional failure excluded from
coverage - real protection.
[] Expert service by a force of more than 10,000
authorized Sears service technicians, which means
someone you can trust will be working on your product.
[] Unlimited service calls and nationwide service, as
often as you want us, whenever you want us.
[] "No-lemon" guarantee- replacement of your covered
product if four or more product failures occur within
twelve months.
[] Product replacement if your covered product can't be
fixed.
[] Annual Preventive Maintenance Check at your
request - no extra charge.
[] Fast help by phone- we call it Rapid Resolution -
phone support from a Sears representative on all
products. Think of us as a "talking owner's manual."
[] Power surge protection against electrical damage due
to power fluctuations.
[] $250 Food Lqss Protection annually for any food
spoilage that is the result of mechanical failure of any
covered refrigerator or freezer.
[] Rental reimbursement if repair of your covered product
takes longer than promised.
[]10% discount off the regular price of any non-covered
repair service and related installed parts.
Once you purchase the Agreement, a simple phone call is
all that it takes for you to schedule service. You can call
anytime day or night, or schedule a service appointment
online.
The Master Protection Agreement is a risk free purchase.
If you cancel for any reason during the product warranty
period, we will provide a full refund. Or, a prorated refund
anytime after the product warranty period expires.
Purchase your Master Protection Agreement today!
Some limitations and exclusions apply. For prices and
additional information in the U.S.A. call 1-800-827-6655.
*Coverage in Canada varies on some items. For full
details call Sears Canada at 1-800-361-6655.
Sears Installation Service
For Sears professional installation of home appliances,
garage door openers, water heaters, and other major
home items, in the U.S.A. or Canada call
1-800-4-MY-HOME_%
In the space below, record the date of purchase, model and serial number of your product. You will find the model and
serial number printed on an identification label located on the right-hand side of the refrigerator compartment. Have
these items of information available whenever you contact Sears concerning your product.
Model No. Date of Purchase
Serial No. Dealer
Save these instructions and attach your sales receipt for future reference.

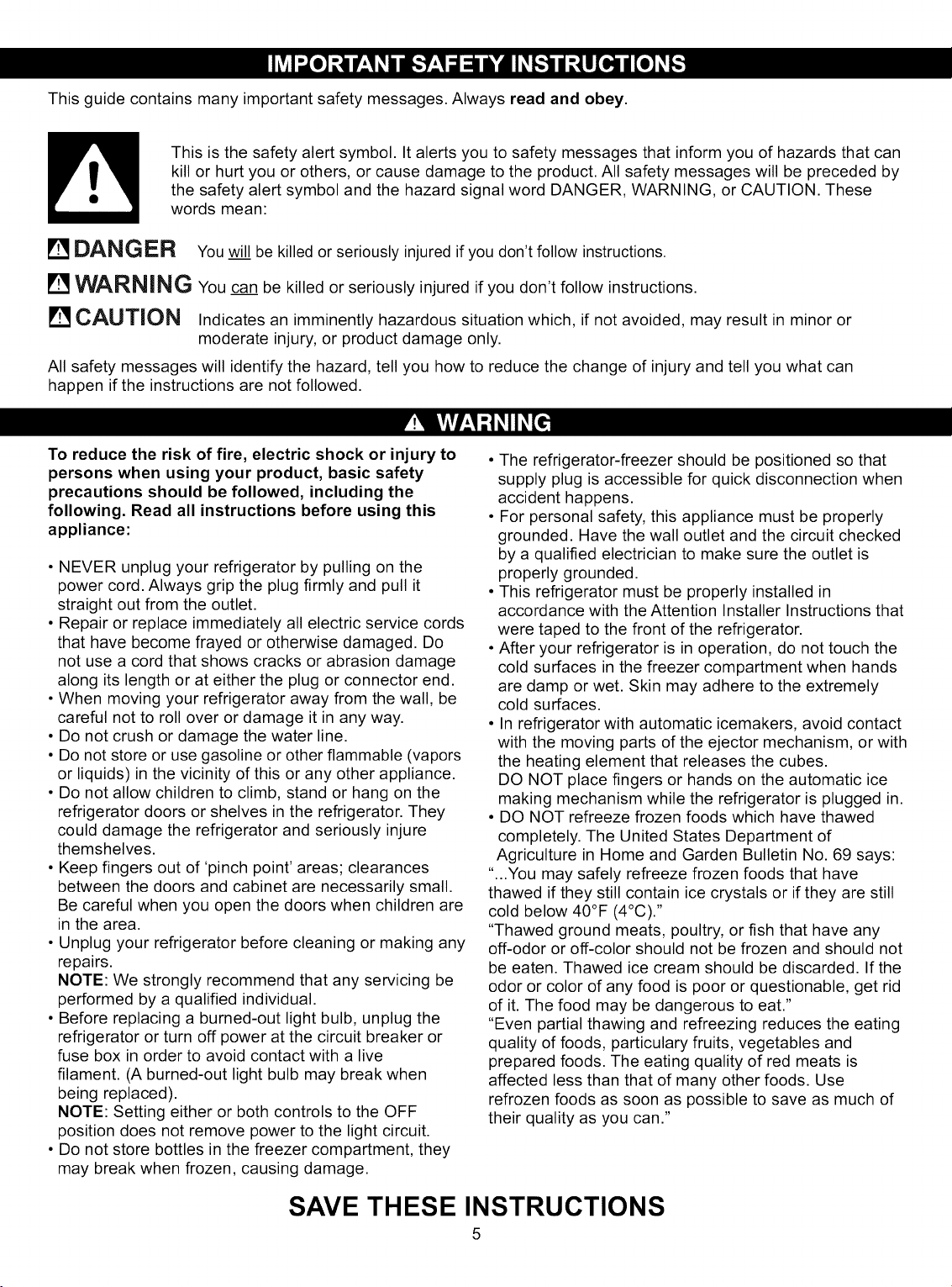

This guide contains many important safety messages. Always read and obey.
This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can
kill or hurt you or others, or cause damage to the product. All safety messages will be preceded by
the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These
words mean:
[] DANGI=R You will be killed or seriously injured if you don't follow instructions.
WARNING You can be killed or seriously injured if you don't follow instructions.
CAUTION Indicates an imminently hazardous situation which, if not avoided, may result in minor or
moderate injury, or product damage only.
All safety messages will identify the hazard, tell you how to reduce the change of injury and tell you what can
happen if the instructions are not followed.
kvAv/ d
To reduce the risk of fire, electric shock or injury to
persons when using your product, basic safety
precautions should be followed, including the
following. Read all instructions before using this
appliance:
° NEVER unplug your refrigerator by pulling on the
power cord. Always grip the plug firmly and pull it
straight out from the outlet.
° Repair or replace immediately all electric service cords
that have become frayed or otherwise damaged. Do
not use a cord that shows cracks or abrasion damage
along its length or at either the plug or connector end.
° When moving your refrigerator away from the wall, be
careful not to roll over or damage it in any way.
° Do not crush or damage the water line.
° Do not store or use gasoline or other flammable (vapors
or liquids) in the vicinity of this or any other appliance.
° Do not allow children to climb, stand or hang on the
refrigerator doors or shelves in the refrigerator. They
could damage the refrigerator and seriously injure
themshelves.
° Keep fingers out of 'pinch point' areas; clearances
between the doors and cabinet are necessarily small.
Be careful when you open the doors when children are
in the area.
° Unplug your refrigerator before cleaning or making any
repairs.
NOTE: We strongly recommend that any servicing be
performed by a qualified individual.
° Before replacing a burned-out light bulb, unplug the
refrigerator or turn off power at the circuit breaker or
fuse box in order to avoid contact with a live
filament. (A burned-out light bulb may break when
being replaced).
NOTE: Setting either or both controls to the OFF
position does not remove power to the light circuit.
° Do not store bottles in the freezer compartment, they
may break when frozen, causing damage.
° The refrigerator-freezer should be positioned so that
supply plug is accessible for quick disconnection when
accident happens.
° For personal safety, this appliance must be properly
grounded. Have the wall outlet and the circuit checked
by a qualified electrician to make sure the outlet is
properly grounded.
° This refrigerator must be properly installed in
accordance with the Attention Installer Instructions that
were taped to the front of the refrigerator.
° After your refrigerator is in operation, do not touch the
cold surfaces in the freezer compartment when hands
are damp or wet. Skin may adhere to the extremely
cold surfaces.
° In refrigerator with automatic icemakers, avoid contact
with the moving parts of the ejector mechanism, or with
the heating element that releases the cubes.
DO NOT place fingers or hands on the automatic ice
making mechanism while the refrigerator is plugged in.
° DO NOT refreeze frozen foods which have thawed
completely. The United States Department of
Agriculture in Home and Garden Bulletin No. 69 says:
"...You may safely refreeze frozen foods that have
thawed if they still contain ice crystals or if they are still
cold below 40°F (4°C). ''
"Thawed ground meats, poultry, or fish that have any
off-odor or off-color should not be frozen and should not
be eaten. Thawed ice cream should be discarded. If the
odor or color of any food is poor or questionable, get rid
of it. The food may be dangerous to eat."
"Even partial thawing and refreezing reduces the eating
quality of foods, particulary fruits, vegetables and
prepared foods. The eating quality of red meats is
affected less than that of many other foods. Use
refrozen foods as soon as possible to save as much of
their quality as you can."
SAVE THESE INSTRUCTIONS
Ir!_ [__ li!!,,-,]:l[o]i {o}I II! p]1:1l i /_!_,II _v_i:1l i d

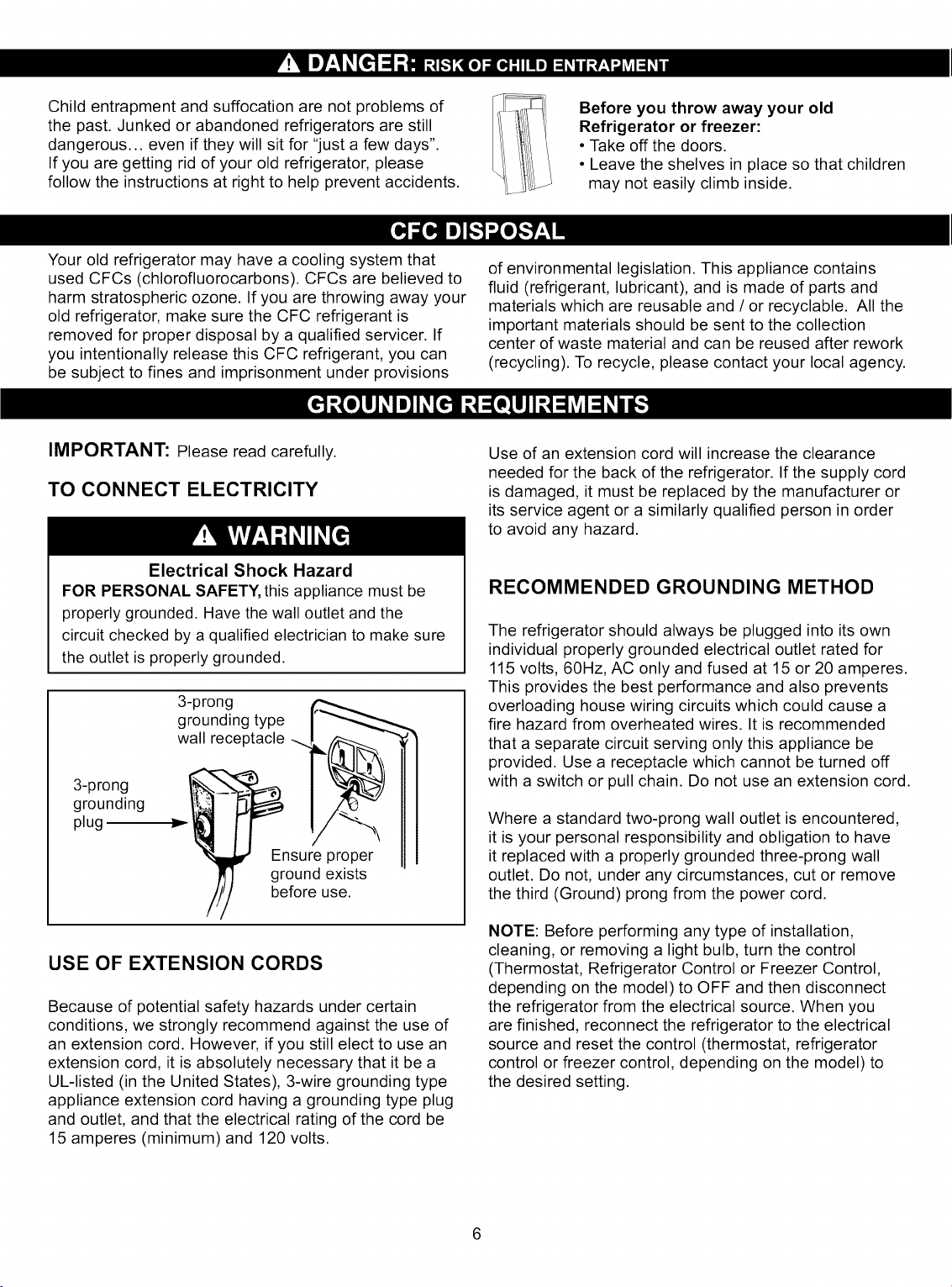

Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous.., even if they will sit for "just a few days".
If you are getting rid of your old refrigerator, please
follow the instructions at right to help prevent accidents.
Before you throw away your old
Refrigerator or freezer:
• Take off the doors.
• Leave the shelves in place so that children
may not easily climb inside.
Your old refrigerator may have a cooling system that
used CFCs (chlorofluorocarbons). CFCs are believed to
harm stratospheric ozone. If you are throwing away your
old refrigerator, make sure the CFC refrigerant is
removed for proper disposal by a qualified servicer. If
you intentionally release this CFC refrigerant, you can
be subject to fines and imprisonment under provisions
of environmental legislation. This appliance contains
fluid (refrigerant, lubricant), and is made of parts and
materials which are reusable and / or recyclable. All the
important materials should be sent to the collection
center of waste material and can be reused after rework
(recycling). To recycle, please contact your local agency.
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must be
properly grounded. Have the wall outlet and the
circuit checked by a qualified electrician to make sure
the outlet is properly grounded.
3-prong
grounding
plug
3-prong
grounding type
wall receptacle
Ensure proper
ground exists
before use.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, we strongly recommend against the use of
an extension cord. However, if you still elect to use an
extension cord, it is absolutely necessary that it be a
UL-listed (in the United States), 3-wire grounding type
appliance extension cord having a grounding type plug
and outlet, and that the electrical rating of the cord be
15 amperes (minimum) and 120 volts.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator. If the supply cord
is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order
to avoid any hazard.
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 volts, 60Hz, AC only and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a
fire hazard from overheated wires. It is recommended
that a separate circuit serving only this appliance be
provided. Use a receptacle which cannot be turned off
with a switch or pull chain. Do not use an extension cord.
Where a standard two-prong wall outlet is encountered,
it is your personal responsibility and obligation to have
it replaced with a properly grounded three-prong wall
outlet. Do not, under any circumstances, cut or remove
the third (Ground) prong from the power cord.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, turn the control
(Thermostat, Refrigerator Control or Freezer Control,
depending on the model) to OFF and then disconnect
the refrigerator from the electrical source. When you
are finished, reconnect the refrigerator to the electrical
source and reset the control (thermostat, refrigerator
control or freezer control, depending on the model) to
the desired setting.
O
1
Use this page to become more familiar with the parts and features. Page references are included for your
convenience.
Note: This guide covers several different models.The refrigerator you have purchased may have some or
all of the items listed below. The locations of the features shown below may not match your model.
O utomatic Icemaker
For storage of ice cubes made by the icemaker.
Do not store anything except ice in the ice bin.
O Freezer Shelf (steel)
t_ Freezer Lamp
O Door Rack
O Drawer (Wire/Plastic)
t_I Freezer Door Rack
O Base Grille
O Dairy Corner
For storage of dairy products
such as butter and cheese.
O Refrigerator Lamp
OWater Filter
O Refrigerator Door Rack
O Refrigerator Shelf
snack Drawer
For storage of meat or fresh food.
O Vegetable Drawer
O Humidity Control
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning
type labels or the model and serial number label.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also
be easily removed by rubbing a small amount of liquid
dish soap over the adhesive with your fingers. Wipe with
warm water and dry.
Do not use sharp instruments, rubbing alcohol,
flammable fluids or abrasive cleaners to remove tape or
glue. These products can damage the surface of your
refrigerator. For more information, see the Important
Safety Instructions section.
Refrigerator shelves are installed in the shipping
position.
Please reinstall shelves according to your individual
storage needs.
INSTALLATION
1. Avoid placing unit near heat sources, direct sunlight or
moisture.
2. To minimize noise and vibration, the refrigerator
MUST be installed on a solidly constructed floor.
3. Carpeting and soft tile surfaces are not recommended.
4. NEVER install the refrigerator on a platform or a
weakly supported structure.
5. Install this appliance in an area where the
temperature is between 41°F (5°C) and 110°F (43°C.)
If the temperature around the appliance is too low or
high, cooling ability may be adverseley affected.
NOTE: For proper air circulation, best cooling and
energy consumption results, maintain a minimum
distance of 2 inches (5.08cm) from adjacent items and
surfaces.
{(
|
2" (5.08 cm) 4" ", 2" (5.08 cm) 4'_
2" (5.08 crn)_
4,_ 2" (5.08 cm)
When Moving Your Refrigerator:
Your refrigerator is heavy When moving the
refrigerator for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator when
trying to move it, as floor damage could occur.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion or fire.
° Be careful when you work with hinge, base grille,
stopper, etc. You may be injured.
• Do not put hands or metal sticks into air vents, base
grille or bottom or refrigerator. You may be injured or
receive an electrical shock.
BASE GRILLE INSTALLATION
To install or replace base grille:
• Place cover into position and insert and tighten
screws.
To remove the base grille
1. Open the Doors. (Refrigerator and Freezer)
2. Once doors are open remove screws on top
of cover.
LEVELING THE REFRIGERATOR DOOR
Place level on refrigerator shelf as shown below.
HANDLE REMOVAL
NOTE: It is ALWAYS recommended to remove the
refrigerator doors when it is necessary to move the
refrigerator through a narrow opening. If necessary,
follow the directions below to remove the door handles.
Removing Refrigerator Handle
• Loosen the set screws with the 3/32" Allen
wrench and remove the handle.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a 1/4"
Allen wrench.
If your refrigerator is not level, insert a flat blade
screwdriver into the grooves of the leveling legs (shown
in picture below). Rotate legs clockwise to raise or
counterclockwise to lower the front of the refrigerator.
Left leveling Right leveling leg
leg
Raise the front of the refrigerator enough so the doors
close freely when opened halfway. The refrigerator
should slope 1/4" to 1/2" from front to back.
Then level the refrigerator from side to side.
Set Screw
\
Allen Wrench
Mounting
Fasteners
Electric Shock Hazard
• Disconnect electrical supply to the refrigerator
before installing. Failure to do so could result in
death or serious injury.
• Do not put hands or feet or other objects into the
air vents, base grille, or bottom of the refrigerator.
You may be injured or receive an electrical shock.
• Be careful when you work with the hinge, base
grille, and stopper. You may be injured.

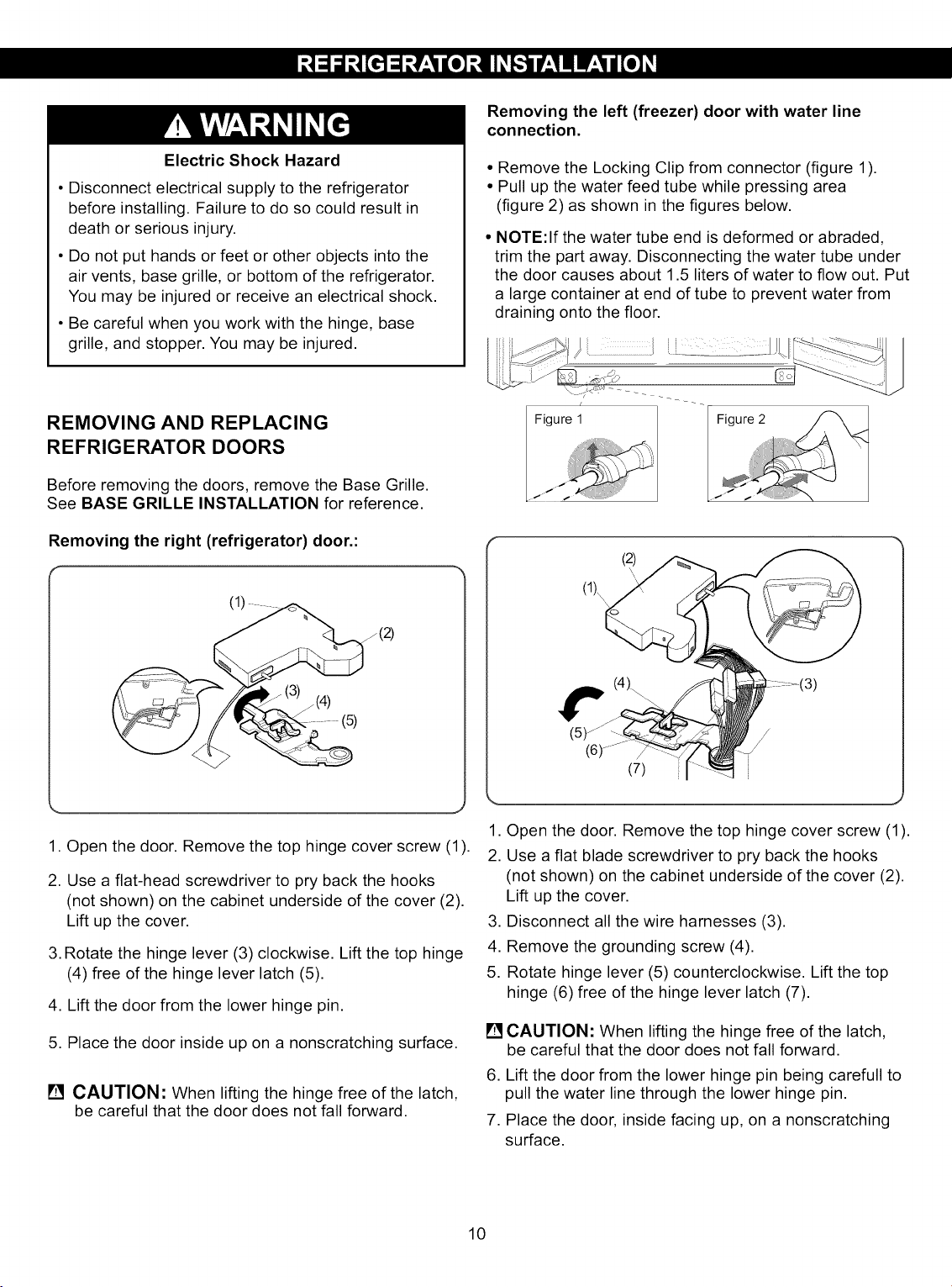

REMOVING AND REPLACING
REFRIGERATOR DOORS
Before removing the doors, remove the Base Grille.
See BASE GRILLE INSTALLATION for reference.
Removing the right (refrigerator) door.:
f
(1)
_(2)
Removing the left (freezer) door with water line
connection.
• Remove the Locking Clip from connector (figure 1).
• Pull up the water feed tube while pressing area
(figure 2) as shown in the figures below.
• NOTE:If the water tube end is deformed or abraded,
trim the part away. Disconnecting the water tube under
the door causes about 1.5 liters of water to flow out. Put
a large container at end of tube to prevent water from
draining onto the floor.
/ ill',
(2)
(1),
(6).....
(7)
1. Open the door. Remove the top hinge cover screw (1).
2. Use a flat-head screwdriver to pry back the hooks
(not shown) on the cabinet underside of the cover (2).
Lift up the cover.
3.Rotate the hinge lever (3) clockwise. Lift the top hinge
(4) free of the hinge lever latch (5).
4. Lift the door from the lower hinge pin.
5. Place the door inside up on a nonscratching surface.
[] CAUTION: When lifting the hinge free of the latch,
be careful that the door does not fall forward.
1. Open the door. Remove the top hinge cover screw (1).
2. Use a flat blade screwdriver to pry back the hooks
(not shown) on the cabinet underside of the cover (2).
Lift up the cover.
3. Disconnect all the wire harnesses (3).
4. Remove the grounding screw (4).
5. Rotate hinge lever (5) counterclockwise. Lift the top
hinge (6) free of the hinge lever latch (7).
[] CAUTION: When lifting the hinge free of the latch,
be careful that the door does not fall forward.
,
7.
Lift the door from the lower hinge pin being carefull to
pull the water line through the lower hinge pin.
Place the door, inside facing up, on a nonscratching
surface.
10
_(4)
z(2)
J

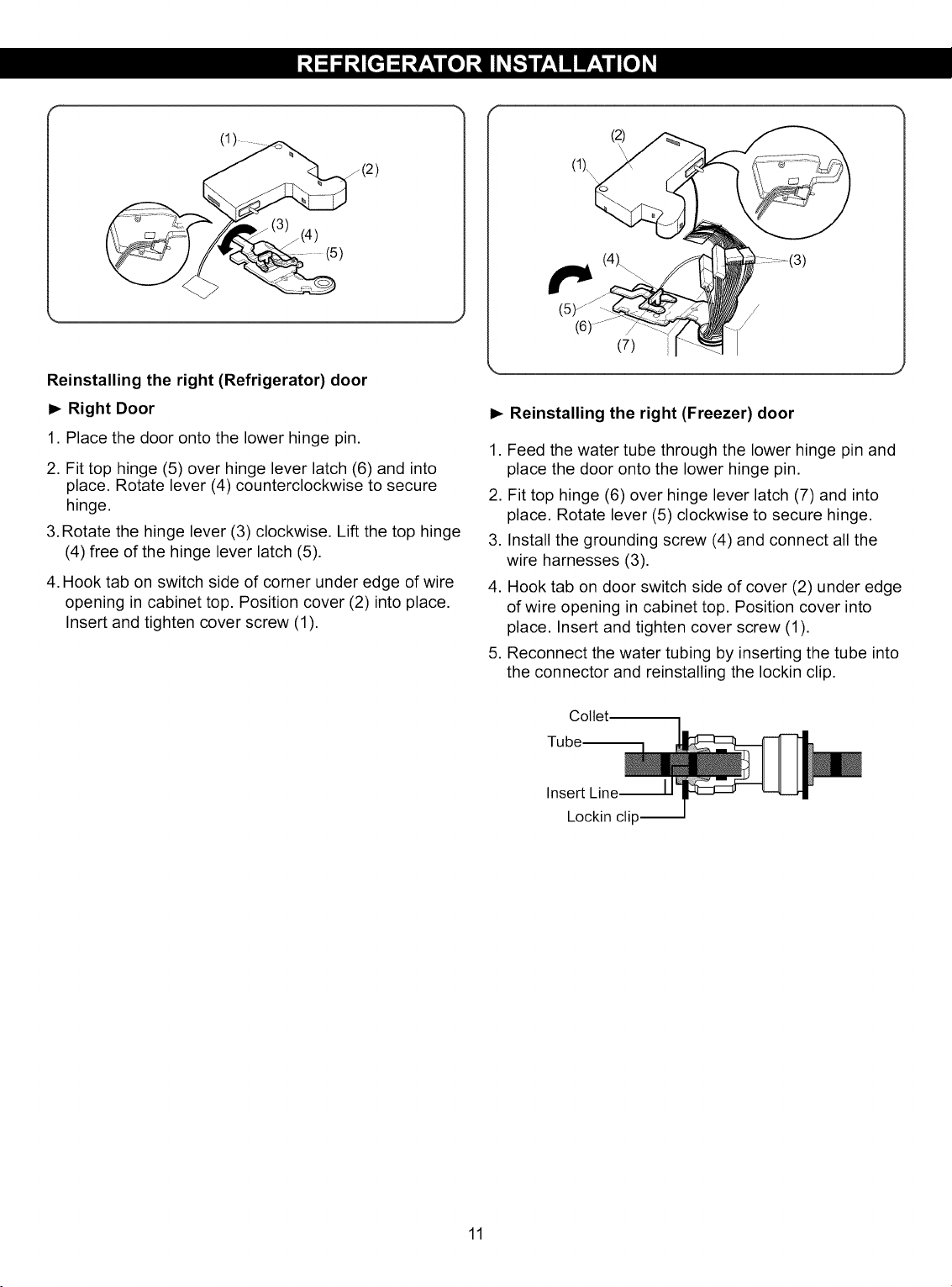

Reinstalling the right (Refrigerator) door
I_ Right Door
1. Place the door onto the lower hinge pin.
2. Fit top hinge (5) over hinge lever latch (6) and into
place. Rotate lever (4) counterclockwise to secure
hinge.
3. Rotate the hinge lever (3) clockwise. Lift the top hinge
(4) free of the hinge lever latch (5).
4. Hook tab on switch side of corner under edge of wire
opening in cabinet top. Position cover (2) into place.
Insert and tighten cover screw (1).
(1),
(2)
(6).....
(7)
Reinstalling the right (Freezer) door
1. Feed the water tube through the lower hinge pin and
place the door onto the lower hinge pin.
2. Fit top hinge (6) over hinge lever latch (7) and into
place. Rotate lever (5) clockwise to secure hinge.
3. Install the grounding screw (4) and connect all the
wire harnesses (3).
4. Hook tab on door switch side of cover (2) under edge
of wire opening in cabinet top. Position cover into
place. Insert and tighten cover screw (1).
5. Reconnect the water tubing by inserting the tube into
the connector and reinstalling the Iockin clip.
Coltet
Insert Line
Lockin clip--
11
DOOR ALIGNMENT ADDITIONAL ADJUSTMENT
NOTE: If after leveling the refrigerator (see LEVELING
THE REFRIGERATOR) the doors are still misaligned
follow the directions below.
Before adjusting the doors, remove the Base Grille.
See BASE GRILLE INSTALLATION for reference.
If the freezer compartment door is lower than the
refrigerator compartment door, align them by inserting
a flat blade screwdriver into the groove of the left
leveling leg and rotating it clockwise.
Left leveling
leg
If the freezer compartment door is higher than the
refrigerator compartment door, align them by inserting
a flat blade screwdriver into the groove of the right
leveling leg and rotating it clockwise.
(
iiiiii_iiiiiil
)
Height
difference
Right leveling leg
If rotating the leveling legs does not result in satisfactory
door alignment, you may fine tune the alignment by
adjusting the right door adjustment hinge pin.
Tools you need
• Wrench 5/16 in (8 mm)
Height
difference
Using a 5/16 in (8mm) wrench, turn the adjustment
hinge pin clockwise or counterclockwise to align the
refrigerator with the freezer door.
Do not over tighten the door adjustment pin. The
hinge pin can be pulled out. (Adjustable range of height is a
maximum of ½" (1.27 cm)).
AFTER LEVELING THE DOOR HEIGHT
Make sure the front leveling legs are completely
touching the floor.
12
ENSURING PROPER AIR CIRCULATION NEXT
In order to ensure proper temperatures, air must flow
between the refrigerator and freezer sections. As shown
in the illustration below, cool air enters through the
refrigerator of the freezer section and moves up. Most of
the air then flows through the freezer section vents and
recirculates under the freezer floor. The rest of the air
enters the refrigerator section through the top vent.
• Do not block any of these vents with food packages.
If the vents are blocked, airflow will be interrupted and
temperature and moisture problems may occur.
IMPORTANT:
Because air circulates between both sections, any odors
formed in one section will transfer to the other. You must
thoroughly clean both sections to eliminate odors.
To prevent odor transfer and drying out food, wrap or
cover food tightly.(See the Food Storage Guide
section for details.)
Note: If you
close the
refrigerator
forcefully, the
freezer
door may open
and close again
due to pressure
from internal air
flow.
1. Clean your refrigerator thoroughly and wipe off dust
accumulated during shipping.
2. Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
3. Let your refrigerator run for at least 2 or 3 hours
before putting food in it. Check the flow of cold air in
the freezer compartment to ensure proper cooling.
Your refrigerator is now ready for use.
SETTING THE CONTROL
Your refrigerator has a control pad on the dispenser that
lets you regulate the temperature in the freezer and
refrigerator compartments.
REFRIGERATOR AND FREEZER
CONTROLS
The refrigerator control is preset at 37°F (3°C) and the
freezer control is preset at 0°F (-18°C).
These are the recommended temperature settings for
normal use and conditions.
Wait 24 hours for the refrigerator and freezer to reach
these temperatures.
To adjust temperatures, press the Ref Temp button or
the Frz Temp button to the desired temperature.
, The Refrigerator Temp Control range is from 33°F to
46°F (0°C to 8°C).
The lower the number setting, the colder the refrigerator
compartment will become.
• The Freezer Temp Control range is from -6°F to 8°F
(-21°C to -13°C).
When the setting is at a lower number, the freezer
compartment becomes colder.
NOTE: When changing control settings, wait 24 hours
before making additional adjustments.
After 24 hours, adjust the compartments temperatures
as desired.
Temperature Mode Switch Function (°F to °C)
If you want to convert °F to °C or vice versa, press and
hold _ button and _ button simultaneously for 5
seconds or until it changes.
13

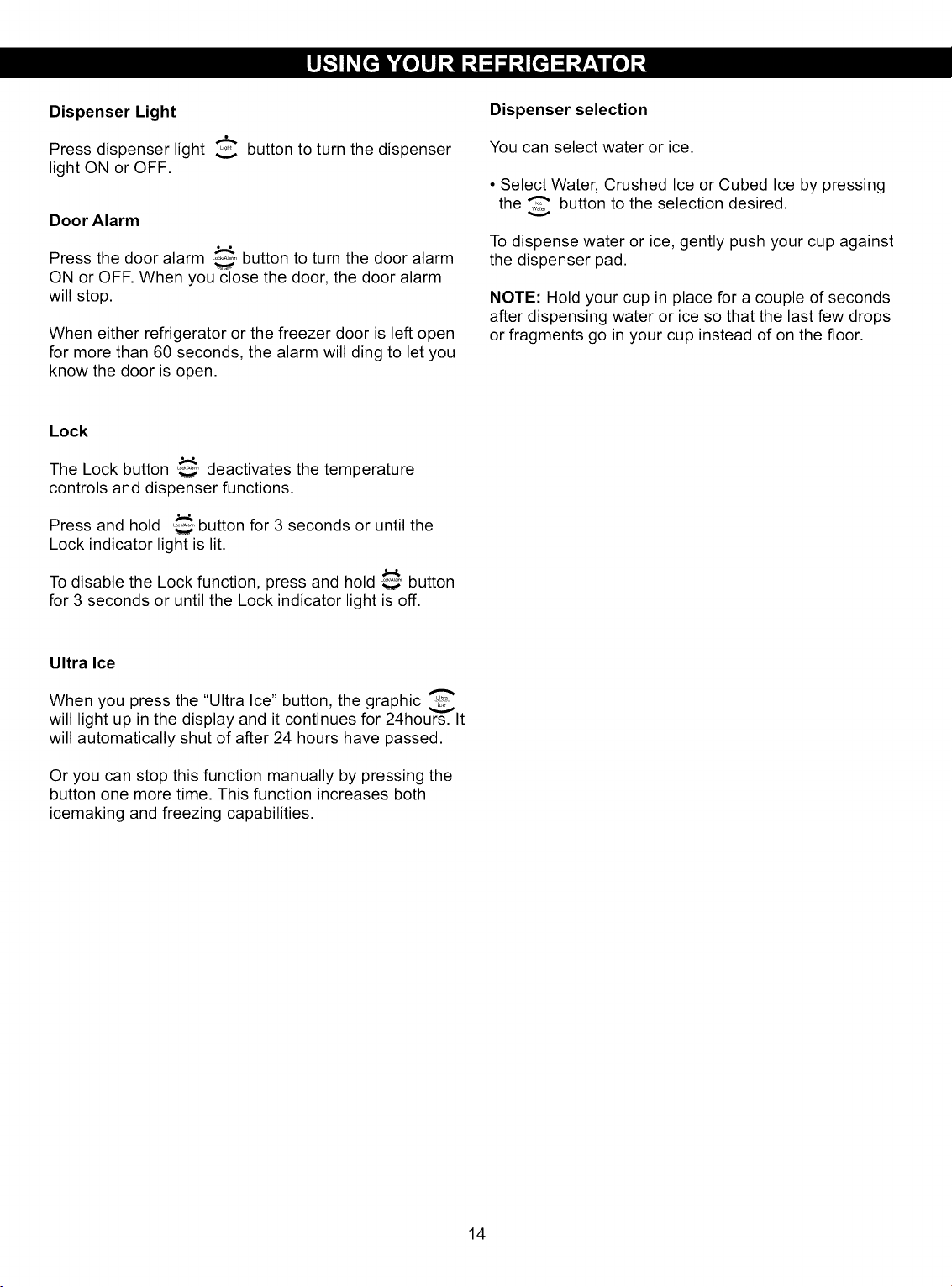

Dispenser Light
Press dispenser light _ button to turn the dispenser
light ON or OFF.
Door Alarm
• °
Press the door alarm L_, button to turn the door alarm
ON or OFF. When you close the door, the door alarm
will stop.
When either refrigerator or the freezer door is left open
for more than 60 seconds, the alarm will ding to let you
know the door is open.
Dispenser selection
You can select water or ice.
• Select Water, Crushed Ice or Cubed Ice by pressing
the _ button to the selection desired.
To dispense water or ice, gently push your cup against
the dispenser pad.
NOTE: Hold your cup in place for a couple of seconds
after dispensing water or ice so that the last few drops
or fragments go in your cup instead of on the floor.
Lock
The Lock button L_ deactivates the temperature
controls and dispenser functions.
Press and hold L_ button for 3 seconds or until the
Lock indicator light is lit.
To disable the Lock function, press and hold L_ button
for 3 seconds or until the Lock indicator light is off.
Ultra Ice
When you press the "Ultra Ice" button, the graphic
will light up m the display and it continues for 24hours. It
will automatically shut of after 24 hours have passed.
Or you can stop this function manually by pressing the
button one more time. This function increases both
icemaking and freezing capabilities.
14
ADJUSTING CONTROL SETTINGS FOOD STORAGE GUIDE
Give the refrigerator time to cool down completely
before making final adjustments. It is best to wait 24
hours before doing this. The initial settings mentioned in
SETTING THE CONTROLS section should be correct
for normal household refrigerator use. The controls are
set correctly when milk or juice is as cold as you like
and when ice cream is firm.
The refrigerator control functions as the thermostat for
the entire appliance (refrigerator and freezer sections).
The higher the number setting, the longer the
compressor will run to keep the temperature colder. The
freezer control adjusts the cold air flow from the freezer
to the refrigerator. Setting the freezer control to a lower
temperature keeps more cold air in the Freezer
compartment to make it colder.
If you need to adjust temperatures in the refrigerator or
freezer, start by adjusting the refrigerator. Then wait 24
hours before checking the freezer temperature. If it is
too warm or too cold, then adjust the freezer control.
Use the settings listed in the chart below as a guide.
Always remember to wait at least 24 hours between
adjustments.
CONDITION/ RECOMMENDED
REASON : ADJUSTMENT :
• REFRIGERATOR section too
warm
- Door opened often
- Large amount of food added
- Room temperature very warm
Turn REFRIGERATOR
control to next highest
number; wait 24 hours
to reach new
temperature.
• FREEZER section too
warm/ice not made fast enough
- Door opened often
- Large amount of food added
-Very cold room temperature
(Compressor doesn't cycle
often enough)
- Heavy ice usage
-Air vents blocked by items
Turn FREEZER control
to next highest
number; wait 24 hours
to reach new
temperature.
Move items out of
airstream
• REFRIGERATOR section too
cold
-Controls not set correctly for
your conditions
Set REFRIGERATOR
control to next lower
number; wait 24 hours
to reach new
temperature.
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to
ensure freshness.
Items How t o
Butter or
margarine
Keep opened butter in a covered
dish or closed compartment.
When storing an extra supply,
wrap in freezer packaging and
freeze.
Cheese
Store in the original wrapping until
you are ready to use it. Once
opened, rewrap tightly in plastic
wrap or aluminum foil.
Milk
• Wipe milk cartons. For best
storage, place milk on interior
shelf, not on door shelf.
Eggs • Store in original carton or Utility Bin
on interior shelf, not on door shelf.
Fruit • Wash, let dry, and store in
refrigerator in plastic bags or in
the crisper. Do not wash or hull
berries until you are ready to use
them. Sort and keep berries in
their original container in a
crisper, or store in a loosely
closed paper bag on a refrigerator
shelf.
Leafy
vegetables
Remove store wrapping and trim
or tear off bruised and discolored
areas. Wash in cold water and
drain. Place in plastic bag or
plastic container and store in
crisper.
Vegetables with • Place in plastic bags or plastic
skins (carrots, container and store in crisper.
peppers)
Fish
• Use fresh fish and shellfish the
same day purchased.
• FREEZER section too cold
-Controls not set correctly for
your conditions
Set FREEZER
control to next lower
number; wait 24 hours
to reach new
temperature.
Leftovers
• Cover leftovers with plastic wrap
or aluminum foil. Plastic
containers with tight lids can
also be used.
15
STORING FROZEN FOOD
NOTE: For further information about preparing food for
freezing or food storage times, check a freezer guide or
a reliable cookbook.
Packaging
Successful freezing depends on correct packaging.
When you close and seal the package, it must not allow
air or moisture in or out. If it does, you could have food
odor and taste transfer throughout the refrigerator and
also dry out frozen food.
Packaging recommendations:
• Rigid plastic containers with tight-fitting lids
• Straight-sided canning/freezing jars
• Heavy-duty aluminum foil
• Plastic-coated paper
• Non-permeable plastic wraps
• Special freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use
• Bread wrappers
• Non-polyethylene plastic containers
• Containers without tight lids
• Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap
[] CAUTION: Do not keep beverage cans or plastic
food containers in the freezer compartment. They
may be break if they freeze.
Freezing
Your freezer will not quick-freeze any large quantity of
food. Do not put more unfrozen food into the freezer
than will freeze within 24 hours (no more than 2 to 3 Ibs
of food per cubic foot of freezer space). Leave enough
space in the freezer for air to circulate around packages.
Be careful to leave enough room at the front so the door
can close tightly.
Storage times will vary according to the quality and type
of food, the type of packaging or wrap used (airtight and
moisture-proof) and the storage temperature. Ice
crystals inside a sealed package are normal. This simply
means that moisture in the food and air inside the
package have condensed, creating ice crystals.
NOTE: Allow hot foods to cool at room temperature for
30 minutes, then package and freeze. Cooling hot foods
before freezing saves energy.
WATER DISPENSER
• Tray can be easily removed by pressing and pulling it.
• Tilt up the front of tray slightly and snap the tabs into
the holes to reinstall the tray.
Holes
Tabs
WARNING
Do not put your hands into the water & ice dispenser
opening. Doing so may cause an injury to your hand.
16
REFRIGERATOR SHELVES FREEZER COMPARTMENT SHELF
The refrigerator compartment shelf is adjustable so that
you can place it at a height according to space
requirement of foods.
• Slide shelf
Pull the shelf ahead, then lift both front and rear
while taking out.
To remove a shelf, Lift the left part of the shelf a bit. Lift
it to the direction @, push the right part to the direction
©, and take it out.
DOOR RACK AND SUPPORT
NOTE
Make sure to keep shelf horizontal while removing;
otherwise it may drop.
• Fixed shelf
Lightly lift up the front part of shelf to pull it ahead, then
take it out while lifting the rear part of shelf.
Lift the door rack holding both sides @ and pull it out to
© direction.
®
CRISPER AND CRISPER COVER
• To remove the crisper compartment cover, pull out
the crisper compartment a bit to the front @, lift the
front part of the cover as shown by@, and take it out.
ICE STORAGE BIN
Hold the ice storage bin as
shown in the right figure ©
and pull it out while slightly
lifting it @.
• Do not disassemble the ice
storage bin unless it is necessary.
° Use both hands to remove
the ice bin to avoid dropping it.
/ i
@
17
WATER FILTER
• Filter Reset: When the FILTER RESET icon turns on,
you have to change the water filter. Press the FILTER
RESET button for 3 seconds to turn the icon @.
You need to change the water filter approximately every
6 months.
Before removing or installing water filter
I. Take out the top shelf and move it to the lowest level.
2. Remove the lamp cover by pressing the tab under the
cover and pulling cover to the front.
3. IMPORTANT: Turn off household water supply
Installing the water filter
Remove red cap from the filter and insert the two
tabs on the filter tip into the two slots in the
refrigerator filter receptacle. Turn the filter to the
right a quarter turn to lock it into place.
The locked symbol will be lined up with the indicator
arrow.
!
Removing the water filter:
1.For first-time installation, remove filter substitute
cap @by turning it counterclockwise a quarter
turn and pulling it down. The substitute cap
must be retained for the future. If the filter is
removed and not replaced, it is necessary to
reinstall the substitute cap to prevent water
leaks from the filter housing.
2.For subsequent installation, remove old filter by
slowly turning it to the left a quarter turn and
pulling it down.
After installing water filter
a) Replace the cover lamp and shelf to the initial
position.
b) After installing filter, turn on household water supply.
c)Dispense at least 1 gallon of water to purge trapped
air from the system. Open the refrigerator door and
check the shelf area for leaks.
To purchase replacement water filters, call
1-800-4-MY-HOME and ask for replacement
part no. 5231JA2002B
a,_8
_I,4,m
18

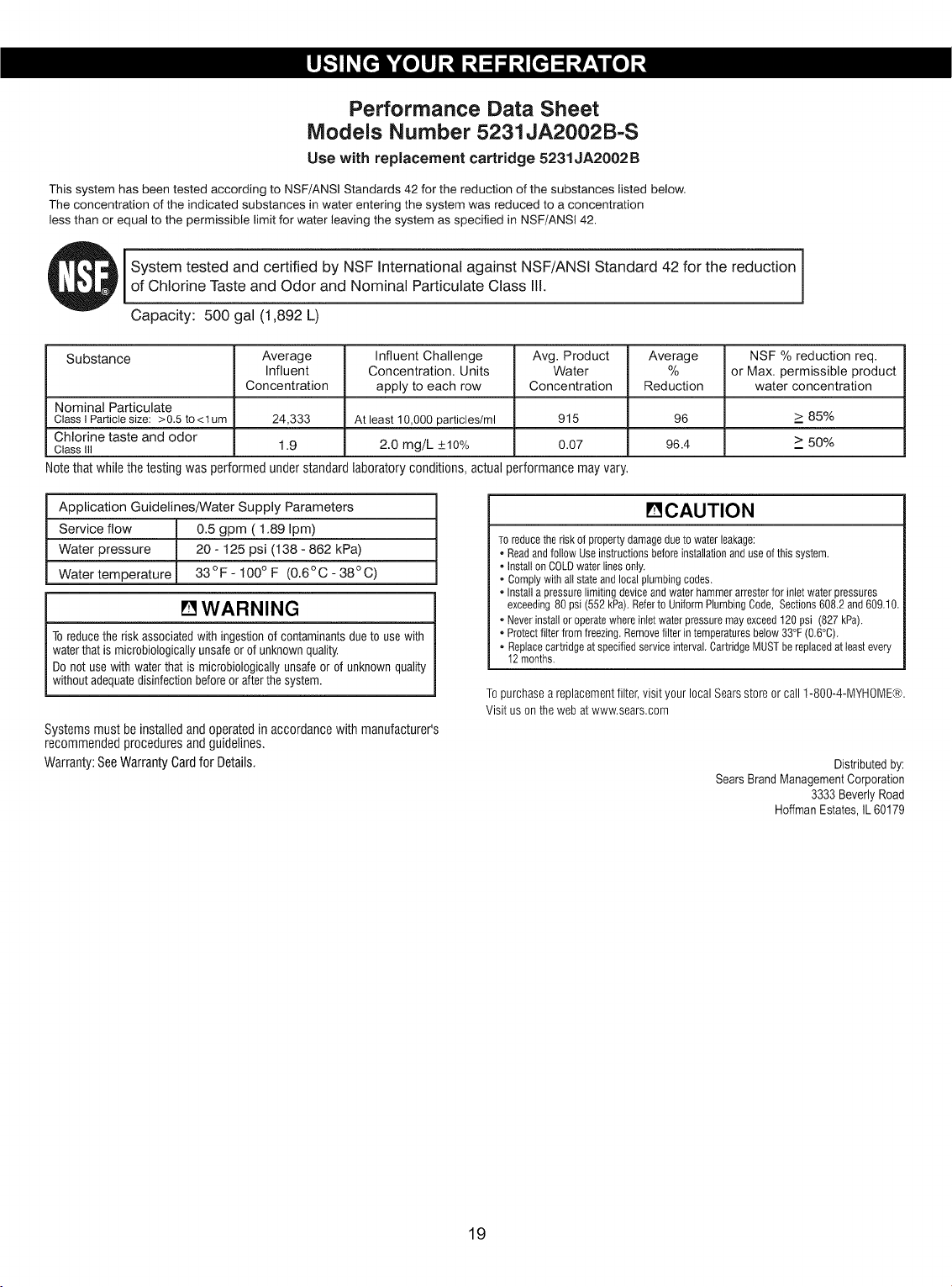

Performance Data Sheet
Models Number 5231JA2002B-S
Use with replacement cartridge 5231JA2002B
This system has been tested according to NSF/ANSI Standards 42 for the reduction of the substances listed below.
The concentration of the indicated substances in water entering the system was reduced to a concentration
less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSl 42.
i
System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction
of Chlorine Taste and Odor and Nomina! Particulate Class Ill.
1
Capacity: 500 gal (1,892 L)
Substance Average Influent Challenge Avg. Product Average NSF % reduction req.
Infiuent Concentration. Units Water % or Max. permissible product
Concentration apply to each row Concentration Reduction water concentration
Nominal Particulate
Class I Particle size: >0.5 to<lum 24,333 At least 10,000 particles/ml 915 96 >_ 85%
Chlorine taste and odor > 50%
ClassIII 1.9 2.0 mg/L +_10% 0.07 96.4 _
Notethat while the testing was performed under standard laboratory conditions, actual performance may vary.
Application Guidelines/Water Supply Parameters
Service flow 0.5 gpm ( 1.89 ipm)
Water pressure 20- 125 psi (138- 862 kPa)
Water temperature 33°F - 100° F (0.6°C - 38°C)
[] WARNING
Toreducethe riskassociatedwith ingestionof contaminantsdueto usewith
waterthatis microbiologicallyunsafeor ofunknownquality.
Do notusewith waterthat is microbiologicallyunsafeor of unknownquality
withoutadequatedisinfectionbeforeor afterthesystem.
Systems must be installed andoperated in accordance with manufacturer's
recommended procedures andguidelines.
Warranty: SeeWarranty Cardfor Details.
[]CAUTION
TOreducethe riskof propertydamagedueto water leakage:
• Readandfollow Useinstructions beforeinstallationanduse ofthis system.
, Installon COLDwater linesonly,
• Complywith al!stateandlocal plumbingcodes.
• Install a pressurelimiting device andwater hammerarrester for inletwater pressures
exceeding80 psi (552 kPa).Referto UniformPlumbingCode, Sections608.2 and609.10.
° Neverinstall or operatewhere inletwater pressuremayexceed120 psi (827 kPa).
• Protectfilter from freezing.Removefilter intemperaturesbelow 33°F (0,6°C).
o Replacecartridge atspecified serviceinterval.Cartridge MUSTbereplacedatleastevery
12 months.
Topurchaseareplacementfilter,visit yourlocalSearsstoreor call1-800-4-MYHOME®.
Visitus onthewebatwww.sears.com
Distributedby:
SearsBrandManagementCorporation
3333BeverlyRoad
HoffmanEstates,IL60179
19
ExplosionHazard
Usenon-flammablecleaner.
Failure to do so can result in death, explosion, or fire.
Both the refrigerator and freezer sections defrost
automatically. However, clean both sections about once
a month to prevent odors. Wipe up spills immediately.
GENERAL CLEANING TIPS
• Unplug refrigerator or disconnect power.
• Remove all removable parts, such as shelves,
crispers, etc. Refer to sections in Using Your
Refrigerator for removal instructions.
• Use a clean sponge or soft cloth and a mild detergent
in warm water. Do not use abrasive or harsh cleaners.
• Hand wash, rinse and dry all surfaces thoroughly.
• Plug in refrigerator or reconnect power.
OUTSIDE
Waxing external paintedmetal surfaces helps provide rust
protection. Do not wax plasticparts.Wax painted metal
surfaces at least twicea year usingappliance wax (or auto
paste wax). Apply wax with a dean, soft cloth.
Do not use wax on stainless steel exteriors. Use a
product specially designed for polishing stainless steel
appliances, or clean with a soft cloth or clean sponge
and a mild detergent dissolved in warm water. Dry
thoroughly with a soft cloth.
NOTE: Avoid door surface contact with chemical
products that contain Phosphate or Chlorine.
INSIDE WALLS (allow freezer to warm up so
cloth won't stick)
To help remove odors, you can wash the inside of the
refrigerator with a mixture of baking soda and warm water.
Mix 2 tablespoons baking soda to 1 quart of water (26 g
soda to 1 litre water.) Be sure the baking soda is
completely dissolved so it does not scratch the surfaces of
the refrigerator.
DOOR LINERS AND GASKETS
Do not use cleaning waxes, concentrated detergent,
bleaches, or cleaners containing petroleum on plastic
refrigerator parts.
Use a clean sponge or soft cloth and a mild detergent in
warm water. Wash, rinse and dry all surfaces thoroughly.
PLASTIC PARTS (covers and panels)
Do not use windows sprays, abrasive cleaners, or
flammable fluids. These can scratch or damage the
material. Use a clean sponge or soft cloth and a mild
detergent in warm water. Wash, rinse and dry all surfaces
thoroughly.
BACK COVER
ELECTRICAL SHOCK HAZARD
Before you begin, either unplug the refrigerator or
turn off power at the circuit breaker or fuse box.
Failure to do so could result in death or serious injury.
NOTE: Back cover should only be removed by a
qualified technician.
ceantheventsonthe
back cover. Use a vacuum
cleaner with the brush
attachment, at least twice a
year to keep your
refrigerator working
efficiently.
Electrical Shock Hazard
Before replacing a burned-out light bulb, either unplug
the refrigerator or turn off power at the circuit breaker
or fuse box.
NOTE: Not all appliance bulbs will fit your refrigerator
Be sure to replace the bulb with one of the same size,
shape and wattage.
20

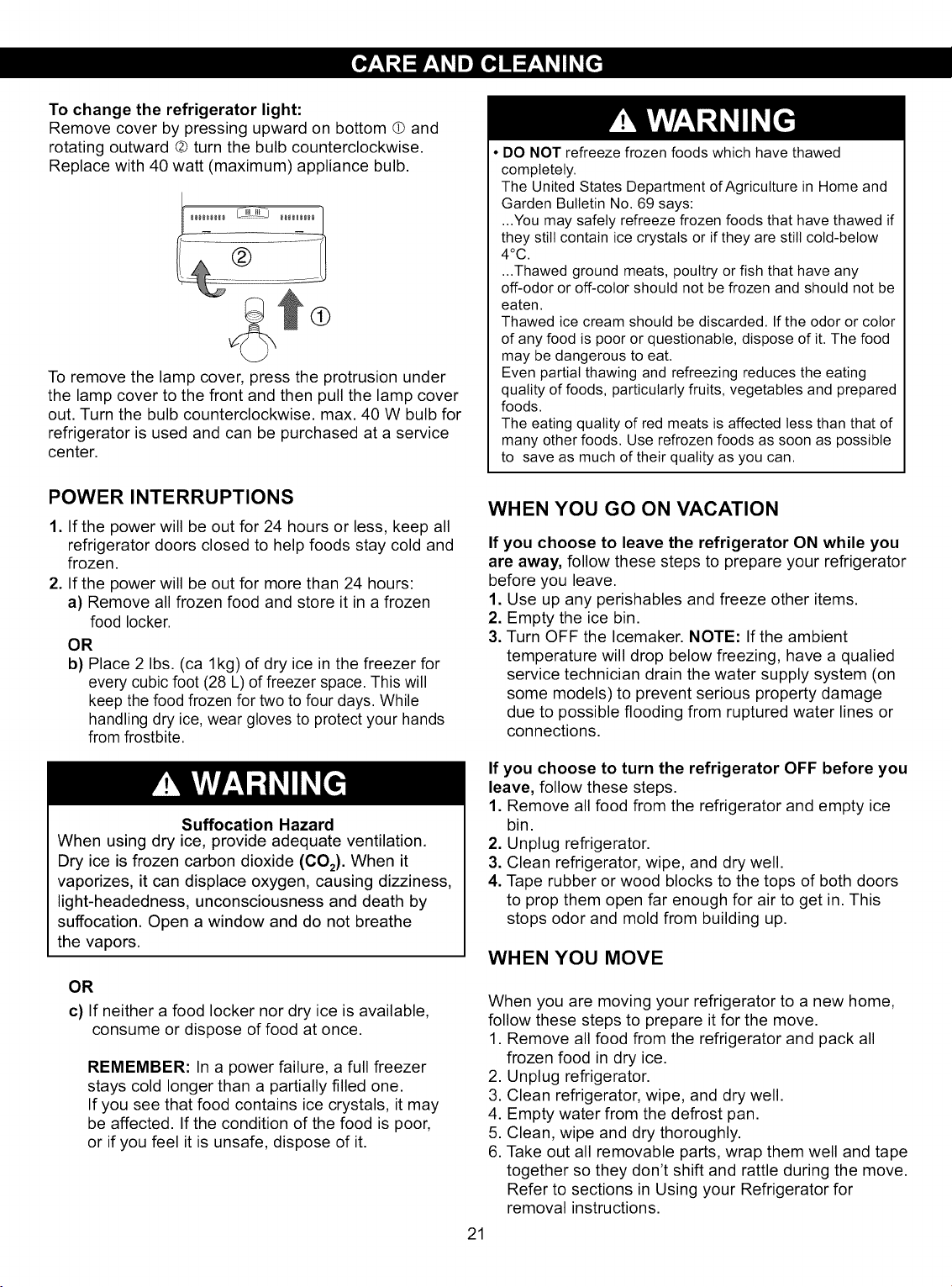

To change the refrigerator light:
Remove cover by pressing upward on bottom q_ and
rotating outward Q turn the bulb counterclockwise,
Replace with 40 watt (maximum / appliance bulb,
Q
To remove the lamp cover, press the protrusion under
the lamp cover to the front and then pull the lamp cover
out. Turn the bulb counterclockwise, max. 40 W bulb for
refrigerator is used and can be purchased at a service
center.
• DO NOT refreeze frozen foods which have thawed
completely•
The United States Department of Agriculture in Home and
Garden Bulletin No. 69 says:
•..You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold-below
4°C.
..•Thawed ground meats, poultry or fish that have any
off-odor or off-color should not be frozen and should not be
eaten.
Thawed ice cream should be discarded• If the odor or color
of any food is poor or questionable, dispose of it. The food
may be dangerous to eat.
Even partial thawing and refreezing reduces the eating
quality of foods, particularly fruits, vegetables and prepared
foods•
The eating quality of red meats is affected less than that of
many other foods• Use refrozen foods as soon as possible
to save as much of their quality as you can.
POWER INTERRUPTIONS
1. If the power will be out for 24 hours or less, keep all
refrigerator doors closed to help foods stay cold and
frozen.
2. If the power will be out for more than 24 hours:
a) Remove all frozen food and store it in a frozen
food locker•
OR
b) Place 2 Ibs. (ca lkg) of dry ice in the freezer for
every cubic foot (28 L) of freezer space• This will
keep the food frozen for two to four days. While
handling dry ice, wear gloves to protect your hands
from frostbite•
WHEN YOU GO ON VACATION
If you choose to leave the refrigerator ON while you
are away, follow these steps to prepare your refrigerator
before you leave.
1. Use up any perishables and freeze other items.
2. Empty the ice bin.
3. Turn OFF the Icemaker. NOTE: If the ambient
temperature will drop below freezing, have a quailed
service technician drain the water supply system (on
some models) to prevent serious property damage
due to possible flooding from ruptured water lines or
connections.
Suffocation Hazard
When using dry ice, provide adequate ventilation.
Dry ice is frozen carbon dioxide (C02). When it
vaporizes, it can displace oxygen, causing dizziness,
light-headedness, unconsciousness and death by
suffocation. Open a window and do not breathe
the vapors.
OR
c) If neither a food locker nor dry ice is available,
consume or dispose of food at once.
REMEMBER: In a power failure, a full freezer
stays cold longer than a partially filled one.
If you see that food contains ice crystals, it may
be affected. If the condition of the food is poor,
or if you feel it is unsafe, dispose of it.
If you choose to turn the refrigerator OFF before you
leave, follow these steps.
1. Remove all food from the refrigerator and empty ice
bin.
2. Unplug refrigerator.
3. Clean refrigerator, wipe, and dry well.
4. Tape rubber or wood blocks to the tops of both doors
to prop them open far enough for air to get in. This
stops odor and mold from building up.
WHEN YOU MOVE
When you are moving your refrigerator to a new home,
follow these steps to prepare it for the move.
1. Remove all food from the refrigerator and pack all
frozen food in dry ice.
2. Unplug refrigerator.
3. Clean refrigerator, wipe, and dry well.
4. Empty water from the defrost pan.
5. Clean, wipe and dry thoroughly.
6. Take out all removable parts, wrap them well and tape
together so they don't shift and rattle during the move.
Refer to sections in Using your Refrigerator for
removal instructions.
21
7.Dependingonthemodel,raisethefrontofthe
refrigeratorsoitrollsmoreeasilyORscrewinthe
levellinglegsallthewaysotheydon'tscrapethefloor.
SeetheLEVELLINGANDDOORCLOSINGsection.
8.Tapethedoorsshutandtapethepowercordtothe
refrigeratorcabinet.
Whenyougettoyournewhome,puteverythingback
andrefertotheREFRIGERATION INSTALLATION
section for setup instructions.
ICEMAKER OPERATION
Personal Injury Hazard
Avoid contact with the moving parts of the icemaker
ejector mechanism, or with the heating element that
releases the cubes. DO NOT place fingers or hands
on the automatic icemaking mechanism while the
refrigerator is plugged in.
A newly-installed refrigerator may take
12 to 24 hours to begin making ice.
Indicator Light
Feeler Arm
Water Amount Power
Selection Button Switch
The icemaker will fill with water when it cools to freezing.
A newly-installed refrigerator may take 12 to 24 hours to
begin making ice cubes.
Throw away the first few batches of ice to allow the
water line to clear.
Be sure nothing interferes with the sweep of the feeler
arm.
When the bin fills to the level of the feeler arm, the
icemaker will stop producing ice.
It is normal for several cubes to be stuck together.
If ice is not used frequently, old ice cubes will become
cloudy, taste stale, and shrink.
WHEN YOU SHOULD SET THE ICEMAKER
POWER SWITCH TO OFF
• When the water supply will be shut off for several
hours.
• When the ice storage bin is removed for more than a
minute or two.
• When the refrigerator will not be used for several
days.
NORMAL SOUNDS YOU MAY HEAR
The icemaker water valve will buzz as the icemaker
fills with water. If the power switch is in the I (on)
position, it will buzz even if it has not yet been hooked
up to water. To stop the buzzing, move the power
switch to o (off).
NOTE: Keeping the power switch in the I (on) position
before the water line is connected can damage the
icemaker.
You will hear the sound of cubes dropping into the bin
and water running in the pipes as the icemaker refills.
The icemaker will produce 6 cubes per cycle
approximately 90-110 cubes in a 24-hour period,
depending on freezer compartment temperature, room
temperature, number of door openings and other
operating conditions.
If the refrigerator is used before the water connection is
made to the icemaker, set the power switch to O (off}.
When the refrigerator has been connected to the water
supply, set the power switch to I (on}.
22
BEFORE YOU BEGIN
This water line installation is not warranted by the
refrigerator or icemaker manufacturer. Follow these
instructions carefully to minimize the risk of expensive
water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and
lead to water leakage or flooding. Call a qualified
plumber to correct water hammer before installing the
water supply line to the refrigerator
To prevent burns and product damage, do not hook up
the water line to the hot water line.
If you use your refrigerator before connecting the water
line, make sure the icemaker power switch is in the O
(off) position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power
drill) during installation, be sure the device is double-
insulated or grounded in a manner to prevent the hazard
of electric shock, or is battery-powered.
All installations local must be in accordance with
plumbing code requirements.
NOTE: Wear eye protection.
WHAT YOU WILL NEED
• Copper Tubing, 1/4" outer
diameter to connect the refrigerator
to the water supply. Be sure both
ends of the tubing are cut square.
To determine how much tubing you need: measure
the distance from the water valve on the back of the
refrigerator to the water supply pipe. Then add 8 feet
(2.4 m). Be sure there is sufficient extra tubing (about 8
feet [2.4 m] coiled into 3 turns of about 10 [25 cm]
diameter) to allow the refrigerator to move out from the
wall after installation.
Be sure that the kit you select allows at least 8 feet
(2.4 m) as described above.
• A cold water supply.The water pressure must be
between 20 and 120 p.s.i, on models without a water
filter and between 40 and 120 p.s.i, on models with a
water filter.
• Power drill.
.½" or adjustable.
wrench.
, Fiat head-and Phillips=
screwdrivers.
Two 1/4" outer diameter
compression nuts and 2
Ferrules (sleeves) to
connect the copper tubing to
the shutoff valve and the
refrigerator water valve.
If your existing copper water
line has a flared fitting at the
end, you will need an
adapter (available at
plumbing supply stores) to
connect the water line to the refrigerator OR you can
cut off the flared fitting with a tube cutter and then use
a compression fitting.
Shutoff valve to connect to
the cold water line. The
shutoff valve should have a
water inlet with a minimum
inside diameter of 5/32" at
the point of connection to the
COLD WATER LINE. Saddle-type shutoff valves are
included in many water supply kits. Before purchasing,
make sure a saddle-type valve complies with your
local plumbing codes.
INSTALLATION INSTRUCTIONS
Install the shutoff valve on the nearest frequently used
drinking water line.
1. SHUTOFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the pressure on
the line.
2. CHOOSE THE VALVE LOCATION
Choose a location for the valve that
is easily accessible. It is best to connect
into the side of a vertical water pipe.
When it is necessary to connect into a
horizontal water pipe, make the
connection to the top or side, either
than at the bottom, to avoid drawing
off any sediment from the water pipe.
23
3. DRILL THE HOLE FOR THE VALVE
Drill a 1/4" hole in the water
pipe (even if using a self-
piercing valve) using a
sharp bit. Remove any burrs
resulting from drilling the
hole in the pipe. Take care
not to allow water to drain
into the drill. Failure to drill a 1/4" hole may result in
reduced ice production or smaller cubes.
NOTE: The hookup line cannot be white, plastic
tubing NDA tubing #49595 or 49499 or Cross Link
Polyethylene (PEX) tubing.
INSTALLATION INSTRUCTIONS
(CONTINUED)
4. FASTEN THE SHUTOFF VALVE
Fasten the shutoff valve to the cold water pipe with
the pipe clamp.
Pipe Clamp
Saddle-Type J
Shutoff Valve
)
Vertical Cold
Water Pipe
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
5. TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing washer
begins to swell.
NOTE: Do not overtighten or you may crush
the tubing.
Pipe Clamp
Clamp Screw_
Washer
/_lntet End
=
=
ROUTE THE TUBING
Route the tubing between the cold water line and the
refrigerator.
Route the tubing through a hole drilled in the wall or
floor (behind the refrigerator or adjacent base
cabinet) as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing (about
8 feet coiled into 3 turns of about 10" diameter) to
allow the refrigerator to move out from the wall after
installation.
CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing and
connect it to the shutoff valve. Make sure the tubing
is fully inserted into the valve. Tighten the
compression nut securely.
Saddle-Type J
Shutoff Va__
Outlet
Valve
Compression
/.ut
_rule (sleeve)
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
8. FLUSH OUT THE TUBING
Turn the main water supply on
and flush out the tubing until the
water is clear.
Shut the water off at the water
valve after about one quart of
water has been flushed through
the tubing.
24

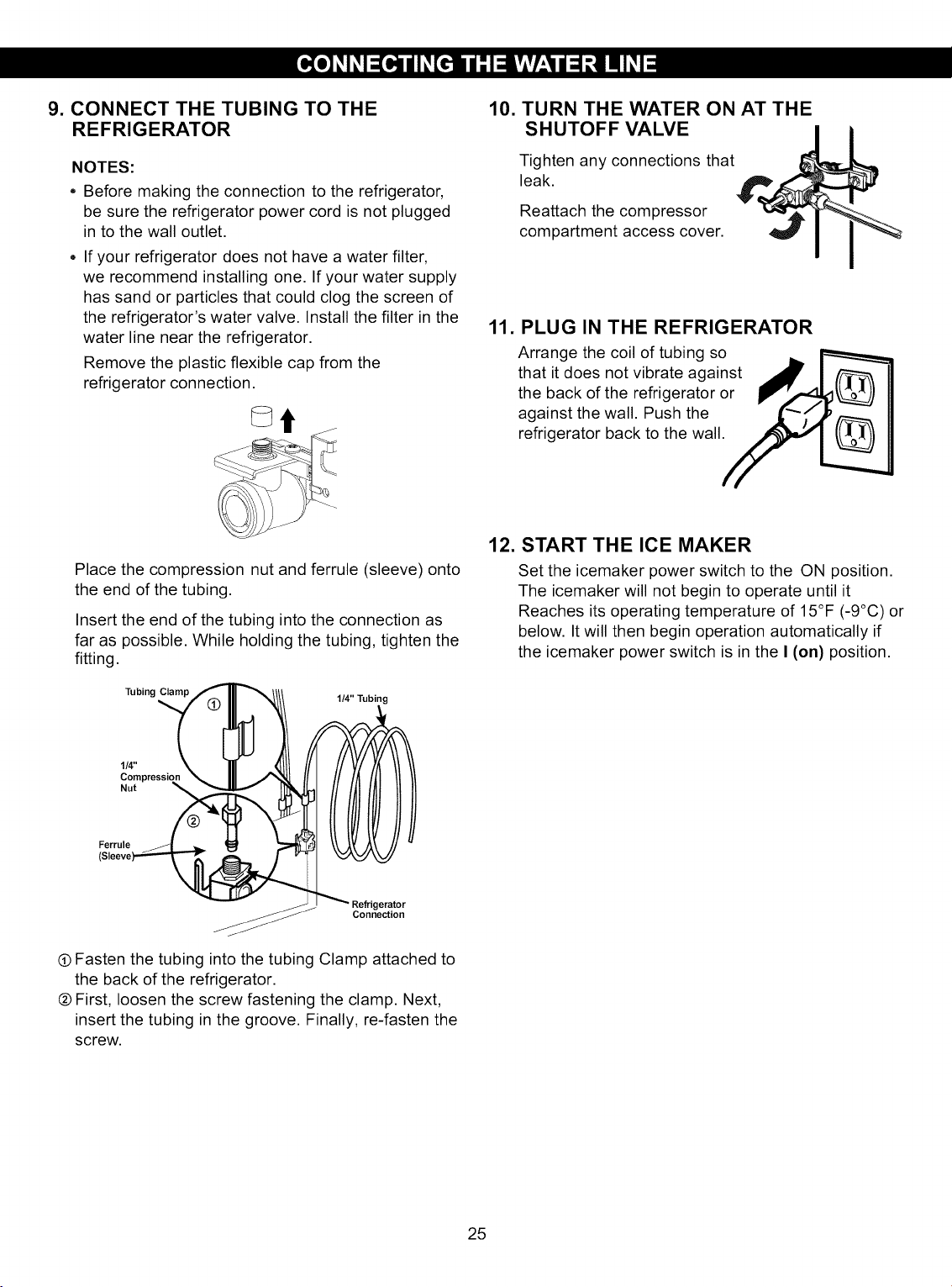

9. CONNECT THE TUBING TO THE
REFRIGERATOR
NOTES:
• Before making the connection to the refrigerator,
be sure the refrigerator power cord is not plugged
in to the wall outlet.
• If your refrigerator does not have a water filter,
we recommend installing one. If your water supply
has sand or particles that could clog the screen of
the refrigerator's water valve. Install the filter in the
water line near the refrigerator.
Remove the plastic flexible cap from the
refrigerator connection.
Place the compression nut and ferrule (sleeve) onto
the end of the tubing.
Insert the end of the tubing into the connection as
far as possible. While holding the tubing, tighten the
fitting.
Tubing
1/4" \ III
Compression _ III
Nut
Ferrule _ /_
(Sleevep'_
1/4" Tubing
J Refrigerator
Connection
(DFasten the tubing into the tubing Clamp attached to
the back of the refrigerator.
® First, loosen the screw fastening the clamp. Next,
insert the tubing in the groove. Finally, re-fasten the
screw.
10. TURN THE WATER ON AT THE
SHUTOFF VALVE
Tighten any connections that
leak.
Reattach the compressor
compartment access cover.
11. PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so
that it does not vibrate against
the back of the refrigerator or
against the wall. Push the
refrigerator back to the wall.
12. START THE ICE MAKER
Set the icemaker power switch to the ON position.
The icemaker will not begin to operate until it
Reaches its operating temperature of 15°F (-9°C) or
below. It will then begin operation automatically if
the icemaker power switch is in the I (on) position.
25
UNDERSTANDING SOUNDS YOU MAY HEAR
Your new refrigerator may make sounds that your old
one didn't make. Because the sounds are new to you,
you might be concerned about them. Most of the new
sounds are normal. Hard surfaces, like the floor, walls
and cabinets, can make the sounds seem louder than
they actually are. The following describes the kinds of
sounds and what may be making them.
The defrost timer will click when the automatic defrost
cycle begins and ends. The thermostat control (or
refrigerator control, depending on the model) will also
click when cycling on and off.
• Rattling noises may come from the flow of refrigerant,
the water line, or items stored on top of the
refrigerator.
• Your refrigerator is designed to run more efficiently
to keep your food items at the desired temperature.
The high efficiency compressor may cause your new
refrigerator to run longer than your old one, and you
may hear a pulsating or high-pitched sound.
You may hear the evaporator fan motor circulating the
air through the refrigerator and freezer compartments.
As each cycle ends, you may hear a gurgling sound
Jue to the refrigerant flowing in your refrigerator.
• Contraction and expansion of the inside walls may
cause a popping noise.
Water dripping on the defrost heater during a defrost
cycle may cause a sizzling sound.
• You may hear air being forced over the condenser by
the condenser fan.
• You may hear water running into the drain pan during
the defrost cycle.
REFRIGERATOR DOES NOT OPERATE
Check if... Then...
The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.
A household fuse has blown or circuit
breaker tripped. Replace the fuse or reset the circuit breaker.
Refrigerator is in the defrost cycle.
Display shows the word OFF
Wait about 30 minutes for defrost cycle to end.
The refrigerator control has been put into the store Demo
(Demonstration) Mode
The Demonstration Mode disables the cooling system, only
lamps and display work normally.
To disable Demo Mode open one door, then press Ultra Ice
and Ref. Temp buttons at the same time for 5 seconds.
You will see the previous value setting you had on display
when Demo Mode is deactivated.
VIBRATION OR RATTLING NOISE
Check if... Then...
The refrigerator is not resting solidly on | Floor is weak or uneven or leveling legs need adjusting.
the floor. | See LEVELING AND DOOR CLOSING Section.
LIGHTS DO NOT WORK
Check if... Then...
The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.
Light bulb is loose in the socket. Turn the refrigerator control to the OFF position and
Unplug the refrigerator. Gently remove the bulb and
reinsert. Then plug in refrigerator and reset the
refrigerator control.
26
LIGHTS DO NOT WORK
Check if... Then...
Light bulb has burned out. Replace with an appliance bulb of the same wattage,
size and shape available at your local hardware store.
(See the LIGHT BULB REPLACEMENT Section.)
Turn the temperature control to the OFF position and
unplug the refrigerator prior to replacement.
COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH
Check if... Then...
The refrigerator that was replaced was an
older model.
The room temperature is hotter than normal.
The door is opened often or a large amount
of food has just been added.
Modern refrigerators with more storage space require
more operating time.
The motor will run longer under warm conditions. At
normal room temperatures, expect your motor to run
about 40% to 80% of the time. Under warmer
conditions, expect it to run even more often.
Adding food and opening the door warms the
refrigerator. It is normal for the refrigerator to run longer
in order to cool the refrigerator back down. Adding a
large amount of food warms the refrigerator. See the
FOOD STORAGE GUIDE Section. In order to conserve
Energy, try to get everything you need out of the
refrigerator at once, keep food organized so it is easy to
find and close the door as soon as the food is removed.
The refrigerator was recently plugged in and The refrigerator will take up to 24 hours to cool
the refrigerator control was set correctly completely.
The refrigerator control was not set correctly for the
surrounding conditions. See the ADJUSTING CONTROL SETTINGS Section.
Push the doors firmly shut. If they will not shut all the
The doors are not closed completely, way, see Doors will not close completely below.
This prevents air transfer and makes the motor work
The condenser coils are dirty, harder. Clean the condenser coils. Refer to the CARE
AND CLEANING section.
DOORS WILL NOT CLOSE COMPLETELY
Check if... Then...
The refrigerator is not level. See the REFRIGERATOR INSTALLATION, LEVELING
AND DOOR ALIGNMENT Section to level refrigerator.
Food packages are blocking the door open. Rearrange food containers to clear door and door
shelves.
The ice bin, crisper cover, pans, shelves, door bins Push bins all the way in and put crisper cover, pans,
or baskets are out of position, shelves and baskets into their correct positions. See
the USING YOUR REFRIGERATOR Section.
The gaskets are sticking. Clean gaskets and the surface that they touch. Rub a
thin coat of paraffin wax on the gaskets after cleaning.
27
DOORS WILL NOT CLOSE COMPLETELY
Check if...
The refrigerator wobbles or seems unstable.
The doors were removed during product installation
and not properly replaced.
Then...
Level the refrigerator. Refer to the LEVELING AND
DOOR CLOSING section.
Remove and replace the doors according to the
REMOVING, AND REPLACING or REVERSING
DOORS section, or call Sears or other qualified service
technician.
FROST OR ICE CRYSTALS ON FROZEN FOOD
Check if... Then...
The door is not closing properly. See "Doors will not close completely" above.
The door is opened often. When the door is opened, warm, humid air is allowed in
the freezer resulting in frost.
ICE HAS OFF-TASTE OR ODOR
Check if... Then...
Discard first few batches of ice to avoid discolored or
The icemaker was recently installed, off-flavored ice.
The ice has been stored for too long. Throw away old ice and make new supply.
The food has not been wrapped tightly in Rewrap foods since odors may migrate to the ice if food
either compartment, is not wrapped properly.
A filter may need to be installed to eliminate taste and
The water supply contains minerals such as sulfur.
odor problems.
The interior of refrigerator needs cleaning. See CARE AND CLEANING section.
Ice storage bin needs cleaning. Empty and wash bin. Discard old cubes.
THERE IS WATER IN THE DEFROST DRAIN PAN
Check if... Then...
The refrigerator is defrosting. The water will evaporate. It is normal for water to drip
into the defrost pan.
It is more humid than normal. Expect that the water in the defrost pan will take longer
to evaporate. This is normal when it is hot or humid.
THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE
Check if... Then...
The sounds may be normal for your refrigerator. I Refer to the UNDERSTANDING SOUNDS YOU MAY
I
HEAR section.
28

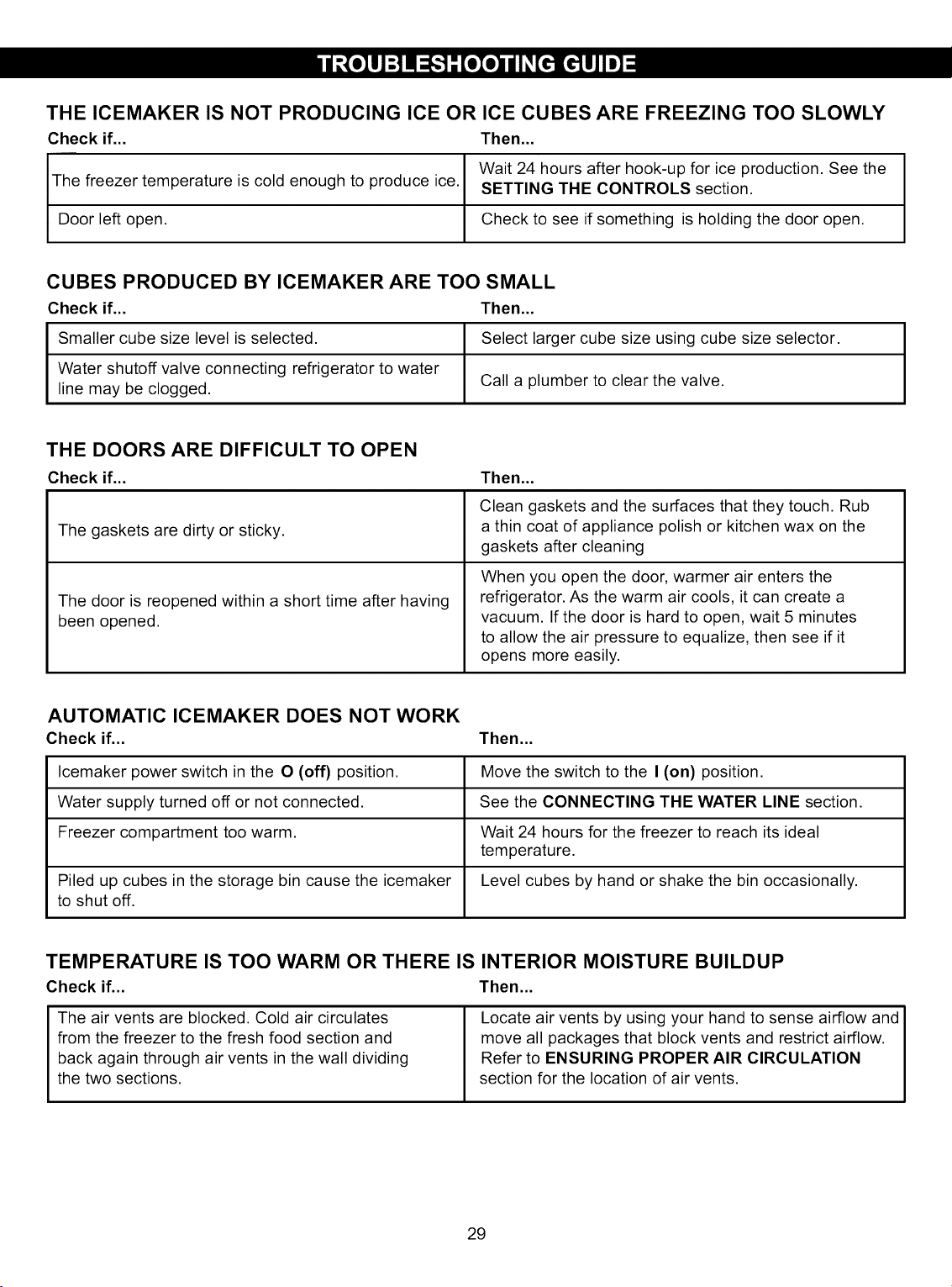

THE ICEMAKER IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY
Check if... Then...
t Wait 24 hours after hook-up for ice production. See the
The freezer temperature is cold enough to produce ice, SETTING THE CONTROLS section,
Door left open, Check to see if something is holding the door open,
CUBES PRODUCED BY ICEMAKER ARE TOO SMALL
Check if... Then...
Smaller cube size level is selected. Select larger cube size using cube size selector.
Water shutoff valve connecting refrigerator to water
line may be clogged, Call a plumber to clear the valve,
THE DOORS ARE DIFFICULT TO OPEN
Check if... Then...
Clean gaskets and the surfaces that they touch, Rub
The gaskets are dirty or sticky, a thin coat of appliance polish or kitchen wax on the
gaskets after cleaning
The door is reopened within a short time after having
been opened,
When you open the door, warmer air enters the
refrigerator, As the warm air cools, it can create a
vacuum, If the door is hard to open, wait 5 minutes
to allow the air pressure to equalize, then see if it
opens more easily,
AUTOMATIC ICEMAKER DOES NOT WORK
Check if... Then...
Icemaker power switch in the O (off) position. Move the switch to the I (on) position.
Water supply turned off or not connected. See the CONNECTING THE WATER LINE section.
Freezer compartment too warm. Wait 24 hours for the freezer to reach its ideal
temperature.
Piled up cubes in the storage bin cause the icemaker Level cubes by hand or shake the bin occasionally.
to shut off.
TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP
Check if... Then...
The air vents are blocked. Cold air circulates
from the freezer to the fresh food section and
back again through air vents in the wall dividing
the two sections.
Locate air vents by using your hand to sense airflow and
move all packages that block vents and restrict airflow,
Refer to ENSURING PROPER AIR CIRCULATION
section for the location of air vents,
29
TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP
Check if... Then...
The doors are opened often.
The control is not set correctly for the surrounding
conditions.
When the door is opened, warm humid air is allowed into
the refrigerator. The more the door is opened, the faster
the humidity builds up, and the more warm air the
refrigerator must cool. In order to keep the refrigerator
cool, try to get everything you need out of the
refrigerator at once, keep food organized so it is easy
to find and close the door as soon as the food is
removed.
Refer to the SETTING THE CONTROLS section. Wait
24 hours for temperatures to stabilize or even out. If the
temperature is too cold or too warm, move the dial one
number at a time.
A large amount of food has just been added Adding food warms the refrigerator. It can take a few
to the refrigerator or freezer, hours for the refrigerator to return to normal temperature.
The food is not packaged correctly.
Wrap food tightly and wipe off damp containers prior to
storing in the refrigerator to avoid moisture accumulation.
If necessary, repackage food according to the guidelines
in the FOOD STORAGE GUIDE section.
The doors are not closing completely. See "Doors will not close completely".
The weather is humid. In humid weather, air carries moisture into refrigerator
when doors are opened.
A self-defrost cycle was completed. It is normal for droplets to form on the back wall after the
refrigerator self-defrosts.
WATER DISPENSER DOES NOT WORK
Check if... Then...
Water does not dispense. Check if house valve is opened and connected to a
recommended water supply. See water line installation.
Water does not dispense correctly. Purge system of air by dispensing approximately 1 gallon
of water.
30
Your Home
..... For expert troubleshooting and home solutions advice:
iiiiiiiiiii
iiiiiiiiiii ........................
For repair- in your home - of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For !he replacement parts, accessories and
owner s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® Call anytime, day or night
(1-800-469-4663) (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of the nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
www.sears.com www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaci6n Au Canada pour service en frangais:
a domicilio, y para ordenar piezas: 1.800.LE.FOYERMC
1-888-SU-HOGAR® (1-800-533-6937)
..... (1-888-784-6427) www.sears.ca .....
© SearsBrands,LLC
® Registered Trademark / TMTrademark / SMService Mark of Sears Brands, LLC
® Marca Registrada / TMMarca de Fabrica / SMMarca de Servicio de Sears Brands, LLC
MCMarque de commerce / MDMarque d6pos6e de Sears Brands, LLC
