*P516-865*
P516-865
Prepare for Installation
Tools Needed
• Phillips screwdriver
• Tape Measure
• Pencil
Optional
• Flathead Screwdriver
• Wood Block
• Hammer
IMPORTANT NOTES
DO NOT use a power drill for installation!
• Install and test lock with door open to avoid being locked out.

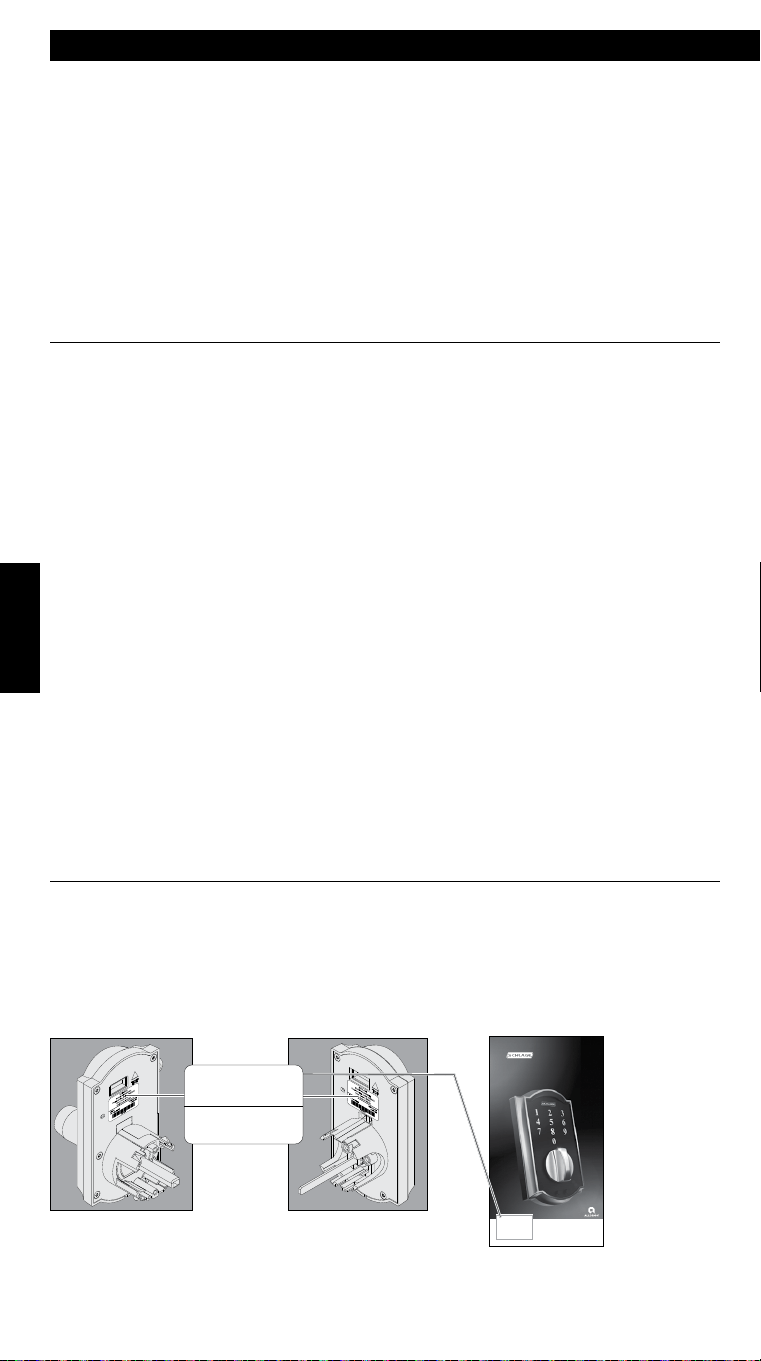

• If tailpiece is not installed,
insert into slot on the back of
the touchscreen and snap into
place.
A Check door dimensions.
See consumer.schlage.com/Service-Support for door preparation
instructions if dimensions are different.
2³⁄₄" (70 mm)
OR
2
³⁄₈" (60 mm)
1" (25 mm)
Door Edge
2¹⁄₈" (53 mm)
Hole
5¹⁄₂" (140 mm)
Minimum
B Adjust bolt length, if necessary.
Measure the dimension shown. If the measurement is 2C\v” (70 mm),
extend the bolt.
2³⁄₈" (60 mm)
OR
2³⁄₄" (70 mm)
No adjustment needed. Rotate faceplate
180° to extend.
Extended

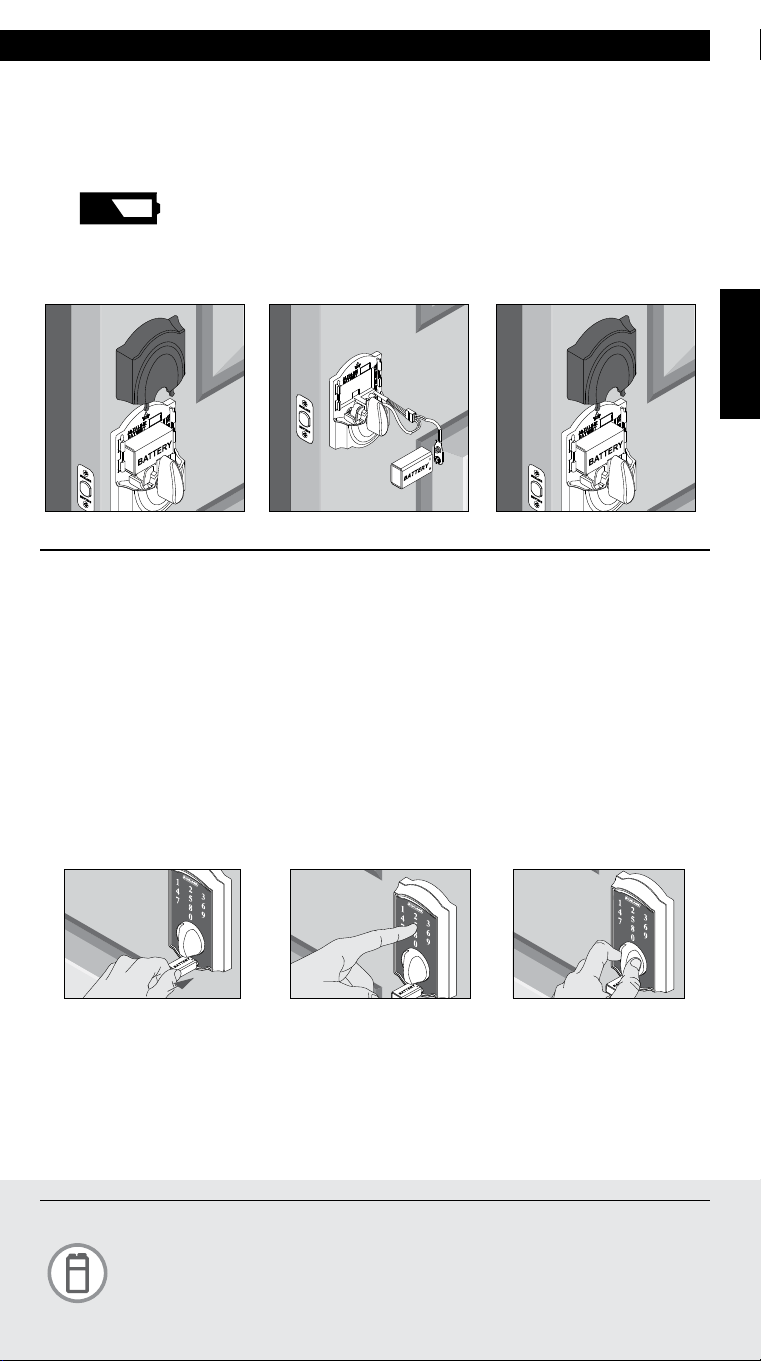

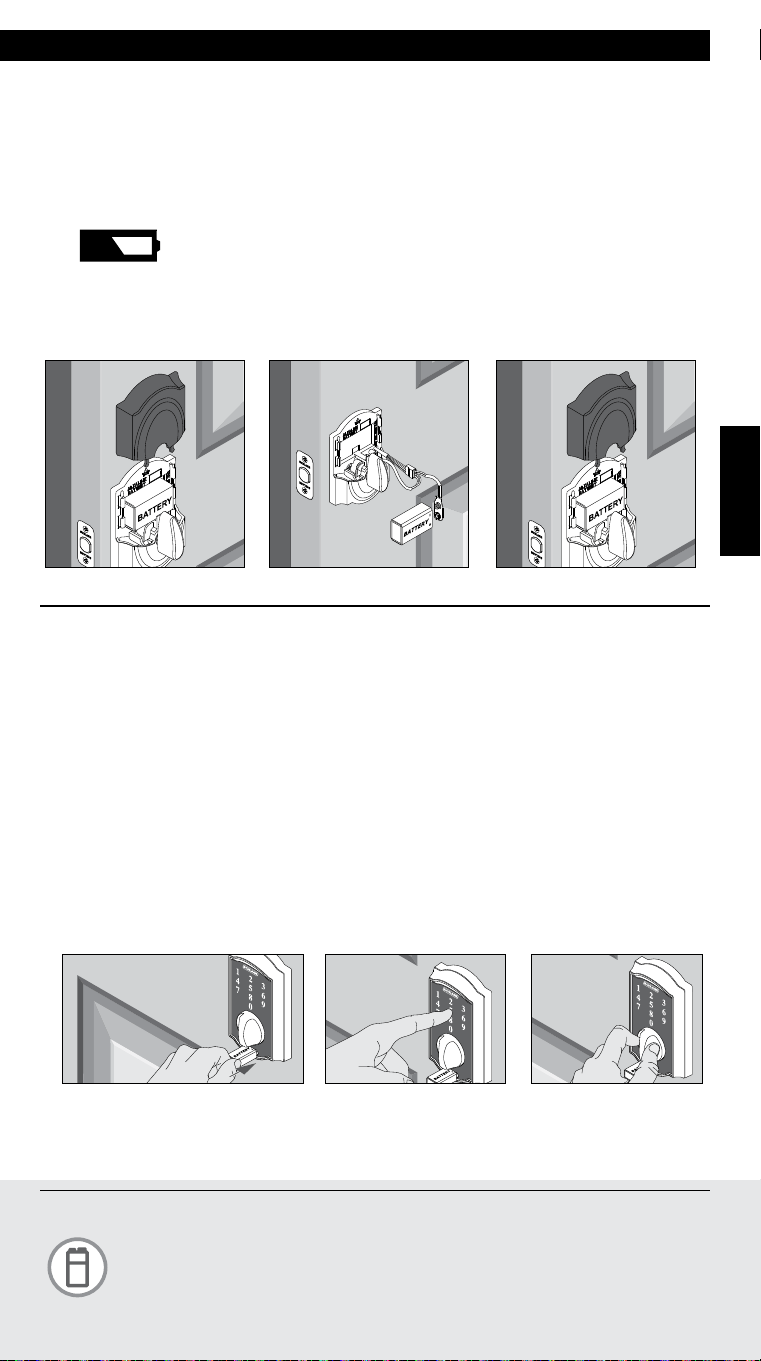

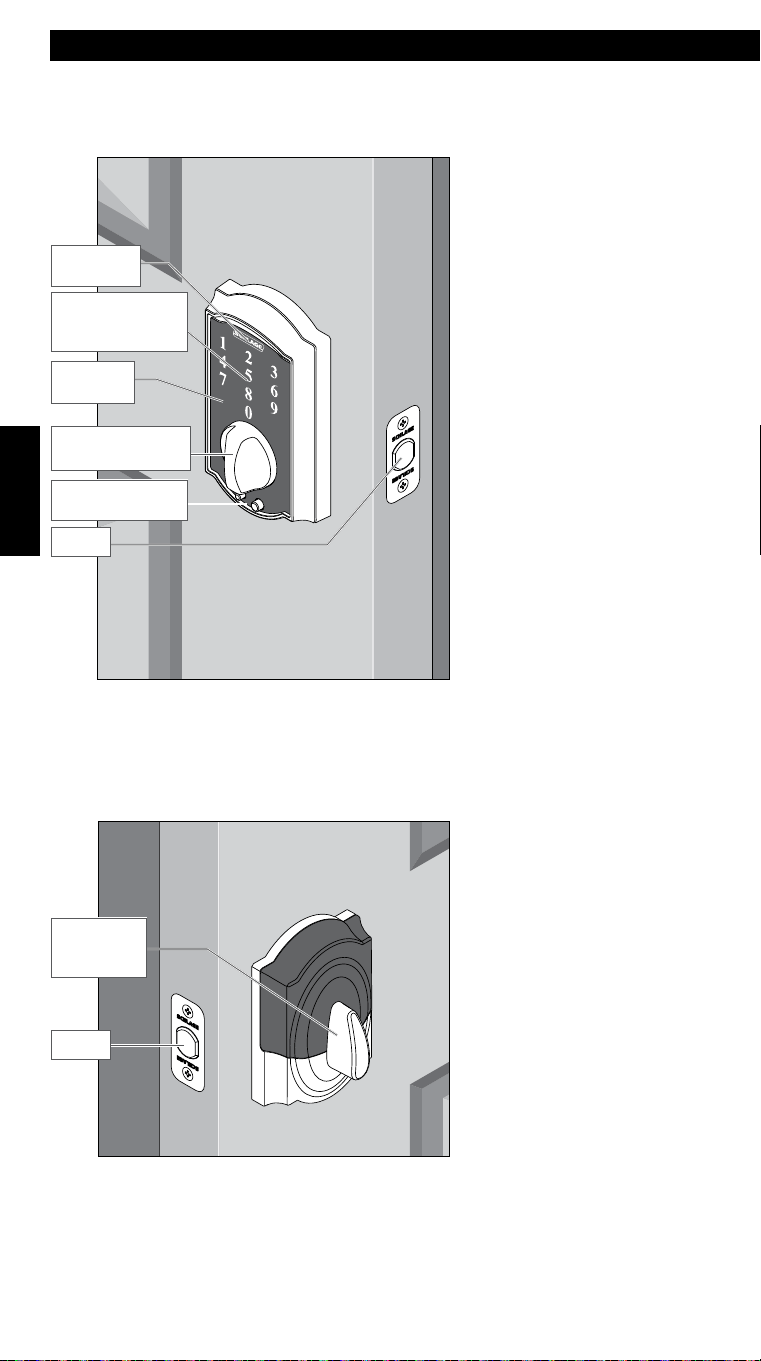

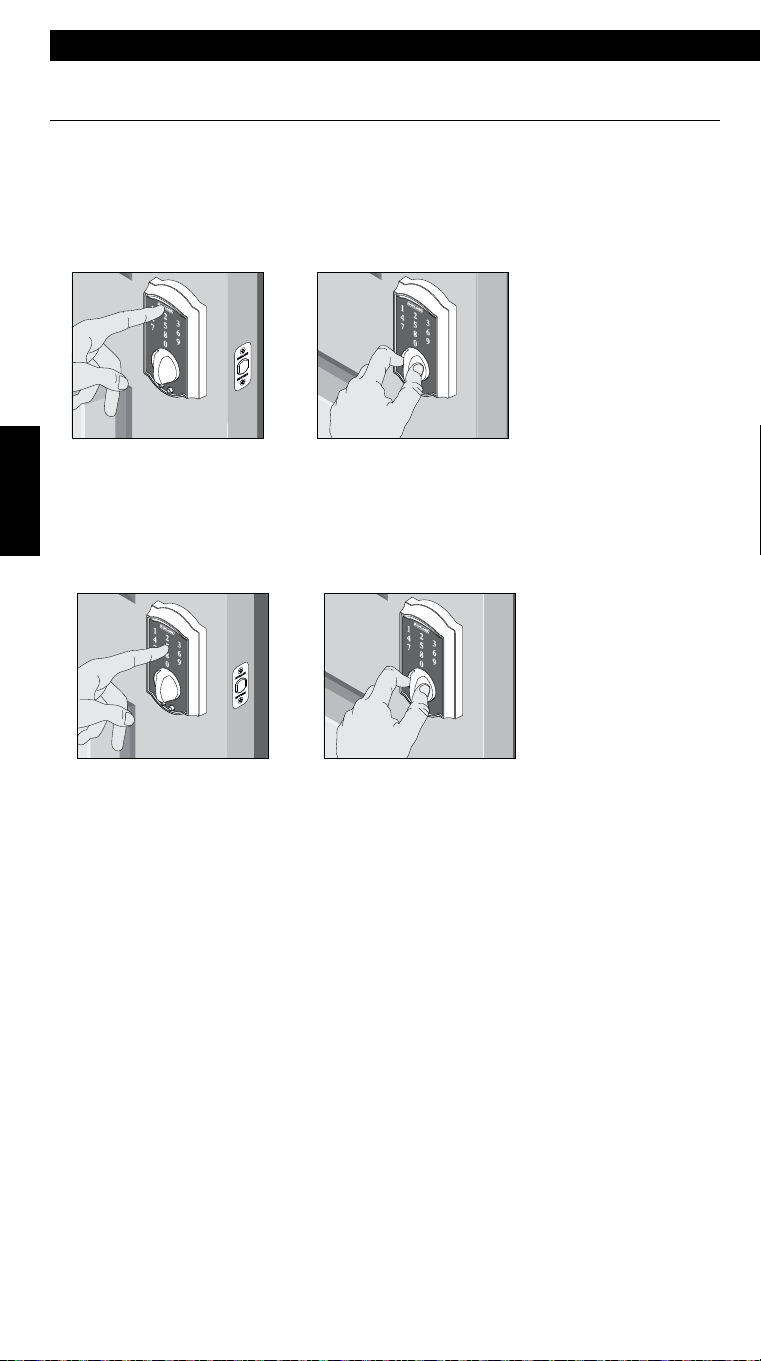

Model BE375
Keyless Touchscreen Deadbolt
Installation Instructions
Alternate Faceplate
