40cm Whisper Quiet Pedestal Fan with WiFi
Operating Instructions
Model: GPPF340
General Care and Safety Guide
Thank you for choosing this Goldair product. This Goldair appliance has been designed
and manufactured to high standards of engineering and with proper use and care, as
described in this leaflet, will give you years of useful service. Please read these
instructions carefully and keep them for future reference.
1. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
4. Ensure that the fan is switched off from the supply mains before removing the
guard.
5. Use only the voltage specified on the rating plate of the appliance.
6. Keep all objects at least 1 Metre from the front, sides and rear of the appliance
7. This appliance is intended for household use only and not for commercial or
industrial use.
8. Use this appliance only as described in this manual. Any other use is not
recommended by the manufacturer and may cause fire, electric shock or injury.
9. The common cause of overheating is deposits of dust or fluff in the appliance.
Ensure these deposits are removed regularly by unplugging the appliance and
vacuum cleaning the air vents and grills.
10. Always unplug appliance when not in use.
11. When the appliance has been unpacked, check it for transport damage and ensure
all parts have been delivered. If parts are missing or the appliance has been
damaged, contact the Goldair Customer Services Team.
12. If your appliance does not work, or is not working properly, contact the place of
purchase. Repair work on the appliance by unqualified persons can cause serious
risk to the user.
13. Ensure hands are dry before handling the plug or the main unit.
14. Carry out regular checks of the supply cord to ensure no damage is evident.
15. Ensure that the cord is fully extended (not coiled) while in use.
16. Avoid contact with the moving parts. Keep hands, hair, clothing, away from blade
of the fan during operation to reduce the risk of injury to person and/or damage
to the unit.
17. Switch off and use handles provided when moving.
18. It is recommended that this fan is plugged directly into the wall socket.
19. A correctly specified, undamaged extension cord may be used with this fan
provided it is used in a safe manner.
General Care and Safety Guide
20. Never place appliance close to radiant heat source.
21. Never operate in areas where petrol, paint or other flammable liquids are used or
stored.
22. Never use the appliance to dry clothes.
23. Never insert or allow foreign objects to enter any ventilation or exhaust opening,
as this may cause an electric shock, fire or damage to the appliance.
24. Never use abrasive cleaning products on this appliance. Clean with a damp cloth
(not wet) rinsed in hot soapy water only. Always remove plug from the mains
supply before cleaning.
25. Never connect the appliance to mains supply until completely assembled and
adjusted.
26. Never remove plug from power socket until the appliance has been switched off.
27. Never remove plug from power socket by pulling cord – always grip plug.
28. Never twist, kink or wrap the cord around the appliance, as this may cause the
insulation to weaken and split. Always ensure that all cord has been removed from
any cord storage area and is unrolled before use.
29. Never use this appliance in the immediate surrounds of a bath, a shower, or a
swimming pool or other liquids. The appliance must not be immersed in any
liquids.
30. Due to the risk of injury, never use this appliance for any purpose other than its
intended use. This appliance is intended for use in household and similar
applications such as staff kitchen areas in shops, offices and other working
environments; farm houses, by clients in hotels, motels, bed and breakfast type
environments and other residential type environments
31. Never use this appliance outdoors.
32. Never operate the appliance with a damaged cord or plug, after it malfunctions, or
if it has been damaged in any manner. Have the appliance checked and repaired
by a qualified electrician if repair is necessary.
33. Never place the unit in wardrobes or other enclosed spaces as this may cause fire
hazards.

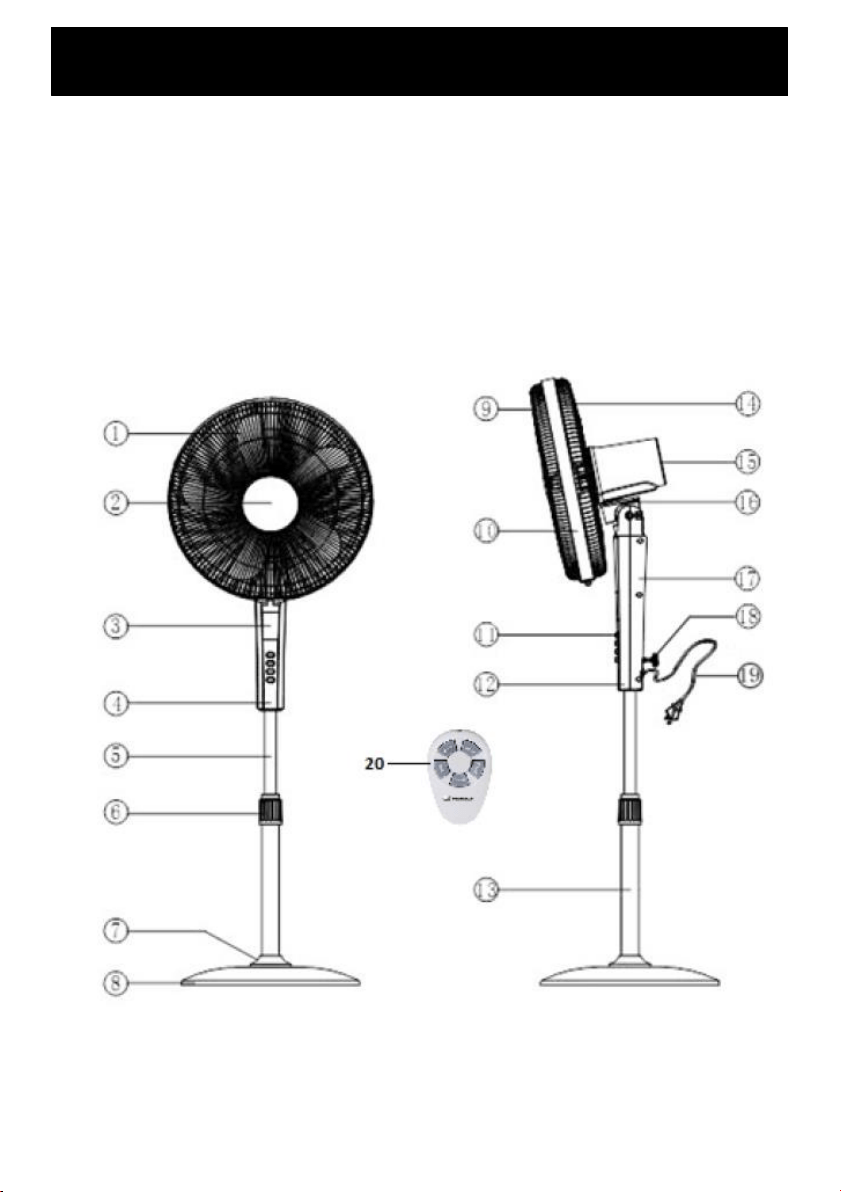

Components
1. Blade
2. Blade’s nut
3. Indication lights
4. Decorative cover
5. Inner tube
6. Height adjustment nut
7. Base cover
8. Base
9. Front guard
10. Holding ring
11. Control panel
12. Body’s frontal
13. Outer tube
14. Rear guard
15. Motor housing
16. Tilt adjustment
17. Main Body
18. Securing Screw
19. Power Cord
20. Remote control

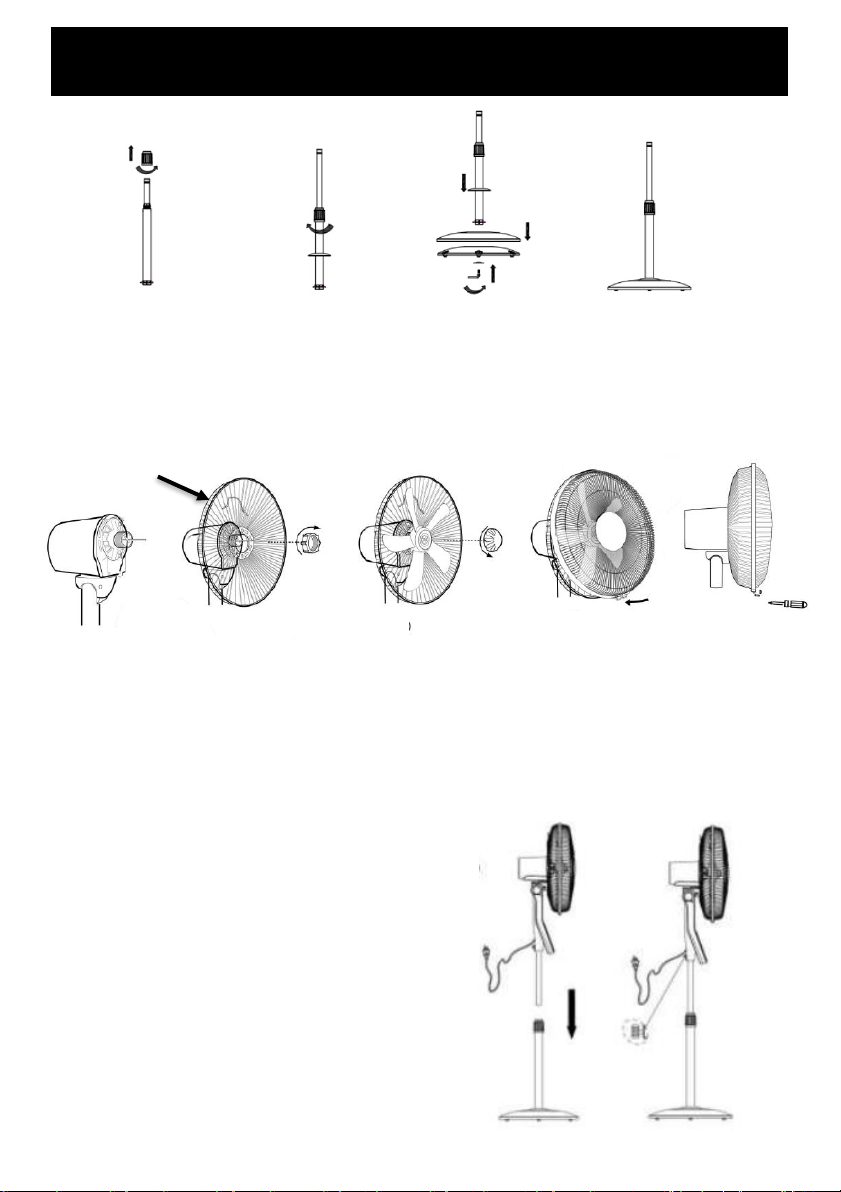

Assembly
• Loosen and remove the height adjustment nut from the top of the inner tube.
• Place the Base cover onto the pole and replace the height adjustment nut.
• Then connect the pole assembly to the base with the 'L' shaped screw supplied.
• Tighten until secure.
• Slide the Base cover down over the assembly.
• Take off guard lock nut from motor housing.
• Place the rear guard on the front of the motor housing. Line up the lugs on the front of the
motor housing with the holes in the rear guard. Ensure handle is at the top.
• Screw on guard lock nut tightly to attach rear guard.
• Place the fan blade on the motor shaft ensuring the small locating grooves on the back of the
blade are pointed to the rear grill so they engage with the pin in the motor shaft. Secure it by
tightening the fan blade nut.
• Place the front guard and install the plastic ring around the grids.
• Tighten the screw of the plastic to set in place.
• Insert inner tube into fan control panel and
secure by tightening the large screw at the rear
This way up
Always choose a safe location for the fan, keeping in mind the safety precautions
outlined. Ensure all packaging has been removed from the unit before use. This
appliance requires no installation, it should be used solely as a portable appliance.
Operating your Fan
WARNING:Keep all objects at least 1 metre from the front, sides and rear
of the appliance.
IMPORTANT! NEVER COVER THIS APPLIANCE!
Place the fan on a dry, level and sturdy surface.
Check that the fan control switch is set to the off position before
plugging into the mains supply.
OPERATION
Press the button to start the fan.
Press SPEED button to set Low, Middle or High speed.
Press MODE button to set normal, natural or silent mode.
In Silent mode, the fan will operate at a predetermined speed
and the symbol will be illuminated.
In Natural mode the air flow changes from high to low in a
rhythmic pattern. The symbol will be illuminated.
Press TIMER button to start timer from 30 minutes to 7.5 hours.
Each time you press button time will increase in 30 minutes until
7.5 hours.
Press SWING button to active oscillation function.
Tilt adjustment: air flow can be adjusted by moving the fans
head up or down.
REMOTE CONTROL
All functions on the fan can be activated from the remote
control.
The remote control requires 2 x AAA batteries (supplied). If the
remote control stops working, replace the batteries.
WiFi – Downloading and Setting up APP
This APP is supported only on 2.4GHz Wi-Fi channels. Please ensure your phone is 2.4GHz
capable
Note this device will only work within your home WIFI system.
This does not operate on 3G or 4G internet connections.
You will need a connection to your home Wi-Fi.
• Tap REGISTER near the bottom of the screen.
• Read and agree to the Privacy Policy.
• Add your email address.
• Tap 'Obtain verification code'
You will then receive an email with a verification
code.
Download Goldair mobile APP
• Open the APP Store or Google Play on your mobile phone.
• Open 'Search' and enter 'Goldair'
• Click 'GET' and begin to download and install.
Once downloaded to your phone open the APP
• Enter the verification code from your email.
• Create a password.
• Then tap confirm.
If you haven't received a verification code via
email, tap the resend button and when the
verification code is received follow above steps.
Your APP is now registered and ready for pairing
to your device.
Pairing APP to Device
Details for pairing this heater to the Goldair App can be found at the below website link.
Either scan the QR code below or enter the website into your browser.
https://www.goldair.co.nz/
goldair-app
New Zealand Products
https://www.goldair.com.au/
goldair-app
Australia Products
Pairing Mode
To connect to the Goldair app you must ensure that your device is in
pairing mode which is where the Wifi Icon is flashing.
Most products will be in pairing mode after switching the device on
but if it is not:
- Put device on STAND-BY mode (ON at the wall but device is OFF)
- Hold down “SPEED” for around 3 seconds or until the Wifi icon
begins to flash.
Quick Connection
- Turn your phone’s Bluetooth ON
- Ensure your device is in Pairing Mode (see instructions above)
- Tap the + on the top right corner to navigate to the main device
screen. Tap ‘Auto Scan’ – your device will appear. Tap the device
and follow the instructions.
- If Quick Connection does not work, follow the manual via the QR
Code above
SUPPORT AND TECHNICAL ADVICE
PROOF OF PURCHASE
To receive warranty retain receipt as proof of purchase. (Refer to back of booklet).
Goldair – New Zealand
Monday – Friday 8am-5pm
Phone +64 (0)9 917 4000
Phone 0800 232 633
Goldair – Australia
Monday – Friday 8am-5pm
Phone +61 (0)3 9365 5100
Phone 1300 465 324
The fan requires regular cleaning to ensure trouble free operation.
Ensure that the fan is switched off from the supply mains before removing the guard.
Unplug the fan from the mains supply before cleaning.
Use a damp cloth (not wet) to wipe the exterior of the fan to remove dust and dirt.
Use a vacuum cleaner to remove dust and fluff from around the grills.
Ensure the fan is dry before plugging back into the mains supply.
Do not attempt to dismantle the fan. There are no user serviceable parts. For service
or repair, contact an authorised electrical service technician.
Cleaning
Thank you for purchasing this Goldair Platinum product. Your product is warranted against faults and manufacture when used in
normal domestic use for a period of two years. In non-domestic use Goldair limits the voluntary warranty to three months.
Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the
warranty period.
This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out by anyone
other than a qualified electrical service technician.
PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.
The benefits given to you by this warranty are in addition to other rights and remedies available to you under law in relation to the
goods or services to which this warranty relates.
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).
Two Year Warranty
Goldair Two Year Warranty (IMPORTANT: Please complete and retain this warranty card)
Name
Address
Place Of Purchase Date Of Purchase
Name Of Product Model Number
Attach a copy of the purchase receipt to this warranty card
Due to continual design improvements, the product illustrated in this User Manual may differ slightly from the actual
product.
Goldair – New Zealand
CDB Goldair
PO Box 100-707
N.S.M.C
Auckland
Phone +64 (0)9 917 4000
Phone 0800 232 633
www.goldair.co.nz
Goldair – Australia
CDB Goldair Australia Pty
PO Box 574
South Morang
Victoria, 3752
Phone +61 (0)3 9365 5100
Phone 1300 GOLDAIR (1300 465 324)
www.goldair.com.au
New Zealand
PO Box 100707,
North Shore Mail Centre,
Auckland, 0745
www.goldair.co.nz
Australia
PO Box 574,
South Morang,
Victoria, 3752
www.goldair.com.au
