3. Insert the Tape Cassette
• After the tape passes under the Tape Guide, pull the tip
to remove any slack in the tape.
• Make sure the tape is not caught in the Label Maker
when inserting or removing the Tape Cassette.
1. Insert the Tape Cassette following the illustration under
the Tape Cassette Compartment Cover. Conrm that the
tip of the tape is pointed at the Tape Exit Slot.
2. Press the Tape Cassette into the Label Maker until
it locks into place and then close the Tape Cassette
Compartment Cover.
End of tape
Tape Guide
4. Turn the Power ON or OFF
To print from the Label Maker, go to
1. Print from the Label Maker
To print from your computer, go to
2. Print from Your Computer
Power on Press
Power o
Press and hold
until the Label Maker turns o.
D026K6001
P-TOUCH PT-D410
D410
Thank you for purchasing the PT-D410 (hereafter referred to as “the Label Maker”). Your PT-
D410 produces professional, high-quality, durable labels. In addition, the variety of tape cartridges
available allows you to print labels with dierent widths and exciting colors.
Please read this guide, including the Product Safety Guide, before using this Label Maker. After
reading this guide, keep it in a safe place.
For FAQs, troubleshooting, and to download software and manuals, visit support.brother.com.
• Manuals in Spanish for this model are available at support.brother.com.
• Manuales en Español para este modelo están disponibles en support.brother.com.
Supplies
Brother TZe Tape Cassette Available widths: 0.13 in., 0.23 in., 0.35 in., 0.47 in., 0.70 in.
3.5 mm, 6 mm, 9 mm, 12 mm, 18 mm
Head Cleaning Tape Cassette TZeCL4
2. Install Batteries or Connect the AC Adapter
Remove the protective material (rst use only) before using the Label Maker.
Batteries
AC Adapter
• When using the AC Adapter (AD-E001A):
- Insert the Adapter cord plug into the AC Adapter Jack
on the side of the printer.
- Insert the plug into the nearest standard electrical
outlet. For memory backup, we recommend using AA
alkaline batteries (LR6) together with the AC Adapter.
• To safeguard and back up the Label Maker’s memory,
when the AC Adapter is unplugged, keep AA alkaline
batteries (LR6) installed in the Label Maker.
• When power is disconnected for more than two minutes,
all text and format settings will be cleared. Any text les
stored in the memory will also be cleared.
• Remove the batteries if you do not intend to use the
Label Maker for an extended period of time.
• Dispose of the batteries at an appropriate collection point,
not in the general waste stream. In addition, be sure to
observe all applicable federal, state, and local regulations.
• When storing or discarding the batteries, wrap them (for
example with cellophane tape), to prevent them from
short-circuiting.
(Battery insulation example)
1. Cellophane tape
2. Alkaline battery
1
2

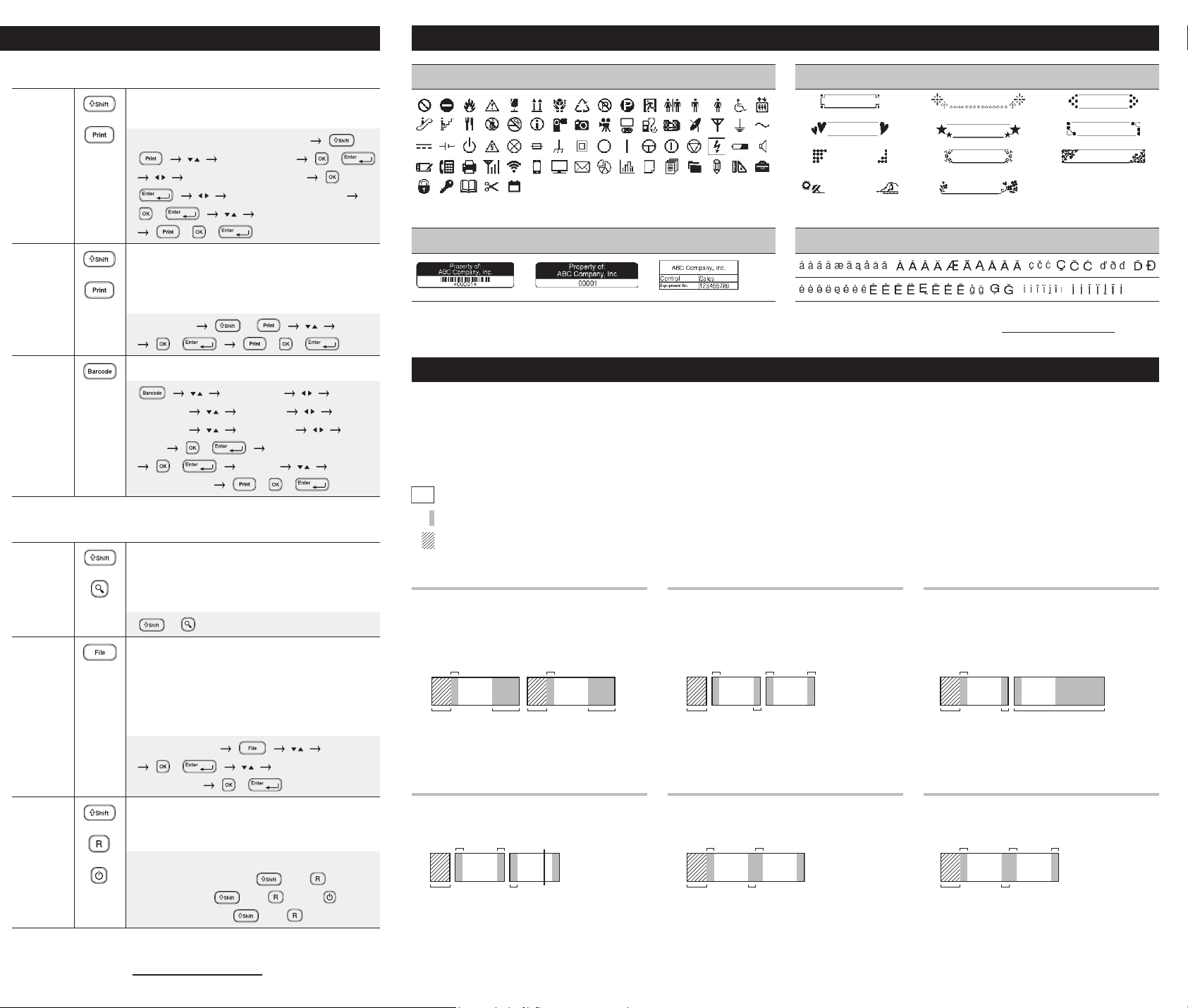

1. Print from the Label Maker
STEP
1
Enter Text
STEP
2
Preview Labels
STEP
3
Print Labels
2
3
1
1. LCD and Keyboard
D410
Starter
Tape Cassette
USB Cable
AC Adapter
Tape Viewer
1. Caps mode
2-4. Font Style Icons
5. Label Length
6. Block number
7. Line number
8. Cursor
9. Return mark
Tape Cassette
Compartment
Cover
Tape Exit Slot
LCD
Keyboard
Power
Preview
Application Download Label
Tape Cutter
Lever
AC Adapter Jack
USB Port
6
7
8
9
1 2 3 4 5
The components included in the box may dier depending on your country or region.
Serial Number Location
Serial Number
Before Use Use the Label Maker
Safety Precautions
Be sure to read this section before using the product. It contains important safety instructions.
We recommend that you keep this document nearby for future reference.
• For servicing, adjustments, or repairs, contact Brother Customer Service or your local Brother dealer.
• If the product operates abnormally or any error occurs, or if any cable is damaged, turn o the product,
disconnect all cables, and contact Brother Customer Service or your local Brother dealer.
• We assume no responsibility for damages arising from earthquakes, re, other disasters, actions of third
parties, the user’s intentional or negligent operation, misuse, or operation under other special conditions.
• We assume no responsibility for damage (such as losses, loss of business prot, lost prots, business
disruptions, or a lost means of communication) that may result from the use of, or inability to use, the
product.
• We assume no responsibility for damages that may result from incorrect operation of the product by
connecting incompatible equipment or using incompatible software.
• We assume no responsibility for any damages or lost prot arising from the use of labels created with this
product, the disappearance or change of data due to failure, repair, or consumables and we do not accept
any claim from a third party.
• Brother reserves the right to make changes without notice in the specications and materials contained
herein. Furthermore, Brother shall not be responsible for any damages (including consequential) caused by
reliance on the materials presented, including but not limited to typographical and other errors relating to
the publications.
• For more information about the available software, see the User’s Guide on the Brother support website at
support.brother.com.
• The latest version of your product documentation is available on the Brother support website at
support.brother.com.
• The available models, accessories, and supplies may vary depending on the country or region.
• This product is approved for use in the country or region of purchase only.
WARNING
Failure to observe instructions and warnings could result in death or serious injuries.
• DO NOT operate, charge, or store the Label Maker, AC Adapter, USB Cable, and Alkaline Batteries in the
following locations (otherwise a re, electrical shock, smoke, or damage may occur):
- Near water, such as in a bathroom or near a water heater, or in an extremely humid or cold location.*
- In a location where it is exposed to rain or moisture.
- In an extremely dusty location.
- In an extremely hot location, such as near open ames, heaters, or in direct sunlight.
- In a closed car in direct sunlight.
- In a location where condensation may form.
- At a high altitude.
- During a thunderstorm.
• DO NOT use the Label Maker with a foreign object in it. If water, a metal object, or any other foreign object
enters the Label Maker, disconnect the AC Adapter and remove the batteries (if installed), and then contact
your local Brother dealer for repairs.
• If foreign objects are inserted into the Label Maker or its slots, connectors, ports, or Battery Compartment,
stop using the Label Maker, turn o the power, and then disconnect each cable or remove the batteries (if
installed).
• Stop using the Label Maker if there are noticeable abnormalities such as smell, heat, noise, deformities, or
discoloration.
• DO NOT use a damaged AC Adapter.
To avoid damaging the Label Maker, AC Adapter, USB Cable, or Alkaline Batteries, DO NOT:
- Place heavy objects on them.
- Dissamble or modify them.
- Drop or hit them.
- Allow them to get wet, for example, by handling them with wet hands or spilling liquids on them.
• DO NOT allow babies and children to play with the plastic bag that contained the Label Maker.
Dispose of the bag or keep it away from babies and children. There is a risk of suocation.
* For more information, see the “Specications” section in your model’s User’s Guide.
• DO NOT forcibly bend or pull the USB Cable or AC Adapter.
• DO NOT touch the AC Adapter or plug with wet hands, otherwise an electrical shock may occur.
• Use only the specied AC Adapter.
• Use only the AC Adapter and USB Cable included with your Label Maker. Failure to do so may result in an
injury to yourself or others, or damage to the Label Maker, or other property. Brother does not assume any
responsibility for any accident or damage resulting from not using the specied AC Adapter and USB Cable.
• DO NOT connect the included AC Adapter and USB Cable to other products.
• Use the AC Adapter with standard electrical sockets (AC 100 V - 240 V 50/60 Hz).
• Insert the plug rmly into the electrical outlet.
• DO NOT use the batteries if they are damaged or leaking.
• Keep batteries away from infants. If batteries are ingested, contact emergency services immediately.
• DO NOT use sharp objects, such as tweezers or a metallic pen, to remove or replace batteries.
• If liquid (electrolyte) from the batteries gets into eyes, wash them immediately with clean water. Contact
emergency services immediately.
• DO NOT solder connections to the batteries.
• DO NOT use the batteries with the polarity (+) (-) reversed.
• DO NOT connect the + and - terminals with metal objects such as wire.
• DO NOT incinerate the batteries or dispose of them with household waste.
• Keep ngers and other body parts away from the Cutter unit.
• DO NOT touch the Cutter unit’s blade or insert your ngers inside the
Tape Exit Slot, otherwise ngers and other body parts may be injured.
• DO NOT touch any metal parts near the Print Head. The Print Head
becomes very hot during and immediately after use. DO NOT touch it
directly with your hands.
CAUTION
Failure to observe instructions and warnings could result in minor or moderate injuries.
Label Maker, USB Cable, AC Adapter, Alkaline Batteries
• Use only the specied AA alkaline batteries (LR6).
• DO NOT use combinations of old and new batteries or combinations of dierent types, charging levels,
manufacturers, or models.
• DO NOT drop the Label Maker when removing it from the box or relocating it, otherwise you may get injured.
• Be careful when closing the Tape Cassette Compartment Cover. There is a risk of injury if your nger gets
pinched between the upper and lower parts of the cover.
• When you are not using the Label Maker, store it out of the reach of children. In addition, do not allow
children to put the Label Maker parts or labels in their mouths. If any object has been swallowed, seek
medical attention immediately.
• DO NOT leave the Label Maker or any tape within the reach of babies and children.
• Store the Label Maker on a at, level, and stable surface.
• Remove the batteries and disconnect the AC Adapter if you do not intend to use the printer for an extended
period of time.
• DO NOT press on the Liquid Crystal Display (LCD).
• When disconnecting the AC Adapter from the electrical outlet, always hold the AC Adapter.
• DO NOT overload an electrical circuit with the AC Adapter.
• DO NOT open the Tape Cassette Compartment Cover when operating the Cutter unit.
• DO NOT apply excessive pressure to the Cutter unit.
Product Safety Guide
Regulation
Federal Communications Commission (FCC) Supplier’s Declaration of Conformity (USA)
Responsible Party: Brother International Corporation
200 Crossing Boulevard
Bridgewater, NJ 08807-0911, U.S.A.
TEL: (908) 704-1700
Product Name: Label Maker
Model Number: PT-D410
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This equipment may not cause harmful interference, and (2) this equipment
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Important
• The enclosed interface cable should be used in order to ensure compliance with the limits
for a Class B digital device.
• Changes or modications not expressly approved by Brother Industries, Ltd. could void the
user’s authority to operate the equipment.
CAUTION
RISK OF EXPLOSION IF BATTERIES ARE REPLACED WITH AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
International ENERGY STAR
®
Compliance Statement (US only)
The purpose of the International ENERGY STAR
®
Program is to promote the
development and popularization of energy-ecient oce equipment. As an ENERGY
STAR
®
Partner, Brother Industries, Ltd. has determined that this product meets the
ENERGY STAR
®
guidelines for energy eciency.
2. Print from Your Computer
Windows
In your browser’s address bar, type http://install.brother. Download
and install the Printer Driver and P-touch Editor by following the
on-screen instructions.
Mac
Download P-touch Editor from the App Store to print from your
Mac. You do not need to download and install any drivers.
http://install.brother
Software Features
Printer Driver
Software required to print from a Label Maker using a Windows
computer.
P-touch Editor
Label creation software for computers. This application comes with
built-in drawing tools that allow you to print a wide variety of custom
labels in complex layouts with text of dierent fonts and styles,
frames, imported images, barcodes, and more.
• When printing from your computer, you must connect the Label Maker and computer with
the included USB Cable.
• This Label Maker does not support Wi-Fi connections.
3. Application Installation
Download the applications from the App Store or Google Play™:
Support Center
App
This app provides access to setup
information, product manuals, FAQs, and
troubleshooting tips.
3. Insert the Tape Cassette
• After the tape passes under the Tape Guide, pull the tip
to remove any slack in the tape.
• Make sure the tape is not caught in the Label Maker
when inserting or removing the Tape Cassette.
1. Insert the Tape Cassette following the illustration under
the Tape Cassette Compartment Cover. Conrm that the
tip of the tape is pointed at the Tape Exit Slot.
2. Press the Tape Cassette into the Label Maker until
it locks into place and then close the Tape Cassette
Compartment Cover.
End of tape
Tape Guide
4. Turn the Power ON or OFF
To print from the Label Maker, go to
1. Print from the Label Maker
To print from your computer, go to
2. Print from Your Computer
Power on Press
Power o
Press and hold
until the Label Maker turns o.
D026K6001
P-TOUCH PT-D410
D410
Thank you for purchasing the PT-D410 (hereafter referred to as “the Label Maker”). Your PT-
D410 produces professional, high-quality, durable labels. In addition, the variety of tape cartridges
available allows you to print labels with dierent widths and exciting colors.
Please read this guide, including the Product Safety Guide, before using this Label Maker. After
reading this guide, keep it in a safe place.
For FAQs, troubleshooting, and to download software and manuals, visit support.brother.com.
• Manuals in Spanish for this model are available at support.brother.com.
• Manuales en Español para este modelo están disponibles en support.brother.com.
Supplies
Brother TZe Tape Cassette Available widths: 0.13 in., 0.23 in., 0.35 in., 0.47 in., 0.70 in.
3.5 mm, 6 mm, 9 mm, 12 mm, 18 mm
Head Cleaning Tape Cassette TZeCL4
2. Install Batteries or Connect the AC Adapter
Remove the protective material (rst use only) before using the Label Maker.
Batteries
AC Adapter
• When using the AC Adapter (AD-E001A):
- Insert the Adapter cord plug into the AC Adapter Jack
on the side of the printer.
- Insert the plug into the nearest standard electrical
outlet. For memory backup, we recommend using AA
alkaline batteries (LR6) together with the AC Adapter.
• To safeguard and back up the Label Maker’s memory,
when the AC Adapter is unplugged, keep AA alkaline
batteries (LR6) installed in the Label Maker.
• When power is disconnected for more than two minutes,
all text and format settings will be cleared. Any text les
stored in the memory will also be cleared.
• Remove the batteries if you do not intend to use the
Label Maker for an extended period of time.
• Dispose of the batteries at an appropriate collection point,
not in the general waste stream. In addition, be sure to
observe all applicable federal, state, and local regulations.
• When storing or discarding the batteries, wrap them (for
example with cellophane tape), to prevent them from
short-circuiting.
(Battery insulation example)
1. Cellophane tape
2. Alkaline battery
1
2
1. Print from the Label Maker
STEP
1
Enter Text
STEP
2
Preview Labels
STEP
3
Print Labels
2
3
1
1. LCD and Keyboard
D410
Starter
Tape Cassette
USB Cable
AC Adapter
Tape Viewer
1. Caps mode
2-4. Font Style Icons
5. Label Length
6. Block number
7. Line number
8. Cursor
9. Return mark
Tape Cassette
Compartment
Cover
Tape Exit Slot
LCD
Keyboard
Power
Preview
Application Download Label
Tape Cutter
Lever
AC Adapter Jack
USB Port
6
7
8
9
1 2 3 4 5
The components included in the box may dier depending on your country or region.
Serial Number Location
Serial Number
Before Use Use the Label Maker
Safety Precautions
Be sure to read this section before using the product. It contains important safety instructions.
We recommend that you keep this document nearby for future reference.
• For servicing, adjustments, or repairs, contact Brother Customer Service or your local Brother dealer.
• If the product operates abnormally or any error occurs, or if any cable is damaged, turn o the product,
disconnect all cables, and contact Brother Customer Service or your local Brother dealer.
• We assume no responsibility for damages arising from earthquakes, re, other disasters, actions of third
parties, the user’s intentional or negligent operation, misuse, or operation under other special conditions.
• We assume no responsibility for damage (such as losses, loss of business prot, lost prots, business
disruptions, or a lost means of communication) that may result from the use of, or inability to use, the
product.
• We assume no responsibility for damages that may result from incorrect operation of the product by
connecting incompatible equipment or using incompatible software.
• We assume no responsibility for any damages or lost prot arising from the use of labels created with this
product, the disappearance or change of data due to failure, repair, or consumables and we do not accept
any claim from a third party.
• Brother reserves the right to make changes without notice in the specications and materials contained
herein. Furthermore, Brother shall not be responsible for any damages (including consequential) caused by
reliance on the materials presented, including but not limited to typographical and other errors relating to
the publications.
• For more information about the available software, see the User’s Guide on the Brother support website at
support.brother.com.
• The latest version of your product documentation is available on the Brother support website at
support.brother.com.
• The available models, accessories, and supplies may vary depending on the country or region.
• This product is approved for use in the country or region of purchase only.
WARNING
Failure to observe instructions and warnings could result in death or serious injuries.
• DO NOT operate, charge, or store the Label Maker, AC Adapter, USB Cable, and Alkaline Batteries in the
following locations (otherwise a re, electrical shock, smoke, or damage may occur):
- Near water, such as in a bathroom or near a water heater, or in an extremely humid or cold location.*
- In a location where it is exposed to rain or moisture.
- In an extremely dusty location.
- In an extremely hot location, such as near open ames, heaters, or in direct sunlight.
- In a closed car in direct sunlight.
- In a location where condensation may form.
- At a high altitude.
- During a thunderstorm.
• DO NOT use the Label Maker with a foreign object in it. If water, a metal object, or any other foreign object
enters the Label Maker, disconnect the AC Adapter and remove the batteries (if installed), and then contact
your local Brother dealer for repairs.
• If foreign objects are inserted into the Label Maker or its slots, connectors, ports, or Battery Compartment,
stop using the Label Maker, turn o the power, and then disconnect each cable or remove the batteries (if
installed).
• Stop using the Label Maker if there are noticeable abnormalities such as smell, heat, noise, deformities, or
discoloration.
• DO NOT use a damaged AC Adapter.
To avoid damaging the Label Maker, AC Adapter, USB Cable, or Alkaline Batteries, DO NOT:
- Place heavy objects on them.
- Dissamble or modify them.
- Drop or hit them.
- Allow them to get wet, for example, by handling them with wet hands or spilling liquids on them.
• DO NOT allow babies and children to play with the plastic bag that contained the Label Maker.
Dispose of the bag or keep it away from babies and children. There is a risk of suocation.
* For more information, see the “Specications” section in your model’s User’s Guide.
• DO NOT forcibly bend or pull the USB Cable or AC Adapter.
• DO NOT touch the AC Adapter or plug with wet hands, otherwise an electrical shock may occur.
• Use only the specied AC Adapter.
• Use only the AC Adapter and USB Cable included with your Label Maker. Failure to do so may result in an
injury to yourself or others, or damage to the Label Maker, or other property. Brother does not assume any
responsibility for any accident or damage resulting from not using the specied AC Adapter and USB Cable.
• DO NOT connect the included AC Adapter and USB Cable to other products.
• Use the AC Adapter with standard electrical sockets (AC 100 V - 240 V 50/60 Hz).
• Insert the plug rmly into the electrical outlet.
• DO NOT use the batteries if they are damaged or leaking.
• Keep batteries away from infants. If batteries are ingested, contact emergency services immediately.
• DO NOT use sharp objects, such as tweezers or a metallic pen, to remove or replace batteries.
• If liquid (electrolyte) from the batteries gets into eyes, wash them immediately with clean water. Contact
emergency services immediately.
• DO NOT solder connections to the batteries.
• DO NOT use the batteries with the polarity (+) (-) reversed.
• DO NOT connect the + and - terminals with metal objects such as wire.
• DO NOT incinerate the batteries or dispose of them with household waste.
• Keep ngers and other body parts away from the Cutter unit.
• DO NOT touch the Cutter unit’s blade or insert your ngers inside the
Tape Exit Slot, otherwise ngers and other body parts may be injured.
• DO NOT touch any metal parts near the Print Head. The Print Head
becomes very hot during and immediately after use. DO NOT touch it
directly with your hands.
CAUTION
Failure to observe instructions and warnings could result in minor or moderate injuries.
Label Maker, USB Cable, AC Adapter, Alkaline Batteries
• Use only the specied AA alkaline batteries (LR6).
• DO NOT use combinations of old and new batteries or combinations of dierent types, charging levels,
manufacturers, or models.
• DO NOT drop the Label Maker when removing it from the box or relocating it, otherwise you may get injured.
• Be careful when closing the Tape Cassette Compartment Cover. There is a risk of injury if your nger gets
pinched between the upper and lower parts of the cover.
• When you are not using the Label Maker, store it out of the reach of children. In addition, do not allow
children to put the Label Maker parts or labels in their mouths. If any object has been swallowed, seek
medical attention immediately.
• DO NOT leave the Label Maker or any tape within the reach of babies and children.
• Store the Label Maker on a at, level, and stable surface.
• Remove the batteries and disconnect the AC Adapter if you do not intend to use the printer for an extended
period of time.
• DO NOT press on the Liquid Crystal Display (LCD).
• When disconnecting the AC Adapter from the electrical outlet, always hold the AC Adapter.
• DO NOT overload an electrical circuit with the AC Adapter.
• DO NOT open the Tape Cassette Compartment Cover when operating the Cutter unit.
• DO NOT apply excessive pressure to the Cutter unit.
Product Safety Guide
Regulation
Federal Communications Commission (FCC) Supplier’s Declaration of Conformity (USA)
Responsible Party: Brother International Corporation
200 Crossing Boulevard
Bridgewater, NJ 08807-0911, U.S.A.
TEL: (908) 704-1700
Product Name: Label Maker
Model Number: PT-D410
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This equipment may not cause harmful interference, and (2) this equipment
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Important
• The enclosed interface cable should be used in order to ensure compliance with the limits
for a Class B digital device.
• Changes or modications not expressly approved by Brother Industries, Ltd. could void the
user’s authority to operate the equipment.
CAUTION
RISK OF EXPLOSION IF BATTERIES ARE REPLACED WITH AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
International ENERGY STAR
®
Compliance Statement (US only)
The purpose of the International ENERGY STAR
®
Program is to promote the
development and popularization of energy-ecient oce equipment. As an ENERGY
STAR
®
Partner, Brother Industries, Ltd. has determined that this product meets the
ENERGY STAR
®
guidelines for energy eciency.
2. Print from Your Computer
Windows
In your browser’s address bar, type http://install.brother. Download
and install the Printer Driver and P-touch Editor by following the
on-screen instructions.
Mac
Download P-touch Editor from the App Store to print from your
Mac. You do not need to download and install any drivers.
http://install.brother
Software Features
Printer Driver
Software required to print from a Label Maker using a Windows
computer.
P-touch Editor
Label creation software for computers. This application comes with
built-in drawing tools that allow you to print a wide variety of custom
labels in complex layouts with text of dierent fonts and styles,
frames, imported images, barcodes, and more.
• When printing from your computer, you must connect the Label Maker and computer with
the included USB Cable.
• This Label Maker does not support Wi-Fi connections.
3. Application Installation
Download the applications from the App Store or Google Play™:
Support Center
App
This app provides access to setup
information, product manuals, FAQs, and
troubleshooting tips.
3. Insert the Tape Cassette
• After the tape passes under the Tape Guide, pull the tip
to remove any slack in the tape.
• Make sure the tape is not caught in the Label Maker
when inserting or removing the Tape Cassette.
1. Insert the Tape Cassette following the illustration under
the Tape Cassette Compartment Cover. Conrm that the
tip of the tape is pointed at the Tape Exit Slot.
2. Press the Tape Cassette into the Label Maker until
it locks into place and then close the Tape Cassette
Compartment Cover.
End of tape
Tape Guide
4. Turn the Power ON or OFF
To print from the Label Maker, go to
1. Print from the Label Maker
To print from your computer, go to
2. Print from Your Computer
Power on Press
Power o
Press and hold
until the Label Maker turns o.
D026K6001
P-TOUCH PT-D410
D410
Thank you for purchasing the PT-D410 (hereafter referred to as “the Label Maker”). Your PT-
D410 produces professional, high-quality, durable labels. In addition, the variety of tape cartridges
available allows you to print labels with dierent widths and exciting colors.
Please read this guide, including the Product Safety Guide, before using this Label Maker. After
reading this guide, keep it in a safe place.
For FAQs, troubleshooting, and to download software and manuals, visit support.brother.com.
• Manuals in Spanish for this model are available at support.brother.com.
• Manuales en Español para este modelo están disponibles en support.brother.com.
Supplies
Brother TZe Tape Cassette Available widths: 0.13 in., 0.23 in., 0.35 in., 0.47 in., 0.70 in.
3.5 mm, 6 mm, 9 mm, 12 mm, 18 mm
Head Cleaning Tape Cassette TZeCL4
2. Install Batteries or Connect the AC Adapter
Remove the protective material (rst use only) before using the Label Maker.
Batteries
AC Adapter
• When using the AC Adapter (AD-E001A):
- Insert the Adapter cord plug into the AC Adapter Jack
on the side of the printer.
- Insert the plug into the nearest standard electrical
outlet. For memory backup, we recommend using AA
alkaline batteries (LR6) together with the AC Adapter.
• To safeguard and back up the Label Maker’s memory,
when the AC Adapter is unplugged, keep AA alkaline
batteries (LR6) installed in the Label Maker.
• When power is disconnected for more than two minutes,
all text and format settings will be cleared. Any text les
stored in the memory will also be cleared.
• Remove the batteries if you do not intend to use the
Label Maker for an extended period of time.
• Dispose of the batteries at an appropriate collection point,
not in the general waste stream. In addition, be sure to
observe all applicable federal, state, and local regulations.
• When storing or discarding the batteries, wrap them (for
example with cellophane tape), to prevent them from
short-circuiting.
(Battery insulation example)
1. Cellophane tape
2. Alkaline battery
1
2
1. Print from the Label Maker
STEP
1
Enter Text
STEP
2
Preview Labels
STEP
3
Print Labels
2
3
1
1. LCD and Keyboard
D410
Starter
Tape Cassette
USB Cable
AC Adapter
Tape Viewer
1. Caps mode
2-4. Font Style Icons
5. Label Length
6. Block number
7. Line number
8. Cursor
9. Return mark
Tape Cassette
Compartment
Cover
Tape Exit Slot
LCD
Keyboard
Power
Preview
Application Download Label
Tape Cutter
Lever
AC Adapter Jack
USB Port
6
7
8
9
1 2 3 4 5
The components included in the box may dier depending on your country or region.
Serial Number Location
Serial Number
Before Use
Use the Label Maker
Safety Precautions
Be sure to read this section before using the product. It contains important safety instructions.
We recommend that you keep this document nearby for future reference.
• For servicing, adjustments, or repairs, contact Brother Customer Service or your local Brother dealer.
• If the product operates abnormally or any error occurs, or if any cable is damaged, turn o the product,
disconnect all cables, and contact Brother Customer Service or your local Brother dealer.
• We assume no responsibility for damages arising from earthquakes, re, other disasters, actions of third
parties, the user’s intentional or negligent operation, misuse, or operation under other special conditions.
• We assume no responsibility for damage (such as losses, loss of business prot, lost prots, business
disruptions, or a lost means of communication) that may result from the use of, or inability to use, the
product.
• We assume no responsibility for damages that may result from incorrect operation of the product by
connecting incompatible equipment or using incompatible software.
• We assume no responsibility for any damages or lost prot arising from the use of labels created with this
product, the disappearance or change of data due to failure, repair, or consumables and we do not accept
any claim from a third party.
• Brother reserves the right to make changes without notice in the specications and materials contained
herein. Furthermore, Brother shall not be responsible for any damages (including consequential) caused by
reliance on the materials presented, including but not limited to typographical and other errors relating to
the publications.
• For more information about the available software, see the User’s Guide on the Brother support website at
support.brother.com.
• The latest version of your product documentation is available on the Brother support website at
support.brother.com.
• The available models, accessories, and supplies may vary depending on the country or region.
• This product is approved for use in the country or region of purchase only.
WARNING
Failure to observe instructions and warnings could result in death or serious injuries.
• DO NOT operate, charge, or store the Label Maker, AC Adapter, USB Cable, and Alkaline Batteries in the
following locations (otherwise a re, electrical shock, smoke, or damage may occur):
- Near water, such as in a bathroom or near a water heater, or in an extremely humid or cold location.*
- In a location where it is exposed to rain or moisture.
- In an extremely dusty location.
- In an extremely hot location, such as near open ames, heaters, or in direct sunlight.
- In a closed car in direct sunlight.
- In a location where condensation may form.
- At a high altitude.
- During a thunderstorm.
• DO NOT use the Label Maker with a foreign object in it. If water, a metal object, or any other foreign object
enters the Label Maker, disconnect the AC Adapter and remove the batteries (if installed), and then contact
your local Brother dealer for repairs.
• If foreign objects are inserted into the Label Maker or its slots, connectors, ports, or Battery Compartment,
stop using the Label Maker, turn o the power, and then disconnect each cable or remove the batteries (if
installed).
• Stop using the Label Maker if there are noticeable abnormalities such as smell, heat, noise, deformities, or
discoloration.
• DO NOT use a damaged AC Adapter.
To avoid damaging the Label Maker, AC Adapter, USB Cable, or Alkaline Batteries, DO NOT:
- Place heavy objects on them.
- Dissamble or modify them.
- Drop or hit them.
- Allow them to get wet, for example, by handling them with wet hands or spilling liquids on them.
• DO NOT allow babies and children to play with the plastic bag that contained the Label Maker.
Dispose of the bag or keep it away from babies and children. There is a risk of suocation.
* For more information, see the “Specications” section in your model’s User’s Guide.
• DO NOT forcibly bend or pull the USB Cable or AC Adapter.
• DO NOT touch the AC Adapter or plug with wet hands, otherwise an electrical shock may occur.
• Use only the specied AC Adapter.
• Use only the AC Adapter and USB Cable included with your Label Maker. Failure to do so may result in an
injury to yourself or others, or damage to the Label Maker, or other property. Brother does not assume any
responsibility for any accident or damage resulting from not using the specied AC Adapter and USB Cable.
• DO NOT connect the included AC Adapter and USB Cable to other products.
• Use the AC Adapter with standard electrical sockets (AC 100 V - 240 V 50/60 Hz).
• Insert the plug rmly into the electrical outlet.
• DO NOT use the batteries if they are damaged or leaking.
• Keep batteries away from infants. If batteries are ingested, contact emergency services immediately.
• DO NOT use sharp objects, such as tweezers or a metallic pen, to remove or replace batteries.
• If liquid (electrolyte) from the batteries gets into eyes, wash them immediately with clean water. Contact
emergency services immediately.
• DO NOT solder connections to the batteries.
• DO NOT use the batteries with the polarity (+) (-) reversed.
• DO NOT connect the + and - terminals with metal objects such as wire.
• DO NOT incinerate the batteries or dispose of them with household waste.
• Keep ngers and other body parts away from the Cutter unit.
• DO NOT touch the Cutter unit’s blade or insert your ngers inside the
Tape Exit Slot, otherwise ngers and other body parts may be injured.
• DO NOT touch any metal parts near the Print Head. The Print Head
becomes very hot during and immediately after use. DO NOT touch it
directly with your hands.
CAUTION
Failure to observe instructions and warnings could result in minor or moderate injuries.
Label Maker, USB Cable, AC Adapter, Alkaline Batteries
• Use only the specied AA alkaline batteries (LR6).
• DO NOT use combinations of old and new batteries or combinations of dierent types, charging levels,
manufacturers, or models.
• DO NOT drop the Label Maker when removing it from the box or relocating it, otherwise you may get injured.
• Be careful when closing the Tape Cassette Compartment Cover. There is a risk of injury if your nger gets
pinched between the upper and lower parts of the cover.
• When you are not using the Label Maker, store it out of the reach of children. In addition, do not allow
children to put the Label Maker parts or labels in their mouths. If any object has been swallowed, seek
medical attention immediately.
• DO NOT leave the Label Maker or any tape within the reach of babies and children.
• Store the Label Maker on a at, level, and stable surface.
• Remove the batteries and disconnect the AC Adapter if you do not intend to use the printer for an extended
period of time.
• DO NOT press on the Liquid Crystal Display (LCD).
• When disconnecting the AC Adapter from the electrical outlet, always hold the AC Adapter.
• DO NOT overload an electrical circuit with the AC Adapter.
• DO NOT open the Tape Cassette Compartment Cover when operating the Cutter unit.
• DO NOT apply excessive pressure to the Cutter unit.
Product Safety Guide
Regulation
Federal Communications Commission (FCC) Supplier’s Declaration of Conformity (USA)
Responsible Party: Brother International Corporation
200 Crossing Boulevard
Bridgewater, NJ 08807-0911, U.S.A.
TEL: (908) 704-1700
Product Name: Label Maker
Model Number: PT-D410
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This equipment may not cause harmful interference, and (2) this equipment
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Important
• The enclosed interface cable should be used in order to ensure compliance with the limits
for a Class B digital device.
• Changes or modications not expressly approved by Brother Industries, Ltd. could void the
user’s authority to operate the equipment.
CAUTION
RISK OF EXPLOSION IF BATTERIES ARE REPLACED WITH AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
International ENERGY STAR
®
Compliance Statement (US only)
The purpose of the International ENERGY STAR
®
Program is to promote the
development and popularization of energy-ecient oce equipment. As an ENERGY
STAR
®
Partner, Brother Industries, Ltd. has determined that this product meets the
ENERGY STAR
®
guidelines for energy eciency.
2. Print from Your Computer
Windows
In your browser’s address bar, type http://install.brother. Download
and install the Printer Driver and P-touch Editor by following the
on-screen instructions.
Mac
Download P-touch Editor from the App Store to print from your
Mac. You do not need to download and install any drivers.
http://install.brother
Software Features
Printer Driver
Software required to print from a Label Maker using a Windows
computer.
P-touch Editor
Label creation software for computers. This application comes with
built-in drawing tools that allow you to print a wide variety of custom
labels in complex layouts with text of dierent fonts and styles,
frames, imported images, barcodes, and more.
• When printing from your computer, you must connect the Label Maker and computer with
the included USB Cable.
• This Label Maker does not support Wi-Fi connections.
3. Application Installation
Download the applications from the App Store or Google Play™:
Support Center
App
This app provides access to setup
information, product manuals, FAQs, and
troubleshooting tips.
3. Insert the Tape Cassette
• After the tape passes under the Tape Guide, pull the tip
to remove any slack in the tape.
• Make sure the tape is not caught in the Label Maker
when inserting or removing the Tape Cassette.
1. Insert the Tape Cassette following the illustration under
the Tape Cassette Compartment Cover. Conrm that the
tip of the tape is pointed at the Tape Exit Slot.
2. Press the Tape Cassette into the Label Maker until
it locks into place and then close the Tape Cassette
Compartment Cover.
End of tape
Tape Guide
4. Turn the Power ON or OFF
To print from the Label Maker, go to
1. Print from the Label Maker
To print from your computer, go to
2. Print from Your Computer
Power on Press
Power o
Press and hold
until the Label Maker turns o.
D026K6001
P-TOUCH PT-D410
D410
Thank you for purchasing the PT-D410 (hereafter referred to as “the Label Maker”). Your PT-
D410 produces professional, high-quality, durable labels. In addition, the variety of tape cartridges
available allows you to print labels with dierent widths and exciting colors.
Please read this guide, including the Product Safety Guide, before using this Label Maker. After
reading this guide, keep it in a safe place.
For FAQs, troubleshooting, and to download software and manuals, visit support.brother.com.
• Manuals in Spanish for this model are available at support.brother.com.
• Manuales en Español para este modelo están disponibles en support.brother.com.
Supplies
Brother TZe Tape Cassette Available widths: 0.13 in., 0.23 in., 0.35 in., 0.47 in., 0.70 in.
3.5 mm, 6 mm, 9 mm, 12 mm, 18 mm
Head Cleaning Tape Cassette TZeCL4
2. Install Batteries or Connect the AC Adapter
Remove the protective material (rst use only) before using the Label Maker.
Batteries
AC Adapter
• When using the AC Adapter (AD-E001A):
- Insert the Adapter cord plug into the AC Adapter Jack
on the side of the printer.
- Insert the plug into the nearest standard electrical
outlet. For memory backup, we recommend using AA
alkaline batteries (LR6) together with the AC Adapter.
• To safeguard and back up the Label Maker’s memory,
when the AC Adapter is unplugged, keep AA alkaline
batteries (LR6) installed in the Label Maker.
• When power is disconnected for more than two minutes,
all text and format settings will be cleared. Any text les
stored in the memory will also be cleared.
• Remove the batteries if you do not intend to use the
Label Maker for an extended period of time.
• Dispose of the batteries at an appropriate collection point,
not in the general waste stream. In addition, be sure to
observe all applicable federal, state, and local regulations.
• When storing or discarding the batteries, wrap them (for
example with cellophane tape), to prevent them from
short-circuiting.
(Battery insulation example)
1. Cellophane tape
2. Alkaline battery
1
2
1. Print from the Label Maker
STEP
1
Enter Text
STEP
2
Preview Labels
STEP
3
Print Labels
2
3
1
1. LCD and Keyboard
D410
Starter
Tape Cassette
USB Cable
AC Adapter
Tape Viewer
1. Caps mode
2-4. Font Style Icons
5. Label Length
6. Block number
7. Line number
8. Cursor
9. Return mark
Tape Cassette
Compartment
Cover
Tape Exit Slot
LCD
Keyboard
Power
Preview
Application Download Label
Tape Cutter
Lever
AC Adapter Jack
USB Port
6
7
8
9
1 2 3 4 5
The components included in the box may dier depending on your country or region.
Serial Number Location
Serial Number
Before Use
Use the Label Maker
Safety Precautions
Be sure to read this section before using the product. It contains important safety instructions.
We recommend that you keep this document nearby for future reference.
• For servicing, adjustments, or repairs, contact Brother Customer Service or your local Brother dealer.
• If the product operates abnormally or any error occurs, or if any cable is damaged, turn o the product,
disconnect all cables, and contact Brother Customer Service or your local Brother dealer.
• We assume no responsibility for damages arising from earthquakes, re, other disasters, actions of third
parties, the user’s intentional or negligent operation, misuse, or operation under other special conditions.
• We assume no responsibility for damage (such as losses, loss of business prot, lost prots, business
disruptions, or a lost means of communication) that may result from the use of, or inability to use, the
product.
• We assume no responsibility for damages that may result from incorrect operation of the product by
connecting incompatible equipment or using incompatible software.
• We assume no responsibility for any damages or lost prot arising from the use of labels created with this
product, the disappearance or change of data due to failure, repair, or consumables and we do not accept
any claim from a third party.
• Brother reserves the right to make changes without notice in the specications and materials contained
herein. Furthermore, Brother shall not be responsible for any damages (including consequential) caused by
reliance on the materials presented, including but not limited to typographical and other errors relating to
the publications.
• For more information about the available software, see the User’s Guide on the Brother support website at
support.brother.com.
• The latest version of your product documentation is available on the Brother support website at
support.brother.com.
• The available models, accessories, and supplies may vary depending on the country or region.
• This product is approved for use in the country or region of purchase only.
WARNING
Failure to observe instructions and warnings could result in death or serious injuries.
• DO NOT operate, charge, or store the Label Maker, AC Adapter, USB Cable, and Alkaline Batteries in the
following locations (otherwise a re, electrical shock, smoke, or damage may occur):
- Near water, such as in a bathroom or near a water heater, or in an extremely humid or cold location.*
- In a location where it is exposed to rain or moisture.
- In an extremely dusty location.
- In an extremely hot location, such as near open ames, heaters, or in direct sunlight.
- In a closed car in direct sunlight.
- In a location where condensation may form.
- At a high altitude.
- During a thunderstorm.
• DO NOT use the Label Maker with a foreign object in it. If water, a metal object, or any other foreign object
enters the Label Maker, disconnect the AC Adapter and remove the batteries (if installed), and then contact
your local Brother dealer for repairs.
• If foreign objects are inserted into the Label Maker or its slots, connectors, ports, or Battery Compartment,
stop using the Label Maker, turn o the power, and then disconnect each cable or remove the batteries (if
installed).
• Stop using the Label Maker if there are noticeable abnormalities such as smell, heat, noise, deformities, or
discoloration.
• DO NOT use a damaged AC Adapter.
To avoid damaging the Label Maker, AC Adapter, USB Cable, or Alkaline Batteries, DO NOT:
- Place heavy objects on them.
- Dissamble or modify them.
- Drop or hit them.
- Allow them to get wet, for example, by handling them with wet hands or spilling liquids on them.
• DO NOT allow babies and children to play with the plastic bag that contained the Label Maker.
Dispose of the bag or keep it away from babies and children. There is a risk of suocation.
* For more information, see the “Specications” section in your model’s User’s Guide.
• DO NOT forcibly bend or pull the USB Cable or AC Adapter.
• DO NOT touch the AC Adapter or plug with wet hands, otherwise an electrical shock may occur.
• Use only the specied AC Adapter.
• Use only the AC Adapter and USB Cable included with your Label Maker. Failure to do so may result in an
injury to yourself or others, or damage to the Label Maker, or other property. Brother does not assume any
responsibility for any accident or damage resulting from not using the specied AC Adapter and USB Cable.
• DO NOT connect the included AC Adapter and USB Cable to other products.
• Use the AC Adapter with standard electrical sockets (AC 100 V - 240 V 50/60 Hz).
• Insert the plug rmly into the electrical outlet.
• DO NOT use the batteries if they are damaged or leaking.
• Keep batteries away from infants. If batteries are ingested, contact emergency services immediately.
• DO NOT use sharp objects, such as tweezers or a metallic pen, to remove or replace batteries.
• If liquid (electrolyte) from the batteries gets into eyes, wash them immediately with clean water. Contact
emergency services immediately.
• DO NOT solder connections to the batteries.
• DO NOT use the batteries with the polarity (+) (-) reversed.
• DO NOT connect the + and - terminals with metal objects such as wire.
• DO NOT incinerate the batteries or dispose of them with household waste.
• Keep ngers and other body parts away from the Cutter unit.
• DO NOT touch the Cutter unit’s blade or insert your ngers inside the
Tape Exit Slot, otherwise ngers and other body parts may be injured.
• DO NOT touch any metal parts near the Print Head. The Print Head
becomes very hot during and immediately after use. DO NOT touch it
directly with your hands.
CAUTION
Failure to observe instructions and warnings could result in minor or moderate injuries.
Label Maker, USB Cable, AC Adapter, Alkaline Batteries
• Use only the specied AA alkaline batteries (LR6).
• DO NOT use combinations of old and new batteries or combinations of dierent types, charging levels,
manufacturers, or models.
• DO NOT drop the Label Maker when removing it from the box or relocating it, otherwise you may get injured.
• Be careful when closing the Tape Cassette Compartment Cover. There is a risk of injury if your nger gets
pinched between the upper and lower parts of the cover.
• When you are not using the Label Maker, store it out of the reach of children. In addition, do not allow
children to put the Label Maker parts or labels in their mouths. If any object has been swallowed, seek
medical attention immediately.
• DO NOT leave the Label Maker or any tape within the reach of babies and children.
• Store the Label Maker on a at, level, and stable surface.
• Remove the batteries and disconnect the AC Adapter if you do not intend to use the printer for an extended
period of time.
• DO NOT press on the Liquid Crystal Display (LCD).
• When disconnecting the AC Adapter from the electrical outlet, always hold the AC Adapter.
• DO NOT overload an electrical circuit with the AC Adapter.
• DO NOT open the Tape Cassette Compartment Cover when operating the Cutter unit.
• DO NOT apply excessive pressure to the Cutter unit.
Product Safety Guide
Regulation
Federal Communications Commission (FCC) Supplier’s Declaration of Conformity (USA)
Responsible Party: Brother International Corporation
200 Crossing Boulevard
Bridgewater, NJ 08807-0911, U.S.A.
TEL: (908) 704-1700
Product Name: Label Maker
Model Number: PT-D410
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This equipment may not cause harmful interference, and (2) this equipment
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Important
• The enclosed interface cable should be used in order to ensure compliance with the limits
for a Class B digital device.
• Changes or modications not expressly approved by Brother Industries, Ltd. could void the
user’s authority to operate the equipment.
CAUTION
RISK OF EXPLOSION IF BATTERIES ARE REPLACED WITH AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
International ENERGY STAR
®
Compliance Statement (US only)
The purpose of the International ENERGY STAR
®
Program is to promote the
development and popularization of energy-ecient oce equipment. As an ENERGY
STAR
®
Partner, Brother Industries, Ltd. has determined that this product meets the
ENERGY STAR
®
guidelines for energy eciency.
2. Print from Your Computer
Windows
In your browser’s address bar, type http://install.brother. Download
and install the Printer Driver and P-touch Editor by following the
on-screen instructions.
Mac
Download P-touch Editor from the App Store to print from your
Mac. You do not need to download and install any drivers.
http://install.brother
Software Features
Printer Driver
Software required to print from a Label Maker using a Windows
computer.
P-touch Editor
Label creation software for computers. This application comes with
built-in drawing tools that allow you to print a wide variety of custom
labels in complex layouts with text of dierent fonts and styles,
frames, imported images, barcodes, and more.
• When printing from your computer, you must connect the Label Maker and computer with
the included USB Cable.
• This Label Maker does not support Wi-Fi connections.
3. Application Installation
Download the applications from the App Store or Google Play™:
Support Center
App
This app provides access to setup
information, product manuals, FAQs, and
troubleshooting tips.
Basic Operations support.brother.com/manuals
Initial Settings
Language
Settings
Set your language.
/ [Language] /
Select a language
/
Unit
Settings
Set the unit for various types of
adjustments.
/ [Unit] /
[inch] / [mm] /
LCD
Contrast
Adjust the LCD contrast.
/ [Adjustment] /
[LCD Contrast]
[-2] to [+2] /
Enter Text
New Line
Press to start a new line.
Maximum number of lines for each
tape width:
0.70” (18 mm): ve lines
0.47” (12 mm): three lines
0.35” (9 mm), 0.23” (6 mm): two lines
0.13” (3.5 mm): one line
Block
+
Use this feature to include multiple
lines or font sizes on a single label.
Maximum: 5 blocks.
Delete Text
and Format
or
Delete text and formatting.
Delete one character at a time
Delete all characters
[Text Only] /
Delete all text and formatting.
[Text & Format]
/
Tab Insert a tab.
Maximum length: 4” (100 mm)
Tab Length
Set the tab length.
[Tab Length]
Select a value /
Upper-Case
Lower-Case
Switch between upper-case and
lower-case characters.
Enter Text (cont.)
Label
Length
Set the label length.
[Auto]: Automatically adjusts the label
length to the length of the text.
[Length] [Auto] /
Set a value
/
Symbol
Characters
Inserts symbols, units, and pictures.
Select a category
/ Select a symbol
/
Accented
Characters
Select text you wish to convert to accented
characters.
Enter characters
Select an accent
/
Frame Select a decorative frame to add to your
label.
/ Select a frame
category
/
Select a frame
/
Change Font
Change
Font
Change the label font, size, width, style,
and alignment.
/ Select a
font type
[Size] Select
the font height
[Width]
Select the font width
[Style]
Select the font style [Align]
Select the font alignment
/
Change
Font Line
By Line
+
Change the line font, size, width, style, and
alignment.
Move the cursor to the line you
want to change
+
[Font]
Select a font type
[Size] Select the font height
[Width] Select the font
width
[Style] Select the
font style
[Align] Select
the font alignment
/
Auto Fit
Style
Automatically adjust the text size to t the
label length.
[Text Size]: Adjust to the length of the label
[Text Width]: Adjust by condensing the
character width by half
/ [Auto Fit Style] /
[Text Size] / [Text Width]
/
Set Margins
Set
Margins
Set the margins before and after an entered
character.
[Small Margin]: Initial margin is approx. 0.9”
(23 mm), and then 0.08” (2 mm) margins are
inserted before and after the text of each label.
[Large Margin]: Insert an initial margin of
approx. 0.98” (25 mm) is inserted before and
after the text of each label.
[Chain]: Select this setting when printing
multiple labels. The initial margin is approx.
0.9” (23 mm), and then 0.08” (2 mm)
margins are inserted before and after the
text of each label.
[No Cut]: Select this setting when printing
multiple parts or when printing on special tape.
[Special Tape]: Select this setting when
printing on special tape.
[Cut Option]
Select the margin type
/
Set Auto Format Layouts
Template Set specic template designs.
[Templates]
/
Select a template
category
/ Select
a template
/
[Font]
Select a font type
[Style] Select a style /
Enter text /
Block
Layout
Set Block Layout patterns.
[Block Layouts] /
Select the tape width
/ Select a block layout
/ [Font]
Select a font type
[Align]
[Left] / [Center] / [Right] / [Just]
[Frame] [On] / [O] /
Enter text /
Print Labels
Preview Use this feature to preview the label before
printing.
Print
Start printing.
When printing a single label:
/ /
When printing multiple labels:
Select a print quantity
/ /
Numbering
Print
+
Set this feature when printing consecutive
alphanumeric characters.
Enter alphanumeric characters
+
[Numbering] /
Set the start position /
Set the end position
/ Select a print quantity
/ /
Mirror
Print
+
Print reversed from left to right.
Print on clear tape and attach it to the inside
of glass to create a label that can be read
from the outside.
Enter text
+ [Mirror]
/ / /
Barcode
Printing
Create a barcode and print it.
[Protocol] Select a
Protocol
[Width] [Small]
/ [Large]
[Under#] [On] /
[O]
/ Enter barcode data
/ [Print] Select a
print quantity
/ /
Other
Tape Feed
+
Feed approx. 0.9” (23 mm) of tape to
remove any slack.
Tape may have some slack when it is
loaded.
+
Save Save your labels and access them later to
edit and print them, as well as overwrite and
save edited data.
Maximum data: 50 les
Maximum character count per le: 280
characters
Create a label
[Save]
/ Select a save
destination
/
Reset
+
+
Reset the internal memory. For example, to
reset the Label Maker or delete any saved
label data.
Turn o the machine.
Press and hold down
and . While
holding down
and , press once
and then release
and .
For more information, see the User’s Guide on the Brother
support website at support.brother.com.
Print Labels (cont.)
Error Messages
Contact Information
Troubleshooting (cont.) Troubleshooting (cont.)
Troubleshooting
Message Cause/Remedy
Check no. of digits entered The number of digits entered in the barcode data does not match
the number of digits set in the barcode parameters. Enter the
correct number of digits.
Cutter error The Tape Cutter Lever was pressed while trying to print or
feed the tape. If the tape is jammed in the Cutter unit, remove
the tape. Turn the Label Maker o and then on again before
continuing.
Length limit The printed label length using the text entered is longer than
39.37” (999 mm). Edit the text so that the label length is less than
39.37” (999 mm).
Text too long The printed label length using the text entered is longer than the
length setting. Edit the text to t within the set length or change
the length setting.
System error XX Contact Brother Customer Service.
Problem Solution
• The tape does not feed
correctly.
• The tape gets stuck
inside the Label Maker.
• If the tape is bent, cut o the bent section.
• If the tape is jammed, remove the Tape Cassette, remove the
jammed tape, and then cut any damaged tape.
• Check that the end of the tape exits through the Tape Guide.
• Conrm that the tape is pointed at the Tape Exit Slot.
• Remove the Tape Cassette and insert it again.
The screen is locked, or
the Label Maker does not
operate normally.
Refer to the Basic Operations section in this guide and reset the
Label Maker’s internal memory to the factory settings. If resetting
the Label Maker does not solve the problem, disconnect the AC
Adapter and remove the batteries for more than 10 minutes.
The LCD remains blank
after turning on the power.
Check that the batteries are correctly installed or that the AC
Adapter included with your Label Maker is correctly connected.
The LCD messages are
displayed in a foreign
language.
Refer to the Basic Operations section in this guide to select your
desired language.
The Label Maker stops
while printing a label.
• Replace the Tape Cassette if striped tape is visible, as this
indicates that you have reached the end of the tape.
• Replace all batteries or connect the AC Adapter directly to the
Label Maker.
Previously saved label les
are not available.
All les saved in the internal memory are deleted if the batteries are
weak or the AC Adapter is disconnected.
• I cannot install the Printer
Driver even if I follow the
correct procedure.
• I cannot see my printer
listed in P-touch Editor
even though I have
installed the Printer
Driver.
If you cannot use your Label Maker even though you have installed
the Printer Driver:
1. Download the Printer Driver Uninstaller from your model’s page at
support.brother.com.
2. Use the Printer Driver Uninstaller to remove the printer
information.
3. Run the Printer Driver Installer again and follow the on-screen
instructions to proceed with the installation.
The ink ribbon is separated
from the ink roller.
If the ink ribbon is broken, replace the Tape
Cassette. If it is not, leave the tape uncut and
carefully remove the Tape Cassette, and then wind
the loose ink ribbon back onto the spool.
Spool
Problem Solution
Printed barcodes or QR
codes cannot be read.
• Change the tape. (Recommended: Black on white tape)
• Enlarge the barcodes or QR codes using the barcode application,
if possible.
I do not know the rmware
version of the Label
Maker.
Conrm the rmware version by pressing the following keys:
[Version Information] /
When the label is printed,
there is too much margin
(space) on both sides of
the text.
• Refer to the Set Margins section in this guide and select [Small
Margin] [Chain] or [No Cut] for smaller margins.
When you set [Small Margin], the label maker feeds approx. 0.9”
(23 mm) of leader tape before every new label.
To save tape, set the [Chain] setting. After the last label prints,
press
and to feed the tape, and then press the Tape
Cutter Lever.
• The Label Maker feeds approx. 0.9’’ (23 mm) of tape before every
new label. When printing multiple labels, you can reduce the blank
space on the second and subsequent labels.
Select the [Chain] setting in the optional print settings. Then, print
your labels and leave the last label in the Label Maker until you are
ready to print a new label.
• After the last label prints, press
and simultaneously to
feed the tape, and then eject and cut the last label. Note that the
Label Maker will feed approx. 0.9’’ (23 mm) of tape before the next
new label when you use this method.
The font size cannot be
increased.
The font is already the maximum size for the width of the label. Or,
the label length has been set, so there is a limit on the font size to
prevent exceeding the set length.
When multiple labels are
printed, the last label is cut
incorrectly.
When Chain Print is enabled, feed the tape to eject the last printed
label, and then press the Tape Cutter Lever to cut the label manually.
Customer Service for USA
Phone: 1-877-BROTHER (1-877-276-8437)
Fax: 1-901-379-1210
To order supplies and accessories:
www.brother-usa.com
Phone: 1-877-552-6255
Other countries or regions
support.brother.com
DON’T FORGET TO REGISTER!
Registering your product will provide purchase conrmation, proof of ownership and, if
you choose, allow us to notify you of product enhancements and special oers!
You can register online at: www.registermybrother.com (USA)
LIMITED WARRANTY
Product warranty information can be found online at:
www.brother-usa.com/brother-support (USA)
If you need additional help, visit support.brother.com.
Problem Solution
The Label Maker does not
print.
• Check that the Tape Cassette is inserted correctly.
• If the Tape Cassette is empty, replace it. To order supplies and
accessories, visit www.brother-usa.com
• Check that the Tape Cassette Compartment Cover is securely
closed.
• Check that the Label Maker is on.
• Check that the correct printer driver is installed when printing
from a computer.
• Connect the Label Maker to your computer using the USB
Cable (included) when printing from a computer.
• If the Print Head is dirty, clean it with a cotton swab or with the
optional Print Head Cleaning Cassette (TZeCL4).
Symbols and Frames
Set Margins
The laminate mechanism creates a margin of approx. 0.9” (23 mm) at the beginning of printing. You can reduce this margin by printing
labels continuously.
You can also change the margin before and after the text for the second and subsequent labels when printing multiple labels.
Select [Chain] to print labels with the narrowest margin width. DO NOT feed the tape until the nal label is printed. When the nal
label prints, feed the tape, and press the Tape Cutter Lever.
Symbol Examples Frame Examples
...
...
Auto Format Layouts Examples Accented Character Examples
...
...
For more information about symbols and frames, see the User’s Guide on the Brother support website at support.brother.com.
Large Margin
ABC ABC
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
Approx. 0.98”
(25 mm)
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
Approx. 0.98”
(25 mm)
ABC
: Print area
: Margin
: Laminate margin
Chain
ABC ABC
0.08”
(2 mm)
0.08 Cut
Position
”
(2 mm)
Approx. 0.9”
(23 mm)
0.08”
(2 mm)
No Cut
ABC ABC
0.08”
(2 mm)
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
0.08”
(2 mm)
Special Tape
ABC ABC
0.08”
(2 mm)
0.08”
(2 mm)
0.08”
(2 mm)
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
Small Margin
When the label length is approx. 0.9”
(23 mm) or more
ABC ABC
Approx. 0.9”
(23 mm)
0.08”
(2 mm)
0.08”
(2 mm)
0.08”
(2 mm)
0.08”
(2 mm)
Small Margin
When the label length is approx. 0.9”
(23 mm) or less
ABC
0.08”
(2 mm)
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
Approx. 0.9”
(23 mm)
ABC
Problem Solution
I cannot update the printer’s
rmware using the P-touch
Update Software, Transfer
Express, or Mac Update
Tool.
Restart the printer and then try to update the rmware again. Do not
press any buttons during the rmware update.
Basic Operations support.brother.com/manuals
Initial Settings
Language
Settings
Set your language.
/ [Language] /
Select a language
/
Unit
Settings
Set the unit for various types of
adjustments.
/ [Unit] /
[inch] / [mm] /
LCD
Contrast
Adjust the LCD contrast.
/ [Adjustment] /
[LCD Contrast]
[-2] to [+2] /
Enter Text
New Line
Press to start a new line.
Maximum number of lines for each
tape width:
0.70” (18 mm): ve lines
0.47” (12 mm): three lines
0.35” (9 mm), 0.23” (6 mm): two lines
0.13” (3.5 mm): one line
Block
+
Use this feature to include multiple
lines or font sizes on a single label.
Maximum: 5 blocks.
Delete Text
and Format
or
Delete text and formatting.
Delete one character at a time
Delete all characters
[Text Only] /
Delete all text and formatting.
[Text & Format]
/
Tab Insert a tab.
Maximum length: 4” (100 mm)
Tab Length
Set the tab length.
[Tab Length]
Select a value /
Upper-Case
Lower-Case
Switch between upper-case and
lower-case characters.
Enter Text (cont.)
Label
Length
Set the label length.
[Auto]: Automatically adjusts the label
length to the length of the text.
[Length] [Auto] /
Set a value
/
Symbol
Characters
Inserts symbols, units, and pictures.
Select a category
/ Select a symbol
/
Accented
Characters
Select text you wish to convert to accented
characters.
Enter characters
Select an accent
/
Frame Select a decorative frame to add to your
label.
/ Select a frame
category
/
Select a frame
/
Change Font
Change
Font
Change the label font, size, width, style,
and alignment.
/ Select a
font type
[Size] Select
the font height
[Width]
Select the font width
[Style]
Select the font style [Align]
Select the font alignment
/
Change
Font Line
By Line
+
Change the line font, size, width, style, and
alignment.
Move the cursor to the line you
want to change
+
[Font]
Select a font type
[Size] Select the font height
[Width] Select the font
width
[Style] Select the
font style
[Align] Select
the font alignment
/
Auto Fit
Style
Automatically adjust the text size to t the
label length.
[Text Size]: Adjust to the length of the label
[Text Width]: Adjust by condensing the
character width by half
/ [Auto Fit Style] /
[Text Size] / [Text Width]
/
Set Margins
Set
Margins
Set the margins before and after an entered
character.
[Small Margin]: Initial margin is approx. 0.9”
(23 mm), and then 0.08” (2 mm) margins are
inserted before and after the text of each label.
[Large Margin]: Insert an initial margin of
approx. 0.98” (25 mm) is inserted before and
after the text of each label.
[Chain]: Select this setting when printing
multiple labels. The initial margin is approx.
0.9” (23 mm), and then 0.08” (2 mm)
margins are inserted before and after the
text of each label.
[No Cut]: Select this setting when printing
multiple parts or when printing on special tape.
[Special Tape]: Select this setting when
printing on special tape.
[Cut Option]
Select the margin type
/
Set Auto Format Layouts
Template Set specic template designs.
[Templates]
/
Select a template
category
/ Select
a template
/
[Font]
Select a font type
[Style] Select a style /
Enter text /
Block
Layout
Set Block Layout patterns.
[Block Layouts] /
Select the tape width
/ Select a block layout
/ [Font]
Select a font type
[Align]
[Left] / [Center] / [Right] / [Just]
[Frame] [On] / [O] /
Enter text /
Print Labels
Preview Use this feature to preview the label before
printing.
Print
Start printing.
When printing a single label:
/ /
When printing multiple labels:
Select a print quantity
/ /
Numbering
Print
+
Set this feature when printing consecutive
alphanumeric characters.
Enter alphanumeric characters
+
[Numbering] /
Set the start position /
Set the end position
/ Select a print quantity
/ /
Mirror
Print
+
Print reversed from left to right.
Print on clear tape and attach it to the inside
of glass to create a label that can be read
from the outside.
Enter text
+ [Mirror]
/ / /
Barcode
Printing
Create a barcode and print it.
[Protocol] Select a
Protocol
[Width] [Small]
/ [Large]
[Under#] [On] /
[O]
/ Enter barcode data
/ [Print] Select a
print quantity
/ /
Other
Tape Feed
+
Feed approx. 0.9” (23 mm) of tape to
remove any slack.
Tape may have some slack when it is
loaded.
+
Save Save your labels and access them later to
edit and print them, as well as overwrite and
save edited data.
Maximum data: 50 les
Maximum character count per le: 280
characters
Create a label
[Save]
/ Select a save
destination
/
Reset
+
+
Reset the internal memory. For example, to
reset the Label Maker or delete any saved
label data.
Turn o the machine.
Press and hold down
and . While
holding down
and , press once
and then release
and .
For more information, see the User’s Guide on the Brother
support website at support.brother.com.
Print Labels (cont.)
Error Messages
Contact Information
Troubleshooting (cont.) Troubleshooting (cont.)
Troubleshooting
Message Cause/Remedy
Check no. of digits entered The number of digits entered in the barcode data does not match
the number of digits set in the barcode parameters. Enter the
correct number of digits.
Cutter error The Tape Cutter Lever was pressed while trying to print or
feed the tape. If the tape is jammed in the Cutter unit, remove
the tape. Turn the Label Maker o and then on again before
continuing.
Length limit The printed label length using the text entered is longer than
39.37” (999 mm). Edit the text so that the label length is less than
39.37” (999 mm).
Text too long The printed label length using the text entered is longer than the
length setting. Edit the text to t within the set length or change
the length setting.
System error XX Contact Brother Customer Service.
Problem Solution
• The tape does not feed
correctly.
• The tape gets stuck
inside the Label Maker.
• If the tape is bent, cut o the bent section.
• If the tape is jammed, remove the Tape Cassette, remove the
jammed tape, and then cut any damaged tape.
• Check that the end of the tape exits through the Tape Guide.
• Conrm that the tape is pointed at the Tape Exit Slot.
• Remove the Tape Cassette and insert it again.
The screen is locked, or
the Label Maker does not
operate normally.
Refer to the Basic Operations section in this guide and reset the
Label Maker’s internal memory to the factory settings. If resetting
the Label Maker does not solve the problem, disconnect the AC
Adapter and remove the batteries for more than 10 minutes.
The LCD remains blank
after turning on the power.
Check that the batteries are correctly installed or that the AC
Adapter included with your Label Maker is correctly connected.
The LCD messages are
displayed in a foreign
language.
Refer to the Basic Operations section in this guide to select your
desired language.
The Label Maker stops
while printing a label.
• Replace the Tape Cassette if striped tape is visible, as this
indicates that you have reached the end of the tape.
• Replace all batteries or connect the AC Adapter directly to the
Label Maker.
Previously saved label les
are not available.
All les saved in the internal memory are deleted if the batteries are
weak or the AC Adapter is disconnected.
• I cannot install the Printer
Driver even if I follow the
correct procedure.
• I cannot see my printer
listed in P-touch Editor
even though I have
installed the Printer
Driver.
If you cannot use your Label Maker even though you have installed
the Printer Driver:
1. Download the Printer Driver Uninstaller from your model’s page at
support.brother.com.
2. Use the Printer Driver Uninstaller to remove the printer
information.
3. Run the Printer Driver Installer again and follow the on-screen
instructions to proceed with the installation.
The ink ribbon is separated
from the ink roller.
If the ink ribbon is broken, replace the Tape
Cassette. If it is not, leave the tape uncut and
carefully remove the Tape Cassette, and then wind
the loose ink ribbon back onto the spool.
Spool
Problem Solution
Printed barcodes or QR
codes cannot be read.
• Change the tape. (Recommended: Black on white tape)
• Enlarge the barcodes or QR codes using the barcode application,
if possible.
I do not know the rmware
version of the Label
Maker.
Conrm the rmware version by pressing the following keys:
[Version Information] /
When the label is printed,
there is too much margin
(space) on both sides of
the text.
• Refer to the Set Margins section in this guide and select [Small
Margin] [Chain] or [No Cut] for smaller margins.
When you set [Small Margin], the label maker feeds approx. 0.9”
(23 mm) of leader tape before every new label.
To save tape, set the [Chain] setting. After the last label prints,
press
and to feed the tape, and then press the Tape
Cutter Lever.
• The Label Maker feeds approx. 0.9’’ (23 mm) of tape before every
new label. When printing multiple labels, you can reduce the blank
space on the second and subsequent labels.
Select the [Chain] setting in the optional print settings. Then, print
your labels and leave the last label in the Label Maker until you are
ready to print a new label.
• After the last label prints, press
and simultaneously to
feed the tape, and then eject and cut the last label. Note that the
Label Maker will feed approx. 0.9’’ (23 mm) of tape before the next
new label when you use this method.
The font size cannot be
increased.
The font is already the maximum size for the width of the label. Or,
the label length has been set, so there is a limit on the font size to
prevent exceeding the set length.
When multiple labels are
printed, the last label is cut
incorrectly.
When Chain Print is enabled, feed the tape to eject the last printed
label, and then press the Tape Cutter Lever to cut the label manually.
Customer Service for USA
Phone: 1-877-BROTHER (1-877-276-8437)
Fax: 1-901-379-1210
To order supplies and accessories:
www.brother-usa.com
Phone: 1-877-552-6255
Other countries or regions
support.brother.com
DON’T FORGET TO REGISTER!
Registering your product will provide purchase conrmation, proof of ownership and, if
you choose, allow us to notify you of product enhancements and special oers!
You can register online at: www.registermybrother.com (USA)
LIMITED WARRANTY
Product warranty information can be found online at:
www.brother-usa.com/brother-support (USA)
If you need additional help, visit support.brother.com.
Problem Solution
The Label Maker does not
print.
• Check that the Tape Cassette is inserted correctly.
• If the Tape Cassette is empty, replace it. To order supplies and
accessories, visit www.brother-usa.com
• Check that the Tape Cassette Compartment Cover is securely
closed.
• Check that the Label Maker is on.
• Check that the correct printer driver is installed when printing
from a computer.
• Connect the Label Maker to your computer using the USB
Cable (included) when printing from a computer.
• If the Print Head is dirty, clean it with a cotton swab or with the
optional Print Head Cleaning Cassette (TZeCL4).
Symbols and Frames
Set Margins
The laminate mechanism creates a margin of approx. 0.9” (23 mm) at the beginning of printing. You can reduce this margin by printing
labels continuously.
You can also change the margin before and after the text for the second and subsequent labels when printing multiple labels.
Select [Chain] to print labels with the narrowest margin width. DO NOT feed the tape until the nal label is printed. When the nal
label prints, feed the tape, and press the Tape Cutter Lever.
Symbol Examples Frame Examples
...
...
Auto Format Layouts Examples Accented Character Examples
...
...
For more information about symbols and frames, see the User’s Guide on the Brother support website at support.brother.com.
Large Margin
ABC ABC
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
Approx. 0.98”
(25 mm)
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
Approx. 0.98”
(25 mm)
ABC
: Print area
: Margin
: Laminate margin
Chain
ABC ABC
0.08”
(2 mm)
0.08 Cut
Position
”
(2 mm)
Approx. 0.9”
(23 mm)
0.08”
(2 mm)
No Cut
ABC ABC
0.08”
(2 mm)
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
0.08”
(2 mm)
Special Tape
ABC ABC
0.08”
(2 mm)
0.08”
(2 mm)
0.08”
(2 mm)
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
Small Margin
When the label length is approx. 0.9”
(23 mm) or more
ABC ABC
Approx. 0.9”
(23 mm)
0.08”
(2 mm)
0.08”
(2 mm)
0.08”
(2 mm)
0.08”
(2 mm)
Small Margin
When the label length is approx. 0.9”
(23 mm) or less
ABC
0.08”
(2 mm)
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
Approx. 0.9”
(23 mm)
ABC
Problem Solution
I cannot update the printer’s
rmware using the P-touch
Update Software, Transfer
Express, or Mac Update
Tool.
Restart the printer and then try to update the rmware again. Do not
press any buttons during the rmware update.
Basic Operations support.brother.com/manuals
Initial Settings
Language
Settings
Set your language.
/ [Language] /
Select a language
/
Unit
Settings
Set the unit for various types of
adjustments.
/ [Unit] /
[inch] / [mm] /
LCD
Contrast
Adjust the LCD contrast.
/ [Adjustment] /
[LCD Contrast]
[-2] to [+2] /
Enter Text
New Line
Press to start a new line.
Maximum number of lines for each
tape width:
0.70” (18 mm): ve lines
0.47” (12 mm): three lines
0.35” (9 mm), 0.23” (6 mm): two lines
0.13” (3.5 mm): one line
Block
+
Use this feature to include multiple
lines or font sizes on a single label.
Maximum: 5 blocks.
Delete Text
and Format
or
Delete text and formatting.
Delete one character at a time
Delete all characters
[Text Only] /
Delete all text and formatting.
[Text & Format]
/
Tab Insert a tab.
Maximum length: 4” (100 mm)
Tab Length
Set the tab length.
[Tab Length]
Select a value /
Upper-Case
Lower-Case
Switch between upper-case and
lower-case characters.
Enter Text (cont.)
Label
Length
Set the label length.
[Auto]: Automatically adjusts the label
length to the length of the text.
[Length] [Auto] /
Set a value
/
Symbol
Characters
Inserts symbols, units, and pictures.
Select a category
/ Select a symbol
/
Accented
Characters
Select text you wish to convert to accented
characters.
Enter characters
Select an accent
/
Frame Select a decorative frame to add to your
label.
/ Select a frame
category
/
Select a frame
/
Change Font
Change
Font
Change the label font, size, width, style,
and alignment.
/ Select a
font type
[Size] Select
the font height
[Width]
Select the font width
[Style]
Select the font style [Align]
Select the font alignment
/
Change
Font Line
By Line
+
Change the line font, size, width, style, and
alignment.
Move the cursor to the line you
want to change
+
[Font]
Select a font type
[Size] Select the font height
[Width] Select the font
width
[Style] Select the
font style
[Align] Select
the font alignment
/
Auto Fit
Style
Automatically adjust the text size to t the
label length.
[Text Size]: Adjust to the length of the label
[Text Width]: Adjust by condensing the
character width by half
/ [Auto Fit Style] /
[Text Size] / [Text Width]
/
Set Margins
Set
Margins
Set the margins before and after an entered
character.
[Small Margin]: Initial margin is approx. 0.9”
(23 mm), and then 0.08” (2 mm) margins are
inserted before and after the text of each label.
[Large Margin]: Insert an initial margin of
approx. 0.98” (25 mm) is inserted before and
after the text of each label.
[Chain]: Select this setting when printing
multiple labels. The initial margin is approx.
0.9” (23 mm), and then 0.08” (2 mm)
margins are inserted before and after the
text of each label.
[No Cut]: Select this setting when printing
multiple parts or when printing on special tape.
[Special Tape]: Select this setting when
printing on special tape.
[Cut Option]
Select the margin type
/
Set Auto Format Layouts
Template Set specic template designs.
[Templates]
/
Select a template
category
/ Select
a template
/
[Font]
Select a font type
[Style] Select a style /
Enter text /
Block
Layout
Set Block Layout patterns.
[Block Layouts] /
Select the tape width
/ Select a block layout
/ [Font]
Select a font type
[Align]
[Left] / [Center] / [Right] / [Just]
[Frame] [On] / [O] /
Enter text /
Print Labels
Preview Use this feature to preview the label before
printing.
Print
Start printing.
When printing a single label:
/ /
When printing multiple labels:
Select a print quantity
/ /
Numbering
Print
+
Set this feature when printing consecutive
alphanumeric characters.
Enter alphanumeric characters
+
[Numbering] /
Set the start position /
Set the end position
/ Select a print quantity
/ /
Mirror
Print
+
Print reversed from left to right.
Print on clear tape and attach it to the inside
of glass to create a label that can be read
from the outside.
Enter text
+ [Mirror]
/ / /
Barcode
Printing
Create a barcode and print it.
[Protocol] Select a
Protocol
[Width] [Small]
/ [Large]
[Under#] [On] /
[O]
/ Enter barcode data
/ [Print] Select a
print quantity
/ /
Other
Tape Feed
+
Feed approx. 0.9” (23 mm) of tape to
remove any slack.
Tape may have some slack when it is
loaded.
+
Save Save your labels and access them later to
edit and print them, as well as overwrite and
save edited data.
Maximum data: 50 les
Maximum character count per le: 280
characters
Create a label
[Save]
/ Select a save
destination
/
Reset
+
+
Reset the internal memory. For example, to
reset the Label Maker or delete any saved
label data.
Turn o the machine.
Press and hold down
and . While
holding down
and , press once
and then release
and .
For more information, see the User’s Guide on the Brother
support website at support.brother.com.
Print Labels (cont.)
Error Messages
Contact Information
Troubleshooting (cont.)
Troubleshooting (cont.)
Troubleshooting
Message Cause/Remedy
Check no. of digits entered The number of digits entered in the barcode data does not match
the number of digits set in the barcode parameters. Enter the
correct number of digits.
Cutter error The Tape Cutter Lever was pressed while trying to print or
feed the tape. If the tape is jammed in the Cutter unit, remove
the tape. Turn the Label Maker o and then on again before
continuing.
Length limit The printed label length using the text entered is longer than
39.37” (999 mm). Edit the text so that the label length is less than
39.37” (999 mm).
Text too long The printed label length using the text entered is longer than the
length setting. Edit the text to t within the set length or change
the length setting.
System error XX Contact Brother Customer Service.
Problem Solution
• The tape does not feed
correctly.
• The tape gets stuck
inside the Label Maker.
• If the tape is bent, cut o the bent section.
• If the tape is jammed, remove the Tape Cassette, remove the
jammed tape, and then cut any damaged tape.
• Check that the end of the tape exits through the Tape Guide.
• Conrm that the tape is pointed at the Tape Exit Slot.
• Remove the Tape Cassette and insert it again.
The screen is locked, or
the Label Maker does not
operate normally.
Refer to the Basic Operations section in this guide and reset the
Label Maker’s internal memory to the factory settings. If resetting
the Label Maker does not solve the problem, disconnect the AC
Adapter and remove the batteries for more than 10 minutes.
The LCD remains blank
after turning on the power.
Check that the batteries are correctly installed or that the AC
Adapter included with your Label Maker is correctly connected.
The LCD messages are
displayed in a foreign
language.
Refer to the Basic Operations section in this guide to select your
desired language.
The Label Maker stops
while printing a label.
• Replace the Tape Cassette if striped tape is visible, as this
indicates that you have reached the end of the tape.
• Replace all batteries or connect the AC Adapter directly to the
Label Maker.
Previously saved label les
are not available.
All les saved in the internal memory are deleted if the batteries are
weak or the AC Adapter is disconnected.
• I cannot install the Printer
Driver even if I follow the
correct procedure.
• I cannot see my printer
listed in P-touch Editor
even though I have
installed the Printer
Driver.
If you cannot use your Label Maker even though you have installed
the Printer Driver:
1. Download the Printer Driver Uninstaller from your model’s page at
support.brother.com.
2. Use the Printer Driver Uninstaller to remove the printer
information.
3. Run the Printer Driver Installer again and follow the on-screen
instructions to proceed with the installation.
The ink ribbon is separated
from the ink roller.
If the ink ribbon is broken, replace the Tape
Cassette. If it is not, leave the tape uncut and
carefully remove the Tape Cassette, and then wind
the loose ink ribbon back onto the spool.
Spool
Problem Solution
Printed barcodes or QR
codes cannot be read.
• Change the tape. (Recommended: Black on white tape)
• Enlarge the barcodes or QR codes using the barcode application,
if possible.
I do not know the rmware
version of the Label
Maker.
Conrm the rmware version by pressing the following keys:
[Version Information] /
When the label is printed,
there is too much margin
(space) on both sides of
the text.
• Refer to the Set Margins section in this guide and select [Small
Margin] [Chain] or [No Cut] for smaller margins.
When you set [Small Margin], the label maker feeds approx. 0.9”
(23 mm) of leader tape before every new label.
To save tape, set the [Chain] setting. After the last label prints,
press
and to feed the tape, and then press the Tape
Cutter Lever.
• The Label Maker feeds approx. 0.9’’ (23 mm) of tape before every
new label. When printing multiple labels, you can reduce the blank
space on the second and subsequent labels.
Select the [Chain] setting in the optional print settings. Then, print
your labels and leave the last label in the Label Maker until you are
ready to print a new label.
• After the last label prints, press
and simultaneously to
feed the tape, and then eject and cut the last label. Note that the
Label Maker will feed approx. 0.9’’ (23 mm) of tape before the next
new label when you use this method.
The font size cannot be
increased.
The font is already the maximum size for the width of the label. Or,
the label length has been set, so there is a limit on the font size to
prevent exceeding the set length.
When multiple labels are
printed, the last label is cut
incorrectly.
When Chain Print is enabled, feed the tape to eject the last printed
label, and then press the Tape Cutter Lever to cut the label manually.
Customer Service for USA
Phone: 1-877-BROTHER (1-877-276-8437)
Fax: 1-901-379-1210
To order supplies and accessories:
www.brother-usa.com
Phone: 1-877-552-6255
Other countries or regions
support.brother.com
DON’T FORGET TO REGISTER!
Registering your product will provide purchase conrmation, proof of ownership and, if
you choose, allow us to notify you of product enhancements and special oers!
You can register online at: www.registermybrother.com (USA)
LIMITED WARRANTY
Product warranty information can be found online at:
www.brother-usa.com/brother-support (USA)
If you need additional help, visit support.brother.com.
Problem Solution
The Label Maker does not
print.
• Check that the Tape Cassette is inserted correctly.
• If the Tape Cassette is empty, replace it. To order supplies and
accessories, visit www.brother-usa.com
• Check that the Tape Cassette Compartment Cover is securely
closed.
• Check that the Label Maker is on.
• Check that the correct printer driver is installed when printing
from a computer.
• Connect the Label Maker to your computer using the USB
Cable (included) when printing from a computer.
• If the Print Head is dirty, clean it with a cotton swab or with the
optional Print Head Cleaning Cassette (TZeCL4).
Symbols and Frames
Set Margins
The laminate mechanism creates a margin of approx. 0.9” (23 mm) at the beginning of printing. You can reduce this margin by printing
labels continuously.
You can also change the margin before and after the text for the second and subsequent labels when printing multiple labels.
Select [Chain] to print labels with the narrowest margin width. DO NOT feed the tape until the nal label is printed. When the nal
label prints, feed the tape, and press the Tape Cutter Lever.
Symbol Examples Frame Examples
...
...
Auto Format Layouts Examples Accented Character Examples
...
...
For more information about symbols and frames, see the User’s Guide on the Brother support website at support.brother.com.
Large Margin
ABC ABC
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
Approx. 0.98”
(25 mm)
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
Approx. 0.98”
(25 mm)
ABC
: Print area
: Margin
: Laminate margin
Chain
ABC ABC
0.08”
(2 mm)
0.08 Cut
Position
”
(2 mm)
Approx. 0.9”
(23 mm)
0.08”
(2 mm)
No Cut
ABC ABC
0.08”
(2 mm)
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
0.08”
(2 mm)
Special Tape
ABC ABC
0.08”
(2 mm)
0.08”
(2 mm)
0.08”
(2 mm)
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
Small Margin
When the label length is approx. 0.9”
(23 mm) or more
ABC ABC
Approx. 0.9”
(23 mm)
0.08”
(2 mm)
0.08”
(2 mm)
0.08”
(2 mm)
0.08”
(2 mm)
Small Margin
When the label length is approx. 0.9”
(23 mm) or less
ABC
0.08”
(2 mm)
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
Approx. 0.9”
(23 mm)
ABC
Problem Solution
I cannot update the printer’s
rmware using the P-touch
Update Software, Transfer
Express, or Mac Update
Tool.
Restart the printer and then try to update the rmware again. Do not
press any buttons during the rmware update.
Basic Operations support.brother.com/manuals
Initial Settings
Language
Settings
Set your language.
/ [Language] /
Select a language
/
Unit
Settings
Set the unit for various types of
adjustments.
/ [Unit] /
[inch] / [mm] /
LCD
Contrast
Adjust the LCD contrast.
/ [Adjustment] /
[LCD Contrast]
[-2] to [+2] /
Enter Text
New Line
Press to start a new line.
Maximum number of lines for each
tape width:
0.70” (18 mm): ve lines
0.47” (12 mm): three lines
0.35” (9 mm), 0.23” (6 mm): two lines
0.13” (3.5 mm): one line
Block
+
Use this feature to include multiple
lines or font sizes on a single label.
Maximum: 5 blocks.
Delete Text
and Format
or
Delete text and formatting.
Delete one character at a time
Delete all characters
[Text Only] /
Delete all text and formatting.
[Text & Format]
/
Tab Insert a tab.
Maximum length: 4” (100 mm)
Tab Length
Set the tab length.
[Tab Length]
Select a value /
Upper-Case
Lower-Case
Switch between upper-case and
lower-case characters.
Enter Text (cont.)
Label
Length
Set the label length.
[Auto]: Automatically adjusts the label
length to the length of the text.
[Length] [Auto] /
Set a value
/
Symbol
Characters
Inserts symbols, units, and pictures.
Select a category
/ Select a symbol
/
Accented
Characters
Select text you wish to convert to accented
characters.
Enter characters
Select an accent
/
Frame Select a decorative frame to add to your
label.
/ Select a frame
category
/
Select a frame
/
Change Font
Change
Font
Change the label font, size, width, style,
and alignment.
/ Select a
font type
[Size] Select
the font height
[Width]
Select the font width
[Style]
Select the font style [Align]
Select the font alignment
/
Change
Font Line
By Line
+
Change the line font, size, width, style, and
alignment.
Move the cursor to the line you
want to change
+
[Font]
Select a font type
[Size] Select the font height
[Width] Select the font
width
[Style] Select the
font style
[Align] Select
the font alignment
/
Auto Fit
Style
Automatically adjust the text size to t the
label length.
[Text Size]: Adjust to the length of the label
[Text Width]: Adjust by condensing the
character width by half
/ [Auto Fit Style] /
[Text Size] / [Text Width]
/
Set Margins
Set
Margins
Set the margins before and after an entered
character.
[Small Margin]: Initial margin is approx. 0.9”
(23 mm), and then 0.08” (2 mm) margins are
inserted before and after the text of each label.
[Large Margin]: Insert an initial margin of
approx. 0.98” (25 mm) is inserted before and
after the text of each label.
[Chain]: Select this setting when printing
multiple labels. The initial margin is approx.
0.9” (23 mm), and then 0.08” (2 mm)
margins are inserted before and after the
text of each label.
[No Cut]: Select this setting when printing
multiple parts or when printing on special tape.
[Special Tape]: Select this setting when
printing on special tape.
[Cut Option]
Select the margin type
/
Set Auto Format Layouts
Template Set specic template designs.
[Templates]
/
Select a template
category
/ Select
a template
/
[Font]
Select a font type
[Style] Select a style /
Enter text /
Block
Layout
Set Block Layout patterns.
[Block Layouts] /
Select the tape width
/ Select a block layout
/ [Font]
Select a font type
[Align]
[Left] / [Center] / [Right] / [Just]
[Frame] [On] / [O] /
Enter text /
Print Labels
Preview Use this feature to preview the label before
printing.
Print
Start printing.
When printing a single label:
/ /
When printing multiple labels:
Select a print quantity
/ /
Numbering
Print
+
Set this feature when printing consecutive
alphanumeric characters.
Enter alphanumeric characters
+
[Numbering] /
Set the start position /
Set the end position
/ Select a print quantity
/ /
Mirror
Print
+
Print reversed from left to right.
Print on clear tape and attach it to the inside
of glass to create a label that can be read
from the outside.
Enter text
+ [Mirror]
/ / /
Barcode
Printing
Create a barcode and print it.
[Protocol] Select a
Protocol
[Width] [Small]
/ [Large]
[Under#] [On] /
[O]
/ Enter barcode data
/ [Print] Select a
print quantity
/ /
Other
Tape Feed
+
Feed approx. 0.9” (23 mm) of tape to
remove any slack.
Tape may have some slack when it is
loaded.
+
Save Save your labels and access them later to
edit and print them, as well as overwrite and
save edited data.
Maximum data: 50 les
Maximum character count per le: 280
characters
Create a label
[Save]
/ Select a save
destination
/
Reset
+
+
Reset the internal memory. For example, to
reset the Label Maker or delete any saved
label data.
Turn o the machine.
Press and hold down
and . While
holding down
and , press once
and then release
and .
For more information, see the User’s Guide on the Brother
support website at support.brother.com.
Print Labels (cont.)
Error Messages
Contact Information
Troubleshooting (cont.)
Troubleshooting (cont.)
Troubleshooting
Message Cause/Remedy
Check no. of digits entered The number of digits entered in the barcode data does not match
the number of digits set in the barcode parameters. Enter the
correct number of digits.
Cutter error The Tape Cutter Lever was pressed while trying to print or
feed the tape. If the tape is jammed in the Cutter unit, remove
the tape. Turn the Label Maker o and then on again before
continuing.
Length limit The printed label length using the text entered is longer than
39.37” (999 mm). Edit the text so that the label length is less than
39.37” (999 mm).
Text too long The printed label length using the text entered is longer than the
length setting. Edit the text to t within the set length or change
the length setting.
System error XX Contact Brother Customer Service.
Problem Solution
• The tape does not feed
correctly.
• The tape gets stuck
inside the Label Maker.
• If the tape is bent, cut o the bent section.
• If the tape is jammed, remove the Tape Cassette, remove the
jammed tape, and then cut any damaged tape.
• Check that the end of the tape exits through the Tape Guide.
• Conrm that the tape is pointed at the Tape Exit Slot.
• Remove the Tape Cassette and insert it again.
The screen is locked, or
the Label Maker does not
operate normally.
Refer to the Basic Operations section in this guide and reset the
Label Maker’s internal memory to the factory settings. If resetting
the Label Maker does not solve the problem, disconnect the AC
Adapter and remove the batteries for more than 10 minutes.
The LCD remains blank
after turning on the power.
Check that the batteries are correctly installed or that the AC
Adapter included with your Label Maker is correctly connected.
The LCD messages are
displayed in a foreign
language.
Refer to the Basic Operations section in this guide to select your
desired language.
The Label Maker stops
while printing a label.
• Replace the Tape Cassette if striped tape is visible, as this
indicates that you have reached the end of the tape.
• Replace all batteries or connect the AC Adapter directly to the
Label Maker.
Previously saved label les
are not available.
All les saved in the internal memory are deleted if the batteries are
weak or the AC Adapter is disconnected.
• I cannot install the Printer
Driver even if I follow the
correct procedure.
• I cannot see my printer
listed in P-touch Editor
even though I have
installed the Printer
Driver.
If you cannot use your Label Maker even though you have installed
the Printer Driver:
1. Download the Printer Driver Uninstaller from your model’s page at
support.brother.com.
2. Use the Printer Driver Uninstaller to remove the printer
information.
3. Run the Printer Driver Installer again and follow the on-screen
instructions to proceed with the installation.
The ink ribbon is separated
from the ink roller.
If the ink ribbon is broken, replace the Tape
Cassette. If it is not, leave the tape uncut and
carefully remove the Tape Cassette, and then wind
the loose ink ribbon back onto the spool.
Spool
Problem Solution
Printed barcodes or QR
codes cannot be read.
• Change the tape. (Recommended: Black on white tape)
• Enlarge the barcodes or QR codes using the barcode application,
if possible.
I do not know the rmware
version of the Label
Maker.
Conrm the rmware version by pressing the following keys:
[Version Information] /
When the label is printed,
there is too much margin
(space) on both sides of
the text.
• Refer to the Set Margins section in this guide and select [Small
Margin] [Chain] or [No Cut] for smaller margins.
When you set [Small Margin], the label maker feeds approx. 0.9”
(23 mm) of leader tape before every new label.
To save tape, set the [Chain] setting. After the last label prints,
press
and to feed the tape, and then press the Tape
Cutter Lever.
• The Label Maker feeds approx. 0.9’’ (23 mm) of tape before every
new label. When printing multiple labels, you can reduce the blank
space on the second and subsequent labels.
Select the [Chain] setting in the optional print settings. Then, print
your labels and leave the last label in the Label Maker until you are
ready to print a new label.
• After the last label prints, press
and simultaneously to
feed the tape, and then eject and cut the last label. Note that the
Label Maker will feed approx. 0.9’’ (23 mm) of tape before the next
new label when you use this method.
The font size cannot be
increased.
The font is already the maximum size for the width of the label. Or,
the label length has been set, so there is a limit on the font size to
prevent exceeding the set length.
When multiple labels are
printed, the last label is cut
incorrectly.
When Chain Print is enabled, feed the tape to eject the last printed
label, and then press the Tape Cutter Lever to cut the label manually.
Customer Service for USA
Phone: 1-877-BROTHER (1-877-276-8437)
Fax: 1-901-379-1210
To order supplies and accessories:
www.brother-usa.com
Phone: 1-877-552-6255
Other countries or regions
support.brother.com
DON’T FORGET TO REGISTER!
Registering your product will provide purchase conrmation, proof of ownership and, if
you choose, allow us to notify you of product enhancements and special oers!
You can register online at: www.registermybrother.com (USA)
LIMITED WARRANTY
Product warranty information can be found online at:
www.brother-usa.com/brother-support (USA)
If you need additional help, visit support.brother.com.
Problem Solution
The Label Maker does not
print.
• Check that the Tape Cassette is inserted correctly.
• If the Tape Cassette is empty, replace it. To order supplies and
accessories, visit www.brother-usa.com
• Check that the Tape Cassette Compartment Cover is securely
closed.
• Check that the Label Maker is on.
• Check that the correct printer driver is installed when printing
from a computer.
• Connect the Label Maker to your computer using the USB
Cable (included) when printing from a computer.
• If the Print Head is dirty, clean it with a cotton swab or with the
optional Print Head Cleaning Cassette (TZeCL4).
Symbols and Frames
Set Margins
The laminate mechanism creates a margin of approx. 0.9” (23 mm) at the beginning of printing. You can reduce this margin by printing
labels continuously.
You can also change the margin before and after the text for the second and subsequent labels when printing multiple labels.
Select [Chain] to print labels with the narrowest margin width. DO NOT feed the tape until the nal label is printed. When the nal
label prints, feed the tape, and press the Tape Cutter Lever.
Symbol Examples Frame Examples
...
...
Auto Format Layouts Examples Accented Character Examples
...
...
For more information about symbols and frames, see the User’s Guide on the Brother support website at support.brother.com.
Large Margin
ABC ABC
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
Approx. 0.98”
(25 mm)
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
Approx. 0.98”
(25 mm)
ABC
: Print area
: Margin
: Laminate margin
Chain
ABC ABC
0.08”
(2 mm)
0.08 Cut
Position
”
(2 mm)
Approx. 0.9”
(23 mm)
0.08”
(2 mm)
No Cut
ABC ABC
0.08”
(2 mm)
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
0.08”
(2 mm)
Special Tape
ABC ABC
0.08”
(2 mm)
0.08”
(2 mm)
0.08”
(2 mm)
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
Small Margin
When the label length is approx. 0.9”
(23 mm) or more
ABC ABC
Approx. 0.9”
(23 mm)
0.08”
(2 mm)
0.08”
(2 mm)
0.08”
(2 mm)
0.08”
(2 mm)
Small Margin
When the label length is approx. 0.9”
(23 mm) or less
ABC
0.08”
(2 mm)
0.08”
(2 mm)
Approx. 0.9”
(23 mm)
Approx. 0.9”
(23 mm)
ABC
Problem Solution
I cannot update the printer’s
rmware using the P-touch
Update Software, Transfer
Express, or Mac Update
Tool.
Restart the printer and then try to update the rmware again. Do not
press any buttons during the rmware update.
